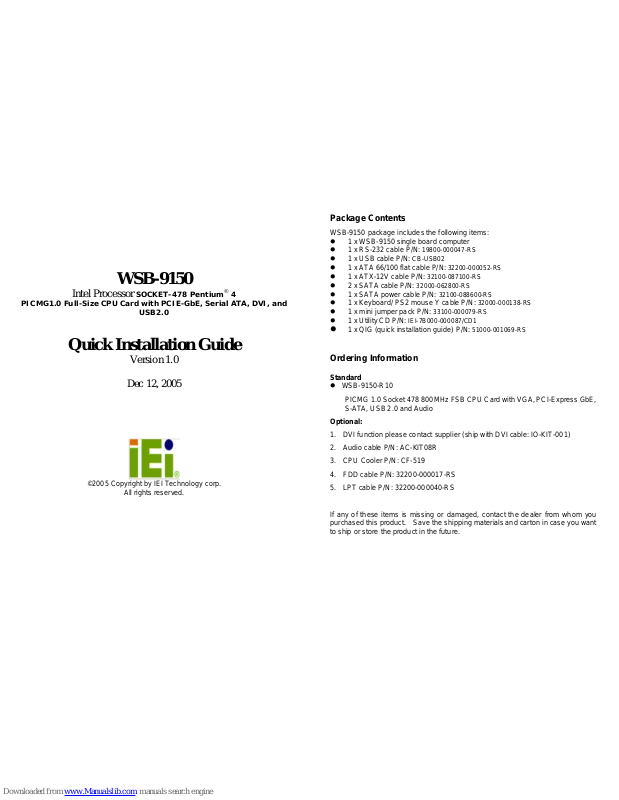

Page 1
WSB-9150
Intel Processor SOCKET-478 Pentium
®
4
PICMG1.0 Full-Size CPU Card with PCIE-GbE, Serial ATA, DVI, and
USB2.0
Quick Installation Guide
Version 1.0
Dec 12, 2005
©2005 Copyright by IEI Technology corp.
All rights reserved.
Package Contents
WSB-9150 package includes the following items:
1 x WSB-9150 single board computer
1 x RS-232 cable P/N:
19800-000047-RS
1 x USB cable P/N:
CB-USB02
1 x ATA 66/100 flat cable P/N:
32200-000052-RS
1 x ATX-12V cable P/N:
32100-087100-RS
2 x SATA cable P/N:
32000-062800-RS
1 x SATA power cable P/N:
32100-088600-RS
1 x Keyboard/ PS2 mouse Y cable P/N:
32000-000138-RS
1 x mini jumper pack P/N:
33100-000079-RS
1 x Utility CD P/N:
IEI-7B000-000087/CD1
1 x QIG (quick installation guide) P/N: 51000-001069-RS
Ordering Information
Standard
WSB-9150-R10
PICMG 1.0 Socket 478 800MHz FSB CPU Card with VGA, PCI-Express GbE,
S-ATA, USB 2.0 and Audio
Optional:
1. DVI function please contact supplier (ship with DVI cable: IO-KIT-001)
2. Audio cable P/N: AC-KIT08R
3. CPU Cooler P/N: CF-519
4. FDD cable P/N: 32200-000017-RS
5. LPT cable P/N: 32200-000040-RS
If any of these items is missing or damaged, contact the dealer from whom you
purchased this product. Save the shipping materials and carton in case you want
to ship or store the product in the future.
Page 2
Specifications
CPU: Intel Socket-478 P4/Prescott/Celeron-D up to FSB 800 MHz
BIOS: AMI 4MB Flash Memory
Chipset: Intel 915GV and ICH6/ICH6R.
System memory: Daul channel, two 184-pin DIMM sockets support up to
2GB DDR 333/400 SDRAM (PC2700/PC3200)
SATA/IDE interface: Support four Serial SATA hard drives (up to
150MB/s) and two enhanced IDE devices
FDD interface: Support up to two FDDs
Serial ports: Two Serial ports (RS232)
Parallel port: One parallel port, supports SPP/EPP/ECP Modes
Keyboard/Mouse connector: PS/2 type keyboard and mouse
Watchdog timer: software programmable
USB 2.0: Support up to eight ports
Video output:
CRT: Intel GMA 900 support up to 2048x1536@85Hz
DVI interface (optional)
Ethernet: Single PCI-Express GbE
Audio: AC97 2.3 (Optional by cable kit)

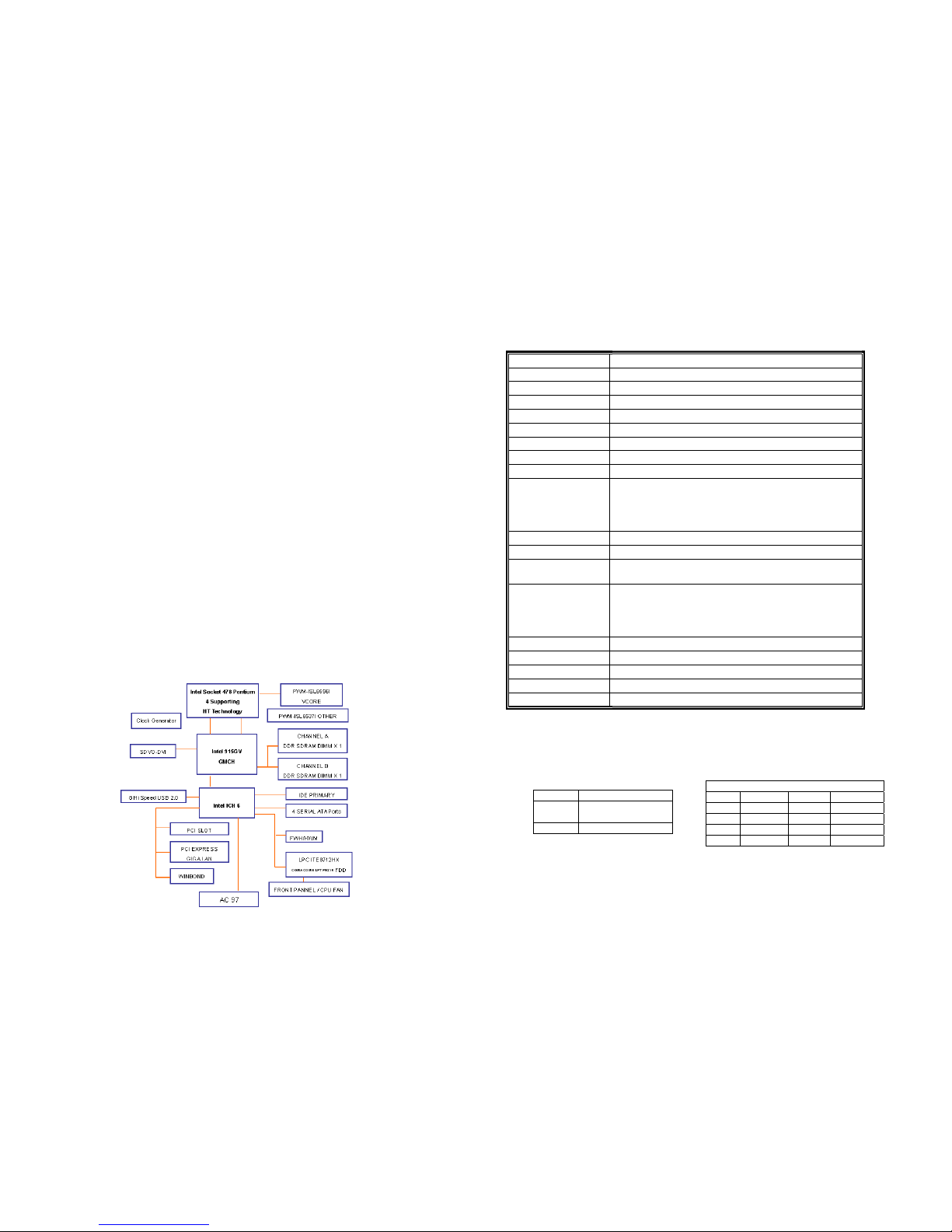

Block Diagram
Jumpers/Connections
LABEL FUNCTION
KB_MS1 PS/2 MOUSE & KEYBOARD Connector
LAN1 LAN RJ45 Connector
VGA1 VGA 15-pin Female Connector
COM1 Serial Port Connectors
PIDE1 IDE Connectors
FDD1 FDC Connector
LPT1 Parallel Port Connector
COM2 Internal Serial Port 10-pin Connectors
USB01
USB23
USB45
USB67
Internal 2 Port USB Connectors
IR1 IrDA Infrared Interface Connector
CPU_FAN1 Fan Connectors
ATXCTL1
Backplane to Main Board ATX Power Control
Connector
S_ATA1
S_ATA2
S_ATA3
S_ATA4
Serial ATA Connectors
F_PANEL1 PWR & RST Buttons
and Indicators
J_AUDIO1 AC’97 Connector
KB1 External 5-pin Header Keyboard Connector
DVI1 DVI-D connector
CPU12V1 ATX-12V CPU Power Source
Jumpers setting and Connectors
J_COMS1 Description
1-2
(Default)*
Keep CMOS Setup
Short 2-3 Clear CMOS Setup
USB01, USB23, USB45, USB 67
Pin No. Description Pin No. Description
1 VCC 2 GND
3 DATA- 4 DATA+
5 DATA+ 6 DATA7 GND 8 VCC
Page 3
COM2: 10-Pin External connector
Connector Parts Address Interrupt
COM2 COM2 2F8 IRQ3
Pin No. Description
1 Data Carrier Detect DCD
2 Receive Data RXD
3 Transmit Data TXD
4
Data Terminal
Ready
DTR
5 GND GND
6 Data Set Ready DSR
7 Request To Send RTS
8 Clear To Send CTS
9 Ring Indicator RI
10 GND GND
IR1: IrDA connector
Pin No. Description
1 VCC
2 NC
3 IR-RX
4 GND
5 IR-TX
CPU_FAN1: Fan Connector
Pin No. Description
1 GND
2 +12V
3 Rotation Signal
ATXCTL1: Back Plane to Mother Board Connector
Pin No Description
1 GND
2 ATX-ON
3 5VSB
J_AUDIO1: AC97 Connector for Audio Module
Pin No Description Pin No Description
1 SYNC 2 BITCLK
3 SDOUT 4 PCBEEP
5 SDIN 6 RST#
7 VCC 8 GND
9 +12V 10 GND
F_PANEL1: External Switches and indicators Panel
Pin Description Pin Description
1 +5V 2 +5V
3 N/C 4 N/C
Power
LED
5 GROUND 6 N/C
7 PWRBTSW- 8 Speaker
Speaker
PWRBTN
9 GROUND 10 N/C
11 +5V 12 Reset-
HDDLED
13 HDLED- 14 GND
RESET
KB1:KB Connector
Pin No. Description
1 KB Clock
2 KB Data
3 N/C
4 GND
5 VCC
DVI1: DVI connector
Pin No. Description
Pin
No.
Description
1 Data 2- 14 +5V Power
2 Data 2+ 15 GND
3 GND 16 High Plug Detect
4 N/C 17 Data 05 N/C 18 Data 0+
6 DDC Clock 19 GND
7 DDC Data 20 N/C
8 N/C 21 N/C
9 Data 1- 22 GND
10 Data 1+ 23 Clock +
11 GND 24 Clock 12 N/C 25 GND
13 N/C
CPU12V1:CPU Power connector
Pin Description Pin Description
1 GND 2 GND
3 +12V 4 +12V

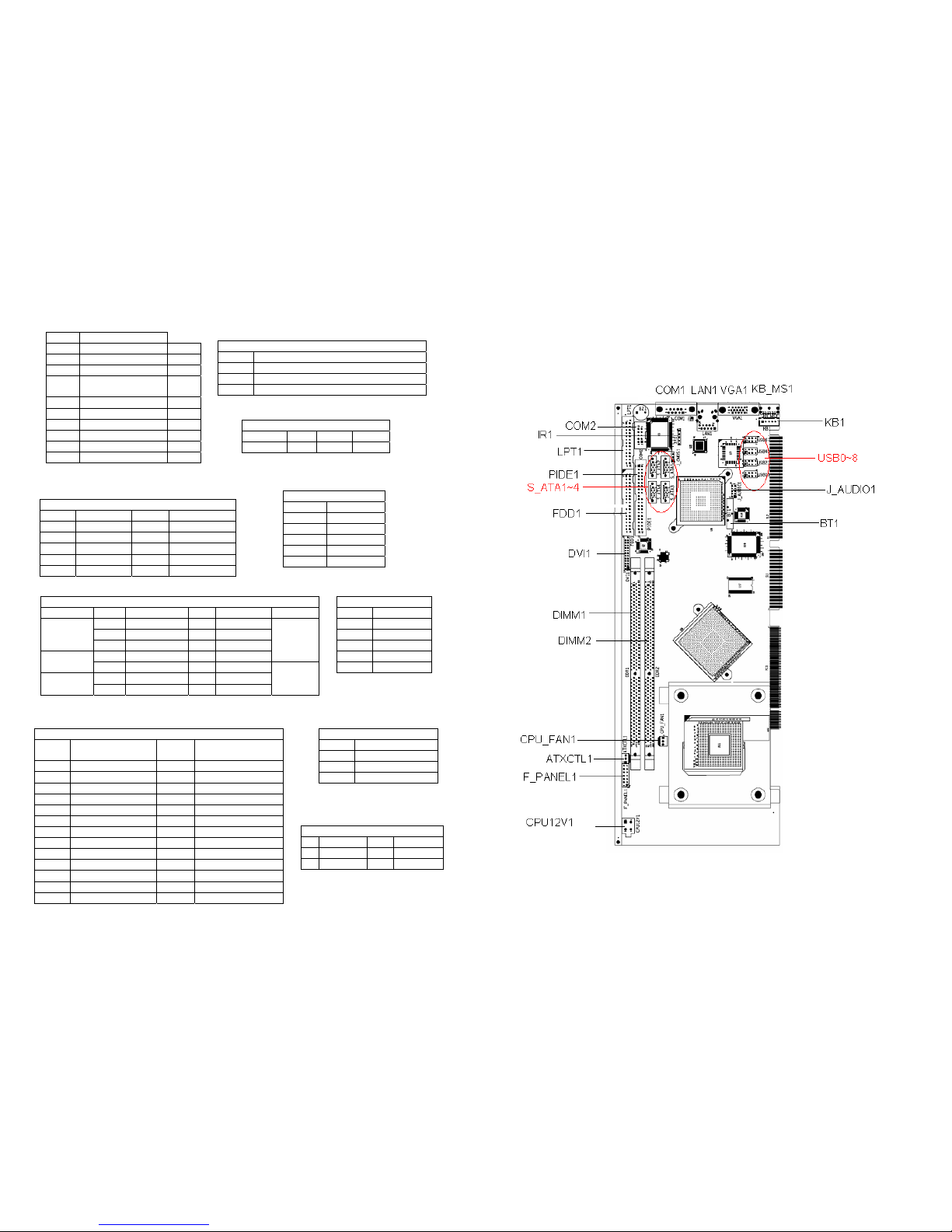

Board Layout: Jumper and Connector Locations
