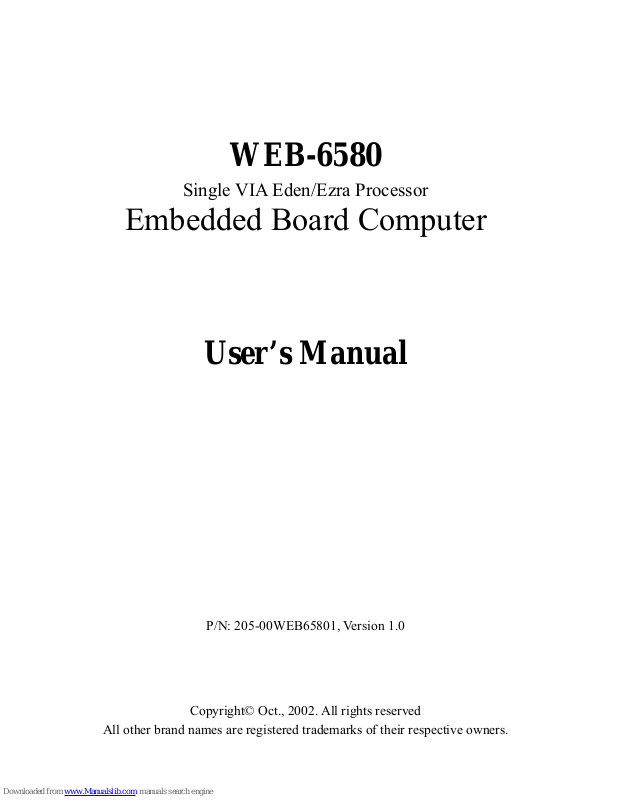

IEI Technology WEB-6580 User Manual

WEB-6580

Single VIA Eden/Ezra Processor

Embedded Board Computer

User’s Manual

P/N: 205-00WEB65801, Version 1.0

Copyright© Oct., 2002. All rights reserved

All other brand names are registered trademarks of their respective owners.

（To Be Added）

WEB-6580【R1.0】 User’s Manual 3

Table of Contents

Chapter 1 Introduction ................................................................ 1-1

1.1 Check List.................................................................................1-2

1.2 Product Features and Specification...........................................1-3

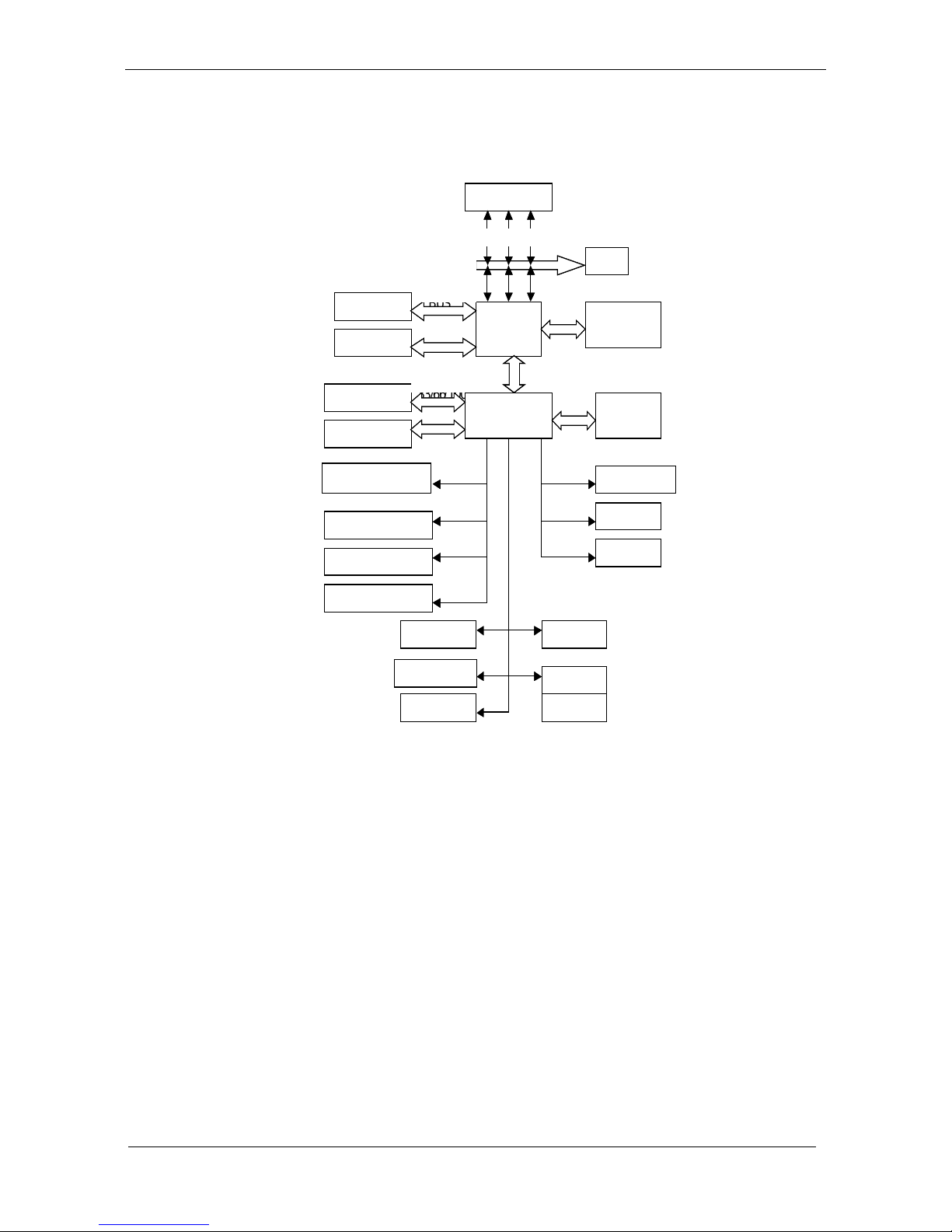

1.3 System Architecture..................................................................1-6

Chapter 2 Hardware Configuration Setting .............................. 2-1

2.1 Jumper Notes ............................................................................2-1

2.2 Jumper and Connector Locations..............................................2-2

2.3 Jumper Setting ..........................................................................2-3

2-3-1 RTC CMOS Clear Jumper Setting (J12) .........................2-3

2-3-2 Watch-Dog Timer Jumper Setting (JP1)..........................2-3

2-3-3 Panel Voltage Level Selection (J18)................................2-4

2-3-4 RS232/422/485 Selection (JP2) ......................................2-4

2.4 Connectors................................................................................2-5

2-4-1 ..............................................................................................2-6

2-4-2 On Board VGA D-SUB15 Connector (J1).............2-6

2-4-3 COM1 DSUB9 Connector (J2)..............................2-6

2-4-4 External Panel Power Connector (J3)....................2-7

2-4-5 Reset Button (J4) ...................................................2-7

2-4-6 Power / HDD LED (J5) .........................................2-7

2-4-7 CD-ROM Audio In Connector (J6) .......................2-7

2-4-8 Front Panel Interface (J7) ......................................2-7

2-4-9 Panel LVDS Interface (J8) .....................................2-7

2-4-10 COM2(2x5 Pin header) Interface (J9) ...................2-8

2-4-11 AUDIO Interface (J10)..........................................2-8

2-4-12 CPLD Program Connector (J11)............................2-9

2-4-13 External –12/-5V Connector (J13).........................2-9

WEB-6580【R1.0】 User’s Manual 4

2-4-14

PC/104 Bus Connector (J14/15) ............................2-9

2-4-15 External USB (J16)..............................................2-10

2-4-16 External FDD Power Connector (J17).................2-11

2-4-17 Standard 5-1/4” Disk Power Connector (J19)......2-11

2-4-18 Compact Flash Card (J20) ...................................2-11

2-4-19 Panel Type Select (J22)........................................2-12

2-4-20 Floppy Connector (FDD1)...................................2-13

2-4-21 IDE1 ( Primary ) Connector ( IDE1 ) ..................2-13

2-4-22 Parallel Port (LPT1).............................................2-14

2-4-23 Standard IrDA (IR1) ............................................2-14

2-4-24 Panel TTL Connector (CN1)................................2-14

2-4-25 RJ-45_Ethernet Connector ( LAN1 )...................2-15

2-4-26 PS/2 Keyboard & Mouse (KM1).........................2-15

2-4-27 BAT1: Battery Socket..........................................2-15

Chapter 3 System Installation ..................................................... 3-1

3.1 Main Memory ...........................................................................3-1

3.2 Installing the Single Board Computer.......................................3-2

3.3 Install Display and Ethernet Driver ..........................................3-2

3-3-1 VIA VT8606 Integrated Graphics Controller3-2

3-3-2 REALTEK 8100BL Network Controller......3-3

3-3-3 Drivers Support............................................3-4

3.4 Watch-Dog Timer Programming...............................................3-4

Chapter 4 BIOS Setup Information............................................ 4-1

4.1 Entering Setup ..........................................................................4-1

4.2 Main Menu ...............................................................................4-2

4.3 Standard CMOS Setup Menu....................................................4-3

4.4 Standard CMOS Setup Menu....................................................4-9

4.5 Advanced CMOS Setup Menu .................................................4-9

WEB-6580【R1.0】 User’s Manual 5

4.6

Advanced Chipset Setup Menu...............................................4-12

4.7 Power Management Setup Menu............................................4-14

4.8 PCI/Plug and Play Setup.........................................................4-17

4.9 Peripheral Setup......................................................................4-19

4.10 Hardware Monitor Setup ........................................................4-22

4.11 BIOS POST Check Point List.................................................4-23

4.12 Flash BIOS Utility ..................................................................4-29

WEB-6580【R1.0】 User’s Manual 6

How to Use This Manual

This manual is written for the system integrator, PC technician and

knowledgeable PC end user. It describes how to configure your WEB-6580

SERIES to meet various operating requirements. The user’s manual is divided into

four chapters, with each chapter addressing a basic concept and operation of the

server board.

Chapter 1: Introduction - presents what you have inside the box and gives

you an overview of the product specifications and basic system architecture

for the WEB-6580 SERIES server board.

Chapter 2: Hardware Configuration Setting - shows the definitions and

locations of Jumpers and Connectors so that you can easily configure your

system.

Chapter 3: System Install a ti on - describes how to properly mount the main

memory for a safe installation. It will also introduce and show you the driver

installation procedure for the Graphics Controller and Ethernet Controller.

Chapter 4: BIOS Setup Information - specifies the meaning of each setup

parameter, how to get advanced BIOS performance and update to a new BIOS.

Additionally, the POST checkpoint list will give you a guide for

troubleshooting.

The contents of this manual are subject to change without prior notice. These

changes will be incorporated in new editions of this manual. We may make

supplements or changes for the product described in this manual at any time.

Introduction

WEB-6580【R1.0】 User’s Manual 1-1

Chapter 1 Introduction

The WEB-6580 SERIES all-in-one 3.5” embedded board computer are

designed to fit a high performance VIA Eden/Ezra processor onboard. It is made to

meet today’s demanding pace, and keep complete compatibility with hardware and

software designed for the IBM PC/AT. The on-board devices support one AGP-bus

VGA and one Network controller. It’s beneficial to build up a high performance and

high data availability system for VARs, or system integrators.

WEB-6580 SERIES support the following processors:

 VIA Eden Series for 400/533/667MHz or above

 VIA C3 Ezra Series <EBGA> up to 933MHz or above

This embedded board computer can support SO-DIMM up to 512MB SDRAM.

The enhanced on-board PCI-IDE interface can support 2 drives up to PIO mode 4

timing and Ultra ATA33/66/100 synchronous mode feature. The on-board South

Bridge VIA VT82C686B chipset integrates floppy controller, two serial ports, one

IR (Infrared) port, and one parallel port. Two high performance

16C550-compatible UARTs provide 16-byte send/receive FIFOs and the

multi-mode parallel port supports SPP/EPP/ECP function, one

RS232/RS422/RS485 serial port interface (COM2). Besides, H/W monitor

function, and Watchdog function from 1 to 63 seconds, software programmable.

WEB-6580 SERIES are built-in one Mini-DIN connectors are provided to

connect PS/2 mouse and keyboard. The on-board Flash ROM is used to make the

BIOS update easier. The high precision Real Time Clock /calendar is built to

support Y2K for accurate scheduling and storing configuration information. One

4-pin header is designed to support ATX power function. A feature of CPU

overheat protection will give user more security and stability. All of these features

make WEB-6580 SERIES excellent in stand-alone applications.

Introduction

WEB-6580【R1.0】 User’s Manual 1-2

WEB-6580 SERIES are the highly integrated multi-media Embedded Board

Computer that combines video, audio and network functions based on a 3.5” board

size. The maximum resolution is up to 1920x1440 @ 16M

colors (CRT) with UMA

32MB display memory and the display interfaces can support CRT and LCD Panel

within TFT and LVDS output. AC-97 audio provides Line-in, Line-out and MIC-in

function. Onboard Ethernet LAN controller supports 100/10Bast-T fast LAN

function. This EBC is a compact size but powerful hardware platform with full

function.

1.1 Check List

The WEB-6580 SERIES package includes the following basic items

accompany with this manual.

* One WEB-6580 SERIES embedded board computer

* One printer port cable kit

* One serial port kit

* One FDC cable

* One IDE cable

* One PS/2 Y-type cable

* One USB cable

* One Audio cable

* One CD-Title to support internal VGA display driver, IDE driver and Realtek

8100B(L) network controller driver.

If any of these items is damaged or missed, please contact your vendor and

save all packing materials for future replacement and maintenance.

Introduction

WEB-6580【R1.0】 User’s Manual 1-3

1.2 Product Features and Specification

Features

◆ 3.5” Compact Size Embedded Board Computer

◆ Onboard VIA C3 EZRA 800AMHz or EDEN 400MHz

◆ Integrated AGP 4X 2D/3D Graphics core

◆ Support CRT and 24-bit TFT/DSTN panels

◆ Integrated AC-97 SoundBlaster compatible audio codec

◆ Support Compact Flash Storage

◆ LVDS interface onboard

◆ Support One 10/100Base-T fast Ethernet

◆ Support Ultra DMA 100/66/33 PCI-EIDE interface

◆ 2 COMs/1 Parallel/2 USBs/1 IrDA port

◆ 5V only operation

Specification

 Chipset : VIA VT8606 and VT82C686B
 CPU

◆ Support VIA C3 EZRA <EBGA> and EDEN series processors

◆ Onboard VIA C3 EZRA 800AMHz for Model: WEB-6580-P800

◆ Onboard VIA EDEN 400MHz for Model: WEB-6580-P400

◆ CPU bus clock : 66/100/133 MHz

 L2 Cache Memory : CPU Integrated
 Main Memory

◆ One 144-pin SO-DIMM sockets

◆ 32 MB to 512 MB using 16MB/64MB/128MB/256MB

◆ Supports up to double-sided or single-sided SO-DIMMs at 133/100

MHz system memory bus.

Introduction

WEB-6580【R1.0】 User’s Manual 1-4

 System BIOS

◆ AMI BIOS

◆ 2MB Flash ROM for easy upgrades

◆ Support ACPI, DMI, PnP, and Green function

 IDE Interface

◆ One enhanced IDE interface up to two IDE devices with Ultra DMA

33/66/100

 I/O Interface

◆ FDD Interface: Support one FDD port up to two floppy disk drives

◆ Parallel Port: Support one SPP, EPP/ECP bi-directional parallel port

◆ Serial Ports: Support one RS232 port for COM1and one

RS232/RS422/RS485/IrDA port for COM2(16C550 equivalent)

◆ IrDA Interface: Support one Infrared port

 Keyboard and PS/2 Mouse Interfaces

Support one mini-DIN connectors for Keyboard and Mouse (via Y cable)

 USB

Support 2 USB ports

 Battery

Lithium battery

 Real-Time Clock/Calendar (RTC)

◆ Build-in VIA VT686B

◆ Y2K compliant

 W atch-Dog T imer

From 1 to 63 seconds, software programmable

 System Monitoring and Protection

◆ Monitoring system temperature, voltage, and cooling fan status

◆ Auto throttling control when CPU overheats

 On-chip 3D AGP 4X VGA Display

Introduction

WEB-6580【R1.0】 User’s Manual 1-5

◆ Integrated S3 Graphics Savage4

™ AGP 4X graphics core

◆ Shared system memory from 8MB to 32MB Frame Buffer

◆ One DSUB-15 connector for CRT display interface

◆ Support TTL and LVDS LCD Panel

◆ Support resolution up to 1920 x 1440, 16M colors

 Audio Interface

◆ VT82C686B included

◆ Onboard AC97 SoundBlaster compatible codec

◆ Support Line-in, Line-out, MIC-in and CD-in

 On-board Ethernet Function

◆ Ethernet Chipset Realtek 8100B(L)

◆ Support 10/100BASE-T with RJ-45 connector

 SSD Interface

One socket supports Compact Flash Disk(type II)

 Expansion slot

PC/104 ISA-bus connector for PC/104 module expansion

 Mechanical and Environmental

◆ Outline Dimension (L X W): 145mm (5.75 inch) X 102m (4 inch)

◆ PCB layout : 6-layer (Double-side components)

◆ Power Requirements: +5V(4.75~5.25V)

◆ Operating Temperature : 0 ~ 60℃

◆ Relative Humidity: 5% to 95%, non-condensing

Introduction

WEB-6580【R1.0】 User’s Manual 1-6

1.3 System Architecture

The following illustration of block diagram will show you how WEB-6580

SERIES give you a highly integrated system solution. The most up-to-date system

architecture of WEB-6580 SERIES, includes two main VLSI chips, VT8606 North

Bridge and VT82C686B South Bridge, to support VIA EDEN/EZRA processor,

SDRAM with non ECC, PCI bus interface, ACPI compliant power management,

USB port, SMBus communication, and Ultra ATA/33/66/100 IDE Bus Master. The

VT82C686B South Bridge will support PS/2 Keyboard/Mouse, two UARTs, FDC,

Parallel and Infrared interface. Besides, VGA is integrated in VT8606 North Bridge.

Ethernet device will provide user more flexibility and reliability in a highly

integrated application.

WEB-6580 SERIES are built-in VIA C3 EDEN or EZRA processors for high

performance and cost-effective application. The North Bridge VT8606 provides a

completely integrated solution for the system controller and data path components

in a processor system. The South Bridge, VT82C686B, provides PCI-to-ISA bridge

solution for the best industry application. It supports Ultra ATA 33/66/100 IDE

master interface, full Plug-and-Play compatibility, and Advanced Programmable

Interrupt Controller (APIC) interface on WEB-6580 SERIES. It also supports

2-port Universal Serial Bus (USB), PCI 2.1 Compliance operation and internal

Real-time Clock (RTC) to maintain date and time of a system.

The South Bridge VT82C686B, which integrates two high-speed serial ports,

one parallel port, IrDA interface, 8042 keyboard controller with PS/2 mouse ports

and FDD interface. This parallel port supports one PC-compatible printer port

(SPP), Enhanced Parallel Port (EPP) and Extended Capabilities Port (ECP).Beside,

it offer H/W monitor function and one Smart Card Reader interface.

VT82C686B standard 16-bit ISA bus slot is applied for all of slower I/O

operations. In WEB-6580 SERIES, it contains Watch-dog Timer (WDT) enabled

by jumper setting and trigger by software. The on-board AGP device, graphics

Introduction

WEB-6580【R1.0】 User’s Manual 1-7

display port. The on-board PCI device, Ethernet controller, powered by Realtek

RTL8100BL supports 10/100 BASE-T data transfer.

All of details operating relations are shown in Figure 1-1 WEB-6580 SERIES

System Block Diagram.

Introduction

WEB-6580【R1.0】 User’s Manual 1-8

C3 Processor

VT8606

VT82C6 86B

S3 Savage4

LVDS/TTL

IDE Primary

C/F CARD

Term

1 SODIM M
Modules

8100B(L)
LAN

WDT

BIOS

PC /104 I/F

AC’ 97

USB Port

IR Por t

RS422 /485

Keyboard
M ouse

Floppy COM 1/2

AGT L+

ADDR/CTRL/DATA

AGP
BUS

ATA-
33/66/100

PC I
BUS

ISA
BUS

Hardware Monitor

Par allel Port

C3 Processor

VT8606

VT82C6 86B

S3 Savage4

LVDS/TTL

IDE Primary

C/F CARD

Term

1 SODIM M
Modules

8100B(L)
LAN

WDT

BIOS

PC /104 I/F

AC’ 97

USB Port

IR Por t

RS422 /485

Keyboard
M ouse

Floppy COM 1/2

AGT L+

ADDR/CTRL/DATA

AGP
BUS

ATA­33/66/100

PC I
BUS

ISA
BUS

Hardware Monitor

Par allel Port

Figure 1-1 WEB-6580 SERIES System Block Diagram

Hardware Configuration Setting

WEB-6580【R1.0】 User’s Manual 2-1

Chapter 2 Hardware Configuration Setting

This chapter gives the definitions and shows the positions of jumpers, headers

and connectors. All of the configuration jumpers on WEB-6580 are in the proper

position. The default settings shipped from factory are marked with an asterisk ().

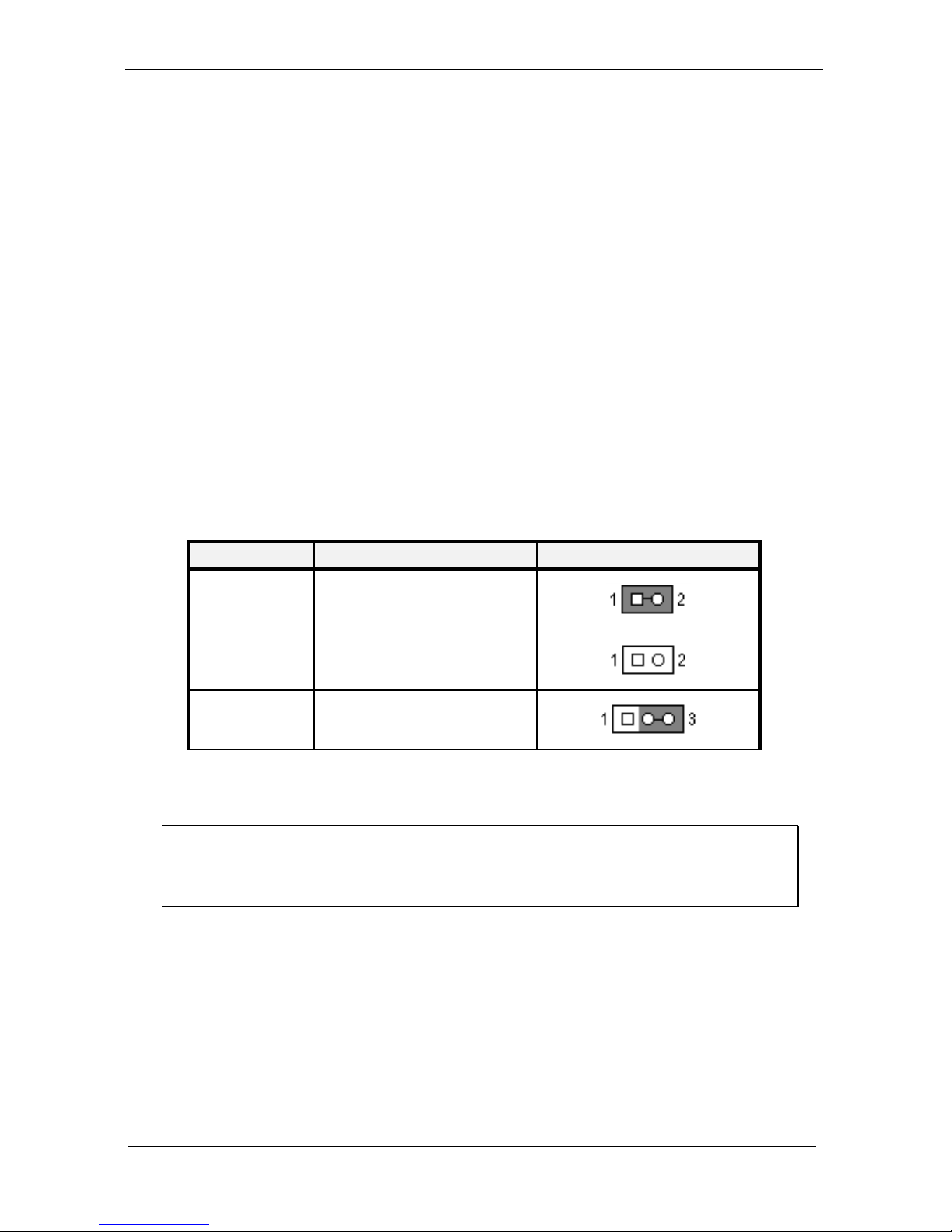

2.1 Jumper Notes

To close or enable a setting, put a jumper cap over the jumper pins. To open or

disable a setting, make sure there is no jumper cap covering the jumper pins. See

the table below for an illustration.

Notation Description Illustration

CLOSE Pins 1 & 2 closed

OPEN Pins 1 & 2 open

2-3 Pins 2 & 3 closed

Table Jumper Setting Example

Note : In this chapter , settings which are marked with ♣ are default

factory settings.

Hardware Configuration Setting

WEB-6580【R1.0】 User’s Manual 2-2

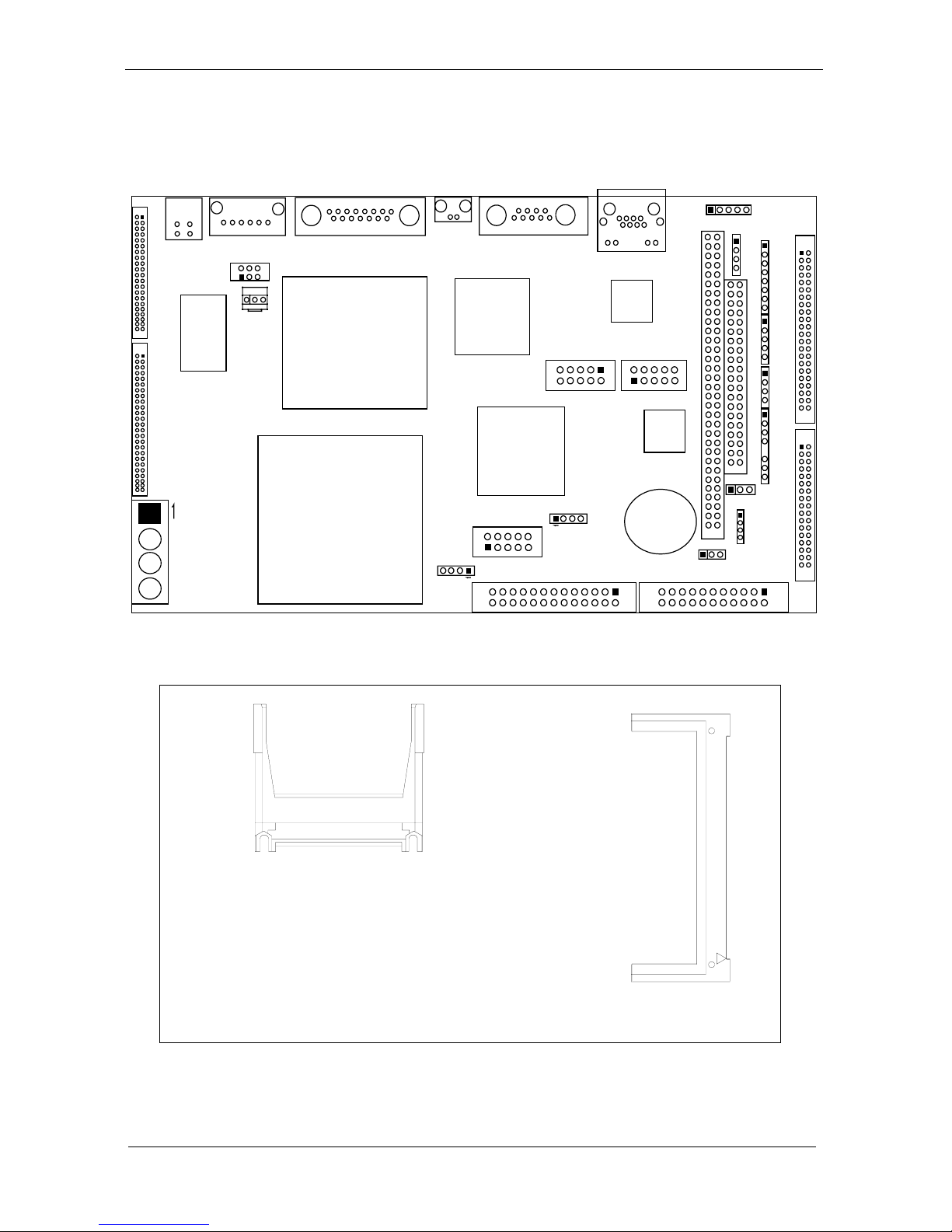

2.2 Jumper and Connector Locations

J13

1

J2

LAN1

J17

1

J12

IDE1

21

43 44

FDD1

21

33 34

J7

1

IR1

1

JP1

1

J6

1

J11

1

1

J3

C1 D1

JP2

21

21 22

LPT1

141

13 26

J14

J15

J16

910

12

J9

21

109

J10

910

12

SPK1

J1KM1

J5

J4

AC97

RTL8100BL

BIOS

VT82C686B

CPU

VT8606

J19

J8

CLK

J21

21

J22

78

12

1

J18

A1 B1

CN1

21

BT1

WEB-6580 TOP SIDE

J20

SODIMM1

WEB-6580 BOTTOM SIDE

Hardware Configuration Setting

WEB-6580【R1.0】 User’s Manual 2-3

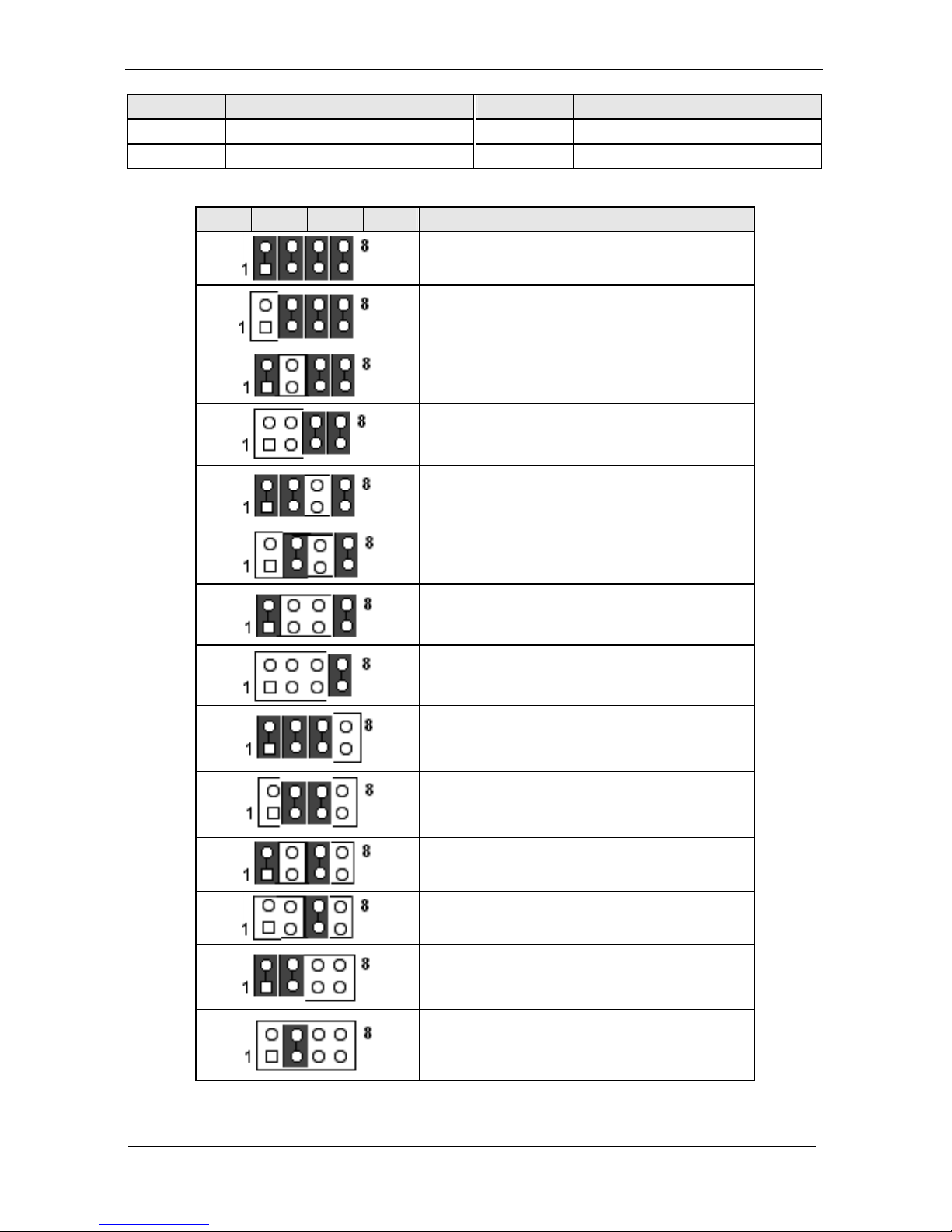

2.3 Jumper Setting

2-3-1 RTC CMOS Clear Jumper Setting (J12)

Description JP12 Illustration

Normal operation ♣

1-2

Clear CMOS content 2-3

Table 1-1 Clearing CMOS Content (JP12)

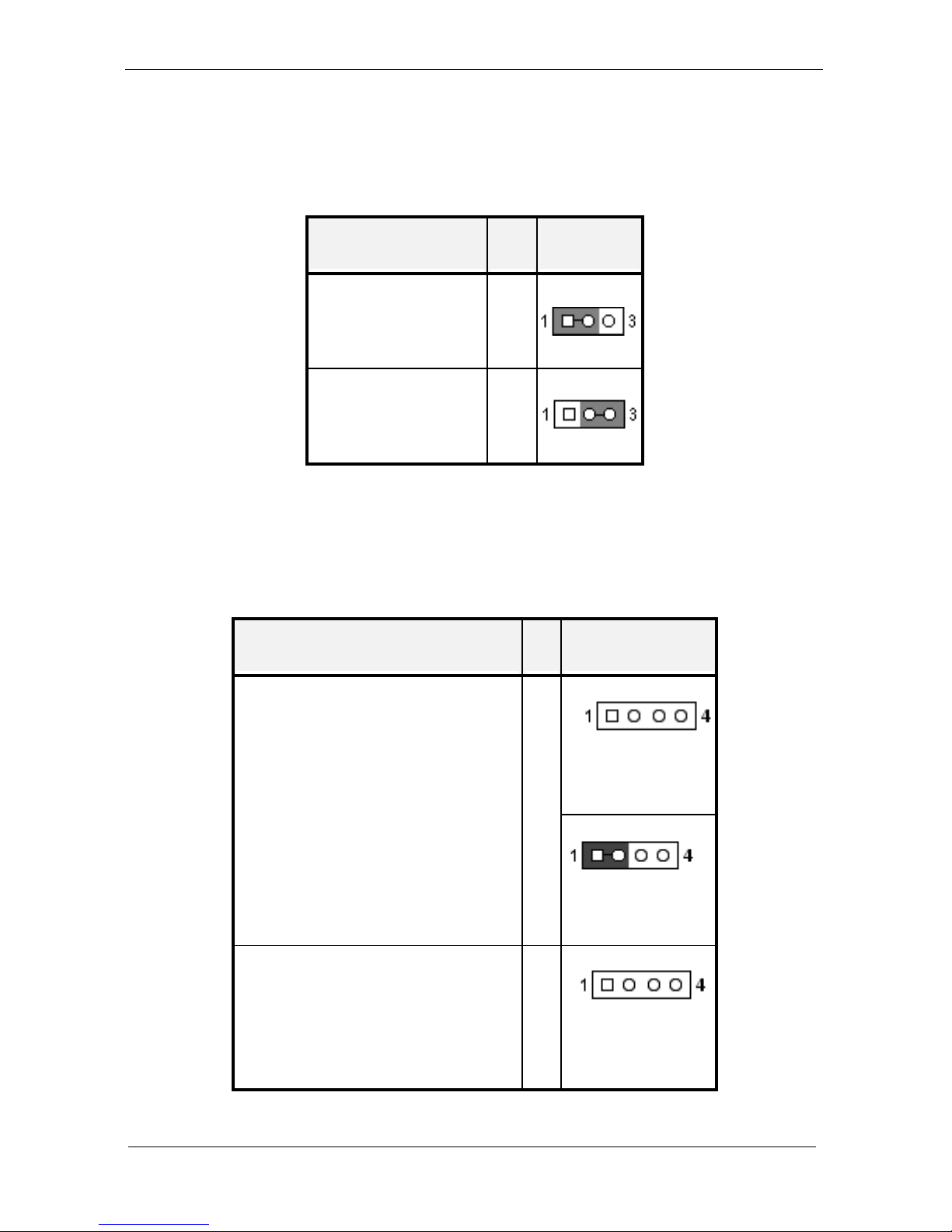

2-3-2 Watch-Dog Timer Jumper Setting (JP1)

Description JP1 Illustration

♣

Disable

Disable/Enable WDT function 1-2

Enable

I/O address for S/W programming 3-4

♣

0543H

Hardware Configuration Setting

WEB-6580【R1.0】 User’s Manual 2-4

0443H

2-3-3 Panel Voltage Level Selection (J18)

Description J18 Illustration

5V 1-2

3V 2-3

♣

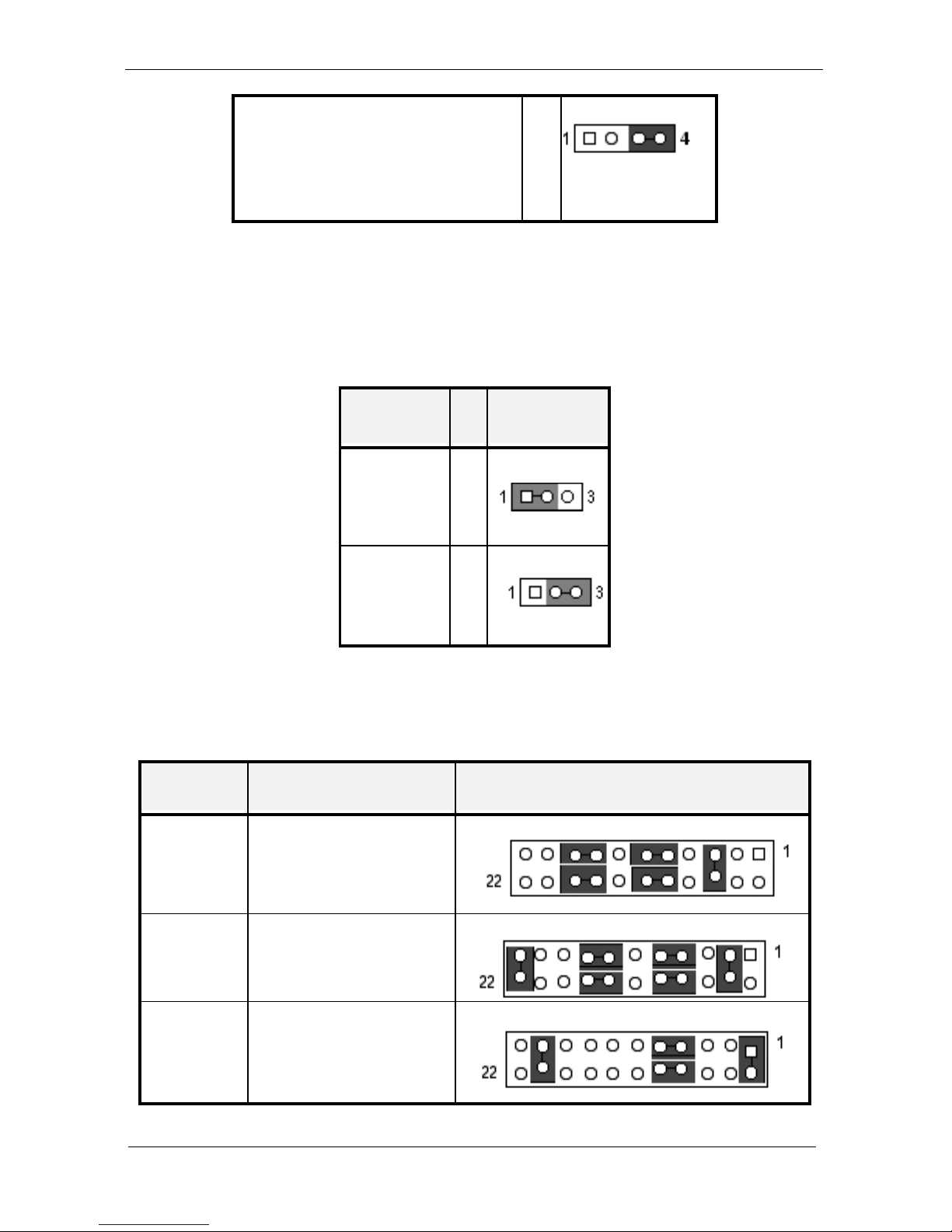

2-3-4 RS232/422/485 Selection (JP2)

Description JP2 Illustration

RS232

5-6 , 9-11 , 10-12 ,

15-17 , 16-18

♣

RS422

3-4 , 7-9 , 8-10 , 13-15 ,

14-16 , 21-22

RS485 1-2 , 7-9 , 8-10 , 19-20

Hardware Configuration Setting

WEB-6580【R1.0】 User’s Manual 2-5

2.4 Connectors

The connectors on the WEB-6580 are used to connect external devices

such as hard disk drives, printers, keyboard, CRT, panel, serial ports, etc.

Specifically, WEB-6580 has the following connectors:

CONNECTOR FUNCTION REMARK

J1 VGA Interface DSUB-15
J2 COM1 Serial Interface (RS232) DSUB-9
J3 External Panel Power Connector 5 pin
J4 Reset Button
J5 Power/HDD LED
J6 CD-ROM Audio In Connector 4-pin Mini-Din
J7 Front Panel 8-pin
J8 Panel LVDS Interface

J9 COM2 Serial Port (RS232/422/485) 2x5 pin header
J10 Audio Interface 2x5 pin header
J11 CPLD Program Interface
J12 RTC CMOS Clear
J13 External –12/-5V Interface 4-pin Mini-Din

J14/J15 PC/104 Bus Connector

J16 External USB Interface
J17 External FDD Power Interface
J18 LCD Voltage Select
J19 Standard 5-1/4” Disk Power Connector Big 4 Pin
J20 Compact Flash Card
J22 Panel type select

FDD1 Floppy connector 2x17 pin header

IDE1 IDE1 (Primary) interface

LPT1 Parallel port connector 2x13 pin header

IR1 Standard IrDA (Infrared) port

CN1 Panel TTL interface

LAN1 RJ-45 Ethernet connector

KM1 PS/2 keyboard & mouse connector 6-pin Mini-Din

BT1 Battery socket

Hardware Configuration Setting

WEB-6580【R1.0】 User’s Manual 2-6

2-4-1

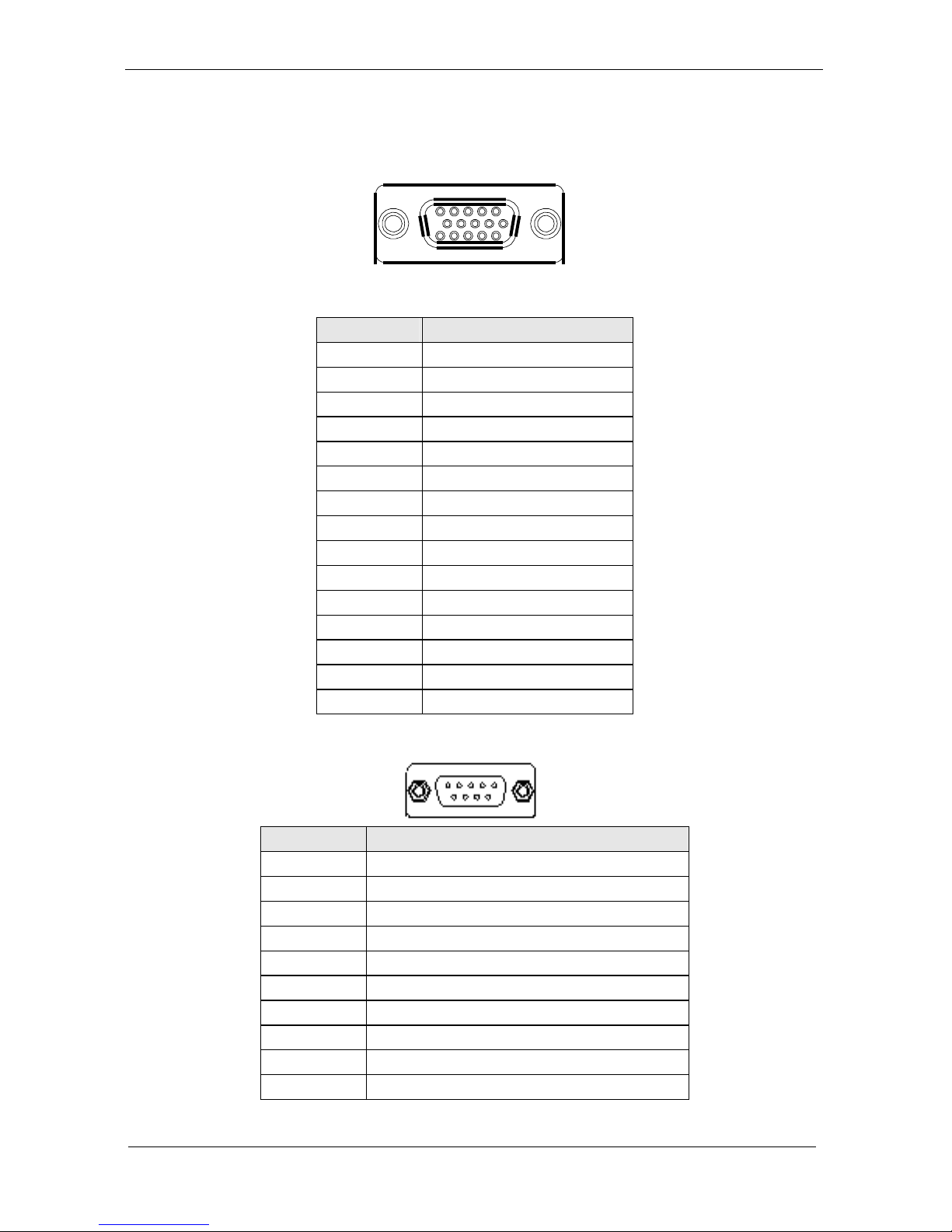

2-4-2 On Board VGA D-SUB15 Connector (J1)

PIN No. Signal Description

1 Red

2 Green
3 Blue
4 N/C
5 Ground
6 Ground
7 Ground
8 Ground

9 VCC
10 Ground
11 N/C
12 DDC Data
13 HSYNC
14 VSYNC
15 DDC Clock

2-4-3 COM1 DSUB9 Connector (J2)

PIN No. Signal Description

1 Data Carrier Detect
2 Received Data
3 Transmit Data
4 Data Terminal Ready
5 Ground
6 Data Set Ready
7 Request To Send
8 Clear To Send
9 Ring Indicator

10 Not used

Hardware Configuration Setting

WEB-6580【R1.0】 User’s Manual 2-7

2-4-4 External Panel Power Connector (J3)

PIN No. Signal Description

1 NC
2 Ground
3 +12V
4 Ground
5 Enablk

2-4-5 Reset Button (J4)

PIN No. Signal Description

1 Reset

2 Ground

3 Ground

4 Ground

2-4-6 Power / HDD LED (J5)

PIN No. Signal Description

1 Power_5V

2 Ground

3 HDD_5V

4 HDD_Active

2-4-7 CD-ROM Audio In Connector (J6)

PIN No. Signal Description

1 CD_L

2 Ground

3 Ground

4 CD_R

2-4-8 Front Panel Interface (J7)

PIN No. Signal Description

1 ACTLED

2 SPDLED

3 LINKLED

4 +3V

5 PWRLED

6 HD_LED

7 RST

8 Ground

2-4-9 Panel LVDS Interface (J8)

PIN No. Signal Description PIN No. Signal Description

Hardware Configuration Setting

WEB-6580【R1.0】 User’s Manual 2-8

PIN No. Signal Description PIN No. Signal Description

1 +LCD 2 +LCD
3 +LCD 4 +LCD
5 Ground 6 Ground
7 +12V 8 Y0M

9 +12V 10 Y0P
11 Ground 12 Ground
13 +5V 14 Ground
15 +5V 16 Y1M
17 Ground 18 Y1P
19 SKBDATA 20 Ground
21 Ground 22 Ground
23 SMSDATA 24 Y2M
25 Ground 26 Y2P
27 SKBCLK 28 Ground
29 Ground 30 Ground
31 SMSCLK 32 YCM
33 Ground 34 YCP
35 RXD#1 36 Ground
37 Ground 38 VEEON
39 TXD#1 40 Ground

2-4-10 COM2(2x5 Pin header) Interface (J9)

PIN No. Signal Description

1 Data Carrier Detect
2 Received Data
3 Transmit Data
4 Data Terminal Ready
5 Ground
6 Data Set Ready
7 Request To Send
8 Clear To Send
9 Ring Indicator

10 Not used

2-4-11 AUDIO Interface (J10)

PIN No. Signal Description

1 MICPWR
2 N/C
3 LINE_L
4 Ground
5 LINE_R
6 Ground

Hardware Configuration Setting

WEB-6580【R1.0】 User’s Manual 2-9

PIN No. Signal Description

7 LOUT_L
8 Ground
9 LOUT_R

10 Ground

2-4-12 CPLD Program Connector (J11)

PIN No. Signal Description

1 VCC
2 TDO
3 TDI
4 N/C
5 N/C
6 TMS
7 Ground
8 TCK

2-4-13 External –12/-5V Connector (J13)

PIN No. Signal Description

1 -5V
2 GND
3 GND
4 -12V

2-4-14 PC/104 Bus Connector (J14/15)

PIN No. Signal Description PIN No. Signal Description

A1 IOCHK B1 Ground
A2 D7 B2 RESET
A3 D6 B3 VCC
A4 D5 B4 IRQ9
A5 D4 B5 -5V
A6 D3 B6 DRQ2
A7 D2 B7 -12V
A8 D1 B8 PULL-VCC
A9 D0 B9 +12V

A10 IOCHRDY B10 Ground

A11 AEN B11 SMEMW
A12 A19 B12 SMEMR
A13 A18 B13 IOW
A14 A17 B14 IOR
A15 A16 B15 DACK3
A16 A15 B16 DRQ3
A17 A14 B17 DACK1

Hardware Configuration Setting

WEB-6580【R1.0】 User’s Manual 2-10

PIN No. Signal Description PIN No. Signal Description

A18 A13 B18 DRQ1
A19 A12 B19 REFRESH
A20 A11 B20 CLK
A21 A10 B21 IRQ7
A22 A9 B22 IRQ6
A23 A8 B23 IRQ5
A24 A7 B24 IRQ4
A25 A6 B25 IRQ3
A26 A5 B26 DACK2
A27 A4 B27 TC
A28 A3 B28 BALE
A29 A2 B29 VCC
A30 A1 B30 OSC
A31 A0 B31 Ground
A32 Ground B32 Ground

C1 Ground D1 Ground
C2 SBHE D2 MEMCS16
C3 LA23 D3 IOCS16
C4 LA22 D4 IRQ10
C5 LA21 D5 IRQ11
C6 LA20 D6 IRQ12
C7 LA19 D7 IRQ15
C8 LA18 D8 IRQ14

C9 LA17 D9 DACK0
C10 MEMR D10 DRQ0
C11 MEMW D11 DACK5
C12 D8 D12 DRQ5
C13 D9 D13 DACK6
C14 D10 D14 DRQ6
C15 D11 D15 DACK7
C16 D12 D16 DRQ7
C17 D13 D17 VCC
C18 D14 D18 MASTER
C19 D15 D19 Ground
C20 N/C D20 Ground

2-4-15 External USB (J16)

PIN No. Signal Description PIN No. Signal Description

1 +5V 2 NC
3 USBP0- 4 Ground
5 USBP0+ 6 USBP1+

Hardware Configuration Setting

WEB-6580【R1.0】 User’s Manual 2-11

PIN No. Signal Description PIN No. Signal Description

7 Ground 8 USBP1­9 NC 10 +5V

2-4-16 External FDD Power Connector (J17)

PIN No. Signal Description

1 +5V
2 GND
3 GND
4 +5V

2-4-17 Standard 5-1/4” Disk Power Connector (J19)

PIN No. Signal Description

1 +12V
2 GND
3 GND
4 +5V

2-4-18 Compact Flash Card (J20)

PIN No. Signal Description PIN No. Signal Description

1 Ground 2 D3
3 D4 4 D5
5 D6 6 D7
7 CS#0 8 A10

9 ATA_SEL 10 A9
11 A8 12 A7
13 VCC 14 A6
15 A5 16 A4
17 A3 18 A2
19 A1 20 A0
21 D0 22 D1
23 D2 24 IOCS16
25 CD2 26 CD1
27 D11 28 D12
29 D13 30 D14
31 D15 32 CS1
33 VS1 34 IOR
35 IOW 36 WE#
37 INTRQ 38 VCC
39 CSEL 40 VS2
41 RESET 42 IOCHRDY
43 INPACK 44 REQ
45 DASP 46 PDIAG

Hardware Configuration Setting

WEB-6580【R1.0】 User’s Manual 2-12

PIN No. Signal Description PIN No. Signal Description

47 D8 48 D9
49 D10 50 Ground

2-4-19 Panel Type Select (J22)

7-8 5-6 3-4 1-2 Panel Type

640x480 TFT

800x600 TFT

1024x768 TFT 2pixel/clk at 32Mhz

1280x1024 TFT

640x480 DSTN

800x600 DSTN

1024x768 DSTN

1024x768 TFT 1pixel/clk at 65Mhz

640x480 TFT

800x600 TFT

1024x768 TFT

1280x1024 TFT

1400x1050 TFT 2pixel/clk at 54Mhz

800x600 DSTN

Hardware Configuration Setting

WEB-6580【R1.0】 User’s Manual 2-13

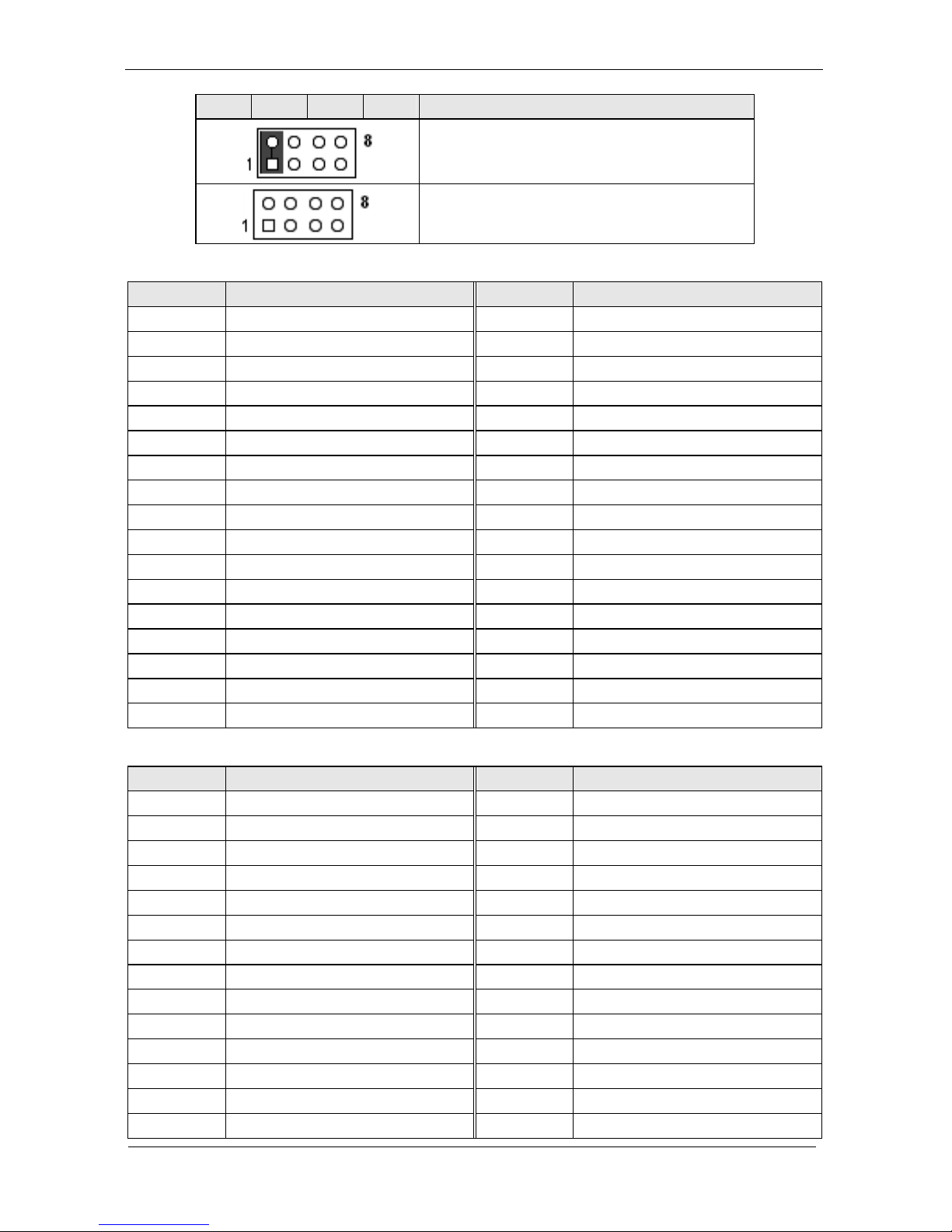

7-8 5-6 3-4 1-2 Panel Type

1024x768 DSTN

1280x1024 DSTN

2-4-20 Floppy Connector (FDD1)

PIN No. Signal Description PIN No. Signal Description

1 Ground 2 Density Select

3 Ground 4 N/C

5 Ground 6 N/C

7 Ground 8 Index#

9 Ground 10 Motor ENA#
11 Ground 12 Drive Select B#
13 Ground 14 Drive Select A#
15 Ground 16 Motor ENB#
17 Ground 18 Direction#
19 Ground 20 Step#
21 Ground 22 Write Data#
23 Ground 24 Write Gate#
25 Ground 26 Track 0#
27 Ground 28 Write Protect#
29 Ground 30 Read Data#
31 Ground 32 Head Select#
33 Ground 34 Disk Change#

2-4-21 IDE1 ( Primary ) Connector ( IDE1 )

PIN No. Signal Description PIN No. Signal Description

1 RESET# 2 Ground

3 Data 7 4 Data 8

5 Data 6 6 Data 9

7 Data 5 8 Data 10

9 Data 4 10 Data 11
11 Data 3 12 Data 12
13 Data 2 14 Data 13
15 Data 1 16 Data 14
17 Data 0 18 Data 15
19 Ground 20 N/C
21 DMA REQ 22 Ground
23 IOW# 24 Ground
25 IOR# 26 Ground
27 IOCHRDY 28 Pull-down

Hardware Configuration Setting

WEB-6580【R1.0】 User’s Manual 2-14

PIN No. Signal Description PIN No. Signal Description

29 DMA ACK# 30 Ground
31 INT REQ 32 N/C
33 SA1 34 ATA_SEL
35 SA0 36 SA2
37 CS0# 38 CS1#
39 HDD Active# 40 Ground
41 +5V 42 +5V
43 Ground 44 Ground

2-4-22 Parallel Port (LPT1)

PIN No. Signal Description PIN No. Signal Description

1 Strobe# 14 Auto Form Feed#
2 Data0 15 Error#
3 Data1 16 Initialization#
4 Data2 17 Printer Select IN#
5 Data3 18 Ground
6 Data4 19 Ground
7 Data5 20 Ground
8 Data6 21 Ground

9 Data7 22 Ground
10 Acknowledge# 23 Ground
11 Busy 24 Ground
12 Paper Empty 25 Ground
13 Printer Select 26 NC

2-4-23 Standard IrDA (IR1)

PIN No. Signal Description

1 +5V
2 NC
3 IRRX
4 Ground
5 IRTX

2-4-24 Panel TTL Connector (CN1)

PIN No. Signal Description PIN No. Signal Description

1 Ground 2 SHFCLK
3 Ground 4 HSYNC
5 VSYNC 6 Ground
7 FP0 8 FP1

9 FP2 10 FP3
11 Ground 12 Ground
13 FP4 14 FP5

Hardware Configuration Setting

WEB-6580【R1.0】 User’s Manual 2-15

PIN No. Signal Description PIN No. Signal Description

15 FP6 16 FP7
17 Ground 18 Ground
19 FP8 20 FP9
21 FP10 22 FP11
23 Ground 24 Ground
25 FP12 26 FP13
27 FP14 28 FP15
29 Ground 30 Ground
31 FP16 32 FP17
33 FP18 34 FP19
35 Ground 36 Ground
37 FP20 38 FP21
39 FP22 40 FP23
41 Ground 42 Ground
43 N/C 44 N/C
45 DE 46 N/C
47 +LCD 48 +LCD
49 Ground 50 Ground

2-4-25 RJ-45_Ethernet Connector ( LAN1 )

PIN No. Signal Description

1 TX+
2 TX­3 RX+
4 Termination To Ground
5 Termination To Ground
6 RX­7 Termination To Ground
8 Termination To Ground

2-4-26 PS/2 Keyboard & Mouse (KM1)

PIN No. Signal Description

1 Keyboard Data
2 Mouse Data
3 Ground
4 +5V
5 Keyboard Clock
6 Mouse Clock

2-4-27 BAT1: Battery Socket

Follow below instructions and notice the caution for replacing and disposing of the

RTC Lithium battery CR2032 for safety consideration :

Hardware Configuration Setting

WEB-6580【R1.0】 User’s Manual 2-16

CAUTION:

Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type recommended by the

manufacturer.

Dispose of used batteries according to the manufacturer’s instruction.

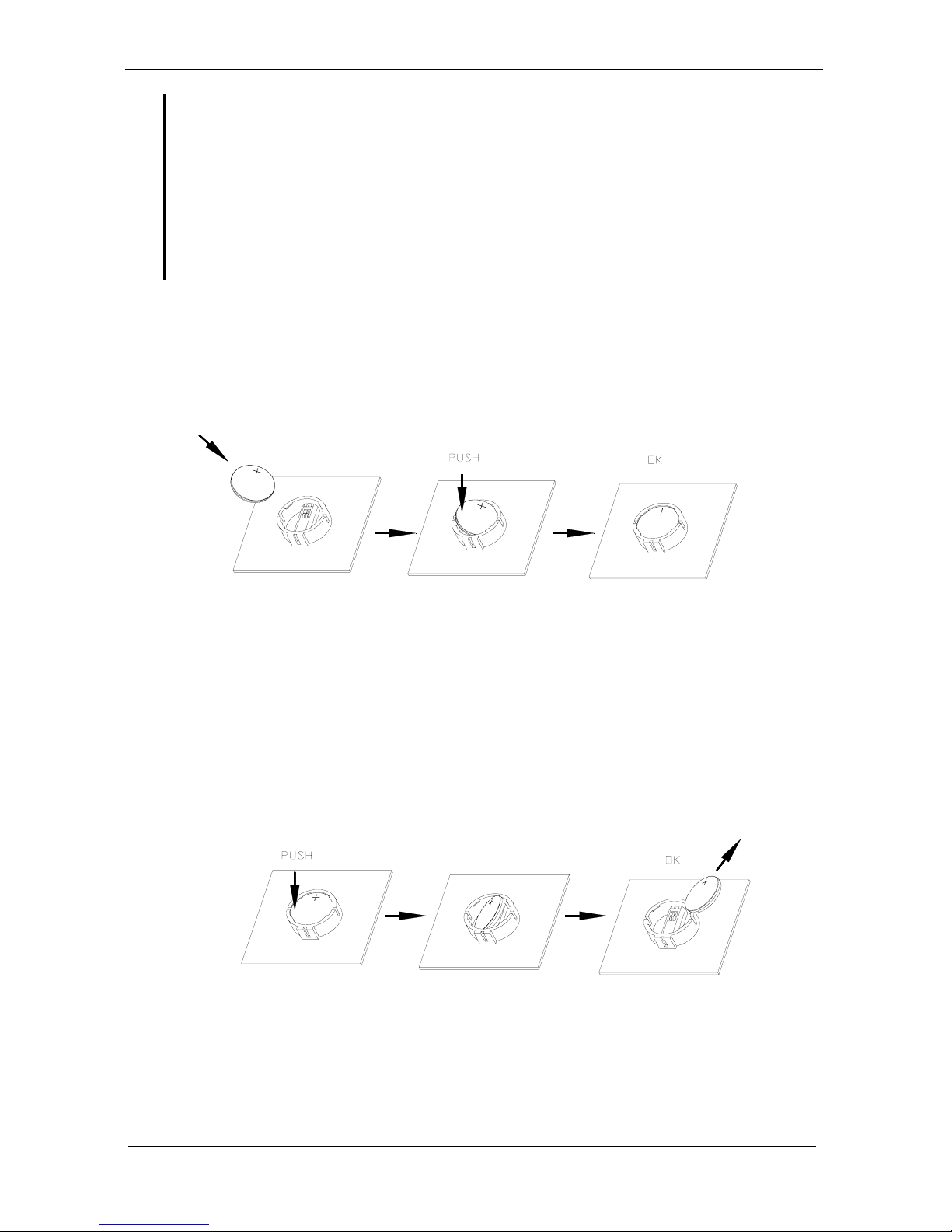

(1) Install Battery Procedure

(2) Uninstall Battery Procedure

Hardware Configuration Setting

WEB-6580【R1.0】 User’s Manual 2-17

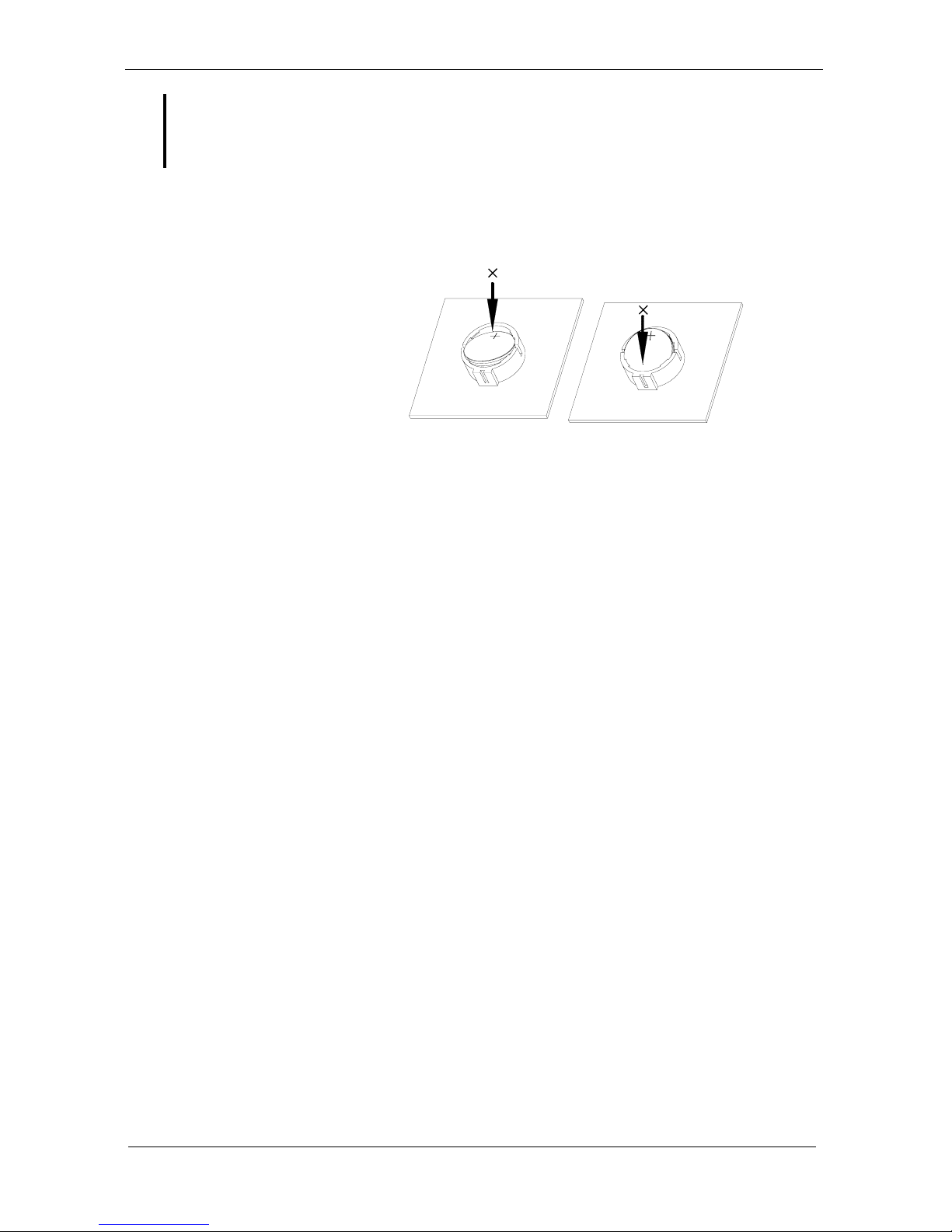

CAUTION:

Do not install and press battery shown as below direction.

System Installation

WEB-6580【R1.0】 User’s Manual 3-1

Chapter 3 System Installation

This chapter provides you with instructions on how to setup your system. The

additional information shows you how to handle WDT operation in software

program.

3.1 Main Memory

WEB-6580 SERIES provide 1 SO-DIMMs (144-pin Dual In-line Memory

Module) to support 3.3V SDRAM (Synchronized DRAM) as on-board main

memory. The maximum memory size is 32MB~ 512MB with using

16MB/64MB/128MB/256MB technology. The location of the SO-DIMM socket is

on the back of the EBC. Support up to 1 double-sided SO-DIMMs at 100/133MHz

or 1 single-sided SO-DIMMs at 100/133MHz system memory bus. The memory

architecture adopts 64-bit data interface to support for x16 SDRAM device width.

In addition, it also supports Un-buffered , Non-ECC SDRAM and Enhanced Open

page arbitration SDRAM paging scheme. For Refresh mechanism, the CBR ONLY

supported.

For system compatibility and stability, don’t use memory module without

brand. You can also use the single or double-side SO-DIMM .The SO-DIMMs can

be out of order. You can install different size of SDRAM module.

Without out the contact and lock integrity of memory module with socket, it

will impact on the system reliability. Follow normal procedure to install your

SDRAM module into memory socket. Before locking, make sure that the module

has been fully inserted into the SO-DIMM slot.

NOTE: For maintaining system stability, do not change any of

SDRAM parameters in BIOS setup to upgrade your system

System Installation

WEB-6580【R1.0】 User’s Manual 3-2

performance without acquiring technical information.

3.2 Installing the Single Board Computer

To install your WEB-6580 SERIES into standard chassis or proprietary

environment, you need to perform the following steps:

(1). Check all jumpers setting on proper position
(2). Install memory module on right position
(3). Place WEB-6580 SERIES into the dedicated position in your system
(4). Attach cables to existing peripheral devices and secure it

NOTE: Please refer section 3.3 to install display and Ethernet

drivers and setup your system.

3.3 Install Display and Ethernet Driver

3-3-1 VIA VT8606 Integrated Graphics Controller

The on-board graphics controller is integrated in VIA VT8606 chipset that

integrates S3 Graphics 128-bit ProSavage4 graphics accelerator in a single chip.

The integrated AGP 4X graphics core with 2D, 3D and DVD video acceleration is

fully matched with the mainstream requirement today. The optimized Shared

Memory Architecture (SMA) can use system memory as frame buffer. The capacity

is optional for 8MB/16MB/32MB and setup by BIOS setting.

Featuring a new super-pipelined 128-bit engine, the integrated Graphics can

support 2D acceleration with all color depth, 3D acceleration for more vivid and

realistic images with true 32-bit color rendering throughout the 3D pipeline. This

integrated Graphics also provides the high quality MPEG-2 based DVD

applications and video conferencing.

VIA VT8606 integrated graphics controller can support a wide variety of

DSTN and TFT Panel. This includes the supporting for VGA, SVGA, XGA,

System Installation

WEB-6580【R1.0】 User’s Manual 3-3

SXGA+, UXGA and UXGA+ TFT color panels with 9/12/18-bit (both 1

pixel/clock and 2 pixels/clock) and 24-bit interfaces. Enhanced STN hardware with

256 gray scale support and the advanced frame rate control provides 16.7million

color. And the LVDS interface can support another panel. All resolutions are

supported up to 1280x1024.

Supported CRT Screen Resolution is as the following table,

System Memory

Frame Buffer Size Resolution

8MB 16/32MB

640x480x8/16/32

√ √

800x600x8/16/32

√ √

1024x768x8x16x32

√ √

1280x1024x8

√ √

1280x1024x16

√ √

1280x1024x32

√ √

1600x1200x8

√ √

1600x1200x16

√ √

1600x1200x32

√

1920x1440x8

√

1920x1440x16

√

3-3-2 REALTEK 8100BL Network Controller

The REALTEK 8100BL is fully integrated 10BASE-T/100BASE-TX LAN

solution. The 32-bit PCI controller provides enhanced scatter-gather bus mastering

capabilities and enables to perform high-speed data transfers over the PCI bus. Its

bus master capabilities enable the component to process high level commands and

perform multiple operations, which lower CPU utilization by off-loading

communication tasks from the CPU.

The WEB-6580 SERIES provides two LED indicators on RJ-45 connector to

show LAN interface status. These messages will give you a guide for

System Installation

WEB-6580【R1.0】 User’s Manual 3-4

troubleshooting.

Yellow LED indicates transmit and receive activity.

Blinking : indicates transmit/receive activity

On : indicates no activity but link is valid
Off : link is invalid

Green LED indicates Link speed

On : link speed at 100Mbps
Off : link speed at 10Mbps

3-3-3 Drivers Support

WEB-6580 SERIES provides on CD-Title to support on-board VGA and

Ethernet device drivers in various operating systems. Before installing the device

drivers, please see the reference files in each sub-directory. You cannot install

drivers from CD-Title directly.

 VIA VT8606 CHIPSET INTEGRATED GRAPHY: Support NT4.0,

Windows9x, Win2000, … environment

 VIA VT8606 and VT82C686B CHIPSET DRIVER: Support NT4.0,

Windows9x, Win2000 , … environment

 REALTEK 8100BL: Support Dos, Windows3.1, Windows9x, NT3.5, NT4.0,

Novell, OS/2 …

3.4 Watch-Dog Timer Programming

The design technology of Watch-Dog Timer (WDT) is to utilize hardware

jumper setting and programmed by software command. After this feature is enabled,

a system reset will be generated unless an application triggers the timer periodically

within time-out period. This allows the system to restart in an orderly way in case

of any abnormal condition is found.

An optional two-port WDT is provided on WEB-6580 SERIES. This WDT

System Installation

WEB-6580【R1.0】 User’s Manual 3-5

comes with 8 possible ranges of time intervals from 1 to 63sec., which can be

adjusted by setting jumper positions. It could be enabled and programmed by

reading I/O port 443H or 543H to issue trigger continuously, and disabled by

reading I/O port 443H or 543H. A tolerance of 30% timer limit must be considered.

For instance, if the time-out interval is set to 1 second, the WDT trigger command

must be issued within 700ms at least.

The below example gives you a reference algorithm for WDT programming

via I/O port 443H in your application programs:

Enable WDT

MOV DX, 0443H←WDT port
MOV AL, sec←sec=WDT time(1<sec<63sec)

OUT DX,AL

Re-trigger WDT

MOV DX, 0443H←WDT port
MOV AL, sec←sec=WDT time(1<sec<63sec)

OUT DX,AL

Disable WDT

MOV DX, 0443H
MOV AL, 0
OUT DX,AL

BIOS Setup Information

WEB-6580【R1.0】 User’s Manual 4-1

Chapter 4 BIOS Setup Information

WEB-6580 is equipped with the AMI BIOS stored in Flash ROM. This BIOS

has a built-in Setup program that allows users to modify the basic system

configuration easily. This type of information is stored in CMOS RAM so that it is

retained during power-off periods. When system is turned on, WEB-6580

communicates with peripheral devices and check its hardware resources against the

configuration information stored in the CMOS memory. If any error is detected, or

the CMOS parameters need to be initially defined, the diagnostic program will

prompt the user to enter the SETUP program. Some errors are significant enough to

abort the start-up.

4.1 Entering Setup

Turn on or reboot the computer. When the message “Hit <DEL> if you want to

run SETUP” appears, press <Del> key immediately to enter BIOS setup program.

If the message disappears before you respond, but you still wish to enter Setup,

please restart the system to try “COLD START” again by turning it OFF and then

ON, or touch the "RESET" button. You may also restart from “WARM START” by

pressing <Ctrl>, <Alt>, and <Delete> keys simultaneously. If you do not press the

keys at the right time and the system will not boot, an error message will be

displayed and you will again be asked to,

Press <F1> to Run SETUP or Resume

In HIFLEX BIOS setup, you can use the keyboard to choose among options or

modify the system parameters to match the options with your system. The table

below will show you all of keystroke functions in BIOS setup.

BIOS Setup Information

WEB-6580【R1.0】 User’s Manual 4-2

Keys to navigate within setup menu

Key Functions

Up Arrow Move to the previous item

Down

Arrow

M

ove to the next item

Left Arrow Move to the item on the left (menu bar)

Right

Arrow

M

ove to the item on the right (menu bar)

Move Enter Move to the item you desired

P

ageUp key Increase the numeric value or make changes

P

ageDn key Decrease the numeric value or make changes

+ key

I

ncrease the numeric value or make changes

- key

D

ecrease the numeric value or make changes

Esc key

M

ain Menu -- Quit and not save changes into CMOS

Status Page Setup Menu and Option Page Setup Menu -- Exit current page and

r

eturn to Main Menu

F1 key

G

eneral help on Setup navigation keys

F10 key Save all the CMOS changes and exit

4.2 Main Menu

Once you enter WEB-6580 AMI BIOS CMOS Setup Utility, you should start

with the Main Menu. The Main Menu allows you to select from eleven setup

functions and two exit choices. Use arrow keys to switch among items and press

<Enter> key to accept or bring up the sub-menu.

AMIBIOS HIFLEX SETUP UTILITY – VERSION 1.30

BIOS Setup Information

WEB-6580【R1.0】 User’s Manual 4-3

Standard CMOS Setup

Advanced BIOS Setup

Advanced Chipset Setup

Power Management Setup

PCI / Plug and Play Setup

Peripheral Setup

Hardware Monitor Setup

Auto-Detect Hard Disks

Change User Password

Change Supervisor Password

Auto Configuration with Optimal Settings

Auto Configuration with Fail Safe Settings

Save Settings and Exit

Exit Without Saving

Standard CMOS Setup for changing time, date, hard disk type, etc.

NOTE : It is strongly recommended to reload Optimal Setting if

CMOS is lost or BIOS is updated.

4.3 Standard CMOS Setup Menu

This setup page includes all the items in a standard compatible BIOS. Use the

arrow keys to highlight the item and then use the <PageUp>/<PageDn> or <+>/<->

keys to select the value or number you want in each item and press <Enter> key to

certify it.

Follow command keys in CMOS Setup table to change Date, Time, Drive type,

and Boot Sector Virus Protection Status.

BIOS Setup Information

WEB-6580【R1.0】 User’s Manual 4-4

 Screen shot

AMIBIOS SETUP – STANDARD CMOS SETUP

(C)2000 America Megatrends, Inc. All Rights Reserved

Date (mm/dd/yyyy): Mon, Oct 2 1999
Time (hh/mm/ss): 16:51:13

Floppy Drive A: 1.44 MB 3 1/2
Floppy Drive B: Not Installed

Base Memory: 640 KB
Extd Memory: 119 KB

LBA Blk PIO 32Bit
Type Size Cyln Head WPcom Sec Mode Mode Mode Mode

Pri Master Auto On
Pri Slave Auto On
Sec Master Auto On
Sec Slave Auto On

Boot Sector Virus Protection Disabled

Month: Jan – Dec ESC : Exit ↑↓:Sel
Day: 01 – 31 PageUp/PageDn : Mofify

Year: 1901 – 2099 F1:Help F2/F3:color

 Menu seletions

Item Options Description

Date Mm:dd:yy Set the system date. Note that the ‘Day’

automatically changes when you set the date

Time Hh:mm:ss Set the system time

Drive A

Drive B

Non Installed

360KB, 5 1/4

Select the type of floppy disk drive

installed in your system

BIOS Setup Information

WEB-6580【R1.0】 User’s Manual 4-5

1.2MB, 5 1/4

720KB, 3 1/2

1.44MB, 3 1/2

Pri Master Select a suitable item or

keep it in Auto for automatic

detection.

Press <PageUp> or <PageDn> to select a

suitable item

Pri Slave Select a suitable item or

keep it in Auto for automatic

detection.

Press <PageUp> or <PageDn> to select a

suitable item

Sec Master Select a suitable item or

keep it in Auto for automatic

detection.

Press <PageUp> or <PageDn> to select a

suitable item

Sec Slave Select a suitable item or

keep it in Auto for automatic

detection.

Press <PageUp> or <PageDn> to select a

suitable item

Advanced CMOS Setup

This setup reference table includes all the Optimal, Failsafe, and Other options

setting in each BIOS setup item. It is very easy to cross reference. If you want to go

BIOS Setup Information

WEB-6580【R1.0】 User’s Manual 4-6

details, you can directly refer to item description in sub-section.

▓ ADVANCED CMOS SETUP DEFAULTS

BIOS Setup Items Optimal Default Failsafe Default Other Options

Quick Boot Enabled Disabled
1st Boot Device Floppy Floppy
2nd Boot Device IDE-0 IDE-0
3rd Boot Device CDROM CDROM
Try Other Boot Device Yes Yes No
S.M.A.R.T. for Hard Disks Disabled Disabled Enabled
Boot Up Num-Lock On On Off
Floppy Drive Swap Disabled Disabled Enabled
Floppy Drive Seek Disabled Disabled Enabled
PS/2 Mouse Support Enabled Enabled Disabled
System Keyboard Absent Absent Present
Primary Display Absent Absent VGA/EGA,…,Mono
Password Check Setup Setup Always
Boot To OS/2 No No Yes
L1 Cache Enabled Enabled Disabled
L2 Cache Enabled Disabled
System BIOS Cacheable Enabled Disabled
C000, 32K Shadow Cached Cached Enabled, Disabled
C800, 16K Shadow Cached Cached Enabled, Disabled
CC00, 16K Shadow Cached Cached Enabled, Disabled
D000, 16K Shadow Disabled Disabled Cached, Enabled
D400, 16K Shadow Disabled Disabled Cached, Enabled
D800, 16K Shadow Disabled Disabled Cached, Enabled
DC00, 16K Shadow Disabled Disabled Cached, Enabled

▓ ADVANCED CHIPSET SETUP

BIOS Setup Items Optimal Default Failsafe Default Other Options

Configure SDRAM Timing by SPD Disabled Disabled Enabled
DRAM Frequency 100Mhz 100Mhz 133Mhz ,66Mhz
SDRAM CAS# Latency 3 3 2
Memory Hole Disabled Disabled 512KB-640KB,

15MB-16MB,

14MB-16MB
AGP Mode 4x 2x 1x
AGP Aperture Size 64MB 64MB 4,8,16,32,128,256MB
Search for DMA Resources Yes No
PCI Delay Transaction Enabled Disabled
USB Controller All USB Port Disabled USB Port 0&1, USB

Port 2&3.
USB KB/Mouse Legacy Support Disabled Disabled No mice,All Device
Spread Spectrum Controller Normal Normal Enable
Spread Spectrum Controller 0.25% 0.25% 0.5%

BIOS Setup Information

WEB-6580【R1.0】 User’s Manual 4-7

▓ POWER MANAGEMENT SETUP DEFAULTS

BIOS Setup Items Optimal Default Failsafe Default Other Options

Power Management / APM Enabled Disabled
Video Power Down Mode Disabled Disabled Stand By, Suspend
Hard Disk Power Down Mode Disabled Disabled Stand By, Suspend
Standby Time Out (Minute) Disabled Disabled 1, 2, 4, 8, 10, 20, 30,

40, 50, 60 .
Suspend Time Out (Minute) Disabled Disabled 1, 2, 4, 8, 10, 20, 30,

40, 50, 60 .
Throttle Slow Clock Ratio 50 %-56.25% 50 %-56.25% 0%-6.25%,

6.25%-12.5%,

18.75%-25%,

31.25%- 37.5%,

37.5%-43.75%

43.75%-50%

56.25%-62.5%

62.5%-68.75%

68.75%-75%

75%-87.5%

75%-81.25%

81.25%-87.5%

87.5%-93.75%

93.75%-100%
Display Activity Ignore Ignore Monitor
IRQ3 Monitor Ignore Ignore
IRQ4 Monitor Ignore Ignore
IRQ5 Ignore Ignore Monitor
IRQ7 Monitor Ignore Ignore
IRQ9 Ignore Ignore Monitor
IRQ10 Ignore Ignore Monitor
IRQ11 Ignore Ignore Monitor
IRQ13 Ignore Ignore Monitor
IRQ14 Monitor Ignore Ignore
IRQ15 Ignore Ignore Monitor

▓ PCI / Plug AND Play SETUP

BIOS Setup Items Optimal Default Failsafe Default Other Options

Plug and Play Aware O/S No No Yes
Clear NVRAM No No Yes
On Chip VGA Fram Buffer Size 8MB 8MB None,2,4,16.32MB
PCI Latency Timer (PCI Clocks) 32 32 32, 96, 128, 160, 192,

224, 248

Boot Screen Select Auto Auto Both CRT & LCD,

BIOS Setup Information

WEB-6580【R1.0】 User’s Manual 4-8

LCD Panel Type 0 0 1 ~ 15
PCI VGA Palette Snoop Disabled Disabled Enabled
Allocate IRQ to PCI VGA Yes Yes No
PCI IDE Bus Master Disabled Disabled Enabled
DMA Channel 0 PnP PnP ISA/ EISA
DMA Channel 1 PnP PnP ISA/ EISA
DMA Channel 3 PnP PnP ISA/ EISA
DMA Channel 5 PnP PnP ISA/ EISA
DMA Channel 6 PnP PnP ISA/ EISA
DMA Channel 7 PnP PnP ISA/ EISA
IRQ3 PCI/ PnP PCI/ PnP ISA/ EISA
IRQ4 PCI/ PnP PCI/ PnP ISA/ EISA
IRQ5 PCI/ PnP PCI/ PnP ISA/ EISA
IRQ7 PCI/ PnP PCI/ PnP ISA/ EISA
IRQ9 PCI/ PnP PCI/ PnP ISA/ EISA
IRQ10 PCI/ PnP PCI/ PnP ISA/ EISA
IRQ11 PCI/ PnP PCI/ PnP ISA/ EISA
IRQ12 PCI/ PnP PCI/ PnP ISA/ EISA
IRQ14 PCI/ PnP PCI/ PnP ISA/ EISA
IRQ15 PCI/ PnP PCI/ PnP ISA/ EISA

▓ PERIPHERAL SETUP DEFAULTS

BIOS Setup Items Optimal Default Failsafe Default Other Options

On Board FDC Auto Auto Enabled, Disabled
On Board Serial Port1 3F8/COM1 3F8/COM1 Disabled 3F8h/COM1,

2F8h/COM2,
3E8h/COM3,
2E8h/COM4,

On Board Serial Port2 2F8/COM2 2F8/COM2 Disabled

3F8h/COM1,
2F8h/COM2,
3E8h/COM3,

2E8h/COM4,
Serial Port2 Mode Normal Normal IrDA, ASK IR
Duplex Mode N/A N/A
On Board Parallel Port 378 378 Disabled, 378, 278,

3BC
Parallel Port Mode Normal Normal Normal, EPP, ECP,

EPP+ECP
EPP Version N/A N/A
Parallel Port DMA Channel N/A N/A
Parallel Port IRQ 7 7 5
On Board IDE Both N/A Auto
Onboard AC’ 97 Audio Enabled Enabled Disabled

▓ HARDWARE MONITOR SETUP DEFAULTS

BIOS Setup Items Optimal Default Failsafe Default Other Options

BIOS Setup Information

WEB-6580【R1.0】 User’s Manual 4-9

System Temperature ===
CPU Fan Speed ===
Vcore ===
+ 2.500V ===
+ 3.300V ===
+ 5.000V ===
+ 12.000V ===

4.4 Standard CMOS Setup Menu

This setup page includes all the items in a standard compatible BIOS. Use the

arrow keys to highlight the item and then use the <PageUp>/<PageDn> or <+>/<->

keys to select the value or number you want in each item and press <Enter> key to

certify it.

Follow command keys in CMOS Setup table to change Date, Time, Drive type,

and Boot Sector Virus Protection Status.

4.5 Advanced CMOS Setup Menu

This setup includes all of the advanced features in the system. The detail

descriptions are specified as below.

Quick Boot

Set “Disabled” for normal booting or select “Enabled” to skip minor BIOS

test items to obtain quick boot response.

Boot Up Sequence

This category includes six items to determine which drive computer

searches first for the Disk Operating System (DOS).

BIOS Setup Information

WEB-6580【R1.0】 User’s Manual 4-10

The default ARMD (ATAPI Removable Media Device) emulation type is

set to popular drive type LS-120 and ATAPI ZIP. There are many choices of

booting devices to boot up system. User can select “Disabled”, “IDE-0”,

“IDE-1”, “IDE-2”, “IDE-3”, “Floppy”, “ARMD-FDD”, “ARMD-HDD”,

“CDROM”, “SCSI”, or “NETWORK”.

Try Other Boot Device

Select “Yes” to enable trying to boot from different devices in sequence.

Selected “No” for booting only from the first boot device.

S.M.A.R.T for Hard Disks

Self-Monitoring, analysis and reporting Technology. For prediction of

device degradation and/or faults.

Boot Up Num-Lock

Select “On” to enable numeric function of the numeric keypad, or “Off” to

disregard it.

PS/2 Mouse Support

Select “Enabled” to enable PS/2 mouse function, or “Disabled” to release

IRQ12 interrupt for other ISA-bus I/O devices.

System Keyboard

BIOS Setup Information

WEB-6580【R1.0】 User’s Manual 4-11

This option will be used to neglect “keyboard error” while you choose
Absent setting in your BIOS setup and system has no keyboard attached.

Primary Display

Chooses Absent, VGA/EGA, CGA40x25, CGA80x25, or Mono to meet your
monitor type. If you select Absent, the “CMOS Display Type Wrong”

message will be ignored regardless the mismatched display card.

Password Check

This option enables the password checking when the system boots up or

runs CMOS Setup. It only takes effect after setting Change Supervisor

Password.

Setup : This option will force system to check password before running

Setup if you have already entered the current user password in

“Change User Password”. By that time, the system will be only able

to boot but deny accessing Setup.

Always : Password prompt appears every boot-up. The system will not boot

and deny access Setup with invalid password. The best way is to

clear CMOS or try to reload BIOS Setup to boot up system.

Boot To OS/2

You should set this option to “Yes” to support OS/2 environment.

BIOS Setup Information

WEB-6580【R1.0】 User’s Manual 4-12

L1 Cache

This option controls to turn on or off the CPU’s Level 1 built-in cache.

L2 Cache

Enables this option to turn on or off the CPU’s Level 2 built-in cache.

System BIOS Cacheable

Enables this option to enhance system performance by shadowing and

caching system BIOS. When disabled, this BIOS shadow function will be

ignored.

Shadow Memory

Each of segments provides three options “Disabled”, “Enabled”, and

“Cached” for faster adapter’s ROM execution. However this shadow

function is Chipset oriented and dependent on system hardware feature. In

general, C000 64k will be allocated for VGA BIOS and set to Cached to get

higher display performance by shadowing and caching feature. If user

chooses Enabled setting, only BIOS shadow function is active.

4.6 Advanced Chipset Setup Menu

This setup is very important to keep system stability. If you are not technical

BIOS Setup Information

WEB-6580【R1.0】 User’s Manual 4-13

person, do not attempt to change any parameters. The best way is to choose

optimal default setting.

Configre SDRAM Timing by SPD

This option provides DIMM plug-and-play support by Serial Presence

Detect (SPD) mechanism via the System Management Bus (SMBus)

interface. You can disable this option to manage the following four

SDRAM timing options by yourself. In addition, SDRAM operating

timings may follow serial presence from EEPROM content by setting this

option to “Enabled”, and all of SDRAM timing options will be not available

and hidden.

DRAM Frequency

PC-100 means the memory bus is running at 100MHz. PC-133 means its

bus is running at 133MHz.

SDRAM CAS# Latency

This option controls the number of SCLKs between the time a read

command is sampled by the SDRAMs and the time the North Bridge,

8601A, samples correspondent data from the SDRAMs.

Spread Spectrum

This option is for EMI test only.

BIOS Setup Information

WEB-6580【R1.0】 User’s Manual 4-14

Memory Hole

This option allows the end user to specify the location of a memory hole for

memory space requirement from ISA-bus cards.

USB Controller

This option will enable on-chip USB function to support USB peripheral

devices.

USB KB/Mouse Legacy Support

This feature will be automatically disabled and hidden if user chooses the

“Disabled” setting from the foregoing USB Function option. Otherwise,

enabling this option provides support for USB-keyboard without auxiliary

driver under DOS environment.

4.7 Power Management Setup Menu

This APM (Advanced Power Management) determines how much power

energy can be saved by setting below items to handle system power

resource. The following descriptions will specify the definition of each

item in details.

Power Management/APM

Using this feature to control system power resources. Set this option to

BIOS Setup Information

WEB-6580【R1.0】 User’s Manual 4-15

“Enabled” to enable power management function and effective based on

following parameter settings.

Video Power Down Mode

This option specifies the power conserving state that the VESA VGA video

subsystem enters after the specified period of display inactivity has expired.

Hard Disk Power Down Mode

This option specifies the power management state that the HDD enters after

the specified period of hard drive inactivity has expired. It is the same as

video power control. If user chooses “Stand By” or “Suspend”, it will

depend on period of parameter “Stand By Time out” or “Suspend Time

out”.

Stand by Time out (Minute)

This option specifies the length of the period of system inactivity while the

computer is in Full-On power state before the computer is placed in Standby

mode. When this length of time expires, the computer enters Standby

Timeout state. In Standby mode, some power use is curtailed.

Suspend Time out (Minute)

This option is the same as Stand by Time out function. These two features

will be enabled to monitor power of sub-items “Display Activity”, “Serial

port”, “Parallel Port”, “Floppy”, “Pri-HDD”, and “Sec-HDD”

BIOS Setup Information

WEB-6580【R1.0】 User’s Manual 4-16

independently. It is also used to control CPU throttle running function. All

of sub-items will be ineffective in selection of disabling “Stand by Time

out” or “Suspend Time out” even if it can be choose by user in BIOS setup

menu.

Throttle Slow Clock Ratio

This option specifies the speed at which the system clock runs in power

saving modes. The settings are expressed as duty cycle of the STPCLK#

signal. This duty cycle indicates the percentage of time the STPCLK#

signal is asserted while in the throttle mode.

Display Activity

This option specifies if BIOS is to monitor activity on the display monitor

for power conservation purposes. If set to Monitor and the computer is in a

power saving state, BIOS watches for video display activity. The computer

enters the full on power state if any activity occurs. BIOS reloads the

Standby and Suspend timeout timers if activity occurs on the specified IRQ

lines. If set to Ignore, video display monitor activity is not monitored.

IRQ Active

When set to Monitor, these options enable event monitoring on the

specified IRQ. If set to Monitor and the computer is in a power saving state,

BIOS watches for activity on the device with specified IRQ line. The

computer enters the full on power state if any activity occurs. BIOS reloads

the Standby and Suspend timeout timers if activity occurs on the specified

BIOS Setup Information

WEB-6580【R1.0】 User’s Manual 4-17

IRQ. No monitoring activity occurs if the option is set to Ignore. The

settings for each of these options are Monitor or Ignore.

4.8 PCI/Plug and Play Setup

This section describes configuring the PCI bus system. PCI (Peripheral

Component Interconnect) is a system which allows I/O devices to operate at

speeds nearing CPU’s when they communicate with own special

components.

All of options described in this section are important and technical and it is

strongly recommended that only experienced users could make any changes

to the default settings.

Plug and Play Aware O/S

Set this option to “Yes” if the operating system installed in the computer is

Plug and Play-aware. BIOS only detects and enables PnP ISA adapter cards

that are required for system boot. The Windows 95 operating system detects

and enables all other PnP-aware adapter cards. Windows 95 is PnP-aware.

Set this option to “No” if the operating system (such as DOS, OS/2,

Windows 3.x) does not use PnP. You must set this option correctly or

PnP-aware adapter cards installed in your computer will not be configured

properly.

Clear NVRAM

BIOS Setup Information

WEB-6580【R1.0】 User’s Manual 4-18

This option is used to clear NVRAM and check or update ESCD (Extended

System Configuration Data) data after system power on. Set this option to

No that will not clear NVRAM and the operation of update ESCD is

effective in different ESCD data comparison. If you select the “Yes” setting,

then the BIOS will update ESCD each time of power on.

PCI Latency Timer (PCI Clocks)

This option is used to control PCI latency timer period (follow PCI clocks).

Based on PCI specification 2.1 or later and PCI bus frequency in system,

user can select different timer to meet their PCI bus environment.

PCI VGA Palette Snoop

Some display cards that are non-standard VGA such as graphics

accelerations or MPEG video cards may not show colors properly. User can

choose “Enabled” setting to correct this display mismatch problem and

support any ISA adapter card installed in the computer requires VGA

palette snooping.

Allocate IRQ to PCI VGA

This option will be used to allocate IRQ for PCI VGA card. In general,

some of PCI VGA cards need IRQ support.

PCI IDE Bus Master

BIOS Setup Information

WEB-6580【R1.0】 User’s Manual 4-19

Set this option to Enabled to specify that the IDE controller on the PCI local

bus has bus mastering capability.

DMA Channel 0/1/3/5/6/7

These options specify if the named DMA channel is available for using on

the ISA/EISA bus or PnP (Plug & Play).

IRQ 3/4/5/7/9/10/11/12/14/15

These options specify the bus that the named interrupt request lines (IRQs)

are used on. These options allow you to specify IRQs for use by legacy ISA

adapter cards. These options determine if AMIBIOS should remove an IRQ

from the pool of available IRQs passed to devices that are configurable by

the system BIOS. The available IRQ pool is determined by reading the

ESCD NVRAM. If more IRQs must be removed from the pool, the end user

can use these PCI/PnP Setup to remove the IRQ by assigning the option to

the ISA/EISA setting. All IRQs used by on-board I/O are configured as

PCI/PnP.

4.9 Peripheral Setup

This section describes I/O resources assignment for all of on-board

peripheral devices.

On Board FDC

BIOS Setup Information

WEB-6580【R1.0】 User’s Manual 4-20

If user wants to install different add-on super I/O card to connect floppy

drives, set this field to Disabled. Otherwise, set it to Auto to call BIOS to

automatically determine if the floppy controller should be enabled.

On Board Serial Port 1/Port 2

These fields control the resource assignments of two on-board serial

interfaces SIO1 and SIO2. The following lists show current options in On

Board Serial Port 1/ Port 2 :

Auto  cannot set serial I/O resources by manual operation
Disabled  indicates on-board COM port function is ineffective
3F8h/COM1  assign I/O address 3F8h to COM1
2F8h/COM2  assign I/O address 2F8h to COM2
3E8h/COM3  assign I/O address 3E8h to COM3
2E8h/COM4  assign I/O address 2E8h to COM4

Serial Port2 Mode

This option control the resource assignments of on-board Serial Port2. The

Serial Port2 Mode Select has Four settings Normal, IrDA, and ASK IR.

Duplex Mode

Duplex Mode has two settings Half Duplex and Full Duplex

On Board Parallel Port

BIOS Setup Information

WEB-6580【R1.0】 User’s Manual 4-21

There are four optional items Parallel Port Mode, EPP Version, Parallel Port

IRQ, and Parallel Port DMA Channel used to control on-board parallel port

interface while user select I/O base address manually. The following lists

are available options of on-board parallel port :

Auto  user can not control all of LPT port I/O resources
Disabled  on-board parallel port function is ineffective and N/A
378h  locate IRQ7 for this default I/O address
278h  assign this I/O address to LPT1
3BCh  assign this I/O address to LPT1

◎ Parallel Port Mode :

This option specifies the parallel port mode. ECP and EPP are both

bi-directional data transfer schemes that adhere to the IEEE P1284

specifications. This Parallel Port Mode includes four options “Normal”,

“Bi-Dir”, “EPP”, and “ECP”.

Setting Description

Normal Uni-direction operation at normal speed

Bi-Dir Bi-direction operation at normal speed

EPP

The parallel port can be used with devices that adhere to the Enhanced
Parallel Port (EPP) specification. EPP uses the existing parallel port
signals to provide asymmetric bi-directional data transfer driven by the
host device.

ECP

The parallel port can be used with devices that adhere to the Extended
Capabilities Port (ECP) specification. ECP uses the DMA protocol to
achieve data transfer rates up to 2.5 Megabits per second. ECP provides
symmetric bi-directional communication.

◎ EPP Version :

This option is only valid if the Parallel Port Mode option is set to EPP. This

option specifies the version of the Enhanced Parallel Port specification that

BIOS Setup Information

WEB-6580【R1.0】 User’s Manual 4-22

will be used by AMIBIOS.

◎ Parallel Port DMA Channel :

This option is only available if On Board Parallel Port is set to fixed
I/O address and the setting of Parallel Port Mode is ECP. This option

sets the DMA channel used by ECP-capable parallel port.

◎ Parallel Port IRQ :

This option is only valid if the Onboard Parallel Port option is not set
to Disabled. This option sets the IRQ used by the parallel port.

On Board IDE

This option specifies the onboard IDE controller channels that will be used.

The settings are Disabled, Primary, Secondary, or Both.

4.10 Hardware Monitor Setup

This setup describes current system status detected from hardware monitor

controller. The status showed on screen will include :

 There are two on-board temperature sensors, TSENS1, and TSENS2.

 Current System Temperature (Generally indicates the inside

temperature of chassis or surface temperature of SBC)

 Current CPU Fan Speed

 Current Chassis Fan Speed

 System operating voltage includes “CPU Vcore”, “+2.500V”,

BIOS Setup Information

WEB-6580【R1.0】 User’s Manual 4-23

“+3.300”, “+5.000V”, “+12.000V”.

4.11 BIOS POST Check Point List

AMIBIOS provides all IBM standard Power On Self Test (POST) routines

as well as enhanced AMIBIOS POST routines. The POST routines

support CPU internal diagnostics. The POST checkpoint codes are

accessible via the Manufacturing Test Port (I/O port 80h).

Whenever a recoverable error occurs during the POST, the system BIOS

will display an error message describing the message and explaining the

problem in detail so that the problem can be corrected.

During the POST, the BIOS signals a checkpoint by issuing one code to

I/O address 80H. This code can be used to establish how far the BIOS has

executed through the power-on sequence and what test is currently being

performed. This is done to help troubleshoot faulty system board.

If the BIOS detects a terminal error condition, it will halt the POST

process and attempt to display the checkpoint code written to port 80H. If

the system hangs before the BIOS detects the terminal error, the value at

port 80H will be the last

test performed. In this case, the terminal error cannot be displayed on the

screen. The following POST checkpoint codes are valid for all AMIBIOS

products with a core BIOS date of 07/15/95 version 6.27 (Enhanced).

Uncompressed Initialization Codes — The uncompressed

BIOS Setup Information

WEB-6580【R1.0】 User’s Manual 4-24

initialization checkpoint hex codes are listed in order of execution :

Code Description

D0

NMI is disabled. CPU ID saved. INIT code checksum verification will be
started.

D1

Initializing the DMA controller, performing the keyboard controller BAT
test, starting memory refresh, and going to 4GB flat mode.

D3 To start memory sizing.

D4

Returning to real mode. Executing any OEM patches and setting the stack
next.

D5

Passing control to the uncompressed code in shadow RAM at E000:0000h.
The INIT code is copied to segment 0 and control will be transferred to
segment 0.

D6

Control is in segment 0. Next, checking if <Ctrl><Home> was pressed and
verifying the system BIOS checksum.
If either <Ctrl><Home> was pressed or the system BIOS checksum is bad,
next will go to checkpoint code E0h.

Otherwise, going to checkpoint code D7h.
D7 To pass control to interface module.
D8 Main BIOS runtime code is to be decompressed.
D9 Passing control to the main system BIOS in shadow RAM next.

Bootblock Recovery Codes — The bootblock recovery checkpoint

hex codes are listed in order of execution :

Code Description

E0

The onboard floppy controller if available is initialized. Next, beginning the

base 512KB memory test.

E1 Initializing the interrupt vector table next.

BIOS Setup Information

WEB-6580【R1.0】 User’s Manual 4-25

Code Description

E2 Initializing the DMA and Interrupt controllers next.

E6

Enabling the floppy drive controller and Timer IRQs. Enabling internal cache

memory.
ED Initializing the floppy drive.
EE Start looking for a diskette in drive A: and read first sector of the diskette.

EF A read error occurred while reading the floppy drive in drive A: .
F0 Next, searching for the AMIBOOT.ROM file in the root directory.
F1 The AMIBOOT.ROM file is not in the root directory.

F2

Next, reading and analyzing the floppy diskette FAT to find the clusters

occupied by the AMIBOOT.ROM file.

F3 Start reading AMIBOOT.ROM file, cluster by cluster.
F4 The AMIBOOT.ROM file is not the correct size.

F5 Next, disabling internal cache memory.
FB Next, detecting the type of Flash ROM.
FC Erasing the Flash ROM.
FD Programming the Flash ROM

FF Flash ROM programming was successful. Next, restarting the system BIOS.

Uncompressed Initialization Codes — The following runtime

checkpoint hex codes are listed in order of execution. These codes are

uncompressed in F0000h shadow RAM.

Code Description

03 The NMI is disabled. Next, checking for a soft reset or a power on condition.
05 The BIOS stack has been built. Next, disabling cache memory.
06 Uncompressing the POST code next.
07 Next, initializing the CPU and the CPU data area.
08 The CMOS checksum calculation is done next.

0B

Next, performing any required initialization before the keyboard BAT
command is issued.

0C

The keyboard controller input buffer is free. Next, issuing the BAT
command to the keyboard controller.

0E

The keyboard controller BAT command result has been verified. Next,
performing any necessary INIT after the K/B controller BAT command test.

0F The keyboard command byte is written next.

10 Next, issuing the pin 23 and 24 blocking and unblocking commands.
11 Next, checking if the <End> or <Ins> keys were pressed during power on.

12

To initialize CMOS if the initialize CMOS RAM in every boot is set or the

<End> key is pressed. Going to disable DMA and Interrupt controllers.

13 The video display has been disabled. Port B has been initialized. Next,

BIOS Setup Information

WEB-6580【R1.0】 User’s Manual 4-26

initializing the chipset.

Code Description

14 The 8254 timer test will begin next.
19 The 8254 timer test is over. Starting the memory refresh test next.

1A The memory refresh line is toggling. Checking the 15us on/off time next.

23

Reading the 8042 input port and disabling the MEGAKEY Green PC feature
next. Making the BIOS code segment writable and performing any necessary
configuration before initializing the interrupt vectors.

24

The configuration or setup required before interrupt vector initialization has
completed. Interrupt vector init. is about to begin

25

Interrupt vector initialization is done. Clearing the password if the POST

DIAG switch is on.
27 Any initialization before setting video mode to be done.
28 Going for monochrome mode and color mode setting.

2A Bus initialization system, static, output devices will be done next, if present.

2B

Passing control to the video ROM to perform any required configuration

before the video ROM test.

2C To look for optional video ROM and give control.

2D

The video ROM has returned control to BIOS POST. Performing any

required processing after the video ROM had control.

2E

Completed post-video ROM test processing. If the EGA/VGA controller is

not found, performing the display memory read/write test next.

2F EGA/VGA not found. Display memory R/W test about to begin.

30 Display memory R/W test passed. Look for retrace checking next.

31

Display memory R/W test or retrace checking failed. To do alternate display

retrace checking.

32

Alternate display memory R/W test passed. To look for the alternate display

retrace checking.
34 Video display checking is over. Setting the display mode next.
37 The display mode is set. Displaying the power on message next.
38 Initializing the bus input, IPL, and general devices next, if present.
39 Displaying bus initialization error message.

3A

The new cursor position has been read and saved. Displaying the Hit <DEL>

message next.
40 Preparing the descriptor tables next.
42 Entering protected mode for the memory test next.
43 Entered protected mode. Enabling interrupts for diagnostics mode next.

44

Interrupts enabled if the diagnostics switch is on. Initializing data to check

memory wraparound at 0:0 next.

45

Data initialized. Checking for memory wraparound at 0:0 and finding the

total system memory size next.

46

The memory wraparound test has completed. The memory size calculation

has been done. Writing patterns to test memory next.
47 The memory pattern has been written to extended memory. Writing patterns

BIOS Setup Information

WEB-6580【R1.0】 User’s Manual 4-27

to the base 640 KB memory test.

Code Description

48 Patterns written in base memory. Determining the amount of memory below

1MB next.

49 The amount of memory below 1MB has been found and verified.

Determining the amount of memory above 1MB memory next.

4B The amount of memory above 1MB has been found and verified. Checking

for a soft reset and clearing the memory below 1MB for the soft reset next.

If this is a power on situation, going to checkpoint 4Eh next.

4C The memory below 1MB has been cleared via a soft reset. Clearing the

memory above 1MB next.

4D The memory above 1MB has been cleared via soft reset. Saving the memory

size next. Going to checkpoint 52h next.

4E The memory test started, but not as the result of a soft reset. Displaying the

first 64KB memory size next.

4F Memory size display started. This will be updated during memory test.

Performing the sequential and random memory test next.

50 Memory testing/initialization below 1MB completed. Going to adjust

displayed memory size for relocation and shadowing.

51 The memory size display was adjusted for relocation and shadowing.

Testing the memory above 1MB next.

52 The memory above 1MB has been tested and initialized. Saving the memory

size information next.

53 The memory size information and the CPU registers are saved. Entering

real mode next.

54 Shutdown was successful. The CPU is in real mode. Disabling the Gate A20

line, parity, and the NMI next.

57 The A20 address line, parity, and the NMI are disabled. Adjusting the

memory size depending on relocation and shadowing next.

58 The memory size was adjusted for relocation and shadowing. Clearing the

Hit <DEL> message next.

59 The Hit <DEL> message is cleared. The <WAIT…> message is displayed.

Staring the DMA and interrupt controller test next.

60 The DMA page register test passed. To do DMA#1 base register test.
62 DMA#1 base register test passed. To do DMA#2 base register test.
65 DMA#2 base register test passed. To program DMA unit 1 and 2.
66 DMA unit 1 and 2 programming over. To initialize 8259 interrupt controller.
7F Extended NMI sources enabling is in progress.
80 The keyboard test has started. Clearing the output buffer and checking for

stuck keys. Issuing the keyboard reset command next.

81 A keyboard reset error or stuck key was found. Issuing the keyboard

Controller interface test command next.

82 The keyboard controller interface test completed. Writing the command byte

and initializing the circular buffer next.

BIOS Setup Information

WEB-6580【R1.0】 User’s Manual 4-28

83 Command byte written, Global data init done. To check for lock-key.
84 Locked key checking is over. Checking for a memory size mismatch with

CMOS RAM data next.

85 The memory size check is done. Displaying a soft error and checking for a

password or bypassing Setup next.

86 Password checked. About to do programming before setup.
87 The programming before Setup has completed. Uncompressing the Setup

code and executing the AMIBIOS Setup utility next.

88 Returned from CMOS setup program and screen is cleared. About to do

programming after setup.

89 The programming after Setup has completed. Displaying the power on

Screen message next.

8B The first screen message has been displayed. The <WAIT…> message is

displayed. Performing the PS/2 mouse check and extended BIOS data

area allocation check next.

8C Programming the Setup options next.
8D Going for hard disk controller reset.
8F Hard disk controller reset done. Floppy setup to be done next.
91 The floppy drive controller has been configured. Configuring the hard disk

drive controller next.

95 Initializing the bus option ROMs from C800 next.
96 Initializing before passing control to the adaptor ROM at C800.
97 Initialization before the C800 adaptor ROM gains control has completed.

The adaptor ROM check is next.

98 The adaptor ROM had control and has now returned control to BIOS POST.

Performing any required processing after the option ROM returned control.

99 Any initialization required after the option ROM test has completed.

Configuring the timer data area and printer base address next.

9A Return after setting timer and printer base address. Going to set the RS-232

base address.

9B Returned after setting the RS-232 base address. Performing any required

initialization before the Coprocessor test next.

9C Required initialization before the Coprocessor test is over. Initializing the

Coprocessor next.

9D Coprocessor initialized. Going to do any initialization after Coprocessor test.
9E Initialization after the Coprocessor test is complete. Checking the extended

keyboard, keyboard ID, and Num Lock key next. Issuing the keyboard ID

command next.

A2 Displaying any soft errors next.
A3 Soft error display complete. Going to set keyboard typematic rate.
A4 Keyboard typematic rate set. To program memory wait states.
A5 Memory wait state programming is over. Clearing the screen and enabling

parity and the NMI next.

A7 NMI and parity enabled. Performing any initialization required before

passing control to the adaptor ROM at E000 next.

A8 Initialization before passing control to the adaptor ROM at E000h completed.

Passing control to the adaptor ROM at E000h next.

BIOS Setup Information

WEB-6580【R1.0】 User’s Manual 4-29

A9 Returned from adaptor ROM at E000h control. Performing any initialization

required after the E000 option ROM had control next.

AA Initialization after E000 option ROM control has completed. Displaying the

system configuration next.

AB Building the multiprocessor table, if necessary.
AC Uncompressing the DMI data and initializing DMI POST next.
B0 The system configuration is displayed.
B1 Copying any code to specific areas.
00 Code copying to specific areas is done. Passing control to INT 19 h boot

loader next.

4.12 Flash BIOS Utility

Utilize AMI Flash BIOS programming utility to update on-board BIOS

for the future new BIOS version. Please contact your technical window to

get this utility if necessary.

NOTE : Remark or delete any installed Memory Management Utility

(such as HIMEM.SYS, EMM386.EXE, QEMM.EXE, …,
etc.) in the CONFIG.SYS files before running Flash
programming utility.

BIOS Setup Information

WEB-6580【R1.0】 User’s Manual 4-30
