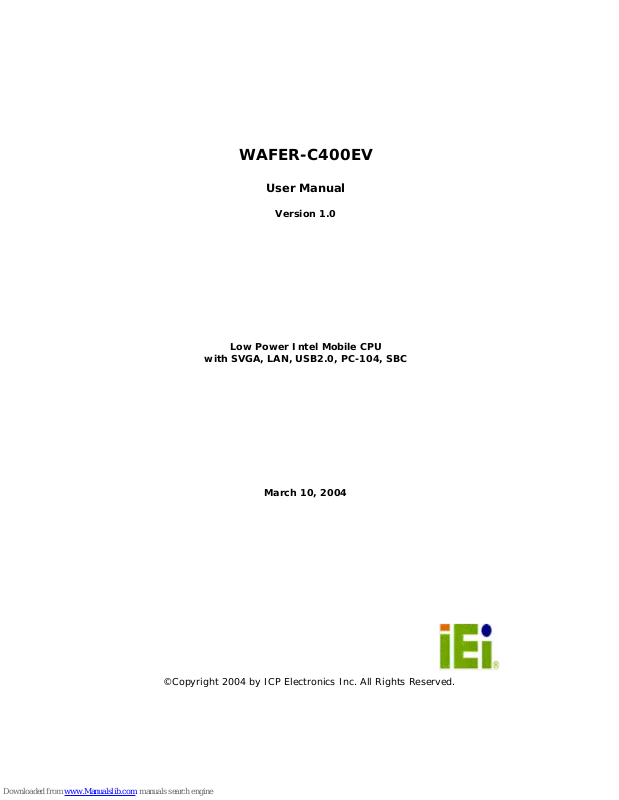

IEI Technology WAFER-C400EV User Manual

WAFER-C400EV

User Manual

Version 1.0

Low Power Intel Mobile CPU

with SVGA, LAN, USB2.0, PC-104, SBC

March 10, 2004

©Copyright 2004 by ICP Electronics Inc. All Rights Reserved.

1

Copyright Notice

The information in this document is subjected to change without prior notice in
order to improve reliability, design and function and does not represent a
commitment on the part of the manufacturer.

In no event will the manufacturer be liable for direct, indirect, special, incidental,
or consequential damages arising out of the use or inability to use the produc t or
documentation, even if advised of the possibility of such damages.

This document contains proprietary information protected by copyright. All rights
are reserved. No part of this manual may be reproduced by any mechanical,
electronic, or other means in any form without prior written permission of the
manufacturer.

Trademarks

WAFER-C400EV is a registered trademark of ICP Electronics Inc. IBM PC is a
registered trademark of International Business Machines Corporation. Intel is a
registered trademark of Intel Corporation. Other product names mentioned herein
are used for identification purposes only and may be trademarks and/or
registered trademarks of their respective companies.

2

Table of Contents

CHAPTER 1 INTRODUCTION.............................................................4

1.1 S

PECIFICATIONS ...........................................................................5

1.2 P

ACKAGE CONTENTS.......................................................................6

CHAPTER 2 INSTALLATION ..............................................................7

2.1 B

LOCK DIAGRAM & BOARD LAYOUT .....................................................7

2.2 U

NPACKING PRECAUTIONS................................................................9

2.3 S

YSTEM MEMORY DRAM .................................................................9

2.4 W

ATCH-DOG TIMER SETTING ............................................................9

2.5 C

LEAR CMOS SETUP......................................................................9

2.6 LCD VCC V

OLTAGE SELECTOR ........................................................ 10

2.7 S

YSTEM PANEL CONNECTORS (CN9)..................................................10

CHAPTER 3 CONNECTION...............................................................11

3.1 F

LOPPY DISK DRIVE CONNECTOR (FDD1) ...........................................11

3.2 PCI E-IDE D

ISK DRIVE CONNECTOR (IDE1).......................................12

3.3 C

OMPACT FLASH CONNECTOR(CN12) ................................................13

3.4 P

ARALLEL PORT (CN10)................................................................14

3.5 S

ERIAL POSTS (COM1,CN4)...........................................................15

3.6 K

EYBOARD & PS/2 MOUSE CONNECTOR (CN11)...................................16

3.7 USB P

ORT CONNECTOR (USB1)...................................................... 16

3.8 I

RDA INFRARED INTERFACE PORT (CN5)............................................ 16

3.9 VGA C

ONNECTOR (VGA1)............................................................. 17

3.10 LAN RJ45 C

ONNECTOR (P1,P2) .....................................................17

3.11 LCD I

NTERFACE CONNECTOR (CN8) ................................................. 18

3.12 E

XTERNAL POWER CONNECTOR (CN7)................................................19

3.13 ATX P

OWER CONNECTOR (CN6) ......................................................19

3.14 PC/104 C

ONNECTION BUS (J5, J6) .................................................20

3.15 4-BIT GPIO C

ONNECTOR (CN1)..................................................... 21

3.16 F

AN CONNECTOR (JFAN1) .............................................................21

3.17 A

UDIO CONNECTOR (CN2)............................................................. 22

CHAPTER 4 AMI BIOS SETUP..........................................................23

4.1 I

NTRODUCTION...........................................................................23

4.2 S

TARTING SETUP......................................................................... 23

3

4.3 U

SING SETUP.............................................................................24

4.4 G

ETTING HELP ........................................................................... 24

4.5 M

AIN MENU...............................................................................25

4.6 S

TANDARD CMOS SETUP ..............................................................27

4.7 A

DVANCED CMOS SETUP .............................................................. 28

4.8 A

DVANCED CHIPSET SETUP.............................................................32

4.9 P

OWER MANAGEMENT SETUP...........................................................33

4.10 PCI / P

LUG AND PLAY SETUP ..........................................................35

4.11 P

ERIPHERAL SETUP ......................................................................37

4.12 H

ARDWARE MONITOR SETUP ........................................................... 38

4.13 C

HANGE SUPERVISOR PASSWORD ..................................................... 39

APPENDIX A. WATCHDOG TIMER............................................................40

APPENDIX B. DIGITAL I/O.....................................................................42

APPENDIX C. I/O ADDRESS MAP............................................................43

4

Chapter 1 Introduction

WAFER-C400EV is designed for network applications. It supports the full functions
of an AT/ATX-compatible industrial computer on a single board. The
WAFER-C400EV is equipped with a low-power consumption and high performance
Intel Mobile processor on board. It also contains an SDRAM SODIMM socket that
support up to 512MB memory.

The WAFER-C400EV provides two Ethernet interfaces, one FDD interface, one
EIDE interface, one audio interface, one Compact Flash Type II, one parallel port,
one RS-232 serial port, one RS-232 / RS-422 / RS-485 header, one 2x25-pin LCD
header, one PC-104, two USB 2.0 ports, one 5-pin IR header, and one 6-pin
header of PS/2 keyboard/mouse interface. The built-in SVGA/LCD display
controller supports both the CRT and LCD display simultaneously. It offers the
resolutions of LCD screen up to 1024 x 768 @ 60HZ, and CRT resolutions up to
1600 x 1280 @ 64K colors. The Flash ROM contains both the system BIOS and
the VGA BIOS. Reprogramming the Flash ROM could do the modification, in case
of necessary.

5

1.1 Specifications

 CPU：Embedded Intel

®

Ultra Low Voltage Celeron 400MHz

 System Memory: One 144-pin SODIMM socket support up to 512 MB SDRAM
 BIOS: AMI 256 KB Flash memory
 Display Controller: VIA 8601T

 Support 24-bit TFT LCD panel resolution up to 1024x768 @ 60Hz
 Support non-interlaced CRT monitors resolutions up to 1600x1280 @ 16bit

colors

 IDE Interface: Supports two ATA100 IDE hard drives
 Compact Flash Disk: Runs in true IDE mode that is compatible with an IDE disk

drive. It can be used with a passive adapter in a Type II socket.

 FDD Interface: Supports up to two floppy disk drives, 5.25”（360KB and 1.2MB）

and/or 3.5”（720KB, 1.44MB, and 2.88MB）

 Serial Ports: Two RS-232 ports whi ch COM2 can support RS-422/485
 Parallel Port: One parallel port supports SPP/EPP/ECP mode
 Audio Connector: One 2x8-pin header supports Line-in, Line-out, Speaker-out,

Mic-in.

 Digital IO: Supports four digital-in, and four digital-out
 IrDA: Supports Serial Infrared (SIR) or Amplitude Shift Keyed IR (ASKIR) interface
 PS/2 Mouse/Keyboard Connector: A 6-pin header connector supports PS/2

keyboard and PS/2 mouse.

 USB Interface: Two USB ports, USB 2.0 compliant
 Watchdog Timer: Can be set by 1-255 seconds period. Reset or NMI will be

generated when CPU does not periodically trigger the timer

 10/100Mbps Ethernet Controller: Two IEEE802.3 10/100M BASE-T standard Dual

auto-sensing interface to 10MBps or 100MBps networks. On board RJ-45 connectors
are provided for easy connection.

 PC-104 Interface: Supports ISA functions
 E2Key: A non-volatile 1Kbit EEPROM is provided to retain application critical

read/write data

 Power Supply: +5V: 3A typical, +12V: 0.1A
 Operating Temperature: 0-60℃
 Dimension: 5.9”（L）x 4.2”（W）（145mmx102mm）

6

1.2 Package Contents

Before any installation, please check if the following materials are included in the
package:

 One WAFER-C400EV all-in-one single board computer
 One compact disk for utility and drivers
 One 2.5" IDE flat cable (44-pin 2.0mm pitch to 40-pin 2.54mm pitch)
 One floppy cable (for 3.5" FDD only)
 One serial port cable (RS-422/485/232)
 One standard D-25 connector for parallel cable
 One 6-pin header connector for keyboard and mouse
 One audio cable

If any of these items are missing or damaged, contact your distributor or sales
representative immediately.

7

Chapter 2 Installation

This chapter gives instructions about how to set up the WAFER-C400EV hardware,
including directions of setting jumpers and connecting peripherals, switches and
indicators. Before installation, please pay attention to the unpacking precautions
on the following page for safety.

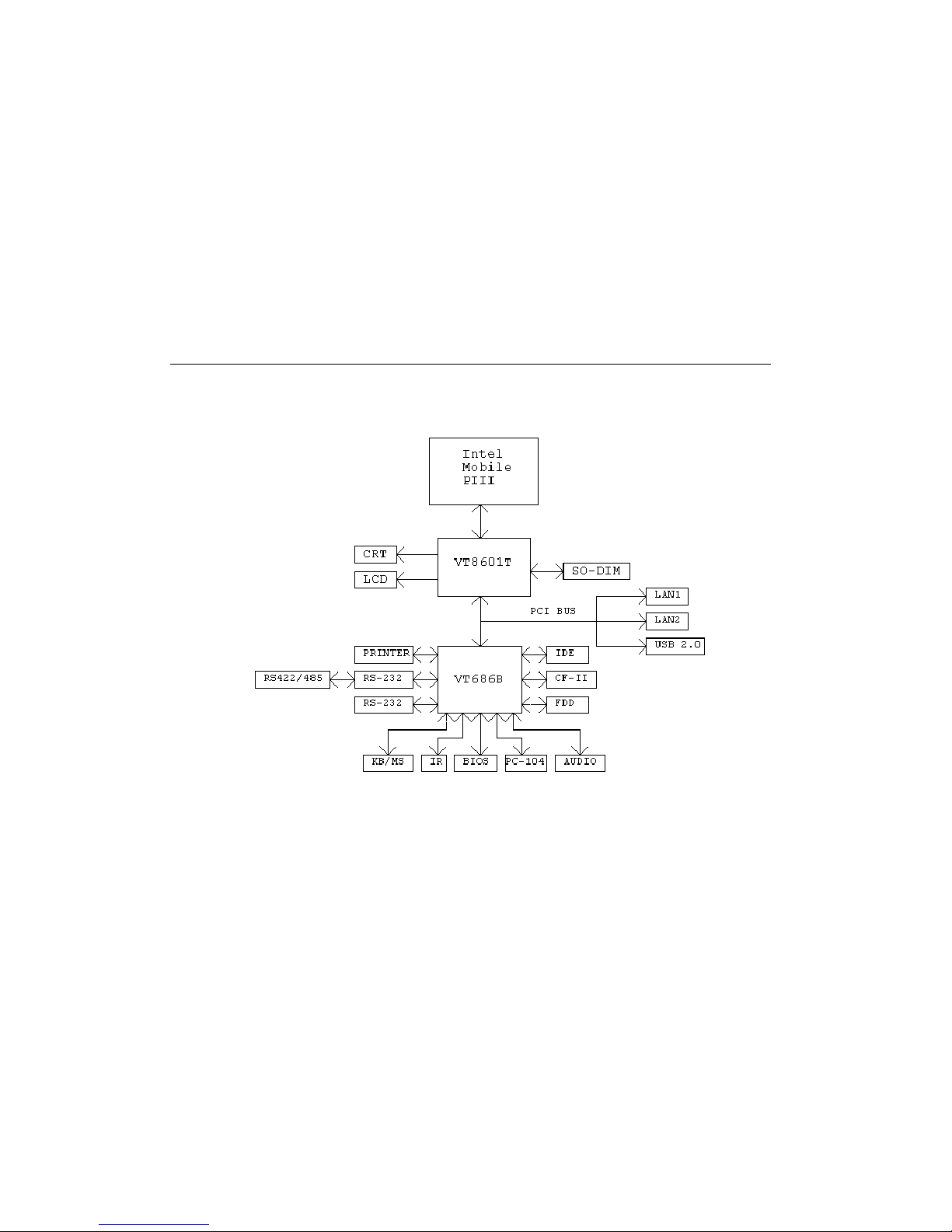

2.1 Block Diagram & Board Layout

8

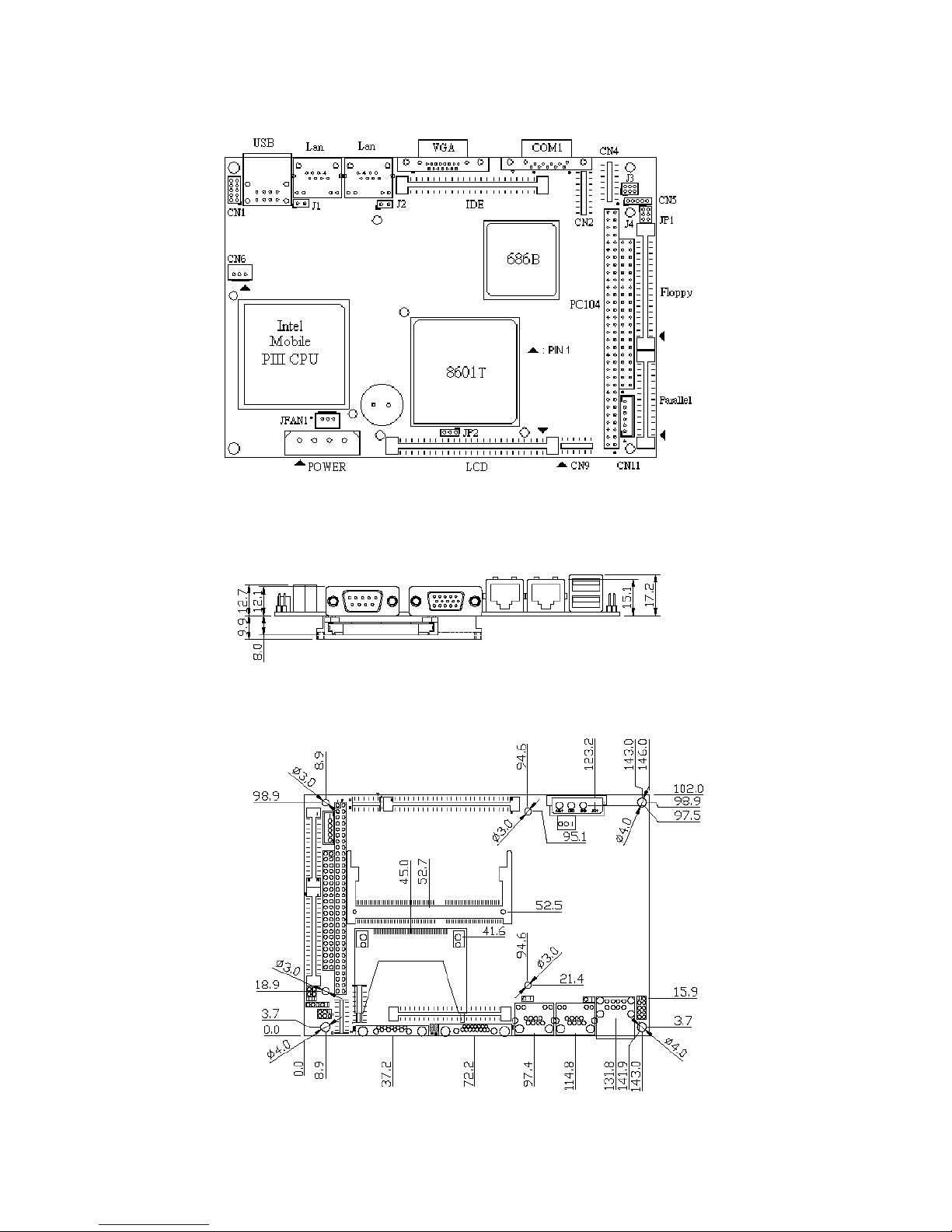

 BOARD LAYOUT

 BOARD DIMENSION – SIDE VIEW

 BOARD DIMENSION

9

2.2 Unpacking Precautions

Some components of WAFER-C400EV SBC are very sensitive to static electric
charges and can be damaged by a sudden rush of power. To protect it from
unintended damage, be sure to note these precautions:

1. Ground yourself to remove any static charge before touching the
WAFER-C400EV SBC. You can do it by using a grounded wrist strap at all
times or by frequently touching any conducting materials that is connected
to the ground.

2. Handle WAFER-C400EV SBC by its edges. Don’t touch IC chips, leads or
circuitry if not necessary.

3. Do not plug any connector or jumper while the power is on.

2.3 System Memory DRAM

There is one 144-pin SO-DIMM socket to accept 3.3V non-buffered SDRAM. The
max Memory size is 512MB.

2.4 Watch-Dog Timer Setting

Reading port 443H enables the Watchdog Timer. It should be triggered before the
time-out period ends, otherwise it will assume the program operation is abnormal
and will issue a reset signal to start again. Reading port 043/843H disables the
Watchdog Timer. Please refer to Appendix A for detailed information.

2.5 Clear CMOS Setup

If the user needs to clear the CMOS setup (for example, the user forgot the
password, then the setup should be cleared and the password should be re-set).
The user should short the JP1 about 3 seconds, and then open it again. Opening
JP1 can set the system back to normal operation mode.

 JP1: Clear CMOS Setup (Reserve Function)

JP1 DESCRIPTION
1-2 Normal Operation

2-3 Clear CMOS Setup

10

2.6 LCD VCC Voltage Selector

The LCD interface connector JP2 can provide 5V or 3.3V power supply by
selecting the JP2 to meet the different LCD requirement.

 JP2: LCD VCC Voltage Selector

JP2 DESCRIPTION
1-2 5V
2-3 3.3V

2.7 System Panel Connectors (CN9)

 Pin 1-3 System power LED connector
 Pin 5-7 ATX power on button
 Pin 9-11 IDE active LED connector
 Pin 2-8 External speaker connector
 Pin 10-12 System reset connector

PIN DESCRIPTION PIN DESCRIPTION

1 VCC 2 SPEAK
3 GND 4 NC
5 GND 6 NC
7 PS_ON 8 VCC
9 VCC 10 RESET

11 HD-LED 12 GND

11

Chapter 3 Connection

This chapter describes how to connect peripherals, switches and indicators to
the WAFER-C400EV board.

3.1 Floppy Disk Drive Connector (FDD1)

WAFER-C400EV board is equipped with a 34-pin daisy-chain driver connecting
cable.

 FDD1: FDC CONNECTOR

PIN DESCRIPTION PIN DESCRIPTION

1 GROUND 2 REDUCE WRITE
3 GROUND 4 N/C
5 GROUND 6 N/C
7 GROUND 8 INDEX#

9 GROUND 10 MOTOR ENABLE A#
11 GROUND 12 DRIVE SELECT B#
13 GROUND 14 DRIVE SELECT A#
15 GROUND 16 MOTOR ENABLE B#
17 GROUND 18 DIRECTION#
19 GROUND 20 STEP#
21 GROUND 22 WRITE DATA#
23 GROUND 24 WRITE GATE#
25 GROUND 26 TRACK 0#
27 GROUND 28 WRITE PROTECT#
29 GROUND 30 READ DATA#
31 GROUND 32 SIDE 1 SELECT#
33 GROUND 34 DISK CHANGE#

12

3.2 3.2 PCI E-IDE Disk Drive Connector (IDE1)

For IDE HDD connection, the WAFER-C400EV was designed with one 2.0mm
connector (IDE1), which could be converted to two 2.54mm standard IDE
connectors via proprietary cable. Using this cable the user can attach two IDE
hard disk drives to the WAFER-C400EV.

 IDE1: 44-pin Primary Mini-pitched IDE Interface Connector
 IDE1: Primary IDE Interface Connector

PIN DESCRIPTION PIN DESCRIPTION

1 RESET# 2 GROUND

3 DATA 7 4 DATA 8

5 DATA 6 6 DATA 9

7 DATA 5 8 DATA 10

9 DATA 4 10 DATA 11
11 DATA 3 12 DATA 12
13 DATA 2 14 DATA 13
15 DATA 1 16 DATA 14
17 DATA 0 18 DATA 15
19 GROUND 20 N/C
21 IDE DRQ 22 GROUND
23 IOW# 24 GROUND
25 IOR# 26 GROUND
27 IDE CHRDY 28 GROUND
29 IDE DACK 30 GROUND–DEFAULT
31 INTERRUPT 32 N/C
33 SA1 34 N/C
35 SA0 36 SA2
37 HDC CS0# 38 HDC CS1#
39 HDD ACTIVE# 40 GROUND
41 VCC 42 VCC
43 GROUND 44 N/C

13

3.3 Compact Flash Connector(CN12)

You can attach one Compact Flash Disk to CN12 that occupies the secondary
IDE channel. The CN12 supports both the TYPE II and TYPE I module.

 CN12: Compact Flash Connector (Secondary IDE)

PIN DESCRIPTION PIN DESCRIPTION

1 GROUND 26 VCC-IN CHECK1
2 DATA 3 27 DATA 11
3 DATA 4 28 DATA 12
4 DATA 5 29 DATA 13
5 DATA 6 30 DATA 14
6 DATA 7 31 DATA 15
7 HDC_CS0# 32 HDC_CS1
8 N/C 33 N/C

9 GROUND 34 IOR#
10 N/C 35 IOW#
11 N/C 36 N/C
12 N/C 37 INTERRUPT
13 VCC_COM 38 VCC_COM
14 N/C 39 CSEL
15 N/C 40 N/C
16 N/C 41 HDD_RESET

17 N/C 42 IORDY
18 SA2 43 N/C
19 SA1 44 VCC_COM
20 SA0 45 HDD_ACTIVE#
21 DATA 0 46 N/C
22 DATA 1 47 DATA 8
23 DATA 2 48 DATA 9
24 N/C 49 DATA 10
25 VCC-IN CHECK2 50 GROUND

14

3.4 Parallel Port (CN10)

This port is usually connected to a printer. The WAFER-C400EV includes an
on-board parallel port (CN10), accessed through a 26-pin flat-cable connector.

 CN10: Parallel Port Connector

PIN DESCRIPTION PIN DESCRIPTION

1 STROBE# 2 DATA 0

3 DATA 1 4 DATA 2

5 DATA 3 6 DATA 4

7 DATA 5 8 DATA 6

9 DATA 7 10 ACKNOWLEDGE
11 BUSY 12 PAPER EMPTY
13 PRINTER SELECT 14 AUTO FORM FEED #
15 ERROR# 16 INITIALIZE
17 PRINTER SELECT LN# 18 GROUND
19 GROUND 20 GROUND
21 GROUND 22 GROUND
23 GROUND 24 N/C
25 GROUND 26

15

3.5 Serial Posts (Com1,CN4)

The WAFER-C400EV offers two high speed NS-16C-550 compatible UARTS with
Read/Receive 16 byte FIFO serial ports, and supports RS-422/485 mode from
CN4 Pin11~14 by setting J4 connector. These ports let you connect to serial
devices or a communication network. The J3 header also provides a 1A-fuesd
+5V or +12V power out from CN4 pin 8. One 9-pin D-SUB connector and one
14-pin header are also provided. The detailed pin assignment of the connectors
is specified as following tables:

 COM1: Serial Port1 Connector (9-pin D-SUB)

PIN DESCRIPTION PIN DESCRIPTION

1 DCD 2 RX

3 TX 4 DTR

5 GND 6 DSR

7 RTS 8 CTS

9 RI

 CN4: Serial Port2 Connector (14-pin 2.0mm Header)

PIN DESCRIPTION PIN DESCRIPTION

1 DCD 2 DSR

3 RX 4 RTS

5 TX 6 CTS

7 DTR 8 RI

9 GND 10 N/C
11 TX+ 12 TX­13 RX+ 14 RX-

 J3: Com1 Pin 9 selector (2X3-pin 2.0mm Header)

PIN DESCRIPTION PIN DESCRIPTION

1 VCC 2 RI (To I/O Buffer)
3 Connect to J3 Pin6 4 RI (To Com1)
5 +12V 6 Connect to J3 Pin9

Applications:

 For normal operation, connect Pin2-4
 For VCC supply from CN4 Pin8, connect Pin1-3 and Pin4-6
 For +12V supply from CN4 Pin8, connect Pin3-5 and Pin4-6

 J4: RS-232/RS-422/485 Selector (3-pin 2.0mm Header)

 Pin 1-2 RS-232
 Pin 2-3 RS-422/RS-485

16

3.6 Keyboard & PS/2 Mouse Connector (CN11)

A 6-pin header connector (CN11) is located on the mounting bracket for easy
connection to a keyboard and PS/2 mouse. The card comes with a Y split PS/2
cable for keyboard and mouse connection.

 CN11: 2.0mm header Keyboard & Mouse Connector

PIN DESCRIPTION

1 +5V
2 MOUSE DATA
3 MOUSE CLOCK
4 KEYBOARD DATA
5 KEYBOARD CLOCK
6 GROUND

3.7 USB Port Connector (USB1)

The WAFER-C400EV provides two USB 2.0 interfaces, which give the completed
plug and play, for up to 127 external devices.

 USB1: Internal USB Connector

PIN DESCRIPTION PIN DESCRIPTION

1 USBVCC1 1 USBVCC2
2 D1F+ 2 D2F+
3 D1F- 3 D2F­4 USBGND1 4 USBGND2

3.8 IrDA Infrared Interface Port (CN5)

The WAFER-C400EV has a built-in IrDA port which supports Serial Infrared (SIR)
or Amplitude Shift Keyed IR (ASKIR) interface. To use the IrDA port, the system
has to be set to SIR or ASKIR model in the BIOS’s Peripheral.

 CN5: 1X5 2.0mm IrDA connector

PIN DESCRIPTION

1 VCC
2 NC
3 IRRX
4 GROUND
5 IR-TX

17

3.9 VGA Connector (VGA1)

The WAFER-C400EV has a built-in 15-pin VGA connector accepting the CRT
monitor.

 VGA1: 15-pin D-Sub Connector

PIN DESCRIPTION PIN DESCRIPTION

1 RED 9 NC
2 GREEN 10 GROUND
3 BLUE 11 NC
4 NC 12 DDCDAT
5 GROUND 13 HSYNC
6 GROUND 14 VSYNC
7 GROUND 15 DDCCLK
8 GROUND

3.10 LAN RJ45 Connector (P1,P2)

The WAFER-C400EV has two built-in RJ-45 LAN connectors for 10/100Mbps
Ethernet connection.

 P1,P2: LAN RJ-45 Connector

PIN DESCRIPTION PIN DESCRIPTION

1 TX+ 6 N/C
2 TX- 7 RX­3 RX+ 8 N/C
4 N/C 9 N/C

 J1 : Lan1 link indicator (2-pin 2.54mm Header)

PIN DESCRIPTION

1 3VSB
2 Active

 J2 : Lan2 link indicator (2-pin 2.54mm Header)

PIN DESCRIPTION

1 3VSB

2 Active

18

3.11 LCD Interface Connector (CN8)

The WAFER-C400EV provides a 2x25-pin connector for the LCD flat panel
interface.

The TTL signal connecting interfaces locate on CN8.The display options need to be
setup manually from BIOS. The BIOS “Integrated Peripheral” Setup will allow
you to choose display resolution either 640x480 or 800x600 or 1024x768.

 CN8: LCD Interface Connector – support up to 24 bit LCD. For better

display quality, the length of LCD cable should be shorter than 35
cm.

PIN DESCRIPTION PIN DESCRIPTION

1 NC 2 NC
3 NC 4 NC
5 NC 6 NC
7 NC 8 NC

9 NC 10 NC
11 NC 12 NC
13 NC 14 RED5
15 RED7 16 RED6
17 RED0 18 RED4
19 RED1 20 RED2
21 RED3 22 GREEN6
23 GREEN5 24 GREEN4
25 GREEN7 26 GREEN3
27 BLUE7 28 GREEN2
29 LCD POWER 30 LCD POWER
31 GREEN1 32 GREEN0
33 BLUE4 34 BLUE6
35 BLUE3 36 BLUE5
37 BLUE2 38 BLUE1
39 DE 40 BLUE0
41 SFCLK 42 ENPBLT
43 ENPVDD 44 FLM
45 ENPVEE 46 LP
47 GND 48 GND
49 +12V 50 +12V

19

3.12 External Power Connector (CN7)

The WAFER-C400EV has an on-board external power connector CN7. You can
connect power directly to the CPU board.

 CN7: External Power Connector

PIN DESCRIPTION

1 +5V

2 GROUND

3 GROUND

4 +12V

3.13 ATX Power connector (CN6)

 CN6: ATX Power connector

PIN DESCRIPTION

1 5VSB

2 PSON

3 GND

20

3.14 PC/104 Connection Bus (J5, J6)

The WAFER-C400EV PC/104 expansion bus let you attach any kind of PC/104
modules. The PC/104 bus has already become the industrial embedded PC bus
standard, so you can easily install over thousands of PC/104 modules from
hundreds of vendors in the world. There are two PC/104 connectors on this board:
PC/104-64 and PC/104-40.

 J5: PC/104-64 Connector

PIN DESCRIPTION PIN DESCRIPTION

1 IOCHCK# 33 GND
2 SD7 34 IRSTDRV
3 SD6 35 VCC
4 SD5 36 IRQ9
5 SD4 37 -5V
6 SD3 38 DRQ2
7 SD2 39 -12V
8 SD1 40 ZWS

9 SD0 41 +12V
10 IOCHRDY 42 GND
11 AEN 43 SMEMW#
12 LA19 44 SMEMR#
13 LA18 45 IOW#
14 LA17 46 IOR#
15 SA16 47 DACK3#
16 SA15 48 DRQ3
17 SA14 49 DACK1#
18 SA13 50 DRQ1
19 SA12 51 REFRESH#
20 SA11 52 SYSCLK
21 SA10 53 IRQ7
22 SA9 54 N/C
23 SA8 55 IRQ5
24 SA7 56 IRQ4
25 SA6 57 IRQ3
26 SA5 58 DACK2
27 SA4 59 TC
28 SA3 60 BALE
29 SA2 61 VCC
30 SA1 62 OSC
31 SA0 63 GND
32 GND 64 GND

21

 J6: PC/104-40 Connector

PIN DESCRIPTION PIN DESCRIPTION

1 GND 21 GND

2 MCS16# 22 SBHE#

3 IOCS16# 23 LA23

4 IRQ10 24 LA22

5 IRQ11 25 LA21

6 IRQ12 26 LA20

7 IRQ15 27 LA19

8 IRQ14 28 LA18

9 DACK0# 29 LA17
10 DRQ0 30 MEMR#
11 DACK5# 31 MEMW#
12 DRQ5 32 SD8
13 DACK6# 33 SD9
14 DRQ6 34 SD10
15 DACK7# 35 SD11
16 DRQ7 36 SD12
17 VCC 37 SD13
18 MASTER# 38 SD14
19 GND 39 SD15
20 GND 40 GND

3.15 4-BIT GPIO Connector (CN1)

 CN1: 4 BIT GPIO Connector

PIN DESCRIPTION PIN DESCRIPTION

1 GND 2 VCC

3 GPI0 4 GPO0

5 GPI1 6 GPO1

7 GPI2 8 GPO2

9 GPI3 10 GPO3

3.16 Fan Connector (JFAN1)

PIN DESCRIPTION

1 Fan Speed Detect

2 +12V

3 GND

22

3.17 Audio Connector (CN2)

PIN DESCRIPTION PIN DESCRIPTION

1 Speaker out R 2 GND

3 Speaker out L 4 GND

5 Line out L 6 Line out R

7 GND 8 GND

9 Line in L 10 Line in R

11 GND 12 GND
13 GND 14 GND
15 MIC in 16 GND

23

Chapter 4 AMI BIOS Setup

4.1 Introduction

This chapter discusses AMI's setup program built into the ROM BIOS. The setup
program allows users to modify the basic system configuration. This special
information is then stored in battery-backed RAM so that it retains the setup
information when the power is turned off.

4.2 Starting Setup

The AMI BIOS is immediately activated when you first boot up the computer. The
BIOS reads the system information contained in the CMOS and begins the process
of checking out the system and then configures it . When it finishes, the BIOS will
seek an operating system on one of the disks and then launch and pass the
control over to the operating system.
While the BIOS is in charge, the Setup program can be activated in one of the
following ways:

1. By pressing <Del> immediately after switching the system on, or

2. By pressing the <Del>key when the following message appears briefly at the
bottom of the screen during the POST.

Press DEL to enter SETUP.

If the message disappears before you respond and you still wish to enter Setup,
press the “RESET” button on the chassis or turn the power off then turn it back
on to restart the system then you can try again. You may also restart by
simultaneously pressing <Ctrl>, <Alt>, an d <Delete> keys. If you do not press
the keys at the correct moment and the system does not boot, an error message
will be displayed and you will again be asked to...

PRESS F1 TO ENTER SETUP OR PRESS F2 TO CONTINUE

24

4.3 Using Setup

In general, use the arrow keys to highlight options, press <Enter> to select, use
the PageUp and PageDown keys to change entries, press <F1> for help and press
<Esc> to quit. The following ta ble provides more detail about how to navigate in
the Setup program.

Up arrow Move to previous option
Down arrow Move to next option
Left arrow Move to the option in the left column
Right arrow Move to the option in the right column
Esc key Main Menu -- Quit and not save changes into CMOS

Status Page Setup Menu and Option Page Setup Menu -- Exit current

page and return to Main Menu
PgUp key Increase the numeric value or make changes
PgDn key Decrease the numeric value or make changes
+ key Increase the numeric value or make changes

- key Decrease the numeric value or make changes
F1 key General help, only for Status Page Setup Menu and Option Page Setup

Menu
F2 /F3 key Change color from total 16 colors. F2 to select color forward, (Shift)

F2 to select color backward
F4 key Reserved
F5 key Reserved
F6 key Reserved
F7 key Reserved
F8 key Reserved
F9 key Reserved
F10 key Save all the CMOS changes, only for Main Menu

4.4 Getting Help

Press F1 to pop up a small help window that describes the appropriate keys to
use and the possible selections for the highlighted item. To exit the Help Window
press <Esc> or the F1 key again.

If, after making and saving system changes with Setup, you discover that your
computer is no longer able to boot, the AMI BIOS supports an override to the
CMOS settings which can reset your system to its defaults.

The best advice is to alter only the settings which you thoroughly understand. To
this end, we strongly recommend not to make any changes to the chipset defaults.
These defaults have been carefully chosen by both AMI and the system
manufacturer to provide the optimum performance and reliability. Even a
seemingly little change to the chipset setup may shut the system down and need
the override program to reset it.

25

4.5 Main Menu

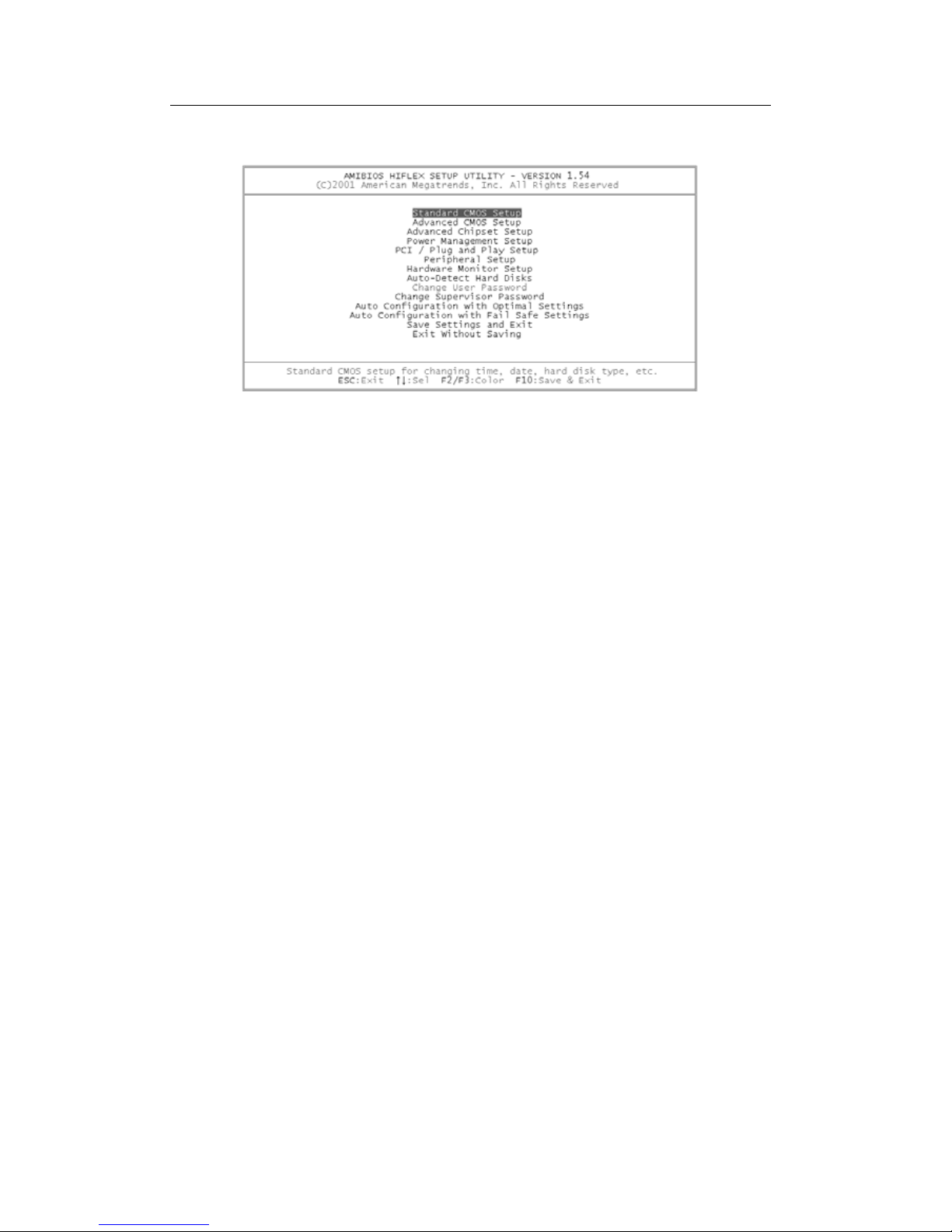

Once you enter the AMIBIOS™ CMOS Setup Utility, the Main Menu will appear on
the screen. The Main Menu allows you to select from several setup functions and
two exit choices. Use the arrow keys to select among the option and press
<Enter> to accept and enter the sub-menu.
Note that a brief description of each highlighted selection appears at the bottom
of the screen.
The main menu includes the following main setu p categories. Recall that some
systems may not include all entries.

 Standard CMOS Setup

Use this menu for basic system configuration.

 Advanced CMOS Setup

Use this menu to set the Advanced Features available on your system.

 Advanced Chipset Setup

Use this menu to change the values in the chipset registers and optimize the
system's performance.

 Power Management Setup

When Disabled, SMI will not be initialized, and complete power management
functionality is removed unless this option is set to Enabled.

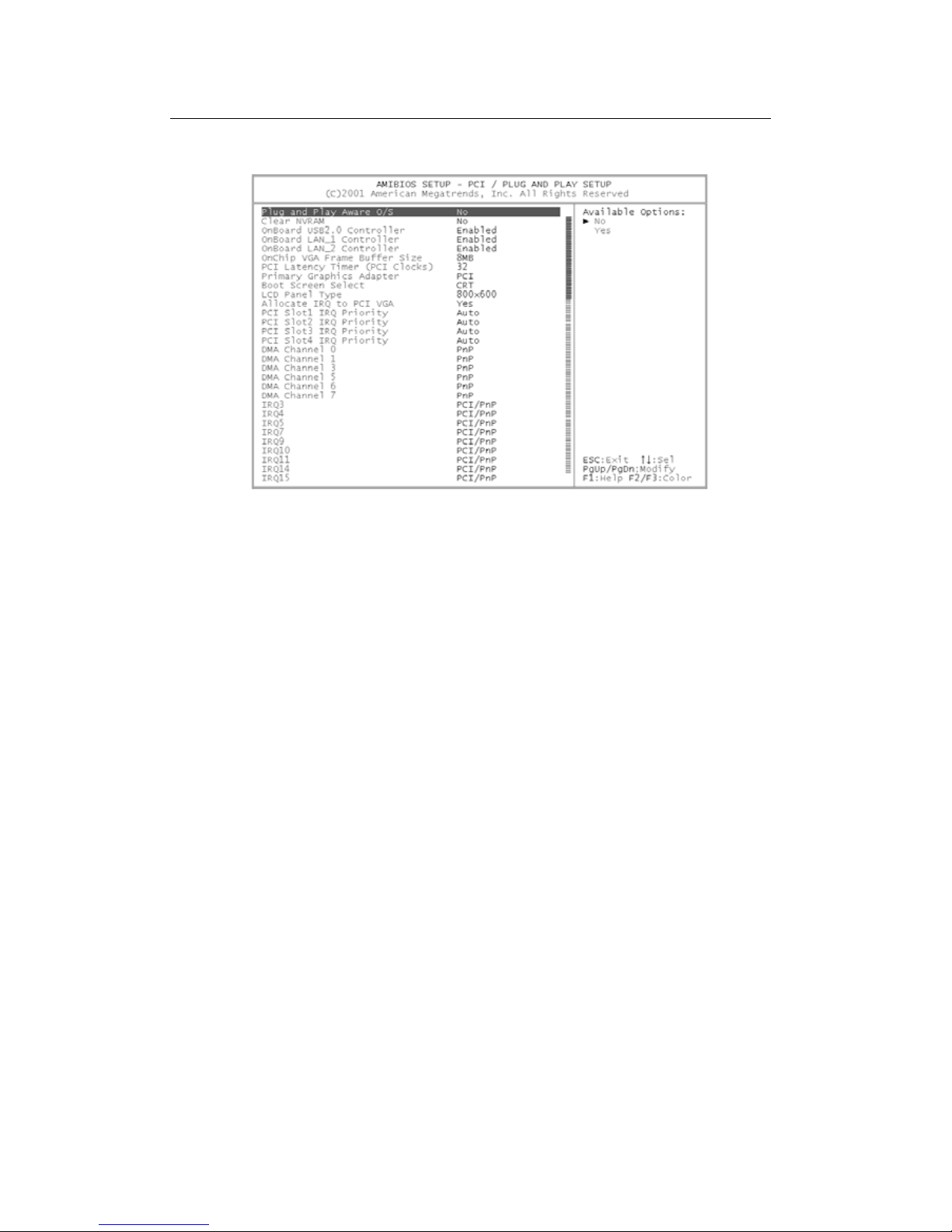

 PCI / Plug and Play Setup

This entry appears if your system supports PnP / PCI.

 Peripheral Setup

Use this menu to specify your settings for integrated peripherals.

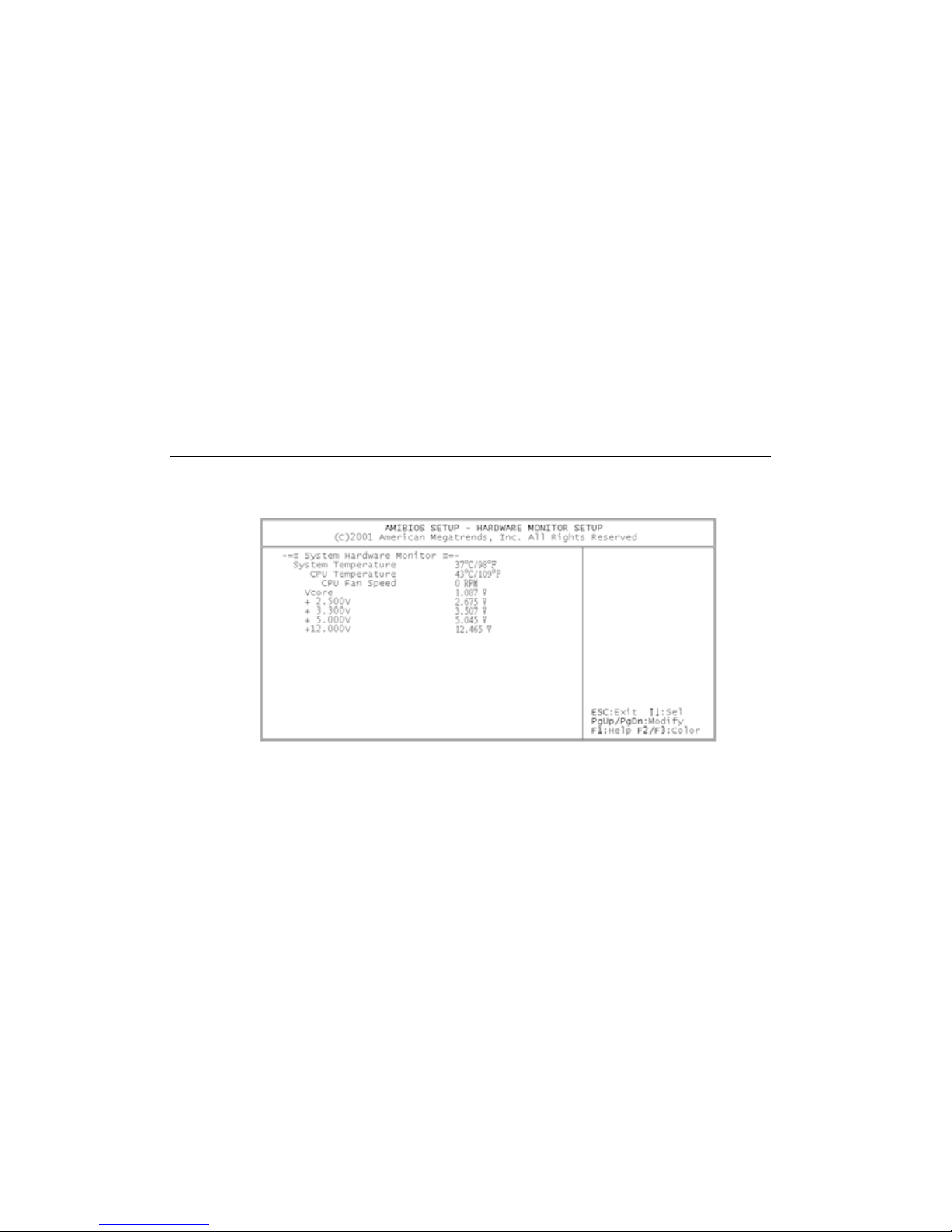

 Hardware Monitor Setup

Use this menu to monitor your hardware.

26

 Auto-detect Hard Disks

Use this menu to specify your settings for hard disks control.

 Change Supervisor Password

Use this menu to set User and Supervisor Passwords.

 Auto Configuration with Optimal Settings

Use this menu to load the BIOS factory settings for optimal system
performance. While AMI has been designed the custom BIOS to optimize
performance, the factory has the right to change these defaults to meet its
needs.

 Auto Configuration with Fail-Safe Settings

Use this menu to load the BIOS default values for the safe and stable system
performance.

 Save Settings and Exit

Save CMOS value changes to CMOS and exit setup.

 Exit Without Saving

Abandon all CMOS value changes and exit setup.

27

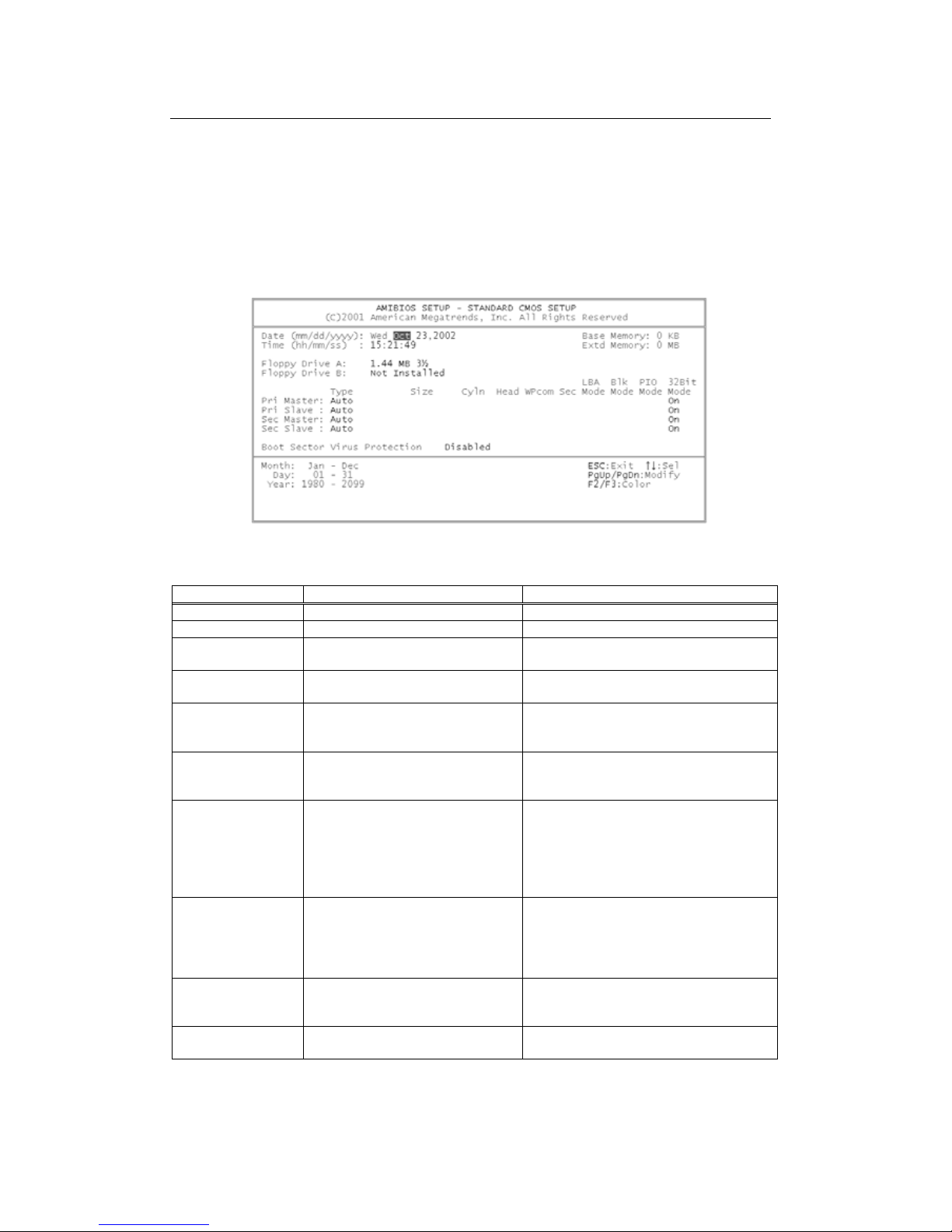

4.6 Standard CMOS Setup

The options in Standard CMOS Setup Menu are divided into 10 categories. Each
category includes none, one or more than one setup options. Use the arrow keys
to highlight the option and then use the <PgUp> or <PgDn> keys to select the
value you want for each option.

 Main Menu Selections

Item Options Description

Date MM DD YYYY Set the system date.
Time HH : MM : SS Set the system time
IDE
Primary Master

Options are in its sub menu
(Described in Table 3)

Press <Enter> to enter the sub

menu for more options
IDE
Primary Slave

Options are in its sub menu
(Described in Table 3)

Press <Enter> to enter the sub

menu for more options
IDE
Secondary

Options are in its sub menu
(Described in Table 3)

Press <Enter> to enter the sub

menu for more options

IDE
Secondary

Options are in its sub menu
(Described in Table 3)

Press <Enter> to enter the sub

menu for more options

Drive A
Drive B

None
360K, 5.25 in

1.2M, 5.25 in
720K, 3.5 in

1.44M, 3.5 in

2.88M, 3.5 in

Select the type of floppy disk drive

installed in the system

Halt On All Errors

No Errors
All, but Keyboard
All, but Diskette
All, but Disk/Key

Select the status in which you want

the BIOS to stop the POST

processes and notify you

Base Memory N/A Displays the amount of

conventional memory detected

during boot up
Extended
Memory

N/A Displays the amount of extended

memory detected during boot up

28

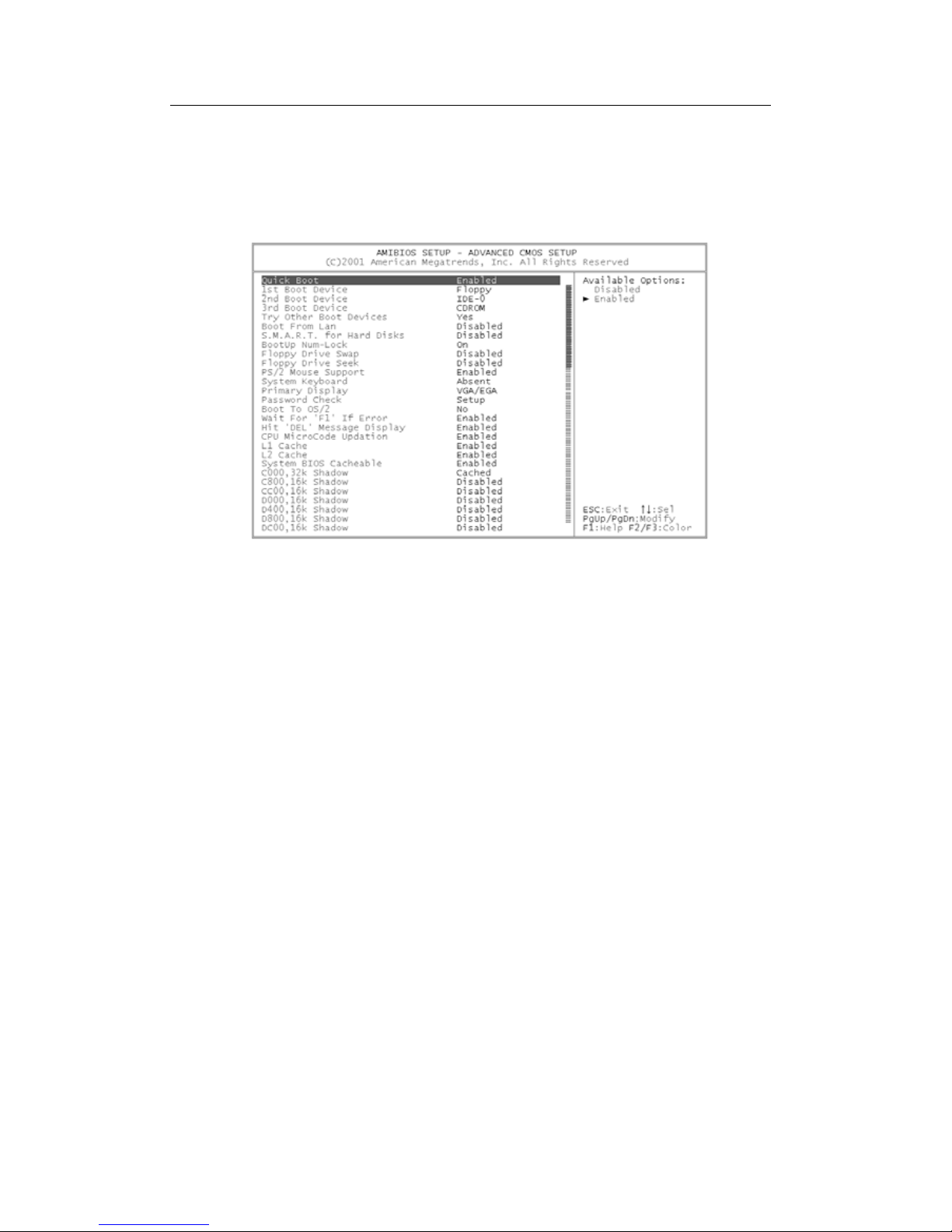

4.7 Advanced CMOS Setup

This section allows you to configure your system for basic operation. You have
the opportunity to select the system’s default speed, boot-up sequence,
keyboard operation, shadowing and security.

 Quick Boot

When this option is set to enable, DRAM testing function will be disable.

 1st /2nd /3rd Boot Device

This option sets the type of device for the first boot drives that the AMIBIOS
attempts to boot from after AMIBIOS POST completes. The settings are
Disabled, IDE-0, IDE-1, IDE-2, IDE-3, Floppy, ARMD-FDD, ARMD-HDD,
CDROM, SCSI.

 Try Other Boot Devices

The options are Yes or No. Set this setting to Yes to instruct AMIBIOS to
attempt to boot from any other drive in the system if it cannot find a boot
drive among the drives specified in the 1st Boot Device, 2nd Boot Device,
3rd Boot Device, 4th Boot Device options.

 Boot From LAN

When setting Enable, bios will load LAN’s Boot Rom and try to boot the
system from LAN.

 S.M.A.R.T. for Hard Disks

S.M.A.R.T. stands for Self-Monitoring, Analysis and Reporting Technology.
This setting can help BIOS to warn the user of the possible device failure and
let the user back up the device before actual failure happens. The options are
Disabled, Enabled.

29

 Boot Up Num-Lock

If the user wants the Num-Lock function to be turned on during the boot-up
period so that the user can use the key pad on the keyboard right after the
system starts, please select ON to do so. Otherwise, select OFF.

 Floppy Drive Swap

This setting decides whether drives A: and B: can be swapped or not. The
options are Enabled or Disabled.

 Floppy Drive Seek

This setting is whether to enable floppy drives A: to perform a Seek
operation at system boot process. The options are Enabled or Disabled.

 PS/2 Mouse Support

When this setting is enabled, BIOS support a PS/2- type mouse.

 System Keyboard

This won’t be specified if a keyboard is attached to the computer. Otherwise,
when there’s no keyboard detected and an error message is displayed, this
setting can be marked as needed. This setting permits you to configure
workstation with no keyboard. The options are Absent, Present.

 Primary Display

This setting is to configure the type of monitor attached to the computer. The
settings are Monochrome, Color 40x25,Color 80x25,VGA/PGA/EGA ,or Not
Install.

 Password Check

This option enables the password check option every time the system boots
or the end user runs Setup. If always is chosen a user password prompt
appears every time the computer is tuned on. If setup is chosen, the
password prompt appears if BIOS is executed.

 Boot To OS/2

Set this option to YES if running OS/2 operating system and using more than
64MB of system memory on the motherboard. The options are YES or NO.

 Wait For 'F1' If Error

If this setting is enabled, AMIBIOS waits for the end user to press <F1>
before continuing. If this option is disabled, AMIBIOS continues the boot
process without waiting for <F1> to be pressed. The options are Disabled or
Enabled.

 Hit 'DEL' Message Display

Disabling this setting prevents "Hit <DEL> if you want to run Setup" from
appearing when the system boots. The options are Disabled or Enabled.

30

 CPU MicroCode Update

When setting Enable, Bios will load CPU Microcode.

 L1 Cache

The setting enabled or disabled the L1 cache memory in the processor.

 L2 Cache

The setting enables L2 cache memory. If Enabled is selected, L2 cache
memory is enabled. If disabled is select, L2 cache memory is disabled.

 System BIOS Cacheable

When this setting is set to enabled, the System ROM area from F0000-FFFFF
is copied (shadowed) to RAM for faster execution.

 C000, 32k Shadow

This setting is about the contents inside the Video ROM area form
C000-C7FFF, which influences the speed of execution.
Disabled: The contents of the video ROM are not copied to RAM.

Cached: The contents of the video ROM area from C0000h - C7FFFh

are copied from ROM to RAM and can be written to or read
from cache memory.

Enabled: The contents of the video ROM area from C0000h - C7FFFh

are copied (shadowed) from ROM to RAM for faster
execution.

 C800, 16k Shadow

These settings enable shadowing of the contents of the ROM area named in
the option title. The options are Enable Disable, Cached. The ROM area that
is not used by ISA adapter cards will be allocated to PCI adapter cards.000,
32k Shadow.

 CC00, 16k Shadow

These settings enable shadowing of the contents of the ROM area named in
the setting title. The settings are Enable Disable, Cached. The ROM area that
is not used by ISA adapter cards will be allocated to PCI adapter cards.800,
16k Shadow.

 D000, 16k Shadow

These settings enable shadowing of the contents of the ROM area named in
the setting title. The options are Enable, Disable, and Cached. The ROM area
that is not used by ISA adapter cards will be allocated to PCI adapter
cards.C00, 16k Shadow.

31

 D400, 16k Shadow

These settings enable shadowing of the contents of the ROM area named in
the setting title. The options are Enable, Disable, and Cached. The ROM area
that is not used by ISA adapter cards will be allocated to PCI adapter
cards.000, 16k Shadow.

 D800,16k Shadow

These settings enable shadowing of the contents of the ROM area named in
the setting title. The options are Enable, Disable, and Cached. The ROM area
that is not used by ISA adapter cards will be allocated to PCI adapter
cards.400, 16k Shadow.

 DC00, 16k Shadow

These settings enable shadowing of the contents of the ROM area named in
the setting title. The options are Enable, Disable, and Cached. ISA adapter
cards will be allocated to PCI adapter cards.800, 16k Shadow.

32

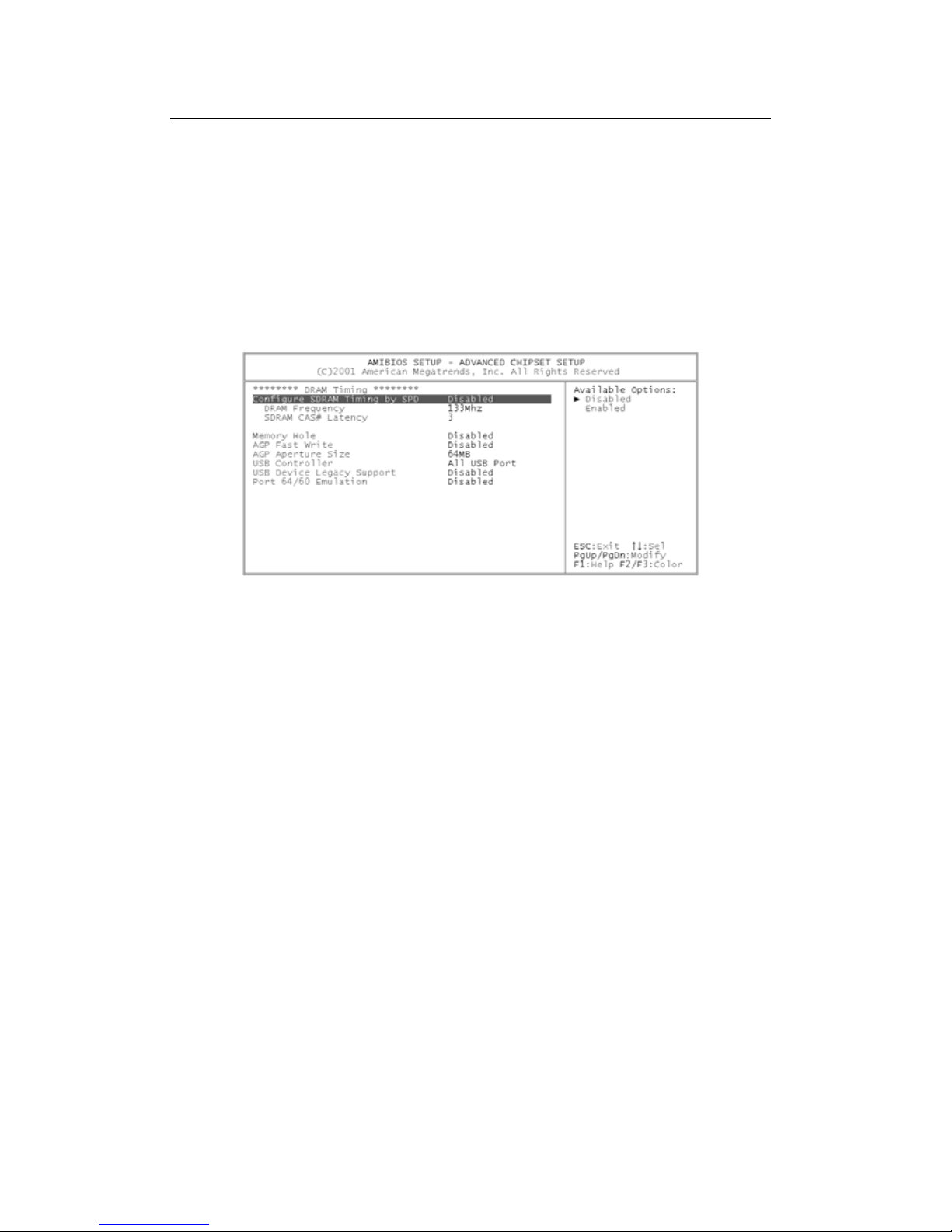

4.8 Advanced Chipset Setup

This section allows you to configure the system based on the specific features of
the installed chipset. This chipset manages bus speeds and access to system
memory resources, such as DRAM and the external cache. It also coordinates
communications between the conventional ISA bus and the PCI bus. It must be
stated that these items should never need to be altered. The default settings
have been chosen because they provide the best operating conditions for your
system.

 Configure SDRAM Timing by SPD

When setting Enable, bios will use the data from DIMM’s SPD to setup the
DRAM timing. Disable the setting, bios will use default set tin g.

 DRAM Frequency

This setting is setting Memory working frequency, 66/100/133 MHz.

 SDRAM CAS# Latency

This setting is setting Memory CAS latency

 AGP Aperture Size

This is about the size of AGP aperture. The aperture is a portion of the PCI
Memory addresses space. Host cycles that hit the aperture range are
forwarded to the AGP without any translation

 USB Controller

Select enable if your system contains a USB controller and you have USB
Peripherals. Otherwise, select disable.

 USB Device Legacy Support

Enable or Disable the USB device legacy support.

 Port 64/60 Emulation

Enable or Disable the USB KB/MS legacy support.

33

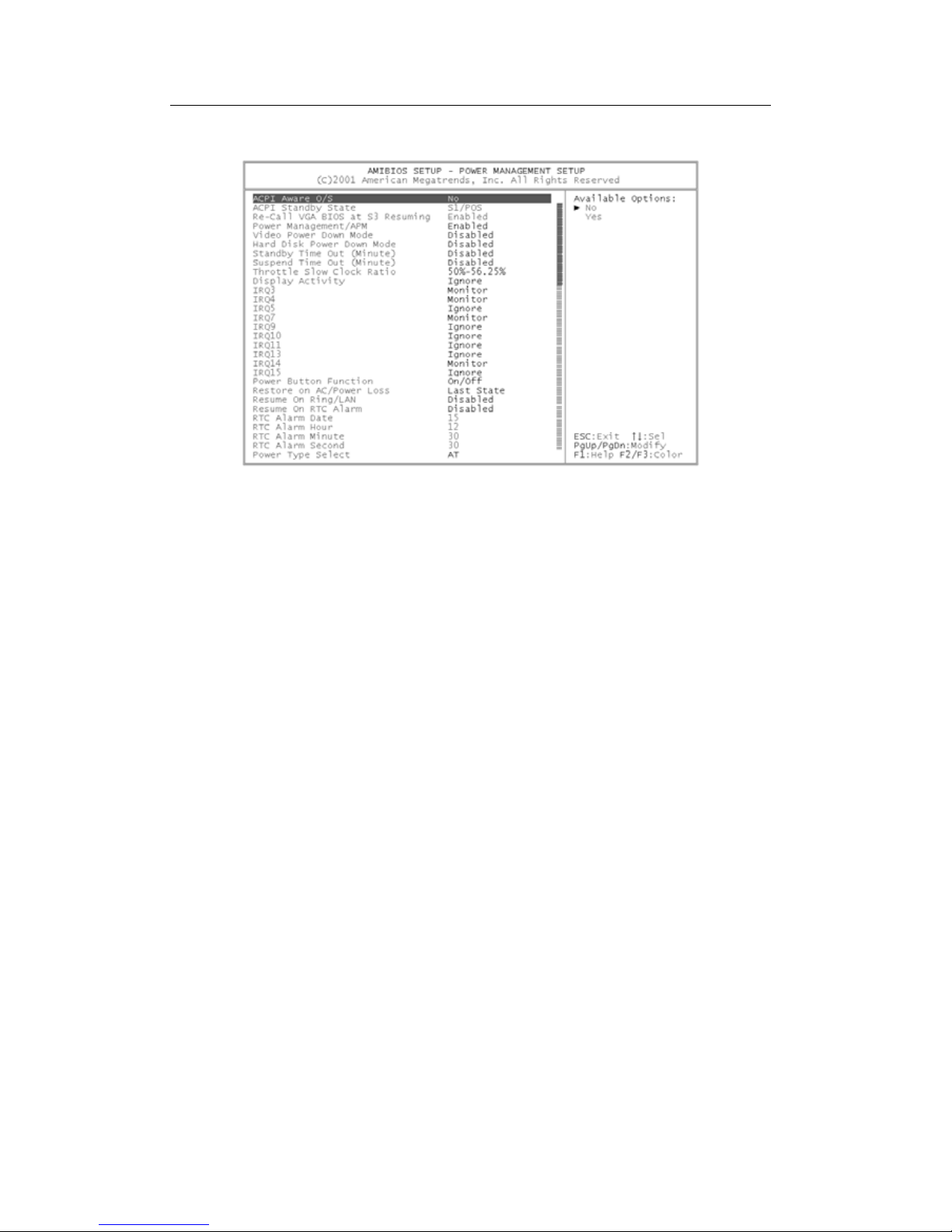

4.9 Power Management Setup

 ACPI Aware O/S

This feature is the switch of ACPI function. Configuration options : [No]
[Yes]

 ACPI Standby State

This feature is the switch of STR (S3) or POS (S1) function. Configuration
options: [S3/STR] [S1/POS]

 Re-Call VGA BIOS at S3 Resuming

Enable or Disable system load the VGA bios after S3 state.

 Power Management/APM

When Disabled, SMI will not be initialized, and the complete power
management functionality is removed unless this option is set to Enabled.

 Video Power Down Mode

Hard Disk Power Down Mode
Standby Time Out (Minute)
Suspend Time Out (Minute)

If no activity occurs during this time period, the BIOS will place the system
into the suspended low power state.

 Throttle Slow Clock Ratio

Display Activity
IRQ3 ,4 ,5 ,7 , 9, 10, 11, 13, 14, 15

The factory defaults assigned IRQ3, 4, 7, and 14 to the Monitor. When other
external devices using the same IRQ numbers as of the Monitor start, the
Monitor will be waked up from the power saving state by these devices.

The user can assign the other IRQ numbers available here to the Monitor.
Just highlight the IRQ number and set the value to Monitor.

34

 Resume on Ring/LAN

Allows the user to decide to resume the system from Soft Off state by either
LAN or Modem Ring.

 Resume On RTC Alarm

When this setting is enabled, the system will wakeup from soft off mode
according to the time you set.

 Power Type Select

This setting allows the user to choose the power type for AT or ATX.

35

4.10 PCI / Plug and Play Setup

 Plug and Play Aware O/S

If enabled, BIOS will configure only PnP ISA boot devices(i.e. all PnP ISA
cards which has boot flag set). And PnP aware OS will configure all oth er
devices. If disabled, BIOS will configure all devices.

 Clear NVRAM

When set to Yes, system can clear NVRAM automatically. The options are No,
Yes.

 Onboard USB2.0 controller

Select to enable or disable the controller.

 Onboard Lan1 controller

Select to enable or disable the controller.

 Onboard Lan2 controller

Select to enable or disable the controller.

 On Chip VGA Frame Buffer Size

This is for selecting frame buffer size (2~32MB) for VGA.

 PCI Latency Timer (PCI Clocks)

This setting specifies the latency timings (in PCI clocks) for PCI devices
installed in the PCI expansion slots. The options are 32, 64, 96, 128, 160,
192, 224, or 248.

 Primary Graphics Adapter

Boot Screen Select

This setting is to specify Boot Screen. .Select Both will Boot from CRT and
LCD Both.

36

 LCD Panel Type

This setting is to choose LCD Panel Type

 Allocate IRQ to PCI VGA

Choose Yes to allocate an IRQ to the VGA device on the PCI bus. The other
option is No.

 PCI Slot1 / Slot2 / Slot3 / Slot4 IRQ Priority

The setting specifies the IRQ priority for PCI device installed in the PCI
expansion slot. The options are Auto, (IRQ) 3, 4, 5, 7, 9, 10, and 11, in
priority order.

37

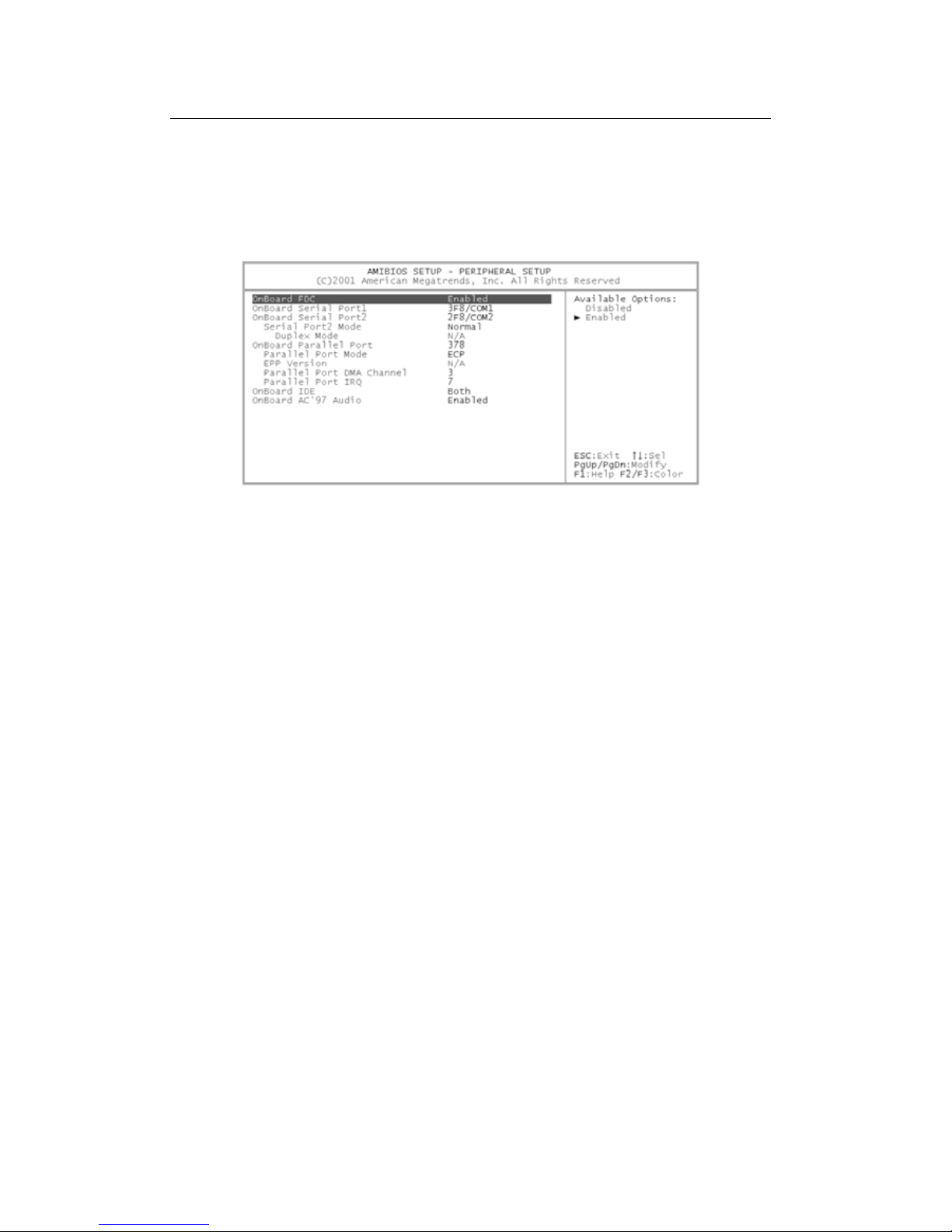

4.11 Peripheral Setup

The Peripheral Setup allows the user to configure the system to the most
effectively power saving mode while operating in a consistent manner with your
own style of computer use.

 Onboard FDC

Onboard Serial Port 1/Port 2

This setting specifies the base I/O port address of serial port 1.The option
are Auto (AMIBIOS automatically determines the correct base I/O port
address) , Disabled, 3F8h, 2F8h, 2E8h, or 3E8h.

 Onboard Parallel Port

This setting specifies the base I/O port address of parallel port on the
motherboard. The options are Disabled, 378h, 278h, or 3BCh.

 Parallel Port Mode

This setting specifies the parallel port mode. The options are Normal, Bi-Dir,
EPP, ECP.

Normal: The normal parallel port mode is used.
Bi-Dir : To support bidirectional transfers on the parallel port.
EPP: The parallel port can be used with devices that adhere to the

Enhanced Parallel Port(EPP) specification. EPP uses the existing
parallel port signals to provide asymmetric bidirectional data
transfer driven by the host device.

ECP: The parallel port can be used with devices that adhere to the

Extended Capabilities Port (ECP) specification. ECP uses the
DMA protocol to achieve data transfer rates up to 2.5 Megabits
per second. ECP provides symmetric bi-directional
communication.

38

 EPP Version

EPP data or address read cycle 1.9 or 1.7

 Parallel Port IRQ

This setting specifies the IRQ used by the parallel port. The options are Auto,
(IRQ)5, (IRQ)7.

 Parallel Port DMA Channel

This setting is available only if the setting for the Parallel Port Mode option is
ECP. This setting makes the DMA channel used by the parallel port. The
options are DMA Channel 0, 1, or 3.

 On Board AC’97 Audio

Enable or Disable AC’97 Audio Function.

4.12 Hardware Monitor Setup

39

4.13 Change Supervisor Password

You can set passwords for either supervisor or user password, or for both of them.
The differences between them are:

 Supervisor Password:

It’s used to enter and change the settings of the setup menus.

 User Password:

It’s used to only access the setup menus, but can’t change anything of it.
When you select this option, the following message will appear at the center
of the screen to assist you in creating a password.

 ENTER PASSWORD:

Type the password, up to eight characters in length, and press <Enter>. The
password typed now will clear any previously existing password within CMOS
memory. You will be prompted to confirm the password. Type the password
again and press <Enter>. You may also press <Esc> to abort the selection
and not to enter a password.
To disable a password, just press <Enter> when you are prompted to enter
the password. A message which ask you to confirm the password will be
disabled. Once the password is disabled, the system will boot and you can
enter Setup freely.

 PASSWORD DISABLED.

When a password has been enabled, you will be prompted to enter it every
time you try to enter Setup. This prevents an unauthorized user from
changing any bit of your system configuration.
Additionally, when a password is enabled, you can also require the BIOS to
request a password every time the system is booting. This would prevent
unauthorized uses of your computer.
The user can determine whether the password is needed for entering BIOS
Setup Program or other Security options (see Section 4.5). Once the
Password has been set, The user will be prompted to enter the password at
the beginning of booting and at the entry to Setup Menu.

40

Appendix A Watchdog Timer

The Watchdog Timer is a device to ensure that standalone systems can always
recover from catastrophic conditions that cause the CPU to crash. This condition
may have occurred by external EMI or a software bug. When the CPU stops
working normally, hardware on the board will perform hardware reset (cold boot)
to bring the system back to a known state.

Three I/O ports control the Watchdog Timer:

443 Write Set Watchdog Time period

443 (hex) Read Enable the refresh the Watchdog Timer

043/843 (hex) Read Disable the Watchdog Timer

Prior to enable the Watchdog Timer, user has to define Timer first. The output
data is a value of time interval and the range of the value is from 01(hex) to FF
(hex) and time interval 1 sec to 255 sec.

DATA TIME INTERVAL

01 1 sec
02 2 sec
03 3 sec
04 4 sec

- - - -

FF 255 sec

This will enable and activate the countdown timer which eventually time ou t and
reset the CPU to ensure that this reset condition does not occur; the Watch-Dog
Timer must be periodically refreshed by reading the same I/O port 043/843H
and 443H. This must be done within the time out period that is selected by
software, please refer to the example program.

A tolerance of at least 5% must be maintained to avoid unknown routines within
the operating system (DOS), such as disk I/O that can be very time consuming.
Therefore if the time-out period has been set to 10 seconds, the I/O port 443H
must be read within 7 seconds.

Note: When exiting a program it is necessary to disable the Watchdog Timer,

otherwise the system will reset.

41

Example Assembly Program

:

TIMER_PORT = 443H
TIMER_START = 443H
TIMER_STOP = 843H

;;INITIAL TIME PERIOD COUNTER
MOV DX, TIME_PORT
MOV AL,8: ;;8 SECONDS
OUT DX,AL

;;ADD YOUR APPLICATION HERE
MOV DX, TIMER_START
IN AL, DX. ;;START COUNTER

;ADD YOUR APPLICATION HERE
W_LOOP:
MOV DX, TIMER_STOP
IN AL, DX
MOV DX, TIMER_START
IN AL, DX. ; RESTART COUNTER

; ADD YOUR APPLICATION HERE
CMP EXIT_AP, 0
JNE W_LOOP
MOV DX, TIMER_STOP
IN AL, DX
;;EXIT AP

42

Appendix B Digital I/O

One characteristic of digital circuit is its fast response to high or low signal. This
kind of response is highly needed for harsh and critical industrial operating
environment. That’s why we design 4-bit digital inputs and 4-bit digital outputs
on the WAFER-C400EV.
Digital Input and Output, generally, are control signals. You can use these signals
to control external devices that needs On/Off circuit or TTL devices. You can read
or write data to the selected address to enable the function of digital IO.

A BIOS function call (INT 15H) is used to control the Watchdog Timer:

 INT 15H:

AH – 6FH

Sub-function:

AL – 8 : Set the Digital port is INPUT
AL : Digital I/O input value

Example Program:

MOV AX, 6F08H ;setting the Digital port is input
INT 15H ;

 AL low byte = value

AH – 6FH

Sub-function:

AL – 9 : Set the Digital port is OUTPUT
BL : Digital I/O output value

Example program:

MOV AX, 6F09H ;setting the Digital port is output
MOV BL, 09H ;Digital value is 09H
INT 15H ;Digital Output is 1001b

43

Appendix C I/O Address Map

 C.1 System I/O Address Map

I/O ADDRESS MAP DESCRIPTION

000-00F DMA controller #1
020-021 Interrupt controller # 1, master
022-023 Chipset address
040-043 System timer
060-060 Standard 101/102 keyboard controller
061-061 System speaker
064-064 Standard 101/102 keyboard controller
070-07F Real time clock, NMI controller
080-0BF DMA page register
0A0-0BF Interrupt Controller # 2
0C0-0DF DMA Controller # 2
0F0-0F0 Clear math coprocessor busy
0F1-0F1 Reset math coprocessor
0F8-OFF Math coprocessor
1F0-1F7 BUS master PCI IDE controller
278-27F Reserved
2F8-2FF Serial Port 2
378-37F Parallel Printer Port 1
3B0-3DF Graphic Adapter
3F0-3F7 Floppy Disk Controller
3F8-3FF Serial Port 1
443 Watch dog timer enable
043/843 Watch dog timer disable

 C.2 DMA Channel Assignments

CHANNEL FUNCTION

0 Available
1 Available
2 S tandard floppy disk controller
3 Parallel port*
4 Cascade for DMA controller 1
5 Available
6 Available
7 Available

* parallel port DMA default setting: DMA 3
parallel port DMA select: DMA 1 or 3

44

 C.3 Interrupt Assignments

INTERRUPT # INTERRUPT SOURCE

NMI Parity error detected
IRQ 0 System timer
IRQ 1 Keyboard
IRQ 2 Interrupt from controller 2 (cascade)
IRQ 3 Serial communication port 2
IRQ 4 Serial communication port 1
IRQ 5 Available
IRQ 6 Standard floppy disk controller
IRQ 7 Parallel port (print port)
IRQ 8 Real-time clock
IRQ 9 Available
IRQ 10 Available
IRQ 11 Available
IRQ 12 PS/2 mouse
IRQ 13 Numeric data processor
IRQ 14 Fixed primary IDE controller
IRQ 15 Fixed secondary IDE controller

Ethernet IRQ is automatically set by the system.

 C.4 1st MB Memory Map

ADDRESS DESCRIPTION

F000h-FFFFh System BIOS
EF00h-EFFFh Expansion ROM*
C800h-EEFFh Unused
C000h-C7FFh VGA BIOS*
B000h-BFFFh VGA DRAM
A000h-AFFFh VGA DRAM
0000h-9FFFh Base memory

* Default setting
