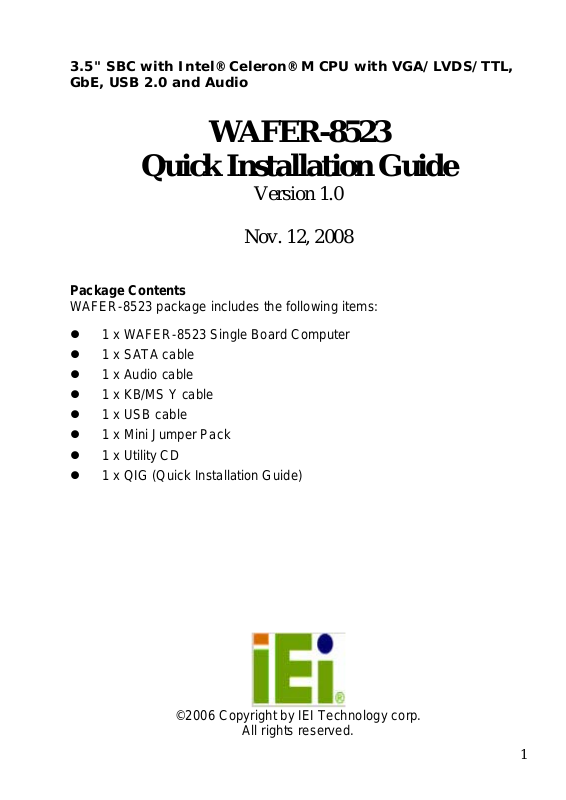

Page 1
3.5" SBC with Intel® Celeron® M CPU with VGA/LVDS/TTL,
GbE, USB 2.0 and Audio
WAFER-8523
Quick Installation Guide
Version 1.0
Nov. 12, 2008
Package Contents
WAFER-8523 package includes th e fo llowing items:
z 1 x WAFER-8523 Single Board Computer
z 1 x SATA cable
z 1 x Audio cable
z 1 x KB/MS Y cable
z 1 x USB cable
z 1 x Mini Jumper Pack
z 1 x Utility CD
z 1 x QIG (Quick Installation Guide)
©2006 Copyright by IEI Technology corp.
All rights reserved.
1
Page 2
Specifications
z CPU: On board Inte l® Celeron® M 600MHz 512K cach e / 1.0GHz
zero cache processor with a 400MHz FSB
z System Chipset: Intel 852GME+ICH4
z BIOS: AMI Flash BIOS
z System memory: 1x 200-Pin DDR SO-DIMM SDRAM 200/ 266MHz
up to 1GB
z Ethernet:
One Realtek RTL8110SC GbE chipset
z I/O Interface:
1 x SATA by IDE to SATA chip ULI-JMICRON JM20330
2 x USB 2.0
1 x RS-232
1 x RS-232/422/485
1 x PS/2 KB/MS
1 x LPT
z Expansions: 1 x PC-104 (for 16-bit ISA DMA support, by PCI to ISA
chip: ITE IT8888G)
z SSD: CF type I/II
z Audio: Realtek ALC655 with AC'97 codec
z Infrared Interface: 1x Infrared Interfac e pin-he ader by super I/O : ITE
IT8718F
z Super I/O: ITE IT8718F
z Display Interface:
VGA integrated in Intel® 852GME
18/24-bit Dual-Channel LVDS (30-pin connector)
24-bit TTL LCD supported (40-pin connector)
For Dual Display: only VGA+LVDS or VGA+TTL
z Watchdog timer:
Software programmable supports 1~255 sec. system reset
z Power Supply: +5V only or +5V/+12V, AT/ATX support
z Power Consumption:
+5V@2.93A
(Intel® Celeron® M 1GHz zero cache with DDR 400MHZ, 512MB
2
Page 3
RAM, 3D Mark 2001SE)
+5V@2.57A
(Intel® Celeron® M 600MHz 512KB cache with DDR 400MHz,
512MB RAM, 3D Mark 2001SE)
z Humidity: Operation: 5% ~ 95%, non-condensing
z Temperature: 0 ~ 60°C(32 ~ 140°F)
z Dimension: 146 mm x 102 mm
z Weight: GW: 670g; NW: 240g
Ordering Information
WAFER-8523-600-R10: 3.5" SBC with ULV Intel® Celeron® 600MHz 512K
cache CPU with VGA/LVDS/TTL, LAN, USB 2.0 and Audio
WAFER-8523-1GZ-R10
cache CPU with VGA/LVDS/TTL, LAN, USB 2.0 and Audio
32200-015100-RS:
LPT cable
: 3.5" SBC with ULV Intel® Celeron® 1GHz zero
32100-088600-RS
32200-026500-RS
: SATA Power cable
: RS-232/422/485 cable
Table of Jumpers Setting
JP1: LCD Power Setting
JP1 DESCRIPTION
1-2
(Default)
2-3 LCD +5V
JP3: Clear CMOS Setup Setting
JP3 DESCRIPTION
1-2
(Default)
2-3 Clear CMOS Setup
LABEL FUNCTION
JP1 LCD Power Setting
JP2 LCD Panel Type Select Setting
JP3 Clear CMOS Setup Setting
JP4 CF Card Select Setting
JP5 Select RS-232 or RS-485/RS-422 on COM2
LCD +3.3V
Normal Operation
JP2: LCD Panel Type Select Setting
JP2 DESCRIPTION
1-2
LVDS Panel Type
(Default)
2-3 TTL Panel Type
JP4: CF Card Select Setting
JP4 DESCRIPTION
1-2
Slave
(Default)
2-3 Master
3
Page 4
JP5: Select RS-232 or RS-485/RS-422 o n COM2
JP5 DESCRIPTION
1-2
(Default)
3-4 RS-422
5-6 RS-485
RS-232
Table of Connectors
LABEL FUNCTION
CN1 FAN Connector
CN4 ATX Power Control Connector
CN7 Power Button Connector
CN5 LCD Panel Inverter Connector
CN6 Main Power Input Connector
CN8 PC104 -5V/-12V Power Input Connector
CN13 Infrared Interface Connector
CN15 +3V Battery Connector
CN17 Power and HDD LED Indicators and +5V Output conne ctor
CN20 PS2 Keyboard /Mouse Connector (MINI-DIN)
CN9 Serial ATA HDD Connector
CN12 Internal Serial Port Connector (COM2)(RS-232/422/485)
CN18 Audio Connector
CN19 RJ-45 LAN Connector
CN22 VGA DB 15-pin Female Connector
CN21 External Serial Port Connector (COM1) (RS-232)
CN16 Parallel Port Connector
CN2 TTL LCD Connector
CN3 LVDS Connector
CN24 CF Card Interface Slot
CN11 Internal USB Connector
LED1 LAN (Active/Link) indicator LED
CN10 PC/104 connector (ISA-Bus)
CN23 DDR SO-DIMM Slot
SW1 Reset button
4
Page 5
CN1: FAN Connector
PIN NO.
1 FANIO
2 +12V
3 GND
DESCRIPTION
CN7: Power Button Connector
PIN NO. DESCRIPTION
1 PWBTN#
2 GND
CN6: Main Power Input Connector
PIN NO. DESCRIPTION
1 +12V
2 GND
3 GND
4 +5V
CN13: Infrared Interface Connector
PIN NO.
1 +5V
2 NC
3 IR_RXD
4 GND
5 IR_TXD
DESCRIPTION
CN17: Power and HDD LED Indicators
and +5V Output connector
PIN NO.
1 +5V
DESCRIPTION
2 GND
3 Power LED+
4 Power LED- (GND)
5 HDD LED+
6 HDD LED-
CN4: ATX Power Control Connector
AT Mode: Short 2-3 (Default)
ATX Mode: Use PS_ON & 5VSB cable
PIN NO.
DESCRIPTION
1 +5VSBY
2 GND
3 PS_ON#
CN5: LCD Panel Inverter Connector
PIN NO.
DESCRIPTION
1 +12V
2 GND
3 LCD_BKLEN
4 LCD_BKLTCTL
5 +5V
CN8: PC104 -5V/-12V Power Input
Connector
PIN NO. DESCRIPTION
1 -5V
2 GND
3 -12V
CN15: +3V Battery Connector
PIN NO. DESCRIPTION
1 Battery (+3V)
2 GND
CN20: PS2 Keyboard /Mouse
Connector (MINI-DIN)
PIN NO.
DESCRIPTION
1 Keyboard Data
2 Mouse Data
3 GND
4 VCC (+5V)
5 Keyboard CLK
6 Mouse CLK
7~11 GND
5
Page 6
CN9 : Serial ATA HDD Connector
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1
GND
5 RX-
2 TX+ 6 RX+
3 TX- 7 GND
4 GND 8 N/C
CN12 : Internal Serial Port Connector (COM2) (RS-232/42 2/485)
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 DATA CARRIER
DETECT (DCD#)
3 RECEIVE DATA (RXD) 4 REQUEST T O SEND
5 TRANSMIT DATA
(TXD)
7 DATA TERMINAL
READY (DTR#)
2 DATA SET READY
(DSR#)
(RTS#)
6 CLEAR TO SEND
(CTS#)
8 RING INDICATOR
(RI#)
9 GND 10 N/C
11 TXD485+ 12 TXD485#
13 RXD485+ 14 RXD485#
CN18 : Audio Connector
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1
LINE_OUTR
2 LINEIN_R
3 GND_AUDIO 4 GND_AUDIO
5 LINE_OUTL 6 LINEIN_L
7 GND_AUDIO 8 GND_AUDIO
9 MICIN 10 MICIN
CN19: RJ-45 LAN Connector
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 MDIA3- 5 MDIA1+
2 MDIA3+ 6 MDIA2+-
3. MDIA2- 7 MDIA0-
4. MDIA1- 8 MDIA0+
6
Page 7
CN22: VGA DB 15-pin Female Connector
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 RED 2 GREEN
3 BLUE 4 NC
5 GND 6 CRT_PLUG#
7 GND 8 GND
9 VCC 10 GND
11 NC 12 DDCDAT
13 HSYNC 14 VSYNC
15 DDCCLK
CN21: External Serial Port Connector (COM1)(RS-232)
PIN NO.
1
2
3
4
5
6
7
8
9
DESCRIPTION
DATA CARRIER DETECT (DCD#)
RECEIVE DATA (RXD)
TRANSMIT DATA (TXD)
DATA TERMINAL READY (DTR#)
GND (GND)
DATA SET READY (DSR#)
REQUEST TO SEND (RTS#)
CLEAR TO SEND (CTS#)
RING INDICATOR (RI#)
CN16 : Parallel Port Connector
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 STROBE# 14 AUTO FORM FEED #
2 DATA0 15 ERROR#
3 DATA1 16 INITIALIZE#
4 DATA2 17 PRINTER SELECT LN#
5 DATA3 18 GND
6 DATA4 19 GND
7 DATA5 20 GND
8 DATA6 21 GND
9 DATA7 22 GND
10 ACKNOWLEDGE# 23 GND
11 BUSY 24 GND
12 PAPER EMPTY 25 GND
13 PRINTER SELECT 26 N/C
7
Page 8
CN2: TTL LCD Connector
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 LCD_VCC 2 LCD_VCC
3 GND 4 GND
5 LCD_VCC 6 LCD_VCC
7 NC 8 GND
9 TFT_B0 10 TFT_B1
11 TFT_B2 12 TFT_B3
13 TFT_B4 14 TFT_B5
15 TFT_B6 16 TFT_B7
17 TFT_G0 18 TFT_G1
19 TFT_G2
20 TFT_G3
21 TFT_G4 22 TFT_G5
23 TFT_G6 24 TFT_G7
25 TFT_R0 26 TFT_R1
27 TFT_R2 28 TFT_R3
29 TFT_R4 30 TFT_R5
31 TFT_R6 32 TFT_R7
33 GND 34 GND
35 FPCLK 36 TFT_VS
37 FPDEN 38 TFT_HS
39 NC 40 LCD_EN
CN3: LVDS Connector
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 GND1 2 GND2
3 A_Y0 4 A_Y0#
5 A_Y1 6 A_Y1#
7 A_Y2 8 A_Y2#
9 A_CK 10 A_CK#
11 A_Y3 12 A_Y3#
13 GND3 14 GND4
15 B_Y0 16 B_Y0#
17 B_Y1 18 B_Y1#
19 B_Y2 20 B_Y2#
21 B_CK 22 B_CK#
23 B_Y3 24 B_Y3#
25 GND5 26 GND6
27 VCC_LCD 28 VCC_LCD
29 VCC_LCD 30 VCC_LCD
8
Page 9
CN24 : CF Card Interface Slot
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 GND 26 CD1#
2 D3 27 D11
3 D4 28 D12
4 D5 29 D13
5 D6 30 D14
6 D7 31 D15
7 CE# 32 CE2#
8 A10 33 VS1#
9 OE# 34 IOR#
10 A9 35 IOW#
11 A8 36 WE#
12 A7 37 IRQ
13 VCC 38 VCC
14 A6 39 CSEL#
15 A5 40 VS2#
16 A4 41 RESET#
17 A3 42 WAIT#
18 A2 43 INPACK#
19 A1 44 REG#
20 A0 45 BVD2
21 D0 46 BVD1
22 D1 47 D8
23 D2 48 D9
24 IOCS16# 49 D10
25 CD2# 50 GND2
CN11: Internal USB Connector
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 VCC (+5V) 2 VCC (+5V)
3 DATA- 4 DATA5 DATA+ 6 DATA+
7 GND 8 GND
9 GND
LED1: LAN (Active/Link) indicator LED
PIN NO. DESCRIPTION
1 LAN_ACT#
2 LAN_LINK#
9
Page 10
CN10: PC/104 Connector (ISA-Bus)
#
PIN Description PIN Description PIN Description PIN Description
A1 IOCHCK# B1 GND C1 GND D1 GND
A2 SD7 B2 RESET C2 SBHE# D2 MEMCS16
A3 SD6 B3 VCC5 C3 LA23 D3 IOCS16#
A4 SD5 B4 IRQ9 C4 LA22 D4 IRQ10
A5 SD4 B5 -5V C5 LA21 D5 IRQ11
A6 SD3 B6 DRQ2 C6 LA20 D6 IRQ12
A7 SD2 B7 -12V C7 SA19 D7 IRQ15
A8 SD1 B8 OWS# C8 SA18 D8 IRQ14
A9 SD0 B9 +12V C9 SA17 D9 DACK0#
A10 IOCHRDY B10 GND C10 MEMR# D10 DRQ0#
A11 AEN B11 SMEMW# C11 MEMW# D11 DACK5#
A12 SA19 B12 SMEMR# C12 SD8 D12 DRQ5#
A13 SA18 B13 IOW# C13 SD9 D13 DACK6#
A14 SA17 B14 IOR# C14 SD10 D14 DRQ6#
A15 SA16 B15 DACK3# C15 SD11 D15 DACK7#
A16 SA15 B16 DRQ3 C16 SD12 D16 DRQ7#
A17 SA14 B17 DACK1# C17 SD13 D17 VCC5
A18 SA13 B18 DRQ1 C18 SD14 D18 MASTER#
A19 SA12 B19 REFRESH#C19 SD15 D19 GND
A20 SA11 B20 SYSCLK C20 NC D20 GND
A21 SA10 B21 IRQ7
A22 SA9 B22 IRQ6
A23 SA8 B23 IRQ5
A24 SA7 B24 IRQ4
A25 SA6 B25 IRQ3
A26 SA5 B26 DACK2#
A27 SA4 B27 TC
A28 SA3 B28 ALE
A29 SA2 B29 VCC5
A30 SA1 B30 OSC
A31 SA0 B31 GND
A32 GND B32 GND
10
Page 11

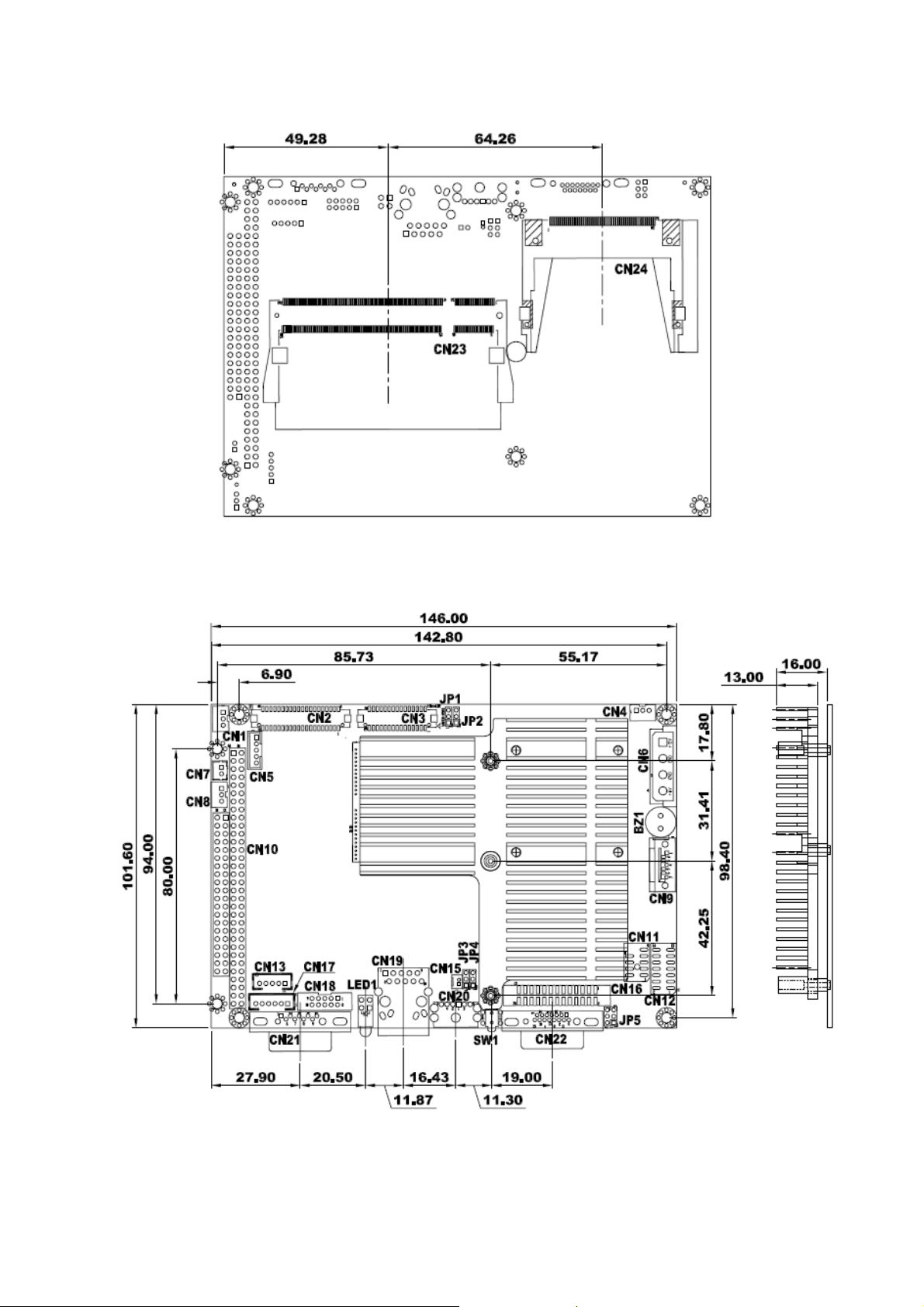

Board Layout: Jumper and Connector Locations
11
Page 12
