SRM-KIT Series LCD Monitor
SRM-KIT LCD Monitor User Manual
Page i
SRM-KIT Series LCD Monitor
Revision
Title SRM-KIT LCD Monitor User Manual
Revision Number Description Date of Issue
1.0 Initial release January 2007
Page ii
SRM-KIT Series LCD Monitor
COPYRIGHT NOTICE
The information in this document is subject to change without prior notice in order to
improve reliability, design and function and does not represent a commitment on the part
of the manufacturer.
In no event will the manufacturer be liable for direct, indirect, special, incidental, or
consequential damages arising out of the use or inability to use the product or
documentation, even if advised of the possibility of such damages.
Copyright
This document contains proprietary information protected by copyright. All rights are
reserved. No part of this manual may be reproduced by any mechanical, electronic, or
other means in any form without prior written permission of the manufacturer.
TRADEMARKS
IBM PC is a registered trademark of International Business Machines Corporation. INTEL
is a registered trademark of INTEL Corporation. Other product names mentioned herein
are used for identification purposes only and may be trademarks and/or registered
trademarks of their respective owners.
Page iii
SRM-KIT Series LCD Monitor
Packing List
NOTE:
If any of the components listed in the checklist below are missing,
please do not proceed with the installation. Contact the IEI reseller or
vendor you purchased the SRM-KIT from or contact an IEI sales
representative directly. To contact an IEI sales representative, please
send an email to
The items listed below should all be included in the SRM-KIT package.
1 x SRM-KIT121G / SRM-KIT150G industrial LCD monitor
1 x 45W AC Power Adapter
1 x AC power cable
1 x DVI cable
1 x VGA cable
1 x Screw set
1 x User manual and driver CD
Images of the above items are shown in Chapter 4.2.3.
sales@iei.com.tw.
Page iv
SRM-KIT Series LCD Monitor
SAFETY PRECAUTIONS
1. Prior to installing, moving, and modifying the panel PC, make sure that the
unit’s power is turned off and the power cord is disconnected.
2. Do not apply voltage levels that exceed the specified voltage range. Doing
so may cause fire or an electrical shock.
3. Electric shock can occur if the panel is opened. Do not drop or insert any
objects into the ventilation openings of the panel PC.
4. Only qualified engineers from certified system integrators or VARs are
allowed to make necessary functional modifications to the panel PC, e.g.,
adding a touch screen. IEI offers the customization service on a pre-order
Precautions
basis.
5. If considerable amount of dust, water, or fluids entered the panel PC, turn off
the power supply immediately, unplug the power cord, and contact the vendor.
6. Explosions may occur with installations in environments where flammable
gases are present.
7. Fault-tolerant and failsafe designs should be implemented with the use of the
series models on transportation vehicles, ships, safety/security devices, or
medical devices not related to life-support functionalities. Users/integrators
should take the responsibility for implementations with adequate levels of
reliability and safety.
8. Preventive designs should be implemented so as to avoid the
communications faults between the panel PC and the
PC/workstation/terminals that controls it. 0.
HANDLING PRECAUTIONS
1. Do not drop the panel PC against a hard surface. Doing so may damage the
display.
2. Do not strike or exert excessive force onto the touch panel.
3. Touching the touch panel using a sharp object may damage the LCD panel.
4. Avoid environments exposed to direct sunlight, dust, or chemical vapors.
5. The panel PC is actively cooled. In no circumstances should the panel PC
Page v
A
operate with the openings obstructed by foreign objects. However, the
ambient temperature of the installation site should be observed and controlled
to avoid overheating the panel PC.
6. Condensation might form inside the panel PC chassis if exposed to sudden
changes in temperature.
7. Carefully route the power cord so that people cannot step on it. Do not place
anything over the power cord.
8. If the equipment should be left unused for an extended period of time,
disconnect it from the power source to avoid damage by transient
over-voltage.
9. If any of the following situations arises, get the equipment checked by service
personnel: 0.
SRM-KIT Series LCD Monitor
o The power cord or plug is damaged.
o Liquid has penetrated into the equipment.
o The equipment has been exposed to moisture.
o The equipment does not work properly, or the user cannot get it to work
according to the user manual.
o The equipment has been dropped and damaged.
o The equipment shows obvious signs of breakage.
WARNING!
ny changes or modifications made to the equipment that are not
expressly approved by the relevant standards could void the authority to
operate the equipment.
MAINTENANCE AND CLEANING
Note the following precautions before beginning to clean the Panel PC.
When cleaning any single part or component of the computer, please read and
understand the details below fully.
Except for the properly installed front LCD panel, never spray or squirt liquids
directly onto any computer component. To clean the device, please rub it with
Page vi
SRM-KIT Series LCD Monitor
a piece of dry and soft cloth or a slightly moistened cloth with the exterior
casing.
The interior of the Panel PC does not require cleaning. Keep fluids away
from the Panel PC and the interior of it.
Be cautious of the tiny removable components when using a vacuum cleaner
to absorb the dirt on the floor.
Turn the system off before cleaning up the Panel PC.
Never drop any tiny objects through the openings of the Panel PC or get
circuit board damp or wet.
Be cautious of all kinds of cleaning solvents or chemicals when using it for the
sake of cleaning. Some individuals may be allergic to the ingredients.
Avoid any food, drink or cigarette around the Panel PC.
CLEANING TOOLS
Although many companies have created products to help improve the process of cleaning
the computer and peripherals, users can also use household items to clean their
computers and peripherals. Below is a list of items to use while cleaning the computer or
computer peripherals.
Please keep in mind that some components in the computer may only be cleaned using a
product designed for cleaning that component, if this is the case it will be mentioned in the
cleaning tips.
Cloth - A piece of cloth is the best tool to use when rubbing up a component.
Although paper towels or tissues can be used on most hardware as well, it is
recommended to rub it with a piece of cloth.
Water or rubbing alcohol – Moisten a piece of cloth a bit with some water or
rubbing alcohol and rub it on the computer.
Unknown solvents may be harmful to the plastics parts.
Vacuum cleaner - Absorb the dust, dirt, hair, cigarette particles, and other
particles out of a computer can be one of the best methods of cleaning a
computer. Over time these items can restrict the airflow in a computer and
cause circuitry to corrode.
Cotton swabs - Cotton swabs moistened with rubbing alcohol or water are
Page vii
excellent tools for wiping hard to reach areas in the keyboard, mouse, and
other locations.
Foam swabs - Whenever possible it is better to use lint free swabs such as
foam swabs.
SRM-KIT Series LCD Monitor
ESD PRECAUTIONS
Observe all conventional anti-ESD methods while handling the components contained
within the LCD should the need arise for adding a functionality. The use of a grounded
wrist strap and an anti-static work pad is recommended. Avoid dust and debris or other
static-accumulating materials in the work area.
Page viii
SRM-KIT Series LCD Monitor
Table of Contents
1 INTRODUCTION..................................................................................................... 1
1.1 SRM-KIT SERIES LCD MONITOR OVERVIEW........................................................... 2
1.1.1 Standard Features.............................................................................................. 2
1.1.2 SRM-KIT Series Industrial Monitor Applications ............................................. 2
1.1.3 Model Variations................................................................................................ 3
1.2 EXTERNAL OVERVIEW ............................................................................................... 3
1.2.1 Front View.......................................................................................................... 3
1.2.2 Rear View ........................................................................................................... 4
1.2.3 Connectors......................................................................................................... 5
1.3 AD BOARD ................................................................................................................ 5
1.4 SERIES SPECIFICATIONS ............................................................................................. 6
1.5 CERTIFICATION........................................................................................................... 7
1.6 PHYSICAL DIMENSIONS.............................................................................................. 8
1.6.1 SRM-KIT121G Physical Dimensions................................................................. 8
1.6.2 SRM-KIT150G Physical Dimensions................................................................. 9
1.7 MOUNTING OPTIONS................................................................................................ 10
2 LCD SPECIFICATIONS ........................................................................................11
2.1 LCD SPECIFICATIONS .............................................................................................. 12
2.1.1 LCD Overview ................................................................................................. 12
2.1.2 SRM-KIT121G LCD Specifications................................................................. 12
2.1.3 SRM-KIT150G LCD Specifications................................................................. 13
2.2 POWER ADAPTERS ................................................................................................... 15
3 AD BOARD ............................................................................................................. 17
3.1 AV-5300 AD BOARD OVERVIEW ............................................................................. 18
3.1.1 AV-5300 AD Board Connectors ....................................................................... 19
3.1.2 AV-5300 AD Board Layout............................................................................... 20
3.1.3 AV-5300 Peripheral Interface Connectors....................................................... 21
3.1.4 AV-5300 Rear Panel Connectors..................................................................... 21
3.1.5 AV-5300 On-board Jumpers............................................................................. 22
Page ix
SRM-KIT Series LCD Monitor
3.2 AV-5300 I
NTERNAL PERIPHERAL CONNECTORS....................................................... 22
3.2.1 Auto-Dimming Connector................................................................................ 22
3.2.2 Debug Port Connector..................................................................................... 23
3.2.3 External OSD and LED Indication Connector................................................ 24
3.2.4 Backlight Inverter Connector .......................................................................... 25
3.2.5 LVDS Output Connector.................................................................................. 26
3.2.6 Power Output Connector................................................................................. 27
3.2.7 Power Input Connector.................................................................................... 28
3.2.8 VGA Connector................................................................................................ 29
3.3 AV-5300 ON-BOARD JUMPERS ................................................................................. 31
3.3.1 LCD Panel Power Input Jumper...................................................................... 32
3.3.2 LCD Panel Voltage Select Jumper................................................................... 32
3.4 AV-5300 E
XTERNAL (REAR PANEL) CONNECTORS .................................................. 33
3.4.1 DC 12V Connector........................................................................................... 33
3.4.2 VGA Connector................................................................................................ 34
3.4.3 DVI-D Connector............................................................................................. 34
4 INSTALLATION .................................................................................................... 37
4.1 INSTALLATION PRECAUTIONS................................................................................... 38
4.2 UNPACKING.............................................................................................................. 39
4.2.1 Packaging ........................................................................................................ 39
4.2.2 Unpacking Procedure ...................................................................................... 39
4.2.3 Packing List ..................................................................................................... 40
RE-INSTALLATION PREPARATION ............................................................................ 40
4.3 P
4.3.1 Tools ................................................................................................................. 40
4.3.2 Voltage Select Jumper Settings ........................................................................ 41
4.4 CONNECTORS........................................................................................................... 41
4.4.1 VGA Connector................................................................................................ 42
4.4.2 DVI-D Connector............................................................................................. 42
4.4.3 12V Power Connector...................................................................................... 43
4.5 MOUNTING THE SRM-KIT SERIES LCD MONITOR ................................................. 44
5 ON-SCREEN-DISPLAY (OSD) CONTROLS ..................................................... 45
5.1 USER MODE OSD STRUCTURE ................................................................................ 46
5.1.1 OSD Buttons..................................................................................................... 46
Page x
SRM-KIT Series LCD Monitor
5.1.2 OSD Menu Structure........................................................................................ 47
SING THE OSD....................................................................................................... 48
5.2 U
5.2.1 Main Display Features..................................................................................... 48
5.2.2 Color................................................................................................................ 50
5.2.3 Image Settings.................................................................................................. 51
5.2.4 OSD Configurations......................................................................................... 52
5.2.5 Signal ............................................................................................................... 53
5.2.6 Auto-Dimming Configurations......................................................................... 53
5.2.6.1 Default Settings......................................................................................... 54
5.2.6.2 OSD Control ............................................................................................. 55
5.2.6.3 Changing the Default Settings.................................................................. 56
A CERTIFICATION .................................................................................................. 59
A.1 R
OHS COMPLIANT.................................................................................................. 60
B INDEX...................................................................................................................... 61
Page xi
SRM-KIT Series LCD Monitor
List of Figures
Figure 1-1: Front View...................................................................................................3
Figure 1-2: Rear View....................................................................................................4
Figure 1-3: SRM-KIT Series Connectors.....................................................................5
Figure 1-4: AV-5300 AD Board.....................................................................................6
Figure 1-5: SRM-KIT121G Physical Dimensions (millimeters) .................................8
Figure 1-6: SRM-KIT150G Physical Dimensions (millimeters) .................................9
Figure 1-7: Sizes of Mounting Holes.........................................................................10
Figure 1-8: Monitor Arm or Stand Mounting ............................................................10
Figure 3-1: AV-5300 AD Board Overview..................................................................18
Figure 3-2: Connector and Jumper Locations.........................................................20
Figure 3-3: Auto-dimming Connector Location .......................................................23
Figure 3-4: Debug Port Connector Location............................................................24
Figure 3-5: External OSD and LED Indication Connector Location.......................25
Figure 3-6: Backlight Inverter Connector Location.................................................26

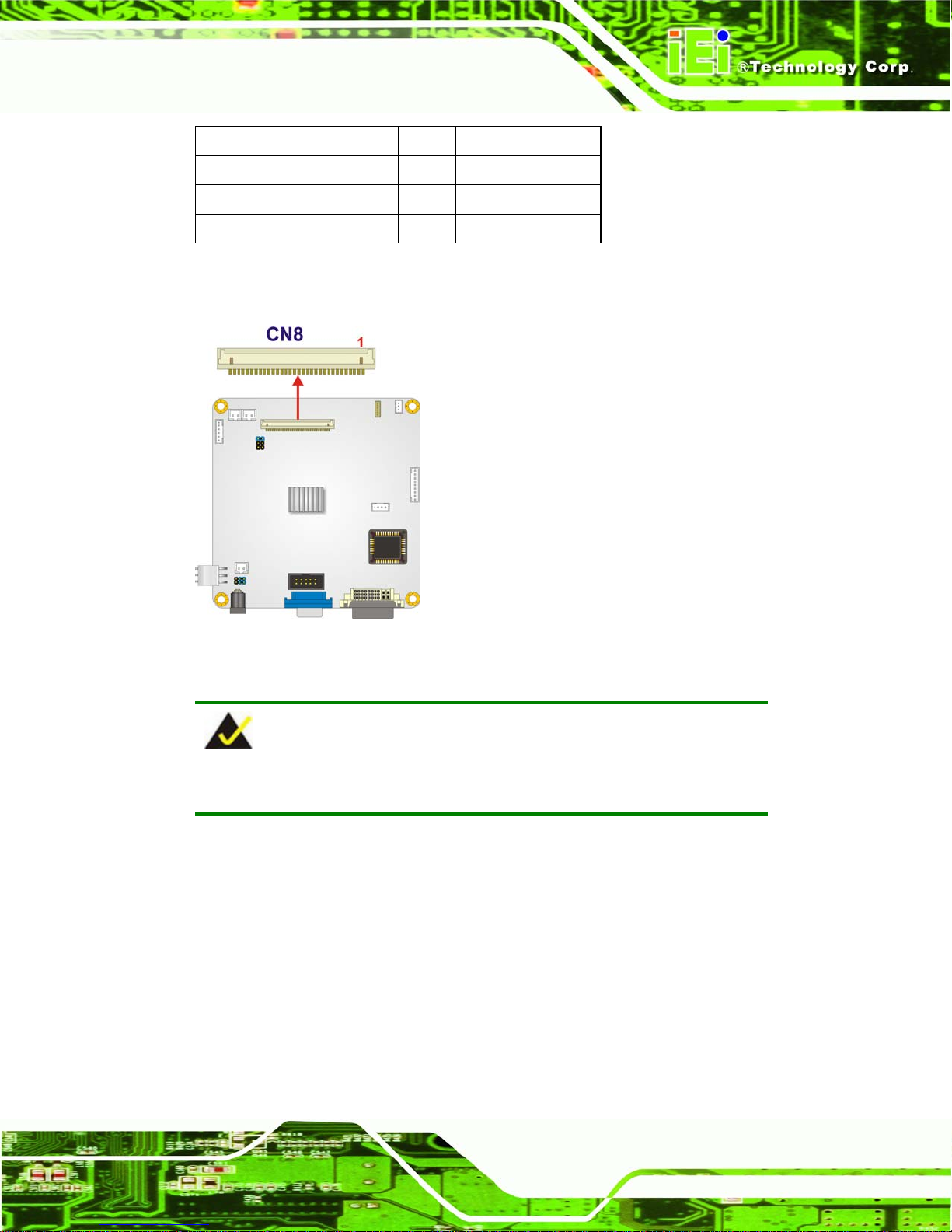

Figure 3-7: LVDS Output Connector Location .........................................................27
Figure 3-8: Power Output Connector Locations......................................................28
Figure 3-9: Power Input Connector Locations.........................................................29
Figure 3-10: VGA Connector Location......................................................................30
Figure 3-11: Jumpers..................................................................................................31
Figure 3-12: Jumper Locations..................................................................................31
Figure 3-13: AV-5300 External (Rear Panel) Connectors........................................33
Figure 3-14: VGA Connector Pinout Locations........................................................34
Figure 3-15: DVI-D Connector Pinout Locations......................................................35
Figure 4-1: VGA Connector Pinout Locations..........................................................42
Figure 4-2: DVI-D Connector Pinout Locations........................................................43
Figure 4-3: 12V Power Connector..............................................................................43
Figure 5-1: OSD Control Buttons for All Models......................................................46
Figure 5-2: Main Display Features.............................................................................49
Page xii
SRM-KIT Series LCD Monitor
Figure 5-3: Color Options...........................................................................................50

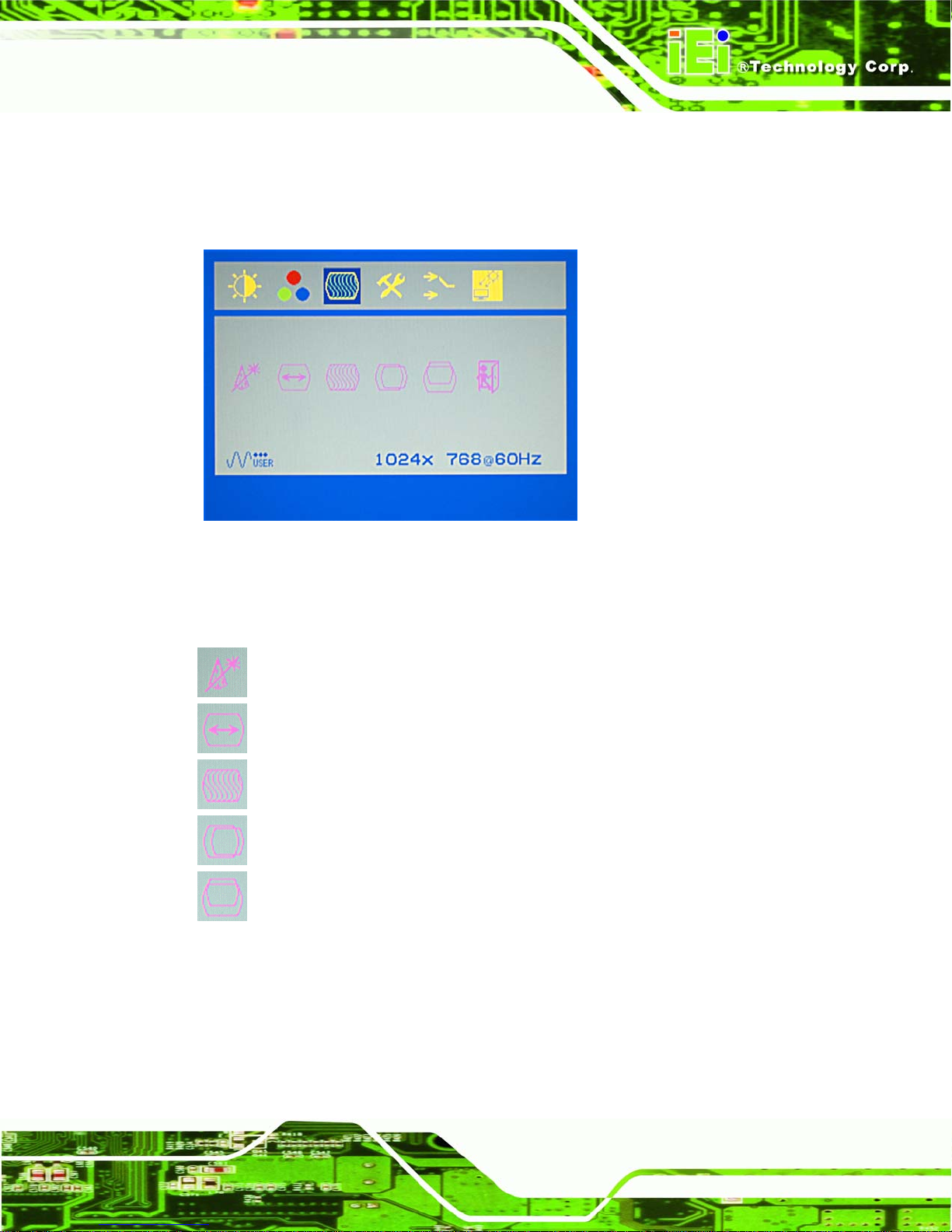

Figure 5-4: Image Settings Menu...............................................................................51

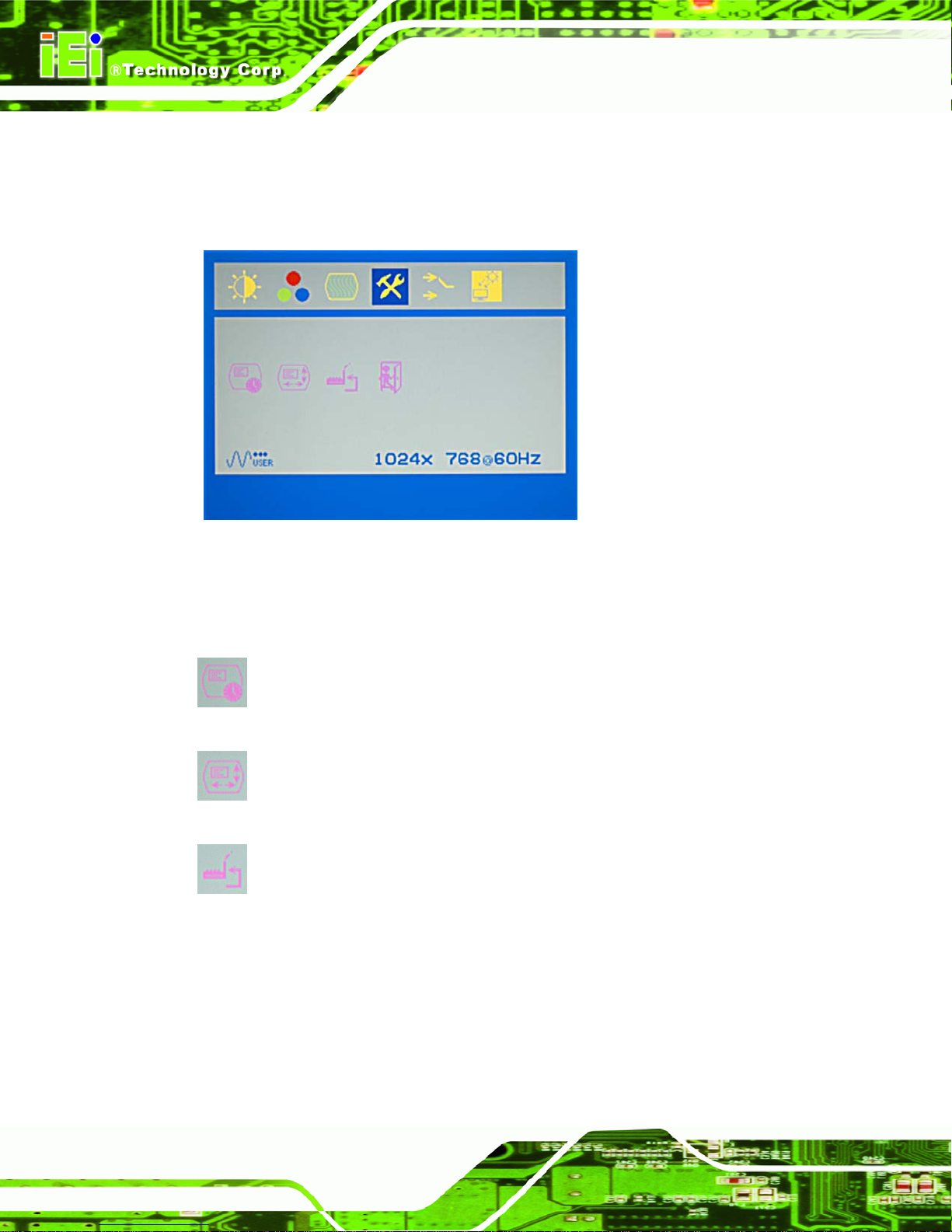

Figure 5-5: OSD Configurations Menu......................................................................52
Figure 5-6: Signal Menu..............................................................................................53

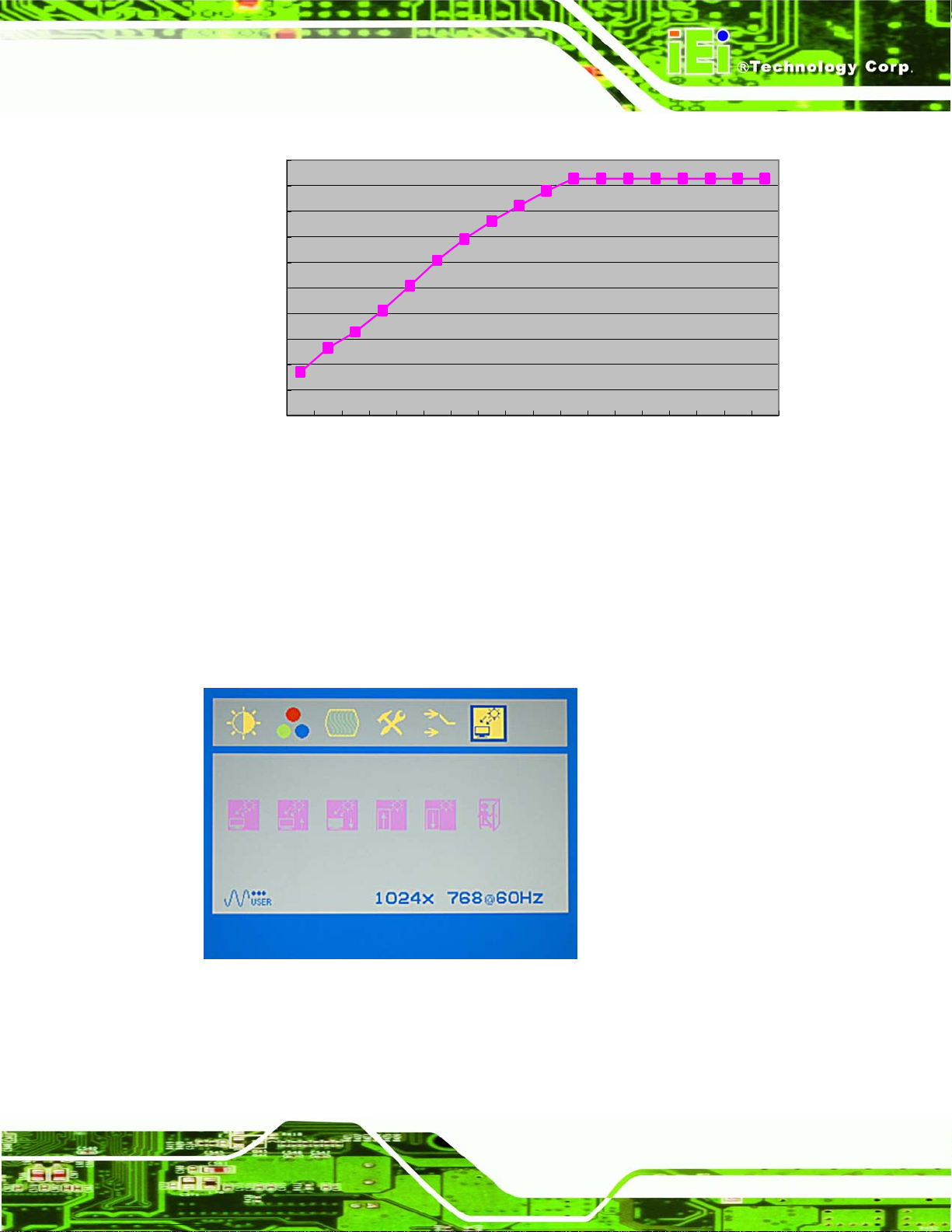

Figure 5-7: SRM-KIT121G Default Linearity of the LCD Backlight and Ambient
Light...........................................................................................55
Figure 5-8: Auto-Dimming Configurations Menu.....................................................55
Figure 5-9: Decreasing LUX Max. Value....................................................................57
Figure 5-10: Light Max, Light Min and LUX Min in Default Value...........................58
Page xiii
SRM-KIT Series LCD Monitor
List of Tables
Table 1-1: SRM-KIT Series Specifications..................................................................7
Table 2-1: SRM-KIT121G LCD Specifications...........................................................13
Table 2-2: SRM-KIT150G LCD Specifications...........................................................14
Table 2-3: Power Adapter Specifications..................................................................15
Table 3-1: AV-5300 Peripheral Interface Connectors ..............................................21
Table 3-2: AV-5300 Rear Panel Connectors .............................................................21
Table 3-3: AV-5300 On-board Jumpers.....................................................................22
Table 3-4: Auto-dimming Connector Pinouts...........................................................23
Table 3-5: Debug Port Connector Pinouts................................................................23
Table 3-6: External OSD and LED Indication Connector Pinouts..........................24
Table 3-7: Backlight Inverter Connector Pinouts.....................................................25
Table 3-8: LVDS Output Connector Pinouts.............................................................27
Table 3-9: Power Output Connector Pinouts (CN12)...............................................28
Table 3-10: Power Output Connector Pinouts (CN13).............................................28
Table 3-11: Power Input Connector Pinouts (CN24)................................................29
Table 3-12: Power Input Connector Pinouts (CN25)................................................29
Table 3-13: VGA Connector Pinouts .........................................................................30
Table 3-14: LCD Panel Power Input Jumper Settings .............................................32
Table 3-15: LCD Panel Voltage Select Jumper Settings .........................................32
Table 3-16: DC 12V Connector Pinouts.....................................................................33
Table 3-17: VGA Connector Pinouts .........................................................................34
Table 3-18: DVI-D Connector Pinouts .......................................................................35
Table 4-1: External Peripheral Interface Connectors ..............................................42
Table 4-2: VGA Connector Pinouts ...........................................................................42
Table 4-3: DVI-D Connector Pinouts .........................................................................43
Table 5-1: OSD Menus ................................................................................................48
Table 5-2: LUX Measurement of Everyday Light Source ........................................54
Table 5-3: Auto-Dimming Default Settings...............................................................54
Page xiv
SRM-KIT Series LCD Monitor
Chapter
1
1 Introduction
Page 1
SRM-KIT Series LCD Monitor
1.1 SRM-KIT Series LCD Monitor Overview
The SRM-KIT series industrial monitor is the latest member of IEI’s line of sophisticated
LCD designs, and it has been improved to be RoHS compliant. The SRM-KIT series is
designed to fit industrial automation, or any other applications that require minimum
installation space and flexible configuration. The SRM-KIT sunlight readable industrial
monitor with the ultra-high brightness and auto-dimming LCD is also suitable for outdoor
use. Flexible analog or digital interfaces are provided for ease of connection with a
management computer. If remote/non-attentive control is preferred, RS-232 or USB
interfaces can be used with customized adapter cables.
1.1.1 Standard Features
All the models listed in Section 1.2.1 have the following standard features:
Auto-dimming TFT LCD
1000 cd/m
2
high brightness and 50000hrs MTFB long lifetime panel
Analog VGA and DVI-D input
RoHS compliance
Wide range operating temperature
Wide viewing angle
High contrast ratio
Advanced thermal and air-flow design
1.1.2 SRM-KIT Series Industrial Monitor Applications
IEI’s series of SRM-KIT are designed for system manufacturers, integrators, or
value-added resellers that want to provide all the performance, quality and reliability of an
LCD display solution at a cost effective price. IEI’s SRM-KIT offers additional components
such as cables, an inverter and power supply with controller interfaces that include VGA
and DVI.
Page 2
SRM-KIT Series LCD Monitor
1.1.3 Model Variations
The SRM-KIT series offers the following model variations.
SRM-KIT121G: 12.1” LCD screen
SRM-KIT150G: 15” LCD screen
1.2 External Overview
The SRM-KIT series industrial monitors are durable devices that can be used in harsh
industrial environments. The following sections describe the physical layout of the
SRM-KIT series industrial monitors.
1.2.1 Front View
The front of the SRM-KIT series monitor is a flat panel TFT LCD screen attached to a
metal chassis.
Figure 1-1: Front View
Figure 1-1 shows a typical SRM-KIT front view.
Page 3
1.2.2 Rear View
The rear of the SRM-KIT series monitor is a metal chassis. An on screen display (OSD)
control button panel is located vertically on the left side of the chassis with the following
control buttons:
The OSD panel also has one auto-dimming sensor, one power LED and one auto-
SRM-KIT Series LCD Monitor
LCD On/Off
Auto
Left
Right
Menu
dimming LED. Refer to Chapter
Figure 1-2 shows the LCD monitor front view of SRM-KIT121G and SRM-KIT150G.
5 for a complete description of OSD panel.
Figure 1-2: Rear View
Page 4
SRM-KIT Series LCD Monitor
1.2.3 Connectors
Each SRM-KIT series monitor has a number of interface connectors on the right panel of
the chassis (when viewing the rear panel).
connector panel.
Figure 1-3: SRM-KIT Series Connectors
1.3 AD Board
The SRM-KIT series monitor AD boards provide a wide variety of control interfaces,
Figure 1-3 shows the SRM-KIT series
receiving and managing signals from a CPU card through cabling.
AV-5300 AD board as a sample of a typical AD board for the SRM-KIT series monitor.
Refer to Chapter
3 for a complete description of AD boards and their connectors.
Figure 1-4 shows the
Page 5
SRM-KIT Series LCD Monitor
Figure 1-4: AV-5300 AD Board
1.4 Series Specifications
Table 1-1 shows the SRM-KIT Series specifications.
Model SRM-KIT121G SRM-KIT150G
LCD Size
Input Interface
Resolution
Brightness
Contrast
12.1” 15”
Analog VGA and DVI-D
800 x 600 1024 x 768
1000 cd/m2 800 cd/m2
700:1 600:1
Page 6
SRM-KIT Series LCD Monitor
Model SRM-KIT121G SRM-KIT150G
Display Color
Pixel Pitch
Chassis
View Angle
Input Voltage
OSD Function
Mounting
Dimension (mm)
Operation Temperature
Storage Temperature
Table 1-1: SRM-KIT Series Specifications
262K (6 bit/color) or 16.7M (8 bit/color)
0.3075 mm 0.297 mm
Heavy-duty steel
130 (H)/120 (V) 150 (H)/110 (V)
12VDC
Yes
Panel / Arm / Stand
316 x 224.4 x 47.9 364.1 x 262.5 x 46
-10°C~60°C
-20°C~80°C
1.5 Certification
All SRM-KIT series industrial monitor models comply with the following international
standard:
RoHS
For a more detailed description of the standard, please refer to Sections A.1.
Page 7
1.6 Physical Dimensions
The following sections describe the physical dimensions for the SRM-KIT121GS and
SRM-KIT150G industrial monitor.
1.6.1 SRM-KIT121G Physical Dimensions
The physical dimensions of the SRM-KIT121G are shown in Figure 1-5.
SRM-KIT Series LCD Monitor
Figure 1-5: SRM-KIT121G Physical Dimensions (millimeters)
Page 8
SRM-KIT Series LCD Monitor
1.6.2 SRM-KIT150G Physical Dimensions
The physical dimensions of the SRM-KIT150G are shown in Figure 1-6.
Figure 1-6: SRM-KIT150G Physical Dimensions (millimeters)
Page 9
1.7 Mounting Options
Each SRM-KIT series monitor has mounting holes located on the mounting bracket and
the rear panel. The mounting holes on the mounting bracket are for panel mounting.
Figure 1-7 shows the sizes of the holes on the mounting bracket.
SRM-KIT Series LCD Monitor
Figure 1-7: Sizes of Mounting Holes
The SRM-KIT series also have four Video Electronics Standards Association (VESA)
standard holes located on the rear panel (
monitor arm or stand.
Figure 1-8) for mounting the monitor to a
Figure 1-8: Monitor Arm or Stand Mounting
Page 10
SRM-KIT Series LCD Monitor
Chapter
2
2 LCD Specifications
Page 11
2.1 LCD Specifications
2.1.1 LCD Overview
The SRM-KIT series industrial monitors use the following LCD panels.
SRM-KIT121G: MITSUBISHI AA121SN02 SVGA TFT LCD
SRM-KIT150G: MITSUBISHI AA150XN08 XGA TFT LCD
Detailed specifications for the LCD screens are listed in the following sections.
2.1.2 SRM-KIT121G LCD Specifications
Table 2-1 lists the LCD specifications of the SRM-KIT121G.
SRM-KIT Series LCD Monitor
Model
Size
MFR/Model
Resolution
Display Area (mm)
Pixel Pitch (mm)
Number of Colors
View Angle (H/V)
Brightness (cd/m2)
Contrast Ratio
Response Time (ms)
Interface
SRM-KIT121G
12.1”
MITSUBISHI AA121SN02
SVGA (800 x 600)
246.0 x 184.5
0.3075 x 0.3075
262K(6 bit/color), 16.7M(8 bit/color)
130 / 120
1000
700:1
TR: 10 TF: 30
LVDS (6 bit/8 bit)
Input Voltage (V)
Backlight
Page 12
3.3V
4 CCFL
SRM-KIT Series LCD Monitor
Power Supply Voltage for LCD
Power Supply Current for LCD
Lamp Voltage/Current
Starting Lamp Minimum Voltage
Operating Temperature
Operating Humidity
Storage Temperature
Shock Level (Non-operation)
Vibration Level (Non-operation)
3.3V / 3.6V (Max.)
300mA / 450mA
Voltage: 540 Vrms
Current: 12.0 mArms/14.0 mAms (Max.)
1000 Vrms (25°C)/ 1200 Vrms (0°C)/
1290 Vrms (-20°C)
-20°C ~70°C
5%~90% RH.
-20°C ~80°C
1470 m/s2 (100G), Waveform 2ms.
9.8 m/s2 (1.0G) zero to peak, frequency
range 5-500Hz sweep rate 0.5 octave/min
Lamp Life (hrs)
Table 2-1: SRM-KIT121G LCD Specifications
50,000
2.1.3 SRM-KIT150G LCD Specifications
Table 2-2 lists the LCD specifications of the SRM-KIT150G.
Model
Size
MFR/Model
Resolution
Active Area (mm)
Pixel Pitch (mm)
Number of Colors
15”
MITSUBISHI AA150XN08
XGA (1024 x 768)
246.0 x 184.5
0.297 x 0.297
262K(6 bit/color), 16.7M(8 bit/color)
SRM-KIT150G
Page 13
SRM-KIT Series LCD Monitor
View Angle (H/V)
Brightness (cd/m2)
Contrast Ratio
Response Time (ms)
Interface
Input Voltage (V)
Backlight
Power Supply Voltage for LCD
Power Supply Current for LCD
Lamp Voltage/Current
Starting Lamp Minimum Voltage
150 / 110
800
600:1
TR: 6 TF: 19
LVDS (6 bit/8 bit)
3.3V
4 CCFL
3.3V / 3.6V (Max.)
410mA / 700mA
Voltage: 620 Vrms/2500 Vrms (Max.)
Current: 6.5 mArms/8.0 mAms (Max.)
1300 Vrms (25°C)/ 1500 Vrms (0°C)/
1650 Vrms (-20°C)
Operating Temperature
Operating Humidity
Storage Temperature
Shock Level (Non-operation)
Vibration Level (Non-operation)
Lamp Life (hrs)
Table 2-2: SRM-KIT150G LCD Specifications
-20°C ~70°C
5%~90% RH.
-20°C ~80°C
980 m/s2 (100G), Waveform 2ms.
9.8 m/s2 (1.0G) zero to peak, frequency
range 5-500Hz sweep rate 0.5 octave/min
50,000
Page 14
SRM-KIT Series LCD Monitor
2.2 Power Adapters
Table 2-3 lists the AC/DC power adapter specifications.
Power
General Description
Input Voltage Range
Input Frequency
Inrush Current
Hold-up Time
Leakage Current
Short Circuit Protection
Over-voltage Protection
45 Watt AC/DC Adapter
Universal Input 90 to 264 VAC
EMI Meets FCC/CISPR 22 Class B
MTBF 165Khrs
Limited Power Source
90-264VAC
47-63 Hz
40A max. (Cold Start)
10mS typical
0.5mA max.
Continuous
Yes
Continuous Output Power
Hi-pot Isolation:
Input / Output
Table 2-3: Power Adapter Specifications
45W max.
4242VDC
Page 15
SRM-KIT Series LCD Monitor
THIS PAGE IS INTENTIONALLY LEFT BLANK
Page 16
SRM-KIT Series LCD Monitor
Chapter
3
3 AD Board
Page 17
3.1 AV-5300 AD Board Overview
The SRM series industrial monitor AD board provides a wide variety of control interfaces,
receiving and managing interface signals from a CPU card through cabling. The following
sections describe the AV-5300 AD board in detail.
SRM-KIT Series LCD Monitor
Figure 3-1: AV-5300 AD Board Overview
Page 18
SRM-KIT Series LCD Monitor
3.1.1 AV-5300 AD Board Connectors
The AV-5300 AD board has the following connectors on-board:
1 x Auto-dimming connector
1 x Debug connector
1 x External OSD and LED Indication connector
1 x Inverter interface connector
1 x LVDS connector
2 x Power output connector
2 x Power input connector
1 x VGA connector
The AV-5300 AD board has the following connectors on the board rear panel:
1 x 12V DC power connector
1 x DVI connector
1 x VGA connector
The locations of the peripheral interface connectors for the AV-5300 AD board are shown
in Section
Section
3.1.2. A complete list of all the peripheral interface connectors can be seen in
3.1.3.
Page 19
3.1.2 AV-5300 AD Board Layout
Figure 3-2 shows the on-board peripheral connectors and on-board jumpers.
SRM-KIT Series LCD Monitor
Figure 3-2: Connector and Jumper Locations
Page 20
SRM-KIT Series LCD Monitor
3.1.3 AV-5300 Peripheral Interface Connectors
Table 3-1 shows a list of the peripheral interface connectors on the AV-5300 AD board.
Detailed descriptions of these connectors can be found in Section
3.2.
Connector Type Label
Auto-dimming connector 6-pin wafer connector CN16
Debug connector 4-pin wafer connector CN4
External OSD and LED Indication connector 9-pin wafer connector CN3
Inverter interface connector 6-pin wafer connector CN2
LVDS connector 30-pin connector CN8
Power output connectors 2-pin wafer connector CN12, CN13
Power input connectors 3-pin wafer connector CN24. CN25
VGA connector 10-pin box header J1
Table 3-1: AV-5300 Peripheral Interface Connectors
3.1.4 AV-5300 Rear Panel Connectors
Table 3-2 lists the rear panel connectors on the AV-5300 AD board. Detailed descriptions
of these connectors can be found in Section
Connector Type Label
12V DC power connector DC Power Jack J3
DVI connector 24-pin DVI-D connector J2
VGA connector 15-pin VGA connector J5
Table 3-2: AV-5300 Rear Panel Connectors
3.4.
Page 21
3.1.5 AV-5300 On-board Jumpers
Table 3-3 lists the on-board jumpers. A detailed description of these jumpers can be found
SRM-KIT Series LCD Monitor
in Section
Jumper Type Label
LCD Panel Power Input Select 6-pin header JP4
LCD Panel Voltage Select 6-pin header JP1
Table 3-3: AV-5300 On-board Jumpers
3.3.
3.2 AV-5300 Internal Peripheral Connectors
Internal peripheral connectors on the AV-5300 AD board are only accessible when the
board is outside of the monitor. This section has complete descriptions of all the internal,
peripheral connectors on the AV-5300 AD board.
3.2.1 Auto-Dimming Connector
CN Label: CN16
CN Type: 6-pin wafer connector
CN Pinouts: See
CN Location: See Figure 3-3
The auto-dimming connector connects to an external auto-dimming sensor.
PIN DESCRIPTION
1 +3.3V
2 NC
3 GND
4 SCL
5 NC
6 SDA
Table 3-4
Page 22
SRM-KIT Series LCD Monitor
Table 3-4: Auto-dimming Connector Pinouts
Figure 3-3: Auto-dimming Connector Location
3.2.2 Debug Port Connector
CN Label: CN4
CN Type: 4-pin wafer connector
CN Pinouts: See
CN Location: See Figure 3-4
Use the debug port connector to update the AD board BIOS.
PIN DESCRIPTION
1 +5V
2 TX
3 RX
4 GND
Table 3-5: Debug Port Connector Pinouts
Table 3-5
Page 23
SRM-KIT Series LCD Monitor
Figure 3-4: Debug Port Connector Location
3.2.3 External OSD and LED Indication Connector
CN Label: CN3
CN Type: 9-pin wafer connector
CN Pinouts: See
Table 3-6
CN Location: See Figure 3-5
The External OSD and LED Indication connector connects to an external OSD controller.
PIN DESCRIPTION
1 LED_ORANGE
2 LED_SENSOR
3 LED_GREEN
4 MENU/ENTER
5 RIGHT
6 LEFT
7 AUTO/EXIT
8 LCD ON/OFF
9 GND
Table 3-6: External OSD and LED Indication Connector Pinouts
Page 24
SRM-KIT Series LCD Monitor
Figure 3-5: External OSD and LED Indication Connector Location
3.2.4 Backlight Inverter Connector
CN Label: CN2
CN Type: 6-pin wafer connector
CN Pinouts: See
Table 3-7
CN Location: See Figure 3-6
The Inverter connector connects to the LCD backlight. Using the BKLT_EN signal to
control the inverter status (ON/OFF) and the BKLT_ADJ signal to adjust brightness of
inverter by OSD brightness function. The OSD brightness function can control a PWM
input and variable DC voltage to minimize flickering (due to the interference between
panel timing and inverter’s AC timing), and adjust LCD back light brightness.
PIN DESCRIPTION
1 +12V
2 +12V
3 BKLT_EN
4 BKLT_ADJ
5 GND
6 GND
Table 3-7: Backlight Inverter Connector Pinouts
Page 25
Figure 3-6: Backlight Inverter Connector Location
3.2.5 LVDS Output Connector
CN Label: CN8
SRM-KIT Series LCD Monitor
CN Type: 30-pin connector
CN Pinouts: See
Table 3-8
CN Location: See Figure 3-7
Use either LVDS output connector to connect the LCD panel to a system.
PIN DESCRIPTION PIN DESCRIPTION
1 GND 2 GND
3 TXO3+ 4 TXO3-
5 TXOC+ 6 TXOC-
7 TXO2+ 8 TXO2-
9 TXO1+ 10 TXO1-
11 TXO0+ 12 TXO0-
13 GND 14 GND
15 TXE3+ 16 TXE3-
17 TXEC+ 18 TXEC-
19 TXE2+ 20 TXE2-
21 TXE1+ 22 TXE1-
Page 26
SRM-KIT Series LCD Monitor
23 TXE0+ 24 TXE0-
25 GND 26 GND
27 VDD 28 VDD
29 VDD 30 VDD
Table 3-8: LVDS Output Connector Pinouts
Figure 3-7: LVDS Output Connector Location
NOTE:
The supply voltage (3.3V (Default), 5V or 12V) can be selected via JP1.
3.2.6 Power Output Connector
CN Label: CN12, CN13
CN Type: 2-pin wafer connector
CN Pinouts: See
CN Location: See Figure 3-8
Table 3-9 and Table 3-10
The AV-5300 supports two power output connectors, one for 12V and the other for 5V.
Page 27
SRM-KIT Series LCD Monitor
PIN DESCRIPTION
1 +12V
2 GND
Table 3-9: Power Output Connector Pinouts (CN12)
PIN DESCRIPTION
1 +5V
2 GND
Table 3-10: Power Output Connector Pinouts (CN13)
Figure 3-8: Power Output Connector Locations
3.2.7 Power Input Connector
CN Label: CN24, CN25
CN Type: 2-pin wafer connector, 3-pin wafer connector
CN Pinouts: See
CN Location: See Figure 3-9
Page 28
Table 3-11 and Table 3-12
SRM-KIT Series LCD Monitor
The AV-5300 supports two internal power input connectors.
PIN DESCRIPTION
1 +12V
2 GND
Table 3-11: Power Input Connector Pinouts (CN24)
PIN DESCRIPTION
1 +12V Input
2 GND
3 +24V to external power module
Table 3-12: Power Input Connector Pinouts (CN25)
Figure 3-9: Power Input Connector Locations
3.2.8 VGA Connector
CN Label: J1
CN Type: 10-pin box header
CN Pinouts: See
Table 3-13
Page 29
SRM-KIT Series LCD Monitor
CN Location: See Figure 3-10
In addition to the standard DB-15 female VGA connector (J1), a VGA connection can also
be made through the on-board CN2 10-pin header.
PIN DESCRIPTION PIN DESCRIPTION
1 RED 2 SMCLK
3 GREEN 4 SMDATA
5 BLUE 6 GROUND
7 HSYNC 8 GROUND
9 VSYNC 10 GROUND
Table 3-13: VGA Connector Pinouts
Figure 3-10: VGA Connector Location
Page 30
p
p
SRM-KIT Series LCD Monitor
3.3 AV-5300 On-board Jumpers
NOTE:
A jumper is a metal bridge used to close an
electrical circuit. It consists of two or three metal
ins and a small metal clip (often protected by a
lastic cover) that slides over the pins to
connect them. To CLOSE/SHORT a jumper
means connecting the pins of the jumper with
the plastic clip and to OPEN a jumper means
removing the plastic clip from a jumper.
The AV-5300 has two on-board jumpers (Table 3-3).
Figure 3-11: Jumpers
Figure 3-12: Jumper Locations
Page 31
3.3.1 LCD Panel Power Input Jumper
Jumper Label: JP4
Jumper Type: 6-pin header
SRM-KIT Series LCD Monitor
Jumper Location: See
Figure 3-12
Jumper Settings: See Table 3-14
The JP4 jumper sets the input source from either the 12V power connector (J3) or the
external terminal block.
JP4 Description
1-3, 2-4 +12V from power connector (J3) (Default)
3-5, 4-6
Input with external connector
(Need external power module)
Table 3-14: LCD Panel Power Input Jumper Settings
3.3.2 LCD Panel Voltage Select Jumper
Jumper Label: JP1
Page 32
Jumper Type: 6-pin header
Jumper Location: See
Figure 3-12
Jumper Settings: See Table 3-15
The JP1 jumper sets the voltage to the LCD panel.
JP1 Description
1-2 Panel Voltage sele ct 3.3V (Default)
3-4 Panel Voltage select 5V
5-6 Panel Voltage select 12V
Table 3-15: LCD Panel Voltage Select Jumper Settings
SRM-KIT Series LCD Monitor
3.4 AV-5300 External (Rear Panel) Connectors
Figure 3-13 shows the AV-5300 external (rear panel) connectors. The peripheral
connectors on the back panel of the monitor can connect to external devices. The
peripheral connectors on the rear panel are:
1 x DC 12V connector
1 x DVI-D connector
1 x VGA connector
Figure 3-13: AV-5300 External (Rear Panel) Connectors
3.4.1 DC 12V Connector
CN Label: J3
CN Type: DC 12V Jack
CN Pinouts: See
CN Location:
Use the DC 12V connector to power the monitor.
PIN DESCRIPTION
1 GND
2 GND
3 DC 12V
Table 3-16
Figure 3-13
See
Table 3-16: DC 12V Connector Pinouts
Page 33
3.4.2 VGA Connector
CN Label: J5
CN Type: D-sub 15 female connector
SRM-KIT Series LCD Monitor
CN Pinouts: See
CN Location:
Table 3-17 and Figure 3-14
Figure 3-13
See
Use the standard D-sub 15-pin VGA connector to connect the monitor to a system.
PIN DESCRIPTION PIN DESCRIPTION
1 Red 9 No Connect
2 Green 10 Ground
3 Blue 11 No Connect
4 No Connect 12 DDC DAT
5 Ground 13 Horizontal Synchronization
6 Ground 14 Vertical Synchronization
7 Ground 15 DDC Clock
8 Ground
Table 3-17: VGA Connector Pinouts
Figure 3-14: VGA Connector Pinout Locations
3.4.3 DVI-D Connector
CN Label: J2
CN Type: D-sub DVI female connector
CN Pinouts: See
Page 34
Table 3-18 and Figure 3-15
SRM-KIT Series LCD Monitor
CN Location:
Figure 3-13
See
The 24-pin female dual link digital only DVI [Digital Visual Interface] connector is a
standard for high-speed, high-resolution digital displays. Use the DVI-D connector to
connect the LCD to a system.
PIN DESCRIPTION PIN DESCRIPTION
1 RX2- 2 RX2+
3 GND 4 NC
5 NC 6 DVI-SCL
7 DVI-SDA 8 NC
9 RX1- 10 RX1+
11 GND 12 NC
13 NC 14 DVI-5V
15 GND 16 HOT-PLUG
17 RX0- 18 RX0+
19 GND 20 NC
21 NC 22 GND
23 RXC+ 24 RXC-
Table 3-18: DVI-D Connector Pinouts
Figure 3-15: DVI-D Connector Pinout Locations
Page 35
SRM-KIT Series LCD Monitor
THIS PAGE IS INTENTIONALLY LEFT BLANK
Page 36
SRM-KIT Series LCD Monitor
Chapter
4
4 Installation
Page 37
4.1 Installation Precautions
When installing the SRM-KIT series industrial monitor, please follow the precautions listed
below:
Read the user manual: The user manual provides a complete description of
the SRM-KIT series industrial monitor, installation instructions and
configuration options.
DANGER! Disconnect Power: Power to the monitor must be disconnected
when installing the SRM-KIT series industrial monitor, or before any attempt is
made to access the rear panel. Electric shock and personal injury might occur
if the rear panel of the monitor is opened while the power cord is still
connected to an electrical outlet.
Qualified Personnel: The SRM-KIT series industrial monitor must be
SRM-KIT Series LCD Monitor
installed and operated only by trained and qualified personnel. Maintenance,
upgrades, or repairs may only be carried out by qualified personnel who are
familiar with the associated dangers.
Mounting: Since the monitor may weigh up to 10 kg (not including a swing
arm or other accessories), please ensure at least two people assist with
mounting the monitor.
Air Circulation: Make sure there is sufficient air circulation when installing the
monitor. The monitor’s cooling vents must not be obstructed by any objects.
Blocking the vents can cause overheating of the monitor. Leave at least 5 cm
of clearance around the monitor to prevent overheating.
Grounding: The monitor should be properly grounded. The voltage feeds
must not be overloaded. Adjust the cabling and provide external overcharge
protection per the electrical values indicated on the label attached to the back
of the monitor.
Anti-static Discharge: The rear panel of the monitor must to be removed to
configure the monitor’s AD board voltage select jumper. When doing so, be
sure the monitor is disconnected from its power source and take all necessary
safety precautions to avoid electrocution and static discharge to the AD board.
The use of a grounded wrist strap and an anti-static work pad is
recommended.
Page 38
SRM-KIT Series LCD Monitor
4.2 Unpacking
4.2.1 Packaging
When shipped, the SRM-KIT series industrial monitor is wrapped in a plastic bag. Two
polystyrene ends are placed on either side of the monitor. The monitor is then placed into
a first (internal) cardboard box. This box is then sealed and placed into a second (external)
cardboard box. The second box is also sealed. A bag containing accessory items is
placed underneath the monitor, at the bottom of the internal (first) box.
4.2.2 Unpacking Procedure
To unpack the SRM-KIT series industrial monitor, follow the steps below:
WARNING:
The front side LCD screen has a protective plastic cover stuck to the
screen. Only remove the plastic cover after the SRM-KIT series
industrial monitor has been properly installed. This ensures the screen
is protected during the installation process.
Step 1: Use box cutters, a knife or a sharp pair of scissors to open the seal on the top
side of the external (second) box.
Step 2: Open the external (second) box.
Step 3: Use box cutters, a knife or a sharp pair of scissors the seal on the top side of the
internal (first) box.
Step 4: Lift the monitor out of the boxes.
Step 5: Remove both polystyrene ends, one from each side.
Step 6: Pull the plastic cover off the SRM-KIT series industrial monitor.
Step 7: Make sure all the components listed in the packing list are present. Step 0:
Page 39
4.2.3 Packing List
All the monitors in the SRM-KIT series are shipped with the following components:
Quantity Item Image
1 45W AC power adapter
1 AC power cord
1 DVI cable
SRM-KIT Series LCD Monitor
1 Screw kit
1 VGA cable
1 User manual and driver CD
If any of these items are missing or damaged, contact the distributor or sales
representative immediately.
4.3 Pre-installation Preparation
4.3.1 Tools
Before installing the SRM-KIT series industrial monitor, make sure the following tools are
on hand:
Phillips (crosshead) screwdriver: All the retention screws on the system are
Phillips screws.
Page 40
SRM-KIT Series LCD Monitor
Soft working mat: When the SRM-KIT series industrial monitor is installed,
the screen is placed on the working surface. It is therefore important to rest
the MPC industrial workstation on a soft at that cannot damage the LCD
screen on the front of the SRM-KIT series industrial monitor.
4.3.2 Voltage Select Jumper Settings
If the monitor comes with both 12V and 9 ~ 36V DC power connectors, the voltage select
jumper on the integrated AD board must be configured for the DC connector that is used
to power the monitor. Refer to Section
board.
NOTE:
The default voltage select jumper is configured for a 12V power source.
Do not change the jumper setting unless a 9~36V DC power connector
is to be used as the monitor’s power source.
To properly set the voltage select jumper, the following steps must be completed:
Step 1: Use a screwdriver to remove all the screws holding the rear panel to the monitor.
Step 2: Remove the rear panel.
3.3.2 for the appropriate jumper settings of the AD
Step 3: Locate the voltage select jumper. (See Section
Step 4: Use the jumper(s) to set the correct voltage input. (See Section
the rear panel.
Step 5: Replace all removed screws.Step 0:
4.4 Connectors
Table 4-1 lists the external peripheral interface panel connectors for the SRM-KIT series
industrial monitors.
3.3.2)
3.3.2) Replace
Page 41
Y
Y
Y
SRM-KIT Series LCD Monitor
VGA
DVI-D
Power (12V Jack)
SRM-KIT121G SRM-KIT150G
es Yes
es Yes
es Yes
Table 4-1: External Peripheral Interface Connectors
4.4.1 VGA Connector
Use the rear panel standard 15-pin female VGA connector to connect the monitor to the
system graphics interface.
PIN DESCRIPTION PIN DESCRIPTION
1 Red 9 No Connect
2 Green 10 Ground
3 Blue 11 No Connect
4 No Connect 12 DDC DAT
5 Ground 13 Horizontal Synchronization
6 Ground 14 Vertical Synchronization
7 Ground 15 DDC Clock
8 Ground
Table 4-2: VGA Connector Pinouts
Figure 4-1: VGA Connector Pinout Locations
4.4.2 DVI-D Connector
Use the rear panel standard 24-pin female DVI-D connector to connect the monitor to the
system graphics interface.
Page 42
SRM-KIT Series LCD Monitor
PIN DESCRIPTION PIN DESCRIPTION PIN DESCRIPTION
1 TMDS Data2- 9 TMDS Data1- 17 TMDS Data02 TMDS Data2+ 10 TMDS Data1+ 18 TMDSData0+
3 TMDS Data2/4 Shield 11 TMDS Data1/3 Shield 19 TMDS Data0/5 Shield
4 TMDS Data4- 12 TMDS Data3- 20 TMDS Data55 TMDS Data4+ 13 TMDS Data3+ 21 TMDS Data5+
6 DDC Clock [SCL] 14 +5 V Power 22 TMDS Clock Shield
7 DDC Data [SDA] 15 Ground (for +5 V) 23 TMDS Clock +
8 Analog vertical sync 16 Hot Plug Detect 24 TMDS Clock -
Table 4-3: DVI-D Connector Pinouts
Figure 4-2: DVI-D Connector Pinout Locations
4.4.3 12V Power Connector
Use the rear panel +12V DC jack to connect the monitor to a power source.
Figure 4-3: 12V Power Connector
Page 43
SRM-KIT Series LCD Monitor
4.5 Mounting the SRM-KIT Series LCD Monitor
Each SRM-KIT series monitor comes with a preinstalled mounting bracket with a number
of holes available for mounting purposes that system integrators will find especially useful.
Refer to Sections
each model of the SRM-KIT series monitor.
1.7 for further details on the number and location of mounting holes for
Page 44
SRM-KIT Series LCD Monitor
Chapter
5
5 On-Screen-Display
(OSD) Controls
Page 45
5.1 User Mode OSD Structure
5.1.1 OSD Buttons
There are several on-screen-display (OSD) control buttons oriented vertically and
temporarily along the right hand side of the monitor rear panel. The user can reposition the
OSD panel to fit their needs. To make the auto-dimming function properly, please install
SRM-KIT Series LCD Monitor
the OSD panel at a place where no obstacle blocks ambient light sensor.
shows a typical arrangement of OSD controls.
Figure 5-1
Figure 5-1: OSD Control Buttons for All Models
LCD ON/OFF Button
Press this button to turn the LCD monitor on or off. When the LCD monitor is
on, the power LED is turned on in green.
Auto/Exit Button
Press this button to enable auto-configuration or apply default values.
Left Button
Press this button to scroll to the left, to increase the value, or to switch from
Page 46
SRM-KIT Series LCD Monitor
one selected item to another.
Right Button
Press this button to scroll to the right, to decrease the value, or to switch from
one selected item to another.
Menu/Enter Button
Press this button to open the OSD window. When inside a menu, press this
button to confirm the function adjustment or selection of the item. There may
be several levels in one item. As you select an item in the menu, the
sub-items will be displayed.
The OSD control panel also includes one sensor and two LED.
Ambient Light Sensor
The ambient light sensor detects the brightness of ambient environment when
the auto-dimming function is turned on.
Power LED
The power LED is turned on in green when the LCD monitor is on.
Auto-dimming LED
The auto-dimming LED is turned on in red when the auto-dimming function is
on.
5.1.2 OSD Menu Structure
Table 5-1 shows the OSD menu structure for all models of the SRM-KIT series LCD
monitor.
Level 0 Level 1 Value
Main Display Features Menu
Speaker Menu
Brightness 0 to 100
Contrast 0 to 100
Sharpness 1 to 5
Volume
Mute
This menu is currently disabled,
and will be implemented with
models equipped with speakers.
Gamma Off, On
9300K - Preset NTSC value Color Menu
7500K - Preset NTSC value
Page 47
6500K - Preset NTSC value
User Temp RGB values from 0 to 100
SRM-KIT Series LCD Monitor
Image Setting Menu
OSD Menu
Auto-Dimming Menu
Table 5-1: OSD Menus
Auto Color Select
Width 0 to 100
Phase 0 to 100
H. Position 0 to 100
V. Position 0 to 100
OSD Time Out 0 to 60 sec
OSD Position 1 to 5
Factory Reset Select
Digital Signal Menu
Analog
Light Enable Off, On
Light Max 0 to 100
Light Min 0 to 100
LUX Max 0 to 400
LUX Min 0 to 400
Select
5.2 Using the OSD
OSD menu options are described below.
5.2.1 Main Display Features
Main display features are shown in Figure 5-2.
Page 48
SRM-KIT Series LCD Monitor
Figure 5-2: Main Display Features
The brightness option adjusts the brightness of screen. This
function adjusts the offset value of ADC. Setting this value too
Brightness
high or too low will affect the quality of image. When the auto-
dimming function is turned on, the brightness control is not
effective.
This function adjusts the gain value of ADC. Adjusting this
Contrast
Horizontal Size
value too high or too low will worsen the quality of image.
This item adjusts the screen size in the horizontal direction.
Page 49
5.2.2 Color
SRM-KIT Series LCD Monitor
Color options are shown in Figure 5-3.
Figure 5-3: Color Options
The Color menu fine-tunes the palette of color hues for the LCD.
9300k
NTSC standard Kelvin
7500k
NTSC standard Kelvin
6500k
NTSC standard Kelvin
This item allows fine-tuning the balance among Red, Green, and
User T emp
Blue color hues if images look garish or unrealistic.
Page 50
SRM-KIT Series LCD Monitor
5.2.3 Image Settings
The image settings are shown in Figure 5-4.
Figure 5-4: Image Settings Menu
Image settings are described below.
Auto Color
Automatically adjusts the color settings.
Width
Adjusts the width of the display screen.
Phase
Adjusts the input signal and dot clock position (Analog only)
H. Position
Adjusts the horizontal position of the display screen.
V. Position
Adjusts the vertical position of the display screen
Page 51
5.2.4 OSD Configurations
The OSD configurations are shown in Figure 5-5.
SRM-KIT Series LCD Monitor
Figure 5-5: OSD Configurations Menu
OSD Configurations are described below.
Determines how many seconds the OSD screen stays on
OSD Time Out
OSD Position
screen before it disappears when OSD is left unattended.
Adjusts the OSD position on the screen. Position 1 is in the
upper left of the screen, position 2 in the upper right and
position 3 in the center.
Restores the default OSD settings. Note that this will restore all
Factory Reset
default display settings.
Page 52
SRM-KIT Series LCD Monitor
5.2.5 Signal
The Signal menu in Figure 5-6 enables manual selection of the type of graphic source
input:
Analog
Digital
Figure 5-6: Signal Menu
15-pin VGA
DVI-D
5.2.6 Auto-Dimming Configurations
The SRM-KIT industrial monitor features an auto-dimming LCD that can automatically
adjust the backlight brightness according to the ambient light. If the auto-dimming function
is turned on, the backlight turns brighter when the ambient illuminance is high. The
backlight dims automatically when the ambient brightness level is low.
The SI unit of illuminance is “lux”. Lux measures the intensity of light.
illuminance (LUX measurement) of everyday light sources.
Table 5-2 lists the
Page 53
Light Source Brightness (LUX)
SRM-KIT Series LCD Monitor
Night without moonlight
Night with moonlight
Office desk lighting
Overcast day
Sunny day
Direct sunlight
Table 5-2: LUX Measurement of Everyday Light Source
<10
<100
500~1000
1000~2000
10,000
100,000
5.2.6.1 Default Settings
The auto-dimming default settings of the SRM-KIT industrial monitor are listed in Table
5-3
below:
OSD Default Settings Description
Light Min
0 Minimum backlight value
Unit in percentage (%)
Light Max
LUX Min
LUX Max
Table 5-3: Auto-Dimming Default Settings
The Figure 5-7 shows the SRM-KIT121G default linearity of the LCD backlight and
ambient light. When the sensor detects the ambient illuminance as 5200 LUX or above,
the SRM-KIT series industrial monitor adjusts the LCD brightness to 100%.
100 Maximum backlight value
Unit in percentage (%)
0 Minimum ambient brightness
Unit in 100 lux
52 Maximum ambient brightness
Unit in 100 lux (52=5200 lux)
Page 54
SRM-KIT Series LCD Monitor
1000
900
800
700
600
500
20%
1000
30%
1500
2000
400
300
200
LCD Brightness (cd/m2)
100
0
10%
0%
0
500
40%
50%
2500
60%
3000
70%
3500
80%
4000
100%
90%
4500
100%100%
5000
10000
15000
20000
100%
25000
30000
100%100%
35000
40000
Ambient Light (LUX)
Figure 5-7: SRM-KIT121G Default Linearity of the LCD Backlight and Ambient Light
5.2.6.2 OSD Control
The auto-dimming configurations are shown in Figure 5-5.
Figure 5-8: Auto-Dimming Configurations Menu
Auto-Dimming Configurations are described below.
Page 55
A
A
A
Turn on or turn off auto-dimming function. When auto-dimming
SRM-KIT Series LCD Monitor
Light Enable
ON/OFF
Light Max
Light Min
LUX Max
LUX Min
is turned on, the auto-dimming LED on the OSD panel is on
and the monitor automatically adjusts the brightness according
to ambient light conditions.
djusts the maximum LCD brightness value. The value is from
0% to 100%. The value cannot be smaller than the minimum
LCD brightness value.
djusts the minimum LCD brightness value. The value is
among 0% to 100%. The value cannot be larger than the
maximum LCD brightness value.
Adjusts the maximum LUX. The value is from 0 to 400 (40,000
LUX). The value cannot be smaller than the minimum LUX.
djusts the minimum LUX. The value is from 0 to 400 (40,000
LUX). The value cannot be larger than the maximum LUX.
5.2.6.3 Changing the Default Settings
The maximum and minimum LUX value and backlight brightness in the OSD panel can be
adjusted to meet custom needs and lighting conditions.
NOTE:
When the auto dimming function is on, the “Brightness Control” in
main display feature (refer to Section
only adjust the maximum and minimum value of the LUX and backlight to
make the LCD brighter or darker.
5.2.1) is not effective. The user can
Page 56
SRM-KIT Series LCD Monitor
Light Max. and Light Min.
To keep the LCD brightness within a specific range, not the 0~100% wide range, adjust
the minimum and maximum value of the LCD backlight. For example, set the Light Min. to
30 and the Light Max. to 70. Then, the adjustable LCD brightness range is among 30% to
70%. By doing this, the LCD brightness does not become too bright or too dark if the
ambient light reaches the default maximum or minimum value.
LUX Max. and LUX Min.
The SRM-KIT series is an ideal product for outdoor display. However, if the SRM-KIT
series is installed in an environment with stable and low lux lighting, the LCD monitor
cannot detect the default maximum lux (5200 lux) and make the LCD brightness reach to
the maximum. To set the LCD brightness to the maximum value, the user can adjust the
default maximum lux value.
For example, in a low lux office desk lighting environment, the default lux maximum value
may be adjusted from 52 (5200 lux) to 4 (400 lux). Once the setting is changed, the
monitor detects the ambient light and increases the LCD brightness to the maximum
Figure 5-9). In this case, the LCD brightness increases in a low lux environment by
(
decreasing the maximum LUX value while keeping other settings in default (
Figure 5-10).
Figure 5-9: Decreasing LUX Max. Value
Page 57
SRM-KIT Series LCD Monitor
Keep Light Max. in default setting: 100
Keep Light Min. in default setting: 0
Keep LUX Min. in default setting: 0
Figure 5-10: Light Max, Light Min and LUX Min in Default Value
Page 58
SRM-KIT Series LCD Monitor
Appendix
A
A Certification
Page 59
A.1 RoHS Compliant
All models in the SRM-KIT LCD monitor series comply with the Restriction of Hazardous
Materials (RoHS) Directive. This means that all components used to build the industrial
workstations and the workstation itself are RoHS compliant.
The RoHS Directive bans the placing on the EU market of new electrical and electronic
equipment containing more than agreed levels of lead, cadmium, mercury, hexavalent
chromium, polybrominated biphenyl (PBB) and polybrominated diphenyl ether (PBDE)
flame retardants.
SRM-KIT Series LCD Monitor
Page 60
SRM-KIT Series LCD Monitor
B Index
Page 61
1
SRM-KIT Series LCD Monitor
Light Max, 62, 70
Light Min, 62, 70
12V, 33, 35, 41, 46, 47
A
AD board, 32, 33, 35, 36
AD Board, 32, 33, 34, 50
ambient light sensor, 60, 61
auto-dimming, 16, 60, 61, 70
AV-5300, 32, 33, 34, 35, 36, 45, 47
B
Brightness, 26, 28, 61, 63
C
Certifications
RoHS, 74
connectors, 33, 34, 35, 36, 47
LUX Max, 62, 70
LUX Min, 62, 70
M
Model Variations, 17
monitor arm, 24
O
OSD, 33, 35, 38, 39
OSD Structure, 60
Using the OSD, 62
P
Packing List, 54
peripheral interface connectors, 35
Physical Dimensions, 22
Pinouts, 36, 37, 38, 39, 40, 41, 42, 43, 44, 47,
D
DVI-D, 33, 35, 47, 48, 49, 57
J
jumper, 45, 46
jumpers, 34, 36, 45
L
LCD, 16, 36, 39, 40, 46, 49
LCD Specifications, 26
SRM-KIT121G LCD Specifications, 26
SRM-KIT150G LCD Specifications, 27
Page 62
48, 49, 56, 57
Power Adapter, 29
R
RoHS, 16
RS-232, 16
S
Series Specifications
Brightness, 20
Chassis, 21
Contrast, 21
SRM-KIT Series LCD Monitor
Dimension, 21
Display Color, 21
Input Interface, 20
Input Voltage, 21
LCD Size, 20
Mounting, 21
Operation Temperature, 21
OSD Function, 21
Pixel Pitch, 21
Resolution, 20
Weight, 21
Standard Features, 16
T
terminal block, 46
touch screen, 5
U
USB, 16
V
VESA, 24
VGA, 33, 35, 43, 44, 47, 48, 56
Page 63
