IEI Technology PUZZLE-A002, PUZZLE-A002-MF1, PUZZLE-A002-MF1/8G User Manual

Download

Page 1

PUZZLE-A002

Page i

MODEL:

PUZZLE-A002

1U Network Appliance with AMD RX-421ND CPU, DDR4,

Rev. 1.00 – Febru ary 19, 2019

8 GB eMMC, Six GbE Ports, PCIe x4, PCI e Mi ni,

M.2, Dual USB 3.1 Gen 1, Rack Mount, and RoHS

User Manual

Page 2

PUZZLE-A002

Page ii

Date Version Changes

February 19, 2019 1.00 Initial release

Revision

Page 3

PUZZLE-A002

Page iii

The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer.

In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibil ity of such damages.

This document contains proprietary information protected by copyright. All rights are reserved. No part of this manual may be reproduced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer.

TRADEMARKS

All registered trademarks and product names mentioned herein are used for identification purposes only and may be trademarks and/or registered trademarks of their respective owners.

Page 4

PUZZLE-A002

Page iv

Manual Conventions

WARNING

Warnings appear where overlooked details may cause damage to the equipment or result in personal injury. Warnings should be taken seriously.

CAUTION

Cautionary messages should be heeded to help red uce the chance of losing data or damaging the product.

NOTE

These messages inform the reader of essent ial but non-critical information. These messages should be read carefully as any directions or instructions contained therein can help avoid making mistakes.

Page 5

PUZZLE-A002

Page v

Table of Contents

1 INTRODUCTION .......................................................................................................... 1

1.1 OVERVIEW .................................................................................................................. 2

1.2 MODEL VARIATIONS ................................................................................................... 2

1.3 FEATURES ................................................................................................................... 3

1.4 FRONT PANEL ............................................................................................................. 3

1.5 REAR PANEL ............................................................................................................... 4

1.6 TECHNICAL SPECIFICATIONS ...................................................................................... 4

1.7 DIMENSIONS ............................................................................................................... 6

2 UNPACKING ................................................................................................................. 7

2.1 ANTI-STATI C PRECAUTIONS ........................................................................................ 8

2.2 UNPACKING PRECAUTIONS ......................................................................................... 8

2.3 PACKING LIST ............................................................................................................. 9

2.4 OPTIONAL ITEMS ...................................................................................................... 10

3 INSTALLATION .......................................................................................................... 11

3.1 INSTALLATION PRECAUTIONS ................................................................................... 12

3.2 TOP COVER REM OVAL .............................................................................................. 13

3.3 DIMM INSTALLATION .............................................................................................. 13

3.4 HDD INSTALLATION ................................................................................................. 15

3.5 PCIE EXPANSION CARD INSTALLATION .................................................................... 17

3.6 M.2 MODULE INSTALLATION .................................................................................... 20

3.7 PCIE MINI CARD INSTALLATION .............................................................................. 21

3.7.1 Half-size PCIe Mini Card Installation ............................................................. 22

3.8 LAN CONNECTION ................................................................................................... 23

3.9 CONSOLE CONNECTION ............................................................................................ 24

3.10 MOUNTING THE SYSTEM ........................................................................................ 24

3.11 POWER-ON PROCEDURE ......................................................................................... 25

3.12 AVAILABLE DRIVERS .............................................................................................. 26

3.12.1 Driver Download ........................................................................................... 27

4 BIOS .............................................................................................................................. 29

Page 6

PUZZLE-A002

Page vi

4.1 INTRODUCTION ......................................................................................................... 30

4.1.1 Starting Setup ................................................................................................... 30

4.1.2 Using Setup ...................................................................................................... 30

4.1.3 Getting Help ..................................................................................................... 31

4.1.4 Unable to Reboot after Configuration Changes .............................................. 31

4.1.5 BIOS Menu Bar ................................................................................................ 31

4.2 MAIN ........................................................................................................................ 32

4.3 ADVANCED ............................................................................................................... 33

4.3.1 Trusted Computing ........................................................................................... 34

4.3.1 IDE Configuration ........................................................................................... 35

4.3.2 iWDD H/W Monitor ......................................................................................... 36

4.3.2.1 Smart Fan Mode Configuration ................................................................ 37

4.3.3 iWDD Super IO Configuration ........................................................................ 39

4.3.3.1 Serial Port 1 Configuration ....................................................................... 39

4.3.4 Serial Port Console Redirection ...................................................................... 41

4.3.5 CPU Configuration .......................................................................................... 43

4.3.5.1 Node 0 Information ................................................................................... 44

4.3.6 NVMe Configuration ........................................................................................ 45

4.4 CHIPSET ................................................................................................................... 45

4.4.1 South Bridge ..................................................................................................... 46

4.4.1.1 SB SATA Configuration ............................................................................ 47

4.4.2 GFX Configuration .......................................................................................... 48

4.4.3 North Bridge .................................................................................................... 49

4.4.3.1 Socket 0 Information ................................................................................. 49

4.5 SECURITY ................................................................................................................. 50

4.6 BOOT ........................................................................................................................ 51

4.7 SAVE & EXIT ............................................................................................................ 53

5 INTERFACE CONNECTORS ................................................................................... 54

5.1 PERIPHERAL INTERFACE CONNECTORS ..................................................................... 55

5.2 INTERNAL PERIPHERAL CONNECTORS ...................................................................... 56

5.2.1 ATX Power Connector (ATXPWR1) ................................................................ 57

5.2.2 Chassis Intrusion Connector (CHASSIS1) ....................................................... 57

5.2.3 DIO Connector (DIO1) .................................................................................... 57

5.2.4 EC Debug Connector (CN1) ............................................................................ 58

Page 7

PUZZLE-A002

Page vii

5.2.5 Fan Connectors (CPU_FAN1/2/3, SYS_FAN1) ............................................... 58

5.2.6 Front Panel Connector (F_PANEL1) ............................................................... 59

5.2.7 LCM Connector (LCM_CON1) ....................................................................... 59

5.2.1 M.2 Slot (M2_CN1) .......................................................................................... 60

5.2.2 PCIe Mini Card Slot (MPCIE1) ....................................................................... 61

5.2.1 Power Switch Connector (PWR_BTN1) .......................................................... 62

5.2.2 SATA Connector (SATA0_1) ............................................................................. 62

5.2.3 SPI Flash Connector (JSPI_BIOS_1) .............................................................. 63

5.2.4 SPI Flash Connector - EC (JSPI_EC1) ........................................................... 63

5.2.5 TPM Connector (TPM1) .................................................................................. 64

5.2.6 USB 2.0 Connector (USB_CON2) ................................................................... 64

5.2.7 USB DOM Connector (USB_DOM1) .............................................................. 64

A REGULATORY COMPLIANCE .............................................................................. 65

B SAFETY PRECAUTIONS ......................................................................................... 70

B.1 SAFETY PRECAUTIONS ............................................................................................. 71

B.1.1 General Safety Precautions ............................................................................. 71

B.1.2 Anti-static Precautions .................................................................................... 71

B.1.3 Product Disposal ............................................................................................. 72

B.2 MAINTENANCE AND CLEANING PRECAUTIONS ........................................................ 73

B.2.1 Maintenance and Cleaning .............................................................................. 73

B.2.2 Cleaning Tools ................................................................................................. 73

C HAZARDOUS MATERIALS DISCLOSURE ......................................................... 75

Page 8

PUZZLE-A002

Page viii

List of Figures

Figure 1-1: PUZZLE-A002 Series ................................................................................................... 2

Figure 1-2: PUZZLE-A002 Front Panel .......................................................................................... 3

Figure 1-3: PUZZLE-A002 Rear Panel ........................................................................................... 4

Figure 1-4: Physical Dimensions (millimeters) ............................................................................ 6

Figure 3-1: Top Cover Removal .................................................................................................. 13

Figure 3-2: DIMM Slot Locations ................................................................................................. 14

Figure 3-3: HDD Bracket Retention S c r ews ............................................................................... 15

Figure 3-4: Secure HDD to the Bracket ...................................................................................... 16

Figure 3-5: HDD Installation ........................................................................................................ 16

Figure 3-6: Expansion Slot Module Retention Screws ............................................................. 17

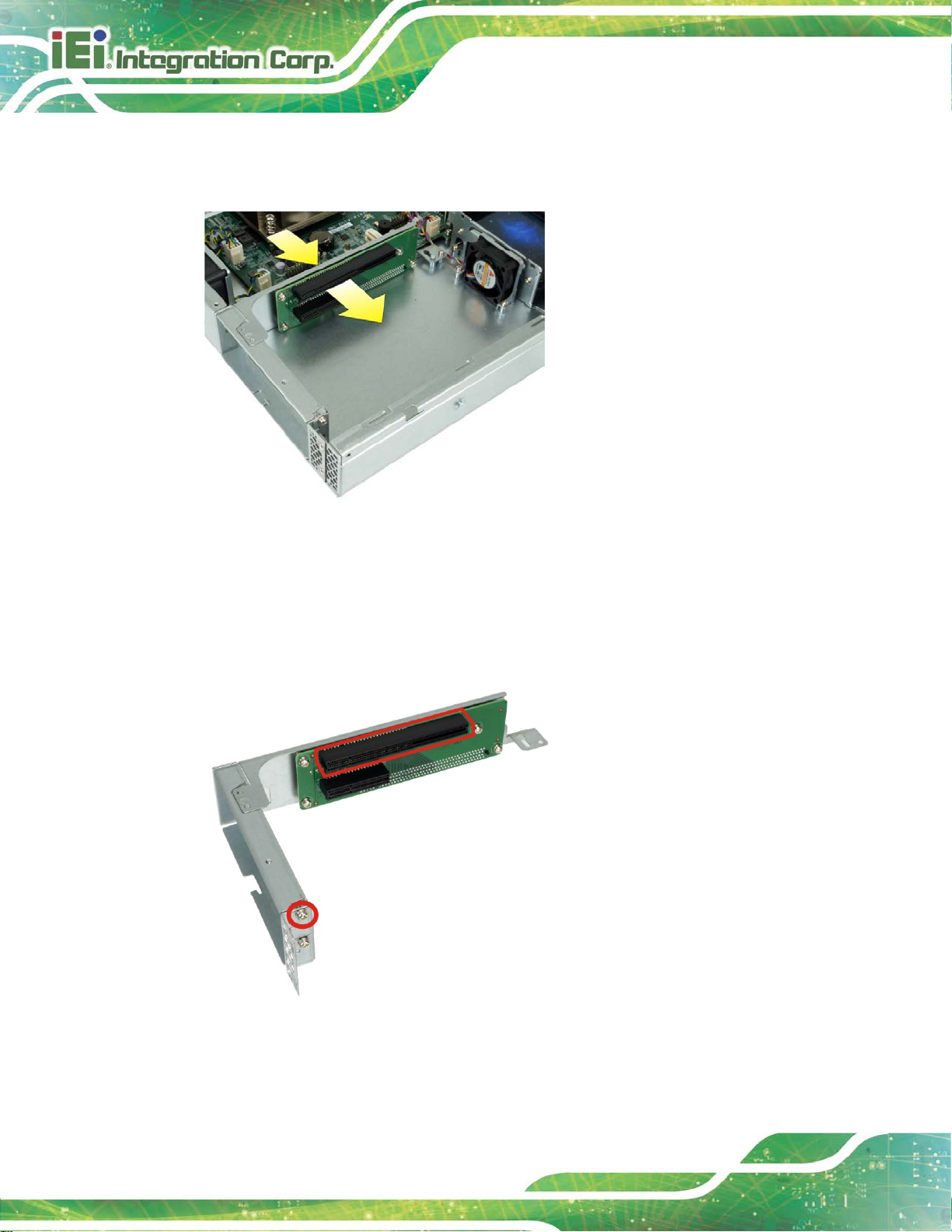

Figure 3-7: Disconnect the Expansion Slot Module .................................................................. 18

Figure 3-8: Blank Bracket Screw ................................................................................................. 18

Figure 3-9: PCIe Expansion Card Installation ............................................................................ 19

Figure 3-10: Expansion Slot Module Installation ...................................................................... 20

Figure 3-11: PCIe Mini Slot Location .......................................................................................... 22

Figure 3-12: RJ-45 Ethernet Connector ...................................................................................... 23

Figure 3-13: Rack Mounting Bracket Installati on ...................................................................... 24

Figure 3-14: Power-on .................................................................................................................. 25

Figure 3-15: IEI Resource Download Center .............................................................................. 26

Page 9

PUZZLE-A002

Page ix

List of Tables

Table 1-1: PUZZLE-A002 Model Variations .................................................................................. 2

Table 1-2: Technical Specifications .............................................................................................. 6

Table 3-1: LAN Pinouts ................................................................................................................ 23

Table 3-2: RJ-45 Ethernet Connector LEDs ............................................................................... 23

Table 3-3: RJ-45 Serial Port Pinouts ........................................................................................... 24

Table 4-1: BIOS Navigation Keys ................................................................................................ 31

Table 5-1: Peripheral Interface Connectors ............................................................................... 56

Table 5-2: ATX Power Connector (ATXPWR1) Pinouts ............................................................ 57

Table 5-3: Chassis Intrusion Connector (CHASSIS1) Pinouts ................................................. 57

Table 5-4: DIO Connector (DIO1) Pinouts .................................................................................. 57

Table 5-5: EC Debug Connector (CN1) Pinouts ......................................................................... 58

Table 5-6: Fan Connectors (CPU_FAN1/2/3, SYS_FAN1) Pinouts ........................................... 58

Table 5-7: Front Panel Connector (F_PANEL1) Pinouts ........................................................... 59

Table 5-8: LCM Connector (LCM_CON1) Pinouts ..................................................................... 59

Table 5-9: M.2 Slot (M2_CN1) Pino uts ........................................................................................ 61

Table 5-10: PCIe Mini Card Slot (MPCIE1) Pinouts ................................................................... 62

Table 5-11: Power Switch Connector (PWR_BTN1) Pinouts .................................................... 62

Table 5-12: SATA 6Gb/s Connector (SATA0_1) Pinouts .......................................................... 63

Table 5-13: SPI Flash Connector (JSPI_BIOS_1) Pinouts ........................................................ 63

Table 5-14: SPI Flash Connector - EC (JSPI_EC1) Pinouts ...................................................... 63

Table 5-15: TPM Connector (TPM1) Pinouts .............................................................................. 64

Table 5-16: USB 2.0 Connector (USB_CON2) Pinouts .............................................................. 64

Table 5-17: USB DOM Connector (USB_DOM1) Pinouts .......................................................... 64

PUZZLE-A002

Page 10

Page 11

PUZZLE-A002

Page 1

Chapter

1 Introduction

Page 12

PUZZLE-A002

Page 2

1.1 Overview

Figure 1-1: PUZZLE-A002 Series

The PUZZLE-A002 is a 1U network appliance series powered by AMD RX-421ND processor. It is optimized to host VNFs (Virtual Network Functions) and is ideal for SD-WAN.

The PUZZLE-A002 supports six copper GbE ports for high-speed network applications, and it is equipped with two PCIe x4 slots for upgrading with expansion cards, such as NIC cards or accelerator cards.

Multiple storage interfaces for fast and stable data transmission are offered through two SATA 6Gb/s connectors and one PCIe Mini slot that supports mSATA module.

1.2 Model Variations

The model variations of the PUZZLE-A002 are listed below.

Model No. CPU Memory SSD

PUZZLE-A002-MF1 PUZZLE-A002-MF1/8G

Table 1-1: PUZZLE-A002 Model Variations

AMD RX-421ND N/A N/A AMD RX-421ND 8 GB DDR4 256 GB

Page 13

PUZZLE-A002

Page 3

1.3 Features

The PUZZLE-A002 features are listed below:

 Powered by AMD RX-421ND  Support two 2400 MHz DDR4 non-ECC RDIMMs (system max. 32 GB)  Support two 2.5” SATA SSD/HDD  Support up to six GbE connections via Broadcom B CM 5720 controllers  Upgradable with future expansion cards by two PCIe x4 slots, one M.2 slot

and one PCIe Mini card slot

 One RJ-45 RS-232 serial port  Supports two USB 3.1 Gen 1 (5 Gb/s) ports  1U chassis for rack mounting  RoHS compliant

1.4 Front Panel

The overview of the front panel is shown in Figure 1-2.

processor (quad-core, up to 3.4 GHz)

Figure 1-2: PUZZLE-A002 Front Panel

The states of the LED indicators located on the front panel are listed below.

Off The system is turned off.

Power LED

Blue The system is turned on. Off No HDD activity

HDD Status LED

Blinking Blue HDD activity Off No alert

Alert LED

Red Alert message

Page 14

PUZZLE-A002

Page 4

1.5 Rear Panel

An overview of the PUZZLE-A002 rear panel is sh own in Figure 1-3 below.

Figure 1-3: PUZZLE-A002 Rear Panel

1.6 Technical Specifications

The PUZZLE-A002 technical specifications are listed below.

System Form Factor 1U CPU (SoC) AMD RX-421ND processor (quad-core, up to 3.4 GHz) Memory

Networking Broadcom BCM5720 Ethernet controllers

Network Acceleration and Security

Storage 2 x 2.5" SATA 6Gb/s HDD/SSD bay

Two 288-pin 2400 MHz DDR 4 ECC/non-ECC RDIMM slots (system max. 32 GB)

(8G SKUs are pre-installed with two 4 GB memory modules)

6 x Copper 1GbE LAN port AES-NI encryption acceleration

AMD Secure Processor Secure boot with AMD Hardware Validated Boot (HVB)

8 GB eMMC

Expansion PCIe 1 x PCIe x4 slot

1 x PCIe x16 slot (x4 mode)

Page 15

PUZZLE-A002

Page 5

PCIe Mini

M.2

I/O and Indicators Console 1 x RJ-45 RS-232 USB 2 x USB 3.1 Gen 1 (5 Gb/s) port (external)

Indicator LCM (with two control buttons)

Switch/Button

1 x PCIe Mini slot (reserved for WWAN module, supports PCIe and USB 2.0 signals)

1 x M.2 A-key 2230 slot (reserved for Wi-Fi module, supports PCIe and USB 2.0 signals)

2 x USB 3.1 Gen 1 (5 Gb/s) port (internal, Type-A) 2 x USB 2.0 internal pin-header (8-pin, p=2.54)

Power status (blue) HDD status (green) Alert LED (programmable, red)

Power switch (rear panel) Reset button (front panel)

TPM 1 x TPM 2.0 (2x10 pin header) Antenna Connector 1 x Knockout hole for antenna connector Power Power Input 100 V ~ 240 V

ATX power, 250 W

Thermal Solution 1 x Passive heatsink for CPU

4 x Smart fan

Environmental and Mechanical Mounting 1U rack mount Operating Temperature 0°C~40°C (32°F~104°F) Storage Temperature -10°C~50°C (14°F~122°F) Operating Humidity 5%~90%, non-condensing Safety CE, FCC Weight 5 kg Physical Dimensions 430 mm x 320 mm x 44.2 mm (W x D x H)

Page 16

PUZZLE-A002

Page 6

Operating System Linux Ubuntu 16.04 Table 1-2: Technical Specifications

1.7 Dimensions

The physical dimensions are shown below:

Figure 1-4: Physical Dimensions (millimeters)

Page 17

PUZZLE-A002

Page 7

Chapter

2 Unpacking

Page 18

PUZZLE-A002

Page 8

may result in

2.1 Anti-static Precautions

WARNING:

Failure to take ESD precautions during installation permanent damage to the PUZZLE-A002 and severe injury to t he user.

Electrostatic discharge (ESD) can cause serious damage to electronic components, including the PUZZLE-A002. Dry climates are especial ly susceptible to ESD. It is therefore critical that whenever the PUZZLE-A002 or any other electrical compone nt is handle d, the following anti-static precautions are strictly adhered to.

 Wear an anti-static wristband: W earing a simple anti-static wristband can

help to prevent ESD from damaging the board.

 Self-grounding: Before handling the board, touch any grounded conducting

material. During the time the board is handled, frequently touch any conducting materials that are connected t o the ground.

 Use an anti-static pad: When configuring the PUZZLE-A002, place it on an

anti-static pad. This reduces the possibility of ESD damaging the PUZZLE-A002.

2.2 Unpacking Precautions

When the PUZZLE-A002 is unpacked, please do the following:

 Follow the anti-static precautions outline d i n Section 2.1.  Make sure the packing box is facing upwards so the PUZZLE-A002 does not

fall out of the box.

 Make sure all the components shown in Section 2.3 are present.

Page 19

PUZZLE-A002

Page 9

2.3 Packing List

NOTE:

If some of the components listed in the checklist below are missing, please do not proceed with the installation. Contact the IEI reseller or vendor you purchased the PUZZLE-A002 from or contact an IEI sales representative directly. To contact an IEI sales representative, please send an email to sales@ieiworld.com

The PUZZLE-A002 is shipped with the following components:

Quantity Item Image

1 PUZZLE-A002

1 Power cord

2 Rack mounting bracket

6 Mounting bracket screw (M4*6)

10 Screw for securing HDD (M3*4)

1 USB to console cable

(only for SKUs with memory)

Page 20

PUZZLE-A002

Page 10

Quantity Item Image

1 RS-232 to console cable

(only for SKUs without memory)

2.4 Optional Items

The following table lists the optional items that can be purchased separately.

Optional Item Image

Slide rail (P/N: RAIL-B02)

USB to console cable (P/N: 32013-004000-100-RS)

RS-232 to console cable (P/N: 32005-005100-100-RS)

20-pin Infineon TPM 2.0 module, sof tware management tool, firmware v5.5

(P/N: TPM-IN02-R20)

Page 21

PUZZLE-A002

Page 11

Chapter

3 Installation

Page 22

PUZZLE-A002

Page 12

3.1 Installation Precautions

During installation, be aware of the precautions below:

 Read the user manual: The user manual provides a complete description of

the PUZZLE-A002, installation instructions an d configuration options.

 DANGER! Disconnect Power: Power to the PUZZLE-A002 must be

disconnected during the installation proce ss. Failin g to disconnect the power may cause severe injury to the body and/or damage to the system.

 Qualified Personnel: The PUZZLE-A002 must be installed and operated

only by trained and qualified personnel. Maint enance, upgrades, or repairs may only be carried out by qualified personnel w ho are familiar with the associated dangers.

 Air Circulation: Make sure there is sufficient air circulation when installing

the PUZZLE-A002. The PUZZLE-A002’s cooling vents must not be obstructed by any objects. Blocking the vent s can cause overheating of the PUZZLE-A002. Leave at least 5 cm of clearance arou nd the PUZZLE-A002 to prevent overheating.

 Grounding: The PUZZLE-A002 should be properly grounded. The voltage

feeds must not be overloaded. Adjust the cabling and provide external overcharge protection per the electrical value s indi cat ed on the label at tached to the back of the PUZZLE-A002.

Page 23

PUZZLE-A002

Page 13

identical memory

modules that feature the same capacity, timings, voltage, number of

3.2 Top Cover Removal

Before installing or maintaining the internal components, the top cover must be removed from the PUZZLE-A002. Follow the steps below to complete the task.

Step 1: Remove the four retention screws indicated in Figure 3-1.

Step 2: Slide the top cover towards the rear side and ge ntly lift the top cover

(Figure 3-1).

Figure 3-1: Top Cover Removal

3.3 DIMM Installation

CAUTION:

For dual channel configuration, always install two

ranks and the same brand.

Page 24

PUZZLE-A002

Page 14

To install the DIMM module, please follow the ste ps below.

Step 1: Remove the top cover from the PUZZLE-A002. Please follow the instruction

described in Section 3.2.

Step 2: Locate the DIMM slots on the motherboard.

Figure 3-2: DIMM Slot Locations

Step 3: Open the DIMM socket handles. Open the two handles outwards as far as they

can.

Step 4: Align the DIMM so the notch on the memory li nes up with the notch on the

memory socket.

Step 5: Once aligned, press down until the DIMM is properly seated. Clip the two

handles into place.

Step 6: To remove a DIMM, push both handles outward. The memory modul e i s ejected

by a mechanism in the socket.Step 0:

Page 25

PUZZLE-A002

Page 15

3.4 HDD Installation

The PUZZLE-A002 allows installa tion of two 2.5” SATA HDD/SSD. To install HDDs into the system, please follow the steps belo w.

Step 1: Remove the top cover from the PUZZLE-A002. Please follow the instruction

described in Section 3.2.

Step 2: Remove the HDD bracket from the system. To do this, remove the three

retention screws indicated below and discon nect the SATA connector modul e from the motherboard.

Figure 3-3: HDD Bracket Retention S cr ews

Step 3: Insert an HDD into the bracket until the HDD is prop erly connected to the SATA

connector. Secure the HDD with four retention screws (M3*4). See Figure 3-5.

Page 26

PUZZLE-A002

Page 16

Figure 3-4: Secure HDD to the Bracket

Step 4: Re-connect the SATA co n necto r modul e to the motherbo ar d. S ecure t he brac ket

Figure 3-5: HDD Installation

Step 5: Re-install and secure the top cover to the system .

to the chassis with three screws removed previously (Figure 3-5).

Page 27

PUZZLE-A002

Page 17

3.5 PCIe Expansion Card Installation

The PUZZLE-A002 allows installation of two PCIe x4 cards. To install a PCIe expansion card, please follow the steps below.

Step 1: Remove the top cover from the PUZZLE-A002 (refer to Section 3.2).

Step 2: Remove the four expansion slot module ret ention screws indicated below .

Figure 3-6: Expansion Slot Module Retention Scre ws

Page 28

PUZZLE-A002

Page 18

Step 3: Push the expansion slot module with strength to di sconne ct the m odule fro m the

edge connector of the motherboard.

Figure 3-7: Disconnect the Expansion Slot Module

Step 4: Remove the blank bracket panel that aligns with the PCIe slot for installing the

expansion card. Save the bracket screw.

Figure 3-8: Blank Bracket Screw

Page 29

PUZZLE-A002

Page 19

Step 5: Align the expansion card to the PCIe slot. Press g ently, but firmly, to seat the

expansion card correctly in the slot. Install the bracket screw to secure the card to the expansion slot module.

Figure 3-9: PCIe Expansion Card Installation

Step 6: Place the expansion slot module back to the origi nal position by hooking the

slotted hole into the positioning stud in the chassis (Figure 3-10 “A”). Push the connector of the expansion slot module into the edge connector to install it. During installation, ensure that

1. the connector on the slot module is properly aligned and connected to the edge connector;

2. the two studs on the side is going through the t wo holes in the chassis;

3. the slot module tab is going under the cha ssis tab.

Page 30

PUZZLE-A002

Page 20

Figure 3-10: Expansion Slot Module Installation

Step 7: Secure the expansion slot module with the four retention screws previously

removed.

Step 8: Re-install the top cover.

3.6 M.2 Module Installation

The M.2 slot is keyed in the A positi on and provides m ounting scre w position f or 2230-size M.2 module. To install an M.2 module, please follow the steps below.

Step 1: Remove the top cover from the PUZZLE-A002. See Section 3.2.

Step 2: Locate the M.2 slot on the motherboard.

Page 31

PUZZLE-A002

Page 21

Step 3: Remove the on-board retention screw.

Step 4: Line up the notch on the module with the notch on the slot. Slide t he M.2 module

into the socket at an angle of about 20º.

Step 5: Push the M.2 module down and secure it with the pre viously removed retention

screw.

3.7 PCIe Mini Card Installation

The PUZZLE-A002 has one full-size/half-size PCIe Mini slot on the motherboard. To install a full-size module, follow the instructions below.

Step 1: Remove the top cover from the PUZZLE-A002. See Section 3.2.

Step 2: Locate the PCIe Mini slot on the motherboard (Figure 3-11).

Page 32

PUZZLE-A002

Page 22

Figure 3-11: PCIe Mini Slot Location

Step 3: Remove the retention screw and standoff for half-size PCIe Mini card to avoid

interference of the board circuit.

Step 4: Remove the pre-installed retention screw for full-size card from the standoff.

Step 5: Line up the notch on the card with the notch on the slot. Slide the PCIe Mini card

into the socket at an angle of about 20º.

Step 6: Secure the full-size PCIe Mini card with the retention screw previously removed.

3.7.1 Half-size PCIe Mini Card Installation

The PCIe Mini slot also allows installation of a half-size PCIe Mini card. To install a half-size PCIe Mini card, please follow the st eps below.

Step 1: Remove the pre-installed retention screw for half-size PCIe Mini card from the

standoff.

Step 2: Line up the notch on the card with the notch on the slot. Slide the PCIe Mini card

into the socket at an angle of about 20º.

Step 3: Secure the half-size PCIe Mini card with the retention screw previously

removed.

Page 33

PUZZLE-A002

Page 23

3.8 LAN Connection

The LAN connectors on the front panel allow connection to an external network. The pinouts of the LAN connectors are listed below.

Pin Description Pin Description

1 MDIA0+ 5 MDIA22 MDIA0- 6 MDIA13 MDIA1+ 7 MDIA3+ 4 MDIA2+ 8 MDIA3-

Table 3-1: LAN Pinouts

Figure 3-12: RJ-45 Ethernet Connector

The RJ-45 Ethernet connector has two status LEDs, one yellow and one green/orange. The yellow LED indicates activity on the port and the green/orange LED indicates the speed. See Table 3-2.

Activity/Link LED Speed LED

STATUS DESCRIPTION STATUS DESCRIPTION

Off No link Off 10 Mbps connection Yellow Linked Green 100 Mbps connection Blinking TX/RX activity Orange 1 Gbps connection

Table 3-2: RJ-45 Ethernet Connector LEDs

Page 34

PUZZLE-A002

Page 24

3.9 Console Connection

The PUZZLE-A002 has one RJ-45 serial device connector on the front panel. The RJ-45 connector for the serial port can be identified easily as the RJ-45 for the network has two LEDs on the port, while the connectors for the serial cables don’ t. The pinouts of the serial port are listed below.

Pin Description Pin Description

1 -NRTS1 5 GND 2 -NDTR1 6 NSIN1 3 NSOUT1 7 -NDSR1 4 GND 8 -NCTS1

Table 3-3: RJ-45 Serial Port Pinouts

The serial device slot (RJ-45) connects to a cable with a standard D-sub 9 connector or a USB connector (varied from SKU) at the other end.

3.10 Mounting the System

The PUZZLE-A002 is shipped with two mounting brack ets that support 1U rack mount. To install the mounting brackets, please follow the steps below.

Step 1: Align the three retention screw holes in each bracket with the corresponding

retention screw holes on the sides of the PUZZLE-A002.

Step 2: Secure the brackets to the system by inserting three retention screws (M4*6)

into each bracket (Figure 3-13). Make sure the screws are tight and on the right positions.

Figure 3-13: Rack Mounting Bracket Installation

Page 35

PUZZLE-A002

Page 25

Make sure a power supply with the correct input voltage is being fed into

3.11 Power-On Procedure

WARNING:

the system. Incorrect voltages applied t o the system may cause damage to the internal electronic components and may also cause injury to the user.

To power-on the PUZZLE-A002 please follow the steps below:

Step 1: Connect the power source to the power inlet on the rear panel.

Step 2: Turn on the power swit ch to power up the system.

Step 3: The power LED indicator on the front panel turns to green.Step 0:

Figure 3-14: Power-on

Page 36

PUZZLE-A002

Page 26

Figure 3-15: IEI Resource Download Center

3.12 Available Drivers

All the drivers for the PUZZLE-A002 are available on IEI Resource Download Center (https://download.ieiworld.com relevant software, utilities, and documentation.

). Type PUZZLE-A002 and press Enter to find all the

NOTE:

To install software from the downloaded ISO image file in Windows 10, double-click the ISO file to mount it as a v i rt ual dri ve to view its content.

Page 37

PUZZLE-A002

Page 27

3.12.1 Driver Download

To download drivers from IEI Resource Download Center, follow the steps below.

Step 1: Go to https://download.ieiworld.com

Step 2: All product-related software, ut il i ties, and documentation will be listed. You can

choose Driver to filter the result.

. Type PUZZLE-A002 and press Enter.

Step 3: Click the driver file name on the page an d you will be prompted with the

following window. You can download the entire ISO file ( arrow to find an individual driver and click the fil e name to download (

), or click the small

).

Page 38

PUZZLE-A002

Page 28

Page 39

PUZZLE-A002

Page 29

Chapter

4 BIOS

Page 40

PUZZLE-A002

Page 30

Some of the BIOS options may vary throughout the life cycle of the

4.1 Introduction

The BIOS is programmed onto the BIOS chip. The BI OS setup pro gram allows changes to certain system settings. This chapter outlines the options that can be changed.

NOTE:

product and are subject to change without prior notice.

4.1.1 Starting Setup

The UEFI BIOS is activated when the computer is turned on. The setup program can be activated in one of two ways.

1. Press the DEL or F2 key as soon as the system is turned on or

2. Press the DEL or F2 key when the “Press DEL or F2 to enter S E TUP” message appears on the screen.

If the message disappears before the DEL or F2 key is pres sed, restart the computer and try again.

4.1.2 Using Setup

Use the arrow keys to highlight items, press ENTER to select, use the PageUp and PageDown keys to change entries, press F1 for help and press E keys are shown in Table 4-1.

Key Function

Up arrow Move to previous item Down arrow Move to next item Left arrow Move to the item on the left hand side

SC to quit. Navigation

Right arrow Move to the item on the right hand side + Increase the numeric value or make changes

Page 41

PUZZLE-A002

Page 31

Key Function

- Decrease the numeric value or make changes Esc key Main Menu – Quit and not save changes into CMOS

Status Page Setup Menu and Option Page Setup Menu -Exit current page and return to Main Menu

F1 key General help, only for Status Page Setup Menu and Option

Page Setup Menu F2 key Load previous values F3 key Load optimized defaults F4 key Save changes and exit BIOS

Table 4-1: BIOS Navigation Keys

4.1.3 Getting Help

When F1 is pressed a small help window describing the appropriate keys to use and the possible selections for the highlighted item appears. To ex it the Help Window press E the F1 key again.

4.1.4 Unable to Reboot after Configuration Changes

If the computer cannot boot after changes to the system configuration is made, remove the on-board RTC battery to clear CMOS, and then reinstall it.

4.1.5 BIOS Menu Bar

The menu bar on top of the BIOS screen has the foll owing main items:

 Main – Changes the basic system configuration.  Advanced – Changes the advanced system settings.  Chipset – Changes the chipset settings.  Security – Sets User and Supervisor Passwords.

SC or

 Boot – Changes the system boot configuration.  Save & Exit – Selects exit options and loads default settings

Page 42

PUZZLE-A002

Page 32

Main

Advanced

Chipset

Security

Boot

Save & Exit

ESC: Exit

The following sections completely describe the configuration options found in the menu items at the top of the BIOS screen and listed above.

4.2 Main

The Main BIOS menu (BIOS Menu 1) appears when the BIOS Setup program is enter ed. The Main menu gives an overview of the basic syste m i nformation.

BIOS Information BIOS Vendor American Megatrends Core Version 5.12 Compliancy UEFI 2.5; PI 1.4 Project Version Z540AT12.ROM Build Date and Time 10/01/2018 10:45:41

iWDD Vendor iEi iWDD Version Z540ER10.bin

BIOS Information Access Level Administrator

System Language [English]

System Date [Thu 11/09/2018] System Time [06:10:27]

BIOS Menu 1: Main

The Main menu has two user configurable fields:

Set the Date. Use Tab to switch between Date elements.

----------------------



: Select Screen

↑ ↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit

 System Date [xx/xx/xx]

Use the System Date option to set the system date. Manually enter the day, month and year.

 System Time [xx:xx:xx]

Use the System Time option to set the system time. Manually enter the hours, minutes and seconds.

Page 43

PUZZLE-A002

Page 33

Main

Advanced

Chipset

Security

Boot

Save & Exit

BIOS Menu 2: Advanced

4.3 Advanced

Use the Advanced menu (BIOS Menu 2) to configure the CPU and peripheral devices through the following sub-menus:

WARNING!

Setting the wrong values in the sections below may cause the system to malfunction. Make sure that the settings made are compatible with the hardware.

> Trusted Computing > IDE Configuration > iWDD H/M Monitor > iWDD Super IO Configuration > Serial Port Console Redirection > CPU Configuration > NVMe Configuration

Trusted Computing Settings

----------------------



: Select Screen

↑ ↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Page 44

PUZZLE-A002

Page 34

Advanced

4.3.1 Trusted Computing

Use the Trusted Computing menu (BIOS Menu 3) to configure settings related to the Trusted Computing Group (TCG) Trusted P l atform Module (TPM).

Configuration Security Device Support [Disable]

NO Security Device Found

BIOS Menu 3: Trusted Computing

 Security Device Support [Disable]

Enables or Disables BIOS support for security device. O.S. will not show Security Device. TCG EFI protocol and INT1A interface will not be available.

----------------------



: Select Screen

↑ ↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Use the Security Device Support option to configu re support for the TPM.



Disable DEFAULT



Enable

TPM support is disabled. TPM support is enabled.

Page 45

PUZZLE-A002

Page 35

Advanced

ESC: Exit

4.3.1 IDE Configuration

Use the IDE Configuration (BIOS Menu 4) menu to display the configurati on of the SATA devices installed in the system.

IDE Configuration

SATA Port0 Not Present SATA Port1 256GB SATA Fla (256.0…

BIOS Menu 4: IDE Configuration

---------------------



: Select Screen

↑ ↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit

Page 46

PUZZLE-A002

Page 36

Advanced

4.3.2 iWDD H/W Monitor

The iWDD H/W Monitor menu (BIOS Menu 5) contains the fan configuration submenu, and displays the system temperature and CPU fan speed.

PC Health Status

CPU temperature :+59 °C System temperature :+32 °C

CPU_FAN1 Speed :4244 RPM CPU_FAN2 Speed :4099 RPM CPU_FAN3 Speed :4473 RPM SYS_FAN1 Speed :478 RPM

CPU_CORE :+1.043 V +5V :+5.152 V +DDR :+1.199 V +5VSB :+5.126 V +3.3V :+3.307 V +3.3VSB :+3.259 V

> Smart Fan Mode Configuration

BIOS Menu 5: iWDD H/W Monitor

 PC Health Status

Smart Fan Mode Select

---------------------



: Select Screen

↑ ↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

The following system parameters and values are shown. The system parameters that are monitored are:

 System Temperatures:

o CPU temperature o System temperature

 Fan Speeds:

o CPU fan speed o System fan speed

 Voltages:

o CPU_CORE o +5V

Page 47

PUZZLE-A002

Page 37

Advanced

The fan spins at the speed set in Manual Mode

The fan adjusts its speed using Auto Mode

o DDR o +5VSB o +3.3V o +3.3VSB

4.3.2.1 Smart Fan Mode Configuration

Use the Smart Fan Mode Configuration submenu (BIOS Menu 6) to configure the CPU/system fan temperature and speed settings.

Smart Fan Mode Configuration

CPU_FAN1 Smart Fan Control [Auto Mode] Auto mode fan start temperature 45 Auto mode fan off temperature 30 Auto mode fan start PWM 30 Auto mode fan slope PWM 3

CPU_FAN2 Smart Fan Control [Auto Mode] Auto mode fan start temperature 45 Auto mode fan off temperature 30 Auto mode fan start PWM 30 Auto mode fan slope PWM 3

BIOS Menu 6: Smart Fan Mode Configuration

 CPU_FAN/SYS_FAN Smart Fan Control [Auto Mode]

Use the CPU_FAN/SYS_FAN Smart Fan Control options to configure the CPU/System Smart Fans.



Manual Mode

Smart Fan Mode Select

---------------------



: Select Screen

↑ ↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit



The following options can only be set if the CPU Smart Fan Control option is set to Auto Mode.

Auto Mode DEFAULT

settings.

Page 48

PUZZLE-A002

Page 38

 Auto mode fan start temperature

If the CPU temperature is between fan off and fan start, the fan speed change to fan start PWM. To set a value, Use the + or – key to change the value or enter a decimal number between 1 and 100.

 Auto mode fan off temperature

If the CPU temperature is lower than the value set this option, the fan speed change to be lowest. To set a value, Use the + or – key to change the value or enter a decimal number between 1 and 100.

 Auto mode fan start PWM

Use the Auto mode fan start PWM option to set the PWM start value. Use the + or – key to change the value or enter a decimal number bet ween 1 and 100.

 Auto mode fan slope PWM

Use the Auto mode fan slope PWM option to select the linear rate at which the PWM mode increases with respect to an increase in temperature. Use the + or – key to change the value or enter a decimal number between 1 and 8.

Page 49

PUZZLE-A002

Page 39

Advanced

ESC: Exit

4.3.3 iWDD Super IO Configuration

Use the iWDD Super IO Configuration menu (BIOS Menu 7) to set or change the configurations for the parallel ports and serial ports.

Super IO Configuration

Super IO Chip iWDD

> Serial Port 1 Configuration

BIOS Menu 7: iWDD Super IO Configuration

4.3.3.1 Serial Port 1 Configuration

Use the Serial Port 1 Configuration menu (BIOS Menu 8) to configure the serial port 1.

Set Parameters of Serial Port 1 (COMA)

---------------------



: Select Screen

↑ ↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Serial Port n Configuration

Serial Port [Enabled]

Device Settings IO=3F8h; IRQ=4

Change Settings [Auto]

BIOS Menu 8: Serial Port 1 Configuration Menu

Enable or Disable Serial Port (COM)

---------------------



: Select Screen

↑ ↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit

Page 50

PUZZLE-A002

Page 40

IRQ=3, 4, 5, 6, 7, 9,

 Serial Port [Enabled]

Use the Serial Port option to enable or disable the serial port.



Disabled



Enabled DEFAULT

 Change Settings [Auto]

Use the Change Settings option to change the serial port IO port address and interrupt address.



Auto DEFAULT



IO=3F8h; IRQ=4

IO=3F8h;

10, 11, 12

Disable the serial port Enable the serial port

The serial port IO port address and int err upt add re ss are automatically detected.

Serial Port I/O port address is 3F8h and the interrupt address is IRQ4

Serial Port I/O port address is 3F8h and the interrupt address is IRQ3, 4, 5, 6, 7, 9, 10, 11, 12



IO=2F8h;

10, 11, 12

IO=3E8h;

10, 11, 12

IO=2E8h;

10, 11, 12

Serial Port I/O port address is 2F8h and the interrupt address is IRQ3, 4, 5, 6, 7, 9, 10, 11, 12

Serial Port I/O port address is 3E8h a nd the i nter rupt address is IRQ3, 4, 5, 6, 7, 9, 10, 11, 12

Serial Port I/O port address is 2E8h a nd the i nter rupt address is IRQ3, 4, 5, 6, 7, 9, 10, 11, 12

Page 51

PUZZLE-A002

Page 41

Advanced

ESC: Exit

4.3.4 Serial Port Console Redirection

The Serial Port Console Redirection menu (BIOS Menu 9) allows the console redirection options to be configured. Console redirection allows users to maintain a system remotely by re-directing keyboard input and text output through the serial port.

COM1

Console Redirection [Enabled]

> Console Redirection Settings

BIOS Menu 9: Serial Port Console Redirection

 Console Redirection [Enabled]

Use Console Redirection option to enable or disable the con sole redirection function.



Disabled

Disabled the console redirection function

Console Redirection Enable or Disable

--------------------



: Select Screen

↑ ↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit



Enabled DEFAULT

The following options are available in the Console Redirection Settings submenu when the Console Redirection option is enabled.

 Terminal Type [ANSI]

Use the Terminal Type option to specify the remote termi nal type.



VT100



VT100+

Enabled the console redirection function

The target terminal type is VT100 The target terminal type is VT100+

Page 52

PUZZLE-A002

Page 42

The parity bit is always 1. This option does not

The parity bit is always 0. This option does not



VT-UTF8



ANSI DEFAULT

 Bits per second [115200]

Use the Bits per second option to specify the serial port transmission speed. The speed must match the other side. Long or noisy lines may require lower speeds.



9600



19200



57600



115200 DEFAULT

 Data Bits [8]

Use the Data Bits option to specify the number of data bits.

The target terminal type is VT-UTF8 The target terminal type is ANSI

Sets the serial port transmission speed at 9600. Sets the serial port transmission speed at 19200. Sets the serial port transmission speed at 57600. Sets the serial port transmission speed at 115200.



8 DEFAULT

 Parity [None]

Use the Parity option to specify the parity bit that can be sent with the data bits for detecting the transmission errors.



None DEFAULT



Even



Odd



Mark



Space

Sets the data bits at 7. Sets the data bits at 8.

No parity bit is sent with the data bits. The parity bit is 0 if the number of ones in the data

bits is even. The parity bit is 0 if the number of ones in the data

bits is odd.

provide error detection.

Page 53

PUZZLE-A002

Page 43

Advanced

ESC: Exit

 Stop Bits [1]

Use the Stop Bits option to specify the number of stop bits used to indicate the end of a serial data packet. Communication with slow devices may require more than 1 stop bit.



1 DEFAULT



Sets the number of stop bits at 1. Sets the number of stop bits at 2.

4.3.5 CPU Configuration

Use the CPU Configuration menu (BIOS Menu 10) to view detailed CPU specifications or enable CPU virtualization.

CPU Configuration

Module Version: StoneyCPU 013 AGESA Version: StoneyPI 1.3.0.6

NX Mode [Enabled] SVM Mode [Enabled] > Node 0 Information

Enable/disable No-execute page protection Function

----------------------



: Select Screen

↑ ↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit

BIOS Menu 10: CPU Configuration

 NX Mode [Enabled]

Use the NX Mode BIOS option to enable or disable the no-execute page protection function.



Disabled



Enabled DEFAULT

Disable the no-execute page protection function. Enable the no-execute page protection function.

Page 54

PUZZLE-A002

Page 44

Advanced

ESC: Exit

 SVM Mode [Enabled]

Use the SVM Mode option to enable or disable CPU virtualizatio n on the system.



Disabled



Enabled DEFAULT

Disable CPU virtualization Enable CPU virtualization

4.3.5.1 Node 0 Information

Use the Node 0 Information (BIOS Menu 11) menu to display the memory information related to Node 0.

Socket0: AMD Embedded R-Series RX-421ND ... Quad Core Running @ 2117 MHz 375 mV Processor Family: 15h Processor Model: 60h-6Fh CPUID: 00660F01 Max Speed:2100 MHZ Intended Speed:2100 MHZ Min Speed:1400 MHZ Microcode Patch Level: 6006118

--------- Cache per Compute Unit ---------L1 Instruction Cache: 96 KB/3-way L1 Data Cache: 64 KB/8-way L2 Cache: 1024 KB/16-way

---------------------



: Select Screen

↑ ↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit

BIOS Menu 11: Node 0 Information

Page 55

PUZZLE-A002

Page 45

Advanced

ESC: Exit

4.3.6 NVMe Configuration

Use the NVMe Configuration (BIOS Menu 12) menu to display the NVMe controller and device information.

NVMe Controller and Drive information

No NVME Device Found

BIOS Menu 12: NVMe Configuration

4.4 Chipset

Use the Chipset menu (BIOS Menu 13) to access the south bridge and north bridge configuration menus.

---------------------



: Select Screen

↑ ↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit

WARNING!

Setting the wrong values for the Chipset B IOS selections in the Chipset BIOS menu may cause the system to malfunction.

Page 56

PUZZLE-A002

Page 46

Main

Advanced

Chipset

Security

Boot

Save & Exit

Chipset

applied

ESC: Exit

> South Bridge > GFX Configuration > North Bridge

BIOS Menu 13: Chipset

4.4.1 South Bridge

Use the South Bridge menu (BIOS Menu 14) to configure the south bridge chipset.

System Agent (SA) Parameters

---------------------



: Select Screen

↑ ↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

AMD Reference Code Ve AGESAPI_NAME PI 1.3.0.6

Auto Power Button State [Disable (ATX)]

Restore AC Power Loss [Last State]

> SB SATA Configuration

BIOS Menu 14: South Bridge

 Restore on AC Power Loss [Last State]

Use the Restore on AC Power Loss BIOS option to specify what state the system returns to if there is a sudden loss of power to the system.

Select AC power state when power is reafter a power failure.

---------------------



: Select Screen

↑ ↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit

Page 57

PUZZLE-A002

Page 47

Chipset

ESC: Exit

BIOS Menu 15: SB SATA Configuration



Power Off



Power On



Last State DEFAULT

The system remains turned off The system turns on The system returns to its previous state. If it was on, it

turns itself on. If it was off, it remains off.

4.4.1.1 SB SATA Configuration

Use the SB SATA Configuration submenu (BIOS Menu 15) to configure SATA devices.

OnChip SATA Channel [Enabled] OnChip SATA Type [AHCI]

Enabled / Disabled Serial ATA

---------------------



: Select Screen

↑ ↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit

 OnChip SATA Channel [ Enabled]

Use the OnChip SATA Channel option to configure the SATA channel.



Disabled



Enabled DEFAULT

 OnChip SATA Type [AHCI]

Use the OnChip SATA Type option to configure the SATA device type.



AHCI DEFAULT



Legacy IDE

Disable the on-board SATA channel. Enable the on-board SATA channel.

Configures SATA devices as AHCI device. Configures SATA devices as IDE device.

Page 58

PUZZLE-A002

Page 48

Chipset

4.4.2 GFX Configuration

Use the GFX Configuration (BIOS Menu 16) menu to configure the graphics controller.

GFX Configuration

Internal Graphics [Auto]

BIOS Menu 16: GFX Configuration

 Internal Graphics [Auto]

Use the Internal Graphics option to keep IG FX ena bl ed ba sing on t he setu p opt ions. The

Enable Integrate Graphics Controller

----------------------



: Select Screen

↑ ↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

following options are available:

 Auto Default  Disabled

Page 59

PUZZLE-A002

Page 49

Chipset

4.4.3 North Bridge

Use the North Bridge menu (BIOS Menu 17) to configure the north bridge chipset.

North Bridge Configuration

Memory Information

Total Memory: 8176 MB (DDR4)

> Socket 0 Information

BIOS Menu 17: North Bridge

4.4.3.1 Socket 0 Information

Use the Socket 0 Information menu (BIOS Menu 18) to view the information related to Socket 0.

View Information related to Socket 0.

---------------------



: Select Screen

↑ ↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Socket 0 Information

Starting Address: 0 KB Ending Address: 8388607 KB

Dimm0: size=4096 MB, speed=2400 MHz Dimm2: size=4096 MB, speed=2400 MHz

BIOS Menu 18: Socket 0 Information

---------------------



: Select Screen

↑ ↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Page 60

PUZZLE-A002

Page 50

Main

Advanced

Chipset

Security

Boot

Save & Exit

4.5 Security

Use the Security menu (BIOS Menu 19) to set system and user passwords.

Password Description

If ONLY the Administrator’s password is set, then this only limits access to Setup and is only asked for when entering Setup. If ONLY the User’s password is set, then this is a power on password and must be entered to boot or enter Setup. In Setup the User will have Administrator rights. The password length must be: Minimum length 3 Maximum length 20

Administrator Password User Password

BIOS Menu 19: Security

 Administrator Password

Use the Administrator Password to set or change a administrator password.

Set Administrator Password

---------------------



: Select Screen

↑ ↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

 User Password

Use the User Password to set or change a user pass word.

Page 61

PUZZLE-A002

Page 51

Main

Advanced

Chipset

Security

Boot

Save & Exit

Allows the Number Lock on the keyboard to be enabled automatically when the computer system boots up. This allows the immediate use of the

the keyboard. To confirm this, the Number Lock LED

Does not enable the keyboard Number Lock

press the Number Lock key located on the upper

key pad. The Number

Lock LED on the keyboard lights up when the

4.6 Boot

Use the Boot menu (BIOS Menu 20) to configure system boot options.

Boot Configuration

Bootup NumLock State [On] Quiet Boot [Enabled] Launch PXE OpROM [Disabled] Option ROM Messages [Force BIOS] UEFI Boot [Disabled]

Boot Option Priorities

Boot Option #1 [MMC – DG4008]

Hard Drive BBS Priorities

BIOS Menu 20: Boot

 Bootup NumLock State [On]

Use the Bootup NumLock State BIOS option to specify if the number lock setting must be modified during boot up.

Select the keyboard NumLock state

---------------------



: Select Screen

↑ ↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit



On DEFAULT



Off

10-key numeric keypad located on the right side of

light on the keyboard is lit.

automatically. To use the 10-keys on the keyboard,

left-hand corner of the 10-

Number Lock is engaged.

Page 62

PUZZLE-A002

Page 52

 Quiet Boot [Enabled]

Use the Quiet Boot BIOS option to select the screen display when the system boots.



Disabled



Enabled DEFAULT

 Launch PXE OpROM [Disabled]

Use the Launch PXE OpROM option to enable or disable boot option for legacy network devices.



Disabled DEFAULT



Enabled

 Option ROM Messages [Force BIOS]

Use the Option ROM Messages option to set the Option ROM display mode.



Force BIOS DEFAULT



Keep Current

Normal POST messages displayed OEM Logo displayed instead of POST m essages

Ignore all PXE Option ROMs Load PXE Option ROMs.

Sets display mode to force BIOS. Sets display mode to current.

 UEFI Boot [Disabled]

Use the UEFI Boot option to enable or disable to boot f rom the UEFI devices.



Disabled DEFAULT



Enabled

Boot from UEFI devices is disabled. Boot from UEFI devices is enabled.

Page 63

PUZZLE-A002

Page 53

Main

Advanced

Chipset

Security

Boot

Save & Exit

4.7 Save & Exit

Use the Safe & Exit menu (BIOS Menu 21) to load default BIOS values, optimal failsafe values and to save configuration changes.

Save Changes and Reset Discard Changes and Reset

Restore Defaults Save as User Defaults Restore User Defaults

BIOS Menu 21: Save & Exit

 Save Changes and Reset

Use the Save Changes and Reset option to save the changes made to the BIOS options and reset the system.

 Discard Changes and Reset

Exit the system after saving the changes.

---------------------



: Select Screen

↑ ↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Use the Discard Changes and Reset option to exit the system without saving the changes made to the BIOS configuration setup program.

 Restore Defaults

Use the Restore Defaults option to load the optimal default values for each of the parameters on the Setup menus. F3 key can be used for this operation.

 Save as User Defaults

Use the Save as User Defaults option to save the changes done so far as user defaults.

 Restore User Defaults

Use the Restore User Defaults option to restore the user defaults to all the setup opti ons.

Page 64

PUZZLE-A002

Page 54

Chapter

5 Interface Connectors

Page 65

PUZZLE-A002

Page 55

5.1 Peripheral Interface Connectors

The connector locations of the PUZZLE-A002’s motherboard are shown below. The connector pinouts for these connectors are listed in t he following sections.

Page 66

PUZZLE-A002

Page 56

5.2 Internal Peripheral Connectors

The table below shows a list of the connectors on the motherboard. Pinouts of these connectors can be found in the following section s.

Connector Type Label

ATX power connector 24-pin connector ATXPWR1 Chassis intrusion connector 2-pin header CHASSIS1 Digital I/O connector 10-pin header DIO1 EC debug connector 20-pin FPC CN1 Fan connectors 4-pin wafer CPU_FAN1, CPU_FAN2,

Front panel connector 14-pin header F_PANEL1 LCM connector 8-pin wafer LCM_CON1

CPU_FAN3, SYS_FAN1

M.2 slot M.2 A-key slot M2_CN1 Memory slots DDR4 DIMM slot CHA_DIMM0,

CHB_DIMM0 PCIe Mini slot (full-/half-size) PCIe Mini slot MPCIE1 Power switch connector 2-pin waf er PWR_BTN1 Power button (on-board) Push button PWR_SW1 SATA 6Gb/s socket 36-pin socket SATA0_1 SIM card slot SIM card slot SIM1 SPI flash connector 6-pin wafer JSPI_BIOS_1 SPI flash connector (EC) 6-pin wafer JSPI_EC1 TPM connector 20-pin header TPM1 USB 2.0 connector 8-pin header USB_CON2 USB 3.1 Gen 1 connectors USB T ype-A USB_CON0 USB DOM connector 8-pin header USB_DOM1

Table 5-1: Peripheral Interface Connectors

Page 67

PUZZLE-A002

Page 57

5.2.1 ATX Power Connector (ATXPWR1)

Pin Description Pin Description

1 +3.3 V 13 +3.3 V 2 +3.3 V 14 N/C 3 GND 15 GND 4 +5 V 16 PS-ON 5 GND 17 GND 6 +5 V 18 GND 7 GND 19 GND 8 PW-OK 20 N/C 9 +5VSB 21 +5 V 10 +12V 22 +5 V 11 +12V 23 +5 V 12 +3.3 V 24 GND

Table 5-2: ATX Power Connector (ATXPWR1) Pinouts

5.2.2 Chassis Intrusion Connector (CHASSIS1)

PIN NO. DESCRIPTION

1 +3.3VSB 2 CHASSIS OPEN

Table 5-3: Chassis Intrusion Connector (CHASSIS1) Pinouts

5.2.3 DIO Connector (DIO1)

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 GND 2 VCC 3 Output 3 4 Output 2 5 Output 1 6 Output 0 7 Input 3 8 Input 2 9 Input 1 10 Input 0

 

Table 5-4: DIO Connector (DIO1) Pinouts

Page 68

PUZZLE-A002

Page 58

5.2.4 EC Debug Connector (CN1)

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 KSI0 2 KSO0 3 KSO1 4 KSO2 5 KSO3 6 KSO4 7 KSO5 8 KSO6 9 KSO7 10 KSO8 11 KSO9 12 KSO10 13 KSO12 14 KSI1 15 KSO11 16 KSI2 17 KSI3 18 GND 19 GND 20 GND

Table 5-5: EC Debug Connector (CN1) Pinouts

5.2.5 Fan Connectors (CPU_FAN1/2/3, SYS_FAN1)

PIN NO. DESCRIPTION

1 GND 2 +12V 3 FANIO 4 PWM

Table 5-6: Fan Connectors (CPU_FAN1/2/3, SYS_FAN1) Pinouts

Page 69

PUZZLE-A002

Page 59

5.2.6 Front Panel Connector (F_PANEL1)

FUNCTION PIN DESCRIPTION FUNCTION PIN DESCRIPTION

Power LED 1 PWR_LED+ Speaker 2 Speaker+ 3 N/C 4 N/C 5 PWR_LED- 6 N/C Power Button 7 PWR_BTN+ 8 Speaker 9 PWR_BTN- Reset 10 N/C HDD LED 11 HDD LED+ 12 Reset+ 13 HDD LED- 14 Reset-

Table 5-7: Front Panel Connector (F_PANEL1) Pinouts

5.2.7 LCM Connector (LCM_CON1)

PIN NO. DESCRIPTION

1 VCC5V 2 Power button 3 LCM RX 4 LCM TX 5 HDD LED 6 Alert LED 7 Reset button 8 GND

Table 5-8: LCM Connector (LCM_CON1) Pinouts

Page 70

PUZZLE-A002

Page 60

5.2.1 M.2 Slot (M2_CN1)

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 GND 2 +3.3V 3 USB_D+ 4 +3.3V 5 USB_D- 6 N/C 7 GND 8 N/C 9 N/C 10 N/C 11 N/C 12 N/C 13 N/C 14 N/C 15 N/C 16 N/C 17 N/C 18 GND 19 N/C 20 N/C 21 N/C 22 N/C 23 N/C 24 N/C 25 N/C 26 N/C 27 N/C 28 N/C 29 N/C 30 N/C 31 N/C 32 N/C 33 GND 34 N/C 35 PCIe_TX+ 36 N/C 37 PCIe_TX- 38 N/C 39 GND 40 N/C 41 PCIe_RX+ 42 N/C 43 PCIe_RX- 44 N/C 45 GND 46 N/C 47 REFCLK+ 48 N/C 49 REFCLK- 50 PCH_SUSCLK 51 GND 52 RST 53 CLKREQ 54 BT_RF_KILL55 PCH_WAKE- 56 WIFI_RF_KILL57 GND 58 I2C_DATA 59 N/C 60 I2C_CLK

Page 71

PUZZLE-A002

Page 61

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

61 N/C 62 INT63 GND 64 N/C 65 N/C 66 RESET67 N/C 68 CLKREQ 69 GND 70 PEWAKE71 N/C 72 +3.3V 73 N/C 74 +3.3V 75 GND

Table 5-9: M.2 Slot (M2_CN1) Pinouts

5.2.2 PCIe Mini Card Slot (MPCIE1)

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 PCH_WAKE- 2 +3.3V 3 N/C 4 GND 5 N/C 6 1.5V 7 +3.3V_DUAL 8 SIM_VCC 9 GND 10 SIM_IO 11 REF_CLK- 12 SIM_CLK 13 REF _CLK+ 14 SIM_RST 15 GND 16 SIM_VPP 17 N/C 18 GND 19 N/C 20 +3.3V 21 GND 22 PLTRST_N 23 PCIe_RX- 24 +3.3V 25 PCIe_RX+ 26 GND 27 GND 28 1.5V 29 GND 30 SMB_CLK 31 PCIe_TX- 32 SMB_DATA 33 PCIe_TX+ 34 GND 35 GND 36 USB_DATA-

Page 72

PUZZLE-A002

Page 62

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

37 GND 38 USB_DATA+ 39 +3.3V 40 GND 41 +3.3V 42 N/C 43 GND 44 N/C 45 N/C 46 N/C 47 N/C 48 1.5V 49 N/C 50 GND 51 mSATA_DET 52 +3.3V

Table 5-10: PCIe Mini Card Slot (MPCIE1) Pinouts

5.2.1 Power Switch Connector (PWR_BTN1)

PIN NO. DESCRIPTION

1 PWRBTN_SW+ 2 PWRBTN_SW-

Table 5-11: Power Switch Connector (PWR_BTN1) Pinouts

5.2.2 SATA Connector (SATA0_1)

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

B1 +V12S A1 N/C B2 +V12S A2 +V12S B3 +V12S A3 +V12S B4 GND A4 GND B5 SATA_TX1- A5 +V5S B6 SATA_TX1+ A6 +V5S B7 GND A7 SATA_RX1B8 +V3.3S A8 SATA RX1+ B9 +V5S A9 +V3.3S B10 N/C A10 +V3.3S B11 +V5S A11 +V5S

Page 73

PUZZLE-A002

Page 63

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

B12 +V5S A12 GND B13 GND A13 N/C B14 SATA_TX0- A14 N/C B15 SATA_TX0+ A15 GND B16 GND A16 SATA_RX0B17 +V5S A17 SATA RX0+ B18 GND A18 GND

Table 5-12: SATA 6Gb/s Connector (SATA0_1) Pinouts

5.2.3 SPI Flash Connector (JSPI_BIOS_1)

PIN NO. DESCRIPTION

1 +1.8V 2 SPI_CS 3 SPI_SO 4 SPI_CLK 5 SPI_SI 6 GND

Table 5-13: SPI Flash Connector (JSPI_BIOS_1) Pinouts

5.2.4 SPI Flash Connector - EC (JSPI_EC1)

PIN NO. DESCRIPTION

1 +V3.3 2 SPI_CS#0_CN_EC 3 SPI_SO_SW_EC 4 SPI_CLK_SW_EC 5 SPI_SI_SW_EC 6 GND

Table 5-14: SPI Flash Connector - EC (JSPI_EC1) Pinouts

Page 74

PUZZLE-A002

Page 64

5.2.5 TPM Connector (TPM1)

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 LCLK 2 GND 3 LFRAME# 4 KEY 5 LRERST# 6 +5V 7 LAD3 8 LAD2 9 +3.3V 10 LAD1 11 LAD0 12 GND 13 SCL 14 SDA 15 SB3V 16 SERIRQ 17 GND 18 GLKRUN# 19 LPCPD# 20 LDRQ#

Table 5-15: TPM Connector (TPM1) Pinouts

5.2.6 USB 2.0 Connector (USB_CON2)

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 VCC 2 GND

3 USB_DATA- 4 USB_DATA+

5 USB_DATA+ 6 USB_DATA-

7 GND 8 VCC

Table 5-16: USB 2.0 Connector (USB_CON2) Pinouts

5.2.7 USB DOM Connector (USB_DOM1)

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 VCC5V 2 N/A

3 USB- 4 N/A

5 USB+ 6 N/A

7 GND 8 N/A

 

Table 5-17: USB DOM Connector (U SB_DOM1) Pinouts

Page 75

PUZZLE-A002

Page 65

Appendix

A Regulatory Compliance

Page 76

PUZZLE-A002

Page 66

If the user modifies and/or install other devices in the equipment, the CE conformity

If this equipment has telecommunications functionality, it also complies with the

DECLARATION OF CONFORMITY

This equipment is in conformity with the following EU directives:

 EMC Directive 2014/30/EU  Low-Voltage Directive 2014/35/EU  RoHS II Directive 2011/65/EU

declaration may no longer apply.

requirements of the R&TTE Directive 1999/5/ E C.

English IEI Integration Corp declares that this equi pm ent is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

Български [Bulgarian]

IEI Integration Corp. декларира, че този оборудване е в съответствие със съществените изисквания и другите приложими правила на Директива 1999/5/ЕС.

Česky [Czech]

IEI Integration Corp tímto prohlašuje, že tento zařízení je ve shodě se základními požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES.

Dansk [Danish] IEI Integration Corp erklærer herved, at følgende u dstyr overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF. Deutsch [German] IEI Integration Corp, erklärt dieses Gerät entspri cht den grundlegenden Anforderungen und den weiteren entsprechenden Vorgaben der Richtlinie 1999/5/EU.

Eesti [Estonian] IEI Integration Corp deklareerib seadme seadme vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.

Page 77

PUZZLE-A002

Page 67

Español [Spanish] IEI Integration Corp declara que el equipo cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicabl es o exigibles de la Directiva 1999/5/CE. Ελληνική [Greek] IEI Integration Corp ΔΗΛΩΝΕΙ ΟΤΙ ΕΞΟΠΛΙΣΜΟΣ ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.

Français [French] IEI Integration Corp déclare que l'appar ei l est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE.

Italiano [Italian] IEI Integration Corp dichiara che questo apparecchio è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE. Latviski [Latvian]

IEI Integration Corp deklarē, ka iekārta atbilst būtiskajām prasībām un citiem ar to saistītajiem noteikumiem Direktīvas 1999/5/EK.

Lietuvių [Lithuanian]

IEI Integration Corp deklaruoja, kad šis įranga atitinka esminius reikalavimus ir kitas

1999/5/EB Direktyvos nuostatas. Nederlands [Dutch]

IEI Integration Corp dat het toestel toestel in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG. Malti [Maltese] IEI Integration Corp jiddikjara li dan prodott jikkonforma mal-ħtiġijiet essenzjali u ma provvedimenti oħrajn relevanti li hemm fid-Dirrettiva 1999/ 5/EC.

Magyar [Hungarian] IEI Integration Corp nyilatkozom, hogy a beren dezés megfelel a vonatkozó alapvetõ követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.

Polski [Polish]

IEI Integration Corp oświadcza, że wyrobu jest zgodny z zasadniczymi wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC.

Português [Portuguese] IEI Integration Corp declara que este equipam ento está conforme com os requisitos essenciais e outras disposições da Directiva 1999/5/CE.

Page 78

PUZZLE-A002

Page 68

Româna [Romanian]

IEI Integration Corp declară că acest echipament este in conformitate cu cerinţele esenţiale şi cu celelalte prevederi relevante ale Directivei 1999/5/CE.

Slovensko [Slovenian] IEI Integration Corp izjavlja, da je ta opreme v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive 1999/5/ES.

Slovensky [Slovak]

IEI Integration Corp týmto vyhlasuje, že zariadenia spĺňa základné požiadavky a všetky

príslušné ustanovenia Smernice 1999/5/E S. Suomi [Finnish]

IEI Integration Corp vakuuttaa täten että laitteet on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin m ui den ehtojen mukainen. Svenska [Swedish] IEI Integration Corp förklarar att denna utrustningstyp står I överensstämmelse med de väsentliga egenskapskrav och övriga relev anta bestämmelser som framgår av direktiv 1999/5/EG.

Page 79

PUZZLE-A002

Page 69

This equipment has been tested and found to comply with the limits for a Class A digital

protection against harmful interference when the equipment is operated in a commercial

alled and used in accordance with the instruction manual, may cause harmful

The label on the product indicates this product conforms to European (EU) Restriction of

The label on the product indicates the estimated “Environmentally Friendly Use Period”

or undergo abrupt change.” This product may contain replaceable

FCC WARNING

This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

 This device may not cause harmful interferenc e, and  This device must accept any interference receiv ed, including interference that

may cause undesired operation.

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

environment. This equipment generates, uses, and can radiate radio frequency energy and, if not inst interference to radio communications. Operatio n of t his equipment in a residenti al area is likely to cause harmful interference in which ca se the use r will be r equir ed to corr ect the interf erenc e at his own expense.

ROHS STATEMENT

Hazardous Substances (RoHS) that set maximum co ncentration l imits on ha zardous mat erials used in electrical and electronic equipment.

CHINA ROHS

(EFUP). This is an estimate of the number of years that these substances would “not leak out

sub-assemblies/components which have a shorter EFUP such as batteries and lamps. These components will be separately marked.

Page 80

PUZZLE-A002

Page 70

Appendix

B Safety Precautions

Page 81

PUZZLE-A002

Page 71

the installation of the

B.1 Safety Precautions

WARNING:

The precautions outlined in this appendix should be strictly followed. Failure to follow these precautions may result in permanent damage to the PUZZLE-A002.

Please follow the safety precautions out l i ned i n the sections that follow:

B.1.1 General Safety Precautions

Please ensure the following safety precautions are adhered to at all times.

 Make sure the power is turned off and the power cord is disconnected

when moving, installing or modifying the system.

 Do not apply voltage levels that exceed the specified voltage range.

Doing so may cause fire and/or an electrical shock.

 Electric shocks can occur if opened while still powered on.  Do not drop or insert any objects into the ventilation openings.  If considerable amounts of dust, water, or fluids enter the system, turn

off the power supply immediately, unplug the power cord, and contact the system vendor.

 DO NOT:

o Drop the system against a hard surface. o In a site where the ambient temperature exceeds the rated temperature

B.1.2 Anti-static Precautions

WARNING:

Failure to take ESD precautions during PUZZLE-A002 may result in permanent damage to the PUZZLE-A002 and severe injury to the user.

Page 82

PUZZLE-A002

Page 72

batteries according to instructions and local

Electrostatic discharge (ESD) can cause serious damage to electronic components, including the PUZZLE-A002. Dry climates are especial ly susceptible to ESD. It is therefore critical that whenever the PUZZLE-A002 is opened and any of the electrical components are handled, the following anti-static prec autions are strictly adhered to.

 Wear an anti-static wristband: Wearing a simple anti-static wristband can

help to prevent ESD from damaging any electrical component.

 Self-grounding: Before handling any electrical component , touch any

grounded conducting material. During the t im e the electrical component is handled, frequently touch any conducting materials that are connected to the ground.

 Use an anti-static pad: When configuring or worki ng with an electrical

component, place it on an anti-static pad. This reduces the possibility of ESD damage.

 Only handle the edges of the electrical component: When handling the

electrical component, hold the electrical c om ponent by its edges.

B.1.3 Product Disposal

CAUTION:

Risk of explosion if the battery is replaced by an i ncorrect type; Dispose of used

regulations.

 Outside the European Union - If you wish to dispo se of used electrical and

electronic products outside the Europea n Union, please contact your local authority so as to comply with the correct disposal method.

 Within the European Union:

EU-wide legislation, as implemented in each Membe r State, require s that waste electrical and electronic products carrying the mark (left) must be disposed of separately from normal household waste. This includes monitors and electrical accessories, such as signal cables or power cords. When you need to dispose of your display products, please follow

Page 83

PUZZLE-A002

Page 73

the guidance of your local authority, or ask the shop where you purchased the product. The mark on electrical and electronic products only applie s to t he current Europ ean Unio n Member States.

Please follow the national guidelines for elect rical and electronic product disposal.

B.2 Maintenance and Cleaning Precautions

When maintaining or cleaning the PUZZLE-A002, please follow the guidelines below.

B.2.1 Maintenance and Cleaning

Prior to cleaning any part or component of the PUZZLE-A002, please read the details below.

 The interior of the PUZZLE-A002 does not require cleaning. Keep fluids away

from the PUZZLE-A002 interior.

 Be cautious of all small removable component s when vacuuming the

PUZZLE-A002.

 Turn the PUZZLE-A002 off before cleaning the PUZZLE-A002.  Never drop any objects or liquids through the openings of the PUZZLE-A002.  Be cautious of any possible allergic reactions t o solvents or chemicals used

when cleaning the PUZZLE-A002.

 Avoid eating, drinking and smoking within vicinity of the PUZZLE-A002.

B.2.2 Cleaning Tools

Some components in the PUZZLE-A002 may only be cleaned using a product specifically designed for the purpose. In such case, the product will be explicitly mentioned in the cleaning tips. Below is a list of items to use when cleaning the PUZZLE-A002.

 Cloth – Although paper towels or tissues can be used, a soft, clean piec e of

cloth is recommended when cleaning the PUZZLE-A002.

 Water or rubbing alcohol – A cloth moistened with water or rubbing alcohol

can be used to clean the PUZZLE-A002.

 Using solvents – T he use of solvents is not recomm ended when cleaning the

PUZZLE-A002 as they may damage the plastic parts.

Page 84

PUZZLE-A002

Page 74

 Vacuum cleaner – U sing a vacuum specifically designed for computers is

one of the best methods of cleaning the PUZZLE-A002. Dust and dirt can restrict the airflow in the PUZZLE-A002 and cause its circuitry to corrode.

 Swabs - Swaps moistened with rubbing alcohol or water are excellent tools

for wiping hard to reach areas. Whenever possible, it is best to use lint free swabs such as foam swabs for cleaning.

Page 85

PUZZLE-A002

Page 75

Appendix

C Hazardous Materials

Disclosure

Page 86

PUZZLE-A002

Page 76

The details provided in this appendix are to ensure that the product is compliant with the Peoples Republic of China (China) RoHS standards. The table below acknowledges the presences of small quantities of certain material s in the product, and is applicable to China RoHS only.

A label will be placed on each product to indicate the estimated “Environmentally Friendly Use Period” (EFUP). This is an estimate of the number of years that these substances would “not leak out or undergo abrupt change.” This product may contain replaceable sub-assemblies/components which have a shorter EFUP such as batteries and lamps. These components will be separately marked.

Please refer to the following table.

Part Name Toxic or Hazardous Substances and Elements

Lead (Pb)

Housing Display Printed Circuit Board Metal Fasteners Cable Assembly Fan Assembly Power Supply Assemblies Battery O: This toxic or hazardous substance is contained in a ll o f the homogeneous materials for the par t is below the limit

requirement in SJ/T11363-2006 (now replaced by GB/T 26572-2011).

X: This toxic or hazardous substance is contained in at least one of the homogeneous materials for this part is above

O O O O O O O O O O O O O O O O O O

O O O O O O O O O O O O O O O O O O O O O O O O

O O O O O O

Mercury (Hg)

Cadmium (Cd)

Hexavalent Chromium (CR(VI))

Polybrominated Biphenyls (PBB)

Polybrominated Diphenyl Ethers (PBDE)

the limit requirement in SJ/T11363-2006 (now replaced by GB/T 26572-2011).

Page 87

PUZZLE-A002

Page 77

部件名称

有毒有害物质或元素

铅

汞

镉

六价铬

多溴联苯

多溴二苯

醚

壳体

显示

印刷电路板

金属螺帽

电缆组装

风扇组装

电力供应组装

电池

此附件旨在确保本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符合中国 RoHS 标准规定的限量要求。

本产品上会附有”环境友好使用期限”的标签，此期限是估算这些物质”不会有泄漏或突变”的

年限。本产品可能包含有较短的环境友好使用期限的可替换元件，像是电池或灯管，这些元

件将会单独标示出来。

(Pb)

O: 表示该有毒有害物质在该部件所有物质材料中的含量均在 SJ/T 11363-2006 (现由 GB/T 26572-2011 取代) 标准规定的限量要求以下。

O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O

(Hg)

(Cd)

(CR(VI))

(PBB)

(PBDE)
