IEI Technology PPC-F06B-BT User Manual

PPC-F06B-BT Panel PC

Page I

MODEL:

PPC-F06B-BT

Industrial Panel PC with Intel® Celeron® Processor N2807,

Rev. 1.03 – December 13, 2017

PPC-F06B-BT Panel PC

Touchscreen, PCIe Mini, USB 3.0, USB 2.0, RS-232,

RS-422/485, Dual PCIe GbE, 9 V ~ 30 V D C-in

IP 65 Compliant Front Panel and RoHS Compliant

User Manual

PPC-F06B-BT Panel PC

Page II

Revision

Date Version Changes

December 13, 2017 1.03 Updated Section 1.8: Specifications

Updated Section 2.3: Optional Items

August 8, 2016 1.02 Added Section 3.8: Wireless LAN Module Installation

(Optional)

June 1, 2016 1.01 Updated I/O panel photos

Updated Chapter 4: BIOS Setup
Added Section 3.15: OS Installation

June 23, 2015 1.00 Initial release

PPC-F06B-BT Panel PC

Page III

Copyright

COPYRIGHT NOTICE

The information in this document is subject to change without prior notice in order to
improve reliability, design and function and does not represent a commitment on the part
of the manufacturer.

In no event will the manufacturer be liable for direct, indirect, special, incidental, or
consequential damages arising out of the use or inability to use the product or
documentation, even if advised of the possibil ity of such damages.

This document contains proprietary information protected by copyright. All rights are
reserved. No part of this manual may be reproduced by any mechanical, electronic, or
other means in any form without prior written permission of the manufacturer.

TRADEMARKS

All registered trademarks and product names mentioned herein are used for identification
purposes only and may be trademarks and/or registered trademarks of their respective
owners.

PPC-F06B-BT Panel PC

Page IV

Manual Conventions

WARNING

Warnings appear where overlooked details may cause damage to the
equipment or result in personal injury. Warnings should be tak en
seriously.

CAUTION

Cautionary messages should be heeded to help red uce the chance of
losing data or damaging the product.

NOTE

These messages inform the reader of essent ial but non-critical
information. These messages should be read carefully as any directions
or instructions contained therein ca n help avoid making mistakes.

HOT SURFACE

This symbol indicates a hot surface that shoul d not be touched without
taking care.

PPC-F06B-BT Panel PC

Page V

Table of Contents

1 INTRODUCTION .......................................................................................................... 1

1.1 OVERVIEW .................................................................................................................. 2

1.2 FEATURES .................................................................................................................. 3

1.3 FRONT PANEL ............................................................................................................. 3

1.4 REAR PANEL ............................................................................................................... 4

1.5 SIDE PANELS .............................................................................................................. 4

1.6 BOTTOM PANEL .......................................................................................................... 5

1.7 DIMENSIONS ............................................................................................................... 6

1.8 SPECIFICATIONS ......................................................................................................... 7

2 UNPACKING ................................................................................................................. 9

2.1 UNPACKING .............................................................................................................. 10

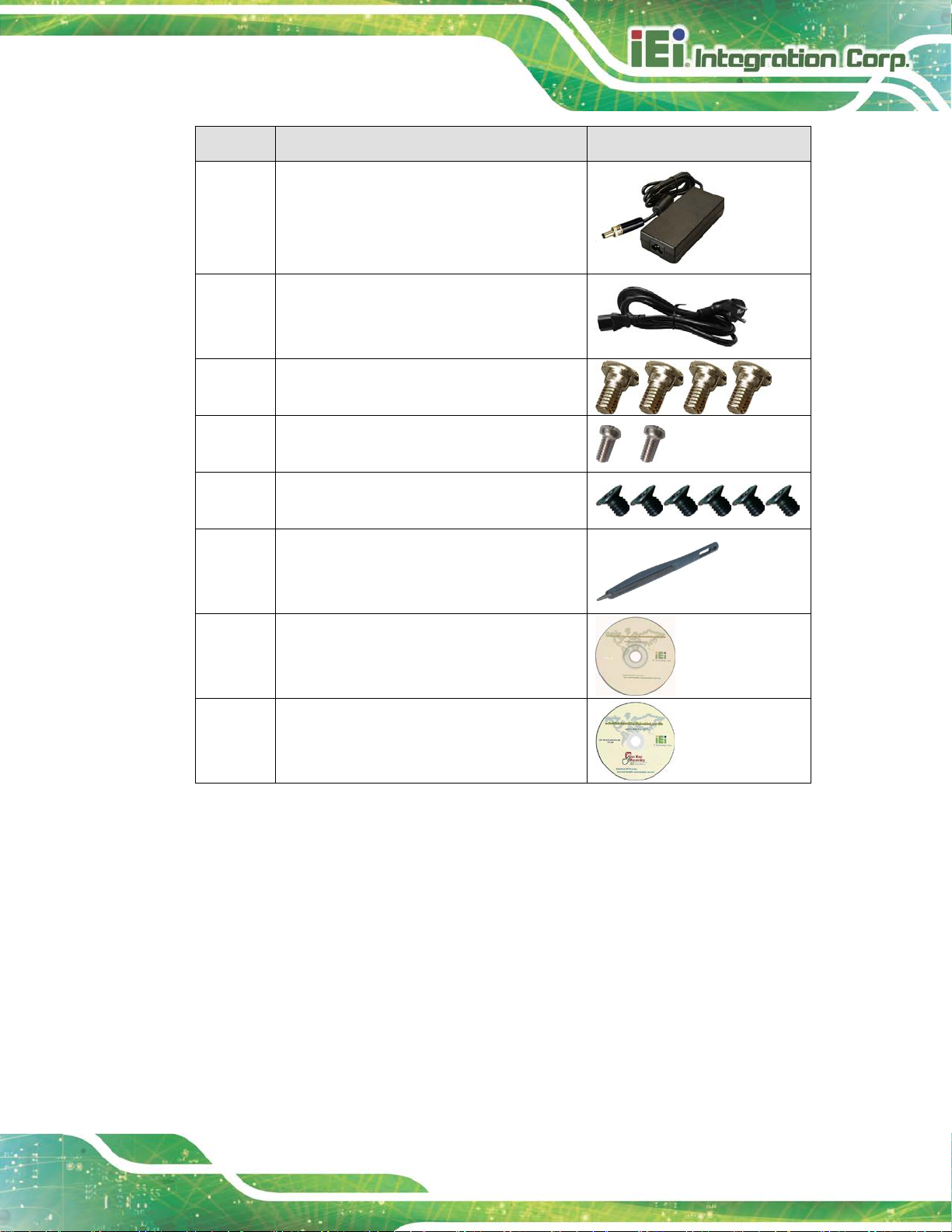

2.2 PACKING LIST ........................................................................................................... 10

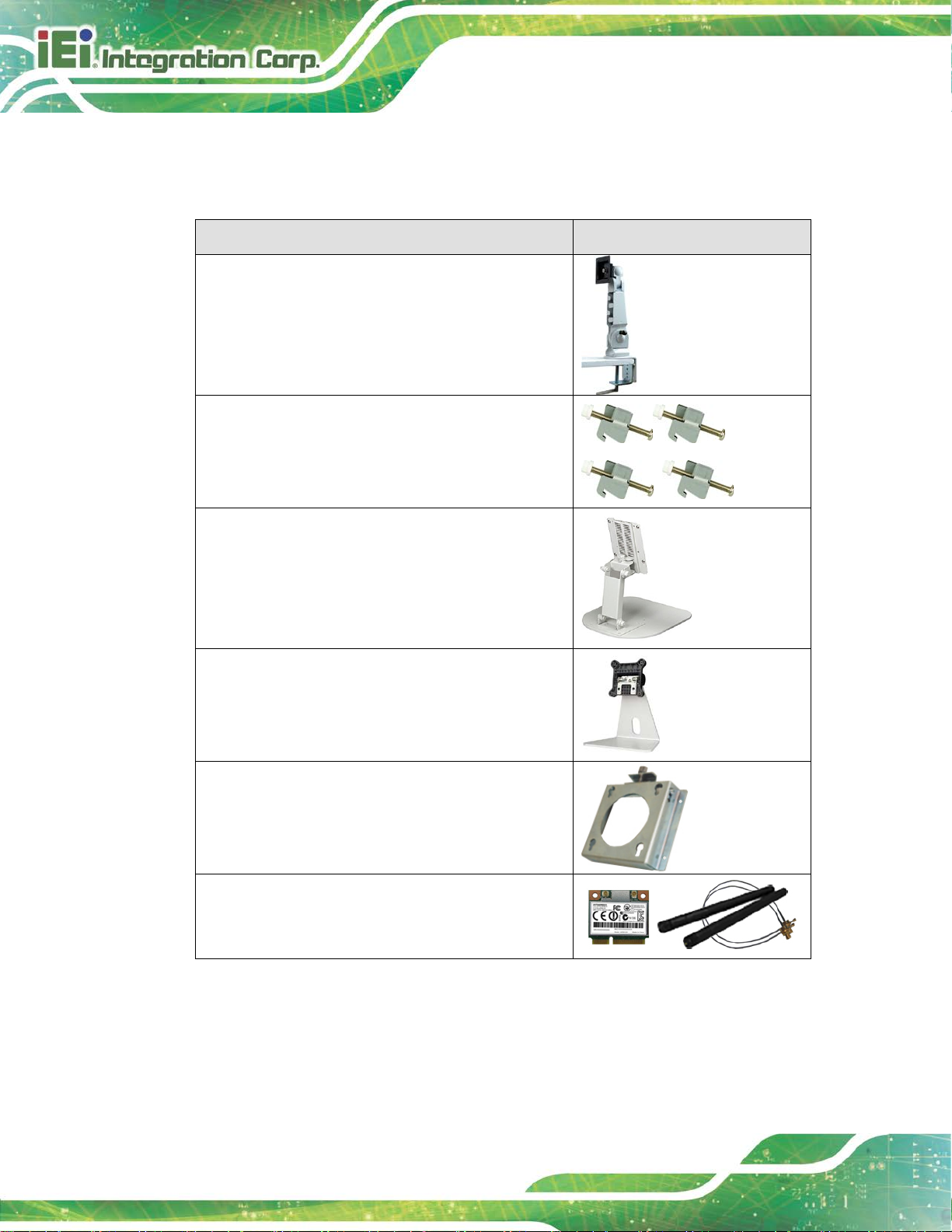

2.3 OPTIONAL ITEMS ...................................................................................................... 12

3 INSTALLATION ......................................................................................................... 13

3.1 ANTI-STATIC PRECAUTIONS ...................................................................................... 14

3.2 INSTALLATION PRECAUTIONS ................................................................................... 14

3.3 PREINSTALLED COMPONENTS................................................................................... 15

3.4 INSTALLATION AND CONFIGURATION STEPS ............................................................. 15

3.5 REMOVING THE BACK COVER .................................................................................. 16

3.6 SATA DOM INSTALLATION ...................................................................................... 16

3.7 MSATA MODULE INSTALLATION .............................................................................. 18

3.8 WIRELESS LAN MODULE INSTALLATION (OPTIONAL) ............................................. 19

3.9 SERIAL PORT CONFIGURA TION AND CONNECTION .................................................... 24

3.9.1 RS-232 Serial Port Pinouts (COM1) ............................................................... 24

3.9.2 RS-232 Serial Port Pin 9 Selection .................................................................. 24

3.9.3 RS-422/485 Serial Port Pinouts (COM2) ........................................................ 25

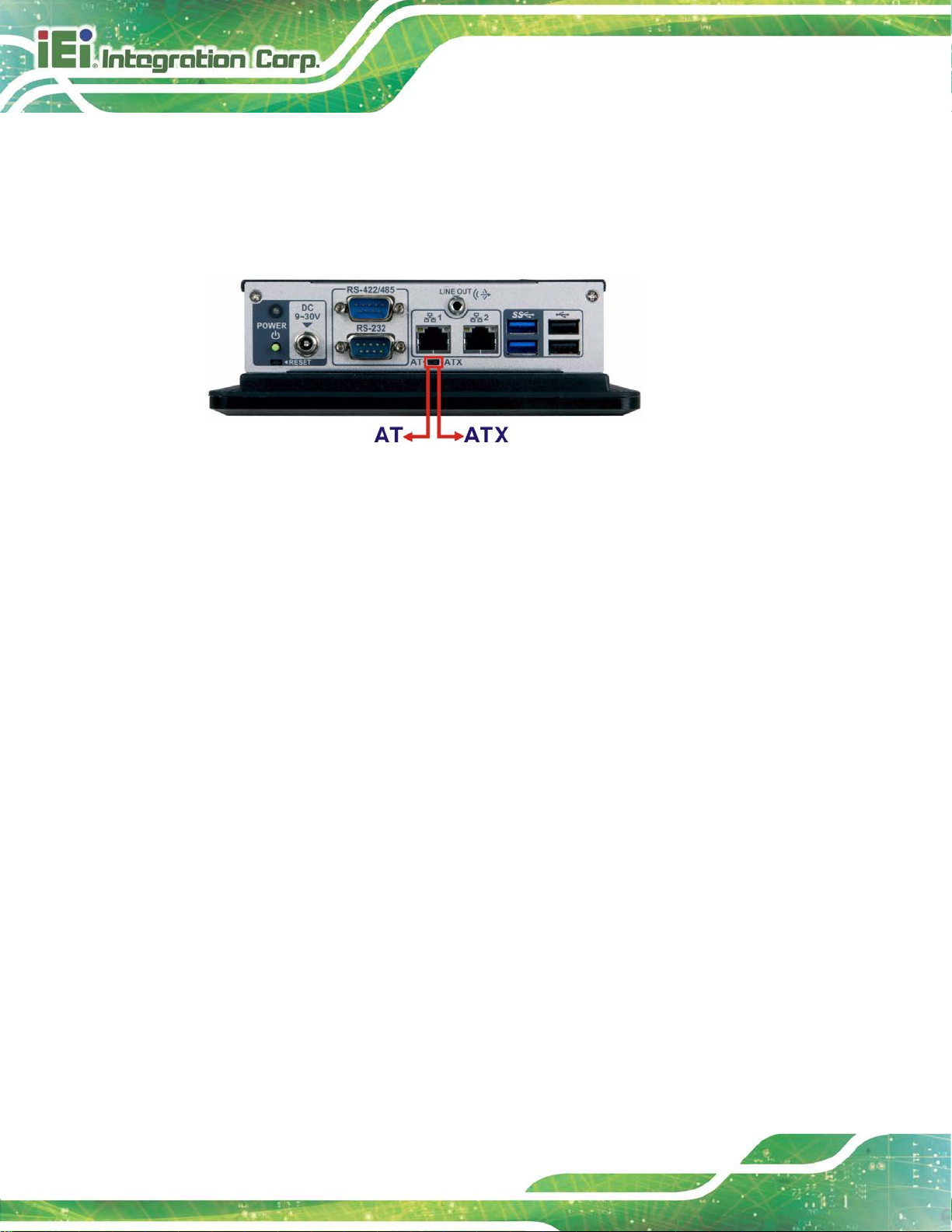

3.10 AT/ATX MODE SELECTION .................................................................................... 26

3.10.1 AT Power Mode .............................................................................................. 26

3.10.2 ATX Power Mode ........................................................................................... 26

PPC-F06B-BT Panel PC

Page VI

3.11 MOUNTING THE SYSTEM ........................................................................................ 27

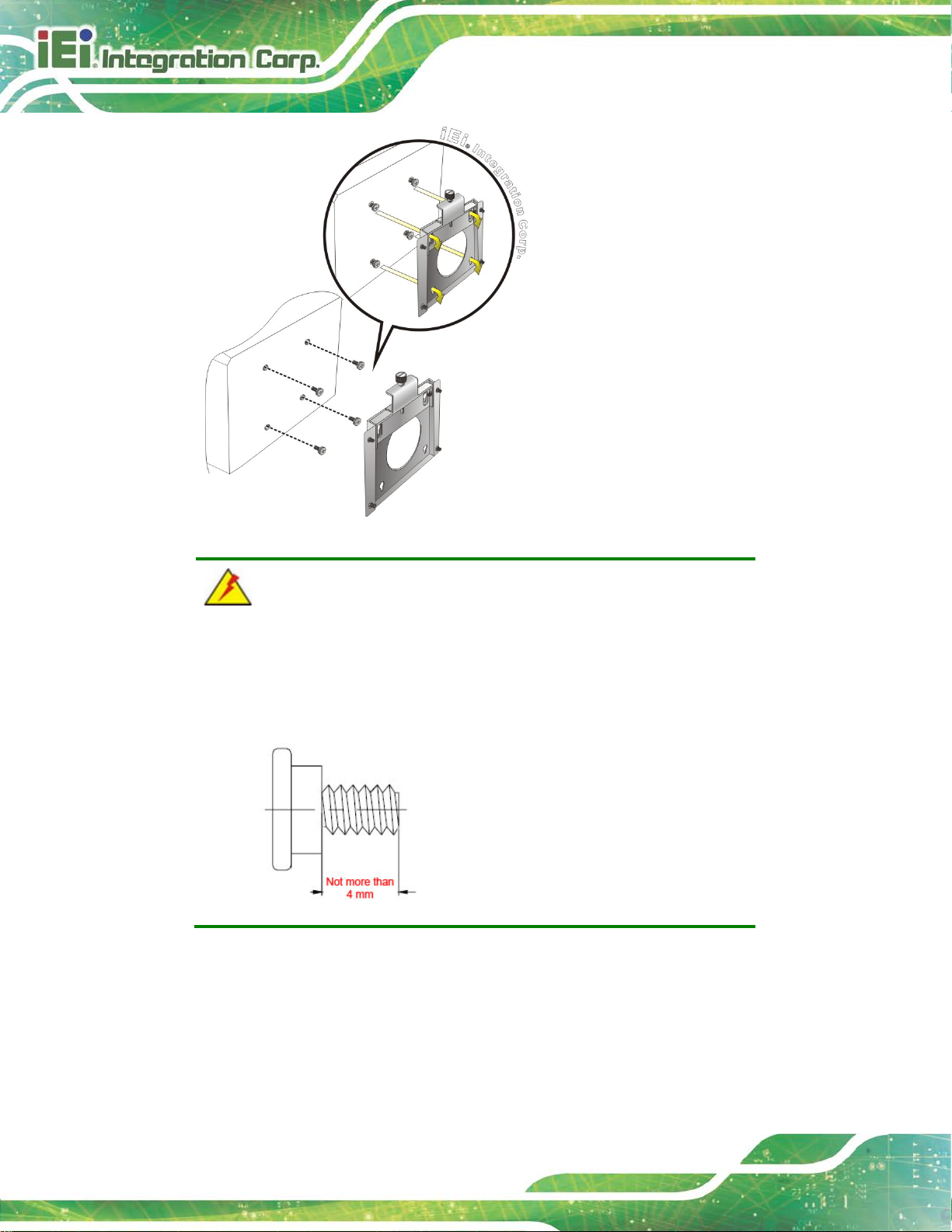

3.1 1.1 Wall Mounting ................................................................................................ 27

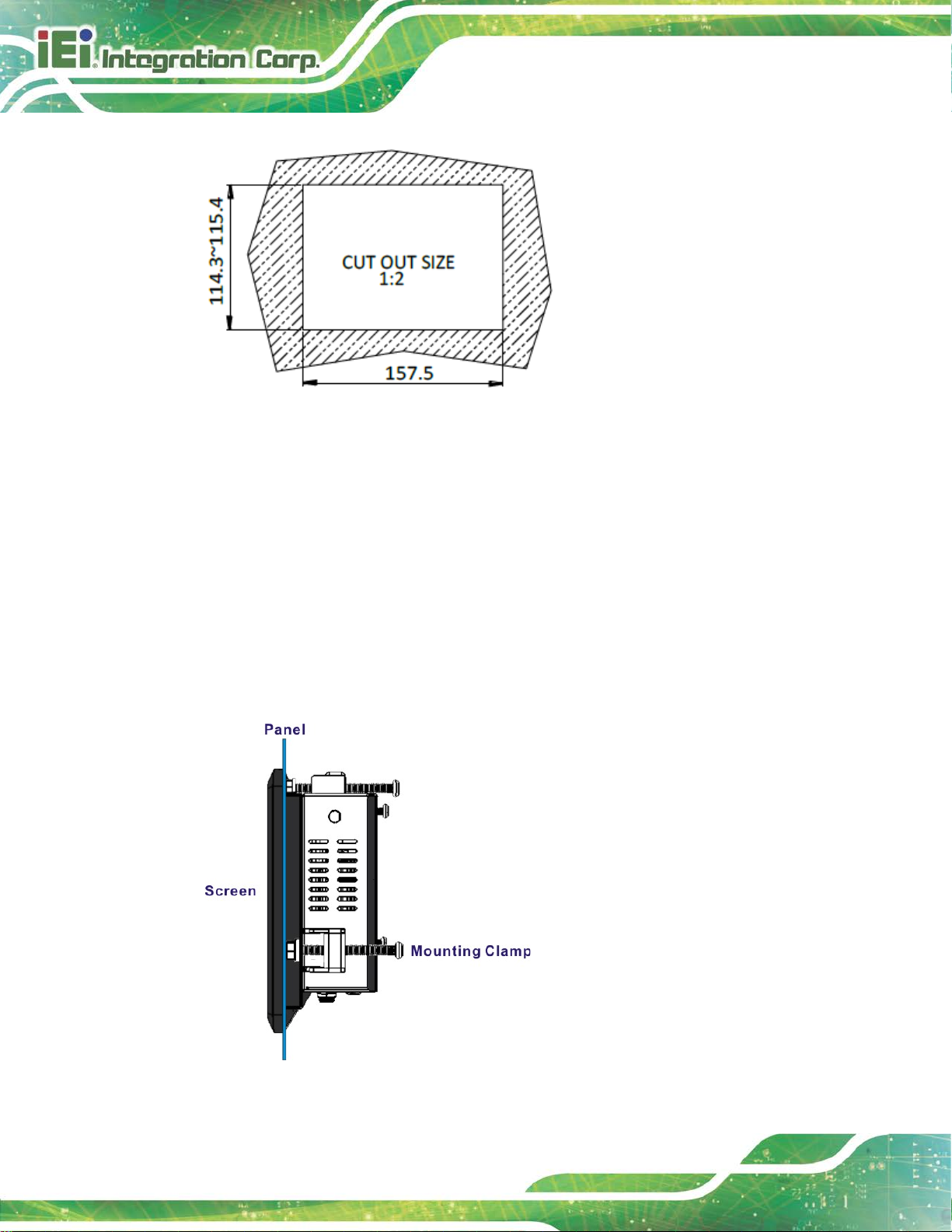

3.11.2 Panel Mounting .............................................................................................. 29

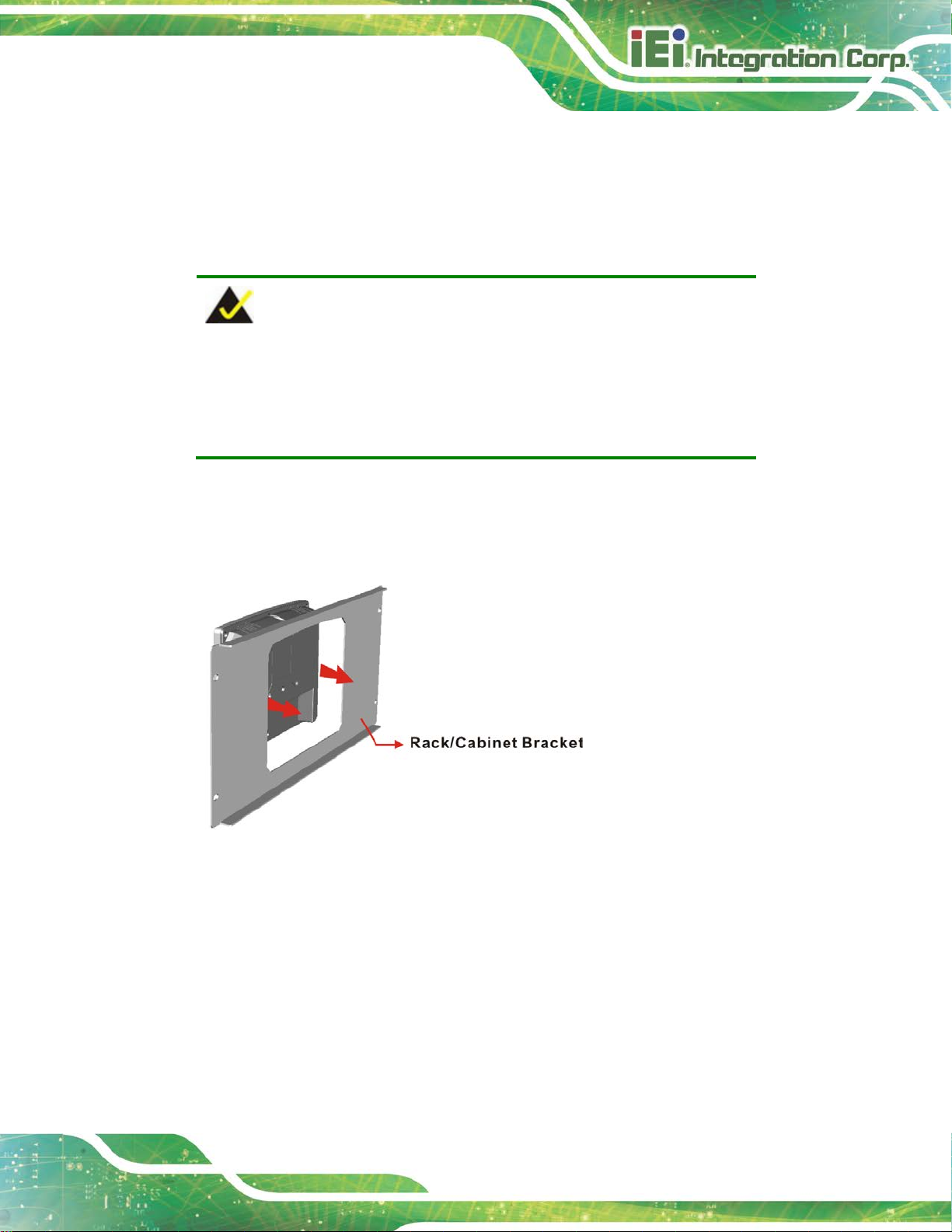

3.11.3 Rack Mounting ............................................................................................... 31

3.1 1.4 A rm Mounting ................................................................................................ 33

3.11.5 Stand Mounting .............................................................................................. 34

3.12 POWERING ON THE SYSTEM ................................................................................... 35

3.13 RESET THE SYSTEM ................................................................................................ 36

3.14 CLEAR CMOS ........................................................................................................ 36

3.15 OS INSTALLATION .................................................................................................. 37

3.16 DRIVER INSTALLATION ........................................................................................... 37

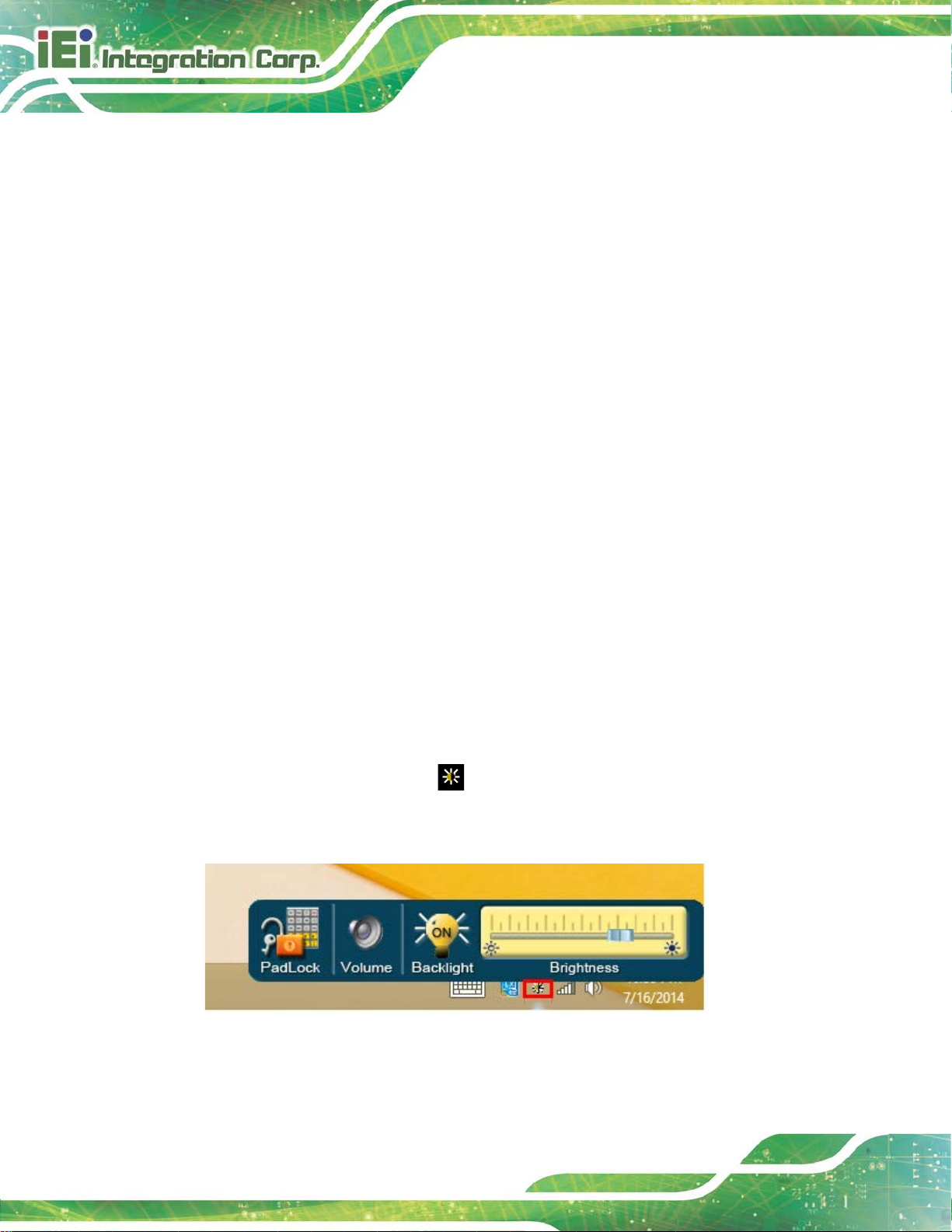

3.16.1 Keypad AP...................................................................................................... 38

3.17 SYSTEM MAINTENANCE ......................................................................................... 39

4 BIOS SETUP ................................................................................................................ 40

4.1 INTRODUCTION ......................................................................................................... 41

4.1.1 Starting Setup ................................................................................................... 41

4.1.2 Using Setup ...................................................................................................... 41

4.1.3 Getting Help ..................................................................................................... 42

4.1.4 Unable to Reboot after Configuration Changes .............................................. 42

4.1.5 BIOS Menu Bar ................................................................................................ 43

4.2 MAIN ........................................................................................................................ 43

4.3 ADVANCED ............................................................................................................... 45

4.3.1 ACPI Settings ................................................................................................... 46

4.3.2 F81866 Super IO Configuration ...................................................................... 47

4.3.2.1 Serial Port n Configuration ....................................................................... 48

4.3.3 F81866 H/W Monitor ....................................................................................... 50

4.3.4 RTC Wake Settings ........................................................................................... 51

4.3.5 Serial Port Console Redirection ...................................................................... 52

4.3.6 IEI Feature ....................................................................................................... 53

4.3.7 CPU Configuration .......................................................................................... 54

4.3.8 IDE Configuration ........................................................................................... 56

4.3.9 USB Configuration ........................................................................................... 57

4.4 CHIPSET ................................................................................................................... 58

4.4.1 North Bridge Configuration ............................................................................. 59

PPC-F06B-BT Panel PC

Page VII

4.4.1.1 Internal IGD Configuration ....................................................................... 59

4.4.2 South Bridge Configuration ............................................................................. 61

4.5 SECURITY ................................................................................................................. 62

4.6 BOOT ........................................................................................................................ 63

4.7 SAVE & EXIT ............................................................................................................ 66

5 INTERFACE CONNECTORS ................................................................................... 68

5.1 PERIPHERAL INTERFACE CONNECTORS ..................................................................... 69

5.2 INTERNAL PERIPHERAL CONNECTORS ...................................................................... 70

5.2.1 Audio Connector (AUDIO1) ............................................................................ 71

5.2.2 Battery Connector (BAT2) ............................................................................... 71

5.2.3 Inverter Connector (INV_CN1) ....................................................................... 72

5.2.4 LCD Connector (PANEL1)............................................................................... 72

5.2.5 MCU Connector (JSPI2) .................................................................................. 73

5.2.6 PCIe Mini Connector (M_PCIE1) ................................................................... 73

5.2.7 Power Input Connector (CN1) ......................................................................... 74

5.2.8 Power LED Connector (PW_LED1) ................................................................ 74

5.2.9 SATA DOM Connector (SATA1) ....................................................................... 74

5.2.10 SATA Power Connector (SATA_PWR1) ......................................................... 75

5.2.11 Serial Port Connector, RS-422/485 (COM2) ................................................. 75

5.2.12 SPI Flash Connector (JSPI1) ......................................................................... 75

5.2.13 Touch Panel Connector (TOUCH1) ............................................................... 76

5.2.14 USB 2.0 Connector (TOUCH_USB1) ............................................................ 76

5.2.15 USB 2.0 Connector (TOUCH_USB2) ............................................................ 76

5.2.16 VGA Connector (VGA_CON1) ...................................................................... 77

5.3 EXTERNAL INTERFACE PANEL CONNECTORS ............................................................ 77

5.3.1 Ethernet Connectors (LAN1 & LAN2) ............................................................. 78

5.3.2 Power Connector (CN2) ............................................................................... 78

5.3.3 RS-232 Serial Port (COM1) ............................................................................. 78

5.3.4 USB 2.0 Connectors (USB1) ............................................................................ 79

5.3.5 USB 3.0 Connectors (USB_CON1) .................................................................. 79

A REGULATORY COMPLIANCE .............................................................................. 80

B BIOS CONFIGURATION OPTIONS ....................................................................... 86

B.1 BIOS CONFIGURATION OPTIONS ............................................................................. 87

PPC-F06B-BT Panel PC

Page VIII

C SAFETY PRECAUTIONS ......................................................................................... 89

C.1 SAFETY PRECAUTIONS ............................................................................................. 90

C.1.1 General Safety Precautions ............................................................................. 90

C.1.2 Anti-static Precautions .................................................................................... 91

C.1.3 Product Disposal ............................................................................................. 92

C.2 MAINTENANCE AND CLEANING PRECAUTIONS ........................................................ 93

C.2.1 Maintenance and Cleaning ............................................................................. 93

C.2.2 Cleaning T ools ................................................................................................. 93

D WA TCHDOG TIMER ................................................................................................ 95

E HAZARDOUS MATERIALS DISCLOSURE ......................................................... 98

PPC-F06B-BT Panel PC

Page IX

List of Figures

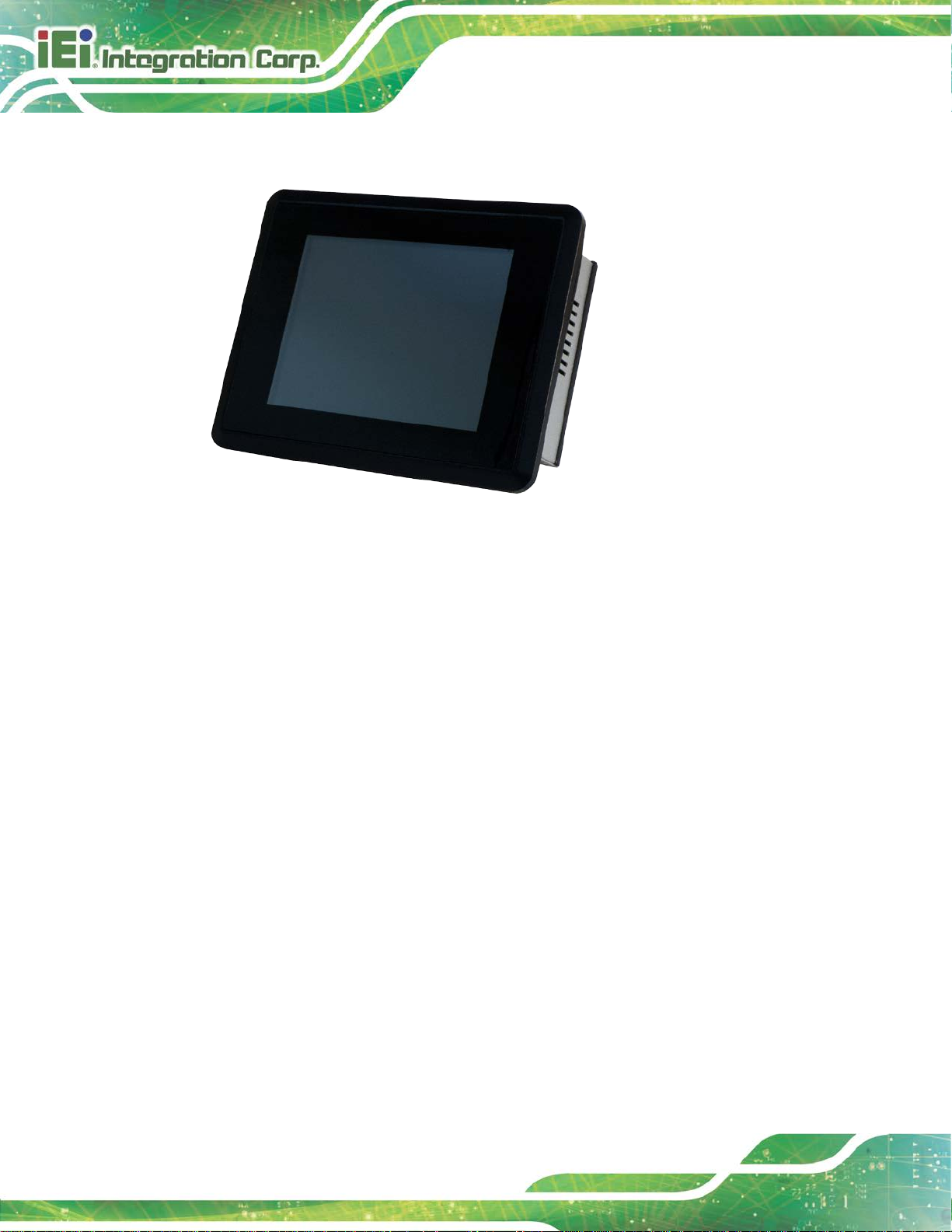

Figure 1-1: PPC-F06B-BT Series Panel PC .................................................................................. 2

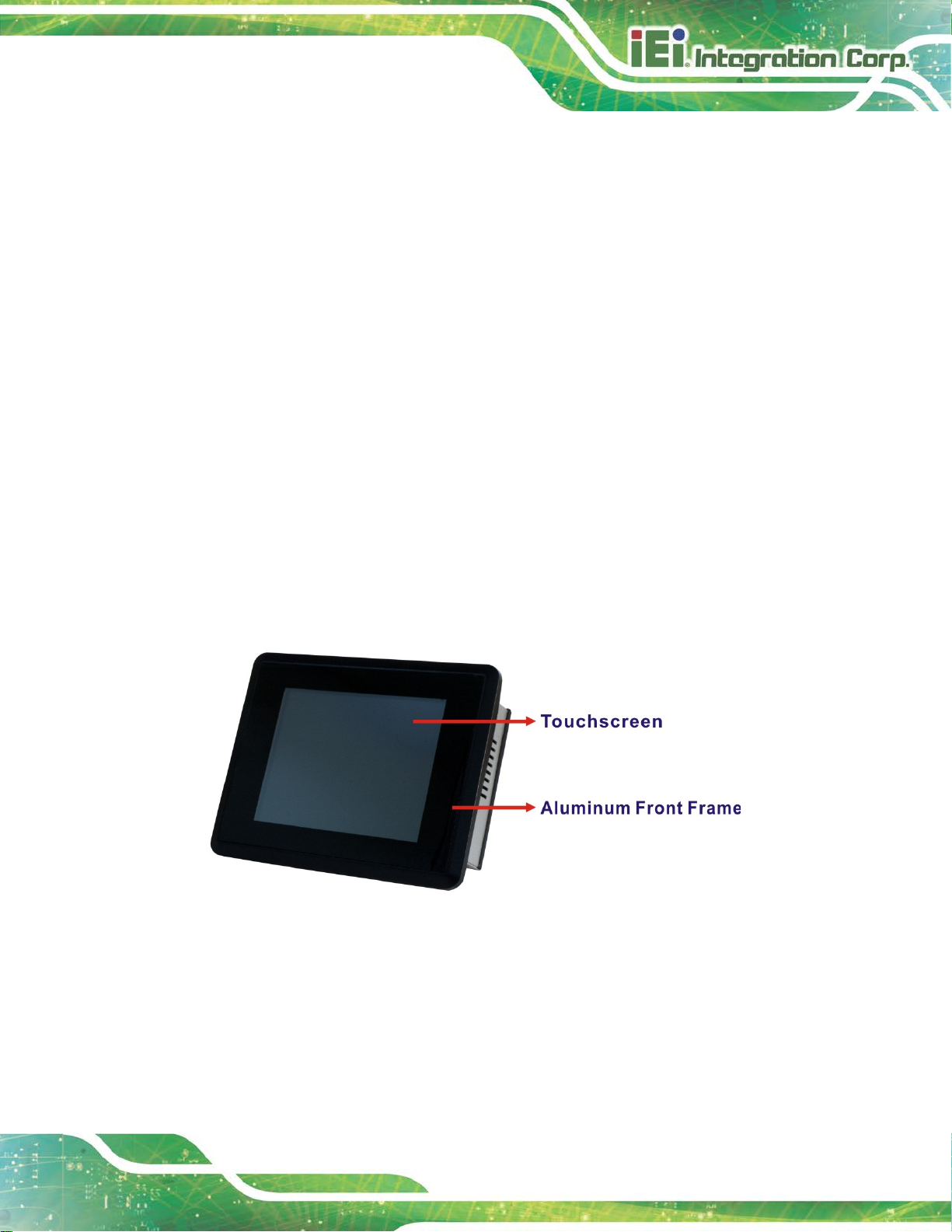

Figure 1-2: Front View .................................................................................................................... 3

Figure 1-3: Rear View ..................................................................................................................... 4

Figure 1-4: Side View...................................................................................................................... 4

Figure 1-5: Bottom Panel ............................................................................................................... 5

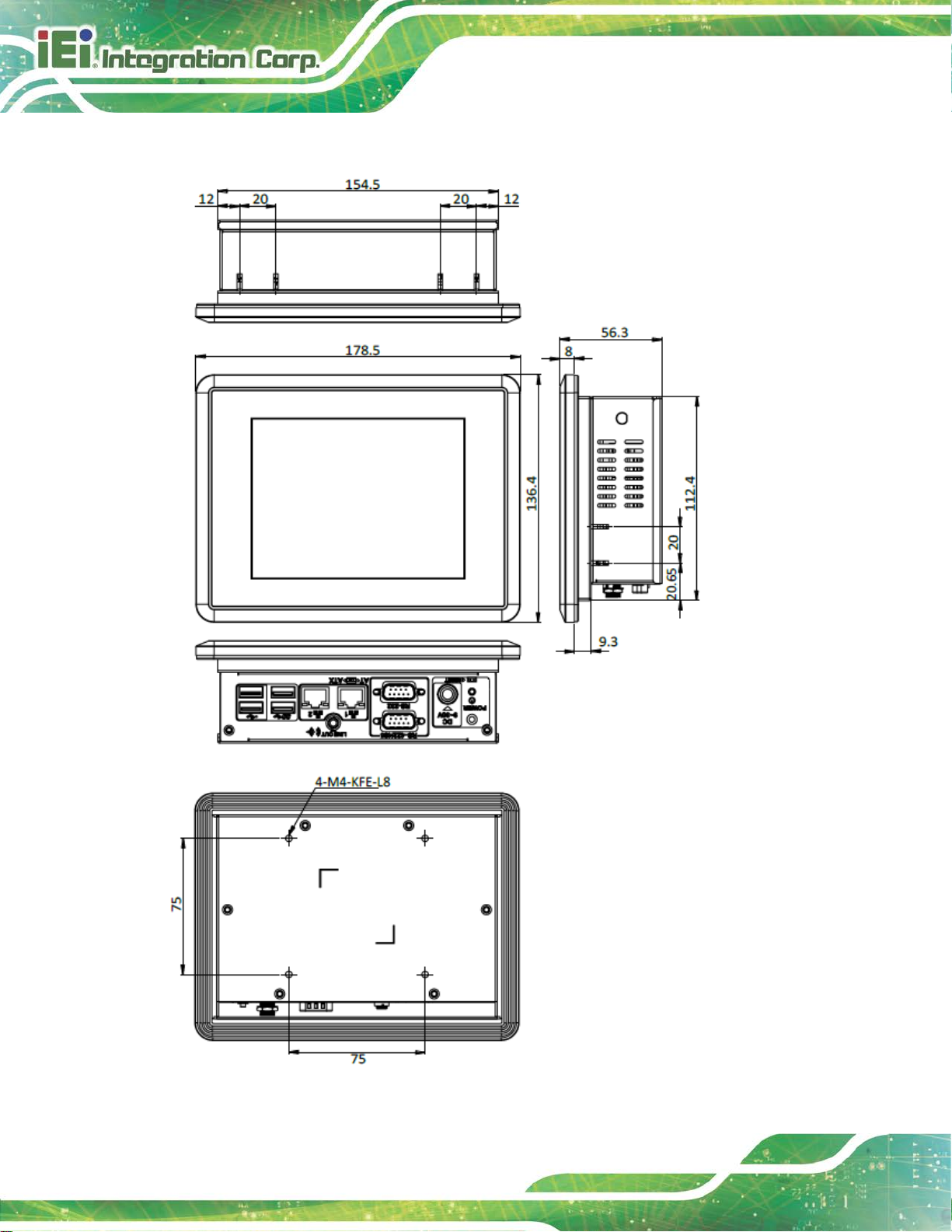

Figure 1-6: PPC-F06B-BT Dimensions (mm) ............................................................................... 6

Figure 3-1: Back Cover Retention Screws ................................................................................. 16

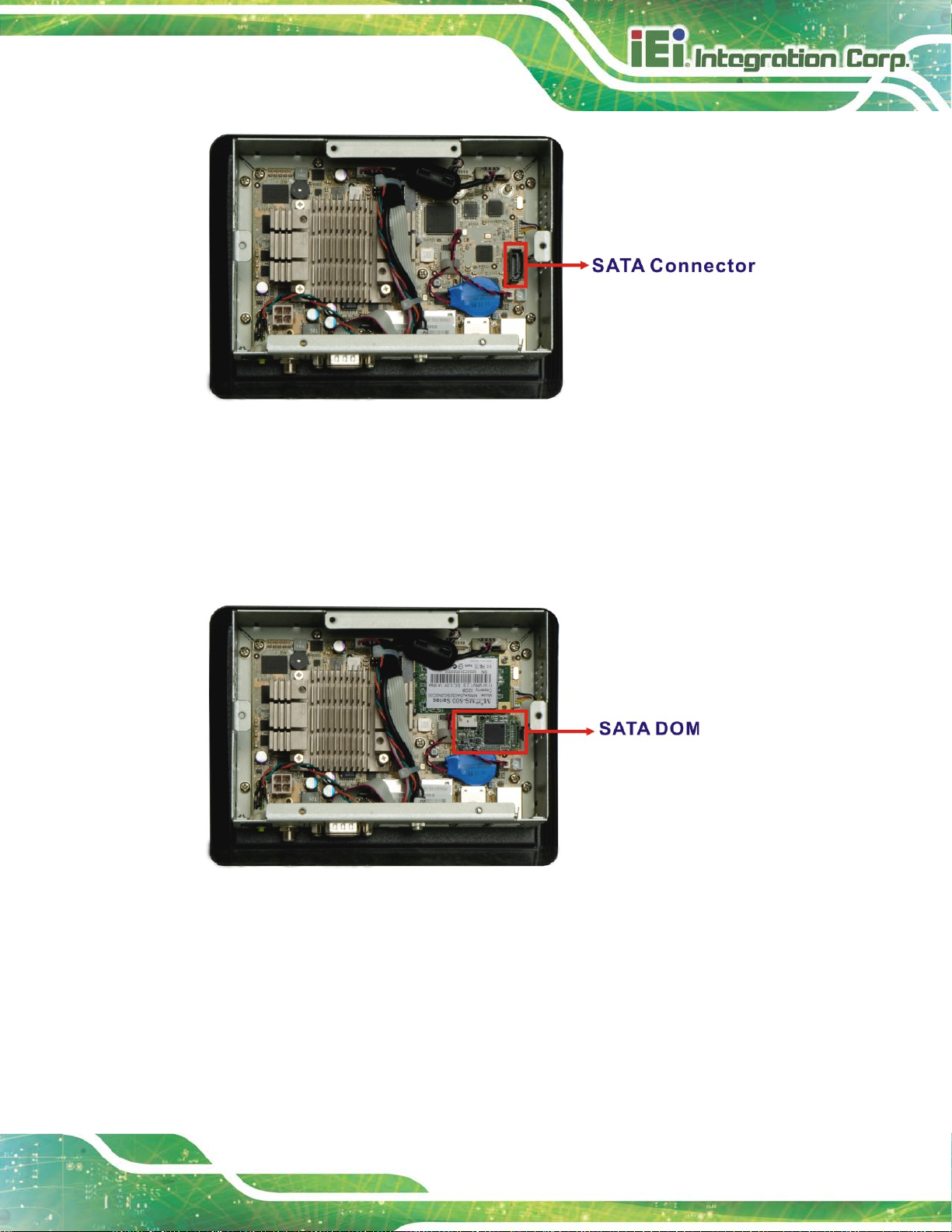

Figure 3-2: SATA Connector Location ....................................................................................... 17

Figure 3-3: SATA DOM Installatio n ............................................................................................. 17

Figure 3-4: mSATA Module Slot Location .................................................................................. 18

Figure 3-5: mSATA Module Installation...................................................................................... 19

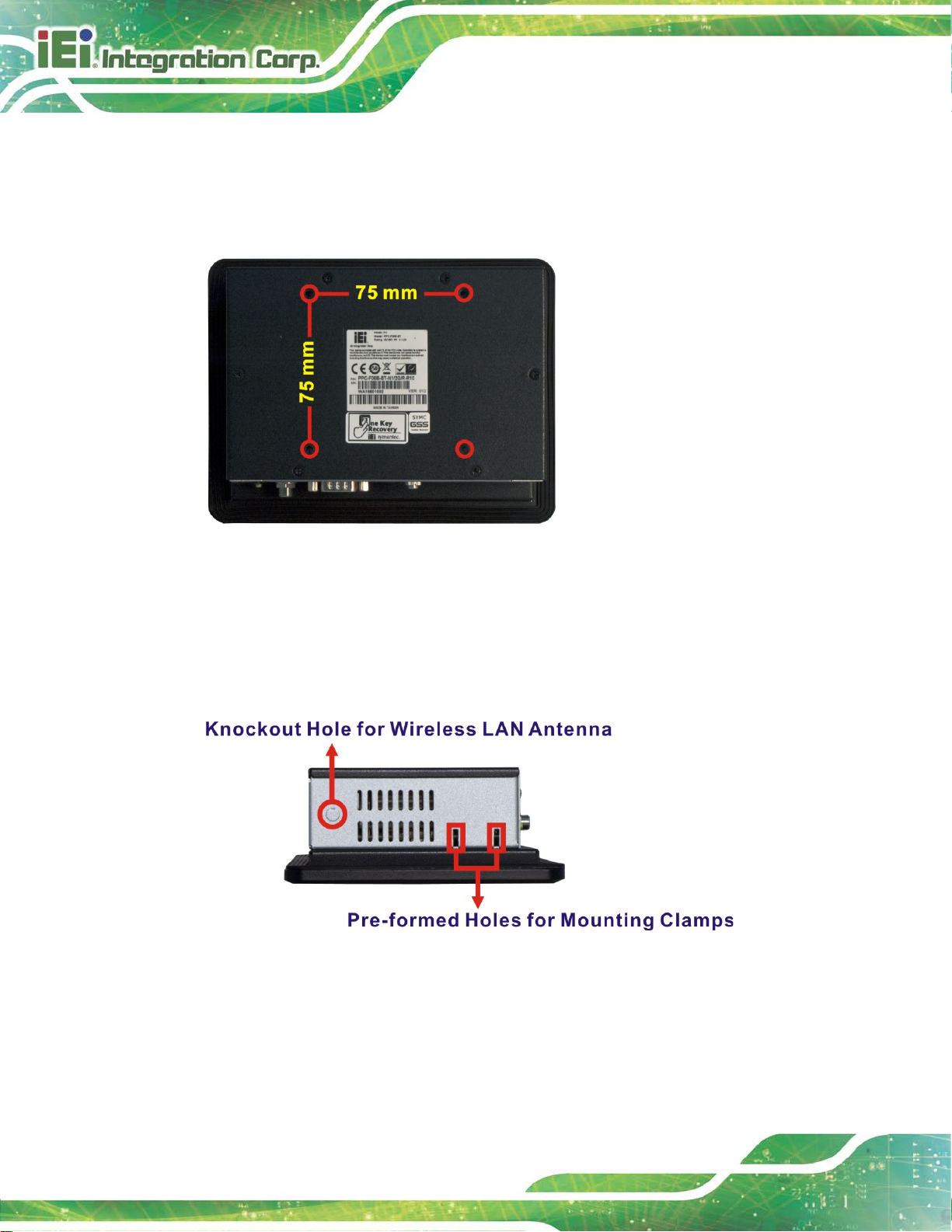

Figure 3-6: Knockout for Wireless Antenna (Lef t Side Panel) ................................................. 19

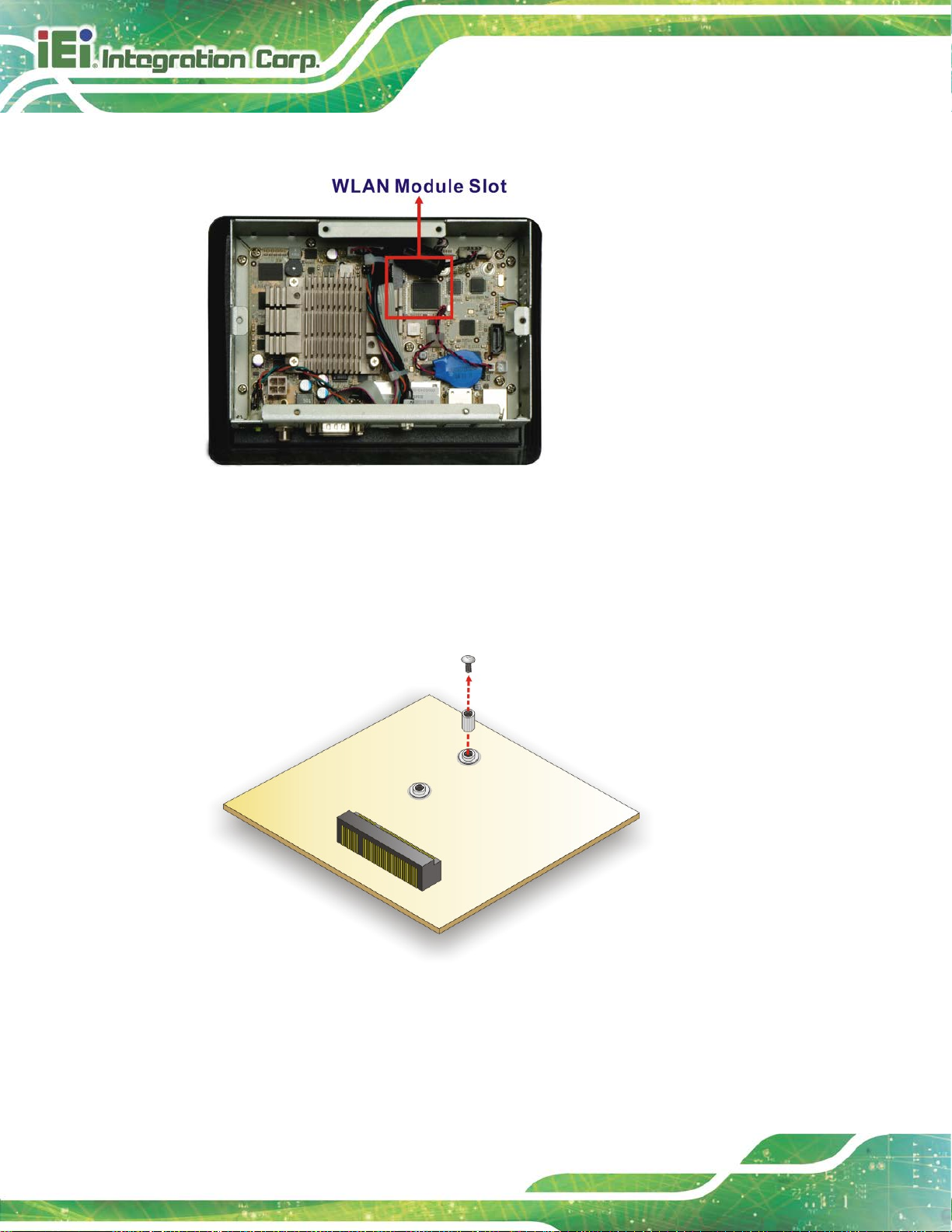

Figure 3-7: PCIe Mini Slot Location ............................................................................................ 20

Figure 3-8: Removing Screw and Standoff ................................................................................ 20

Figure 3-9: Installing the Standoff .............................................................................................. 21

Figure 3-10: Inserting the WLAN Module ................................................................................... 21

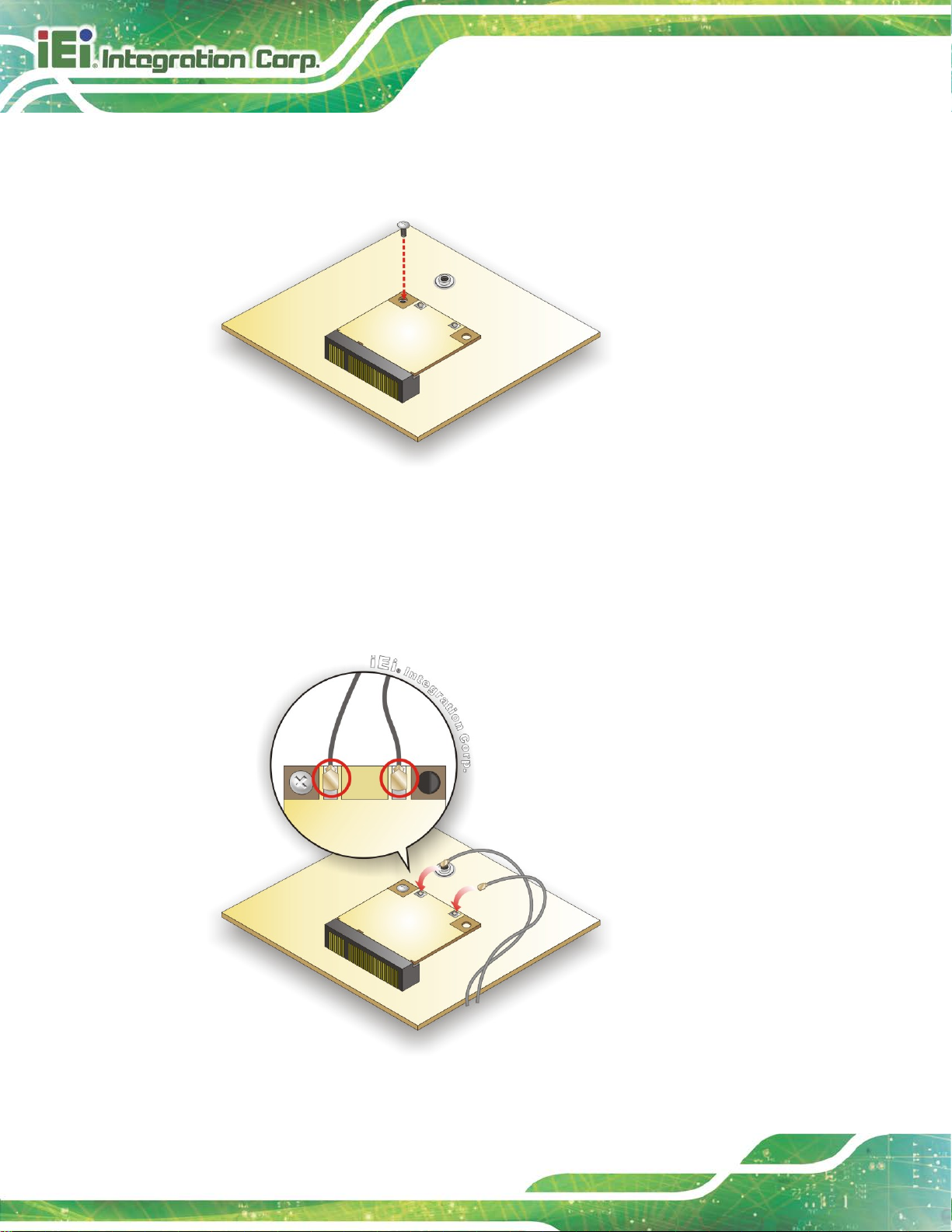

Figure 3-11: Securing WLAN Module ......................................................................................... 22

Figure 3-12: Connecting RF Cables ............................................................................................ 22

Figure 3-13: Securing SMA Connector and External Antenna Installation ............................ 23

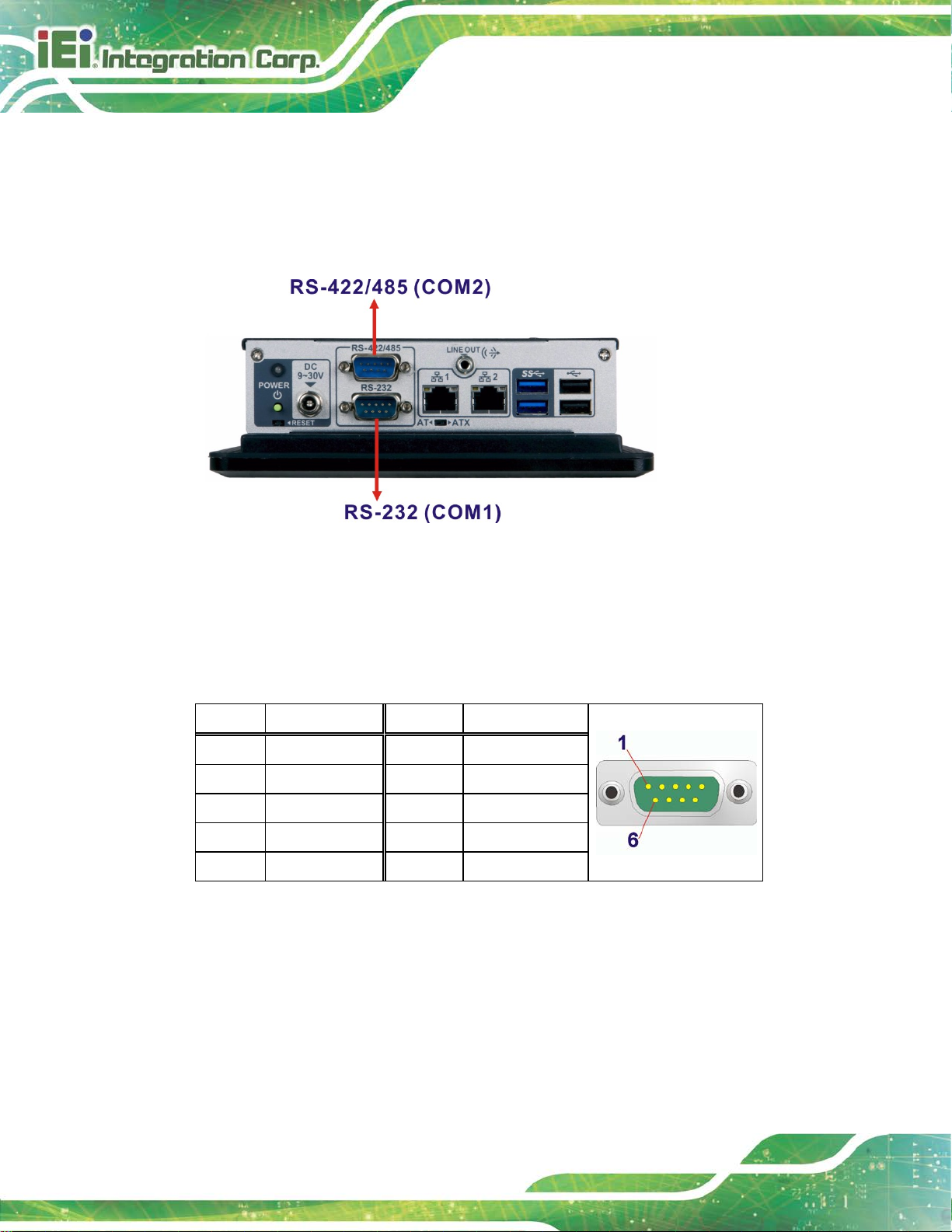

Figure 3-14: Serial Port Locations .............................................................................................. 24

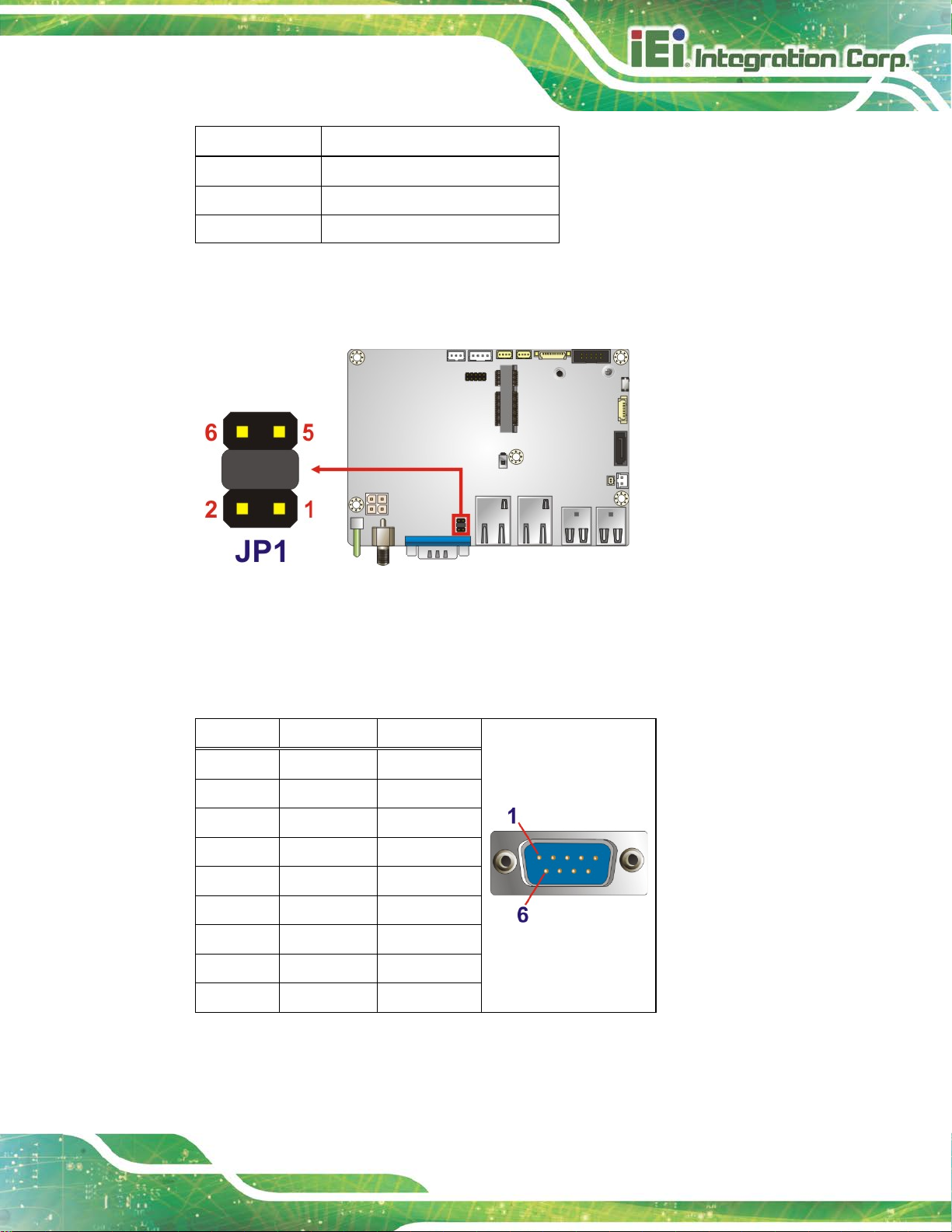

Figure 3-15: COM1 Serial Port Pin 9 Setting Jumper Location ................................................ 25

Figure 3-16: AT/ATX Mode Selection .......................................................................................... 26

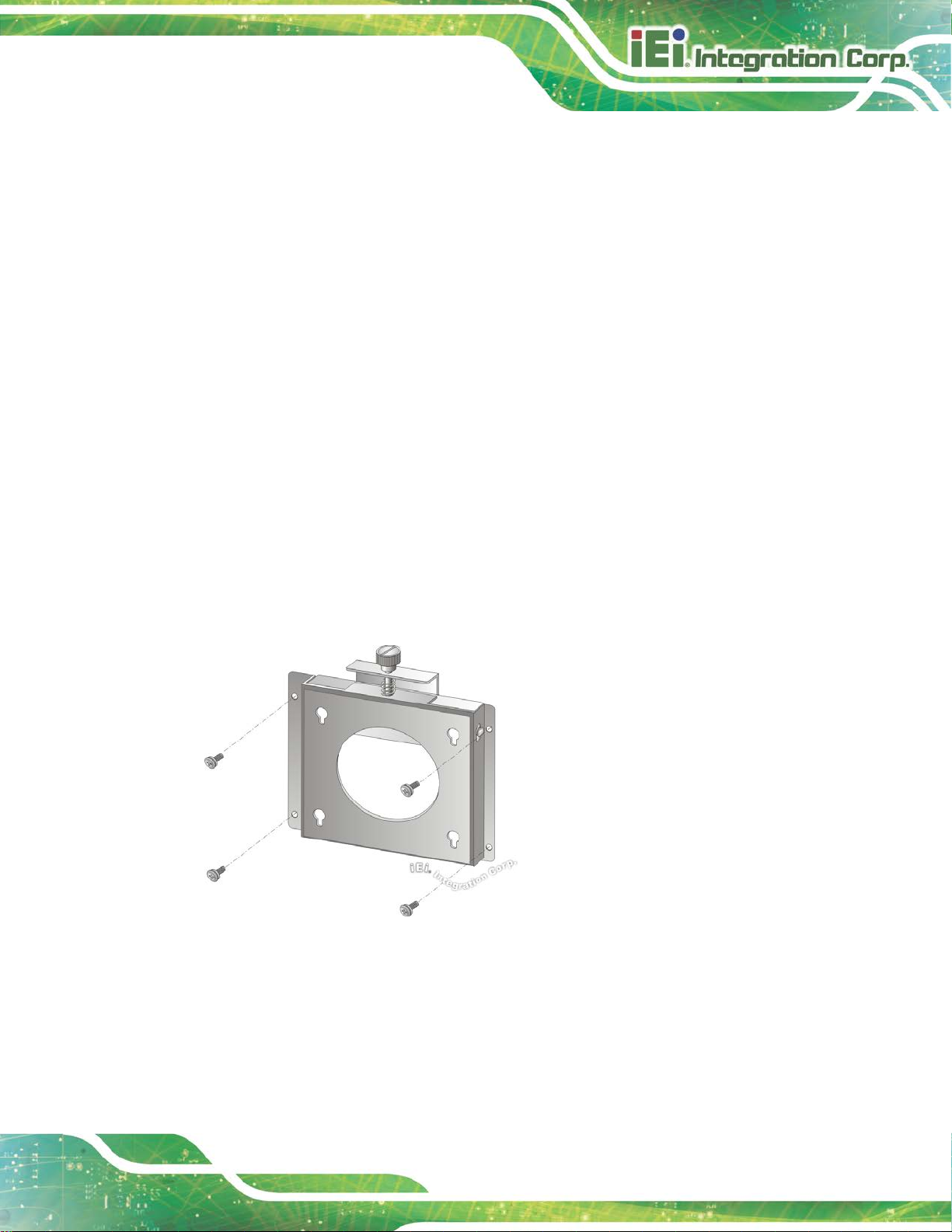

Figure 3-17: Attach Wall Mounting Kit to the Wall .................................................................... 27

Figure 3-18: Hook onto Wall Mounting Kit ................................................................................. 28

Figure 3-19: Tighten Retention Screw ........................................................................................ 29

Figure 3-20: Panel Cutout Dimensions....................................................................................... 30

Figure 3-21: Tighten the Mounting Clamp Screws .................................................................... 30

Figure 3-22: The Rack/Cabinet Bracket ...................................................................................... 31

Figure 3-23: Secure the Rack/Cabinet Bracket .......................................................................... 32

Figure 3-24: Install into a Rack/Cabinet ..................................................................................... 32

Figure 3-25: Arm Mounting (ARM-11-RS) ................................................................................... 34

PPC-F06B-BT Panel PC

Page X

Figure 3-26: Stand Mounting (Stand-B08) .................................................................................. 35

Figure 3-27: Powering on the System ........................................................................................ 35

Figure 3-28: Reset Button Location ............................................................................................ 36

Figure 3-29: Clear CMOS Button Location ................................................................................. 36

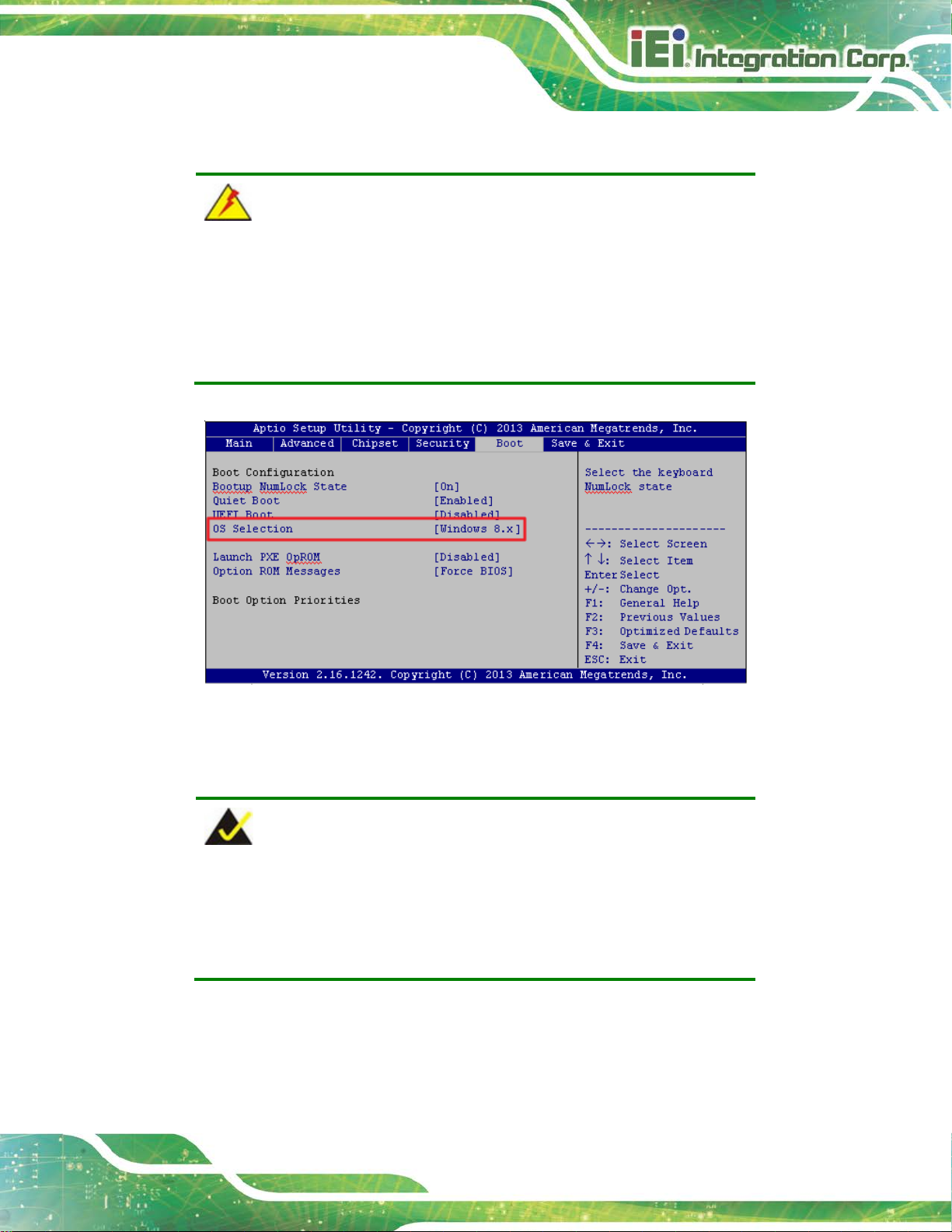

Figure 3-30: BIOS Option–OS Selection .................................................................................... 37

Figure 3-31: Keypad AP ............................................................................................................... 38

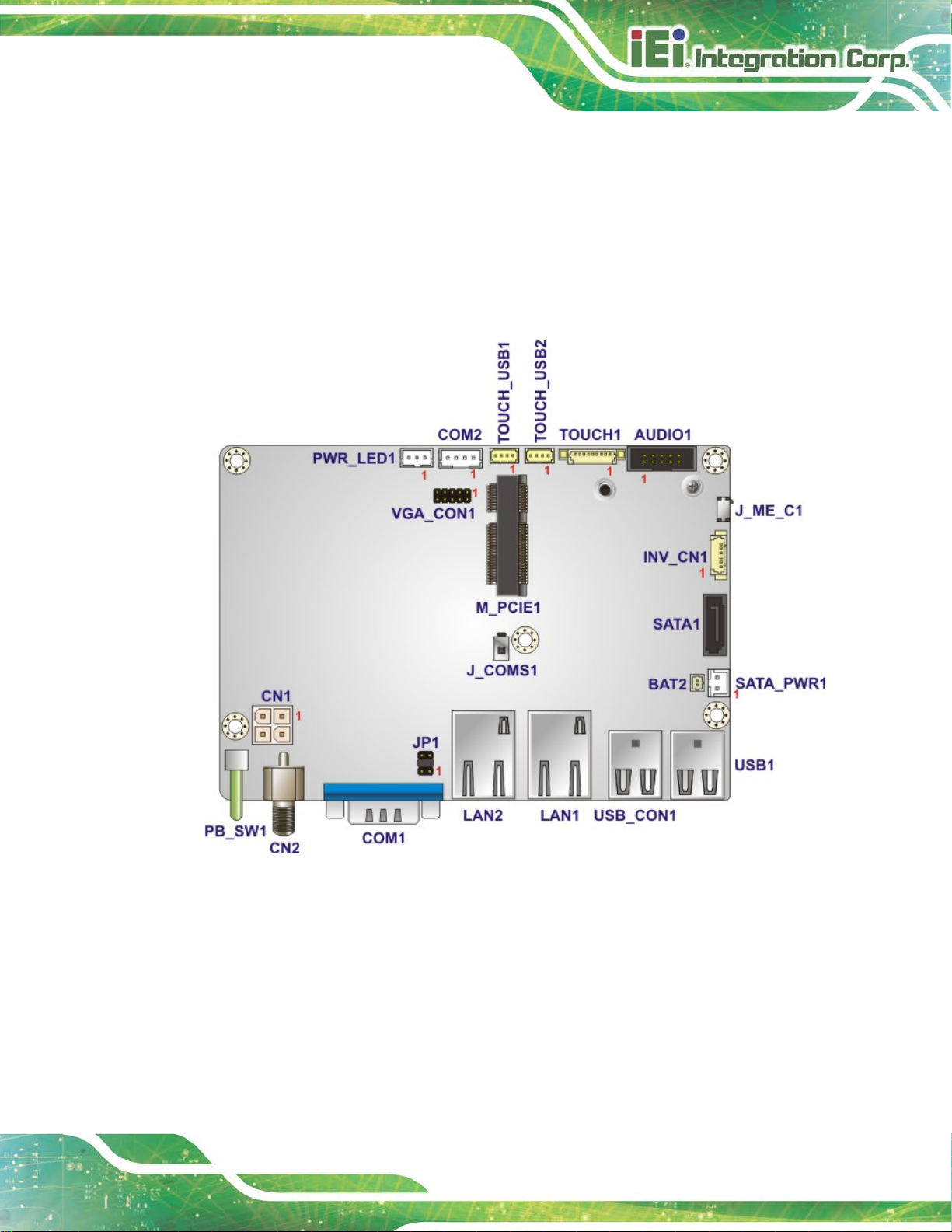

Figure 5-1: Main Board Layout Diagram (Front Side) ............................................................... 69

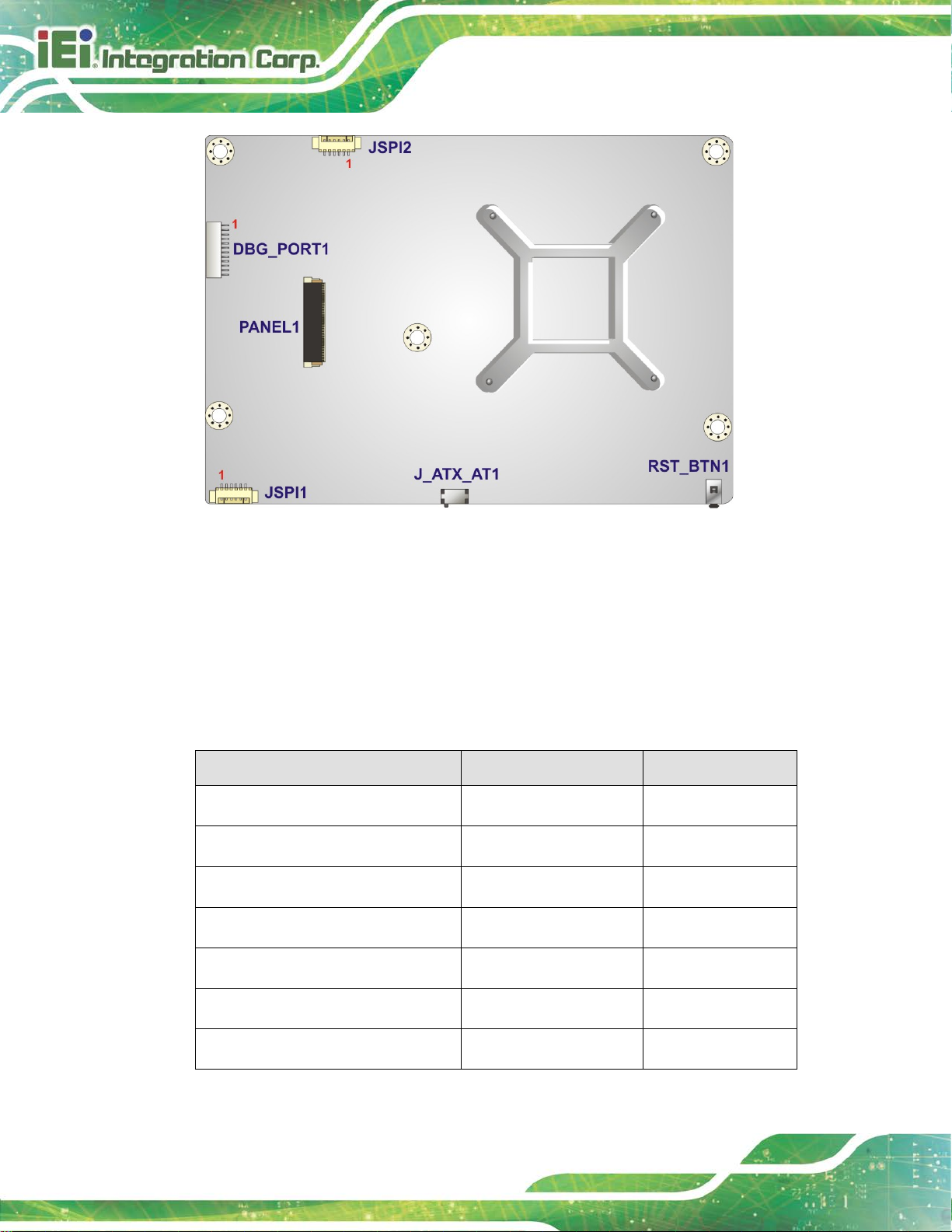

Figure 5-2: Main Board Layout Diagram (Solder Side) ............................................................. 70

PPC-F06B-BT Panel PC

Page XI

List of Tables

Table 1-1: System Specifications .................................................................................................. 8

Table 2-1: Packing List ................................................................................................................. 11

Table 2-2: Optional Items ............................................................................................................. 12

Table 3-1: RS-232 Serial Port (COM1) Pinouts .......................................................................... 24

Table 3-2: COM1 Serial Port Pin 9 Setting Jumper Settings .................................................... 25

Table 3-3: RS-422/485 Serial Port Pinouts ................................................................................. 25

Table 4-1: BIOS Navigation Keys ................................................................................................ 42

Table 5-1: Peripheral Interface Connectors ............................................................................... 71

Table 5-2: Audio Connector (AUDIO1) Pinouts ......................................................................... 71

Table 5-3: Battery Connector (BAT2) Pinouts ........................................................................... 71

Table 5-4: Inverter Connector (INV_CN1) Pinouts ..................................................................... 72

Table 5-5: LCD Connector (PANEL1) Pinouts ........................................................................... 72

Table 5-6: MCU Connector (JSPI2) Pinouts ............................................................................... 73

Table 5-7: PCIe Mini Connector (M_PCIE1) Pinouts ................................................................. 74

Table 5-8: Power Input Connector (CN1) Pinouts ..................................................................... 74

Table 5-9: Power LED Connector (PW_LED1) Pinouts ............................................................. 74

Table 5-10: SATA Connector (SATA1) Pinou ts ......................................................................... 75

Table 5-11: SATA Power Connector (SATA_PWR1) Pinouts ................................................... 75

Table 5-12: Serial Port Connector (COM2) Pinouts ................................................................... 75

Table 5-13: SPI Flash Connector (JSPI1) Pinouts ..................................................................... 75

Table 5-14: Touch Panel Connector (TOUCH1) Pinouts ........................................................... 76

Table 5-15: USB 2.0 Connector (TO UCH_USB1) Pinouts ......................................................... 76

Table 5-16: USB 2.0 Connector (TO UCH_USB2) Pinouts ......................................................... 76

Table 5-17: VGA Connector (VGA_CON1) Pinouts ................................................................... 77

Table 5-18: Rear Panel Connectors ............................................................................................ 77

Table 5-19: Ethernet Connectors (LAN1 & LAN2) Pinouts ....................................................... 78

Table 5-20: Power Connector (CN2) Pinouts ............................................................................. 78

Table 5-21: RS-232 Serial Port (COM1) Pinouts ........................................................................ 78

Table 5-22: USB 2.0 Connectors (USB1) Pinou ts ...................................................................... 79

Table 5-23: USB 3.0 Connectors ( USB_CON1) Pinouts ............................................................ 79

PPC-F06B-BT Panel PC

Page XII

List of BIOS Menus

BIOS Menu 1: Main ....................................................................................................................... 43

BIOS Menu 2: Advanced .............................................................................................................. 46

BIOS Menu 3: ACPI Settings ....................................................................................................... 46

BIOS Menu 4: F81866 Super IO Configuration .......................................................................... 47

BIOS Menu 5: Serial Port n Configuration Menu ....................................................................... 48

BIOS Menu 6: F81866 H/W Monitor ............................................................................................. 50

BIOS Menu 7: RTC Wake Settings .............................................................................................. 51

BIOS Menu 8: Serial Port Console Redirection ......................................................................... 52

BIOS Menu 9: IEI Feature ............................................................................................................. 53

BIOS Menu 10: CPU Configuration ............................................................................................. 54

BIOS Menu 11: IDE Configuration ............................................................................................... 56

BIOS Menu 12: USB Configuration ............................................................................................. 57

BIOS Menu 13: Chipset ................................................................................................................ 58

BIOS Menu 14: North Bridge Configuration .............................................................................. 59

BIOS Menu 15: Internal IGD Configuration ................................................................................ 59

BIOS Menu 16: South Bridge Configuration .............................................................................. 61

BIOS Menu 17: Security ............................................................................................................... 62

BIOS Menu 18: Boot ..................................................................................................................... 63

BIOS Menu 19: Save & Exit .......................................................................................................... 66

PPC-F06B-BT Panel PC

Page 1

Chapter

1

1 Introduction

PPC-F06B-BT Panel PC

Page 2

1.1 Overview

Figure 1-1: PPC-F06B-BT Series Panel PC

The PPC-F06B-BT series is a quad-core Intel® Celeron® processor N2807 powered flat
bezel panel PC with a rich variety of functions and peripherals. The rugged and trendy
design can be applied in harsh industrial environments and enriches aesthetic experience
at the same time.

The Intel® Celeron® processor N2807 is a SoC (System-on-Chip) that ensures optimal
memory, graphics, and peripheral I/O support. The major external device connections
include USB 3.0, USB 2.0, RS-232, RS-422/485, audio line-out jack and two GbE
connectors. Furthermore, the PPC-F06B-BT has one full-size/half-size PCIe Mini card
slots, allowing installation of a wide variety of PCIe Mini cards, su ch as Wi-Fi module s and
mSATA modules.

PPC-F06B-BT Panel PC

Page 3

1.2 Features

Some of the features of the PPC-F06B-BT panel PC include:

 Robust aluminum IP 65 compliant front bezel
 Compact and fanless design for easy installation
 Supports 1.58 GHz dual-core Intel® Celeron® processor N2807
 2 GB 1600 MHz DDR3L on-board memory (system max. 4 GB)
 One full-size/half-size PCIe Mini card slot supports mSATA or Wireless LAN

 Rich I/O interfaces, including two GbE, one RS-232, o ne RS -422/485, two

 Optional wireless LAN module
 RoHS compliant

module

USB 3.0, two USB 2.0 and audio line-out jack

1.3 Front Panel

The front side of the PPC-F06B-BT (Figure 1-2) is a flat panel LCD screen surrounded by
an aluminum frame.

Figure 1-2: Front View

PPC-F06B-BT Panel PC

Page 4

1.4 Rear Panel

The rear panel has four VESA mounting holes and several retention screws. The VESA
mounting holes are circled in the following diagrams.

Figure 1-3: Rear View

1.5 Side Panels

Each side panel has one knockout hole for optional wireless LAN antenna and two
pre-formed holes for panel/rack mounting clamps.

Figure 1-4: Side View

PPC-F06B-BT Panel PC

Page 5

1.6 Bottom Panel

The bottom panel has the following interfaces:

 1 x Power input connector
 1 x Power button
 1 x Power LED indicator
 2 x USB 3.0 connectors
 2 x USB 2.0 connectors
 1 x Reset button
 2 x RJ-45 GbE connectors
 1 x RS-232 connectors (COM1)
 1 x RS-422/485 connector (COM2)
 1 x Audio line-out jack
 1 x AT/ATX switch

Figure 1-5: Bottom Panel

PPC-F06B-BT Panel PC

Page 6

1.7 Dimensions

Figure 1-6: PPC-F06B-BT Dimensions (mm)

PPC-F06B-BT Panel PC

Page 7

1.8 Specifications

The technical specifications for the PPC-F06B-BT system are listed in Table 1-1.

LCD Display 5.7” (4:3)
Max. Resolution 640 (W) x 480 (H)
Brightness 550 cd/m
Contrast Ratio 800:1
LCD Color 262K
Pixel Pitch (mm) 0.18 (H) x 0.18 (V)
Viewing Angle (H-V) 160°/140°
Backlight MTBF 50,000 hours
SBC Model PPCMB2-BT-R10
CPU (SoC) 1.58 GHz dual-core Intel® Celeron® processor N2807

Memory

PPC-F06B-BT

2

2 GB 1600 MHz DDR3L on-board memory
(system max. 4 GB by MOQ=300 pcs)

4-wire resistive type flat touchscreen

Touchscreen

Storage mSATA or SATA DOM (Disk on Module)

Expansion

Ethernet 2 x Realtek RTL8111E GbE control ler
Wireless LAN Optional 802.11a/b/g/n/ac Wi-Fi PCIe Mini module
Audio Codec Realtek ALC662 HD Audio codec
Power Input 9 V–30 V DC

Controller: PenMount DMC9000
Surface hardness: 3H

One full-size/half-size PCIe Mini card slot supports
mSATA mod ule or wireless LAN module

PPC-F06B-BT Panel PC

Page 8

Power Adapter

Power Consumption 24 W

I/O Ports, Switches and
Buttons

PPC-F06B-BT

36W power adapter
Input: 90V - 264V AC, 50/60Hz
Output: 12V DC

2 x GbE (RJ-45)
2 x USB 3.0
2 x USB 2.0
1 x RS-232 (DB-9)
1 x RS-422/485 (DB-9)
1 x Audio line-out jack
1 x Power jack (lockable)
1 x Power button
1 x Reset button
1 x AT/ATX switch

VESA 75 m m x 75 mm

Mounting

Panel, wall, rack, stand and arm

Construction Material Aluminum front cover and sheet metal r ear cover
Enclosure Color Black
Operating Temperature

(with air flow)
Storage Temperature -20ºC–60ºC
Humidity 10%–95%, non-condensing
IP Level IP 65 compl i ant front panel
Safety and EMC CE, FCC Class A
Dimensions (H x W x D) 136.4 mm x 178.5 mm x 56.3 mm
Net Weight 0.89 kg

Table 1-1: System Specifications

-10ºC–50ºC

PPC-F06B-BT Panel PC

Page 9

Chapter

2

2 Unpacking

PPC-F06B-BT Panel PC

Page 10

The front side LCD screen has a protective plastic cover stuck to the

2.1 Unpacking

To unpack the panel PC, follow the steps below:

WARNING!

screen. Only remove the plastic cove r after the panel PC has be en properly
installed. This ensures the screen is protected during the installation
process.

Step 1: Use box cutters, a knife or a sharp pair of scissors that seals the top side of the

external box.

Step 2: Open the external box.

Step 3: Lift the panel PC out of the box.

Step 4: Remove both polystyrene ends, one from each side.

Step 5: Pull the plastic cover off the panel PC.

Step 6: Make sure all the components listed in the packing list are present. Step 0:

2.2 Packing List

The PPC-F06B-BT panel PC is shipped with the following components:

Quantity Item Image

1 PPC-F06B-BT panel PC

PPC-F06B-BT Panel PC

Page 11

Quantity Item Image

1 Power adapter (36 W, 12 V DC input)

1 Power cord

(part number varies by regions)

4 Screws for VESA mounting

2 Screws for mSATA module installation

6 Screws

1 Touch pen

1 User manual and driver CD

1 One Key Recovery CD

Table 2-1: Packing List

If any of the above items are missing or damaged, contact the distributor or sales
representative immediately.

PPC-F06B-BT Panel PC

Page 12

2.3 Optional Items

The following are optional components which may be separately purchased:

Item and Part Number Image

Arm
(P/N: ARM-11-RS)

Panel mount kit
(P/N: FPK-07-R10)

Stand
(P/N:STAND-100-RS)

Stand for VESA 75
(P/N: STAN D -B08)

VESA 75 wall m ount kit
(P/N: AFLWK-12)

Wi-Fi kit
(P/N: EMB-WIFI-KIT01-R20)

Table 2-2: Optional Items

PPC-F06B-BT Panel PC

Page 13

Chapter

3

3 Installation

PPC-F06B-BT Panel PC

Page 14

Failure to take ESD precautions during the maintenance of the EP
series may result in permanent damage to the EP series and severe

3.1 Anti-static Precautions

WARNING:

injury to the user.

Electrostatic discharge (ESD) can cause serious damage to electronic components,
including the PPC-F06B-BT. Dry climates are especially susceptible to ESD. It is therefore
critical that whenever the PPC-F06B-BT is accessed internally, or any other electrical
component is handled, the following anti-stat i c precautions are strictly adhered to.

 Wear an anti-static wristband: W earing a simple anti-static wristb and can

help to prevent ESD from damaging the board.

 Self-grounding: Before handling the board, touch any grounded conducting

material. During the time the board is handled, f requently touch any
conducting materials that are connected to the ground.

 Use an anti-static pad: When configuring the PPC-F06B-BT, place it on an

anti-static pad. This reduces the possibility of ESD damaging the
PPC-F06B-BT.

 Only handle the edges of the PCB: When handling the PCB , hold the PCB

by the edges.

3.2 Installation Precautions

When installing the panel PC, please follow the precautions listed below:

 Power turned off: When installing the panel PC, make sure the power is off.

Failing to turn off the power may cause severe injury to the body and/or
damage to the system.

 Certified Engineers: Only certified engineers should install and modify

onboard functionalities.

PPC-F06B-BT Panel PC

Page 15

 Mounting: The PPC-F06B-BT is a heavy device. When mounting the system

onto a rack, panel, wall or arm, please m ake sure that at least two people are
assisting with the procedure.

 Anti-static Discharge: I f a user open the rear panel of the panel PC, to

configure the jumpers or plug in added peripheral dev ices, ground themselves
first and wear an anti-static wristband.

3.3 Preinstalled Components

The following components are all preinstalled.

 Motherboard
 TFT LCD
 Touchscreen

Preinstalled OEM customizations may inclu de the following.

 Wireless LAN module
 mSATA
 SATA DOM

3.4 Installation and Configuration Steps

The following installation steps must be foll owed.

Step 1: Unpack the PPC-F06B-BT.

Step 2: Install mSATA module/SATA DOM.

Step 3: Configure the system.

Step 4: Mount the PPC-F06B-BT panel PC.

Step 5: Connect peripheral devices to the bottom panel of the PPC-F06B-BT.

Step 6: Configure the system.Step 0:

PPC-F06B-BT Panel PC

Page 16

, it cannot be

3.5 Removing the Back Cover

To remove the back cover, remove the back cover retention screws on the back cover. Lift
the cover up to remove. The following diagrams show the back cover screw locations of
the PPC-F06B-BT.

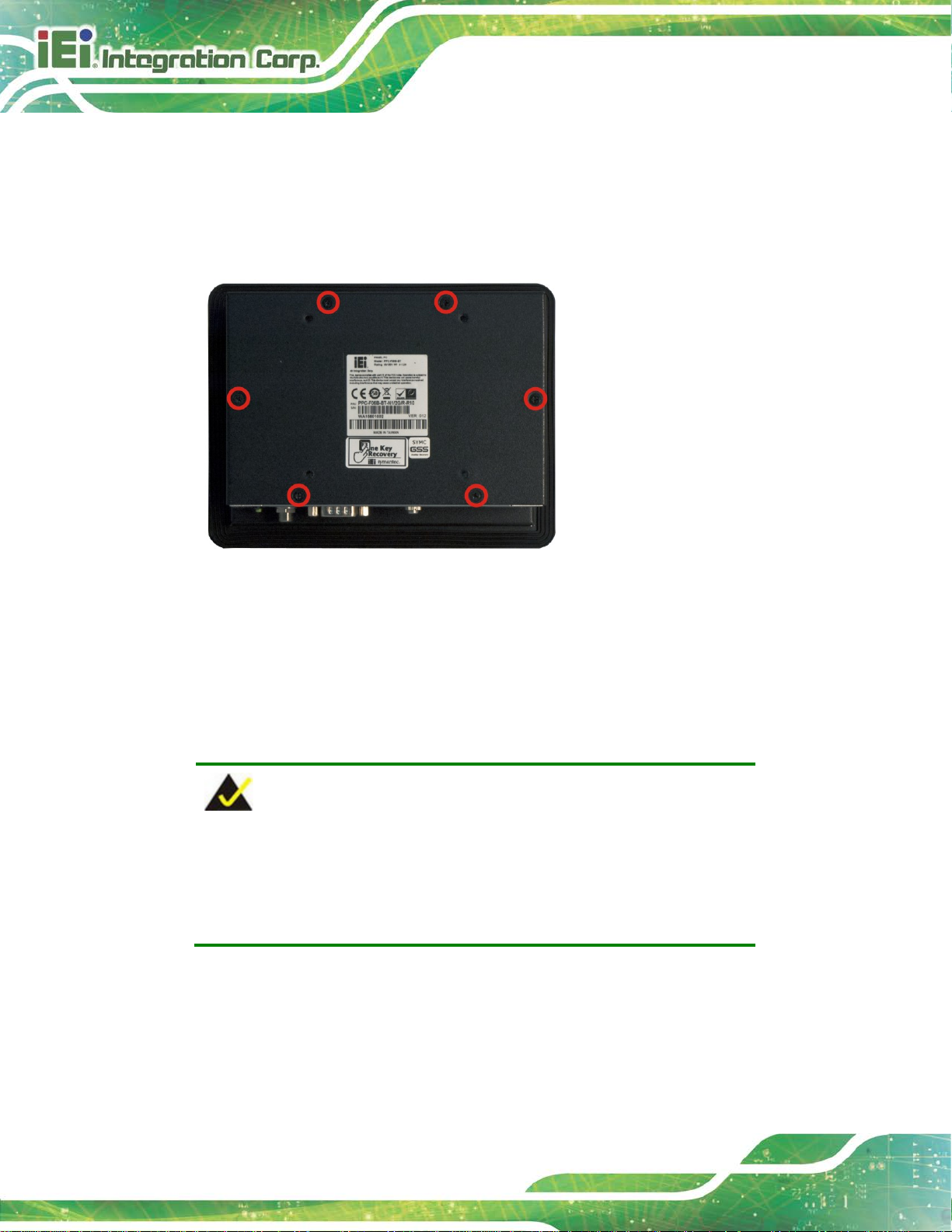

Figure 3-1: Back Cover Retention Screws

3.6 SATA DOM Installation

The SATA connector on the motherboard of the PPC-F06B-BT supports SATA DOM. To
install a SATA DOM, please follow the steps below.

NOTE:

When purchasing the SATA DOM, please ensure that it is in horizontal
orientation. If the SATA DOM is not horizontal type
installed into the PPC-F06B-BT panel PC.

Step 1: Remove the back cover. See Section 3.5.

Step 2: Locate the SATA connector as shown in Figure 3-4.

PPC-F06B-BT Panel PC

Page 17

Figure 3-2: SATA Connector Location

Step 3: Connect the SATA DOM with the SATA connector on the motherboard t o inst all it.

Either high-profile or low-profile SATA DOM can be installed into the
PPC-F06B-BT. Figure 3-5 shows that the system is in stalled with a high-profile
SATA DOM.

Figure 3-3: SATA DOM Installation

Step 4: Replace the back cover and secure it with retention screw s.

PPC-F06B-BT Panel PC

Page 18

is installed with a

3.7 mSATA Module Installation

The PCIe Mini card slot on the motherboard of the PPC-F06B-BT supports mSATA
module. To install an mSATA module, please follow the steps below.

Step 1: Remove the back cover. See Section 3.5.

Step 2: Locate the full-size PCIe Mini card slot. Remove th e prein stalled retention screw

on the screw pillar of the PCIe Mini card slot as shown in Figure 3-4.

NOTE:

In the model with wireless LAN function, this PCIe Mini slot is reserved
for wireless LAN module installation. If the slot
wireless LAN module, please install a SATA DOM for system storage.

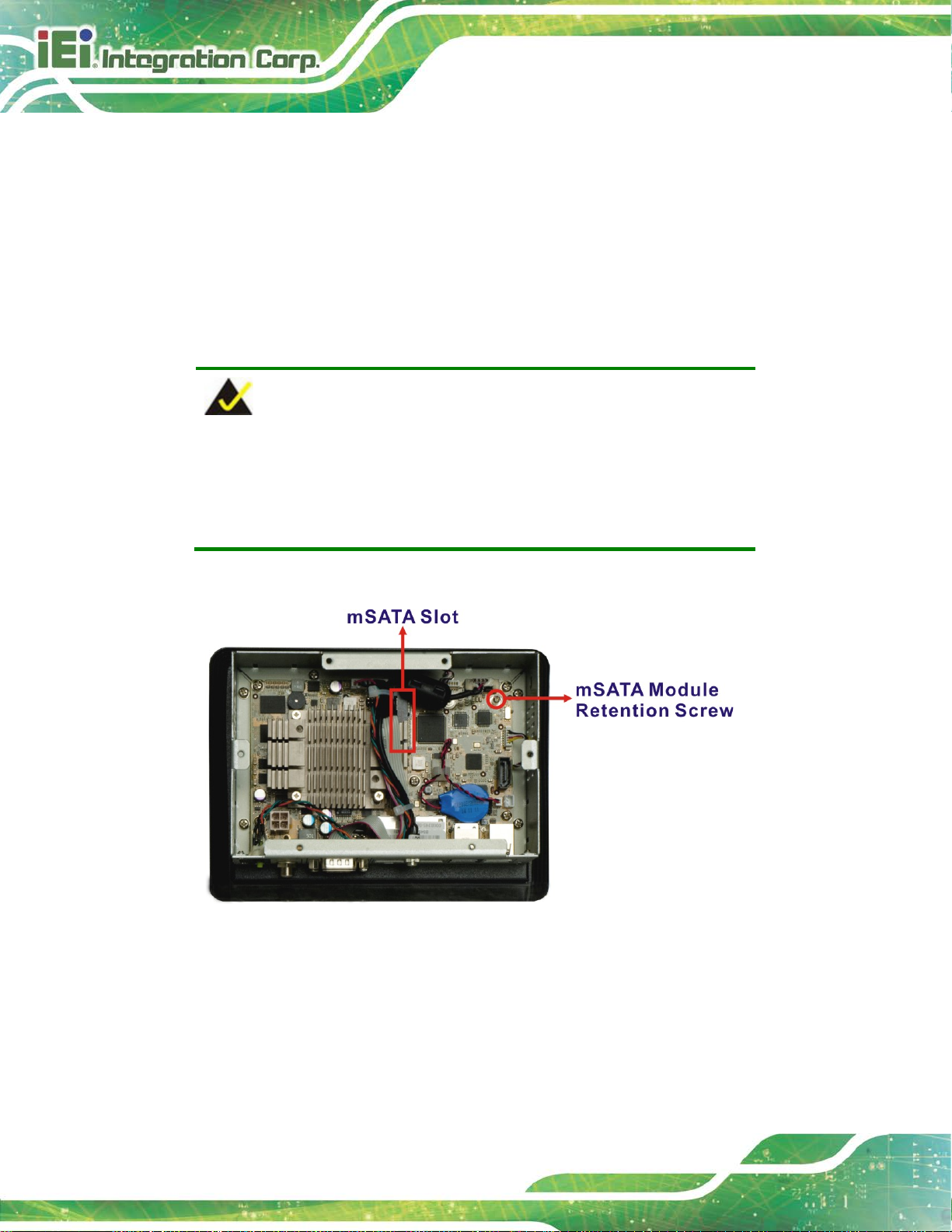

Figure 3-4: mSATA Module Slot Location

Step 3: Line up the notch on the mSATA module with the notch on the connector. S l i de

the PCIe Mini card into the socket at an angle of about 20º.

PPC-F06B-BT Panel PC

Page 19

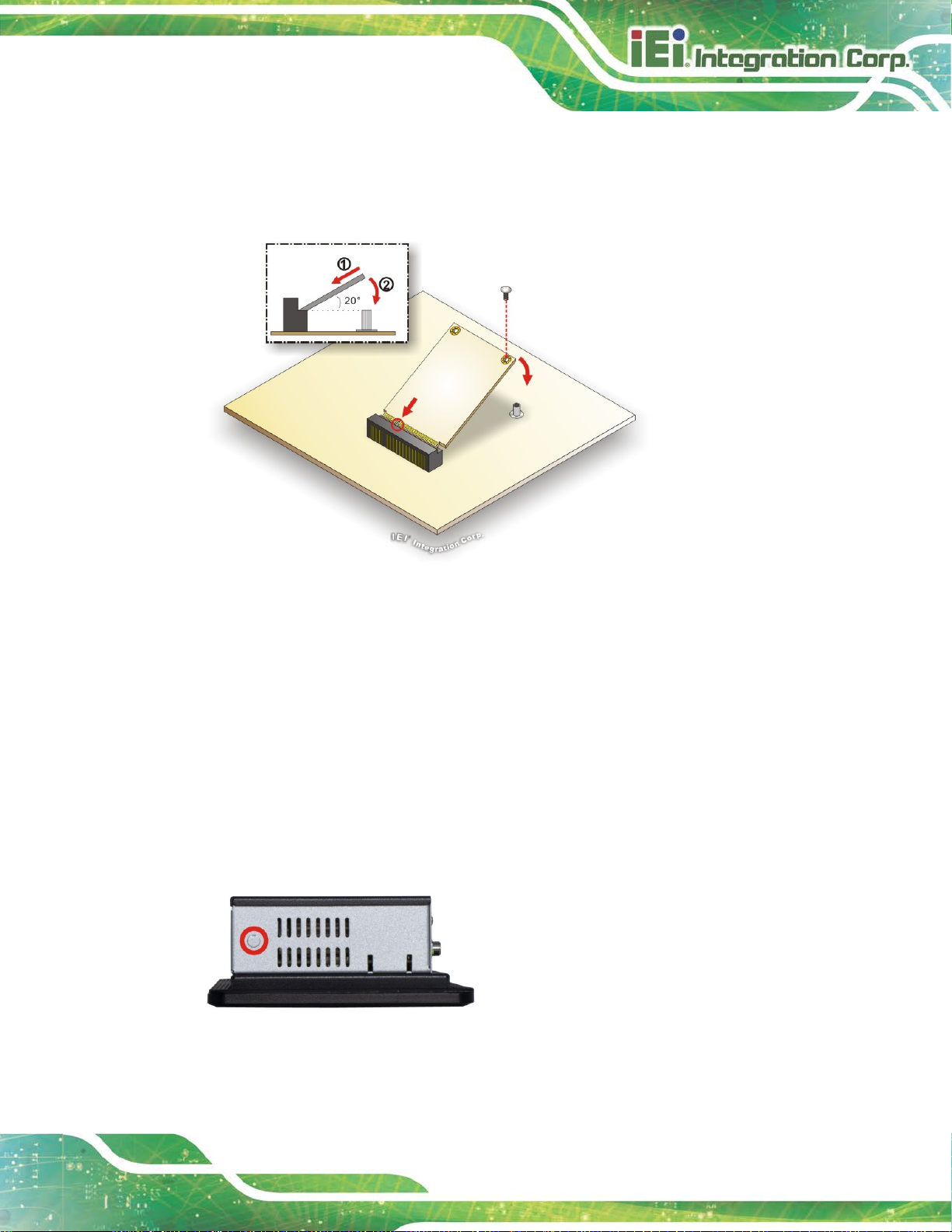

Step 4: Secure the mSATA module with the retention screw. Push the other end of the

mSATA mod ule down and secure the module with the previously removed
retention screw (Figure 3-5).

Figure 3-5: mSATA Module Installation

Step 5: Replace the back cover and secure it with retention screw s.

3.8 Wireless LAN Module Installation (Optional)

To install the optional wireless LAN (WLAN) module, please follow the steps below.

Step 1: Remove the back cover. See Section 3.5.

Step 2: Remove the two knockouts for ant enna installation. The two knockouts are

located on the side panels of the PPC-F06B-BT, one on each side.

Figure 3-6: Knockout for Wireless Antenna (Left Side Panel)

PPC-F06B-BT Panel PC

Page 20

Step 3: Locate the PCIe Mini slot (Figure 3-7).

Figure 3-7: PCIe Mini Slot Location

Step 4: Remove the retention screw and the standoff for the half-size PCIe Mini ca rd as

shown in Figure 3-8.

Figure 3-8: Removing Screw and Standoff

PPC-F06B-BT Panel PC

Page 21

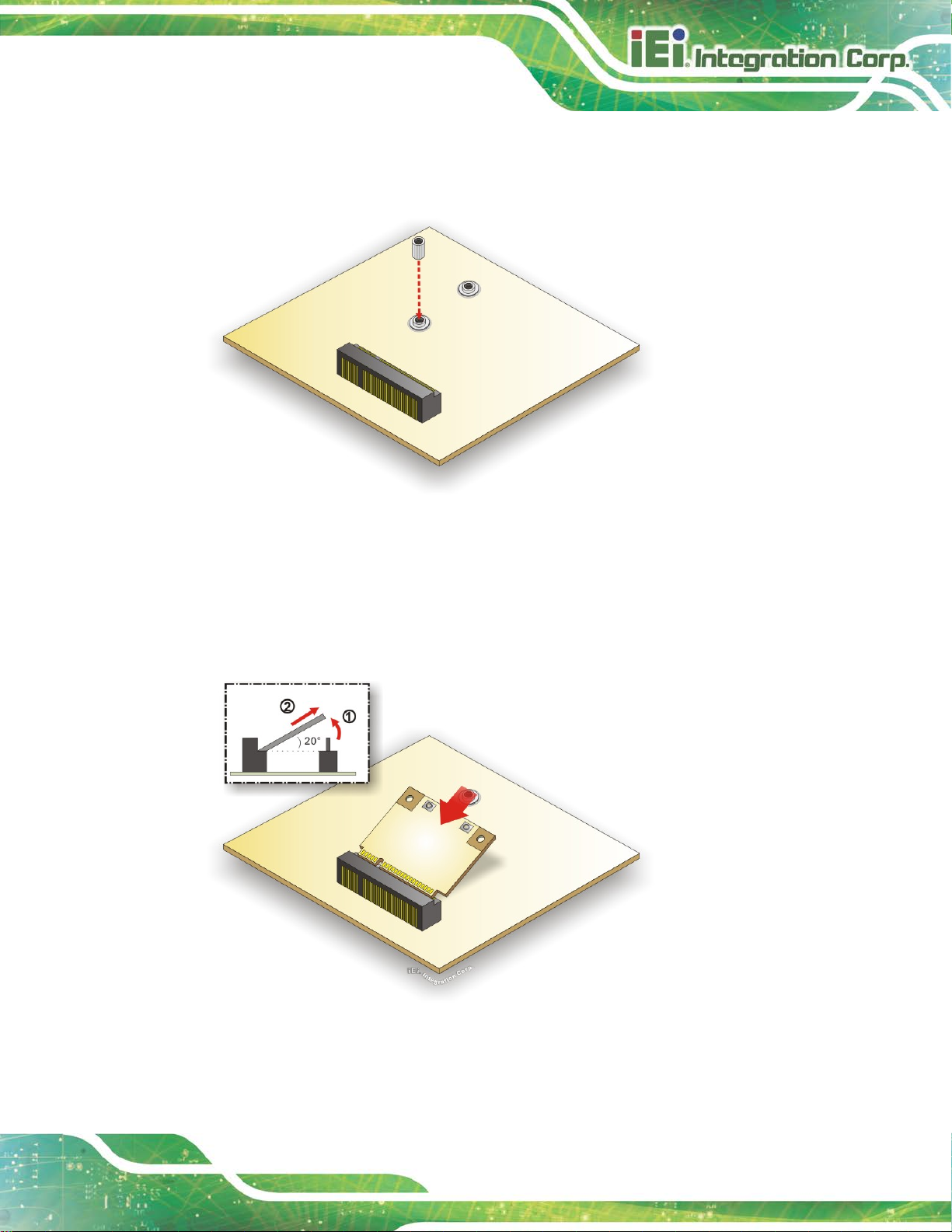

Step 5: Install the previously removed standoff to the screw hole for the half-size PCIe

Mini card (Figure 3-9).

Figure 3-9: Installing the Standoff

Step 6: Line up the notch on the WLAN module with the notch on the slot. Slide the

WLAN module into the slot at an angle of about 20º (Figure 3-10).

Figure 3-10: Inserting the WLAN Module

PPC-F06B-BT Panel PC

Page 22

Step 7: Secure the WLAN module with the previously removed retention screw (Figure

3-11).

Figure 3-11: Securing WLAN Module

Step 8: Connect the two RF cables to the antenna connectors on the WLAN module

(Figure 3-12).

Figure 3-12: Connecting RF Cables

PPC-F06B-BT Panel PC

Page 23

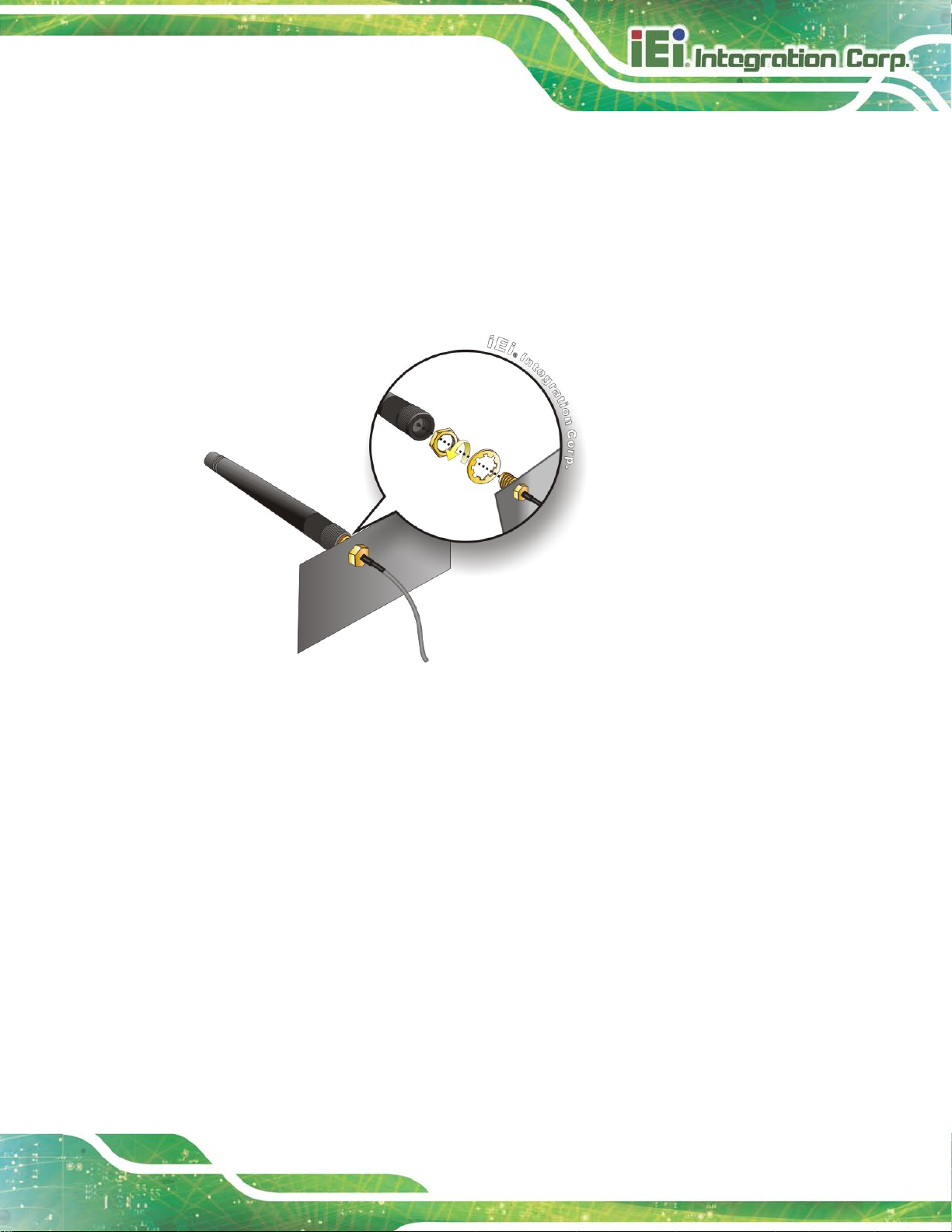

Step 9: Remove the nut and washer from the SMA connector at the other end of the RF

cable.

Step 10: Insert the SMA connector to the antenna connector holes on the top panel.

Step 11: Secure the SMA connector by inserting the washer and tightening it with nut.

Step 12: Install the external antenna.

Figure 3-13: Securing SMA Connector and External Antenna Installation

PPC-F06B-BT Panel PC

Page 24

3.9 Serial Port Configuration and Connection

The PPC-F06B-BT series has two serial ports, including one RS-232 port and one
RS-422/484 port. The port locations are shown in Figure 3-14. The pinouts and jumper
settings of the serial ports are listed in the following sections.

Figure 3-14: Serial Port Locations

3.9.1 RS-232 Serial Port Pinouts (COM1)

The pinouts of the RS-232 serial port (COM1) are listed in the following table.

Pin No. Description Pin No. Description

1 DCD 2 RXD
3 TXD 4 DTR
5 GND 6 DSR
7 RTS 8 CTS
9 RI

Table 3-1: RS-232 Serial Port (COM1) Pinouts

3.9.2 RS-232 Serial Port Pin 9 Selection

Pin 9 on the COM1 DB-9 connector can be set as the ring (RI) signal, +5 V or +12 V. The
jumper selection options are shown in Table 3-2.

PPC-F06B-BT Panel PC

Page 25

JP1 Description
Short 1-2 COM1 RI Pin use +12 V

Short 3-4 COM1 RI Pin use RI (Default)
Short 5-6 COM1 RI Pin use +5 V

Table 3-2: COM1 Serial Port Pin 9 Setting Jumper Settings

The COM1 Serial Port Pin 9 Setting jumper location is shown in Figure 3-15 below.

Figure 3-15: COM1 Serial Port Pin 9 Setting Jumper Location

3.9.3 RS-422/485 Serial Port Pinouts (COM2)

The RS-422/485 serial port (COM2) pinouts are listed in the following table.

Pin No. RS-422 RS-485

1 TX- TX­2 TX+ TX+
3 RX+ -­4 RX- -­5 -- -­6 -- -­7 -- -­8 -- -­9 -- --

Table 3-3: RS-422/485 Serial Port Pinouts

PPC-F06B-BT Panel PC

Page 26

3.10 AT/ATX Mode Selection

AT and ATX power modes can both be used on the PPC-F06B-BT panel PC. The
selection is made through an AT/ATX switch on the I/O interface panel. The switch is
shown below.

Figure 3-16: AT/ATX Mode Selection

3.10.1 AT Power Mode

With the AT mode selected, the power is controlled by a central power unit rather than a
power switch. The PPC-F06B-BT panel PC turns on automatically when the power is
connected. The AT mode benefits a production line to control multiple panel PCs from a
central management center and other applic ations including:

 ATM
 Self-service kiosk
 Plant environment monitoring system
 Factory automation platform
 Manufacturing shop flow

3.10.2 ATX Power Mode

With the ATX mode selected, the PPC-F06B-BT panel PC goes in a standby mode when it
is turned off. The panel PC can be easily turned on via network or a power switch in
standby mode. Remote power control is perfect for advertising applications since the
broadcasting time for each panel PC can be set individually and controlled remot ely. Other
possible application includes

 Security surveillance
 Point-of-Sale (POS)

PPC-F06B-BT Panel PC

Page 27

 Advertising terminal

3.11 Mounting the System

The methods of mounting the PPC-F06B-BT are:

 Wall mounting
 Panel mounting
 Rack mounting
 Arm mounting
 Stand mounting

The mounting methods are described in the fol lowing sections.

3.11.1 Wall Mounting

To mount the PPC-F06B-BT panel PC onto a wall, please follow the steps below.

Step 1: Attach the wall mounting kit to the mounting surface with the included screws.

Make sure it is attached securely.

Figure 3-17: Attach Wall Mounting Kit to the Wall

Step 2: Screw the mounting screws to the mounting hole s on the rear of the

Step 3: Hook the PPC-F06B-BT into the mounting holes on the wall mounting kit.

PPC-F06B-BT.

PPC-F06B-BT Panel PC

Page 28

Figure 3-18: Hook onto Wall Mounting Kit

WARNING:

Please use the M4 screws provided in th e package fo r the rear pa nel. If
the screw is missing, the thread depth of the repl acement screw should
be not more than 4 mm.

PPC-F06B-BT Panel PC

Page 29

Step 4: Tighten the top screw on the wall mounting kit to securely hold the

PPC-F06B-BT in place. After this screw is tightened, the PPC-F06B-BT should
not be able to move. Step 0:

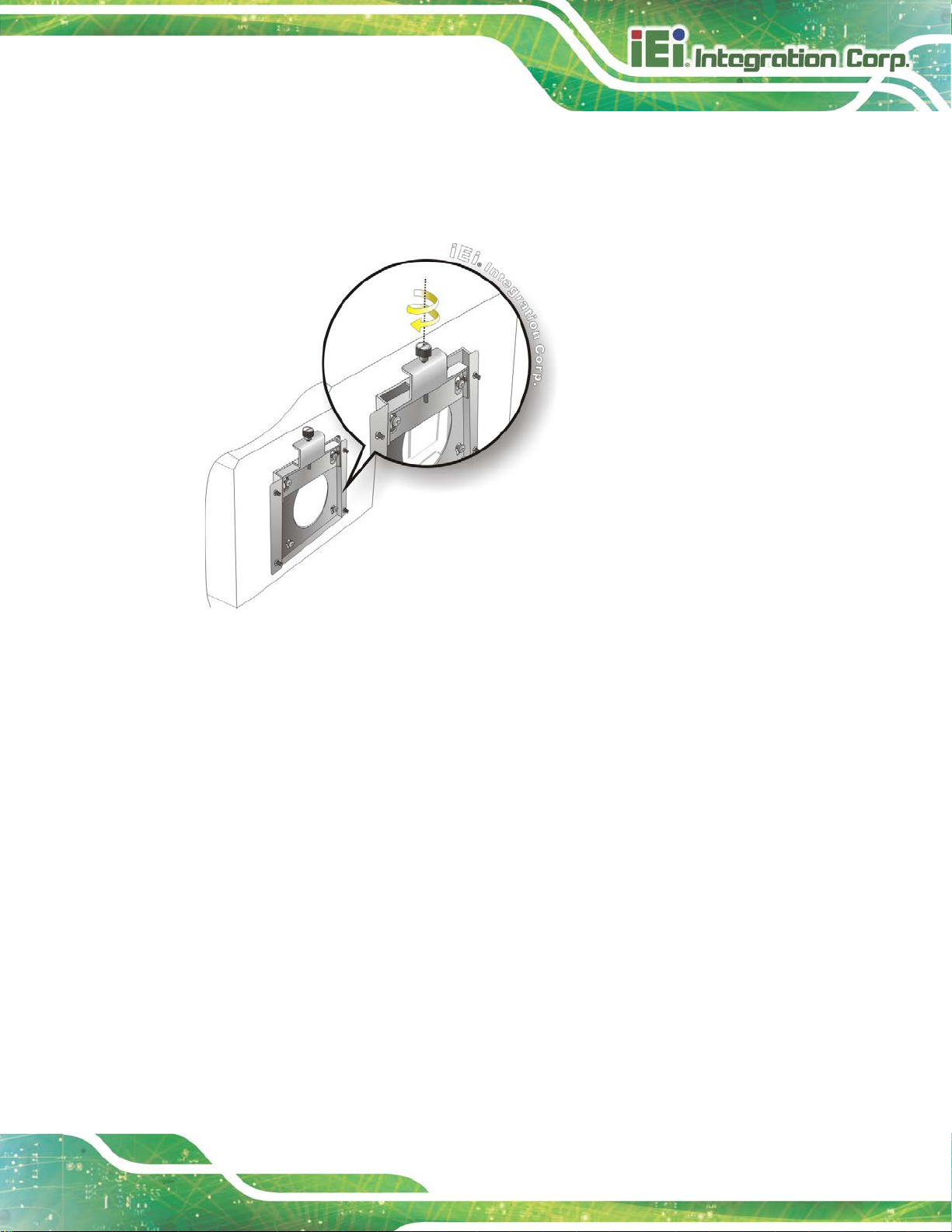

Figure 3-19: Tighten Retention Screw

3.11.2 Panel Mounting

To mount the PPC-F06B-BT panel PC into a panel, please follow the steps below.

Step 1: Select the position on the panel to mou nt the PPC-F06B-BT.

Step 2: Cut out a section of the panel that cor responds to the rear panel dimensions of

the PPC-F06B-BT. The recommended cutout sizes are shown below
(Figure 3-20).

PPC-F06B-BT Panel PC

Page 30

Figure 3-20: Panel Cutout Dimensions

Step 3: Slide the PPC-F06B-BT through the hole unt i l the aluminum frame is flush

against the panel.

Step 4: Insert the mounting clamps into the mounting brackets and pre-formed holes

along the edges of the PPC-F06B-BT, behind the aluminum frame (Figure 3-21).
There are a total of four mounting clamps required.

Step 5: Tighten the screws that pass through the m ounting clamps until the plastic caps

at the front of all the screws are firmly secured t o the panel (Figure 3-21).

Figure 3-21: Tighten the Mounting Clamp Screws

PPC-F06B-BT Panel PC

Page 31

flat panel PC and the

3.11.3 Rack Mounting

The PPC-F06B-BT flat panel PC can be installed into a cabinet or rack. The installation
procedures are similar to the panel mounting installation. To do this, please follow the
steps below:

NOTE:

When purchasing the cabinet/rack installation bracket, make sure it is
compatible with both the PPC-F06B-BT
rack/cabinet into which the PPC-F06B-BT is installed.

Step 1: Slide the rear of the PPC-F06B-BT flat panel PC through the rack/cabinet

bracket until the aluminum frame is flush against the front of the bracket
(Figure 3-22).

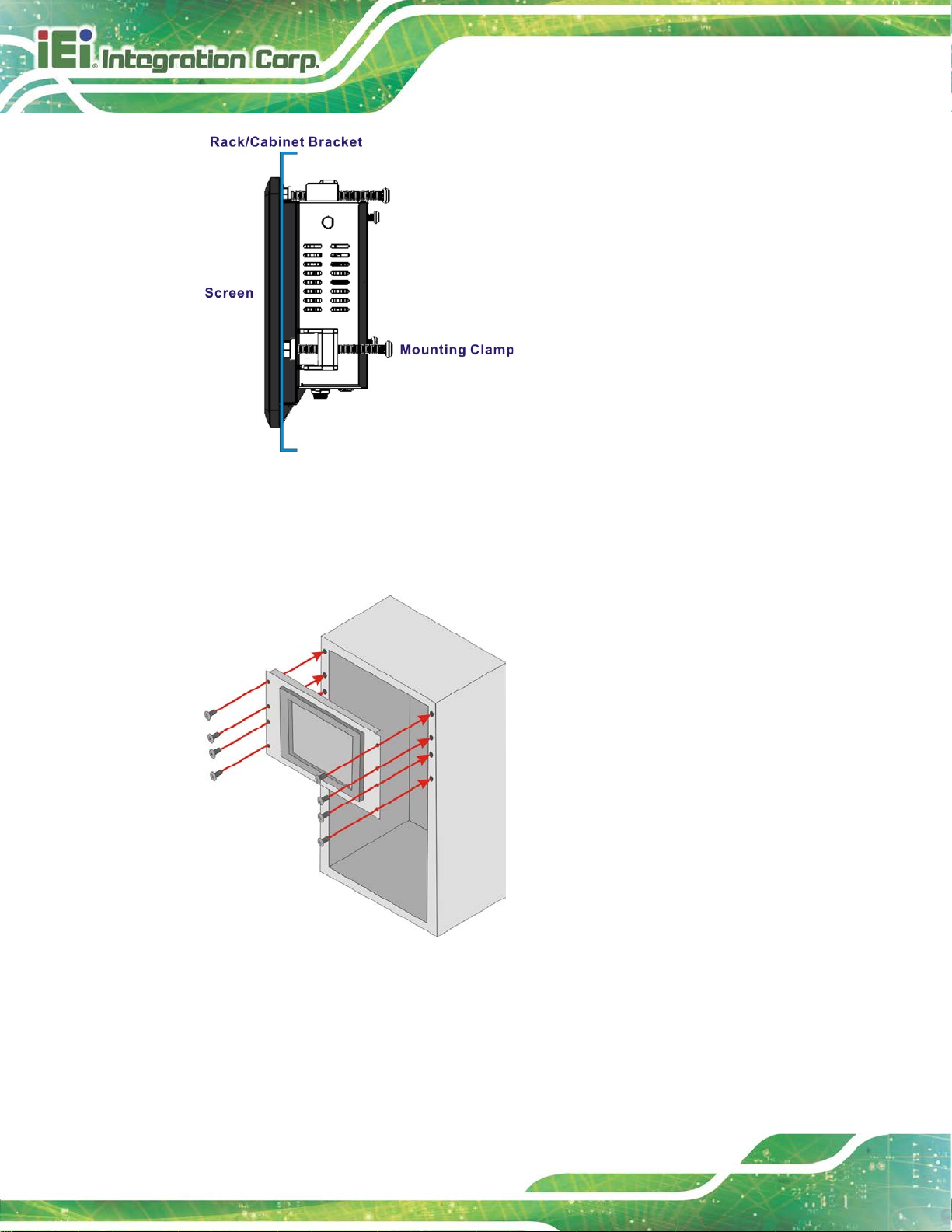

Figure 3-22: The Rack/Cabinet Bracket

Step 2: Insert the mounting clamps into the mounting brackets and pre-formed holes

along the edges of the PPC-F06B-BT, behind the aluminum frame (Figure 3-23).
There are a total of four mounting clamps required.

Step 3: Tighten the screws that pass through the mounting clamps until the plastic caps

at the front of all the screws are firmly secured t o the bracket (Figure 3-23).

PPC-F06B-BT Panel PC

Page 32

Figure 3-23: Secure the Rack/Cabinet Bracket

Step 4: Slide the PPC-F06B-BT with the attached rack/cabinet bracket into a rack o r

cabinet (Figure 3-24).

Figure 3-24: Install into a Rack/Cabinet

Step 5: Once the flat panel PC with the att ached rac k/cabi ne t bracket has been properly

inserted into the rack or cabinet, secure the f ront of the rack/cabinet bracket to
the front of the rack or cabinet (Figure 3-24).Step 0:

PPC-F06B-BT Panel PC

Page 33

3.11.4 Arm Mounting

The PPC-F06B-BT is VESA (Video Electronics Standards Association) compliant and can
be mounted on an arm with a 75 mm interface pad. To mount the PPC-F06B-BT on an
arm, please follow the steps below.

Step 1: The arm is a separately purchased item. Please correctly mount the arm onto

the surface it uses as a base. To do this, refer to the installation documentation
that came with the mounting arm.

NOTE:

When purchasing the arm please ensure that it is VESA compliant and
that the arm has a 75 mm interface pad. If the mounting arm is not
VESA compliant, it cannot be used to support the PPC-F06B-BT panel
PC.

Step 2: Once the mounting arm has been firmly attached to its surface, lift the

PPC-F06B-BT panel PC onto the interface pad of the mounting arm.

Step 3: Align the retention screw holes on the mounting a rm interface with those in the

PPC-F06B-BT panel PC. The arm mounting retention screw holes of the
PPC-F06B-BT panel PC are shown in Figure 1-3.

Step 4: Secure the PPC-F06B-BT to the interface pad by inserting four retention screws

through the mounting arm interface pad and into the PPC-F06B-BT panel PC.

Step 0:

PPC-F06B-BT Panel PC

Page 34

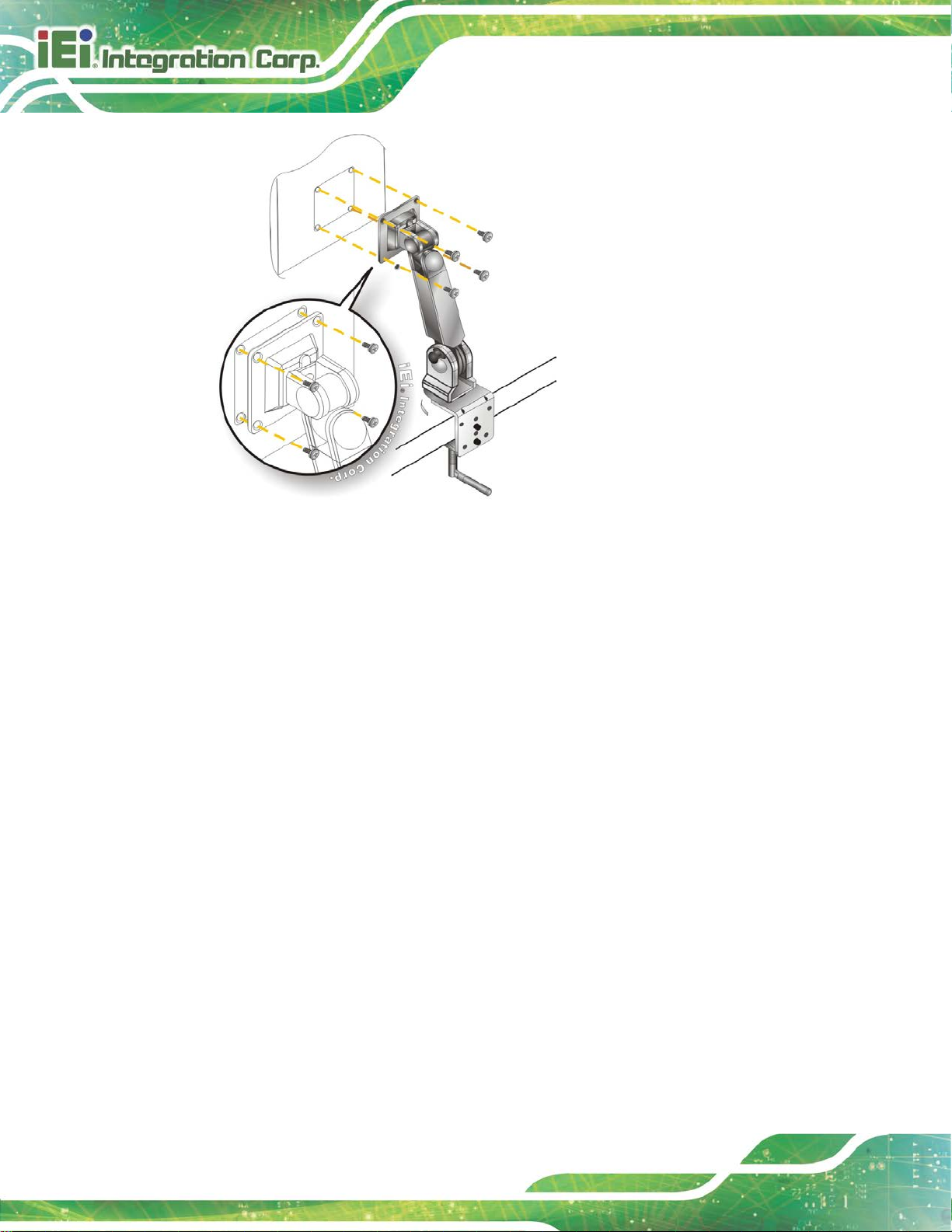

Figure 3-25: Arm Mounting (ARM-11-RS)

3.11.5 Stand Mounting

To mount the PPC-F06B-BT using the stand mounting kit, please follow the steps below.

Step 1: Locate the screw holes on the rear of the PPC-F06B-BT. This is where the

bracket will be attached. The mounting screw holes of the PPC-F06B-BT panel
PC are shown in Figure 1-3.

Step 2: Align the bracket with the screw holes.

Step 3: To secure the bracket to the PPC-F06B-BT, insert the retention screws into the

screw holes and tighten them.Step 0:

PPC-F06B-BT Panel PC

Page 35

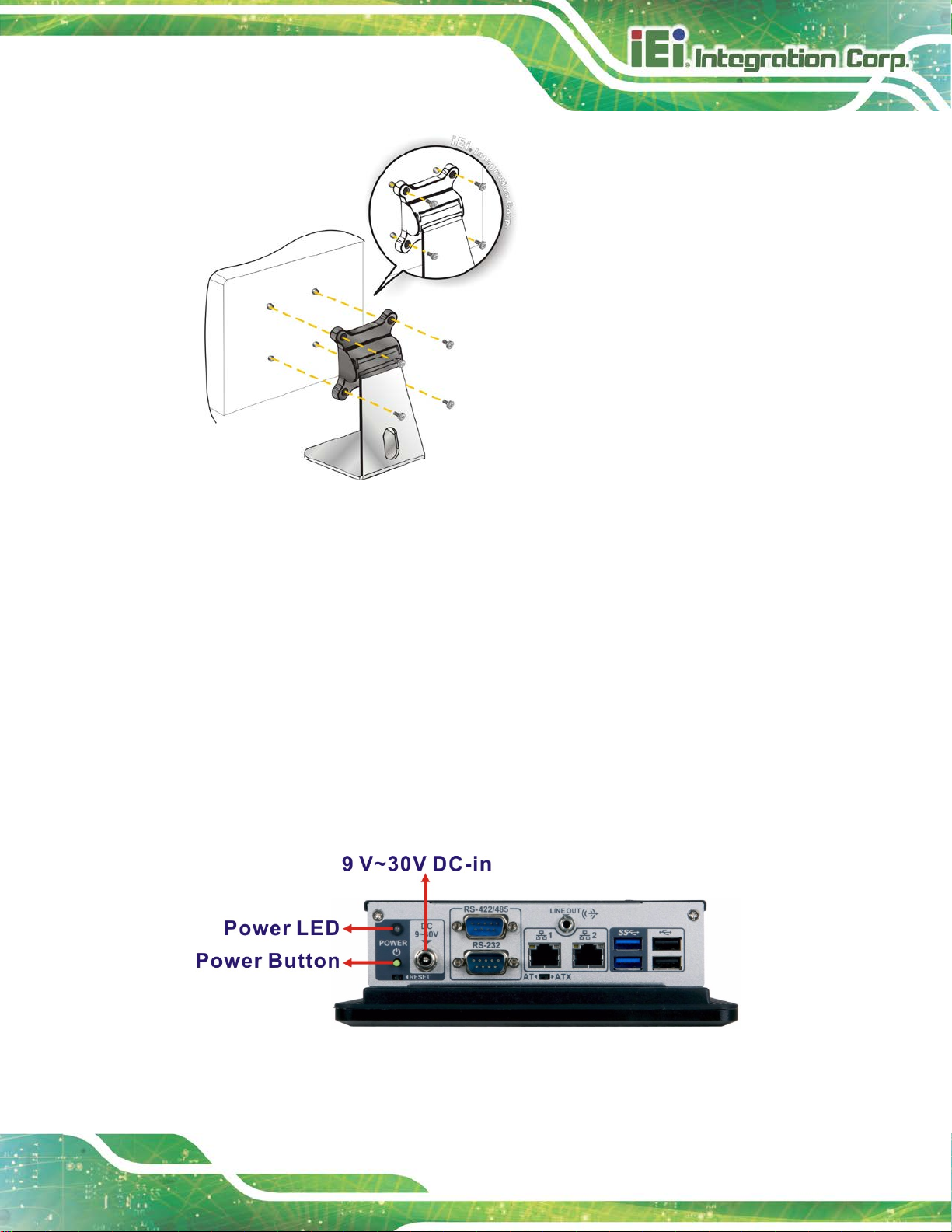

Figure 3-26: Stand Mounting (Stand-B08)

3.12 Powering On the System

To power on the system, follow the steps below:

Step 1: Connect the power cord to the power adapter. Connect the other end of the

power cord to a power source.

Step 2: Connect the power adapter to the power connect or of the PPC-F06B-BT.

Step 3: Locate the power button on the I/O p anel .

Step 4: Hold down the power button until the power LED turns on in green.

Figure 3-27: Powering on the System

PPC-F06B-BT Panel PC

Page 36

3.13 Reset the System

The reset button enables users to reboot the system when the system is turned on. The
reset button location is shown in Figure 3-28. Press the reset butt on to reboot the system.

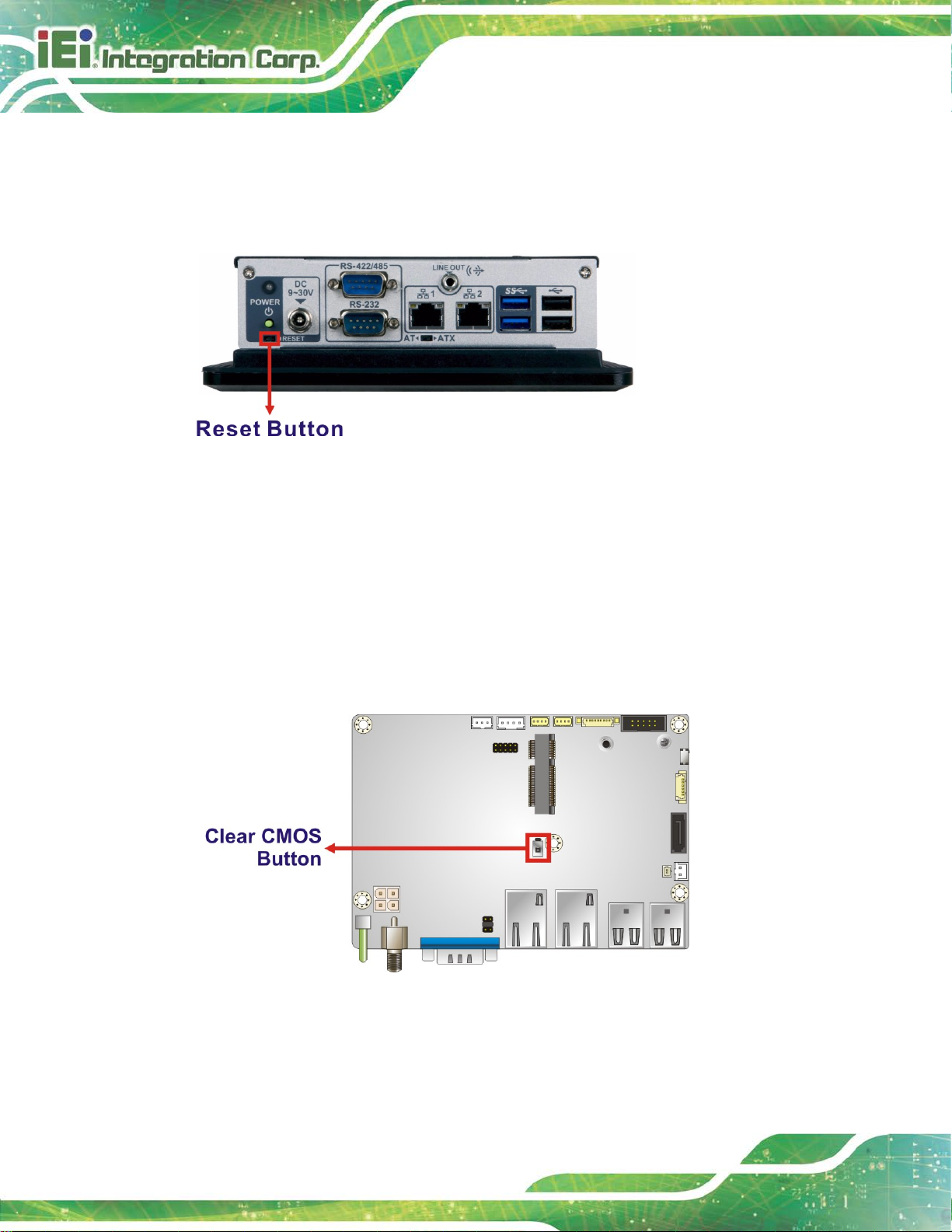

Figure 3-28: Reset Button Location

3.14 Clear CMOS

If the PPC-F06B-BT fails to boot due to improper BIOS settings, the clear CMOS jumper
clears the CMOS data and resets the system BIOS information. To do this, push the clear
CMOS button for three seconds, then restart the system. To access the clear CMOS
button, the back cover must be removed. Please refer to Section 3.5 for back cover
removal instruction. The clear CMOS butt on l ocat i on is shown in Figure 3-29.

Figure 3-29: Clear CMOS Button Location

PPC-F06B-BT Panel PC

Page 37

3.15 OS Installation

WARNING:

Before installing the operating system, the user must enter the Boot
BIOS menu first and choose which operating system will be installed.
Otherwise, the OS installation may fail. Please refer to Figure 3-30 and

Section 4.6.

Figure 3-30: BIOS Option–OS Selection

3.16 Driver Installation

NOTE:

The content of the CD may vary throughout the life cycle of the product
and is subject to change without prior notice. Visit the IEI website or
contact technical support for the latest updat es.

All the drivers for the PPC-F06B-BT are on the utility CD that came with the system. The
utility CD contains drivers for Window s 7 and Wind ows 8 operat ing system s. Please select
the corresponding drivers for the system.

PPC-F06B-BT Panel PC

Page 38

The following drivers can be installed on t he Windows 7 operating system:

 Chipset
 I/O driver
 Graphics (Intel® EMGD)
 TXE
 USB 3.0
 LAN
 Audio
 Keypad AP

The following drivers can be installed on t he Windows 8 operating system:

 Chipset
 Serial I/O driver (64-bit only)
 TXE
 Graphics
 LAN
 Audio
 Keypad AP

3.16.1 Keypad AP

Keypad AP is an OSD control tool developed by IEI. After the installation, the Keypad AP

can be accessed by clicking the
control screen brightness and audio volume.

icon on the notification area. It allows users to

Figure 3-31: Keypad AP

PPC-F06B-BT Panel PC

Page 39

3.17 System Maintenance

If the components of the PPC-F06B-BT fail, they must be replaced. Please contact the
system reseller or vendor to purchase the replacement parts.

NOTE:

A user cannot replace a motherboard. If the motherboard fails it must
be shipped back to IEI to be replaced. Please contact the system
vendor, reseller or an IEI sales person directly.

PPC-F06B-BT Panel PC

Page 40

Chapter

4

4 BIOS Setup

PPC-F06B-BT Panel PC

Page 41

f the BIOS options may vary throughout the life cycle of the

4.1 Introduction

The BIOS is programmed onto the BIOS chip. The BI OS setup pro gram allows changes to
certain system settings. This chapter outli nes t he options that can be changed.

NOTE:

Some o
product and are subject to change without prior notice.

4.1.1 Starting Setup

The UEFI BIOS is activated when the computer is turned on. The setup program can be
activated in one of two ways.

1. Press the D

2. Press the D
message appears on the screen. 0.

If the message disappears before the D
and try again.

ELETE or F2 key as soon as the system is turned on or
ELETE or F2 key when the “Press DELETE or F2 to enter SETUP”

ELETE or F2 key is pressed, restart the computer

4.1.2 Using Setup

Use the arrow keys to highlight items, press ENTER to select, use the PageUp and
PageDown keys to change entries, press F1 for help and press E
keys are shown in the following table.

Key Function

Up arrow Move to the item above

Down arrow Move to the item below

Left arrow Move to the item on the left hand side

SC to quit. Navigation

Right arrow Move to the item on the right hand side

PPC-F06B-BT Panel PC

Page 42

Key Function

+ Increase the numeric value or make changes

- Decrease the numeric value or make changes

Page up Move to the next page

Page down Move to the previous page

Esc Main Menu – Quit and do not save changes into CMOS

St atus Page Setup Menu and Option Page Setup Menu -­Exit current page and return to M ai n M enu

F1 General help, only for Status Page Setup Menu and Option

Page Setup Menu

F2 Load previous values

F3 Load optimized defaults

F4 Save changes and Exit BIOS

Table 4-1: BIOS Navigation Keys

4.1.3 Getting Help

When F1 is pressed a small help window describing the appropriate keys to use and the
possible selections for the highlighted item appears. To ex it the Help Window press E
the F1 key again.

4.1.4 Unable to Reboot after Configuration Changes

If the computer cannot boot after changes t o the syste m configur ation are made, press the
Clear CMOS button on the bottom panel to clear the CMOS data and reset the system
BIOS information. The location of the CMOS button is shown in Figure 3-29.

SC or

PPC-F06B-BT Panel PC

Page 43

Aptio Setup Utility – Copyright (C) 2013 American Megatrends, Inc.

Main

Advanced

Chipset

Security

Boot

Save & Exit

Access Level Administrator

Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.

4.1.5 BIOS Menu Bar

The menu bar on top of the BIOS screen has the foll owing main items:

 Main – Changes the basic system configuration.
 Advanced – Changes the advanced system settings.
 Chipset – Changes the chip set settings.
 Security – Sets User and Supervisor Passwords.
 Boot – Changes the system boot configuration.
 Save & Exit – Selects exit options and loads default set tings

The following sections completely describe the configuration options found in the menu
items at the top of the BIOS screen and listed above.

4.2 Main

The Main BIOS menu (BIOS Menu 1) appears when the BIOS Setup program is entered.
The Main menu gives an overview of the basic syste m i nformation.

BIOS Information
BIOS Vendor American Megatrends
Core Version 5.009
Compliency UEFI 2.3; PI 1.2
Project Version Z300AM10.ROM
Build Date and Time 09/25/2015 16:11:42

CPU Configuration
Microcode Patch 833
BayTrial SoC C0 Stepping

Memory Information
Total Memory 2048 MB (LPDDR3)

TXE Information
Sec RC Version 00.05.00.00
TXE FW Version 01.00.02.1060

System Date [Wed 01/08/2010]
System Time [16:49:37]

Set the Date. Use Tab to
switch between Data
elements.

----------------------



: Select Screen

↑ ↓: Select Item
Enter Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit

BIOS Menu 1: Main

PPC-F06B-BT Panel PC

Page 44

 BIOS Information

The BIOS Information lists a brief summary of the BIOS. The fields in BIOS Information
cannot be changed. The items shown in the syst em overview include:

 BIOS Vendor: Installed BIOS vendor
 Core Version: Current BIOS version
 Compliancy: Current compliant version
 Project Version: the board version
 Build Date and Time: Date and time the current BIOS version was made

 CPU Information

The CPU Information lists a brief summary of the CPU. The fields in CPU Information
cannot be changed. The items shown in the syst em overview include:

 Microcode Patch: Installed microcode p at ch
 BayTrail SoC: CPU stepping level

 Memory Information

The Memory Information lists the total memory of the system.

 TXE Information

The TXE Information lists a brief summary of Intel® Trusted Execution Engine (TXE).
The fields in TXE Information cannot be changed. The items shown in the system
overview include:

 Sec RC Version: Current sec reference code version
 TXE FW Version: Current Intel® TXE firmware version

 System Date [xx/xx/xx]

Use the System Date option to set the system date. Manually enter the day, month and
year.

PPC-F06B-BT Panel PC

Page 45

 System Time [xx:xx:xx]

Use the System Time option to set the system time. Manually enter the hours, minutes
and seconds.

4.3 Advanced

Use the Advanced menu (BIOS Menu 2) to configure the CPU and peripheral devices
through the following sub-menus:

WARNING:

Setting the wrong values in the sections below may cause the system
to malfunction. Make sure that the settings made are compatible with
the hardware.

 ACPI Settings
 F81866 Super IO Configuration
 F81866 H/W Monitor
 RTC Wake Sett ings
 Serial Port Console Redirection
 iEi Feature
 CPU Configuration
 IDE Configuration
 USB Configuration

PPC-F06B-BT Panel PC

Page 46

Aptio Setup Utility – Copyright (C) 2013 American Megatrends, Inc.

Main

Advanced

Chipset

Security

Boot

Save & Exit

ESC: Exit

Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.

Aptio Setup Utility – Copyright (C) 2013 American Megatrends, Inc.

Advanced

Select the highest ACPI

ESC: Exit

Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.

> ACPI Settings
> F81866 Super IO Configuration
> F81866 H/M Monitor
> RTC Wake Settings
> Serial Port Console Redirection
> CPU Configuration
> IDE Configuration
> USB Configuration

BIOS Menu 2: Advanced

4.3.1 ACPI Settings

The ACPI Settings menu (BIOS Menu 3) configures the Advanced Configuration and
Power Interface (ACPI) options.

System ACPI Parameters.

----------------------



: Select Screen

↑ ↓: Select Item
Enter Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit

ACPI Settings

ACPI Sleep State [S3 (Suspend to RAM)]

BIOS Menu 3: ACPI Settings

sleep state the system
will enter, when the
SUSPEND button is
pressed.

----------------------



: Select Screen

↑ ↓: Select Item
Enter Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit

PPC-F06B-BT Panel PC

Page 47

nd to

off. Power to the RAM is maintained. The
computer returns slower to a working state, but

Aptio Setup Utility – Copyright (C) 2013 American Megatrends, Inc.

Advanced

ESC: Exit

Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.

 ACPI Sleep State [S3 (Suspend to RAM)]

Use the ACPI Sleep State option to specify the sleep state the system enters when it is
not being used.



S3 (Suspe
RAM)

DEFAULT

4.3.2 F81866 Super IO Configuration

Use the F81866 Super IO Configuration menu (BIOS Menu 4) to set or change the
configurations for the serial ports.

F81866 Super IO Configuration

Super IO Chip F81866

> Serial Port 1 Configuration
> Serial Port 2 Configuration

The caches are flushed and the CPU is powered

more power is saved.

Set Parameters of Serial
Port 1 (COMA)

---------------------



: Select Screen

↑ ↓: Select Item
Enter Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit

BIOS Menu 4: F81866 Super IO Configuration

PPC-F06B-BT Panel PC

Page 48

Aptio Setup Utility – Copyright (C) 2013 American Megatrends, Inc.

Advanced

ESC: Exit

Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.

and the

4.3.2.1 Serial Port n Configuration

Use the Serial Port n Configuration menu (BIOS Menu 5) to configure the serial port n.

Serial Port 1 Configuration

Serial Port [Enabled]

Device Settings IO=3F8h; IRQ=4

Change Settings [Auto]

BIOS Menu 5: Serial Port n Configuration Menu

4.3.2.1.1 Serial Port 1 Configuration

 Serial Port [Enabled]

Use the Serial Port option to enable or disable the serial port.

Enable or Disable Serial
Port (COM)

---------------------



: Select Screen

↑ ↓: Select Item
Enter Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit



Disabled



Enabled DEFAULT

 Change Settings [Auto]

Use the Change Settings option to change the serial port IO port address and interrupt
address.



Auto DEFAULT



IO=3F8h; IRQ=4

Disable the serial port
Enable the serial port

The serial port IO port address and interrupt
address are automatically detected.

Serial Port I/O port address is 3F8h
interrupt address is IRQ4

PPC-F06B-BT Panel PC

Page 49

and the

and the

and the

nd the

and the









IO=3F8h;
IRQ=3, 4

IO=2F8h;
IRQ=3, 4

IO=3E8h;
IRQ=3, 4

IO=2E8h;
IRQ=3, 4

4.3.2.1.2 Serial Port 2 Configuration

 Serial Port [Enabled]

Use the Serial Port option to enable or disable the serial port.



Disabled

Serial Port I/O port address is 3F8h
interrupt address is IRQ3, 4

Serial Port I/O port address is 2F8h
interrupt address is IRQ3, 4

Serial Port I/O port address is 3E8h and the
interrupt address is IRQ3, 4

Serial Port I/O port address is 2E8h and the
interrupt address is IRQ3, 4

Disable the serial port



Enabled DEFAULT

 Change Settings [Auto]

Use the Change Settings option to change the serial port IO port address and interrupt
address.



Auto DEFAULT



IO=2F8h; IRQ=3







IO=3F8h;
IRQ=3, 4

IO=2F8h;
IRQ=3, 4

IO=3E8h;

Enable the serial port

The serial port IO port address and interrupt
address are automatically detected.

Serial Port I/O port address is 2F8h
interrupt address is IRQ3

Serial Port I/O port address is 3F8h a
interrupt address is IRQ3, 4

Serial Port I/O port address is 2F8h
interrupt address is IRQ3, 4

Serial Port I/O port address is 3E8h and the

IRQ=3, 4

interrupt address is IRQ3, 4

PPC-F06B-BT Panel PC

Page 50

Aptio Setup Utility – Copyright (C) 2013 American Megatrends, Inc.

Advanced

ESC: Exit

Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.



IO=2E8h;
IRQ=3, 4

Serial Port I/O port address is 2E8h and the
interrupt address is IRQ3, 4

4.3.3 F81866 H/W Monitor

The F81866 H/W Monitor menu (BIOS Menu 6) shows the operating temperatures and
voltages.

PC Health Status

CPU temperature :+41 °C
System temperature :+36 °C

CPU_CORE :+0.744 V
+5V :+5.045 V
+12V :+12.144 V
+DDR :+1.364 V
+5VSB :+4.920 V
+3.3V :+3.328 V
+3.3VSB :+3.328 V

---------------------



: Select Screen

↑ ↓: Select Item
Enter Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit

BIOS Menu 6: F81866 H/W Monitor

 Hardware Health Status

The following system parameters and values are shown. The system parameters that are
monitored are:

 CPU Temperature
 System Temperature
 Voltages:

o CPU_CORE
o +5V
o +12V
o +DDR
o +5VSB

PPC-F06B-BT Panel PC

Page 51

Aptio Setup Utility – Copyright (C) 2013 American Megatrends, Inc.

Advanced

ESC Exit

Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.

The real time clock (RTC) cannot generate a wake

o +3.3V
o +3.3VSB

4.3.4 RTC Wake Settings

The RTC Wake Settings menu (BIOS Menu 7) configures RTC wake event.

Wake system with Fixed Time [Disabled]

BIOS Menu 7: RTC Wake Settings

 Wa ke System with Fixed Time [Disabled]

Use the Wake System with Fixed Time option to specify the time the system should be

Enable or disable System
wake on alarm event. When
enabled, System will
wake on the
dat::hr::min::sec
specified

----------------------



: Select Screen

↑ ↓: Select Item
Enter Select
F1 General Help
F2 Previous Values
F3 Optimized Defaults
F4 Save

roused from a suspended state.



Disabled DEFAULT

event

PPC-F06B-BT Panel PC

Page 52

If selected, the following appears with values that

er setting the alarm, the computer turns itself on

Aptio Setup Utility – Copyright (C) 2013 American Megatrends, Inc.

Advanced

ESC: Exit

Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.



Enabled

4.3.5 Serial Port Console Redirection

The Serial Port Console Redirection menu (BIOS Menu 8) allows the console
redirection options to be configured. Console redirection allows users to maintain a

can be selected:
*Wake up every day
*Wake up date
*Wake up hour
*Wake up minute
*Wake up second
Aft

from a suspend state when the alarm g oes off.

system remotely by re-directing keyboard input and te xt output through the serial port.

COM1

Console Redirection [Disabled]

> Console Redirection Settings

COM2

Console Redirection [Disabled]

> Console Redirection Settings

BIOS Menu 8: Serial Port Console Redirection

Console Redirection
Enable or Disable.

---------------------



: Select Screen

↑ ↓: Select Item
Enter Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit

PPC-F06B-BT Panel PC

Page 53

Aptio Setup Utility – Copyright (C) 2013 American Megatrends, Inc.

Advanced

crashes. Please install

service before enabling

ESC: Exit

Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.

 Console Redirection [Disabled]

Use Console Redirection option to enable or disable the con sole redirection function.



Disabled DEFAULT



Enabled

Disabled the console redirection function
Enabled the console redirection function

4.3.6 IEI Feature

Use the IEI Feature (BIOS Menu 10) to configure One Key Recovery function.

iEi Feature

Auto Recovery Function [Disabled]

Auto Recovery Function
Reboot and recover
system automatically
within 10 min, when OS

Auto Recovery API

this funciton.

----------------------



: Select Screen

↑ ↓: Select Item
Enter Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit

BIOS Menu 9: IEI Feature

 Auto Recovery Function [Disabled]

Use the Auto Recovery Function BIOS option to enable or disable the auto recovery
function of the IEI One Key Recovery.




Disabled DEFAULT

Enabled

Auto recovery function disabled
Auto recovery function enabled

PPC-F06B-BT Panel PC

Page 54

Aptio Setup Utility – Copyright (C) 2013 American Megatrends, Inc.

Advanced

When enabled, a VMM can

Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.

4.3.7 CPU Configuration

Use the CPU Configuration (BIOS Menu 10) to view detailed CPU specifications and
configure the CPU.

CPU Configuration

Intel(R) Celeron(R) CPU N2807 @ 1.58GHz
CPU Signature 30678
Microcode Patch 833
Max CPU Speed 1580 MHz
Min CPU Speed 500 MHz
Processor Cores 2
Intel HT Technology Not Supported
Intel VT-x Technology Supported

L1 Date Cache 24 kB x 2
L1 Code Cache 32 kB x 2
L2 Cache 1024 kB x 1
L3 Cache Not Present
64-bit Supported

Intel Virtualization [Disabled]
EIST [Enabled]

utilize the additional
hardware capabilities
provided by Vanderpool
Technology

----------------------



: Select Screen

↑ ↓: Select Item
Enter Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit

The CPU Configuration menu lists the following CPU details:

BIOS Menu 10: CPU Configuration

 CPU Signature: Lists the CPU signature value.
 Microcode Patch: Lists the microcode patch being used.
 Max CPU Speed: Lists the maximum CPU proces sing speed.
 Min CPU Speed: Li sts the minimum CPU processing speed.
 Processor Cores: Lists the number of the processor core
 Intel HT Technology: Indicates if Intel HT Technology is supported by the

CPU.

 Intel VT-x Technology: Indicates if Intel VT-x Technology i s su pported by the

CPU.

 L1 Data Cache: Lists the amount of data storage space on the L1 cache.
 L1 Code Cache: Lists the amount of code storage space on the L1 cache.

PPC-F06B-BT Panel PC

Page 55

 L2 Cache: Lists the amount of st orage space on the L2 cache.
 L3 Cache: Lists the amount of st orage space on the L3 cache.
 64-bit: Indicates if 64-bit OS is supported by the CPU.

 Intel Virtualization [Disabled]

Use the Intel Virtualization option to enable or disable virtualization on the system. When
combined with third party software, Intel® Virtualization technology allows several OSs to
run on the same system at the same time.



Disabled DEFAULT



Enabled

 EIST [Enabled]

Use the EIST option to enable or disable Enhanced Intel SpeedStep® Techonology
(EIST).



Disabled



Enabled DEFAULT

Disables Intel Virtualization Technology .
Enables Intel Virtualization Technology.

Disables Enhanced Intel SpeedStep®
Techonology.

Enables Enhanced Intel SpeedStep®
Techonology.

PPC-F06B-BT Panel PC

Page 56

Aptio Setup Utility – Copyright (C) 2013 American Megatrends, Inc.

Advanced

Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.

4.3.8 IDE Configuration

Use the IDE Configuration menu (BIOS Menu 11) to change a nd /or s et the conf igurat ion
of the SATA devices installed in the system.

IDE Configuration

Serial-ATA(SATA) [Enabled]
SATA Mode [IDE mode]

SATA1
Not Present

SATA2

Not Present

BIOS Menu 11: IDE Configuration

 Serial-ATA (SATA) [Enabled]

Use the Serial-ATA (SATA) option to enable or disable the serial ATA controller.



Enabled D

EFAULT

Enables the on-board SATA controller.

Enable/Disable Serial
ATA

---------------------



: Select Screen

↑ ↓: Select Item
Enter Select
+/-: Change Opt.
F1 General Help
F2 Previous Values
F3 Optimized Defaults
F4 Save & Exit
ESC Exit



Disabled

 SATA Mode [IDE Mode]

Use the SATA Mode option to configure SATA devi ces as n ormal IDE devices.



IDE Mode DEFAULT



AHCI Mode

Disables the on-board SATA controller.

Configures SATA devices as normal IDE devi ce.
Configures SATA devices as AHCI device.

PPC-F06B-BT Panel PC

Page 57

Aptio Setup Utility – Copyright (C) 2013 American Megatrends, Inc.

Advanced

disables legacy support

ESC: Exit

Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.

4.3.9 USB Configuration

Use the USB Configuration menu (BIOS Menu 12) to read USB configuration
information and configure the USB settin gs.

USB Configuration

USB Devices:
1 Keyboard, 2 Hubs

Legacy USB Support [Enabled]

BIOS Menu 12: USB Configuration

 USB Devices

Enables Legacy USB
support. AUTO option

if no USB devices are
connected. DISABLE
option will keep USB
devices available only
for EFI applications.

---------------------



: Select Screen

↑ ↓: Select Item
Enter Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit

The USB Devices Enabled field lists th e US B devices that are enabled on the system

 Legacy USB Support [Enabled]

Use the Legacy USB Support BIOS option to enable USB mouse and USB keyboard
support. Normally if this option is not enable d, any a t tached USB m ouse o r US B keyboard
does not become available until a USB comp atible operat ing syst em is fully bo oted with all
USB drivers loaded. When this option is enabled, any attached USB mouse or USB
keyboard can control the system even when there is no USB driver loaded onto the
system.



Enabled DEFAULT

Legacy USB support enabled

PPC-F06B-BT Panel PC

Page 58

Aptio Setup Utility – Copyright (C) 2013 American Megatrends, Inc.

Main

Advanced

Chipset

Security

Boot

Save & Exit

Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.



Disabled



Auto

4.4 Chipset

Use the Chipset menu (BIOS Menu 13) to access the North Bridge and South Bridge
configuration menus.

Legacy USB support disabled
Legacy USB support disabled if no USB devices are

connected

WARNING!

Setting the wrong values for the Chipset B IOS selections in the Chipset
BIOS menu may cause the system to malfunction.

> North Bridge
> South Bridge

BIOS Menu 13: Chipset

North Bridge Parameters

---------------------



: Select Screen

↑ ↓: Select Item
Enter Select
+ - Change Opt.
F1 General Help
F2 Previous Values
F3 Optimized Defaults
F4 Save & Exit
ESC Exit

PPC-F06B-BT Panel PC

Page 59

Aptio Setup Utility – Copyright (C) 2013 American Megatrends, Inc.

Chipset

ESC Exit

Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.

Aptio Setup Utility – Copyright (C) 2013 American Megatrends, Inc.

Chipset

ESC Exit

Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.

4.4.1 North Bridge Configuration

Use the North Bridge menu (BIOS Menu 14) to configure the north bridge chipset.

> Intel IGD Configuration

Memory Information

Total Memory 2048 MB (LPDDR3)

On Board Memory 2048 MB (LPDDR3)

BIOS Menu 14: North Bridge Configuration

4.4.1.1 Internal IGD Configuration

Use the Internal IGD Configuration (BIOS Menu 15) menu to set the integrated graphics.

Config Intel IGD
Settings

---------------------



: Select Screen

↑ ↓: Select Item
Enter Select
+ - Change Opt.
F1 General Help
F2 Previous Values
F3 Optimized Defaults
F4 Save & Exit

Internal IGD Configuration

DVMT Pre-Allocated [256M]
DVMT Total Gfx Mem [Max]

BIOS Menu 15: Internal IGD Configuration

Select DVMT 5.0
Pre-Allocated (Fixed)
Graphics Memory size
used by the Internal
Graphics Device.

---------------------



: Select Screen

↑ ↓: Select Item
Enter Select
+ - Change Opt.
F1 General Help
F2 Previous Values
F3 Optimized Defaults
F4 Save & Exit

PPC-F06B-BT Panel PC

Page 60

MB of memory used by internal graphics

MB of memory used by internal graphics

 DVMT Pre-Allocated [256M]

Use the DVMT Pre-Allocated option to specify the amount of system memory that can be
used by the internal graphics device.



64M



128M



256M DEFAULT



512M

 DVMT Total Gfx Mem [Max]

Use the DVMT Total Gfx Mem option to specify the maximum amount of memory that can
be allocated as graphics memory. Configurat ion options are listed below.

 128MB
 256MB
 Max D

EFAULT

64 MB of memory used by internal grap hics device
128 MB of memory used by internal graphics

device
256

device
512

device

PPC-F06B-BT Panel PC

Page 61

Aptio Setup Utility – Copyright (C) 2013 American Megatrends, Inc.

Chipset

applied

ESC Exit

Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.

4.4.2 South Bridge Configuration

Use the South Bridge menu (BIOS Menu 16) to configure the south bridge chipset.

Auto Power Button Status [Disabled (ATX)]

Restore AC Power Loss [Last State]

Audio Configuration

Audio Controller [Enabled]

BIOS Menu 16: South Bridge Configuration

 Restore on AC Power Loss [Last State]

Use the Restore on AC Power Loss BIOS option to specify what state the system
returns to if there is a sudden loss of power to the system.

Select AC power state
when power is re­after a power failure.

---------------------



: Select Screen

↑ ↓: Select Item
Enter Select
+ - Change Opt.
F1 General Help
F2 Previous Values
F3 Optimized Defaults
F4 Save & Exit





 Audio Controller [Enabled]

Use the Audio Controller BIOS option to enable or disable the High Definition Audio
controller.



Power Off

Power On

Last State DEFAULT

Disabled

The system remains turned of f
The system turns on
The system returns to its previous state. If it was on, it

turns itself on. If it was off, it remains off.

The High Definition Audio controller is disabled.

PPC-F06B-BT Panel PC

Page 62

Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc.

Main

Advanced

Chipset

Security

Boot

Save & Exit

Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.



Enabled DEFAULT

The High Definition Audio controller is enabled.

4.5 Security

Use the Security menu (BIOS Menu 17) to set system and user pas swords.

Password Description

If ONLY the Administrator’s password is set,
then this only limits access to Setup and is
only asked for when entering Setup.
If ONLY the User’s password is set, then this
is a power on password and must be entered to
boot or enter Setup. In Setup the User will
have Administrator rights.
The password must be
In the following range:
Maximum length 3
Minimum length 20

Administrator Password
User Password

Set Administrator
Password

---------------------



: Select Screen

↑ ↓: Select Item
Enter Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit

BIOS Menu 17: Security

 Administrator Password

Use the Administrator Password field to set or change an administrator password.

 User Password

Use the User Password field to set or chang e a user password.

PPC-F06B-BT Panel PC

Page 63

Aptio Setup Utility – Copyright (C) 2013 American Megatrends, Inc.

Main
