Page 1
®
A

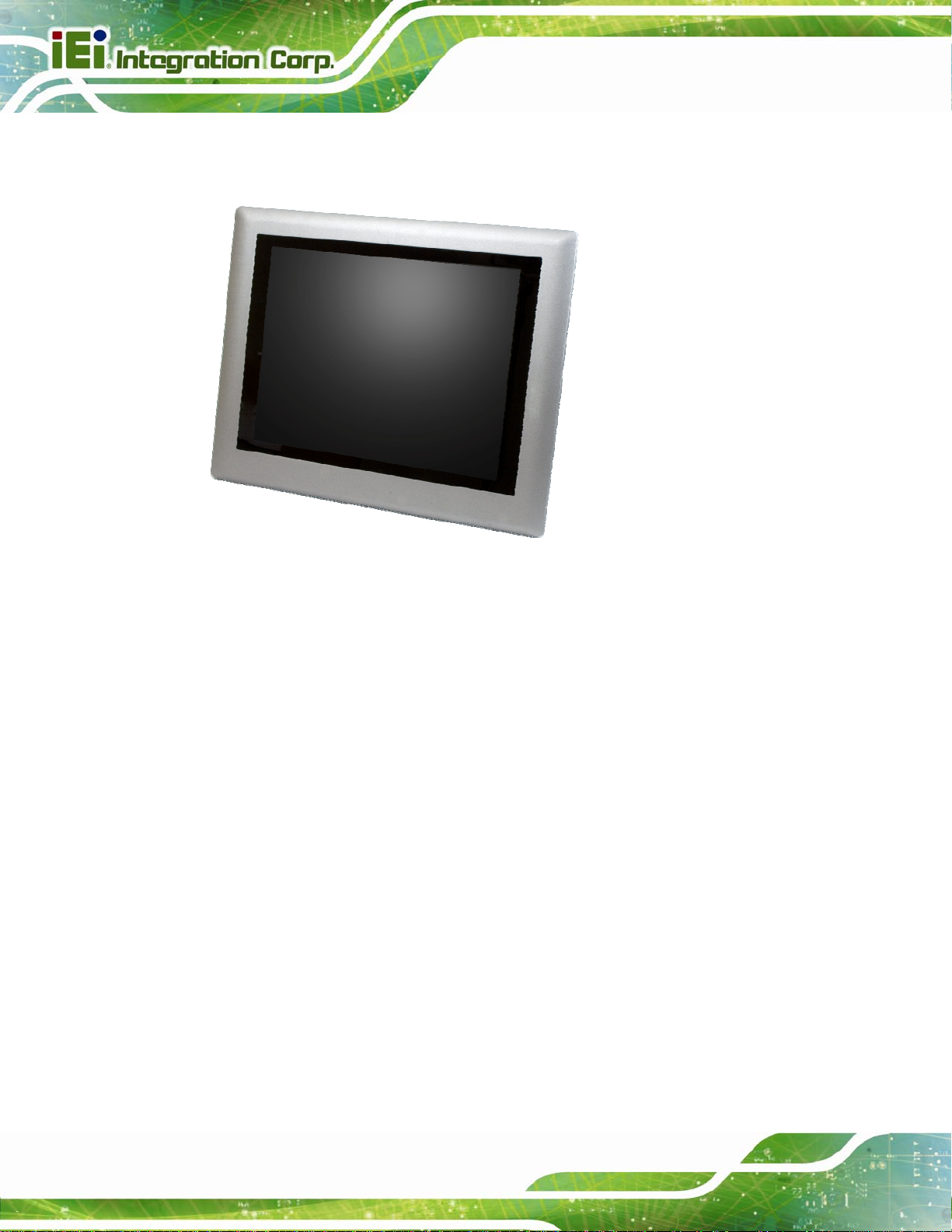

PPC-5152-D525-E Panel PC
PPC-5152-D525-E Panel PC
MODEL:
PPC-5152-D525-E
15” Panel PC with Touchscreen, Intel
USB 3.0, Dual Gigabit LAN, RS-232/422/485,
IP 64 Protection, RoHS Compliant
User Manual
tom™ CPU,
Rev. 1.10 – October 14, 2014
Page 1
Page 2
Date Version Changes
October 14, 2014 1.10 Initial release
PPC-5152-D525-E Panel PC
Revision
Page 2
Page 3
PPC-5152-D525-E Panel PC
COPYRIGHT NOTICE
The information in this document is subject to change without prior notice in order to
improve reliability, design and function and does not represent a commitment on the part
of the manufacturer.
In no event will the manufacturer be liable for direct, indirect, special, incidental, or
consequential damages arising out of the use or inability to use the product or
documentation, even if advised of the possibility of such damages.
This document contains proprietary information protected by copyright. All rights are
Copyright
reserved. No part of this manual may be reproduced by any mechanical, electronic, or
other means in any form without prior written permission of the manufacturer.
TRADEMARKS
All registered trademarks and product names mentioned herein are used for identification
purposes only and may be trademarks and/or registered trademarks of their respective
owners.
Page 3
Page 4
PPC-5152-D525-E Panel PC
WARNING
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and(2) this device must accept any
interference received, including interference that may cause u ndesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications.
However, there is no guarantee that interference will not occu r in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
—
Reorient or relocate the receiving antenna.
—
Increase the separation between the equipment and receiver.
—
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
—
Consult the dealer or an experienced radio/ TV technician for help.
You are cautioned that any change or modifications to the equipment not expressly
approve by the party responsible for compliance could void your authority to operate
such equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
Page 4
Page 5
PPC-5152-D525-E Panel PC
Table of Contents
1 INTRODUCTION.......................................................................................................... 1
1.1 OVERVIEW.................................................................................................................. 2
1.2 FEATURES................................................................................................................... 3
1.3 EXTERNAL OVERVIEW................................................................................................ 4
1.3.1 Front Panel........................................................................................................ 4
1.3.2 Bottom Panel...................................................................................................... 4
1.3.3 Side Panels......................................................................................................... 6
1.3.4 Top Panel ........................................................................................................... 6
1.3.5 Rear Panel ......................................................................................................... 7
1.4 BACKPLANE OPTIONS ................................................................................................ 8
1.5 DIMENSIONS............................................................................................................... 9
1.6 SPECIFICATIONS ....................................................................................................... 10
1.7 POWER ADAPTER SPECIFICATIONS ........................................................................... 13
2 UNPACKING............................................................................................................... 14
2.1 UNPACKING.............................................................................................................. 15
2.2 PACKING LIST........................................................................................................... 16
3 INSTALLATION ......................................................................................................... 18
ANTI-STATIC PRECAUTIONS...................................................................................... 19
3.1
3.2
INSTALLATION PRECAUTIONS ................................................................................... 19
3.3 PREINSTALLED COMPONENTS................................................................................... 20
3.4 COMPACTFLASH® INSTALLATION ............................................................................ 20
3.5 HDD INSTALLATION................................................................................................. 21
3.6 PCI EXPANSION CARD INSTALLATION...................................................................... 24
3.7 PCIE EXPANSION CARD INSTALLATION (OPTIONAL)................................................ 26
3.8 MOUNTING THE SYSTEM .......................................................................................... 28
3.8.1 Arm Mounting .................................................................................................. 28
3.8.2 Panel Mounting................................................................................................ 30
3.8.3 Rack/Cabinet Mounting................................................................................... 32
Page 5
Page 6
PPC-5152-D525-E Panel PC
3.8.4 Stand Mounting................................................................................................ 34
3.8.5 Wall Mounting.................................................................................................. 35
BOTTOM PANEL CONNECTORS ................................................................................. 38
3.9
3.9.1 LAN Connector ................................................................................................ 38
3.9.2 Power Input, DIN Connector........................................................................... 39
3.9.3 RS-232 Serial Port (COM1, COM2)................................................................ 39
3.9.4 RS-232/422/485 Serial Port (COM3) .............................................................. 40
3.9.4.1 COM3 Mode Select Switch...................................................................... 41
3.9.5 RJ-45 RS-422/485 Serial Port (COM4, COM5).............................................. 42
3.9.6 USB 2.0 Connectors......................................................................................... 45
3.9.7 USB 3.0 Connectors......................................................................................... 45
3.9.8 VGA Connector................................................................................................ 46
3.10
POWER-UP THE SYSTEM......................................................................................... 47
3.10.1 AT/ATX Power Mode Selection...................................................................... 47
3.10.2 Powering On/Off in ATX Power Mode.......................................................... 48
4 SYSTEM MAINTENANCE ....................................................................................... 49
4.1 SYSTEM MAINTENANCE INTRODUCTION .................................................................. 50
4.2 ANTI-STATIC PRECAUTIONS...................................................................................... 50
4.3 TURN OFF THE POWER.............................................................................................. 51
4.4 OPENING THE SYSTEM.............................................................................................. 51
4.5 MEMORY MODULE REPLACEMENT........................................................................... 52
5 AMI BIOS SETUP....................................................................................................... 54
INTRODUCTION......................................................................................................... 55
5.1
5.1.1 Starting Setup................................................................................................... 55
5.1.2 Using Setup...................................................................................................... 55
5.1.3 Getting Help..................................................................................................... 56
5.1.4 BIOS Menu Bar................................................................................................ 56
5.2 MAIN........................................................................................................................ 57
5.3 ADVANCED............................................................................................................... 58
5.3.1 ACPI Settings................................................................................................... 59
5.3.2 RTC Wake Settings........................................................................................... 60
5.3.3 CPU Configuration.......................................................................................... 61
5.3.4 IDE Configuration........................................................................................... 63
Page 6
Page 7
PPC-5152-D525-E Panel PC
5.3.5 USB Configuration........................................................................................... 64
5.3.6 Super IO Configuration
................................................................................... 65
5.3.6.1 Serial Port n Configuration....................................................................... 66
5.3.7 H/W Monitor.................................................................................................... 71
5.3.8 Serial Port Console Redirection...................................................................... 72
5.3.8.1 Console Redirection Settings.................................................................... 72
5.3.9 IEI Feature....................................................................................................... 74
5.4 CHIPSET ................................................................................................................... 75
5.4.1 Host Bridge Configuration .............................................................................. 76
5.4.1.1 OnChip VGA Configuration..................................................................... 77
5.4.2 South Bridge Configuration............................................................................. 78
5.4.3 Intel IGD SWSCI OpRegion............................................................................. 80
5.5
BOOT........................................................................................................................ 81
5.6 SECURITY................................................................................................................. 83
5.7 SAVE & EXIT ............................................................................................................ 84
6 SOFTWARE DRIVERS.............................................................................................. 86
6.1 AVAILABLE SOFTWARE DRIVERS .............................................................................. 87
6.2 ST ARTING THE DRIVER PROGRAM ............................................................................ 87
6.3 CHIPSET DRIVER INSTALLATION............................................................................... 87
6.4 GRAPHICS DRIVER INSTALLATION............................................................................ 91
6.5 LAN DRIVER INSTALLATION.................................................................................... 95
6.6 TOUCHSCREEN DRIVER INSTALLATION..................................................................... 98
6.6.1 Calibrating the Touchscreen.......................................................................... 101
USB 3.0 DRIVER INSTALLATION ............................................................................ 103
6.7
A BIOS CONFIGURATION OPTIONS..................................................................... 106
A.1 BIOS CONFIGURATION OPTIONS ........................................................................... 107
B SAFETY PRECAUTIONS.......................................................................................109
B.1 SAFETY PRECAUTIONS............................................................................................110
B.1.1 General Safety Precautions............................................................................110
B.1.2 Anti-static Precautions...................................................................................111
B.1.3 Product Disposal............................................................................................111
B.2 MAINTENANCE AND CLEANING PRECAUTIONS .......................................................112
B.2.1 Maintenance and Cleaning.............................................................................112
Page 7
Page 8
PPC-5152-D525-E Panel PC
B.2.2 Cleaning Tools................................................................................................113
C WATCHDOG TIMER ...............................................................................................114
D HAZARDOUS MATERIALS DISCLOSURE ........................................................117
HAZARDOUS MATERIAL DISCLOSURE TABLE FOR IPB PRODUCTS CERTIFIED AS
D.1
ROHS COMPLIANT UNDER 2002/95/EC WITHOUT MERCURY......................................118
Page 8
Page 9
PPC-5152-D525-E Panel PC
List of Figures
Figure 1-1: PPC-5152-D525-E Panel PC........................................................................................2
Figure 1-2: Front View....................................................................................................................4
Figure 1-3: Bottom View ................................................................................................................5
Figure 1-4: Side View......................................................................................................................6
Figure 1-5: Top View.......................................................................................................................6
Figure 1-6: Rear View.....................................................................................................................7
Figure 1-7: Backplane Option (HPE-2S2).....................................................................................8
Figure 1-8: PPC-5152-D525-E Dimensions (mm).........................................................................9
Figure 3-1: CompactFlash® Cover Screws................................................................................20
Figure 3-2: CompactFlash® Slot.................................................................................................21
Figure 3-3: Rear Panel Retention Screws ..................................................................................21
Figure 3-4: HDD Bracket Retention Screws...............................................................................22
Figure 3-5: HDD Installation ........................................................................................................22
Figure 3-6: HDD Bracket Installation..........................................................................................23
Figure 3-7: PCI Expansion Slot Retention Screw......................................................................25
Figure 3-8: Install PCI Card..........................................................................................................25
Figure 3-9: PICe Expansion Slot Retention Screw....................................................................27
Figure 3-10: Install PCIe Card......................................................................................................27
Figure 3-11: VESA Compliant Arm..............................................................................................28
Figure 3-12: Arm Mounting Retention Screw Holes..................................................................29

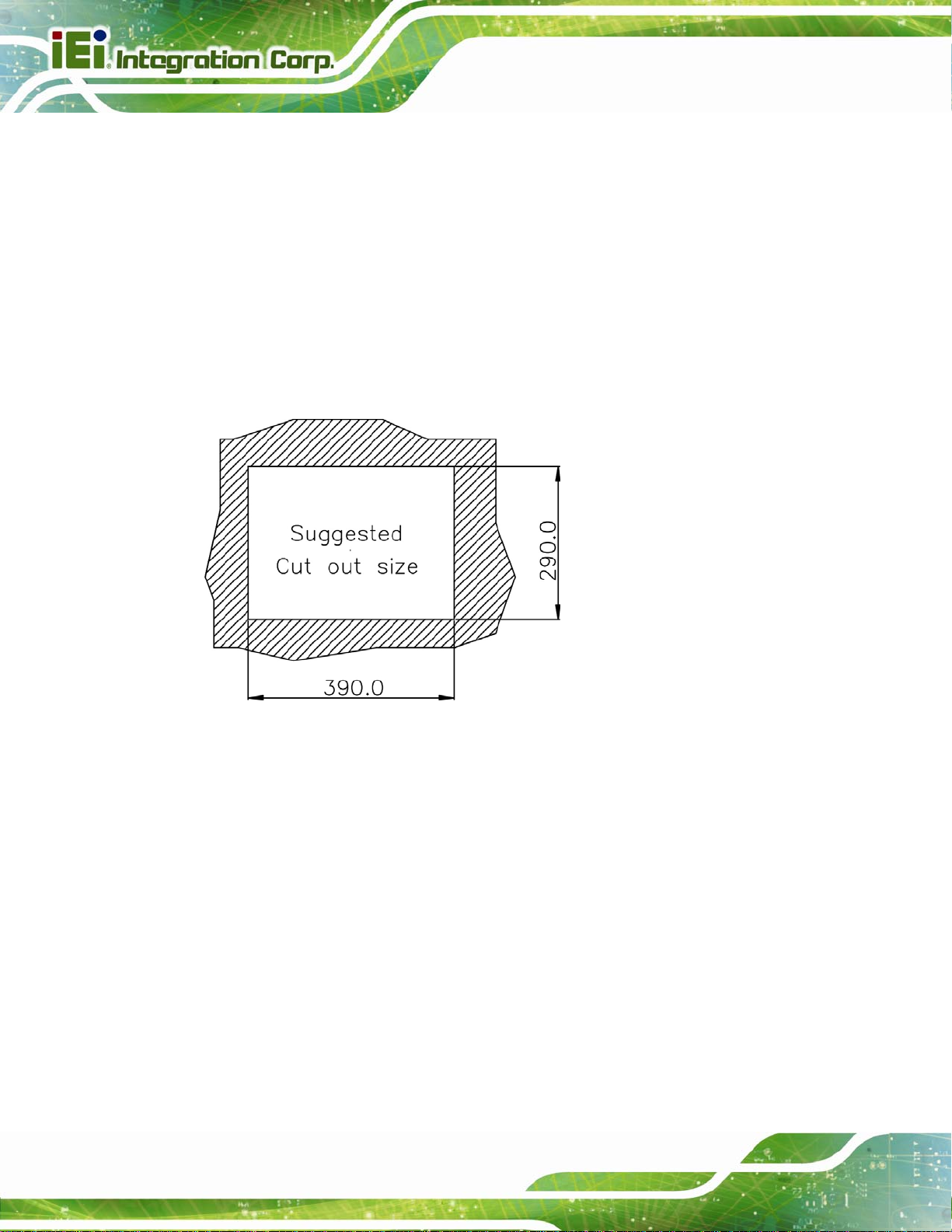

Figure 3-13: Suggested Panel Cut Out Size for PPC-5152-D525-E (Unit: mm) ......................30
Figure 3-14: Panel Mounting Clamp Slots (Side View).............................................................31
Figure 3-15: Tighten the Panel Mounting Clamp Screws.........................................................32

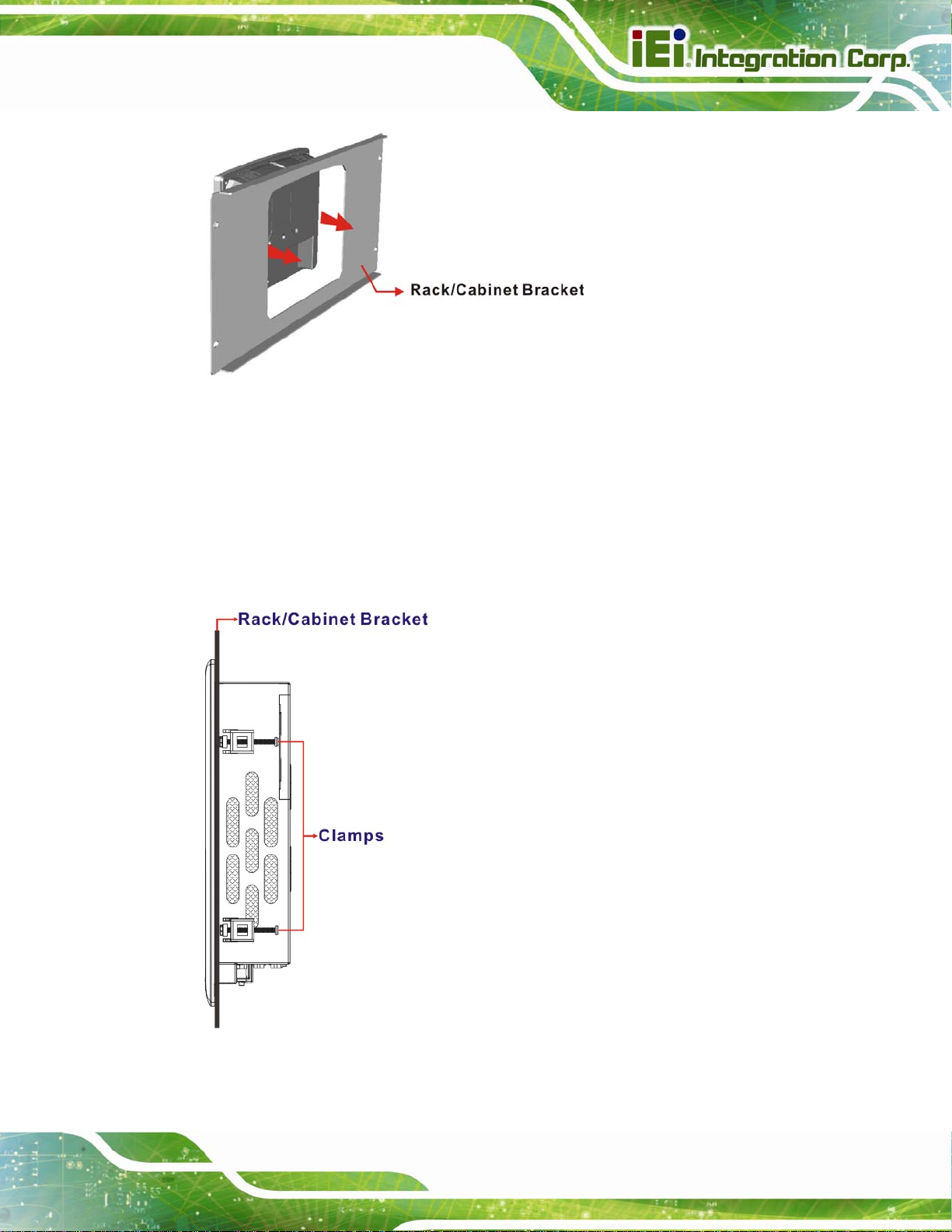

Figure 3-16: The Rack/Cabinet Bracket......................................................................................33
Figure 3-17: Secure the Rack/Cabinet Bracket..........................................................................33
Figure 3-18: Install into a Rack/Cabinet .....................................................................................34
Figure 3-19: VESA Compliant Stand...........................................................................................34
Figure 3-20: Stand Mounting Retention Screw Holes...............................................................35
Figure 3-21: Wall-mounting Bracket...........................................................................................36
Figure 3-22: Chassis Support Screws........................................................................................37
Figure 3-23: Secure the Panel PC...............................................................................................38
Page 9
Page 10
Figure 3-24: RJ-45 Ethernet Connector......................................................................................39
Figure 3-25: RS-232 Serial Port...................................................................................................40
Figure 3-26: RS-232/422/485 Serial Port.....................................................................................41
Figure 3-27: COM3 RS-232/422/485 Serial Port Select Switch Location.................................42
Figure 3-28: RJ-45 RS-422/485 Serial Port.................................................................................43

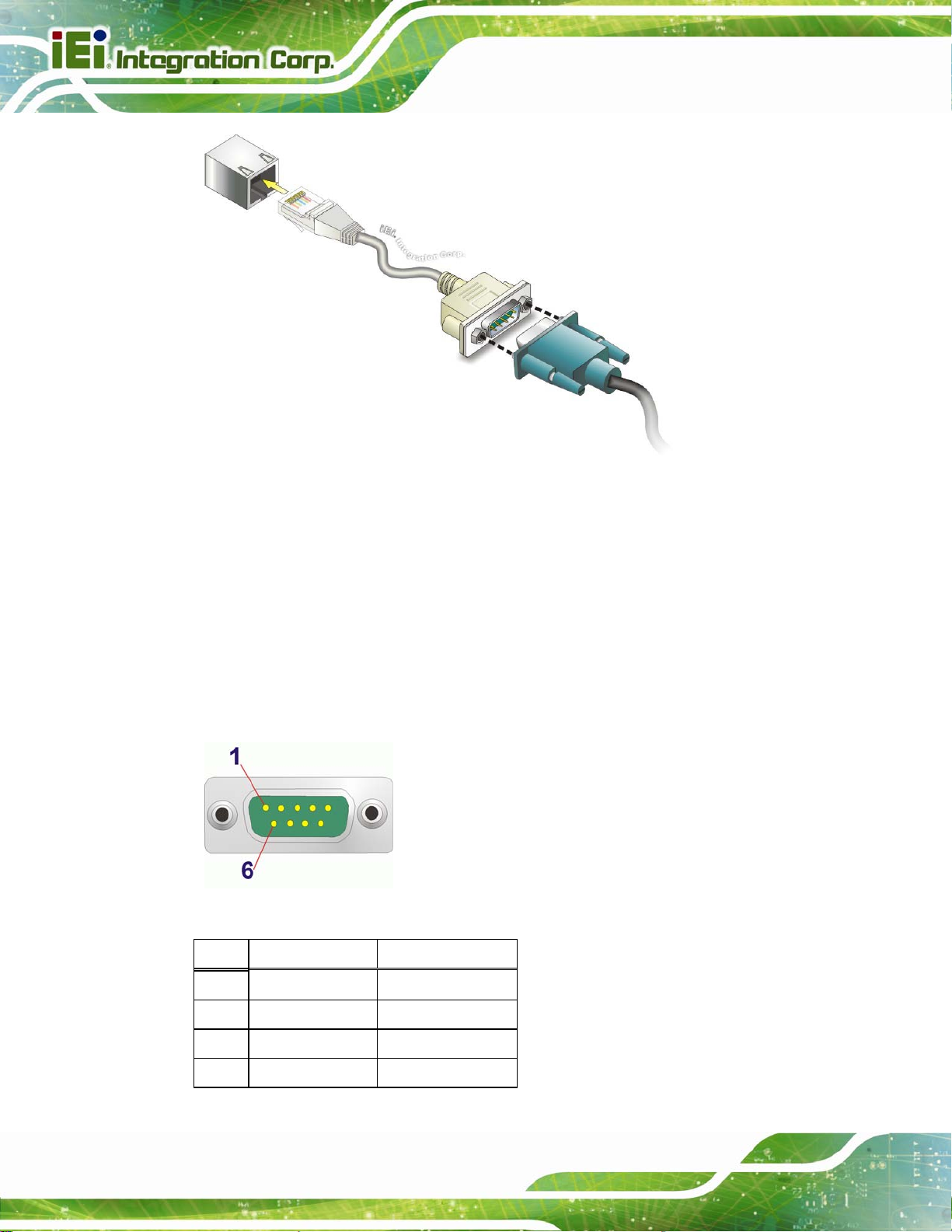

Figure 3-29: RJ-45 RS-422/485 Serial Device Connection........................................................44
Figure 3-30: RS-422/485 Serial Port (DB-9)................................................................................44
Figure 3-31: VGA Connector .......................................................................................................46
Figure 3-32: AT/ATX Power Mode Switch ..................................................................................47
Figure 3-33: Power Button...........................................................................................................48
Figure 4-1: Back Cover Retention Screws.................................................................................52
Figure 4-2: DDR SO-DIMM Module Installation..........................................................................53
Figure 6-1: Chipset Driver Screen...............................................................................................88
Figure 6-2: Chipset Driver Welcome Screen..............................................................................88
PPC-5152-D525-E Panel PC
Figure 6-3: Chipset Driver License Agreement.........................................................................89
Figure 6-4: Chipset Driver Read Me File ....................................................................................90
Figure 6-5: Chipset Driver Setup Operations ............................................................................90
Figure 6-6: Chipset Driver Installation Finish Screen...............................................................91
Figure 6-7: Graphics Driver Read Me File..................................................................................92
Figure 6-8: Graphics Driver Setup Files Extracted ...................................................................92
Figure 6-9: Graphics Driver Welcome Screen...........................................................................93
Figure 6-10: Graphics Driver License Agreement.....................................................................93
Figure 6-11: Graphics Driver Read Me File................................................................................94
Figure 6-12: Graphics Driver Setup Operations........................................................................94
Figure 6-13: Graphics Driver Installation Finish Screen ..........................................................95
Figure 6-14: LAN Driver Welcome Screen .................................................................................96
Figure 6-15: LAN Driver Welcome Screen .................................................................................96
Figure 6-16: LAN Driver Installation ...........................................................................................97
Figure 6-17: LAN Driver Installation Complete..........................................................................97
Figure 6-18: Touchscreen Driver Welcome Screen ..................................................................98
Figure 6-19: Touchscreen Driver License Agreement..............................................................99
Figure 6-20: Touchscreen Driver Choose Install Location ......................................................99
Figure 6-21: Touchscreen Driver Installation Screen............................................................ 100
Figure 6-22: Touchscreen Driver Update Complete............................................................... 100
Figure 6-23: PenMount Monitor Icon....................................................................................... 101
Page 10
Page 11
PPC-5152-D525-E Panel PC
Figure 6-24: PenMount Monitor Popup Menu......................................................................... 101
Figure 6-25: Configuration Screen........................................................................................... 102
Figure 6-26: Calibration Initiation Screen............................................................................... 102
Figure 6-27: Calibration Screen ............................................................................................... 103
Figure 6-28: USB 3.0 Driver Welcome Screen........................................................................ 104
Figure 6-29: USB 3.0 Driver License Agreement.................................................................... 104
Figure 6-30: USB 3.0 Driver Installation Screen..................................................................... 105
Figure 6-31: USB 3.0 Driver Update Complete ....................................................................... 105
Page 11
Page 12
PPC-5152-D525-E Panel PC
List of Tables
Table 1-1: System Specifications................................................................................................12
Table 1-2: Power Adapter Specifications...................................................................................13
Table 3-1: LAN Pinouts ................................................................................................................38
Table 3-2: RJ-45 Ethernet Connector LEDs...............................................................................39
Table 3-3: RS-232 Serial Port Pinouts ........................................................................................40
Table 3-4: RS-232/422/485 Serial Port Pinouts..........................................................................41
Table 3-5: COM3 RS-232/422/485 Serial Port Select Settings..................................................42
Table 3-6: RJ-45 RS-422/485 Serial Port Pinouts ......................................................................43
Table 3-7: RS-422/485 Serial Port Pinouts .................................................................................45
Table 3-8: USB 2.0 Port Pinouts..................................................................................................45
Table 3-9: USB 3.0 Port Pinouts..................................................................................................46
Table 3-10: VGA Connector Pinouts...........................................................................................47
Table 5-1: BIOS Navigation Keys................................................................................................56
Page 12
Page 13
PPC-5152-D525-E Panel PC
Chapter
1
1 Introduction
Page 1
Page 14
1.1 Overview
PPC-5152-D525-E Panel PC
Figure 1-1: PPC-5152-D525-E Panel PC
The fanless PPC-5152-D525-E is Intel® Atom D525 powered flat-bezel panel PC with a
rich variety of functions and peripherals. The PPC-5152-D525-E panel PC is designed for
easy and simplified integration in to various applications.
An Intel® ICH8M chipset ensures optimal memory, graphics, and peripheral I/O support.
The system comes with 1GB of preinstalled DDR3 SDRAM ensuring smooth data
throughputs with reduced bottlenecks and fast system access.
Five serial ports and four USB ports ensure simplified connectivity to a variety of external
peripheral devices. A VGA connector enables connectivity to other monitors. Dual gigabit
LAN connectors ensure smooth connection of the system to an external LAN.
Page 2
Page 15
PPC-5152-D525-E Panel PC
1.2 Features
All the PPC-5152-D525-E models feature the following:
15'' 400nits 1024 x 768 LCD with LED backlight
5-wire resistive type touchscreen
Fanless system with 1.8GHz Intel® Atom™ D525 dual-core processor
Dual gigabit Ethernet port
Flexible expansion interfaces:
o Two PCI slots or
o One PCI slot and one PCIe x1 slot
Four USB ports:
o 2 x USB 2.0 (I/O panel)
o 2 x USB 3.0 (I/O panel)
Five serial ports:
o 2 x RS-232 (DB-9)
o 2 x RS-422/485 (RJ-45)
o 1 x RS-232/422/485 (DB-9)
IP 64 compliant system
AT or ATX power mode
RoHS compliance
Page 3
Page 16
1.3 External Overview
The flat panel PC is a rectangular cubic structure that comprises of a screen, rear panel,
top panel, bottom panel and two side panels (left and right). An aluminum frame surrounds
the front screen. The rear panel provides screw holes for a wall-mounting bracket, and an
arm mounting interface. The bottom panel provides access to external interface
connectors.
1.3.1 Front Panel
The front side of the PPC-5152-D525-E is a flat panel TFT LCD screen surrounded by an
aluminum frame.
PPC-5152-D525-E Panel PC
Figure 1-2: Front View
1.3.2 Bottom Panel
The following is a list of the bottom panel peripheral device connectors on the
PPC-5152-D525-E.
1 x 9 V ~ 36 V DC power input connector
2 x RJ-45 GbE connector
2 x RS-232 serial port connector (COM1, COM2)
1 x RS-232/422/485 serial port (COM3) connector
2 x RS-422/485 COM ports by RJ-45 connectors (COM4, COM5)
2 x USB 2.0 connectors
2 x USB 3.0 connectors
1 x VGA connector
Page 4
Page 17
PPC-5152-D525-E Panel PC
1 x CF Type II slot
2 x Expansion slots for PCI/PCIe expansion modules
The bottom panel also includes the following switches and buttons:
1 x Power switch
1 x AT/ATX power mode switch
1 x Reset button
Figure 1-3: Bottom View
Page 5
Page 18
1.3.3 Side Panels
Both side panels of the flat panel PC have some vents for ventilation and slots for
PPC-5152-D525-E Panel PC
installing the panel mounting clamps (
Figure 1-4: Side View
1.3.4 Top Panel
554Figure 1-4).
Page 6
The top panel of the flat panel PC has some vents for ventilation and slots for installing the
panel mounting clamps (
554Figure 1-4).
Figure 1-5: Top View
Page 19
PPC-5152-D525-E Panel PC
1.3.5 Rear Panel

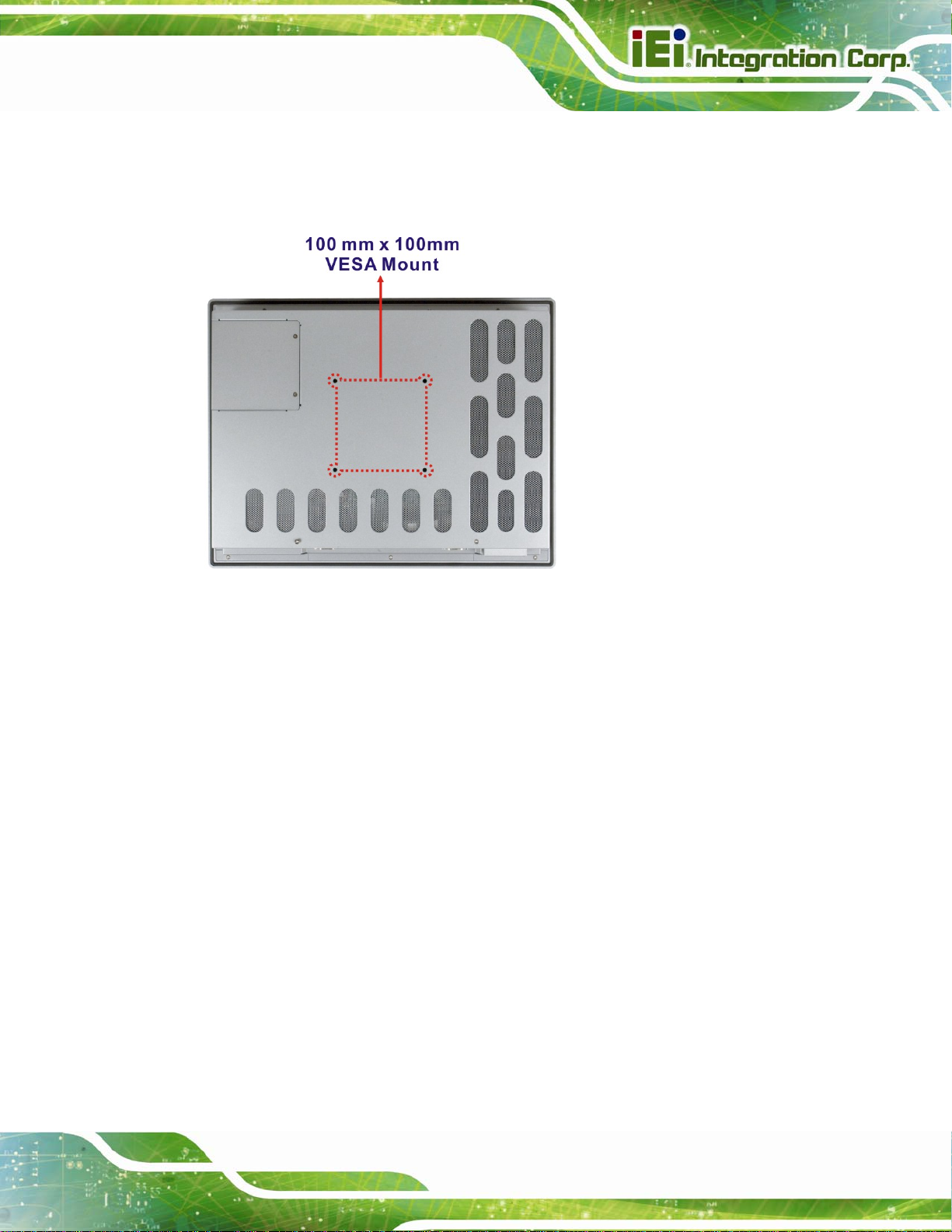

The rear panel has retention screw holes that support VESA-mounting compliant
wall-mounting brackets, stands or arms.

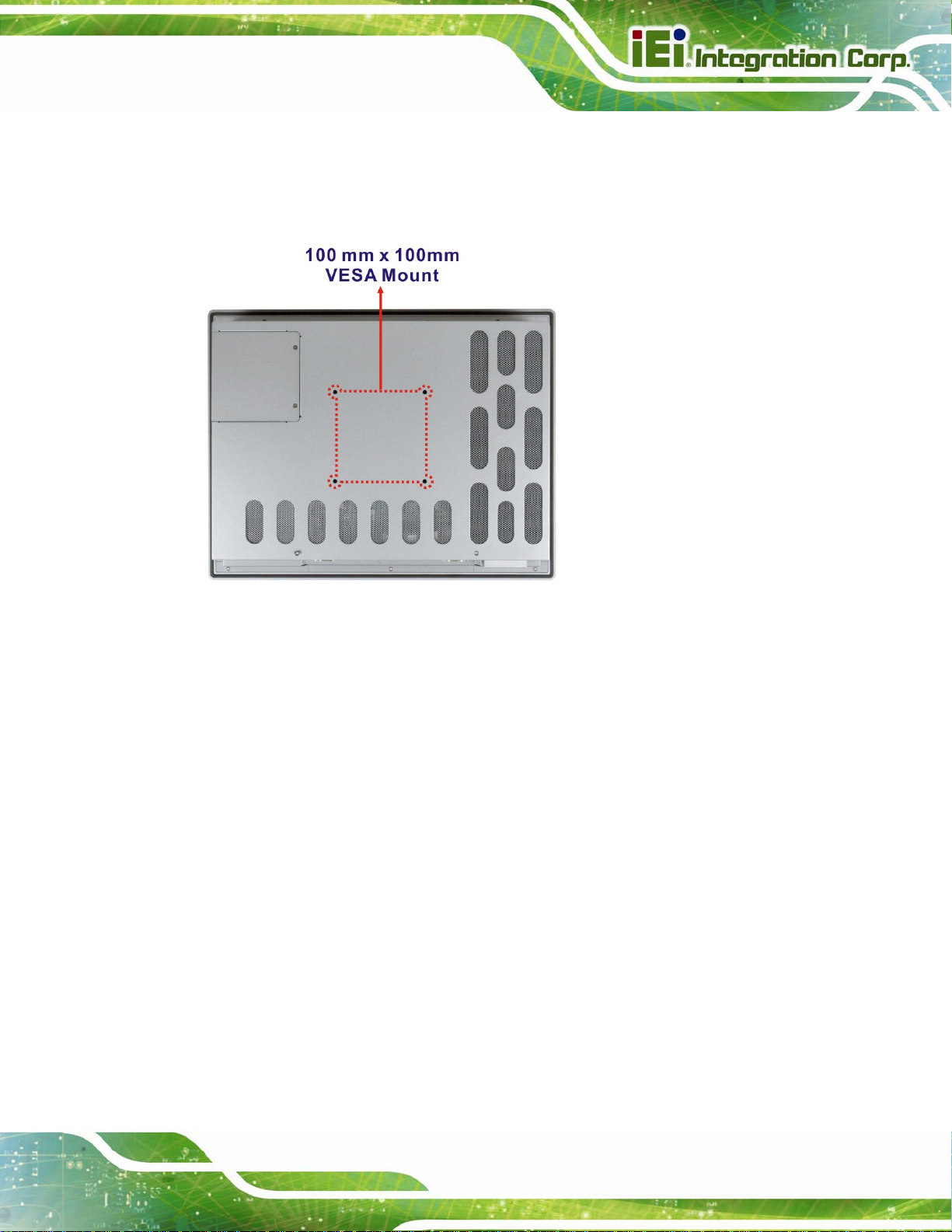

Figure 1-6: Rear View
Page 7
Page 20
1.4 Backplane Options
The backplane option of the PPC-5152-D525-E is shown below.

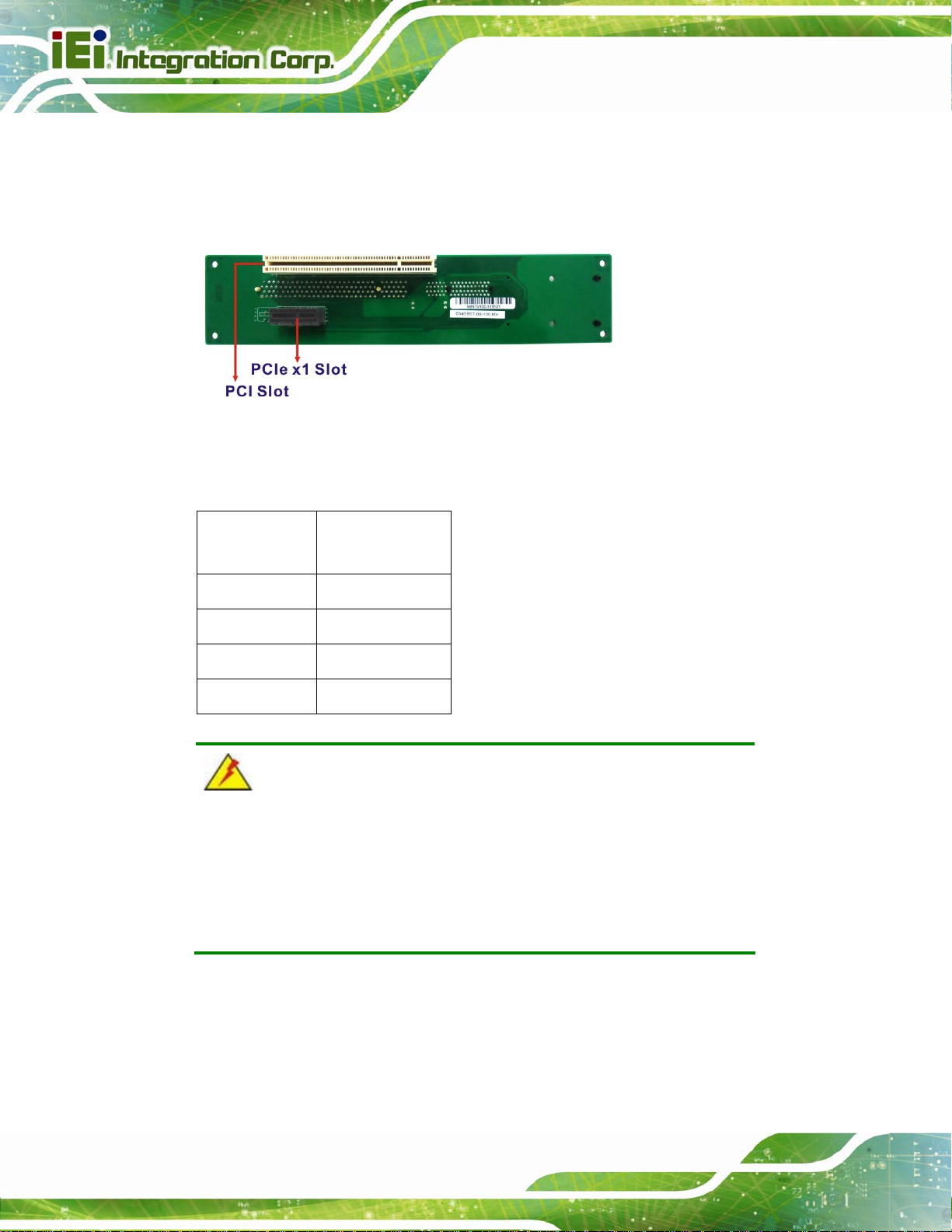

Figure 1-7: Backplane Option (HPE-2S2)
The rated voltage and current of the backplane are listed below:
PPC-5152-D525-E Panel PC
Rated
Voltage
+5 V 5 A
+12 V 2.4 A
-12 V 0.1 A
+3.3 V 8 A
Rated Current
WARNING:
The system default power is 90 W. The maximum total power of the
backplane to support expansion cards is 35 W. The power of the
selected expansion cards can not exceed the maximum power (35 W),
otherwise, the system may fail.
Page 8
Page 21
PPC-5152-D525-E Panel PC
1.5 Dimensions
The dimensions of the PPC-5152-D525-E are shown in 554Figure 1-8 and listed below.
Figure 1-8: PPC-5152-D525-E Dimensions (mm)
Page 9
Page 22
1.6 Specifications
The technical specifications for the PPC-5152-D525-E system are listed in 554Table 1-1.
PPC-5152-D525-E Panel PC
Specification
LCD Size
Max. Resolution
Brightness
Contrast Ratio
LCD Color
Pixel Pitch (mm)
Viewing Angle (H-V)
Backlight MTBF
SBC Model
CPU
Chipsets
PPC-5152-D525-E
15”
1024 x 768 (XGA)
400 cd/m
500:1
16.2 M
0.1095 (H) x 0.1095 (V)
160 (H) / 140 (V)
50,000 hours
PPCMB-5152A-D525
1.8 GHz Intel® Atom™ D525 dual-core processor
Intel® ICH8M
2
Page 10
Memory
Ethernet
Drive Bay
CompactFlash®
Watchdog Timer
Ethernet
On-board 1.0 GB DDR3 SDRAM SO-DIMM
(system max. 4 GB)
Realtek RTL8111E PCIe GbE controller supports
ASF 2.0
One 2.5” SATA HDD/SSD bay
One CF Type II socket
Software Programmable supports 1 sec. ~ 255 sec.
system reset
Two Gigabit LAN ports
Page 23
PPC-5152-D525-E Panel PC
Expansion
Construction Material
Mounting
Front Panel Color
Dimensions (W x H x D)
Cut-out Dimensions (W x H)
Weight (Net/Gross)
Operating Temperature
Storage Temperature
Two PCI slots or
One PCI slot and one PCIe x1 slot
Aluminum (front panel)
Heavy-duty steel (chassis)
Wall, Panel, Rack, Stand, Arm
(VESA 100 mm x 100 mm)
PMS 8401C
422 mm x 331 mm x 80 mm
390 mm x 290 mm
6.5kg/7.0kg
-20ºC ~ 50ºC
-30ºC ~ 80ºC
Relative Humidity
IP Level
Touchscreen
Vibration
Shock
Power Adapter
Power Requirement
Power Consumption
I/O Ports and Switches
5%~90%, non-condensing
IP 64 compliant front panel
5-wire resistive type
MIL-STD-810F 514.5C-2 (with CF card or SSD)
Half-sine wave shock 3G; 11ms; 3 shocks per axis
FSP 90W power adapter (FSP090-D2BA1)
Input: 100 VAC ~ 240 VAC @ 50 Hz / 60 Hz
Output: 19 VDC
DC input: 9 V ~ 36 V
50 W (without add-on card)
1 x 9 V ~ 36 V DC In jack
Page 11
Page 24
PPC-5152-D525-E Panel PC
Table 1-1: System Specifications
Five serial ports :
Four USB ports:
1 x VGA connector
1 x AT/ATX power mode switch
1 x Power switch
1 x Reset button
2 x DB-9 RS-232 ports
1 x DB-9 RS-232/422/485 port
2 x RJ-45 RS-422/485 ports
2 x USB 2.0 (I/O panel)
2 x USB 3.0 (I/O panel)
Page 12
Page 25
PPC-5152-D525-E Panel PC
1.7 Power Adapter Specifications
The specifications of the power adapter that came with the PPC-5152-D525-E are listed
in
554Table 1-2.
Model Name
Wattage
Product Highlight
Input Electrical
Output Electrical
No load and
Efficiency
Environmental
Requirement
FSP090-D2BA1
90 W
V-Output 19 V
O/P Current 4.74 A
Input Voltage 90 V ~ 264 V
Input Frequency 47 Hz ~ 63 Hz
Single Output 19 V / 4.74 A
No Load < 0.3 Watts
Efficiency
DOE Level V
Temperature Range
≧86 %
Operating: 0 ℃ to + 40 ℃
Storage : -30 ℃ to + 60 ℃
Mechanical
Protection
Safety
Table 1-2: Power Adapter Specifications
Altitude 2000 M
50,000 hours of continuous operation at 25℃,
MTBF
129 mm x 51 mm x 30.9 mm
Over Voltage Protection, Over Current Protection,
Over Temperature Protection
CE, UL/cUL, FCC
maximum-output load, and nominal AC input
voltage
Page 13
Page 26
PPC-5152-D525-E Panel PC
Chapter
2
2 Unpacking
Page 14
Page 27
PPC-5152-D525-E Panel PC
2.1 Unpacking
To unpack the flat panel PC, follow the steps below:
WARNING!
The front side LCD screen has a protective plastic cover stuck to the
screen. Only remove the plastic cover after the panel PC has been properly
installed. This ensures the screen is protected during the installation
process.
Step 1: Use box cutters, a knife or a sharp pair of scissors that seals the top side of the
external (second) box.
Step 2: Open the external (second) box.
Step 3: Use box cutters, a knife or a sharp pair of scissors that seals the top side of the
internal (first) box.
Step 4: Lift the monitor out of the boxes.
Step 5: Remove both polystyrene ends, one from each side.
Step 6: Pull the plastic cover off the panel PC.
Step 7: Make sure all the components listed in the packing list are present. Step 0:
Page 15
Page 28
2.2 Packing List
The PPC-5152-D525-E panel PC is shipped with the following components:
Quantity Item Image
1 PPC-5152-D525-E panel PC
1 Power adapter
(P/N: 63040-010090-050-RS)
PPC-5152-D525-E Panel PC
1 Power cord
(P/N: 32702-000401-100-RS)
2 RJ-45 to DB-9 COM port cable
(P/N: 32005-000700-101-RS)
4 HDD installation screws (M3*4)
(P/N: 44043-030051-RS)
4 VESA mount screws (M4*6)
(P/N: 44033-040062-RS)
4 Backup chassis screws (M3*4)
(P/N: 44013-030041-RS)
6 Panel mounting clamps
(P/N: 19Z00-000024-01-RS)
Page 16
1 Touch pen
(P/N: 43125-0002C0-00-RS)
Page 29
PPC-5152-D525-E Panel PC
1 User manual CD and driver CD
(P/N: IEI-7B000-000732-RS)
1 One Key Recover CD
(P/N: IEI-7B000-000724-RS)
If any of these items are missing or damaged, contact the distributor or sales
representative immediately.
Page 17
Page 30
PPC-5152-D525-E Panel PC
Chapter
3
3 Installation
Page 18
Page 31
PPC-5152-D525-E Panel PC
3.1 Anti-static Precautions
WARNING:
Failure to take ESD precautions during the maintenance of the EP
series may result in permanent damage to the EP series and severe
injury to the user.
Electrostatic discharge (ESD) can cause serious damage to electronic components,
including the PPC-5152-D525-E. Dry climates are especially susceptible to ESD. It is
therefore critical that whenever the PPC-5152-D525-E is accessed internally, or any other
electrical component is handled, the following anti-static precautions are strictly adhered
to.
Wear an anti-static wristband: - Wearing a simple anti-static wristband can
help to prevent ESD from damaging the board.
Self-grounding: - Before handling the board touch any grounded conducting
material. During the time the board is handled, frequently touch any
conducting materials that are connected to the ground.
Use an anti-static pad: - When configuring the PPC-5152-D525-E, place it
on an anti-static pad. This reduces the possibility of ESD damaging the
PPC-5152-D525-E.
Only handle the edges of the PCB: - When handling the PCB, hold the PCB
by the edges.
3.2 Installation Precautions
When installing the panel PC, please follow the precautions listed below:
Power turned off: When installing the panel PC, make sure the power is off.
Failing to turn off the power may cause severe injury to the body and/or
damage to the system.
Certified Engineers: Only certified engineers should install and modify
onboard functionalities.
Anti-static Discharge : If a user open the rear panel of the panel PC, to
Page 19
Page 32
configure the jumpers or plug in added peripheral devices, ground themselves
first and wear and anti-static wristband.
3.3 Preinstalled Components
The following components are all preinstalled.
Motherboard
TFT LCD screen
DDR3 memory module
Resistive type touchscreen
PCI riser card
3.4 CompactFlash® Installation
To install the CompactFlash® card, please follow the steps below:
PPC-5152-D525-E Panel PC
Step 1: Undo the CompactFlash® slot cover screw and remove the CompactFlash® slot
cover.
Figure 3-1: CompactFlash® Cover Screws
Page 20
Page 33
PPC-5152-D525-E Panel PC
Step 2: Insert the CompactFlash® card into the slot.
Figure 3-2: CompactFlash® Slot
Step 3: Fasten the CompactFlash® cover plate.Step 0:
3.5 HDD Installation
The PPC-5152-D525-E has one internal HDD bay. To install the HDD, follow the
instructions below.
Step 1: Remove a total of 11 retention screws from the back cover, nine on the rear of
the frame and two on the rear panel (
4Figure 3-3).
Figure 3-3: Rear Panel Retention Screws
Page 21
Page 34
PPC-5152-D525-E Panel PC
Step 2: Remove the four HDD bracket retention screws and unplug the SATA cable and
the SATA power cable from the motherboard. See
Figure 3-4: HDD Bracket Retention Screws
Step 3: Lift the HDD bracket out of the PPC-5152-D525-E.
4Figure 3-4.
Step 4: Insert the HDD to the bracket and connect the HDD to the SATA connector on
the bracket.
Step 5: Secure the HDD with the HDD bracket by four retention screws (
4Figure 3-5).

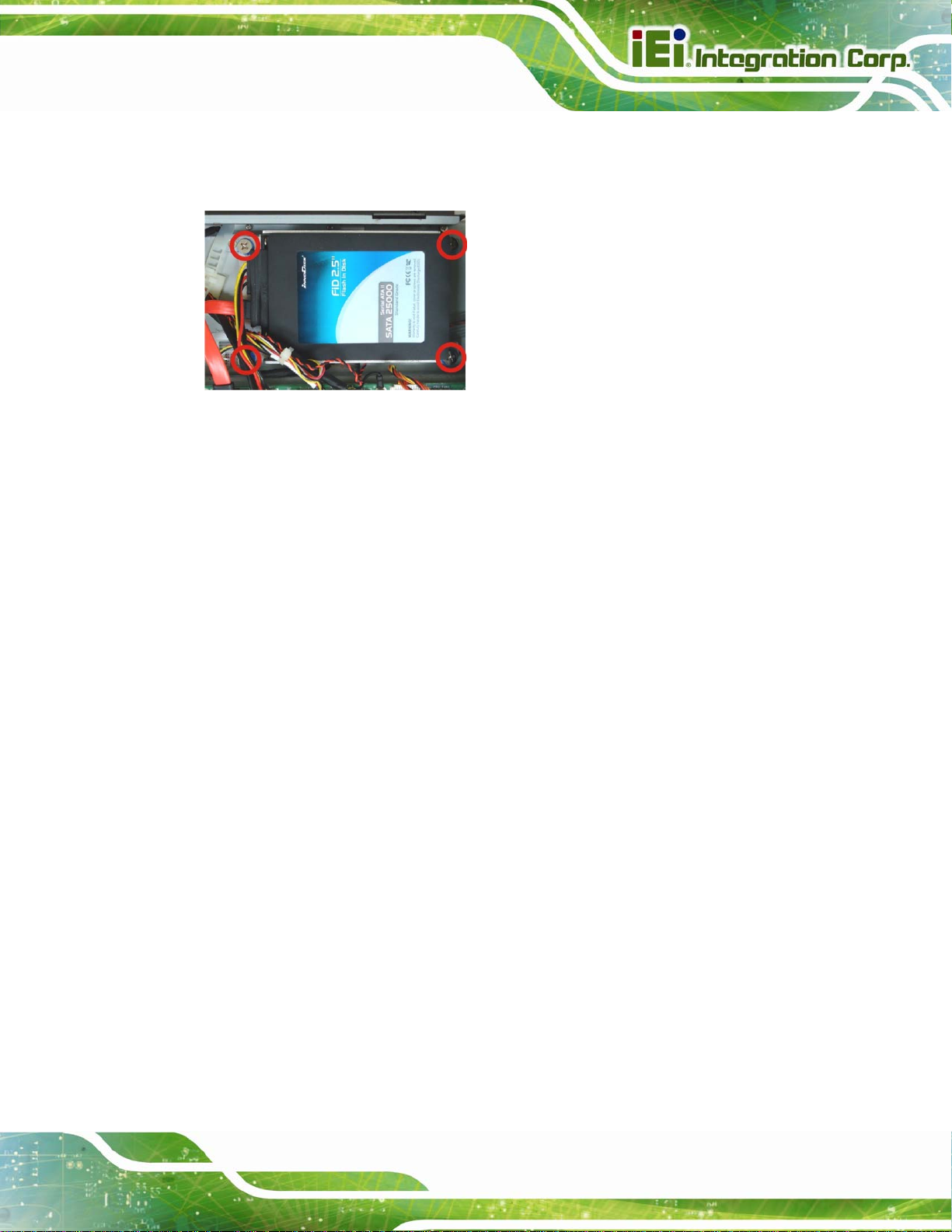

Figure 3-5: HDD Installation
Page 22
Page 35
PPC-5152-D525-E Panel PC
Step 6: Secure the HDD bracket with the PPC-5152-D525-E by the four retention
screws that were previously removed (
4Figure 3-6).
Figure 3-6: HDD Bracket Installation
Step 7: Connect the SATA cable and the SATA power cable to the corresponding
connectors on the motherboard.
Step 8: Reinstall the rear panel to the PPC-5152-D525-E.
Page 23
Page 36
3.6 PCI Expansion Card Installation
CAUTION:
The maximum dimensions of the expansion card should be 200 mm in
length, 100 mm in width and 20 mm in height. The width of the I/O panel
should be no more than 73.8 mm. The diagram below shows the
dimensions of the expansion slot on the bottom panel of the
PPC-5152-D525-E.
PPC-5152-D525-E Panel PC
To install a PCI expansion card, please do the following.
Step 1: Remove the rear cover. See Section
Step 2: Remove the expansion slot cover. The expansion slot cover is secured to the
system with a single retention screw. Remove the screw and the cover.
43.5 Step 1.
Page 24
Page 37
PPC-5152-D525-E Panel PC
Figure 3-7: PCI Expansion Slot Retention Screw
Step 3: Insert the expansion card. Align the PCI expansion card edge connector with the
PCI expansion slot on the PCI riser card. Gently insert the PCI card into the PCI
expansion slot.
Step 4: Secure the expansion card. Once the PCI card is correctly installed in the
system, reinsert the previously removed retention screw to secure the card to
the I/O interface panel.Step 0:
Figure 3-8: Install PCI Card
Page 25
Page 38
PPC-5152-D525-E Panel PC
3.7 PCIe Expansion Card Installation (Optional)
CAUTION:
The maximum dimensions of the expansion card should be 200 mm in
length, 100 mm in width and 20 mm in height. The width of the I/O panel
should be no more than 73.8 mm. The diagram below shows the
dimensions of the expansion slot on the bottom panel of the
PPC-5152-D525-E.
To install a PCIe expansion card, please do the following.
Step 1: Remove the rear cover. See Section
Step 2: Remove the expansion slot cover. The expansion slot cover is secured to the
system with a single retention screw. Remove the screw and the cover.
43.5 Step 1.
Page 26
Page 39
PPC-5152-D525-E Panel PC
Figure 3-9: PICe Expansion Slot Retention Screw
Step 3: Insert the expansion card. Align the PCIe expansion card edge connector with
the PCIe expansion slot on the PCIe riser card. Gently insert the PCIe card into
the PCIe expansion slot.
Step 4: Secure the expansion card. Once the PCIe card is correctly installed in the
system, reinsert the previously removed retention screw to secure the card to
the I/O interface panel.Step 0:
Figure 3-10: Install PCIe Card
Page 27
Page 40
3.8 Mounting the System
WARNING:
When mounting the flat panel PC onto an arm or onto the wall, it is
better to have more than one person to help with the installation to
make sure the flat panel PC does not fall down and get damaged.
The following installation options are available:
Arm mounting
Panel mounting
Rack/Cabinet mounting
Stand mounting
PPC-5152-D525-E Panel PC
The mounting methods are described below.
Wall mounting
3.8.1 Arm Mounting
The PPC-5152-D525-E can be installed on any arm that supports the standard VESA
mounting interface. An example arm is shown below.
Figure 3-11: VESA Compliant Arm
To install the PPC-5152-D525-E on the arm, follow the directions below.
Page 28
Page 41
PPC-5152-D525-E Panel PC
NOTE:
Make sure the arm supports standard VESA mounting. The
PPC-5152-D525-E uses a VESA mounting to attach to the arm.
Step 1: The arm is purchased separately. Follow the instructions in the arm's user
manual to securely attach the arm to the wall.
Step 2: Once the mounting arm has been firmly attached to the surface, lift the panel PC
onto the interface pad of the mounting arm.
Step 3: Align the retention screw holes on the mounting arm interface with those in the
panel PC. The arm mount retention screw holes are shown in Figure 3-12.
Figure 3-12: Arm Mounting Retention Screw Holes
Step 4: Secure the flat panel PC to the interface pad by inserting four retention screws
through the bottom of the mounting arm interface pad and into the flat panel PC.
Step 0:
Page 29
Page 42
3.8.2 Panel Mounting
To mount the PPC-5152-D525-E flat panel PC into a panel, please follow the steps below.
Step 1: Select the position in the panel to mount the panel PC.
Step 2: Cut out a section from the panel that corresponds to the dimensions of the flat
panel PC chassis. The panel section that is cut out must be smaller than the size
of the aluminum frame that surrounds the TFT LCD panel but just large enough
PPC-5152-D525-E Panel PC
for the chassis to fit through. Refer to
Figure 3-13: Suggested Panel Cut Out Size for PPC-5152-D525-E (Unit: mm)
554Figure 3-13 for the suggested cut out size.
Step 3: Slide the flat panel computer through the previously cut hole. The chassis at the
rear of the flat panel should slide easily through the hole. Only stop sliding the
Page 30
panel through the hole when the back of the front aluminum frame is flush
against the panel.
Step 4: Insert the panel mounting clamps into the pre-formed holes along the edges of
the chassis, behind the frame. There are a total of 6 panel mounting clamps for
PPC-5152-D525-E.
Page 43
PPC-5152-D525-E Panel PC
Figure 3-14: Panel Mounting Clamp Slots (Side View)
Step 5: Tighten the screws that pass through the panel mounting clamps until the plastic
caps at the front of all the screws are firmly secured to the panel (
554Figure 3-15).
Page 31
Page 44
PPC-5152-D525-E Panel PC
Figure 3-15: Tighten the Panel Mounting Clamp Screws
3.8.3 Rack/Cabinet Mounting
The PPC-5152-D525-E panel PC can be installed into a rack or cabinet. The installation
procedures are similar to the panel mounting installation. To do this, please follow the
steps below:
NOTE:
When purchasing the cabinet/rack installation bracket, make sure it is
compatible with both the PPC-5152-D525-E flat panel PC and the
rack/cabinet into which the PPC-5152-D525-E is installed.
Step 1: Slide the rear of the PPC-5152-D525-E panel PC through the rack/cabinet
Page 32
bracket until the aluminum frame is flush against the front of the bracket
(Figure 3-16).
Page 45
PPC-5152-D525-E Panel PC
Figure 3-16: The Rack/Cabinet Bracket
Step 2: Insert the rack mounting clamps into the pre-formed holes along the edges of
the panel PC, behind the ABS/PC plastic frame.
Step 3: Tighten the screws that pass through the rack mounting clamps until the plastic
caps at the front of all the screws are firmly secured to the bracket
(Figure 3-17).
Figure 3-17: Secure the Rack/Cabinet Bracket
Page 33
Page 46
Step 4: Slide the panel PC with the attached rack/cabinet bracket into a rack or cabinet
(Figure 3-18).
PPC-5152-D525-E Panel PC
Figure 3-18: Install into a Rack/Cabinet
Step 5: Once the panel PC with the attached rack/cabinet bracket has been properly
inserted into the rack or cabinet, secure the front of the rack/cabinet bracket to
the front of the rack or cabinet (Figure 3-18).
3.8.4 Stand Mounting
The PPC-5152-D525-E can be installed on any stand that supports the standard VESA
mounting interface. An example stand is shown below.
Figure 3-19: VESA Compliant Stand
Page 34
To install the PPC-5152-D525-E on the stand, follow the directions below.
Page 47
PPC-5152-D525-E Panel PC
Step 1: Locate the screw holes on the rear of the PPC-5152-D525-E. This is where the
stand bracket will be attached. The stand mount retention screw holes are
shown in Figure 3-20.
Figure 3-20: Stand Mounting Retention Screw Holes
Step 2: Align the bracket with the screw holes.
Step 3: Insert the retention screws into the screw holes to secure the bracket to the
PPC-5152-D525-E. Step 0:
3.8.5 Wall Mounting
To mount the panel PC onto the wall, please follow the steps below.
Step 1: Select the location on the wall for the wall-mounting bracket.
Step 2: Carefully mark the locations of the four brackets screw holes on the wall.
Step 3: Drill four pilot holes at the marked locations on the wall for the bracket retention
screws.
Step 4: Align the wall-mounting bracket screw holes with the pilot holes.
Step 5: Secure the mounting-bracket to the wall by inserting the retention screws into
the four pilot holes and tightening them (Figure 3-21).
Page 35
Page 48

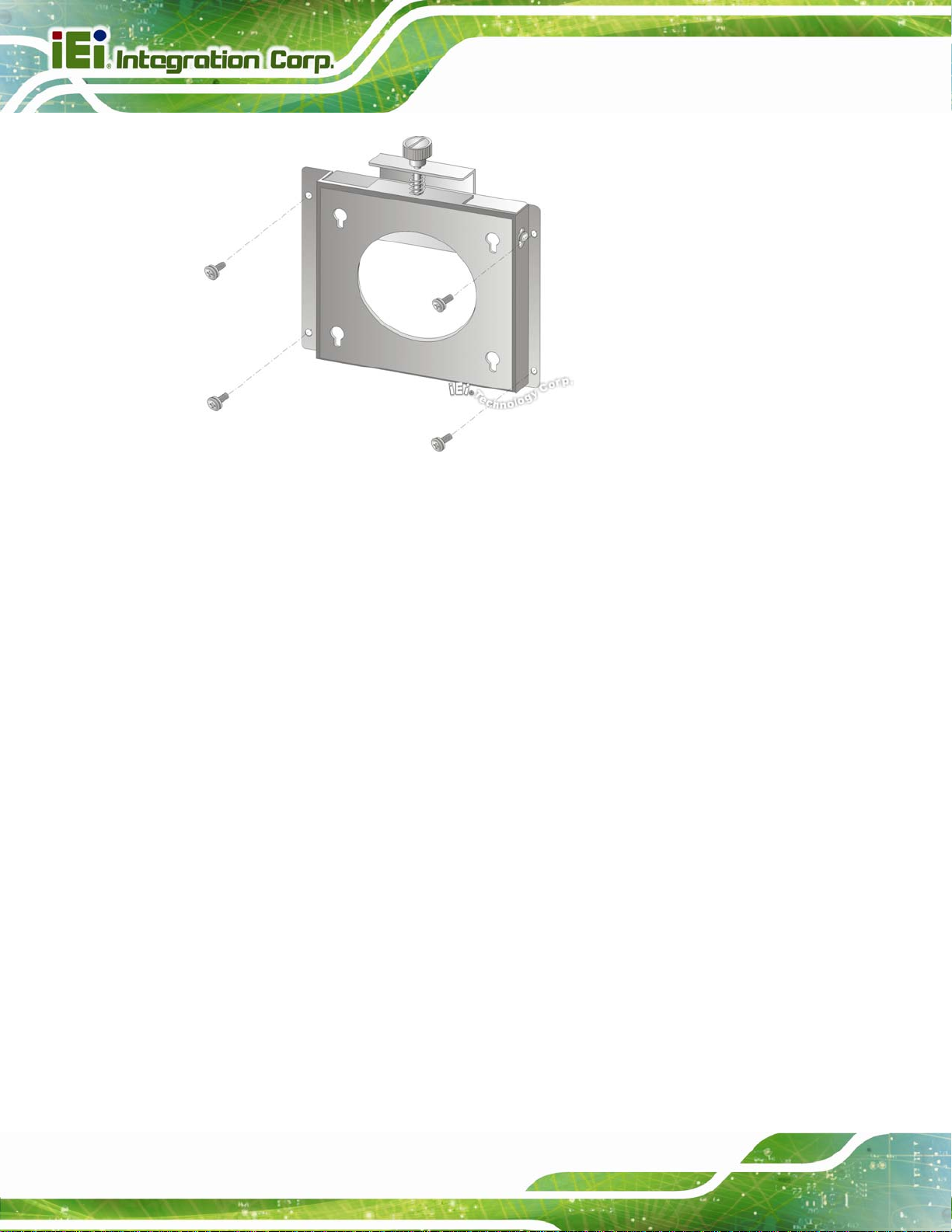

Figure 3-21: Wall-mounting Bracket
Step 6: Insert the four monitor mounting screws provided in the wall mounting kit into the
PPC-5152-D525-E Panel PC
four screw holes on the real panel of the flat panel PC and tighten until the screw
shank is secured against the rear panel (Figure 3-22).
Step 7: Align the mou
the bracket.
Step 8: Carefully insert the screws through the holes and gently pull the monitor
downwards until the monitor rests securely in the slotted holes (Figure 3-22).
re that all four of the mounting screws fit snuggly into their respective
Ensu
slotted holes.
nting screws on the monitor rear panel with the mounting holes on
Page 36
Page 49
PPC-5152-D525-E Panel PC
Figure 3-22: Chassis Support Screws
NOTE:
In the diagram below the bracket is already installed on the wall.
Step 9: Secure the panel PC by fastening the retention screw of the wall-mounting
bracket. (Figure 3-23). Step 0:
Page 37
Page 50
PPC-5152-D525-E Panel PC
Figure 3-23: Secure the Panel PC
3.9 Bottom Panel Connectors
The bottom panel of the PPC-5152-D525-E contains I/O connectors, switches and a CF
card slot. Detailed descriptions of the connectors can be found in the subsections below.
3.9.1 LAN Connector
The LAN connector allows connection to an external network. The pinouts of the RJ-45
LAN connector is shown below.
Pin Description Pin Description
1 MDI0+ 2 MDI03 MDI1+ 4 MDI1-
Page 38
5 MDI2+ 6 MDI27 MDI3+ 8 MDI3-
Table 3-1: LAN Pinouts
Page 51
PPC-5152-D525-E Panel PC
Figure 3-24: RJ-45 Ethernet Connector
The RJ-45 Ethernet connector has two status LEDs, one green and one yellow. See
4Figure 3-24.
LED Description LED Description
A on: linked
blinking: data is being sent/received
Table 3-2: RJ-45 Ethernet Connector LEDs
3.9.2 Power Input, DIN Connector
CN Label: DC IN
CN Type:
CN Location:
4-pin DIN connector
4Figure 1-3
See
The power connector connects to the 9 V ~ 36 V DC power adapter.
3.9.3 RS-232 Serial Port (COM1, COM2)
B off: 10 Mb/s
green: 100 Mb/s
orange: 1000 Mb/s
CN Label: COM1, COM2
CN Type:
CN Location:
CN Pinouts:
DB-9 connector
4Figure 1-3
See
4Table 3-4 and 4Figure 3-26
See
An RS-232 device can be connected to the RS-232 serial port on the bottom panel. The
pinouts of the RS-232 serial port is shown below.
Page 39
Page 52
PPC-5152-D525-E Panel PC
Figure 3-25: RS-232 Serial Port
Pin Description
1 DCD
2 DSR
3 RX
4 RTS
5 TX
6 CTS
7 DTR
8 RI
9 GND
Table 3-3: RS-232 Serial Port Pinouts
3.9.4 RS-232/422/485 Serial Port (COM3)
CN Label: COM3
Page 40
CN Type:
CN Location:
CN Pinouts:
DB-9 connector
4Figure 1-3
See
4Table 3-4 and 4Figure 3-26
See
An RS-232/422/485 device can be connected to the RS-232/422/485 serial port on the
bottom panel. The pinouts of the RS-232/422/485 serial port is shown below.
Page 53
PPC-5152-D525-E Panel PC
Figure 3-26: RS-232/422/485 Serial Port
Pin RS-232 RS-422 RS-485
1 DCD RX+
2 RXD RX-
3 TXD TX+ DATA+
4 DTR TX- DATA5 GND
6 DSR
7 RTS
8 CTS
9 RI
Table 3-4: RS-232/422/485 Serial Port Pinouts
3.9.4.1 COM3 Mode Select Switch
Jumper Label: U61
Jumper Type:
Jumper Settings:
Jumper Location:
10-pin DIP switch
54Table 3-5
See
54Figure 3-27
See
The COM3 RS-232/422/485 Serial Port Select jumper sets the communication protocol
used by the second serial communications port (COM3) as RS-232, RS-422 or RS-485.
The COM3 RS-232/422/485 Serial Port Select settings are shown in
54Table 3-5.
Page 41
Page 54
COM3 Mode Settings
RS-232 (Default) OFF: 1, 2, 3, 4, 5
ON: 6, 7, 8, 9, 10
RS-422/485 OFF: 6, 7, 8, 9, 10
ON: 1, 2, 3, 4, 5
PPC-5152-D525-E Panel PC
Table 3-5: COM3 RS-232/422/485 Serial Port Select Settings
The COM3 RS-232/422/485 Serial Port Select jumper location is shown in 54Figure 3-27.
Figure 3-27: COM3 RS-232/422/485 Serial Port Select Switch Location
3.9.5 RJ-45 RS-422/485 Serial Port (COM4, COM5)
CN Label: COM4, COM5
RJ-45
4Figure 1-3
See
4Table 3-6 and 4Figure 3-28
See
Page 42
CN Type:
CN Location:
CN Pinouts:
An RS-422/485 serial port device can be connected to the RJ-45 RS-422/485 serial port
on the bottom panel. The pinouts of the RJ-45 RS-422/485 serial port is shown below.
Page 55
PPC-5152-D525-E Panel PC
Figure 3-28: RJ-45 RS-422/485 Serial Port
Pin Description Pin Description
1 N/A 5 N/A
2 TXD485# 6 RXD485#
3. N/A 7 N/A
4. TXD485+ 8 RXD485+
Table 3-6: RJ-45 RS-422/485 Serial Port Pinouts
To install the RS-422/485 devices, follow the steps below.
Step 1: Locate the RJ-45 RS-422/485 connector. The location of the RJ-45 RS-422/485
connector is shown in
4Figure 1-3.
Step 2: Insert the RJ-45 connector. Insert the RJ-45 connector on the RJ-45 to DB-9
COM port cable to the RJ-45 RS-422/485 connector on the PPC-5152-D525-E.
4Figure 3-29.
See
Page 43
Page 56
Figure 3-29: RJ-45 RS-422/485 Serial Device Connection
PPC-5152-D525-E Panel PC
Step 3: Insert the serial connector. Insert the DB-9 connector of a serial device into the
DB-9 connector on the RJ-45 to DB-9 COM port cable.
Step 4: Secure the connector. Secure the serial device connector to the external
interface by tightening the two retention screws on either side of the connector.
Step 5: The DB-9 connector pinouts are listed below.
Figure 3-30: RS-422/485 Serial Port (DB-9)
Pin RS-422 RS-485
1 RX+ --
Page 44
2 RX- -3 TX+ DATA+
4 TX- DATA-
Page 57
PPC-5152-D525-E Panel PC
Pin RS-422 RS-485
5 -- -6 -- -7 -- -8 -- -9 -- --
Table 3-7: RS-422/485 Serial Port Pinouts
3.9.6 USB 2.0 Connectors
CN Label: USB2.0
CN Type:
CN Location:
CN Pinouts:
USB 2.0 port
4Figure 1-3
See
4Table 3-8
See
The USB 2.0 ports are for attaching USB 2.0 peripheral devices to the system. The
pinouts of the USB 2.0 port is shown below.
Pin Description Pin Description
1 VCC 5 VCC
2 DATA- 6 DATA3 DATA+ 7 DATA+
4 GROUND 8 GROUND
Table 3-8: USB 2.0 Port Pinouts
3.9.7 USB 3.0 Connectors
CN Label: USB3.0
CN Type:
CN Location:
CN Pinouts:
USB 3.0 port
4Figure 1-3
See
4Table 3-8
See
Page 45
Page 58
PPC-5152-D525-E Panel PC
The USB 3.0 ports are for attaching USB 3.0 peripheral devices to the system. To be able
to use the USB 3.0 ports, please make sure the USB 3.0 function is enabled in BIOS (see
Section
45.3.5).
The pinouts of the USB 3.0 port is shown below.
Pin Description Pin Description
1 USB_3P0_VCC1 10 USB_3P0_VCC2
2 DATA1- 11 DATA23 DATA1+ 12 DATA2+
4 GROUND 13 GROUND
5 RX1N 14 RX2N
6 RX1P 15 RX2P
7 GROUND 16 GROUND
8 TX1N 17 TX2N
9 TX1P 18 TX2P
Table 3-9: USB 3.0 Port Pinouts
3.9.8 VGA Connector
CN Label: VGA
CN Type:
CN Location:
CN Pinouts:
The VGA connector connects to a monitor that accepts VGA video input. The pinouts of
the VGA connector is shown below.
Figure 3-31: VGA Connector
15-pin Female
4Figure 1-3
See
4Figure 3-31 and 4Table 3-10
See
Page 46
Page 59
PPC-5152-D525-E Panel PC
Pin Description Pin Description
1 RED 2 GREEN
3 BLUE 4 NC
5 GND 6 GND
7 GND 8 GND
9 CRT_VCC 10 GND
11 NC 12 5VDDC DAT
13 HSYNC 14 VSYNC
15 5VDDCCLK
Table 3-10: VGA Connector Pinouts
3.10 Power-up the System
WARNING:
Make sure a power supply with the correct input voltage is being fed into
the system. Incorrect voltages applied to the system may cause damage to
the internal electronic components and may also cause injury to the user.
3.10.1 AT/ATX Power Mode Selection
The PPC-5152-D525-E supports both AT and ATX power modes. The setting can be
made through the AT/ATX power mode switch on the bottom panel as shown below.
Figure 3-32: AT/ATX Power Mode Switch
Page 47
Page 60
3.10.2 Powering On/Off in ATX Power Mode
Power on the system: press the power button for 3 seconds
Power off the system: press the power button for 6 seconds
Figure 3-33: Power Button
PPC-5152-D525-E Panel PC
Page 48
Page 61
PPC-5152-D525-E Panel PC
4 System Maintenance
Chapter
4
Page 49
Page 62
4.1 System Maintenance Introduction
If the components of the PPC-5152-D525-E fail they must be replaced. Components that
can be replaced include:
SO-DIMM module
WLAN Module
Please contact the system reseller or vendor to purchase the replacement parts. Back
cover removal instructions for the PPC-5152-D525-E are described below.
4.2 Anti-static Precautions
WARNING:
PPC-5152-D525-E Panel PC
Failure to take ESD precautions during the maintenance of the
PPC-5152-D525-E may result in permanent damage to the
PPC-5152-D525-E and severe injury to the user.
Electrostatic discharge (ESD) can cause serious damage to electronic components,
including the PPC-5152-D525-E. Dry climates are especially susceptible to ESD. It is
therefore critical that whenever the PPC-5152-D525-E is accessed internally, or any other
electrical component is handled, the following anti-static precautions are strictly adhered
to.
Wear an anti-static wristband: - Wearing a simple anti-static wristband can
help to prevent ESD from damaging the board.
Self-grounding: - Before handling the board touch any grounded conducting
material. During the time the board is handled, frequently touch any
conducting materials that are connected to the ground.
Use an anti-static pad: - When configuring the PPC-5152-D525-E, place it
Page 50
on an anti-static pad. This reduces the possibility of ESD damaging the
PPC-5152-D525-E.
Only handle the edges of the PCB: - When handling the PCB, hold the PCB
by the edges.
Page 63
PPC-5152-D525-E Panel PC
4.3 Turn off the Power
WARNING:
Failing to turn off the system before opening it can cause permanent
damage to the system and serious or fatal injury to the user.
Before any maintenance procedures are carried out on the system, make sure the system
is turned off.
To power off the system, follow the steps below:
Step 1: Locate the power switch. See
Step 2: Hold down the power switch for six seconds to power off the system. Step 0:
4.4 Opening the System
To access the PPC-5152-D525-E internally the back cover must be removed. To remove
the back cover, please follow the steps below.
Step 1: Follow all anti-static procedures. See Section
Step 2: Turn off the power. See Section
4Figure 3-33.
44.2.
44.3.
Page 51
Page 64
PPC-5152-D525-E Panel PC
Step 3: Remove a total of 11 retention screws from the back cover, nine on the rear of
the frame and two on the rear panel (
4Figure 4-1).
Figure 4-1: Back Cover Retention Screws
Step 4: Carefully separate the back cover from the chassis and lift the cover clear of the
device Step 0:
4.5 Memory Module Replacement
The flat bezel panel PC is preinstalled with a 1.0 GB DDR3 memory module. If the
memory module fails, follow the instructions below to replace the memory module.
Step 1: Follow all anti-static procedures. See Section
Step 2: Turn off the power. See Section
Step 3: Remove the back cover. See Section
Step 4: Locate the DDR3 SO-DIMM on the motherboard.
Step 5: Remove the DDR3 memory module by pulling both the spring retainer clips
outward from the socket.
Step 6: Grasp the DDR3 memory module by the edges and carefully pull it out of the
44.2.
44.3.
44.4 above.
Page 52
socket.
Page 65
PPC-5152-D525-E Panel PC
Step 7: Install the new DDR3 memory module by pushing it into the socket at an angle
4Figure 4-2).
(
Step 8: Gently pull the spring retainer clips of the SO-DIMM socket out and push the
rear of the DDR memory module down (
4Figure 4-2).
Step 9: Release the spring retainer clips on the SO-DIMM socket. They clip into place
and secure the DDR memory module in the socket.
Figure 4-2: DDR SO-DIMM Module Installation
Step 10: Replace the internal aluminum cover and secure it to the chassis using six (6)
retention screws.
Step 11: Replace the back cover and secure it using nine (9) previously removed
retention screws. Step 0:
Page 53
Page 66
PPC-5152-D525-E Panel PC
Chapter
5
5 AMI BIOS Setup
Page 54
Page 67
PPC-5152-D525-E Panel PC
5.1 Introduction
The BIOS is programmed onto the BIOS chip. The BIOS setup program allows changes to
certain system settings. This chapter outlines the options that can be changed.
NOTE:
Some of the BIOS options may vary throughout the life cycle of the
product and are subject to change without prior notice.
5.1.1 Starting Setup
The UEFI BIOS is activated when the computer is turned on. The setup program can be
activated in one of two ways.
1. Press the D
2. Press the D
message appears on the screen. 0.
If the message disappears before the D
and try again.
ELETE or F2 key as soon as the system is turned on or
ELETE or F2 key when the “Press DELETE or F2 to enter SETUP”
ELETE or F2 key is pressed, restart the computer
5.1.2 Using Setup
Use the arrow keys to highlight items, press ENTER to select, use the PageUp and
PageDown keys to change entries, press F1 for help and press E
keys are shown in the following table.
Key Function
Up arrow Move to the item above
SC to quit. Navigation
Down arrow Move to the item below
Left arrow Move to the item on the left hand side
Right arrow Move to the item on the right hand side
Page 55
Page 68
Key Function
+ Increase the numeric value or make changes
- Decrease the numeric value or make changes
Page up Move to the next page
Page down Move to the previous page
Esc Main Menu – Quit and do not save changes into CMOS
Status Page Setup Menu and Option Page Setup Menu --
Exit current page and return to Main Menu
F1 General help, only for Status Page Setup Menu and Option
Page Setup Menu
F9 Load optimized defaults
F10 Save changes and Exit BIOS
PPC-5152-D525-E Panel PC
Table 5-1: BIOS Navigation Keys
5.1.3 Getting Help
When F1 is pressed a small help window describing the appropriate keys to use and the
possible selections for the highlighted item appears. To exit the Help Window press E
the F1 key again.
5.1.4 BIOS Menu Bar
The menu bar on top of the BIOS screen has the following main items:
Main – Changes the basic system configuration.
Advanced – Changes the advanced system settings.
Chipset – Changes the chipset settings.
Boot – Changes the system boot configuration.
Save & Exit – Selects exit options and loads default settings
SC or
Page 56
The following sections completely describe the configuration options found in the menu
items at the top of the BIOS screen and listed above.
Page 69
S
PPC-5152-D525-E Panel PC
5.2 Main
The Main BIOS menu (4BIOS Menu 1) appears when the BIOS Setup program is entered.
The Main menu gives an overview of the basic system information.
Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc.
Main Advanced Chipset Boot Security Save & Exit
BIOS Information
BIOS Vendor American Megatrends
Core Version 4.6.4.0 0.23
Compliency UEFI 2.0
Project Version SEE4AR11.ROM
Build Date 12/17/2013 15:36:48
IWDD Vendor ICP
IWDD Version SEE4ER10.BIN
System Date [Tue 10/13/2014]
System Time [14:20:27]
Access Level Administrator
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
et the Time. Use Tab to
switch between Time
elements.
----------------------
: Select Screen
: Select Item
Enter Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
BIOS Menu 1: Main
BIOS Information
The BIOS Information lists a brief summary of the BIOS. The fields in BIOS Information
cannot be changed. The items shown in the system overview include:
BIOS Vendor: Installed BIOS vendor
Core Version: Current BIOS version
Compliency: compliant UEFI specification version
Project Version: the board version
Build Date: Date the current BIOS version was made
System Date [xx/xx/xx]
Use the System Date option to set the system date. Manually enter the day, month and
year.
Page 57
Page 70
System Time [xx:xx:xx]
Use the System Time option to set the system time. Manually enter the hours, minutes
and seconds.
5.3 Advanced
Use the Advanced menu (4BIOS Menu 2) to configure the CPU and peripheral devices
through the following sub-menus:
WARNING!
Setting the wrong values in the sections below may cause the system
to malfunction. Make sure that the settings made are compatible with
the hardware.
PPC-5152-D525-E Panel PC
Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc.
Main Advanced Chipset Boot Security Save & Exit
> ACPI Settings
> RTC Wake Settings
> CPU Configuration
> IDE Configuration
> USB Configuration
> Super IO Configuration
> H/M Monitor
> Serial Port Console Redirection
> iEi Feature
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
BIOS Menu 2: Advanced
System ACPI Parameters
----------------------
: Select Screen
: Select Item
Enter Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
Page 58
Page 71
s
PPC-5152-D525-E Panel PC
5.3.1 ACPI Settings
The ACPI Settings menu (4BIOS Menu 3) configures the Advanced Configuration and
Power Interface (ACPI) options.
Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc.
Advanced
ACPI Sleep State [S1 (CPU Stop Clock)]
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
Select the highest ACPI
leep state the system will
enter, when the SUSPEND
button is pressed.
----------------------
: Select Screen
: Select Item
Enter Select
F1 General Help
F2 Previous Values
F3 Optimized Defaults
F4 Save
ESC Exit
BIOS Menu 3: ACPI Configuration
ACPI Sleep State [S1 (CPU Stop Clock)]
Use the ACPI Sleep State option to specify the sleep state the system enters when it is
not being used.
S1 (CPU Stop
Clock)
S3 (Suspend to
RAM)
DEFAULT
The system enters S1(POS) sleep state. The
system appears off. The CPU is stopped; RAM is
refreshed; the system is running in a low power
mode.
The caches are flushed and the CPU is powered
off. Power to the RAM is maintained. The
computer returns slower to a working state, but
more power is saved.
Page 59
Page 72
s
PPC-5152-D525-E Panel PC
5.3.2 RTC Wake Settings
The RTC Wake Settings menu (4BIOS Menu 4) configures RTC wake event.
Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc.
Advanced
Wake System with Fixed Time [Disabled]
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
Select the highest ACPI
leep state the system will
enter, when the SUSPEND
button is pressed.
----------------------
: Select Screen
: Select Item
Enter Select
F1 General Help
F2 Previous Values
F3 Optimized Defaults
F4 Save
ESC Exit
BIOS Menu 4: RTC Wake Settings
Wake System with Fixed Time [Disabled]
Use the Wake System with Fixed Time option to specify the time the system should be
roused from a suspended state.
Disabled DEFAULT
The real time clock (RTC) cannot generate a
wake event
Page 60
Page 73
E
PPC-5152-D525-E Panel PC
Enabled
If selected, the following appears with values that
can be selected:
*Wake up every day
*Wake up date
*Wake up hour
*Wake up minute
*Wake up second
After setting the alarm, the computer turns itself
on from a suspend state when the alarm goes off.
5.3.3 CPU Configuration
Use the CPU Configuration menu (4BIOS Menu 5) to view detailed CPU specifications
and configure the CPU.
Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc.
Advanced
CPU Configuration
Processor Type Intel(R) Atom(TM)
CPU D525 @ 1.80GHz
EMT64 Supported
Processor Speed 1800 MHz
System Bus Speed 800 MHz
Ratio Status 9
Actual Ratio 9
Processor Stepping 106ca
Microcode Revision 263
L1 Cache RAM 2x56 k
L2 Cache RAM 2x512 k
Processor Cores Dual
Hyper-Threading Supported
Hyper-Threading [Enabled]
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
nabled for Windows XP and
Linux (OS) optimized for
Hyper-Threading
Technology) and Disabled
for other OS (OS not
optimized for
Hyper-Threading
Technology)
----------------------
: Select Screen
: Select Item
Enter Select
F1 General Help
F2 Previous Values
F3 Optimized Defaults
F4 Save
ESC Exit
BIOS Menu 5: CPU Configuration
The CPU Configuration menu (
4BIOS Menu 5) lists the following CPU details:
Page 61
Page 74
Processor Type: Lists the brand name of the CPU being used
EMT64: Indicates if EM64T is supported by the CPU.
Processor Speed: Lists the CPU processing speed
System Bus Speed: Lists the system bus speed
Ratio Status: Lists the ratio status
Actual Ratio: Lists the actual ratio
Processor Stepping: Lists the CPU processing stepping
Microcode Revision: Lists the microcode revision
L1 Cache RAM: Lists the amount of storage space on the L1 Cache
L2 Cache RAM: Lists the amount of storage space on the L2 Cache
Processor Core: Lists the number of the processor cores
Hyper-Threading: Indicates if Hyper-Threading is supported by the CPU.
Intel® Virtualization Technology [Disabled]
Hyper Threading Function [Enabled]
PPC-5152-D525-E Panel PC
Use the Hyper Threading function to enable or disable the CPU hyper threading function.
Disabled
Enabled DEFAULT
Disables the use of hyper threading technology
Enables the use of hyper threading technology
Page 62
Page 75
PPC-5152-D525-E Panel PC
5.3.4 IDE Configuration
Use the IDE Configuration menu (4BIOS Menu 6) to change and/or set the configuration
of the IDE or SATA devices installed in the system.
Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc.
Advanced
PATA Master Not Present
SATA Port1 Not Present
ATA Or IDE Configuration [Enhanced]
Configure SATA as [IDE]
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
Select ATA or IDE
Configuration
---------------------
: Select Screen
: Select Item
Enter Select
F1 General Help
F2 Previous Values
F3 Optimized Defaults
F4 Save
ESC Exit
BIOS Menu 6: IDE Configuration
ATA or IDE Configurations [Enhanced]
Use the ATA/IDE Configurations option to configure the ATA/IDE controller.
Disabled
Compatible
Enhanced DEFAULT
Disables the on-board ATA/IDE controller.
Configures the on-board ATA/IDE controller to be in
compatible mode. In this mode, a SATA channel will
replace one of the IDE channels. This mode supports up
to 4 storage devices.
Configures the on-board ATA/IDE controller to be in
Enhanced mode. In this mode, IDE channels and SATA
channels are separated. This mode supports up to 6
storage devices. Some legacy OS do not support this
mode.
Page 63
Page 76
d
Configure SATA as [IDE]
Use the Configure SATA as option to configure SATA devices as normal IDE devices.
PPC-5152-D525-E Panel PC
IDE DEFAULT
AHCI
The SATA drive connected to the nth SATA drive port is
Configures SATA devices as normal IDE device.
specified as a normal SATA drive.
5.3.5 USB Configuration
Use the USB Configuration menu (4BIOS Menu 7) to read USB configuration information
and configure the USB settings.
Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc.
Advanced
USB Configuration
USB Devices:
1 Keyboard
Legacy USB Support [Enabled]
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
Enables Legacy USB
support. AUTO option
isables legacy support
if no USB devices are
connected. DISABLE
option will keep USB
devices available only
for EFI applications.
---------------------
: Select Screen
: Select Item
Enter Select
F1 General Help
F2 Previous Values
F3 Optimized
Defaults
F4 Save
ESC Exit
BIOS Menu 7: USB Configuration
USB Devices
The USB Devices Enabled field lists the USB devices that are enabled on the system
Page 64
Page 77
PPC-5152-D525-E Panel PC
Legacy USB Support [Enabled]
Use the Legacy USB Support BIOS option to enable USB mouse and USB keyboard
support. Normally if this option is not enabled, any attached USB mouse or USB keyboard
does not become available until a USB compatible operating system is fully booted with all
USB drivers loaded. When this option is enabled, any attached USB mouse or USB
keyboard can control the system even when there is no USB driver loaded onto the
system.
Enabled DEFAULT
Disabled
Auto
Legacy USB support enabled
Legacy USB support disabled
Legacy USB support disabled if no USB devices are
connected
5.3.6 Super IO Configuration
Use the Super IO Configuration menu (4BIOS Menu 8) to set or change the
configurations for the serial ports.
Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc.
Advanced
Super IO Configuration
Super IO Chip Fintek F81865
> Serial Port 1 Configuration
> Serial Port 2 Configuration
> Serial Port 3 Configuration
> Serial Port 4 Configuration
> Serial Port 5 Configuration
Set Parameters of Serial
Port 1 (COMA)
---------------------
: Select Screen
: Select Item
Enter Select
F1 General Help
F2 Previous Values
F3 Optimized Defaults
F4 Save
ESC Exit
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
BIOS Menu 8: Super IO Configuration
Page 65
Page 78
PPC-5152-D525-E Panel PC
5.3.6.1 Serial Port n Configuration
Use the Serial Port n Configuration menu (4BIOS Menu 9) to configure the serial port n.
Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc.
Advanced
Serial Port 1 Configuration
Serial Port [Enabled]
Device Settings IO=3F8h; IRQ=4
Change Settings [Auto]
Serial Port 1 Mode RS232
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
Enable or Disable Serial
Port (COM)
---------------------
: Select Screen
: Select Item
Enter Select
F1 General Help
F2 Previous Values
F3 Optimized Defaults
F4 Save
ESC Exit
BIOS Menu 9: Serial Port n Configuration Menu
5.3.6.1.1 Serial Port 1 Configuration
Serial Port [Enabled]
Use the Serial Port option to enable or disable the serial port.
Disabled
Enabled DEFAULT
Change Settings [Auto]
Use the Change Settings option to change the serial port IO port address and interrupt
address.
Auto DEFAULT
Disable the serial port
Enable the serial port
The serial port IO port address and interrupt address
Page 66
are automatically detected.
Page 79
PPC-5152-D525-E Panel PC
IO=3F8h;
IRQ=4
IO=3F8h;
IRQ=3, 4
IO=2F8h;
IRQ=3, 4
Serial Port 1 Mode [RS232]
The Serial Port 1 Mode option is set the Serial Port 1 signaling mode to RS-232 and can
not be changed.
Serial Port I/O port address is 3F8h and the interrupt
address is IRQ4
Serial Port I/O port address is 3F8h and the interrupt
address is IRQ3, 4
Serial Port I/O port address is 2F8h and the interrupt
address is IRQ3, 4
5.3.6.1.2 Serial Port 2 Configuration
Serial Port [Enabled]
Use the Serial Port option to enable or disable the serial port.
Disabled
Enabled DEFAULT
Change Settings [Auto]
Use the Change Settings option to change the serial port IO port address and interrupt
address.
Auto DEFAULT
IO=2F8h;
IRQ=3
IO=3F8h;
IRQ=3, 4
IO=2F8h;
IRQ=3, 4
Disable the serial port
Enable the serial port
The serial port IO port address and interrupt address
are automatically detected.
Serial Port I/O port address is 2F8h and the interrupt
address is IRQ3
Serial Port I/O port address is 3F8h and the interrupt
address is IRQ3, 4
Serial Port I/O port address is 2F8h and the interrupt
address is IRQ3, 4
Page 67
Page 80
Serial Port 2 Mode [RS232]
The Serial Port 2 Mode option is set the Serial Port 2 signaling mode to RS-232 and can
not be changed.
5.3.6.1.3 Serial Port 3 Configuration
Serial Port [Enabled]
Use the Serial Port option to enable or disable the serial port.
PPC-5152-D525-E Panel PC
Disabled
Enabled DEFAULT
Change Settings [Auto]
Use the Change Settings option to change the serial port IO port address and interrupt
address.
Auto DEFAULT
IO=3E8h;
IRQ=5
IO=3E8h;
IRQ=5, 7
IO=2E8h;
IRQ=5, 7
Disable the serial port
Enable the serial port
The serial port IO port address and interrupt address
are automatically detected.
Serial Port I/O port address is 3E8h and the interrupt
address is IRQ5
Serial Port I/O port address is 3E8h and the interrupt
address is IRQ5, 7
Serial Port I/O port address is 2E8h and the interrupt
address is IRQ5, 7
Serial Port 3 Mode [RS232]
Use the Serial Port 3 Mode option shows the Serial Port 3 signaling mode is set to
RS-232 and can not be changed. The serial port 3 mode is set by the 10-pin DIP switch on
the motherboard. Please see Section
Page 68
43.9.4.1 for detail.
Page 81
PPC-5152-D525-E Panel PC
5.3.6.1.4 Serial Port 4 Configuration
Serial Port [Enabled]
Use the Serial Port option to enable or disable the serial port.
Disabled
Enabled DEFAULT
Change Settings [Auto]
Use the Change Settings option to change the serial port IO port address and interrupt
address.
Auto DEFAULT
IO=2E8h;
IRQ=10
IO=3E8h;
IRQ=10, 11
IO=2E8h;
IRQ=10, 11
Disable the serial port
Enable the serial port
The serial port IO port address and interrupt address
are automatically detected.
Serial Port I/O port address is 2E8h and the interrupt
address is IRQ10
Serial Port I/O port address is 3E8h and the interrupt
address is IRQ10, 11
Serial Port I/O port address is 2E8h and the interrupt
address is IRQ10, 11
Serial Port 4 Mode [RS422/485]
The Serial Port 4 Mode option shows the Serial Port 4 signaling mode is set to
RS-422/485 and can not be changed.
5.3.6.1.5 Serial Port 5 Configuration
Serial Port [Enabled]
Use the Serial Port option to enable or disable the serial port.
Disabled
Disable the serial port
Page 69
Page 82
PPC-5152-D525-E Panel PC
Enabled DEFAULT
Change Settings [Auto]
Use the Change Settings option to change the serial port IO port address and interrupt
address.
Auto DEFAULT
IO=2C0h;
IRQ=10
IO=2C0h;
IRQ=10, 11
IO=2C8h;
IRQ=10, 11
Enable the serial port
The serial port IO port address and interrupt address
are automatically detected.
Serial Port I/O port address is 2C0h and the interrupt
address is IRQ10
Serial Port I/O port address is 2C0h and the interrupt
address is IRQ10, 11
Serial Port I/O port address is 2C8h and the interrupt
address is IRQ10, 11
Serial Port 5 Mode [RS422/485]
The Serial Port 5 Mode option is set the Serial Port 5 signaling mode to RS-422/485 and
can not be changed.
Page 70
Page 83
PPC-5152-D525-E Panel PC
5.3.7 H/W Monitor
The H/W Monitor menu (4BIOS Menu 10) shows the operating temperature, fan speeds
and system voltages.
Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc.
Advanced
PC Health Status
CPU Temperature :+60 °C
Accuracy:1.(-5~+10)degree around 100 degree
2.(-10~+15)degree around 50 degree
SYS Temperature :+37 °C
VCC3V :+3.280 V
V_core :+1.000 V
VCC5 :+4.918 V
VCC3 :+3.297 V
Vcc1_5VDDR :+1.552 V
VSB3V :+3.380 V
VBAT :+3.216 V
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
---------------------
: Select Screen
: Select Item
Enter Select
F1 General Help
F2 Previous Values
F3 Optimized Defaults
F4 Save
ESC Exit
BIOS Menu 10: Hardware Health Configuration
PC Health Status
The following system parameters and values are shown. The system parameters that are
monitored are:
System Temperatures:
o CPU Temperature
o System Temperature
Voltages:
o VCC3V
o V_core
o VCC5
o VCC3
o Vcc1_5VDDR
o VSB3V
o VBAT
Page 71
Page 84
PPC-5152-D525-E Panel PC
5.3.8 Serial Port Console Redirection
The Serial Port Console Redirection menu (4BIOS Menu 11) allows the console
redirection options to be configured. Console redirection allows users to maintain a
system remotely by re-directing keyboard input and text output through the serial port.
Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc.
Advanced
COM1
Console Redirection [Disabled]
> Console Redirection Settings
COM2
Console Redirection [Disabled]
> Console Redirection Settings
COM3
Console Redirection [Disabled]
> Console Redirection Settings
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
Console Redirection
Enable or Disable
---------------------
: Select Screen
: Select Item
Enter Select
F1 General Help
F2 Previous Values
F3 Optimized Defaults
F4 Save
ESC Exit
BIOS Menu 11: Serial Port Console Redirection
Console Redirection [Disabled]
Use Console Redirection option to enable or disable the console redirection function.
Disabled DEFAULT
Enabled
Disabled the console redirection function
Enabled the console redirection function
5.3.8.1 Console Redirection Settings
Use the Console Redirection Settings menu (4BIOS Menu 12) to configure console
redirection settings of the specified serial port. This menu appears only when the Console
Redirection is enabled.
Page 72
Page 85
PPC-5152-D525-E Panel PC
Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc.
Advanced
COM1
Console Redirection Settings
Terminal Type [ANSI]
Bits per second [115200]
Data Bits [8]
Parity [None]
Stop Bits [1]
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
BIOS Menu 12: Console Redirection Settings
Terminal Type [ANSI]
Console Redirection
Enable or Disable
---------------------
: Select Screen
: Select Item
Enter Select
F1 General Help
F2 Previous Values
F3 Optimized Defaults
F4 Save
ESC Exit
Use the Terminal Type option to specify the remote terminal type.
VT100
VT100+
VT-UTF8
ANSI DEFAULT
Bits per second [115200]
Use the Bits per second option to select serial port transmission speed. The speed must
match on the other side. Long or noisy lines may require lower speeds. The options
include:
9600
19200
38400
57600
The target terminal type is VT100
The target terminal type is VT100+
The target terminal type is VT-UTF8
The target terminal type is ANSI
115200 D
EFAULT
Page 73
Page 86
c
s
PPC-5152-D525-E Panel PC
5.3.9 IEI Feature
Use the IEI Feature menu (4BIOS Menu 13) to configure One Key Recovery function.
Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc.
Advanced
iEi Feature
Auto Recovery Function [Disabled]
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
Auto Recovery Function
Reboot and recovery
system automatically
within 10 min, when OS
rashes. Please install
Auto Recovery API
ervice before enabling
this function
----------------------
Select Screen
Select Item
Enter Go to SubScreen
F1 General Help
F10 Save and Exit
ESC Exit
BIOS Menu 13: IEI Feature
Auto Recovery Function [Disabled]
Use the Auto Recovery Function BIOS option to enable or disable the auto recovery
function of the IEI One Key Recovery.
Disabled DEFAULT
Enabled
Auto recovery function disabled
Auto recovery function enabled
Page 74
Page 87
PPC-5152-D525-E Panel PC
5.4 Chipset
Use the Chipset menu (4BIOS Menu 14) to access the Northbridge and Southbridge
configuration menus.
WARNING!
Setting the wrong values for the Chipset BIOS selections in the Chipset
BIOS menu may cause the system to malfunction.
Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc.
Main Advanced Chipset Boot Security Save & Exit
> Host Bridge
> South Bridge
> Intel IGD SWSCI OpRegion
Host Bridge Parameters
---------------------
: Select Item
Enter Select
F1 General Help
F2 Previous Values
F3 Optimized Defaults
F4 Save
ESC Exit
: Select Screen
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
BIOS Menu 14: Chipset
Page 75
Page 88
PPC-5152-D525-E Panel PC
5.4.1 Host Bridge Configuration
Use the Host Bridge Configuration menu (4BIOS Menu 15) to configure the Northbridge
chipset.
Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc.
Chipset
> OnChip VGA Configuration
Initate Graphic Adapter [IGD]
******* Memory Information *******
Memory Frequency 800 Mhz
Total Memory 1024 MB
DIMM#0 1024 MB
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
Config On Chip VGA
Settings.
---------------------
: Select Screen
: Select Item
Enter Select
F1 General Help
F2 Previous Values
F3 Optimized Defaults
F4 Save
ESC Exit
BIOS Menu 15: Host Bridge Chipset Configuration
Initiate Graphics Adapter [IGD]
Use the Initiate Graphics Adapter option to select the graphics controller used as the
primary boot device. Select either an integrated graphics controller (IGD) or a combination
of PCI graphics controller, a PCI express (PEG) controller or an IGD. Configuration
options are listed below:
IGD
PCI/IGD
DEFAULT
Page 76
Page 89
PPC-5152-D525-E Panel PC
5.4.1.1 OnChip VGA Configuration
Use the OnChip VGA Configuration menu (BIOS Menu 16) to configure the OnChip
VGA.
Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc.
Chipset
OnChip VGA Configuration
IGD Memory [8 MB]
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
Select Share Memory Size.
---------------------
: Select Screen
: Select Item
Enter Select
F1 General Help
F2 Previous Values
F3 Optimized Defaults
F4 Save
ESC Exit
BIOS Menu 16: OnChip VGA Configuration
IGD Memory [8 MB]
Use the IGD Memory Size option to set the amount of system memory allocated to the
integrated graphics processor when the system boots. The system memory allocated can
then only be used as graphics memory, and is no longer available to applications or the
operating system. Configuration options are listed below:
Disabled
8 MB Default
Page 77
Page 90
S
a
s
PPC-5152-D525-E Panel PC
5.4.2 South Bridge Configuration
Use the South Bridge Configuration menu (4BIOS Menu 17) to configure the
Southbridge chipset.
Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc.
Chipset
Auto Power Button Function [Enabled]
Restore AC Power Loss [Last State]
High Definition Audio Controller [Enabled]
Set Spread Spectrum function [Disabled]
WIFI Support [Enabled]
Auto Dimming Support [Disabled]
Power Saving Function [Disabled]
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
elect AC power state when
power is re-applied after
power failure. When Auto
Power Button Function
elect Enabled the AC power
loss will always power on.
---------------------
: Select Screen
: Select Item
Enter Select
F1 General Help
F2 Previous Values
F3 Optimized Defaults
F4 Save
ESC Exit
BIOS Menu 17: South Bridge Chipset Configuration
Restore on AC Power Loss [Last State]
Use the Restore on AC Power Loss BIOS option to specify what state the system
returns to if there is a sudden loss of power to the system.
Power Off
Power On
Last State DEFAULT
The system remains turned off
The system turns on
The system returns to its previous state. If it was on, it
turns itself on. If it was off, it remains off.
Page 78
Page 91
PPC-5152-D525-E Panel PC
High Definition Audio Controller [Enabled]
The High Definition Audio Controller option enables or disables the High Definition (HD)
Audio controller.
Enabled DEFAULT
Disabled
Set Spread Spectrum function [Disabled]
Use the Set Spread Spectrum function option to reduce the EMI. Excess EMI is
generated when the system clock generator pulses have extreme values. Spreading the
pulse spectrum modulates changes in the extreme values from spikes to flat curves, thus
reducing the EMI. This benefit may in some cases be outweighed by problems with
timing-critical devices, such as a clock-sensitive SCSI device.
Disabled DEFAULT
Enabled
WIFI Support [Enabled]
Use the WIFI Support option to enable or disable the Wi-Fi function.
The onboard HD Audio controller is enabled
The onboard HD Audio controller is disabled
EMI not reduced
EMI reduced
Enabled DEFAULT
Disabled
Auto Dimming Support [Disabled]
Use the Auto Dimming Support option to enable or disable the auto dimming function.
Enabled
Disabled DEFAULT
Enables Wi-Fi function
Disables Wi-Fi function
Enables auto dimming function
Disables auto dimming function
Page 79
Page 92
Power Saving Function [Disabled]
Use the Power Saving Function option to enable or disable the power saving function to
reduce the power consumption when the system is off.
PPC-5152-D525-E Panel PC
Disabled DEFAULT
Enabled
Disable power saving function
Enable power saving function
5.4.3 Intel IGD SWSCI OpRegion
Use the Intel IGD SWSCI OpRegion menu (4BIOS Menu 18) to configure the video device
connected to the system.
Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc.
Chipset
Intel IGD SWSCI OpRegion Configuration
DVMT Mode Select [DVMT Mode]
DVMT/FIXED Memory [Maximum]
IGD - Boot Type [VBIOS Default]
LCD Panel Type [1024x768 18bit]
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
Select DVMT Mode/Fixed
Mode
---------------------
: Select Screen
: Select Item
Enter Select
F1 General Help
F2 Previous Values
F3 Optimized Defaults
F4 Save
ESC Exit
BIOS Menu 18: Intel IGD SWSCI OpRegion
DVMT Mode Select [DVMT Mode]
Use the DVMT Mode Select option to select the Intel Dynamic Video Memory Technology
(DVMT) operating mode.
Fixed Mode
DVMT Mode DEFAULT
Page 80
A fixed portion of graphics memory is reserved as
graphics memory.
Graphics memory is dynamically allocated according to
the system and graphics needs.
Page 93
PPC-5152-D525-E Panel PC
DVMT/FIXED Memory [Maximum]
Use the DVMT/FIXED Memory option to specify the maximum amount of memory that
can be allocated as graphics memory. Configuration options are listed below.
128 MB
256 MB
Maximum Default
IGD - Boot Type [VBIOS Default]
Use the IGD - Boot Type option to select the display device used by the system when it
boots. Configuration options are listed below.
VBIOS Default
CRT
LFP
CRT + LFP
DEFAULT
5.5 Boot
Use the Boot menu (4BIOS Menu 19) to configure system boot options.
Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc.
Main Advanced Chipset Boot Security Save & Exit
Boot Configuration
Bootup NumLock State [On]
Quiet Boot [Enabled]
Launch PXE OpROM [Disabled]
UEFI Boot [Disabled]
Boot Option Priorities
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
Select the keyboard
NumLock state
---------------------
: Select Item
Enter Select
F1 General Help
F2 Previous Values
F3 Optimized
Defaults
F4 Save
ESC Exit
: Select Screen
BIOS Menu 19: Boot
Page 81
Page 94
Bootup NumLock State [On]
Use the Bootup NumLock State BIOS option to specify if the number lock setting must
be modified during boot up.
PPC-5152-D525-E Panel PC
On DEFAULT
Off
Quiet Boot [Enabled]
Use the Quiet Boot BIOS option to select the screen display when the system boots.
Allows the Number Lock on the keyboard to be
enabled automatically when the computer system
boots up. This allows the immediate use of the
10-key numeric keypad located on the right side of
the keyboard. To confirm this, the Number Lock LED
light on the keyboard is lit.
Does not enable the keyboard Number Lock
automatically. To use the 10-keys on the keyboard,
press the Number Lock key located on the upper
left-hand corner of the 10-key pad. The Number
Lock LED on the keyboard lights up when the
Number Lock is engaged.
Disabled
Enabled DEFAULT
Launch PXE OpROM [Disabled]
Use the Launch PXE OpROM option to enable or disable boot option for legacy network
devices.
Disabled DEFAULT
Enabled
Page 82
Normal POST messages displayed
OEM Logo displayed instead of POST messages
Ignore all PXE Option ROMs
Load PXE Option ROMs
Page 95
PPC-5152-D525-E Panel PC
UEFI Boot [Disabled]
Use the UEFI Boot option to enable or disable to boot from a UEFI device.
Enabled
Disabled DEFAULT
Enable to boot from a UEFI device.
Disable to boot from a UEFI device.
5.6 Security
Use the Security menu (BIOS Menu 20) to set system and user passwords.
Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc.
Main Advanced Chipset Boot Security Save & Exit
Password Description
If ONLY the Administrator’s password is set,
then this only limits access to Setup and is
only asked for when entering Setup
If ONLY the User’s password is set, then this
is a power on password and must be entered to
boot or enter Setup. In Setup the User will
have Administrator rights.
The password must be 3 to 20 characters long.
Administrator Password
User Password
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
Set Administrator
Password
---------------------
: Select Item
Enter Select
F1 General Help
F2 Previous Values
F3 Optimized
Defaults
F4 Save
ESC Exit
: Select Screen
BIOS Menu 20: Security
Administrator Password
Use the Administrator Password to set or change an administrator password.
User Password
Use the User Password to set or change a user password.
Page 83
Page 96
PPC-5152-D525-E Panel PC
5.7 Save & Exit
Use the Save & Exit menu (5BIOS Menu 21) to load default BIOS values, optimal failsafe
values and to save configuration changes.
Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc.
Main Advanced Chipset Boot Security Save & Exit
Save Changes and Reset
Discard Changes and Reset
Restore Defaults
Save as User Defaults
Restore User Defaults
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
Reset the system after
saving the changes.
---------------------
: Select Screen
: Select Item
Enter Select
F1 General Help
F2 Previous Values
F3 Optimized
Defaults
F4 Save
ESC Exit
BIOS Menu 21: Save & Exit
Save Changes and Reset
Use the Save Changes and Reset option to save the changes made to the BIOS options
and reset the system.
Discard Changes and Reset
Use the Discard Changes and Reset option to exit the system without saving the
changes made to the BIOS configuration setup program.
Restore Defaults
Use the Restore Defaults option to load the optimal default values for each of the
parameters on the Setup menus. F3 key can be used for this operation.
Save as User Defaults
Page 84
Use the Save as User Defaults option to save the changes done so far as user defaults.
Page 97
PPC-5152-D525-E Panel PC
Restore User Defaults
Use the Restore User Defaults option to restore the user defaults to all the setup options.
Page 85
Page 98
PPC-5152-D525-E Panel PC
Chapter
6
6 Software Drivers
Page 86
Page 99
PPC-5152-D525-E Panel PC
6.1 Available Software Drivers
NOTE:
The content of the CD may vary throughout the life cycle of the product
and is subject to change without prior notice. Visit the IEI website or
contact technical support for the latest updates.
The following drivers can be installed on the system:
Chipset
Graphics
LAN
Touchscreen
USB 3.0
Installation instructions are given below.
6.2 Starting the Driver Program
To access the driver installation programs, please do the following.
Step 1: Insert the CD-ROM that came with the system into a CD-ROM drive attached to
the system.
Step 2: Click PPC-5152-D525-E.
Step 3: A list of available drivers appears.Step 0:
6.3 Chipset Driver Installation
To install the chipset driver, please do the following.
Step 1: Access the driver list. (See Section
Step 2: Click “Chipset” and select the folder which corresponds to the operating system.
Step 3: Locate the setup file and double click on it.
56.2)
Page 87
Page 100
PPC-5152-D525-E Panel PC

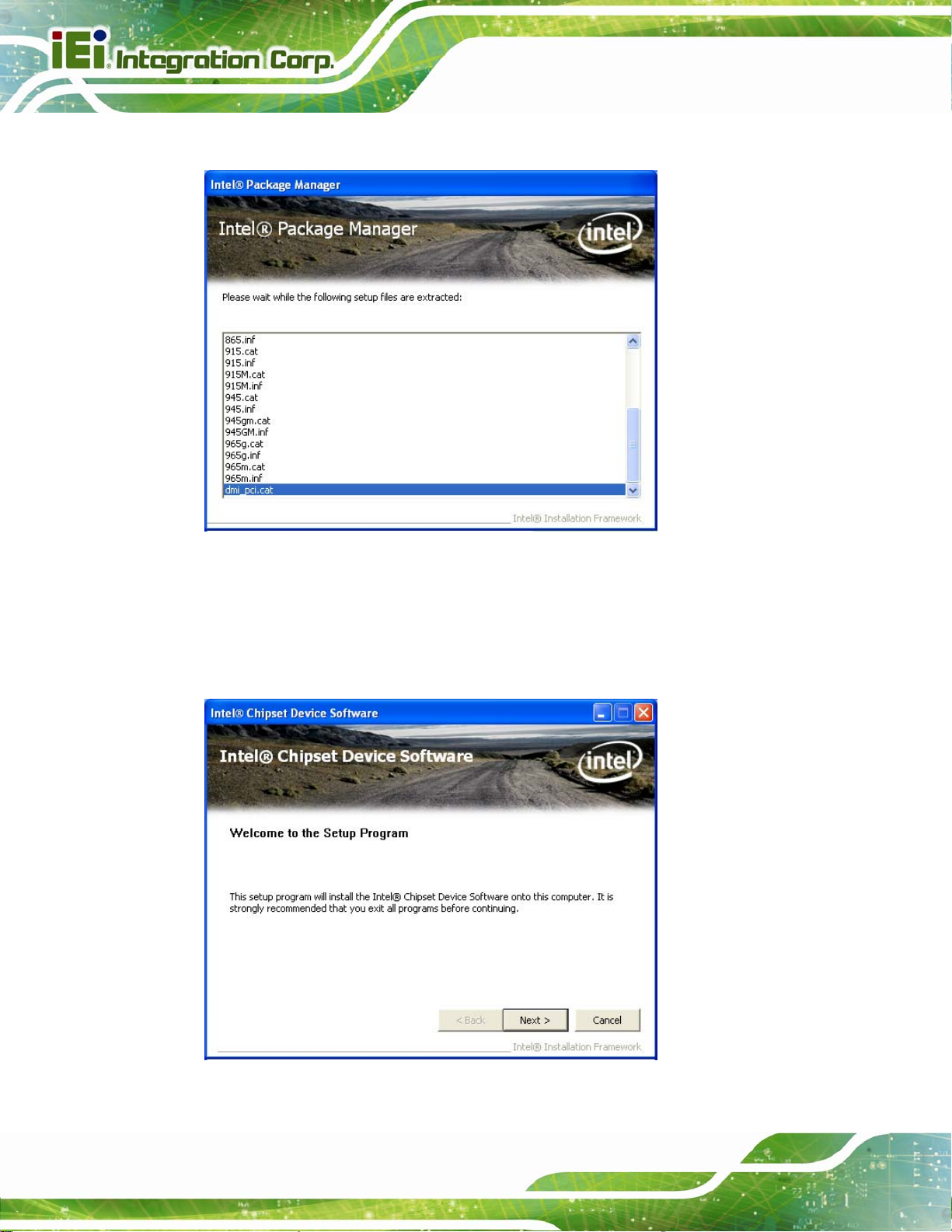

Step 4: The setup files are extracted as shown in 5Figure 6-1.
Figure 6-1: Chipset Driver Screen
Step 5: When the setup files are completely extracted the Welcome Screen in
6-2 appears.
Step 6: Click Next to continue.
5Figure
Page 88
Figure 6-2: Chipset Driver Welcome Screen
Loading...
