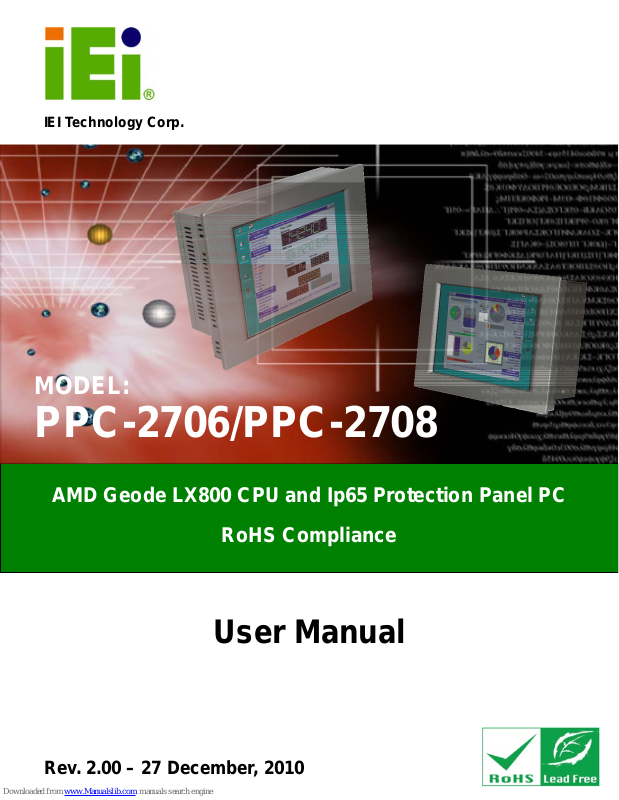

Page 1
IEI Technology Corp.
User Manual
PPC-2706/PPC-2708 Panel PC
MODEL:
PPC-2706/PPC-2708
AMD Geode LX800 CPU and Ip65 Protection Panel PC
RoHS Compliance
Rev. 2.00 – 27 December, 2010
Page I
Page 2
PPC-2706/PPC-2708 Panel PC
Revision
Date Version Changes
27 December, 2010 2.00 Added system fan module installation
February, 2008 1.11 Updated PPC-2706 CF card installation images
December, 2006 1.1 1. Updated following connector pinouts in Appendix A
- CN7: Battery connector
- CN12: Reset button connector
- CN24: USB connector
2. Added CF card installation procedures in Section
CompactFlash® Card Installation
October, 2006 1.0 Initial release
3.9
Page II
Page 3
PPC-2706/PPC-2708 Panel PC
COPYRIGHT NOTICE
The information in this document is subject to change without prior notice in order to
improve reliability, design and function and does not represent a commitment on the part
of the manufacturer.
In no event will the manufacturer be liable for direct, indirect, special, incidental, or
consequential damages arising out of the use or inability to use the product or
documentation, even if advised of the possibility of such damages.
This document contains proprietary information protected by copyright. All rights are
Copyright
reserved. No part of this manual may be reproduced by any mechanical, electronic, or
other means in any form without prior written permission of the manufacturer.
TRADEMARKS
All registered trademarks and product names mentioned herein are used for identification
purposes only and may be trademarks and/or registered trademarks of their respective
owners.
Page III
Page 4
PPC-2706/PPC-2708 Panel PC
Table of Contents
1 INTRODUCTION.......................................................................................................... 1
1.1 PPC-2706/PPC-2708 FLAT PANEL PC OVERVIEW ..................................................... 2
1.1.1 Model Variations................................................................................................ 2
1.1.2 Applications ....................................................................................................... 2
1.1.3 Standard Features..............................................................................................2
1.2 EXTERNAL OVERVIEW................................................................................................ 3
1.2.1 General Description........................................................................................... 3
1.2.2 Front Panel........................................................................................................ 3
1.2.3 Rear Panel ......................................................................................................... 4
1.2.4 Top Panel ........................................................................................................... 4
1.2.5 Bottom Panel...................................................................................................... 5
1.3 INTERNAL OVERVIEW................................................................................................. 6
1.4 SPECIFICATIONS ......................................................................................................... 6
1.4.1 Preinstalled Hardware Components.................................................................. 6
1.4.2 System Specifications......................................................................................... 7
1.4.3 Motherboard Specifications............................................................................... 8
1.4.4 Flat Panel Screen............................................................................................... 9
1.4.4.1 PPC-2706 Flat Panel Screen Specifications ............................................... 9
1.4.4.2 PPC-2708 Flat Panel Screen Specifications ..............................................11
1.5 DIMENSIONS............................................................................................................. 12
1.5.1 PPC-2706 Dimensions..................................................................................... 12
1.5.2 PPC-2708 Dimensions..................................................................................... 13
2 WAFER-LX MOTHERBOARD................................................................................. 14
2.1 INTRODUCTION......................................................................................................... 15
2.2 CPU SUPPORT.......................................................................................................... 15
2.2.1 AMD® Geode™ LX 800 500MHz Specifications............................................. 15
2.2.2 AMD® Geode™ LX 800 500MHz Power Management................................... 16
2.3 SYSTEM CHIPSET...................................................................................................... 16
2.4 ETHERNET CONTROLLER SPECIFICATIONS................................................................ 17
2.4.1 Overview.......................................................................................................... 17
Page IV
Page 5
PPC-2706/PPC-2708 Panel PC
2.4.2 Features ........................................................................................................... 17
2.5 PERIPHERAL DEVICE INTERFACES, CONNECTORS, AND SLOTS ................................. 18
2.5.1 OEM Options................................................................................................... 18
2.5.2 Internal Slots.................................................................................................... 18
2.5.3 Internal Peripheral Device Connectors........................................................... 18
2.5.4 External Peripheral Device Connectors.......................................................... 19
3 INSTALLATION AND CONFIGURATION ............................................................ 20
3.1 INSTALLATION PRECAUTIONS ................................................................................... 21
3.2 PREINSTALLED COMPONENTS................................................................................... 21
3.3 INST ALLATION AND CONFIGURATION STEPS............................................................. 21
3.4 UNPACKING.............................................................................................................. 22
3.4.1 Packing List ..................................................................................................... 23
3.5 REMOVE THE BACK COVER...................................................................................... 23
3.5.1 PPC-2706 Back Cover Removal...................................................................... 23
3.5.2 PPC-2708 Back Cover Removal...................................................................... 24

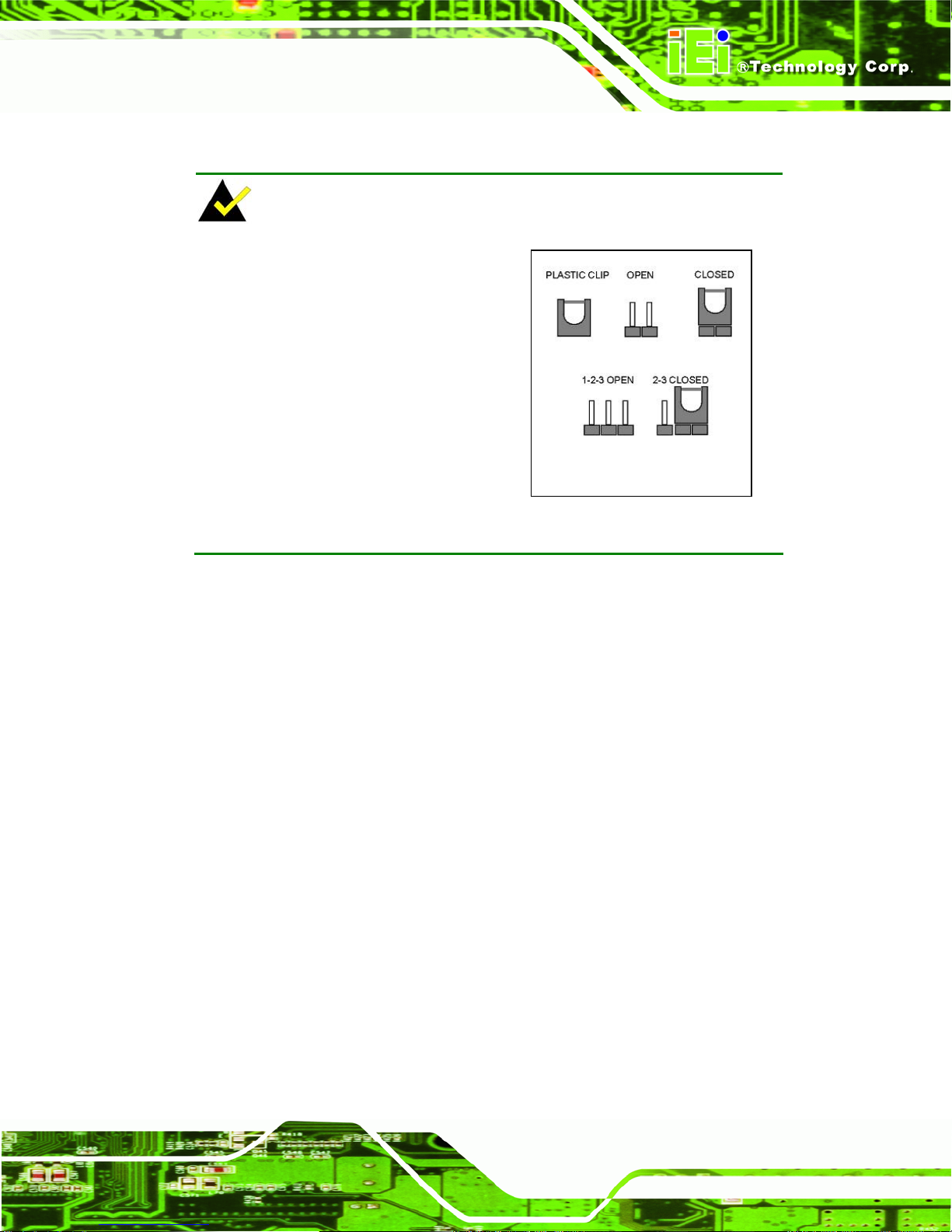

3.6 JUMPER SETTINGS .................................................................................................... 25
3.6.1 JP1: AT Power Select Jumper Settings............................................................ 26
3.6.2 CN7: Clear CMOS Setup................................................................................. 26
3.6.3 JP2: COM3 Setup Jumper Settings.................................................................. 27
3.7 SYSTEM FAN INSTALLATION..................................................................................... 27
3.7.1 PPC-2706 System Fan Installation.................................................................. 27
3.7.2 PPC-2708 System Fan Installation.................................................................. 30
3.8 HDD INSTALLATION................................................................................................. 31
3.8.1 PPC-2706 HDD Installation............................................................................ 31
3.8.2 PPC-2708 HDD Installation............................................................................ 32
3.9 COMPACTFLASH® CARD INSTALLATION.................................................................. 34
3.9.1 PPC-2706 CF Card Installation...................................................................... 34
3.9.2 PPC-2708 CF Card Installation...................................................................... 36

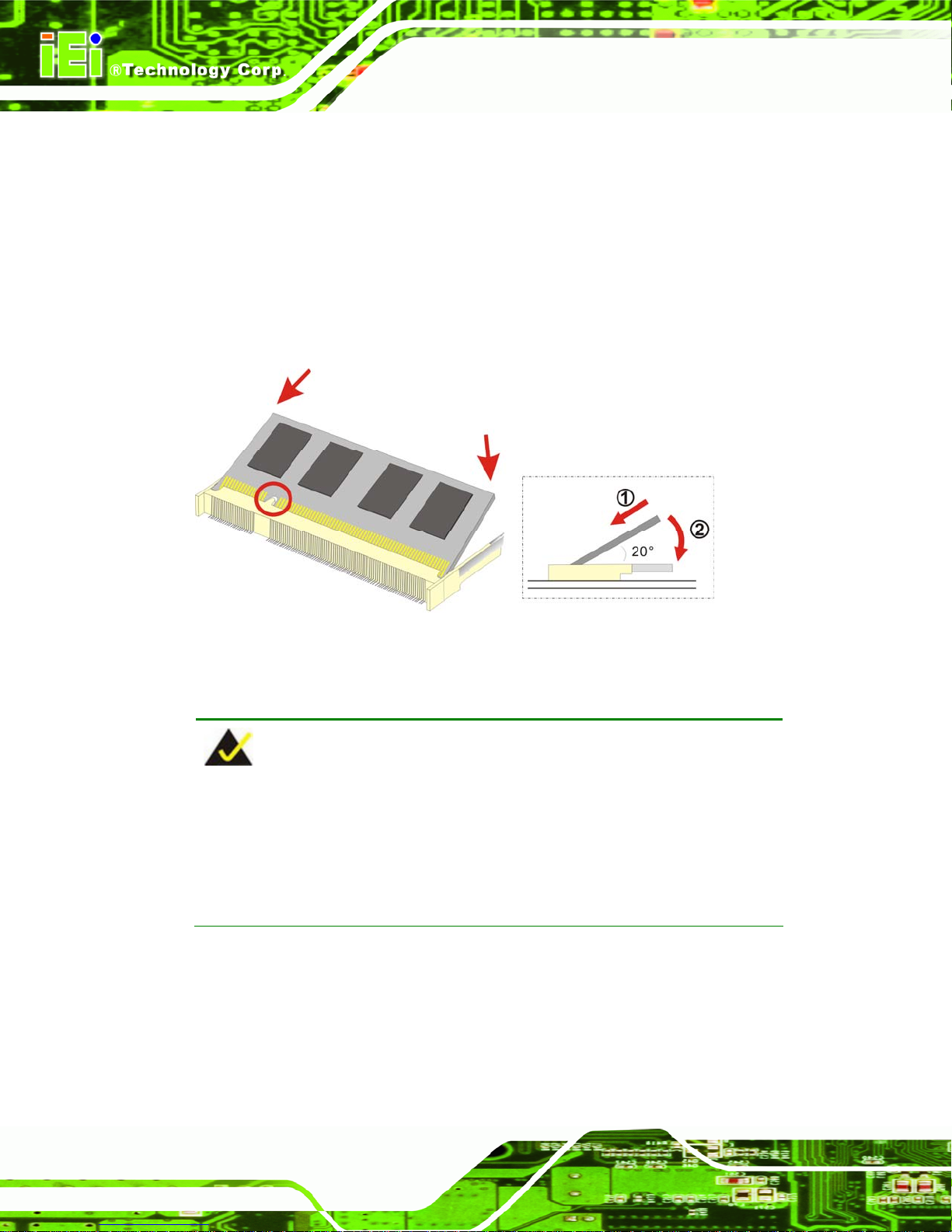

3.10 MEMORY MODULE INSTALLATION ......................................................................... 37
3.11 SATA - ALI RAID DRIVER INSTALLATION ............................................................. 38
3.11.1 Installation Steps During Windows XP Installation....................................... 39
3.11.2 Installation Steps under Existing Windows XP .............................................. 40
3.12 MOUNTING THE SYSTEM ........................................................................................ 41

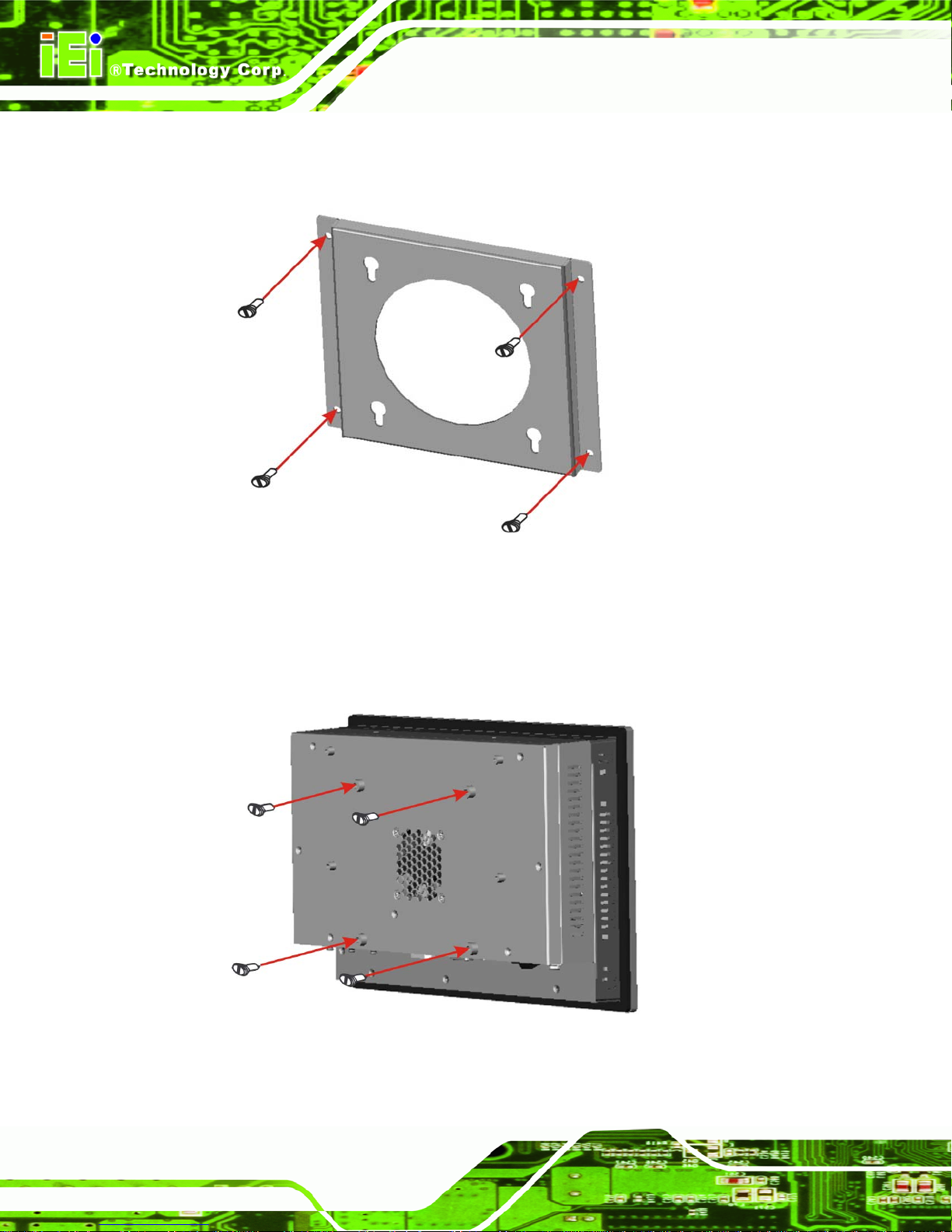

3.12.1 Wall Mounting................................................................................................ 41
Page V
Page 6
PPC-2706/PPC-2708 Panel PC
3.12.2 Panel Mounting.............................................................................................. 43

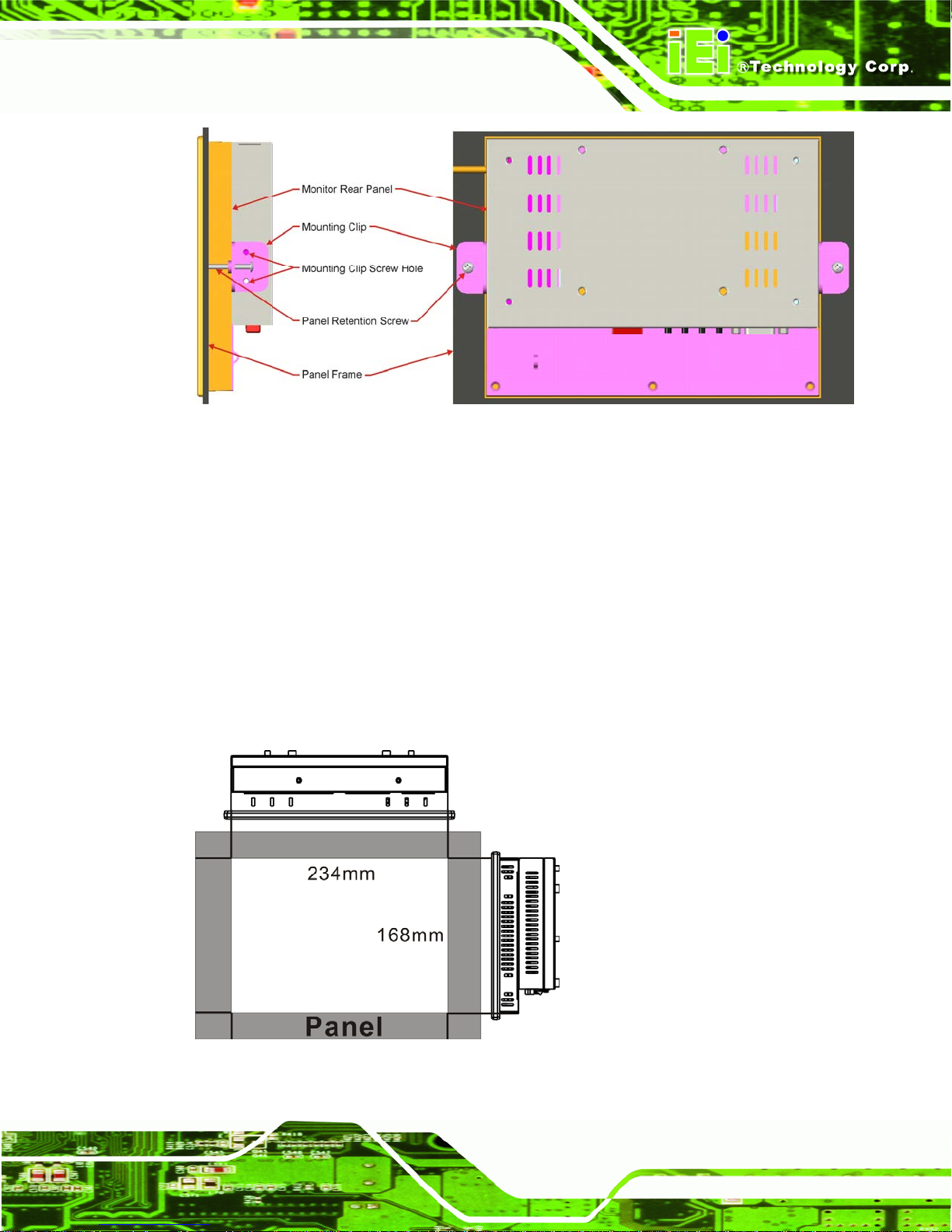

3.12.2.1 PPC-2706 Panel Mounting ..................................................................... 43
3.12.2.2 PPC-2708 Panel Mounting ..................................................................... 45
3.12.3 Arm Mounting ................................................................................................ 46

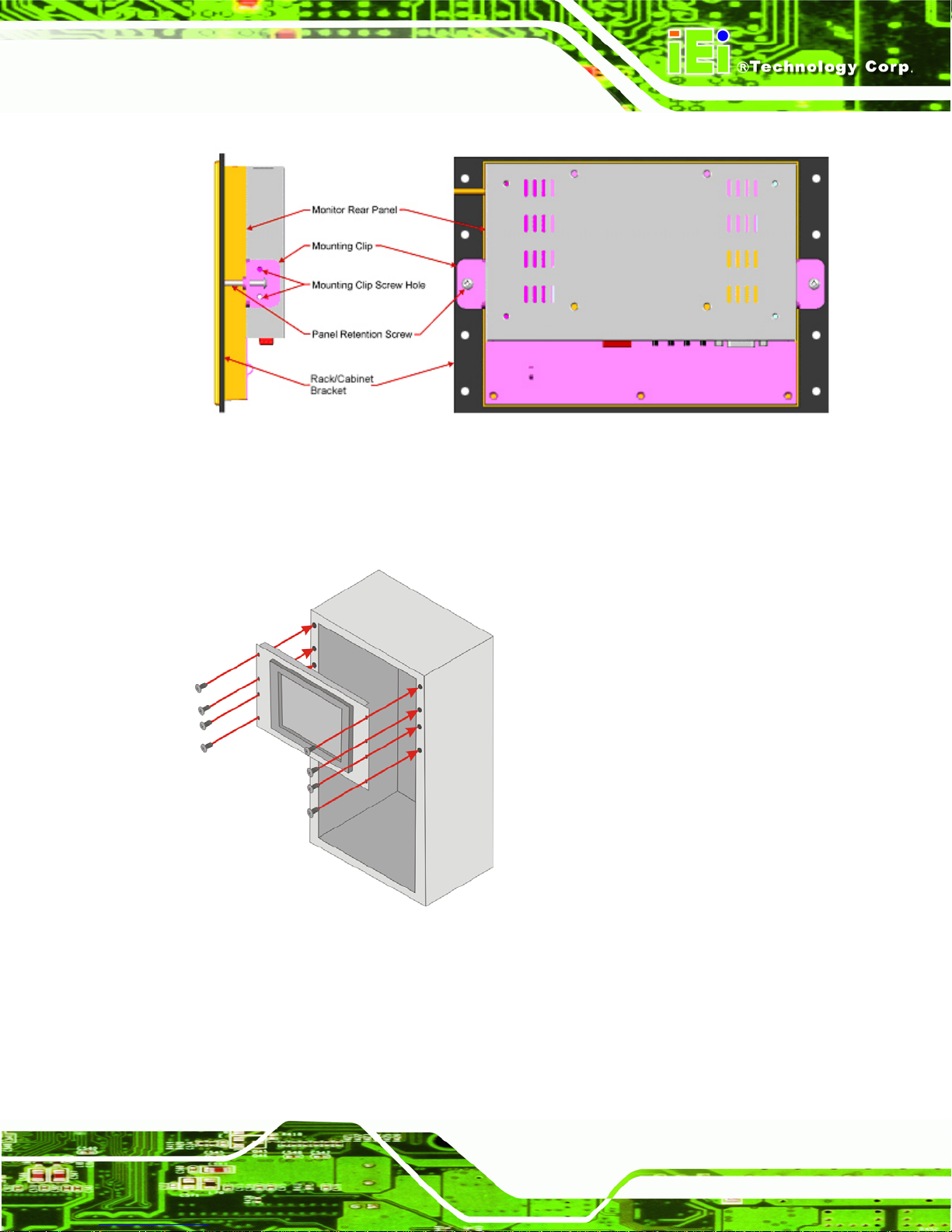

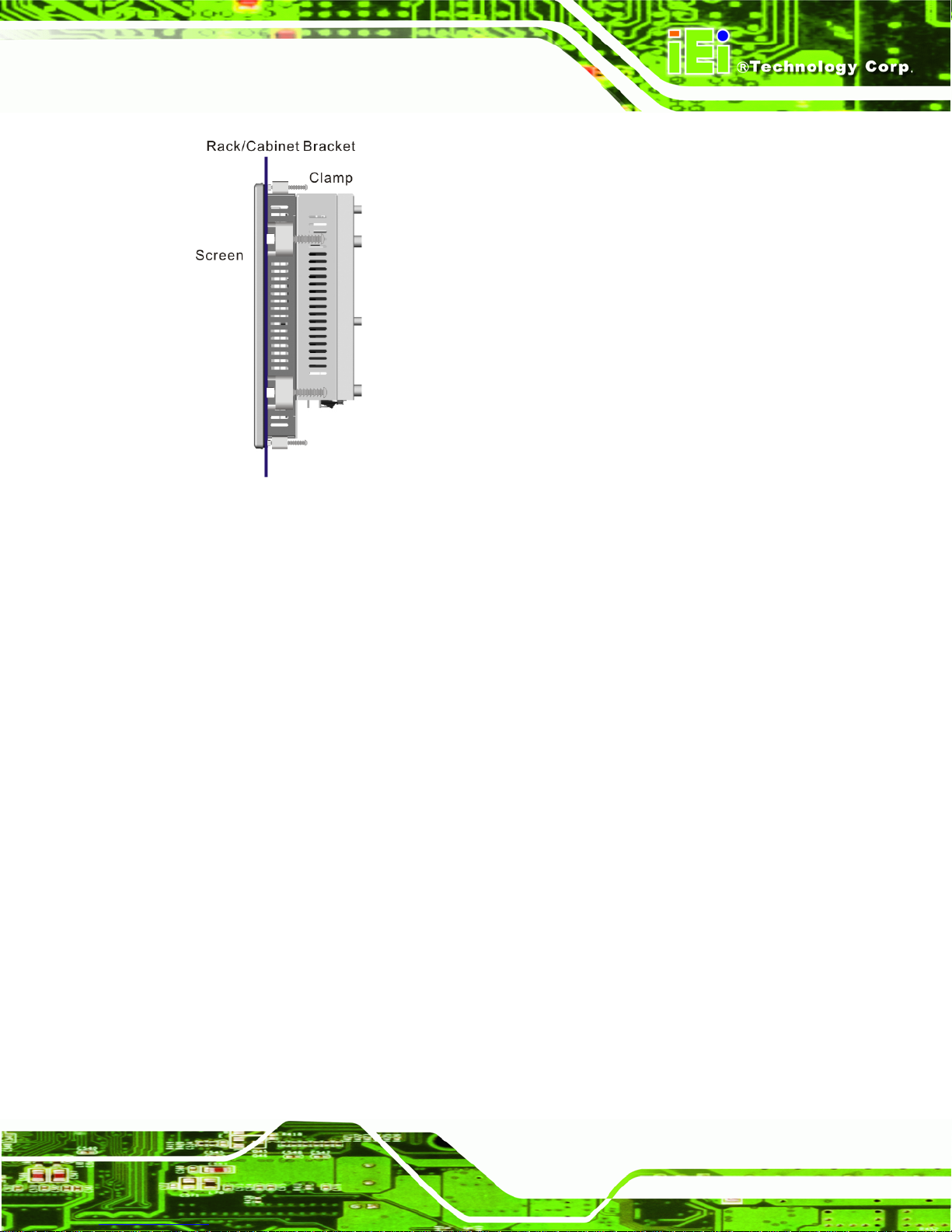

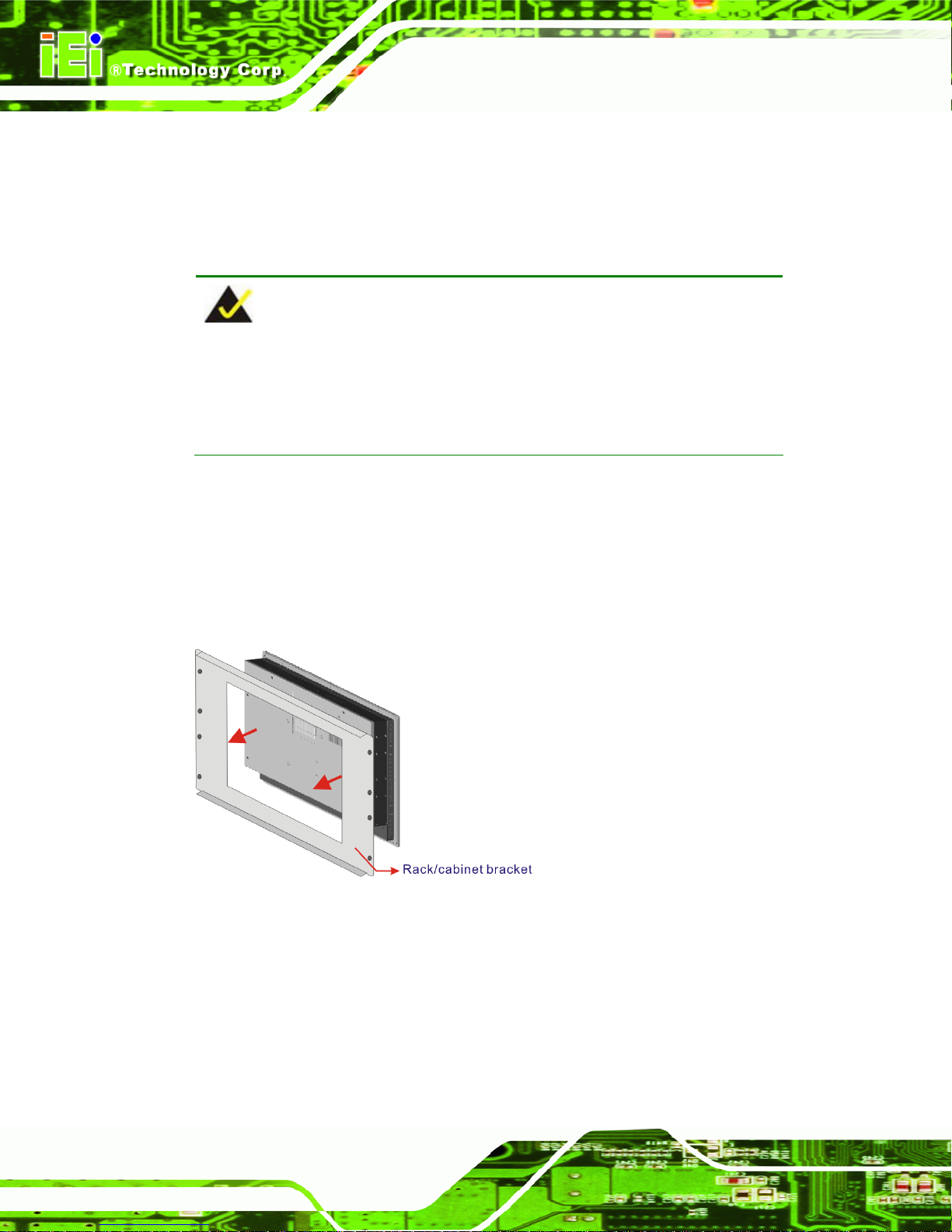

3.12.4 Cabinet and Rack Installation ....................................................................... 48
3.12.4.1 PPC-2706 Cabinet and Rack Installation................................................ 48
3.12.4.2 PPC-2708 Cabinet and Rack Installation................................................ 50

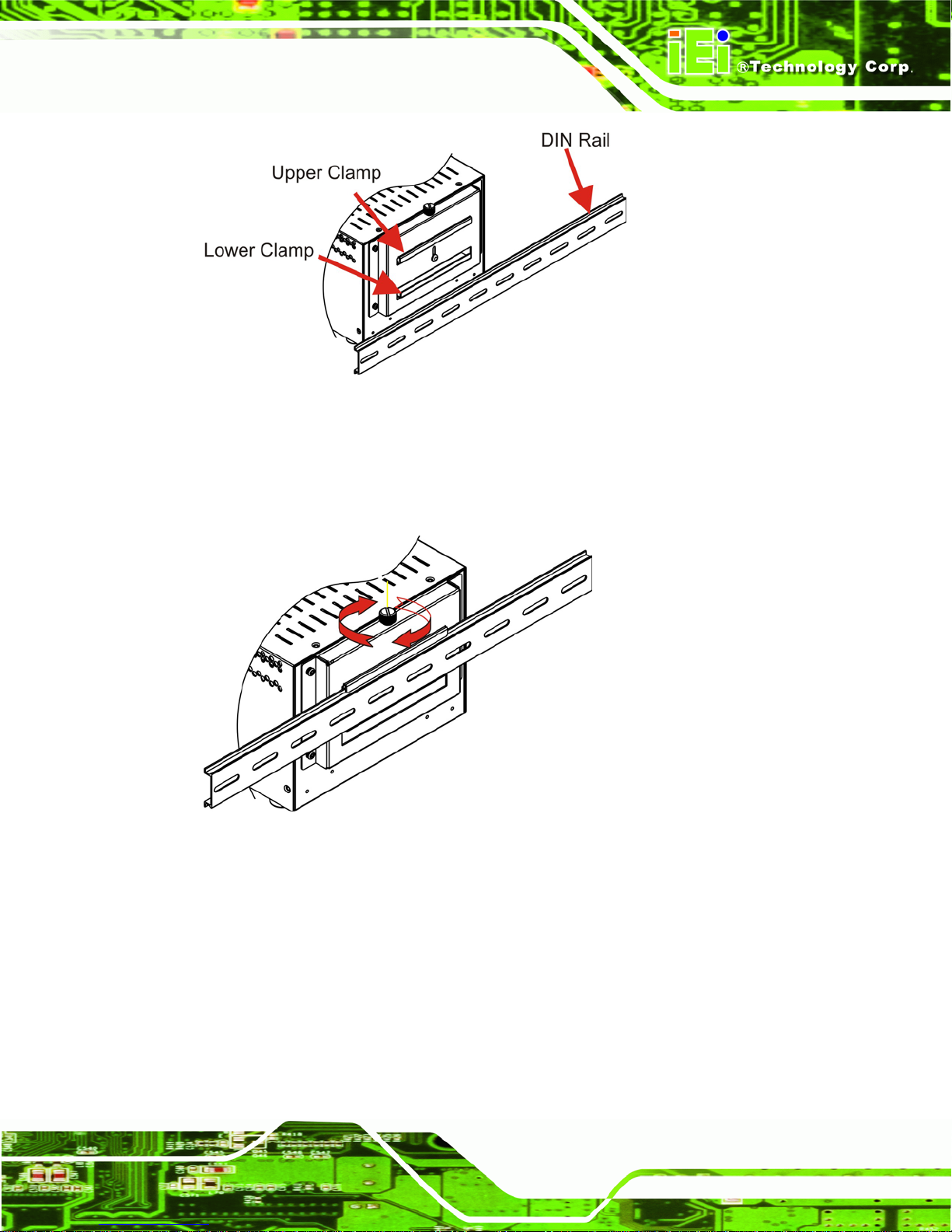

3.12.5 DIN Mounting................................................................................................ 51
3.13 REAR PANEL CONNECTORS .................................................................................... 53
3.13.1 LCD Panel Connection.................................................................................. 53
3.13.2 Ethernet Connection ...................................................................................... 54
3.13.3 USB Connection............................................................................................. 54
3.13.4 Keyboard and Mouse Connection.................................................................. 54
3.14 SYSTEM MAINTENANCE......................................................................................... 54
4 GASKET REPLACEMENT....................................................................................... 55
4.1 GASKET REPLACEMENT ........................................................................................... 56
5 AMI BIOS SETUP....................................................................................................... 57
5.1 INTRODUCTION......................................................................................................... 58
5.1.1 Starting Setup................................................................................................... 58
5.1.2 Using Setup...................................................................................................... 58
5.1.3 Getting Help..................................................................................................... 59
5.1.4 Unable to Reboot After Configuration Changes.............................................. 59
5.1.5 Main BIOS Menu ............................................................................................. 59

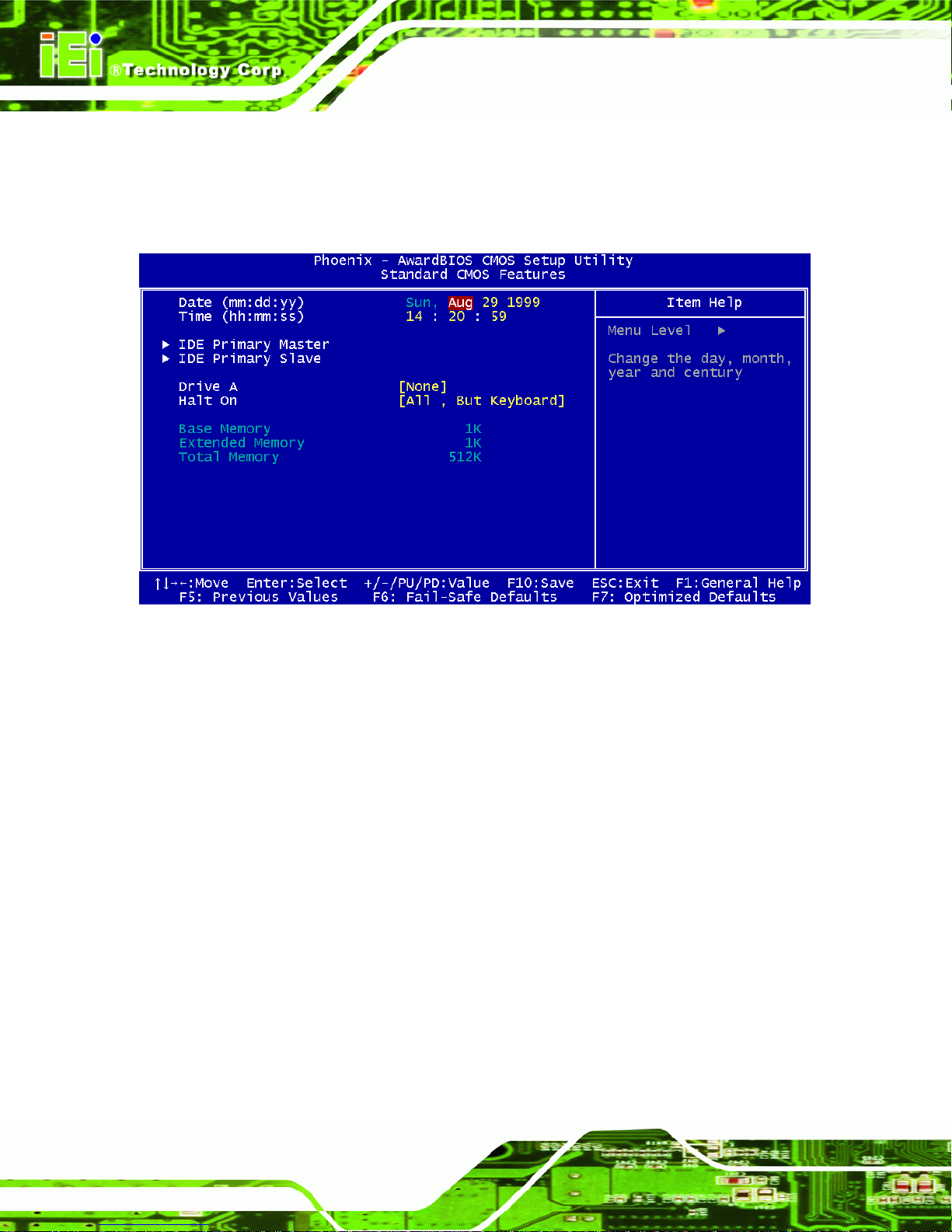

5.2 STANDARD CMOS FEATURES.................................................................................. 62
5.2.1 IDE Primary Master/Slave .............................................................................. 64
5.3 ADVANCED BIOS FEATURES .................................................................................... 66

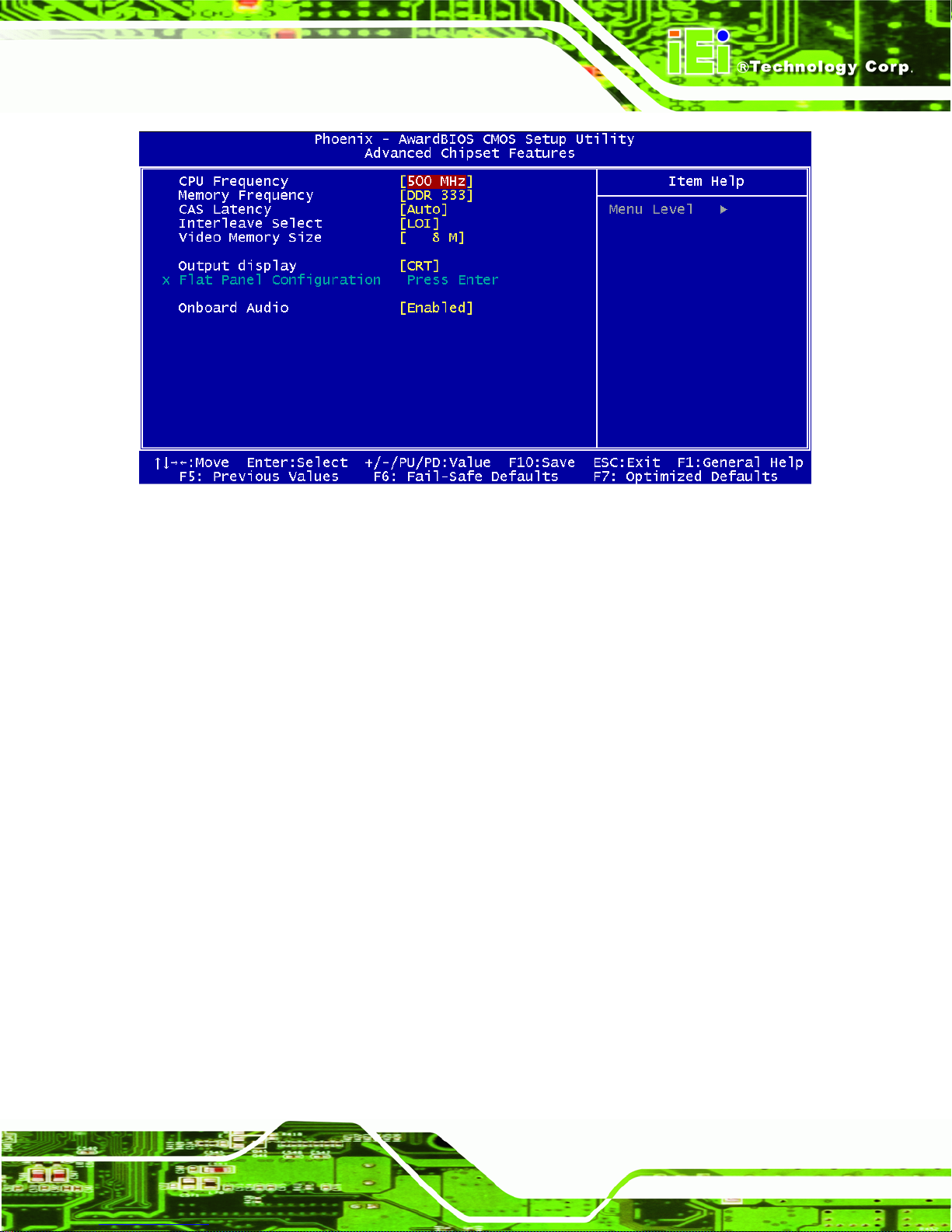

5.4 ADVANCED CHIPSET FEATURES ................................................................................ 72

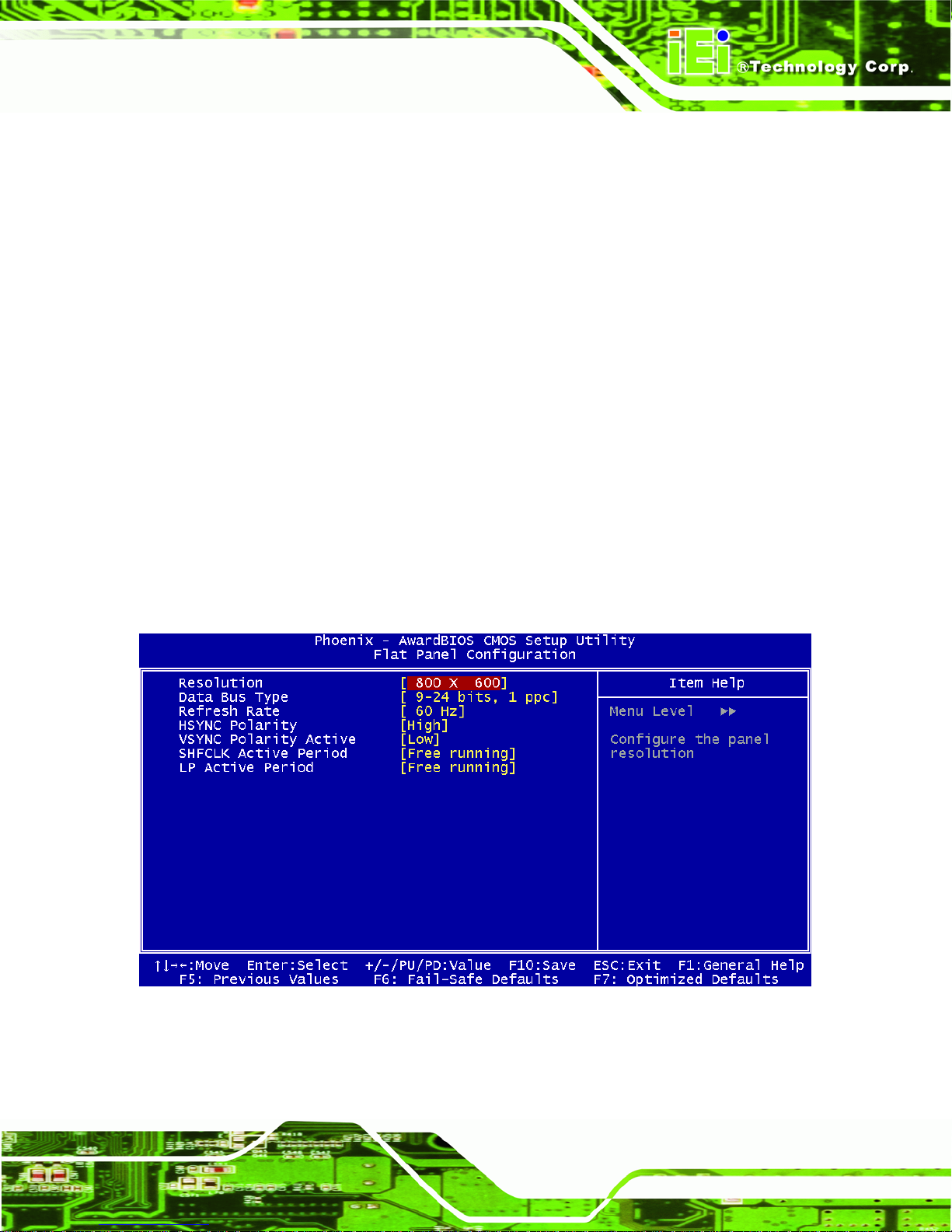

5.4.1 Flat Panel Configuration................................................................................. 75
5.5 INTEGRATED PERIPHERALS....................................................................................... 77
5.5.1 IT8888 ISA Decode IO..................................................................................... 83

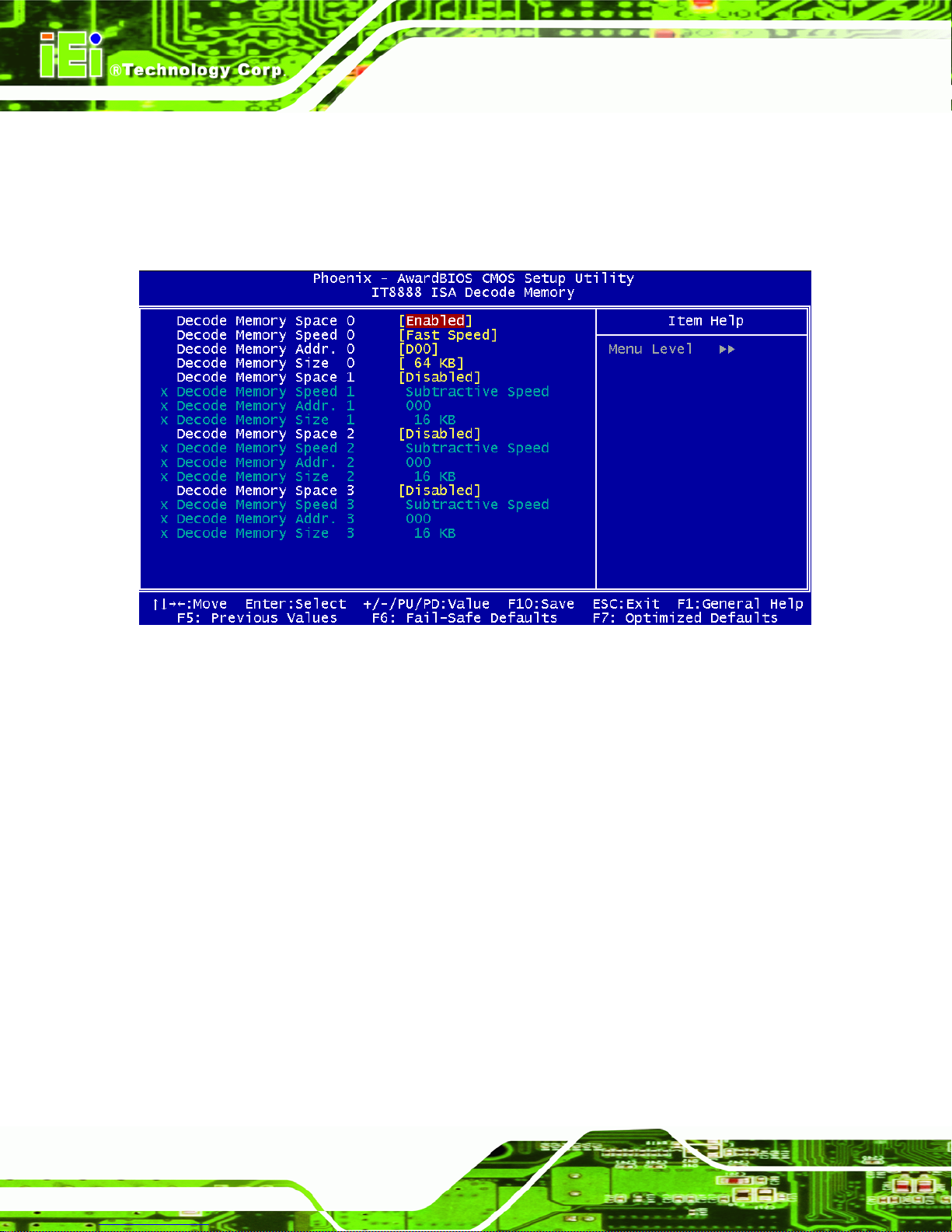

5.5.2 IT8888 ISA Decode Memory............................................................................ 86

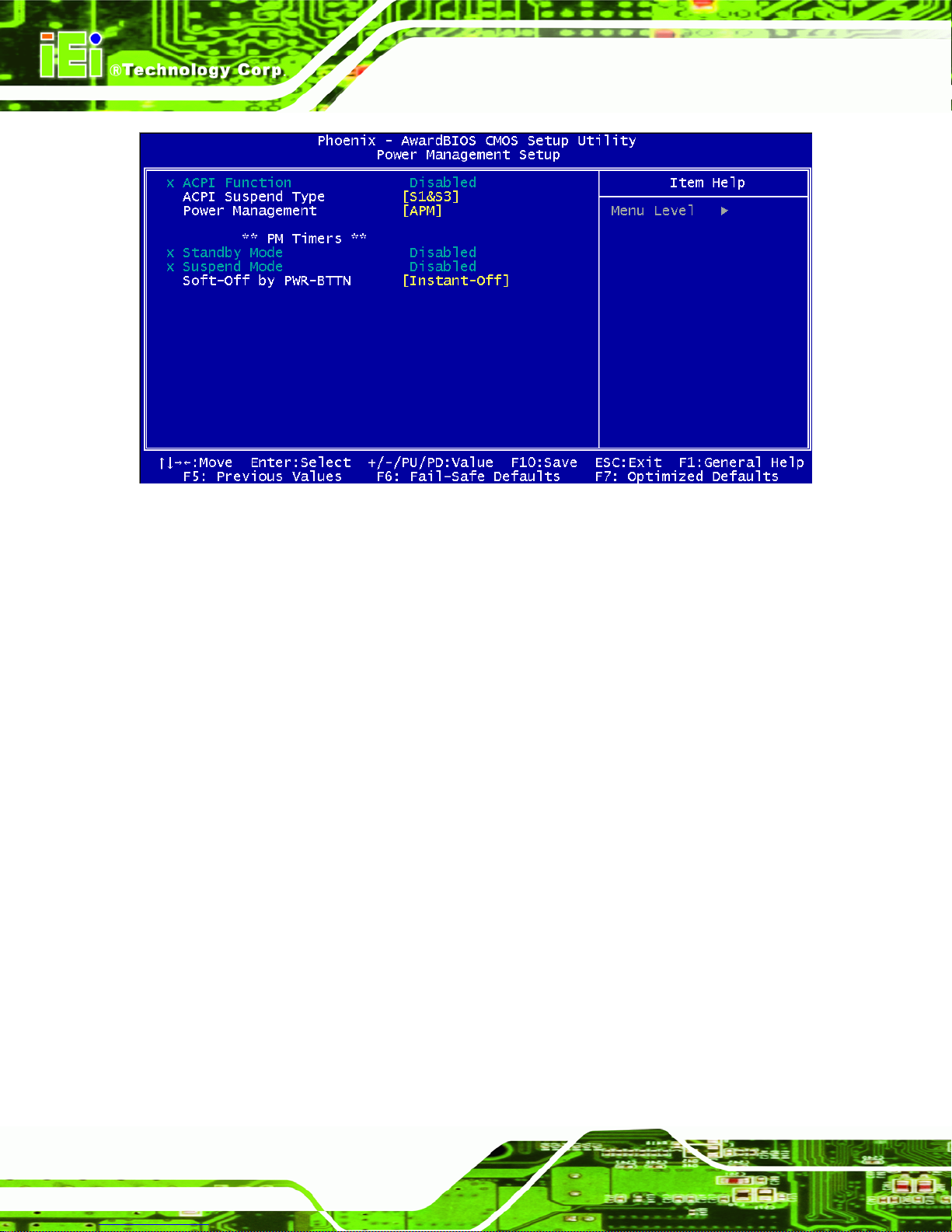

5.6 POWER MANAGEMENT SETUP.................................................................................. 87
5.7 PNP/PCI CONFIGURATIONS...................................................................................... 91
Page VI
Page 7
PPC-2706/PPC-2708 Panel PC
5.8 PC HEALTH STATUS ................................................................................................. 95
A INTERFACE CONNECTORS .................................................................................. 98
A.1 PERIPHERAL INTERFACE CONNECTORS.................................................................... 99
B BIOS CONFIGURATION OPTIONS..................................................................... 106
B.1 BIOS CONFIGURATION OPTIONS ........................................................................... 107
C SAFETY PRECAUTIONS........................................................................................110
C.1 SAFETY PRECAUTIONS............................................................................................111
C.1.1 General Safety Precautions............................................................................111
C.1.2 Anti-static Precautions...................................................................................112
C.1.3 Product Disposal............................................................................................113
C.2 MAINTENANCE AND CLEANING PRECAUTIONS.......................................................113
C.2.1 Maintenance and Cleaning ............................................................................113
C.2.2 Cleaning Tools................................................................................................114
Page VII
Page 8
PPC-2706/PPC-2708 Panel PC
List of Figures

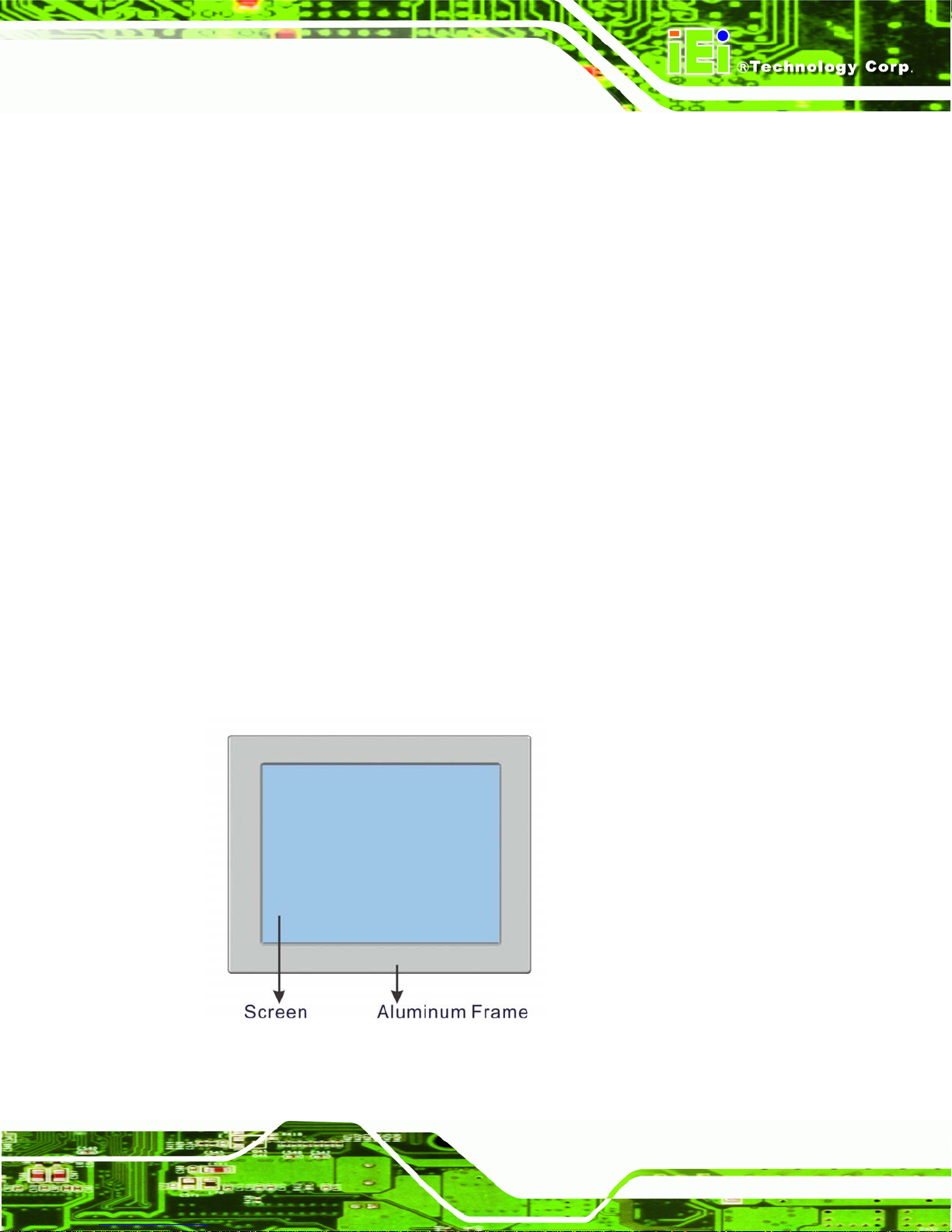

Figure 1-1: PPC-2706/PPC-2708 Front View ................................................................................3

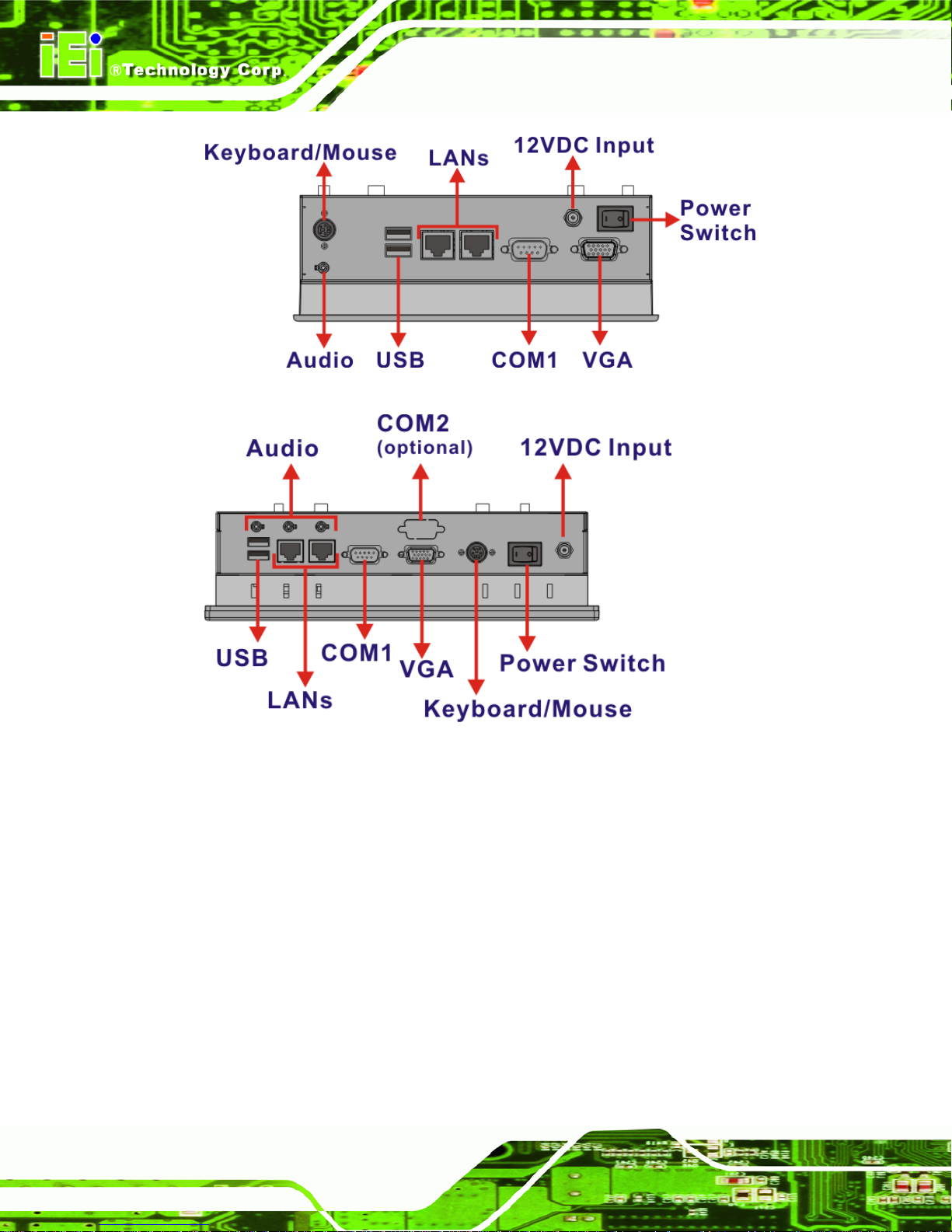

Figure 1-2: PPC-2706 Rear View ...................................................................................................4
Figure 1-3: PPC-2708 Rear View ...................................................................................................4
Figure 1-4: PPC-2706 Top View.....................................................................................................5

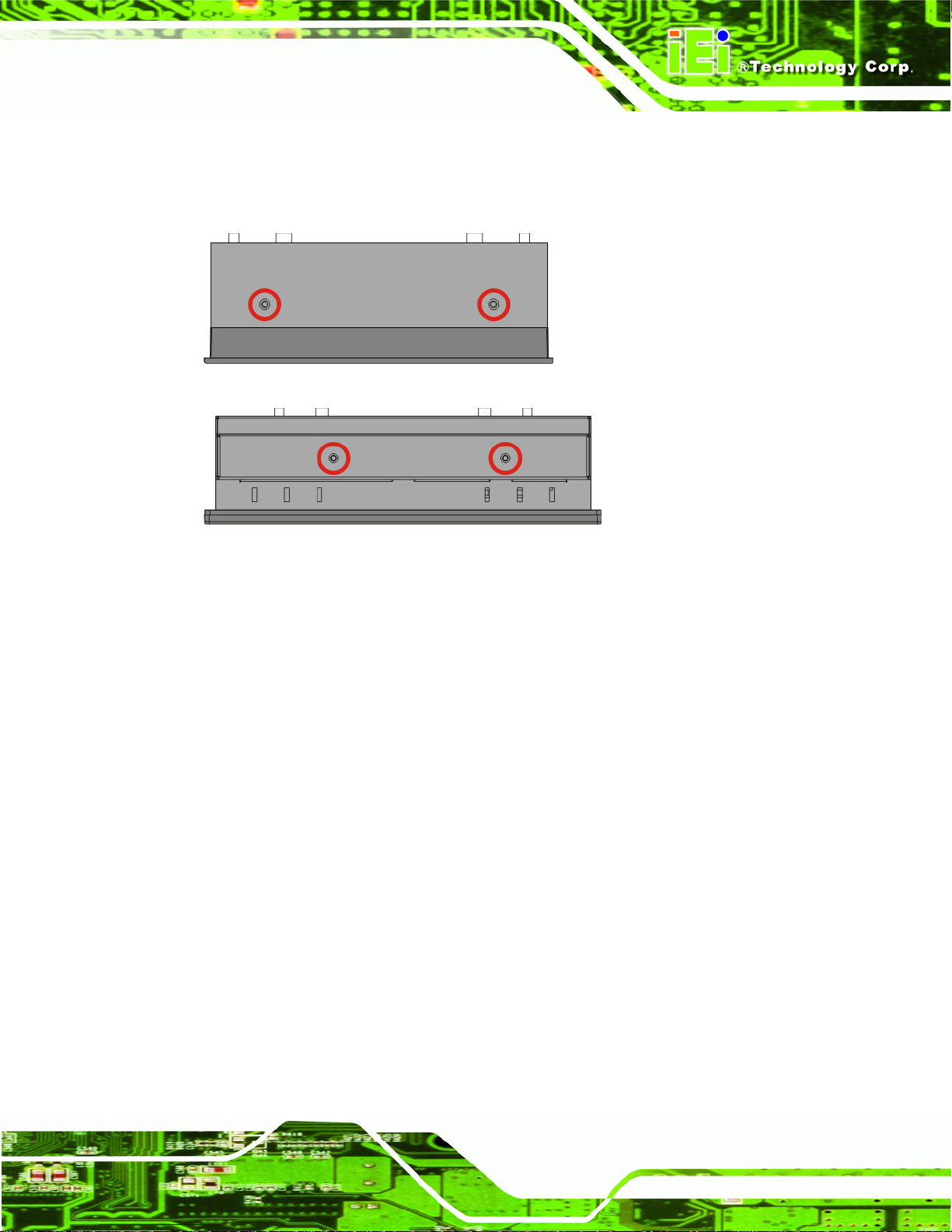

Figure 1-5: PPC-2708 Top View.....................................................................................................5
Figure 1-6: PPC-2706 Bottom View...............................................................................................6
Figure 1-7: PPC-2708 Bottom View...............................................................................................6

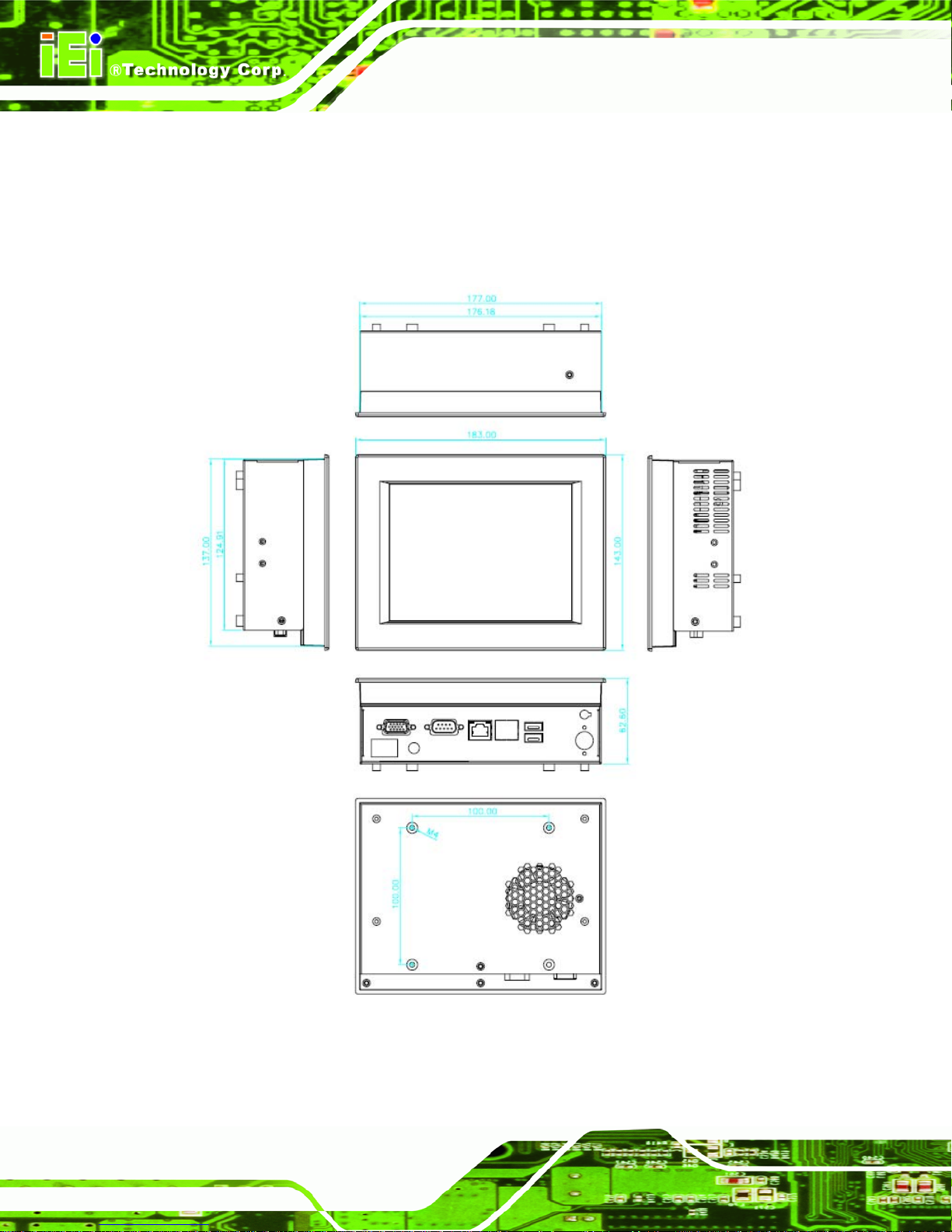

Figure 1-8: PPC-2706 Dimensions (units in mm) ......................................................................12
Figure 1-9: PPC-2708 Dimensions (units in mm) ......................................................................13

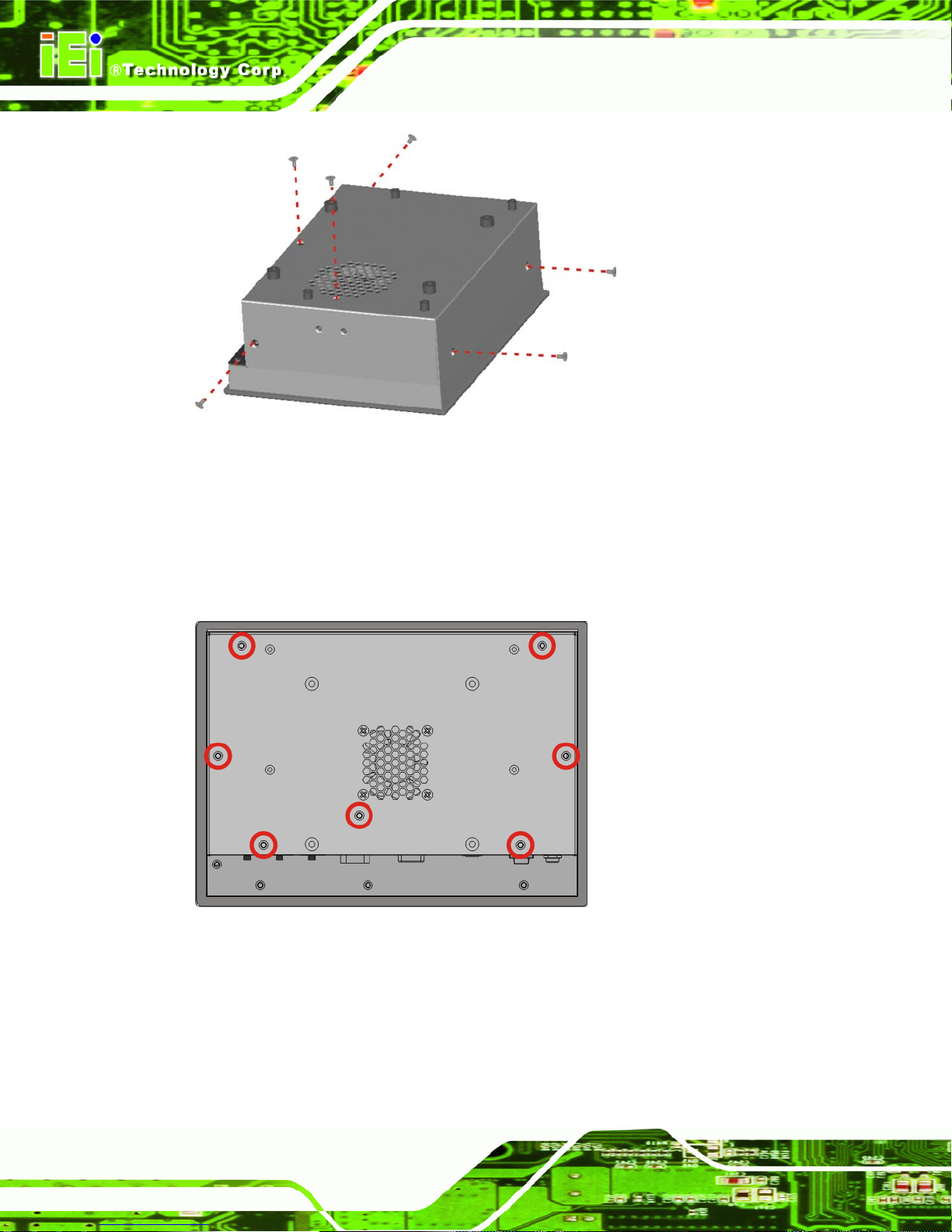

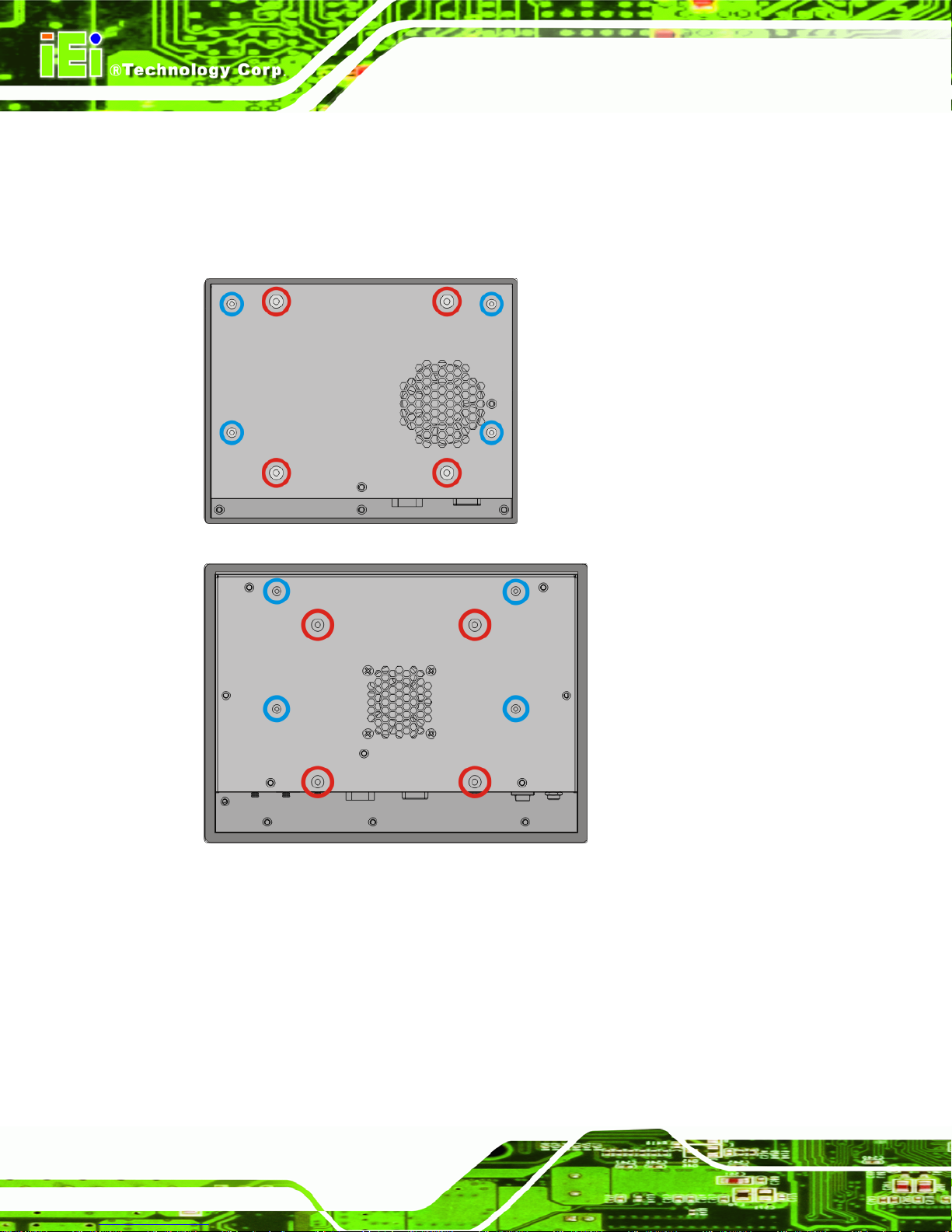

Figure 3-1: PPC-2706 Back Cover Retention Screws ...............................................................24
Figure 3-2: PPC-2708 Back Cover Retention Screws (Real Panel)..........................................24

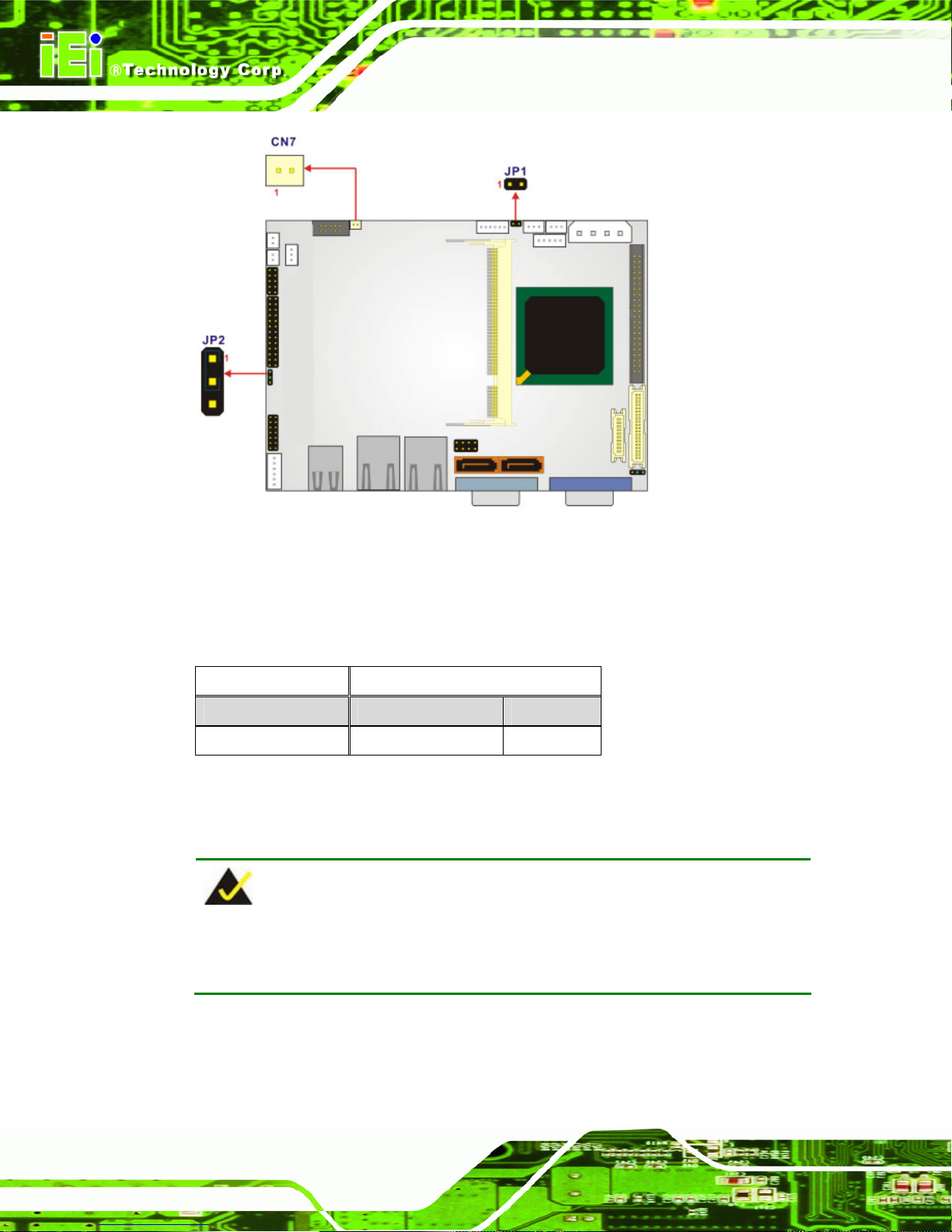

Figure 3-3: Jumper Locations.....................................................................................................26

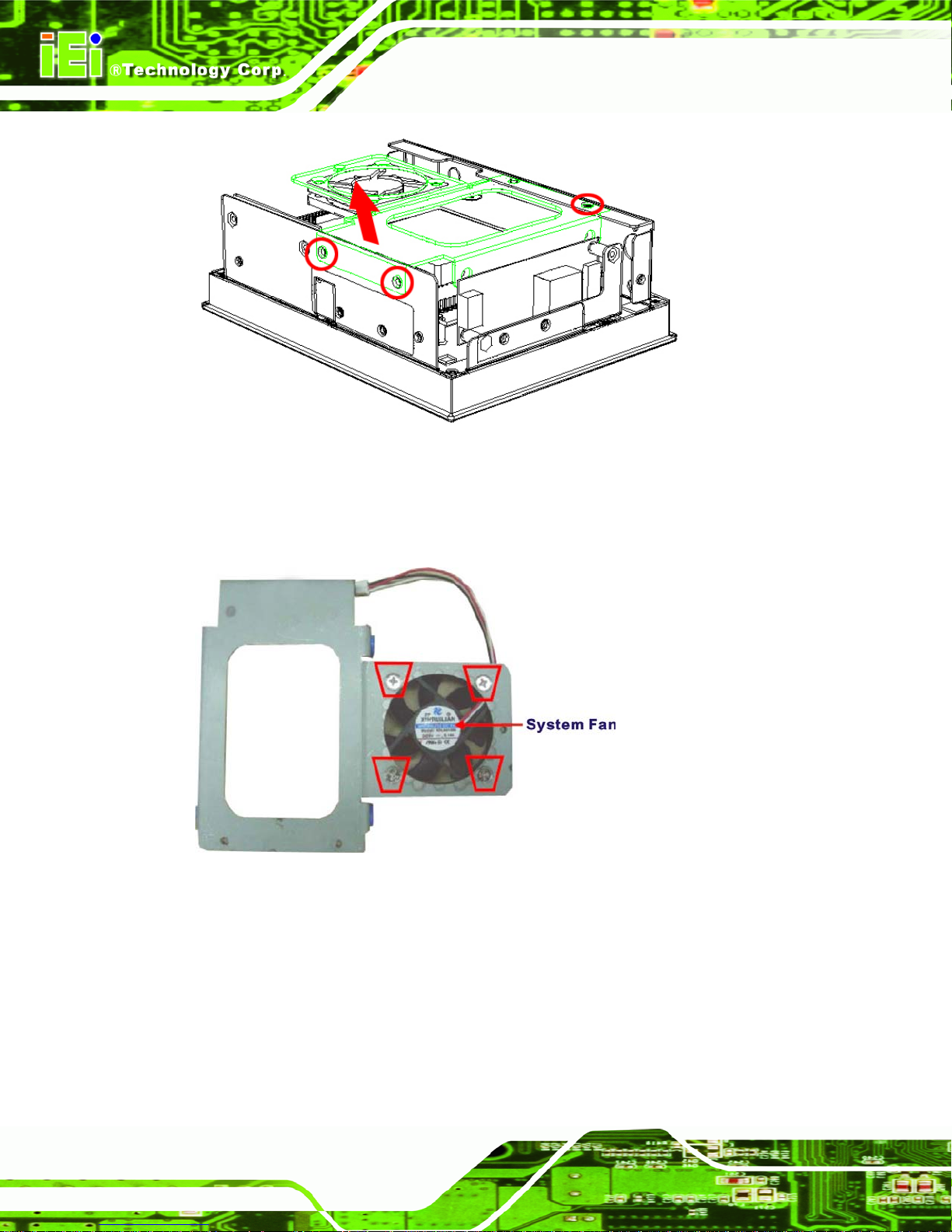

Figure 3-4: PPC-2706 Fan Bracket Removal..............................................................................28

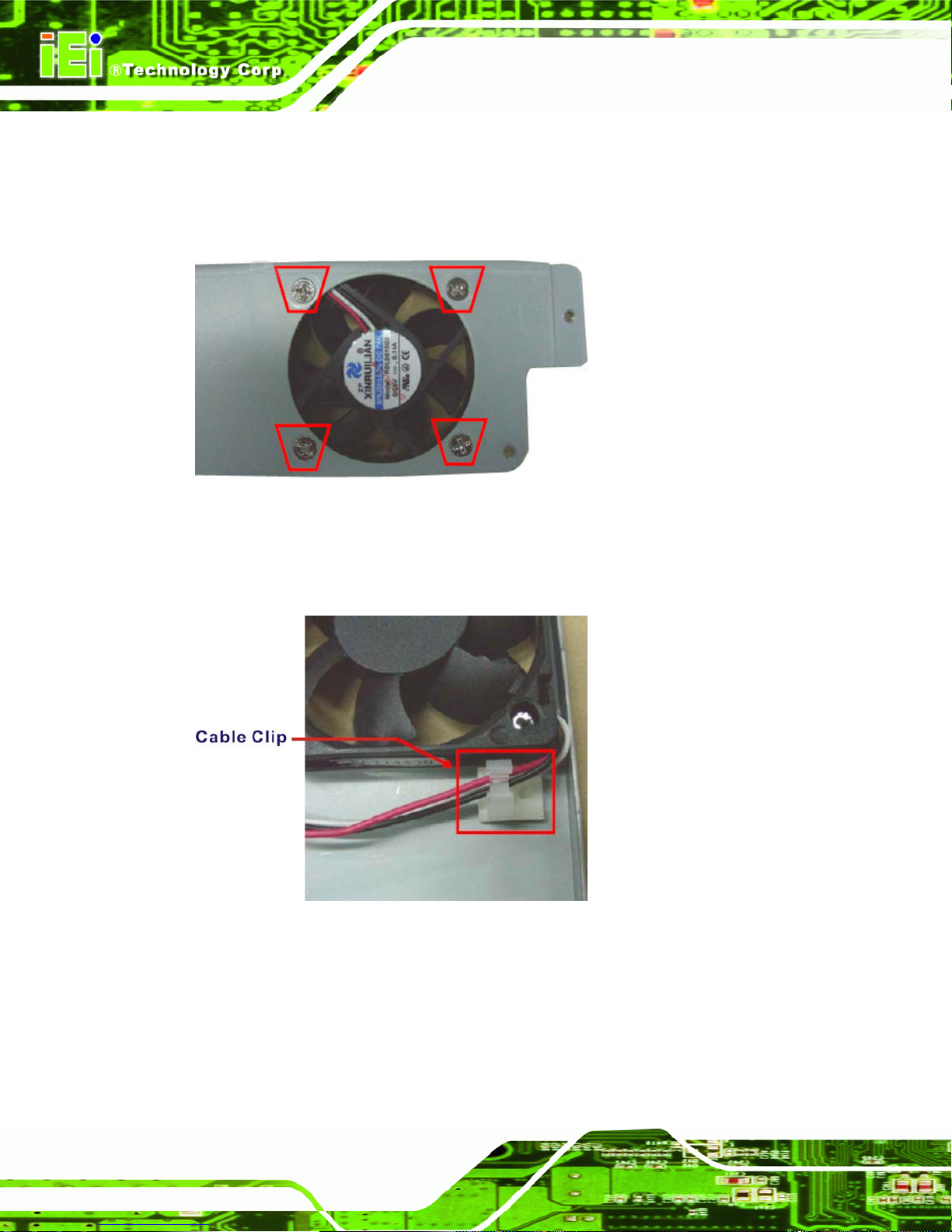

Figure 3-5: PPC-2706 System Fan Installation..........................................................................28

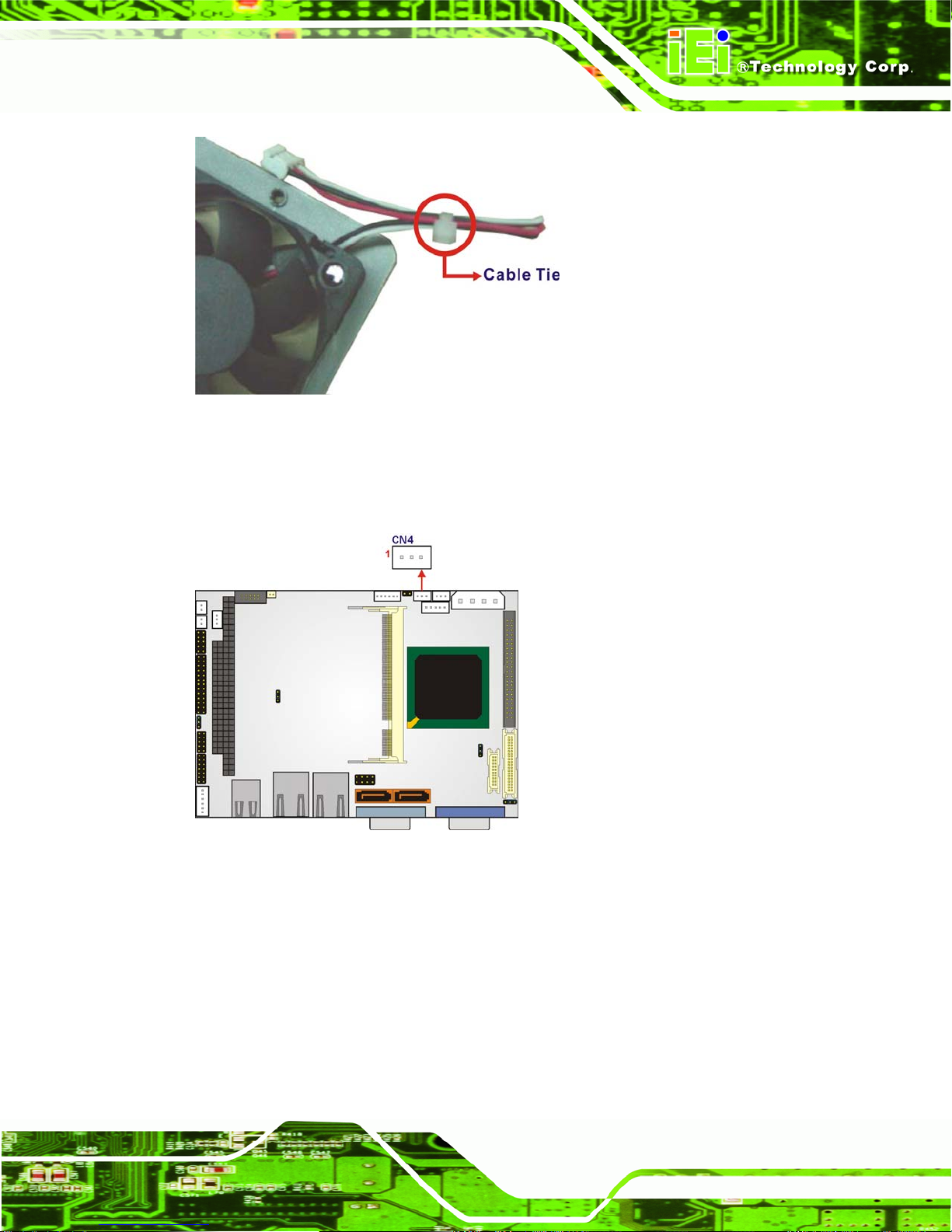

Figure 3-6: PPC-2706 Fan Module Cables..................................................................................29

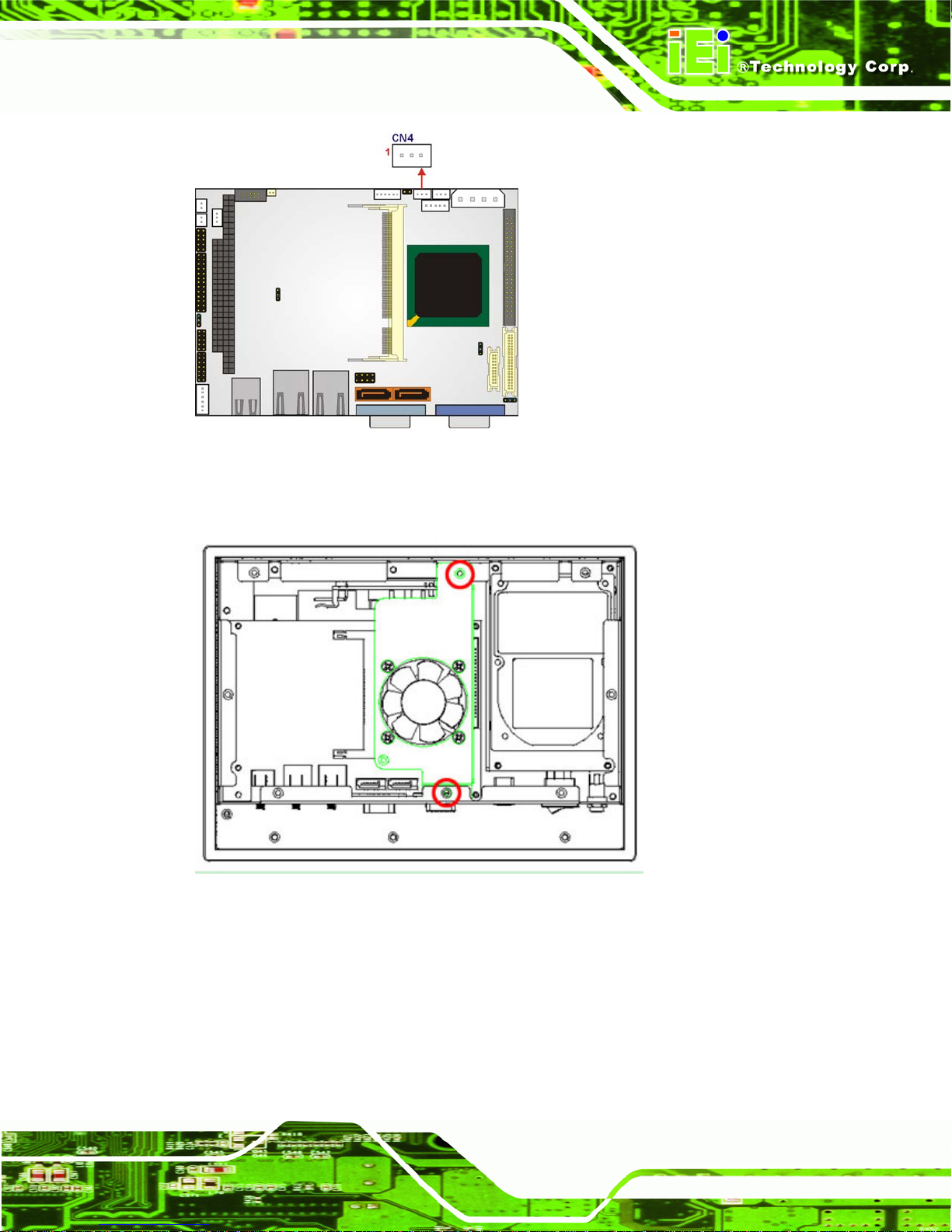

Figure 3-7: PPC-2706 Fan Connector Location.........................................................................29
Figure 3-8: PPC-2708 System Fan Installation..........................................................................30
Figure 3-9: PPC-2708 Fan Module Cables..................................................................................30
Figure 3-10: PPC-2706 Fan Connector Location.......................................................................31
Figure 3-11: PPC-2708 Fan Bracket Installation........................................................................31

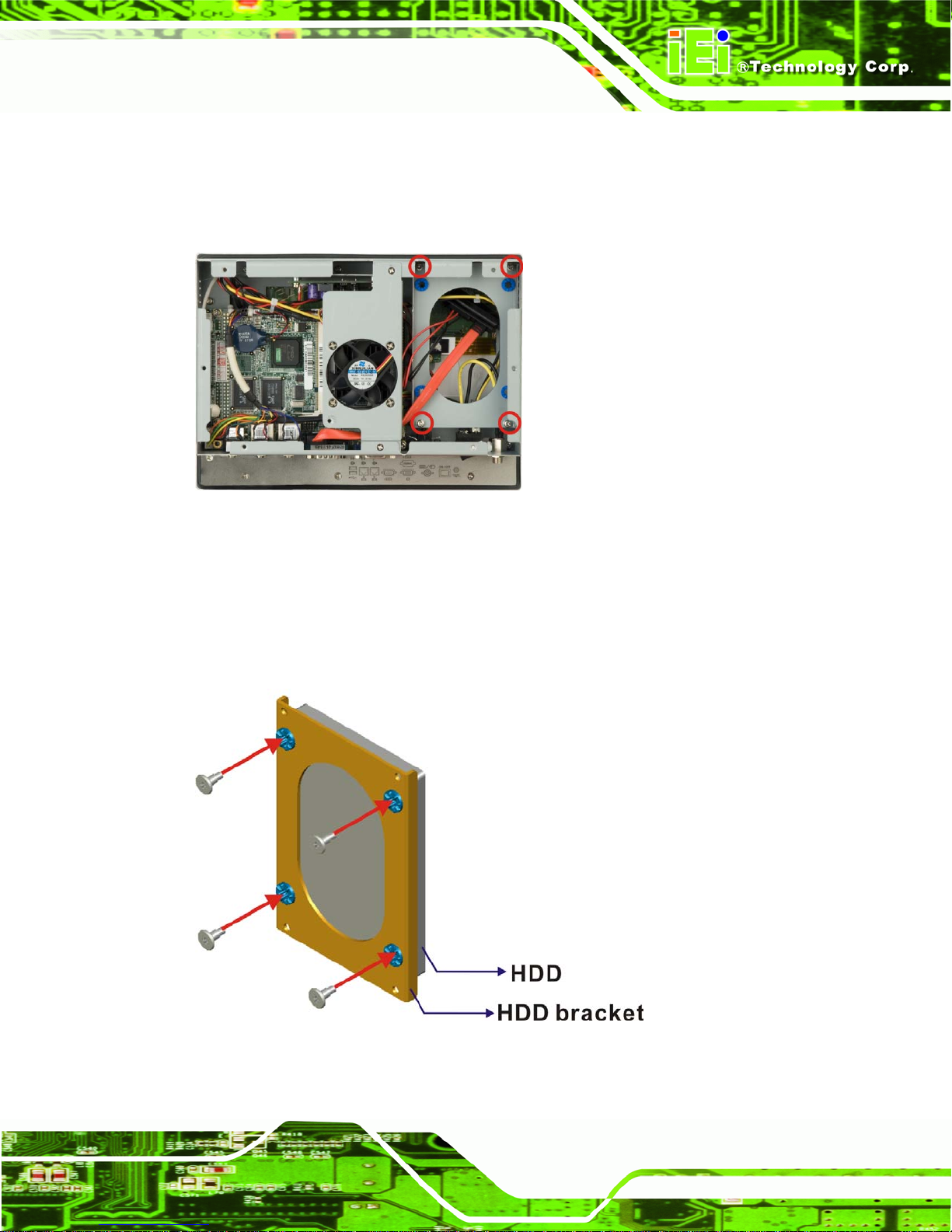

Figure 3-12: PPC-2706 HDD Bracket Retention Screws...........................................................32
Figure 3-13: HDD Bracket Retention Screws.............................................................................33
Figure 3-14: PPC-2708 HDD Bracket Retention Screws...........................................................33

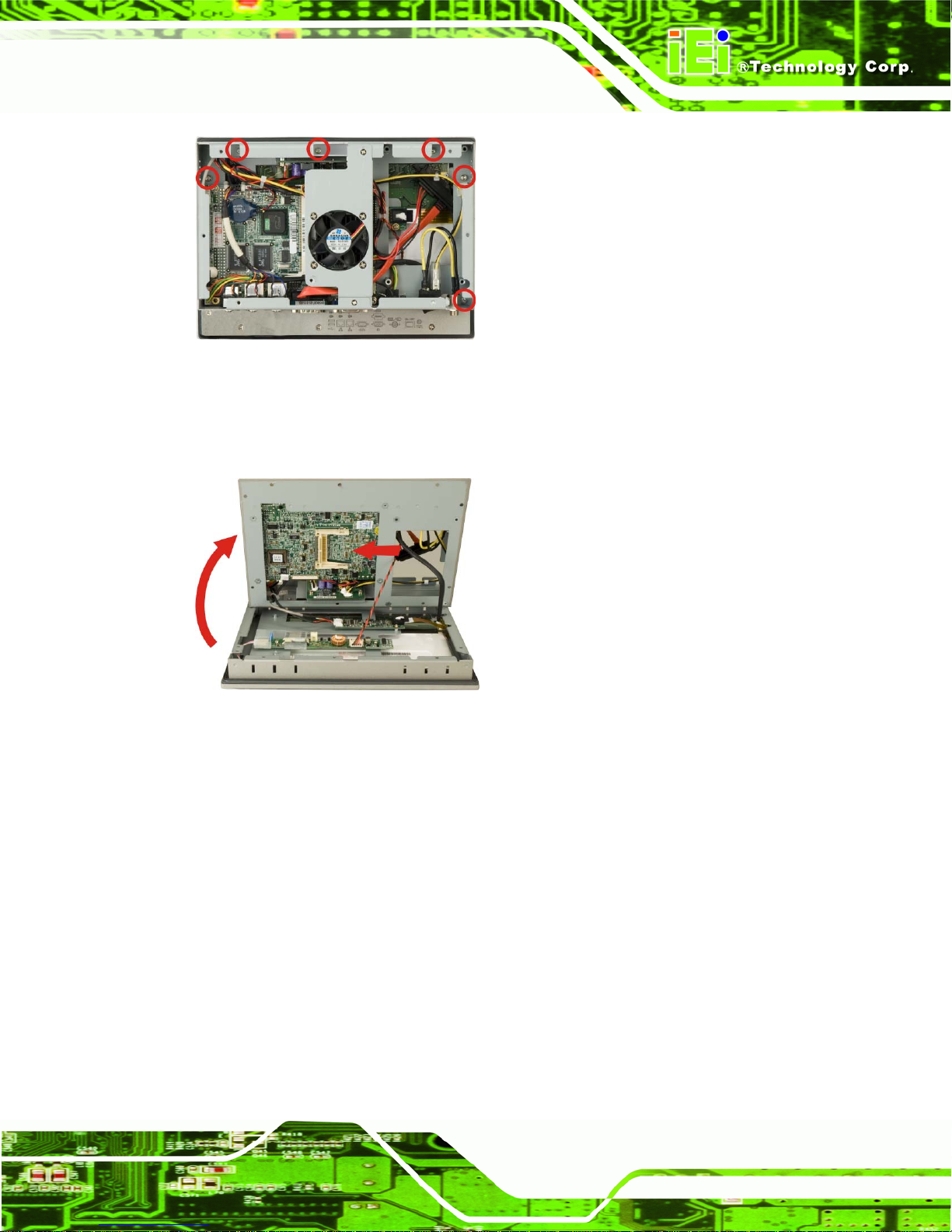

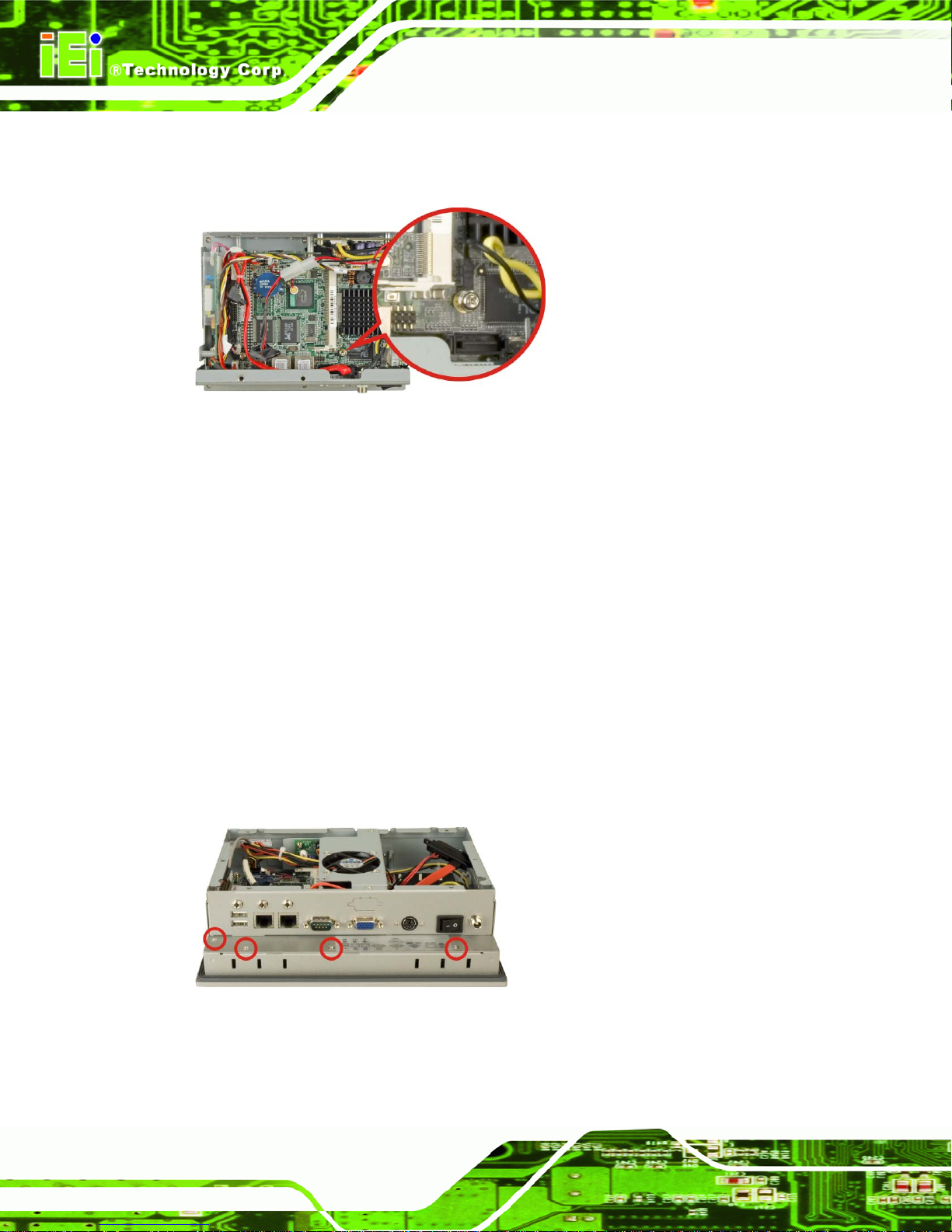

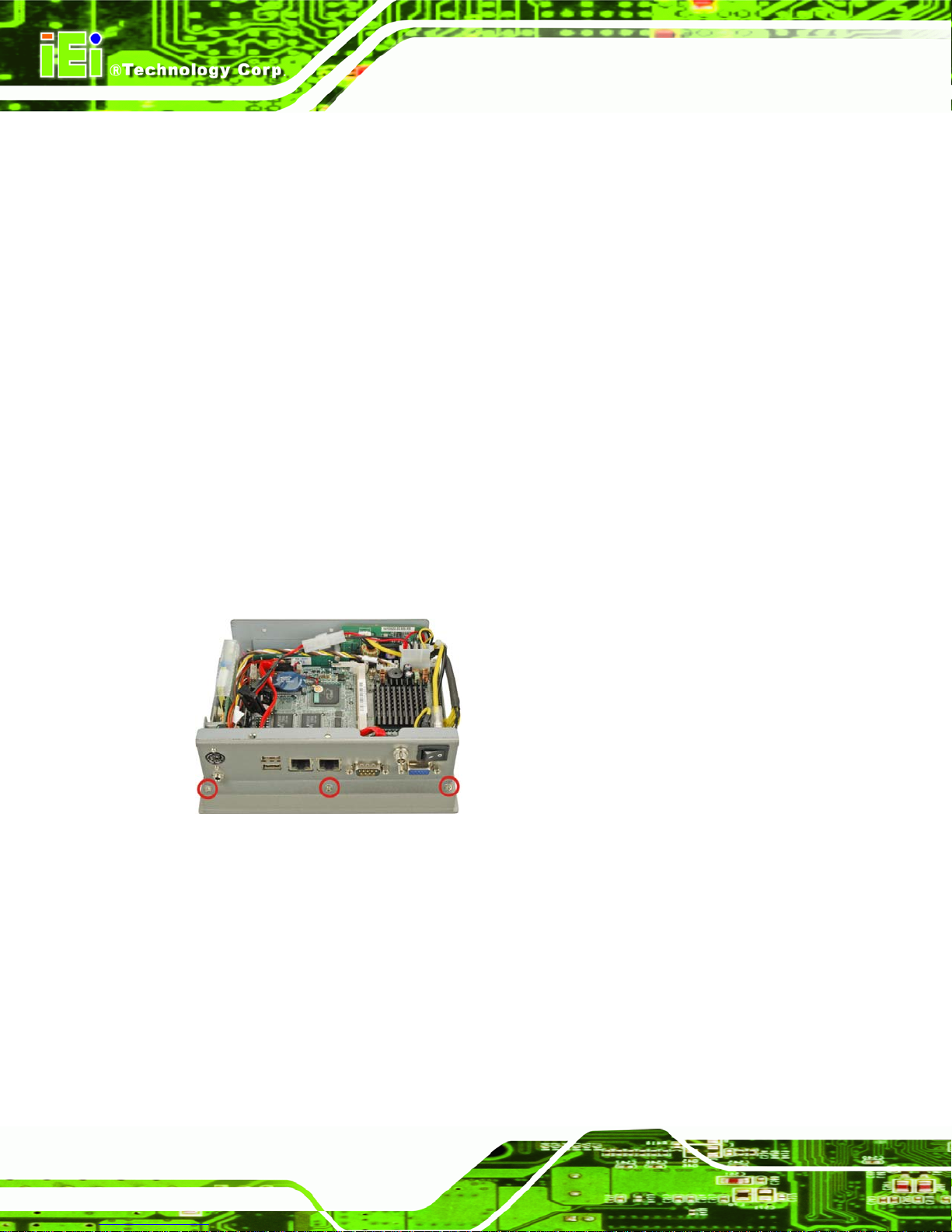

Figure 3-15: PPC-2706 Chassis Retention Screws ...................................................................34

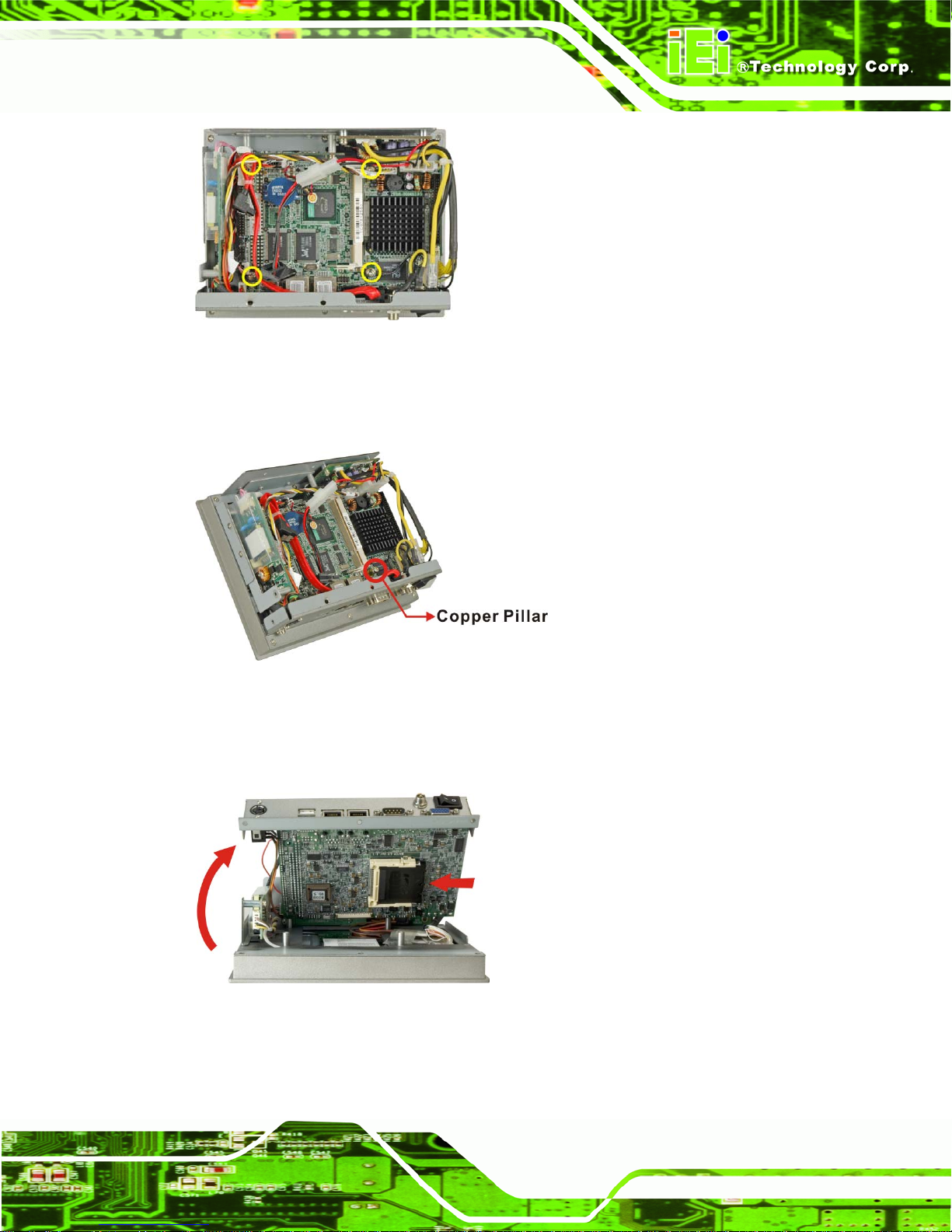

Figure 3-16: PPC-2706 Motherboard Retention Screws...........................................................35
Figure 3-17: PPC-2706 Motherboard Copper Pillar...................................................................35
Figure 3-18: PPC-2706 CF Card Location ..................................................................................35
Figure 3-19: PPC-2706 Grounding Cable ...................................................................................36
Figure 3-20: PPC-2708 Chassis Retention Screws (Bottom Panel).........................................36
Figure 3-21: PPC-2708 Chassis Retention Screws (Inside) .....................................................37
Figure 3-22: PPC-2708 CF Card Location ..................................................................................37
Page VIII
Page 9
PPC-2706/PPC-2708 Panel PC
Figure 3-23: SO-DIMM Module Installation ................................................................................38

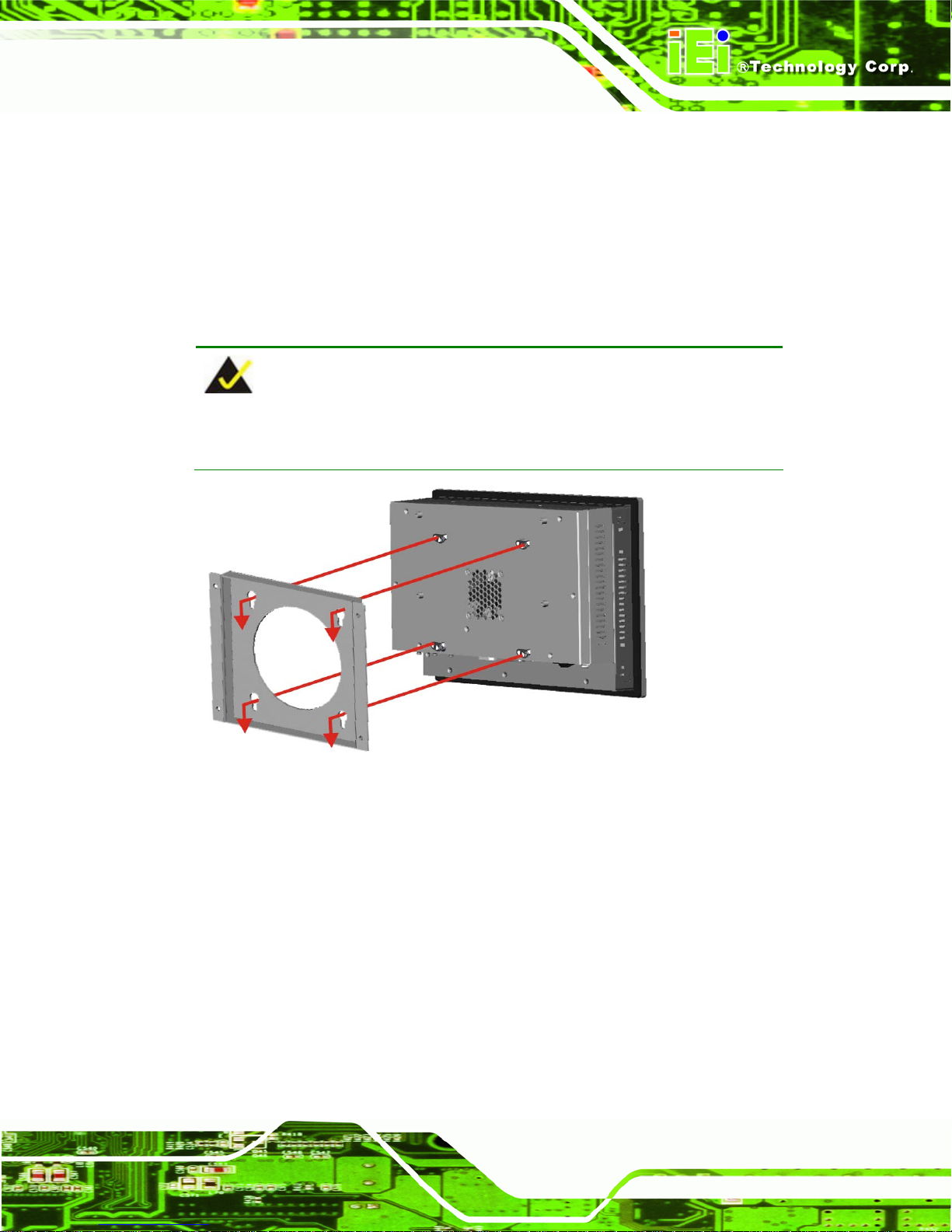

Figure 3-24: Wall-mounting Bracket...........................................................................................42
Figure 3-25: Chassis Support Screws........................................................................................42
Figure 3-26: Mount the Chassis..................................................................................................43

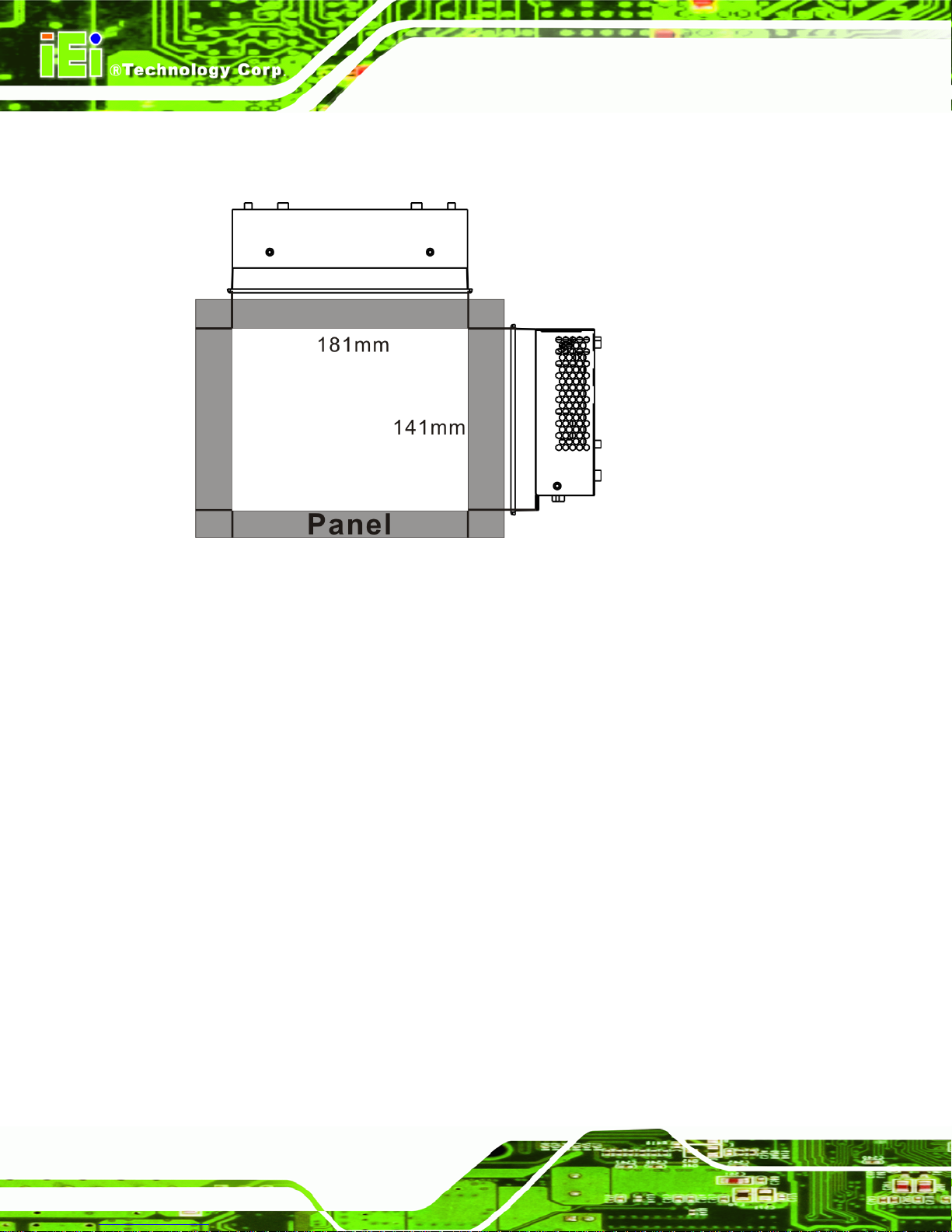

Figure 3-27: PPC-2706 Panel Opening .......................................................................................44

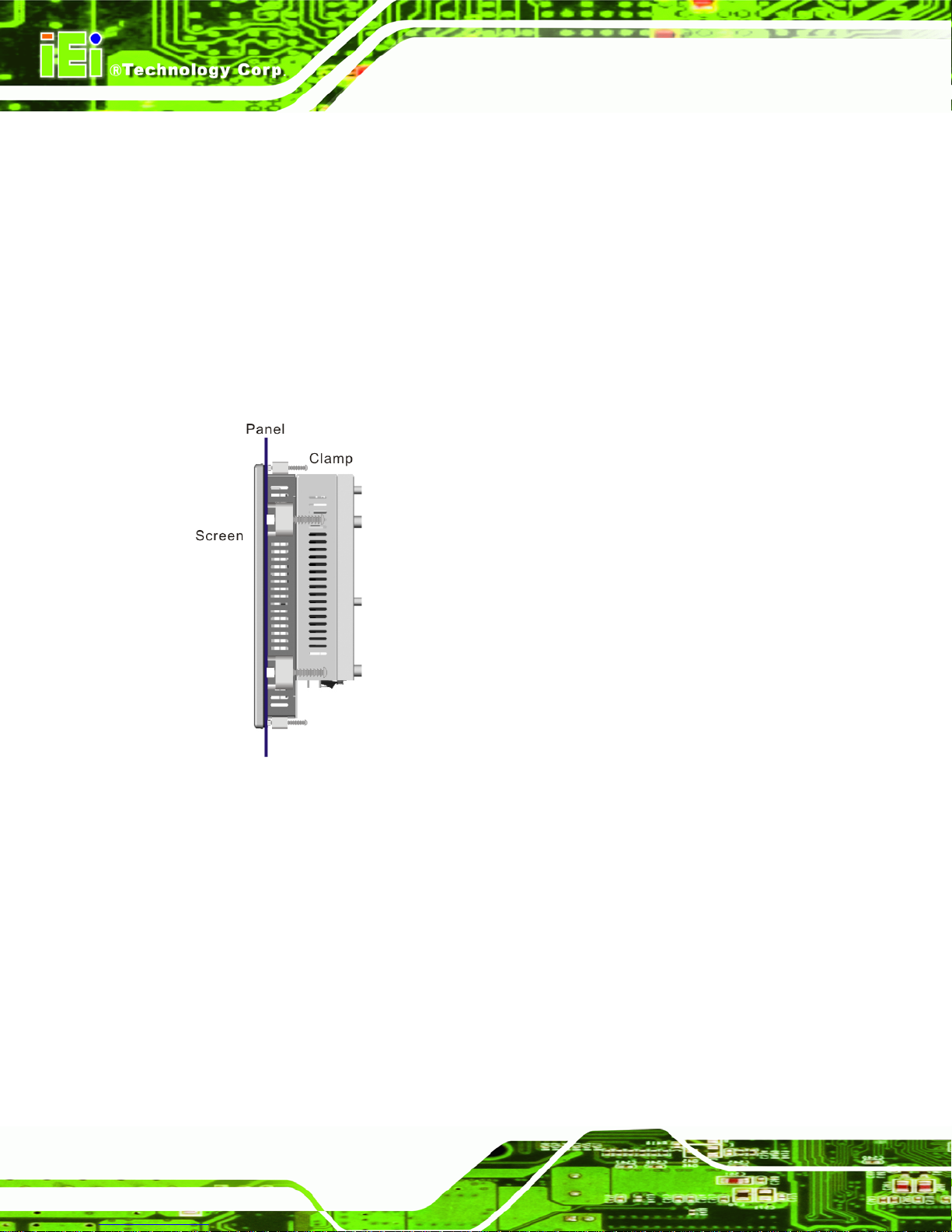

Figure 3-28: PPC-2706 Panel Mounting......................................................................................45
Figure 3-29: PPC-2708 Panel Opening .......................................................................................45
Figure 3-30: Tighten the Panel Mounting Clamp Screws.........................................................46
Figure 3-31: Arm Mounting Retention Screw Holes..................................................................47
Figure 3-32: The Rack/Cabinet Bracket......................................................................................48
Figure 3-33: PPC-2706 Rack and Cabinet Mounting.................................................................49

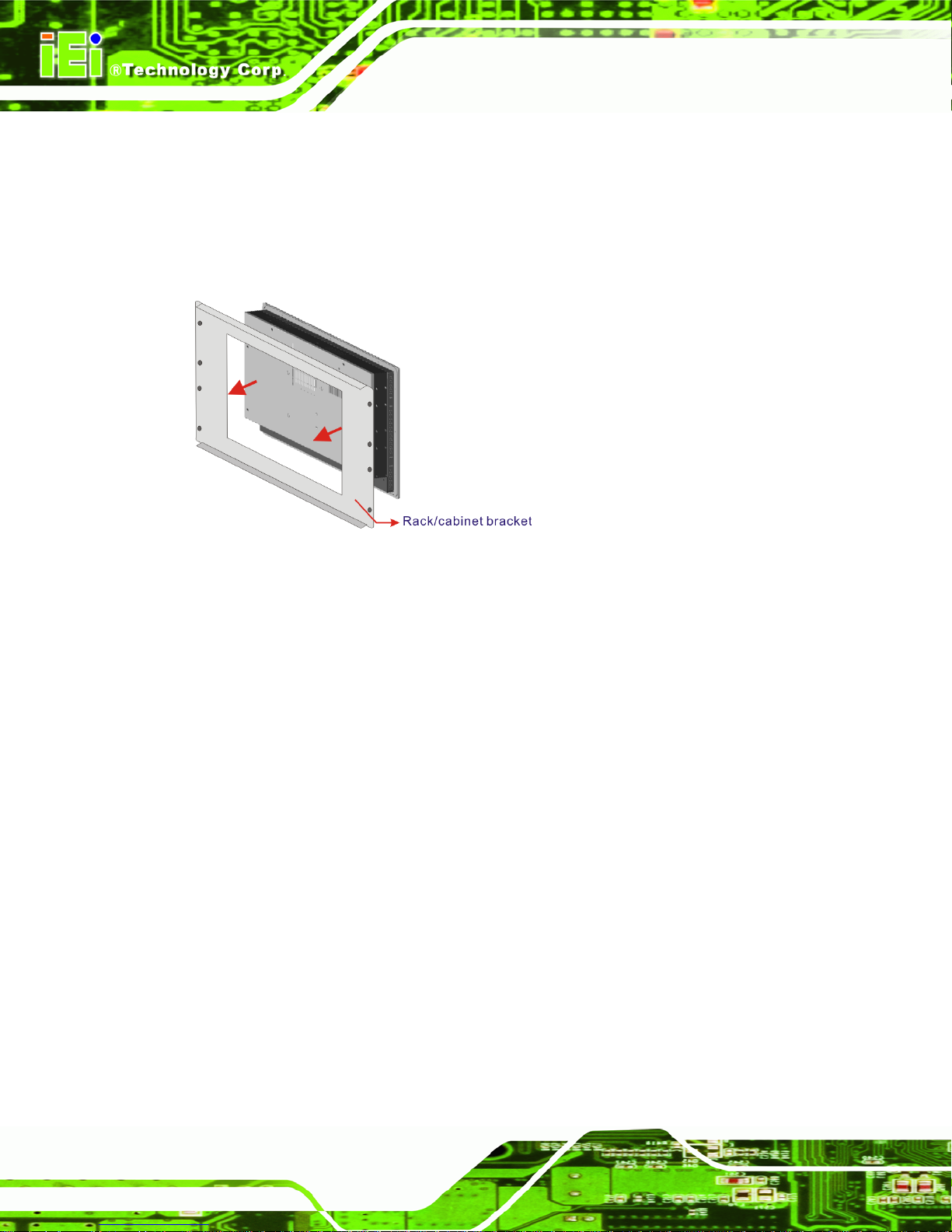

Figure 3-34: Install into a Rack/Cabinet .....................................................................................49
Figure 3-35: The Rack/Cabinet Bracket......................................................................................50
Figure 3-36: Secure the Rack/Cabinet Bracket..........................................................................51
Figure 3-37: DIN Rail Mounting Bracket.....................................................................................52
Figure 3-38: Screw Locations......................................................................................................52
Figure 3-39: Mounting the DIN RAIL...........................................................................................53
Figure 3-40: Secure the Assembly to the DIN Rail....................................................................53
Figure 4-1: Gasket Replacement.................................................................................................56
Page IX
Page 10
PPC-2706/PPC-2708 Panel PC
List of Tables
Table 1-1: PPC-2706 and PPC-2708 Model Variations................................................................2
Table 1-2: PPC-2706/PPC-2708 Specifications............................................................................8
Table 1-3: Motherboard Specifications ........................................................................................9
Table 1-4: 6.5” TFT LCD Monitor Specifications.......................................................................10
Table 1-5: 8.4” TFT LCD Monitor Specifications.......................................................................11
Table 3-1: AT Power Select Jumper Settings ............................................................................26
Table 3-2: Clear CMOS Jumper Settings....................................................................................27
Table 3-3: COM3 Setup Jumper Settings...................................................................................27
Table 5-1: BIOS Navigation Keys................................................................................................59
TableeA-1: AT Power Connector (CN1) Pinouts........................................................................99
TableeA-2: ATX Power Connector (CN2) Pinouts.....................................................................99
TableeA-3: ATX Power Button Connector (CN13) Pinouts.......................................................99
TableeA-4: Audio Connector (CN8) Pinouts..............................................................................99
TableeA-5: Battery Connector (CN7) Pinouts......................................................................... 100
TableeA-6: Compact Flash Connector (CN32) Pinouts ......................................................... 100
TableeA-7: Fan Connector (CN4) Pinouts............................................................................... 101
TableeA-8: FDD Connector (CN31) Pinouts............................................................................ 101
TableeA-9: GPIO Connector (CN14) Pinouts .......................................................................... 101
TableeA-10: Secondary IDE Connector (CN30) Pinouts........................................................ 102
TableeA-11: Inverter Power Connector (CN3) Pinouts.......................................................... 102
TableeA-12: Keyboard/Mouse Connector (CN17) Pinouts.................................................... 103
TableeA-13: LED Connector (CN5) Pinouts............................................................................ 103
TableeA-14: Parallel Port Connector (CN15) Pinouts............................................................ 103
TableeA-15: Reset Button Connector (CN12) Pinouts........................................................... 103
TableeA-16: RS-232/422/485 Serial Port Connector (CN16) Pinouts.................................... 104
TableeA-17: SATA Drive Connector (CN23 & CN25) Pinouts ............................................... 104
TableeA-18: TFT LCD LVDS Port Connector (CN29) Pinouts............................................... 104
TableeA-19: TFT LCD TTL Port Connector (CN28) Pinouts .................................................. 105
Page X
Page 11
PPC-2706/PPC-2708 Panel PC
Chapter
1
1 Introduction
Page 1
Page 12
PPC-2706/PPC-2708 Panel PC
1.1 PPC-2706/PPC-2708 Flat Panel PC Overview
The PPC-2706/PPC-2708 flat panel PC is a flexible, multi-functional flat panel PC that can
be applied in diverse operational environments and implemented in multi-faceted
applications. The PPC-2706/PPC-2708 comes fully kitted with a high-performance
motherboard and a host of other peripheral interface connectors. The
PPC-2706/PPC-2708 is designed for ease of use and easy installation.
1.1.1 Model Variations
Three IEI PPC-27xx models are available. All models come with an AMD® Geode LX800
CPU and touch screen. The models are listed in
PPC-2706 CPU LCD Brightness Memory
GS-LX/R/256M
PPC-2708 CPU LCD Brightness Memory
GS-LX/R/256M
GS-LX/R/512M
Table 1-1: PPC-2706 and PPC-2708 Model Variations
AMD® Geode LX800 6.5” 800 cd/m² 256 MB
AMD® Geode LX800 8.4” 450 cd/m² 256 MB
AMD® Geode LX800 8.4” 450 cd/m² 512 MB
Table 1-1.
1.1.2 Applications
The PPC-2706/PPC-2708 flat panel PC is designed for rigorous industrial environments
where it may be exposed to both heat and moisture. Its durability and strength also makes
it an ideal choice for public access computers. Some possible applications include:
Automated manufacturing processes
Public information gathering point
1.1.3 Standard Features
Some of the standard features of the PPC-2706 and PPC-2708 flat panel PC include:
Low power consumption and thermal distribution
AMD® Geode LX-800 processor
Page 2
Page 13
PPC-2706/PPC-2708 Panel PC
DDR 333/400 MHz SO-DIMM memory support up to 1GB
Aluminum die-casting IP65 industrial panel
Dual 10/100Mbps Ethernet support
One CompactFlash
Simplified installation process
RoHS compliance
1.2 External Overview
1.2.1 General Description
The PPC-2706/PPC-2708 flat panel PC is a rectangular cubic structure that comprises of
a screen, rear panel, top panel, bottom panel and two side panels (left and right). An
aluminum frame surrounds the front screen. The rear panel provides screw holes for a
wall-mounting bracket, and a DIN rail mounting bracket. The bottom panel provides
®
Type I/II socket support
access to external interface connectors that include LAN, USB 2.0, audio, VGA port, serial
port, keyboard/mouse connectors and power switch.
1.2.2 Front Panel
The front side of the PPC-2706/PPC-2708 is a flat panel TFT LCD screen surrounded by
an aluminum frame.
Figure 1-1: PPC-2706/PPC-2708 Front View
Page 3
Page 14
1.2.3 Rear Panel
The rear panel provides access to a fan ventilation vent and retention screw holes that
support the wall mounting (circled in red) and DIN rail mounting (circled in blue). Refer to
Figure 1-2 and Figure 1-3.
PPC-2706/PPC-2708 Panel PC
Figure 1-2: PPC-2706 Rear View
Figure 1-3: PPC-2708 Rear View
1.2.4 Top Panel
The top panel of PPC-2706 provides access to two retention screw holes that support to
secure the back cover to the chassis. The retention screw holes are circled in
Figure 1-4
below.
Page 4
Page 15
PPC-2706/PPC-2708 Panel PC
The top panel of PPC-2708 provides access to two retention screw holes that support to
secure the power module to the chassis. The retention screw holes are circled in
1-5 below.
Figure 1-4: PPC-2706 Top View
Figure 1-5: PPC-2708 Top View
1.2.5 Bottom Panel
Figure
The bottom panel of the PPC-2706/PPC-2708 has the following I/O interfaces (Figure 1-6
and
Figure 1-7):
1 x Serial port (COM) connector
1 x PS/2 keyboard/mouse connector
1 x AC power adapter connector
1 x VGA connector
2 x RJ-45 10/100Mbps Ethernet connectors
2 x USB 2.0 connectors
1 x Power switch
Audio jacks
Page 5
Page 16
PPC-2706/PPC-2708 Panel PC
Figure 1-6: PPC-2706 Bottom View
Figure 1-7: PPC-2708 Bottom View
1.3 Internal Overview
The PPC-2706/2708 internal components are configured in a two level format. The
motherboard and 2.5” HDD are installed on a metal sheet that protects the rear of the TFT
LCD screen. Below the metal sheet is a circuit board that is connected to the screen and
the motherboard.
1.4 Specifications
1.4.1 Preinstalled Hardware Components
The PPC-2706/PPC-2708 flat panel PC has the following preinstalled components:
Page 6
Page 17
PPC-2706/PPC-2708 Panel PC
1 x Motherboard
1 x TFT LCD screen
The technical specifications for these components and the system are shown in the
sections below.
1.4.2 System Specifications
The technical specifications for the PPC-2706 and PPC-2708 systems are listed in Table
1-2.
SPECIFICATION PPC-2706 PPC-2708
Front Panel
Chassis
LCD Panel
Resolution
Brightness
Contrast Ratio
Viewing Angle (H-V)
Backlight MTBF
Touch Screen
Drive Bay
I/O
Aluminum Front Panel
Heavy-duty Steel
6.5” TFT LCD 8.4” TFT LCD
640 x 480 (VGA) 800 x 600 (SXGA)
800 cd/m2 450 cd/m2
600:1 600:1
160/140 160/140
50,000 hrs 50,000 hrs
Optional 4-wire resistive type touch screen
One 2.5” SATA/IDE HDD bay
2 x USB 2.0 ports
1 x keyboard/mouse port
2 x USB 2.0 ports
1 x keyboard/mouse port
1 x VGA port
2 x LAN
1 x IDE
2 x SATA
1 x RS-232
1 x Audio jack
1 x VGA port
2 x LAN
1 x IDE
2 x SATA
2 x RS-232 (one for optional
touch screen)
3 x Audio jacks
Page 7
Page 18
SPECIFICATION PPC-2706 PPC-2708
PPC-2706/PPC-2708 Panel PC
Power
Mounting Feature
Color
Operating Temperature
Relative Humidity
Vibration
Shock
Dimension (W x H x D)
Net/Gross Weight
Front Panel Protection
60W AC adapter
-Input: 90-264VAC @ 50/60 Hz
-Output voltage: 12VDC
Panel, Wall, Arm, Stand, Rack or Din
Silver (PANTONE PMS-8001)
-10~50ºC
5 ~ 95%@ºC, non-condensing
5 - 17Hz, 0.1” double amplitude displacement.
17 - 640Hz, 1.5G acceleration, peak to peak.
10G Acceleration, peak to peak (11ms)
183 x 143 x 62.6 mm 244 x 178 x 67 mm
1.4/3.4 Kg 2.2/4.4 Kg
IP65 compliant
Table 1-2: PPC-2706/PPC-2708 Specifications
1.4.3 Motherboard Specifications
The PPC-2706 and PPC-2708 both come with a WAFER-LX motherboard. The technical
specifications of the motherboard are listed in
Specification WAFER-LX
Form Factor
CPU
Southbridge Chipset
Display
TTL/LVDS
3.5” form factor
AMD® Geode™ LX 800 500Mhz
AMD® Geode™ CS5536
CRT integrated in AMDâ Geode™ LX800
18-bit single channel TFT LCD
Table 1-3.
Page 8
Page 19
PPC-2706/PPC-2708 Panel PC
Memory
BIOS
SSD
Super I/O
Audio
LAN
COM
IDE
SA TA
KB/MS
Supports one 1GB DDR 333/400 200-pin SO-DIMM SDRAM
module
Award BIOS
Compact Flash (CF)
W83627EHG
AC'97 Codec Realtek ALC203
10/100 Base-T dual RTL8100C
Two RS-232
One RS-422/485
One 44-pin IDE connects to two Ultra ATA33/66/100 devices
Two SATA connectors with transfer rates up to 1.5Gb/sec
One on-board keyboard/mouse connector
Watchdog Timer
Fan connector
Power Supply
Temperature
Humidity (operating)
Dimensions
Weight (GW/NW)
Table 1-3: Motherboard Specifications
Software programmable 1-255 sec. by supper I/O
One CPU fan connector
+5V ± 5% AT/ATX power support
0ºC - 60ºC
5%~95% non-condensing
145mm x 102mm
670g/230g
1.4.4 Flat Panel Screen
1.4.4.1 PPC-2706 Flat Panel Screen Specifications
The PPC-2706 comes with a 6.5” TFT LCD monitor at the front of the flat panel PC (see
Figure 1-1). The specifications for the LCD monitor are shown in Table 1-4 below.
Page 9
Page 20
SPECIFICATION PPC-2706
Model AUO G65VN01 V2
Size 6.5”
Resolution 640 x 480 (VGA)
Active Area (mm) 132.48 x 99.36
Pixel Pitch (mm) 0.207
Mode TN
View Angel (H/V) 140/120
Brightness (cd/m2) 800
PPC-2706/PPC-2708 Panel PC
Contrast Ratio 600:1
Response Time Rising=15ms, Falling=10ms
Power Consumption (W) 3.86
Supply Voltage (V) 3.3
Backlight LED
Outline Dimensions (mm) 153.0 (H) x 118.0 (V) x 10.9 (D)
Weight (g) 170
Table 1-4: 6.5” TFT LCD Monitor Specifications
Page 10
Page 21
PPC-2706/PPC-2708 Panel PC
1.4.4.2 PPC-2708 Flat Panel Screen Specifications
The PPC-2708 comes with an 8.4” TFT LCD monitor at the front of the flat panel PC (see
Figure 1-1). The specifications for the LCD monitor are shown in Table 1-5 below.
SPECIFICATION PPC-2708
Model AUO-G084SN05 V8
Size 8.4”
Resolution 800 x 600 (SVGA)
Active Area (mm) 170.4 x 127.8
Pixel Pitch (mm) 0.213
Mode TN
Number of Colors 16.2M
Color Saturation (NTSC%) 45
View Angel (H/V) 160/140
Brightness (cd/m2) 450
Contrast Ratio 600:1
Response Time (ms) (at 25°C) 30
Power Consumption (W) 4.2
Interface 1ch LVDS
Supply Voltage (V) 3.3
Backlight LED
Outline Dimensions (mm) 203.0 x 142.5 x 8.0
Weight (g) 250
Table 1-5: 8.4” TFT LCD Monitor Specifications
Page 11
Page 22
1.5 Dimensions
1.5.1 PPC-2706 Dimensions
The dimensions of the PPC-2706 flat panel PC are shown in Figure 1-8 below.
PPC-2706/PPC-2708 Panel PC
Figure 1-8: PPC-2706 Dimensions (units in mm)
Page 12
Page 23
PPC-2706/PPC-2708 Panel PC
1.5.2 PPC-2708 Dimensions
The dimensions of the PPC-2708 flat panel PC are shown in Figure 1-9 below.

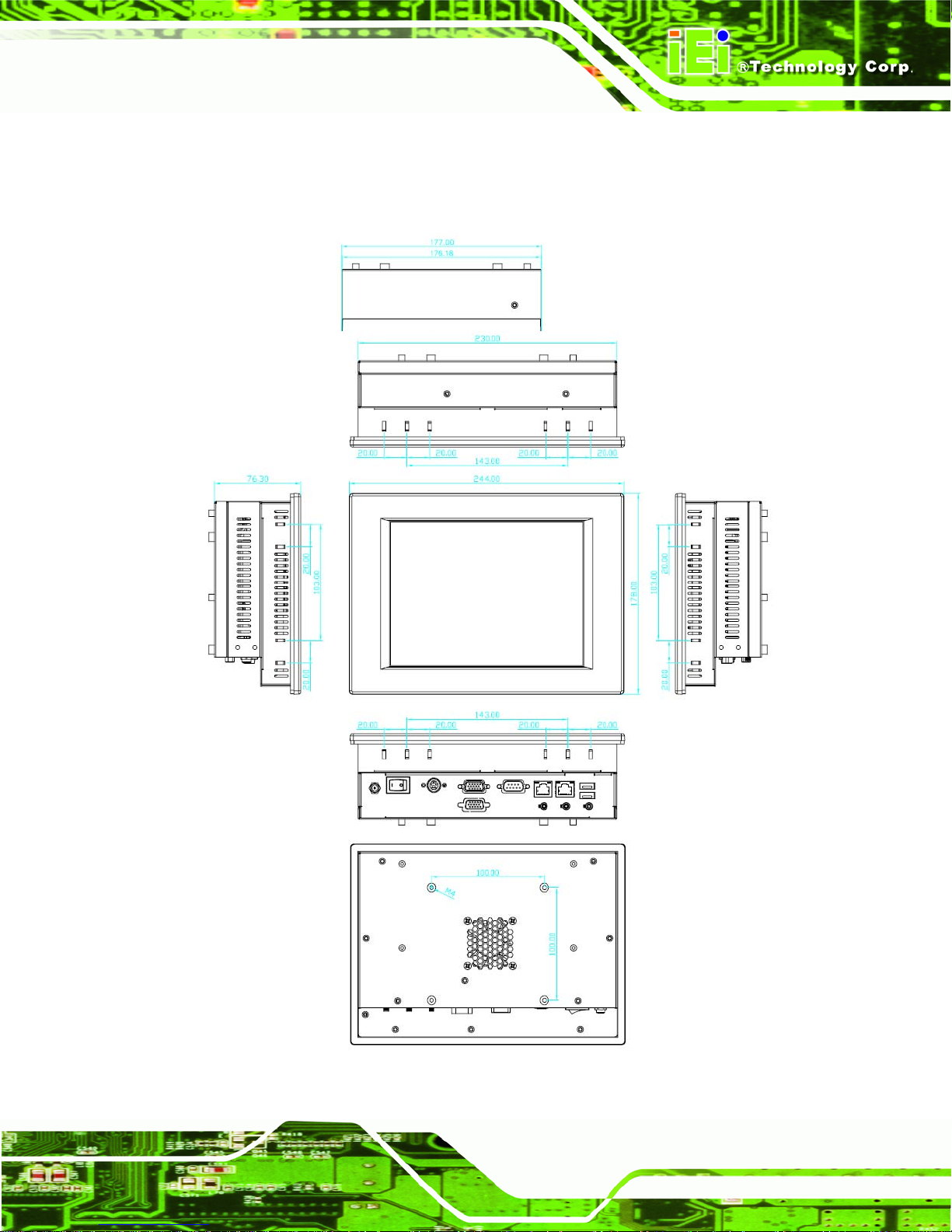

Figure 1-9: PPC-2708 Dimensions (units in mm)
Page 13
Page 24
PPC-2706/PPC-2708 Panel PC
Chapter
2
2 WAFER-LX Motherboard
Page 14
Page 25
PPC-2706/PPC-2708 Panel PC
2.1 Introduction
The PPC-2706 and PPC-2708 flat screen PC both contain the WAFER-LX motherboard.
The motherboard is the heart of any computer and is responsible for transmitting,
receiving and processing data as well as driving the different onboard devices. This
chapter gives a brief introduction to the WAFER-LX motherboard. For more complete
details on the connectors and the different implementations of the WAFER-LX, please
refer to the WAFER-LX user guide.
2.2 CPU Support
The WAFER-LX series motherboards all come with a preinstalled AMD® Geode™ LX 800
500MHz CPU.
2.2.1 AMD® Geode™ LX 800 500MHz Specifications
The specifications for the 500MHz AMD® Geode™ LX 800 are listed below
x86/x87-compatible core
Processor frequency up to 500 MHZ
64K I/64K D L1 cache and 128K L2 cache
Split I/D cache/TLB (Translation Look-Aside Buffer)
64-bit DDR Memory interface up to 400MHz (LX 800), up to 333MHz (LX 700)
Integrated FPU that supports the Intel MMX® and AMD 3DNow!™
Technology instruction sets
9 GB/s internal GeodeLink™ Interface Unit (GLIU)
Security Block
o 128-bit AES (CBC/ECB)
o True Random Number Generator
High-resolution CRT and TFT outputs (simultaneous operation)
o Support for High Definition (HD) and Standard Definition (SD) standards
o Support 1920x1440 in CRT mode and 1600x1200 in TFT mode
VESA 1.1 and 2.0 VIP/VDA support
0.13 micron process
481-terminal PBGA (Plastic Ball Grid Array) with internal heatspreader
Page 15
Page 26
PPC-2706/PPC-2708 Panel PC
2.2.2 AMD® Geode™ LX 800 500MHz Power Management
The power management for the 500MHz AMD® Geode™ LX 800 is listed below:
1.8W Typical (3.9W TDP) @ 500MHz
GeodeLink active hardware power management
Hardware support for standard ACPI software power management
I/O companion SUSP#/SUSPA# power controls
Lower power I/O
Wakeup on SMI/INTR
2.3 System Chipset
The WAFER-LX series motherboards all have a preinstalled AMD® Geode™ CS5536
system chipset. The system chipset features are listed below.
GeodeLink™ Interface Unit
o 64-bit, 66MHz operation
o PCI VSM (Virtual System Module) that makes the interface transparent to
applications software and BIOS
o Programmable routing descriptors, use and activity monitors, and SSMI
(Synchronous System Management Interrupt)
ATA-6 Controller
o 100 MB/second IDE Controller in UDMA mode per the ATA-6
specification
o 5V interface
Flash Interface
o Multiplexed with IDE interface Connects to an array of industry standard
NAND Flash and/or NOR Flash
USB Controller
o 4 USB ports
o Supports both USB 1.1 and USB 2.0
o 3 host ports
o 1 host/device
Audio Codec 97 (AC97) Controller
Page 16
Page 27
PPC-2706/PPC-2708 Panel PC
o AC97 specification v2.3 compliant interface to multiple audio codecs:
Serial In, Serial Out, Sync Out, Bit Clock In
o Legacy “PC Beep” support
Diverse Device
o 82xx Legacy Devices
o IR Communication Port
o System Management Bus (SMB) Controller
o LPC (Low Pin Count) Port
o General Purpose I/Os (GPIOs)
o 8 Multi-Function General Purpose Timers (MFGPTs)
o Real-Time Clock (RTC) with CMOS RAM
o Power Management Controller
o ACPI v2.0 compliant
2.4 Ethernet Controller Specifications
2.4.1 Overview
The Realtek RTL8100C(L) is a highly integrated and cost-effective single-chip Fast
Ethernet controller. It is enhanced with an ACPI (Advanced Configuration Power Interface)
management function for PCI in order to provide efficient power management for
advanced operating systems with OSPM (Operating System Directed Power
Management).
The RTL8100C(L) also supports remote wake-up (including AMD Magic Packet™ and
Microsoft® Wake-up frame) to increase cost-efficiency in network maintenance and
management. It is an ideal solution for notebook/motherboard-embedded network
designs.
2.4.2 Features
Integrates Fast Ethernet MAC, physical chip, and transceiver onto a single
chip
10Mbps and 100Mbps operation
Supports 10Mbps and 100Mbps N-way auto-negotiation
Supports 25MHz Crystal or 25MHz OSC as the internal clock source
Complies with PC99/PC2001 standards
Page 17
Page 28
Supports ACPI power management
Provides PCI bus master data transfer
PPC-2706/PPC-2708 Panel PC
2.5 Peripheral Device Interfaces, Connectors, and Slots
The peripheral device connectors, interfaces and slots on the WAFER-LX motherboard
are listed in the sections below.
2.5.1 OEM Options
Many of the peripheral device connectors listed below are not connected to any devices.
These connectors are reserved for OEM customizations. For a customized option, please
contact the vendor, reseller or IEI sales representative.
2.5.2 Internal Slots
The slots listed below can all be found on the WAFER-LX motherboard.
1 x 200-pin DDR SO-DIMM socket
1 x CFII slot
2.5.3 Internal Peripheral Device Connectors
The peripheral device connectors listed below are located on the WAFER-LX
motherboard. Pinouts for these connectors can be found in Appendix A.
1 x AT power connector
1 x ATX power function connector
1 x Audio connector
1 x Battery connector
1 x Compact Flash (CF) connector (solder side)
1 x External LED connector
1 x Fan connector
1 x Floppy disk drive (FDD) connector
1 x General purpose input/output (GPIO) connector
1 x IDE Interface connectors (44-pin)
1 x Inverter power connector
1 x Keyboard/mouse connector
Page 18
Page 29
PPC-2706/PPC-2708 Panel PC
1 x Parallel port connector
1 x Reset button connector
1 x RS-232/422/485 serial port connector
2 x SATA connectors
1 x Suspend power input connector
1 x TFT LCD LVDS interface connector
1 x TFT LCD TFT interface connector
1 x USB connector
1 x SO-DIMM socket
2.5.4 External Peripheral Device Connectors
The peripheral device connectors listed below are located on the rear panel of the
WAFER-LX motherboard. Pinouts for these connectors can be found in Appendix A.
2 x Ethernet connectors
2 x USB connectors
1 x Serial port connector
1 x VGA connector
Page 19
Page 30
PPC-2706/PPC-2708 Panel PC
Chapter
3
3 Installation and
Configuration
Page 20
Page 31
PPC-2706/PPC-2708 Panel PC
3.1 Installation Precautions
When installing the flat panel PC, please follow the precautions listed below:
Power turned off: When installing the flat panel PC, make sure the power is
off. Failing to turn off the power may cause severe injury to the body and/or
damage to the system.
Certified Engineers: Only certified engineers should install and modify
onboard functionalities.
Mounting: The flat panel PC is a heavy device. When mounting the system
onto a rack, panel, wall or arm please make sure that at least two people are
assisting with the procedure.
Anti-static Discharge : If a user open the rear panel of the flat panel PC, to
configure the jumpers or plug in added peripheral devices, ground themselves
first and wear and anti-static wristband.
3.2 Preinstalled Components
The following components are all preinstalled.
Motherboard
TFT LCD screen
Power module
Power switch
Preinstalled OEM customizations may include the following.
Hard disk drive (HDD)
Resistive type touch screen
Installation of some of the components are described in the following sections.
3.3 Installation and Configuration Steps
The following installation steps must be followed.
Step 1: Unpack the flat panel PC
Step 2: Set the jumper settings
Page 21
Page 32
Step 3: Install system fan
Step 4: Install HDD
Step 5: Install the SO-DIMM memory module
Step 6: Mount the flat panel PC
Step 7: Connect peripheral devices to the bottom panel of the flat panel PC
Step 8: Configure the systemStep 0:
3.4 Unpacking
To unpack the flat panel PC, follow the steps below:
WARNING!
PPC-2706/PPC-2708 Panel PC
The front side LCD screen has a protective plastic cover stuck to the
screen. Only remove the plastic cover after the flat panel PC has been
properly installed. This ensures the screen is protected during the
installation process.
Step 1: Use box cutters, a knife or a sharp pair of scissors that seals the top side of the
external (second) box.
Step 2: Open the external (second) box.
Step 3: Use box cutters, a knife or a sharp pair of scissors that seals the top side of the
internal (first) box.
Step 4: Lift the monitor out of the boxes.
Step 5: Remove both polystyrene ends, one from each side.
Step 6: Pull the plastic cover off the flat panel PC.
Step 7: Make sure all the components listed in the packing list are present. Step 0:
Page 22
Page 33
PPC-2706/PPC-2708 Panel PC
3.4.1 Packing List
The PPC-2706/PPC-2708 flat panel PC is shipped with the following components:
1 x IDE HDD cable
1 x SATA HDD cable
1 x PS/2 cable
1 x Screw kit
1 x Jumper pack
1 x Power cord
1 x Power adapter
1 x System fan module
1 x Fan bracket (PPC-2708 only)
1 x Cable tie or cable clip for fan installation
1 x Panel mounting kit
1 x Wall mounting kit
1 x User Manual and Driver CD
1 x Touch screen driver CD and touch pen
If any of these items are missing or damaged, contact the distributor or sales
representative immediately.
3.5 Remove the Back Cover
3.5.1 PPC-2706 Back Cover Removal
The back cover is secured to the chassis with six retention screws, two on the top panel,
two on the rear panel, one on the right panel and one on the left panel (
Remove the six retention screws and lift the cover off the PPC-2706.
Figure 3-1).
Page 23
Page 34
Figure 3-1: PPC-2706 Back Cover Retention Screws
3.5.2 PPC-2708 Back Cover Removal
PPC-2706/PPC-2708 Panel PC
The back cover is secured to the chassis with seven retention screws on the rear panel
(
Figure 3-2). Remove the seven retention screws and lift the cover off the PPC-2708.
Figure 3-2: PPC-2708 Back Cover Retention Screws (Real Panel)
Page 24
Page 35
PPC-2706/PPC-2708 Panel PC
3.6 Jumper Settings
NOTE:
A jumper is a metal bridge that is used to
close an electrical circuit. It consists of
two metal pins and a small metal clip
(often protected by a plastic cover) that
slides over the pins to connect them.
To CLOSE/SHORT a jumper means
connecting the pins of the jumper with
the plastic clip and to OPEN a jumper
means removing the plastic clip from a
jumper.
The WAFER-LX comes with three jumpers. They are listed below.
AT power select (JP1)
COM 2 mode setup (JP2)
Clear CMOS (CN7)
Jumper
Page 25
Page 36
PPC-2706/PPC-2708 Panel PC
Figure 3-3: Jumper Locations
3.6.1 JP1: AT Power Select Jumper Settings
The AT/ATX Power Mode Select jumper specifies the systems power mode.
AT Power Select Description
Short Use AT power Default
Open Use ATX power
Table 3-1: AT Power Select Jumper Settings
3.6.2 CN7: Clear CMOS Setup
NOTE:
The battery connector (CN7) is used as the clear CMOS jumper on the
motherboard.
If the motherboard fails to boot due to improper BIOS settings, use this jumper to clear the
CMOS data and reset the system BIOS information. To do this, use the jumper cap to
close pins 2 and 3 for a few seconds then reinstall the jumper clip back to pins 1 and 2.
Page 26
Page 37
PPC-2706/PPC-2708 Panel PC
If the “CMOS Settings Wrong” message displays during the boot up process, try to correct
the fault by pressing the F1 to enter the CMOS Setup menu. Then do one of the
following:
Enter the correct CMOS setting
Load Optimal Defaults
Load Failsafe Defaults.
After one of the above has been done, save the changes and exit the CMOS Setup menu.
Clear CMOS Description
Closed Keep CMOS Setup Default
Open Clear CMOS Setup
Table 3-2: Clear CMOS Jumper Settings
3.6.3 JP2: COM3 Setup Jumper Settings
The COM3 port can be configured as an RS-422 serial port or as an RS-485 serial port.
COM 2 Setup Description
Short Pin 1 ~ Pin 2 RS-422 Default
Short Pin 2 ~ Pin 3 RS-485
Table 3-3: COM3 Setup Jumper Settings
3.7 System Fan Installation
3.7.1 PPC-2706 System Fan Installation
Step 1: The fan bracket of the PPC-2706 is secured to the chassis with three retention
screws inside the chassis (
the fan bracket off the PPC-2706 flat panel PC.
Figure 3-4). Remove the three retention screws. Lift
Page 27
Page 38
PPC-2706/PPC-2708 Panel PC
Figure 3-4: PPC-2706 Fan Bracket Removal
Step 2: Install the system fan module to the fan bracket with four retention screws
Figure 3-11).
(
Figure 3-5: PPC-2706 System Fan Installation
Step 3: Use a cable tie to tie the system fan module cables as shown in
Figure 3-6.
Page 28
Page 39
PPC-2706/PPC-2708 Panel PC
Figure 3-6: PPC-2706 Fan Module Cables
Step 4: Locate the fan connector (CN4) on the motherboard (
connector of the fan module to the fan connector on the motherboard.
Figure 3-7). Insert the fan
Figure 3-7: PPC-2706 Fan Connector Location
Step 5: Reinstall the fan bracket into the system using the three previously removed
retention screws.
Page 29
Page 40
3.7.2 PPC-2708 System Fan Installation
Step 1: Install the system fan module to the fan bracket with four retention screws
Figure 3-11).
(
Figure 3-8: PPC-2708 System Fan Installation
PPC-2706/PPC-2708 Panel PC
Step 2: Attach the cable clip on the fan bracket as shown in
cable with the cable clip.
Figure 3-9: PPC-2708 Fan Module Cables
Step 3: Locate the fan connector (CN4) on the motherboard (
Figure 3-6. Secure the fan
Figure 3-7). Insert the fan
connector of the fan module to the fan connector on the motherboard.
Page 30
Page 41
PPC-2706/PPC-2708 Panel PC
Figure 3-10: PPC-2706 Fan Connector Location
Step 4: Install the fan bracket into the system with two retention screws.
Figure 3-11: PPC-2708 Fan Bracket Installation
3.8 HDD Installation
3.8.1 PPC-2706 HDD Installation
To install the HDD into the PPC-2706, please follow the steps below:
Page 31
Page 42
Step 1: Remove the back cover. See Section 3.5.1 above.
PPC-2706/PPC-2708 Panel PC
Step 2: Remove HDD bracket from the platform. See Section
Step 3: Attach the HDD brackets to the HDD. To do this, align the four retention screw
holes in the both sides of the HDD bracket with the retention screw holes on the
sides of the HDD. Insert four retention screws into the HDD bracket (
3-12).
3.7.1 Step 1.
Figure

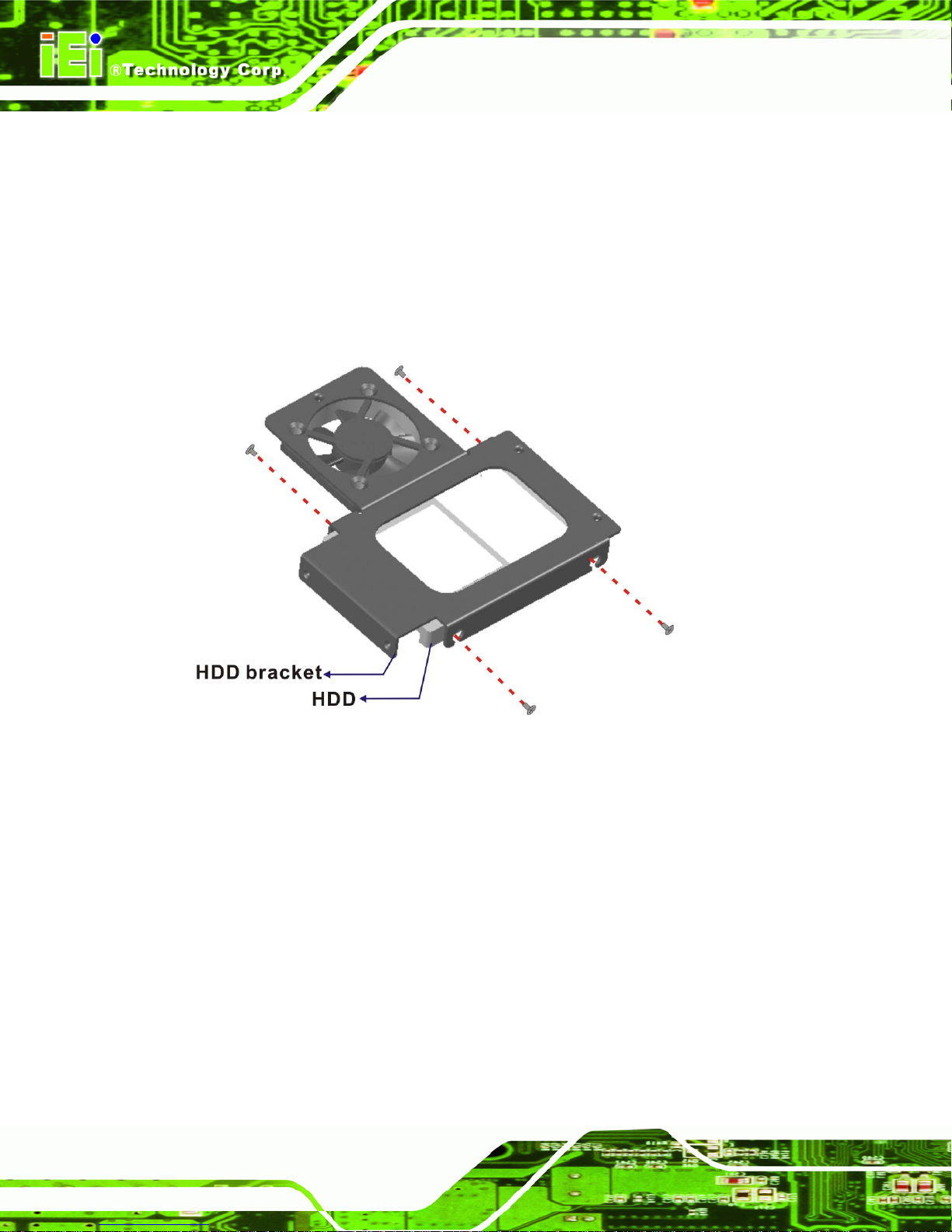

Figure 3-12: PPC-2706 HDD Bracket Retention Screws
Step 4: Connect the IDE/SATA cable from the IDE/SATA connector on the motherboard
to the rear of HDD. Reconnect the fan cable to the motherboard.
Step 5: Install the HDD into the PPC-2706 by aligning the retention screw holes in the
HDD brackets with the retention screw holes on the chassis. Insert the three
retention screws.
3.8.2 PPC-2708 HDD Installation
To install the HDD into the PPC-2708, please follow the steps below:
Step 1: Remove the back cover. See Section
Page 32
3.5.2 above.
Page 43
PPC-2706/PPC-2708 Panel PC
Step 2: The HDD bracket is attached to the platform by four retention screws. Remove
the four retention screws from the platform (
Figure 3-13).
Figure 3-13: HDD Bracket Retention Screws
Step 3: Attach the HDD brackets to the HDD. To do this, align the four retention screw
holes in the base of the HDD bracket with the retention screw holes on the
bottom of the HDD. Insert four retention screws into the HDD bracket from the
bottom (
Figure 3-14: PPC-2708 HDD Bracket Retention Screws
Figure 3-14).
Page 33
Page 44
Step 4: Connect the IDE/SATA cable from the IDE/SATA connector on the motherboard
to the rear of HDD.
Step 5: Install the HDD into the PPC-2708 by aligning the retention screw holes in the
base of the HDD brackets with the retention screw holes on the platform. Insert
the four retention screws. Step 0:
3.9 CompactFlash® Card Installation
3.9.1 PPC-2706 CF Card Installation
The PPC-2706 embedded motherboard has one CF Type II slot on the solder side. To
install the CF card, follow the instructions below.
PPC-2706/PPC-2708 Panel PC
Step 1: Remove the back cover. See Section
Step 2: Remove HDD bracket from the chassis. See Section
Step 3: Remove the three retention screws on the bottom panel (
3.5 above.
3.7.1 above.
Figure 3-15).
Figure 3-15: PPC-2706 Chassis Retention Screws
Step 4: Remove the four retention screws that secure the motherboard to the chassis
Figure 3-16).
(
Page 34
Page 45
PPC-2706/PPC-2708 Panel PC
Figure 3-16: PPC-2706 Motherboard Retention Screws
Step 5: Remove the copper pillar that secures the motherboard to the chassis (
3-17).
Figure 3-17: PPC-2706 Motherboard Copper Pillar
Step 6: Lift the chassis up and locate the CF slot. Insert a CF card into the slot (
3-18).
Figure
Figure
Figure 3-18: PPC-2706 CF Card Location
Step 7: Secure the motherboard with the copper pillar first. Then, Insert all previously
removed retention screws into the PPC-2706 to secure the motherboard and the
Page 35
Page 46
chassis. Remember to connect the grounding cable when inserting the retention
PPC-2706/PPC-2708 Panel PC
screw to the copper pillar (
Figure 3-19).
Figure 3-19: PPC-2706 Grounding Cable
Step 8: Install the previously removed HDD bracket and reconnect the fan cable.
Step 9: Replace the top cover. Once replaced reinsert the six previously removed
retention screws. Step 0:
3.9.2 PPC-2708 CF Card Installation
The PPC-2708 embedded motherboard has one CF Type II slot on the solder side. To
install the CF card, follow the instructions below.
Step 1: Remove the back cover. See Section
Step 2: Remove HDD bracket from the chassis. See Section
Step 3: Remove the four retention screws on the bottom panel (
3.5.2 above.
3.8.2 above.
Figure 3-15).
Figure 3-20: PPC-2708 Chassis Retention Screws (Bottom Panel)
Step 4: Remove the six retention screws inside the chassis (
Figure 3-16).
Page 36
Page 47
PPC-2706/PPC-2708 Panel PC
Figure 3-21: PPC-2708 Chassis Retention Screws (Inside)
Step 5: Lift the chassis up and locate the CF slot. Insert a CF card into the slot (
3-18).
Figure
Figure 3-22: PPC-2708 CF Card Location
Step 6: Insert all previously removed retention screws into the PPC-2708 to secure the
chassis.
Step 7: Install the previously removed HDD bracket.
Step 8: Replace the top cover. Once replaced reinsert the six previously removed
retention screws. Step 0:
3.10 Memory Module Installation
The flat panel PC embedded motherboard has one 200-pin SO-DIMM socket. To install
the SO-DIMM module, follow the instructions below.
Step 1: Remove the back cover. See Section
3.5 above.
Page 37
Page 48
Step 2: Locate the SO-DIMM socket on the motherboard of the flat panel PC.
PPC-2706/PPC-2708 Panel PC
Step 3: Push the SO-DIMM chip into the socket at an angle. (See
Step 4: Gently pull the arms of the SO-DIMM socket out and push the rear of the
SO-DIMM module down. (See
Step 5: Release the arms on the SO-DIMM socket. They clip into place and secure the
SO-DIMM module in the socket.Step 0:
Figure 3-23)
Figure 3-23)
Figure 3-23: SO-DIMM Module Installation
3.11 SATA - ALi RAID Driver Installation
CAUTION!
Because of the inherent limitations by AMD Geode CS5536 chipset, the ALi
M5283 SATA and RAID controller is implemented as a device that requires
device driver during the Windows installation process. To successfully
install the device driver, please carefully read the following instructions.
The ALi driver is especially required if SATA drives are the only hard disk drives in the
PPC-2706/PPC-2708 system. Otherwise, the Windows installation program may fail to
locate the hard drives whether configuring the SATA disk drives into RAID volumes or
using them as individual disk drives.
Page 38
Page 49
PPC-2706/PPC-2708 Panel PC
The system BIOS can identify SATA disk drives, but cannot control their operation. The
separately installed driver therefore is necessary.
3.11.1 Installation Steps During Windows XP Installation
Step 1: Enable SATA ROM using the BIOS configuration utility. The process has been
detailed in Appendix E.
Step 2: Locate the ALi installation driver folder within the Utility CD that came with the
motherboard.
Step 3: Copy files under a sub-directory named “SATA50XX” (taking Windows XP
installation as the example) to the root directory of floppy diskette (labeled driver
diskette). The file names are listed below:
disk1
5283096D.bin
txtsetup.oem
Step 4: Also copy the OS option directory “win98_me”, “win_nt”, or “win_xp”, and related
driver files in each directory.
Step 5: Boot from Windows installation CD-ROM (set CD-ROM as the 1st Boot Device),
when the Windows XP Setup blue screen appears and prompts users to Press
F6. Please press the F6 key, if third-party SCSI or RAID driver installation is
needed.
Step 6: The setup program continues, later when the setup program prompts users to
specify additional adapters, please press the S key.
Step 7: The setup program prompts user to insert the driver diskette. Please insert the
driver diskette, and press ENTER to continue.
Step 8: The follow-up window lists out the installation choices, please select ALi
SA TA/RAID Controller for Windows XP and press ENTER to continue.
Page 39
Page 50
Step 9: The follow-up window lists out the devices to be installed, in which selected ALi
controller(s) should be included.
Step 10: Repeat step 5, but select ALi A TA/RAID Controller at step 7. If both controllers
are installed, go to next step.
Step 11: If users want to install other devices, please operate at this time. If all devices
have been successfully installed, please go to next step.
Step 12: Press ENTER to continue Windows XP setup. Step 0:
PPC-2706/PPC-2708 Panel PC
3.11.2 Installation Steps under Existing Windows XP
After Windows XP is started, Windows system automatically finds the newly installed
adapter and prompts user to install its driver. Please follow these steps to install the driver:
Step 1: When the Found New Hardware Wizard windows appear (Mass Storage
Controller), select Install from a list or specify location (Advanced) and click Next
to continue.
Step 2: In the follow-up window, please select "Don't search, I will choose the driver to
install", then click Next to continue.
Step 3: In the follow-up window, please select SCSI and RAID controllers, and then click
Next to continue.
Step 4: In the follow-up window, click Have Disk, then insert the driver diskette and type
in the driver location: e.g., a CD-ROM, then click OK to continue.
Step 5: In the follow-up window, select ALi SATA/RAID Controller, then click Next to
continue.
Step 6: Confirm the follow-up windows and click the Finish button to continue.
Step 7: Please "confirm" the Digital Signature Not Found window when it appears, when
finished, please restart the computer.
Step 8: Repeat step 1, but select ALi ATA/RAID Controller at step 4.
Page 40
Page 51
PPC-2706/PPC-2708 Panel PC
3.12 Mounting the System
WARNING!
When mounting the flat panel PC onto an arm, onto the wall or onto a
panel, it is better to have more than one person to help with the installation
to make sure the panel PC does not fall down and get damaged.
The five methods of mounting the PPC-2706/PPC-2708 are listed below.
Wall mounting
Panel mounting
Arm mounting
Rack mounting
DIN mounting
The four mounting methods are described below.
3.12.1 Wall Mounting
To mount the flat panel PC onto the wall, please follow the steps below.
Step 1: Select the location on the wall for the wall-mounting bracket.
Step 2: Carefully mark the locations of the four bracket screw holes on the wall.
Step 3: Drill four pilot holes at the marked locations on the wall for the bracket retention
screws.
Step 4: Align the wall-mounting bracket screw holes with the pilot holes.
Page 41
Page 52
Step 5: Secure the mounting-bracket to the wall by inserting the retention screws into
PPC-2706/PPC-2708 Panel PC
the four pilot holes and tightening them (
Figure 3-24).
Figure 3-24: Wall-mounting Bracket
Step 6: Insert the four monitor mounting screws provided in the wall mounting kit into the
four screw holes on the real panel of the flat panel PC and tighten until the screw
shank is secured against the rear panel (
Figure 3-25).
Figure 3-25: Chassis Support Screws
Page 42
Page 53
PPC-2706/PPC-2708 Panel PC
Step 7: Align the mounting screws on the monitor rear panel with the mounting holes on
the bracket.
Step 8: Carefully insert the screws through the holes and gently pull the monitor
downwards until the monitor rests securely in the slotted holes (
Ensure that all four of the mounting screws fit snuggly into their respective
slotted holes.
Figure 3-26).
NOTE:
In the diagram below the bracket is already installed on the wall.
Figure 3-26: Mount the Chassis
3.12.2 Panel Mounting
3.12.2.1 PPC-2706 Panel Mounting
To mount the PPC-2706 flat panel PC into a panel, please follow the steps below.
Step 1: Select the position on the panel to mount the PPC-2706.
Step 2: Cut out a section from the panel that corresponds to the rear panel dimensions
of the PPC-2706. Take care that the panel section that is cut out is smaller than
Page 43
Page 54
the overall size of the metal frame that surrounds the PPC-2706 but just large
PPC-2706/PPC-2708 Panel PC
enough for the rear panel of the PPC-2706 to fit through (
Figure 3-27).
Figure 3-27: PPC-2706 Panel Opening
Step 3: Slide the PPC-2706 through the hole until the aluminum frame is flush against
the panel.
Step 4: Secure the panel mounting clips to either side of the monitor using the retention
screws supplied in the mounting kit pack (
Step 5: Tighten the panel retention screws that pass through the panel mounting clips
until the plastic caps at the front of all the screws are firmly secured to the panel
Figure 3-28).
(
Figure 3-28).
Page 44
Page 55
PPC-2706/PPC-2708 Panel PC
Figure 3-28: PPC-2706 Panel Mounting
3.12.2.2 PPC-2708 Panel Mounting
To mount the PPC-2708 flat panel PC into a panel, please follow the steps below.
Step 1: Select the position on the panel to mount the PPC-2708.
Step 2: Cut out a section from the panel that corresponds to the rear panel dimensions
of the PPC-2708. Take care that the panel section that is cut out is smaller than
the overall size of the metal frame that surrounds the PPC-2708 but just large
enough for the rear panel of the PPC-2708 to fit through (
Figure 3-29).
Figure 3-29: PPC-2708 Panel Opening
Page 45
Page 56
Step 3: Slide the PPC-2708 through the hole until the aluminum frame is flush against
the panel.
Step 4: Insert the panel mounting clamps into the pre-formed holes along the edges of
the chassis, behind the aluminum frame. There are a total of 8 panel mounting
clamps.
Step 5: Tighten the screws that pass through the panel mounting clamps until the plastic
PPC-2706/PPC-2708 Panel PC
caps at the front of all the screws are firmly secured to the panel (
Step 5:
Figure 3-30: Tighten the Panel Mounting Clamp Screws
Figure 3-30).
3.12.3 Arm Mounting
The PPC-2706/PPC-2708 is VESA (Video Electronics Standards Association) compliant
and can be mounted on an arm with a 100mm interface pad. To mount the
PPC-2706//PPC-2708 on an arm, please follow the steps below.
Step 1: The arm is a separately purchased item. Please correctly mount the arm onto
the surface it uses as a base. To do this, refer to the installation documentation
that came with the mounting arm.
Page 46
Page 57
PPC-2706/PPC-2708 Panel PC
NOTE:
When purchasing the arm please ensure that it is VESA compliant and that
the arm has a 100mm interface pad. If the mounting arm is not VESA
compliant it cannot be used to support the PPC-2706/PPC-2708 flat panel
PC.
Step 2: Once the mounting arm has been firmly attached to the surface, lift the flat panel
PC onto the interface pad of the mounting arm.
Step 3: Align the retention screw holes on the mounting arm interface with those in the
flat panel PC. The flat panel PC arm mount retention screw holes are shown in
Figure 3-31.
100.00
100.00

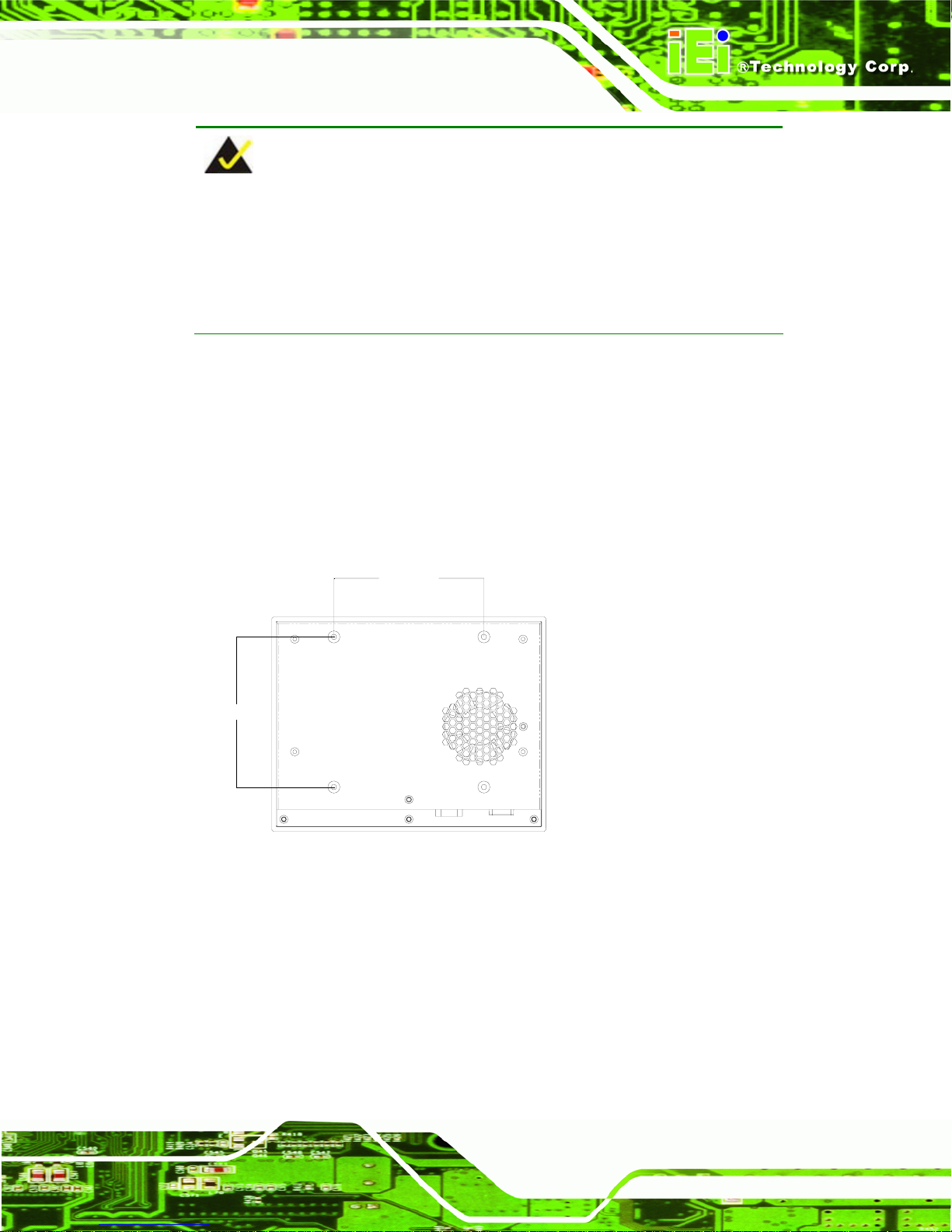

Figure 3-31: Arm Mounting Retention Screw Holes
Step 4: Secure the flat panel PC to the interface pad by inserting four retention screws
through the bottom of the mounting arm interface pad and into the flat panel PC.
Step 0:
Page 47
Page 58
3.12.4 Cabinet and Rack Installation
The PPC-2706/PPC-2708 flat panel PC can be installed into a cabinet or rack. The
installation procedures are similar to the panel mounting installation. To do this, please
follow the steps below:
NOTE:
When purchasing the cabinet/rack installation bracket, make sure it is
compatible with both the PPC-2706/PPC-2708 flat panel PC and the
rack/cabinet into which the PPC-2706/PPC-2708 is installed.
3.12.4.1 PPC-2706 Cabinet and Rack Installation
PPC-2706/PPC-2708 Panel PC
Step 1: Slide the rear chassis of the PPC-2706 flat panel PC through the rack/cabinet
bracket until the aluminum frame is flush against the front of the bracket (
3-32).
Figure
Figure 3-32: The Rack/Cabinet Bracket
Step 2: Secure the mounting clips to either side of the flat panel PC using the retention
screws supplied in the mounting kit pack (
Figure 3-33).
Step 3: Tighten the panel retention screws that pass through the mounting clips until the
plastic caps at the front of all the screws are firmly secured to the rack/cabinet
bracket (
Page 48
Figure 3-33).
Page 59
PPC-2706/PPC-2708 Panel PC
Figure 3-33: PPC-2706 Rack and Cabinet Mounting
Step 4: Slide the PPC-2708 flat panel PC with the attached rack/cabinet bracket into a
rack or cabinet (
Figure 3-34: Install into a Rack/Cabinet
Figure 3-34).
Step 5: Once the PPC-2708 flat panel PC with the attached rack/cabinet bracket has
been properly inserted into the rack or cabinet, secure the front of the
rack/cabinet bracket to the front of the rack or cabinet (
Figure 3-34).
Page 49
Page 60
3.12.4.2 PPC-2708 Cabinet and Rack Installation
Step 1: Slide the rear chassis of the PPC-2708 flat panel PC through the rack/cabinet
PPC-2706/PPC-2708 Panel PC
bracket until the aluminum frame is flush against the front of the bracket (
3-35).
Figure
Figure 3-35: The Rack/Cabinet Bracket
Step 2: Insert the rack mounting clamps into the pre-formed holes along the edges of
the PPC-2708, behind the metal frame. Refer to the mounting kit packing list for
the required number of mounting clamps.
Page 50
Step 3: Tighten the screws that pass through the rack mounting clamps until the plastic
caps at the front of all the screws are firmly secured to the bracket (
Figure 3-36).
Page 61
PPC-2706/PPC-2708 Panel PC
Figure 3-36: Secure the Rack/Cabinet Bracket
Step 4: Follow the Step 4 and Step 5 of the PPC-2706 Cabinet and Rack Installation
procedures to complete the whole installation process.Step 0:
3.12.5 DIN Mounting
To mount the PPC-2706/PPC-2708 flat panel PC onto a DIN rail, please follow the steps
below.
Step 1: Attach the DIN rail mounting bracket to the rear of the panel PC. Secure the
bracket to the panel PC with the supplied retention screws (
Figure 3-37).
Page 51
Page 62
PPC-2706/PPC-2708 Panel PC

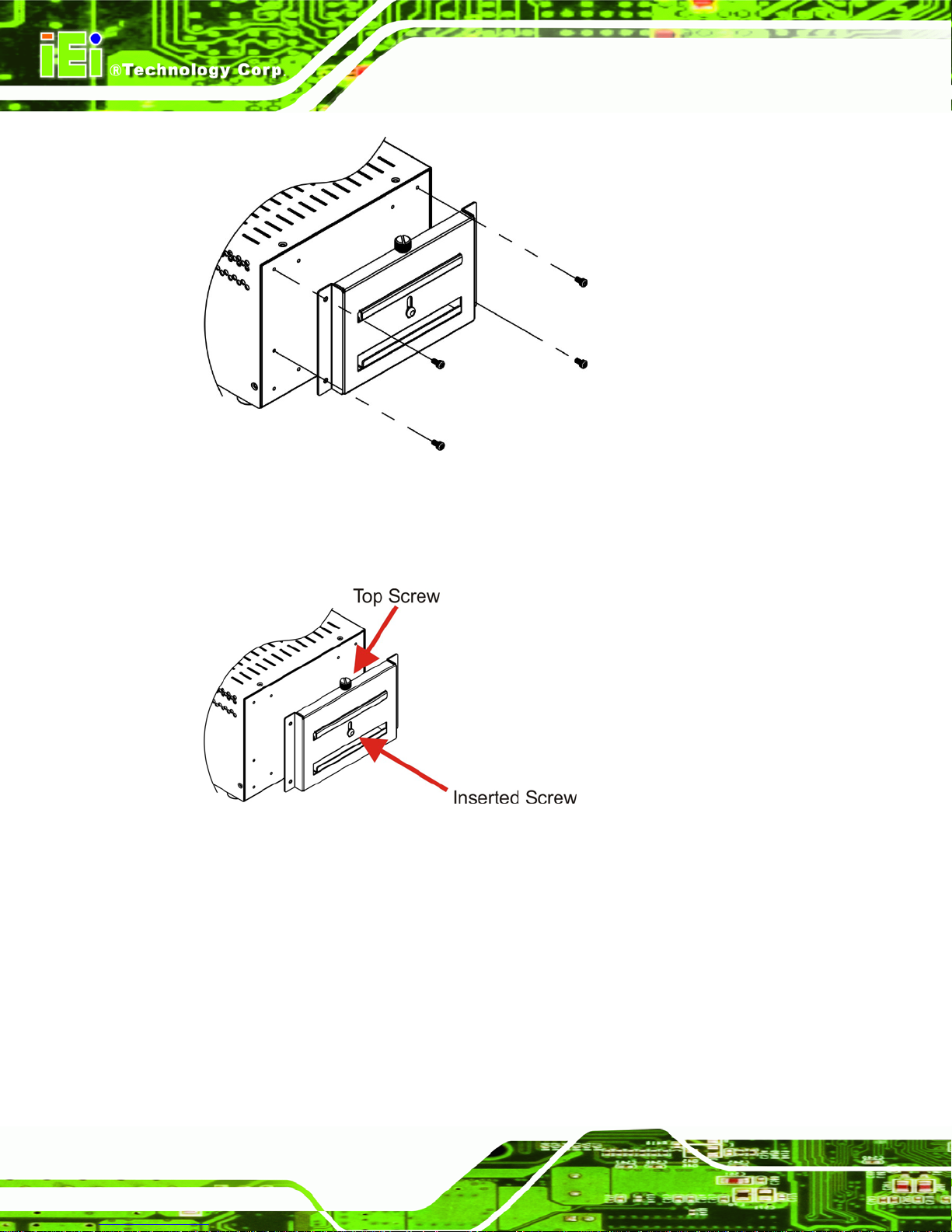

Figure 3-37: DIN Rail Mounting Bracket
Step 2: Make sure the inserted screw in the center of the bracket is at the lowest
position of the elongated hole (
Figure 3-38).
Figure 3-38: Screw Locations
Step 3: Place the DIN rail flush against the back of the mounting bracket making sure
the edges of the rail are between the upper and lower clamps (
Figure 3-39).
Page 52
Page 63
PPC-2706/PPC-2708 Panel PC
Figure 3-39: Mounting the DIN RAIL
Step 4: Secure the DIN rail to the mounting bracket by turning the top screw clockwise.
This draws the lower clamp up and secures the monitor to the DIN rail (
3-40).Step 0:
Figure 3-40: Secure the Assembly to the DIN Rail
3.13 Rear Panel Connectors
Figure
3.13.1 LCD Panel Connection
To connect the PPC-2706/PPC-2708 flat panel PC to a second monitor, a conventional
CRT VGA monitor connector is located on the bottom panel. This panel is a 15-pin, female
D-SUB connector.
Page 53
Page 64
A
3.13.2 Ethernet Connection
The two rear panel RJ-45 connectors can be connected to an external LAN and provide
Internet connectivity to the flat panel PC.
3.13.3 USB Connection
The rear panel USB connectors provide easier and quicker access to external USB
devices. The rear panel USB connector is a standard connector and can easily be
connected to other USB devices.
3.13.4 Keyboard and Mouse Connection
One PS/2 connector on the bottom panel facilitates the connection of a mouse and a
keyboard. To connect either device, plug the PS/2 connector at the end of the keyboard or
mouse cable into the corresponding PS/2 connector on the external peripheral interface
PPC-2706/PPC-2708 Panel PC
panel.
3.14 System Maintenance
If the components of the PPC-2706/PPC-2708 fail they must be replaced. Please contact
the system reseller or vendor to purchase the replacement parts. Replacement
instructions for the above listed components are described below.
NOTE:
user cannot replace a motherboard. If the motherboard fails it
must be shipped back to IEI to be replaced. Please contact the
system vendor, reseller or an IEI sales person directly.
Page 54
Page 65
PPC-2706/PPC-2708 Panel PC
Chapter
4
4 Gasket Replacement
Page 55
Page 66
4.1 Gasket Replacement
A gasket used for a long time may gradually lose its ability to protect the monitor from
fluids and vapors; scratches or dirt may also accumulate. It is recommended that the
gasket be replaced yearly.
NOTE:
If the monitor is mounted vertically, first remove it and place it on a flat, level
surface with the display screen facing down before changing the gasket.
Step 1: Remove the old gasket from the sides of the monitor.
Step 2: Attach the new gasket to the monitor. Make sure the gasket fits precisely into the
PPC-2706/PPC-2708 Panel PC
groove along the edges of the monitor’s front panel (
Figure 4-1: Gasket Replacement
NOTE:
Compliance with the IP65 standard depends on correct installation of the
Figure 4-1).

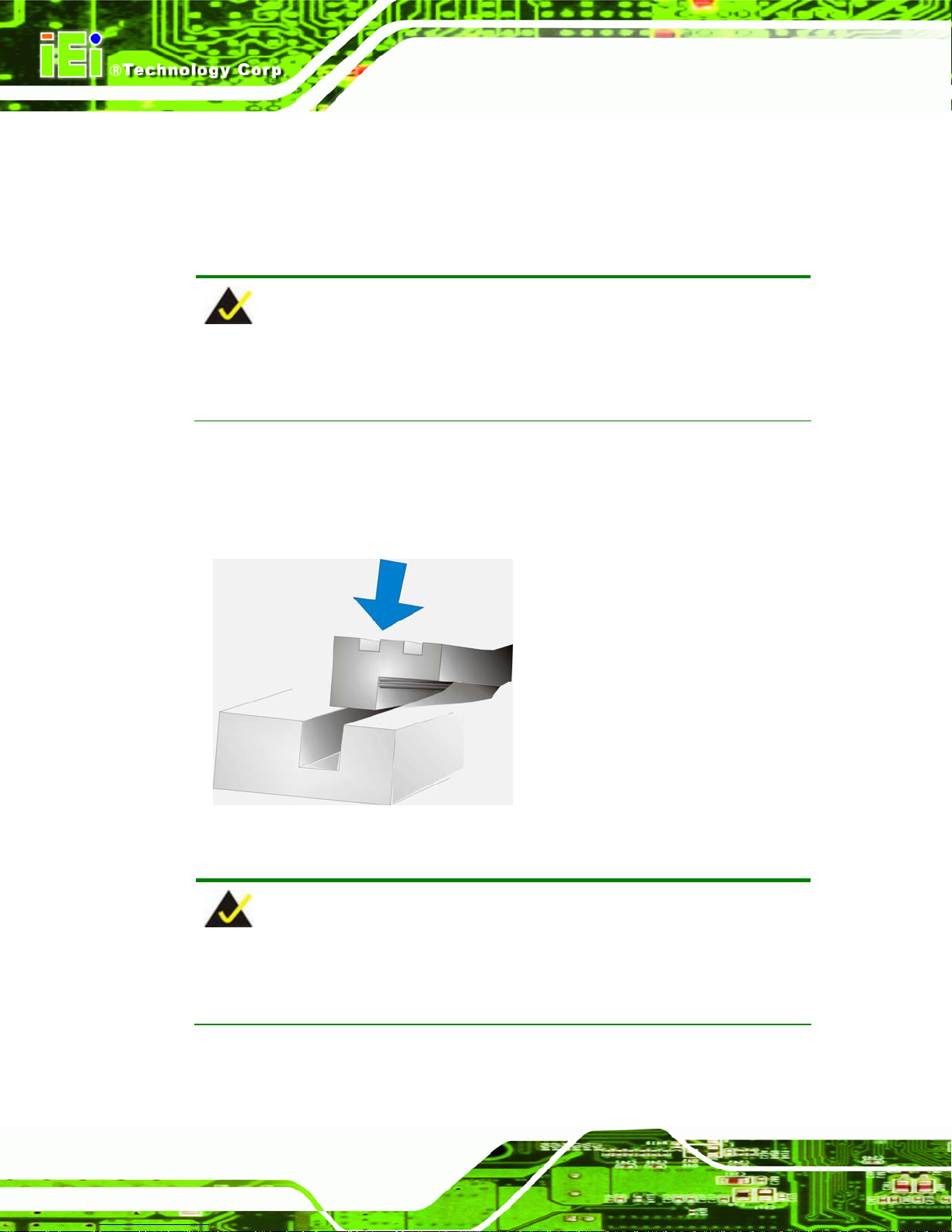

gasket. Be sure to check that the gasket is properly installed after changing it.
Page 56
Page 67
PPC-2706/PPC-2708 Panel PC
5 AMI BIOS Setup
Chapter
5
Page 57
Page 68
5.1 Introduction
A licensed copy of Phoenix Award BIOS is preprogrammed into the ROM BIOS. The BIOS
setup program allows users to modify the basic system configuration. This chapter
describes how to access the BIOS setup program and the configuration options that may
be changed.
5.1.1 Starting Setup
The Phoenix Award BIOS is activated when the computer is turned on. The setup program
can be activated in one of two ways.
PPC-2706/PPC-2708 Panel PC
1. Press the D
2. Press the D
appears on the screen.
If the message disappears, restart the computer and try again.
ELETE key as soon as the system is turned on or
ELETE key when the “Press Del to enter SETUP” message
5.1.2 Using Setup
Use the arrow keys to highlight items, press ENTER to select, use the PAGEUP and
P
AGEDOWN keys to change entries, press F1 for help and press ESC to quit. Navigation
keys are shown below.
Key Function
Up arrow
Down arrow Move to the item below
Left arrow Move to the item on the left hand side
Right arrow Move to the item on the right hand side
+/Page up Increase the numeric value or make changes
Move to the item above
-/Page down Decrease the numeric value or make changes
Esc Main Menu – Quit and do not save changes into CMOS
Status Page Setup Menu and Option Page Setup Menu --
Exit current page and return to Main Menu
F1 General help, only for Status Page Setup Menu and Option
Page Setup Menu
F2 Item help
Page 58
Page 69
PPC-2706/PPC-2708 Panel PC
F5 Previous values for the page menu items
F6 Fail-safe defaults for the current page menu items
F7 Optimized defaults for the current page menu items
F9 Menu in BIOS
F10 Save changes and Exit BIOS
Table 5-1: BIOS Navigation Keys
5.1.3 Getting Help
When F1 is pressed a small help window describing the appropriate keys to use and the
possible selections for the highlighted item appears. To exit the Help Window press E
the F1 key again.
5.1.4 Unable to Reboot After Configuration Changes
If the system cannot be booted after changes are made, restore the CMOS defaults. The
CPU card should come with a restore CMOS settings jumper. Refer to Section
more information.
5.1.5 Main BIOS Menu
Once the BIOS opens, the main menu (BIOS Menu 1) appears.
SC or
3.6.2 for
Page 59
Page 70
PPC-2706/PPC-2708 Panel PC

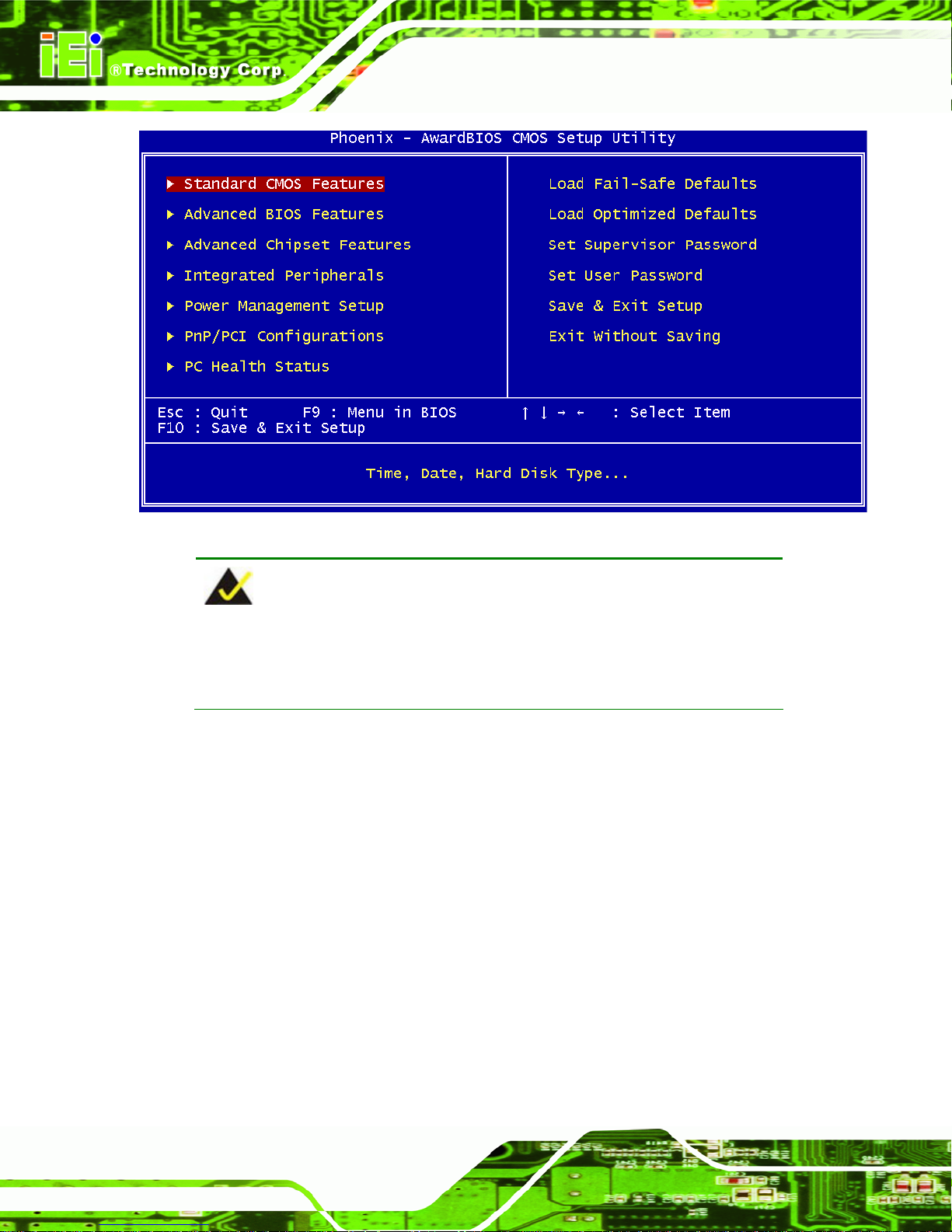

BIOS Menu 1: Award BIOS CMOS Setup Utility
NOTE:
The following sections will completely describe the menus listed below and
the configuration options available to users.
The following menu options are seen in BIOS Menu 1.
Standard CMOS Features: Changes the basic system configuration.
Advanced BIOS Features: Changes the advanced system settings.
Advanced Chipset Features: Changes the chipset configuration features.
Integrated Peripherals: Changes the settings for integrated peripherals.
Power Management Setup: Configures power saving options.
PnP/PCI Configurations: Changes the advanced PCI/PnP settings.
PC Health Status: Monitors essential system parameters.
The following user configurable options are also available in
Page 60
BIOS Menu 1:
Page 71
PPC-2706/PPC-2708 Panel PC
Load Fail-Safe Defaults
Use the Load Fail-Safe Defaults option to load failsafe default values for each BIOS
parameter in the setup menus. Press F6 for this operation on any page.
Load Optimized Defaults
Use the Load Optimized Defaults option to load optimal default values for each BIOS
parameter in the setup menus. Press F7 for this operation on any page.
Set Supervisor Password
Use the Set Supervisor Password option to set the supervisor password. By default, no
supervisor password is set. To install a supervisor password, select this field and enter the
password. After this option is selected, a red dialogue box appears with “Enter
Password: ”. Type the password and press E
“Confirm Password: ” dialogue box and press E
press E
NTER in the “Enter Password: ” dialogue box, then press any key in the
NTER. Retype the original password into the
NTER. To disable the password, simply
“Password Disabled !!!” dialogue box.
Set User Password
Use the Set User Password option to set the user password. By default no user
password is set. To install a user password, select this field and enter the password. After
this option is selected, a red dialogue box appears with “Enter Password: ”. Type the
password and press E
dialogue box and press E
NTER. Retype the original password into the “Confirm Password: ”
NTER. To disable the password, simply press ENTER in the “Enter
Password: ” dialogue box, then press any key in the “Password Disabled !!!” dialogue
box.
Save & Exit Setup
Use the Save & Exit Setup option to save any configuration changes made and exit the
BIOS menus.
Exit Without Saving
Use the Exit Without Saving option to exit the BIOS menus without saving any
configuration changes.
Page 61
Page 72
5.2 Standard CMOS Features
Use the Standard CMOS Features BIOS menu (BIOS Menu 2) to set basic BIOS
configuration options.
PPC-2706/PPC-2708 Panel PC
BIOS Menu 2: Standard CMOS Features
Date [Day mm:dd:yyyy]
Use the Date option to set the system date.
Time [hh/mm/ss]
Use the Time option to set the system time.
IDE Master and IDE Slave
When entering setup, BIOS auto detects the presence of IDE devices. The Standard
CMOS Features menu shows the status of the auto detected IDE devices. The following
IDE devices are detected and shown in the Standard CMOS Features menu:
IDE Primary Master
IDE Primary Slave
IDE Secondary Master
Page 62
Page 73
PPC-2706/PPC-2708 Panel PC
IDE Secondary Slave
IDE device configurations are changed or set in the IDE Configuration menu. If an IDE
device is detected, and one of the above listed two BIOS configuration options is selected,
the IDE configuration options shown in Section
Drive A [None]
Use the Drive A/B configuration to specify the floppy drive type installed in the system.
The floppy drive configuration options are:
None
360K, 5.25 in.
1.2M, 5.25 in.
720K, 3.5 in.
1.44M, 3.5in (Default)
2.88M, 3.5 in.
Halt On [All, But Keyboard]
Use the Halt On option to specify what errors detected during the power up process stop
the system.
5.2.1 appear.
All Errors
No Errors
All, But Keyboard
All, But Diskette
All, But Disk/Key
Whenever BIOS detects a non-fatal error the
system is stopped and the user prompted.
The system boot is not stopped for any errors
that may be detected.
(Default) The system boot does not stop for a keyboard
error; it stops for all other errors.
The system boot does not stop for a disk
error; it stops for all other errors.
The system boot does not stop for a keyboard
or a disk error; it stops for all other errors.
Page 63
Page 74
Base Memory:
The Base Memory is NOT user configurable. The POST determines the amount of base
(or conventional) memory installed in the system. The value of the base memory is
typically 512K for systems with 512K memory installed, or 640K for systems with 640K or
more memory installed.
Extended Memory
The Extended Memory is NOT user configurable. The BIOS determines how much
extended memory is present during the POST. This is the amount of memory above 1MB
located in the memory address map of the CPU.
Total Memory
The Total Memory is NOT user configurable.
PPC-2706/PPC-2708 Panel PC
5.2.1 IDE Primary Master/Slave
Use the IDE Primary Master/Slave menu to set or change the master/slave IDE
configurations.
IDE HDD Auto-Detection [Press Enter]
Use the IDE HDD Auto-Detection option to enable BIOS to automatically detect the IDE
settings. Select IDE HDD Auto-Detection and press E
the HDD type. Do not set this option manually.
IDE Primary Master [Auto]
Use the IDE Primary Master option to activate or deactivate the following drive channels:
Channel 0 Master
Channel 0 Slave
Channel 1 Master
Channel 1 Slave
NTER. BIOS automatically detects
None
Page 64
If no drives are connected to the IDE channel select this
option. Once set, this IDE channel becomes
Page 75
PPC-2706/PPC-2708 Panel PC
inaccessible and any drives attached to it are
undetected.
Auto
Manual
Access Mode [Auto]
The Access Mode option can only be configured if the BIOS configuration option is set to
either Manual or Auto.. Use the Access Mode option to determine the hard disk BIOS
translation modes. Most systems now use hard drives with large capacities and therefore
either the LBA translation mode or auto mode should be selected.
CHS
LBA
(Default) Setting this option allows the device to be automatically
detected by the BIOS.
Selecting this option allows manual configuration of the
device on the IDE channel in BIOS.
Select this mode if the HDD capacity is less than
504MB.
Select this mode if the HDD capacity is more than
8.4GB.
Large
Auto
Capacity
The Capacity specification indicates the storage capacity of the HDD installed in the
system.
Cylinder
The Cylinder specification indicates how many cylinders (tracks) are on the HDD installed
in the system.
This mode is an extended ECHS mode and while it
supports HDDs larger than 504MB, it is not
recommended.
(Default) If you are unsure of what access mode to set, select this
option.
Page 65
Page 76
Head
The Head specification indicates how many logical heads are on the HDD installed in the
system.
Precomp
The Precomp specification indicates on what track the write precompensation begins.
Landing Zone
The Landing Zone specification indicates where the disk head will park itself after the
system powers off.
Sector
The Sector specification indicates how many logical sectors the HDD has been divided
PPC-2706/PPC-2708 Panel PC
into.
5.3 Advanced BIOS Features
Use the Advanced BIOS Features menu (BIOS Menu 3) to configure the CPU and
peripheral device configuration options.

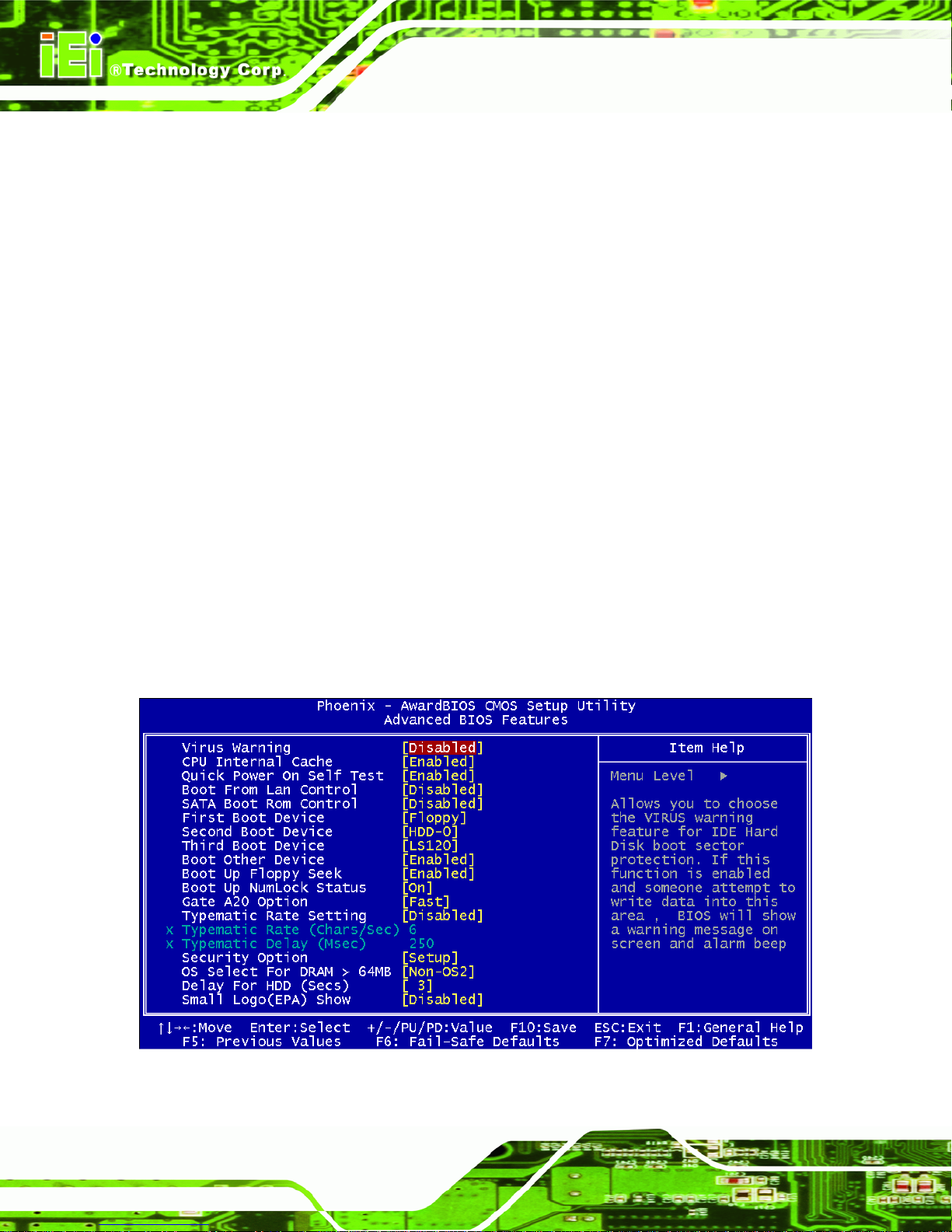

BIOS Menu 3: Advanced BIOS Features
Page 66
Page 77
PPC-2706/PPC-2708 Panel PC
Virus Warning [Disabled]
NOTE:
Many disk diagnostic programs can cause the above warning message to
appear when the program attempts to access the boot sector table. If you
are running such a program, it is recommended that the virus protection
function be disabled beforehand.
Use the Virus Warning option to enable BIOS to monitor the boot sector and partition
table of the HDD for any attempted modification. If a modification attempt is made, the
BIOS halts the system and an error message appears. If necessary, an anti-virus program
can then be run to locate and remove the virus before any damage is done.
Enabled
Disabled
CPU Internal Cache [Enabled]
Use the CPU Internal Cache option to enable or disable the internal CPU cache.
Disabled
Enabled
Quick Power On Self Test [Enabled]
Use the Quick Power On Self Test option to speed up the POST after the computer is
turned on. If enabled, BIOS shortens or skips some POST check items.
Activates automatically when the system boots up
causing a warning message to appear when anything
attempts to access the boot sector or HDD partition table.
(Default) No warning message appears when there is an attempt
to access the boot sector or HDD partition table.
The internal CPU cache is disabled.
(Default) The internal CPU cache is enabled.
Disabled Normal POST occurs after the computer is turned on.
Enabled (Default) Quick POST occurs after the computer is turned on.
Page 67
Page 78
Boot From LAN Control [Disabled]
Use the BOOT From LAN Control option to enable the system to be booted from a
remote system.
PPC-2706/PPC-2708 Panel PC
Disabled
Enabled
SATA Boot ROM Control [Disabled]
Use the SATA Boot ROM Control option to configure SATA IDE use in DOS mode.
Disabled
Enabled
Boot Device
Use the Boot Device options to select the order of the devices the system boots from.
There are three boot device configuration options:
(Default) The system cannot be booted from a remote system
through the LAN.
The system can be booted from a remote system
through the LAN.
(Default) Disables SATA IDE use in DOS mode.
Enables SATA IDE use in DOS mode.
Page 68
First Boot Device [Default: HDD-0]
Second Boot Device [Default: CDROM]
Third Boot Device [Default: SCSI]
Using the default values, the system first looks for a HDD to boot from. If it cannot find an
HDD, it boots from a CD-ROM. If both The HDD and the CD-ROM are unavailable, the
system boots from a SCSI drive.
Boot Device configuration options are:
Floppy
LS120
HDD-0
SCSI
CDROM
Page 79
PPC-2706/PPC-2708 Panel PC
HDD-1
HDD-2
HDD-3
ZIP100
USB-FDD
USB-ZIP
USB-CDROM
USB-HDD
LAN
Disabled
Boot Other Device [Enabled]
Use the Boot Other Device option to determine whether the system uses a second or
third boot device if the first boot device is not found.
Disabled
Enabled
Boot Up Floppy Seek [Disabled]
Use the Boot Up Floppy Seek option to enable the BIOS to determine if the floppy disk
drive installed has 40 or 80 tracks during the POST. 360K FDDs have 40 tracks while
760K, 1.2M and 1.44M FDDs all have 80 tracks.
Disabled
Enabled
The system does not look for second and third boot
devices if the first one is not found.
(Default) The system looks for second and third boot devices if the
first one is not found.
(Default) BIOS does not search for the type of FDD drive by track
number. Note that there is no warning message if the
drive installed is 360K.
BIOS searches for a FDD to determine if it has 40 or 80
tracks. Note that BIOS cannot tell the difference between
720K, 1.2M or 1.44M drives as they all have 80 tracks.
Page 69
Page 80
Boot Up Numlock Status [On]
Use the Boot Up Numlock Status option to specify the default state of the numeric
keypad.
PPC-2706/PPC-2708 Panel PC
Off
On
Gate A20 Option [Fast]
Use the Gate A20 Option option to set if the keyboard controller or the chipset controls
the Gate A20 switching.
Normal
Fast
Typematic Rate Setting [Disabled]
Use the Typematic Rate Setting configuration option to specify if only one character is
allowed to appear on the screen if a key is continuously held down. When this option is
enabled, the BIOS reports as before, but it then waits a moment, and, if the key is still held
down, it begins to report that the key has been pressed repeatedly. This feature
The keys on the keypad are not activated.
(Default) Activates the keys on the keypad.
The keyboard controller does the switching.
(Default) The chipset does the switching.
accelerates cursor movement with the arrow keys.
Disabled
Enabled
Typem atic Rate ( Chars/sec) [6]
The Typematic Rate option can only be configured if the Typematic Rate Setting is
enabled. Use the Typematic Rate option to specify the rate keys are accelerated.
6
8
10
Page 70
(Default) Disables the typematic rate.
Enables the typematic rate.
(Default) 6 characters per second
8 characters per second
10 characters per second
Page 81
PPC-2706/PPC-2708 Panel PC
12
15
20
24
30
Typematic Delay (Msec) [250]
The Typematic Rate option can only be configured if the Typematic Rate Setting is
enabled. Use the Typematic Delay option to specify the delay time between when a key
is first pressed and when the acceleration begins.
250
500
750
12 characters per second
15 characters per second
20 characters per second
24 characters per second
30 characters per second
(Default) 250 milliseconds
500 milliseconds
750 milliseconds
1000
Security Option [Setup]
Use the Security Option to limit access to both the system and Setup, or just Setup.
Setup
System
NOTE:
To disable security, select the password setting in the Main Menu. When
asked to enter a password, don’t type anything, press E
security is disabled. Once the security is disabled, the system boots and
Setup can be accessed.
1000 milliseconds
(Default) The system does not boot and access to Setup is denied
if the correct password is not entered at the prompt.
The system boots, but access to Setup is denied if the
correct password is not entered at the prompt.
NTER and the
Page 71
Page 82
OS Select For DRAM > 64MB [Non-OS2]
Use the OS Select For DRAM > 64MB option to specify the operating system.
PPC-2706/PPC-2708 Panel PC
Enabled
Disabled
Video BIOS Shadow [Enabled]
Use the Video Bios Shadow option to enable video BIOS to be copied to RAM.
Disabled
Enabled
Delay for HDD (secs) [3]
Use the Delay for HDD option to specify the period of time the system should wait before
the HDD is identified. If selected, the user is asked to enter a number between 0 and 15.
The number specified is the number of seconds the system waits before the HDD is
identified.
Specifies the operating system used as OS/2.
(Default) Select this option when not using the OS/2 operating
system.
Video BIOS is not copied to RAM.
(Default) Video BIOS is copied to RAM.
Small Logo (EPA) Sho w [Disabled]
Use the Small Logo (EPA) Show option to specify if the Environmental Protection
Agency (EPA) logo appears during the system boot-up process. If enabled, the boot up
process may be delayed.
Disabled
Enabled
(Default) EPA logo does not appear during boot up.
EPA logo appears during boot up.
5.4 Advanced Chipset Features
Use the Advanced Chipset Features menu (BIOS Menu 4) to change chipset
configuration options.
Page 72
Page 83
PPC-2706/PPC-2708 Panel PC
BIOS Menu 4: Advanced Chipset Features
CPU Frequency [500MHz]
Use the CPU Frequency option to set the CPU frequency. The CPU Frequency options
are:
Auto
200MHz
333MHz
400MHz
433MHz
500MHz (Default)
Memory Frequency [333MHz]
Use the Memory Frequency option to set the frequency of the installed DRAM modules.
The Memory Frequency options are:
200MHz
266MHz
333MHz (Default)
400MHz
Page 73
Page 84
CAS Latency [Auto]
Use the CAS Latency Time option to set the Column Address Strobe (CAS) delay time.
The CAS Latency Time options are:
Auto (Default)
1.5 nanoseconds
2.0 nanoseconds
2.5 nanoseconds
3.0 nanoseconds
3.5 nanoseconds
Interleave Select [LOI]
Use the Interleave Select option to specify how the cache memory is interleaved.
PPC-2706/PPC-2708 Panel PC
LOI
HOI
Video Memory Size [8M]
Use the Video Memory Size option to determine how much memory is allocated to the
video graphics device. The Video Memory Size options are:
None
8M (Default)
16M
32M
64M
128M
254M
Output Display [Panel & CRT]
(Default) Low order interleaving (LOI) of memory occurs.
High order interleaving (HOI) of memory occurs.
Use the Output Display configuration to specify the display devices the system is
connected to. The Output Display options are:
Flat Panel
Page 74
Page 85
PPC-2706/PPC-2708 Panel PC
CRT
Panel & CRT (Default)
Flat Panel Configuration [Press Enter]
Use the Flat Panel Configuration option to open the Flat Panel Configuration menu. The
Flat Panel Configuration options are shown in Section
OnBoard Audio [Enabled]
Use the OnBoard Audio option to enable or disable the onboard codec.
Disabled
Enabled
The onboard codec is disabled.
(Default) The onboard codec is detected and enabled.
5.4.1.
5.4.1 Flat Panel Configuration
Use the Flat Panel Configuration menu (BIOS Menu 5) to set the configuration settings
for the flat panel screen connected to the system.
BIOS Menu 5: Flat Panel Configuration
Page 75
Page 86
Resolution [800 x 600]
The Resolution option can only be configured if the Flat Panel Type option is not set to
Auto. Use the Resolution option to set the resolution of the flat panel screen connected
to the system. The Resolution options are:
320 x 240
640 x 480
800 x 600 (Default)
1024 x 768
1152 x 864
1280 x 1024
1600 x 1200
Data Bus Type [9 – 24 bits, 1 ppc]
PPC-2706/PPC-2708 Panel PC
The Data Bus Type option can only be configured if the Flat Panel Type option is not set
to Auto. Use the Data Bus Type option to set the bus type and the data bus width used to
transfer data between the system and the flat panel screen connected to the system. The
Data Bus Type options are:
9-24 bits, 1 ppc (Default)
18, 24 bits, 2 ppc
Refresh Rate [60Hz]
The Refresh Rate option can only be configured if the Flat Panel Type option is not set to
Auto. Use the Refresh Rate option to set the screen refresh rate required by the panel
connected to the system. Check the documentation that came with the panel before
setting this option. The Refresh Rate options are:
60Hz (Default)
70Hz
72Hz
75Hz
85Hz
90Hz
100Hz
Page 76
Page 87
PPC-2706/PPC-2708 Panel PC
HSYNC Polarity [High]
The HSYNC Polarity option can only be configured if the Flat Panel Type option is not
set to Auto. Use the HSYNC Polarity option to set the polarity of the HSYNC signal to the
panel. The HSYNC Polarity options are:
High
Low (Default)
VSYNC Polarity Active [Low]
The VGSYNC Polarity Active option can only be configured if the Flat Panel Type option
is not set to Auto. Use the VGSYNC Polarity Active option to set the polarity of the
VSYNC signal to the panel. The VGSYNC Polarity Active options are:
High
Low (Default)
SHFCLK Active Period [Free Running]
Use the SHFCLK Active Period option to set the SHFCLK. The SHFCLK Active Period
options are:
Active Only
Free running (Default)
LP Active Period [Free Running]
Use the LP Active Period option to set the LDE/MOD signal to the panel. The LP Active
Period options are:
Active Only
Free running (Default)
5.5 Integrated Peripherals
Use the Integrated Peripherals menu (BIOS Menu 6) to change the configuration options
for the attached peripheral devices.
Page 77
Page 88

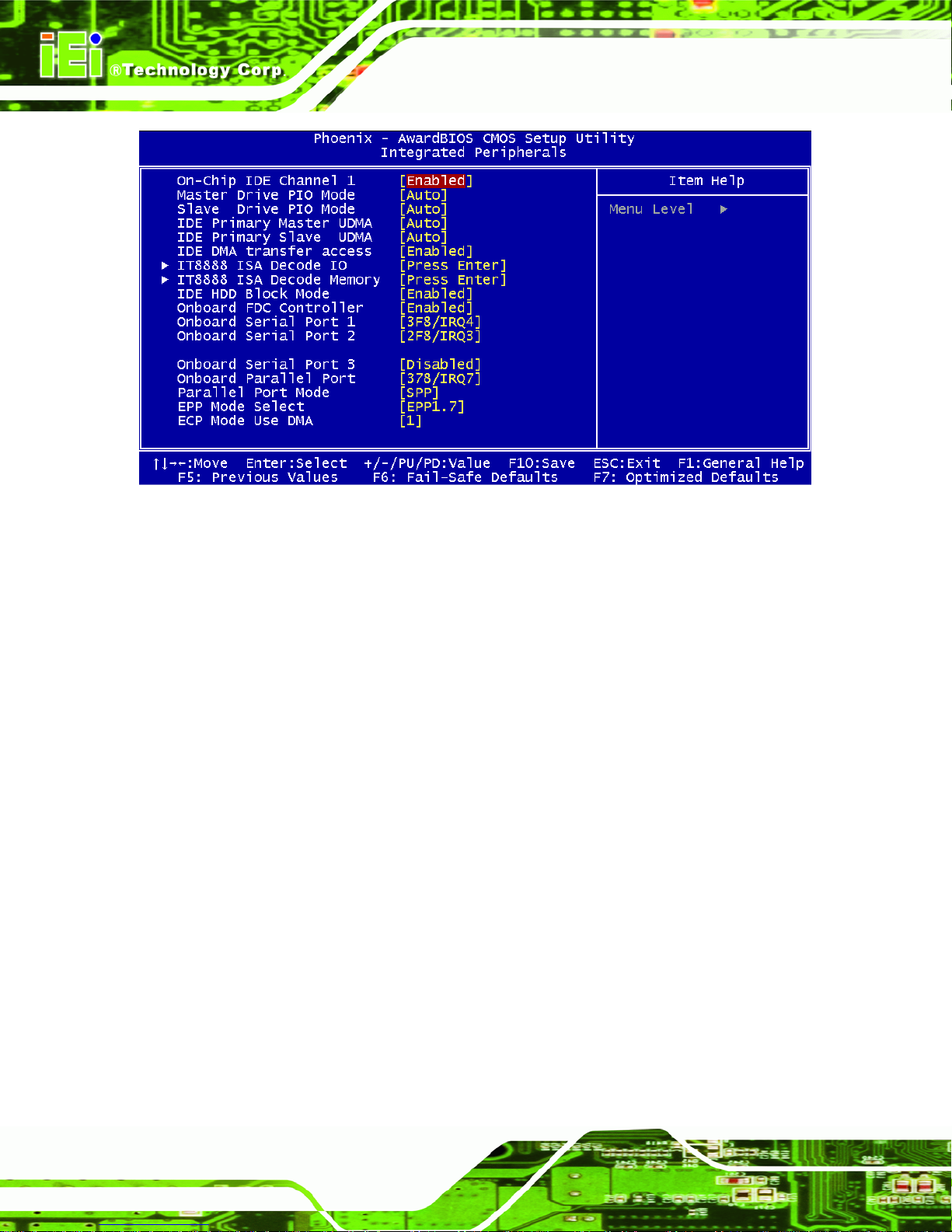

BIOS Menu 6: Integrated Peripherals
PPC-2706/PPC-2708 Panel PC
On-Chip IDE Channel 1 [Enabled]
Use the On-Chip IDE Channel 1 option to specify if the system uses the integrated
primary IDE channel or not.
Disabled
Enabled
Drive PIO Mode [Auto]
Use the Drive PIO Mode options below to select the Programmed Input/Output (PIO)
mode for the following HDDs:
Master Drive PIO Mode
Slave Drive PIO Mode
The primary IDE channel is not used.
(Default) The primary IDE channel is used.
Auto
(Default) The computer selects the correct mode.
Mode 0
Mode 1
Page 78
PIO mode 0 selected with a maximum transfer rate of 3.3MBps.
PIO mode 1 selected with a maximum transfer rate of 5.2MBps.
Page 89
PPC-2706/PPC-2708 Panel PC
Mode 2
Mode 3
Mode 4
Mode 5
IDE UDMA [Auto]
Use the IDE UDMA option below to select the Ultra DMA (UDMA) mode for the following
HDDs:
IDE Primary Master UDMA
IDE Primary Slave UDMA
Auto
Disabled
PIO mode 2 selected with a maximum transfer rate of 8.3MBps.
PIO mode 3 selected with a maximum transfer rate of 11.1MBps.
PIO mode 4 selected with a maximum transfer rate of 16.6MBps.
PIO mode 5 selected with a maximum transfer rate of 22.2MBps.
(Default) The computer selects the correct UDMA.
The UDMA for the HDD device is disabled.
IT8888 ISA Decode IO
Use the IT8888 ISA Decode IO menu (
onboard ISA. See Section
IT8888 ISA Decode Memory
Use the IT8888 ISA Decode Memory (
ISA bus. See Section
IDE HDD Block Mode [Enabled]
If the drive connected to the system supports block mode, use the IDE HDD Block Mode
option to enable the system to detect the optimal number of block read/writes per sector
the system IDE drive can support. Block mode is also called block transfer, multiple
commands, or multiple sector read/write.
5.5.1.
5.5.2.
BIOS Menu 7) to set the IO memory range for the
BIOS Menu 8) to set the resources for the onboard
Disabled
Block mode is not supported.
Page 79
Page 90
PPC-2706/PPC-2708 Panel PC
Enabled
Onboard FDC Controller [Disabled]
Use the Onboard FDC Controller option to enable or disable the onboard floppy
controller. If the system is not connected to a floppy disk or uses an adapter for the FDD,
this option can be disabled.
Disabled
Enabled
Onboard Serial Port 1 [3F8/IRQ4]
Use the Onboard Serial Port 1 option to select the I/O address and IRQ for the onboard
serial port 1. The serial port can be disabled or the I/O address and the IRQ can be
automatically selected by the BIOS. The Onboard Serial Port 1 options are:
Disabled
(Default) Block mode is supported.
(Default) The FDD controller is disabled.
The FDD controller is enabled.
3F8/IRQ4 (Default)
2F8/IRQ3
3E8/IRQ4
2E8/IRQ3
Auto
Onboard Serial Port 2 [2F8/IRQ3]
Use the Onboard Serial Port 2 option to select the I/O address and IRQ for the onboard
serial port 2. The serial port can be disabled or the I/O address and the IRQ can be
automatically selected by the BIOS. The Onboard Serial Port 2 options are:
Disabled
3F8/IRQ4
2F8/IRQ3 (Default)
3E8/IRQ4
2E8/IRQ3
Auto
Page 80
Page 91
PPC-2706/PPC-2708 Panel PC
Onboard Serial Port 3 [Disabled]
Use the Onboard Serial Port 3 option to select the I/O address and IRQ for the onboard
serial port 2. The serial port can be disabled or the I/O address and the IRQ can be
automatically selected by the BIOS. The Onboard Serial Port 3 options are:
Disabled (Default)
3F8/IRQ4
2F8/IRQ3
3E8/IRQ4
2E8/IRQ3
Auto
Onboard Parallel Port [378/IRQ7]
Use the Onboard Parallel Port option to specify a logical LPT port address and
corresponding interrupt for the physical parallel port. The Onboard Parallel Port options
are:
Disabled
378/IRQ7 (Default)
278/IRQ5
3BC/IRQ7
Parallel Port Mode [SPP]
Use the Parallel Port Mode option to select parallel port operation mode.
SPP
EPP
(Default) The parallel port operates in the standard parallel port
(SPP) mode. This parallel port mode works with most
parallel port devices but is slow.
The parallel port operates in the enhanced parallel port
mode (EPP). The EPP mode supports bi-directional
ECP
communication between the system and the parallel
port device and the transmission rates between the two
are much faster than the SPP mode.
The parallel port operates in the extended capabilities
Page 81
Page 92
port (ECP) mode. The ECP mode supports
bi-directional communication between the system and
the parallel port device and the transmission rates
between the two are much faster than the SPP mode.
PPC-2706/PPC-2708 Panel PC
ECP+EPP
Normal
EPP Mode Select [EPP1.7]
The EPP Mode Select option is only available if the Parallel Port Mode option is set to
EPP mode. Use the EPP Mode Select option to select the parallel port mode standard for
the parallel port.
EPP1.9
EPP1.7
ECP Mode Use DMA [1]
The ECP Mode Use DMA option is only available if the Parallel Port Mode option is set
to ECP mode. Use the ECP Mode Use DMA option to specify the DMA channel the
The parallel port is compatible with both ECP and EPP
devices.
EPP 1.9 is selected as the EPP standard.
(Default) EPP 1.7 is selected as the EPP standard.
Page 82
parallel port must use in the ECP mode.
1
3
(Default) The parallel port uses DMA Channel 1 in ECP mode.
The parallel port uses DMA Channel 3 in ECP mode.
Page 93
PPC-2706/PPC-2708 Panel PC
5.5.1 IT8888 ISA Decode IO
Use the IT8888 ISA Decode IO menu (BIOS Menu 7 to set the IO memory range for the
onboard ISA.

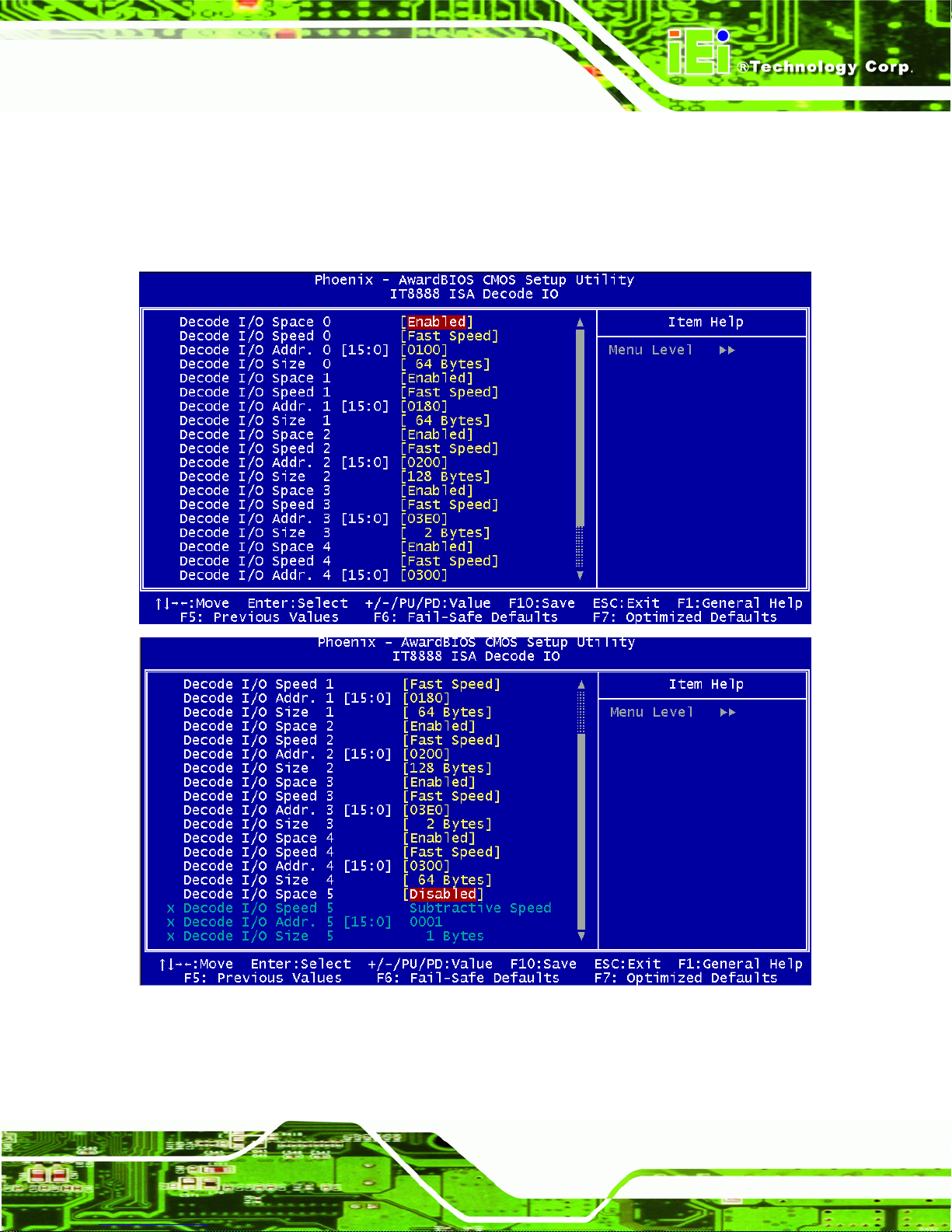

BIOS Menu 7: IT8888 ISA Decode IO
The IT8888 ISA Decode IO menu has the following common options:
Page 83
Page 94
Decode I/O Space N
Decode I/O Speed N
Decode I/O Addr. N [15:0]
Decode I/O Size N
Where N is an integer in the set [1, 2, 3, 4, 5] and represents a set for the PCI-104 devices
that are attached to the system.
Decode IO Space N [Enabled]
Use the Decode IO Space N option to allocate system resources to the ISA bridge and to
enable the Nth PCI-104 to function correctly.
PPC-2706/PPC-2708 Panel PC
Disabled
Enabled
Decode IO Speed N [Fast Speed]
Use the Decode IO Speed N option to specify the speed of the Nth ISA bus. The following
options are available:
Fast Speed
Middle Speed
Slow Speed
Subtractive Speed
Decode IO Address N 0:15 [xx]
Use the Decode IO Address N 0:15 option to allocate an address to the ISA bus. The
The Nth IO set is disabled and the system resources
are reallocated to other applications.
(Default) The Nth IO set is enabled and dedicated system
resources are allocated to the Nth ISA bus.
address may range from 0001 to FFFF.
Decode IO Size N [Fast Speed]
Use the Decode IO Size N option to specify the size of the ISA bus. The following options
are available:
Page 84
Page 95
PPC-2706/PPC-2708 Panel PC
1 Byte
2 Bytes
4 Bytes
8 Bytes
16 Bytes
32 Bytes
64 Bytes
128 Bytes
Page 85
Page 96
5.5.2 IT8888 ISA Decode Memory
Use the IT8888 ISA Decode Memory (BIOS Menu 8) to set the resources for the onboard
ISA bus.
PPC-2706/PPC-2708 Panel PC
BIOS Menu 8: IT8888 ISA Decode Memory
The IT8888 ISA Decode IO menu has the following common options:
Decode Memory Space N
Decode Memory Speed N
Decode Memory Addr. N [15:0]
Decode Memory Size N
Where N is an integer in the set [1, 2, 3, 4, 5] and represents a memory set for the PCI-104
devices that are attached to the system.
Decode Memory Space N [Enabled]
Use the Decode IO Memory N option to allocate memory resources to the ISA bridge and
to enable the PCI-104 to function correctly.
Disabled
The Nth memory set is disabled and the system
Page 86
Page 97
PPC-2706/PPC-2708 Panel PC
memory resources are reallocated to other applications.
Enabled
Decode Memory Speed N [Fast Speed]
Use the Decode Memory Speed N option to specify the memory speed of the ISA bus.
The following options are available:
Fast Speed
Middle Speed
Slow Speed
Subtractive Speed
Decode Memory Address N [xx]
Use the Decode Memory Address N option to allocate an address to the memory of the
ISA bus. The address may range from 0001 to FFFF.
(Default) The Nth memory set is enabled and dedicated system
memory resources are allocated to the ISA bus.
Decode Memory Size N [xx]
Use the Decode Memory Size N option to specify the memory size of the ISA bus. The
following options are available:
16 KB
32 KB
64 KB
128 KB
256 KB
512 KB
1 MB
2 MB
5.6 Power Management Setup
Use the Power Management Setup menu (BIOS Menu 9) to set the BIOS power
management and saving features.
Page 87
Page 98
BIOS Menu 9: Power Management Setup
PPC-2706/PPC-2708 Panel PC
ACPI Function [Disabled]
Use the ACPI Function to enable the ACPI (Advanced Configuration and Power Interface)
function.
Disabled
Enabled
ACPI function disabled.
(Default) ACPI function enabled.
Page 88
Page 99
PPC-2706/PPC-2708 Panel PC
ACPI Suspend Ty pe [S1(POS)]
Use the ACPI Suspend Type BIOS option to specify the sleep state the system enters
when not being used.
S1 (POS)
S3 (STR)
S1 & S3
Power Management [ACPI]
Use the Power Management option to set the power management type used by the
system.
Disabled
Legacy
(Default) System appears off. The CPU is stopped; RAM is
refreshed; the system is running in a low power mode.
System appears off. The CPU has no power; RAM is in
slow refresh; the power supply is in a reduced power
mode.
Both suspend modes are implemented
All power management options are turned off. The only
user configurable options are the power button and
alarm settings.
Standby and suspend modes can be set.
APM
ACPI
x Standby Mode [Disabled]
The Standby Mode option can only be selected if the Power Management option is set
to Legacy. The Standby Mode specifies the amount of time the system can be inactive
before the system enters standby mode. The Standby Mode options are:
Disabled (Default)
1 Sec
5 Sec
(Default) Advanced power management (APM) is activated
Advanced Configuration and Power Interface (ACPI) is
activated.
Page 89
Page 100
10 Sec
15 Sec
30 Sec
45 Sec
1 Min
5 Min
10 Min
15 Min
30 Min
45 Min
60 Min
90 Min
120 Min
x Suspend Mode [Disabled]
PPC-2706/PPC-2708 Panel PC
The Suspend Mode option can only be selected if the Power Management option is set
to Legacy. The Suspend Mode specifies the amount of time the system can be inactive
before the system enters suspend mode. The Suspend Mode options are:
Disabled (Default)
1 Sec
5 Sec
10 Sec
15 Sec
30 Sec
45 Sec
1 Min
5 Min
10 Min
15 Min
30 Min
45 Min
60 Min
90 Min
120 Min
Page 90
