POC 965 Series Medical Panel PC
POC-965 Series Medical Panel PC
Page I
Page 2
POC 965 Series Medical Panel PC
Revision
Date Version Changes
2008-11 1.01
2008-09 1.00
Modified the model number
Initial release
Page II
Page 3
POC 965 Series Medical Panel PC
COPYRIGHT NOTICE
The information in this document is subject to change without prior notice in order to
improve reliability, design and function and does not represent a commitment on the part
of the manufacturer.
In no event will the manufacturer be liable for direct, indirect, special, incidental, or
consequential damages arising out of the use or inability to use the product or
documentation, even if advised of the possibility of such damages.
Copyright
This document contains proprietary information protected by copyright. All rights are
reserved. No part of this manual may be reproduced by any mechanical, electronic, or
other means in any form without prior written permission of the manufacturer.
TRADEMARKS
All registered trademarks and product names mentioned herein are used for identification
purposes only and may be trademarks and/or registered trademarks of their respective
owners.
Page III
Page 4
POC 965 Series Medical Panel PC
Manual Conventions
WARNING!
Warnings appear where overlooked details may cause damage to the equipment or result
in personal injury. Warnings should be taken seriously. Warnings are easy to recognize.
The word “warning” is written as “WARNING,” both capitalized and bold and is followed by
text. The text is the warning message. A warning message is shown below:
WARNING:
This is an example of a warning message. Failure to adhere to warning
messages may result in permanent damage to the POC-965 Series or
personal injury to the user. Please take warning messages seriously.
CAUTION!
Cautionary messages should also be heeded to help reduce the chance of losing data or
damaging the POC-965 Series. Cautions are easy to recognize. The word “caution” is
written as “CAUTION,” both capitalized and bold and is followed. The italicized text is the
cautionary message. A caution message is shown below:
CAUTION:
This is an example of a caution message. Failure to adhere to cautions
messages may result in permanent damage to the POC-965 Series.
Page IV
Please take caution messages seriously.
Page 5
POC 965 Series Medical Panel PC
NOTE:
These messages inform the reader of essential but non-critical information. These
messages should be read carefully as any directions or instructions contained therein can
help avoid making mistakes. Notes are easy to recognize. The word “note” is written as
“NOTE,” both capitalized and bold and is followed by text. The text is the cautionary
message. A note message is shown below:
NOTE:
This is an example of a note message. Notes should always be read.
Notes contain critical information about the POC-965 Series. Please
take note messages seriously.
Page V
Page 6
POC 965 Series Medical Panel PC
Packing List
NOTE:
If any of the components listed in the checklist below are missing,
please do not proceed with the installation. Contact the IEI reseller or
vendor you purchased the POC-965 Series from or contact an IEI sales
representative directly. To contact an IEI sales representative, please
send an email to
The items listed below should all be included in the POC-965 Series package.
1 x POC-965 Series medical panel PC
1 x Power cord (Europe standard or USA standard)
1 x Medical grade power adapter
1 x eSATA cable
1 x Touch pen
1 x User Manual and driver CD
1 x Screw kit

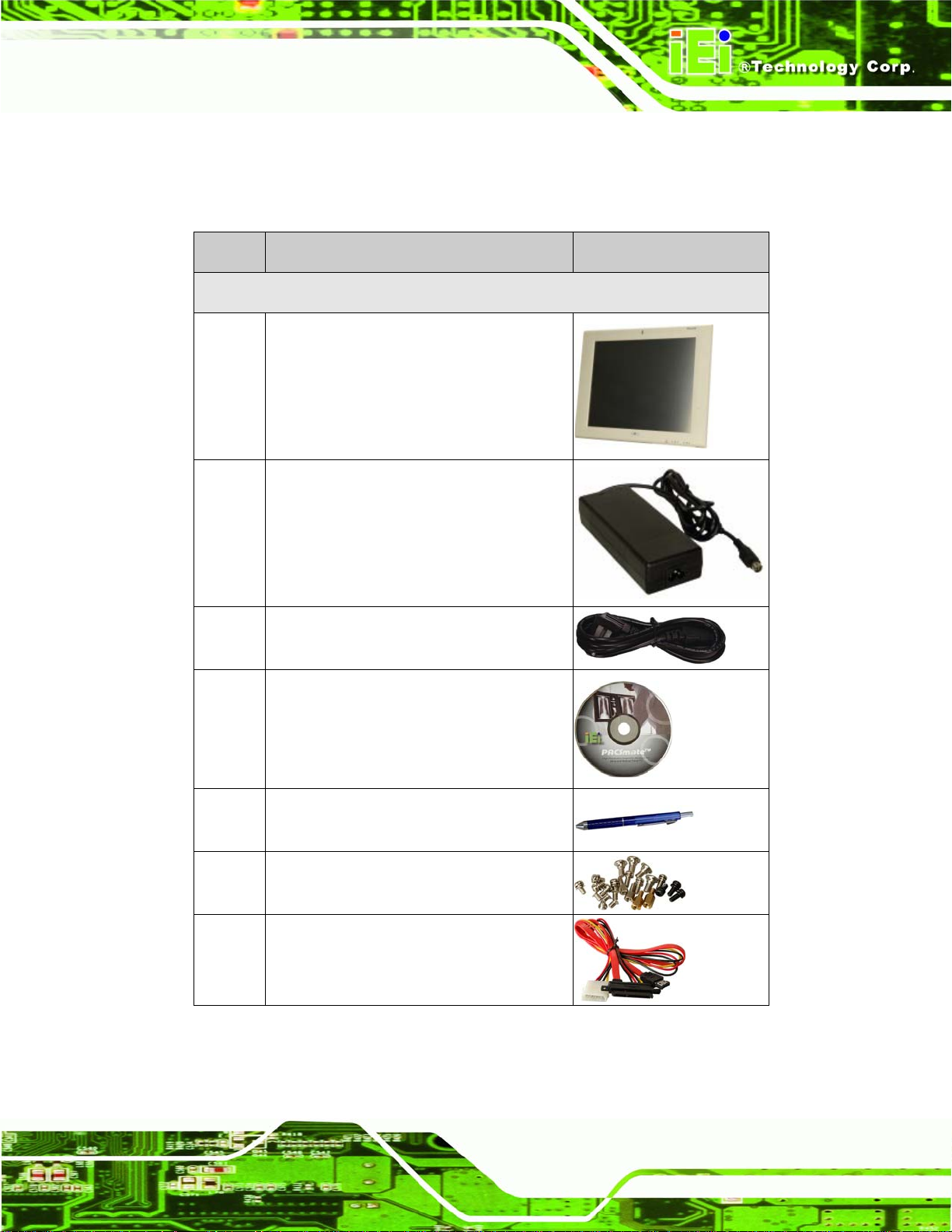

Images of the above items are shown in Chapter 3.
sales@iei.com.tw.
Page VI
Page 7
POC 965 Series Medical Panel PC
Table of Contents
1 INTRODUCTION................................................................................................. 1
1.1 GENERAL OVERVIEW ................................................................................................. 2
1.1.1 Model Variations................................................................................................ 3
1.1.2 Standard Features.............................................................................................. 3
1.2 EXTERNAL OVERVIEW................................................................................................4
1.2.1 Front Panel........................................................................................................ 4
1.2.2 Rear Panel ......................................................................................................... 5
1.2.3 Bottom Panel...................................................................................................... 5
1.3 INTERNAL OVERVIEW................................................................................................. 6
1.4 SPECIFICATIONS ......................................................................................................... 7
1.4.1 Preinstalled Hardware Components.................................................................. 7
1.4.2 System Specifications..........................................................................................8
2 SPECIFICATIONS............................................................................................. 10
2.1 DIMENSIONS..............................................................................................................11
2.1.1 POC-417B Dimensions.....................................................................................11
2.1.2 POC-419B Dimensions.................................................................................... 12
2.2 INTEL® DESK-TOP PROCESSOR SUPPORT................................................................. 13
2.3 MOTHERBOARD COMPONENTS................................................................................. 14
2.3.1 Memory Support............................................................................................... 14
2.3.1.1 Installed Memory...................................................................................... 14
2.3.1.2 Additional Memory................................................................................... 14
2.3.2 Storage Capacity.............................................................................................. 14
2.4 EXTERNAL PERIPHERAL INTERFACE CONNECTORS................................................... 15
2.4.1 Serial Port Connectors .................................................................................... 15
2.4.2 LAN Connectivity............................................................................................. 15
2.4.3 External USB Connectors................................................................................ 16
2.4.4 eSATA Connectivity.......................................................................................... 16
2.5 POC-965 SERIES FRONT SIDE.................................................................................. 17
2.5.1 Monitor ............................................................................................................ 17
2.5.2 Touch-Screen Module....................................................................................... 17
Page VII
Page 8
2.6 GRAPHICS ................................................................................................................ 17
2.6.1 Intel® GME965 Integrated Graphics Media Accelerator 950......................... 17
2.6.2 Dual-Display.................................................................................................... 18
2.7 AUDIO...................................................................................................................... 18
2.7.1 High Definition Audio Controller.................................................................... 18
2.7.2 Stereo Speakers................................................................................................ 18
2.8 SYSTEM POWER ....................................................................................................... 19
2.8.1 Power Mode..................................................................................................... 19
2.8.1.1 ATX Power Mode (Default)...................................................................... 19
2.8.1.2 AT Power Mode ........................................................................................ 20
2.8.2 Power Adapter................................................................................................. 20
2.8.3 Power Connector............................................................................................. 20
2.9 WIRELESS CONNECTIONS......................................................................................... 21
2.9.1 USB Bluetooth Module .................................................................................... 21
POC 965 Series Medical Panel PC
2.9.2 Wireless Ethernet ............................................................................................. 22
3 UNPACKING...................................................................................................... 23
3.1 UNPACKING.............................................................................................................. 24
3.1.1 Packing List ..................................................................................................... 25
4 INSTALLATION................................................................................................ 26
4.1 ANTI-STATIC PRECAUTIONS...................................................................................... 27
4.2 INSTALLATION PRECAUTIONS ................................................................................... 27
4.3 PREINSTALLED COMPONENTS................................................................................... 28
4.4 INST ALLATION AND CONFIGURATION STEPS............................................................. 28
4.5 CF CARD INSTALLATION .......................................................................................... 29
4.6 AT/ATX MODE SELECTION...................................................................................... 30
4.7 MOUNTING THE SYSTEM .......................................................................................... 31
4.7.1 Wall Mounting.................................................................................................. 31
4.7.2 Arm Mounting .................................................................................................. 34
4.8 BOTTOM PANEL CONNECTORS ................................................................................. 36
4.8.1 12V DC Power Connection.............................................................................. 36
4.8.2 LAN Connection............................................................................................... 36
4.8.3 Serial Device Connection ................................................................................ 37
4.8.4 USB Device Connection................................................................................... 38
Page VIII
Page 9
POC 965 Series Medical Panel PC
4.8.5 VGA Monitor Connection ................................................................................ 39
5 SYSTEM MAINTENANCE .............................................................................. 41
5.1 INTRODUCTION......................................................................................................... 42
5.2 MOTHERBOARD REPLACEMENT ............................................................................... 42
5.3 INTERNAL ALUMINUM COVER REMOVAL ................................................................. 42
5.4 HDD REPLACEMENT................................................................................................ 43
5.5 MEMORY MODULE REPLACEMENT........................................................................... 46
5.6 JUMPER SETTINGS .................................................................................................... 48
5.6.1 Clear CMOS Jumper (J_CMOS1)................................................................... 49
5.6.2 COM1 and COM3 RI and Voltage Select (J10)............................................... 49
5.6.3 COM3 RS-232/422/485 Select (J9).................................................................. 49
5.6.4 COM2 RI and Voltage Select (J6).................................................................... 49
5.6.5 CompactFlash® Setup (J4).............................................................................. 50
5.6.6 LCD Voltage Select (J2)................................................................................... 50
5.7 RS-422 AND RS-485 PINOUTS ................................................................................. 50
6 AMI BIOS SETUP.............................................................................................. 52
6.1 INTRODUCTION......................................................................................................... 53
6.1.1 Starting Setup................................................................................................... 53
6.1.2 Using Setup...................................................................................................... 53
6.1.3 Getting Help..................................................................................................... 54
6.1.4 Unable to Reboot After Configuration Changes.............................................. 54
6.1.5 BIOS Menu Bar................................................................................................ 54
6.2 MAIN........................................................................................................................ 55
6.3 ADVANCED............................................................................................................... 56
6.3.1 CPU Configuration.......................................................................................... 57
6.3.2 IDE Configuration........................................................................................... 59
6.3.2.1 IDE Master, IDE Slave............................................................................. 60
6.3.3 Super IO Configuration ................................................................................... 65
6.3.4 Hardware Health Configuration...................................................................... 67
6.3.5 Intel AMT Configuration.................................................................................. 72
6.3.5.1 ME Subsystem Configuration ................................................................... 72
6.3.6 Intel Robson Configuration.............................................................................. 75
6.3.7 Remote Access Configuration.......................................................................... 76
Page IX
Page 10
6.3.8 USB Configuration........................................................................................... 79
6.3.9 Power Configuration ....................................................................................... 81
6.3.9.1 ACPI Configuration .................................................................................. 81
6.3.10 APM Configuration........................................................................................ 82
6.4 PCI/PNP................................................................................................................... 85
6.5 BOOT........................................................................................................................ 88
6.5.1 Boot Settings Configuration............................................................................. 89
6.5.2 Boot Device Priority........................................................................................ 91
6.6 SECURITY................................................................................................................. 92
6.7 CHIPSET ................................................................................................................... 93
6.7.1 North Bridge Configuration............................................................................. 93
6.7.2 South Bridge Configuration............................................................................. 96
6.8 EXIT......................................................................................................................... 97
7 SOFTWARE DRIVERS..................................................................................... 99
POC 965 Series Medical Panel PC
7.1 AVAILABLE SOFTWARE DRIVERS ............................................................................ 100
7.2 DRIVER CD AUTO-RUN.......................................................................................... 100
7.3 INTEL® CHIPSET DRIVER....................................................................................... 103
7.4 INTEL® GRAPHICS MEDIA ACCELERATOR DRIVER ................................................ 106
7.5 INTEL® 82566 GIGABIT LAN CONNECT DEVICE DRIVER.......................................110
7.6 GIGABIT ETHERNET CONTROLLER DRIVER.............................................................116
7.7 REALTEK HD AUDIO DRIVER (ALC883) INSTALLATION........................................ 122
7.7.1 BIOS Setup..................................................................................................... 122
7.7.2 Driver Installation ......................................................................................... 123
7.8 TOUCH SCREEN DRIVER......................................................................................... 126
7.9 BLUETOOTH DRIVER.............................................................................................. 130
7.10 INTEL® ACTIVE MANAGEMENT TECHNOLOGY DRIVER INSTALLATION................ 135
A SYSTEM SPECIFICATIONS......................................................................... 140
A.1 MOTHERBOARD SPECIFICATIONS........................................................................... 141
A.2 FLAT PANEL SCREEN SPECIFICATIONS ................................................................... 142
A.3 TOUCH SCREEN SPECIFICATIONS ........................................................................... 143
A.4 BLUETOOTH MODULE SPECIFICATIONS ................................................................. 143
A.5 WIRELESS LAN MODULE...................................................................................... 144
B SAFETY PRECAUTIONS............................................................................... 145
Page X
Page 11
POC 965 Series Medical Panel PC
B.1 SAFETY PRECAUTIONS........................................................................................... 146
B.1.1 General Safety Precautions........................................................................... 146
B.1.2 Anti-static Precautions.................................................................................. 147
B.2 MAINTENANCE AND CLEANING PRECAUTIONS...................................................... 147
B.2.1 Maintenance and Cleaning............................................................................ 147
B.2.2 Cleaning Tools............................................................................................... 148
B.3 ESD PRECAUTIONS ............................................................................................... 149
B.4 PRODUCT DISPOSAL .............................................................................................. 149
B.5 UL 60601-1 AND CAN/CSA C22.2 NO. 601.1.................................................... 150
B.6 EN60601-1-2,....................................................................................................... 150
B.7 FCC....................................................................................................................... 150
B.8 STANDARD INSPECTION BUREAU FOR CHINA ........................................................ 150

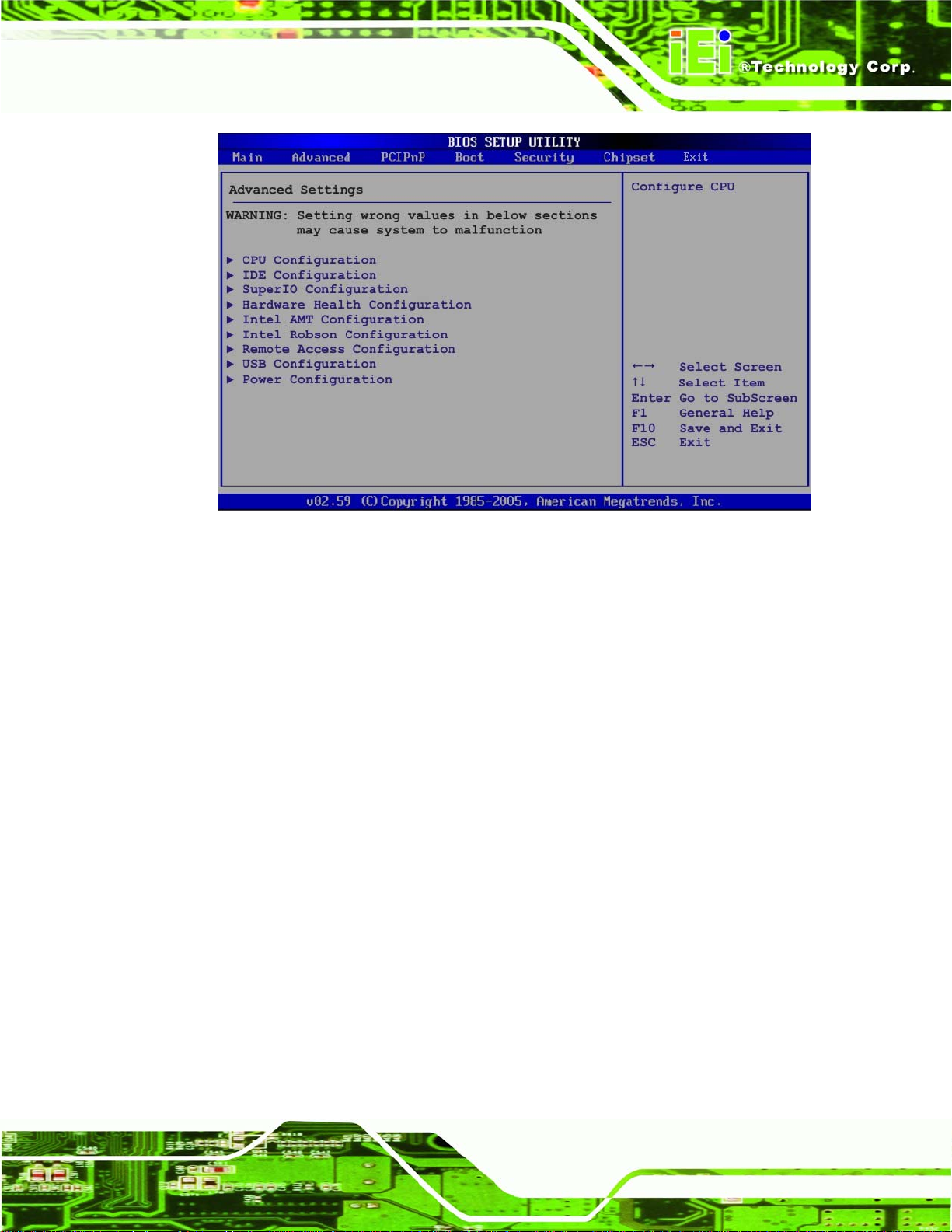

C BIOS CONFIGURATION OPTIONS............................................................ 152
C.1 BIOS CONFIGURATION OPTIONS ........................................................................... 153
D WATCHDOG TIMER ..................................................................................... 157
E HAZARDOUS MATERIALS DISCLOSURE............................................... 160
E.1 HAZARDOUS MATERIAL DISCLOSURE TABLE FOR IPB PRODUCTS CER TIFIED AS
ROHS COMPLIANT UNDER 2002/95/EC WITHOUT MERCURY..................................... 161
Page XI
Page 12
POC 965 Series Medical Panel PC
List of Figures

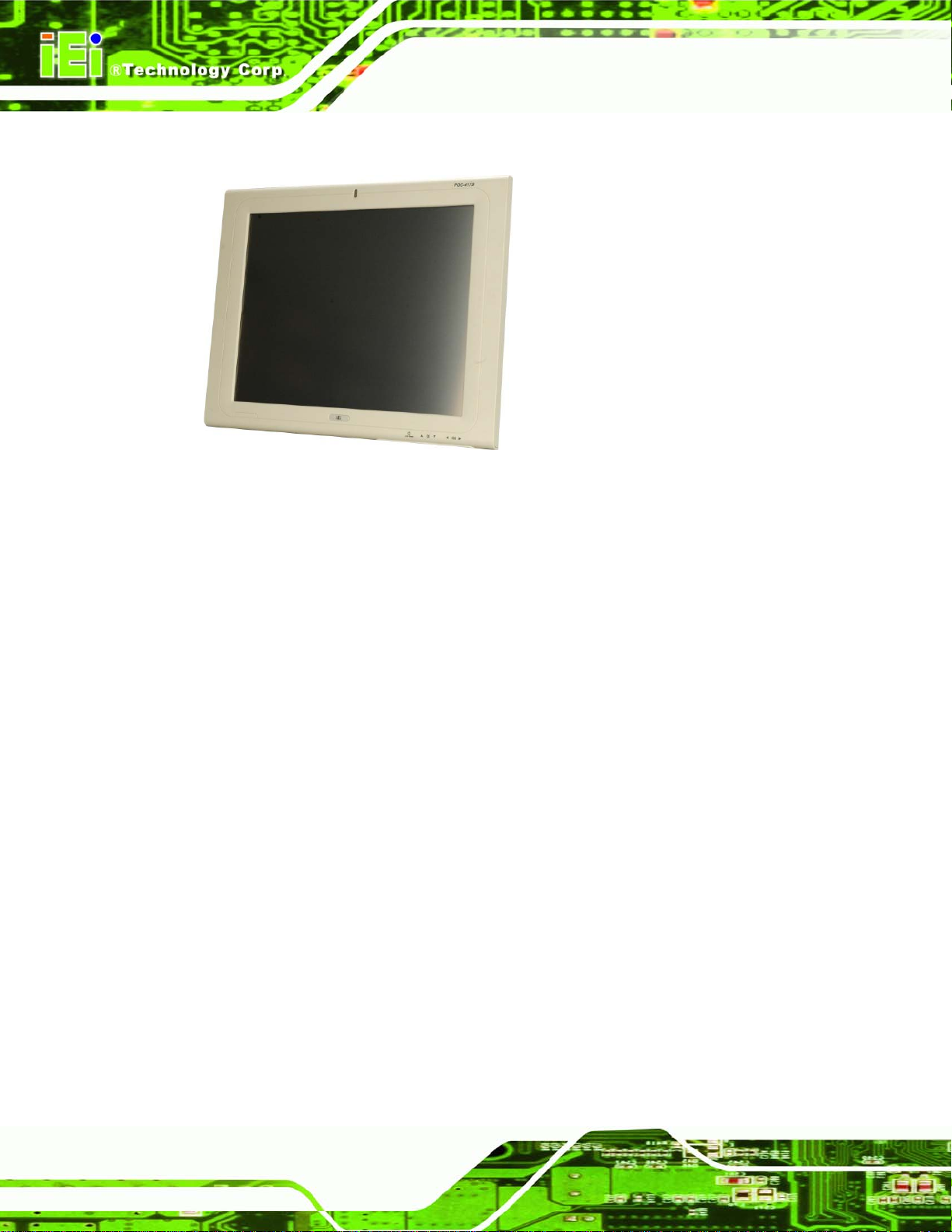

Figure 1-1: POC-965 Series Medical Panel PC...........................................................2

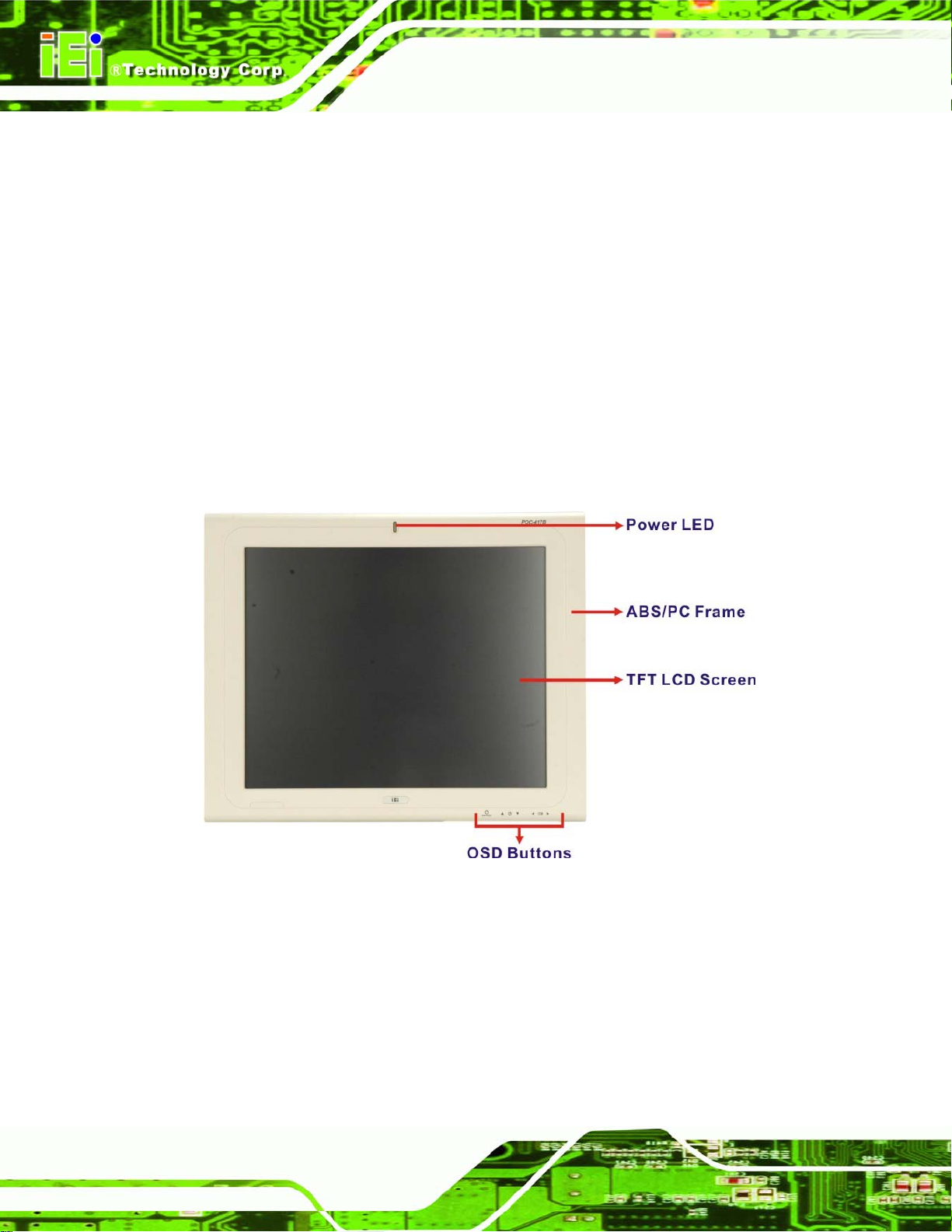

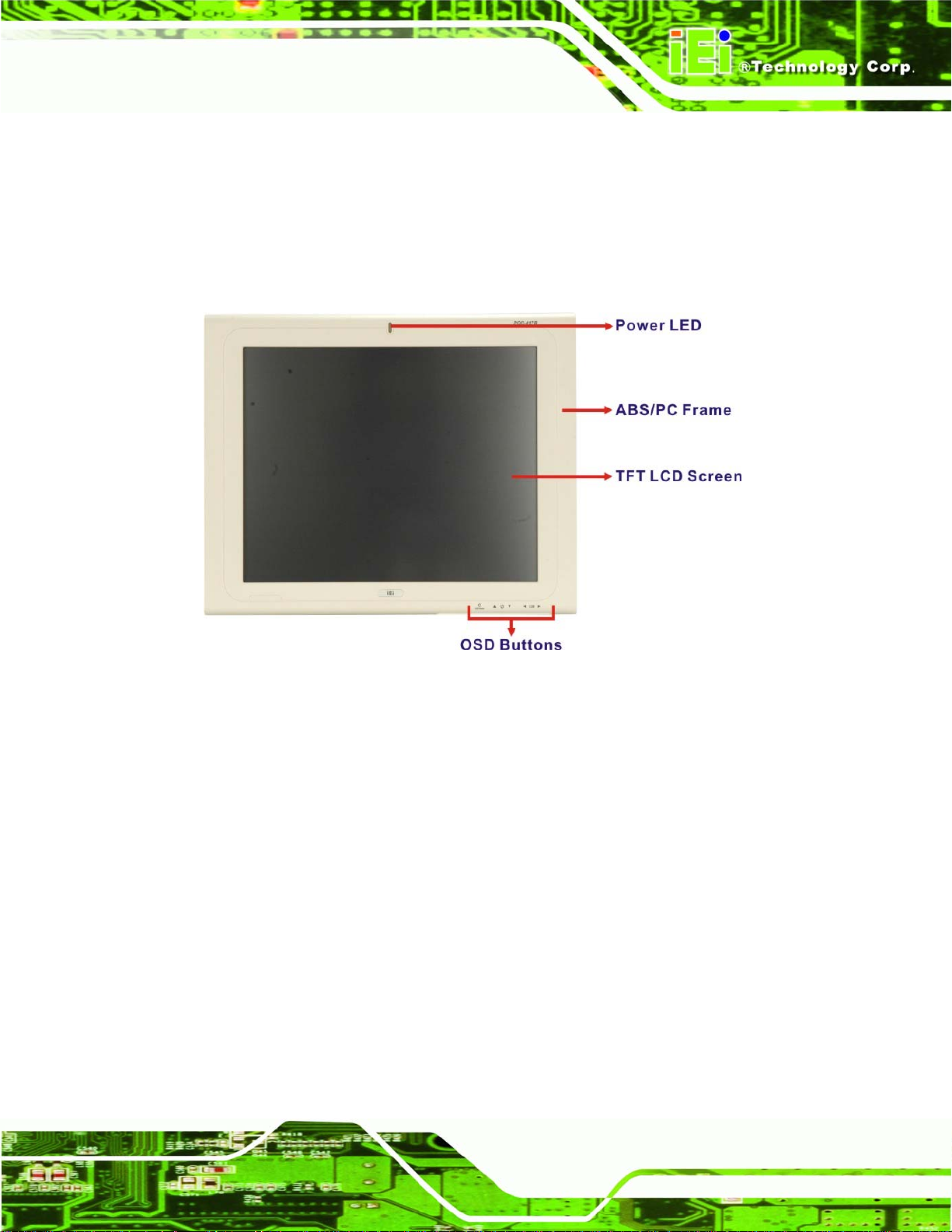

Figure 1-2: Front View...................................................................................................4
Figure 1-3: Rear View....................................................................................................5

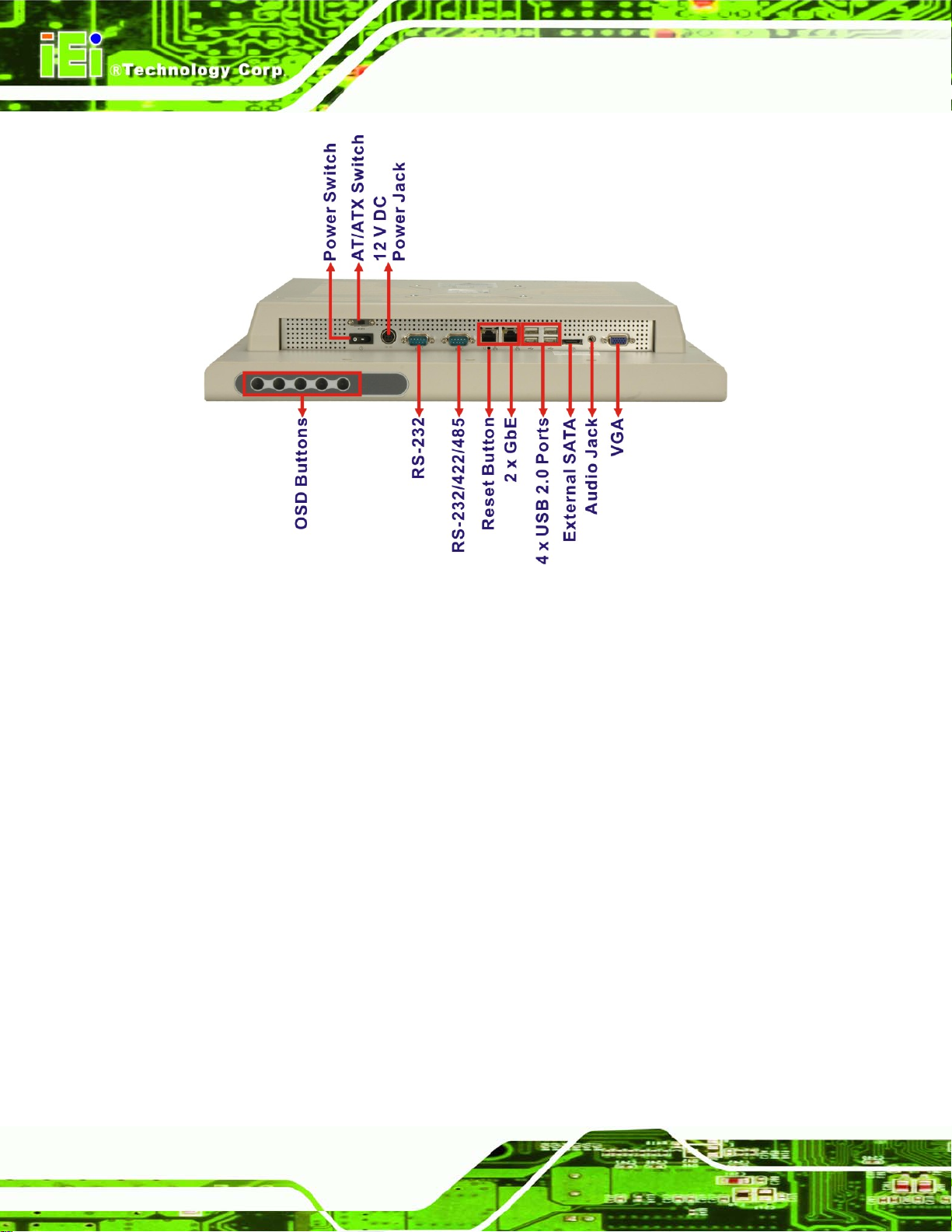

Figure 1-4: Bottom View...............................................................................................6

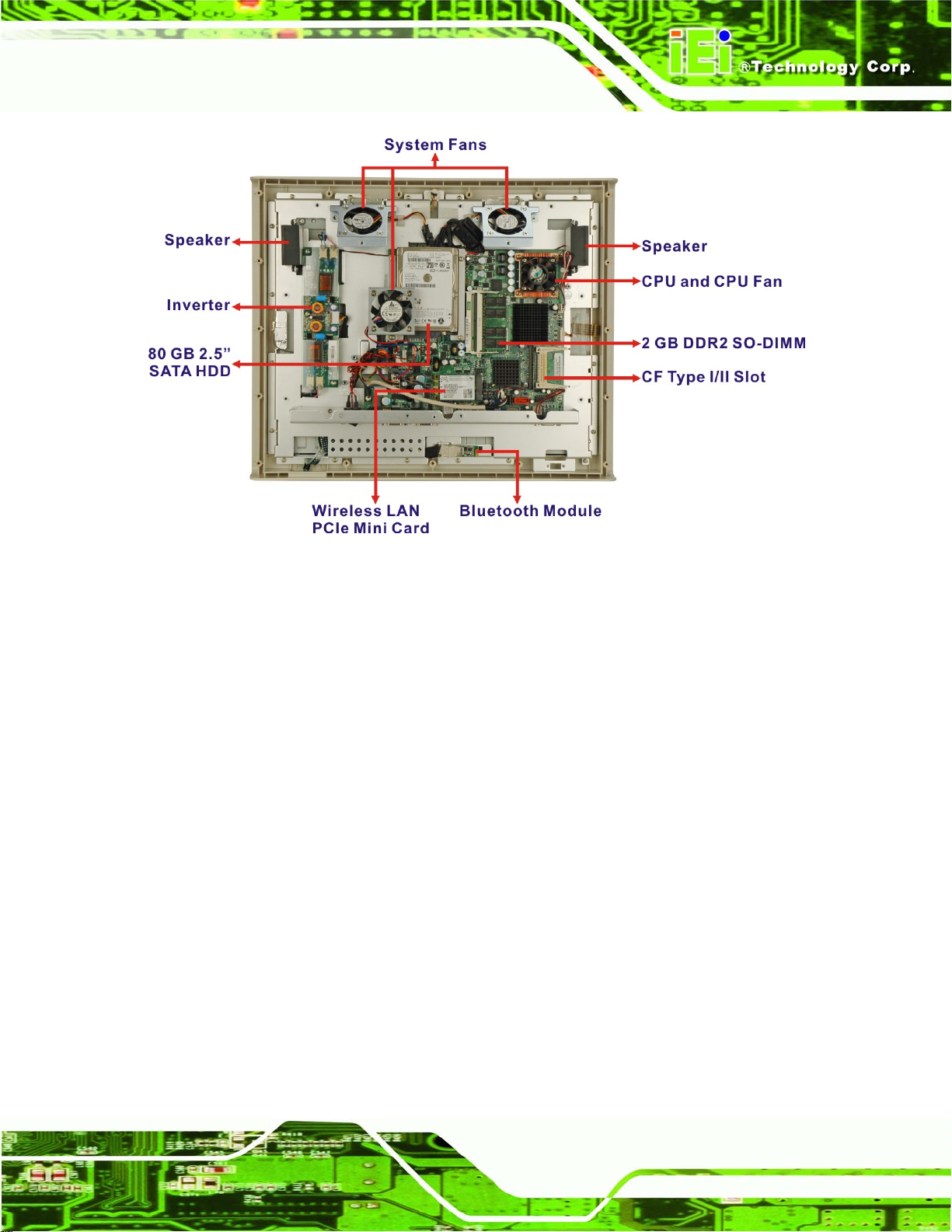

Figure 1-5: Internal Overview.......................................................................................7

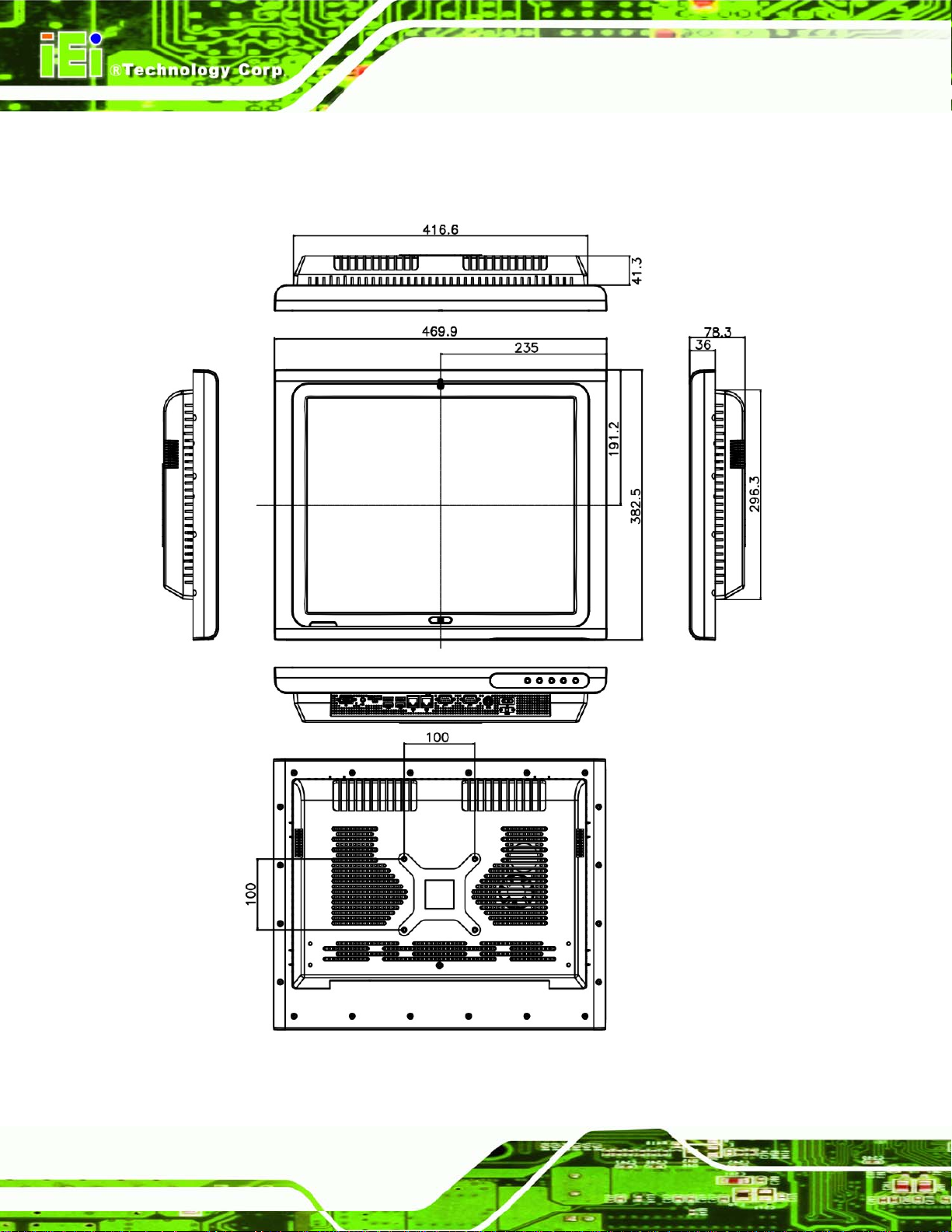

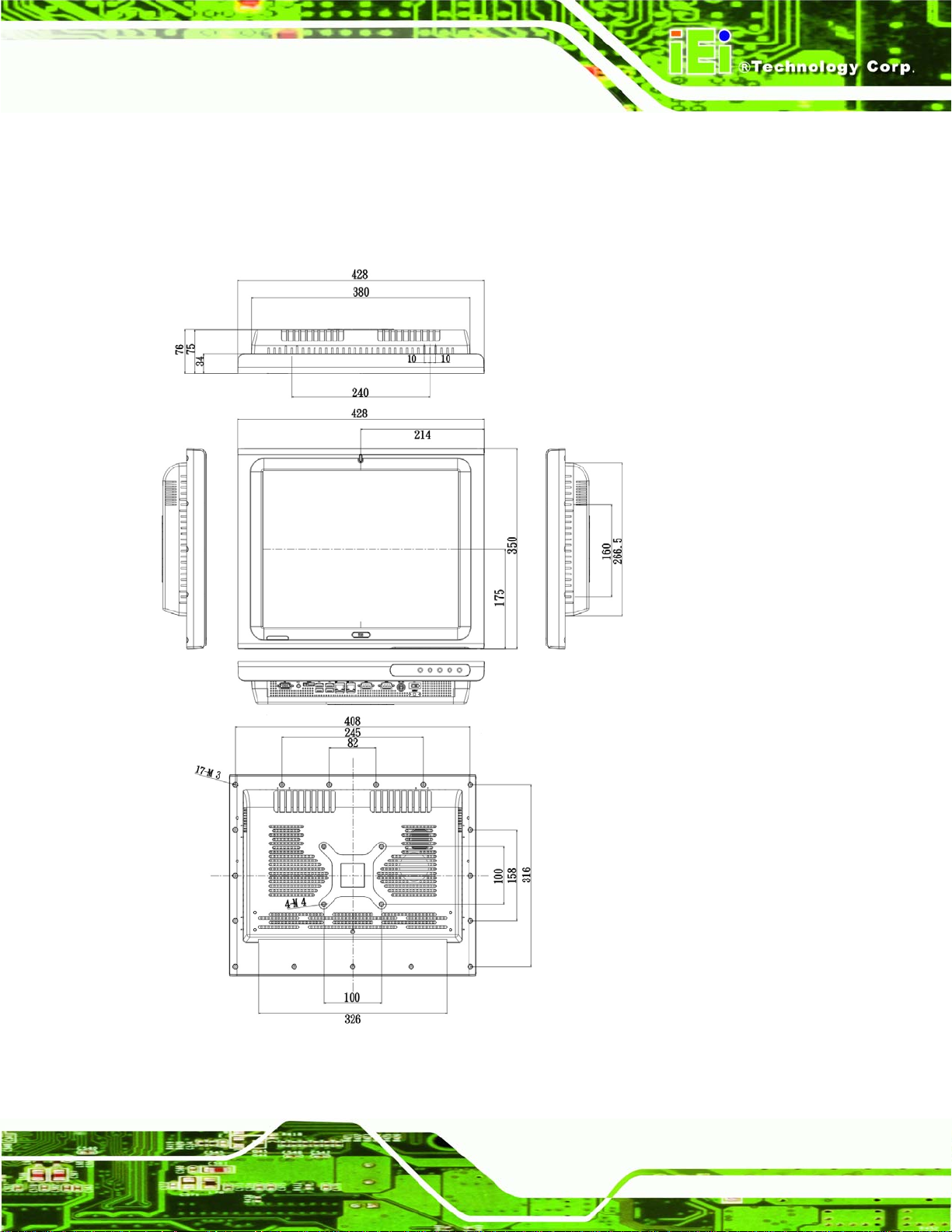

Figure 2-1: POC-417B Dimensions (units in mm)....................................................11
Figure 2-2: POC-419B Dimensions (units in mm)....................................................12

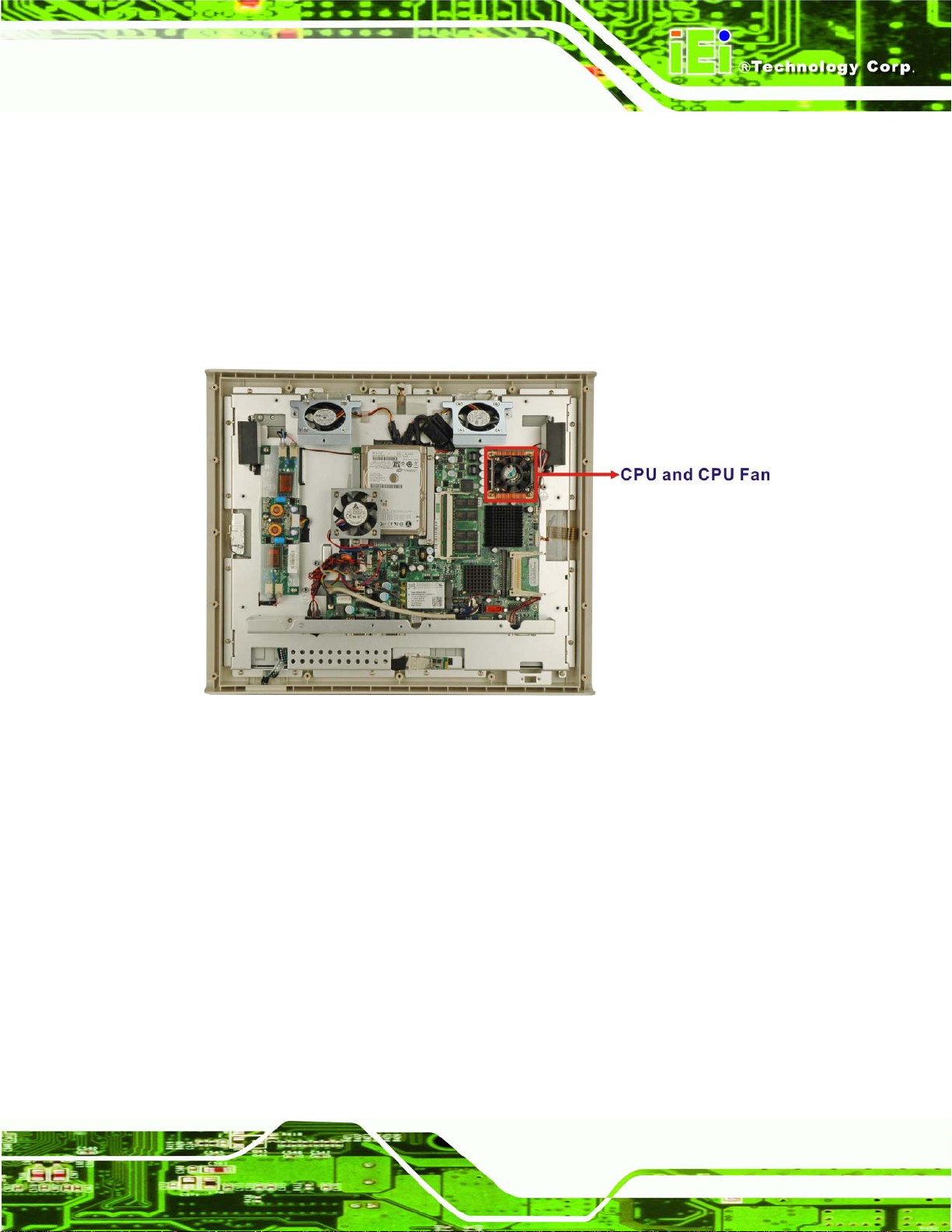

Figure 2-3: CPU and CPU Fan....................................................................................13

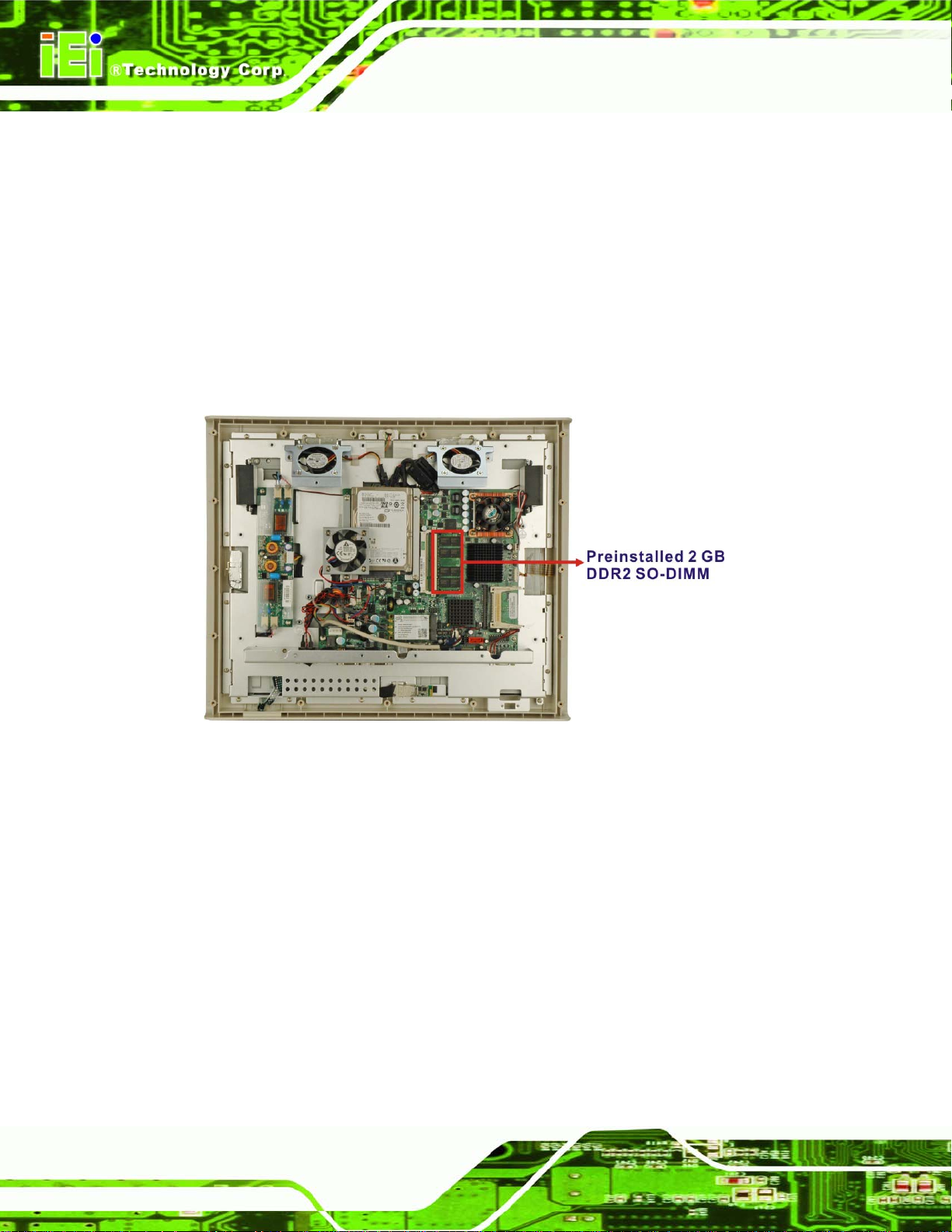

Figure 2-4: Memory Module and Memory Socket....................................................14

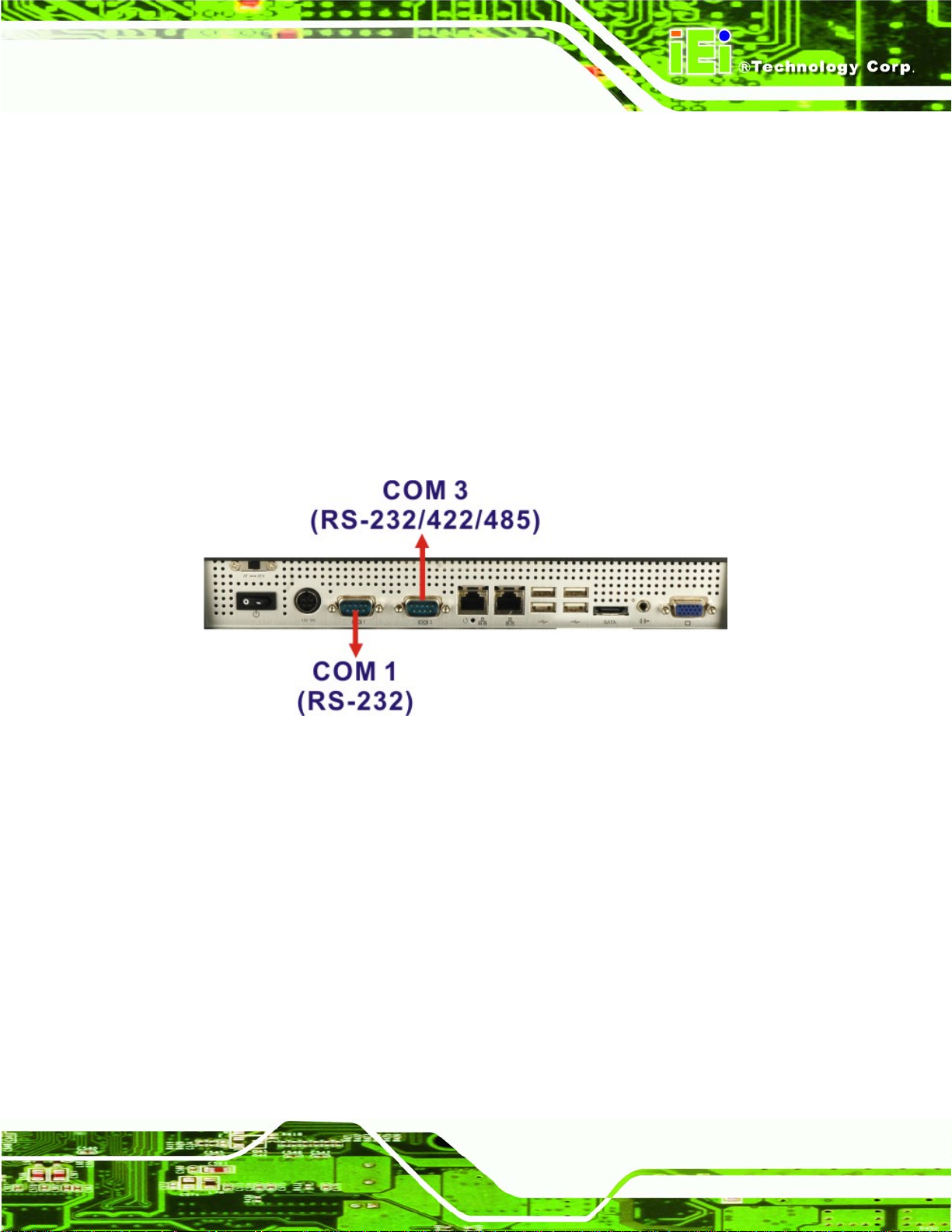

Figure 2-5: COM Ports ................................................................................................15

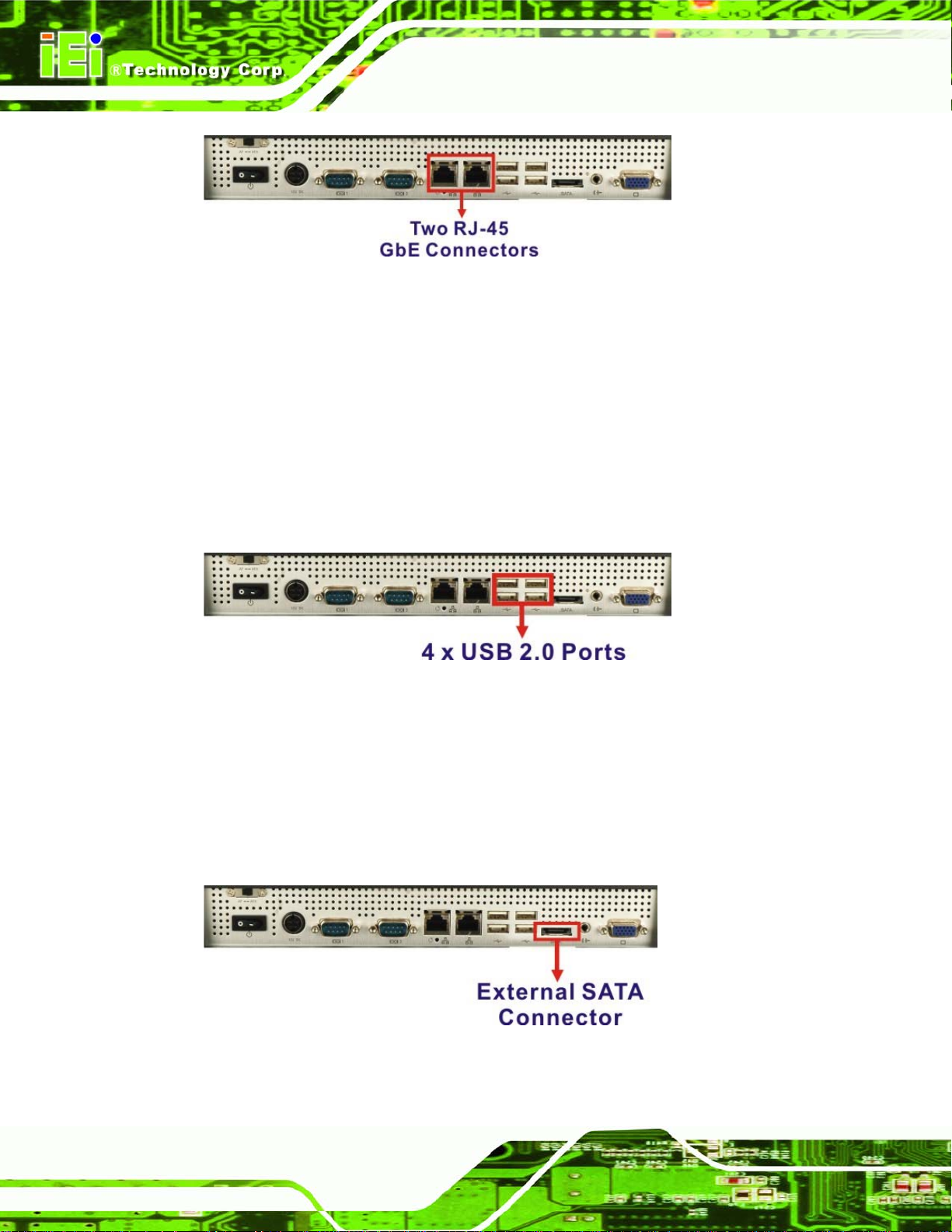

Figure 2-6: RJ-45 Ethernet Connectors ....................................................................16
Figure 2-7: External USB Ports..................................................................................16
Figure 2-8: eSATA Connector....................................................................................16
Figure 2-9: LCD Screen ..............................................................................................17

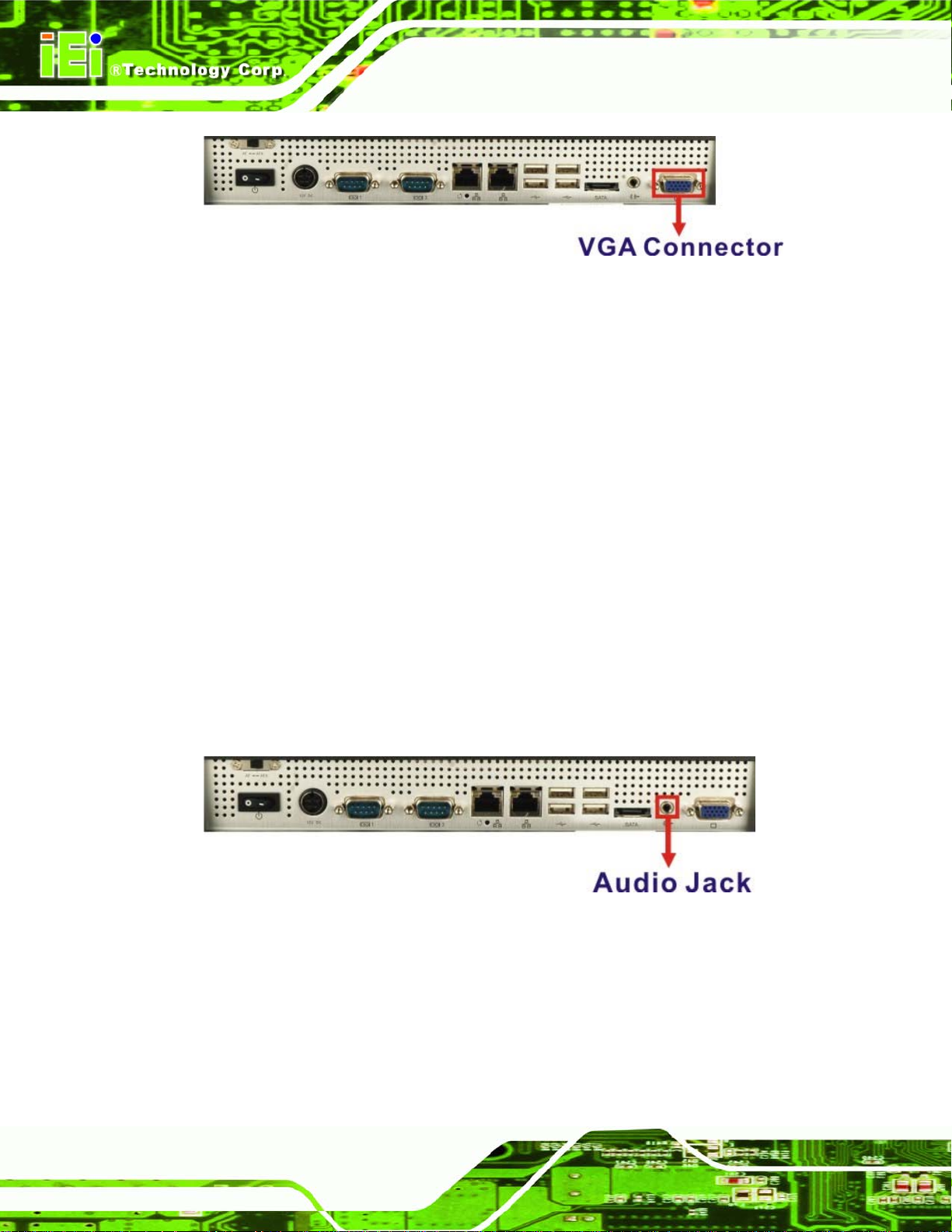

Figure 2-10: VGA Connector......................................................................................18
Figure 2-11: Audio Jack..............................................................................................18

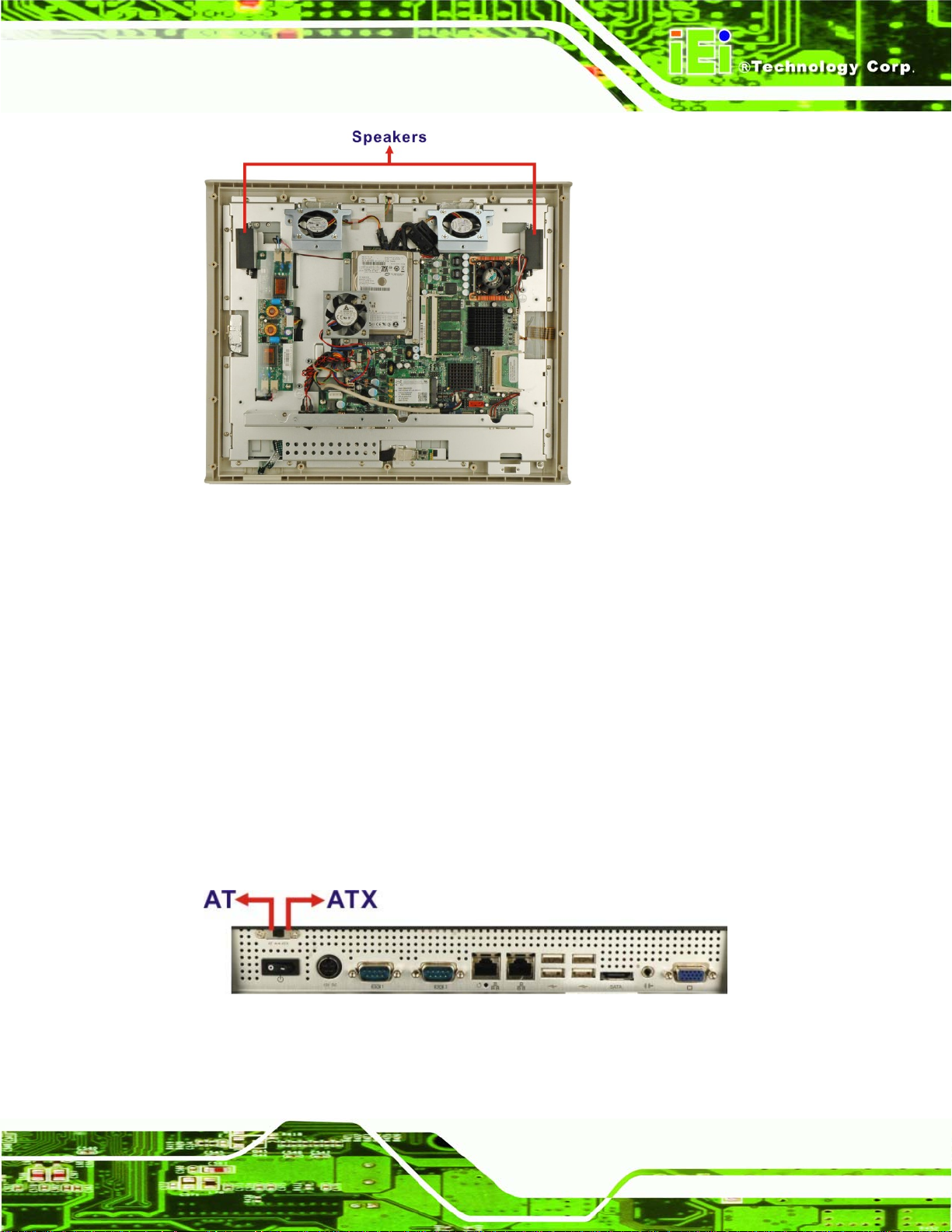

Figure 2-12: Stereo Speakers.....................................................................................19

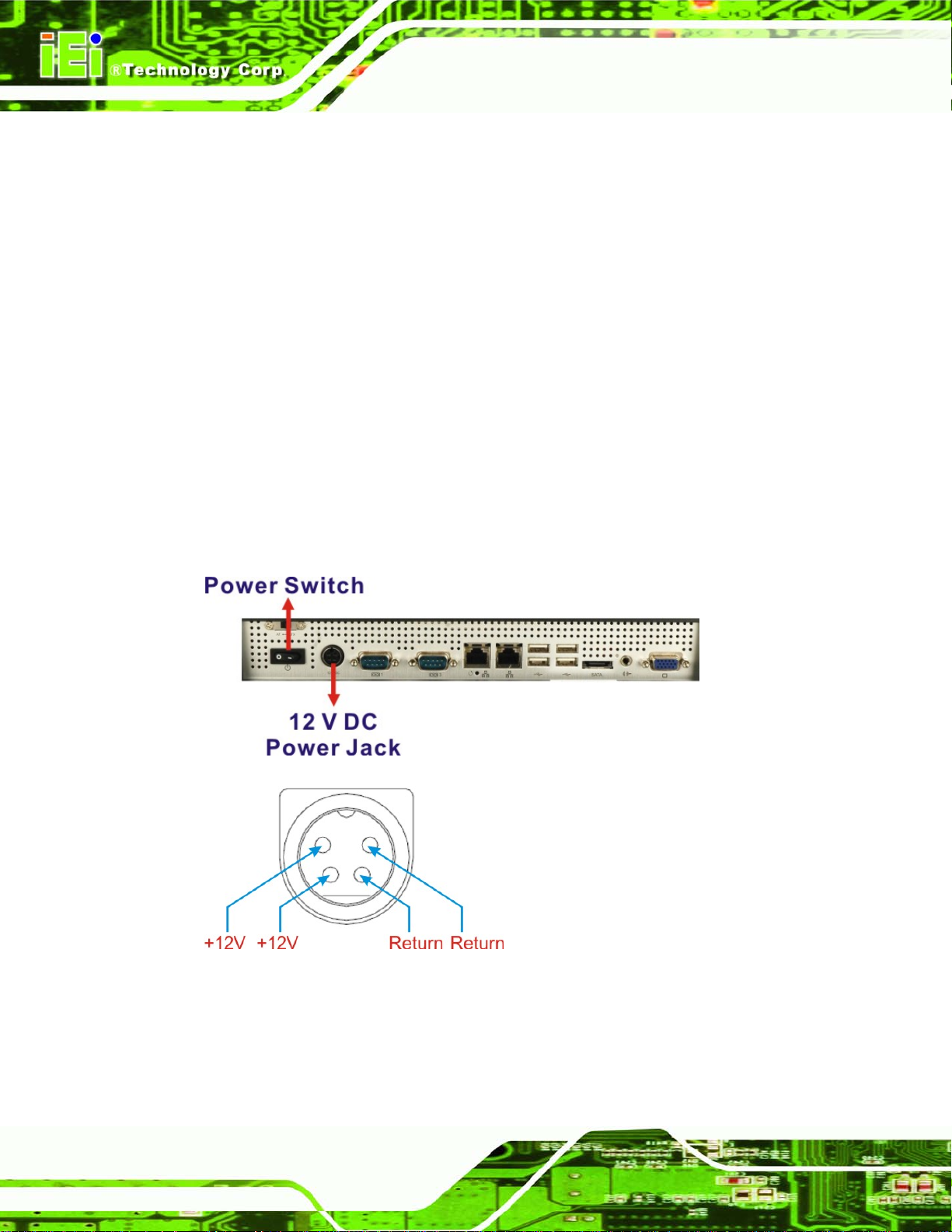

Figure 2-13: Power Connector...................................................................................19
Figure 2-14: Power Connector...................................................................................20

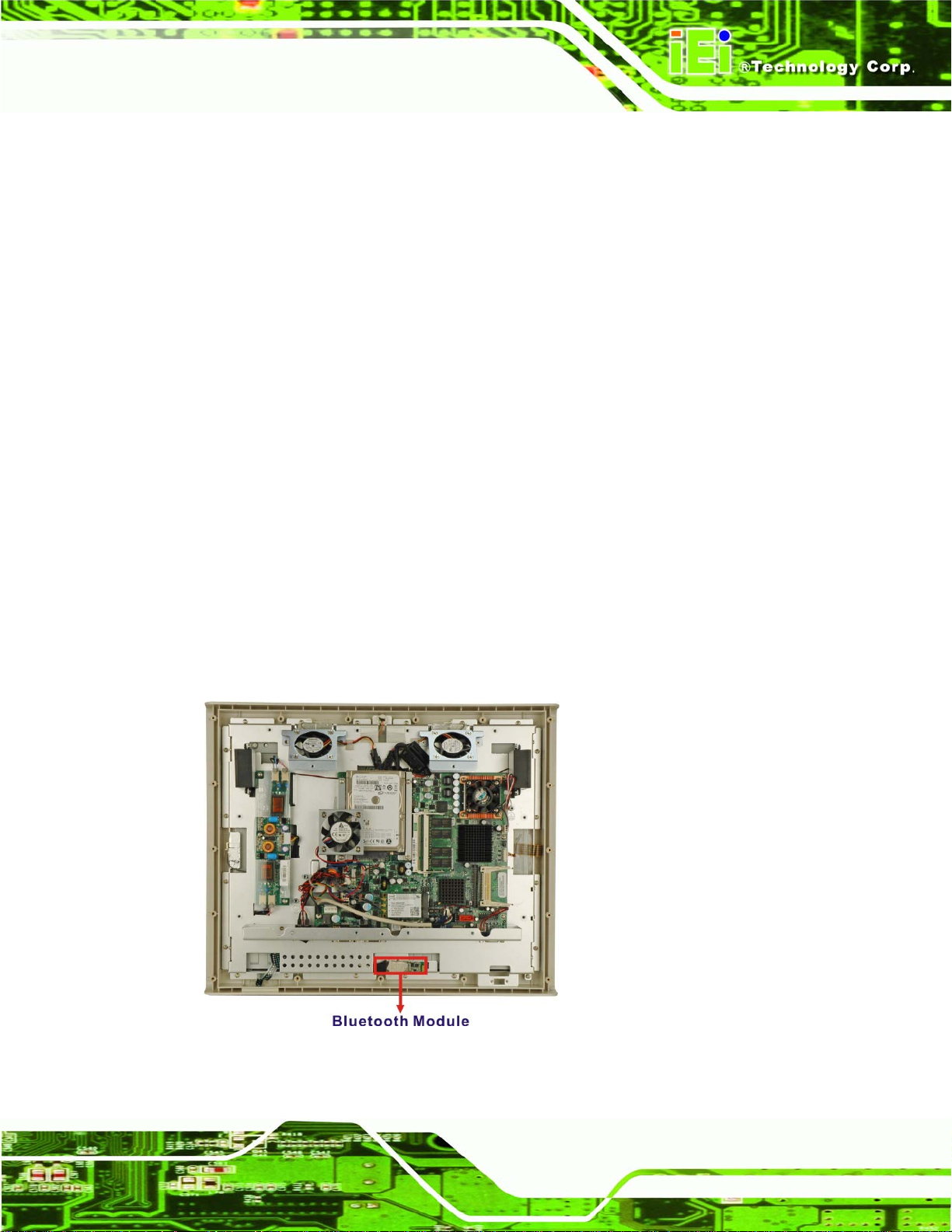

Figure 2-15: Bluetooth Module ..................................................................................21

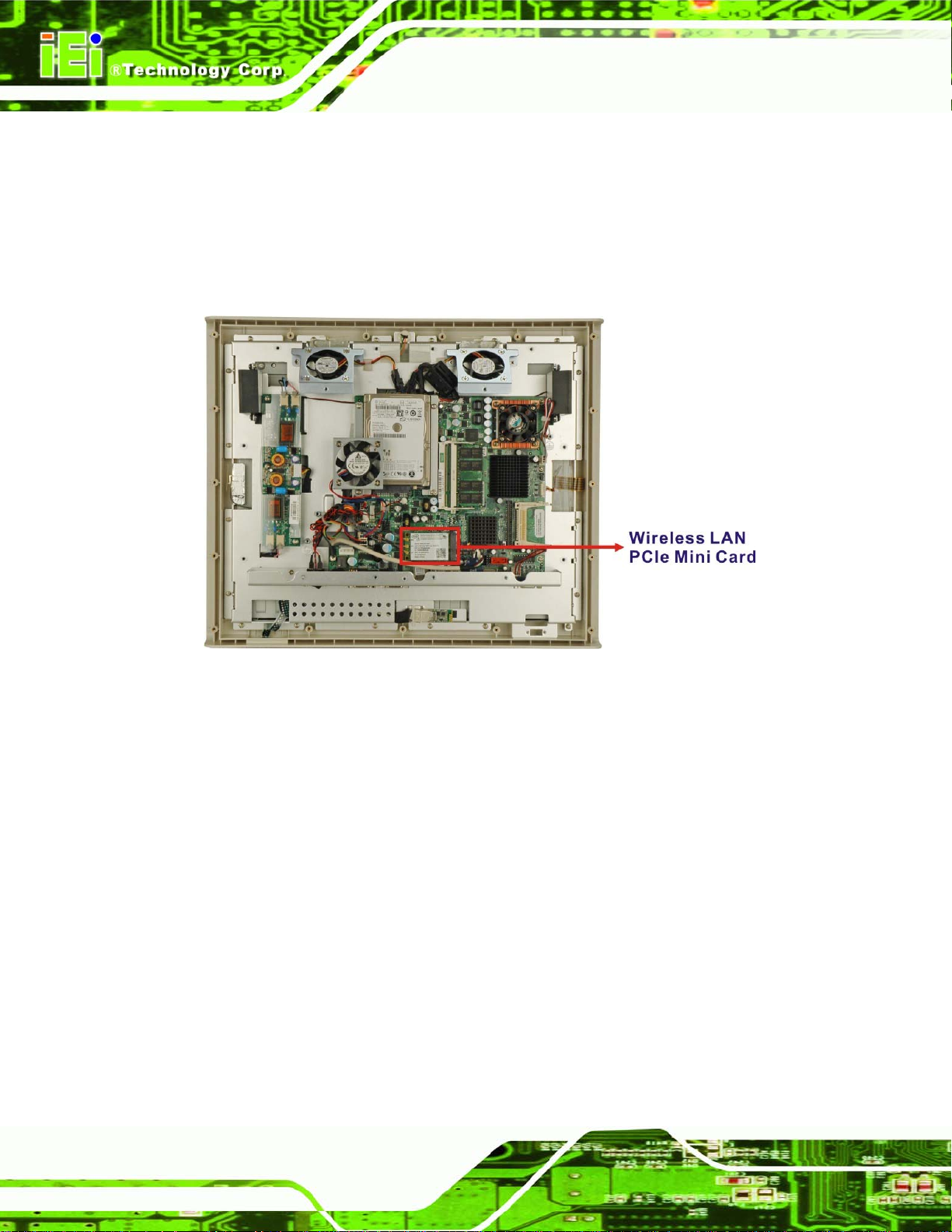

Figure 2-16: Wireless LAN Module............................................................................22

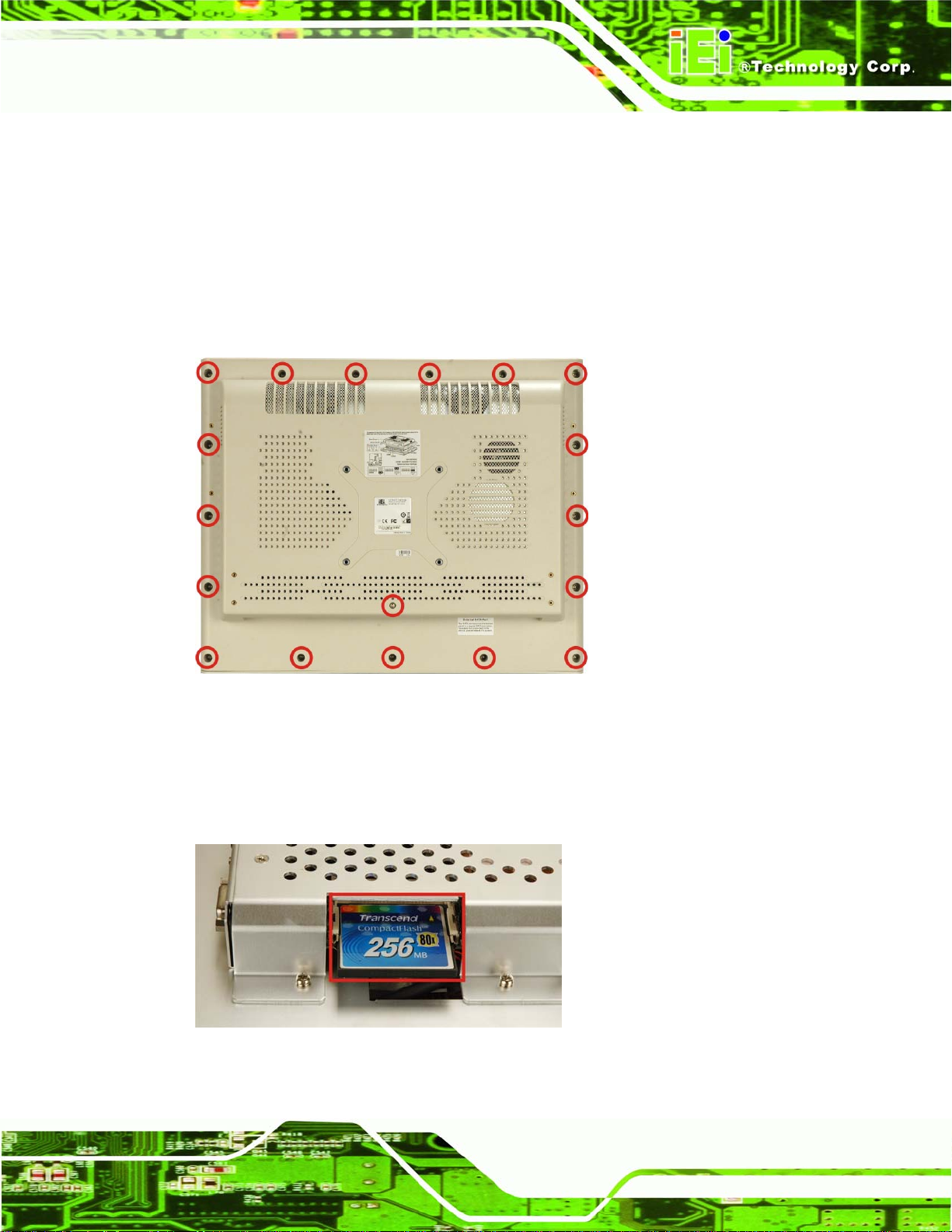

Figure 4-1: Back Cover Retention Screws................................................................29
Figure 4-2: CF Card Installation.................................................................................29

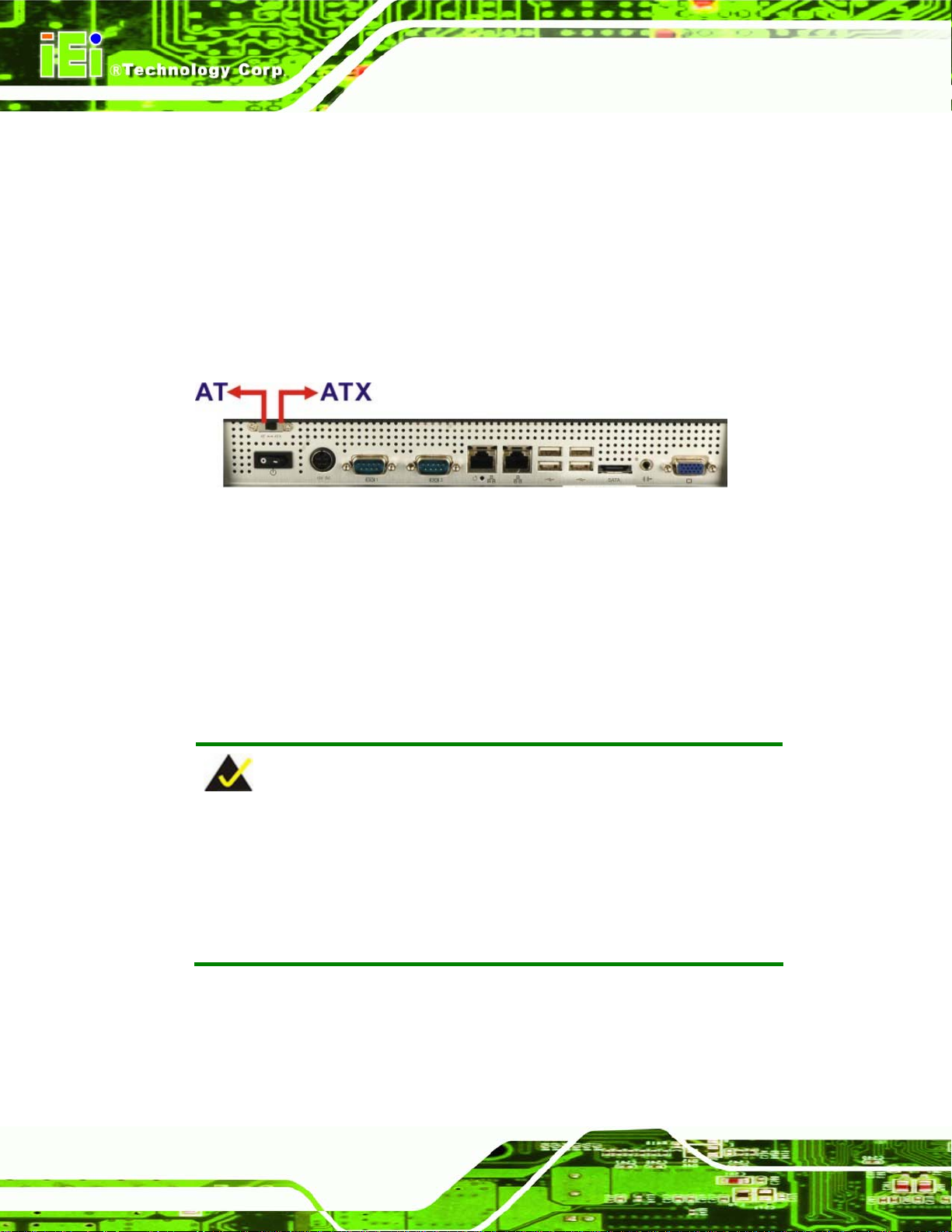

Figure 4-3: AT/ATX Switch Location.........................................................................30
Page XII

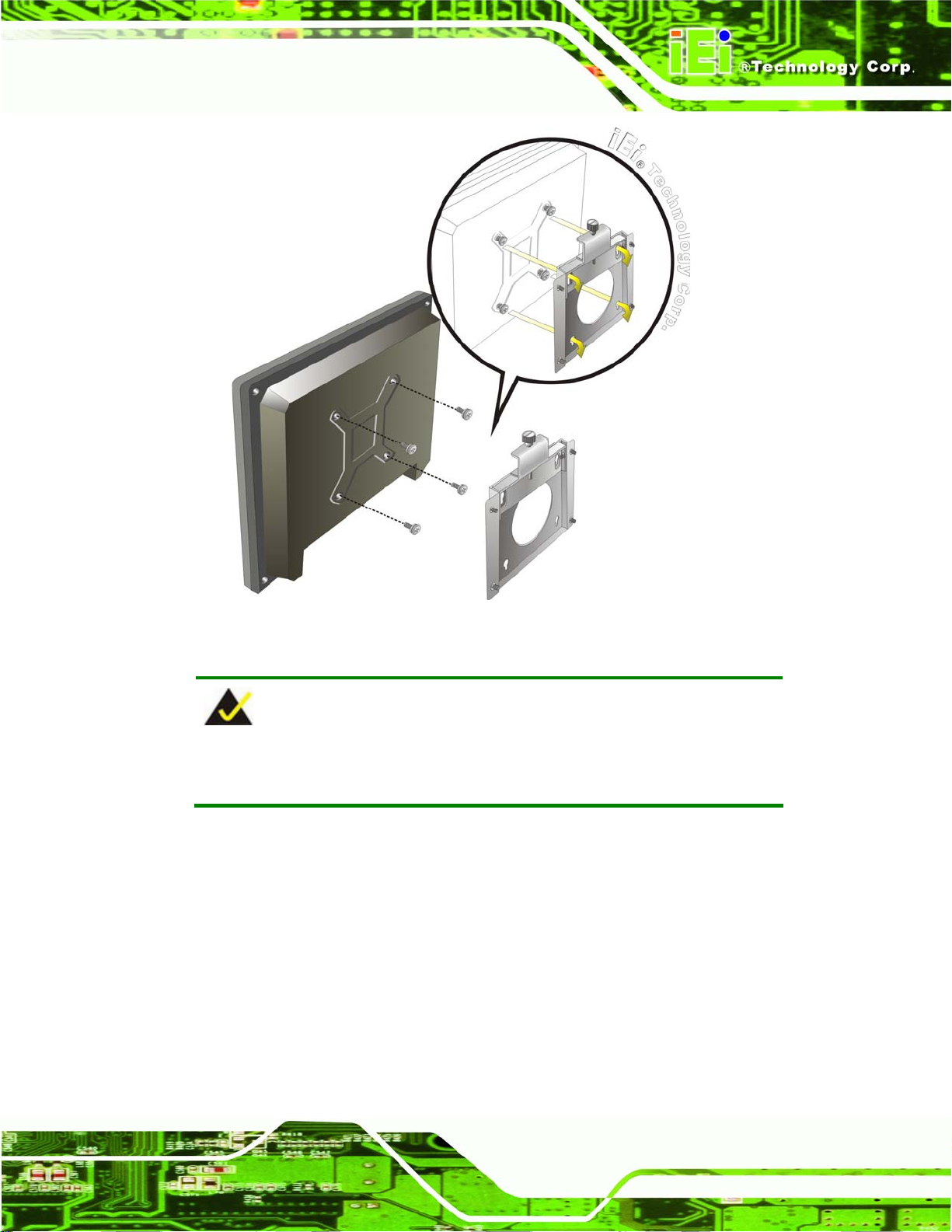

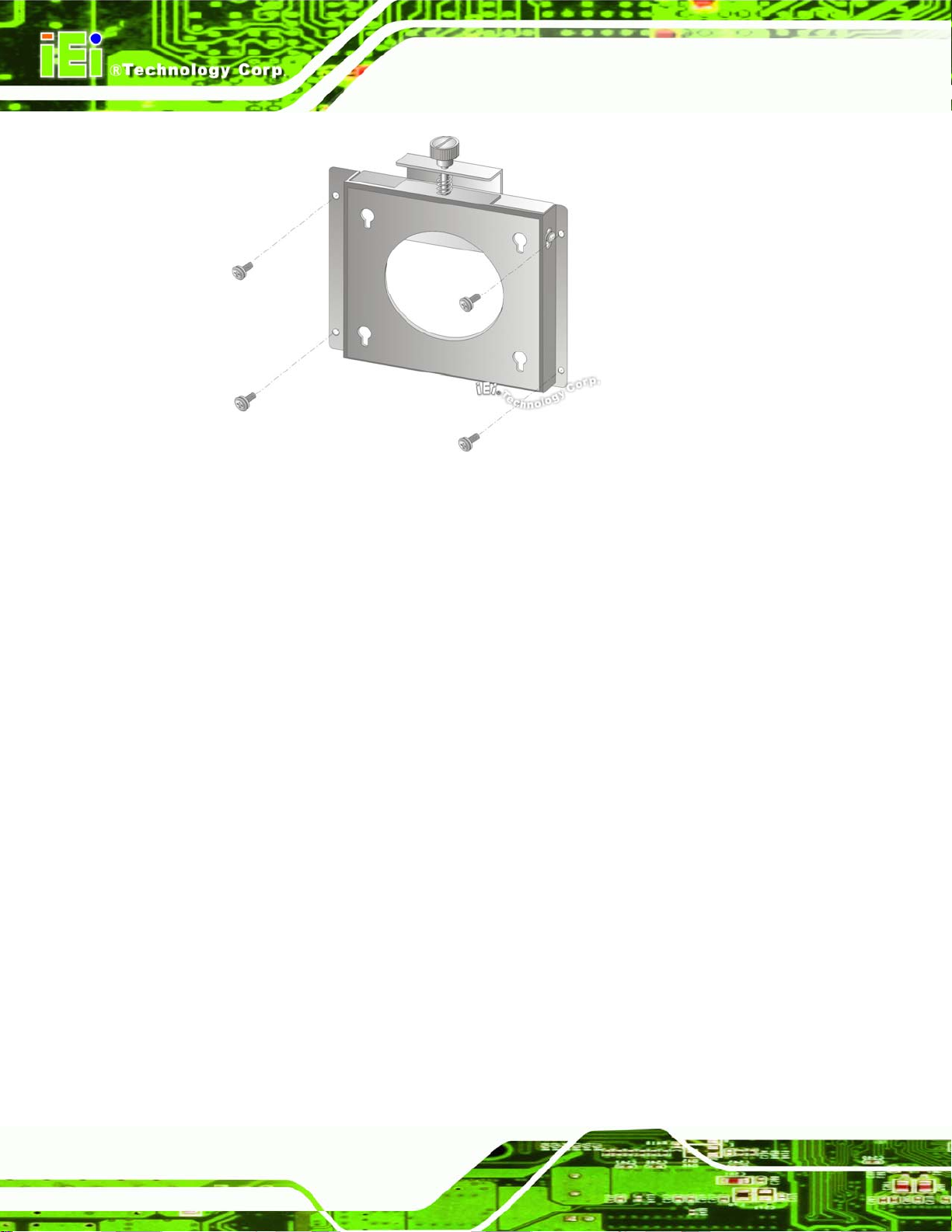

Figure 4-4: Wall-mounting Bracket............................................................................32
Figure 4-5: Chassis Support Screws.........................................................................33
Figure 4-6: Secure the Panel PC................................................................................34

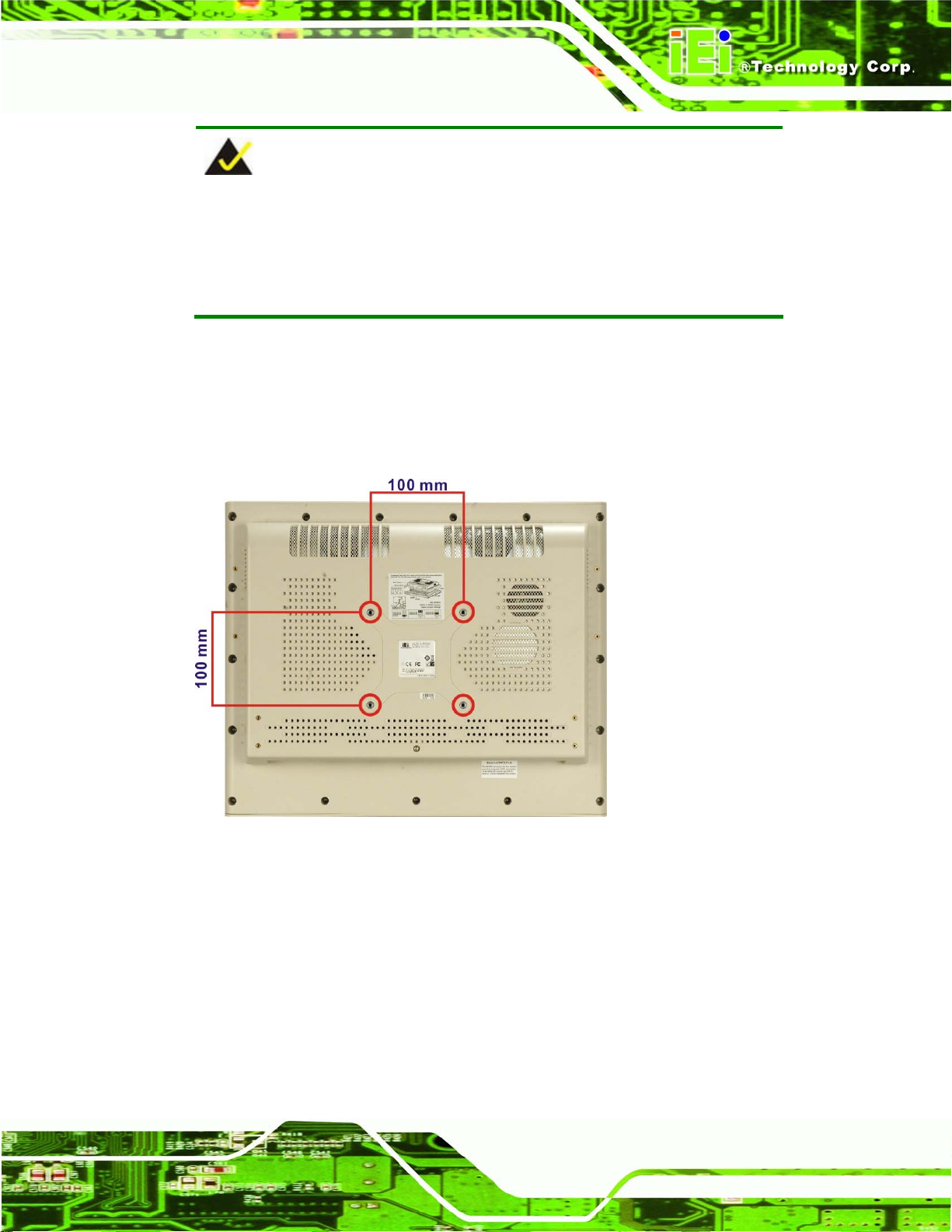

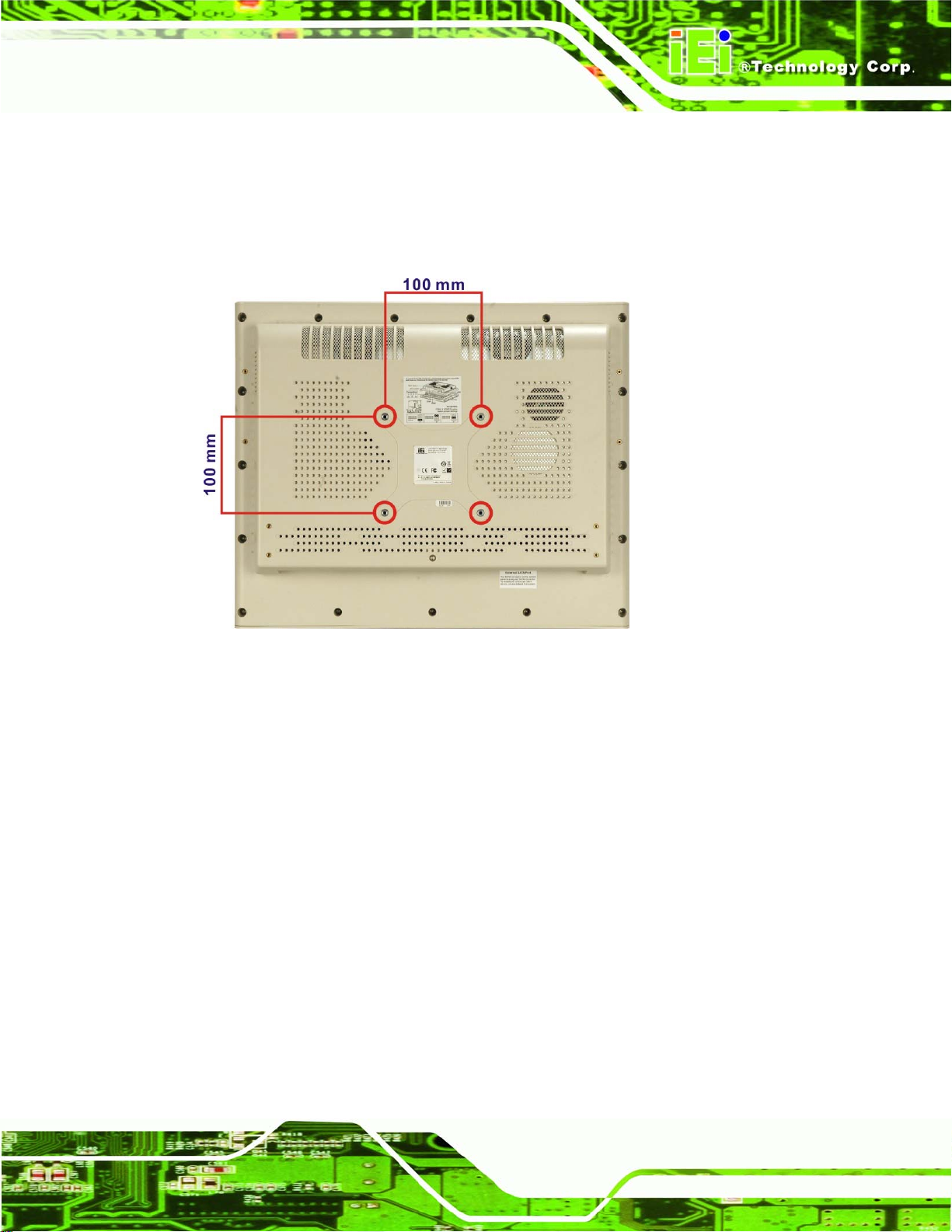

Figure 4-7: Arm Mounting Retention Screw Holes..................................................35
Page 13
POC 965 Series Medical Panel PC
Figure 4-8: 4-pin Power Mini-DIN Connection..........................................................36

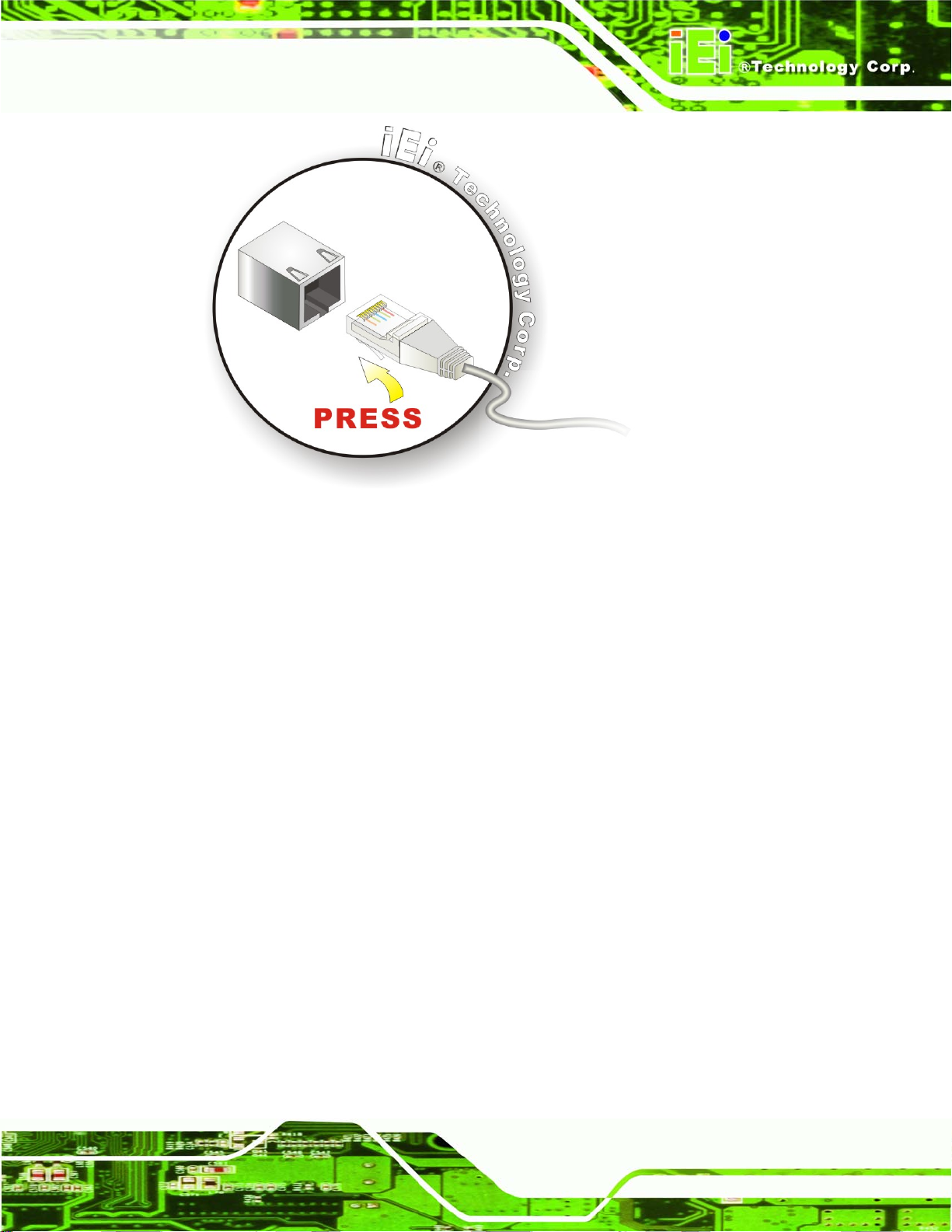

Figure 4-9: LAN Connection.......................................................................................37

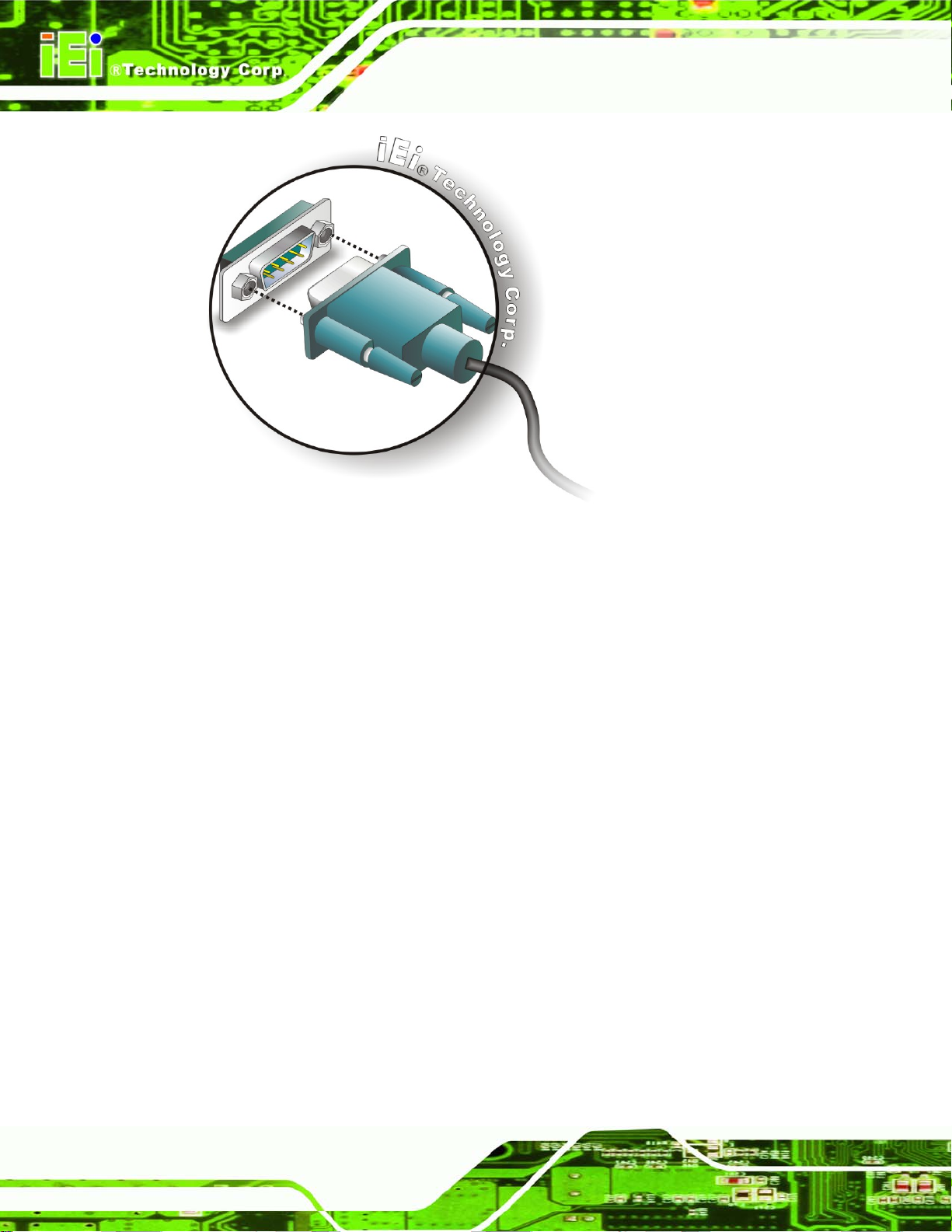

Figure 4-10: Serial Device Connector .......................................................................38

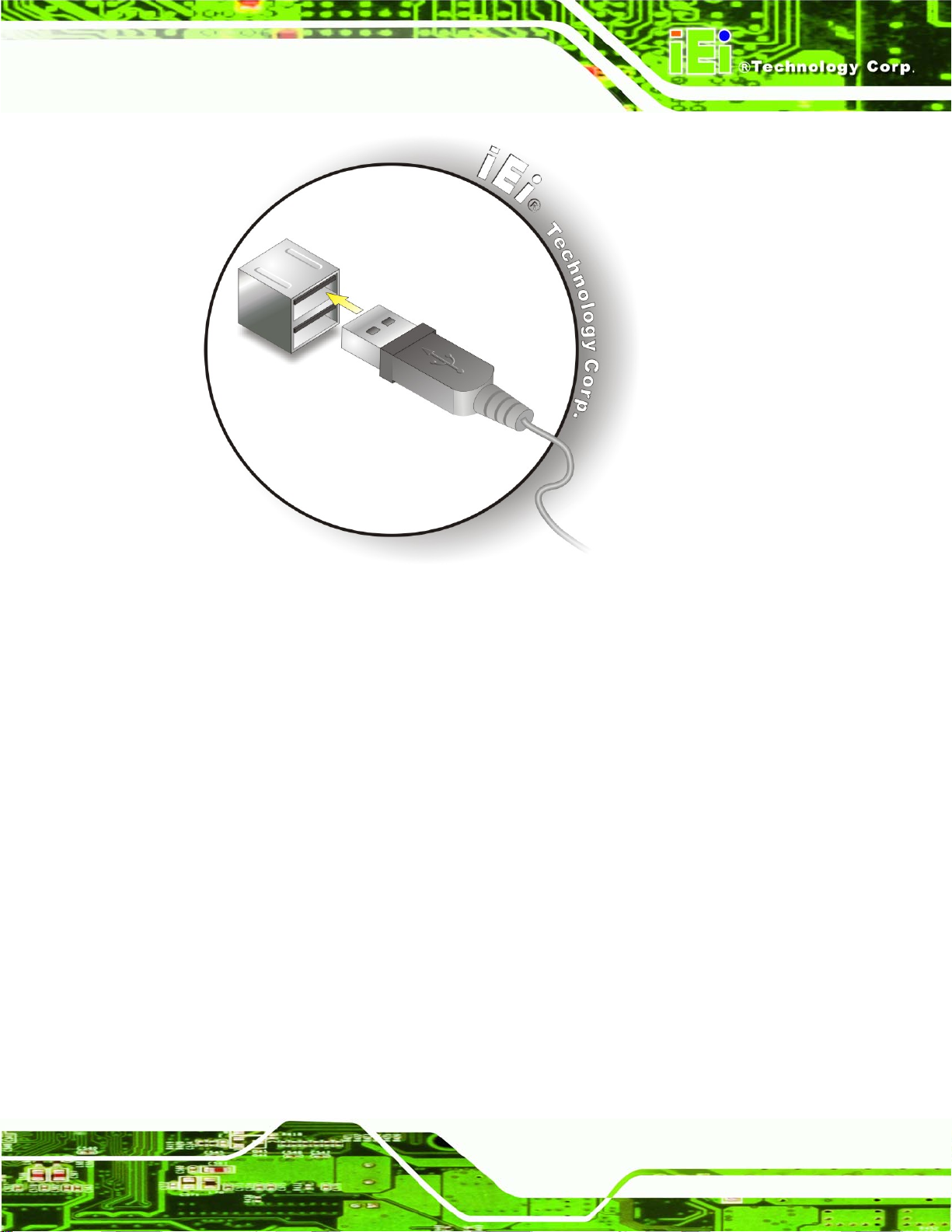

Figure 4-11: USB Device Connection........................................................................39

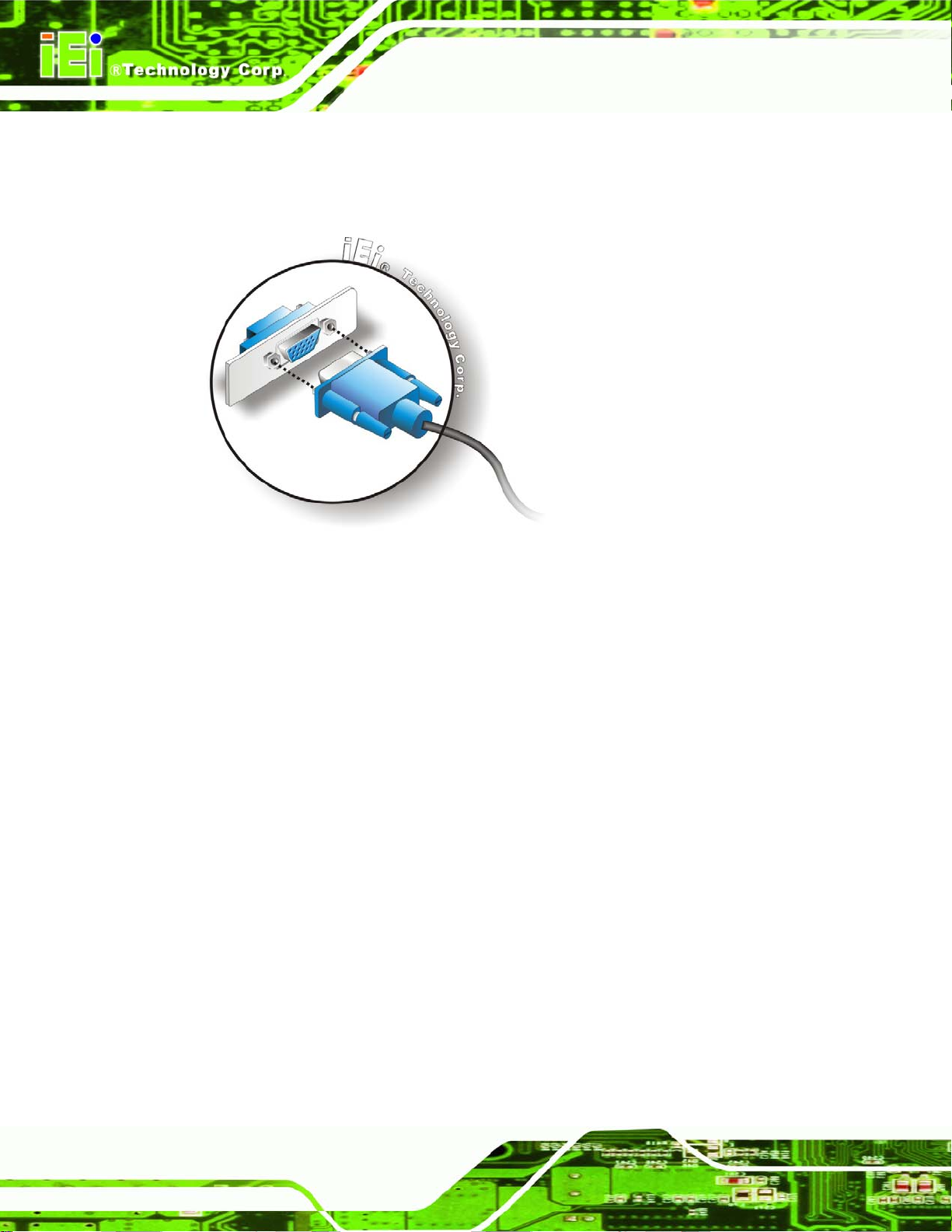

Figure 4-12: VGA Connector......................................................................................40

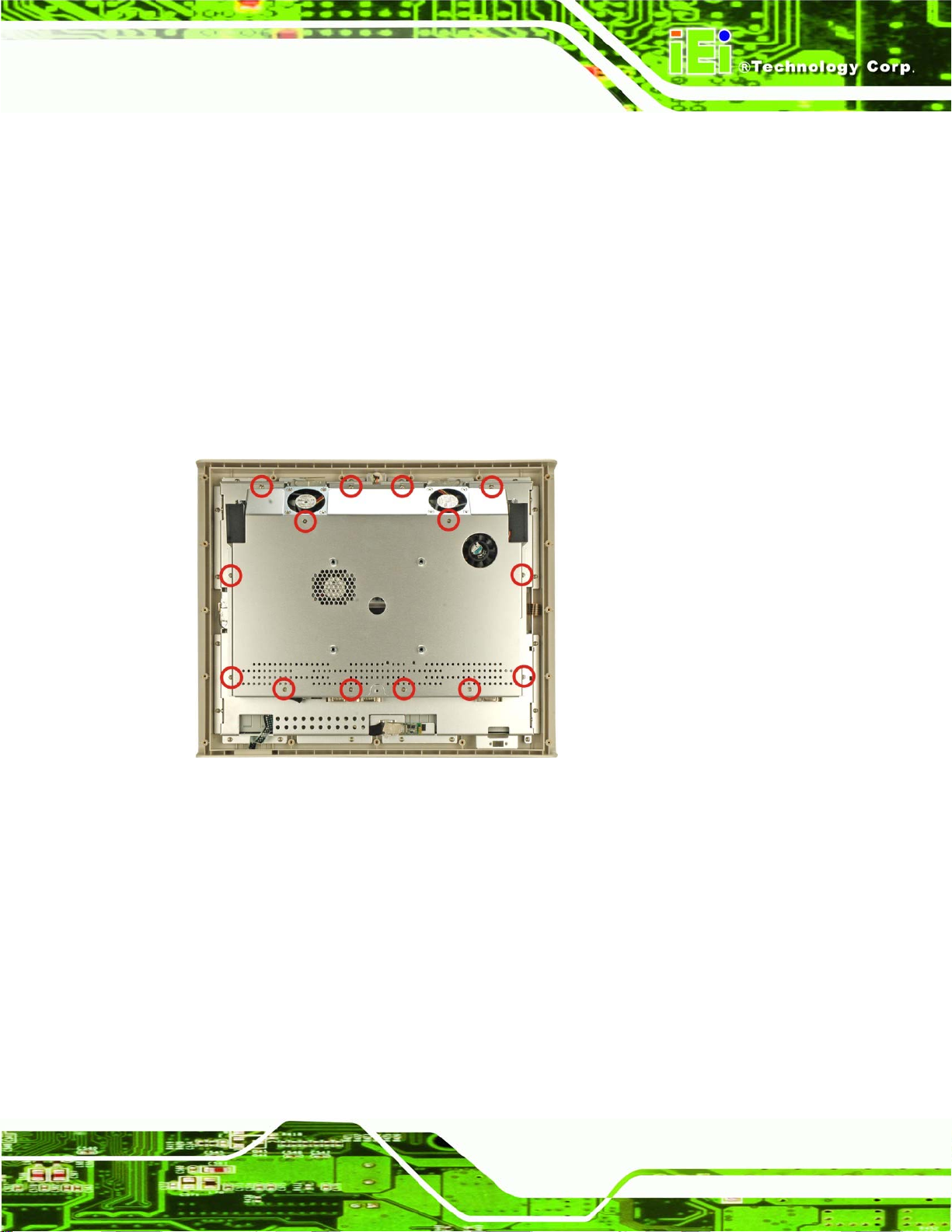

Figure 5-1: Aluminum Back Cover Retention Screws.............................................43
Figure 5-2: System Fan Retention Screws ...............................................................44

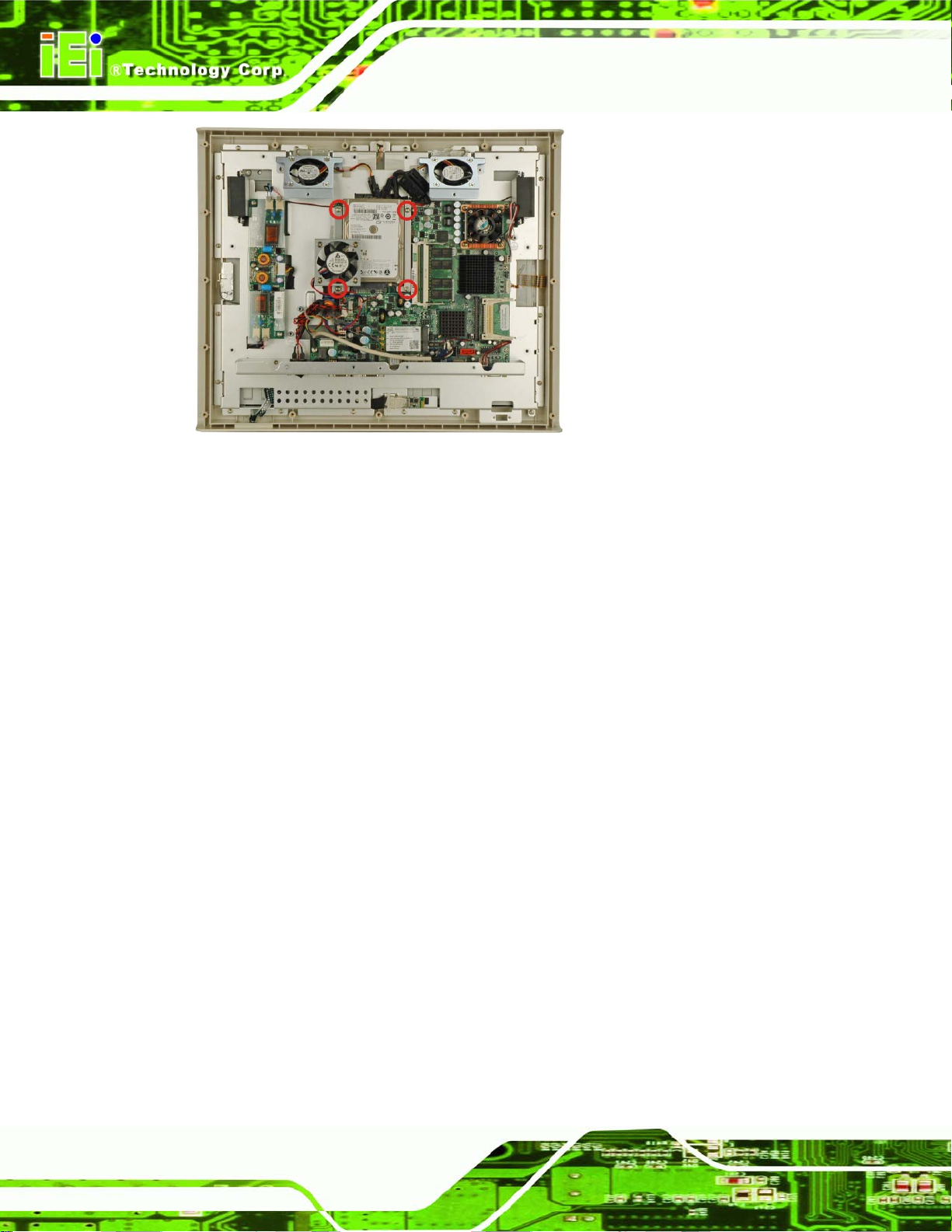

Figure 5-3: Hard Drive Bracket Retention Screws...................................................44

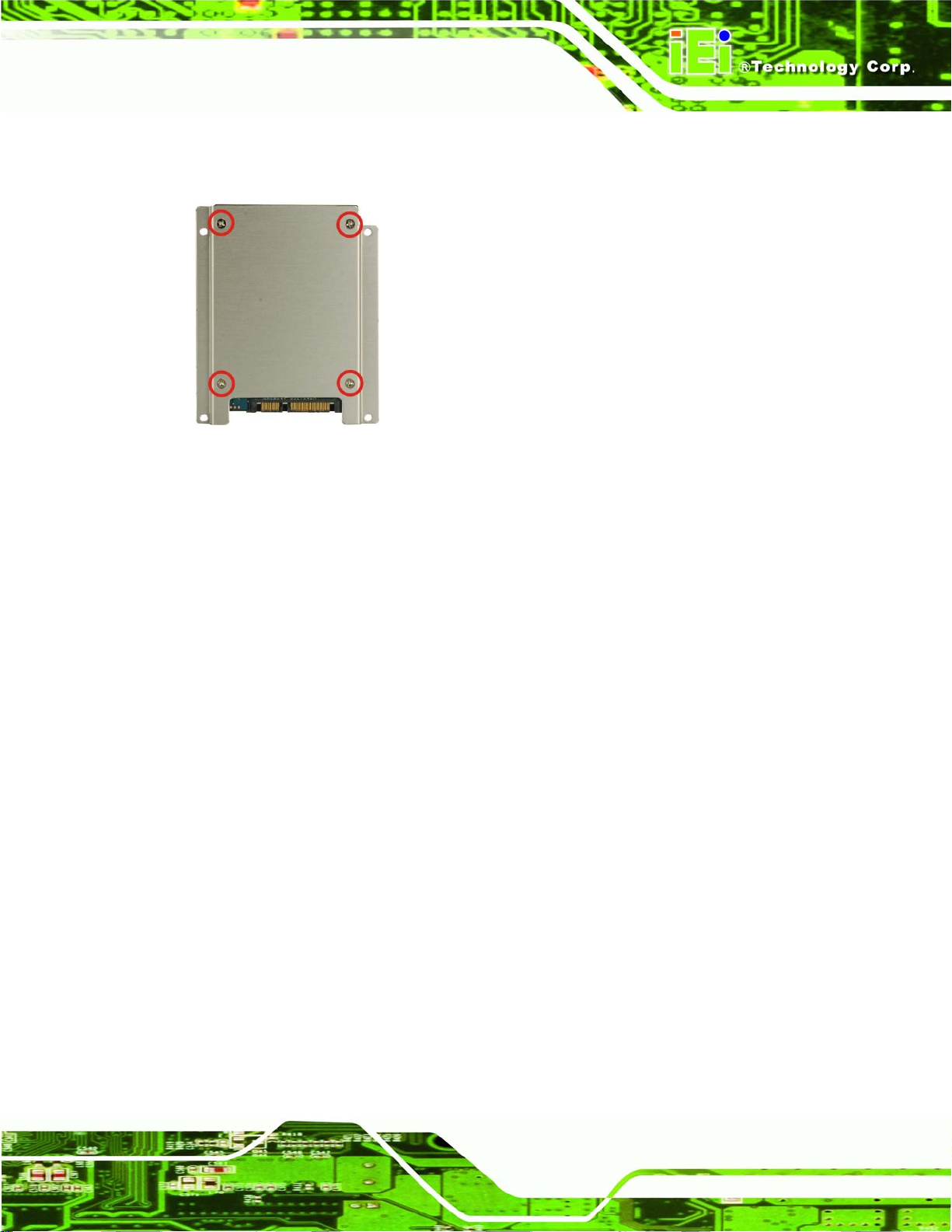

Figure 5-4: Hard Drive Retention Screws .................................................................45
Figure 5-5: Hard Drive Installed.................................................................................46

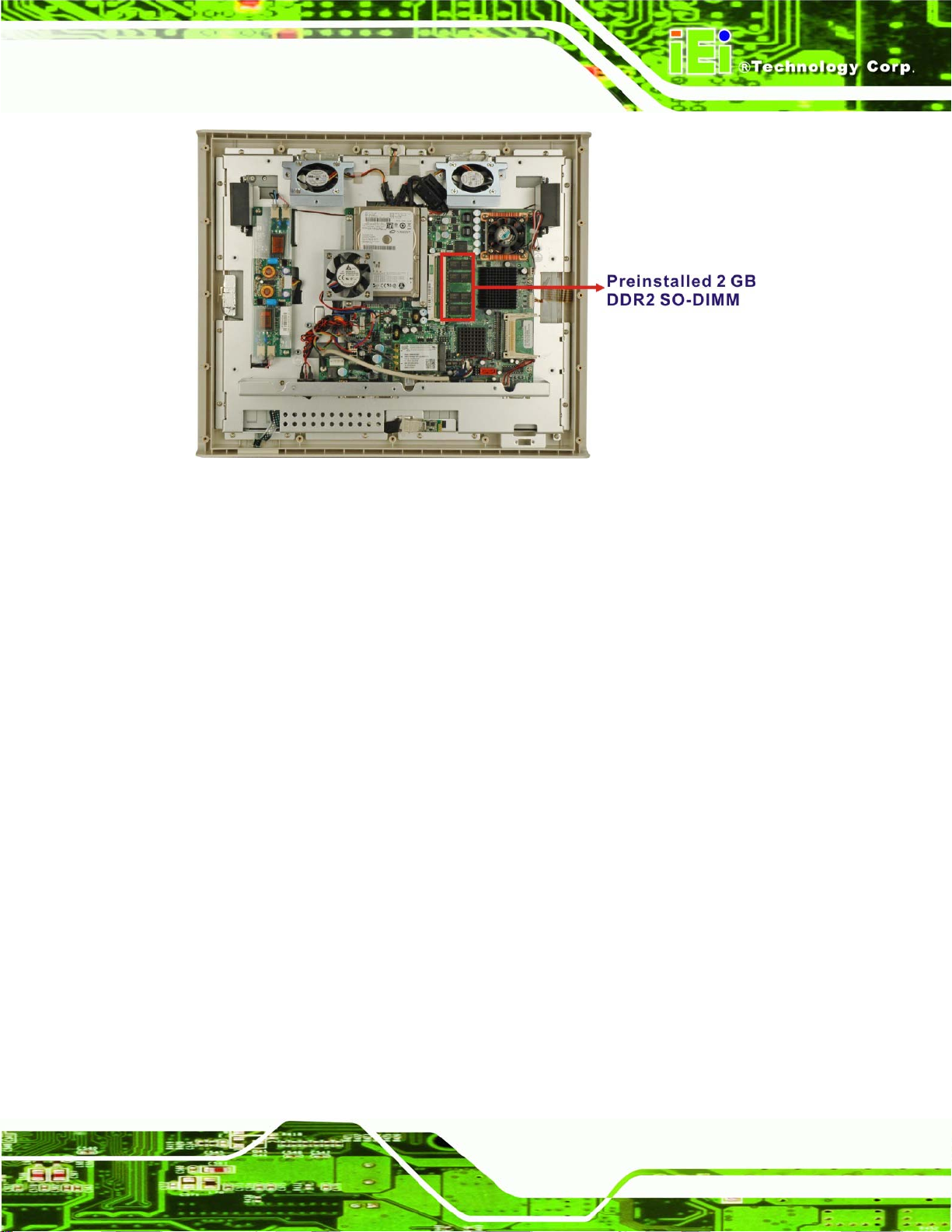

Figure 5-6: SO-DIMM Socket Locations....................................................................47

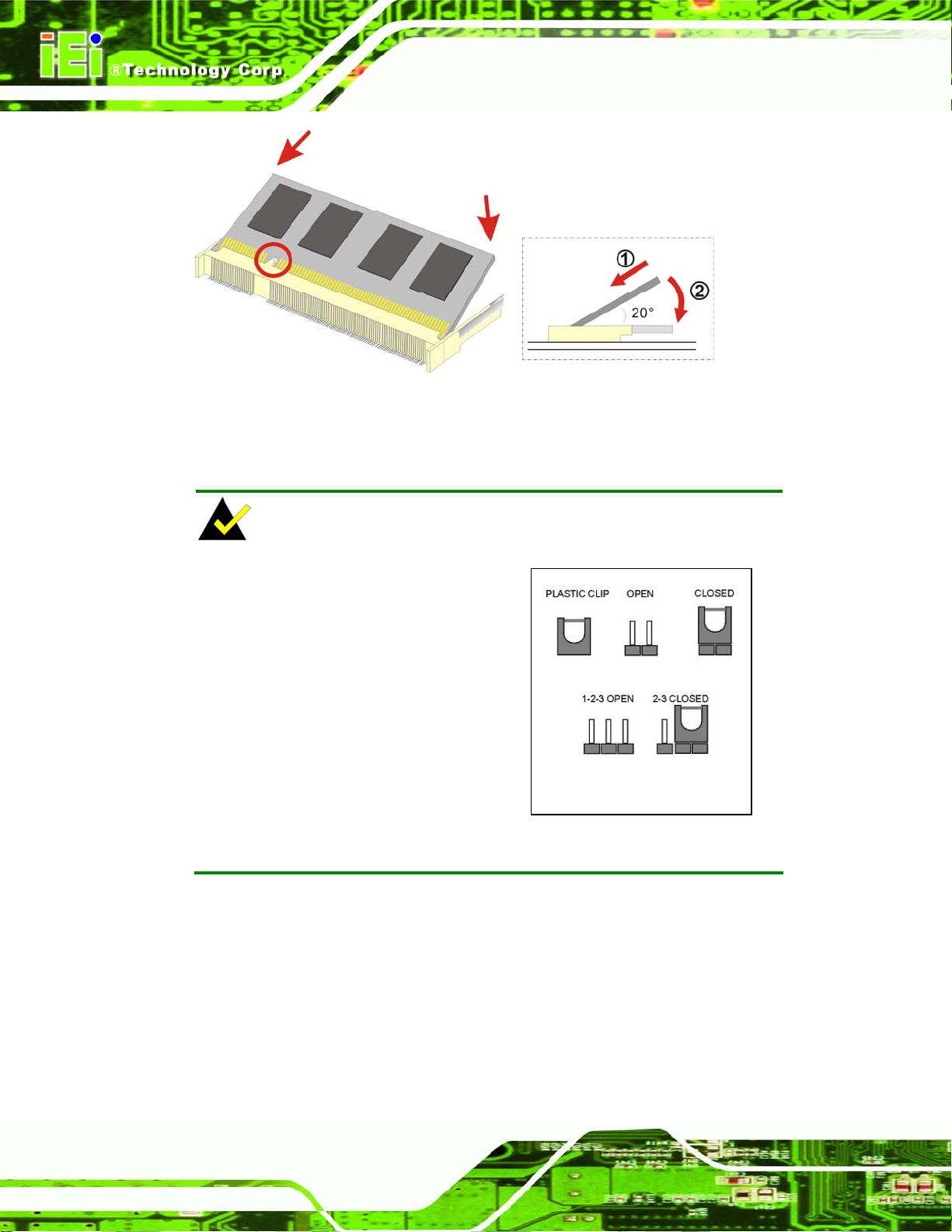

Figure 5-7: DDR2 SO-DIMM Module Installation......................................................48
Figure 7-1: Introduction Screen.............................................................................. 101
Figure 7-2: Available Models................................................................................... 102
Figure 7-3: Available Drivers................................................................................... 102
Figure 7-4: Intel® Chipset Driver Directory........................................................... 103
Figure 7-5: Intel® Package Manager ...................................................................... 104
Figure 7-6: Intel® Setup Welcome Screen............................................................. 104
Figure 7-7: Intel® Chipset Driver License Agreement.......................................... 105
Figure 7-8: Readme File........................................................................................... 105
Figure 7-9: Intel® Chipset Driver Complete Installation Screen ......................... 106
Figure 7-10: Select the Operating System............................................................. 107
Figure 7-11: GMA Driver Readme File.................................................................... 107
Figure 7-12: GMA Driver File Extraction................................................................ 108
Figure 7-13: GMA Driver Installation Welcome Screen........................................ 108
Figure 7-14: GMA Driver License Agreement........................................................ 109
Figure 7-15: GMA Driver Installing Notice............................................................. 109
Figure 7-16: GMA Driver Installation Complete .................................................... 110
Figure 7-17: Intel® 82566 Operating System......................................................... 111
Figure 7-18: Select Operating System Type.......................................................... 112
Figure 7-19: Driver Directory................................................................................... 112
Figure 7-20: Intel® 82566 Device Driver Startup Icon .......................................... 113
Page XIII
Page 14
Figure 7-21: Intel® 82566 Welcome Screen........................................................... 114
Figure 7-22: Intel® 82566 Driver License Agreement........................................... 114
Figure 7-23: Intel® 82566 Driver Setup Options.................................................... 115
Figure 7-24: Intel® 82566 Driver Installation Ready Window .............................. 115
Figure 7-25: Intel® 82566 Driver Installation Progress ........................................ 116
Figure 7-26: Windows Control Panel...................................................................... 117
Figure 7-27: System Icon......................................................................................... 118
Figure 7-28: Device Manager Tab........................................................................... 119
Figure 7-29: Device Manager List........................................................................... 120
Figure 7-30: Search for Suitable Driver.................................................................. 121
Figure 7-31: Locate Driver Files.............................................................................. 121
Figure 7-32: Location Browsing Window............................................................... 122
Figure 7-33: Select the Audio Driver Installation Icon.......................................... 123
POC 965 Series Medical Panel PC
Figure 7-34: The InstallShield Wizard Starts......................................................... 123
Figure 7-35: Preparing Setup Screen..................................................................... 124
Figure 7-36: InstallShield Wizard Welcome Screen.............................................. 124
Figure 7-37: Audio Driver Software Configuration............................................... 125
Figure 7-38: Installation Wizard Updates the System .......................................... 125
Figure 7-39: Restart the Computer......................................................................... 126
Figure 7-40: Touch Screen Driver Icon.................................................................. 127
Figure 7-41: Welcome Screen................................................................................. 127
Figure 7-42: License Agreement............................................................................. 128
Figure 7-43: Ready to Install the Program............................................................. 128
Figure 7-44: Installing PenMount DMC9000.......................................................... 129
Figure 7-45: Reboot the Computer......................................................................... 129
Figure 7-46: Bluetooth Driver Icon......................................................................... 130
Figure 7-47: Welcome Screen................................................................................. 131
Figure 7-48: License Agreement............................................................................. 131
Page XIV
Figure 7-49: Bluetooth Driver Setup Options........................................................ 132
Figure 7-50: Bluetooth Driver Destination Folder................................................. 132
Figure 7-51: Ready to Install the Program............................................................. 133
Figure 7-52: Installing BlueSoleil............................................................................ 133
Page 15
POC 965 Series Medical Panel PC
Figure 7-53: Bluetooth Driver Complete Installation Screen............................... 134
Figure 7-54: Reboot the Computer......................................................................... 134
Figure 7-55: IAMT Driver Directory......................................................................... 135
Figure 7-56: IAMT Driver Installation Icon............................................................. 136
Figure 7-57: IAMT Welcome Screen....................................................................... 136
Figure 7-58: IAMT License Agreement................................................................... 137
Figure 7-59: IAMT Readme File............................................................................... 137
Figure 7-60: IAMT Setup Operations...................................................................... 138
Figure 7-61: Completed Installation....................................................................... 138
Figure 7-62: IAMT Driver Directory......................................................................... 139
Figure 7-63: HECI Driver Installation Icon ............................................................. 139
Figure 7-64: Wireless LAN Module......................................................................... 144
Page XV
Page 16
POC 965 Series Medical Panel PC
List of Tables
Table 1-1: Model Variations..........................................................................................3
Table 1-2: System Specifications................................................................................9
Table 5-1: Clear CMOS Jumper Settings ..................................................................49
Table 5-2: COM1 and COM3 RI and Voltage Settings..............................................49
Table 5-3: COM3 Mode Selection...............................................................................49
Table 5-4: COM2 RI and Voltage Selection...............................................................50
Table 5-5: CompactFlash® Master/Slave Selection.................................................50
Table 5-6: LCD Type Selection...................................................................................50
Table 5-7: RS-422 Pinouts (J7)...................................................................................51
Table 5-8: RS-485 Pinouts (J11).................................................................................51
Table 6-1: BIOS Navigation Keys...............................................................................54
Table 7-1: Motherboard Specifications.................................................................. 141
Table 7-2: TFT LCD Monitor Specifications........................................................... 142
Table 7-3: Touch Panel Specifications................................................................... 143
Table 7-4: Bluetooth Module Specifications ......................................................... 144
Page XVI
Page 17
POC 965 Series Medical Panel PC
Chapter
1
1 Introduction
Page 1
Page 18
1.1 General Overview
Figure 1-1: POC-965 Series Medical Panel PC
POC 965 Series Medical Panel PC
The POC-417B and POC-419B (POC-965 Series) are Intel® Core™2 Duo or Intel®
Celeron® M powered flat panel PCs with a rich variety of functions and peripherals. Both
POC-965 Series models are designed for easy and simplified integration in to medical
applications.
An Intel® GME965 graphics memory controller hub (GMCH) coupled with an Intel®
ICH8M input/output controller hub ensures optimal memory, graphics, and peripheral I/O
support. The system comes with 2.0 GB of preinstalled DDR2 SDRAM and supports a
maximum of 4.0 GB of DDR2 SDRAM ensuring smooth data throughputs with reduced
bottlenecks and fast system access. The POC-965 Series also preinstalled with a 2.5”
80 GB SATA HDD for data storage.
Two serial ports and four external USB 2.0 ports ensure simplified connectivity to a variety
of external peripheral devices. A VGA connector enables connectivity to other monitors.
802.11 a/b/g/n Wi-Fi capabilities and two RJ-45 Ethernet connectors ensure smooth
connection of the system to an external LAN.
Page 2
Page 19
POC 965 Series Medical Panel PC
1.1.1 Model Variations
The models of POC-965 Series are listed in Table 1-1.
POC-417B CPU LCD SATA HDD Memory Wireless
-CM550/2GB/80GB
2.0 GHz Intel®
17” 80 GB 2 GB DDR2 Yes
Celeron® M (550)
-T7500/2GB/80GB
2.2 GHz Intel® Core™2
17” 80 GB 2 GB DDR2 Yes
Duo (T7500)
POC-419B CPU LCD SATA HDD Memory Wireless
-CM550/2GB/80GB
2.0 GHz Intel®
19” 80 GB 2 GB DDR2 Yes
Celeron® M (550)
-T7500/2GB/80GB
2.2 GHz Intel® Core™2
19” 80 GB 2 GB DDR2 Yes
Duo (T7500)
Table 1-1: Model Variations
1.1.2 Standard Features
Some of the standard features of the POC-965 Series flat panel PC include:
Rugged mechanism design with ABS/PC case
IP 64 dustproof and waterproof front panel
Preinstalled 2.0 GB DDR2 memory
Preinstalled 80 GB SATA HDD
802.11 a/b/g/n Wireless LAN
eSATA port
Dual 10/100/1000 Mbps Ethernet support
Bluetooth connectivity supported
Simplified installation process
RoHS compliance
Page 3
Page 20
1.2 External Overview
The POC-965 Series is a flat panel PC. The monitor and all internal components are
enclosed in an aluminum chassis. An ABS/PC plastic cover surrounds the aluminum
chassis. VESA compliant screw holes in the rear panel allow the POC-965 Series to be
attached to any VESA compliant mounting. The bottom of the POC-965 Series gives
access to a VGA port, four USB ports, an eSATA port, two Ethernet ports, a
RS-232/422/485 port, a RS-232 port, an audio jack, power input and power switch.
1.2.1 Front Panel
The front side of the POC-965 Series is a flat panel TFT LCD screen surrounded by an
ABS/PC plastic frame.
POC 965 Series Medical Panel PC
Page 4
Figure 1-2: Front View
Page 21
POC 965 Series Medical Panel PC
1.2.2 Rear Panel
The rear panel provides access to retention screw holes that support the wall mounting.
Refer to
Figure 1-3.
Figure 1-3: Rear View
1.2.3 Bottom Panel
The bottom panel of the POC-965 Series has the following I/O interfaces (Figure 1-4):
1 x 12 V DC power input connector
1 x Audio jack
1 x AT/ATX switch
1 x eSATA port
1 x Power switch
1 x Reset button
1 x RS-232 serial port connector
1 x RS-232/422/485 serial port connector
2 x RJ-45 10/100/1000Mbps Ethernet connectors
4 x USB 2.0 connectors
1 x VGA port
Page 5
Page 22
POC 965 Series Medical Panel PC
Figure 1-4: Bottom View
1.3 Internal Overview
The POC-965 Series includes the following parts inside the aluminum internal cover.
2.0 GB DDR2 SO-DIMM
PIFA antennas
Backlight inverter
Bluetooth module
80 GB hard drive
Two speakers
Wireless LAN card
System fans and CPU fan
CompactFlash® disk (optional)
Page 6
Page 23
POC 965 Series Medical Panel PC
Figure 1-5: Internal Overview
1.4 Specifications
1.4.1 Preinstalled Hardware Components
The POC-965 Series medical flat panel PC has the following preinstalled components:
1 x Motherboard
1 x TFT LCD screen
1 x Touch screen panel
1 x Inverter
1 x Wireless LAN module
1 x 2 GB DDR2 memory module
1 x Bluetooth module
1 x AT/ATX switch
2 x Speakers
Page 7
Page 24
POC 965 Series Medical Panel PC
The technical specifications for the system, and some of these components, are shown in
the sections below.
1.4.2 System Specifications
The technical specifications for the POC-965 Series systems are listed in Table 1-2.
SPECIFICATION 17 inch 19 inch
LCD Size 17” 19”
Max Resolution 1280 x 1024 1280 x 1024
Brightness (cd/m2) 300 300
Contrast Ratio 800:1 1000:1
LCD Color 16.7M 16.7M
Pixel Pitch (mm) 0.264 (H) x 0.264 (V) 0.294 (H) x 0.294 (V)
Viewing Angle (H-V) 160 / 160 178 / 178
Backlight MTBF 50,000 hours
SBC Model AFLMB-9652
CPU 2.0 GHz Intel® Celeron M 550 CPU or
2.20 GHz Intel® Core™2 Duo T7500 CPU
Chipsets Intel® GME965 + ICH8M
Memory One 200-pin 2.0 GB dual-channel DDR2 SO-DIMM
I/O Ports 1 x eSATA port
2 x RS-232
1 x RS-232/422/485
2 x RJ-45
4 x USB 2.0
1 x Power switch
1 x Reset button
1 x VGA port
1 x Audio
Storage 1 x 2.5” 80 GB SATA HDD
1 x CompactFlash® Type I/II slot
Speakers 2 x 3 W AMP
Expansion 1 x PCIe Mini Wireless LAN Module
Construction Material ABS + PC Plastic front frame
Page 8
Page 25
POC 965 Series Medical Panel PC
SPECIFICATION 17 inch 19 inch
LED Functions 1 x Power on/off LED
Mounting VESA MIS-D mount for panel, wall, rack, stand and arm mounting
Front Panel Color Cool Gray 2C
Dimensions
(W x H x D) (mm)
Operating
Temperature
Storage Temperature -20°C ~ 60°C
Net Weight 6.6 kg 7.0 kg
IP Level IP 64 (front panel)
Safety and EMI UL60601-1, EN60601-1, CCC, CE (EN60601-1-2), FCC Parts 18
Touch Screen Resistive Type 5 Wire (touch controller IC is on board)
Power Input 12 V DC input
Power Adapter Medical Grade, AC 100 V ~ 240 V input to DC 12 V output
428 x 350 x 76 470 x 383 x 78
0°C ~ 40°C
Table 1-2: System Specifications
Page 9
Page 26
POC 965 Series Medical Panel PC
Chapter
2
2 Specifications
Page 10
Page 27
POC 965 Series Medical Panel PC
2.1 Dimensions
2.1.1 POC-417B Dimensions
The dimensions of the POC-417B medical panel PC are shown in Figure 2-1 below.
Figure 2-1: POC-417B Dimensions (units in mm)
Page 11
Page 28
2.1.2 POC-419B Dimensions
The dimensions of the POC-419B medical panel PC are shown in Figure 2-1 below.
POC 965 Series Medical Panel PC
Figure 2-2: POC-419B Dimensions (units in mm)
Page 12
Page 29
POC 965 Series Medical Panel PC
2.2 Intel® Desk-Top Processor Support
A T7500 Intel® Socket P Core™2 Duo or a 550 Intel® Socket P Celeron® M processor is
installed in the system. TheT7500 Intel® Core™2 Duo processor has a CPU speed of
2.2 GHz, a 800 MHz front side bus (FSB) and a 4.0 MB L2 cache. The 550 Intel®
Celeron® M processor has a CPU speed of 2.0 GHz, a 533 MHz front side bus (FSB) and
a 1.0 MB L2 cache. The processor is shown in
Figure 2-3 below.
Figure 2-3: CPU and CPU Fan
T7500 Intel® Socket P Core™2 Duo desktop processor supports the following Intel®
features:
Dual Core
Intel® Wide Dynamic Execution
Intel® Intelligent Power Capability
Intel® Smart Memory Access
Intel® Advanced Smart Cache
Page 13
Page 30
2.3 Motherboard Components
The following sections describe some of the features on the motherboard.
2.3.1 Memory Support
2.3.1.1 Installed Memory
One 200-pin 2.0 GB DDR2 SDRAM SO-DIMM are installed in the POC-965 Series and
controlled by the Intel® GME965 GMCH installed on the internal motherboard.
POC 965 Series Medical Panel PC
Figure 2-4: Memory Module and Memory Socket
2.3.1.2 Additional Memory
The Intel® GME965 is capable of supporting two 200-pin 2.0 GB (max.) 400 MHz DDR2
SDRAM SO-DIMM (system max. 4.0 GB). If additional memory is required, please contact
an IEI sales representative and discuss the necessary system requirement.
2.3.2 Storage Capacity
The POC-965 Series is preinstalled with a 2.5” 80 GB SATA hard disk drive. The system
can also support an easily installed CompactFlash® Type II (CF Type II) memory disk.
Page 14
Page 31
POC 965 Series Medical Panel PC
2.4 External Peripheral Interface Connectors
The following section describes the external peripheral interface connectors on the rear
panel of the subsystem.
2.4.1 Serial Port Connectors
The POC-965 Series has two serial ports. The COM1 serial port is a RS-232 only port.
The COM3 serial port can be configured as a RS-232, RS-422 or an RS-485 serial port.
Pin 9 on all ports can be set as the normal ring (RI) signal or can be designated as a 5 V or
12 V power supply. The two serial ports (COM1 and COM3) are interfaced to the ITE
IT8712 super IO, through the low pin count (LPC) bus to the ICH8M Southbridge.
Figure 2-5: COM Ports
There is one additional on-board serial port (COM2), which is connected to the touch
screen panel.
2.4.2 LAN Connectivity
The POC-965 Series has two GbE connectors on the bottom panel. One of the external
RJ-45 Ethernet LAN connectors is interfaced to an Intel® 82566MM Gigabit LAN connect
device from the ICH8M Southbridge. The other RJ-45 Ethernet LAN connector is
interfaced directly to an Intel® 82573L PCIe GbE controller.
Page 15
Page 32
Figure 2-6: RJ-45 Ethernet Connectors
2.4.3 External USB Connectors
There are four USB 2.0 connectors on the bottom panel of the POC-965 Series. All the
USB 2.0 connectors are interfaced directly to the USB controllers on the ICH8M
Southbridge. The USB connectors are all fully compliant with USB specification Revision
2.0 and USB specification Revision 1.1 and can be interfaced to both USB 1.1 and USB
2.0 compliant devices.
POC 965 Series Medical Panel PC
Figure 2-7: External USB Ports
2.4.4 eSATA Connectivity
An external SATA connector on the bottom panel interfaces to ICH8M Southbridge on the
motherboard that connects through the serial ATA bus. The external SATA connector
supports one external SATA drive.
Figure 2-8: eSATA Connector
Page 16
Page 33
POC 965 Series Medical Panel PC
2.5 POC-965 Series Front Side
2.5.1 Monitor
A LCD screen is installed on the front of the POC-965 Series and connected to the LVDS
connector on the motherboard. The screen is shown in
Figure 2-9: LCD Screen
Figure 2-9 below.
2.5.2 Touch-Screen Module
A controller for the 5-wire resistive touch screen is installed on the motherboard. The
sensitive touch screen is accurate, reliable and durable.
2.6 Graphics
2.6.1 Intel® GME965 Integrated Graphics Media Accelerator 950
The Intel® GME965 has the mobile Intel® Graphics Media Accelerator (GMA) X3100
integrated into the chipset and interfaced to the VGA connector. The Intel® GMA X3100,
with an integrated 300 MHz RAMDAC and hot plug CRT support, supports analog CRT
monitors up to QXGA.
Page 17
Page 34
Figure 2-10: VGA Connector
2.6.2 Dual-Display
The system supports dual display capabilities. An additional monitor can be connected to
the POC-965 Series through the VGA connector described above.
2.7 Audio
2.7.1 High Definition Audio Controller
POC 965 Series Medical Panel PC
The integrated High Definition Audio compliant audio controller on the Intel® ICH8M
Southbridge is integrated to a RealTek ALC262 audio codec. The RealTek ALC262 is
connected to the external audio jack, which is then connected to compliant audio devices.
The RealTek ALC262 is a four-channel High Definition Audio codec with two 24-bit stereo
DACs and three 20-bit stereo ADCs. The codec and the audio connector are shown in
Figure 2-11.
Figure 2-11: Audio Jack
2.7.2 Stereo Speakers
Page 18
Two stereo speakers on the both sides of the POC-965 Series are interfaced to the
system through a Philips TDA1517P integrated 3 W dual output amplifier.
Page 35
POC 965 Series Medical Panel PC
Figure 2-12: Stereo Speakers
2.8 System Power
2.8.1 Power Mode
The system can be run in the AT power mode or the ATX power mode. Both these power
modes are described below.
2.8.1.1 ATX Power Mode (Default)
With the ATX mode selected, the POC-965 Series medical panel PC goes in a standby
mode when it is turned off. The panel PC can be easily turned on via network or a power
switch in standby mode.
Figure 2-13: Power Connector
Page 19
Page 36
2.8.1.2 AT Power Mode
With the AT mode selected, the power is controlled by a central power unit rather than a
power switch. ThePOC-965 Series medical panel PC turns on automatically when the
power is connected. The AT mode is ideal for controlling multiple panel PCs from a central
management center.
2.8.2 Power Adapter
The system is shipped with a 100 V to 240 V AC power adapter that has a maximum
power output of 100 W. The power adapter has a 12 V DC output connectors.
2.8.3 Power Connector
The power connector is located on the bottom panel interface panel. A 12 V DC input
POC 965 Series Medical Panel PC
connector is a standard 4-pin power connector shown in
Figure 2-14: Power Connector
Figure 2-14 below.
Page 20
Page 37
POC 965 Series Medical Panel PC
2.9 Wireless Connections
The following section describes the wireless modules on the circuit.
2.9.1 USB Bluetooth Module
An integrated Bluetooth module is connected to ICH8M chipset through the USB bus. The
POC-965 Series Bluetooth module enables wireless communications between the
POC-965 Series and various peripheral devices through a Bluetooth network. The
peripheral devices may include:
Headsets
Barcode readers
PDA
Printers
Cell phones
Keyboard and mouse
The Bluetooth module is shown in
the Bluetooth module are listed in the Appendix.
Figure 2-15 below and the technical specifications of
Figure 2-15: Bluetooth Module
Page 21
Page 38
2.9.2 Wireless Ethernet
An integrated 802.11 a/b/g/n wireless LAN module and PIFA antenna on the POC-965
Series ensure an uninterrupted wireless connection. PIFA antennas can receive
high-quality, uniform signals in any location from all directions without any signal
degradation or impedance and are the most efficient antennas on the market.
POC 965 Series Medical Panel PC
Figure 2-16: Wireless LAN Module
Page 22
Page 39
POC 965 Series Medical Panel PC
Chapter
3
3 Unpacking
Page 23
Page 40
3.1 Unpacking
To unpack the flat panel PC, follow the steps below:
WARNING!
The front side LCD screen has a protective plastic cover stuck to the
screen. Only remove the plastic cover after the flat panel PC has been
properly installed. This ensures the screen is protected during the
installation process.
Step 1: Use box cutters, a knife or a sharp pair of scissors that seals the top side of the
external (second) box.
POC 965 Series Medical Panel PC
Step 2: Open the external (second) box.
Step 3: Use box cutters, a knife or a sharp pair of scissors that seals the top side of the
internal (first) box.
Step 4: Lift the monitor out of the boxes.
Step 5: Remove both polystyrene ends, one from each side.
Step 6: Pull the plastic cover off the flat panel PC.
Step 7: Make sure all the components listed in the packing list are present. Step 0:
Page 24
Page 41
POC 965 Series Medical Panel PC
3.1.1 Packing List
The POC-965 Series medical panel PC is shipped with the following components:
Quantity Item Image
Standard
1 POC-965 Series medical panel PC
1 Medical grade power adapter
1 Power cord (Europe/USA standard)
1 User manual CD and driver CD
1 Touch pen
1 Screw kit
1 eSATA cable
If any of these items are missing or damaged, contact the distributor or sales
representative immediately.
Page 25
Page 42
POC 965 Series Medical Panel PC
Chapter
4
4 Installation
Page 26
Page 43
POC 965 Series Medical Panel PC
4.1 Anti-static Precautions
WARNING:
Failure to take ESD precautions during the maintenance of the
POC-965 Series may result in permanent damage to the POC-965
Series and severe injury to the user.
Electrostatic discharge (ESD) can cause serious damage to electronic components,
including the POC-965 Series. Dry climates are especially susceptible to ESD. It is
therefore critical that whenever the POC-965 Series is accessed internally, or any other
electrical component is handled, the following anti-static precautions are strictly adhered
to.
Wear an anti-static wristband: - Wearing a simple anti-static wristband can
help to prevent ESD from damaging the board.
Self-grounding:- Before handling the board touch any grounded conducting
material. During the time the board is handled, frequently touch any
conducting materials that are connected to the ground.
Use an anti-static pad: - When configuring the POC-965 Series, place it on
an antic-static pad. This reduces the possibility of ESD damaging the
POC-965 Series.
Only handle the edges of the PCB: - When handling the PCB, hold the PCB
by the edges.
4.2 Installation Precautions
When installing the flat panel PC, please follow the precautions listed below:
Power turned off: When installing the flat panel PC, make sure the power is
off. Failing to turn off the power may cause severe injury to the body and/or
damage to the system.
Certified Engineers: Only certified engineers should install and modify
onboard functionalities.
Page 27
Page 44
Mounting: The flat panel PC is a heavy device. When mounting the system
onto a rack, panel, wall or arm please make sure that at least two people are
assisting with the procedure.
Anti-static Discharge: If a user open the rear panel of the flat panel PC, to
configure the jumpers or plug in added peripheral devices, ground themselves
first and wear and anti-static wristband.
4.3 Preinstalled Components
The following components are all preinstalled.
Motherboard
Backlight inverter
TFT LCD screen
DDR2 memory module
POC 965 Series Medical Panel PC
Resistive type touch screen panel
Wireless LAN module
Bluetooth module
AT/ATX power switch
Preinstalled OEM customizations may include the following.
Different DDR2 memory modules
Different SATA hard disk drive
Installation of some of the components is described in the following sections.
4.4 Installation and Configuration Steps
The following installation steps must be followed.
Step 1: Unpack the flat panel PC
Step 2: Install the CompactFlash® card (optional)
Page 28
Step 3: Mount the flat panel PC
Step 4: Connect peripheral devices
Page 45
POC 965 Series Medical Panel PC
Step 5: Configure the systemStep 0:
4.5 CF Card Installation
The POC-965 Series has one CompactFlash® Type I/II slot inside the side panel. To
install the CF card, follow the instructions below.
Step 1: Remove the retention screws (
Figure 4-1) and lift the cover off the flat panel PC.
Figure 4-1: Back Cover Retention Screws
Step 2: Locate the CF slot. Align the CF card with the guides on the slot.
Step 3: Insert a CF card into the slot (Figure 4-2).
Figure 4-2: CF Card Installation
Page 29
Page 46
Step 4: Replace the plastic back cover and fasten the retention screws. Step 0:
4.6 AT/ATX Mode Selection
AT and ATX power modes can both be used on the POC-965 Series. The selection is
POC 965 Series Medical Panel PC
made through an AT/ATX switch on the bottom panel (
ATX mode, follow the steps below.
Step 1: Locate the AT/ATX switch on the bottom panel (
Figure 4-3). To select AT mode or
Figure 4-3).
Figure 4-3: AT/ATX Switch Location
Step 2: The system is set to ATX mode by default. To change to the AT mode, just adjust
the AT/ATX switch to AT mode.
Step 3: To switch from AT mode to ATX mode, please load BIOS default or clear
CMOS first. Then adjust the switch to ATX mode. Step 0:
Page 30
NOTE:
To load BIOS default, please use the Load Optimal Defaults option of the
Exit menu in the BIOS (refer to Section
default values for each of the parameters on the Setup menus. F9 key can
be used for this operation.
6.8 on page 97) to load the optimal
Page 47
POC 965 Series Medical Panel PC
4.7 Mounting the System
WARNING!
When mounting the flat panel PC onto an arm, onto the wall or onto a
panel, it is better to have more than one person to help with the installation
to make sure the panel PC does not fall down and get damaged.
The four methods of mounting the POC-965 Series are listed below.
Wall mounting
Arm mounting
Stand mounting
The four mounting methods are described below.
4.7.1 Wall Mounting
To mount the flat panel PC onto the wall, please follow the steps below.
Step 1: Select the location on the wall for the wall-mounting bracket.
Step 2: Carefully mark the locations of the four brackets screw holes on the wall.
Step 3: Drill four pilot holes at the marked locations on the wall for the bracket retention
screws.
Step 4: Align the wall-mounting bracket screw holes with the pilot holes.
Step 5: Secure the mounting-bracket to the wall by inserting the retention screws into
the four pilot holes and tightening them (
Figure 4-4).
Page 31
Page 48
POC 965 Series Medical Panel PC
Figure 4-4: Wall-mounting Bracket
Step 6: Insert the four monitor mounting screws provided in the wall mounting kit into the
four screw holes on the real panel of the flat panel PC and tighten until the screw
shank is secured against the rear panel (
Step 7: Align the mounting screws on the monitor rear panel with the mounting holes on
the bracket.
Step 8: Carefully insert the screws through the holes and gently pull the monitor
downwards until the monitor rests securely in the slotted holes (
Ensure that all four of the mounting screws fit snuggly into their respective
slotted holes.
Figure 4-5).
Figure 4-5).
Page 32
Page 49
POC 965 Series Medical Panel PC
Figure 4-5: Chassis Support Screws
NOTE:
In the diagram below the bracket is already installed on the wall.
Step 9: Secure the panel PC by fastening the retention screw of the wall-mounting
bracket. (
Figure 4-6).Step 0:
Page 33
Page 50
POC 965 Series Medical Panel PC

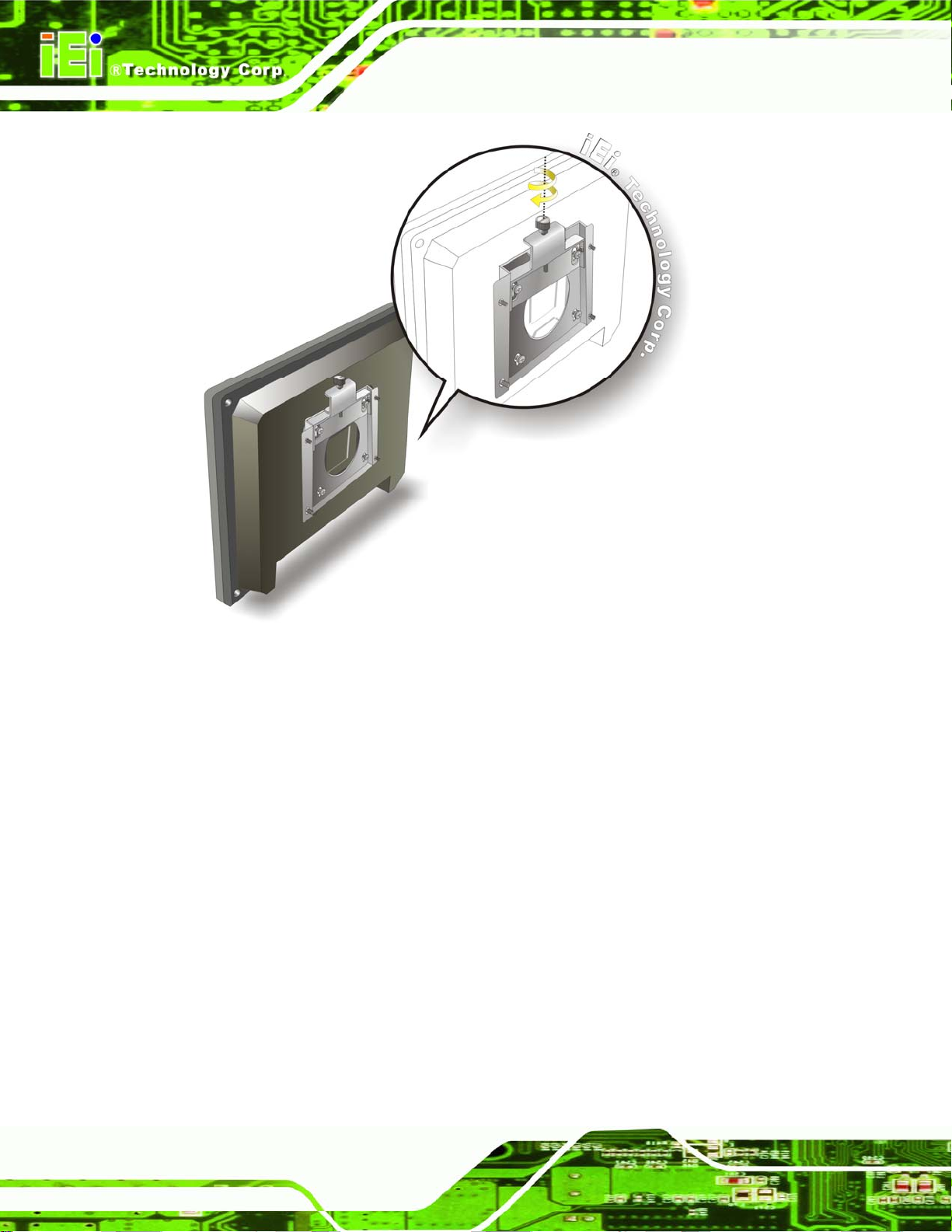

Figure 4-6: Secure the Panel PC
4.7.2 Arm Mounting
The POC-965 Series is VESA (Video Electronics Standards Association) compliant and
can be mounted on an arm with a 100 mm interface pad. To mount the POC-965 Series
on an arm, please follow the steps below.
Step 1: The arm is a separately purchased item. Please correctly mount the arm onto
the surface it uses as a base. To do this, refer to the installation documentation
that came with the mounting arm.
Page 34
Page 51
POC 965 Series Medical Panel PC
NOTE:
When purchasing the arm please ensure that it is VESA compliant and that
the arm has a 100 mm interface pad. If the mounting arm is not VESA
compliant it cannot be used to support the POC-965 Series flat panel PC.
Step 2: Once the mounting arm has been firmly attached to the surface, lift the flat panel
PC onto the interface pad of the mounting arm.
Step 3: Align the retention screw holes on the mounting arm interface with those in the
flat panel PC, as shown in
Figure 4-7.
Figure 4-7: Arm Mounting Retention Screw Holes
Step 4: Secure the flat panel PC to the interface pad by inserting four retention screws
through the bottom of the mounting arm interface pad and into the flat panel PC.
Step 0:
Page 35
Page 52
4.8 Bottom Panel Connectors
All the external peripheral interface connectors are located at the bottom of the rear panel
on the POC-965 Series medical panel PC.
4.8.1 12V DC Power Connection
The POC-965 Series has one 4-pin Power Mini-DIN connector on the bottom panel for a
POC 965 Series Medical Panel PC
medical grade power supply.
Figure 4-8 shows the power connector pinouts.

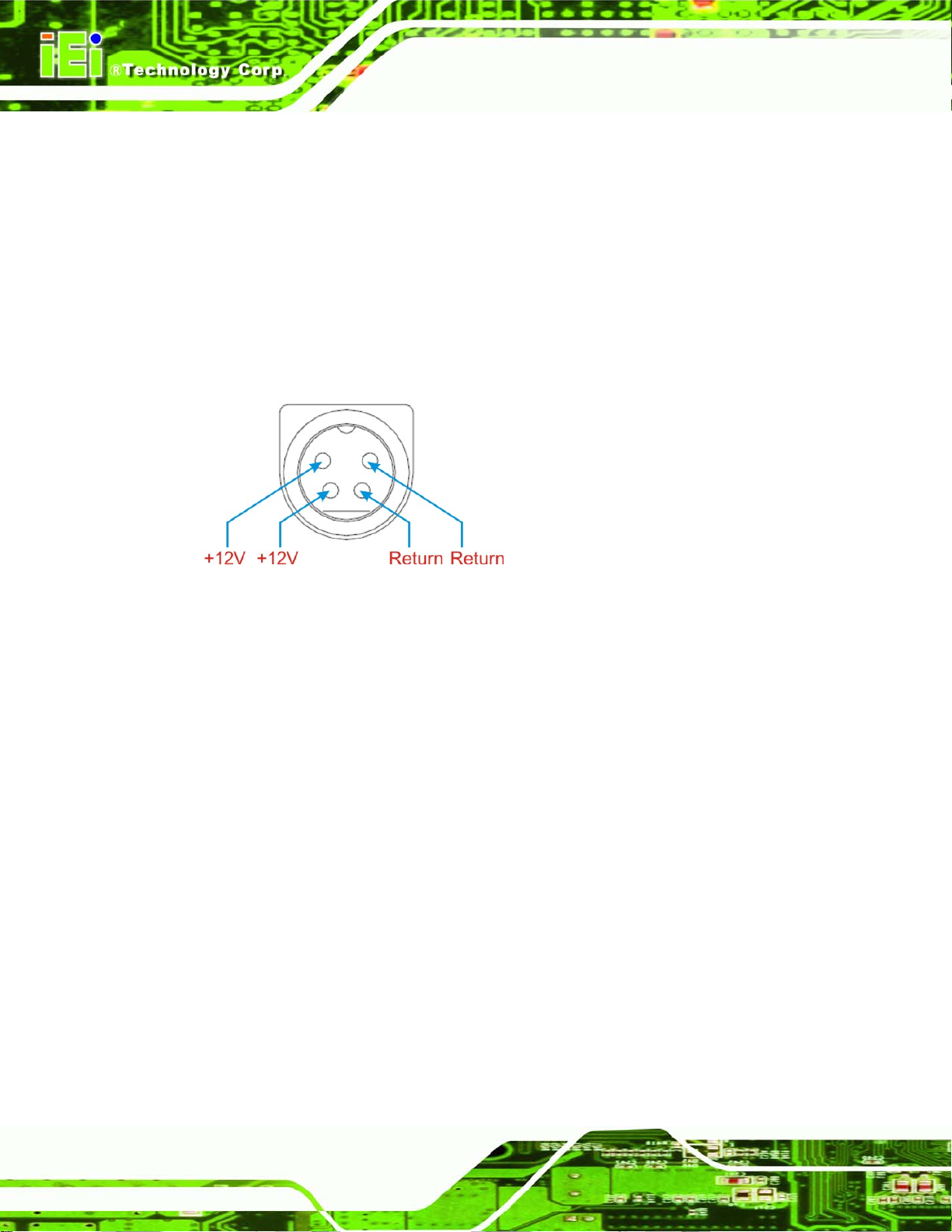

Figure 4-8: 4-pin Power Mini-DIN Connection
4.8.2 LAN Connection
There are two external RJ-45 LAN connectors. The RJ-45 connectors enable connection
to an external network. To connect a LAN cable with an RJ-45 connector, please follow
the instructions below.
Page 36
Step 1: Locate the RJ-45 connectors on the bottom panel of the POC-965 Series.
Step 2: Align the connectors. Align the RJ-45 connector on the LAN cable with one of
the RJ-45 connectors on the bottom panel of the POC-965 Series. See
4-9.
Figure
Page 53
POC 965 Series Medical Panel PC
Figure 4-9: LAN Connection
Step 3: Insert the LAN cable RJ-45 connector. Once aligned, gently insert the LAN
cable RJ-45 connector into the onboard RJ-45 connector. Step 0:
4.8.3 Serial Device Connection
The POC-965 Series has two single female DB-9 connectors on the bottom panel for a
serial device. Follow the steps below to connect a serial device to the POC-965 Series
panel PC.
Step 1: Locate the DB-9 connector. The location of the DB-9 connector is shown in
Chapter 2.
Step 2: Insert the serial connector. Insert the DB-9 connector of a serial device into
the DB-9 connector on the bottom panel. See
Figure 4-10.
Page 37
Page 54
POC 965 Series Medical Panel PC
Figure 4-10: Serial Device Connector
Step 3: Secure the connector. Secure the serial device connector to the external
interface by tightening the two retention screws on either side of the connector.
Step 0:
4.8.4 USB Device Connection
There are four external USB 2.0 connectors. All connectors are perpendicular to the
POC-965 Series. To connect a USB 2.0 or USB 1.1 device, please follow the instructions
below.
Step 1: Locate the USB connectors. The locations of the USB connectors are shown
in Chapter 2.
Step 2: Align the connectors. Align the USB device connector with one of the
Page 38
connectors on the bottom panel. See
Figure 4-11.
Page 55
POC 965 Series Medical Panel PC
Figure 4-11: USB Device Connection
Step 3: Insert the device connector. Once aligned, gently insert the USB device
connector into the onboard connector. Step 0:
4.8.5 VGA Monitor Connection
The POC-965 Series has a single female DB-15 connector on the external peripheral
interface panel. The DB-15 connector is connected to a CRT or VGA monitor. To connect
a monitor to the POC-965 Series, please follow the instructions below.
Step 1: Locate the female DB-15 connector. The location of the female DB-15
connector is shown in Chapter 3.
Step 2: Align the VGA connector. Align the male DB-15 connector on the VGA screen
cable with the female DB-15 connector on the external peripheral interface.
Page 39
Page 56
Step 3: Insert the VGA connector. Once the connectors are properly aligned with the
insert the male connector from the VGA screen into the female connector on the
POC 965 Series Medical Panel PC
POC-965 Series. See
Figure 4-12.
Figure 4-12: VGA Connector
Step 4: Secure the connector. Secure the DB-15 VGA connector from the VGA
monitor to the external interface by tightening the two retention screws on either
side of the connector. Step 0:
Page 40
Page 57
POC 965 Series Medical Panel PC
Chapter
5
5 System Maintenance
Page 41
Page 58
POC 965 Series Medical Panel PC
5.1 Introduction
If the components of the POC-965 Series fail they must be replaced, such as the wireless
LAN module or the motherboard. Please contact the system reseller or vendor to
purchase the replacement parts. Back cover removal instructions and jumper settings for
the POC-965 Series are described below.
5.2 Motherboard Replacement
A user cannot replace a motherboard. If the motherboard fails it must be shipped back to
IEI to be replaced. If the system motherboard has failed, please contact the system vendor,
reseller or an IEI sales person directly.
5.3 Internal Aluminum Cover Removal
WARNING!
Turn the power off before removing the back cover. Failing to do so
may lead to severe damage of POC-965 Series and injury to the body.
WARNING!
Take antistatic precautions when working with internal components.
The interior of the POC-965 Series contains very sensitive electronic
components. These components are easily damaged by electrostatic
discharge (ESD). Before working with the internal components make sure
all the anti-static precautions described earlier have been observed.
To replace any of the following components,
Page 42
DDR2 memory module
Hard disk drive
Page 59
POC 965 Series Medical Panel PC
Wireless LAN module
Inverter
The internal aluminum back cover of the POC-965 Series must be removed. To remove
the aluminum back cover, remove the retention screws indicated in the sections below.
Remove the following screws:
6 x Flat head screws
8 x Round head screws
Screw positions are indicated below (
Figure 5-1: Aluminum Back Cover Retention Screws
5.4 HDD Replacement
Figure 5-1).
The POC-965 Series medical panel PC is preinstalled with an 80 GB SATA HDD. If the
HDD fails, follow the instructions below to replace the HDD.
Step 1: Disconnect the system power cable.
Step 2: Remove the back cover. See Section
Step 3: Remove the internal aluminum back cover. See Section
4.5 above.
5.3 above.
Page 43
Page 60
Step 4: Remove the system fan on the top of the HDD by removing the two retention
POC 965 Series Medical Panel PC
screws (
Figure 5-2).

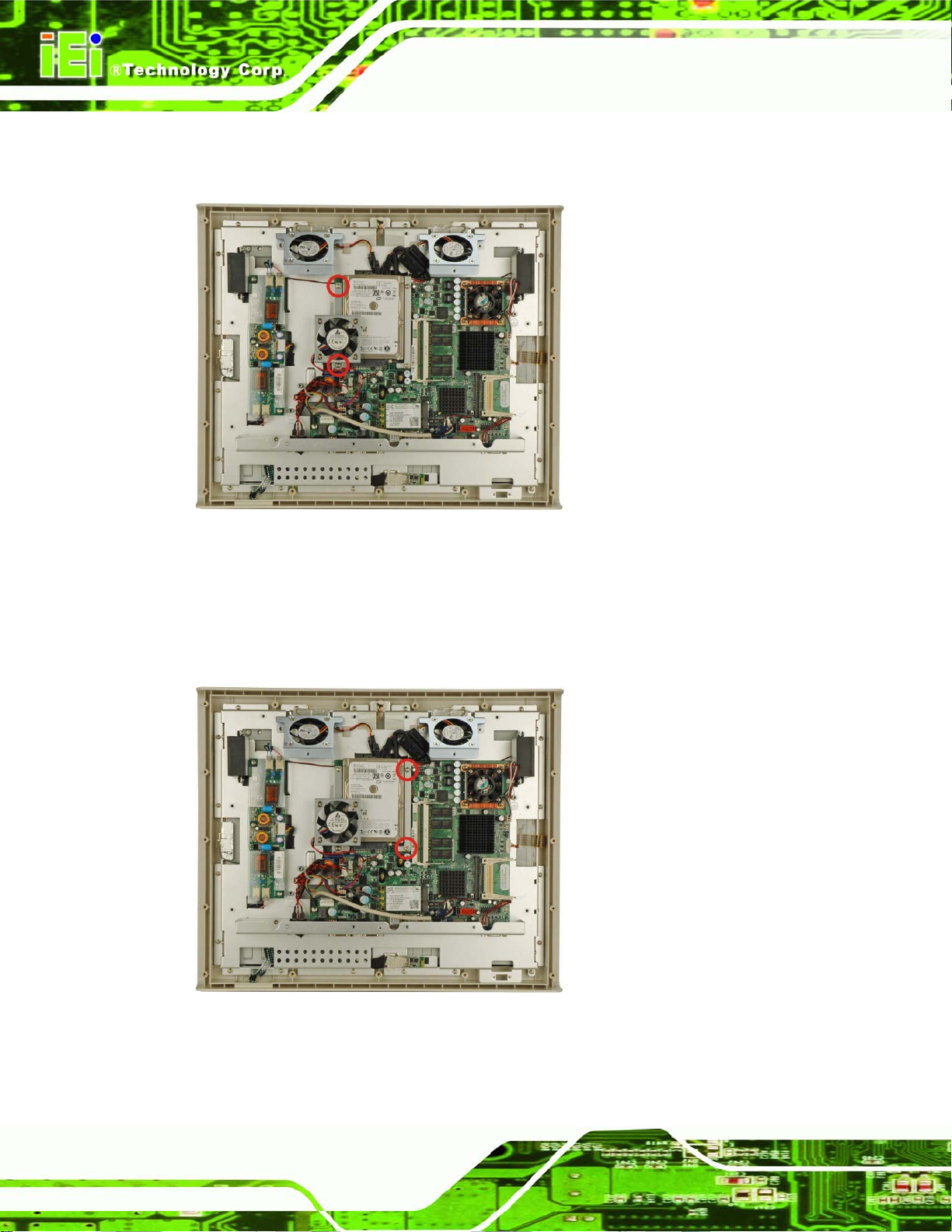

Figure 5-2: System Fan Retention Screws
Step 5: Remove the remaining two HDD bracket retention screws (
Figure 5-3) and lift
the HDD bracket off the panel PC.
Figure 5-3: Hard Drive Bracket Retention Screws
Page 44
Page 61
POC 965 Series Medical Panel PC
Step 6: Remove the HDD from the bracket. Remove the four retention screws from the
bottom of the HDD bracket and lift the HDD off the bracket (
Figure 5-4).
Figure 5-4: Hard Drive Retention Screws
Step 7: Attach a new hard drive to the hard drive bracket. To do this, align the four
retention screw holes on the hard drive with the screw holes on the hard drive
bracket. Fasten four flat head retention screws to secure the hard drive to the
bracket.
Step 8: Reinstall the hard drive bracket. Slide the hard drive bracket into its original
position, making sure the SATA connectors on the hard drive connect with the
SATA connectors on the motherboard.
Step 9: Fasten the hard drive bracket screws (
Figure 5-5).
Page 45
Page 62
POC 965 Series Medical Panel PC
Figure 5-5: Hard Drive Installed
Step 10: Replace the aluminum back cover to the chassis.
Step 11: Replace the plastic back cover.
5.5 Memory Module Replacement
The medical panel PC is preinstalled with a DDR2 memory module. If the memory module
fails, follow the instructions below to replace the memory module.
Step 12: Remove the back cover. See Section
Step 13: Remove the internal aluminum back cover. See Section
Step 14: Locate the DDR2 memory module on the motherboard of the flat panel PC
Figure 5-6).
(
4.5 above.
5.3 above.
Page 46
Page 63
POC 965 Series Medical Panel PC
Figure 5-6: SO-DIMM Socket Locations
Step 15: Remove the DDR2 memory module by pulling both the spring retainer clips
outward from the socket.
Step 16: Grasp the DDR2 memory module by the edges and carefully pull it out of the
socket.
Step 17: Install the new DDR2 memory module by pushing it into the socket at an angle
Figure 5-7).
(
Step 18: Gently pull the spring retainer clips of the SO-DIMM socket out and push the
rear of the DDR2 memory module down (
Step 19: Release the spring retainer clips on the SO-DIMM socket. They clip into place
and secure the DDR2 memory module in the socket.Step 0:
Figure 5-7).
Page 47
Page 64
Figure 5-7: DDR2 SO-DIMM Module Installation
5.6 Jumper Settings
POC 965 Series Medical Panel PC
NOTE:
A jumper is a metal bridge that is used to
close an electrical circuit. It consists of
two metal pins and a small metal clip
(often protected by a plastic cover) that
slides over the pins to connect them.
To CLOSE/SHORT a jumper means
connecting the pins of the jumper with
the plastic clip and to OPEN a jumper
means removing the plastic clip from a
jumper.
The six jumpers listed below are located on the motherboard and can be setup for
POC-965 Series.
Jumper
Page 48
Clear CMOS jumper (J_CMOS1)
COM1 and COM3 RI and voltage select (J10)
COM3 RS-232/422/485 select (J9)
COM2 RI and voltage select (J6)
Page 65
POC 965 Series Medical Panel PC
CompactFlash® setup (J4)
LCD voltage select (J2)
5.6.1 Clear CMOS Jumper (J_CMOS1)
The Clear CMOS jumper setting is used to reset the CMOS to default settings.
JP9 Description
1-2 Normal Operation
2-3 Clear CMOS Setup
Table 5-1: Clear CMOS Jumper Settings
5.6.2 COM1 and COM3 RI and Voltage Select (J10)
The COM1 and COM3 pin-9 signal can be selected as 12V, 5V or Ring.
J10 Description
7-9, 8-10 Use for RI
3-5, 4-6 5 V
1-3, 2-4 12 V
Table 5-2: COM1 and COM3 RI and Voltage Settings
5.6.3 COM3 RS-232/422/485 Select (J9)
J9 selects RS-232, RS-422 or RS-485 mode for the COM3 serial port.
J9 Description
1-2 RS-232
3-4 RS-422
5-6 RS-485
Table 5-3: COM3 Mode Selection
5.6.4 COM2 RI and Voltage Select (J6)
The COM2 pin-9 signal can be selected as 12V, 5V or Ring.
Page 49
Page 66
J6 Description
1-2 12 V
3-4 Use for RI
5-6 5 V
Table 5-4: COM2 RI and Voltage Selection
5.6.5 CompactFlash® Setup (J4)
The Master/Slave selection allows the CompactFlash® slot to be setup as either the IDE
master or the IDE slave. If no other IDE device is used in the system, then the setting does
not need to be changed.
J4 Description
Short Master
POC 965 Series Medical Panel PC
Open Slave
Table 5-5: CompactFlash® Master/Slave Selection
5.6.6 LCD Voltage Select (J2)
This jumper should not be changed from factory settings. The LCD type jumper
selects what kind of LCD screen is being used in the system.
J2 Description
1-2 3.3 V
3-4 5 V
5-6 12 V
Table 5-6: LCD Type Selection
5.7 RS-422 and RS-485 Pinouts
Page 50
The pinouts for RS-422 and RS-485 operation of external serial port COM3 are detailed
below.
Page 67
POC 965 Series Medical Panel PC
J7 RS-422/485 Description
1-3 RS-422 TX3-5 RS-485 D-
2-4 RS-422 TX+
4-6 RS-485 D+
Table 5-7: RS-422 Pinouts (J7)
J11 RS-485 Description
1 Data2 Data+
Table 5-8: RS-485 Pinouts (J11)
Page 51
Page 68
POC 965 Series Medical Panel PC
Chapter
6
6 AMI BIOS Setup
Page 52
Page 69
POC 965 Series Medical Panel PC
6.1 Introduction
A licensed copy of AMI BIOS is preprogrammed into the ROM BIOS. The BIOS setup
program allows users to modify the basic system configuration. This chapter describes
how to access the BIOS setup program and the configuration options that may be
changed.
6.1.1 Starting Setup
The AMI BIOS is activated when the computer is turned on. The setup program can be
activated in one of two ways.
1. Press the D
2. Press the D
message appears on the screen. 0.
If the message disappears before the D
again.
ELETE key as soon as the system is turned on or
ELETE key when the “Press Del to enter SETUP”
ELETE key is pressed, restart the computer and try
6.1.2 Using Setup
Use the arrow keys to highlight items, press ENTER to select, use the PageUp and
PageDown keys to change entries, press F1 for help and press E
keys are shown in.
Key Function
Up arrow Move to previous item
Down arrow Move to next item
Left arrow Move to the item on the left hand side
SC to quit. Navigation
Right arrow Move to the item on the right hand side
Esc key Main Menu – Quit and not save changes into CMOS
Status Page Setup Menu and Option Page Setup Menu --
Exit current page and return to Main Menu
Page Up key Increase the numeric value or make changes
Page Dn key Decrease the numeric value or make changes
Page 53
Page 70
F1 key General help, only for Status Page Setup Menu and Option
F2 /F3 key Change color from total 16 colors. F2 to select color
F10 key Save all the CMOS changes, only for Main Menu
Table 6-1: BIOS Navigation Keys
6.1.3 Getting Help
When F1 is pressed a small help window describing the appropriate keys to use and the
POC 965 Series Medical Panel PC
Page Setup Menu
forward.
possible selections for the highlighted item appears. To exit the Help Window press E
the F1 key again.
6.1.4 Unable to Reboot After Configuration Changes
If the computer cannot boot after changes to the system configuration is made, CMOS
defaults. Use the jumper described in Chapter 5 or disconnect the battery from the
connector.
6.1.5 BIOS Menu Bar
The menu bar on top of the BIOS screen has the following main items:
Main Changes the basic system configuration.
Advanced Changes the advanced system settings.
PCIPnP Changes the advanced PCI/PnP Settings
Boot Changes the system boot configuration.
Security Sets user and supervisor passwords.
SC or
Page 54
Chipset Changes the chipset settings.
Exit Selects exit options and loads default settings
The following sections completely describe the configuration options found in the menu
items at the top of the BIOS screen and listed above.
Page 71
POC 965 Series Medical Panel PC
6.2 Main
The Main BIOS menu (BIOS Menu 1) appears when the BIOS Setup program is entered.
The Main menu gives an overview of the basic system information.

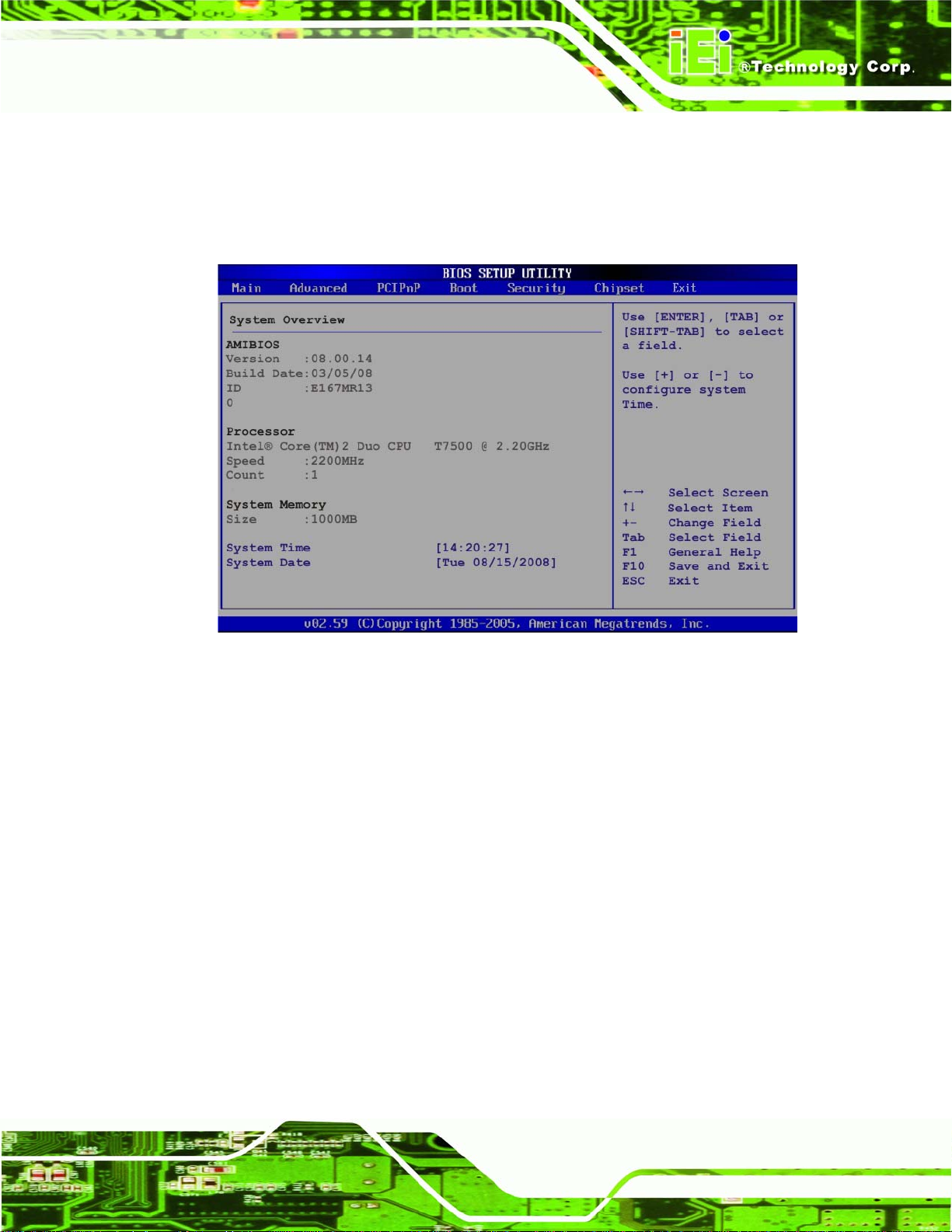

BIOS Menu 1: Main
System Overview
The System Overvie w lists a brief summary of different system components. The fields in
System Overview cannot be changed. The items shown in the system overview include:
AMI BIOS: Displays auto-detected BIOS information
o Version: Current BIOS version
o Build Date: Date the current BIOS version was made
o ID: Installed BIOS ID
Processor: Displays auto-detected CPU specifications
o Type: Names the currently installed processor
o Speed: Lists the processor speed
o Count: The number of CPUs on the motherboard
System Memory: Displays the auto-detected system memory.
Page 55
Page 72
POC 965 Series Medical Panel PC
o Size: Lists memory size
The System Overview field also has two user configurable fields:
System Time [xx:xx:xx]
Use the System Time option to set the system time. Manually enter the hours, minutes
and seconds.
System Date [xx/xx/xx]
Use the System Date option to set the system date. Manually enter the day, month and
year.
6.3 Advanced
Use the Advanced menu (BIOS Menu 2) to configure the CPU and peripheral devices
through the following sub-menus:
WARNING!
Setting the wrong values in the sections below may cause the system to
malfunction. Make sure that the settings made are compatible with the
hardware.
CPU Configuration (see Section 6.3.1)
IDE Configuration (see Section 6.3.2)
Super IO Configuration (see Section 6.3.3)
Hardware Health Configuration (see Section 6.3.4)

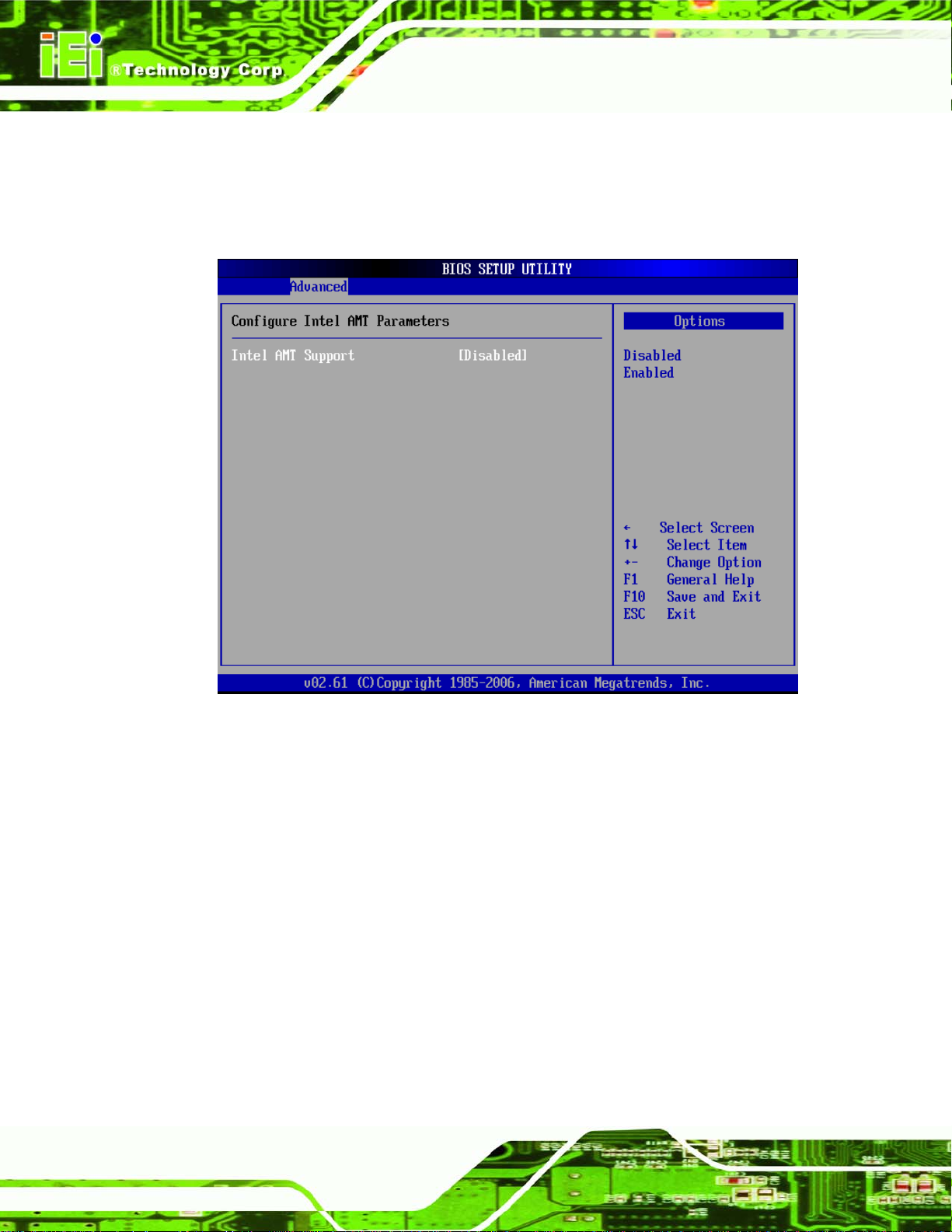

Intel AMT Configuration (see Section 6.3.5)

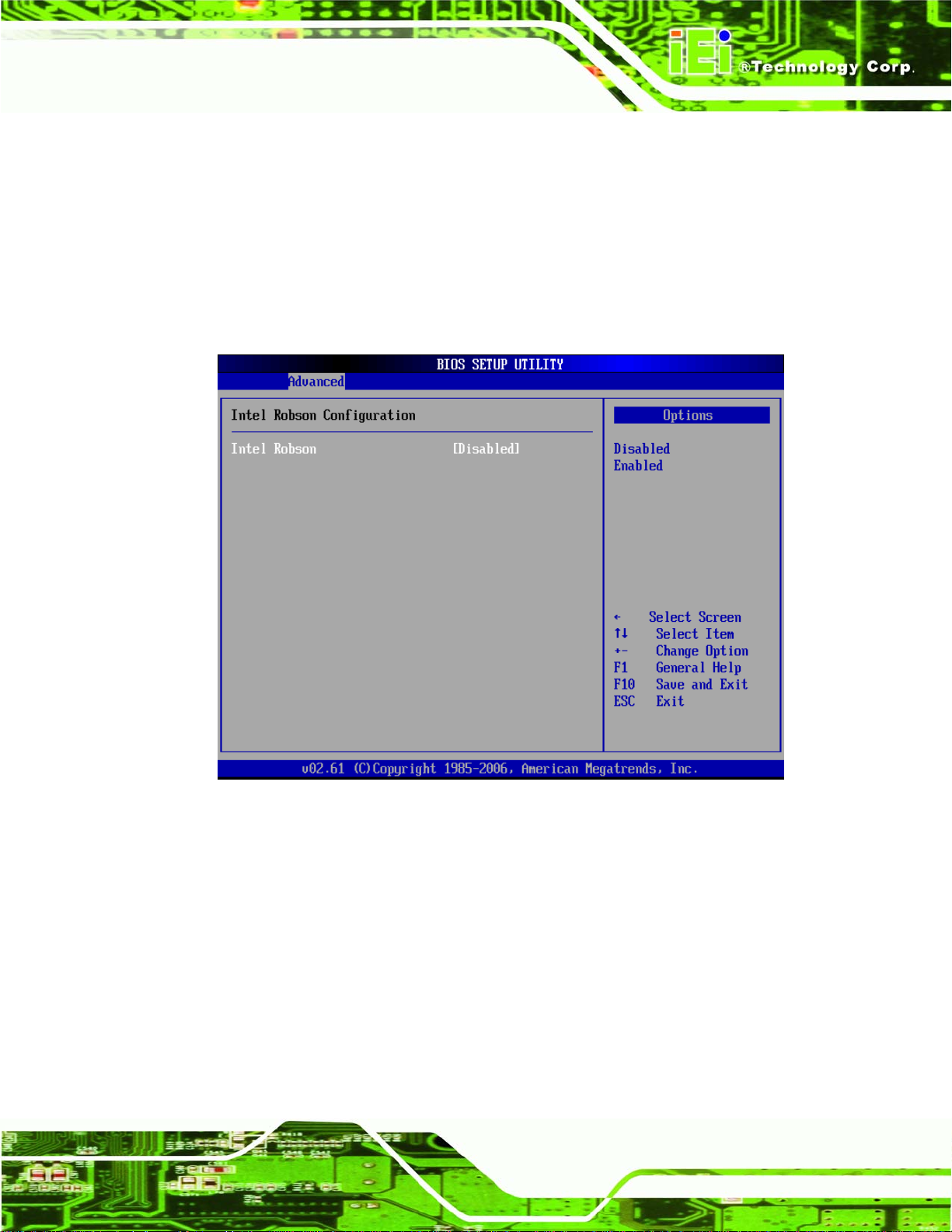

Intel Robson Configuration (see Section 6.3.6)

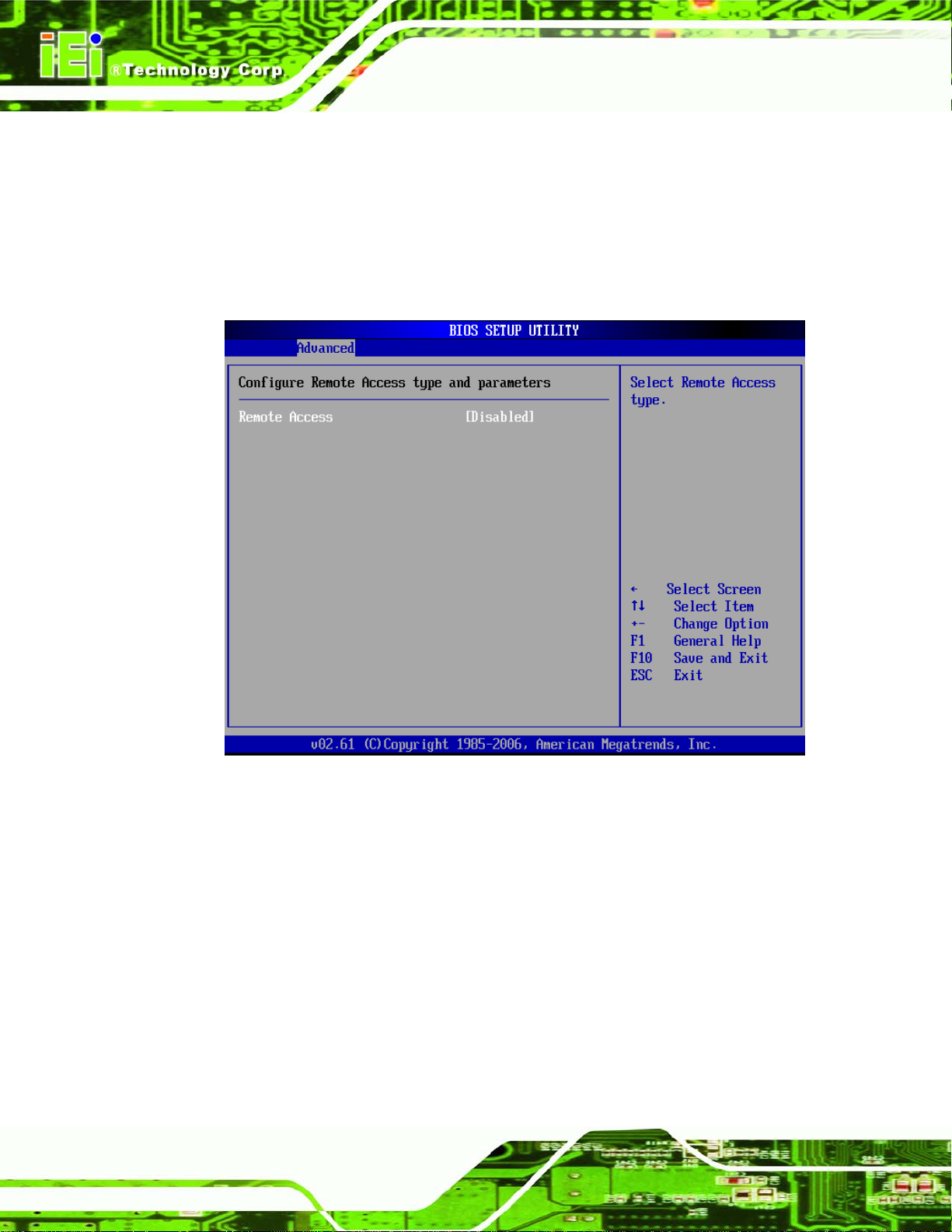

Remote Access Configuration (see Section 6.3.7)
Page 56

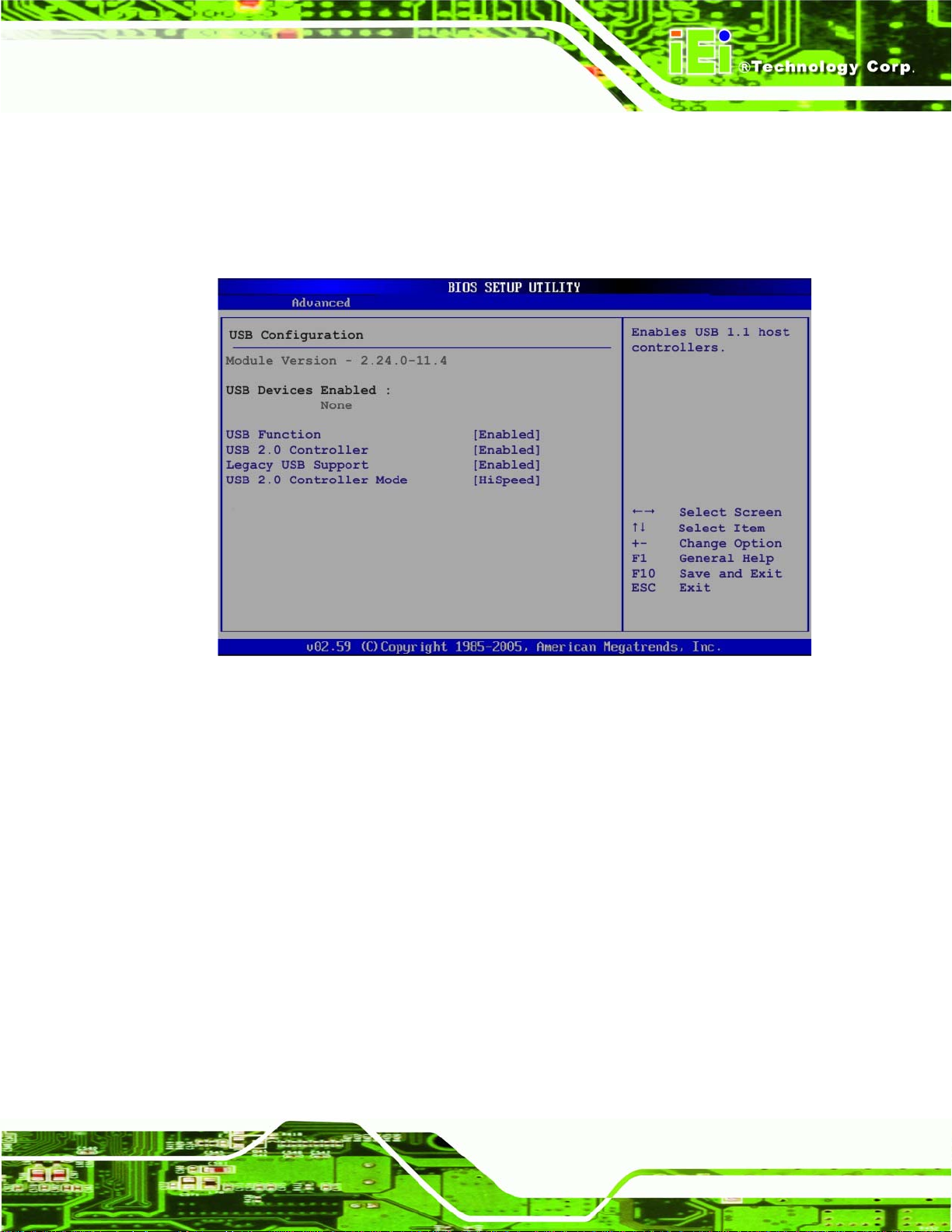

USB Configuration (see Section 6.3.8)

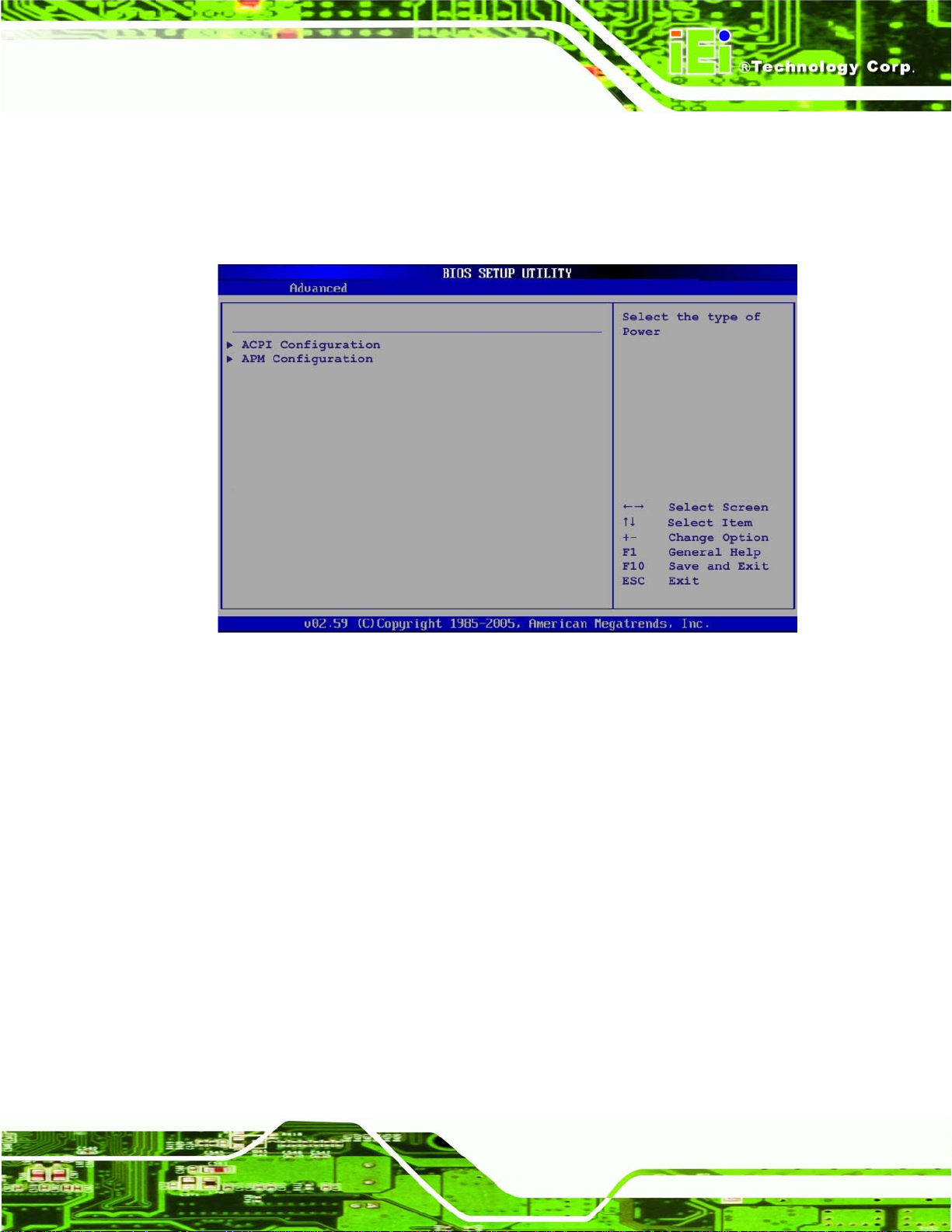

Power Configuration (see Section 6.3.9)
Page 73
POC 965 Series Medical Panel PC
BIOS Menu 2: Advanced
6.3.1 CPU Configuration
Use the CPU Configuration menu (BIOS Menu 3) to view detailed CPU specifications
and configure the CPU.
Page 57
Page 74
POC 965 Series Medical Panel PC

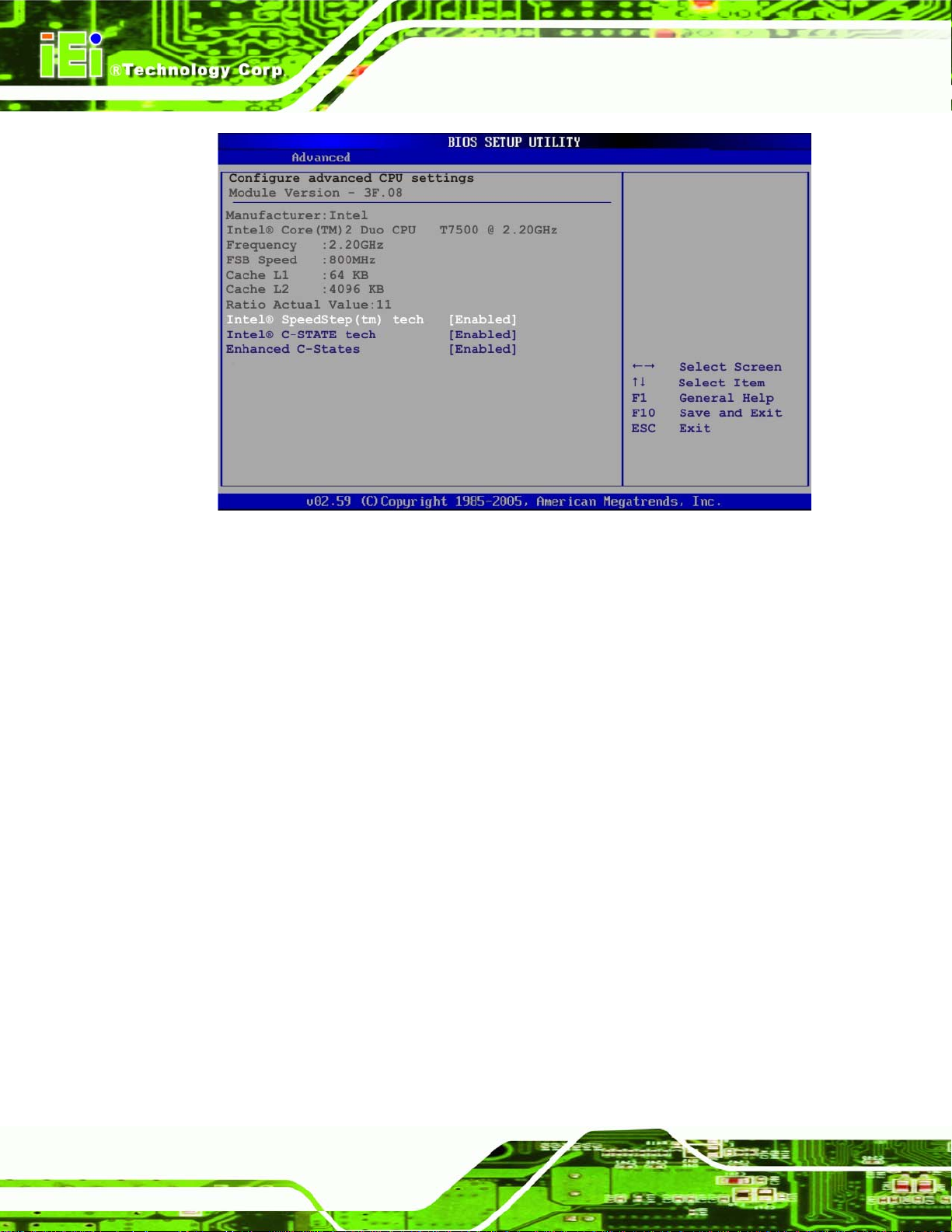

BIOS Menu 3: CPU Configuration
The CPU Configuration menu (
Manufacturer: Lists the name of the CPU manufacturer
Brand String: Lists the brand name of the CPU being used
Frequency: Lists the CPU processing speed
FSB Speed: Lists the FSB speed
Cache L1: Lists the CPU L1 cache size
Cache L2: Lists the CPU L2 cache size
BIOS Menu 3) lists the following CPU details:
Intel (R) SpeedStep (tm) t ech. [Enabled]
Use the Intel (R) SpeedStep (tm) tech. option to enable or disable GV3. GV3 technology
is a power-saving scheme where the OS optimizes overall power consumption by
dynamically changing CPU frequency based on demand.
Page 58
Disabled
Enabled D
Disables SpeedStep i.e. GV3
EFAULT
Enables SpeedStep i.e. GV3
Page 75
POC 965 Series Medical Panel PC
6.3.2 IDE Configuration
Use the IDE Configuration menu (BIOS Menu 4) to change and/or set the configuration
of the IDE devices installed in the system.

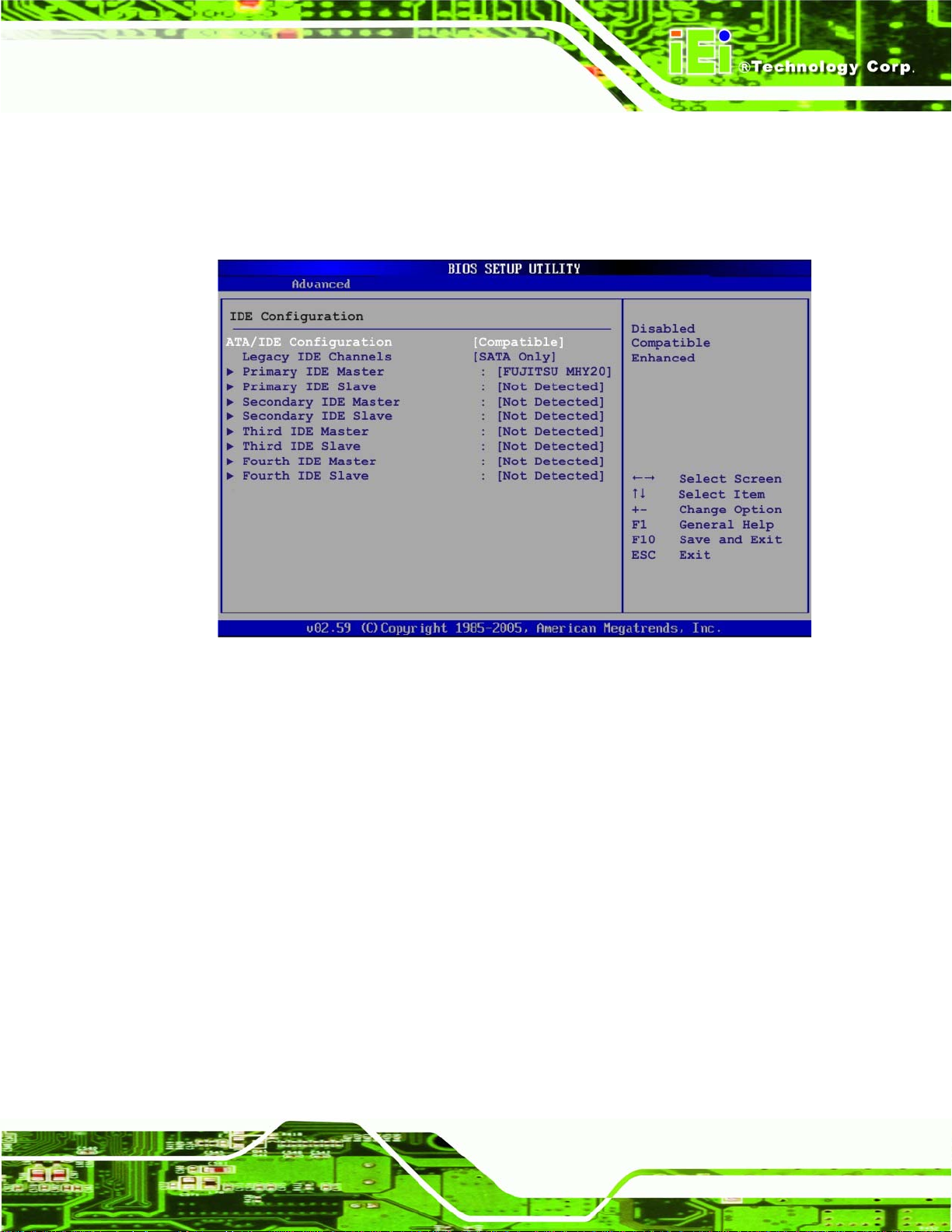

BIOS Menu 4: IDE Configuration
ATA/IDE Configurations [Compatible]
Use the ATA/IDE Configurations option to configure the ATA/IDE controller.
Disabled
Compatible DEFAULT
Enhanced
Disables the on-board ATA/IDE controller.
Configures the on-board ATA/IDE controller to be in
compatible mode. In this mode, a SATA channel will
replace one of the IDE channels. This mode supports up
to 4 storage devices.
Configures the on-board ATA/IDE controller to be in
Enhanced mode. In this mode, IDE channels and SATA
channels are separated. This mode supports up to 6
Page 59
Page 76
Legacy IDE Channels [SATA Only]
POC 965 Series Medical Panel PC
storage devices. Some legacy OS do not support this
mode.
SA TA Only DEFAULT
SA TA Pri., PATA Sec
PATA Only
IDE Master and IDE Slave
When entering setup, BIOS auto detects the presence of IDE devices. BIOS displays the
status of the auto detected IDE devices. The following IDE devices are detected and are
shown in the IDE Configuration menu:
Primary IDE Master
Primary IDE Slave
Secondary IDE Master
Secondary IDE Slave
Third IDE Master
Third IDE Slave
Page 60
Fourth IDE Master
Fourth IDE Slave
The IDE Configuration menu (
IDE devices installed in the system. If an IDE device is detected, and one of the above
listed four BIOS configuration options are selected, the IDE configuration options shown in
Section
6.3.2.1 appear.
BIOS Menu 4) allows changes to the configurations for the
6.3.2.1 IDE Master, IDE Slave
Use the IDE Master and IDE Slave configuration menu to view both primary and
secondary IDE device details and configure the IDE devices connected to the system.
Page 77
POC 965 Series Medical Panel PC
BIOS Menu 5: IDE Master and IDE Slave Configuration
Type [Auto]
Use the Type BIOS option select the type of device the AMIBIOS attempts to boot from
after the Power-On Self-Test (POST) is complete.
Not Installed
Auto DEFAULT
CD/DVD
BIOS is prevented from searching for an IDE disk
drive on the specified channel.
The BIOS auto detects the IDE disk drive type
attached to the specified channel. This setting should
be used if an IDE hard disk drive is attached to the
specified channel.
The CD/DVD option specifies that an IDE CD-ROM
drive is attached to the specified IDE channel. The
BIOS does not attempt to search for other types of
Page 61
Page 78
POC 965 Series Medical Panel PC
IDE disk drives on the specified channel.
ARMD
LBA/Large Mode [Auto]
Use the LBA/Large Mode option to disable or enable BIOS to auto detects LBA (Logical
Block Addressing). LBA is a method of addressing data on a disk drive. In LBA mode, the
maximum drive capacity is 137 GB.
Disabled
Auto DEFAULT
This option specifies an ATAPI Removable Media
Device. These include, but are not limited to:
ZIP
LS-120
BIOS is prevented from using the LBA mode control on
the specified channel.
BIOS auto detects the LBA mode control on the specified
channel.
Block (Multi Sector Transfer) [Auto]
Use the Block (Multi Sector Transfer) to disable or enable BIOS to auto detect if the
device supports multi-sector transfers.
Disabled
Auto DEFAULT
BIOS is prevented from using Multi-Sector Transfer on the
specified channel. The data to and from the device occurs
one sector at a time.
BIOS auto detects Multi-Sector Transfer support on the
drive on the specified channel. If supported the data
transfer to and from the device occurs multiple sectors at
a time.
Page 62
Page 79
POC 965 Series Medical Panel PC
PIO Mode [Auto]
Use the PIO Mode option to select the IDE PIO (Programmable I/O) mode program timing
cycles between the IDE drive and the programmable IDE controller. As the PIO mode
increases, the cycle time decreases.
Auto DEFAULT
0
1
2
3
4
DMA Mode [Auto]
PIO mode 0 selected with a maximum transfer rate of 3.3MBps
PIO mode 1 selected with a maximum transfer rate of 5.2MBps
PIO mode 2 selected with a maximum transfer rate of 8.3MBps
PIO mode 3 selected with a maximum transfer rate of 11.1MBps
PIO mode 4 selected with a maximum transfer rate of 16.6MBps
BIOS auto detects the PIO mode. Use this value if the IDE disk
drive support cannot be determined.
(This setting generally works with all hard disk drives
manufactured after 1999. For other disk drives, such as IDE
CD-ROM drives, check the specifications of the drive.)
Use the DMA Mode BIOS selection to adjust the DMA mode options.
Auto DEFAULT
SWDMA0
SWDMA1
SWDMA2
Single Word DMA mode 0 selected with a maximum data
Single Word DMA mode 1 selected with a maximum data
Single Word DMA mode 2 selected with a maximum data
BIOS auto detects the DMA mode. Use this value if the IDE
disk drive support cannot be determined.
transfer rate of 2.1MBps
transfer rate of 4.2MBps
transfer rate of 8.3MBps
Page 63
Page 80
POC 965 Series Medical Panel PC
MWDMA0
MWDMA1
MWDMA2
UDMA1
UDMA1
UDMA2
Multi Word DMA mode 0 selected with a maximum data
transfer rate of 4.2MBps
Multi Word DMA mode 1 selected with a maximum data
transfer rate of 13.3MBps
Multi Word DMA mode 2 selected with a maximum data
transfer rate of 16.6MBps
Ultra DMA mode 0 selected with a maximum data transfer
rate of 16.6MBps
Ultra DMA mode 1 selected with a maximum data transfer
rate of 25MBps
Ultra DMA mode 2 selected with a maximum data transfer
rate of 33.3MBps
UDMA3
UDMA4
UDMA5
S.M.A.R.T [Auto]
Use the S.M.A.R.T option to auto-detect, disable or enable Self-Monitoring Analysis and
Reporting Technology (SMART) on the drive on the specified channel. S.M.A.R.T predicts
Ultra DMA mode 3 selected with a maximum data transfer
rate of 44MBps (To use this mode, it is required that an
80-conductor ATA cable is used.)
Ultra DMA mode 4 selected with a maximum data transfer
rate of 66.6MBps (To use this mode, it is required that an
80-conductor ATA cable is used.)
Ultra DMA mode 5 selected with a maximum data transfer
rate of 99.9MBps (To use this mode, it is required that an
80-conductor ATA cable is used.)
Page 64
impending drive failures. The S.M.A.R.T BIOS option enables or disables this function.
Page 81
POC 965 Series Medical Panel PC
Auto DEFAULT
Disabled
Enabled
32Bit Data Transfer [Enabled]
Use the 32Bit Data Transfer BIOS option to enables or disable 32-bit data transfers.
Disabled
Enabled DEFAULT
Prevents BIOS from using the HDD SMART feature.
Allows BIOS to use the HDD SMART feature
Prevents the BIOS from using 32-bit data transfers.
BIOS auto detects HDD SMART support.
Allows BIOS to use 32-bit data transfers on supported
hard disk drives.

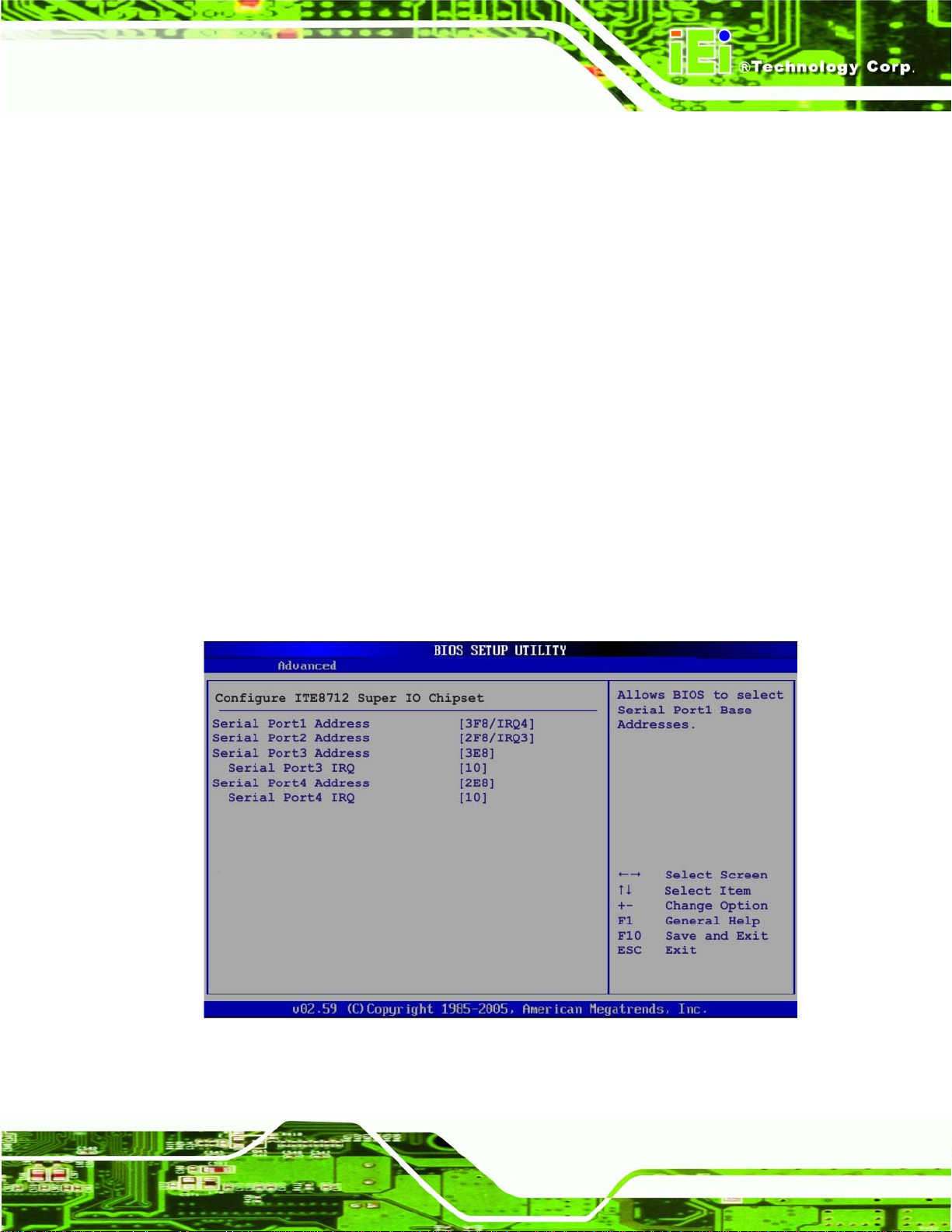

6.3.3 Super IO Configuration
Use the Super IO Configuration menu (BIOS Menu 6) to set or change the
configurations for the FDD controllers, parallel ports and serial ports.
BIOS Menu 6: Super IO Configuration
Page 65
Page 82
Serial Port1 Address [3F8/IRQ4]
Use the Serial Port1 Address option to select the Serial Port 1 base address.
POC 965 Series Medical Panel PC
Disabled
3F8/IRQ4 DEFAULT
3E8/IRQ4
2E8/IRQ3
Serial Port2 Address [2F8/IRQ3]
Use the Serial Port2 Address option to select the Serial Port 2 base address.
Disabled
2F8/IRQ3 DEFAULT
No base address is assigned to Serial Port 1
Serial Port 1 I/O port address is 3F8 and the interrupt
address is IRQ4
Serial Port 1 I/O port address is 3E8 and the interrupt
address is IRQ4
Serial Port 1 I/O port address is 2E8 and the interrupt
address is IRQ3
No base address is assigned to Serial Port 2
Serial Port 2 I/O port address is 3F8 and the interrupt
3E8/IRQ4
2E8/IRQ3
Serial Port3 Address [3E8]
Use the Serial Port3 Address option to select the base addresses for serial port 3
Page 66
Disabled
3F8
No base address is assigned to serial port 3
address is IRQ3
Serial Port 2 I/O port address is 3E8 and the interrupt
address is IRQ4
Serial Port 2 I/O port address is 2E8 and the interrupt
address is IRQ3
Serial port 3 I/O port address is 3F8
Page 83
POC 965 Series Medical Panel PC
2F8
3E8 DEFAULT
2E8
Serial Port3 IRQ [10]
Use the Serial Port3 IRQ option to select the interrupt address for serial port 3.
10 DEFAULT
Serial Port4 Address [2E8]
Use the Serial Port4 IRQ option to select the interrupt address for serial port 4.
Disabled
3F8
Serial port 3 I/O port address is 2F8
Serial port 3 I/O port address is 3E8
Serial port 3 I/O port address is 2E8
Serial port 3 IRQ address is 10
No base address is assigned to serial port 3
Serial port 4 I/O port address is 3F8
2F8
3E8
2E8 DEFAULT
Serial Port4 IRQ [10]
Use the Serial Port4 IRQ option to select the interrupt address for serial port 4.
10 DEFAULT
Serial port 4 I/O port address is 2F8
Serial port 4 I/O port address is 3E8
Serial port 4 I/O port address is 2E8
Serial port 4 IRQ address is 10
6.3.4 Hardware Health Configuration
The Hardware Health Configuration menu (BIOS Menu 7) shows the operating
temperature, fan speeds and system voltages.
Page 67
Page 84
POC 965 Series Medical Panel PC
BIOS Menu 7: Hardware Health Configuration
FAN Mode Setting [Full On Mode]
Use the FAN Mode Setting option to configure the CPU fan or system fans.
Full On Mode D
Automatic mode
PWM Manual mode
When the CPU FAN 1 Mode Setting option is in the Automatic Mode, the following
parameters can be set.
CPU Temp. Limit of OFF
EFAULT
Fan is on all the time
Fan is off when the temperature is low
enough. Parameters must be set by the
user.
Pulse width modulation set manually
Page 68
CPU Temp. Limit of Start
CPU Fan Start PWM
Slope PWM 1
Page 85
POC 965 Series Medical Panel PC
When the CPU FAN Mode Setting option is in the PWM Manual Mode, the following
parameters can be set.
CPU Fan PWM control
CPU Temp. Limit of OFF [000]
WARNING:
Setting this value too high may cause the fan to stop when the CPU is
at a high temperature and therefore cause the system to be damaged.
The CPU Temp. Limit of OFF option can only be set if the CPU FAN Mode Setting
option is set to Automatic Mode. Use the CPU Temp. Limit of OFF option to select the
CPU temperature at which the cooling fan should automatically turn off. To select a value,
select the CPU Temp. Limit of OFF option and enter a decimal number between 000 and
127. The temperature range is specified below.
Minimum Value: 0°C
Maximum Value: 127°C
CPU Temp. Limit of Start [020]
WARNING:
Setting this value too high may cause the fan to start only when the
CPU is at a high temperature and therefore cause the system to be
damaged.
The CPU Temp. Limit of Start option can only be set if the CPU FAN Mode Setting
option is set to Automatic Mode. Use the CPU Temp. Limit of Start option to select the
CPU temperature at which the cooling fan should automatically turn on. When the fan
Page 69
Page 86
starts, it rotates using the starting pulse width modulation (PWM) specified in the Fan 3
Start PWM option below. To select a value, select the CPU Temp. Limit of Start option
and enter a decimal number between 000 and 127. The temperature range is specified
below.
Minimum Value: 0°C
Maximum Value: 127°C
CPU Fan Start PWM [070]
The Fan 3 Start PWM option can only be set if the CPU FAN Mode Setting option is set
to Automatic Mode. Use the Fan 3 Start PWM option to select the PWM mode the fan
starts to rotate with after the temperature specified in the Temperature 3 Limit of Start is
exceeded. The Super I/O chipset supports 128 PWM modes. To select a value, select the
Fan 3 Start PWM option and enter a decimal number between 000 and 127. The
POC 965 Series Medical Panel PC
temperature range is specified below.
PWM Minimum Mode: 0
PWM Maximum Mode: 127
Slope PWM 1 [1 PWM]
The Slope PWM 1 option can only be set if the CPU FAN Mode Setting option is set to
Automatic Mode. Use the Slope PWM 1 option to select the linear rate at which the PWM
mode increases with respect to an increase in temperature. A list of available options is
shown below:
0 PWM
1 PWM
2 PWM
4 PWM
8 PWM
16 PWM
Page 70
32 PWM
64 PWM
Page 87
POC 965 Series Medical Panel PC
CPU Fan PWM Control [070]
The CPU Fan PWM Control option can only be set if the CPU FAN Mode Setting option
is set to Manual Mode. Use the CPU Fan PWM Control option to select PWM duty cycle
control. The PWM duty cycle specifies the width of the modulated pulse. A high value
ensures a wide pulse and a low value ensures a narrow pulse. To select a value, select
the CPU Fan PWM Control option and enter a decimal number between 000 and 127.
The PWM Duty Cycle control range is specified below.
PWM Minimum Mode: 0
PWM Maximum Mode: 127
The following system parameters and values are shown. The system parameters that are
monitored are:
System Temperatures: The following system temperatures are monitored
o CPU Temperature
o PWM Temperature
o System Temperature
Fan Speeds: The CPU cooling fan speed is monitored.
o CPU Fan1 Speed
o SYS_Fan1 Speed
o SYS_Fan2 Speed
Voltages: The following system voltages are monitored
o CPU Core
o +1.8V
o +3.30V
o +5.00V
o +12.0V
o +1.05V
o +1.5V
o +1.25V
o VBAT
Page 71
Page 88
6.3.5 Intel AMT Configuration
The Intel AMT Configuration menu (BIOS Menu 8) configures the Intel® Active
Management Technology (AMT) options.
POC 965 Series Medical Panel PC
BIOS Menu 8: Intel AMT Configuration
Intel AMT Support [Disabled]
Use the Intel AMT Support option to enable or disable the Intel AMT support.
Disabled DEFAULT
Enabled
The Intel® AMT function is disabled.
The Intel® AMT function is enabled.
6.3.5.1 ME Subsystem Configuration
The ME Subsystem Configuration menu (BIOS Menu 23) allows the AMT subsystem
(Management Engine, ME) and Host Embedded Controller Interface (HECI) driver options
to be configured.
Page 72
Page 89
POC 965 Series Medical Panel PC

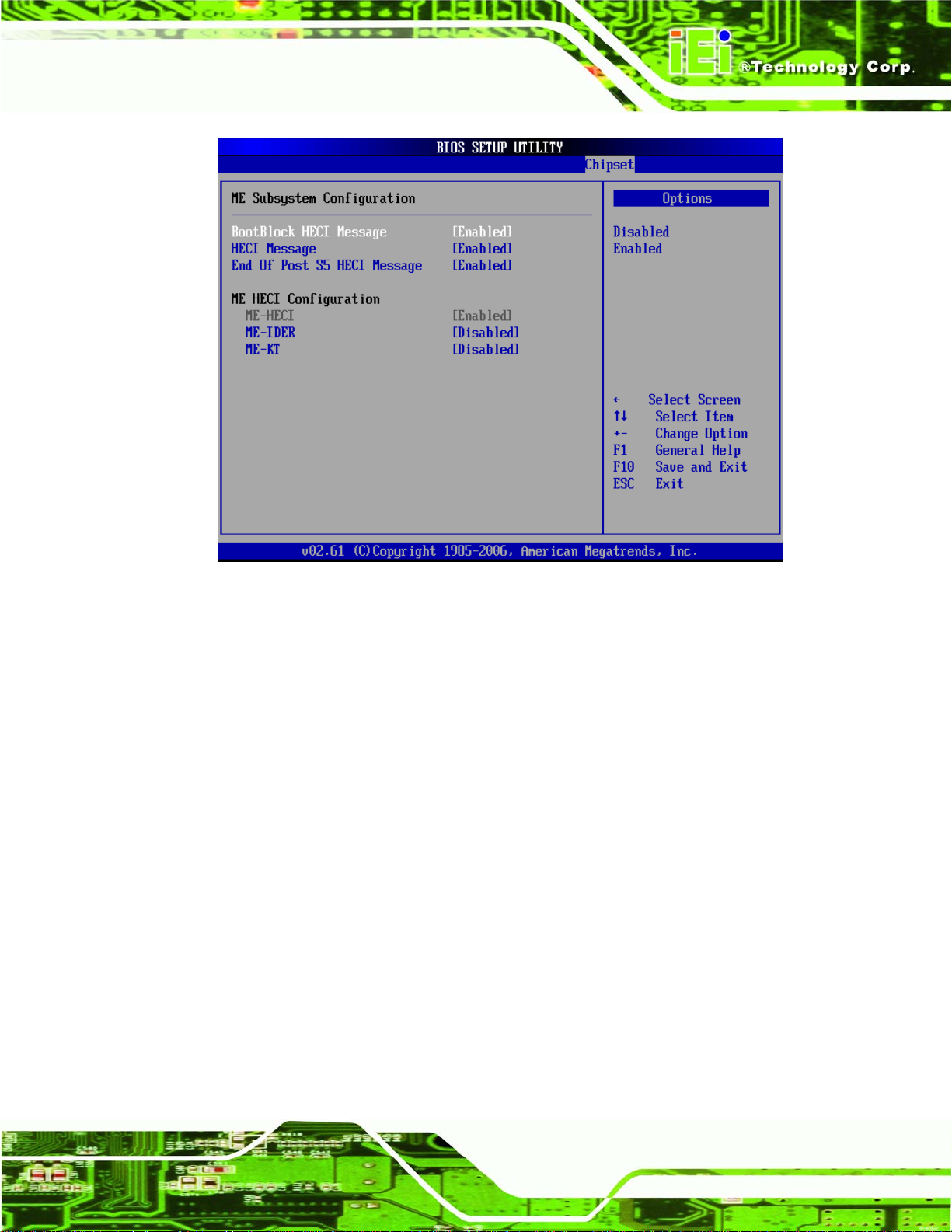

BIOS Menu 9: Me Subsystem Configuration
BootBlock HECI Message [Enabled]
Use the BootBlock HECI Message option to enable or disable HECI message when
booting up the system.
Disabled
Enabled DEFAULT
HECI Message [Enabled]
Use the HECI Message BIOS option to enable or disable HECI message.
The HECI message is disabled when booting up the
system.
The HECI message is enabled when booting up the
system.
Disabled
The HECI message disabled.
Page 73
Page 90
POC 965 Series Medical Panel PC
Enabled DEFAULT
End Of Post S5 HECI Message [Enabled]
Use the End Of Post S5 HECI Message option to enable or disable HECI message when
the system is in the off (S5) state.
Disabled
Enabled DEFAULT
ME-HECI [Enabled]
The ME-HECI option is enabled by default and can not be changed.
ME-IDER [Disabled]
Use the ME-IDER option to enable or disable the IDE-Redirection (IDE-R) function on an
The HECI message is disabled when the system is off.
The HECI message enabled.
The HECI message enabled when the system is off.
AMT-capable system.
Disabled DEFAULT
Enabled
ME-KT [Disabled]
Use the ME-KT option to enable or disable the Keyboard and Text redirection (KT)
function on an AMT-capable system. KT is also known as Serial-Over-Lan (SOL).
Disabled DEFAULT
Enabled
The IDE-R function is disabled.
The IDE-R function allows an AMT-capable client system
to access IDE devices and load OS from a management
system. When an IDE-R session is established, the
virtual drives are shown in the system.
The KT function of the ME is disabled.
The KT function allows a management system to control
Page 74
an Intel® AMT client system remotely. The keyboard
Page 91
POC 965 Series Medical Panel PC
interface of a managed client system, such as BIOS
menu, is displayed through the management system.
6.3.6 Intel Robson Configuration
The Intel Robson Configuration menu (BIOS Menu 10) allows the Intel® Robson
Technology option to be configured.
BIOS Menu 10: Intel Robson Configuration
Intel Robson [Disabled]
Use the Intel Robson BIOS option to enable or disable the Intel® Robson Technology
feature. Intel® Robson, Intel® Turbo Memory, is a technology introduced by Intel® to
boost a computer startup process.
Disabled DEFAULT
Enabled
Disables the Intel® Robson feature
Enables the Intel® Robson feature
Page 75
Page 92
6.3.7 Remote Access Configuration
Use the Remote Access Configuration menu (BIOS Menu 11) to configure remote
access parameters. The Remote Access Configuration is an AMIBIOS feature and
allows a remote host running a terminal program to display and configure the BIOS
settings.
POC 965 Series Medical Panel PC
BIOS Menu 11: Remote Access Configuration [Advanced]
Remote Access [Disabled]
Use the Remote Access option to enable or disable access to the remote functionalities
of the system.
Disabled DEFAULT
Enabled
Page 76
Remote access is disabled.
Remote access configuration options shown below
appear:
Page 93
POC 965 Series Medical Panel PC
Serial Port Number [COM1]
Use the Serial Port Number option allows users to select the serial port used for remote
access.
Serial Port Number
Serial Port Mode
Redirection after BIOS POST
Terminal Type
These configuration options are discussed below.
COM1 DEFAULT
COM2
COM3
COM4
COM5
NOTE: Make sure the selected COM port is enabled through the Super I/O configuration
menu.
Base Address, IRQ [3F8h,4]
The Base Address, IRQ option cannot be configured and only shows the interrupt
address of the serial port listed above.
Serial Port Mode [115200 8,n,1]
System is remotely accessed through COM2
System is remotely accessed through COM3
System is remotely accessed through COM4
System is remotely accessed through COM5
System is remotely accessed through COM1
Use the Serial Port Mode option to select baud rate through which the console redirection
is made. The following configuration options are available
115200 8,n,1 DEFAULT
Page 77
Page 94
57600 8,n,1
38400 8,n,1
19200 8,n,1
09600 8,n,1
NOTE:
Identical baud rate setting musts be set on the host (a management
computer running a terminal software) and the slave
Redirection After BIOS POST [Always]
Use the Redirection After BIOS POST option to specify when console redirection should
occur.
POC 965 Series Medical Panel PC
Disabled
Boot Loader
Always
Terminal Type [ANSI]
Use the Terminal Type BIOS option to specify the remote terminal type.
ANSI DEFAULT
VT100
VT-UTF8
The console is not redirected after POST
Redirection is active during POST and during Boot
Loader
DEFAULT
The target terminal type is VT100
The target terminal type is VT-UTF8
Redirection is always active (Some OSes may not
work if set to Always)
The target terminal type is ANSI
Page 78
Page 95
POC 965 Series Medical Panel PC
6.3.8 USB Configuration
Use the USB Configuration menu (BIOS Menu 12) to read USB configuration
information and configure the USB settings.
BIOS Menu 12: USB Configuration
USB Configuration
The USB Configuration field shows the system USB configuration. The items listed are:
Module Version: x.xxxxx.xxxxx
USB Devices Enabled
The USB Devices Enabled field lists the USB devices that are enabled on the system
USB Function [Enabled]
Use the USB Function BIOS option to enable or disable the USB function.
Disabled
USB function support disabled
Page 79
Page 96
POC 965 Series Medical Panel PC
Enabled DEFAULT
USB 2.0 Controller [Enabled]
Use the USB 2.0 Controller BIOS option to enable or disable the USB 2.0 controller
Disabled
Enabled D
Legacy USB Support [En abled]
Use the Legacy USB Support BIOS option to enable USB mouse and USB keyboard
support.
Normally if this option is not enabled, any attached USB mouse or USB keyboard does not
become available until a USB compatible operating system is fully booted with all USB
drivers loaded. When this option is enabled, any attached USB mouse or USB keyboard
USB 2.0 controller disabled
EFAULT
USB function support enabled
USB 2.0 controller enabled
can control the system even when there is no USB driver loaded onto the system.
Disabled
Enabled DEFAULT
Auto
USB2.0 Controller Mode [HiSpeed]
Use the USB2.0 Controller Mode option to set the speed of the USB2.0 controller.
FullSpeed
HiSpeed D
Legacy USB support disabled
Legacy USB support enabled
Legacy USB support disabled if no USB devices are
connected
The controller is capable of operating at 12Mb/s
EFAULT
The controller is capable of operating at 480Mb/s
Page 80
Page 97
POC 965 Series Medical Panel PC
6.3.9 Power Configuration
Use the Power Configuration menu (BIOS Menu 13) configures the Advanced
Configuration and Power Interface (ACPI) and Power Management (APM) options.
BIOS Menu 13: Power Configuration
6.3.9.1 ACPI Configuration
The ACPI Configuration menu (BIOS Menu 8) configures the Advanced Configuration
and Power Interface (ACPI) option.
Page 81
Page 98
POC 965 Series Medical Panel PC

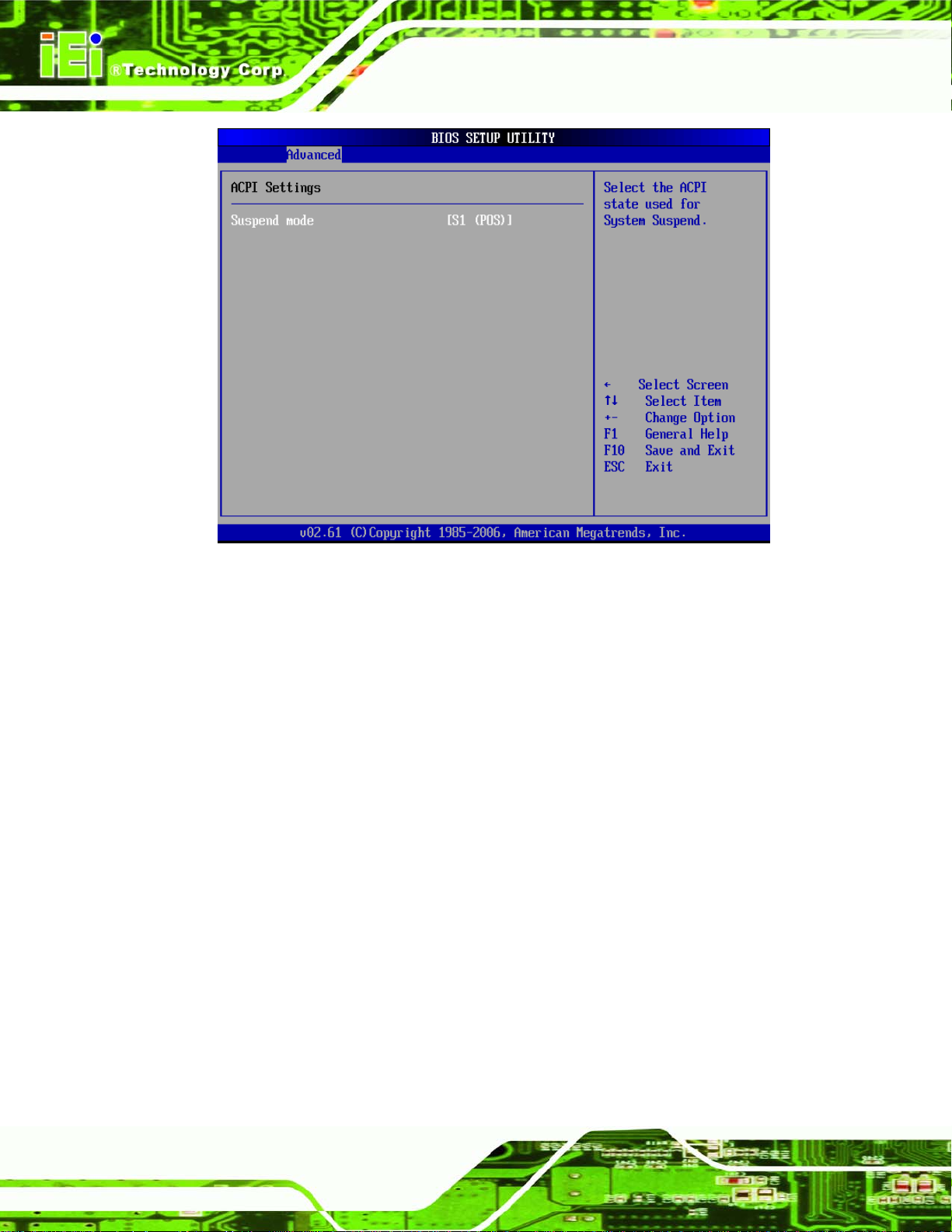

BIOS Menu 14: ACPI Configuration [Advanced\ Power Configuration]
Suspend Mode [S1(POS)]
Use the Suspend Mode option to specify the sleep state the system enters when it is not
being used.
S1 (POS) DEFAULT
S3 (STR)
The system enters S1(POS) sleep state. The system
appears off. The CPU is stopped; RAM is refreshed; the
system is running in a low power mode.
System appears off. The CPU has no power; RAM is in
slow refresh; the power supply is in a reduced power
mode.
6.3.10 APM Configuration
The APM Configuration menu (BIOS Menu 10) allows the advanced power
management options to be configured.
Page 82
Page 99
POC 965 Series Medical Panel PC

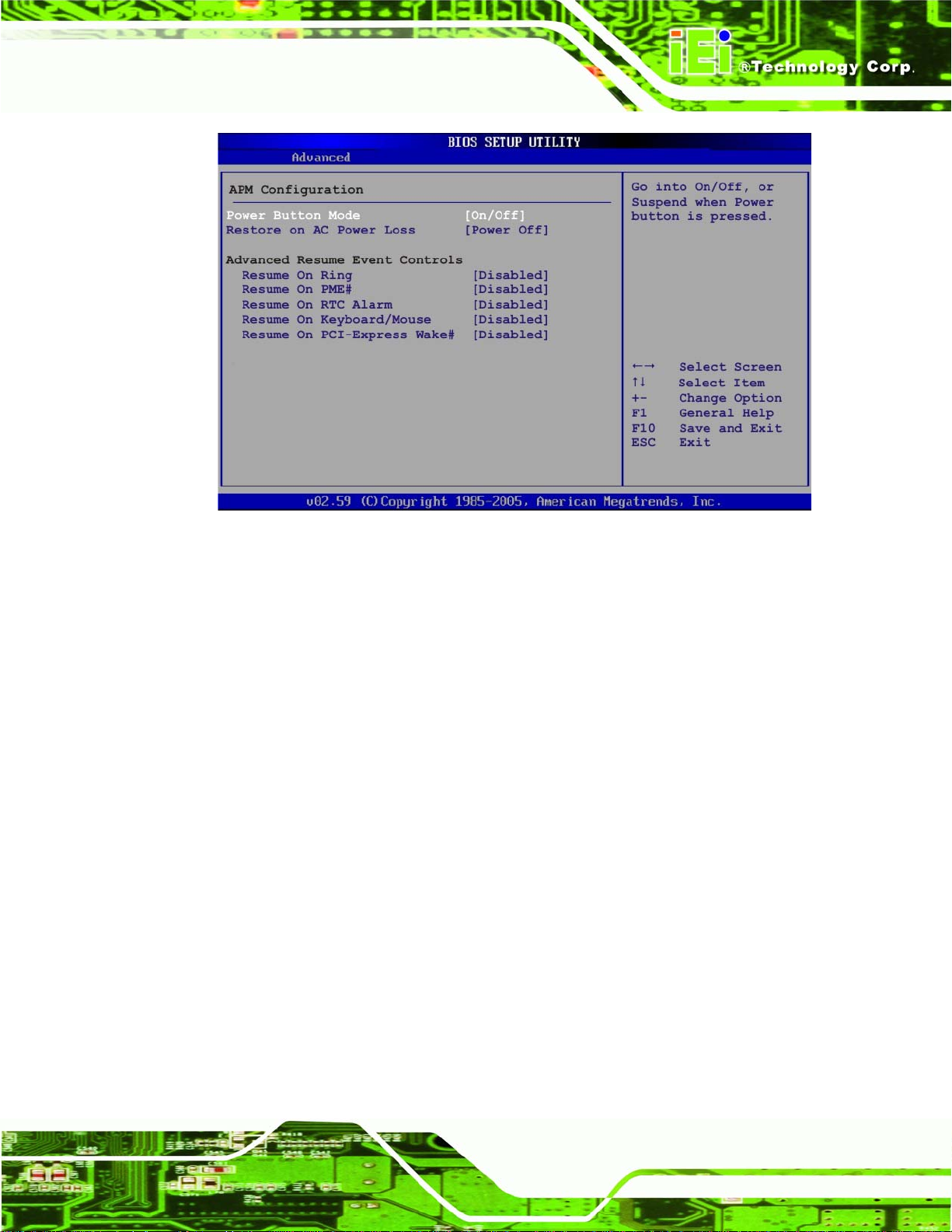

BIOS Menu 15:Advanced Power Management Configuration
Power Button Mode [On/Off]
Use the Power Button Mode BIOS to specify how the power button functions.
On/Off DEFAULT
Suspend
Restore on AC Po wer Loss [Last State]
Use the Restore on AC Power Loss BIOS option to specify what state the system
returns to if there is a sudden loss of power to the system.
Power Off
When the power button is pressed the system goes into
The system remains turned off
When the power button is pressed the system is either
turned on or off
suspend mode
Power On
Last State DEFAULT
The system turns on
The system returns to its previous state. If it was on, it
Page 83
Page 100
Resume on Ring [Disabled]
Use the Resume on Ring BIOS option to enable activity on the RI (ring in) modem line to
rouse the system from a suspend or standby state. That is, the system will be roused by
an incoming call on a modem.
POC 965 Series Medical Panel PC
turns itself on. If it was off, it remains off.
Disabled DEFAULT
Enabled
Resume on PME# [Disabled]
Use the Resume on PME# BIOS option to enable activity on the PCI PME (power
management event) controller to rouse the system from a suspend or standby state.
Disabled DEFAULT
Enabled
Resume On RTC Alarm [Disabled]
Use the Resume On RTC Alarm option to specify the time the system should be roused
from a suspended state.
Wake event generated by an incoming call
Wake event generated by PCI PME controller activity
Wake event not generated by an incoming call
Wake event not generated by PCI PME controller
activity
Page 84
Disabled DEFAULT
Enabled
The real time clock (RTC) cannot generate a wake
event
If selected, the following appears with values that
can be selected:
RTC Alarm Date (Days)
RTC Alarm Time
