IEI Technology NOVA-8890 User Manual

NOVA-8890

User Manual

Version 2.2

<Product Overview>

SOCKET 478 PENTIUM 4

with Dual Ethernet LAN / 1394A / SATA

AGP4X VGA Embedded Board

December 31, 2003

©Copyright 2003 by ICP Electronics Inc. All Rights Reserved.

2

Copyright Notice

The information in this document is subject to change without prior notice in
order to improve reliability, design and function and does not represent a
commitment on the part of the manufacturer.
In no event will the manufacturer be liable for direct, indirect, special, incidental,
or consequential damages arising out of the use or inability to use the product or
documentation, even if advised of the possibility of such damages.
This document contains proprietary information protected by copyright. All rights
are reserved. No part of this manual may be reproduced by any mechanical,
electronic, or other means in any form without prior written permission of the
manufacturer.

Trademarks

NOVA-8890 is a registered trademark of ICP Electronics Inc. IBM PC is a
registered trademark of International Business Machines Corporation. Intel is a
registered trademark of Intel Corporation. Other product names mentioned
herein are used for identification purposes only and may be trademarks and/or
registered trademarks of their respective companies.

Support

Any questions regarding the product or the content of this manual please email
us at: [e-mail]

3

Table of Contents

Chapter 1. Introduction................................................................5

1.1 Specifications ..............................................................................6

1.2 Package Contents.........................................................................8

Chapter 2. Installation .................................................................9

2.1 NOVA-8890 Layout ....................................................................... 9

2.2 Unpacking Precautions ................................................................ 10

2.3 PC/104-PLUS Power Source Setting .............................................. 10

2.4 Clear CMOS ............................................................................... 11

2.5 Onboard Keyboard/Mouse Power Source Setting ............................. 11

2.6 COM2 RS232/RS422/RS485......................................................... 11

2.7 LCD Setting ............................................................................... 12

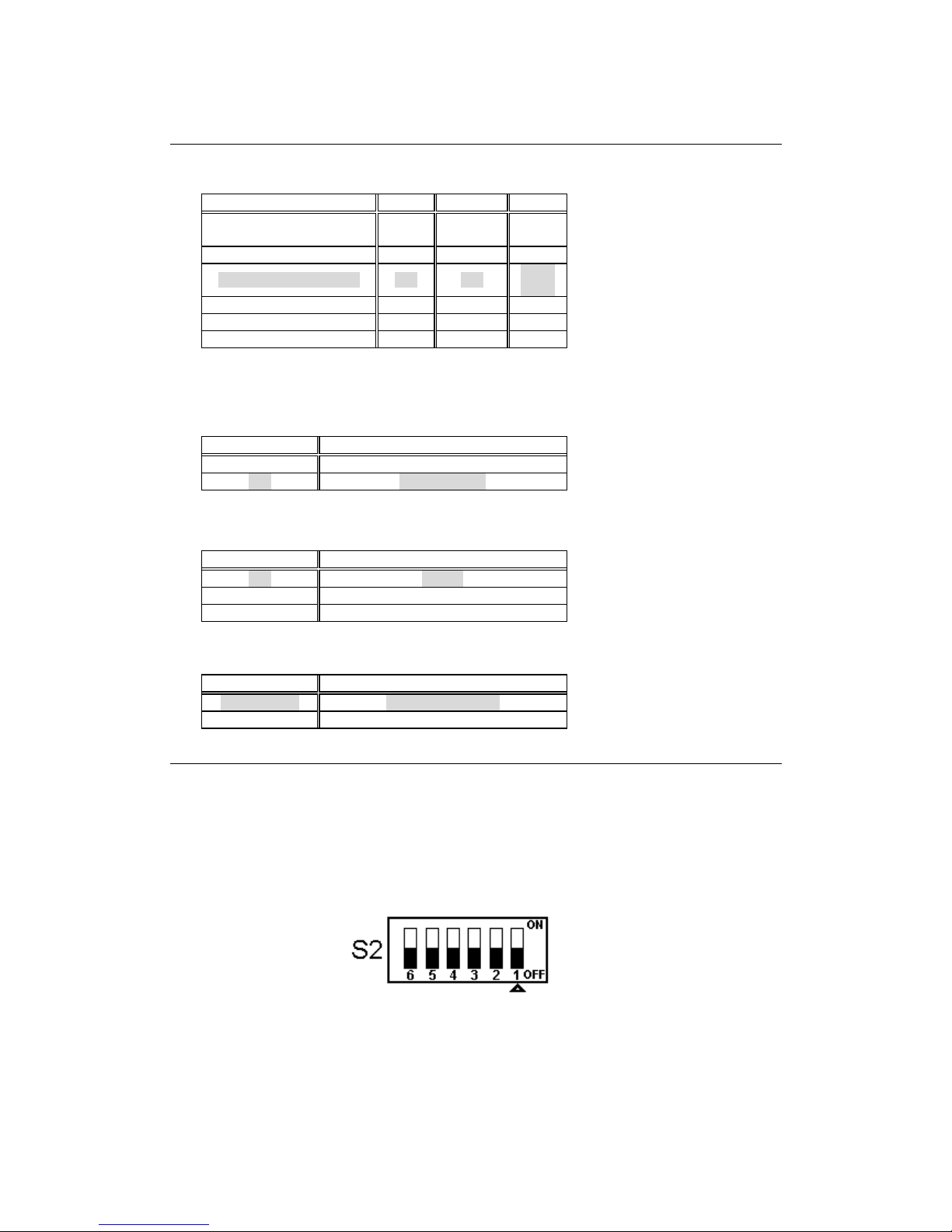

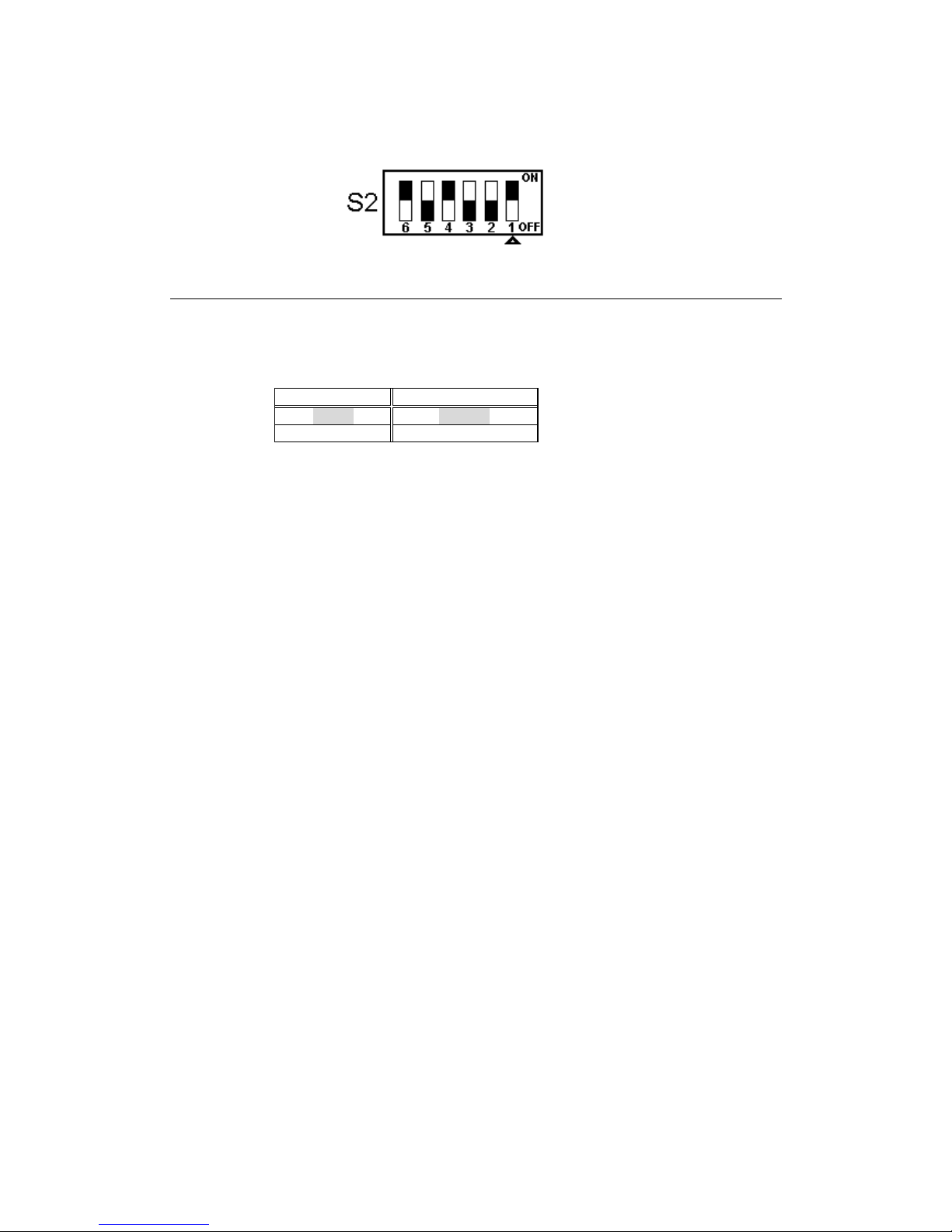

2.8 CPU Voltage Setting.................................................................... 12

2.9 Compact Flash Master/Slave Function Setting................................. 13

Chapter 3. Connection................................................................ 14

3.1 Floppy Disk Drive Connector ........................................................ 15

3.2 PCI E-IDE Disk Drive Connector.................................................... 16

3.3 Parallel Port............................................................................... 18

3.4 Serial Ports................................................................................ 18

3.5 Keyboard & PS/2 Mouse Connector ............................................... 19

3.6 External Switches and Indicators .................................................. 19

3.7 USB Port Connectors................................................................... 20

3.8 IrDA Infrared Interface Port ......................................................... 20

3.9 Fan Connectors (FAN1) ............................................................... 20

3.10 LAN RJ45 & State LED Connectors.............................................. 21

3.11 VGA Connector........................................................................ 21

3.12 Audio Connector...................................................................... 22

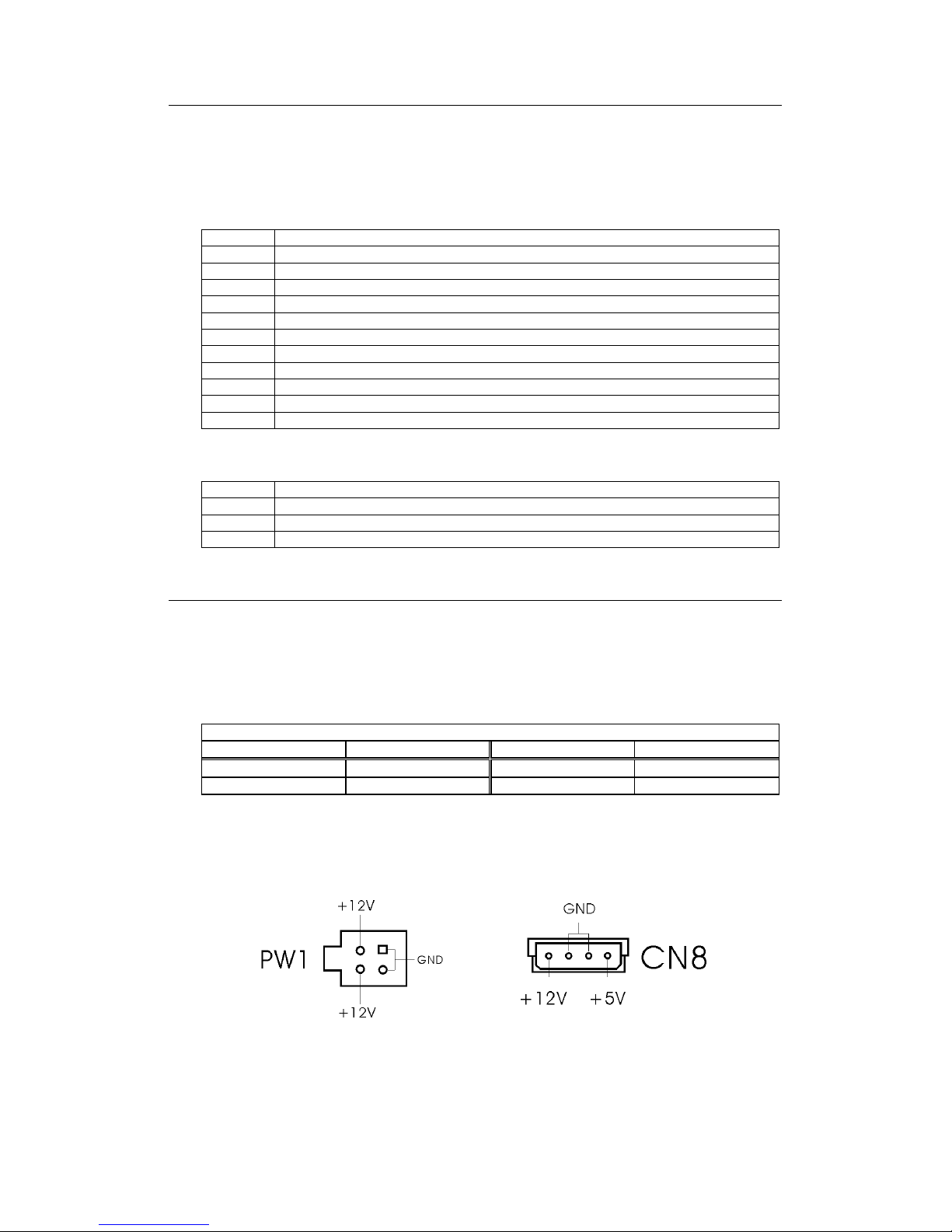

3.13 ATX-12V Power Connector ........................................................ 22

3.14 Digital INPUT/OUTPUT Connector............................................... 23

3.15 LVDS (J3) LCD & Inverter (CN9) Connector ................................. 23

3.16 IEEE 1394 Port Connector......................................................... 24

Chapter 4. AMI BIOS SETUP ....................................................... 25

4.1 Introduction .............................................................................. 25

4.2 Starting Setup ........................................................................... 25

4.3 Using Setup............................................................................... 26

4.4 Getting Help .............................................................................. 26

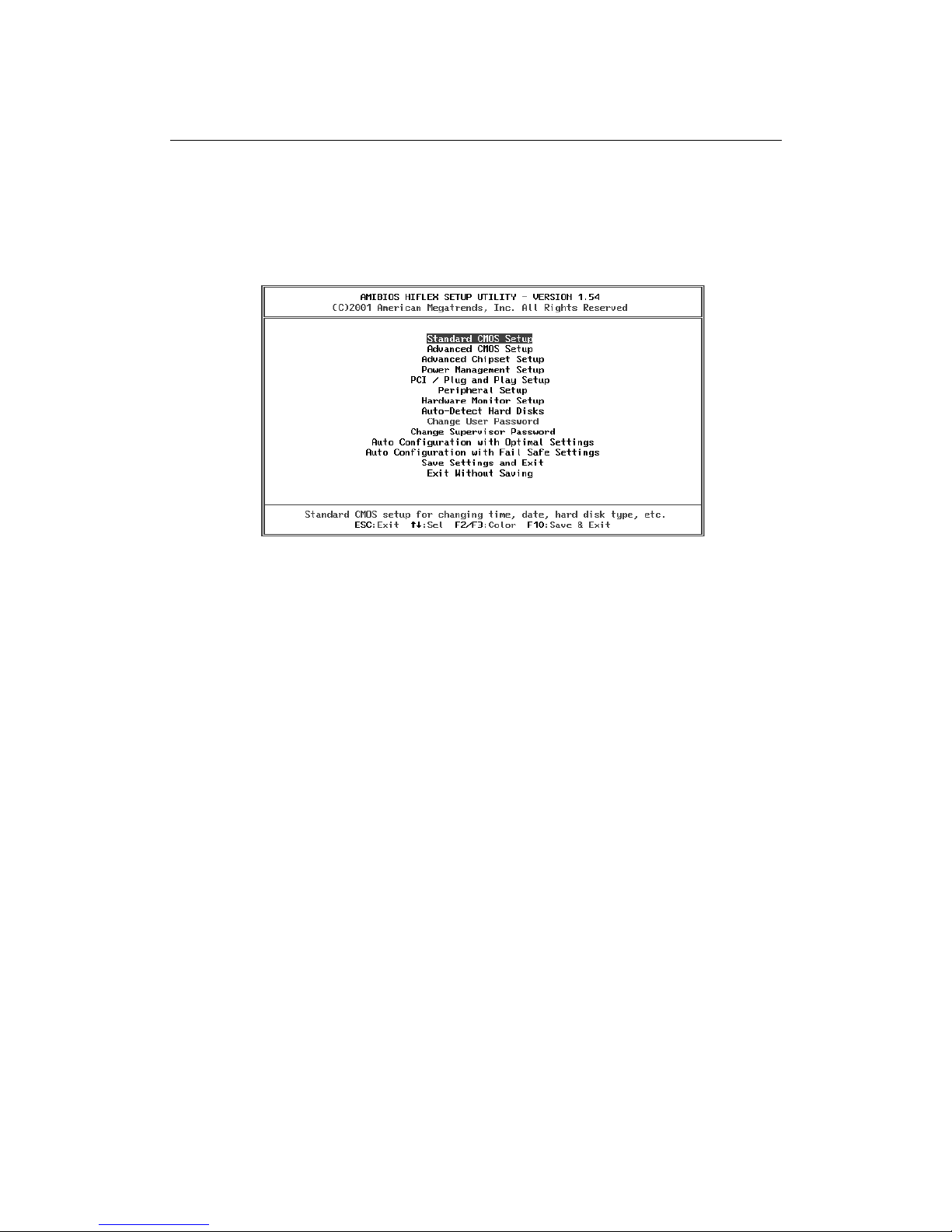

4.5 Main Menu ................................................................................ 27

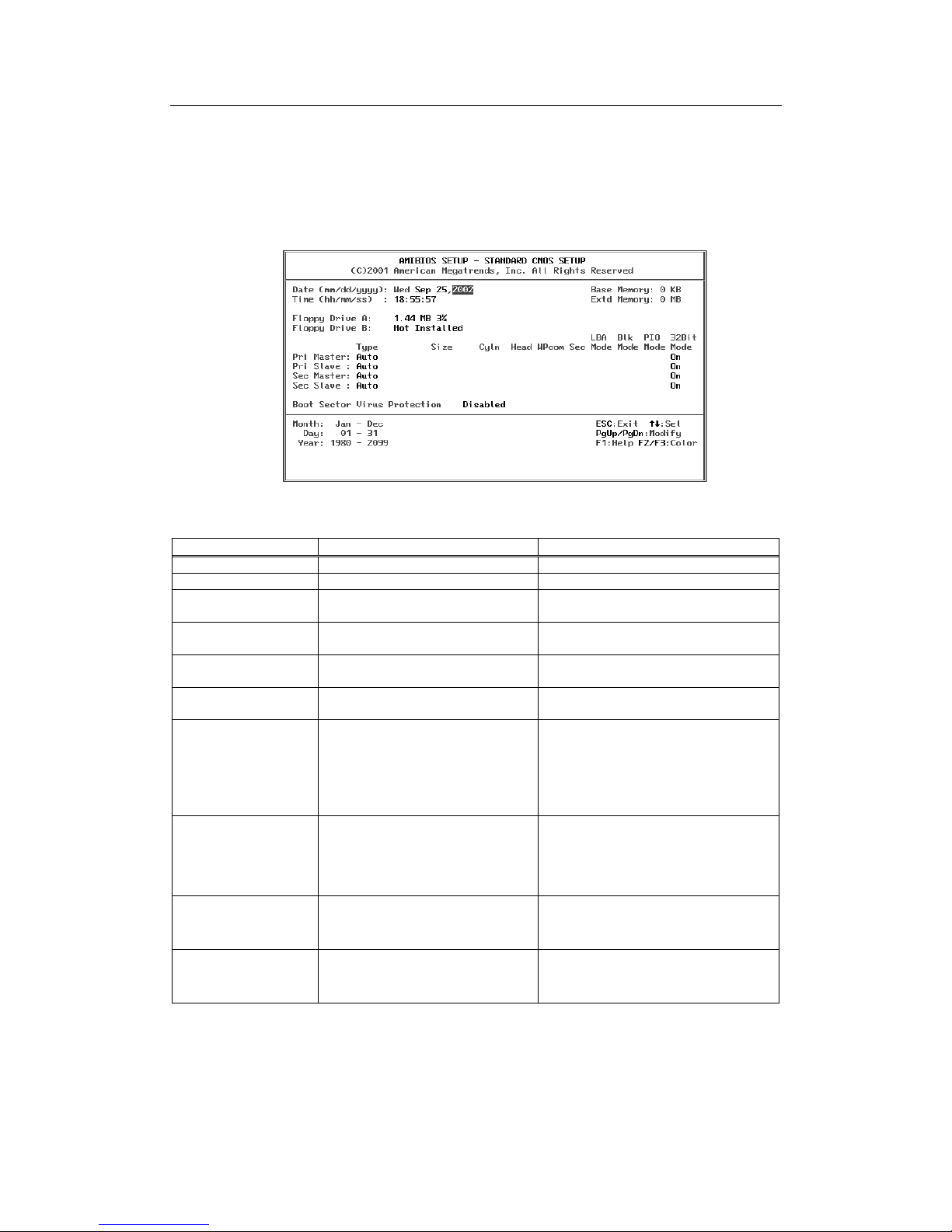

4.6 Standard CMOS Setup................................................................. 29

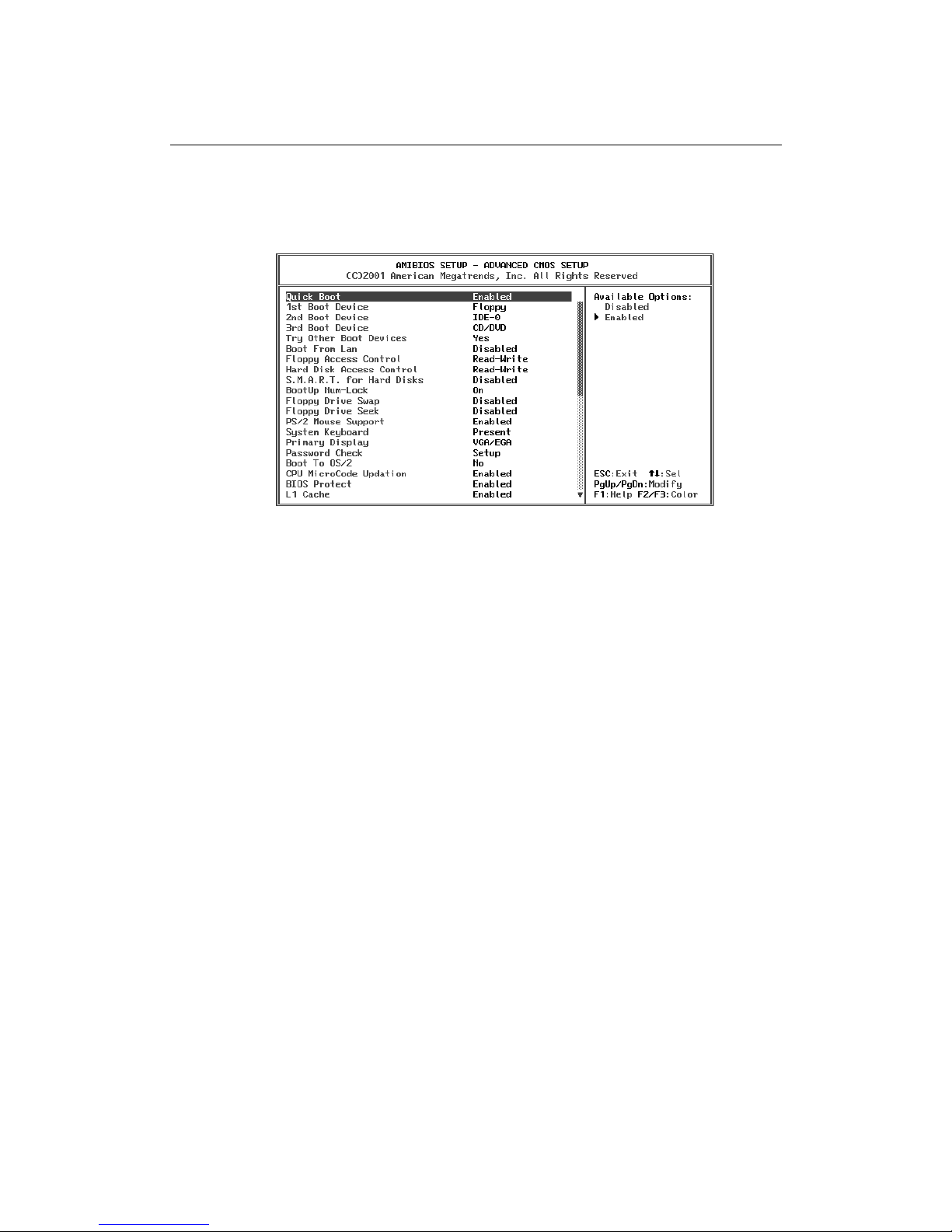

4.7 Advanced CMOS Setup................................................................ 30

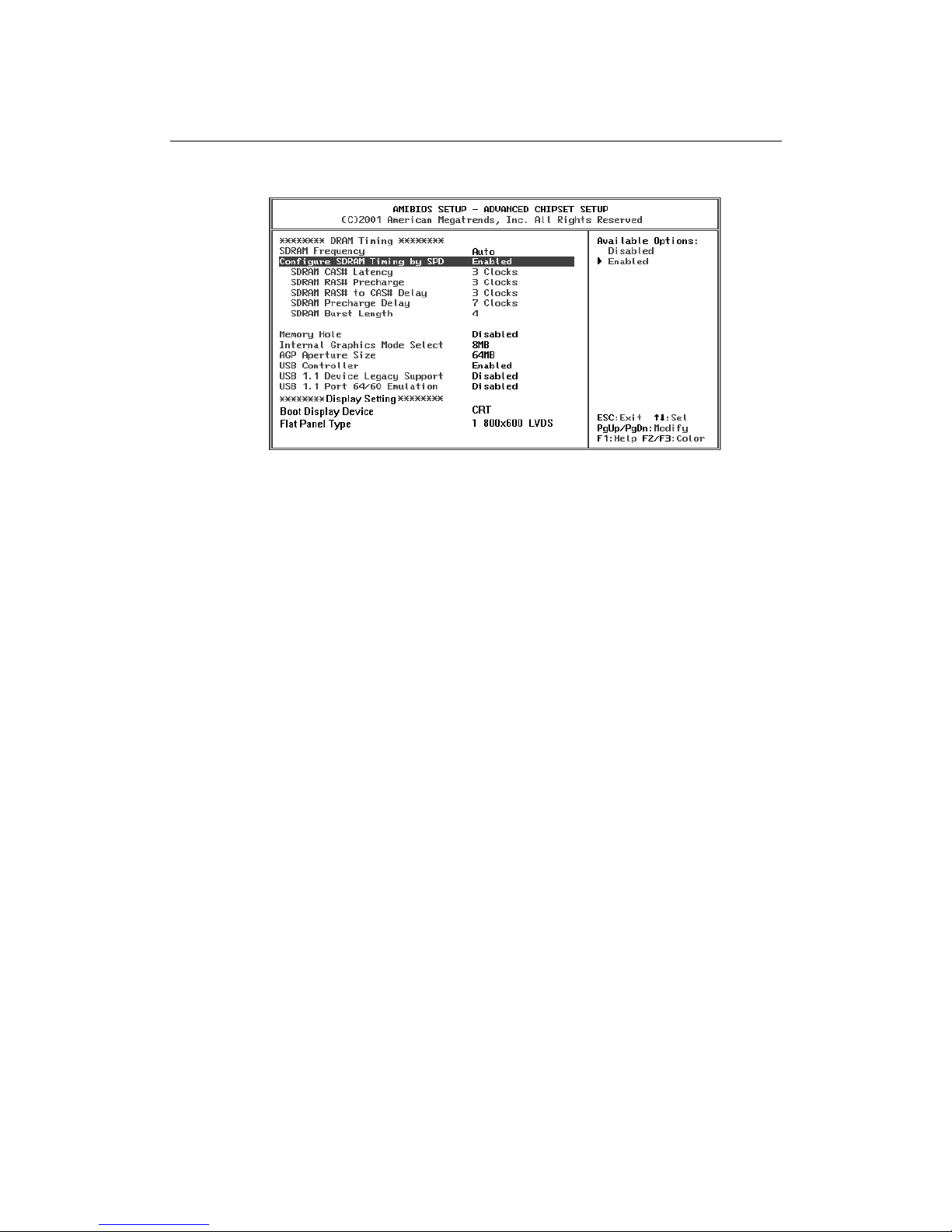

4.8 Advanced Chipset Setup.............................................................. 34

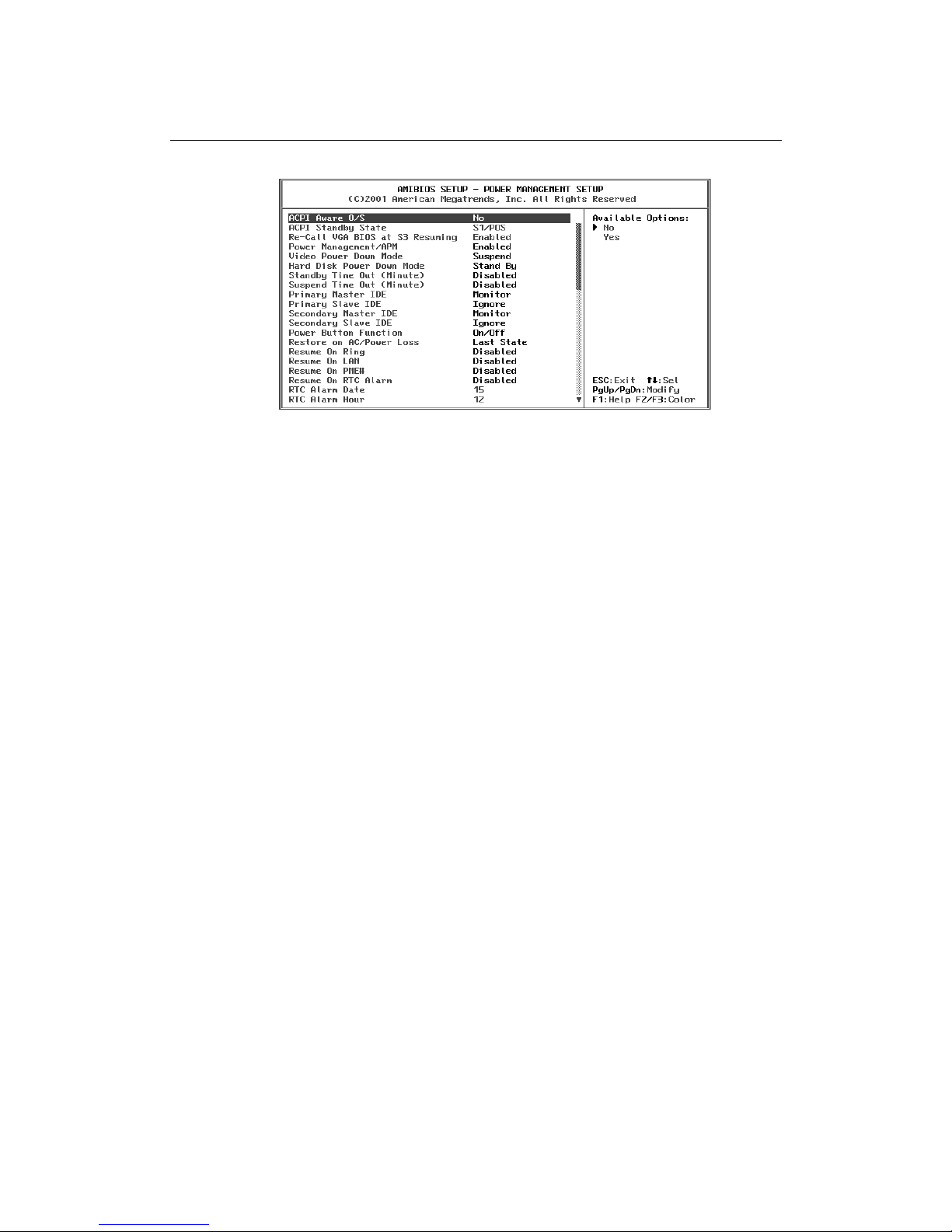

4.9 Power Management Setup ........................................................... 35

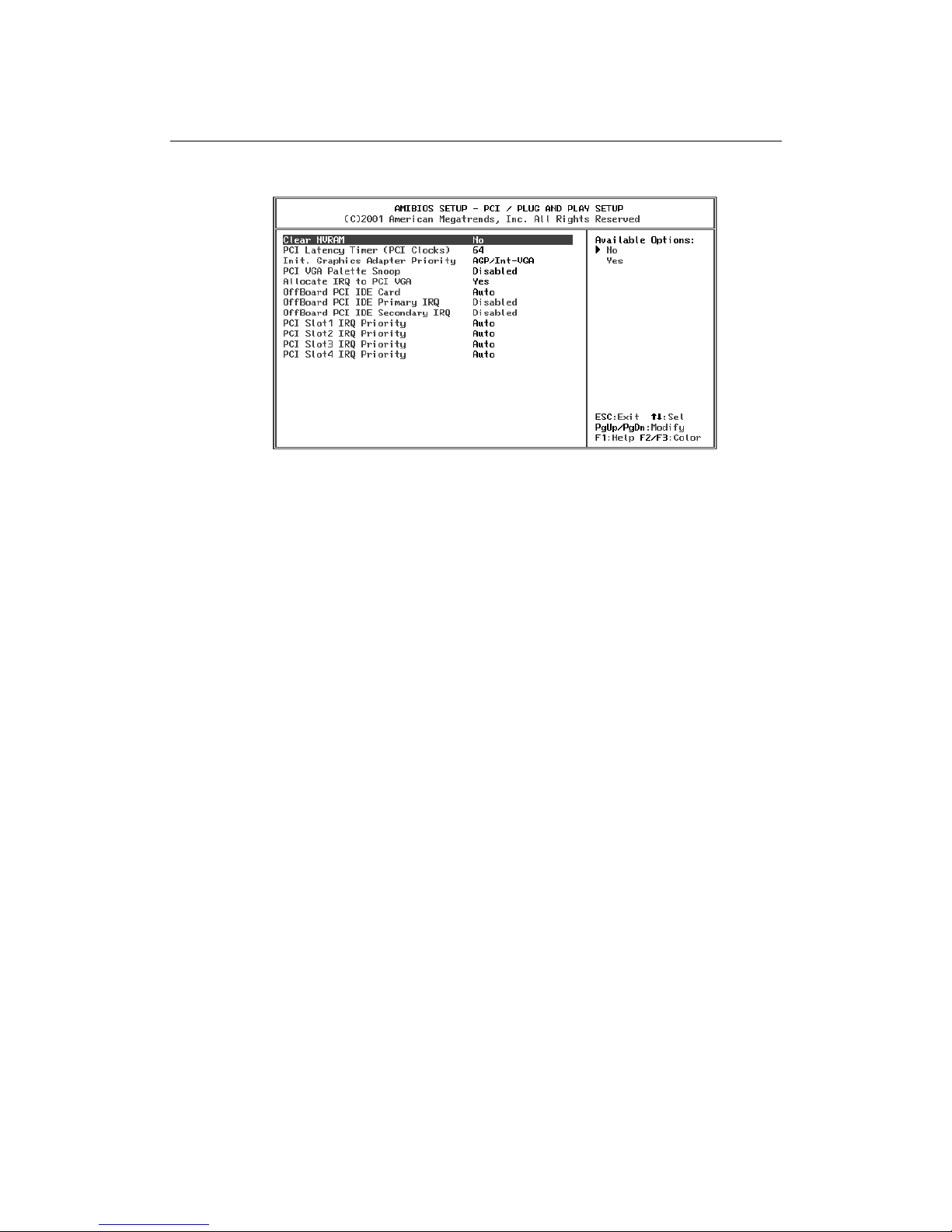

4.10 PCI / Plug and Play Setup ......................................................... 36

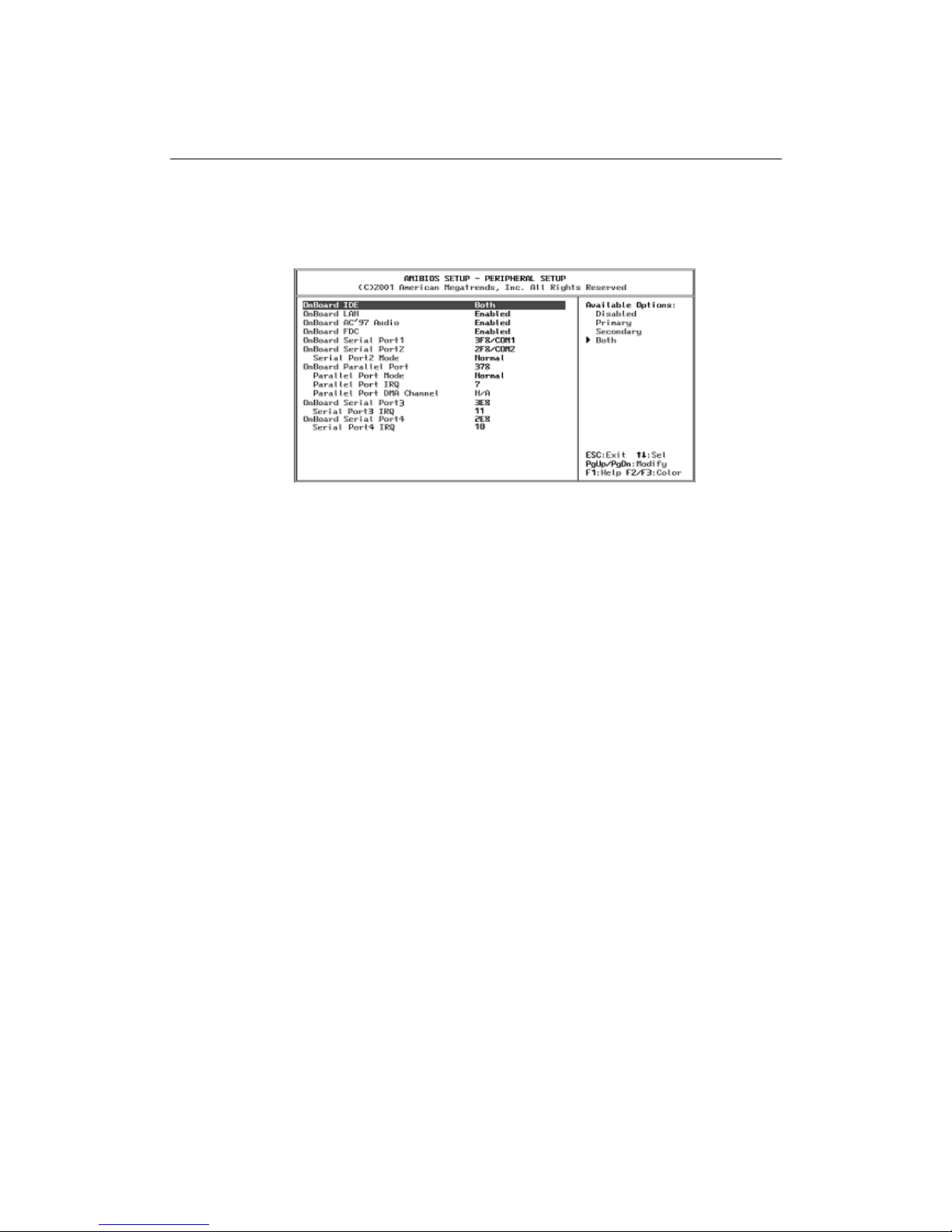

4.11 Peripheral Setup...................................................................... 37

4

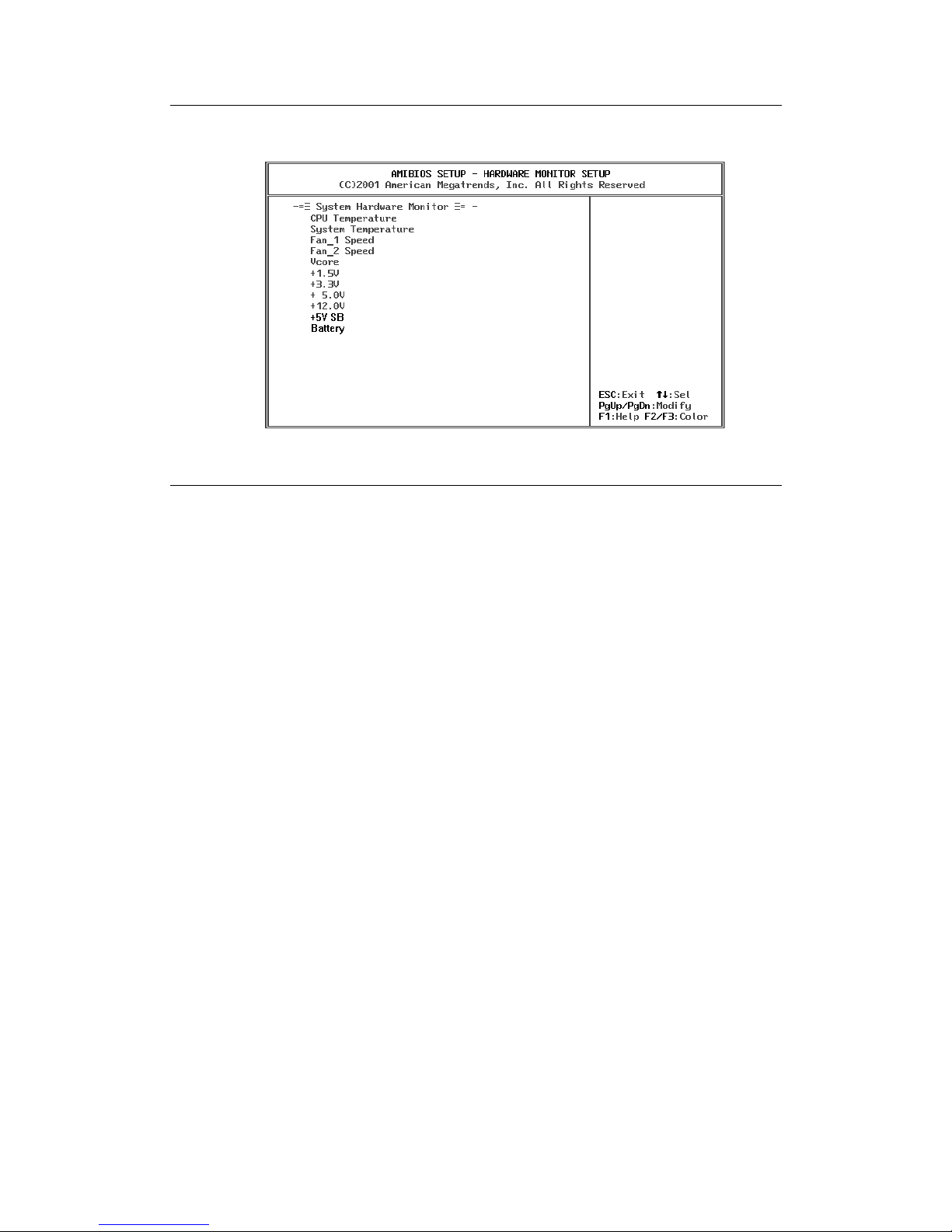

4.12 Hardware Monitor Setup ........................................................... 39

4.13 Change Supervisor Password..................................................... 39

Appendix A: Watchdog Timer ................................................................. 41

Appendix B: I/O Address Map ................................................................ 42

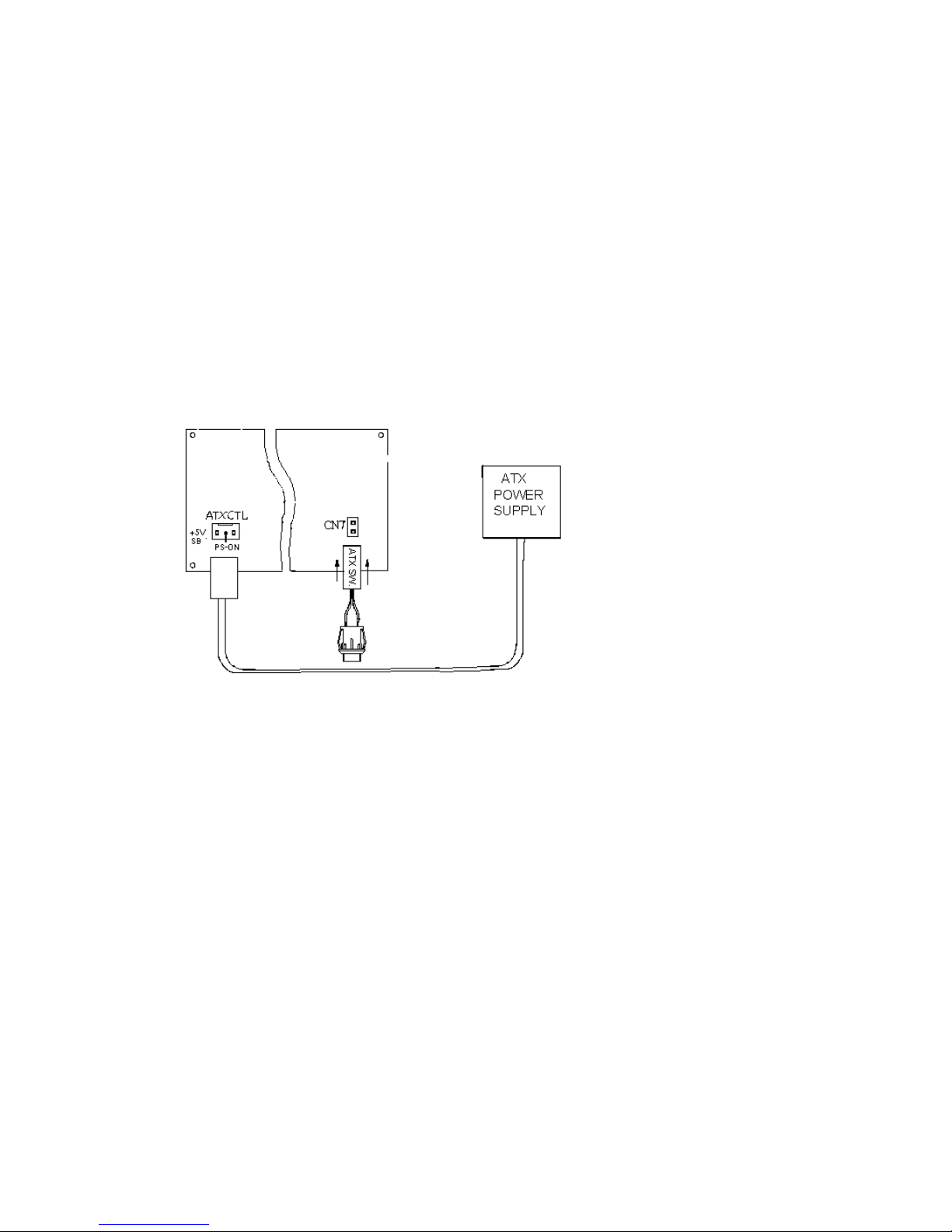

Appendix C: ATX Power Supply ..............................................................44

Appendix D: How to use Wake-Up Function ...........................................45

Appendix E: Connecting LCD to NOVA-8890 ........................................... 46

5

Chapter 1. Introduction

Thank you for choosing NOVA-8890 SOCKET 478 Pentium 4/4-M Single Board
Computer. NOVA-8890 board is a 5.25” embedded form factor board equipped
with high performance processor and multi-mode I/O designed for the system
manufacturers, integrators, or VARs that needs reliable and quality performance
at a reasonable price.

In addition, the VGA controller of NOVA-8890 Built-in AGP4X VGA (Intel 845G/GV)
has 3D graphics capability, which provides up to 2048x1536x16-color resolution.
The onboard VGA shares 8MB system DDR-SDRAM.

An advanced high performance super AT I/O chip–ITE IT8712 & Winbond W83627
are used in the NOVA-8890 board. On-chip UARTs are compatible with
NS16C550. The parallel port and IDE interface are compatible with IBM PC/AT
architecture.

NOVA-8890 has built-in (ICH4) 10/100 & Onboard Intel 82540EM 100/1000 Fast
Ethernet LAN. They are fully integrated 10BASE-T/100BASE-TX/1000BASE-TX
LAN solution with high performance networking functions as well as low power
consumption feature.

NOVA-8890 uses Intel 845G/GV chipsets that are 100% software compatible and
are of PCI 2.2 standard.

6

1.1 Specifications

 CPU (PGA 478) Intel Pentium 4/4-M Processor, supports 400/533 MHz FSB

 Bus interface PC/104-PLUS & One PCI SLOT signal are provided

 Bus speed PCI: 33 MHz

 DMA channels 7

 Interrupt levels 15

 Chipset INTEL 845G/GV (GMCH)

 Real-time clock INTEL 82801DB (ICH4)

 System memory One 184-pin DIMM socket to support DDR 200/266 SDRAM.

The maximum memory is up to 1 GB.

 IDE interface ATA/100

 Supports up to four PCI Enhanced IDE hard drives.

 The ATA/100 IDE can handle data transfer up to 100 MB/s.

 Compatible with existing ATA-2 IDE specifications.

 IDE1 can be converted to SATA type of devices.]

 Floppy disk drive interface: Supports up to two floppy disk drives, 5.25” (360KB

and 1.2MB) and/or 3.5” (720KB, 1.44MB, and 2.88MB)

 Serial ports: COM1, COM3, COM4 (RS-232) & COM2 (RS-232/RS-422/RS-

485) with 16C550 UART (or compatible) with 16-byte FIFO

buffer. Supports up to 115.2Kbps.

 Bi-directional parallel port: Configurable to LPT1, or disabled. Supports EPP/ECP/SPP

 Hardware monitor: Built in to monitor power supply voltage and fan speed status

 IrDA port: Supports Serial Infrared (SIR) and Amplitude Shift Keyed IR (ASKIR) interface

 USB port: Supports 4 USB 2.0 ports for future expansion

 Watchdog timer: Software Programmable Reset generated when CPU does not

periodically trigger the timer. Your can use BIOS INT15 to control

the watchdog and generate a system reset.

 VGA controller:

 Built-in AGP2.0 4X 3D graphics engine.

 Share system DDR SDRAM 8MB.

 Onboard flat panel chip ds90c2501 Supports 18bit/24-bit

single pixel or 36bit/48bit dual pixel color LVDS TFT LCD.

 Ethernet:

 ICH4 & 82540EM Fast Ethernet controllers, IEEE 802.3u

Auto-Negotiation support for 10BASE-T/100BASE-TX &

100BASE-T/1000BASE-TX standard.

 Two RJ45 connectors are located on board for easy

connection.

7

 Keyboard and PS/2 mouse: A 6-pin header connector is located on board for

easy connection to keyboard & PS/2 mouse.

 Digital input/output: It provide with 4-bit digital input/output (+5V level). Your

can use I/O PORT 201H to control it.

 Audio: AC’97 Audio CODEC

 1394A port: Supports 2 1394A ports compliant with 1394 OHCI specification 1.1,

IEEE 1394-1395 and 1394A-2000.

 Compact flash: It can be used (IDE2) with a passive adapter (True IDE Mode) in a

Type I/II Socket.

 Power consumption:

 (Pentium 4: 2.4GHz, 512MB DDR266-SDRAM)

 +5V @ 4.2A, +12V @ 4.85A.

 (Pentium 4-M (mobile CPU): 2.4GHz, 512MB DDR266-

SDRAM)

 +5V @ 3.9A, +12V @ 4.00A.

 Recommended: 350-watt power supply or higher

Operating temperature: 0 ℃ ~ 60 ℃ (*CPU needs Cooler & silicone heat sink paste*)

WARNING:

1. Run the processor only when the heat sink (cooler) is properly and firmly
attached.

2. Please use ATX-12V Power Connector (PW1) to supply power to the CPU.

8

1.2 Package Contents

In addition to this User Manual, the NOVA-8890 package includes the following
items:

 NOVA-8890 single board X 1

 RS-232 & RS232/422/485 cable X 1

 RS-232 cable x 3

 Printer cable X 1

 FDD cable X 1

 USB cable X 1

 1394A cable X 1 (For model NOVA-8890MSFG/MSF)

 Audio cable X 1

 VGA cable X 1

 SATA IDE cable X 2 (For model NOVA-8890MSFG/MSF)

 SATA IDE Power Y cable X 1 (For model NOVA-8890MSFG/MSF)

 PATA IDE cable X 3 (40-pin X 1,44-pin X 1,44-pin to 40-pin x 1)

 ATX-12V cable X 1

 Power cable X 1 (For ATX 5VSB/Power on)

 One 6-pin cable converts to two 6-pin mini-Din cables for keyboard and

mouse connection

If any of these items are missing or damaged, please contact the dealer from
whom you purchased this product. Keep the shipping materials and carton in
case you want to ship or store the product in the future.

9

Chapter 2. Installation

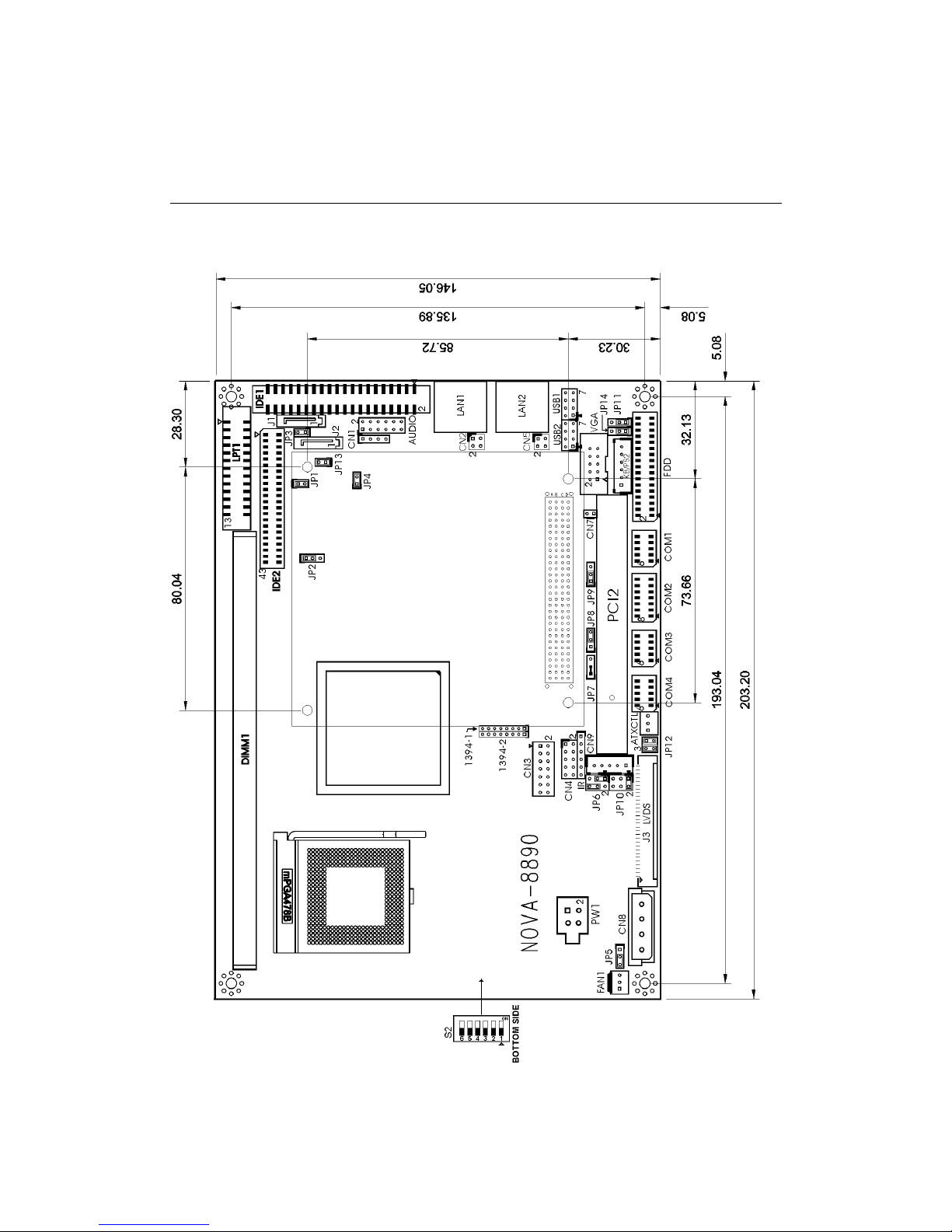

2.1 NOVA-8890 Layout

10

2.2 Unpacking Precautions

Some components on NOVA-8890 SBC are very sensitive to static electric charges
and can be damaged by a sudden rush of power. To protect it from unintended
damage, be sure to follow the precautions listed below:

• Ground yourself to remove any static charge before touching your NOVA-

8890 SBC. You can do it by using a grounded wrist strap at all times or by
frequently touching any conducting materials that is connected to the ground.

• Handle your NOVA-8890 SBC by its edges. If not necessary, please don’t

touch IC chips, leads or circuitry on this CPU board.

• Do not plug any connector or jumper while the power is on.

 Table of Jumpers

LABEL FUNCTION

JP1 Disable (close) J2 (IDE1 slave) S-ATA

JP3 Disable (close) J1 (IDE1 master) S-ATA

JP2 CMOS state setting

JP4 CompactFlash Master (close)/Slave (open) setting

JP5 RGB TO LVDS color mapping select

JP6 COM2 PIN11 Voltage Output setting

JP8 PC/104-PLUS Power source setting

JP9 COM2 RS232/RS422/RS485 select

JP10 LCD Power setting

JP11 Keyboard/Mouse power source setting

JP12 LCD pixel type setting

JP14 COM2 RS422 or RS485 select

S2 CPU voltage setting

2.3 PC/104-PLUS Power Source Setting

JP8 DESCRIPTION

1-2 +5V
2-3 +3.3V

Note: All shaded rows in the tables of this manual are the default settings for
NOVA-8890.

11

2.4 Clear CMOS

To clear the CMOS data, close the JP2 (2-3) for about 3 seconds, then open it
again.

• JP2: Clear CMOS (Reserved Function)

JP2 DESCRIPTION

1-2 Normal Operation
2-3 Clear CMOS Setup

WARNING:

When you change the power supply between ATX and AT, clear CMOS (Power
On) first. Otherwise, the CPU Board may fail to boot.

2.5 Onboard Keyboard/Mouse Power Source

Setting

JP11 DESCRIPTION

1-2 +5V
2-3 +5VSB

2.6 COM2 RS232/RS422/RS485

COM2 RS232/RS422/RS485 mode Selection & Voltage Output (PIN11)
Setting

• JP9: To set the operating mode of COM2.

JP9 DESCRIPTION

1-2 RS232
2-3 RS422/485

• JP14: To set the operating mode of COM2.

JP14 DESCRIPTION

1-2 RS422
2-3 RS485

• JP6: To select the function of pin 11 at COM2, you can set this pin to

provide RI, 5V or 12V power source.

JP6 COM2 PIN8

(1-3) (2-4) +5V
(3-5) (2-4) +12V
(1-3) (4-6) RI

12

2.7 LCD Setting

PANEL MODEL JP10 JP5 JP12

ChiMei M170E4 3-4 2-3

(1-2)
(3-4)

LG LP150X1 1-2 2-3 1-2

Toshiba LTM15C423S 1-2 2-3

(1-2)
(3-4)

Torisan TM121XG-02 1-2 2-3 1-2

IMES DM121-53DR 1-2 2-3 1-2

UniPac UB104S01 1-2 2-3 1-2

• JP5: Shorting (1-2) pin to select non-conventional 24/48-bit color

mapping LCD, shorting (2-3) pin to select conventional 18/36-bit &
24/48-bit LCD color mapping LCD.

JP5 DESCRIPTION

1-2 Non-conventional
2-3 Conventional

• JP10: LCD Power Setting

JP10 DESCRIPTION

1-2 +3.3V
3-4 +5V
5-6 +12V

• JP12: Setting single pixel or dual pixel of LCD panel

JP12 DESCRIPTION

(1-2) (3-4) Dual pixel output

(1-2) Single pixel output

2.8 CPU Voltage Setting

NOVA-8890 board can use two different types of CPU. One is Pentium4 CPU
model and the other is Pentium4-M CPU.

 2.8-1: While using Pentium4 CPU, please turn OFF 1,2,3,4,5,6 of S2

switch. CPU VID will now automatically configure the power of CPU.
(Default)

13

 2.8-2: When using Pentium4-M CPU, turn ON 1,4,6 of S2 switch, and

turn OFF 2,3,5. The power of CPU will be set to 1.3V at this time.

2.9 Compact Flash Master/Slave Function Setting

• JP4 : Compact Flash Master/Slave Function Setting
Short 1 - 2 pin , Compact Flash is Master

JP4 DESCRIPTION

Short Master
Open Slave

14

Chapter 3. Connection

This chapter describes how to connect peripherals, switches and indicators to the
NOVA-8890 board.

 Table of Connectors

LABEL FUNCTION

FAN1 Fan Connectors

PW1/CN8 ATX-12V CPU/SYSTEM Power Source

VGA VGA 15-pin Female Connector

J3 & CN9 LVDS panel & Inverter Connectors

IR IrDA Connector

USB1/USB2 USB Connectors

1394-1/1394-2 1394 Connectors

LPT1 Parallel Port Connector

COM1/COM3/COM4 Serial Port Connectors

COM2 Serial Port Connector

ATXCTL Power supply to Mainboard Connector

CN7 ATX BUTTON (Power ON) Switch
CN4 Digital INPUT/OUTPUT Connector
CN3 External Switches and Indicators

CN2/CN5 LAN State LED Connectors

KB/PS2 6-pin Header Keyboard & PS2 Mouse Connector

AUDIO AUDIO MIC-IN, LINE-IN, LINE-OUT Connector

CN1 AUDIO CD-IN
LAN1 10/100-TX LAN RJ45 Connector
LAN2 100/1000-TX LAN RJ45 Connector

FDD FDC Connector

IDE1 Primary IDE Connector

J1/J2 S-ATA Primary IDE Connector

IDE2/CF Secondary IDE Connector

15

3.1 Floppy Disk Drive Connector

The NOVA-8890 board is equipped with a 34-pin daisy-chain drive connector
cable.

• FDD: FDC Connector

PIN DESCRIPTION PIN DESCRIPTION

1 GROUND 2 REDUCE WRITE
3 GROUND 4 N/C
5 GROUND 6 N/C
7 GROUND 8 INDEX#

9 GROUND 10 MOTOR ENABLE A#
11 GROUND 12 DRIVE SELECT B#
13 GROUND 14 DRIVE SELECT A#
15 GROUND 16 MOTOR ENABLE B#
17 GROUND 18 DIRECTION#
19 GROUND 20 STEP#
21 GROUND 22 WRITE DATA#
23 GROUND 24 WRITE GATE#
25 GROUND 26 TRACK 0#
27 GROUND 28 WRITE PROTECT#
29 GROUND 30 READ DATA#
31 GROUND 32 SIDE 1 SELECT#
33 GROUND 34 DISK CHANGE#

16

3.2 PCI E-IDE Disk Drive Connector

You can attach four IDE (Integrated Device Electronics) hard disk drives on two
channels. These connectors support Ultra-DMA100 IDE devices. It is
recommended to connect Non-DMA100 devices to the secondary IDE connector.

IDE 1: Primary IDE Connector (Pitch 2.54 mm)
IDE 2: Secondary IDE Connector (Pitch 2.0 mm)

IDE1 converts to SATA setting:

• J1 (Master)/J2 (Slave): Primary SATA IDE Connector

PIN DESCRIPTION

1 GROUND
2 S-ATA TX+
3 S-ATA TX­4 GROUND
5 S-ATA RX­6 S-ATA RX+
7 GROUND

MASTER ONLY MASTER + SLAVE

DISABLE SATA FUNCTION

JP1 (CLOSE) JP1 (OPEN) JP1 (CLOSE)

JP3 (OPEN) JP3 (OPEN) JP3 (CLOSE)

JP13 (CLOSE) JP13 (OPEN) JP13 (CLOSE)

Note: All shaded rows in the tables of this manual are the default settings for
NOVA-8890.

17

• IDE Interface Connector

PIN DESCRIPTION PIN DESCRIPTION

1 RESET# 2 GROUND
3 DATA 7 4 DATA 8
5 DATA 6 6 DATA 9
7 DATA 5 8 DATA 10

9 DATA 4 10 DATA 11
11 DATA 3 12 DATA 12
13 DATA 2 14 DATA 13
15 DATA 1 16 DATA 14
17 DATA 0 18 DATA 15
19 GROUND 20 N/C
21 DREQ 22 GROUND
23 IOW# 24 GROUND
25 IOR# 26 GROUND
27 IORDY 28 BALE – DEFAULT
29 DACK 30 GROUND – DEFAULT
31 INTERRUPT 32 IOCS16# - DEFAULT
33 SA1 34 66DET
35 SA0 36 SA2
37 HDC CS0# 38 HDC CS1#
39 HDD ACTIVE# 40 GROUND
41 +5V 42 +5V
43 GROUND 44 N/C

Note: Pins 41~44 are applicable for IDE2 only.

18

3.3 Parallel Port

This port is usually connected to a printer. NOVA-8890 includes an on-board
parallel port, accessed through a 26-pin flat-cable connector.

• LPT1: Parallel Port Connector

PIN DESCRIPTION PIN DESCRIPTION

1 STROBE# 14 AUTO FORM FEED #
2 DATA 0 15 ERROR#
3 DATA 1 16 INITIALIZE
4 DATA 2 17 PRINTER SELECT LN#
5 DATA 3 18 GROUND
6 DATA 4 19 GROUND
7 DATA 5 20 GROUND
8 DATA 6 21 GROUND

9 DATA 7 22 GROUND
10 ACKNOWLEDGE 23 GROUND
11 BUSY 24 GROUND
12 PAPER EMPTY 26 GROUND
13 PRINTER SELECT 26 GROUND

3.4 Serial Ports

NOVA-8890 offers four high speed NS16C550 compatible UART.

• COM1, COM3, COM4: 10-pin header

• COM2: 14-pin header

CONNECTOR PORT ADDRESS INTERRUPT

COM1 COM1 3F8 IRQ4
COM2 COM2 2F8 IRQ3
COM3 COM3 3E8 IRQ11
COM4 COM4 2E8 IRQ10

• COM1, COM3, COM4 10-pin Connector

PIN DESCRIPTION PIN DESCRIPTION

1 DATA CARRIER DETECT (DCD) 6 DATA SET READY (DSR)
2 RECEIVE DATA (RXD) 7 REQUEST TO SEND (RTS)
3 TRANSMIT DATA (TXD) 8 CLEAR TO SEND (CTS)
4 DATA TERMINAL READY (DTR) 9 RING INDICATOR (RI)
5 GROUND 10 NC

19

• COM2 14-pin Connector

PIN DESCRIPTION PIN DESCRIPTION

1 DATA CARRIER DETECT (DCD) 8 DATA SET READY (DSR)
2 RECEIVE DATA (RXD)

9

REQUEST TO SEND (RTS)

3 TRANSMIT DATA (TXD)

10

CLEAR TO SEND (CTS)

4 DATA TERMINAL READY (DTR)

11

RING INDICATOR (RI)

5 GROUND

12 NC

6 RS422/RS485 TX+

13

RS422/RS485 TX-

7 RS422/RS485 RX+

14

RS422/RS485 RX-

3.5 Keyboard & PS/2 Mouse Connector

A 6-pin connector is located on the mounting bracket for easy connection to a
keyboard & a PS/2 mouse. The board comes with a cable to convert from the 6­pin mini-DIN connector to two 6-pin mini-DIN connectors appropriate for
keyboard and mouse connection.

• KB/PS2: 6-pin Mini-DIN Keyboard Connector

PIN DESCRIPTION

1 +5V
2 MOUSE DATA
3 MOUSE CLOCK
4 KEYBOARD DATA
5 KEYBOARD CLOCK
6 GROUND

3.6 External Switches and Indicators

There are several external switches and indicators available to use for
monitoring and controlling the CPU board. All the functions are in CN3
connector.

• CN3: External Switches and Indicators

PIN DESCRIPTION PIN DESCRIPTION

1 +5V 2 Speaker +
3 N/C 4 N/C

Power LED

5 GND 6 N/C
7 KEYLOCK PIN1 8 Speaker -

Speaker

KEYLOCK

9 KEYLOCK PIN2 10 Reset PIN1

11 GND 12 Reset PIN2

Reset

Button

HDD LED 13 HDD LED+ 14 HDD LED - HDD LED

• CN7: 2-pin Header ATX POWER BUTTON Connector

PIN DESCRIPTION

1 BUTTON PIN 1
2 BUTTON PIN 2

20

• ATXCTL: Power Supply to Mainboard Connector

PIN DESCRIPTION

1 5VSB
2 ATX-ON
3 GND

3.7 USB Port Connectors

NOVA-8890 provides 4 built-in USB2.0 ports for new I/O bus expansion.

USB1/USB2

PIN DESCRIPTION PIN DESCRIPTION

1 VCC 2 GROUND
3 DATA0- 4 DATA1+
5 DATA0+ 6 DATA1­7 GROUND 8 VCC

3.8 IrDA Infrared Interface Port

NOVA-8890 has a built-in IrDA port which supports Serial Infrared (SIR) or
Amplitude Shift Keyed IR (ASKIR) interface. To use the IrDA port, configure SIR
or ASKIR model in the BIOS under Peripheral Setup COM2. In the case, the
normal RS-232 COM 2 will be disabled.

• IR: IrDA Connector

PIN DESCRIPTION

1 VCC
2 NC
3 IR-RX
4 Ground
5 IR-TX
6 NC

3.9 Fan Connectors (FAN1)

NOVA-8890 provides two CPU cooling fan connectors, which can supply
12V/500mA to the cooling fan. All connectors have the same pin assignments
and provide a "rotation" pin to get rotation signals from fans and notice the
system. Therefore the system BIOS can recognize fan speed. Please note that
only specified fan can issue the rotation signals.

21

• Fan Connector

PIN DESCRIPTION

1 Rotation Signal
2 +12V
3 Ground

3.10 LAN RJ45 & State LED Connectors

NOVA-8890 is equipped with LAN1 10/100-TX & LAN2 100/1000-TX Ethernet
controllers. You can connect it to your LAN through RJ45 LAN connectors. There
are two LEDs on the connector indicating the status of LAN. The pin assignments
are listed below:

• LAN1 (10/100-TX) RJ45 Connector

PIN DESCRIPTION PIN DESCRIPTION

1 TX+ 5 N/C
2 TX- 6 RX­3 RX+ 7 N/C
4 N/C 8 N/C

• LAN2 (100/1000-TX) RJ45 Connector

PIN DESCRIPTION PIN DESCRIPTION

1 TXA+ (TX+) 5 TXC- (N/C)
2 TXA- (TX-) 6 TXB- (RX-)
3 TXB+ (RX+) 7 TXD+ (N/C)
4 TXC+ (N/C) 8 TXD- (N/C)

• CN2 (10/100-TX)/CN5 (100/1000-TX): LAN State LED Connector

PIN DESCRIPTION

1-2 LINK
3-4 ACTIVE

3.11

VGA Connector

NOVA-8890 has a built-in 10-pin VGA connector directly connected to your CRT
monitor.

• VGA: 10-pin Female Connector

PIN DESCRIPTION PIN DESCRIPTION

1 RED 2 DDC CLK
3 GREEN 4 DDC DAT
5 BLUE 6 GROUND
7 HSYNC 8 GROUND
9 VSYNC 10 GROUND

22

3.12 Audio Connector

NOVA-8890 has a built-in AC’97 AUDIO CODEC connector directly connected to
your MIC-IN & LINE-IN.

• Audio: Audio Connector

1 LEFT SPEAKER OUT SIGNAL (WITH AMPLIFIER)
2 RIGHT SPEAKER OUT SIGNAL (WITH AMPLIFIER)
3 GROUND (FOR SPK CONNECTOR)
4 GROUND
5 LEFT SPEAKER OUT SIGNAL (WITHOUT AMPLIFIER)
6 RIGHT SPEAKER OUT SIGNAL (WITHOUT AMPLIFIER)
7 LEFT LINE IN SIGNAL
8 RIGHT LINE IN SIGNAL

9 GROUND (FOR LINE IN CONNECTOR)
10 GROUND (NO USE)
11 MIC IN
12 GROUND (FOR MIC IN CONNECTOR)

• CD_IN: CD Audio Input Connector

1 LEFT CD AUDIO INPUT SIGNAL

2 GROUND

3 GROUND

4 RIGHT CD AUDIO INPUT SIGNAL

3.13 ATX-12V Power Connector

This connector supports the ATX power and provides functions such as modem
ring on; wake-up LAN and soft power off are supported by mainboard. (Power
source from Mainboard)

PW1

PIN DESCRIPTION PIN DESCRIPTION

1 GND 2 GND
3 +12V 4 +12V

Note: The power from PW1 should support at least 9A current for the use of P4

CPU. Otherwise, the operation of CPU could be abnormal. Do not connect
the power to other devices, such as hard disk. For such occasions, you
can choose from other special cables provided by ICP.

23

3.14 Digital INPUT/OUTPUT Connector

These I/O pins are TTL level with 8mA source-sink capability.

CN4

PIN DESCRIPTION PIN DESCRIPTION

1 GND 2 +5V
3 OUT3 4 OUT2
5 OUT1 6 OUT0
7 IN3 8 IN2
9 IN1 10 IN0

3.15 LVDS (J3) LCD & Inverter (CN9) Connector

• J3: LVDS Connector

PIN DESCRIPTION PIN DESCRIPTION

1 GROUND 16 CH2 DATA3­2 GROUND 17 CH2 CLK+
3 CH1 DATA3+ 18 CH2 CLK­4 CH1 DATA3- 19 CH2 DATA2+
5 CH1CLK+ 20 CH2 DATA2­6 CH1 CLK- 21 CH2 DATA1+
7 CH1 DATA2+ 22 CH2 DATA1­8 CH1 DATA2- 23 CH2 DATA0+

9 CH1 DATA1+ 24 CH2 DATA0­10 CH1 DATA1- 25 GROUND
11 CH1 DATA0+ 26 GROUND
12 CH1 DATA0- 27 LCD power
13 GROUND 28 LCD power
14 GROUND 29 LCD power
15 CH2 DATA3+ 30 LCD power

Please refer to Appendix E for LCD application example.

• CN9: Inverter Connector

PIN DESCRIPTION

1 NC

2 GROUND

3 BKL-POWER, 12V

4 GROUND

5 +5V

24

3.16 IEEE 1394 Port Connector

NOVA-8890 provides two built-in IEEE 1394 ports to connect with 1394 devices.

1394-1/1394-2

PIN DESCRIPTION PIN DESCRIPTION

1 +12V 5 TPA­2 GND 6 TPA+
3 TPB- 7 SHIELD
4 TPB+ 8 SHIELD

25

Chapter 4. AMI BIOS SETUP

4.1 Introduction

AMI BIOS Setup program enables users to modify basic system configuration.
This special information is then stored in battery-backed RAM so that it retains
the Setup information when the power is turned off.

4.2 Starting Setup

AMI BIOS is immediately activated when you first turn on the computer. The
BIOS reads the system information contained in the CMOS and begins the
process of checking out the system and configuring it. When the process is
completed, the BIOS will seek an operating system on one of the disks, launch it
then turn control over to that operating system.

While the BIOS is in control, the Setup program can be activated in one of two
ways:

1. By pressing <Del> immediately after switching the system on, or

2. By pressing <Del> when the following message appears briefly at the bottom
of the screen during the POST.

Press DEL to enter SETUP

If the message disappears before you respond and you still wish to enter Setup,
restart the system by turning the power off momentarily or by pressing the
"RESET" button on the system case. You may also restart the system by
simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys. If you do not press
the keys at the right timing and the system does not boot, an error message will
be displayed and you will prompt to...

PRESS F2 to continue, DEL to enter SETUP

26

4.3 Using Setup

In general, you use the arrow keys to highlight items, press <Enter> to select,
use the PageUp and PageDown keys to change entries, press <F1> for help and
press <Esc> to quit. The following table provides additional details on how to
navigate in the Setup program using the keyboard.

Up arrow Move to previous item

Down arrow Move to next item

Left arrow Move to the item on the left hand

Right arrow Move to the item on the right hand

Esc key Main Menu -- Quit and not save changes into CMOS

Status Page Setup Menu and Option Page Setup Menu --

Exit current page and return to Main Menu
PgUp key Increase the numeric value or make changes
PgDn key Decrease the numeric value or make changes

+ key Increase the numeric value or make changes

- key Decrease the numeric value or make changes

F1 key General help, only for Status Page Setup Menu and Option

Page Setup Menu

F2 /F3 key Change color from total 16 colors. F2 to select color

forward, F3 to select color backward

F4 key Reserved
F5 key Reserved
F6 key Reserved
F7 key Reserved
F8 key Reserved
F9 key Reserved

F10 key Save all the CMOS changes, only for Main Menu

4.4 Getting Help

Press F1, a help window will pop up and describe the appropriate keys to use and
the possible selections for the highlighted item. To exit the Help Window, press
<Esc> or F1 again.

If you discover that your computer cannot boot after making and saving system
changes in the Setup Menu, AMI BIOS supports an override to the CMOS settings
that consequently resets your system to its default setting.
We strongly recommend you to avoid making any changes to the chipset defaults.
These defaults have been carefully chosen by both AMI and your systems
manufacturer to ensure a reliable performance.

27

4.5 Main Menu

Once you enter the AMIBIOS™ CMOS Setup Utility, the Main Menu will appear on
the screen. The Main Menu enables you to select from several setup functions
and two exit choices. Use the arrow keys to select among the items and press
<Enter> to accept and enter the sub-menu.

A brief description of each highlighted selection will appear at the bottom of the
screen.
The main menu includes the following main setup categories. Please note that
some systems may not include all of the following entries.

 Standard CMOS Setup

Use this menu for basic system configuration.

 Advanced CMOS Setup

Use this menu to set the Advanced Features available on your system.

 Advanced Chipset Setup

Use this menu to change the values in the chipset registers and optimize
system performance.

 Power Management Setup

When Disabled, SMI will not be initialized, and complete power
management functionality is removed until this option is set to Enabled.

 PCI / Plug and Play Setup

This entry appears if your system supports PnP/PCI.

 Peripheral Setup

Use this menu to specify your settings for integrated peripherals.

 Hardware Monitor Setup

Use this menu to monitor your hardware.

28

 Auto-detect Hard Disks

Use this menu to specify your settings for hard disks control.

 Change Supervisor Password

Use this menu to set User and Supervisor Passwords.

 Auto Configuration with Optimal Settings

Use this menu to load the BIOS default values that are factory settings for
optimal performance system operations. While AMI has designed the
custom BIOS to maximize performance, the factory has the right to change
these defaults to meet their needs.

 Auto Configuration with Fail-Safe Settings

Use this menu to load the BIOS default values for the minimal/stable
performance for your system to operate.

 Save Settings and Exit

Save CMOS value changes to CMOS and exit setup.

 Exit Without Saving

Abandon all CMOS value changes and exit setup.

29

4.6 Standard CMOS Setup

The items in Standard CMOS Setup Menu are divided into 10 categories. Each
category includes no, one or more than one setup items. Use the arrow keys to
highlight the item and then use the <PgUp> or <PgDn> keys to select the value
in each item.

 Main Menu Selections

ITEM OPTIONS DESCRIPTION

Date MM DD YYYY Set the system date
Time HH: MM: SS Set the system time
IDE
Primary Master

Options are in its sub menu
(described in Table 3)

Press <Enter> to enter the sub

menu of detailed options
IDE
Primary Slave

Options are in its sub menu
(described in Table 3)

Press <Enter> to enter the sub

menu of detailed options
IDE
Secondary Master

Options are in its sub menu
(described in Table 3)

Press <Enter> to enter the sub

menu of detailed options
IDE
Secondary Master

Options are in its sub menu
(described in Table 3)

Press <Enter> to enter the sub

menu of detailed options
Drive A
Drive B

None
360K, 5.25 in

1.2M, 5.25 in
720K, 3.5 in

1.44M, 3.5 in

2.88M, 3.5 in

Select the type of floppy disk

drive installed in your system

Halt On All Errors

No Errors
All, but Keyboard
All, but Diskette
All, but Disk/Key

Select the situation in which you

want the BIOS to stop the POST

process and notify you

Base Memory N/A Displays the amount of

conventional memory

detected during boot up
Extended
Memory

N/A Displays the amount of

extended memory detected

during boot up

30

4.7 Advanced CMOS Setup

This section enables you to configure the basic operation of the system including
default speed, boot-up sequence, keyboard operation, shadowing and security.

 Quick Boot

When set to enabled, DRAM testing function will be disabled.

 1st /2nd /3rd Boot Device

This option sets the type of device for the first boot drives that the
AMIBIOS attempts to boot from after AMIBIOS POST completes.

Options: Disabled, IDE-0, IDE-1, IDE-2, IDE-3, Floppy, ARMD-FDD, ARMD­HDD, CDROM, and SCSI.

 Try Other Boot Devices

Set this option to Yes to instruct AMIBIOS to boot from any other drives in
the system if it cannot find a boot drive among the drives specified in the
1st, 2nd, 3rd, and 4th Boot Device options.

Options: Yes or No.

 Floppy Access Control

This option specifies the read/write access that is set when booting from a
floppy drive.

Options: Read/Write or Read-Only.

 Hard Disk Access Control

This option specifies the read/write access that is set when booting from a
hard disk drive.

Options: Read/Write or Read-Only.

 S.M.A.R.T. for Hard Disks

S.M.A.R.T. stands for Self-Monitoring, Analysis and Reporting Technology.
When this option is selected, BIOS will warn users of any possible device
failure and enable users back up the device before actual failure happens.

Options: Disabled, Enabled.

31

 Boot Up Num-Lock

This option turns off Num Lock when the system is powered on so that
users can use the arrow keys on both the numeric keypad and the
keyboard.

 Floppy Drive Swap

Set this option to Enabled to permit drives A: and B: to be swapped.
Options: Enabled or Disabled.

 Floppy Drive Seek

Set this option to Enabled to specify that floppy drives A: will perform a
Seek operation at system boot.

Options: Enabled or Disabled.

 PS/2 Mouse Support

When this option is enabled, BIOS can support a PS/2- type mouse.

 System Keyboard

This option does not specify if a keyboard is attached to the computer.
Rather, it specifies if error messages are displayed or not when a keyboard
is not attached. This option permits you to configure workstation with no
keyboard.

Options: Absent, Present.

 Primary Display

Select this option to configure the type of monitor attached to the computer.

Options: Monochrome, Color 40x25, Color 80x25, VGA/PGA/EGA, or Not
Install.

 Password Check

This option enables the password check option every time the system boots
or the end user runs Setup. If ‘always’ is chosen, a user password prompt
will appear every time the computer is turned on. If ‘setup’ is chosen, the
password prompt will appear only when BIOS is executed.

 Boot To OS/2

Set this option to Enabled if running OS/2 operating system and using more
than 64MB of system memory on the motherboard.

Options: YES or NO.

 Wait For 'F1' If Error

If this option is enabled, AMIBIOS will wait for users to press <F1> before
continuing the boot process. If this option is disabled, AMIBIOS continues
the boot process without waiting for <F1> to be pressed.

Options: Disabled or Enabled.

 Hit 'DEL' Message Display

Disabling this option prevents "Hit <DEL> if you want to run Setup" from
appearing when the system boots.

Options: Disabled or Enabled.

 L1 Cache

This option is used to enable or disable internal cache memory in the

32

processor.

 L2 Cache

The option enables secondary cache memory. If Enabled is selected,
external cache memory will be enabled. If disabled is selected, external
cache memory will be disabled.

 System BIOS Cacheable

When this option is set to Enabled, the System ROM area from F0000-FFFFF
is copied (shadowed) to RAM for faster execution.

 C000, 32k Shadow

When this option is set to Enabled, the Video ROM area from C0000-C7FFF
is copied (shadowed) to RAM for faster execution.
Disabled: The contents of the video ROM are not copied to RAM.
Cached: The contents of the video ROM area from C0000h - C7FFFh

are copied from ROM to RAM and can be written to or read
from cache memory.

Enabled: The contents of the video ROM area from C0000h - C7FFFh

are copied (shadowed) from ROM to RAM for faster execution.

 C800, 16k Shadow

These options enable shadowing of the contents of the ROM area named in
the option title.

Options: Enabled, Disabled, and Cached.

The ROM area that is not used by ISA adapter cards will be allocated to PCI
adapter cards.000, 32k Shadow.

 CC00, 16k Shadow

These options enable shadowing of the contents of the ROM area named in
the option title.

Options: Enabled, Disabled, and Cached.

The ROM area that is not used by ISA adapter cards will be allocated to PCI
adapter cards.800, 16k Shadow.

 D000, 16k Shadow

These options enable shadowing of the contents of the ROM area named in
the option title.

Options: Enabled, Disabled, and Cached.

The ROM area that is not used by ISA adapter cards will be allocated to PCI
adapter cards.C00, 16k Shadow.

 D400, 16k Shadow

These options enable shadowing of the contents of the ROM area named in
the option title.

Options: Enabled, Disabled, and Cached.

The ROM area that is not used by ISA adapter cards will be allocated to PCI
adapter cards.000, 16k Shadow.

 D800, 16k Shadow

These options enable shadowing of the contents of the ROM area named in
the option title.

Options: Enabled, Disabled, and Cached.

The ROM area that is not used by ISA adapter cards will be allocated to PCI

33

adapter cards.400, 16k Shadow.

34

 DC00, 16k Shadow

These options enable shadowing of the contents of the ROM area named in
the option title.

Options: Enabled, Disabled, and Cached.

ISA adapter cards will be allocated to PCI adapter cards.800, 16k Shadow.

35

4.8 Advanced Chipset Setup

This section allows you to configure the system based on the specific features of
the installed chipset. This chipset manages bus speeds and access to system
memory resources, such as DRAM and external cache. It also coordinates
communications between the conventional ISA bus and the PCI bus. Please note
that these items should never need to be altered for the default settings have
been chosen because they provide the best operating conditions for your system.

 SDRAM Frequency

This setting decided by Memory frequency.

 Configure SDRAM Timing by SPD

This field detects the capability of the SDRAM modules that you are using ­Enabled or Disabled.

 SDRAM CAS# Latency

This controls the latency between the SDRAM read command and the time
when the data actually is available.

 Memory Hole

You can reserve this area of system memory for ISA adapter ROM. When
this area is reserved, it cannot be cached. The user information of
peripherals that need to use this area of system memory usually discusses
their memory requirements.

 Internal Graphics Mode Select

This option is set for sharing memory size from system memory to video
memory.

 Boot Display Device Select

This option is setting for CRT output or LFP (LCD PANEL) output or dual
view output.

 Flat Panel Type Select

This option is setting for LVDS PANEL type select.

36

4.9 Power Management Setup

 ACPI Aware O/S

This feature is switch of ACPI function. Configuration options: [No] and
[Yes]

**When you are using AT Power supply, please set this option to [NO].

 ACPI Standby State

This feature is switch of POS (S1) function. Configuration options: [S1/POS]

 Power Management/APM

When Disabled, SMI will not be initialized. Complete power management
functionality is removed until this option is set to Enabled.

 Suspend Time Out (Minute)

If no activity occurs during this time period, BIOS will set the system to low
power state. The ''Standby Time Out'' period must expire first (if enabled)
before this time out period begins.

 Hard Disk Time Out

If no disk activity occurs for, this time period, the BIOS will set the hard
disk, device(s) to low power mode.

 RTC Alarm Date, Hour

When this option is set enabled, system will according to you set time then
wakeup from soft off mode.

 Resume on Ring

Modem Ring Resume From Soft Off.

 Power Type Select

This feature is switch of Power Type function.
Configuration options: [AT] [ATX]

**When you are using ATX Power supply, please set this option to [ATX].
**When you are using AT Power supply, please set this option to [AT].

37

4.10 PCI / Plug and Play Setup

 Clear NVRAM

When this option is set to Yes, system can auto clear NVRAM.

Options: Yes or No.

 PCI Latency Timer (PCI Clocks)

This option specifies the latency timings (in PCI clocks) for PCI devices
installed in the PCI expansion slots.

Options: 32, 64, 96, 128, 160, 192, 224, or 248.

 Allocate IRQ to PCI VGA

Set this option to Yes to allocate an IRQ to the VGA device on the PCI bus.

Options: Yes or No.

 OffBoard PCI IDE Card

This question is needed for off-board non-compliant PCI IDE card. If
present, BIOS needs to know which slot it is in and how the IRQ is used by
the card.

 OffBoard PCI IDE Primary IRQ

This option specifies the PCI interrupt used by the primary IDE channel on
the offboard PCI IDE controller.

Options: Disabled, Hardwired, INTA, INTB, INTC, or INTD.

 OffBoard PCI IDE Secondary IRQ

This option specifies the PCI interrupt used by the secondary IDE channel
on the offboard PCI IDE controller.

Options: Disabled, Hardwired, INTA, INTB, INTC, or INTD.

 PCI Slot1 / Slot2 / Slot3 / Slot4 IRQ Priority

The option specifies the IRQ priority for PCI device installed in the PCI
expansion slot.

Options: Auto, (IRQ) 3, 4, 5, 7, 9, 10, and 11, in priority orders.

38

4.11 Peripheral Setup

Peripheral Setup enables you to configure you system to the most effectively
save energy while operating in a user defined system environment.

 OnBoard Serial Port1 /Port2

This option specifies the base I/O port address of serial port 1.

Options: Auto (AMIBIOS automatically determines the correct base I/O port
address), Disabled, 3F8h, 2F8h, 2E8h, or 3E8h.

 Serial Port2 Mode

This option specifies the IR active pulse or inverting clock of serial port B.

 IR Pin Select

The SINB/SOUTB pin of Serial Port B function or IRRX/IRTX pin if IR
function is in normal condition.

 OnBoard Parallel Port

This option specifies the base I/O port address of parallel port on the
motherboard.

Options: Disabled, 378h, 278h, or 3BCh.

 Parallel Port Mode

This option specifies the parallel port mode.

Options: Normal, Bi-Dir, EPP, and ECP.

Normal: The normal parallel port mode is used.
Bi-Dir: Use this setting to support bi-directional transfers on the

parallel port.

EPP: The parallel port can be used with devices adhered to the

Enhanced Parallel Port (EPP) specification. EPP uses the
existing parallel port signals to provide asymmetric bi­directional data transfer driven by the host device.

ECP: The parallel port can be used with devices that adhere to the

Extended Capabilities Port (ECP) specification. ECP uses the
DMA protocol to achieve data transfer rates up to 2.5
Megabits per second. ECP also provides symmetric bi­directional communication.

39

 EPP Version

EPP data or address read cycle 1.9 or 1.7.

 Parallel Port IRQ

This option specifies the IRQ used by the parallel port.

Options: Auto, (IRQ) 5, or (IRQ) 7.

 Parallel Port DMA Channel

This option is only available if the setting for the Parallel Port Mode option is
ECP. This option sets the DMA channel used by the parallel port.

Options: DMA Channel 0, 1, or 3.

40

4.12 Hardware Monitor Setup

4.13 Change Supervisor Password

You can set either supervisor or user password, or both of them. The differences
between are:

Supervisor Password:

You can both access the Setup Menu as well as make changes in setting.

User Password:

You can only access but do not have the right to change the settings of BIOS
setup menus. When you select this function, the following message will appear
at the center of the screen prompt you to create a password.

ENTER PASSWORD:

Type the password of up to eight characters in length and press <Enter>. Any
previously entered password will be cleared from CMOS memory. When you are
asked to confirm the password, enter the password again and press <Enter>.
You may also press <Esc> to abort the selection.
To disable a password, press <Enter> when you are prompted to enter the
password. A message will pop up and ask you to confirm the selection. Once the
password is disabled, the system will boot and you can enter Setup freely.

PASSWORD DISABLED:

When a password has been enabled, you will be prompted to enter it every time
you try to enter Setup. This prevents any unauthorized party from changing your
system configuration.
Additionally, when a password is enabled, you can also require the BIOS to
request a password every time your system is rebooted. This would prevent
unauthorized use of your computer.

41

You can also determine when a password is required within the BIOS Features
Setup Menu and its Security option. If the Security option is set to “Always”,
password will be required both at boot and at entry to Setup. If the option is set
to “Setup”, password will only be prompted when trying to enter Setup.

42

Appendix A: Watchdog Timer

The Watchdog Timer is provided to ensure that standalone systems can always
recover from catastrophic conditions that cause the CPU to crash. This condition
may have occurred by external EMI or a software bug. When the CPU stops
working correctly, hardware on the board will either perform a hardware reset
(cold boot) or a Non-Maskable Interrupt (NMI) to bring the system back to a
known state.

A BIOS function call (INT 15H) is used to control the Watchdog Timer:

INT 15H:

AH – 6FH

Sub-function:

AL – 2: Set the Watchdog Timer’s period
BL: Time-out value (Its unit--second or minute, is

dependent on the item “Watchdog Timer unit select”
in CMOS setup).

You have to call sub-function 2 to set the time-out period of Watchdog Timer first.
If the time-out value is not zero, the Watchdog Timer will start counting down.
While the timer value reaches zero, the system will reset. To ensure that this
reset condition does not occur, please make sure that the Watchdog Timer is
being periodically refreshed by calling sub-function 2. However the Watchdog
timer will be disabled if you set the time-out value to zero.

A tolerance of at least 10% must be maintained to avoid unknown routines within
the operating system (DOS), such as disk I/O that can be very time-consuming.

Note: When exiting a program it is necessary to disable the Watchdog Timer,

otherwise the system will reset.

Example program:

; INITIAL TIMER PERIOD COUNTER
;

W_LOOP:

MOV AX, 6F02H ;setting the time-out value
MOV BL, 30 ;time-out value is 48 seconds

INT 15H
;
; ADD YOUR APPLICATION PROGRAM HERE
;
CMP EXIT_AP, 1 ;is your application over?
JNE W_LOOP ;No, restart your application

MOV AX, 6F02H ;disable Watchdog Timer
MOV BL, 0 ;
INT 15H
;
; EXIT
;

43

Appendix B: I/O Address Map

• I/O Address Map

I/O Address Map Description

000-01F DMA Controller #1

020-021 Interrupt Controller # 1, Master

040-05F System Timer

060-06F Standard 101/102 keyboard Controller

070-07F Real time Clock, NMI Controller

080-0BF DMA Page Register

0A0-0BF Interrupt Controller # 2

0C0-0DF DMA Controller # 2

0F0-0F0 Clear Math Coprocessor Busy

0F1-0F1 Reset Math Coprocessor

0F8-OFF Math Coprocessor

170-1F7 BUS Master PCI IDE Controller

278-27F Parallel Printer Port 2

2E8-2EF Serial Port 4

2F8-2FF Serial Port 2

376-376 BUS Master PCI IDE Controller

378-37F Parallel Printer Port 1

3B0-3DF Intel 82845G/GV/GL Graphic Controller

3E8-3EF Serial Port 3

3F0-3F7 Floppy Disk Controller

3F8-3FF Serial Port 1

480-48F PCI BUS

• 1st MB Memory Address Map

Memory address Description

00000-9FFFF SYSTEM MEMORY

A0000-BFFFF VGA BUFFER

C0000-CFFFF VGA BIOS

E0000-FFFFF SYSTEM BIOS

100000 EXTEND MEMORY

44

• IRQ Mapping Chart

IRQ0 System Timer IRQ8 RTC clock

IRQ1 Keyboard IRQ9 AC97 AUDIO

IRQ2 IRQ Controller IRQ10 COM4

IRQ3 COM2 IRQ11 COM3

IRQ4 COM1 IRQ12 PS/2 mouse

IRQ5 PCI DEVICES IRQ13 FPU

IRQ6 FDC IRQ14 Primary IDE

IRQ7 Printer IRQ15 Secondary IDE

• DMA Channel Assignment

Channel Function

0 Available

1 Available

2 Floppy disk

3 Available

4 Cascade for DMA controller 1

5 Available

6 Available

7 Available

45

Appendix C: ATX Power Supply

The following notes show you how to connect ATX Power Supply.

For backplanes with ATX Connector

1. Disconnect the AC cord of the Power Supply from the AC source to prevent
sudden electric surge to the board.

2. Check the type of your Power Supply and find out +5VSB,PS-ON & GND.

 NOVA-8890 (through Power Button & GND):

Connect the ATX power button switch to the CN7 (power button). Then connect
the power cable from power supply. To turn ON the system, press the button
once. To turn off the power supply, hold down the ATX power switch button for
about 4 seconds.

46

Appendix D: How to use Wake-Up Function

NOVA-8890 provides two kinds of Wake up Function.
This page describes how to use Modem Wake-Up and LAN Wake-Up function.
Wake-Up function is enabled when you use ATX power supply.

Wake–Up On Modem (Ring):

You must set the option Resume on Ring of CMOS SETUP to enable this option.
The ATX power supply will be switched on when there is a ring signal detected on
pin “RI” of serial port.

Wake-Up On LAN:

You must set the option Resume on Ring (LAN2) & Resume on LAN (LAN1) of
CMOS SETUP to enable this option.

When your computer is turned off while LAN Link/Active LED is flashing, it
indicates that LAN chip has entered standby mode and waits for Wake-Up signal.
You can use other computers to wake up your computer by sending ID to it.

ID: ID is the MAC address of your system LAN. Every LAN chip has a factory-set
ID, which can be found from network information in WINDOWS.

ID’s format is xxxxxxxxxxxx
Example ID: 009027388320

47

Appendix E: Connecting LCD to NOVA-8890

NOVA-8890 can support both one-channel and two-channel LVDS LCD through
connector J3. We use the LCD–LTM15C423S (two-channel) for an example to
explain the signal mapping and data format.

The pixel data of LTM15C423S is 48-bit wide. To use 36-bit LCD, please neglect
the third pair of signals–(DATA3+, DATA3-). In other words, only the data of
MSB (R2 ~ R7, G2 ~ G7, B2 ~ B7) are left. On the other hand, if the one­channel LCD is used, only the first channel (CH1) is necessary. The way to deal
with 18-bit data is the same as that of 36-. For different types of LCD, you
should refer to the data sheet for more detailed information to make the right
connection.

(1) Signal mapping between LTM15C423S and J3 (NOVA-8890)

J3 (NOVA-8890) LTM15C423S

PIN NAME PIN NAME

3 CH1 DATA3+ 15 R1IN3+

4 CH1 DATA3- 14 R1IN3-

5 CH1 CLK+ 13 R1CK+

6 CH1 CLK- 12 R1CK-

7 CH1 DATA2+ 11 R1IN2+

8 CH1 DATA2- 10 R1IN2-

9 CH1 DATA1+ 9 R1IN1+

10 CH1 DATA1- 8 R1IN1-

11 CH1 DATA0+ 7 R1IN0+

12 CHA DATA0- 6 R1IN0-

15 CH2 DATA3+ 26 R2IN3+

16 CH2 DATA3- 25 R2IN3-

17 CH2 CLK+ 24 R2CK+

18 CH2 CLK- 23 R2CK-

19 CH2 DATA2+ 22 R2IN2+

20 CH2 DATA2- 21 R2IN2-

21 CH2 DATA1+ 20 R2IN1+

22 CH2 DATA1- 19 R2IN1-

23 CH2 DATA0+ 18 R2IN0+

24 CH2 DATA0- 17 R2IN0-

29 SELLVDS (H)

30 SELFRC (H)

1,2,13,14,25,26 GND 4,5,16,27 GND

27,28,29,30 LCD power 1,2,3 VDD

*48 BIT -- SELLVDS=H, SELFRC=H

48

(2) DATA format (output of NOVA-8890) for LTM15C423S (48 bit)

SIGNAL NAME

FUNCTION

(GRAPHICS CONTROLLER OUTPUT SIGNAL)

PIN NAME

OR2 RED Odd pixels DATA

OR3 RED Odd pixels DATA

OR4 RED Odd pixels DATA

OR5 RED Odd pixels DATA

OR6 RED Odd pixels DATA

OR7 RED Odd pixels DATA (MSB)

OG2 GREEN Odd pixels DATA

CH1 DATA0-

CH1 DATA0+

OG3 GREEN Odd pixels DATA

OG4 GREEN Odd pixels DATA

OG5 GREEN Odd pixels DATA

OG6 GREEN Odd pixels DATA

OG7 GREEN Odd pixels DATA (MSB)

OB2 BLUE Odd pixels DATA

OB3 BLUE Odd pixels DATA

CH1 DATA1-

CH1 DATA1+

OB4 BLUE Odd pixels DATA

OB5 BLUE Odd pixels DATA

OB6 BLUE Odd pixels DATA

OB7 BLUE Odd pixels DATA (MSB)

GND

GND

ENAB COMPOUND SYNCHRONIZATION SIGNAL

CH1 DATA2-

CH1 DATA2+

OR0 RED Odd pixels DATA (LSB)

OR1 RED Odd pixels DATA

OG0 GREEN Odd pixels DATA (LSB)

OG1 GREEN Odd pixels DATA

OB0 BLUE Odd pixels DATA (LSB)

OB1 BLUE Odd pixels DATA

GND

CH1 DATA3-

CH1 DATA3+

NCLK DATA SAMPLING CLOCK (Odd) CH1 CLK+

CH1 CLK-

49

SIGNAL NAME

FUNCTION

(GRAPHICS CONTROLLER OUTPUT SIGNAL)

PIN NAME

ER2 RED Even pixels DATA

ER3 RED Even pixels DATA

ER4 RED Even pixels DATA

ER5 RED Even pixels DATA

ER6 RED Even pixels DATA

ER7 RED Even pixels DATA (MSB)

EG2 GREEN Even pixels DATA

CH2 DATA0-

CH2 DATA0+

EG3 GREEN Even pixels DATA

EG4 GREEN Even pixels DATA

EG5 GREEN Even pixels DATA

EG6 GREEN Even pixels DATA

EG7 GREEN Even pixels DATA (MSB)

EB2 BLUE Even pixels DATA

EB3 BLUE Even pixels DATA

CH2 DATA1-

CH2 DATA1+

EB4 BLUE Even pixels DATA

EB5 BLUE Even pixels DATA

EB6 BLUE Even pixels DATA

EB7 BLUE Even pixels DATA (MSB)

GND

GND

GND

CH2 DATA2-

CH2 DATA2+

ER0 RED Even pixels DATA (LSB)

ER1 RED Even pixels DATA

EG0 GREEN Even pixels DATA (LSB)

EG1 GREEN Even pixels DATA

EB0 BLUE Even pixels DATA (LSB)

EB1 BLUE Even pixels DATA

GND

CH2 DATA3-

CH2 DATA3+

NCLK DATA SAMPLING CLOCK (Even) CH2 CLK-

CH2 CLK+
