NOVA-7830

SOCKET-370 CPU Embedded Board

With 10/100 Mbps Ethernet, VGA,

Audio

User Manual

Version 1.1

September 23, 2003

©Copyright 2003 by ICP Electronics Inc. All Rights Reserved.

2

Copyright Notice

The information in this document is subject to change without prior notice in
order to improve reliability, design and function and d oes not represent a
commitment on the part of the manufacturer.

In no event will the manufacturer be liable for direct, indirect, special, incidental,
or consequential damages arising out of the use or inabilit y to use the product or
documentation, ev en if advised o f the possibility of such damag es.
This document contains proprietary information protected by copyright. All rights
are reserved. No part of this manual may be reproduced by any mechanical,
electronic, or other means in any form without prior written permission of the
manufacturer.

Trademarks

NOVA-7830 is a registered trademark of ICP Electronics Inc., IBM PC is a
registered trademark of International Business Machines Corporat ion. Intel is a
registered trademark of Intel Corpo ration. Award is a registered trademar k of
Award Software International, Inc. Other product names mentioned he rein are
used for identification purposes only and may be trademarks and/or register ed
trademarks of their respective companies.

Support

For any questions regarding the content of this manual or the pro duct, please
contact us at: [e-mail]

.

3

Table of Contents

1 Introduction.................................................................. 4

1.1 Specifications.....................................................................................4

1.2 Package Contents ...............................................................................5

2 Installation.................................................................... 6

2.1 NOVA-7830 Layout.............................................................................. 6

2.2 Clear CMOS Setup...............................................................................7

2.3 Compact Flash Setting.........................................................................7

2.4 Audio Amplifier Select .........................................................................7

2.5 LCD Panel Shift Clock/Panel VCC Select ................................................. 8

2.6 COM Port RI and Voltage Selection ........................................................8

2.7 COM4 RS232/RS422 (485) Selection.....................................................9

3 Connection .................................................................. 10

3.1 Floppy Disk Drive Connector............................................................... 11

3.2 Video IN Connector ........................................................................... 11

3.3 Ultra ATA33/66/100 IDE Disk Drive Connector ...................................... 12

3.4 Parallel Port...................................................................................... 13

3.5 USB Port Connector........................................................................... 13

3.6 Serial Ports ...................................................................................... 14

3.7 Power Connector............................................................................... 15

3.8 Keyboard Connector.......................................................................... 15

3.9 IrDA Infrared Interface Port................................................................ 16

3.10 Fan Connector ............................................................................... 16

3.11 Audio Connectors ........................................................................... 17

3.12 VGA Connector .............................................................................. 17

3.13 LAN RJ45 Connector ....................................................................... 18

3.14 Compact Flash Connector—TYPE II ................................................... 18

3.15 External Switches and Indicators...................................................... 19

3.16 IEEE-1394 Connector...................................................................... 19

3.17 CardBus/PCMCIA Connector............................................................. 20

3.18 Digital I/O..................................................................................... 21

3.19 LCD Panel Connector ...................................................................... 22

4 AMI BIOS Setup........................................................... 23

4.1 Introduction ..................................................................................... 23

4.2 Starting Setup.................................................................................. 23

4.3 Setup Summary................................................................................ 23

4.4 Standard CMOS Setup Selections........................................................ 25

4.5 Advanced CMOS Setup Selections ....................................................... 26

4.6 Advanced Chipset Setup Selections ..................................................... 29

4.7 Power Management Setup Selections................................................... 31

4.8 PCI / Plug and Play Setup Selections ................................................... 33

4.9 Peripheral Setup Selections................................................................ 35

4.10 Hardware Monitor Setup Selections .................................................. 36

Appendix A Watchdog Timer .............................................. 37

Appendix B Digital I/O ....................................................... 38

Appendix C Address Mapping ............................................. 39

Appendix D How to Use Wake-up Function......................... 41

Appendix E How to Use VIDEO-IN Function........................ 42

Appendix F How to Use LCD-TYPE Function........................ 44

4

Chapter 1 Introduction

Thank you for choosing NOVA-7830 SOCKET370 CPU with Multimedia & LAN
Ethernet Embedded Little Board, which comes equipped with the Intel adva nced
chipset 815E. This product is designed for the syste m manufacturers, integrators,
or VARs that want to build a low power consumption system.

In addition, NOVA-7830 provides on-chip VGA which provides up to 1600x1200
resolution. LCD which provides up to 1024x768 res olution.

An advanced high performanc e super I/O chip— W83627 and NS87366 is used in
the NOVA-7830 boar d, which provides four UARTs are compatible with the
NS16C550. The parallel port and FDD interface are compatible with IBM PC/AT
architecture's.

NOVA-7830 has one Fast Ethernet Multifunction PCI Controller as a LAN controller,
which is fully integrated 10BASE-T/100BASE-TX LAN solution with high
performance networking functions and low power consumption fe atures.

This board has a built-in Compact Flash Disk Socket, CardBus, and FireWire for
embedded applications.

For multimedia application, NOVA-7830 provides many functions, such as 1394,

5.1 channel Audio and video in.

1.1 Specifications

• CPU: SOCKET-370

• DMA channels: 7

• Interrupt levels: 15

• Chipset: Intel 815E

• Memory: One 168-pin DIMM sockets. The memory capability is up to

512MB/133MHz.

• Ultra ATA/33/66/100 IDE interface: One PCI Enhanc ed IDE channels (2
IDE devices). The south br idge ICH2 supports Ultra ATA/33/66/100 IDE
interface. To support Ultra ATA66/100 Hard disk, a specific cable (maximum
length— 45 cm) is available.

• Floppy disk drive interface: Single 2.88 MB, 1.44MB, 1.2MB, 720KB, or
360KB floppy disk drive.

• Serial ports: Four high-speed 16C550 compatible UARTs with 16-byte FIFO
buffer. Up to 115Kbps in speed. One port supports RS232/422/485 function.

• Parallel port: One IEEE1284 compatible bi-directional ports. Supports
SPP/ECP/EPP.

• IrDA: Supports Serial Infrar ed (SIR) and Amplitude Shift Keyed IR (ASKIR)
interface.

• USB: Supports two USB 1.1 compatible ports.

5

• Audio: Onboard CMI8738 chipset, Supports 5.1 channel sound, that include
LINEOUT, REAR, and CENTER/BASS.

• Watchdog Timer: Software programmable— enable/disabled. Timer
interval is 1~255 seconds. System Reset will be ge nerated while time out.

• VGA Controller: Embedded VGA controller. Screen resolution: up to
1600x1200 in 256 Colors at 85Hz refresh.

• LCD Controller: Onboard SP1015 LCD controller. Screen res olution: up to
1024x768 36bits.

• Intel 82801BA embedded LAN: IEEE 802.3u Auto-Negotiation support for
10BASE-T/100BASE-TX. Fast bac k-to-back transmission support with
minimum interframe spacing. Connected to your LAN thro ugh RJ45 connector.

• Keyboard Controller: 8042 compatible for keyboard and PS/2 mouse

• 4 digital inputs and 4 digital outputs

• 4 channels of composite video input

• FireWire: TSB43AA22 provides the digital and analog transceiver functions to

implement a two-port node in a cable-based IEEE 1394. Provides two P1394a
fully compliant cable ports at 100/200/400 megabits per second (Mbits/s).

• CardBus: Compliant with CardBus/PCMCIA PC Card 95/97 standard
specification.

• Power Consumption: 5V/4.9A and 12V/0.22A, as running by CELERON-850,
256 SDRAM.

• Operating Temperature: 0℃ ~ 60℃ (CPU needs cooler).

1.2 Package Contents

NOVA-7830 package includes the following items:

• NOVA-7830 Mobile CPU based Single board computer.

• FDD cable x 1

• HDD cable x 1

• Keyboard / Mouse adapter Y cable x 1

• RS-232 serial port cable x 2

• RS-232/422/485 serial port cable x 1

• Printer port cable x 1

• AUDIO port cable x 1

• 4-channel composite video cable x 2

• User manual x 1

• IEEE 1394 cable X1

6

Chapter 2 Installation

This chapter describes how to install NOVA-7830. Read the unpacking
information carefully. The jumpers and switches setting for NOVA-7830
configuration, such as CPU type selection, system clock setting, and watchdog
timer, are also included.

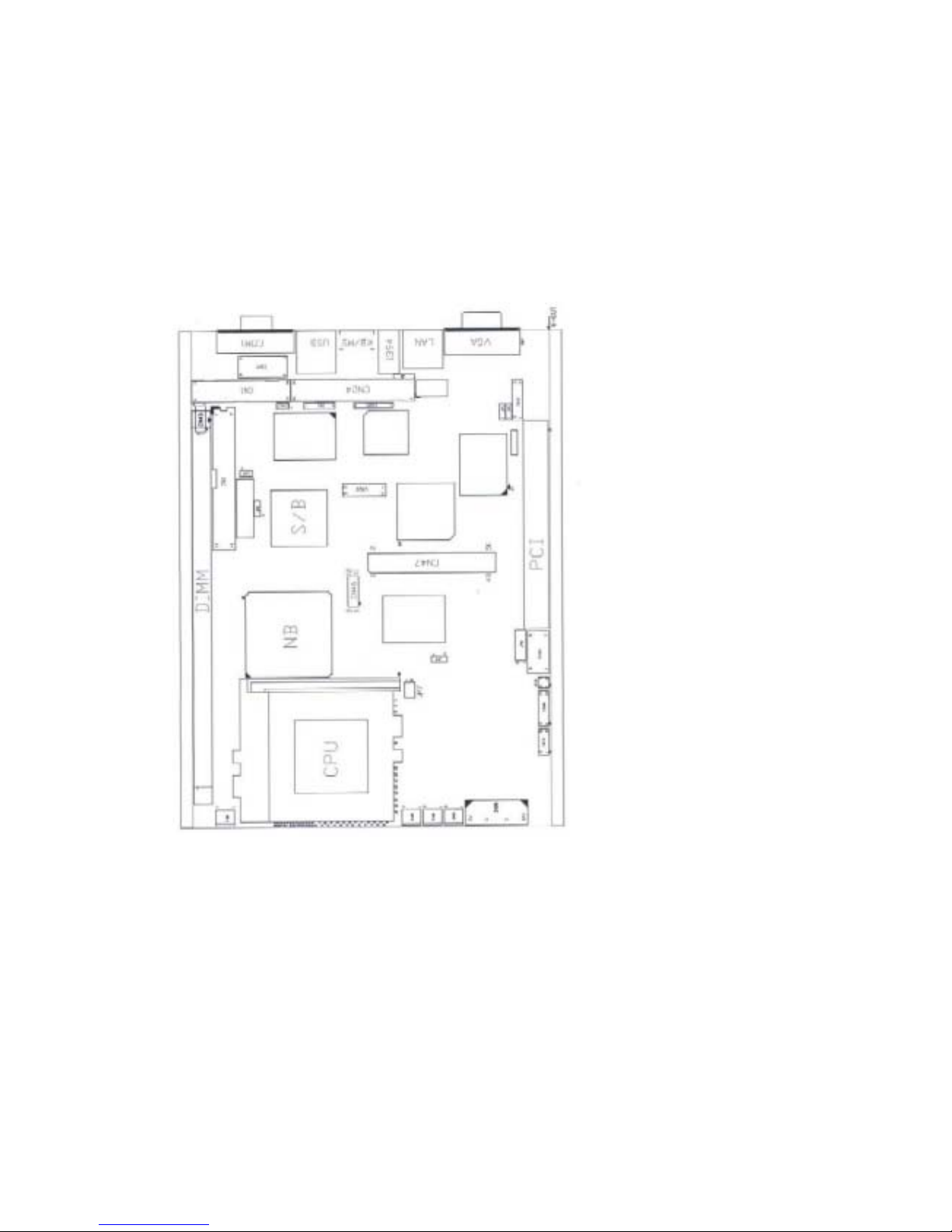

2.1 NOVA-7830 Layout

7

2.2 Clear CMOS Setup

CMOS RAM holds the board’s configuration data, which has to be se t by means of
system BIOS. To clear CMOS RAM, close JP1 for about 3 seconds, and then open
it again. It will then resume normal operation.

• JP1: Clear CMOS Setup

JP1 Description
1-2 Keep CMOS Setup

(Normal Operation)

2-3 Clear CMOS Setup

2.3 Compact Flash Setting

Set the operating mode of Compact Flash disk. This is similar to the operation of
hard disk.

• JP2: Compact Flash Setting

JP2 Description

OPEN Slave

Close Master

2.4 Audio Amplifier Select

This jum per is for the setting of Audio Amplifier.

• JP5: Audio L_Line out select

JP5 Description

1-2 OFF

2-3 ON

• JP6: Audio R_Line out select

JP6 Description

1-2 OFF

2-3 ON

8

2.5 LCD Panel Shift Clock/Panel VCC Select

This jumper is for the setting of L CD panel shift clock mode and panel power
voltage.

• JP7: LCD Panel Shift Clock

JP7 Description

1-3 Inverted

3-5 Normal

• JP7: Panel VCC

JP7 Description

2-4 +5 V

4-6 +3.3 V

2.6 COM Port RI and Voltage Selection

JP8 is setting COM3, 4 RI and Voltage.

• JP8: Set pin 9 of COM3 as signal RI or voltage source

JP8 Description

10-12 COM3 RI Pin Use RI

8-10 COM3 RI Pin Use Voltage

• JP8: Set pin 9 of COM4 as signal RI or voltage source

JP8 Description

9-11 COM4 RI Pin Use RI

7-9 COM4 RI Pin Use Voltage

• JP8: Set pin 9 of COM3 as +5V or 12V

JP8 Description

2-4 COM3 RI Pin Use Voltage +5V
4-6 COM3 RI Pin Use Voltage +12V

• JP8: Set pin 9 of COM4 as +5V or 12V

JP8 Description

1-3 COM4 RI Pin Use Voltage +5V
3-5 COM4 RI Pin Use Voltage +12V

9

2.7 COM4 RS232/RS422 (485) Selection

• JP9: Selection COM4 is RS232/RS422 (485)

JP9 Description
1-2 RS232

2-3 RS422/485

• JP10: Selection COM4 is RS422/RS485

Description

JP10 1-3 2-4

RS422 OFF OFF

RS485 ON ON

10

Chapter 3 Connection

This chapter describes how to connect peripherals, s w itches and indicators to the
NOVA-7830 board. The following table lists the connectors on NOVA-7830.

Label Description

CDIN1 CD-IN Connector

CN1 Parallel Port Connector
CN2 IDE Connector
CN7 SUS LED

CN8, 11 Serial Port 1, 2

CN12 ATX Power On/Off Button Connector
CN16 DIN Connector for Keyboard/Mouse
CN20 External Switch and Indicators

CN21, 36 IEEE-1394 Connector

CN24 FDD Connector
CN26 ATX Power Connector
CN30 Power Connector
CN32 Audio Connector
CN33 4 Channels of composite video in Connector
CN35 USB Connector
CN37 LAN Connector
CN43 Compact Flash
CN44 CardBus/PCMCIA Connector
CN45 Digital I/O
CN47 LCD Connector

CN48, 49 Serial Port 3,4

CON1 VGA Connector

FAN1, 3 Fan Connectors

IR1 IrDA Connector

PCI1 Specific PCI Slot

11

1.3 Floppy Disk Drive Connector

NOVA-7830 board equipped with a 34-pin daisy-chain driver connector cable.

• CN24: FDD Connector

PIN Description PIN Description

1 GROUND 2 REDUCE WRITE
3 GROUND 4 N/C
5 GROUND 6 DS1#
7 GROUND 8 INDEX#

9 GROUND 10 MOTOR ENABLE A#
11 GROUND 12 DRIVE SELECT B#
13 GROUND 14 DRIVE SELECT A#
15 GROUND 16 MOTOR ENABLE B#
17 GROUND 18 DIRECTION#
19 GROUND 20 STEP#
21 GROUND 22 WRITE DATA#
23 GROUND 24 WRITE GATE#
25 GROUND 26 TRACK 0#
27 GROUND 28 WRITE PROTECT#
29 N/C 30 READ DATA#
31 GROUND 32 SIDE 1 SELECT#
33 N/C 34 DISK CHANGE#

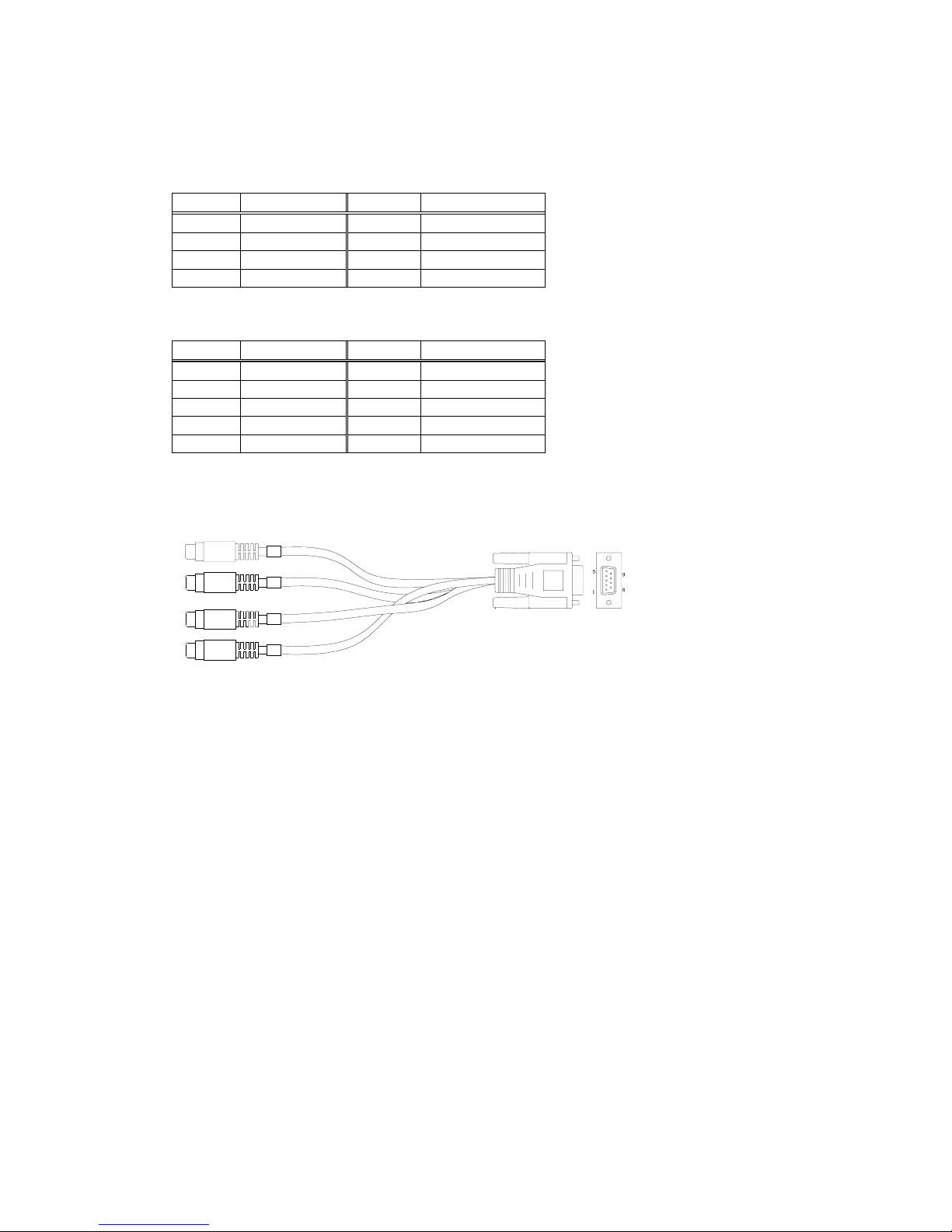

1.4 Video IN Connector

NOVA-7830 is equipped witch 4 channels of co mposite video connector (BT878A).

• CN33: Capture IN

PIN Description PIN Description

1 AVIN0 2 GROUND
3 AVIN1 4 GROUND
5 AVIN2 6 GROUND
7 AVIN3 8 GROUND

12

1.5 Ultra ATA33/66/100 IDE Disk Drive Connector

Yo u can attach one IDE (Integrated Device Electronics) hard disk drives to the
NOVA-7830 IDE controller.

• CN2: Primary IDE Connector

PIN Description PIN Description

1 RESET# 2 GROUND
3 DATA 7 4 DATA 8
5 DATA 6 6 DATA 9
7 DATA 5 8 DATA 10

9 DATA 4 10 DATA 11
11 DATA 3 12 DATA 12
13 DATA 2 14 DATA 13
15 DATA 1 16 DATA 14
17 DATA 0 18 DATA 15
19 GROUND 20 N/C
21 N/C 22 GROUND
23 IOW# 24 GROUND
25 IOR# 26 GROUND
27 CHRDY 28 GROUND
29 DACK 30 GROUND
31 INTERRUPT 32 GROUND
33 SA1 34 P66DET
35 SA0 36 N/C
37 HDC CS0# 38 HDC CS1#
39 HDD ACTIVE# 40 GROUND

13

1.6 Parallel Port

This port is usually connected to a printer. NOVA-7830 includes an on-board
parallel port, and accessed thr ough a 26-pin flat-cable connector CN1. Three
modes— SPP, EPP and ECP, are supported.

• CN1: Parallel Port Connector

PIN Description PIN Description

1 STROBE# 14 AUTO FORM FEED #
2 DATA 0 15 ERROR#
3 DATA 1 16 INITIALIZE
4 DATA 2 17 PRINTER SELECT LN#
5 DATA 3 18 GROUND
6 DATA 4 19 GROUND
7 DATA 5 20 GROUND
8 DATA 6 21 GROUND

9 DATA 7 22 GROUND
10 ACKNOWLEDGE 23 GROUND
11 BUSY 24 GROUND
12 PAPER EMPTY 25 GROUND
13 PRINTER SELECT 26 N/C

1.7 USB Port Connector

NOVA-7830 provides two USB ports (USB 1.1 compliant).

• CN35: USB 8-Pin Header

PIN Description

A1 VCC
A2 DATA0­A3 DATA0+
A4 GROUND
B1 VCC
B2 DATA0­B3 DATA0+
B4 GROUND

14

1.8 Serial Ports

NOVA-7830 offers four high speed NS16C550 compatible UARTs with
Read/Receive 16 byte FIFO in each serial port.

• CN8: D_SUB 9-PIN Connector

PIN Description

1 DATA CARRIER DETECT (DCD)
2 RECEIVE DATA (RXD)
3 TRANSMIT DATA (TXD)
4 DATA TERMINAL READY (DTR)
5 GROUND
6 DATA SET READY (DSR)
7 REQUEST TO SEND (RTS)
8 CLEAR TO SEND (CTS)
9 RING INDICATOR (RI)

• CN11: 10-pin Connector

PIN Description

1 DATA CARRIER DETECT (DCD)
2 RECEIVE DATA (RXD)
3 TRANSMIT DATA (TXD)
4 DATA TERMINAL READY (DT R)
5 GROUND
6 DATA SET READY (DSR)
7 REQUEST TO SEND (RTS)
8 CLEAR TO SEND (CTS)
9 RING INDICATO R (RI)

10 N/C

• CN48: 10-pin Connector

PIN Description

1 DATA CARRIER DETECT (DCD)
2 RECEIVE DATA (RXD)
3 TRANSMIT DATA (TXD)
4 DATA TERMINAL READY (DT R)
5 GROUND
6 DATA SET READY (DSR)
7 REQUEST TO SEND (RTS)
8 CLEAR TO SEND (CTS)
9 RING INDICATO R (RI)

10 N/C

15

• CN49: 14-pin Connector

PIN Description

1 DATA CARRIER DETECT (DCD)
2 RECEIVE DATA (RXD)
3 TRANSMIT DATA (TXD)
4 DATA TERMINAL READY (DT R)
5 GROUND
6 DATA SET READY (DSR)
7 REQUEST TO SEND (RTS)
8 CLEAR TO SEND (CTS)

9 RING INDICATO R (RI)
10 N/C
11 TX+ (RS422/485)
12 TX- (RS422/485)
13 RX+ (RS422/485)
14 RX- (RS422/485)

1.9 Power Connector

The NOVA-7830 has one power connector for power supply.

• CN30: Power Supply Connector

PIN Description

1 VCC12V
2 GROUND
3 GROUND
4 VCC5V

• CN26: ATX Power Connector

PIN Description

1 VCC5VSB
2 PS_ON
3 GROUND

1.10 Keyboard Connector

NOVA-7830 pro vides 6-PIN MIN-DIN keyboard/mouse connector.

• CN16: 6-pin Mini-DIN Keyboard/Mouse Connector

PIN Description

1 KEYBOARD DATA
2 MOUSE DATA
3 GROUND
4 +5V
5 KEYBOARD CLOCK
6 MOUSE CLOCK

16

1.11 IrDA Infrared Interface Port

NOVA-7830 has a built-in IrDA port which supports Serial Infrared (SIR) or
Amplitude Shift Keyed IR (ASKIR) interface. When IrDA port is used, you have to
set SIR or ASKIR model in COM 2 of Peripheral Setup in BIOS. Normal RS-232
COM 2 will then be disabled.

• IR1: IrDA Connector

PIN Description

1 VCC5V
2 N/C
3 IR-RX
4 GROUND
5 IR-TX

1.12 Fan Connector

NOVA-7830 provides CPU cooling fan connector and system fan connector. CPU
connectors can supply 12V/500mA. The fan rotation is in full speed.

• FAN1, FAN3: Fan Connector

PIN Description

1 SENSOR
2 12V
3 GROUND

17

1.13 Audio Connectors

NOVA-7830 has a built-in AUDIO c hipset (CMEDIA CMI8738LX); and a connector
directly connected to the pin-heade r (CN32). The Audio chipset can support 5.1
channel sounds that include LINEOUT, REAR, and CENTER/BASS.

• CN32: Audio Connector (2x8_2.00mm)

PIN Description PIN Description

1 LINEOUT_L 2 GROUND
3 LINEOUT_R 4 GROUND
5 CENTER 6 BASS
7 GROUND 8 GROUND
9 LININ_L 10 LINEIN_R

11 GROUND 12 GROUND
13 REAR_L 14 REAR_R
15 MIN_IN 16 GROUND

• CDIN1: CD-IN

PIN Description

1 CD LEFT SIGNAL
2 GROUND
3 GROUND
4 CD RIGHT SIGNAL

1.14 VGA Connector

NOVA-7830 built-in 15-pin VGA connector directly to your CRT monitor.

• CON1: 15-pin Female Connector

PIN Description PIN Description

1 RED 2 GREEN
3 BLUE 4 N/C
5 GROUND 6 GROUND
7 GROUND 8 GROUND

9 VCC 10 GROUND
11 N/C 12 DDC DAT
13 HSYNC 14 VSYNC
15 DDCCLK

18

1.15 LAN RJ45 Connector

NOVA-7830 is equipped with built-in one 10/100Mbps Etherne t Controller. You
can connect it to your LAN through RJ45 LAN connector. The pin assignments are
as below:

• CN37: Intel 82562ET LAN RJ45 Connector

PIN Description PIN Description

1 TX+ 5 N/C
2 TX- 6 RX­3 RX+ 7 N/C
4 N/C 8 N/C

1.16 Compact Flash Connector—TYPE II

NOVA-7830 supports one Compact Flash socket provided from IDE2. You must
set the jumper to avoid the conflict (like master or slave).

• CN43: Compact Flash Socket

PIN Description PIN Description

1 GROUND 26 VCC-IN

CHECK2
2 DATA3 27 DATA11
3 DATA4 28 DATA12
4 DATA5 29 DATA13
5 DATA6 30 DATA14
6 DATA7 31 DATA15
7 HDC_CS0# 32 HDC_CS1#
8 N/C 33 N/C
9 GROUND 34 IOR#

10 N/C 35 IOW#
11 N/C 36 N/C
12 N/C 37 INTERRUPT
13 +5V 38 +5V
14 N/C 39 CSEL
15 N/C 40 N/C
16 N/C 41 RESET#
17 N/C 42 IORDY
18 SA2 43 N/C
19 SA1 44 +5V
20 SA0 45 HDD_ACTIVE#
21 DATA0 46 N/C
22 DATA1 47 DATA8
23 DATA2 48 DATA9
24 N/C 49 DATA10
25 VCC-IN CHECK2 50 GROUND

19

1.17 External Switches and Indicators

There are several external switche s and indicators for monitoring and c ontro lling
your CPU board. All the functions are in the CN7, CN12, and CN20 connector.

• Suspend LED Connector (CN7)

PIN Description

1 LED+
2 LED-

• ATX Power On/Off Button Connector (CN12)

PIN Description

1 PWR_BUTTON+
2 GROUND

• CN20: Multi Panel

PIN Description PIN Description

1 POWER-LED + 2 SPEAKER ­3 N/C 4 N/C
5 POWER-LED - 6 N/C
7 KEYLOCK+ 8 SPEAKER +5V

9 KEYLOCK- 10 RESET SW
11 GROUND 12 RESET SW GND
13 HDD LED+ 14 HDD LE D -

1.18 IEEE-1394 Connector

NOVA-7830 is equipped witch IEEE1394 controller (TI TSB43AA22). You can
connect it to your 1394 device through CN21, 36 connector. The pin assignments
are as follows:

• CN21: 1394 Connector

PIN Description PIN Description

1 VCC12V 2 GROUND

3 TPB- 4 TPB+

5 TPA- 6 TPA+

7 NC/FG 8 NC/FG

• CN36: 1394 Connector

PIN Description PIN Description

1 VCC12V 2 GROUND

3 TPB- 4 TPB+

5 TPA- 6 TPA+

20

1.19 CardBus/PCMCIA Connector

NOVA-7830 has a built-in CardBus/PCMCIA interface connector.

• CN44: CardBus/PCMCIA Connector

PIN Description PIN Description

1 GROUND 2 D3
3 D4 4 D5
5 D6 6 D7
7 CE1# 8 A10

9 OE# 10 A11
11 A9 12 A8
13 A13 14 A14
15 WE# 16 READY
17 VCC 18 VCC
19 A16 20 A15
21 A12 22 A7
23 A6 24 A5
25 A4 26 A3
27 A2 28 A1
29 A0 30 D0
31 D1 32 D2
33 WP 34 GROUND
35 GROUND 36 CD1#
37 D11 38 D12
39 D13 40 D14
41 D15 42 CE2#
43 VS1# 44 IORD#
45 IOWR# 46 A17
47 A18 48 A19
49 A20 50 A21
51 VCC 52 VCC
53 A22 54 A23
55 A24 56 A25
57 VS2# 58 RESET
59 WAIT# 60 INPACK#
61 REG# 62 BVD2
63 BVD1 64 D8
65 D9 66 D10
67 CD2# 68 GROUND
69 GROUND 70 GROUND

21

1.20 Digital I/O

One of the characteristics of digital circu it is its fast resp on se to high or l ow signal.
This kind of response is highly nece ssary for harsh and critic al industrial operating
environment. That’s why we design 4-bit digital inputs and 4-bit digital outputs
on NOVA-7830.

Digital Input and Output are control signals in general. You can use these signals
to control external devices that needs On/Off circuit or TTL devices. We provide
"BIOS Call" for DI O's reading.

READ WRITE

Bit0 DIN0 Bit0 DO0
Bit1 DIN1 Bit1 DO1
Bit2 DIN2 Bit2 DO2
Bit3 DIN3 Bit3 DO3

• CN45: Digital I/O

PIN Description PIN Description

1 GROUND 2 VCC5V
3 DO3 4 DO2
5 DO1 6 DO0
7 DIN3 8 DIN2
9 DIN1 10 DIN0

22

1.21 LCD Panel Connector

NOVA-7830 provides a 2 x 25-pin connector for the LCD flat panel interface.
NOVA-7830 comes to support TFT LCD panels at following display options:

Video Display type

Resolution Example

TFT VGA 640x480, 18bits Toshiba LTM10C209H
TFT SVGA 800x600, 18bits Toshiba LTM12C275C
TFT XVGA 1024x768, 18bits L.G LM151X2

This is a reference table only, may support more type panels.

• CN47: LCD Panel Connector for SP1015.

PIN Description PIN Description

1 N/C 2 RB2
3 BB2 4 RB3
5 BB3 6 RB4
7 BB4 8 RB5

9 BB5 10 RB6
11 BB6 12 RB7
13 BB7 14 RA5
15 RA7 16 RA6
17 GB2 18 RA4
19 GB3 20 RA2
21 RA3 22 GA6
23 GA5 24 GA4
25 GA7 26 GA3
27 BA7 28 GA2
29 Panel-VCC 30 Panel-VCC
31 GB4 32 GB5
33 BA4 34 BA6
35 BA3 36 BA5
37 BA2 38 GB6
39 RM 40 GB7
41 Shift Clock 42 E nable Ba cklight
43 FPVDD 44 FLM
45 Enable VEE 46 LP
47 GND 48 GND
49 Inverter VCC 50 Inverter VCC

23

Chapter 4 AMI BIOS Setup

1.1 Introduction

This chapter discusses the Setup program built into the BIOS which allows users
to configure the system. This configuration is then stored in battery-backed
CMOS RAM so that Setup information is retained whilst the power is off.

1.2 Starting Setup

The BIOS is immediately active when you turn on the computer. While the BIOS
is activated, the Setup program can be entered in one of two ways:

i. By pressing <Del> immediately after switching the system on, or

ii. By pressing the <Del> key when the following message appears briefly at

the bottom of the screen during the POST (Power On Self-Te st).

Press DEL to run SETUP.

1.3 Setup Summary

Field Description

Standard CMOS Setup To change time, date, hard disk type, etc.
Advanced CMOS Setup To configure system options.
Advanced Chipset Setup To configure chipset features.
Power Management Setup Power Management Setup to configure power

management features.
PCI / Plug and Play Setup Configures PCI / Plug and Play features.
Peripheral Setup Configures peripheral features.
Hardware Monitor Setup Configures hardware monitor features.
Auto-Detect Hard Disks

Selecting these options allow the user to configure

the drive named in the option. Select Auto-Detect

Hard Disks to allow AMIBIOS to automatically

configure the drive. A list of drive parameters that

appears on the scree n.
Change User Password Change the user password.
Change Supervisor
Password

Change the supervisor pass w ord.

Auto Configuration with
Optimal Settings

Load configuration settings that ensure the highest

performance.
Auto Configuration with
Fail Safe Settings

Load fail-safe configuration settings.

24

Save Settings and Exit Write the current settings to CMOS and exit.
Exit Without Saving

Exit without saving the current settings.

AMIBIOS HIFLEX SETUP UTILITY – VERSION 1.52

©2001 American Megatrends, Inc. All Rights Res erved

NOVA-7830 V1.0 (02/11/2003)

Standard CMOS Setup

Advanced CMOS Setup

Advanced Chipset Setup

Power Management Setup

PCI / Plug and Play Setup

Peripheral Setup

Hardware Monitor Setup

Auto-Detect Hard Disks

Change User Password

Change Supervisor P a ssword

Auto Configuration with Optimal Settings

Auto Configuration with Fail Safe Setting s

Save Settings and Exit

Exit Without Saving

Standard CMOS Setup for changing time, date, hard disk type, etc.

ESC: Exit : Sel F2/F3: Color F10: Save & Exit↑↓

Figure 1: The Main Menu

25

1.4 Standard CMOS Setup Selections

AMIBIOS SETUP – STANDARD CMOS SETUP

©2001 American Megatrends, Inc. All Rights Reserved

Date (mm/dd/yyyy): Tue Mar 19, 2002 Base Memory: 639 KB

Time (hh/mm/ss): 17:18:10 Extd M emory: 247 MB

Floppy Drive A: Not In s ta lled
Floppy Drive B: Not Installed

LBA Blk PIO 32Bit

Type Size Cyln Head WPcom Sec Mode Mode Mode Mode

Pri Master: Auto On
Pri Slave: Auto On
Sec Master: Auto On
Sec Slave: Auto On

Boot Sector Virus Protection Disabled

Month: Jan – Dec ESC: Exit ↑↓:Sel
Day: 01 – 31 PgUp/PgDn: Modify

Year: 1980 – 2099 F 1: Help F2/F3: Color

Figure 2: Standard CMOS Setup

Date (mm/dd/yyyy)

Set the system date.

Time (hh/mm/ss)

Set the system time.

Floppy A, B

Move the cursor to these fields and select the floppy type .

Primary/Secondary Master/Slave LBA Mode

LBA (Logical Block Addressing) is a new IDE HDD access method to develop to
overcome the 528-megabyte capacity bottleneck. If your IDE hard disk capacity
is greater than 528MB, AMIBIO S can enable this LBA mode feature. The option is
only for Primary Master IDE LBA mode .

Primary/Secondary Master/Slave Block Mode

If your hard disk drive supports IDE block transfer mode, enable this option for a
faster IDE hard disk drive transfer rate. The option is only for Primary Master
Block mode.

Primary/Secondary Master/Slave PIO Mode

This option enables Primary Master IDE PIO mode on the IDE, whic h can set
proper cycle timings. The cycle timing between the IDE PIO mode value and IDE
cycle timing is shown below:
Mode 0 -> Timing (600ns) Mode 1 -> Timing (383ns)
Mode 2 -> Timing (240ns) Mode 3 -> Timing (180ns)
Mode 4 -> Timing (120ns) Mode 5 -> Timing (60ns)

26

Primary/Secondary Master/Slave 32Bit Mode

This option enables Primary Master IDE 32-bit data transfe rs on the IDE data port.
If disabled, 16-bit data transfer is used by the BIOS.32-bit data transfers can only
be enabled if IDE prefetch mo de is also enabled.

Boot Sector Virus Protection

When this option is enabled, AMIBIOS issues a warning when any program or
virus issues a Disk Format command or attempts to write to the boot sector of the
hard disk drive. The settings are Disabled, Enabled.

Base/Extd Memory

Displays the amount of conv entional/extended memory detected dur ing boot up.

1.5 Advanced CMOS Setup Selections

AMIBIOS SETUP – ADVANCED CMOS SETUP

©2001 American Megatrends, Inc. All Rights Reserved

Quick Boot Enabled
1st Boot Device Disabled
2nt Boot Device Disabled
3rd Boot Device Disabled
Try Other Boot Devices Yes
LAN Boot ROM Disabled
Floppy Access Control Read-Write
Hard Disk Access Control Read-Write
S.M.A.R.T. for Hard Disks Disabled
BootUP Num-Lock On
Floppy Drive Seek Disabled
PS/2 Mouse Support Enabled
System Keyboard Present
Primary Display VGA/EGA
Password Check Setup
Boot To OS/2 No
Wait For ‘F1’ If Error Enabled
Hit ‘DEL’ Message Display Enabled
L1 Cache WriteBack
L2 Cache WriteBack
System BIOS Cacheabled Disable
C000 16K Shadow Enabled
C400 16K Shadow Enabled
C800 16K Shadow Enabled
CC00 16K Shadow Disabled
D000 16K Shadow Disabled
D400 16K Shadow Disabled
D800 16K Shadow Disabled
DC00 16K Shadow Disabled

Available Op tions:
Disabled
> Enabled

ESC: Exit ↑↓: Sel
PgUp/PgDn: Modify

F1: Help F2/F3: Color

Figure 3: Advanced CMOS Setup

Quick Boot

When Q uick Boot is selected, DRAM testing function will be disabled.

1st Boot Device

This option sets the type of device fo r the first boot drives that the AMIBIOS
attempts to boot from after AMIBIOS POST completes. The settings are Disabled,
IDE-0, IDE-1, IDE-2, IDE-3, Floppy, ARMD-FDD, ARMD-HDD, CDROM, and SCSI.

27

2nd Boot Device

This option sets the type of device for the second boot driv es that the AMIBIOS
attempts to boot from after AMIBIOS POST completes. The settings are Disabled,
IDE-0, IDE-1, IDE-2, IDE-3, Floppy, ARMD-FDD, ARMD-HDD, and CDROM.

3rd Boot Device

This option sets the type of device for the third boot drives that the AMIBIOS
attempts to boot from after AMIBIOS POST completes. The settings are Disabled,
IDE-0, IDE-1, IDE-2, IDE-3, Floppy, ARMD-FDD, ARMD-HDD, and CDROM.

Try Other Boot Devices

Set this option to Yes to instruct AMIBIOS to attempt to boot from any other drive
in the system if it cannot find a boot drive among the drives specified in the 1st
Boot Device, 2nd Boot Device, 3rd Boot Device, 4

th

Boot Device options. The

settings are Yes or No.

Floppy Access Control

This option specifies the read/write access that is set when booting from a floppy
drive.

Hard Disk Access Control

This option specifies the read/write access that is set when booting from a hard
disk drive.

S.M.A.R.T. for Hard Disks

Self -Monitoring, Analysis and Reportin g Technology. This option can help the
BIOS to warn the user of a possible device failure and give the user a chance to
back up the device before the failure actually happens. The settings are Auto,
Disabled, Enabled.

Floppy Drive Seek

Set this option to Enabled to specif y that f loppy drive A: will perform a Seek
operation at system boot. The settings are Enabled or Disabled.

BootUp Num-Lock

When this option is selected, Num Lock is turned off when the system is powered
on so the user can use the arrow keys on both the numeric keypad and the
keyboard.

PS/2 Mouse Support

When this option is enabled, BIOS supports a PS/2- type mouse.

System Keyboard

This option does not specify if a keyboard is attached to the computer. Rather, it
specifies if error mess ages are disp layed if a keyboard is not attached. This
option permits you to configure workstation with no keyboard. The settings are
Absent, Present.

Primary Display

Select this option to configure the type of monitor attached to the computer. The
settings are Monochrome, Color 40x25, Color 80x25,VGA/PGA/EGA, or Not Ins tall.

Password Check

This item allows you Setup/Alw ays Password Check.

28

Boot To OS/2

Set this option to Enabled if running OS/2 operating sys tem and using more than
64MB of system memory o n the motherboard. The settings are Disabled or
Enabled.

Wait For 'F1' If Error

If this option is enabled, AMIBIOS waits for the end user to pr ess <F1> before
continuing. If this option is disabled, AMIBIOS continues the boot process without
waiting for <F1> to be pressed. T he settings are Disabled or Enabled.

Hit 'DEL' Message Display

Disabling this option prevents "Hit <DEL> if you want to run Setup" from
appearing when the system boots. T he settings are Disabled or Enabled.

L1 Cache

The option includes: Disable/WriteThru/WriteBack the internal cache memory in
the processor.

L2 Cache

The option includes: Disable/WriteThru/WriteBack the secondary cache memory.

System BIOS Cacheable

When this option is set to Enabled, the System ROM area from F0000-FFFFF is
copied (shadowed) to the RAM for faster execution.

C000, 16k Shadow

When this option is set to Enabled, the Video ROM area from C0000-C3FFF is
copied (shadowed) to the RAM for faster execution.

Disabled: The contents of the video ROM are not copied to the RAM.
Cached: The contents of the video RO M area from C0000h - C3FFFh are copied
from the ROM to the RAM and can be written to or read from the cache memory.
Enabled: The contents of the video ROM ar ea from C0000h - C3FFFh are copied
(shadowed) from the ROM to the RAM for faster execution.

C400, 16k Shadow

When this option is set to Enabled, the Video ROM area from C4000-C7FFF is
copied (shadowed) to the RAM for faster execution.
Disabled: The contents of the video ROM are not copied to the RAM.
Cached: The contents of the video RO M area from C4000h-C7FFFh are copied
from the ROM to the RAM and can be written to or read from the cache memory.
Enabled: The contents of the video ROM ar ea from C4000h-C7FFFh are copied
(shadowed) from the ROM to the RAM for faster execution.

C800, 16k Shadow

These options enable shadowing of the contents of the ROM area named in the
option title. The settings are Enable Disable, Cached. The ROM area that is not
used by ISA adapte r cards will be allocated to PC I adapter cards.

CC00, 16k Shadow

These options enable shadowing of the contents of the ROM area named in the
option title. The settings are Enable Disable, Cached. The ROM area that is not
used by ISA adapte r cards will be allocated to PC I adapter cards.

29

D000, 16k Shadow

These options enable shadowing of the contents of the ROM area named in the
option title. The settings are Enable Disable, Cached. The ROM area that is not
used by ISA adapte r cards will be allocated to PC I adapter cards.

D400, 16k Shadow

These options enable shadowing of the contents of the ROM area named in the
option title. The settings are Enable Disable, Cached. The ROM area that is not
used by ISA adapte r cards will be allocated to PC I adapter cards.

D800, 16k Shadow

These options enable shadowing of the contents of the ROM area named in the
option title. The settings are Enable Disable, Cached. The ROM area that is not
used by ISA adapte r cards will be allocated to PC I adapter cards.

DC00, 16k Shadow

These options enable shadowing of the contents of the ROM area named in the
option title. The settings are Enable Disable, Cached. The ROM area that is not
used by ISA adapte r cards will be allocated to PC I adapter cards.

1.6 Advanced Chipset Setup Selections

AMIBIOS SETUP – ADVANCED CHIPSET SETUP

©2001 American Megatrends, Inc. All Rights Reserved

Memory Hole Disabled
SDRAM Timing by SPD Disabled
DRAM Refresh 15.6uS
DRAM Cycle time (SCLKs) 7/9
CAS# Latency (SCLKs) 3
RAS to CAS delay (SCLKs) 3
SDRAM RAS# Precharge (SCLKs) 3
Internal Graphics Mode Size 1MB
Display Cache Window Size 64MB
AGP Aperture Window 64MB
USB Function All USB Port
USB Device Legacy Support Disabled
Port 64/60 Emulation Disabled

Available Op tions:
> Disabled
Enabled

ESC: Exit ↑↓: Sel
PgUp/PgDn: Modify

F1: Help F2/F3: Color

Figure 4: Advanced Chipset Setup

Memory Hold

This field allows you to reserve an address space for ISA devices that require it.
Configuration options: [Disabled] and [15MB-16MB]

SDRAM Timing by SPD

This sets the optimal timings for items "DRAM Refresh", "DRAM Cycle time",
"CAS# Latency", "RAS to CAS delay" and "SDRAM RAS# Precharge", depending
on the memory modules that you are using.

30

DRAM Cycle time (SCLKs)

This feature controls the number of SDRAM clocks used for SDRAM parameters
Tras and Tr c. Tras specifies the minimum clocks required between active
command and precharge command. Trc specifies the minimum clocks required
between active command and re-active command.

CAS# Latency (SCLs)

This controls the latency between the SDRAM read command and the time that
the data actually becomes available.

RAS to CAS delay (SCLKs)

This controls the latency between the SDRAM active command and the read/write
command.

SDRAM RAS# Precharge (SCLKs)

This controls the idle clocks after issuing a precharge command to the SDRAM.

Display Cache Window Size

This feature allows you to select the size of mapped memory for Display Cache
data.

AGP Aperture Window

This feature allows you to select the size of mapped memory for AGP graphic data.

USB Function

Select Enabled if your system contains a Universal Serial Bus (USB) controller and
you have USB peripherals.

USB Device Legacy Support

This motherboard support Universal Serial Bus (USB) devices. If detected, USB
controller legacy m ode will be enabled. If not de tected, USB controller legacy
mode will be disa bled.

31

1.7 Power Management Setup Selections

AMIBIOS SETUP – POWER MANAGEMENT SETUP

©2001 American Megatrends, Inc. All Rights Reserved

ACPI Aware O/S No
Sleep State S1/POS
USB KB/MS wakeup From S3 Disable
Power Management/APM Enabled
Suspend Time Out Disabled
Throttle Slow Clock Temperature 65℃/149℉

Throttle Slow Clock Ratio 50.0%
Keyboard & PS/2 Mouse Monitor
FDC/LPT/COM Ports Monitor
SB & MSS Audio Ports Ignore
MIDI Ports Ignore
ADLIB Ports Ignore
Primary Master IDE Monitor
Primary Slave IDE Ignore
Secondary Master IDE Monitor
Secondary Slave IDE Ignore
System Thermal Ignore
Power Button Function ON/Off
Restore on AC/Power Loss Last State
Wake Up On Ring Disabled
Wake Up On LAN Disabled
Wake Up On PME Disabled
Resume By Alarm Disabled
Alarm Date 15
Alarm Hour 12
Alarm Minute 30
Alarm Second 30
Power Type Select AT

Available Op tions:
> No
Yes

ESC: Exit ↑↓: Sel
PgUp/PgDn: Modify

F1: Help F2/F3: Color

Figure 5: Power Management Setup

ACPI Aware O/S

This feature is switch of ACPI function.

Sleep State

This feature is switch of STR (S3) or POS (S1) function.

USB KB/MS Wakeup from S3

This option set to "Enabled", using USB keyboard or USB mouse can wake up
system when system enters S3 mode.

Power Management/APM

Set this option to Enabled to run APM (Advanced Power Management).

Suspend Time Out

This option specifies the length of a period of syste m inactivity while in Standby
state. When this length of time expires, the computer enters Suspend power
state.

Keyboard & PS/2 Mouse

Enabling the option allow the IRQ input to be monitored for both inactiving for
entering Auot_mode/SMI_mode and activing for e ntering Normal_mode.

32

FDC/LPT/COM Ports

Enabling the option allow the IRQ input to be monitored for both inactiving for
entering Auot_mode/SMI_mode and activing for e ntering Normal_mode.

SB & MSS Audio Ports

Enabling the option allow the IRQ input to be monitored for both inactiving for
entering Auot_mode/SMI_mode and activing for e ntering Normal_mode.

MIDI Ports

Enabling the option allow the IRQ input to be monitored for both inactiving for
entering Auot_mode/SMI_mode and activing for e ntering Normal_mode.

ADLIB Ports

Enabling the option allow the IRQ input to be monitored for both inactiving for
entering Auot_mode/SMI_mode and activing for e ntering Normal_mode.

Primary Master IDE

Enabling the option allow the IRQ input to be monitored for both inactiving for
entering Auot_mode/SMI_mode and activing for e ntering Normal_mode.

Primary Slave IDE

Enabling the option allow the IRQ input to be monitored for both inactiving for
entering Auot_mode/SMI_mode and activing for e ntering Normal_mode.

Secondary Master IDE

Enabling the option allow the IRQ input to be monitored for both inactiving for
entering Auot_mode/SMI_mode and activing for e ntering Normal_mode.

Secondary Slave IDE

Enabling the option allow the IRQ input to be monitored for both inactiving for
entering Auot_mode/SMI_mode and activing for e ntering Normal_mode.

Power Button Function

This option specifies how the power button mounted externally on the compute r
chassis is used.

Wake Up On Ring

Ring Resume From Soft Off

Wake Up On LAN

LAN Resume From Soft Off

Wake Up On PME

PME# Resume From Soft Off

Resume By Alarm

When this option is set enabled, system will according to you set time then
wakeup from soft off mode.

Alarm Date

You can set time for date.

Alarm Hour

You can set time for hour.

Alarm Minute

You can set time for minute.

33

Alarm Second

You can set time for second.

Power Type Select

Select you use power type.

1.8 PCI / Plug and Play Setup Selections

AMIBIOS SETUP – PCI / PLUG AND PLAY SETUP

©2001 American Megatrends, Inc. All Rights Reserved

Plug and Play Aware O/S No
Clear NVRAM on Every Boot No
On Board Audio Controller Enabled
On Board IEEEE1394 Controller Enabled
On Board PCMCIA Controller Enabled
PCI Latency Timer (PCI Clocks) 64
Primary Graphics Adapter External PCI
PCI VGA Palette Snooper Disabled
Allocate IRQ to PCI VGA No
OffBoard PCI IDE Card Auto
OffBoard PCI IDE Primary IRQ Disabled
OffBoard PCI IDE Secondary IRQ Disabled
PCI Slot1 IRQ Priority Auto
PCI Slot2 IRQ Priority Auto
PCI Slot3 IRQ Priority Auto
PCI Slot4 IRQ Priority Auto
DMA Channel 0 PnP
DMA Channel 1

PnP

DMA Channel 3 PnP
DMA Channel 5 PnP
DMA Channel 6 PnP
DMA Channel 7 PnP
IRQ3 PCI/PnP
IRQ4 PCI/PnP
IRQ5 PCI/PnP
IRQ7 PCI/PnP
IRQ9 PCI/PnP
IRQ10 PCI/PnP
IRQ11 PCI/PnP
IRQ14 PCI/PnP
IRQ15 PCI/PnP

Available Op tions:
No
> Yes

ESC: Exit ↑↓: Sel
PgUp/PgDn: Modify

F1: Help F2/F3: Color

Figure 6: PCI / Plug and Play Setup

Plug and Play Aware O/S

If en able, BIOS will configure only PnP ISA boo t devices (i.e. all PnP ISA cards
which ha s boot flag se t). And PnP aware OS will configure all other devices.
When disabled, BIOS will configure all devices.

Clear NVRAM on Every Boot

When this option is set to Yes, system can auto clear NVRAM.

34

PCI Latency Timer (PCI Clocks)

This option specifies the latency timings (in PCI clocks) for PCI devices installed in
the PCI expansion slots. The settings are 32, 64, 96, 128, 160, 192, 224, or 248.

PCI VGA Palette Snoop

If en able, PCI will allow VGA palette signals to go to the ISA bus.

Allocate IRQ to PCI VGA

Set this option to Yes to allocate an IRQ to the VGA device on the PCI bus. The
settings are Yes or No.

PCI Slot1/2/3/4 IRQ Priority

The option specifies the IRQ priority for PCI device installed in the PCI expansion
slot. The settings are Auto, (IRQ ) 3, 4, 5, 7, 9, 10, and 11, in priority order.

DMA Channel 0/1/3/5/6/7

The option allows you to specify the bus type used by each DMA channel. The
settings are PnP or ISA/EISA.

IRQ3/4/5/7/9/10/11/14/15

The option specifies the bus that the specified IRQ line is used on. The option
allows you to reserve IRQs for legacy ISA adapter cards. The option determine if
AMIBIOS should remove an IRQ from the po ol of available IRQs passed to devices
that are configurable by the system BIOS. The available IRQ pool is determined
by reading the ESCD NVRAM. If more IRQs must be removed from the pool, the
end user can use the option to reserve the IRQ by assigning an ISA/EISA setting
to it. Onboard I/O is configured by AMIBIOS. All IRQs used by onboard I/O are
configured as PCI/PnP.

35

1.9 Peripheral Setup Selections

AMIBIOS SETUP – PERIPHERAL SETUP

©2001 American Megatrends, Inc. All Rights Reserved

OnBoard Serial PortC 3E8/COM3
Serial Port C IRQ 11
OnBoard Serial PortD 2E8/COM4
Serial Port D IRQ 10
OnBoard FDC Enabled
OnBoard Serial PortA 3F8/COM1
OnBoard Serial PortB 2F8/COM2
Serial PortB Mode Normal
IR Duplex Mode Half Duplex
IR Pin Select IRRX/IRIX
OnBoard Parallel Port 378
Paralled Port Mode Normal
EPP Version N/A
Parallel Port IRQ 3
Parallel Port DMA Channel N/A
On-Chip IDE Both

Available Op tions:
Disabled
3F8/COM1
2F8/COM2
> 3E8/COM3
2E8/COM4

ESC: Exit ↑↓: Sel
PgUp/PgDn: Modify

F1: Help F2/F3: Color

Figure 7: Peripheral Setup

OnBoard FDC

Set this option to Enabled to enable the floppy drive c ontroller on the
motherboard. The se ttings ar e Auto (AMIBIOS automatically determines if the
floppy controller should be enabled), Enabled, or Disabled.

OnBoard Serial Port A/B

This option specifies the base I/O port address of serial port A. The settings are
Auto (AMIBIOS automatically determines the correct base I/O po rt address),
Disabled, 3F8h, 2F8h, 2E8h, or 3E8h.

OnBoard Parallel Port

This option specifies the base I/O po rt address of parallel port on the motherboard.
The settings are Disabled, 378h, 278h, or 3BCh.

Parallel Port Mode

This option specifies the parallel port mode.
The settings are Normal, Bi-Dir, EPP, and ECP.
Normal: The normal parallel port mode is used.
Bi-Dir: Use this setting to support bi-directional transfers on the parallel port.
EPP: The parallel port can be used with devices that adhere to the Enhanced
Parallel Port (EPP) specification. EPP uses the existing parallel port signals to
provide asymmetric bi-directional data transfer driven by the host device.
ECP: The parallel port can be used with devices that adhere to the Extende d
Capabilities Port (ECP) sp ecification. ECP uses the D MA protocol t o achie ve data
transfer rates up to 2.5 Megabits per second. ECP provides symmetric bi­directional communication.

36

Parallel Port IRQ

This option specifies the IRQ used by the parallel port. The settings are Auto,
(IRQ) 5, (IRQ) 7.

Parallel Port DMA Channel

This option is o nly available if the setting for the Parallel Port Mode option is ECP.
This option sets the DMA channel used by the parallel port. The settings are DMA
Channel 0, 1, or 3.

On-Chip IDE

This option specifies the IDE channel used by the onboard IDE c ontroller
The settings are Disabled, Primary, and Secondary.

1.10 Hardware Monitor Setup Selections

AMIBIOS SETUP – HARDWARE MONITOR SETUP

©2001 American Megatrends, Inc. All Rights Reserved

CPU Temperature 31ºC/87ºF
System Temperature 29ºC/84ºF
CPU Fan Speed 6300 RPM
Chassis Fan Speed 0 RPM
Vcore 1.399 V
Vtt 1.501 V
+ 3.3V 3.349 V
+ 5.0V 5.070 V
+12.0V 12.046 V
+5V SB 4.978 V

ESC: Exit ↑↓: Sel
PgUp/PgDn: Modify

F1: Help F2/F3: Color

Figure 8: Hardware Monitor Setup

This setup helps users monitor the NOVA-7830 board on board system voltage
and fan speed. The function is implemented by on board W83627HF chip. The
volta ge monitoring will cov er V core, Vtt, +3.3V, SB5V, +5V and +12V. And there
is one fan connector for CPU fan.

37

Appendix A Watchdog Timer

The Watchdog Timer is provided to ensure that standalone systems can always
recover from catastrophic conditions that cause the CPU to crash. This condition
may have occur red by external EMI or a software bug. When the CPU stops
working correctly, hardware on the board will either perform a h ardware reset
(cold boot) to bring the system back to a known state.

A BIOS function call (INT 15H) is used to control the Watchdog Timer:
INT 15H:

AH – 6FH
Sub-function:
AL– 2: Set the W a tchdog Timer’s period
BL: Time-out value (the time unit-second, is
dependent on the item “Watchdog Timer unit
(selected in BIOS setup).

You have to call sub-function 2 to se t the time-out period of Watchdog Timer first.
If the time-out value is not zero, the Watchdog Timer will start counting down.
When the timer value reaches zero, the system will reset. To ensur e that this
reset condition does no t occur, the W a tchdog Timer must be periodically refr eshed
by calling sub-function 2. However the Watchdog timer will be disabled if you set
the time-out value to be zero.

A tolerance of at least 10% must be maintained to avoid unknown
routines within the operating system (DOS), such as disk I/O that can be
very time-consuming.

Note: When exiting a program it is necessary to disable the Watchdog Timer,
otherwise the system will reset.

Example program:

; INITIAL TIMER PERIOD COUNTER

;
W_LOOP:

MOV AX, 6F02H ;setting the time-out value
MOV BL, 30 ;time-out value is 48 seconds
INT 15H
;

; ADD YOUR APPLICATION PROGRAM HERE

;
CMP EXIT_AP, 1 ;is your application over?
JNE W_LOOP ;No, restart your application

MOV AX, 6F02H ;disable Watchdog Timer
MOV BL, 0 ;
INT 15H
;

; EXIT

38

Appendix B Digital I/O

One of the characteristics of digital circu it is its fast resp on se to high or l ow signal.
This kind of response is highly needed for harsh and critical industrial op erating
environment. That is why we design 4-bit digital inputs and 4-bit digital outputs
on NOVA-7830.

Digital Input and Output are control signals in general. You can use these signals
to control external devices that needs On/Off circuit or TTL devices. You can read
or write data to the selected address to enable the function of digital IO.

A BIOS function call (INT 15H) is used to control the Watchdog Timer:

INT 15H:

AH – 6FH

Sub-function:

AL–8: Set the Digital port is INPUT
AL: Digital I/O input value

Example program:

MOV AX, 6F08H ;setting the Digital port is input
INT 15H ;

AL low byte = value

AH–6FH

Sub-function:

AL–9: Set the Digital port is OUTPUT
BL: Digital I/O output value

Example program:

MOV AX, 6F09H ;setting the Digital port is output
MOV BL, 09H ;Digital value is 09H
INT 15H ;

Digital Output is 1001b

39

Appendix C Address Mapping

IO Address Map

I/O address Range Description

000-01F DMA Controller #1
020-021 Interrupt Controller #1, Master
02E-02F Super I/O
040-05F 8254 timer
04E-04F Super I/O
060-06F 8042 (Keyboard Controller)
070-07F Real time Clock, NMI Mask
080-09F DMA Page Register
0A0-0BF Interrupt Controller #2
0C0-0DF DMA Controller #2

0F0 Clear Math Coprocessor Busy
0F1 Reset Math Coprocesso r

0F2 Core logic programming configuration
0F8-0FF Math Coprocessor
1F0-1F8 Fixed Disk

295-296 Hardware Monitor
2E8-2EF Serial Port 4

2F8-2FF Serial Port 2

300-31F Prototype Card
360-36F Reserved
378-37F Parallel Printer Port 1 (LPT2)
3B0-3BF Monochrome Display and Printer Adapter (LPT1)
3C0-3CF Reserved

3D0-3DF Color/Graphics Monitor Adapter

3E8-3EF Serial Port 3

3F0-3F7 Diskette Controller
3F8-3FF Serial Port 1

40

1st MB Memory Address Map

Memory address Description

00000-9FFFF System memory
A0000-BFFFF VGA buffer

C0000-C7FFF VGA BIOS

F0000-FFFFF System BIOS

1000000- Extend BIOS

IRQ Mapping Table

IRQ0 System Timer IRQ8 RTC clock
IRQ1 Keyboard IRQ9 Available
IRQ2 Cascade to IRQ Controller IRQ10 COM4
IRQ3 COM2 IRQ11 COM3
IRQ4 COM1 IRQ12 PS/2 mouse
IRQ5 Audio Device IRQ13 FPU
IRQ6 FDC IRQ14 Primary IDE
IRQ7 Printer IRQ15 Secondary IDE

DMA Channel Assignments

Channel Function

0 Available
1 Available
2 Floppy disk (8-bit transfer)
3 Available
4 Cascade for DMA controller 1
5 Available
6 Available
7 Available

41

Appendix D How to Use Wake-up Function

NOVA-7830 provides two kinds of wake-up function: mode m wake-up and LAN
wake-up function. Wake-up function is working while you use ATX power supply.

Wake-up By Ring:
You must set the option Power On By Ring of CMOS SETUP to be enabled. The
A TX power supply will be switched on when there is a ring signal d etected on pin
“RI” of serial port.

Wake-up On LAN:
When your compute r is in power-down status, y ou can see LAN Link/Active LED is
flashing. This status indicates that the LAN chip has entered standby mode and
waits for Wake-up signal. You can use other computers to wake up your computer
by sending ID to it.

ID: ID is the address of your system LAN. Every LAN chip has a factory, set ID,
which you can find it from network information in WINDOWS.

ID’s format is xxxxxxxxxxxx
Example ID: 009027388320

42

Appendix E How to Use VIDEO-IN Function

NOVA-7830 provides users to capture live video from video source such as the
CCTV camera. NOVA-7830 has four video input channels for surveillance systems.

Driver Installation:

Taking the advantage of IEI driver installation program makes the driver
installation an easy job.

Steps:

1. Insert the IEI Driver CD (4).

2. The window will display the menu of IEI Driver CD. Click “IVC Series”.

3. Click “IVC-100/100G/200/200G”.

4. Double click the “Windows” folder.

5. Double click “ ieisetup.exe”.
Microsoft D irect X 8.1 or above is need. Th e setu p program (ieisetup.exe) will

prompt you to install Direct X8.1 after the driver installation has been completed.
Therefore, IE I strongly recommend you to use ieisetup.exe for driv er inst allation.

Demo Programs:

1. Double click “Demo” folder.

2. Double click “ivc-100.exe”.

Connection:

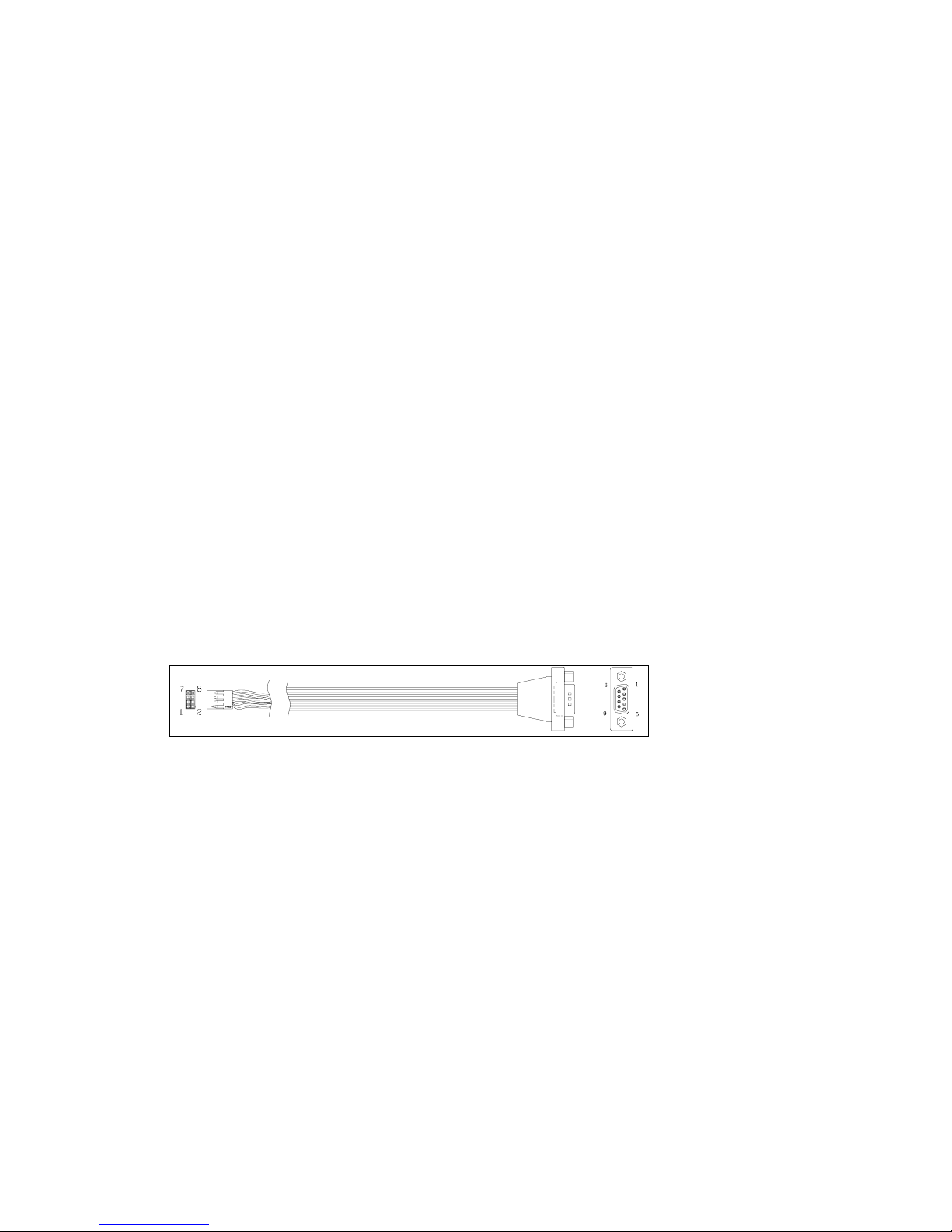

Cable 1: Dupont Head 8Pin, to CPU board.

Dupont Head 8-Pin D-SUB 9-Pin

43

Pin Definition:

Dupont Head 8-Pin

PIN Description PIN Description

1 AVIN0 2 GROUND
3 AVIN1 4 GROUND
5 AVIN2 6 GROUND
7 AVIN3 8 GROUND

D-SUB 9-Pin (for both cable 1 and cable 2)

PIN Description PIN Description

1 AVIN0 2 AVIN1
3 AVIN2 4 AVIN3
5 N.C. 6 GROUND
7 GROUND 8 GROUND
9 GROUND

Cable 2: D-SUB 9-Pin, connected to cable 1.
RCA connectors are used to connect with video-in source.

A

B

C

D

RCA connector D-SUB 9-Pin

44

Appendix F How to Use LCD-TYPE Function

NOVA-7830 provides four kinds of LCD-TYPE Function. This page describes how
to use LCD-TYPE function.

LCD-TYPE function Procedure:

1. Go to the DOS command prompt in MS-DOS or Windows 9x.

2. At the DOS command prompt, type "LCD_Prg".

3. Set 1, 2, 3, and 4 from LCD Type.

ICP Electronic Inc.
LCD M odule Flash Utility

640x480 18 bits
800x600 18 bits
1024x768 18 bits
1024x768 36 bits

[M] Menu [1-4] LCD Type
[ESC] Exit

4. Reboot the system
