IEI Technology NOVA-7810 User Manual

NOVA-7810

Intel Mobile CPU Embedded Board

with 10/100Mbps Ethernet, VGA,

Audio

Version 1.0

User Manual Version 1.0

June 11, 2003

2

©Copyright 2003 by ICP Electronics Inc. All Rights Reserved.

3

Copyright Notice

The information in this document is subject to change without prior notice in
order to improve reliability, design and function and does not represent a
commitment on the part of the manufacturer.
In no event will the manufacturer be liable for direct, indirect, special, incidental,
or consequential damages arising out of the use or inability to use the product or
documentation, even if advised of the possibility of such damages.
This document contains proprietary information protected by copyright. All rights
are reserved. No part of this manual may be reproduced by any mechanical,
electronic, or other means in any form without prior written permission of the
manufacturer.

Trademarks

NOVA-7810 is a registered trademark of ICP Electronics Inc. IBM PC is a
registered trademark of International Business Machines Corporation. Intel is a
registered trademark of Intel Corporation. Award is a registered trademark of
Award Software International, Inc. Other product names mentioned herein are
used for identification purpose only and may be trademarks and/or registered
trademarks of their respective companies.

Support

For any questions regarding the content of this manual or the product, please
contact us at: [e-mail]

.

4

Table of Contents

1. Introduction............................................................... 6

1.1 Specifications............................................................................ 6

1.2 Package Contents ......................................................................7

2. Installation................................................................. 8

2.1 NOVA-7810 Layout ....................................................................8

2.2 Clear CMOS Setup ................................................................... 10

2.3 Compact Flash Setting.............................................................. 10

2.4 Audio Amplifier Selection .......................................................... 10

2.5 LCD Panel Shift Clock/Panel VCC Selection .................................. 11

2.6 COM Port RI and Voltage Selection............................................. 11

2.7 COM4 RS232/RS422 (485) Selection .......................................... 12

3. Connection ............................................................... 13

3.1 Floppy Disk Drive Connector ..................................................... 14

3.2 Video-in Connector .................................................................. 14

3.3 Ultra ATA33/66/100 IDE Disk Drive Connector............................. 15

3.4 Parallel Port ............................................................................ 15

3.5 USB Port Connector .................................................................16

3.6 Serial Ports............................................................................. 16

3.7 Power Connector ..................................................................... 17

3.8 Keyboard Connector................................................................. 18

3.9 IrDA Infrared Interface Port ...................................................... 18

3.10 Fan Connector......................................................................... 18

3.11 Audio Connectors .................................................................... 19

3.12 VGA Connector........................................................................ 19

3.13 LAN RJ45 Connector................................................................. 20

3.14 Compact Flash Connector—TYPE II............................................. 20

3.15 External Switches and Indicators ...............................................21

3.16 IEEE-1394 Connector ............................................................... 21

3.17 CardBus/PCMCIA Connector ...................................................... 22

3.18 Digital I/O .............................................................................. 23

3.19 LCD Panel Connector................................................................ 24

4. AMI BIOS Setup ...................................................... 25

4.1 Introduction............................................................................ 25

4.2 Starting Setup......................................................................... 25

4.3 Setup Summary ...................................................................... 25

4.4 Standard CMOS Setup Selections ............................................... 27

4.5 Advanced CMOS Setup Selections .............................................. 28

4.6 Advanced Chipset Setup Selections ............................................ 32

4.7 Power Management Setup Selections.......................................... 34

4.8 PCI / Plug and Play Setup Selections .......................................... 37

4.9 Peripheral Setup Selections....................................................... 39

4.10 Hardware Monitor Setup Selections ............................................ 41

Appendix A: Watchdog Timer...................................... 42

Appendix B: Digital I/O................................................ 43

Appendix C: Address Mapping..................................... 44

Appendix D: How to Use Wake-Up Function ............ 46

5

Appendix E: How to Use VIDEO-IN Function ........... 47

Appendix F: How to Use LCD-TYPE Function............ 49

6

1. Introduction

Thank you for choosing NOVA-7810. NOVA-7810 is an Intel Mobile
Processor CPU with Multimedia & LAN Ethernet Embedded Little Board
equipped with low power Intel Mobile Processor CPU with the Intel
advanced chipset 815E. This product is designed for system manufacturers,
integrators, or VARs who want to build a low power consumption system.

NOVA-7810 provides on-chip VGA of up to 1600 x 1200 resolution and LCD
of up to 1024 x 768 resolution.

An advanced high performance super I/O chip—W83627 and NS87366 is
used in the NOVA-7810 board, which provides four UARTs1 compatible with
NS16C550. The parallel port and FDD interface are compatible with IBM
PC/AT architecture.

NOVA-7810 has one Fast Ethernet Multifunction PCI Controller as a LAN
controller fully integrated 10BASE-T/100BASE-TX LAN solution with high
performance networking functions and low power features.

This board has a built-in Compact Flash Disk Socket, CardBus, and FireWire
for embedded applications.

For multimedia application, NOVA-7810 provides functions such as 1394,

5.1 channel Audio and video in.

1.1 Specifications

•

CPU: Intel Mobile Processor CPU

•

DMA channels: 7

•

Interrupt levels: 15

•

Chipset: Intel 815E

•

Memory: One 168-pin DIMM sockets. The memory capability is
up to 512 MB/133 MHz.

•

Ultra ATA/33/66/100 IDE interface: One PCI Enhanced IDE
channels (2 IDE devices). The south bridge ICH2 supports Ultra
ATA/33/66/100 IDE interface. To support Ultra ATA66/100 Hard
disk, a specific cable (maximum length—45 cm) is available.

•

Floppy disk drive interface: Single 2.88 MB, 1.44 MB, 1.2 MB,
720 KB, or 360 KB floppy disk drive.

•

Serial ports: Four high-speed 16C550 compatible UARTs with
16-byte FIFO buffer. Up to 115Kbps in speed. One port supports
RS232/422/485 function.

•

Parallel port: One IEEE1284 compatible bi-directional ports.
Supports SPP/ECP/EPP.

•

IrDA: Supports Serial Infrared (SIR) and Amplitude Shift Keyed
IR (ASKIR) interface.

•

USB: Supports two USB 1.1 compatible ports.

7

•

Audio: Onboard CMI8738 chipset. Supports 5.1 channel sound,
including LINEOUT, REAR, and CENTER/BASS.

•

Watchdog timer: Software programmable – Enabled/Disabled.
Timer interval is 1 ~ 255 seconds. System Reset will be
generated while time out.

•

VGA controller: Embedded VGA controller. Screen Resolution:
up to 1600 x 1200 in 256 colors at 85Hz Refresh.

•

LCD controller: Onboard SP1015 LCD controller. Screen
Resolution: up to 1024 x 768 36bits.

•

Intel 82801BA embedded LAN: IEEE 802.3u Auto-Negotiation
support for 10BASE-T/100BASE-TX. Fast back-to-back
transmission support with minimum interframe spacing.
Connected to your LAN through RJ45 connector.

•

Keyboard Controller: 8042 compatible for keyboard and PS/2
mouse.

•

4 digital inputs and 4 digital outputs

•

4 channels of composite video input

•

FireWire: TSB43AA22 provides digital and analog transceiver
functions to implement a two-port node in a cable-based IEEE

1394. It provides two P1394a fully compliant cable ports at
100/200/400 megabits per second (Mbits/s).

•

CardBus: Compliant with CardBus/PCMCIA PC Card 95/97
standard specification.

•

Power Consumption: 5V/3.5A and 12V/0.3A, as running by
Intel Mobile P800 (800MHz) and 256MB SDRAM.

•

Operating Temperature: 0 ℃~60 ℃.

1.2 Package Contents

In addition to this User's Manual, the NOVA-7810 package includes
the following items:

•

NOVA-7810 Mobile CPU bases single board computer x 1

•

FDD cable x 1

•

HDD cable x 1

•

Keyboard / Mouse adapter Y cable x 1

•

RS-232 serial port cable x 2

•

RS-232/422/485 serial port cable x 1

•

Printer port cable x 1

•

AUDIO ports cable x 1

•

Four-Channel composite video cable x 2

•

IEEE-1394 cable x 1

8

2. Installation

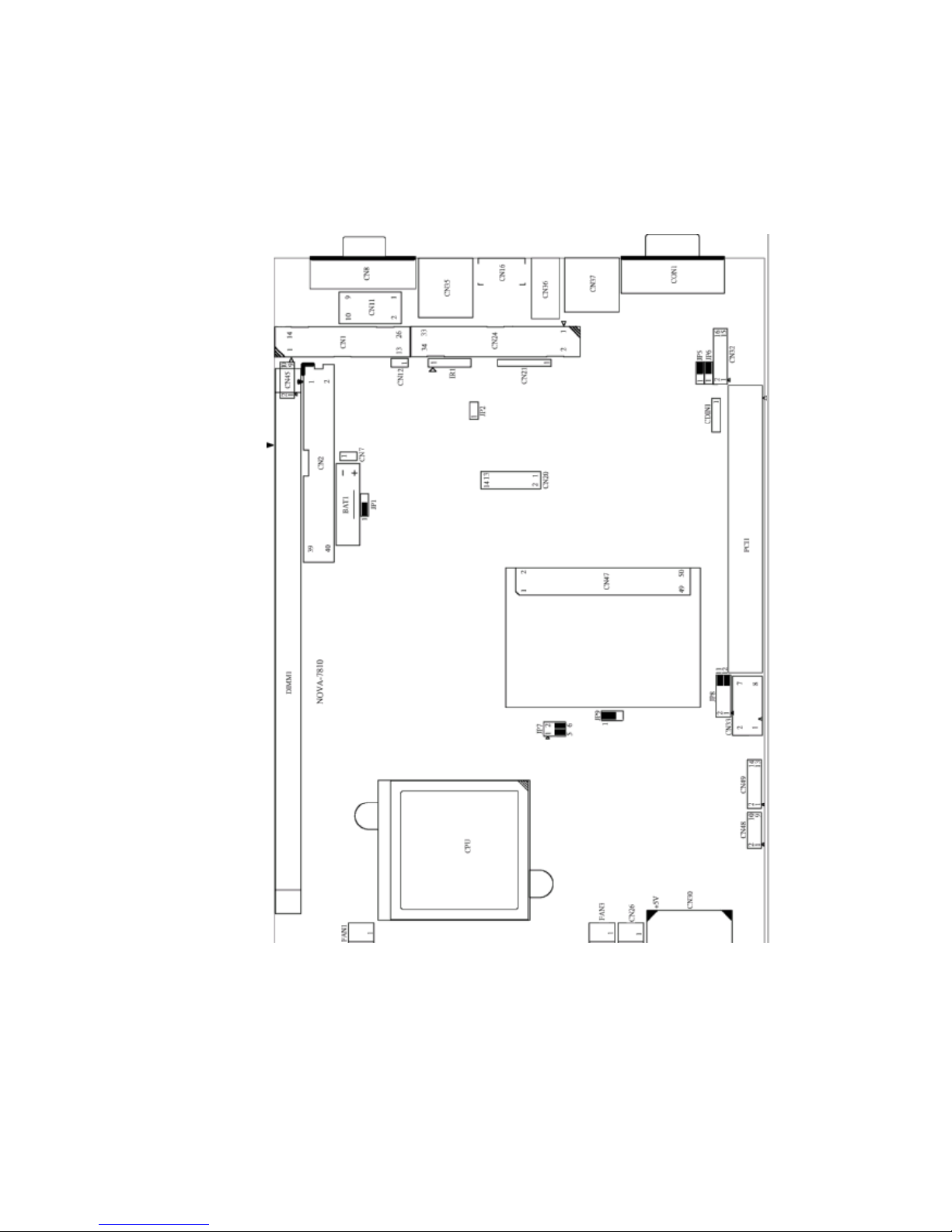

2.1 NOVA-7810 Layout

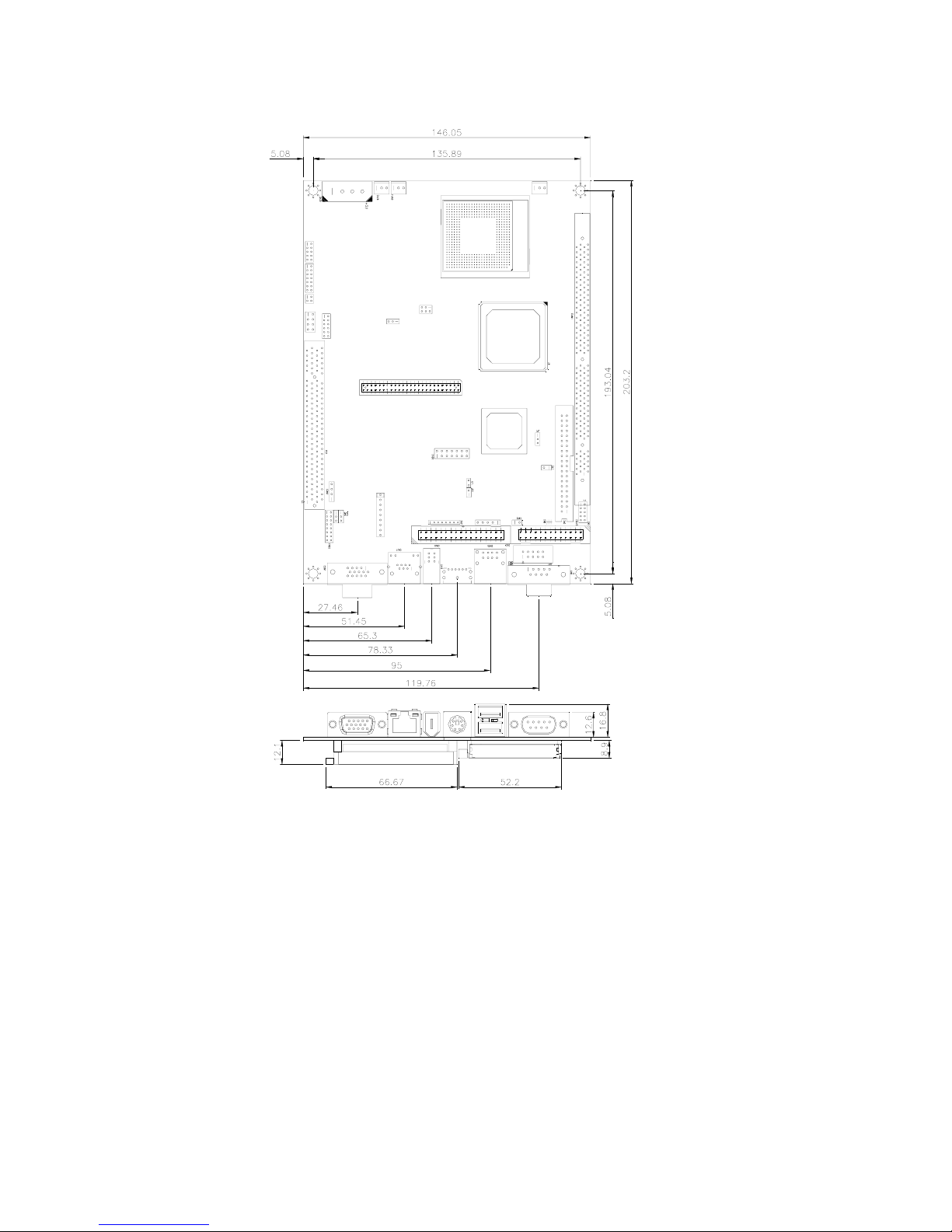

Figure 1

9

Figure 2

10

2.2 Clear CMOS Setup

CMOS RAM stores the configuration data of the board. It is set by
system BIOS. To clear CMOS RAM, close JP1 for about 3 seconds,
and then open it again.

•

JP1: Clear CMOS Setup

JP1 Description

1-2 Keep CMOS Setup

(Normal Operation)

2-3 Clear CMOS Setup

2.3 Compact Flash Setting

Set the operating mode of CompactFlash disk. This is similar to the
operation of hard disk.

•

JP2: Compact Flash Setting

JP2 Description

Open Slave
Close Master

2.4 Audio Amplifier Selection

This jumper is for the setting of Audio Amplifier.

•

JP5: Audio L_Line out selection

JP5 Description

1-2 OFF
2-3 ON

•

JP6: Audio R_Line out selection

JP6 Description

1-2 OFF
2-3 ON

11

2.5 LCD Panel Shift Clock/Panel VCC Selection

This jumper is for the setting of LCD panel shift clock mode and
Panel power voltage.

•

JP7: LCD Panel Shift Clock

JP7 Description

1-3 Inverted
3-5 Normal

•

JP7: Panel VCC

JP7 Description

2-4 +5V
4-6 +3.3V

2.6 COM Port RI and Voltage Selection

JP8 is setting COM3, 4 RI and Voltage.

•

JP8: Set pin 9 of COM3 as signal RI or voltage source

JP8 Description

10-12 COM3 RI Pin Use RI

8-10 COM3 RI Pin Use Voltage

•

JP8: Set pin 9 of COM4 as signal RI or voltage source

JP8 Description

9-11 COM4 RI Pin Use RI

7-9 COM4 RI Pin Use Voltage

•

JP8: Set pin 9 of COM3 as +5V or 12V

JP8 Description

2-4 COM3 RI Pin Use Voltage +5V
4-6 COM3 RI Pin Use Voltage +12V

•

JP8: Set pin 9 of COM4 as +5V or 12V

JP8 Description

1-3 COM4 RI Pin Use Voltage +5V
3-5 COM4 RI Pin Use Voltage +12V

12

2.7 COM4 RS232/RS422 (485) Selection

•

JP9: Selection COM4 is RS232/RS422 (485)

JP9 Description

1-2 RS232
2-3 RS422/485

13

3. Connection

This chapter describes how to connect peripherals, switches and indicators
to the NOVA-7810 board. The connectors on NOVA-7810 are listed in the
following table:

Label Description

CDIN1 CD-IN Connector

CN1 Parallel Port Connector
CN2 IDE Connector
CN7 SUS LED

CN8, 11 Serial Port 1,2

CN12 ATX Power On/Off Button Connector
CN16 DIN Connector for Keyboard/Mouse
CN20 External Switch and Indicators

CN21, 36 IEEE-1394 Connector

CN24 FDD Connector
CN26 ATX Power Connector
CN30 Power Connector
CN32 Audio Connector
CN33 4 Channels of composite video in Connector
CN35 USB Connector
CN37 LAN Connector
CN43 Compact Flash
CN44 CardBus/PCMCIA Connector
CN45 Digital I/O
CN47 LCD Connector

CN48, 49 Serial Port 3,4

CON1 VGA Connector

FAN1, 3 Fan Connectors

IR1 IrDA Connector

PCI1 Specific PCI Slot

14

3.1 Floppy Disk Drive Connector

NOVA-7810 board is equipped with a 34-pin daisy-chain driver
connector cable.

•

CN24: FDD Connector

PIN Description PIN Description

1 GROUND 2 REDUCE WRITE
3 GROUND 4 N/C
5 GROUND 6 DS1#
7 GROUND 8 INDEX#

9 GROUND 10 MOTOR ENABLE A#
11 GROUND 12 DRIVE SELECT B#
13 GROUND 14 DRIVE SELECT A#
15 GROUND 16 MOTOR ENABLE B#
17 GROUND 18 DIRECTION#
19 GROUND 20 STEP#
21 GROUND 22 WRITE DATA#
23 GROUND 24 WRITE GATE#
25 GROUND 26 TRACK 0#
27 GROUND 28 WRITE PROTECT#
29 N/C 30 READ DATA#
31 GROUND 32 SIDE 1 SELECT#
33 N/C 34 DISK CHANGE#

3.2 Video-in Connector

NOVA-7810 is equipped witch 4 channels of composite video
connector (BT878A).

•

CN33: Capture IN

PIN Description PIN Description

1 AVIN0 2 GROUND
3 AVIN1 4 GROUND
5 AVIN2 6 GROUND
7 AVIN3 8 GROUND

15

3.3 Ultra ATA33/66/100 IDE Disk Drive Connector

You can attach one IDE (Integrated Device Electronics) hard disk
drives to NOVA-7810 IDE controller.

•

CN2: Primary IDE Connector

PIN Description PIN Description

1 RESET# 2 GROUND
3 DATA 7 4 DATA 8
5 DATA 6 6 DATA 9
7 DATA 5 8 DATA 10

9 DATA 4 10 DATA 11
11 DATA 3 12 DATA 12
13 DATA 2 14 DATA 13
15 DATA 1 16 DATA 14
17 DATA 0 18 DATA 15
19 GROUND 20 N/C
21 N/C 22 GROUND
23 IOW# 24 GROUND
25 IOR# 26 GROUND
27 CHRDY 28 GROUND
29 DACK 30 GROUND
31 INTERRUPT 32 GROUND
33 SA1 34 P66DET
35 SA0 36 N/C
37 HDC CS0# 38 HDC CS1#
39 HDD ACTIVE# 40 GROUND

3.4 Parallel Port

This port is usually connected to a printer. NOVA-7810 includes an
on-board parallel port, and accessed through a 26-pin flat-cable
connector CN1. Three modes—SPP, EPP and ECP are supported.

•

CN1: Parallel Port Connector

PIN Description PIN Description

1 STROBE# 14 AUTO FORM FEED #
2 DATA 0 15 ERROR#
3 DATA 1 16 INITIALIZE
4 DATA 2 17 PRINTER SELECT LN#
5 DATA 3 18 GROUND
6 DATA 4 19 GROUND
7 DATA 5 20 GROUND
8 DATA 6 21 GROUND

9 DATA 7 22 GROUND
10 ACKNOWLEDGE 23 GROUND
11 BUSY 24 GROUND
12 PAPER EMPTY 25 GROUND
13 PRINTER SELECT 26 N/C

16

3.5 USB Port Connector

NOVA-7810 provides two USB ports (USB 1.1 compliant).

•

CN35: USB 8-pin Header

PIN Description

A1 VCC
A2 DATA 0­A3 DATA 0+
A4 GROUND
B1 VCC
B2 DATA 0­B3 DATA 0+
B4 GROUND

3.6 Serial Ports

The NOVA-7810 offers four high speed NS16C550 compatible UARTs
with Read/Receive 16 byte FIFO in each serial port.

•

CN8: D_SUB 9-PIN Connector

PIN Description

1 DATA CARRIER DETECT (DCD)
2 RECEIVE DATA (RXD)
3 TRANSMIT DATA (TXD)
4 DATA TERMINAL READY (DTR)
5 GROUND
6 DATA SET READY (DSR)
7 REQUEST TO SEND (RTS)
8 CLEAR TO SEND (CTS)
9 RING INDICATOR (RI)

•

CN11: 10-pin Connector

PIN Description

1 DATA CARRIER DETECT (DCD)

2 RECEIVE DATA (RXD)

3 TRANSMIT DATA (TXD)

4 DATA TERMINAL READY (DTR)

5 GROUND

6 DATA SET READY (DSR)

7 REQUEST TO SEND (RTS)

8 CLEAR TO SEND (CTS)

9 RING INDICATOR (RI)
10 N/C

17

•

CN48: 10-pin Connector

PIN Description

1 DATA CARRIER DETECT (DCD)

2 RECEIVE DATA (RXD)

3 TRANSMIT DATA (TXD)

4 DATA TERMINAL READY (DTR)

5 GROUND

6 DATA SET READY (DSR)

7 REQUEST TO SEND (RTS)

8 CLEAR TO SEND (CTS)

9 RING INDICATOR (RI)
10 N/C

•

CN49: 14-pin Connector

PIN Description

1 DATA CARRIER DETECT (DCD)
2 RECEIVE DATA (RXD)
3 TRANSMIT DATA (TXD)
4 DATA TERMINAL READY (DTR)
5 GROUND
6 DATA SET READY (DSR)
7 REQUEST TO SEND (RTS)
8 CLEAR TO SEND (CTS)
9 RING INDICATOR (RI)

10 N/C
11 TX+ (RS422/485)
12 TX- (RS422/485)
13 RX+ (RS422/485)
14 RX- (RS422/485)

3.7 Power Connector

NOVA-7810 has one connector for power supply.

•

CN30: Power Supply Connector

PIN Description

1 VCC12V

2 GROUND

3 GROUND

4 VCC5V

•

CN26: ATX Power Connector

PIN Description

1 VCC5VSB

2

PS_ON

3

GROUND

18

3.8 Keyboard Connector

NOVA-7810 provides 6-pin mini-DIN keyboard/mouse connector.

•

CN16: 6-pin Mini-DIN Keyboard/Mouse Connector

PIN Description

1 KEYBOARD DATA

2 MOUSE DATA

3 GROUND

4 +5V

5 KEYBOARD CLOCK

6 MOUSE CLOCK

3.9 IrDA Infrared Interface Port

NOVA-7810 is built in with an IrDA port that supports Serial Infrared
(SIR) or Amplitude Shift Keyed IR (ASKIR) interface. To use the
IrDA port, set SIR or ASKIR model in Peripheral Setup COM 2 of
BIOS. RS-232 COM 2 will then be disabled.

•

IR1: IrDA Connector

PIN Description

1 VCC5V
2 N/C
3 IR-RX
4 GROUND
5 IR-TX

3.10 Fan Connector

NOVA-7810 provides CPU cooling fan connector and system fan
connector. CPU connectors can supply 12V/500mA. The Fan
rotation is in full speed.

•

FAN1, FAN3: Fan Connector

PIN Description

1 SENSOR
2 12V
3 GROUND

19

3.11 Audio Connectors

NOVA-7810 has a built-in AUDIO chipset (CMEDIA CMI8738LX);
connector directly connects to the pin-header (CN32). The Audio
chipset can support 5.1 channel sounds that include LINEOUT, REAR,
and CENTER/BASS.

•

CN32: Audio Connector (2x8_2.00mm)

PIN Description PIN Description

1 LINEOUT_L 2 GROUND

3 LINEOUT_R 4 GROUND
5 CENTER 6 BASS
7 GROUND 8 GROUND
9 LININ_L 10 LINEIN_R

11 GROUND 12 GROUND
13 REAR_L 14 REAR_R
15 MIN_IN 16 GROUND

•

CDIN1: CD-IN

PIN Description

1 CD LEFT SIGNAL
2 GROUND
3 GROUND
4 CD RIGHT SIGNAL

3.12 VGA Connector

NOVA-7810 has a 15-pin VGA connector built in directly to your CRT
monitor.

•

CON1: 15-pin Female Connector

PIN Description PIN Description

1 RED 2 GREEN
3 BLUE 4 N/C
5 GROUND 6 GROUND
7 GROUND 8 GROUND
9 VCC 10 GROUND

11 N/C 12 DDC DAT
13 HSYNC 14 VSYNC
15 DDCCLK

20

3.13 LAN RJ45 Connector

NOVA-7810 is equipped with built-in one 10/100Mbps Ethernet
Controller. You can connect it to your LAN through RJ45 LAN
connector. The pin assignments are as below:

•

CN37: Intel 82562ET LAN RJ45 Connector

PIN Description PIN Description

1 TX+ 5 N/C

2 TX- 6 RX­ 3 RX+ 7 N/C
4 N/C 8 N/C

3.14 Compact Flash Connector—TYPE II

NOVA-7810 supports one CompactFlash socket provided from IDE2.
Set the jumper to avoid any conflicts.

•

CN43: CompactFlash Socket

PIN Description PIN Description

1 GROUND 26 VCC-IN

CHECK2
2 DATA3 27 DATA11
3 DATA4 28 DATA12
4 DATA5 29 DATA13
5 DATA6 30 DATA14
6 DATA7 31 DATA15
7 HDC_CS0# 32 HDC_CS1#
8 N/C 33 N/C
9 GROUND 34 IOR#

10 N/C 35 IOW#
11 N/C 36 N/C
12 N/C 37 INTERRUPT
13 +5V 38 +5V
14 N/C 39 CSEL
15 N/C 40 N/C
16 N/C 41 RESET#
17 N/C 42 IORDY
18 SA2 43 N/C
19 SA1 44 +5V
20 SA0 45 HDD_ACTIVE#
21 DATA0 46 N/C
22 DATA1 47 DATA8
23 DATA2 48 DATA9
24 N/C 49 DATA10
25 VCC-IN

CHECK2

50 GROUND

21

3.15 External Switches and Indicators

There are several external switches and indicators for monitoring
and controlling your CPU board. All the functions are in the CN7,
CN12, and CN20 connector.

•

Suspend Led Connector (CN7)

PIN Description

1 LED+
2 LED-

•

ATX Power On/Off Button Connector (CN12)

PIN Description

1 PWR_BUTTON

+

2 GROUND

•

CN20: Multi Panel

PIN Description PIN Description

1 POWER-LED + 2 SPEAKER ­3 N/C 4 N/C
5 POWER-LED - 6 N/C
7 KEYLOCK+ 8 SPEAKER +5V

9 KEYLOCK- 10 RESET SW
11 GROUND 12 RESET SW GND
13 HDD LED+ 14 HDD LED -

3.16 IEEE-1394 Connector

NOVA-7810 is equipped with IEEE1394 controller (TI TSB43AA22).
You can connect it to your 1394 device through CN21 36 connector.
The pin assignments are as below:

•

CN21: 1394 Connector

PIN Description PIN Description

1 VCC12V 2 GROUND

3 TPB- 4 TPB+

5 TPA- 6 TPA+

7 NC/FG 8 NC/FG

•

CN36: 1394 Connector

PIN Description PIN Description

1 VCC12V 2 GROUND
3 TPB- 4 TPB+
5 TPA- 6 TPA+

22

3.17 CardBus/PCMCIA Connector

NOVA-7810 has a built-in CardBus/PCMCIA interface connector.

•

CN44: CardBus/PCMCIA Connector

PIN Description PIN Description

1 GROUND 2 D3
3 D4 4 D5
5 D6 6 D7
7 CE1# 8 A10

9 OE# 10 A11
11 A9 12 A8
13 A13 14 A14
15 WE# 16 READY
17 VCC 18 VCC
19 A16 20 A15
21 A12 22 A7
23 A6 24 A5
25 A4 26 A3
27 A2 28 A1
29 A0 30 D0
31 D1 32 D2
33 WP 34 GROUND
35 GROUND 36 CD1#
37 D11 38 D12
39 D13 40 D14
41 D15 42 CE2#
43 VS1# 44 IORD#
45 IOWR# 46 A17
47 A18 48 A19
49 A20 50 A21
51 VCC 52 VCC
53 A22 54 A23
55 A24 56 A25
57 VS2# 58 RESET
59 WAIT# 60 INPACK#
61 REG# 62 BVD2
63 BVD1 64 D8
65 D9 66 D10
67 CD2# 68 GROUND
69 GROUND 70 GROUND

23

3.18 Digital I/O

One of the characteristics of digital circuit is fast response to high or
low signal. This kind of response is highly needed for industrial
operating environment. NOVA-7810 is designed with 4-bit digital
inputs and 4-bit digital outputs to maintain a quality performance in
such environment.

Digital Input and Output are control signals used to control external
devices that needs On/Off circuit or TTL devices. We provide "BIOS
Call" for DIO's reading.

READ WRITE

Bit0 DIN0 Bit0 DO0
Bit1 DIN1 Bit1 DO1
Bit2 DIN2 Bit2 DO2
Bit3 DIN3 Bit3 DO3

•

CN45: Digital I/O

PIN Description PIN Description

1 GROUND 2 VCC5V
3 DO3 4 DO2
5 DO1 6 DO0
7 DIN3 8 DIN2
9 DIN1 10 DIN0

24

3.19 LCD Panel Connector

NOVA-7810 provides a 2 x 25-pin connector for LCD flat panel
interface. It supports TFT LCD panels at the following options:

Video Display Type Resolution Example

TFT VGA 640 x 480, 18 bits Toshiba LTM10C209H

TFT SVGA 800 x 600, 18 bits Toshiba LTM12C275C

TFT XVGA 1024 x 768, 18 bits L.G LM151X2

Note that the table is for reference only, the connector may support
more types of panels.

•

CN47: LCD Panel Connector for SP1015

PIN Description PIN Description

1 N/C 2 RB2
3 BB2 4 RB3
5 BB3 6 RB4
7 BB4 8 RB5

9 BB5 10 RB6
11 BB6 12 RB7
13 BB7 14 RA5
15 RA7 16 RA6
17 GB2 18 RA4
19 GB3 20 RA2
21 RA3 22 GA6
23 GA5 24 GA4
25 GA7 26 GA3
27 BA7 28 GA2
29 Panel-VCC 30 Panel-VCC
31 GB4 32 GB5
33 BA4 34 BA6
35 BA3 36 BA5
37 BA2 38 GB6
39 RM 40 GB7
41 Shift Clock 42 Enable Backlight
43 FPVDD 44 FLM
45 Enable VEE 46 LP
47 GND 48 GND
49 Inverter VCC 50 Inverter VCC

25

4. AMI BIOS Setup

4.1 Introduction

This chapter discusses the Setup program built into the BIOS, which
allows users to configure the system. This configuration is then
stored in battery-backed CMOS RAM so that Setup information is
retained when the power is off.

4.2 Starting Setup

The BIOS is immediately active when you turn on the computer.
When BIOS is activated, the Setup program can be entered in one of
two ways:

1.

By pressing <Del> immediately after switching the system on,
or

2. By pressing the <Del> key when the following message appears
briefly at the bottom of the screen during the POST (Power On
Self-Test).

Press DEL to run SETUP.

4.3 Setup Summary

Standard CMOS Setup:

Standard CMOS Setup to change time, date, hard disk type etc.

Advanced CMOS Setup:

Advanced CMOS Setup to configure system options.

Advanced Chipset Setup:

Advanced Chipset Setup to configure chipset features.

Power Management Setup:

Power Management Setup to configure power management features.

PCI / Plug and Play Setup:

Configures PCI / Plug and Play features.

Peripheral Setup:

Configures peripheral features.

Hardware Monitor Setup:

Configures hardware monitor features.

26

Auto-Detect Hard Disks:

Selecting these options allow the user to configure the drive named
in the option. Select Auto-Detect Hard Disks to allow AMIBIOS to
automatically configure the drive. Below is the list of drive
parameters appears on the screen:

Change User Password:

Change the user password.

Change Supervisor Password:

Change the supervisor password.

Auto Configuration with Optimal Settings:

Load configuration settings that ensure the highest performance.

Auto Configuration with Fail Safe Settings:

Load fails-afe configuration settings.

Save Settings and Exit:

Write the current settings to CMOS and exit.

Exit Without Saving:

Exit without saving the current settings.

AMIBIOS HIFLEX SETUP UTILITY – VERSION 1.52
©2001 American Megatrends, Inc. All Rights Reserved

NOVA-7810 V 1.0 (02/11/2003)

Standard CMOS Setup
Advanced CMOS Setup
Advanced Chipset Setup
Power Management Setup
PCI / Plug and Play Setup
Peripheral Setup
Hardware Monitor Setup
Auto-Detect Hard Disks
Change User Password
Change Supervisor Password
Auto Configuration with Optimal Settings
Auto Configuration with Fail Safe Settings
Save Settings and Exit
Exit Without Saving

Standard CMOS Setup for changing time, date, hard disk type, etc.
ESC: Exit : Sel F2/F3: Color F10: Save & Exit↑↓

Figure 1: Main Menu

27

4.4 Standard CMOS Setup Selections

AMIBIOS SETUP – STANDARD CMOS SETUP

©2001 American Megatrends Inc. All Rights Reserved

Date (mm/dd/yyyy): Tue Mar 19,2002 Base Memory: 639 KB
Time (hh/mm/ss): 17:18:10 Extd Memory: 247 MB

Floppy Drive A: Not Installed
Floppy Drive B: Not Installed
LBA Blk PIO 32Bit
Type Size Cyln Head WPcom Sec Mode Mode Mode Mode
Pri Master: Auto On
Pri Slave: Auto On
Sec Master: Auto On
Sec Slave: Auto On

Boot Sector Virus Protection Disabled

Month: Jan – Dec ESC: Exit ↑↓: Sel
Day: 01 – 31 PgUp/PgDn: Modify

Year: 1980 – 2099 F1: Help F2/F3: Color

Figure 2: Standard CMOS Setup

Date (mm/dd/yyyy)

Set the system date.

Time (hh/mm/ss)

Set the system time.

Floppy A, B

Move the cursor to these fields and select the floppy type.

Primary/Secondary Master/Slave LBA Mode

LBA (Logical Block Addressing) is a new IDE HDD access method
developed to overcome the 528-megabyte capacity bottleneck. If
your IDE hard disk capacity is greater than 528MB, AMIBIOS can
enable this LBA mode feature. This option is only for Primary Master
IDE LBA mode.

Primary/Secondary Master/Slave Block Mode

If your hard disk drive supports IDE block transfer mode, enable this
option for a faster IDE hard disk drive transfer rate. This option is
only for Primary Master Block mode.

Primary/Secondary Master/Slave PIO Mode

This option enables Primary Master IDE PIO mode on the IDE, which
can set proper cycle timings. The cycle timing between the IDE PIO
mode value and IDE cycle timing is shown below:
Mode 0 -> Timing (600ns) Mode 1 -> Timing (383ns)
Mode 2 -> Timing (240ns) Mode 3 -> Timing (180ns)
Mode 4 -> Timing (120ns) Mode 5 -> Timing (60ns)

28

Primary/Secondary Master/Slave 32Bit Mode

This option enables Primary Master IDE 32-bit data transfers on the
IDE data port. When disabled, 16-bit data transfer will be used by
the BIOS. 32-bit data transfers can only be enabled if IDE prefetch
mode is also enabled.

Boot Sector Virus Protection

When this option is enabled, AMIBIOS issues a warning when any
program or virus issues a Disk Format command or attempts to write
to the boot sector of the hard disk drive. The settings are Disabled,
Enabled.

Base/Extd Memory

Displays the amount of conventional/extended memory detected
during boot up.

4.5 Advanced CMOS Setup Selections

AMIBIOS SETUP – ADVANCED CMOS SETUP

© 2001 American Megatrends, Inc. All Rights Reserved

Quick Boot Enabled
1st Boot Device Disabled
2nt Boot Device Disabled
3rd Boot Device Disabled
Try Other Boot Devices Yes
LAN Boot ROM Disabled
Floppy Access Control Read-Write
Hard Disk Access Control Read-Write
S.M.A.R.T. for Hard Disks Disabled
BootUP Num-Lock On
Floppy Drive Seek Disabled
PS/2 Mouse Support Enabled
System Keyboard Present
Primary Display VGA/EGA
Password Check Setup
Boot To OS/2 No
Wait For ‘F1’ If Error Enabled
Hit ‘DEL’ Message Display Enabled
L1 Cache WriteBack
L2 Cache WriteBack
System BIOS Cacheabled Disabled
C000 16K Shadow Enabled

C400 16K Shadow Enabled

C800 16K Shadow Enabled
CC00 16K Shadow Disabled
D000 16K Shadow Disabled
D400 16K Shadow Disabled
D800 16K Shadow Disabled
DC00 16K Shadow Disabled

Available Options:
Disabled
> Enabled

ESC: Exit ↑↓: Sel
PgUp/PgDn: Modify

F1: Help
F2/F3: Color

Figure 3: Advanced CMOS Setup

29

Quick Boot

When Quick Boot is selected, DRAM testing function will be disabled.

1st Boot Device

This option sets the type of device for the first boot drives that the
AMIBIOS attempts to boot from after AMIBIOS POST is completed.
The settings are Disabled, IDE-0, IDE-1, IDE-2, IDE-3, Floppy,
ARMD-FDD, ARMD-HDD, CDROM, and SCSI.

2nd Boot Device

This option sets the type of device for the second boot drives that
the AMIBIOS attempts to boot from after AMIBIOS POST is
completed. The settings are Disabled, IDE-0, IDE-1, IDE-2, IDE-3,
Floppy, ARMD-FDD, ARMD-HDD, and CDROM.

3rd Boot Device

This option sets the type of device for the third boot drives that the
AMIBIOS attempts to boot from after AMIBIOS POST is completed.
The settings are Disabled, IDE-0, IDE-1, IDE-2, IDE-3, Floppy,
ARMD-FDD, ARMD-HDD, and CDROM.

Try Other Boot Devices

Set this option to Yes to instruct AMIBIOS to attempt to boot from
any other drive in the system if it cannot find a boot drive among
the drives specified in the 1st Boot Device, 2nd Boot Device, 3rd
Boot Device, and 4th Boot Device options. The settings are Yes or
No.

Floppy Access Control

This option specifies the read/write access that is set when booting
from a floppy drive.

Hard Disk Access Control

This option specifies the read/write access that is set when booting
from a hard disk drive.

S.M.A.R.T. for Hard Disks

Self-Monitoring, Analysis and Reporting Technology. This option
enables BIOS to warn users of a possible device failure and allows
users to back up the device before hard disk failure actually happens.
The settings are Auto, Disabled, and Enabled.

Floppy Drive Seek

Set this option to Enabled to specify that floppy drive A: will perform
a Seek operation at system boot. The settings are Enabled and
Disabled.

BootUp Num-Lock

30

When this option is selected, Num Lock is turned off when the
system is powered on. Users can use the arrow keys on both the
numeric keypad and the keyboard.

PS/2 Mouse Support

When this option is enabled, BIOS supports a PS/2- type mouse.

System Keyboard

This option does not specify if a keyboard is attached to the
computer. It specifies if error messages are displayed when a
keyboard is not detected. This option permits you to configure
workstation without a keyboard. The settings are Absent, or Present.

Primary Display

Select this option to configure the type of monitor attached to the
computer. The settings are Monochrome, Color 40x25, Color 80x25,
VGA/PGA/EGA, or Not Install.

Password Check

This item enables you to select Setup/Always Password Check for
password check.

Boot To OS/2

Set this option to Enabled if running OS/2 operating system and
using a system memory of more than 64 MB for the motherboard.
The settings are Disabled or Enabled.

Wait For 'F1' If Error

If this option is enabled, AMIBIOS waits for end users to press <F1>
before continuing. When disabled, AMIBIOS continues the boot
process without waiting for <F1> to be pressed. The settings are
Disabled or Enabled.

Hit 'DEL' Message Display

Disabling this option prevents "Hit <DEL> if you want to run Setup"
from appearing when the system boots. The settings are Disabled or
Enabled.

L1 Cache

This option enables you to select Disable/ WriteThru/ WriteBack for
the internal cache memory in the processor.

L2 Cache

The option enables you to select Disable/ WriteThru/ WriteBack for
the secondary cache memory.

System BIOS Cacheable

When this option is enabled, System ROM area from F0000-FFFFF is
copied (shadowed) to the RAM for faster execution.

31

C000, 16k Shadow

The selections for this option are as below:

-

Enabled: The contents of the video ROM area from C0000h ­C3FFFh are copied (shadowed) from the ROM to the RAM for
faster execution.

-

Disabled: The contents of the video ROM are not copied to the
RAM.

-

Cached: The contents of the video ROM area from C0000h ­C3FFFh are copied from the ROM to the RAM and can be written
to or read from the cache memory.

C400, 16k Shadow

The selections for this option are as below:

-

Enabled: The contents of the video ROM area from C4000h ­C7FFFh are copied (shadowed) from the ROM to the RAM for
faster execution.

-

Disabled: The contents of the video ROM are not copied to the
RAM.

-

Cached: The contents of the video ROM area from C4000h ­C7FFFh are copied from the ROM to the RAM and can be written
to or read from the cache memory.

C800, 16k Shadow

These options enable shadowing of the contents of the ROM area
named in the option title. The settings are Enabled, Disabled, and
Cached. The ROM area not used by ISA adapter cards will be
allocated to PCI adapter cards.

CC00, 16k Shadow

These options enable shadowing of the contents of the ROM area
named in the option title. The settings are Enabled, Disabled, and
Cached. The ROM area not used by ISA adapter cards will be
allocated to PCI adapter cards.

D000, 16k Shadow

These options enable shadowing of the contents of the ROM area
named in the option title. The settings are Enabled, Disabled, and
Cached. The ROM area not used by ISA adapter cards will be
allocated to PCI adapter cards.

D400, 16k Shadow

These options enable shadowing of the contents of the ROM area
named in the option title. The settings are Enabled, Disabled, and
Cached. The ROM area not used by ISA adapter cards will be
allocated to PCI adapter cards.

32

D800, 16k Shadow

These options enable shadowing of the contents of the ROM area
named in the option title. The settings are Enabled, Disabled, and
Cached. The ROM area not used by ISA adapter cards will be
allocated to PCI adapter cards.

DC00, 16k Shadow

These options enable shadowing of the contents of the ROM area
named in the option title. The settings are Enabled, Disabled, and
Cached. The ROM area not used by ISA adapter cards will be
allocated to PCI adapter cards.

4.6 Advanced Chipset Setup Selections

AMIBIOS SETUP – ADVANCED CHIPSET SETUP
©2001 American Megatrends Inc. All Rights Reserved

Memory Hole Disabled
SDRAM Timing by SPD Disabled
DRAM Refresh 15.6uS
DRAM Cycle time (SCLKs) 7/9
CAS# Latency (SCLKs) 3
RAS to CAS delay (SCLKs) 3
SDRAM RAS# Precharge (SCLKs) 3
Internal Graphics Mode Size 1MB
Display Cache Window Size 64MB
AGP Aperture Window 64MB
USB Function All USB Port
USB Device Legacy Support Disabled
Port 64/60 Emulation Disabled

Available Options:
> Disabled
Enabled

ESC: Exit ↑↓: Sel
PgUp/PgDn: Modify

F1: Help
F2/F3: Color

Figure 4: Advanced Chipset Setup

Memory Hold

This field enables you to reserve an address space for ISA devices.
Configuration options: [Disabled] or [15MB-16MB].

SDRAM Timing by SPD

This sets the optimal timings for items "DRAM Refresh", "DRAM
Cycle time", "CAS# Latency", "RAS to CAS delay" and "SDRAM RAS#
Precharge", depending on the memory modules in use.

DRAM Cycle time (SCLKs)

This feature controls the number of SDRAM clocks used for SDRAM
parameters: Tras and Trc. Tras specifies the minimum clocks
required between active command and precharge command. Trc
specifies the minimum clocks required between active command and
re-active command.

33

CAS# Latency (SCLs)

This option controls the latency between the SDRAM read command
and the time when data becomes available.

RAS to CAS delay (SCLKs)

This option controls the latency between the SDRAM active
command and the read/write command.

SDRAM RAS# Precharge (SCLKs)

This controls the idle clocks after issuing a pre-charged command to
the SDRAM.

Display Cache Window Size

This feature enables you to select the size of mapped memory for
Display Cache data.

AGP Aperture Window

This feature enables you to select the size of mapped memory for
AGP graphic data.

USB Function

Select Enabled if your system has a Universal Serial Bus (USB)
controller and you have USB peripherals.

USB Device Legacy Support

This motherboard supports Universal Serial Bus (USB) devices. If
detected, USB controller legacy mode will be enabled. If not
detected, USB controller legacy mode will be disabled.

34

4.7 Power Management Setup Selections

AMIBIOS SETUP – POWER MANAGEMENT SETUP

© 2001 American Megatrends Inc. All Rights Reserved

ACPI Aware O/S No
Sleep State S1/POS
USB KB/MS wakeup From S3 Disabled
Power Management/APM Enabled
Suspend Time Out Disabled
Throttle Slow Clock Temperature 65℃/149℉

Throttle Slow Clock Ratio 50.0%
Keyboard & PS/2 Mouse Monitor
FDC/LPT/COM Ports Monitor
SB & MSS Audio Ports Ignore
MIDI Ports Ignore
ADLIB Ports Ignore
Primary Master IDE Monitor
Primary Slave IDE Ignore
Secondary Master IDE Monitor
Secondary Slave IDE Ignore
System Thermal Ignore
Power Button Function ON/Off
Restore on AC/Power Loss Last State
Wake Up On Ring Disabled
Wake Up On Lan Disabled
Wake Up On PME Disabled
Resume By Alarm Disabled
Alarm Date 15
Alarm Hour 12
Alarm Minute 30
Alarm Second 30
Power Type Select AT

Available Options:
> No
Yes

ESC: Exit ↑↓: Sel
PgUp/PgDn: Modify

F1: Help
F2/F3: Color

Figure 5: Power Management Setup

ACPI Aware O/S

This feature is switch of ACPI function.

Sleep State

This feature is switch of STR (S3) or POS (S1) function.

USB KB/MS Wakeup From S3

When set to "Enabled", using USB keyboard or USB mouse can wake
up the system from S3 mode.

Power Management/APM

Set this option to Enabled to run APM (Advanced Power
Management).

Suspend Time Out

This option specifies how long the system will be inactive in Standby
state. When this length of time expires, the system will be in
Suspend power state.

35

Keyboard & PS/2 Mouse

Enabling this option allows the corresponding IRQ input to be
monitored for entering or leaving the sleep state.

FDC/LPT/COM Ports

Enabling this option allows the corresponding IRQ input to be
monitored for entering or leaving the sleep state.

SB & MSS Audio Ports

Enabling this option allows the corresponding IRQ input to be
monitored for entering or leaving the sleep state.

MIDI Ports

Enabling this option allows the corresponding IRQ input to be
monitored for entering or leaving the sleep state.

ADLIB Ports

Enabling this option allows the corresponding IRQ input to be
monitored for entering or leaving the sleep state.

Primary Master IDE

Enabling this option allows the corresponding IRQ input to be
monitored for entering or leaving the sleep state.

Primary Slave IDE

Enabling this option allows the corresponding IRQ input to be
monitored for entering or leaving the sleep state.

Secondary Master IDE

Enabling this option allows the corresponding IRQ input to be
monitored for entering or leaving the sleep state.

Secondary Slave IDE

Enabling this option allows the corresponding IRQ input to be
monitored for entering or leaving the sleep state.

Power Button Function

This option specifies how the power button mounted externally on
the computer chassis is used.

Wake Up On Ring

To resume Ring from Soft Off

Wake Up On LAN

To resume LAN from Soft Off

Wake Up On PME

To resume PME from Soft Off

36

Resume By Alarm

When this option is enabled, system will wake up from soft off mode
according to the time you set.

Alarm Date

To set the date for alarm

Alarm Hour

To set the hour for alarm

Alarm Minute

To set the minute for alarm

Alarm Second

To set the second for alarm

Power Type Select

To select the power type

37

4.8 PCI / Plug and Play Setup Selections

AMIBIOS SETUP – PCI / PLUG AND PLAY SETUP

© 2001 American Megatrends, Inc. All Rights Reserved.

Plug and Play Aware O/S No
Clear NVRAM on Every Boot No
On Board Audio Controller Enabled
On Board IEEEE1394 Controller Enabled
On Board PCMCIA Controller Enabled
PCI Latency Timer (PCI Clocks) 64
Primary Graphics Adapter External PCI
PCI VGA Palette Snooper Disabled
Allocate IRQ to PCI VGA No
OffBoard PCI IDE Card Auto
OffBoard PCI IDE Primary IRQ Disabled
OffBoard PCI IDE Secondary IRQ Disabled
PCI Slot1 IRQ Priority Auto
PCI Slot2 IRQ Priority Auto
PCI Slot3 IRQ Priority Auto
PCI Slot4 IRQ Priority Auto
DMA Channel 0 PnP
DMA Channel 1 PnP
DMA Channel 3 PnP
DMA Channel 5 PnP
DMA Channel 6 PnP
DMA Channel 7 PnP
IRQ3 PCI/PnP
IRQ4 PCI/PnP
IRQ5 PCI/PnP
IRQ7 PCI/PnP
IRQ9 PCI/PnP
IRQ10 PCI/PnP
IRQ11 PCI/PnP
IRQ14 PCI/PnP
IRQ15 PCI/PnP

Available Options:
No
> Yes

ESC: Exit ↑↓: Sel
PgUp/PgDn: Modify

F1: Help
F2/F3: Color

Figure 6: PCI / Plug and Play Setup

Plug and Play Aware O/S

When enabled, BIOS will configure only PnP ISA boot devices (i.e. all
PnP ISA cards which has boot flag set). PnP aware OS will configure
all other devices. When disabled, BIOS will configure all devices.

Clear NVRAM on Every Boot

When set to Yes, system can automatically clear NVRAM.

PCI Latency Timer (PCI Clocks)

This option specifies the latency timings (in PCI clocks) for PCI
devices installed in PCI expansion slots. The settings are 32, 64, 96,
128, 160, 192, 224, or 248.

PCI VGA Palette Snoop

When enabled, PCI will allow VGA palette signals to go to the ISA
bus.

38

Allocate IRQ to PCI VGA

Set this option to Yes to allocate an IRQ to the VGA device on the
PCI bus. The settings are Yes or No.

PCI Slot1/2/3/4 IRQ Priority

The option specifies IRQ priority for PCI device installed in PCI
expansion slot. The settings are Auto, (IRQ) 3, 4, 5, 7, 9, 10, and

11.

DMA Channel 0/1/3/5/6/7

The option enables you to specify the bus type used by each DMA
channel. The settings are PnP or ISA/EISA.

IRQ3/4/5/7/9/10/11/14/15

The option specifies the bus that an IRQ line is used on. You can
reserve IRQs for legacy ISA adapter cards and determine if AMIBIOS
should remove an IRQ from all available IRQs. The available IRQ
pool is determined by reading the ESCD NVRAM and is passed to
devices configurable by the system BIOS. If more IRQs must be
removed from the pool, users can reserve the IRQ by assigning an
ISA/EISA setting to it. Onboard I/O is configured by AMIBIOS. All
IRQs used by onboard I/O are configured as PCI/PnP.

39

4.9 Peripheral Setup Selections

AMIBIOS SETUP – PERIPHERAL SETUP

©2001 American Megatrends, Inc. All Rights Reserved

OnBoard Serial Port C 3E8/COM3
Serial Port C IRQ 11
OnBoard Serial Port D 2E8/COM4
Serial Port D IRQ 10
OnBoard FDC Enabled
OnBoard Serial Port A 3F8/COM1
OnBoard Serial Port B 2F8/COM2
Serial Port B Mode Normal
IR Duplex Mode Half Duplex
IR Pin Select IRRX/IRIX
OnBoard Parallel Port 378
Paralled Port Mode Normal
EPP Version N/A
Parallel Port IRQ 3
Parallel Port DMA Channel N/A
On-Chip IDE Both

Available Options:
Disabled
3F8/COM1

2F8/COM2

> 3E8/COM3

2E8/COM4

ESC: Exit ↑↓: Sel
PgUp/PgDn: Modify

F1: Help
F2/F3: Color

Figure 7: Peripheral Setup

OnBoard FDC

Set this option to Enabled to activate the floppy drive controller on
the motherboard. The settings are Auto (AMIBIOS automatically
determines if the floppy controller should be enabled), Enabled, or
Disabled.

OnBoard Serial Port A/B

This option specifies the base I/O port address of serial port A. The
settings are Auto (AMIBIOS automatically determines the correct
base I/O port address), Disabled, 3F8h, 2F8h, 2E8h, or 3E8h.

OnBoard Parallel Port

This option specifies the base I/O port address of parallel port on the
motherboard. The settings are Disabled, 378h, 278h, or 3BCh.

40

Parallel Port Mode

This option specifies the parallel port mode. The settings are Normal,
Bi-Dir, EPP, or ECP.

-

Normal: The normal parallel port mode is used.

-

Bi-Dir: Use this setting to support bi-directional transfers on the
parallel port.

-

EPP: The parallel port can be used with devices that adhere to the
Enhanced Parallel Port (EPP) specification. EPP uses the existing
parallel port signals to provide asymmetric bi-directional data
transfer driven by the host device.

-

ECP: The parallel port can be used with devices that adhere to the
Extended Capabilities Port (ECP) specification. ECP uses DMA
protocol to achieve data transfer rates up to 2.5 Megabits per
second. ECP provides symmetric bi-directional communication.

Parallel Port IRQ

This option specifies the IRQ used by the parallel port. The settings
are Auto, (IRQ) 5, or (IRQ) 7.

Parallel Port DMA Channel

This option is only available when the setting for the Parallel Port
Mode option is ECP. This option sets the DMA channel used by the
parallel port. The settings are DMA Channel 0, 1, or 3.

On-Chip IDE

This option specifies the IDE channel used by the onboard IDE
controller. The settings are Disabled, Primary, or Secondary.

41

4.10 Hardware Monitor Setup Selections

AMIBIOS SETUP – HARDWARE MONITOR SETUP

© 2001 American Megatrends Inc. All Rights Reserved.

CPU Temperature 31ºC/87ºF
System Temperature 29ºC/84ºF
CPU Fan Speed 6300 RPM
Chassis Fan Speed 0 RPM
Vcore 1.399 V
Vtt 1.501 V
+ 3.3V 3.349 V
+ 5.0V 5.070 V
+12.0V 12.046 V
+5V SB 4.978 V

ESC: Exit ↑↓: Sel
PgUp/PgDn: Modify

F1: Help
F2/F3: Color

Figure 8: Hardware Monitor Setup

This setup helps users monitor the NOVA-7810 board on board
system voltage and fan speed. The function is implemented by on
board W83627HF chip. The voltage monitoring will cover V core, Vtt,
+3.3V, SB5V, +5V and +12V. There is also a fan connector for CPU
fan.

42

Appendix A: Watchdog Timer

The Watchdog Timer is provided to ensure that standalone systems can always
recover from CPU crash caused by external EMI or a software bug. When the
CPU is not functioning normally, a hardware reset (cold boot) will be performed to
bring the system to a normal state.

A BIOS function call (INT 15H) is used to control the Watchdog Timer:

INT 15H:

AH – 6FH

Sub-function:

AL – 2: Set the Watchdog Timer period
BL : Time-out value (the time unit—second,

is dependent on Watchdog Timer unit
(selected in BIOS setup).

You have to call sub-function 2 to set the time-out period of Watchdog Timer first.
If the time-out value is not zero, Watchdog Timer will begin counting down.
When the timer value reaches zero, the system will reset. To ensure this reset
condition does not occur, Watchdog Timer must be periodically refreshed by
calling sub-function 2. However the Watchdog timer will be disabled if you set
the time-out value to be zero.

A tolerance of at least 10% must be maintained to avoid unknown routines within
the operating system (DOS), such as disk I/O that can be very time-consuming.

Note: When exiting a program, it is necessary to disable the Watchdog Timer.
Otherwise, the system will reset.

Example program:

; INITIAL TIMER PERIOD COUNTER
;

W_LOOP:

MOV AX, 6F02H ;setting the time-out value
MOV BL, 30 ;time-out value is 48 seconds

INT 15H
;
; ADD YOUR APPLICATION PROGRAM HERE
;
CMP EXIT_AP, 1 ;is your application over?
JNE W_LOOP ;No, restart your application

MOV AX, 6F02H ;disable Watchdog Timer
MOV BL, 0 ;
INT 15H
;
; EXIT

43

Appendix B: Digital I/O

One of the characteristics of digital circuit is fast response to high or low signal.
This kind of response is highly needed for harsh and critical industrial operating
environment. NOVA-7810 is designed with 4-bit digital inputs and 4-bit digital
outputs to ensure a quality performance in such operating environment.

Digital Input and Output are control signals generally. Use these signals to
control external devices that needs On/Off circuit or TTL devices. You can read or
write data to the selected address to enable digital I/O function.

A BIOS function call (INT 15H) is used to control Watchdog Timer:

INT 15H:

AH – 6FH

Sub-function:

AL – 8 : Set the Digital port is INPUT
AL : Digital I/O input value

Example program:

MOV AX, 6F08H ;setting the Digital port is input
INT 15H ;

AL low byte = value

AH – 6FH

Sub-function:

AL – 9: Set the Digital port is OUTPUT
BL : Digital I/O output value

Example program:

MOV AX, 6F09H ;setting the Digital port is output
MOV BL, 09H ;Digital value is 09H
INT 15H ;

Digital Output is 1001b

44

Appendix C: Address Mapping

IO Address Map

I/O address Range Description

000-01F DMA Controller #1
020-021 Interrupt Controller #1, Master
02E-02F Super I/O
040-05F 8254 timer
04E-04F Super I/O
060-06F 8042 (Keyboard Controller)
070-07F Real time Clock, NMI Mask

080-09F DMA Page Register
0A0-0BF Interrupt Controller #2
0C0-0DF DMA Controller #2

0F0 Clear Math Coprocessor Busy
0F1 Reset Math Coprocessor
0F2 Core logic programming configuration

0F8-0FF Math Coprocessor
1F0-1F8 Fixed Disk
295-296 Hardware Monitor
2E8-2EF Serial Port 4

2F8-2FF Serial Port 2
300-31F Prototype Card
360-36F Reserved
378-37F Parallel Printer Port 1 (LPT2)

3B0-3BF Monochrome Display and Printer Adapter

(LPT1)

3C0-3CF Reserved

3D0-3DF Color/Graphics Monitor Adapter

3E8-3EF Serial Port 3
3F0-3F7 Diskette Controller

3F8-3FF Serial Port 1

1st MB Memory Address Map

Memory address Description

00000-9FFFF System memory
A0000-BFFFF VGA buffer

C0000-C7FFF VGA BIOS

F0000-FFFFF System BIOS

1000000- Extend BIOS

*Default setting

45

IRQ Mapping Table

IRQ0 System Timer IRQ8 RTC clock
IRQ1 Keyboard IRQ9 Available
IRQ2 Cascade to IRQ Controller IRQ10 COM4
IRQ3 COM2 IRQ11 COM3
IRQ4 COM1 IRQ12 PS/2 mouse
IRQ5 Audio Device IRQ13 FPU
IRQ6 FDC IRQ14 Primary IDE
IRQ7 Printer IRQ15 Secondary IDE

DMA Channel Assignments

Channel Function

0 Available
1 Available
2 Floppy disk (8-bit transfer)
3 Available
4 Cascade for DMA controller 1
5 Available
6 Available
7 Available

46

Appendix D: How to Use Wake-Up Function

NOVA-7810 provides two kinds of Wake up Function. Wake-Up function is
enabled when you use ATX power supply.

Wake-Up By Ring:

You must enable the option Power On By Ring of CMOS SETUP. The ATX power
supply will be switched on when there is a ring signal detected on pin “RI” of
serial port.

Wake-Up On LAN:

When LAN Link/Active LED of your computer is flashing, it indicates that the LAN
chip is in standby mode and is waiting for Wake-Up signal. You can use other
computers to wake up your computer by sending ID to it.

ID: ID is the address of your system LAN. Every LAN chip has a factory, set ID,
which can be found from network information in WINDOWS.

ID format is xxxxxxxxxxxx
Example ID: 009027388320

47

Appendix E: How to Use VIDEO-IN Function

NOVA-7810 enables users to capture live video from video source such as the
CCTV camera. NOVA-7810 has four video input channels for surveillance systems.

Steps of driver installation:

1. Insert IEI Driver CD-ROM

2. The window will display the menu of IEI Driver CD. Click “IVC Series”.

3. Click “IVC-100/100G/200/200G”

4. Double click the “Windows” folder

5. Double click “ ieisetup.exe”

Microsoft Direct X 8.1 or above is needed. The setup program (ieisetup.exe) will
prompt you to install Direct X8.1 after the driver installation has been completed.
Therefore, IEI strongly recommends you to use ieisetup.exe for driver installation.

Demo Programs:

1. Double click “Demo” folder

2. Double click “ivc-100.exe”

Connection:

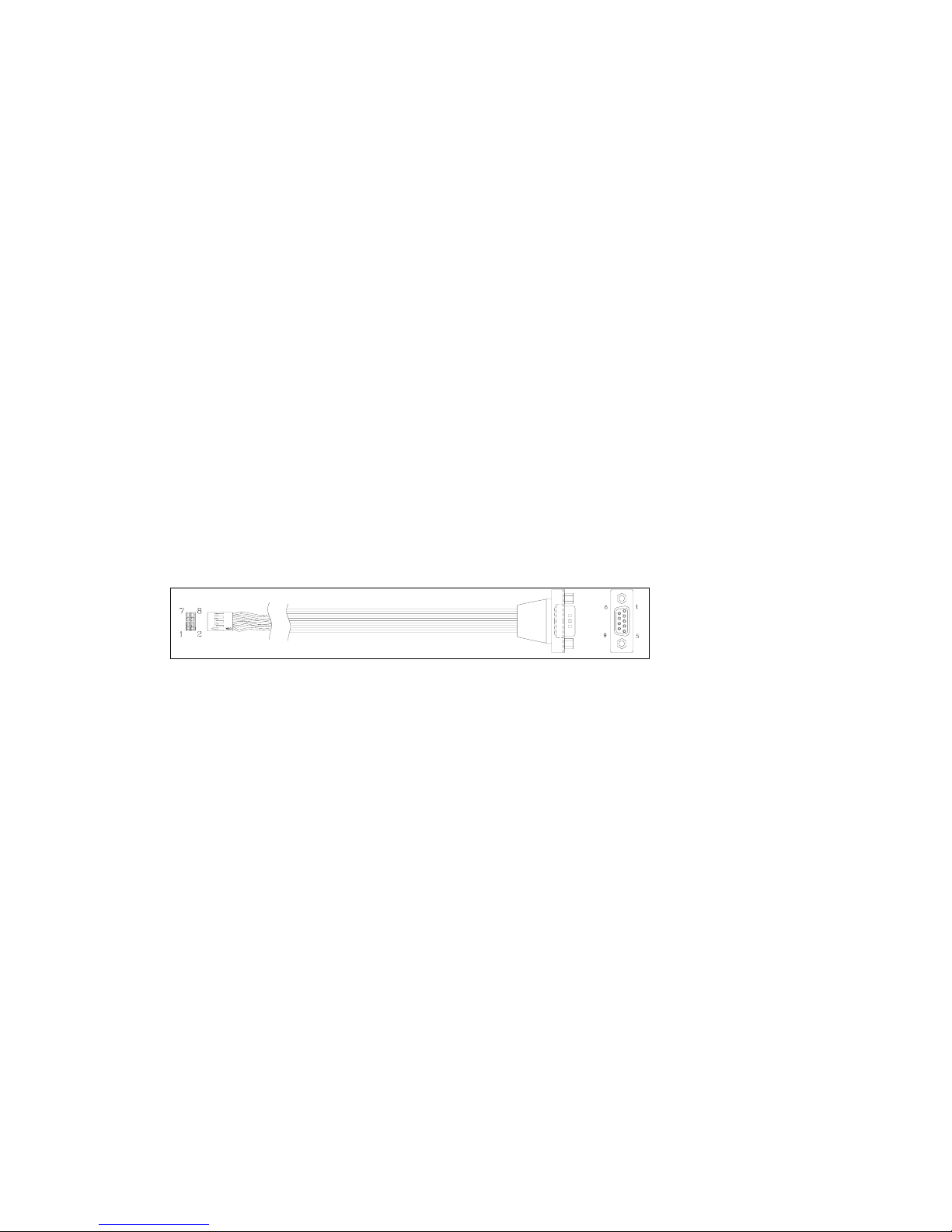

Cable 1: Dupont Head 8-Pin, to CPU board.

Dupont Head 8Pin D-SUB 9Pin

48

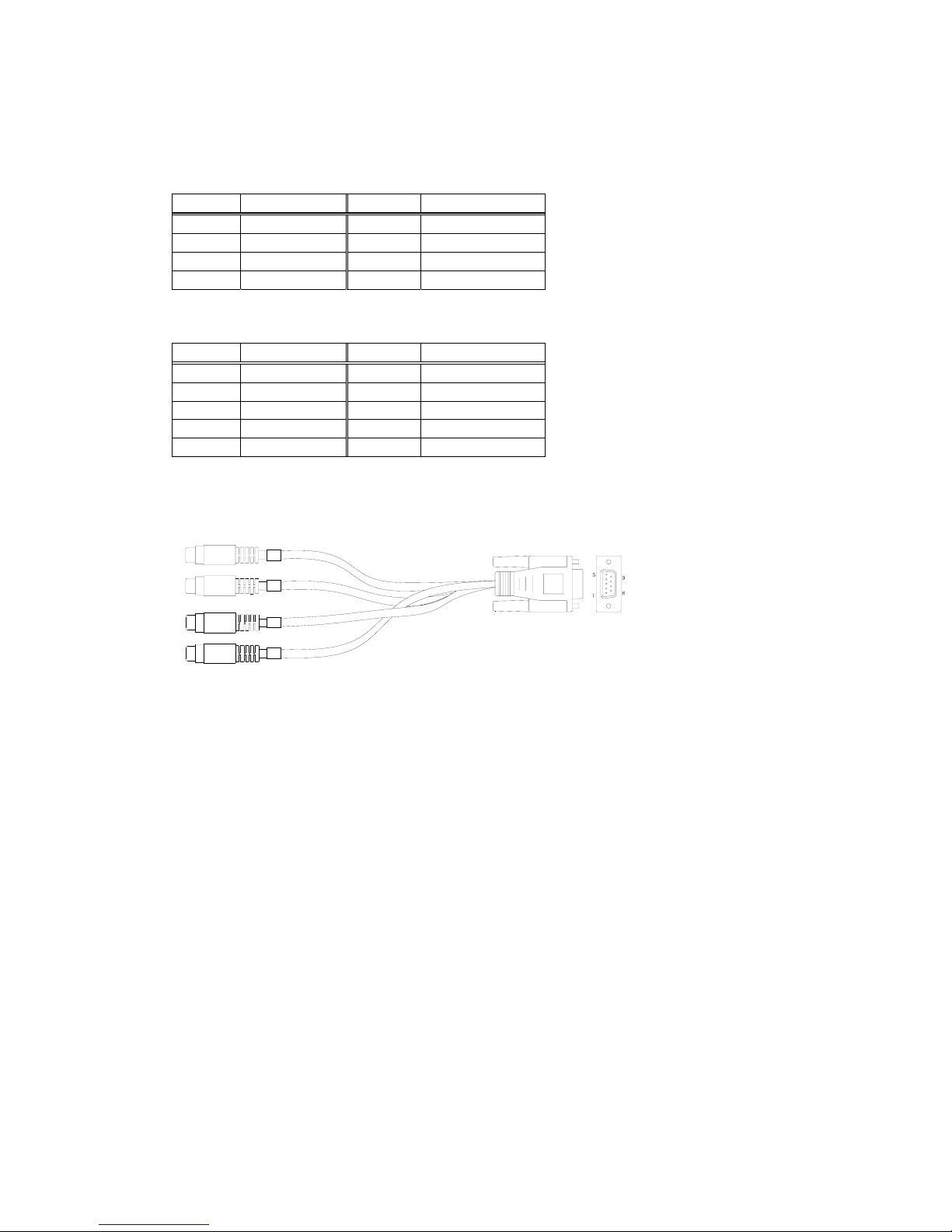

Pin Definition:

Dupont Head 8Pin

PIN Description PIN Description

1 AVIN0 2 GROUND
3 AVIN1 4 GROUND
5 AVIN2 6 GROUND
7 AVIN3 8 GROUND

D-SUB 9Pin(for both cable 1 and cable 2)

PIN Description PIN Description

1 AVIN0 2 AVIN1
3 AVIN2 4 AVIN3
5 N.C 6 GROUND
7 GROUND 8 GROUND
9 GROUND

Cable 2: D-SUB 9Pin, connected to cable 1.
RCA connectors are connected with video-in source.

A

B

C

D

RCA connector D-SUB 9Pin

49

Appendix F: How to Use LCD-TYPE Function

NOVA-7810 provides four kinds of LCD-TYPE function.

LCD-TYPE function setup procedure:

1. Go to the DOS command prompt in MS-DOS or Windows 9x

2. In DOS command prompt, type "LCD_Prg"

3. Select 1, 2, 3, or 4 from LCD Type

4. Reboot the system

ICP Electronic Inc.

LCD Module Flash Utility

(1) 640 x 480 18 bits

(2) 800 x 600 18 bits
(3) 1024 x 768 18 bits
(4) 1024 x 768 36 bits

[M] Menu [1-4] LCD Type [ESC] Exit
