IEI Technology NOVA-7800 User Manual

October 22, 2003

NOVA-7800

Mobile CPU embedded board

With 10/100Mbps Ethernet,

VGA, Audio Version 1.1

User Manual

Version 1.2

2

Copyright Notice

The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages. This document contains proprietary information protected by copyright. All rights are reserved. No part of this manual may be reproduced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer.

Trademarks

NOVA-7800 is registered trademarks of ICP Electronics Inc., IBM PC is a registered trademark of International Business Machines Corporation. Intel is a registered trademark of Intel Corporation. Award is registered trademarks of Award Software International, Inc. Other product names mentioned herein are used for identification purposes only and may be trademarks and/or registered trademarks of their respective companies.

Support

Any questions regarding the content of this manual or related issues can be e-mailed to us directly at: SUPPORT@IEI.COM.TW

3

Table of Contents

CHAPTER 1. INTRODUCTION ........................................5

1.1 S

PECIFICATIONS .......................................................... 6

1.2 P

ACKAGE CONTENTS...................................................... 8

CHAPTER 2. INSTALLATION..........................................9

2.1 NOVA-7800’

S LAYOUT ................................................. 9

2.2 C

LEAR CMOS SETUP................................................... 12

2.3 C

OMPACT FLASH SETTING ............................................. 12

2.4 A

UDIO AMPLIFIER SELECT ............................................. 12

CHAPTER 3. CONNECTION ..........................................13

3.1 F

LOPPY DISK DRIVE CONNECTOR ..................................... 14

3.2 V

IDEO IN CONNECTOR ................................................. 14

3.3 U

LTRA ATA33/66/100 IDE DISK DRIVE CONNECTOR ........... 15

3.4 P

ARALLEL PORT ......................................................... 15

3.5 USB P

ORT CONNECTOR................................................ 16

3.6 S

ERIAL PORTS........................................................... 16

3.7 P

OWER CONNECTOR .................................................... 17

3.8 K

EYBOARD CONNECTOR ................................................ 18

3.9 I

RDA INFRARED INTERFACE PORT .................................... 18

3.10 F

AN CONNECTOR ...................................................... 19

3.11 A

UDIO CONNECTORS ................................................. 19

3.12 VGA C

ONNECTOR..................................................... 20

3.13 LAN RJ45 C

ONNECTOR.............................................. 20

3.14 C

OMPACT FLASH CONNECTOR--TYPEII ............................ 21

3.15 E

XTERNAL SWITCHES AND INDICATORS ............................ 22

3.16 IEEE-1394 C

ONNECTOR ............................................ 22

3.17 C

ARDBUS/PCMCIA CONNECTOR ................................... 23

3.18 D

IGITAL I/O ........................................................... 24

CHAPTER 4. AMI BIOS SETUP .....................................26

4.1 I

NTRODUCTION .......................................................... 26

4.2 S

TARTING SETUP........................................................ 26

4.3 S

ETUP SUMMARY ........................................................ 26

4

4.4 STANDARD CMOS SETUP SELECTIONS ............................. 28

4.5 A

DVANCED CMOS SETUP SELECTIONS ............................. 30

4.6 A

DVANCED CHIPSET SETUP SELECTIONS............................. 36

4.7 P

OWER MANAGEMENT SETUP SELECTIONS........................... 38

4.8 PCI / P

LUG AND PLAY SETUP SELECTIONS .......................... 41

4.9 P

ERIPHERAL SETUP SELECTIONS ...................................... 43

4.10 H

ARDWARE MONITOR SETUP SELECTIONS ......................... 46

APPENDIX A. WATCHDOG TIMER ..................................47

APPENDIX B. DIGITAL I/O ............................................49

APPENDIX C. ADDRESS MAPPING .................................50

IO A

DDRESS MAP ............................................................ 50

1

ST MB MEMORY ADDRESS MAP........................................... 51

IRQ M

APPING TABLE ........................................................ 51

DMA C

HANNEL ASSIGNMENTS ............................................. 51

APPENDIX D. HOW TO USE WAKE-UP FUNCTION .........52

APPENDIX E. HOW TO USE VIDEO-IN FUNCTION ........53

5

Chapter 1. Introduction

Thank you for choosing the NOVA-7800 Mobile Intel® Celeron® and Pentium III

®

(Micro-FCBGA) with Multimedia & LAN Ethernet Embedded Little Board. This board comes equipped with low power mobile Pentium

®

III, or Celeron Processor with the Intel advanced chipset 815E especially designed to fit the needs of the system manufacturers, integrators, or VARs that want to build a low power consumption system.

In addition, the NOVA-7800 provides on-chip VGA which provides up to 1600x1200 in resolution.

An advanced high performance super I/O chip – W83627 is used in the NOVA-7800 board, providing two UARTs that are compatible with the NS16C550. The parallel port and FDD interface are compatible with IBM PC/AT architectures.

The NOVA-7800 has one Fast Ethernet Multifunction PCI Controller working as a LAN controller, which is fully a integrated 10BASE-T/100BASE-TX LAN solution that provides high performance networking functions as well as low power consumption features.

This CPU board has a built-in Compact Flash Disk Socket, CardBus, FireWire for embedded applications.

For multimedia applications, NOVA-7800 provides many functions such as IEEE 1394 ,5.1 channel Audio and video in.

6

1.1 Specifications

•

CPU : Intel Mobile CPU( Micro-FCBGA )

•

DMA channels : 7

•

Interrupt levels : 15

•

Chipset : Intel 815E

•

Memory : One 168 pin DIMM sockets. The memory

capability is up to 512MB/133MHz.

•

Ultra ATA/33/66/100 IDE Interface : One PCI

Enhanced IDE channels (2 IDE devices). The south bridge ICH2 supports Ultra ATA/33/66/100 IDE interface. To support Ultra ATA66/100 Hard disk, a specific cable (maximum length -- 45 cm) is available.

•

Floppy disk drive interface : Single 2.88 MB, 1.44MB,

1.2MB, 720KB, or 360KB floppy disk drive.

•

Serial ports : Two high-speed 16C550 compatible UARTs

with 16-byte FIFO buffer. Up to 115Kbps in speed.

•

Parallel Port : One IEEE1284 compatible Bi-directional

ports. Supports SPP/ECP/EPP.

•

IrDA : Supports Serial Infrared(SIR) and Amplitude Shift

Keyed IR(ASKIR) interface.

•

USB : Supports two USB 1.1 compatible ports.

•

Audio : Onboard CMI8738 chipset, supports 5.1 channel

sound that include LINEOUT, REAR, and CENTER/BASS.

•

Watchdog timer :

 Software programmable – enable/disabled.  Timer interval is 1 ~ 255 second.  System Reset will be generated while time out.

7

•

VGA Controller : Embedded VGA controller, screen

Resolution : up to 1600x1200 in 256 Colors at 85Hz Refresh.

•

Intel 82801BA embedded LAN : IEEE 802.3u Auto-

Negotiation support for 10BASE-T/100BASE-TX. Fast backto-back transmission support with minimum interframe spacing. Connected to your LAN through RJ45 connector.

•

Keyboard Controller : 8042 compatible for keyboard and

PS/2 mouse

•

4 Digital Inputs and 4 Digital Outputs.

•

4 Channels of composite video input.

•

FireWire : The TSB43AA22 provides the digital and analog

transceiver functions to implement a two-port mode in a cable-based IEEE 1394. Provides two P1394a fully compliant cable ports at 100/200/400 megabits per second (Mbits/s).

•

CardBus : Compliant with CardBus/PCMCIA PC Card 95/97

standard specification.

•

Power Consumption : 5V/3.5A and 12V/0.18A, as running

by PIII 800MHz and 256MB.

•

Operating Temperature : 0° ~ 60° C ( CPU needs cooler)

8

1.2 Package Contents

In addition to this User's Manual, the NOVA-7800 package includes the following items:

•

NOVA-7800 Mobile CPU bases Single board computer.

•

One FDD cable.

•

One HDD cable.

•

Keyboard / Mouse adapter Y cable.

•

One RS-232 serial port and one Printer port cable.

•

One AUDIO ports cable.

•

Two 4 Channels of composite video cable.

•

One CPU cooler.

•

One IEEE-1394 cable.

9

Chapter 2. Installation

This chapter describes how to install the NOVA-7800. At first, the layout of NOVA-7800 is shown and then comes the unpacking information that you should be careful is described. Jumpers and switches setting for the NOVA-7800’s configuration, such as CPU type selection, system clock setting, and watch dog timer, are also included.

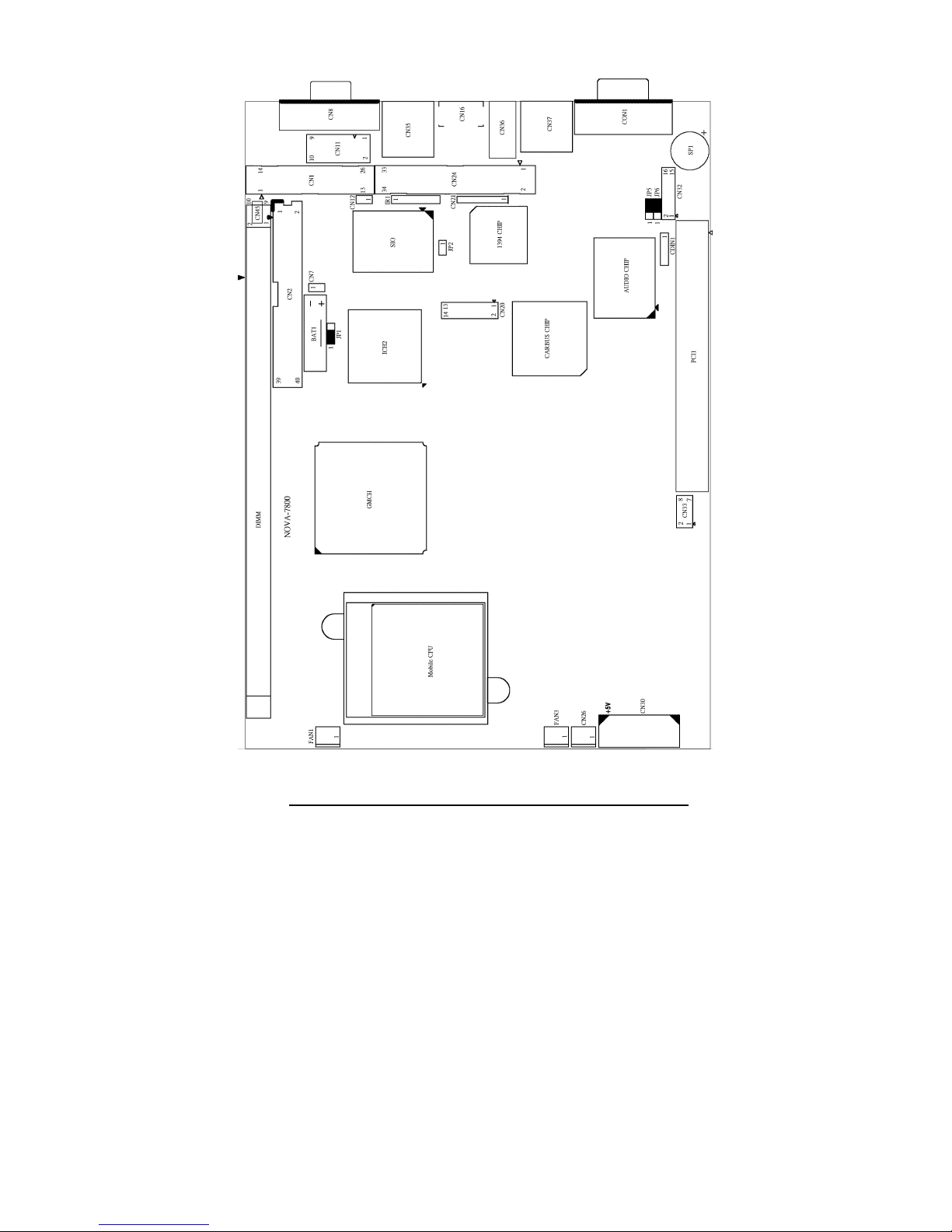

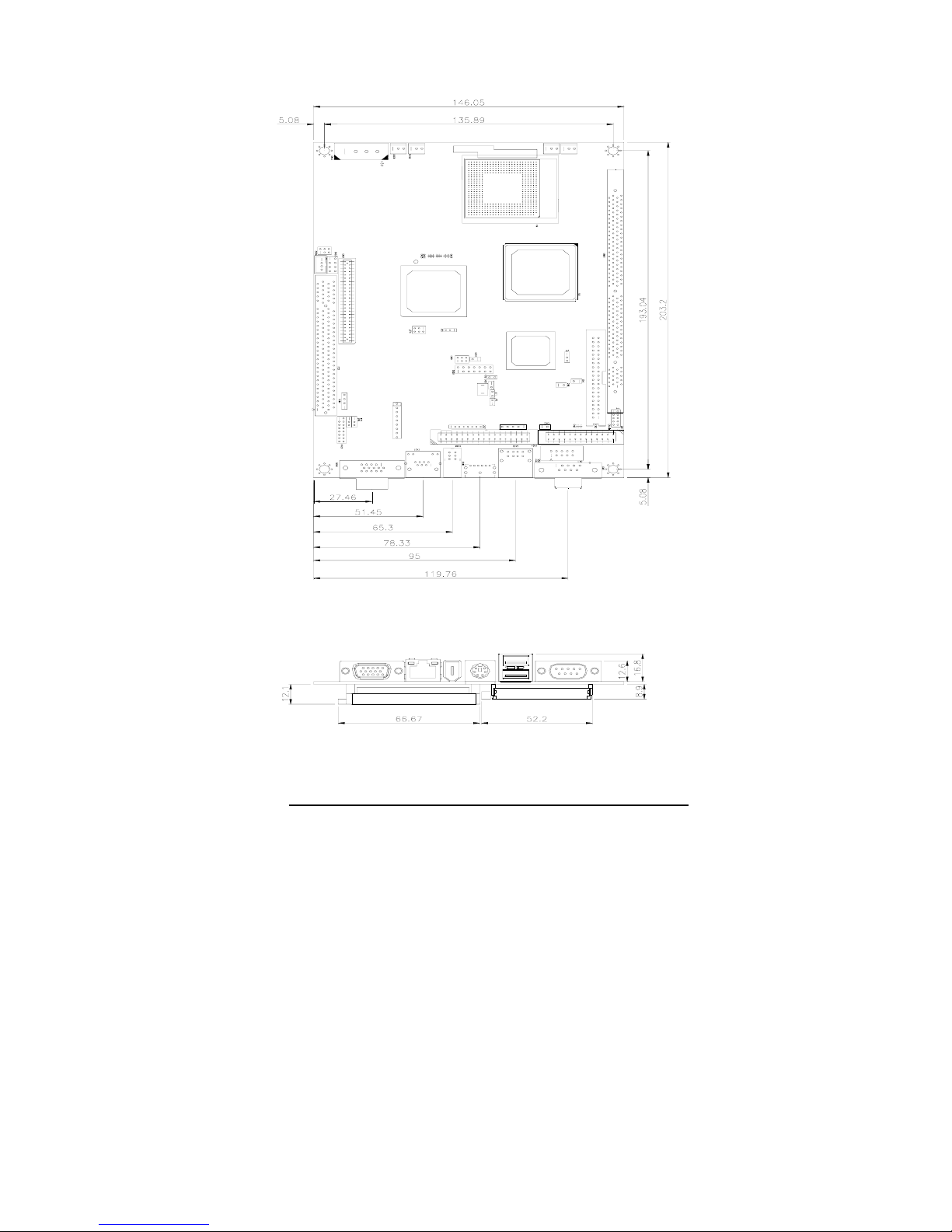

2.1 NOVA-7800’s Layout

10

11

12

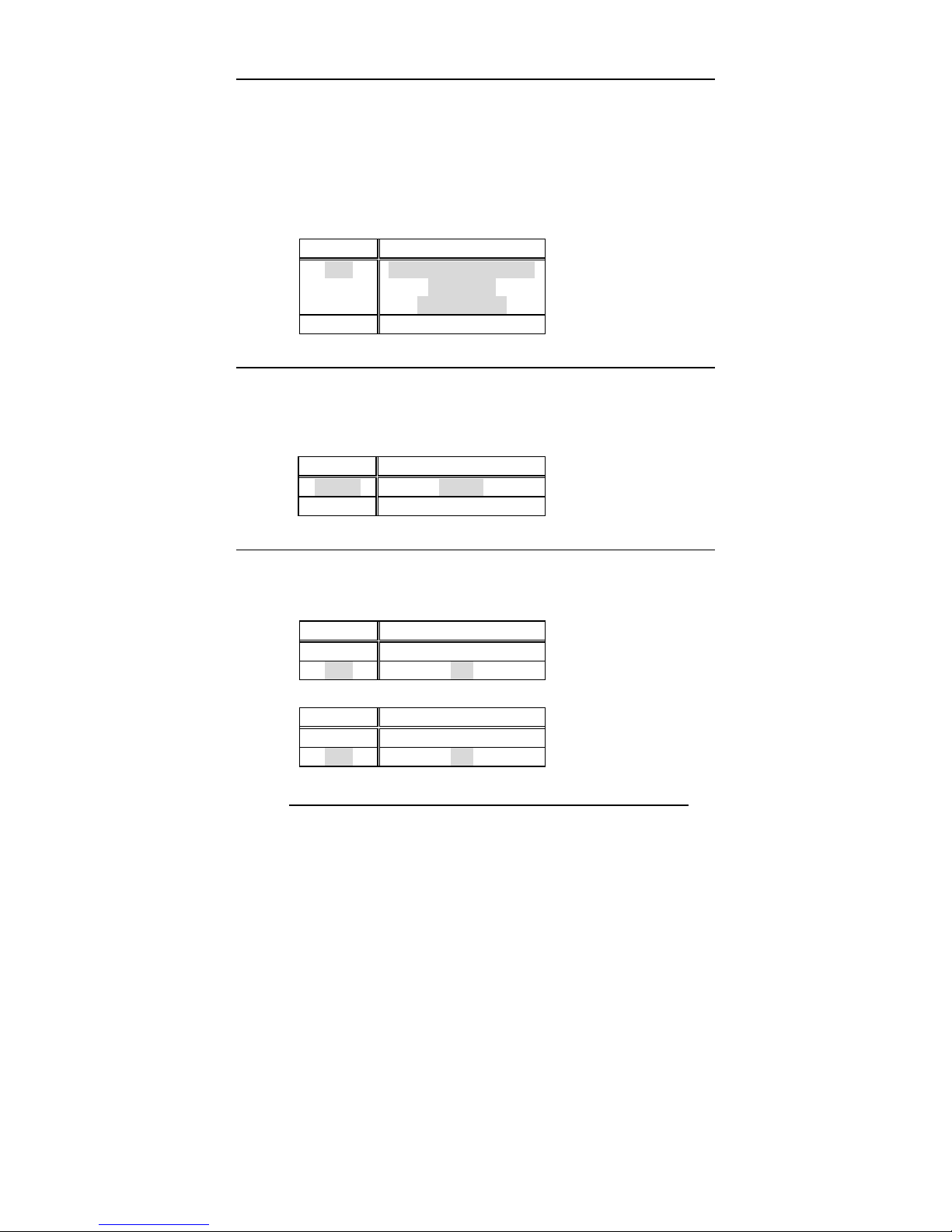

2.2 Clear CMOS Setup

The CMOS RAM holds the board’s configuration data, which had to be set through system BIOS. In case you want to clear the CMOS RAM (for example, if you have forgotten the password, you should clear the CMOS setting then re-set the password.), you need to close JP1 for about 3 seconds, then open it again to set system back to normal operation mode.

•

JP1: Clear CMOS Setup

JP1 DESCRIPTION 1-2 Keep CMOS Setup

(Normal

Operation)

2-3 Clear CMOS Setup

2.3 Compact Flash Setting

Set the operating mode of CompactFlash disk. This is similar to the operation of a hard disk.

• JP2 : Compact Flash Setting JP2 DESCRIPTION

OPEN Slave

Close Master

2.4 Audio Amplifier Select

This jumper is for the setting of Audio Amplifier.

•

JP5 : Audio L_Line out select

JP5 DESCRIPTION 1-2 OFF

2-3 ON

•

JP6 : Audio R_Line out select

JP6 DESCRIPTION 1-2 OFF

2-3 ON

13

Chapter 3. Connection

This chapter describes how to connect peripherals, switches and indicators to the NOVA-7800 board. The following table lists the connectors on NOVA-7800.

Label Description

CDIN1 CD-IN Connector CN1 Parallel Port Connector

CN2 IDE Connector CN7 SUS LED CN8,11 Serial Port 1,2 CN12 ATX Power On/Off Button Connector CN16 DIN Connector for Keyboard/Mouse CN20 External Switch and Indicators CN21,36 IEEE-1394 Connector

CN24 FDD Connector CN26 ATX Power Connector CN30 Power Connector CN32 Audio Connector CN33 4 Channels of composite video in Connector CN35 USB Connector CN37 LAN Connector CN43 Compact Flash CN44 CardBus/PCMCIA Connector CN45 Digital I/O CON1 VGA Connector FAN1,3 Fan Connectors IR1 IrDA Connector PCI1 Specific PCI Slot

14

3.1 Floppy Disk Drive Connector

NOVA-7800 board equipped with a 34-pin daisy-chain driver connector cable.

•

CN24 : FDD CONNECTOR

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 GROUND 2 REDUCE WRITE 3 GROUND 4 N/C 5 GROUND 6 DS1# 7 GROUND 8 INDEX#

9 GROUND 10 MOTOR ENABLE A# 11 GROUND 12 DRIVE SELECT B# 13 GROUND 14 DRIVE SELECT A# 15 GROUND 16 MOTOR ENABLE B# 17 GROUND 18 DIRECTION# 19 GROUND 20 STEP# 21 GROUND 22 WRITE DATA# 23 GROUND 24 WRITE GATE# 25 GROUND 26 TRACK 0# 27 GROUND 28 WRITE PROTECT# 29 N/C 30 READ DATA# 31 GROUND 32 SIDE 1 SELECT# 33 N/C 34 DISK CHANGE#

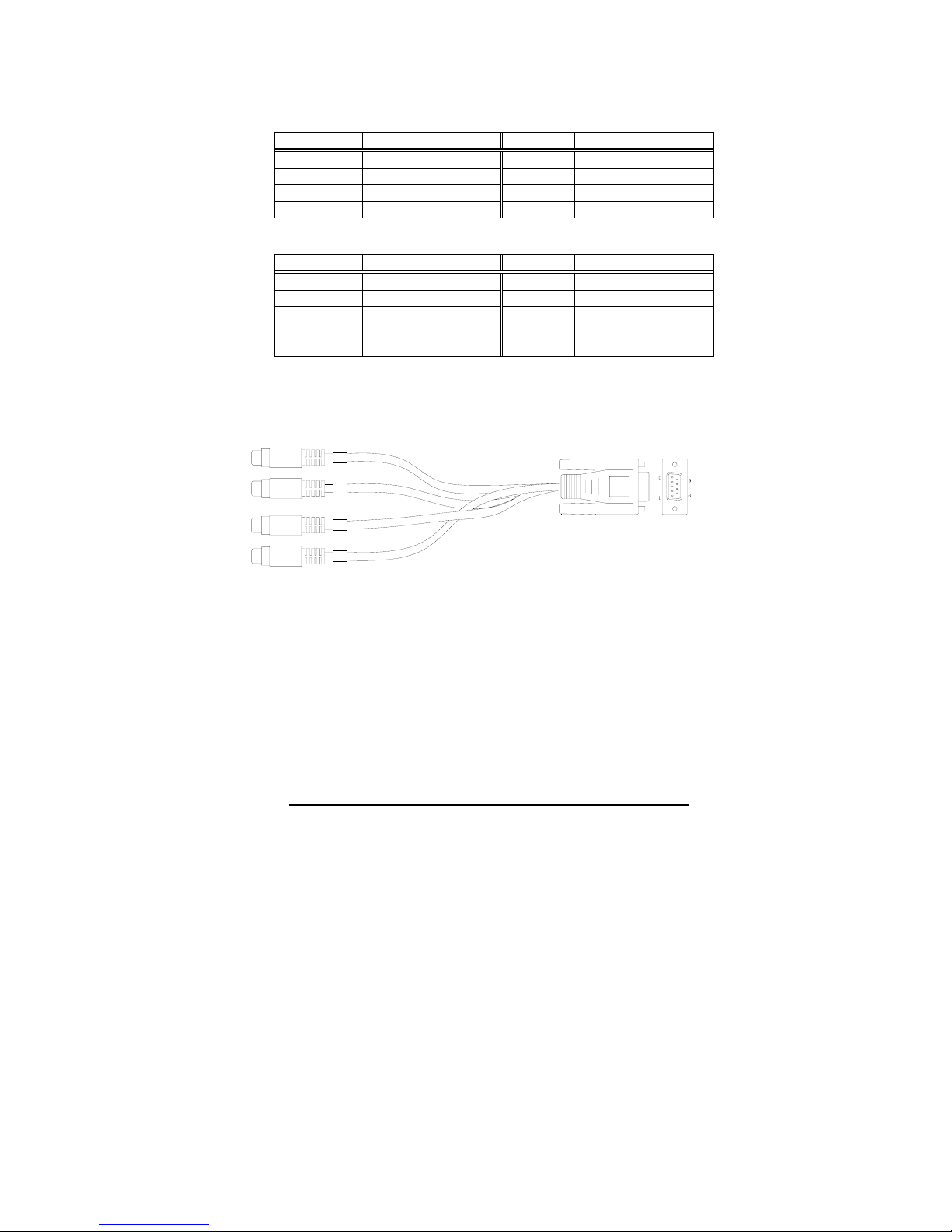

3.2 Video IN Connector

NOVA-7800 is equipped witch 4 channels of composite video connector(BT878A).

• CN33: Capture IN

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 AVIN0 2 GROUND 3 AVIN1 4 GROUND 5 AVIN2 6 GROUND 7 AVIN3 8 GROUND

15

3.3 Ultra ATA33/66/100 IDE Disk Drive Connector

You can attach one IDE( Integrated Device Electronics) hard disk drives to the NOVA-7800 IDE controller.

• CN2 : Primary IDE Connector

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 RESET# 2 GROUND 3 DATA 7 4 DATA 8 5 DATA 6 6 DATA 9 7 DATA 5 8 DATA 10

9 DATA 4 10 DATA 11 11 DATA 3 12 DATA 12 13 DATA 2 14 DATA 13 15 DATA 1 16 DATA 14 17 DATA 0 18 DATA 15 19 GROUND 20 N/C 21 N/C 22 GROUND 23 IOW# 24 GROUND 25 IOR# 26 GROUND 27 CHRDY 28 GROUND 29 DACK 30 GROUND 31 INTERRUPT 32 GROUND 33 SA1 34 P66DET 35 SA0 36 N/C 37 HDC CS0# 38 HDC CS1# 39 HDD ACTIVE# 40 GROUND

3.4 Parallel Port

This port is usually connected to a printer, The NOVA-7800 includes an on-board parallel port, and accessed through a 26pin flat-cable connector CN1. Three modes – SPP, EPP and ECP – are supported.

16

•

CN1 : Parallel Port Connector

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 STROBE# 14 AUTO FORM FEED # 2 DATA 0 15 ERROR# 3 DATA 1 16 INITIALIZE 4 DATA 2 17 PRINTER SELECT LN# 5 DATA 3 18 GROUND 6 DATA 4 19 GROUND 7 DATA 5 20 GROUND 8 DATA 6 21 GROUND

9 DATA 7 22 GROUND 10 ACKNOWLEDGE 23 GROUND 11 BUSY 24 GROUND 12 PAPER EMPTY 25 GROUND 13 PRINTER SELECT 26 N/C

3.5 USB Port Connector

The NOVA-7800 provides two USB ports(USB 1.1 compliant).

• CN35 : USB 8-PIN HEADER

PIN NO. DESCRIPTION

A1 VCC A2 DATA0A3 DATA0+ A4 GROUND B1 VCC B2 DATA0B3 DATA0+ B4 GROUND

3.6 Serial Ports

The NOVA-7800 offers two high speed NS16C550 compatible UARTs with Read/Receive 16 byte FIFO in each serial port.

17

• CN8 : D_SUB 9-PIN Connector

PIN NO. DESCRIPTION

1 DATA CARRIER DETECT (DCD) 2 RECEIVE DATA (RXD) 3 TRANSMIT DATA (TXD) 4 DATA TERMINAL READY (DTR) 5 GROUND 6 DATA SET READY (DSR) 7 REQUEST TO SEND (RTS) 8 CLEAR TO SEND (CTS) 9 RING INDICATOR (RI)

•

CN11 : 10-pin Connector

PIN NO. DESCRIPTION

1 DATA CARRIER DETECT (DCD) 2 RECEIVE DATA (RXD) 3 TRANSMIT DATA (TXD) 4 DATA TERMINAL READY (DTR) 5 GROUND 6 DATA SET READY (DSR) 7 REQUEST TO SEND (RTS) 8 CLEAR TO SEND (CTS) 9 RING INDICATOR (RI)

10 N/C

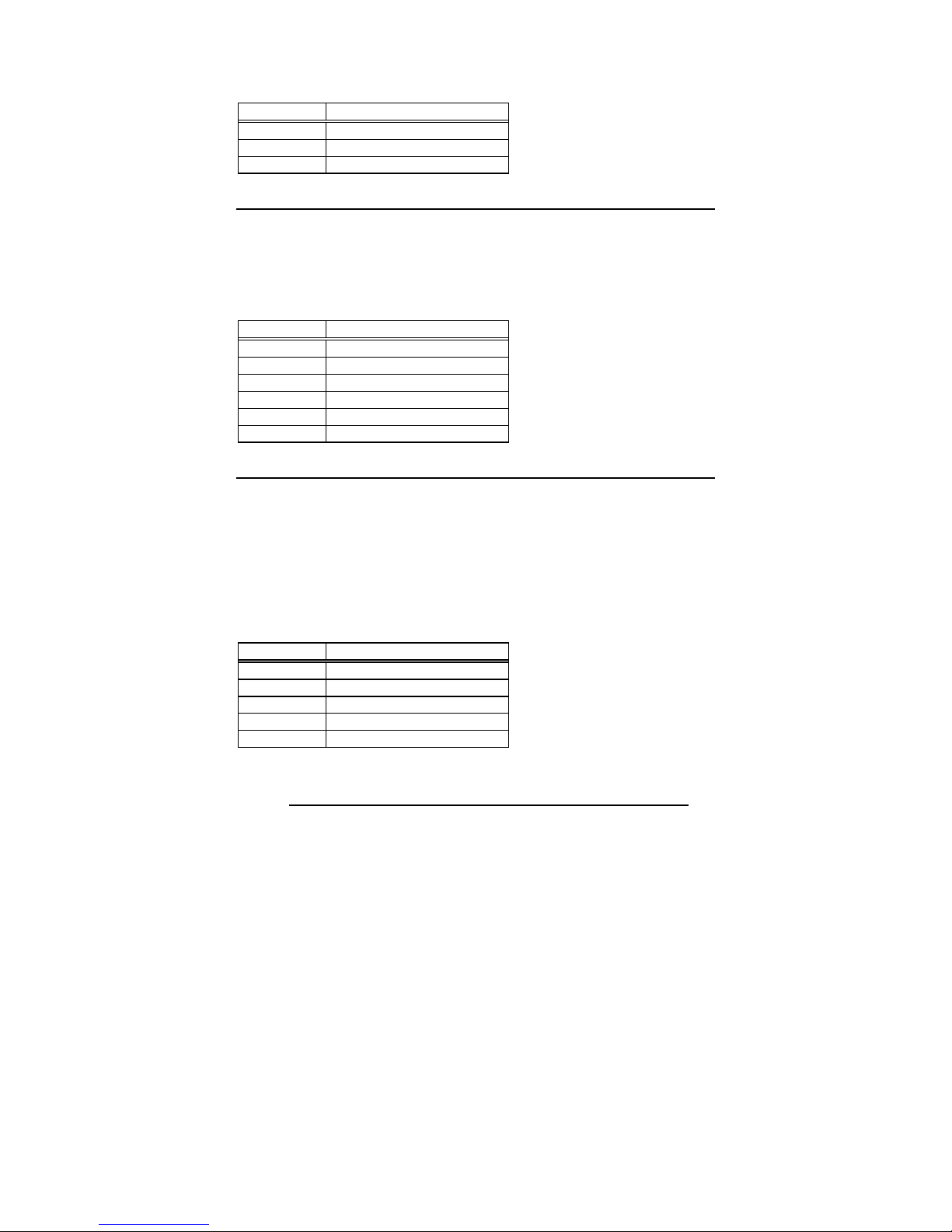

3.7 Power Connector

The NOVA-7800 has one power connector for power supply.

• CN30 : Power Supply Connector

PIN NO. DESCRIPTION

1 VCC12V 2 GROUND 3 GROUND 4 VCC5V

18

• CN26 : ATX Power Connector

PIN NO. DESCRIPTION

1 VCC5VSB 2 PS_ON 3 GROUND

3.8 Keyboard Connector

The NOVA-7800 provides 6-PIN MIN-DIN keyboard/mouse connector.

• CN16 : 6-pin Mini-DIN Keyboard/Mouse Connector

PIN NO. DESCRIPTION

1 KEYBOARD DATA 2 MOUSE DATA 3 GROUND 4 +5V 5 KEYBOARD CLOCK 6 MOUSE CLOCK

3.9 IrDA Infrared Interface Port

The NOVA-7800 built-in a IrDA port which support Serial Infrared(SIR) or Amplitude Shift Keyed IR(ASKIR) interface. When use the IrDA port have to set SIR or ASKIR model in the BIOS’s Peripheral Setup’s COM 2. Then the normal RS-232 COM 2 will be disabled.

• IR1 : IrDA connector

PIN NO. DESCRIPTION

1 VCC5V 2 N/C 3 IR-RX 4 GROUND 5 IR-TX

19

3.10 Fan Connector

The NOVA-7800 provides CPU cooling fan connector and system fan connector. CPU connectors can supply 12V/500mA while the fan’s rotation is in full speed.

•

FAN1, FAN3 : Fan Connector

PIN NO. DESCRIPTION

1 SENSOR 2 12V 3 GROUND

3.11 Audio Connectors

The NOVA-7800 has a built-in AUDIO chipset (CMEDIA CMI8738LX); connector directly connects to the pin-header (CN32). The Audio chipset can support 5.1 channel sounds that include LINEOUT, REAR, and CENTER/BASS .

• CN32 : Audio Connector (2x8_2.00mm)

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 LINEOUT_L 2 GROUND

3 LINEOUT_R 4 GROUND 5 CENTER 6 BASS 7 GROUND 8 GROUND 9 LININ_L 10 LINEIN_R

11 GROUND 12 GROUND 13 REAR_L 14 REAR_R 15 MIN_IN 16 GROUND

• CDIN1 : CD-IN

PIN NO. DESCRIPTION

1 CD LEFT SIGNAL

2 GROUND

3 GROUND

4 CD RIGHT SIGNAL

20

3.12 VGA Connector

NOVA-7800 built-in 15-pin VGA connector directly to your CRT monitor.

• CON1 : 15-pin Female Connector

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 RED 2 GREEN 3 BLUE 4 N/C 5 GROUND 6 GROUND 7 GROUND 8 GROUND

9 VCC 10 GROUND 11 N/C 12 DDC DAT 13 HSYNC 14 VSYNC 15 DDCCLK

3.13 LAN RJ45 Connector

NOVA-7800 is equipped with built-in one 10/100Mbps Ethernet Controller. You can connect it to your LAN through RJ45 LAN connector. The pin assignments are as following:

• CN37 : Intel 82562ET LAN RJ45 Connector

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 TX+ 5. N/C

2 TX- 6. RX-

3. RX+ 7. N/C

4. N/C 8. N/C

21

3.14 Compact Flash Connector--TYPEII

The NOVA-7800 supports one CompactFlash socket that be provided from IDE2. You must set the jumper to avoid the conflict. (for example: master or slave)

•

CN43 : CompactFlash Socket

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 GROUND 26 VCC-IN CHECK2 2 DATA3 27 DATA11 3 DATA4 28 DATA12 4 DATA5 29 DATA13 5 DATA6 30 DATA14 6 DATA7 31 DATA15 7 HDC_CS0# 32 HDC_CS1# 8 N/C 33 N/C

9 GROUND 34 IOR# 10 N/C 35 IOW# 11 N/C 36 N/C 12 N/C 37 INTERRUPT 13 +5V 38 +5V 14 N/C 39 CSEL 15 N/C 40 N/C 16 N/C 41 RESET# 17 N/C 42 IORDY 18 SA2 43 N/C 19 SA1 44 +5V 20 SA0 45 HDD_ACTIVE# 21 DATA0 46 N/C 22 DATA1 47 DATA8 23 DATA2 48 DATA9 24 N/C 49 DATA10 25 VCC-IN CHECK2 50 GROUND

22

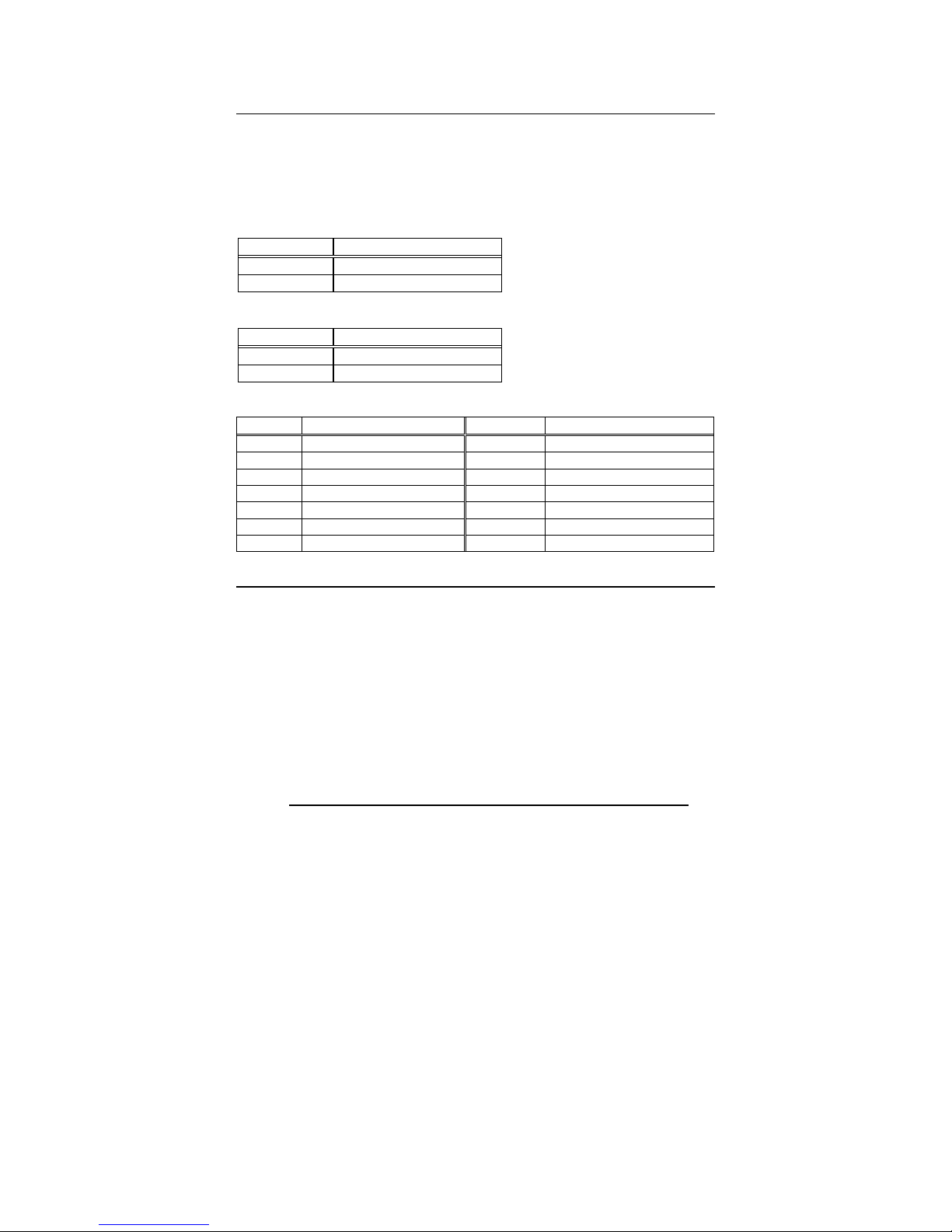

3.15 External Switches and Indicators

There are several external switches and indicators for monitoring and controlling your CPU board. All the functions are in the CN7, CN12, CN20 connector.

•

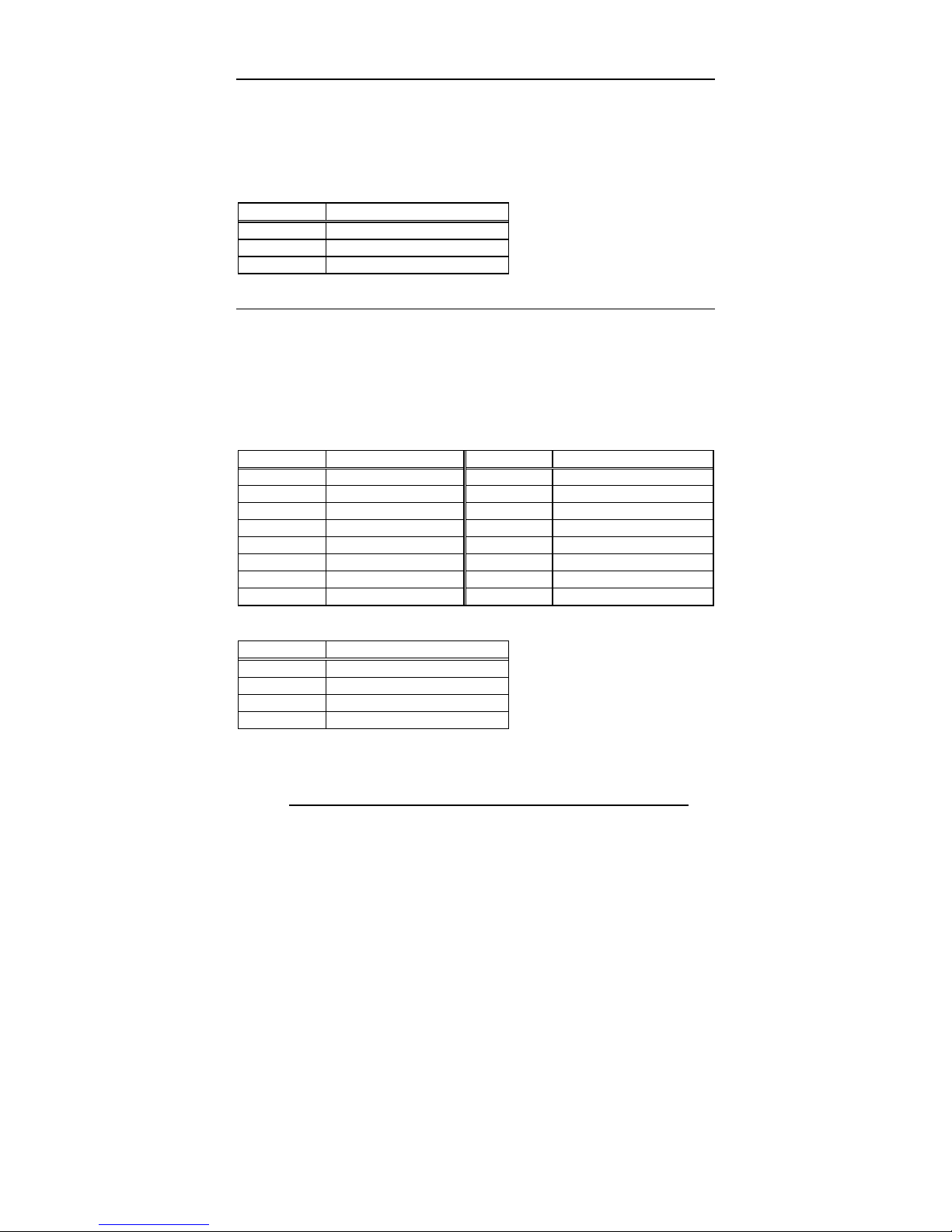

Suspend Led Connector(CN7)

PIN NO. DESCRIPTION

1 LED+ 2 LED-

•

ATX Power On/Off Button Connector(CN12)

PIN NO. DESCRIPTION

1 PWR_BUTTON+ 2 GROUND

•

CN20 : Multi Panel

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1. POWER-LED + 2 SPEAKER -

3. N/C 4 N/C

5. POWER-LED - 6 N/C

7. KEYLOCK+ 8 SPEAKER +5V

9. KEYLOCK- 10 RESET SW

11. GROUND 12 RESET SW GND 13 HDD LED+ 14 HDD LED -

3.16 IEEE-1394 Connector

NOVA-7800 is equipped witch IEEE1394 controller (TI TSB43AA22). You can connect it to your 1394 device through CN21, 36 connector. The pin assignments are as follows:

23

•

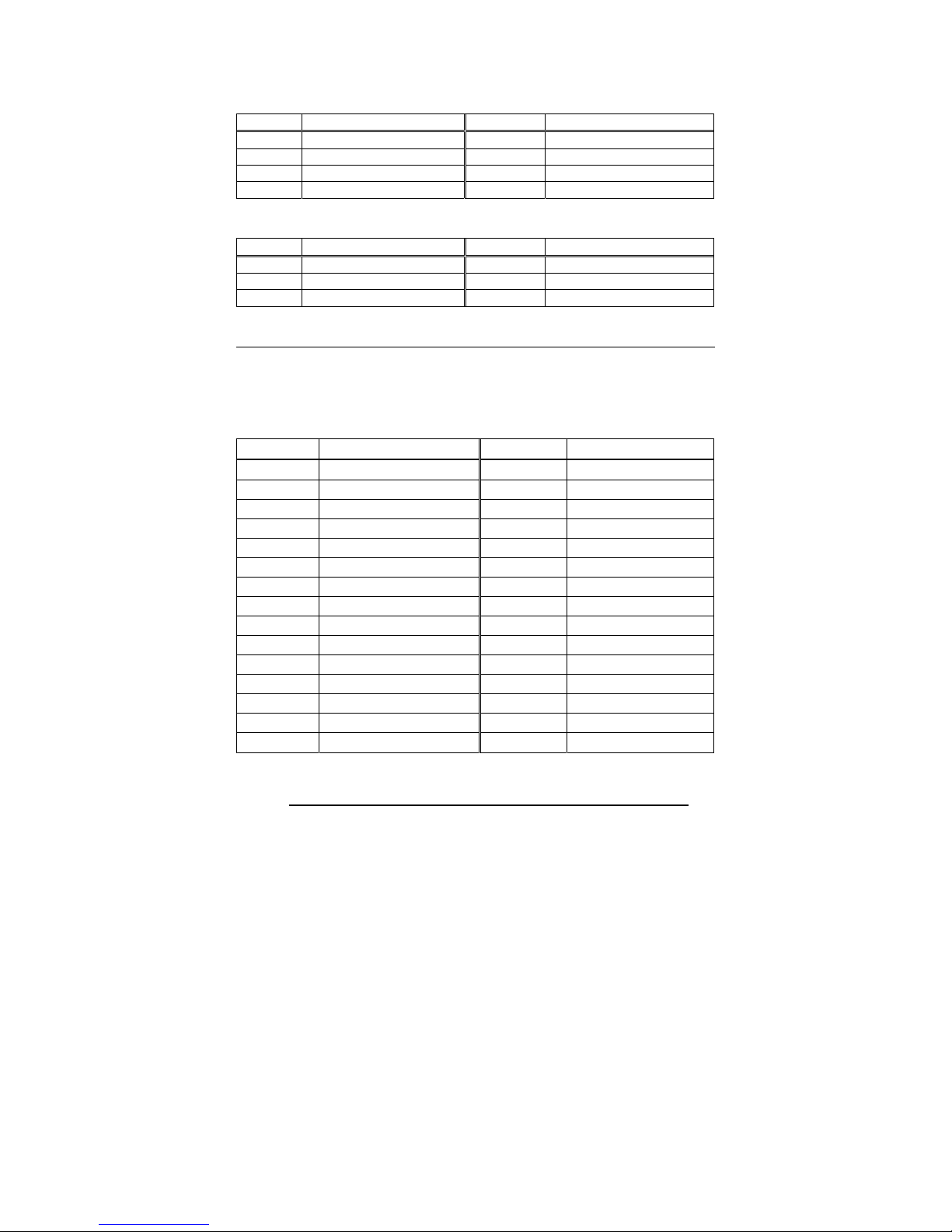

CN21 : 1394 connector

PIN NO.

DESCRIPTION PIN NO. DESCRIPTION

1. VCC12V 2 GROUND

3. TPB- 4 TPB+

5. TPA- 6 TPA+

7. NC/FG 8 NC/FG

•

CN36 : 1394 connector

PIN NO.

DESCRIPTION PIN NO. DESCRIPTION

1. VCC12V 2 GROUND

3. TPB- 4 TPB+

5. TPA- 6 TPA+

3.17 CardBus/PCMCIA Connector

The NOVA-7800 built-in a CardBus/PCMCIA interface connector.

•

CN44: CardBus/PCMCIA Connector

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 GROUND 2 D3 3 D4 4 D5 5 D6 6 D7 7 CE1# 8 A10

9 OE# 10 A11 11 A9 12 A8 13 A13 14 A14 15 WE# 16 READY 17 VCC 18 VCC 19 A16 20 A15 21 A12 22 A7 23 A6 24 A5 25 A4 26 A3 27 A2 28 A1 29 A0 30 D0

24

31 D1 32 D2 33 WP 34 GROUND 35 GROUND 36 CD1# 37 D11 38 D12 39 D13 40 D14 41 D15 42 CE2# 43 VS1# 44 IORD# 45 IOWR# 46 A17 47 A18 48 A19 49 A20 50 A21 51 VCC 52 VCC 53 A22 54 A23 55 A24 56 A25 57 VS2# 58 RESET 59 WAIT# 60 INPACK# 61 REG# 62 BVD2 63 BVD1 64 D8 65 D9 66 D10 67 CD2# 68 GROUND 69 GROUND 70 GROUND

3.18 Digital I/O

One characteristic of digital circuit is its fast response to high or low signal. This kind of response is highly needed for harsh and critical industrial operating environment. That’s why we design 4-bit digital inputs and 4-bit digital outputs on the NOVA-7800. Digital Input and Output, generally, are control signals. You can use these signals to control external devices that needs On/Off circuit or TTL devices. We provide "BIOS Call " for DIO's reading.

READ WRITE

Bit0 DIN0 Bit0 DO0 Bit1 DIN1 Bit1 DO1 Bit2 DIN2 Bit2 DO2 Bit3 DIN3 Bit3 DO3

25

• CN45: Digital I/O PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 GROUND 2 VCC5V 3 DO3 4 DO2 5 DO1 6 DO0 7 DIN3 8 DIN2 9 DIN1 10 DIN0

26

Chapter 4. AMI BIOS Setup

4.1 Introduction

This chapter discusses the Setup program built into the BIOS, which allows users to configure the system. This configuration is then stored in battery-backed CMOS RAM so that Setup information is retained whilst the power is off.

4.2 Starting Setup

The BIOS is immediately active when you turn on the computer. While the BIOS is activated, the Setup program can be entered in one of two ways:

1. By pressing <Del> immediately after switching the system

on, or

2. by pressing the <Del> key when the following message

appears briefly at the bottom of the screen during the POST (Power On Self-Test).

Press DEL to run SETUP.

4.3 Setup Summary

Standard CMOS Setup:

Standard CMOS Setup to change time, date, hard disk type, etc.

Advanced CMOS Setup:

Advanced CMOS Setup to configure system options.

Advanced Chipset Setup:

Advanced Chipset Setup to configure chipset features.

27

Power Management Setup: Power Management Setup to configure power management

features.

PCI / Plug and Play Setup:

Configures PCI / Plug and Play features.

Peripheral Setup:

Configures peripheral features.

Hardware Monitor Setup:

Configures hardware monitor features.

Auto-Detect Hard Disks:

Selecting these options allow the user to configure the drive named in the option. Select Auto-Detect Hard Disks to allow AMIBIOS to automatically configure the drive. A list of drive parameters then appears on the screen.

Change User Password:

Change the user password.

Change Supervisor Password:

Change the supervisor password.

Auto Configuration with Optimal Settings:

Load configuration settings that ensure the highest performance.

Auto Configuration with Fail Safe Settings:

Load fails-afe configuration settings.

Save Settings and Exit:

Write the current settings to CMOS and exit.

Exit Without Saving:

Exit without saving the current settings.

28

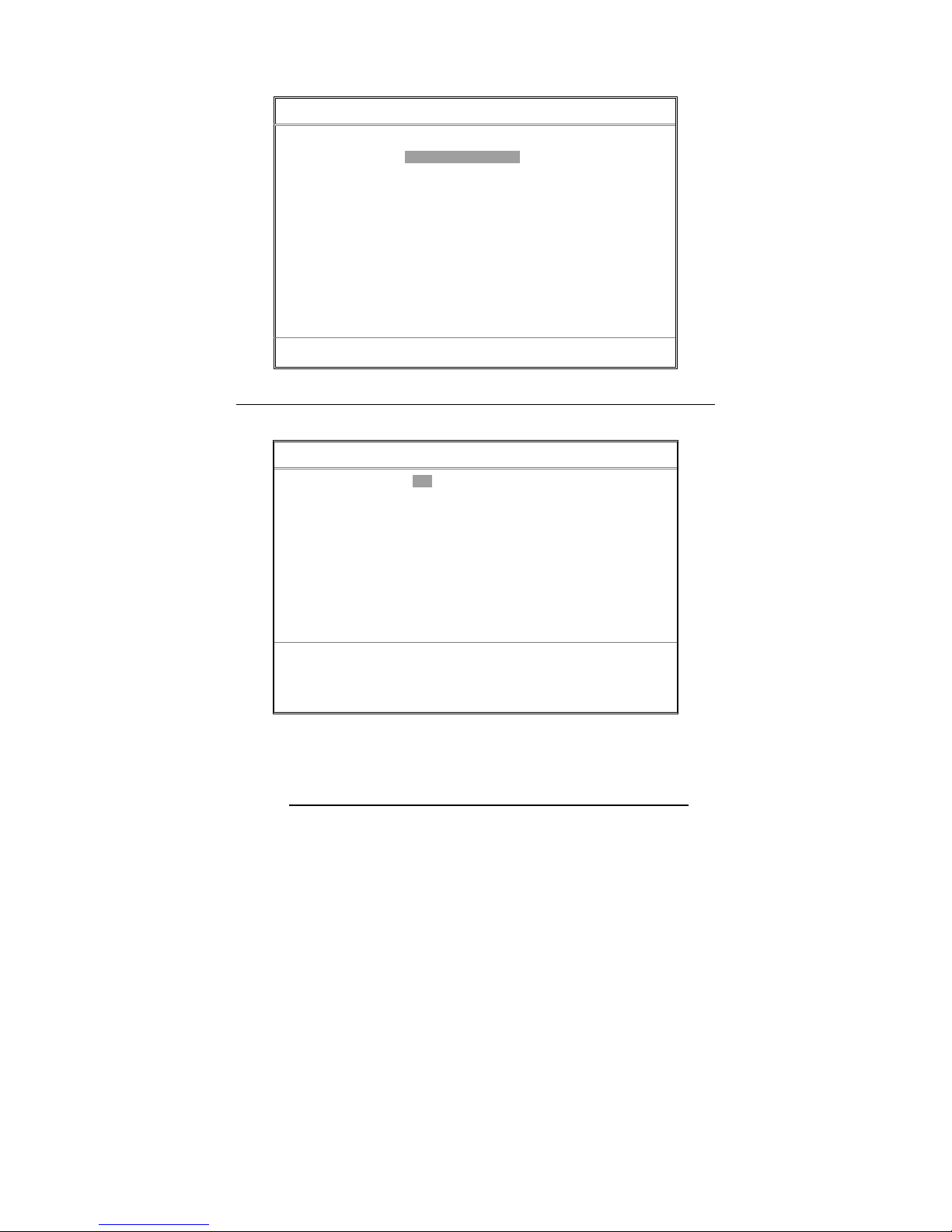

AMIBIOS HIFLEX SETUP UTILITY – VERSION 1.52

NOVA-7800 V1.0 (07/04/2002)

Standard CMOS Setup

Advanced CMOS Setup

Advanced Chipset Setup Power Management Setup PCI / Plug and Play Setup

Peripheral Setup

Hardware Monitor Setup

Auto-Detect Hard Disks

Change User Password

Change Supervisor Password

Auto Configuration with Optimal Settings

Auto Configuration with Fail Safe Settings

Save Settings and Exit

Exit Without Saving

Standard CMOS Setup for changing time, date, hard disk type, etc.

ESC:Exit ↑↓:Sel F2/F3:Color F10:Save & Exit

Figure 1:The Main Menu

4.4 Standard CMOS Setup Selections

AMIBIOS SETUP – STANDARD CMOS SETUP

Date (mm/dd/yyyy): Tue Mar 19,2002 Base Memory: 639 KB Time (hh/mm/ss) : 17:18:10 Extd Memory: 247 MB

Floppy Drive A: Not Installed Floppy Drive B: Not Installed LBA Blk PIO 32Bit Type Size Cyln Head WPcom Sec Mode Mode Mode Mode Pri Master: Auto On Pri Slave : Auto On Sec Master: Auto On Sec Slave : Auto On

Boot Sector Virus Protection Disabled

Month: Jan – Dec ESC:Exit ↑↓:Sel Day: 01 – 31 PgUp/PgDn:Modify Year: 1980 – 2099 F1:Help F2/F3:Color

Figure 2:Standard CMOS Setup

29

Date(mm/dd/yyyy)

Set the system date.

Time(hh/mm/ss)

Set the system time.

Floppy A, B

Move the cursor to these fields and select floppy type.

Primary/Secondary Master/Slave LBA Mode

LBA (Logical Block Addressing) is a new IDE HDD access method to developed to overcome the 528-megabyte capacity bottleneck. If your IDE hard disk capacity is greater than 528MB, AMIBIOS can enable this LBA mode feature. The option is only for Primary Master IDE LBA mode.

Primary/Secondary Master/Slave Block Mode

If your hard disk drive supports IDE block transfer mode, enable this option for a faster IDE hard disk drive transfer rate. The option is only for Primary Master Block mode.

Primary/Secondary Master/Slave PIO Mode

This option enables Primary Master IDE PIO mode on the IDE, which can set proper cycle timings. The cycle timing between the IDE PIO mode value and IDE cycle timing is shown below : Mode 0 -> Timing ( 600ns ) Mode 1 -> Timing ( 383ns ) Mode 2 -> Timing ( 240ns ) Mode 3 -> Timing ( 180ns ) Mode 4 -> Timing ( 120ns ) Mode 5 -> Timing ( 60ns )

Primary/Secondary Master/Slave 32Bit Mode

This option enables Primary Master IDE 32-bit data transfers on the IDE data port. If disabled,16-bit data transfer is used by the BIOS.32-bit data transfers can only be enabled if IDE prefetch mode is also enabled.

Boot Sector Virus Protection

When this option is enabled, AMIBIOS issues a warning when

30

any program or virus issues a Disk Format command or attempts to write to the boot sector of the hard disk drive. The settings are Disabled, Enabled.

Base/Extd Memory

Displays the amount of conventional/extended memory detected during boot up.

4.5 Advanced CMOS Setup Selections

AMIBIOS SETUP – ADVANCED CMOS SETUP

Quick Boot 1st Boot Device 2nt Boot Device 3rd Boot Device Try Other Boot Devices Floppy Access Control Hard Disk Access Control S.M.A.R.T. for Hard Disks BootUP Num-Lock Floppy Drive Seek PS/2 Mouse Support System Keyboard Primary Display Password Check Boot To OS/2 Wait For ‘F1’ If Error Hit ‘DEL’ Message Display L1 Cache L2 Cache System BIOS Cacheabled C000 16K Shadow C400 16K Shadow C800 16K Shadow CC00 16K Shadow D000 16K Shadow D400 16K Shadow D800 16K Shadow DC00 16K Shadow

Enabled Disabled Disabled Disabled Yes Read-Write Read-Write Disabled On Disabled Enabled Present VGA/EGA Setup No Enabled Enabled WriteBack WriteBack Disable Enabled Enabled Enabled Disabled Disabled Disabled Disabled Disabled

Available Options: Disabled > Enabled

ESC:Exit ↑↓:Sel PgUp/PgDn:Modify F1:Help F2/F3:Color

Figure 3:Advance CMOS Setup

Quick Boot

When Quick Boot is selected, DRAM testing function will be disabled.

31

1st Boot Device

This option sets the type of device for the first boot drives that the AMIBIOS attempts to boot from after AMIBIOS POST completes.

The Choice: Disabled, IDE-0, IDE-1, IDE-2, IDE-3, Floppy, ARMD-FDD, ARMD-HDD, CDROM, SCSI.

2nd Boot Device

This option sets the type of device for the second boot drives that the AMIBIOS attempts to boot from after AMIBIOS POST completes.

The Choice: Disabled, IDE-0, IDE-1, IDE-2, IDE-3, Floppy, ARMD-FDD, ARMD-HDD, CDROM.

3rd Boot Device

This option sets the type of device for the third boot drives that the AMIBIOS attempts to boot from after AMIBIOS POST completes.

The Choice: Disabled, IDE-0, IDE-1, IDE-2, IDE-3, Floppy, ARMD-FDD, ARMD-HDD, CDROM.

Try Other Boot Devices

Set this option to Yes to instruct AMIBIOS to attempt to boot from any other drive in the system if it cannot find a boot drive among the drives specified in the 1st Boot Device, 2nd Boot Device, 3rd Boot Device, 4

th

Boot Device options.

The Choice: Yes or No.

Floppy Access Control

This option specifies the read/write access that is set when booting from a floppy drive.

Hard Disk Access Control

This option specifies the read/write access that is set when

32

booting from a hard disk drive.

S.M.A.R.T. for Hard Disks

Self-Monitoring, Analysis and Reporting Technology. This option can help the BIOS to warn the user of a possible device failure and give the user a chance to back up the device before the failure actually happens.

The Choice: are Auto, Disabled, Enabled.

Floppy Drive Seek

Set this option to Enabled to specify that floppy drive A: will perform a Seek operation at system boot.

The Choice: are Enabled or Disabled.

BootUp Num-Lock

When this option is selected, Num Lock is turned off when the system is powered on so the user can use the arrow keys on both the numeric keypad and the keyboard.

PS/2 Mouse Support When this option is enabled, BIOS supports a PS/2- type mouse.

System Keyboard

This option does not specify if a keyboard is attached to the computer. Rather, it specifies if error messages are displayed if a keyboard is not attached. This option permits you to configure workstation with no keyboard.

The Choice: Absent, Present.

Primary Display

Select this option to configure the type of monitor attached to the computer.

The Choice: Monochrome, Color 40x25, Color 80x25, VGA/PGA/EGA , or Not Install.

Password Check

33

This item allows you Setup/Always Password Check.

Boot To OS/2

Set this option to Enabled if running OS/2 operating system and using more than 64MB of system memory on the motherboard.

The Choice: Disabled or Enabled.

Wait For 'F1' If Error

If this option is enabled, AMIBIOS waits for the end user to press <F1> before continuing. If this option is disabled, AMIBIOS continues the boot process without waiting for <F1> to be pressed.

The Choice: Disabled or Enabled.

Hit 'DEL' Message Display

Disabling this option prevents "Hit <DEL> if you want to run Setup" from appearing when the system boots.

The Choice: Disabled or Enabled.

L1 Cache

The option Disable/WriteThru/WriteBack the internal cache memory in the processor.

L2 Cache

The option Disable/WriteThru/WriteBack the secondary cache memory.

System BIOS Cacheable

When this option is set to enabled, the System ROM area from F0000-FFFFF is copied (shadowed) to the RAM for faster execution.

C000,16k Shadow

When this option is set to enabled, the Video ROM area from C0000-C3FFF is copied (shadowed) to the RAM for faster execution. (turn to the next page for detail description)

34

Disabled : The contents of the video ROM are not copied to

the RAM.

Cached: The contents of the video ROM area from

C0000h - C3FFFh are copied from the ROM to the RAM and can be written to or read from the cache memory.

Enabled: The contents of the video ROM area from

C0000h - C3FFFh are copied (shadowed) from the ROM to the RAM for faster execution.

C400,16k Shadow

When this option is set to enabled, the Video ROM area from C4000-C7FFF is copied (shadowed) to the RAM for faster execution. Disabled : The contents of the video ROM are not copied to

the RAM.

Cached: The contents of the video ROM area from

C4000h - C7FFFh are copied from the ROM to the RAM and can be written to or read from the cache memory.

Enabled: The contents of the video ROM area from

C4000h - C7FFFh are copied (shadowed) from the ROM to the RAM for faster execution.

C800,16k Shadow

These options enable shadowing of the contents of the ROM area named in the option title. The settings are Enable Disable, Cached. The ROM area that is not used by ISA adapter cards will be allocated to PCI adapter cards.

CC00,16k Shadow

These options enable shadowing of the contents of the ROM area named in the option title. The settings are Enable Disable, Cached. The ROM area that is not used by ISA adapter cards will be allocated to PCI adapter cards.

D000,16k Shadow

35

These options enable shadowing of the contents of the ROM area named in the option title. The settings are Enable Disable, Cached. The ROM area that is not used by ISA adapter cards will be allocated to PCI adapter cards.

D400,16k Shadow

These options enable shadowing of the contents of the ROM area named in the option title. The settings are Enable Disable, Cached. The ROM area that is not used by ISA adapter cards will be allocated to PCI adapter cards.

D800,16k Shadow

These options enable shadowing of the contents of the ROM area named in the option title. The settings are Enable Disable, Cached. The ROM area that is not used by ISA adapter cards will be allocated to PCI adapter cards.

DC00,16k Shadow

These options enable shadowing of the contents of the ROM area named in the option title. The settings are Enable Disable, Cached. The ROM area that is not used by ISA adapter cards will be allocated to PCI adapter cards.

36

4.6 Advanced Chipset Setup Selections

AMIBIOS SETUP – ADVANCED CHIPSET SETUP

CPU Sleep Step Mode Memory Hole SDRAM Timing by SPD DRAM Refresh DRAM Cycle time (SCLKs) CAS# Latency (SCLKs) RAS to CAS delay (SCLKs) SDRAM RAS# Precharge (SCLKs) Internal Graphics Mode Size Display Cache Window Size AGP Aperture Window USB Function USB Device Legacy Support Port 64/60 Emulation

Disable Disable Disabled

15.6uS 7/9 3 3 3 1MB 64MB 64MB All USB Port Disabled Disabled

Available Options: > Disabled Enabled

ESC:Exit ↑↓:Sel PgUp/PgDn:Modif y F1:Help F2/F3:Color

Figure 4: Advanced Chipset Setup

CPU Sleep Step Mode

Select the CPU is in Maximum Performance Mode or Battery Optimized Mode.

Memory Hold

This field allows you to reserve an address space for ISA devices that require it.

The Choice:

Disabled], 15MB-16MB

SDRAM Timing by SPD

This sets the optimal timings for items "DRAM Refresh", "DRAM Cycle time", "CAS# Latency", "RAS to CAS delay" and "SDRAM

37

RAS# Precharge", depending on the memory modules that you are using.

DRAM Cycle time (SCLKs)

This feature controls the number of SDRAM clocks used for SDRAM parameters Tras and Trc. Tras specifies the minimum clocks required between active command and precharge command. Trc specifies the minimum clocks required between active command and re-active command.

CAS# Latency (SCLs)

This controls the latency between the SDRAM read command and the time that the data actually becomes available.

RAS to CAS delay (SCLKs)

This controls the latency between the SDRAM active command and the read/write command.

SDRAM RAS# Precharge (SCLKs)

This controls the idle clocks after issuing a precharge command to the SDRAM.

Display Cache Window Size

This feature allows you to select the size of mapped memory for Display Cache data.

AGP Aperture Window

This feature allows you to select the size of mapped memory for AGP graphic data.

USB Function

Select Enabled if your system contains a Universal Serial Bus (USB) controller and you have USB peripherals.

USB Device Legacy Support

This motherboard support Universal Serial Bus (USB) devices. If detected, USB controller legacy mode will be enabled. If not detected, USB controller legacy mode will be disabled.

38

4.7 Power Management Setup Selections

AMIBIOS SETUP – POWER MANAGEMENT SETUP

ACPI Aware O/S Sleep State USB KB/MS wakeup From S3 Power Management/APM Suspend Time Out Keyboard & PS/2 Mouse FDC/LPT/COM Ports SB & MSS Audio Ports MIDI Ports ADLIB Ports Primary Master IDE Primary Slave IDE Secondary Master IDE Secondary Slave IDE System Thermal Power Button Function Restore on AC/Power Loss Wake Up On Ring Wake Up On Lan Wake Up On PME Resume By Alarm Alarm Date Alarm Hour Alarm Minute Alarm Second Power Type Select

No S1/POS Disable Enabled Disabled Monitor Monitor Ignore Ignore Ignore Monitor Ignore Monitor Ignore Ignore ON/Off Last State Disabled Disabled Disabled Disabled 15 12 30 30 AT

Available Options: > No Yes

ESC:Exit ↑↓:Sel PgUp/PgDn:Modify F1:Help F2/F3:Color

Figure 5: Power Management Setup

ACPI Aware O/S

This feature is switch of ACPI function.

Sleep State

This feature is switch of STR (S3) or POS (S1) function.

USB KB/MS wakeup From S3

This option set to "Enabled", using USB keyboard or USB mouse can wake up system , when system entry to S3 mode.

39

Power Management/APM

Set this option to Enabled to run APM (Advanced Power Management).

Suspend Time Out

This option specifies the length of a period of system inactivity while in Standby state. When this length of time expires, the computer enters Suspend power state.

Keyboard & PS/2 Mouse

Enabling the option allow the IRQ input to be monitored for both inactive for entering Auto_mode/SMI_mode and active for entering Normal_mode.

FDC/LPT/COM Ports

Enabling the option allow the IRQ input to be monitored for both inactive for entering Auto_mode/SMI_mode and active for entering Normal_mode.

SB & MSS Audio Ports

Enabling the option allow the IRQ input to be monitored for both inactive for entering Auto_mode/SMI_mode and active for entering Normal_mode.

MIDI Ports

Enabling the option allow the IRQ input to be monitored for both inactive for entering Auto_mode/SMI_mode and active for entering Normal_mode.

ADLIB Ports

Enabling the option allow the IRQ input to be monitored for both inactive for entering Auto_mode/SMI_mode and active for entering Normal_mode.

Primary Master IDE

Enabling the option allow the IRQ input to be monitored for both inactive for entering Auto_mode/SMI_mode and active for entering Normal_mode.

40

Primary Slave IDE

Enabling the option allow the IRQ input to be monitored for both inactive for entering Auto_mode/SMI_mode and active for entering Normal_mode.

Secondary Master IDE

Enabling the option allow the IRQ input to be monitored for both inactive for entering Auto_mode/SMI_mode and active for entering Normal_mode.

Secondary Slave IDE

Enabling the option allow the IRQ input to be monitored for both inactive for entering Auto_mode/SMI_mode and active for entering Normal_mode.

Power Button Function

This option specifies how the power button mounted on the external of the computer chassis is used.

Wake Up On Ring

Ring Resume From Soft Off

Wake Up On Lan

LAN Resume From Soft Off

Wake Up On PME

PME# Resume From Soft Off

Resume By Alarm

When this option is enabled, system will wakeup from soft off mode according to the time you set.

Alarm Date

You can set time according to date.

Alarm Hour

You can set time according to hour.

41

Alarm Minute

You can set time according to minute.

Alarm Second

You can set time according to second.

Power Type Select

Select the type of power that you use.

4.8 PCI / Plug and Play Setup Selections

AMIBIOS SETUP – PCI / PLUG AND PLAY SETUP

Plug and Play Aware O/S Clear NVRAM on Every Boot On Board Audio Controller On Board IEEEE1394 Controller On Board PCMCIA Controller On Board Video Controller PCI Latency Timer (PCI Clocks) Primary Graphics Adapter PCI VGA Palette Snoop er Allocate IRQ to PCI VGA OffBoard PCI IDE Card OffBoard PCI IDE Primary IRQ OffBoard PCI IDE Secondary IRQ

No No Enabled Enabled Enabled Enabled 64 External PCI Disabled No Auto Disabled Disabled

PCI Slot1 IRQ Priority PCI Slot2 IRQ Priority PCI Slot3 IRQ Priority PCI Slot4 IRQ Priority DMA Channel 0 DMA Channel 1 DMA Channel 3 DMA Channel 5 DMA Channel 6 DMA Channel 7 IRQ3 IRQ4 IRQ5 IRQ7 IRQ9 IRQ10 IRQ11 IRQ14 IRQ15

Auto Auto Auto Auto

PnP PnP PnP PnP PnP

PnP PCI/PnP PCI/PnP PCI/PnP PCI/PnP PCI/PnP PCI/PnP PCI/PnP PCI/PnP PCI/PnP

Available Options: No > Yes

ESC:Exit ↑↓:Sel PgUp/PgDn:Modify F1:Help F2/F3:Color

Figure 6: PCI / Plug and Play Setup

42

Plug and Play Aware O/S

If this options is enabled, BIOS will configure only PnP ISA boot devices (i.e. all PnP ISA cards which has boot flag set). And PnP aware OS will configure all other devices. If disable, BIOS will configure all devices.

Clear NVRAM on Every Boot

When this option is set to Yes, system can auto clear NVRAM.

PCI Latency Timer (PCI Clocks)

This option specifies the latency timings(in PCI clocks) for PCI devices installed in the PCI expansion slots.

The Choice: 32, 64, 96, 128, 160, 192, 224, or 248.

PCI VGA Palette Snoop

If enable, PCI will allow VGA palette signals to go to the ISA bus.

Allocate IRQ to PCI VGA

Set this option to Yes to allocate an IRQ to the VGA device on the PCI bus.

The Choice: Yes or No.

PCI Slot1/2/3/4 IRQ Priority

The option specify the IRQ priority for PCI device installed in the PCI expansion slot.

The Choice: Auto, (IRQ) 3, 4, 5, 7, 9, 10, and 11, in priority order.

DMA Channel 0/1/3/5/6/7

The option allow you to specify the bus type used by each DMA channel. The settings are PnP or ISA/EISA.

43

IRQ3/4/5/7/9/10/11/14/15

The option specify the bus that the specified IRQ line is used on. The option allow you to reserve IRQs for legacy ISA adapter cards. The option determine if AMIBIOS should remove an IRQ from the pool of available IRQs passed to devices that are configurable by the system BIOS. The available IRQ pool is determined by reading the ESCD NVRAM. If more IRQs must be removed from the pool, the end user can use the option to reserve the IRQ by assigning an ISA/EISA setting to it. Onboard I/O is configured by AMIBIOS. All IRQs used by onboard I/O are confogured as PCI/PnP.

4.9 Peripheral Setup Selections

AMIBIOS SETUP – PERIPHERAL SETUP

OnBoard FDC OnBoard Serial PortA OnBoard Serial PortB Serial PortB Mode IR Duplex Mode IR Pin Select OnBoard Parallel Port Paralled Port Mode EPP Version Parallel Port IRQ Parallel Port DMA Channel On-Chip IDE

Enabled 3F8/COM1 2F8/COM2 Normal Half Duplex IRRX/IRIX 378 Normal N/A 3 N/A Both

Available Options: Disabled > Enabled

ESC:Exit ↑↓:Sel PgUp/PgDn:Modify F1:Help F2/F3:Color

Figure 7: Peripheral Setup

44

OnBoard FDC

Set this option to Enabled to enable the floppy drive controller on the motherboard.

The Choice: Auto (AMIBIOS automatically determines if the floppy controller should be enabled), Enabled, or Disabled.

OnBoard Serial PortA/B

This option specifies the base I/O port address of serial port A.

The Choice: are Auto (AMIBIOS automatically determines the correct base I/O port address), Disabled, 3F8h, 2F8h, 2E8h, or 3E8h.

OnBoard Parallel Port

This option specifies the base I/O port address of parallel port on the motherboard.

The Choice: Disabled, 378h, 278h, or 3BCh.

Parallel Port Mode

This option specifies the parallel port mode. The settings are Normal, Bi-Dir, EPP, ECP.

Normal : The normal parallel port mode is used. Bi-Dir : Use this setting to support bidirectional transfers

on the parallel port.

EPP : The parallel port can be used with devices that

adhere to the Enhanced. Parallel Port(EPP) specification. EPP uses the existing parallel port signals to provide asymmetric bidirectional data transfer driven by the host device.

ECP : The parallel port can be used with devices that

adhere to the Entended. Capabilities Port(ECP) specification. ECP uses the DMA protocol to achieve data transfer rates up to 2.5 Megabits per second. ECP provides symmetric bidirectional communication.

45

Parallel Port IRQ

This option specifies the IRQ used by the parallel port.

The Choice: Auto, (IRQ)5, (IRQ)7.

Parallel Port DMA Channel

This option is only available if the setting for the Parallel Port Mode option is ECP. This option sets the DMA channel used by the parallel port.

The Choice: DMA Channel 0, 1, or 3.

On-Chip IDE

This option specifies the IDE channel used by the onboard IDE controller.

The Choice: Disabled, Primary, Secondary.

46

4.10 Hardware Monitor Setup Selections

AMIBIOS SETUP – HARDWARE MONITOR SETUP

CPU Temperature Detected by CPU CPU Temperature 31ºC/87ºF System Temperature 29ºC/84ºF CPU Fan Speed 6300 RPM Chassis Fan Speed 0 RPM Vcore 1.399 V + 3.300V 3.349 V + 5.000V 5.070 V +12.000V 12.046 V +5V SB 4.978 V

Available Options: > CPU Themistor

ESC:Exit ↑↓:Sel PgUp/PgDn:Modify F1:Help F2/F3:Color

Figure 8: Hardware Monitor Setup

This setup helps users monitor the NOVA-7800 board on board system voltage and fan speed. The function is implemented by on board W83627HF chip. The voltage monitoring will cover V core, +3.3V, SB5V, +5V and +12V. And there is a fan connector for CPU fan.

47

Appendix A. Watchdog Timer

The Watchdog Timer is provided to ensure that standalone systems can always recover from catastrophic conditions that cause the CPU to crash. This condition may have occurred by external EMI or a software bug. When the CPU stops working correctly, hardware on the board will either perform a hardware reset (cold boot) to bring the system back to a known state.

A BIOS function call (INT 15H) is used to control the Watchdog Timer:

INT 15H :

AH – 6FH

Sub-function:

AL – 2 : Set the Watchdog Timer’s period BL : Time-out value(the time unit--second, is

dependent on the item “Watchdog Timer unit (selected in BIOS setup).

You have to call sub-function 2 to set the time-out period of Watchdog Timer first. If the time-out value is not zero, the Watchdog Timer will start counting down. When the timer value reaches zero, the system will reset. To ensure that this reset condition does not occur, the Watchdog Timer must be periodically refreshed by calling sub-function 2. However the Watchdog timer will be disabled if you set the time-out value to be zero.

A tolerance of at least 10% must be maintained to avoid unknown routines within the operating system (DOS), such as disk I/O that can be very time-consuming.

Note: When exiting a program it is necessary to disable the

Watchdog Timer, otherwise the system will reset.

48

Example program:

; INITIAL TIMER PERIOD COUNTER ;

W_LOOP:

MOV AX, 6F02H ;setting the time-out value MOV BL, 30 ;time-out value is 48

seconds INT 15H ; ; ADD YOUR APPLICATION PROGRAM HERE ; CMP EXIT_AP, 1 ;is your application over? JNE W_LOOP ;No, restart your application

MOV AX, 6F02H ;disable Watchdog Timer MOV BL, 0 ; INT 15H ; ; EXIT

49

Appendix B. Digital I/O

One characteristic of digital circuit is its fast response to high or low signal. This kind of response is highly needed for harsh and critical industrial operating environment. That’s why we design 4-bit digital inputs and 4-bit digital outputs on the NOVA-7800. Digital Input and Output, generally, are control signals. You can use these signals to control external devices that needs On/Off circuit or TTL devices. You can read or write data to the selected address to enable the function of digital IO.

A BIOS function call (INT 15H) is used to control the Watchdog Timer:

INT 15H :

AH – 6FH

Sub-function:

AL – 8 : Set the Digital port is INPUT AL : Digital I/O input value

Example program:

MOV AX, 6F08H ;setting the Digital port is input INT 15H ;

AL low byte = value

AH – 6FH

Sub-function:

AL – 9 : Set the Digital port is OUTPUT BL : Digital I/O output value

Example program:

MOV AX, 6F09H ;setting the Digital port is output MOV BL, 09H ;Digital value is 09H INT 15H ;

50

Digital Output is 1001b

Appendix C. Address Mapping

IO Address Map

I/O address Range Description

000-01F DMA Controller #1 020-021 Interrupt Controller #1, Master 040-05F 8254 timer 060-06F 8042 (Keyboard Controller) 070-07F Real time Clock, NMI Mask 080-09F DMA Page Register 0A0-0BF Interrupt Controller #2 0C0-0DF DMA Controller #2

0F0 Clear Math Coprocessor Busy 0F1 Reset Math Coprocessor 0F2 Core logic programming configuration

0F8-0FF Math Coprocessor

1F0-1F8 Fixed Disk

2F8-2FF Serial Port 2

300-31F Prototype Card 360-36F Reserved 378-37F Parallel Printer Port 1 (LPT2) 3B0-3BF Monochrome Display and Printer Adapter

(LPT1)

3C0-3CF Reserved

3D0-3DF Color/Graphics Monitor Adapter

3F0-3F7 Diskette Controller

3F8-3FF Serial Port 1

51

1st MB Memory Address Map

Memory address Description

00000-9FFFF System memory A0000-BFFFF VGA buffer C0000-C7FFF VGA BIOS F0000-FFFFF System BIOS 1000000- Extend BIOS

*Default setting

IRQ Mapping Table

IRQ0 System Timer IRQ8 RTC clock IRQ1 Keyboard IRQ9 Available

IRQ2 Cascade to IRQ Controller IRQ10 Intel 82562ET LAN IRQ3 COM2 IRQ11 Video IN Device IRQ4 COM1 IRQ12 PS/2 mouse IRQ5 Audio Device IRQ13 FPU

IRQ6 FDC IRQ14 Primary IDE IRQ7 Printer IRQ15 Secondary IDE

DMA Channel Assignments

Channel Function

0 Available 1 Available 2 Floppy disk ( 8-bit transfer ) 3 Available 4 Cascade for DMA controller 1 5 Available 6 Available 7 Available

52

Appendix D. How to use Wake-Up Function

The NOVA-7800 provides two kinds of Wake up Function. This page describes how to use Modem Wake-Up and LAN Wake-Up function. Wake-Up function functions when you use ATX power supply.

Wake-Up By Ring: You must set the option Power On By Ring of CMOS SETUP to be enabled. The ATX power supply will be switched on when there is a ring signal detected on pin “RI” of serial port.

Wake-Up On LAN: When your computer is in power-down status, you can see LAN Link/Active LED is flashing. This status indicates that the LAN chip has entered standby mode and waits for Wake-Up signal. You can use other computers to wake up your computer by sending ID to it.

ID

: ID is the address of your system LAN. Every LAN chip has a factory, set ID, which you can find it from network information in WINDOWS.

ID’s format is xxxxxxxxxxxx Example ID: 009027388320

53

Appendix E. How to use VIDEO-IN Function

The NOVA-7800 allow users to capture live video from video source such as the CCTV camera as it has four video input channels for surveillance systems.

 Driver Installation:

Taking advantage of IEI driver installation program, you will find driver installation a very simple job. Steps to follow:

1. Insert the IEI Driver CD(4).

2. The window will display the menu of IEI Driver CD. Click “IVC Series”.

3. Click “IVC-100/100G/200/200G”.

4. Double click the “Windows” folder.

5. Double click “ ieisetup.exe”.

Note: Microsoft Direct X 8.1 or above is needed. The setup

program (ieisetup.exe) will prompt you to install Direct X8.1 after the driver installation has been completed. Therefore, IEI strongly recommend you to use ieisetup.exe for driver installation.

 Demo Programs:

1. Double click “Demo” folder.

2. Double click “ivc-100.exe”.

 Connection:

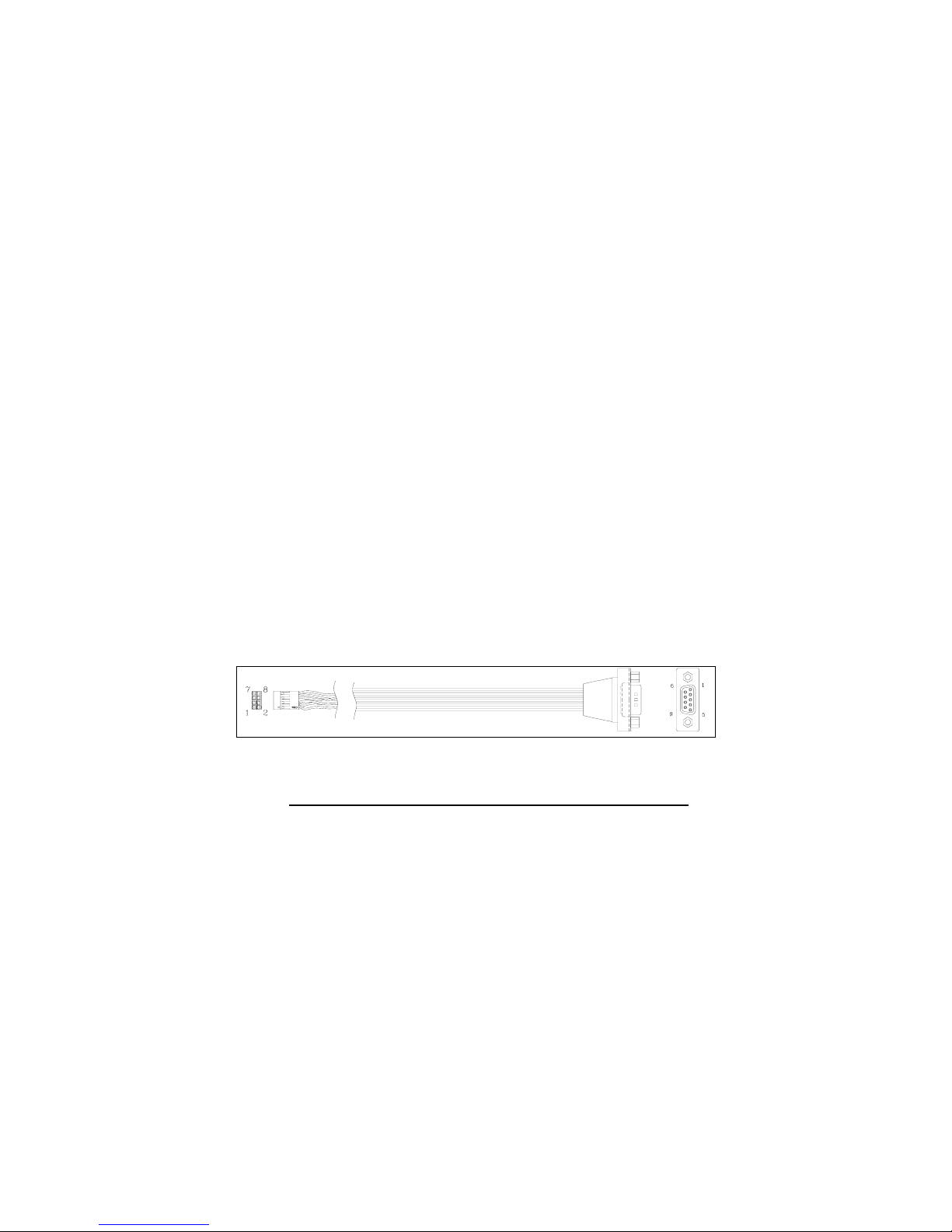

Cable 1: Dupont Head 8Pin, to CPU board.

Dupont Head 8Pin D-SUB 9Pin

54

Pin Definition:

Dupont Head 8Pin

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 AVIN0 2 GROUND 3 AVIN1 4 GROUND 5 AVIN2 6 GROUND 7 AVIN3 8 GROUND

D-SUB 9Pin(for both cable1 and cable2)

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 AVIN0 2 AVIN1 3 AVIN2 4 AVIN3 5 N.C 6 GROUND 7 GROUND 8 GROUND 9 GROUND

Cable 2: D-SUB 9Pin, connected to cable 1.

RCA connectors are used to connect video-in source.

A

B

C

D

RCA connector D-SUB 9Pin
