IEI Technology NANO-CV-D25501, NANO-CV-N26001 User Manual

Download
Page 1
NANO-CV-D25501/N26001 EPIC SBC
MODEL:
EPIC SBC with Intel® Atom™ D2550/N2600 Processor,
DDR3, VGA, HDMI, Dual LVDS, Dual PCIe GbE, USB 3.0,
mSATA, SATA 3Gb/s, PC/104-Plus, Audio and RoHS
User Manual
Rev. 1.04 – February 22, 2016
Page i
Page 2
NANO-CV-D25501/N26001 EPIC SBC
Revision
Date Version Changes
February 22, 2016
February 18, 2013
February 6, 2013
November 26, 2012
September 3, 2012
1.04 Added LVDS1 to Modified
1.03 Updated
1.02 Updated
1.01 Updated the note for the Intel® GMA driver limitation
1.00 Initial release
Table 4-7 Figure 1-5: Data Flow Diagram
Figure 3-11: LVDS1 Connector Location
Figure 1-3
Page ii
Page 3
NANO-CV-D25501/N26001 EPIC SBC
COPYRIGHT NOTICE
The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer.
In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.
This document contains proprietary information protected by copyright. All rights are
Copyright
reserved. No part of this manual may be reproduced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer.
TRADEMARKS
All registered trademarks and product names mentioned herein are used for identification purposes only and may be trademarks and/or registered trademarks of their respective owners.
Page iii
Page 4
NANO-CV-D25501/N26001 EPIC SBC
Manual Conventions
WARNING
Warnings appear where overlooked details may cause damage to the equipment or result in personal injury. Warnings should be taken seriously.
CAUTION
Cautionary messages should be heeded to help reduce the chance of losing data or damaging the product.
NOTE
These messages inform the reader of essential but non-critical information. These messages should be read carefully as any directions or instructions contained therein can help avoid making mistakes.
HOT SURFACE
This symbol indicates a hot surface that should not be touched without taking care.
Page iv
Page 5
NANO-CV-D25501/N26001 EPIC SBC
Table of Contents
1 INTRODUCTION.......................................................................................................... 1
1.1 INTRODUCTION........................................................................................................... 2
1.2 MODEL VARIATIONS ................................................................................................... 2
1.3 FEATURES................................................................................................................... 3
1.4 CONNECTORS ............................................................................................................. 3
1.5 DIMENSIONS............................................................................................................... 5
1.6 DATA FLOW................................................................................................................ 6
1.7 TECHNICAL SPECIFICATIONS ...................................................................................... 7
2 PACKING LIST........................................................................................................... 10
2.1 ANTI-STATIC PRECAUTIONS.......................................................................................11
2.2 UNPACKING PRECAUTIONS........................................................................................11
2.3 PACKING LIST........................................................................................................... 12
2.4 OPTIONAL ITEMS...................................................................................................... 13
3 CONNECTORS ........................................................................................................... 14
3.1 PERIPHERAL INTERFACE CONNECTORS..................................................................... 15
3.1.1 NANO-CV-D25501/N26001 Layout................................................................. 15
3.1.2 Peripheral Interface Connectors ..................................................................... 16
3.1.3 External Interface Panel Connectors............................................................... 17
3.2 INTERNAL PERIPHERAL CONNECTORS...................................................................... 17
3.2.1 5 V SATA Power Connectors............................................................................ 17
3.2.2 Audio Connector .............................................................................................. 18
3.2.3 Backlight Inverter Connectors......................................................................... 19
3.2.4 Battery Connector............................................................................................ 20
3.2.5 Buzzer Connector............................................................................................. 21
3.2.6 Digital Input/Output (DIO) Connector............................................................ 21
3.2.7 Fan Connector................................................................................................. 22
3.2.8 Front Panel Connector.................................................................................... 23
3.2.9 Keyboard/Mouse Connector............................................................................ 24
3.2.10 LVDS1 Connector.......................................................................................... 25
Page v
Page 6
3.2.11 LVDS2 Connector........................................................................................... 26
3.2.12 microSD Card Slot ......................................................................................... 27
3.2.13 PC/104-Plus Slot............................................................................................ 28
3.2.14 PC/104-Plus Power Input Connector............................................................ 31
3.2.15 PCIe Mini Card Slot ...................................................................................... 32
3.2.16 Power Connector (9V~28V)........................................................................... 33
3.2.17 RS-232 Serial Port Connectors...................................................................... 34
3.2.18 RS-422/485 Serial Port Connector................................................................ 35
3.2.19 SATA Drive Connectors ................................................................................. 36
3.2.20 SO-DIMM Connector..................................................................................... 37
3.2.21 USB Connector .............................................................................................. 38
3.3 EXTERNAL PERIPHERAL INTERFACE CONNECTOR PANEL ......................................... 39
3.3.1 Ethernet Connectors ........................................................................................ 39
3.3.2 HDMI Connector............................................................................................. 40
NANO-CV-D25501/N26001 EPIC SBC
3.3.3 USB 2.0 Connector .......................................................................................... 41
3.3.4 USB 3.0 Connector .......................................................................................... 41
3.3.5 VGA Connector................................................................................................ 42
4 INSTALLATION ......................................................................................................... 44
4.1 ANTI-STATIC PRECAUTIONS...................................................................................... 45
4.2 INSTALLATION CONSIDERATIONS.............................................................................. 45
4.3 SO-DIMM INSTALLATION ....................................................................................... 47
4.4 JUMPER SETTINGS .................................................................................................... 48
4.4.1 AT/ATX Power Selection Jumper..................................................................... 48
4.4.2 Clear CMOS Jumper........................................................................................ 49
4.4.3 LVDS1 Voltage Selection.................................................................................. 50
4.4.4 LVDS2 Voltage Selection.................................................................................. 51
4.4.5 LVDS2 Resolution Selection............................................................................ 52
4.4.6 mSATA/PCIe Mini Mode Selection .................................................................. 53
4.4.7 PC/104-Plus VIO Voltage Selection................................................................. 54
4.5 CHASSIS INSTALLATION............................................................................................ 55
4.5.1 Airflow.............................................................................................................. 55
4.5.2 Motherboard Installation................................................................................. 55
4.6 INTERNAL PERIPHERAL DEVICE CONNECTIONS........................................................ 55
4.6.1 AT/ATX Power Connection.............................................................................. 56
Page vi
Page 7
NANO-CV-D25501/N26001 EPIC SBC
4.6.2 Audio Kit Installation....................................................................................... 57
4.6.3 Keyboard/Mouse Connector............................................................................ 58
4.6.4 LVDS LCD Installation.................................................................................... 60
4.6.5 PCIe Mini Card Installation............................................................................ 62
4.6.6 SATA Drive Connection ................................................................................... 63
4.6.7 Single RS-232 Cable........................................................................................ 64
4.6.8 USB Cable (Dual Port without Bracket) ......................................................... 65
4.7 EXTERNAL PERIPHERAL INTERFACE CONNECTION ................................................... 66
4.7.1 HDMI Display Device Connection.................................................................. 66
4.7.2 LAN Connection............................................................................................... 67
4.7.3 USB Connection (Dual Connector)................................................................. 67
4.7.4 VGA Monitor Connection ................................................................................ 68
4.8 INSTALLING USB 3.0 DRIVER DURING WINDOWS® 7 OS INSTALLATION................. 69
5 BIOS.............................................................................................................................. 73
5.1 INTRODUCTION......................................................................................................... 74
5.1.1 Starting Setup................................................................................................... 74
5.1.2 Using Setup...................................................................................................... 74
5.1.3 Getting Help..................................................................................................... 75
5.1.4 Unable to Reboot after Configuration Changes.............................................. 75
5.1.5 BIOS Menu Bar................................................................................................ 75
5.2 MAIN........................................................................................................................ 76
5.3 ADVANCED ............................................................................................................... 77
5.3.1 ACPI Settings................................................................................................... 77
5.3.2 RTC Wake Settings........................................................................................... 78
5.3.3 CPU Configuration.......................................................................................... 80
5.3.4 IDE Configuration........................................................................................... 81
5.3.5 USB Configuration........................................................................................... 82
5.3.6 F81866 Super IO Configuration...................................................................... 83
5.3.6.1 Serial Port n Configuration....................................................................... 84
5.3.7 F81866 H/W Monitor....................................................................................... 88
5.3.7.1 Smart Fan Mode Configuration................................................................ 89
5.3.8 Serial Port Console Redirection...................................................................... 90
5.3.9 iEi Feature....................................................................................................... 92
5.4 CHIPSET ................................................................................................................... 93
Page vii
Page 8
5.4.1 Host Bridge Configuration .............................................................................. 93
5.4.1.1 Intel IGD Configuration............................................................................ 94
5.4.2 South Bridge Configuration............................................................................. 96
5.5 BOOT........................................................................................................................ 98
5.6 SECURITY............................................................................................................... 100
5.7 SAVE & EXIT .......................................................................................................... 100
6 SOFTWARE DRIVERS............................................................................................ 102
6.1 AVAILABLE SOFTWARE DRIVERS ............................................................................ 103
6.2 ST ARTING THE DRIVER PROGRAM .......................................................................... 103
6.3 CHIPSET DRIVER INSTALLATION............................................................................. 105
6.4 VGA DRIVER INSTALLATION.................................................................................. 109
6.5 LAN DRIVER INSTALLATION...................................................................................113
6.6 AUDIO DRIVER INSTALLATION ................................................................................115
6.7 USB 3.0 DRIVER INSTALLATION .............................................................................117
NANO-CV-D25501/N26001 EPIC SBC
A REGULATORY COMPLIANCE............................................................................ 121
B BIOS OPTIONS ........................................................................................................ 123
C TERMINOLOGY ..................................................................................................... 126
D DIGITAL I/O INTERFACE..................................................................................... 130
D.1 INTRODUCTION...................................................................................................... 131
D.2 ASSEMBLY LANGUAGE SAMPLE 1.......................................................................... 132
D.3 ASSEMBLY LANGUAGE SAMPLE 2.......................................................................... 132
E WA TCHDOG TIMER............................................................................................... 133
F HAZARDOUS MATERIALS DISCLOSURE........................................................ 136
F.1 HAZARDOUS MATERIALS DISCLOSURE TABLE FOR IPB PRODUCTS CERTIFIED AS
ROHS COMPLIANT UNDER 2002/95/EC WITHOUT MERCURY..................................... 137
Page viii
Page 9
NANO-CV-D25501/N26001 EPIC SBC
List of Figures

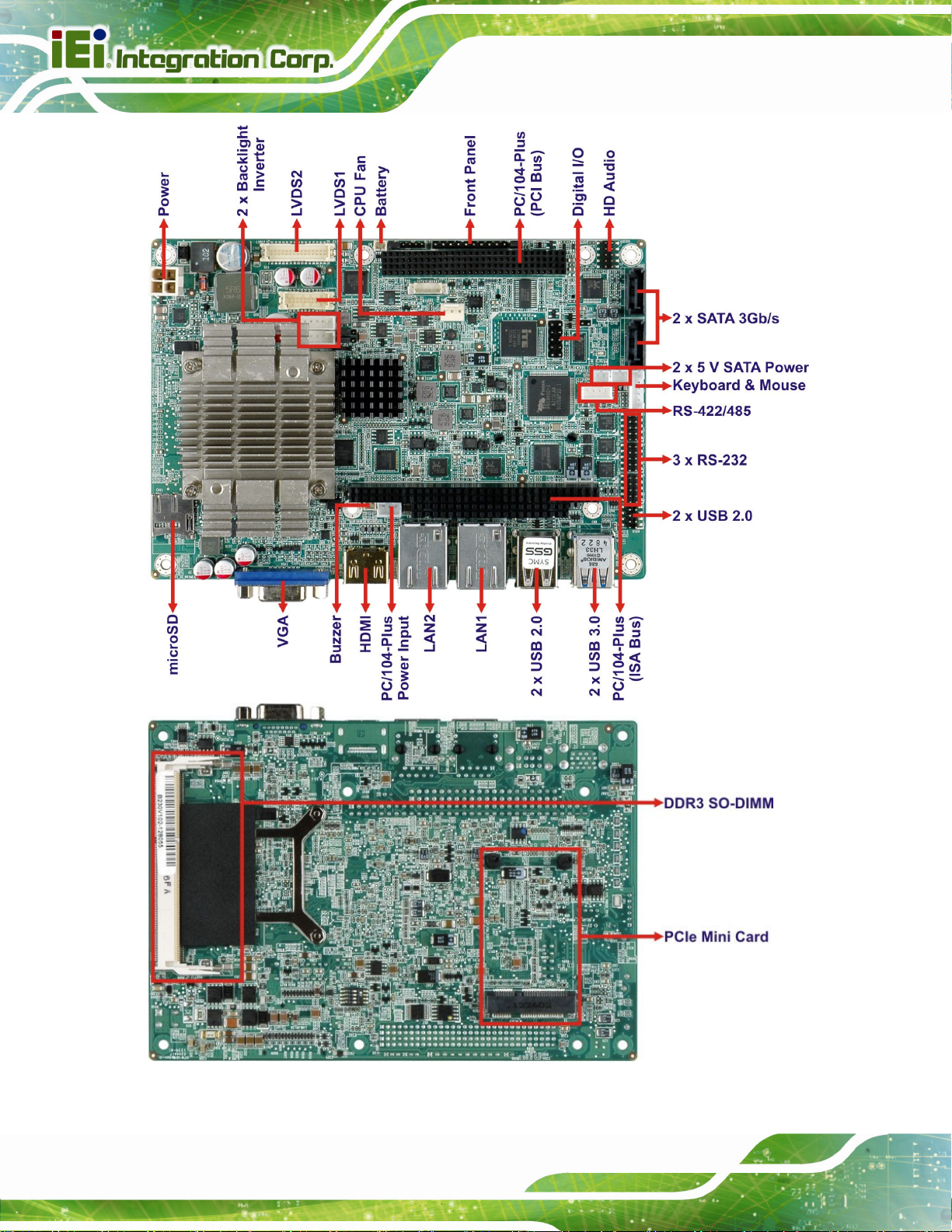

Figure 1-1: NANO-CV-D25501/N26001..........................................................................................2
Figure 1-2: Connectors ..................................................................................................................4

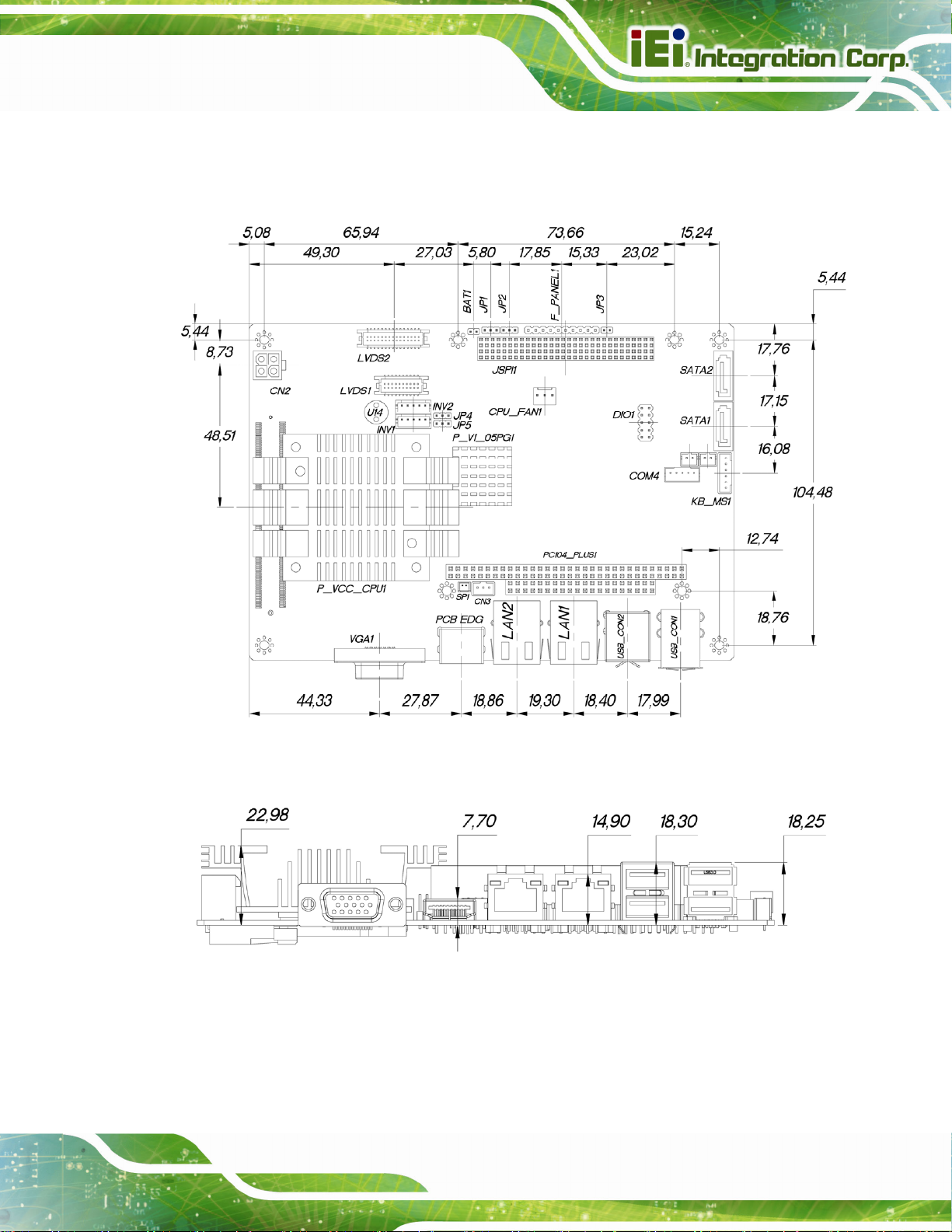

Figure 1-3: NANO-CV-D25501/N26001 Dimensions (mm)...........................................................5
Figure 1-4: External Interface Panel Dimensions (mm)..............................................................5
Figure 1-5: Data Flow Diagram......................................................................................................6
Figure 3-1: Connectors and Jumpers.........................................................................................15
Figure 3-2: 5 V SATA Power Connector Locations...................................................................17
Figure 3-3: Audio Connector Location.......................................................................................18
Figure 3-4: Backlight Inverter Connector Locations.................................................................19
Figure 3-5: Battery Connector Location.....................................................................................20
Figure 3-6: Buzzer Connector Location .....................................................................................21

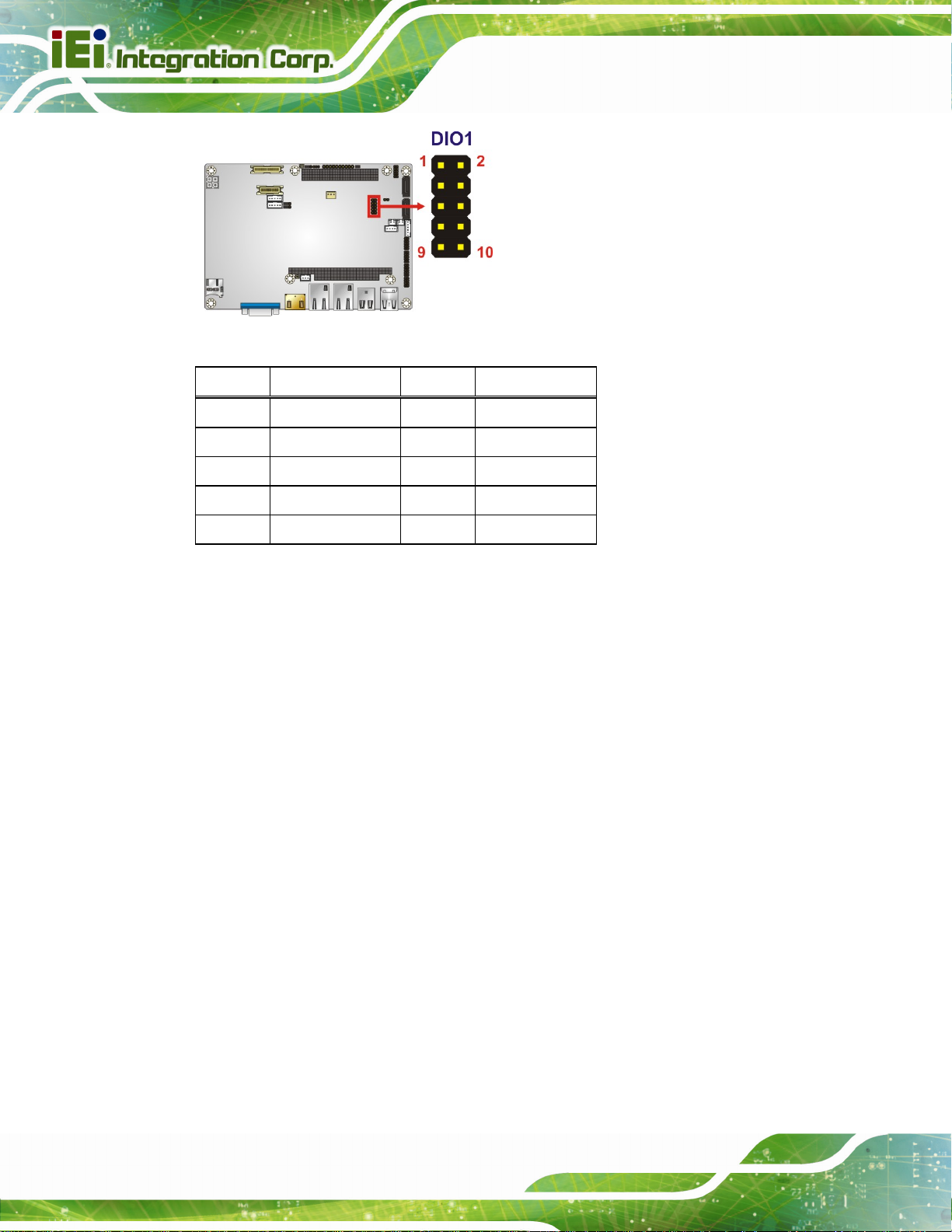

Figure 3-7: Digital I/O Connector Location ................................................................................22

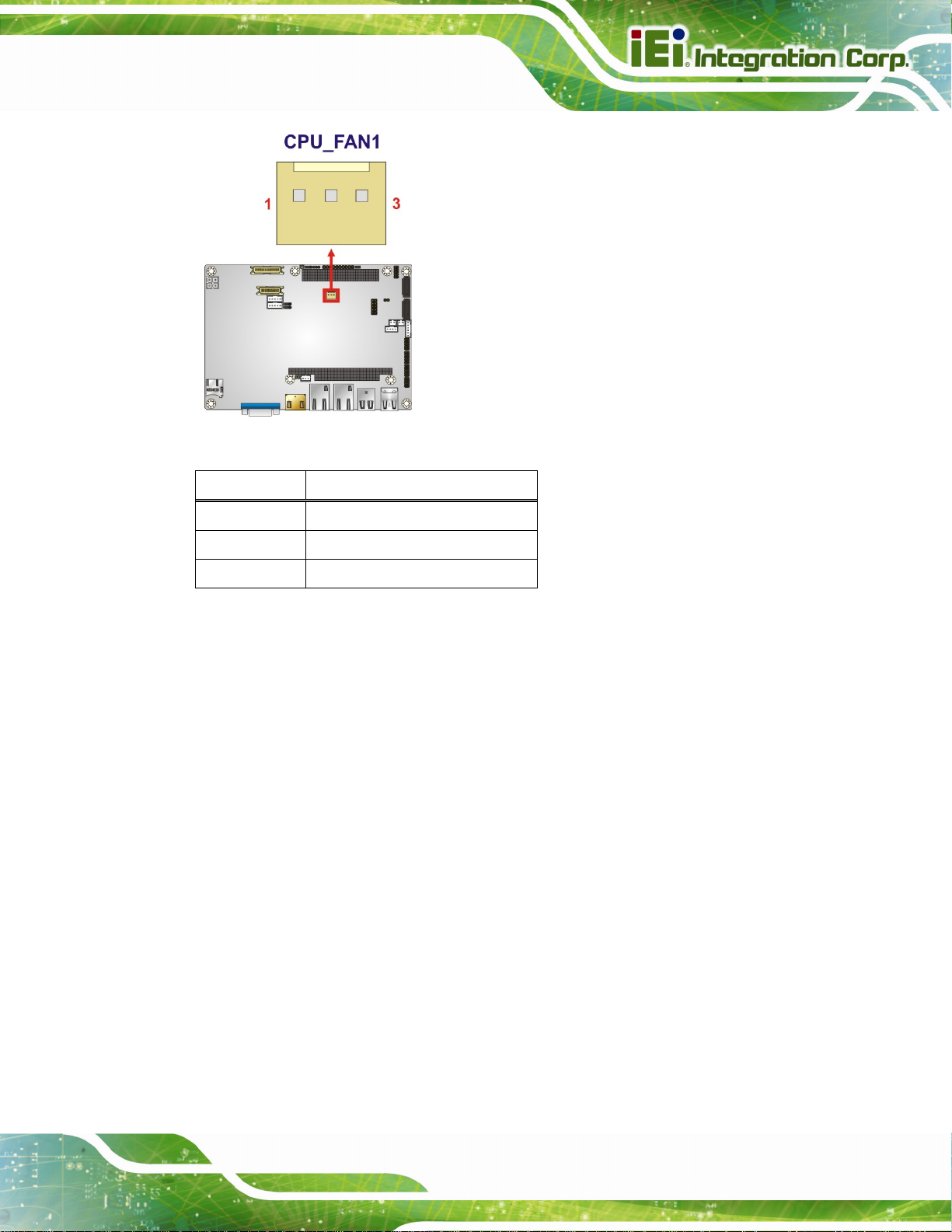

Figure 3-8: Fan Connector Location...........................................................................................23
Figure 3-9: Front Panel Connector Location .............................................................................24
Figure 3-10: Keyboard/Mouse Connector Location..................................................................25
Figure 3-11: LVDS1 Connector Location ...................................................................................25

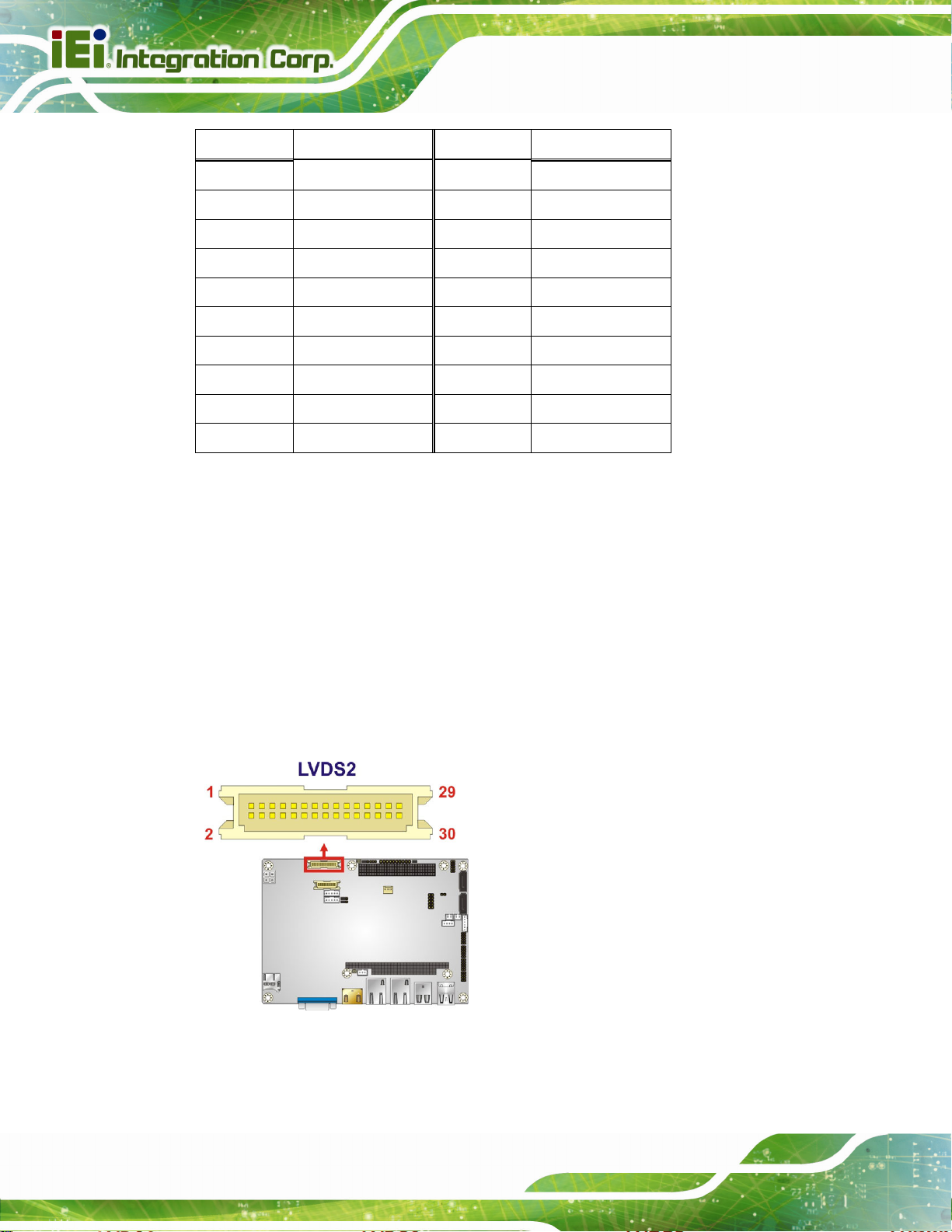

Figure 3-12: LVDS2 Connector Location ...................................................................................26
Figure 3-13: microSD Card Slot Location..................................................................................27
Figure 3-14: PC/104-Plus Slot Location .....................................................................................28
Figure 3-15: PC/104-Plus Power Input Connector Pinouts......................................................31

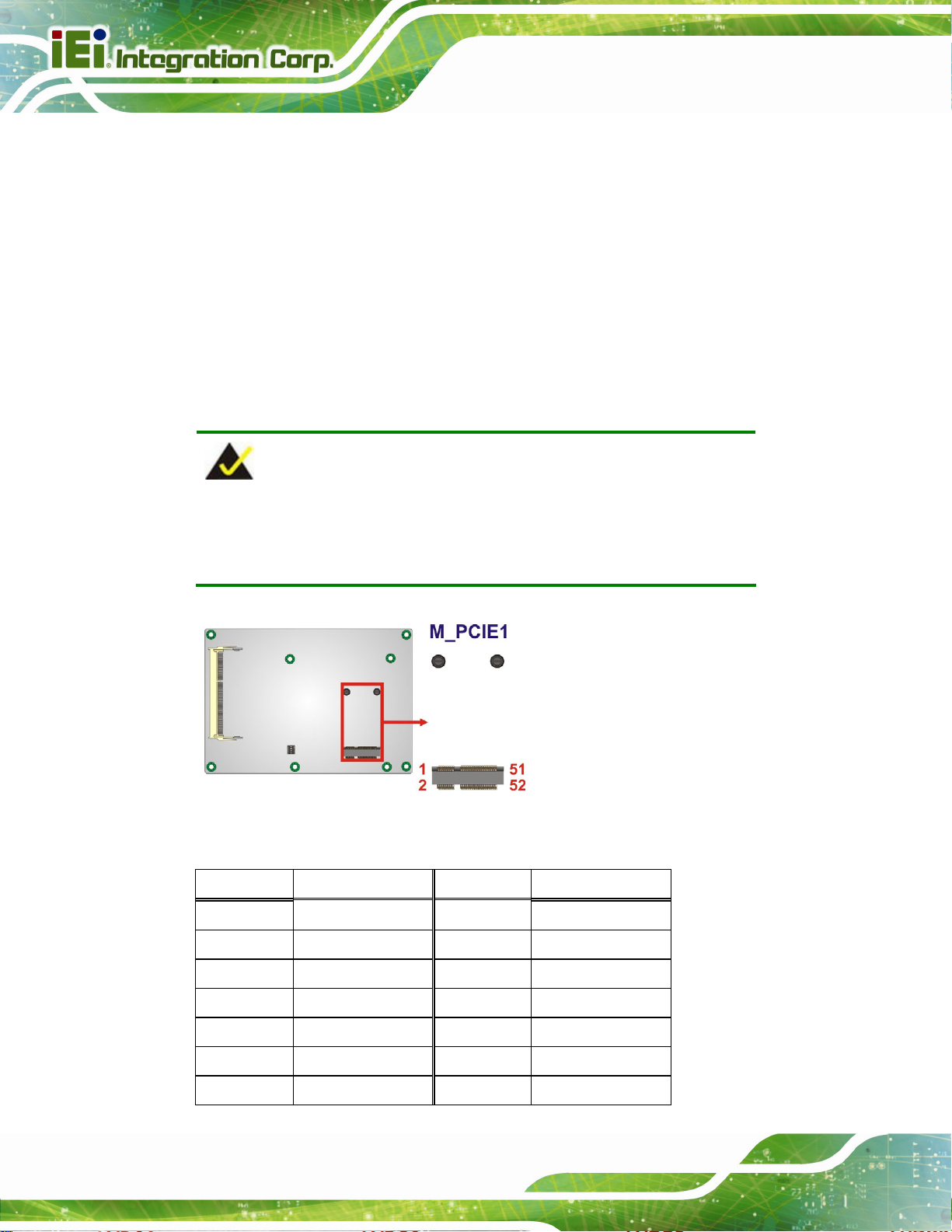

Figure 3-16: PCIe Mini Card Slot Location.................................................................................32
Figure 3-17: Power Connector Location ....................................................................................34
Figure 3-18: RS-232 Serial Port Connector Locations..............................................................34
Figure 3-19: RS-422/485 Connector Location............................................................................35

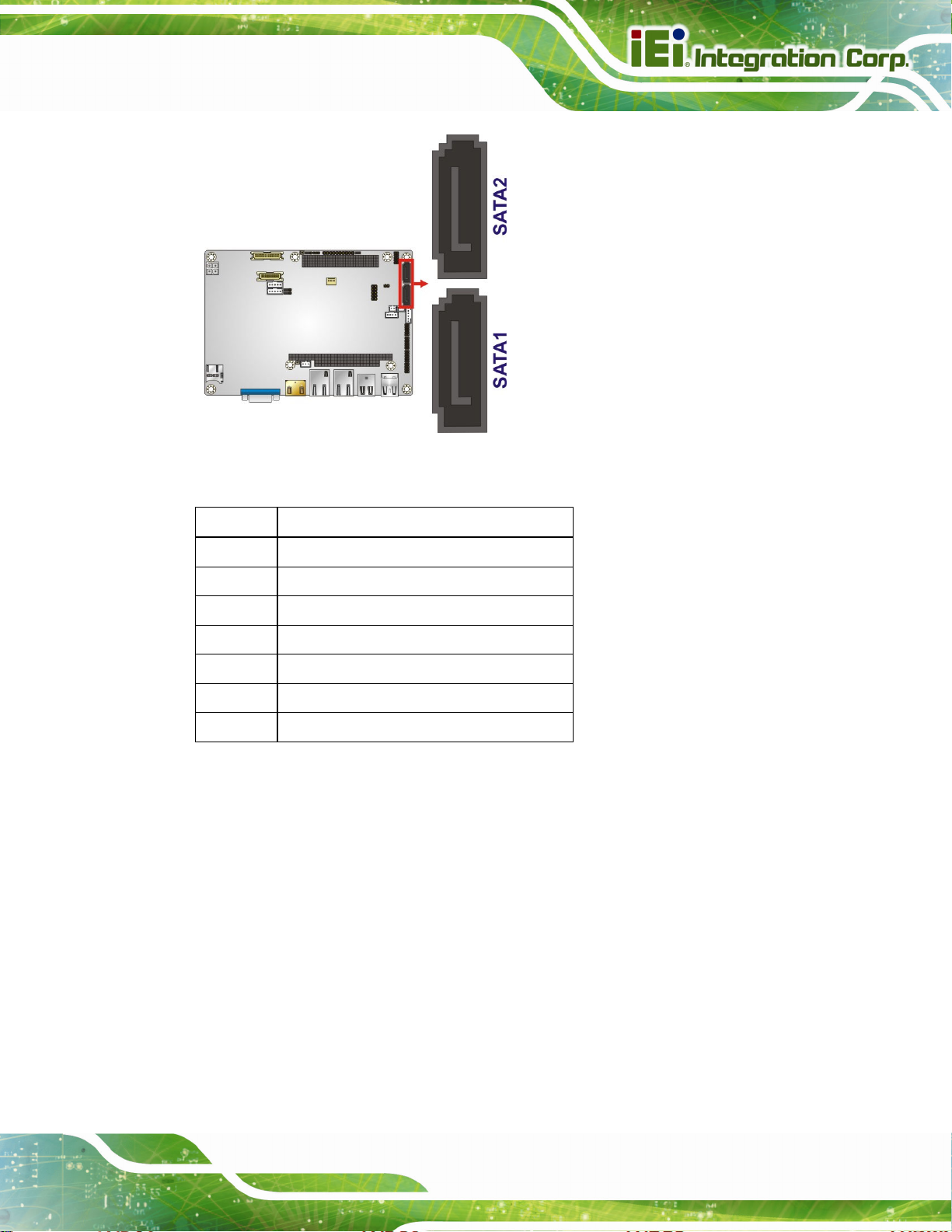

Figure 3-20: SATA Drive Connector Locations.........................................................................37

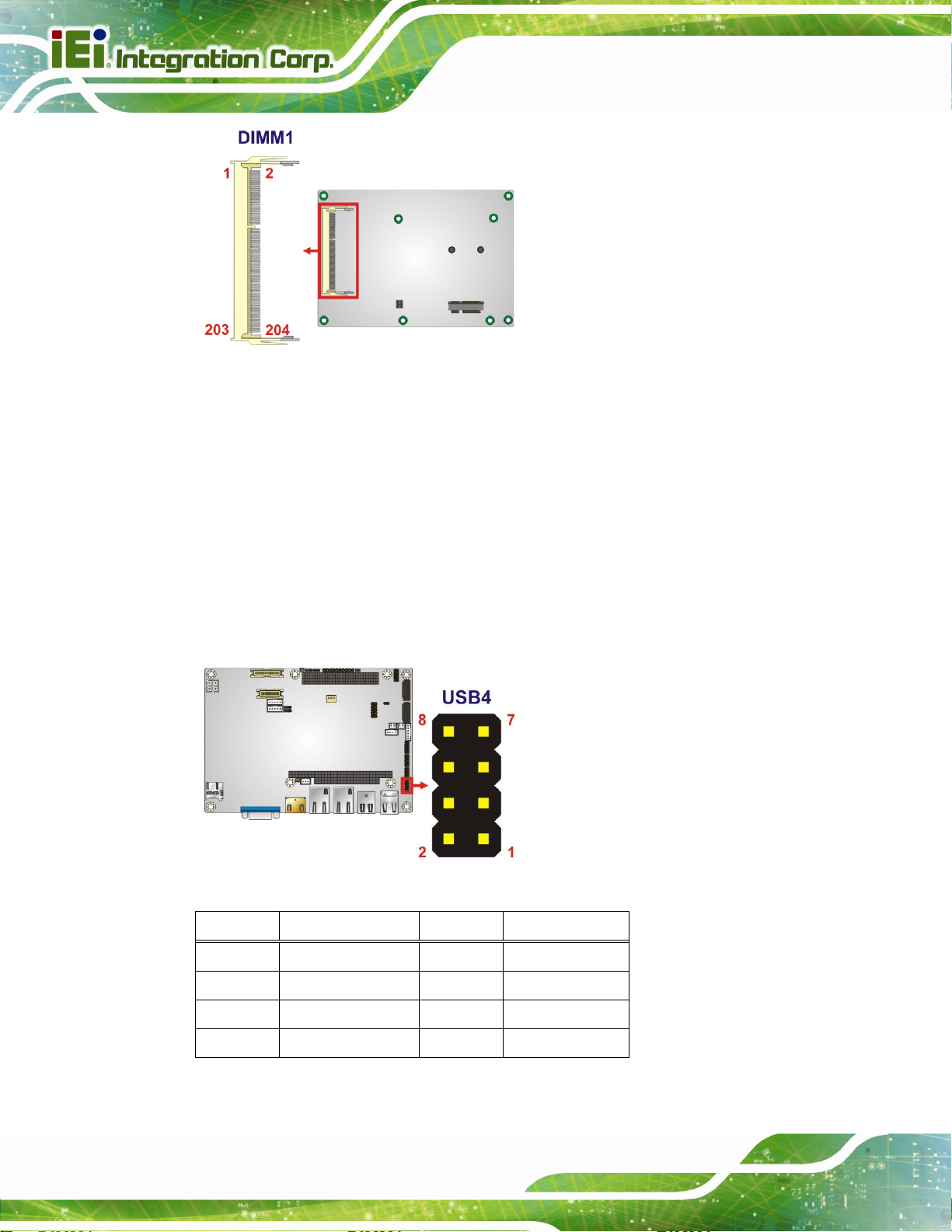

Figure 3-21: SO-DIMM Connector Location...............................................................................38
Figure 3-22: USB Connector Location........................................................................................38
Figure 3-23: External Peripheral Interface Connector..............................................................39

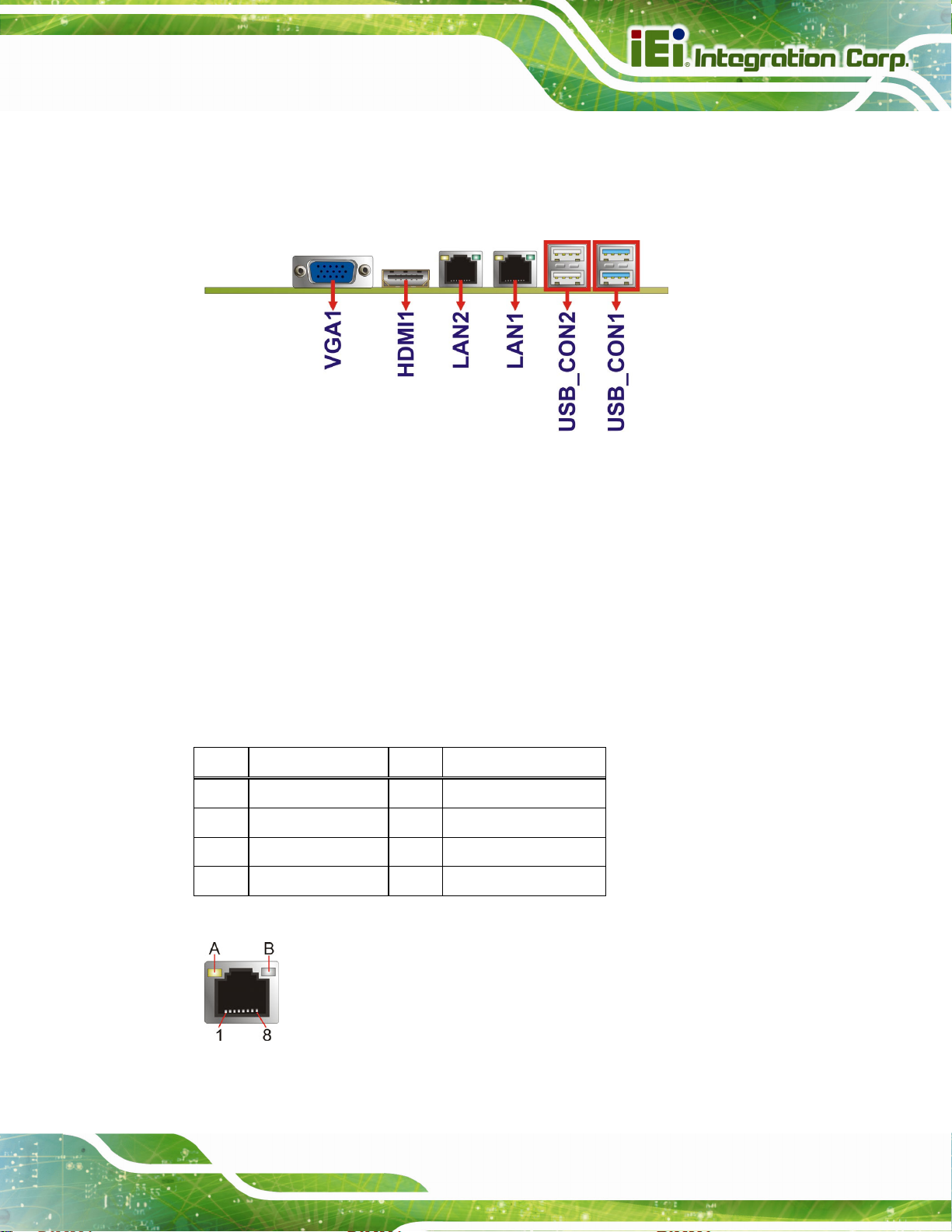

Figure 3-24: RJ-45 Ethernet Connector......................................................................................39
Figure 3-25: HDMI Connector......................................................................................................40
Page ix
Page 10

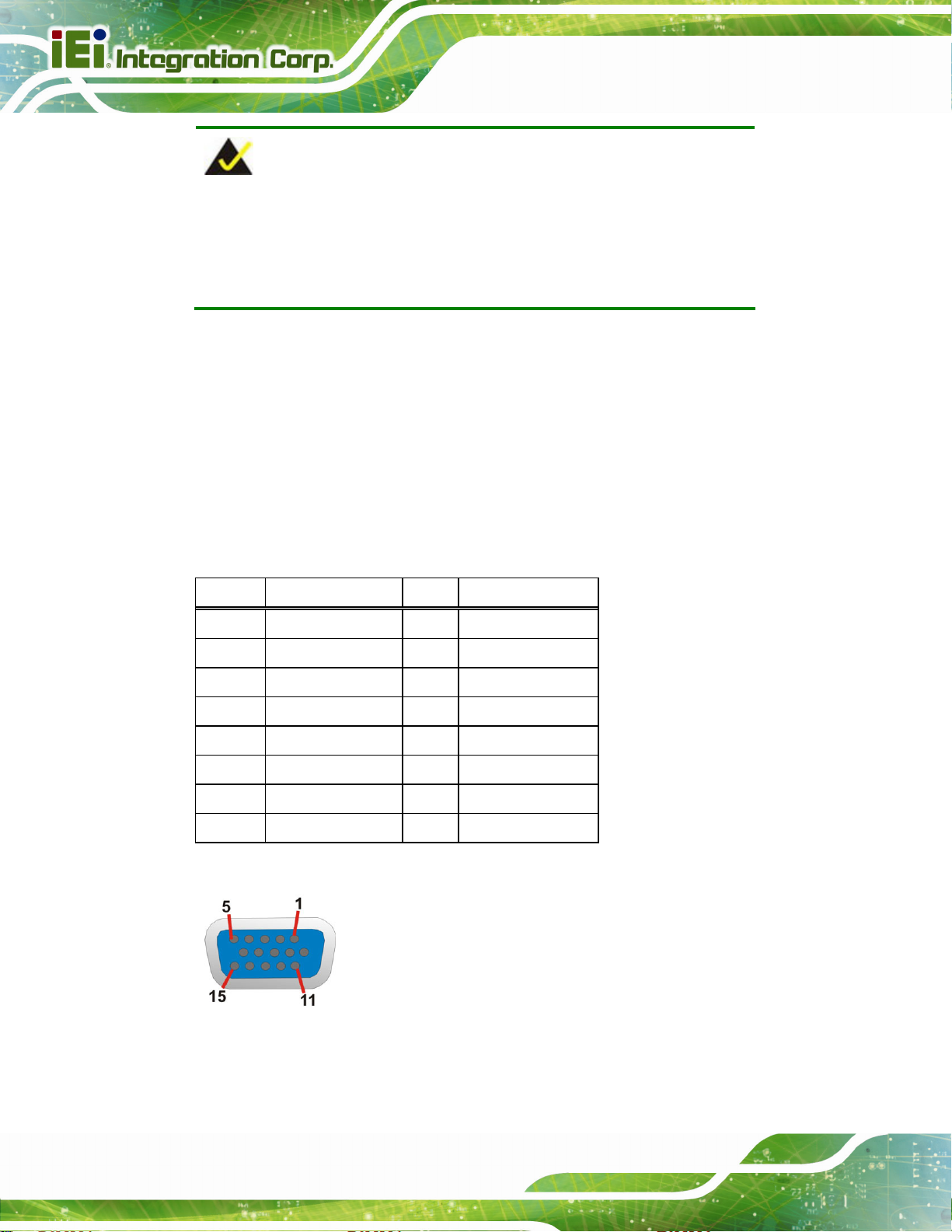

Figure 3-26: VGA Connector .......................................................................................................42
Figure 4-1: SO-DIMM Installation................................................................................................47

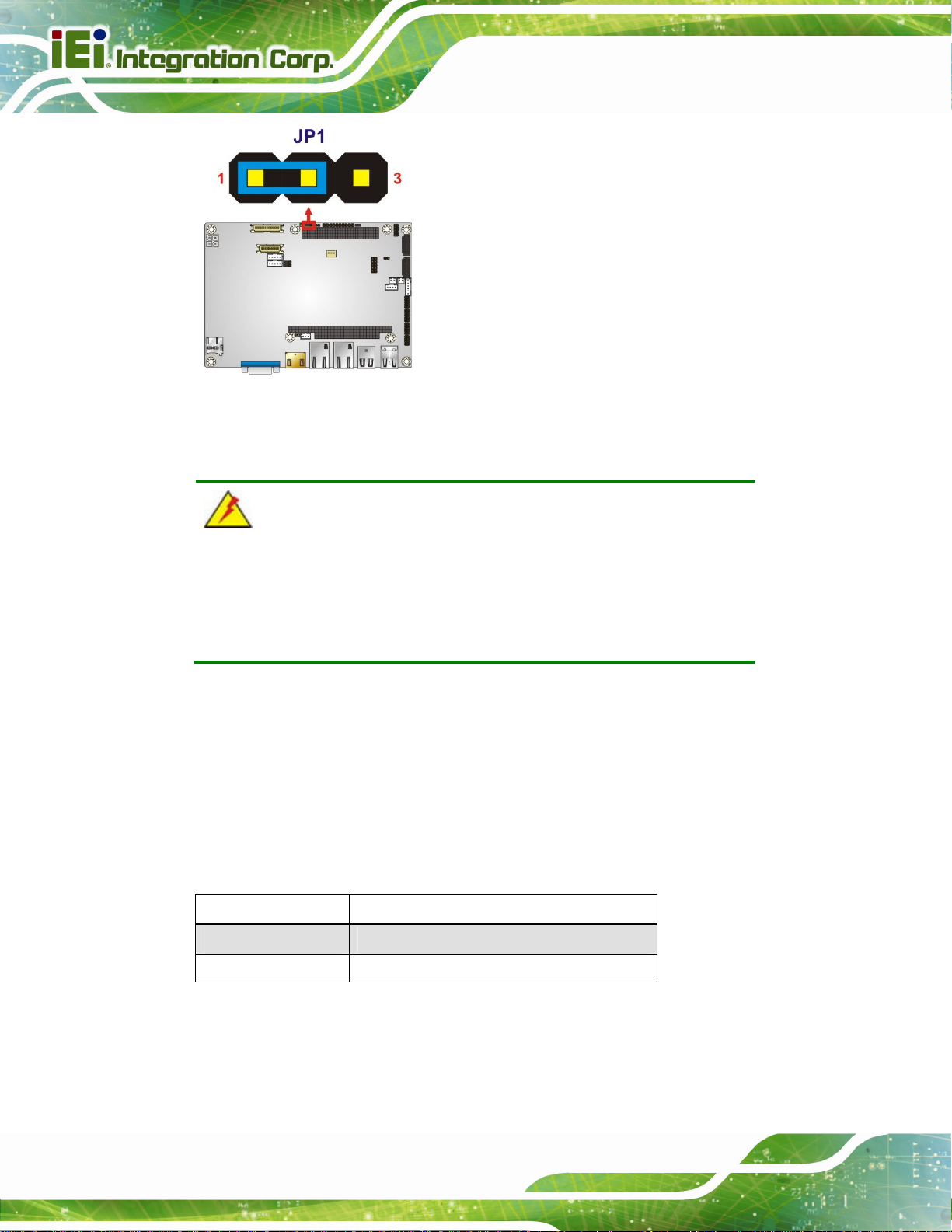

Figure 4-2: AT/ATX Power Selection Jumper Location............................................................49
Figure 4-3: Clear CMOS Jumper Location .................................................................................50
Figure 4-4: LVDS1 Voltage Selection Jumper Location ...........................................................51

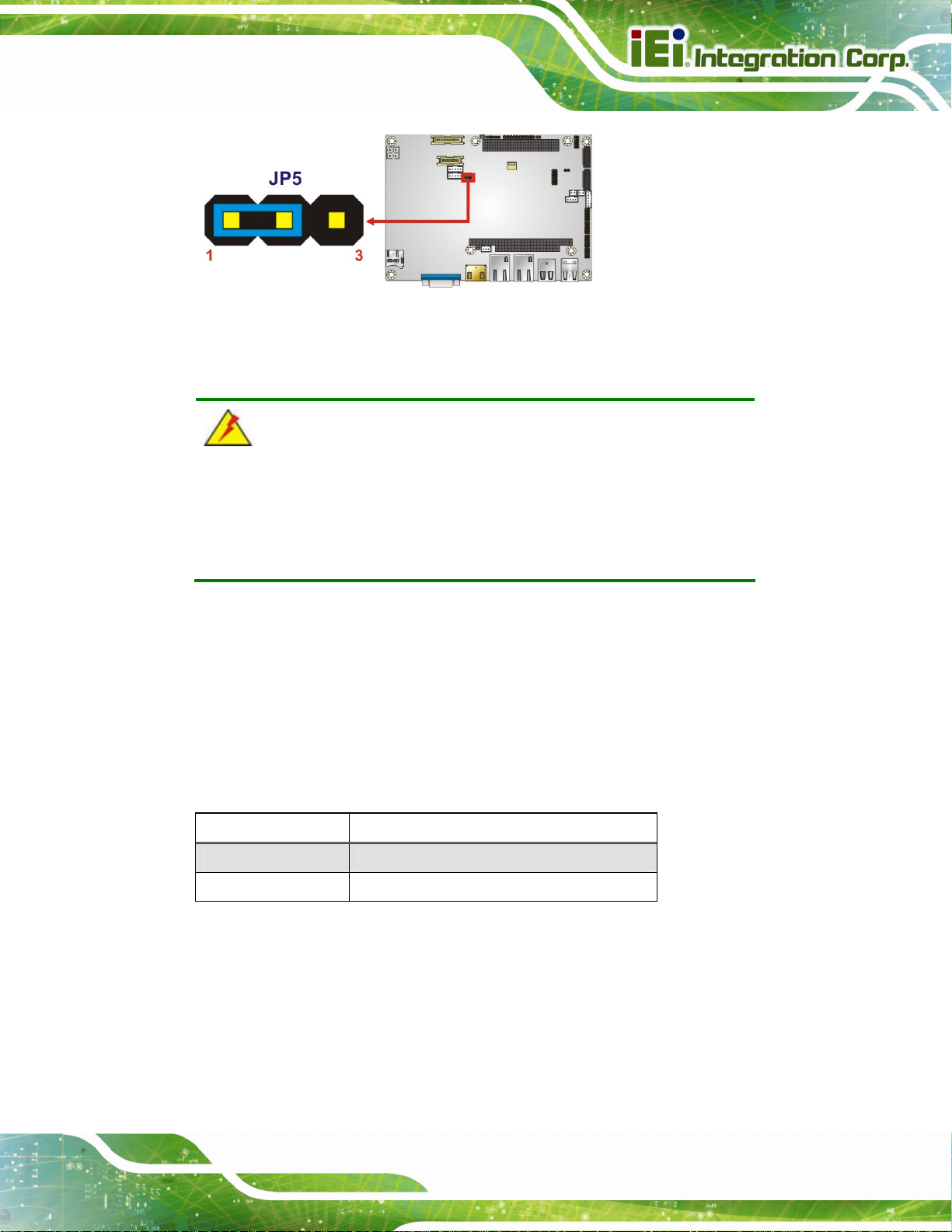

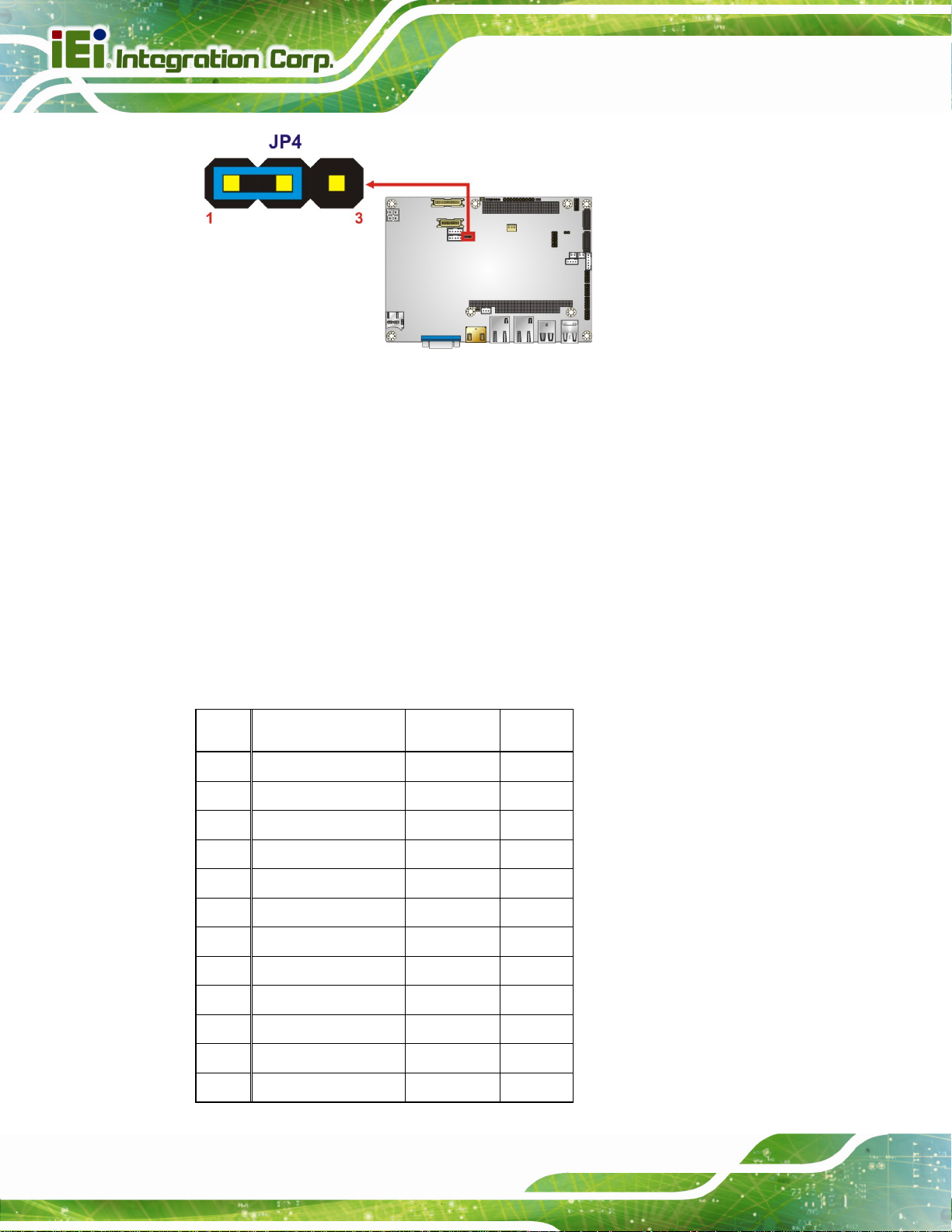

Figure 4-5: LVDS2 Voltage Selection Jumper Location ...........................................................52
Figure 4-6: LVDS2 Resolution Selection Jumper Location......................................................53

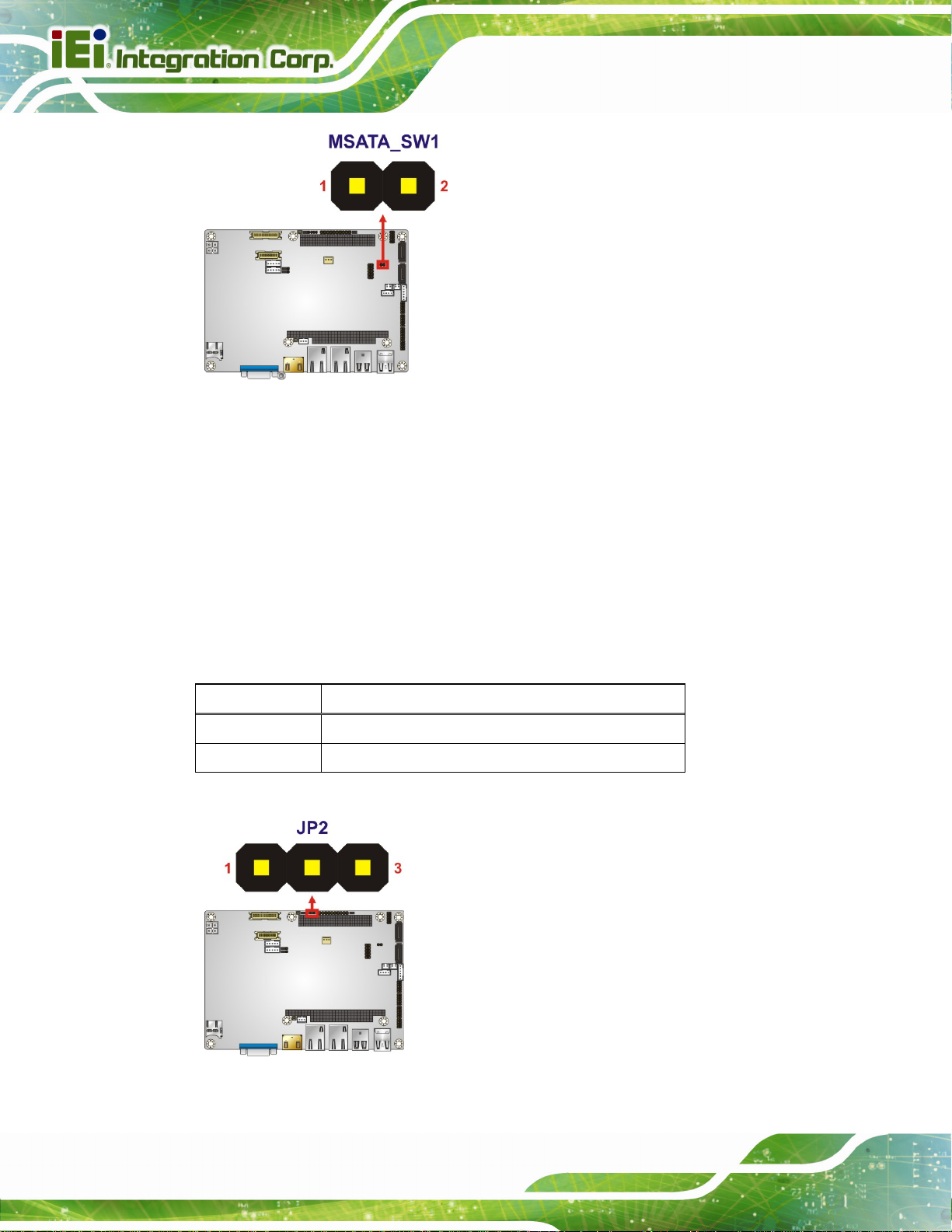

Figure 4-7: mSATA/PCIe Mini Mode Selection Jumper Location............................................54
Figure 4-8: PC/104-Plus VIO Voltage Selection Jumper Location...........................................54
Figure 4-9: Power Cable to Motherboard Connection..............................................................56
Figure 4-10: Connect Power Cable to Power Supply................................................................57
Figure 4-11: Audio Kit Cable Connection ..................................................................................58

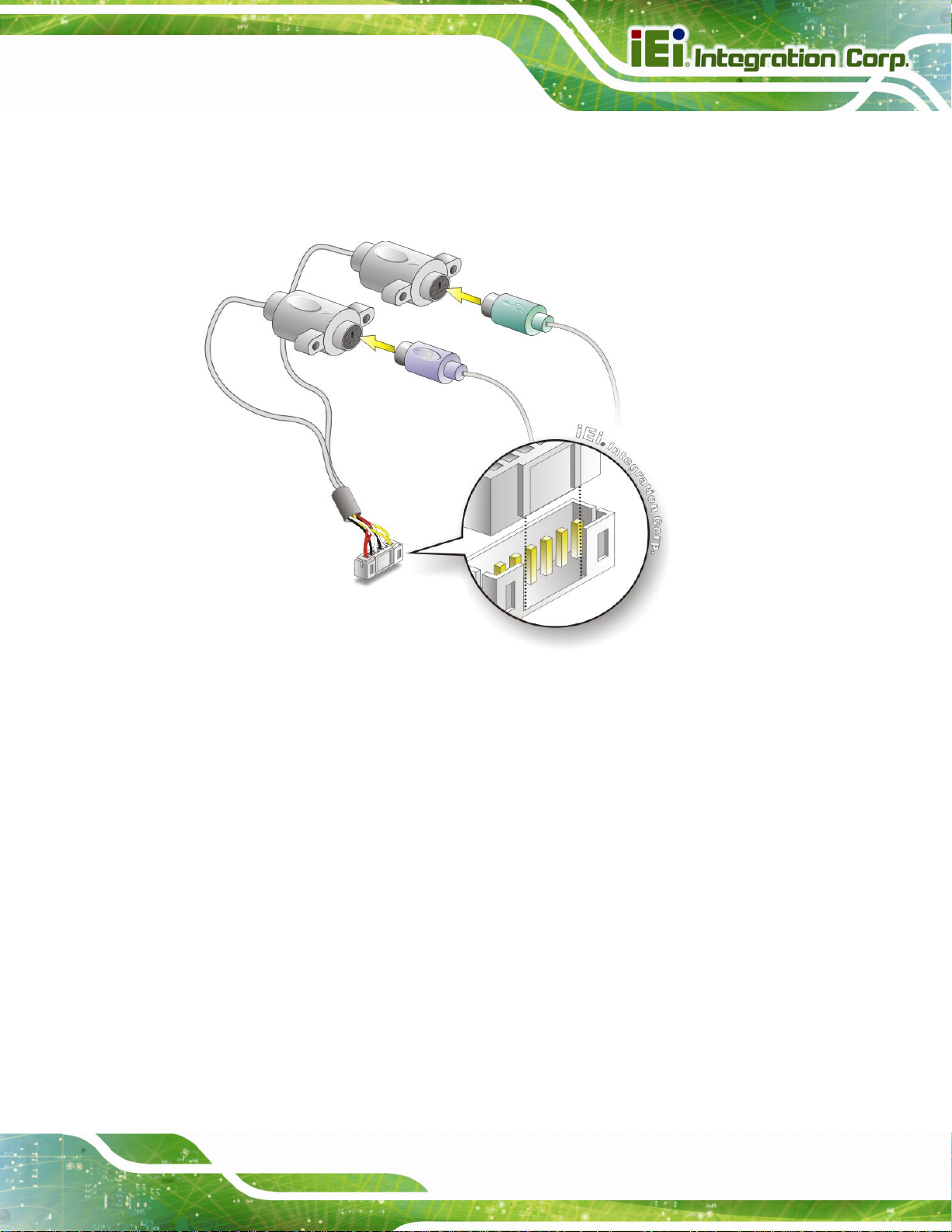

Figure 4-12: Keyboard/mouse Y-cable Connection..................................................................59
Figure 4-13: LVDS Connector......................................................................................................61
NANO-CV-D25501/N26001 EPIC SBC

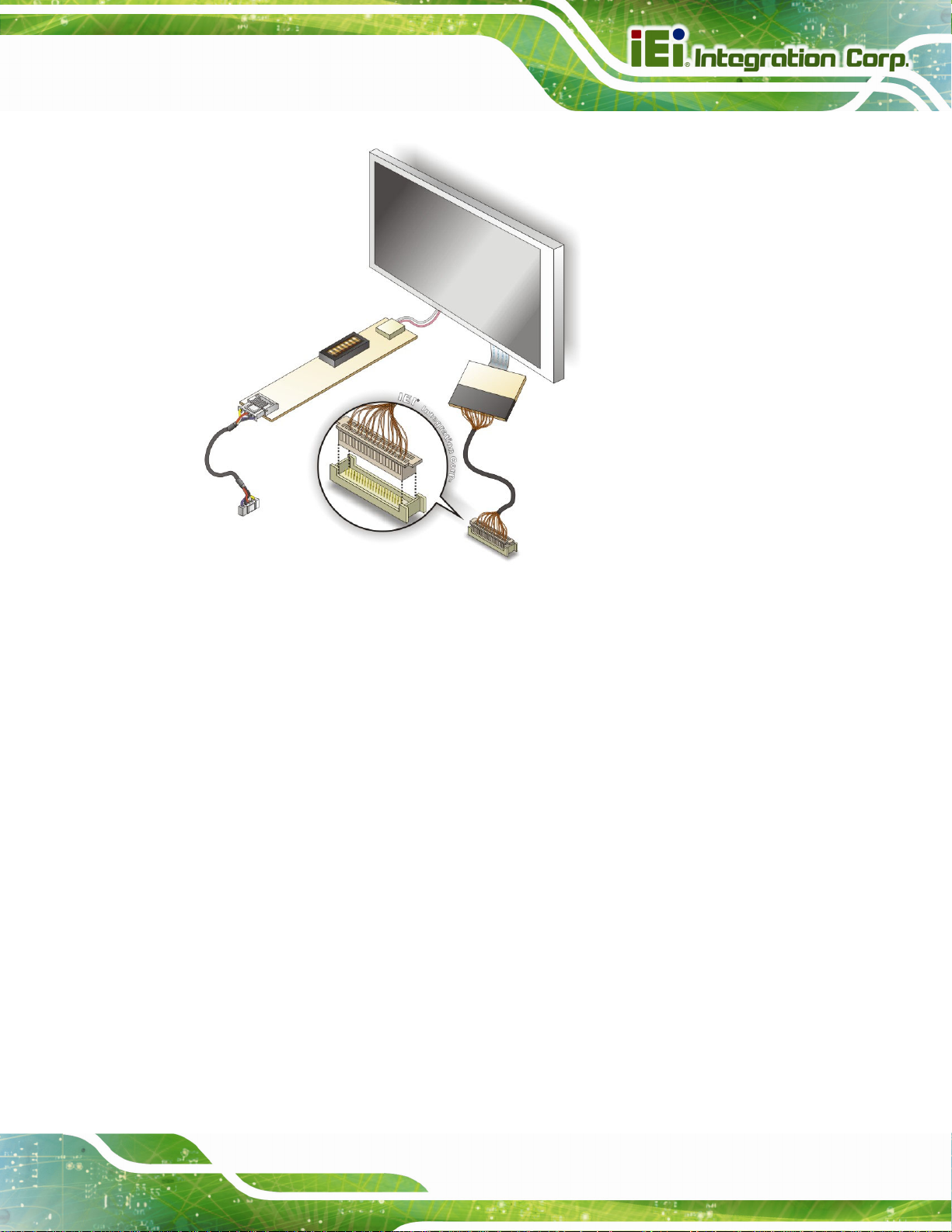

Figure 4-14: Backlight Inverter Connection...............................................................................62
Figure 4-15: PCIe Mini Card Installation.....................................................................................62

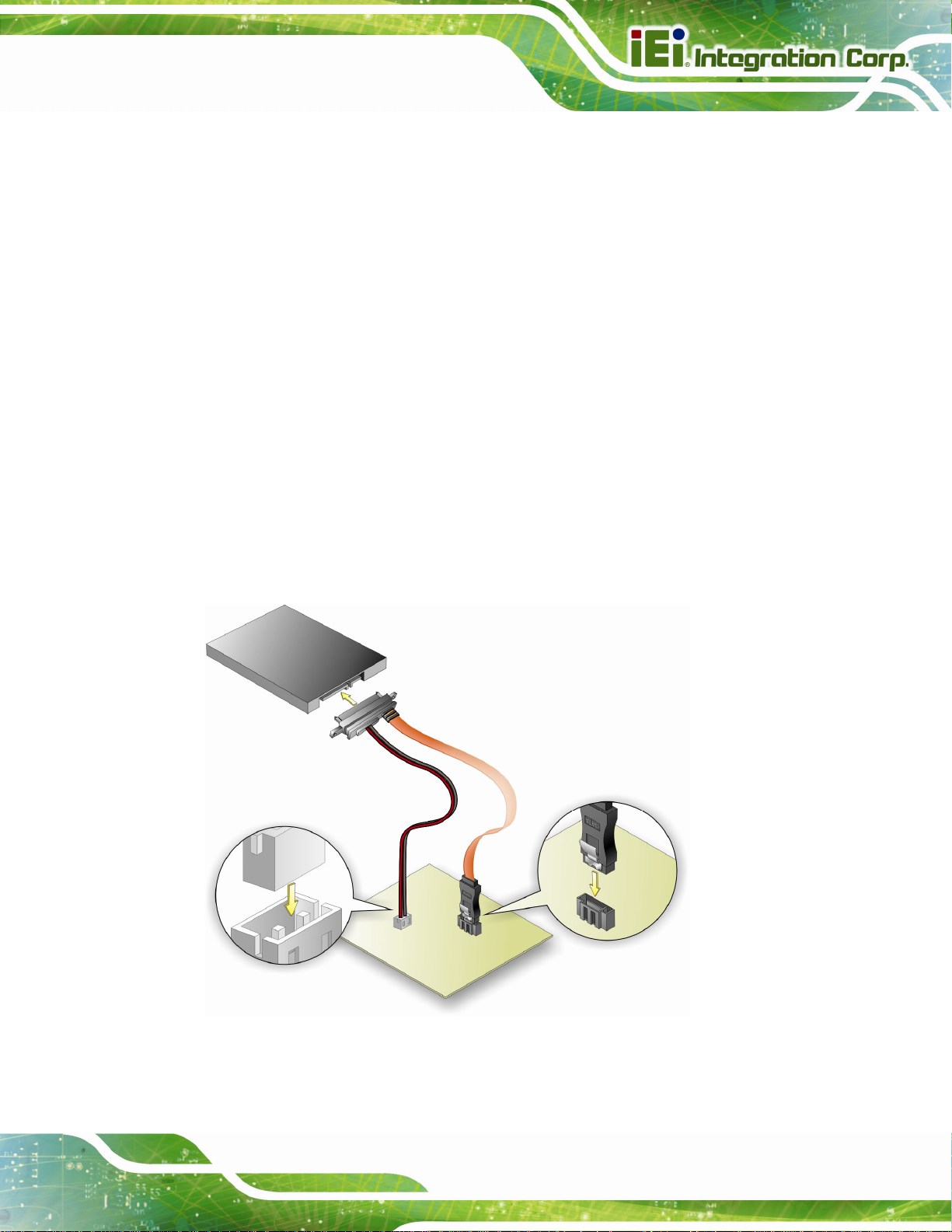

Figure 4-16: SATA Drive Cable Connection...............................................................................63

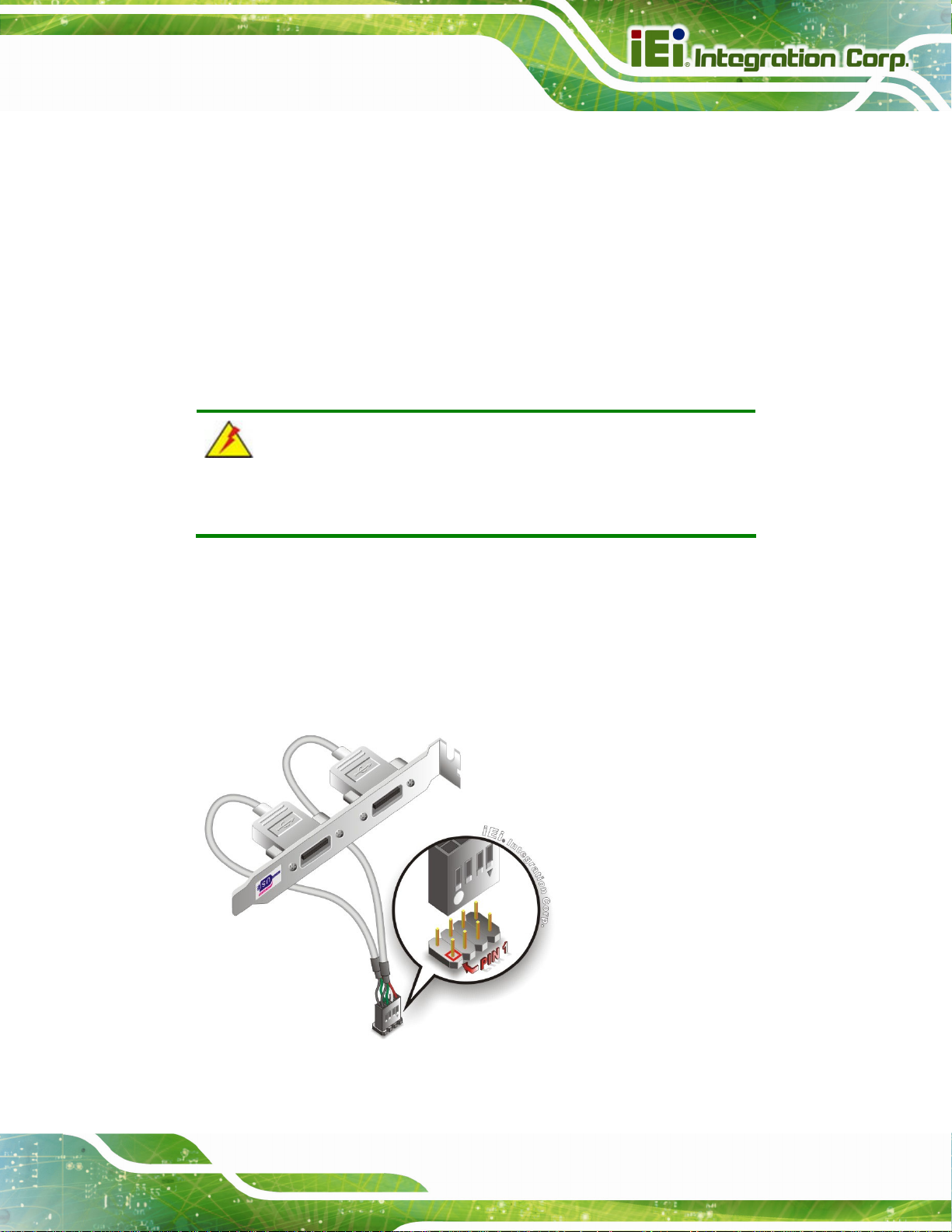

Figure 4-17: Single RS-232 Cable Installation ...........................................................................64
Figure 4-18: Dual USB Cable Connection..................................................................................65

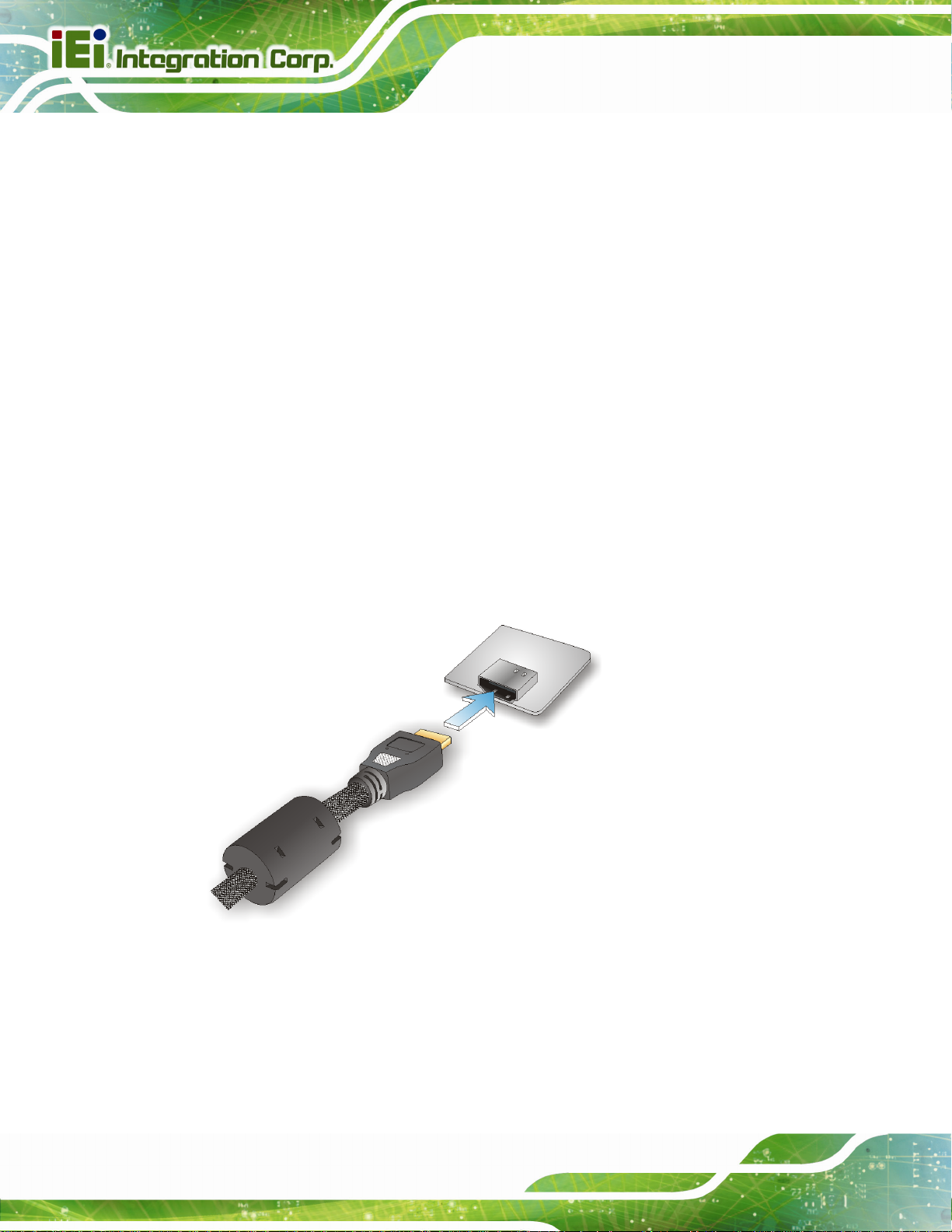

Figure 4-19: HDMI Connection....................................................................................................66

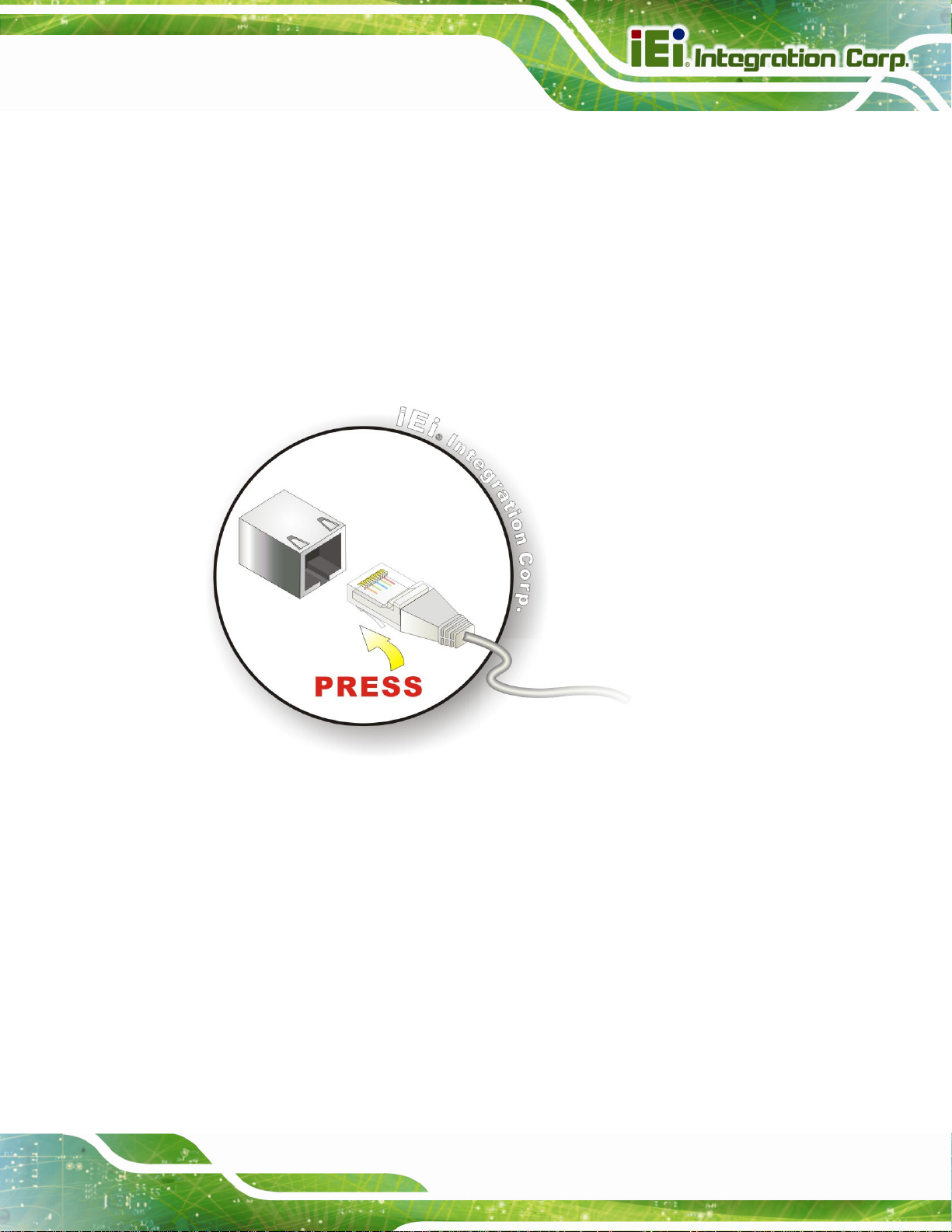

Figure 4-20: LAN Connection......................................................................................................67

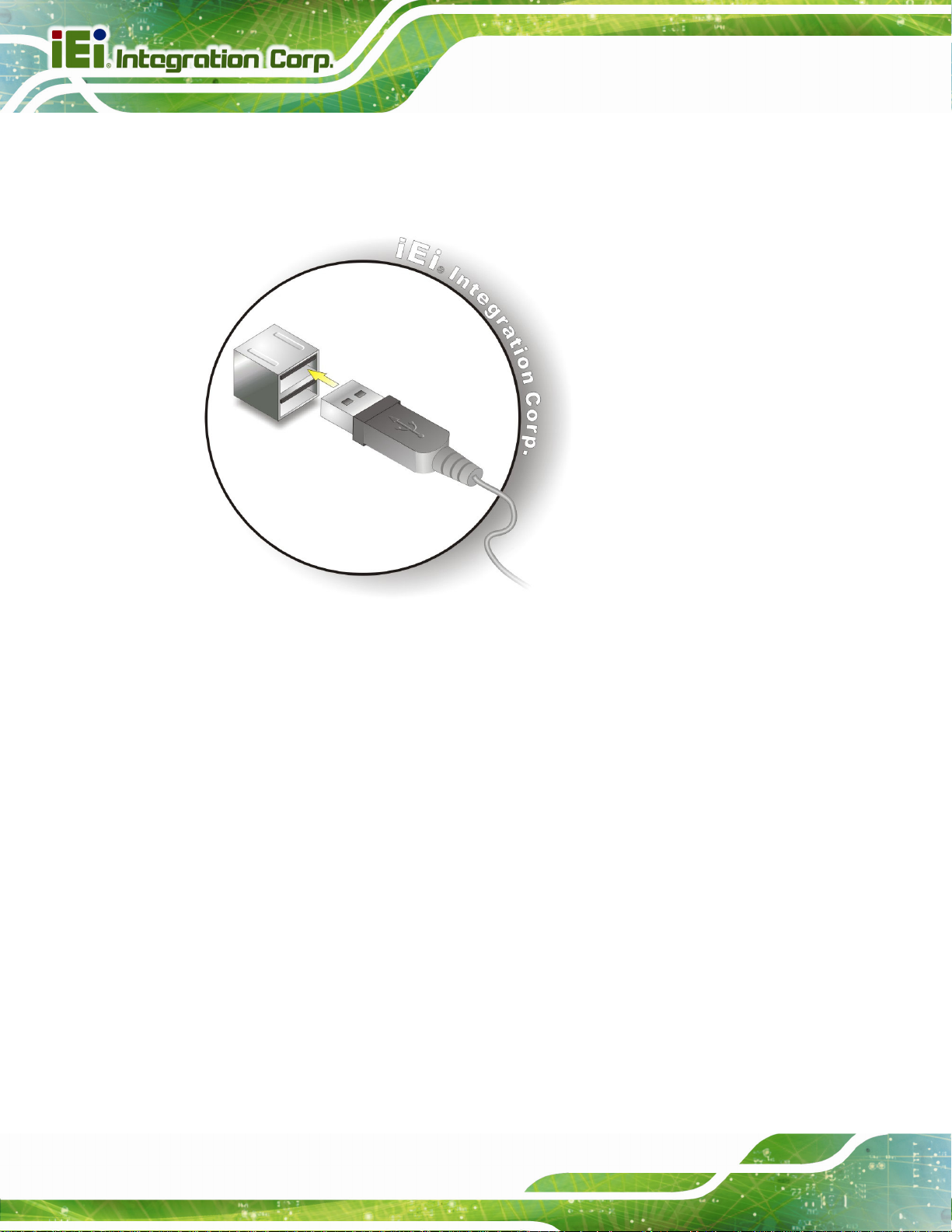

Figure 4-21: USB Connector........................................................................................................68
Figure 4-22: VGA Connector .......................................................................................................69

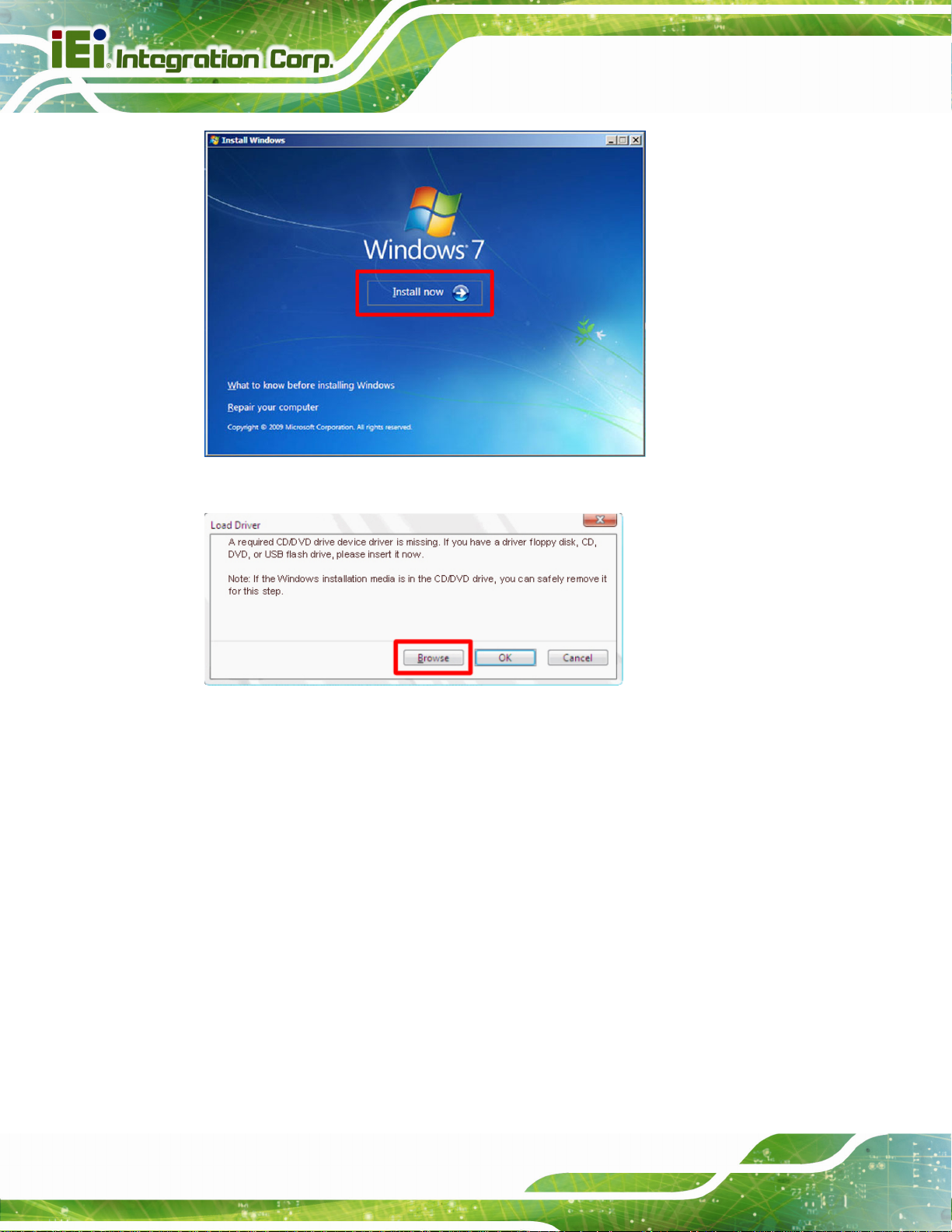

Figure 4-23: Install Now ...............................................................................................................70
Figure 4-24: Load Driver..............................................................................................................70
Figure 4-25: Browse for Folder ...................................................................................................71
Figure 4-26: Select the ASMedia XHCI Controller Driver..........................................................71
Figure 4-27: Confirm the Driver File ...........................................................................................72

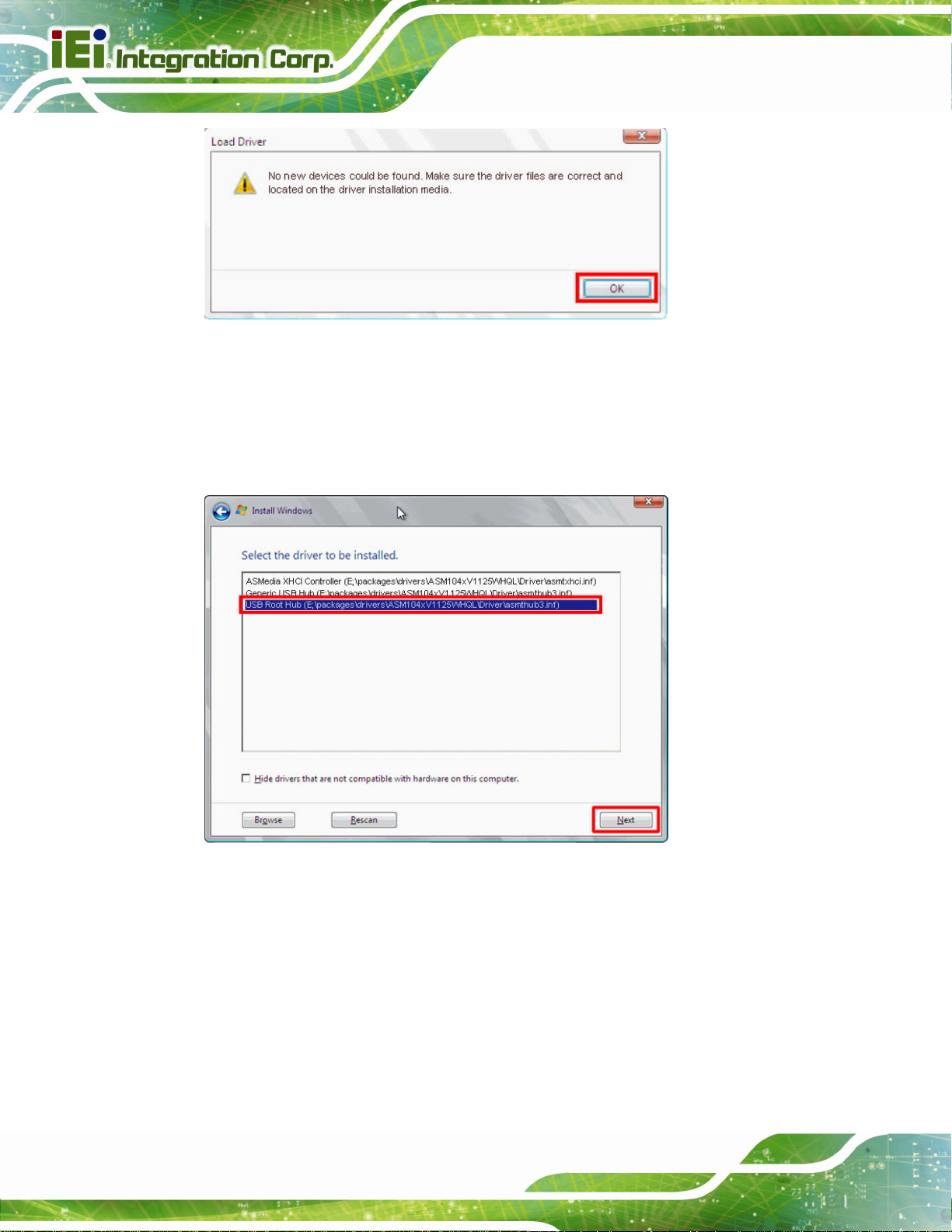

Figure 4-28: Select the USB Root Hub Driver............................................................................72
Figure 6-1: Start Up Screen ...................................................................................................... 104
Figure 6-2: Drivers..................................................................................................................... 104
Figure 6-3: Chipset Driver Screen............................................................................................ 105
Figure 6-4: Chipset Driver Welcome Screen........................................................................... 106
Figure 6-5: Chipset Driver License Agreement...................................................................... 107
Figure 6-6: Chipset Driver Read Me File ................................................................................. 107
Page x
Page 11
NANO-CV-D25501/N26001 EPIC SBC
Figure 6-7: Chipset Driver Setup Operations ......................................................................... 108
Figure 6-8: Chipset Driver Installation Finish Screen............................................................ 109
Figure 6-9: VGA Driver Welcome Screen................................................................................ 110
Figure 6-10: VGA Driver License Agreement.......................................................................... 111
Figure 6-11: VGA Driver Read Me File..................................................................................... 111
Figure 6-12: VGA Driver Setup Operations............................................................................. 112
Figure 6-13: VGA Driver Installation Finish Screen............................................................... 112
Figure 6-14: LAN Driver Welcome Screen .............................................................................. 113
Figure 6-15: LAN Driver Installation ........................................................................................ 114
Figure 6-16: LAN Driver Installation Complete....................................................................... 114
Figure 6-17: Audio Driver Installation File Extraction............................................................ 115
Figure 6-18: Audio Driver Welcome Screen............................................................................ 116
Figure 6-19: Audio Driver Installation...................................................................................... 116
Figure 6-20: Audio Driver Installation Complete.................................................................... 117
Figure 6-21: USB 3.0 Driver Welcome Screen........................................................................ 118
Figure 6-22: USB 3.0 Driver License Agreement.................................................................... 119
Figure 6-23: USB 3.0 Driver Setup Operations....................................................................... 119
Figure 6-24: USB 3.0 Driver Installation Finish Screen ......................................................... 120
Page xi
Page 12
NANO-CV-D25501/N26001 EPIC SBC
List of Tables
Table 1-1: NANO-CV-D25501/N26001 Model Variations..............................................................2
Table 1-2: NANO-CV-D25501/N26001 Specifications..................................................................9

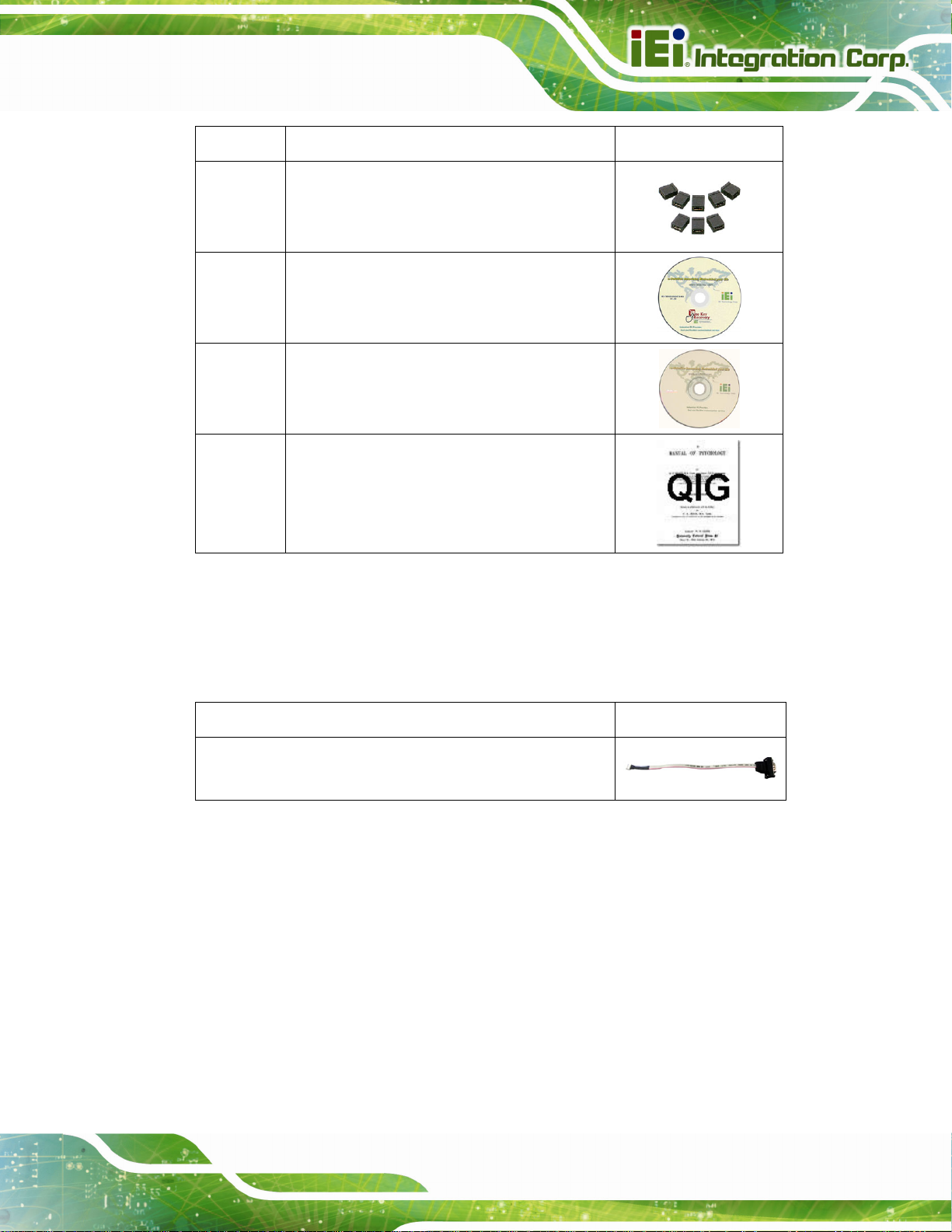

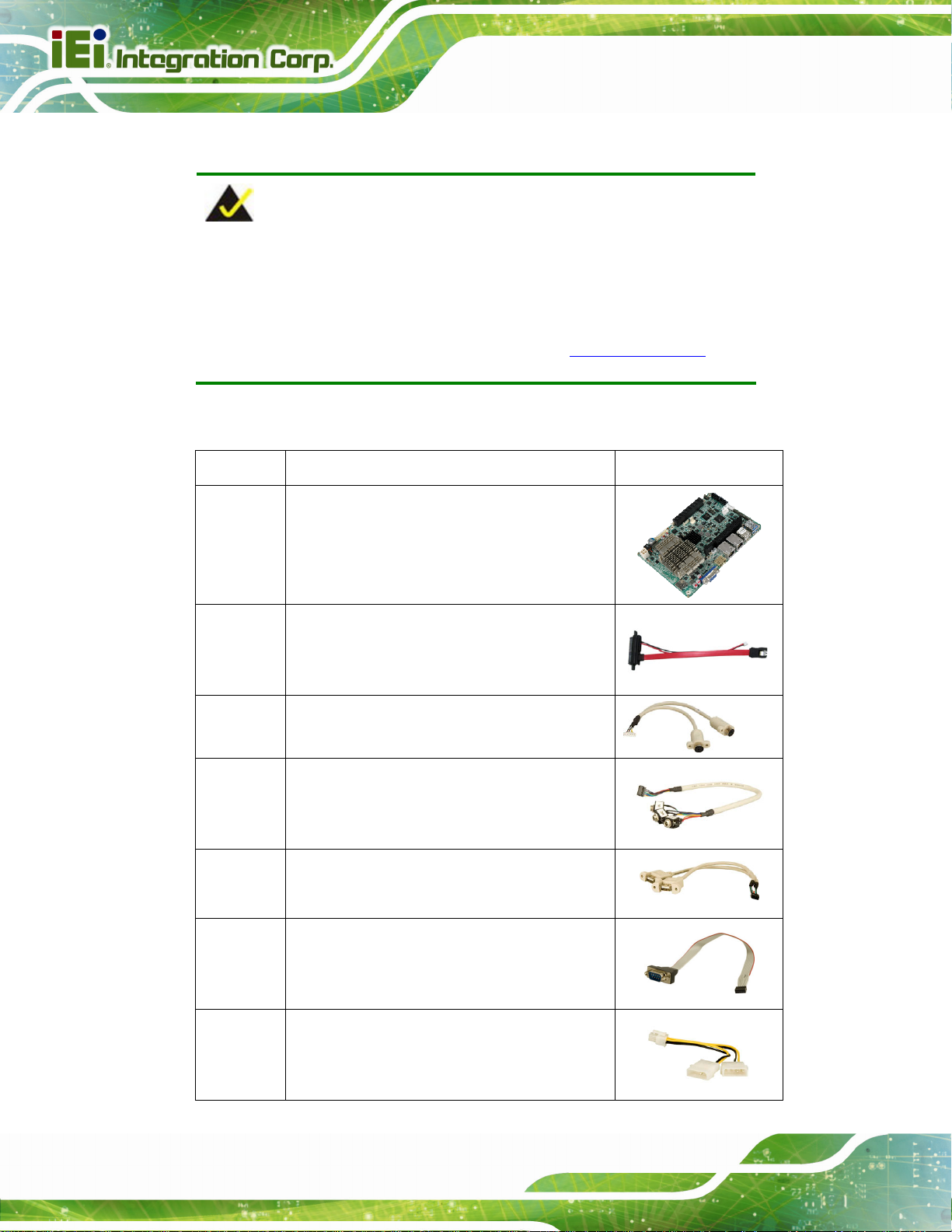

Table 2-1: Packing List.................................................................................................................13
Table 2-2: Optional Items.............................................................................................................13
Table 3-1: Peripheral Interface Connectors...............................................................................16
Table 3-2: Rear Panel Connectors..............................................................................................17

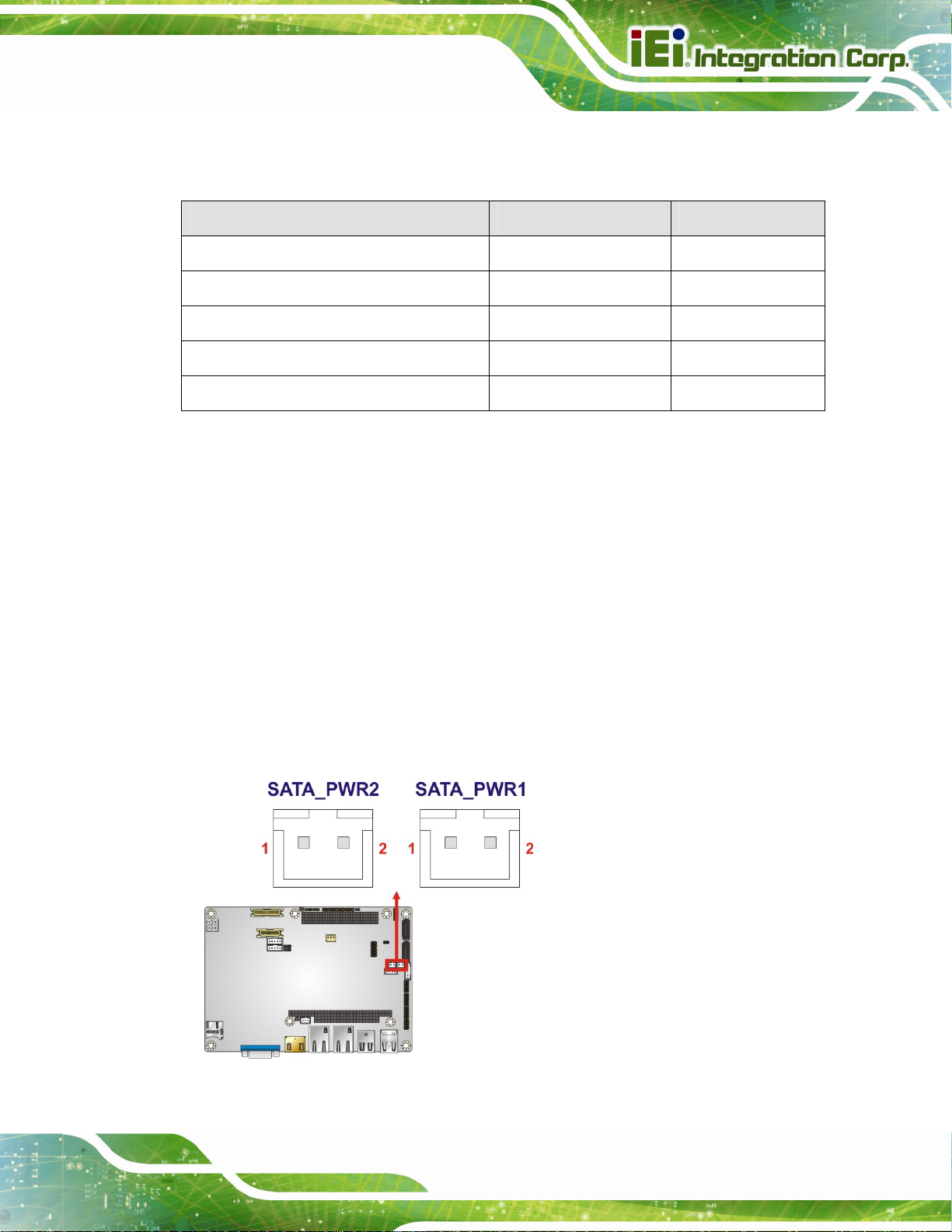

Table 3-3: 5 V SATA Power Connector Pinouts ........................................................................18

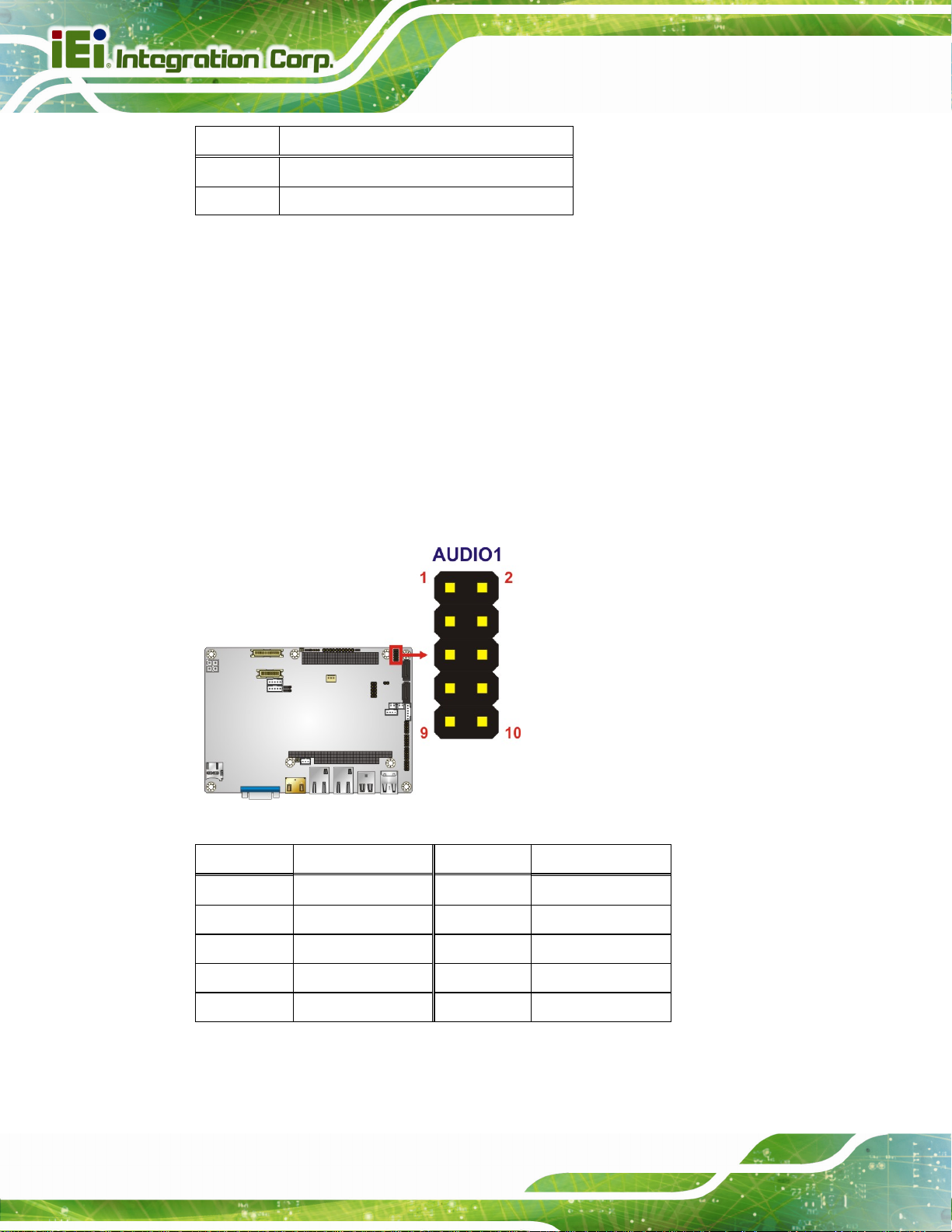

Table 3-4: Audio Connector Pinouts ..........................................................................................18

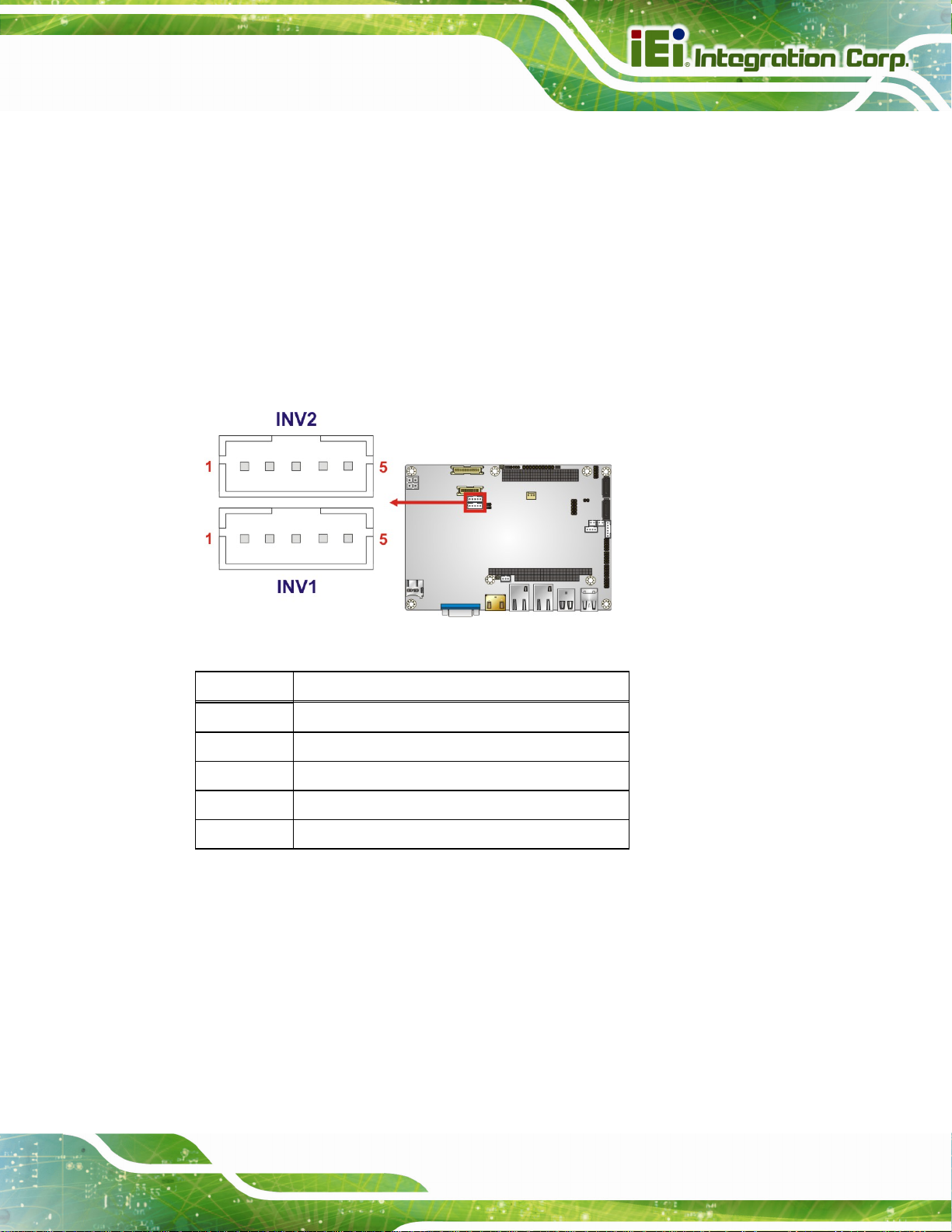

Table 3-5: Backlight Inverter Connector Pinouts......................................................................19

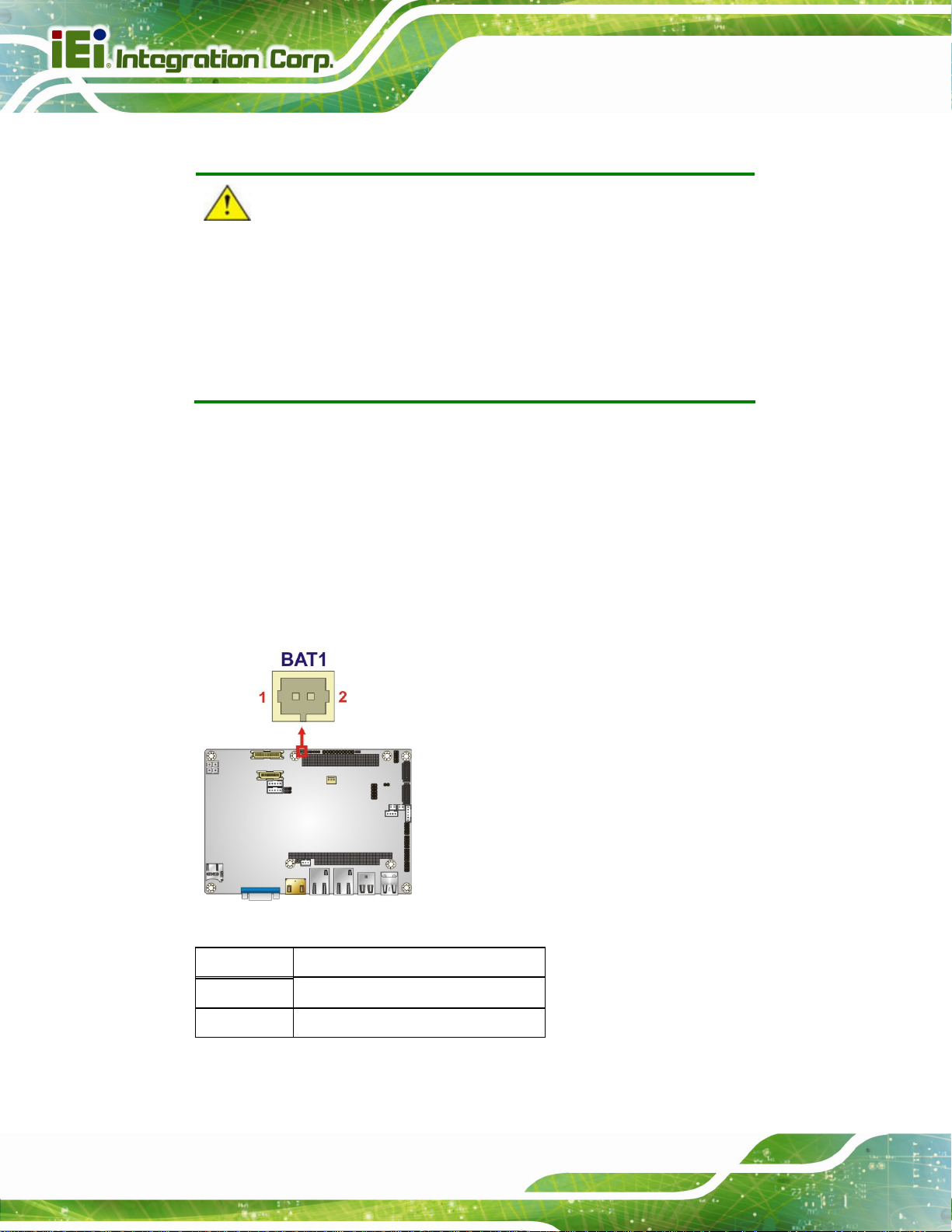

Table 3-6: Battery Connector Pinouts........................................................................................20

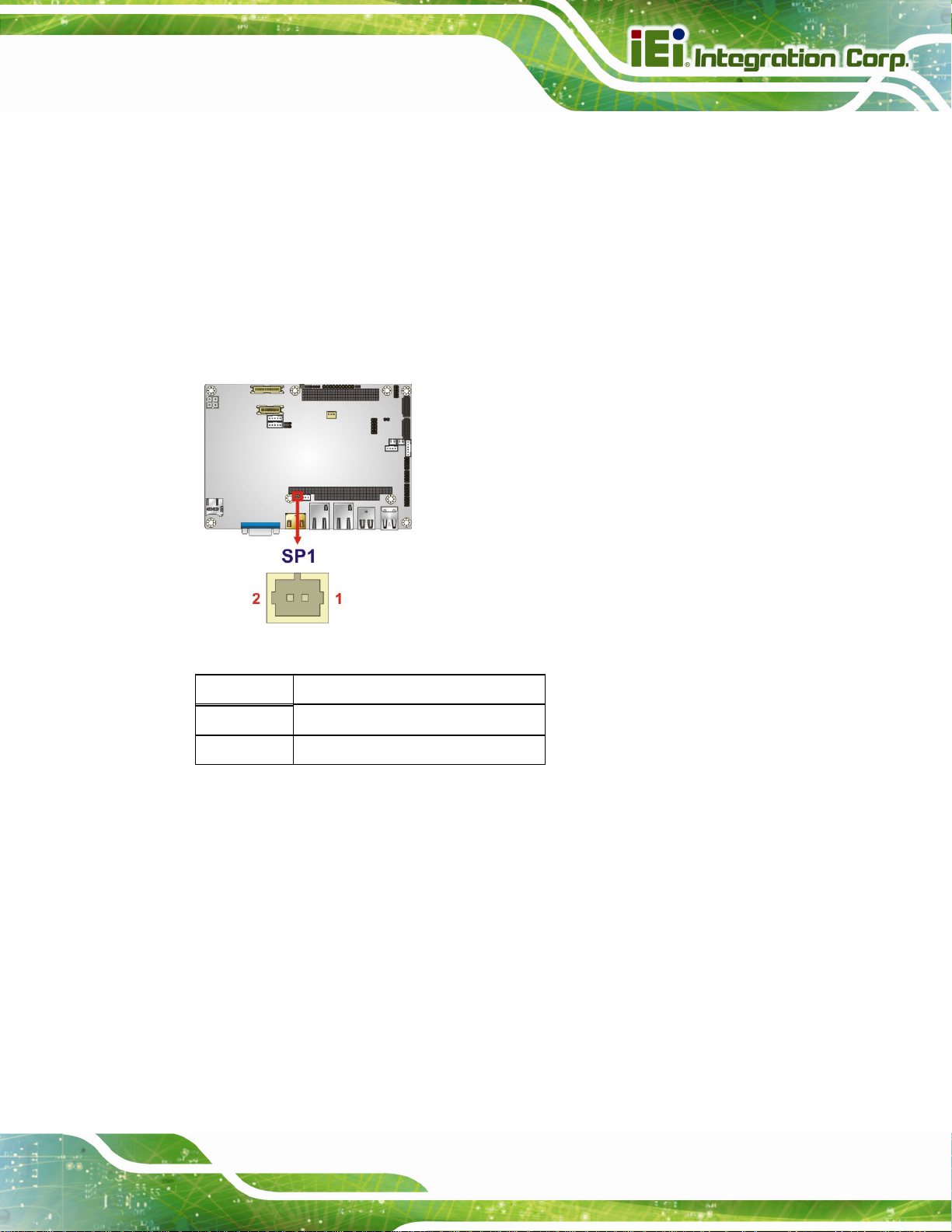

Table 3-7: Buzzer Connector Pinouts.........................................................................................21
Table 3-8: Digital I/O Connector Pinouts....................................................................................22
Table 3-9: Fan Connector Pinouts..............................................................................................23
Table 3-10: Front Panel Connector Pinouts...............................................................................24
Table 3-11: Keyboard/Mouse Connector Pinouts .....................................................................25
Table 3-12: LVDS1 Connector Pinouts.......................................................................................26
Table 3-13: LVDS2 Connector Pinouts.......................................................................................27
Table 3-14: microSD Card Slot Connector Pinouts...................................................................28

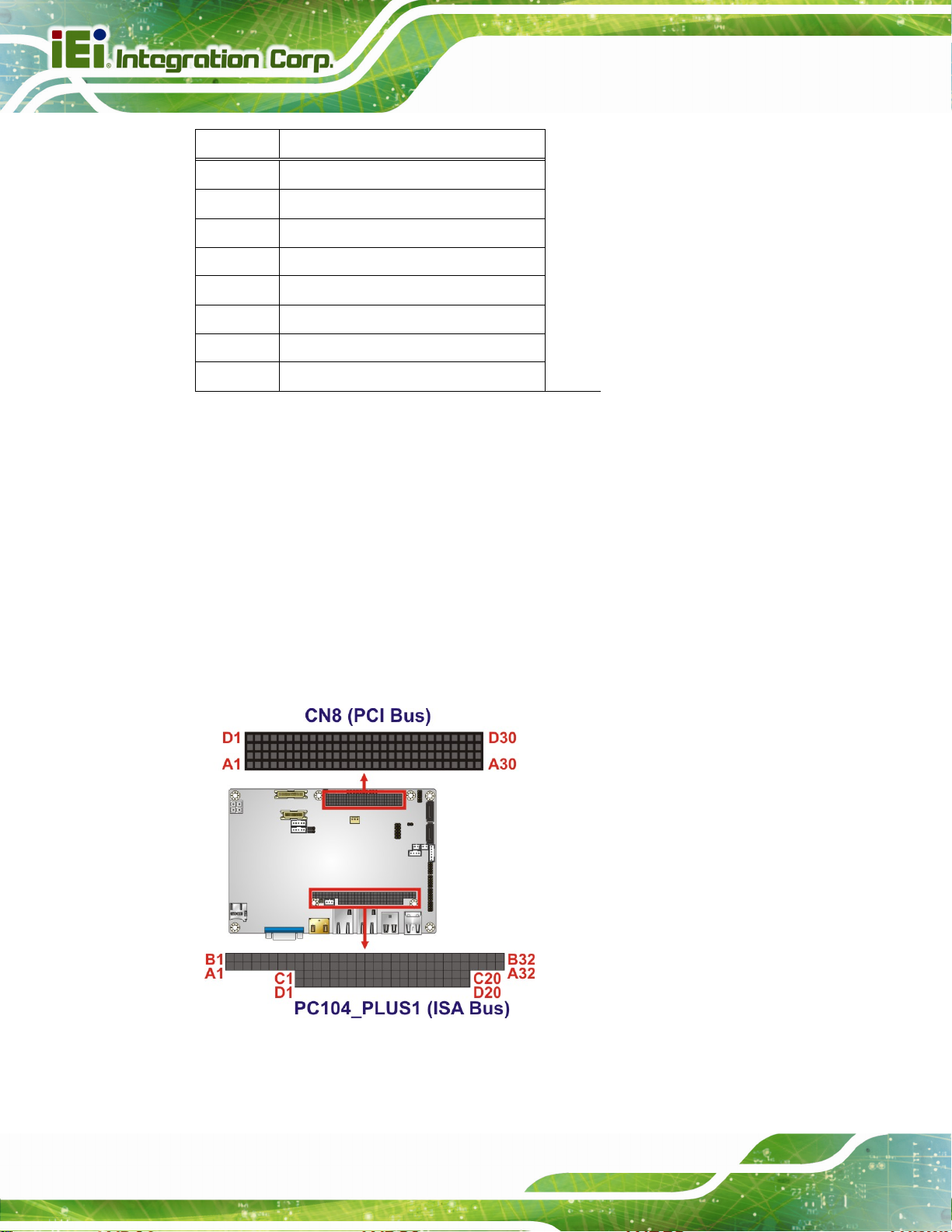

Table 3-15: PCI Bus Pinouts........................................................................................................29
Table 3-16: ISA Bus Pinouts........................................................................................................31
Table 3-17: PC/104-Plus Power Input Connector Pinouts........................................................31
Table 3-18: PCIe Mini Card Slot Pinouts ....................................................................................33
Table 3-19: Power Connector Pinouts........................................................................................34
Table 3-20: RS-232 Serial Port Connector Pinouts...................................................................35
Table 3-21: RS-422/485 Connector Pinouts...............................................................................36

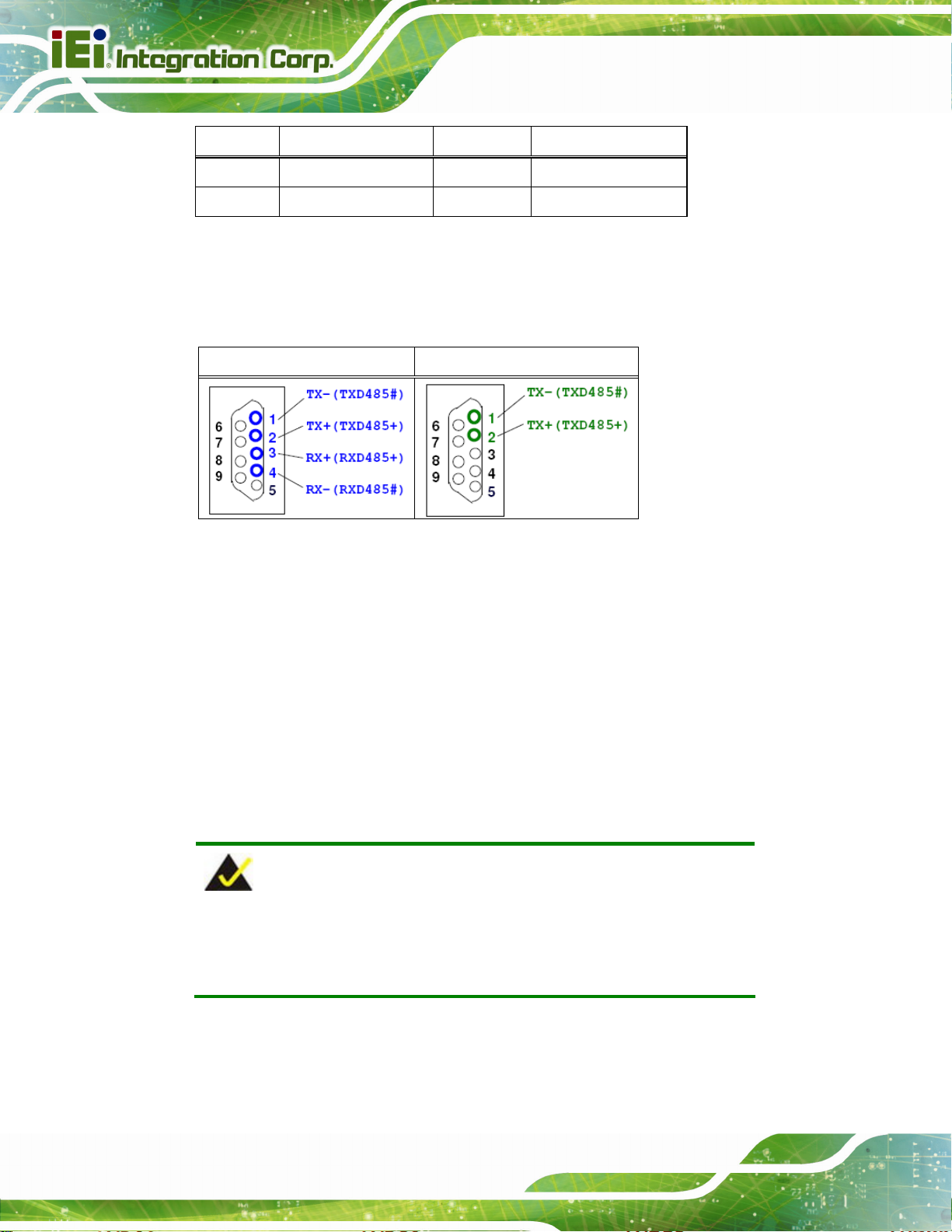

Table 3-22: DB-9 RS-422/485 Pinouts.........................................................................................36
Table 3-23: SATA Drive Connector Pinouts...............................................................................37
Table 3-24: USB Connector Pinouts...........................................................................................38
Table 3-25: LAN Pinouts ..............................................................................................................39
Table 3-26: RJ-45 Ethernet Connector LEDs.............................................................................40
Page xii
Page 13
NANO-CV-D25501/N26001 EPIC SBC

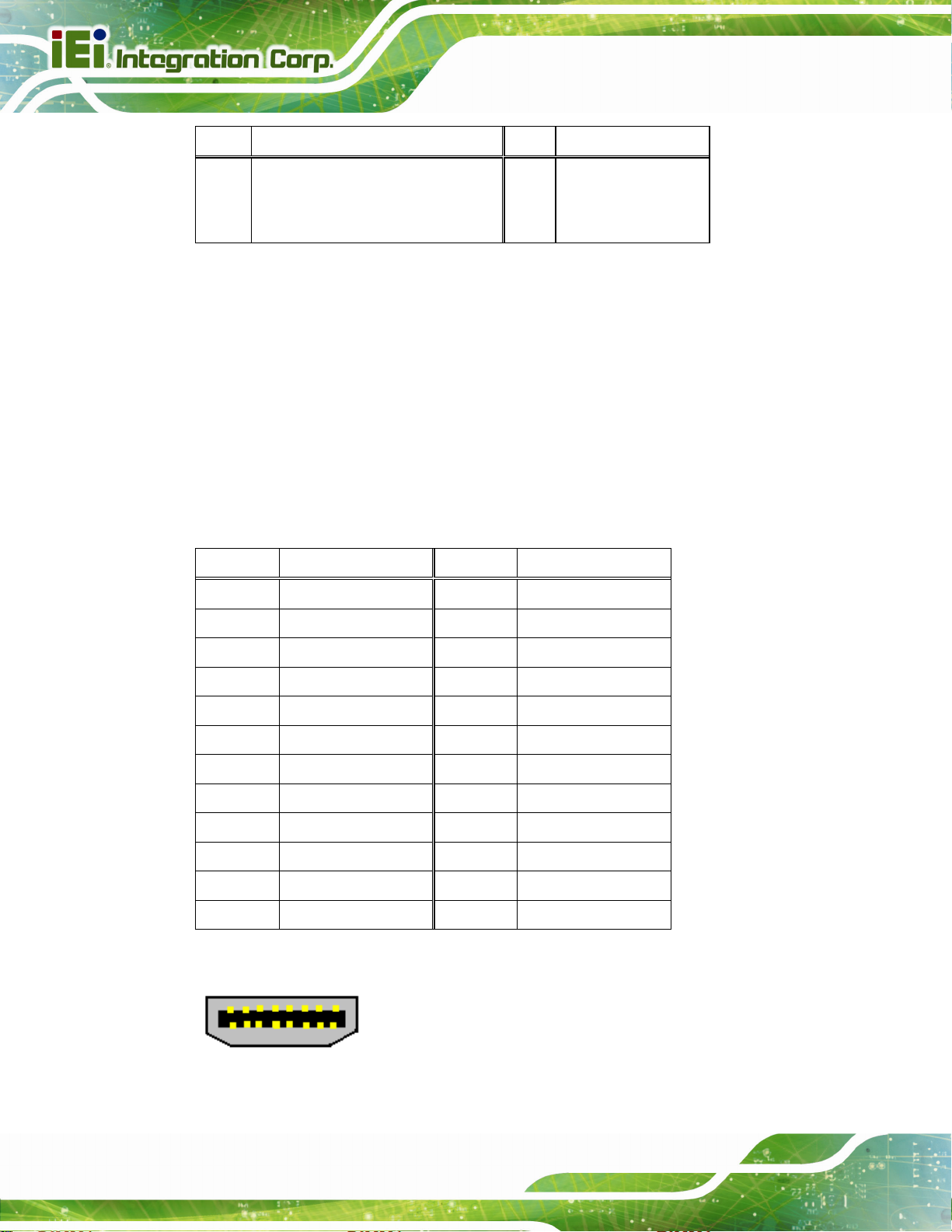

Table 3-27: HDMI Connector Pinouts .........................................................................................40
Table 3-28: USB 2.0 Port Pinouts................................................................................................41
Table 3-29: USB 3.0 Port Pinouts................................................................................................41
Table 3-30: VGA Connector Pinouts...........................................................................................42
Table 4-1: Jumpers.......................................................................................................................48
Table 4-2: AT/ATX Power Selection Jumper Settings...............................................................49
Table 4-3: Clear CMOS Jumper Settings....................................................................................49
Table 4-4: LVDS1 Voltage Selection Jumper Settings..............................................................50
Table 4-5: LVDS2 Voltage Selection Jumper Settings..............................................................51
Table 4-6: LVDS2 Resolution Selection .....................................................................................53
Table 4-7: mSATA/PCIe Mini Mode Selection Jumper Settings...............................................53
Table 4-8: PC/104-Plus VIO Voltage Selection Jumper Settings.............................................54
Table 5-1: BIOS Navigation Keys................................................................................................75
Page xiii
Page 14
NANO-CV-D25501/N26001 EPIC SBC
BIOS Menus
BIOS Menu 1: Main.......................................................................................................................76
BIOS Menu 2: Advanced..............................................................................................................77
BIOS Menu 3: ACPI Settings .......................................................................................................78
BIOS Menu 4: RTC Wake Settings..............................................................................................79
BIOS Menu 5: CPU Configuration...............................................................................................80
BIOS Menu 6: IDE Configuration.................................................................................................81
BIOS Menu 7: USB Configuration...............................................................................................82
BIOS Menu 8: Super IO Configuration........................................................................................83
BIOS Menu 9: Serial Port n Configuration Menu.......................................................................84
BIOS Menu 10: F81866 H/W Monitor...........................................................................................88
BIOS Menu 11: Smart Fan Mode Configuration ........................................................................89
BIOS Menu 12: Serial Port Console Redirection.......................................................................90
BIOS Menu 13: iEi Feature...........................................................................................................92
BIOS Menu 14: Chipset................................................................................................................93
BIOS Menu 15: Host Bridge Configuration................................................................................94
BIOS Menu 16: Intel IGD Configuration......................................................................................94
BIOS Menu 17: Southbridge Configuration ...............................................................................96
BIOS Menu 18: Boot.....................................................................................................................98
BIOS Menu 19: Security............................................................................................................ 100
BIOS Menu 20: Save & Exit....................................................................................................... 101
NANO-CV-D25501/N26001
Page xiv
Page 15
NANO-CV-D25501/N26001 EPIC SBC

1 Introduction

Chapter
1
Page 1
Page 16

1.1 Introduction

Figure 1-1: NANO-CV-D25501/N26001
NANO-CV-D25501/N26001 EPIC SBC
The NANO-CV-D25501/N26001 EPIC motherboard is an Intel® Atom™ D2550/N2600 processor platform that supports one 1066 MHz or 800 MHz DDR3 SO-DIMM memory. The NANO-CV-D25501/N26001 supports VGA/HDMI display output and comes with two LVDS connectors supporting 24-bit or 18-bit LVDS screens. Maximum six USB ports (two USB 3.0, four USB 2.0), two SATA 3Gb/s connectors, one PCIe Mini card slot, one microSD card slot, four COM ports, and one audio connector provide flexible expansion options.

1.2 Model Variations

The model variations of the NANO-CV-D25501/N26001 are listed below.
Model No. CPU
NANO-CV-D25501-R10 NANO-CV-N26001-R10 NANO-CV-N28001-R10
Intel® Atom D2550 1.86 GHz Intel® Atom N2600 1.6 GHz Intel® Atom N2800 1.86 GHz
Page 2
Table 1-1: NANO-CV-D25501/N26001 Model Variations
Page 17
NANO-CV-D25501/N26001 EPIC SBC

1.3 Features

Some of the NANO-CV-D25501/N26001 motherboard features are listed below:
EPIC form factor  Supports DDR3/DDR3L (1.35V) SO-DIMM  Flexible VGA, HDMI and dual LVDS interfaces for dual display  Wide range power input (9V~28V)  PCIe Mini card slot with mSA TA support  Supports PC/104-Plus (PC/104 and PCI-104 slots)  Dual GbE  Complete I/O with six USB (two USB 3.0, four USB 2.0), two SATA 3Gb/s,
four COM and audio
RoHS compliant

1.4 Connectors

The connectors on the NANO-CV-D25501/N26001 are sho wn in th e figure below.
Page 3
Page 18
NANO-CV-D25501/N26001 EPIC SBC

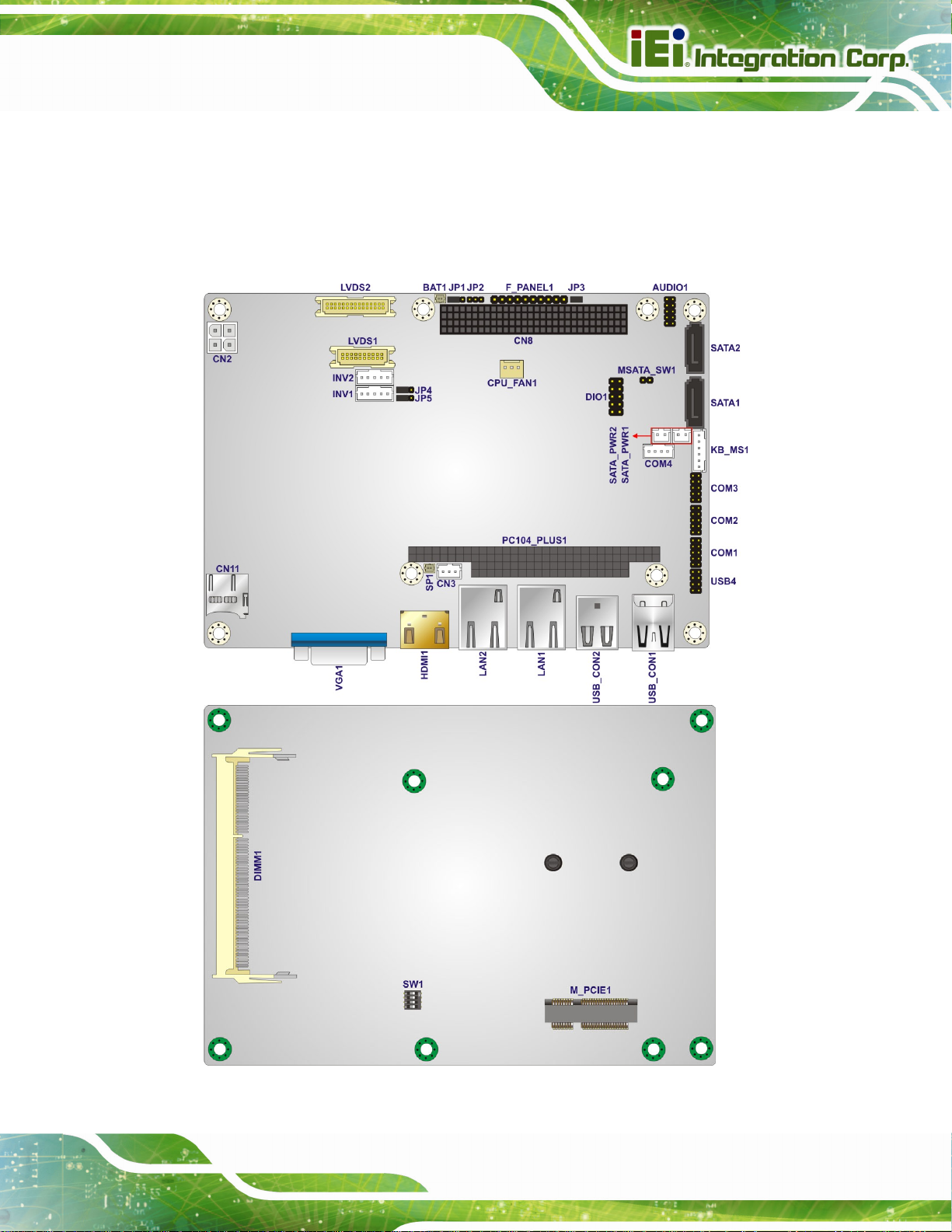

Figure 1-2: Connectors
Page 4
Page 19
NANO-CV-D25501/N26001 EPIC SBC

1.5 Dimensions

The main dimensions of the NANO-CV-D25501/N26001 are shown in the diagram below.
Figure 1-3: NANO-CV-D25501/N26001 Dimensions (mm)
.
Figure 1-4: External Interface Panel Dimensions (mm)
Page 5
Page 20

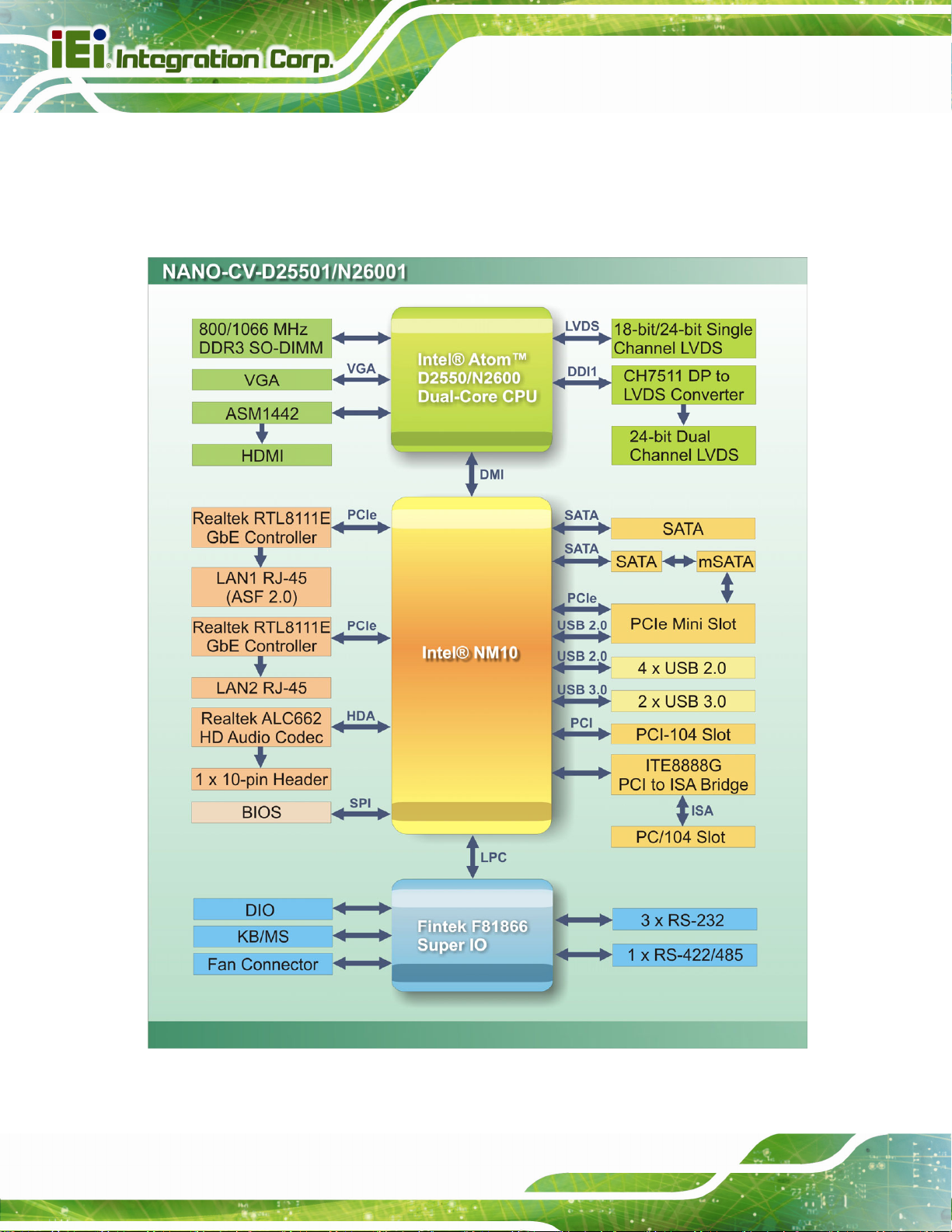

1.6 Data Flow

5Figure 1-5 shows the data flow between the system chipset, the CPU and other
components installed on the motherboard.
NANO-CV-D25501/N26001 EPIC SBC
Figure 1-5: Data Flow Diagram
Page 6
Page 21
NANO-CV-D25501/N26001 EPIC SBC

1.7 Technical Specifications

The NANO-CV-D25501/N26001 technical specifications are listed below.
Specification/Model NANO-CV-D25501/N26001 Form Factor
System CPU
System Chipset
Memory
Graphics Engine
EPIC
1.86 GHz Intel® Atom™ D2550 dual-cor e CPU
1.6 GHz Intel® Atom™ N2600 dual-core CPU
1.86 GHz Intel® Atom™ N2800 dual-core CPU (optional) Intel® NM10 D2550/N2800: One 1066 MHz DDR3/DDR3L (1.35V) SO-DIMM support
(up to 4 GB) N2600: One 800 MHz DDR3/DDR3L (1.35V) SO-DIMM support (up to
2 GB) D2550/N2800: Intel® GMA 3650 with 640 MHz graphics core speed
N2600: Intel® GMA 3600 with 400 MHz graphics core speed Dual display supported
One VGA One HDMI One LVDS1 is integrated in the CPU:
Display
Ethernet
BIOS Super I/O Controller Watchdog Timer
D2550: 24-bit single-channel LVDS up to 1440 x 900  N2600/N2800: 18-bit single-channel LVDS up to 1366 x 768
One LVDS2 is driven by the Chrontel CH7511 DP to LVDS converter:
D2550: 24-bit dual-channel LVDS up to 1920 x 1200  N2600/N2800: 24-bit dual-channel LVDS up to 1600 x 1200
Two Realtek RTL8111E PCIe GbE controllers (LAN1 with ASF 2.0 support)
UEFI BIOS Fintek F81866 Software programmable supports 1~2 55 sec. system reset
Page 7
Page 22
Specification/Model NANO-CV-D25501/N26001
One PCIe Mini card slot with mSATA support (SATA1 and mSATA share
NANO-CV-D25501/N26001 EPIC SBC
Expansion
Audio
COM
Digital I/O Fan Front Panel Keyboard/Mouse microSD
SATA
USB
SATA signal) One PC/104-Plus slot (ISA bus and PCI bus)
Realtek ALC662 HD Audio codec One internal audio connector (10-pin box header)
Three RS-232 One RS-422/485
One 8-bit digital input/output connector One 3-pin CPU fan connector One 10-pin header (power LED, HDD LED, power button, reset button) One internal 6-pin wafer connector One microSD card slot (for booting up to DOS only) Two SATA 3Gb/s ports with 5V power connectors (SATA1 and mSATA
share SATA signal) Two external USB 3.0 ports
Four USB 2.0 (two external ports, two via pin header)
Power Supply
Power Consumption
Operating Temperature
Storage Temperature
Humidity (Operating) Dimensions
Page 8
Max. power input voltage range: 9V~28V Recommended operating input voltage range: 12V~24V One internal 4-pin (2x2) power connector
12V @ 2.1 A (1.86 GHz Intel® Atom™ D2550 CPU with 2 GB 1333 MHz DDR3 SO-DIMM) 12V @ 1.72 A (1.6 GHz Intel® Atom™ N2600 CPU with 2 GB 1333 MHz DDR3 SO-DIMM)
D2550: -20ºC ~ 60ºC with free air; -20ºC ~ 70ºC with force air N2600/N2800: -20ºC ~ 70ºC with free air; -20ºC ~ 75ºC with force air
D2550: -30ºC ~ 80ºC N2600/N2800: -30ºC ~ 85ºC
5% ~ 95% (non-condensing) 115 mm x 165 mm
Page 23
NANO-CV-D25501/N26001 EPIC SBC
Specification/Model NANO-CV-D25501/N26001 Weight (GW/NW) Table 1-2: NANO-CV-D25501/N26001 Specifications
670 g/350 g
Page 9
Page 24
NANO-CV-D25501/N26001 EPIC SBC
Chapter
2

2 Packing List

Page 10
Page 25
NANO-CV-D25501/N26001 EPIC SBC

2.1 Anti-static Precautions

WARNING!
Static electricity can destroy certain electronics. Make sure to follow the ESD precautions to prevent damage to the product, and injury to the user.
Make sure to adhere to the following guidelines:
Wear an anti-static wristband: Wearing an anti-static wristband can prevent
electrostatic discharge.
Self-grounding: Touch a grounded conductor every few minutes to discharge
any excess static buildup.
Use an anti-static pad: When configuring any circuit board, place it on an
anti-static mat.
Only handle the edges of the PCB: Don't touch the surface of the
motherboard. Hold the motherboard by the edges when handling.

2.2 Unpacking Precautions

When the NANO-CV-D25501/N26001 is unpacked, please do the following:
Follow the antistatic guidelines above.  Make sure the packing box is facing upwards whe n opening.  Make sure all the packing list items are present.
Page 11
Page 26

2.3 Packing List

NOTE:
If any of the components listed in the checklist below are missing, do not proceed with the installation. Contact the IEI reseller or vendor the NANO-CV-D25501/N26001 was purchased from or contact an IEI sales representative directly by sending an email to 32sales@ieiworld.com.
The NANO-CV-D25501/N26001 is shipped with the following components:
Quantity Item and Part Number Image
1 NANO-CV-D25501/N26001 motherboard
NANO-CV-D25501/N26001 EPIC SBC
1 SATA and power cable
(P/N: 32801-000201-100-RS)
1 PS/2 KB/MS Y-cable
(P/N: 32000-023800-RS)
1 Audio cable
(P/N: 32000-072100-RS)
1 Dual USB cable (wo bracket)
(P/N: 32001-008600-100-RS)
1 RS-232 cable
(P/N: 32205-002700-100-RS)
1 Power cable
Page 12
(P/N: 32100-087100-RS)
Page 27
NANO-CV-D25501/N26001 EPIC SBC
Quantity Item and Part Number Image
1 Mini jumper pack
1 One Key Recovery CD
1 Utility CD
1 Quick Installation Guide
Table 2-1: Packing List

2.4 Optional Items

The following are optional components which may be separately purchased:
Item and Part Number Image
RS-422/485 cable (200 mm) (P/N: 32205-003800-100-RS)
Table 2-2: Optional Items
Page 13
Page 28
NANO-CV-D25501/N26001 EPIC SBC
Chapter
3

3 Connectors

Page 14
Page 29
NANO-CV-D25501/N26001 EPIC SBC

3.1 Peripheral Interface Connectors

This chapter details all the jumpers and connectors.

3.1.1 NANO-CV-D25501/N26001 Layout

The figure below shows all the connectors and jumpers.
Figure 3-1: Connectors and Jumpers
Page 15
Page 30

3.1.2 Peripheral Interface Connectors

The table below lists all the connectors on the board.
Connector Type Label
5 V SATA power connectors 2-pin wafer SATA_PWR1,
Audio connector 10-pin header AUDIO1 Backlight inverter connectors 5-pin wafer INV1, INV2 Battery connector 2-pin wafer BAT1 Buzzer connector 2-pin wafer SP1 Digital Input/Output (DIO) connector 10-pin header DIO1 Fan connector 3-pin wafer CPU_FAN1
NANO-CV-D25501/N26001 EPIC SBC
SATA_PWR2
Front panel connector 10-pin header F_PANEL1 Keyboard and mouse connector 6-pin wafer KB_MS1 LVDS connectors 20-pin/30-pin crimp LVDS1, LVDS2 microSD card slot microSD slot CN11 PC/104-Plus power input connector 3-pin wafer CN3 PC/104-Plus slot 104-pin ISA bus and
120-pin PCI bus PCIe Mini card slot 52-pin PCIe Mini M_PCIE1 Power connector (9V~28V) 4-pin connector CN2 RS-232 serial port connectors 10-pin header COM1, COM2,

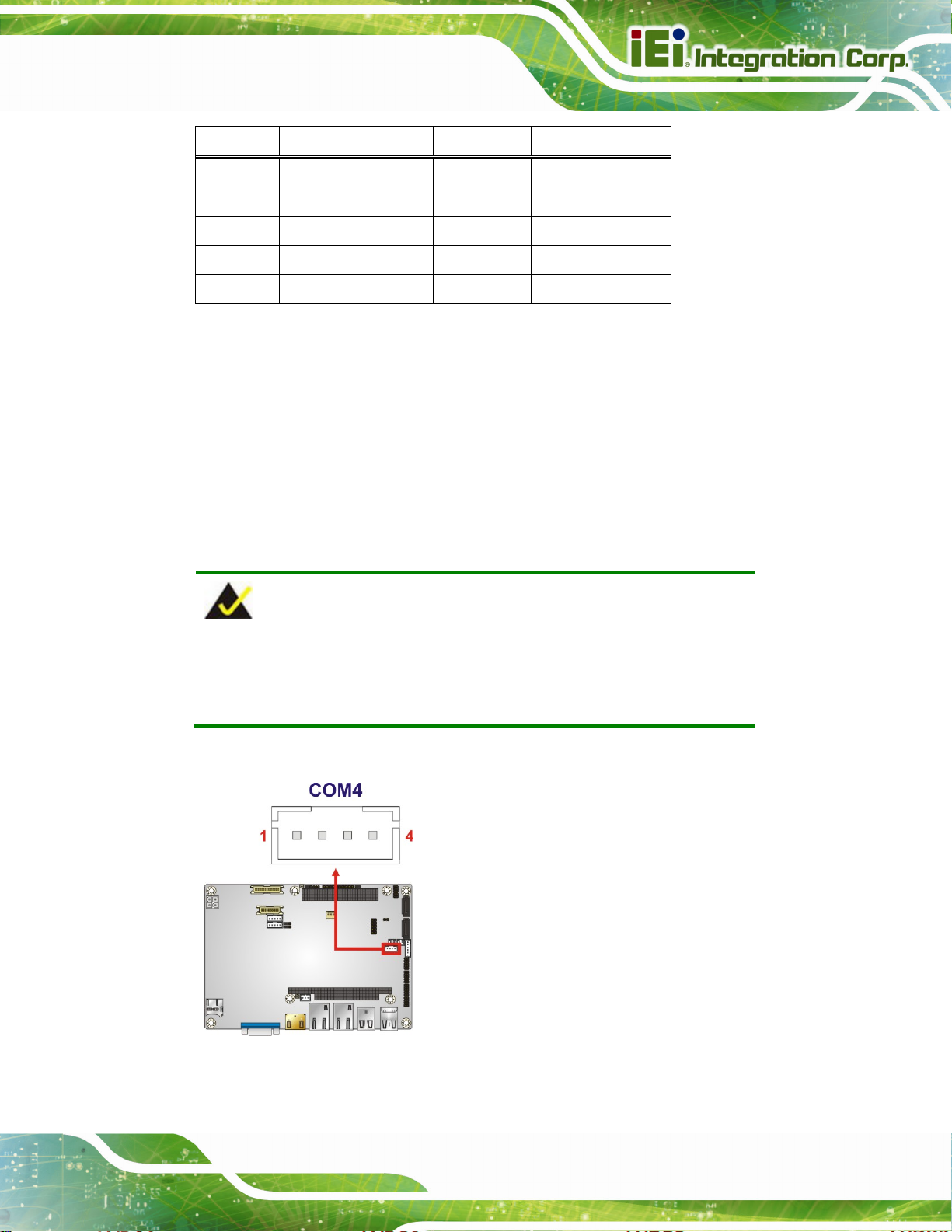

RS-422/485 serial port connector 4-pin wafer COM4 Serial ATA (SATA) drive connectors 7-pin SATA SATA1, SATA2 SO-DIMM connector SO-DIMM connector DIMM1
PC104_PLUS1, CN8
COM3
USB 2.0 connector 8-pin header USB4
Table 3-1: Peripheral Interface Connectors
Page 16
Page 31
NANO-CV-D25501/N26001 EPIC SBC

3.1.3 External Interface Panel Connectors

The table below lists the connectors on the external I/O panel.
Connector Type Label
Ethernet connectors RJ-45 LAN1, LAN2 HDMI connector HDMI HDMI1 USB 2.0 connector USB 2.0 USB_CON2 USB 3.0 connector USB 3.0 USB_CON1 VGA connector 15-pin female VGA1
Table 3-2: Rear Panel Connectors

3.2 Internal Peripheral Connectors

The section describes all of the connectors on the NANO-CV-D25501/N26001.

3.2.1 5 V SATA Power Connectors

CN Label: SATA_PWR1, SATA_PWR2 CN Type: CN Location: CN Pinouts:
Use the 5 V SATA power connectors to connect to SATA device power connection.
2-pin wafer See Figure 3-2 See Table 3-3
Figure 3-2: 5 V SATA Power Connector Locations
Page 17
Page 32
Pin No. Description
1 +5V 2 Ground
Table 3-3: 5 V SATA Power Connector Pinouts

3.2.2 Audio Connector

CN Label: AUDIO1
NANO-CV-D25501/N26001 EPIC SBC
CN Type: CN Location: CN Pinouts:
10-pin header
Figure 3-3
See
Table 3-4
See
The 10-pin audio connector is connected to external audio devices including speakers a nd microphones for the input and output of audio signals to and from the system.
Figure 3-3: Audio Connector Location
Pin Description Pin Description
Page 18
1 3 5 7 9
SPK_R AUD_GND SPK _L AUD_GND MIC1_R
2 4 6 8 10
Table 3-4: Audio Connector Pinouts
LINE1_R AUD_GND LINE1_L AUD_GND MIC1_L
Page 33
NANO-CV-D25501/N26001 EPIC SBC

3.2.3 Backlight Inverter Connectors

CN Label: CN Type: CN Location: CN Pinouts:
INV1, INV2
5-pin wafer
Figure 3-4
See
Table 3-5
See
The backlight inverter connectors provide the backlight on the LCD display connected to the NANO-CV-D25501/N26001 with +12V of power.
Figure 3-4: Backlight Inverter Connector Locations
Pin Description
1 2 3 4 5
LCD_BKLTCTL GROUND +12V GROUND BACKLIGHT ENABLE
Table 3-5: Backlight Inverter Connector Pinouts
Page 19
Page 34

3.2.4 Battery Connector

CAUTION:
Risk of explosion if battery is replaced by an incorrect type. Only certified engineers should replace the on-board battery.
Dispose of used batteries according to instructions and local regulations.
CN Label: BAT1
NANO-CV-D25501/N26001 EPIC SBC
CN Type: CN Location: CN Pinouts:
This is connected to the system battery. The battery provides power to the system clock to retain the time when power is turned off.
Figure 3-5: Battery Connector Location
2-pin wafer
Figure 3-5
See
Table 3-6
See
Pin Description
Page 20
1 Battery+ 2 GND
Table 3-6: Battery Connector Pinouts
Page 35
NANO-CV-D25501/N26001 EPIC SBC

3.2.5 Buzzer Connector

CN Label: SP1 CN Type: CN Location: CN Pinouts:
This is connected to the buzzer cable.
Figure 3-6: Buzzer Connector Location
2-pin wafer
Figure 3-6
See
Table 3-7
See
Pin Description
1 +V5S 2 GND
Table 3-7: Buzzer Connector Pinouts

3.2.6 Digital Input/Output (DIO) Connector

CN Label: DIO1 CN Type: CN Location: CN Pinouts:
The digital input/output connector is managed through a Super I/O chip. The DIO connector pins are user programmable.
10-pin header See Figure 3-7 See Table 3-8
Page 21
Page 36
NANO-CV-D25501/N26001 EPIC SBC
Figure 3-7: Digital I/O Connector Location
Pin Description Pin Description
1 GND 2 VCC 3 Output 3 4 Output 2 5 Output 1 6 Output 0 7 Input 3 8 Input 2 9 Input 1 10 Input 0
Table 3-8: Digital I/O Connector Pinouts

3.2.7 Fan Connector

CN Label: CPU_FAN1 CN Type: CN Location: CN Pinouts:
The fan connector attaches to the CPU cooling fan.
3-pin wafer See Figure 3-8 See Table 3-9
Page 22
Page 37
NANO-CV-D25501/N26001 EPIC SBC
Figure 3-8: Fan Connector Location
PIN NO. DESCRIPTION
1 FANIO 2 +12V (PWM) 3 Ground
Table 3-9: Fan Connector Pinouts

3.2.8 Front Panel Connector

CN Label: F_PANEL1 CN Type: CN Location: CN Pinouts:
The front panel connector connects to the indicator LEDs and buttons on the computer's front panel.
10-pin header See Figure 3-9 See Table 3-10
Page 23
Page 38
NANO-CV-D25501/N26001 EPIC SBC
Figure 3-9: Front Panel Connector Location
Function Pin Description Function Pin Description
1 NC 6 PWRLED
Power Button
2 PWRBTSW# 7 PWRLED 3 GND 4 +V5S 9 RESET+
HDD LED
5 HDD_LED-
Power LED
8 GND
Reset Button
10 GND
Table 3-10: Front Panel Connector Pinouts

3.2.9 Keyboard/Mouse Connector

CN Label: KB_MS1 CN Type: CN Location: CN Pinouts:
The keyboard and mouse connector can be connected to a standard PS/2 cable or PS/2 Y-cable to add keyboard and mouse functionality to the system.
6-pin wafer
Figure 3-10
See
Table 3-11
See
Page 24
Page 39
NANO-CV-D25501/N26001 EPIC SBC
Figure 3-10: Keyboard/Mouse Connector Location
Pin Description
1 VCC 2 Mouse Data 3 Mouse Clock 4 Keyboard Data 5 Keyboard Clock 6 GND
Table 3-11: Keyboard/Mouse Connector Pinouts

3.2.10 LVDS1 Connector

CN Label: LVDS1 CN Type: CN Location: CN Pinouts:
The LVDS connector is for an LCD panel connected to the board.
20-pin crimp
Figure 3-11
See
Table 3-12
See
Figure 3-11: LVDS1 Connector Location
Page 25
Page 40
Pin Description Pin Description
1 GND 2 GND 3 LVDS_DATA0 4 LVDS_DATA0# 5 LVDS_DATA1 6 LVDS_DATA1# 7 LVDS_DATA2 8 LVDS_DATA2# 9 LVDS_CLK 10 LVDS_CLK# 11 NC 12 NC 13 GND 14 GND 15 LDDC_DATA 16 LDDC_CLK 17 VCC_LCD 18 VCC_LCD 19 VCC_LCD 20 VCC_LCD
Table 3-12: LVDS1 Connector Pinouts

3.2.11 LVDS2 Connector

NANO-CV-D25501/N26001 EPIC SBC
CN Label: LVDS2 CN Type: CN Location: CN Pinouts:
30-pin crimp
Figure 3-12
See
Table 3-13
See
The LVDS connector is for an LCD panel connected to the board.
Figure 3-12: LVDS2 Connector Location
Page 26
Page 41
NANO-CV-D25501/N26001 EPIC SBC
Pin Description Pin Description
1 GND 2 GND 3 LVDS_DATA0 4 LVDS_DATA0# 5 LVDS_DATA1 6 LVDS_DATA1# 7 LVDS_DATA2 8 LVDS_DATA2# 9 LVDS_CLK1 10 LVDS_CLK1# 11 LVDS_DATA3 12 LVDS_DATA3# 13 GND 14 GND 15 LVDS_DATA4 16 LVDS_DATA4# 17 LVDS_DATA5 18 LVDS_DATA5# 19 LVDS_DATA6 20 LVDS_DATA6# 21 LVDS_CLK2 22 LVDS_CLK2# 23 LVDS_DATA7 24 LVDS_DATA7# 25 GND 26 GND 27 VCC_LCD 28 VCC_LCD 29 VCC_LCD 30 VCC_LCD
Table 3-13: LVDS2 Connector Pinouts

3.2.12 microSD Card Slot

CN Label: CN11 CN Type: CN Location: CN Pinouts:
A microSD card can be installed in the microSD card slot.
8-pin microSD slot
Figure 3-13
See
Table 3-14
See
Figure 3-13: microSD Card Slot Location
Page 27
Page 42
NANO-CV-D25501/N26001 EPIC SBC
Pin Description
1 2 3 4 5 6 7 8
DAT2 DAT3 CMD VDD CLK VSS1 DAT0 DAT1
Table 3-14: microSD Card Slot Connector Pinouts

3.2.13 PC/104-Plus Slot

CN Label: PC104_PLUS1, CN8 CN Type: CN Location: CN Pinouts:
104-pin ISA bus and 120-pin PCI bus See See
Figure 3-14 Table 3-15 and Table 3-16
The PC/104-Plus slot is for installing a PC/104-Plus expansion module.
Figure 3-14: PC/104-Plus Slot Location
Page 28
Page 43
NANO-CV-D25501/N26001 EPIC SBC
Pin Description Pin Description Pin Description Pin Description
A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16
GND VIO1 AD5 CBE0­GND AD11 AD14 +3V SERR­GND STOP­+3V FRAME­GND AD18 AD21
B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16
RESERVED1 AD2 GND AD7 AD9 VIO2 AD13 CBE1­GND PERR­+3V TRDY­GND AD16 +3V AD20
C1 C2 C3 C4 C5 C6 C7 C8 C9 C10 C11 C12 C13 C14 C15 C16
+5V AD1 AD4 GND AD8 AD10 GND AD15 SBO­+3V LOCK­GND IRDY­+3V AD17 GND
D1 D2 D3 D4 D5 D6 D7 D8 D9 D10 D11 D12 D13 D14 D15 D16
AD0 +5V AD3 AD6 GND M66EN AD12 +3V PAR SDONE GND DEVSEL­+3V CBE2­GND
AD19 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30
+3V IDSEL0 AD24 GND AD29 +5V REQ0­GND GNT1­+5V PCICLK2 GND +12V
-12V
B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30
AD23 GND CBE3­AD26 +5V AD30 GND REQ2­VIO3 PCICLK0 +5V INTD­INTA­RESERVED2
C17 C18 C19 C20 C21 C22 C23 C24 C25 C26 C27 C28 C29 C30
AD22 IDSEL1­VIO4 AD25 AD28 GND REQ1­+5V GNT2­GND PCICLK3 +5V INTB­RESERVED3
D17 D18 D19 D20 D21 D22 D23 D24 D25 D26 D27 D28 D29 D30
+3V
IDSEL2
IDSEL3
GND
AD27
AD31
VIO5
GNT0-
GND
PCICLK1
GND
PCIRST-
INTC-
GND
Table 3-15: PCI Bus Pinouts
Page 29
Page 44
Pin Description Pin Description Pin Description Pin Description
NANO-CV-D25501/N26001 EPIC SBC
A1 A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
-IOCHK SD7
SD6
SD5
SD4
SD3
SD2
SD1
SD0
IOCHRDY
AEN
SA19
SA18
SA17
SA16
B1 B2
B3
B4
B5
B6
B7
B8
B9
B10
B11
B12
B13
B14
B15
GND RSTDRV
VCC
IRQ9
NC
DRQ2
NC
-NOWS
+12V
GND
-SMEMW
-SMEMR
-IOW
-IOR
-DACK3
C1 C2
C3
C4
C5
C6
C7
C8
C9
C10
C11
C12
C13
C14
C15
GND
-SBHE
SA23
SA22
SA21
SA20
SA19
SA18
SA17
-MEMR
-MEMW
SD8
SD9
SD10
SD11
D1 D2
D3
D4
D5
D6
D7
D8
D9
D10
D11
D12
D13
D14
D15
GND
-MEMCS16
-IOCS16
IRQ10
IRQ11
IRQ12
IRQ15
IRQ14
-DACK0
DRQ0
-DACK5
DRQ5
-DACK6
DRQ6
-DACK7 A16
A17
A18
A19
A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
SA15
SA14
SA13
SA12
SA11
SA10
SA9
SA8
SA7
SA6
SA5
SA4
SA3
SA2
SA1
B16
B17
B18
B19
B20
B21
B22
B23
B24
B25
B26
B27
B28
B29
B30
DRQ3
-DACK1
DRQ1
-REFRESH
BCLK
IRQ7
IRQ6
IRQ5
IRQ4
IRQ3
-DACK2
TC
BALE
VCC
ISAOSC
C16
C17
C18
C19
C20
SD12
SD13
SD14
SD15
NC
D16
D17
D18
D19
D20
DRQ7
VCC
-MASTER
GND
GND
Page 30
Page 45
NANO-CV-D25501/N26001 EPIC SBC
Pin Description Pin Description Pin Description Pin Description
A31 A32
SA0 GND
B31 B32
GND GND
Table 3-16: ISA Bus Pinouts

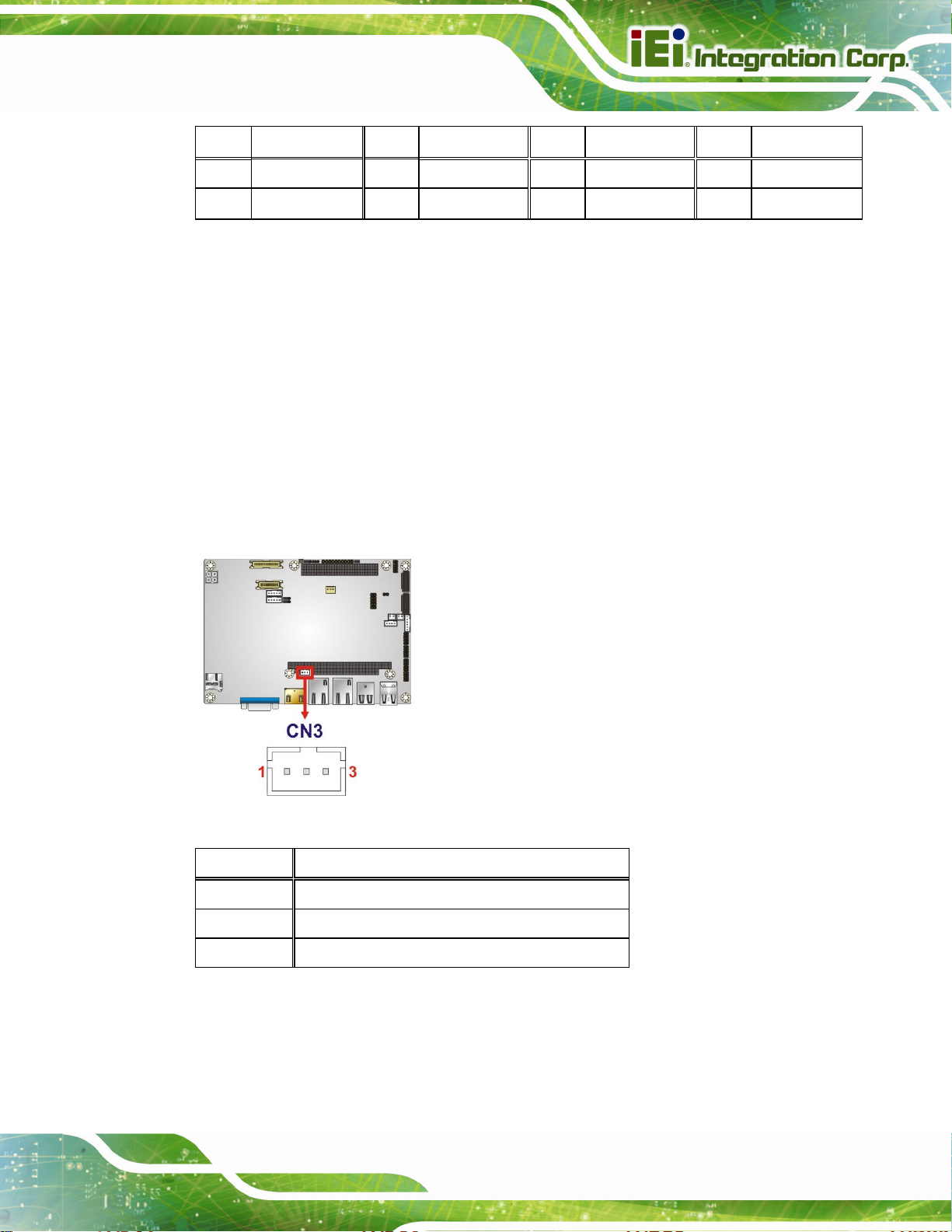

3.2.14 PC/104-Plus Power Input Connector

CN Label: CN3 CN Type: CN Location: CN Pinouts:
The PC/104-Plus power input connector provides power to the PC/104-Plus expansion module installed on the PC/104-Plus slot.
3-pin wafer
Figure 3-15
See
Table 3-17
See
Figure 3-15: PC/104-Plus Power Input Connector Pinouts
Pin Description
1 -5V 2 GND 3 -12V
Table 3-17: PC/104-Plus Power Input Connector Pinouts
Page 31
Page 46

3.2.15 PCIe Mini Card Slot

CN Label: M_PCIE1
NANO-CV-D25501/N26001 EPIC SBC
CN Type: CN Location: CN Pinouts:
52-pin PCIe Mini card slot
Figure 3-16
See
Table 3-18
See
The PCIe Mini card slot enables a PCIe Mini card expansion module to be connected to the board. Cards supported include among others wireless LAN (WLAN) cards and IEI PCIe Mini disk on module (DOM) SSD cards.
NOTE:
The SATA1 connector will be disabled when an mSATA device is installed to the M_PCIE1 slot.
Page 32
Figure 3-16: PCIe Mini Card Slot Location
Pin Description Pin Description
1 PCIE_WAKE# 2 VCC3 3 N/C 4 GND 5 N/C 6 1.5V 7 N/C 8 N/C 9 GND 10 N/C 11 PCIE_CLK# 12 N/C 13 PCIE_CLK 14 N/C
Page 47
NANO-CV-D25501/N26001 EPIC SBC
Pin Description Pin Description
15 GND 16 N/C 17 N/C 18 GND 19 N/C 20 N/C 21 GND 22 PCIRST# 23 PCIE_RXN 24 VCC3 25 PCIE_RXP 26 GND 27 GND 28 1.5V 29 GND 30 SMBCLK 31 PCIE_TXN 32 SMBDATA 33 PCIE_TXP 34 GND 35 GND 36 USBD­37 GND 38 USBD+ 39 VCC3 40 GND 41 VCC3 42 N/C 43 GND 44 N/C 45 N/C 46 N/C 47 N/C 48 1.5V 49 N/C 50 GND 51 M-SATA Detect 52 VCC3
Table 3-18: PCIe Mini Card Slot Pinouts

3.2.16 Power Connector (9V~28V)

CN Label: CN2 CN Type: CN Location: CN Pinouts:
The power connector is connected to an external power supply and supports 9V~28V
4-pin connector
Figure 3-17
See
Table 3-19
See
power input. Power is provided to the system, from the power supply through this connector.
Page 33
Page 48
Figure 3-17: Power Connector Location
Pin Description Pin Description
1 GND 2 GND 3 PWR 4 PWR
Table 3-19: Power Connector Pinouts

3.2.17 RS-232 Serial Port Connectors

NANO-CV-D25501/N26001 EPIC SBC
CN Label: COM1, COM2, COM3 CN Type: CN Location: CN Pinouts:
Each of these connectors provides RS-232 connections.
Figure 3-18: RS-232 Serial Port Connector Locations
10-pin header See Figure 3-18 See Table 3-20
Page 34
Page 49
NANO-CV-D25501/N26001 EPIC SBC
Pin Description Pin Description
1 DCD 2 DSR 3 RXD 4 RTS 5 TXD 6 CTS 7 DTR 8 RI 9 GND 10 GND
Table 3-20: RS-232 Serial Port Connector Pinouts

3.2.18 RS-422/485 Serial Port Connector

CN Label: COM4 CN Type: CN Location: CN Pinouts:
4-pin wafer See Figure 3-19 See Table 3-21
NOTE:
These pins are shared with those on the main serial port. Use either the pins on the main connector, or on this connector, but not both.
This connector provides RS-422 or RS-485 communications.
Figure 3-19: RS-422/485 Connector Location
Page 35
Page 50
Pin Description Pin Description
1 RXD422- 3 TXD422+/TXD485+ 2 RXD422+ 4 TXD422-/TXD485-
Table 3-21: RS-422/485 Connector Pinouts
Use the optional RS-422/485 cable to connect to a serial device. The pinouts of the DB-9 connector are listed below.
RS-422 Pinouts RS-485 Pinouts
NANO-CV-D25501/N26001 EPIC SBC
Table 3-22: DB-9 RS-422/485 Pinouts

3.2.19 SATA Drive Connectors

CN Label: SATA1, SATA2 CN Type: CN Location: CN Pinouts:
The SATA drive connectors can be connected to SATA drives and support up to 3Gb/s data transfer rate.
7-pin SATA drive connector
Figure 3-20
See
Table 3-23
See
NOTE:
The SATA1 connector will be disabled when an mSATA device is installed to the M_PCIE1 slot.
Page 36
Page 51
NANO-CV-D25501/N26001 EPIC SBC
Figure 3-20: SATA Drive Connector Locations
Pin Description
1 GND 2 TX+ 3 TX­4 GND 5 RX­6 RX+ 7 GND
Table 3-23: SATA Drive Connector Pinouts

3.2.20 SO-DIMM Connector

CN Label: DIMM1 CN Type: CN Location:
The SO-DIMM connector is for installing memory on the system.
204-pin DDR3 SO-DIMM connector See
Figure 3-21
Page 37
Page 52
Figure 3-21: SO-DIMM Connector Location

3.2.21 USB Connector

CN Label: USB4
NANO-CV-D25501/N26001 EPIC SBC
CN Type: CN Location: CN Pinouts:
The USB connector provides connectivity to two USB 1.1/2.0 ports.
Figure 3-22: USB Connector Location
8-pin header See Figure 3-22 See Table 3-24
Pin Description Pin Description
1 USB_VCC 2 GND
Page 38
3 DATA- 4 DATA+ 5 DATA+ 6 DATA­7 GND 8 USB_VCC
Table 3-24: USB Connector Pinouts
Page 53
NANO-CV-D25501/N26001 EPIC SBC

3.3 External Peripheral Interface Connector Panel

The figure below shows the external peripheral interface connector (EPIC) panel. The EPIC panel consists of the following:
Figure 3-23: External Peripheral Interface Connector

3.3.1 Ethernet Connectors

CN Label: LAN1, LAN2 CN Type: CN Location: CN Pinouts:
The NANO-CV-D25501/N26001 is equipped with two built-in RJ-45 Ethernet controllers. Each controller can connect to the LAN through one RJ-45 LAN connector.
Pin Description Pin Description
1 MDI0+ 5 MDI2+ 2 MDI0- 6 MDI2­3 MDI1+ 7 MDI3+ 4 MDI1- 8 MDI3-
Table 3-25: LAN Pinouts
RJ-45 connector See Figure 3-23 See Table 3-25
Figure 3-24: RJ-45 Ethernet Connector
Page 39
Page 54
LED Description LED Description
NANO-CV-D25501/N26001 EPIC SBC
A on: linked
blinking: data is being sent/received
B off: 10 Mb/s
green: 100 Mb/s orange: 1000 Mb/s
Table 3-26: RJ-45 Ethernet Connector LEDs

3.3.2 HDMI Connector

CN Label: HDMI1 CN Type: CN Location: CN Pinouts:
The HDMI connector connects to a display device with HDMI interface.
Pin Description Pin Description
1 HDMI_DATA2 13 N/C 2 GND 14 N/C
HDMI connector
Figure 3-23
See
Table 3-27 and Figure 3-25
See
3 HDMI_DATA2# 15 HDMI_SCL 4 HDMI_DATA1 16 HDMI_SDA 5 GND 17 GND 6 HDMI_DATA1# 18 +5V 7 HDMI_DATA0 19 HDMI_HPD 8 GND 20 HDMI_GND 9 HDMI_DATA0# 21 HDMI_GND 10 HDMI_CLK 22 HDMI_GND 11 GND 23 HDMI_GND 12 HDMI_CLK#
Table 3-27: HDMI Connector Pinouts
Figure 3-25: HDMI Connector
Page 40
Page 55
NANO-CV-D25501/N26001 EPIC SBC

3.3.3 USB 2.0 Connector

CN Label: USB_CON2 CN Type: CN Location: CN Pinouts:
Dual USB port See Figure 3-23 See Table 3-28
The ports connect to both USB 2.0 and USB 1.1 devices.
Pin Description Pin Description
VCC
1 3 DATA+ 4 GND
2 DATA-
Table 3-28: USB 2.0 Port Pinouts

3.3.4 USB 3.0 Connector

CN Label: USB_CON1 CN Type: CN Location:
Dual USB port See Figure 3-23
CN Pinouts:
See Table 3-29
The NANO-CV-D25501/N26001 has two external USB 3.0 ports. Each USB 3.0 port can be connected to a USB device.
Pin Description Pin Description
1 VCC 2 D­3 D+ 4 GND 5 RX- 6 RX+ 7 GND 8 TX­9 TX+
Table 3-29: USB 3.0 Port Pinouts
Page 41
Page 56
NOTE:
If installing the Windows® 7 OS by using the USB 3.0 ports, loading the USB 3.0 driver during OS installation is necessary. Refer to Section
4.8 for detailed installation procedure.

3.3.5 VGA Connector

CN Label: VGA1
NANO-CV-D25501/N26001 EPIC SBC
CN Type: CN Location: CN Pinouts:
15-pin Female See Figure 3-23 See Figure 3-26 and Table 3-30
The VGA connector connects to a monitor that accepts a standard VGA input.
Pin Description Pin Description
1 RED 2 GREEN 3 BLUE 4 NC 5 GND 6 GND 7 GND 8 GND 9 VCC 10 GND 11 NC 12 DDCDAT 13 HSYNC 14 VSYNC 15 DDCCLK
Table 3-30: VGA Connector Pinouts
Page 42
Figure 3-26: VGA Connector
Page 57
NANO-CV-D25501/N26001 EPIC SBC
NOTE:
Due to Intel® GMA driver limitation, the monitor connected to the VGA connector may become extended desktop or not have signal to it after restarting from the graphics driver installation. To work out this limitation, press the Ctrl+Alt+F1 hotkey to switch the primary display to CRT mode.
Page 43
Page 58
NANO-CV-D25501/N26001 EPIC SBC
Chapter
4

4 Installation

Page 44
Page 59
NANO-CV-D25501/N26001 EPIC SBC

4.1 Anti-static Precautions

WARNING:
Failure to take ESD precautions during the installation of the NANO-CV-D25501/N26001 may result in permanent damage to the NANO-CV-D25501/N26001 and severe injury to the user.
Electrostatic discharge (ESD) can cause serious damage to electronic components, including the NANO-CV-D25501/N26001. Dry climates are especially susceptible to ESD. It is therefore critical that whenever the NANO-CV-D25501/N26001 or any other electrical component is handled, the following anti-static precautions are strictly adhered to.
Wear an anti-static wristband: - Wearing a simple anti-static wristband can
help to prevent ESD from damaging the board.
Self-grounding:- Before handling the board touch any grounded conducting
material. During the time the board is handled, frequently touch any conducting materials that are connected to the ground.
Use an anti-static pad: When configuring the NANO-CV-D25501/N26001,
place it on an anti-static pad. This re duces the possibility of ESD damaging the NANO-CV-D25501/N26001.
Only handle the edges of the PCB:-: When handling the PCB, hold the PCB
by the edges.

4.2 Installation Considerations

NOTE:
The following installation notices and installation considerations should be read and understood before installation. All installation notices must be strictly adhered to. Failing to adhere to these precautions may lead to severe damage and injury to the person performing the installation.
Page 45
Page 60
NANO-CV-D25501/N26001 EPIC SBC
WARNING:
The installation instructions described in this manual should be carefully followed in order to prevent damage to the components and injury to the user.
Before and during the installation please DO the following:
Read the user manual:
o The user manual provides a complete description of the
NANO-CV-D25501/N26001 installation instructions and configuration options.
Wear an electrostatic discharge cuff (ESD):
o Electronic components are easily damaged by ESD. Wearing an ESD cuff
removes ESD from the body and helps prevent ESD damage.
Place the NANO-CV-D25501/N26001 on an antistatic pad:
o When installing or configuring the motherboard, place it on an antistatic
pad. This helps to prevent potential ESD damage.
Turn all power to the NANO-CV-D25501/N26001 off:
o When working with the NANO-CV-D25501/N26001, make sure that it is
disconnected from all power supplies and that no electricity is being fed into the system.
Before and during the installation of the NANO-CV-D25501/N26001 DO NOT:
Remove any of the stickers on the PCB board. These stickers are required for
warranty validation.
Use the product before verifying all the cables and power connectors are
properly connected.
Allow screws to come in contact with the PCB circuit, connector pins, or its
Page 46
components.
Page 61
NANO-CV-D25501/N26001 EPIC SBC

4.3 SO-DIMM Installation

WARNING:
Using incorrectly specified SO-DIMM may cause permanent damage to the NANO-CV-D25501/N26001. Please make sure the purchased SO-DIMM complies with the memory specifications of the NANO-CV-D25501/N26001. SO-DIMM specifications compliant with the NANO-CV-D25501/N26001 are listed in Chapter 1.
To install a SO-DIMM into a SO-DIMM socket, please follow the steps below and refer to
Figure 4-1.

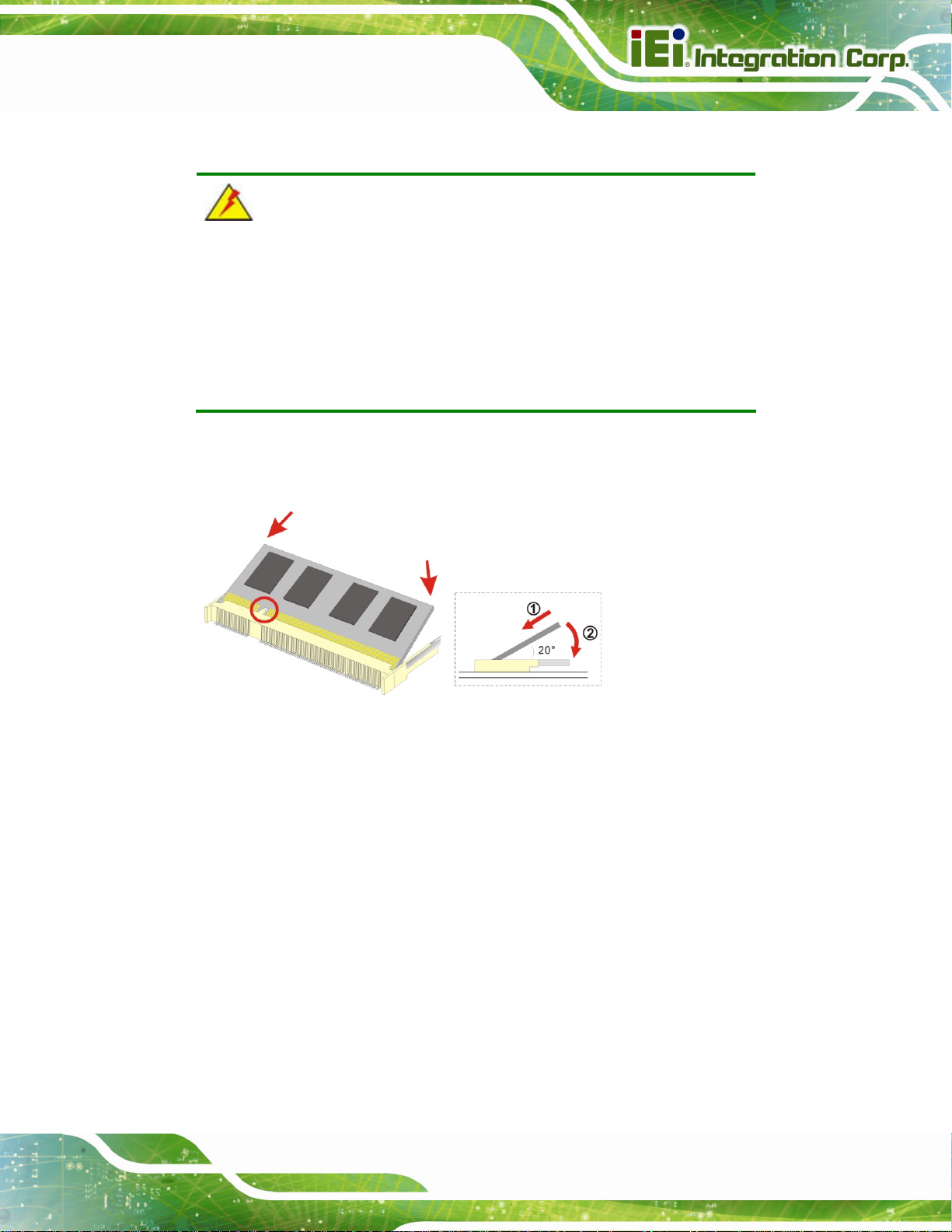

Figure 4-1: SO-DIMM Installation
Step 1: Locate the SO-DIMM socket. Place the NANO-CV-D25501/N26001 on an
anti-static pad with the solder side facing up.
Step 2: Align the SO-DIMM with the socket. The SO-DIMM must be oriented in such a
way that the notch in the middle of the SO-DIMM must be aligned with the plastic bridge in the socket.
Step 3: Insert the SO-DIMM. Push the SO-DIMM chip into the socket at an angle. (See
Figure 4-1)
Step 4: Seat the SO-DIMM. Gently push downwards and the arms clip into place.
Figure 4-1) Step 0:
(See
Page 47
Page 62

4.4 Jumper Settings

NOTE:
A jumper is a metal bridge used to close an electrical circuit. It consists of two or three metal pins and a small metal clip (often protected by a plastic cover) that slides over the pins to connect them. To CLOSE/SHORT a jumper means connecting the pins of the jumper with the plastic clip and to OPEN a jumper means removing the plastic clip from a jumper.
NANO-CV-D25501/N26001 EPIC SBC
The hardware jumpers must be set before installation. Jumpers are shown in Table 4-1.
Description Label Type
AT/ATX power selection JP3 2-pin header Clear CMOS JP1 3-pin header LVDS1 voltage selection JP5 3-pin header LVDS2 voltage selection JP4 3-pin header L VDS2 resolution selection SW1 DIP switch PC/104-Plus VIO voltage selection JP2 3-pin header mSA TA/PCIe Mini mode selection MSATA_SW1 2-pin header
Table 4-1: Jumpers

4.4.1 AT/ATX Power Selection Jumper

Jumper Label: JP3 Jumper Type:
2-pin header
Page 48
Jumper Settings: Jumper Location:
See Table 4-2 See Figure 4-2
Page 63
NANO-CV-D25501/N26001 EPIC SBC
The AT/ATX power selection jumper specifies the system power mode as AT or ATX.
Setting Description
Short 1-2 Use ATX power (Default) Off Use AT power
Table 4-2: AT/ATX Power Selection Jumper Settings

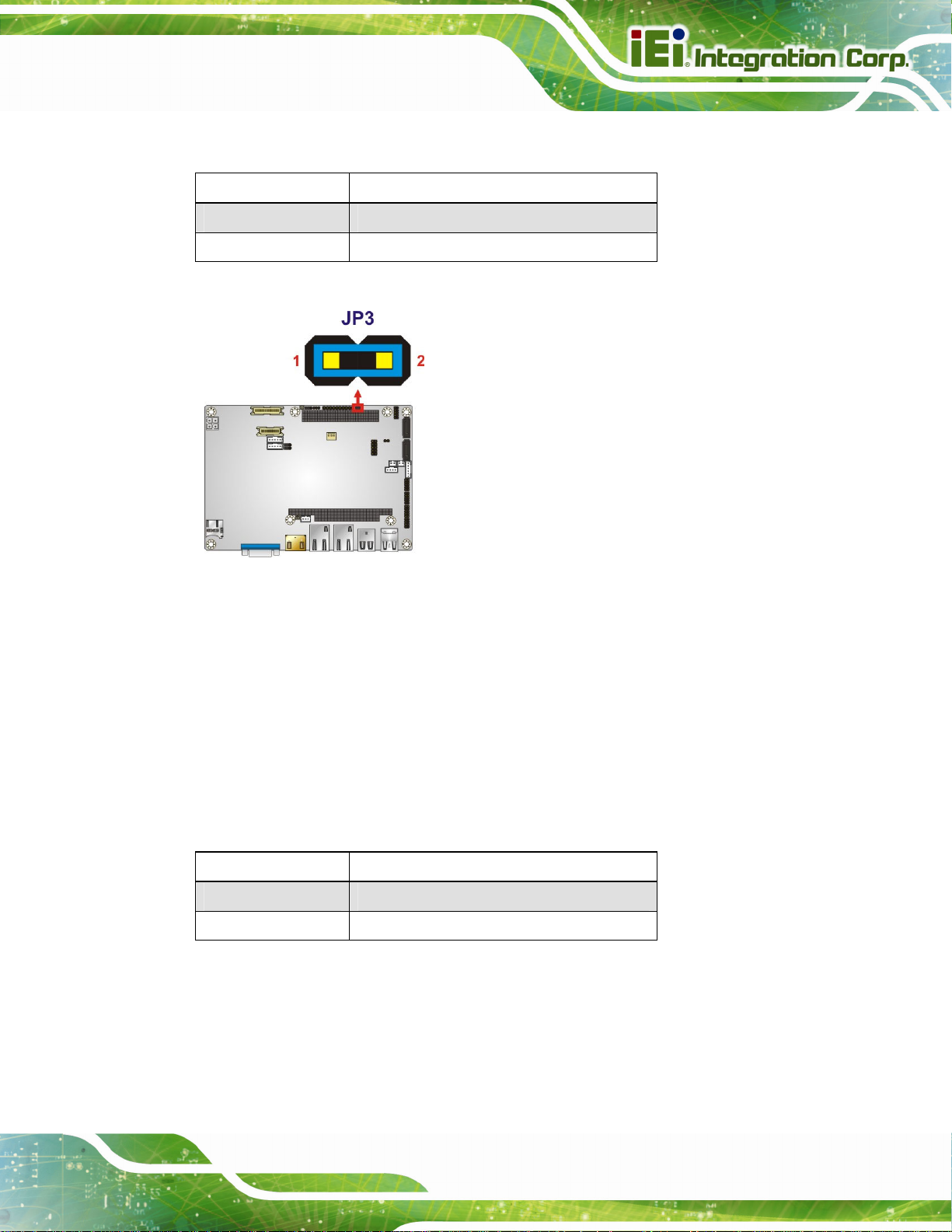

Figure 4-2: AT/ATX Power Selection Jumper Location

4.4.2 Clear CMOS Jumper

Jumper Label: JP1 Jumper Type:
3-pin header
Jumper Settings: Jumper Location:
To reset the BIOS, move the jumper to the "Clear BIOS" position for 3 seconds or more, and then move back to the default position.
Setting Description
Short 1-2 Normal (Default) Short 2-3 Clear BIOS
Table 4-3: Clear CMOS Jumper Settings
See Table 4-3 See Figure 4-3
Page 49
Page 64
Figure 4-3: Clear CMOS Jumper Location

4.4.3 LVDS1 Voltage Selection

WARNING:
NANO-CV-D25501/N26001 EPIC SBC
Permanent damage to the screen and NANO-CV-D25501/N26001 may occur if the wrong voltage is selected with this jumper. Please refer to the user guide that came with the monitor to select the correct voltage.
Jumper Label: JP5 Jumper Type: Jumper Settings: Jumper Location:
Sets the voltage provided to the monitor by LVDS1.
Setting Description
Short 1-2 +3.3V LVDS (Default) Short 2-3 +5V LVDS
Table 4-4: LVDS1 Voltage Selection Jumper Settings
3-pin header
Table 4-4
See
Figure 4-4
See
Page 50
Page 65
NANO-CV-D25501/N26001 EPIC SBC
Figure 4-4: LVDS1 Voltage Selection Jumper Location

4.4.4 LVDS2 Voltage Selection

WARNING:
Permanent damage to the screen and NANO-CV-D25501/N26001 may occur if the wrong voltage is selected with this jumper. Please refer to the user guide that came with the monitor to select the correct voltage.
Jumper Label: JP4 Jumper Type: Jumper Settings: Jumper Location:
Sets the voltage provided to the monitor by LVDS2.
Setting Description
Short 1-2 +3.3V LVDS (Default) Short 2-3 +5V LVDS
Table 4-5: LVDS2 Voltage Selection Jumper Settings
3-pin header
Table 4-4
See
Figure 4-4
See
Page 51
Page 66
Figure 4-5: LVDS2 Voltage Selection Jumper Location

4.4.5 LVDS2 Resolution Selection

Jumper Label: SW1
NANO-CV-D25501/N26001 EPIC SBC
Jumper Type: Jumper Settings: Jumper Location:
DIP switch
Table 4-6
See
Figure 4-6
See
Selects the resolution of the LCD panel connected to the LVDS2 connector.
The pin order listed in the first column of
SW1 EDID Resolution Color Depth Channel
0000 800 x 600 @ 60Hz 18-bit Single 0001 1024 x 768 @ 60Hz 18-bit Single 0010 1024 x 768 @ 60Hz 24-bit Single 0011 1280 x 768 @ 60Hz 18-bit Single 0100 1280 x 800 @ 60Hz 18-bit Single 0101 1280 x 960 @ 60Hz 18-bit Single 0110 1280 x 1024 @ 60Hz 24-bit Dual
Table 4-6 is: 4 3 2 1. (ON=0, OFF=1)
Page 52
0111 1366 x 768 @ 60Hz 18-bit Single 1000 1366 x 768 @ 60Hz 24-bit Single 1001 1440 x 900 @ 60Hz 24-bit Dual 1010 1440 x 1050 @ 60Hz 24-bit Dual 1011 1600 x 900 @ 60Hz 24-bit Dual
Page 67
NANO-CV-D25501/N26001 EPIC SBC
1100 1680 x 1050 @ 60Hz 24-bit Dual 1101 1600 x 1200 @ 60Hz 24-bit Dual 1110 1920 x 1080 @ 60Hz 24-bit Dual 1111 1920 x 1200 @ 60Hz 24-bit Dual
Table 4-6: LVDS2 Resolution Selection

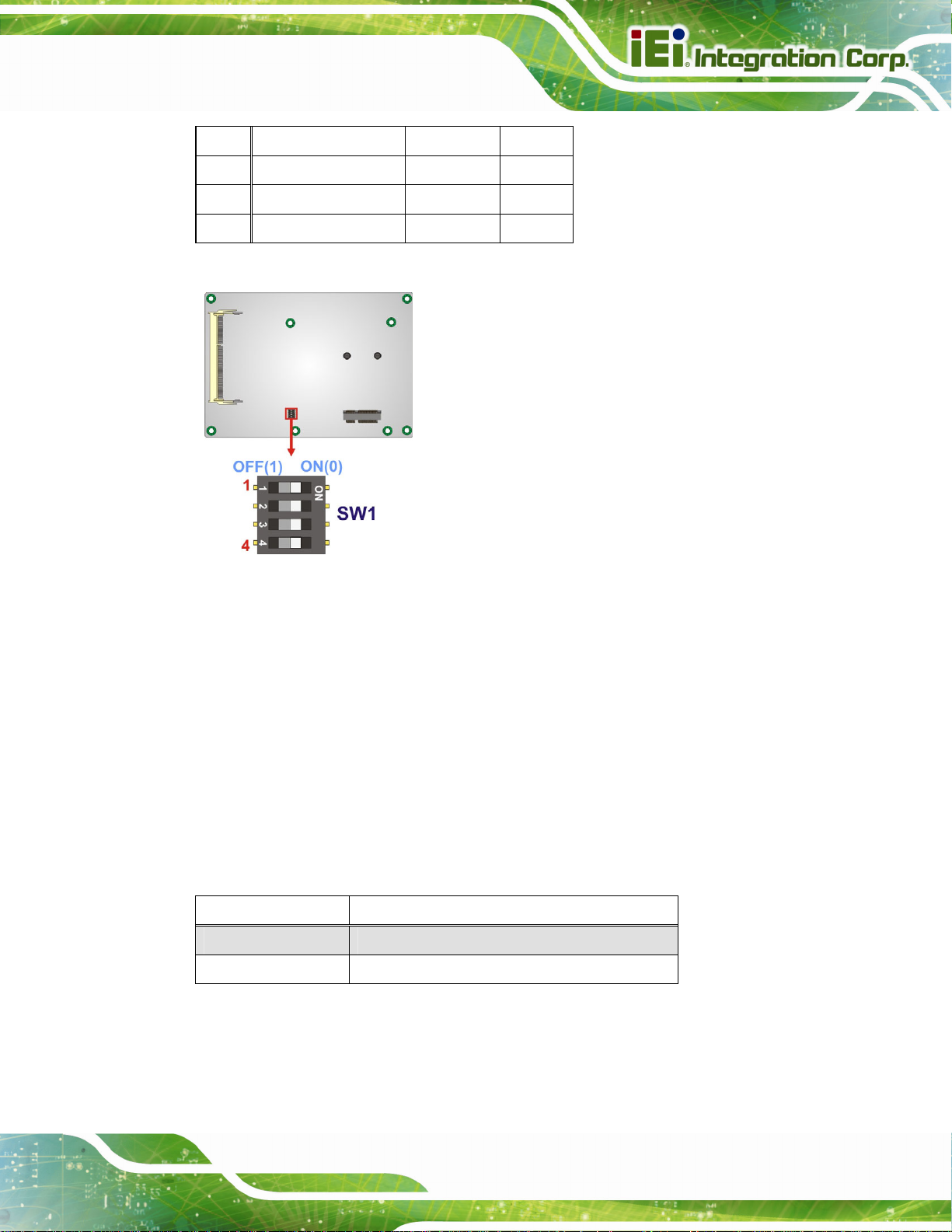

Figure 4-6: LVDS2 Resolution Selection Jumper Location

4.4.6 mSATA/PCIe Mini Mode Selection

Jumper Label: MSATA_SW1 Jumper Type: Jumper Settings: Jumper Location:
2-pin header
Table 4-7
See
Figure 4-7
See
The jumper configures the PCIe Mini slot (M_PCIE1) to automatically detect mSATA device or to force mSATA to be enabled.
Setting Description
Open Auto-detect mSATA device (Default) Short 1-2 Enable mSATA
Table 4-7: mSATA/PCIe Mini Mode Selection Jumper Settings
Page 53
Page 68
Figure 4-7: mSATA/PCIe Mini Mode Selection Jumper Location

4.4.7 PC/104-Plus VIO Voltage Selection

Jumper Label: JP2
NANO-CV-D25501/N26001 EPIC SBC
Jumper Type: Jumper Settings: Jumper Location:
This jumper selects the PC/104-Plus VIO voltage to VCC or VCC3.
Setting Description
Short 1-2 VCC Short 2-3 VCC3
Table 4-8: PC/104-Plus VIO Voltage Selection Jumper Settings
3-pin header
Table 4-8
See
Figure 4-8
See
Page 54
Figure 4-8: PC/104-Plus VIO Voltage Selection Jumper Location
Page 69
NANO-CV-D25501/N26001 EPIC SBC

4.5 Chassis Installation

4.5.1 Airflow

WARNING:
Airflow is critical to the cooling of the CPU and other on-board components. The chassis in which the NANO-CV-D25501/N26001 must have air vents to allow cool air to move into the system and hot air to move out.
The NANO-CV-D25501/N26001 must be installed in a chassis with ventilation holes on the sides allowing airflow to travel through the heat sink surface. In a system with an individual power supply unit, the cooling fan of a power supply can also help generate airflow through the board surface.
NOTE:
IEI has a wide range of chassis available. Please contact your NANO-CV-D25501/N26001 vendor, reseller or an IEI sales representative at (
2http://www.ieiworld.com.tw) to find out more about the available
chassis.
2sales@ieiworld.com or visit the IEI website

4.5.2 Motherboard Installation

To install the NANO-CV-D25501/N26001 motherboard into the chassis please refer to the reference material that came with the chassis.

4.6 Internal Peripheral Device Connections

This section outlines the installation of peripheral devices to the on-board connectors.
Page 55
Page 70

4.6.1 AT/ATX Power Connection

Follow the instructions below to connect the NANO-CV-D25501/N26001 to an AT or ATX power supply.
WARNING:
Disconnect the power supply power cord from its AC power source to prevent a sudden power surge to the NANO-CV-D25501/N26001.
Step 1: Locate the power cable. The power cable is shown in the packing list in
Chapter 2.
Step 2: Connect the Power Cable to the Motherboard. Connect the 4-pin (2x2) Molex
NANO-CV-D25501/N26001 EPIC SBC
type power cable connector to the power connector on the motherboard. See
Figure 4-9.
Page 56

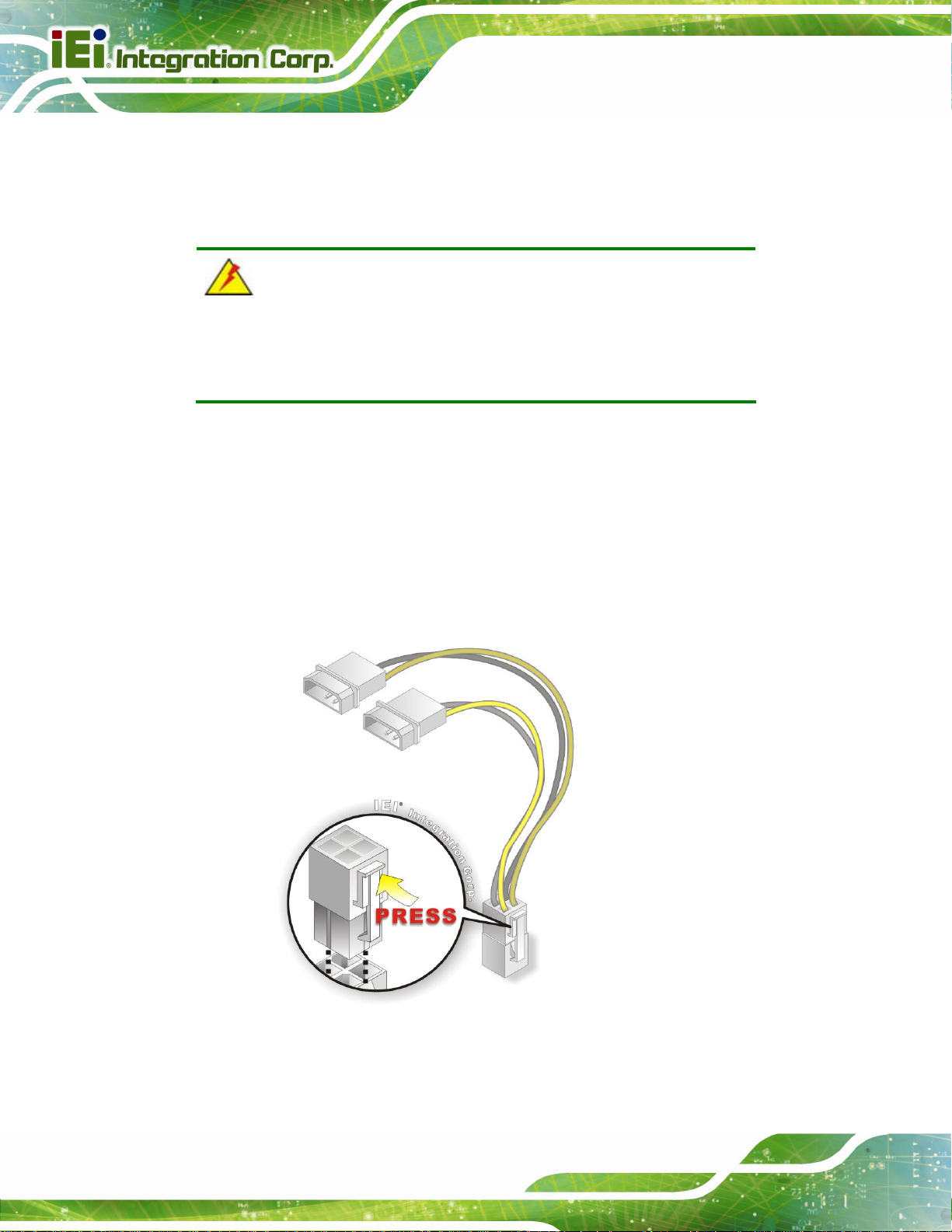

Figure 4-9: Power Cable to Motherboard Connection
Page 71
NANO-CV-D25501/N26001 EPIC SBC
Step 3: Connect Power Cable to Power Supply. Connect one of the 4-pin (1x4) Molex
type power cable connectors to an AT/ATX power supply. See
Figure 4-10.
Figure 4-10: Connect Power Cable to Power Supply

4.6.2 Audio Kit Installation

The Audio Kit that came with the NANO-CV-D25501/N26001 co nn ects t o the 1 0-pin audio connector on the NANO-CV-D25501/N26001. The audio kit consists of three audio jacks. One audio jack, Mic In, connects to a microphone. The remaining two audio jacks, Line-In and Line-Out, connect to two speakers. To install the audio kit, please refer to the steps below:
Step 1: Locate the audio connector. The location of the 10-pin audi o connector is
shown in Chapter 3.
Step 2: Align pin 1. Align pin 1 on the on-board connector with pin 1 on the audio kit
connector. Pin 1 on the audio kit connector is indicated with a white dot. See
Figure 4-11.
Page 57
Page 72
NANO-CV-D25501/N26001 EPIC SBC
Figure 4-11: Audio Kit Cable Connection
Step 3: Connect the audio devices. Connect one speaker to the line-in audio jack, one
speaker to the line-out audio jack and a microphone to the mic-in audio jack.

4.6.3 Keyboard/Mouse Connector

The NANO-CV-D25501/N26001 is shipped with a keyboard/mouse Y-cable connector. The keyboard/mouse Y-cable connector connects to a keyboard/mouse connector on the NANO-CV-D25501/N26001 and branches into two cables that are each connected to a PS/2 connector, one for a mouse and one for a keyboard. To connect the keyboard/mouse Y-cable connector please follow the steps below.
Step 1: Locate the connector. The location of the keyboard/mouse Y-cable connector
is shown in Chapter 3.
Step 2: Align the connectors. Correctly align pin 1 on the cable connector with pin 1 on
the NANO-CV-D25501/N26001 keyboard/mouse connector. See
Figure 4-12.
Page 58
Page 73
NANO-CV-D25501/N26001 EPIC SBC
Step 3: Insert the cable connectors. Once the cable connector i s pro pe rly aligned wit h
the keyboard/mouse connector on the NANO-CV-D25501/N26001, connect the cable connector to the on-board connectors. See
Figure 4-12.
Figure 4-12: Keyboard/mouse Y-cable Connection
Step 4: Attach PS/2 connectors to the chassis. The keyboard/mouse Y-cable
connector is connected to two PS/2 connectors. To secure the PS/2 connectors to the chassis please refer to the installation instructions that came with the chassis.
Step 5: Connect the keyboard and mouse. Once the PS/2 connectors are connected
to the chassis, a keyboard and mouse can each be connected to one of the PS/2 connectors. The keyboard PS/2 connector and mouse PS/2 connector are both marked. Please make sure the keyboard and mouse are connected to the correct PS/2 connector.
Page 59
Page 74

4.6.4 LVDS LCD Installation

The NANO-CV-D25501/N26001 can be connected to a TFT LCD screen through the LVDS crimp connectors on the board. To connect a TFT LCD to the NANO-CV-D25501/N26001, please follow the steps below.
Step 1: Locate the connector. The location of the LVDS connector is shown in
Chapter 3.
Step 2: Insert the cable connector. Insert the connector from the LVDS PCB driving
NANO-CV-D25501/N26001 EPIC SBC
board to the LVDS connector as shown in connectors, make sure the pins are properly aligned.
Figure 4-13. When connecting the
WARNING:
The diagram below is merely for illustration. The configuration and connection of the cables from the TFT LCD screen being installed may be different. Please refer to the installation manual that came with the TFT LCD screen.
Page 60
Page 75
NANO-CV-D25501/N26001 EPIC SBC
Figure 4-13: LVDS Connector
Step 3: Locate the backlight inverter connector. The location of the ba cklight inverter
connector is shown in Chapter 3.
Step 4: Connect backlight connector. Connect the backlight connector to the driver
TFT LCD PCB as shown in make sure the pins are properly aligned.
Figure 4-14. When inserting the cable connector,
Page 61
Page 76
NANO-CV-D25501/N26001 EPIC SBC

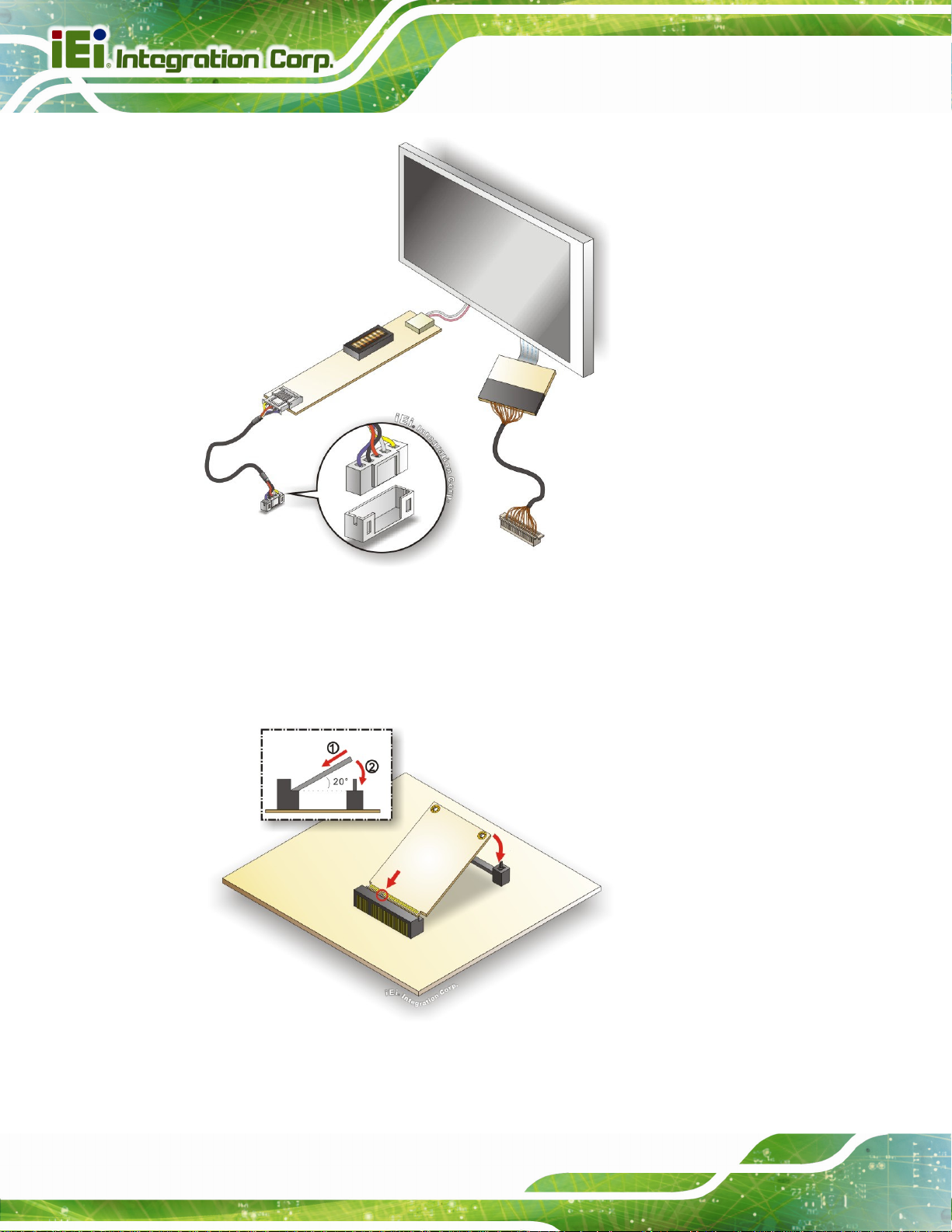

Figure 4-14: Backlight Inverter Connection

4.6.5 PCIe Mini Card Installation

To install the PCIe Mini card, please refer to the diagram and instructions below.
Page 62
Figure 4-15: PCIe Mini Card Installation
Page 77
NANO-CV-D25501/N26001 EPIC SBC
Step 1: Insert into the socket at an angle. Line up the notch on the card with the notch
on the connector. Slide the PCIe Mini card into the socket at an angle of about 20º.
Step 2: Push down until the card clips into place. Push the other end of the card
down until it clips into place on the plastic connector.

4.6.6 SATA Drive Connection

The NANO-CV-D25501/N26001 is shipped with a SATA drive cable. To connect the SATA drive to the connector, please follow the steps below.
Step 1: Locate the SA TA connector and the SATA p o wer connector. The locations of
the connectors are shown in Chapter 3.
Step 2: Insert the cable connector. Insert the cable connector into the on-board SATA
drive connector and the SATA power connector. See
Figure 4-16.
Figure 4-16: SATA Drive Cable Connection
Page 63
Page 78
Step 3: Connect the cable to the SATA disk. Connect the connector on the other end
NANO-CV-D25501/N26001 EPIC SBC
of the cable to the connector at the back of the SATA drive. See
Step 4: To remove the SATA cable from the SATA connector, press the clip on the
connector at the end of the cable.
Figure 4-16.

4.6.7 Single RS-232 Cable

The single RS-232 cable consists of one serial port connector attached to a serial communications cable that is then attached to a D-sub 9 male connector. To install the single RS-232 cable, please follow the steps below.
Step 1: Locate the connector. The locations of the RS-232 connectors are shown in
Chapter 3.
Step 2: Insert the cable connector. Insert the connector into the serial port header.
Figure 4-17. A key on the front of the cable connector ensures the
See connector can only be installed in one direction.
Page 64

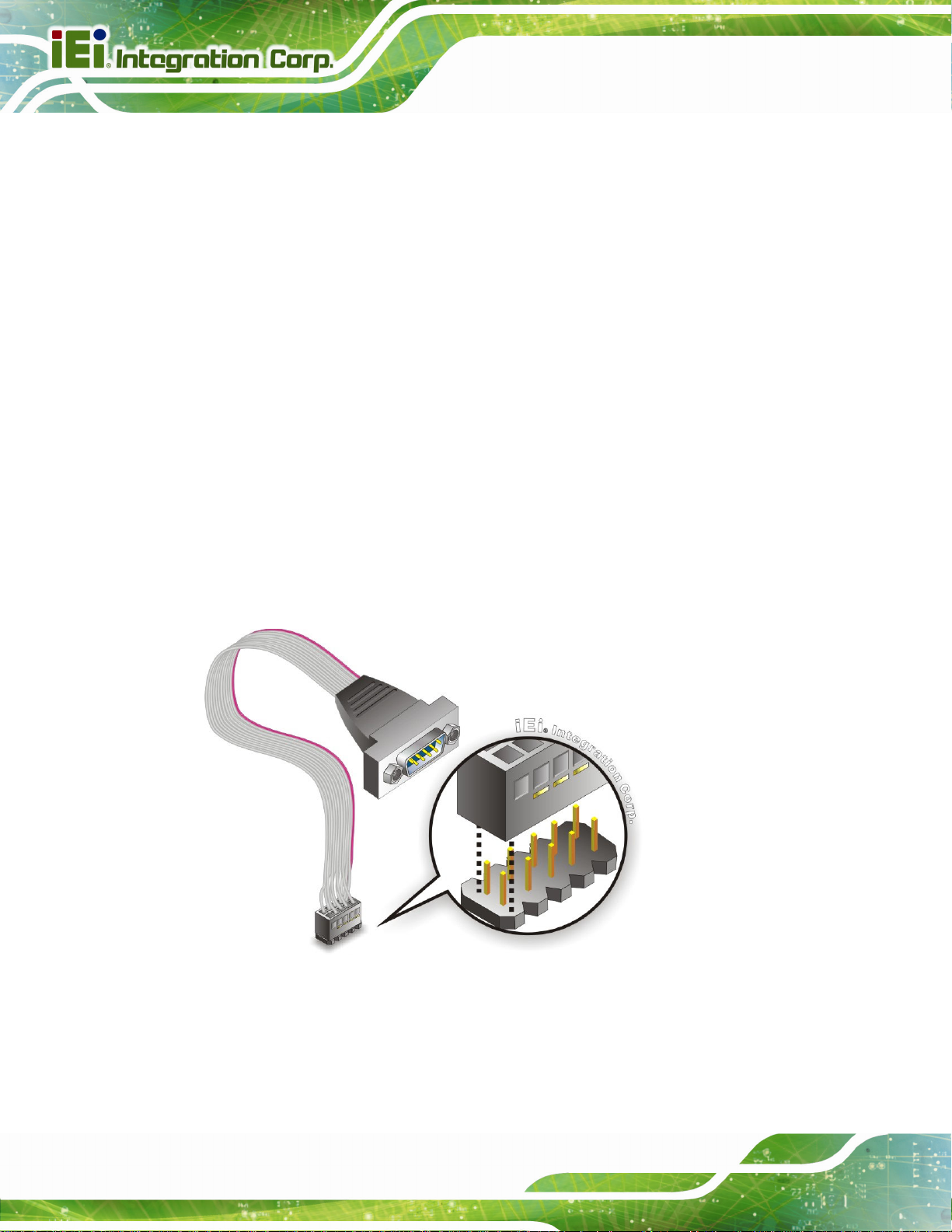

Figure 4-17: Single RS-232 Cable Installation
Step 3: Secure the bracket. The single RS-232 connector has two retention scre ws
that must be secured to a chassis or bracket.
Page 79
NANO-CV-D25501/N26001 EPIC SBC
Step 4: Connect the serial device. Once the single RS-232 connector is connected to
a chassis or bracket, a serial communications device can be connected to the system.

4.6.8 USB Cable (Dual Port without Bracket)

The NANO-CV-D25501/N26001 is shipped with a dual port USB 2.0 cabl e. To connect the USB cable connector, please follow the steps below.
Step 1: Locate the connector. The location of the USB connector is shown in Chapter 3.
WARNING:
If the USB pins are not properly aligned, the USB device can burn out.
Step 2: Align the connectors. Correctly align pin 1on the cable connector with pin 1 on
the NANO-CV-D25501/N26001 USB connector.
Step 3: Insert the cable connectors. Once the cable connector is pro perly aligne d wit h
the USB connector on the NANO-CV-D25501/N26001, connect the cable connector to the on-board connector. See
Figure 4-18.
Figure 4-18: Dual USB Cable Connection
Page 65
Page 80
Step 4: Attach the USB connectors to the chassis. Each of the USB 2.0 connectors
has two retention screw holes. To secure the connectors to the chassis, please refer to the installation instructions that came with the chassis.Step 0:
NANO-CV-D25501/N26001 EPIC SBC

4.7 External Peripheral Interface Connection

This section describes connecting devices to the external connectors on the NANO-CV-D25501/N26001.

4.7.1 HDMI Display Device Connection

The HDMI connector transmits a digital signal to compatible HDMI display devices such as a TV or computer screen. To connect the HDMI cable to the NANO-CV-D25501/N26001, follow the steps below.
Step 1: Locate the HDMI connector. The location is shown in Chapter 3. Step 2: Align the connector. Alig n the HDMI connector with the HDMI port. Make sure
the orientation of the connector is correct.
Figure 4-19: HDMI Connection
Step 3: Insert the HDMI connector. Gently insert the HDMI connector. The connector
Page 66
should engage with a gentle push. If the connector does not insert easily, check again that the connector is aligned correctly, and that the connector is being inserted with the right way up. Step 0:
Page 81
NANO-CV-D25501/N26001 EPIC SBC

4.7.2 LAN Connection

The RJ-45 connector enables connection to an external network. To connect a LAN cable with an RJ-45 connector, please follow the instructions below.
Step 1: Locate the RJ-45 connector. The locations of the RJ-45 connectors are shown
in Chapter 3.
Step 2: Align the connectors. Align the RJ-45 connector on the LAN cable with the
RJ-45 connector on the NANO-CV-D25501/N26001. See
Figure 4-20: LAN Connection
Figure 4-20.
Step 3: Insert the LAN cable RJ-45 connector. Once aligned, gently insert the LAN
cable RJ-45 connector into the on-board RJ-45 connector.

4.7.3 USB Connection (Dual Connector)

The external USB Series "A" receptacle connectors provide easier and quicker access to external USB devices. Follow the steps below to connect USB devices to the NANO-CV-D25501/N26001.
Step 1: Locate the USB Series "A" receptacle connectors. The locations of the USB
Series "A" receptacle connectors are shown in Chapter 3.
Page 67
Page 82
Step 2: Insert a USB Series "A" plug. Insert the USB Series "A" plug of a device into
the USB Series "A" receptacle on the external peripheral interface. See
Figure 4-21.
NANO-CV-D25501/N26001 EPIC SBC
Figure 4-21: USB Connector

4.7.4 VGA Monitor Connection

The NANO-CV-D25501/N26001 has one female DB-15 connector on the external peripheral interface panel. The DB-15 connector is connected to a CRT or VGA monitor. To connect a monitor to the NANO-CV-D25501/N26001, please follow the instructions below.
Step 1: Locate the female DB-15 connector. The location of the female DB-15
connector is shown in Chapter 3.
Step 2: Align the VGA connector. Align the male DB-15 connector on the VGA screen
cable with the female DB-15 connector on the external peripheral interface.
Step 3: Insert the VGA connector. Once the connectors are properly aligned with the
insert the male connector from the VGA screen into the female connector on the
Page 68
NANO-CV-D25501/N26001. See
Figure 4-22.
Page 83
NANO-CV-D25501/N26001 EPIC SBC

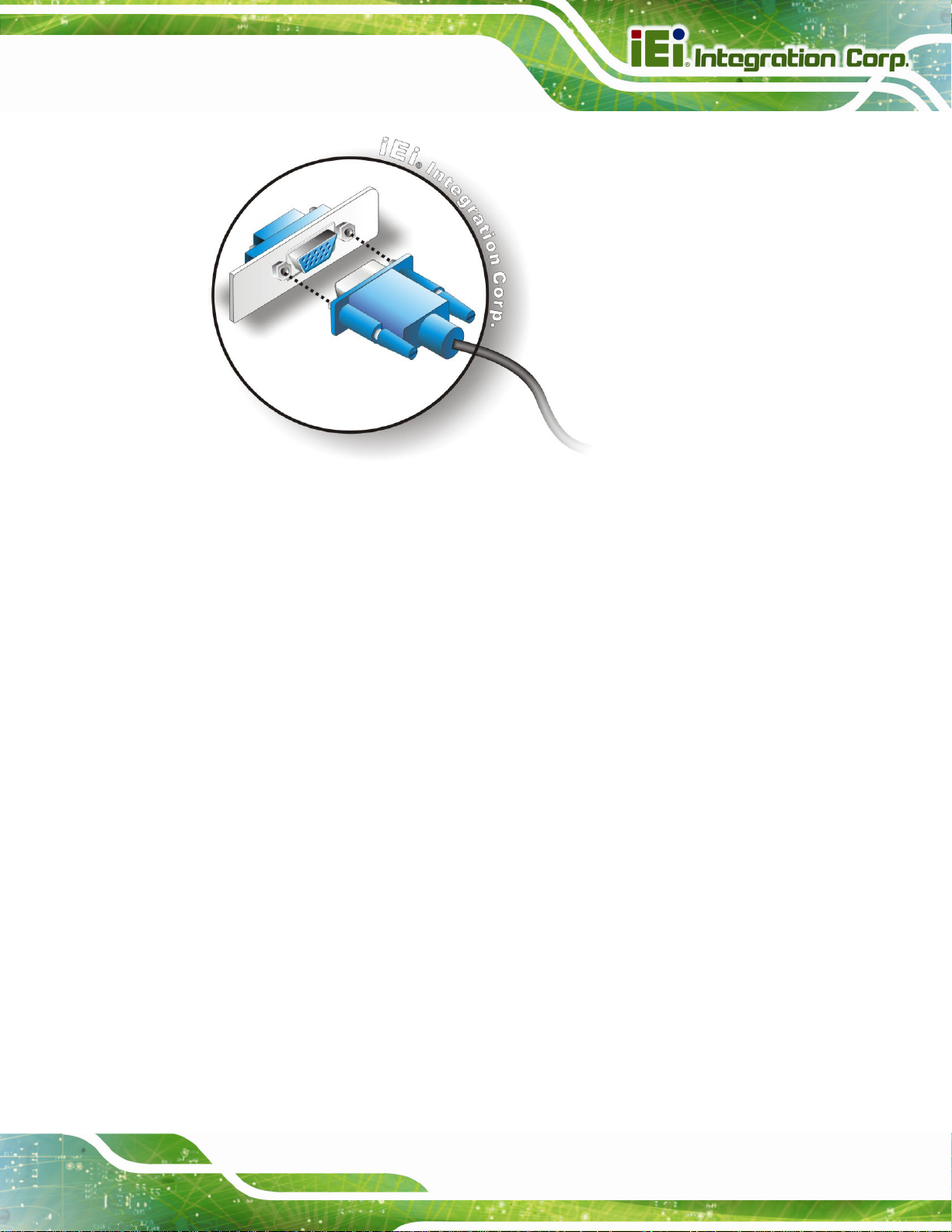

Figure 4-22: VGA Connector
Step 4: Secure the connector. Secure the DB-15 VGA connector from the VGA
monitor to the external interface by tightening the two retention screws on either side of the connector.

4.8 Installing USB 3.0 Driver during Windows® 7 OS Installation

If installing the Windows® 7 OS by using the USB 3.0 ports, loading the USB 3.0 driver during the OS installation is necessary. Follow the instructions below to complete the task.
Step 1: Insert the USB flash drive containing the USB 3.0 driver into one of the USB 2.0
ports on the NANO-CV-D25501/N26001.
Step 2: After clicking the Install now button during the OS inst allation (
Load Driver screen appears (
Figure 4-24). Click Browse.
Figure 4-23), the
Page 69
Page 84
NANO-CV-D25501/N26001 EPIC SBC
Figure 4-23: Install Now
Figure 4-24: Load Driver
Step 3: Locate the USB 3.0 driver folder, select Driver, and then click OK (
Figure 4-25).
Page 70
Page 85
NANO-CV-D25501/N26001 EPIC SBC
Figure 4-25: Browse for Folder
Step 4: Make sure the ASMedia XHCI Controller driver is selected, and then click
Next.
Figure 4-26: Select the ASMedia XHCI Controller Driver
Step 5: Click OK to continue (
Figure 4-27).
Page 71
Page 86
Figure 4-27: Confirm the Driver File
Step 6: Make sure the Driver subfolder inside the USB 3.0 driver folder is selected, and
NANO-CV-D25501/N26001 EPIC SBC
then click OK (
Step 7: Select the USB Root Hub driver and click Next.
Figure 4-25).
Page 72
Figure 4-28: Select the USB Root Hub Driver
Step 8: Follow the on-screen instructions of the Windows setup wizard to complete the
OS installation.
Page 87
NANO-CV-D25501/N26001 EPIC SBC
Chapter
5

5 BIOS

Page 73
Page 88

5.1 Introduction

The BIOS is programmed onto the BIOS chip. The BIOS setup program allows changes to certain system settings. This chapter outlines the options that can be changed.

5.1.1 Starting Setup

The UEFI BIOS is activated when the computer is turned on. The setup program can be activated in one of two ways.
1. Press the DEL or F2 key as soon as the system is turned on or
2. Press the DEL or F2 key when the “Press DEL or F2 to enter SETUP” message appears on the screen.
If the message disappears before the DEL or F2 key is pressed, restart the computer and try again.
NANO-CV-D25501/N26001 EPIC SBC

5.1.2 Using Setup

Use the arrow keys to highlight items, press ENTER to select, use the PageUp and PageDown keys to change entries, press F1 for help and press E keys are shown in the following table.
Key Function
Up arrow Move to previous item Down arrow Move to next item Left arrow Move to the item on the left hand side Right arrow Move to the item on the right hand side + Increase the numeric value or make changes
- Decrease the numeric value or make changes Page Up key Move to the next page Page Dn key Move to the previous page
SC to quit. Navigation
Page 74
Page 89
NANO-CV-D25501/N26001 EPIC SBC
Key Function
Esc key Main Menu – Quit and not save changes into CMOS
Status Page Setup Menu and Option Page Setup Menu -­Exit current page and return to Main Menu
F1 General help, only for Status Page Setup Menu and Option
Page Setup Menu F2 Load previous values F3 Load optimized defaults F4 Save changes and Exit BIOS
Table 5-1: BIOS Navigation Keys

5.1.3 Getting Help

When F1 is pressed a small help window describing the appropriate keys to use and the possible selections for the highlighted item appears. To exit the Help Window press E the F1 key again.

5.1.4 Unable to Reboot after Configuration Changes

If the computer cannot boot after changes to the system configuration is made, CMOS defaults. Use the jumper described in Chapter 4.

5.1.5 BIOS Menu Bar

The menu bar on top of the BIOS screen has the following main items:
Main – Changes the basic system configuration.  Advanced – Changes the advanced system settings.  Chipset – Changes the chipset settings.  Boot – Changes the system boot configuration.  Security – Sets User and Supervisor Passwords.
SC or
Save & Exit – Selects exit options and loads default settings.
The following sections completely describe the configuration options found in the menu items at the top of the BIOS screen and listed above.
Page 75
Page 90
NANO-CV-D25501/N26001 EPIC SBC

5.2 Main

The Main BIOS menu (BIOS Menu 1) appears when the BIOS Setup program is entered. The Main menu gives an overview of the basic system information.
Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc.
Main Advanced Chipset Boot Security Save & Exit
BIOS Information BIOS Vendor American Megatrends Core Version 4.6.5.3 0.16 Compliancy UEFI 2.3; PI 1.2 Project Version B230AR12.ROM Build Date and Time 08/10/2012 11:53:40
System Date [Tue 08/28/2012] System Time [15:10:27]
Access Level Administrator
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Set the Date. Use Tab to switch between Date elements.
----------------------

↑ ↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
: Select Screen
BIOS Menu 1: Main
System Overview
The BIOS Information lists a brief summary of the BIOS. The fields in BIOS Information cannot be changed. The items shown in the system overview include:
BIOS Vendor: Installed BIOS vendor  Core Version: Current BIOS version  Project Version: the bo ard version  Build Date and Time: Date and time the current BIOS version was made
The System Overview field also has two user configurable fields:
System Date [xx/xx/xx]
Use the System Date option to set the system date. Manually enter the day, month and year.
Page 76
Page 91
NANO-CV-D25501/N26001 EPIC SBC
System Time [xx:xx:xx]
Use the System Time option to set the system time. Manually enter the hours, minutes and seconds.

5.3 Advanced

Use the Advanced menu (BIOS Menu 2) to configure the CPU and peripheral devices through the following sub-menus:
WARNING:
Setting the wrong values in the sections below may cause the system to malfunction. Make sure that the settings made are compatible with the hardware.
Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc.
Main Advanced Chipset Boot Security Save & Exit
> ACPI Settings > RTC Wake Settings > CPU Configuration > IDE Configuration > USB Configuration > F81866 Super IO Configuration > F81866 H/W Monitor > Serial Port Console Redirection > iEi Feature
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
BIOS Menu 2: Advanced
System ACPI Parameters
----------------------

↑ ↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

5.3.1 ACPI Settings

: Select Screen
The ACPI Settings menu (BIOS Menu 3) configures the Advanced Configuration and Power Interface (ACPI) options.
Page 77
Page 92
S
Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc.
Advanced
ACPI Settings
ACPI Sleep State [S1 (CPU Stop Clock)]
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
NANO-CV-D25501/N26001 EPIC SBC
elect the highest ACPI sleep state the system will enter when the SUSPEND button is pressed.
----------------------

: Select Screen
↑ ↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
BIOS Menu 3: ACPI Settings
ACPI Sleep State [S1 (CPU Stop Clock)]
Use the ACPI Sleep State option to specify the sleep state the system enters when it is not being used.
S1 (CPU Stop Clock)
S3 (Suspend to RAM)
DEFAULT
The system enters S1 (POS) sleep state. The system appears off. The CPU is stopped; RAM is refreshed; the system is running in a low power mode.
The caches are flushed and the CPU is powered off. Power to the RAM is maintained. The computer returns slower to a working state, but more power is saved.

5.3.2 RTC Wake Settings

The RTC Wake Settings menu (BIOS Menu 4) enables the system to wake at the specified time.
Page 78
Page 93
E
w
NANO-CV-D25501/N26001 EPIC SBC
Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc.
Advanced
Wake system with Fixed Time [Disabled]
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
nable or disable System
ake on alarm event. When enabled, System will wake on the date::hr::min::sec specified
----------------------

: Select Screen
↑ ↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
BIOS Menu 4: RTC Wake Settings
Wake system with Fixed Time [Disabled]
Use the Wake system with Fixed Time option to enable or disable the system wake on alarm event.
Disabled D
Enabled
EFAULT
The real time clock (RTC) cannot generate a wake event
If selected, the Wake up every day option appears allowing you to enable to disable the system to wake every day at the specified time. Besides, the following options appear with values that can be selected:
Wake up date Wake up hour W ake up minute Wake up second After setting the alarm, the computer turns itself on
from a suspend state when the alarm goes off.
Page 79
Page 94
a
T
NANO-CV-D25501/N26001 EPIC SBC

5.3.3 CPU Configuration

Use the CPU Configuration menu (BIOS Menu 5) to view detailed CPU specifications and configure the CPU.
Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc.
Advanced
CPU Configuration
Processor Type Intel(R) Atom(TM) CPU N2600 @ 1.6GHz EMT64 Supported Processor Speed 1600 MHz System Bus Speed 400 MHz Ratio Status 16 Actual Ratio 16 System Bus Speed 400 MHz Processor Stepping 30661 Microcode Revision 269 L1 Cache RAM 2x56 k L2 Cache RAM 2x512 k Processor Core Dual Hyper-Threading Supported
Hyper-Threading [Enabled]
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Enabled for Windows XP
nd Linux (OS optimized
for Hyper-Threading
echnology) and Disabled for other OS (OS not optimized for Hyper-Threading Technology).
----------------------

: Select Screen
↑ ↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
BIOS Menu 5: CPU Configuration
The CPU Configuration menu (
Processor Type: Lists the brand name of the CPU being used. EMT64: Indicates if EMT64 is supported by the CPU.  Processor Speed: Lists the CPU proce ssing speed.  System Bus Speed: Lists the system bus speed. Ratio Status: Lists the ratio status.  Actual Ratio: Lists the ratio of the frequency to the clock speed. Processor Stepping: Lists the CPU ID. Microcode Revision: Lists the microcode revision.  L1 Cache RAM: Lists the CPU L1 cache size.  L2 Cache RAM: Lists the CPU L2 cache size.  Processor Core: Lists the number of the processor core.  Hyper-Threading: Indicates if Intel HT Technology is supported by the CPU.
BIOS Menu 5) lists the following CPU details:
Page 80
Page 95
NANO-CV-D25501/N26001 EPIC SBC
Hyper-Threading [Enabled]
Use the Hyper-Threading BIOS option to enable or disable the Intel Hyper-Threading Technology.
Disabled
Enabled DEFAULT
Disables the Intel Hyper-Threading Technology. Enables the Intel Hyper-Threading Technology.

5.3.4 IDE Configuration

Use the IDE Configuration menu (BIOS Menu 6) to change and/or set the configuration of the SATA devices installed in the system.
Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc.
Advanced
SATA Port0 Not Present SATA Port1 Not Present
Configure SATA as [IDE]
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Select a configuration for SATA Controller.
---------------------

: Select Screen
↑ ↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
BIOS Menu 6: IDE Configuration
Configure SATA as [IDE]
Use the Configure SATA as option to configure SATA devices as normal IDE or AHCI devices.
IDE DEFAULT
AHCI
Configures SATA devices as normal IDE device. Configures SATA devices as AHCI device.
Page 81
Page 96
d
NANO-CV-D25501/N26001 EPIC SBC

5.3.5 USB Configuration

Use the USB Configuration menu (BIOS Menu 7) to read USB configuration information and configure the USB settings.
Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc.
Advanced
USB Configuration
USB Devices: 1 Keyboard
Legacy USB Support [Enabled]
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Enables Legacy USB support. AUTO option
isables legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications.
---------------------

: Select Screen
↑ ↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
BIOS Menu 7: USB Configuration
USB Devices
The USB Devices field lists the USB devices that are enabled on the system
Legacy USB Support [Enabled]
Use the Legacy USB Support BIOS option to enable USB mouse and USB keyboard support.
Normally if this option is not enabled, any attached USB mouse or USB keyboard does not become available until a USB compatible operating system is fully booted with all USB drivers loaded. When this option is enabled, any attached USB mouse or USB keyboard can control the system even when there is no USB driver loaded onto the system.
Disabled
Legacy USB support disabled
Page 82
Page 97
S
NANO-CV-D25501/N26001 EPIC SBC
Enabled DEFAULT
Auto
Legacy USB support enabled Legacy USB support disabled if no USB devices are
connected

5.3.6 F81866 Super IO Configuration

Use the F81866 Super IO Configuration menu (BIOS Menu 8) to set or change the configurations for the serial ports.
Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc.
Advanced
F81866 Super IO Configuration
F81866 Super IO Chip F81866
> Serial Port 1 Configuration > Serial Port 2 Configuration > Serial Port 3 Configuration > Serial Port 4 Configuration
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
et Parameters of Serial Port 1 (COMA)
---------------------

: Select Screen
↑ ↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
BIOS Menu 8: Super IO Configuration
Page 83
Page 98
NANO-CV-D25501/N26001 EPIC SBC
5.3.6.1 Serial Port n Configuration
Use the Serial Port n Configuration menu (BIOS Menu 9) to configure the serial port n.
Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc.
Advanced
Serial Port n Configuration
Serial Port [Enabled]
Device Settings IO=3F8h; IRQ=4
Change Settings [Auto]
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Enable or Disable Serial Port (COM)
---------------------

: Select Screen
↑ ↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
BIOS Menu 9: Serial Port n Configuration Menu
5.3.6.1.1 Serial Port 1 Configuration
Serial Port [Enabled]
Use the Serial Port option to enable or disable the serial port.
Disabled
Enabled DEFAULT
Change Settings [Auto]
Use the Change Settings option to change the serial port IO port address and interrupt address.
Auto DEFAULT
IO=3F8h;
Disable the serial port Enable the serial port
The serial port IO port address and interrupt address are automatically detected.
Serial Port I/O port address is 3F8h and the interrupt
Page 84
IRQ=4
IO=3F8h; IRQ=3, 4
address is IRQ4 Serial Port I/O port address is 3F8h and the interrupt
address is IRQ3, 4
Page 99
NANO-CV-D25501/N26001 EPIC SBC
IO=2F8h; IRQ=3, 4
IO=3E8h; IRQ=3, 4
IO=2E8h; IRQ=3, 4
Serial Port I/O port address is 2F8h and the interrupt address is IRQ3, 4
Serial Port I/O port address is 3E8h and the interrupt address is IRQ3, 4
Serial Port I/O port address is 2E8h and the interrupt address is IRQ3, 4
5.3.6.1.2 Serial Port 2 Configuration
Serial Port [Enabled]
Use the Serial Port option to enable or disable the serial port.
Disabled
Enabled DEFAULT
Disable the serial port Enable the serial port
Change Settings [Auto]
Use the Change Settings option to change the serial port IO port address and interrupt address.
Auto DEFAULT
IO=2F8h; IRQ=3
IO=3F8h; IRQ=3, 4
IO=2F8h; IRQ=3, 4
IO=3E8h; IRQ=3, 4
IO=2E8h;
The serial port IO port address and interrupt address are automatically detected.
Serial Port I/O port address is 2F8h and the interrupt address is IRQ3
Serial Port I/O port address is 3F8h and the interrupt address is IRQ3, 4
Serial Port I/O port address is 2F8h and the interrupt address is IRQ3, 4
Serial Port I/O port address is 3E8h and the interrupt address is IRQ3, 4
Serial Port I/O port address is 2E8h and the interrupt
IRQ=3, 4
address is IRQ3, 4
Page 85
Page 100
5.3.6.1.3 Serial Port 3 Configuration
Serial Port [Enabled]
Use the Serial Port option to enable or disable the serial port.
NANO-CV-D25501/N26001 EPIC SBC
Disabled
Enabled DEFAULT
Change Settings [Auto]
Use the Change Settings option to change the serial port IO port address and interrupt address.
Auto DEFAULT
IO=3E8h; IRQ=10
IO=3F8h; IRQ=10, 11
IO=2F8h; IRQ=10, 11
Disable the serial port Enable the serial port
The serial port IO port address and interrupt address are automatically detected.
Serial Port I/O port address is 3E8h and the interrupt address is IRQ10
Serial Port I/O port address is 3F8h and the interrupt address is IRQ10, 11
Serial Port I/O port address is 2F8h and the interrupt address is IRQ10, 11
Page 86
IO=3E8h; IRQ=10, 11
IO=2E8h; IRQ=10, 11
IO=250h; IRQ=10, 11
IO=2E0h; IRQ=10, 11
Serial Port I/O port address is 3E8h and the interrupt address is IRQ10, 11
Serial Port I/O port address is 2E8h and the interrupt address is IRQ10, 11
Serial Port I/O port address is 250h and the interrupt address is IRQ10, 11
Serial Port I/O port address is 2E0h and the interrupt address is IRQ10, 11
