NANO-9453 EPIC Motherboard
Page i
NANO-9453 EPIC Motherboard
Revision
Date Version Changes
2008-07-03 1.11 Removed JP3
Replaced 32200-025401-RS with 32100-147900-RS
2008-03-18 1.10 Changed the Northbridge chipset form Intel® 945GM to Intel® 945GME
Added more extensive list of supported processors.
Added Compatibility Appendix
Added terminology Appendix
Removed glossary from the front of the manual
2007-03-15 1.0 Initial release
Page ii
NANO-9453 EPIC Motherboard
COPYRIGHT NOTICE
The information in this document is subject to change without prior notice in order to
improve reliability, design and function and does not represent a commitment on the part
of the manufacturer.
In no event will the manufacturer be liable for direct, indirect, special, incidental, or
consequential damages arising out of the use or inability to use the product or
documentation, even if advised of the possibility of such damages.
Copyright
This document contains proprietary information protected by copyright. All rights are
reserved. No part of this manual may be reproduced by any mechanical, electronic, or
other means in any form without prior written permission of the manufacturer.
TRADEMARKS
All registered trademarks and product names mentioned herein are used for identification
purposes only and may be trademarks and/or registered trademarks of their respective
owners.
Page iii
NANO-9453 EPIC Motherboard
Manual Conventions
WARNING!
Warnings appear where overlooked details may cause damage to the equipment or result
in personal injury. Warnings should be taken seriously. Warnings are easy to recognize.
The word “warning” is written as “WARNING,” both capitalized and bold and is followed by
text. The text is the warning message. A warning message is shown below:
WARNING:
This is an example of a warning message. Failure to adhere to warning
messages may result in permanent damage to the NANO-9453 or
personal injury to the user. Please take warning messages seriously.
CAUTION!
Cautionary messages should also be heeded to help reduce the chance of losing data or
damaging the NANO-9453. Cautions are easy to recognize. The word “caution” is written
as “CAUTION,” both capitalized and bold and is followed. The italicized text is the
cautionary message. A ca ution message is shown below:
Page iv
NANO-9453 EPIC Motherboard
CAUTION:
This is an example of a caution message. Failure to adhere to cautions
messages may result in permanent damage to the NANO-9453.
Please take caution messages seriously.
NOTE:
These messages inform the reader of essential but non-critical information. These
messages should be read carefully as any directions or instructions contained therein can
help avoid making mistakes. Notes are easy to recognize. The word “note” is written as
“NOTE,” both capitalized and bold and is followed by text. The text is the cautionary
message. A note message is shown below:
NOTE:
This is an example of a note message. Notes should always be read.
Notes contain critical information about the NANO-9453. Please take
note messages seriously.
Page v
NANO-9453 EPIC Motherboard
Packing List
NOTE:
If any of the components listed in the checklist below are missing,
please do not proceed with the installation. Contact the IEI reseller or
vendor you purchased the NANO-9453 from or contact an IEI sales
representative directly. To contact an IEI sales representative, please
send an email to
The items listed below should all be included in the NANO-9453 package.
1 x NANO-9453 single board computer
1 x 4 RS-232 adapter cable
1 x Power cable
1 x IDE cable
1 x SATA power cable
2 x SATA cables
1 x KB/MS cable
1 x Mini jumper pack
1 x Utility CD
1 x QIG (quick installation guide)

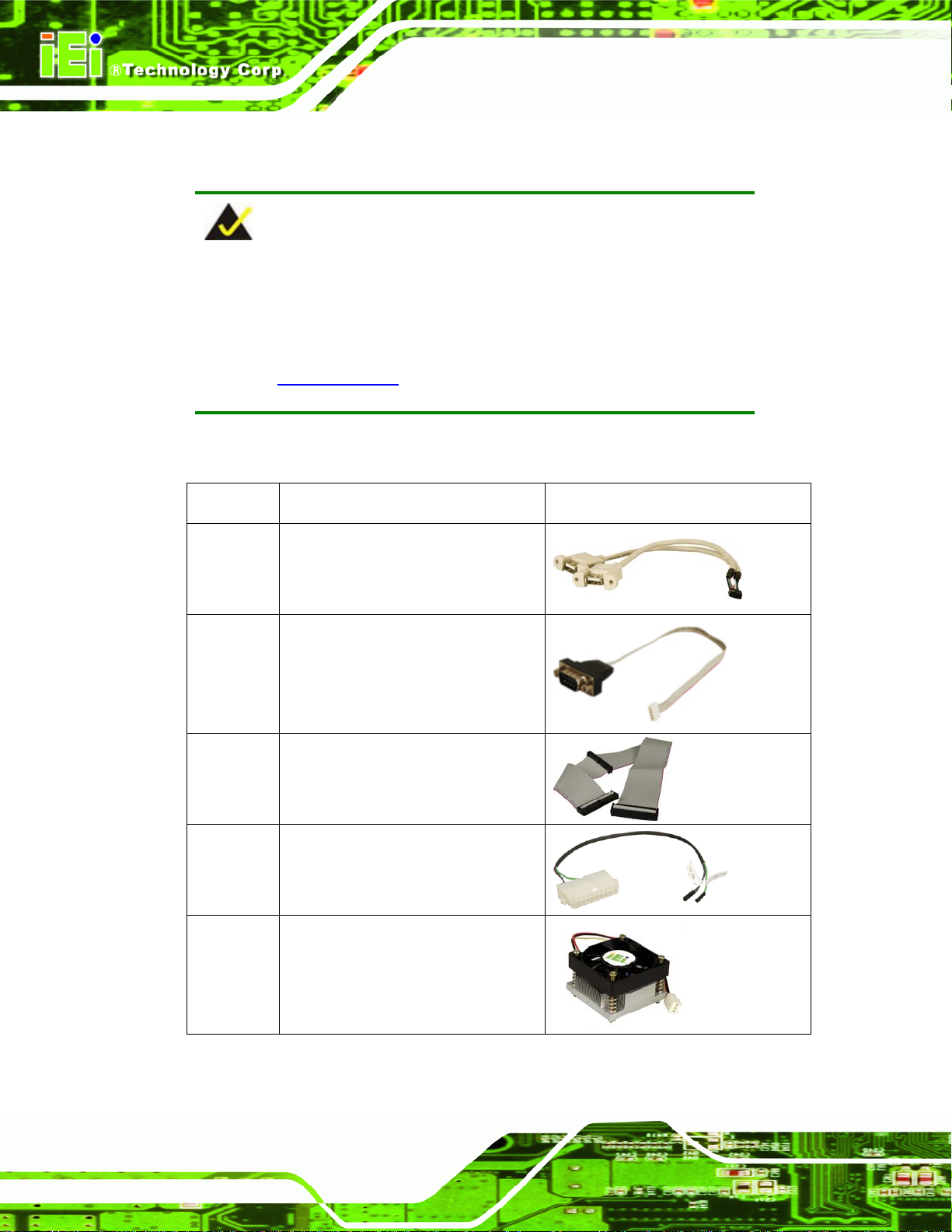

Images of the above items are shown in Chapter 3.
sales@iei.com.tw.
Page vi
NANO-9453 EPIC Motherboard
Table of Contents
1 INTRODUCTION..................................................................................................... 1
1.1 INTRODUCTION ..........................................................................................................2
1.1.1 NANO-9453 Benefits.......................................................................................... 2
1.1.2 NANO-9453 Features ........................................................................................ 2
1.2 NANO-9453 OVERVIEW ........................................................................................... 3

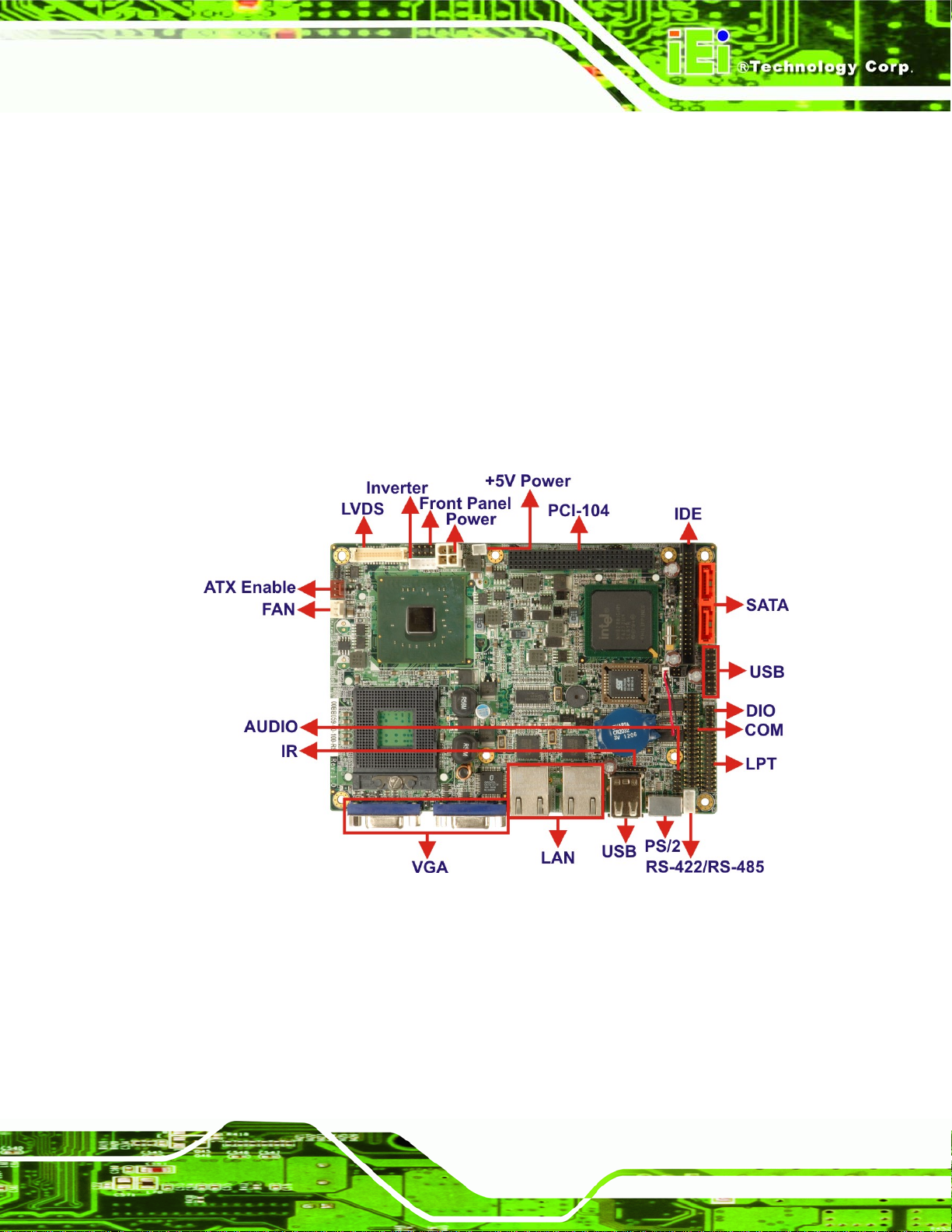

1.2.1 NANO-9453 Overview Photo............................................................................. 3
1.2.2 NANO-9453 Peripheral Connectors and Jumpers............................................ 4
1.2.3 Technical Specifications..................................................................................... 5
2 DETAILED SPECIFICATIONS............................................................................. 7
2.1 OVERVIEW ................................................................................................................. 8
2.2 DIMENSIONS .............................................................................................................. 8
2.2.1 Board Dimensions.............................................................................................. 8
2.2.2 External Interface Panel Dimensions................................................................ 9
2.3 DATA FLOW.............................................................................................................. 10
2.4 COMPATIBLE PROCESSORS ........................................................................................11
2.4.1 Compatible Processor Overview ......................................................................11
2.4.2 Supported Socket M Processors....................................................................... 12
2.5 INTEL
2.5.1 Intel® 945GME Overview................................................................................ 14
2.5.2 Intel® 945GME Memory Support.................................................................... 14
2.5.3 Intel® 945GME Integrated Graphics............................................................... 15
2.5.4 Intel® 945GME Direct Media Interface (DMI)................................................ 18
2.6 INTEL
®
945GME NORTHBRIDGE CHIPSET............................................................... 14
2.5.3.1 Intel® 945GME Analog CRT Support...................................................... 16

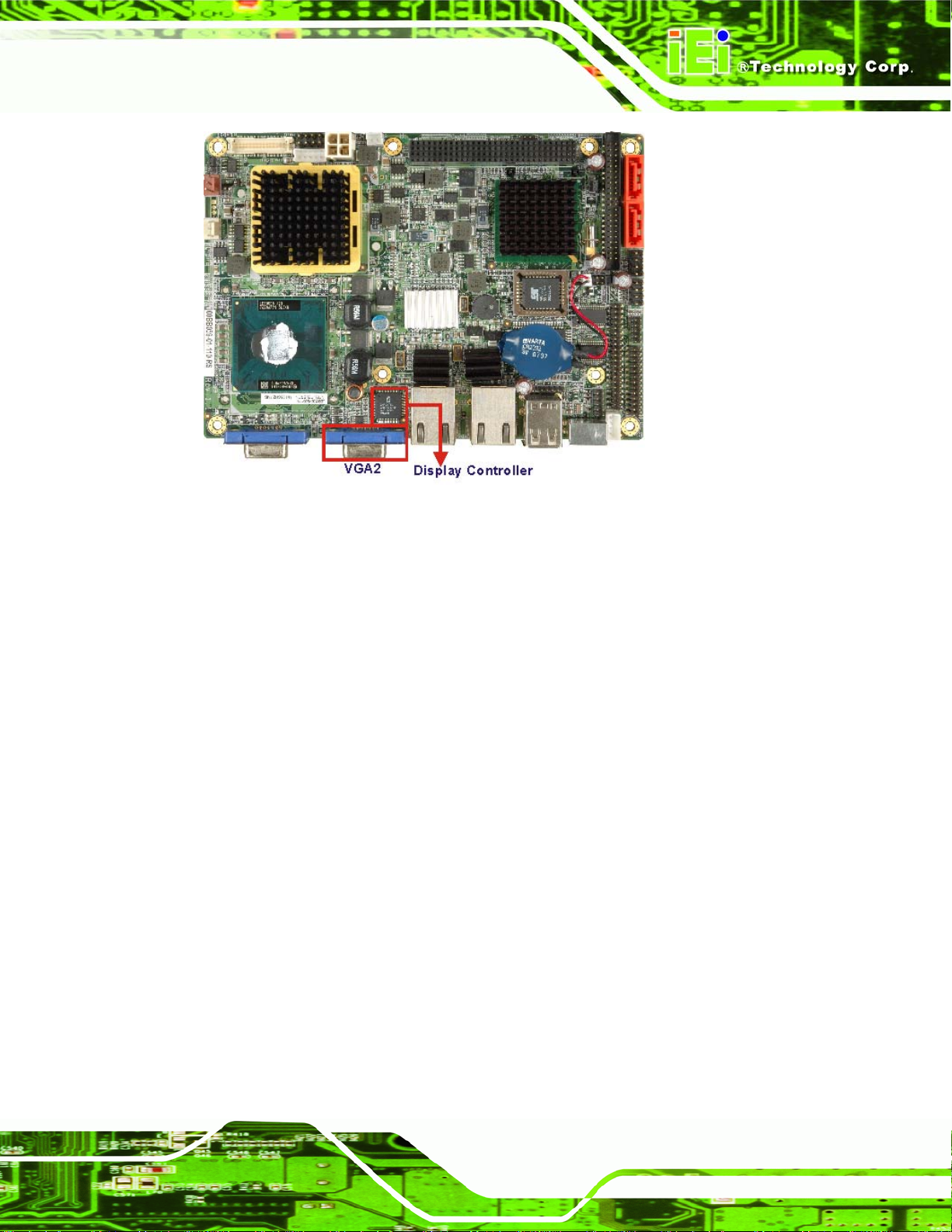

2.5.3.2 Intel® 945GME SDVO to VGA............................................................... 16
2.5.3.3 Intel® 945GME LVDS Support................................................................. 17
®
ICH7-M SOUTHBRIDGE CHIPSET................................................................. 19
2.6.1 Intel® ICH7-M Overview ................................................................................. 19

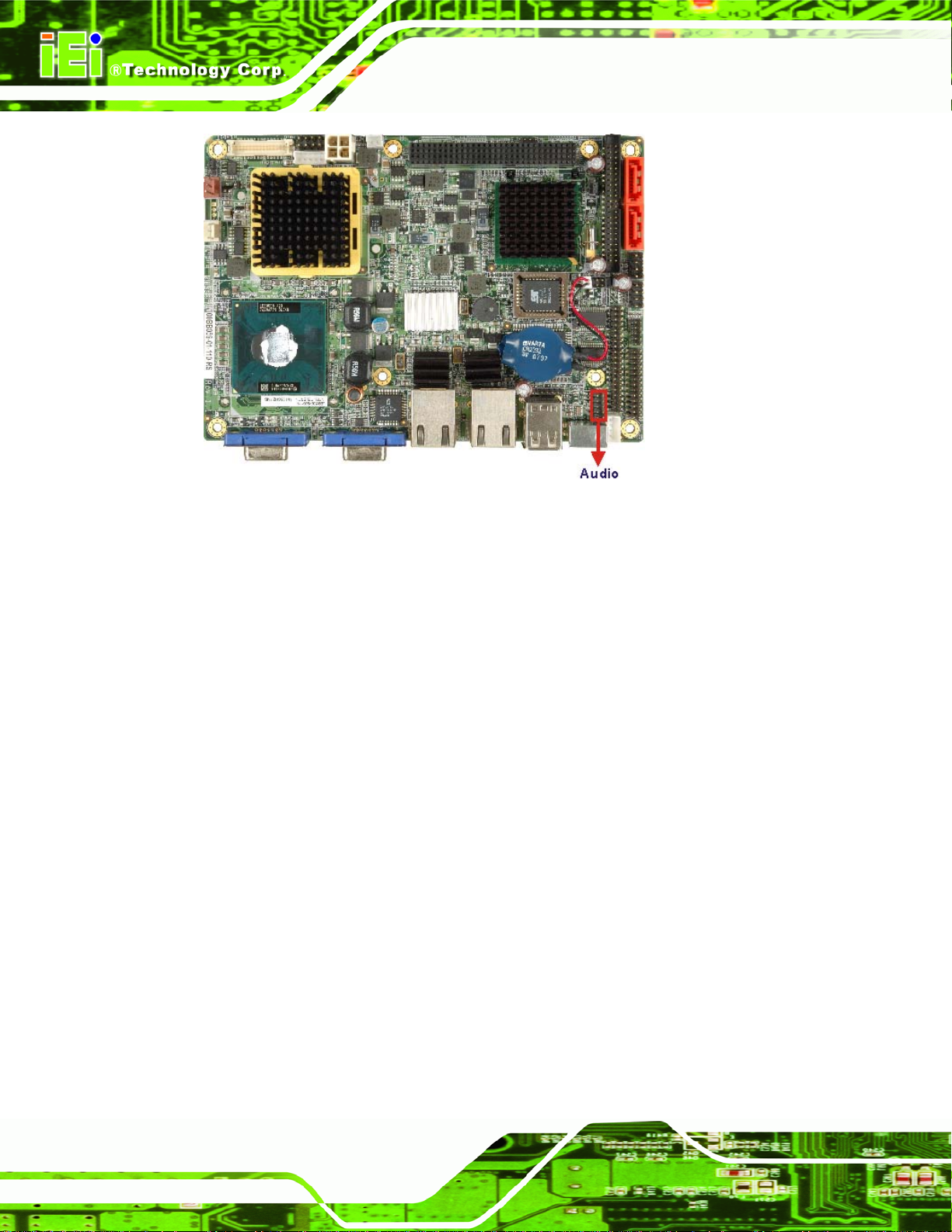

2.6.2 Intel® ICH7-M Audio Codec ’97 Controller.................................................... 19
2.6.3 Intel® ICH7-M IDE Interface........................................................................... 20
2.6.4 Intel® ICH7-M Low Pin Count (LPC) Interface.............................................. 22
Page vii
2.6.5 Intel® ICH7-M PCI Interface........................................................................... 22
2.6.6 Intel® ICH7-M Real Time Clock ...................................................................... 23
2.6.7 Intel® ICH7-M SATA Controller...................................................................... 23
2.6.8 Intel® ICH7-M USB Controller........................................................................ 24
2.7 PCIE BUS COMPONENTS .......................................................................................... 25
2.7.1 PCIe Bus Overview.......................................................................................... 25
2.7.2 Broadcom PCI Express GbE interface............................................................. 25
2.7.3 Mini PCIe......................................................................................................... 26
2.8 LPC BUS COMPONENTS........................................................................................... 27
2.8.1 LPC Bus Overview........................................................................................... 27
2.8.2 BIOS Chipset.................................................................................................... 28
2.8.3 Super I/O chipset.............................................................................................. 29
2.8.3.1 Super I/O LPC Interface ........................................................................... 29
2.8.3.2 Super I/O 16C550 UARTs ........................................................................ 30
NANO-9453 EPIC Motherboard
2.8.3.3 Super I/O Enhanced Hardware Monitor................................................... 30
2.8.3.4 Super I/O Fan Speed Controller................................................................ 30
2.8.3.5 Super I/O Parallel Port.............................................................................. 30
2.8.3.6 Super I/O Keyboard Controller................................................................. 31
2.8.4 Fintek F81216DG LPC Serial Port Chipset.................................................... 31
2.9 ENVIRONMENTAL AND POWER SPECIFICATIONS ....................................................... 31
2.9.1 System Monitoring........................................................................................... 31
2.9.2 Operating Temperature and Temperature Control........................................... 32
2.9.3 Power Consumption......................................................................................... 33
3 UNPACKING .......................................................................................................... 34
3.1 ANTI-STATIC PRECAUTIONS...................................................................................... 35
3.2 UNPACKING.............................................................................................................. 35
3.2.1 Unpacking Precautions.................................................................................... 35
3.3 UNPACKING CHECKLIST........................................................................................... 36

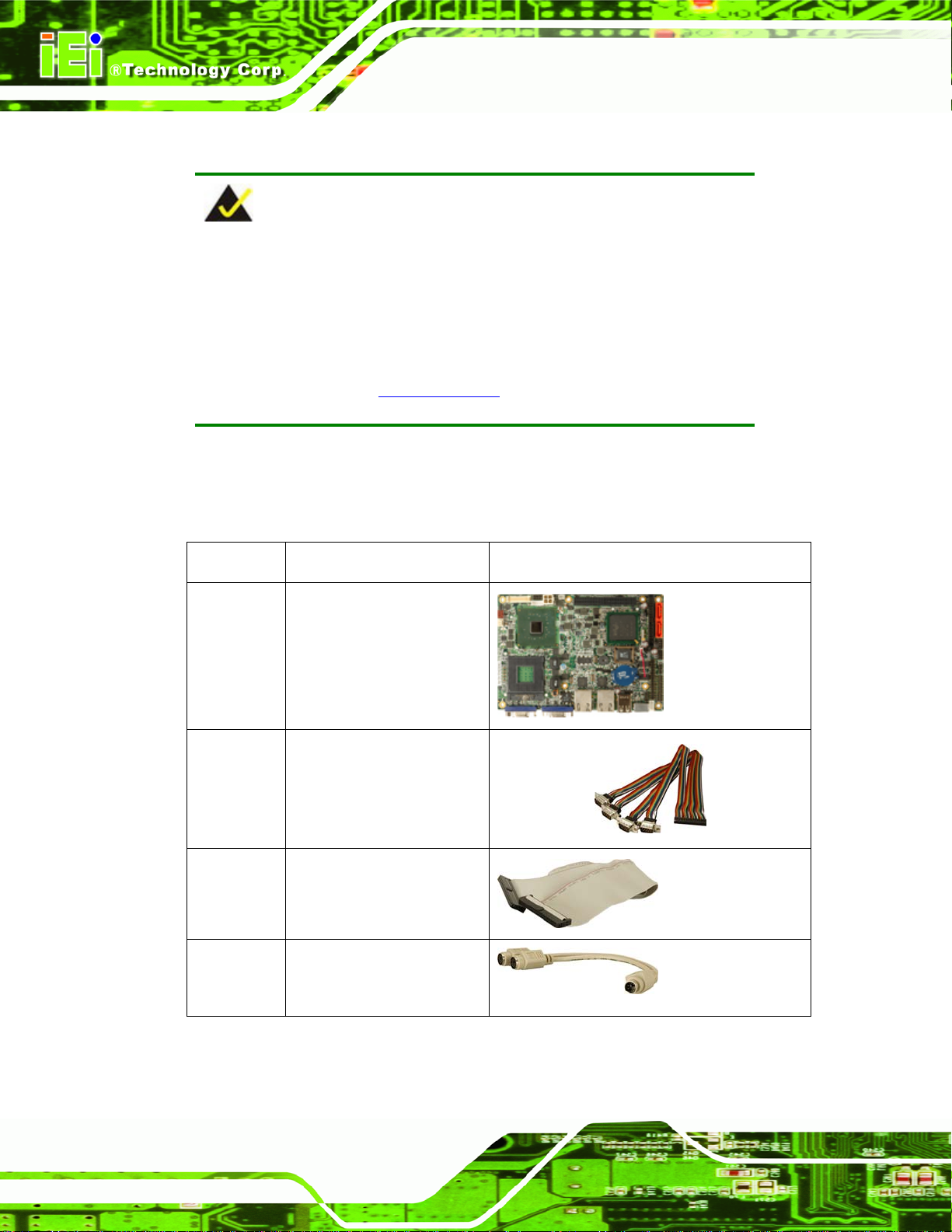

3.3.1 Package Contents............................................................................................. 36

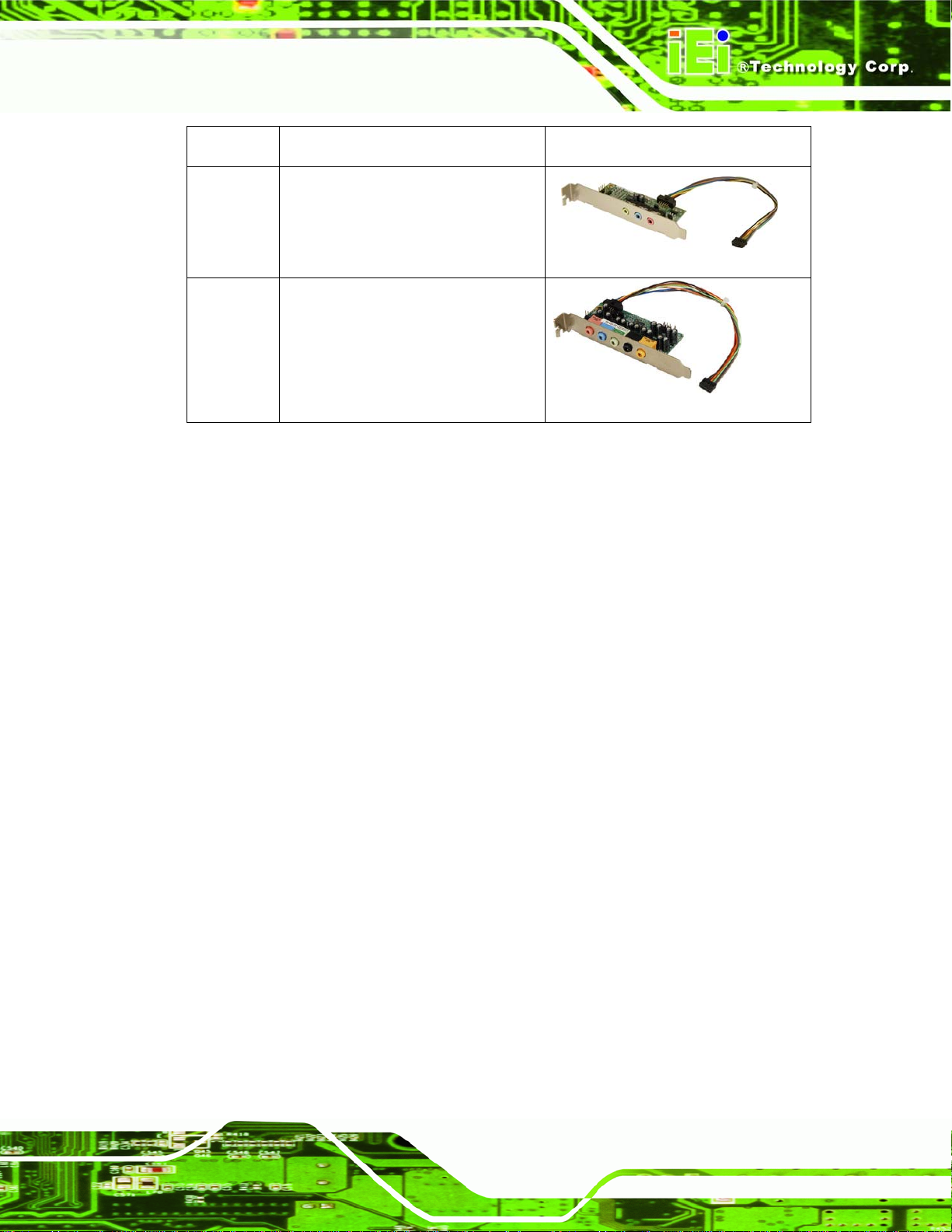

3.3.2 Optional Items.................................................................................................. 38
4 CONNECTOR PINOUTS...................................................................................... 40
4.1 PERIPHERAL INTERFACE CONNECTORS .................................................................... 41
4.1.1 NANO-9453 Layout ......................................................................................... 41
Page viii
NANO-9453 EPIC Motherboard
4.1.2 Peripheral Interface Connectors ..................................................................... 42
4.1.3 External Interface Panel Connectors............................................................... 43
4.2 INTERNAL PERIPHERAL CONNECTORS...................................................................... 44
4.2.1 +12V ATX Power Supply Connector ............................................................... 44
4.2.2 +5V ATX Power Supply Connector ................................................................. 45

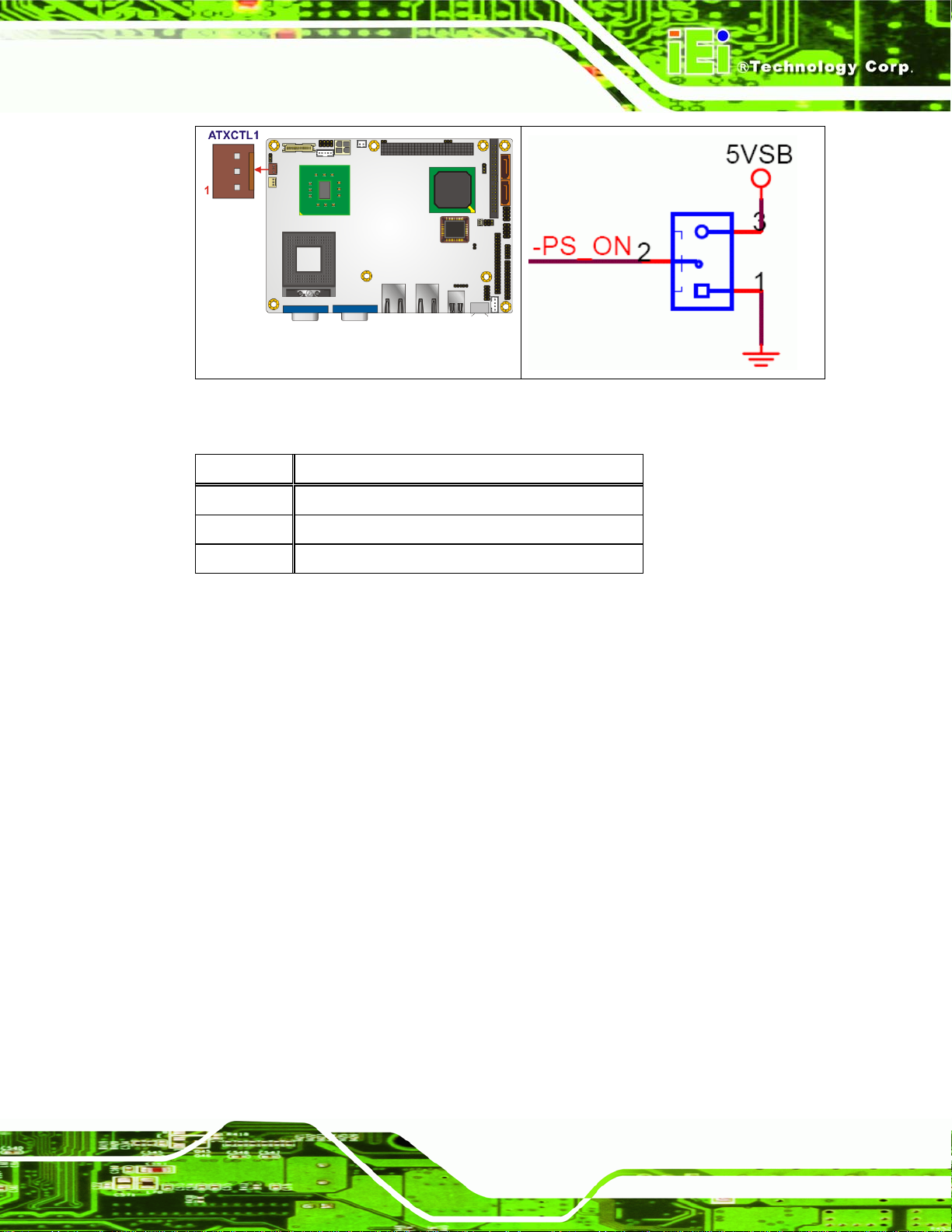

4.2.3 ATX Power Supply Enable Connector............................................................. 46
4.2.4 Audio Connector (9-pin).................................................................................. 47

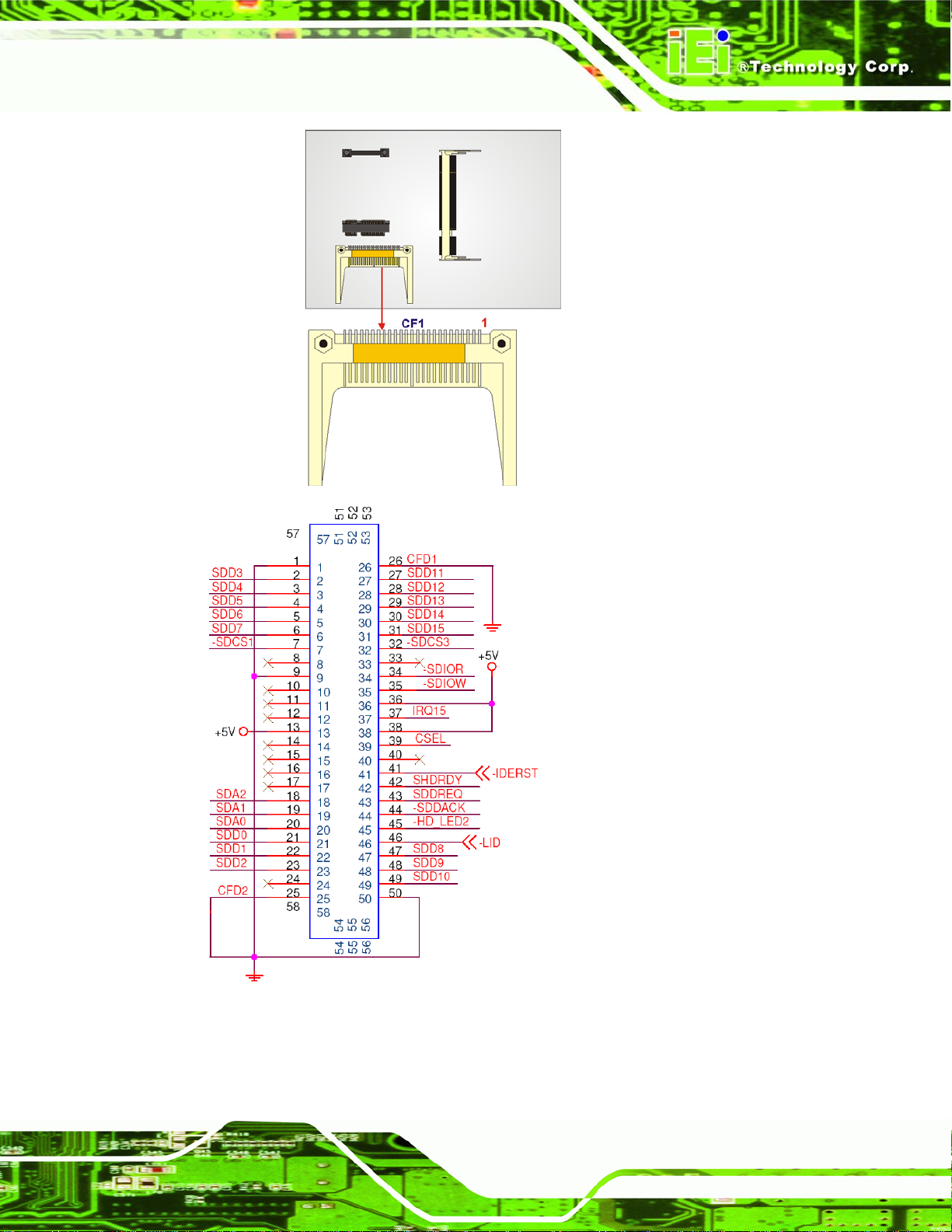

4.2.5 Compact Flash Socket...................................................................................... 48

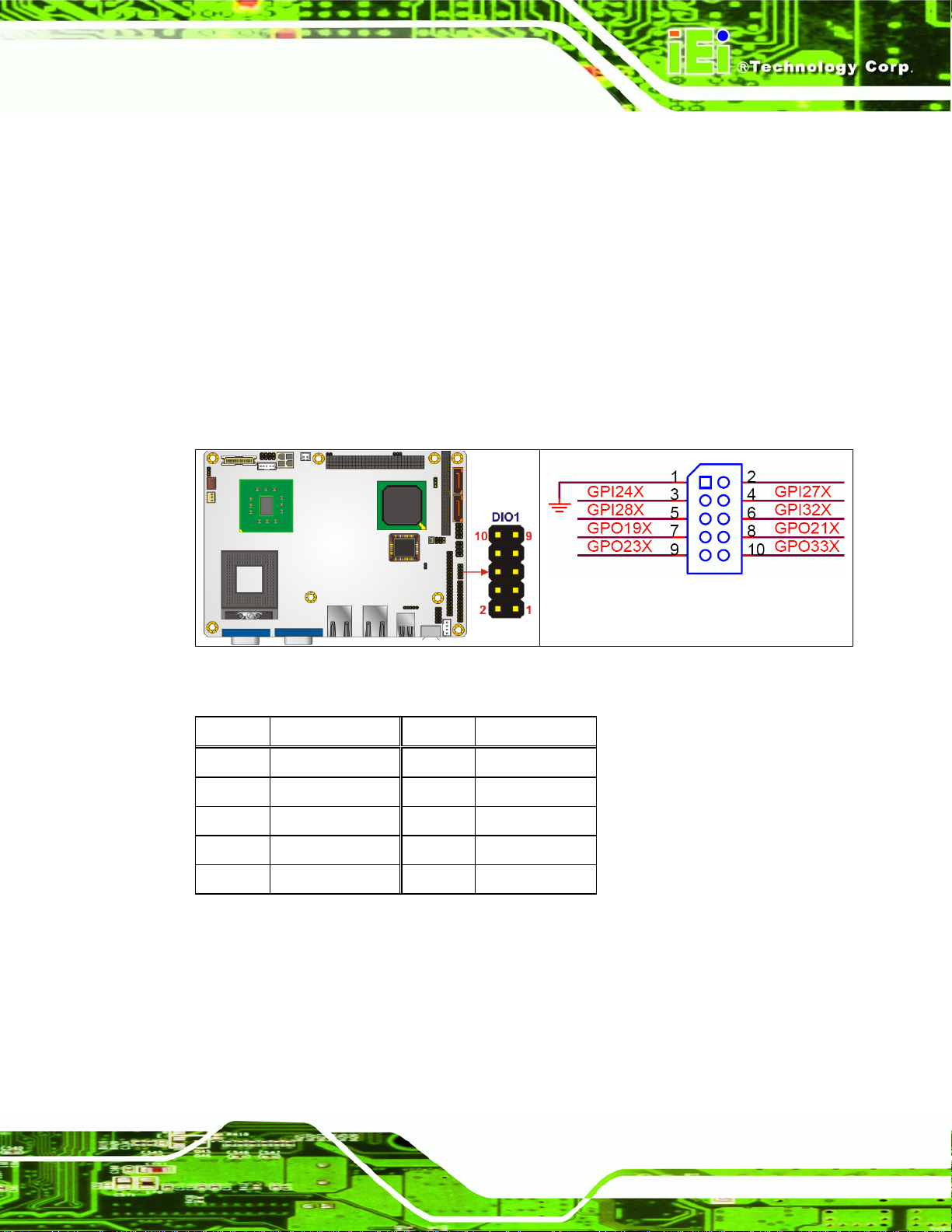

4.2.6 Digital Input/Output (DIO) Connector............................................................ 51

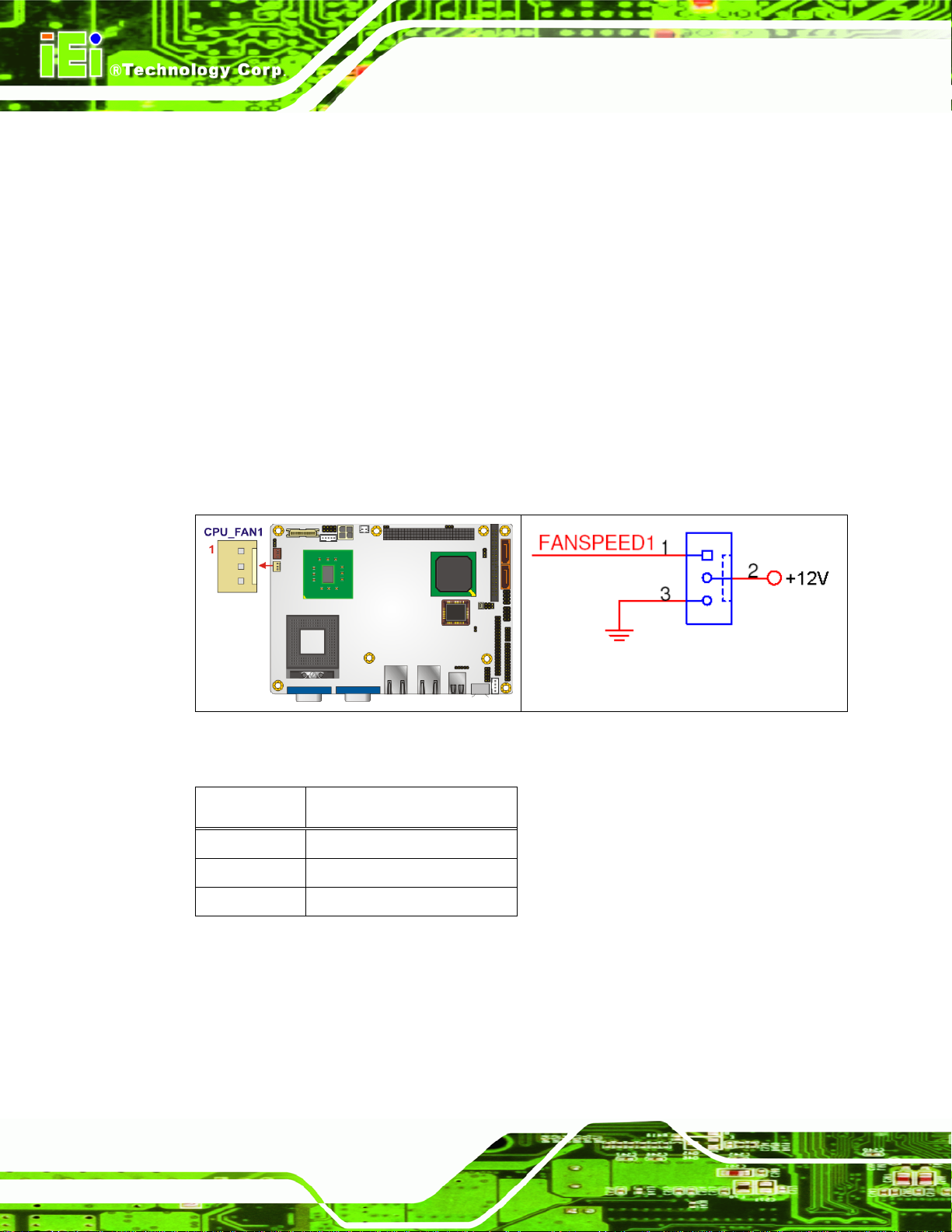

4.2.7 Fan Connector................................................................................................. 51

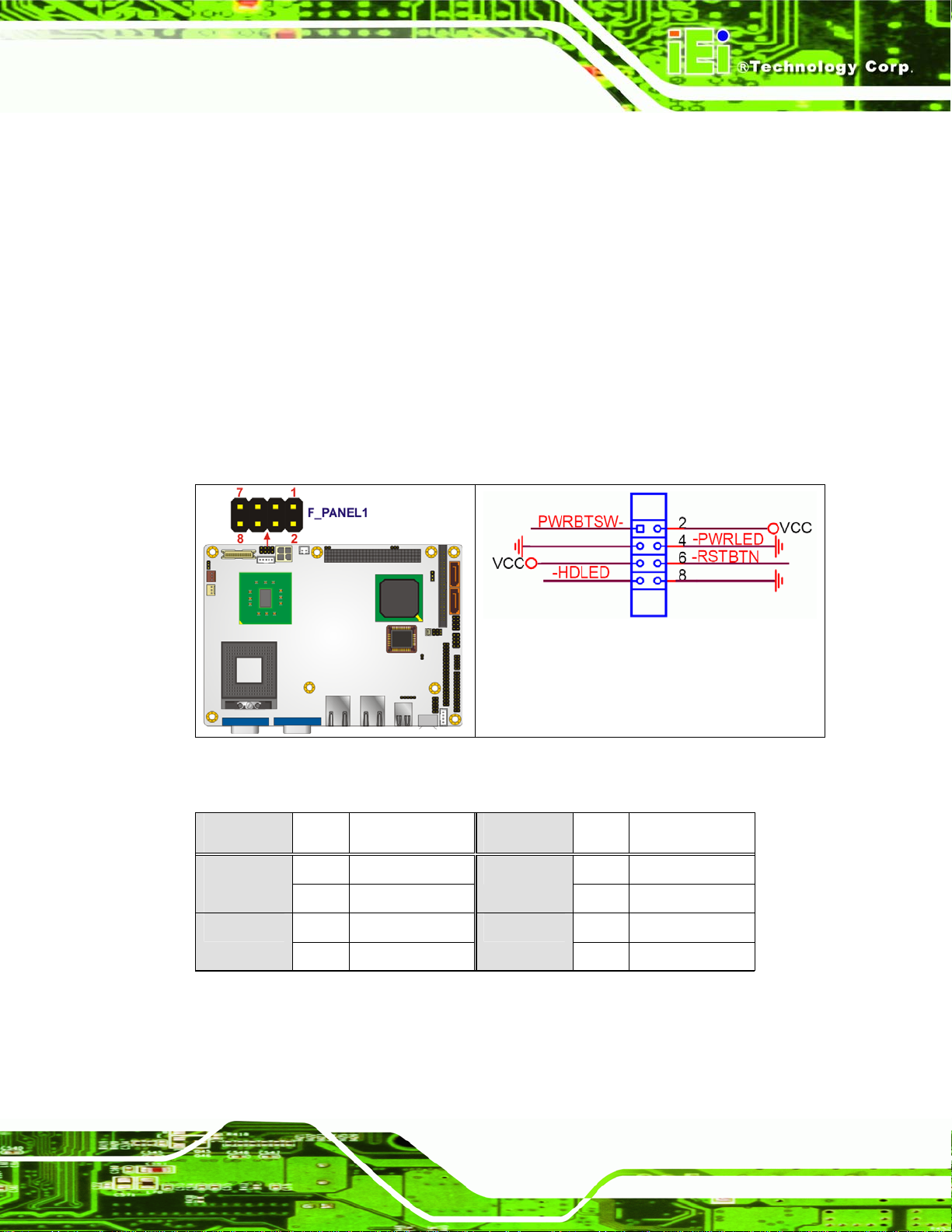

4.2.8 Front Panel Connector (12-pin)...................................................................... 52

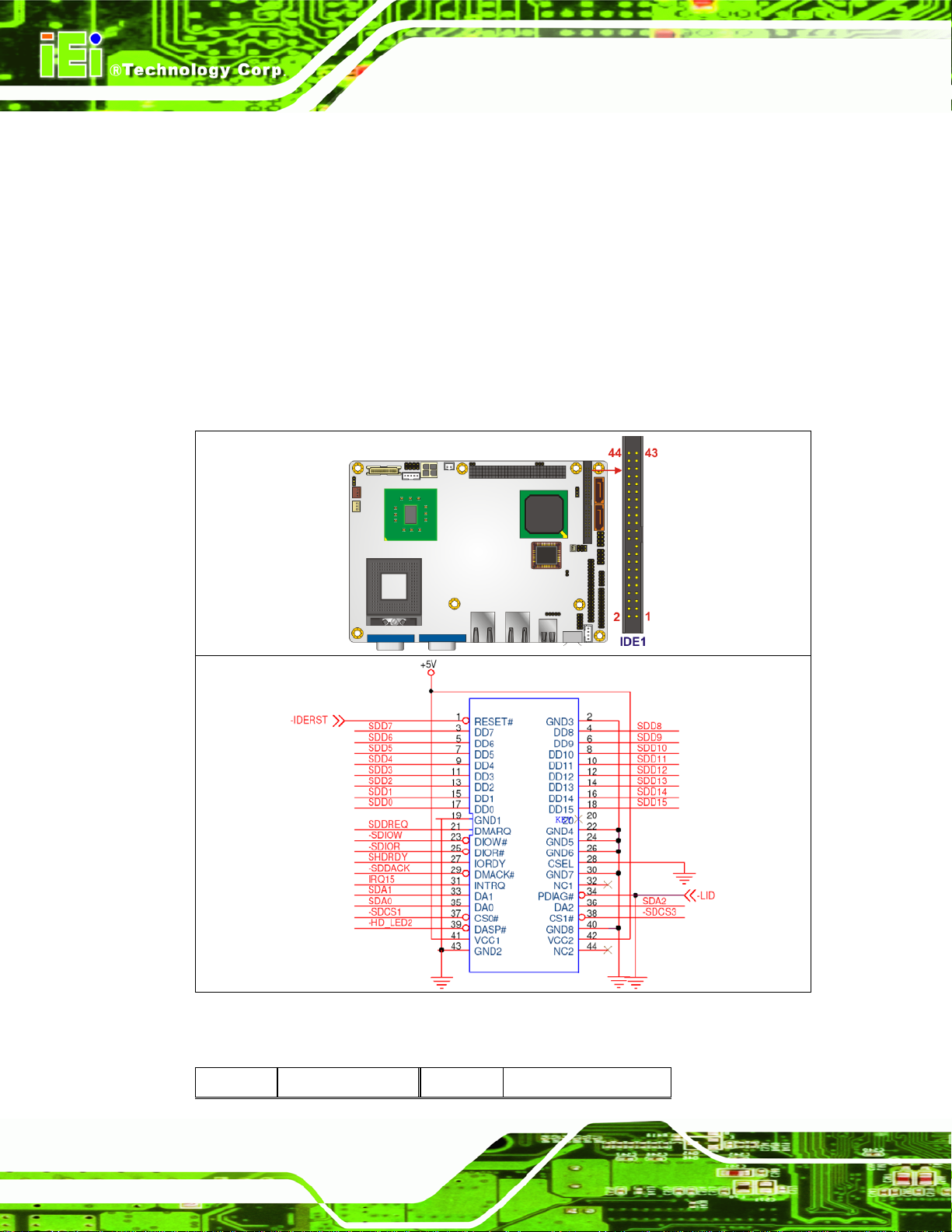

4.2.9 IDE Connector(44-pin).................................................................................... 54
4.2.10 Infrared Interface Connector (5-pin)............................................................. 55

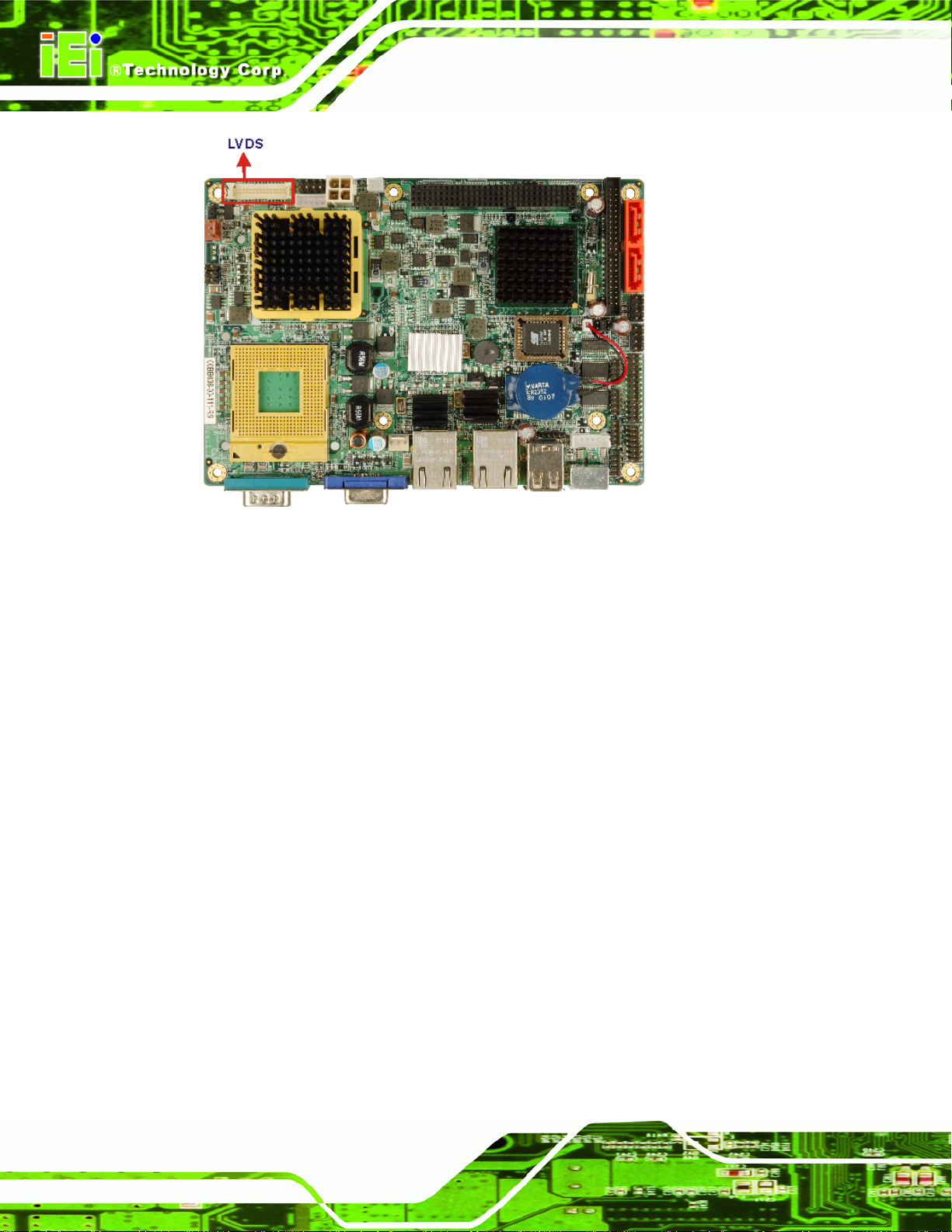

4.2.11 LVDS LCD Connector.................................................................................... 56
4.2.12 Mini PCIe Socket ........................................................................................... 58
4.2.13 Parallel Port Connector ................................................................................ 60

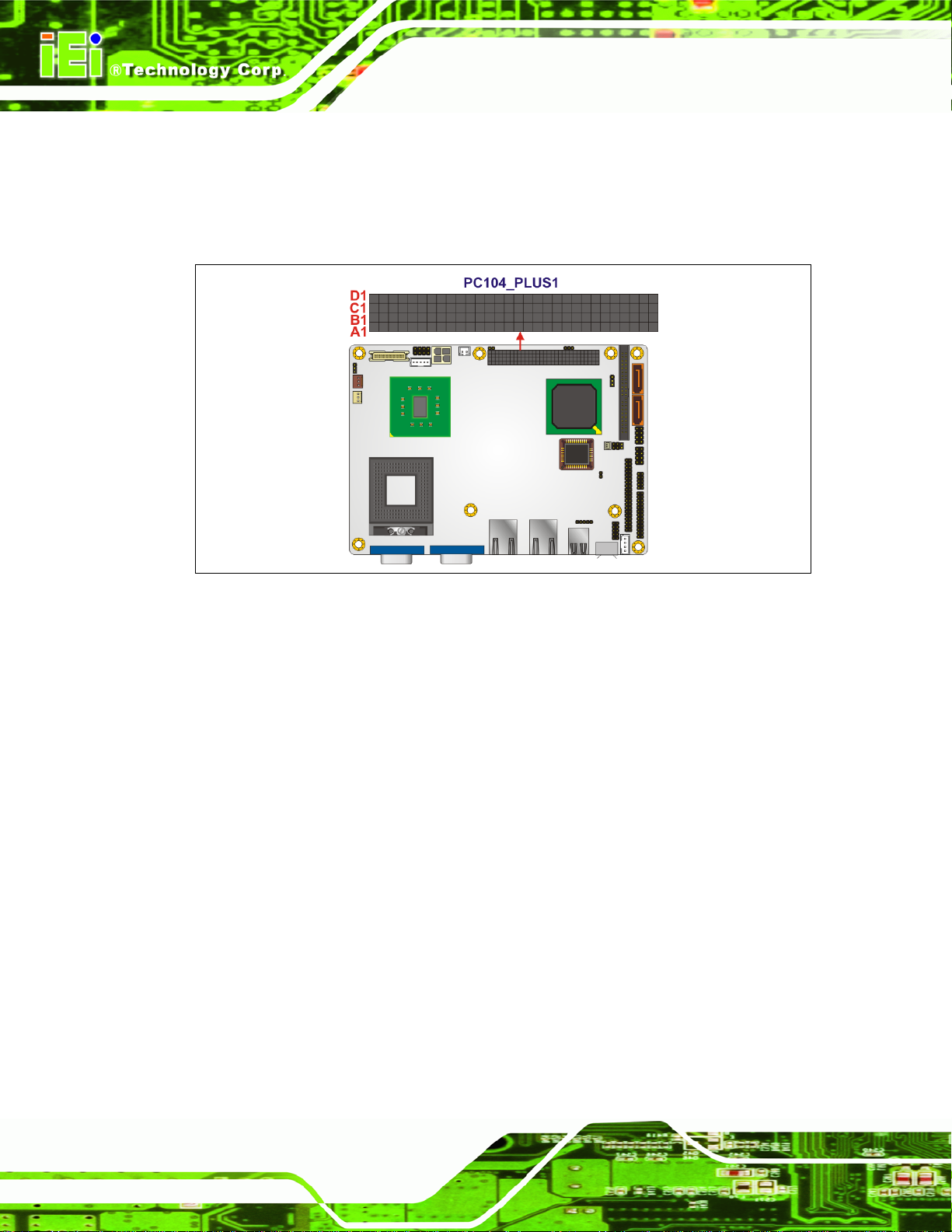

4.2.14 PCI-104 Slot................................................................................................... 61

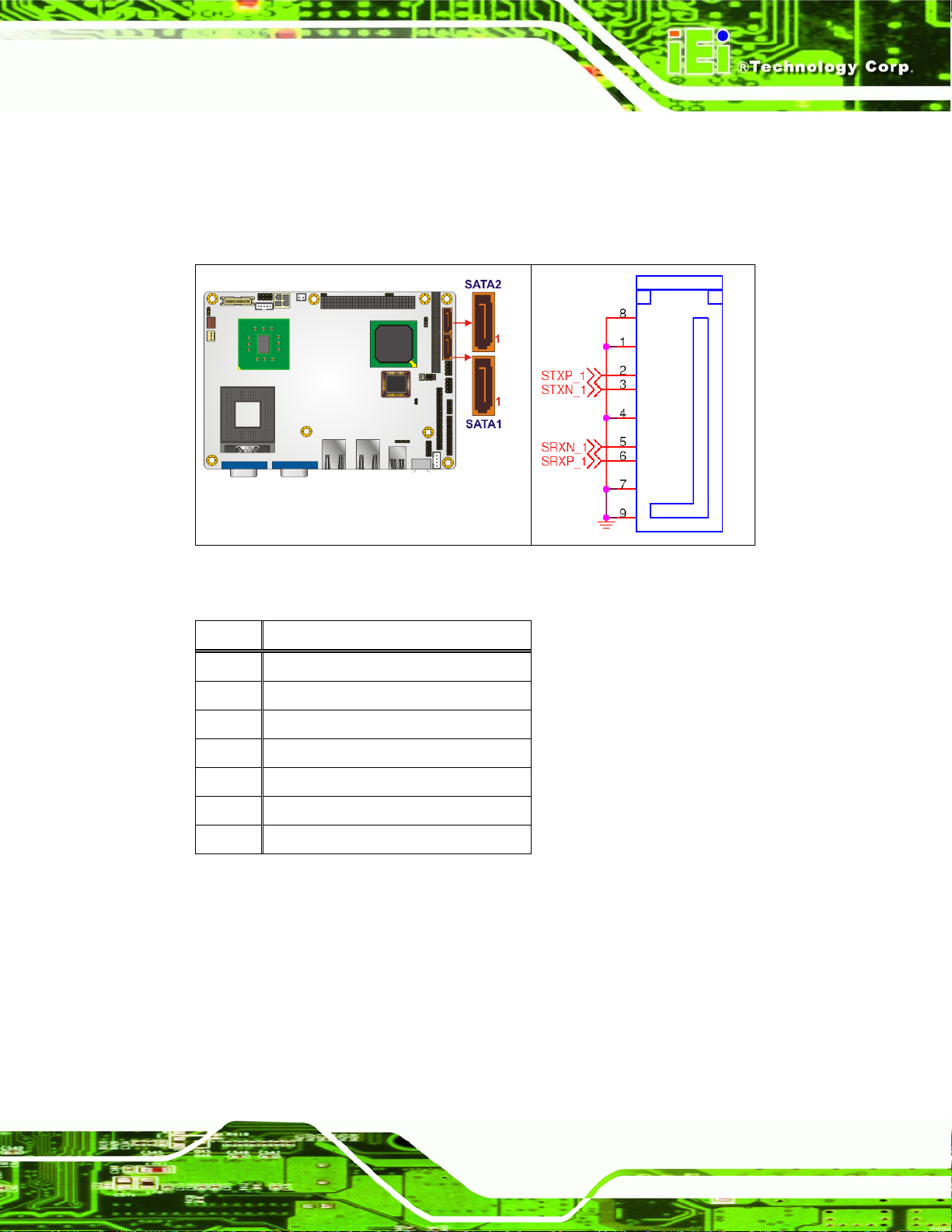

4.2.15 SATA Drive Connectors ................................................................................. 64

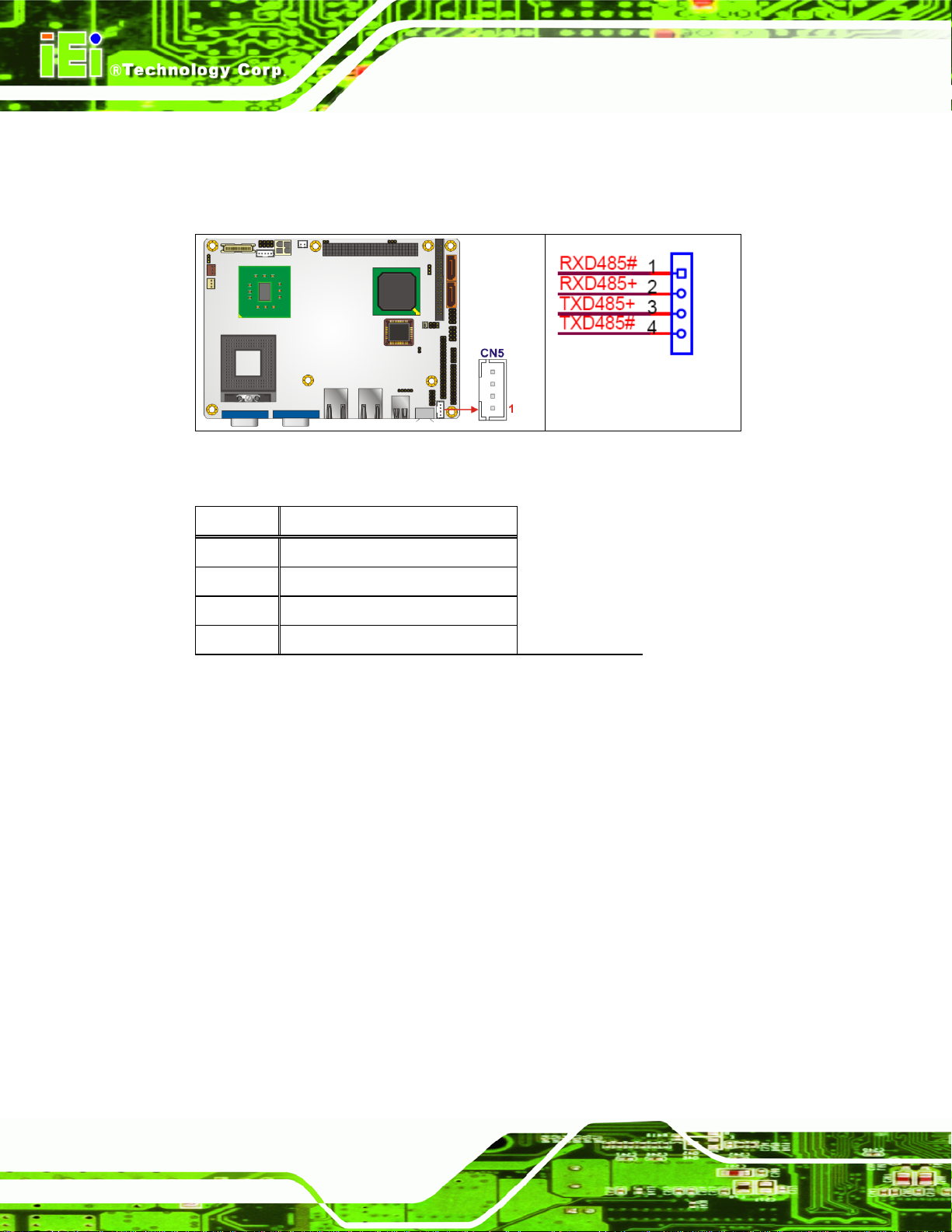

4.2.16 Serial Port Connector (RS-422 or RS-485)................................................... 65

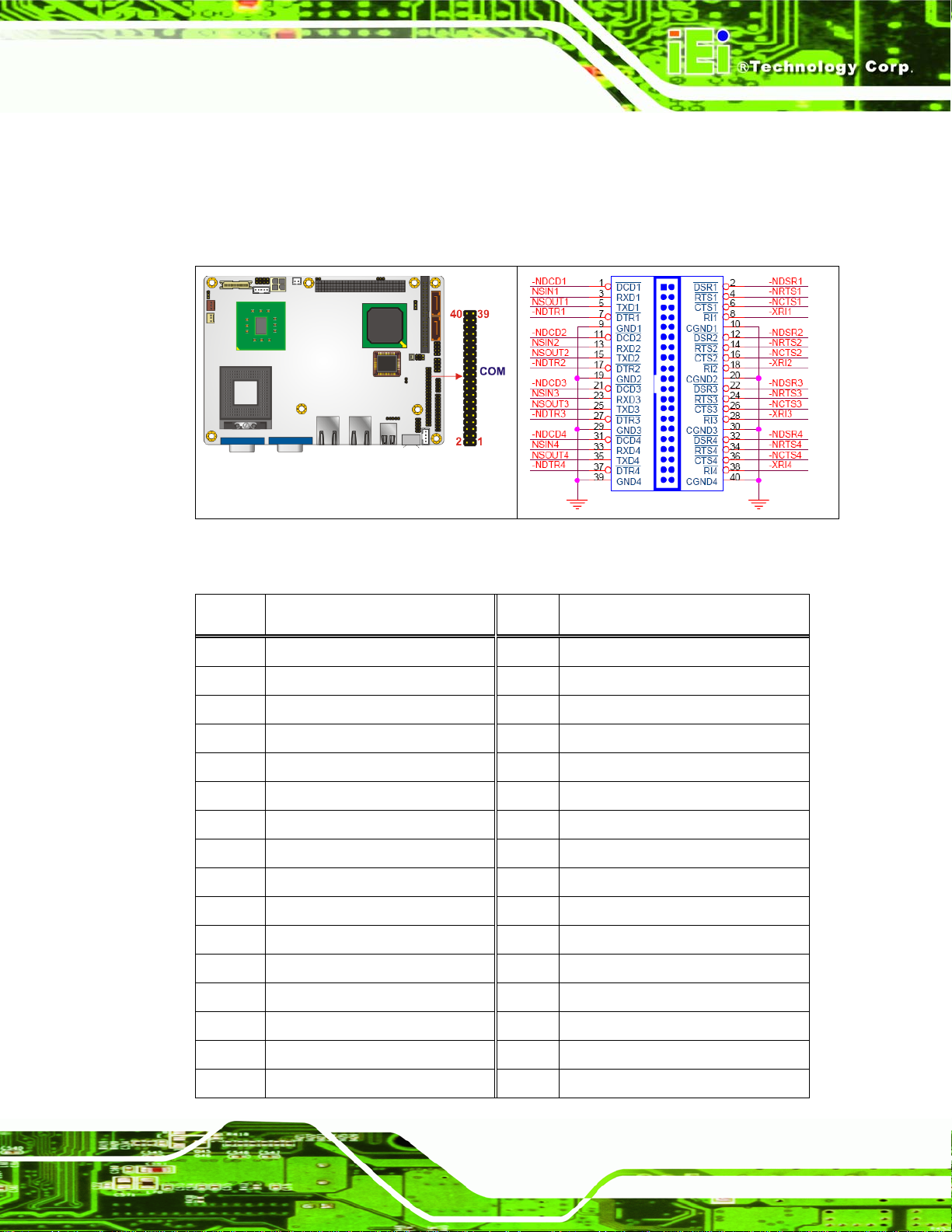

4.2.17 4-port Serial Port Connector (RS-232).......................................................... 66

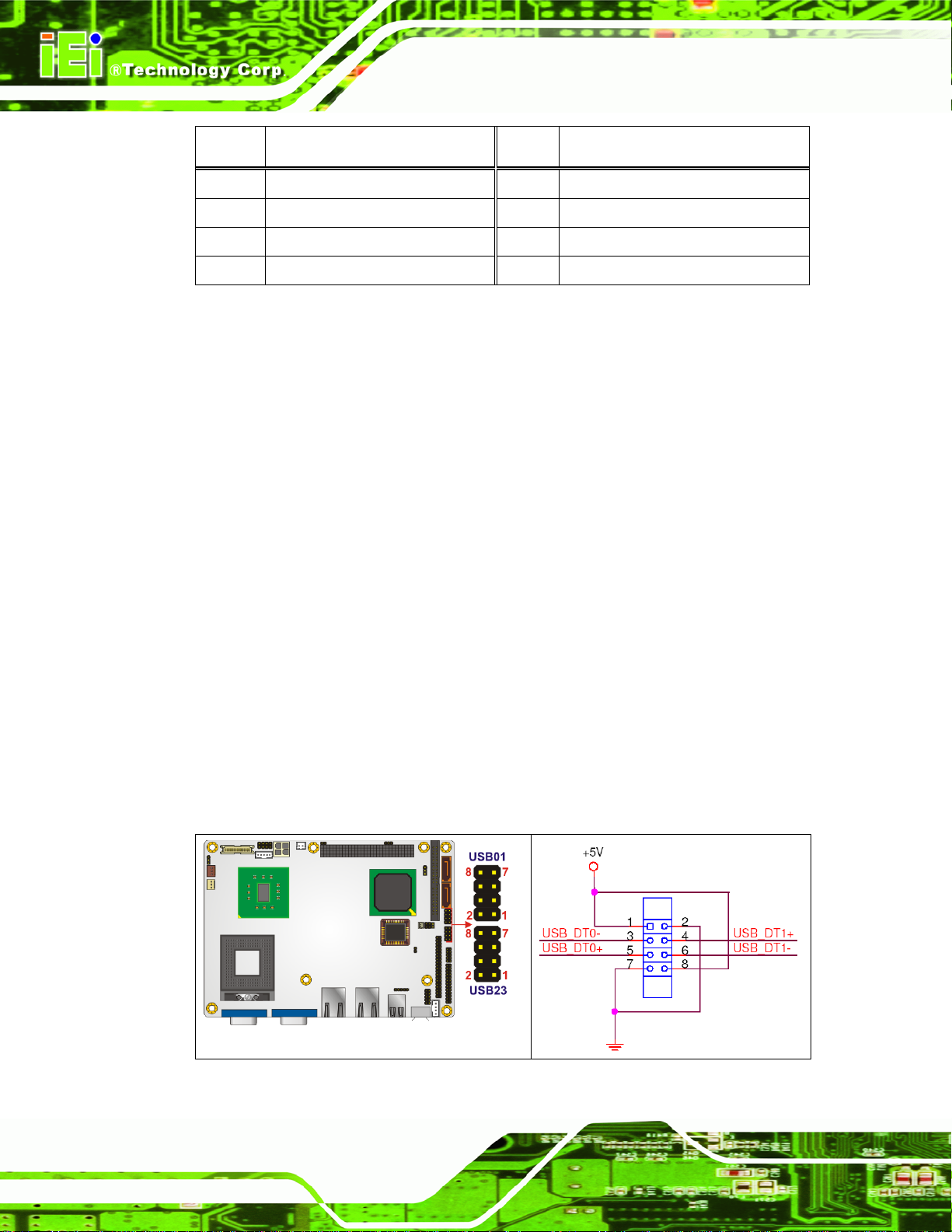

4.2.18 USB Connectors (Internal)............................................................................ 68

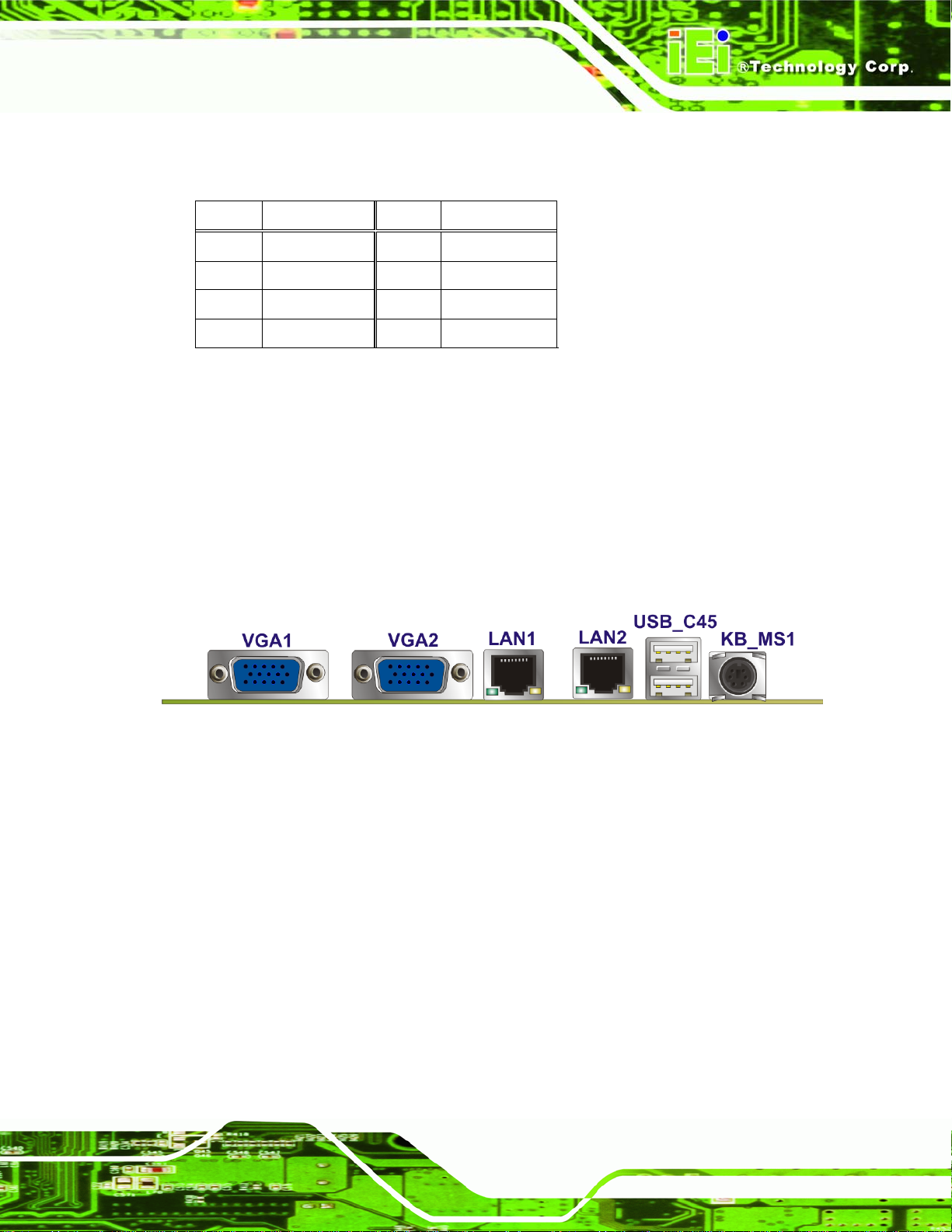

4.3 EXTERNAL PERIPHERAL INTERFACE CONNECTOR PANEL......................................... 69

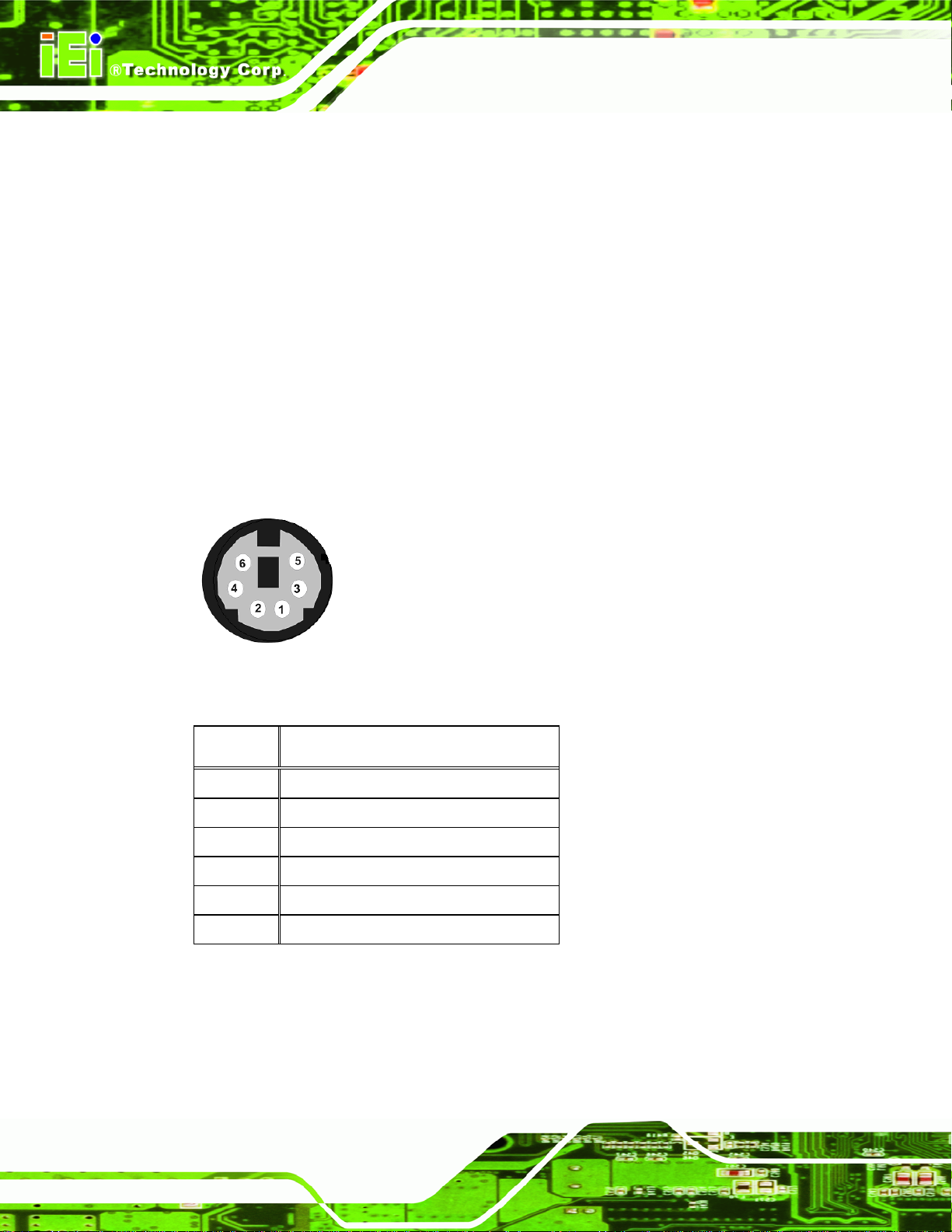

4.3.1 Keyboard/Mouse Connector............................................................................ 70
4.3.2 LAN Connectors............................................................................................... 71
4.3.3 USB Connector ................................................................................................ 72

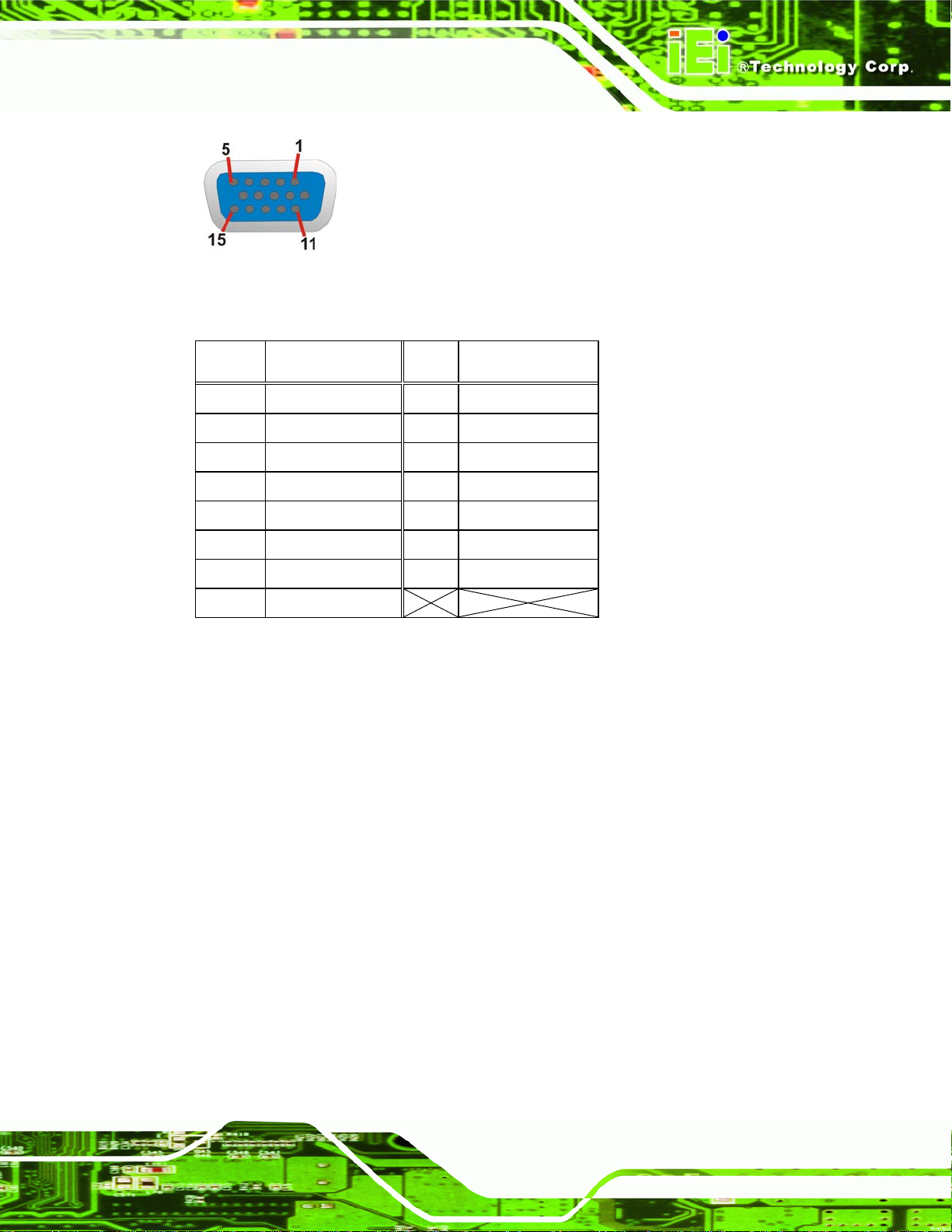

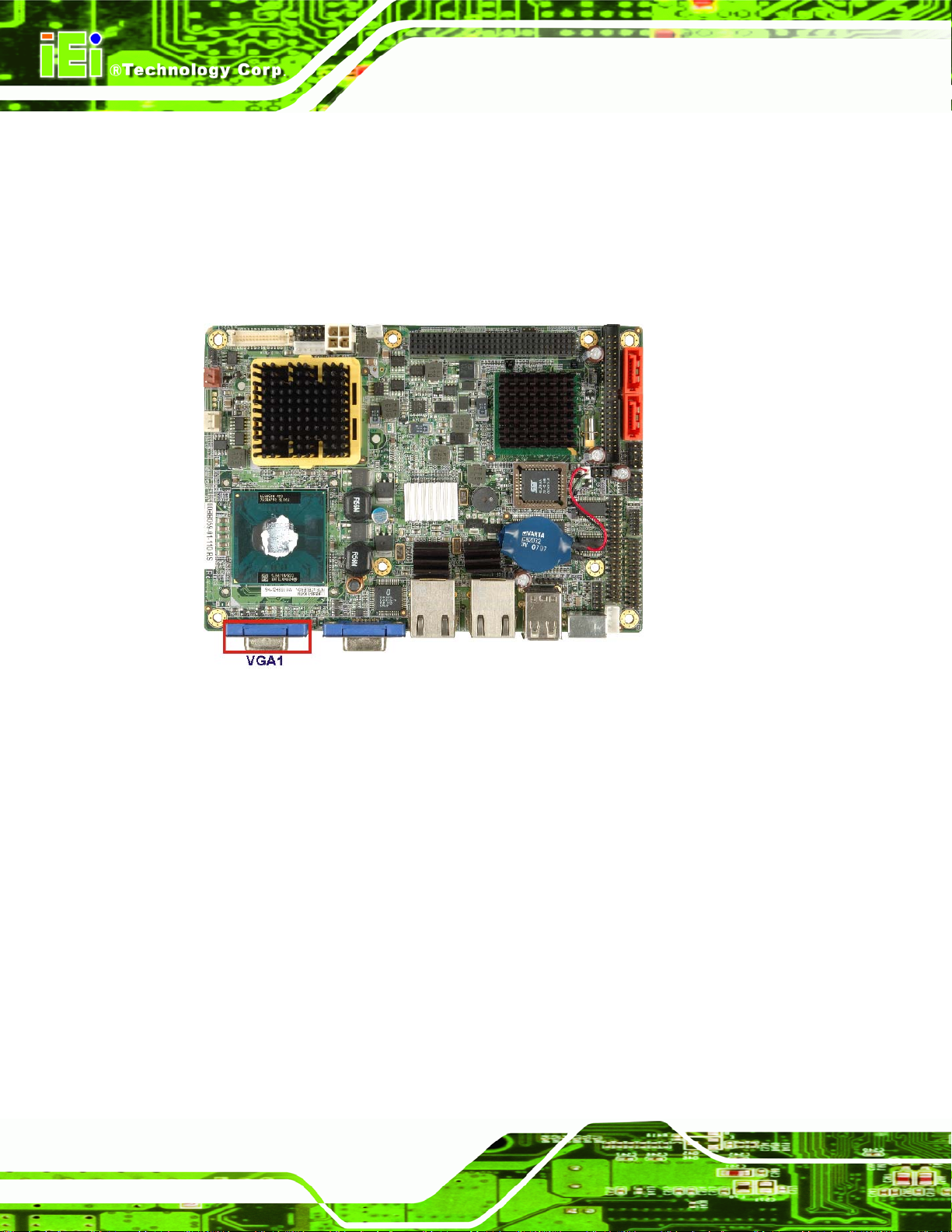

4.3.4 VGA Connector................................................................................................ 72
5 INSTALLATION .................................................................................................... 74
5.1 ANTI-STATIC PRECAUTIONS...................................................................................... 75
5.2 INSTALLATION CONSIDERATIONS ............................................................................. 76
5.2.1 Installation Notices.......................................................................................... 76
5.2.2 Installation Checklist....................................................................................... 77
5.3 CPU, CPU COOLING KIT AND DIMM INSTALLATION ............................................. 78

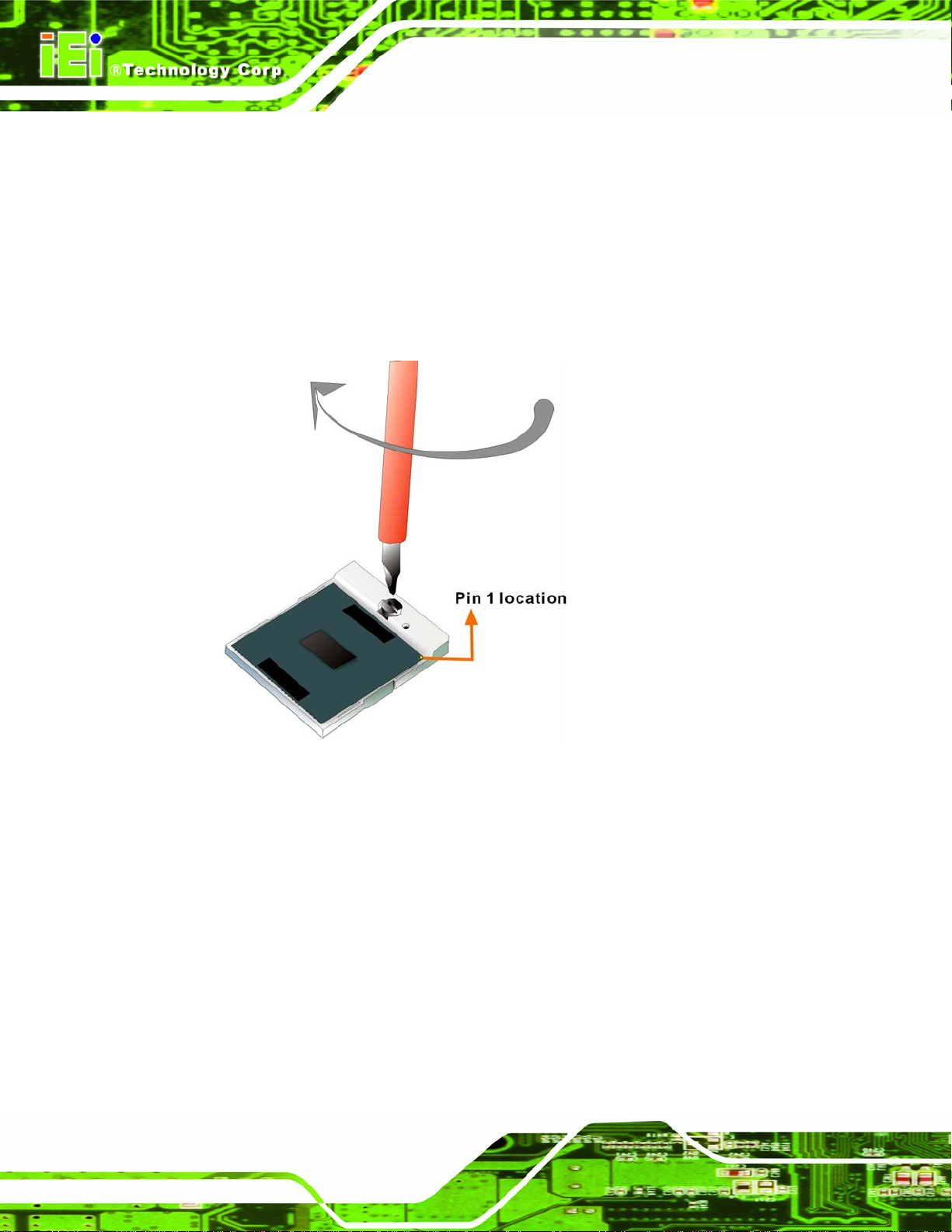

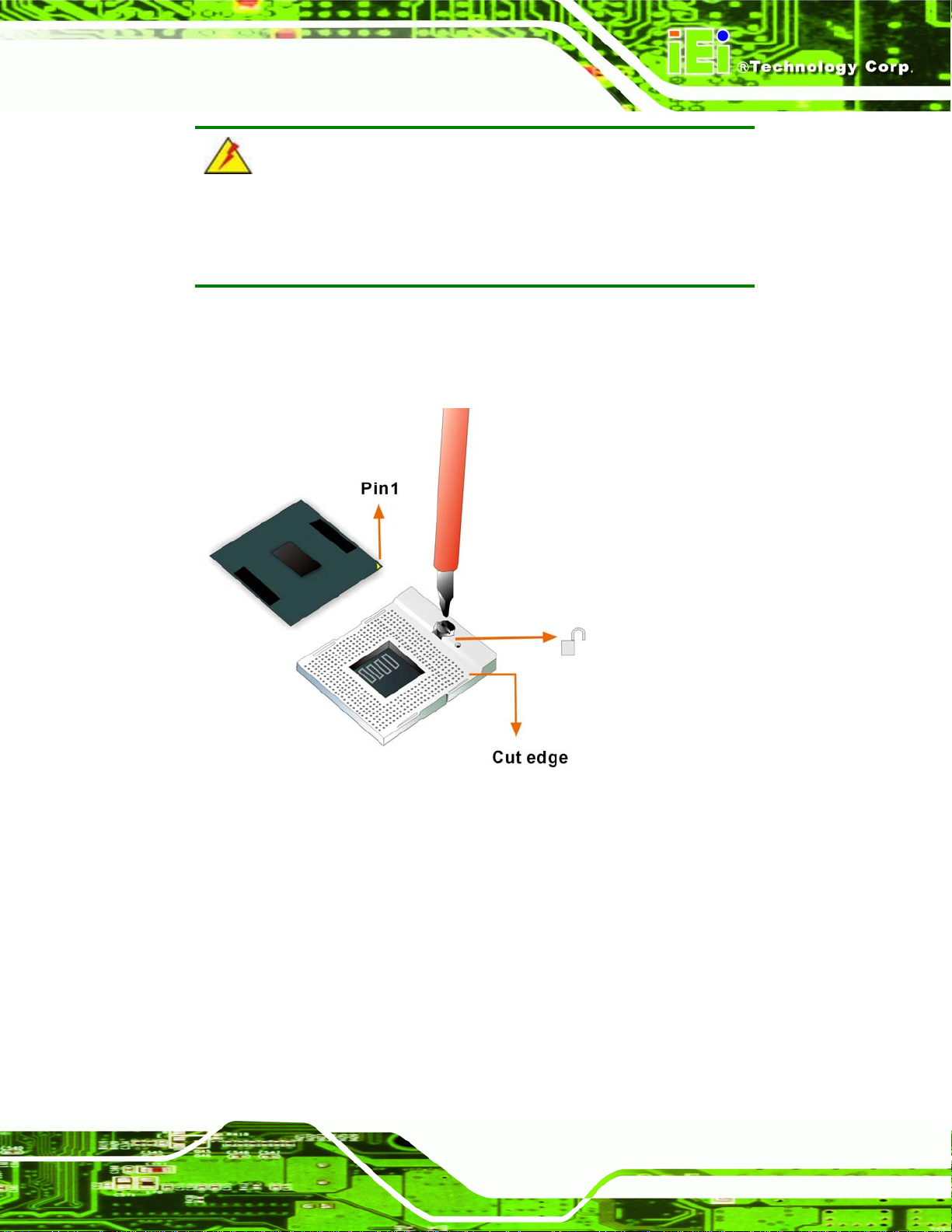

5.3.1 Socket M CPU Installation .............................................................................. 78

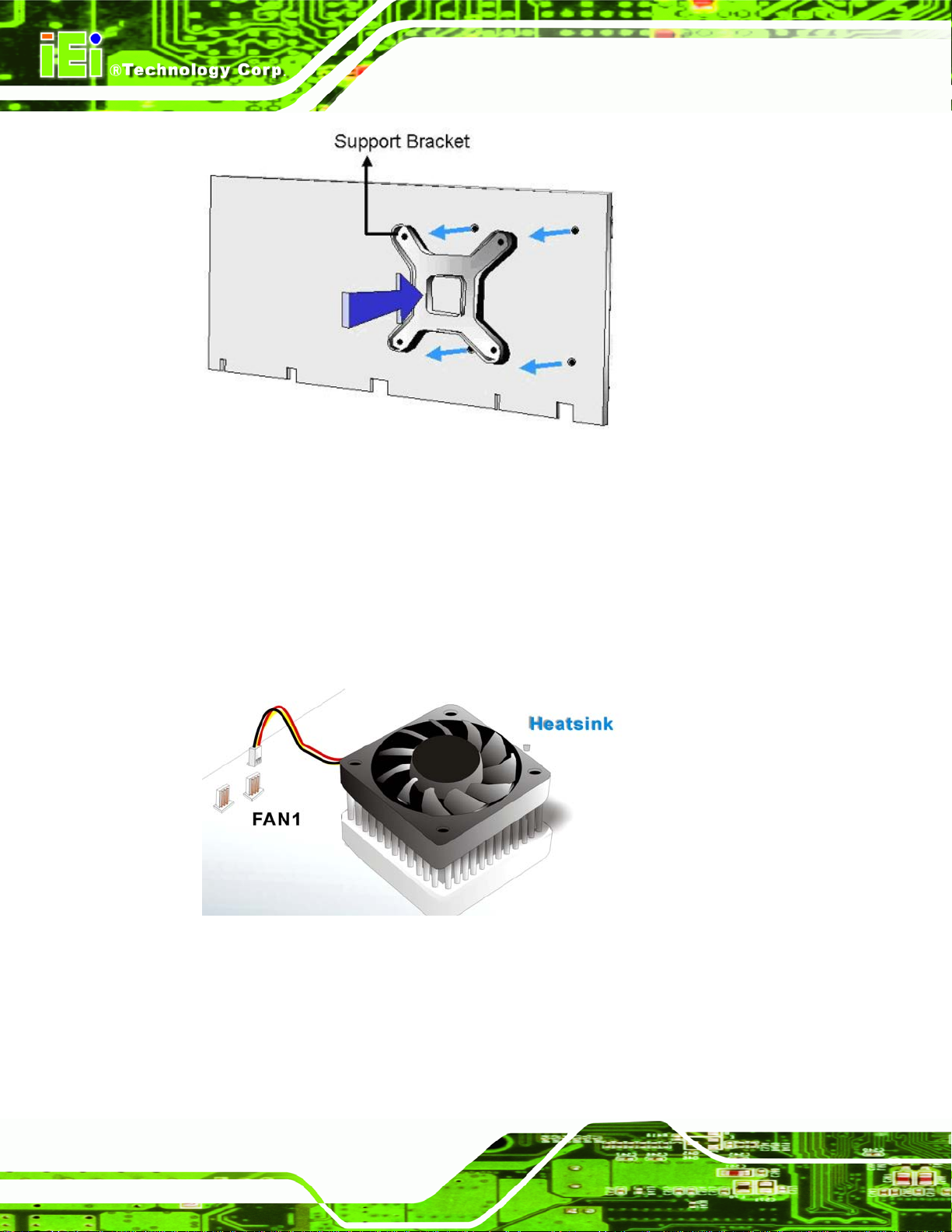

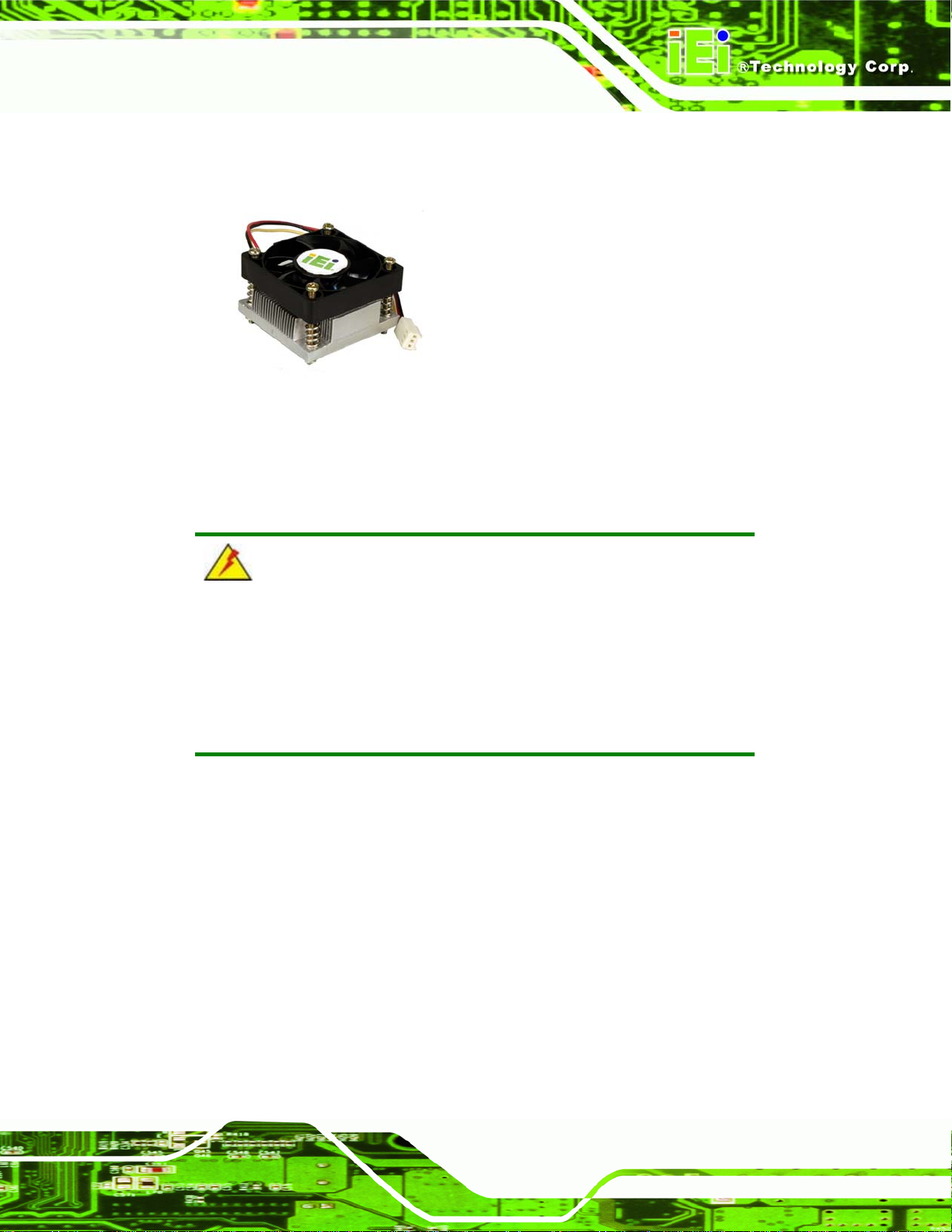

5.3.2 Cooling Kit CF-479B-RS Installation.............................................................. 81
Page ix

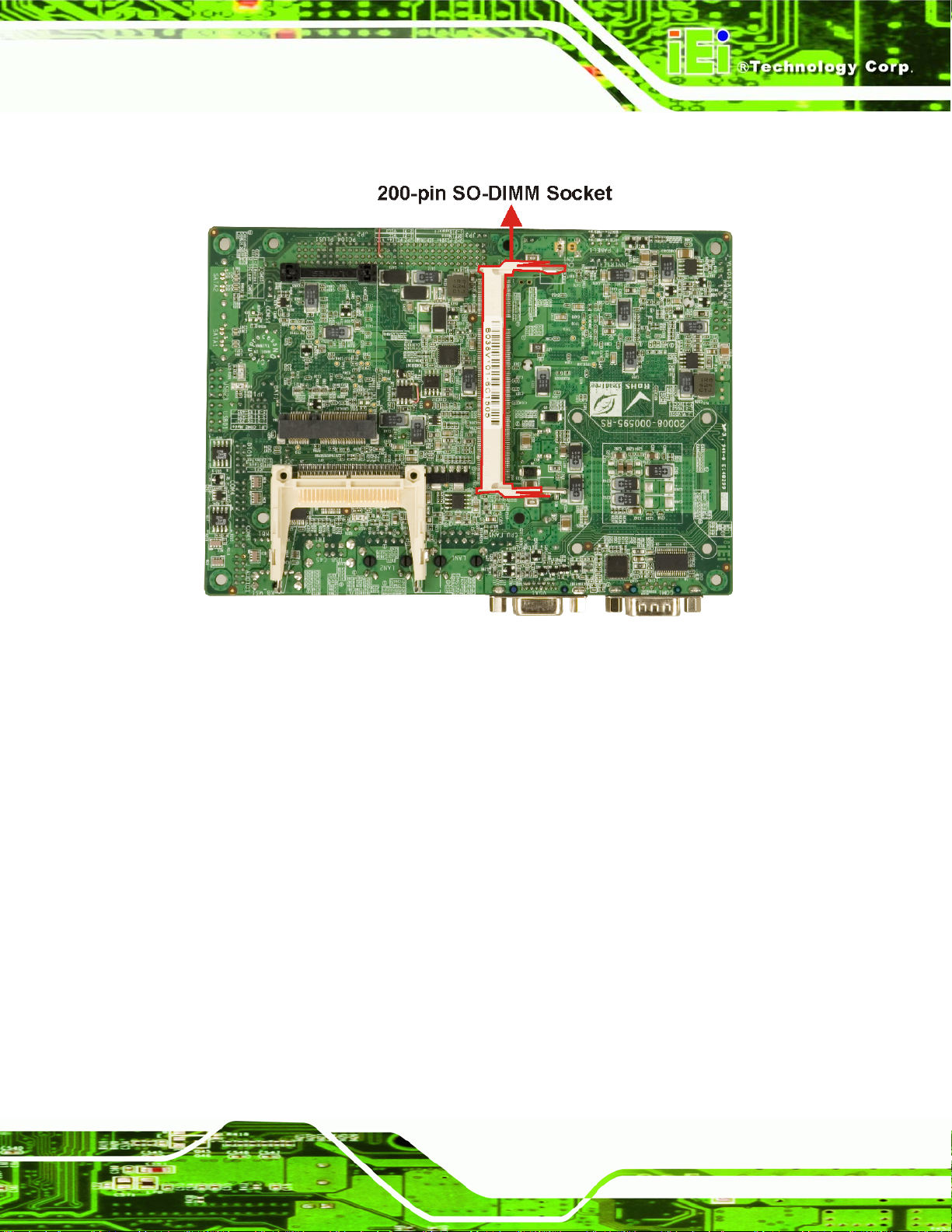

5.3.3 SO-DIMM Installation..................................................................................... 83
5.3.4 CF Card Installation........................................................................................ 84
5.4 JUMPER SETTINGS.................................................................................................... 86
5.4.1 CF Card Setup ................................................................................................. 87
5.4.2 Clear CMOS Jumper........................................................................................ 88
5.4.3 COM 2 Function Select Jumper....................................................................... 89
5.4.4 LVDS Voltage Selection.................................................................................... 90
5.4.5 PCI-104 VIO Selector Jumper......................................................................... 91
5.5 CHASSIS INSTALLATION ........................................................................................... 92
5.5.1 Airflow.............................................................................................................. 92
5.5.2 Motherboard Installation................................................................................. 93
5.6 INTERNAL PERIPHERAL DEVICE CONNECTIONS........................................................ 93
5.6.1 Peripheral Device Cables................................................................................ 93
5.6.2 IDE Cable Connection..................................................................................... 94
NANO-9453 EPIC Motherboard
5.6.3 5.1 Channel Audio Kit Installation.................................................................. 95
5.6.4 7.1 Channel Audio Kit Installation.................................................................. 97
5.6.5 SATA Drive Connection ................................................................................... 98
5.6.6 Serial Port Connector Cable (Four Ports) Cable Connection...................... 100
5.6.7 USB Cable (Dual Port).................................................................................. 101
5.7 EXTERNAL PERIPHERAL INTERFACE CONNECTION ................................................. 102
5.7.1 VGA Monitor Connection .............................................................................. 103
5.7.2 PS/2 Keyboard/Mouse Connection................................................................ 104
5.7.3 RJ-45 Ethernet Connection............................................................................ 105
5.7.4 USB Connection............................................................................................. 106
6 AMI BIOS.............................................................................................................. 108
6.1 INTRODUCTION ...................................................................................................... 109
6.1.1 Starting Setup................................................................................................. 109
6.1.2 Using Setup.................................................................................................... 109
6.1.3 Getting Help....................................................................................................110
6.1.4 Unable to Reboot After Configuration Changes.............................................110
6.1.5 BIOS Menu Bar...............................................................................................110
6.2 MAIN ......................................................................................................................111
6.3 ADVANCED..............................................................................................................112
6.3.1 CPU Configuration.........................................................................................113
Page x
NANO-9453 EPIC Motherboard
6.3.2 IDE Configuration..........................................................................................115
6.3.2.1 IDE Master, IDE Slave............................................................................116
6.3.3 Super IO Configuration.................................................................................. 122
6.3.4 Hardware Health Configuration.................................................................... 126
6.3.5 ACPI Configuration ....................................................................................... 131
6.3.5.1 General ACPI Configuration...................................................................132
6.3.6 APM Configuration........................................................................................ 134
6.3.7 MPS Configuration ........................................................................................ 137
6.3.8 Remote Access Configuration........................................................................ 138
6.3.9 USB Configuration......................................................................................... 142
6.3.9.1 USB Mass Storage Device Configuration............................................... 144
6.4 PCI/PNP ................................................................................................................ 146
6.5 BOOT ..................................................................................................................... 153
6.5.1 Boot Settings Configuration........................................................................... 153
6.5.2 Boot Device Priority...................................................................................... 156
6.6 SECURITY............................................................................................................... 158
6.7 CHIPSET ................................................................................................................. 159
6.7.1 NorthBridge Configuration............................................................................ 160
6.7.1.1 V ideo Function Configuration ................................................................ 164
6.7.2 SouthBridge Chipset Configuration............................................................... 167
6.8 EXIT....................................................................................................................... 169
7 DRIVER INSTALLATION.................................................................................. 171
7.1 AVAILABLE SOFTWARE DRIVERS............................................................................ 172
7.2 DRIVER CD AUTO-RUN.......................................................................................... 172
7.3 CHIPSET DRIVER INSTALLATION............................................................................. 173
7.4 INTEL GRAPHICS MEDIA ACCELERATOR DRIVER ................................................... 175
7.5 BROADCOM LAN DRIVER (FOR GBE LAN) INSTALLATION .................................. 179
7.6 REALTEK HD AUDIO DRIVER (ALC883) INSTALLATION ....................................... 183
7.6.1 BIOS Setup..................................................................................................... 183
7.6.2 Driver Installation ......................................................................................... 183
7.7 REALTEK AC`97 AUDIO DRIVER (ALC665) INSTALLATION .................................. 186
7.7.1 BIOS Setup..................................................................................................... 186
7.7.2 Driver Installation ......................................................................................... 186
A BIOS OPTIONS.................................................................................................... 192
Page xi
B TERMINOLOGY................................................................................................. 197
C DIO INTERFACE................................................................................................. 202
C.1 DIO INTERFACE INTRODUCTION ........................................................................... 203
C.2 DIO CONNECTOR PINOUTS ................................................................................... 203
C.3 ASSEMBLY LANGUAGE SAMPLES........................................................................... 204
C.3.1 Enable the DIO Input Function..................................................................... 204
C.3.2 Enable the DIO Output Function.................................................................. 204
D WA TCHDOG TIME R.......................................................................................... 205
E ADDRESS MAPPING.......................................................................................... 208
E.1 ADDRESS MAP....................................................................................................... 209
E.2 1ST MB MEMORY ADDRESS MAP.......................................................................... 210
E.3 IRQ MAPPING TABLE ............................................................................................ 210
E.4 DMA CHANNEL ASSIGNMENTS..............................................................................211
NANO-9453 EPIC Motherboard
F COMPATIBILITY................................................................................................ 212
F.1 COMPATIBLE OPERATING SYSTEMS ........................................................................ 213
F.2 COMPATIBLE PROCESSORS ..................................................................................... 213
F.3 COMPATIBLE MEMORY MODULES .......................................................................... 214
G HAZARDOUS MATERIALS DISCLOSURE................................................... 215
G.1 HAZARDOUS MATERIAL DISCLOSURE TABLE FOR IPB PRODUCTS CERTIFIED AS
ROHS COMPLIANT UNDER 2002/95/EC WITHOUT MERCURY..................................... 216
H INDEX.................................................................................................................... 219
Page xii
NANO-9453 EPIC Motherboard
List of Figures
Figure 1-1: NANO-9453 Overview [Front View] ...........................................................................3

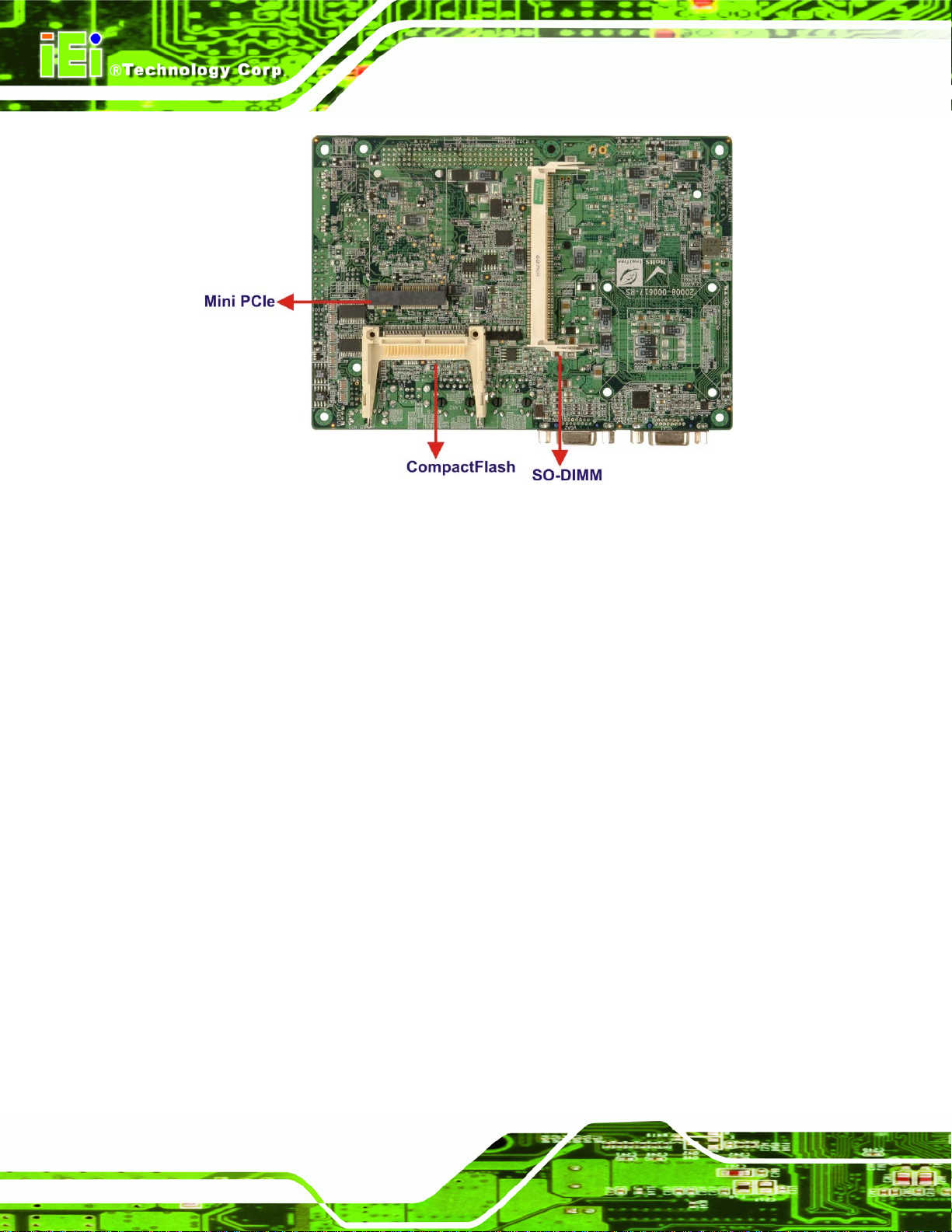

Figure 1-2: NANO-9453 Overview [Rear View].............................................................................4
Figure 2-1: NANO-9453 Dimensions (mm)...................................................................................8
Figure 2-2: External Interface Panel Dimensions (mm)..............................................................9
Figure 2-3: Data Flow Block Diagram.........................................................................................10
Figure 2-4: 200-pin SO-DIMM Socket..........................................................................................15
Figure 2-5: VGA1 Connector .......................................................................................................16
Figure 2-6: VGA2 Connectors .....................................................................................................17
Figure 2-7: LVDS Connector........................................................................................................18
Figure 2-8: Audio Connector.......................................................................................................20
Figure 2-9: IDE Connector ...........................................................................................................21
Figure 2-10: PC/104-Plus Connector ..........................................................................................23
Figure 2-11: SATA Connectors ....................................................................................................24
Figure 2-12: USB Connectors......................................................................................................25
Figure 2-13: PCIe GbE Controllers..............................................................................................26
Figure 2-14: Mini PCIe Socket.....................................................................................................27
Figure 2-15: Serial Port Chipset (Under the CF Card Socket)..................................................28
Figure 4-1: Connector and Jumper Locations...........................................................................41
Figure 4-2: Connector and Jumper Locations (Solder Side) ...................................................42
Figure 4-3: +12V ATX Power Connector Location.....................................................................45
Figure 4-4: +5V ATX Power Connector Location.......................................................................46
Figure 4-5: ATX Power Supply Enable Connector Location ....................................................47
Figure 4-6: Audio Connector Pinouts.........................................................................................48
Figure 4-7: CF Card Socket Location .........................................................................................49
Figure 4-8: DIO Connector Locations.........................................................................................51
Figure 4-9: +12V Fan Connector Location.................................................................................52
Figure 4-10: Front Panel Connector Pinout Locations.............................................................53
Figure 4-11: Secondary IDE Device Connector Locations.......................................................54
Figure 4-12: Infrared Connector Pinout Locations ...................................................................56
Figure 4-13: LVDS LCD Connector Pinout Locations...............................................................57
Figure 4-14: Mini PCIe Connector Pinout Locations.................................................................59
Page xiii
Figure 4-15: Parallel Port Connector Location..........................................................................61
Figure 4-16: PCI-104 Slot Location.............................................................................................63
Figure 4-17: SATA Drive Connector Locations..........................................................................65
Figure 4-18: RS-422/485 Serial Port Connector Location.........................................................66
Figure 4-19: 4-port Serial Port Connector Pinout Locations ...................................................67
Figure 4-20: USB Connector Pinout Locations .........................................................................69
Figure 4-21: NANO-9453 External Peripheral Interface Connector.........................................69
Figure 4-22: PS/2 Pinouts ............................................................................................................70
Figure 4-23: RJ-45 Ethernet Connector......................................................................................71
Figure 4-24: VGA Connector........................................................................................................73
Figure 5-1: Make sure the CPU socket retention screw is unlocked ......................................79
Figure 5-2: Lock the CPU Socket Retention Screw...................................................................80
Figure 5-3: IEI CF-479B-RS Cooling Kit......................................................................................81
Figure 5-4: Cooling Kit Support Bracket....................................................................................82
NANO-9453 EPIC Motherboard
Figure 5-5: Connect the cooling fan cable.................................................................................82
Figure 5-6: SO-DIMM Installation................................................................................................83
Figure 5-7: CF Card Installation..................................................................................................85
Figure 5-8: Jumper Locations.....................................................................................................86
Figure 5-9: CF Card Setup Jumper Location.............................................................................87
Figure 5-10: Clear CMOS Jumper ...............................................................................................89
Figure 5-11: COM 2 Function Select Jumper Location.............................................................90
Figure 5-12: LVDS Voltage Selection Jumper Pinout Locations..............................................91
Figure 5-13: PCI-104 VIO Selector Jumper Pinout Locations..................................................92
Figure 5-15: IDE Cable Connection.............................................................................................94
Figure 5-16: 5.1 Channel Audio Kit.............................................................................................96
Figure 5-17: 5.1 Channel Audio Kit.............................................................................................98
Figure 5-18: SATA Drive Cable Connection...............................................................................99
Figure 5-19: SATA Power Drive Connection........................................................................... 100
Figure 5-20: Four Serial Port Connector Cable Connection ................................................. 101
Figure 5-21: Dual USB Cable Connection............................................................................... 102
Figure 5-22: VGA Connector..................................................................................................... 103
Figure 5-23: PS/2 Connector .................................................................................................... 104
Figure 5-24: RJ-45 Ethernet Connector................................................................................... 106
Figure 5-25: USB Connector..................................................................................................... 107
Figure 6-1: Video Function Configuration............................................................................... 165
Page xiv
NANO-9453 EPIC Motherboard
Figure 7-1: Available Drivers.................................................................................................... 173
Figure 7-2: Chipset Driver Installation Program..................................................................... 173
Figure 7-3: Chipset Driver Installation Welcome Screen....................................................... 174
Figure 7-4: Chipset Driver Installation License Agreement.................................................. 174
Figure 7-5: Chipset Driver Readme File Information ............................................................. 175
Figure 7-6: Chipset Driver Installation Complete................................................................... 175
Figure 7-7: Select the Operating System ................................................................................ 176
Figure 7-8: VGA Driver.............................................................................................................. 176
Figure 7-9: GMA Driver Readme File....................................................................................... 177
Figure 7-10: GMA Driver File Extraction.................................................................................. 177
Figure 7-11: GMA Driver Installation Welcome Screen.......................................................... 178
Figure 7-12: GMA Driver License Agreement ......................................................................... 178
Figure 7-13: GMA Driver Installing Notice............................................................................... 179
Figure 7-14: GMA Driver Installation Complete...................................................................... 179
Figure 7-15: Access Windows Control Panel ......................................................................... 180
Figure 7-16: Double Click the System Icon............................................................................. 180
Figure 7-17: Double Click the Device Manager T ab............................................................... 181
Figure 7-18: Device Manager List ............................................................................................ 181
Figure 7-19: Search for Suitable Driver................................................................................... 182
Figure 7-20: Locate Driver Files............................................................................................... 182
Figure 7-21: Location Browsing Window................................................................................ 183
Figure 7-22: 4-AUDIO\AC-KIT883HD\Windows Folder........................................................... 184
Figure 7-23: HD Audio Driver Setup Extracting Files............................................................. 184
Figure 7-24: HD Audio Driver Setup Welcome Screen........................................................... 185
Figure 7-25: HD Audio Driver Installation Complete .............................................................. 185
Figure 7-26: CD 4-AUDIO\AC-KIT08R\Windows Folder ......................................................... 187
Figure 7-27: AC`97 Audio Driver Install Shield Wizard Starting............................................ 187
Figure 7-28: AC`97 Audio Driver Setup Preparation.............................................................. 188
Figure 7-29: AC`97 Audio Driver Welcome Screen................................................................. 188
Figure 7-30: AC`97 Audio Driver Software Configuration ..................................................... 189
Figure 7-31: AC`97 Audio Driver Digital Signal....................................................................... 189
Figure 7-32: AC`97 Audio Driver Installation Begins............................................................. 190
Figure 7-33: AC`97 Audio Driver Installation Complete......................................................... 190
Page xv
NANO-9453 EPIC Motherboard
List of Tables
Table 1-1: Technical Specifications..............................................................................................6
Table 2-1: Core™Processor Features.........................................................................................11
Table 2-2: Celeron® M Processor Features ...............................................................................11
Table 2-3: Supported Processors ...............................................................................................13
Table 2-4: Supported HDD Specifications..................................................................................22
Table 2-5: Power Consumption...................................................................................................33
Table 3-1: Package List Contents................................................................................................37
Table 3-2: Optional Items.............................................................................................................39
Table 4-1: Peripheral Interface Connectors ...............................................................................43
Table 4-2: Rear Panel Connectors ..............................................................................................44
Table 4-3: +12V ATX Power Connector Pinouts.........................................................................45
Table 4-4: +5V ATX Power Connector Pinouts...........................................................................46
Table 4-5: ATX Power Supply Enable Connector Pinouts ........................................................47
Table 4-6: Audio Connector Pinouts...........................................................................................48
Table 4-7: CF Card Socket Pinouts.............................................................................................50
Table 4-8: DIO Connector Pinouts...............................................................................................51
Table 4-9: +12V Fan Connector Pinouts.....................................................................................52
Table 4-10: Front Panel Connector Pinouts...............................................................................53
Table 4-11: Secondary IDE Connector Pinouts..........................................................................55
Table 4-12: Infrared Connector Pinouts .....................................................................................56
Table 4-13: LVDS LCD Port Connector Pinouts.........................................................................58
Table 4-14: Mini PCIe Socket Pinouts.........................................................................................60
Table 4-15: Parallel Port Connector Pinouts..............................................................................61
Table 4-16: PCI-104 Slot Connector Pinouts..............................................................................64
Table 4-17: SATA Drive Connector Pinouts................................................................................65
Table 4-18: RS-422/RS-485 Serial Port Connector Pinouts......................................................66
Table 4-19: 4-Port Serial Port Connector....................................................................................68
Table 4-20: USB Port Connector Pinouts...................................................................................69
Table 4-21: Mini-DIN 6 PS/2 Connector Pinouts ........................................................................70
Table 4-22: LAN Pinouts...............................................................................................................71
Table 4-23: RJ-45 Ethernet Connector LEDs .............................................................................72
Page xvi
NANO-9453 EPIC Motherboard
Table 4-24: USB Port Pinouts......................................................................................................72
Table 4-25: VGA Connector Pinouts...........................................................................................73
Table 5-1: Jumpers.......................................................................................................................86
Table 5-2: CF Card Setup Jumper Settings................................................................................87
Table 5-3: Clear CMOS Jumper Settings....................................................................................88
Table 5-4: COM 2 Function Select Jumper Settings .................................................................89
Table 5-5: LVDS Voltage Selection Jumper Settings.................................................................90
Table 5-6: PCI-104 VIO Selector Jumper Settings.....................................................................91
Table 5-8: IEI Provided Cables ....................................................................................................93
Table 6-1: BIOS Navigation Keys..............................................................................................110
Page xvii
NANO-9453 EPIC Motherboard
BIOS Menus
Menu 1: Main...............................................................................................................................111
Menu 2: Advanced......................................................................................................................113
Menu 3: CPU Configuration.......................................................................................................114
Menu 4: IDE Configuration ........................................................................................................115
Menu 5: IDE Master and IDE Slave Configuration...................................................................117
Menu 6: Super IO Configuration .............................................................................................. 122
Menu 7: Hardware Health Configuration................................................................................. 127
Menu 8: ACPI Configuration..................................................................................................... 132
Menu 9: General ACPI Configuration [Advanced\ ACPI Configuration] .............................. 133
Menu 10:Advanced Power Management Configuration........................................................ 134
Menu 11: MPS Configuration.................................................................................................... 137
Menu 12: Remote Access Configuration [Advanced]............................................................ 138
Menu 13: USB Configuration.................................................................................................... 142
Menu 14: USB Mass Storage Device Configuration............................................................... 144
Menu 15: PCI/PnP Configuration ............................................................................................. 147
Menu 16: Boot............................................................................................................................ 153
Menu 17: Boot Settings Configuration.................................................................................... 154
Menu 18: Boot Device Priority Settings .................................................................................. 157
Menu 19: Security...................................................................................................................... 158
Menu 20: Chipset....................................................................................................................... 159
Menu 21:NorthBridge Chipset Configuration......................................................................... 160
Menu 22:SouthBridge Chipset Configuration......................................................................... 167
Menu 23:Exit............................................................................................................................... 169
Page xviii
NANO-9453 EPIC Motherboard
Chapter
1
1 Introduction
Page 1
1.1 Introduction
The NANO-9453 EPIC form factor CPU card is a Socket M Intel® Core™2 Duo, Core™
Duo, Core™ Solo or Celeron® M CPU platform. The NANO-9453 has a maximum front
side bus (FSB) frequency of 667MHz and comes with two VGA interfaces and dual PCI
Express (PCIe) Gigabit Ethernet (GbE) controllers. The NANO-9453 supports up to two,
second-generation 3.0 Gbps serial ATA (SATA) hard disk drives (HDD) and up to six USB
2.0 devices. The NANO-9453 also has a PCI-104 socket and a Mini PCI Express (PCIe)
socket for system expansion. Multiple display support adds versatility to the system
enabling system integrators and designers increased flexibility in selecting display panel
options.
1.1.1 NANO-9453 Benefits
NANO-9453 EPIC Motherboard
Some of the NANO-9453 benefits are listed below:
Multiple display output options
Storage flexibility with support for SATA II drives, IDE drives and
CompactFlash (CF) disks
Expandable system with PCI-104 and mini PCIe slots
DDR2 support enables faster data transfers
Multiple I/O interfaces provide connectivity to a broad range of external
peripheral devices
1.1.2 NANO-9453 Features
Some of the NANO-9453 features are listed below.
Support for Socket M Intel® Core™ 2 Duo or Core™ Solo CPUs
Maximum FSB of 667MHz
Supports one 200-pin 533MHz or 667MHz 1GB DDR2 SO-DIMM memory
Two SATA II drives with transfer rates of 3.0 Gbps supported
Page 2
Two Ultra ATA 100, Ultra ATA 66 or Ultra ATA 33 IDE HDDs supported
Six USB 2.0 devices supported
Dual PCIe GbE Ethernet connectivity
Multiple display options including dual VGA-out and dual-channel LVDS
NANO-9453 EPIC Motherboard
EPIC form factor
RoHS compliant
Supports AT and ATX power supplies
1.2 NANO-9453 Overview
1.2.1 NANO-9453 Overview Photo
The NANO-9453 has a wide variety of internal and external peripheral connectors. The
peripheral connectors are connected to devices including PCI-104 devices, mini PCIe
devices, storage devices, display devices and parallel communications devices. A labeled
photo of the peripheral connectors on the front of the NANO-9453 is shown in
Figure 1-1.
Figure 1-1: NANO-9453 Overview [Front View]
A labeled photo of the peripheral connectors on the back of the NANO-9453 is shown in
Figure 1-1.
Page 3
NANO-9453 EPIC Motherboard
Figure 1-2: NANO-9453 Overview [Rear View]
1.2.2 NANO-9453 Peripheral Connectors and Jumpers
The NANO-9453 has the following connectors on-board:
1 x +5V ATX power connector
1 x +12V ATX power connector
1 x ATX enable connector
1 x Audio connector
1 x Compact flash connector
1 x Digital input/output connector
1 x Fan connector
1 x Front panel connector
1 x IDE disk drive connector
1 x Infrared interface connector
1 x Inverter connector
1 x Keyboard and mouse connector
1 x LVDS connector
Page 4
1 x Parallel port connector
1 x PCI-104 slot
1 x Mini PCIe card slot
NANO-9453 EPIC Motherboard
2 x Serial ATA (SATA) drive con ne ctors
1 x Serial port connector (RS-422 or RS-485)
1 x Serial port connector (RS-232)
2 x USB connectors
The NANO-9453 has the following external peripheral interface connectors on the board
rear panel
2 x Ethernet connectors
1 x PS/2 keyboard or mouse connector
2 x USB port connectors
2 x VGA connectors
The NANO-9453 has the following on-board jumpers:
Clear CMOS
LCD voltage selector
CF card setting
COM 2 port mode setting
PC104+ VIO selector
PC104+ SERIRQ# support
1.2.3 Technical Specifications
NANO-9453 technical specifications are listed in Table 1-1. See Chapter 2 for details.
Specification NANO-9453
Form Factor
System CPU
EPIC
Socket M Intel® Core™2 Duo (Merom core)
Socket M Intel® Core™ Duo (Merom core)
Socket M Intel® Core™ Solo (Merom core)
Socket M Intel® Celeron® M (Yonah core)
Front Side Bus
667MHz (Merom core) or 533 MHz (Yonah core)
Page 5
Specification NANO-9453
NANO-9453 EPIC Motherboard
System Chipset
Memory
Display
BIOS
Audio
LAN
COM
USB2.0
Northbridge: Intel® 945GME
Southbridge: Intel® ICH7-M
One 200-pin SO-DIMM socket supports one 533 MHz or
667 MHz DDR2 SO-DIMM with a maximum capacity of 1 GB
Dual VGA: Integrated in the Intel® 945GME to support CRT
LVDS: Dual channel 18-bit LVDS LCD panel
AMI BIOS
7.1 channel or 5.1 channel audio with an optional AC-KIT
Two Broadcom PCIe GbE controlle rs
Three RS-232 internal serial ports
One RS-232, RS-422 or RS-485 serial port
Six USB 2.0 devices supported
IDE
SATA
Keyboard/mouse
Watchdog Timer
Power Supply
Temperature
Humidity (operating)
Dimensions (LxW)
Weight (GW/NW)
Table 1-1: Technical Specifications
One 44-pin IDE connects to two Ultra ATA33/66/100 devices
Two 3.0 Gbps SATA drives supported
One PS/2 connector supports mouse and keyboard
connectivity
Software programmable 1-255 sec. by super I/O
12 V only, AT and ATX supported
0ºC – 60ºC (32ºF - 140ºF)
5%~95% non-condensing
165 mm x 115 mm
800g/ 260g
Page 6
NANO-9453 EPIC Motherboard
Chapter
2
2 Detailed Specifications
Page 7
2.1 Overview
This chapter describes the specifications and on-board features of the NANO-9453 in
detail.
2.2 Dimensions
2.2.1 Board Dimensions
The dimensions of the board are listed below:
Length: 165 mm
Width: 115 mm
NANO-9453 EPIC Motherboard
Figure 2-1: NANO-9453 Dimensions (mm)
Page 8
NANO-9453 EPIC Motherboard
2.2.2 External Interface Panel Dimensions
External peripheral interface connector panel dimensions are shown in Figure 2-2.
Figure 2-2: External Interface Panel Dimensions (mm)
Page 9
2.3 Data Flow
Figure 2-3 shows the data flow between the two on-board chip set s and other component s
installed on the motherboard and described in the following sections of this chapter .
NANO-9453 EPIC Motherboard
Figure 2-3: Data Flow Block Diagram
Page 10
NANO-9453 EPIC Motherboard
2.4 Compatible Processors
2.4.1 Compatible Processor Overview
The NANO-9453 supports the following Socket M processors:
Intel® Core™2 Duo Mobile processors
Intel® Core™ Duo processors
Intel® Core™ Solo processors
Intel® Celeron® M processors
All three of the above processors communicate with the Intel
chipset through a 667MHz front side bus (FSB). Features of the supported Core™
®
945GME Northbridge
processors are listed in
Table 2-1.
Core™ CPU Features Core™2 Duo Mobile Core™ Duo Core™ Solo
Dual core Yes Yes No
Enhanced Halt State (C1E) No Yes No
Enhanced Intel® Speedstep® Technolgy
Execute Disable Bit Yes Yes Yes
Intel® EM64T
Intel® Virtualization Technology
Yes Yes Yes
Yes No No
Yes Yes No
Table 2-1: Core™Processor Features
Features of the supported Celeron® M processors are listed in Table 2-2.
Celeron® M CPU Features Celeron® M
Execute Disable Bit Yes
Intel® EM64T
Yes
Table 2-2: Celeron® M Processor Features
Page 11
2.4.2 Supported Socket M Processors
Specifications for the compatible processors are listed in Table 2-3 below:
Processor CPU Speed Processor # Bus Speed Mfg Tech Cache Size
NANO-9453 EPIC Motherboard
Core™2 Duo Mobile
2.33 GHz T7600 667 MHz 65 nm 4 MB
2.16 GHz T7400 667 MHz 65 nm 4 MB
2 GHz T7200 667 MHz 65 nm 4 MB
2 GHz T2450 533 MHz 65 nm 2 MB
1.86 GHz T2350 533 MHz 65 nm 2 MB
1.83 GHz T5600 667 MHz 65 nm 2 MB
1.73 GHz T5300 533 MHz 65 nm 2 MB
1.73 GHz T2250 533 MHz 65 nm 2 MB
1.66 GHz T5500 667 MHz 65 nm 2 MB
1.60 GHz T5200 533 MHz 65 nm 2 MB
1.60 GHz T2050 533 MHz 65 nm 2 MB
1.50 GHz L7400 667 MHz 65 nm 4 MB
1.33 GHz L7200 667 MHz 65 nm 4 MB
1.20 GHz U7600 533 MHz 65 nm 2 MB
Page 12
Core™ Duo
1.06 GHz U7500 533 MHz 65 nm 2 MB
2.33 GHz T2700 667 MHz 65 nm 2 MB
2.16 GHz T2600 667 MHz 65 nm 2 MB
2 GHz T2500 667 MHz 65 nm 2 MB
1.83 GHz T2400 667 MHz 65 nm 2 MB
1.83 GHz L2500 667 MHz 65 nm 2 MB
1.66 GHz T2300 667 MHz 65 nm 2 MB
1.66 GHz L2400 667 MHz 65 nm 2 MB
1.50 GHz L2300 667 MHz 65 nm 2 MB
1.20 GHz U2500 533 MHz 65 nm 2 MB
NANO-9453 EPIC Motherboard
Processor CPU Speed Processor # Bus Speed Mfg Tech Cache Size
1.06 GHz U2400 533 MHz 65 nm 2 MB
1.20 GHz U2200 533 MHz 65 nm 1 MB Core™2 Solo
1.06 GHz U2100 533 MHz 65 nm 1 MB
Core™ Solo
Pentium® Dual-Core Mobile
Celeron® M
1.83 GHz T1400 667 MHz 65 nm 2 MB
1.66 GHz T1300 667 MHz 65 nm 2 MB
1.20 GHz U1400 533 MHz 65 nm 2 MB
1.06 GHz U1300 533 MHz 65 nm 2 MB
1.86 GHz T2130 533 MHz 65 nm 1 MB
1.73 GHz T2370 533 MHz 65 nm 1 MB
1.73 GHz T2080 533 MHz 65 nm 1 MB
1.60 GHz T2060 533 MHz 65 nm 1 MB
1.60 GHz T2330 533 MHz 65 nm 1 MB
1.46 GHz T2310 533 MHz 65 nm 1 MB
2 GHz 450 533 MHz 65 nm 1 MB
1.86 GHz 440 533 MHz 65 nm 1 MB
1.73 GHz 430 533 MHz 65 nm 1 MB
1.73 GHz 530 533 MHz 65 nm 1 MB
1.60 GHz 420 533 MHz N/A 1 MB
1.60 GHz 520 533 MHz 65 nm 1 MB
1.46 GHz 410 533 MHz 65 nm 1 MB
1.20 GHz 443 533 MHz 65 nm 1 MB
1.06 GHz 423 533 MHz 65 nm 1 MB
Table 2-3: Supported Processors
Page 13
NANO-9453 EPIC Motherboard
2.5 Intel® 945GME Northbridge Chipset
2.5.1 Intel® 945GME Overview
The Intel® 945GME Northbridge chipset has the Generation 3.1 Intel Integrated Graphics
Engine and the Intel® Graphics Media Accelerator 950 (Intel® GMA 950). The integrated
graphics and memory controller hub (GMCH) facilitates the flow of information primarily
between the following four interfaces:
Front Side Bus (FSB)
System Memory Interface
Graphics Interface
Direct Media Interface (DMI)
2.5.2 Intel® 945GME Memory Support
WARNING:
Only DDR2 memory module can be installed on the NANO-9453. Do
not install DDR memory modules. If a DDR memory module is installed
on the NANO-9453, the NANO-9453 may be irreparably damaged.
The Intel® 945GME Northbridge chipset on the NANO-945GME supports one DDR2
200-pin SO-DIMM with the following features:
One 200-pin SO-DIMM only
DDR2 only (DO NOT install a DDR SO-DIMM)
Single-channel or dual-channel
Capacities of 256MB, 512MB or 1GB
Page 14
Transfer speeds of 533MHz, or 667MHz
64-bit wide channel
NANO-9453 EPIC Motherboard
The memory socket is shown in Figure 2-4.
Figure 2-4: 200-pin SO-DIMM Socket
2.5.3 Intel® 945GME Integrated Graphics
The Intel® 945GME GMCH has an Intel® Gen 3.5 Integrated Graphics Engine with a 250
MHz core render clock and 200 MHz core display clock at 1.05 V core voltage. The
following Intel® 945GME graphics interfaces are also implemented on the NANO-9453:
LVDS
CRT
SDVO
One of the Intel® 945GME SDVO ports is interfaced to a Chrontel CH7317A display
controller, which is then interfaced to a second external female DB-15 VGA connector.
Page 15
NANO-9453 EPIC Motherboard
2.5.3.1 Intel® 945GME Analog CRT Support
A DB-15 VGA connector on the external peripheral interface connector panel is interfaced
to the Intel® 945GME graphics engine. The Intel® 945GME internal graphics engine, with
an integrated 400MHz RAMDAC and hot plug CRT support, supports analog CRT
monitors up to QXGA.
Figure 2-5: VGA1 Connector
2.5.3.2 Intel® 945GME SDVO to VGA
A DB-15 VGA connector is interfaced to the Intel® 945GME SDVO through a Chrontel
CH7317A display controller.
Page 16
NANO-9453 EPIC Motherboard
Figure 2-6: VGA2 Connectors
2.5.3.3 Intel® 945GME LVDS Support
A 30-pin LVDS crimp connector is interfaced to the Intel® 945GME graphics engine. The
Intel® 945GME internal graphics engine supports LVDS displays with the following
features:
Up to UXGA monitors with a maximum resolution of 1600 x 1200
18-bit 25MHz to 112MHz single-channel or dual-channel LVDS screens
CPIS 1.5 compliant LVDS screens
Page 17
NANO-9453 EPIC Motherboard
Figure 2-7: LVDS Connector
2.5.4 Intel® 945GME Direct Media Interface (DMI)
Intel® 945GME Northbridge GMCH is connected to the Intel® ICH7-M Southbridge
Chipset through the chip-to-chip Direct Media Interface (DMI). Features of the Intel®
945GME DMI are listed below:
2 GBps (1 GBps in each direction) bus speed
32-bit downstream address
Page 18
NANO-9453 EPIC Motherboard
2.6 Intel® ICH7-M Southbridge Chipset
2.6.1 Intel® ICH7-M Overview
The Intel® ICH7-M Southbridge chipset is connected to the Intel® 945GME Northbridge
through the chip-to-chip Direct Media Interface (DMI). Some of the features of the Intel®
ICH7-M are listed below.
Complies with PCI Express Base Specification, Revision 1.0a
Complies with PCI Local Bus Specification, Revision 2.3 and supports 33MHz
PCI operations
Supports ACPI Power Management Logic
Contains:
o Enhanced DMA controller
o Interrupt controller
o Timer functions
Integrated SATA host controller with DMA operations interfaced to two SATA
connectors on the NANO-9453
Integrated IDE controller supports Ultra ATA 100/66/33
Supports the six USB 2.0 devices on the NANO-9453 with four UHCI
controllers and one EHCI controller
Complies with System Management Bus (SMBus) Specification, Version 2.0
Supports Audio Codec ’97 (AC’97) Revision 2.3
Supports Intel
Contains Low Pin Count (LPC) interface
Supports Firmware Hub (FWH) interface
2.6.2 Intel® ICH7-M Audio Codec ’97 Controller
The Audio Codec ’97 (AC’97) controller integrated into the ICH7-M complies with AC’97
Component Specification, Version 2.3. The AC’97 controller is connected to the onboard
®
High Definition Audio
audio connector. The audio connector is connected to an optional 5.1 channel or 7.1
channel audio kit with an embedded AC’97 audio codec.
Page 19
NANO-9453 EPIC Motherboard
Figure 2-8: Audio Connector
The AC’97 controller supports up to six PCM audio output channels. Complete surround
sound requires six-channel audio consisting of:
Front left
Front right
Back left
Back right
Center
Subwoofer
2.6.3 Intel® ICH7-M IDE Interface
The integrated IDE interface on the ICH7-M Southbridge supports two IDE hard disks and
ATAPI devices. PIO IDE transfers up to 16MB/s and Ultra AT A transfers of 100MB/s.
Page 20
NANO-9453 EPIC Motherboard
Figure 2-9: IDE Connector
The integrated IDE interface is able to support the following IDE HDDs:
Ultra AT A/100, with data transfer rates up to 100MB/s
Ultra AT A/66, with data transfer rates up to 66MB/s
Ultra AT A/33, with data transfer rates up to 33MB/s
Specification Ultra A T A/10 0 Ultra A TA/66 Ultra A T A/10 0
IDE devices
PIO Mode
PIO Max Transfer Rate
DMA/UDMA designation
2 2 2
0 – 4 0 – 4 0 – 4
16.6 MB/s 16.6 MB/s 16.6 MB/s
UDMA 3 - 4 UDMA 3 – 4 UDMA 2
Page 21
NANO-9453 EPIC Motherboard
DMA/UDMA Max Transfer
Controller Interface
Table 2-4: Supported HDD Specifications
100MB/s 66MB/s 33MB/s
5V 5V 5V
2.6.4 Intel® ICH7-M Low Pin Count (LPC) Interface
The ICH7-M LPC interface complies with the LPC 1.1 specifications. The LPC bus from
the ICH6 is connected to the following components:
BIOS chipset
Super I/O chipset
2.6.5 Intel® ICH7-M PCI Interface
The PCI interface on the ICH7-M is compliant with the PCI Revision 2.3 implementation.
Some of the features of the PCI interface are listed below.
PCI Revision 2.3 compliant
33MHz
5V tolerant PCI signals (except PME#)
Integrated PCI arbiter supports up to seven PCI bus masters
The PCI bus on the ICH7-M Southbridge is directly connected to the PC/104-Plus
connector.
Page 22
NANO-9453 EPIC Motherboard
Figure 2-10: PC/104-Plus Connector
2.6.6 Intel® ICH7-M Real Time Clock
256 bytes of battery backed RAM is provided by the Motorola MC146818A real time clock
(RTC) integrated into the ICH6. The RTC operate s on a 3V battery and 32.768KHz cryst al.
The RTC keeps track of the time and stores system data even when the system is turned
off.
2.6.7 Intel® ICH7-M SATA Controller
The integrated SATA controller on the ICH7-M Southbridge supports two SATA drives on
the NANO-9453 with independent DMA operations.
Page 23
NANO-9453 EPIC Motherboard
Figure 2-11: SATA Connectors
SATA controller specifications are listed below.
Supports two SATA drives
Supports 3Gbps data transfer speeds
Supports Serial ATA Spe cification, Revision 1.0a
2.6.8 Intel® ICH7-M USB Controller
Up to six high-speed, full-speed or low-speed USB devices are supported by the ICH7-M
on the NANO-9453. High-speed USB 2.0, with data transfers of up to 480 MBps, is
enabled with the ICH7-M integrated Enhanced Host Controller Interface (EHCI) compliant
host controller. USB full-speed and low-speed signaling is supported by the ICH7-M
integrated Universal Host Controller Interface (UHCI) controllers.
Page 24
NANO-9453 EPIC Motherboard
Figure 2-12: USB Connectors
2.7 PCIe Bus Components
2.7.1 PCIe Bus Overview
The PCIe bus is connected to components listed below:
Two PCIe GbE Broadcom LAN chipsets
One Mini PCIe socket
2.7.2 Broadcom PCI Express GbE interface
The BCM5787M Broadcom PCI Express (PCIe) GbE controller is a 10/100/1000BASE-T
Ethernet LAN controller. The BCM5787M combines a triple-speed IEEE 802.3 compliant
Media Access Controller (MAC) with a triple-speed Ethernet transceiver, a PCIe bus
interface, and an on-chip buffer memory. Some of the BCM5787 controller features are
listed below:
Integrated 10/100/1000BASE-T transceiver
Automatic MDI crossover function
PCIe v1.0a
10/100/1000BASE-T full/half-duplex MAC
Wake on LAN support meeting the ACPI requirem ents
Statistics for SNMP MIB II, Ethernet-like MIB, and Ethernet MIB (802.3z,
Page 25
clause 30)
Serial EEPROM or serial flash support
JTAG support
The PCIe GbE controllers are shown below.
NANO-9453 EPIC Motherboard
Figure 2-13: PCIe GbE Controllers
2.7.3 Mini PCIe
The Mini PCIe socket supports Mini PCIe cards that are compliant with PCI Express Base
Specification, Revision 1.0a. The Mini PCIe cards are easily installed into the socket. Mini
PCIe cards are 30mm wide, 50.95mm long and 5mm high and come with a single 52-pin
edge connector. Supported Mini PCIe components include wireless LAN cards.
Page 26
NANO-9453 EPIC Motherboard
Figure 2-14: Mini PCIe Socket
2.8 LPC Bus Components
2.8.1 LPC Bus Overview
The LPC bus is connected to components listed below:
BIOS chipset
Super I/O chipset
Serial Port Chipset (under the CF card socket)
Page 27
NANO-9453 EPIC Motherboard
Figure 2-15: Serial Port Chipset (Under the CF Card Socket)
2.8.2 BIOS Chipset
The BIOS chipset has a licensed copy of AMI BIOS installed on the chipset. Some of the
BIOS features are listed below:
AMI Flash BIOS
Page 28
NANO-9453 EPIC Motherboard
SMIBIOS (DMI) compliant
Console redirection function support
PXE (Pre-boot Execution Environment) support
USB booting support
2.8.3 Super I/O chipset
The iTE IT8712F Super I/O chipset is connected to the ICH6 Southbridge through the LPC
bus. The iTE IT8712F is an LPC interface-based Super I/O device that comes with
Environment Controller integration. Some of the features of the iTE IT8712F chipset are
listed below:
LPC Interface
PC98/99/2001, ACPI and LANDesk Compliant
Enhanced Hardware Monitor
Fan Speed Controller
SmartGuardian Controller
Single +5V Power Supply
Two 16C550 UARTs for serial port control
One IEEE 1284 Parallel Port
Floppy Disk Controller
Keyboard Controller
Watchdog Timer
Serial IRQ Support
Vbat & Vcch Support
Single +5V Power Supply
Some of the Super I/O features are described in more detail below:
2.8.3.1 Super I/O LPC Interface
The LPC interface on the Super I/O complies with the Intel® Low Pin Count Specification
Rev. 1.0. The LPC interface supports both LDRQ# and SERIRQ protocols as well as PCI
PME# interfaces.
Page 29
NANO-9453 EPIC Motherboard
2.8.3.2 Super I/O 16C550 UARTs
The onboard Super I/O has two integrated 16C550 UARTs that can support the following:
Two standard serial ports (COM1 and COM2)
IrDa 1.0 and ASKIR protocols
Another two chipsets connected to the LPC bus provided connectivity to another two seri al
port connectors (COM3 and COM4).
2.8.3.3 Super I/O Enhanced Hardware Monitor
The Super I/O Enhanced Hardware Monitor monitors three thermal inputs, VBAT
internally, and eight voltage monitor inputs. These hardware parameters are reported in
the BIOS and can be read from the BIOS Hardware Health Configuration menu.
2.8.3.4 Super I/O Fan Speed Controller
The Super I/O fan speed controller enables the system to monitor the speed of the fan.
One of the pins on the fan connector is reserved for fan speed detection and interfaced to
the fan speed controller on the Super I/O. The fan speed is then reported in the BIOS.
2.8.3.5 Super I/O Parallel Port
The Super I/O parallel port (LPT) supports standard mode, enhanced mode and
high-speed mode parallel port devices. The LPT is compliant with the following LPT
modes.
Standard mode
o Bi-directional SPP compliant
Enhanced mode
o EPP v1.7 compliant
o EPP v1.9 compliant
Page 30
High-speed mode
o ECP, IEEE 1284 compliant
NANO-9453 EPIC Motherboard
2.8.3.6 Super I/O Keyboard Controller
The Super I/O keyboard controller can execute the 8042 instruction set. Some of the
keyboard controller features are listed below:
The 8042 instruction is compatible with a PS/2 keyboard and PS/2 mouse
Gate A20 and Keyboard reset output
Supports multiple keyboard power on events
Supports mouse double-click and/or mouse move power on events
2.8.4 Fintek F81216DG LPC Serial Port Chipset
The Fintek F81216DG chipset enables the addition of two additional UART serial ports
(COM3 and COM4). UART includes 16-byte send/receive FIFO. The Fintek serial port
chipset is interfaced to the Southbridge chipset through the LP C bus. Some of the features
of the Fintek chipset are listed below:
Supports LPC interface
Totally provides 4 UART (16550 asynchronous) ports
o 3 x Pure UART
o 1 x UART+IR
One Watch dog timer with WDTOUT# signal
One Frequency input 24/48MHz
Powered by 3Vcc
2.9 Environmental and Power Specifications
2.9.1 System Monitoring
Three thermal inputs on the NANO-9453 Super I/O Enhanced Hardware Monitor monitor
the following temperatures:
System temperature
Power temperature
CPU temperature
Page 31
NANO-9453 EPIC Motherboard
Eight voltage inputs on the NANO-9453 Super I/O Enhanced Hardware Monitor monitor
the following voltages:
Vcore
+2.5V
+3.3V
+5.0V
+12.0V
DDR Vtt
+1.5V
5VSB
The NANO-9453 Super I/O Enhanced Hardware Monitor also monitors the following
voltages internally:
VBAT
The NANO-9453 Super I/O Enhanced Hardware Monitor also monitors the following fan
speeds:
CPU Fan speed
The values for the above environmental parameters are all recorded in the BIOS
Hardware Health Configuration menu.
2.9.2 Operating Temperature and Temperature Control
The maximum and minimum operating temperatures for the NANO-9453 are listed below.
Minimum Operating Temperature: 0ºC (32°F)
Maximum Operating Temperature: 60°C (140°F)
A cooling fan and heat sink must be installed on the CPU. Thermal paste must be
Page 32
smeared on the lower side of the heat sink before it is mounted on the CPU. Heat sinks
are also mounted on the Northbridge and Southbridge chipsets to ensure the operating
temperature of these chips remain low.
NANO-9453 EPIC Motherboard
2.9.3 Power Consumption
Table 2-5 shows the power consumption parameters for the NANO-9453 running a
2.16 GHz Intel® Core™2 Duo mobile processor with 1GB of 533 MHz DDR2 memory.
Voltage Current
+12 V 3.29 A
5 VSB 0.26 A
Table 2-5: Power Consumption
Page 33
NANO-9453 EPIC Motherboard
Chapter
3
3 Unpacking
Page 34
NANO-9453 EPIC Motherboard
3.1 Anti-static Precautions
WARNING:
Failure to take ESD precautions during the installation of the
NANO-9453 may result in permanent damage to the NANO-9453 and
severe injury to the user.
Electrostatic discharge (ESD) can cause serious damage to electronic components,
including the NANO-9453. Dry climates are especially susceptible to ESD. It is therefore
critical that whenever the NANO-9453, or any other electrical component is handled, the
following anti-static precautions are strictly adhered to.
Wear an anti-static wristband: - Wearing a simple anti-static wristband can
help to prevent ESD from damaging the board.
Self-grounding:- Before handling the board touch any grounded conducting
material. During the time the board is handled, frequently touch any
conducting materials that are connected to the ground.
Use an anti-static pad: When configuring the NANO-9453, place it on an
antic-static pad. This reduces the possibility of ESD damaging the
NANO-9453.
Only handle the edges of the PCB:- When handling the PCB, hold the PCB
by the edges.
3.2 Unpacking
3.2.1 Unpacking Precautions
When the NANO-9453 is unpacked, please do the following:
Follow the anti-static precautions outlined in Section 3.1.
Make sure the packing box is facing upwards so the NANO-9453 does not fall
out of the box.
Make sure all the components shown in Section 3.3 are present.
Page 35
3.3 Unpacking Checklist
NOTE:
If some of the components listed in the checklist below are missing,
please do not proceed with the installation. Contact the IEI reseller or
vendor you purchased the NANO-9453 from or contact an IEI sales
representative directly. To contact an IEI sales representative, please
NANO-9453 EPIC Motherboard
send an email to
sales@iei.com.tw.
3.3.1 Package Contents
The NANO-9453 is shipped with the following components:
Quantity Item and Part Number Image
1 NANO-9453
1 Quad RS-232
(P/N: 32100-147900-RS)
Page 36
1 IDE cable 44p/44p
(P/N: 32200-000009-RS)
1 KB/MS cable
(P/N: 32000-000138-RS)
NANO-9453 EPIC Motherboard
2 SATA cables
(P/N: 32000-062800-RS)
1 SATA power cable
(P/N: 32100-088600-RS)
1 Power cable
(P/N: 32100-087100-RS)
1 Mini jumper Pack
1 Quick Installation Guide
1 Utility CD
Table 3-1: Package List Contents
Page 37
3.3.2 Optional Items
NOTE:
The items listed in this section are optional items that must be ordered
separately. Please contact your NANO-9453 vendor, distributor or
reseller for more information or, contact iEi directly by sending an email
to
The following optional items are available for the NANO-9453.
Quantity Item and Part Number Image
NANO-9453 EPIC Motherboard
sales@iei.com.tw.
1 USB cable
(P/N: 32000-070300-RS)
1 RS-422/485 cable
(P/N: 32200-074800-RS)
1 LPT cable
(P/N: 32200-000017-RS)
1 ATX cable
(P/N: 32100-052100-RS)
1 CPU cooler
(P/N: CF-479B-RS)
Page 38
NANO-9453 EPIC Motherboard
Quantity Item and Part Number Image
1 5.1 Channel audio kit with Realtek
ALC655
(P/N: AC-KIT08R)
1 7.1 Channel HD audio kit with
Realtek ALC883 supporting dual
audio streams
(P/N: AC-KIT-883HD)
Table 3-2: Optional Items
Page 39
NANO-9453 EPIC Motherboard
Chapter
4
4 Connector Pinouts
Page 40
NANO-9453 EPIC Motherboard
4.1 Peripheral Interface Connectors
Section 4.1.2 shows peripheral interface connector locations. Section 4.1.2 lists all the
peripheral interface connectors seen in Section
4.1.2.
4.1.1 NANO-9453 Layout
Figure 4-1 shows the on-board peripheral connectors, rear panel peripheral connectors
and on-board jumpers.
Figure 4-1: Connector and Jumper Locations
Page 41
NANO-9453 EPIC Motherboard
Figure 4-2: Connector and Jumper Locations (Solder Side)
4.1.2 Peripheral Interface Connectors
Ta ble 4-1 shows a list of the peripheral interface connectors on the NANO-9453. Detailed
descriptions of these connectors can be found below.
Connector Type Label
+12V ATX power supply connector 4-pin ATX connector CN1 and CN2

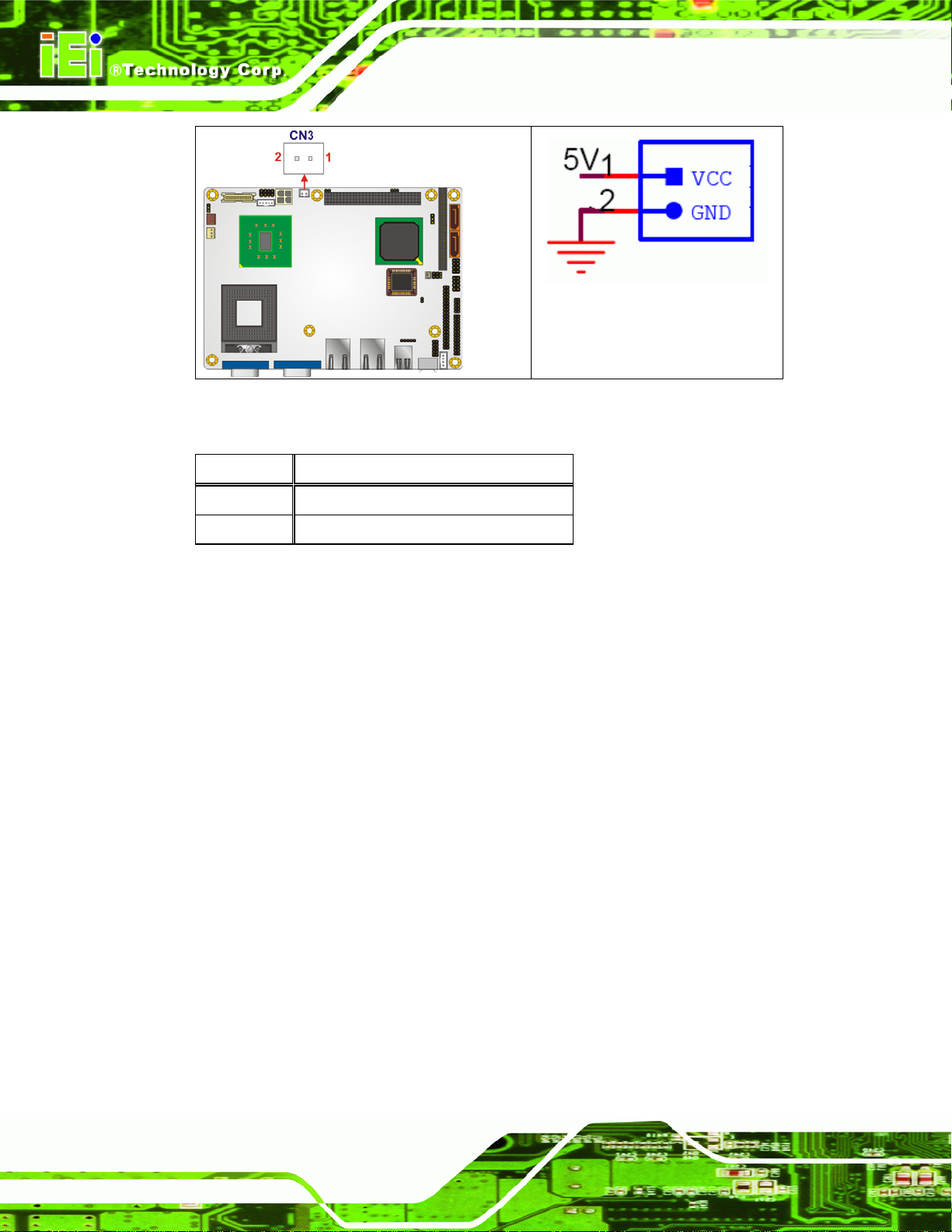

+5V power connector 2-pin ATX connector CN3
ATX enable connector 3-pin wafer ATXCTL1
Audio connector 14-pin header J_AUDIO1
Compact Flash (CF) connector 50-pin header JCF1
Page 42
Digital I/O connector 10-pin header DIO1
Fan connector 3-pin wafer CPU_FAN1
NANO-9453 EPIC Motherboard
Connector Type Label
Front panel connector 8-pin header F_PANEL1
IDE Interface connector 44-pin header IDE1
Infrared connector 5-pin header IR1
Inverter power connector 5-pin header INVERTER1
LVDS connector 30-pin crimp LVDS1
Parallel port connector 26-pin header LPT1
PCI-104 slot 104-pin slot PC104_PLUS1
PCIe Mini Card slot 52-pin slot CN4
Serial ATA (SATA) connector 7-pin SATA connector SATA1
Serial ATA (SATA) connector 7-pin SATA connector SATA2
Serial port connectors (Four RS-232 ports) 40-pin header COM
Serial port connector (RS-422/485) 4-pin wafer connector CN5
USB connector 8-pin header USB01
USB connector 8-pin header USB23
Table 4-1: Peripheral Interface Connectors
4.1.3 External Interface Panel Connectors
Table 4-2 lists the rear panel connectors on the NANO-9453. Detailed descriptions of
these connectors can be found in Section
Connector Type Label
Ethernet connector RJ-45 LAN1
4.3 on page 69
Ethernet connector RJ-45 LAN2
Keyboard and mouse connector PS/2 connector KB_MS1
Page 43
Connector Type Label
USB port USB port USB_C45
VGA port con nectors Female DB-15 VGA1 and VGA2
Table 4-2: Rear Panel Connectors
4.2 Internal Peripheral Connectors
Internal peripheral connectors are found on the motherboard and are only accessible
when the motherboard is outside of the chassis. This section has complete descriptions of
all the internal, peripheral connectors on the NANO-9453.
4.2.1 +12V ATX Power Supply Connector
NANO-9453 EPIC Motherboard
CN Label:
CN Type:
CN Location:
CN Pinouts:
The 4-pin +12V ATX power supply connector is connected to a +12V ATX power supply.
CN1 and CN2
4-pin ATX power connector (1x4)
Figure 4-3
See
Table 4-3
See
Page 44
NANO-9453 EPIC Motherboard
Figure 4-3: +12V ATX Power Connector Location
PIN NO. DESCRIPTION
1 GND
2 GND
3 +12V
4 +12V
Table 4-3: +12V ATX Power Connector Pinouts
4.2.2 +5V ATX Power Supply Connector
CN Label:
CN Type:
CN Location:
CN Pinouts:
The 2-pin +5V ATX power supply connector is connected to a +5V ATX power supply.
CN3
2-pin Wafer (1 x 2)
Figure 4-4
See
Table 4-4
See
Page 45
NANO-9453 EPIC Motherboard
Figure 4-4: +5V ATX Power Connector Location
PIN NO. DESCRIPTION
1 VCC
2 GND
Table 4-4: +5V ATX Power Connector Pinouts
4.2.3 ATX Power Supply Enable Connector
CN Label:
CN Type:
CN Location:
CN Pinouts:
The ATX power supply enable connector enables the NANO-9453 to be connected to an
ATX power supply. In default mode, the NANO-9453 can only us an AT power supply. To
enable an ATX power supply the AT Power Select jumper must also be configured. Please
refer to Chapter 3 for more details.
ATXCTL1
3-pin wafer (1x3)
Figure 4-5
See
Table 4-5
See
Page 46
NANO-9453 EPIC Motherboard
Figure 4-5: ATX Power Supply Enable Connector Location
PIN NO. DESCRIPTION
1 GND
2 PS_ON#
3 +5V Standby
Table 4-5: ATX Power Supply Enable Connector Pinouts
4.2.4 Audio Connector (9-pin)
CN Label:
CN Type:
CN Location:
CN Pinouts:
An optional module can be connected to the 10-pin audio connector to provide the system
with a high quality AC’97 or Azalia compatible codec that provides a complete integrated
audio solution.
J_AUDIO1
9-pin header
See
See
Figure 4-6
Table 4-6
Page 47
NANO-9453 EPIC Motherboard
Figure 4-6: Audio Connector Pinouts
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 AC97_SYNC 2 AC97_BITCLK
3 AC97_SDOUT 4 AC97_PCBEEP
5 AC97_SDIN 6 AC97_RST#
7 AC97_VCC 8 AC97_GND
9 AC97_12V
Table 4-6: Audio Connector Pinouts
4.2.5 Compact Flash Socket
CN Label:
CN Type:
CN Location:
CN Pinouts:
A CF Type I or Type II memory card is inserted to the CF socket on the solder side of the
CF1 (solder side)
50-pin header (2x25)
Figure 4-7
See
Table 4-7
See
Page 48
NANO-9453.
NANO-9453 EPIC Motherboard
Figure 4-7: CF Card Socket Location
Page 49
NANO-9453 EPIC Motherboard
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 GROUND 26 VCC-IN CHECK1
2 DATA 3 27 DATA 11
3 DATA 4 28 DATA 12
4 DATA 5 29 DATA 13
5 DATA 6 30 DATA 14
6 DATA 7 31 DATA 15
7 HDC_CS0# 32 HDC_CS1
8 N/C 33 N/C
9 GROUND 34 IOR#
10 N/C 35 IOW#
11 N/C 36 VCC_COM
12 N/C 37 IRQ15
13 VCC_COM 38 VCC_COM
14 N/C 39 CSEL
15 N/C 40 N/C
16 N/C 41 HDD_RESET
17 N/C 42 IORDY
18 SA2 43 SDREQ
19 SA1 44 SDACK#
20 SA0 45 HDD_ACTIVE#
21 DATA 0 46 66DET
22 DATA 1 47 DATA 8
23 DATA 2 48 DATA 9
24 N/C 49 DATA 10
25 VCC-IN CHECK2 50 GROUND
Table 4-7: CF Card Socket Pinouts
Page 50
NANO-9453 EPIC Motherboard
4.2.6 Digital Input/Output (DIO) Connector
CN Label:
CN Type:
CN Location:
CN Pinouts:
DIO1
10-pin header (2x5)
Figure 4-8
See
Table 4-8
See
The digital input/output connector is managed through a Super I/O chip. The DIO
connector pins are user programmable.
Figure 4-8: DIO Connector Locations
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 GND 2 VCC
3 Output 3 4 Output 2
5 Output 1 6 Output 0
7 Input 3 8 Input 2
9 Input 1 10 Input 0
Table 4-8: DIO Connector Pinouts
4.2.7 Fan Connector
CN Label:
CN Type:
CPU_FAN1
3-pin header
Page 51
See
See
Figure 4-9
Table 4-9
CN Location:
CN Pinouts:
NANO-9453 EPIC Motherboard
The cooling fan connector provides a 12V, 500mA current to a system cooling fan. The
connector has a "rotation" pin to get rotation signals from fans and notify the system so the
system BIOS can recognize the fan speed. Please note that only specified fans can issue
the rotation signals.
Figure 4-9: +12V Fan Connector Location
PIN NO. DESCRIPTION
1 Rotation Signal
2 +12V
3 GND
Table 4-9: +12V Fan Connector Pinouts
4.2.8 Front Panel Connector (12-pin)
F_PANEL1
Page 52
CN Label:
NANO-9453 EPIC Motherboard
CN Type:
CN Location:
CN Pinouts:
12-pin header (2x6)
Figure 4-10
See
Table 4-10
See
The front panel connector connects to external switches and indicators to monitor and
controls the motherboard. These indicators and switches include:
Power button
Reset button
Power LED
HDD LED
Figure 4-10: Front Panel Connector Pinout Locations
FUNCTION PIN DESCRIPTION FUNCTION PIN DESCRIPTION
1 PWRBTSW- 2 VCC Power
Button
3 Ground
5 VCC 6 SYSRST- HDD LED
7 -HDLED
Table 4-10: Front Panel Connector Pinouts
Power LED
4 Ground
Reset
8 GND
Page 53
4.2.9 IDE Connector(44-pin)
NANO-9453 EPIC Motherboard
CN Label:
CN Type:
CN Location:
CN Pinouts:
One 44-pin IDE device connector on the NANO-9453 supports connectivity to two hard
disk drives.
IDE1
44-pin header (2x22)
Figure 4-11
See
Table 4-11
See
Figure 4-11: Secondary IDE Device Connector Locations
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
Page 54
NANO-9453 EPIC Motherboard
1 RESET# 2 GROUND
3 DATA 7 4 DATA 8
5 DATA 6 6 DATA 9
7 DATA 5 8 DATA 10
9 DATA 4 10 DATA 11
11 DATA 3 12 DATA 12
13 DATA 2 14 DATA 13
15 DATA 1 16 DATA 14
17 DATA 0 18 DATA 15
19 GROUND 20 N/C
21 IDE DRQ 22 GROUND
23 IOW# 24 GROUND
25 IOR# 26 GROUND
27 IDE CHRDY 28 GROUND
29 IDE DACK 30 GROUND–DEFAULT
31 INTERRUPT 32 N/C
33 SA1 34 N/C
35 SA0 36 SA2
37 HDC CS0# 38 HDC CS1#
39 HDD ACTIVE# 40 GROUND
41 VCC 42 VCC
43 GROUND 44 N/C
Table 4-11: Secondary IDE Connector Pinouts
4.2.10 Infrared Interface Connector (5-pin)
CN Label:
CN Type:
CN Location:
IR1
5-pin header (1x5)
Figure 4-12
See
Table 4-12
CN Pinouts:
See
Page 55
NANO-9453 EPIC Motherboard
The infrared interface connector supports both Serial Infrared (SIR) and Amplitude Shift
Key Infrared (ASKIR) interfaces.
Figure 4-12: Infrared Connector Pinout Locations
PIN NO. DESCRIPTION
1 VCC
2 NC
3 IR-RX
4 GND
5 IR-TX
Table 4-12: Infrared Connector Pinouts
4.2.11 LVDS LCD Connector
CN Label:
CN Type:
CN Location:
CN Pinouts:
LVDS1
30-pin crimp (2x10)
Figure 4-13
See
Table 4-13
See
Page 56
The 30-pin LVDS LCD connector can be connected to single channel or dual channel,
18-bit or 36-bit LVDS panel.
NANO-9453 EPIC Motherboard
Figure 4-13: LVDS LCD Connector Pinout Locations
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 GROUND 2 GROUND
3 LVDSA_Y0+ 4 LVDSA_Y05 LVDSA_Y1+ 6 LVDSA_Y17 LVDSA_Y2+ 8 LVDSA_Y29 LVDSA_CLK+ 10 LVDSA_CLK11 N/C 12 N/C
13 GROUND 14 GROUND
15 LVDSB_Y0+ 16 LVDSB_Y017 LVDSB_Y1+ 18 LVDSB_Y119 LVDSB_Y2+ 20 LVDSB_Y221 LVDSB_CLK+ 22 LVDSB_CLK-
Page 57
23 N/C 24 N/C
25 GROUND 26 GROUND
27 VCC_LVDS 28 VCC_LVDS
29 VCC_LVDS 30 VCC_LVDS
Table 4-13: LVDS LCD Port Connector Pinouts
4.2.12 Mini PCIe Socket
NANO-9453 EPIC Motherboard
CN Label:
CN Type:
CN Location:
CN Pinouts:
The 52-pin mini PCIe socket supports the latest PCIe extension cards such as wireless
LAN cards and other compatible devices.
CN4
26-pin box header
See
See
Page 58
NANO-9453 EPIC Motherboard
Figure 4-14: Mini PCIe Connector Pinout Locations
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 PCIE_WAKE# 2 VCC3
3 N/C 4 GND
5 N/C 6 1.5V
7 CLKREQ# 8 LFRAME#
9 GND 10 LAD3
11 CLK- 12 LAD2
13 CLK+ 14 LAD1
15 GND 16 LAD0
17 PCIRST# 18 GND
19 LPC 20 VCC3
21 GND 22 PCIRST#
23 PERN2 24 3VDual
25 PERP2 26 GND
27 GND 28 1.5V
29 GND 30 SMBCLK
31 PETN2 32 SMBDATA
Page 59
33 PETP2 34 GND
35 GND 36 USBD37 N/C 38 USBD+
39 N/C 40 GND
41 N/C 42 N/C
43 N/C 44 RF_LINK#
45 N/C 46 BLUELED#
47 N/C 48 1.5V
49 N/C 50 GND
51 N/C 52 VCC3
Table 4-14: Mini PCIe Socket Pinouts
4.2.13 Parallel Port Connector
NANO-9453 EPIC Motherboard
CN Label:
CN Type:
CN Location:
CN Pinouts:
LPT1
26-pin box header
Figure 4-15
See
Table 4-15
See
The 26-pin parallel port connector connects to a parallel port connector interface or some
other parallel port device such as a printer.
Page 60
NANO-9453 EPIC Motherboard
Figure 4-15: Parallel Port Connector Location
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 STROBE# 2 DATA 0
3 DATA 1 4 DATA 2
5 DATA 3 6 DATA 4
7 DATA 5 8 DATA 6
9 DATA 7 10 ACKNOWLEDGE
11 BUSY 12 PAPER EMPTY
13 PRINTER SELECT 14 AUTO FORM FEED #
15 ERROR# 16 INITIALIZE
17 PRINTER SELECT LN# 18 GROUND
19 GROUND 20 GROUND
21 GROUND 22 GROUND
23 GROUND 24 GROUND
25 GROUND 26 NC
Table 4-15: Parallel Port Connector Pinouts
4.2.14 PCI-104 Slot
CN Label:
PC104_PLUS1
CN Type:
CN Location:
120-pin PCI-104 slot
Figure 4-16
See
Page 61
See
CN Pinouts:
The PCI-104 slot enables a PCI-104 compatible expansi on mod ul e to be con nected to the
board.
Table 4-16
NANO-9453 EPIC Motherboard
Page 62
NANO-9453 EPIC Motherboard
Figure 4-16: PCI-104 Slot Location
Pin No. Column A Column B Column C Column D
1 GND/5V TBD1 5V AD00
2 VI/O1 AD02 AD01 +5V
3 AD05 GND AD04 AD03
4 C/BE0# AD07 GND AD06
5 GND AD09 AD08 GND
6 AD11 VI/O2 AD10 M66EN
7 AD14 AD13 GND AD12
8 +3.3V C/BE1# AD15 +3.3V
Page 63
NANO-9453 EPIC Motherboard
Pin No. Column A Column B Column C Column D
9 SERR# GND SB0# PAR
10 GND PERR# +3.3V SDONE
11 STOP# +3.3V LOCK# GND
12 +3.3V TRDY# GND DEVSEL#
13 FRAME# GND IRDY# +3.3V
14 GND AD16 +3.3V C/BE2#
15 AD18 +3.3V AD17 GND
16 AD21 AD20 GND AD19
17 +3.3V AD23 AD22 +3.3V
18 IDSEL0 GND IDSEL1 IDSEL2
19 AD24 C/BE3# VI/O1 IDSEL3
20 GND AD26 AD25 GND
21 AD29 +5V AD28 AD27
22 +5V AD30 GND AD31
23 REQ0# GND REQ1# VI/O2
24 GND REQ2# +5V GNT0#
25 GNT1# VI/O3 GNT2# GND
26 +5V CLK0 GND CLK1
27 CLK2 +5V CLK3 GND
28 GND INTD# +5V RST#
29 +12V INTA# INTB# INTC#
30 -12V TBD2 TBD GND/3.3V
Table 4-16: PCI-104 Slot Connector Pinouts
4.2.15 SATA Drive Connectors
Page 64
CN Label:
CN Type:
CN Location:
SATA1 and SATA2
7-pin SATA drive connectors
Figure 4-17
See
NANO-9453 EPIC Motherboard
See
CN Pinouts:
Table 4-17
The two SATA drive connectors are each connected to a first generation SATA drive. First
generation SATA drives transfer data at speeds as high as 150Mb/s.
Figure 4-17: SATA Drive Connector Locations
PIN NO. DESCRIPTION
1 GND
2 TX+
3 TX4 GND
5 RX6 RX+
7 GND
Table 4-17: SATA Drive Connector Pinouts
4.2.16 Serial Port Connector (RS-422 or RS-485)
CN Label:
CN Type:
CN Location:
CN5
4-pin header (2x7)
Figure 4-18
See
Page 65
See
CN Pinouts:
Table 4-18
NANO-9453 EPIC Motherboard
The 4-pin serial port connector supports RS-422 or RS-485 serial port.
Figure 4-18: RS-422/485 Serial Port Connector Location
PIN NO. DESCRIPTION
1 TXD485#
2 TXD485+
3 RXD485+
4 RXD485#
Table 4-18: RS-422/RS-485 Serial Port Connector Pinouts
4.2.17 4-port Serial Port Connector (RS-232)
CN Label:
CN Type:
CN Location:
CN Pinouts:
The 40-pin serial port connector contains the following four serial ports, COM 1, COM 2,
COM 3 and COM 4. COM 3 and COM 4 are RS-232 serial communications channels.
COM
40-pin header (2x20)
Figure 4-19
See
Table 4-19
See
Page 66
COM 2 is a multi function channel. In default mode COM 2 is an RS-232 serial
communication channel but, with the COM 2 function select jumper, can be configured as
either an RS-422 or RS-485 serial communications channel. The serial port locations are
specified below.
NANO-9453 EPIC Motherboard
COM 1 is located on pin 1 to pin 10
COM 2 is located on pin 11 to pin 20
COM 3 is located on pin 21 to pin 30
COM 4 is located on pin 31 to pin 40
Figure 4-19: 4-port Serial Port Connector Pinout Locations
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 DAT A CARRIER DETECT (DCD1) 2 DATA SET READY (DSR1)
3 RECEIVE DATA (RXD1) 4 REQUEST TO SEND (RTS1)
5 TRANSMIT DATA (TXD1) 6 CLEAR TO SEND (CTS1)
7 DATA TERMINAL READY (DTR1) 8 RING INDICATOR (RI1)
9 GND 10 GND
11 DATA CARRIER DETECT (DCD2) 12 DATA SET READY (DSR2)
13 RECEIVE DATA (RXD2) 14 REQUEST TO SEND (RTS2)
15 TRANSMIT DATA (TXD2) 16 CLEAR TO SEND (CTS2)
17 DATA TERMINAL READY (DTR2) 18 RING INDICATOR (RI2)
19 GND 20 GND
21 DATA CARRIER DETECT (DCD3) 22 DATA SET READY (DSR3)
23 RECEIVE DATA (RXD3) 24 REQUEST TO SEND (RTS3)
25 TRANSMIT DATA (TXD3) 26 CLEAR TO SEND (CTS3)
27 DATA TERMINAL READY (DTR3) 28 RING INDICATOR (RI3)
29 GND 30 GND
31 DATA CARRIER DETECT (DCD4) 32 DATA SET READY (DSR4)
Page 67
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
33 RECEIVE DATA (RXD4) 34 REQUEST TO SEND (RTS4)
35 TRANSMIT DATA (TXD4) 36 CLEAR TO SEND (CTS4)
37 DATA TERMINAL READY (DTR4) 38 RING INDICATOR (RI4)
39 GND 40 GND
Table 4-19: 4-Port Serial Port Connector
4.2.18 USB Connectors (Internal)
NANO-9453 EPIC Motherboard
CN Label:
CN Type:
CN Location:
CN Pinouts:
The 2x4 USB pin connectors each provide connectivity to two USB 1.1 or two USB 2.0
ports. Each USB connector can support two USB devices. Additional external USB ports
are found on the rear panel. The USB ports are used for I/O bus expansion.
USB01 and USB23
8-pin header (2x4)
Figure 4-20
See
Table 4-20
See
Page 68
NANO-9453 EPIC Motherboard
Figure 4-20: USB Connector Pinout Locations
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 VCC 2 GND
3 DATA- 4 DATA+
5 DATA+ 6 DATA7 GND 8 VCC
Table 4-20: USB Port Connector Pinouts
4.3 External Peripheral Interface Connector Panel
Figure 4-21 shows the NANO-9453 rear panel. The NANO-9453 rear panel consists of
two RJ-45 Ethernet connectors, a PS/2 keyboard connector a USB port and a VGA
connector. These connectors are accessible when the NANO-9453 is installed in a
chassis.
Figure 4-21: NANO-9453 External Peripheral Interface Connector
Page 69
4.3.1 Keyboard/Mouse Connector
NANO-9453 EPIC Motherboard
CN Label:
CN T ype:
CN Location:
CN Pinouts:
KB_MS1
Mini-DIN 6 PS/2
Figure 4-21
See
Figure 4-22 and Table 4-21
See
The NANO-9453 CPU card has a mini-DIN 6 PS/2 connector on the mounting bracket for
easy connection to a PS/2 keyboard or PS/2 mouse. The card comes with a cable to
convert the mini-DIN 6 PS/2 into two mini-DIN 6 PS/2 connectors for keyboard and mouse
connection.
Figure 4-22: PS/2 Pinouts
PIN DESCRIPTION
1 KEYBOARD DATA
2 MOUSE DATA
3 GND
4 VCC
5 KEYBOARD CLOCK
6 MOUSE CLOCK
Table 4-21: Mini-DIN 6 PS/2 Connector Pinouts
Page 70
NANO-9453 EPIC Motherboard
4.3.2 LAN Connectors
CN Label:
CN Type:
CN Location:
CN Pinouts:
LAN1 and LAN2
RJ-45
Figure 4-21
See
Table 4-22
See
The NANO-9453 is equipped with two built-in GbE Ethernet controllers. The controllers
can connect to the LAN through two RJ-45 LAN connectors. There are two LEDs on the
connector indicating the status of LAN. The pin assignments are listed in the following
table:
PIN DESCRIPTION PIN DESCRIPTION
1 MDIA3- 5 MDIA1+
2 MDIA3+ 9 MDIA2+3 MDIA2- 10 MDIA0-
4 MDIA1- 11 MDIA0+
Table 4-22: LAN Pinouts
Figure 4-23: RJ-45 Ethernet Connector
The RJ-45 Ethernet connector has two status LE Ds, one g reen and one yellow. The green
LED indicates activity on the port and the yellow LED indicates the port is linked. See
Table 4-23.
Page 71
NANO-9453 EPIC Motherboard
STATUS
GREEN Activity YELLOW Linked
Table 4-23: RJ-45 Ethernet Connector LEDs
DESCRIPTION STATUS DESCRIPTION
4.3.3 USB Connector
CN Label:
CN T ype:
CN Location:
CN Pinouts:
The NANO-9453 has a one external USB 2.0 port. The port connects to both USB 2.0 and
USB 1.1 devices.
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
USB_C45
USB port
Figure 4-21
See
Table 4-24
See
1 VCC 5 VCC
2 DATA- 6 DATA3 DATA+ 7 DATA+
4 GROUND 8 GROUND
Table 4-24: USB Port Pinouts
4.3.4 VGA Connector
CN Label:
CN Type:
CN Location:
CN Pinouts:
The NANO-9453 has two 15-pin female connectors for connectivity to standard display
devices.
VGA1 and VGA2
15-pin Female
Figure 4-21
See
Figure 4-24 and Table 4-25
See
Page 72
NANO-9453 EPIC Motherboard
Figure 4-24: VGA Connector
PIN DESCRIPTION PIN DESCRIPTION
1 RED 2 GREEN
3 BLUE 4 NC
5 GND 6 GND
7 GND 8 GND
9 VCC / NC 10 GND
11 NC 12 DDC DAT
13 HSYNC 14 VSYNC
15 DDCCLK
Table 4-25: VGA Connector Pinouts
Page 73
NANO-9453 EPIC Motherboard
Chapter
5
5 Installation
Page 74
NANO-9453 EPIC Motherboard
5.1 Anti-static Precautions
WARNING:
Failure to take ESD precautions during the installation of the
NANO-9453 may result in permanent damage to the NANO-9453 and
severe injury to the user.
Electrostatic discharge (ESD) can cause serious damage to electronic components,
including the NANO-9453. Dry climates are especially susceptible to ESD. It is therefore
critical that whenever the NANO-9453, or any other electrical component is handled, the
following anti-static precautions are strictly adhered to.
Wear an anti-static wristband: - Wearing a simple anti-static wristband can
help to prevent ESD from damaging the board.
Self-grounding:- Before handling the board touch any grounded conducting
material. During the time the board is handled, frequently touch any
conducting materials that are connected to the ground.
Use an anti-static pad: When configuring the NANO-9453, place it on an
antic-static pad. This reduces the possibility of ESD damaging the
NANO-9453.
Only handle the edges of the PCB:-: When handling the PCB, hold the PCB
by the edges.
Page 75
5.2 Installation Considerations
NOTE:
The following installation notices and installation considerations should
be read and understood before the NANO-9453 is installed. All
installation notices pertaining to the installation of the NANO-9453
should be strictly adhered to. Failing to adhere to these precautions
may lead to severe damage of the NANO-9453 and injury to the person
installing the motherboard.
5.2.1 Installation Notices
NANO-9453 EPIC Motherboard
WARNING:
The installation instructions described in this manual should be
carefully followed in order to prevent damage to the NANO-9453,
NANO-9453 components and injury to the user.
Before and during the installation please DO the following:
Read the user manual:
o The user manual provides a complete description of the NANO-9453
installation instructions and configuration options.
Wear an electrostatic discharge cuff (ESD):
o Electronic components are easily damaged by ESD. Wearing an ESD cuff
removes ESD from the body and helps prevent ESD damage.
Place the NANO-9453 on an antistatic pad:
o When installing or configuring the motherboard, place it on an antistatic
Page 76
pad. This helps to prevent potential ESD damage.
Turn all power to the NANO-9453 off:
NANO-9453 EPIC Motherboard
o When working with the NANO-9453, make sure that it is disconnected
from all power supplies and that no electricity is being fed into the system.
Before and during the installation of the NANO-9453 DO NOT:
Remove any of the stickers on the PCB board. These stickers are required for
warranty validation.
Use the product before verifying all the cables and power connectors are
properly connected.
Allow screws to come in contact with the PCB circuit, connector pins, or its
components.
5.2.2 Installation Checklist
The following checklist is provided to ensure the NANO-9453 is properly installed.
All the items in the packing list are present
The CPU is installed
The CPU cooling kit is properly installed
A compatible memory module is properly inserted into the slot
The CF Type I or CF Type II card is properly installed into the CF socket
The jumpers have been properly configured
The NANO-9453 is inserted into a chassis with adequate ventilation
The correct power supply is being used
The following devices are properly connected
o IDE device
o SATA drives
o Keyboard and mouse cable
o Audio kit
o Power supply
o USB cable
o Serial port cable
o Parallel port cable
The following external peripheral devices are properly connected to the
chassis:
o VGA screen
Page 77
NANO-9453 EPIC Motherboard
o Keyboard
o Mouse
o RS-232 serial communications device
5.3 CPU, CPU Cooling Kit and DIMM Installation
WARNING:
A CPU should never be turned on without the specified cooling kit
being installed. If the cooling kit (heat sink and fan) is not properly
installed and the system turned on, permanent damage to the CPU,
NANO-9453 and other electronic components attached to the system
may be incurred. Running a CPU without a cooling kit may also result
in injury to the user.
The CPU, CPU cooling kit and DIMM are the most critical component s of the NANO-9453.
If one of these component is not installed the NANO-9453 cannot run.
5.3.1 Socket M CPU Installation
WARNING:
CPUs are expensive and sensitive components. When installing the
CPU please be careful not to damage it in anyway. Make sure the CPU
is installed properly and ensure the correct cooling kit is properly
installed.
To install a Socket M CPU onto the NANO-9453, follow the steps below:
Page 78
NANO-9453 EPIC Motherboard
WARNING:
When handling the CPU, only hold it on the sides. DO NOT touch the
pins at the bottom of the CPU.
Step 1: Unlock the CPU retention screw. When shipped, the retention screw of the
CPU socket should be in the unlocked position. If it is not in the unlocked
position, use a screwdriver to unlock the screw. See
Figure 5-1.
Figure 5-1: Make sure the CPU socket retention screw is unlocked
Step 2: Inspect the CPU socket. Make sure there are no bent pins and make sure the
socket contacts are free of foreign material. If any debris is found, remove it with
compressed air.
Step 3: Correctly Orientate the CPU. Make sure the IHS (integrated heat sink) side is
facing upwards.
Step 4: Correctly position the CPU. Match the Pin 1 mark with the cut edge on the
CPU socket. See
Figure 5-1.
Page 79
Step 5: Align the CPU pins. Carefully align the CPU pins with the holes in the CPU
socket.
Step 6: Insert the CPU. Gently insert the CPU into the socket. If the CPU pins are
properly aligned, the CPU should slide into the CPU socket smoothly.
Step 7: Lock the retention screw. Rotate the retention screw into the locked position.
Figure 5-2.Step 0:
See
NANO-9453 EPIC Motherboard
Page 80
Figure 5-2: Lock the CPU Socket Retention Screw
NANO-9453 EPIC Motherboard
5.3.2 Cooling Kit CF-479B-RS Installation
Figure 5-3: IEI CF-479B-RS Cooling Kit
An IEI Socket M CPU cooling kit can be purchased separately. The cooling kit comprises a
CPU heat sink and a cooling fan.
WARNING:
Do not wipe off (accidentally or otherwise) the pre-sprayed layer of
thermal paste on the bottom of the CF-479B-RS heat sink. The thermal
paste between the CPU and the heat sink is important for optimum
heat dissipation.
To install the CF-479B-RS cooling kit, please follow the steps below.
Step 1: Place the cooling kit onto the CPU. Make sure the CPU cooling fan cable
can be properly routed when the cooling kit is install ed.
Step 2: Properly align the cooling kit. Make sure its four spring screw fasteners can
pass through the pre-drilled holes on the PCB.
Step 3: Secure the cooling kit. From the solder side of the PCB, align the support
bracket to the screw threads on heat sink that were inserted through the PCB
holes. (See
Figure 5-4)
Page 81
Figure 5-4: Cooling Kit Support Bracket
Step 4: Tighten the screws. Use a screwdriver to tighten the four screws. Tighten each
NANO-9453 EPIC Motherboard
nut a few turns at a time and do not over-tighten the screws.
Step 5: Connect the fan cable. Connect the cooling kit fan cable to the fan connector
on the motherboard. Carefully route the cable and avoid heat generating chips
and fan blades. See
Figure 5-5: Connect the cooling fan cable
Figure 5-5. Step 0:
Page 82
