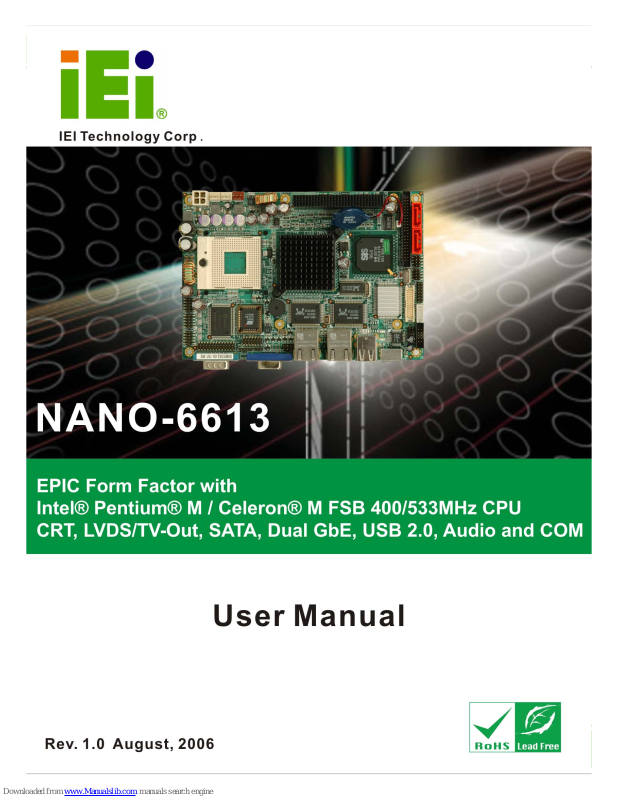

IEI Technology NANO-6613 User Manual

Download

0-1

NANO-6613 Motherboard

0-2

IEI

Technology, Corp.

REVISION HISTORY

Title NANO-6613Intel Pentium M/Celeron M Motherbard Revision Number Description Date of Issue

1.0 Initial release July 2006

The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer.

In no event is the manufacturer liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.

This document contains proprietary information protected by copyright. All rights are reserved. No part of this manual may be reprodu ced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer.

TRADEMARKS

IBM PC is a registered trademark of International Business Machines Corporation. INTEL is a registered trademark of INTEL Corporation. AMI is registered trademarks of American Megatrends Inc. Other product names mentioned herein are used for identification purposes only and may be trademarks and/or registered trademarks of their respective owners.

0-3

NANO-6613 Motherboard

Table of Contents

1 INTRODUCTION................................................................................................... 15

1.1 NANO-6613 O

VERVIEW ......................................................................................... 16

1.1.1 NANO-6613 Applications ...................... ................................................... ... .... 16

1.1.2 NANO-6613 Benefits.............................................. .......................................... 16

1.1.3 NANO-6613 Features .......................................................................... .. .......... 16

1.2 NANO-6613 B

OARD OVERVIEW............................................................................. 17

1.2.1 NANO-6613 Connectors................................... ...............................................18

1.2.2 Technical Specifications......................................... ........... ........ ........... .......... .. 19

2 DETAILED SPECIFICATIONS ......................... ... ...............................................21

2.1 CPU S

UPPORT.......................................................................................................... 22

2.2 O

NBOARD CHIPSETS ................................................................................................ 22

2.2.1 Northbridge and Southbridge Chipsets ...........................................................22

2.2.2 SiS661CX Northbridge Chipset ................................................................... .. ..22

2.2.3 SiS964 Southbridge Chipset............................................................................. 23

2.3 GRAPHICS SUPPORT ................................................................................................. 24

2.4 M

EMORY SUPPORT................................................................................................... 24

2.5 PCI B

US INTERFACE SUPPORT .................................................................................25

2.6 G

BE ETHERNET .......................................................................................................25

2.7 D

RIVE INTERFACES.................................................................................................. 25

2.7.1 SATA Drives................................... ... ................................................ ... ............ 26

2.7.2 IDE HDD Interfaces........................................................................................26

2.7.3 Floppy Disk Drive (FDD)................................................................................ 26

2.7.4 Compact Flash Support.................................................... ... ............................ 26

2.8 S

ERIAL PORTS ..........................................................................................................26

2.9 R

EAL TIME CLOCK................................................................................................... 27

2.10 I

NFRARED DATA ASSOCIATION (IRDA) INTERFACE................................................27

2.11 USB I

NTERFACES................................................................................................... 27

2.12 BIOS ......................................... ................................................ .. .......................... 27

2.13 O

PERATING TEMPERATURE AND TEMPERATURE CONTROL..................................... 27

2.14 A

UDIO CODEC........................................................................................................ 28

2.15 P

OWER CONSUMPTION........................................................................................... 29

0-4

IEI

Technology, Corp.

2.16 PACKAGED CONTENTS AND OPTIONAL ACCESSORY ITEMS..................................... 29

2.16.1 Package Contents........................................................................................... 29

2.16.2 Optional Accessory Items............................................................................... 30

3 CONNECTORS AND JUMPERS ......................................................................... 31

3.1 P

ERIPHERAL INTERFACE CONNECTORS .................................................................... 32

3.1.1 NANO-6613 Layout ..................................... .. ..................................................32

3.1.2 Peripheral Interface Connectors..................................................................... 33

3.1.3 Rear Panel Connectors.................................................................................... 34

3.1.4 Onboard Jumpers............................................................................................. 34

3.2 I

NTERNAL PERIPHERAL CONNECTORS...................................................................... 35

3.2.1 ATX Power Connector ..................................................................................... 35

3.2.2 Audio Connector.................................................... ........... ........... ........ .......... .. 36

3.2.3 Compact Flash Connector............................................................................... 37

3.2.4 Fan Connectors................................................................................................ 38

3.2.5 GPIO Connector.................................... ... ................................................... .... 39

3.2.6 IDE Connector............................................................. .................................... 40

3.2.7 Inverter Power Connector........................................................ ... .................... 42

3.2.8 IR Interface Connector .................................................................................... 43

3.2.9 LCD LVDS Interface Connector.......................................... ............................ 44

3.2.10 Parallel Port Connector ......................................................................... ....... 45

3.2.11 PCI-104 Connector.................................................... .................................... 46

3.2.12 RS-232 Serial Port Connectors...................................................................... 48

3.2.13 RS-232/485 Serial Port Connector................................................................ 49

3.2.14 SATA Drive Connectors................................................................................. 51

3.2.15 System Front Panel Connector...................................................................... 52

3.2.16 Power Connector........................................................................................... 53

3.2.17 TV Out Connector.............................................. .......... ........ ........... ........... ....53

3.2.18 Internal USB Connectors............................................................................... 54

3.3 E

XTERNAL (REAR PANEL) CONNECTORS ................................................................. 56

3.3.1 CRT Connector ................................................................. ............................... 56

3.3.2 Ethernet Connectors ........................................................................................ 57

3.3.3 Keyboard/Mouse Connector.......................................... ... ............................... 58

3.3.4 Serial Port Connectors .................................................................................... 58

3.3.5 USB Connector ......................... ... .................................................................... 59

3.4 O

NBOARD JUMPERS ................................................................................................. 60

0-5

NANO-6613 Motherboard

3.4.1 Clear CMOS Jumper.............................. .......................................................... 60

3.4.2 CPU FSB Settings Jumper................................................................... ............ 62

3.4.3 CPU Frequency Setting Jumper ............................................................... ... .... 63

3.4.4 LCD Voltage Setup Jumper.............................................................................. 64

3.4.5 COM2 Setup Jumper........................................................................................66

4 INST ALLA TIO N AND CONFIGURATION .......................................................67

4.1 I

NSTALLATION CONSIDERATIONS .............................................................................68

4.1.1 Installation Notices........................... ... ............................................................ 68

4.2 U

NPACKING.............................................................................................................. 69

4.2.1 Unpacking Precautions.................................................................................... 69

4.2.2 Checklist................................................. ... ....................................................... 69

4.3 NANO-6613

MOTHERBOARD INSTALLATION........................................................... 70

4.3.1 CPU Installation............................... ............................................................... 71

4.3.2 Cooling Kit (CF-479B-RS ) Installation.......................................................... 73

4.3.3 Mounting the NANO-6613 Embedded Module................................................ 74

4.3.4 DIMM Module Installation.............................................................................. 75

4.3.4.1 Purchasing the Memory Module............................................................... 75

4.3.4.2 SODIMM Module Installation.................................................................. 75

4.3.5 Peripheral Device Connection..................................................... .. .................. 76

4.3.5.1 IDE Disk Drive Connector (IDE1)........................................................... 77

4.3.5.2 Compact Flash Disk..................................................................................78

4.3.5.3 Parallel Port Connector (LPT1)................................................................ 78

4.3.5.4 Audio Interface ......................................................................................... 78

4.3.5.5 COM Port Connectors [COM1, COM2, COM3 and COM4]................... 78

4.4 C

HASSIS INSTALLATION ........................................................................................... 78

4.5 R

EAR PANEL CONNECTORS...................................................................................... 79

4.5.1 LCD Panel Connection.................................................................................... 79

4.5.2 Ethernet Connection ........................................................................................ 79

4.5.3 USB Connection............................................................................................... 79

4.5.4 Serial Connection................................... ... ....................................................... 79

4.5.5 Keyboard and Mouse Connection.................................................................... 79

5 AMI BIOS SETUP........................................... ................................................ ....... 81

5.1 I

NTRODUCTION ........................................................................................................ 82

5.1.1 Starting Setup............................................................... .. .................................. 82

5.1.2 Using Setup.......................................................................................... ............ 82

0-6

IEI

Technology, Corp.

5.1.3 Getting Help.............................................................. ....................................... 83

5.1.4 Unable to Reboot after Configuration Changes.............................................. 83

5.1.5 BIOS Menu Bar................................................................................................ 83

5.2 M

AIN .......................................................................................................................83

5.3 A

DVANCED............................................................................................................... 85

5.3.1 CPU Configuration.............................................. ............................................86

5.3.2 IDE Configuration...........................................................................................87

5.3.2.1 IDE Master, IDE Slave............................................................................. 90

5.3.3 Super IO Configuration.......................................... ..........................................94

5.3.4 Hardware Health Configuration.................................................... ... ............... 99

5.3.5 ACPI Configuration............................... ........... ........... .......... ........... ........ .....100

5.3.6 MPS Configuration.............................................................................. .......... 101

5.3.7 Power Configuration .....................................................................................102

5.3.8 USB Configuration......................................................................................... 104

5.4 PCI/P

NP ................................................................................................................ 106

5.5 C

HIPSET ..................................................................................................................111

5.5.1 NorthBridge Configuration.............................................................................112

5.5.1.1 Internal VGA Settings..............................................................................113

5.5.2 SouthBridge Configuration............................................... ..............................116

5.6 B

OOT ......................................................................................................................117

5.6.1 Boot Settings Configuration............................................................................118

5.6.2 Boot Device Priority...................................................................................... 121

5.6.3 Hard Disk Drives........................................................................................... 122

5.7 S

ECURITY............................................................................................................... 123

5.8 E

XIT....................................................................................................................... 124

6 SOFTWARE DRIVERS....................................................................................... 127

6.1 AVAILABLE SOFTWARE DRIVERS............................................................................128

6.2 R

EALTEK AUDIO DRIVER (ALC655) INSTALLATION..............................................128

6.3 R

EALTEK LAN DRIVER (FOR GBE LAN) INSTALLATION....................................... 132

6.4 S

IS AGP DRIVER INSTALLATION............................................................................ 135

6.5 S

IS IDE DRIVER INSTALLATION ............................................................................ 137

6.6 S

IS VGA UTILITIES DRIVER..................................................................................139

A BIOS CONFIGURATION OPTIONS ........................................... ..................... 143

A.1 BIOS CONFIGURATION OPTIONS........................................................................... 144

0-7

NANO-6613 Motherboard

B W ATCHDOG TIMER ............................. ........... .......... ........ ........... ........... ........ ..147

C ADDRESS MAPPING.......................................................................................... 151

C.1 IO A

DDRESS MAP ................................................................................................. 152

C.2 1

ST MB MEMORY ADDRESS MAP .........................................................................152

C.3 IRQ M

APPING TABLE............................................................................................ 153

C.4 DMA C

HANNEL ASSIGNMENTS............................................................................. 153

D EXTERNAL AC’97 AUDI O CODEC.................................................................155

D.1 INTRODUCTION ..................................................................................................... 156

D.1.1 Accessing the AC’97 CODEC............................. ............. ............. .............. .. 156

D.1.2 Driver Installation....................... .. ................................................................ 156

D.2 S

OUND EFFECT CONFIGURATION........................................................................... 157

D.2.1 Accessing the Sound Effects Manager .......................................................... 157

D.2.2 Sound Effect Manager Configuration Options ............................................. 158

E RAID SETUP ........................................................................................................ 161

E.1 I

NTRODUCTION......................................................................................................162

E.1.1 RAID Support ................................................................................................ 162

E.1.2 What is RAID................................................................................................. 162

E.2 RAID S

ETUP ......................................................................................................... 162

E.2.1 Introduction................................................................................................... 162

E.2.2 Copy the RAID Driver...................................................................................163

E.2.3 Install SATA Drives................ ... ................................................ ... .................. 164

E.2.4 Configure the SATA Controller in BIOS........................................................ 164

E.2.5 Configure the RAID BIOS ............................................................................. 165

E.2.6 Install the OS............................................ .....................................................169

F INDEX.................................................................................................................... 171

0-8

IEI

Technology, Corp.

List of Figures

Figure 1-1: NANO-6613 Board Overview (Top View)...............................................17

Figure 1-2: NANO-6613 Board Overview (Bottom View).........................................17

Figure 3-1: Connector and Jumper Locations .........................................................32

Figure 3-2: ATX Power Connector Location.............................................................35

Figure 3-3: Audio Connector Location......................................................................36

Figure 3-4: CFII Socket Location...............................................................................37

Figure 3-5: Fan Connector Locations .......................................................................39

Figure 3-6: GPIO Connector Location.......................................................................40

Figure 3-7: IDE Device Connector Location.............................................................41

Figure 3-8: Inverter Power Connector Location.......................................................42

Figure 3-9: IR Connector Location............................................................................43

Figure 3-10: LCD LVDS Connector Locations..........................................................44

Figure 3-11: Parallel Port Connector Location.........................................................46

Figure 3-12: PCI-104 Connector Location ....................................................... .... .... .47

Figure 3-13: Serial Port Connector Locations..........................................................49

Figure 3-14: RS-232/485 Serial Port Connector Location .......................................50

Figure 3-15: SATA Drive Connector Locations........................................................51

Figure 3-16: System Front Panel Connector Location............................................52

Figure 3-17: Power Connector Location...................................................................53

Figure 3-18: TV Out Connector Location..................................................................54

Figure 3-19: Internal USB Connector Locations......................................................55

Figure 3-20: NANO-6613 Board Rear Panel..............................................................56

Figure 3-21: RJ-45 Ethernet Connector ................................................................... .58

Figure 3-22 Jumper ...................................... ..............................................................60

Figure 3-23: Clear CMOS Jumper Location..............................................................62

Figure 3-24: J5 Location.............................................................................................63

Figure 3-25: J4 Location.............................................................................................64

Figure 3-26: J2 Location.............................................................................................65

Figure 3-27: J1 Location.............................................................................................66

0-9

NANO-6613 Motherboard

Figure 4-1: Make sure th e C PU so c ke t retention screw is unlocked.....................71

Figure 4-2: Lock the CPU Socket Retention Screw.................................................72

Figure 4-3: IEI CF-479B-RS Cooling Kit ....................................................................73

Figure 4-4: Securing the Cooling Kit.........................................................................74

Figure 4-5: Connect the cooling fan cable ...............................................................74

Figure 4-6: SODIMM Module Installation ..................................................................76

Figure 4-7: Connection of IDE Connector ................................................................77

Figure 6-1: InstallShield Wizard Extracting Files.................................................. 129

Figure 6-2: Audio Driver Install Shield Wizard Starting ....................................... 129

Figure 6-3: Audio Driver Setup Preparation.......................................................... 130

Figure 6-4: Audio Driver Digital Signal .................................................................. 130

Figure 6-5: Audio Driver Installation Continues ................................................... 131

Figure 6-6: Audio Driver Installation Complete..................................................... 131

Figure 6-7: Realtek LAN Driver InstallShield Wizard............................................ 132

Figure 6-8: Realtek LAN Driver Welcome.............................................................. 133

Figure 6-9: Realtek LAN Driver Ready to Install ................................................... 133

Figure 6-10: Realtek LAN Driver Setup Status............................................ .... .... .. 134

Figure 6-11: Realtek LAN Driver Installation Complete........................................ 134

Figure 6-12: Starting Install Shield Wizard Screen......................................... .... .. 135

Figure 6-13: Preparing Setup Screen..................................................................... 135

Figure 6-14: Install Shield Screen........................................................................... 136

Figure 6-15: Installing Screen................................................................................. 136

Figure 6-16: Restart the Computer................................................................... ...... 137

Figure 6-17: Select a Language.............................................................................. 137

Figure 6-18: Welcome Screen................................................................................. 138

Figure 6-19: Chipset Driver Readme File Information.......................................... 138

Figure 6-20: Chipset Driver Installation Complete................................................ 139

Figure 6-21: VGA Utilities Welcome Screen......................................... ....... .... .... .. 140

Figure 6-22: Select Setup Installation Type........................................................... 140

Figure 6-23: Select Folders to Copy Files ............................................ ................. 141

Figure 6-24: Review Settings ..................................................................... ... .... ......141

Figure 6-25: Read ReadMe File............................................................................... 142

Figure 6-26: Restart the Computer......................................................................... 142

0-10

IEI

Technology, Corp.

List of Tables

Table 1-1: Technical Specifications ..........................................................................20

Table-2-1: Supported CPUs........................................................................................22

Table 2-2: Power Consumption .................................................................................29

Table 3-1: Peripheral Interface Connectors..............................................................34

Table 3-2: Rear Panel Connectors............................................. ................................34

Table 3-3: Onboard Jumpers .............................................. .......................................35

Table 3-4: ATX Power Connector Pinouts................................................................36

Table 3-5: Audio Connector Pinouts.........................................................................37

Table 3-6: CFII Socket Pinouts...................................................................................38

Table 3-7: Fan Connector Pinouts.............................................................................39

Table 3-8: GPIO Connector Pinouts..........................................................................40

Table 3-9: IDE Connector Pinouts.............................................................................42

Table 3-10: Inverter Power Connector Pinouts........................................................43

Table 3-11: IR Connector Pinouts..............................................................................44

Table 3-12: LCD LVDS Connector Pinouts...............................................................45

Table 3-13: Parallel Port Connector Pinouts............................................................46

Table 3-14: PCI-104 Connector Pinouts....................................................................48

Table 3-15: COM3 Pinouts..........................................................................................49

Table 3-16: COM4 Pinouts..........................................................................................49

Table 3-17: RS-232/485 Serial Port Connector Pinouts...........................................50

Table 3-18: SATA Drive Connector Pinouts .............................................................51

Table 3-19: System Front Panel Connector Pinouts ...............................................53

Table 3-20: Power Connector Pinouts ......................................................................53

Table 3-21: TV Out Connector Pinouts .....................................................................54

Table 3-22: USB2 Pinouts...........................................................................................55

Table 3-23: USB3 Pinouts...........................................................................................55

Table 3-24: VGA Connector Pinouts ..................................................... ... ........ .... .... .57

Table 3-25: LAN1 and LAN2 Pinouts.................................................................... .....57

Table 3-26: RJ-45 Ethernet Connector LEDs............................................................58

0-11

NANO-6613 Motherboard

Table 3-27: Serial Port Pinouts.............................................................. ....................59

Table 3-28: USB1 Connector Pinouts....................................................... .................59

Table 3-29: Onboard Jumpers ................................................ ... .... .... ........ ... .... .... .... .60

Table 3-30: Clear CMOS Jumper Settings ................................................................61

Table 3-31: J5 FSB Selection Jumper Settings........................................................62

Table 3-32: CPU Frequency Jumper Settings......................................................... . 63

Table 3-33: J2 Jumper Settings..................................................... ............................65

Table 3-34: J1 Jumper Settings..................................................... ............................66

Table 4-1: IEI Provided Cables.................................................................................. .76

Table 5-1: BIOS Navigation Keys...............................................................................83

0-12

IEI

Technology, Corp.

List of BIOS Menus

Menu 1: Main .......................................... ..........................................................84

Menu 2: Advanced .......................................... ..........................................................86

Menu 3: CPU Configuration .......................................................................................87

Menu 4: IDE Configuration .........................................................................................88

Menu 5: IDE Master and IDE Slave Configuration ...................................................90

Menu 6: Super IO Configuration................................................................................94

Menu 7: Hardware Health Configuration ..................................................................99

Menu 8: ACPI Configuration ................................................................................... 100

Menu 9: MPS Configuration .................................................................................... 101

Menu 10: Power Configuration............................................................................... 102

Menu 11: USB Configuration .................................................................................. 105

Menu 12: PCI/PnP Configuration............................................................................ 107

Menu 13: Chipset .......................................... ....................................................... 112

Menu 14: NorthBridge Chipset Configuration....................................................... 113

Menu 15: SouthBridge Chipset Configuration...................................................... 116

Menu 16: Boot .......................................... ....................................................... 118

Menu 17: Boot Settings Configuration................................................................... 119

Menu 18: Boot Device Priority Settings................................................................. 121

Menu 19: Removable Drives ................................................................................... 122

Menu 20: Security ................................................................................................. 123

Menu 21: Exit .......................................... ....................................................... 124

0-13

NANO-6613 Motherboard

Glossary

AC ’97 Audio Codec 97 ACPI Advanced Configuration and

Power Interface APM Advanced Power Management ARMD ATAPI Removable Media Device ASKIR Shift Keyed Infrared ATA Advanced Technology

Attachments BIOS Basic Input/Output System CFII Compact Flash Type 2 CMOS Complementary Metal Oxide

Semiconductor CPU Central Processing Unit Codec Compressor/Decompressor COM Serial Port DAC Digital to Analog Converter DDR Double Data Rate DIMM Dual Inline Memory Module DIO Digital Input/Output DMA Direct Memory Access EIDE Enhanced IDE EIST Enhanced Intel SpeedStep

Technology FDD Floppy Disk Drive FDC Floppy Disk Connector FFIO Flexible File Input/Output FIFO First In/First Out FSB Front Side Bus IrDA Infrared Data Association

HDD Hard Disk Drive IDE Integrated Data Electronics I/O Input/Output ICH4 I/O Controller Hub 4 L1 Cache Level 1 Cache L2 Cache Level 2 Cache LCD Liquid Crystal Display LPT Parallel Port Connector LVDS Low Voltage Differential Signaling MAC Media Access Controller OS Operating System PCI Peripheral Connect Interface PIO Programmed Input Output PnP Plug and Play POST Power On Self Test RAM Random Access Memory SATA Serial ATA S.M.A.R.T Self Monitoring Analysis and

Reporting Technology SPD Serial Presence Detect S/PDI Sony/Philips Digital Interface SDRAM Synchronous Dynamic Random

Access Memory SIR Serial Infrared UART Universal Asynchronous

Receiver-transmitter USB Universal Serial Bus VGA Video Graphics Adapter

0-14

IEI

Technology, Corp.

THIS PAGE IS INTENTIONALLY LEFT BLANK

1-15

NANO-6613 Motherboard

1 Introduction

Chapter

1-16

IEI

Technology, Corp.

1.1 NANO-6613 Overview

The EPIC form factor NANO-6613 socket 479 Pentiu m M / Celeron M CPU platform is fully equipped with advanced multi-mode I/Os. The NANO-6613 is designed for system manufacturers, integrators, and VARs that want performance, reliability, and quality at a reasonable price.

1.1.1 NANO-6613 Applications

The NANO-6613 is designed for applications in the following areas:

 Industrial PC applications  Human Machine Interface (HMI) applications  Marine, GPS and transportation applications  Financial, retail and kiosk applications

1.1.2 NANO-6613 Benefits

Some of the NANO-6613 benefits include:

 Low power, high performance  Dual GbE design supports multi network embedded applications such as

redundant network or multi-subnet working environment



Multiple storage option integration including

44 Pin IFM or 2.5＂ HDD

Dual SATA ports support

o CFII support



PCI-104 extension support

 Data security SATA RAID support  Flexible dual display options

1.1.3 NANO-6613 Features

Some of the NANO-6613 features are li s te d below:

 Complies with Ro HS  Supports socket 479 Intel® Pentium M / Celeron M CPUs



Supports a maximum front side bus (FSB) speed up to 533MHz

1-17

NANO-6613 Motherboard



Supports up to 1GB of 333MHz or 400MHz of DDR memory

 Comes with two high performance gigabit Ethernet (GbE) controller  Supports two SATA channels with transfer rates up to 150MB/s  Supports six USB 2.0 devices

1.2 NANO-6613 Board Overview

Figure 1-1: NANO-6613 Board Overview (Top View)

Figure 1-2: NANO-6613 Board Overview (Bottom View)

1-18

IEI

Technology, Corp.

1.2.1 NANO-6613 Connectors

The NANO-6613 has the following connectors onboard:

 1 x ATX PSON connector  1 x Audio connector  1 x Compact Flash (CF) connector (solder side)  1 x DDR SODIMM socket  2 x Fan connectors  1 x GPIO connector  1 x IDE Interface connector  1 x Inverter power connector  1 x IR interface connector  1 x LCD LVDS interface connector  1 x Parallel port connector  1 x PCI-104 connector  2 x Serial port connectors  1 x RS-232/485 serial port connector  2 x Serial ATA connectors  1 x System front panel connector  1 x Power connector  1 x TV out connector  2 x USB connectors

The NANO-6613 has the following connectors on the board rear panel:

 1 x CRT connector  2 x Ethernet connectors  1 x Keyboard/Mouse connector



1 x Serial port connector

 2 x USB 2.0 ports

The NANO-6613 has the following onboard jumpers:

 Clear CMOS  CPU FSB setting



CPU frequency setting

1-19

NANO-6613 Motherboard



LCD voltage setup

 COM2 setup (RS-232/485)

The location of these connectors on the motherboard can be seen in Figure 1-1. These connectors are fully described in Chapter 3.

1.2.2 Technical Specifications

NANO-6613 technical specifications are listed in

Table 1-1

. Detailed descriptions of each

specification can be found in

Chapter 2 Detailed Specifications

SPECIFICA TION

CPUs Supported

Intel

Pentium® M / Celeron® M FSB 400/533MHz

Chipsets Northbridge: SIS 661CX

Southbridge: SIS 964

I/O Controller SIS 964

Graphics Support

SiS Mirage™ Graphic Engine

Display

CRT; LVDS; TV-out

Memory One DDR memory modules (Max. 1GB)

PCI Bus Interface 33MHz, Revision 2.3

Serial ATA (SATA) Two SATA channels with 150MB/s transfer rates

HDD Interface One IDE channels support two Ultra ATA 100/133 devices

USB Interfaces Six USB 2.0 connectors supported

Serial Ports Four COM ports

Super I/O W83697HG

IrDA By super I/O

Digital I/O 4 input / 4 output by super I/O

Audio Interfaces One Audio Codec ’97 (AC’97) version 2.3 connector

1-20

IEI

Technology, Corp.

Ethernet Two Gigabit Ethernet (GbE) connectors

BIOS AMI flash BIOS

Power +12V, AT/ATX supported

Physical Dimensions 165mm x 115mm (width x length)

Operating Temperature Minimum: 0ºC (32°F)

Maximum: 60°C (140°F)

Table 1-1: Technical Specifications

1-21

NANO-6613 Motherboard

2 Detailed Specifications

Chapter

1-22

IEI

Technology, Corp.

2.1 CPU Support

Table-2-1 lists the CPUs supported by the NANO-6613 board.

CPU Type

Intel® Pentium® M / Intel® Celeron® M

Max. FSB

533 MHz

L2 Cache

1MB / 2MB

Max. Clock Speed

2.26 GHz

Architecture

90 nm / 130 nm

Table-2-1: Supported CPUs

2.2 Onboard Chipsets

2.2.1 Northbridge and Southbridge Chipsets

The following chipsets are preinstalled on the board:

 Northbridge: SiS661CX  Southbridge: SiS964

The following two sections (Section 2.2.2 and Section 2.2.3) list some of the featur es of the SiS661CX and the SiS964 chipsets. For more information on these two chipsets please refer to the SiS website.

2.2.2 SiS661CX Northbridge Chipset

The SiS661CX northbridge chipset comes with the following features:

 Host Interface

o 12 Outstanding Transactions support o Quasi-Synchronous/Asynchronous Host/DRAM Timing support o Supports 2M/4M/8M/16M TSEG SMRAM o Supports Dynamic Bus Inversion.

 DRAM Controller

o DDR400/DDR333/DDR266 supported

1-23

NANO-6613 Motherboard

o Up to two un-buffered DIMMs DDR400 supported o Up to 1GB per DIMM with 512Mb tech. o Dynamic Clock Enable (CKE) control placing the Memory into Suspend to

DRAM state.



SiS MuTIOL® 1G Delivering 1GB/s Bandwidth

o Proprietary Interconnect between Northbridge and Southbridge o Bi-Directional 16 bit Data Bus at 533MHz Operating Frequency

2.2.3 SiS964 Southbridge Chipset

The SiS964 southbridge chipset comes with the following features:

 SiS MuTIOL® 1G Delivering 1GB/s Bandwidth

o Proprietary Interconnect between SiS northbridge and SiS964

southbridge

o Bi-Directional 16 bit Data Bus at 533MHz Operating Frequency

 Integrated Serial Host Controller

o Provides 2 independent ports for SATA, compliant with Serial ATA 1.0

specification with transfer rate 150MB/s

o Supports RAID 0, 1 and JBOD

 USB 2.0/1.1 Host Controller

o One EHCI USB 2.0 controller o Supports Total 8 USB 2.0 ports o Supports USB 2.0 High-Speed Device @480 Mb/s transfer rates

 Fast Ethernet Controller with MII Interface

o Supports 10/100Mb Fast Ethernet with External PHY

 Supports six channels AC'97 Rev.2.3 Audio and V.90 Software Modem  Advanced Power Management: ACPI 1.0b and APM 1.2 Compliant  Dual IDE channels with ATA 133/100  Supports up to six PCI Masters  LPC 1.1 Interface  Integrated Keyboard/PS2 Mouse Controller

1-24

IEI

Technology, Corp.

2.3 Graphics Support

The graphics features listed below are all integrated on the SiS661CX northbridge chipset.

 AGP 3.5 and AGP 2.0 Compliant

o AGP 8X/4X mode support o Fast Write support o 1.5V interface support only

 DX9 S/W Compliant  High performance 256Bit 3D/128Bit 2D Graphic Engine

o 2 pixel rendering pipelines and 4 texture units per cycle (2P4T) o Up to 200 MHz ECLK

 SiS Ultra-AGPII™ Technology w/ up to 3.2GB/s Data Transfer Rate

o Successor of Ultra-AGPII™ Technology and doubles the ba ndwidth up to

3.2GB/s with DDR400

o AGP 8X equivalent bandwidth for 3D/2D/Video

 Advanced Hardware Acceleration for DVD playback  Dual 12-bit DDR Digital Interface for Digital LCD/TV-OUT support

o NTSC/PAL TV-OUT o LCD Monitor o Dual view function support for LCD-TV,LCD-CRT or CRT-TV

 Built-in high performance 333MHz RAMDAC  Graphics support mode

o CRT highest resolution mode: 2048x1536x32@75NI o LCD highest resolution mode: 1600x1200x32@ 60NI o TV highest resolution mode: 1024x768x32@60NI

2.4 Memory Support

The NANO-6613 has one 200-pin SO-DIMM socket and supports one 400MHz, 333MHz or 266MHz DDR DIMM with a maximum RAM of up to 1GB.

1-25

NANO-6613 Motherboard

2.5 PCI Bus Interface Support

The PCI bus on the NANO-6613 has the following features:

 33MHz Revision 2.3 is implemented  Up to six external bus masters are supported

2.6 GbE Ethernet

The onboard Realtek RTL8110S GbE controller combines a triple-speed IEEE 802.3 compliant Media Access Controller (MAC) with a triple-spe ed Ethernet transceiver, 32-bit PCI bus controller, and embedded memory. The controller has state-of-the-art DSP technology and mixed-mode signal technology and it offers high-speed transmission over CAT 5 UTP cables or CAT 3 UTP (10Mbps only) cables. The GbE controller specifications are below.



Integrated 10/100/1000 transceiver

 Auto-Negotiation with Next Page capability  Supports PCI rev.2.3, 32-bit, 33/66MHz  Supports pair swap/polarity/skew correction



Crossover Detection & Auto-Correction

 Wake-on-LAN and remote wake-up support  Microsoft® NDIS5 Checksum Offload (IP, TCP, UDP) and largesend offload

support



Supports Full Duplex flow control (IEEE 802.3x)

 Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab  Supports IEEE 802.1P Layer 2 Priority Encoding  Supports IEEE 802.1Q VLAN tagging



Serial EEPROM

 3.3V signaling, 5V PCI I/O tolerant  Transmit/Receive FIFO (8K/64K) support  Supports power down/link down power saving

2.7 Drive Interfaces

The NANO-6613 can support the following drive interfaces.

 2 x SATA drives

1-26

IEI

Technology, Corp.



2 x IDE devices

 1 x FDD  1 x CFII slot

2.7.1 SATA Drives

The NANO-6613 supports two, first generation SATA drives with transfer rates of up to 150MB/s

2.7.2 IDE HDD Interfaces

The NANO-6613 southbridge chipset IDE controller supports up to four HDDs with the following specifications:

 Supports PIO IDE transfers up to 16MB/s  Supports Ultra ATA 100/133 devices with data transfer rates up to 133MB/s

2.7.3 Floppy Disk Drive (FDD)

The NANO-6613 CPU Board supports a single FDD. The following FDD formats are compatible with the board.

 5.25”: 360KB and 1.2MB  3.5”: 720KB, 1.44MB and 2.88MB

2.7.4 Compact Flash Support

Standard CF-II cards can be inserted into the compact flash slot on the solder side of the NANO-6613.

2.8 Serial Ports

The NANO-6613 has four high-speed UART serial ports, configured as COM1, COM2, COM3 and COM4. The serial ports have the following specifications.

 16C550 UART with 16-byte FIFO buffer  115.2Kbps transmission rate

1-27

NANO-6613 Motherboard

2.9 Real Time Clock

512-byte battery backed CMOS SRAM

2.10 Infrared Data Association (IrDA) Interface

The NANO-6613 IrDA supports the following interfaces.

 Serial Infrared (SIR)



Shift Keyed Infrared (ASKIR)

If an IrDA port is need, COM2 must be configured as either SIR or ASKIR mode in the BIOS under Super IO devices. Normal RS-232 COM2 is then disabled.

2.11 USB Interfaces

The NANO-6613 supports six USB interfaces, four internal and two external. The USB interfaces support USB 2.0.

2.12 BIOS

The NANO-6613 uses a licensed copy of AMI BIOS. The features of the flash BIOS used are listed below:

 SMIBIOS (DMI) compliant  Console redirection function support  PXE (Pre-Boot Execution Environment ) support  USB booting support

2.13 Operating Temperature and Temperature Control

The maximum and minimum operating temperatures for the NANO-6613 are listed below.



Minimum Operating Temperature: 0ºC (32°F)

 Maximum Operating Temperature: 60°C (140°F)

A cooling fan and heat sink must be installed on the CPU. Thermal paste must be smeared on the lower side of the heat sink before it is mounted on the CPU. Heat sinks

1-28

IEI

Technology, Corp.

are also mounted on the northbridge and southbridge chipsets to ensure the op erating temperature of these chips remain low.

2.14 Audio Codec

The NANO-6613 has an integrated REALTEK ALC655 CODEC. The ALC655 CODEC is a 16-bit, full-duplex AC'97 Rev. 2.3 compatible six-channel audio CODEC designed for PC multimedia systems, including host/soft audio and AMR/CNR-based designs. Some of the features of the codec are listed below.

 Meets performance requirements for audio on PC99/2001 systems  Meets Microsoft WHQL/WLP 2.0 audio requirements  16-bit Stereo full-duplex CODEC with 48KHz sampling rate



Compliant with AC'97 Rev 2.3 specifications

 Front-Out, Surround-Out, MIC-In and LINE-In Jack Sensing  14.318MHz -> 24.576MHz PLL to eliminate crystal  12.288MHz BITCLK input



Integrated PCBEEP generator to save buzzer

 Interrupt capability  Three analog line-level stereo inputs with 5-bit volume control, LINE_IN, CD,

AUX



High-quality differential CD input

 Two analog line-level mono inputs: PCBEEP, PHONE-IN  Two software selectable MIC inputs  Dedicated Front-MIC input for front panel applications (software selectable)



Boost preamplifier for MIC input

 LINE input shared with surround output; MIC input shared with Center and

LFE output

 Built-in 50mW/20ohm amplifier for both Front-out and Surround-Out



External Amplifier Power Down (EAPD) capability

 Power management and enhanced power saving features  Supports Power-Off CD function  Adjustable VREFOUT control



Supports 48KHz S/PDIF output, complying with AC'97 Rev 2.3 specifications

 Supports 32K/44.1K/48KHz S/PDIF input  Power support: Digital: 3.3V; Analog: 3.3V/5V

1-29

NANO-6613 Motherboard



Standard 48-pin LQFP package

 EAX™ 1.0 & 2.0 compatible  Direct Sound 3D™ compatible  A3D™ compatible



I3DL2 compatible

 HRTF 3D positional audio  10-band software equalizer  Voice cancellation and key shifting in Karaoke mode



AVRack® Media Player

 Configuration Panel for improved user convenience

2.15 Power Consumption

Table 2-2 shows the power consumption parameters for the NANO-6613 when a Pentium

M processor with a clock speed of 2.1GHz is running with a DDR333 SO-DIMM module.

Voltage Current

+12V 3.78A

5VSB 0.35A

Table 2-2: Power Consumption

2.16 Packaged Contents and Optional Accessory Items

2.16.1 Package Contents

The NANO-6613 is shipped with the following components.

 1 x NANO-6613 single board computer  1 x IDE flat cable  2 x SATA cables  1 x SATA power cable  2 x RS232 cables  1 x PS2 keyboard/mouse Y cable  1 x Audio cable  1 x Power cable  1 x Mini jumper pack

1-30

IEI

Technology, Corp.



1 x Utility CD

 1 x Quick Installation Guide

2.16.2 Optional Accessory Items

The items shown in the list below are optional accessory items are purchased separately.

 CP U cooler  USB cable  LPT cable  RS-232/422/485 cable

1-31

NANO-6613 Motherboard

3 Connectors and

Jumpers

Chapter

1-32

IEI

Technology, Corp.

3.1 Peripheral Interface Connectors

Section 3.1.1 shows peripheral interface connector locations. Section 3.1.2 lists all the peripheral interface connectors seen in Section 3.1.1.

3.1.1 NANO-6613 Layout

Figure 3-1 shows the onboard peripheral connectors, backplane peripheral connectors

and onboard jumpers .

Figure 3-1: Connector and Jumper Locations

1-33

NANO-6613 Motherboard

3.1.2 Peripheral Interface Connectors

Table 3-1 shows a list of the peripheral interface connectors on the NANO-6613. Detailed descriptions of these connectors can be found in Section 3.2 on page 35.

Connector Type Label

ATX PSON connector 3-pin header PSON1

Audio connector 10-pin header AUDIO1

Compact Flash (CF) connector 50-pin header CF1

DDR SODIMM socket 200-pin slot DIMM1

Fan connector (1) 3-pin header FAN1

Fan connector (2) 3-pin header FAN2

GPIO connector 10-pin header DIO1

IDE Interface connector 44-pin header IDE1

Inverter Power connector 5-pin header INV1

IR Interface connector 5-pin header IR1

LCD LVDS Interface Connector 30-pin header LVDS1

Parallel port connector 26-pin header LPT1

PCI-104 connector 120-pin PCI slot J6

Serial port connector (RS-232/485) 14-pin header COM2

Serial port connector (RS-232) 10-pin header COM3

Serial port connector (RS-232) 10-pin header COM4

SA TA drive connector (150MB/s) 7-pin SATA connector SATA1

SA TA drive connector (150MB/s) 7-pin SATA connector SATA2

System front panel connector 14-pin header F_PANEL1

Power connector 4-pin connector PWR1

1-34

IEI

Technology, Corp.

TV-out connector 6-pin header TV1

USB connector (1) 8-pin header USB2

USB connector (2) 8-pin header USB3

Table 3-1: Peripheral Interface Connectors

3.1.3 Rear Panel Connectors

Table 3-2 lists the rear panel connectors on the NANO-6613. Detailed descriptions of these connectors can be found in Section 3.3 on page 56.

Connector Type Label

CRT connector 15-pin female connector VGA1

Ethernet connector (1) RJ-45 connector LAN1

Ethernet connector (2) RJ-45 connector LAN2

Keyboard/Mouse connector PS/2 connector KB/MS1

Serial port connector 9-pin serial port connector COM1

Two USB 2.0 ports USB port connector USB1

Table 3-2: Rear Panel Connectors

3.1.4 Onboard Jumpers

Table 3-3 lists the onboard jumpers. Detailed descriptions of these jumpers can be found in Section 3.4 on page 60.

Description Label Type

Clear CMOS J7 3-pin header

CPU FSB setting J5 2-pin header

CPU frequency setting J4 2-pin header

LCD voltage setup J2 6-pin header

1-35

NANO-6613 Motherboard

COM2 setup (RS-232/485) J1 3-pin header

Table 3-3: Onboard Jumpers

3.2 Internal Peripheral Connectors

Internal peripheral connectors are found on the motherboard and are only accessible when the motherboard is outside of the chassis. This section has complete descriptions of all the internal, peripheral connectors on the NANO-6613.

3.2.1 ATX Power Connector

CN Label: PSON1

CN Ty pe: 3-pin head er (1x3)

CN Location: See Figure 3-2

CN Pinouts: See Table 3-4

The ATX Power connector (PSON1) connects an ATX or AT power supply connector.

Figure 3-2: ATX Power Connector Location

1-36

IEI

Technology, Corp.

PIN NO. DESCRIPTION

1 5VSB

2 PS_ON#

3 GND

Table 3-4: ATX Power Connector Pinouts

3.2.2 Audio Connector

CN Label: AUDIO1

CN Type: 10-pin headers (2x5)

CN Location: See Figure 3-3

CN Pinouts: See Table 3-5

The NANO-6613 has a built-in AC ’97 AUDIO CODEC connector directly connected to the mic-in, line-out and line-in.

Figure 3-3: Audio Connector Location

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 ROUT_L 2 LINR_L

3 GND 4 GND

1-37

NANO-6613 Motherboard

5 LOUT_L 6 LINL_L

7 GND 8 GND

9 MICIN 10

Table 3-5: Audio Connector Pinouts

3.2.3 Compact Flash Connector

CN Label: CF1 (solder side of the motherboard)

CN Type: 50-pin header (2x25)

CN Location: See Figure 3-4

CN Pinouts: See Table 3-6

A compact flash memory module is inserted to the Compact Flash connector (CF1). Jumper 2 (JP2) configures the compact flash drive as either a slave or master device.

Figure 3-4: CFII Socket Location

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 GROUND 26 VCC-IN CHECK1

2 DATA 3 27 DATA 11

3 DATA 4 28 DATA 12

1-38

IEI

Technology, Corp.

4 DATA 5 29 DATA 13

5 DATA 6 30 DATA 14

6 DATA 7 31 DATA 15

7 HDC_CS1# 32 HDC_CS1

8 N/C 33 N/C

9 GROUND 34 IOR# 10 N/C 35 IOW#

11 N/C 36 VCC_COM 12 N/C 37 IRQ15

13 VCC_COM 38 VCC_COM 14 N/C 39 CSEL

15 N/C 40 N/C

16 N/C 41 HDD_RESET

17 N/C 42 IORDY

18 SA2 43 SDREQ

19 SA1 44 SDACK#

20 SA0 45 HDD_ACTIVE#

21 DATA 0 46 66DET 22 DATA 1 47 DATA 8

23 DATA 2 48 DATA 9 24 N/C 49 DATA 10

25 VCC-IN CHECK2 50 GROUND

Table 3-6: CFII Socket Pinouts

3.2.4 Fan Connectors

CN Label: F A N 1 and FAN2

CN Ty pe: 3-pin header

CN Location: See Figure 3-5

CN Pinouts: See Table 3-7

The cooling fan connectors provide a 1 2V, 500mA current to a system cooling fan. The connectors have a "rotation" pin to get rotation signals fro m fans and notify the system so

1-39

NANO-6613 Motherboard

the system BIOS can recognize the fan speed. Please no te that only specified fans can issue the rotation signals.

Figure 3-5: Fan Connector Locations

PIN NO. DESCRIPTION

1 Fan Speed Detect 2 +12V 3 GND

Table 3-7: Fan Connector Pinouts

3.2.5 GPIO Connector

CN Label: DIO1

CN Type: 10-pin header (2x5)

CN Location: See Figure 3-6

CN Pinouts: See Table 3-8

1-40

IEI

Technology, Corp.

The General Purpose Input Output (GPIO) connector can be connected to externa l I/O control devices including sensors, lights, alarms and switches.

Figure 3-6: GPIO Connector Location

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 GND 2 5V 3 GPO0 4 GPO1 5 GPO2 6 GPO3 7 GPI0 8 GPI1 9 GPI2 10 GPI3

Table 3-8: GPIO Connector Pinouts

3.2.6 IDE Connector

CN Label: IDE1

CN Type: 44-pin header (2x20)

CN Location: See Figure 3-7

CN Pinouts: See Table 3-9

One primary 44-pin IDE device connector on the NANO-6613 motherboard supports connectivity to ATA 100/133 IDE devices with data transfer rates up to 133MB/s.

1-41

NANO-6613 Motherboard

Figure 3-7: IDE Device Connector Location

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 RESET# 2 GROUND

3 DATA 7 4 DATA 8

5 DATA 6 6 DATA 9

7 DATA 5 8 DATA 10

9 DATA 4 10 DATA 11

11 DATA 3 12 DATA 12

13 DATA 2 14 DATA 13

15 DATA 1 16 DATA 14 17 DATA 0 18 DATA 15

19 GROUND 20 N/C 21 IDE DRQ 22 GROUND

23 IOW# 24 GROUND 25 IOR# 26 GROUND

27 IDE CHRDY 28 GROUND

29 IDE DACK 30 GROUND–DEFAULT

31 INTERRUPT 32 N/C

33 SA1 34 N/C

35 SA0 36 SA2 37 HDC CS0# 38 HDC CS1#

1-42

IEI

Technology, Corp.

39 HDD ACTIVE# 40 GROUND

41 VCC 42 VCC

43 GROUND 44 N/C

Table 3-9: IDE Connector Pinouts

3.2.7 Inverter Power Connector

CN Label: INV1

CN Ty pe: 5-pin header (1x5)

CN Location: See Figure 3-8

CN Pinouts: See Table 3-10

The inverter connector is connected to the LCD backlight.

Figure 3-8: Inverter Power Connector Location

PIN NO. DESCRIPTION

1 NC

2 GND

3 12V 4 GND

5 EN_BL

1-43

NANO-6613 Motherboard

Table 3-10: Inverter Power Connector Pinouts

3.2.8 IR Interface Connector

CN Label: IR1

CN Ty pe: 5-pin header (1x5)

CN Location: See Figure 3-9

CN Pinouts: See Table 3-11

The integrated infrared (IrDA) connector supports both Serial Infrared (SIR) and Amplitude Shift Key Infrared (ASKIR) interfaces.

Figure 3-9: IR Connector Location

PIN NO. DESCRIPTION

1 5V

2 NC 3 IRRX

4 GND

1-44

IEI

Technology, Corp.

5 IRTX

Table 3-11: IR Connector Pinouts

3.2.9 LCD LVDS Interface Connector

CN Label: LVDS1

CN Type: 30-pin header (2x15)

CN Location: See Figure 3-10

CN Pinouts: See Table 3-12

The LCD LVDS interfaceconnector (LVDS1) connects to a one or two channel ( 18-bit or 24-bit) LVDS panel.

Figure 3-10: LCD LVDS Connector Locations

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 GND 2 GND

3 A0P 4 A0M

5 A1P 6 A1M

7 A2P 8 A2M 9 CLK1P 10 CLK1M

1-45

NANO-6613 Motherboard

11 A3P 12 A3M

13 GND 14 GND

15 A4P 16 A4M

17 A5P 18 A5M

19 A6P 20 A6M

21 CLK2P 22 CLK2M 23 A7P 24 A7M

25 GND 26 GND 27 LCD_VDD 28 LCD_VDD

29 LCD_VDD 30 LCD_VDD

Table 3-12: LCD LVDS Connector Pinouts

3.2.10 Parallel Port Connector

CN Label: LPT1

CN Type: 26-pin header (2x13)

CN Location: See Figure 3-11

CN Pinouts: See Table 3-13

The parallel port connector is usually connected to a printer. A 26-pin flat-cable connector is used to connect the parallel port with a printer or other parallel communication devices.

1-46

IEI

Technology, Corp.

Figure 3-11: Parallel Port Connector Location

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 STROBE# 2 DATA 0 3 DATA 1 4 DATA 2 5 DATA 3 6 DATA 4 7 DATA 5 8 DATA 6 9 DATA 7 10 ACKNOWLEDGE 11 BUSY 12 PAPER EMPTY 13 PRINTER SELECT 14 AUTO FORM FEED # 15 ERROR# 16 INITIALIZE 17 PRINTER SELECT LN# 18 GROUND 19 GROUND 20 GROUND 21 GROUND 22 GROUND 23 GROUND 24 N/C 25 GROUND 26

Table 3-13: Parallel Port Connector Pinouts

3.2.11 PCI-104 Connector

CN Label: J6

1-47

NANO-6613 Motherboard

CN Type: 4x30 pin PCI slot

CN Location: See Figure 3-12

CN Pinouts: See Table 3-14

This connector supports the PCI-104 module.

Figure 3-12: PCI-104 Connector Location

PIN Description PIN Description PIN Description PIN Description

A1 GROUND B1 TBD1 C1 +5V D1 AD0

A2 VIO B2 AD2 C2 AD1 D2 +5V

A3 AD5 B3 GND C3 AD4 D3 AD3

A4 CBE0- B4 AD7 C4 GND D4 AD6

A5 GND B5 AD9 C5 AD8 D5 GND

A6 AD11 B6 VIO C6 AD10 D6 N66EV

A7 AD14 B7 AD13 C7 GND D7 AD12

A8 +3.3V B8 CBE1- C8 AD15 D8 +3.3V

A9 SERR- B9 GND C9 SBO- D9 PAR

A10 GND B10

PERR- C10 +3.3V D10 SDONE

A11 STOP- B11

+3.3V C11 LOCK- D11 GND

1-48

IEI

Technology, Corp.

A12 +3.3V B12

TRDY- C12 GND D12 DEVSEL-

A13 FRAME- B13

GND C13 IRDY- D13 +3.3V

A14 GND B14

AD16 C14 +3.3V D14 CBE2-

A15 AD18 B15

+3.3V C15 AD17 D15 GND

A16 AD21 B16

AD20 C16 GND D16 AD19

A17 +3.3V B17

AD23 C17 AD22 D17 +3.3V

A18 IDSEL0 B18

GND C18 IDSEL1 D18 IDSEL2

A19 AD24 B19

CBE3- C19 VIO D19 IDSEL3

A20 GND B20

AD26 C20 AD25 D20 GND

A21 AD29 B21

+5V C21 AD28 D21 AD27

A22 +5V B22

AD30 C22 GND D22 AD31

A23 REQ0- B23

GND C23 REQ1- D23 VIO

A24 GND B24

REQ2- C24 +5V D24 GNT0-

A25 GNT1- B25

VIO C25 GNT2- D25 GND

A26 +5V B26 PCICLK0 C26 GND D26 PCICLK1

A27 PCICLK2 B27

+5V C27 PCICLK3 D27 GND

A28 GND B28

INTD- C28 +5V D28 PCIRST-

A29 +12V B29

INTA- C29 INTB- D29 INTC-

A30 -12v B30

TBD2 C30 TBD D30 GND/3.3V

Table 3-14: PCI-104 Connector Pinouts

3.2.12 RS-232 Serial Port Connectors

CN Label: COM3 and COM4

CN Type: 10-pin header (2x5)

CN Location: See Figure 3-13

CN Pinouts: See T able 3-15, Table 3-16

The COM3 and COM4 serial ports connectors connect to RS-232 serial port device.

1-49

NANO-6613 Motherboard

Figure 3-13: Serial Port Connector Locations

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 NDCD3 2 NDSR3

3 NRX3 4 NRTS3

5 NTX3 6 NCTS3

7 NDTR3 8 NRI3

9 GND 10 GND

Table 3-15: COM3 Pinouts

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 NDCD4 2 NDSR4

3 NRX4 4 NRTS4 5 NTX4 6 NCTS4

7 NDTR4 8 NRI4

9 GND 10 GND

Table 3-16: COM4 Pinouts

3.2.13 RS-232/485 Serial Port Connector

CN Label: COM2

1-50

IEI

Technology, Corp.

CN Type: 14-pin header (2x7)

CN Location: See Figure 3-14

CN Pinouts: See Table 3-17

The COM2 serial port connector connects to an RS-232, or RS-485 serial port devices.

Figure 3-14: RS-232/485 Serial Port Connector Location

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 NDCD2 2 NDSR2

3 NRX2 4 NRTS2

5 NTX2 6 NCTS2

7 NDTR2 8 NRI2 9 GND 10 GND

11 TX2+ 12 TX213 RX2+ 14 RX2-

Table 3-17: RS-232/485 Serial Port Connector Pinouts

1-51

NANO-6613 Motherboard

3.2.14 SATA Drive Connectors

CN Label: SATA1 and SATA2

CN T ype: 1x7 pin SATA drive connectors

CN Location: See Figure 3-15

CN Pinouts: See Table 3-18

The two SATA drive connectors are connected to two first generation SATA drives. First generation SATA drives transfer data at speeds as high as 150MB/s.

Figure 3-15: SATA Drive Connector Locations

PIN NO. DESCRIPTION

1 GND 2 TX+ 3 TX4 GND 5 RX6 RX+ 7 GND

Table 3-18: SATA Drive Connector Pinouts

1-52

IEI

Technology, Corp.

3.2.15 System Front Panel Connector

CN Label: F_PANEL1

CN Type: 14-pin header (2x7)

CN Location: See Figure 3-16

CN Pinouts: See Table 3-19

The system front panel connector connects to several external switches and indicators to monitor and control the motherboard. These indicators and switches include:

 Power  Power button  Reset button  Speaker  HDD LED

Figure 3-16: System Front Panel Connector Location

PIN NO. DESCRIPTION

1-5 POWER LED

2-8 SPEAKER

7-9 PWR BUTTON 12-14 RESET

1-53

NANO-6613 Motherboard

11-13 HDLED

Table 3-19: System Front Panel Connector Pinouts

3.2.16 Power Connector

CN Label: PWR1

CN Type: 4-pin connector

CN Location: See Figure 3-18

CN Pinouts: See Table 3-21

This connector supports the 12V power supply.

Figure 3-17: Power Connector Location

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 GND 2 GND 3 +12V 4 +12V

Table 3-20: Power Connector Pinouts

3.2.17 TV Out Connector

CN Label: TV1

1-54

IEI

Technology, Corp.

CN Ty pe: 6-pin header (2x3)

CN Location: See Figure 3-18

CN Pinouts: See Table 3-21

The 2x3 pin TV out connector connects to a TV.

Figure 3-18: TV Out Connector Location

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 GND 2 TVDAC_B 3 GND 4 TVDAC_C 5 GND 6 TVDAC_A

Table 3-21: TV Out Connector Pinouts

3.2.18 Internal USB Connectors

CN Label: USB2 and USB3

CN Ty pe: 8-pin header (2x4)

1-55

NANO-6613 Motherboard

CN Location: See Figure 3-19

CN Pinouts: See T able 3-22, Table 3-23

One 2x4 pin connector provides connectivity to two USB 2.0 ports. The USB ports are used for I/O bus expansion.

Figure 3-19: Internal USB Connector Locations

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 USBV1L5V 2 GND 3 DATA2_N 4 DATA3_P 5 DATA2_P 6 DATA3_N 7 GND 8 USBVCC5

Table 3-22: USB2 Pinouts

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 USBV3L 5V 2 GND 3 USBP4N 4 USBP5P 5 USBP4P 6 USBP5N 7 GND 8 USBV1L5V

Table 3-23: USB3 Pinouts

1-56

IEI

Technology, Corp.

3.3 External (Rear Panel) Connectors

The peripheral connectors on the back panel are connected to devices exter nally when the NANO-6613 is installed in a chassis. The peripheral connectors on the rear panel are:

 1 x CRT connector  2 x RJ-45 Ethernet connectors



1 x PS/2 keyboard/mouse connector

 1 x Serial port connector  2 x USB2.0 connectors

Figure 3-20: NANO-6613 Board Rear Panel

3.3.1 CRT Connector

CN Label: VGA1

CN Type: 15-pin female connector

CN Location: See Figure 3-20 (labeled number 2)

CN Pinouts: See Table 3-24

The standard 15-pin VGA connector connects to a CRT or LCD display monitor.

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 RED 9 NC 2 GREEN 10 GROUND 3 BLUE 11 NC 4 NC 12 DDCDAT

1-57

NANO-6613 Motherboard

5 GROUND 13 HSYNC 6 GROUND 14 VSYNC 7 GROUND 15 DDCCLK 8 GROUND

Table 3-24: VGA Connector Pinouts

3.3.2 Ethernet Connectors

CN Label: LAN1 and LAN2

CN Type: RJ-45

CN Location: See Figure 3-20 (labeled number 3 and 4)

CN Pinouts: See Table 3-25

The NANO-6613 is equipped with two built-in GbE Ethernet controller s. The controllers can connect to the LAN through two RJ-45 LAN con nectors. There are two LEDs on the connector indicating the status of LAN. The pin assignments are listed in the following table:

PIN DESCRIPTION PIN DESCRIPTION

1 TX0+ 2 TX0-

3 TX1+ 4 TX1-

5 +2.5VCC 6 +2.5VCC

7 TX2+ 8 TX2-

9 TX3+ 10 TX311 LINK- 12 +3.3VCC

13 ACTIVE- 14 +3.3VCC

Table 3-25: LAN1 and LAN2 Pinouts

1-58

IEI

Technology, Corp.

Figure 3-21: RJ-45 Ethernet Connector

The RJ-45 Ethernet connector has two status LEDs, one green and one yellow. The green LED indicates activity on the port and the yellow LED indicates the port is linked. See

Table 3-26.

STATUS DESCRIPTION STATUS DESCRIPTION

GREEN Activity YELLOW Linked

Table 3-26: RJ-45 Ethernet Connector LEDs

3.3.3 Keyboard/Mouse Connector

CN Label: KB/PS1

CN Type: PS/2 connector

CN Location: See Figure 3-20 (labeled number 6)

3.3.4 Serial Port Connectors

CN Label: COM1

CN Type: DB-9

CN Location: See Figure 3-20 (labeled number 1)

CN Pinouts: See Table 3-27

The serial ports (COM1) can be connected to a serial communications device directly.

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 DCD1 6 DSR1

2 RX1 7 RTS1

1-59

NANO-6613 Motherboard

3 TX1 8 CTS1

4 DTR1 9 RI1

5 GND

Table 3-27: Serial Port Pinouts

3.3.5 USB Connector

CN Label: USB1

CN Ty pe: USB port

CN Location: See Figure 3-20 (labeled number 5)

CN Pinouts: See Table 3-28

USB devices can be connected directly to the USB connectors on the rear panel.

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 USBV0L 5 USBV0L

2 DATA0_N 6 DATA1_N 3 DATA0_P 7 DATA1_P

4 GND 8 GND

Table 3-28: USB1 Connector Pinouts

1-60

IEI

Technology, Corp.

3.4 Onboard Jumpers

NOTE:

A jumper is a metal bridge that is used to close an electrical circuit. It consists of two met al pins and a s mall metal clip (often protected by a plastic cover) that slides over the pins to connect them. To CLOSE/SHORT a jumper means connecting the pins of the jumper with the plastic clip and to OPEN a jumper means removing the plastic clip from a jumper.

Figure 3-22 Jumper

The NANO-6613 motherboard has five onboard jumpers. The jumpers are described in

Table 3-29.

Description Label Type

Clear CMOS J7 3-pin header

CPU FSB setting J5 2-pin header

CPU frequency setting J4 2-pin header

LCD voltage setup J2 6-pin header

COM2 setup (RS-232/485) J1 3-pin header

Table 3-29: Onboard Jumpers

3.4.1 Clear CMOS Jumper

Jumper Label: J7

Jumper Type: 3 pin header

Jumper Settings: See Table 3-30

1-61

NANO-6613 Motherboard

Jumper Location: See Figure 3-23

If the NANO-6613 fails to boot due to improper BIOS settings, use this jumper to clear the CMOS data and reset the system BIOS information. To do this, use the jumper cap to close pins 2 and 3 for a few seconds then reinstall the jumper clip back to pins 1 and 2.

If the “CMOS Settings Wrong” message is displayed during the boot up process, the fault may be corrected by pressing the F1 to enter the CMOS Setup menu. Do one of the following:

 Enter the correct CMOS setting



Load Optimal Defaults

 Load Failsafe Defaults.

After having done one of the above, save the changes and exit the CMOS Setup menu.

Clear CMOS DESCRIPTION

Short 1-2 Normal Operation (Default)

Short 2-3 Clear CMOS Setup

Table 3-30: Clear CMOS Jumper Settings

The clear CMOS jumper is located in Figure 3-23.

1-62

IEI

Technology, Corp.

Figure 3-23: Clear CMOS Jumper Location

3.4.2 CPU FSB Settings Jumper

Jumper Label: J5

Jumper Type: 2-pin header

Jumper Settings: See Table 3-31

Jumper Location: See Figure 3-24

The CPU FSB Settings jumper allows the user to select the front side bus frequency between the CPU and the northbridge.

J5 DESCRIPTION

OPEN Default

CLOSE FSB 533MHz

Table 3-31: J5 FSB Selection Jumper Settings

The CPU FSB Settings jumper location is shown in Figure 3-24.

1-63

NANO-6613 Motherboard

Figure 3-24: J5 Location

3.4.3 CPU Frequency Setting Jumper

Jumper Label: J4

Jumper Type: 2-pin header

Jumper Settings: See Figure 3-25

Jumper Location: See Table 3-32

The CPU Frequency Setting jumper allows the user to select the CPU operating speed.

J4 DESCRIPTION

OPEN 100MHz (Default)

CLOSE 133MHz

Table 3-32: CPU Frequency Jumper Settings

The CPU Frequency Setting jumper location is shown in Figure 3-25.

1-64

IEI

Technology, Corp.

Figure 3-25: J4 Location

3.4.4 LCD Voltage Setup Jumper

WARNING:

Making the wrong setting on this jumper ma y cause irrepa rable damage to both the motherboard and the LCD screen connected to the onboard connector.

Jumper Label: J2

Jumper Type: 6-pin header

Jumper Settings: See Figure 3-26

Jumper Location: See Table 3-33

1-65

NANO-6613 Motherboard

This jumper allows the user to set the voltage for the LCD panel. Before setting this jumper please refer to the LCD panel user guide to determine the required voltage. After the required voltage is known, make the necessary jumper setting in accordance with the settings shown in Table 3-33.

J2 DESCRIPTION

Short 1-2 3V

Short 3-4 5V (default)

Short 5-6 12V

Table 3-33: J2 Jumper Settings

The LCD Voltage Setup jumper location is shown in

Figure 3-26

below.

Figure 3-26: J2 Location

1-66

IEI

Technology, Corp.

3.4.5 COM2 Setup Jumper

Jumper Label: J1

Jumper Type: 3-pin header

Jumper Settings: See Figure 3-27

Jumper Location: See Table 3-34

This jumper configures the COM2 connector as an RS-232 serial port, an RS-422 serial port or an RS-485 serial port. The selection options are shown in Table 3-34.

J1 DESCRIPTION

Short 1 – 2 RS-232 (Default)

Short 2 – 3 RS-485

Table 3-34: J1 Jumper Settings

The COM2 Setup jumper location is shown in Figure 3-27 below.

Figure 3-27: J1 Location

1-67

NANO-6613 Motherboard

4 Installation and

Configuration

Chapter

1-68

IEI

Technology, Corp.

4.1 Installation Considerations

NOTE:

The following installation notices and installation considerations should be read and understood before the motherboard is installed. All installation notices pertaining to the installation o f the motherboard should be strictly adhered to. Failing to adhere to these precautions may lead to severe damage of the motherboard and injury to the person installing the motherboard.

4.1.1 Installation Notices

Before and during the installation of the NANO-6613, please do the following:



Read the user manual

o The user manual provides a complete description of the NANO-6613,

installation instructions and configuration options.

 Wear an electrostatic discharge cuff (ESD )

o Electronic components are easily damaged by ESD. Wearing an ESD cuff

removes ESD from the body and helps prevent ESD damage.

 Place the motherboard on an antistatic pad

o When installing or configuring the motherboard, place it on an antistatic

pad. This helps to prevent potential ESD damage.

 Turn off all power to the NANO-6613

When working with the motherboard, make sure that it is disconnected from all power supplies and that no electricity is being fed into the system.

Before and during the installation of the NANO-6613

DO NOT:



remove any of the stickers on the PCB board. These stickers are required for warranty validation.

 use the product before verifying all the cables and power connectors are

properly connected.



allow screws to come in contact with the PCB circuit, connector pins, or its

1-69

NANO-6613 Motherboard

components.

4.2 Unpacking

NOTE:

If any of the items listed below are missing when the NANO-6613 is unpacked, do not proceed with the installation and contact the NANO-6613 reseller or vendor.

4.2.1 Unpacking Precautions

Before installing the NANO-6613, unpack the motherboard. Some components on NANO-6613 are very sensitive to static electricity and can be damaged by a sudden rush of power. To protect it from being damaged, follow these precautions:

 The user should ground them self to remove any static charge before

touching the NANO-6613. To do so wear a grounded wrist strap at all times or frequently touch any conducting materials that is connected to the ground.

 Handle the NANO-6613 by its edges. Do not touch the IC chips, leads or

circuitry if not necessary.

Do not place a PCB on top of an anti-static bag. Only the inside of the bag is safe from static discharge.

4.2.2 Checklist

When unpacking the NANO-6613, please make sure that the package contains the following items.

 1 x NANO-6613 single board computer



1 x IDE flat cable

 2 x SATA cables  1 x SATA power cable  2 x RS232 cables

1-70

IEI

Technology, Corp.



1 x Keyboard/mouse Y cable

 1 x Audio cable  1 x Power cable  1 x Mini jumper pack



1 x Utility CD

 1 x Quick Installation Guide

If one or more of these items are missing, please contact the reseller or vendor the NANO-6613 was purchased from and do not proceed any further with the installation.

4.3 NANO-6613 motherboard Installation

WARNING!

1. Never run the motherboard without an appropriate heat sink and cooler that can be ordered from IEI Technology or purchased separat ely.

Be sure to use the CPU 12V power connector for the CPU power.

WARNING!

Please note that the installation instructions described in this manual should be carefully followed in order to avoid damage to the motherboard components and injury to the user.

WARNING!

When installing electronic components onto the motherboard always take the following anti-static precautions in order to prevent ESD damage to the motherboard and other electronic components like the CPU and DIMM modules

The following components must be installed onto the motherboard or connected to the motherboard during the installation proces s .

 CPU

1-71

NANO-6613 Motherboard



CPU cooling kit

 DIMM modules  Peripheral device connection

4.3.1 CPU Installation

WARNING!

CPUs are expensive and sensitive components. When installing the CPU please be careful not to damage it in anyway. Make sure the CPU is installed properly and ensure that a heat sink and CPU cooling fan is properly installed before the motherboard is run or else both the CPU and the board may be damaged.

To install an Intel 479-pin CPU onto the motherboard, follow the steps below:

Step 1: Is the CPU retention screw in an unlocked position? When shipped, the

retention screw of the CPU socket should be in the unlocked positio n. If it is not in the unlocked position, use a screwdriver to position it in an unlocked position. (See Figure 4-1)

Figure 4-1: Make sure the CPU socket retention screw is unlocked

1-72

IEI

Technology, Corp.

Step 2: Inspect the CPU socket.

Make sure there are no bent pins and make sure the socket contact s a re free o f foreign material. If any debris is found, remove it with compressed air.

Step 3: Correctly position the CPU. Make sure the pin 1 mark matches the cut edge

on the CPU socket. Carefully place the CPU on top of the socket. When properly placed, the CPU should be easily inserted into the socket.

Step 4: Insert the CPU. To insert the CPU into the socket, hold the CPU by its edges

and follow the instructions below:

a. Correctly orientate the CPU with the IHS (Integrated Heat Sink) side

facing upward.

b. Locate the pin 1 mark on the CPU.

c. Gently insert the CPU into the socket.

d. Rotate the retention screw into the locked position. (See Figure 4-2)

Step 0:

Figure 4-2: Lock the CPU Socket Retention Screw

1-73

NANO-6613 Motherboard

4.3.2 Cooling Kit (CF-479B-RS ) Installation

Figure 4-3: IEI CF-479B-RS Cooling Kit

IEI provides a cooling kit designed for socket 479 CPUs. (See Figure 4-3) The cooling kit is comprised of a CPU heat sink and a cooling fan.

NOTE:

The CF-479B-RS heat sink comes with a sprayed layer of thermal paste. Make sure the paste is not accidentally wiped during the unpacking or installation of the heat sink. Thermal paste between the CPU and the heat sink is important for optimu m heat dissipation.

To install the CF-479B-RS cooling kit, please follow the steps below.

Step 1: Place the cooling kit onto the CPU. Make sure the CPU cable can be

properly routed when the cooling kit is installed.

Step 2: Properly align the cooling kit. Make sure its four spring screw fasteners can

pass through the pre-drilled holes on the PCB.

Step 3: Secure the cooling kit. From the solder side of the PCB, align the support

bracket to the screw threads on heat sink that were inserted through the PCB holes. (See Figure 4-4)

1-74

IEI

Technology, Corp.

Figure 4-4: Securing the Cooling Kit

Step 4: Tighten the screws. Use a screwdriver to tighten the four screws. Tighten each

nut a few turns at a time and do not over-tighten the screws.

Step 5: Connect the fan cable

. Connect the cooling kit fan cable to the fan connector on the motherboard. Carefully route the cable and avoid heat generating chips and fan blades. (See Figure 4-5) Step 0:

Figure 4-5: Connect the cooling fan cable

4.3.3 Mounting the NANO-6613 Embedded Module

The NANO-6613 embedded module has a standard PCI-104 connector on the front side. Baseboards can be designed by the end user, customized by IEI, or purch ased from IEI.

1-75

NANO-6613 Motherboard

For more information visit the IEI webstie (www.ieiworld.com) or contact an IEI sales representative.

To install the module, follow the instructions below.

Step 1: Align the PCI-104 connector with the corresponding connector on a compatible

module.

Step 2: Gently push the embedded module down to ensure the connectors are properly

connected.

4.3.4 DIMM Module Installation

4.3.4.1 Purchasing the Memory Module

WARNING!

When purchasing the SODIMM modules, make sure the modules are compatible with the SODIMM slot specified in Section 2.5 Memory

Support.

WARNING!

The board supports DDR1 SODIMM modules only. DDR1 and DDR2 are not compatible. If a DDR2 SODIMM module is installed, the system may be damaged and become inaccessible. Please only use DDR1 SODIMM modules.

4.3.4.2 SODIMM Module Installation

The NANO-6613 embedded module has one 200-pin SODIMM socket. To install the SODIMM module, follow the instructions below.

Step 3: Turn the NANO-6613 over so that the SODIMM socket is facing up.

Step 4: Push the SODIMM chip into the socket at an angle. (See Figure 4-6)

1-76

IEI

Technology, Corp.

Step 5:

Gently pull the arms of the SODIMM socket out and push the rear of the SODIMM module down. (See Figure 4-6)

Step 6: Release the arms on the SODIMM socket. They clip into place and secure the

SODIMM module in the socket.Step 0:

Figure 4-6: SODIMM Module Installation

4.3.5 Peripheral Device Connection

Cables provided by IEI that connect peripheral de vices to the motherboard are listed in

Table 4-1. Cables not included in the kit must be separately purchased.

Quantity Type

1 IDE flat cable 1 Audio Cable 1 Keybaord/PS2 mouse Y cable 2 SATA cables 1 SATA power cable 2 RS-232 cables 1 Power cable

Table 4-1: IEI Provided Cables

1-77

NANO-6613 Motherboard

4.3.5.1 IDE Disk Drive Connector (IDE1)

The cable used to connect the motherboard to the IDE HDD is a standard 44-pin ATA/100 flat cable. To connect an IDE HDD to the motherboard, follow the instructions below.

Step 1: Find the IDE flat cable in the kit that came with the motherboard.

Step 2:

Connect one end of the ca ble to the IDE c onnector on the moth erboard. A keyed pin on the IDE connector prevents it from being connected incorrectly.

Step 3: Locate the red wire on the other side of the cable that corresponds to the pin 1

connector.

Step 4: Connect the other side of the cable to the HDD making sure that the pin 1 cable

corresponds to pin 1 on the connector.

Step 0:

Figure 4-7: Connection of IDE Connector

NOTE:

When two IDE disk drives are connected toge ther, back-end jumpers on the drives must be us ed to co nfigure o ne drive as a ma ster an d the o ther as a slave.

1-78

IEI

Technology, Corp.

4.3.5.2 Compact Flash Disk

When appropriately formatted, a compact Flash disk can serve as a bootable hard drive in applications where installation space is limited. The Compact Flash card occupies a secondary IDE channel. Configuration options can be found through the BIOS configuration utility.

4.3.5.3 Parallel Port Connector (LPT1)

The onboard parallel port connector (LPT1) connects to a printer. The NANO-6613 comes with a multi-mode (ECP/EPP/SPP) parallel port. The parallel port interface features a 26-pin flat-cable connector that requires an adapter cable if a traditional DB-25 connector is used. The parallel port interface can be re-assigned to LPT2 or LPT3 through the BIO S configuration utility. The default interrupt channel is IRQ7. Select ECP or EPP DMA mode using the BIOS configuration utility.

4.3.5.4 Audio Interface

AC’97 Audio signals are interfaced through a 10-pin flat-cable connector. The signals include microphone line-in, line-in stereo, line-out stereo and speaker out stereo. An audio 10-pin-to-phone-jack adapter kit is required.

4.3.5.5 COM Port Connectors [COM1, COM2, COM3 and COM4]

The NANO-6613 provides four serial ports (COM1, COM3, COM4: RS-232; COM2: RS-232/485) interfaced through two 10-pin male headers (COM3, COM4), one 14-pin male header (COM2) and one DB-9 connector (COM1). The serial ports facilitate the connection to serial devices or a communications network, e.g., terminal console.

4.4 Chassis Installation

After the CPU, the cooling kit, and the SODIMM modules have been installed and after the internal peripheral connectors have been connected to the peripheral devices and the jumpers have been configure, the motherboard can be mounted into chassis.

To mount the motherboard into a chassis please refer to the chassis user guide that came with the product.

1-79

NANO-6613 Motherboard

4.5 Rear Panel Connectors

4.5.1 LCD Panel Connection

The conventional CRT monitor connector, VGA1, is a 15-pin, female D-SUB connector. Pin assignments can be seen in that can be connected to external monitors.

4.5.2 Ethernet Connection

The rear panel RJ-45 connectors can be connected to an external LAN and communicate with data transfer rates up to 1Gb/s.

4.5.3 USB Connection

The rear panel USB connectors provide easier and quicker access to external USB devices. The rear panel USB connector is a standard connector and can easily be connected to other USB devices.

4.5.4 Serial Connection

The rear panel serial connector (COM1) provides easy and quick access to external serial devices

4.5.5 Keyboard and Mouse Connection

A PS/2 keyboard and a PS/2 mouse can be connected to the appropr iate PS/2 conn ector on the rear panel.

1-80

IEI

Technology, Corp.

THIS PAGE IS INTENTIONALLY LEFT BLANK

1-81

NANO-6613 Motherboard

5 AMI BIOS Setup

Chapter

1-82

IEI

Technology, Corp.

5.1 Introduction

A licensed copy of AMI BIOS is preprogrammed into the ROM BIOS. The BIOS setup program allows users to modify the basic system configura tion. T his chapter describes how to access the BIOS setup program and the configuration options that may be changed.

5.1.1 Starting Setup

The AMI BIOS is activated when the computer is turned on. The setup program can be activated in one of two ways.

1. Press the

ELETE

key as soon as the system is turned on or

2. Press the D

ELETE key when the “Press Del to enter SETUP” message

appears on the screen. 0.

If the message disappears before, restart the computer and try again.

5.1.2 Using Setup

Use the arrow keys to highlight items, press

NTER

to select, use the PageUp and

PageDown keys to change entries, press F1 for help and press E

to quit. Navigation

keys are shown in.

Key Function

Up arrow Move to previous item Down arrow Move to next item Left arrow Move to the item on the left hand side Right arrow Move to the item on the right hand side Esc key Main Menu – Quit and not save changes into CMOS

Status Page Setup Menu and Option Page Setup Menu --

Exit current page and return to Main Menu “+” key Increase the numeric value or make changes “-“ key Decrease the numeric value or make changes F1 key General help, only for Status Page Setup Menu and Option

Page Setup Menu

1-83

NANO-6613 Motherboard

F2 /F3 key Change color from total 16 colors. F2 to select color

forward. F10 key Save all the CMOS changes, only for Main Menu

Table 5-1: BIOS Navigation Keys

5.1.3 Getting Help

When F1 is pressed a small help window describing the appropriate keys to use and the possible selections for the highlighted item appears. To exit the Help Window press E

SC or

the F1 key again.

5.1.4 Unable to Reboot after Configuration Changes

If the computer cannot boot after changes to th e system configuration is made, CMOS defaults. Use the jumper described in Chapter Chapter 3, Section 3.4.1.

5.1.5 BIOS Menu Bar

The menu bar on top of the BIOS screen has t he following main items:



Main

Changes the basic system conf igurat ion .



Advanced

Changes the advanced system settings.



PCIPnP Changes the advanced PCI/PnP Settings

 Chipset Changes the chipset settings.



Boot

Changes the system boot configuration.



Security

Sets User and Supervisor Passwords.



Exit Selects exit options and loads default settings

The following sections completely describe the configuration optio ns found in the menu items at the top of the BIOS screen and listed above.

5.2 Main

When the BIOS Setup program is entered, the Main menu (BIOS Menu 1) appears. The Main menu gives an overview of the basic system information.

1-84

IEI

Technology, Corp.

BIOS Menu 1: Main

 System Overview

The System Overview lists a brief summary of different system components. The fields in System Overview cannot be changed. The items shown in the system overview include:

 AMI BIOS: Displays auto-detected BIOS information

o Version: Current BIOS version o Build Date: Date the current BIOS version was made o ID

: Installed BIOS ID

 Processor: Displays auto-detected CPU specifications

o Type: Names the currently installed processor o Speed: Lists the processor speed o Count

: The number of CPUs on the motherboard

 System Memory: Displays the auto-detected system memory .

o Size: Lists memory size

The System Overview field also has two user configurable fields:

1-85

NANO-6613 Motherboard

 System Time [xx:xx:xx]: The system time is set here.  System Date [Day xx/xx/xxxx]: The system date is set here.

5.3 Advanced

The Advanced menu (BIOS Menu 2) allows access to the CPU and peripheral device configuration options through the following sub-menus:

WARNING:

Setting the wrong values in the sections below may ca use the system to malfunction. Make sure that the settings made are compatible with the hardware.

 CPU Configuration (see Section 5.3.1)  IDE Configuration (see Section 5.3.2)  SuperIO Configuration (see Section 5.3.3)  Hardware Health Configuration (see Section 5.3.4)  ACPI Configuration (see Section 5.3.5)  MPS Configuration (see Section 5.3.6)  Power Configuration (see Section 5.3.7)  USB Configuration (see Section 5.3.8)

1-86

IEI

Technology, Corp.

BIOS Menu 2: Advanced

5.3.1 CPU Configuration

The CPU Configuration menu (BIOS M enu 3) shows detailed CPU specifications and CPU configuration options.

1-87

NANO-6613 Motherboard

BIOS Menu 3: CPU Configuration

The CPU Configuration menu (

BIOS Menu 3

) lists the following CPU details:

 Manufacturer: Lists the name of the CPU manufacturer  Brand String: Lists the brand name of the CPU being used  Frequency: Lists the CPU processing sp eed  FSB Speed

: Lists the FSB speed

 Cache L1: Lists the CPU L1 cache size  Cache L2: Lists the CPU L2 cache size

5.3.2 IDE Configuration

The IDE Configuration menu (BIOS Menu 4) allows changes to the configurations for the IDE devices installed in the system.

1-88

IEI

Technology, Corp.

BIOS Menu 4: IDE Configuration

 OnBoard PCI IDE Controller [Both]

The OnBoard PCI IDE Controller BIOS option specifies the IDE channels used by the onboard PCI IDE controller. The following configuration options are available.



Disabled

Prevents the system from using the onboard IDE

controller



Primary

Only allows the system to detect the Primary IDE

channel, including both the Primary Master and Primary Slave)



Secondary

Only allows the system to detect the Secondary IDE

channel, including both the Secondary Master and Secondary Slave)



Both

(Default) Allows the system to detect both the Primary and

1-89

NANO-6613 Motherboard

Secondary IDE channels including the Primary Master, Primary Slave, Secondary Master and Secondary Slave.



Onboard PCI IDE Mode [Legacy Mode]

The Onboard PCI IDE Mode BIOS option sets the running mode for the PCI IDE.



Legacy Mode

(Default) The PCI IDE mode is the same as the IDE mode



Native Mode

The PCI IDE mode is the native mode

 Onboard PCI S-ATA Controller [Disabled]

The Onboard PCI S -ATA Contro ller option sets the onboard SATA controller. If the RAID function is going to be used (see Appendix E) this option must be set in the RAID mode.



Disabled

(Default) The onboard PCI SATA controller is disabled



Native Mode

The SATA controller is set as an IDE device with ID

at 0181h



Raid Mode

The SATA controller is set as a RAID device with ID

at 0181h

 IDE Master and IDE Slave

When entering setup, BIOS auto detects the pr esence of IDE devices. This displays the status of the auto detected IDE devices. The following IDE devices are detected and are shown in the IDE Configuration menu:

 Primary IDE Master  Primary IDE Slave  Secondary IDE Master



Secondary IDE Slave

 Third IDE Master  Third IDE Slave

1-90

IEI

Technology, Corp.



Fourth IDE Master

 Fourth IDE Slave

The IDE Configuration menu (BIOS Menu 4) allows changes to the configurations for the IDE devices installed in the system. If an IDE device is detected, and one of the above listed four BIOS configuration options are selected, the IDE configuration options shown in

Section 5.3.2.1 appear.

5.3.2.1 IDE Master, IDE Slave

IDE Master and IDE Slave configuration options for both primary and secondary IDE devices are shown in the BIOS menu below.

BIOS Menu 5: IDE Master and IDE Slave Configuration

 Auto-Detected Drive Parameters

The “grayed-out” items in the left frame are IDE disk drive parameters automatically detected from the firmware of the selected IDE disk drive. The drive parameters are listed as follows:

1-91

NANO-6613 Motherboard

 Device: Lists the device type (e.g. hard disk, CD-ROM etc.)  Vendor: Lists the device manufacturer  Size: The size of the device.  LBA Mode: Indicates whether the LBA (Logical Block Addressing) is a

method of addressing data on a disk drive is supported or not.

 Block Mode: Block mode boosts IDE drive perf orm ance by increasing the

amount of data transferred. Only 512 bytes of data can be transferred per interrupt if block mode is not used. Block mode allows tran sfers of up to 64 KB per interrupt.

 PIO Mode: Indicates the PIO mode of the installed device.  Async DMA: Indicates the highest Asynchronous DMA Mode that is

supported.

 Ultra DMA: Indicates the highest Synchronous DMA Mode that is supported.  S.M.A.R.T.: Indicates whether or not the Self-Monitoring Analysis and

Reporting Technology protocol is supported.

 Type [Auto]

The Type BIO S option determines the type of device that the AMIBIOS attempts to boot from after the Power-On Self-Test (POST) has completed.



Not Installed

Selecting this value prevents the BIOS from searching

for an IDE disk drive on the specified channel.



Auto

(Default) This selection enables the BIOS to auto detect the

IDE disk drive type attached to the specified channel. This setting should be used if an IDE hard disk drive is attached to the specified channel.



CD/DVD

The CD/DVD option specifies that an IDE CD-ROM

drive is attached to the specified IDE channel. The BIOS does not attempt to search for other types of IDE disk drives on the specified channel.



ARMD

This option specifies an ATAPI Removable Media

Device. These include, but are not limited to:

1-92

IEI

Technology, Corp.

 ZIP



LS-120

 LBA/Large Mode [Auto]

The

LBA/Large Mode

BIOS option disables or auto detects LBA (Logical Block Addressing). LBA is a method of addressing data on a disk drive. In LBA mode, the maximum drive capacity is 137 GB.



Disabled

This selection prevents the BIOS from using the LBA

mode control on the specified channel.



Auto

(Default) This option allows the BIOS to auto detect the LBA mode

control on the specified channel.

 Block (Multi Sector Transfer) [Auto]



Disabled

Selecting this option prevents the BIOS from using

Multi-Sector Transfer on the specified channel. The data to and from the device occurs one sector at a time.



Auto

(Default) Selecting this value to allows the BIOS to auto detect the

device support for Multi-Sector Transfers on the specified channel. If supported. Select this value to allow the BIO S to auto detect the number of sectors per block for transfer from the hard disk drive to the memory. The data transfer to and from the device occurs multiple sectors at a time.



PIO Mode [Auto]

The PIO Mode option selects the IDE PIO (Programmable I/O) mode program timing cycles between the IDE drive and the programmable IDE controller. As the PIO mode increases, the cycle time decreases.

1-93

NANO-6613 Motherboard



Auto

(Default) This setting allows the BIOS to auto detect the PIO mode. Use

this value if the IDE disk drive support cannot be determined.



PIO mode 0 selected with a maximum transfer rate of 3.3MBps



PIO mode 1 selected with a maximum transfer rate of 5.2MBps



PIO mode 2 selected with a maximum transfer rate of 8.3MBps



PIO mode 3 selected with a maximum transfer rate of 11.1MBps



PIO mode 4 selected with a maximum transfer rate of 16.6MBps

(This setting generally works with all hard disk drives manufactured after 1999. For other disk drives, such as IDE CD-ROM drives, check the specifications of the drive.)

 DMA Mode [Auto]

The DMA Mode BIOS selection adjusts the DMA mode options.



Auto

(Default) The BIOS auto detects the DMA mode. Use this value if the

IDE disk drive support cannot be determined.

 S.M.A.R.T [Auto]

Self-Monitoring Analysis and Reporting Technology (SMART) feature can help predict impending drive failures. The S.M.A.R.T BIOS option enables or disables this function.



Auto

(Default) BIOS to auto detects if the hard disk drive supports

S.M.A.R.T. Use this setting if the IDE disk drive suppor t cannot be determined.



Disabled

Select this value to prevent the BIOS from using the

SMART feature.



Enabled

Select this value to allow the BIOS to use the SMART

feature on support hard disk drives.

1-94

IEI

Technology, Corp.

 32Bit Data Transfer [Disabled]

The 32Bit Data Transfer BIOS option enables or disables 32-bit data transfers.



Disabled

(Default) Prevents the BIOS from using 32-bit data transfers.



Enabled

Allows BIOS to use 32-bit data transfers on support hard

disk drives.

5.3.3 Super IO Configuration

The Super IO Confi gura tio n menu (BIOS Menu 6) sets or changes the configurations for the FDD controllers, parallel ports and serial ports.

BIOS Menu 6: Super IO Configuration

 Serial Port1 Address [3F8/IRQ4]

The

Serial Port1 Address

option allows BIOS to select the Serial Port 1 base address.

1-95

NANO-6613 Motherboard



Disabled

No base address is assigned to Serial Port 1



3F8/IRQ4

(Default) Serial Port 1 I/O port address is 3F8 and the interrupt

address is IRQ4



3E8/IRQ4

Serial Port 1 I/O port address is 3E8 and the interrupt

address is IRQ4



2E8/IRQ3

Serial Port 1 I/O port address is 2E8 and the interrupt

address is IRQ3

 Serial Port2 Address [2F8/IRQ3]

The Serial Port2 Address option allows BIOS to select the Serial Port 2 base address.



Disabled

No base address is assigned to Serial Port 2



2F8/IRQ3

(Default) Serial Port 2 I/O port address is 3F8 and the interrupt

address is IRQ3



3E8/IRQ4

Serial Port 2 I/O port address is 3E8 and the interrupt

address is IRQ4



2E8/IRQ3

Serial Port 2 I/O port address is 2E8 and the interrupt

address is IRQ3



Serial Port2 Mode [Normal]

Allows BIOS to select the mode for Serial Port 2



Normal

(Default) Serial Port 1 mode is normal



IrDA

Serial Port 1 mode is IrDA



ASK IR

Serial Port 1 mode is ASK IR

 Parallel Port Address [378]

This option allows BIOS to select the base addresses for th e Parallel Port

1-96

IEI

Technology, Corp.



Disabled

No base address is assigned to the Parallel Port



378

(Default) Parallel Port I/O port address is 378



278

Parallel Port I/O port address is 278



3BC

Parallel Port I/O port address is 3BC

 Parallel Port Mode [Normal]

The Parallel Port Mode selection selects the mode the parallel port operates in.



Normal

(Default) The normal parallel port mode is the standard mode

for parallel port operation.



Bi-Directional

Bi-Directional parallel port is able to receive 8 lines

of data into the computer.



EPP

The parallel port operates in the enhanced parallel

port mode (EPP). The EPP mode supports bi-directional communication between the system and the parallel port device and the transmission rates between the two are much faster than the Normal mode.



ECP+EPP

The parallel port operates in the extended

capabilities port (ECP) mode. The ECP mode supports bi-directional communication between the system and the parallel port device and the transmission rates between the two are much faster than the Normal mode

The parallel port becomes compatible with EPP devices described above

1-97

NANO-6613 Motherboard

 Parallel Port IRQ [IRQ7]

The Parallel Port Address BIOS option assigns the parallel port interrupt address. The following address options are available.



IRQ5

Parallel port interrupt address is IRQ5



IRQ7

(Default) Parallel port interrupt address is IRQ7

 Serial Port3 Address [3E8]

This option allows BIOS to select the base addresses for serial port 3



Disabled

No base address is assigned to serial port 3



3E8

(Default) Serial port 3 I/O port address is 3E8



2E8

Serial port 3 I/O port address is 2E8



2E0

Serial port 3 I/O port address is 2E0

 Serial Port3 IRQ [11]

The Serial Port3 IRQ selection sets the interrupt address for serial port 3.



Serial port 3 IRQ address is 10



(Default) Serial port 3 IRQ address is 11

 Serial Port4 Address [2E8]

This option allows BIOS to select the base addresses for serial port 4.



Disabled

No base address is assigned to serial port 4



3E8

Serial port 4 I/O port address is 3E8



2E8

(Default) Serial port 4 I/O port address is 2E8



2E0

Serial port 4 I/O port address is 2E0

1-98

IEI

Technology, Corp.

 Serial Port4 IRQ [10]

The Serial Port4 IRQ selection sets the interrupt address for serial port 4.



EFAULT) Serial port 4 IRQ address is 10



Serial port 4 IRQ address is 11

 Serial Port5 Address [2E0]

This option allows BIOS to select the base addresses for serial port 5.



Disabled

No base address is assigned to serial port 5



3E8

Serial port 5 I/O port address is 3E8



2E8

Serial port 5 I/O port address is 2E8



2E0

(Default) Serial port 5 I/O port address is 2E0



2D8

Serial port 5 I/O port address is 2D8

 Serial Port5 IRQ [11]

The

Serial Port5 IRQ

selection sets the interrupt address for serial port 5.



Serial port 5 IRQ address is 10



(Default) Serial port 5 IRQ address is 11

 Serial Port6 Address [2D8]

This option allows BIOS to select the base addresses for serial port 6.



Disabled

No base address is assigned to serial port 6



3E8

Serial port 6 I/O port address is 3E8



2E8

Serial port 6 I/O port address is 2E8



2E0

Serial port 6 I/O port address is 2E0

1-99

NANO-6613 Motherboard



2D8

(Default) Serial port 6 I/O port address is 2D8

 Serial Port6 IRQ [10]

The Serial Port6 IRQ selection sets the interrupt address for serial port 6.



(Default) Serial port 6 IRQ address is 10



Serial port 6 IRQ address is 11

5.3.4 Hardware Health Configuration

The Hardware Health Configuration menu (BIOS Menu 7) shows the operating temperature, fan speeds and sys t em v oltag es.

BIOS Menu 7: Hardware Health Configuration

The following system parameters and values are shown. The system parameters that are monitored are:

1-10

100

IEI

Technology, Corp.

 System Temperatures: T h e following system temperatures are monitored

o CPU Temperature o System Temperature

 Fan Speeds: The CPU cooling fan speed is monitored.

o Fan1 Speed

 Voltages: The following system voltages are monitored

o Vcore o +3.30Vin o +5.00Vin o +12Vin

5.3.5 ACPI Configuration

The ACPI Configuration menu (BIOS Menu 8) configures the Advanced Configur ation and Power Interface (ACPI) and Power Management (APM) options.

BIOS Menu 8: ACPI Configuration

IEI Technology NANO-6613 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
