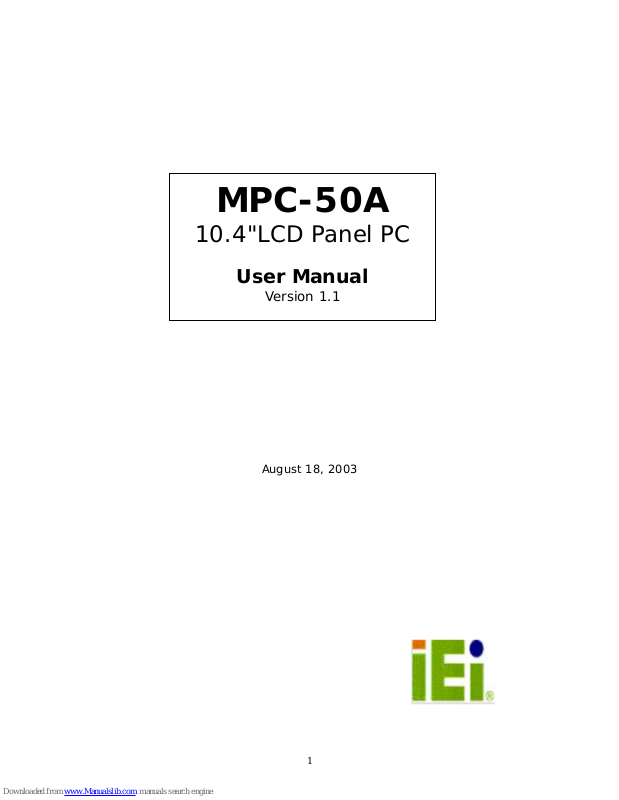

August 18, 2003
MPC-50A
10.4"LCD Panel PC
User Manual
Version 1.1
2
Copyright Notice
©Copyright 2003 by ICP Electronics Inc. All Rights Reserved.
The information in this document is subject to change without prior notice in order
to improve reliability, design and function and does not represent a commitment on
the part of the manufacturer.
In no event will the manufacturer be liable for direct, indirect, special, incidental, or
consequential damages arising out of the use or inability to use the product or
documentation, even if advised of the possibility of such damages.
This document contains proprietary information protected by copyright. All rights
are reserved. No part of this manual may be reproduced by any mechanical,
electronic, or other means in any form without prior written permission of the
manufacturer.
Trademarks
MPC-50A is a registered trademark of ICP Electronics Inc. IBM PC is a registered
trademark of International Business Machines Corporation. Intel is a registered
trademark of Intel Corporation. Other product names mentioned herein are used
for identification purposes only and may be trademarks and/or registered
trademarks of thei r respect ive compani es. If you have any qu estions or need oth er
information, please visit our web site.
http://www.ieiworld.com
3
Table of Contents
CHAPTER 1 PRODUCT INFORMATION.............................................................................4
1.1 GENERAL INFORMATION...........................................................................................................4
1.2 PRODUCT SPECIFICATIONS......................................................................................................4
1.3 CHECK LIST ..............................................................................................................................5
1.4 MECHANICAL DIMENSIONS......................................................................................................6
1.5 DISPLAY MODULE (MPC-50A)..............................................................................................6
CHAPTER 2 SYSTEM SETUP...................................................................................................6
2.1 MPC-50A PANEL PC INSTALLATION......................................................................................7
2.2 DISK DRIVE INSTALLATION.....................................................................................................8
2.3 POWER SUPPLY INSTALLATION................................................................................................9
2.4 COOLING FAN INST ALLATION ..................................................................................................9
2.5 BACKPLANE AND CPU CARD INSTALLATION........................................................................10
2.6 COVER INSTALLATION............................................................................................................10
2.7 PANEL MOUNTING..................................................................................................................11
APPENDIX A POWER SUPPLY SPECIFICATION........................................................12
APPENDIX B USER MODE OSD ITEM DESCRIPTION..............................................13
APPENDIX C DIMENSIONS OF BACKPLANES .............................................................16
4
Chapter 1 Product Information
1.1 General Information
The MPC-50A, 10.4”TFT LCD 4-slot Panel PC, takes advantages of modern
flat-panel displays technology. It consists of a CPU board, a power supply and a
passive backplane for minimum size. It is an IBM PC/AT compatible computer
specially designed to meet the applications for industrial environments.
1.2 Product Specifications
z Front Panel: Meets NEMA 4
z Disk Drive Bay: Supports one slim type CD-ROM driver space and three 3.5"
open drive spaces
z Cooling Fan: One 80mm cooling fan with filter
z Anti-vibration card clamp included
z Optiona l Backplane:
9 IP-4SA backplane for ATX power supply (ACE-816AP)
9 BP-4S, IP-4S IP-4S2 and IP-4S3 backplane for AT power supply
(ACE-916AP)
z Dimensions: Front panel: 312(W) x 242(H) x 9(D) mm
Cabinet: 288(W) x 218(H) x 212(D) mm
z LCD Display
Display Type 10.4” TFT color
LCD model UB104S01
DIAGONAL 10.4 inch
BRIGHTNESS 250 cd/m
2
TEMPERATURE 0~50℃
Color configuration R.G.B. vertical stripe
LCD MTBF 50,000 hrs
Resolution (pixel) 800(H) x600(V)
z Dynapro Touch Screen (optional)
9 Type: Analog Resistive
9 Resolution: Continuous
9 Light Transmission: T ypical value 75%
9 Surface Hardness: 4H (Test condition: ASTM D3363-92A)
9 8-wire touch screen
9 Support driver: Supports DOS, Windows 3.1, 95, 98, NT, 2000,
XP, DOS OS/2
5
z Plug-in Card Size
Maximum card size is 226mm
z Industrial Power Supply
9 Type:ACE-816AP (ATX), 150 Watt
ACE-916AP (AT), 150 Watt
9 Shock: 10 G peaks acceleration (11 msec duration)
9 Safety: meet UL/CSA/TUV
9 EMI: meet FCC/CISPR class B
z Environmental specificatio ns
9 Operating T emperature : 0 ~ 50℃
9 Relative Humidity: 10-95% @40 , non℃ -condensing
9 Vibration: 5 to 17 Hz, 0.1"double-amplitude displacement,17 to 640 Hz,
1.5 G Peak to peak
1.3 Check List
z User Manual x 1
z Power Cable x 1
z VGA Cable D-SUB 15P M TO M x 1
z Round Cable D-SUB 9P (optional) x 1
z Screw Accessories x 1
z Setting Kit x3
z Chassis Supporters x 8
6
1.4 Mechanical Dimensions
The following diagram indicates the dimensions of MPC-50A.
Front panel: 312(W) x 242(H) x 9(D)mm
Cabinet: 288(W) x 218(H) x 212(D) mm
1.5 Display Module (MPC-50A)
2
4
1
.
9
311.9
273.0
9
.
0
2
1
8
.
0
(227.1)
211.9
Unit :mm
100.0 100.0
288.0
15
2
1
.
5
2
4
.
4
7
Chapter 2 System Setup
The MPC-50A(10.4.") LCD 4-slot Panel PC is easy to setup for operation. The
following sections demonstrate how to remove the upper cover, and then install
backplane, CPU card, display control card, hard disk drive and other I/O cards
required by the application.
2.1 MPC-50A Panel PC Installation
8
2.2 Disk Drive Installation
MPC-50A (10.4") provides one slim type CD-ROM drive space and Three 3.5” drive
spaces.
The following diagram shows how to install the slim CD-ROM drive and the 3.5"
FDD.
For installing the two 3.5" HDDs, please remove the bottom panel by releasing the
screws as the below diagram shown.
9
2.3 Power Supply Installation
This Panel PC is equipped with ACE-816AP or ACE-916AP power supply, which is
fastened by 4 screws as the diagram shown below.
2.4 Cooling Fan Installation
MPC-50A is equipped with one 80mm cooling fan for system. The following diagram
indicates the location of the fan.
Warning: Do not use the wet filter to filter out the dirt.
10
2.5 Backplane and CPU Card Installation
The figure below illustrates how to install the Backplane and CPU card on the
MPC-50A.
2.6 Cover Installation
Figure below illustrates how to install the cover on the MPC-50A.
11
2.7 Panel Mounting
MPC-50A can be mounted within a panel as the diagram below shown. Please make
sure the dimension of the case is within panel aperture so that the holes of screws
match with the mounting bolts on the flange of MPC-50A.
12
Appendix A Power Supply Specification.
This chapter provides detailed information of the power supply.
ACE-816AP
OUTPUT RATING
ACE-916AP
OUTPUT RATING
Output Nominal Regulation Ripple/Noise Min Max
1 +3.3V
%5±
50mV 0.3A 10.0A
2 +5V
%5±
50mV 1.0A 14.0A
3 +12V
%5±
120mV 0.3A 4.2A
4 -12V
%10±
120mV 0.0A 0.3A
5 +5VSB
%5±
50mV 0A 2.0A
Output Nominal Regulation Ripple/Noise Min Max PEAK
1 +5V
%5±
50mV 1.0A 16.0A
2 +12V
%5±
120mV 0.5A 6.0A 8A
3 -12V
%10±
120mV 0.3A 0.3A
Warning: Whenever you need to take off a part for either maintenance or
upgrading purpose, you should switch off the power supply and unplug the
power cord first.
Appendix B User Mode OSD Item Description
z Auto-Adjustment
This item will automatically adjust the H/V position, frequency, phase, and black
level.
z Auto Phase
This item will automatically adjust the sampling.
z Brightness
It is used to adjust the brightness of screen. This function will adjust the offset
value of ADC. Setting this value too high or too low will destroy the quality of
image.
z Contrast
It is used to adjust the contrast of scre en; this function will adjust the gain value
of ADC. Adjust this value too high or too low will destroy the quality of image.
14
z DOS/GFX
It is used to choose VGA input signal that are text mode or graphic mode. ( It is
only selectable on resolution of 720/640x400 or 720/640x350 . ) 400 and 350
standard IBM mode have the same Hsync. and Vsync. Value. AV-9261 MPU can
not differentiate them automatically , user need to adjust the m manually to
match proper VGA mode .
z H. Position
It is used to adjust horizontal display position of image.
z V. Position
It is used to adjust vertical display position of image.
z Language
It is used to select the languages using on OSD display. AV-9261 now can
support 2 languages on OSD display. English is the default one.
z Revert
It is used to reload original parameters from the factory’s OSD data area of the
system EEPROM 24c16 device to re-initialize AV-9261 system device. When user
adjust OSD data too much and can not see better quality than before , user can
select this item and MPU will reload default BIOS setting and re-initialize the
system.
15
z Save
It is used to save the parameters into the user OSD adjustment data area of the
system EEPROM 24c16 device and close OSD. Whenever user adjusts any
parameters, it is needed to execute this item to save data into EEPROM. And next
time power on, the MPU will use the storied data to initialize the AV-9261 system.
z Main Menu
Every level of OSD have the item name Main Menu, this item let user leave
current level and jump to upper level , or press the Return key.
z Exit
Press the EXIT key to exit the OSD menu when the OSD menu is on top of the
level.
16
Appendix C Dimensions of Backplanes
4-O4.0
0
0
96.29
1
6
4
.
4
4
91.34
4.95
6
.
1
5
1
5
8
.
2
7
10.19
30.51
50.83
71.15
1
7
.
8
3
BP-4S
Utin:mm
4-O4.0
0
0
5
10.36
46.25
66.57
91.36
86.89
1
5
7
.
7
6
1
6
4
.
3
9
96.37
3
3
.
5
5
1
7
.
7
5
IP-4S
Unit:mm
17
IP-4S2
IP-4S2
6
.
2
5
0
0
5
10.36
31.95
66.57
86.89
91.36
96.37
6
.
2
5
3
3
.
7
6
1
7
.
9
6
1
5
8
.
4
5
1
6
4
.
4
9
53.11
91.36
96.37
1
5
8
.
4
5
4-O4 Holes
Unit:mm
IP-4SA
I
P
-
4
S
A
0
0
6
.
1
1
7
.
7
8
1
5
7
.
7
9
1
6
4
.
4
1
5
59.99
91.36
1
5
7
.
7
9
1
4
0
.
7
3
3
3
.
5
8
6
.
1
96.37
91.36
86.89
46.25
5
10.36
4
-
O
4
H
o
l
e
s
Unit:mm
