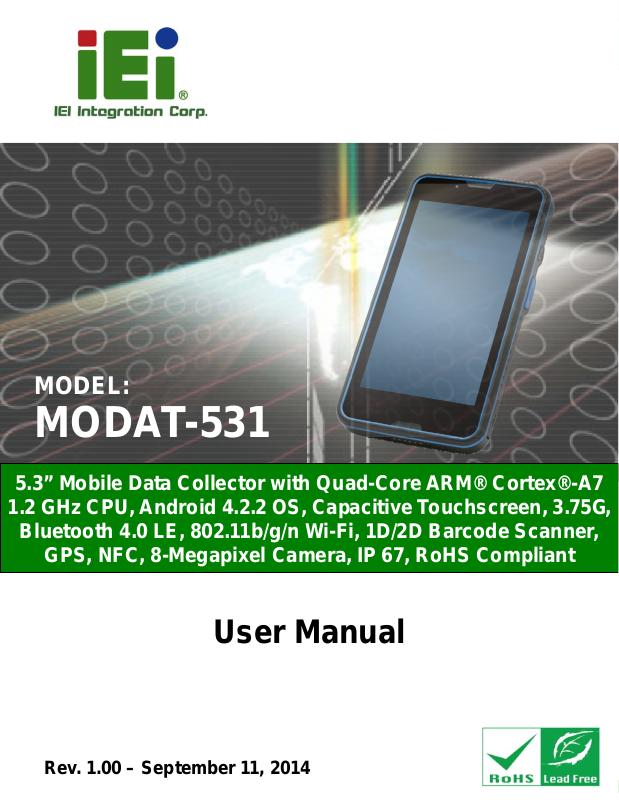

MODAT-531 Mobile Data Collector
MODEL:
MODAT-531
5.3” Mobile Data Collector with Quad-Core ARM® Cortex®-A7
1.2 GHz CPU, Android 4.2.2 OS, Cap acitive Touchscreen, 3.75G,
Bluetooth 4.0 LE, 802.11b/g/n Wi-Fi, 1D/2D Barcode Scanner,
GPS, NFC, 8-Megapixel Camera, IP 67, RoHS Compliant
User Manual
Rev. 1.00 – September 11, 2014
Page i
Date Version Changes
September 11, 2014 1.00 Initial release
MODAT-531 Mobile Data Collector
Revision
Page ii
MODAT-531 Mobile Data Collector
COPYRIGHT NOTICE
In no event will the manufacturer be liable for direct, indirect, special, incidental, or
consequential damages arising out of the use or inability to use the product or
documentation, even if advised of the possibility of such damages.
This document contains proprietary information protected by copyright. All rights are
reserved. No part of this manual may be reproduced by any mechanical, electronic, or
other means in any form without prior written permission of the manufacturer.
TRADEMARKS
Copyright
All registered trademarks and product names mentioned herein are used for identification
purposes only and may be trademarks and/or registered trademarks of their respective
owners.
Page iii
MODAT-531 Mobile Data Collector
Table of Contents
1 INTRODUCTION.......................................................................................................... 1
1.1 OVERVIEW.................................................................................................................. 2
1.2 FEATURES................................................................................................................... 2
1.3 FRONT PANEL............................................................................................................. 3
1.4 REAR PANEL............................................................................................................... 4
1.5 SIDE PANELS .............................................................................................................. 5
1.6 TOP PANEL ................................................................................................................. 6
1.7 BOTTOM PANEL.......................................................................................................... 6
1.8 TECHNICAL SPECIFICATIONS ...................................................................................... 7
1.9 DIMENSIONS............................................................................................................... 9
2 UNPACKING............................................................................................................... 10
3 INSTALLATION ......................................................................................................... 13
3.1 ANTI-STATIC PRECAUTIONS...................................................................................... 14
3.2 INSTALLATION PRECAUTIONS................................................................................... 14
3.3 CHARGING THE SYSTEM........................................................................................... 15
3.4 SIM CARD INSTALLATION........................................................................................ 17
3.5 MICROSD CARD INSTALLATION................................................................................ 18
3.6 I/O CONNECTORS..................................................................................................... 19
3.6.1 Headset Jack.................................................................................................... 19
3.6.2 Micro USB Connector...................................................................................... 20
3.7 SYSTEM MAINTENANCE...........................................................................................21
4 USING THE MODAT-531........................................................................................... 22
4.1 POWERING ON/OFF .................................................................................................. 23
4.2 HOME SCREEN ......................................................................................................... 24
4.2.1 Switching between Home Screens.................................................................... 24
4.2.2 Favorites Tray.................................................................................................. 25
4.2.3 Adding Shortcuts.............................................................................................. 26
4.2.4 Arranging the Home Screen............................................................................. 27
4.3 NAVIGATION BUTTONS............................................................................................. 28
Page iv
MODAT-531 Mobile Data Collector
4.4 STATUS BAR ............................................................................................................. 29
4.5 SETTINGS ................................................................................................................. 30
4.5.1 WIRELESS & NETWORKS.............................................................................. 30
4.5.1.1 More Settings............................................................................................ 31
4.5.2 Audio Profiles................................................................................................... 33
4.5.3 Display............................................................................................................. 34
4.5.4 Storage............................................................................................................. 35
4.5.5 Battery.............................................................................................................. 36
4.5.6 Apps.................................................................................................................. 37
4.5.7 Barcode............................................................................................................ 38
4.5.8 Location Access................................................................................................ 39
4.5.9 Security ............................................................................................................ 40
4.5.10 Language & Input.......................................................................................... 41
4.5.11 Backup & Reset.............................................................................................. 43
4.5.12 Add an Account.............................................................................................. 44
4.5.13 Date & Time................................................................................................... 45
4.5.14 Scheduled Power On & Off............................................................................ 46
4.5.15 Accessibility ................................................................................................... 47
4.5.16 Developer Options......................................................................................... 48
4.5.17 About Phone................................................................................................... 49
4.6 CAMERA................................................................................................................... 50
A SAFETY PRECAUTIONS.........................................................................................51
A.1 SAFETY PRECAUTIONS ............................................................................................ 52
A.1.1 General Safety Precautions............................................................................. 52
A.1.2 Anti-static Precautions.................................................................................... 53
A.1.3 Product Disposal............................................................................................. 54
A.2 MAINTENANCE AND CLEANING PRECAUTIONS........................................................ 54
A.2.1 Maintenance and Cleaning.............................................................................. 54
A.2.2 Cleaning Tools................................................................................................. 55
B HAZARDOUS MATERIALS DISCLOSURE ......................................................... 56
B.1 HAZARDOUS MATERIALS DISCLOSURE TABLE FOR IPB PRODUCTS CERTIFIED AS
ROHS COMPLIANT UNDER 2002/95/EC WITHOUT MERCURY ....................................... 57
Page v
MODAT-531 Mobile Data Collector
List of Figures
Figure 1-1: MODAT-531..................................................................................................................2
Figure 1-2: Front Panel ..................................................................................................................3
Figure 1-3: Rear Panel....................................................................................................................4
Figure 1-4: Side Panel....................................................................................................................5
Figure 1-5: Top Panel.....................................................................................................................6
Figure 1-6: Bottom Panel...............................................................................................................6
Figure 1-7: Dimensions (units in mm)..........................................................................................9

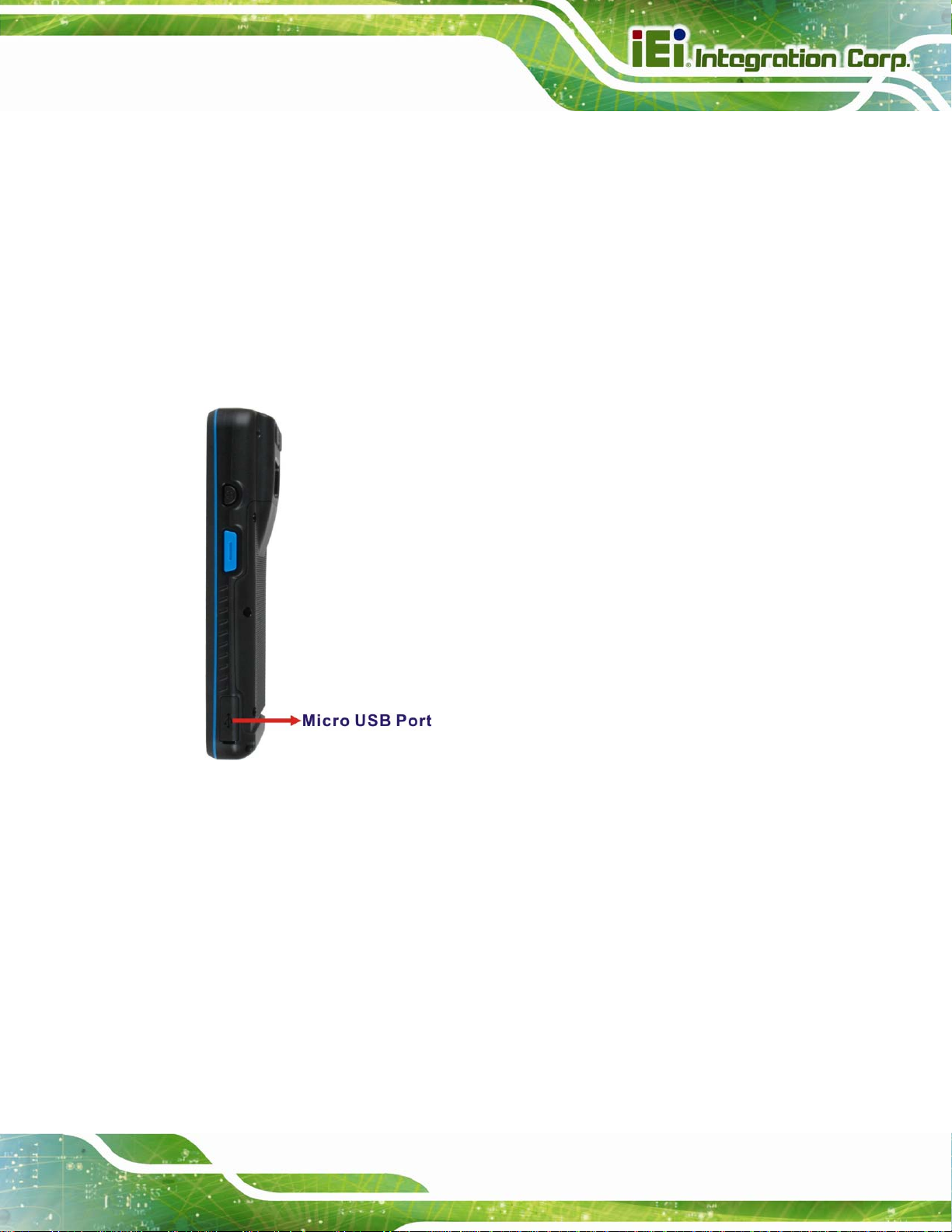

Figure 3-1: MODAT-531 Micro USB Port ....................................................................................15

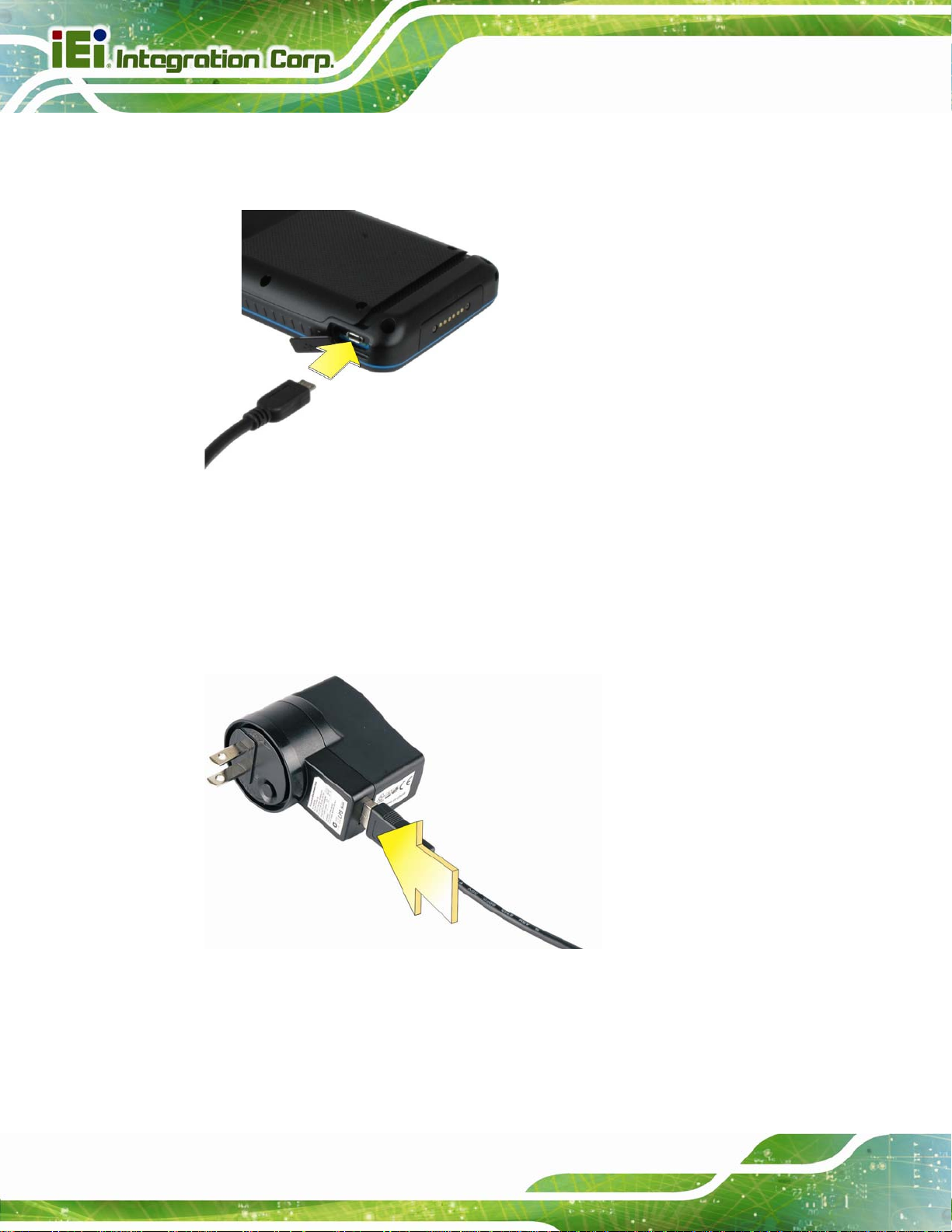

Figure 3-2: Connecting the Micro USB Cable to the MODAT-531 ...........................................16
Figure 3-3: Connecting the MODAT-531 to the Power Adapter...............................................16

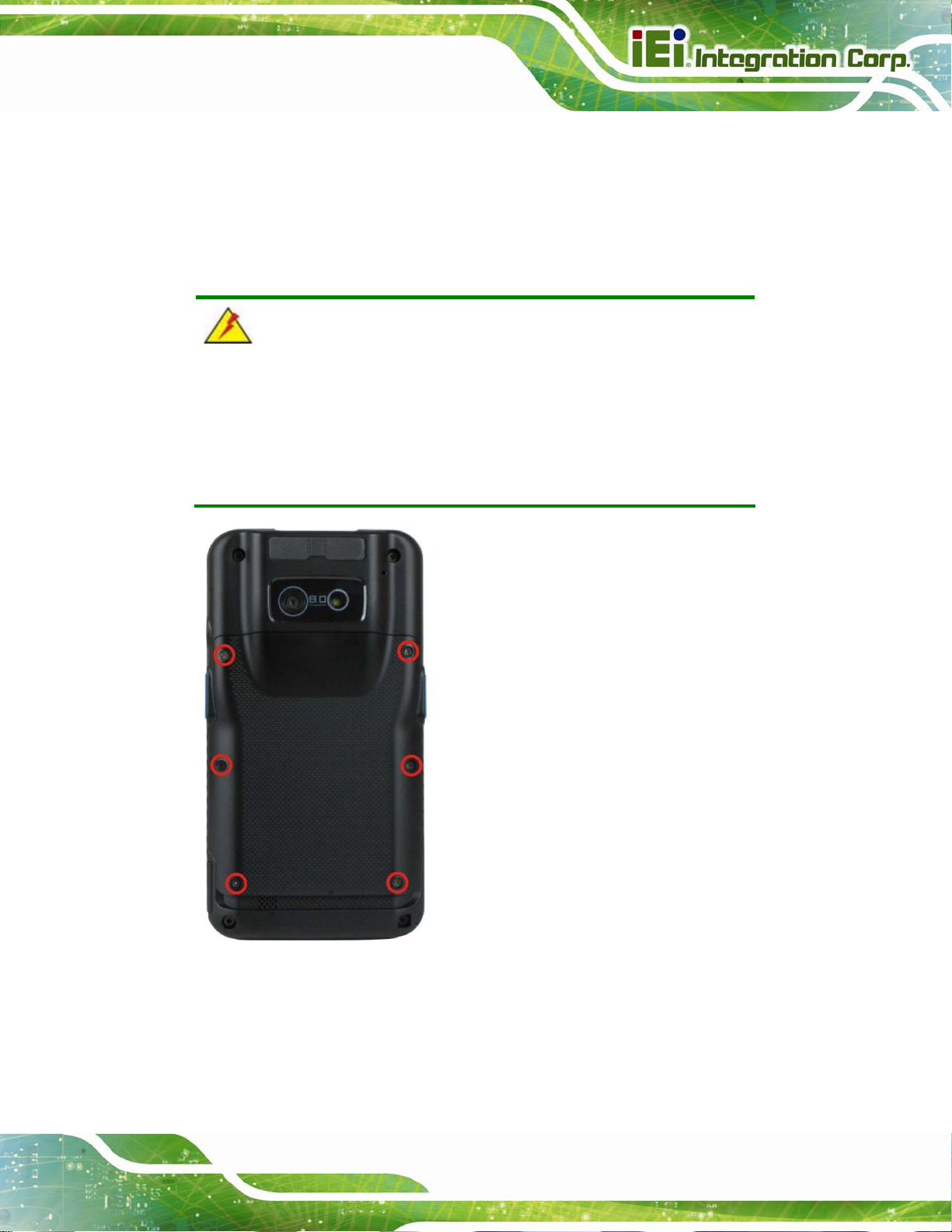

Figure 3-4: Battery Cover Retention Screws.............................................................................17
Figure 3-5: Removing the Battery...............................................................................................18
Figure 3-6: SIM Card Installation.................................................................................................18
Figure 3-7: microSD Card Slot ....................................................................................................19
Figure 3-8: MODAT-531 Headset Jack........................................................................................19
Figure 3-9: USB Mass Storage Screen.......................................................................................20
Figure 4-1: Power Button.............................................................................................................23
Figure 4-2: Option Menu ..............................................................................................................23
Figure 4-3: Multiple Home Screens.............................................................................................24
Figure 4-4: Favorites Tray............................................................................................................25
Figure 4-5: Launcher Page ..........................................................................................................26
Figure 4-6: Move and Trash Item on Home Screen...................................................................27

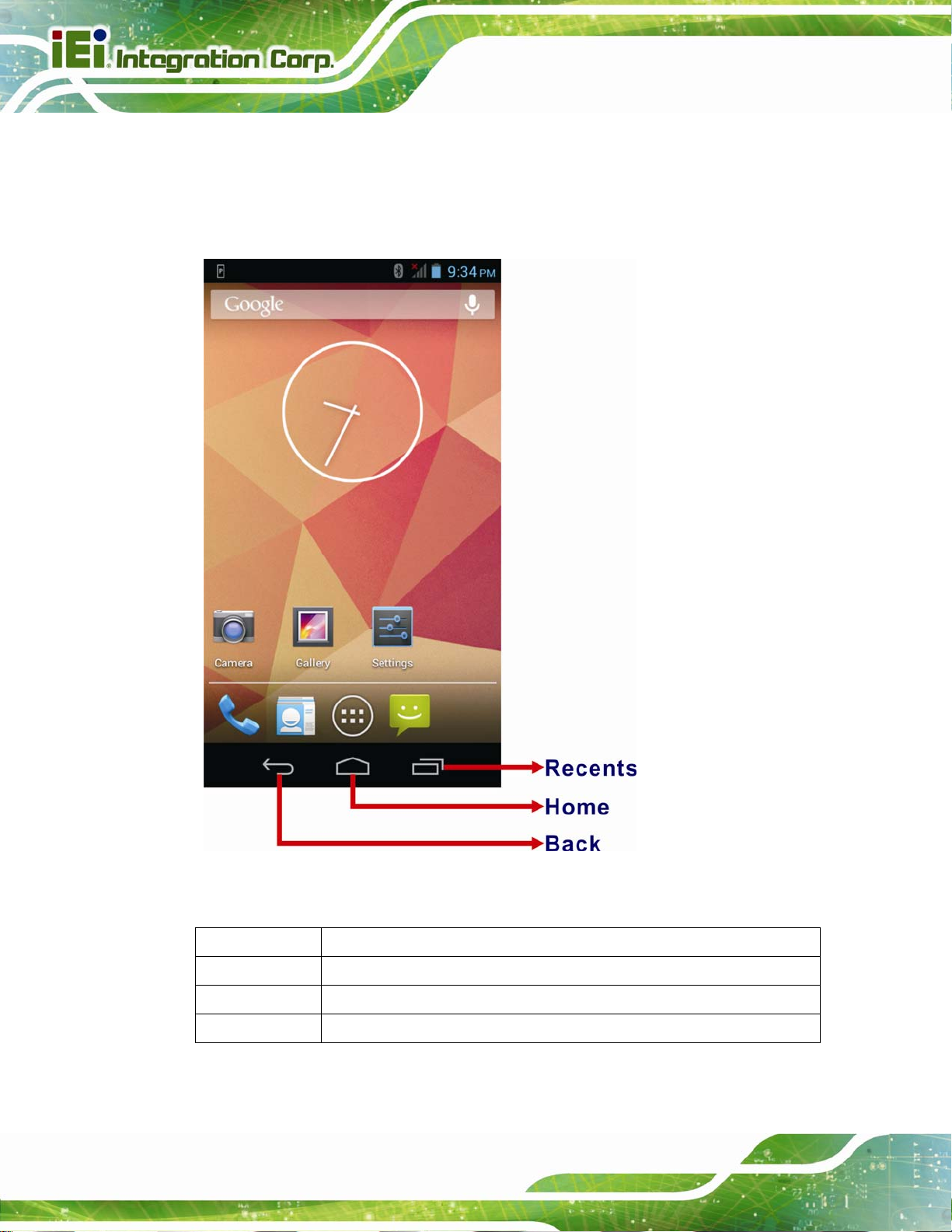

Figure 4-7: Navigation Buttons...................................................................................................28

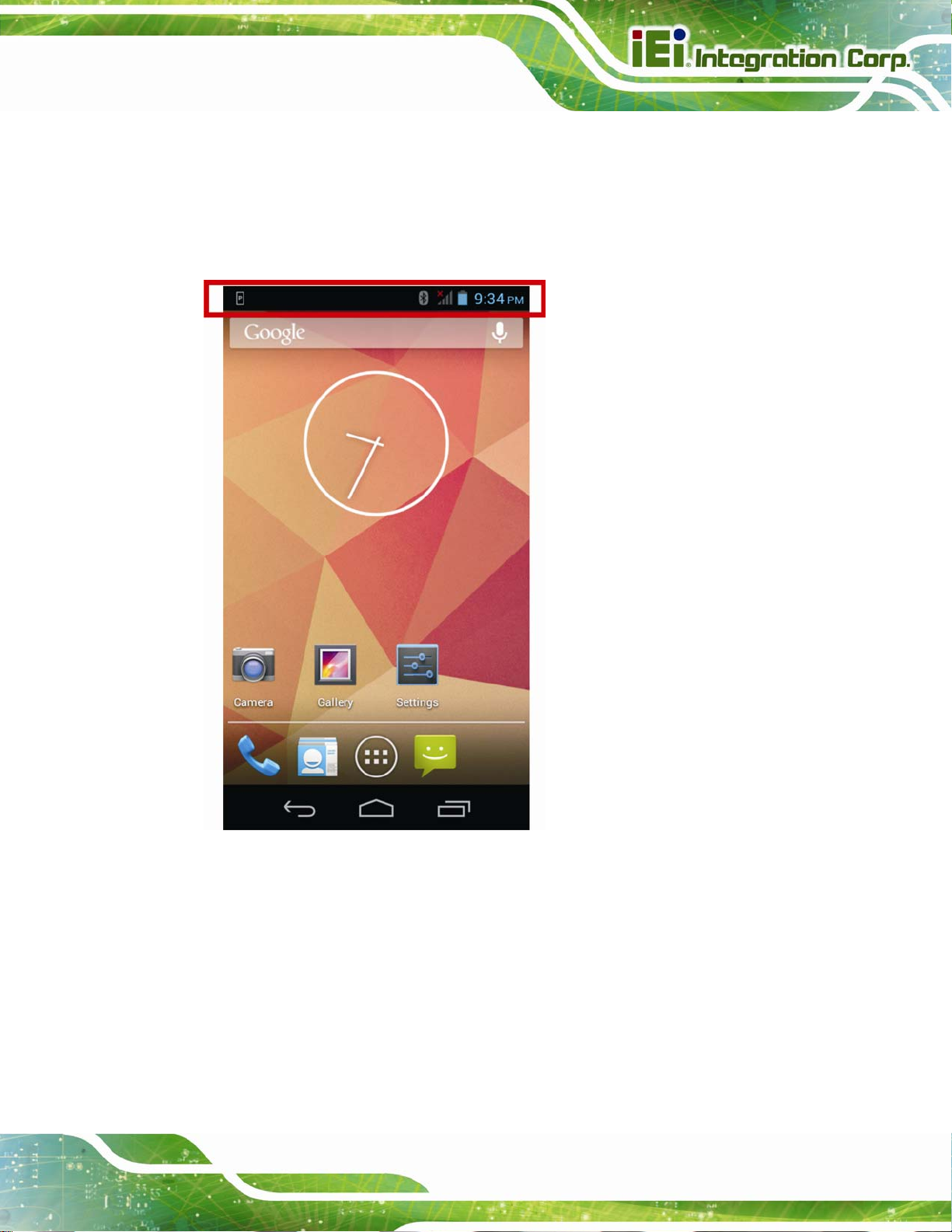

Figure 4-8: Status Bar ..................................................................................................................29

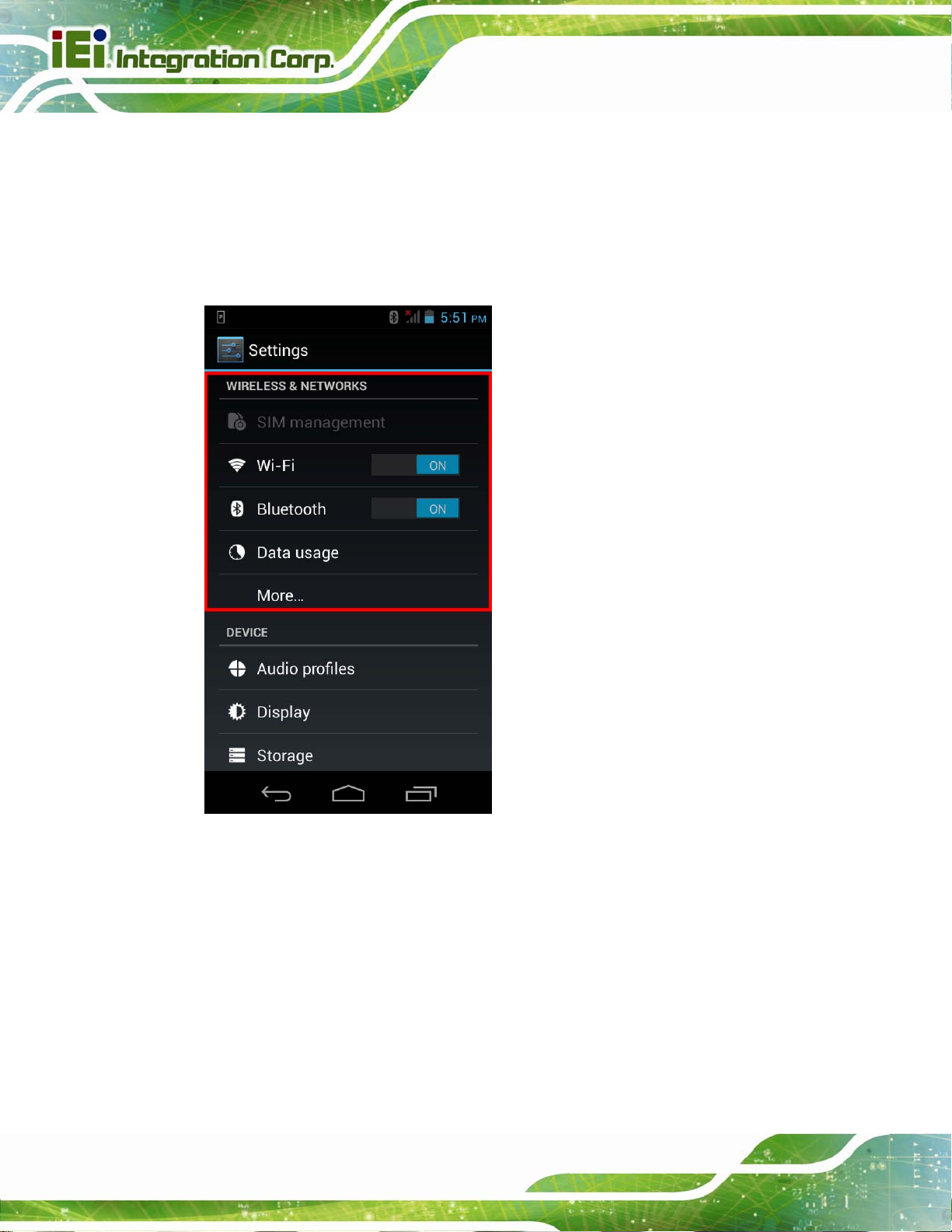

Figure 4-9: Wireless and Networks Settings .............................................................................30
Figure 4-10: More Settings Menu................................................................................................31
Figure 4-11: Audio Profiles Menu ...............................................................................................33
Figure 4-12: Display Menu...........................................................................................................34
Figure 4-13: Storage Menu ..........................................................................................................35
Figure 4-14: Battery Menu ...........................................................................................................36
Figure 4-15: Apps Menu...............................................................................................................37
Page vi
MODAT-531 Mobile Data Collector
Figure 4-16: Barcode....................................................................................................................38
Figure 4-17: Location Access Menu...........................................................................................39
Figure 4-18: Security Menu..........................................................................................................40

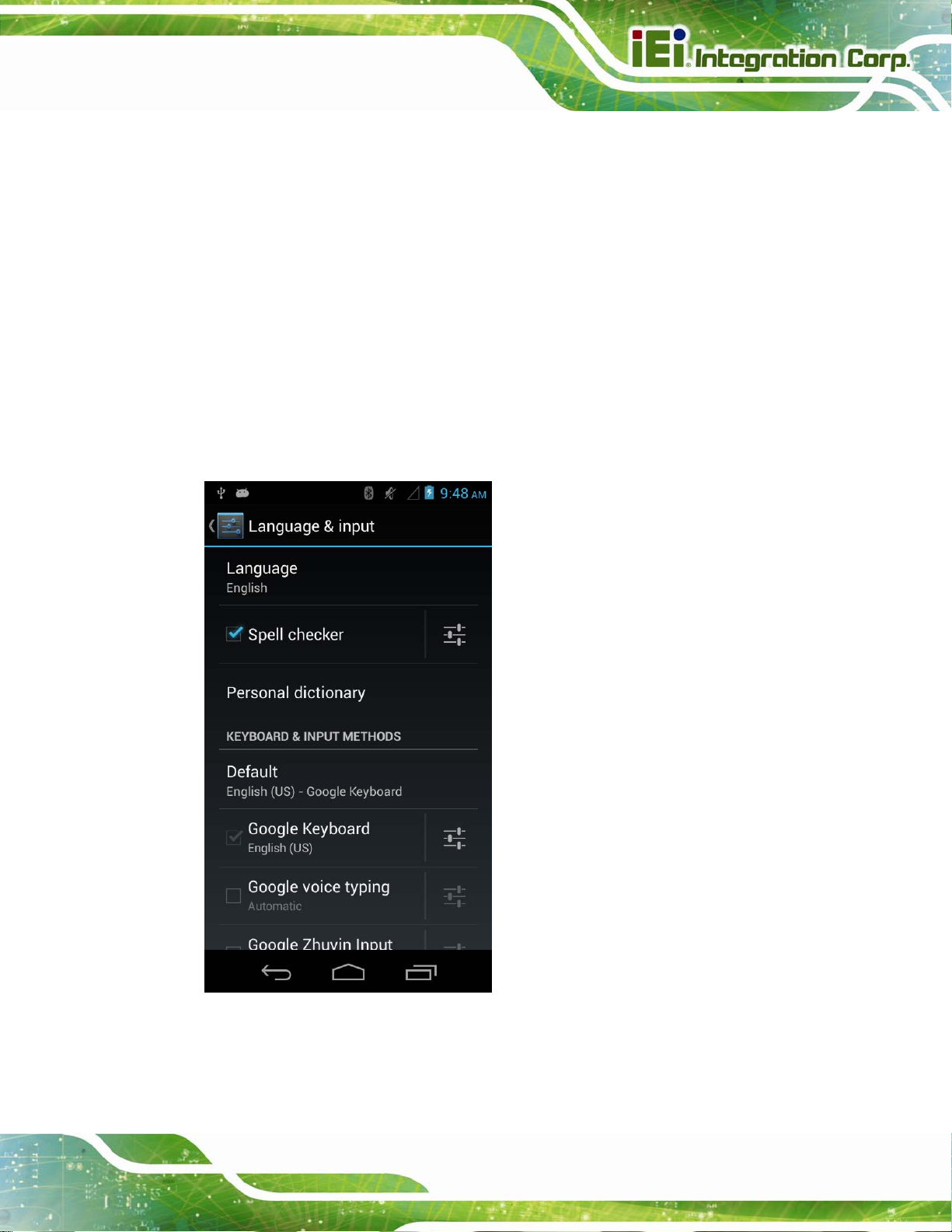

Figure 4-19: Language & Input Menu .........................................................................................41

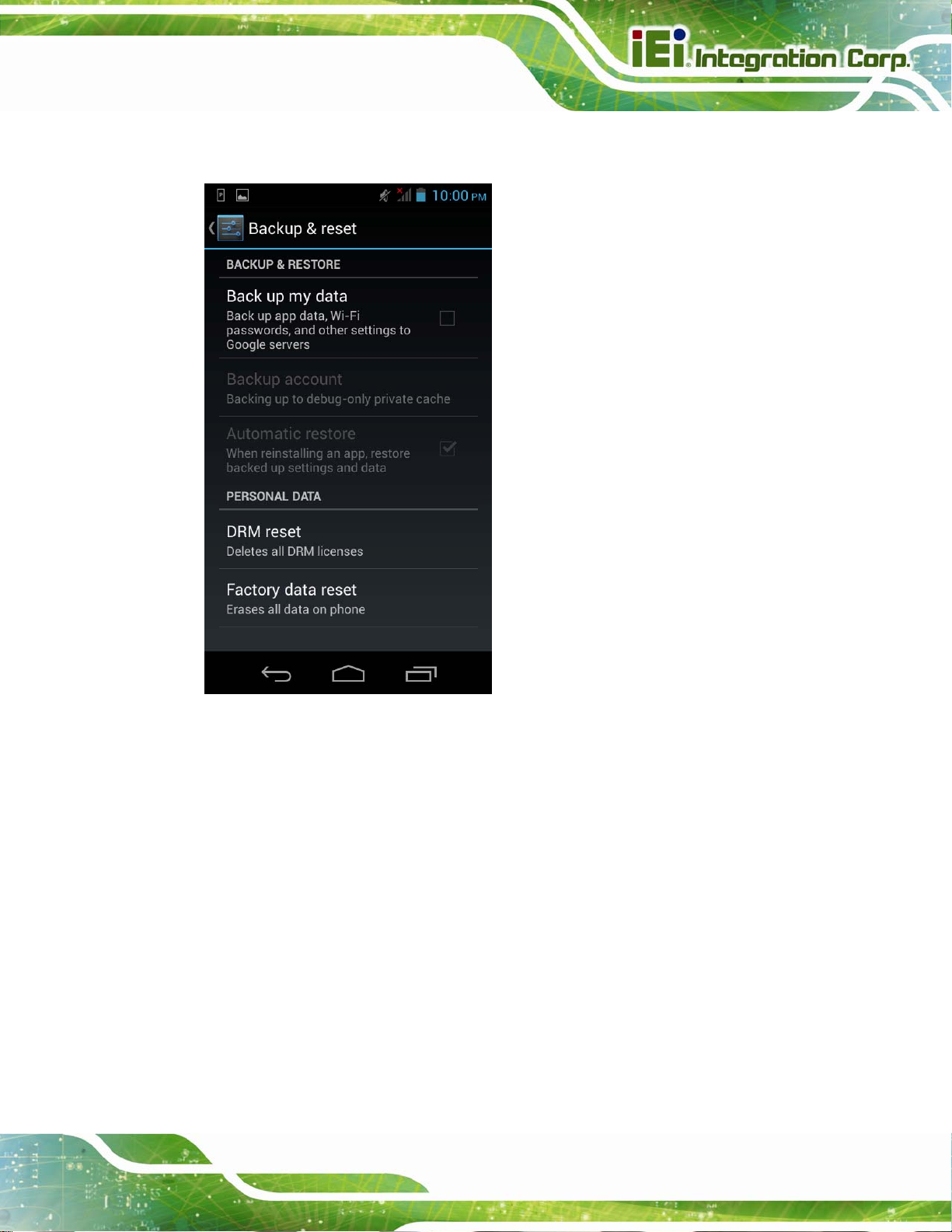

Figure 4-20: Backup & Reset Menu ............................................................................................43
Figure 4-21: Add Account Menu .................................................................................................44

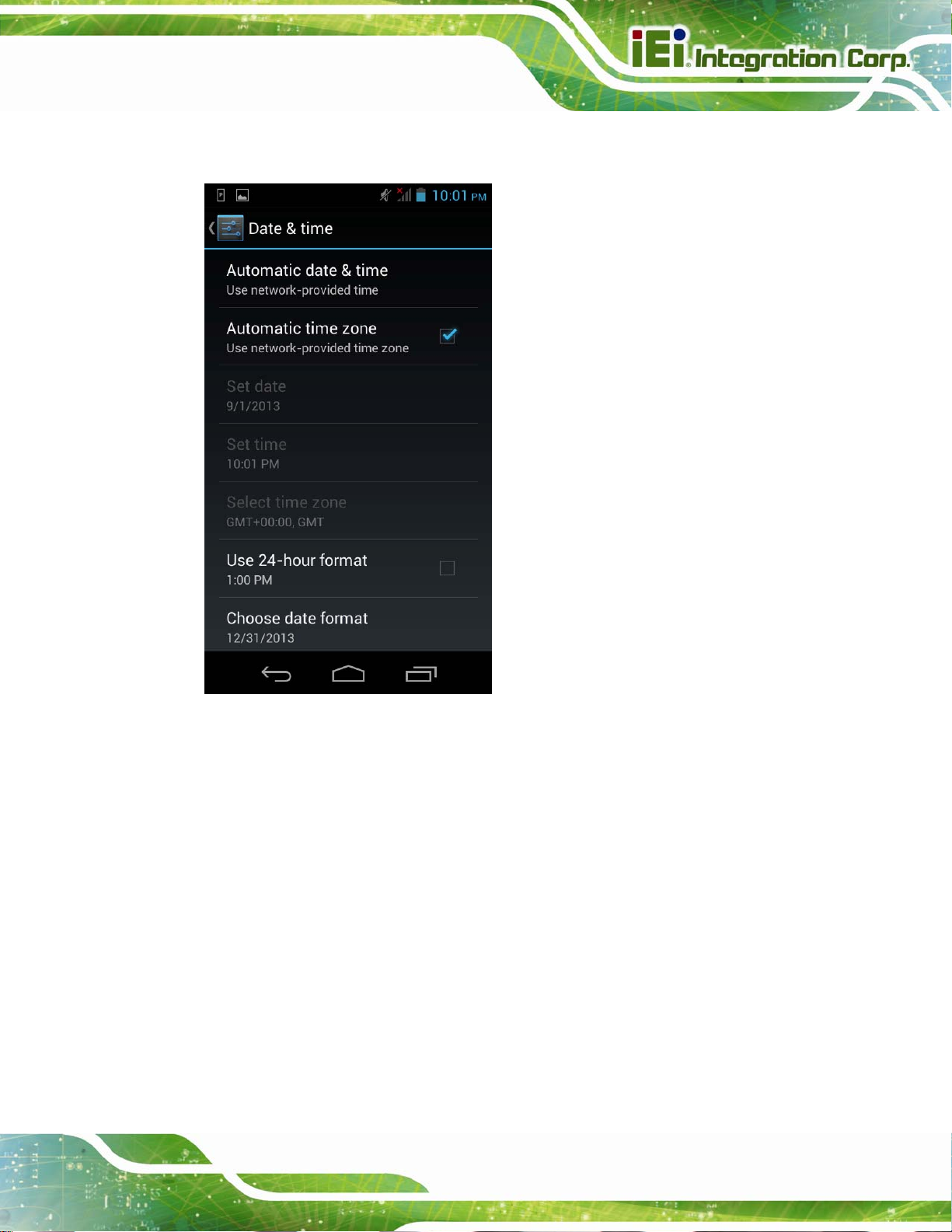

Figure 4-22: Date & Time Menu...................................................................................................45

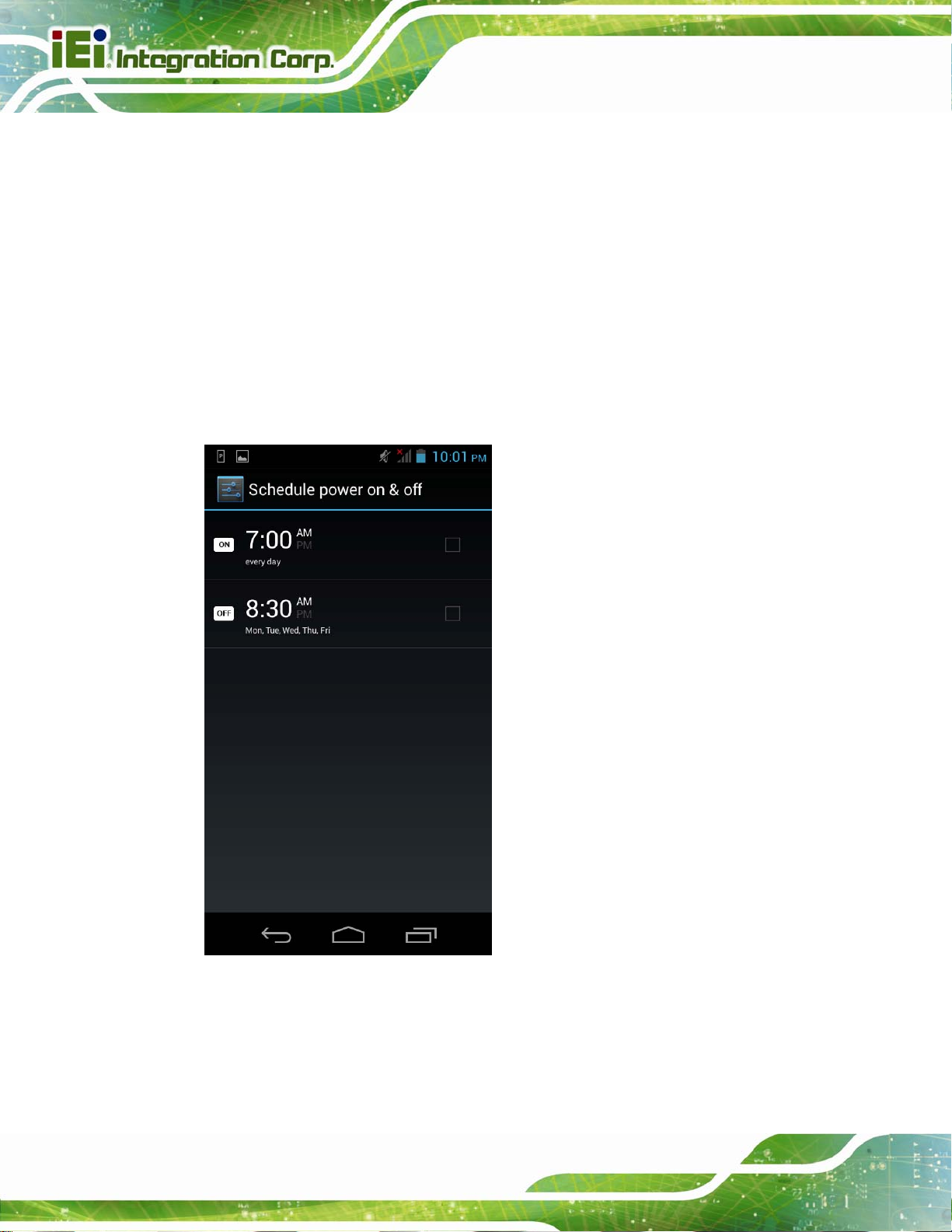

Figure 4-23: Scheduled Power On & Off Menu..........................................................................46
Figure 4-24: Accessibility Menu..................................................................................................47

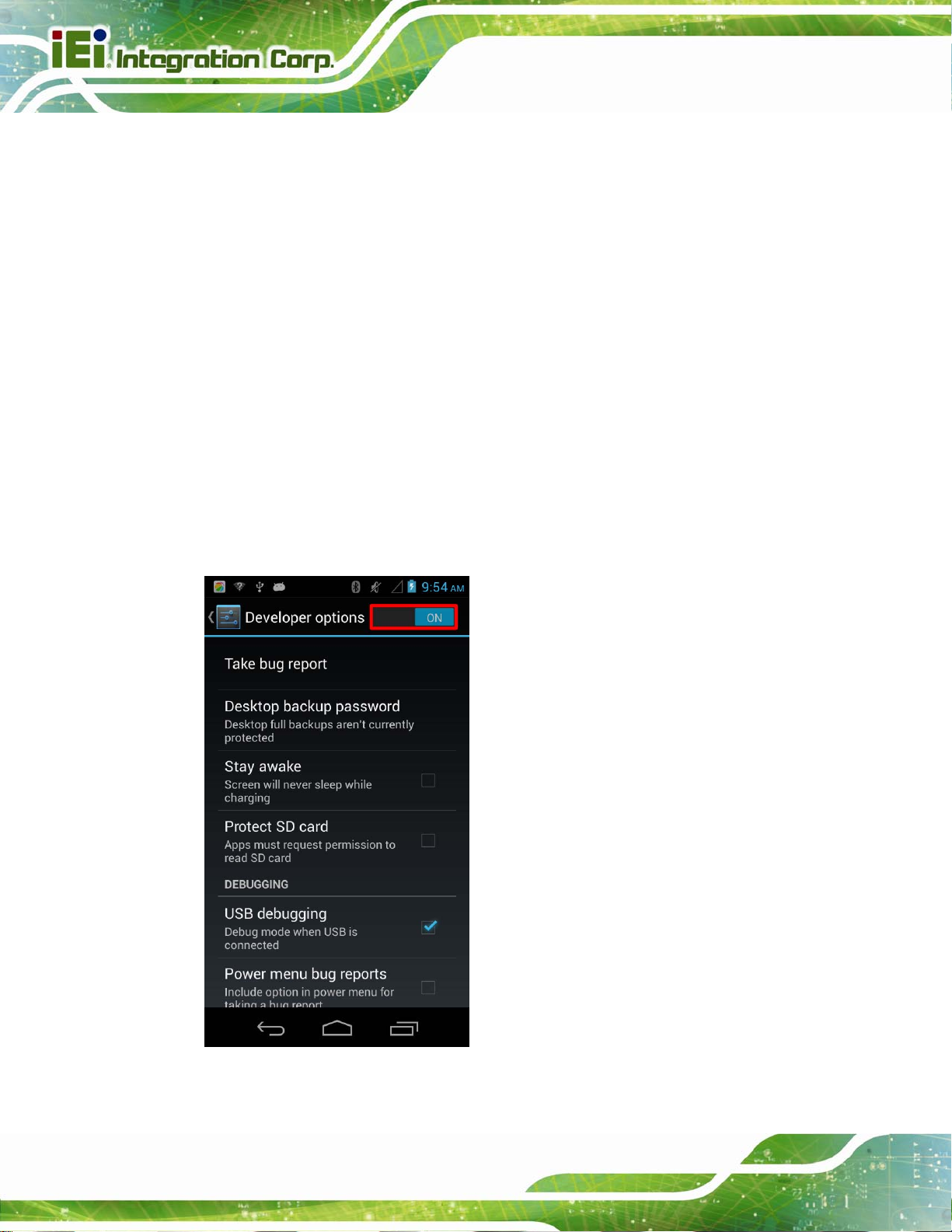

Figure 4-25: Developer Options Menu........................................................................................48

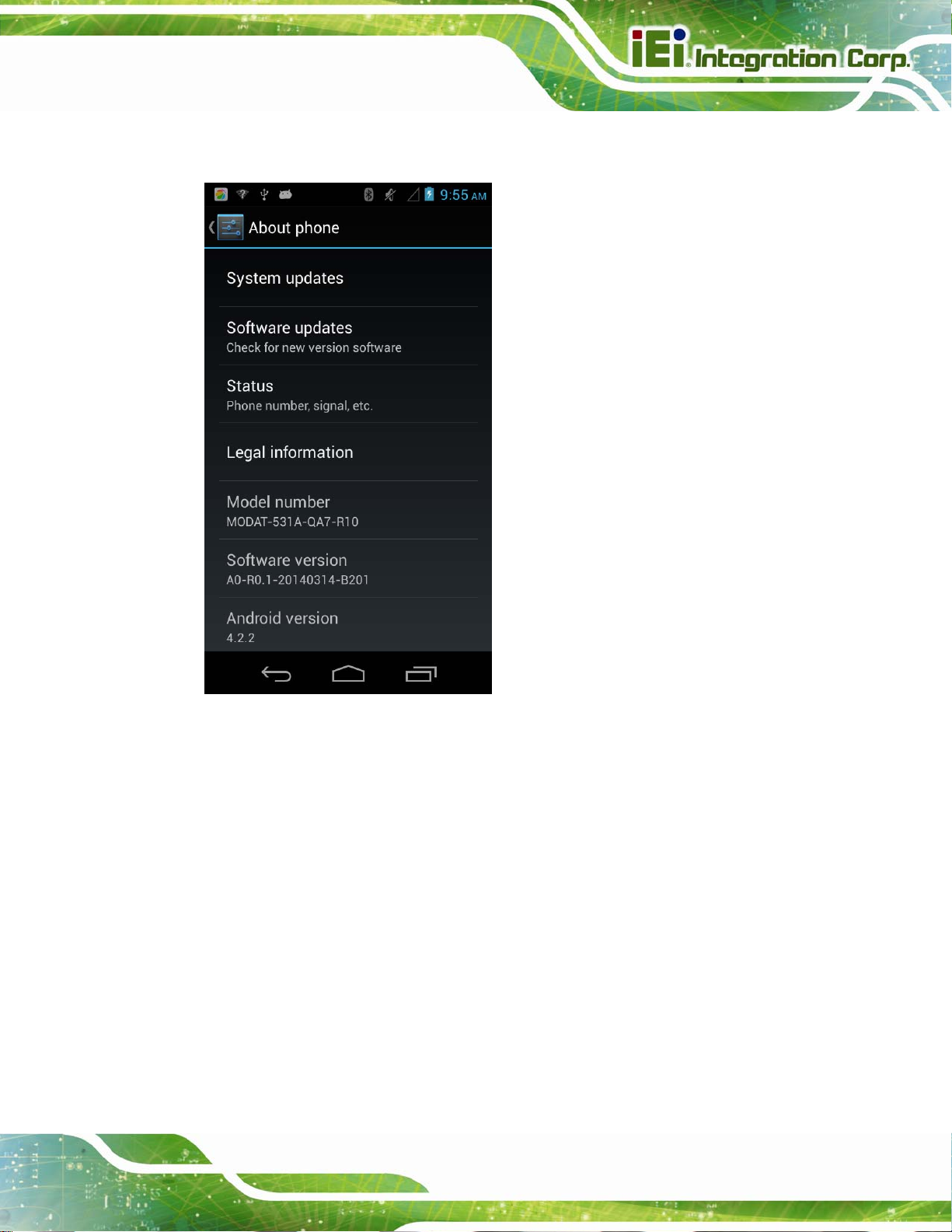

Figure 4-26: About Phone Menu .................................................................................................49
Figure 4-27: Camera Application ................................................................................................50
Page vii
MODAT-531 Mobile Data Collector
List of Tables
Table 1-1: Technical Specifications..............................................................................................8

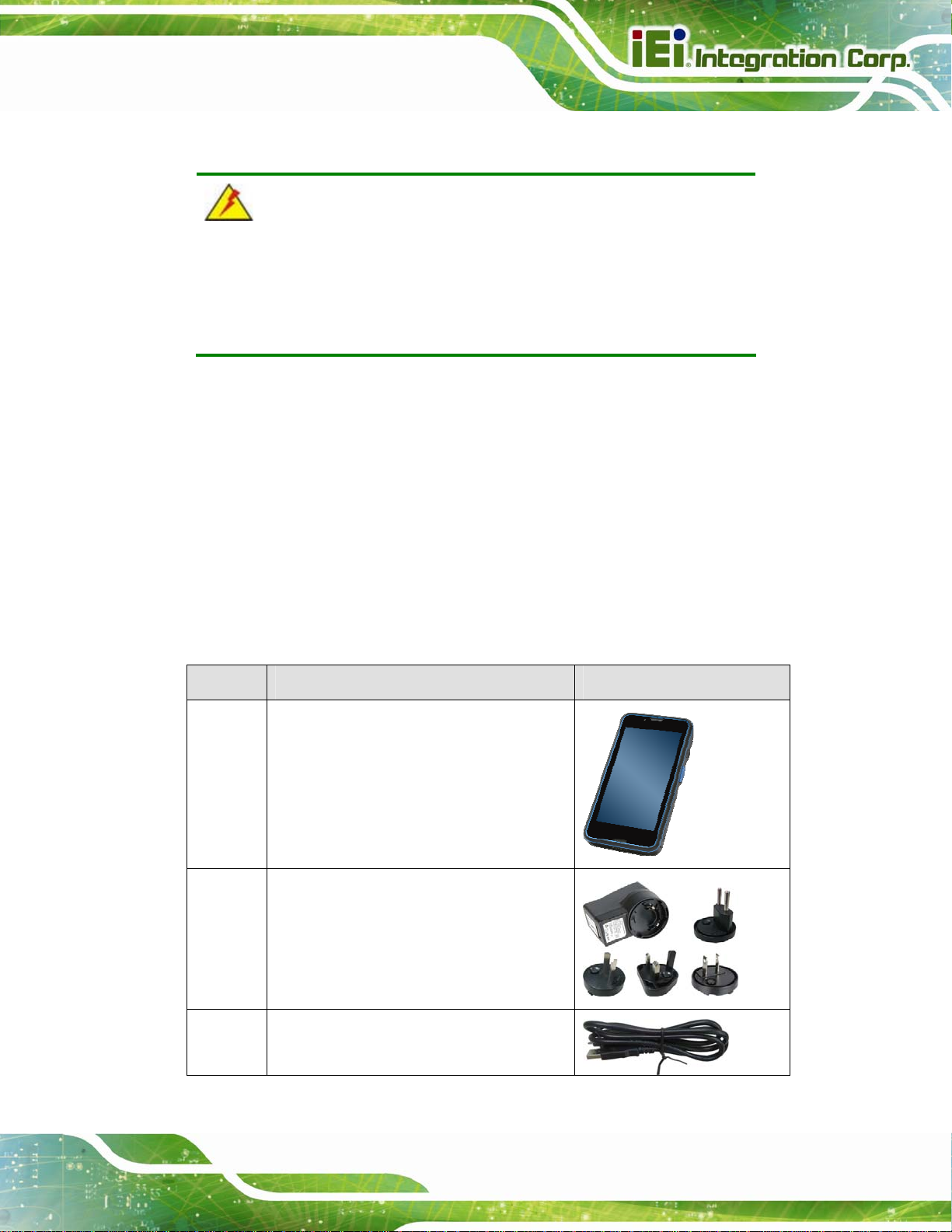

Table 2-1: Packing List.................................................................................................................12
Table 4-1: Navigation Buttons.....................................................................................................28
Page viii
MODAT-531 Mobile Data Collector
Chapter
1
1 Introduction
Page 1
1.1 Overview
MODAT-531 Mobile Data Collector
Figure 1-1: MODAT-531
The MODAT-531 is an Android-based mobile data collector with a 5.3” touchscreen. At
the heart of the system is the quad-core ARM
communication technologies include 802.11b/g/n Wi-Fi, Bluetooth 4.0 LE and 3.75G.
Other peripherals include an 8-megapixel camera, a 1D/2D barcode scanner, a microSD
card slot, a Micro USB port, a headset jack and a speaker.
1.2 Features
Some of the MODAT-531 features include:
5.3” LCD with capacitive touchscreen
Quad-core ARM
Android 4.2.2 OS
8-megapixel camera with flashlight
®
Cortex®-A7 1.2 GHz CPU. Wireless
®
Cortex®-A7 1.2 GHz CPU
Page 2
Bluetooth 4.0 LE, 802.11b/g/n Wi-Fi and 3.75G wireless communication
technologies
Built-in GPS with internal antenna
1D/2D barcode scanner
MODAT-531 Mobile Data Collector
IP 67 protection
RoHS compliant
1.3 Front Panel
The front panel of the MODAT-531 has a 5.3” LCD with capacitive touchscreen, a receiver,
a microphone and a LED indicator.
Figure 1-2: Front Panel
Page 3
1.4 Rear Panel
The rear panel consists of an 8-megapixel camera with flashlight, a speaker, a
microphone and the NFC area.
MODAT-531 Mobile Data Collector
Page 4
Figure 1-3: Rear Panel
MODAT-531 Mobile Data Collector
1.5 Side Panels
The side panels contain a power button, two barcode trigger buttons and a Micro USB
port.
Figure 1-4: Side Panel
Page 5
1.6 Top Panel
The top panel contains a 1D/2D barcode scanner and a headset jack.
Figure 1-5: Top Panel
1.7 Bottom Panel
MODAT-531 Mobile Data Collector
The bottom panel has a docking connector
Figure 1-6: Bottom Panel
Page 6
MODAT-531 Mobile Data Collector
1.8 Technical Specifications
The MODAT-531 technical specifications are listed in the table below.
Display
LCD Size
Brightness (cd/m2)
Max. Resolution
Viewing Angle
Touchscreen
System
CPU
Operating System
Memory
Storage
Communication
Wi-Fi
Bluetooth
5.3”
350
480 (H) x 854 (V)
70/70/70/70 degree
5-point capacitive
Quad-core ARM
Android 4.2.2
4 GB eMMC
1 GB LPDDR2
1 x microSD card slot (up to 32 GB)
802.11b/g/n
Bluetooth 4.0 LE
®
Cortex®-A7 1.2 GHz
GSM 850/900/1800/1900
Modem
GPS
Data Collection
Barcode
Camera
NFC
Indicator and Buttons
LED Indicator
WCDMA 850/2100 (HSPA+, HSDPA 42 Mbps, HSUPA
11.5 Mbps) (optional)
GPS
1D/2D imager scan engine
8-megapixel AF rear camera with flashlight
Yes
Battery charging (red)/fully charged (green)
Page 7
MODAT-531 Mobile Data Collector
Buttons
Sensors
Magnetometer
Gravity Sensor
I/O Interface
Audio
USB
Power
Power Adapter
Battery
Power button
2 x Barcode trigger buttons
Yes
Yes
1 x Headset jack
2 x Microphone
1 x Receiver
1 x Speaker (0.5 W)
1 x High-speed Micro USB 2.0 port
5V, 2.6A
3900mAh
Environment
Operating Temperature
Storage Temperature
Battery Charging
Temperature
Humidity
Drop Survival
Environment Protection
Certification
Physical Characteristics
Dimensions (LxWxH)
Weight
Table 1-1: Technical Specifications
-10ºC ~ 55ºC
-20ºC ~ 60ºC
0ºC ~ 45ºC
5% ~ 95%, non-condensing
1.2 m
IP 67
CE (Class A: Telecommunication centers only)
160.9 mm x 85.4 mm x 28.85 mm
386 g
Page 8
MODAT-531 Mobile Data Collector
1.9 Dimensions
Figure 1-7: Dimensions (units in mm)
Page 9
MODAT-531 Mobile Data Collector
Chapter
2
2 Unpacking
Page 10
MODAT-531 Mobile Data Collector
To unpack the MODAT-531, follow the steps below:
WARNING!
Only remove the protective plastic cover stuck to the front screen after
installation. The plastic layer protects the monitor surface during
installation process.
Step 1: Carefully cut the tape sealing the box. Only cut deep enough to break the tape.
Step 2: Open the box.
Step 3: Lift the MODAT-531 out of the box.
Step 4: Pull the plastic cover off the MODAT-531.
Step 5: Make sure all the components listed in the packing list are present. Step 0:
The MODAT-531 is shipped with the following components. If any of these items are
missing or damaged, contact the distributor or sales representative immediately.
Quantity Item Image
1 MODAT-531
1 Power adapter
(P/N: 63040-290013-000-RS)
1 Micro USB cable
(P/N: 32001-014300-100-RS)
Page 11
Quantity Item Image
1 Hand strap
(P/N: 46035-000300-RS)
Table 2-1: Packing List
MODAT-531 Mobile Data Collector
Page 12
MODAT-531 Mobile Data Collector
Chapter
3
3 Installation
Page 13
3.1 Anti-static Precautions
WARNING:
Failure to take ESD precautions during the maintenance of the
MODAT-531 may result in permanent damage to the MODAT-531 and
severe injury to the user.
Electrostatic discharge (ESD) can cause serious damage to electronic components,
including the MODAT-531. Dry climates are especially susceptible to ESD. It is therefore
critical that whenever the MODAT-531 is accessed internally, or any other electrical
component is handled, the following anti-static precautions are strictly adhered to.
Wear an anti-static wristband: - Wearing a simple anti-static wristband can
MODAT-531 Mobile Data Collector
help to prevent ESD from damaging the board.
Self-grounding: - Before handling the board touch any grounded conducting
material. During the time the board is handled, frequently touch any
conducting materials that are connected to the ground.
Use an anti-static pad: - When configuring the MODAT-531, place it on an
antic-static pad. This reduces the possibility of ESD damaging the
MODAT-531.
Only handle the edges of the PCB: - When handling the PCB, hold the PCB
by the edges.
3.2 Installation Precautions
When installing the MODAT-531, please follow the precautions listed below:
Power turned off: When installing the MODAT-531, make sure the power is
off. Failing to turn off the power may cause severe injury to the body and/or
damage to the system.
Certified Engineers: Only certified engineers should install and modify
Page 14
onboard functionalities.
MODAT-531 Mobile Data Collector
Anti-static Discharge : If a user open the rear panel of the MODAT-531, to
configure the jumpers or plug in added peripheral devices, ground themselves
first and wear and anti-static wristband.
3.3 Charging the System
To start using the MODAT-531, the user must charge the MODAT-531 by the power
adapter. To charge the MODAT-531, please follow the steps below.
Step 1: Open the protective rubber cover to expose the Micro USB port.
Figure 3-1: MODAT-531 Micro USB Port
Page 15
Step 2: Connect the Micro USB plug of the Micro USB cable to the Micro USB connector
MODAT-531 Mobile Data Collector
of the MODAT-531 (
Figure 3-2: Connecting the Micro USB Cable to the MODAT-531
Step 3: Connect the other end of the Micro USB cable to the USB connector of the
power adapter (
Then plug the power adapter to a power source.
Figure 3-2).
Figure 3-3).
OR connect the Micro USB cable directly to a computer.
Figure 3-3: Connecting the MODAT-531 to the Power Adapter
Step 4: The LED indicator on the front panel lights up in red to indicate that the battery is
charging. When the battery is fully charged, the LED indicator turns green.
Step 0:
Page 16
MODAT-531 Mobile Data Collector
3.4 SIM Card Installation
Follow the steps below to install a SIM card.
Step 1: Release the six retention screws that secure the battery cover to the
MODAT-531.
WARNING:
Before removing the battery cover, make sure that the system power is
turned off and all power to the system has been disconnected. Failing
to do so may cause severe damage to the MODAT-531 and injury to
the user.
Figure 3-4: Battery Cover Retention Screws
Step 2: Lift the battery cover up to remove.
Step 3: Remove the battery (
2Figure 3-6).
Page 17
Figure 3-5: Removing the Battery
MODAT-531 Mobile Data Collector
Step 4: Locate the SIM card slot and insert a SIM card into it (
Figure 3-6: SIM Card Installation
3.5 microSD Card Installation
2Figure 3-6).
Page 18
This section covers the installation of a microSD card.
Step 1: Refer to Step 1 ~ Step 2 in Section
Step 2: Locate the microSD card slot and insert a microSD card into it.
3.4 to remove the battery cover.
MODAT-531 Mobile Data Collector
Figure 3-7: microSD Card Slot
3.6 I/O Connectors
The I/O connectors are protected by a rubber cover. Open the rubber cover before
connecting any peripheral devices to the MODAT-531.
3.6.1 Headset Jack
The headset jack on the top panel enables the MODAT-531 to be connected to a headset.
Open the protective rubber cover to expose the headset jack before connection.
Figure 3-8: MODAT-531 Headset Jack
Page 19
3.6.2 Micro USB Connector
The MODAT-531 is equipped with a Micro USB connector that allows connection to a
MODAT-531 Mobile Data Collector
computer or the supplied power adapter. Refer to Step 1 ~ Step 3 in Section
connect the MODAT-531 to a computer or power adapter by using the supplied Micro USB
cable.
When the MODAT-531 is connected to a computer, the screen in
displayed on the MODAT-531. Tap Turn on USB storage to allow the connected
computer to recognize the MODAT-531 and assign it a drive letter. Then the user can
transfer files between them.
Figure 3-9 should be
3.3 to
Page 20
Figure 3-9: USB Mass Storage Screen
MODAT-531 Mobile Data Collector
3.7 System Maintenance
If the components of the MODAT-531 fail, they must be replaced. Please contact the
system reseller or vendor to purchase the replacement parts.
NOTE:
A user cannot replace a motherboard. If the motherboard fails it must
be shipped back to IEI to be replaced. Please contact the system
vendor, reseller or an IEI sales person directly.
Page 21
MODAT-531 Mobile Data Collector
Chapter
4
4 Using the MODAT-531
Page 22
MODAT-531 Mobile Data Collector
4.1 Powering On/Off
To power on/off the MODAT-531, please follow the steps below:
Powering On: Press the power button until the start-up screen displays.
Figure 4-1: Power Button
Powering Off: Press and hold the power button until the option menu as shown in
Figure 4-2 appears. Tap Power off > OK to turn off the MODAT-531.
Figure 4-2: Option Menu
NOTE:
When the MODAT-531 is powered on, press the power button once to
suspend the MODAT-531 or to resume from the suspend mode.
Page 23
4.2 Home Screen
The MODAT-531 has multiple home screens allowing users to customize the screen with
widgets, apps, folders and shortcuts. The following sections describe the basic technique
to manage the home screen.
4.2.1 Switching between Home Screens
Swipe left or right to switch between home screens.
MODAT-531 Mobile Data Collector
Page 24
Figure 4-3: Multiple Home Screens
MODAT-531 Mobile Data Collector
4.2.2 Favorites Tray
The Favorites tray at the bottom of each home screen allows users to keep the most
important or frequently used shortcuts and folders.
Tap the (All Apps) button at the center of the Favorites Tray to access the
launcher/widget page.
Figure 4-4: Favorites Tray
Page 25
4.2.3 Adding Shortcuts
To add app or widget shortcuts on the home screen, follow the steps below.
Step 1: Tap the All Apps button on the home screen to access the launcher/widget page.
Step 2: Long press an app icon or a widget (click the WIDGETS tab to access the
widgets page) and drag it to the home screen.
MODAT-531 Mobile Data Collector
Page 26
Figure 4-5: Launcher Page
MODAT-531 Mobile Data Collector
4.2.4 Arranging the Home Screen
The items on the home screen can be moved and deleted. Long press an item on the
home screen and drag it where you want. To trash the item on the desktop, drag it to the
Remove icon. Release the icon when it turns red.
Figure 4-6: Move and Trash Item on Home Screen
Page 27
4.3 Navigation Buttons
The three navigation buttons shown in Figure 4-7 can always be found at the bottom of
every screen.
MODAT-531 Mobile Data Collector
Page 28
Figure 4-7: Navigation Buttons
Buttons Description
Back Tap to return to the previous screen.
Home Tap to return to the home screen.
Recents Tap to display all the recently used applications.
Table 4-1: Navigation Buttons
MODAT-531 Mobile Data Collector
4.4 Status Bar
The status bar on the top of the screen (Figure 4-8) displays the pending notifications and
status, such as battery level or signal strength. Swipe down from the status bar to view
notification details.
Figure 4-8: Status Bar
Page 29
4.5 Settings
The Settings menu allows configuration to the MODAT-531, such as Wi-Fi, volume,
display brightness, etc. To enter the Settings menu, tap Settings on the launcher page.
4.5.1 WIRELESS & NETWORKS
MODAT-531 Mobile Data Collector
Page 30
Figure 4-9: Wireless and Networks Settings
In the WIRELESS & NETWORKS field, the user can turn on/off the Wi-Fi and Bluetooth
functions, and view the data usage status.
Wi-Fi:
Allows the user to turn on or off the Wi-Fi function. When the Wi-Fi function is
turned on, tap this item to manage the access points.
MODAT-531 Mobile Data Collector
Bluetooth:
Allows the user to turn on or off the Bluetooth function. When the Bluetooth
function is turned on, tap this item to manage the Bluetooth connections.
Data usage:
Allows the user to view data usage status.
4.5.1.1 More Settings
Figure 4-10: More Settings Menu
After tapping More… in the WIRELESS & NETWORKS field, the user can configure the
following network settings.
Airplane mode:
Turns on or off the airplane mode.
Page 31
VPN:
Sets up and manages Virtual Private Networks (VPNs).
Tethering & portable hotspot:
Allows the user to set this device as a portable Wi-Fi hotspot and configure
the hotspot settings.
NFC:
Turns on or off the NFC function.
RCS-e settings:
Allows the user to configure the joyn service.
Mobile networks:
Configures the mobile network settings.
USB Internet:
This item is available only when the MODAT-531 is connected to a computer
via the Micro USB cable. Enabling this feature allows the connected computer
MODAT-531 Mobile Data Collector
to share its internet connection via the Micro USB cable.
Page 32
MODAT-531 Mobile Data Collector
4.5.2 Audio Profiles
The Audio Profiles menu allows the user to configure the audio settings.
Figure 4-11: Audio Profiles Menu
Page 33
4.5.3 Display
MODAT-531 Mobile Data Collector
Figure 4-12: Display Menu
Use the Display menu to configure the following items.
Lock screen notifications:
Enables to show notifications on lock screen.
Scenes:
Sets up the scene.
Theme:
Sets up the theme color.
Wallpaper:
Sets up the wallpaper.
Auto-rotate screen:
Turns on or off the auto-rotate function of the screen.
Page 34
MODAT-531 Mobile Data Collector
Brightness:
Adjusts the screen brightness.
Daydream:
Configures the screensaver settings.
Font size:
Sets up the font size.
Sleep:
Sets up the time of inactivity after which the screen turns to sleep mode.
Wireless display:
Turns on or off the wireless display function and configures its settings.
4.5.4 Storage
The Storage menu displays the status of the internal storage and the inserted microSD
card, and allows users to manage the data stored in them.
Figure 4-13: Storage Menu
Page 35
4.5.5 Battery
The Battery menu displays the battery status and allows showing the battery percentage
on the status bar.
MODAT-531 Mobile Data Collector
Page 36
Figure 4-14: Battery Menu
MODAT-531 Mobile Data Collector
4.5.6 Apps
The Apps menu displays the applications installed in the device, and allows users to
manage them.
Figure 4-15: Apps Menu
Page 37
4.5.7 Barcode
MODAT-531 Mobile Data Collector
Figure 4-16: Barcode
Use the Barcode menu to turn on the barcode reader and configure its settings. The items in
this menu can be configured only when the Barcode function is set to ON (
Scan Mode:
Sets up the scan mode.
Input Mode:
Sets up the input mode.
Figure 4-16).
Page 38
MODAT-531 Mobile Data Collector
4.5.8 Location Access
Figure 4-17: Location Access Menu
Use the Location access menu to configure the following items.
Access to my location:
Turns on to let the apps obtain the user’s location information.
GPS satellites:
This item is available only when the Access to my location item is enabled.
Enabling this item allows the apps to use the GPS in the device to pinpoint the
user’s location.
Wi-Fi & mobile network location:
This item is available only when the Access to my location item is enabled.
Enabling this item allows the apps to use Google’s location service to
estimate the user’s location.
Page 39
4.5.9 Security
MODAT-531 Mobile Data Collector
Figure 4-18: Security Menu
Use the Security menu to configure the following items.
Screen lock:
Sets up the way to unlock the screen.
Owner info:
Enables to show the information of device owner on the lock screen.
Encrypt phone:
Once this item is enabled, the user will need to type a numeric PIN or
password to decrypt the MODAT-531 each time when powering on.
Make passwords visible:
Enables to show password when typing.
Page 40
MODAT-531 Mobile Data Collector
Device administrators:
Views or deactivates the device administrators.
Unknown sources:
Enables to allow installation of applications from unknown sources.
Verify apps:
Enables to verify apps before installation.
Trusted credentials:
Taps to display the CA certificates.
Install from SD card:
Taps to install certificates from the microSD card.
4.5.10 Language & Input
Figure 4-19: Language & Input Menu
Use the Language & input menu to configure the following items.
Page 41
Language:
Sets up the language for MODAT-531.
Spell checker:
Allows the user to enable the spell checking function and to configure its
settings.
Personal dictionary:
Configures the user dictionary.
KEYBOARD & INPUT METHODS:
Sets up the input methods.
Voice Control:
Configures the voice control settings.
Voice Search:
Configures the voice search settings.
Text-to-speech output:
MODAT-531 Mobile Data Collector
Configures the text-to-speech settings.
Pointer speed:
Sets up the pointer speed.
Page 42
MODAT-531 Mobile Data Collector
4.5.11 Backup & Reset
Figure 4-20: Backup & Reset Menu
Use the Back & reset menu to configure the following items.
Back up my data:
Enables to back up the app data, Wi-Fi passwords and other settings to
Google servers.
Automatic restore:
This item is available only when the Back up my data item is enabled. Enabling
this item to restore backed up setting and data when reinstalling an app.
DRM reset:
Deletes all the DRM licenses on the MODAT-531.
Factory data reset:
Erases all data from the internal storage of the MODAT-531.
Page 43
4.5.12 Add an Account
Tap Add account to start setting up an e-mail or corporate account.
MODAT-531 Mobile Data Collector
Page 44
Figure 4-21: Add Account Menu
MODAT-531 Mobile Data Collector
4.5.13 Date & Time
Figure 4-22: Date & Time Menu
Use the Date & time menu to configure the following items.
Automatic date & time:
Turns on to use the network-provided or GPS-provided time.
Automatic time zone:
Turns on to use the network-provided time zone.
Set date:
Sets up the system date. This item is available only when the Automatic date
& time item is set to Off.
Set time:
Sets up the system time. This item is available only when the Automatic date
& time item is set to Off.
Page 45
Select time zone:
Sets up the time zone. This item is available only when the Automatic time
zone item is disabled.
Use 24-hour format:
Turns on to use the 24-hour format.
Choose date format:
Sets up the date format.
4.5.14 Scheduled Power On & Off
The Scheduled power on & off menu allows the user to set up a power-on/off schedule.
MODAT-531 Mobile Data Collector
Page 46
Figure 4-23: Scheduled Power On & Off Menu
MODAT-531 Mobile Data Collector
4.5.15 Accessibility
Figure 4-24: Accessibility Menu
Use the Accessibility menu to configure the following items.
TalkBack:
Enables to provide spoken feedback to help blind and low-vision users.
Magnification gestures:
Enables to zoom in and out by triple-tapping the screen.
Large text:
Turns on to use large text.
Power button ends call:
Turns on to set the power button to end calls.
Auto-rotate screen:
Turns on or off the auto-rotate function of the screen.
Speak passwords:
Turns on or off the speak password function.
Page 47
Text-to-speech output:
Configures the text-to-speech settings.
Touch & hold delay:
Configures the touch & hold delay settings.
Enhance web accessibility:
Turns on to allow apps to install scripts from Google that make their web
content more accessible.
Quick boot:
Turns on or off the quick boot function.
4.5.16 Developer Options
The Developer options menu contains several settings for development use only which
may cause the device and the applications on it to break or misbehave. Be cautious prior
changing these settings. The items in this menu can be configured only when the
MODAT-531 Mobile Data Collector
Developer options is enabled (
Figure 4-25).
Page 48
Figure 4-25: Developer Options Menu
MODAT-531 Mobile Data Collector
4.5.17 About Phone
Figure 4-26: About Phone Menu
Use the About phone menu to check for new versions of software/system and display the
following items.
System updates:
Taps to update the system.
Software up dates:
Taps to check for new version software.
Status:
Taps to display the status of batteries, network, signal, etc.
Legal information:
Taps to display the legal information.
Page 49
4.6 Camera
The MODAT-531 equips with an 8-megapixel camera with flashlight. Tap Camera on the
application page to launch it.
MODAT-531 Mobile Data Collector
Model number:
Displays the model number.
Software version:
Displays the software version.
Android version:
Displays the Android OS version.
Kernel version:
Displays the kernal version.
Page 50
Figure 4-27: Camera Application
MODAT-531 Mobile Data Collector
A Safety Precautions
Appendix
A
Page 51
WARNING:
The precautions outlined in this chapter should be strictly followed.
Failure to follow these precautions may result in permanent damage to
the MODAT-531.
A.1 Safety Precautions
Please follow the safety precautions outlined in the sections that follow:
A.1.1 General Safety Precautions
Please ensure the following safety precautions are adhered to at all times.
MODAT-531 Mobile Data Collector
Follow the electrostatic precautions outlined below whenever the
MODAT-531 is opened.
Make sure the power is turned off and the power cord is disco nnected
whenever the MODAT-531 is being installed, moved or modified.
Do not apply voltage levels that exceed the specified voltage range.
Doing so may cause fire and/or an electrical shock.
Electric shocks can occur if the MODAT-531 chassis is opened when the
MODAT-531 is running.
Do not drop or insert any objects into the ventilation openings of the
MODAT-531.
If considerable amounts of dust, water, or fluids enter the MODA T-531,
turn off the power supply immediately, unplug the power cord, and contact the
MODAT-531 vendor.
DO NOT:
o Drop the MODAT-531 against a hard surface.
o Strike or exert excessive force onto the LCD panel.
o Touch any of the LCD panels with a sharp object
Page 52
o In a site where the ambient temperature exceeds the rated temperature
MODAT-531 Mobile Data Collector
A.1.2 Anti-static Precautions
WARNING:
Failure to take ESD precautions during the installation of the
MODAT-531 may result in permanent damage to the MODAT-531 and
severe injury to the user.
Electrostatic discharge (ESD) can cause serious damage to electronic components,
including the MODAT-531. Dry climates are especially susceptible to ESD. It is therefore
critical that whenever the MODAT-531 is opened and any of the electrical components are
handled, the following anti-static precautions are strictly adhered to.
Wear an anti-static wristband: Wearing a simple anti-static wristband can
help to prevent ESD from damaging any electrical component.
Self-grounding: Before handling any electrical component, touch any
grounded conducting material. During the time the electrical component is
handled, frequently touch any conducting materials that are connected to the
ground.
Use an anti-static pad: When configuring or working with an electrical
component, place it on an antic-static pad. This reduces the possibility of ESD
damage.
Only handle the edges of the electrical component: When handling the
electrical component, hold the electrical component by its edges.
Page 53
A.1.3 Product Disposal
CAUTION:
Risk of explosion if battery is replaced by an incorrect type. Only
certified engineers should replace the on-board battery.
Dispose of used batteries according to instructions and local
regulations.
Outside the European Union - If you wish to dispose of used electrical and
electronic products outside the European Union, please contact your local
authority so as to comply with the correct disposal method.
MODAT-531 Mobile Data Collector
Within the European Union:
EU-wide legislation, as implemented in each Member State, requires that
waste electrical and electronic products carrying the mark (left) must be
disposed of separately from normal household waste. This includes
monitors and electrical accessories, such as signal cables or power cords.
When you need to dispose of your display products, please follow the
guidance of your local authority, or ask the shop where you purchased the product. The
mark on electrical and electronic products only applies to the current European Union
Member States.
Please follow the national guidelines for electrical and electronic product disposal.
A.2 Maintenance and Cleaning Precautions
When maintaining or cleaning the MODAT-531, please follow the guidelines below.
A.2.1 Maintenance and Cleaning
Page 54
Prior to cleaning any part or component of the MODAT-531, please read the details below.
MODAT-531 Mobile Data Collector
Except for the LCD panel, never spray or squirt liquids directly onto any other
components. To clean the LCD panel, gently wipe it with a piece of soft dry
cloth or a slightly moistened cloth.
The interior of the MODAT-531 does not require cleaning. Keep fluids away
from the MODAT-531 interior.
Be cautious of all small removable components when vacuuming the
MODAT-531.
Turn the MODAT-531 off before cleaning the MODAT-531.
Never drop any objects or liquids through the openings of the MODAT-531.
Be cautious of any possible allergic reactions to solvents or chemicals used
when cleaning the MODAT-531.
Avoid eating, drinking and smoking within vicinity of the MODAT-531.
A.2.2 Cleaning Tools
Some components in the MODAT-531 may only be cleaned using a product specifically
designed for the purpose. In such case, the product will be explicitly mentioned in the
cleaning tips. Below is a list of items to use when cleaning the MODAT-531.
Cloth – Although paper towels or tissues can be used, a soft, clean piece of
cloth is recommended when cleaning the MODAT-531.
Water or rubbing alcohol – A cloth moistened with water or rubbing alcohol
can be used to clean the MODAT-531.
Using solvents – The use of solvents is not recommended when cleaning the
MODAT-531 as they may damage the plastic parts.
Vacuum cleaner – Using a vacuum specifically designed for computers is
one of the best methods of cleaning the MODAT-531. Dust and dirt can
restrict the airflow in the MODAT-531 and cause its circuitry to corrode.
Cotton swabs - Cotton swaps moistened with rubbing alcohol or water are
excellent tools for wiping hard to reach areas.
Foam swabs - Whenever possible, it is best to use lint free swabs such as
foam swabs for cleaning.
Page 55
MODAT-531 Mobile Data Collector
Appendix
B
B Hazardous Materials
Disclosure
Page 56
MODAT-531 Mobile Data Collector
B.1 Hazardous Materials Disclosure Table for IPB Products
Certified as RoHS Compliant Under 2002/95/EC Without
Mercury
The details provided in this appendix are to ensure that the product is compliant with the
Peoples Republic of China (China) RoHS standards. The table below acknowledges the
presences of small quantities of certain materials in the product, and is applicable to China
RoHS only.
A label will be placed on each product to indicate the estimated “Environmentally Friendly
Use Period” (EFUP). This is an estimate of the number of years that these substances
would “not leak out or undergo abrupt change.” This product may contain replaceable
sub-assemblies/components which have a shorter EFUP such as batteries and lamps.
These components will be separately marked.
Please refer to the table on the next page.
Page 57
Toxic or Hazardous Substances and Elements Part Name
MODAT-531 Mobile Data Collector
Lead
(Pb)
Mercury
(Hg)
Cadmium
(Cd)
Hexavalent
Chromium
(CR(VI))
Polybrominated
Biphenyls
(PBB)
Polybrominated
Diphenyl Ethers
(PBDE)
Housing O O O O O O
Display O O O O O O
Printed Circuit
O O O O O O
Board
Metal Fasteners O O O O O O
Cable Assembly O O O O O O
Fan Assembly O O O O O O
Power Supply
O O O O O O
Assemblies
Battery O O O O O O
O: This toxic or hazardous substance is contained in all of the homogeneous materials for the part is
below the limit requirement in SJ/T11363-2006
X: This toxic or hazardous substance is contained in at least one of the homogeneous materials for
this part is above the limit requirement in SJ/T11363-2006
Page 58
MODAT-531 Mobile Data Collector
此附件旨在确保本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符
合中国 RoHS 标准规定的限量要求。
本产品上会附有”环境友好使用期限”的标签，此期限是估算这些物质”不会有泄漏或突变”的
年限。本产品可能包含有较短的环境友好使用期限的可替换元件，像是电池或灯管，这些元
件将会单独标示出来。
部件名称
壳体
显示
印刷电路板
金属螺帽
电缆组装
风扇组装
电力供应组装
电池
有毒有害物质或元素
铅
(Pb)
汞
(Hg)
镉
(Cd)
六价铬
(CR(VI))
多溴联苯
(PBB)
多溴二苯醚
(PBDE)
O O O O O O
O O O O O O
O O O O O O
O O O O O O
O O O O O O
O O O O O O
O O O O O O
O O O O O O
O: 表示该有毒有害物质在该部件所有物质材料中的含量均在 SJ/T11363-2006 标准规定的限量要求以下。
X: 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T11363-2006 标准规定的限量要求。
Page 59
Loading...
