IEI Technology MMD-4300, MMD-4300C, MMD-4300CX User Manual

MMD-4300 Series Medical LCD Monitor
MMD-4300 Series Medical LCD Monitor
Page i
r
MMD-4300 Series Medical LCD Monito
Date Version Changes
2007-11 1.01 Modified OSD images
2007-10 1.00 Initial Release
Page ii
MMD-4300 Series Medical LCD Monitor
COPYRIGHT NOTICE
The information in this document is subject to change without prior notice in order to
improve reliability, design and function and does not represent a commitment on the part
of the manufacturer.
In no event will the manufacturer be liable for direct, indirect, special, incidental, or
consequential damages arising out of the use or inability to use the product or
documentation, even if advised of the possibility of such damages.
Copyright
This document contains proprietary information protected by copyright. All rights are
reserved. No part of this manual may be reproduced by any mechanical, electronic, or
other means in any form without prior written permission of the manufacturer.
TRADEMARKS
All registered trademarks and product names mentioned herein are used for identification
purposes only and may be trademarks and/or registered trademarks of their respective
owners.
Page iii
r
MMD-4300 Series Medical LCD Monito
Manual Conventions
WARNING!
Warnings appear where overlooked details may cause damage to the equipment or result
in personal injury. Warnings should be taken seriously. Warnings are easy to recognize.
The word “warning” is written as “WARNING,” both capitalized and bold and is followed by
text. The text is the warning message. A warning message is shown below:
WARNING:
This is an example of a warning message. Failure to adhere to warning
messages may result in permanent damage to the MMD-4300 Series
or personal injury to the user. Please take warning messages seriously.
CAUTION!
Cautionary messages should also be heeded to help reduce the chance of losing data or
damaging the MMD-4300 Series. Cautions are easy to recognize. The word “caution” is
written as “CAUTION,” both capitalized and bold and is followed. The italicized text is the
cautionary message. A caution message is shown below:
Page iv
MMD-4300 Series Medical LCD Monitor
CAUTION:
This is an example of a caution message. Failure to adhere to cautions
messages may result in permanent damage to the MMD-4300 Series.
Please take caution messages seriously.
NOTE:
These messages inform the reader of essential but non-critical information. These
messages should be read carefully as any directions or instructions contained therein can
help avoid making mistakes. Notes are easy to recognize. The word “note” is written as
NOTE,” both capitalized and bold and is followed by text. The text is the cautionary
message. A note message is shown below:
NOTE:
This is an example of a note message. Notes should always be read.
Notes contain critical information about the MMD-4300 Series. Please
take note messages seriously.
Page v
r
MMD-4300 Series Medical LCD Monito
Packing List
NOTE:
If any of the components listed in the checklist below are missing,
please do not proceed with the installation. Contact the IEI reseller or
vendor you purchased the MMD-4300 series from or contact an IEI
sales representative directly. To contact an IEI sales representative,
please send an email to
The items listed below should all be included in the MMD-4300 Series package.
1 x MMD-4300 Series LCD monitor
1 x Monitor stand
1 x Power adapter
1 x Power cord (US)
2 x DVI-D cables
1 x USB cable (Type A to Type B)
1 x User manual and utility CD
Images of the above items are shown in Chapter
sales@iei.com.tw.
3.
Page vi
MMD-4300 Series Medical LCD Monitor
Safety Precautions
Prior to installing, moving and modifying the monitor, make sure the power is
turned off and the power cord is disconnected.
Do not apply voltage levels that exceed the specified voltage range. Doing so will
cause fire or an electric shock.
Electric shocks can occur if the panel is opened. Do not drop or insert any object
into the ventilation openings of the monitor.
Only qualified engineers from certified system integrators are allowed to make
necessary functional modifications to the monitor.
If considerable amount of dust, water or fluids entered the monitor, turn off the
power supply immediately, unplug the power cord and contact the monitor vendor.
Explosions may occur with installations in environments where flammable gases
are present.
Grounding reliability can only be achieved when the equipment is connected to an
equivalent receptacle marked “Hospital Only” or “Hospital Grade”.
This device is intended to be used: (1) outside a “patient vicinity” area or (2) within
a “patient vicinity” area such as consulting rooms.
The signal input parts or signal output parts (SIP/SOP) need to be connected
properly and any unused SIP/SOP shall not be accessible to unqualified
personnel after the LCD is integrated into a medical system.
The unit is for exclusive interconnection with IEC 60XXX certified equipment
outside of patient environment and IEC 60601-1 certified equipment inside the
patient environment.
This device complies with EN60601-1-2. To minimize the interference from other
equipment, a minimum 0.5 m distance shall be kept from other potential
electromagnetic sources, such as cell phones, etc.
Equipment connected to the analog or digital interfaces must comply with the
respective IEC standards (e.g. IEC 60950 for data processing equipment and IEC
60601-1 for medical equipment).
Page vii
r
To fully disengage power to the unit, disconnect the power cord from its AC outlet.
Do not remove any of the display housings. There are no user serviceable parts
inside the monitor. Refer servicing to qualified service personnel.
All configurations shall comply with the current version of the IEC 60601-1-1
safety requirements for medical electrical systems.
To maintain the highest level of performance, it is recommended that this product
be replaced after five years of use.
MMD-4300 Series Medical LCD Monito
FURTHER PRECAUTIONS
Do not drop the monitor against a hard surface. Doing so will damage the display.
Do not strike or exert excessive force onto the panel.
Touching the LCD panel using a sharp object will cause damage to the display.
Avoid environments exposed to direct sunlight, dust or chemical vapors.
The ambient temperature of the installation site should be observed and
controlled to avoid overheating the monitor.
Condensation might form inside of the monitor chassis if exposed to sudden
changes in temperature.
Carefully route the power cord, so that people cannot step on it. Do not place
anything over the power cord or bend it.
If the equipment should be left unused for an extended period of time, disconnect
it from the power source to avoid damage by transient over-voltage.
If any of the following situations arise, have the equipment checked by qualified
service personnel:
o The power cord or plug is damaged. o Liquid has penetrated into the equipment. o The equipment has been exposed to moisture. o The equipment does not work properly, or cannot be made to work
according to the user manual.
o The equipment has been dropped and damaged. o The equipment shows obvious signs of damage.
Page viii
MMD-4300 Series Medical LCD Monitor
WARNING:
Any changes or modifications made to the equipment that are not
expressly approved by the relevant standards could void the authority
to operate the equipment.
ADDITIONAL INFORMA TION AND ASSISTANCE
MAINTENANCE AND CLEANING
Prior to cleaning any part or component of the monitor, please read the details below.
Except for the properly installed front LCD panel, never spray or squirt liquids
directly onto any other component. To clean the front panel, please rub it with a
piece of soft dry cloth or a slightly moistened cloth.
The interior of the LCD monitor does not require cleaning. Keep fluids away from
the LCD monitor interior.
Be cautious of all small removable components when vacuuming the monitor.
Turn the system off before cleaning the LCD monitor.
Never drop any objects or liquids through the openings of the LCD monitor.
Be cautious of any possible allergic reactions to solvents or chemicals used when
cleaning the monitor.
Avoid eating, drinking and smoking within vicinity of the monitor.
Page ix
r
CLEANING TOOLS
Some components in the monitor may only be cleaned using a product specifically
designed for the purpose. In such case, the product will be explicitly mentioned in the
cleaning tips. Below is a list of items to use when cleaning the computer or computer
peripherals.
Cloth – Although paper towels or tissues can be used, a soft, clean piece of dry
cloth is recommended when cleaning the monitor.
Using solvents – The use of solvents is not recommended when cleaning the
monitor as they may damage the plastic parts.
Vacuum cleaner – Using a vacuum specifically designed for computers is one of
the best methods of cleaning the monitor. Over dust and dirt can restrict the
airflow in a computer and cause circuitry to corrode.
MMD-4300 Series Medical LCD Monito
Cotton swabs - Cotton swaps moistened with rubbing alcohol are excellent tools
for wiping hard to reach areas.
Foam swabs - Whenever possible, it is best to use lint free swabs such as foam
swabs for cleaning.
ESD PRECAUTIONS
Observe all conventional anti-ESD methods while handling the components contained
within the LCD should the need arise for adding a functionality. The use of a grounded
wrist strap and an anti-static work pad is recommended. Avoid dust and debris or other
static-accumulating materials in the work area.
Page x
MMD-4300 Series Medical LCD Monitor
PRODUCT DISPOSAL
Within the United States:
The lamps in this product contain mercury. Please dispose according to state,
local or Federal law.
Within the European Union:
EU-wide legislation, as implemented in each Member State, requires that
waste electrical and electronic products carrying the mark (left) must be
disposed of separately from normal household waste. This includes monitors
and electrical accessories, such as signal cables or power cords. When you
need to dispose of your display products, please follow the guidance of your
local authority, or ask the shop where you purchased the product. The mark
on electrical and electronic products only applies to the current European
Union Member States.
Please follow the national guidelines for electrical and electronic product disposal.
Page xi
r
MMD-4300 Series Medical LCD Monito
Table of Contents
1 INTRODUCTION..................................................................................................... 1
1.1 MMD-4300 SERIES MEDICAL LCD MONITOR OVERVIEW........................................ 2
1.2 FEATURES .................................................................................................................. 2
1.3 COMPATIBLE GRAPHICS CARD ................................................................................... 3
1.4 MODEL VARIATIONS................................................................................................... 3
1.5 GENERAL SPECIFICATIONS ......................................................................................... 3
1.5.1 MMD-4300 Series Monitor................................................................................ 3
1.5.2 Classification ..................................................................................................... 5
1.6 INTERNATIONAL STANDARDS COMPLIANCE............................................................... 5
2 MECHANICAL OVERVIEW................................................................................. 7
2.1 INTRODUCTION .......................................................................................................... 8
2.2 FRONT PANEL............................................................................................................. 8
2.3 REAR PANEL .............................................................................................................. 9
2.4 EXTERNAL PERIPHERAL INTERFACE CONNECTOR (EPIC) PANEL............................... 9
2.5 PHYSICAL DIMENSIONS.............................................................................................11
3 UNPACKING .......................................................................................................... 13
3.1 UNPACKING.............................................................................................................. 14
3.1.1 Unpacking Precautions.................................................................................... 14
3.1.2 Packing List ..................................................................................................... 14
4 INSTALLATION .................................................................................................... 17
4.1 INSTALLATION PRECAUTIONS................................................................................... 18
4.2 EXTERNAL PERIPHERAL INTERFACE CONNECTORS .................................................. 18
4.2.1 EPIC Panel Connectors Overview................................................................... 19
4.2.2 Power Connector............................................................................................. 19
4.2.3 DVI-D Connector............................................................................................. 20
4.2.3.1 Single Viewing Mode Connection ............................................................ 20
4.2.3.2 Dual Viewing Mode Connection (One System) ....................................... 21
4.2.3.3 Dual Viewing Mode Connection (Two Systems) ..................................... 21
Page xii
MMD-4300 Series Medical LCD Monitor
4.2.4 USB Type A Connector..................................................................................... 22
4.2.5 USB Type B Connector .................................................................................... 23
4.3 DISPLAY ADJUSTMENT - SWIVEL.............................................................................. 23
4.4 MOUNTING THE MMD-4300 SERIES LCD MONITOR .............................................. 24
4.4.1 Monitor Arm or Stand Installation................................................................... 24
5 ON-SCREEN-DISPLAY (OSD) CONTROLS ..................................................... 27
5.1 USER MODE OSD STRUCTURE ................................................................................ 28
5.1.1 OSD Buttons..................................................................................................... 28
5.1.2 OSD Menu Structure........................................................................................ 29
5.2 USING THE OSD....................................................................................................... 30
5.2.1 Entering, Exiting and Switching OSD Menus.................................................. 30
5.2.2 Selecting and Setting Adjustments................................................................... 30
5.3 OSD MENU OPTIONS ............................................................................................... 30
5.3.1 Brightness Menu .............................................................................................. 30
5.3.2 Resolution Menu .............................................................................................. 31
5.3.3 Color/Gray Menu............................................................................................. 31
5.3.3.1 Single Viewing Mode (4MP) .................................................................... 31
5.3.3.2 Dual Viewing Mode (2MP)....................................................................... 32
5.3.4 Gamma Menu................................................................................................... 33
5.3.4.1 Mono Display............................................................................................ 33
5.3.4.2 Color Display............................................................................................ 34
5.3.4.3 Dual Display (2MP).................................................................................. 35
5.3.5 Information Menu ............................................................................................ 35
5.3.6 Default Setting Menu ....................................................................................... 37
6 SOFTWARE DRIVER ........................................................................................... 39
6.1 AVAILABLE SOFTWARE DRIVERS.............................................................................. 40
6.2 USB DRIVER INSTALLATION.................................................................................... 40
7 TROUBLESHOOTING......................................................................................... 42
7.1 TROUBLESHOOTING ................................................................................................. 43
A INTERNATIONAL STANDARDS COMPLIANCE........................................... 46
A.1 UL 60601-1 AND CAN/CSA C22.2 NO. 601.1.................................................... 47
A.2 93/42/EEC, EN60601-1, EN60601-2..................................................................... 47
Page xiii
r
MMD-4300 Series Medical LCD Monito
A.3 FCC........................................................................................................................ 47
A.4 ROHS COMPLIANT.................................................................................................. 47
A.5 ATTENTION.............................................................................................................. 48
B GLOSSARY............................................................................................................. 50
INDEX.............................................................................................................................. 54
Page xiv
MMD-4300 Series Medical LCD Monitor
List of Figures
Figure 1-1: MMD-4300 Series Medical LCD Monitor..................................................2
Figure 2-1: MMD-4300 Series Front View....................................................................8
Figure 2-2: Rear Panel ..................................................................................................9
Figure 2-3: EPIC Panel................................................................................................10
Figure 2-4: EPIC Symbols ..........................................................................................10
Figure 4-1: Monitor EPIC Panel Connectors ............................................................19
Figure 4-2: Power Connector.....................................................................................19
Figure 4-3: DVI-D Connector Pin-out Locations ......................................................20
Figure 4-4: DVI-D Connection (One System, 4MP) ..................................................20
Figure 4-5: DVI-D Connection (One System, 2MP) ..................................................21
Figure 4-6: DVI-D Connection (Two Systems)..........................................................22
Figure 4-7: USB Type A Connector...........................................................................22
Figure 4-8: USB Type B Connector...........................................................................23
Figure 4-9: Monitor Swivel Adjustment.....................................................................23
Figure 4-10: VESA Mounting Holes...........................................................................24

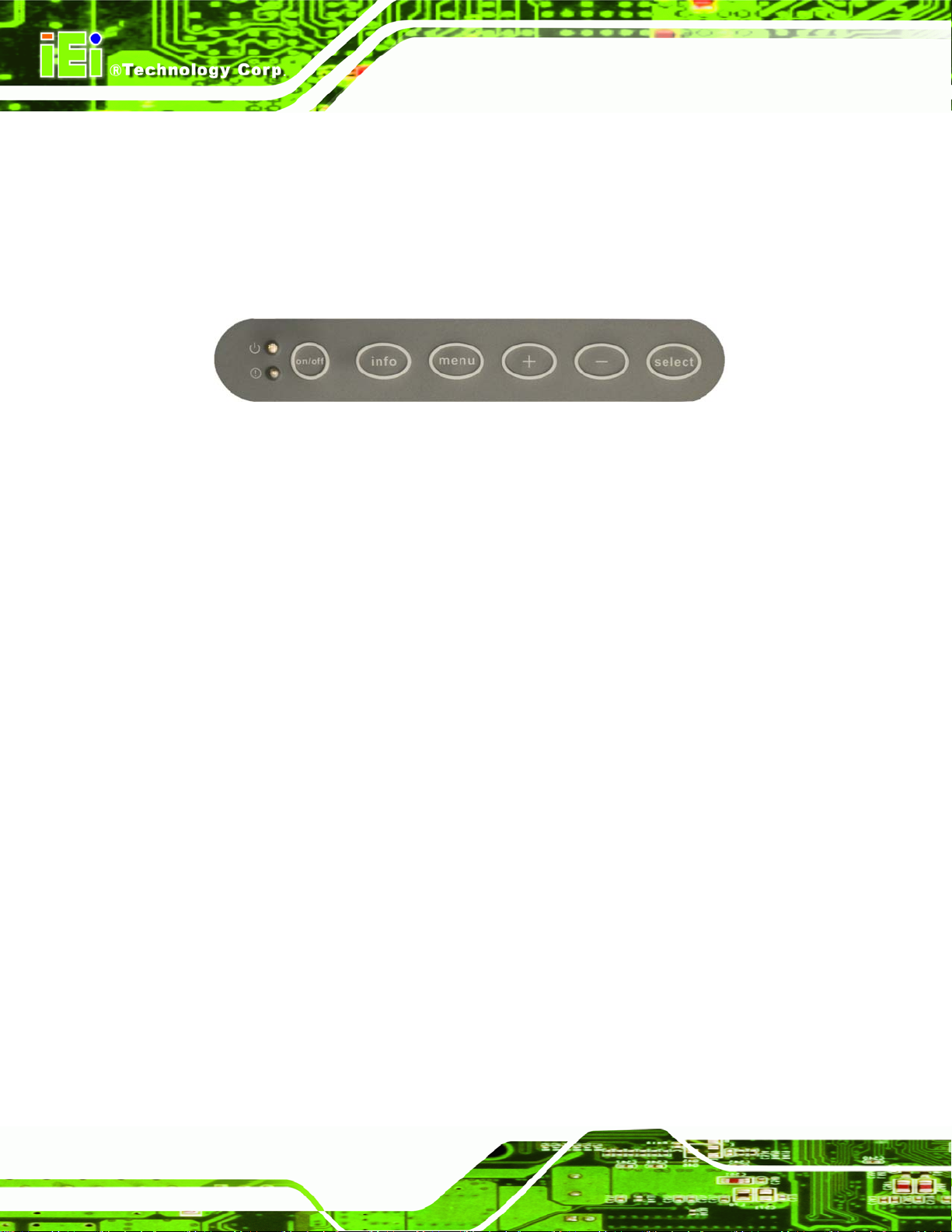

Figure 5-1: OSD Control Buttons...............................................................................28
Figure 5-2: Brightness Menu......................................................................................30
Figure 5-3: Resolution Menu......................................................................................31
Figure 5-4: Color/Gray Menu (4MP)...........................................................................32
Figure 5-5: Color/Gray Menu (2MP)...........................................................................32
Figure 5-6: Gamma Menu (Mono Display) ................................................................33
Figure 5-7: Gamma Menu (Color Display).................................................................34
Figure 5-8: Gamma Menu (Dual Display)..................................................................35
Figure 5-9: Information Menu.....................................................................................36
Figure 5-10: Default Setting Menu.............................................................................37
Figure 6-1: Install Driver Screen................................................................................40
Figure 6-2: Installation Successful Screen...............................................................41
Page xv
r
MMD-4300 Series Medical LCD Monito
List of Tables
Table 1-1: Model Variations..........................................................................................3
Table 1-2: MMD-4300 Series Monitor Specifications.................................................5
Table 2-1: Physical Dimensions ................................................................................11
Table 3-1: Package List Contents..............................................................................15
Table 5-1: OSD Menus ................................................................................................29
Table 5-2: Information Menu – Item Description......................................................36
Table 7-1: Troubleshooting........................................................................................44
Page xvi
MMD-4300 Series Medical LCD Monitor
Chapter
1

1 Introduction

Page 1
r
MMD-4300 Series Medical LCD Monito

1.1 MMD-4300 Series Medical LCD Monitor Overview

Figure 1-1: MMD-4300 Series Medical LCD Monitor
The MMD-4300 Series is a high performance, 4 Megapixel medical grade
monochrome/color LCD monitor designed for the exacting needs of professionals that
provides clear and sharp images with resolutions of up to 2560 x 1600 pixels, 300 cd/m
brightness and 1000:1 contrast ratio, making it ideal for diagnosing detailed medical
graphics. The VESA mounting capabilities provide a wide array of mounting options. The
MMD-4300 Series can be configured to display in seamless dual 2MP through two DVI
signal inputs. The built-in front sensor and the backlight sensor ensure the MMD-4300
Series to display consistent images over time.

1.2 Features

Some of the standard features of the MMD-4300 Series include:
VESA DDC/CI compliant
Supports single 4MP viewing mode or dual 2MP viewing mode
Supports Windows Vista deep color feature, 10-bit and higher for RGB.
2
Built-in backlight controller with sensor to detect the brightness of the backlight
module and to automatically compensate for aging over time.
Dual DVI-D digital interfaces
USB hub support
Page 2
MMD-4300 Series Medical LCD Monitor
Wide viewing angle (right/left: 178°, up/down: 178°)
Full screen availability
Slim bezel
Standard VESA mounting interface (100mm x 100mm or 100mm x 200mm)
Various graphics card support: Matrox, RealVision, ATI, nVidia and other
high-level commercial cards

1.3 Compatible Graphics Card

MMD-4300 Series supports the following graphics cards in either Single 4MP Viewing
Mode or Dual 2MP Viewing Mode:
NVIDIA QUADRO FX Series
ATI FireGL Series

1.4 Model Variations

The MMD-4300 Series has the following base models.
Model Size Mono/Color Pixels Front Panel Protection
MMD-4300C
MMD-4300CX
Table 1-1: Model Variations
30.0" Mono/Color 4M IPX0
30.0" Mono/Color 4M IPX2

1.5 General Specifications

The following sections describe the MMD-4300 Series medical LCD monitor, LCD panel
and power adapter specifications.

1.5.1 MMD-4300 Series Monitor

Table 1-2 lists the specifications for the MMD-4300 Series medical LCD monitor.
Page 3
r
Model MMD-4300C/MMD-4300CX Drive System a-Si TFT active matrix Display area (H x V) 641.3mm x 400.8mm Diagonal size of display 75.6cm (30.0 inches) Resolution (H x V) 2560 x 1600 Display color 16,777,216 colors Pixel pitch (H x V) 0.2505mm x 0.2505mm Sub-pixel pitch (H x V) 0.0835mm x 0.2505mm Pixel format RGB (Red dot, Green dot, Blue dot) vertical stripe Luminance-max. 300 (cd/m2)
MMD-4300 Series Medical LCD Monito
Max. Luminance (calibrated) Contrast ratio 1000:1 (typ.) Viewing angle Right 178o, Left 178o, Up 178o, Down 178o Response time (Ton + Toff) 12ms (typ.) Polarizer surface/hardness Antiglare/3H Backlight 16 CCFL Default gamma Gamma 2.2 LUT 10-bit for each RGB Signal input Dual link DVI-D (digital) USB 2.0 hub 1 upstream/2 downstream OSD Keypad Yes (rear panel) Power Adapter Input voltage range Power Adapter Input frequency range
220 (cd/m2) for MMD-4300C
2
200 (cd/m
100VAC-240VAC
47Hz-63Hz
) for MMD-4300CX
Page 4
Power Adapter Max. Input AC current Power Adapter Power output Physical dimensions (H x W x D) Weight (without/with stand) 12.79kg/16.55kg Operating temperature +10°C ~ +35°C
2.0Arms @ 90V AC
24VDC, 6.25A, 150W (max.)
With stand: 522mm x 736mm x 266mm (landscape) Without stand: 480mm x 736mm x 76mm (landscape)
MMD-4300 Series Medical LCD Monitor
Storage temperature 0°C ~ +45°C Operation Relative Humidity 30% ~ 75% Non-condensing Storage/Transportation Relative Humidity Approvals UL60601-1, EN60601-1-1, EN60601-1-2, FCC Parts 15
10% ~ 95% Non-condensing
Table 1-2: MMD-4300 Series Monitor Specifications

1.5.2 Classification

 Power by Class I power adapter:
No Applied Part.
Protection against the ingress of water:
o MMD-4300C: IPX0 o MMD-4300CX: IPX2
Mode of operation: Continuous Operation
The equipment not suitable for use in the presence of a flammable anesthetic
mixture with air or with oxygen or nitrous oxide: Not AP or APG Category:

1.6 International Standards Compliance

The MMD-4300 series LCD monitor complies with the following international standards:
UL 60601-1 AND CAN/CSA C22.2 NO. 601.1
93/42/EEC, EN60601-1, EN60601-2
FCC
RoHS
For a more detailed description of these standards, please refer to Appendix A.
Page 5
r
MMD-4300 Series Medical LCD Monito
THIS PAGE IS INTENTIONALLY LEFT BLANK
Page 6
MMD-4300 Series Medical LCD Monitor
Chapter
2

2 Mechanical Overview

Page 7
r

2.1 Introduction

This chapter describes the general mechanical overview of the MMD-4300 Series medical
LCD monitors, including the front panel, external peripheral interface connector (EPIC)
panel, available interfaces and dimensions.

2.2 Front Panel

The front panel of the MMD-4300 Series has an LCD screen surrounded by a sturdy
acrylonitrile butadiene styrene (ABS) and polycarbonate (PC) plastic frame. A front sensor
and an ambient light sensor are also located on the front panel to ensure the stability and
MMD-4300 Series Medical LCD Monito
accuracy of the displayed image. The front panel is shown in
Figure 2-1: MMD-4300 Series Front View
Figure 2-1.
Page 8
MMD-4300 Series Medical LCD Monitor

2.3 Rear Panel

The rear panel of the MMD-4300 Series has standard VESA mounting holes that supports
100mm x 100mm and 100mm x 200mm VESA mounting. An OSD control panel is also
located on the rear panel. The rear panel is shown in
Figure 2-2: Rear Panel
Figure 2-2.

2.4 External Peripheral Interface Connector (EPIC) Panel

The external peripheral interface connectors of the MMD-4300 Series are located on the
bottom panel. The bottom panel interface connectors are listed below and shown in
Figure 2-3.
1 x Power connector
2 x DVI-D input connectors
1 x USB Type B upstream port
2 x USB Type A downstream ports
Page 9
r
MMD-4300 Series Medical LCD Monito
Figure 2-3: EPIC Panel
The EPIC connectors on the bottom panel can easily be distinguished by the connector
symbols shown on the rear panel (
Figure 2-4: EPIC Symbols
Figure 2-4).
Page 10
MMD-4300 Series Medical LCD Monitor

2.5 Physical Dimensions

The physical dimensions of the MMD-4300 Series monitors are specified in Table 2-1
below.
Width (mm)
Height (mm)
Depth (mm)
Table 2-1: Physical Dimensions
Landscape Orientation
Without Stand
736 736
480 522
76 266
Landscape Orientation
With Stand
Page 11
r
MMD-4300 Series Medical LCD Monito
THIS PAGE IS INTENTIONALLY LEFT BLANK
Page 12
MMD-4300 Series Medical LCD Monitor
Chapter
3

3 Unpacking

Page 13
r

3.1 Unpacking

3.1.1 Unpacking Precautions

When the MMD-4300 Series is unpacked, please do the following:
Make sure the packing box is facing upwards so the MMD-4300 Series does
not fall out of the box.
Make sure all the components shown in Section 3.1.2 are present.

3.1.2 Packing List

NOTE:
If some of the components listed in the checklist below are missing, please do
MMD-4300 Series Medical LCD Monito
not proceed with the installation. Contact the Richardson reseller or vendor you
purchased the FP304 series from or contact a Richardson sales representative
directly.
When the MMD-4300 Series medical LCD monitor is received, make sure all the
components listed below are present.
Quantity Item Image
1 MMD-4300 Series LCD monitor
1
USB Series A to
USB Series B cable
2 DVI cable
Page 14
MMD-4300 Series Medical LCD Monitor
1 AC power adapter
1 AC power cable (US)
1 Utility CD
Table 3-1: Package List Contents
Page 15
r
MMD-4300 Series Medical LCD Monito
THIS PAGE IS INTENTIONALLY LEFT BLANK
Page 16
MMD-4300 Series Medical LCD Monitor
Chapter
4

4 Installation

Page 17
r

4.1 Installation Precautions

When installing the MMD-4300 Series medical LCD monitor, please follow the precautions
listed below:
Read the user manual: The user manual provides a complete description of
the MMD-4300 Series medical LCD monitor, installation instructions and
configuration options.
DANGER! Disconnect Power: Power to the monitor must be disconnected
when installing the MMD-4300 Series medical LCD monitor. Electric shock
and personal injury might occur if the rear panel of the monitor is accessed
while the power cord is still connected to an electrical outlet.
Qualified Personnel: The MMD-4300 Series medical LCD monitor must be
installed and operated only by trained and qualified personnel. Maintenance,
MMD-4300 Series Medical LCD Monito
upgrades, or repairs may only be carried out by qualified personnel who are
familiar with the associated dangers.
Mounting: The monitor is a heavy piece of equipment. Please ensure at least
two people assist with mounting the monitor.
Air Circulation: Make sure there is sufficient air circulation when installing the
monitor. The monitor’s cooling vents must not be obstructed by any objects.
Blocking the vents can cause overheating of the monitor.

4.2 External Peripheral Interface Connectors

The external peripheral interface panel connectors for the MMD-4300 Series medical LCD
monitors are listed below.
1 x Power connector
2 x DVI-D input connectors
1 x USB Type B upstream port
2 x USB Type A downstream ports
Page 18
MMD-4300 Series Medical LCD Monitor

4.2.1 EPIC Panel Connectors Overview

Figure 4-1 shows the EPIC panel connectors for the MMD-4300 Series LCD monitor. The
following sections fully describe EPIC panel connectors.
Figure 4-1: Monitor EPIC Panel Connectors

4.2.2 Power Connector

Use the bottom panel power connector to connect the monitor to the AC power adapter
provided with the monitor.
Figure 4-2: Power Connector
Page 19
r

4.2.3 DVI-D Connector

The MMD-4300 Series has two 24-pin female DVI (Digital Visual Interface) connectors
which are standard for high-speed, high-resolution digital displays. Use the DVI-D
connectors to connect the MMD-4300 Series to one or two system.
Figure 4-3: DVI-D Connector Pin-out Locations
4.2.3.1 Single Viewing Mode Connection
MMD-4300 Series Medical LCD Monito
Connect the master DVI port of a system to the master DVI port of the MMD-4300 Series
to display in the single viewing mode.
Figure 4-4: DVI-D Connection (One System, 4MP)
Page 20
MMD-4300 Series Medical LCD Monitor
4.2.3.2 Dual Viewing Mode Connection (One System)
To display two screens from a system on the MMD-4300 Series, follow the steps below.
Step 1: Connect the master DVI port of a system to the master DVI port of the
MMD-4300 Series (
Step 2: Connect the slave DVI port of a system to the slave DVI port of the MMD-4300
Series (
Step 3: The MMD-4300 Series displays the source from the master port on the left hand
side screen while the source from the slave port is displayed on the right hand
side screen. Step 0:
Figure 4-5).
Figure 4-5).
Figure 4-5: DVI-D Connection (One System, 2MP)
4.2.3.3 Dual Viewing Mode Connection (Two Systems)
To display two screens from two systems on the MMD-4300 Series, follow the steps
below.
Step 1: Connect the master DVI port of one system to the master DVI port of the
Page 21
r
MMD-4300 Series (Figure 4-6).
Step 2: Connect the master DVI port of the other system to the slave DVI port of the
MMD-4300 Series Medical LCD Monito
MMD-4300 Series (
Step 3: The MMD-4300 Series displays the source from the master port on the left hand
side screen while the source from the slave port is displayed on the right hand
side screen. Step 0:
Figure 4-6).
Figure 4-6: DVI-D Connection (Two Systems)

4.2.4 USB Type A Connector

Use the bottom panel standard USB Type A connector to connect the monitor to a
secondary USB device aside from the main computer. To enable the two USB Type A
connectors, the USB Type B connector must be connected to a computer system with
USB driver installed.
Figure 4-7: USB Type A Connector
Page 22
MMD-4300 Series Medical LCD Monitor

4.2.5 USB Type B Connector

Use the bottom panel standard USB Type B connector to connect the monitor to a
computer system to enable the other two USB Type A connectors on the bottom panel of
the MMD-4300 Series.
Figure 4-8: USB Type B Connector

4.3 Display Adjustment - Swivel

The monitor can be swiveled to offer a more comfortable viewing position to the user. The
total range of movement is 90° (45° left or right from a straightforward position). To adjust
the monitor, hold both sides of the monitor bezel and swivel left or right as necessary.
Figure 4-9: Monitor Swivel Adjustment
Page 23
r
MMD-4300 Series Medical LCD Monito

4.4 Mounting the MMD-4300 Series LCD Monitor

The MMD-4300 Series LCD monitor can be mounted on a monitor arm or stand.
CAUTION:
When mounting the monitor, take care to tighten the retention screws or bolts
until fully secure, but do not over tighten. Over tightening the retention screws
or bolts may cause them to become stripped, rendering them useless.

4.4.1 Monitor Arm or Stand Installation

The MMD-4300 Series medical LCD monitor has Video Electronics Standards Association
(VESA) standard mounting holes tapped into the rear panel. The standard holes are M4
set at 100mm x 100mm or 100mm x 200mm apart (
Figure 4-10).
Figure 4-10: VESA Mounting Holes
To mount the MMD-4300 Series medical LCD monitor onto a monitor arm or stand, please
follow the steps below.
Page 24
MMD-4300 Series Medical LCD Monitor
Step 1: Line up the threaded holes on the monitor rear panel with the screw holes on the
monitor arm or stand mounting plate.
Step 2: Secure the monitor to the arm or stand with the retention screws supplied with
the monitor arm or stand.Step 0:
Page 25
r
MMD-4300 Series Medical LCD Monito
THIS PAGE IS INTENTIONALLY LEFT BLANK
Page 26
MMD-4300 Series Medical LCD Monitor
Chapter
5
5 On-Screen-Display
(OSD) Controls
Page 27
r

5.1 User Mode OSD Structure

5.1.1 OSD Buttons

There are several on-screen-display (OSD) control buttons oriented vertically on the rear
MMD-4300 Series Medical LCD Monito
panel of the monitor as shown in
Figure 5-1: OSD Control Buttons
ON/OFF Button
Press this button to turn the LCD monitor backlight on or off.
Info Button
Press this button to show the general information of the MMD-4300 Series.
Menu Button
Press this button to show or exit the OSD main menu.
Plus (+) Button
Press this button to scroll through items in sub menus or increase a menu
item’s value.
Minus (-) Button
Figure 5-1.
Page 28
Press this button to scroll through items in sub menus or decrease a menu
item’s value.
Select Button
Press this button to enter a sub menu or select an item in a sub menu.
The OSD control panel also includes two LEDs.
Power LED
When the LCD monitor backlight is on and a DVI signal is detected, the power
LED is green. When the LCD monitor backlight is off or no DVI signal is
detected, the power LED is orange.
Failure/Warning LED
The warning LED will also flash when the temperature inside the monitor
housing rises above 60°C. The warning LED discontinues flashing when the
MMD-4300 Series Medical LCD Monitor
temperature inside the monitor housing falls below 45°C.

5.1.2 OSD Menu Structure

Table 5-1 shows the OSD menu structure for all models of the MMD-4300 Series LCD
monitor.
Menu Value
Brightness
Resolution
Color to Gray
Gamma
120~220 for MMD-4300C 120~200 for MMD-4300CX 4MP 2MP
Single Display (4MP) Dual Display (2MP)
COLOR GRAY
Mono Display Color Display
Blue
4
Clear
M
SPECIAL
P
Linear
Blue
L
2
M
P
Clear SPECIAL
R
Linear
C/C C/G G/C G/G
6500K 9300K
Special
6500K 9300K
L
R
Special
Gamma2.2 Gamma2.0 Gamma1.8 Special 1 Special 2 Special 3 Linear Gamma2.2 Gamma2.0 Gamma1.8 Special 1 Special 2 Special 3
Information (Display general information of the MMD-4300 Series)
Default Setting
Table 5-1: OSD Menus
Linear
Yes No
Page 29
r
MMD-4300 Series Medical LCD Monito

5.2 Using the OSD

The following sections describe how to enter the OSD menus and adjust their functions.

5.2.1 Entering, Exiting and Switching OSD Menus

To enter the OSD menus, press the <Menu> button once.
Press the <+>, <-> buttons to select the desired menu.
Press the <Menu> button again to exit the OSD menus.

5.2.2 Selecting and Setting Adjustments

Enter the desired menu with the <Select> button.
Make the required adjustments with the <+>, <-> buttons.
Press the <Select> button again to confirm the setting and exit the menu.

5.3 OSD Menu Options

OSD menu options are described below.

5.3.1 Brightness Menu

Brightness menu are shown in Figure 5-2. Adjusts the brightness of screen with the <+>,
<-> buttons. Setting this value too high or too low will affect the quality of image.
Figure 5-2: Brightness Menu
Page 30
MMD-4300 Series Medical LCD Monitor

5.3.2 Resolution Menu

Resolution menu options are shown in Figure 5-3.
Figure 5-3: Resolution Menu
4MP
2MP
Single viewing mode. The display resolution is 4 megapixels (2560 x 1600).
Dual viewing mode. The display resolution is 2 megapixels (1600 x 1280) in
each display window.
After switching the viewing mode, the system must be restarted for the new
setting to take effect.

5.3.3 Color/Gray Menu

5.3.3.1 Single Viewing Mode (4MP)
NOTE:
Color/Gray menu options for single viewing mode (4MP) are shown in Figure 5-2.
Page 31
r
MMD-4300 Series Medical LCD Monito
Figure 5-4: Color/Gray Menu (4MP)
Color
Gray
Display in color mode.
Display in grayscale mode.
5.3.3.2 Dual Viewing Mode (2MP)
Color/Gray menu options for dual viewing mode (2MP) are shown in Figure 5-2.
Figure 5-5: Color/Gray Menu (2MP)
Page 32
MMD-4300 Series Medical LCD Monitor
C/C
G/C
C/G
G/G

5.3.4 Gamma Menu

5.3.4.1 Mono Display
Gamma menu options for mono display are shown in Figure 5-2.
Display in color mode in both viewing window.
The left hand side window is displayed in grayscale mode;
The right hand side window is displayed in color mode.
The left hand side window is displayed in color mode;
The right hand side window is displayed in grayscale mode.
Display in grayscale mode in both viewing window.
Figure 5-6: Gamma Menu (Mono Display)
Blue
Clear
SPECIAL
Linear
Display in blue and white backlight mode.
Display in normal grayscale mode.
User-defined value
The display gamma is 1. The relationship between the pixel levels in
the computer and the luminance of the monitor is linear.
Page 33
r
MMD-4300 Series Medical LCD Monito
5.3.4.2 Color Display
Gamma menu options for color display in single display mode are shown in Figure 5-2.
Figure 5-7: Gamma Menu (Color Display)
6500K
9300K
Special
NTSC standard Kelvin. Color Temperature.
The available display gamma options under 6500K include:
Gamma2.2
Gamma2.0
Gamma1.8
NTSC standard Kelvin. Color Temperature.
The available display gamma options under 9300K include:
Gamma2.2
Gamma2.0
Gamma1.8
The options include:
Special 1: user defined
Special 2: user defined Special 3: user defined Linear: the display gamma is 1
Page 34
MMD-4300 Series Medical LCD Monitor
5.3.4.3 Dual Display (2MP)
Gamma menu options in dual display mode are shown in Figure 5-2.
Figure 5-8: Gamma Menu (Dual Display)
L
R
After selecting the window, the user can modify the gamma setting of the selected window.
If the selected window is in mono display mode, please refer to Section description; if the selected window is in color display mode, please refer to Section
for detail description.

5.3.5 Information Menu

Information menu provides information on the LCD monitor, such as model number,
version number, and resolution (
described in
Table 5-2.
Select to control the gamma setting of the left hand side window.
Select to control the gamma setting of the right hand side window.
5.3.4.1 for detail
5.3.4.2
Figure 5-2). The detail description of each item is
Page 35
r
MMD-4300 Series Medical LCD Monito
Figure 5-9: Information Menu
Item Description Model MMD-4300/MMD-4300A
Lookup table. Based on the setting in Gamma menu. LUT G0: 6500K – Gamma2.2 G1: 6500K – Gamma2.0 G2: 6500K – Gamma1.8 G3: 9500K – Gamma2.2 G4: 9500K – Gamma2.0
G5: 9500K – Gamma1.8 S/N Serial number Ver Firmware version
F: FPGA firmware
C: CPLD firmware
S: 8051 firmware UT Usage Time: Indicates the hours that the backlight has been
turned on. (H: hours)
G6: Special – Special1 G7: Special – Special2 G8: Special – Special3 LIN: Special – Linear
Table 5-2: Information Menu – Item Description
Page 36
MMD-4300 Series Medical LCD Monitor

5.3.6 Default Setting Menu

Default Setting menu options are shown in Figure 5-2.
Figure 5-10: Default Setting Menu
Yes
No
Resets the menu items to factory defaults. The reset does not affect
the user-defined value of the SPECIAL item in gamma menus.
Factory Defaults:
Brightness: 200 nits
Resolution: 4MP, color mode
LUT: G0 (6500K, Gamma2.2)
Do not reset the menu items to factory defaults.
Page 37
r
MMD-4300 Series Medical LCD Monito
THIS PAGE IS INTENTIONALLY LEFT BLANK
Page 38
MMD-4300 Series Medical LCD Monitor
Chapter
6

6 Software Driver

Page 39
r

6.1 Available Software Drivers

NOTE:
The content of the CD may vary throughout the life cycle of the product
and is subject to change without prior notice. Please contact technical
support for the latest updates.
The following driver can be installed on the system:
USB driver
Installation instructions are given below.
MMD-4300 Series Medical LCD Monito

6.2 USB Driver Installation

The USB driver enables the USB port. Follow the steps below to install the USB driver.
Step 1: Insert the CD into a CD drive connected to the system.
Step 2: The Install Driver screen in
Figure 6-1: Install Driver Screen
Step 3: Click Install to accept the default driver directory on the system (or click Browse
to manually select the driver destination folder).
Figure 6-1 appears.
Page 40
MMD-4300 Series Medical LCD Monitor
Step 4: The driver files are copied to the system and the Installation Successful
screen in
Figure 6-2 appears.
Figure 6-2: Installation Successful Screen
Step 5: Click OK to complete the driver installation process. Step 0:
Page 41
r
MMD-4300 Series Medical LCD Monito
Chapter
7

7 Troubleshooting

Page 42
MMD-4300 Series Medical LCD Monitor

7.1 Troubleshooting

If a problem persists even after applying the remedies suggested below, please contact a
dealer for further examination. Only qualified engineers from certified system integrators
are allowed to make necessary functional modifications to the monitor.
Problem Solution No picture
Message appears when the signal is out of input range Power Button does not respond
The screen is too bright or too dark
Check that the signal cable is completely connected to the
graphics card.
Check that the power cord is correctly connected.
Check that the graphics card is firmly seated in its slot.
Check that the power switch of the monitor is ON.
Check that the power switch of the computer is ON.
Check the compatibility of the graphics card with the
system and setup a suitable signal timing.
Please refer to the user manual of the graphics card for
setting up a suitable frequency level.
Turn off the monitor and unplug the power cord from the
power outlet.
Plug in the power cord again.
Change the <Brightness> value in the OSD menu.
The backlight has a fixed life span. When it starts to
become dark or begins to flicker, please contact your
dealer.
Image Persistence
LCD image persistence isn’t a permanent phenomenon,
but showing the same image for an extended period of
time should still be avoided.
To remove the image, turn off the monitor for as long as the
image had been displayed.
Use a screensaver regularly when a monitor is displaying
the same image or is idled.
The OSD main menu
Without wearing gloves and with dry hands, try touching
Page 43
r
MMD-4300 Series Medical LCD Monito
Problem Solution does not appear
Monitor turns off while in use
Displayed image is not sized properly
Displayed Image is unstable
The USB function does not operate
the buttons again.
Press and hold the <Menu> button for 1.5 second or more.
Make sure the temperature status and fan status indicated
in the OSD menus are still within the allowable operating
range.
Check to see that an appropriate mode is supported by
and has been set on the graphics card or system being
used.
Check that the signal cable is properly attached to the
system.
Check the compatibility of the graphics card and setup a
suitable signal timing.
Check that both the system and OS are USB compliant.
Check that the USB cable is properly connected.
Check the USB setting in the system BIOS.
Table 7-1: Troubleshooting
Page 44
MMD-4300 Series Medical LCD Monitor
THIS PAGE IS INTENTIONALLY LEFT BLANK
Page 45
r
MMD-4300 Series Medical LCD Monito
Appendix
A
A International
Standards Compliance
Page 46
MMD-4300 Series Medical LCD Monitor

A.1 UL 60601-1 AND CAN/CSA C22.2 NO. 601.1

Authentication sign of Standard Inspection Bureau for U.S.A. Complies with UL 60601-1
AND CAN/CSA C22.2 NO. 601.1.

A.2 93/42/EEC, EN60601-1, EN60601-2

The LCD monitor complies with the 93/42/EEC, EN60601-1, EN60601-2 of related
European standards.

A.3 FCC

We hereby declare that the equipment specified above conforms to the technical
standards as specified in the FCC Rules.

A.4 RoHS Compliant

The MMD-4300 series comply with the Restriction of Hazardous Materials (RoHS)
Directive. This means that all components used to build the industrial workstations and the
workstation itself are RoHS compliant.
Page 47
r
The RoHS Directive bans the placing on the EU market of new electrical and electronic
equipment containing more than agreed levels of lead, caISDMium, mercury, hexavalent
chromium, polybrominated biphenyl (PBB) and polybrominated diphenyl ether (PBDE)
flame retardants.

A.5 Attention

Consult the company in the doument.
This symbol alerts the user that important information concerning the operation and
maintenance of this unit has been included. Therefore, the information should be read
MMD-4300 Series Medical LCD Monito
carefully in order to avoid any problems.
Page 48
MMD-4300 Series Medical LCD Monitor
THIS PAGE IS INTENTIONALLY LEFT BLANK
Page 49
r
MMD-4300 Series Medical LCD Monito
Appendix
B

B Glossary

Page 50
MMD-4300 Series Medical LCD Monitor
Active-Matrix Liquid Crystal Displays
A type of flat panel display with advantages such as light weight, excellent image quality,
wide color gamut and response time as compare with other types of displays. Whereas a
passive matrix display uses a simple conductive grid to deliver current to the liquid crystals
in the target area, an active matrix display uses a grid of transistors and capacitors with
the ability to hold a charge for a limited period of time. Because of the switching action of
transistors, only the desired pixel receives a charge, and the pixel acts as a capacitor to
hold the charge until the next refresh cycle, improving image quality over a passive matrix.
Color Gamut
The complete range of hues and strengths of colors that can be achieved with a given set
of colorants such as cyan, magenta, yellow, and black inks on a specific substrate.
Color Space
A three-dimensional space or model into which the three attributes of a color can be
represented, plotted, or recorded. These attributes are usually called hue, value, and
chroma. The most common color space based on the RGB model being used is sRGB.
Flicker
Flicker is visible fading between image frames displayed on CRT based monitor. Flicker
occurs when the monitor’s CRT is driven at a low refresh rate, allowing the screen’s
phosphors to lose their excitation between sweeps of the electron gun. For example, if a
CRT monitor’s vertical refresh rate is set to 60 Hz; most monitors will produce a visible
“flickering” effect. Most people find that refresh rate of 70-80 Hz and above enable
flicker-free viewing. Since flat panel displays use Active-matrix liquid crystal displays that
use a transistor for each pixel, they do not flicker based on the screen refresh rate.
However, Active-matrix liquid crystal displays may display backlight flicker.
Page 51
r
MMD-4300 Series Medical LCD Monito
Gamma Correction
In reference to displaying an image accurately on a computer screen, Gamma correction
controls the overall brightness of an image. Images that are not properly corrected can
look either bleached out, or too dark.
Grayscale
Displayed images of this sort are typically composed of shades of gray, varying from black
at the weakest intensity to white at the strongest. Grayscale images are distinct from
black-and-white images, which show with only two colors, black and white; grayscale
images have many shades of gray in between. Grayscale images intended for visual
display are typically stored with 8 bits per pixel, which allows 256 intensities to be
recorded. Technical uses (e.g. in medical imaging) often require more levels (typically 10
or 12 bits per pixel), to make full use of the sensor accuracy.
LUT
In image processing, lookup tables are often called LUTs, and they link index numbers to
output values. One common LUT, called the colormap or palette, is used to determine the
colors and intensity values with which a particular image will be displayed.
Refresh Rate vs. Frame Rate
The refresh rate is the number of times in a second that a display is illuminated. This is
distinct from the measure of frame rate in that the refresh rate includes the repeated
illumination of identical frames, while frame rate measures how often a display can
change from one image to another.
Page 52
MMD-4300 Series Medical LCD Monitor
Response Time
Response time is the amount of time a pixel in an LCD monitor takes to go from active
(black) to inactive (white) and back to active (black) again. It is measured in milliseconds
(ms). Lower numbers mean faster transitions and therefore fewer visible image artifacts.
White Point (White Chromaticity)
The intensity and color temperature of the brightest white reproducible by a device. For a
monitor this is the color and intensity when red, green and blue guns are generating their
highest output simultaneously.
Page 53
r
MMD-4300 Series Medical LCD Monito
Index
Page 54
MMD-4300 Series Medical LCD Monitor
ACTIVE-MATRIX LIQUID CRYSTAL
DISPLAYS .............................................51
Cleaning Tools .............................................x
COLOR GAMUT........................................51
COLOR SPACE .........................................51
DisposAL .................................................... xi
EPIC
DVI-D.....................................................20
Power ....................................................19
USB Series......................................22, 23
ESD Precautions .........................................x
External Peripheral Interface Connector
(EPIC)......................................................9
Installation Precautions..............................18
International Standards Compliance............5
93/42/EEC, EN60601-1, EN60601-2.....47
FCC .......................................................47
UL 60601-1 AND CAN/CSA C22.2 NO.
601.1 .................................................47
LUT ............................................................52
MAINTENANCE and Cleaning ...................ix
Mechanical Overview
External Peripheral Interface Connector
(EPIC) Panel .......................................9
