IEI Technology KINO-LX User Manual

KINO-LX Motherboard

KINO-LX Motherboard

Page 1

Page 1

KINO-LX Motherboard

REVISION HISTORY

Title KINO-LX Motherboard

Revision Number Description Date of Issue

1.0 Initial release November 2006

COPYRIGHT NOTICE

The information in this document is subject to change without prior notice in order to

improve reliability, design and function and does not represent a commitment on the part

of the manufacturer.

In no event is the manufacturer liable for direct, indirect, special, incidental, or

consequential damages arising out of the use or inability to use the product or

documentation, even if advised of the possibility of such damages.

This document contains proprietary information protected by copyright. All rights are

reserved. No part of this manual may be reproduced by any mechanical, electronic, or

other means in any form without prior written permission of the manufacturer.

TRADEMARKS

Product names mentioned herein are used for identification purposes only and may be

trademarks and/or registered trademarks of their respective owners.

Page 2

IEI® Technology, Corp.

KINO-LX Motherboard

Table of Contents

1 INTRODUCTION................................................................................................... 15

1.1 KINO-LX M

1.1.1 KINO-LX Applications..................................................................................... 16

1.1.2 KINO-LX Benefits ............................................................................................ 16

1.1.3 KINO-LX Features........................................................................................... 16

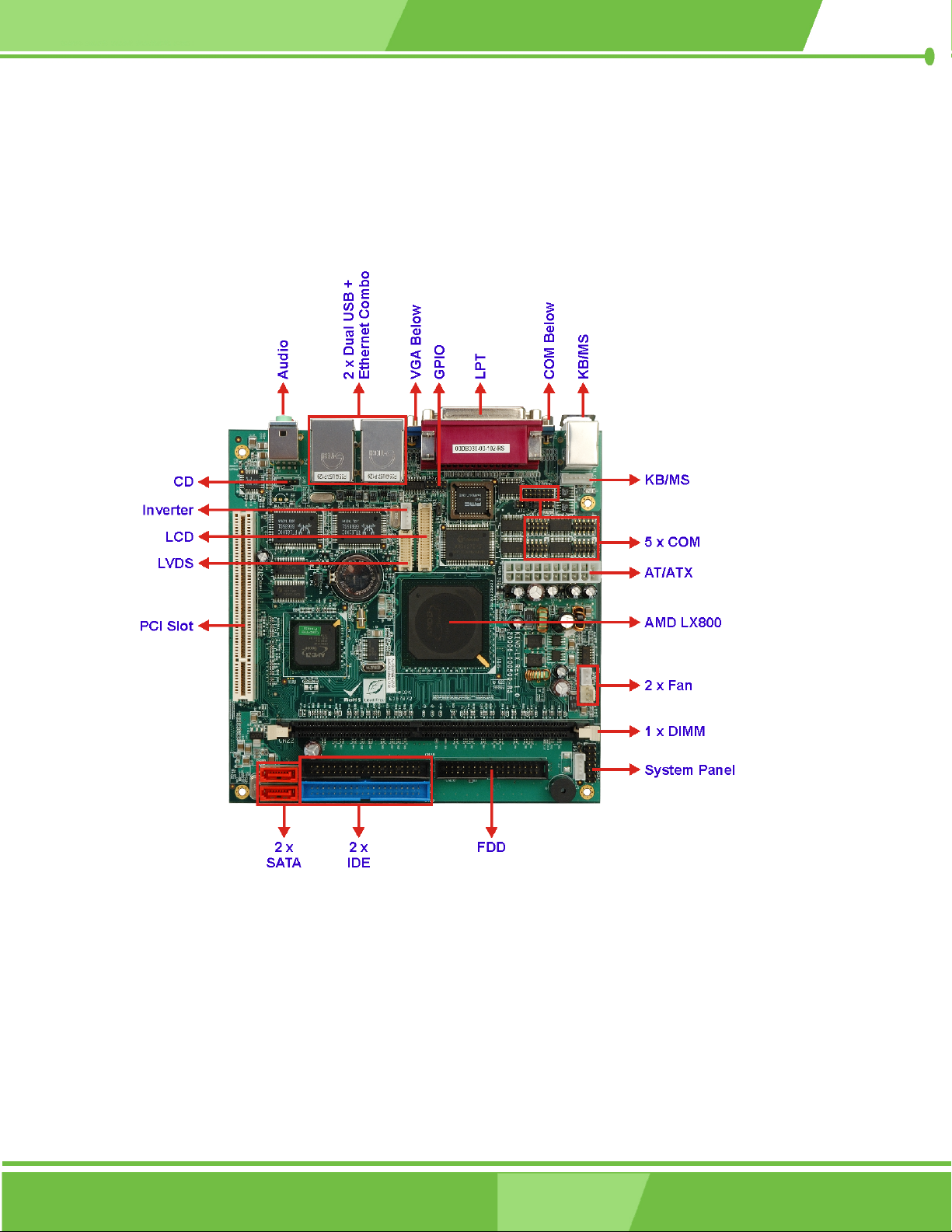

1.2 KINO-LX OVERVIEW.............................................................................................. 17

1.2.1 KINO-LX Connectors....................................................................................... 17

1.2.2 Technical Specifications................................................................................... 19

2 DETAILED SPECIFICATIONS ........................................................................... 21

2.1 CPU SUPPORT.......................................................................................................... 22

2.2 SYSTEM CHIPSET ..................................................................................................... 22

2.2.1 Data Flow ........................................................................................................ 24

2.3 GRAPHICS SUPPORT ................................................................................................. 25

2.4 MEMORY SUPPORT................................................................................................... 26

2.5 SUPER I/O ................................................................................................................ 26

2.6 ETHERNET CONTROLLER ......................................................................................... 29

2.7 DRIVE INTERFACES .................................................................................................. 30

OTHERBOARD OVERVIEW.................................................................... 16

2.7.1 SATA Drive Interface ....................................................................................... 30

2.7.2 IDE HDD Interface.......................................................................................... 31

2.7.3 Floppy Disk Drive (FDD) Interface ................................................................ 31

2.8 SERIAL PORTS .......................................................................................................... 31

2.9 AUDIO CODEC .......................................................................................................... 31

2.10 REAL TIME CLOCK................................................................................................. 33

2.11 SYSTEM MONITORING............................................................................................ 33

2.12 BIOS ..................................................................................................................... 33

2.13 OPERATING TEMPERATURE AND TEMPERATURE CONTROL..................................... 33

2.14 POWER CONSUMPTION........................................................................................... 34

2.15 PXE: PRE-BOOT EXECUTION ENVIRONMENT ........................................................ 34

2.16 PACKAGED CONTENTS AND OPTIONAL ACCESSORY ITEMS..................................... 35

2.16.1 Package Contents........................................................................................... 35

2.16.2 Optional Accessory Items............................................................................... 35

Page 3

KINO-LX Motherboard

3 CONNECTORS AND JUMPERS ......................................................................... 37

ERIPHERAL INTERFACE CONNECTORS .................................................................... 38

3.1 P

3.1.1 KINO-LX Layout.............................................................................................. 38

3.1.2 Peripheral Interface Connectors ..................................................................... 38

3.1.3 External Peripheral Interface Connectors....................................................... 40

3.1.4 On-board Jumpers ........................................................................................... 40

3.2 INTERNAL PERIPHERAL CONNECTORS...................................................................... 41

3.2.1 AT/ATX Power Connector................................................................................ 41

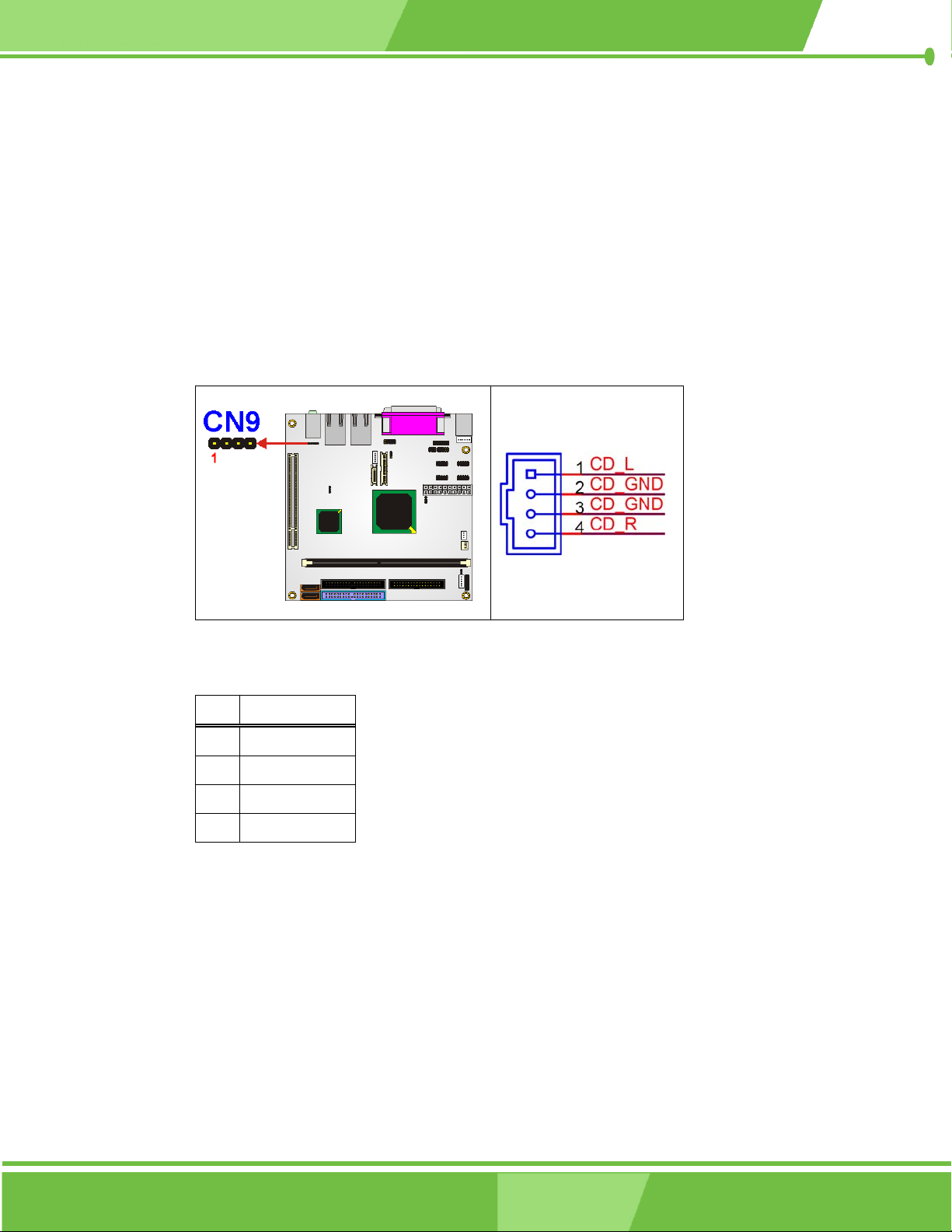

3.2.2 CD-IN Connector............................................................................................. 43

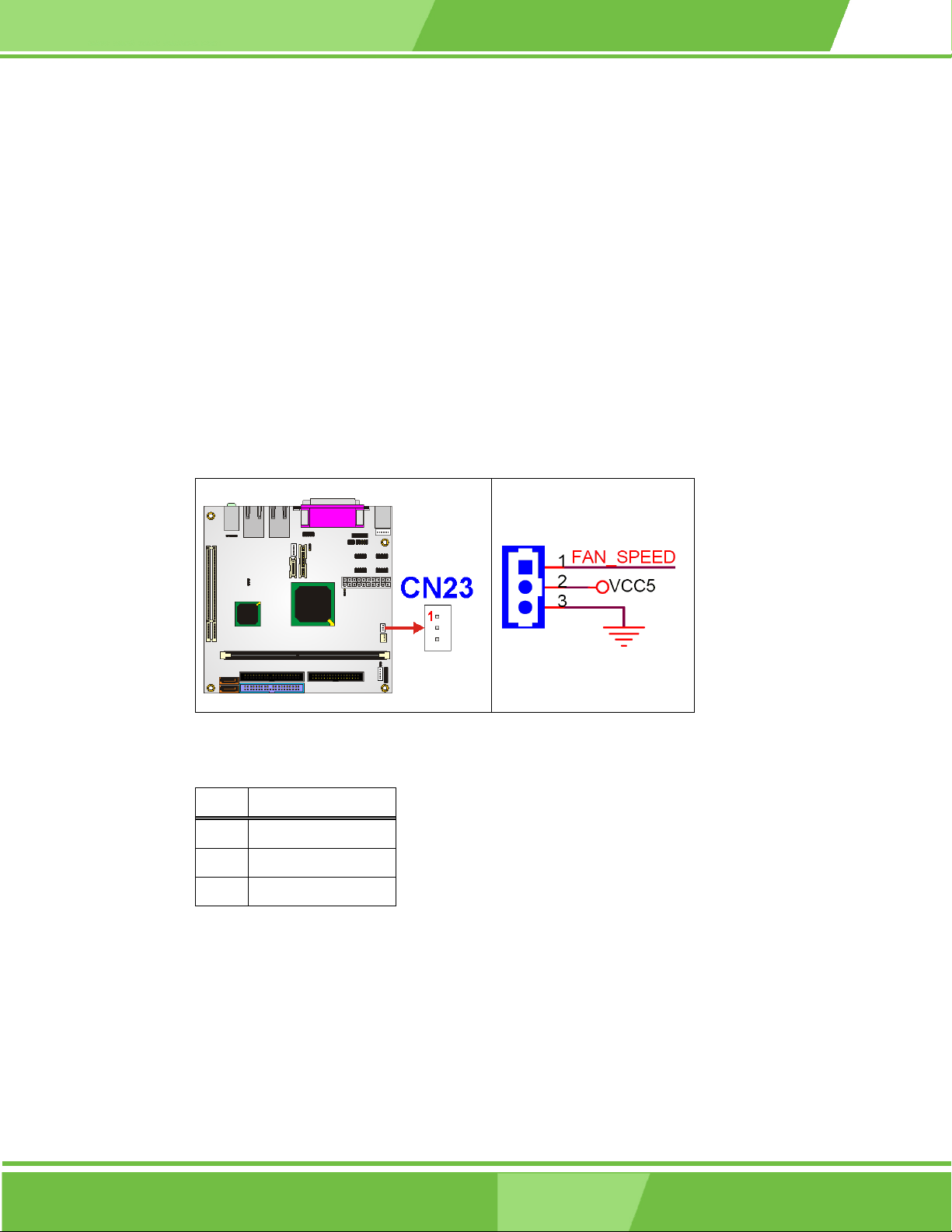

3.2.3 5V Fan Connector............................................................................................ 44

3.2.4 12V Fan Connector.......................................................................................... 45

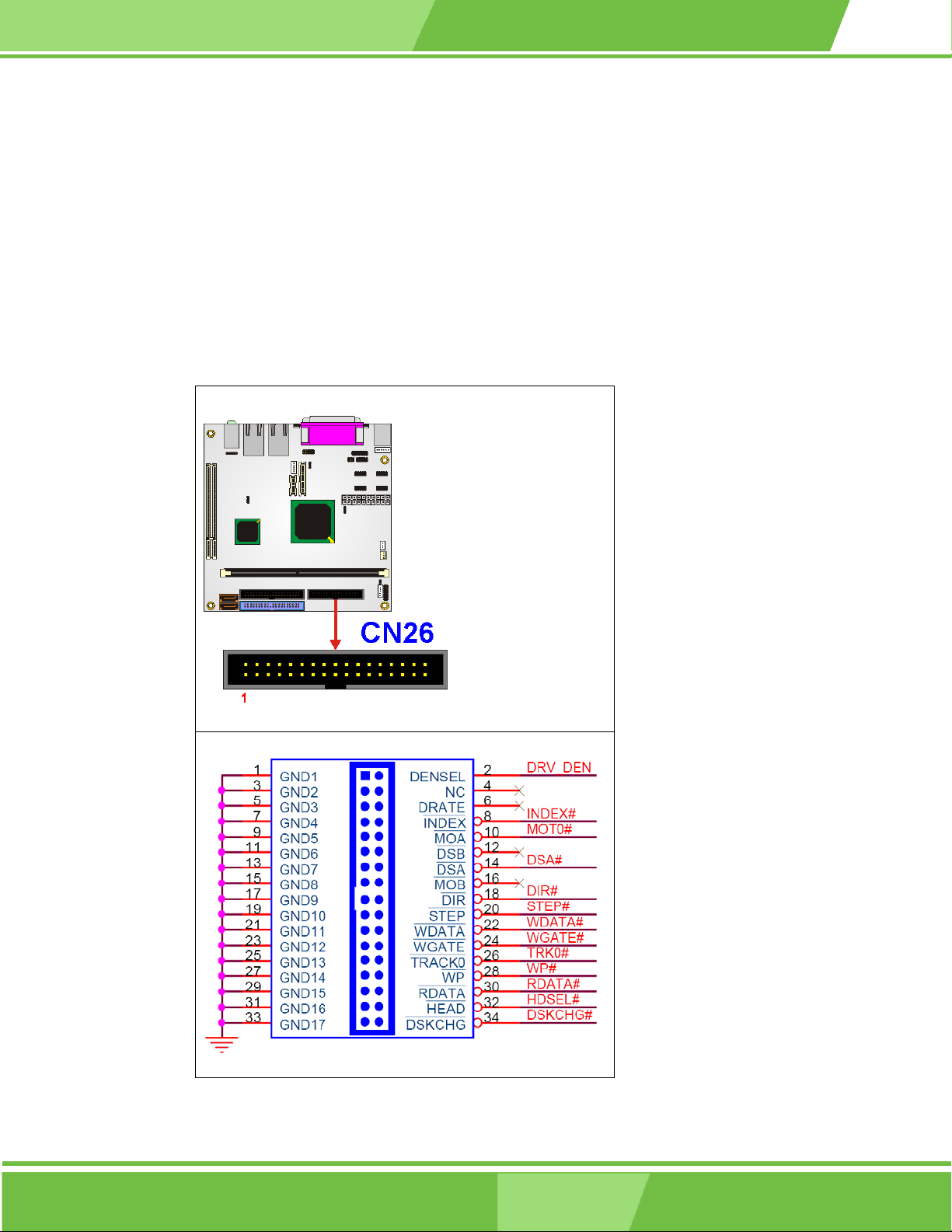

3.2.5 Floppy Disk Connector .................................................................................... 46

3.2.6 Front Panel Connector .................................................................................... 47

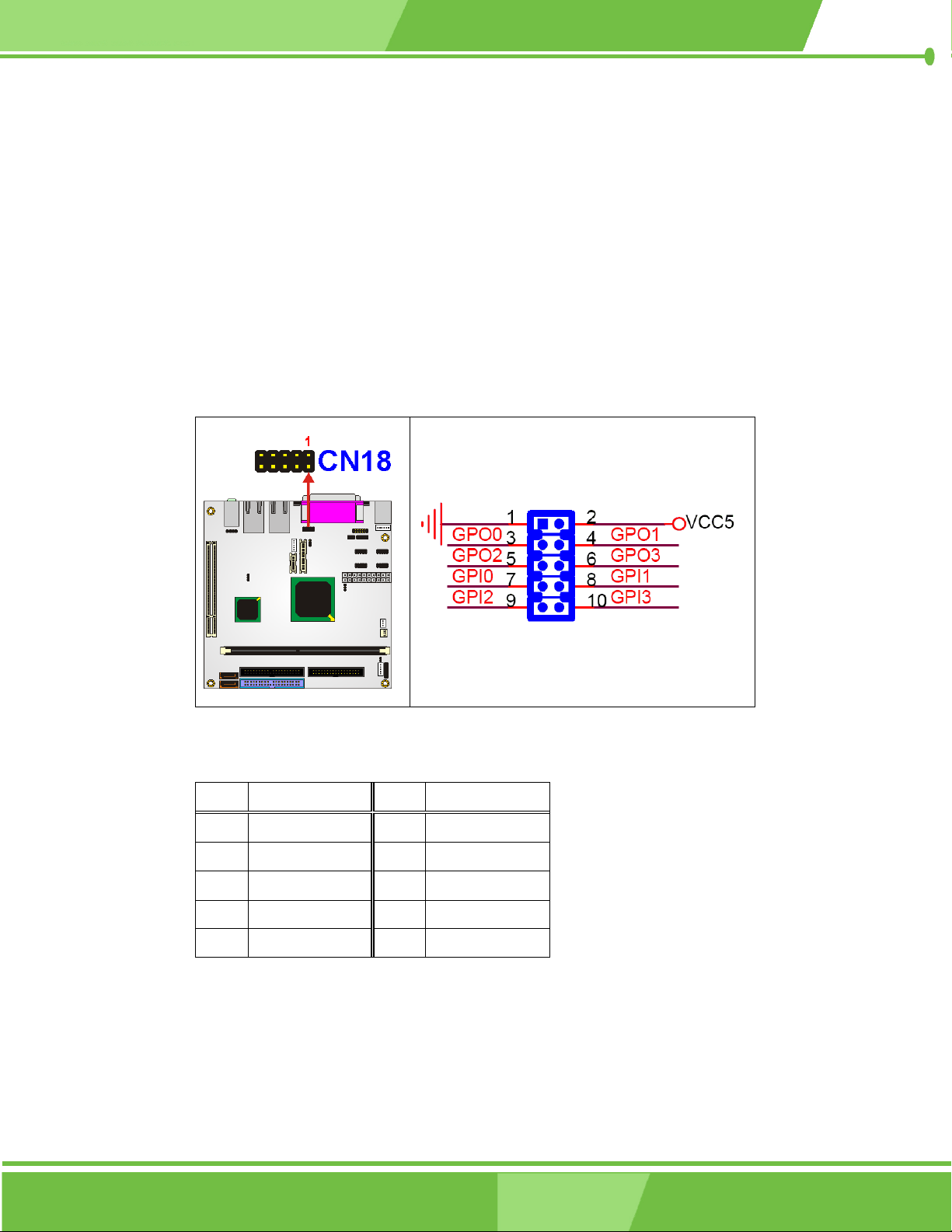

3.2.7 GPIO Connector .............................................................................................. 49

3.2.8 IDE Connectors ............................................................................................... 50

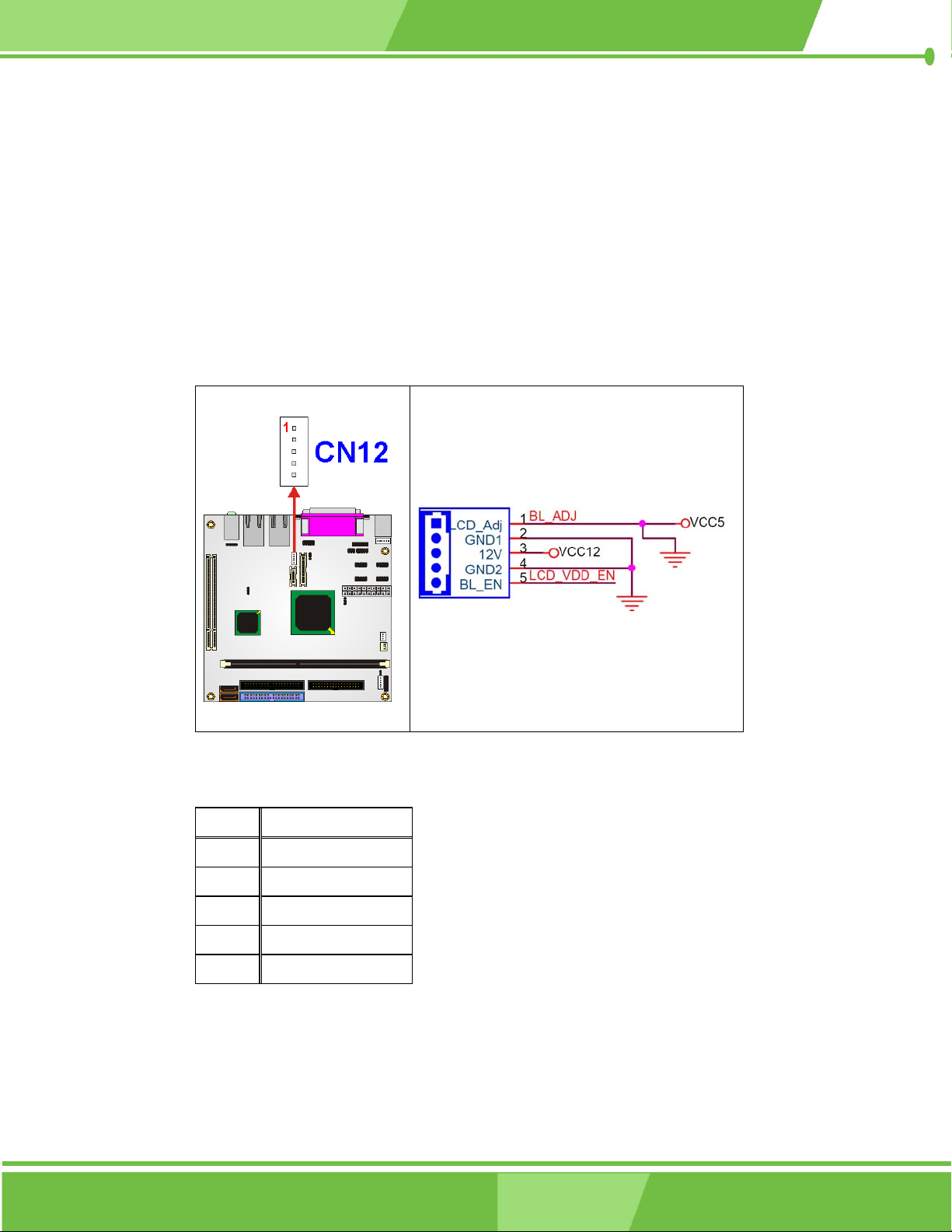

3.2.9 Inverter Power Connector ............................................................................... 53

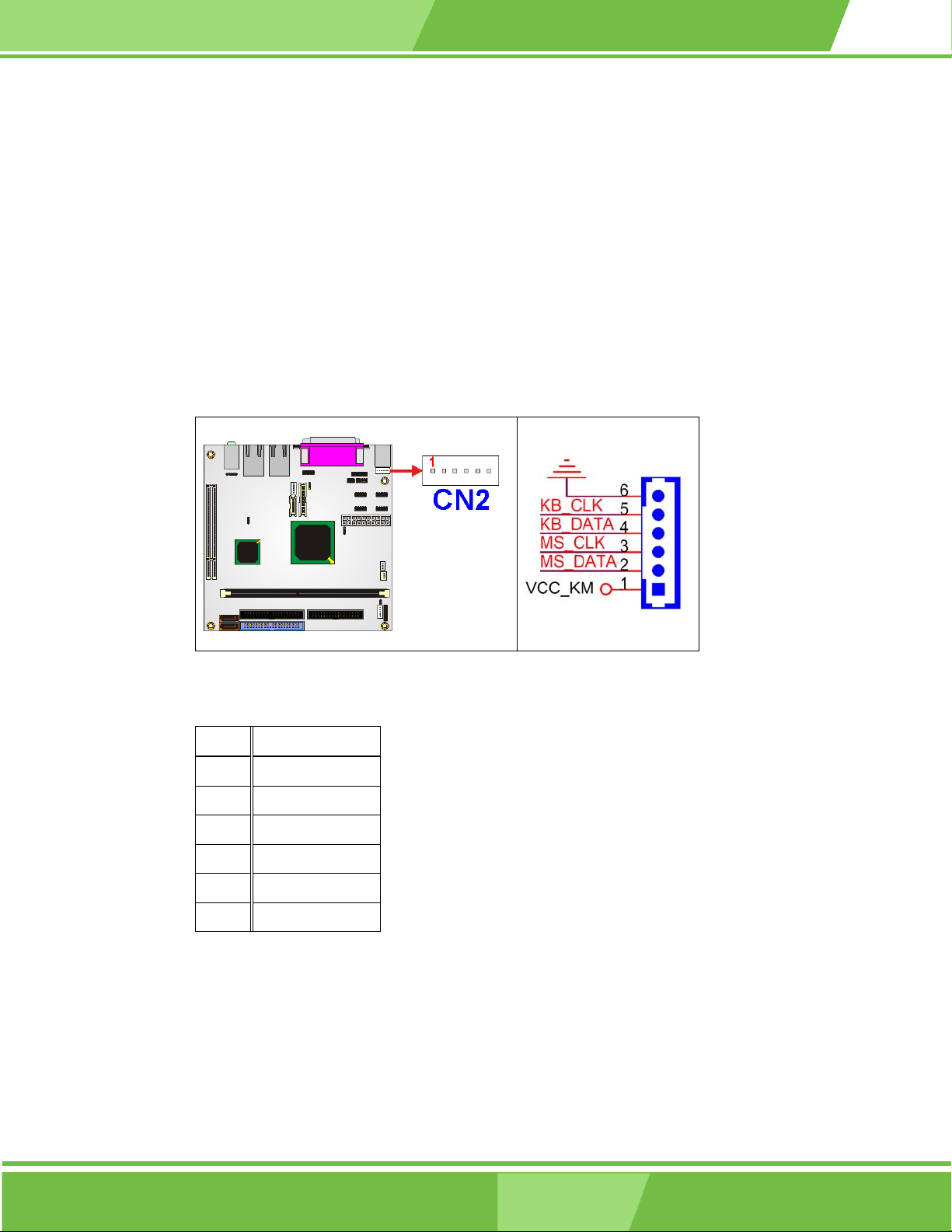

3.2.10 Keyboard/Mouse Connector .......................................................................... 54

3.2.11 LCD LVDS Connector.................................................................................... 55

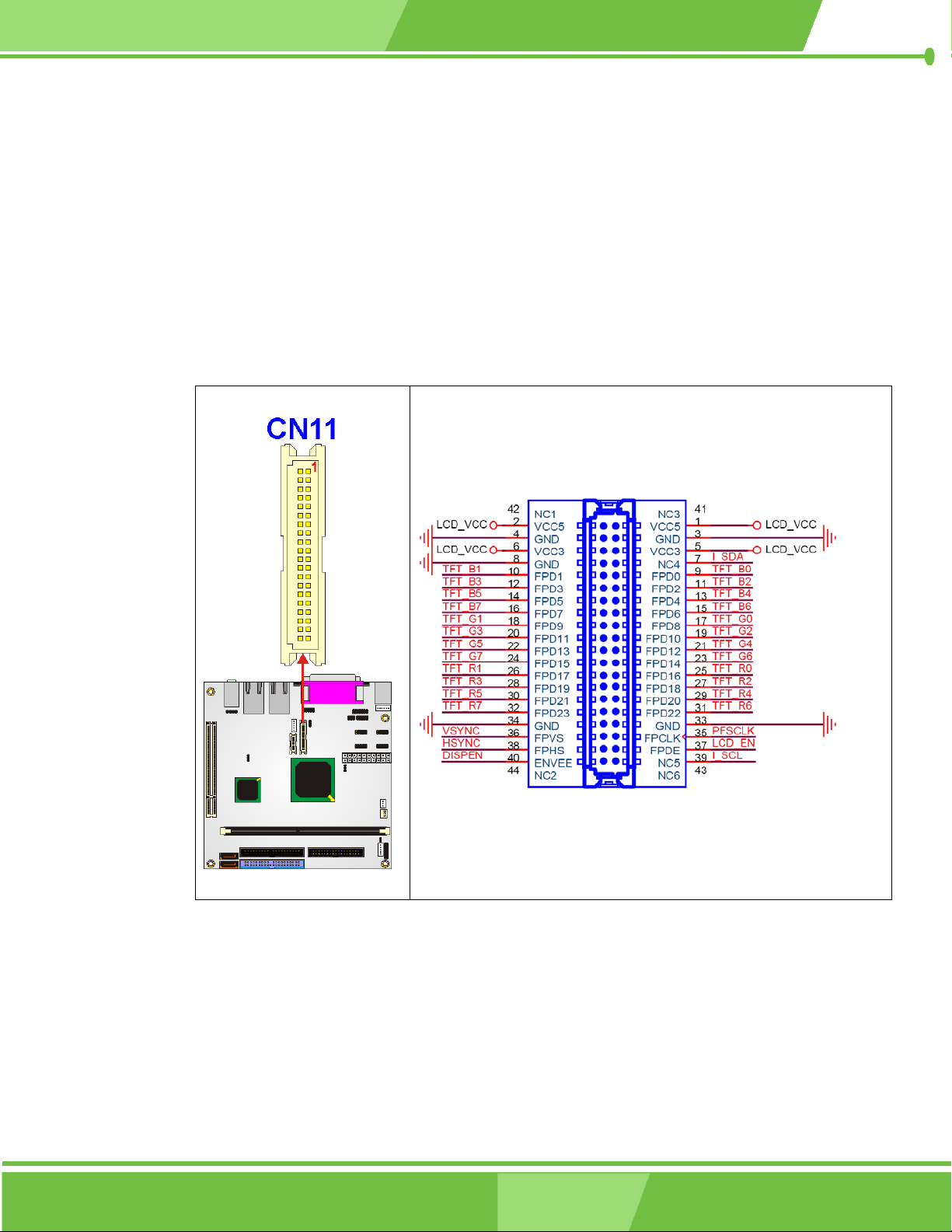

3.2.12 LCD TTL Connector ...................................................................................... 57

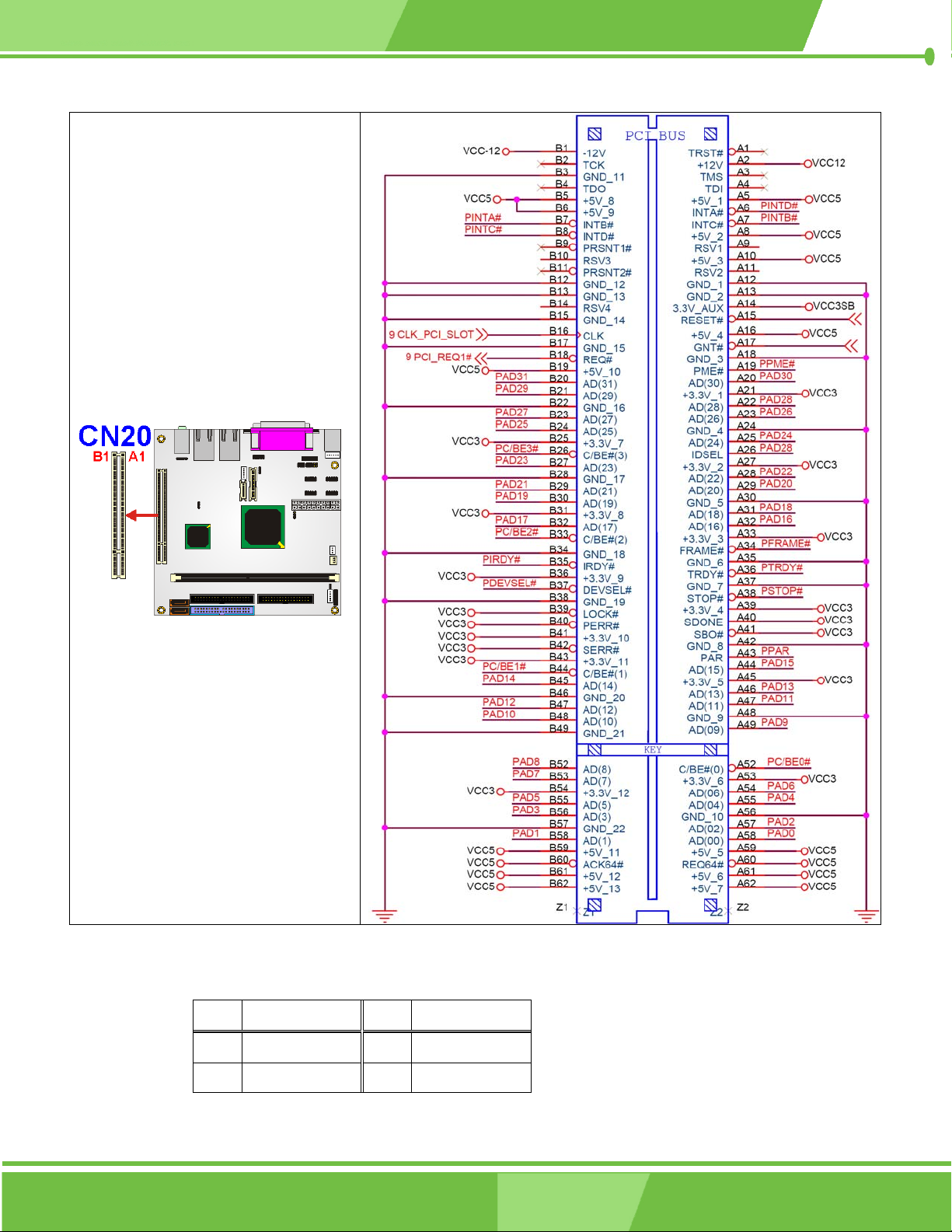

3.2.13 PCI Slot.......................................................................................................... 58

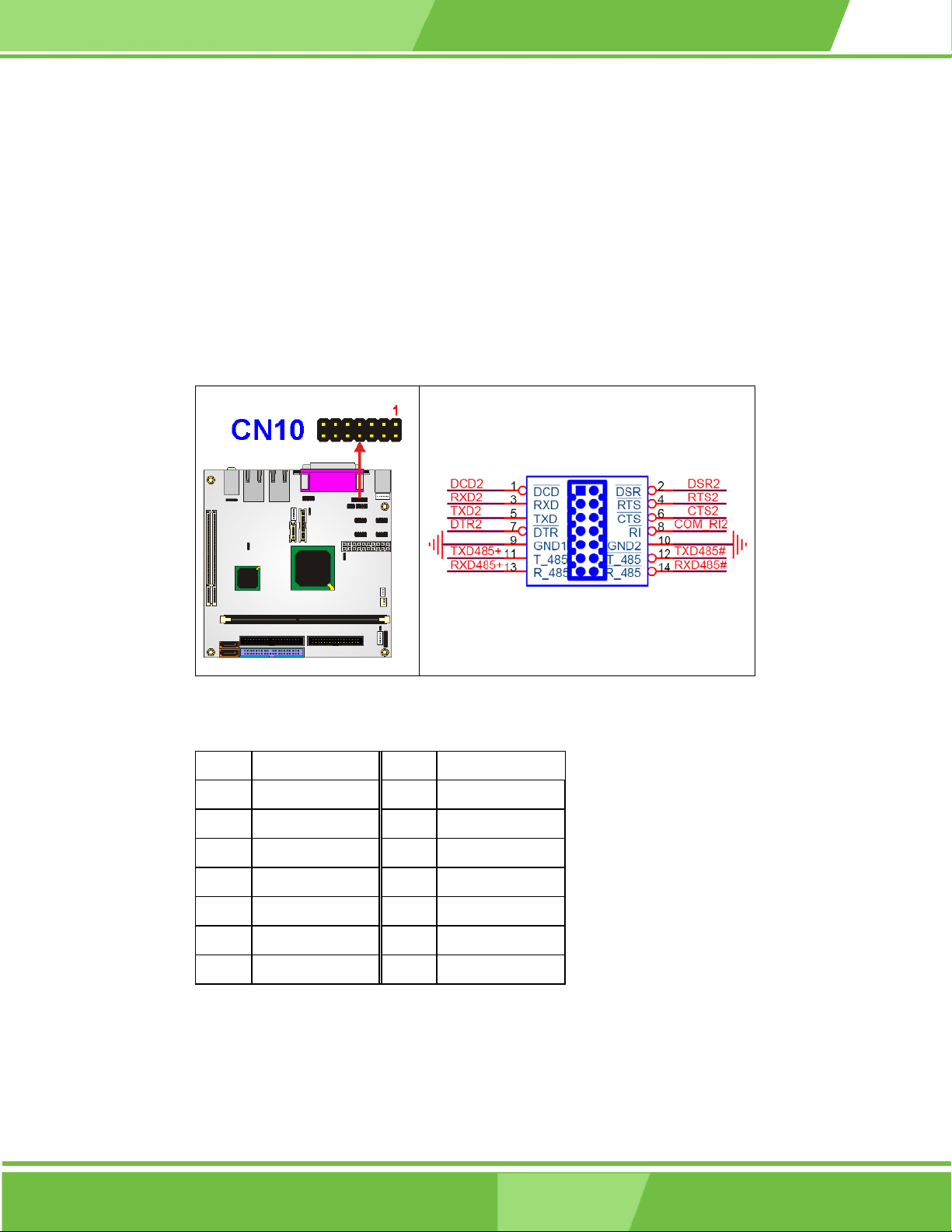

3.2.14 RS-232/422/485 Serial Port Connector ......................................................... 62

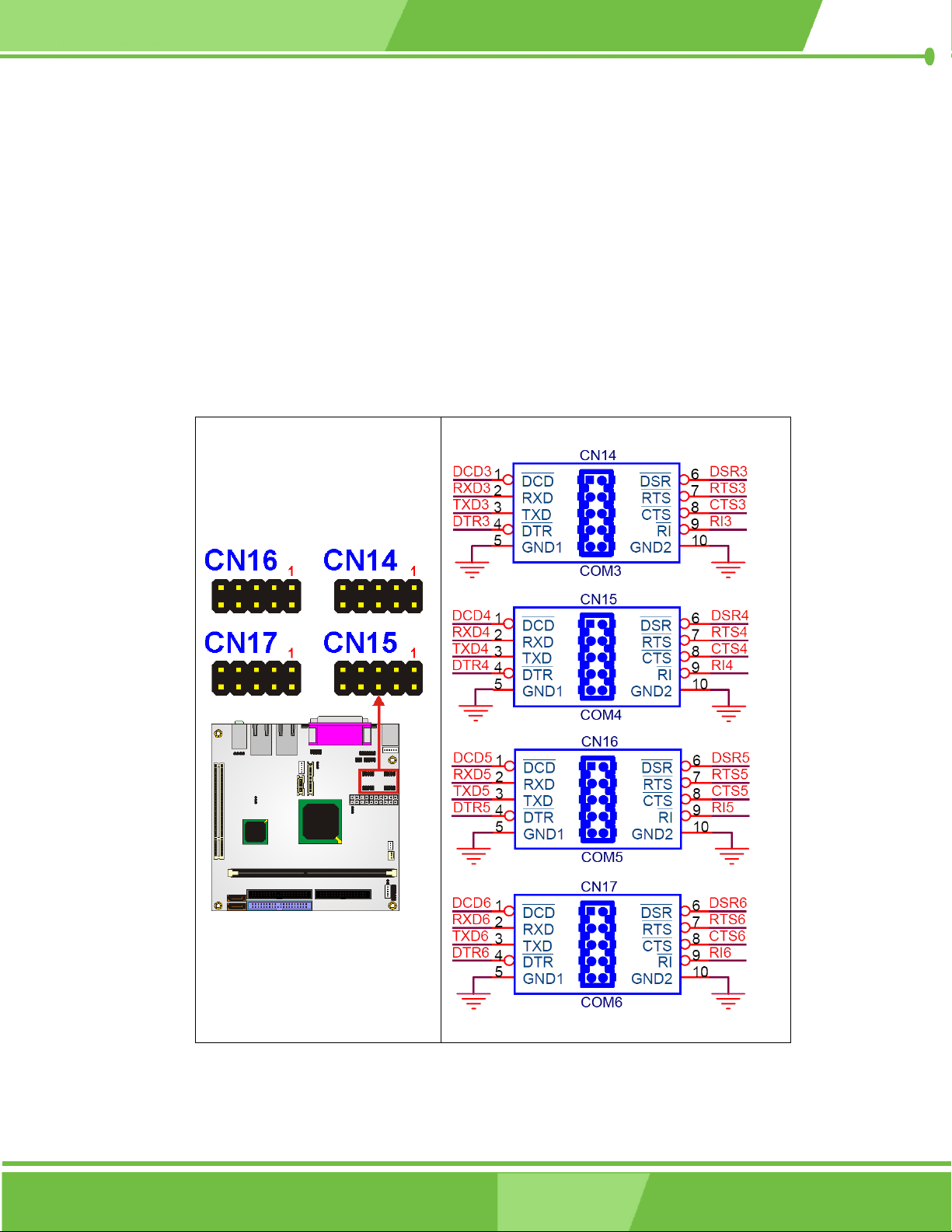

3.2.15 RS-232 COM Serial Port Connector ............................................................. 63

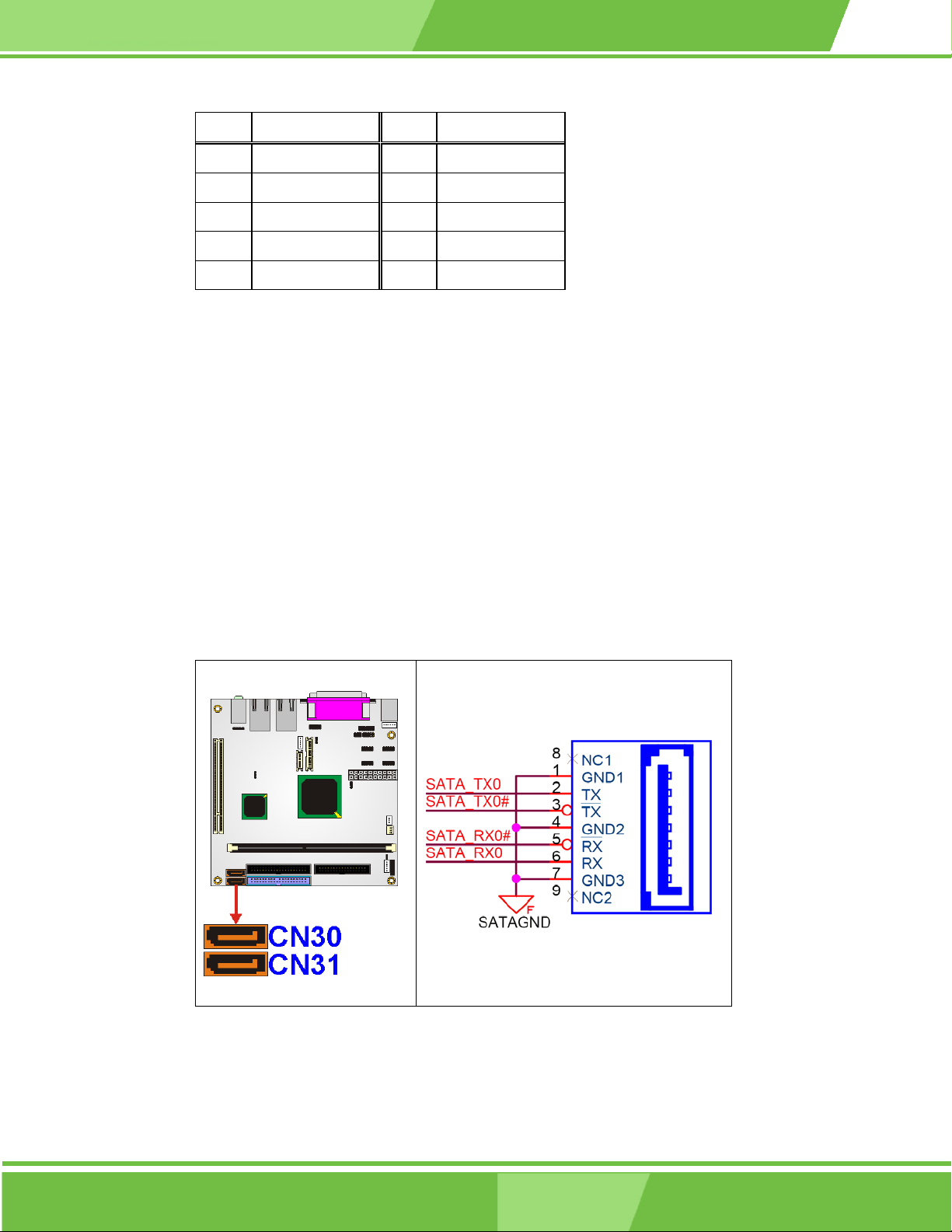

3.2.16 SATA Drive Connectors ................................................................................. 64

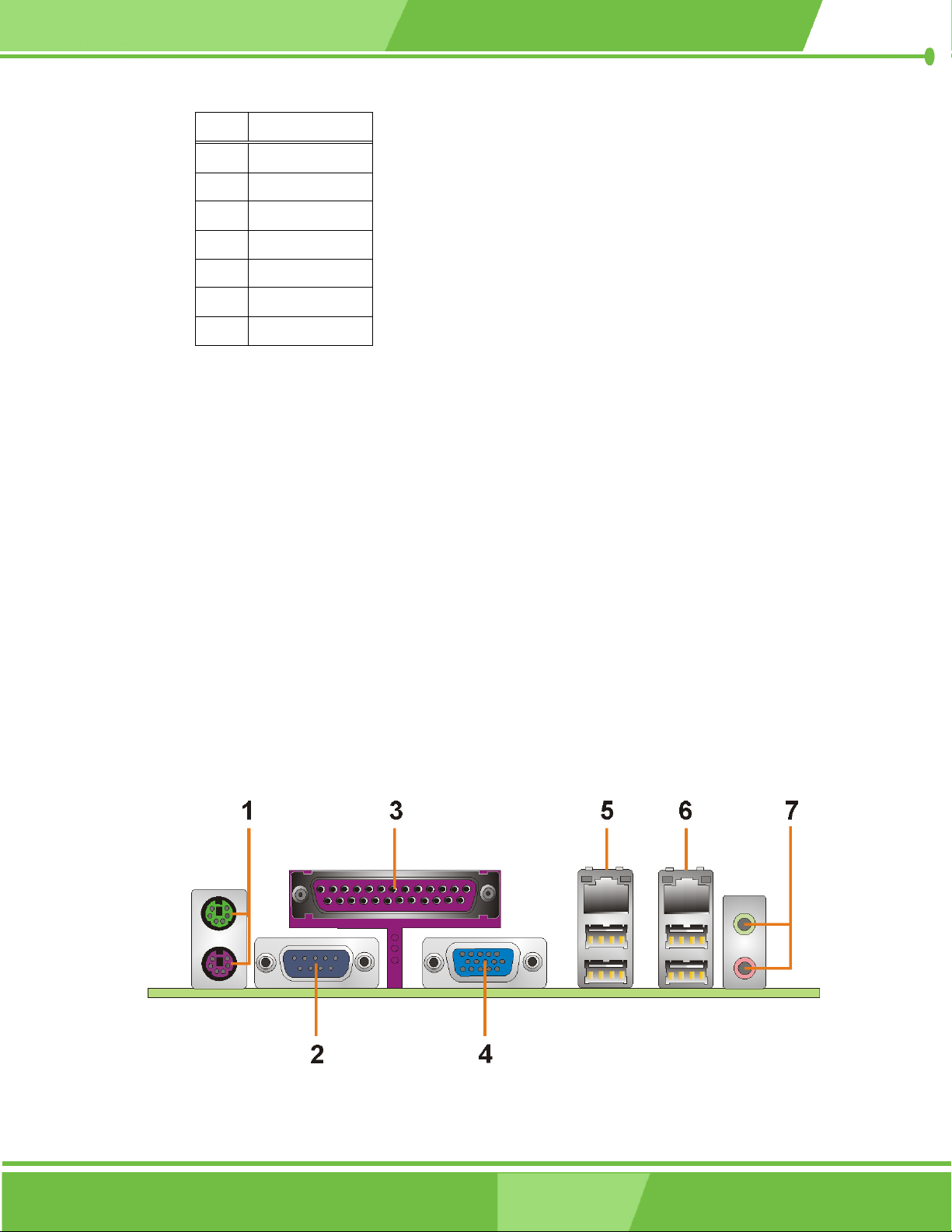

3.3 EXTERNAL PERIPHERAL INTERFACE CONNECTOR PANEL ......................................... 65

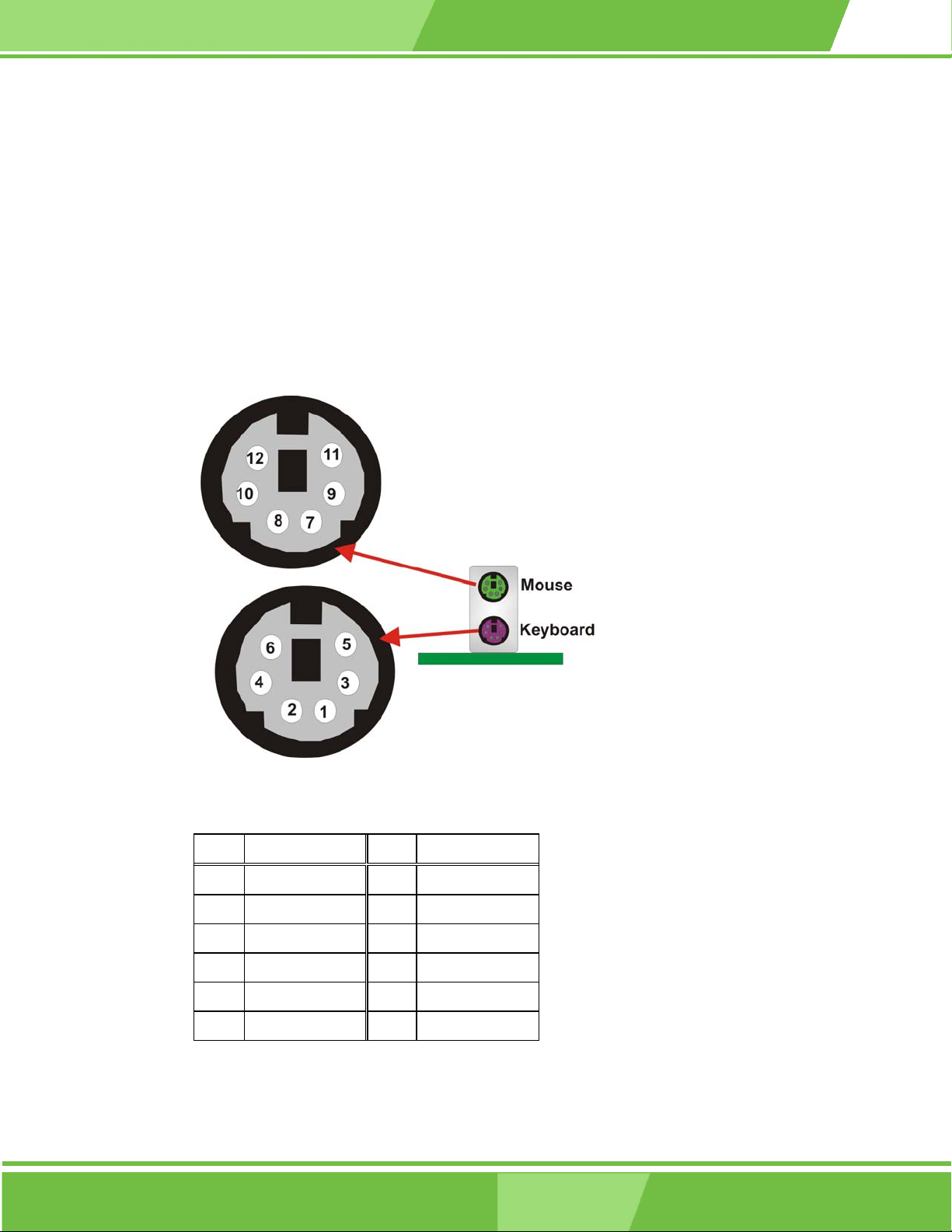

3.3.1 Keyboard/Mouse Connector ............................................................................ 66

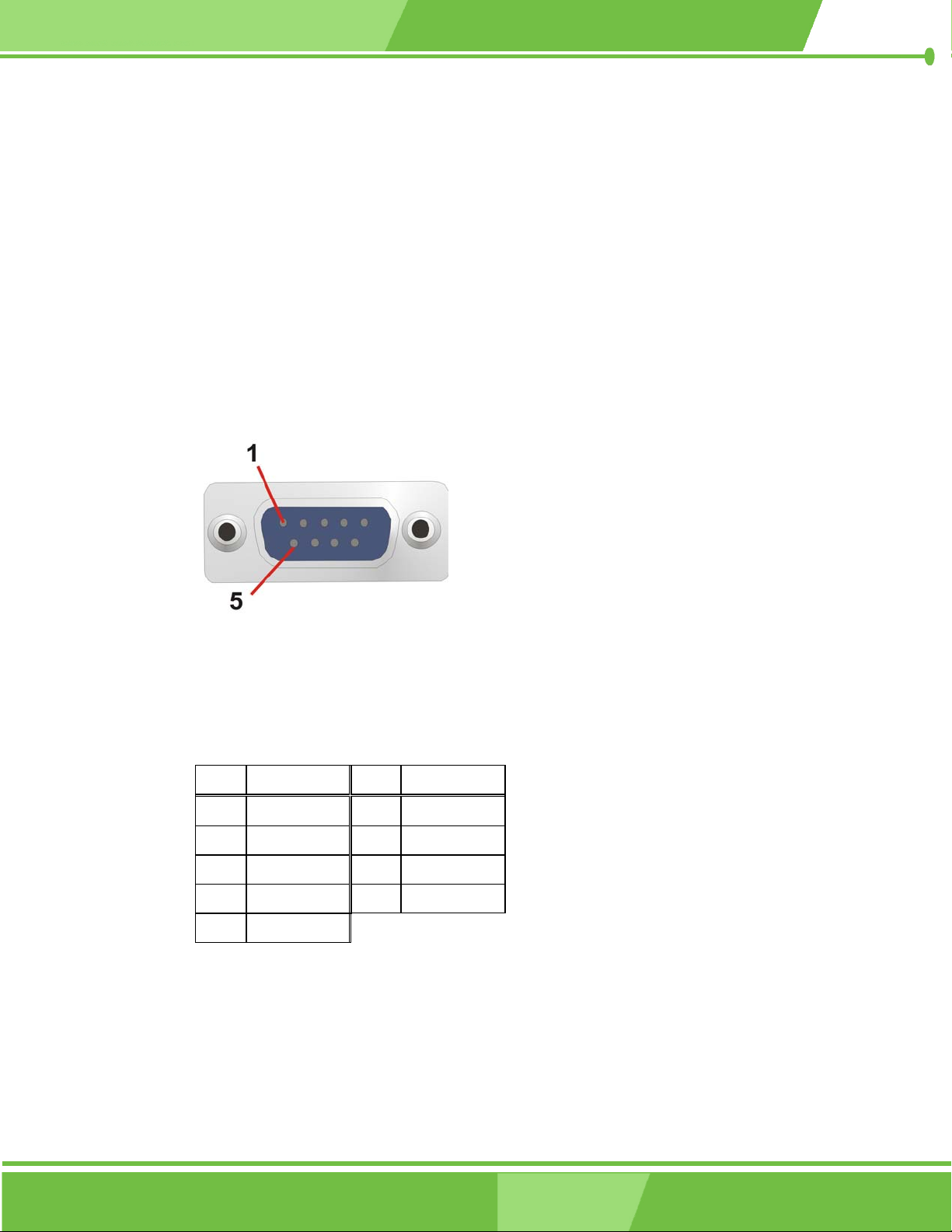

3.3.2 Serial Port Connector ...................................................................................... 67

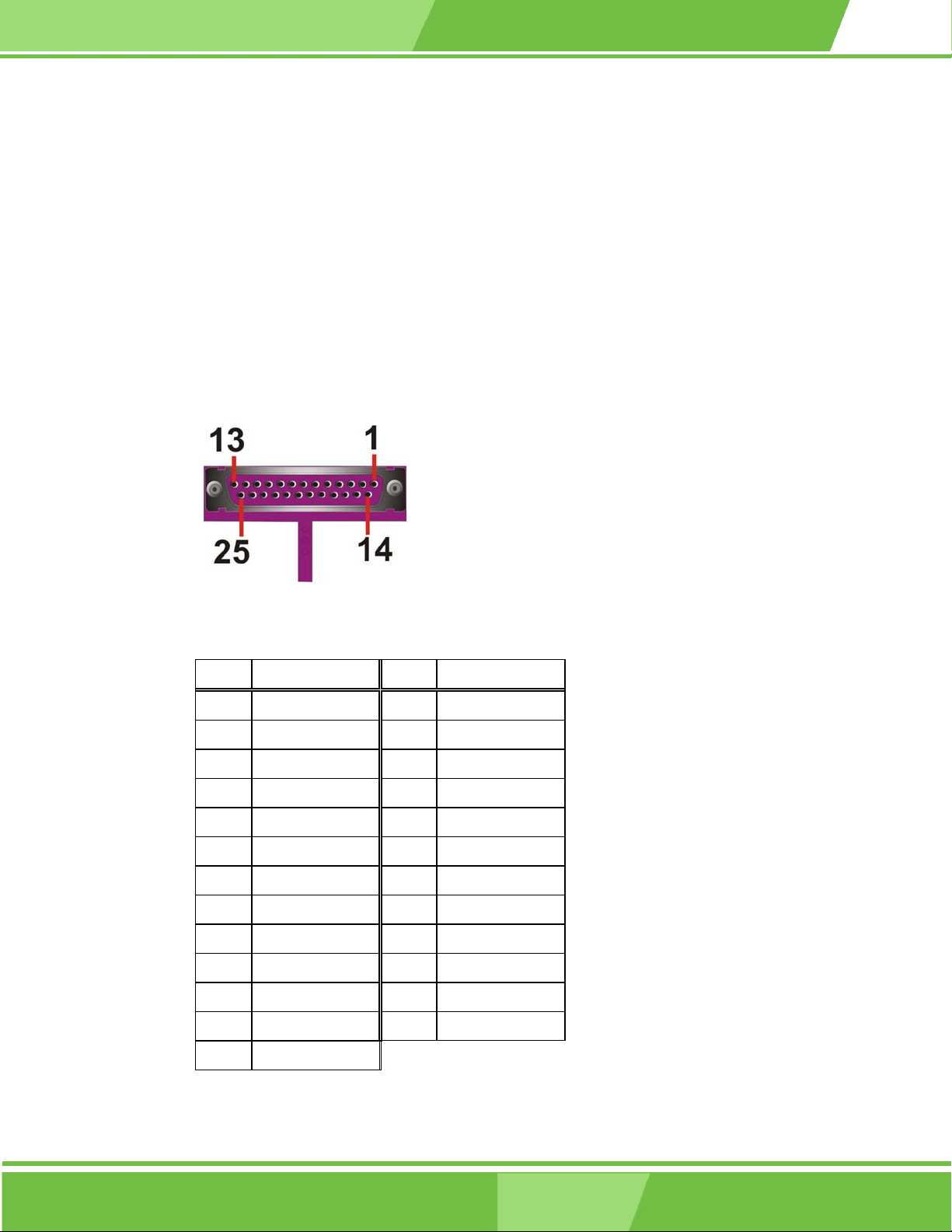

3.3.3 Parallel Port Connector .................................................................................. 68

3.3.4 VGA connector................................................................................................. 69

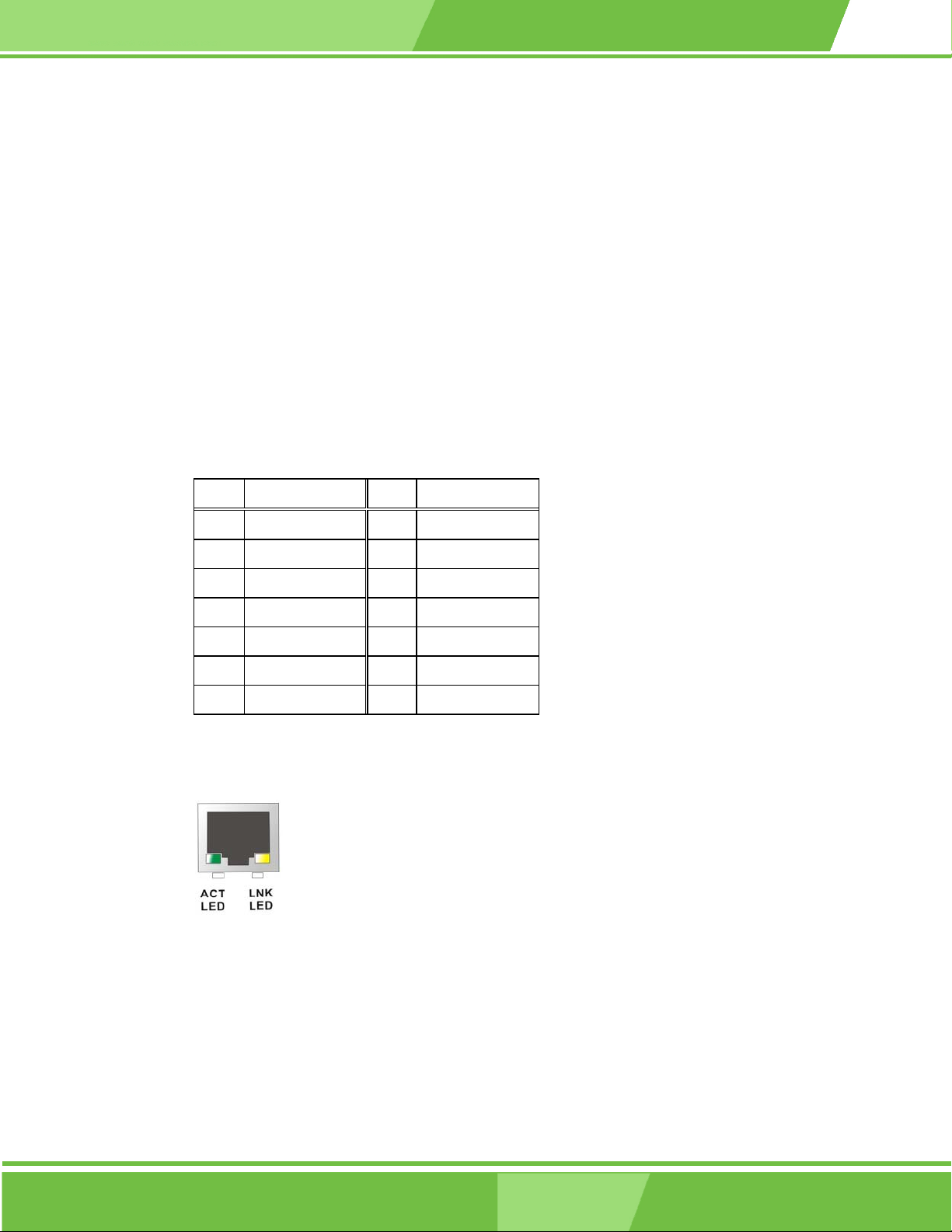

3.3.5 LAN Connectors............................................................................................... 70

3.3.6 USB Connectors............................................................................................... 71

3.3.7 Audio Connector .............................................................................................. 72

4 INSTALLATION .................................................................................................... 73

4.1 ANTI-STATIC PRECAUTIONS...................................................................................... 74

4.2 INSTALLATION CONSIDERATIONS ............................................................................. 74

4.2.1 Installation Notices .......................................................................................... 74

Page 4

IEI® Technology, Corp.

KINO-LX Motherboard

4.3 U

NPACKING.............................................................................................................. 75

4.3.1 Unpacking Precautions.................................................................................... 75

4.3.2 Checklist........................................................................................................... 76

4.4 KINO-LX MOTHERBOARD INSTALLATION .............................................................. 76

4.4.1 Preinstalled Components ................................................................................. 77

4.4.2 Components to Install ...................................................................................... 77

4.4.3 DIMM Module Installation .............................................................................. 77

4.4.3.1 Purchasing the Memory Module............................................................... 77

4.4.3.2 DIMM Module Installation....................................................................... 77

4.5 PERIPHERAL DEVICE CONNECTION .......................................................................... 78

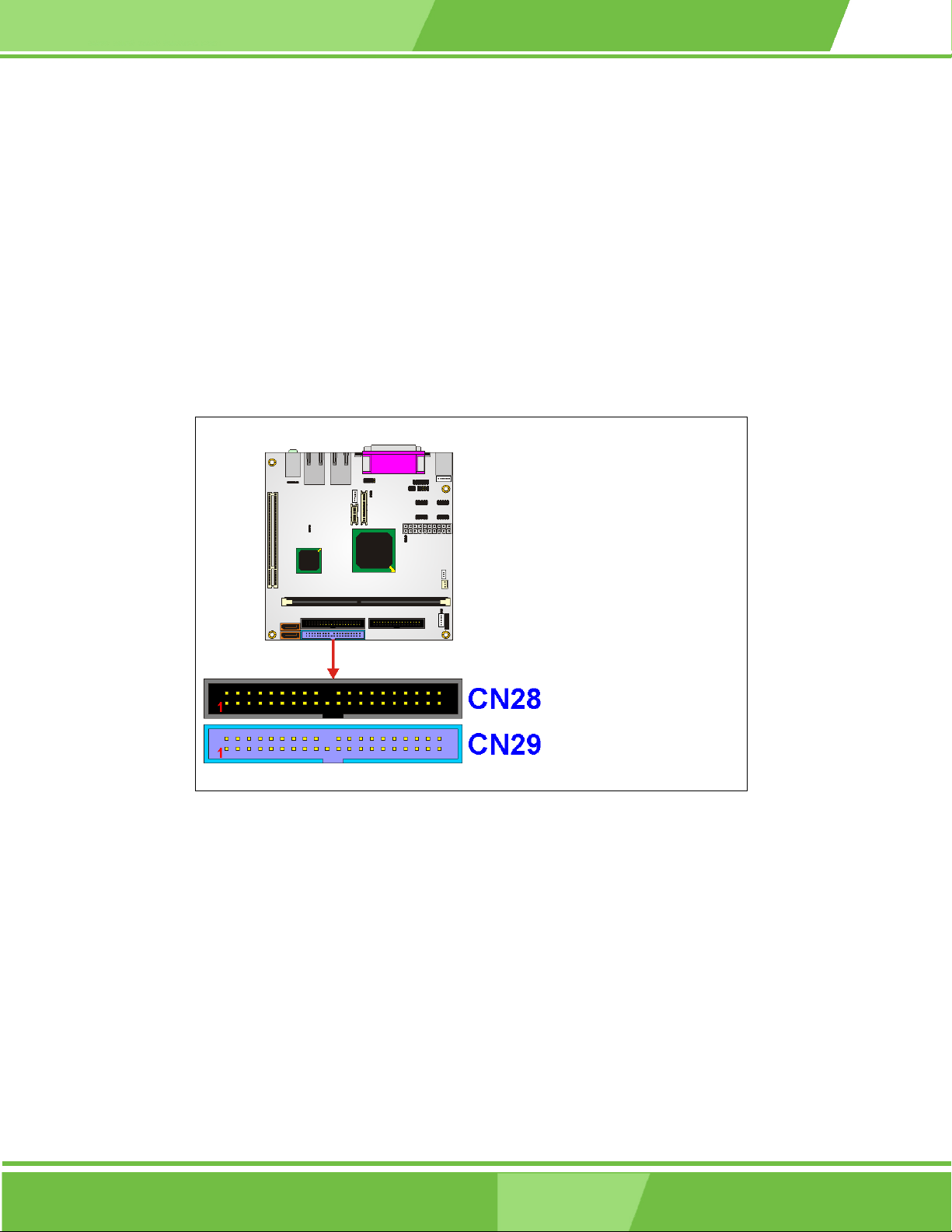

4.5.1 IDE Disk Drive Connectors (CN29 Primary, CN28 Secondary)..................... 79

4.5.2 COM3-COM6 RS-232 Serial Port Installation................................................ 80

4.5.3 COM2 RS-232/485 Serial Port Installation..................................................... 80

4.5.4 LCD Backlight Installation .............................................................................. 81

4.5.5 Power Connection............................................................................................ 81

4.5.6 LVDS LCD Installation.................................................................................... 81

4.5.7 TTL LCD Installation....................................................................................... 81

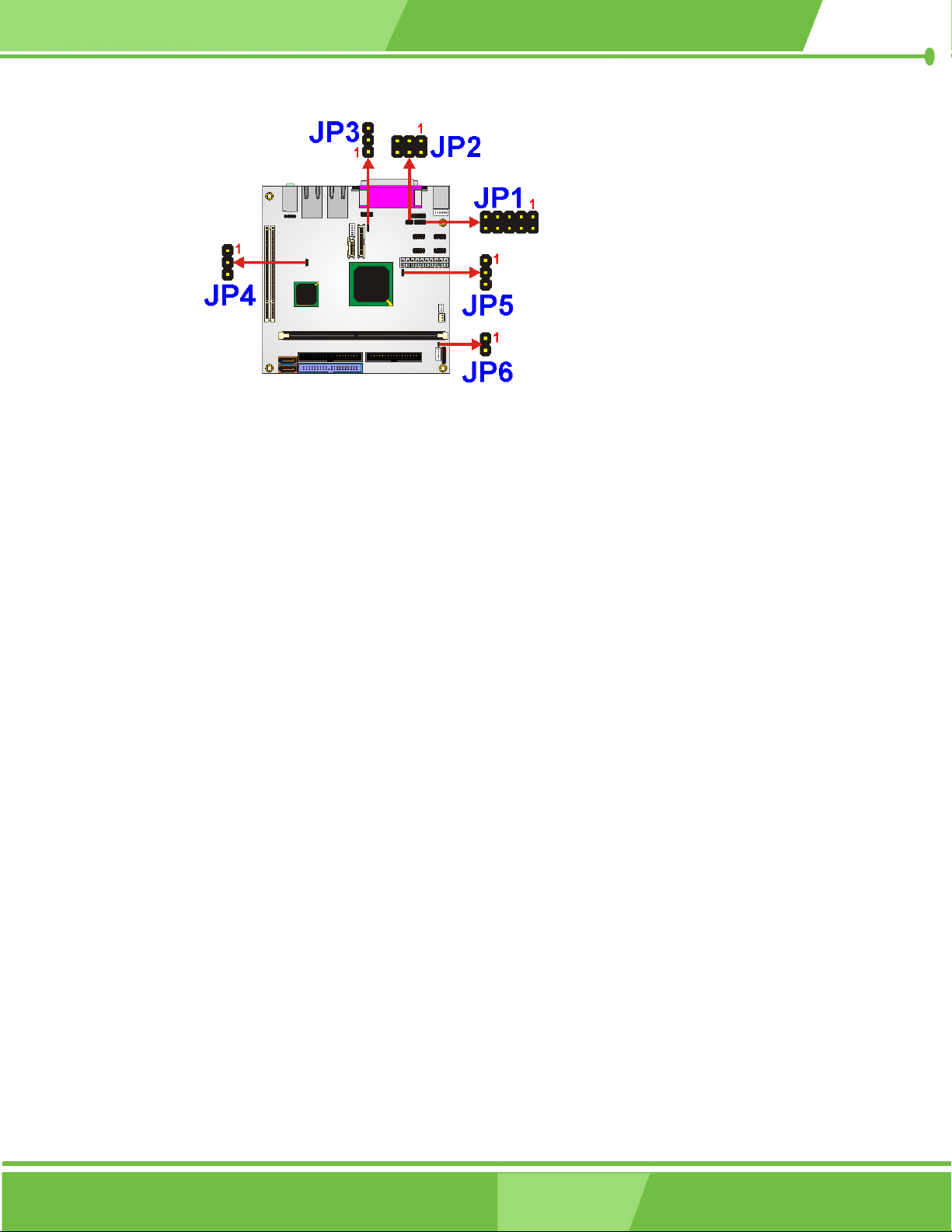

4.6 J

UMPER SETTINGS .................................................................................................... 82

4.6.1 Clear CMOS Jumper........................................................................................ 83

4.6.2 LCD Voltage Select Jumper ............................................................................. 84

4.6.3 COM2 RS-232/422/485 Select ......................................................................... 85

4.6.4 COM1/2 RI and Voltage Select Jumper ........................................................... 85

4.6.5 LCD Clock Jumper .......................................................................................... 86

4.6.6 AT/ATX Power Mode Select Jumper................................................................ 86

HASSIS INSTALLATION ........................................................................................... 87

4.7 C

4.8 REAR PANEL CONNECTORS ...................................................................................... 87

4.8.1 Keyboard and Mouse Connection.................................................................... 87

4.8.2 Serial Connection............................................................................................. 88

4.8.3 Parallel Connector........................................................................................... 88

4.8.4 LCD Panel Connection .................................................................................... 88

4.8.5 Ethernet Connection ........................................................................................ 88

4.8.6 USB Connection............................................................................................... 88

4.8.7 Audio Interface................................................................................................. 88

5 BIOS SETTINGS .................................................................................................... 89

5.1 INTRODUCTION ........................................................................................................ 90

Page 5

KINO-LX Motherboard

5.1.1 Starting Setup................................................................................................... 90

5.1.2 Using Setup ...................................................................................................... 91

5.1.3 Getting Help..................................................................................................... 91

5.1.4 Unable to Reboot After Configuration Changes.............................................. 92

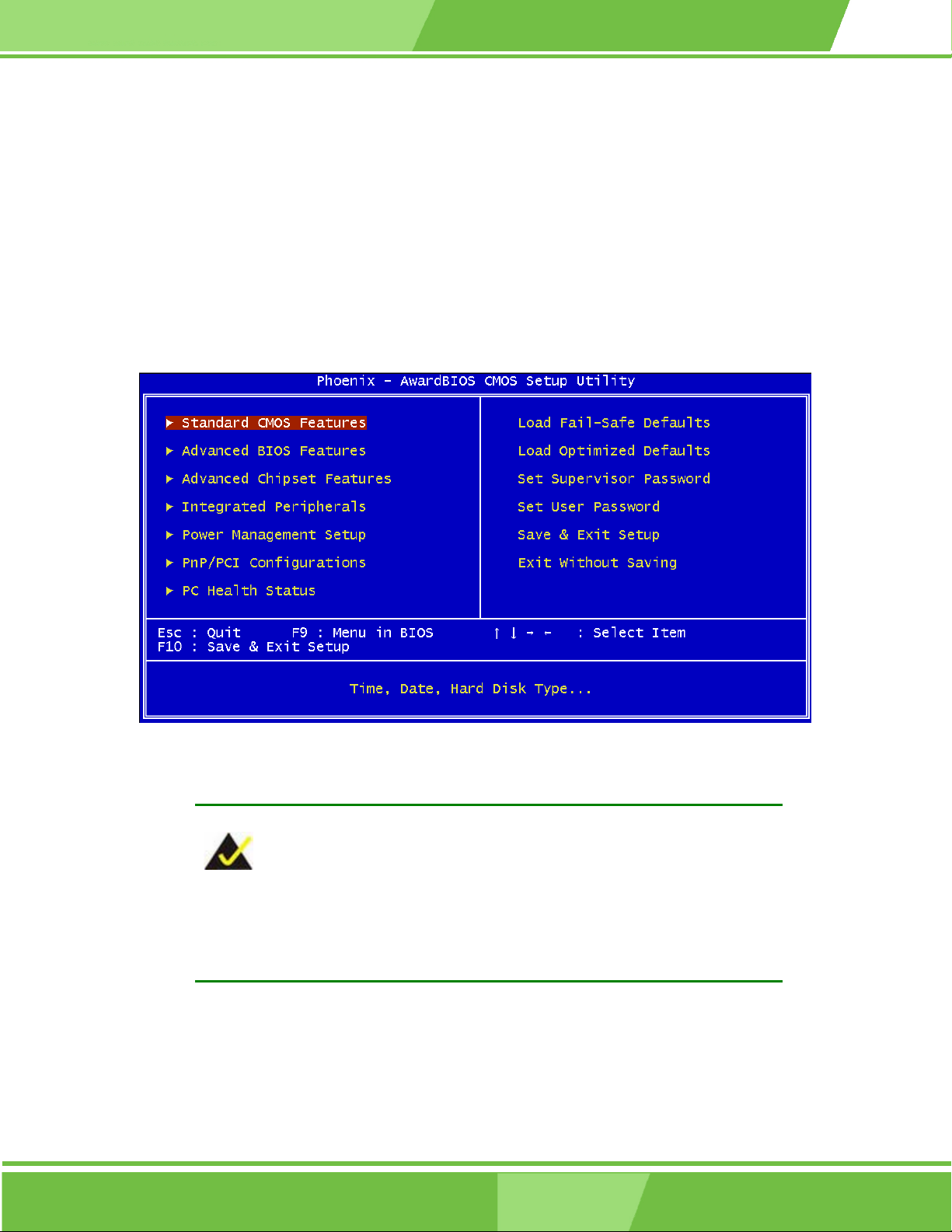

5.1.5 Main BIOS Menu ............................................................................................. 92

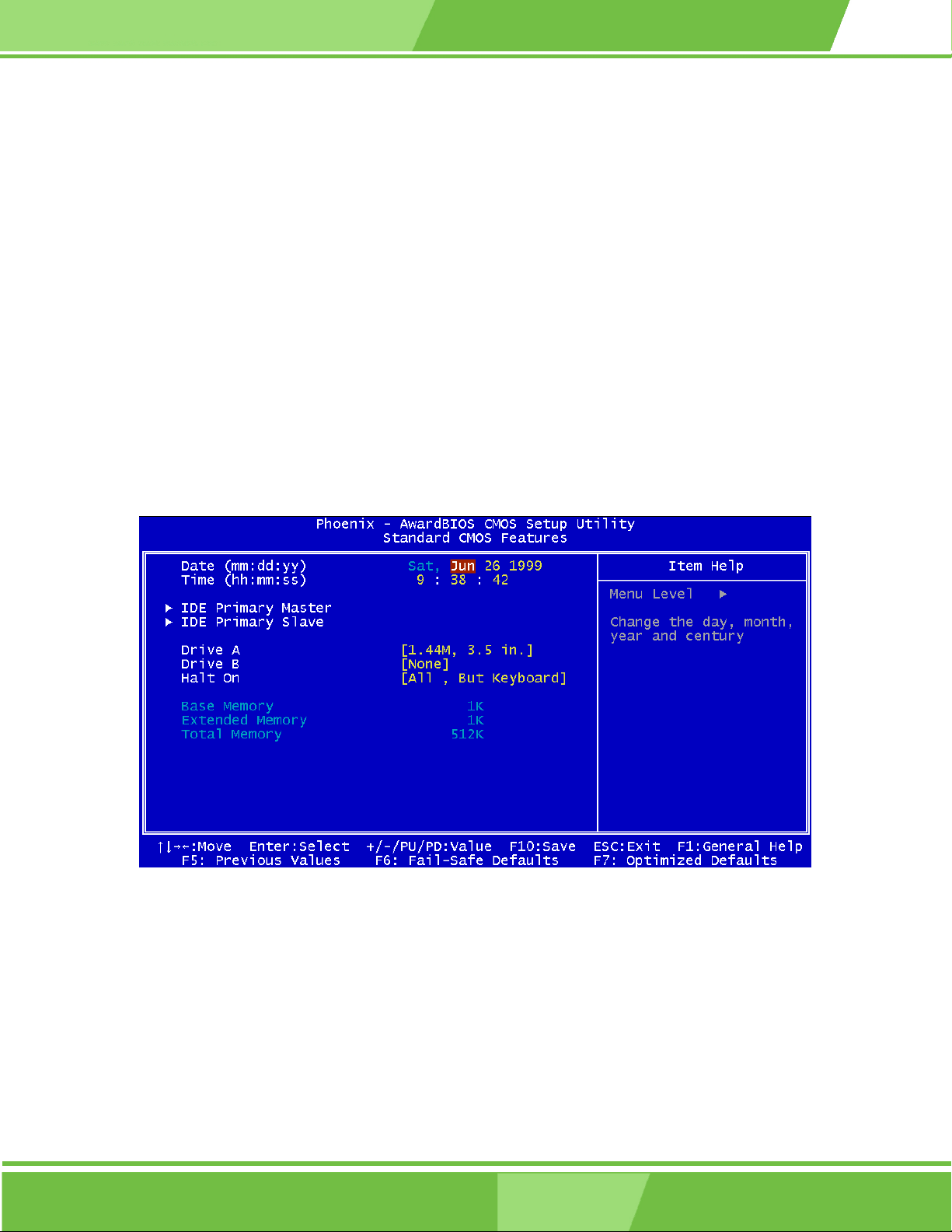

TANDARD CMOS FEATURES .................................................................................. 94

5.2 S

5.2.1 IDE Primary Master/Slave .............................................................................. 97

5.3 ADVANCED BIOS FEATURES .................................................................................. 100

5.4 ADVANCED CHIPSET FEATURES .............................................................................. 107

5.4.1 Flat Panel Configuration............................................................................... 109

5.5 INTEGRATED PERIPHERALS .....................................................................................113

5.6 P

OWER MANAGEMENT SETUP.................................................................................119

5.7 PNP/PCI CONFIGURATIONS ................................................................................... 122

5.8 PC HEALTH STAT US ............................................................................................... 126

6 DRIVER INSTALLATION.................................................................................. 129

6.1 AVAILABLE SOFTWARE DRIVERS ............................................................................ 130

6.2 VGA DRIVER ......................................................................................................... 133

6.3 AUDIO DRIVER INSTALLATION ............................................................................... 142

6.4 LAN DRIVER ......................................................................................................... 147

6.5 SATA/RAID DRIVER............................................................................................. 150

6.6 ISA DRIVER ........................................................................................................... 156

A BIOS MENU OPTIONS....................................................................................... 163

A.1 BIOS C

ONFIGURATION OPTIONS........................................................................... 164

B WATCHDOG TIMER .......................................................................................... 167

C ADDRESS MAPPING.......................................................................................... 171

C.1 IO ADDRESS MAP ................................................................................................. 172

C.2 1ST MB MEMORY ADDRESS MAP ......................................................................... 172

C.3 IRQ MAPPING TABLE ............................................................................................ 173

C.4 DMA CHANNEL ASSIGNMENTS ............................................................................. 173

D EXTERNAL AC’97 AUDIO CODEC ................................................................. 175

D.1 INTRODUCTION ..................................................................................................... 176

D.1.1 Accessing the AC’97 CODEC ....................................................................... 176

D.1.2 Driver Installation......................................................................................... 176

Page 6

IEI® Technology, Corp.

KINO-LX Motherboard

D.2 S

OUND EFFECT CONFIGURATION........................................................................... 177

D.2.1 Accessing the Sound Effects Manager .......................................................... 177

D.2.2 Sound Effect Manager Configuration Options ............................................. 178

E ALI

E.1 I

®

RAID FOR SATA........................................................................................ 181

NTRODUCTION ...................................................................................................... 182

E.1.1 Precautions.................................................................................................... 182

E.2 FEATURES AND BENEFITS ...................................................................................... 183

E.3 ACCESSING THE ALI RAID UTILITY...................................................................... 183

E.4 RAID OPTIONS: .................................................................................................... 185

E.4.1 Create RAID 0 Striping for Performance ...................................................... 185

E.4.2 Create RAID 1 Mirroring for Reliability ....................................................... 188

E.4.3 Create JBOD for Integrated Capacity........................................................... 190

E.4.4 Stripe Size ...................................................................................................... 191

E.4.5 Delete RAID Setting & Partition................................................................... 191

E.4.6 Delete All RAID Setting & Partition ............................................................. 192

E.4.7 Rebuild RAID Array ...................................................................................... 192

E.4.8 Select Boot Drive........................................................................................... 193

INDEX............................................................................................................................ 195

Page 7

KINO-LX Motherboard

List of Figures

Figure 1-1: KINO-LX Overview ...................................................................................17

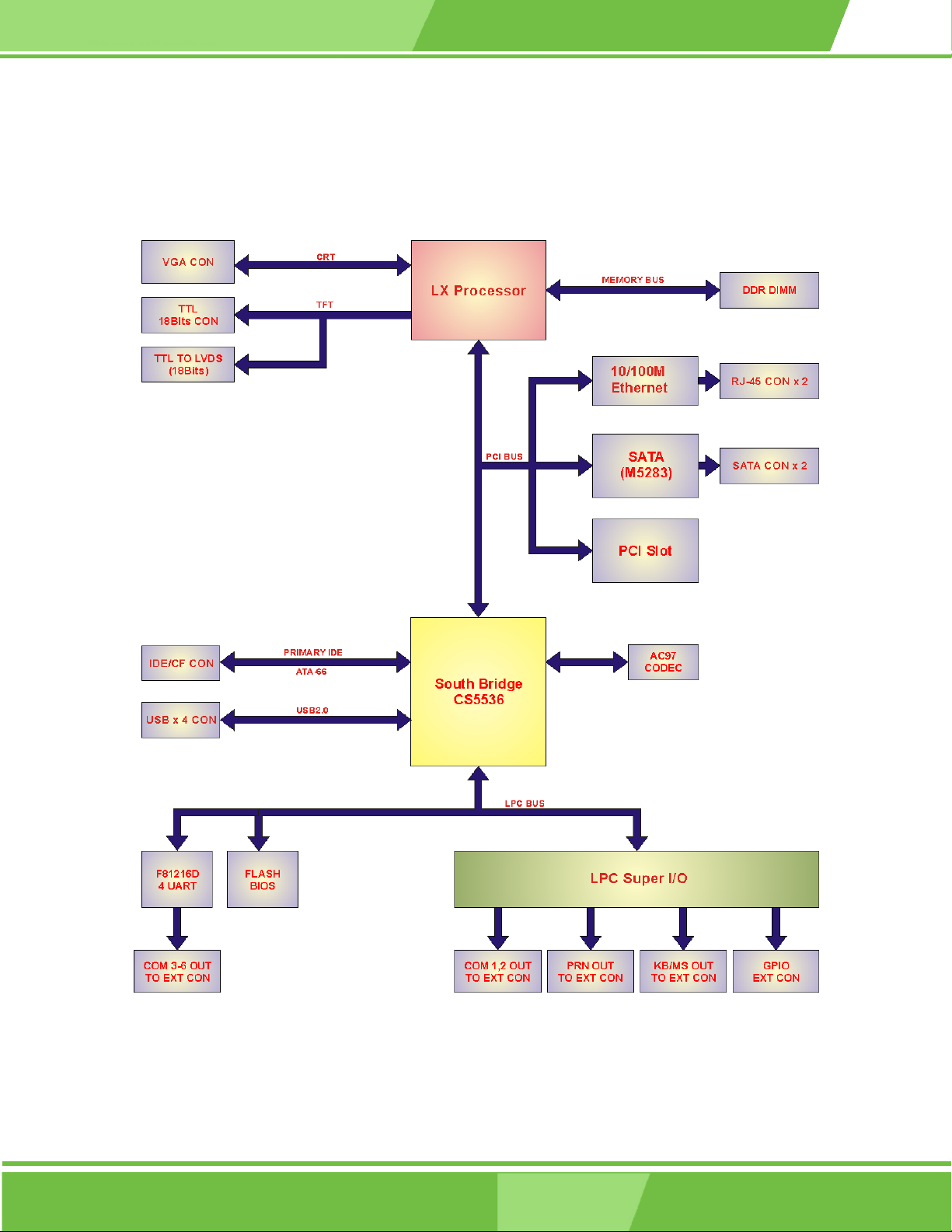

Figure 2-1: Data Flow Block Diagram........................................................................24

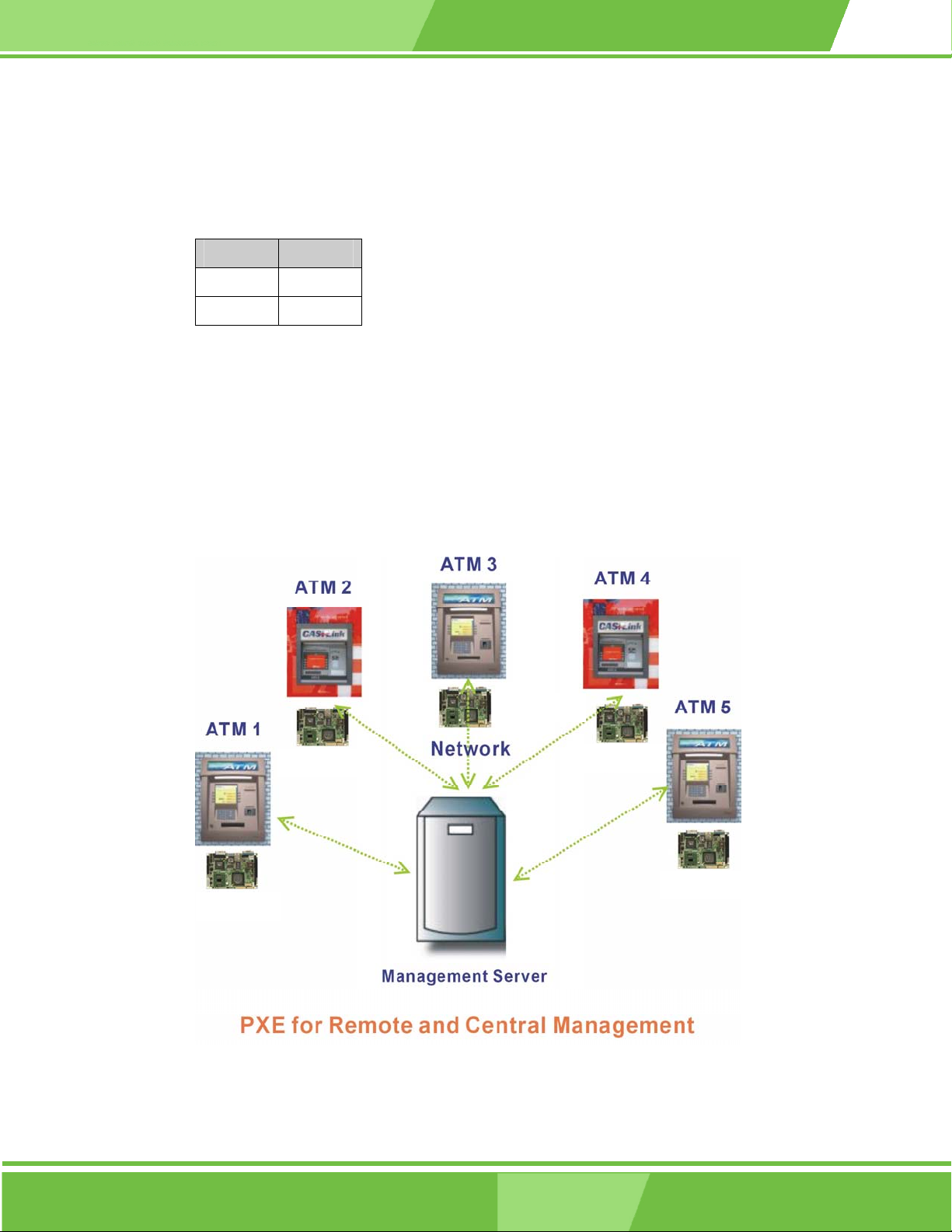

Figure 2-2: PXE: Pre-Boot Execution Environment.................................................34

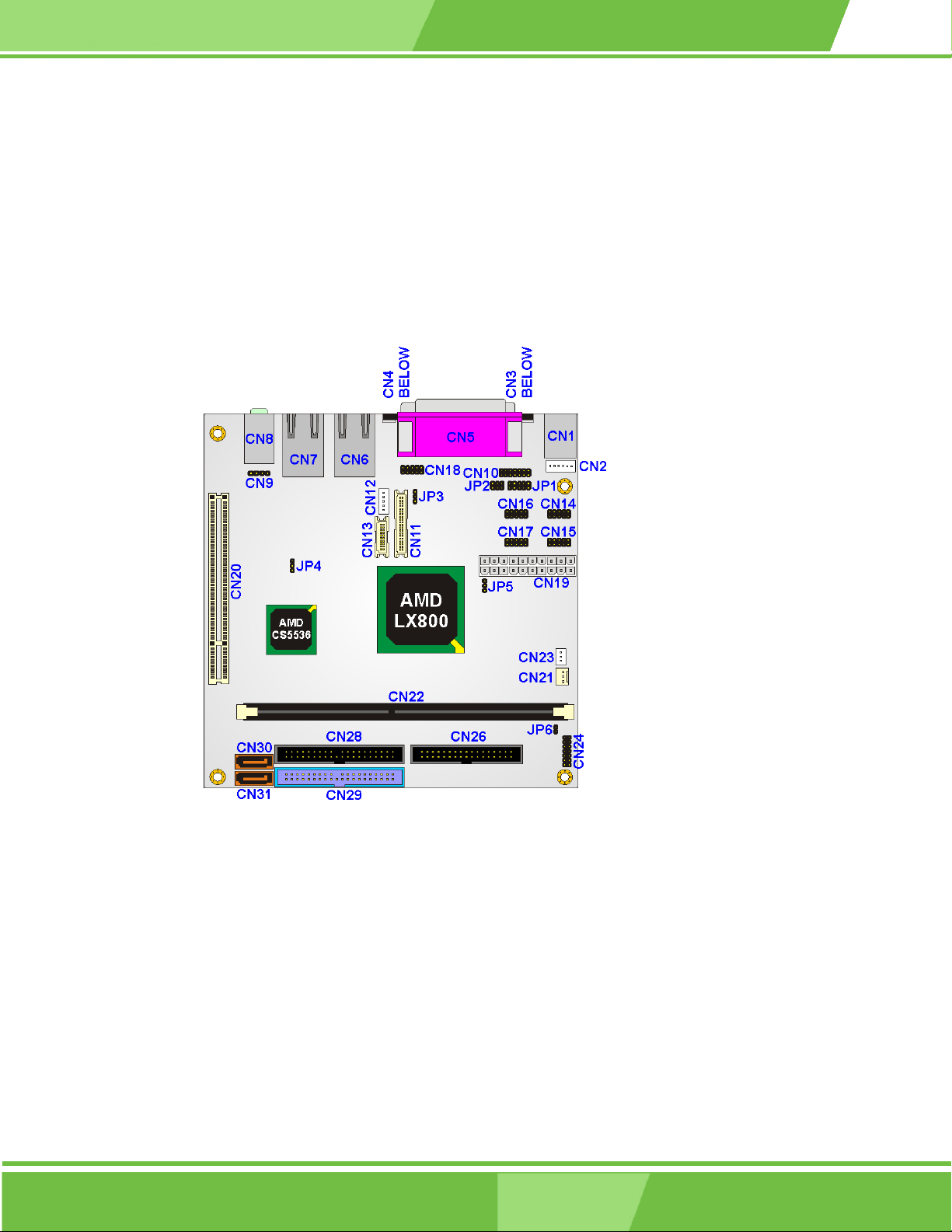

Figure 3-1: Connector and Jumper Locations .........................................................38

Figure 3-2: AT/ATX Power Connector Pinouts.........................................................41

Figure 3-3: CD-IN Connector Pinout Locations .......................................................43

Figure 3-4: 5V Fan Connector Pinout Locations......................................................44

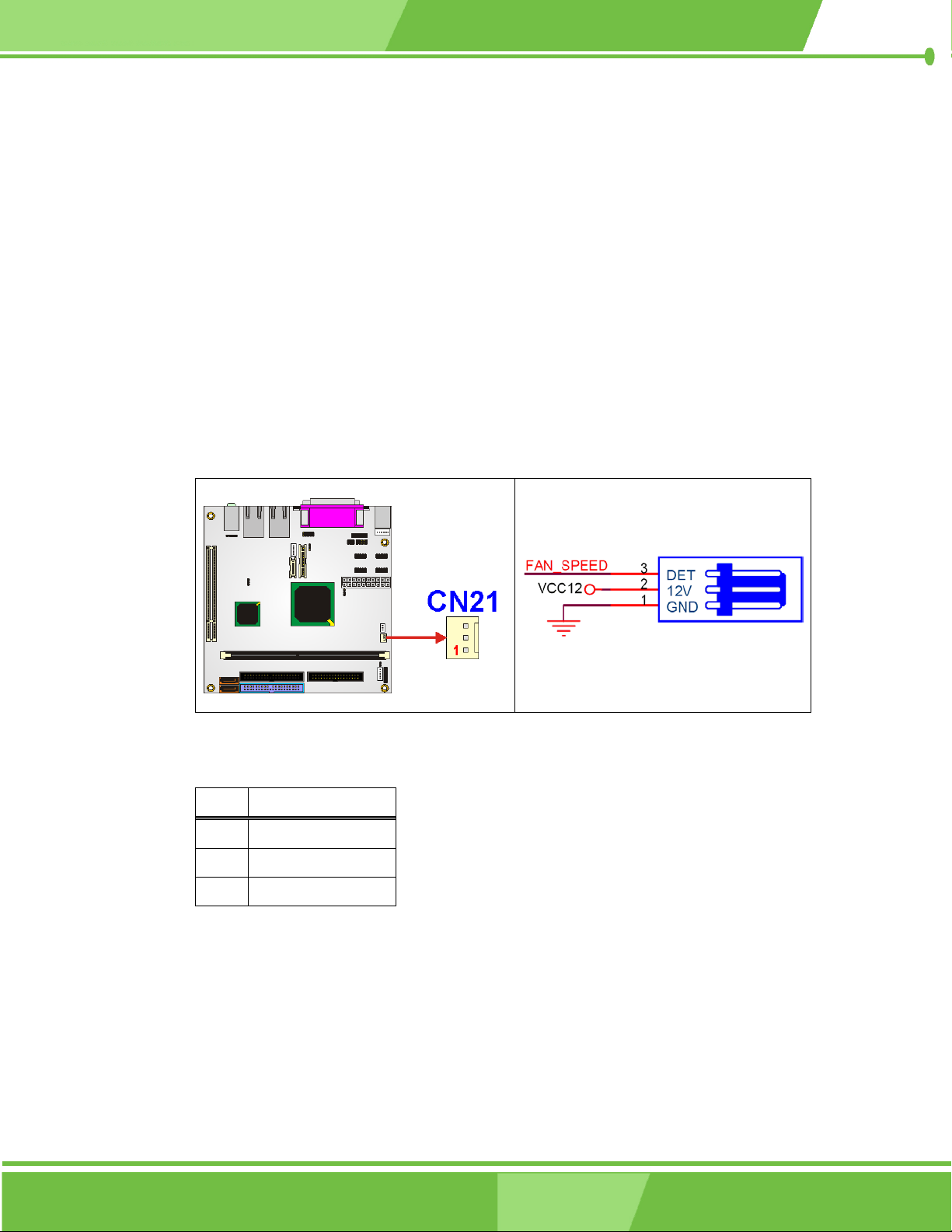

Figure 3-5: Fan Connector Pinout Locations ...........................................................45

Figure 3-6: FDD Pinout Locations .............................................................................46

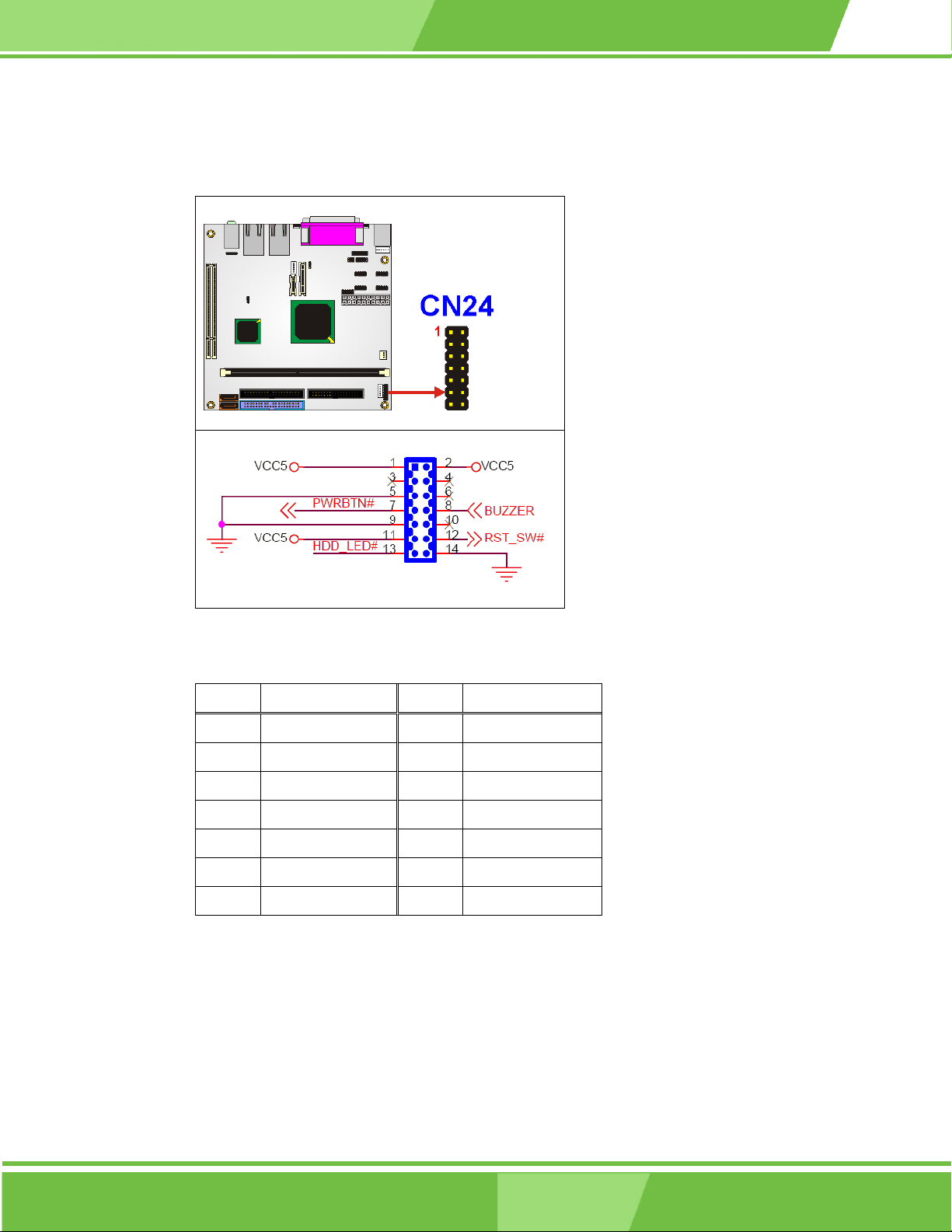

Figure 3-7: Front Panel Connector Pinout Locations..............................................48

Figure 3-8: GPIO Connector Pinout Locations ........................................................49

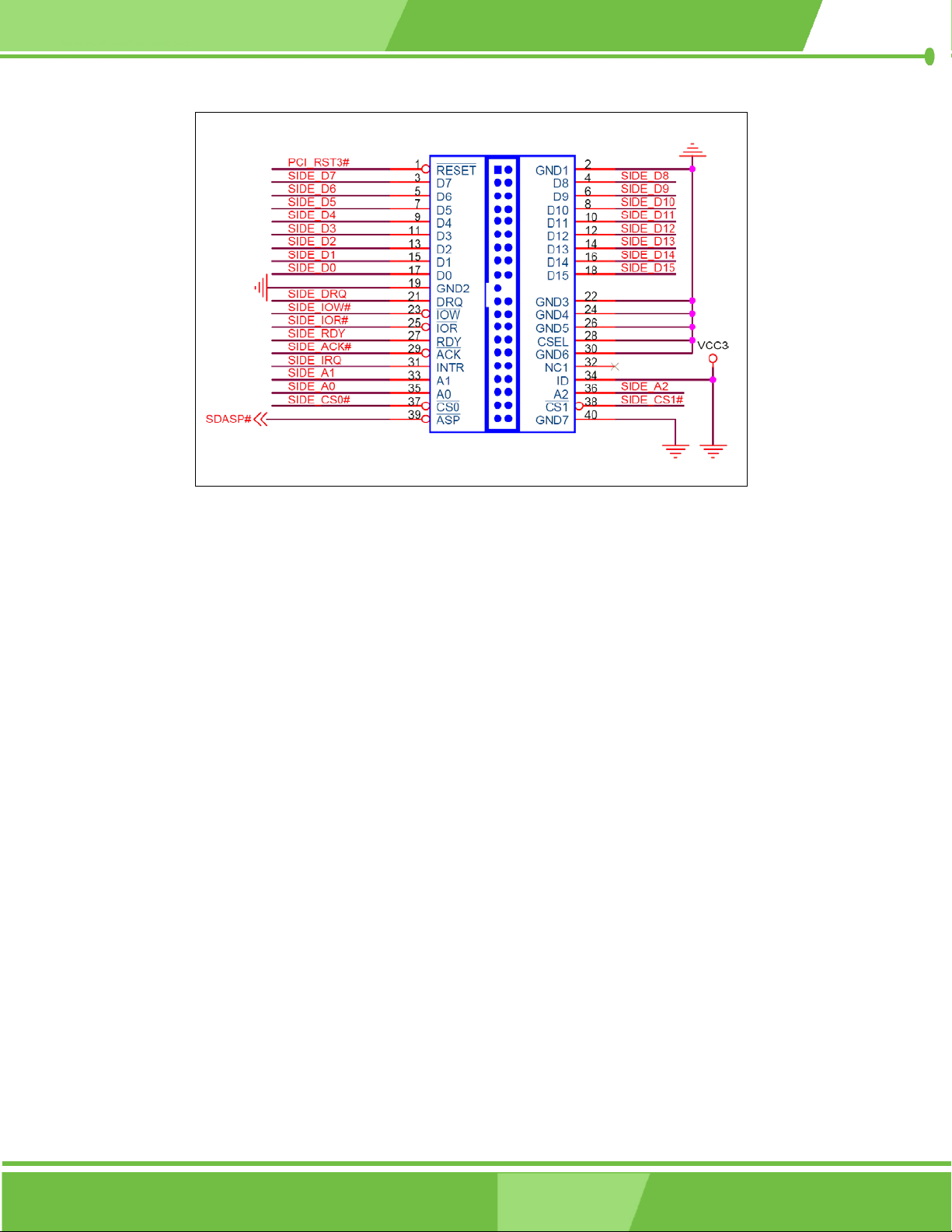

Figure 3-9: IDE Device Connector Locations ...........................................................51

Figure 3-10: Inverter Connector Locations ..............................................................53

Figure 3-11: Keyboard/Mouse Connector Location.................................................54

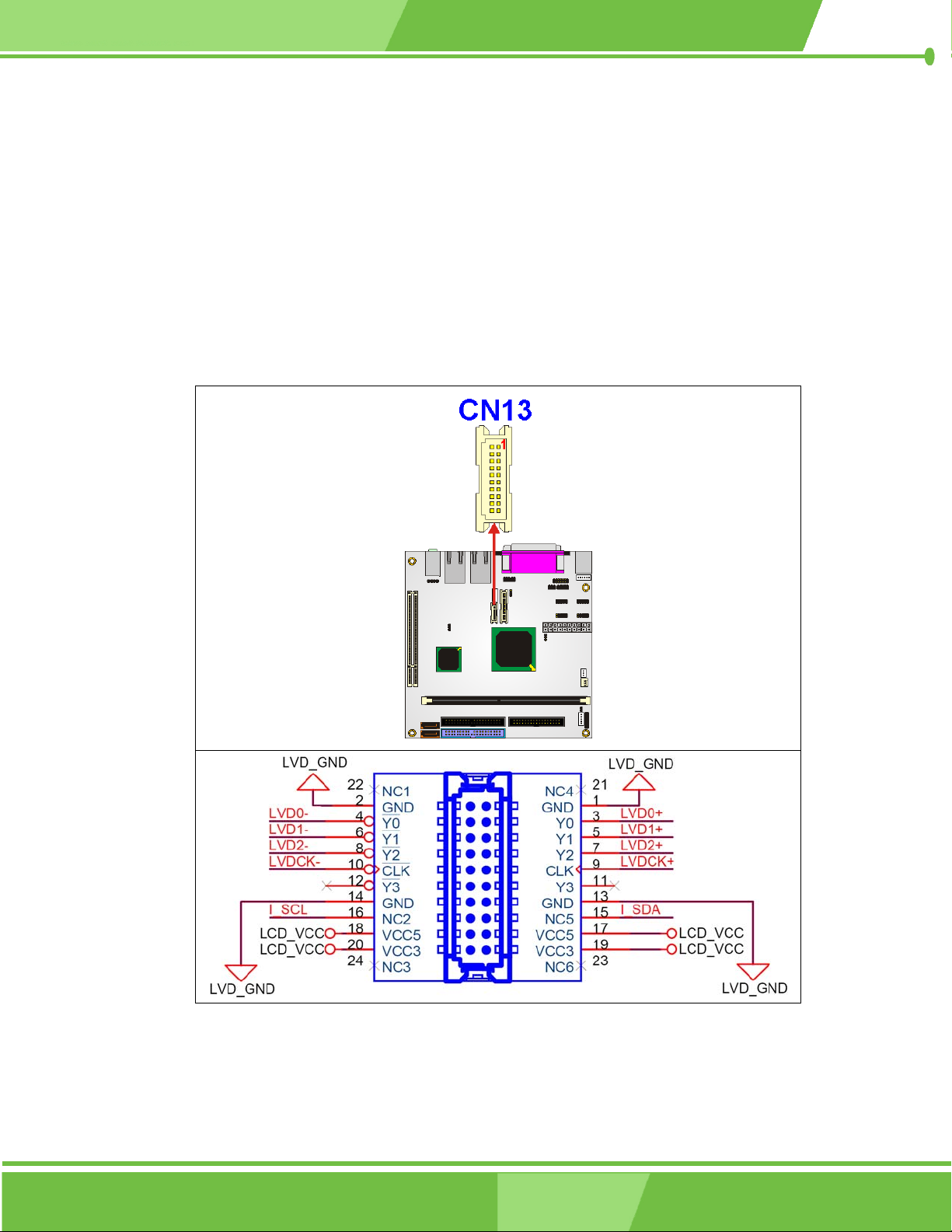

Figure 3-12: LCD LVDS Connector Locations..........................................................55

Figure 3-13: LCD TTL Connector Locations.............................................................57

Figure 3-14: PCI Slot Location ...................................................................................59

Figure 3-15: RS-232/422/485 Serial Port Connector Pinout Locations..................62

Figure 3-16: RS-232 Serial Port Connector Pinout Locations ................................63

Figure 3-17: SATA Drive Connector Pinout Locations............................................64

Figure 3-18: KINO-LX External Peripheral Interface Connector Panel ..................65

Figure 3-19: Keyboard/Mouse Connector Pinouts ..................................................66

Figure 3-20: Serial Port Connector............................................................................67

Page 8

Figure 3-21 Parallel Port Connector Pinout Locations............................................68

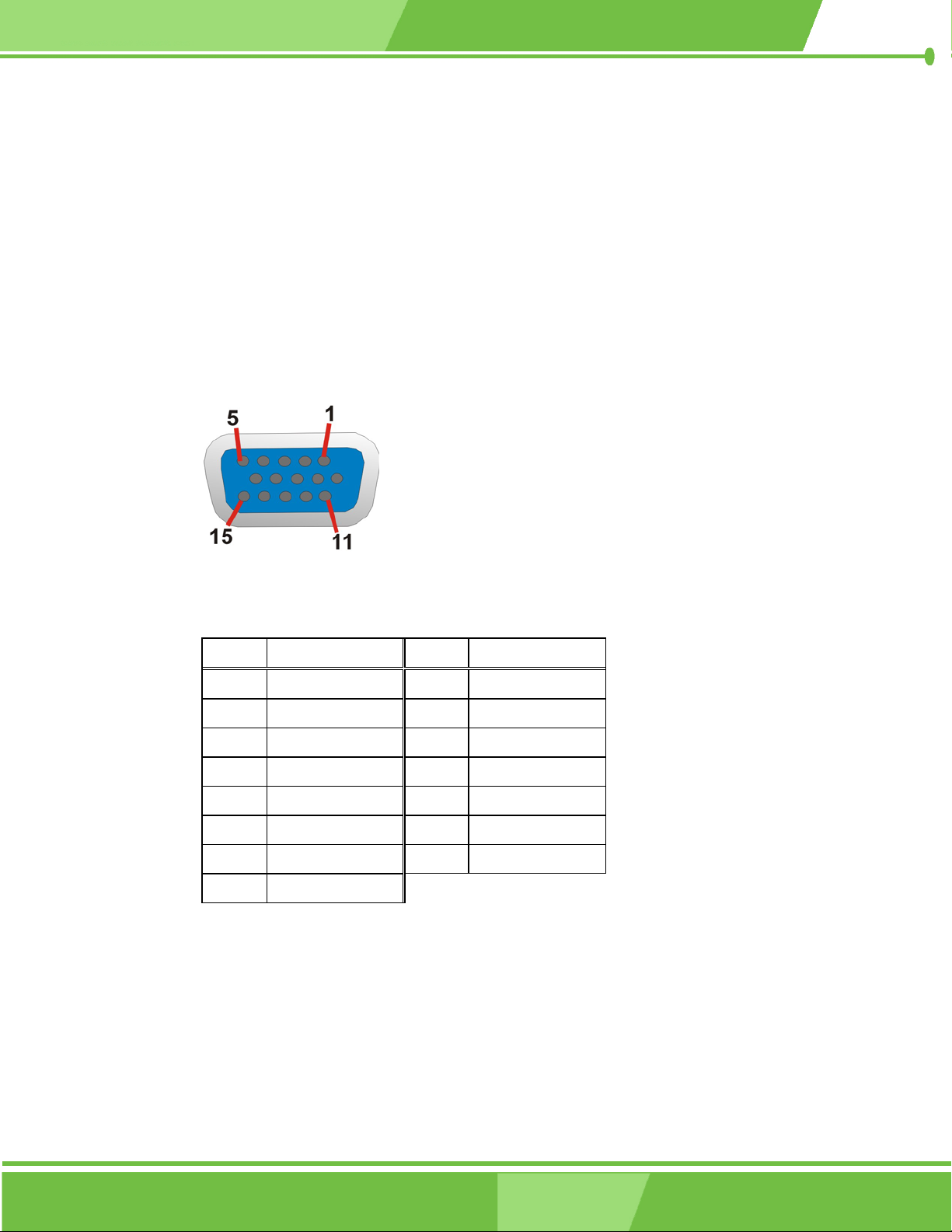

Figure 3-22: VGA Connector ......................................................................................69

Figure 3-23: RJ-45Ethernet Connector .....................................................................70

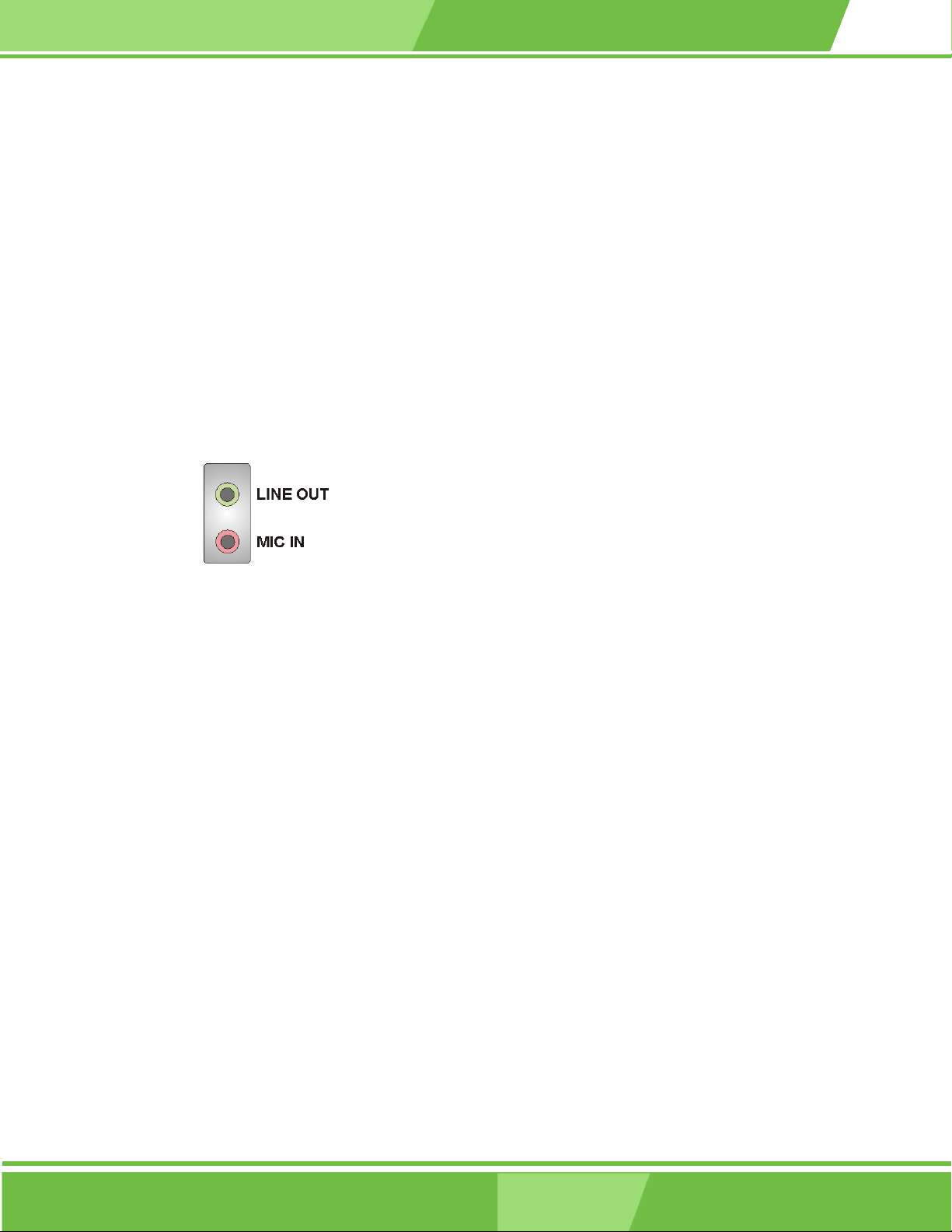

Figure 3-24: Audio Connector....................................................................................72

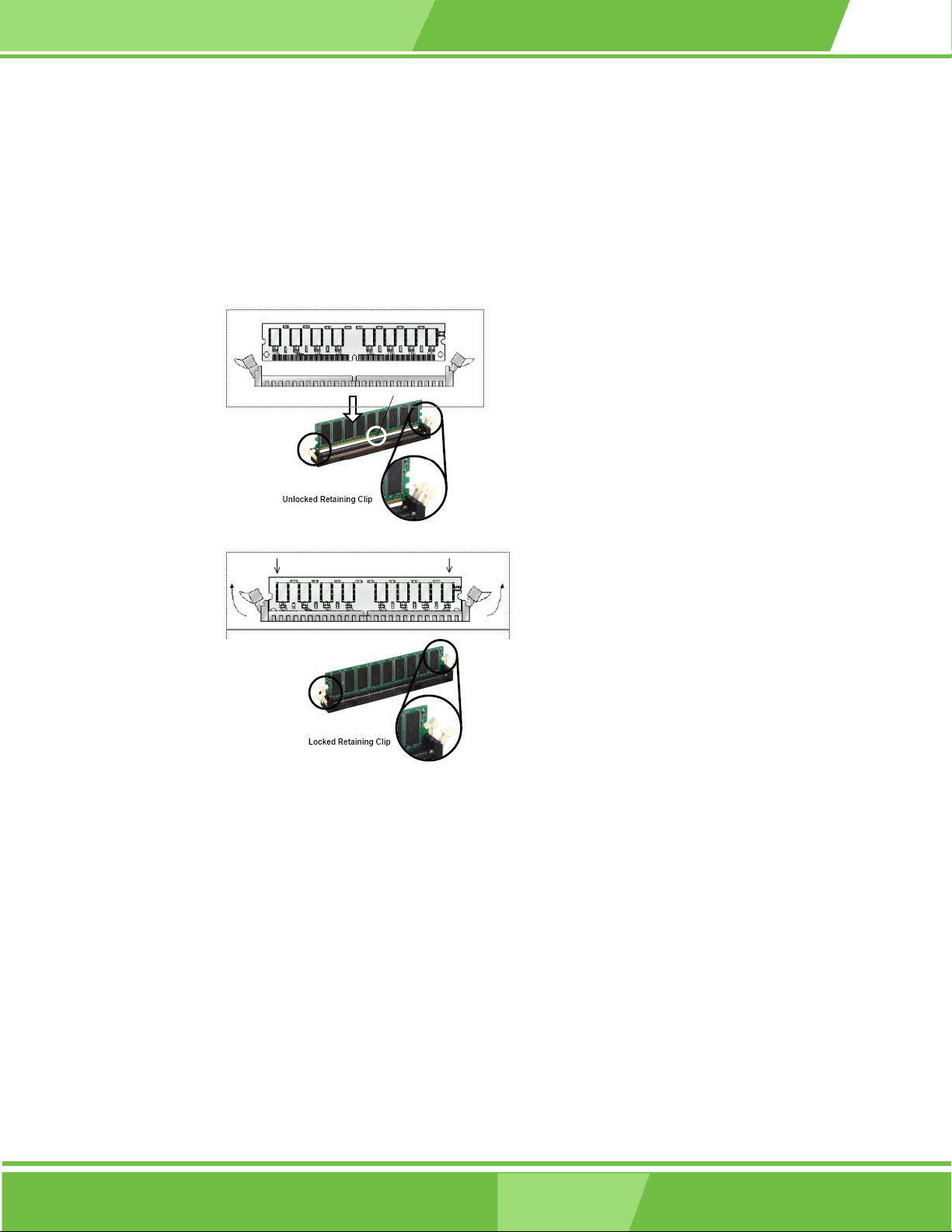

Figure 4-1: DIMM Module Installation........................................................................78

Figure 4-2: Connection of IDE1 Connector ..............................................................79

IEI® Technology, Corp.

KINO-LX Motherboard

Figure 4-3: Jumper Locations....................................................................................83

Figure 6-1: AMD LX/GX CD Main Menu.................................................................. 131

Figure 6-2: AMD LX/GX CD Driver Menu................................................................ 132

Figure 6-3: Access Windows Control Panel.......................................................... 133

Figure 6-4: Double Click the System Icon ............................................................. 134

Figure 6-5: Double Click the Device Manager Tab................................................ 134

Figure 6-6: Device Manager List ............................................................................. 135

Figure 6-7: Expand the Display Adapters Category ............................................. 136

Figure 6-8: Update Driver ........................................................................................ 137

Figure 6-9: Upgrade Device Driver Wizard ............................................................ 138

Figure 6-10: Search for Suitable Driver.................................................................. 139

Figure 6-11: Locate Driver Files.............................................................................. 140

Figure 6-12: Location Browsing Window............................................................... 141

Figure 6-13: Access Windows Control Panel........................................................ 142

Figure 6-14: Double Click the System Icon ........................................................... 143

Figure 6-15: Double Click the Device Manager Tab.............................................. 143

Figure 6-16: Device Manager List........................................................................... 144

Figure 6-17: Search for Suitable Driver.................................................................. 145

Figure 6-18: Locate Driver Files.............................................................................. 146

Figure 6-19: Location Browsing Window............................................................... 147

Figure 6-20: Locate the Setup Program Icon ........................................................ 147

Figure 6-21: Preparing Setup Screen..................................................................... 148

Figure 6-22: Install Wizard Welcome Screen......................................................... 148

Figure 6-23: Installing Screen ................................................................................. 149

Figure 6-24: Restart the Computer......................................................................... 150

Figure 6-25: Locate the Setup Program Icon ........................................................ 151

Figure 6-26: Preparing Setup Screen..................................................................... 151

Figure 6-27: Install Wizard Welcome Screen......................................................... 152

Figure 6-28: Installing Screen ................................................................................. 153

Figure 6-29: RAID Driver Digital Signal.................................................................. 154

Figure 6-30: InstallShield Wizard Complete Screen ............................................. 155

Figure 6-31: Access Windows Control Panel........................................................ 156

Page 9

KINO-LX Motherboard

Figure 6-32: Double Click the System Icon ........................................................... 157

Figure 6-33: Double Click the Device Manager Tab.............................................. 157

Figure 6-34: Device Manager List........................................................................... 158

Figure 6-35: Search for Suitable Driver.................................................................. 159

Figure 6-36: Locate Driver Files.............................................................................. 160

Figure 6-37: Location Browsing Window............................................................... 161

Page 10

IEI® Technology, Corp.

KINO-LX Motherboard

List of Tables

Table 1-1: Technical Specifications ..........................................................................20

Table 2-1: Geode LX Graphics Processor Features ................................................26

Table 2-2: Power Consumption .................................................................................34

Table 3-1: Peripheral Interface Connectors..............................................................39

Table 3-2: Rear Panel Connectors.............................................................................40

Table 3-3: On-board Jumpers ....................................................................................40

Table 3-4: AT/ATX Power Connector Pinouts ..........................................................42

Table 3-5: CD-IN Connector Pinouts .........................................................................43

Table 3-6: 5V Fan Connector Pinouts .......................................................................44

Table 3-7: Fan Connector Pinouts.............................................................................45

Table 3-8: FDD Connector Pinouts............................................................................47

Table 3-9: Front Panel Connector Pinouts ...............................................................48

Table 3-10: GPIO Connector Pinouts ........................................................................49

Table 3-11: IDE Connector Pinouts ...........................................................................52

Table 3-12: Inverter Power Connector Pinouts ........................................................53

Table 3-13: Keyboard/Mouse Connector Pinouts....................................................54

Table 3-14: LCD LVDS Connector Pinouts ...............................................................56

Table 3-15: LCD TTL Connector Pinouts ..................................................................58

Table 3-16: PCI Slot ....................................................................................................61

Table 3-17: RS-232/422/485 Serial Port Connector Pinouts....................................62

Table 3-18: RS-232 Serial Port Connector Pinouts..................................................64

Table 3-19: SATA Drive Connector Pinouts .............................................................65

Table 3-20: Keyboard/Mouse Connector Pinouts....................................................66

Table 3-21: Serial Port Connector Pinouts ...............................................................67

Table 3-22: Parallel Port Pinouts ...............................................................................68

Table 3-23: VGA Connector Pinouts .........................................................................69

Table 3-24: LAN Pinouts.............................................................................................70

Table 3-25: RJ-45 Ethernet Connector LEDs............................................................71

Page 11

KINO-LX Motherboard

Table 3-26: USB Port Pinouts ....................................................................................71

Table 4-1: IEI Provided Cables...................................................................................79

Table 4-2: Jumpers ....................................................................................................82

Table 4-3: Clear CMOS Jumper Settings ..................................................................84

Table 4-4: LCD Voltage Setup Jumper Settings.......................................................84

Table 4-5: COM2 RS-232/422/485 Select Settings....................................................85

Table 4-6: COM2 Voltage Setup Jumper Settings....................................................86

Table 4-7: LCD Clock Jumper Settings.....................................................................86

Table 4-8: AT/ATX Power Mode Select Jumper Settings ........................................87

Table 5-1: BIOS Navigation Keys...............................................................................91

Page 12

IEI® Technology, Corp.

KINO-LX Motherboard

List of BIOS Menus

BIOS Menu 1: AwardBIOS CMOS Setup Utility ........................................................92

BIOS Menu 2: Standard CMOS Features ..................................................................94

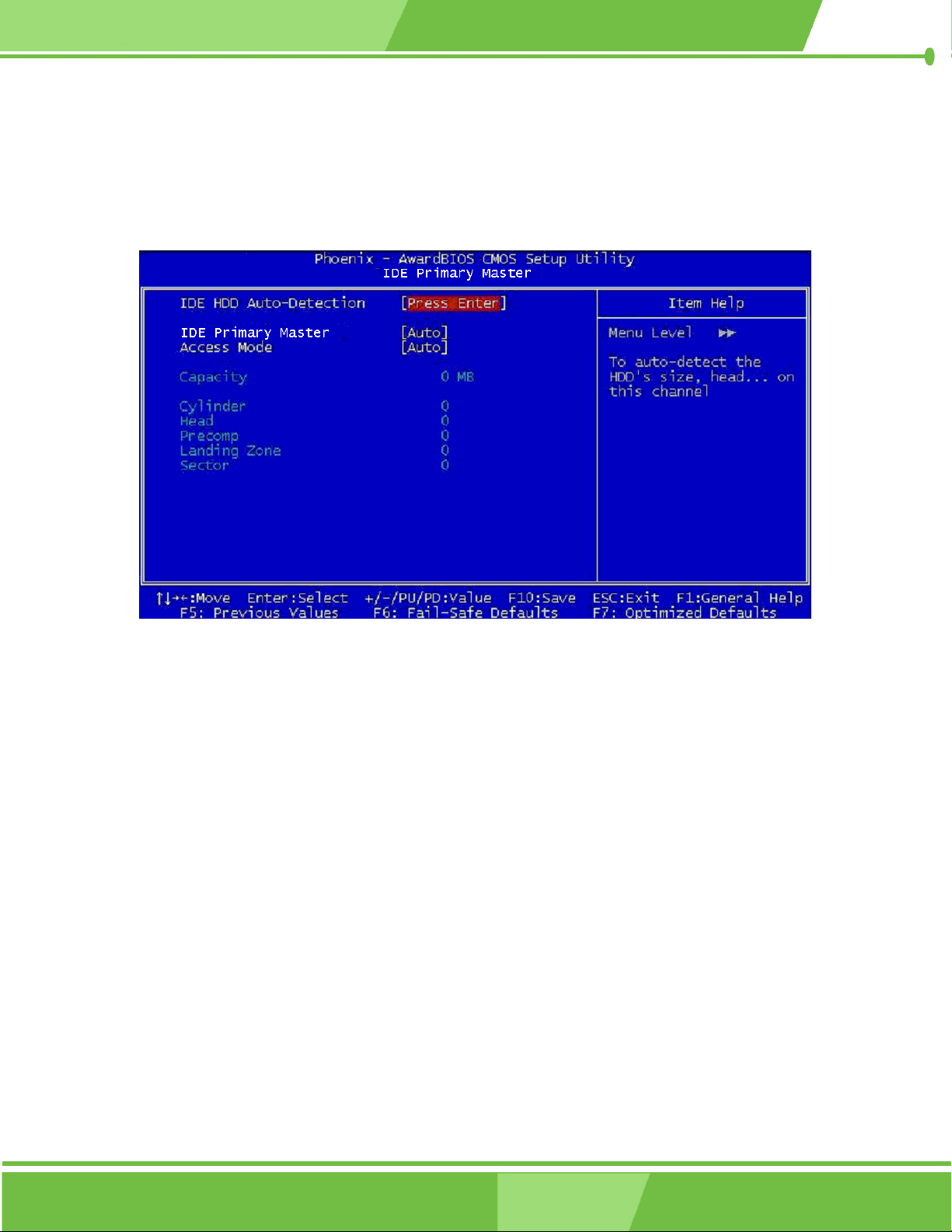

BIOS Menu 3: IDE Primary Master.............................................................................97

BIOS Menu 4: Advanced BIOS Features................................................................ 100

BIOS Menu 5: Advanced Chipset Features ........................................................... 107

BIOS Menu 6: Flat Panel Configuration ................................................................. 109

BIOS Menu 7: Integrated Peripherals..................................................................... 113

BIOS Menu 8: Power Management Setup.............................................................. 119

BIOS Menu 9: PnP/PCI Configurations .................................................................. 122

BIOS Menu 10: IRQ Resources ............................................................................... 123

BIOS Menu 11: Memory Resources........................................................................ 125

BIOS Menu 12: PC Health Status............................................................................ 126

Page 13

KINO-LX Motherboard

Glossary

AC ’97 Audio Codec 97

ACPI Advanced Configuration and

Power Interface

APM Advanced Power Management

ARMD ATAPI Removable Media Device

ASKIR Shift Keyed Infrared

ATA Advanced Technology

Attachments

BIOS Basic Input/Output System

CFII Compact Flash Type 2

CMOS Complementary Metal Oxide

Semiconductor

CPU Central Processing Unit

Codec Compressor/Decompressor

COM Serial Port

DAC Digital to Analog Converter

DDR Double Data Rate

HDD Hard Disk Drive

IDE Integrated Data Electronics

I/O Input/Output

ICH4 I/O Controller Hub 4

L1 Cache Level 1 Cache

L2 Cache Level 2 Cache

LCD Liquid Crystal Display

LPT Parallel Port Connector

LVDS Low Voltage Differential Signaling

MAC Media Access Controller

OS Operating System

PCI Peripheral Connect Interface

PIO Programmed Input Output

PnP Plug and Play

POST Power On Self Test

RAM Random Access Memory

SATA Serial ATA

DIMM Dual Inline Memory Module

DIO Digital Input/Output

DMA Direct Memory Access

EIDE Enhanced IDE

EIST Enhanced Intel SpeedStep

Technology

FDD Floppy Disk Drive

FDC Floppy Disk Connector

FFIO Flexible File Input/Output

FIFO First In/First Out

FSB Front Side Bus

IrDA Infrared Data Association

S.M.A.R.T Self Monitoring Analysis and

Reporting Technology

SPD Serial Presence Detect

S/PDI Sony/Philips Digital Interface

SDRAM Synchronous Dynamic Random

Access Memory

SIR Serial Infrared

UART Universal Asynchronous

Receiver-transmitter

USB Universal Serial Bus

VGA Video Graphics Adapter

Page 14

IEI® Technology, Corp.

KINO-LX Motherboard

Chapter

1

1

Introduction

Page 15

1.1 KINO-LX Motherboard Overview

The mini-ITX form factor KINO-LX is fully equipped with advanced multi-mode I/Os. The

KINO-LX is designed for system manufacturers, integrators, and VARs that want

performance, reliability, and quality at a reasonable price. The KINO-LX is equipped with

an on-board low-power consumption and high performance AMD™ Geode™ LX 800

processor.

1.1.1 KINO-LX Applications

The KINO-LX is designed for applications in the following areas:

 Industrial PC applications

 Human Machine Interface (HMI) applications

KINO-LX Motherboard

 Marine, GPS and transportation applications

 Financial, retail and kiosk applications

1.1.2 KINO-LX Benefits

Some of the KINO-LX benefits include:

 Low power, high performance
 Multiple storage option integration including

o

40 Pin IFM or 3.5” HDD

o 34 Pin floppy disk drive (FDD) support
o Dual SATA ports with RAID 0 and RAID 1 support

 Data security SATA RAID support

1.1.3 KINO-LX Features

Some of the KINO-LX features are listed below:

Page 16

 Complies with mini-ITX form factor

 Complies with RoHS

 Embedded AMD Geode™ LX 800 CPU

 Supports a maximum front side bus (FSB) speed up to 500MHz

 DDR 333MHz up to 1GB

 Complete I/O support with IDE, Dual LAN, 4 x USB2.0 and 6 x COM ports

IEI® Technology, Corp.

 Supports 24-bit TTL LCD and single channel 18-bit LVDS LCD

 Comes with two high performance 10/100MB Ethernet controllers

 Supports two SATA channels with transfer rates up to 150Mb/s

1.2 KINO-LX Overview

KINO-LX Motherboard

Figure 1-1: KINO-LX Overview

1.2.1 KINO-LX Connectors

The KINO-LX has the following connectors onboard:

 1 x 184-pin DDR DIMM socket

 1 x AT/ATX power connector

 1 x CD-IN connector

Page 17

KINO-LX Motherboard

 2 x Fan connectors

 1 x Floppy disk connector

 1 x Front panel connector

 1 x GPIO connector

 2 x IDE Interface connectors

 1 x Inverter power connector

 1 x Keyboard/Mouse connector

 1 x LCD LVDS interface Connector

 1 x LCD TTL interface Connector

 1 x RS-422/485 serial port connector

 1 x PCI slot connector

 4 x RS-232 serial port connectors

 1 x RS-232/422/485 serial port connector

 2 x SATA connectors

The KINO-LX has the following connectors on the board rear panel:

 1 x Audio connector (two audio jacks)

 2 x Ethernet connectors

 2 x PS/2 keyboard/mouse connectors

 1 x LPT port connector

 1 x RS-232 serial port connector

 4 x USB connectors

 1 x VGA connector

The KINO-LX has the following onboard jumpers:

 AT/ATX power mode select

 Clear CMOS

 COM1/2 RI and voltage select

 COM2 RS-232/422/485 select

The location of these connectors on the motherboard can be seen in Figure 1-1. These

connectors are fully described in Chapter 3.

Page 18

 LCD clock setup

 LCD voltage select

IEI® Technology, Corp.

1.2.2 Technical Specifications

KINO-LX technical specifications are listed in Table 1-1. Detailed descriptions of each

specification can be found in Chapter 2.

SPECIFICATION DESCRIPTION

CPUs Supported AMD Geode LX 800

Cache Memory 64K I/ 64k D L1 cache, 128K L2 cache

System Chipset AMD CS5536

I/O Controller AMD CS5536

Memory One 184-pin DDR 333MHz DIMM up to 1GB

PCI Bus Interface Revision 2.2

Super IO W83627EHG

KINO-LX Motherboard

Display CRT integrated in AMD™ LX 800

LVDS Single channel 18 bit LVDS integrated in AMD™ LX 800

TTL 24 bit TTL integrated in AMD LX 800

HDD Interface One IDE channel supports two

Ultra ATA 100/66/33 devices

Power Support ATX power support

Power Consumption +5V @ 1.45A, +12V @ 0.08A

LX-800, 500MHz, DDR 333MHz/512MHz MB-HCT

Power Management Supports Advanced Configuration and Power Interface

(ACPI) Specifications Revision 2.0

Watchdog Timer Software programmable supports

1~255 sec. system reset

Serial ATA (SATA) Two SATA channels with 150Mb/s transfer rates

Floppy Disk Drive (FDD) Supports FDD

USB Interfaces Four USB 2.0 connectors supported

Serial Ports Six RS-232 and one RS422/485 COM ports

Audio Interfaces Realtek ALC203

PCI Interface PCI slot connector

Real Time Clock 256-byte battery backed CMOS RAM

Hardware Monitoring CPU temperature and system voltages

Ethernet 10/100 Base-T RTL8100C

BIOS AWARD

Page 19

KINO-LX Motherboard

SPECIFICATION DESCRIPTION

Physical Dimensions 170mm x 170mm

Operating Temperature Minimum: 0ºC (32°F) - Maximum: 60°C (140°F)

Operating Humidity Minimum: 5% - Maximum: 95%

Weight Gross: 1.1Kg - Net: 500g

Table 1-1: Technical Specifications

Page 20

IEI® Technology, Corp.

KINO-LX Motherboard

2

Chapter

2

Detailed Specifications

Page 21

2.1 CPU Support

The KINO-LX has a preinstalled AMD LX 800 processor. Technical specifications for the

AMD LX 800 processor are listed below:

 x86/x87-compatible core

 Processor frequency up to 500 MHZ

 64K I/64K D L1 cache and 128K L2 cache

 Split I/D cache/TLB (Translation Look-Aside Buffer)

 64-bit DDR Memory interface. 333MHz DDR memory supported

 Integrated FPU that supports the Intel MMX® and AMD 3DNow!™

Technology instruction sets

 9 GB/s internal GeodeLink™ Interface Unit (GLIU)

 Security Block

KINO-LX Motherboard

o 128-bit AES (CBC/ECB)
o True Random Number Generator

 High-resolution CRT and TFT outputs (simultaneous operation)

o Support for High Definition (HD) and Standard Definition (SD) standards
o Support 1920x1440 in CRT mode and 1600x1200 in TFT mode

 VESA 1.1 and 2.0 VIP/VDA support

 0.13 micron process

 481-terminal PBGA (Plastic Ball Grid Array) with internal heatspreader

Power management features for the AMD LX 800 processor are listed below:

 1.8W Typical (3.9W TDP) @ 500MHz

 GeodeLink active hardware power management

 Hardware support for standard ACPI software power management

 I/O companion SUSP#/SUSPA# power controls

 Lower power I/O

 Wakeup on SMI/INTR

2.2 System Chipset

The KINO-LX motherboard has an AMD Geode™ CS5536 chipset installed. The AMD

Geode™ CS5536 is a companion device for the AMD Geode™ LX 800 to create a

high-performance, low-power x86 solution for embedded applications.

Page 22

IEI® Technology, Corp.

KINO-LX Motherboard

Technical specifications of the AMD Geode™ CS5536 chipset are listed below. For more

information on these two chipsets please refer to the AMD website.

 GeodeLink™ Interface Unit:

o 64-bit, 66MHz operation
o PCI VSM (Virtual System Module) that makes the interface transparent to

applications software and BIOS

o Programmable routing descriptors, use and activity monitors, and SSMI

(Synchronous System Management Interrupt)

 ATA-6 Controller:

o 100 MB/second IDE Controller in UDMA mode per the ATA-6

specification

o 5V interface

 Flash Interface:

o Multiplexed with IDE interface Connects to an array of industry standard

NAND Flash and/or NOR Flash

 USB Controller:

o 4 USB ports
o Supports both USB 1.1 and USB 2.0
o 3 host ports
o 1 host/device

 Audio Codec 97 (AC97) Controller:

o AC97 specification v2.3 compliant interface to multiple audio codecs:

Serial In, Serial Out, Sync Out, Bit Clock In

o Legacy “PC Beep” support

 Diverse Device:

o 82xx Legacy Devices
o IR Communication Port
o System Management Bus (SMB) Controller
o LPC (Low Pin Count) Port
o General Purpose I/Os (GPIOs)
o 8 Multi-Function General Purpose Timers (MFGPTs)
o Real-Time Clock (RTC) with CMOS RAM

 Power Management Controller:

o ACPI v2.0 compliant

Page 23

2.2.1 Data Flow

Figure 2-1 shows the data flow between the system chipset, the CPU and other I/O

interfaces that can connect to the KINO-LX motherboard.

KINO-LX Motherboard

Page 24

Figure 2-1: Data Flow Block Diagram

IEI® Technology, Corp.

2.3 Graphics Support

Table 2-1 lists the KINO-LX graphics processor features.

Feature AMD Geode™ LX Processor

Color Depth 8, 16, 32 bpp (A) RGB 4 and 8-bit indexed

ROPs 256 (2-src, dest and pattern)

BLT Buffers FIFOs in Graphics Processor

BLT Splitting Managed by hardware

Video Synchronized BLT/Vector Throttle by VBLANK

Bresenham Lines Yes

KINO-LX Motherboard

Patterned (stippled) Lines Yes

Screen to Screen BLT Yes

Screen to Screen BLT with mono expansion Yes

Memory to Screen BLT Yes (throttled rep movs writes)

Accelerated Text No

Pattern Size (Mono) 8x8 pixels

Pattern Size (Color) 8x8 pixels

Monochrome Pattern Yes (with inversion)

Dithered Pattern (4 color) No

Color Pattern 8, 16, 32 bpp

Transparent Pattern Monochrome

Solid Fill Yes

Pattern Fill Yes

Transparent Source Monochrome

Color Key Source Transparency Y with mask

Page 25

KINO-LX Motherboard

Feature AMD Geode™ LX Processor

Variable Source Stride Yes

Variable Destination Stride Yes

Destination Write Bursting Yes

Selectable BLT Direction Vertical and Horizontal

Alpha BLT Yes (constant α, α/pix, or sep. α channel)

VGA Support Decodes VGA Register

Pipeline Depth Unlimited

Accelerated Rotation BLT 8, 16, 32 bpp

Color Depth Conversion 5:6:5, 1:5:5:5, 4:4:4:4, 8:8:8:8

Table 2-1: Geode LX Graphics Processor Features

2.4 Memory Support

Up to 1GB of DDR 333 MHz DIMM is supported.

2.5 Super I/O

 General

o Meet LPC Spec. 1.01
o Support LDRQ#(LPC DMA), SERIRQ (Serial IRQ)
o Integrated Hardware Monitor functions
o Compliant with Microsoft PC2000/PC2001 Hardware Design Guide
o Support DPM (Device Power Management), ACPI
o Programmable configuration settings
o Single 24 or 48 MHz clock input

Page 26

o It is 3.3V level but 5V tolerance support

• Besides LPC function pins(Pin21 ~ Pin30) and H/W monitor

analog pins(Pin95 ~ Pin110)

• Input level can up to 5V and maximum input level can be up to

5V+10%

 FDC

IEI® Technology, Corp.

KINO-LX Motherboard

o Compatible with IBM PC AT disk drive systems
o Variable write pre-compensation with track selectable capability
o Support vertical recording format
o DMA enable logic
o 16-byte data FIFOs
o Support floppy disk drives and tape drives
o Detects all overrun and underrun conditions
o Built-in address mark detection circuit to simplify the read electronics
o FDD anti-virus functions with software write protect and FDD write enable

signal (write data signal was forced to be inactive)

o Support up to four 3.5-inch or 5.25-inch floppy disk drives
o Completely compatible with industry standard 82077
o 360K/720K/1.2M/1.44M/2.88M format; 250K, 300K, 500K, 1M, 2M bps

data transfer rate

o Support 3-mode FDD, and its Win95/98 driver

 UART

o Two high-speed 16550 compatible UARTs with 16-byte send/receive

FIFOs

o MIDI compatible
o Fully programmable serial-interface characteristics:

• 5, 6, 7 or 8-bit characters

• Even, odd or no parity bit generation/detection

• 1, 1.5 or 2 stop bits generation

o Internal diagnostic capabilities:

• Loop-back controls for communications link fault isolation

• Break, parity, overrun, framing error simulation

o Programmable baud rate generator allows division of 1.8461 MHz and 24

MHz by 1 to (216-1)

o Maximum baud rate up to 921k bps for 14.769 MHz and 1.5M bps for 24

MHz

 Infrared

o Support IrDA version 1.0 SIR protocol with maximum baud rate up to

115.2K bps

o Support SHARP ASK-IR protocol with maximum baud rate up to 57,600

bps

 Parallel Port

Page 27

KINO-LX Motherboard

o Compatible with IBM parallel port
o Support PS/2 compatible bi-directional parallel port
o Support Enhanced Parallel Port (EPP) - Compatible with IEEE 1284

specification

o Support Extended Capabilities Port (ECP) - Compatible with IEEE 1284

specification

o Enhanced printer port back-drive current protection

 Game Port

o Support two separate Joysticks
o Support every Joystick two axis (X, Y) and two button (A, B) controllers

 MIDI Port

o The baud rate is 31.25 K baud
o 16-byte input FIFO
o 16-byte output FIFO

 Keyboard Controller

o 8042 based with optional F/W from AMIKKEYTM-2, Phoenix

MultiKey/42TM or customer code with 2K bytes of programmable ROM,

and 256 bytes of RAM

o Asynchronous Access to Two Data Registers and One status Register
o Software compatibility with the 8042
o Support PS/2 mouse
o Support port 92
o Support both interrupt and polling modes
o Fast Gate A20 and Hardware Keyboard Reset
o 8 Bit Timer/ Counter
o Support binary and BCD arithmetic
o 6 MHz, 8 MHz, 12 MHz, or 16 MHz operating frequency

 Serial Flash ROM Interface

o Support up to 8M bits flash ROM

 General Purpose I/O Ports

Page 28

o 48 programmable general purpose I/O ports
o GPIO port 1 and 4 can not only serve as simple I/O ports but also watch

dog timer output, Power LED output, Suspend LED output

o Functional in power down mode (GP24 ~ GP27, GPIO-3, GPIO-4,

GPIO-5)

 OnNow Functions

IEI® Technology, Corp.

KINO-LX Motherboard

o Keyboard Wake-Up by programmable keys
o Mouse Wake-Up by programmable buttons
o On Now Wake-Up from all of the ACPI sleeping states (S1-S5)

 Hardware Monitor Functions

o Smart Fan control system, support SMART FANTM I - “Thermal

CruiseTM” and “Speed CruiseTM” Mode , SMART FANTM III function

o 3 thermal inputs from optionally remote thermistors or PentiumTM II/III/4

thermal diode output

o 10 voltage inputs (CPUVCORE, VIN[0..4] and intrinsic 3VCC, AVCC ,

3VSB, VBAT)

o 5 fan speed monitoring inputs
o 4 fan speed control
o Dual mode for fan control (PWM & DC)
o Build in case open detection circuit
o Programmable hysteresis and setting points for all monitored items
o Over temperature indicate output
o Issue SMI#, OVT# to activate system protection
o Winbond Hardware DoctorTM Support
o 6 VID inputs / outputs
o Provide I2C interface to read/write registers

 Package

o 128-pin PQFP

2.6 Ethernet Controller

The Realtek RTL8100C is a single-chip Fast Ethernet controller. It is enhanced with an

ACPI (Advanced Configuration Power Interface) management function for PCI in order to

provide efficient power management for advanced operating systems with OSPM

(Operating System Directed Power Management). The RTL8100C also supports remote

wake-up (including AMD Magic Packet

™

and Microsoft® Wake-up frame). Realtek

RTL8100C features are listed below.

 128-pin PQFP/LQFP

 Supports PCI/mini-PCI interfaces

 Integrates Fast Ethernet MAC, physical chip, and transceiver onto a single

chip

Page 29

KINO-LX Motherboard

 10Mbps and 100Mbps operation

 Supports 10Mbps and 100Mbps N-way auto-negotiation

 Supports 25MHz Crystal or 25MHz OSC as the internal clock source

 Complies with PC99/PC2001 standards

 Supports ACPI power management

 Provides PCI bus master data transfer

 Provides PCI memory space or I/O space mapped data transfer

 Supports PCI clock speed of 16.75MHz-40MHz

 Advanced power saving mode

 Supports Wake-on-LAN and remote wake-up (AMD Magic Packet

Change, and Microsoft

 Half/Full duplex capability

 Supports Full Duplex Flow Control (IEEE 802.3x)

®

Wake-up frame)

™

, Link

 Provides interface to 93C46 EEPROM to store resource configuration and ID

parameters

 Provides PCI clock run pin

 Provides LED pins for network operation status indication

 2.5/3.3V power supply with 5V tolerant I/Os

 0.25µm CMOS process

2.7 Drive Interfaces

The KINO-LX can support the following drive interfaces.

 2 x SATA drives

 2 x IDE devices

 1 x FDD

2.7.1 SATA Drive Interface

The KINO-LX supports two, first generation SATA drives with transfer rates of up to

150Mb/s.

Page 30

IEI® Technology, Corp.

2.7.2 IDE HDD Interface

The KINO-LX system chipset IDE controller supports up to two HDDs with the following

specifications:

 100 MB/second IDE Controller in UDMA mode per the ATA-6 specification

2.7.3 Floppy Disk Drive (FDD) Interface

The KINO-LX supports a single FDD. The following FDD formats are compatible with the

board.

 5.25”: 360KB and 1.2MB

 3.5”: 720KB, 1.44MB and 2.88MB

KINO-LX Motherboard

2.8 Serial Ports

The KINO-LX CPU Board has six high-speed UART serial ports, configured as CN1, CN3

and CN14 through CN17. The serial ports have the following specifications.

 16C550 UART with 16/32 byte selectable FIFO buffer

 115.2Kbps transmission rate

2.9 Audio Codec

The KINO-LX has an integrated REALTEK ALC203 CODEC. The ALC203 is a 20-bit DAC

and 18-bit ADC full-duplex AC'97 2.3 compatible stereo audio CODEC designed for PC

multimedia systems, including host/soft audio, and AMR/CNR based designs. ALC203

features are listed below.

 Single chip with high S/N ratio (>100 dB)

 Meets performance requirements for audio on PC2001 systems

 Meets Microsoft WHQL/WLP 2.0 audio requirements

 20-bit DAC and 18-bit ADC resolution

 18-bit Stereo full-duplex CODEC with independent and variable sampling rate

 Complies with AC'97 2.3 specifications

o LINE/HP-OUT, MIC-IN and LINE-IN sensing
o 14.318MHz -> 24.576MHz PLL saves crystal

Page 31

KINO-LX Motherboard

o 12.288MHz BITCLK input can be consumed
o Integrated PCBEEP generator to save buzzer
o Interrupt capability
o Page registers and Analog Plug & Play

 Support of S/PDIF out is fully compliant with AC'97 rev2.3 specifications

 Three analog line-level stereo inputs with 5-bit volume control: LINE_IN, CD,

AUX

 High quality differential CD input

 Two analog line-level mono input: PCBEEP, PHONE-IN

 Supports double sampling rate (96KHz) of DVD audio playback

 Two software selectable MIC inputs

 +6/12/20/30dB boost preamplifier for MIC input

 Stereo output with 6-bit volume control

 Mono output with 5-bit volume control

 Headphone output with 50mW/20Ohm amplifier

 3D Stereo Enhancement

 Multiple CODEC extension capability

 External Amplifier Power Down (EAPD) capability

 Power management and enhanced power saving features

 Stereo MIC record for AEC/BF application

 DC Voltage volume control

 Auxiliary power to support Power Off CD

 Adjustable VREFOUT control

 2 GPIO pins with smart GPIO volume control

 2 Universal Audio Jacks (UAJ)® for front panel

 Supports 32K/44.1K/48K/96KHz S/PDIF output

 Supports 32K/44.1K/48KHz S/PDIF input

 Power support: Digital: 3.3V; Analog: 3.3V/5V

 Standard 48-Pin LQFP Package

 EAX™ 1.0 & 2.0 compatible

Page 32

 Direct Sound 3D™ compatible

 A3D™ compatible

 I3DL2 compatible

 HRTF 3D Positional Audio

 Sensaura™ 3D Enhancement (optional)

 10 Bands of Software Equalizer

IEI® Technology, Corp.

 Voice Cancellation and Key Shifting in Karaoke mode

 AVRack® Media Player

2.10 Real Time Clock

256-byte battery backed CMOS RAM

2.11 System Monitoring

The KINO-LX motherboard is capable of self-monitoring various aspects of its operating

status including:

 CPU, chipset, and battery voltage, +5V, and +12V

 CPU and board temperatures (by the corresponding embedded sensors)

KINO-LX Motherboard

2.12 BIOS

The KINO-LX uses a licensed copy of Phoenix Award BIOS. The features of the flash

BIOS used are listed below:

 SMIBIOS (DMI) compliant

 Console redirection function support

 PXE (Pre-Boot Execution Environment) support

 USB booting support

2.13 Operating Temperature and Temperature Control

The maximum and minimum operating temperatures for the KINO-LX motherboard are

listed below.

 Minimum Operating Temperature: 0ºC (32°F)

 Maximum Operating Temperature: 60°C (140°F)

A cooling heat sink is installed on the CPU. Thermal paste is smeared on the lower side of

the heat sink before it is mounted on the CPU.

Page 33

2.14 Power Consumption

Table 2-2 shows the power consumption parameters for the KINO-LX when an AMD

LX-800 CPU is running with a 333 MHz, 256MB DDR RAM module.

Voltage Current

+5V 1.45A

+12V 0.08A

Table 2-2: Power Consumption

2.15 PXE: Pre-Boot Execution Environment

PXE is an open industry standard developed by a number of software and hardware

KINO-LX Motherboard

vendors. IEI BIOS PXE feature allows a workstation to boot from a server on a network by

receiving a pre-OS agent prior to booting the operating system on the local hard drive.

KINO-LX

KINO-LX

KINO-LX

KINO-LX

KINO-LX

Figure 2-2: PXE: Pre-Boot Execution Environment

Page 34

IEI® Technology, Corp.

KINO-LX Motherboard

2.16 Packaged Contents and Optional Accessory Items

2.16.1 Package Contents

When you unpack the KINO-LX motherboard, you should find the following components.

 1 x KINO-LX single board computer

 1 x Mini jumper pack

 1 x ATA66/100 flat cable

 2 x Dual RS-232 cables

 2 x SATA cables

 1 x SATA Power cable

 1 x I/O Shielding

 1 x Utility CD

 1 x QIG (quick installation guide)

2.16.2 Optional Accessory Items

The items shown in the list below are optional accessory items purchased separately.

 RS-23/422/485 cable

Page 35

KINO-LX Motherboard

THIS PAGE IS INTENTIONALLY LEFT BLANK

Page 36

IEI® Technology, Corp.

KINO-LX Motherboard

Chapter

3

3

Connectors and

Jumpers

Page 37

3.1 Peripheral Interface Connectors

Section 3.1.1 shows peripheral interface connector locations. Section 3.1.2 lists all the

peripheral interface connectors seen in Section 3.1.1.

3.1.1 KINO-LX Layout

Figure 3-1 shows the on-board peripheral connectors and on-board jumpers.

KINO-LX Motherboard

Figure 3-1: Connector and Jumper Locations

3.1.2 Peripheral Interface Connectors

Table 3-1 shows a list of the peripheral interface connectors on the KINO-LX. Detailed

descriptions of these connectors can be found in Section 3.2.

Page 38

IEI® Technology, Corp.

KINO-LX Motherboard

Connector Type Label

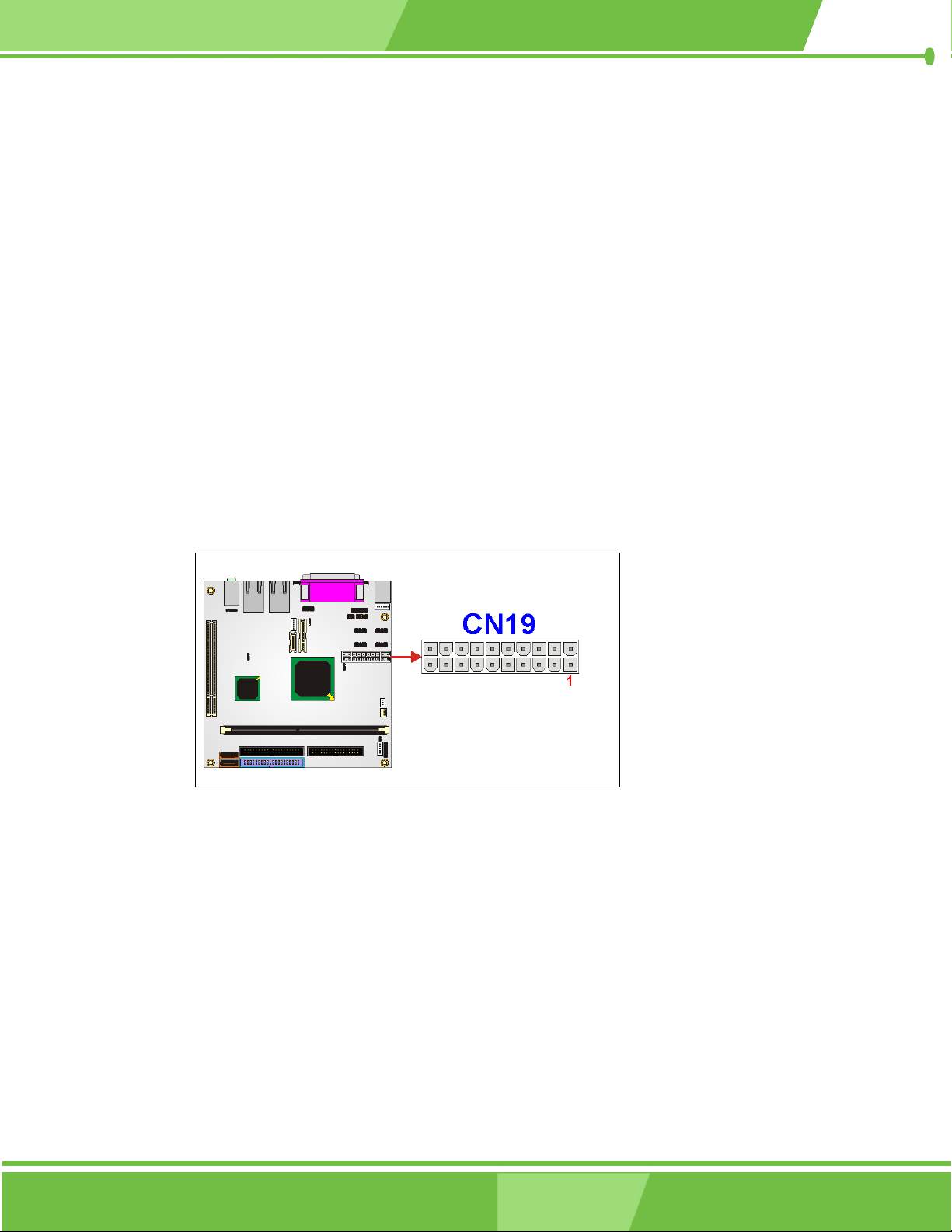

AT/ATX power connector 20-pin header CN19

CD-IN connector 4-pin header CN9

DIMM socket 184-pin socket CN22

5V Fan connector 3-pin box header CN23

12V Fan connector 3-pin header CN21

FDD connector 34-pin box header CN26

Front Panel connector 14-pin header CN24

GPIO connector 10-pin header CN18

IDE Interface connector (Primary) 40-pin box header CN29

IDE Interface connector (Secondary) 40-pin box header CN28

Inverter Power connector 5-pin wafer connector CN12

Keyboard/Mouse connector 6-pin wafer connector CN2

LCD TTL connector 40-pin crimp connector CN11

LCD LVDS connector 20-pin crimp connector CN13

PCI slot 128-pin PCI slot CN20

RS-232/485 COM-2 serial port connector 14-pin header CN10

RS-232 COM-3 serial port connector 10-pin header CN14

RS-232 COM-4 serial port connector 10-pin header CN15

RS-232 COM-5 serial port connector 10-pin header CN16

RS-232 COM-6 serial port connector 10-pin header CN17

SATA-1 drive connector 7-pin SATA connector CN30

SATA-2 drive connector 7-pin SATA connector CN31

Table 3-1: Peripheral Interface Connectors

Page 39

3.1.3 External Peripheral Interface Connectors

Table 3-2 lists the external peripheral interface connectors on the KINO-LX. Detailed

descriptions of these connectors can be found in Section 3.3.

Connector Type Label

Audio connector 2 x audio jacks CN8

Ethernet and USB combo connector RJ-45 and USB 2.0 connectors CN6

Ethernet and USB combo connector RJ-45 and USB 2.0 connectors CN7

Keyboard/mouse connector Dual PS/2 connector CN1

Parallel port DB-25 female connector CN5

KINO-LX Motherboard

RS-232 serial port connector D-sub 9 male connector CN3

VGA connector HD-D-sub 15 female connector CN4

Table 3-2: Rear Panel Connectors

3.1.4 On-board Jumpers

Table 3-3 lists the on-board jumpers. Detailed descriptions of these jumpers can be found

in Section 4.5.

Description Label Type

Clear CMOS JP4 3-pin header

LCD voltage select JP3 3-pin header

COM2 RS-232/422/485 select JP2 6-pin header

COM1/2 RI and voltage select JP1 10-pin header

LCD clock setup JP5 3-pin header

AT/ATX power mode select JP6 2-pin header

Table 3-3: On-board Jumpers

Page 40

IEI® Technology, Corp.

3.2 Internal Peripheral Connectors

Internal peripheral connectors are found on the motherboard and are only accessible

when the motherboard is outside of the chassis. This section has complete descriptions of

all the internal peripheral connectors on the KINO-LX.

3.2.1 AT/ATX Power Connector

KINO-LX Motherboard

CN Label:

CN Type: 20-pin connector

CN Location:

CN Pinouts:

The ATX Power connector is connected to an ATX or AT power supply.

CN19

See Figure 3-2

See Tabl e 3-4

Figure 3-2: AT/ATX Power Connector Pinouts

Page 41

KINO-LX Motherboard

PIN DESCRIPTION PIN DESCRIPTION

11 NC 1 NC

12 -12V 2 NC

13 GND 3 GND

14 PSON 4 +5V

15 GND 5 GND

16 GND 6 +5V

17 GND 7 GND

18 NC 8 PW-OK

19 +5V 9 +5VSB

20 +5V 10 +12V

Table 3-4: AT/ATX Power Connector Pinouts

Page 42

IEI® Technology, Corp.

3.2.2 CD-IN Connector

KINO-LX Motherboard

CN Label:

CN Type: 4-pin header

CN Location:

CN Pinouts:

The CD-In connector connects to audio sources such as CD/DVD-ROM optical drives.

CN9

See Figure 3-3

See Tabl e 3-5

Figure 3-3: CD-IN Connector Pinout Locations

PIN DESCRIPTION

1 CD-L

2 GND

3 GND

4 CD-R

Table 3-5: CD-IN Connector Pinouts

Page 43

3.2.3 5V Fan Connector

KINO-LX Motherboard

CN Label:

CN Type: 3-pin wafer

CN Location:

CN Pinouts:

The cooling fan connector provides a 5V current to a system cooling fan. The connector

has a "rotation" pin to get rotation signals from fans and notify the system so the system

BIOS can recognize the fan speed. Please note that only specified fans can issue the

rotation signals.

CN23

See Figure 3-4

See Tabl e 3-6

Figure 3-4: 5V Fan Connector Pinout Locations

PIN DESCRIPTION

1 GND

2 +5V

3 Fan Speed Detect

Table 3-6: 5V Fan Connector Pinouts

Page 44

IEI® Technology, Corp.

3.2.4 12V Fan Connector

KINO-LX Motherboard

CN Label:

CN Type: 3-pin wafer

CN Location:

CN Pinouts:

The cooling fan connector provides a 12V, 500mA current to a system cooling fan. The

connector has a "rotation" pin to get rotation signals from fans and notify the system so the

system BIOS can recognize the fan speed. Please note that only specified fans can issue

the rotation signals.

CN21

See Figure 3-5

See Tabl e 3-7

Figure 3-5: Fan Connector Pinout Locations

PIN DESCRIPTION

1 GND

2 +12V

3 Fan Speed Detect

Table 3-7: Fan Connector Pinouts

Page 45

3.2.5 Floppy Disk Connector

KINO-LX Motherboard

CN Label:

CN Type: 34-pin box header

CN Location:

CN Pinouts:

The floppy disk connector connects to a floppy disk drive.

CN26

See Figure 3-6

See Tabl e 3-8

Figure 3-6: FDD Pinout Locations

Page 46

IEI® Technology, Corp.

KINO-LX Motherboard

PIN DESCRIPTION PIN DESCRIPTION

1 GND 2 DENSEL

3 GND 4 NC

5 GND 6 NC

7 GND 8 INDEX#

9 GND 10 MOA#

11 GND 12 NC

13 GND 14 DSA#

15 GND 16 NC

17 GND 18 DIR#

19 GND 20 STEP#

21 GND 22 WDATA#

23 GND 24 WGATE#

25 GND 26 TRACK0#

27 GND 28 WP#

29 GND 30 RDATA#

31 GND 32 HEAD#

33 GND 34 DSKCHG#

Table 3-8: FDD Connector Pinouts

3.2.6 Front Panel Connector

CN Label:

CN Type: 14-pin header (2x7 pins)

CN Location:

CN Pinouts:

CN24

See Figure 3-7

See Tabl e 3-9

The front panel connector connects to several external switches and indicators to monitor

and controls the motherboard. These indicators and switches include:

 Power button

 Reset button

 Speaker

Page 47

KINO-LX Motherboard

 Power LED

 HDD LED

Figure 3-7: Front Panel Connector Pinout Locations

PIN DESCRIPTION PIN DESCRIPTION

1 PWRLED+ 2 Buzzer+(+5V)

3 NC 4 NC

5 PWRLED- 6 NC

7 PWRBTN# 8 Buzzer-

9 GND 10 NC

11 HDDLED+ 12 SYS_RST#

13 HDDLED- 14 GND

Table 3-9: Front Panel Connector Pinouts

Page 48

IEI® Technology, Corp.

3.2.7 GPIO Connector

KINO-LX Motherboard

CN Label:

CN Type: 10-pin header (2x5 pins)

CN Location:

CN Pinouts:

The General Purpose Input Output (GPIO) connector can be connected to external I/O

control devices including sensors, lights, alarms and switches.

CN18

See Figure 3-8

See Table 3-10

Figure 3-8: GPIO Connector Pinout Locations

PIN DESCRIPTION PIN DESCRIPTION

1 GND 2 +5V

3 GPO0 4 GPO1

5 GPO2 6 GPO3

7 GPI0 8 GPI1

9 GPI2 10 GPI3

Table 3-10: GPIO Connector Pinouts

Page 49

3.2.8 IDE Connectors

KINO-LX Motherboard

CN Label:

CN Type: 40-pin header (2x20)

CN Location:

CN Pinouts:

Two 40-pin IDE device connectors on the KINO-LX motherboard supports connectivity to

Ultra ATA/133 IDE devices with data transfer rates up to 133MB/s.

CN29 (Primary) and CN28 (Secondary)

See Figure 3-9

See Tabl e 3-11

Page 50

IEI® Technology, Corp.

KINO-LX Motherboard

Figure 3-9: IDE Device Connector Locations

Page 51

KINO-LX Motherboard

PIN DESCRIPTION PIN DESCRIPTION

1 RESET# 2 GND

3 D7 4 D8

5 D6 6 D9

7 D5 8 D10

9 D4 10 D11

11 D3 12 D12

13 D2 14 D13

15 D1 16 D14

17 D0 18 D15

19 GND 20 NC

21 DRQ 22 GND

23 IOW# 24 GND

25 IOR# 26 GND

27 RDY 28 NC

29 ACK# 30 GND

31 INT 32 NC

33 A1 34 CABLEID

35 A0 36 A2

37 CS0# 38 CS1#

39 ASP# 40 GND

Table 3-11: IDE Connector Pinouts

Page 52

IEI® Technology, Corp.

3.2.9 Inverter Power Connector

KINO-LX Motherboard

CN Label:

CN Type: 5-pin wafer

CN Location:

CN Pinouts:

The inverter connector is connected to the LCD backlight.

CN12

See Figure 3-10

See Table 3-12

Figure 3-10: Inverter Connector Locations

PIN DESCRIPTION

1 ADJ (Def : GND)

2 GND

3 +12V

4 GND

5 BL_EN

Table 3-12: Inverter Power Connector Pinouts

Page 53

3.2.10 Keyboard/Mouse Connector

KINO-LX Motherboard

CN Label:

CN Type: 6-pin wafer

CN Location:

CN Pinouts:

For alternative applications, an on board keyboard/mouse pin header connector is also

available.

CN2

See Figure 3-11

See Table 3-13

Figure 3-11: Keyboard/Mouse Connector Location

PIN DESCRIPTION

1 +5V

2 MSDATA

3 MSCLK

4 KBDATA

5 KBCLK

6 GND

Table 3-13: Keyboard/Mouse Connector Pinouts

Page 54

IEI® Technology, Corp.

3.2.11 LCD LVDS Connector

KINO-LX Motherboard

CN Label:

CN Type: 20-pin crimp connector

CN Location:

CN Pinouts:

The LCD LVDS connector is connected to a LCD LVDS display device.

CN13

See Figure 3-12

See Table 3-14

Figure 3-12: LCD LVDS Connector Locations

Page 55

KINO-LX Motherboard

PIN DESCRIPTION PIN DESCRIPTION

2 GND 1 GND

4 D0- 3 D0+

6 D1- 5 D1+

8 D2- 7 D2+

10 CLK- 9 CLK+

12 NC 11 NC

14 GND 13 GND

16 SCL 15 SDA

18 LCD_VCC 17 LCD_VCC

20 LCD_VCC 19 LCD_VCC

Table 3-14: LCD LVDS Connector Pinouts

Page 56

IEI® Technology, Corp.

3.2.12 LCD TTL Connector

KINO-LX Motherboard

CN Label:

CN Type: 40-pin crimp connector

CN Location:

CN Pinouts:

The LCD TTL connector is connected to a LCD TTL display device.

CN11

See Figure 3-13

See Table 3-15

Figure 3-13: LCD TTL Connector Locations

Page 57

KINO-LX Motherboard

PIN DESCRIPTION PIN DESCRIPTION

2 LCD_VCC 1 LCD_VCC

4 GND 3 GND

6 LCD_VCC 5 LCD_VCC

8 GND 7 SDA

10 B1 9 B0

12 B3 11 B2

14 B5 13 B4

16 B7 15 B6

18 G1 17 G0

20 G3 19 G2

22 G5 21 G4

24 G7 23 G6

26 R1 25 R0

28 R3 27 R2

30 R5 29 R4

32 R7 31 R6

34 GND 33 GND

36 VSYNC 35 CLK

38 HSYNC 37 LCD_EN

40 DISP_EN 39 SCL

Table 3-15: LCD TTL Connector Pinouts

3.2.13 PCI Slot

CN Label:

CN Type: PCI slot

CN Location:

CN20

See Figure 3-14

The PCI slot enables a PCI expansion module to be connected to the board.

Page 58

CN Pinouts:

See Table 3-16

IEI® Technology, Corp.

KINO-LX Motherboard

Figure 3-14: PCI Slot Location

PIN DESCRIPTION PIN DESCRIPTION

A1 TRST B1 -12V

A2 +12V B2 TCK

Page 59

KINO-LX Motherboard

PIN DESCRIPTION PIN DESCRIPTION

A3 TMS B3 GND

A4 TDI B4 TDO

A5 +5V B5 +5V

A6 INTA B6 +5V

A7 INTC B7 INTB

A8 +5V B8 INTD

A9 RESERVED3 B9 PRSNT1

A10 +5V B10 RESERVED1

A11 RESERVED4 B11 PRSNT2

A12 GND B12 GND

A13 GND B13 GND

A14 3.3V_AUX B14 RESERVED2

A15 RST B15 GND

A16 +5V B16 CLK

A17 GNT B17 GND

A18 GND B18 REQ

A19 PME B19 +5V

A20 AD30 B20 AD31

A21 +3.3V B21 AD29

A22 AD28 B22 GND

A23 AD26 B23 AD27

A24 GND B24 AD25

A25 AD24 B25 +3.3V

A26 IDSEL B26 C/BE3

A27 +3.3V B27 AD23

A28 AD22 B28 GND

A29 AD20 B29 AD21

A30 GND B30 AD19

A31 AD18 B31 +3.3V

A32 AD16 B32 AD17

A33 +3.3V B33 C/BE2

A34 FRAME B34 GND

Page 60

IEI® Technology, Corp.

KINO-LX Motherboard

PIN DESCRIPTION PIN DESCRIPTION

A35 GND B35 IRDY

A36 TRDY B36 +3.3V

A37 GND B37 DEVSEL

A38 STOP B38 GND

A39 +3.3V B39 LOCK

A40 SDONE B40 PERR

A41 SBO B41 +3.3V

A42 GND B42 SERR

A43 PAR B43 +3.3V

A44 AD15 B44 C/BE1

A45 +3.3V B45 AD14

A46 AD13 B46 GND

A47 AD11 B47 AD12

A48 GND B48 AD10

A49 AD9 B49 GND

A52 C/BE0 B52 AD8

A53 +3.3V B53 AD7

A54 AD6 B54 +3.3V

A55 AD4 B55 AD5

A56 GND B56 AD3

A57 AD2 B57 GND

A68 AD0 B68 AD1

A59 +5V B59 +5V

A60 REQ64 B60 ACK64

A61 +5V B61 +5V

A62 +5V

B62 +5V

Table 3-16: PCI Slot

Page 61

3.2.14 RS-232/422/485 Serial Port Connector

KINO-LX Motherboard

CN Label:

CN Type: 2x7 pin header

CN Location:

CN Pinouts:

The CN10 serial port connector connects to an RS-232 or RS-485 serial port devices.

CN10

See Figure 3-15

See Table 3-17

Figure 3-15: RS-232/422/485 Serial Port Connector Pinout Locations

PIN DESCRIPTION PIN DESCRIPTION

1 DCD# 2 DSR#

3 RxD 4 RTS#

5 TxD 6 CTS#

7 DTR# 8 RI# / Vout

9 GND 10 GND

11 TxD485+ 12 TxD485-

13 RxD485+ 14 RxD485-

Table 3-17: RS-232/422/485 Serial Port Connector Pinouts

Page 62

IEI® Technology, Corp.

3.2.15 RS-232 COM Serial Port Connector

KINO-LX Motherboard

CN Label:

CN Type: 10-pin header (2x5)

CN Location:

CN Pinouts:

The COM3, COM4, COM5 and COM6 serial port connectors connect to RS-232 serial port

devices.

COM3, COM4, COM5 and COM6

See Figure 3-16

See Table 3-18

Figure 3-16: RS-232 Serial Port Connector Pinout Locations

Page 63

PIN DESCRIPTION PIN DESCRIPTION

1 DCD 6 DSR

2 RXD 7 RTS

3 TXD 8 CTS

4 DTR 9 RI

5 GND 10 GND

Table 3-18: RS-232 Serial Port Connector Pinouts

3.2.16 SATA Drive Connectors

KINO-LX Motherboard

CN Label:

CN Type: 1x7 pin SATA drive connectors

CN Location:

CN Pinouts:

The two SATA drive connectors are connected to two first generation SATA drives. First

generation SATA drives transfer data at speeds as high as 150Mb/s.

CN30 and CN31

See Figure 3-17

See Table 3-19

Figure 3-17: SATA Drive Connector Pinout Locations

Page 64

IEI® Technology, Corp.

KINO-LX Motherboard

PIN DESCRIPTION

1 GND

2 TX+

3 TX-

4 GND

5 RX-

6 RX+

7 GND

Table 3-19: SATA Drive Connector Pinouts

3.3 External Peripheral Interface Connector Panel

Figure 3-18 shows the KINO-LX external peripheral interface connector panel. The

peripheral connectors are connected to external devices when the KINO-LX is installed in

a chassis. The peripheral connectors on the panel are:

 1 x PS/2 keyboard and mouse connector

 1 x Serial port connector

 1 x Parallel port connector

 1 x VGA connector

 2 x RJ-45 GbE connector

 4 x USB connectors

 1 x Audio connector (two audio jacks)

Figure 3-18: KINO-LX External Peripheral Interface Connector Panel

Page 65

3.3.1 Keyboard/Mouse Connector

KINO-LX Motherboard

CN Label:

CN Type: Dual PS/2

CN Location:

CN Pinouts:

The KINO-LX keyboard and mouse connectors are standard PS/2 connectors.

CN8

See Figure 3-18 (labeled number 1)

See Figure 3-19 and Table 3-20

Figure 3-19: Keyboard/Mouse Connector Pinouts

PIN DESCRIPTION PIN DESCRIPTION

1 L_KDAT 7 L_MDAT

2 NC 8 NC

3 GND 9 GND

4 5V 10 5V

5 L_KCLK 11 L_MCLK

6 NC 12 NC

Table 3-20: Keyboard/Mouse Connector Pinouts

Page 66

IEI® Technology, Corp.

3.3.2 Serial Port Connector

KINO-LX Motherboard

CN Label:

CN Type: D-sub 9 male connector

CN Location:

CN Pinouts:

The KINO-LX has an RS-232 serial port on the external peripheral interface connector

panel.

CN3

See Figure 3-18 (labeled number 2)

See Figure 3-20 and Table 3-21

Figure 3-20: Serial Port Connector

Serial port connector (COM1) pinouts are shown below.

PIN Description PIN Description

1 DCD1 6 DSR1

2 RXD1 7 RTS1

3 TXD1 8 CTS1

4 DTR1 9 RI1

5 GROUND

Table 3-21: Serial Port Connector Pinouts

Page 67

3.3.3 Parallel Port Connector

KINO-LX Motherboard

CN Label:

CN5

CN Type: DB-25 female connector

CN Location:

CN Pinouts:

See Figure 3-18 (labeled number 3)

See Figure 3-21 and Table 3-22

The KINO-LX has one parallel port on the external peripheral interface connector panel to

connect to a printer or other parallel communication devices.

Figure 3-21 Parallel Port Connector Pinout Locations

PIN DESCRIPTION PIN DESCRIPTION

1 STB# 14 AFD#

2 PD0 15 ERR#

3 PD1 16 INIT#

4 PD2 17 SLIN#

5 PD3 18 GND

6 PD4 19 GND

7 PD5 20 GND

8 PD6 21 GND

9 PD7 22 GND

10 ACK# 23 GND

11 BUSY 24 GND

12 PE 25 GND

13 SLCT

Table 3-22: Parallel Port Pinouts

Page 68

IEI® Technology, Corp.

3.3.4 VGA connector

KINO-LX Motherboard

CN Label:

CN4

CN Type: HD-D-sub 15 female connector

CN Location:

CN Pinouts:

See Figure 3-18 (labeled number 4)

See Figure 3-22 and Table 3-23

A 15-pin VGA connector connects to standard displays.

Figure 3-22: VGA Connector

PIN DESCRIPTION PIN DESCRIPTION

1 RED 9 NC

2 GREEN 10 GROUND

3 BLUE 11 NC

4 NC 12 DDCDAT

5 GROUND 13 HSYNC

6 GROUND 14 VSYNC

7 GROUND 15 DDCCLK

8 GROUND

Table 3-23: VGA Connector Pinouts

Page 69

3.3.5 LAN Connectors

KINO-LX Motherboard

CN Label:

CN Type: RJ-45

CN Location:

CN Pinouts:

The KINO-LX is equipped with two built-in GbE Ethernet controllers. The controllers can

connect to the LAN through two RJ-45 LAN connectors. There are two LEDs on the

connector indicating the status of LAN. The pin assignments are listed in the following

table:

PIN DESCRIPTION PIN DESCRIPTION

1 +2.5VCC 2 TX0+

3 TX0- 4 TX1+

5 TX1- 6 TX2+

7 TX2- 8 TX3+

CN6 and CN7

See Figure 3-18 (labeled number 5 and 6)

See Table 3-24

9 TX3- 10 GND

11 LINK- 12 LINK+

13 ACTIVE- 14 ACTIVE+

Table 3-24: LAN Pinouts

Figure 3-23: RJ-45Ethernet Connector

The RJ-45 Ethernet connector has two status LEDs, one green and one yellow

(Figure 3-23). The green LED indicates activity on the port and the yellow LED

indicates the port is linked. See Table 3-25.

Page 70

IEI® Technology, Corp.

STATUS DESCRIPTION STATUS DESCRIPTION

GREEN Activity YELLOW Linked

Table 3-25: RJ-45 Ethernet Connector LEDs

3.3.6 USB Connectors

KINO-LX Motherboard

CN Label:

CN6 and CN7

CN Type: USB port

CN Location:

CN Pinouts:

See Figure 3-18 (labeled number 5 and 6)

See Table 3-26

The KINO-LX has a four rear panel USB ports. These ports connect to both USB 2.0 and

USB 1.1 devices.

PIN DESCRIPTION PIN DESCRIPTION

1 USBV3L 5V 2 GND

3 USBP4N 4 USBP5P

5 USBP4P 6 USBP5N

7 GND 8 USBV3L 5V

Table 3-26: USB Port Pinouts

Page 71

3.3.7 Audio Connector

KINO-LX Motherboard

CN Label:

CN Type: 2 x audio jacks

CN Location:

CN Pinouts:

 Line Out port (Lime): Connects to a headphone or a speaker. With

multi-channel configurations, this port can also connect to front speakers.

 Microphone (Pink): Connects a microphone.

CN1

See Figure 3-18 (labeled number 7)

See Figure 3-24

Figure 3-24: Audio Connector

Page 72

IEI® Technology, Corp.

KINO-LX Motherboard

Chapter

4

4

Installation

Page 73

4.1 Anti-static Precautions

Electrostatic discharge (ESD) can cause serious damage to electronic components,

including the KINO-LX. (Dry climates are especially susceptible to ESD.) It is therefore

critical that whenever the KINO-LX (or any other electrical component) is handled, the

following anti-static precautions are strictly adhered to.

 Wear an anti-static wristband: - Wearing a simple anti-static wrist band can

help to prevent ESD from damaging the board.

 Self-grounding: - Before handling the board touch any grounded conducting

material. During the time the board is handled, frequently touch any

conducting materials that are connected to the ground.

4.2 Installation Considerations

KINO-LX Motherboard

NOTE:

The following installation notices and installation considerations should be

read and understood before the motherboard is installed. All installation

notices pertaining to the installation of the Motherboard should be strictly

adhered to. Failing to adhere to these precautions may lead to severe

damage of the motherboard and injury to the person installing the

motherboard.

4.2.1 Installation Notices

Before and during the installation of the KINO-LX motherboard, please do the following:

 Read the user manual

o The user manual provides a complete description of the KINO-LX

Page 74

motherboard, installation instructions and configuration options.

 Wear an electrostatic discharge cuff (ESD)

IEI® Technology, Corp.

KINO-LX Motherboard

o Electronic components are easily damaged by ESD. Wearing an ESD cuff

removes ESD from the user’s body and help to prevent ESD damage.

 Place the motherboard on an antistatic pad

o When the motherboard is installed and configured, place it on an

antistatic pad. This helps to prevent potential ESD damage.

 Turn off all power to the KINO-LX motherboard

o When working with the motherboard, make sure that it is disconnected

from all power supplies and that no electricity is being fed into the system.

Before and during the installation of the KINO-LX motherboard DO NOT:

 remove any of the stickers on the PCB board. These stickers are required for

warranty validation.

 use the product before all the cables and power connectors are properly

connected.

 allow screws to come in contact with the PCB circuit, connector pins, or its

components.

4.3 Unpacking

NOTE:

If any of the items listed below are missing when the KINO-LX is unpacked,

do not proceed with the installation and contact the reseller or vendor

motherboard was purchased from.

4.3.1 Unpacking Precautions

Some components on KINO-LX are very sensitive to static electricity and can be damaged

by a sudden rush of power. To protect it from being damaged during the unpacking

process, follow these precautions:

 Users should ground themselves to remove any static charge before touching

Page 75

Do not place a PCB on top of an anti-static bag. Only the inside of the bag is safe from

static discharge.

4.3.2 Checklist

When KINO-LX is unpacked please make sure the package contains the following items.

KINO-LX Motherboard

the KINO-LX. To ground themselves, users can wear a grounded wrist strap

at all times or frequently touching any conducting materials that is connected

to the ground.

 Handle the KINO-LX by its edges. Do not touch the IC chips, leads or circuitry

unnecessarily.

 1 x KINO-LX Single Board Computer

 1 x ATA66/100 Flat Cable

 2 x SATA Cable

 1 x SATA Power Cable

 1 x Dual RS-232 Cable

 1 x I/O Shielding

 1 x Mini Jumper Pack

 1 x Utility CD

 1 x QIG

If one or more of these items are missing, please contact the reseller or vendor KINO-LX

was purchased from and do not proceed any further with the installation.

4.4 KINO-LX Motherboard Installation

WARNING!

Please note that the installation instructions described in this manual should

Page 76

be carefully followed in order to avoid damage to the KINO-LX components

and injury to the user.

IEI® Technology, Corp.

KINO-LX Motherboard

WARNING!

When installing electronic components onto the KINO-LX always take

anti-static precautions in order to prevent ESD damage to the KINO-LX and

other electronic components like the CPU and DIMM modules

4.4.1 Preinstalled Components

The components listed below are preinstalled on the KINO-LX.

 CPU

4.4.2 Components to Install

To install the KINO-LX, the following components must be installed or connected to the

KINO-LX:

 DIMM modules

 Peripheral devices

4.4.3 DIMM Module Installation

4.4.3.1 Purchasing the Memory Module

When purchasing DIMM modules, the following considerations should be taken into

account: to 1GB of 333MHz or 400MHz of DDR memory

 The DIMM module can support a memory chip with a maximum size of 1GB

 The DIMM module can have a of 333MHz or 400MHz

 The DIMM can be either single-sided or dual-sided.

4.4.3.2 DIMM Module Installation

The KINO-LX motherboard has one DDR SDRAM DIMM socket. To install a DIMM

module, follow the instructions below and refer to Figure 4-1.

Step 1: Pull the two white handles on either side of the DIMM socket down.

Page 77

KINO-LX Motherboard

Step 2:

Step 3:

Align the DIMM module with the DIMM socket making sure the matching pins

are correctly aligned.

Insert the DIMM module slowly. Once it is correctly inserted, push down firmly.

The white handles on either side of the socket move back up and lock the

module into the socket. Step 0:

Figure 4-1: DIMM Module Installation

4.5 Peripheral Device Connection

Cables provided by IEI that connect peripheral devices to the board are listed in Table

4-1. Cables not included in the kit must be separately purchased.

Page 78

IEI® Technology, Corp.

KINO-LX Motherboard

Quantity

1

1

2

1

1

Table 4-1: IEI Provided Cables

Type

mini jumper pack

ATA 66/100 HDD cable

SATA cables

SATA power cable

Dual RS-232 cables

4.5.1 IDE Disk Drive Connectors (CN29 Primary, CN28 Secondary)

The cable used to connect the CPU card to an IDE HDD is a standard 40-pin ATA66/100

flat cable. Follow the instructions below to connect an IDE HDD to the CPU card.

Step 1:

Find the ATA66/100 flat cable in the kit that came with the CPU card.

Step 2:

Step 3:

Step 4:

Connect one end of the cable to the CN29 (Primary IDE) connector on the CPU

card. A keyed pin on the IDE connector prevents IT from being connected

incorrectly.

Locate the red wire on the cable that corresponds to the pin 1 connector.

Connect the cable to the HDD making sure that the pin 1 cable corresponds to

pin 1 on the connector.Step 0:

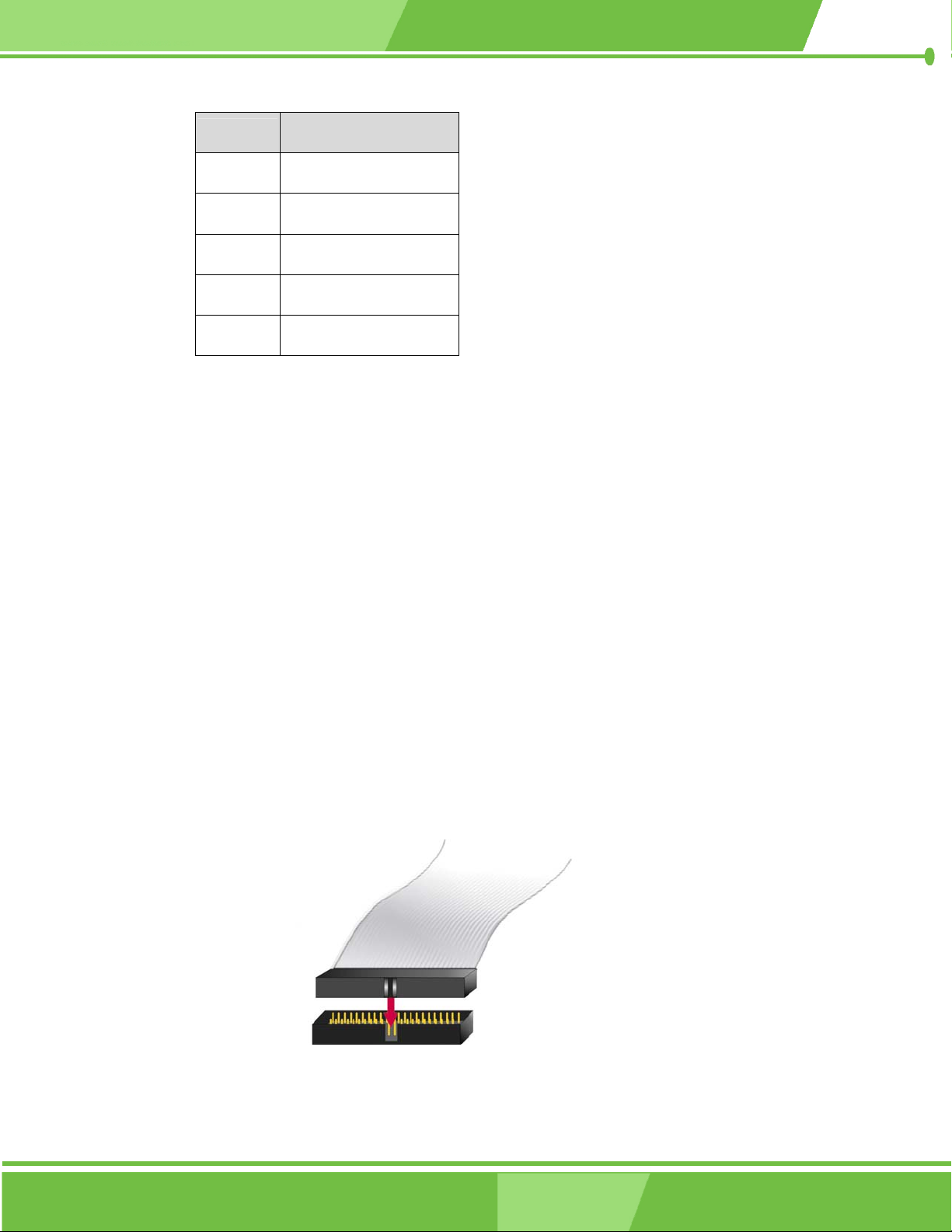

Figure 4-2: Connection of IDE1 Connector

Page 79

NOTE:

When two EIDE disk drives are connected together, back-end jumpers on

the drives must be used to configure one drive as a master and the other as

a slave.

4.5.2 COM3-COM6 RS-232 Serial Port Installation

The cable used to connect the motherboard to an RS-232 serial port is a 10-pin header to

male D-sub 9 connector. To connect an RS-232 serial port to the motherboard, follow the

KINO-LX Motherboard

instructions below.

Step 1:

Step 2:

Step 3:

Find the RS-232 cable in the kit that came with the motherboard.

Connect the 10-pin connector end of the cables to the COM3 to COM6 box

headers on the motherboard. Be sure to align the red wire on the connector to

pin 1 on the box header.

Connect the other end of the cables to standard female D-sub 9 connectors.

4.5.3 COM2 RS-232/485 Serial Port Installation

To connect an RS-232/485 serial port to the motherboard, follow the instructions below.

Step 1:

Connect the 14-pin connector end of an RS-422/485 serial port cable to the

CN10 connector on the motherboard.Step 0:

Step 0:

Page 80

NOTE:

Be sure to configure the JP2 COM2 RS232/RS485 Select Jumper for either an

RS-232 or RS-485 connection. Refer to Section 4.5 for more information.

IEI® Technology, Corp.

4.5.4 LCD Backlight Installation

To connect an LCD backlight (inverter) to the motherboard, follow the instructions below.

KINO-LX Motherboard

Step 1:

Connect the 5-pin connector end of the LCD backlight cable to the CN12 header

on the motherboard. A keyed pin on the connector prevents it from being

connected incorrectly.Step 0:

4.5.5 Power Connection

To connect the motherboard to a power supply, follow the instructions below.

Step 1:

Connect a 20-pin AT/ATX power connector from a power supply to the CN19

power connector on the motherboard. A keyed pin on the connector prevents it

from being connected incorrectly.Step 0:

4.5.6 LVDS LCD Installation

To connect a LVDS LCD to the motherboard, follow the instructions below.

Step 1:

Connect the 20-pin connector end of a TTL LCD cable to the CN13 miniature

crimping connector on the motherboard. A keyed pin on the connector prevents

it from being connected incorrectly.Step 0:

4.5.7 TTL LCD Installation

To connect a TTL LCD to the motherboard, follow the instructions below.

Step 1:

Connect the 40-pin connector end of a TTL LCD cable to the CN11 miniature

crimping connector on the motherboard. A keyed pin on the connector prevents

it from being connected incorrectly.Step 0:

Page 81

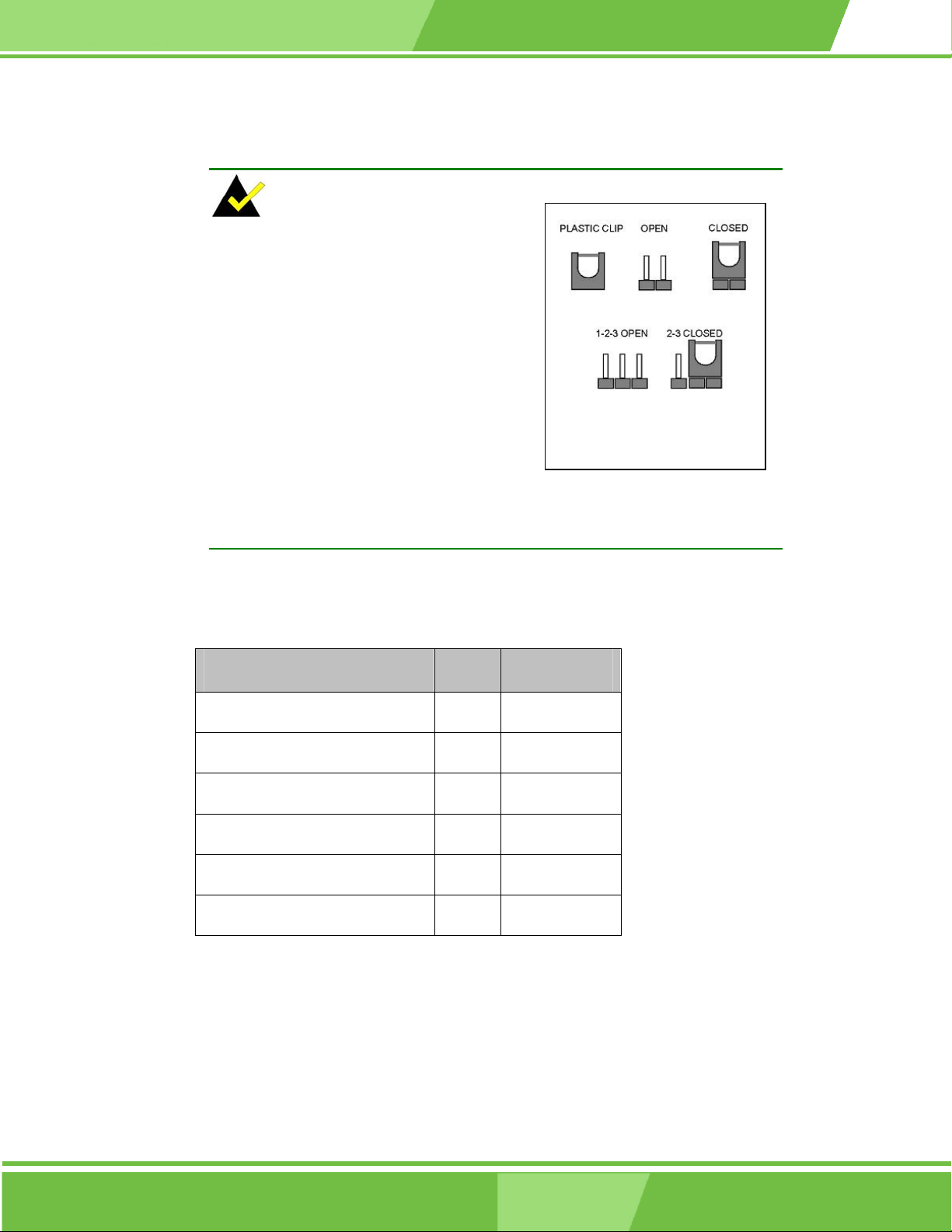

4.6 Jumper Settings

NOTE:

A jumper is a metal bridge that is used to

close an electrical circuit. It consists of

two metal pins and a small metal clip

(often protected by a plastic cover) that

slides over the pins to connect them. To

CLOSE/SHORT a jumper means

KINO-LX Motherboard

connecting the pins of the jumper with

the plastic clip and to OPEN a jumper

means removing the plastic clip from a

jumper.

Before the KINO-LX is installed in the system, the jumpers must be set in accordance with

the desired configuration. The KINO-LX motherboard has six on-board jumpers.

Description Label Type

Clear CMOS JP4 3-pin header

LCD voltage select JP3 3-pin header

COM2 RS-232/422/485 select JP2 6-pin header

COM1/2 RI and voltage select JP1 10-pin header

Jumper

LCD clock setup JP5 3-pin header

AT/ATX power mode select JP6 2-pin header

Figure 4-3 shows the KINO-LX jumper locations.

Page 82

Table 4-2: Jumpers

IEI® Technology, Corp.

Figure 4-3: Jumper Locations

4.6.1 Clear CMOS Jumper

KINO-LX Motherboard

Jumper Label:

Jumper Type: 3-pin header

Jumper Settings:

Jumper Location:

If the KINO-LX fails to boot due to improper BIOS settings, use this connector to clear the

CMOS data and reset the system BIOS information. To do this, use the jumper cap to

close pins 2 and 3 for a few seconds then reinstall the jumper clip back to pins 1 and 2.

If the “CMOS Settings Wrong” message is displayed during the boot up process, the fault

may be corrected by pressing the F1 to enter the CMOS Setup menu. Do one of the

following:

 Enter the correct CMOS setting

 Load Optimal Defaults

 Load Failsafe Defaults.

JP4

See Tabl e 4-3

See Figure 4-3

After having done one of the above, save the changes and exit the CMOS Setup menu.

Page 83

Clear CMOS DESCRIPTION

Short 1 - 2 (Default) Keep CMOS Setup

Short 2 - 3 Clear CMOS Setup

Table 4-3: Clear CMOS Jumper Settings

4.6.2 LCD Voltage Select Jumper

WARNING:

Making the wrong setting on this jumper may cause irreparable damage to

both the motherboard and the LCD screen connected to the on-board

KINO-LX Motherboard

connector.

Jumper Label:

Jumper Type: 3-pin header

Jumper Settings:

Jumper Location:

This jumper allows the user to set the voltage for the LCD panel. Before setting this jumper

please refer to the LCD panel user guide to determine the required voltage. After the

required voltage is known, make the necessary jumper setting in accordance with the

settings shown in Table 4-4.

JP3 DESCRIPTION

Short 1-2 (Default) Panel Voltage select 3V

JP3

See Tabl e 4-4

See Figure 4-3

Page 84

Short 2-3 Panel Voltage select 5V

Table 4-4: LCD Voltage Setup Jumper Settings

IEI® Technology, Corp.

4.6.3 COM2 RS-232/422/485 Select

KINO-LX Motherboard

Jumper Label:

Jumper Type: 6-pin header

Jumper Settings:

Jumper Location:

The RS-232/422/485 select jumper sets the communication protocol used by the second

serial communications port (COM2) as RS-232, RS-422 or RS-485.

JP2 DESCRIPTION

Short 1-2 RS-232

Short 3-4 RS-422

Short 5-6 RS-485

Table 4-5: COM2 RS-232/422/485 Select Settings

JP2

See Tabl e 4-5

See Figure 4-3

4.6.4 COM1/2 RI and Voltage Select Jumper

Jumper Label:

Jumper Type: 10-pin header

Jumper Settings:

Jumper Location:

This jumper allows the user to set the voltage for pin 9 on COM1 or COM2. Pin 9 is

traditionally a ring line but this jumper can set pin 9 to supply 5V or 12V power to a serial

device connected to COM1 or COM2. Make the necessary jumper setting in accordance

with the settings shown in Table 4-6.

JP1

See Tabl e 4-6

See Figure 4-3

Page 85

JP1 DESCRIPTION

1-3 COM1 RI Pin Use +12V

3-5 COM1 RI Pin Use +5V

7-9 COM1 RI Pin Use RI

2-4 COM2 RI Pin Use +12V

4-6 COM2 RI Pin Use +5V

8-10 COM2 RI Pin Use RI

Table 4-6: COM2 Voltage Setup Jumper Settings

4.6.5 LCD Clock Jumper

Jumper Label: JP5

KINO-LX Motherboard

Jumper Type: 3-pin header

Jumper Settings:

Jumper Location:

See Tabl e 4-7

See Figure 4-3

The LCD clock jumper sets the LCD panel shift clock.

JP5 Description

1-2 Inverted Output (Default)

2-3 Normal Output

Table 4-7: LCD Clock Jumper Settings

4.6.6 AT/ATX Power Mode Select Jumper

Jumper Label: JP6

Jumper Type: 2-pin header

The AT/ATX power mode select jumper block controls the connection to a power supply.

Page 86

Jumper Settings:

Jumper Location:

See Tabl e 4-8

See Figure 4-3

IEI® Technology, Corp.

KINO-LX Motherboard

The AT/ATX power connector is used to connect a chassis power On/Off button using an

adapter cable and is configured through the JP6 jumper. The AT/ATX power connector

has two operational modes:

1. Using ATX power: AT/ATX power connects to an externally implemented power

switch, and the JP6 jumper should be left open.

2. Using AT power: The pins on JP6 are shorted by a jumper cap. JP6 should be

shorted by default as the AMD Southbridge is designed without the consideration

for a power button signal. The shorted JP6 provides a hardware feedback to

initiate the system. The power on/off function is then managed by the AT power

switch button.

JP6 Description

Short AT Mode (Default)

Open ATX Mode

Table 4-8: AT/ATX Power Mode Select Jumper Settings

4.7 Chassis Installation

After the DIMM modules have been installed and after the internal peripheral connectors

have been connected to the peripheral devices and the jumpers have been configured,

the KINO-LX can be mounted into chassis.

To mount a board into a chassis, please refer to the chassis user guide that came with the

product.

4.8 Rear Panel Connectors

4.8.1 Keyboard and Mouse Connection

A PS/2 keyboard and a PS/2 mouse can be connected to the appropriate PS/2 connector

on the rear panel.

Page 87

4.8.2 Serial Connection

The external peripheral interface connector panel serial connector provides easy and

quick access to external serial devices.

4.8.3 Parallel Connector

The external parallel port connector connects to a printer. The parallel port interface can

be re-assigned to LPT2 or LPT3 through the BIOS configuration utility. The default

interrupt channel is IRQ7. Select ECP or EPP DMA mode using the BIOS configuration

utility.

4.8.4 LCD Panel Connection

KINO-LX Motherboard

The conventional CRT monitor connector is a 15-pin, female D-SUB connector. It can be

connected to an external monitor.

4.8.5 Ethernet Connection

The rear panel RJ-45 connectors can be connected to an external LAN and communicate

with data transfer rates up to 10Mbps and 100Mbps.

4.8.6 USB Connection

The rear panel USB connectors provide easier and quicker access to external USB

devices. The rear panel USB connector is a standard connector and can easily be

connected to other USB devices.

4.8.7 Audio Interface

AC’97 Audio signals are interfaced through two phone jack connections. The red phone

jack is for Mic In and green is for Speaker Out.

Page 88

IEI® Technology, Corp.

KINO-LX Motherboard

Chapter

5

5

BIOS Settings

Page 89

5.1 Introduction

A licensed copy of Phoenix Award BIOS is preprogrammed into the ROM BIOS. The BIOS

setup program allows users to modify the basic system configuration. This chapter

describes how to access the BIOS setup program and the configuration options that may

be changed.

5.1.1 Starting Setup

The Phoenix Award BIOS is activated when the computer is turned on. The setup program

can be activated in one of two ways.

KINO-LX Motherboard

1. Press the D

2. Press the DELETE key when the “Press Del to enter SETUP” message

appears on the screen.

If the message disappears, restart the computer and try again.

ELETE key as soon as the system is turned on or

Page 90

IEI® Technology, Corp.

5.1.2 Using Setup

Use the arrow keys to highlight items, press ENTER to select, use the PAGEUP and

P

AGEDOWN keys to change entries, press F1 for help and press ESC to quit. Navigation

keys are shown below.

Key Function

Up arrow Move to the item above

Down arrow Move to the item below

Left arrow Move to the item on the left hand side

Right arrow Move to the item on the right hand side

+/Page up Increase the numeric value or make changes

-/Page down Decrease the numeric value or make changes

KINO-LX Motherboard

Esc Main Menu – Quit and do not save changes into CMOS

Status Page Setup Menu and Option Page Setup Menu --

Exit current page and return to Main Menu

F1 General help, only for Status Page Setup Menu and Option

Page Setup Menu

F2 Item help

F5 Previous values for the page menu items

F6 Fail-safe defaults for the current page menu items

F7 Optimized defaults for the current page menu items

F9 Menu in BIOS

F10 Save changes and Exit BIOS

Table 5-1: BIOS Navigation Keys

5.1.3 Getting Help

When F1 is pressed a small help window describing the appropriate keys to use and the

possible selections for the highlighted item appears. To exit the Help Window press E

the F1 key again.

SC or

Page 91

5.1.4 Unable to Reboot After Configuration Changes

If the system cannot be booted after changes are made, restore the CMOS defaults. The

CPU card should come with a restore CMOS settings jumper. Refer to Section 4.5.1 for

more information.

5.1.5 Main BIOS Menu

Once the BIOS opens, the main menu (BIOS Menu 1) appears.

KINO-LX Motherboard

BIOS Menu 1: AwardBIOS CMOS Setup Utility

NOTE:

The following sections will completely describe the menus listed below and

the configuration options available to users.

Page 92

IEI® Technology, Corp.

The following menu options are seen in BIOS Menu 1.

 Standard CMOS Features: Changes the basic system configuration.

 Advanced BIOS Features: Changes the advanced system settings.

 Advanced Chipset Features: Changes the chipset configuration features.

 Integrated Peripherals: Changes the settings for integrated peripherals.

 Power Management Setup: Configures power saving options.

 PnP/PCI Configurations: Changes the advanced PCI/PnP settings.

 PC Health Status: Monitors essential system parameters.

The following user configurable options are also available in BIOS Menu 1:

 Load Fail-Safe Defaults

KINO-LX Motherboard

Select this option to load failsafe default values for each BIOS parameter in the setup

menus. Press F6 for this operation on any page.

 Load Optimized Defaults

Select this option to load optimal default values for each BIOS parameter in the setup

menus. Press F7 for this operation on any page.

 Set Supervisor Password

By default, no supervisor password is set. To install a supervisor password, select this

field and enter the password. After this option is selected, a red dialogue box appears with

“Enter Password: ”. Type the password and press E

into the “Confirm Password: ” dialogue box and press E

simply press E

NTER in the “Enter Password: ” dialogue box, then press any key in the

NTER. Retype the original password

NTER. To disable the password,

“Password Disabled !!!” dialogue box.

 Set User Password

By default no user password is set. To install a user password, select this field and enter

the password. After this option is selected, a red dialogue box appears with “Enter

Password: ”. Type the password and press E

“Confirm Password: ” dialogue box and press E

NTER. Retype the original password into the

NTER. To disable the password, simply

Page 93

press ENTER in the “Enter Password: ” dialogue box, then press any key in the

“Password Disabled !!!” dialogue box.

 Save & Exit Setup

Select this option to save any configuration changes made and exit the BIOS menus.

 Exit Without Saving

Select this option exit the BIOS menus without saving any configuration changes.

5.2 Standard CMOS Features

Use the Standard CMOS Features BIOS menu (BIOS Menu 2) to set basic BIOS

configuration options.

KINO-LX Motherboard

BIOS Menu 2: Standard CMOS Features

 Date [Day mm:dd:yyyy]

The Date option sets the system date.

 Time [hh/mm/ss]

The Time option sets the system time.

Page 94

IEI® Technology, Corp.

 IDE Master and IDE Slave

When entering setup, BIOS auto detects the presence of IDE devices. The Standard

CMOS Features menu shows the status of the auto detected IDE devices. The following

IDE devices are detected and shown in the Standard CMOS Features menu:

 IDE Primary Master

 IDE Primary Slave

IDE device configurations are changed or set in the IDE Configuration menu (BIOS Menu

3). If an IDE device is detected, and one of the above listed two BIOS configuration

options is selected, the IDE configuration options shown in Section 5.2.1 appear.

 Drive A [1.44M, 3.5in]

KINO-LX Motherboard

Use the Drive A configuration to specify the floppy drive type installed in the system. The

floppy drive configuration options are:

 None

 360K, 5.25 in.

 1.2M, 5.25 in.

 720K, 3.5 in.

 1.44M, 3.5in (Default)

 2.88M, 3.5 in.

 Drive B [None]

Use the Drive B configuration to specify the floppy drive type installed in the system. The

floppy drive configuration options are:

 None (Default)

 360K, 5.25 in.

 1.2M, 5.25 in.

 720K, 3.5 in.

 1.44M, 3.5in

 2.88M, 3.5 in.

Page 95

 Halt On [All, But Keyboard]

Use the Halt On option to specify what errors detected during the power up process stop

the system.

KINO-LX Motherboard



All Errors



No Errors



All, But Keyboard



All, But Diskette



All, But Disk/Key

 Base Memory:

The Base Memory is NOT user configurable. The POST determines the amount of base

Whenever BIOS detects a non-fatal error the

system is stopped and the user prompted.

The system boot is not stopped for any errors

that may be detected.

(Default) The system boot does not stop for a keyboard

error; it stops for all other errors.

The system boot does not stop for a disk

error; it stops for all other errors.

The system boot does not stop for a keyboard

or a disk error; it stops for all other errors.

(or conventional) memory installed in the system. The value of the base memory is

typically 512K for systems with 512K memory installed, or 640K for systems with 640K or

more memory installed.

 Extended Memory

The Extended Memory is NOT user configurable. The BIOS determines how much

extended memory is present during the POST. This is the amount of memory above 1MB

located in the memory address map of the CPU.

 Total Memory

The Total Memory is NOT user configurable.

Page 96

IEI® Technology, Corp.

5.2.1 IDE Primary Master/Slave

Use the IDE Primary Master/Slave menu (BIOS Menu 3) to set or change the

master/slave IDE configurations.

KINO-LX Motherboard

BIOS Menu 3: IDE Primary Master

 IDE HDD Auto-Detection [Press Enter]

Use the IDE HDD Auto-Detection option to enable BIOS to automatically detect the IDE

settings. Select IDE HDD Auto-Detection and press E

the HDD type. Do not set this option manually.

 IDE Primary Master [Auto]

Use the IDE Primary Master option to activate or deactivate the following drive channels:

 Channel 0 Master

 Channel 0 Slave

 Channel 1 Master

 Channel 0 Slave

NTER. BIOS automatically detects

Page 97

KINO-LX Motherboard



None



Auto



Manual

 Access Mode [Auto]

The Access Mode option can only be configured if the IDE Primary Master is set to

either Manual or Auto. Use the Access Mode option to determine the hard disk BIOS

translation modes. Most systems now use hard drives with large capacities and therefore

If no drives are connected to the IDE channel select this

option. Once set, this IDE channel becomes

inaccessible and any drives attached to it are

undetected.

(Default) Setting this option allows the device to be automatically

detected by the BIOS.

Selecting this option allows manual configuration of the

device on the IDE channel in BIOS.

either the LBA translation mode or auto mode should be selected.



CHS



LBA



Large



Auto

 Capacity

Select this mode if the HDD capacity is less than

504MB.

Select this mode if the HDD capacity is more than

8.4GB.

This mode is an extended ECHS mode and while it

supports HDDs larger than 504MB, it is not

recommended.

(Default) If you are unsure of what access mode to set, select this

option.

The Capacity specification indicates the storage capacity of the HDD installed in the

system.

Page 98

IEI® Technology, Corp.

 Cylinder

The Cylinder specification indicates how many cylinders (tracks) are on the HDD installed

in the system.

 Head

The Head specification indicates how many logical heads are on the HDD installed in the

system.

 Precomp

The Precomp specification indicates on what track the write precompensation begins.

 Landing Zone

KINO-LX Motherboard

The Landing Zone specification indicates where the disk head will park itself after the

system powers off.

 Sector

The Sector specification indicates how many logical sectors the HDD has been divided

into.

Page 99

5.3 Advanced BIOS Features

CPU and peripheral device configuration options are accessed in the Advanced BIOS

Features menu (BIOS Menu 4).

KINO-LX Motherboard

BIOS Menu 4: Advanced BIOS Features

 Virus Warning [Disabled]

NOTE:

Many disk diagnostic programs can cause the above warning message to

appear when the program attempts to access the boot sector table. If you

are running such a program, it is recommended that the virus protection

function be disabled beforehand.

Use the Virus Warning option to enable BIOS to monitor the boot sector and partition

table of the HDD for any attempted modification. If a modification attempt is made, the

BIOS halts the system and an error message appears. If necessary, an anti-virus program

can then be run to locate and remove the virus before any damage is done.

Page 100

IEI® Technology, Corp.
