IEI Technology KINO-G45A User Manual

Download
Page 1
KINO-G45A Mini-ITX Motherboard
IEI Technology Corp.
MODEL:
KINO-G45A
Mini-ITX LGA775 Motherboard for Intel® Core™2
HDMI, LAN, SATA, PCI, USB, HD Audio, RoHS Compliant
User Manual
Rev. 1.01 – 12 August, 2010
Page i
Page 2
Date Version Changes
12 August, 2010 1.01 Minor edit
10 July, 2009 1.00 Initial release
KINO-G45A Mini-ITX Motherboard
Revision
Page ii
Page 3
KINO-G45A Mini-ITX Motherboard
COPYRIGHT NOTICE
The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer.
In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.
This document contains proprietary information protected by copyright. All rights are
Copyright
reserved. No part of this manual may be reproduced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer.
TRADEMARKS
All registered trademarks and product names mentioned herein are used for identification purposes only and may be trademarks and/or registered trademarks of their respective owners.
Page iii
Page 4
KINO-G45A Mini-ITX Motherboard
Table of Contents
1 INTRODUCTION.......................................................................................................... 1
1.1 INTRODUCTION........................................................................................................... 2
1.2 BENEFITS ................................................................................................................... 3
1.3 FEATURES................................................................................................................... 3
1.4 CONNECTORS ............................................................................................................. 4
1.5 DIMENSIONS............................................................................................................... 5
1.6 DATA FLOW................................................................................................................ 6
1.7 TECHNICAL SPECIFICATIONS ...................................................................................... 7
2 PACKING LIST............................................................................................................. 9
2.1 ANTI-STATIC PRECAUTIONS...................................................................................... 10
2.2 UNPACKING PRECAUTIONS....................................................................................... 10
2.3 PACKING LIST............................................................................................................11
2.4 OPTIONAL ITEMS...................................................................................................... 12
3 CONNECTORS ........................................................................................................... 13
3.1 PERIPHERAL INTERFACE CONNECTORS..................................................................... 14
3.1.1 KINO-G45A Layout......................................................................................... 14
3.1.2 Peripheral Interface Connectors ..................................................................... 14
3.1.3 External Interface Panel Connectors............................................................... 15
3.2 INTERNAL PERIPHERAL CONNECTORS ...................................................................... 16
3.2.1 ATX Power Connector ..................................................................................... 16
3.2.2 Battery Connector............................................................................................ 17
3.2.3 CPU Fan Connector........................................................................................ 18
3.2.4 CPU Power Input Connector........................................................................... 19
3.2.5 Digital I/O Connector...................................................................................... 19
3.2.6 Front Panel Connector.................................................................................... 20
3.2.7 Memory Card Slot............................................................................................ 21
3.2.8 PCI Card Slot................................................................................................... 22
3.2.9 SATA Drive Connectors ................................................................................... 23
3.2.10 S/PDIF Connector ......................................................................................... 23
Page iv
Page 5
KINO-G45A Mini-ITX Motherboard
3.2.11 SPI Flash Connector...................................................................................... 24
3.2.12 System Fan Connector................................................................................... 25
3.2.13 USB Connectors............................................................................................. 26
3.3 EXTERNAL PERIPHERAL INTERFACE CONNECTOR PANEL ......................................... 28
3.3.1 Audio Connector .............................................................................................. 28
3.3.2 DVI Connector................................................................................................. 29
3.3.3 HDMI Connector............................................................................................. 29
3.3.4 Keyboard/Mouse Connector............................................................................ 30
3.3.5 LAN Connector ................................................................................................ 31
3.3.6 Serial Port Connectors (COM1)...................................................................... 31
3.3.7 USB Connector ................................................................................................ 32
3.3.8 VGA Connector................................................................................................ 33
4 INSTALLATION ......................................................................................................... 34
4.1 ANTI-STATIC PRECAUTIONS...................................................................................... 35
4.2 INSTALLATION CONSIDERATIONS.............................................................................. 35
4.2.1 Socket LGA775 CPU Installation.................................................................... 37
4.2.2 Socket LGA775 Cooling Kit Installation ......................................................... 40
4.2.3 DIMM Installation........................................................................................... 42
4.3 JUMPER SETTINGS .................................................................................................... 43
4.3.1 AT/ATX Power Mode ....................................................................................... 43
4.3.2 Clear CMOS Jumper........................................................................................ 44
4.3.3 SATA Drive Connection ................................................................................... 45
4.3.4 USB Cable (Dual Port) with Slot Bracket ....................................................... 46
4.4 EXTERNAL PERIPHERAL INTERFACE CONNECTION................................................... 48
4.4.1 Audio Connector .............................................................................................. 48
4.4.2 DVI Display Device Connection...................................................................... 49
4.4.3 LAN Connection............................................................................................... 50
4.4.4 PS/2 Keyboard and Mouse Connection........................................................... 50
4.4.5 USB Connection (Dual Connector)................................................................. 51
4.4.6 VGA Monitor Connection ................................................................................ 52
4.5 SOFTWARE INSTALLATION ........................................................................................ 53
5 BIOS.............................................................................................................................. 55
5.1 INTRODUCTION......................................................................................................... 56
Page v
Page 6
KINO-G45A Mini-ITX Motherboard
5.1.1 Starting Setup................................................................................................... 56
5.1.2 Using Setup...................................................................................................... 56
5.1.3 Getting Help..................................................................................................... 57
5.1.4 Unable to Reboot After Configuration Changes.............................................. 57
5.1.5 BIOS Menu Bar................................................................................................ 57
5.2 MAIN........................................................................................................................ 58
5.3 ADVANCED............................................................................................................... 59
5.3.1 CPU Configuration.......................................................................................... 60
5.3.2 IDE Configuration........................................................................................... 61
5.3.2.1 IDE Master, IDE Slave............................................................................. 62
5.3.3 Super IO Configuration ................................................................................... 67
5.3.4 Hardware Health Configuration...................................................................... 69
5.3.5 AHCI Configuration......................................................................................... 72
5.3.5.1 AHCI Port n.............................................................................................. 73
5.3.6 Remote Access Configuration.......................................................................... 74
5.3.7 USB Configuration........................................................................................... 76
5.4 PCI/PNP................................................................................................................... 78
5.5 BOOT........................................................................................................................ 81
5.5.1 Boot Settings Configuration............................................................................. 81
5.5.2 Boot Device Priority........................................................................................ 84
5.5.3 Hard Disk Drives............................................................................................. 85
5.5.4 Removable Drives............................................................................................ 86
5.5.5 CD/DVD Drives............................................................................................... 86
5.6 SECURITY................................................................................................................. 87
5.7 CHIPSET ................................................................................................................... 88
5.7.1 Northbridge Configuration.............................................................................. 89
5.7.1.1 V ideo Function Configuration .................................................................. 91
5.7.2 Southbridge Configuration .............................................................................. 93
5.8 EXIT......................................................................................................................... 96
A BIOS OPTIONS .......................................................................................................... 98
B TERMINOLOGY...................................................................................................... 102
C DIGITAL I/O INTERFACE..................................................................................... 106
C.1 INTRODUCTION...................................................................................................... 107
Page vi
Page 7
KINO-G45A Mini-ITX Motherboard
C.2 DIO CONNECTOR PINOUTS.................................................................................... 107
C.3 ASSEMBLY LANGUAGE SAMPLES........................................................................... 107
C.3.1 Enable the DIO Input Function..................................................................... 107
C.3.2 Enable the DIO Output Function.................................................................. 107
D WATCHDOG TIMER.............................................................................................. 108
E COMPATIBILITY.....................................................................................................111
E.1 COMPATIBLE OPERATING SYSTEMS.........................................................................112
E.2 COMPATIBLE PROCESSORS ......................................................................................112
E.3 COMPATIBLE MEMORY MODULES...........................................................................113
F HAZARDOUS MATERIALS DISCLOSURE.........................................................114
F.1 HAZARDOUS MATERIALS DISCLOSURE TABLE FOR IPB PRODUCTS CERTIFIED AS
ROHS COMPLIANT UNDER 2002/95/EC WITHOUT MERCURY ......................................115
Page vii
Page 8
KINO-G45A Mini-ITX Motherboard
List of Figures
Figure 1-1: KINO-G45A...................................................................................................................2
Figure 1-2: Connectors ..................................................................................................................4

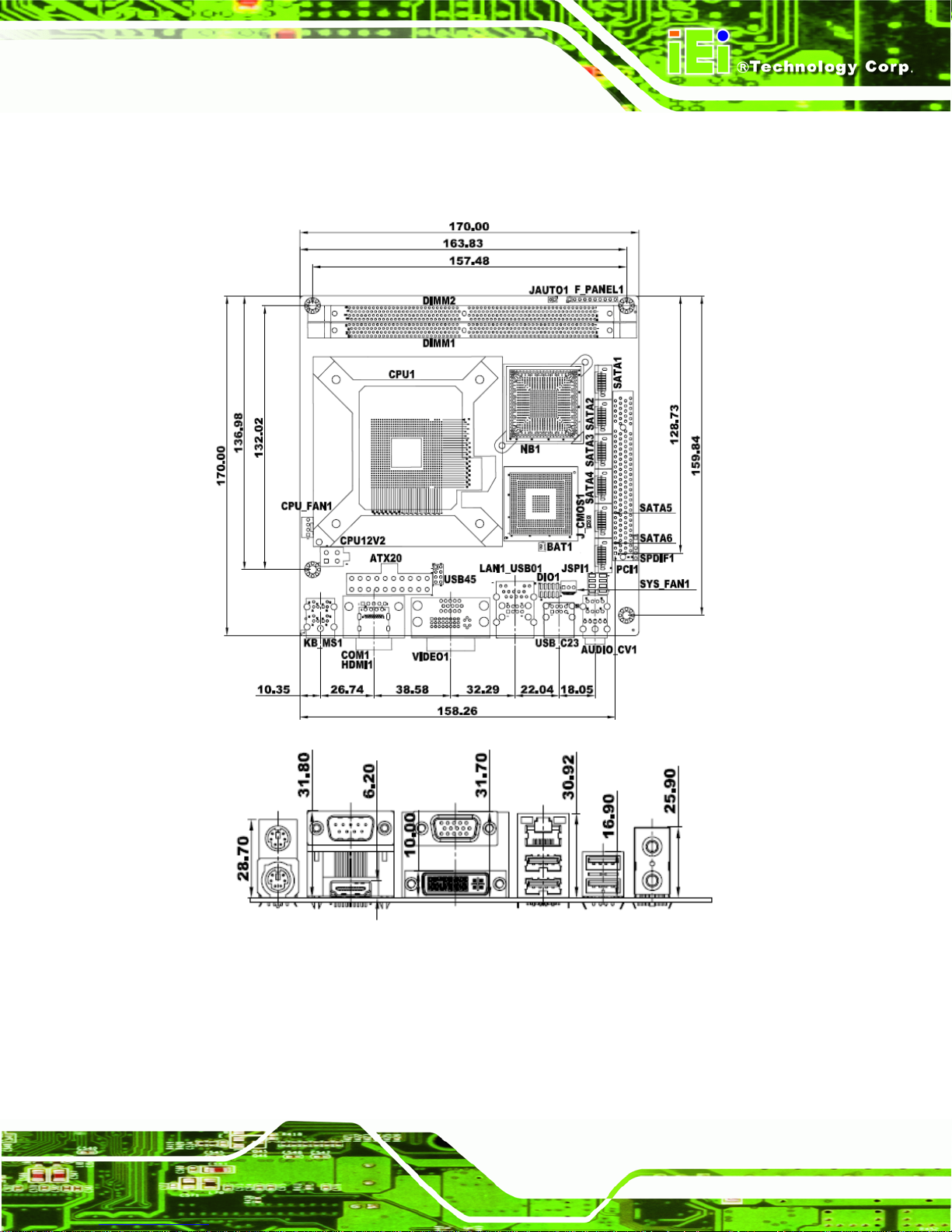

Figure 1-3: KINO-G45A Dimensions (mm)...................................................................................5

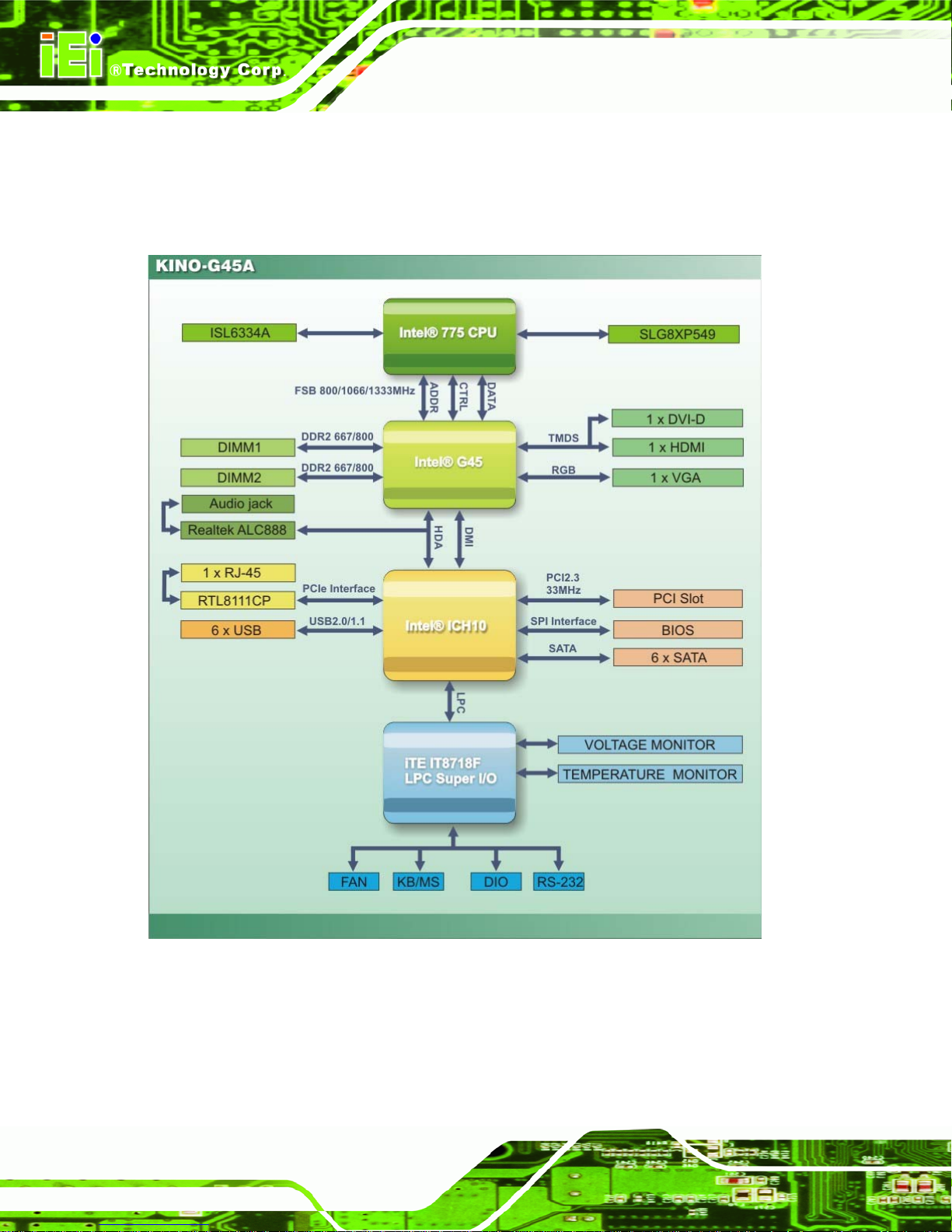

Figure 1-4: Data Flow Diagram......................................................................................................6
Figure 3-1: Connectors and Jumpers.........................................................................................14
Figure 3-2: ATX Power Connector Pinout Locations................................................................16
Figure 3-3: Battery Connector Location.....................................................................................17
Figure 3-4: CPU Fan Connector Location..................................................................................18
Figure 3-5: CPU Power Input Connector Location....................................................................19
Figure 3-6: Digital I/O Connector Locations ..............................................................................20
Figure 3-7: Front Panel Connector Location .............................................................................21
Figure 3-8: Memory Card Slot Location .....................................................................................22
Figure 3-9: PCI Card Slot Location.............................................................................................22
Figure 3-10: SATA Drive Connector Location...........................................................................23
Figure 3-11: SPDIF Connector Location ....................................................................................24

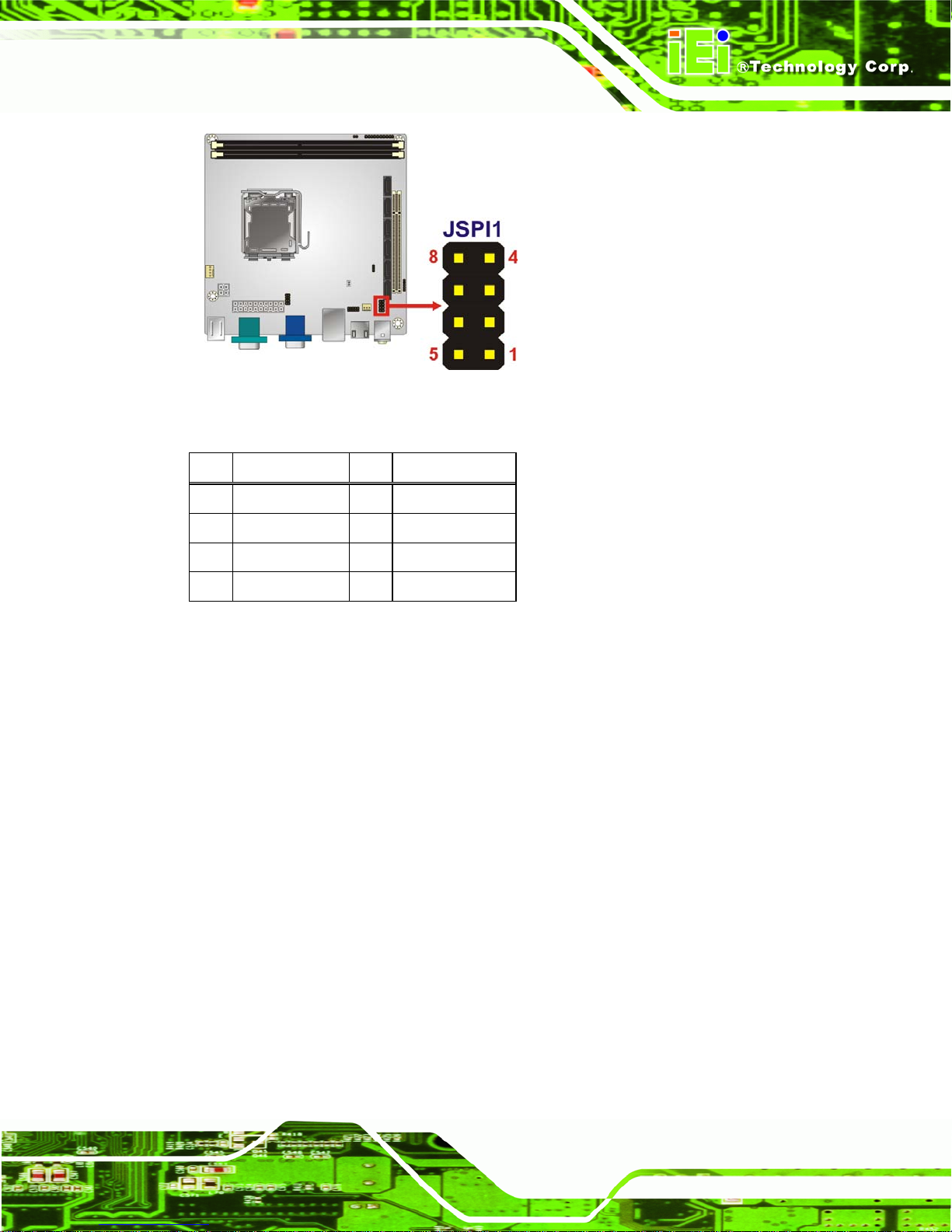

Figure 3-12: SPI Flash Connector...............................................................................................25
Figure 3-13: System Fan Connector Location...........................................................................26
Figure 3-14: USB Connector Pinout Locations.........................................................................27
Figure 3-15: External Peripheral Interface Connector..............................................................28
Figure 3-16: Audio Connector.....................................................................................................28
Figure 3-17: PS/2 Pinouts............................................................................................................30
Figure 3-18: Serial Port Pinouts..................................................................................................32
Figure 3-19: VGA Connector .......................................................................................................33
Figure 4-1: Intel LGA775 Socket .................................................................................................37
Figure 4-2: Remove Protective Cover.........................................................................................38
Figure 4-3: CPU Socket Load Plate.............................................................................................38
Figure 4-4: Insert the Socket LGA775 CPU................................................................................39

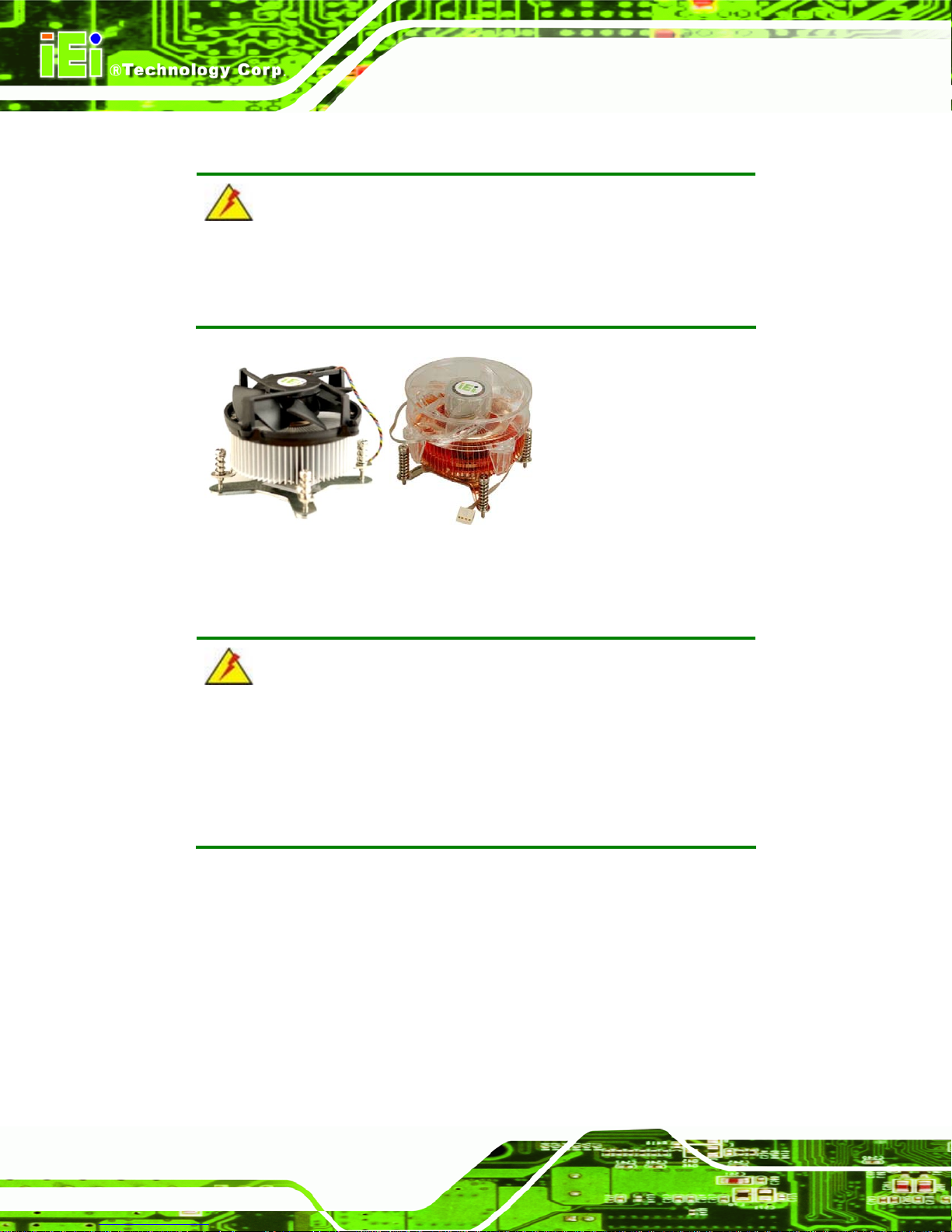

Figure 4-5: Cooling Kits (CF-520 and CF-775A) ........................................................................40
Figure 4-6: Securing the Heat sink to the KINO-G45A..............................................................41

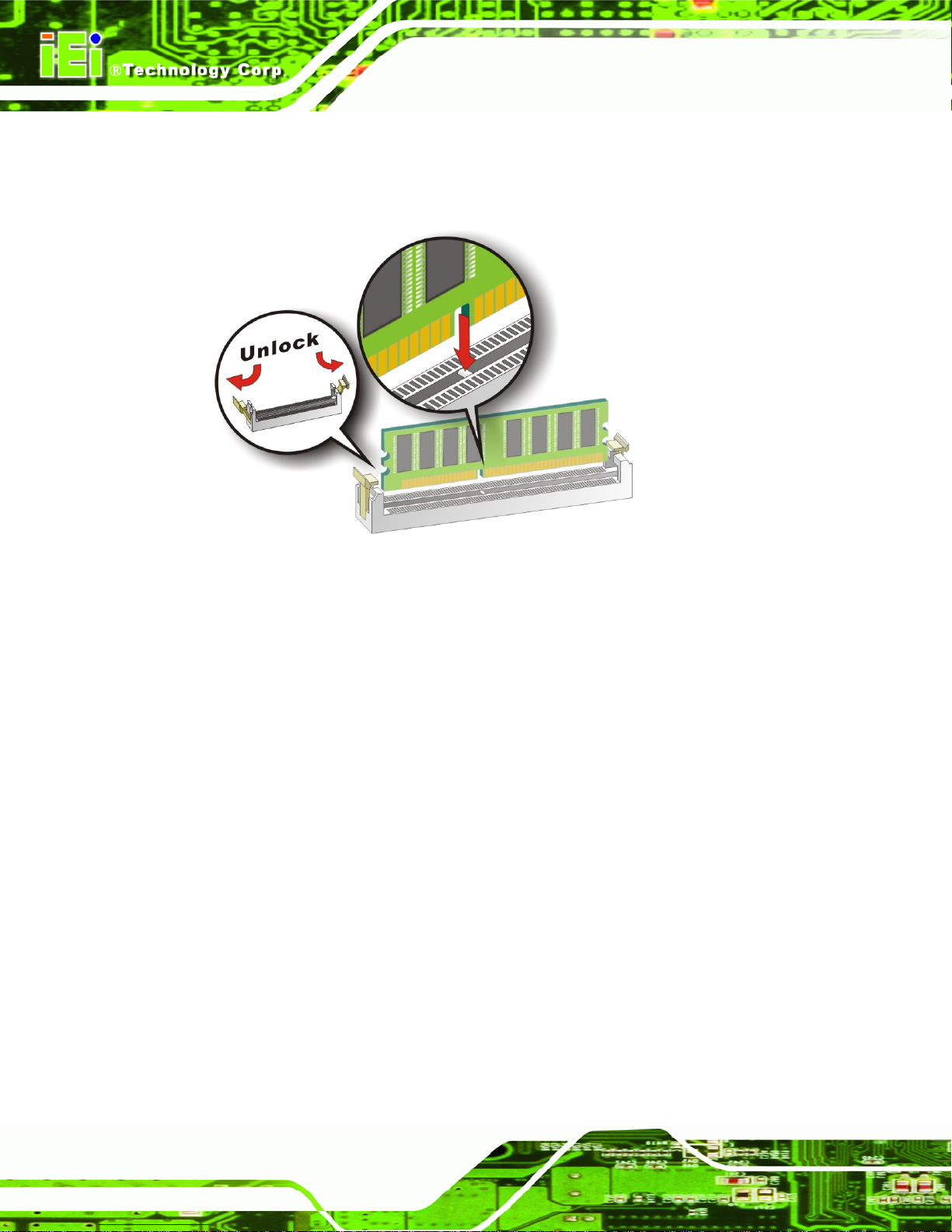

Figure 4-7: DIMM Installation.......................................................................................................42
Page viii
Page 9
KINO-G45A Mini-ITX Motherboard
Figure 4-8: AT/ATX Power Mode Jumper Location...................................................................44
Figure 4-9: Clear BIOS Jumper Location ...................................................................................45
Figure 4-10: SATA Drive Cable Connection...............................................................................45
Figure 4-11: SATA Power Drive Connection..............................................................................46
Figure 4-12: Dual USB Cable Connection..................................................................................47
Figure 4-13: Audio Connector.....................................................................................................48

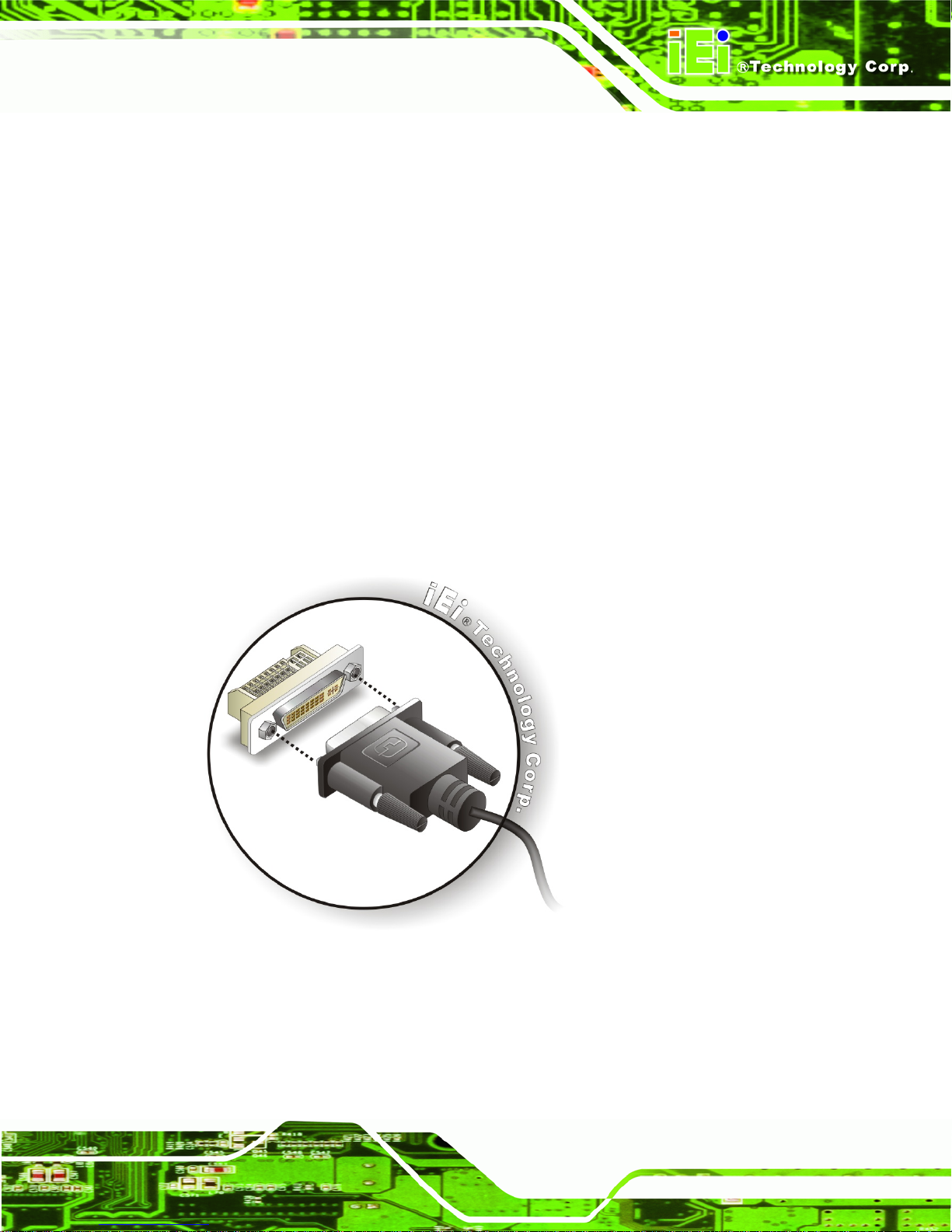

Figure 4-14: DVI Connector.........................................................................................................49

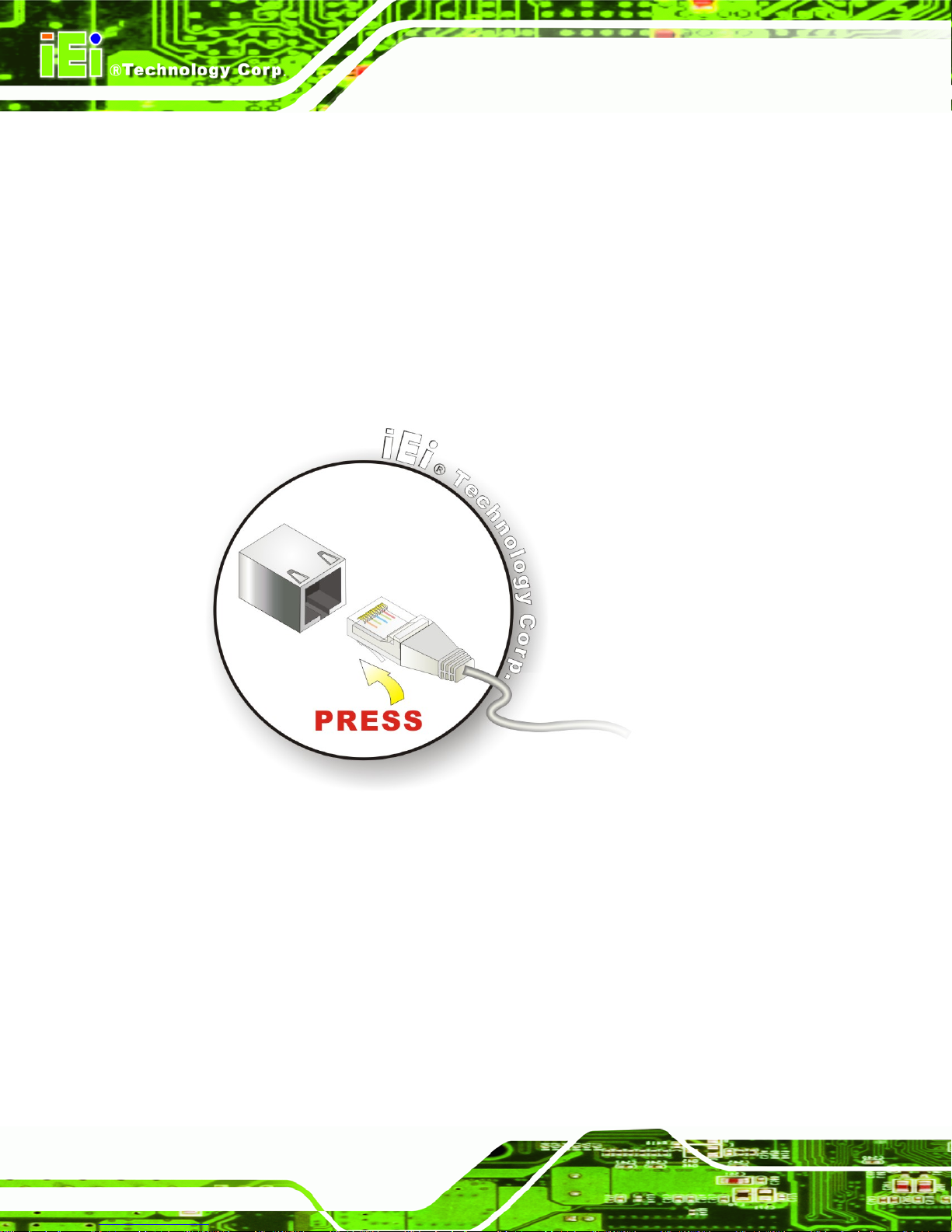

Figure 4-15: LAN Connection......................................................................................................50

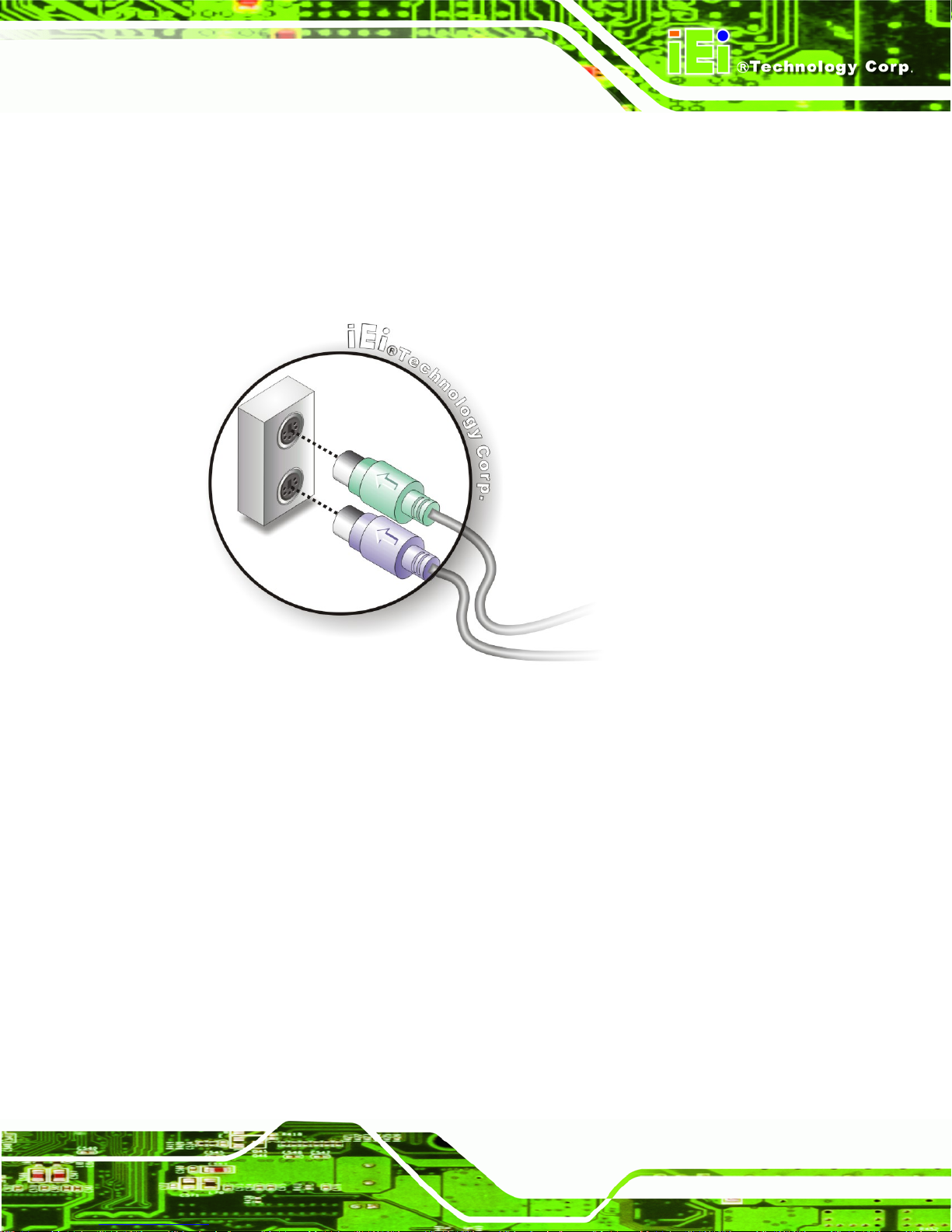

Figure 4-16: PS/2 Keyboard/Mouse Connector.........................................................................51
Figure 4-17: USB Connector........................................................................................................52

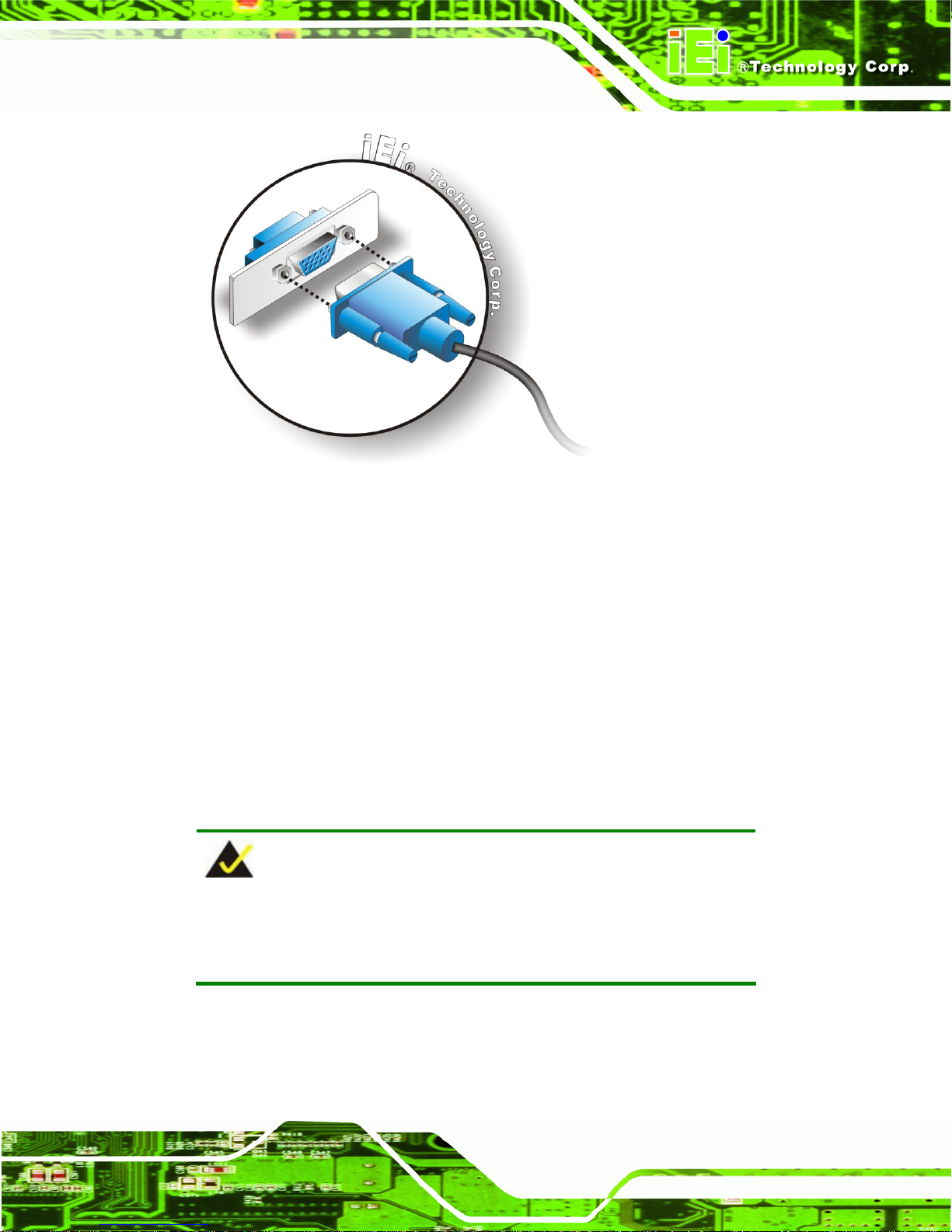

Figure 4-18: VGA Connector .......................................................................................................53
Figure 4-19: Introduction Screen................................................................................................54
Figure 4-20: Available Drivers.....................................................................................................54
Page ix
Page 10
KINO-G45A Mini-ITX Motherboard
List of Tables
Table 1-1: Technical Specifications..............................................................................................8
Table 2-1: Packing List.................................................................................................................12
Table 2-2: Optional Items.............................................................................................................12
Table 3-1: Peripheral Interface Connectors...............................................................................15
Table 3-2: Rear Panel Connectors..............................................................................................15
Table 3-3: ATX Power Connector Pinouts .................................................................................17
Table 3-4: Battery Connector Pinouts........................................................................................18
Table 3-5: CPU Fan Connector Pinouts......................................................................................18
Table 3-6: CPU Power Input Connector Pinouts.......................................................................19
Table 3-7: Digital I/O Connector Pinouts....................................................................................20

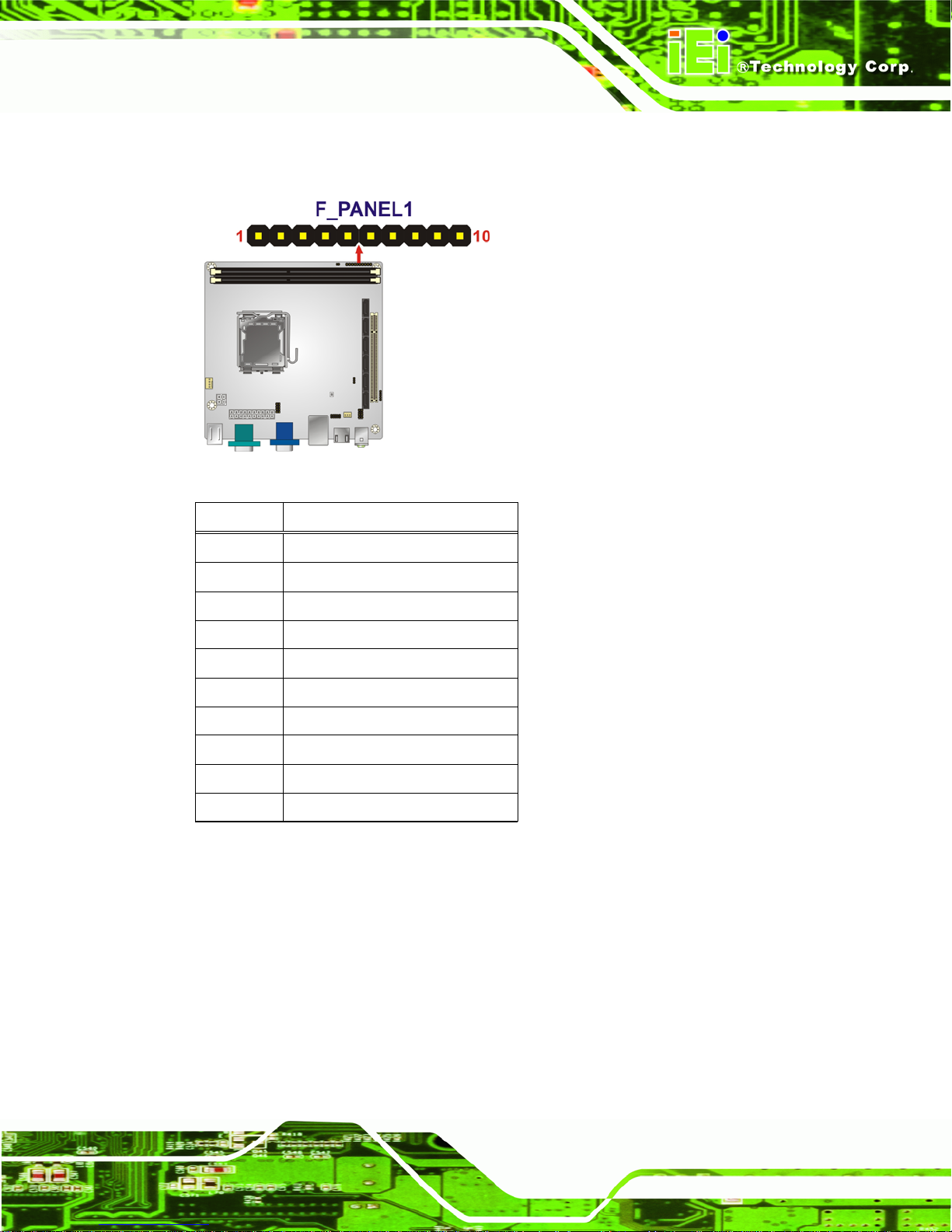

Table 3-8: Front Panel Connector Pinouts.................................................................................21
Table 3-9: SPDIF Connector Pinouts..........................................................................................24
Table 3-10: SPI Flash Connector.................................................................................................25
Table 3-11: System Fan Connector Pinouts..............................................................................26
Table 3-12: USB Port Connector Pinouts...................................................................................27
Table 3-13: DVI Connector Pinouts.............................................................................................29
Table 3-14: HDMI Pinouts ............................................................................................................30
Table 3-15: PS/2 Connector Pinouts...........................................................................................31
Table 3-16: LAN Pinouts ..............................................................................................................31
Table 3-17: Serial Port Pinouts....................................................................................................32
Table 3-18: USB Port Pinouts......................................................................................................32
Table 3-19: VGA Connector Pinouts...........................................................................................33
Table 4-1: Jumpers.......................................................................................................................43
Table 4-2: AT/ATX Power Mode Jumper Settings.....................................................................44
Table 4-3: Clear BIOS Jumper Settings......................................................................................44
Table 5-1: BIOS Navigation Keys................................................................................................57
Page x
Page 11
KINO-G45A Mini-ITX Motherboard
BIOS Menus
BIOS Menu 1: Main.......................................................................................................................58
BIOS Menu 2: Advanced..............................................................................................................60
BIOS Menu 3: CPU Configuration...............................................................................................60
BIOS Menu 4: IDE Configuration.................................................................................................61
BIOS Menu 5: IDE Master and IDE Slave Configuration...........................................................63
BIOS Menu 6: Super IO Configuration........................................................................................67
BIOS Menu 7: Hardware Health Configuration..........................................................................69
BIOS Menu 8: AHCI Configuration..............................................................................................72
BIOS Menu 9: AHCI Port n Configuration Menu........................................................................73
BIOS Menu 10: Remote Access Configuration..........................................................................74
BIOS Menu 11: USB Configuration.............................................................................................77
BIOS Menu 12: PCI/PnP Configuration.......................................................................................79
BIOS Menu 13: Boot.....................................................................................................................81
BIOS Menu 14: Boot Settings Configuration.............................................................................81
BIOS Menu 15: Boot Device Priority Settings ...........................................................................84
BIOS Menu 16: Hard Disk Drives ................................................................................................85
BIOS Menu 17: Removable Drives..............................................................................................86
BIOS Menu 18: CD/DVD Drives ...................................................................................................87
BIOS Menu 19: Security...............................................................................................................87
BIOS Menu 20: Chipset................................................................................................................89
BIOS Menu 21:Northbridge Chipset Configuration...................................................................89
BIOS Menu 22: Northbridge Chipset Configuration..................................................................92
BIOS Menu 23: Southbridge Chipset Configuration.................................................................94
BIOS Menu 24: Exit.......................................................................................................................97
Page xi
Page 12
KINO-G45A Mini-ITX Motherboard
Chapter
1
1 Introduction
Page 1
Page 13
1.1 Introduction
KINO-G45A Mini-ITX Motherboard
Page 2

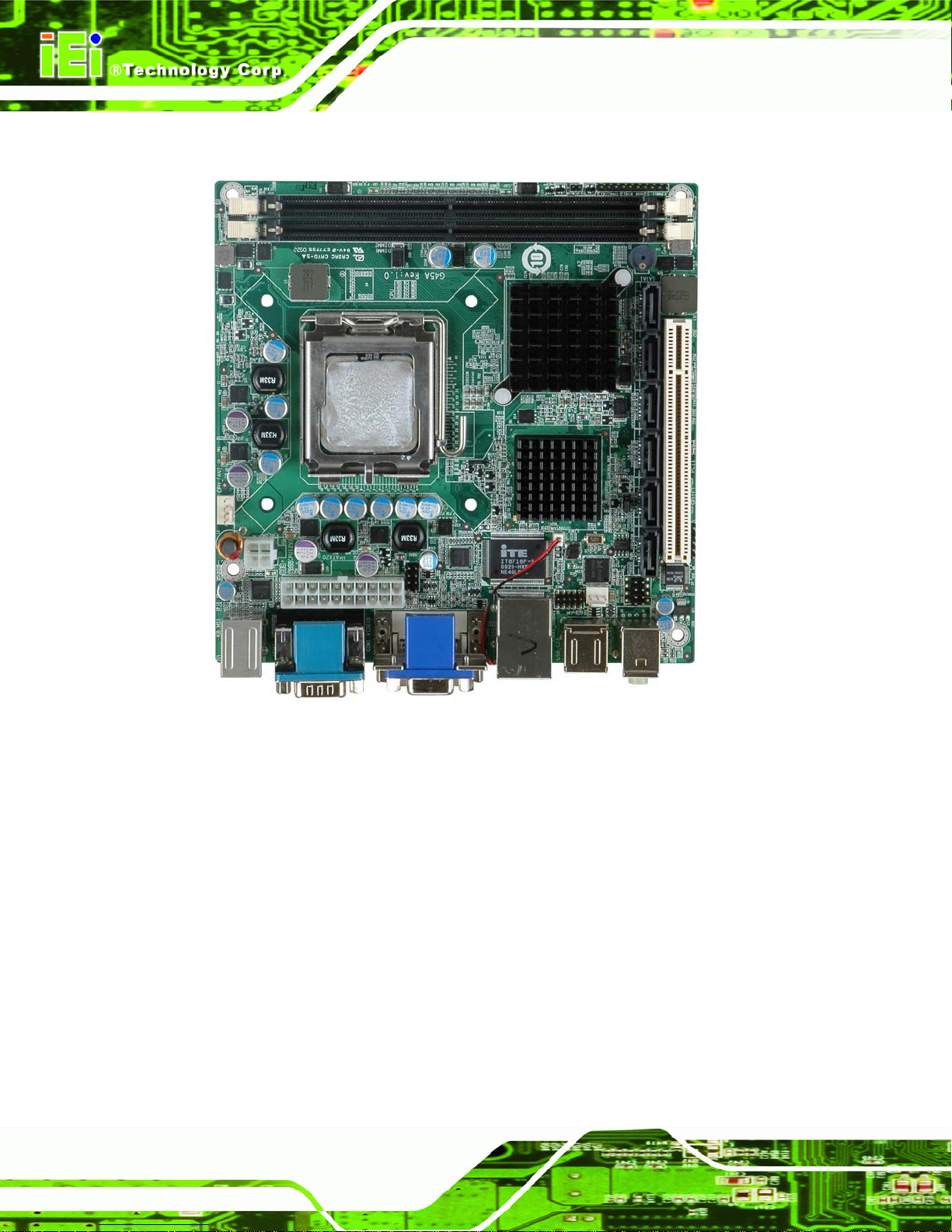

Figure 1-1: KINO-G45A
The KINO-G45A is a Mini-ITX motherboard. It accepts a Socket LGA775 Intel® Core™2 Duo/Quad/Extreme processor and supports two 667/800 MHz Dual-channel DDR2 DIMM modules up to 2.0 GB each. The KINO-G45A supports multiple video outputs including VGA, DVI-D, and HDMI ports. Expansion and I/O include a PCI card slot, High Definition audio, four USB ports on the rear panel, two USB ports via pin headers, six SATA connectors and a keyboard/mouse connector.
Page 14
KINO-G45A Mini-ITX Motherboard
1.2 Benefits
Some of the KINO-G45A motherboard benefits include:
Powerful graphics with multiple monitors  Staying connected with both wired LAN connections  Speedy running of multiple programs and applications
1.3 Features
Some of the KINO-G45A motherboard features are listed below:
 Mini-ITX  RoHS compliant  LGA 775 CPU socket  PCI card expansion slot  Supports two dual-channel DDR2 DIMMs  Gigabit Ethernet connector  Six SATA connectors  High Definition audio  Intel® GMA X4500HD for DX10 and OpenGL 2.0 support  MPEG-2, WMV9 (VC-1) and H.264 (AVC) support
Page 3
Page 15
1.4 Connectors

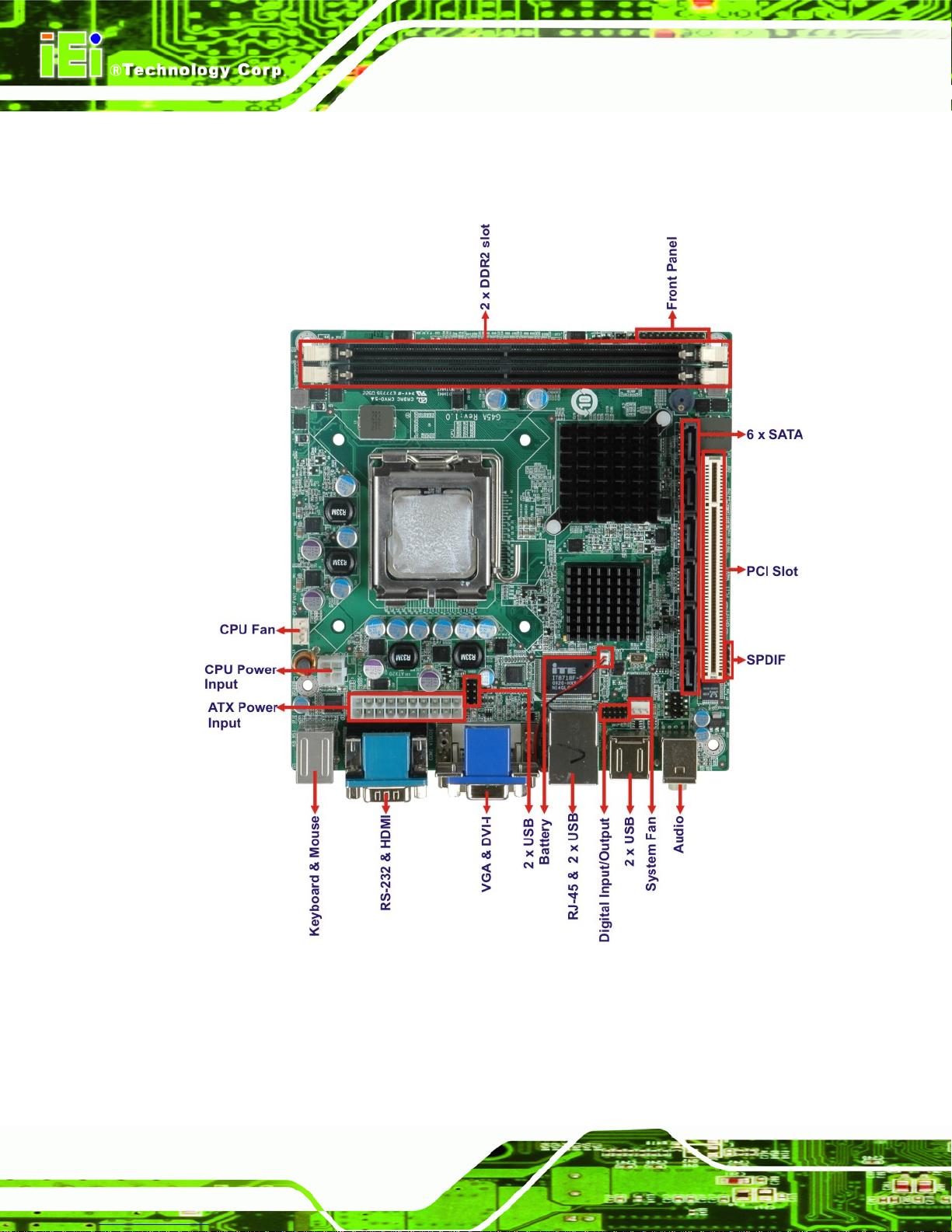

The connectors on the KINO-G45A are shown in the figure below.
KINO-G45A Mini-ITX Motherboard
Figure 1-2: Connectors
Page 4
Page 16
KINO-G45A Mini-ITX Motherboard
1.5 Dimensions
The main dimensions of the KINO-G45A are shown in the diagram below.
Figure 1-3: KINO-G45A Dimensions (mm)
Page 5
Page 17
1.6 Data Flow
4Figure 1-4 shows the data flow between the system chipset, the CPU and other
components installed on the motherboard.
KINO-G45A Mini-ITX Motherboard
Figure 1-4: Data Flow Diagram
Page 6
Page 18
KINO-G45A Mini-ITX Motherboard
1.7 Technical Specifications
KINO-G45A technical specifications are listed in 4Table 1-1.
Specification KINO-G45A Form Factor CPU FSB Speed Northbridge Southbridge Memory
Display
Storage LAN
Audio
Mini-ITX Intel® Core™2 Duo/Quad/Extreme 800/1066/1333 MHz Intel® G45 Intel® ICH10 Two dual-cha nnel 667/800 MHz DDR2 DIMMs up to 2.0 GB
each VGA (Intel® G45)
DVI-D (through Asmedia ASM1442T) HDMI (through Asmedia ASM1442T)
Six SATA2 connectors Realtek RTL8111CP
One RJ-45 port Realtek ALC888 HD Audio codec
One external audio connector One SPDIF by internal pin header
Serial USB
Super I/O BIOS Keyboard/mouse Digital I/O Watchdog Timer Power Supply
One RS-232 serial port Four USB ports
Two USB ports by internal pin headers iTE IT8718F AMI PS/2 8-bit (4-bit input, 4-bit output) Software programmable 1-255 sec. through the super I/O ATX Power, AT/ATX mode supported
Page 7
Page 19
Specification KINO-G45A
KINO-G45A Mini-ITX Motherboard
Power Consumption
Temperature Humidity Dimensions (WxL) Weight (GW/NW)
Table 1-1: Technical Specifications
3.3V @ 0.38A, 5V@ 6.99A, 12V@ 3.54A (Intel E8500
3.16GHz,DDR2 800MHz 2Gb x 2, 3D Mark 2001SE) 0ºC – 60ºC (32ºF – 140ºF) 5%~95% non-condensing 170 mm x 170 mm 1100 g / 390 g
Page 8
Page 20
KINO-G45A Mini-ITX Motherboard
Chapter
2
2 Packing List
Page 9
Page 21
2.1 Anti-static Precautions
WARNING!
Static electricity can destroy certain electronics. Make sure to follow the ESD precautions to prevent damage to the product, and injury to the user.
Make sure to adhere to the following guidelines:
Wear an anti-static wristband: Wearing an anti-static wristband can prevent
electrostatic discharge.
Self-grounding: Touch a grounded conductor every few minutes to discharge
any excess static buildup.
KINO-G45A Mini-ITX Motherboard
Use an anti-static pad: When configuring any circuit board, place it on an
anti-static mat.
Only handle the edges of the PCB: Don't touch the surface of the
motherboard. Hold the motherboard by the edges when handling.
2.2 Unpacking Precautions
When the KINO-G45A is unpacked, please do the following:
Follow the antistatic guidelines above.  Make sure the packing box is facing upwards whe n opening.  Make sure all the packing list items are present.
Page 10
Page 22
KINO-G45A Mini-ITX Motherboard
2.3 Packing List
NOTE:
If any of the components listed in the checklist below are missing, do not proceed with the installation. Contact the IEI reseller or vendor the KINO-G45A was purchased from or contact an IEI sales representative directly by sending an email to 31sales@iei.com.tw.
The KINO-G45A is shipped with the following components:
Quantity Item and Part Number Image
1 KINO-G45A
1 Dual USB cable (with bracket)
(P/N: CB-USB02A-RS)
6 SATA cable
(P/N: 32000-062800-RS)
1 I/O shielding 1 Mini jumper pack (2.0mm)
(P/N:33100-000033-RS)
1 Utility CD
Page 11
Page 23

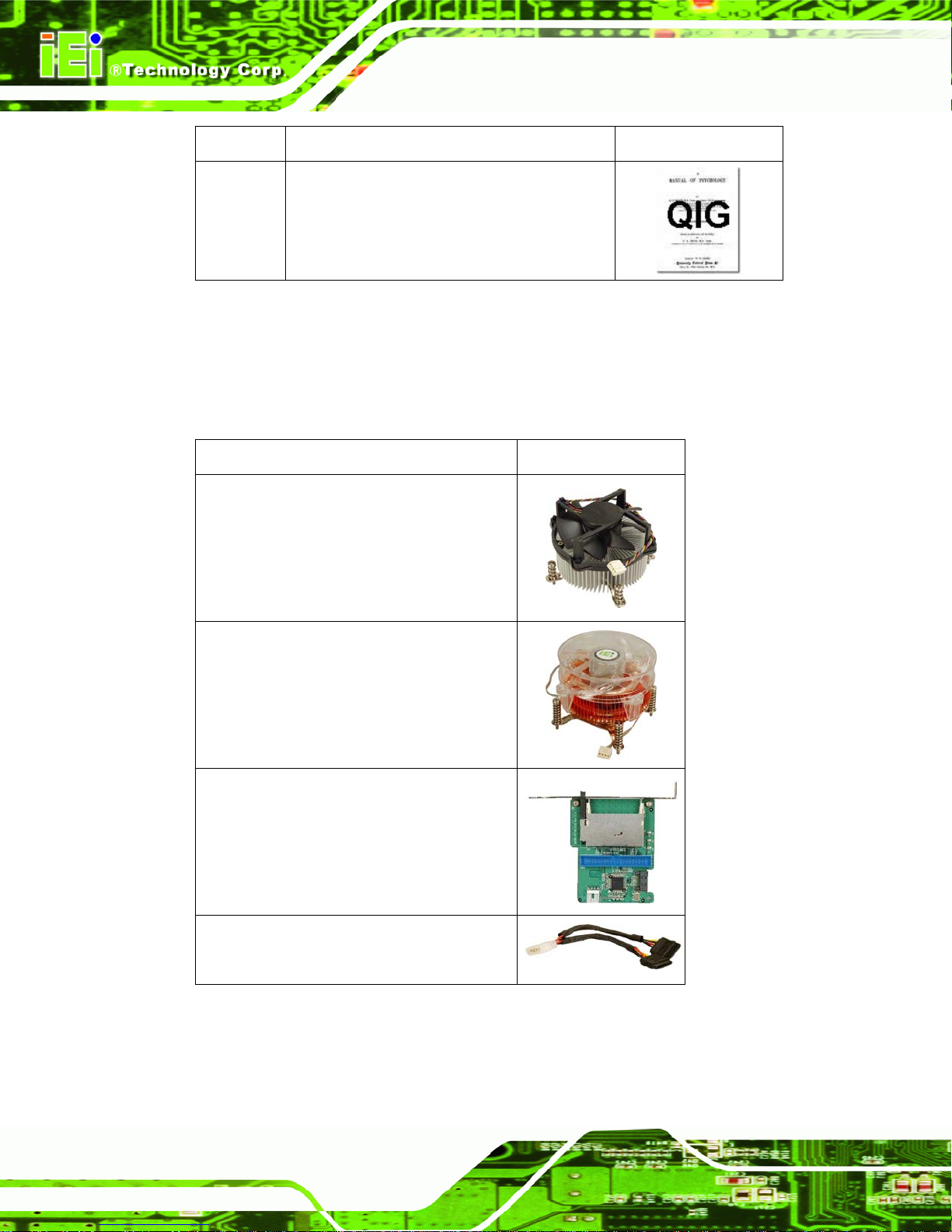

Quantity Item and Part Number Image
1 Quick Installation Guide
Table 2-1: Packing List
2.4 Optional Items
The KINO-G45A is shipped with the following components:
Item and Part Number Image
CPU cooler kit (P/N: CF-520-RS)
KINO-G45A Mini-ITX Motherboard
CPU cooler kit (P/N: CF-775A-RS)
SATA to IDE/CF converter board (P/N: SAIDE-KIT01-R10)
SATA power cable (P/N: 32100-088600-RS)
Table 2-2: Optional Items
Page 12
Page 24
KINO-G45A Mini-ITX Motherboard
Chapter
3
3 Connectors
Page 13
Page 25
3.1 Peripheral Interface Connectors
This chapter details all the jumpers and connectors.
3.1.1 KINO-G45A Layout
The figures below show all the connectors and jumpers.
KINO-G45A Mini-ITX Motherboard
Figure 3-1: Connectors and Jumpers
3.1.2 Peripheral Interface Connectors
The table below lists all the connectors on the board.
Connector Type Label
ATX Power 20-pin ATX (2x10) ATX20 Battery 2-pin header BAT1 CPU fan 4-pin wafer CPU_FAN1
Page 14
Page 26
KINO-G45A Mini-ITX Motherboard
Connector Type Label
CPU power 4-pin box header CPU12V2 Digital I/O 8-pin header DIO1 Flash SPI ROM 8-pin header JSPI1 Front panel 10-pin hea der F_PANEL1 Memory card DIMM slot DIMM1, DIMM2 PCI card slot PCI card slot PCI1 SATA 7-pin SATA
connector S/PDIF 5-pin header SPDIF1 System fan 3-pin wafer SYS_FAN1 USB 8-pin header (2x4) USB45
Table 3-1: Peripheral Interface Connectors

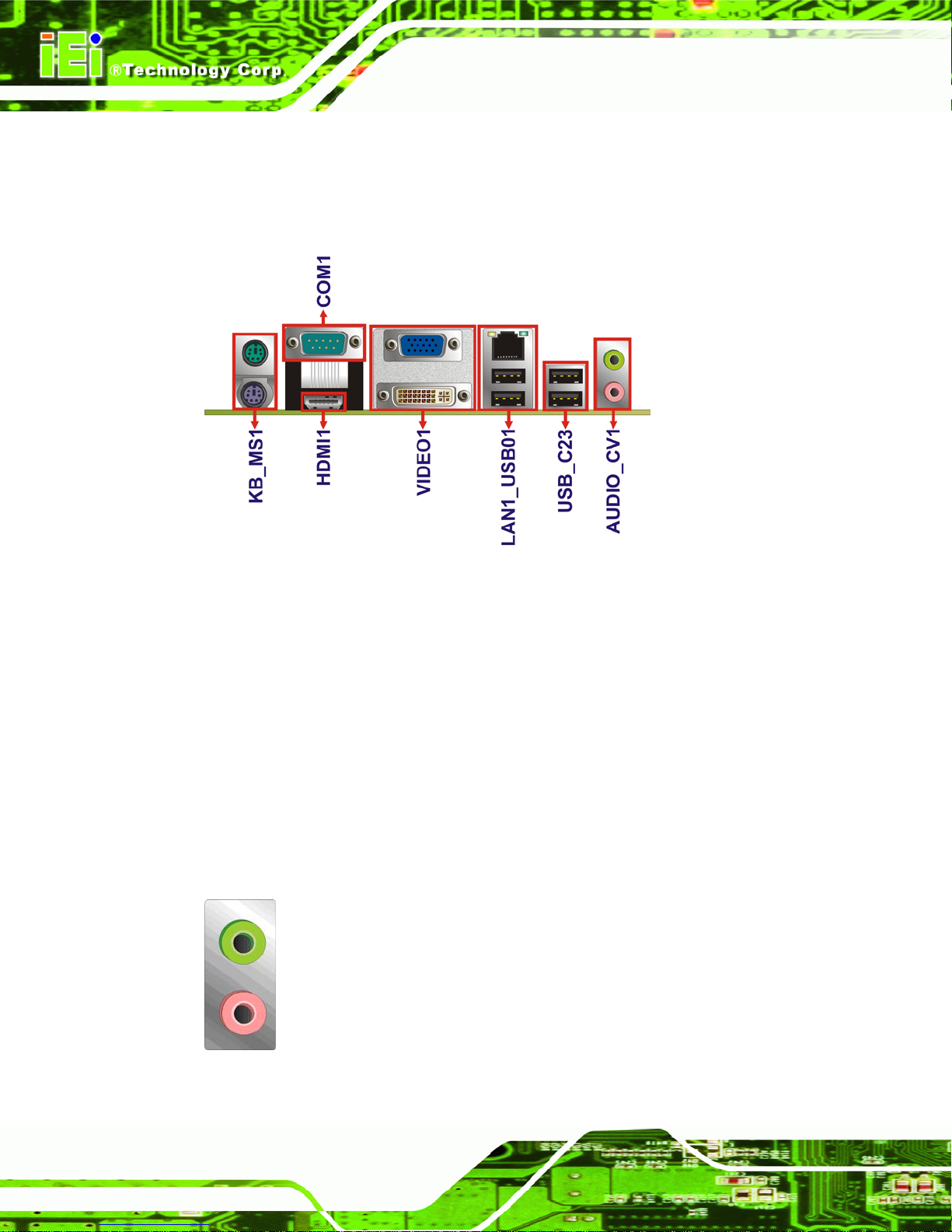

3.1.3 External Interface Panel Connectors
The table below lists the connectors on the external I/O panel.
Connector Type Label
Audio Audio jack AUDIO_CV1 DVI-D DVI-D connector VIDEO1 Ethernet RJ-45 LAN1
SATA1~6
HDMI HDMI port HDMI1 Keyboard/Mouse Dual PS/2 KB_MS1 RS-232 DB-9 COM1 USB USB port USB_01
VGA 15-pin female VIDEO1
Table 3-2: Rear Panel Connectors
USB_C23
Page 15
Page 27
3.2 Internal Peripheral Connectors
The section describes all of the connectors on the KINO-G45A.
3.2.1 ATX Power Connector
CN Label: ATX20
KINO-G45A Mini-ITX Motherboard
CN Type: CN Location: CN Pinouts:
20-pin A TX (2x10)
Figure 3-2
See
Table 3-3
See
The ATX power connector connects to an ATX power supply.

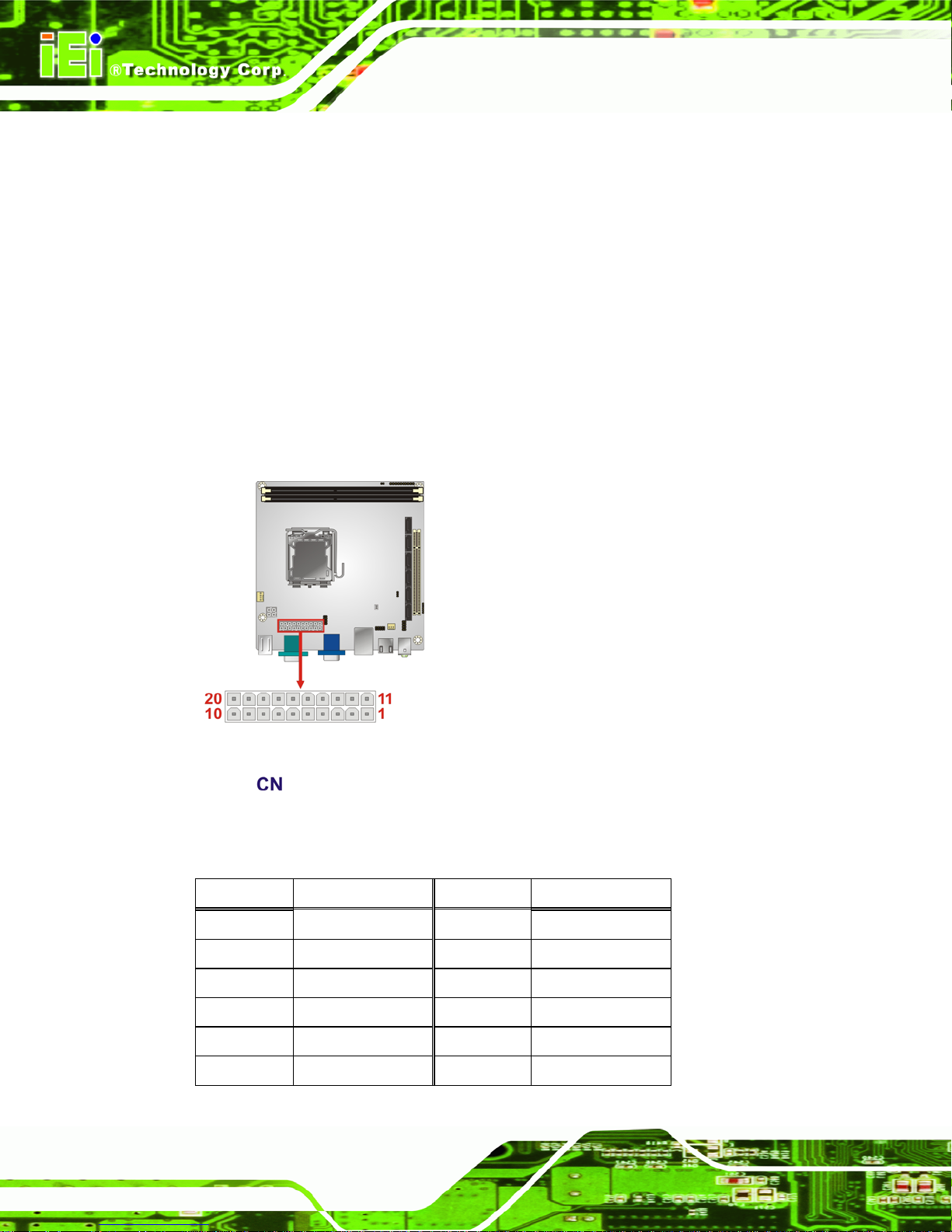

Figure 3-2: ATX Power Connector Pinout Locations
Pin Description Pin Description
1 NC 11 NC 2 NC 12 -12 V 3 GND 13 GND 4 +5 V 14 PS-ON 5 GND 15 GND 6 +5 V 16 GND
Page 16
Page 28
KINO-G45A Mini-ITX Motherboard
Pin Description Pin Description
7 GND 17 GND 8 PW-OK 18 NC 9 +VCC5SB 19 +5 V 10 +12 V 20 +5 V
Table 3-3: ATX Power Connector Pinouts
3.2.2 Battery Connector
CN Label: BAT1 CN Type: CN Location: CN Pinouts:
2-pin wafer (1x2)
Figure 3-3
See
Table 3-4
See
This is connected to the system battery. The battery provides power to the system clock to retain the time when power is turned off.
Figure 3-3: Battery Connector Location
Page 17
Page 29
Pin Description
1 Battery+ 2 Ground
Table 3-4: Battery Connector Pinouts
3.2.3 CPU Fan Connector
CN Label: CPU_FAN1
KINO-G45A Mini-ITX Motherboard
CN Type: CN Location: CN Pinouts:
4-pin header See Figure 3-4 See Table 3-5
The fan connector attaches to a CPU cooling fan.
Figure 3-4: CPU Fan Connector Location
PIN NO. DESCRIPTION
1 GND 2 +12 V 3 FAN_Detect 4 FAN_CTRL
Table 3-5: CPU Fan Connector Pinouts
Page 18
Page 30
KINO-G45A Mini-ITX Motherboard
3.2.4 CPU Power Input Connector
CN Label: CPU12V2 CN Type: CN Location: CN Pinouts:
The CPU power input connector provides power to the CPU.

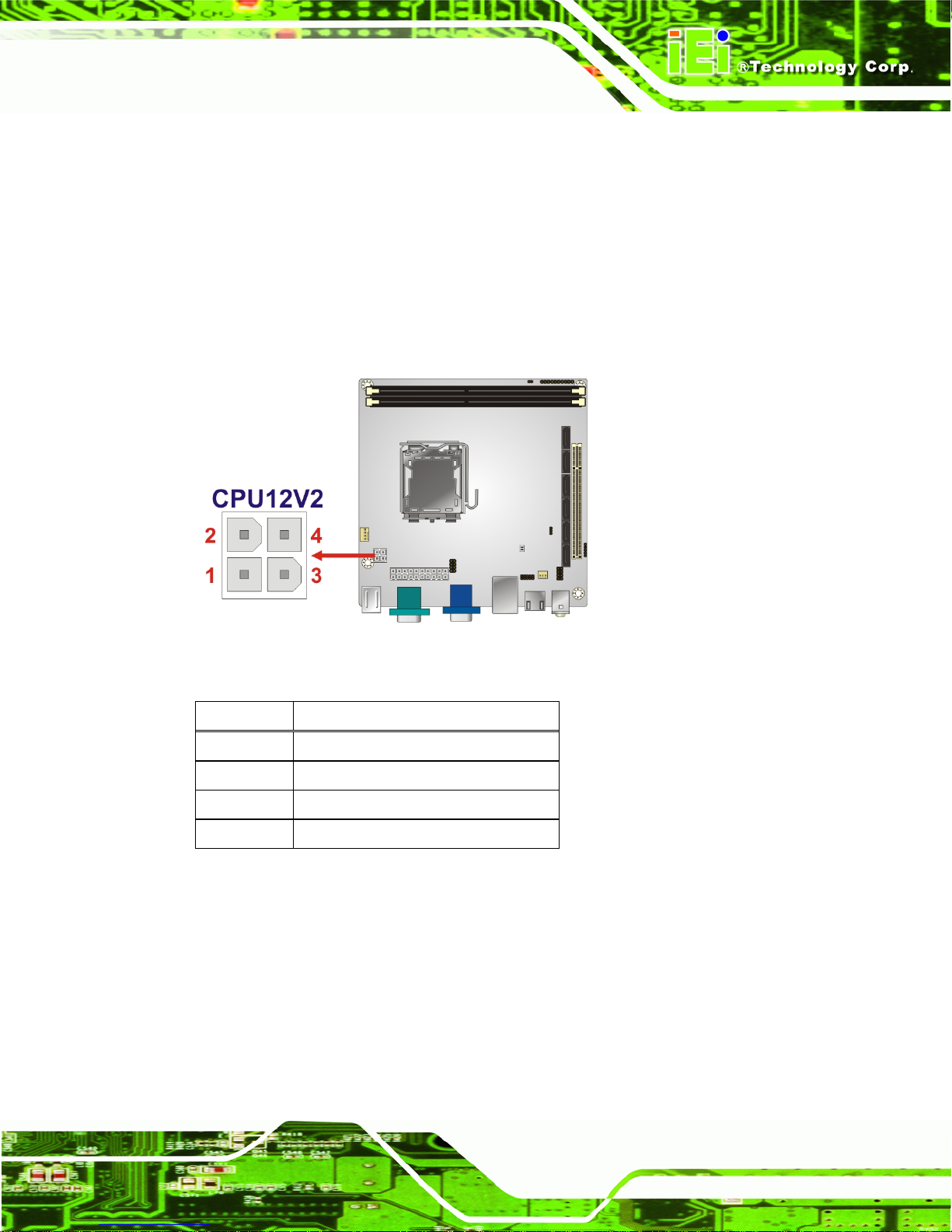

Figure 3-5: CPU Power Input Connector Location
4-pin A T See Figure 3-5 See Table 3-6
PIN NO. DESCRIPTION
1 GND 2 GND 3 12 V 4 12 V
Table 3-6: CPU Power Input Connector Pinouts
3.2.5 Digital I/O Connector
CN Label: DIO1 CN Type: CN Location: CN Pinouts:
10-pin header See Figure 3-6 See Table 3-7
Page 19
Page 31
KINO-G45A Mini-ITX Motherboard
The digital I/O connector provides programmable input and output for external devices. The digital I/O provides 4-bit output and 4-bit input.
Figure 3-6: Digital I/O Connector Locations
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 GND 2 5 V 3 Output 3 4 Output 2 5 Output 1 6 Output 0 7 Input 3 8 Input 2 9 Input 1 10 Input 0
Table 3-7: Digital I/O Connector Pinouts
3.2.6 Front Panel Connector
CN Label: F_PANEL1 CN Type:
10-pin header
CN Location: CN Pinouts:
Page 20
See Figure 3-7 See Table 3-8
Page 32
KINO-G45A Mini-ITX Motherboard
The front panel connector connects to the indicator LEDs and buttons on the computer's front panel.
Figure 3-7: Front Panel Connector Location
PIN DESCRIPTION
1 N/C 2 Power button+ 3 Power button­4 HDD LED+ 5 HDD LED­6 Power LED+ 7 Power LED+ 8 Power LED­9 Reset+ 10 Reset-
Table 3-8: Front Panel Connector Pinouts
3.2.7 Memory Card Slot
CN Label: DIMM1 and DIMM2 CN Type:
DIMM slot
CN Location:
The DIMM slots are for DIMM memory modules.
See 4Figure 3-9
Page 21
Page 33
Figure 3-8: Memory Card Slot Location
3.2.8 PCI Card Slot
KINO-G45A Mini-ITX Motherboard
CN Label: PCI1 CN Type: CN Location:
The PCI card slot is for installing PCI expansion cards.
Figure 3-9: PCI Card Slot Location
PCI card slot See 4Figure 3-9
Page 22
Page 34
KINO-G45A Mini-ITX Motherboard
3.2.9 SATA Drive Connectors
CN Label: SATA1~6 CN Type: CN Location:
The SATA drive connectors can be connected to SATA drives.
7-pin SATA drive connectors See Figure 3-10
Figure 3-10: SATA Drive Connector Location
3.2.10 S/PDIF Connector
CN Label: SPDIF1 CN Type: CN Location: CN Pinouts:
Use the SPDIF connector to connect digital audio devices to the system.
5-pin header See Figure 3-11 See Table 3-9
Page 23
Page 35
KINO-G45A Mini-ITX Motherboard

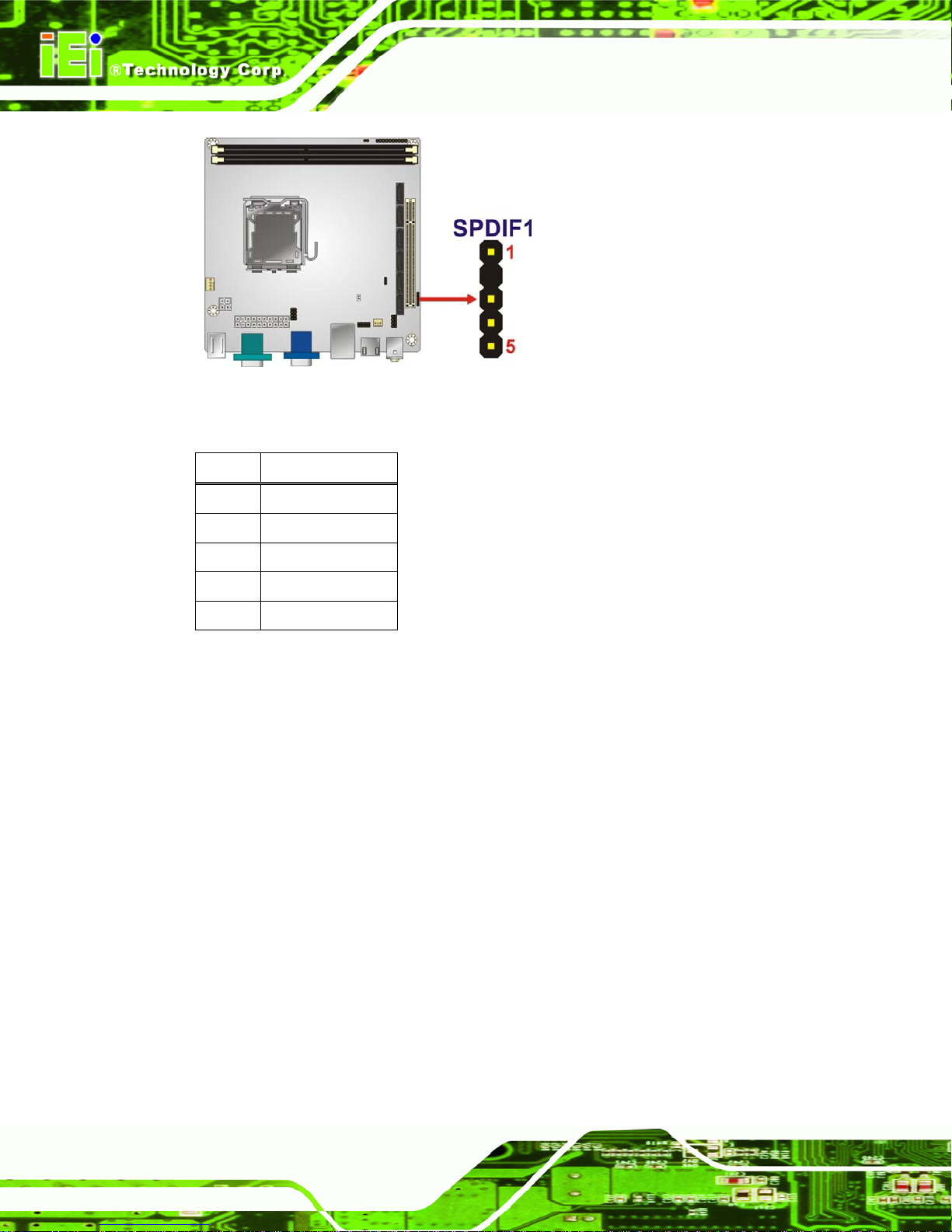

Figure 3-11: SPDIF Connector Location
PIN DESCRIPTION
1 VCC AUDIO 2 NC 3 SPDIF OUT 4 GND AUDIO 5 SPDIF IN
Table 3-9: SPDIF Connector Pinouts
3.2.11 SPI Flash Connector
CN Label: JSPI1 CN Type: CN Location: CN Pinouts:
The 8-pin SPI Flash connector is used to flash the BIOS.
8-pin header (2x4) See Figure 3-12 See Table 3-10
Page 24
Page 36
KINO-G45A Mini-ITX Motherboard
Figure 3-12: SPI Flash Connector
PIN DESCRIPTION PIN DESCRIPTION
1 VCC 2 GND 3 CS# 4 CLOCK 5 SO 6 SI 7 NC 8 NC
Table 3-10: SPI Flash Connector
3.2.12 System Fan Connector
CN Label: SYS_FAN1 CN Type: CN Location: CN Pinouts:
The fan connector attaches to a cooling fan.
3-pin header See Figure 3-13 See Table 3-11
Page 25
Page 37
Figure 3-13: System Fan Connector Location
KINO-G45A Mini-ITX Motherboard
PIN NO. DESCRIPTION
1 GND 2 +12 V 3 Fan_Detect
Table 3-11: System Fan Connector Pinouts
3.2.13 USB Connectors
CN Label: USB45 CN Type: CN Location: CN Pinouts:
The USB connectors connect to USB devices. Each pin header provides two USB ports.
8-pin header (2x4) See Figure 3-14 See Table 3-12
Page 26
Page 38
KINO-G45A Mini-ITX Motherboard
Figure 3-14: USB Connector Pinout Locations
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 VCC 2 GND 3 DATAN- 4 DATAM+ 5 DATAN+ 6 DATA1M­7 GND 8 VCC
Table 3-12: USB Port Connector Pinouts
Page 27
Page 39
KINO-G45A Mini-ITX Motherboard
3.3 External Peripheral Interface Connector Panel
The figure below shows the external peripheral interface connector (EPIC) panel. The EPIC panel consists of the following:
Figure 3-15: External Peripheral Interface Connector
3.3.1 Audio Connector
CN Label: AUDIO_CV1 CN Type: CN Location:
The audio jacks connect to external audio devices. Each jack supports both input and output signals which are automatically detected. The lime green (top) audio jack does not support input from a microphone.
Audio jack See Figure 3-15
Figure 3-16: Audio Connector
Page 28
Page 40
KINO-G45A Mini-ITX Motherboard
3.3.2 DVI Connector
CN Label: VIDEO1 CN Type: CN Location: CN Pinouts:
The 24-pin Digital Visual Interface (DVI) connector connects to high-speed, high-resolution digital displays. The DVI-D connector only supports digital signals.
PIN Signal Name
1 TMDS Data2­2 TMDS Data2+ 3 GND 4 N/C 5 N/C 6 DDC Clock [SCL] 7 DDC Data [SDA] 8 Analog vertical sync
DVI connector See Figure 3-15 See Figure 3-17 and Table 3-13
Pin # Signal Name Pin # Signal Name
9 10 11 12 13 14 15 16
TMDS Data1- 17 TMDS Data1+ 18 GND NC NC PVDD1 GND GND
19 20 21 22 23 24
TMDS Data0­TMDS Data0+ GND NC NC GND TMDS Clock + TMDS Clock -
Table 3-13: DVI Connector Pinouts
3.3.3 HDMI Connector
CN Label: HDMI1 CN Type: CN Location: CN Pinouts:
The HDMI port connects to a display device with an HDMI input port.
HDMI port See Figure 3-15 See Table 3-14
Page 29
Page 41
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 HDMI_DATA2 13 N/C 2 GND 14 N/C 3 HDMI_DATA2# 15 HDMI_SCL 4 HDMI_DATA1 16 HDMI_SDA 5 GND 17 GND 6 HDMI_DATA1# 18 +5V 7 HDMI_DATA0 19 HDMI_HPD 8 GND 20 HDMI_GND 9 HDMI_DATA0# 21 HDMI_GND 10 HDMI_CLK 22 HDMI_GND 11 GND 23 HDMI_GND 12 HDMI_CLK#
KINO-G45A Mini-ITX Motherboard
Table 3-14: HDMI Pinouts
3.3.4 Keyboard/Mouse Connector
CN Label: KB_MS1 CN Type: CN Location: CN Pinouts:
The PS/2 ports are for connecting a PS/2 mouse and a PS/2 keyboard.
Dual PS/2 See Figure 3-15 See Figure 3-17 and Table 3-15
Figure 3-17: PS/2 Pinouts
Page 30
Page 42
KINO-G45A Mini-ITX Motherboard
PIN DESCRIPTION PIN DESCRIPTION
1 L_KDAT 7 L_MDAT 2 NC 8 NC 3 GND 9 GND 4 5 V 10 5 V 5 L_KCLK 11 L_MCLK 6 NC 12 NC
Table 3-15: PS/2 Connector Pinouts
3.3.5 LAN Connector
CN Label: LAN1 CN Type: CN Location: CN Pinouts:
RJ-45 See Figure 3-15 See Table 3-16
The LAN connector connects to a local network.
PIN DESCRIPTION PIN DESCRIPTION
1 TXA+ 5 TXC­2 TXA- 6 TXB­3 TXB+ 7 TXD+ 4 TXC+ 8 TXD-
Table 3-16: LAN Pinouts
3.3.6 Serial Port Connectors (COM1)
CN Label: COM1 CN Type: CN Location: CN Pinouts:
The serial port connects to a RS-232 serial communications device.
DB-9 connector See Figure 3-15 See Table 3-17 and Figure 3-18
Page 31
Page 43
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 DCD 6 DSR 2 RX 7 RTS 3 TX 8 CTS 4 DTR 9 RI 5 GND
KINO-G45A Mini-ITX Motherboard
Table 3-17: Serial Port Pinouts
Figure 3-18: Serial Port Pinouts
3.3.7 USB Connector
CN Label: USB_C23 CN Type: CN Location: CN Pinouts:
The USB connector can be connected to a USB device.
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 5 V 2 5 V 3 DATA- 4 DATA­5 DATA+ 6 DATA+ 7 GND 8 GND
USB port See Figure 3-15 See Table 3-18
Table 3-18: USB Port Pinouts
Page 32
Page 44
KINO-G45A Mini-ITX Motherboard
3.3.8 VGA Connector
CN Label: VIDEO1 CN Type: CN Location: CN Pinouts:
15-pin Female See Figure 3-15 See Figure 3-19 and Table 3-19
The VGA connector connects to a monitor that accepts a standard VGA input.
Figure 3-19: VGA Connector
PIN DESCRIPTION PIN DESCRIPTION
1 RED 2 GREEN 3 BLUE 4 NC 5 GND 6 GND 7 GND 8 GND 9 VCC / NC 10 GND 11 NC 12 DDC DAT 13 HSYNC 14 VSYNC 15 DDCCLK
Table 3-19: VGA Connector Pinouts
Page 33
Page 45
KINO-G45A Mini-ITX Motherboard
Chapter
4
4 Installation
Page 34
Page 46
KINO-G45A Mini-ITX Motherboard
4.1 Anti-static Precautions
WARNING:
Failure to take ESD precautions during the installation of the KINO-G45A may result in permanent damage to the KINO-G45A and severe injury to the user.
Electrostatic discharge (ESD) can cause serious damage to electronic components, including the KINO-G45A. Dry climates are especially susceptible to ESD. It is therefore critical that whenever the KINO-G45A or any other electrical component is handled, the following anti-static precautions are strictly adhered to.
Wear an anti-static wristband: - Wearing a simple anti-static wristband can
help to prevent ESD from damaging the board.
Self-grounding:- Before handling the board touch any grounded conducting
material. During the time the board is handled, frequently touch any conducting materials that are connected to the ground.
Use an anti-static pad: When configuring the KINO-G45A, place it on an
antic-static pad. This reduces the possibility of ESD damaging the KINO-G45A.
Only handle the edges of the PCB:-: When handling the PCB, hold the PCB
by the edges.
4.2 Installation Considerations
NOTE:
The following installation notices and installation considerations should be read and understood before installation. All installation notices must be strictly adhered to. Failing to adhere to these precautions may lead to severe damage and injury to the person performing the installation.
Page 35
Page 47
KINO-G45A Mini-ITX Motherboard
WARNING:
The installation instructions described in this manual should be carefully followed in order to prevent damage to the components and injury to the user.
Before and during the installation please DO the following:
Read the user manual:
o The user manual provides a complete description of the KINO-G45A
installation instructions and configuration options.
Wear an electrostatic discharge cuff (ESD):
o Electronic components are easily damaged by ESD. Wearing an ESD cuff
removes ESD from the body and helps prevent ESD damage.
Place the KINO-G45A on an antistatic pad:
o When installing or configuring the motherboard, place it on an antistatic
pad. This helps to prevent potential ESD damage.
Turn all power to the KINO-G45A off:
o When working with the KINO-G45A, make sure that it is disconnected
from all power supplies and that no electricity is being fed into the system.
Before and during the installation of the KINO-G45A DO NOT:
Remove any of the stickers on the PCB board. These stickers are required for
warranty validation.
Use the product before verifying all the cables and power connectors are
properly connected.
Allow screws to come in contact with the PCB circuit, connector pins, or its
components.
Page 36
Page 48
KINO-G45A Mini-ITX Motherboard
4.2.1 Socket LGA775 CPU Installation
NOTE:
To enable Hyper-Threading, the CPU and chipset must both support it.
WARNING:
CPUs are expensive and sensitive components. When installing the CPU please be careful not to damage it in anyway. Make sure the CPU is installed properly and ensure the correct cooling kit is properly installed.

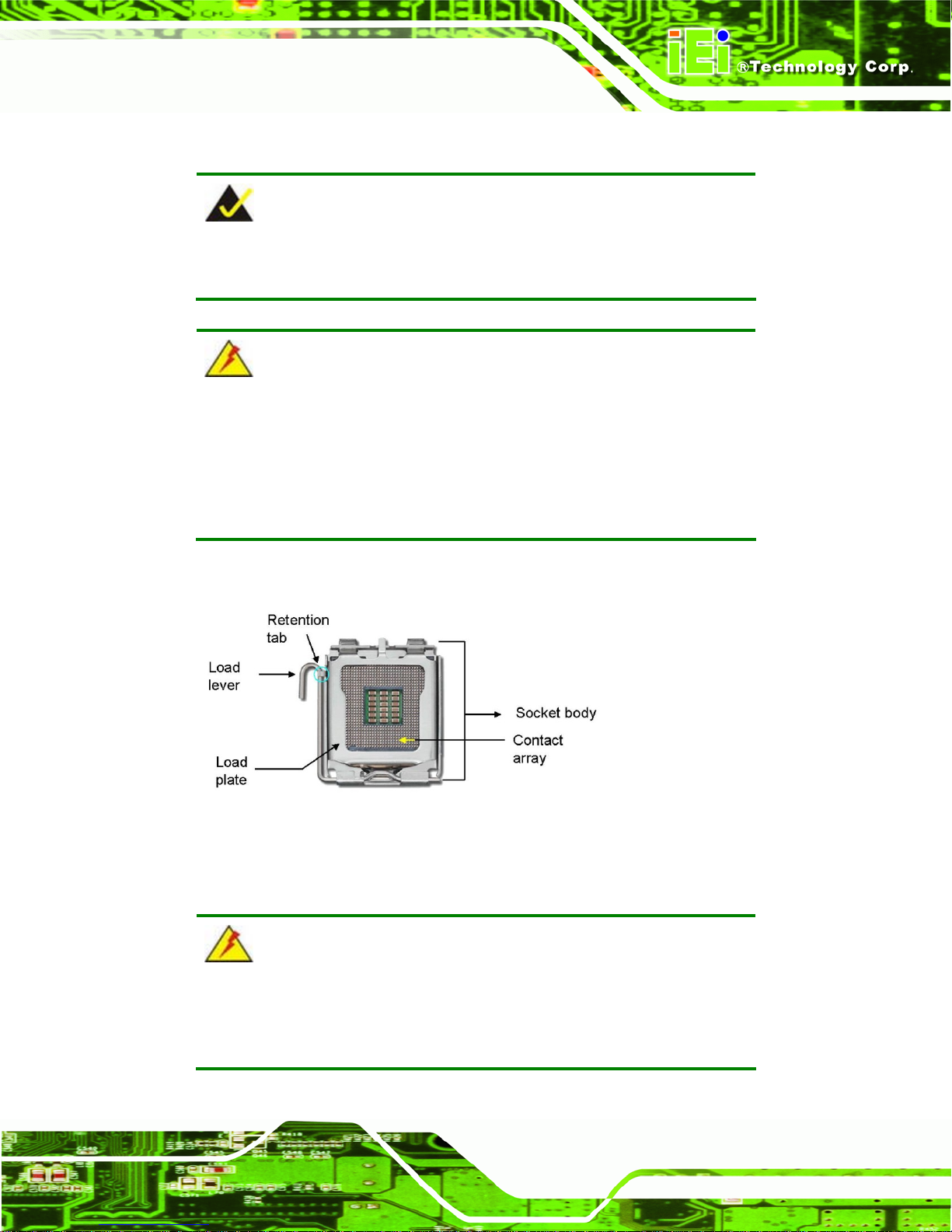

The LGA775 socket is shown in Figure 4-1.
Figure 4-1: Intel LGA775 Socket
To install the CPU, follow the steps below.
WARNING:
DO NOT touch the pins at the bottom of the CPU. When handling the CPU, only hold it on the sides.
Page 37
Page 49

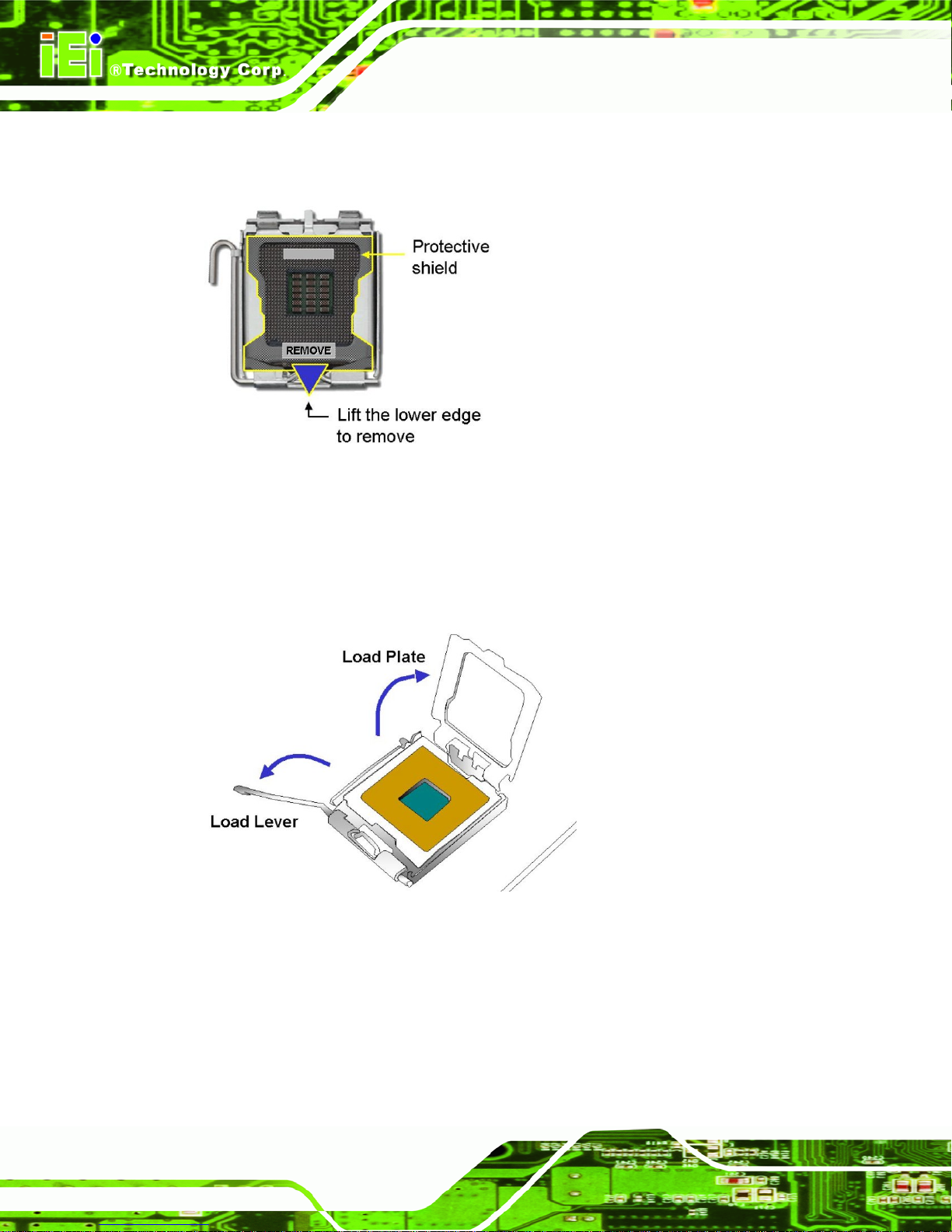

Step 1: Remove the protective cover. The black protective cover can be removed by
KINO-G45A Mini-ITX Motherboard
pulling up on the tab labeled "Remove". See
Figure 4-2: Remove Protective Cover
Step 2: Open the socket. Disengage the load lever by pressing the lever down and
slightly outward to clear the retention tab. Fully open the lever, then open the load plate. See
Figure 4-3.
Figure 4-2.
Figure 4-3: CPU Socket Load Plate
Step 3: Inspect the CPU socket. Make sure there are no bent pins and make sure the
socket contacts are free of foreign material. If any debris is found, remove it with compressed air.
Page 38
Page 50
KINO-G45A Mini-ITX Motherboard
Step 4: Orientate the CPU properly. The contact array should be facing the CPU
socket.
Step 5: Correctly position the CPU. Match the Pin 1 mark with the cut edge on the
CPU socket.
Step 6: Align the CPU pins. Locate pin 1 and the two orientation notches on the CPU.
Carefully match the two orientation notches on the CPU with the socket alignment keys.
Step 7: Insert the CPU. Gently insert the CPU into the socket. If the CPU pins are
properly aligned, the CPU should slide into the CPU socket smoothly. See
Figure 4-4.
Figure 4-4: Insert the Socket LGA775 CPU
Step 8: Close the CPU socket. Close the load plate and engage the load lever by
pushing it back to its original position. There will be some resist ance, but will not require extreme pressure.
Step 9: Connect the 12 V power to the board. Connect the 12 V power from the power
supply to the board. Step 0:
Page 39
Page 51
KINO-G45A Mini-ITX Motherboard
4.2.2 Socket LGA775 Cooling Kit Installation
WARNING:
DO NOT use the original Intel® heat sink and fan. A proprietary one is recommended.
Figure 4-5: Cooling Kits (CF-520 and CF-775A)
The cooling kit can be bought from IEI. The cooling kit has a heatsink and fan.
WARNING:
Do not wipe off (accidentally or otherwise) the pre-sprayed layer of thermal paste on the bottom of the heat sink. The thermal paste between the CPU and the heat sink is important for optimum heat dissipation.
To install the cooling kit, follow the instructions below.
Step 1: Place the cooling kit onto the socket LGA775 CPU. Make sure the CPU
cable can be properly routed when the cooling kit is installed.
Step 2: Properly align the cooling kit. Make sure the four spring screw fasteners can
pass through the pre-drilled holes on the PCB.
Page 40
Page 52
KINO-G45A Mini-ITX Motherboard
Step 3: Mount the cooling kit. Gently place the cooling kit on top of the CPU. Make
sure the four threaded screws on the corners of the cooling kit properly pass through the predrilled holes on the bottom of the PCB.
Step 4: Secure the cooling kit. From the solder side of the PCB, align the support
bracket to the screw threads on heat sink that were inserted through the PCB holes. (See
Figure 4-6: Securing the Heat sink to the KINO-G45A
Figure 4-6)
Step 5: Tighten the screws. Use a screwdriver to tighten the four screws. Tighten each
nut a few turns at a time and do not over-tighten the screws.
Step 6: Connect the fan cable. Connect the cooling kit fan cable to the fan connector
on the KINO-G45A. Carefully route the cable and avoid heat generating chips and fan blades. Step 0:
Page 41
Page 53
4.2.3 DIMM Installation
To install a DIMM, please follow the steps below and refer to Figure 4-7.
KINO-G45A Mini-ITX Motherboard
Figure 4-7: DIMM Installation
Step 1: Open the DIMM socket handles. Open the two handles outwards as far as
they can. See
Step 2: Align the DIMM with the socket. Align the DIMM so the notch on the memory
lines up with the notch on the memory socket. See
Step 3: Insert the DIMM. Once aligned, press down until the DIMM is properly seated.
Clip the two handles into place. See
Step 4: Removing a DIMM. To remove a DIMM, push both handles outward. The
memory module is ejected by a mechanism in the socket.Step 0:
Figure 4-7.
Figure 4-7.
Figure 4-7.
Page 42
Page 54
KINO-G45A Mini-ITX Motherboard
4.3 Jumper Settings
NOTE:
A jumper is a metal bridge used to close an electrical circuit. It consists of two or three metal pins and a small metal clip (often protected by a plastic cover) that slides over the pins to connect them. To CLOSE/SHORT a jumper means connecting the pins of the jumper with the plastic clip and to OPEN a jumper means removing the plastic clip from a jumper.
The hardware jumpers must be set before installation. Jumpers are shown in Table 4-1.
Description Label Type
AT/ATX Auto power setting jumper
Clear CMOS jumper J_CMOS1 3-pin header
Table 4-1: Jumpers
JAUTO1 2-pin header
4.3.1 AT/ATX Power Mode
Jumper Label: JAUTO1 Jumper Type: Jumper Settings: Jumper Location:
The AT Power Select jumper specifies the systems power mode as AT or ATX.
2-pin header See Table 4-2 See Figure 4-8
Page 43
Page 55
Setting Description
Open ATX power Closed AT power
KINO-G45A Mini-ITX Motherboard
Table 4-2: AT/ATX Power Mode Jumper Settings
Figure 4-8: AT/ATX Power Mode Jumper Location
4.3.2 Clear CMOS Jumper
Jumper Label: J_CMOS1 Jumper Type: Jumper Settings: Jumper Location:
To reset the BIOS, move the jumper to the "Clear BIOS" position for 3 seconds or more, and then move back to the default position.
Setting Description
1-2 Normal 2-3 Clear BIOS
Table 4-3: Clear BIOS Jumper Settings
3-pin header See Table 4-3 See Figure 4-9
Page 44
Page 56
KINO-G45A Mini-ITX Motherboard
Figure 4-9: Clear BIOS Jumper Location
4.3.3 SATA Drive Connection
The KINO-G45A is shipped with two SATA drive cables and one SATA drive power cable. To connect the SATA drives to the connectors, please follow the steps below.
Step 1: Locate the connectors. The locations of the SATA drive connectors are shown
in Chapter 3.
Step 2: Insert the cable connector. Press the clip on the connector at the end of the
SATA cable and insert the cable connector into the on-board SATA drive connector. See
Figure 4-10.
Figure 4-10: SATA Drive Cable Connection
Page 45
Page 57
Step 3: Connect the cable to the SATA disk. Connect the connector on the other end
KINO-G45A Mini-ITX Motherboard
of the cable to the connector at the back of the SATA drive. See
Step 4: Connect the SATA power cable. Connect the SATA power connector to the
back of the SATA drive. See
Figure 4-11. Step 4:
Figure 4-11.
Figure 4-11: SATA Power Drive Connection
4.3.4 USB Cable (Dual Port) with Slot Bracket
The KINO-G45A is shipped with a dual port USB 2.0 cable. To connect the USB cable connector, please follow the steps below.
Step 5: Locate the connectors. The locations of the USB connectors are shown in
Chapter 3.
WARNING:
If the USB pins are not properly aligned, the USB device can burn out.
Page 46
Page 58
KINO-G45A Mini-ITX Motherboard
Step 6: Align the connectors. The cable has two connectors. Correctly align pin 1on
each cable connector with pin 1 on the KINO-G45A USB connector.
Step 7: Insert the cable connectors. Once the cable connectors are properly aligned
with the USB connectors on the KINO-G45A, connect the cable connectors to the on-board connectors. See
Figure 4-12.
Figure 4-12: Dual USB Cable Connection
Step 8: Attach the bracket to the chassis. The USB 2.0 connectors are attached to a
bracket. To secure the bracket to the chassis please refer to the installation instructions that came with the chassis.Step 0:
Page 47
Page 59
KINO-G45A Mini-ITX Motherboard
4.4 External Peripheral Interface Connection
This section describes connecting devices to the external connectors on the KINO-G45A.
4.4.1 Audio Connector
The audio jacks on the external audio connector enable the KINO-G45A to be connected to a stereo sound setup. Each jack supports both input and output. When connecting a device, the High Definition Audio utility will automatically detect input or output. The lime green (top) audio jack does not support input from a microphone. To install the audio devices, follow the steps below.
Step 1: Identify the audio plugs. The plugs on your home theater system or speakers
may not match the colors on the rear panel.
Step 2: Plug the audio plugs into the audio jacks. Plug the audio plugs into the audio
jacks. If the plugs on your speakers are different, an adapter will need to be used to plug them into the audio jacks.
Figure 4-13: Audio Connector
Step 3: Check audio clarity. Check that the sound is coming through the right speakers
by adjusting the balance front to rear and left to right.
Page 48
Page 60
KINO-G45A Mini-ITX Motherboard
4.4.2 DVI Display Device Connection
The KINO-G45A has a single female DVI-D connector on the external peripheral interface panel. The DVI-D connector is connected to a digital display device. To connect a digital display device to the KINO-G45A, please follow the instructions below.
Step 4: Locate the DVI-D connector. The location of the DVI-I connector is shown in
another chapter.
Step 5: Align the DVI-D connector. Align the male DVI-I connector on the digital
display device cable with the female DVI-I connector on the external peripheral interface.
Step 6: Insert the DVI-D connector. Once the connectors are properly aligned with the
male connector, insert the male conne ctor from the digital display device into the female connector on the KINO-G45A. See
Figure 4-14: DVI Connector
Figure 4-14.
Step 7: Secure the connector. Secure the DVI-D co nnector from the digital display
device to the external interface by tightening the two retention screws on either side of the connector. Step 0:
Page 49
Page 61
4.4.3 LAN Connection
There are two external RJ-45 LAN connectors. The RJ-45 connectors enable connection to an external network. To connect a LAN cable with an RJ-45 connector, please follow the instructions below.
Step 1: Locate the RJ-45 connectors. The locations of the USB connecto rs are shown
in Chapter 4.
Step 2: Align the connectors. Align the RJ-45 connector on the LAN cable with one of
KINO-G45A Mini-ITX Motherboard
the RJ-45 connectors on the KINO-G45A. See
Figure 4-15: LAN Connection
Figure 4-15.
Step 3: Insert the LAN cable RJ-45 connector. Once aligned, gently insert the LAN
cable RJ-45 connector into the on-board RJ-45 connector. Step 0:
4.4.4 PS/2 Keyboard and Mouse Connection
The KINO-G45A has a dual PS/2 connector on the external peripheral interface panel. The dual PS/2 connector is used to connect to a keyboard and mouse to the system. Follow the steps below to connect a keyboard and mouse to the KINO-G45A.
Page 50
Page 62
KINO-G45A Mini-ITX Motherboard
Step 1: Locate the dual PS/2 connector. The location of the dual PS/2 connector is
shown in Chapter 3.
Step 2: Insert the keyboard/mouse connector. Insert a PS/2 keyboard or mouse
connector into the appropriate PS/2 connector on the external peripheral interface connector . See
Figure 4-16. Step 2:
Figure 4-16: PS/2 Keyboard/Mouse Connector
4.4.5 USB Connection (Dual Connector)
The external USB Series "A" receptacle connectors provide easier and quicker access to external USB devices. Follow the steps below to connect USB devices to the KINO-G45A.
Step 3: Locate the USB Series "A" receptacle connectors. The location of the USB
Series "A" receptacle connectors are shown in Chapter 3.
Step 4: Insert a USB Series "A" plug. Insert the USB Series "A" plug of a device into
the USB Series "A" receptacle on the external peripheral interface. See
Figure 4-17. Step 4:
Page 51
Page 63
KINO-G45A Mini-ITX Motherboard
Figure 4-17: USB Connector
4.4.6 VGA Monitor Connection
The KINO-G45A has a single female DB-15 connector on the external pe riphe ral i nterface panel. The DB-15 connector is connected to a CRT or VGA monitor. To connect a monitor to the KINO-G45A, please follow the instructions below.
Step 5: Locate the female DB-15 connector. The location of the female DB-15
connector is shown in Chapter 3.
Step 6: Align the VGA connector. Align the male DB-15 connector on the VGA screen
cable with the female DB-15 connector on the external peripheral interface.
Step 7: Insert the VGA connector. Once the conne ctors are prop erly aligned with the
insert the male connector from the VGA screen into the female connector on the KINO-G45A. See
Figure 4-18.
Page 52
Page 64
KINO-G45A Mini-ITX Motherboard
Figure 4-18: VGA Connector
Step 8: Secure the connector. Secure the DB-15 VGA connector from the VGA
monitor to the external interface by tightening the two retention screws on either side of the connector. Step 0:
4.5 Software Installation
All the drivers for the KINO-G45A are on the CD that came with the system. To install the drivers, please follow the steps below.
Step 1: Insert the CD into a CD drive connected to the system.
NOTE:
If the installation program doesn't start automatically: Click "Start->My Computer->CD Drive->autorun.exe"
Step 2: The driver main menu appears (Figure 4-19).
Page 53
Page 65
Figure 4-19: Introduction Screen
KINO-G45A Mini-ITX Motherboard
Step 3: Click KINO-G45A.
Step 4: A new screen with a list of available drivers appears (
Figure 4-20: Available Drivers
Figure 4-20).
Step 5: Install all of the necessary drivers in this menu. Step 0:
Page 54
Page 66
KINO-G45A Mini-ITX Motherboard
Chapter
5
5 BIOS
Page 55
Page 67
5.1 Introduction
The BIOS is programmed onto the BIOS chip. The BIOS setup program allows changes to certain system settings. This chapter outlines the options that can be changed.
5.1.1 Starting Setup
The AMI BIOS is activated when the computer is turned on. The setup program can be activated in one of two ways.
KINO-G45A Mini-ITX Motherboard
1. Press the D
2. Press the D appears on the screen. 0.
If the message disappears before the D again.
ELETE key as soon as the system is turned on or ELETE key when the “Press Del to enter SETUP” message
ELETE key is pressed, restart the computer and try
5.1.2 Using Setup
Use the arrow keys to highlight items, press ENTER to select, use the PageUp and PageDown keys to change entries, press F1 for help and press E keys are shown in.
Key Function
Up arrow Move to previous item Down arrow Move to next item Left arrow Move to the item on the left hand side
SC to quit. Navigation
Right arrow Move to the item on the right hand side Esc key Main Menu – Quit and not save changes into CMOS
Status Page Setup Menu and Option Page Setup Menu --
Exit current page and return to Main Menu Page Up key Increase the numeric value or make changes Page Dn key Decrease the numeric value or make changes F1 key General help, only for Status Page Setup Menu and Option
Page Setup Menu
Page 56
Page 68
KINO-G45A Mini-ITX Motherboard
Key Function
F2 /F3 key Change color from total 16 colors. F2 to select color
forward. F10 key Save all the CMOS changes, only for Main Menu
Table 5-1: BIOS Navigation Keys
5.1.3 Getting Help
When F1 is pressed a small help window describing the appropriate keys to use and the possible selections for the highlighted item appears. To exit the Help Window press E the F1 key again.
5.1.4 Unable to Reboot After Configuration Changes
If the computer cannot boot after changes to the system configuration is made, CMOS defaults. Use the jumper described in Chapter 5.
5.1.5 BIOS Menu Bar
The menu bar on top of the BIOS screen has the following main items:
Main – Changes the basic system configuration.  Advanced – Changes the advanced system settings.  PCIPnP – Changes the advanced PCI/PnP Settings  Boot – Changes the system boot configuration.  Security – Sets User and Supervisor Passwords.  Chipset – Changes the chipset settings.
SC or
Power – Changes power management settings.  Exit – Selects exit options and loads default settings
The following sections completely describe the configuration options found in the menu items at the top of the BIOS screen and listed above.
Page 57
Page 69
KINO-G45A Mini-ITX Motherboard
5.2 Main
The Main BIOS menu (BIOS Menu 1) appears when the BIOS Setup program is entered. The Main menu gives an overview of the basic system information.
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Exit
System Overview ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
AMIBIOS Version :08.00.15 Build Date :06/29/09 ID: :B142MT12
Processor Type :Intel® Core™2 CPU 6300 @ 1.86GHz Speed :1866MHz Count :1
System Memory Size :990MB
System Time [14:20:27] System Time [Tue 05/06/2008]
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
Use [ENTER], [TAB] or [SHIFT-TAB] to select a field.
Use [+] or [-] to configure system time.

Select Screen
↑ ↓ Select Item Enter Go to SubScreen F1 General Help F10 Save and Exit ESC Exit
BIOS Menu 1: Main
System Overview
The System Overvie w lists a brief summary of different system components. Th e fields in System Overview cannot be changed. The items shown in the system overview include:
AMI BIOS: Displays auto-detected BIOS information
o Version: Current BIOS version o Build Date: Date the current BIOS version was made o ID: Installed BIOS ID
Processor: Displays auto-detected CPU specifications
o Type: Names the currently installed processor o Speed: Lists the processor speed o Count: The number of CPUs on the motherboard
System Memory: Displays the auto-detected system memory.
o Size: Lists memory size
Page 58
Page 70
KINO-G45A Mini-ITX Motherboard
The System Overview field also has two user configurable fields:
System Time [xx:xx:xx]
Use the System Time option to set the system time. Manually enter the hours, minutes and seconds.
System Date [xx/xx/xx]
Use the System Date option to set the system date. Manually enter the day, month and year.
5.3 Advanced
Use the Advanced menu (BIOS Menu 2) to configure the CPU and peripheral devices through the following sub-menus:
WARNING!
Setting the wrong values in the sections below may cause the system to malfunction. Make sure that the settings made are compatible with the hardware.
CPU Configuration (see Section 5.3.1) IDE Configuration (see Section Floppy Configuration (see Section Super IO Configuration (see Section Hardware Health Configuration (see Section AHCI Configuration (see Section  Remote Access Configuration (see Section USB Configuration (see Section
5.3.2)
5.3.3)
5.3.3)
5.3.4)
5.3.5)
5.3.6)
5.3.7)
Page 59
Page 71
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Exit
Advanced Settings ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
WARNING: Setting wrong values in below sections may cause system to malfunction
> CPU Configuration > IDE Configuration > SuperIO Configuration > Hardware Health Configuration > AHCI Configuration > Remote Access Configuration > USB Configuration
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
BIOS Menu 2: Advanced
KINO-G45A Mini-ITX Motherboard
Configure CPU

Select Screen
↑ ↓ Select Item Enter Go to SubScreen F1 General Help F10 Save and Exit ESC Exit
5.3.1 CPU Configuration
Use the CPU Configuration menu (BIOS Menu 3) to view detailed CPU specifications and configure the CPU.
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Exit
Configure Advanced CPU Settings Module Version:3F.11
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ Manufacturer :Intel® Brand String :Intel® Core™2 CPU 6300 @ 1.86GHz Frequency :1.866GHz FSB Speed :1068MHz Cache L1 : 64KB Cache L2 : 2048KB Ratio Actual Value:7
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
BIOS Menu 3: CPU Configuration

Select Screen
↑ ↓ Select Item Enter Go to SubScreen F1 General Help F10 Save and Exit ESC Exit
The CPU Configuration menu (
Manufacturer: Lists the name of the CPU manufacturer
Page 60
BIOS Menu 3) lists the following CPU details:
Page 72
S
KINO-G45A Mini-ITX Motherboard
Brand String: Lists the brand name of the CPU being used  Frequency: Lists the CPU processing speed  FSB Speed: Lists the FSB speed  Cache L1: Lists the CPU L1 cache size  Cache L2: Lists the CPU L2 cache size
5.3.2 IDE Configuration
Use the IDE Configuration menu (BIOS Menu 4) to change and/or set the configuration of the IDE devices installed in the system.
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Exit
IDE Configuration ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
SATA#1 Configuration [Enhanced]
Configure SATA#1 as [IDE]
SATA#2 Configuration [Enhanced]
> Primary IDE Master : [Not Detected] > Primary IDE Slave : [Not Detected] > Secondary IDE Master : [Not Detected] > Secondary IDE Slave : [Not Detected] > Third IDE Master : [Not Detected] > Fourth IDE Master : [Not Detected]
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
DISABLED: disable the integrated IDE controller. PRIMARY: enables only the Primary IDE controller
ECONDARY: enables only the Secondary IDE controller. BOTH: enables both IDE controllers

Select Screen
↑ ↓ Select Item Enter Go to SubScreen F1 General Help F10 Save and Exit ESC Exit
BIOS Menu 4: IDE Configuration
SATA# Con figurations [Compatible]
Use the SATA# Configurations option to configure the ATA/IDE controller.
Page 61
Page 73
KINO-G45A Mini-ITX Motherboard
Disabled
Enhanced DEFAULT
Configure SATA#1 as [IDE]
Use the Configure SATA as option to configure SATA devices as normal IDE devices.
IDE DEFAULT
AHCI
IDE Master and IDE Slave
When entering setup, BIOS automatically detects the presence of IDE devices. BIOS
Configures SATA device as normal IDE device. Configures SATA device as normal AHCI device.
Disables the on-board ATA/IDE controller. Configures the on-board ATA/IDE controller to be in
Enhanced mode. In this mode, IDE channels and SATA channels are separated. This mode supports up to 6 storage devices. Some legacy OS do not support this mode.
displays the status of the automatically detected IDE devices. The following IDE devices are detected and are shown in the IDE Configuration menu:
 Primary IDE Master  Primary IDE Slave  Secondary IDE Master  Secondary IDE Slave  Third IDE Master  Fourth IDE Master
The IDE Configuration menu ( IDE devices installed in the system. If an IDE device is detected and one of the above listed four BIOS configuration options are selected, the IDE configuration options shown in
Section
5.3.2.1 appear.
BIOS Menu 4) allows changes to the configurations for the
5.3.2.1 IDE Master, IDE Slave
Use the IDE Master and IDE Slave configuration menu to view both primary and secondary IDE device details and configure the IDE devices connected to the system.
Page 62
Page 74
S
KINO-G45A Mini-ITX Motherboard
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Exit
Primary IDE Master ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
Device :Not Detected
Type [Auto] LBA/Large Mode [Auto] Block (Multi-Sector Transfer) [Auto] PIO Mode [Auto] DMA Mode [Auto] S.M.A.R.T. [Auto] 32Bit Data Transfer [Enabled]
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
BIOS Menu 5: IDE Master and IDE Slave Configuration
elect the type of device connected to the system

Select Screen
↑ ↓ Select Item Enter Go to SubScreen F1 General Help F10 Save and Exit ESC Exit
Auto-Detected Drive Parameters
The “grayed-out” items in the left frame are IDE disk drive parameters automatically detected from the firmware of the selected IDE disk drive. The drive parameters are listed as follows:
Device: Lists the device type (e.g. hard disk, CD-ROM etc.)  Type: Indicates the type of devices a user ca n manually select  Vendor: Lists the device manufacturer  Size: List the storage capacity of the device.  LBA Mode: Indicates whether the LBA (Logical Block Addre s sing) is a method
of addressing data on a disk drive is supported or not.
Block Mode: Block mode boosts IDE drive performance by increasing the
amount of data transferred. Only 512 bytes of data can be transferred per interrupt if block mode is not used. Block mode allows transfers of up to 64 KB per interrupt.
PIO Mode: Indicates the PIO mode of the installed device.  Async DMA: Indicates the highest Asynchronous DMA Mode that is
supported.
Ultra DMA: Indicates the highest Synchronous DMA Mode that is supported.  S.M.A.R.T.: Indicates whether or not the Self-Monitoring Analysis and
Reporting Technology protocol is supported.
Page 63
Page 75
Type [Auto]
Use the Type BIOS option select the type of device the AMIBIOS attempts to boot from after the Power-On Self-Test (POST) is complete.
KINO-G45A Mini-ITX Motherboard
32Bit Data Transfer: Enables 32-bit data transfer.
Not Installed
Auto DEFAULT
CD/DVD
ARMD
BIOS is prevented from searching for an IDE disk drive on the specified channel.
The BIOS automatically detects the IDE disk drive type attached to the specified channel. This setting should be used if an IDE hard disk drive is atta ch ed t o the specified channel.
The CD/DVD option specifies that an IDE CD-ROM drive is attached to the specified IDE channel. The BIOS does not attempt to search for other types of IDE disk drives on the specified channel.
This option specifies an ATAPI Removable Media Device. These include, but are not limited to:
ZIP LS-120
LBA/Large Mode [Auto]
Use the LBA/Large Mode option to disable or enable BIOS to auto detects LBA (Logical Block Addressing). LBA is a method of addressing data on a disk drive. In LBA mode, the maximum drive capacity is 137 GB.
Disabled
Auto DEFAULT
Page 64
BIOS is prevented from using the LBA mode control on the specified channel.
BIOS auto detects the LBA mode control on the specified channel.
Page 76
KINO-G45A Mini-ITX Motherboard
Block (Multi Sector Transfer) [Auto]
Use the Block (Multi Sector Transfer) to disable or enable BIOS to auto detect if the device supports multi-sector transfers.
Disabled
Auto DEFAULT
PIO Mode [Auto]
Use the PIO Mode option to select the IDE PIO (Programmable I/O) mode program timing cycles between the IDE drive and the programmable IDE controller. As the PIO mode increases, the cycle time decrease s.
Auto DEFAULT
0
BIOS is prevented from using Multi-Sector T ran sfer on the specified channel. The data to and from the device occurs one sector at a time.
BIOS auto detects Multi-Sector Transfer support on the drive on the specified channel. If supported the data transfer to and from the device occurs multiple sectors at a time.
BIOS auto detects the PIO mode. Use this value if the IDE disk drive support cannot be determined.
PIO mode 0 selected with a maximum transfer rate of 3.3 MB/s
1
2
3
4
DMA Mode [Auto]
Use the DMA Mode BIOS selection to adjust the DMA mode options.
PIO mode 1 selected with a maximum transfer rate of 5.2 MB/s PIO mode 2 selected with a maximum transfer rate of 8.3 MB/s PIO mode 3 selected with a maximum transfer rate of 11.1 MB/s PIO mode 4 selected with a maximum transfer rate of 16.6 MB/s
(This setting generally works with all hard disk drives manufactured after 1999. For other disk drives, such as IDE CD-ROM drives, check the specifications of the drive.)
Page 65
Page 77
KINO-G45A Mini-ITX Motherboard
Auto DEFAULT
SWDMA0
SWDMA1
SWDMA2
MWDMA0
MWDMA1
MWDMA2
BIOS auto detects the DMA mode. Use this value if the IDE disk drive support cannot be determined.
Single Word DMA mode 0 selected with a maximum data transfer rate of 2.1 MB/s
Single Word DMA mode 1 selected with a maximum data transfer rate of 4.2 MB/s
Single Word DMA mode 2 selected with a maximum data transfer rate of 8.3 MB/s
Multi Word DMA mode 0 selected with a maximum data transfer rate of 4.2 MB/s
Multi Word DMA mode 1 selected with a maximum data transfer rate of 13.3 MB/s
Multi Word DMA mode 2 selected with a maximum data transfer rate of 16.6 MB/s
UDMA0
UDMA1
UDMA2
UDMA3
UDMA4
UDMA5
Ultra DMA mode 0 selected with a maximum data transfer rate of 16.6 MB/s
Ultra DMA mode 1 selected with a maximum data transfer rate of 25 MB/s
Ultra DMA mode 2 selected with a maximum data transfer rate of 33.3 MB/s
Ultra DMA mode 3 selected with a maximum data transfer rate of 44 MB/s (To use this mode, it is required that an 80-conductor ATA ca ble is used.)
Ultra DMA mode 4 selected with a maximum data transfer rate of 66.6 MB/s (To use this mode, it is required that an 80-conductor ATA ca ble is used.)
Ultra DMA mode 5 selected with a maximum data transfer rate of 99.9 MB/s (To use this mode, it is required that an 80-conductor ATA ca ble is used.)
Page 66
Page 78
KINO-G45A Mini-ITX Motherboard
S.M.A.R.T [Auto]
Use the S.M.A.R.T option to auto-detect, disable or enable Self-Monitoring Analysis and Reporting Technology (SMART) on the drive on the specified channel. S.M.A.R.T predicts impending drive failures. The S.M.A.R.T BIOS option enables or disables this function.
Auto DEFAULT
Disabled
Enabled
32Bit Data Transfer [Enabled]
Use the 32Bit Data Transfer BIOS option to enables or disable 32-bit data transfers.
Disabled
Enabled DEFAULT
BIOS auto detects HDD SMART support. Prevents BIOS from using the HDD SMART feature. Allows BIOS to use the HDD SMART feature
Prevents the BIOS from using 32-bit data transfers. Allows BIOS to use 32-bit data transfers on supported
hard disk drives.
5.3.3 Super IO Configuration
Use the Super IO Configuration menu (BIOS Menu 6) to set or change the configurations for the FDD controllers, parallel ports and serial ports.
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Exit
Configure Super I/O Chipset ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
Serial Port1 Address [3F8/IRQ4]
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
BIOS Menu 6: Super IO Configuration
Allows BIOS to select Serial Port Base Addresses

Select Screen
↑ ↓ Select Item Enter Go to SubScreen F1 General Help F10 Save and Exit ESC Exit
Page 67
Page 79
Serial Port1 Address [3F8/IRQ4]
Use the Serial Port1 Address option to select the Serial Port 1 base address.
KINO-G45A Mini-ITX Motherboard
Disabled
3F8/IRQ4 DEFAULT
3E8/IRQ4
2E8/IRQ3
No base address is assigned to Serial Port 1 Serial Port 1 I/O port address is 3F8 and the interrupt
address is IRQ4 Serial Port 1 I/O port address is 3E8 and the interrupt
address is IRQ4 Serial Port 1 I/O port address is 2E8 and the interrupt
address is IRQ3
Page 68
Page 80
KINO-G45A Mini-ITX Motherboard
5.3.4 Hardware Health Configuration
The Hardware Health Configuration menu (BIOS Menu 7) shows the operating temperature, fan speeds and system voltages.
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Exit
Hardware Health Event Monitoring ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
CPU_FAN Mode Setting [Automatic Mode]
CPU Temp. Limit of OFF [035] CPU Temp. Limit of Start [055] CPU_FAN1 Start PWM [050] Slope PWM 1 [2 PWM]
CPU Temperature :43ºC/109ºF System Temperature :33ºC/91ºF
CPU Fan Speed :4821 RPM SYS Fan Speed :4821 RPM
CPU Core :1.280 V +1.10V :1.088 V +3.30V :3.376 V +5.00V :5.107 V +12.0V :12.288 V +1.50V :1.504 V VMEM :1.904 V 5VSB :5.053 V
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.

Select Screen
↑ ↓ Select Item Enter Go to SubScreen F1 General Help F10 Save and Exit ESC Exit
BIOS Menu 7: Hardware Health Configuration
Mode Setting [Full On Mode]
Use the Mode Setting option to configure the second fan.
Full On Mode DEFAULT
Automatic mode
Fan is on all the time The fan adjusts its speed using these settings:
Temp. Limit of OFF Temp. Limit of Start Fan Start PWM Slope PWM 1
Page 69
Page 81
KINO-G45A Mini-ITX Motherboard
PWM Manual mode
Temp. Limit of OFF [000]
The fan spins at the speed set in: Fan PWM control
WARNING:
CPU failure can result if this value is set too high
The fan will turn off if the temperature falls below this value.
Minimum Value: 0°C  Maximum Value: 127°C
Temp. Limit of Start [020]
WARNING:
CPU failure can result if this value is set too high
When the fan is off, it will only start when the temperature exceeds this setting.
Minimum Value: 0°C  Maximum Value: 127°C
Start PWM [070]
This is the initial speed of the fan when it first starts spinning.
PWM Minimum Mode: 0  PWM Maximum Mode: 127
Slope PWM [1 PWM]
A bigger value will increase the fan speed in big amounts. A smaller value will increase the speed more gradually.
Page 70
Page 82
KINO-G45A Mini-ITX Motherboard
0 PWM 1 PWM 2 PWM 4 PWM 8 PWM 16 PWM 32 PWM 64 PWM
CPU Fan PWM Control [070]
This value specifies the speed of the fan.
PWM Minimum Mode: 0  PWM Maximum Mode: 127
Hardware Health Monitoring
The following system parameters and values are shown. The system parameters that are monitored are:
System Temperatures:
o CPU Temperature o System Temperature
Fan Speeds:
o CPU Fan Speed o SYS Fan Speed
Voltages:
o CPU Core o +1.10 V o +3.30 V o +5.50 V o +12.0 V o +1.50 V o VMEM o 5VSB
Page 71
Page 83
S
m
KINO-G45A Mini-ITX Motherboard
5.3.5 AHCI Configuration
NOTE:
Advanced Host Controller Interface (AHCI) is a new programming interface for SATA host controllers. AHCI systems do not have master/slave designation for SATA devices, each device is treated as a master, and hardware-assisted native command queuing.
Use the AHCI Settings menu (BIOS Menu 8) to report on the auto-detection of devices connected to the onboard SATA drive connectors.
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Exit
AHCI Settings ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
AHCI CD/DVD Boot Time out [15] ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
> AHCI Port0 [Not Detected] > AHCI Port1 [Not Detected] > AHCI Port2 [Not Detected] > AHCI Port3 [Not Detected] > AHCI Port4 [Not Detected] > AHCI Port5 [Not Detected]
ome SATA CD/DVD in AHCI
ode need to wait ready longer

Select Screen
↑ ↓ Select Item Enter Go to SubScreen F1 General Help F10 Save and Exit ESC Exit
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
BIOS Menu 8: AHCI Configuration
AHCI Port n [Not Detected]
Use the AHCI Port n BIOS option to determine which AHCI (Advanced Host Controller Interface) devices are detected on a specified SATA drive connector. If a device is detected, selecting the BIOS option, e.g. “AHCI Port 3” opens a new window.
Page 72
Page 84
S
KINO-G45A Mini-ITX Motherboard
5.3.5.1 AHCI Port n
Use the AHCI Port n configuration menu (BIOS Menu 9) to configure the drive connected to SATA connector n.
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Exit
AHCI Port0 ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
Device :Not Detected ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
SATA Port0 [Auto] S.M.A.R.T. [Enabled]
elect the type of device connected to the system

Select Screen
↑ ↓ Select Item Enter Go to SubScreen F1 General Help F10 Save and Exit ESC Exit
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
BIOS Menu 9: AHCI Port n Configuration Menu
SATA Port n [Auto]
Use the SATA Port n option to enable the system to auto-detect the type of drive connected to SATA drive connector n.
S.M.A.R.T [Enabled]
Use the S.M.A.R.T option to enable S.M.A.R.T (Self-Monitoring, Analysis, and Reporting Technology) on the drive connected to SATA drive connector n.
Enabled DEFAULT
Disabled
S.M.A.R.T is enabled on the drive connected to SATA drive connector n on the system
S.M.A.R.T is disabled on the drive connected to SATA drive connector n on the system
Page 73
Page 85
KINO-G45A Mini-ITX Motherboard
5.3.6 Remote Access Configuration
Use the Remote Access Configuration menu (BIOS Menu 10) to configure remote access parameters. The Remote Access Configuration is an AMIBIOS feature and allows a remote host running a terminal program to display and configure the BIOS settings.
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Exit
Configure Remote Access type and parameters ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
Remote Access [Disabled]
Serial port number [COM1] Base Address, IRQ [3F8H, 4] Serial Port Mode [115200 8,n,1] Redirection After BIOS POST [Always] Terminal Type [ANSI]

Select Screen
↑ ↓ Select Item Enter Go to SubScreen F1 General Help F10 Save and Exit ESC Exit
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
BIOS Menu 10: Remote Access Configuration
Remote Access [Disabled]
Use the Remote Access option to enable or disable access to the remote functionalities of the system.
Disabled DEFAULT
Remote access is disabled.
Page 74
Page 86
KINO-G45A Mini-ITX Motherboard
Enabled
Serial Port Number [COM1]
Use the Serial Port Number option to select the serial port used for remote access.
COM1 DEFAULT
Remote access configuration options shown below appear:
Serial Port Number Serial Port Mode Flow Control Redirection after BIOS POST Terminal Type VT-UTF8 Combo Key Support These configuration options are discussed below.
System is remotely accessed through COM1
NOTE: Make sure the selected COM port is enabled through the Super I/O configuration menu.
Base Address, IRQ [2F8h,3]
The Base Address, IRQ option cannot be configured and only shows the interrupt address of the serial port listed above.
Serial Port Mode [115200 8,n,1]
Use the Serial Port Mode option to select baud rate through which the console redirection is made. The following configuration options are available
115200 8,n,1 D 57600 8,n,1 38400 8,n,1 19200 8,n,1 09600 8,n,1
EFAULT
Page 75
Page 87
NOTE:
Identical baud rate setting musts be set on the host (a management computer running a terminal software) and the slave
Redirection After BIOS POST [Always]
Use the Redirection After BIOS POST option to specify when console redirection should occur.
KINO-G45A Mini-ITX Motherboard
Disabled
Boot Loader
Always DEFAULT
Terminal Type [ANSI]
Use the Terminal Type BIOS option to specify the remote terminal type.
ANSI DEFAULT
VT100
VT-UTF8
The console is not redirected after POST Redirection is active during POST and during Boot
Loader Redirection is always active (Some OSes may not
work if set to Always)
The target terminal type is ANSI The target terminal type is VT100 The target terminal type is VT-UTF8
5.3.7 USB Configuration
Use the USB Configuration menu (BIOS Menu 11) to read USB configuration information and configure the USB settings.
Page 76
Page 88
KINO-G45A Mini-ITX Motherboard
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Exit
USB Configuration ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
Module Version – 2.24.3-13.4
USB Devices Enabled: None
USB Function [Enabled] USB 2.0 Controller [Enabled] Legacy USB Support [Enabled] USB 2.0 Controller Mode [HiSpeed]
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
BIOS Menu 11: USB Configuration
Enables USB host controllers

Select Screen
↑ ↓ Select Item Enter Go to SubScreen F1 General Help F10 Save and Exit ESC Exit
USB Configuration
The USB Configuration field shows the system USB configuration. The items listed are:
Module Version: x.xxxxx.xxxxx
USB Devices Enabled
The USB Devices Enabled field lists the USB devices that are enabled on the system
USB Function [Enabled]
Use the USB Function BIOS option to enable or disable USB function support.
Disabled
Enabled DEFAULT
USB 2.0 Controller [Enabled]
USB function support disabled USB function support enabled
Use the USB 2.0 Controller BIOS option to enable or disable the USB 2.0 controller
Disabled
Enabled DEFAULT
USB 2.0 controller disabled USB 2.0 controller enabled
Page 77
Page 89
Legacy USB Support [Enabled]
Use the Legacy USB Support BIOS option to enable USB mouse and USB keyboard support.
Normally if this option is not enabled, any attached USB mouse or USB keyboard does not become available until a USB compatible operating system is fully booted with all USB drivers loaded. When this option is enabled, any attached USB mouse or USB keyboard can control the system even when there is no USB driver loaded onto the system.
KINO-G45A Mini-ITX Motherboard
Disabled
Enabled DEFAULT
Auto
USB2.0 Controller Mode [HiSpeed]
Use the USB2.0 Controller Mode option to set the speed of the USB2.0 controller.
FullSpeed
HiSpeed DEFAULT
5.4 PCI/PnP
Use the PCI/PnP menu (BIOS Menu 12) to configure advanced PCI and PnP settings.
Legacy USB support disabled Legacy USB support enabled Legacy USB support disabled if no USB devices are
connected
The controller is capable of operating at 12 Mb/s The controller is capable of operating at 480 Mb/s
WARNING!
Setting wrong values for the BIOS selections in the PCIPnP BIOS menu may cause the system to malfunction.
Page 78
Page 90
A
R
KINO-G45A Mini-ITX Motherboard
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Exit
Advanced PCI/PnP Settings ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
WARNING: Setting wrong values in below sections may cause system to malfunction IRQ3 [Reserved] IRQ4 [Reserved] IRQ5 [Available] IRQ7 [Available] IRQ9 [Available] IRQ10 [Available] IRQ11 [Available] IRQ14 [Available] IRQ15 [Available]
DMA Channel 0 [Available] DMA Channel 1 [Available] DMA Channel 3 [Available] DMA Channel 5 [Available] DMA Channel 6 [Available] DMA Channel 7 [Available]
Reserved Memory Size [Disabled]
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
vailable: Specified IRQ is available to be use the PCI/PnP devices
eserved: Specified IRQ is reserved for use by legacy ISA devices

Select Screen
↑ ↓ Select Item Enter Go to SubScreen F1 General Help F10 Save and Exit ESC Exit
BIOS Menu 12: PCI/PnP Configuration
IRQ# [Av ailable]
Use the IRQ# address to specify what IRQs can be assigned to a particular peripheral device.
Available DEFAULT
Reserved
Available IRQ addresses are:
IRQ3 IRQ4 IRQ5
The specified IRQ is available to be used by PCI/PnP devices
The specified IRQ is reserved for use by Legacy ISA devices
IRQ7
Page 79
Page 91
IRQ9 IRQ10 IRQ 11 IRQ 14 IRQ 15
DMA Channel# [Available]
Use the DMA Channel# option to assign a specific DMA channel to a particular PCI/PnP device.
KINO-G45A Mini-ITX Motherboard
Available DEFAULT
Reserved
Available DMA Channels are:
DM Channel 0  DM Channel 1  DM Channel 3  DM Channel 5  DM Channel 6  DM Channel 7
Reserved Memory Size [Disabled]
Use the Reserved Memory Size BIOS option to specify the amount of memory that
The specified DMA is available to be used by PCI/PnP devices
The specified DMA is reserved for use by Legacy ISA devices
should be reserved for legacy ISA devices.
Disabled DEFAULT
16K
32K
64K
Page 80
No memory block reserved for legacy ISA devices 16 KB reserved for legacy ISA devices 32 KB reserved for legacy ISA devices 54 KB reserved for legacy ISA devices
Page 92
d
KINO-G45A Mini-ITX Motherboard
5.5 Boot
Use the Boot menu (BIOS Menu 13) to configure system boot options.
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Exit
Boot Settings ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
> Boot Settings Configuration
> Boot Device Priority > Hard Disk Drives > CD/DVD Drives > Removable Drives
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
Configure settings during system boot.

Select Screen
↑ ↓ Select Item Enter Go to SubScreen F1 General Help F10 Save and Exit ESC Exit
BIOS Menu 13: Boot
5.5.1 Boot Settings Configuration
Use the Boot Settings Configuration menu (BIOS Menu 14) to configure advanced system boot options.
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Exit
Boot Settings Configuration ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
Quick Boot [Enabled] Quiet Boot [Enabled] AddOn ROM Display Mode [Force BIOS] Bootup Num-Lock [On] Spread Spectrum Function [Disabled]
Allows BIOS to skip certain tests while booting. This will
ecrease the time needed to boot the system.

Select Screen
↑ ↓ Select Item Enter Go to SubScreen F1 General Help F10 Save and Exit ESC Exit
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
BIOS Menu 14: Boot Settings Configuration
Page 81
Page 93
Quick Boot [Enabled]
Use the Quick Boot BIOS option to make the computer speed up the boot process.
KINO-G45A Mini-ITX Motherboard
Disabled
Enabled DEFAULT
Boot From LAN Support [Disabled]
Use the BOOT From LAN Support option to enable the system to be booted from a remote system.
Disabled DEFAULT
Enabled DEFAULT
Quiet Boot [Disabled]
Use the Quiet Boot BIOS option to select the screen display when the system boots.
No POST procedures are skipped Some POST procedures are skipped to decrease
the system boot time
Cannot be booted from a remote system through the LAN
Can be booted from a remote system through the LAN
Disabled DEFAULT
Enabled
AddOn ROM Display Mode [Force BIOS]
Use the AddOn ROM Display Mode option to allow add-on ROM (read-only memory) messages to be displayed.
Force BIOS DEFAULT
Keep Current
Page 82
Normal POST messages displayed OEM Logo displayed instead of POST messages
The system forces third party BIOS to display during system boot.
The system displays normal information during system boot.
Page 94
KINO-G45A Mini-ITX Motherboard
Bootup Num-Lock [On]
Use the Bootup Num-Lock BIOS option to specify if the number lock setting must be modified during boot up.
Off
On DEFAULT
Spread Spectrum Function [Disabled]
The Spread Spectrum Function option can help to improve CPU EMI issues.
Disabled DEFAULT
Enabled
Does not enable the keyboard Number Lock automatically. To use the 10-keys on the keyboard, press the Number Lock key located on the upper left-hand corner of the 10-key pad. The Number Lock LED on the keyboard lights up when the Number Lock is engaged.
Allows the Number Lock on the keyboard to be enabled automatically when the computer system boots up. This allows the immediate use of the 10-key numeric keypad located on the right side of the keyboard. To confirm this, the Number Lock LED light on the keyboard is lit.
The spread spectrum function is disabled The spread spectrum function is enabled
Page 83
Page 95
KINO-G45A Mini-ITX Motherboard
5.5.2 Boot Device Priority
Use the Boot Device Priority menu (BIOS Menu 15) to specify the boot sequence from the available devices. The drive sequence also depends on the boot sequence in the individual device section.
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Exit
Boot Device Priority ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
> 1st Boot Device [1st Boot Device] > 2nd Boot Device [2nd Boot Device] > 3rd Boot Device [3rd Boot Device]
Specifies the boot sequence from the available devices.

Select Screen
↑ ↓ Select Item Enter Go to SubScreen F1 General Help F10 Save and Exit ESC Exit
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
BIOS Menu 15: Boot Device Priority Settings
Page 84
Page 96
KINO-G45A Mini-ITX Motherboard
5.5.3 Hard Disk Drives
Use the Hard Disk Drives menu to specify the boot sequence of the available HDDs. Only installed hard drives are shown.
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Exit
Hard Disk Drives ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
> 1st Drive [Hard Drive 1] > 2nd Drive [Hard Drive 2] > 3rd Drive [Hard Drive 3]
Specifies the boot sequence from the available devices.

Select Screen
↑ ↓ Select Item Enter Go to SubScreen F1 General Help F10 Save and Exit ESC Exit
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
BIOS Menu 16: Hard Disk Drives
Page 85
Page 97
KINO-G45A Mini-ITX Motherboard
5.5.4 Removable Drives
Use the Removable Drives menu (BIOS Menu 17) to specify the boot sequence of the removable drives. Only connected drives are shown.
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Exit
Hard Disk Drives ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
> 1st Drive [Removable Drive 1] > 2nd Drive [Removable Drive 2] > 3rd Drive [Removable Drive 3]
Specifies the boot sequence from the available devices.

Select Screen
↑ ↓ Select Item Enter Go to SubScreen F1 General Help F10 Save and Exit ESC Exit
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
BIOS Menu 17: Removable Drives
5.5.5 CD/DVD Drives
Use the CD/DVD Drives menu to specify the boot sequence of the available CD/DVD drives. When the menu is opened, the CD drives and DVD drives connected to the system are listed as shown below:
1st Drive [CD/DVD: PM-(part ID)]  2nd Drive [HDD: PS-(part ID)]  3rd Drive [HDD: SM-(part ID)]  4th Drive [HDD: SM-(part ID)]
NOTE:
Only the drives connected to the system are shown. For example, if only two CDs or DVDs are connected only “1st Drive” and “2nd Drive” are listed.
Page 86
Page 98
KINO-G45A Mini-ITX Motherboard
The boot sequence from the available devices is selected. If the “1st Drive” option is selected a list of available CD/DVD drives is shown. Select the first CD/DVD drive the system boots from. If the “1st Drive” is not used for booting this option may be disabled.
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Exit
Hard Disk Drives ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
> 1st Drive [CD/DVD 1] > 2nd Drive [CD/DVD 2] > 3rd Drive [CD/DVD 3]
Specifies the boot sequence from the available devices.

Select Screen
↑ ↓ Select Item Enter Go to SubScreen F1 General Help F10 Save and Exit ESC Exit
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
BIOS Menu 18: CD/DVD Drives
5.6 Security
Use the Security menu (BIOS Menu 19) to set system and user passwords.
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Exit
Security Settings ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
Supervisor Password :Not Installed User Password :Not Installed
Change Supervisor Password Change User Password

Select Screen
↑ ↓ Select Item Enter Go to SubScreen F1 General Help F10 Save and Exit ESC Exit
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
BIOS Menu 19: Security
Page 87
Page 99
Change Supervisor Password
Use the Change Supervisor Password to set or change a supervisor password. The default for this option is Not Installed. If a supervisor password must be installed, select this field and enter the password. After the password has been added, Install appears next to Change Supervisor Password.
Change User Password
Use the Change User Password to set or change a user password. The default for this option is Not Installed. If a user password must be installed, select this field and enter the password. After the password has been added, Install appears next to Change User Password.
Clear User Password
KINO-G45A Mini-ITX Motherboard
Use the Clear User Password to clear a user’s password. The default for this option is Not Installed. If a user password must be cleared, use this option.
Boot Sector Virus Protection [Dis abled]
Use the Boot Sector Virus Protection to enable or disable boot sector protection.
Disabled DEFAULT
Enabled
5.7 Chipset
Use the Chipset menu (BIOS Menu 20) to access the Northbridge and Southbridge configuration menus
WARNING!
Disables the boot sector virus protection Enables the boot sector virus protection
Setting the wrong values for the Chipset BIOS selections in the Chipset BIOS menu may cause the system to malfunction.
Page 88
Page 100
KINO-G45A Mini-ITX Motherboard
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Exit
Advanced Chipset Settings ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
WARNING: Setting wrong values in below section may cause system to malfunction.
> Northbridge Configuration > Southbridge Configuration
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
BIOS Menu 20: Chipset

Select Screen
↑ ↓ Select Item Enter Go to SubScreen F1 General Help F10 Save and Exit ESC Exit
5.7.1 Northbridge Configuration
Use the Northbridge Chipset Configuration menu (BIOS Menu 21) to configure the Northbridge chipset.
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Exit
Northbridge Configuration ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
Memory Remap Feature [Enabled] PCI MMIO Allocation: 4GB to 3072MB Memory Hole [Disabled]
Init. Graphic Adapter [Internal VGA] IDG Graphics Mode Select [Enabled, 32MB]
Video Function Configuration
Boot Display Device [CRT Only]
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.

Select Screen
↑ ↓ Select Item Enter Go to SubScreen F1 General Help F10 Save and Exit ESC Exit
BIOS Menu 21:Northbridge Chipset Configuration
Page 89
