KINO-DH810
Page I
User Manual
KINO-DH810
MODEL:
Mini-ITX S BC supports 22nm LGA1150 socket Intel® Co re™ i7/i5/i3
and Celeron® proces sor, DDR3, DVI-D / VG A / DP, Dual Intel®
PCIe GbE, USB 3.0, SATA 6Gb/s , HD Audio and RoHS
Rev. 1.0 0 - 17 December, 2013
KINO-DH810 CPU Card
Page 2
KINO-DH810
Page II
Revis ion
Date Version Changes
17 December, 2013 1.00 Initial release
Page 3
KINO-DH810
Page III
Copyright
COP YRIGHT NOTICE
The information in this document is subject to change without prior notice in order to
improve reliabilit y, design and func tion and does not represent a com mitm ent on the part
of the manufacturer.
In no event will the manufacturer be liable for direct, indirect, special, incidental, or
consequential damages arising out of the use or inability to use the product or
documentation, even if advised of the possibility of such damages.
This document contains proprietary information protected by copyright. All rights are
reserved. No part of this manual may be reproduced by any mechanical, e lectronic, or
other means in any form without prior written permission of the manufacturer.
TRADEMARKS
All registered tradem ark s and produc t nam es ment ioned here in are us ed for identif icatio n
purposes only and m ay be trademarks and/or registe red trademarks of their respecti ve
owners.
Page 4
KINO-DH810
Page IV
Table of Contents
1 INTRODUCTION .......................................................................................................... 1
1.1 INTRODUCTION ........................................................................................................... 2
1.2 FEATURES ................................................................................................................... 3
1.3 CONNECTORS ............................................................................................................. 4
1.4 DIMENSIONS ............................................................................................................... 5
1.5 DATA FLOW ................................................................................................................ 6
1.6 TECHNICAL SPECIFICATIONS ...................................................................................... 7
2 UNPACKING ................................................................................................................. 9
2.1 ANTI-STATIC PRECAUTIONS ...................................................................................... 10
2.2 UNPACKING PRECAUTIONS ....................................................................................... 10
2.3 PACKING LIST ............................................................................................................ 11
2.4 OPTIONAL ITEMS ...................................................................................................... 12
3 CONNECTORS ........................................................................................................... 14
3.1 PERIPHERAL INTERFACE CONNECTORS ..................................................................... 15
3.1.1 KINO-DH810 Layout ....................................................................................... 15
3.1.2 Peripheral Interface Connectors ..................................................................... 16
3.1.3 External Interface Panel Connectors ............................................................... 17
3.2 INTERNAL PERIPHERAL CONNECTORS ...................................................................... 17
3.2.1 AT/ATX Mode Select Switch ............................................................................. 17
3.2.2 Battery Connector ............................................................................................ 18
3.2.3 Clear CMOS Button ......................................................................................... 19
3.2.4 12V DC-IN Power Connector .......................................................................... 20
3.2.5 DDR3 SO-DIMM Slots .................................................................................... 21
3.2.6 Digital I/O Connector ...................................................................................... 22
3.2.7 Display Port Connector ................................................................................... 23
3.2.8 Fan Connector (CPU) ...................................................................................... 24
3.2.9 Fan Connector (System) .................................................................................. 25
3.2.10 Front Audio Connector .................................................................................. 26
3.2.11 Front Panel Connector ................................................................................... 26
Page 5
KINO-DH810
Page V
3.2.12 Keyboard/Mouse Connector .......................................................................... 27
3.2.13 LAN LED Connector ...................................................................................... 28
3.2.14 PCIe x1 Slot ................................................................................................... 29
3.2.15 PCIe Mini Card Slot ...................................................................................... 30
3.2.16 Power Button ................................................................................................. 31
3.2.17 SATA 6Gb/s Drive Connectors ....................................................................... 31
3.2.18 SATA Power Connectors ................................................................................ 32
3.2.19 Serial Port Connector, RS-422/485 ................................................................ 33
3.2.20 Serial Port Connectors, RS-232 ..................................................................... 34
3.2.21 SMBUS Connector ......................................................................................... 34
3.2.22 TPM Connector .............................................................................................. 35
3.2.23 USB Connectors ............................................................................................. 36
3.3 EXTERNAL PERIPHERAL INTERFACE CONNECTOR PANEL ......................................... 37
3.3.1 Audio Connector .............................................................................................. 38
3.3.2 Ethernet and USB Connectors ......................................................................... 38
3.3.3 12V DC- IN Power Connector ......................................................................... 40
3.3.4 RS-232 Serial Port Connectors ........................................................................ 41
3.3.5 VGA and DVI Connector ................................................................................. 42
4 INSTALLATION ......................................................................................................... 44
4.1 ANTI-STATIC PRECAUTIONS ...................................................................................... 45
4.2 INSTALLATION CONSIDERATIONS .............................................................................. 46
4.3 BASIC INSTALLATION ............................................................................................... 47
4.3.1 Socket LGA1150 CPU Installation .................................................................. 47
4.3.2 Cooling Kit Installation ................................................................................... 50
4.3.3 SO-DIMM Installation ..................................................................................... 51
4.4 INTERNAL PERIPHERAL DEVICE CONNECTIONS ........................................................ 53
4.4.1 SATA Drive Connection ................................................................................... 53
4.5 EXTERNAL PERIPHERAL INTERFACE CONNECTION ................................................... 54
4.5.1 Audio Connection ............................................................................................. 54
4.5.2 DVI Display Device Connection ...................................................................... 55
4.5.3 LAN Connection ............................................................................................... 56
4.5.4 Serial Device Connection ................................................................................ 57
4.5.5 USB Connection ............................................................................................... 58
4.5.6 VGA Monitor Connection ................................................................................ 59
Page 6
KINO-DH810
Page VI
5 BIOS .............................................................................................................................. 61
5.1 INTRODUCTION ......................................................................................................... 62
5.1.1 Starting Setup ................................................................................................... 62
5.1.2 Using Setup ...................................................................................................... 62
5.1.3 Getting Help ..................................................................................................... 63
5.1.4 Unable to Reboot after Configuration Changes .............................................. 63
5.1.5 BIOS Menu Bar ................................................................................................ 63
5.2 MAIN ........................................................................................................................ 64
5.3 ADVANCED ............................................................................................................... 65
5.3.1 ACPI Configuration ......................................................................................... 66
5.3.2 Trusted Computing ........................................................................................... 67
5.3.3 CPU Configuration .......................................................................................... 69
5.3.4 SATA Configuration ......................................................................................... 71
5.3.5 USB Configuration ........................................................................................... 72
5.3.6 F81866 Super IO Configuration ...................................................................... 73
5.3.6.1 Serial Port n Configuration ....................................................................... 74
5.3.7 F81866 H/W Monitor ....................................................................................... 79
5.3.7.1 Smart Fan Mode Configuration ................................................................ 80
5.3.8 Serial Port Console Redirection ...................................................................... 83
5.3.8.1 Console Redirection Settings .................................................................... 84
5.3.9 IEI Feature ....................................................................................................... 87
5.4 CHIPSET ................................................................................................................... 88
5.4.1 PCH-IO Configuration .................................................................................... 89
5.4.1.1 PCH Azalia Configuration ........................................................................ 90
5.4.2 System Agent (SA) Configuration .................................................................... 91
5.4.2.1 Graphics Configuration ............................................................................. 91
5.4.2.2 Memory Configuration ............................................................................. 93
5.5 BOOT ........................................................................................................................ 94
5.6 SECURITY ................................................................................................................. 96
5.7 EXIT ......................................................................................................................... 97
A BIOS MENU OPTIONS ............................................................................................. 99
B ONE KEY RECOVERY ........................................................................................... 102
B.1 ONE KEY RECOVERY INTRODUCTION .................................................................... 103
Page 7
KINO-DH810
Page VII
B.1.1 System Requirement ....................................................................................... 104
B.1.2 Supported Operating System ......................................................................... 105
B.2 SETUP PROCEDURE FOR WINDOWS ........................................................................ 106
B.2.1 Hardware and BIOS Setup ............................................................................ 107
B.2.2 Create Partitions ........................................................................................... 107
B.2.3 Install Operating System, Drivers and Applications ...................................... 111
B.2.4 Building the Recovery Partition ..................................................................... 112
B.2.5 Create Factory Default Image ........................................................................ 114
B.3 AUTO RECOVERY SETUP PROCEDURE ..................................................................... 119
B.4 SETUP PROCEDURE FOR LINUX .............................................................................. 123
B.5 RECOVERY TOOL FUNCTIONS ................................................................................ 127
B.5.1 Factory Restore ............................................................................................. 128
B.5.2 Backup System ............................................................................................... 129
B.5.3 Restore Your Last Backup .............................................................................. 130
B.5.4 Manual ........................................................................................................... 131
B.6 RESTORE SYSTEMS FROM A LINUX SERVER THROUGH LAN .................................. 132
B.6.1 Configure DHCP Server Settings .................................................................. 133
B.6.2 Configure TFTP Settings ............................................................................... 134
B.6.3 Configure One Key Recovery Server Settings ............................................... 135
B.6.4 Start the DHCP, TFTP and HTTP ................................................................. 136
B.6.5 Create Shared Directory ................................................................................ 136
B.6.6 Setup a Client System for Auto Recovery ...................................................... 137
B.7 OTHER INFORMATION ............................................................................................ 140
B.7.1 Using AHCI Mode or ALi M5283 / VIA VT6421A Controller ....................... 140
B.7.2 System Memory Requirement ........................................................................ 142
C TERMINOLOGY ..................................................................................................... 143
D WATCHDOG TIMER .............................................................................................. 148
E HAZARDOUS MATERIALS DISCLOSURE ....................................................... 151
E.1 HAZARDOUS MATERIAL DISCLOSURE TABLE FOR IPB PRODUCTS CERTIFIED AS
ROHS COMPLIANT UNDER 2002/95/EC WITHOUT MERCURY ..................................... 152
Page 8
KINO-DH810
Page VIII
List of Figures
Figure 1-1: KINO-DH810 ................................................................................................................. 2
Figure 1-2: Connectors
.................................................................................................................. 4
Figure 1-3: KINO-DH810 Dimensions (mm)
................................................................................. 5

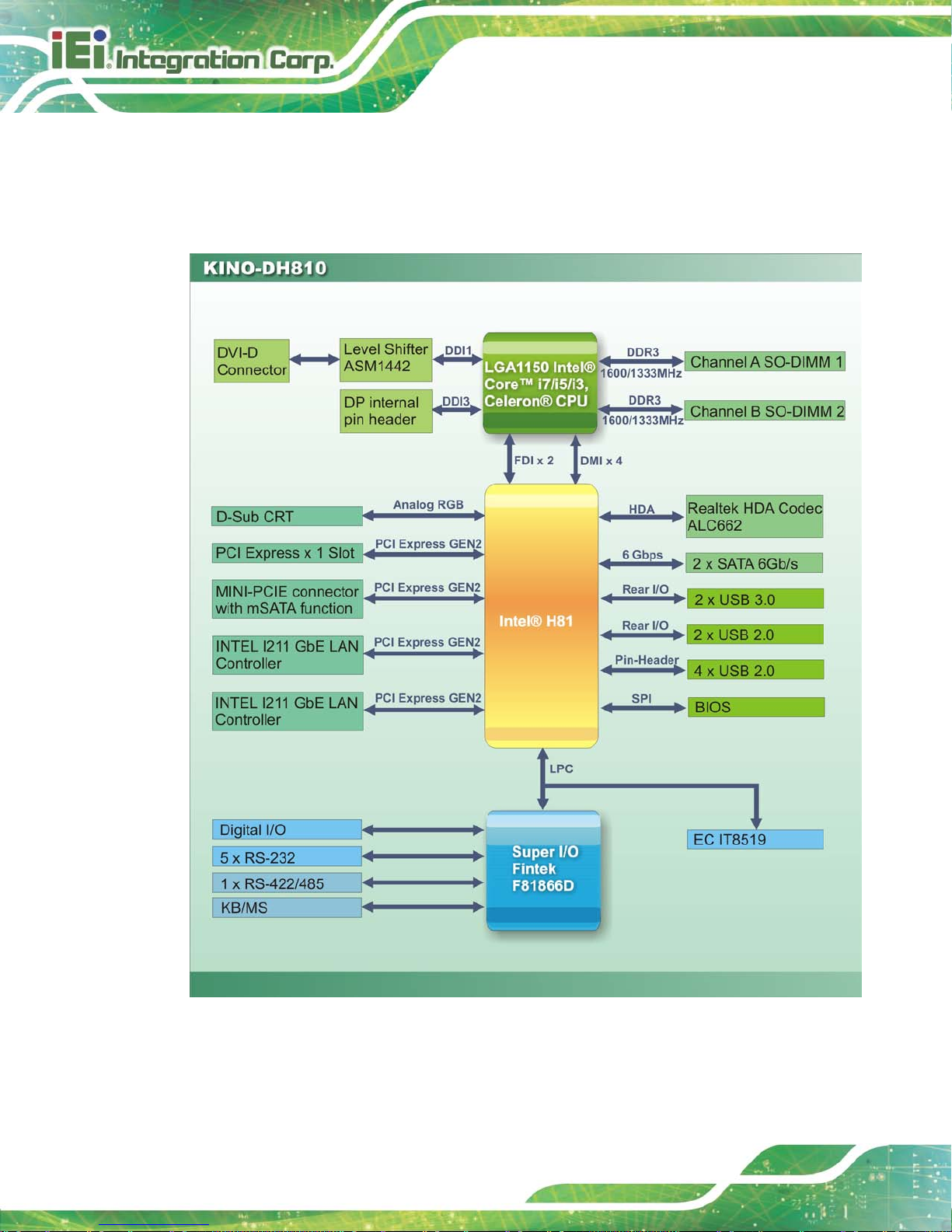

Figure 1-4: Data Flow Diagram
...................................................................................................... 6
Figure 3-1: Connector and Jumper Locati o n s
...........................................................................15
Figure 3-2: AT/ATX Mode Select Switch Location
....................................................................18
Figure 3-3: Battery Connector Location
.....................................................................................19
Figure 3-4: Clear CMOS Button Location
...................................................................................20
Figure 3-5: 12V DC-IN Pow er Connector Location
....................................................................21
Figure 3-6: DDR3 SO-DIMM Slot Locations
...............................................................................22

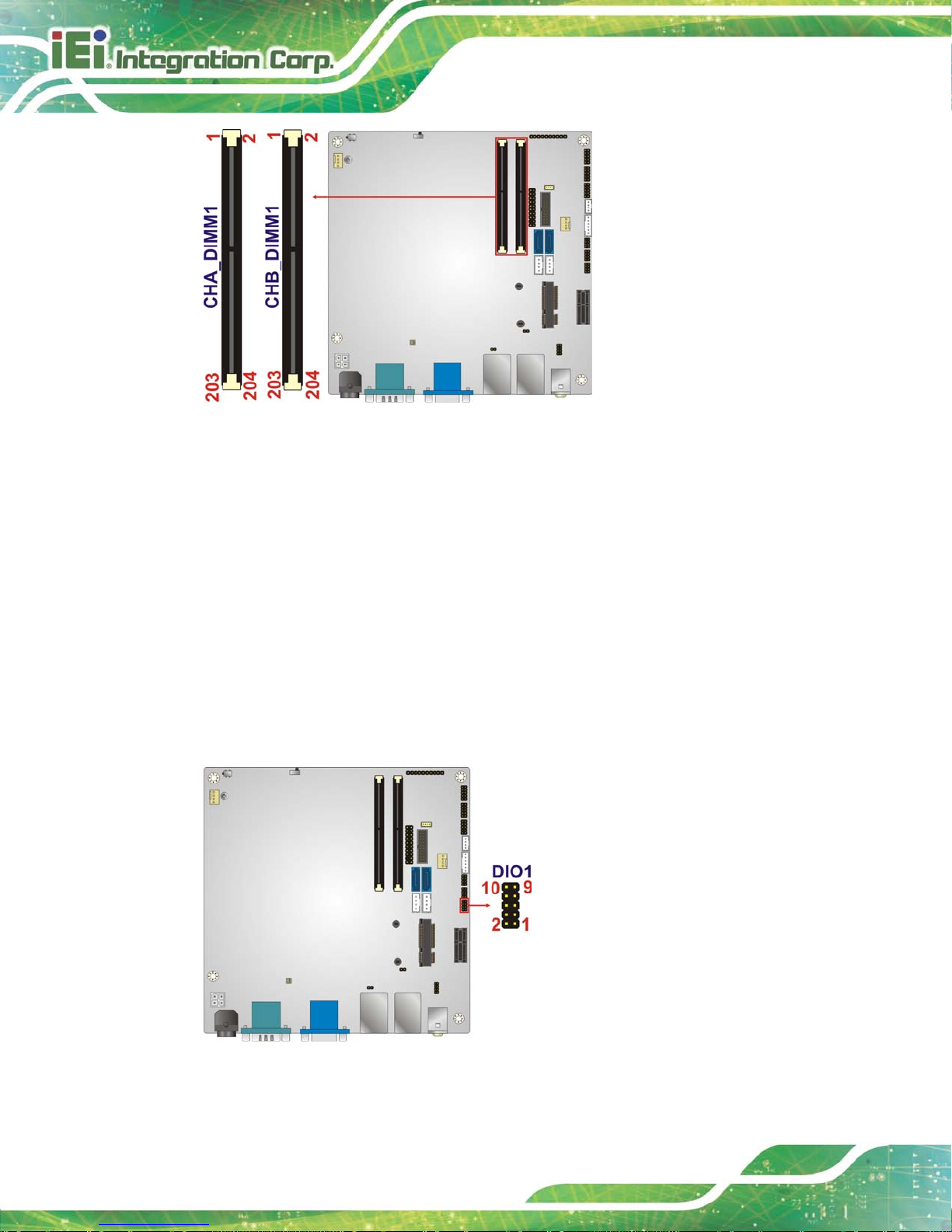

Figure 3-7: Digital I/O Connector Location
................................................................................22

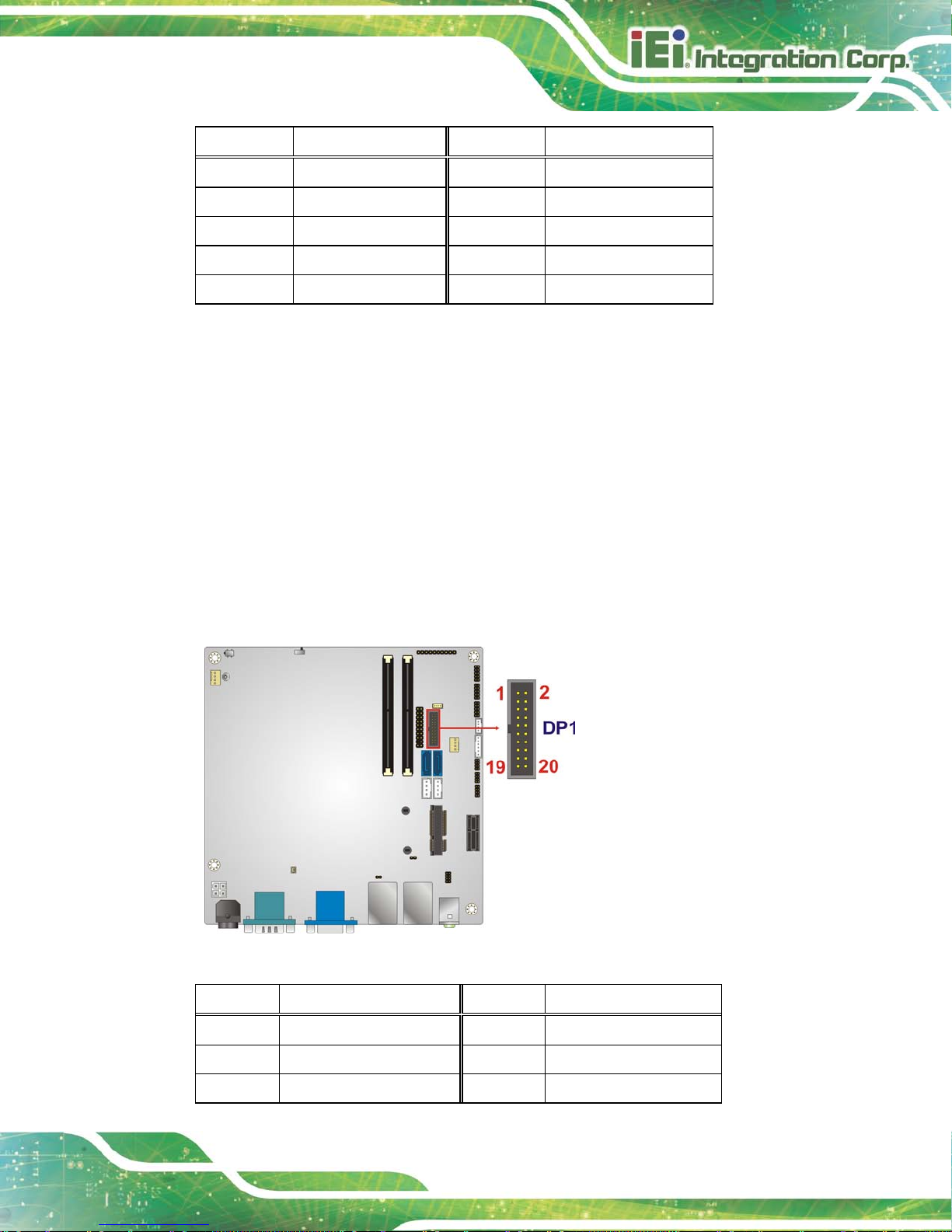

Figure 3-8: Display Port Connector Location
............................................................................23

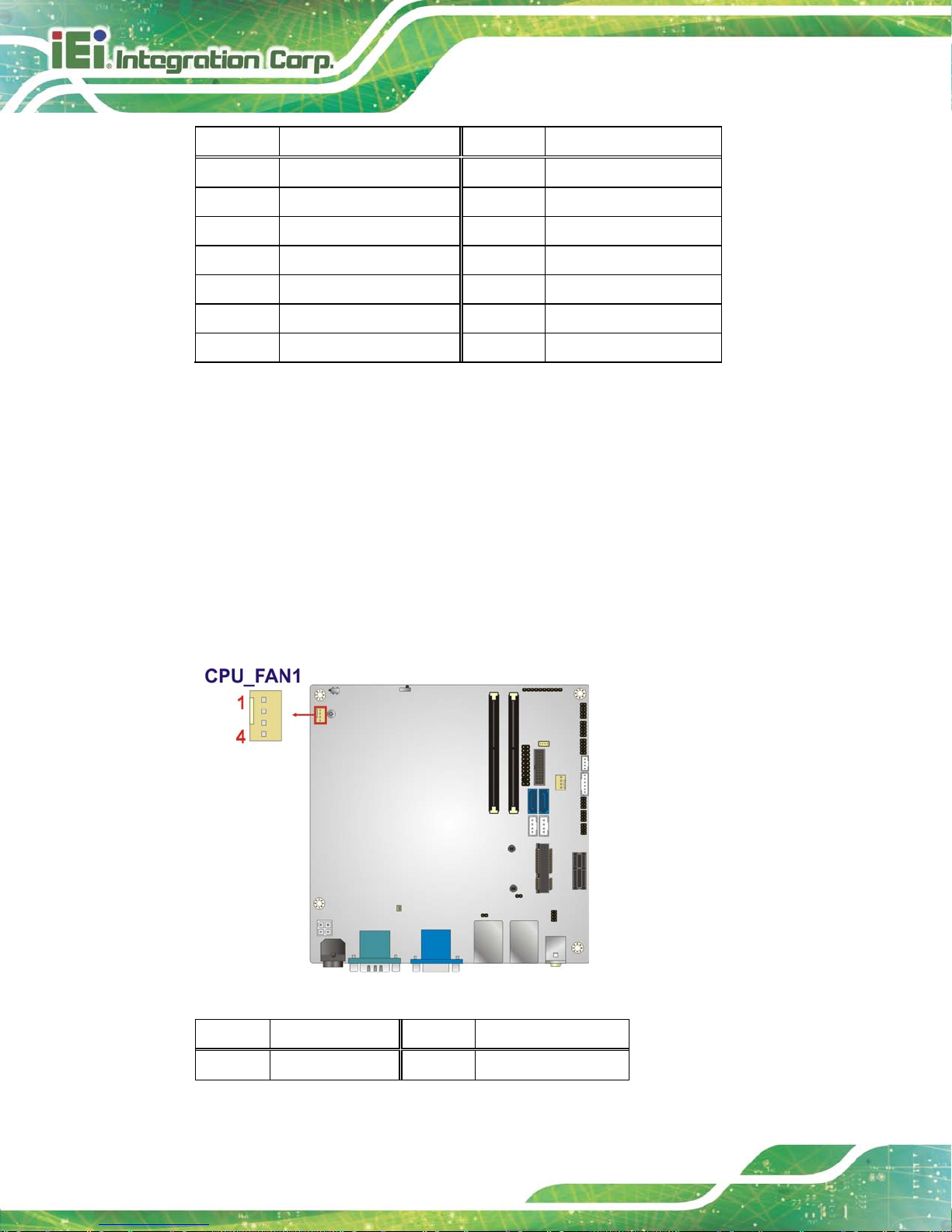

Figure 3-9: CPU Fan Connector Locations
................................................................................24

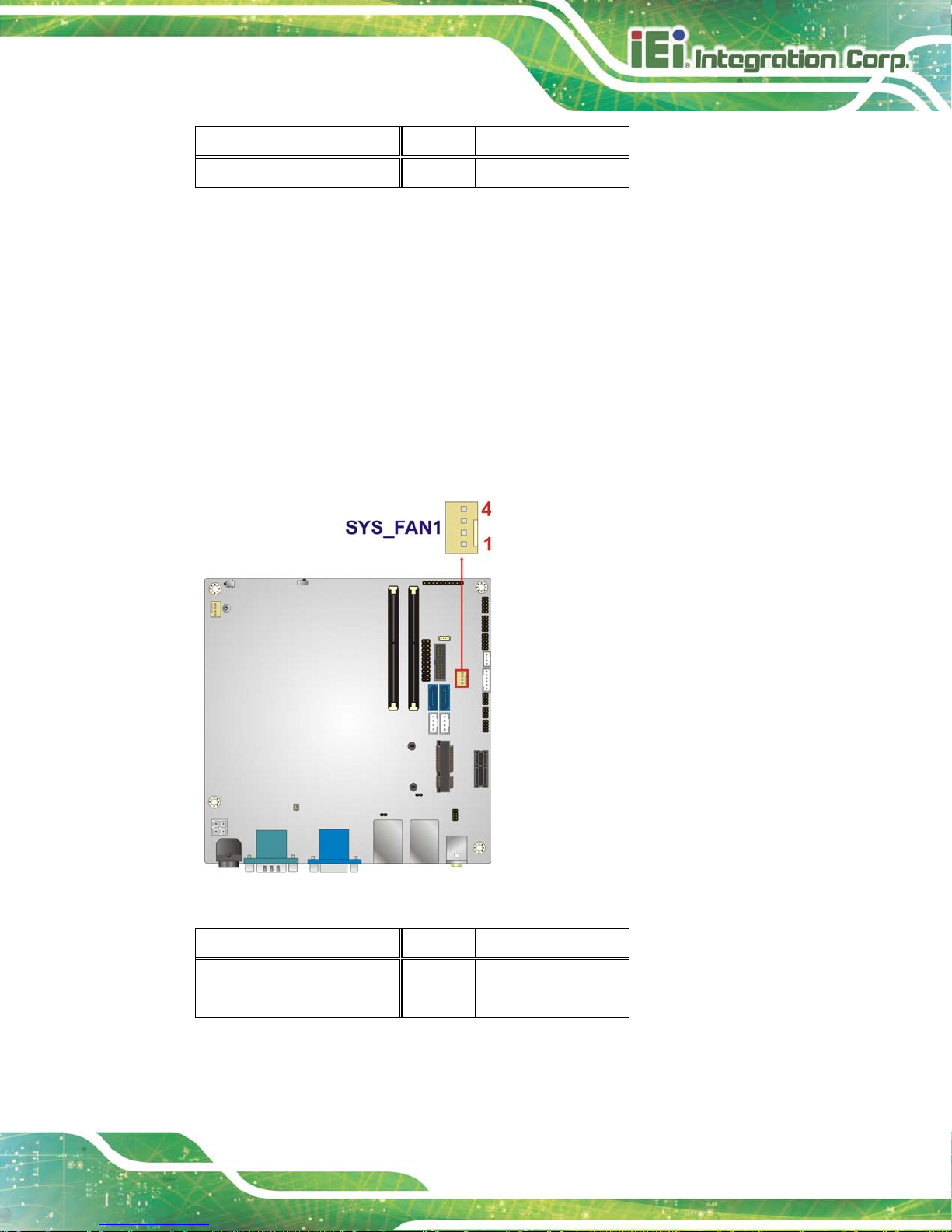

Figure 3-10: System Fan Connector Location
...........................................................................25
Figure 3-11: Front Audio Connector Location
...........................................................................26

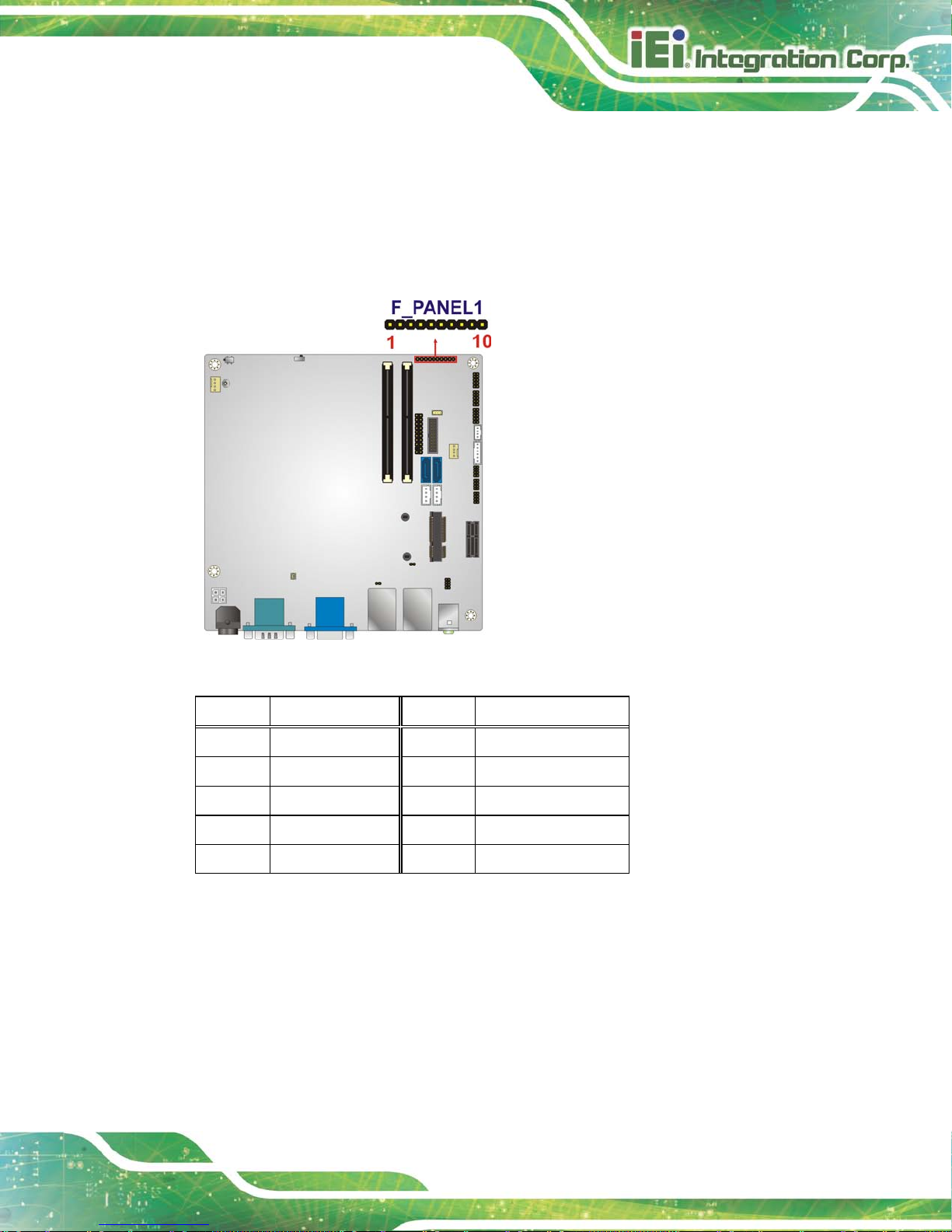

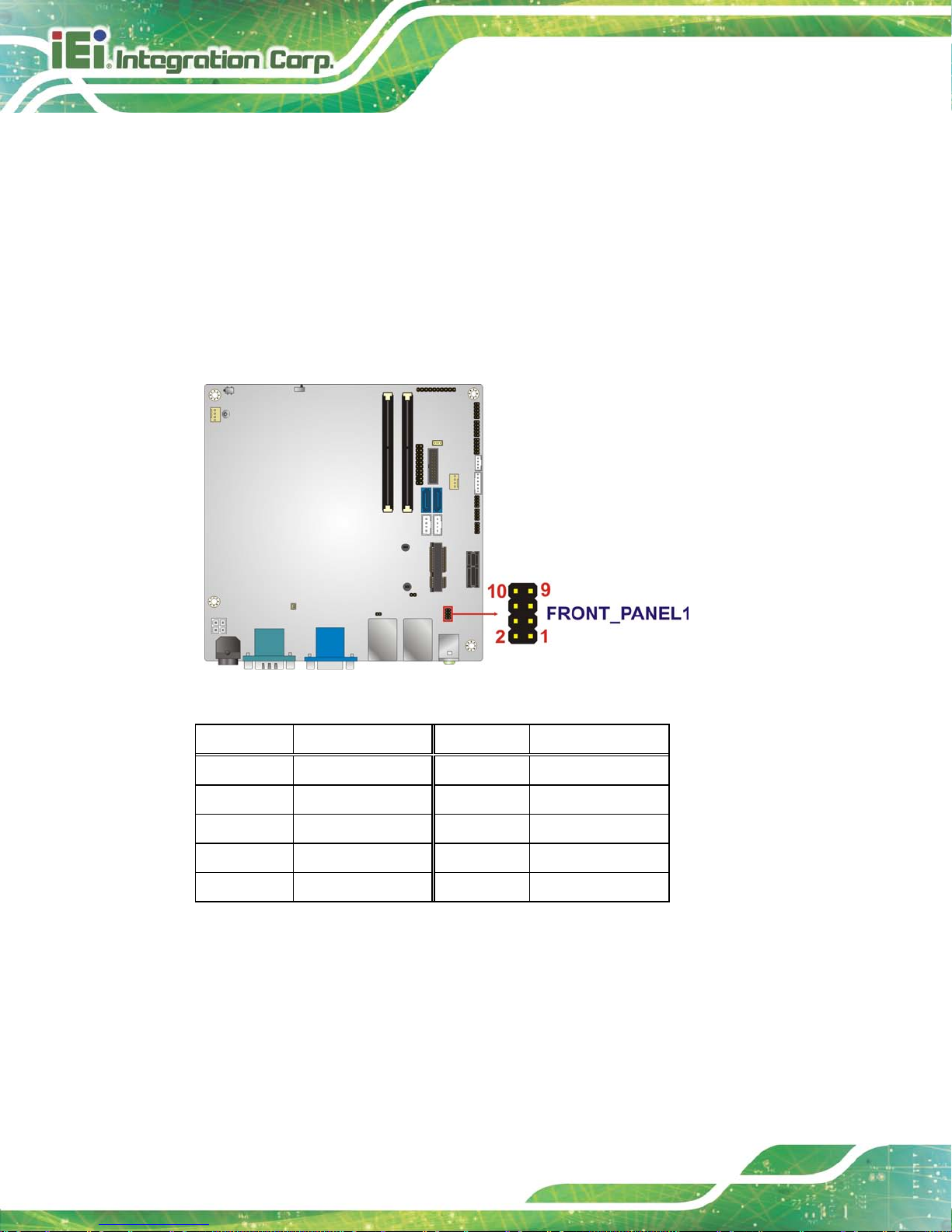

Figure 3-12: Front Panel Connector Location
...........................................................................27

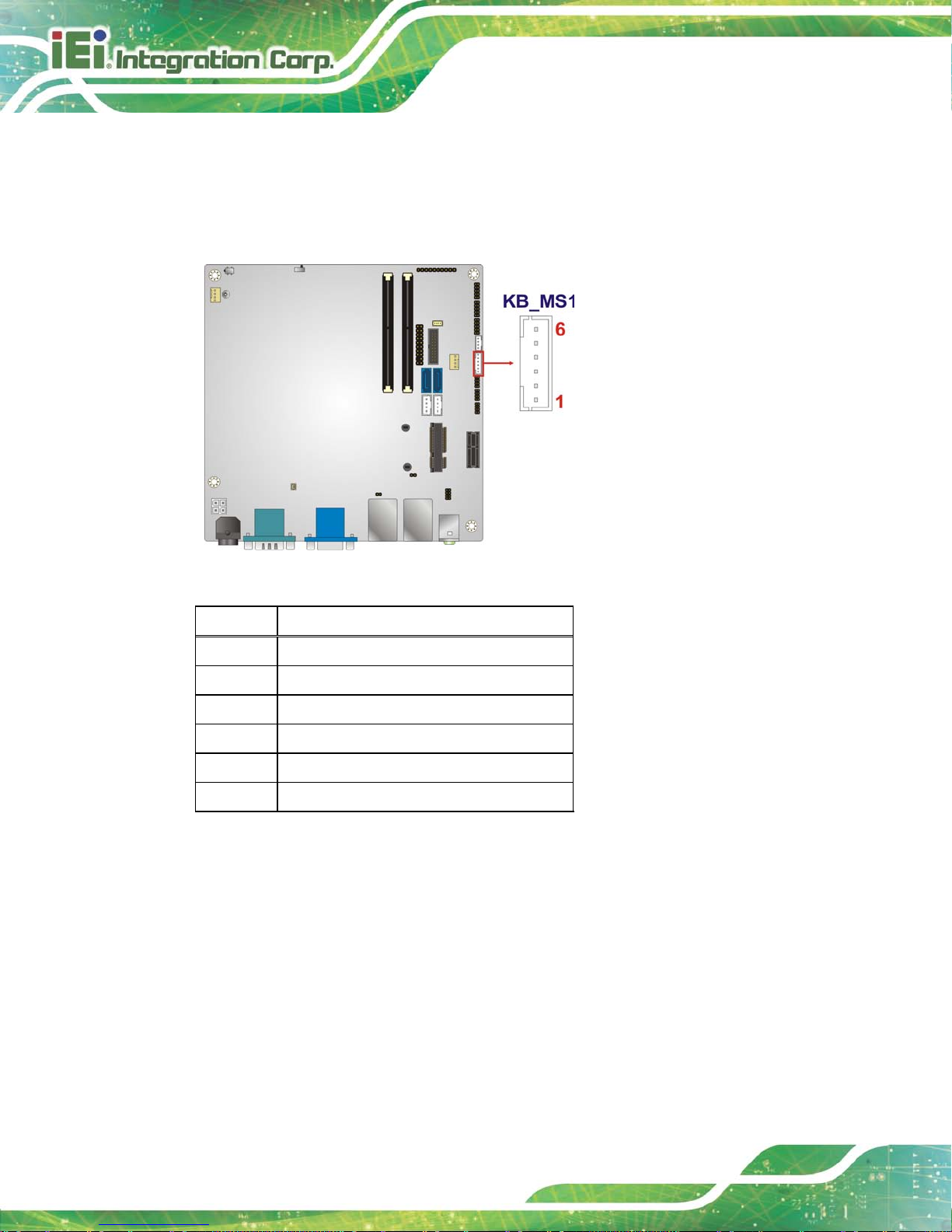

Figure 3-13: Keyboard/Mouse Connector Location
..................................................................28

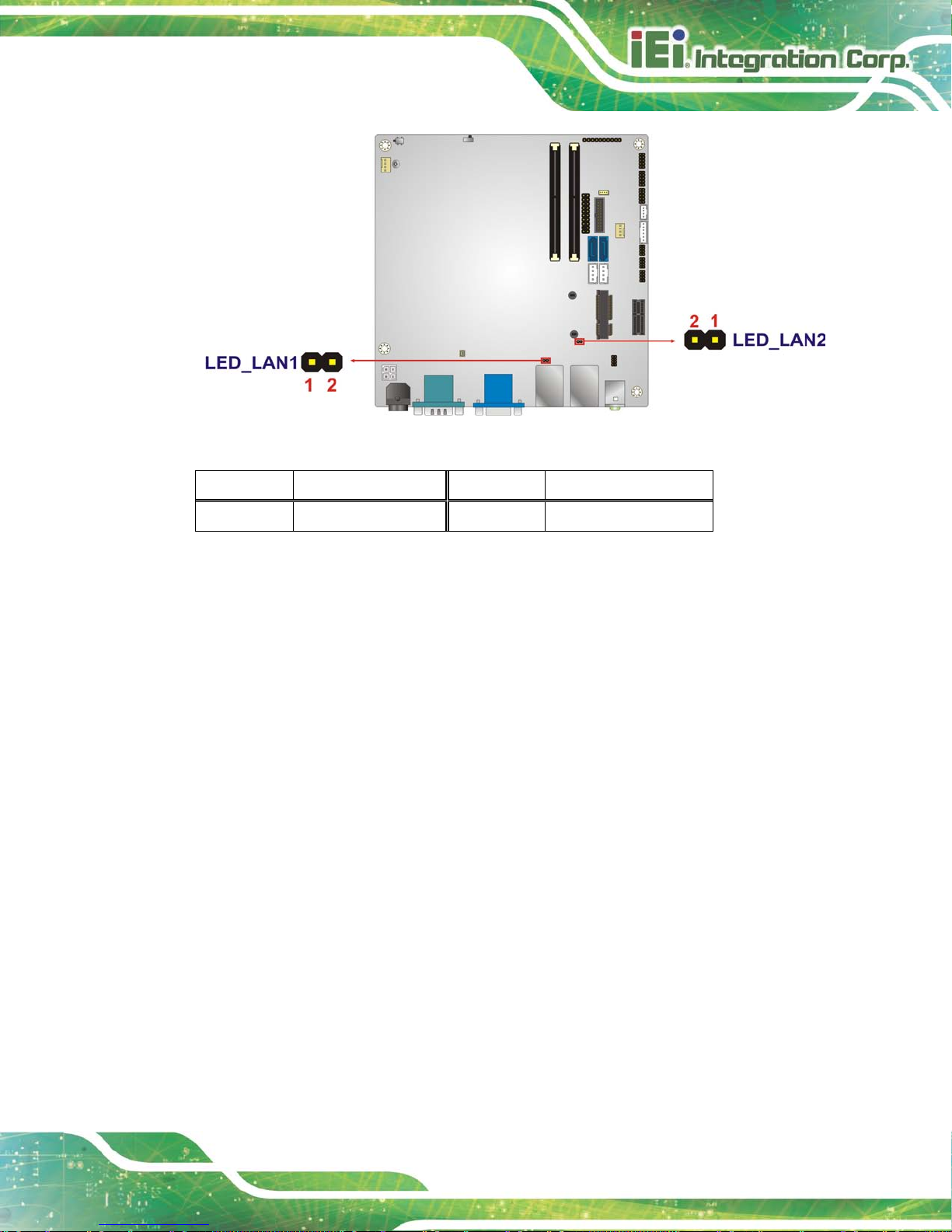

Figure 3-14: LAN LED Connector Location
...............................................................................29

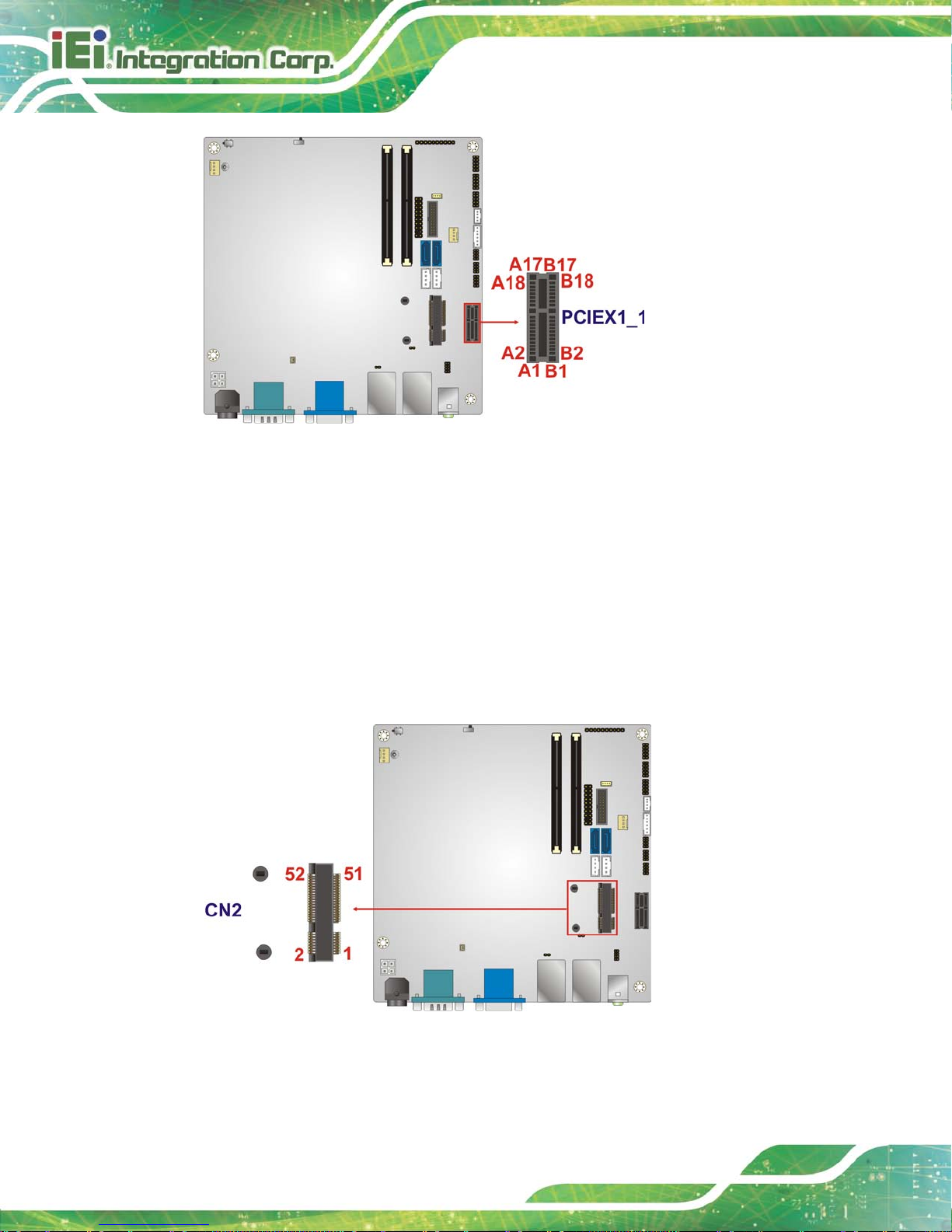

Figure 3-15: PCIe x1 Slot Location
.............................................................................................30
Figure 3-16: PCIe Mini Card Slot Location
.................................................................................30
Figure 3-17: Power Button Location
...........................................................................................31

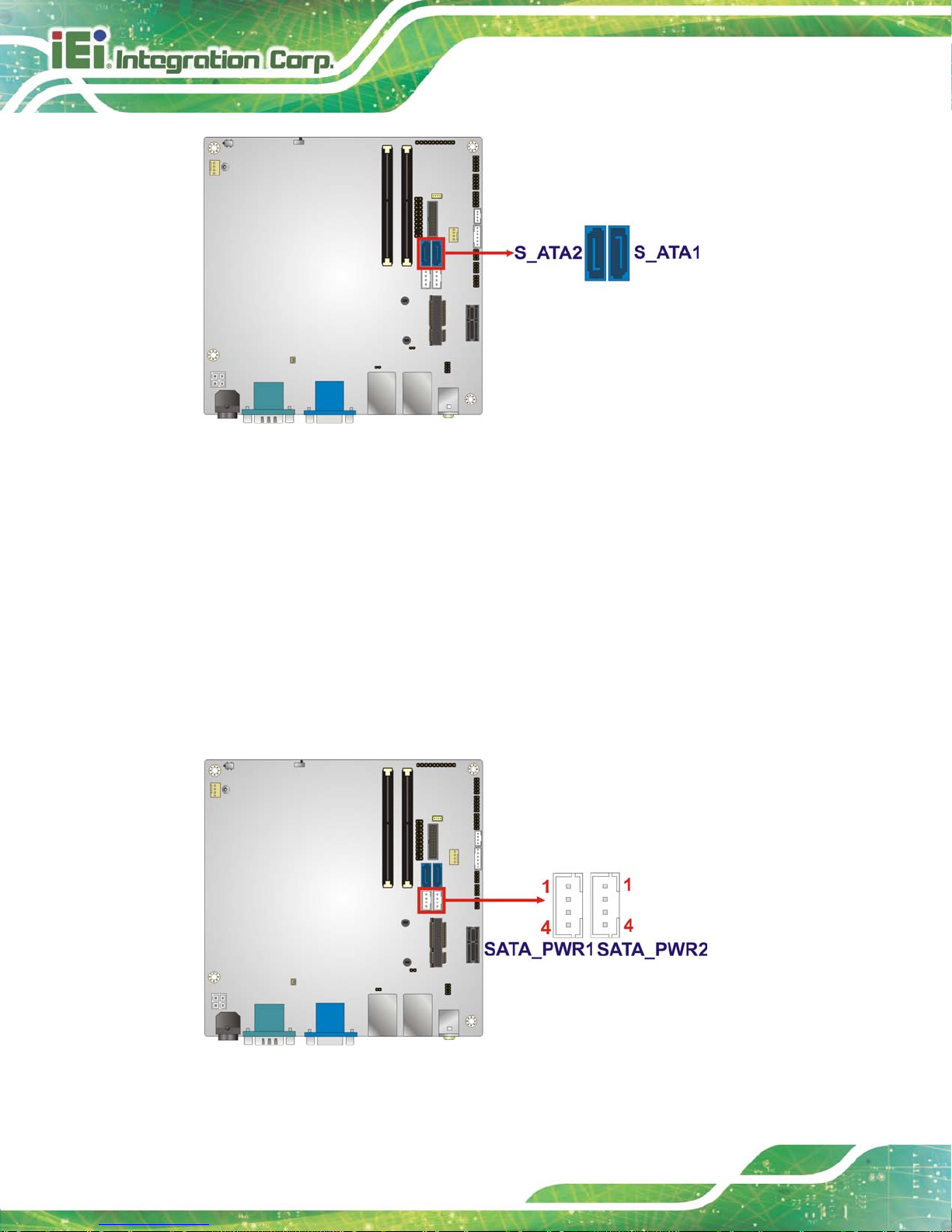

Figure 3-18: SATA 6Gb/s Drive Connector Locations
..............................................................32
Figure 3-19: SATA Power Connector Locations
.......................................................................32
Figure 3-20: RS-422/485 Connector Location
............................................................................33

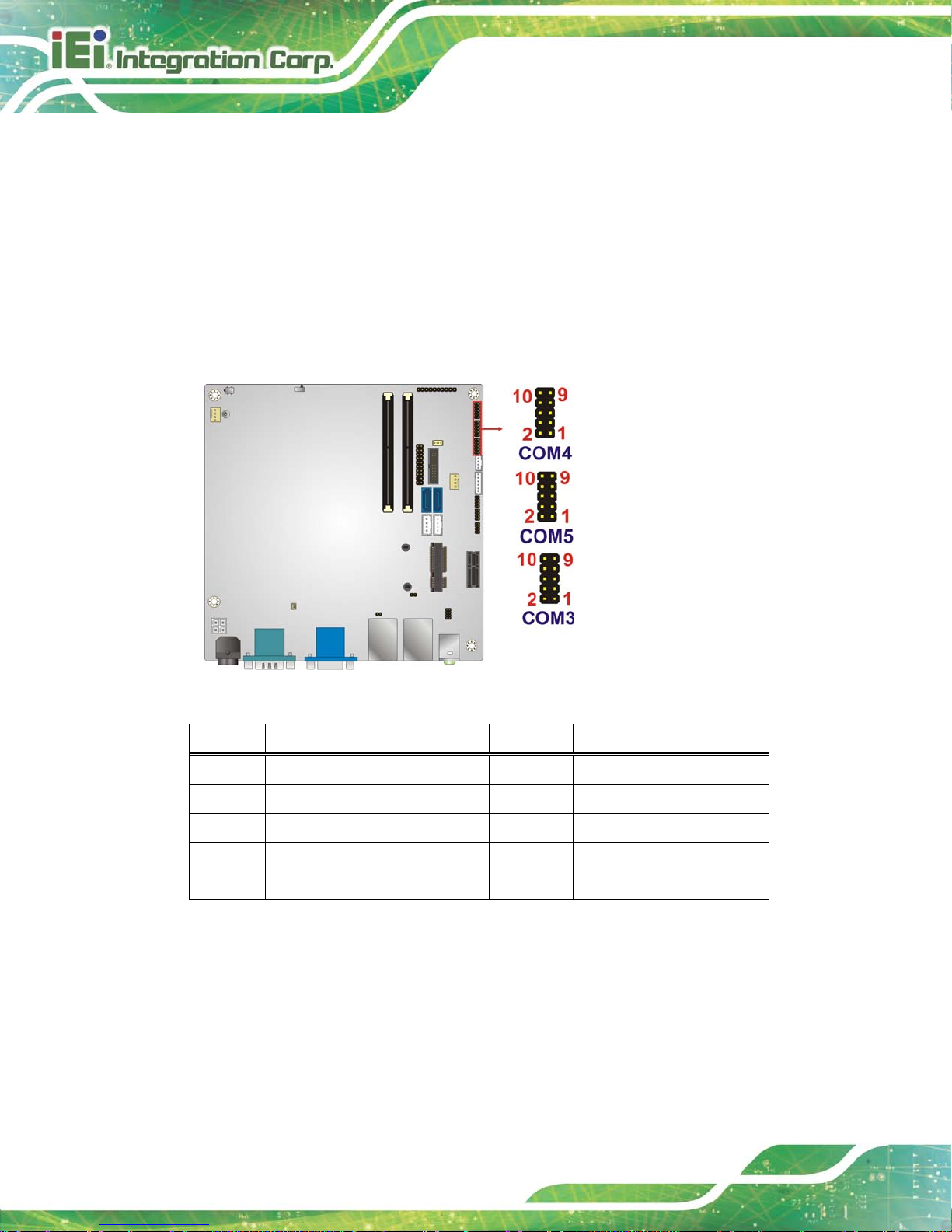

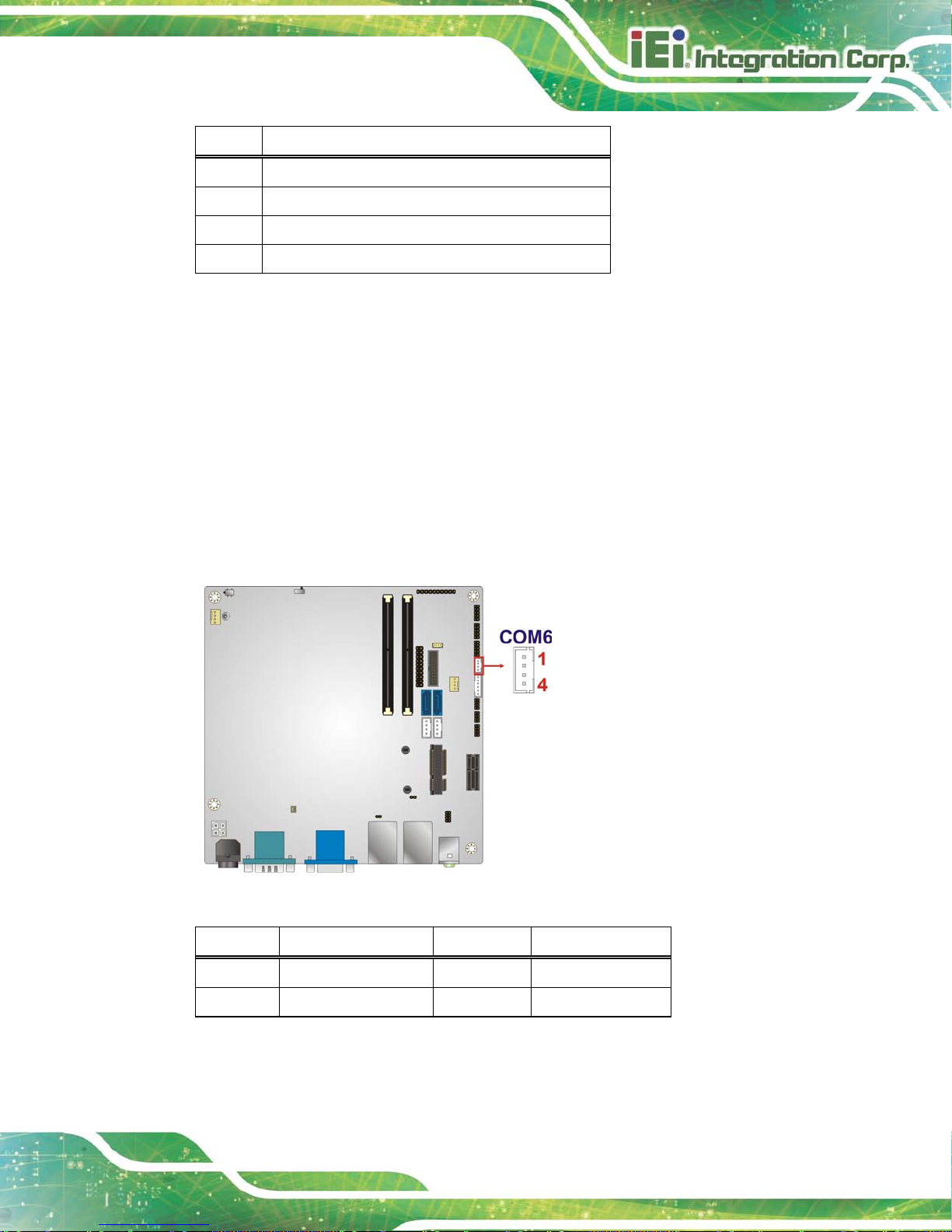

Figure 3-21: Serial Port Connector Loca tion
.............................................................................34
Figure 3-22: SMBus Connector Location
...................................................................................35

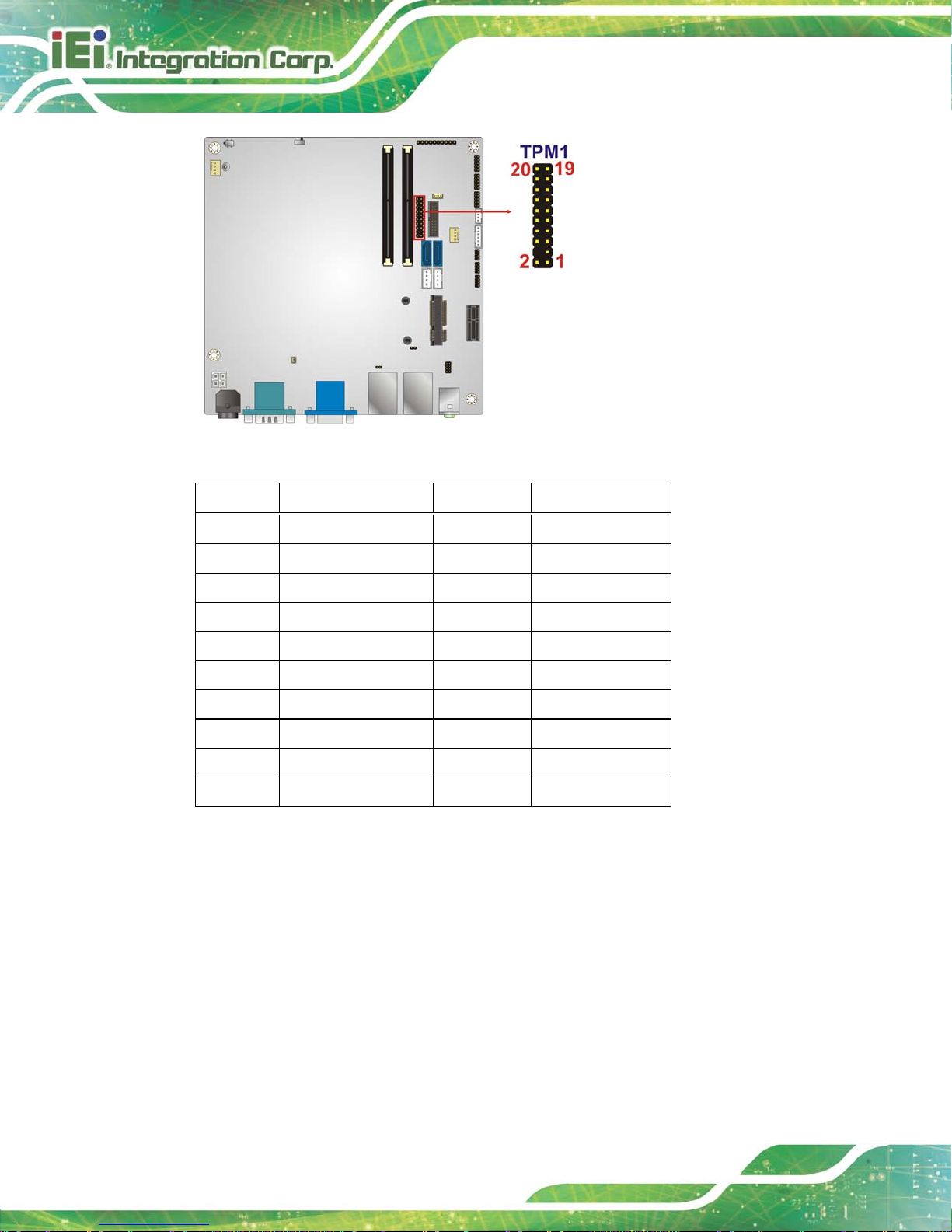

Figure 3-23: TPM Connector Location
........................................................................................36

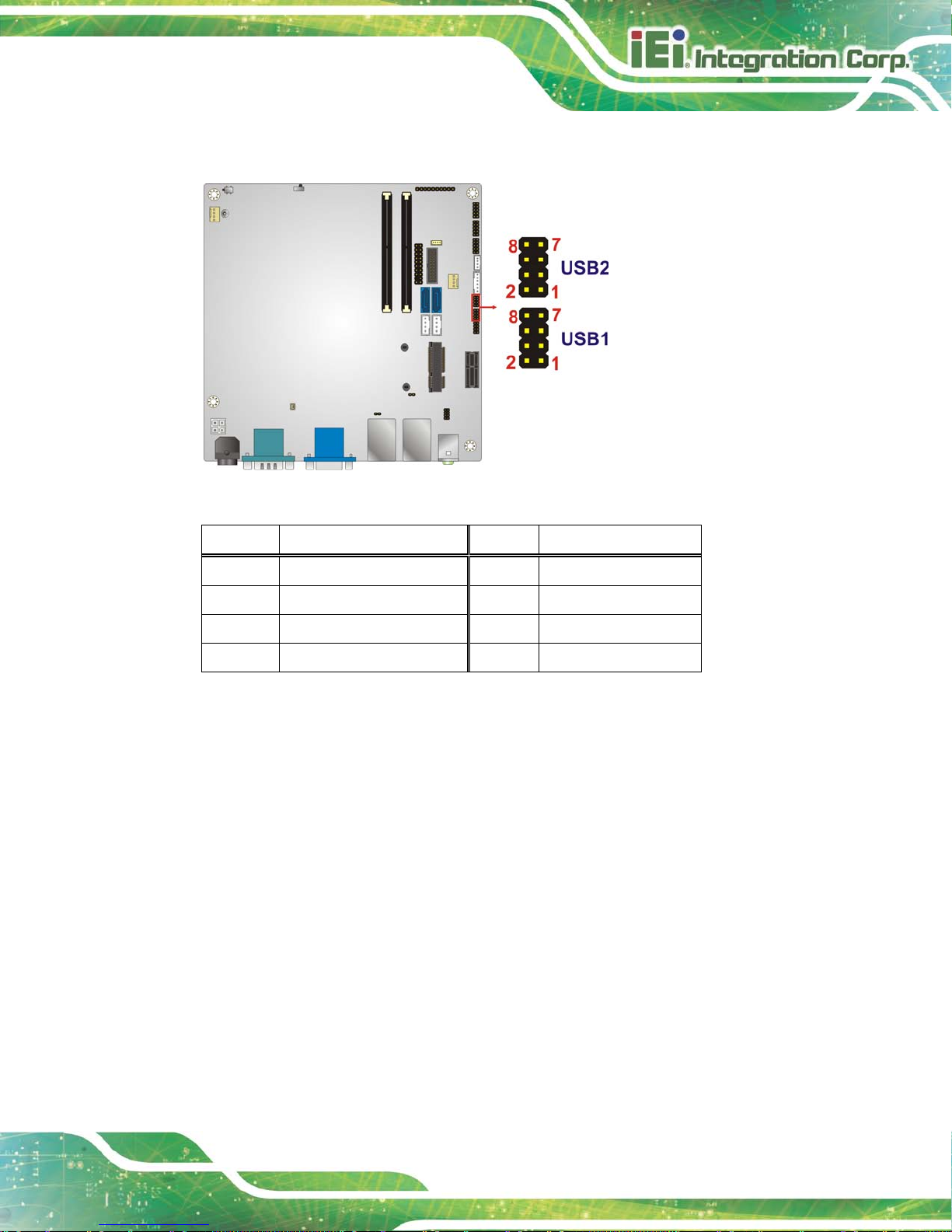

Figure 3-24: USB Connector Locations
......................................................................................37
Figure 3-25: KINO-DH810 External Peripheral Interface Connector
........................................38
Figure 3-26: Audio Connector
.....................................................................................................38
Figure 3-27: LAN Connector
........................................................................................................39
Page 9
KINO-DH810
Page IX

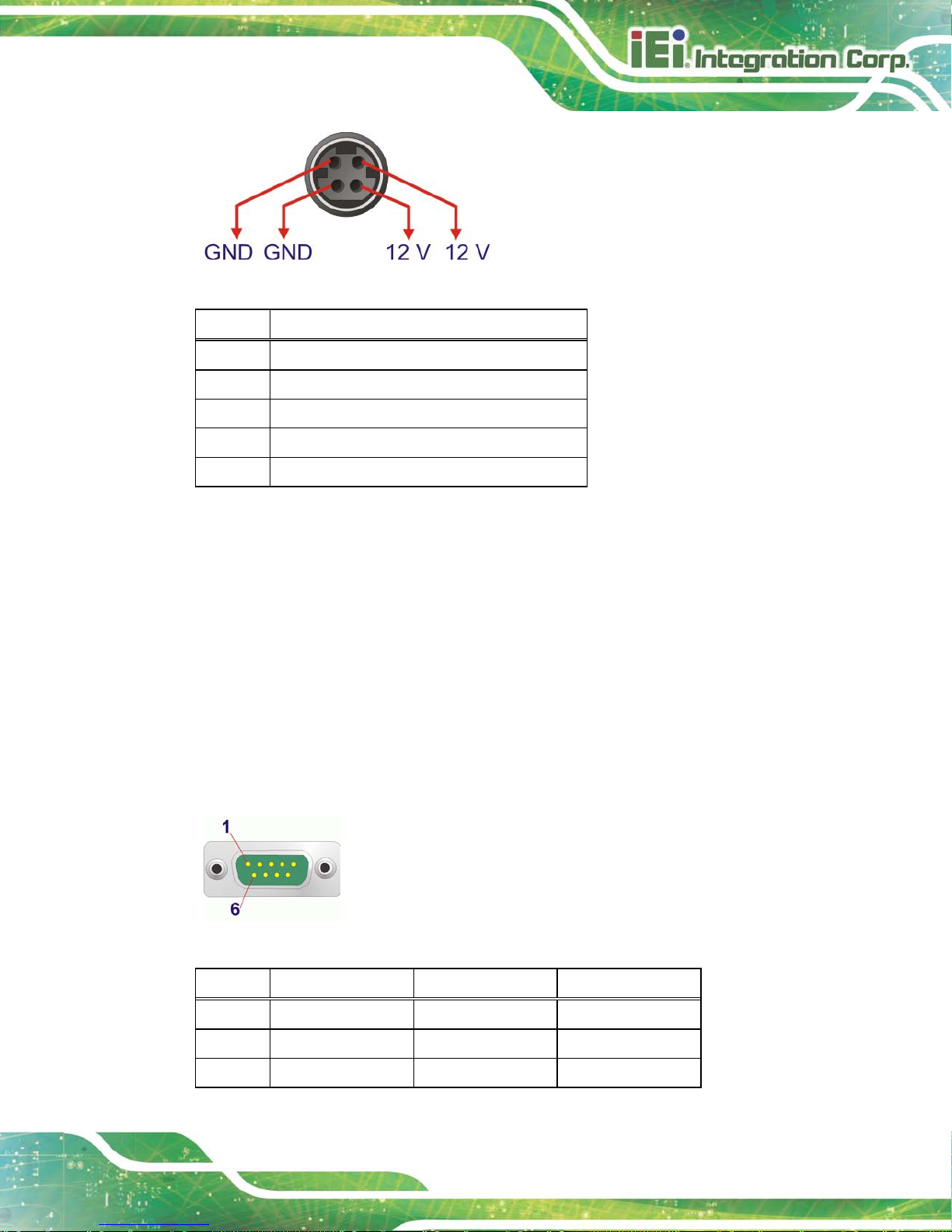

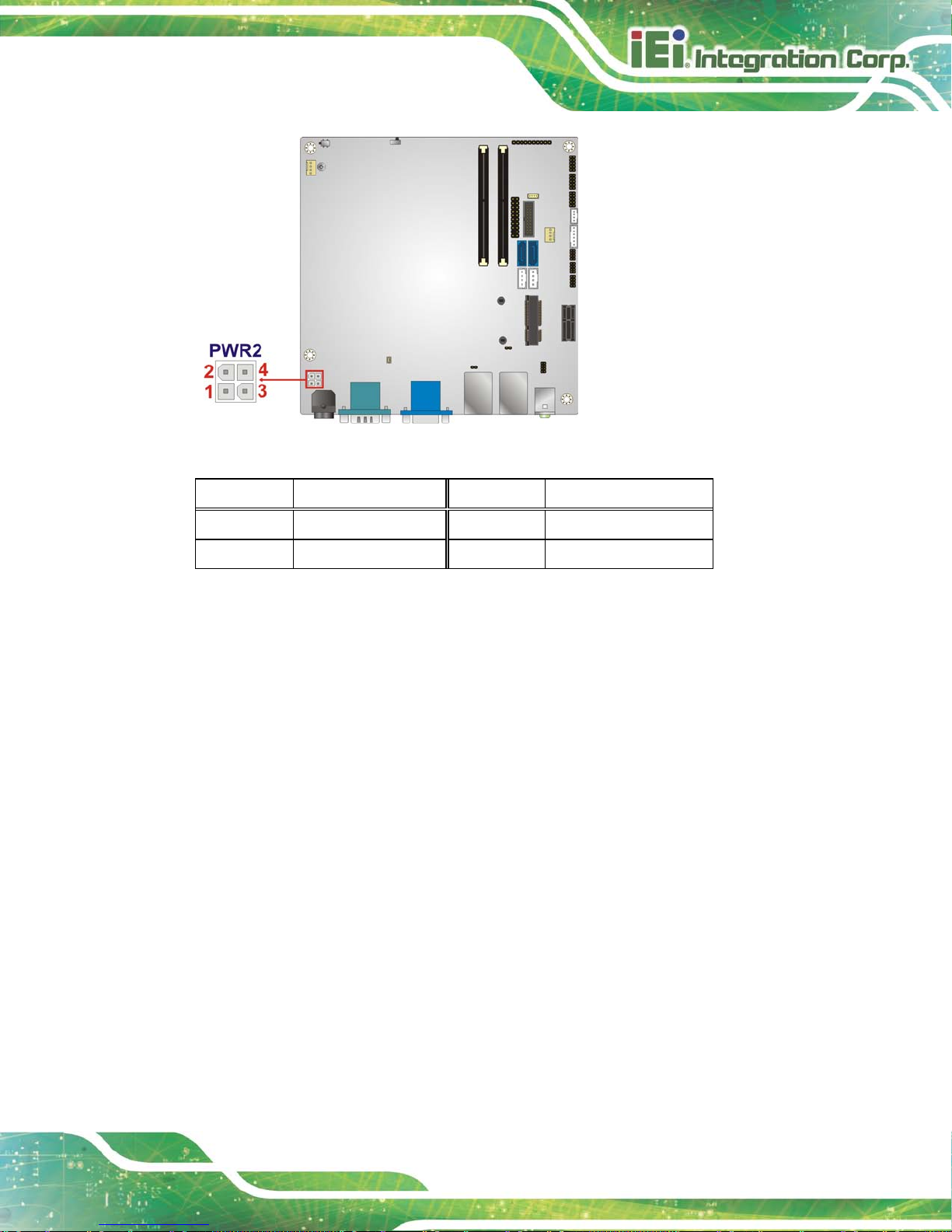

Figure 3-28: 12V DC-IN Power Connector ..................................................................................41
Figure 3-29: RS-232 Serial Port Connector
................................................................................41

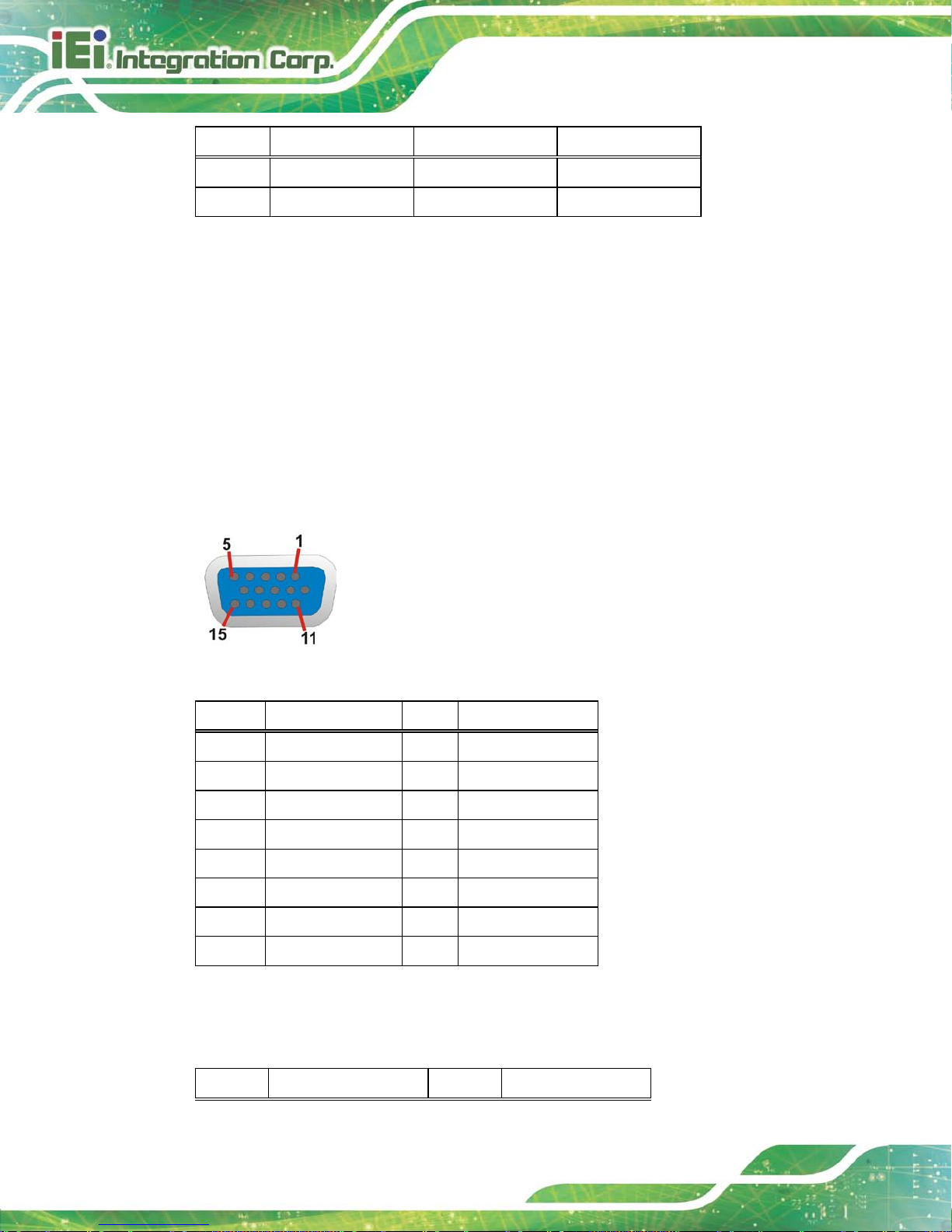

Figure 3-30: VGA Connector
.......................................................................................................42

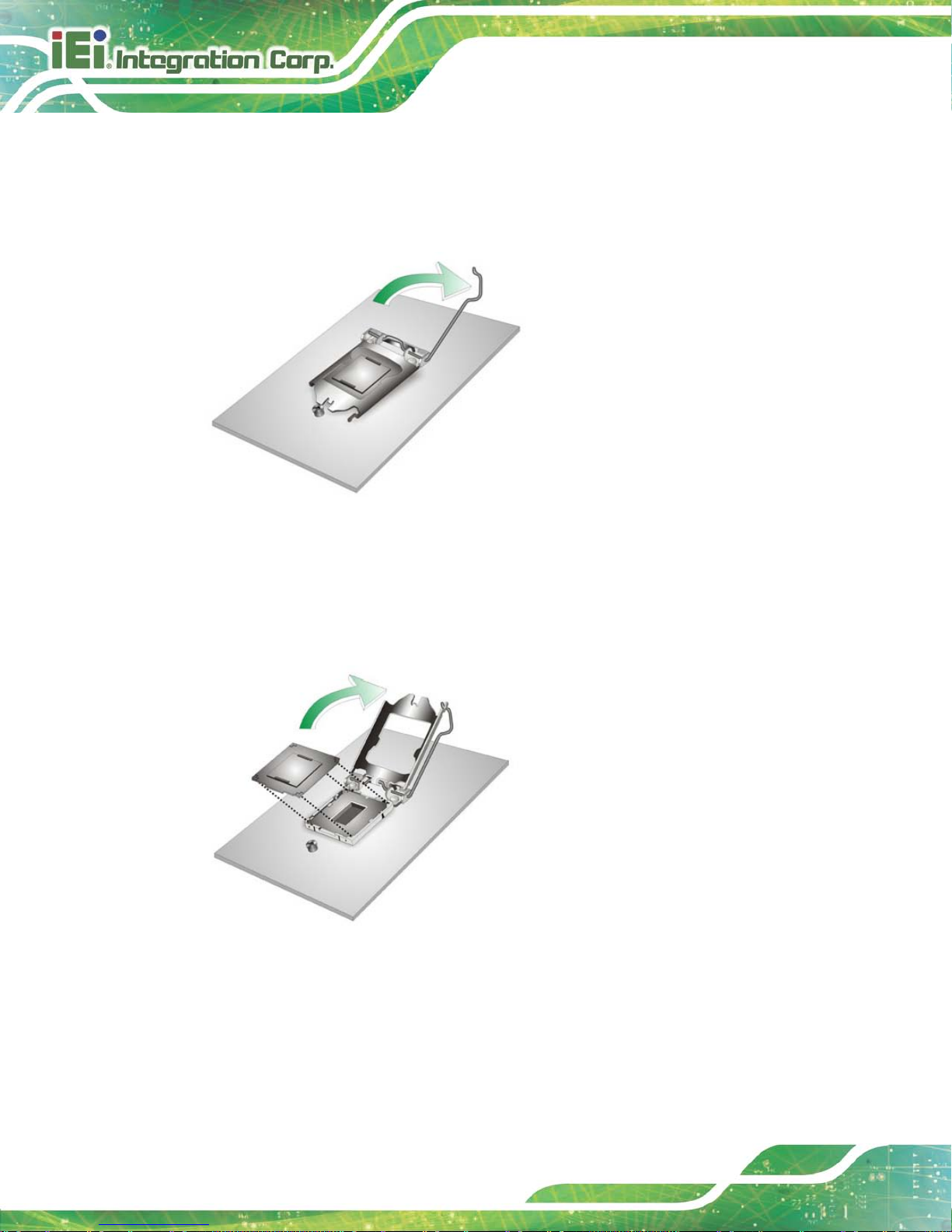

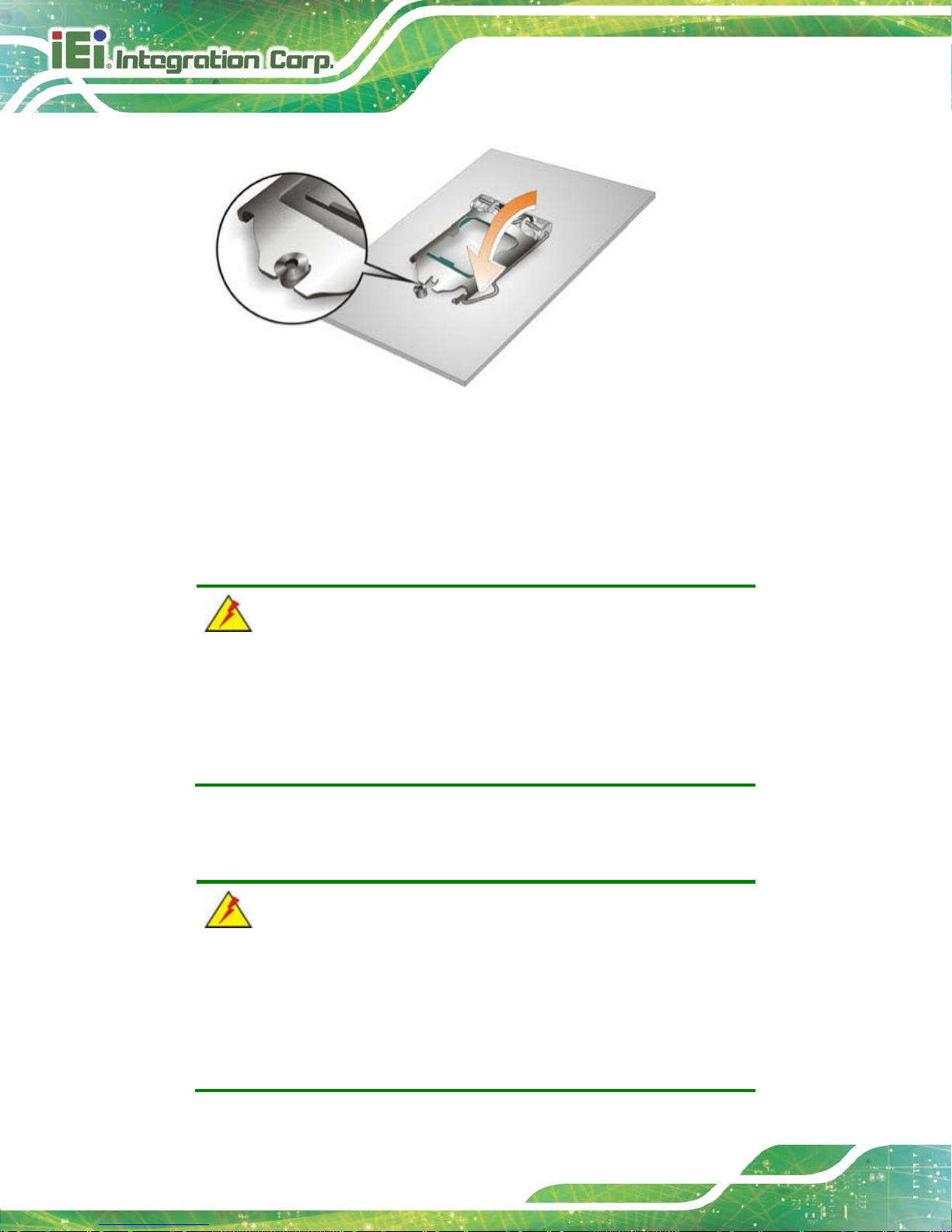

Figure 4-1: Disengage the CPU Socket Load Lever
..................................................................48
Figure 4-2: Remove Protective Cover
.........................................................................................48

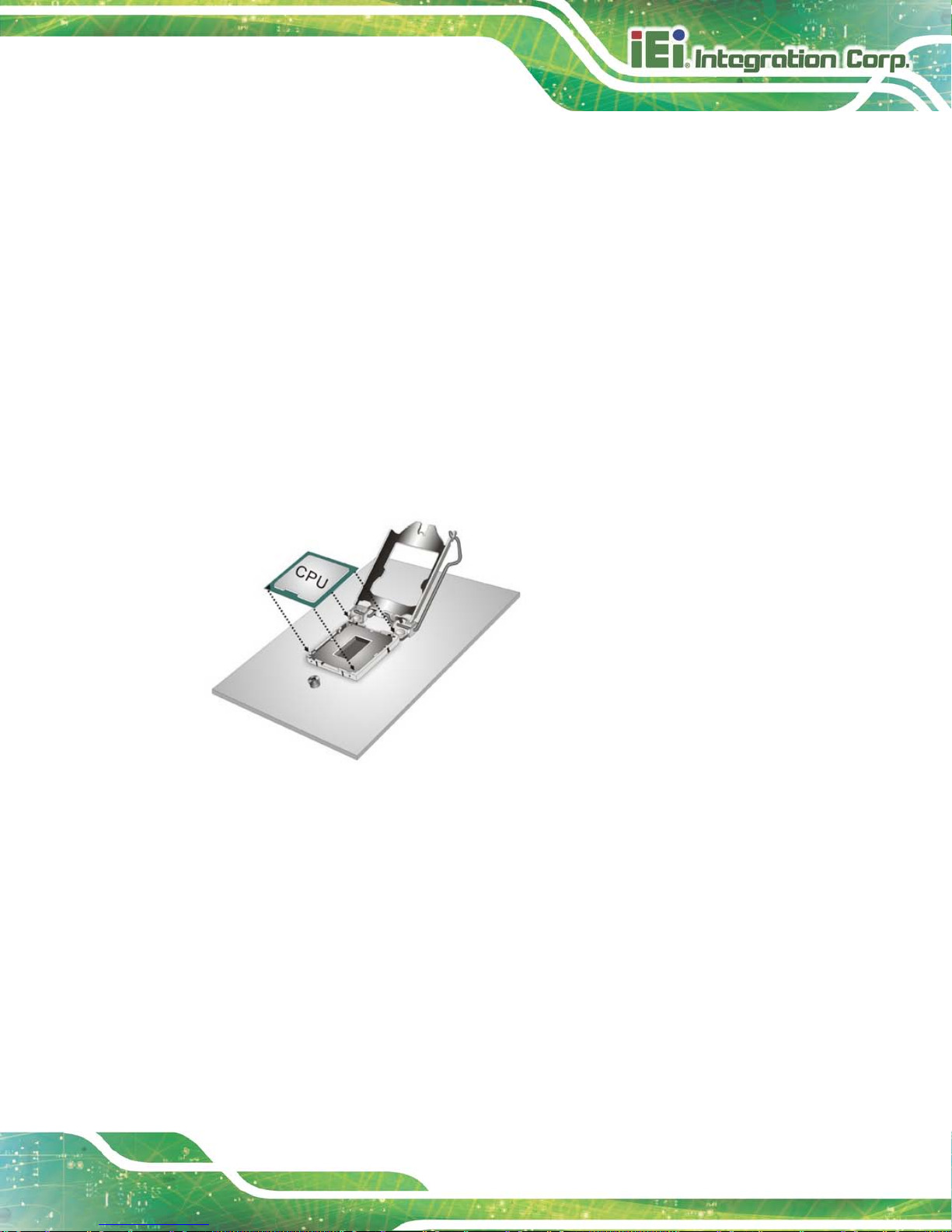

Figure 4-3: Insert the Socket LGA1150 CPU
..............................................................................49
Figure 4-4: Close the Socket LGA1150
.......................................................................................50

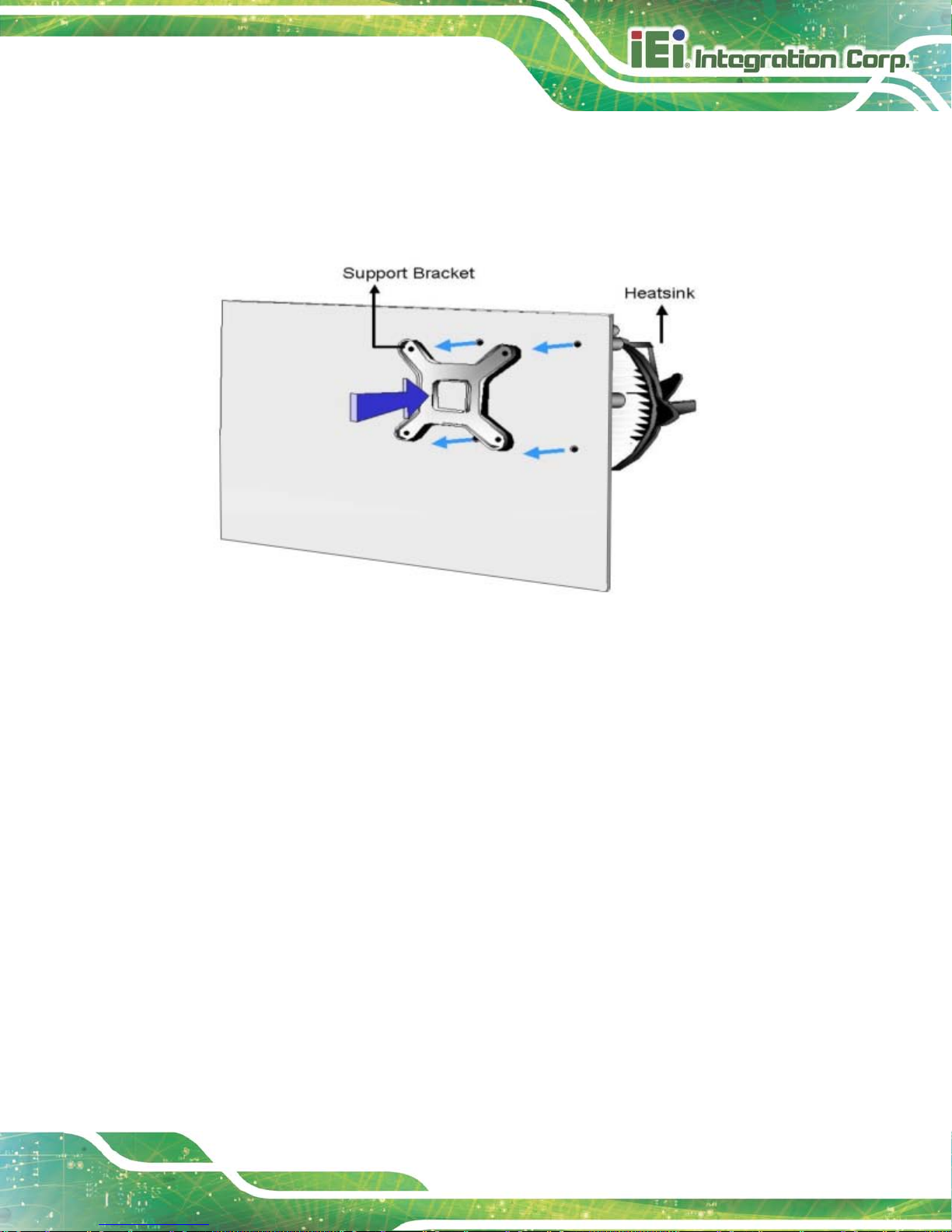

Figure 4-5: Cooling Kit Support Bracket
....................................................................................51

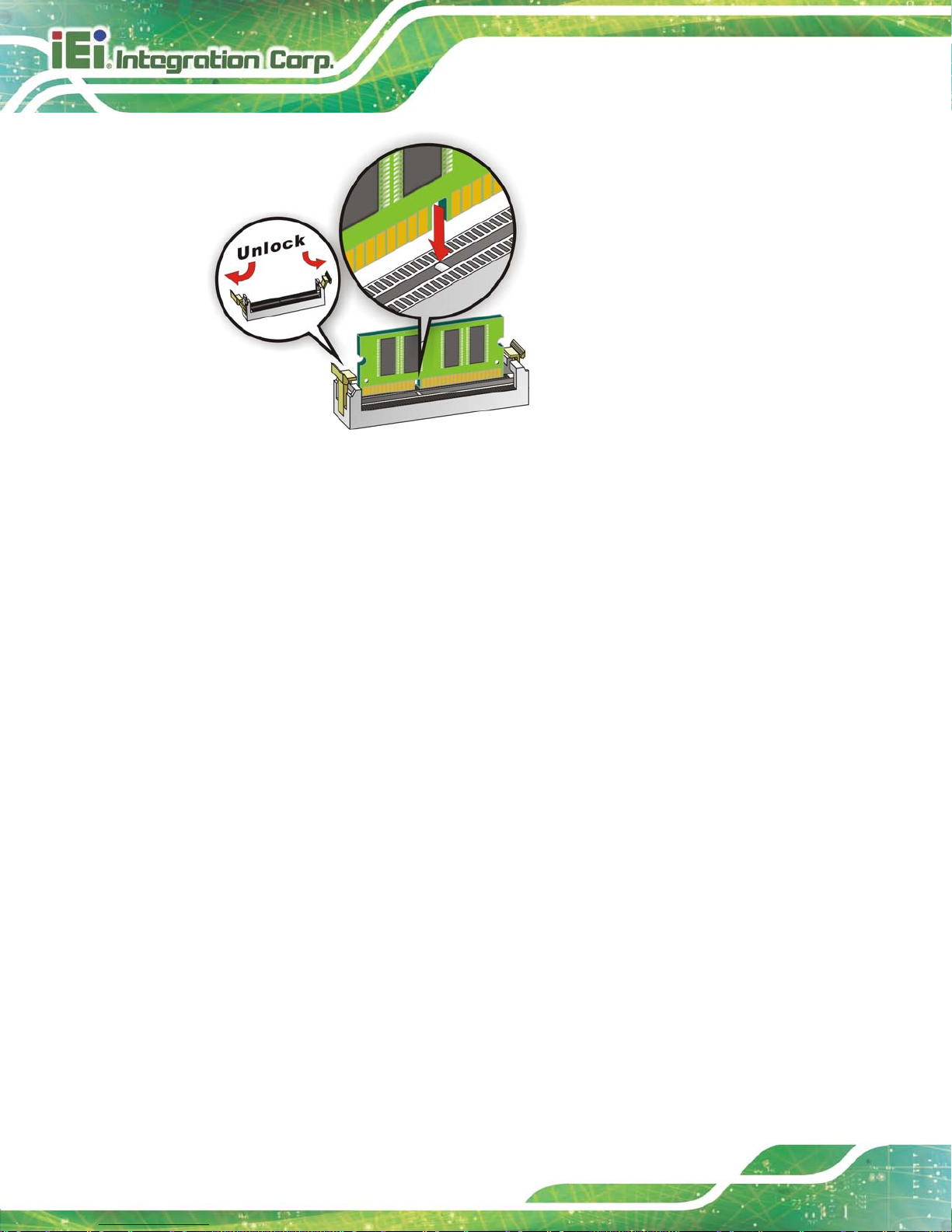

Figure 4-6: SO-DIMM Installation
................................................................................................52

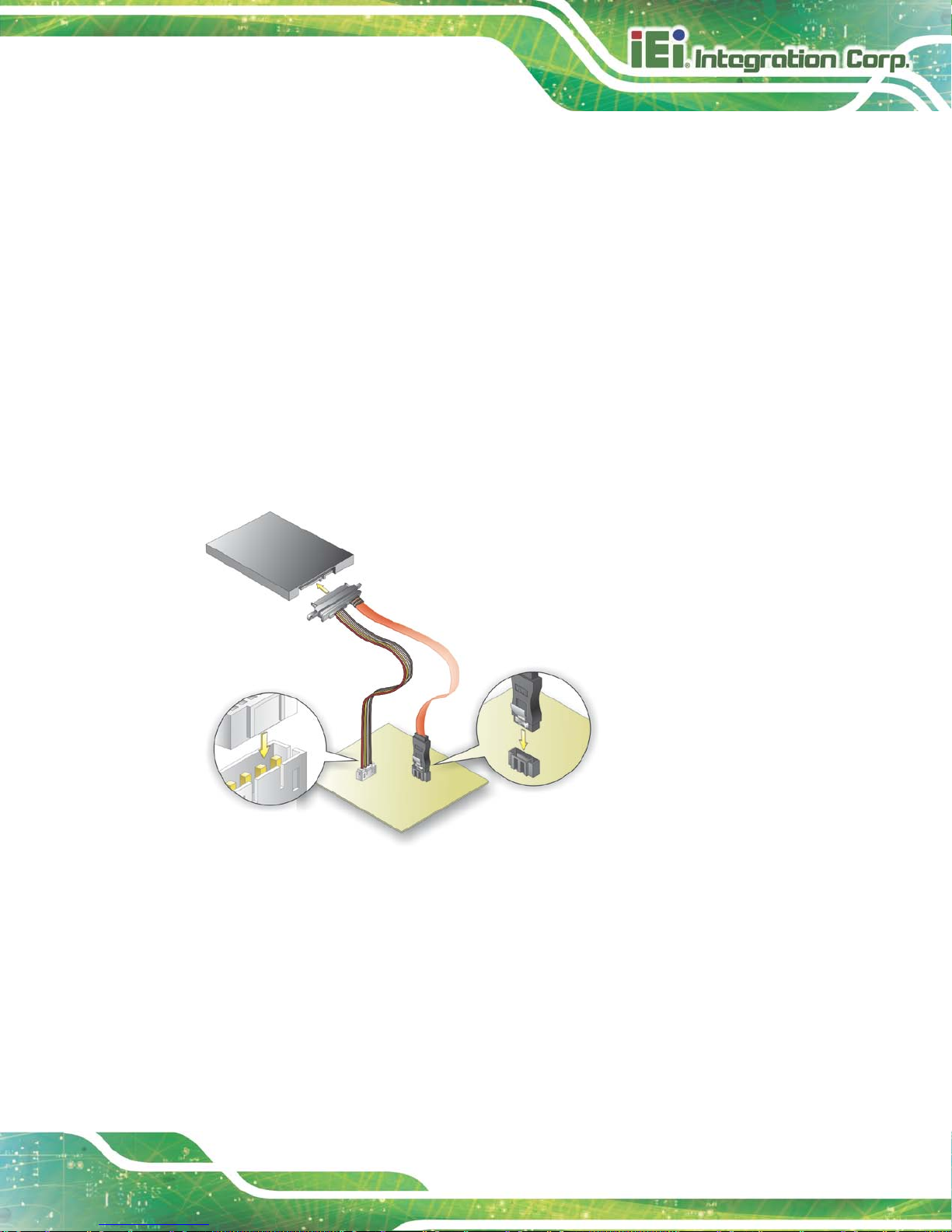

Figure 4-7: SATA Drive Cable Connection
.................................................................................53

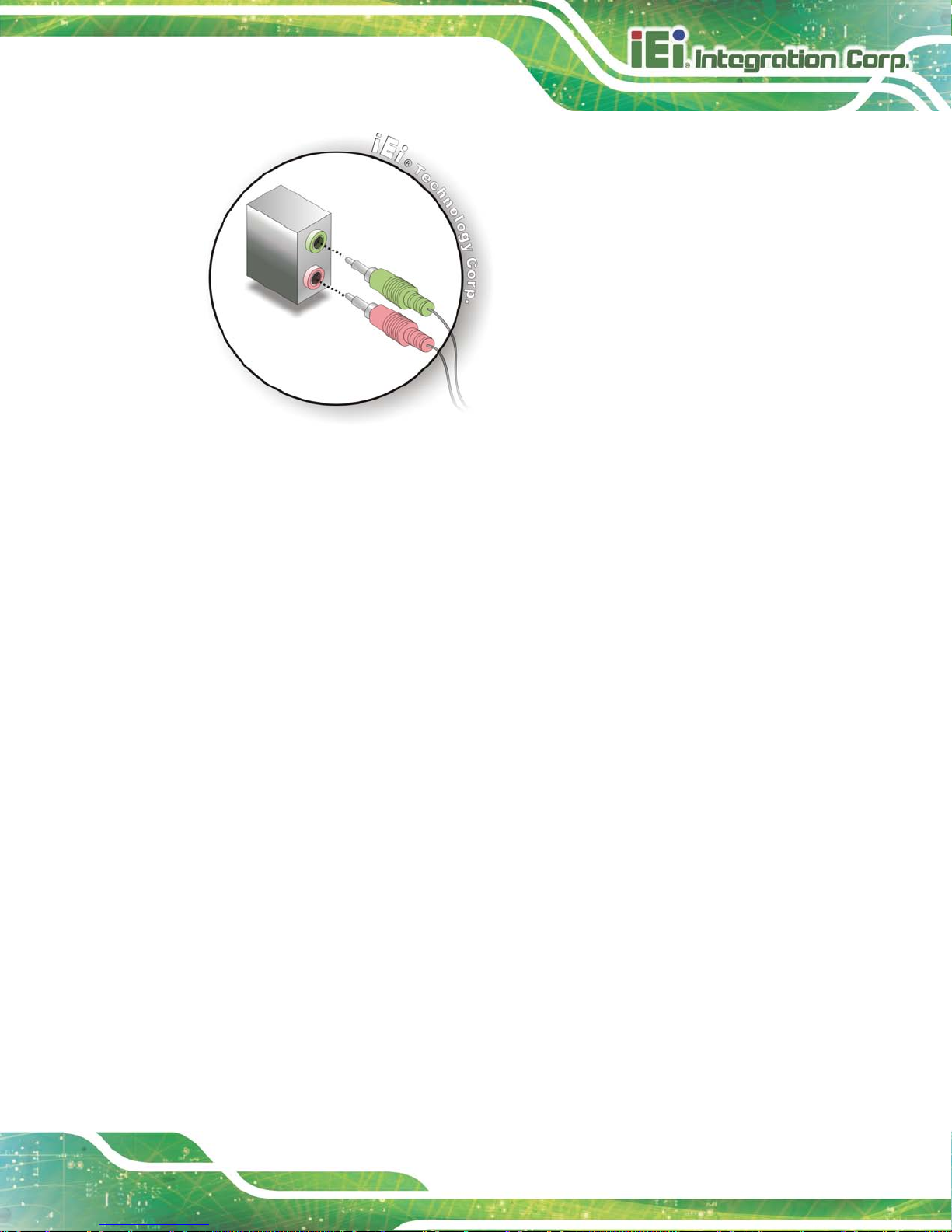

Figure 4-8: Audio Connector
.......................................................................................................55
Figure 4-9: DVI Connector
...........................................................................................................56
Figure 4-10: LAN Connection
......................................................................................................57

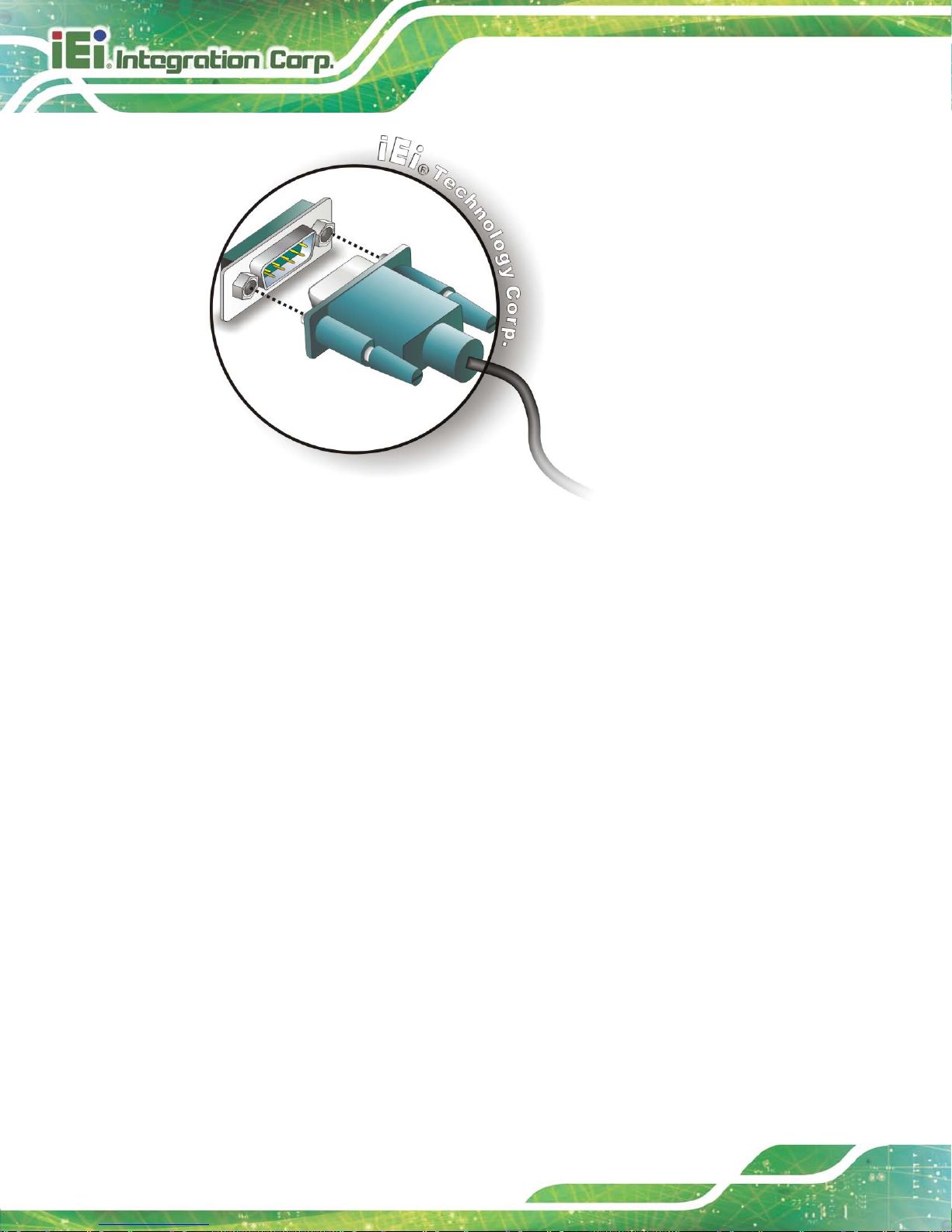

Figure 4-11: Serial Device Connector
.........................................................................................58

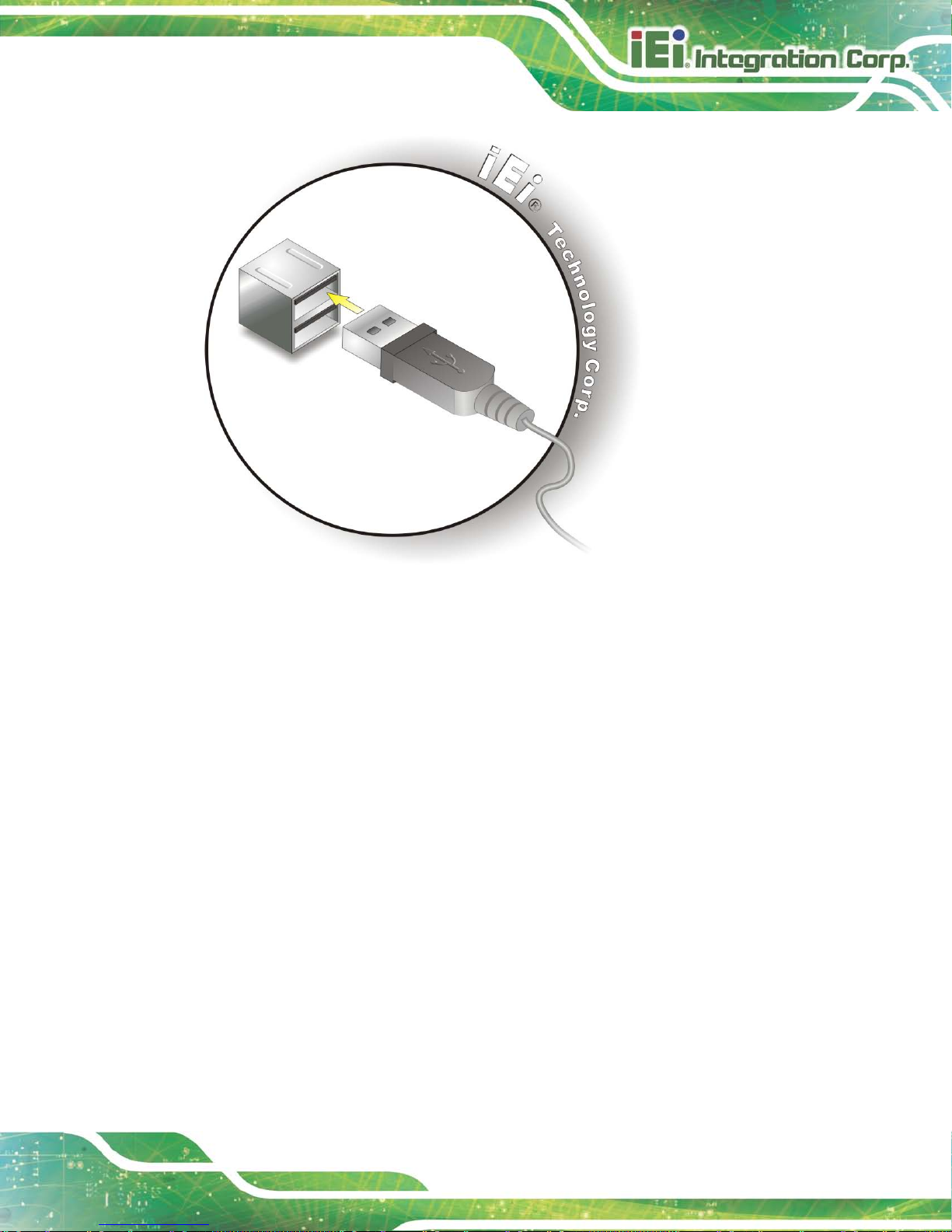

Figure 4-12: USB Connector
........................................................................................................59
Figure 4-13: VGA Connector
.......................................................................................................60
Figure B-1: IEI One Key Recovery Tool Menu
.........................................................................103
Figure B-2: Launching the Recovery Tool
...............................................................................108
Figure B-3: Recovery Tool Setup Menu
...................................................................................108
Figure B-4: Command Prompt
..................................................................................................109
Figure B-5: Partition Creation Commands
...............................................................................110
Figure B-6: Launching the Recovery Tool
...............................................................................112
Figure B-7: Manual Recovery Environment fo r Windows ......................................................112
Figure B-8: Building the Recovery Partition
............................................................................113
Figure B-9: Press Any Key to Continue
...................................................................................113
Figure B-10: Press F3 to Boot into Recovery Mode
................................................................114
Figure B-11: Recovery Tool Menu
............................................................................................114
Figure B-12: About Symantec Ghost Window
.........................................................................115
Figure B-13: Symantec Ghost Path
..........................................................................................115
Figure B-14: Select a Local Source Drive
................................................................................116
Figure B-15: Select a Source Partition from Basic Drive
.......................................................116
Figure B-16: File Name to Copy Image to
................................................................................117
Figure B-17: Compress Image
...................................................................................................117
Figure B-18: Image Creation Confirmation
..............................................................................118
Figure B-19: Image Creation Complete
....................................................................................118
Page 10
KINO-DH810
Page X
Figure B-20: Image Creation Complete ....................................................................................118
Figure B-21: Press Any Key to Continue
.................................................................................119
Figure B-22: Auto Recovery Utility
...........................................................................................120
Figure B-23: Launching the Recovery Tool
.............................................................................120
Figure B-24: Auto Recovery Environment for Windows
........................................................120
Figure B-25: Building the Auto Recovery Partition
.................................................................121
Figure B-26: Factory Default Image Confirmation
..................................................................121
Figure B-27: Image Creation Complete
....................................................................................122
Figure B-28: Press any key to continue
...................................................................................122
Figure B-29: Partitions for Linux
...............................................................................................124
Figure B-30: Manual Recovery Environment for Linux
..........................................................125
Figure B-31: Access menu.lst in Linux (Text Mode)
...............................................................126
Figure B-32: Recovery Tool Menu
............................................................................................126
Figure B-33: Recovery Tool Main Menu
...................................................................................127
Figure B-34: Restore Factory Default
.......................................................................................128
Figure B-35: Recovery Complete Window
...............................................................................129
Figure B-36: Backup System
.....................................................................................................129
Figure B-37: System Backup Complete Window
....................................................................130
Figure B-38: Restore Backup
....................................................................................................130
Figure B-39: Restore System Backup Complete Window
......................................................131
Figure B-40: Symantec Ghost Window
....................................................................................131
Page 11
KINO-DH810
Page XI
List of Tables
Table 1-1: Technical Specifications .............................................................................................. 8
Table 3-1: Peripheral Interface Connectors
...............................................................................17
Table 3-2: Rear Panel Connectors
..............................................................................................17

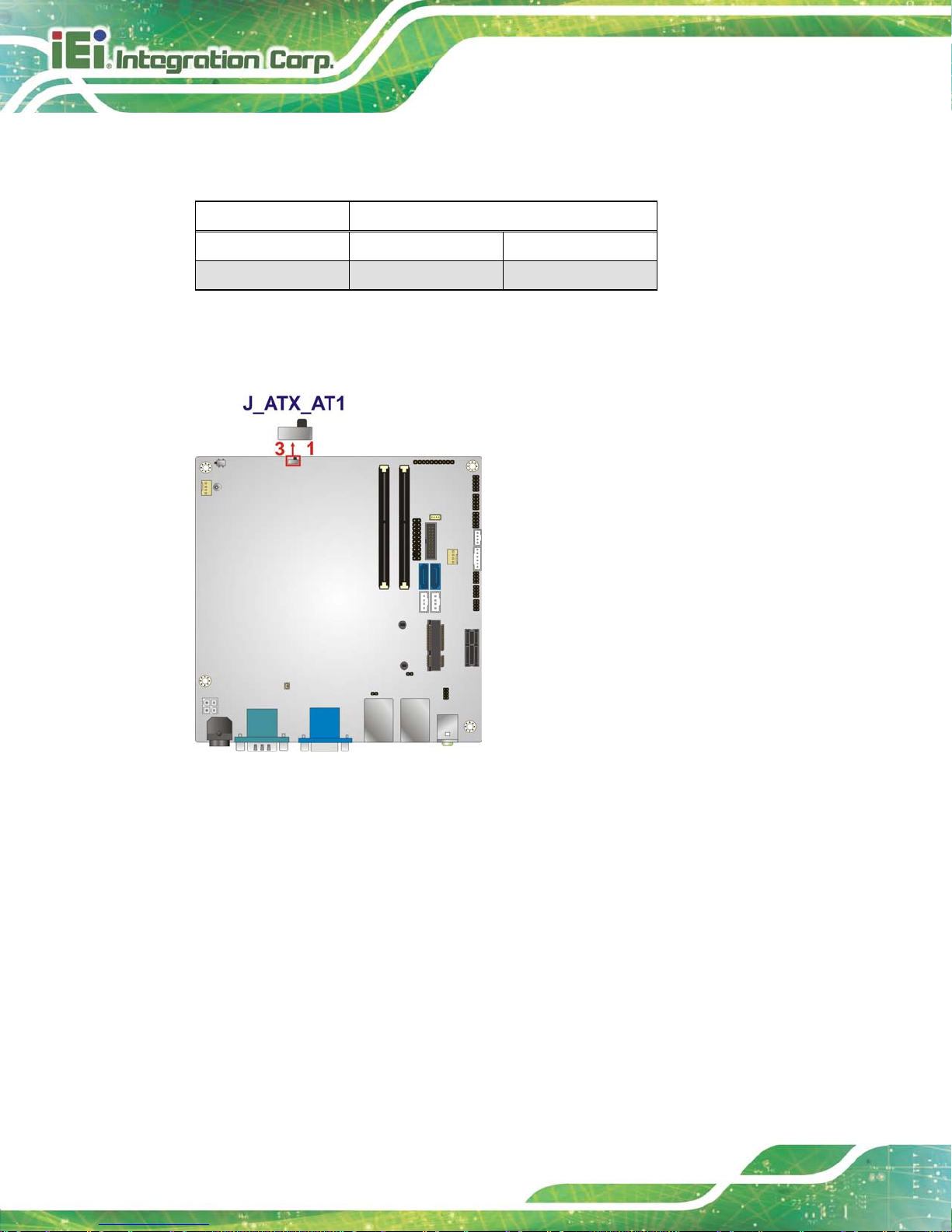

Table 3-3: AT/ATX Mode Select Switch Settings
.......................................................................18
Table 3-4: Battery Connector Pinouts
........................................................................................19
Table 3-5: Clear CMOS Button Settings
.....................................................................................19
Table 3-6: 12V DC-IN Po wer Connector Pinouts
.......................................................................21
Table 3-7: Digital I/O Connector Pinouts
....................................................................................23
Table 3-8: Display Port Connector Pinouts
...............................................................................24
Table 3-9: CPU Fan Connector Pinouts
.....................................................................................25
Table 3-10: System Fan Connector Pinouts
..............................................................................25
Table 3-11: Front Audio Connector Pinouts
..............................................................................26
Table 3-12: Front Panel Connector Pinouts
...............................................................................27
Table 3-13: Keyboard/Mouse Connector Pinouts
.....................................................................28
Table 3-14: LAN LED Connector Pinouts
...................................................................................29
Table 3-15: SATA Power Connector Pinouts
.............................................................................33
Table 3-16: RS-422/485Connector Pinouts
................................................................................33
Table 3-17: Serial Port Connector Pinouts
................................................................................34
Table 3-18: SMBus Connector Pinouts
......................................................................................35
Table 3-19: TPM Connector Pinouts
...........................................................................................36
Table 3-20: USB 2.0 Conn ector Pinouts (USB1, USB2)
............................................................37
Table 3-21: LAN2_USB1 Connector Pinouts
.............................................................................39
Table 3-22: LAN1_USB1 Connector Pinouts .............................................................................40
Table 3-23: 12V DC-IN Power Connector Pinouts
.....................................................................41
Table 3-24: RS-232 Se ria l Por t Connector Pinouts (COM1, COM2)
.........................................42
Table 3-25: VGA Connector Pinouts
...........................................................................................42
Table 3-26: DVI Connector Pinouts
.............................................................................................43
Table 5-1: BIOS Navigation Keys
................................................................................................63
Page 12
KINO-DH810
Page XII
List of BIOS Menus
BIOS Menu 1: Main .......................................................................................................................65
BIOS Menu 2: Advanced
..............................................................................................................66
BIOS Menu 3: ACPI Configuration
..............................................................................................66
BIOS Menu 4: Trusted Computing
..............................................................................................68
BIOS Menu 5: CPU Configuration
...............................................................................................69
BIOS Menu 6: SATA
Configuration .............................................................................................71
BIOS Menu 7: USB Configuration
...............................................................................................72
BIOS Menu 8: Super IO Configuration
........................................................................................73
BIOS Menu 9: Serial Port n Configuration Menu
.......................................................................74
BIOS Menu 10: Hardware Health Configuration
........................................................................79
BIOS Menu 11: FAN 1 Configuration
..........................................................................................80
BIOS Menu 12: Serial Port Console Redirecti o n
.......................................................................84
BIOS Menu 13: Console Redirection Settings
...........................................................................85
BIOS Menu 14: IEI Feature
...........................................................................................................87
BIOS Menu 15: Chipset
................................................................................................................88
BIOS Menu 16:PCH-IO Configuration
.........................................................................................89
BIOS Menu 17:PCH-IO Configuration
.........................................................................................90
BIOS Menu 18: System Agent (SA) Configuration
....................................................................91
BIOS Menu 19: Graphics Configuration
.....................................................................................92
BIOS Menu 20: Memory Configuration
.......................................................................................94
BIOS Menu 21: Boot
.....................................................................................................................94
BIOS Menu 22: Security
...............................................................................................................96
BIOS Menu 23:Exit
........................................................................................................................97
BIOS Menu 24: IEI Feature .........................................................................................................123
Page 13
KINO-DH810
Page 1
1 Introduction
Chapter
1
Page 14
KINO-DH810
Page 2
1.1 Introduction

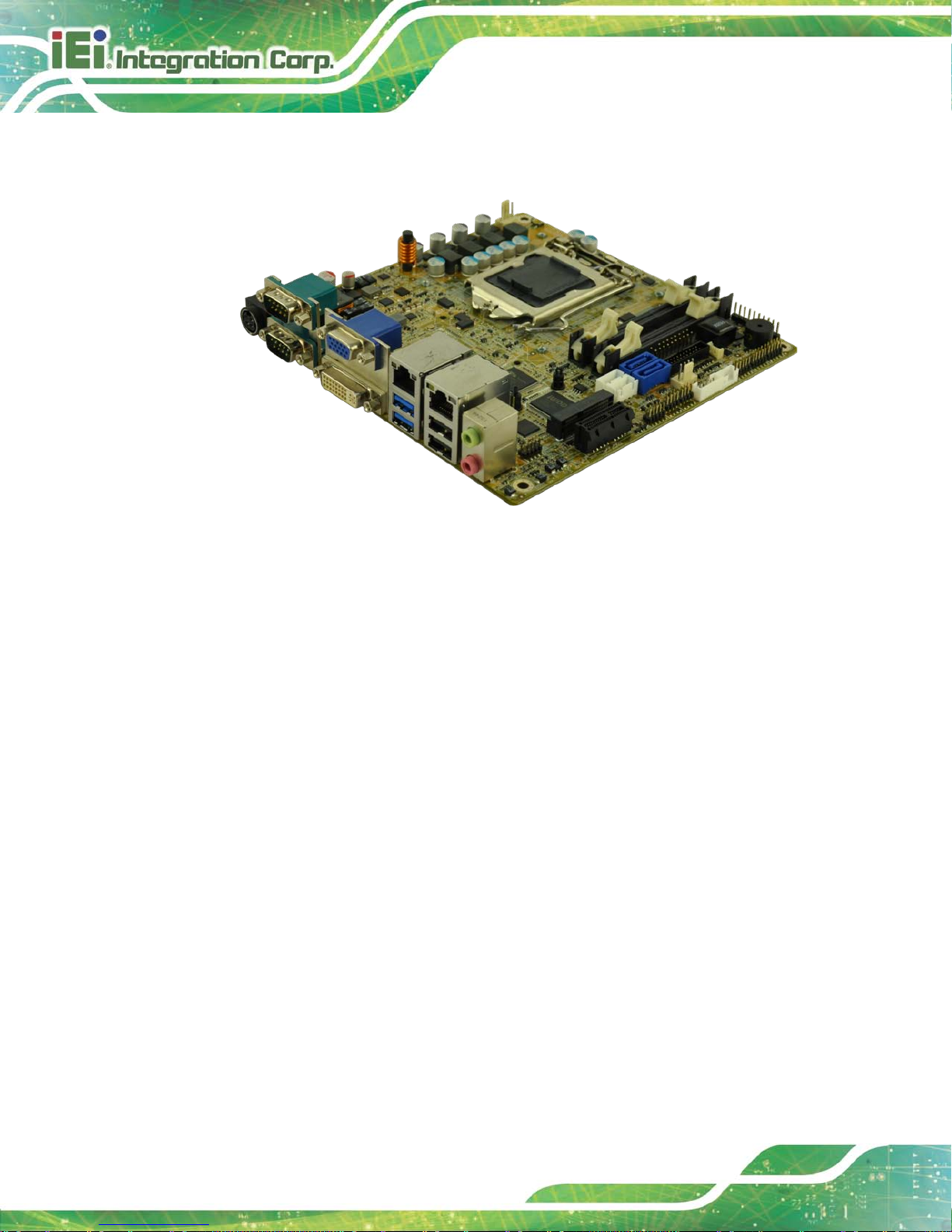

Figure 1-1: KINO-DH810
The KINO-DH810 is a Mini-ITX motherboard. It accepts a LGA1150 Intel® Core™ i7/i5/i 3
and Celeron® processor and supports two 204-pin 1066/1333/1600 MHz dual-channel
DDR3 SDRAM unbuffered SO-DIMM modules up to 16 GB.
The integrated Intel® H81 system chipset supports two GbE LAN ports through dual
Intel® I211AT PCIe GbE controllers.
The KINO-DH810 includes one external VGA connector, one external DVI-D connector
and one internal displa y port connec tor. Expansion and I/O include one PCIe x1 slot, one
mini PCIe card slot, two USB 3.0 connectors on rear panel, two USB 2.0 connectors on
rear panel, four USB 2.0 connectors by pin header and two SATA 6Gb/s connectors.
Serial device connectivity is provided by one internal RS-422/485 connector, three internal
RS-232 connectors and two external RS-232 connectors.
Page 15
KINO-DH810
Page 3
1.2 Features
Some of the KINO-DH810 motherboard features are listed below:
LGA1150 Intel® Core™ i7/i5/i3 and Celeron® processor supported
DDR3 1066/1333/1600 MHz dual channel SDRAM
3D micro-architecture enhancements supports for DX11.1, OCL 1.2 and
OGL3.2
Rich media acceleration for hardware decode and encode acceleration
High speed I/O interface for USB 3.0, SATA 6Gb/s and mSATA supported
IEI jumper-less function
Page 16
KINO-DH810
Page 4

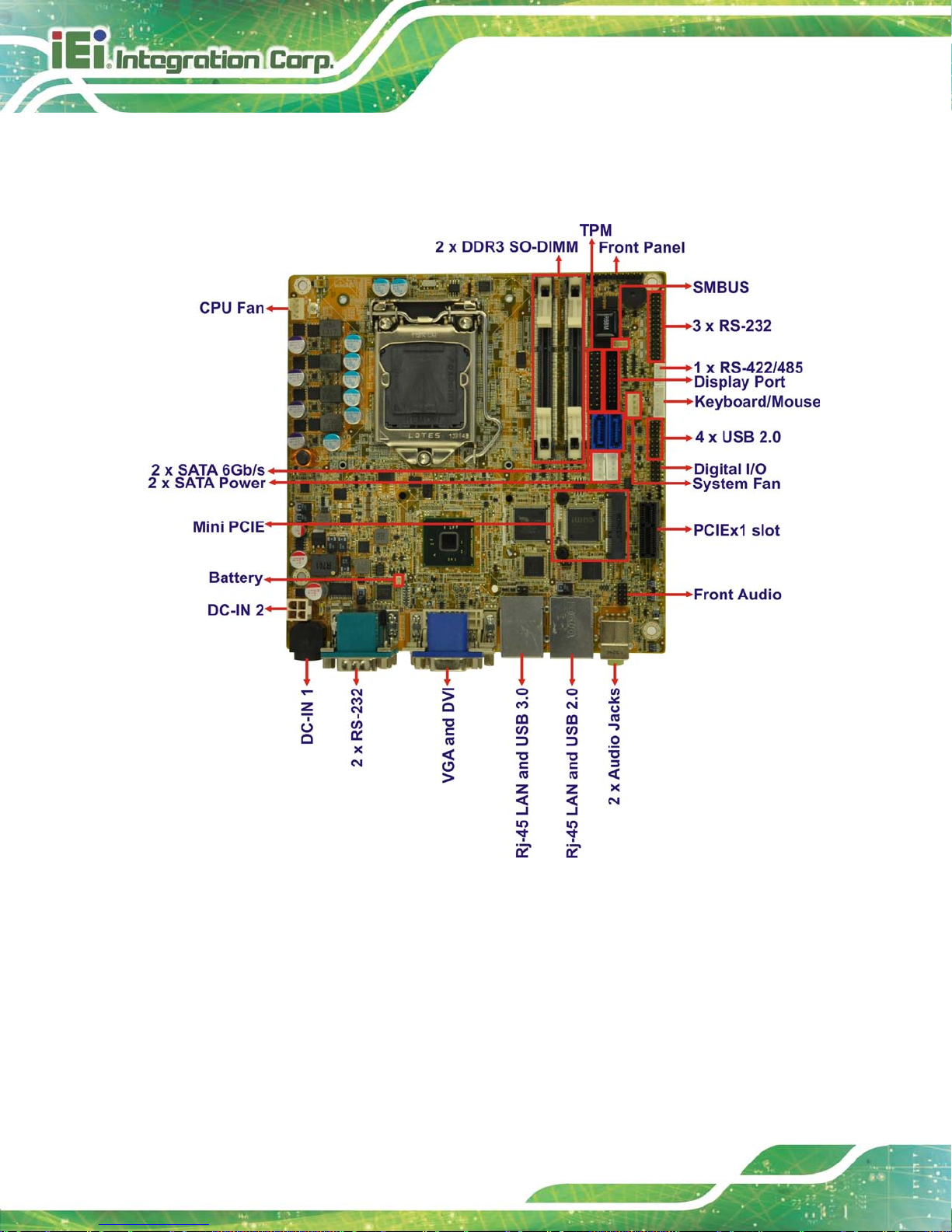

1.3 Connectors
The connectors on the KINO-DH810 are shown in the figure below.
Figure 1-2: Connectors
Page 17
KINO-DH810
Page 5
1.4 Dimensions
The dimensions of the board are listed below:
Length: 170 mm
Width: 170 mm

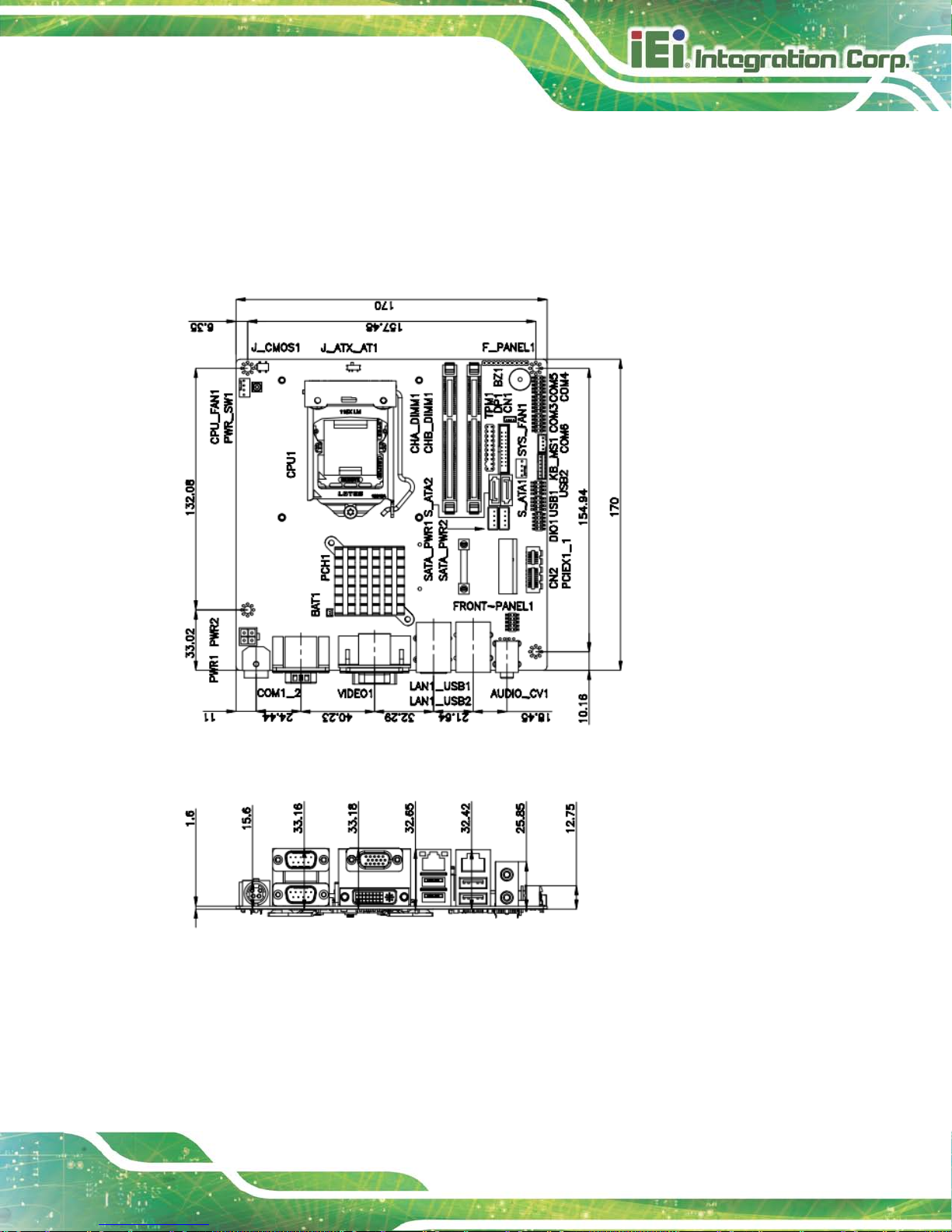

Figure 1-3: KINO-DH810 Dimensions (mm)
Page 18
KINO-DH810
Page 6
1.5 Data Flow
Figure 1-4 shows the data flow between the system chipset, the CPU and other
components installed on the motherboard.
Figure 1-4: Data Flow Diagram
Page 19
KINO-DH810
Page 7
1.6 Technical Specifications
KINO-DH810 technical specifications are listed below.
Specification KINO-DH810
CPU
22nm LGA1150 socket supports Intel® Core™ i7/i5/i3 and
Celeron® processor
PCH
Intel® H81
Mem ory
Two 240-pin 1066/1333/1600 MHz dual-channel DDR3
SRAM unbuffered SO-DIMM supported (system max. 16GB)
BIOS
UEFI BIOS
Ethernet
Dual Intel I211AT PCIe GbE controller
Graphic Engine
Support for DX11.1 and OpenGL3.2
Full MPEG2, VC1, AVC Decode
Displa y Output
DVI-D integrated in the CPU
VGA integrated in the Intel® H81
DisplayPort integrated in the CPU (pin header for changing to
HDMI, LVDS, VGA, DVI, DisplayPort)
Super I/O
Fintek F81866
EC
ITE 8519
Audio
Realtek ALC662 HD Audio codec
Digit al I/O
8-bit digital I/O (4-bit input, 4-bit output)
Watchdog Timer
Software programmable supports 1~255 sec. system reset
Expansions
PCIe
1 x PCIex1 slot (with x1 signal)
1 x Mini PCIe card slot (colay mSATA)
I/O Interface Connectors
Audio Connector
Two external audio jacks (Line-out, Mic)
Ethernet
Two RJ-45 ports
Keyboard/Mouse
1 x 6-pin wafer for PS/2 KB/MS
Page 20
KINO-DH810
Page 8
Specification KINO-DH810
TPM 1 x 20-pin (2x10) header
SMBus 1 x 4-pin (1x4) wafer
Fan 1 x 4-pin (1x4) CPU fan connector
1 x 4-pin (1x4) system fan connector
Ser ial Ports
5 x RS-232 (2 on Rear I/O, 3 by pin header)
1 x RS-422/485 by 4-pin wafer
USB Ports
2 x USB 3.0 (on Rear I/O)
6 x USB 2.0 (2 on Rear I/O, 4 by pin header)
Front Panel
1 x Front Panel (Power LED, HDD LED, Speaker, Power
Button, Reset Button)
LAN LED 2 x 2-pin (1x2) header for LAN1 LED, LAN2 LED
Storage
S erial ATA
2 x SATA 6Gb/s without raid support
Environmental and Power Specifications
Power Supply
DC input (12V only)
Operating Temperature
-20ºC ~ 60ºC
Humidity
5% ~ 95% (non-condensing)
Physical Spe cifications
Dimensions
170 mm x 170 mm
Weight GW/NW
900 g / 450 g
Table 1-1: Technical Specifications
Page 21
KINO-DH810
Page 9
2 Unpacking
Chapter
2
Page 22
KINO-DH810
Page 10
2.1 Anti-static Precautions
WARNING!
Static electricity can destroy certain electronics. Make sure to follow the
ESD precautions to preve nt damage to the product, and injur y to the
user.
Make sure to adhere to the following guidelines:
Wear an anti-static wristband: Wearing an anti-static wristband can prevent
electrostatic discharge.
Self-grounding: Touch a grounded conductor every few minutes to discharge
any excess static buildup.
Use an anti-static pad: When configuring any circuit board, place it on an
anti-static mat.
Only handle the edges of the PCB: Don't touch the surface of the
motherboard. Hold the motherboard by the edges when handling.
2.2 Unpacking Precautions
When the KINO-DH810 is unpacked, please do the following:
Follow the antistatic guidelines above.
Make sure the packing box is facing upwards when opening.
Make sure all the packing list items are present.
Page 23
KINO-DH810
Page 11
2.3 Pack i ng Lis t
NOTE:
If any of the components listed in the checklist below are missing, do not
proceed with the installation. Contact the IEI reseller or vendor the
KINO-DH810 was purchased from or contact an IEI sales representative
directly by sending an email to
sales@iei.com.tw.

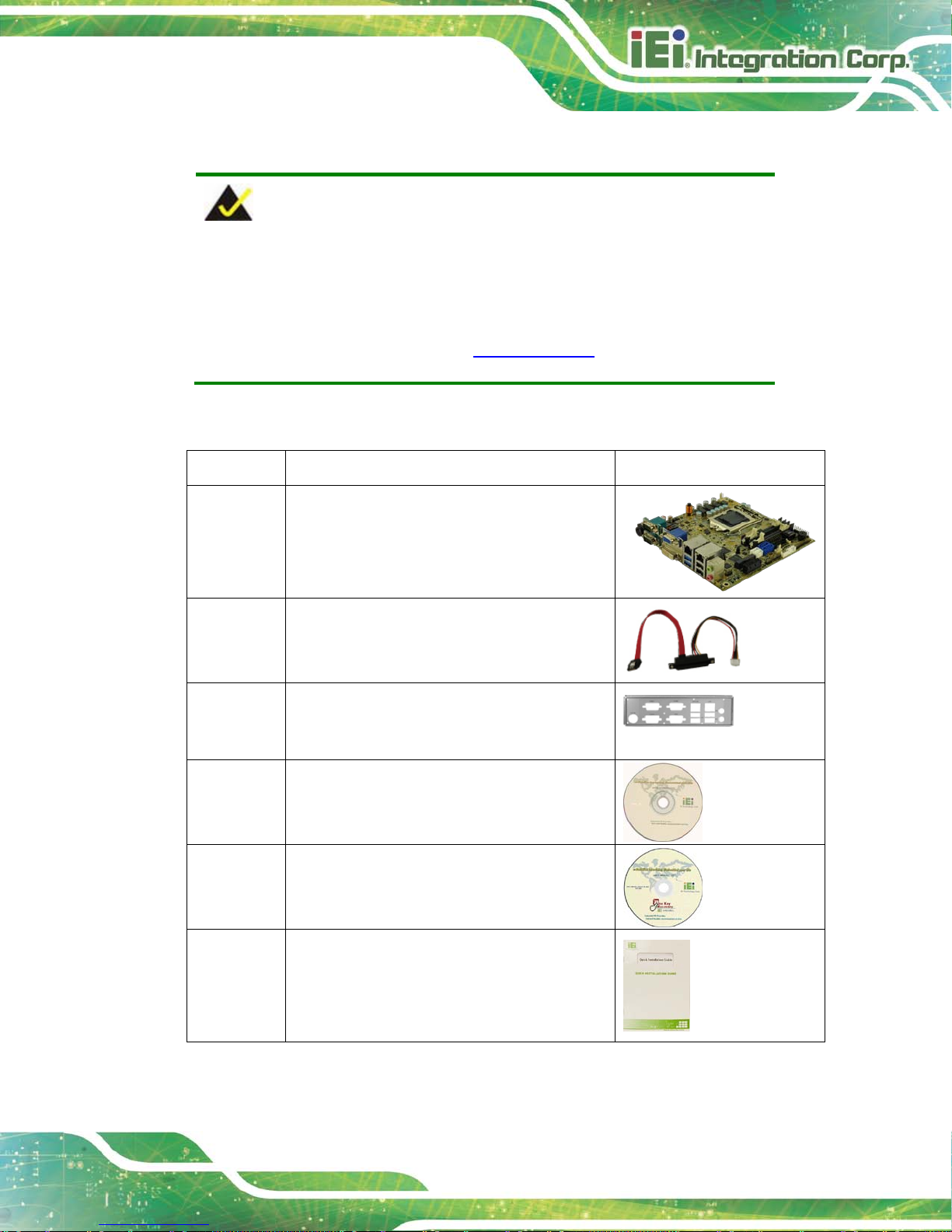

The KINO-DH810 is shipped with the following components:
Quantity Item and Part Number Ima g e
1 KINO-DH810 motherboard
4 SATA cable
(P/N: 32801-000100-100-RS)
1 I/O shielding
(P/N: 45014-0023C0-00-RS)
1 Utility CD
1 One Key Recovery CD
1 Quick Installation Guide
Page 24
KINO-DH810
Page 12

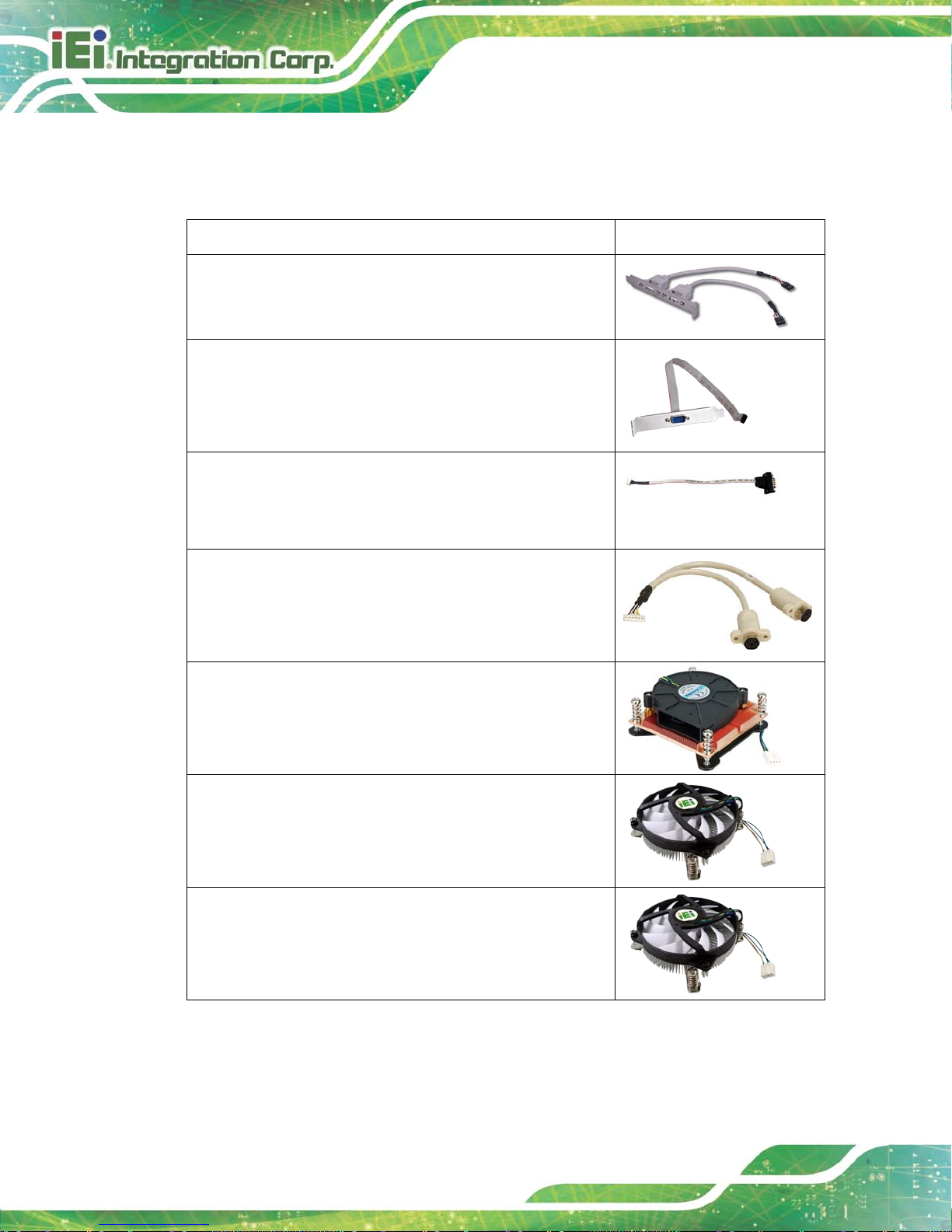

2.4 Option al Items
The following are optional components which may be separately purchased:
Item and Part Number Ima g e
Dual-port USB cable with bracket
(P/N: 19800-003100-200-RS)
RS232 cable, 200mm
(P/N: 19800-000300-100-RS)
RS-422/485 cable, 200mm
(P/N: 32205-003800-100-RS)
KB/MS Y cable
(P/N: 32006-001100-100-RS)
High-performance LGA1155/LGA1156 cooler kit, 1U
chassis compatible, 73W
(P/N: CF-1156A-RS-R11)
LGA1155/LGA1156 cooler kit, 1U chassis compatible,
45W
(P/N: CF-1156C-RS)
LGA1155/LGA1156 cooler kit, 1U chassis compatible,
65W
(P/N: CF-1156D-RS)
Page 25
KINO-DH810
Page 13

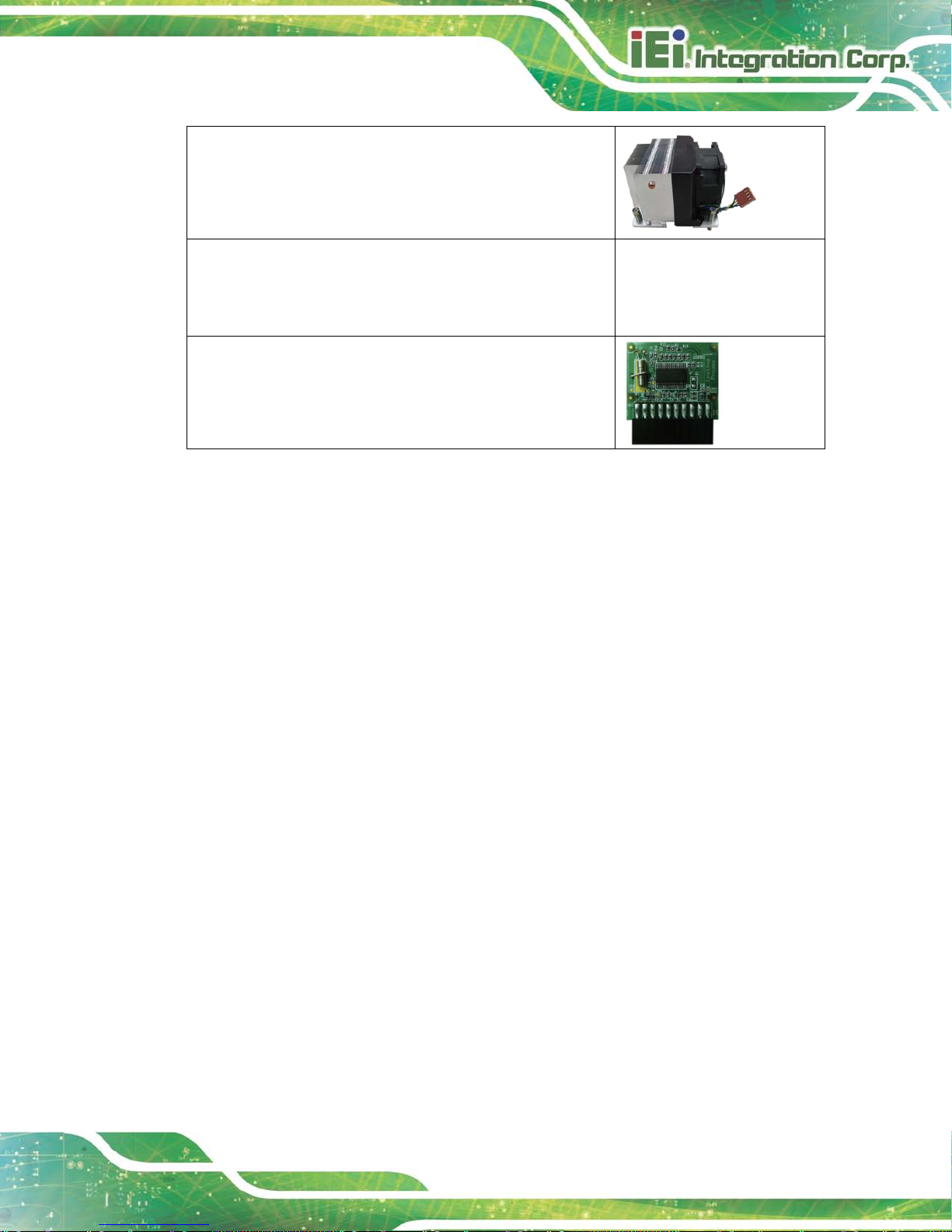

High-performance LGA1155/LGA1156 cooler kit, 95W
(P/N: CF-1156E-RS-R11)
12V 60W power adaptor with 4-pin DIN lock, 90 ~
264VAC input, ErP
(P/N: 63040-010060-050-RS)
20-pin Infineon TPM module, software management tool,
firmware V3.17
(P/N: TPM-IN01-R11)
Page 26
KINO-DH810
Page 14
3 Connectors
Chapter
3
Page 27
KINO-DH810
Page 15
3.1 Peripheral Interface Connectors
This chapter details all the jumpers and connectors.
3.1.1 KINO-DH810 Layout
The figures below show all the connectors and jumpers.
Figure 3-1: Connector and Jumper Locations
Page 28
KINO-DH810
Page 16
3.1.2 Peripheral In terface Connectors
The table below lists all the connectors on the board.
Connector Type Label
AT/ATX mode select switch switch J_ATX_AT1

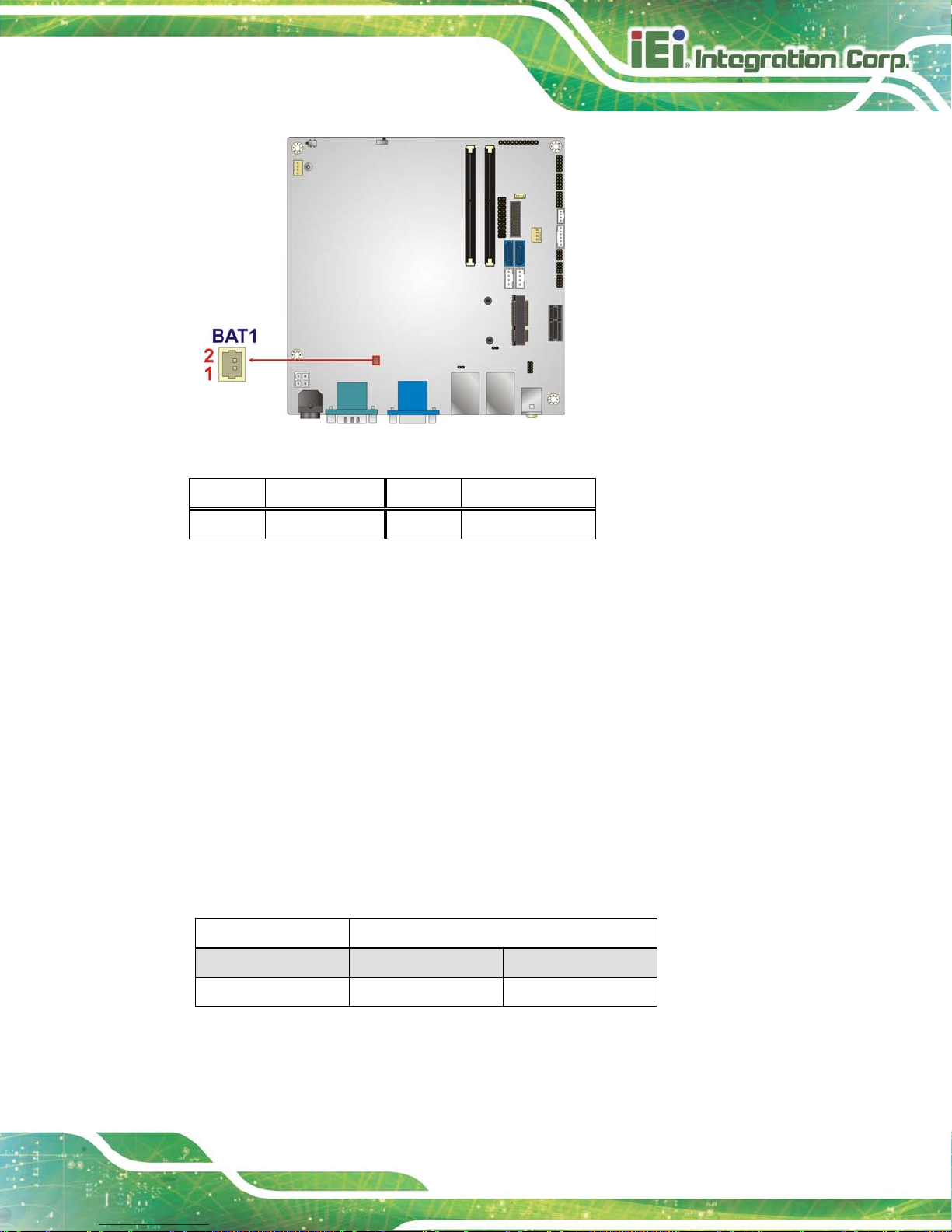

Battery connector 2-pin wafer BAT1
Clear CMOS button button J_CMOS1
12V DC-IN power connector 4-pin Molex PWR2
DDR3 SO-DIMM slots DDR3 SO-DIMM slot CHA_DIMM1, CHB_DIMM1
Digital I/O connector 10-pin header DIO1
Display port connector 20-pin box header DP1
Fan connector (CPU) 4-pin wafer CPU_FAN1
Fan connector (System) 4-pin wafer SYS_FAN1
Front audio connector 10-pin header FRONT_PANEL1
Front panel connector 10-pin header F_PANEL1
Keyboard/Mouse connector 6-pin wafer KB_MS1
LAN LED connector 2-pin header LED_LAN1, LED_LAN2
PCIe x1 slot PCIe x1 slot PCIEX1_1
PCIe Mini card slot PCIe Mini card slot CN2
Power button Push button PWR_SW1
SATA 6Gb/s drive connectors 7-pin SATA connector S_ATA1 , S_ATA2
SATA power connectors 4-pin wafer SATA_PWR1, SATA_PWR2
Serial port, RS-422/485 4-pin wafer COM6
Serial port, RS-232 10-pin header COM3, COM4, COM5
Page 29
KINO-DH810
Page 17
SMBus connector 4-pin wafer CN1
TPM connector 20-pin connector TPM1
USB connectors 8-pin header USB1, USB2
Table 3-1: Peripheral Interface Connectors

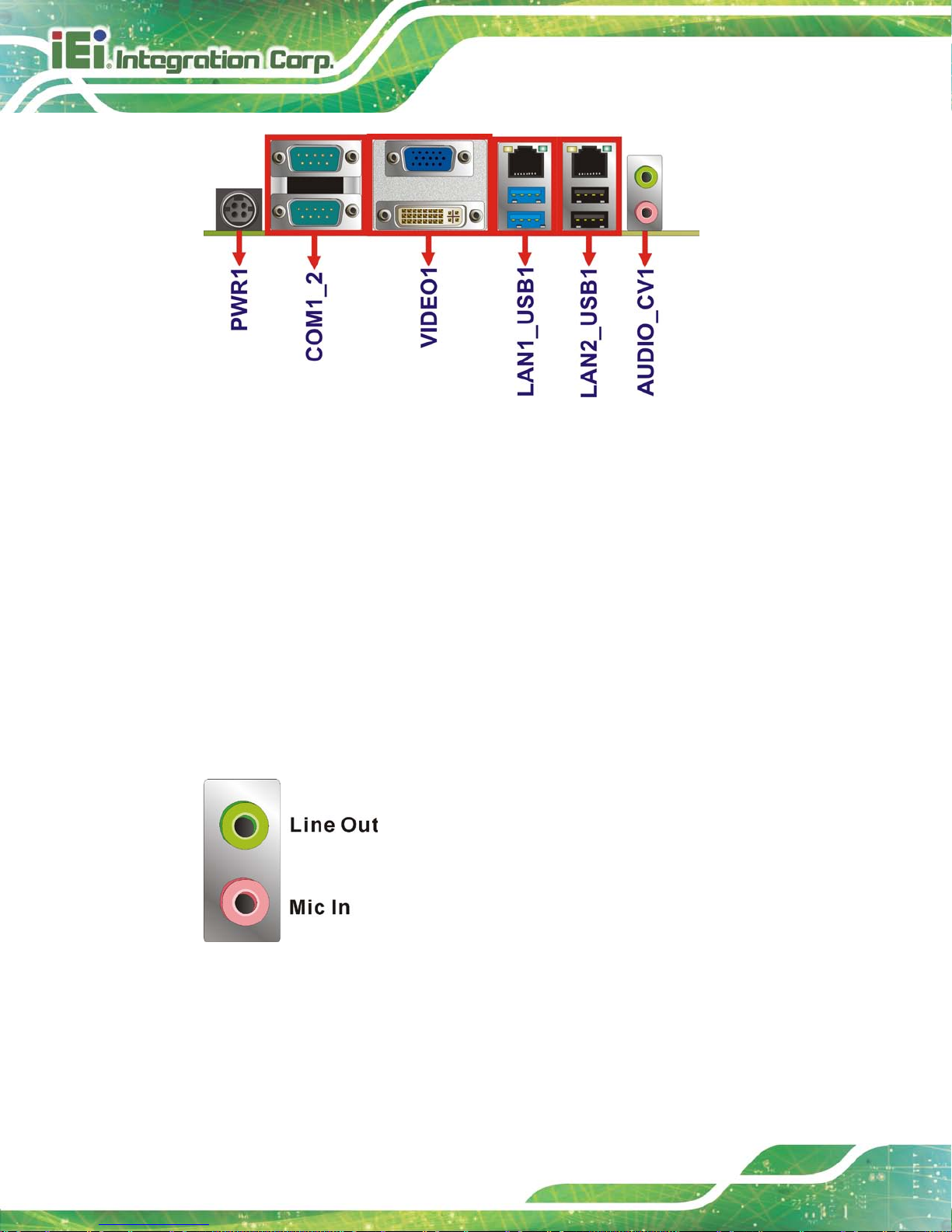

3.1.3 External Interface Panel Connectors
The table below lists the connectors on the external I/O panel.
Connector Type Label
Audio connector Audio jack AUDIO_CV1
Ethernet and USB 3.0 connectors RJ-45, USB 3.0 LAN1_USB1
Ethernet and USB 2.0 connectors RJ-45, USB 2.0 LAN2_USB1
12V DC- IN power connector 4-pin Mini-DIN PWR1
RS-232 serial port connector DB-9 male COM1_2
VGA and DVI connector 15-pin female,
24-pin female
VIDEO1
Table 3-2: Rear Panel Connectors
3.2 Internal Peripheral Connectors
The section describes all of the connectors on the KINO-DH810.
3.2.1 AT/ATX Mode Select Switch
CN Label:
J_ATX_AT1
CN Type:
switch
CN Settings:
See Table 3-3
CN Location:
See Figure 3-2
Page 30
KINO-DH810
Page 18
The AT/ATX mode select switch specifies the systems power mode as AT or ATX.
AT/ATX mode select switch settings are shown in Table 3-3.
Setting Description
Short 2-3 AT Mode
Short 1-2 ATX Mode Default
Table 3-3: AT/ATX Mode Select Switch Settings
The location of the AT/ATX mode select switch is shown in Figure 3-2 below.
Figure 3-2: AT/ATX Mode Select Switch Location
3.2.2 Battery Connector
CN Label:
BAT1
CN T y pe:
2-pin wafer
CN Location:
See Figure 3-3
CN Pinouts:
See Table 3-4
The battery connector is co nnected to the system batt ery. The battery provides po wer to
the system clock to retain the time when power is turned off.
Page 31
KINO-DH810
Page 19
Figure 3-3: Battery Connector Location
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 VBATT 2 GND
Table 3-4: Battery Connector Pinouts
3.2.3 Clea r CMOS Button
CN Label: J_CMOS1
CN Type:
button
CN Settings: See Table 3-5
CN Location: See Figure 3-4
If the KINO-DH810 fails to boot due to improper BIOS settings, use the button to clear the
CMOS data and reset the system BIOS information.
The clear CMOS button settings are shown in Table 3-5.
Setting Description
Open Normal Operation Default
Push Clear CMOS Setup
Table 3-5: Clear CMOS Button Settings
The location of the clear CMOS button is shown in Figure 3-4.
Page 32
KINO-DH810
Page 20

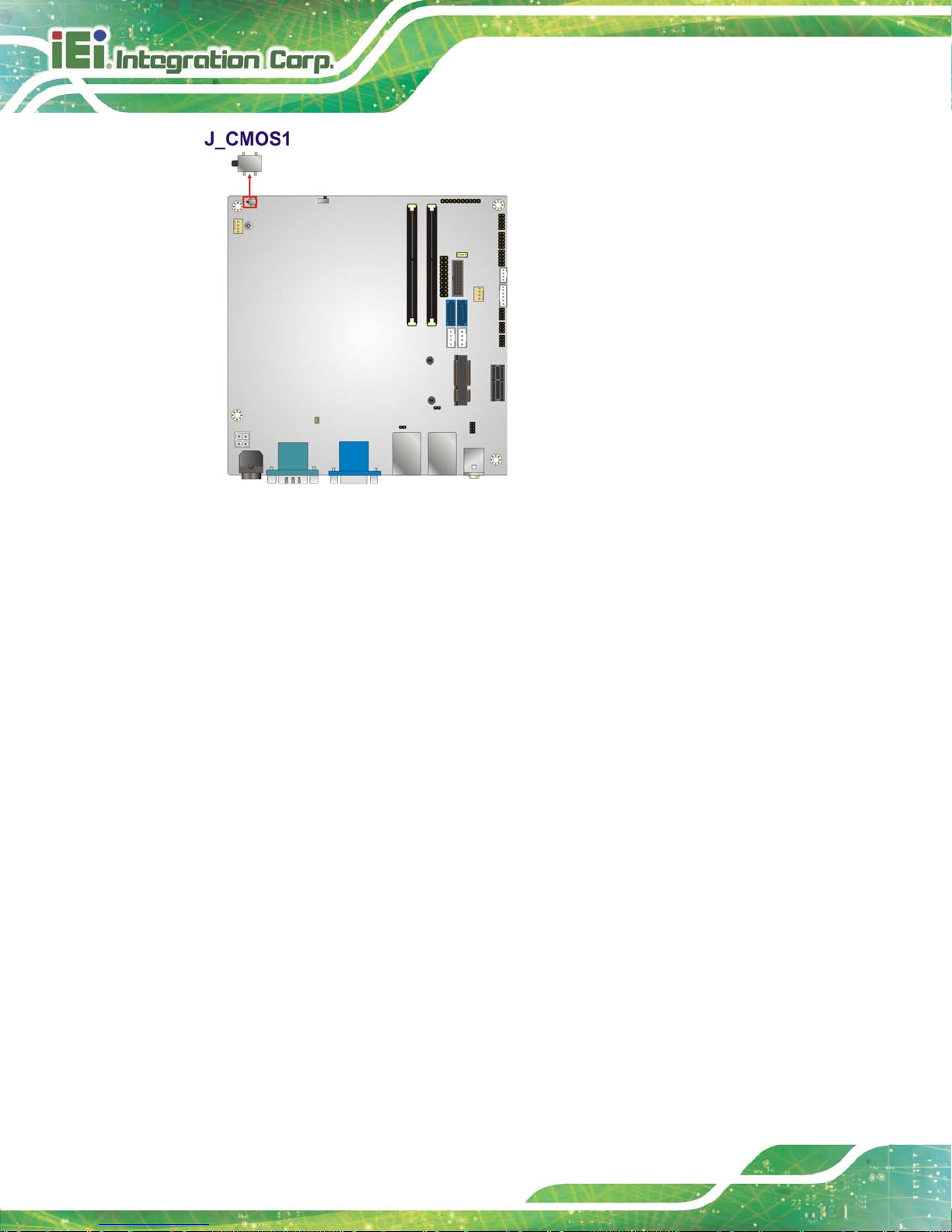

Figure 3-4: Clear CMOS Button Location
3.2.4 12V DC-IN P o we r Connector
CN Label: PWR2
CN T y pe:
4-pin Molex
CN Location: See Figure 3-5
CN Pinouts: See Table 3-6
The connector supports the 12V power supply.
Page 33
KINO-DH810
Page 21
Figure 3-5: 12V DC-IN Power Connector Location
PIN NO. DESCRIPTION PIN NO . DESCRIPTION
1 GND 2 GND
3 +12V 4 +12V
Table 3-6: 12V DC-IN Power Connector Pinouts
3.2.5 DDR3 SO -DIMM Slots
CN Label: CHA_D IMM1, CHB_DIMM1
CN T y pe:
DDR3 SO-DIMM slot
CN Location: See Figure 3-6
The DDR3 SO-DIMM slots are for DDR3 SO-DIMM memory modules.
Page 34
KINO-DH810
Page 22
Figure 3-6: DDR3 SO-DIMM Slot Locations
3.2.6 Digital I/O Connector
CN Label:
DIO1
CN T y pe:
10-pin header
CN Location:
See Figure 3-7
CN Pinouts:
See Table 3-7
The digital I/O co nnector provides programm able input and output for ext ernal devices.
The digital I/O provides 4-bit output and 4-bit input.
Figure 3-7: Digital I/O Connector Location
Page 35
KINO-DH810
Page 23
PIN NO. DESCRIPTION PIN NO . DESCRIPTION
1 GND 2 +5V
3 DGPO3 4 DGPO2
5 DGPO1 6 DGPO0
7 DGPI3 8 DGPI2
9 DGPI1 10 DGPI0
Table 3-7: Digital I/O Connector Pinouts
3.2.7 Display Port Connector
CN Label: DP1
CN T y pe:
20-pin box header
CN Location: See Figure 3-8
CN Pinouts: See Table 3-8
The disport port connector provides flexible display function that supports VGA, DVI,
LVDS, HDMI and
DisplayPort via the disport port convert board.
Figure 3-8: Display Port Connector Location
Pin Description Pin Description
1 +5V 2 DPD_OB_LANE1_N
3 DPD_OB_LANE1_P 4 GND
5 DPD_OB_LANE3_N 6 DPD_OB_LANE3_P
Page 36
KINO-DH810
Page 24
Pin Description Pin Description
7 GND 8 AUX_CTRL_DET_D
9 GND 10 DDI1_HPD#
11 DPD_AUX_CTRL_P2 12 DPD_AUX_CTRL_N2
13 GND 14 DPD_OB_LANE2_P
15 DPD_OB_LANE2_N 16 GND
17 DPD_OB_LANE0_P 18 DPD_OB_LANE0_N
19 +3.3V 20 NC
Table 3-8: Display Port Connector Pinouts
3.2.8 Fan Connector (CPU)
CN Label: CPU_FAN1
CN T y pe:
4-pin wafer
CN Location: See Figure 3-9
CN Pinouts: See Table 3-9
The fan connector attaches to a CPU cooling fan.
Figure 3-9: CPU Fan Connector Locations
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 GND 2 +12V
Page 37
KINO-DH810
Page 25
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
3 FANIO1 4 FANOUT1
Table 3-9: CPU Fan Connector Pinouts
3.2.9 Fan Connector (System)
CN Label: SYS_FAN1
CN T y pe:
4-pin wafer
CN Location: See Figure 3-10
CN Pinouts: See Table 3-10
The fan connector connects to a system cooling fan.
Figure 3-10: System Fan Connector Location
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 GND 2 +12V
3 FANIO2 4 FANOUT2
Table 3-10: System Fan Connector Pinouts
Page 38
KINO-DH810
Page 26
3.2.10 Front Audio Connector
CN Label: FRONT_PANEL1
CN T y pe:
10-pin header
CN Location: See Figure 3-11
CN Pinouts: See Table 3-11
This connector connects to speakers, a microphone and an audio input.
Figure 3-11: Front Audio Connector L o cation
Pin Description Pin Description
1 MIC2-L 2 Analog_GND
3 MIC2-R 4 PRESENCE#
5 LINE2-R 6 MIC2-JD
7 FRONT-IO 8 NC
9 LINE2-L 10 LINE2-JD
Table 3-11: Front Audio Connector Pinouts
3.2.11 Front Panel Connector
CN Label: F_PANEL1
CN T y pe:
10-pin header
Page 39
KINO-DH810
Page 27
CN Location: See Figure 3-12
CN Pinouts: See Table 3-12
The f ront panel connec tor connects to the indica tor LEDs and b uttons on the c omputer ’s
front panel.
Figure 3-12: Front Panel Connector Location
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 NC 2 PWRBTN_SW
3 GND 4 HDDLED+
5 HDDLED- 6 PWRLED+
7 PWRLED+ 8 GND
9 EXTRST- 10 GND
Table 3-12: Front Panel Connector Pinouts
3.2.12 Keyboard/Mouse Connector
CN Label: KB_MS 1
CN T y pe:
6-pin wafer
CN Location: See Figure 3-13
Page 40
KINO-DH810
Page 28
CN Pinouts: See Table 3-13
The keyboard/mous e connector connects to a PS/2 Y-cable that can be connected t o a
PS/2 keyboard and mouse.
Figure 3-13: Keyboard/Mouse Connector Location
Pin Description
1
+5V_KBMS
2 MSDATA
3 MSCLK
4 KBDATA
5 KBCLK
6
KBMS_GND
Table 3-13: Keyboard/Mouse Connector Pinouts
3.2.13 LAN LED Connector
CN Label: LED_LAN1, LED_LAN2
CN T y pe:
2-pin header
CN Location: See Figure 3-14
CN Pinouts: See Table 3-14
The LAN LED connectors connect to the LAN link LEDs on the system.
Page 41
KINO-DH810
Page 29
Figure 3-14: LAN LED Connector Location
PIN NO. DESCRIPTION PIN NO . DESCRIPTION
1 +3.3VLAN 2 LAN1/2_LED_LINK#
Table 3-14: LAN LED Connector Pinouts
3.2.14 PCIe x1 Slot
CN Label: PCIEX1_1
CN T y pe:
PCIe x1 slot
CN Location: See Figure 3-15
The PCIe x1 slot is for PCIe x1 expansion cards.
Page 42
KINO-DH810
Page 30
Figure 3-15: PCIe x1 Slot Location
3.2.15 PC Ie Min i Car d Slot
CN Label: CN2
CN T y pe:
PCIe Mini card slot
CN Location: See Figure 3-16
The PCIe Mini card slot is for installing a PCIe Mini expansion card.
Figure 3-16: PCIe Mini Card Slot Lo cation
Page 43
KINO-DH810
Page 31
3.2.16 P o w er Bu tton
CN Label: PWR_SW1
CN T y pe:
Push button
CN Location: See Figure 3-17
It is an on-board power button. Push the power button to turn on the system.

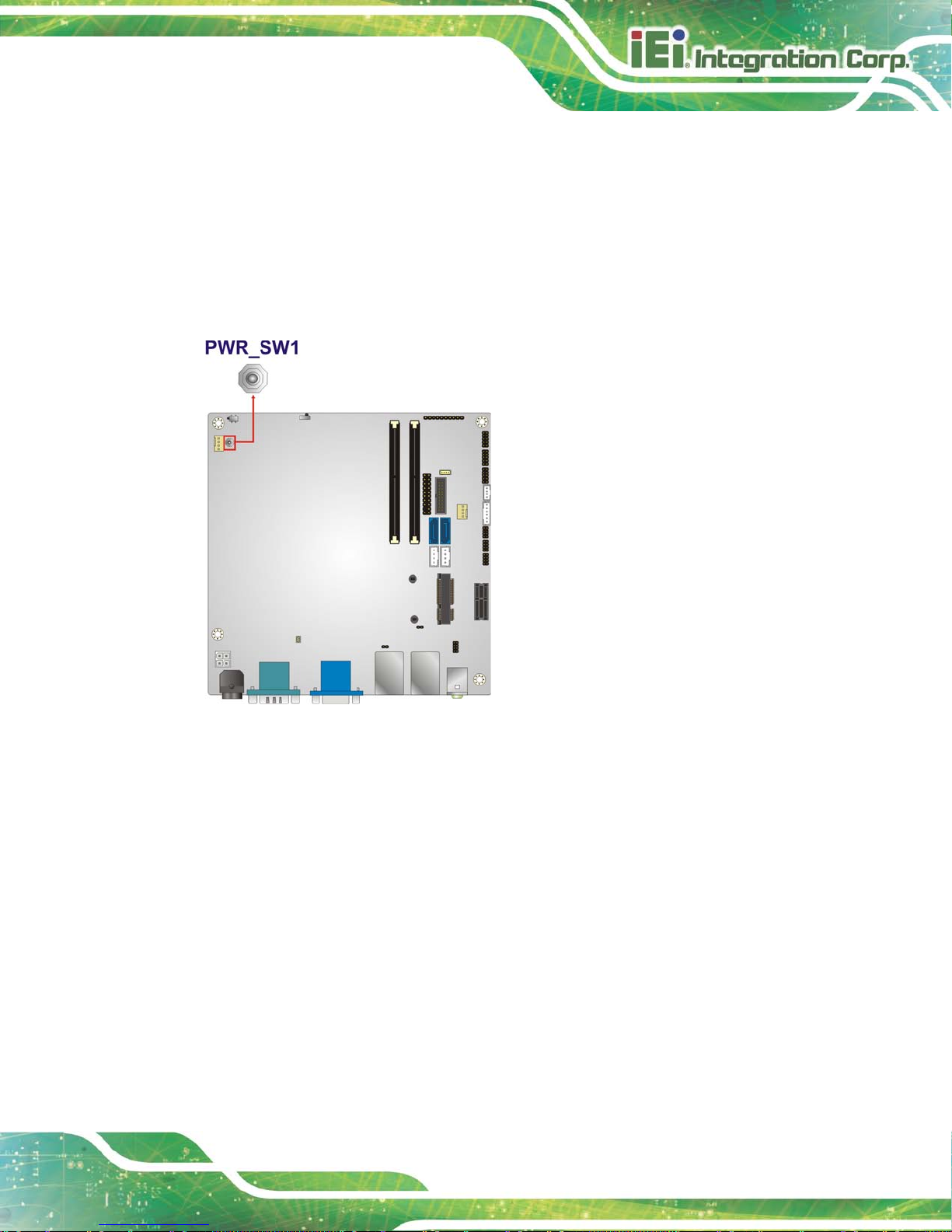

Figure 3-17: Power Button Location
3.2.17 S ATA 6Gb/s Drive Connectors
CN Label:
S_ATA1, S_ATA2
CN T y pe:
7-pin SATA connector
CN Location:
See Figure 3-18
The two SATA 6Gb/s drive connectors are each connec ted to a SATA 6Gb/s drive. The
SATA 6Gb/s drives transfer data at speeds as high as 6Gb/s.
Page 44
KINO-DH810
Page 32
Figure 3-18: SATA 6Gb/s Drive Connector Locations
3.2.18 SATA Power Connectors
CN Label: SATA_PWR1, SATA_PWR2
CN T y pe:
4-pin wafer
CN Location: See Figure 3-19
CN Pinouts: See Table 3-15
Use the SATA Power Connector to connect to SATA device power connections.
Figure 3-19: SATA Power Connector Locations
Page 45
KINO-DH810
Page 33
Pin Description
1 +12V
2 GND
3 GND
4 +5V
Table 3-15: SATA Power Connector Pinouts
3.2.19 Serial Port Connector, RS-422/485
CN Label: COM6
CN T y pe:
4-pin wafer
CN Location: See Figure 3-20
CN Pinouts: See Table 3-16
This connector provides RS-422 or RS-485 communications.
Figure 3-20: RS-422/485 Connector Location
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1
RXD485#
2
RXD485+
3
TXD485+
4
TXD485#
Table 3-16: RS-422/485Connector Pinouts
Page 46
KINO-DH810
Page 34
3.2.20 Serial Port Connectors, RS-232
CN Label: COM3, COM4, COM5
CN T y pe:
10-pin header
CN Location: See Figure 3-21
CN Pinouts: See Table 3-17
Each of these connectors provides RS-232 connections.
Figure 3-21: Serial Port Connector Location
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 NDCD3/4/5 6 NDSR3/4/5
2 NRXD3/4/5 7 NRTS3/4/5
3 NTXD3/4/5 8 NCTS3/4/5
4 NDTR3/4/5 9 NRI3/4/5
5 GND 10 GND
Table 3-17: Serial Port Connector Pinouts
3.2.21 SMBUS Connector
CN Label: CN1
CN T y pe:
4-pin wafer
CN Location: See Figure 3-22
Page 47
KINO-DH810
Page 35
CN Pinouts: See Table 3-18
The SMBus (System Management Bus) connector provides low-speed system
management communications.
Figure 3-22: SMBus Connector Location
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 GND 2 SMBDATA
3 SMBCLK 4 +5V
Table 3-18: SMBus Connector Pinouts
3.2.22 TPM Connector
CN Label: TPM1
CN T y pe:
20-pin connector
CN Location: See Figure 3-23
CN Pinouts: See Table 3-19
The Trusted Platform Module (TPM) connector secures the system on bootup.
Page 48
KINO-DH810
Page 36
Figure 3-23: TPM Connector Location
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 TPMPCLK 2 GND
3 LPC_FRAME# 4 NC
5 BUF_PCIRST# 6 +5V
7 LPC_AD3 8 LPC_AD2
9 +3.3V 10 LPC_AD1
11 LPC_AD0 12 GND
13 SMBCLK_RESUME 14 SMBDATA_RESUME
15 +3V_DUAL 16 SERIRQ
17 GND 18 +3.3V
19 LPCPD_N 20 LDRQ0#
Table 3-19: TPM Connector Pinouts
3.2.23 USB Connectors
CN Label:
USB1, USB2
CN T y pe:
8-pin header
CN Location:
See Figure 3-24
CN Pinouts:
See Table 3-20
Page 49
KINO-DH810
Page 37
The USB connectors connect to USB devices. Each pin header provides two USB ports.
Figure 3-24: USB Connector Locations
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 +5V 2 GND
3 USB20_C_N4/8 4 USB20_C_P5/9
5 USB20_C_P4/8 6 USB20_C_N5/9
7 GND 8 +5V
Table 3-20: USB 2.0 Connector Pinouts (USB1, USB2)
3.3 External Peripheral Interface Conne ctor Panel
Figure 3-25 shows the KINO-DH810 external peripheral interface connector (EPIC) panel.
The EPIC panel consists of the following:
2 x Audio jacks
1 x DVI connector
2 x Ethernet connectors
1 x Power connector
2 x RS-232 serial port connectors
2 x USB 2.0 connectors
2 x USB 3.0 connectors
1 x VGA connector
Page 50
KINO-DH810
Page 38
Figure 3-25: KINO-DH810 External Peripheral Interface Connector
3.3.1 Audio Connector
CN Label:
AUDIO_CV1
CN T y pe:
Audio jack
CN Location:
See Figure 3-25
The audio jacks connect to external audio devices.
Line Out port (Lime): Connects to a headphone or a speaker. With
multi-channel configurations, this port can also connect to front speakers.
Microphone (Pink): Connects to a microphone.
Figure 3-26: Audio Connector
3.3.2 Ethernet and USB Connectors
CN Label:
LAN1_USB1, LAN2_USB1
Page 51
KINO-DH810
Page 39
CN T y pe:
RJ-45 , USB 3.0 and USB 2.0 ports
CN Location:
See Figure 3-25
CN Pinouts:
See Figure 3-27, Table 3-21 and Table 3-22
The LAN connector connects to a local network.

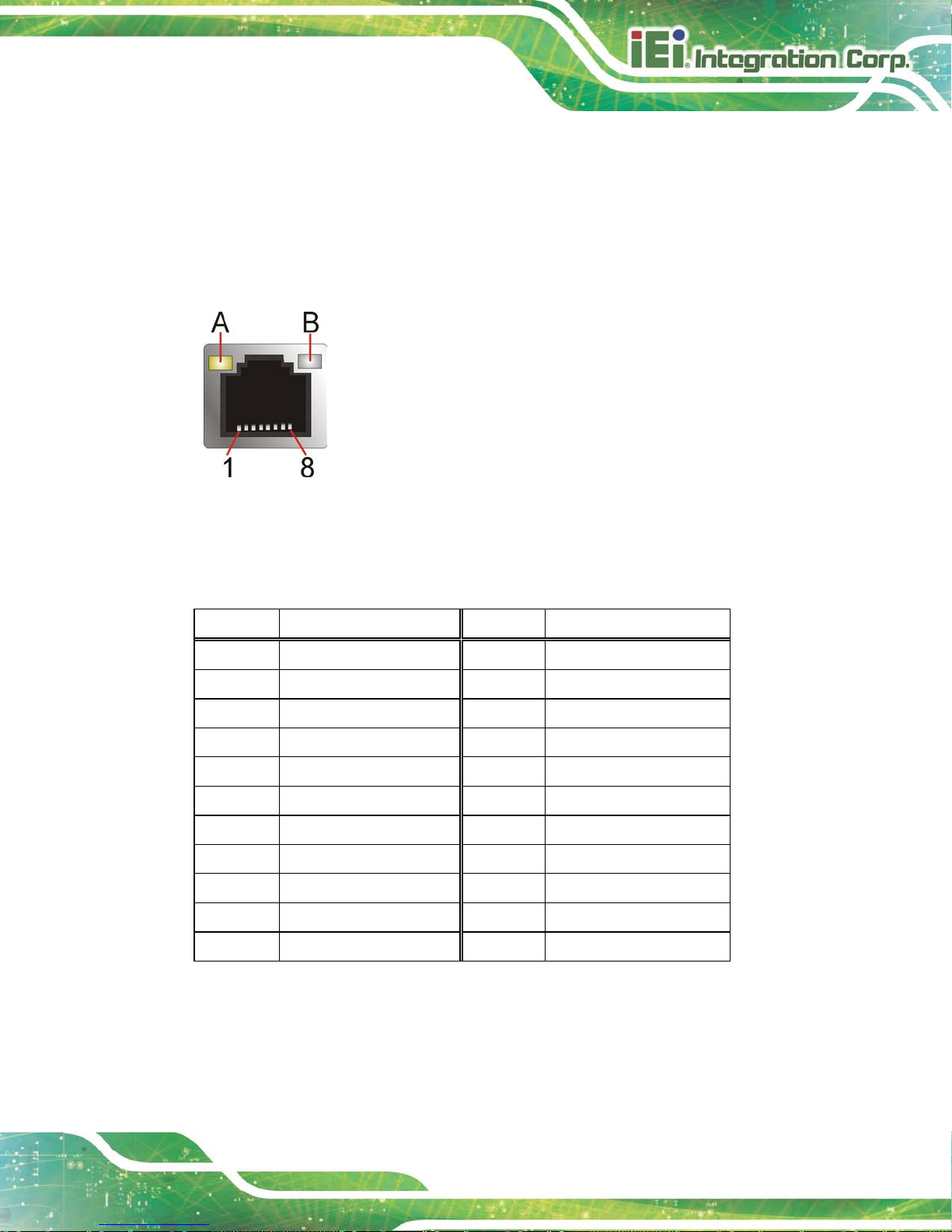

Figure 3-27: LAN Connector
The USB 2.0 ports are for attaching USB 2.0 peripheral devices to the system. The
pinouts of LAN2 and USB 2.0 connectors are shown below.
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
P1 +1.5V_LAN2 P2 LAN2_MDIP0
P3 LAN2_MDIN0 P4 LAN2_MDIP1
P5 LAN2_MDIN1 P6 LAN2_MDIP2
P7 LAN2_MDN2 P8 LAN2_MDIP3
P9 LAN2_MDIN3 P10 GND
P11 LAN2_LINK100 P12 LAN2_LINK1000
P13 LAN2_ACT-1 P14 +V3.3A_LAN2
U1 +USB_PWR1 U2 USB20_C_N10
U3 USB20_C_P10 U4 GND
U5 +USB_PWR1 U6 USB20_C_N11
U7 USB20_C_P11 U8 GND
Table 3-21: LAN2_USB1 Connector Pinouts
The USB 3.0 ports are for attaching USB 3.0 peripheral devices to the system. To be able
to use the USB 3.0 ports, please make sure the USB 3.0 driver is installed. The pinouts of
LAN1 and USB 3.0 connectors are shown below.
Page 52
KINO-DH810
Page 40
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 USB3_PWR1 2 USB2P0_DM1
3 USB2P0_DP1 4 GND
5 USB3P0_RXDN1 6 USB3P0_RXDP1
7 GND 8 USB3P0_TXDN1
9 USB3P0_TXDP1 10 USB3_PWR2
11 USB2P0_DM2 12 USB2P0_DP2
13 GND 14 USB3P0_RXDN2
15 USB3P0_RXDP2 16 GND
17 USB3P0_TXDN2 18 USB3P0_TXDP2
19 +0.9V_LAN1 20 LAN1_MDIP0
21 LAN1_MDIN0 22 LAN1_MDIP1
23 LAN1_MDIN1 24 LAN1_MDIP2
25 LAN1_MDIN2 26 LAN1_MDIP3
27 LAN1_MDIN3 28 GND
29 +3.3V_LAN1 30 LAN1_LINK_ACT#
31 LAN1_100# 32 LAN1_1000#
Table 3-22: LAN1_USB1 Connector Pinouts
3.3.3 12V DC- IN Power Connector
CN Label:
PWR1
CN T y pe:
4-pin Mini-DIN
CN Location:
See Figure 3-25
CN Pinouts:
See Figure 3-28 and Table 3-23
The connector supports 12 V power adapter.
Page 53
KINO-DH810
Page 41
Figure 3-28: 12V DC-IN Power Connector
PIN NO. DESCRIPTION
1 +12V
2 GND
3 +12V
4 GND
5 GND
Table 3-23: 12V DC-IN Power Connector Pinouts
3.3.4 RS-232 Serial Po rt Connectors
CN Label: COM1_2
CN Type:
DB-9 Male
CN Location: See Figure 3-25
CN Pinouts: See Figure 3-29 and Table 3-24
The serial port connects to a RS-232 serial communications device.
Figure 3-29: RS-232 Serial Port Connector
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 NDCD1/2# 2 NRXD1/2
3 NTXD1/2 4 NDTR1/2#
5 GND 6 NDSR1/2#
Page 54
KINO-DH810
Page 42
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
7 NRTS1/2# 8 NCTS1/2#
9 NRI1/2#
Table 3-24: RS-232 Seri al Po rt Connector Pinouts (COM1, COM2)
3.3.5 VGA a nd DVI Connector
CN Label: VIDEO1
CN T y pe:
15-pin female (VGA) , 24-pin female (DVI)
CN Location: See Figure 3-25
CN Pinouts: See Figure 3-30 , Table 3-25 and Table 3-26
The VGA port connects to a monitor that accepts a standard VGA input.
Figure 3-30: VGA Connector
PIN DESCRIPTION PIN DESCRIPTION
1 Red 2 Green
3 Blue 4 NC
5 GND 6 GND
7 GND 8 GND
9 VGAVCC 10 HOTPLUG
11 NC 12 DDCDAT
13 HSYNC 14 VSYNC
15 DDCCLK
Table 3-25: VGA Connector Pinouts
The DVI (Digital Visual Interface) port connects to a monitor that supports DVI video input.
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
Page 55
KINO-DH810
Page 43
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 DVI_TMDS_C_DATA2# 2 DVI_TMDS_C_DATA2
3 GND 4 NC
5 NC 6 DVI_DDC_SCLK
7 DVI_DDC_SDATA 8 NC
9 DVI_TMDS_C_DATA1# 10 DVI_TMDS_C_DATA1
11 GND 12 NC
13 NC 14 +5V_DVI
15 GND 16 DVI_HPD
17 DVI_TMDS_C_DATA0# 18 DVI_TMDS_C_DATA0
19 GND 20 NC
21 NC 22 GND
23 DVI_TMDS_C_CLK 24 DVI_TMDS_C_CLK#
C1 NC C2 NC
C3 NC C4 NC
Table 3-26: DVI Connector Pinouts
Page 56
KINO-DH810
Page 44
4 Installation
Chapter
4
Page 57
KINO-DH810
Page 45
4.1 Anti-static Precautions
WARNING:
Failure to take ESD precautions during the installation of the
KINO-DH810 may result in permanent damage to the KINO-DH810
and severe injury to the user.
Electrostatic discharge (ESD) can cause serious damage to electronic components,
including the KINO-DH810. Dry climates are especiall y susc eptible to ES D. It is t her efore
critical that whenever th e KINO-DH810 or any other electrical c omponent is hand led, the
following anti-static precaut ions are strictly adhered to.
Wear an anti-static wristband: Wearing a simple anti-static wristband can
help to prevent ESD from damaging the board.
Self-grounding: Before handling the board, touch any grounded conducting
material. During the time the board is handled, frequently touch any
conducting materials that are connected to the ground.
Use an anti-static pad: When configuring the KINO-DH810, place it on an
antic-static pad. This reduces the possibility of ESD damaging the
KINO-DH810.
Only handle the edges of the PCB: When handling the PCB, hold the PCB
by the edges.
Page 58
KINO-DH810
Page 46
4.2 Ins tallation Cons iderations
NOTE:
The following installa ti on n otic es a nd i ns tal la tio n cons i derati ons s ho ul d
be read and understood before the KINO-DH810 is installed. All
installation notices pertaining to the installation of the KINO-DH810
should be strictly adhered to. Failing to adhere to these precautions
may lead to severe damage of the KINO-DH810 and injury to the
person installing the motherboard.
WARNING:
The installation instructions described in this manual should be carefully
followed in order to prevent damage to the KINO-DH810, KINO-DH810
components and injury to the user.
Before and during the installation please DO the following:
Read the user manual:
o The user manual provides a complete description of the KINO-DH810
installation instructions and configuration options.
Wear an electrostatic discharge cuff (ESD):
o Electronic components are easily damaged by ESD. Wearing an ESD cuff
removes ESD from the body and helps prevent ESD damage.
Place the KINO-DH810 on an antistatic pad:
o When installing or configuring the motherboard, place it on an antistatic
pad. This helps to prevent potential ESD damage.
Turn all power to the KINO-DH810 off:
o When working with the KINO-DH810, make sure that it is disconnected
from all power supplies and that no electricity is being fed into the system.
Page 59
KINO-DH810
Page 47
Before and during the installation of the KINO-DH810 DO NOT:
Remove any of the stickers on the PCB board. These stickers are required for
warranty validation.
Use the product before verifying all the cables and power connectors are
properly connected.
Allow screws to come in contact with the PCB circuit, connector pins, or its
components.
4.3 Basic Ins tallation
WARNING:
A CPU should never be turned on without the specified cooling kit
being installed. If the cooling kit (heat sink and fan) is not properly
installed and the system turned on, permanent damage to the CPU,
KINO-DH810 and other electronic com ponents attach ed to th e system
may be incurred. R unning a C PU without a cooling k it ma y also result
in injury to the user.
The CPU, CPU cooling kit and DIMM are the most critical components of the
KINO-DH810. If one of these component is not installed the KINO-DH810 cannot r un.
4.3.1 Soc ket LGA1150 CPU In s tallation
WARNING:
CPUs are expensive and sensitive components. W hen installing the
CPU please be careful not to damage it in anyway. Make sure the CPU
is installed properly and ensure the correct cooling kit is properly
installed.
Do NOT touch the pins at the bottom of the CPU. W hen handling the
CPU, only hold it on the sides.
Page 60
KINO-DH810
Page 48
To install the CPU, follow the steps below.
Step 1: Disengage the load lever by pressing the lever down and slightly outwards to
clear the retention tab. Fully open the lever. See Figure 4-1.
Figure 4-1: Disengage the CPU Socket Load Lever
Step 2: Open the socket and remove the protective cover. The black protective
cover can be removed by pulling up on the tab labeled “Remove”. See Figure
4-2.
Figure 4-2: Remove Protective Cover
Step 3: Inspect the CPU socket. Make sure there are no bent pins and make sure the
socket contacts are free of foreign material. If any debris is found, remove it with
compressed air.
Page 61
KINO-DH810
Page 49
Step 4: Orientate the CPU properly. The contact array should be facing the CPU
socket.
Step 5: Correctly position the CPU. Match the Pin 1 mark with the CPU edge on the
CPU socket.
Step 6: Align the CPU pins. Locate pin 1 and the two orientation notches on the CPU.
Carefully match the two orientation notches on the CPU with the socket
alignment keys.
Step 7: Insert the CPU. Gently insert the CPU into the socket. If the CPU pins are
properly aligned, the CPU should slide into the CPU socket smoothly. See
Figure 4-3.
Figure 4-3: Insert the Socket LGA1150 CPU
Step 8: Close the CPU socket. Close the load plate and pull the load back a little to
have the load plate be able to secure to the knob. Engage the load lever by
pushing it back to its original position. See Figure 4-4. There will be some
resistance, but will not require extreme pressure.
Page 62
KINO-DH810
Page 50
Figure 4-4: Close the Socket LGA1150
Step 9: Connect the 12 V power to the board. Connect the 12 V power from the power
supply to the board.
4.3.2 Cooling Kit Installation
WARNING:
DO NOT attempt to install a push-pin cooling fan.
The pre-installed support bracket prevents the board from bending and
is ONLY compatible with captive screw type cooling fans.
The cooling kits can be bought from IEI. The cooling kit has a heat sink and fan.
WARNING:
Do not wipe off (accidentally or otherwise) the pre-sprayed layer of
thermal paste on the bottom of the heat sink. The thermal paste
between the CPU and the heat sink is important for optimum heat
dissipation.
Page 63
KINO-DH810
Page 51
To install the cooling kit, follow the instructions below.
Step 1: A cooling kit bracket is pre-installed on the rear of the motherboard. See Figure
4-5.
Figure 4-5: Cooling Kit Support Bracket
Step 2: Place the cooling kit onto the s o cket LGA1150 CPU. Make sure the CPU
cable can be properly routed when the cooling kit is installed.
Step 3: Mount the cooling kit. Gently place the cooling kit on top of the CPU. Make
sure the four threaded screws on the corners of the cooling kit properly pass
through the holes of the cooling kit bracket.
Step 4: Secure the cooling kit by fastening the four retention screw of the cooling kit.
Step 5: Connect the fan cable. Connect the cooling kit fan cable to the fan connector
on the KINO-DH810. Carefully route the cable and avoid heat generating chips
and fan blades.
4.3.3 SO-DIMM Ins tallation
To install a SO-DIMM, please follow the steps below and refer to Figure 4-6.
Page 64
KINO-DH810
Page 52
Figure 4-6: SO-DIMM Installation
Step 1: Open the SO-DIMM socket handles. Open the two handles outwards as far as
they can. See Figure 4-6.
Step 2: Align the SO-DIMM with the socket. Align the DIMM so the notch on the
memory lines up with the notch on the memory socket. See Figure 4-6.
Step 3: Insert the SO-DIMM. Once aligned, press down until the SO-DIMM is properly
seated. Clip the two handles into place. See Figure 4-6.
Step 4: Removing a SO-DIMM. To remove a SO-DIMM, push both handl es outwar d.
The memory module is ejected by a mechanism in the socket.
Page 65
KINO-DH810
Page 53
4.4 Internal Peripheral Device Connections
This section outlines the installation of peripheral devices to the on-board connectors
4.4.1 SATA Drive Connection
The KINO-DH810 is shipped with two SATA drive cable. To connect the SATA drive to the
connector, please follow the steps below.
Step 1: Locate the SATA connector and the SATA power con nec tor. The locations of
the connectors are shown in Chapter 3.
Step 2: Insert the cable connector. Insert the cable connector into the on-b oar d SATA
drive connector and the SATA power connector. See Figure 4-7.
Figure 4-7: SATA Drive Cable Connection
Step 3: Connect the cable to the SATA disk. Connect the connector on the other end
of the cable to the connector at the back of the SATA drive. See Figure 4-7.
Step 4: To remove the SATA cable from the SATA connector, press the clip on the
connector at the end of the cable.
Page 66
KINO-DH810
Page 54
4.5 External Peripheral Interface Connection
The following external peripheral devices can be connected to the external peripheral
interface connectors.
Audio devices
DVI devices
RJ-45 Ethernet cable connector
Serial port devices
USB devices
VGA monitor
To install these devices, connect the corresponding cable connector from the actual
device to the corres ponding KINO-DH810 external periphera l interf ace connector m aking
sure the pins are properly aligned.
4.5.1 Audio Connection
The audio jacks on the external audio connector enable the KINO-DH810 to be connected
to a stereo sound setup. To install the audio devices, follow the steps below.
Step 1: Identify the audio plugs. The plugs on your home theater system or speakers
may not match the colors on the rear panel. If audio plugs are plugged into the
wrong jacks, sound quality will be very bad.
Step 2: Plug the audio plugs into the audio jacks. Plug the audio plugs into the audio
jacks. If the plugs on your speakers are different, an adapter will need to be used
to plug them into the audio jacks.
Line Out port (Lime): Connects to a headphone or a speaker.
Microphone (Pink): Connects to a microphone.
Page 67
KINO-DH810
Page 55
Figure 4-8: Audio Connector
Step 3: Check audio clarity. Check that the sound is coming through the right speakers
by adjusting the balance front to rear and left to right.
4.5.2 DVI Display Device Connection
The KINO-DH810 has a singl e female DVI connector on the external perip heral interface
panel. The DVI c onnector is connected to a digital display device. To connect a digital
display device to the KINO-DH810, please follow the instructions below.
Step 1: Locate the DVI connector. The location of the DVI connector is shown in
Chapter 3.
Step 2: Align the DVI connector. Align the male DVI connector on the digital display
device cable with the female DVI connector on the external peripheral interface.
Step 3: Insert the DVI connector. Once the connectors are properly aligned with the
male connector, insert the male connector from the digital display device into the
female connector on the KINO-DH810. See Figure 4-9.
Page 68
KINO-DH810
Page 56
Figure 4-9: DVI Connector
Step 4: Secure the connector . Secure the DVI connector from the digital display device
to the external interface by tightening the two retention screws on either side of
the connector.
4.5.3 LAN Connection
There are two external RJ-45 L AN connectors. The RJ-45 connector enables connection
to an external networ k. To connect a LAN cab le with an RJ-45 connec tor, please follow
the instructions below.
Step 1: Locate the RJ-45 connectors. The locations of the LAN connectors are shown
in Chapter 3.
Step 2: Align the connectors. Align the RJ-45 connector on the LAN cable with one of
the RJ-45 connectors on the KINO-DH810. See Figure 4-10.
Page 69
KINO-DH810
Page 57
Figure 4-10: LAN Connection
Step 3: Insert the LAN cable RJ-45 connector. Once aligned, gently insert the LAN
cable RJ-45 connector into the on-board RJ-45 connector.
4.5.4 Serial Device Connection
The KINO-DH810 has two single female DB-9 connectors on the external peripheral
interface panel for a serial device. Follow the steps below to connect a serial device to the
KINO-DH810.
Step 1: Locate the DB-9 connector. The locations of the DB-9 connectors are shown
in Chapter 3.
Step 2: Insert the serial connector. Insert the DB-9 connector of a s er ial device into
the DB-9 connector on the external peripheral interface. See Figure 4-11.
Page 70
KINO-DH810
Page 58
Figure 4-11: Serial Device Connector
Step 3: Secure the connector. Secure the serial device connector to the external
interface by tightening the two retention screws on either side of the connector
4.5.5 USB Connection
The external USB Ser ies "A" recept acle conn ectors p rovide easier and quick er acc ess to
external USB devices. Follow the steps below to connect USB devices to the
KINO-DH810.
Step 1: Locate the USB Series "A" receptacle connectors. The locations of the USB
Series "A" receptacle connectors are shown in Chapter 3.
Step 2: Insert a USB Series "A" plug. Insert the USB Series "A " plug of a device into
the USB Series "A" receptacle on the external peripheral interface. See
Figure 4-12.
Page 71
KINO-DH810
Page 59
Figure 4-12: USB Connector
4.5.6 VGA Monitor Connection
The KINO-DH810 has a single female DB-15 connector on the external peripheral
interface panel. The DB-15 connector is connected to a CR T or VGA monitor. To connect
a monitor to the KINO-DH810, please follow the instructions below.
Step 1: Locate the female DB-15 connector. The location of the female DB-15
connector is shown in Chapter 3.
Step 2: Align the VGA connector. Align the male DB-15 connector on the VGA screen
cable with the female DB-15 connector on the external peripheral interface.
Step 3: Insert the VGA connector. Once the connectors are properly aligned with the
insert the male connector from the VGA screen into the female connector on the
KINO-DH810. See Figure 4-13.
Page 72
KINO-DH810
Page 60

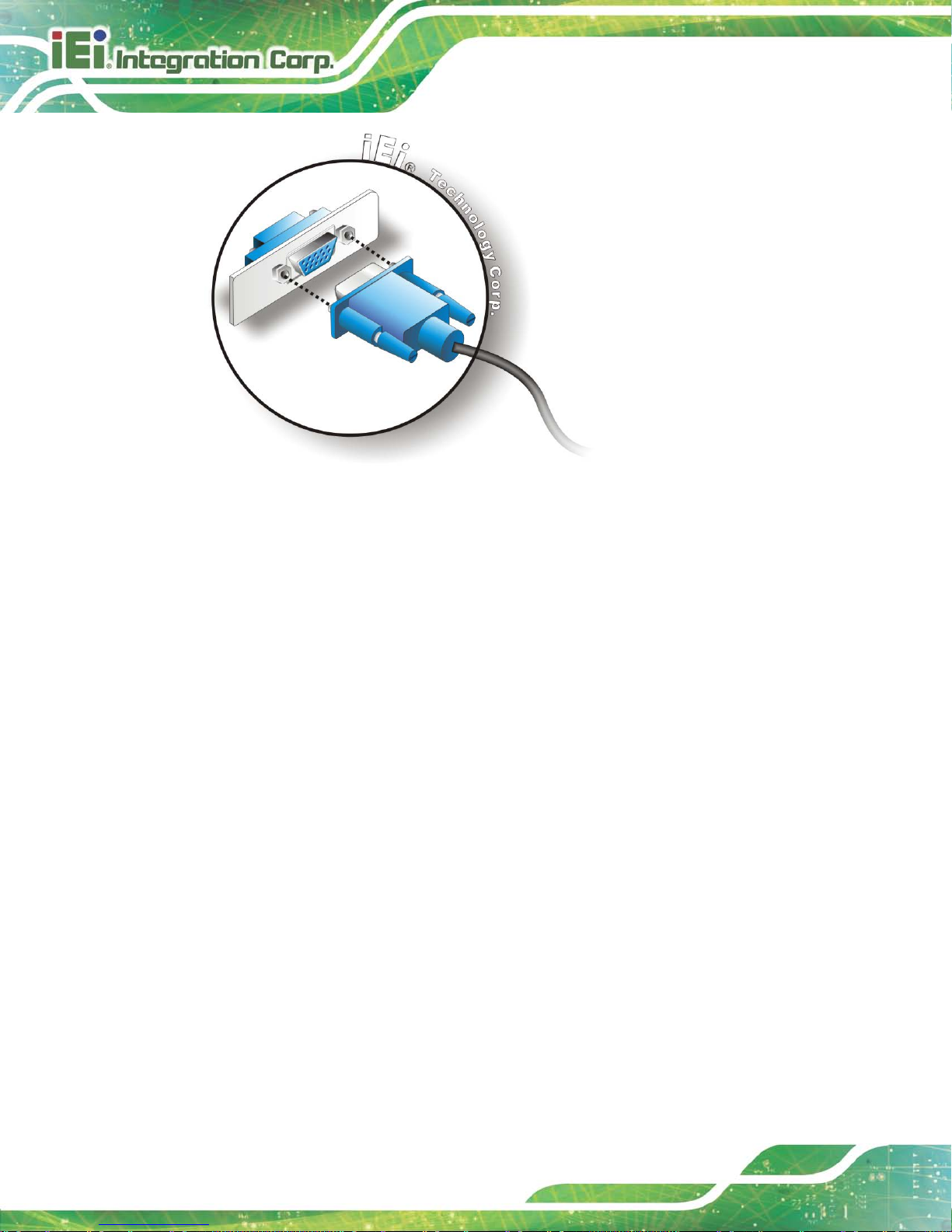

Figure 4-13: VGA Connector
Step 4: Secure the connector. Secure the DB-15 VGA connector from the VGA
monitor to the external interface by tightening the two retention screws on either
side of the connector.
Page 73
KINO-DH810
Page 61
5 BIOS
Chapter
5
Page 74
KINO-DH810
Page 62
5.1 Introduction
The BIOS is programmed onto the BIOS chip. The BIOS setup program allows changes to
certain system settings. This chapter outlines the options that can be changed.
5.1.1 Starting Setup
The UEFI BIOS is ac tivated when the com puter is turned on. The setup progra m can be
activated in one of two ways.
1. Press the D
ELETE or F2 key as soon as the system is turned on or
2. Press the D
ELETE or F2 key when the “Press Del to enter SETUP” message
appears on the screen. 0.
If the message disappears before the D
ELETE or F2 key is pressed, restart th e computer
and try again.
5.1.2 Using S etup
Use the arrow keys to highlight items, press ENTER to select, use the PageUp and
PageDown keys to c hange entries, press F1 for h elp and press E
SC to quit. Navigation
keys are shown in.
Key Function
Up arrow Move to the item above
Down arrow Move to the item below
Left arrow Move to the item on the left hand side
Right arrow Move to the item on the right hand side
+ Increase the numeric value or make changes
- Decrease the numeric value or make changes
Page up Move to the next page
Page down Move to the previous page
Page 75
KINO-DH810
Page 63
Key Function
Esc Main Menu – Quit and do not save changes into CMOS
Status Page Setup Menu and Option Page Setup Menu -Exit current page and return to Main Menu
F1 General help, only for Status Page Setup Menu and Option
Page Setup Menu
F2 Load previous values
F3 Load optimized defaults
F4 Save changes and Exit BIOS
Table 5-1: BIOS Navigation Keys
5.1.3 G ett ing Help
When F1 is pressed a small help window desc ribing the appr opriate ke ys to use and the
possible selections for the highlighted item appears. To exit the Help Window press E
SC or
the F1 key again.
5.1.4 Unable to Re boot after Configuration Changes
If the computer cannot boot after changes to the system configuration is made, CMOS
defaults. Use the clear CMOS button described in Chapter 3.
5.1.5 BIOS Men u Bar
The menu bar on top of the BIOS screen has the following main items:
Main – Changes the basic system configuration.
Advanced – Changes the advanced system settings.
Chipset – Changes the chipset settings.
Boot – Changes the system boot configuration.
Security – Sets User and Supervisor Passwords.
Save & Exit – Selects exit options and loads default settings
The following secti ons completely describe the configuration options f ound in the menu
items at the top of the BIOS screen and listed above.
Page 76
KINO-DH810
Page 64
5.2 Ma in
The Main BIOS menu (BIOS Menu 1) appears when the BIOS Setup program is entered.
The Main menu gives an overview of the basic system information.
Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc.
Main
Advanced
Chipset
Boot
Security
Save & Exit
BIOS Information
BIOS Vendor American Megatrends
Core Version 4.6.5.4
Compliency UEFI 2.3.1; PI 1.2
Project Version SAA2AR11.ROM
Build Date 11/29/2013 08:20:40
iWDD Vendor iEi
iWDD Version SAA2ET02.bin
Processor Information
Name Haswell
Brand String Intel(R) Core(TM)
i5-4570S CPU @ 2.90GHz
Frequency 3200 MHz
Processor ID 306c3
Stepping C0
Number of Processors 4Core(s) / 4Thread(s)
Microcode Revision 8
GT Info GT3 (700 MHz)
IGFX VBIOS Version 2170
Memory RC Version 1.4.0.3
Total Memory 4096 MB (DDR3)
Memory Frequency 1600 MHz
PCH Information
Name LynxPoint
PCH SKU H81
Stepping 05/C2
LAN PHY Revision N/A
ME FW Version 9.0.13.1402
ME Firmware SKU 1.5MB
SPI Clock Frequency
DOFR Support Supported
Read Status Clock Frequnecy 50 MHz
Write Status Clock Frequnecy 50 MHz
Fast Read Status Clock Frequnecy 50 MHz
System Language [English]
System Date [Tue 12/03/2012]
System Time [19:43:27]
Access Level Administrator
Choose the system
default language.
----------------------
: Select Screen
↑ ↓: Select Item
Enter Select
F1 General Help
F2 Previous Values
F3 Optimized Defaults
F4 Save
ESC Exit
Version 2.15.1231. Copyright (C) 2012 American Megatrends, Inc.
Page 77
KINO-DH810
Page 65
BIOS Menu 1: Main
The Main menu lists the following system details:
BIOS Information
Processor Information
Memory Information
PCH Information
SPI Clock Frequency
The Main menu has two user configurable fields:
System Date [xx/xx/xx]
Use the System Date option to set the system date. Manually enter t he day, month and
year.
System Tim e [xx:xx:xx]
Use the System Time option to set the s ystem time. Manually enter the hours, minutes
and seconds.
5.3 Advanced
Use the Advanced menu (BIOS Menu 2) to configure the CPU and per ipheral devices
through the following sub-menus:
WARNING!
Setting the wrong values in the sections below m ay cause the s ystem
to malfunction. Mak e sure that the settings m ade are compatible with
the hardware.
Page 78
KINO-DH810
Page 66
Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc.
Main
Advanced
Chipset
Boot
Security
Save & Exit
> ACPI Settings
> Trusted Computing
> CPU Configuration
> SATA Configuration
> USB Configuration
> F81866 Super IO Configuration
> F81866 H/M Monitor
> Serial Port Console Redirection
> iEi Feature
System ACPI Parameters
----------------------
: Select Screen
↑ ↓: Select Item
Enter Select
F1 General Help
F2 Previous Values
F3 Optimized Defaults
F4 Save
ESC Exit
Version 2.15.1231. Copyright (C) 2012 American Megatrends, Inc.
BIOS Menu 2: Advanced
5.3.1 ACPI Configuration
The ACPI Configuration menu (BIOS Menu 3) configures the Advanced Configur ation
and Power Interface (ACPI) options.
Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc.
Advanced
ACPI Settings
ACPI Sleep State [S1 only (CPU Stop
Clock)]
Select the highest ACPI
sleep state the system
will enter when the
SUSPEND button is
pressed.
----------------------
: Select Screen
↑ ↓: Select Item
Enter Select
F1 General Help
F2 Previous Values
F3 Optimized
Defaults
F4 Save
ESC Exit
Version 2.15.1231. Copyright (C) 2012 American Megatrends, Inc.
BIOS Menu 3: ACPI Configuration
Page 79
KINO-DH810
Page 67
ACPI Sle ep State [S1 only (CPU Stop Cloc k)]
Use the ACPI Sleep State option to specify the sleep s tate the system enter s when it is
not being used.
Suspend Disabled
Disable the suspend function.
S1 only (CPU Stop
Clock)
DEFAULT
The system enters S1 (POS) sleep state. The
system appears off. The CPU is stopped; RAM is
refreshed; the system is running in a low power
mode.
S3 only (Suspend
to RAM)
The caches are flushed and the C PU is pow ered
off. Power to the RAM is maintained. The
computer returns slower to a working state, but
more power is saved.
Both S1 and S3
available for OS to
choose from
Both S1 and S3 are available, for OS to choose.
5.3.2 Trusted Computing
Use the Trusted Computing menu (BIOS Menu 4) to configure settings related to the
Trusted Computing Group (TCG) Trusted Platform Module (TPM).
Page 80
KINO-DH810
Page 68
Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc.
Advanced
Configuration
Security Device Support [Disable]
Current Status Information
NO Security Device Found
Enables or Disables BIOS
support for security
device. O.S. will not
show Security Device.
TCG EFI protocol and
INT1A interface will not
be available.
----------------------
: Select Screen
↑ ↓: Select Item
Enter Select
F1 General Help
F2 Previous Values
F3 Optimized
Defaults
F4 Save
ESC Exit
Version 2.15.1231. Copyright (C) 2012 American Megatrends, Inc.
BIOS Menu 4: Trusted Computing
Security Device Support [Disable]
Use the Security Device Support option to configure support for the security device.
Disable DEFAULT
Security device support is disabled.
Enable
Security device support is enabled.
Page 81
KINO-DH810
Page 69
5.3.3 CPU Configuration
Use the CPU Configuration menu (BIOS Menu 5) to view detailed C PU specifications
and configure the CPU.
Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc.
Advanced
CPU Configuration
Intel(R) Core(TM) i5-4570S CPU @ 2.90GHz
CPU Signature 306c3
Microcode Patch 8
Max CPU Speed 2900 MHz
Min CPU Speed 800 MHz
CPU Speed 3200 MHz
Processor Cores 4
Intel HT Technology Not Supported
Intel VT-x Technology Supported
Intel SMX Technology Supported
64-bit Supported
EIST Technology Supported
CPU C3 state Supported
CPU C6 state Supported
CPU C7 state Supported
L1 Data Cache 32 KB x 4
L1 Code Cache 32 KB x 4
L2 Cache 256 KB x 4
L3 Cache 6144 KB
Active Processor Cores [All]
Intel Virtualization Technology [Enabled]
EIST [Enabled]
Intel TXT(LT) Support [Disabled]
Number of cores to enable
in each processor
package.
----------------------
: Select Screen
↑ ↓: Select Item
Enter Select
F1 General Help
F2 Previous Values
F3 Optimized
Defaults
F4 Save
ESC Exit
Version 2.15.1231. Copyright (C) 2012 American Megatrends, Inc.
BIOS Menu 5: CPU Configuration
Active Pro ce ssor Core s [All]
Use the Active Processor Cores option to configure the number of the active processor
cores.
All DEFAULT
Active all of the processor cores
1
Active one of the processor cores
2
Active two of the processor cores
Page 82
KINO-DH810
Page 70
3
Active three of the processor cores
Intel Virtualization Technology [Enabled]
Use the Intel Virtualization Technology option to enable or disable virtualization on the
system. When combined with thir d party software, Intel Virtualization technolog y allows
several OSs to run on the same system at the same time.
Disabled
Disables Intel Virtualization Technology.
Enabled DEFAULT
Enables Intel Virtualization Technology .
EIS T [Enabled]
Use the EIST BIOS option to enable or disable Intel SpeedStep Technology.
Disabled
Disables Intel SpeedStep Technology.
Enabled DEFAULT
Enables Intel SpeedStep Technology.
Intel TXT(LT) Support [Dis abled]
Use the Intel TXT(LT) Support BIOS option to enable or disable the Intel Trusted
Execution Technology.
Disabled DEFAULT
Disables the Intel Trusted Execution Technology.
Enabled
Enables the Intel Trusted Execution T echnology.
Page 83
KINO-DH810
Page 71
5.3.4 S ATA Configuration
Use the SATA Configuration menu (BIOS Menu 6) to change and/or set the
configuration of the SATA devices installed in the system.
Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc.
Advanced
SATA Mode Selection [IDE]
Serial ATA Port 1 Empty
Software Preserve Unknown
Serial ATA Port 2 Empty
Software Preserve Unknown
Serial ATA Port 3 Empty
Software Preserve Unknown
Serial ATA Port 4 Empty
Software Preserve Unknown
Determines how SATA
controller(s) operate.
---------------------
: Select Screen
↑ ↓: Select Item
Enter Select
F1 General Help
F2 Previous Values
F3 Optimized
Defaults
F4 Save
ESC Exit
Version 2.15.1231. Copyright (C) 2012 American Megatrends, Inc.
BIOS Menu 6: SATA Configuration
S ATA Mode Selection [IDE]
Use the SATA Mode Selection option to configure SATA devices as normal IDE devices.
IDE DEFAULT
Configures SATA devices as normal IDE device.
AHCI
Configures SATA devices as AHCI device.
Page 84
KINO-DH810
Page 72
5.3.5 USB Configuration
Use the USB Configuration menu (BIOS Menu 7) to read USB configuration inf orm ation
and configure the USB settings.
Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc.
Advanced
USB Configuration
USB Devices:
1 Keyboard, 2 Hubs
Legacy USB Support [Enabled]
Enables Legacy USB
support. AUTO option
disables legacy support
if no USB devices are
connected. DISABLE
option will keep USB
devices available only
for EFI applications.
---------------------
: Select Screen
↑ ↓: Select Item
Enter Select
F1 General Help
F2 Previous Values
F3 Optimized
Defaults
F4 Save
ESC Exit
Version 2.15.1231. Copyright (C) 2012 American Megatrends, Inc.
BIOS Menu 7: USB Configuration
USB Devices
The USB Devices Enabled field lists the USB devices that are enabled on the system
Legacy USB Support [Enabled]
Use the Legacy USB Support BIOS option to enable USB mous e and USB keyboard
support. Normally if this option is not enabled, any attached USB mouse or USB keyboard
does not become available until a USB compatible operating system is fully booted with all
USB drivers loaded. When this option is enabled, any attached USB mouse or USB
keyboard can control the system even when there is no USB driver loaded onto the
system.
Enabled DEFAULT
Legacy USB support enabled
Page 85
KINO-DH810
Page 73
Disabled
Legacy USB support disabled
Auto
Legacy USB support disa bled if no USB de vices are
connected
5.3.6 F81866 S upe r IO Configuration
Use the F81866 Super IO Configuration menu (BIOS Menu 8) to set or change the
configurations for the serial ports.
Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc.
Advanced
F81866 Super IO Configuration
F81866 Super IO Chip F81866
> Serial Port 1 Configuration
> Serial Port 2 Configuration
> Serial Port 3 Configuration
> Serial Port 4 Configuration
> Serial Port 5 Configuration
> Serial Port 6 Configuration
Set Parameters of Serial
Port 1 (COMA)
---------------------
: Select Screen
↑ ↓: Select Item
Enter Select
F1 General Help
F2 Previous Values
F3 Optimized
Defaults
F4 Save
ESC Exit
Version 2.15.1231. Copyright (C) 2012 American Megatrends, Inc.
BIOS Menu 8: Super IO Configuration
Page 86
KINO-DH810
Page 74
5.3.6.1 Serial Po rt n Configuration
Use the Serial Port n Configuration menu (BIOS Menu 9) to configure the serial port n.
Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc.
Advanced
Serial Port 1 Configuration
Serial Port [Enabled]
Device Settings IO=3F8h; IRQ=4
Change Settings [Auto]
Enable or Disable Serial
Port (COM)
---------------------
: Select Screen
↑ ↓: Select Item
Enter Select
F1 General Help
F2 Previous Values
F3 Optimized
Defaults
F4 Save
ESC Exit
Version 2.15.1231. Copyright (C) 2012 American Megatrends, Inc.
BIOS Menu 9: Serial Port n Configuration Menu
5.3.6.1.1 Serial Port 1 Configuration
Serial Port [Enabled]
Use the Serial Port option to enable or disable the serial port.
Disabled
Disable the serial port
Enabled DEFAULT
Enable the serial port
Change Settings [Auto]
Use the Change Settings option to c hange the serial port IO port address and interrupt
address.
Auto DEFAULT
The serial port IO port address and interrupt address
are automatically detected.
IO=3F8h;
IRQ=4
Serial Port I/O port address is 3F8h and the interrupt
address is IRQ4
Page 87
KINO-DH810
Page 75
IO=3F8h;
IRQ=3, 4
Serial Port I/O port address is 3E8h and the interrupt
address is IRQ3, 4
IO=2F8h;
IRQ=3, 4
Serial Port I/O port address is 2F8h and the interrupt
address is IRQ3, 4
5.3.6.1.2 Serial Port 2 Configuration
Serial Port [Enabled]
Use the Serial Port option to enable or disable the serial port.
Disabled
Disable the serial port
Enabled DEFAULT
Enable the serial port
Change Settings [Auto]
Use the Change Settings option to c hange the serial port IO port address and interrupt
address.
Auto DEFAULT
The serial port IO port address and interrupt address
are automatically detected.
IO=2F8h;
IRQ=3
Serial Port I/O port address is 2F8h and the interrupt
address is IRQ3
IO=3F8h;
IRQ=3, 4
Serial Port I/O port address is 3F8h and the interrupt
address is IRQ3, 4
IO=2F8h;
IRQ=3, 4
Serial Port I/O port address is 2F8h and the interrupt
address is IRQ3, 4
Device Mode [RS232]
The Device Mode shows Serial Port 2 provides RS-232 communications.
Page 88
KINO-DH810
Page 76
5.3.6.1.3 Serial Port 3 Configuration
Serial Port [Enabled]
Use the Serial Port option to enable or disable the serial port.
Disabled
Disable the serial port
Enabled DEFAULT
Enable the serial port
Change Settings [Auto]
Use the Change Settings option to c hange the serial port IO port address and interrupt
address.
Auto DEFAULT
The serial port IO port address and interrupt address
are automatically detected.
IO=3E8h;
IRQ=10
Serial Port I/O port address is 3E8h and the interrupt
address is IRQ10
IO=3E8h;
IRQ=10, 11
Serial Port I/O port address is 3E8h and the interrupt
address is IRQ10, 11
IO=2E8h;
IRQ=10, 11
Serial Port I/O port address is 2E8h and the interrupt
address is IRQ10, 11
Device Mode [RS232]
The Device Mode shows Serial Port 3 provides RS-232 communications.
5.3.6.1.4 Ser ial Port 4 Configuration
Serial Port [Enabled]
Use the Serial Port option to enable or disable the serial port.
Disabled
Disable the serial port
Page 89
KINO-DH810
Page 77
Enabled DEFAULT
Enable the serial port
Change Settings [Auto]
Use the Change Settings option to change the serial port IO port address and interrupt
address.
Auto DEFAULT
The serial port IO port address and interrupt address
are automatically detected.
IO=2E8h;
IRQ=10
Serial Port I/O port address is 2E8h and the interrupt
address is IRQ10
IO=3E8h;
IRQ=10, 11
Serial Port I/O port address is 3E8h and the interrupt
address is IRQ10, 11
IO=2E8h;
IRQ=10, 11
Serial Port I/O port address is 2E8h and the interrupt
address is IRQ10, 11
Device Mode [RS232]
The Device Mode shows Serial Port 4 provides RS-232 communications.
5.3.6.1.5 Ser ial Port 5 Configuration
Serial Port [Enabled]
Use the Serial Port option to enable or disable the serial port.
Disabled
Disable the serial port
Enabled DEFAULT
Enable the serial port
Change Settings [Auto]
Use the Change Settings option to c hange the serial port IO port address and interrupt
address.
Page 90
KINO-DH810
Page 78
Auto DEFAULT
The serial port IO port address and interrupt address
are automatically detected.
IO=2D0h;
IRQ=10
Serial Port I/O port address is 2D0h and the interrupt
address is IRQ10
IO=2D0h;
IRQ=10, 11
Serial Port I/O port address is 2D0h and the interrupt
address is IRQ10, 11
IO=2D8h;
IRQ=10, 11
Serial Port I/O port address is 2D8h and the interrupt
address is IRQ10, 11
Device Mode [RS232]
The Device Mode shows Serial Port 5 provides RS-232 communications.
5.3.6.1.6 Ser ial Port 6 Configuration
Serial Port [Enabled]
Use the Serial Port option to enable or disable the serial port.
Disabled
Disable the serial port
Enabled DEFAULT
Enable the serial port
Change Settings [Auto]
Use the Change Settings option to c hange the serial port IO port address and interrupt
address.
Auto DEFAULT
The serial port IO port address and interrupt address
are automatically detected.
IO=2D8h;
IRQ=10
Serial Port I/O port address is 2D8h and the interrupt
address is IRQ10
IO=2D0h;
IRQ=10, 11
Serial Port I/O port address is 2D0h and the interrupt
address is IRQ10, 11
Page 91
KINO-DH810
Page 79
IO=2D8h;
IRQ=10, 11
Serial Port I/O port address is 2D8h and the interrupt
address is IRQ10, 11
Device Mode [RS485/RS422]
The Device Mode shows Serial Port 6 provides RS-485/RS-422 communications.
5.3.7 F81866 H/W Monitor
The F8186 H/W Monitor menu (BIOS Menu 10) s hows the operating temperature, fan
speeds and system voltages.
Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc.
Advanced
PC Health Status
> Smart Fan Mode Configuration
CPU temperature :+42 C
System temperature :+31 C
Fan1 Speed :1656 RPM
VCC3V :+3.408 V
V_core :+1.024 V
+1.05V :+1.320 V
VDDR :+1.520 V
VSB5V :+5.040 V
VSB3V :+3.376 V
VBAT :+3.184 V
Enable or Disable Smart
Fan
---------------------
: Select Screen
↑ ↓: Select Item
Enter Select
F1 General Help
F2 Previous Values
F3 Optimized
Defaults
F4 Save
ESC Exit
Version 2.15.1231. Copyright (C) 2012 American Megatrends, Inc.
BIOS Menu 10: Hardware Health Configuration
P C Health Status
The following system param eters and va lues ar e show n. The s ystem par am eters that are
monitored are:
Temperatures:
o CPU Temperature
Page 92
KINO-DH810
Page 80
o System Temperature
Speed:
o FAN1 Speed
Voltages:
o VCC3V
o V_core
o +1.05V
o VDDR
o VSB5V
o VSB3V
o VBAT
5.3.7.1 Smart Fan Mode Configuration
Use the Smart Fan Mode Configuration submenu (BIOS Menu 11) to configure the
smart fan temperature and speed settings.
Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc.
Advanced
Smart Fan Mode Configuration
CPU Smart Fan control [Auto PWM Mode]
Temperature of Off 75
Temperature of Start 80
Start PWM 30
Slope(Duty Cycle) [4]
Smart Fan Mode Select
---------------------
: Select Screen
↑ ↓: Select Item
Enter Select
+ - Change Opt.
F1 General Help
F2 Previous Values
F3 Optimized Defaults
F4 Save & Exit
ESC Exit
Version 2.15.1231. Copyright (C) 2012 American Megatrends, Inc.
BIOS Menu 11: FAN 1 Configuration
CPU Smart Fan control [Auto P WM Mode]
Use the CPU Smart Fan control BIOS option to configure the CPU Smart Fan.
Page 93
KINO-DH810
Page 81
Full Mode
Fan is on all the tim e
Manual PWM Mode
The fan spins at the speed set in the
manual PWM setting
Auto PWM Mode DEFAULT
The fan adjusts its speed using these
settings:
Temperature of Start
Temperature of Off
Start PWM
Slope (Duty Cycl e )
Temperature of Off [75]
WARNING:
Setting this value too high may cause th e fan to speed up onl y when
the CPU is at a very high tem per ature and theref ore c ause the s yst em
to be damaged.
The Temperature of Off option can only be set if the CPU Smart Fan control option is
set to Auto Mode. When the CPU Temperature is lower than Temperature of Off, the
fan speed change t o b e lowest. To set a value, selec t the T emperature of Off option an d
enter a decimal number between 0 and 127. The temperature range is specified below.
Minimum Value: 0°C
Maximum Value: 127°C
Temp erature of Start [80]
WARNING:
Setting this value too high may cause the fan to rotate at full speed only
when the CPU is at a very high tem perature and therefore cause the
Page 94
KINO-DH810
Page 82
system to be damaged.
The Temperature of Start option can o nly be set if the CPU Smart Fan control option is
set to Auto Mode. When the CPU Temperature is higher than Temperature of Start, the
fan will be rotate at full speed. To set a value, select the Temperature of Start option and
enter a decimal number between 0 and 127. The temperature range is specified below.
Minimum Value: 0°C
Maximum Value: 127°C
Temp erature of Off [80]
WARNING:
Setting this value too high may cause th e fan to speed up onl y when
the CPU is at a very high tem per ature and theref ore c ause the s yst em
to be damaged.
The Temperature of Off option can only be set if the CPU Smart Fan control option is
set to Auto Mode. When the CPU Temperature is higher than Temperature of Off, the
fan will be speed up. To set a value, select the Temperature of Off option and enter a
decimal number between 0 and 127. The temperature range is specified below.
Minimum Value: 0°C
Maximum Value: 127°C
St a rt P W M [ 30]
The Start PWM option can only be set if the CPU Smart Fan control option is set to Auto
Mode. Use the Start PWM option to set the PWM s tart value. To set a value, se lect the
Start PWM option and enter a decimal number between 0 and 100. The temperature
range is specified below.
Minimum Value: 0
Maximum Value: 100
Page 95
KINO-DH810
Page 83
Slope (Duty Cy cle) [4]
The Slope (Duty C ycle) option can only be set if the CPU Smart Fan control option is
set to Auto Mode. Use the Slope (Duty Cycle) option to select the linear rate at which the
PWM mode increases with respect to an increase in temperature. A list of available
options is shown below:
0
1
2
4
8
16
5.3.8 Serial Port Console Redirection
The Serial Port Console Redirection menu (BIOS Menu 12) allows the console
redirection options to be configured. Console redirection allows users to maintain a
system remotely by re-directing keyboard input and text output through the serial port.
Page 96
KINO-DH810
Page 84
Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc.
Advanced
COM1
Console Redirection [Disabled]
> Console Redirection Settings
COM2
Console Redirection [Disabled]
> Console Redirection Settings
COM3
Console Redirection [Disabled]
> Console Redirection Settings
COM4
Console Redirection [Disabled]
> Console Redirection Settings
COM5
Console Redirection [Disabled]
> Console Redirection Settings
COM6
Console Redirection [Disabled]
> Console Redirection Settings
Serial Port for Out-of-Band Management/
Windows Emergency Management Services (EMS)
Console Redirection [Disabled]
> Console Redirection Settings
Console Redirection
Enable or Disable
---------------------
: Select Screen
↑ ↓: Select Item
Enter Select
F1 General Help
F2 Previous Values
F3 Optimized
Defaults
F4 Save
ESC Exit
Version 2.15.1231. Copyright (C) 2012 American Megatrends, Inc.
BIOS Menu 12: Serial Port Console Redirection
Console Redirection [Disabled]
Use Console Redirection option to enable or disable the console redirection function.
Disabled DEFAULT
Disabled the console redirection function
Enabled
Enabled the console redirection function
5.3.8.1 Console Redirection Settings
The Console Redirection Settings menu (BIOS Menu 13) allows the console redirection
options to be configured. The option is active when Console Redirection option is enabled.
Page 97
KINO-DH810
Page 85
Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc.
Advanced
COM1
Console Redirection Settings
Terminal Type [ANSI]
Bits per second [115200]
Data Bits [8]
Parity [None]
Stop Bits [1]
Emulation: ANSI:
Extended ASCII char set.
VT100: ASCII char set.
VT100+: Extends VT100 to
support color, function
keys, etc. VT-UTF8: Uses
UTF8 encoding to map
Unicode chars onto 1 or
more bytes.
---------------------
: Select Screen
↑ ↓: Select Item
Enter Select
F1 General Help
F2 Previous Values
F3 Optimized
Defaults
F4 Save
ESC Exit
Version 2.15.1231. Copyright (C) 2012 American Megatrends, Inc.
BIOS Menu 13: Console Redirection Settings
Te rm ina l Type [ANSI]
Use the Terminal Type option to specify the remote terminal type.
VT100
The target terminal type is VT100
VT100+
The target terminal type is VT100+
VT-UTF8
The target terminal type is VT-UTF8
ANSI DEFAULT
The target terminal type is ANSI
Bits per second [115200]
Use the Bits per second option to specify the seria l p ort trans m ission spe ed. The speed
must match the other side. Long or noisy lines may require lower speeds.
9600
Sets the serial port transmission speed at 9600.
19200
Sets the serial port transmission speed at 19200.
Page 98
KINO-DH810
Page 86
38400
Sets the serial port transmission speed at 38400.
57600
Sets the serial port transmission speed at 57600.
115200 DEFAULT
Sets the serial port transmission speed at 115200.
Da ta Bits [8]
Use the Data Bits option to specify the number of data bits.
7
Sets the data bits at 7.
8 DEFAULT
Sets the data bits at 8.
Parity [None]
Use the Parity option to specify the parity bit that can be sent with the data bits for
detecting the transmiss ion errors .
None DEFAULT
No parity bit is sent with the data bits.
Even
The parity bit is 0 if the nu mber of ones in the data
bits is even.
Odd
The parity bit is 0 if the nu mber of ones in the data
bits is odd.
Mark
The parity bit is always 1. This option
does not
provide error detection.
Space
The parity bit is always 0. This option does not
provide error detection.
Stop Bits [1]
Use the Stop Bits o ption to specif y the num ber of stop bits us ed to indicate t he end of a
serial data packet. Communication with slow devices may require more than 1 stop bit.
1 DEFAULT
Sets the number of stop bits at 1.
2
Sets the number of stop bits at 2.
Page 99
KINO-DH810
Page 87
5.3.9 IEI Fe ature
Use the IEI Feature menu (BIOS Menu 14) to configure One Key Recovery function.
Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc.
Advanced
iEi Feature
Auto Recovery Function [Disabled]
Auto Recovery Function
Reboot and recover
system automatically
within 10 min, when OS
crashes. Please install
Auto Recovery API
service before enabling
this function
---------------------
: Select Screen
↑ ↓: Select Item
Enter Select
F1 General Help
F2 Previous Values
F3 Optimized
Defaults
F4 Save
ESC Exit
Version 2.15.1231. Copyright (C) 2012 American Megatrends, Inc.
BIOS Menu 14: IEI Feature
Auto Recovery Function [Disabled]
Use the Auto Recovery Function BIOS option to e nable or disable the auto recovery
function of the IEI One Key Recovery.
Disabled DEFAULT
Auto recovery function disabled
Enabled
Auto recovery function enabled
Page 100
KINO-DH810
Page 88
5.4 Chips et
Use the Chipset menu ( BIOS Menu 15) to access the PCH-IO a nd System Agent (SA)
configuration menus.
WARNING!
Setting the wrong values for the Chipset BIOS selections in the Chipset
BIOS menu may cause the system to malfunction.
Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc.
Main
Advanced
Chipset
Boot
Security
Save & Exit
> PCH-IO Configuration
> System Agent (SA) Configuration
---------------------
: Select Screen
↑ ↓: Select Item
Enter Select
F1 General Help
F2 Previous Values
F3 Optimized
Defaults
F4 Save
ESC Exit
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
BIOS Menu 15: Chipset
