Page 1

KINO-DAL SBC

Page I

KINO-DAL

MODEL:

Mini-ITX SBC with 14nm Intel® Atom™, Pentium® or Celeron®

Rev. 1.01 - March 27, 2018

KINO-DAL CPU Card

On-board SoC, HDMI, LVDS, VGA, Dual PCIe GbE, USB 3.0,

PCIe Mini, M.2, SATA 6Gb/s, RS-232/422/485, Audio, TPM and RoHS

User Manual

Page 2

KINO-DAL SBC

Page II

Revision

Date Version Changes

March 27, 2018 1.01 Changed the SIM card slot to optional item January 4, 2018 1.00 Initial release

Page 3

KINO-DAL SBC

Page III

The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer.

In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibil ity of such damages.

This document contains proprietary information protected by copyright. All rights are reserved. No part of this manual may be reproduced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer.

TRADEMARKS

All registered trademarks and product names mentioned herein are used for identification purposes only and may be trademarks and/or registered trademarks of their respective owners.

Page 4

KINO-DAL SBC

Page IV

Manual Conventions

WARNING

Warnings appear where overlooked details may cause damage to the equipment or result in personal injury. Warnings should be taken seriously.

CAUTION

Cautionary messages should be heeded to help red uce the chance of losing data or damaging the product.

NOTE

These messages inform the reader of essential but non-critical information. These messages should be read carefully as any directions or instructions contained therein can help avoid making mistakes.

HOT SURFACE

This symbol indicates a hot surface that should not be touched without taking care.

Page 5

KINO-DAL SBC

Page V

Table of Contents

1 INTRODUCTION .......................................................................................................... 1

1.1 INTRODUCTION ........................................................................................................... 2

1.2 MODEL VARIATIONS ................................................................................................... 3

1.3 FEATURES ................................................................................................................... 3

1.4 CONNECTORS ............................................................................................................. 4

1.5 DIMENSIONS ............................................................................................................... 5

1.6 DATA FLOW ................................................................................................................ 6

1.7 TECHNICAL SPECIFICATIONS ...................................................................................... 7

2 UNPACKING ............................................................................................................... 10

2.1 ANTI-STATIC PRECAUTIONS ....................................................................................... 11

2.2 UNPACKING PRECAUTIONS ........................................................................................ 11

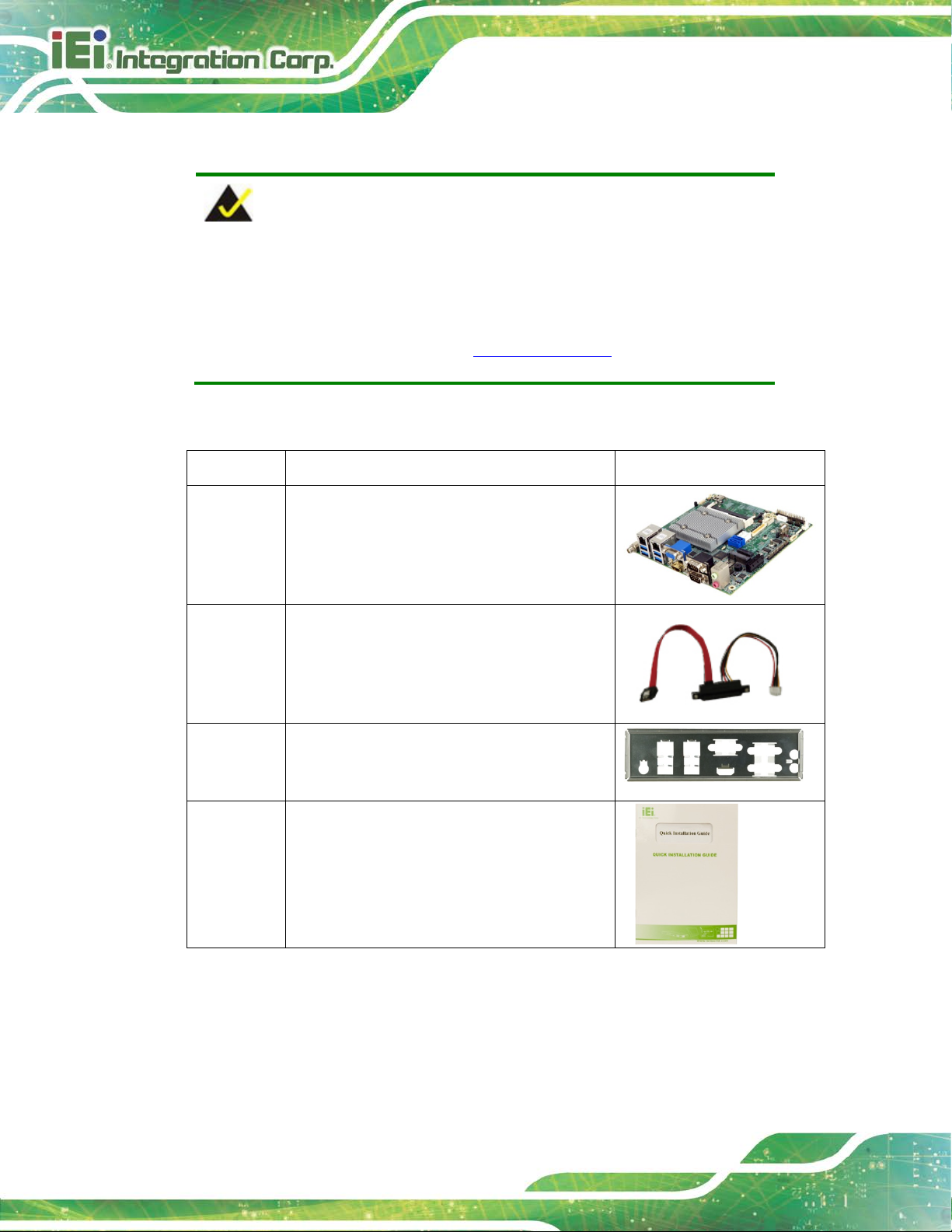

2.3 PACKING LIST ........................................................................................................... 12

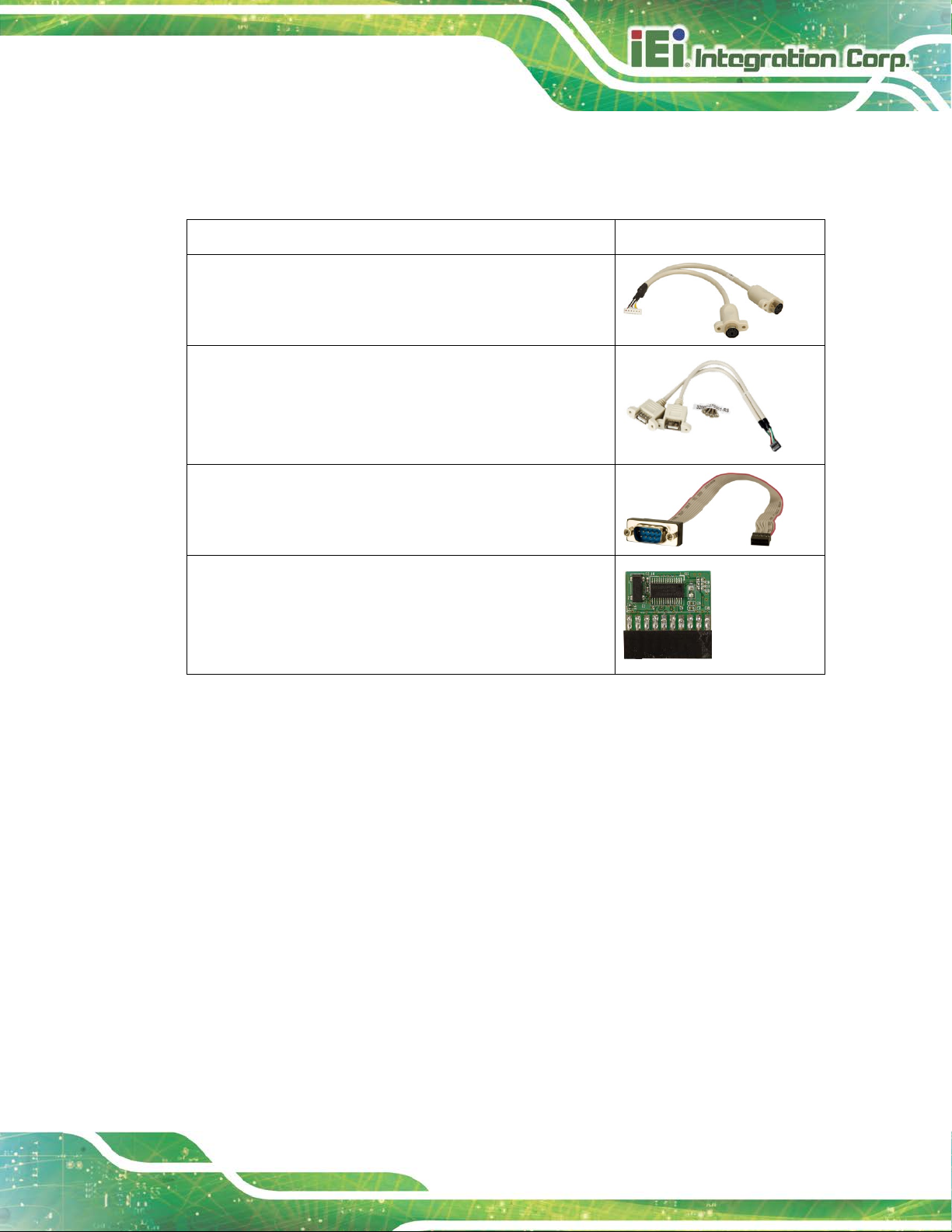

2.4 OPTIONAL ITEMS ...................................................................................................... 13

3 CONNECTORS ........................................................................................................... 14

3.1 PERIPHERAL INTERFACE CONNECTORS ..................................................................... 15

3.1.1 KINO-DAL Layout ........................................................................................... 15

3.1.2 Peripheral Interface Connectors ..................................................................... 16

3.1.3 External Interface Panel Connectors ............................................................... 17

3.2 INTERNAL PERIPHERAL CONNECTORS ...................................................................... 18

3.2.1 Audio Connector .............................................................................................. 18

3.2.2 Battery Connector ............................................................................................ 19

3.2.1 Chassis Intrusion Connector ............................................................................ 20

3.2.1 DC-IN Power Connector ................................................................................. 21

3.2.2 Digital I/O Connector ...................................................................................... 22

3.2.3 Fan Connector, CPU ........................................................................................ 23

3.2.1 Fan Connector, System ..................................................................................... 24

3.2.2 Front Panel Connector .................................................................................... 25

3.2.1 I2C Connector .................................................................................................. 26

3.2.2 Keyboard and Mouse Connector ..................................................................... 27

Page 6

KINO-DAL SBC

Page VI

3.2.3 LAN LED Connectors ...................................................................................... 28

3.2.1 LCD Inverter Connector .................................................................................. 29

3.2.1 LVDS Connector .............................................................................................. 30

3.2.2 M.2 Slot ............................................................................................................ 31

3.2.3 microSD Slot (Optional) .................................................................................. 32

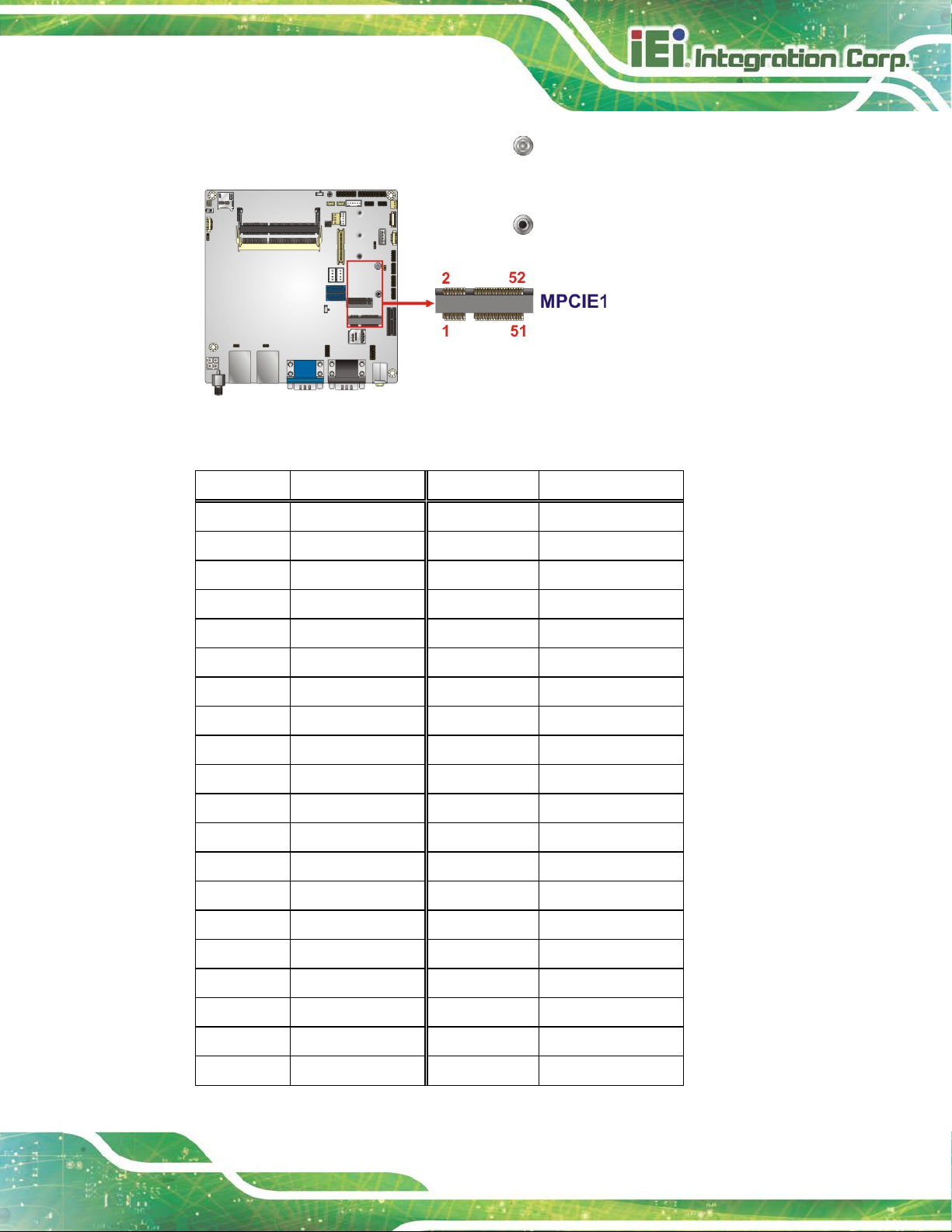

3.2.4 PCIe Mini Card Slot ........................................................................................ 32

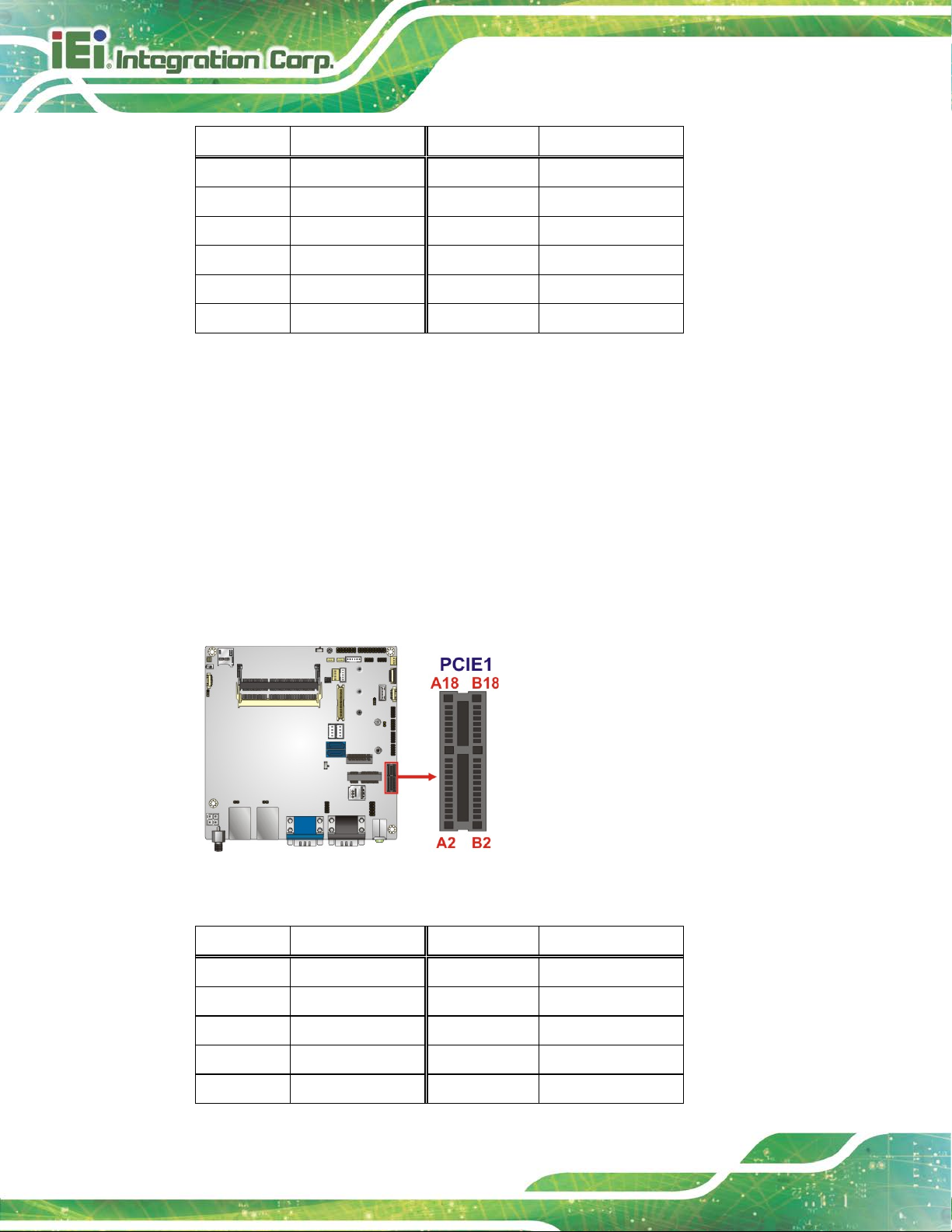

3.2.5 PCIe x1 Card Slot ............................................................................................ 34

3.2.6 RS-232 Serial Port Connector ......................................................................... 35

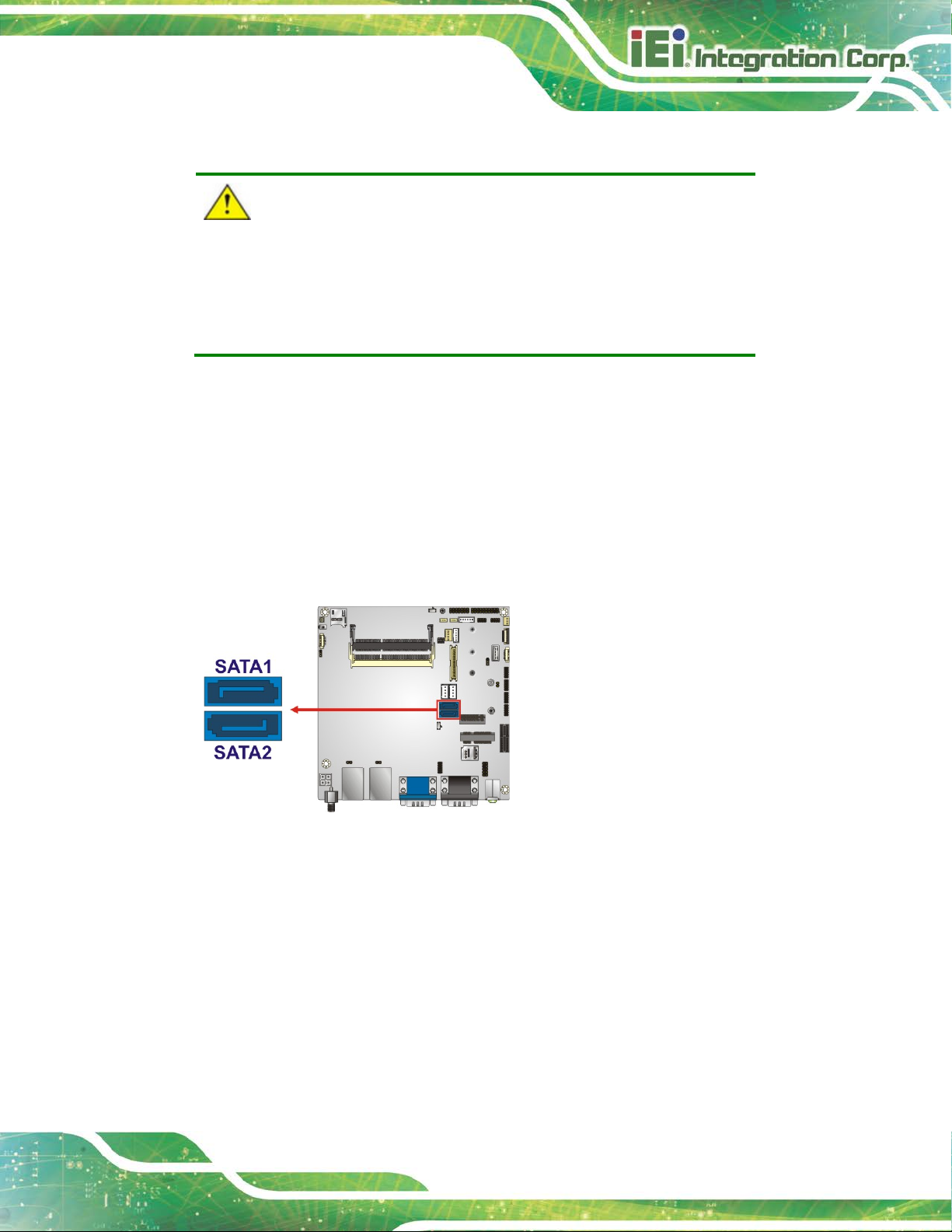

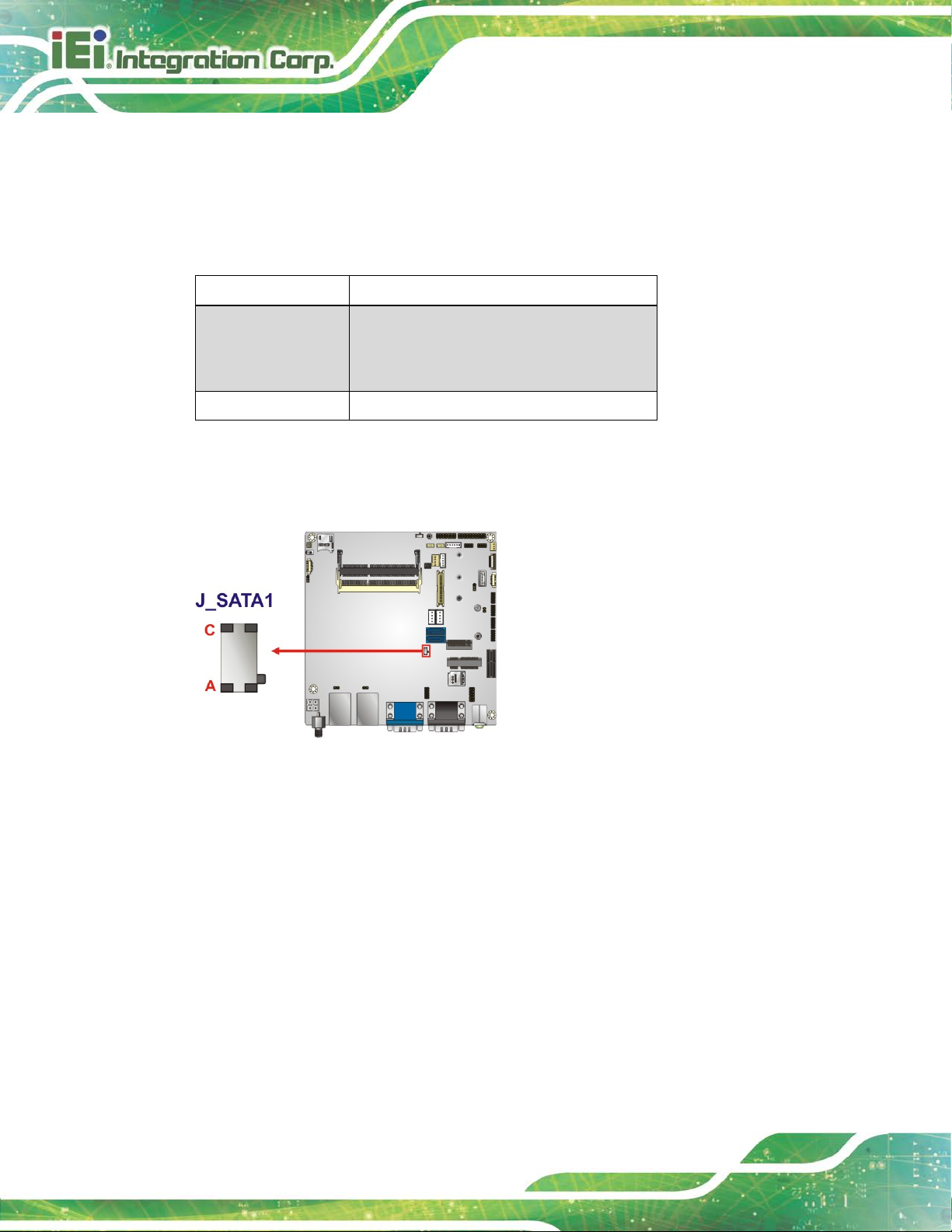

3.2.7 SATA 6Gb/s Drive Connectors ......................................................................... 37

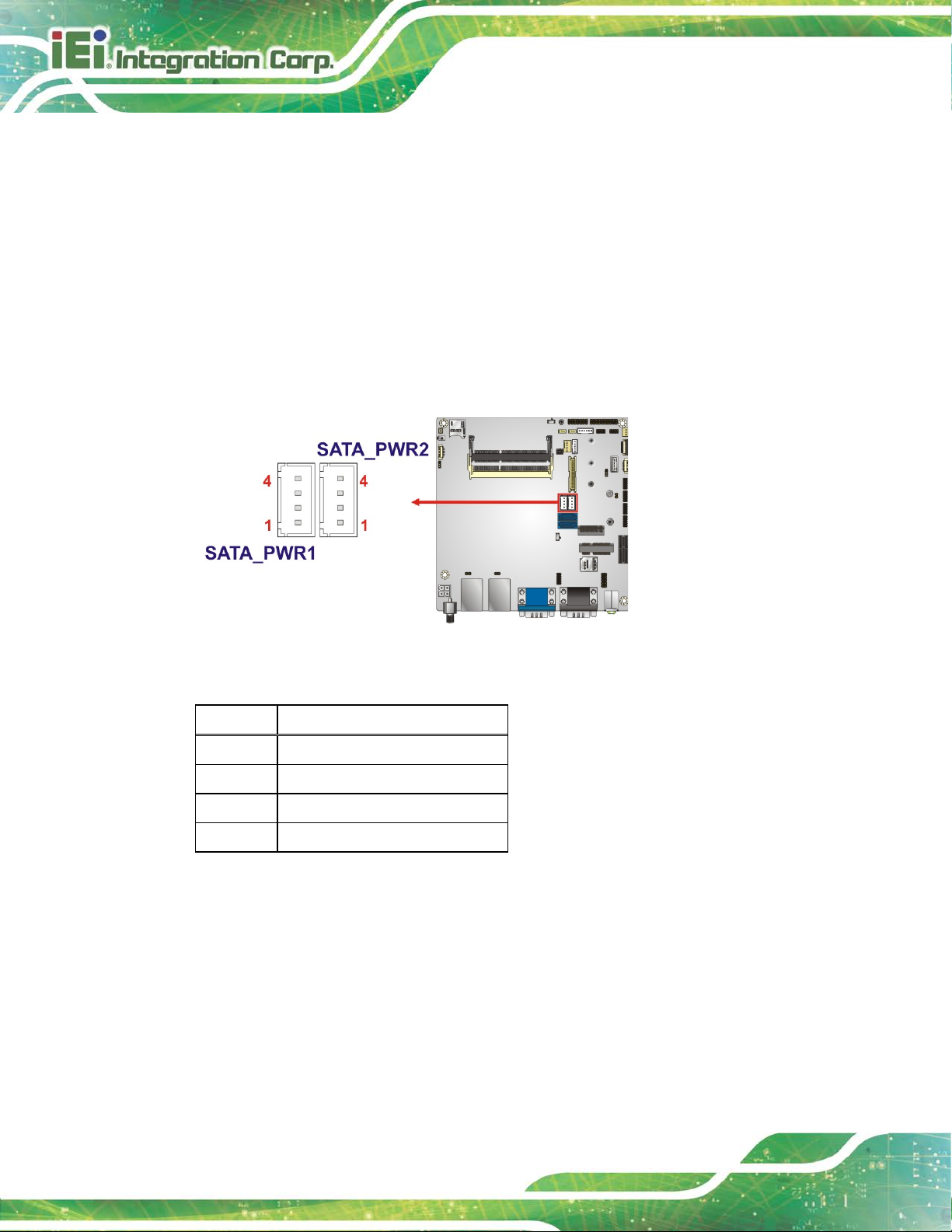

3.2.8 SATA Power Connectors .................................................................................. 38

3.2.9 SIM Card Slot (Optional) ................................................................................. 39

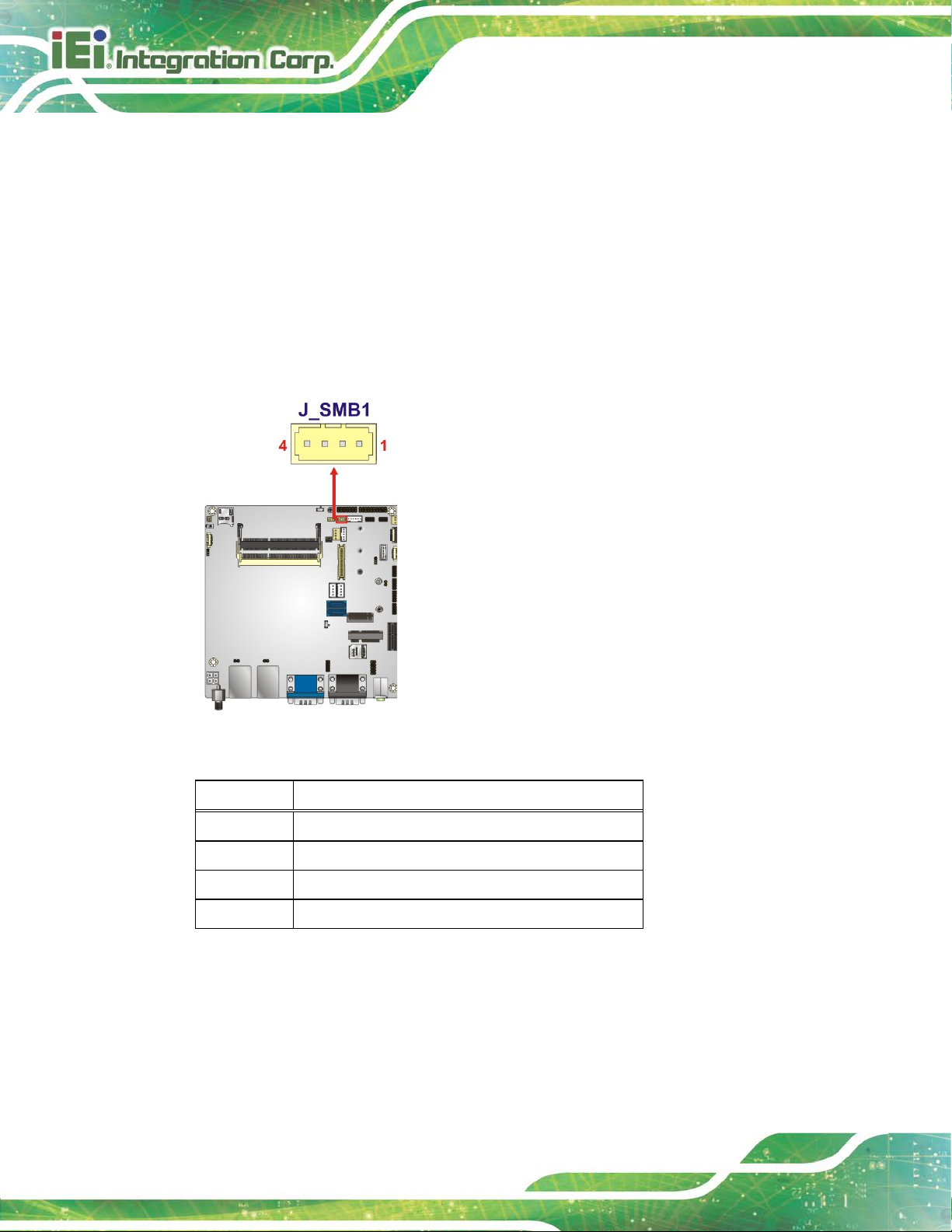

3.2.1 SMBus Connector ............................................................................................ 40

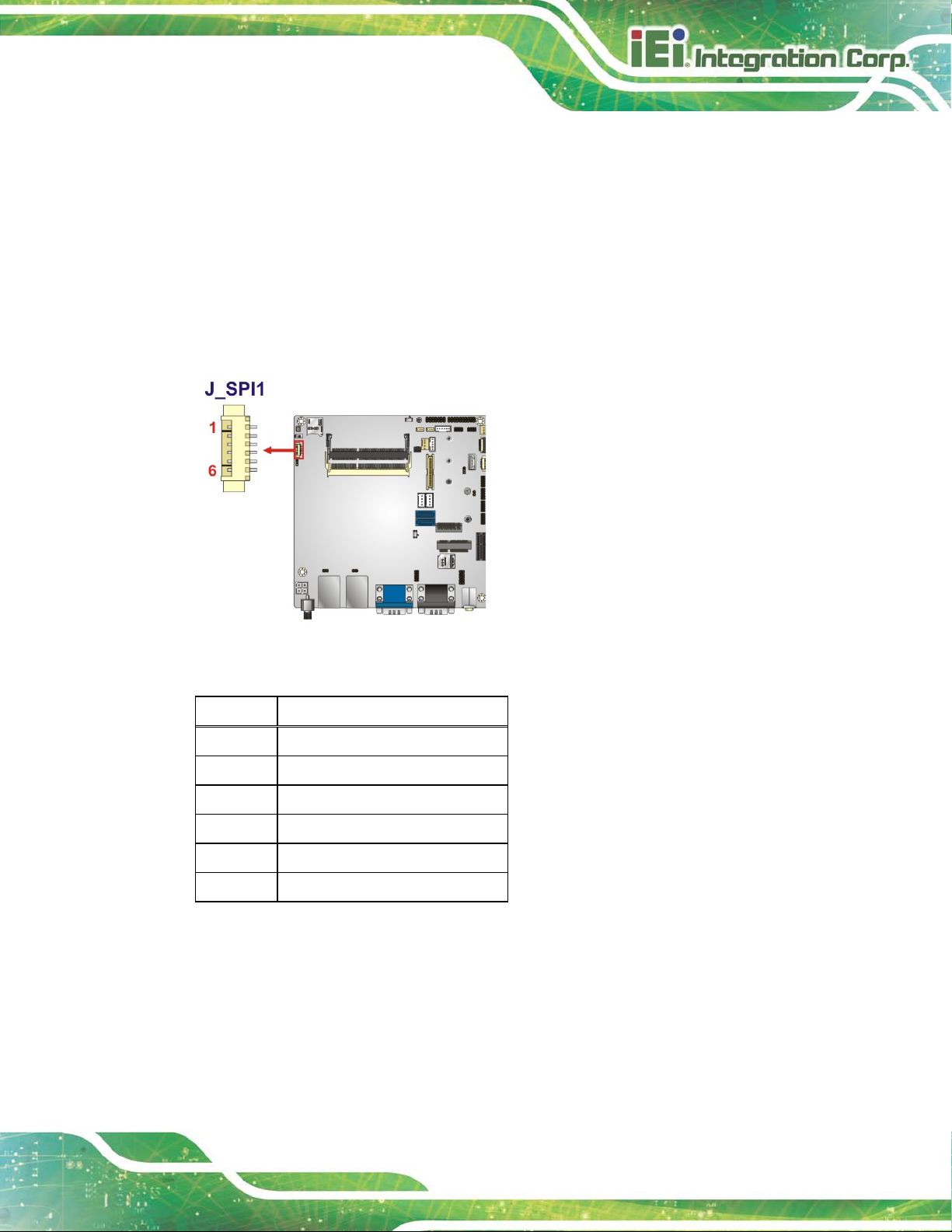

3.2.2 SPI Flash Connector, BIOS .............................................................................. 41

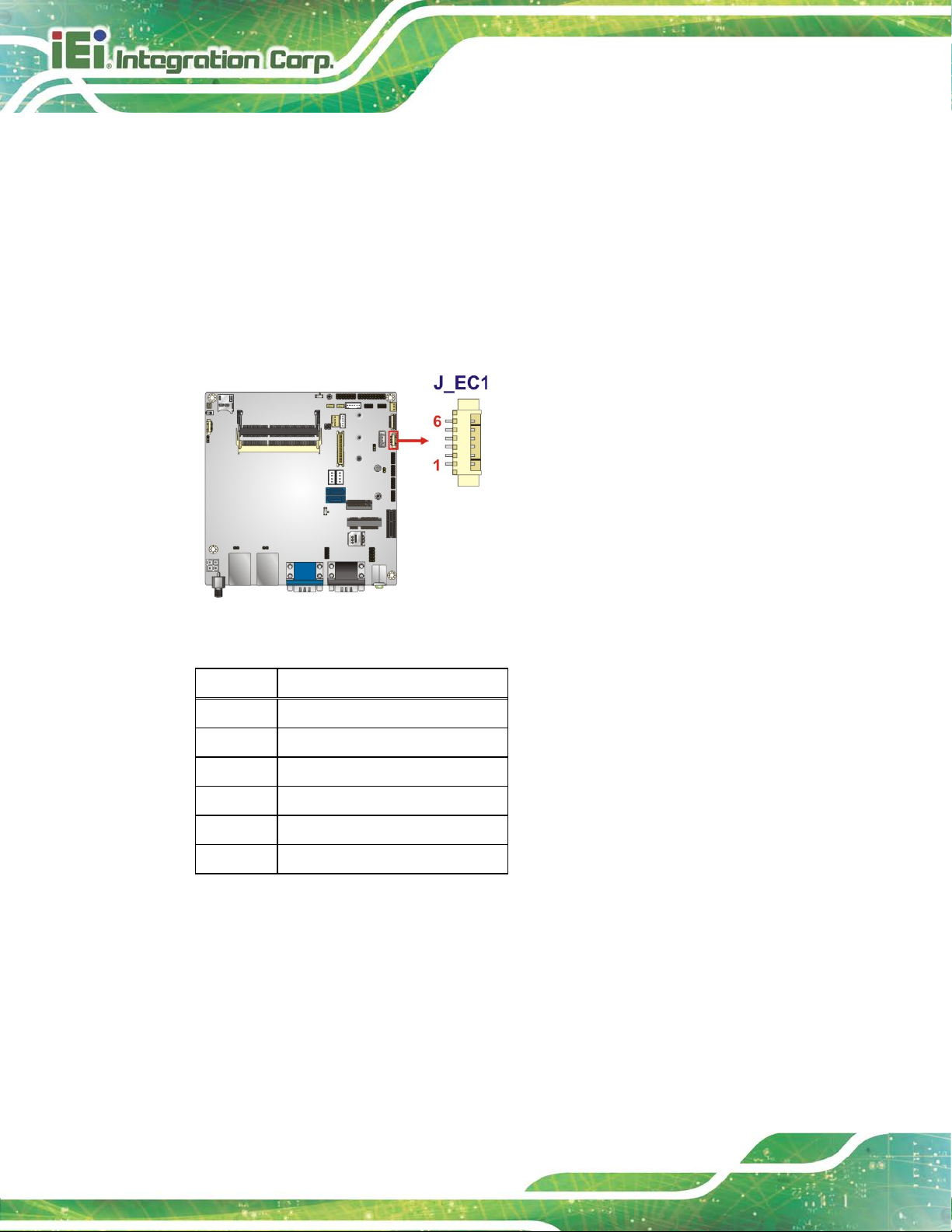

3.2.1 SPI Flash Connector, EC ................................................................................. 42

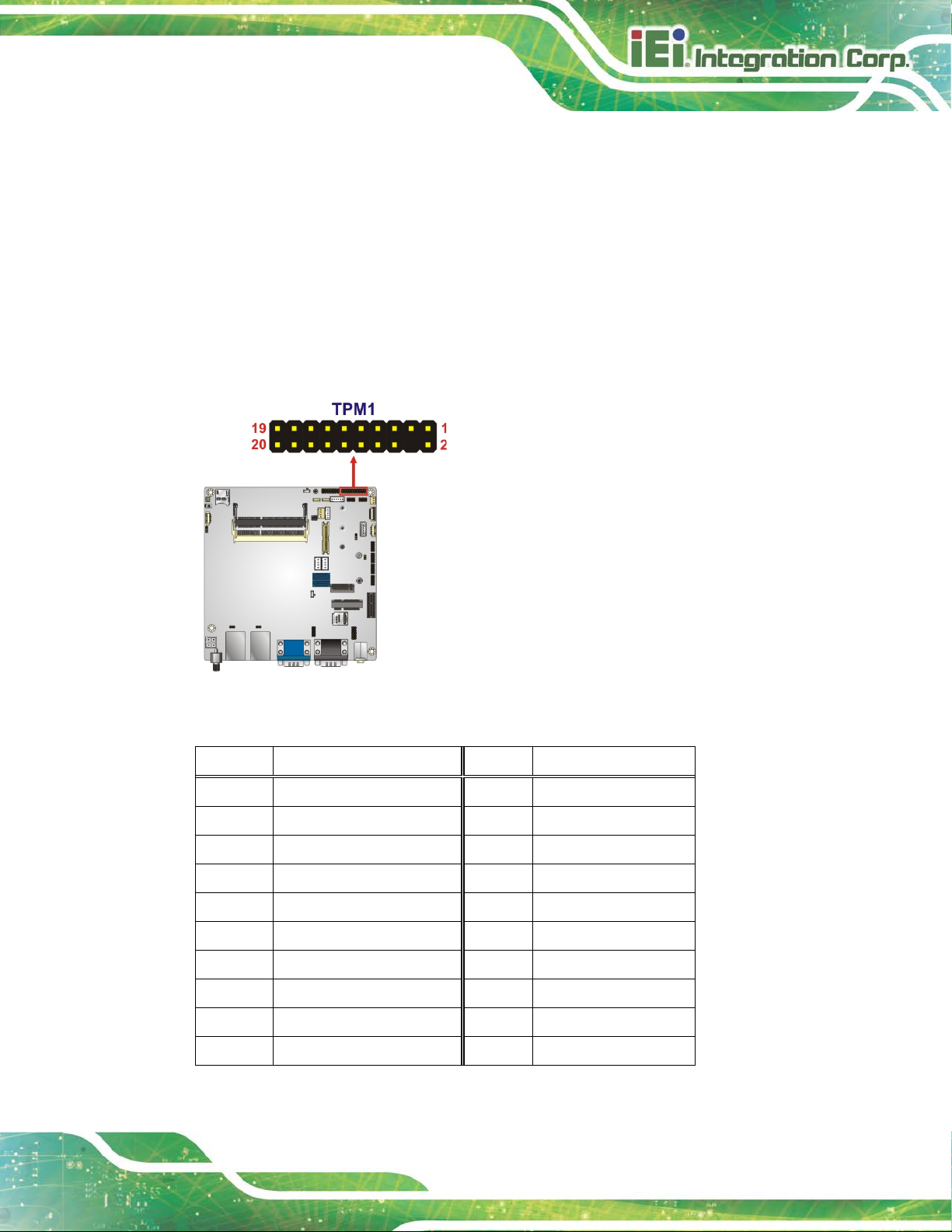

3.2.2 TPM Connector ................................................................................................ 43

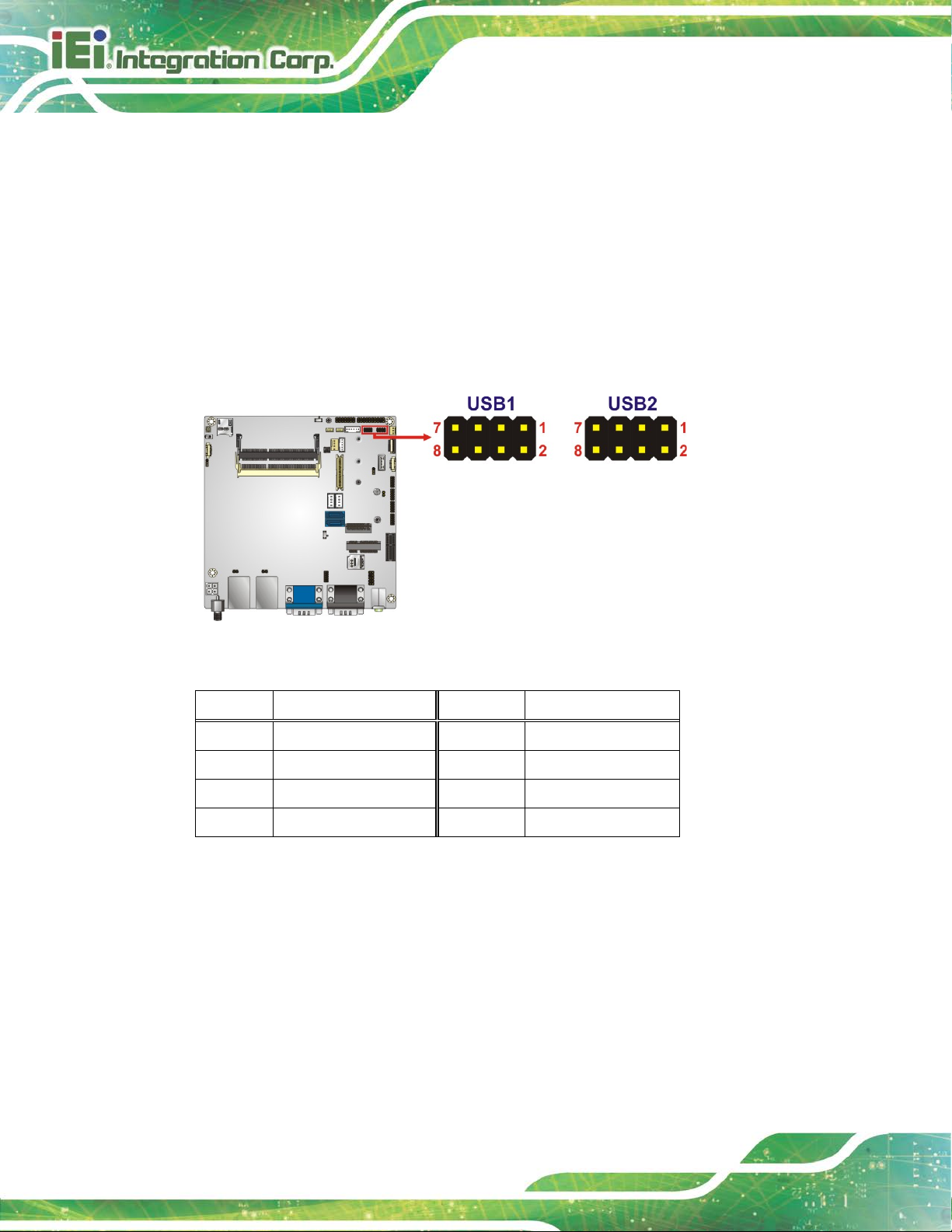

3.2.3 USB Connectors ............................................................................................... 44

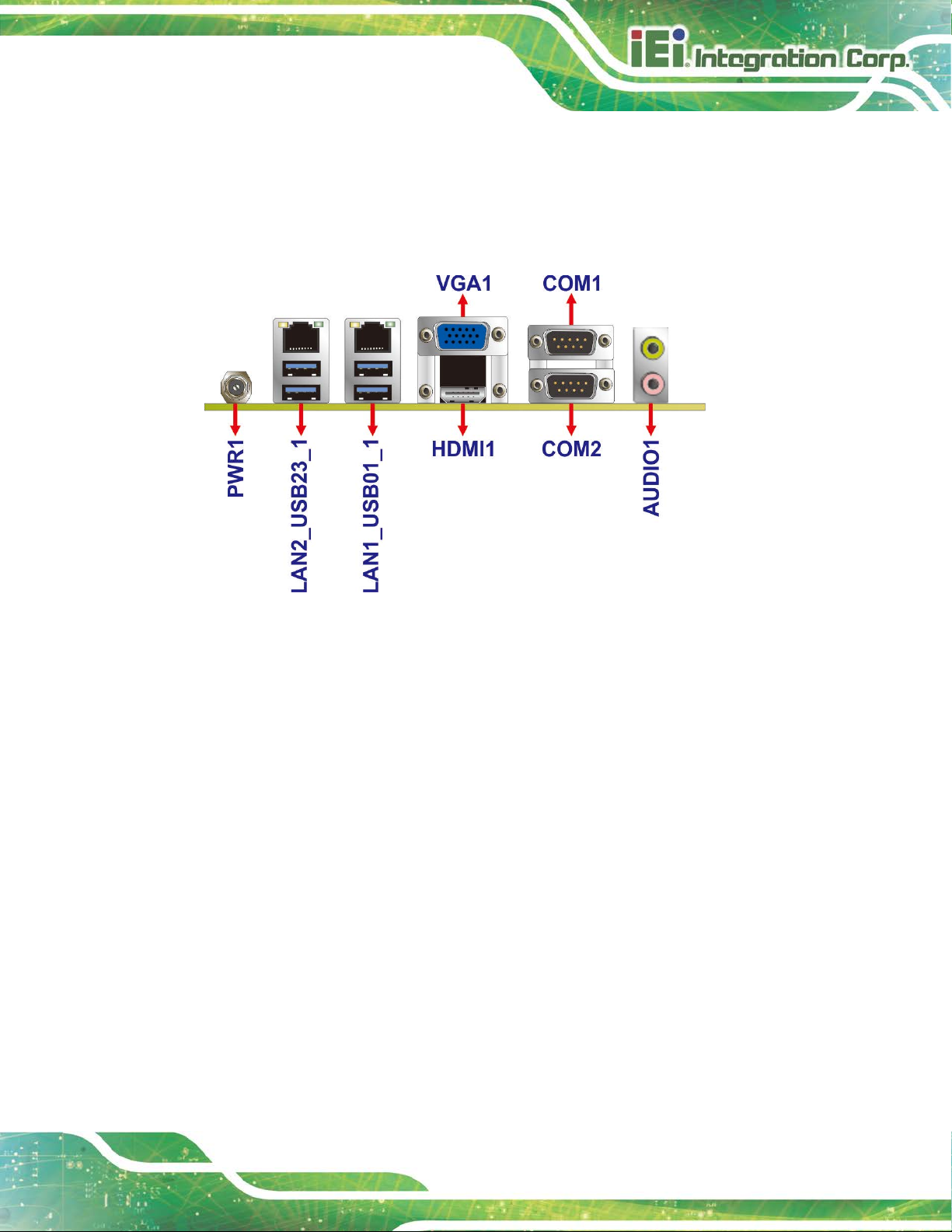

3.3 EXTERNAL PERIPHERAL INTERFACE CONNECTOR PANEL ......................................... 44

3.3.1 Audio Jacks ...................................................................................................... 46

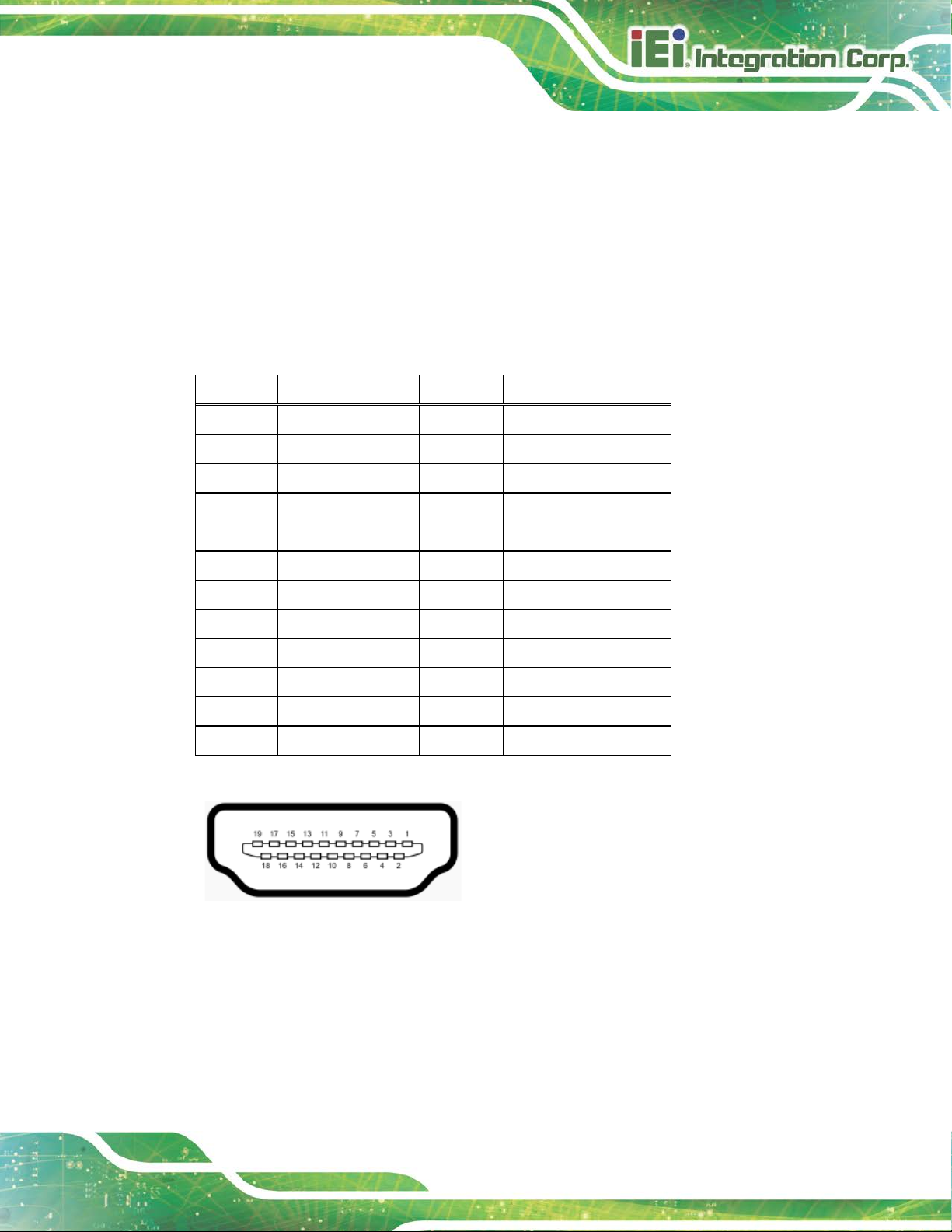

3.3.1 HDMI Connector ............................................................................................. 47

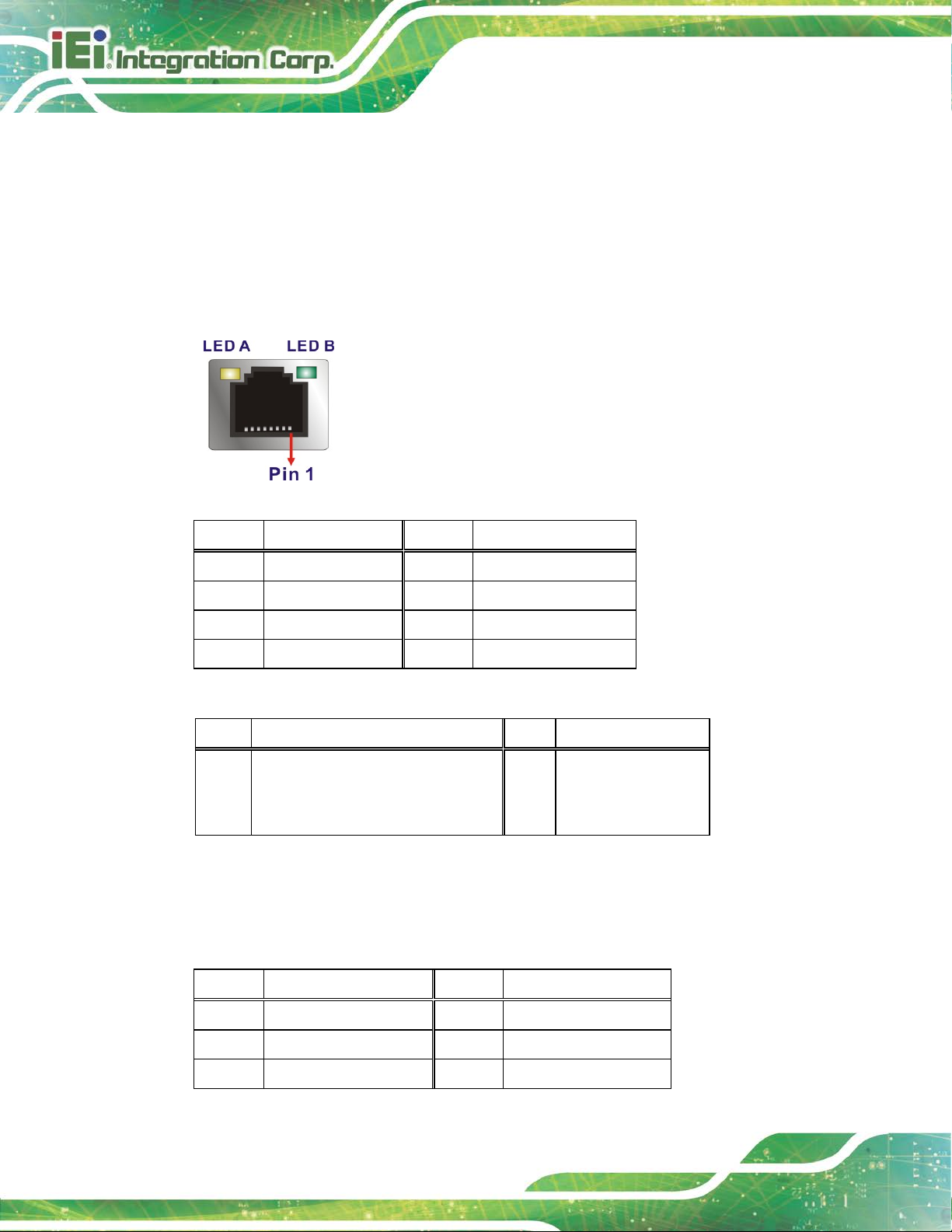

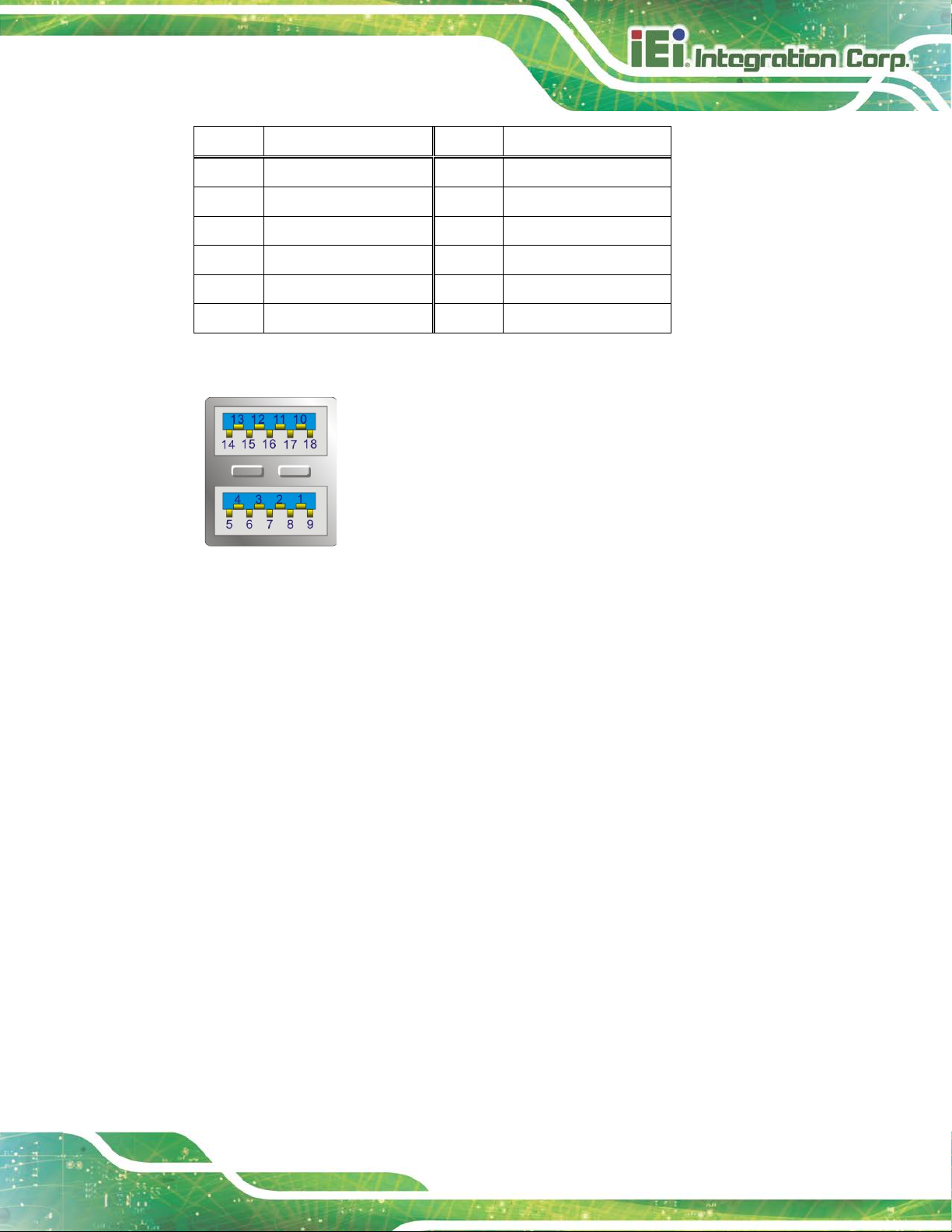

3.3.2 LAN & USB 3.0 Combo Connectors ................................................................ 48

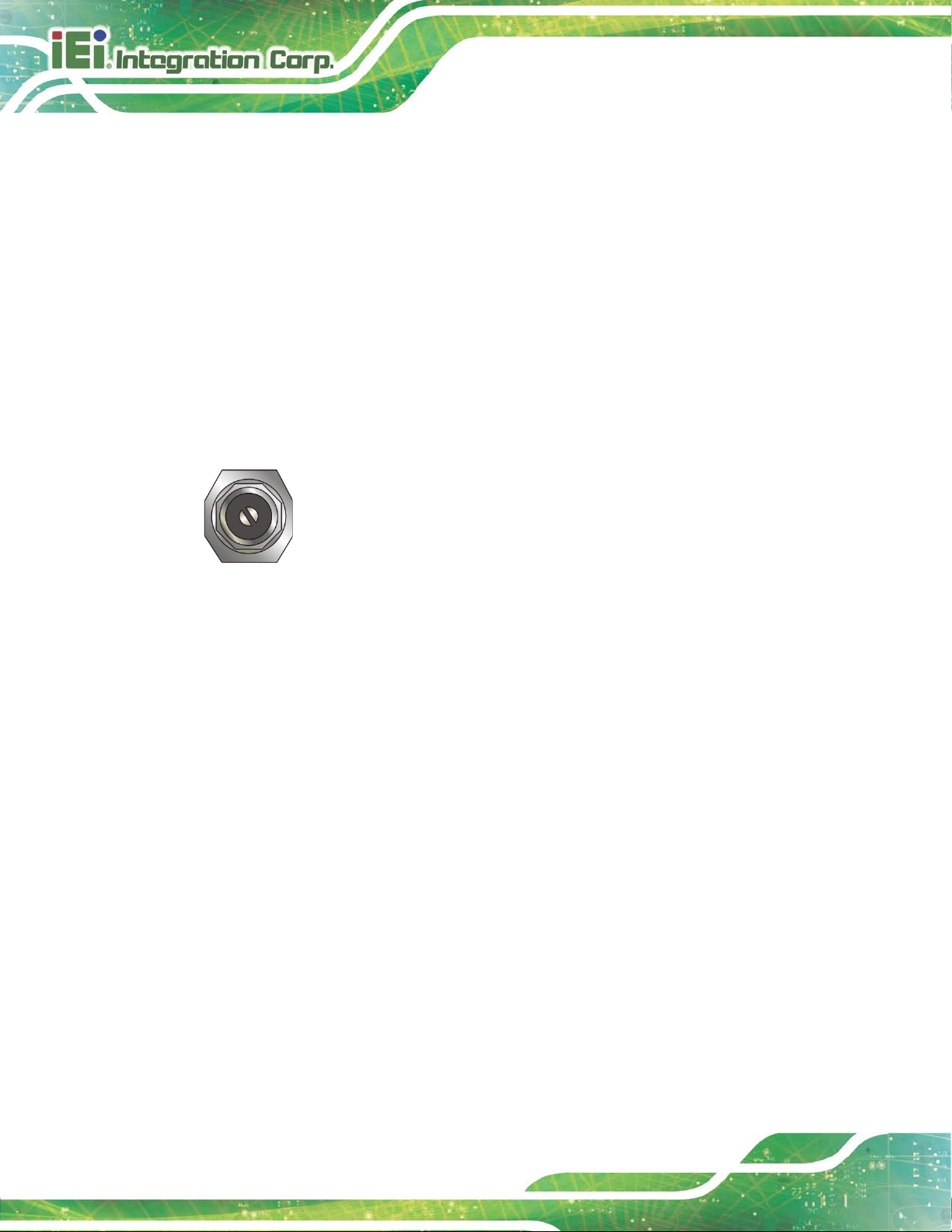

3.3.3 Power Connector ............................................................................................. 50

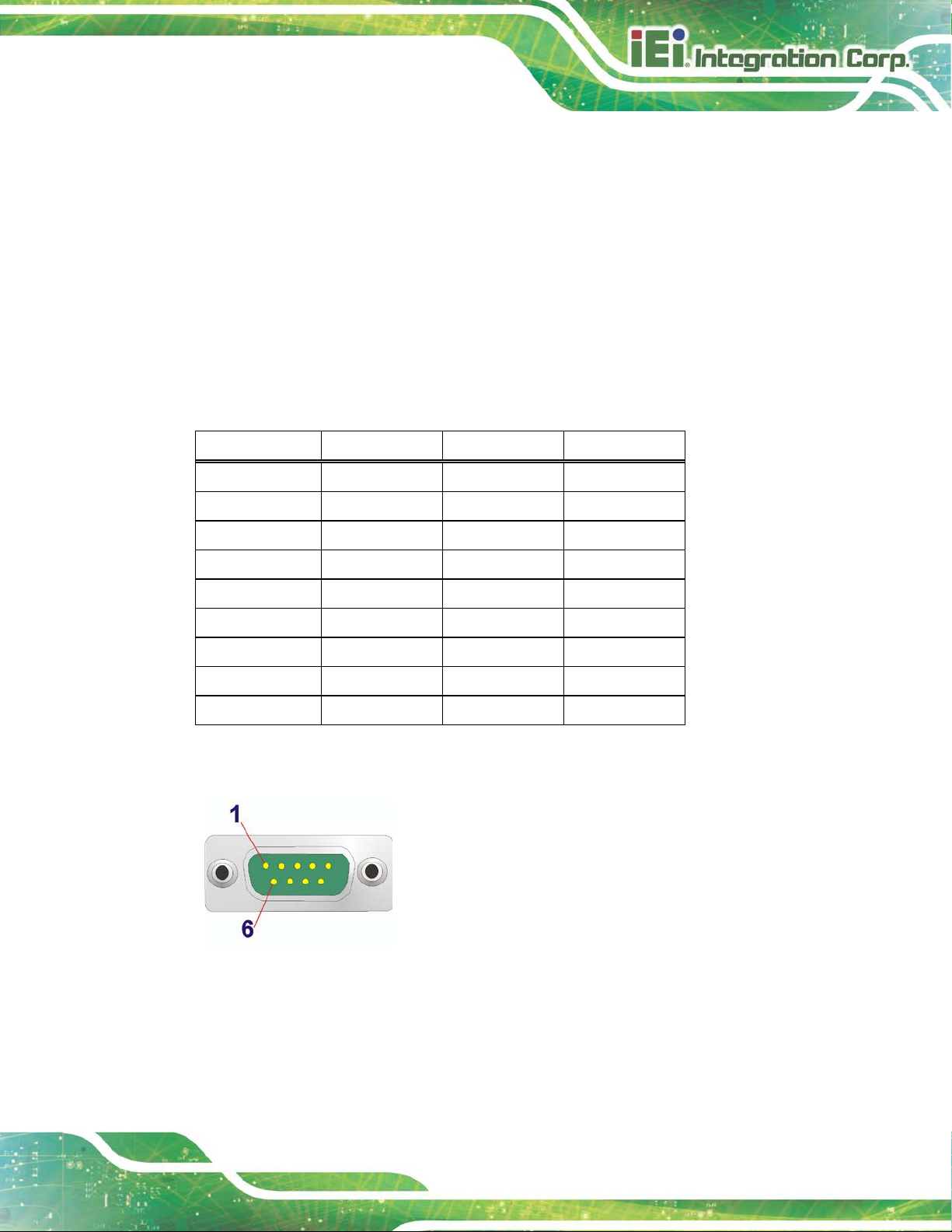

3.3.1 RS-232/422/485 Serial Port Connectors (COM1, COM2) .............................. 51

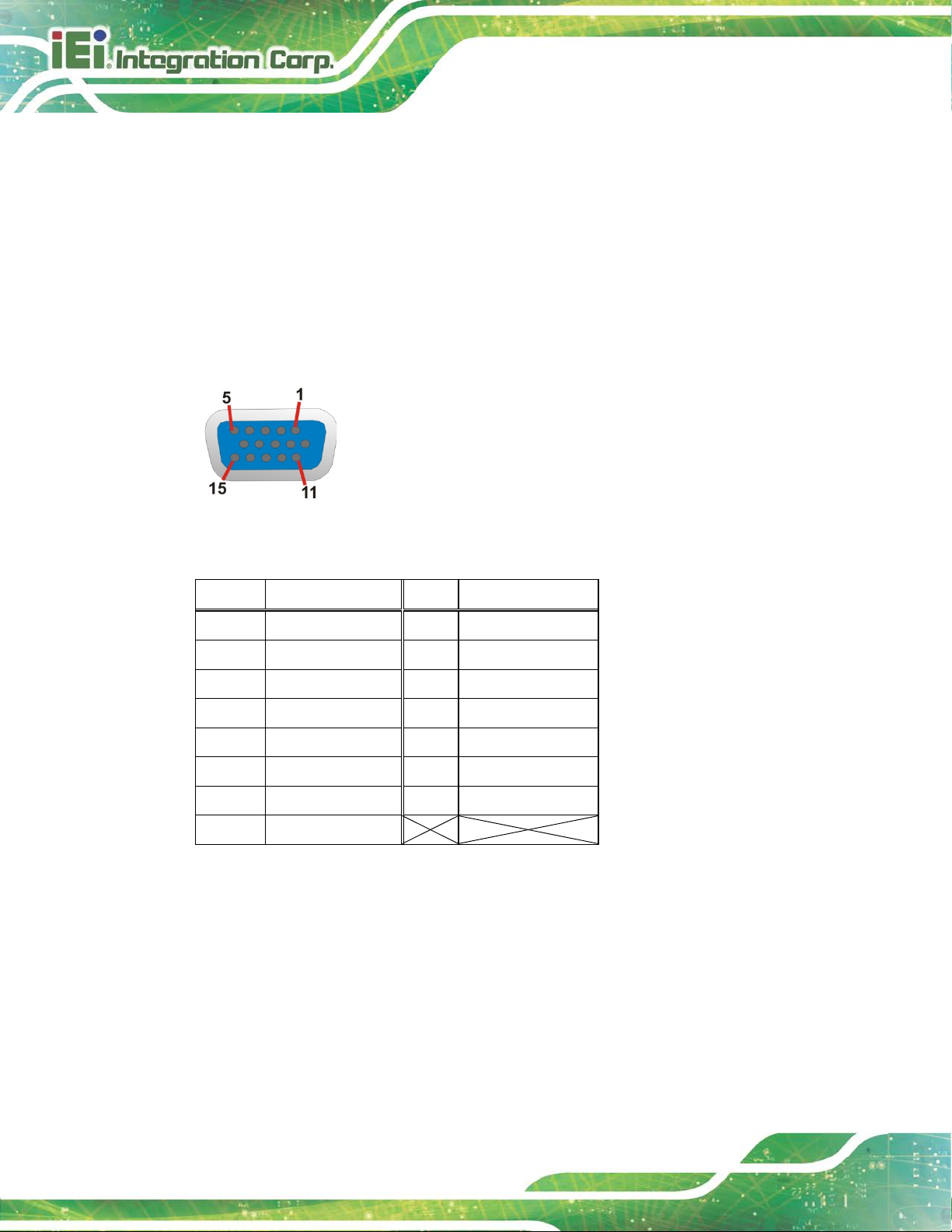

3.3.1 VGA Connector ................................................................................................ 52

4 INSTALLATION ......................................................................................................... 53

4.1 ANTI-STATIC PRECAUTIONS ...................................................................................... 54

4.2 INSTALLATION CONSIDERATIONS .............................................................................. 54

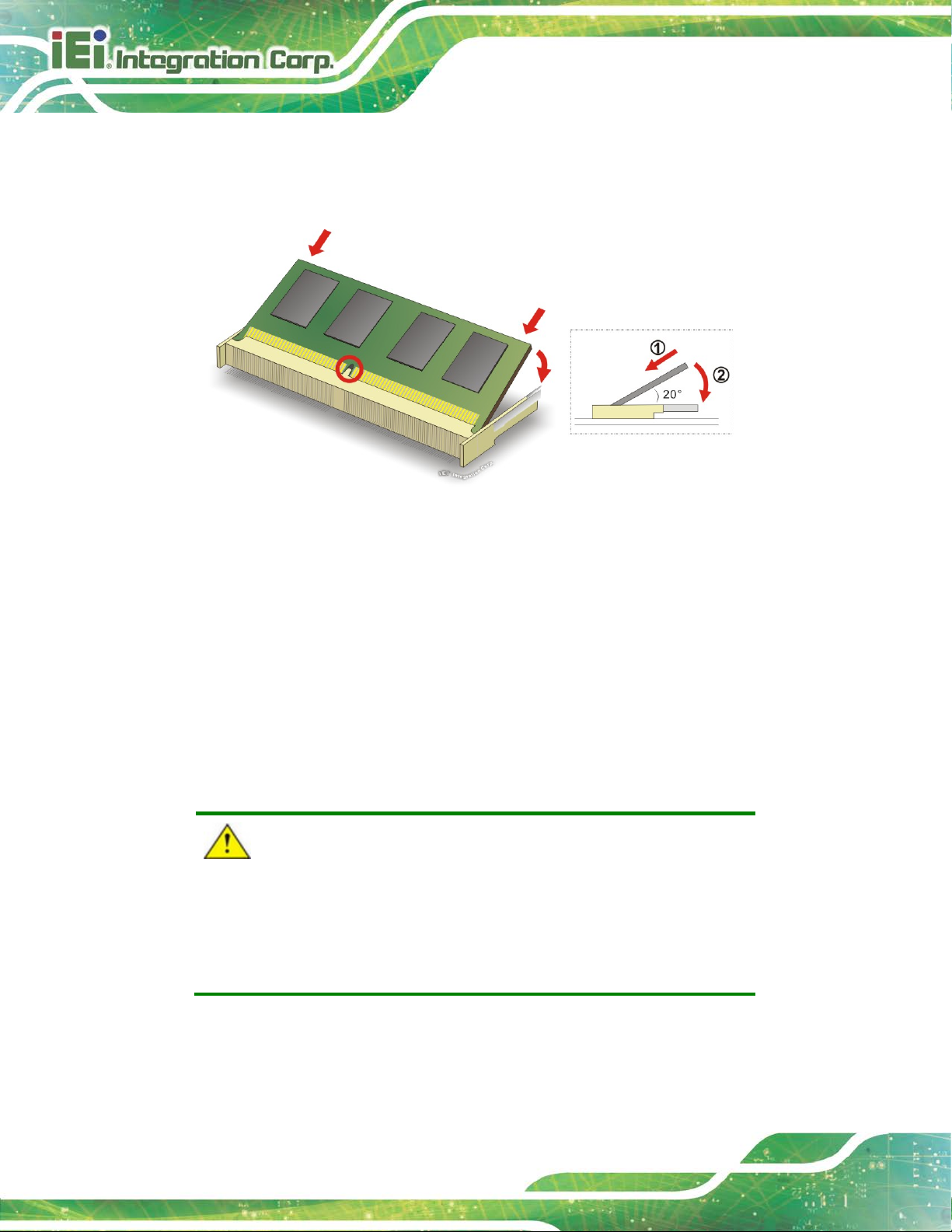

4.3 SO-DIMM INSTALLATION ....................................................................................... 56

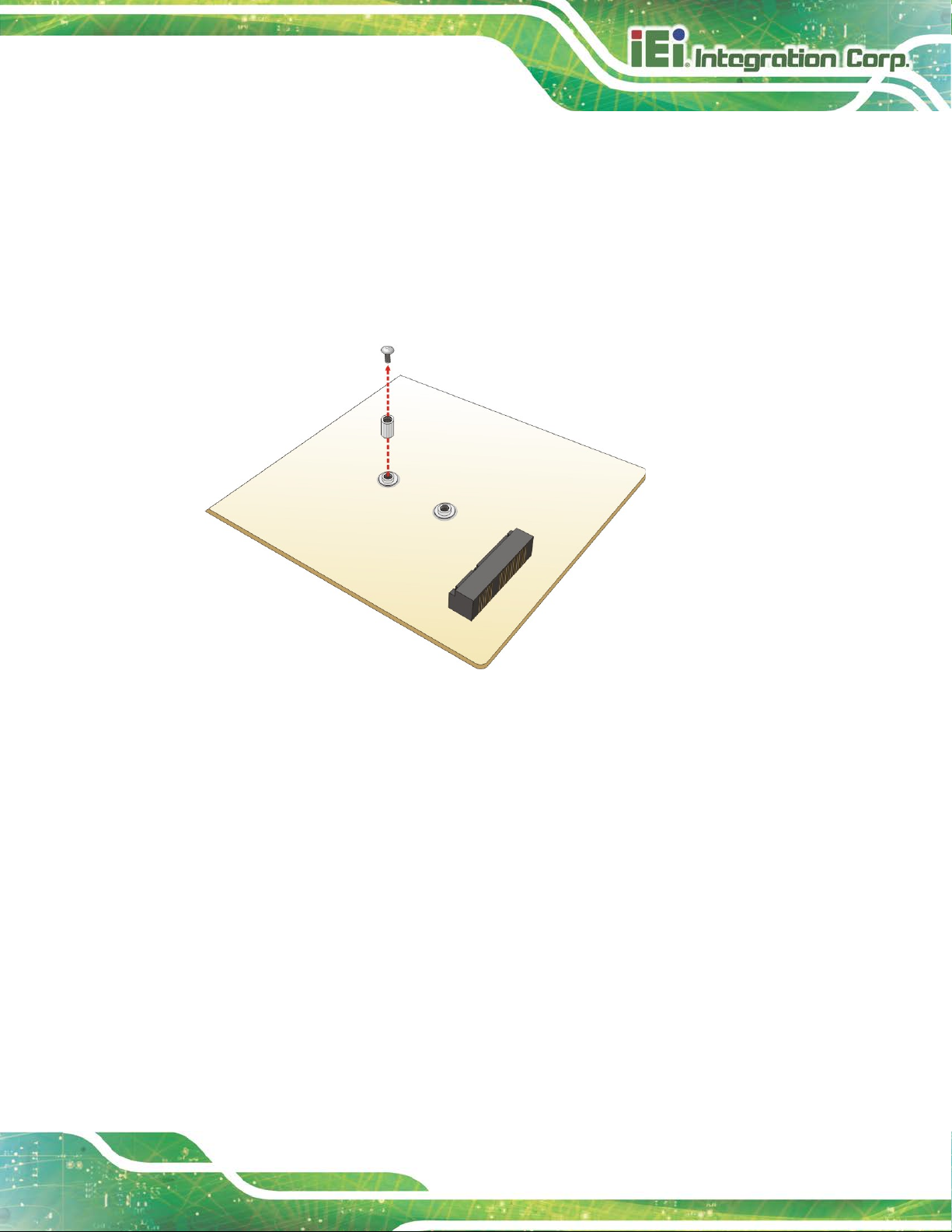

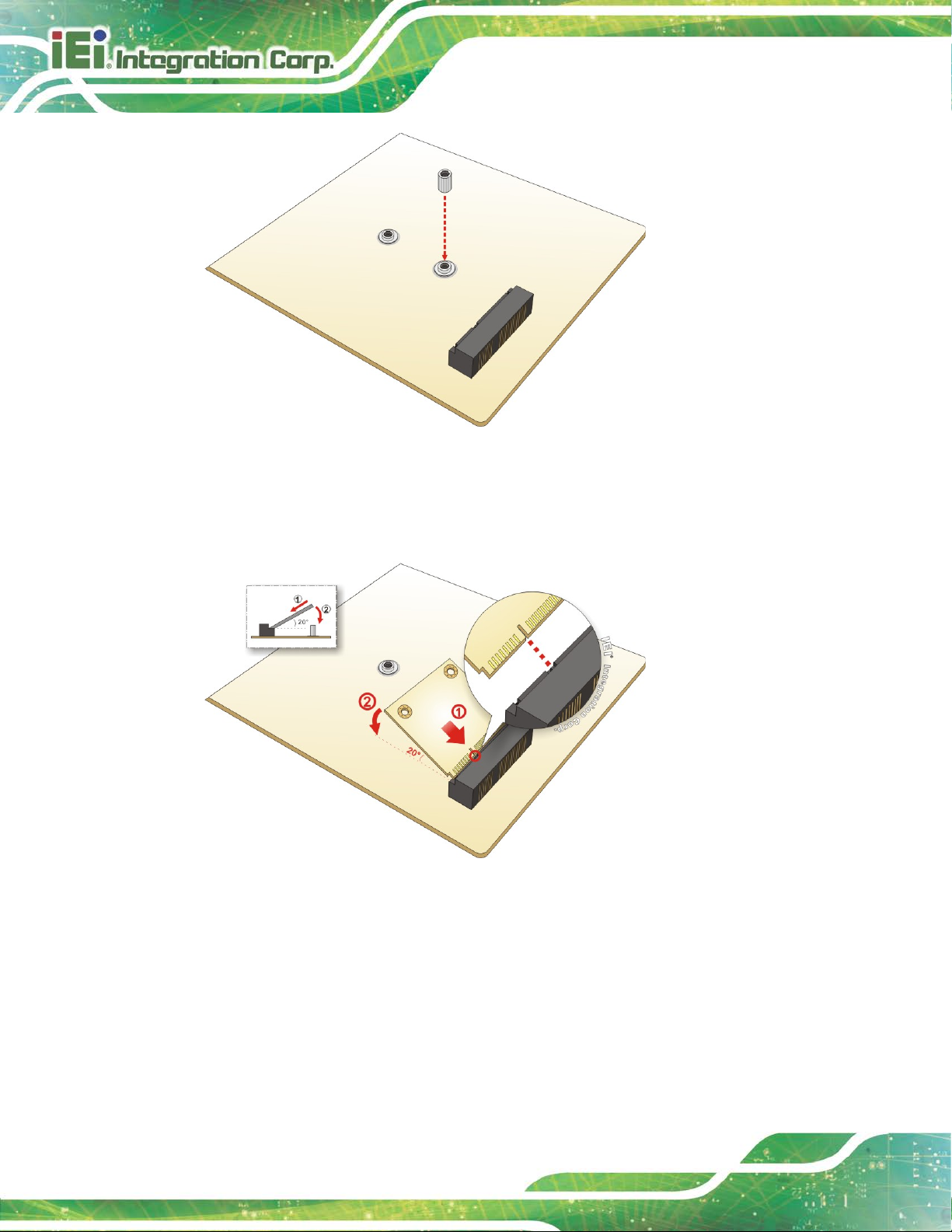

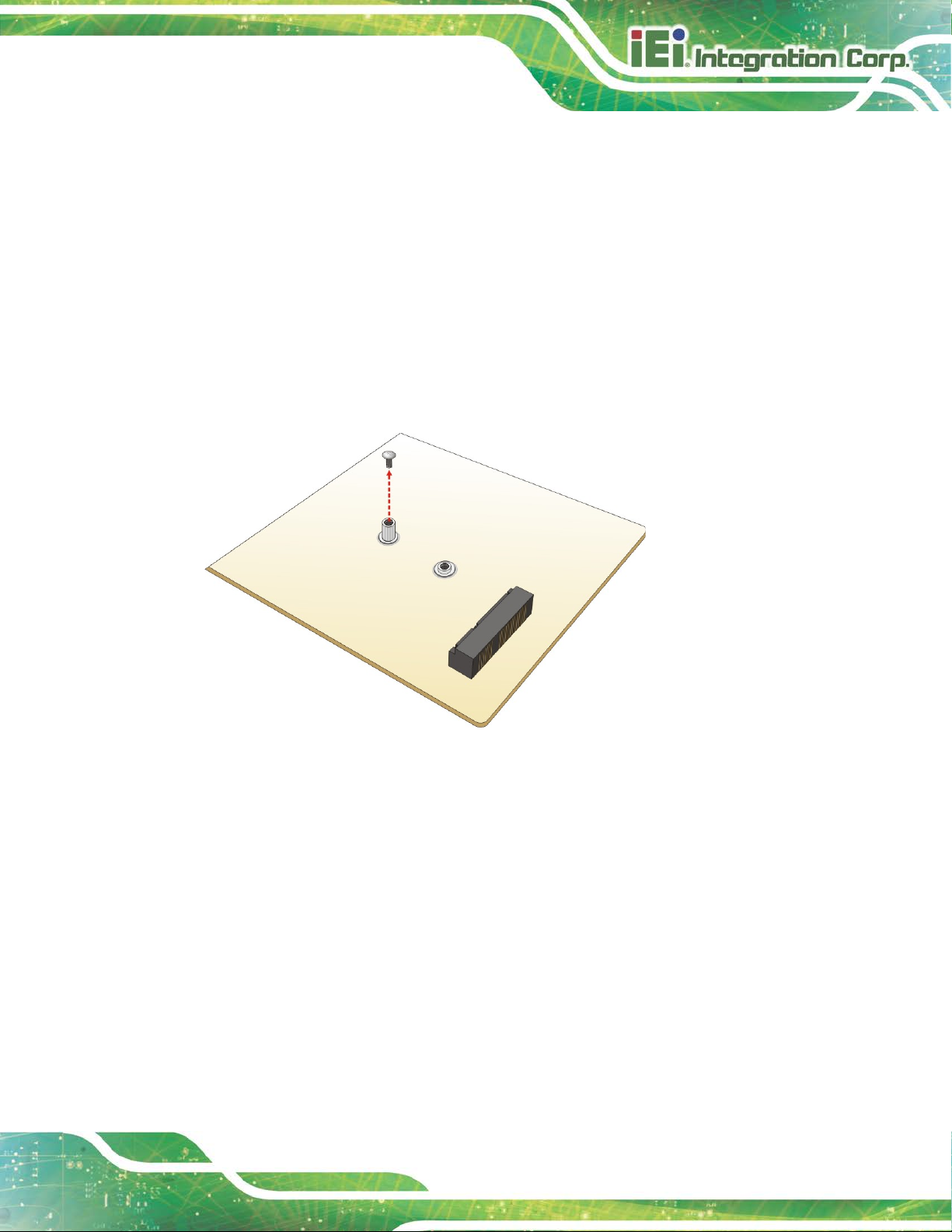

4.4 M.2 MODULE INSTALLATION .................................................................................... 57

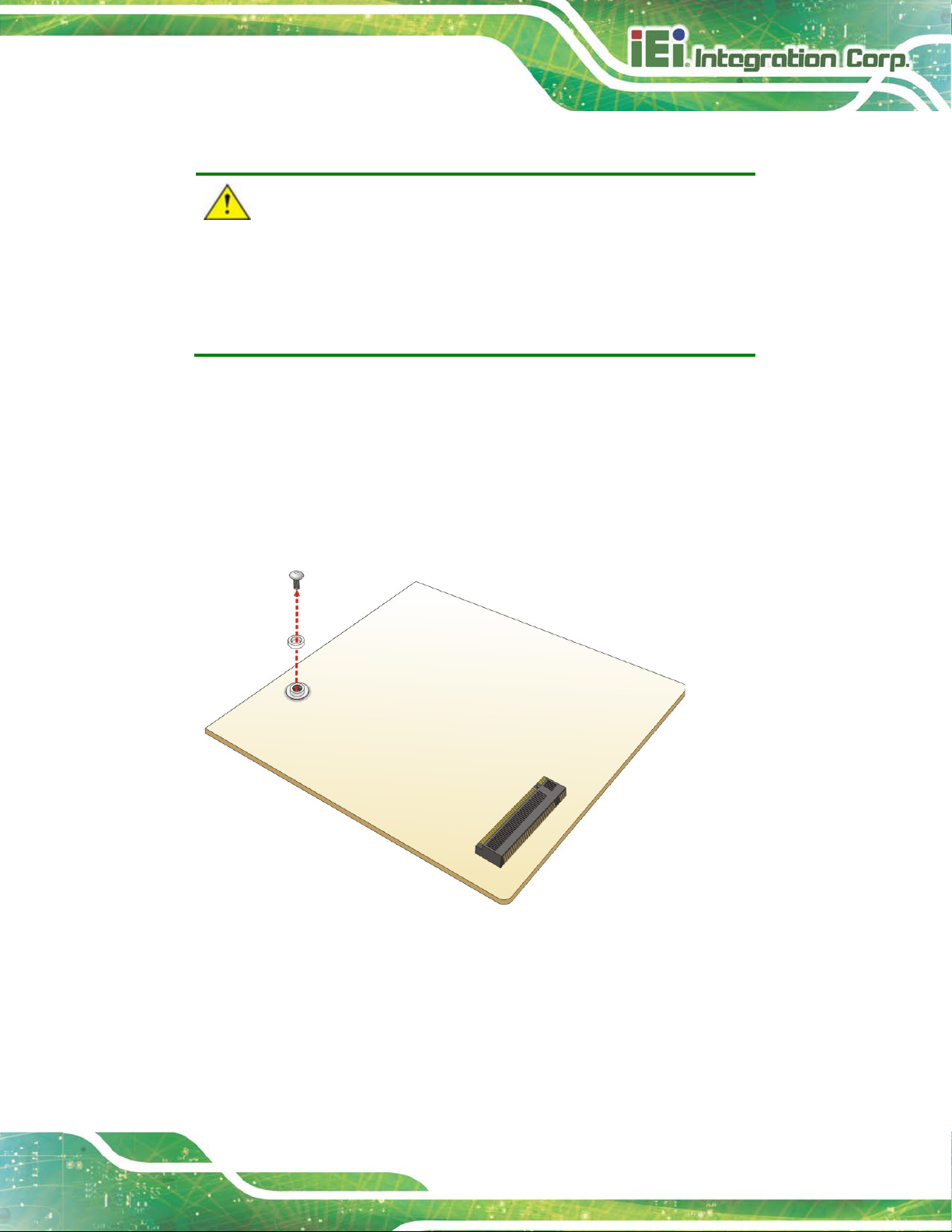

4.5 PCIE MINI CARD INSTALLATION .............................................................................. 59

4.5.1 Full-size PCIe Mini Card Installation ............................................................. 59

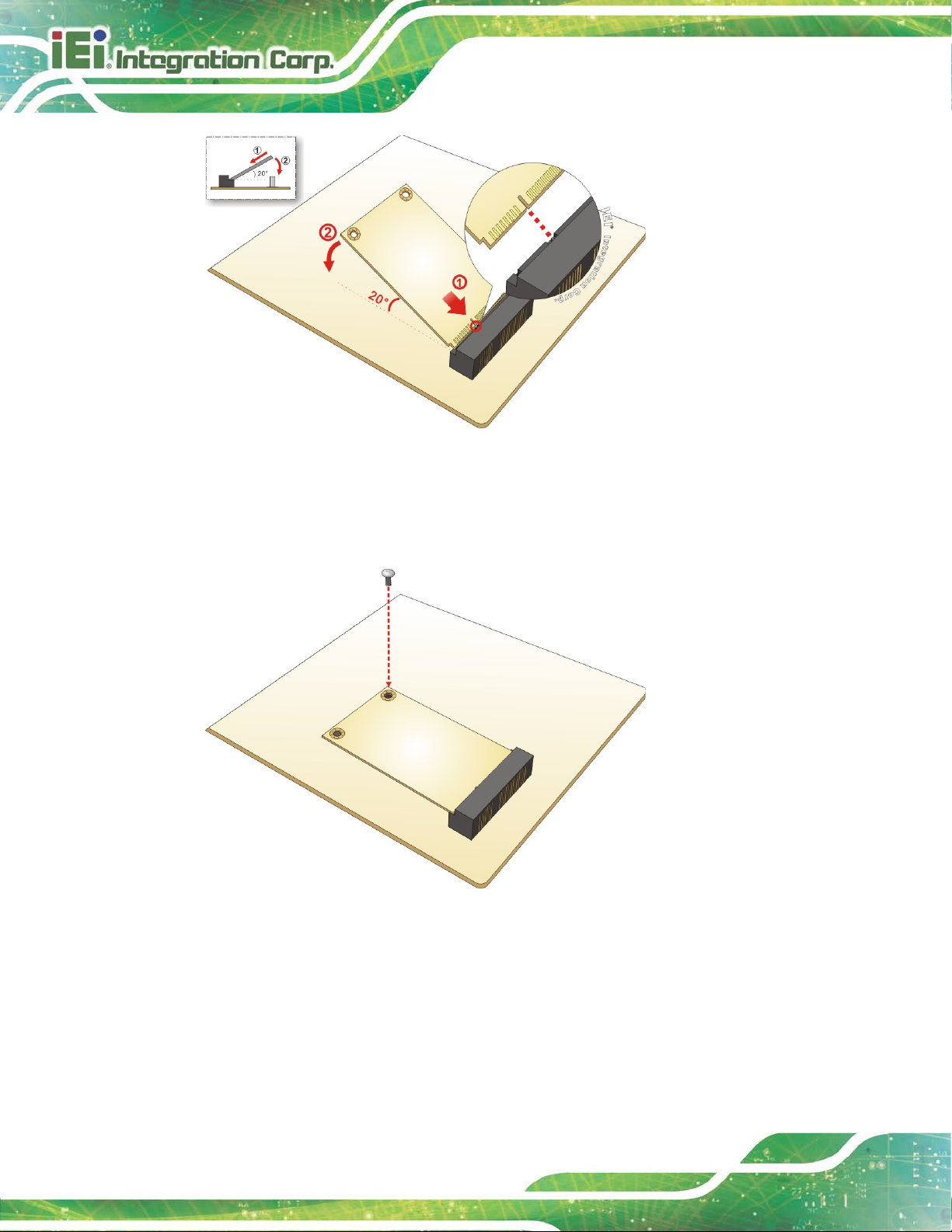

4.5.2 Half-size PCIe Mini Card Installation ............................................................. 61

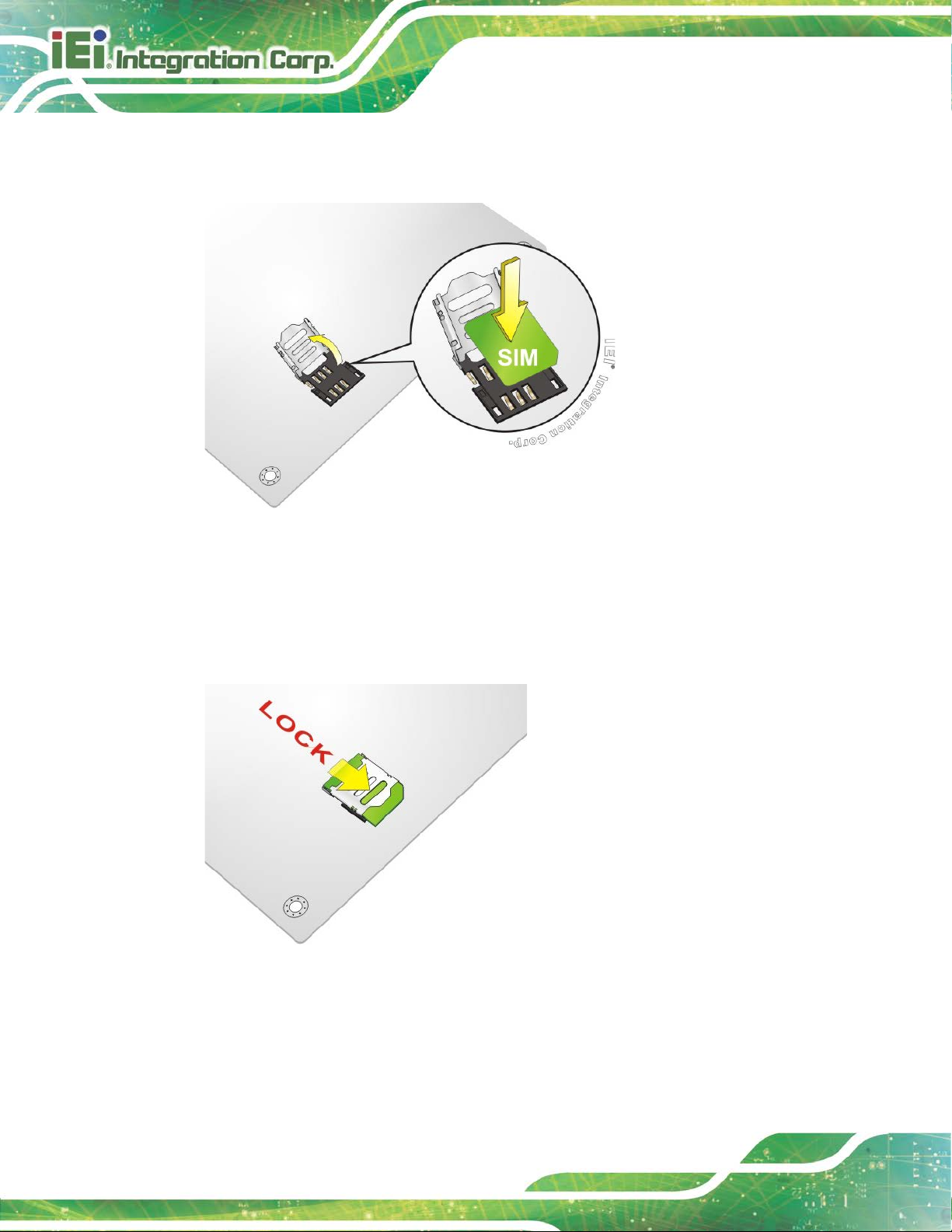

4.6 SIM CARD INSTALLATION (OPTIONAL) .................................................................... 63

4.7 SYSTEM CONFIGURATION ......................................................................................... 65

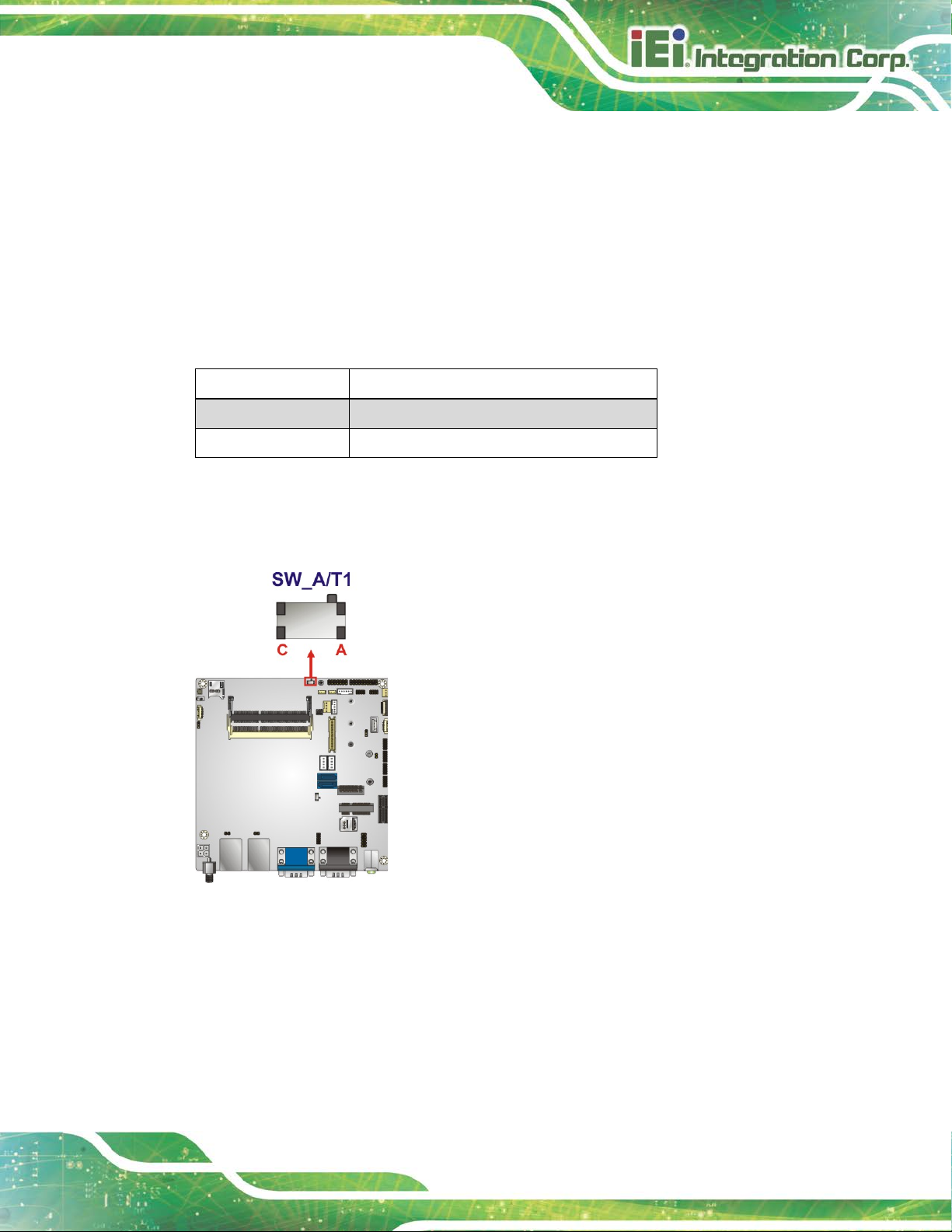

4.7.1 AT/A TX Mode Select Switch ............................................................................. 65

Page 7

KINO-DAL SBC

Page VII

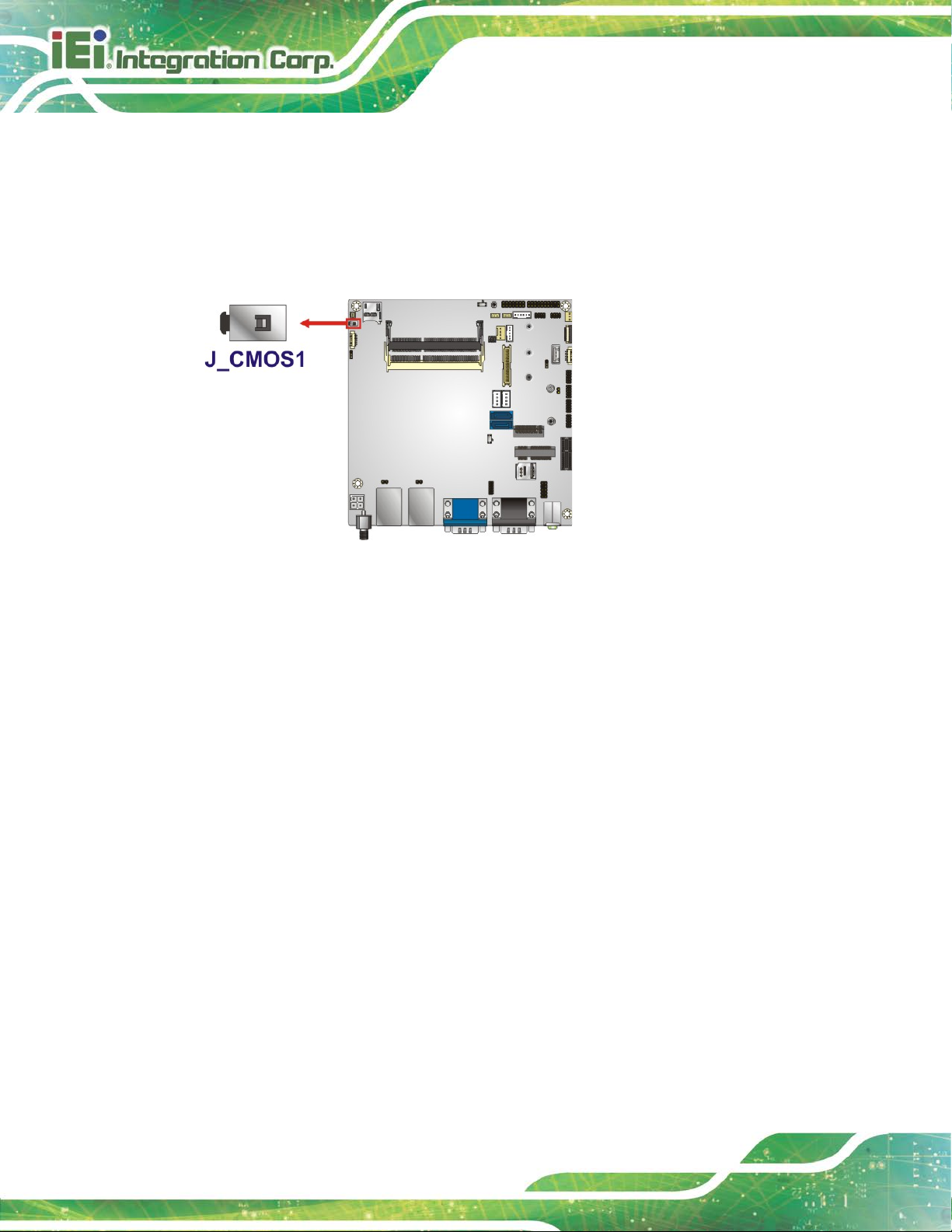

4.7.2 Clear CMOS Button ......................................................................................... 66

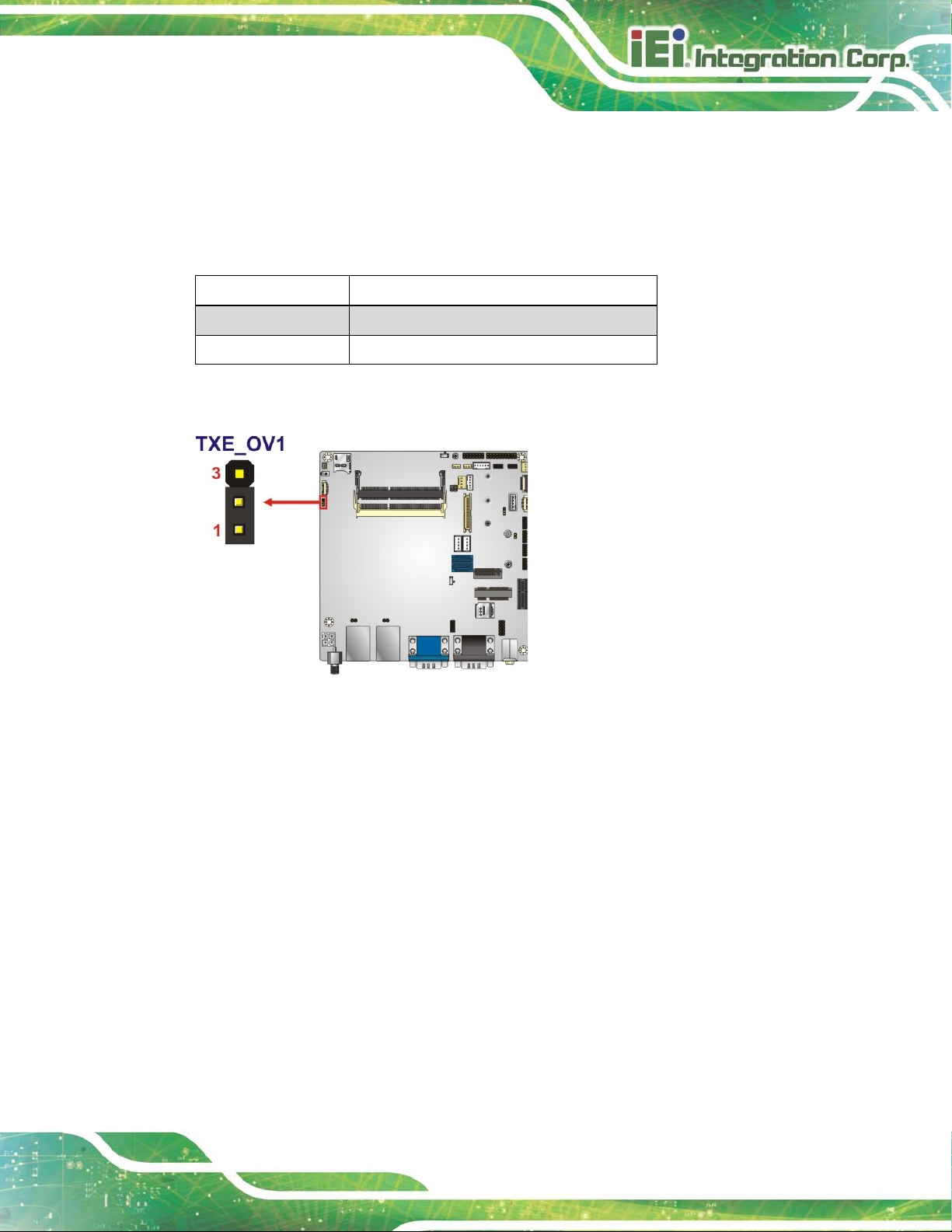

4.7.3 Flash Descriptor Security Override Jumper .................................................... 67

4.7.1 LVDS Voltage Select Jumper ............................................................................ 68

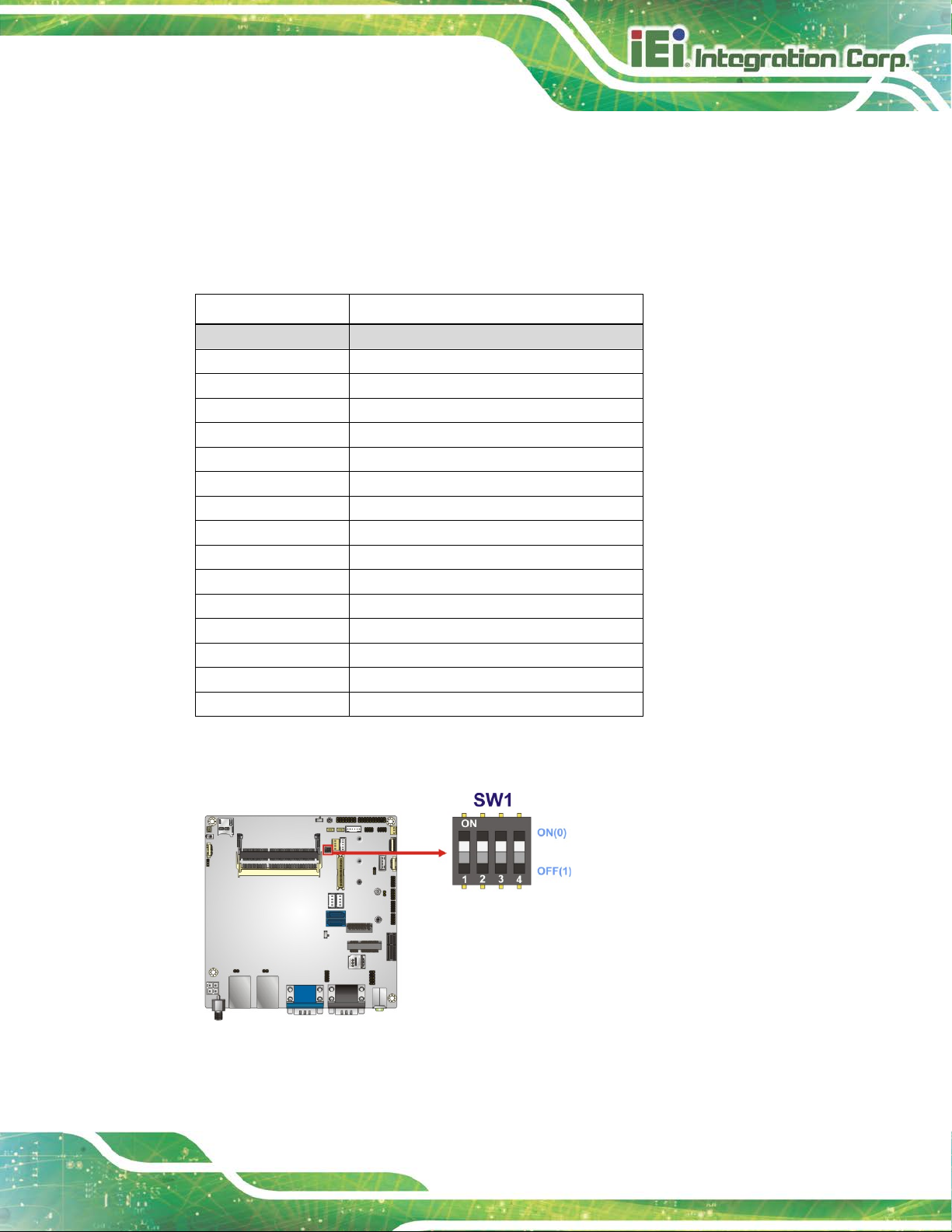

4.7.2 LVDS Panel Resolution Select Switch ............................................................. 69

4.7.3 M.2 and SATA2 Select Switch .......................................................................... 70

4.8 CHASSIS INSTALLATION ............................................................................................ 71

4.8.1 Airflow .............................................................................................................. 71

4.8.2 Motherboard Installation ................................................................................. 71

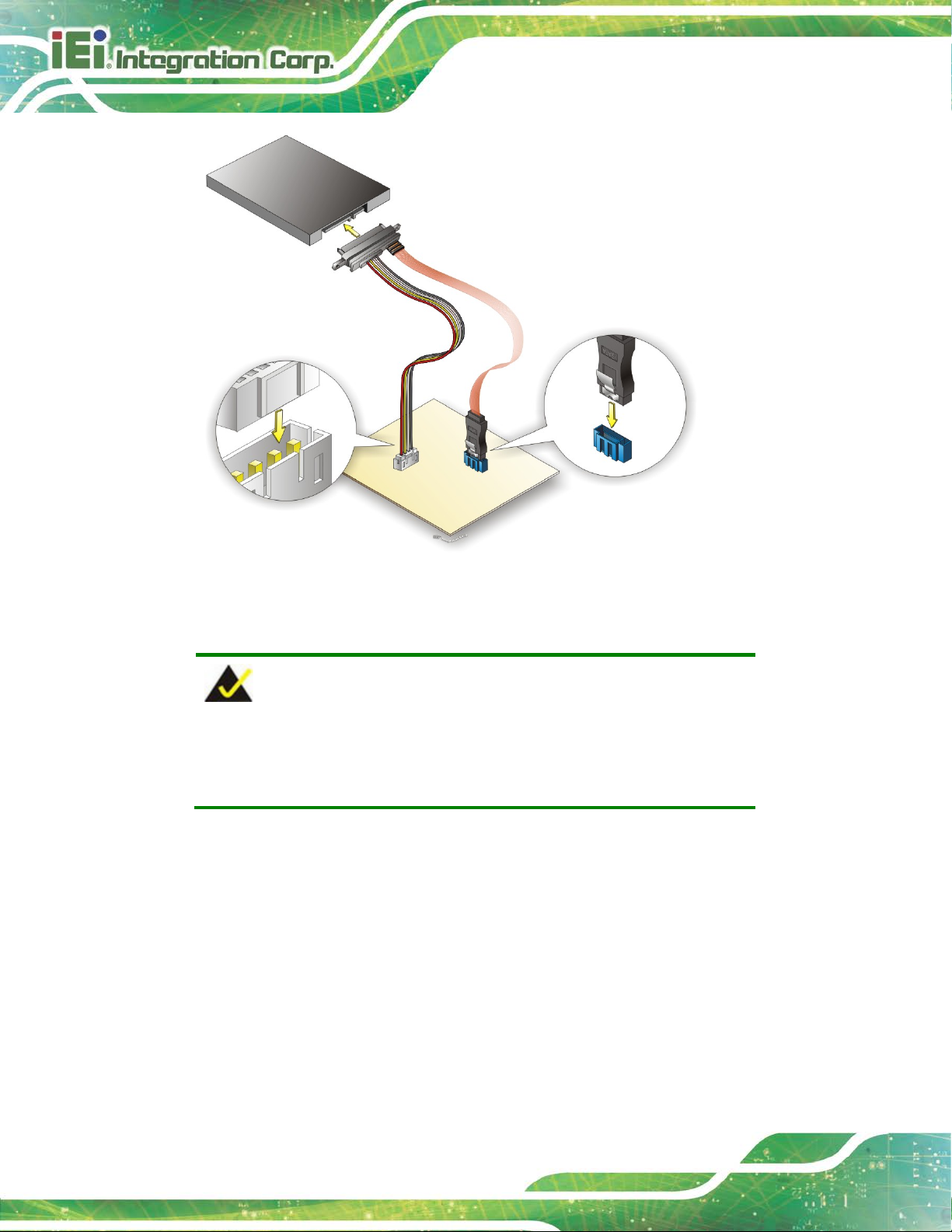

4.9 SATA DRIVE CONNECTION ...................................................................................... 71

5 BIOS .............................................................................................................................. 73

5.1 INTRODUCTION ......................................................................................................... 74

5.1.1 Starting Setup ................................................................................................... 74

5.1.2 Using Setup ...................................................................................................... 74

5.1.3 Getting Help ..................................................................................................... 75

5.1.4 Unable to Reboot after Configuration Changes .............................................. 75

5.1.5 BIOS Menu Bar ................................................................................................ 75

5.2 MAIN ........................................................................................................................ 76

5.3 ADVANCED ............................................................................................................... 77

5.3.1 ACPI Settings ................................................................................................... 78

5.3.2 F81866 Super IO Configuration ...................................................................... 79

5.3.2.1 Serial Port n Configuration ....................................................................... 79

5.3.2.1.1 Serial Port 1 Configuration ................................................................ 80

5.3.2.1.2 Serial Port 2 Configuration ................................................................ 81

5.3.2.1.3 Serial Port 3 Configuration ................................................................ 82

5.3.2.1.4 Serial Port 4 Configuration ................................................................ 83

5.3.2.1.5 Serial Port 5 Configuration ................................................................ 84

5.3.2.1.6 Serial Port 6 Configuration ................................................................ 85

5.3.3 iWDD H/W Monitor ......................................................................................... 86

5.3.3.1 Smart Fan Mode Configuration ................................................................ 87

5.3.4 USB Configuration ........................................................................................... 88

5.3.5 CPU Configuration .......................................................................................... 89

5.3.6 RTC Wake Settings ........................................................................................... 91

5.3.7 Power Saving Configuration ............................................................................ 92

5.3.8 Serial Port Console Redirection ...................................................................... 93

Page 8

KINO-DAL SBC

Page VIII

5.3.8.1 Legacy Console Redirection Settings ....................................................... 94

5.3.9 IEI Feature ....................................................................................................... 95

5.4 CHIPSET ................................................................................................................... 96

5.4.1 North Bridge Configuration ............................................................................. 97

5.4.1.1 Intel IGD Configuration ............................................................................ 98

5.4.1.2 LCD Control ........................................................................................... 100

5.4.2 South Bridge Configuration ........................................................................... 102

5.4.2.1 HD-Audio Configuration ........................................................................ 104

5.4.2.2 PCI Express Configuration ..................................................................... 105

5.4.2.2.1 Onboard LAN .................................................................................. 106

5.4.2.2.2 MPCIE1 ........................................................................................... 107

5.4.2.2.3 SATA Configuration ......................................................................... 108

5.5 SECURITY ................................................................................................................ 110

5.6 BOOT ....................................................................................................................... 111

5.7 SAVE & EXIT ........................................................................................................... 113

6 SOFTWARE DRIVERS ............................................................................................. 115

6.1 SOFTWARE INSTALLATION ....................................................................................... 116

A REGULATORY COMPLIANCE ............................................................................. 118

B PRODUCT DISPOSAL ............................................................................................ 120

C BIOS MENU OPTIONS ........................................................................................... 122

D TERMINOLOGY ..................................................................................................... 125

E DIGITAL I/O INTERFACE ..................................................................................... 129

F WA TCHDOG TIMER ............................................................................................... 132

G HAZARDOUS MATERIALS DISCLOSURE ....................................................... 135

Page 9

KINO-DAL SBC

Page IX

List of Figures

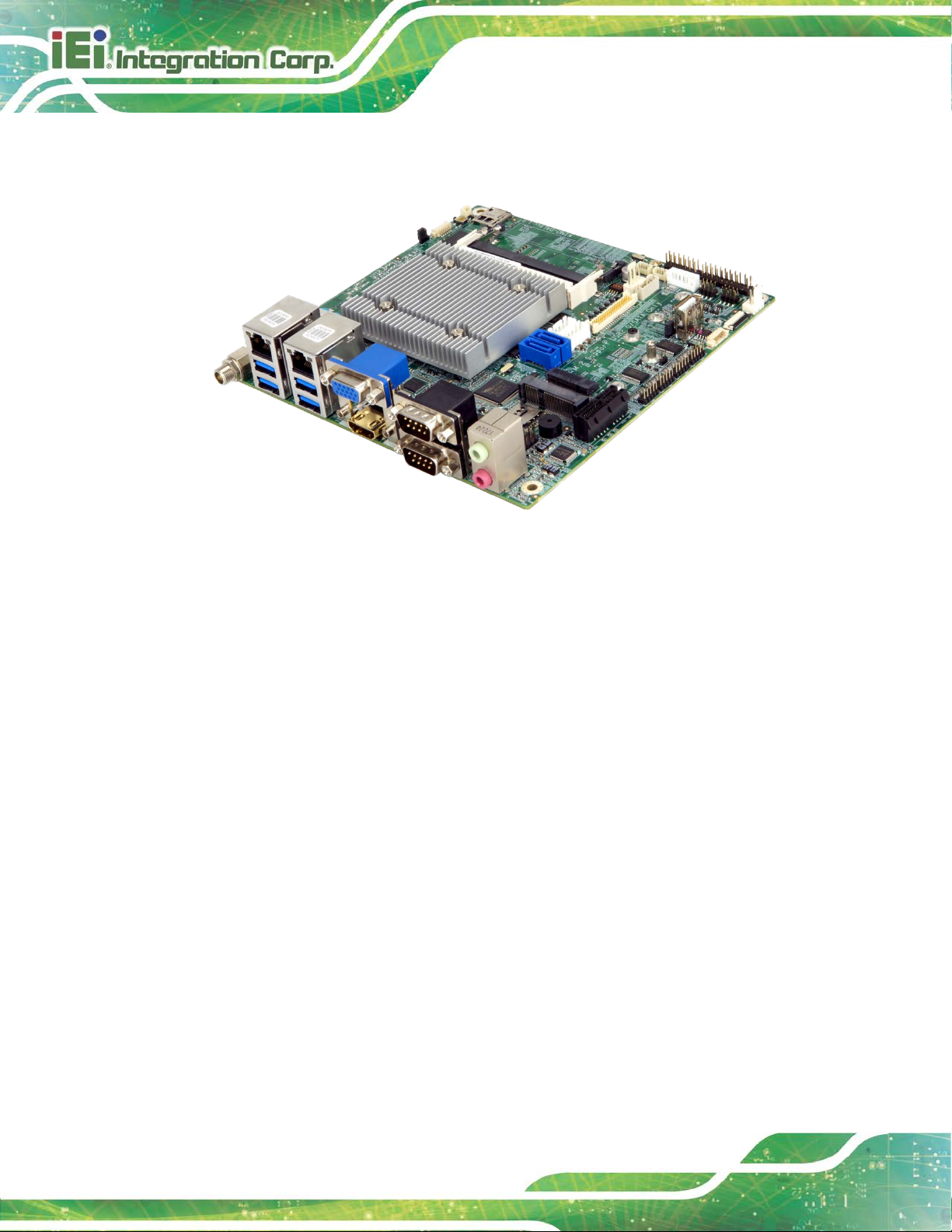

Figure 1-1: KINO-DAL ..................................................................................................................... 2

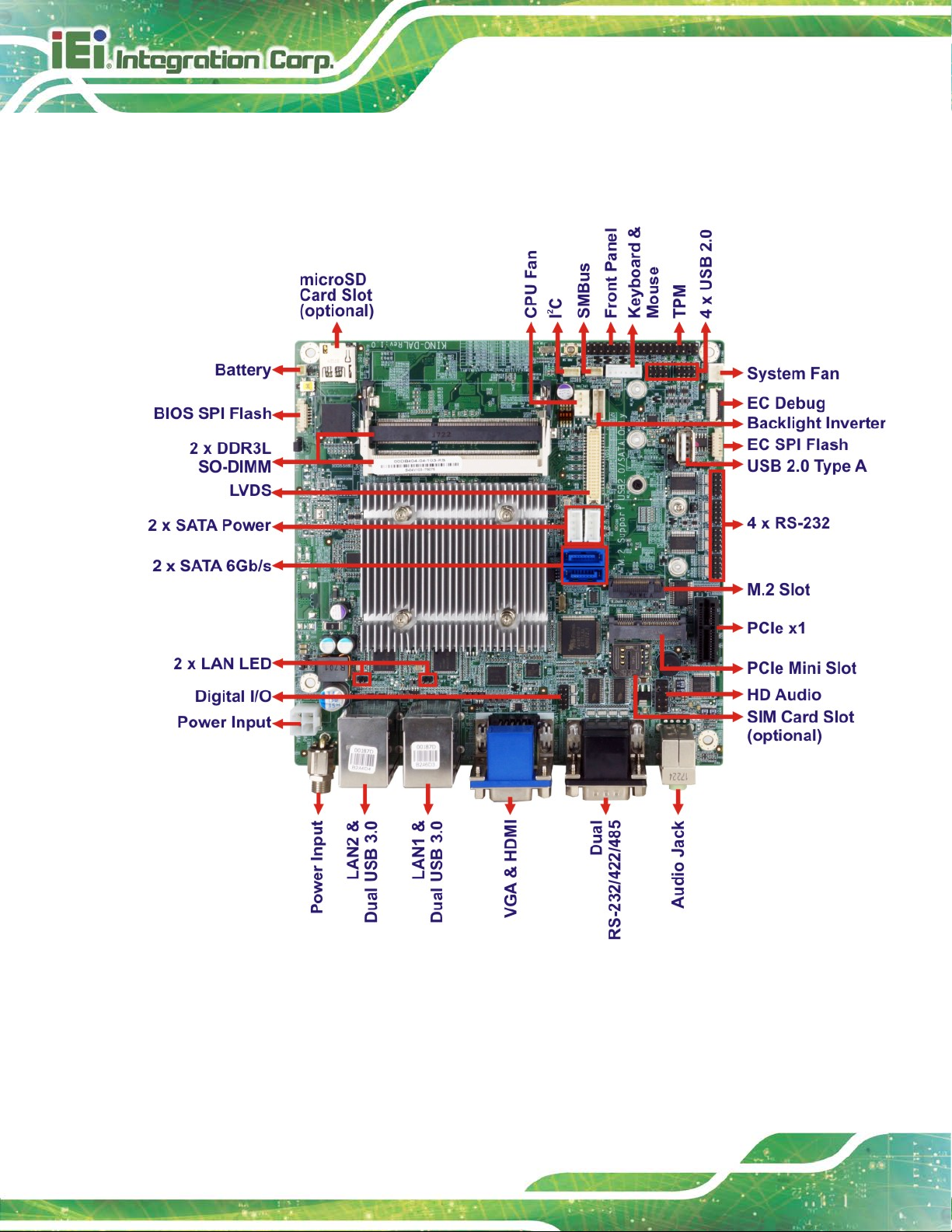

Figure 1-2: Connectors (Front Side) ............................................................................................. 4

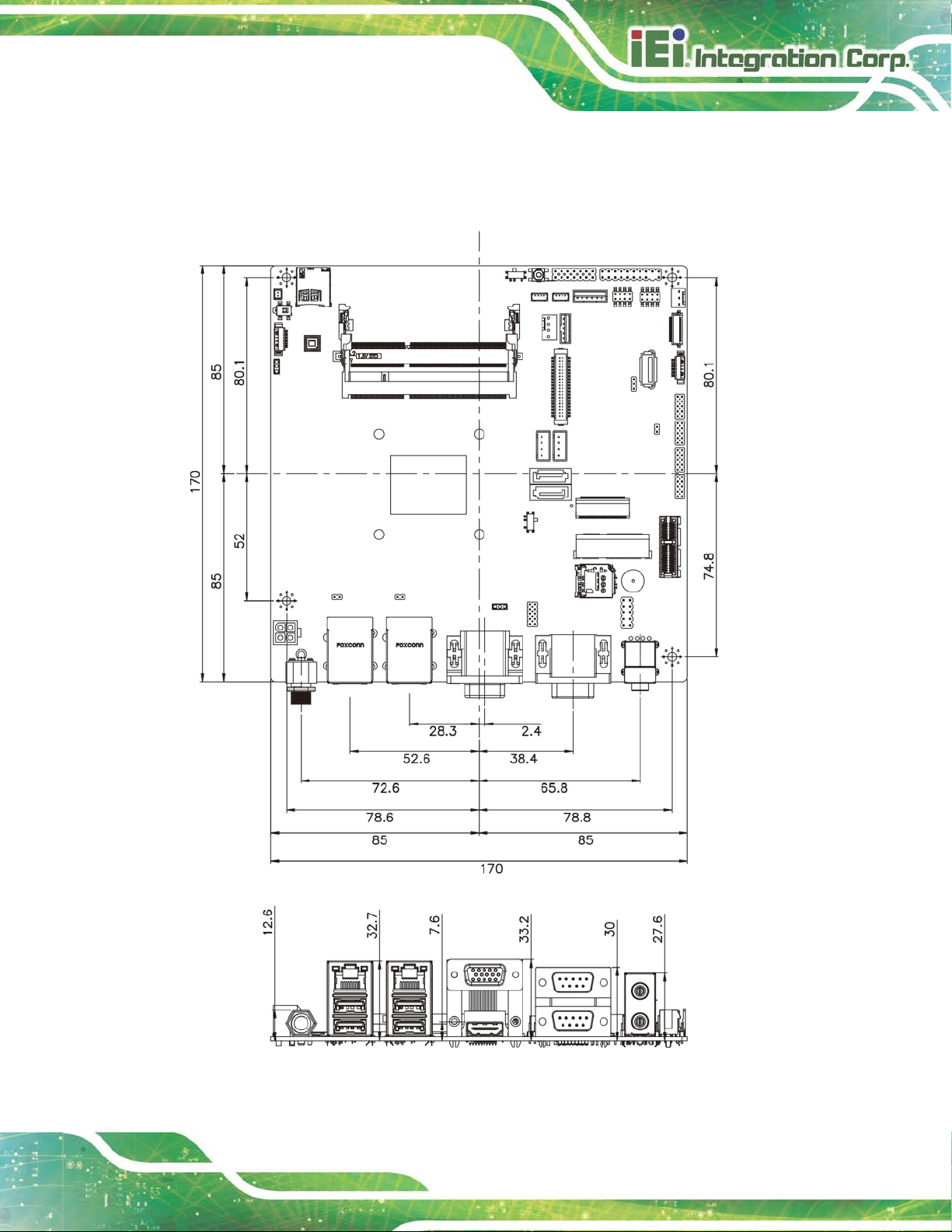

Figure 1-3: Dimensions (mm) ........................................................................................................ 5

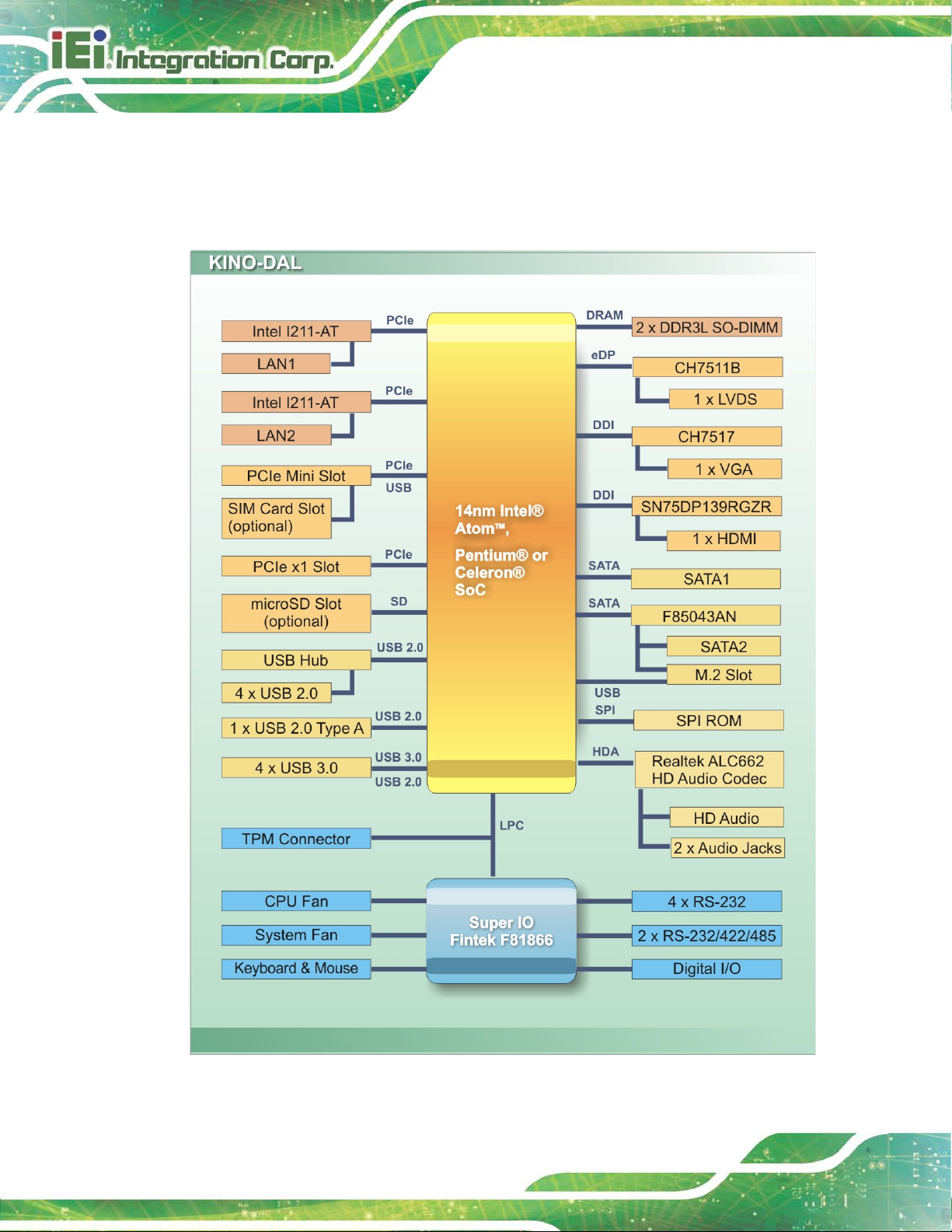

Figure 1-4: Data Flow Diagram ...................................................................................................... 6

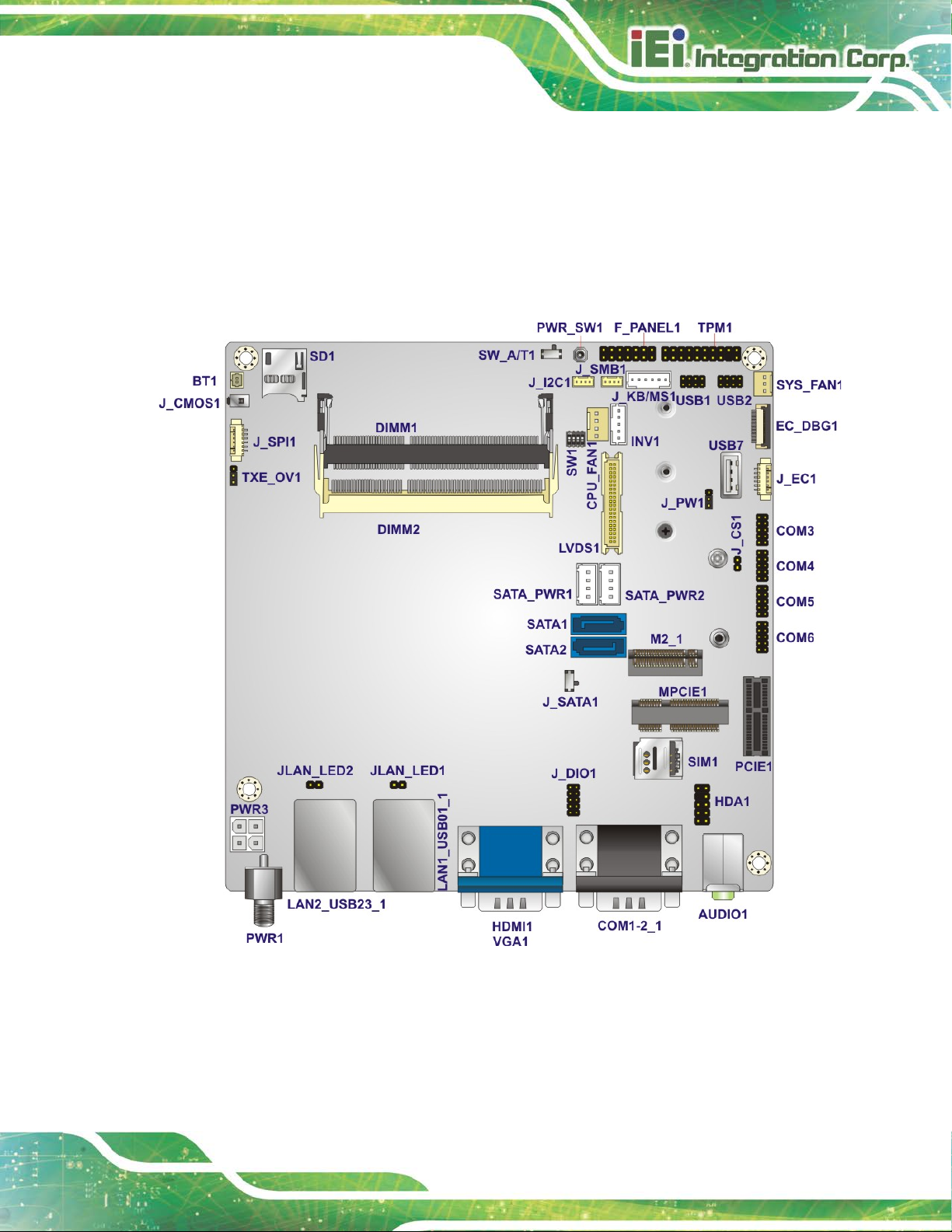

Figure 3-1: Connector and Jumper Locations ........................................................................... 15

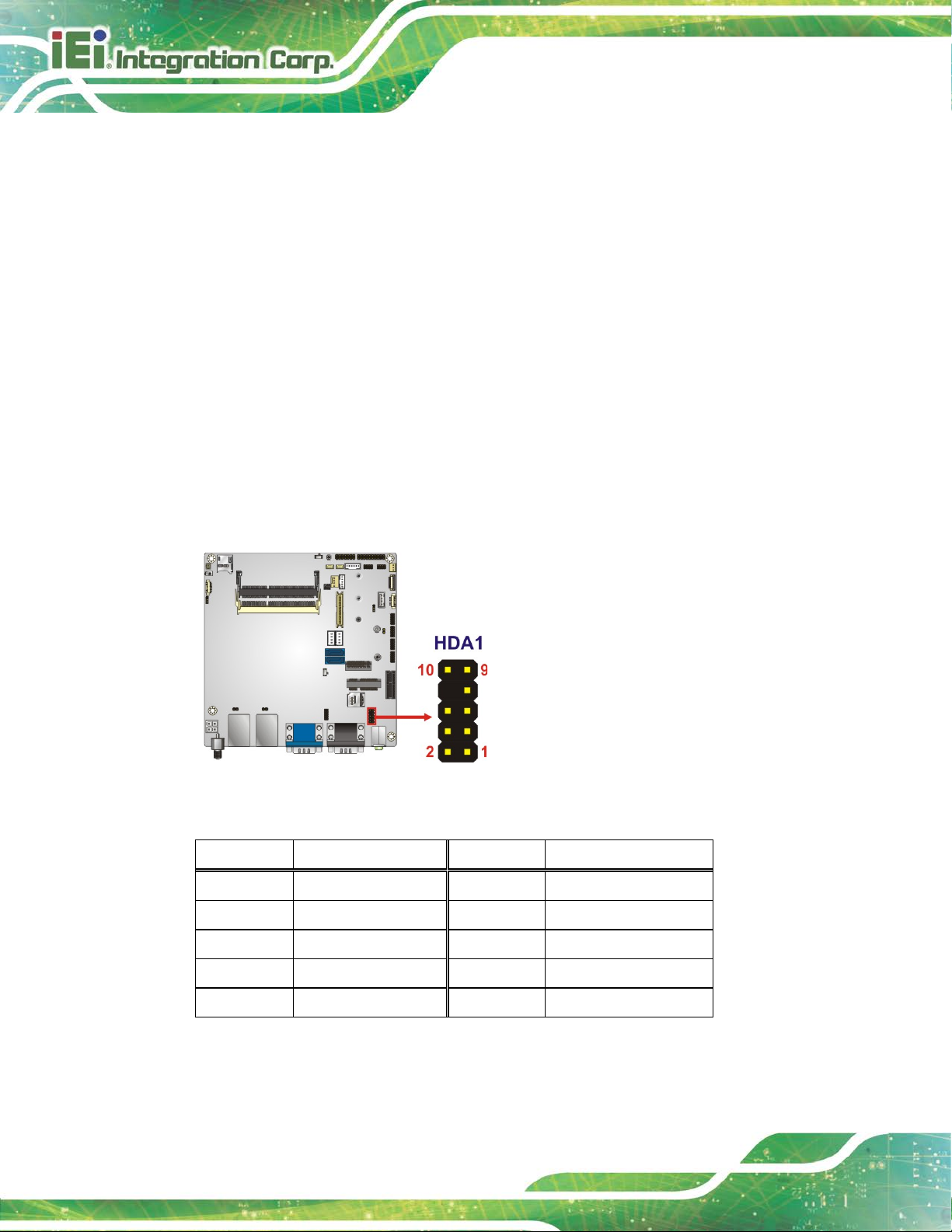

Figure 3-2: Audio Connector Location ....................................................................................... 18

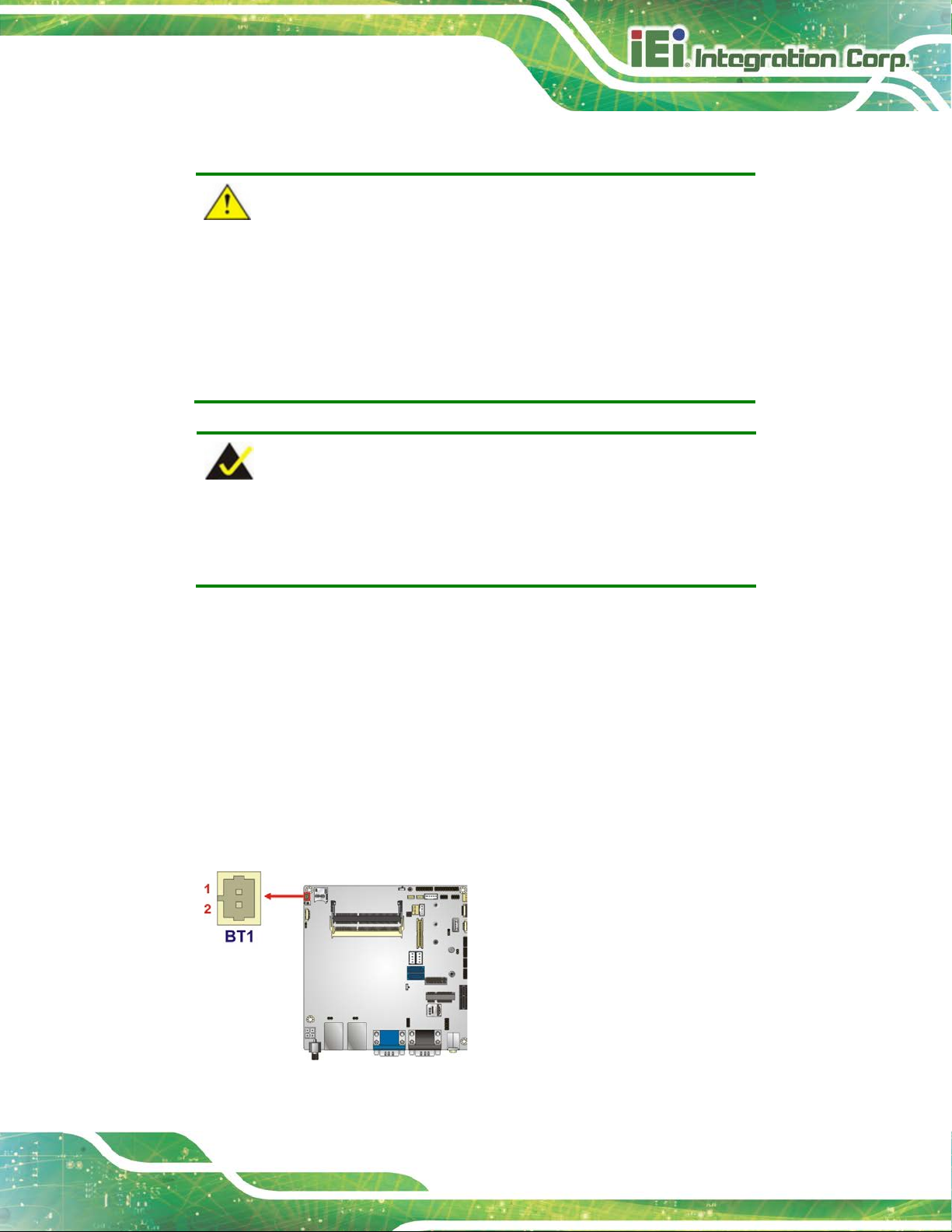

Figure 3-3: Battery Connector Location ..................................................................................... 19

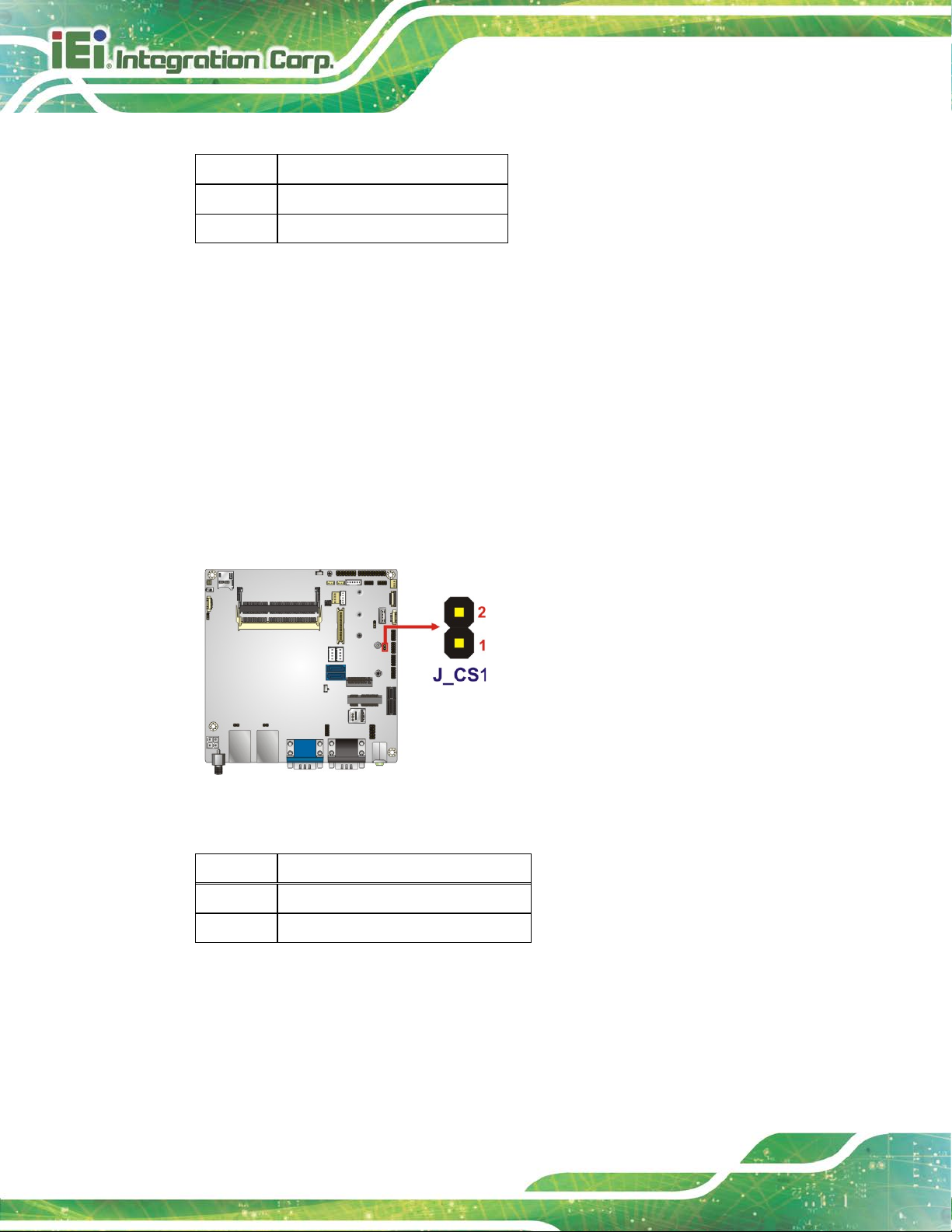

Figure 3-4: Chassis Intrusion Connector Location ................................................................... 20

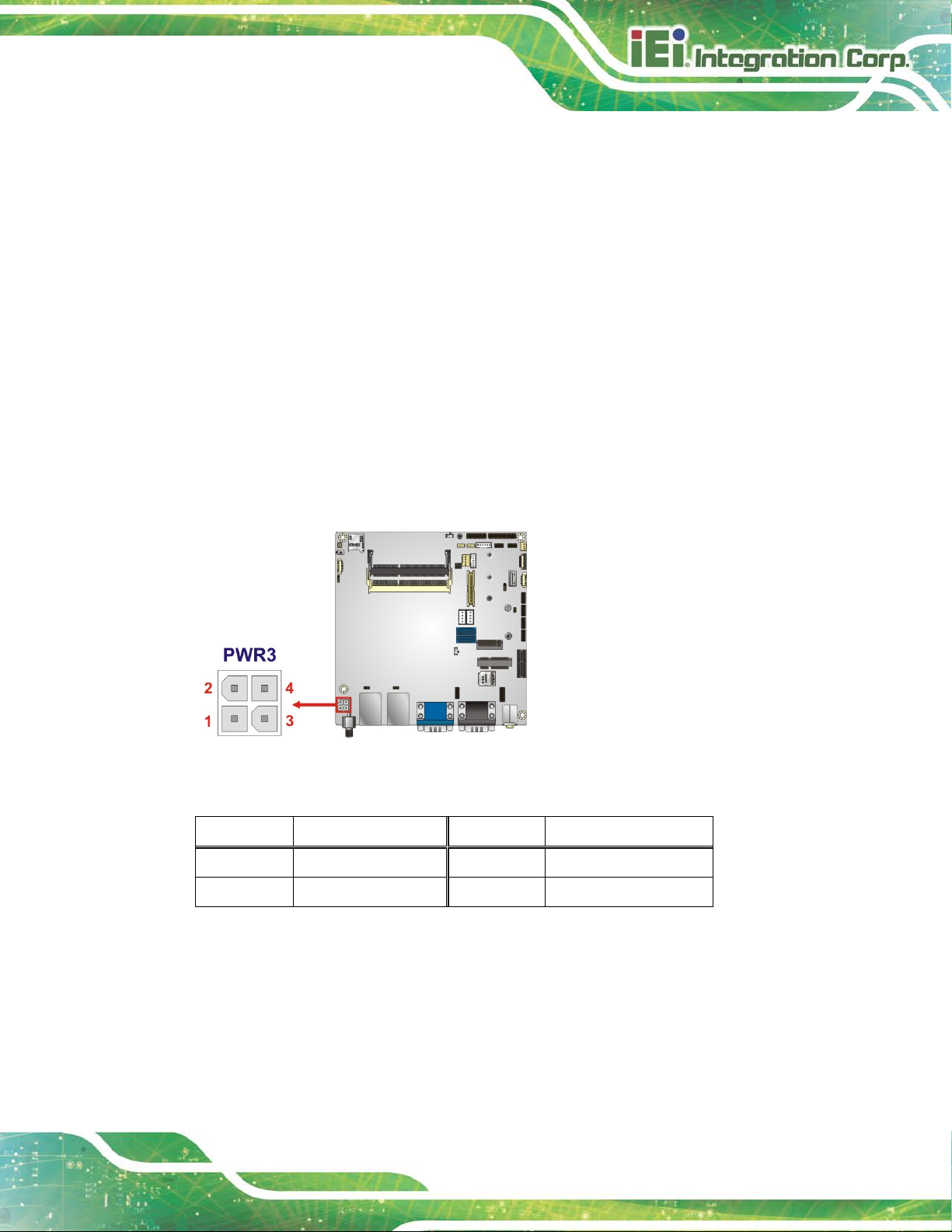

Figure 3-5: DC-IN Power Connector Location ........................................................................... 21

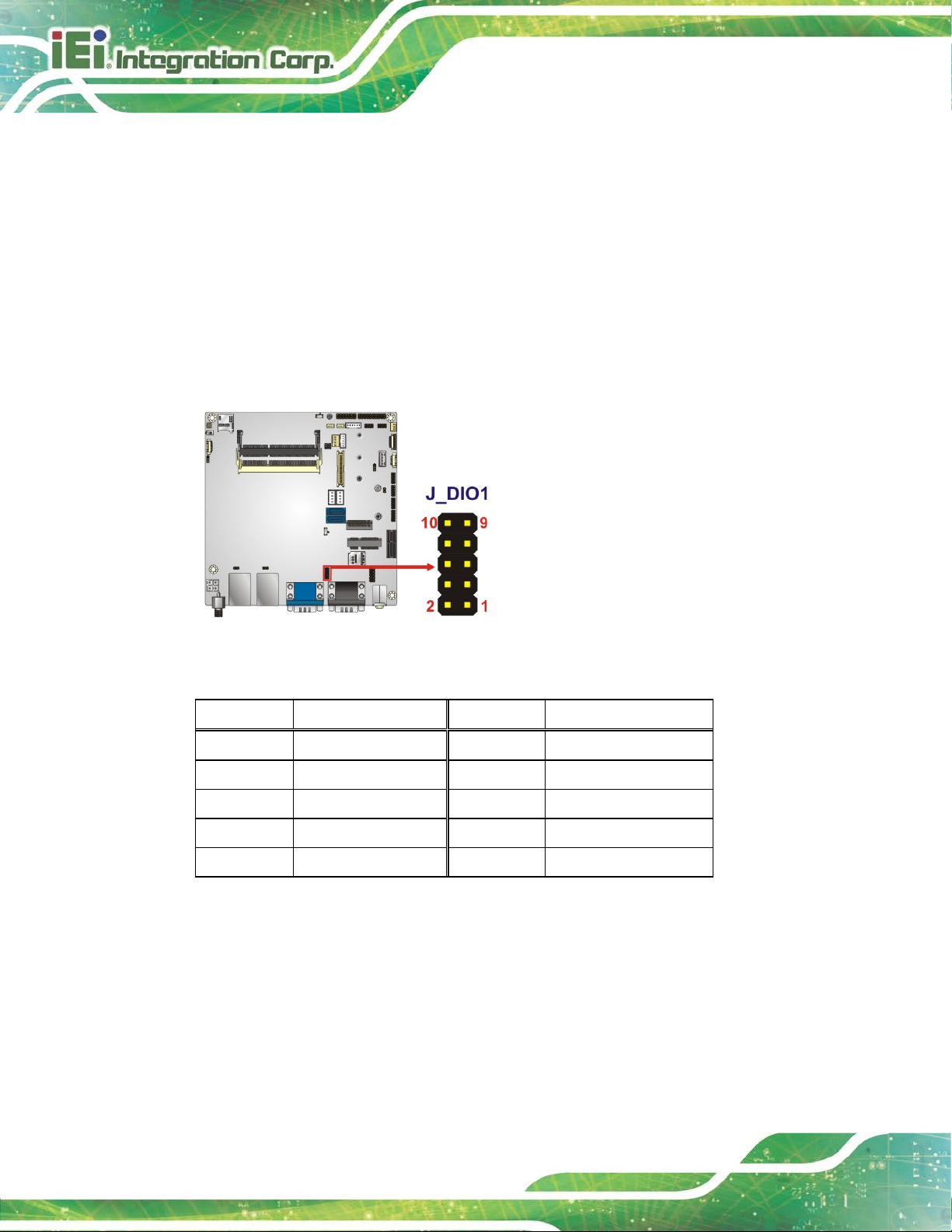

Figure 3-6: Digital I/O Connector Location ................................................................................ 22

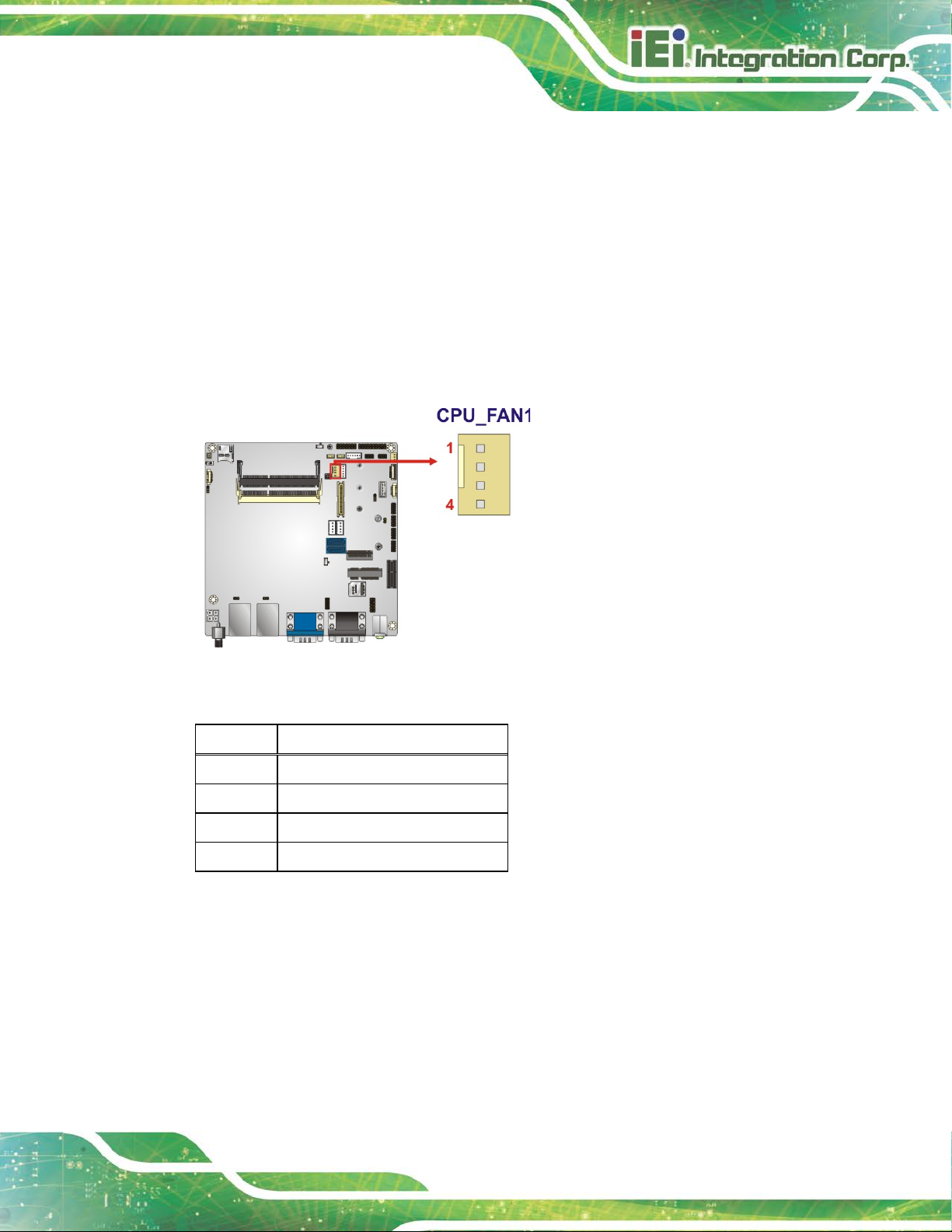

Figure 3-7: CPU Fan Connector Locations ................................................................................ 23

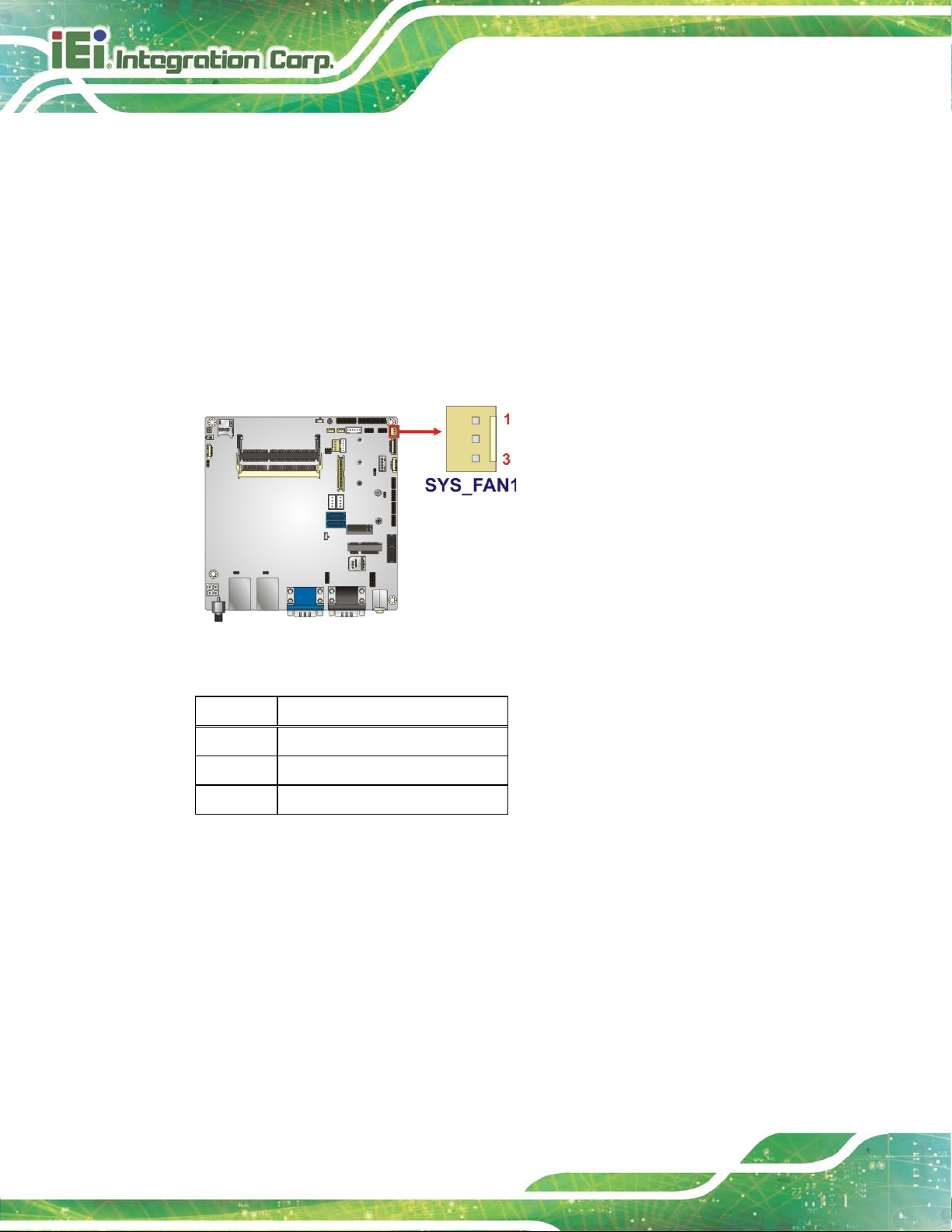

Figure 3-8: System Fan Connector Locations ........................................................................... 24

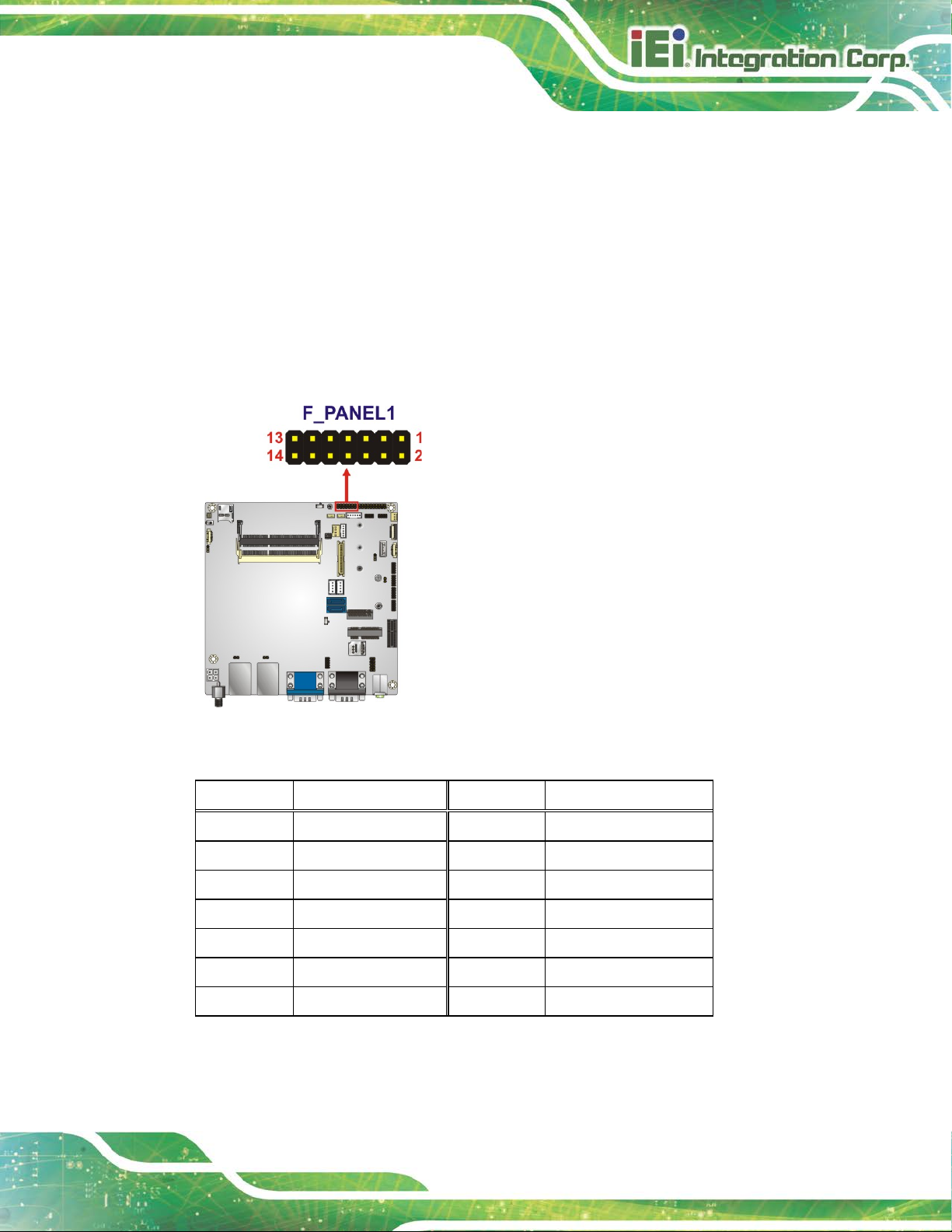

Figure 3-9: Front Panel Connector Location ............................................................................. 25

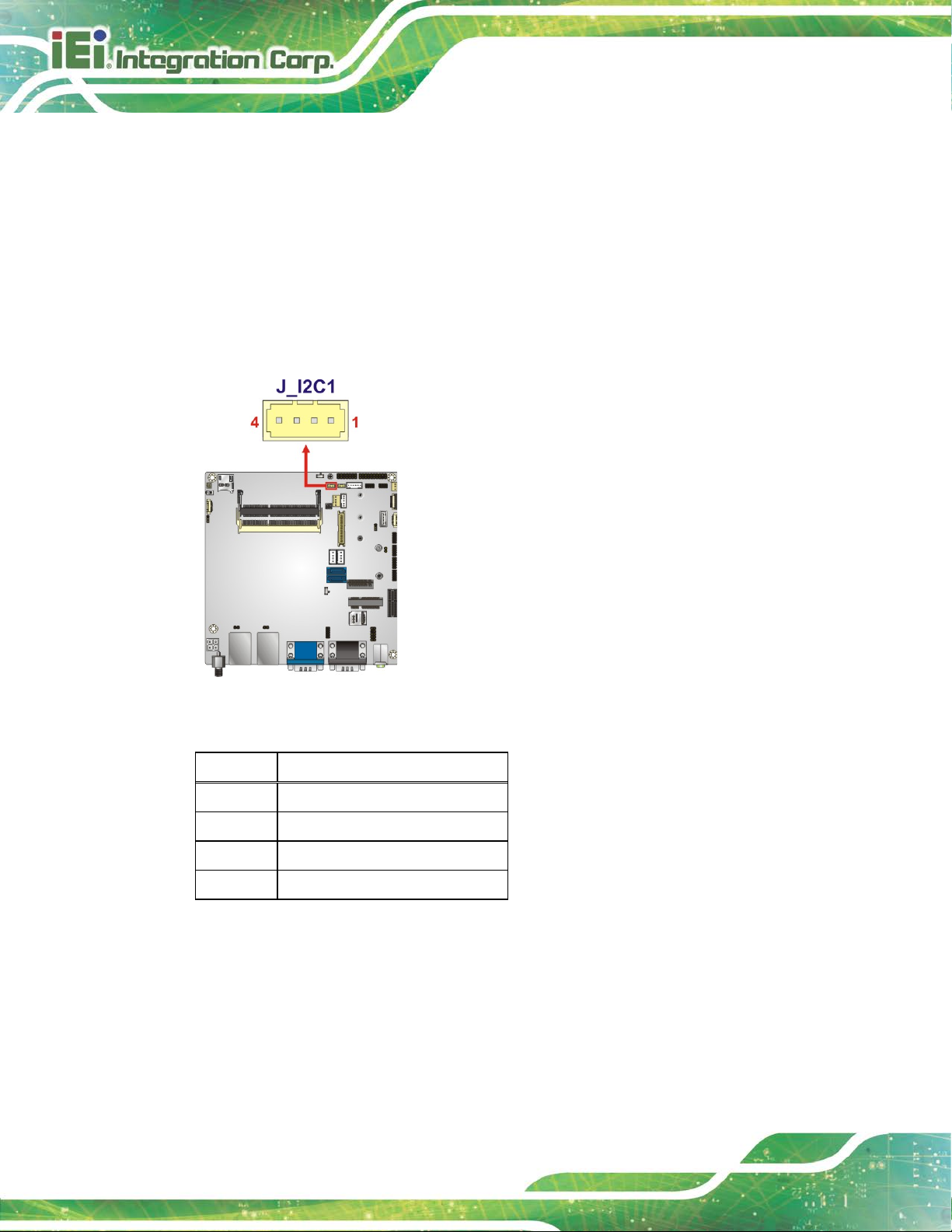

Figure 3-10: I2C Connector Pinout Locations ........................................................................... 26

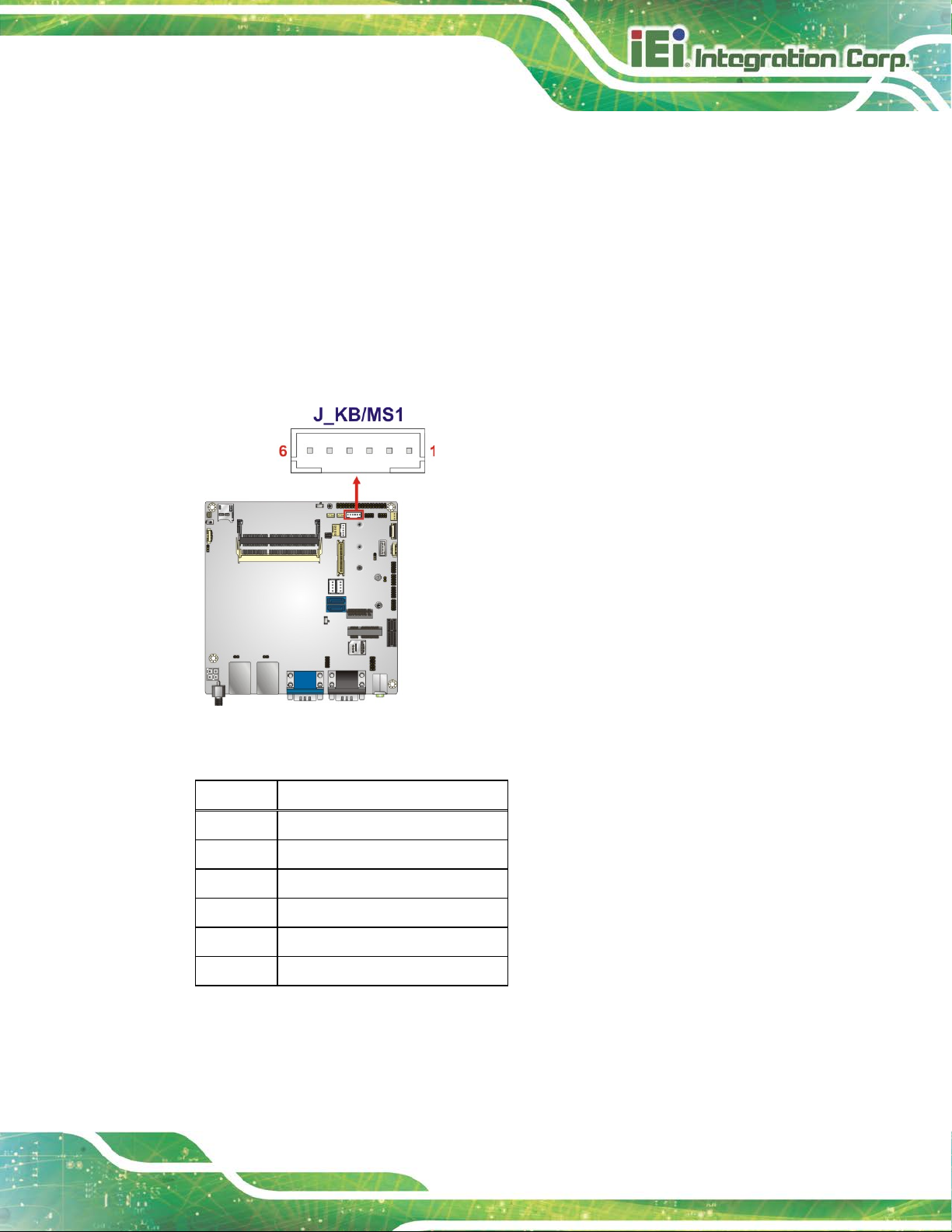

Figure 3-11: Keyboard and Mouse Connector Location ........................................................... 27

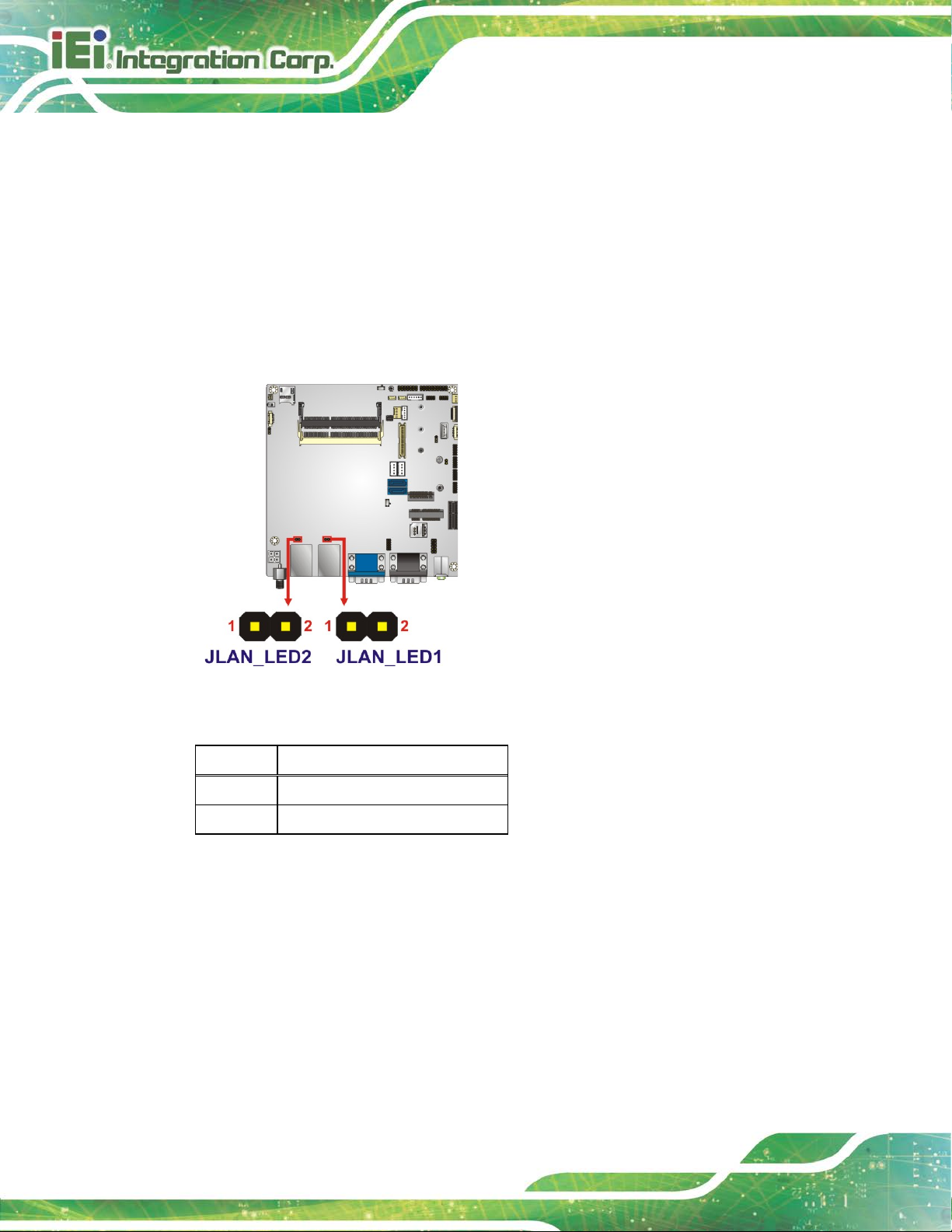

Figure 3-12: LAN LED Connector Locations ............................................................................. 28

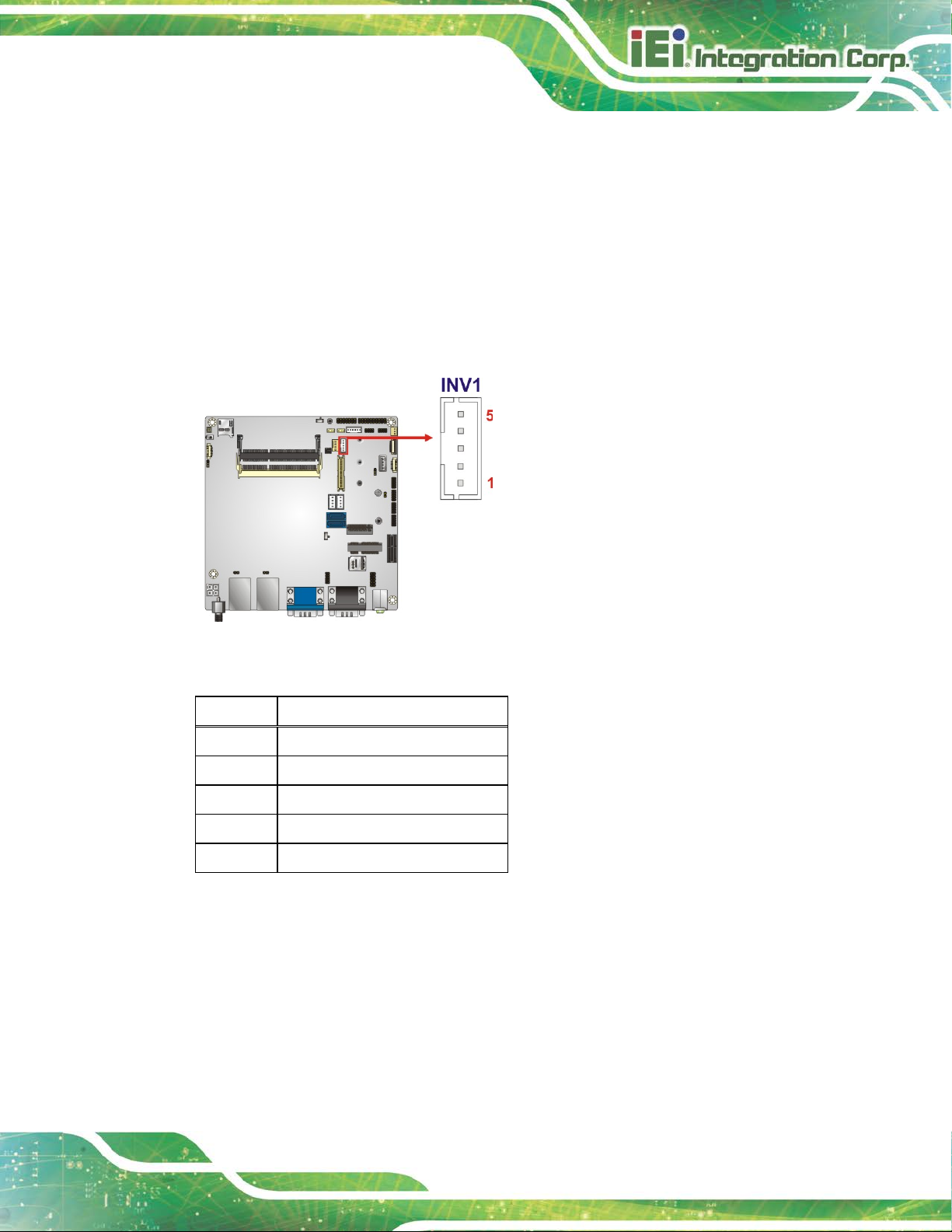

Figure 3-13: LCD Inverter Connector Location ......................................................................... 29

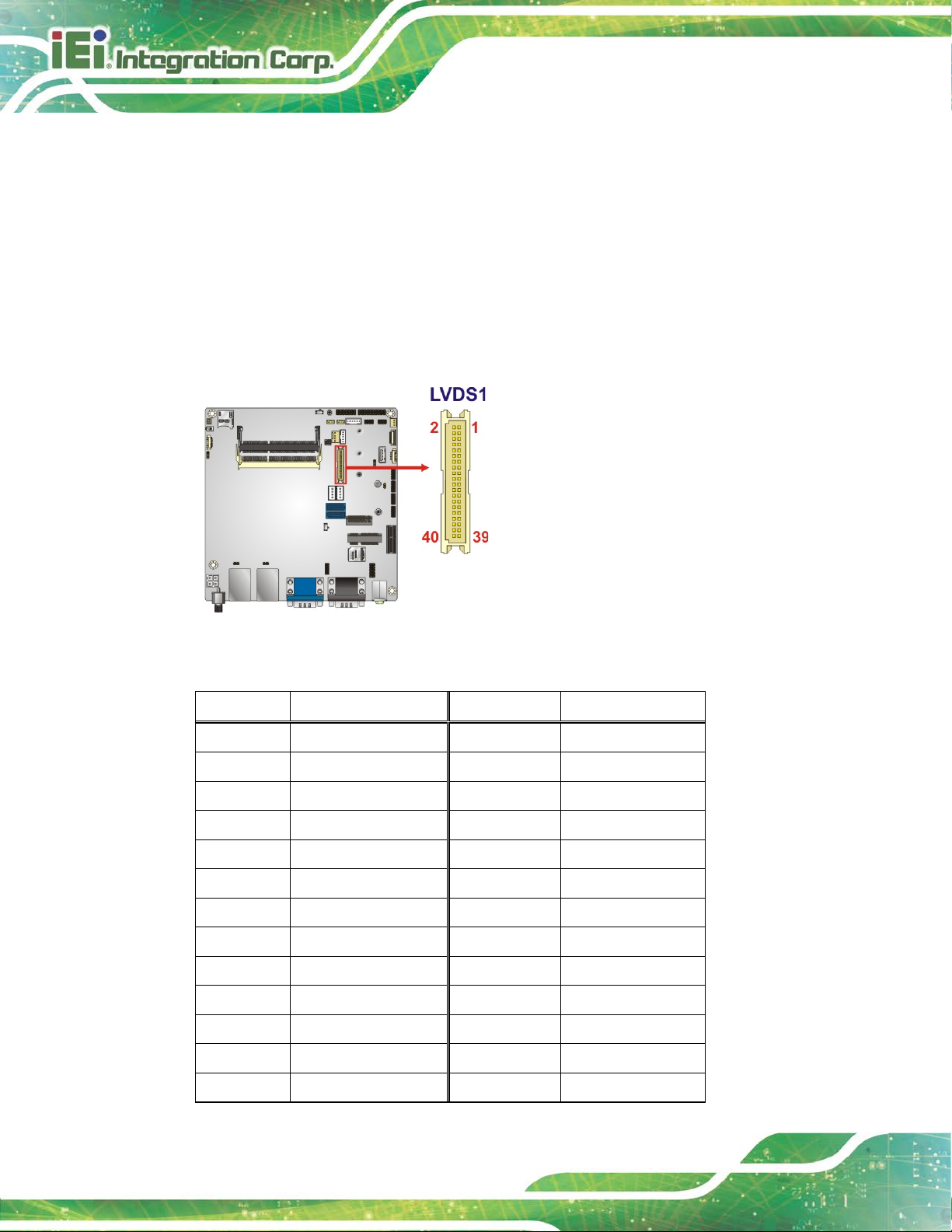

Figure 3-14: LVDS Connector Location...................................................................................... 30

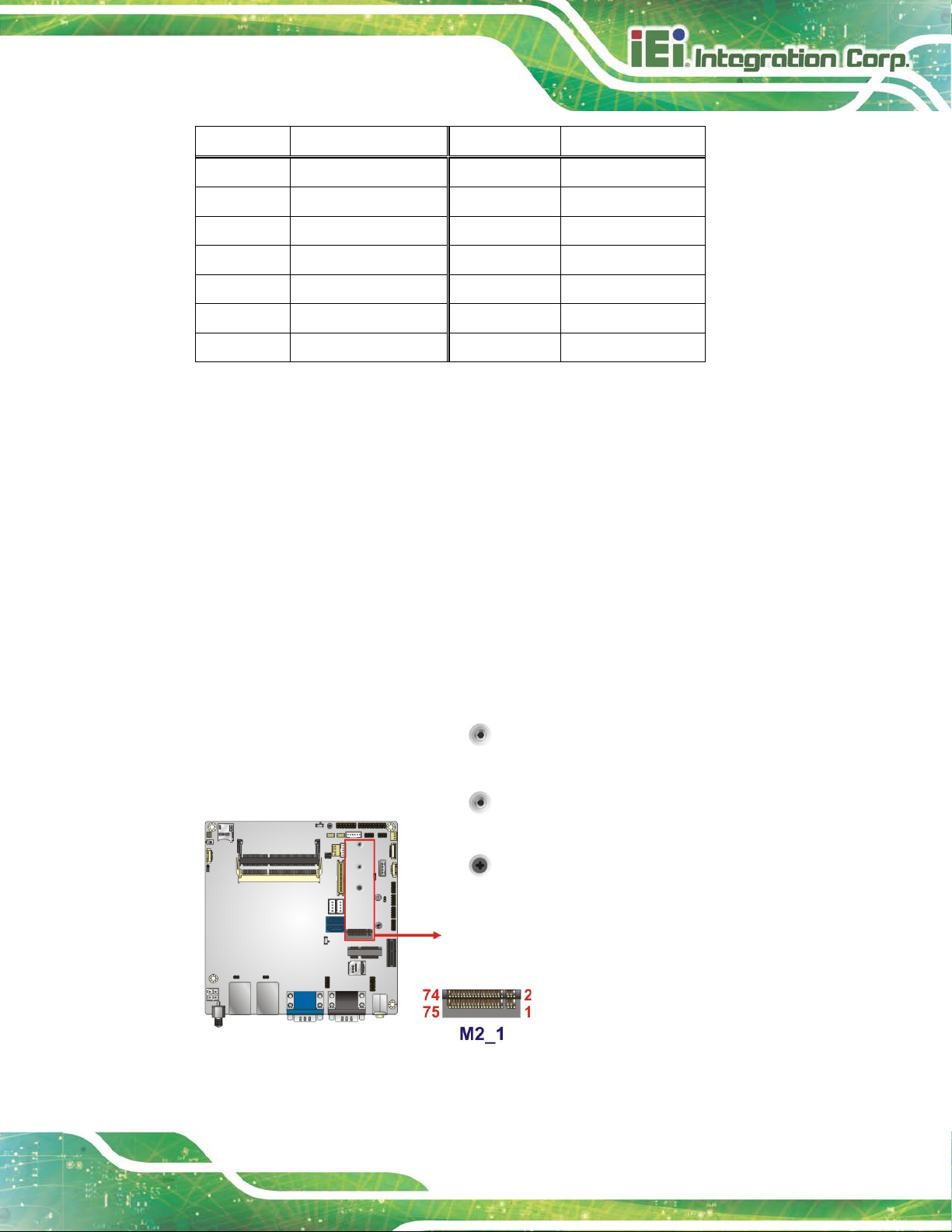

Figure 3-15: M.2 Slot Location .................................................................................................... 31

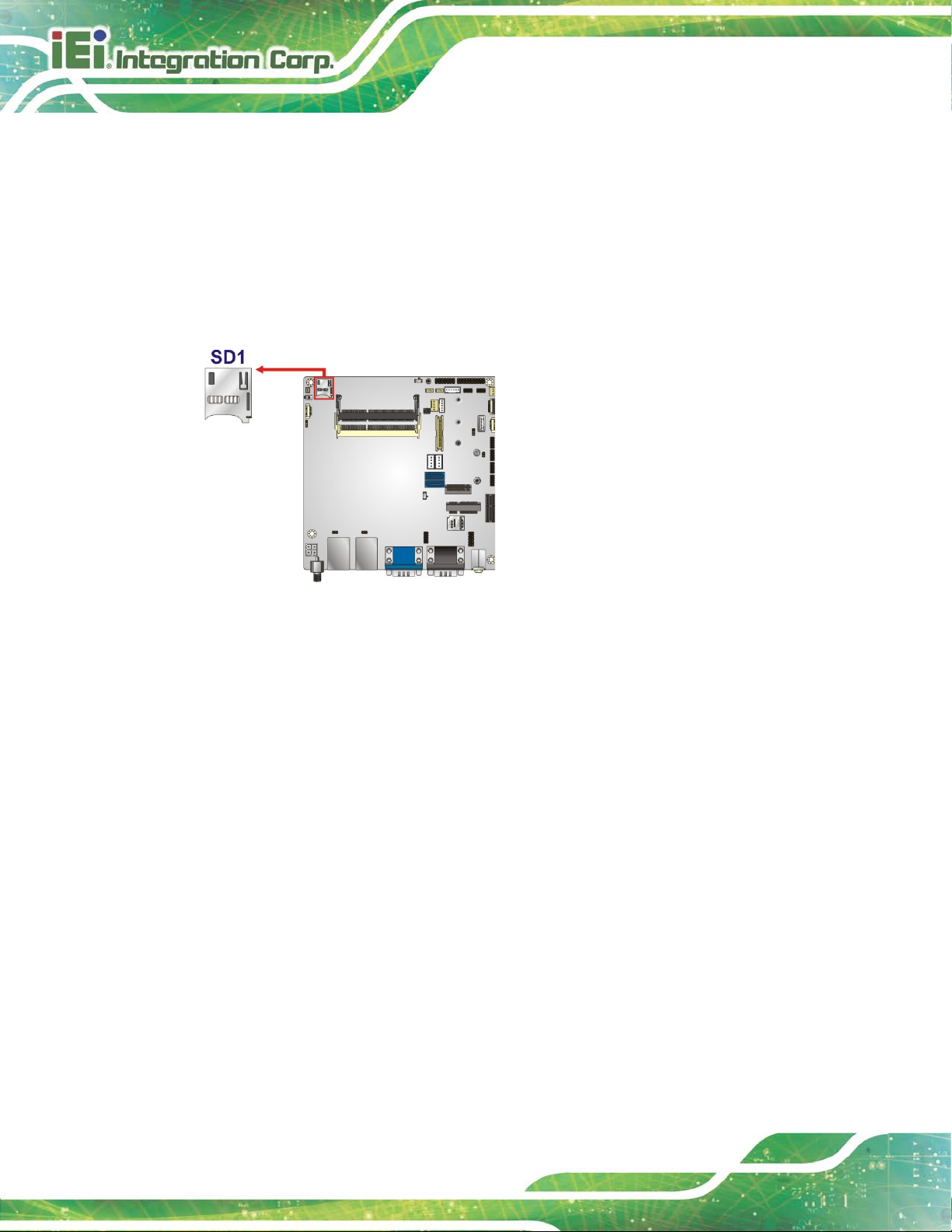

Figure 3-16: microSD Card Slot Location .................................................................................. 32

Figure 3-17: PCIe Mini Card Slot Location ................................................................................. 33

Figure 3-18: PCIe x1 Slot Location ............................................................................................. 34

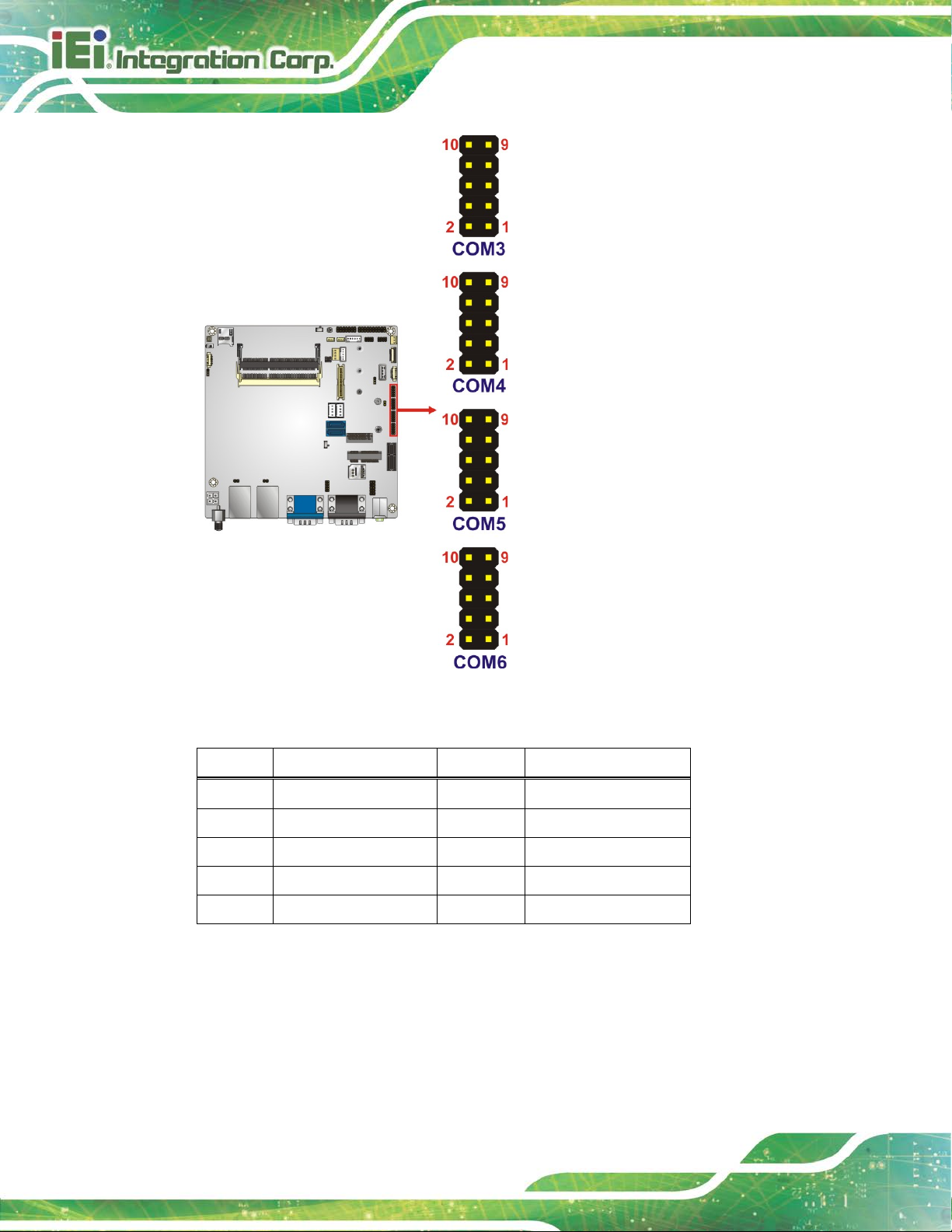

Figure 3-19: RS-232 Serial Port Connector Locations .............................................................. 36

Figure 3-20: SATA 6Gb/s Drive Connectors Locations ............................................................ 37

Figure 3-21: SATA Power Connector Locations ....................................................................... 38

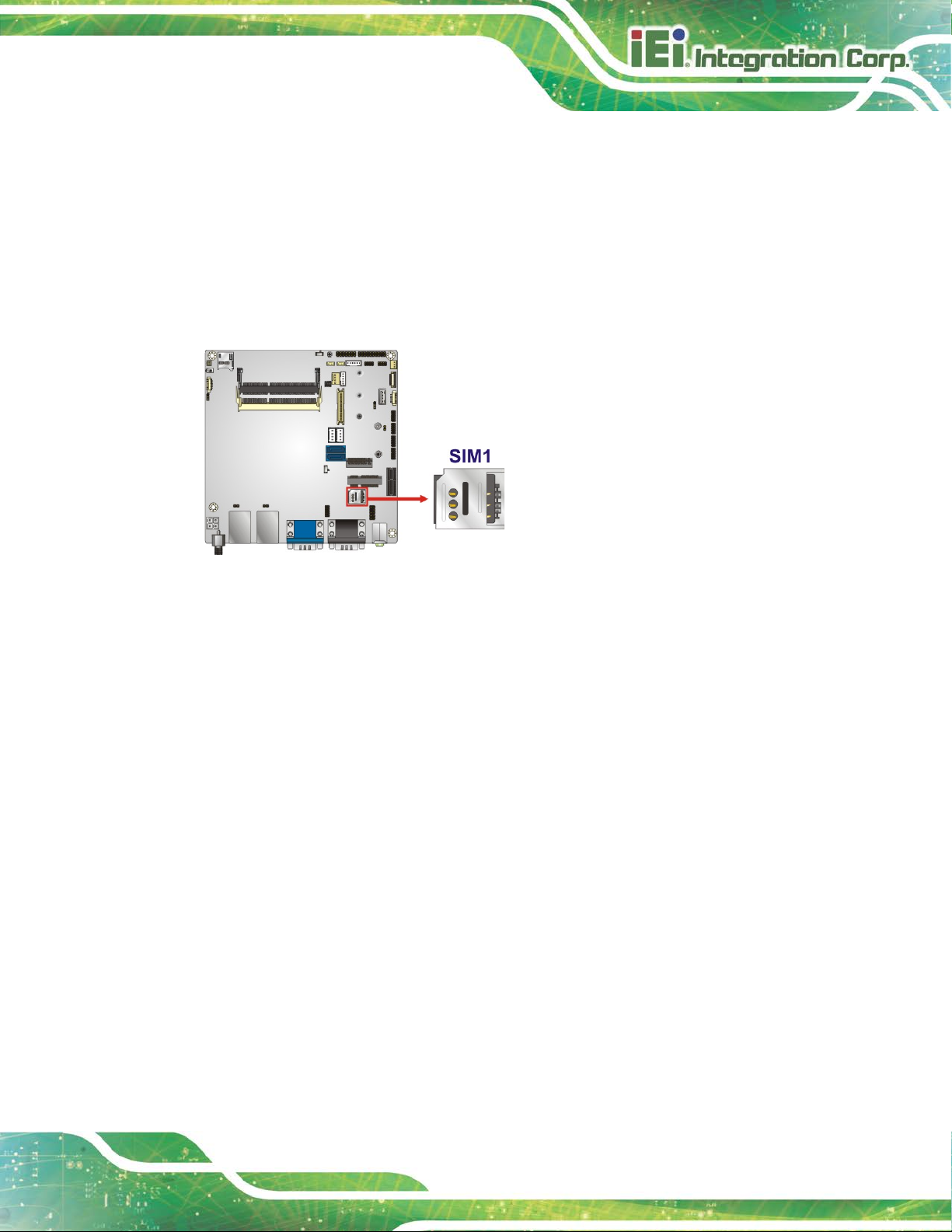

Figure 3-22: SIM Card Slot Location ........................................................................................... 39

Figure 3-23: SMBus Connector Location ................................................................................... 40

Figure 3-24: BIOS SPI Flash Connector Location ..................................................................... 41

Figure 3-25: EC SPI Flash Connector Location ......................................................................... 42

Figure 3-26: TPM Connector Location ........................................................................................ 43

Figure 3-27: USB Connector Locations...................................................................................... 44

Page 10

KINO-DAL SBC

Page X

Figure 3-28: External Peripheral Interface Conn ector .............................................................. 45

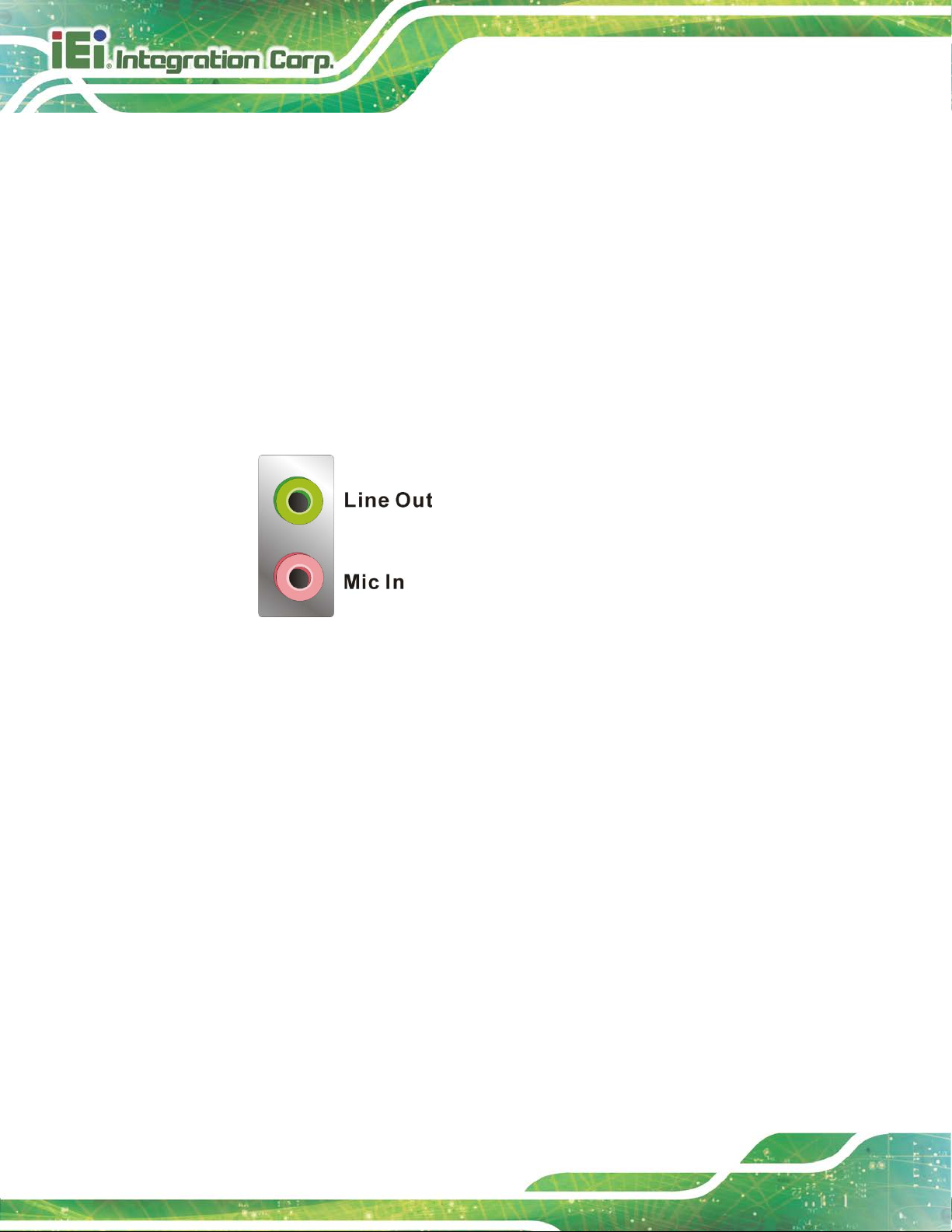

Figure 3-29: Audio Connector ..................................................................................................... 46

Figure 3-30: HDMI Connector ...................................................................................................... 47

Figure 3-31: LAN Connector ........................................................................................................ 48

Figure 3-32: USB 3.0 Port Pinout Locations .............................................................................. 49

Figure 3-33: Power Jack .............................................................................................................. 50

Figure 3-34: Serial Port Pinouts .................................................................................................. 51

Figure 3-35: VGA Connector ....................................................................................................... 52

Figure 4-1: SO-DIMM Installation ................................................................................................ 56

Figure 4-2: Removing the M.2 Module Retention Screw and Plastic Ring ............................. 57

Figure 4-3: Inserting the M.2 Module into the Slot at an Angle ............................................... 58

Figure 4-4: Securing the M.2 Module .......................................................................................... 58

Figure 4-5: Removing the Retention Screw ............................................................................... 59

Figure 4-6: Inserting the Full-size PCIe Mini Card into the Slot at an Angle .......................... 60

Figure 4-7: Securing the Full-size PCIe Mini Card .................................................................... 60

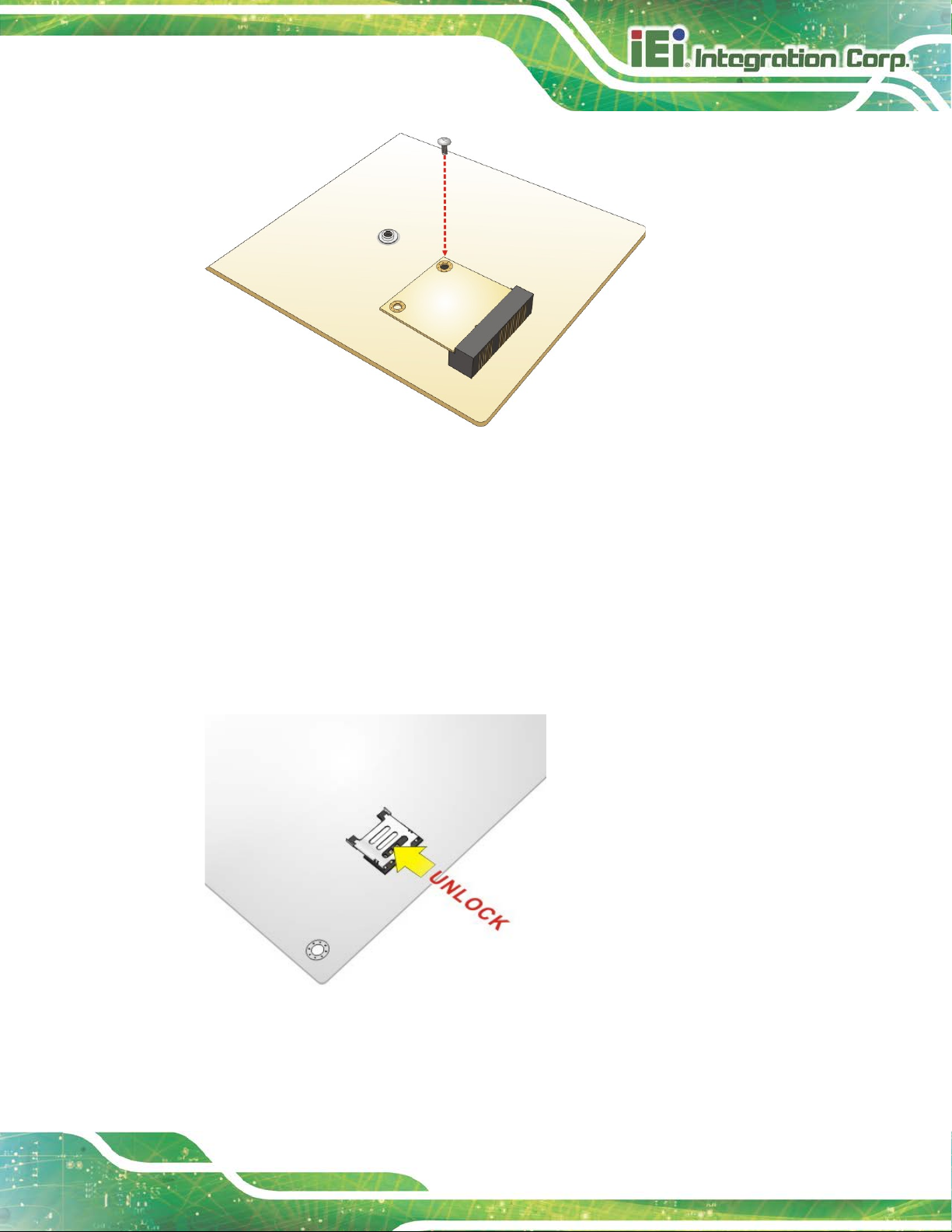

Figure 4-8: Removing Retention Screw and Standoff .............................................................. 61

Figure 4-9: Installing the Standoff .............................................................................................. 62

Figure 4-10: Inserting the Half-size PCIe Mini Card into the Slot at an Angle ........................ 62

Figure 4-11: Securing the Half-size PCIe Mini Card .................................................................. 63

Figure 4-12: Unlock SIM Card Slot Cover .................................................................................. 63

Figure 4-13: SIM Card Installation ............................................................................................... 64

Figure 4-14: Lock SIM Card Slot Cover ...................................................................................... 64

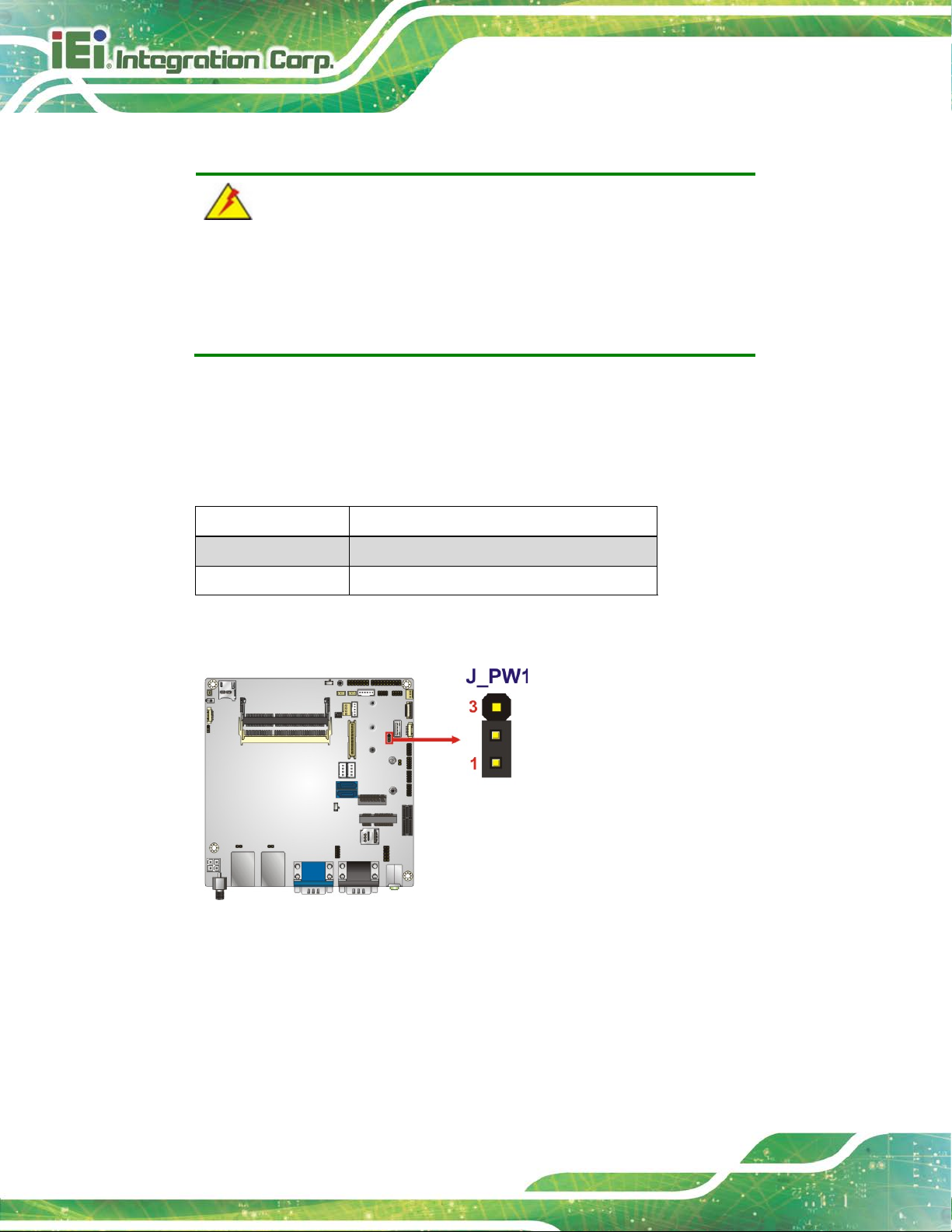

Figure 4-15: AT/ATX Mode Select Switch Location .................................................................. 65

Figure 4-16: Clear CMOS Button Location ................................................................................. 66

Figure 4-17: Flash Descriptor Security Override Jumper Location ........................................ 67

Figure 4-18: LVDS Voltage Select Jumper Locati o n ................................................................. 68

Figure 4-19: LVDS Panel Resolution Select Switch Location .................................................. 69

Figure 4-20: M.2 and SATA2 Select Switch Location ................................................................ 70

Figure 4-21: SATA Drive Cable Connection ............................................................................... 72

Figure 6-1: IEI Resource Download Center ..............................................................................116

Page 11

KINO-DAL SBC

Page XI

List of Tables

Table 1-1: KINO-DAL Model Variations ........................................................................................ 3

Table 1-2: Technical Specifications .............................................................................................. 9

Table 3-1: Peripheral Interface Connectors ............................................................................... 17

Table 3-2: Rear Panel Connectors .............................................................................................. 17

Table 3-3: Audio Connector Pinouts .......................................................................................... 18

Table 3-4: Battery Connector Pinouts ........................................................................................ 20

Table 3-5: Chassis Intrusion Connector Pinouts ...................................................................... 20

Table 3-6: DC-IN Power Connector Pinouts ............................................................................... 21

Table 3-7: Digital I/O Connector Pinouts .................................................................................... 22

Table 3-8: CPU Fan Connector Pinouts...................................................................................... 23

Table 3-9: System Fan Connector Pinouts ................................................................................ 24

Table 3-10: Front Panel Connector Pinouts ............................................................................... 25

Table 3-11: I2C Connector Pinouts ............................................................................................. 26

Table 3-12: Keyboard and Mouse Connector Pinouts .............................................................. 27

Table 3-13: LAN LED Connector Pinouts ................................................................................... 28

Table 3-14: LCD Inverter Connector Pinouts ............................................................................. 29

Table 3-15: LVDS Connector Pinouts ......................................................................................... 31

Table 3-16: PCIe Mini Card Slot Pinouts .................................................................................... 34

Table 3-17: PCIe x1 Slot Pinouts ................................................................................................. 35

Table 3-18: RS-232 Serial Port Connector Pinouts ................................................................... 36

Table 3-19: SATA Power Connector Pinouts ............................................................................. 38

Table 3-20: SMBus Connector Pinouts ...................................................................................... 40

Table 3-21: BIOS SPI Flash Connector Pinouts ........................................................................ 41

Table 3-22: EC SPI Flash Connector Pinouts ............................................................................ 42

Table 3-23: TPM Connector Pinouts ........................................................................................... 43

Table 3-24: USB Connector Pinouts ........................................................................................... 44

Table 3-25: HDMI Connector Pinouts ......................................................................................... 47

Table 3-26: LAN Pinouts .............................................................................................................. 48

Table 3-27: Connector LEDs ........................................................................................................ 48

Table 3-28: USB 3.0 Port Pinouts ................................................................................................ 49

Table 3-29: RS-232/422/485 Serial Port Pinouts ........................................................................ 51

Page 12

KINO-DAL SBC

Page XII

Table 3-30: VGA Connector Pinouts ........................................................................................... 52

Table 4-1: AT/ATX Mode Select Switch Settings ....................................................................... 65

Table 4-2: Flash Descriptor Security Override Jumper Settings ............................................. 67

Table 4-3: LVDS Voltage Select Jumper Settings ..................................................................... 68

Table 4-4: LVDS Panel Resolution Selection ............................................................................. 69

Table 4-5: M.2 and SATA2 Select Switch Settings .................................................................... 70

Table 5-1: BIOS Navigation Keys ................................................................................................ 75

Page 13

KINO-DAL SBC

Page XIII

List of BIOS Menus

BIOS Menu 1: Main ....................................................................................................................... 76

BIOS Menu 2: Advanced .............................................................................................................. 77

BIOS Menu 3: ACPI Settings ....................................................................................................... 78

BIOS Menu 4: F81866 Super IO Configuration .......................................................................... 79

BIOS Menu 5: Serial Port n Configuration ................................................................................. 79

BIOS Menu 6: iWDD H/W Monitor ............................................................................................... 86

BIOS Menu 7: Smart Fan Mode Configuration .......................................................................... 87

BIOS Menu 8: USB Configuration ............................................................................................... 88

BIOS Menu 9: CPU Configuration ............................................................................................... 89

BIOS Menu 10: RTC Wake Settings ............................................................................................ 91

BIOS Menu 11: Power Saving Configuration ............................................................................. 92

BIOS Menu 12: Serial Port Console Redirection ....................................................................... 93

BIOS Menu 13: Legacy Console Redirection Settings ............................................................. 94

BIOS Menu 14: IEI Feature ........................................................................................................... 95

BIOS Menu 15: Chipset ................................................................................................................ 96

BIOS Menu 16: North Bridge Configuration .............................................................................. 97

BIOS Menu 17: Intel IGD Configuration ...................................................................................... 98

BIOS Menu 18: LCD Control ......................................................................................................100

BIOS Menu 19: South Bridge Configuration ............................................................................102

BIOS Menu 20: HD-Audio Configuration ..................................................................................104

BIOS Menu 21: PCI Express Configuration .............................................................................105

BIOS Menu 22: Onboard LAN ....................................................................................................106

BIOS Menu 23: MPCIE1 ..............................................................................................................107

BIOS Menu 24: SATA Configuration .........................................................................................108

BIOS Menu 25: Security .............................................................................................................110

BIOS Menu 26: Boot ...................................................................................................................111

BIOS Menu 27: Save & Exit ........................................................................................................113

Page 14

Page 15

KINO-DAL SBC

Page 1

Chapter

1 Introduction

Page 16

KINO-DAL SBC

Page 2

1.1 Introduction

Figure 1-1: KINO-DAL

The KINO-DAL series is a Mini-ITX form factor single bard computer. It has an on-board

14nm Intel 1867/1600 MHz dual-channel DDR3 Low Voltage (DDR3L) SDRAM SO-DIMM slots with up to 8.0 GB of memory.

The KINO-DAL series includes one internal LVDS connector, one VGA connector and one HDMI connectors for triple independent. Expansion and I/O include one PCIe x1 slot, one PCIe Mini slot supporting WWAN modules, one M.2 B-key slot for expansion, four USB 3.0 connectors on the rear panel, four USB 2.0 connector s by pin header and two SATA 6Gb/s connectors. Serial device connectivity is provided by four internal RS-232 connectors and two external RS-232/422/485 connectors. Two RJ-45 GbE connectors provide the system with smooth connections to an external LAN.

Atom™ , Pentium® or Celeron® processor, and supports two 204-pin

Page 17

KINO-DAL SBC

Page 3

1.2 Model Variations

The model variations of the KINO-DAL series are listed below.

Model No. SoC Power Input Operating Temp.

KINO-DAL-N2 KINO-DAL-N1 KINO-DAL-E3W2* KINO-DAL-E2W2 KINO-DAL-E1W2 *By order production, MOQ 100

Table 1-1: KINO-DAL Model Variations

1.3 Features

Some of the KINO-DAL motherboard features are listed bel ow:

 Mini-ITX motherboard supports 14nm Intel

 Triple independent display support

Intel® Pentium® N4200 12 V DC -20°C ~ 70°C Intel® Celeron® N3350 12 V DC -20°C ~ 70°C Intel® Atom™ E3950 9 V ~ 30 V DC -40°C ~ 85°C Intel® Atom™ E3940 9 V ~ 30 V DC -40°C ~ 85°C Intel® Atom™ E3930 9 V ~ 30 V DC -40°C ~ 85°C

on-board SoC

Atom™/Pentium®/Celeron®

 Two 1867/1600 MHz DDR3L SO-DIMM slots support up to 8 GB of memory  Two SATA 6Gb/s connectors with 5 V / 12 V power output  Full-size/half-size PCIe Mini card slot with optional S IM card holder for

WWAN expansion

 M.2 2242/2260/2280 B-key modules supported  Four USB 3.0 external connectors  Two external RS-232/422/485 connectors and four internal RS-232

connectors

 Optional 9 V ~ 30 V DC wide power input range  IEI One Key Recovery solution allows you to create rapid OS backup and

recovery

Page 18

KINO-DAL SBC

Page 4

1.4 Connectors

The connectors on the KINO-DAL are shown in the figure below.

Figure 1-2: Connectors (Front Side)

Page 19

KINO-DAL SBC

Page 5

1.5 Dimensions

The dimensions of the board are listed below:

Figure 1-3: Dimensions (mm)

Page 20

KINO-DAL SBC

Page 6

1.6 Data Flow

Figure 1-4 shows the data flow between the system chipset, the CPU and other

components installed on the motherboard.

Figure 1-4: Data Flow Diagram

Page 21

KINO-DAL SBC

Page 7

1.7 Technical Specifications

KINO-DAL technical specifications are listed below.

Specification KINO-DAL Form Factor SoC

BIOS Memory

Mini-ITX Intel® Pentium® N4200 on-board SoC

(up to 2.5 GHz, quad-core, 2 MB cache, TDP=6 W) Intel® Celeron® N3350 on-board SoC (up to 2.4 GHz, dual-core, 2 MB cache, TDP=6 W) Intel® Atom™ E 3950 on-board SoC (up to 2.0 GHz, quad-core, 2 MB cache, TDP=12 W) Intel® Atom™ E 3940 on-board SoC (up to 1.8 GHz, quad-core, 2 MB cache, TDP=9 W) Intel® Atom™ E 3930 on-board SoC (up to 1.8 GHz, dual-core, 2 MB cache, TDP=6 W)

AMI UEFI BIOS Two 204-pin 1867/1600 MHz dual-channel DDR3L SDRAM

SO-DIMM slots (system max. 8 GB) Optional eMMC 5.0 (up to 32 GB)

Graphics

Display Output

Ethernet Digital I/O Super IO Embedded Controller

9th generation Intel® HD Graphics with 18 execution units, supporting 4K codec decode & encode for HEVC, H.264, VP8, SVC and MVC

Triple independent display 1 x 18/24-bit dual channel LVDS (up to 1920x1200 @ 60Hz) 1 x VGA (up to 1920x1200 @ 60Hz)

1 x HDMI (up to 3840x2160 @ 30Hz) Dual Intel® I211-AT PCIe GbE controller 8-bit digital I/O by 10-pin (2x5) header Fintek F81866 ITE IT8528

Page 22

KINO-DAL SBC

Page 8

Specification KINO-DAL Audio Watchdog Timer I/O Interface Audio Connector

Ethernet Keyboard/Mouse Serial Ports

USB Ports

Front Panel

Realtek ALC662 HD Audio codec Software programmable support 1~255 sec. system reset

2 x Audio jack (line-out, mic-in) 1 x Front audio by 10-pin (2x5) header

2 x RJ-45 GbE port 1 x KB/MS by 6-pin (1x6) wafer 2 x RS-232/422/485 by DB-9

4 x RS-232 by 10-pin (2x5) header 4 x USB 3.0 on rear I/O

4 x USB 2.0 by 8-pin (2x4) header 1 x USB 2.0 by internal 180° T ype A

1 x Front panel connector by 14-pin (2x7) header for power LED, HDD LED, speaker, power button and reset button

LAN LED Fan

SMBus I2C TPM Storage

Expansion

Environmental and Power Specifications

2 x LAN link LED connector by 2-pin header 1 x CPU smart fan connector by 4-pin (1x4) wafer

1 x System smart fan connector by 3-pin (1x3) wafer 1 x SMBus connector by 4-pin (1x4) wafer 1 x I2C connector by 4-pin (1x4) wafer 1 x TPM connector by 20-pin (2x10) he ader 2 x SATA 6Gb/s with 5 V / 12 V SATA power connectors

1 x microSD socket (optional) 1 x Full-size/Half-size PCIe Mini card slot (with optional SIM

card holder) 1 x M.2 2242/2260/2280 slot (B key, SATA 1 port + USB 2.0

signal) 1 x PCIe x1 slot

Page 23

KINO-DAL SBC

Page 9

Specification KINO-DAL Power Supply

Power Connector

Power Consumption

Operating Temperature Storage Temperature Humidity Safety Physical Specifications Dimensions Weight GW/NW

Default: 12 V DC input Optional: 9 V ~ 30 V DC input (KINO-DAL-ExW2) AT/ATX mode supported

1 x External DC power jack (ø5.5 mm) 1 x Internal power connector by 4-pin (2x2) connector

+12 V@ 3.64 A (Intel® Pentium® N4200 processor with two 4 GB 1600 MHz DDR3L m emo ry)

-20°C ~ 70°C / -40°C ~ 85°C (KINO-DAL-ExW2 series)

-40°C ~ 85°C 5% ~ 95%, non-condensing CE, FCC

170 mm x 170 mm 1100 g / 700 g

Table 1-2: Technical Specifications

Page 24

KINO-DAL SBC

Page 10

Chapter

2 Unpacking

Page 25

KINO-DAL SBC

Page 11

2.1 Anti-static Precautions

WARNING!

Static electricity can destroy certain elect ronics. Make sur e to follow the ESD precautions to prevent damage to the product, and injury to the user.

Make sure to adhere to the following guidelines:

 Wear an anti-static wristband: Wearing an anti-static wristband can prevent

electrostatic discharge.

 Self-grounding: Touch a grounded conductor every few minutes to discharge

any excess static buildup.

 Use an anti-static pad: When configuring any circuit board, place it on an

anti-static mat.

 Only handle the edges of the PCB: Don't touch the surface of the

motherboard. Hold the motherboard by the edges when handling.

2.2 Unpacking Precautions

When the KINO-DAL is unpacked, please do the following:

 Follow the antistatic guidelines above.  Make sure the packing box is facing upwards when opening.  Make sure all the packing list items are present .

Page 26

KINO-DAL SBC

Page 12

2.3 Packing List

NOTE:

If any of the components listed in the checklist below are missing, do not proceed with the installation. Contact the IEI reseller or vendor the KINO-DAL was purchased from or contact an IEI sales repr esentative directly by sending an email to sales@ieiworld.com

The KINO-DAL is shipped with the following components:

Quantity Item and Part Number Image

1 KINO-DAL single board computer

1 SATA with 5V/12V output cable kit

(P/N: 32801-000100-300-RS)

1 I/O shielding

1 Quick Installation Guide

Page 27

KINO-DAL SBC

Page 13

2.4 Optional Items

The following are optional components which may be separately purchased:

Item and Part Number Image

KB/MS PS/2 Y -cable, 135 mm, P=2.0 (P/N: 32000-023800-RS)

Dual USB cable (wo bracket), 210mm, P=2.0 (P/N: 32000-070301-RS)

RS-232 cable, 200mm, P=2.0 (P/N: 32205-002700-100-RS)

Infineon TPM 2.0 module, 20-pin, firmware v5.5 (P/N: TPM-IN02-R20)

Page 28

KINO-DAL SBC

Page 14

Chapter

3 Connectors

Page 29

KINO-DAL SBC

Page 15

3.1 Peripheral Interface Connectors

This chapter details all the jumpers and connectors.

3.1.1 KINO-DAL Layout

The figures below show all the connectors and jumpers.

Figure 3-1: Connector and Jumper Locations

Page 30

KINO-DAL SBC

Page 16

3.1.2 Peripheral Interface Connectors

The table below lists all the connectors on the board.

Connector Type Label

Audio connector 10-pin header HDA1

Battery connector 2-pin wafer BT1

Chassis intrusion connector 2-pin header J_CS1

DC-IN power connector 4-pin Molex PWR3

Digital I/O connector 10-pin header J_DIO1

Fan connector, CPU 4-pin wafer CPU_FAN1

Fan connector, system 3-pin wafer SYS_FAN1

Front panel connector 14-pin header F_PANEL1

I2C connector 4-pin wafer J_I2C1

Keyboard & mouse connector 6-pin wafe r J_KB/MS1

JLAN_LED1,

LAN LED connectors 2-pin header

JLAN_LED2

LCD inverter connector 5-pin wafer INV1

LVDS connector 40-pin crimp LVDS1

M.2 slot M.2 B-key slot M2_1

204-pin DDR3L

Memory slot

SO-DIMM

microSD slot (optional) microSD slot SD1

PCIe Mini card slot PCIe Mini slot MPCIE1

DIMM1, DIMM2

PCIe x1 slot PCIe x1 slot PCIE1

Power button On-board power button PWR_SW1

Page 31

KINO-DAL SBC

Page 17

COM3, COM4,

RS-232 serial port connectors 10-pin header

COM5, COM6

SATA 6Gb/s drive connectors 7-pin SATA connector SATA1, SATA2

SATA_PWR1,

SATA power connectors 4-pin wafer

SATA_PWR2

SIM card slot (optional) micro-SIM card slot SIM1

SMBus connector 4-pin wafer J_SMB1

SPI flash connector, BIOS 6-pin wafer J_SPI1

SPI flash connector, EC 6-pin wafer J_EC1

TPM connector 20-pin header TPM1

USB 2.0 connector 8-pin header USB1, USB2

Table 3-1: Peripheral Interface Connectors

3.1.3 External Interface Panel Connectors

The table below lists the connectors on the external I /O panel.

Connector Type Label

Audio jack Audio jack AUDIO1

DC-IN power jack Power jack PWR1

HDMI connector HDMI HDMI1

LAN and USB 3.0 combo connectors RJ-45, USB 3.0 LAN1_USB01_1,

RS-232/422/485 serial port connectors DB-9 COM1-2_1

LAN2_USB23_1

VGA connector DB-15 VGA1

Table 3-2: Rear Panel Connectors

Page 32

KINO-DAL SBC

Page 18

3.2 Internal Peripheral Connectors

The section describes all of the connectors on the KINO-DAL.

3.2.1 Audio Connector

CN Label:

CN Type:

CN Location:

CN Pinouts:

The audio connector supporting High-Definition Audio is connected to external audio devices including speakers and microphones for the input and output of audio signals to and from the system.

HDA1

10-pin header, p=2.54 mm

See Figure 3-2

See Table 3-3

Figure 3-2: Audio Connector Location

Pin Description Pin Description

1 MIC2-L 2 GND 3 MIC2-R 4 Pre-Sense# 5 LINE2-R 6 MIC2-JD 7 GND 8 Key 9 LINE2-L 10 LINE2-JD

Table 3-3: Audio Connector Pinouts

Page 33

KINO-DAL SBC

Page 19

type. Only

Dispose of used batteries according to instructions and local

3.2.2 Battery Connector

CAUTION:

Risk of explosion if battery is replaced by an incorrect certified engineers should replace the on-board bat tery.

regulations.

NOTE:

It is recommended to attach the RTC battery onto the system chassis in which the KINO-DAL is installed.

CN Label:

CN Type:

CN Location:

CN Pinouts:

The battery connector is connected to the system battery. The battery provides power to the system clock to retain the time when power is turned off.

BT1

2-pin wafer, p=1.25 mm

See Figure 3-3

See Table 3-4

Figure 3-3: Battery Connector Location

Page 34

KINO-DAL SBC

Page 20

Pin Description

1 RTC Battery+ 2 RTC Battery-

Table 3-4: Battery Connector Pinouts

3.2.1 Chassis Intrusion Connector

CN Label: J_CS1 CN Type: CN Location: CN Pinouts:

The chassis intrusion connector is for a chassis intrusion detection sensor or switch that detects if a chassis component is removed or repl aced.

2-pin header, , p=2.0 mm See Figure 3-4 See Table 3-5

Figure 3-4: Chassis Intrusion Connector Location

Pin Description

1 +V3.3A_EC 2 CHASSIS_EC

Table 3-5: Chassis Intrusion Connector Pinouts

Page 35

KINO-DAL SBC

Page 21

12 V DC:

KINO-DAL-N2

9 V ~ 30 V DC:

KINO-DAL-E3W2

KINO-DAL-E2W2

KINO-DAL-E1W2

3.2.1 DC-IN Power Connector

CN Label: PWR3 CN Type: CN Location: CN Pinouts:

The connector supports power input. The input voltage varies by models:



KINO-DAL-N1



4-pin Molex, p=4.2 mm See Figure 3-5 See Table 3-6

Figure 3-5: DC-IN Power Connector Location

Pin Description Pin Description

1 GND 2 GND 3 VCC 4 VCC

Table 3-6: DC-IN Power Connector Pinouts

Page 36

KINO-DAL SBC

Page 22

3.2.2 Digital I/O Connector

CN Label: J_DIO1 CN Type: CN Location: CN Pinouts:

The 8-bit digital I/O connector provides programmable input and output for external devices.

Figure 3-6: Digital I/O Connector Location

10-pin header, p=2.00 mm See Figure 3-6 See Table 3-7

Pin Description Pin Description

1 GND 2 +5V 3 D_OUT3 4 D_OUT2 5 D_OUT1 6 D_OUT0 7 D_IN3 8 D_IN2 9 D_IN1 10 D_IN0

Table 3-7: Digital I/O Connector Pinouts

Page 37

KINO-DAL SBC

Page 23

3.2.3 Fan Connector, CPU

CN Label: CPU_FAN1 CN Type: CN Location: CN Pinouts:

4-pin wafer, p=2.54 mm See Figure 3-7 See Table 3-8

The fan connector attaches to a cooling fan.

Figure 3-7: CPU Fan Connector Locations

Pin Description

GND

1 2 3 4

12V FAN_IO FANCTL

Table 3-8: CPU Fan Connector Pinouts

Page 38

KINO-DAL SBC

Page 24

3.2.1 Fan Connector, System

CN Label: SYS_FAN1 CN Type: CN Location: CN Pinouts:

3-pin wafer, p=2.54 mm See Figure 3-8 See Table 3-9

The fan connector attaches to a cooling fan.

Figure 3-8: System Fan Connector Locations

Pin Description

FAN_IN 12V GND

1 2 3

Table 3-9: System Fan Connector Pinouts

Page 39

KINO-DAL SBC

Page 25

3.2.2 Front Panel Connector

CN Label: F_PANEL1 CN Type: CN Location: CN Pinouts:

The front panel connector connects to the indicator LEDs, buttons and speaker on the system front panel.

14-pin header, p=2.54 mm See Figure 3-9 See Table 3-10

Figure 3-9: Front Panel Connector Location

Pin Description Pin Description

1 PWR_LED+ 2 SPKR+ 3 NC 4 NC 5 PWR_LED- 6 NC 7 PWR_SW+ 8 SPKR9 PWR_SW- 10 NC 11 HDD_LED+ 12 RESET_SW+ 13 HDD_LED- 14 RESET_SW-

Table 3-10: Front Panel Connector Pinouts

Page 40

KINO-DAL SBC

Page 26

3.2.1 I2C Connector

CN Label: J_I2C1 CN Type: CN Location: CN Pinouts:

C connector is used to connect I2C-bus devices to the mainboard.

The I

4-pin wafer, p=1. 25 m m See Figure 3-10 See Table 3-11

Figure 3-10: I2C Connector Pinout Locations

Pin Description

1 GND 2 I2C_DATA 3 I2C_CLK 4 +5V

Table 3-11: I2C Connector Pinouts

Page 41

KINO-DAL SBC

Page 27

3.2.2 Keyboard and Mouse Connector

CN Label: J_KB/MS1 CN Type: CN Location: CN Pinouts:

6-pin wafer, p=2. 00 m m See Figure 3-11 See Table 3-12

The keyboard/mouse connector connects to a PS/2 Y-cable that can be connected to a PS/2 keyboard and mouse.

Figure 3-11: Keyboard and Mouse Connector Location

Pin Description

1 +5V 2 Mouse Data 3 Mouse Clock 4 Keyboard Data 5 Keyboard Clock 6 GND

Table 3-12: Keyboard and Mouse Connector Pinouts

Page 42

KINO-DAL SBC

Page 28

3.2.3 LAN LED Connectors

CN Label: JLAN_LED1, JLAN_LED2 CN Type: CN Location: CN Pinouts:

The LAN LED connectors connect to the LAN link LEDs on the system.

2-pin header, p=2.0 0 mm See Figure 3-12 See Table 3-13

Figure 3-12: LAN LED Connector Locations

Pin Description

1 LED+ 2 LED-

Table 3-13: LAN LED Connector Pinouts

Page 43

KINO-DAL SBC

Page 29

3.2.1 LCD Inverter Connector

CN Label: INV1 CN Type: CN Location: CN Pinouts:

5-pin wafer, p=2. 00 m m See Figure 3-13 See Table 3-14

Use the LCD inverter connector provides power to an LCD panel.

Figure 3-13: LCD Inverter Connector Location

Pin Description

1 LCD Adjust 2 GND 3 +12V 4 GND 5 Backlight Enable

Table 3-14: LCD Inverter Connector Pinouts

Page 44

KINO-DAL SBC

Page 30

3.2.1 LVDS Connector

CN Label: LVDS1 CN Type: CN Location: CN Pinouts:

40-pin crimp See Figure 3-14 See Table 3-15

The LVDS connector is for connecting 18-bit/24-bit dual channel LVDS devices.

Figure 3-14: LVDS Connector Location

Pin Description Pin Description

1 GND 2 GND 3 A_DATA0- 4 A_DATA15 A_DATA0+ 6 A_DATA1+ 7 GND 8 GND 9 A_DATA2- 10 Clock111 A_DATA2+ 12 Clcok1+ 13 GND 14 GND 15 A_DATA3- 16 A_DATA417 A_DATA3+ 18 A_DATA4+ 19 GND 20 GND 21 A_DATA5- 22 A_DATA623 A_DATA5+ 24 A_DATA6+ 25 GND 26 GND

Page 45

KINO-DAL SBC

Page 31

Pin Description Pin Description

27 Clock2- 28 A_DATA729 Clcok2+ 30 A_DATA7+ 31 GND 32 GND 33 LVDS Detect (GND)* 34 GND 35 LCD VCC 36 LCD VCC 37 LCD VCC 38 LCD VCC 39 LCD VCC 40 LCD VCC *LVDS Detect must be connected to GND.

Table 3-15: LVDS Connector Pinouts

3.2.2 M.2 Slot

CN Label: M2_1 CN Type: CN Location:

M.2 B-key slot See Figure 3-15

The M.2 slot is keyed in the B position and provide s three position s for the mounting s crew, accepting 2242, 2260 and 2280 sizes of M.2 modules. The M.2 slot supports SATA and USB 2.0 interfaces only.

Figure 3-15: M.2 Slot Location

Page 46

KINO-DAL SBC

Page 32

3.2.3 microSD Slot (Optional)

CN Label: SD1 CN Type: CN Location:

The microSD card slot accepts a microSD card for storage.

Figure 3-16: microSD Card Slot Location

microSD card slot See Figure 3-16

3.2.4 PCIe Mini Card Slot

CN Label: MPCIE1 CN Type: CN Location: CN Pinouts:

The PCIe Mini card slot is for installing a full-size or half-size PCIe Mini expansion card.

Half-size/Full-size PCIe Mini card slot See Figure 3-17 See Table 3-16

Page 47

KINO-DAL SBC

Page 33

Figure 3-17: PCIe Mini Card Slot Location

Pin Description Pin Description

1 PCIE_WAKE# 2 VCC3 3 N/C 4 GND 5 N/C 6 1.5 V 7 PCIE_CLKREQ# 8 SIM_VCC 9 GND 10 SIM_IO 11 CLK- 12 SIM_CLK 13 CLK+ 14 SIM_RST 15 GND 16 SIM_VPP 17 N/C 18 GND 19 N/C 20 WLAN_EN 21 GND 22 BUF_PLT_RST# 23 PCIE_RXN3 24 VCC3A 25 PCIE_RXP3 26 GND 27 GND 28 1.5 V 29 GND 30 SMBCLK 31 PCIE_TXN3 32 SMBDATA 33 PCIE_TXP3 34 GND 35 GND 36 USB237 GND 38 USB2+ 39 VCC3 40 GND

Page 48

KINO-DAL SBC

Page 34

Pin Description Pin Description

41 VCC3 42 N/C 43 N/C 44 N/C 45 N/C 46 N/C 47 N/C 48 1.5 V 49 N/C 50 GND 51 N/C 52 VCC3

Table 3-16: PCIe Mini Card Slot Pinouts

3.2.5 PCIe x1 Card Slot

CN Label: PCIE1 CN Type: CN Location: CN Pinouts:

PCIe x1 slot See Figure 3-18 See Table 3-17

The PCIe x1 slot is for PCIe x1 expansion cards.

Figure 3-18: PCIe x1 Slot Location

Pin Description Pin Description

A1 +12V B1 PRSNT#1 A2 +12V B2 +12V A3 RSVD B3 +12V A4 GND B4 GND A5 SMCLK B5 JTAG2

Page 49

KINO-DAL SBC

Page 35

Pin Description Pin Description

A6 SMDAT B6 JTAG3 A7 GND B7 JTAG4 A8 +3.3V B8 JTAG5 A9 JTAG1 B9 +3.3V A10 3.3 Vaux B10 +3.3V A11 WAKE# B11 PWRGD A12 RSVD B12 GND A13 GND B13 REFCLK+ A14 HSOp(0) B14 REFCLKA15 HSOn(0) B15 GND A16 GND B16 HSIp(0) A17 PRSNT#2 B17 HSIn(0) A18 GND B18 GND

Table 3-17: PCIe x1 Slot Pinouts

3.2.6 RS-232 Serial Port Connector

CN Label: COM3, COM4, COM5, COM6 CN Type: CN Location: CN Pinouts:

The serial connectors provide RS-232 connections.

10-pin header, p=2.00 mm See Figure 3-19 See Table 3-18

Page 50

KINO-DAL SBC

Page 36

Figure 3-19: RS-232 Serial Port Connector Locations

Pin Description Pin Description

1 DCD 2 DSR 3 RX 4 RTS 5 TX 6 CTS 7 DTR 8 RI 9 GND 10 GND

Table 3-18: RS-232 Serial Port Connector Pinouts

Page 51

KINO-DAL SBC

Page 37

3.2.7 SATA 6Gb/s Drive Connectors

CAUTION:

If an M.2 module is installed in the M.2 slot (M2_1), the SATA port 2 (SATA2) will be disabled. Choose either the SATA2 connector or the M.2 module for storage.

CN Label:

CN Type:

CN Location:

The SATA 6Gb/s drive connector is connected to a SATA 6Gb/s drive. The SATA 6Gb/s drive transfers data at speeds as high as 6Gb/s.

SATA1, SATA2

7-pin SATA connector

See Figure 3-20

Figure 3-20: SATA 6Gb/s Drive Connectors Locations

Page 52

KINO-DAL SBC

Page 38

3.2.8 SATA Power Connectors

CN Label:

CN Type: CN Location: CN Pinouts:

The SATA power connector provides +5 V and +12 V power output to the SATA connector.

SATA_PWR1, SATA_PWR2

4-pin wafer, p=2.54 mm See Figure 3-21 See Table 3-19

Figure 3-21: SATA Power Connector Locations

Pin Description

1 +12V 2 GND 3 GND 4 +5V

Table 3-19: SATA Power Connector Pinouts

Page 53

KINO-DAL SBC

Page 39

3.2.9 SIM Card Slot (Optional)

CN Label: SIM1 CN Type: CN Location:

The SIM card slot accepts a SIM card for 3G network communication.

Figure 3-22: SIM Card Slot Location

micro-SIM card slot See Figure 3-22

Page 54

KINO-DAL SBC

Page 40

3.2.1 SMBus Connector

CN Label: J_SMB1 CN Type: CN Location: CN Pinouts:

The SMBus (System Management Bus) connector provides low-speed system management communications.

4-pin wafer, p=1.25 mm See Figure 3-23 See Table 3-20

Figure 3-23: SMBus Connector Location

Pin Description

1 GND 2 SMB_DATA 3 SMB_CLK 4 +5V

Table 3-20: SMBus Connector Pinouts

Page 55

KINO-DAL SBC

Page 41

3.2.2 SPI Flash Connector, BIOS

CN Label: J_SPI1 CN Type: CN Location: CN Pinouts:

6-pin wafer , p=1.25 mm See Figure 3-24 See Table 3-21

The 6-pin SPI Flash connector is used to flash the BIOS.

Figure 3-24: BIOS SPI Flash Connector Location

Pin Description

1 +3.3V 2 CS# 3 MISO 4 Clock 5 MOSI 6 GND

Table 3-21: BIOS SPI Flash Connector Pinouts

Page 56

KINO-DAL SBC

Page 42

3.2.1 SPI Flash Connector, EC

CN Label: J_EC1 CN Type: CN Location: CN Pinouts:

6-pin wafer , p=1.25 mm See Figure 3-25 See Table 3-22

The 6-pin SPI Flash connector is used to flash the EC.

Figure 3-25: EC SPI Flash Connector Location

Pin Description

1 +3.3V 2 CS# 3 MISO 4 Clock 5 MOSI 6 GND

Table 3-22: EC SPI Flash Connector Pinouts

Page 57

KINO-DAL SBC

Page 43

3.2.2 TPM Connector

CN Label:

CN Type:

CN Location:

CN Pinouts:

TPM1

20-pin header, p=2.54 mm

See Figure 3-26

See Table 3-23

The Trusted Platform Module (TPM) connector secures the system on bootup.

Figure 3-26: TPM Connector Location

Pin Description Pin Description

1 Clock 2 GND 3 LFRAME# 4 Serial IRQ 5 LPC Reset 6 LAD2 7 LAD3 8 LAD1 9 +3.3V 10 LPC Reset 11 LAD0 12 GND 13 SCL 14 SDA 15 SB3V 16 SERIRQ 17 GND 18 CLKRUN# 19 LPCPD# 20 LDRQ#

Table 3-23: TPM Connector Pinouts

Page 58

KINO-DAL SBC

Page 44

3.2.3 USB Connectors

CN Label:

CN Type:

CN Location:

CN Pinouts:

USB1, USB2

8-pin header, p=2.00 mm

See Figure 3-27

See Table 3-24

The USB connectors provide four USB 2.0 ports by dual-port USB cable.

Figure 3-27: USB Connector Locations

Pin Description

1 +5V 3 DATA5 DATA+ 7 GND

Table 3-24: USB Connector Pinouts

Description

GND DATA+ DATA +5V

3.3 External Peripheral Interface Connector Panel

Figure 3-28 shows the KINO-DAL external peripheral interface connector (EPIC) panel.

The EPIC panel consists of the following:

 2 x Audio jack (AUDIO1)  1 x DC-in power jack (PWR1)  2 x GbE connector (LAN1, LAN2)

Page 59

KINO-DAL SBC

Page 45

 1 x HDMI connector (HDMI1)  2 x RS-232/422/485 serial port (COM1, COM2)  4 x USB 3.0 connector (USB01, USB23)  1 x VGA connector (VGA1)

Figure 3-28: External Peripheral Interface Connector

Page 60

KINO-DAL SBC

Page 46

3.3.1 Audio Jacks

CN Label: AUDIO1 CN Type: CN Location:

The audio jacks connect to external audio devices.

 Line Out port (Lime): Connects to a headphone or a speaker. With

multi-channel configurations, this port can also con nect to front speakers.

 Microphone (Pink): Connects a microphone.

Figure 3-29: Audio Connector

Audio jack See Figure 3-28

Page 61

KINO-DAL SBC

Page 47

3.3.1 HDMI Connector

CN Label: HDMI1 CN Type: CN Location: CN Pinouts:

23-pin HDMI port See Figure 3-28 See Figure 3-30 and Table 3-25

The HDMI connector can connect to an HDMI device.

Pin Description Pin Description

1 HDMI_DATA2 2 GND 3 HDMI_DATA2# 4 HDMI_DATA1 5 GND 6 HDMI_DATA1# 7 HDMI_DATA0 8 GND 9 HDMI_DATA0# 10 HDMI_CLK 11 GND 12 HDMI_CLK# 13 N/C 14 N/C 15 HDMI_SCL 16 HDMI_SDA 17 GND 18 +5V 19 HDMI_HPD 20 HDMI_GND 21 HDMI_GND 22 HDMI_GND 23 HDMI_GND

Table 3-25: HDMI Connector Pinouts

Figure 3-30: HDMI Connector

Page 62

KINO-DAL SBC

Page 48

3.3.2 LAN & USB 3.0 Combo Connectors

CN Label: LAN1_USB01_1, LAN2_USB23_1 CN Type: CN Location:

RJ-45, USB 3.0 See Figure 3-28

The LAN connector connects to a local network.

Figure 3-31: LAN Connector

Pin Description Pin Description

1 MDIA0+ 5 MDIA22 MDIA0- 6 MDIA13 MDIA1+ 7 MDIA3+ 4 MDIA2+ 8 MDIA3-

LED Description LED Description

A on: linked

blinking: data is being sent/received

B off: 10 Mb/s

green: 100 Mb/s orange: 1000 Mb/s

Table 3-27: Connector LEDs

The USB connector can be connected to a USB 2.0 or USB 3.0 device. The pinouts of USB 3.0 connectors are shown below.

Pin Description Pin Description

1 USB_VCC 10 USB_VCC 2 USB2_D0- 11 USB2_D03 USB2_D0+ 12 USB2P0_D0+

Table 3-26: LAN Pinouts

Page 63

KINO-DAL SBC

Page 49

Pin Description Pin Description

4 GND 13 GND 5 USB3P0_RXDN1 14 USB3P0_RXDN2 6 USB3P0_RXDP1 15 USB3P0_RXDP2 7 GND 16 GND 8 USB3P0_TXDN1 17 USB3P0_TXDN2 9 USB3P0_TXDP1 18 USB3P0_TXDP2

Table 3-28: USB 3.0 Port Pinouts

Figure 3-32: USB 3.0 Port Pinout Locations

Page 64

KINO-DAL SBC

Page 50

9 V ~ 30 V DC:

KINO-DAL-E3W2

KINO-DAL-E2W2

KINO-DAL-E1W2

3.3.3 Power Connector

CN Label: PWR1 CN Type: CN Location:

The power connector supports a power adapter. The i nput voltage varies by models:

 12 V DC: KINO-DAL-N2 KINO-DAL-N1



Power jack See Figure 3-28

Figure 3-33: Power Jack

Page 65

KINO-DAL SBC

Page 51

3.3.1 RS-232/422/485 Serial Port Connectors (COM1, COM2)

CN Label: COM1, COM2 CN Type: CN Location: CN Pinouts:

DB-9 connector See Figure 3-28 See Figure 3-34 and Table 3-29

These two connectors provide RS-232, RS-422 or RS-485 communications. The default mode is set to RS-232 by BIOS configuration. To configure the connectors as RS-422 or RS-485, please refer to Section 5.3.2.1.1 and Section 5.3.2.1.2.

Pin RS-232 RS-422 RS-485

1 DCD TXD422- TXD4852 RX TXD422+ TXD485+ 3 TX RXD422+ 4 DTR RXD422- 5 GND GND GND 6 DSR 7 RTS 8 CTS 9 RI

Table 3-29: RS-232/422/485 Serial Port Pinouts

Figure 3-34: Serial Port Pinouts

Page 66

KINO-DAL SBC

Page 52

3.3.1 VGA Connector

CN Label: VGA1 CN Type: CN Location: CN Pinouts:

The VGA connector connects to a monitor that accepts a standard VGA input.

Figure 3-35: VGA Connector

15-pin Female See Figure 3-28 See Figure 3-35 and Table 3-30

Pin Description Pin Description

1 RED 2 GREEN 3 BLUE 4 NC 5 GND 6 GND 7 GND 8 GND 9 VCC / NC 10 GND 11 NC 12 DDC DAT 13 HSYNC 14 VSYNC 15 DDCCLK

Table 3-30: VGA Connector Pinouts

Page 67

KINO-DAL SBC

Page 53

Chapter

4 Installation

Page 68

KINO-DAL SBC

Page 54

Failure to take ESD precautions during the installation of the

4.1 Anti-static Precautions

WARNING:

KINO-DAL may result in permanent damage to the KINO-DAL and severe injury to the user.

Electrostatic discharge (ESD) can cause serious damage to electronic components, including the KINO-DAL. Dry climates are especially susceptible to ESD. It is therefore critical that whenever the KINO-DAL or any other electrical component is handled, the following anti-static precautions are strictly adhered to.

 Wear an anti-static wristband: Wearing a simple anti-static wristband can

help to prevent ESD from damaging the board.

 Self-grounding Before handling the board, touch any grounded conducting

material. During the time the board is handled, f requently touch any conducting materials that are connected to the ground.

 Use an anti-static pad: When configuring the KINO-DAL, place it on an

anti-static pad. This reduces the possibility of ESD damaging the KINO-DAL.

 Only handle the edges of the PCB: When handling the PCB, hold the PCB

by the edges.

4.2 Installation Considerations

NOTE:

The following installation notices and installation considerations should be read and understood before installation. All instal l ation notices must be strictly adhered to. Failing to adhere to these precautions may lead to severe damage and injury to the person performing the installation.

Page 69

KINO-DAL SBC

Page 55

The installation instructions described in this manual should be carefully

WARNING:

followed in order to prevent damage to the KINO-DAL, KINO-DAL components and injury to the user.

Before and during the installation please DO the following:

 Read the user manual:

o The user manual provides a complete description of the KINO-DAL

installation instructions and configuration opt i ons.

 Wear an electrostatic discharge cuff (ESD):

o Electronic components are easily damaged by ESD. Wearing an ESD cuff

removes ESD from the body and helps prevent ESD damage.

 Place the KINO-DAL on an antistatic pad:

o When installing or configuring the motherboa rd, pl ace it on an antistatic

pad. This helps to prevent potential ESD damage.

 Turn all power to t he KINO-DAL off:

o When working with the KINO-DAL, make sure that it is disconnected from

all power supplies and that no electricity is being fed into the system.

Before and during the installation of the KINO-DAL DO NOT:

 Remove any of the stickers on the PCB board. These st ickers a re required f or

warranty validation.

 Use the product before verifying all the cables and power connectors are

properly connected.

 Allow screws to come in contact with the PCB circuit, connector pins, or its

components.

Page 70

KINO-DAL SBC

Page 56

For dual channel configuration, always install two identical memory

4.3 SO-DIMM Installation

To install an SO-DIMM, please follow the step s below and refer to Figure 4-1.

Figure 4-1: SO-DIMM Installation

Step 1: Locate the SO-DIMM socket. Place the board on an anti-static mat.

Step 2: Align the SO-DIMM with the socket. Align t he notch on the memory with the

notch on the memory socket.

Step 3: Insert the SO-DIMM. Push the memory in at a 20º angle. (See Figure 4-1)

Step 4: Seat the SO-DIMM. Gently push downwards and the arms clip into place. (See

Figure 4-1)

CAUTION:

modules that feature the same capacity, timings, voltage, number of ranks and the same brand.

Page 71

KINO-DAL SBC

Page 57

M.2 module is installed in the M.2 slot (M2_1), the SATA port 2

4.4 M.2 Module Installation

CAUTION:

If an (SATA2) will be disabled. Choose either the SATA2 connector or the M.2 module for storage.

To install an M.2 module, please follow the steps below.

Step 1: Locate the M.2 module slot. See Chapter 3.

Step 2: Remove the on-board retention screw and the plastic ring as shown in

Figure 4-2.

Figure 4-2: Removing the M.2 Module Retention Screw and Plastic Ring

Page 72

KINO-DAL SBC

Page 58

Step 3: Line up the notch on the card with the notch on the slot. Slide the PCIe Mini card

into the socket at an angle of about 20º (Figure 4-3).

Figure 4-3: Inserting the M.2 Module into the Slot at an Angle

Step 4: Put the plastic ring onto the screw holes. Push the M. 2 module down an d secure

it with the previously removed retention screw (Figure 4-4).

Figure 4-4: Securing the M.2 Module

Page 73

KINO-DAL SBC

Page 59

4.5 PCIe Mini Card Installation

The PCIe Mini card slot on the KINO-DAL allows installation of either a full-size or half-size PCIe Mini card.

4.5.1 Full-size PCIe Mini Card Installation

To install a full-size PCIe Mini card, please follow the steps below.

Step 1: Locate the PCIe Mini card slot. See Chapter 3.

Step 2: Remove the retention screw as shown in Figure 4-5.

Figure 4-5: Removing the Retention Screw

Step 3: Line up the notch on the card with the notch on the slot. Slide the PCIe Mini card

into the socket at an angle of about 20º (Figure 4-6).

Page 74

KINO-DAL SBC

Page 60

Figure 4-6: Inserting the Full-size PCIe Mini Card into the Slot at an Angle

Step 4: Secure the full-size PCIe Mini card with the retention screw previously remov ed

(Figure 4-7).

Figure 4-7: Securing the Full-size PCIe Mini Card

Page 75

KINO-DAL SBC

Page 61

4.5.2 Half-size PCIe Mini Card Installation

To install a half-size PCIe Mini card, please follow the steps below.

Step 1: Locate the PCIe Mini card slot. See Chapter 3.

Step 2: Remove the retention screw first, then unscrew and remove the standoff

secured on the motherboard. See Figure 4-8.

Figure 4-8: Removing Retention Screw and Standoff

Step 3: Install the previously removed standoff to the screw hole for the half-size PCIe

Mini card (Figure 4-9).

Page 76

KINO-DAL SBC

Page 62

Figure 4-9: Installing the Standoff

Step 4: Line up the notch on the card with t he not ch on the slot. Slide the P CIe Mini card

into the slot at an angle of about 20º (Figure 4-10).

Figure 4-10: Inserting the Half-size PCIe Mini Card into the Slot at an Angle

Step 5: Secure the half-size PCIe Mini card with the retent ion scre w prev io usly rem ov ed

(Figure 4-11).

Page 77

KINO-DAL SBC

Page 63

Figure 4-11: Securing the Half-size PCIe Mini Card

4.6 SIM Card Installation (Optional)

To install a SIM card, please follow the steps below.

Step 1: Locate the SIM card slot. See Section 3.2.9.

Step 2: Unlock the SIM card slot cover by sliding the cover in the direct i on as shown by

the arrow in Figure 4-12.

Figure 4-12: Unlock SIM Card Slot Cover

Page 78

KINO-DAL SBC

Page 64

Step 3: Open the slot cover and place a SIM card onto the slot. The cut mark on the

corner should be facing away from the slot as shown in Figure 4-13.

Figure 4-13: SIM Card Installation

Step 4: Close the slot cover and lock it by sliding it in the direction a s sh own by the

arrow in Figure 4-14.

Figure 4-14: Lock SIM Card Slot Cover

Page 79

KINO-DAL SBC

Page 65

4.7 System Configuration

The system configuration is controlled by buttons, jumpers and switches. The system configuration should be performed before inst al l ation.

4.7.1 AT/ATX Mode Select Switch

The AT/ATX mode select switch (SW_A/T1) specifies the systems power mode as AT or ATX. AT/ATX mode select switch settings are shown in Table 4-1.

Setting Description Short A-B ATX Mode (Default) Short B-C AT Mode

Table 4-1: AT/ATX Mode Select Switch Settings

The location of the AT/ATX mode select switch is sh own in Figure 4-15 below.

Figure 4-15: AT/ATX Mode Select Switch Location

Page 80

KINO-DAL SBC

Page 66

4.7.2 Clear CMOS Button

If the KINO-DAL fails to boot due to improper BIOS settings, use the button to clear the CMOS data and reset the system BIOS informati on.

The location of the clear CMOS button (J_CMOS1) is shown in Figure 4-16

Figure 4-16: Clear CMOS Button Location

Page 81

KINO-DAL SBC

Page 67

4.7.3 Flash Descriptor Security Override Jumper

The Flash Descriptor Security Override jumper (TXE_OV1, p= 2.00 mm) allows users to enable or disable the ME firmware update. Refer to Figure 4-17 and Table 4-2 for the jumper location and settings.

Setting Description Short 1-2 Disabled (default) Short 2-3 Enabled

Table 4-2: Flash Descriptor Security Override Jumper Settings

Figure 4-17: Flash Descriptor Security Override Jumper Location

To update the ME firmware, please follow the steps below.

Step 1: Before turning on the system power, short pin 2~3 of the Flash Descriptor

Security Override jumper.

Step 2: Update the BIOS and ME firmware, and then turn off the system power.

Step 3: Remove the metal clip on the Flash Descriptor Security Override jumper to its

default setting (short 1~2).

Step 4: Restart the system. The system will reboot 2 ~ 3 times to complete the ME

firmware update.Step 0:
