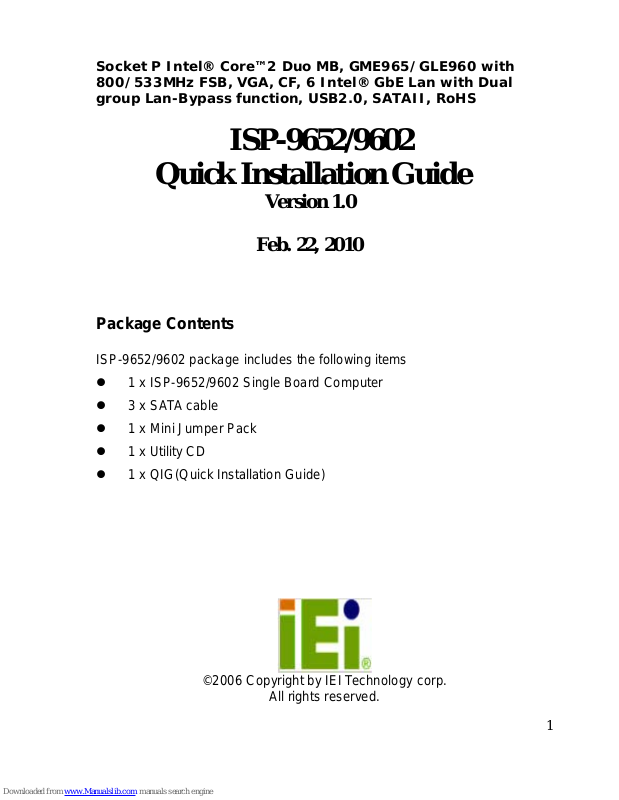

IEI Technology ISP-9652, ISP-9652-R10, ISP-9602, ISP-9602-R10 Quick Installation Manual

1

Socket P Intel® Core™2 Duo MB, GME965/GLE960 with
800/533MHz FSB, VGA, CF, 6 Intel® GbE Lan with Dual
group Lan-Bypass function, USB2.0, SATAII, RoHS

ISP-9652/9602

Quick Installation Guide

Version 1.0

Feb. 22, 2010

Package Contents

ISP-9652/9602 package includes the following items

z 1 x ISP-9652/9602 Single Board Computer
z 3 x SATA cable
z 1 x Mini Jumper Pack
z 1 x Utility CD
z 1 x QIG(Quick Installation Guide)

©2006 Copyright by IEI Technology corp.

All rights reserved.

2

Specifications

z CPU :

Socket P Intel® Core™ 2 Duo Processor with 800MHz FSB
Socket P Intel® Celeron® M Processor with 533MHz FSB

z System Chipset :

Intel® GME965 + ICH8M for ISP-9652
Intel® GLE96 0 + ICH8M for ISP- 9602

z BIOS : AMI Flash BIOS
z FSB :

800 / 533MHz FSB for ISP-9652
533MHz FSB for ISP-9602

z System Memory :

Two 240-pins 667/533MHz dual-channel DDR2 SDRAM DIMM
Supported (max. 4GB) for ISP-9652
Two 240-pins 533MHz dual- channel DDR2 SDRAM DIMM Supported
(max. 2GB) for ISP-9602

z Ethernet :

LAN1~LAN6: Six Intel® 82574L PCIe GbE Controller(PCIe x1
Interface)
2 x LAN By-Pass Function Gruop(with Relay Control)：

By-Pass Group 1: LAN1/LAN2
By-Pass Group 2: LAN3/LAN4

z I/O Interface :

2 x RS-232 (1 on rear side, 1 on board by pin-header)
10 x USB 2.0 (2 on rear side, 8 on board by pin-header)
3 x SATA II
1 x CF Type II Slot

z Display Interface :

CRT/VGA integrated in Intel® GME965/GLE960 (Intel® GMA X3100)

z Expansions :

1 x PCI Slot
1 x PCIe x16 Signal to Golden finger (f or I SP- 965 2 On ly)

z Super I/O : ITE IT8718F

3

z Embedded Controller: ITE IT8512E
z Watchdog Timer :

Software Programmable support 1~255 sec. System reset by Super
I/O : ITE IT8718F.

z Power Supply : ATX Power Supply
z Power Consumptio n :

5V@ 12.9 A, 12V@ 0.14A, 12V_Core@ 12.69A, 3.3V@ 0.47A
(Intel® Core™ 2 Duo T7500 2.2GHz with DDR2 800MHz 2GB DRAM
x2)

z Operation Temperature : 0°C ~ 60°C (32°F ~ 140°F)
z Operation Humidity : 5% ~95% no n- c ondensing
z Dimensions : 220mm x 244mm
z Weight : GW: 1000g / NW: 450 g

Ordering Information

ISP-9652-R10 :
Socket P Intel® Core™2 Duo MB, GME965 with 800MHz FSB, VGA, CF, 6
Intel® GbE Lan with Dual group Lan-Bypass function, USB2.0, SATAII,
RoHS

ISP-9602-R10

:
Socket P Intel® Core™2 Duo MB, GLE960 with 533MHz FSB, VGA, CF, 6
Intel® GbE Lan with Dual group Lan-Bypass function, USB2.0, SATAII,
RoHS

19800-000114-RS

:

RS-232 Cable with Bracket
CB-USB14-RS:

Quad Ports USB Cable with Bracket

CB-USB02-RS:

Dual Ports USB Cable with Bracket

32100-088600-RS/ 32102-000100-RS/ 32102-000100-200-RS :
SATA Power cable

CF-479B-RS

: CPU Cooler

4

Jumpers setting and Connectors

LABEL FUNCTION

J_CMOS1 Clear CMOS jumper

USB_C01 External USB Connector

USB23
USB45
USB67
USB68

Internal USB Connectors

COM1 External Serial Port DB-9 Connector
COM2 Internal Serial Port Connector

VGA1 On Board VGA DB-15 Connector

LAN1
LAN2
LAN3
LAN4

LAN Connectors with Bypass Function

LAN5
LAN6

LAN Connectors without Bypass Function

LAN_LED1 External LAN LED connectors
JEC_SET1 EC Function Setting connector

JSPI2 Flash BIOS/EC FW SPI ROM connector
SATA1
SATA2
SATA3

Serial ATA Connectors

CPU_FAN1

SYS_FAN1

CPU / System Fan Connectors

F_PANEL1

PWR、RST Buttons、Indicators and Speaker

CPU12V1 +12V CPU Power Input Connector

ATX1 ATX Power Input Connector

CF1 Compact Flash Slot

PCI1 PCI Slot

BAT1 Battery connector

DIMM1
DIMM2

DDR2 DIMM Slots

5

J_CMOS1: Clear CMOS Jumper

JP3 DESCRIPTION

1-2

(default)

Normal Operation

2-3 Clear CMOS Setup

USB23,USB45,USB67,USB68:
Internal USB Connectors

PIN DESCRIPTION PIN DESCRIPTION

1 VCC(+5V) 2 GND
3 DATA- 4 DATA+
5 DATA+ 6 DATA­7 GND 8 VCC(+5V)

JSPI2: Flash BIOS/EC FW SPI ROM Connector

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 +3.3V 5 GND
2 CS0# 6 CLK
3 SO0 7 SI
4 N/C 8 N/C

COM2 :
Internal Serial Port Connector (RS-232)

PIN DESCRIPTION PIN DESCRIPTION

1 DCD# 6 DSR#
2 RXD 7 RTS#
3 TXD 8 CTS#
4 DTR# 9 VCC(+5V)
5 GND 10 NC

6

CPU12V1:+12V CPU Power Input Connector

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 GND 2 GND
3 +12V 4 +12V

CPU_FAN1,SYS_FAN1:
FAN Connectors

PIN DESCRIPTION

1 GND
2 +12V
3 Rotation Signal
4 Control

BAT1 :
Battery Connector

PIN DESCRIPTION

1 BAT+ (+3.3V)
2 BAT- (GND)

F_PANEL1 : PWR、RST Buttons、Indicators and Speaker

PIN DESCRIPTION PIN DESCRIPTION

1 Power LED+ 2 Speaker+
3 N/C 4 N/C

Power

LED

5 Power LED- 6 N/C
7 PWRBTN+ 8 Speaker-

Speaker

PWRBTN

9 PWRBTN- 10 N/C

11 HDLED+ 12 Reset+

HDDLED

13 HDLED- 14 Reset -

RESET

7

JEC_SET1: EC Function Setting Connector
By-Pass Mode/Normal Mode Selection

JEC_SET1(1 – 2)

By-Pass Mode

(Default)

Short(Hi)

Normal Mode Open(Low)

JEC_SET1: EC Function Setting Connector
SMBUS ID Selection

JEC_SET1

(3 – 4)

JEC_SET1

(5 – 6)

JEC_SET1

(7 – 8)

0x60 Open(Low) Open(Low) Open(Low)
0x62 Open(Low) Open(Low) Short(Hi)
0x64 Open(Low) Short(Hi) Open(Low)

0x68 Short(Hi) Open(Low) Open(Low)
0x6A Short(Hi) Open(Low) Short(Hi)
0x6C Short(Hi) Short(Hi) Open(Low)
0x6E

(Default)

Short(Hi) Short(Hi) Short(Hi)

System software can send command to Network Bypass MCU through
SMBUS. This jumper selects SMBUS slave address for it.

LAN_LED1: External LAN LED connectors

PIN DESCRIPTION PIN DESCRIPTION

1 CN_L1_LINK_ACT# 14 CN_L1_LED
2 CN_L1_100# 15 CN_L1_1000#
3 CN_L2_LINK_ACT# 16 CN_L2_LED
4 CN_L2_100# 17 CN_L2_1000#
5 CN_L3_LINK_ACT# 18 CN_L3_LED
6 CN_L3_100# 19 CN_L3_1000#
7 CN_L4_LINK_ACT# 20 CN_L4_LED
8 CN_L4_100# 21 CN_L4_1000#

9 CN_L5_LINK_ACT# 22 CN_L5_LED
10 CN_L5_100# 23 CN_L5_1000#
11 CN_L6_LINK_ACT# 24 CN_L6_LED
12 CN_L6_100# 25 CN_L6_1000#
13 N/C 26 N/C

8

JEC_SET1: EC Function Setting Connector
ACK Count

JEC_SET1

(9 – 10)

JEC_SET1

(11 – 12)

JEC_SET1

(13 – 14)

JEC_SET1

(15 – 16)

1 Second Open(Low) Open(Low) Open(Low) Open(Low)
2 Second Open(Low) Open(Low) Open(Low) Short(Hi)
3 Second Open(Low) Open(Low) Short(Hi) Open(Low)
4 Second Open(Low) Open(Low) Short(Hi) Short(Hi)
5 Second Open(Low) Short(Hi) Open(Low) Open(Low)
6 Second Open(Low) Short(Hi) Open(Low) Short(Hi)

…

…

…

…

…

16 Second

(Default)

Short(Hi) Short(Hi) Short(Hi) Short(Hi)

This jumper sets counting-down interval for SMBUS monitoring.

JEC_SET1: EC Function Setting Connector
HW MCU(EC) Enable/Disable

JEC_SET1(19 – 20)

Enable

(Default)

Short(Hi)

Disable Open(Low)

9

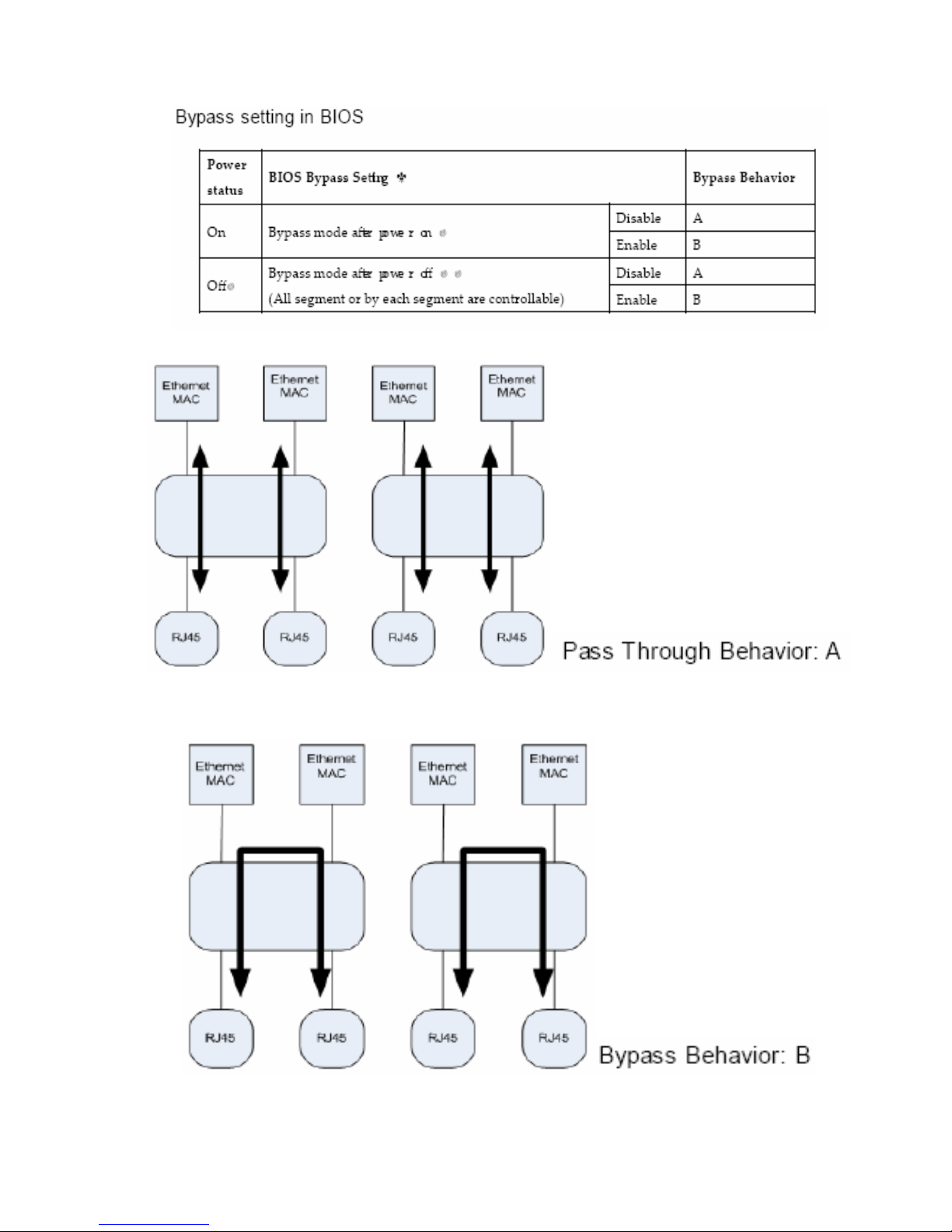

LAN Connectors & Bypass Function

• LAN Bypass Definition

LAN Bypass feature removes a single point of failure so that
essential business communication can continue while a
network failure is diagnosed and resolved. In the event of a
power, hardware or software failure, Hardware Bypass will
automatically activate, allowing network traffic to continue.
Traffi c between the LAN and WAN is allowed without
interruption.

10

11

Board Layout: Connector Locations
