Page 1
iSignager LCD Series
iSignager LCD Series User Manual
Page i
Page 2
iSignager LCD Series
Revision
Date Version Changes
2008-11 1.00 Initial Release
Page ii
Page 3
iSignager LCD Series
COPYRIGHT NOTICE
The information in this document is subject to change without prior notice in order to
improve reliability, design and function and does not represent a commitment on the part
of the manufacturer.
In no event will the manufacturer be liable for direct, indirect, special, incidental, or
consequential damages arising out of the use or inability to use the product or
documentation, even if advised of the possibility of such damages.
This document contains proprietary information protected by copyright. All rights are
Copyright
reserved. No part of this manual may be reproduced by any mechanical, electronic, or
other means in any form without prior written permission of the manufacturer.
TRADEMARKS
All registered trademarks and product names mentioned herein are used for identification
purposes only and may be trademarks and/or registered trademarks of their respective
owners.
Page iii
Page 4
iSignager LCD Series
Manual Conventions
WARNING!
Warnings appear where overlooked details may cause damage to the equipment or result
in personal injury. Warnings should be taken seriously. Warnings are easy to recognize.
The word “warning” is written as “WARNING,” both capitalized and bold and is followed by
text. The text is the warning message. A warning message is shown below:
WARNING:
This is an example of a warning message. Failure to adhere to warning
messages may result in permanent damage to the iSignager LCD
Series or personal injury to the user. Please take warning messages
seriously.
CAUTION!
Cautionary messages should also be heeded to help reduce the chance of losing data or
damaging the iSignager LCD Series. Cautions are easy to recognize. The word “caution”
is written as “CAUTION,” both capitalized and bold and is followed. The italicized text is
the cautionary message. A caution message is shown below:
Page iv
Page 5
iSignager LCD Series
CAUTION:
This is an example of a caution message. Failure to adhere to cautions
messages may result in permanent damage to the iSignager LCD
Series. Please take caution messages seriously.
NOTE:
These messages inform the reader of essential but non-critical information. These
messages should be read carefully as any directions or instructions contained therein can
help avoid making mistakes. Notes are easy to recognize. The word “note” is written as
“NOTE,” both capitalized and bold and is followed by text. The text is the cautionary
message. A note message is shown below:
NOTE:
This is an example of a note message. Notes should always be read.
Notes contain critical information about the iSignager LCD Series.
Please take note messages seriously.
Page v
Page 6
iSignager LCD Series
Packing List
NOTE:
If any of the components listed in the checklist below are missing,
please do not proceed with the installation. Contact the IEI reseller or
vendor you purchased the iSignager LCD Series from or contact an IEI
sales representative directly. To contact an IEI sales representative,
please send an email to

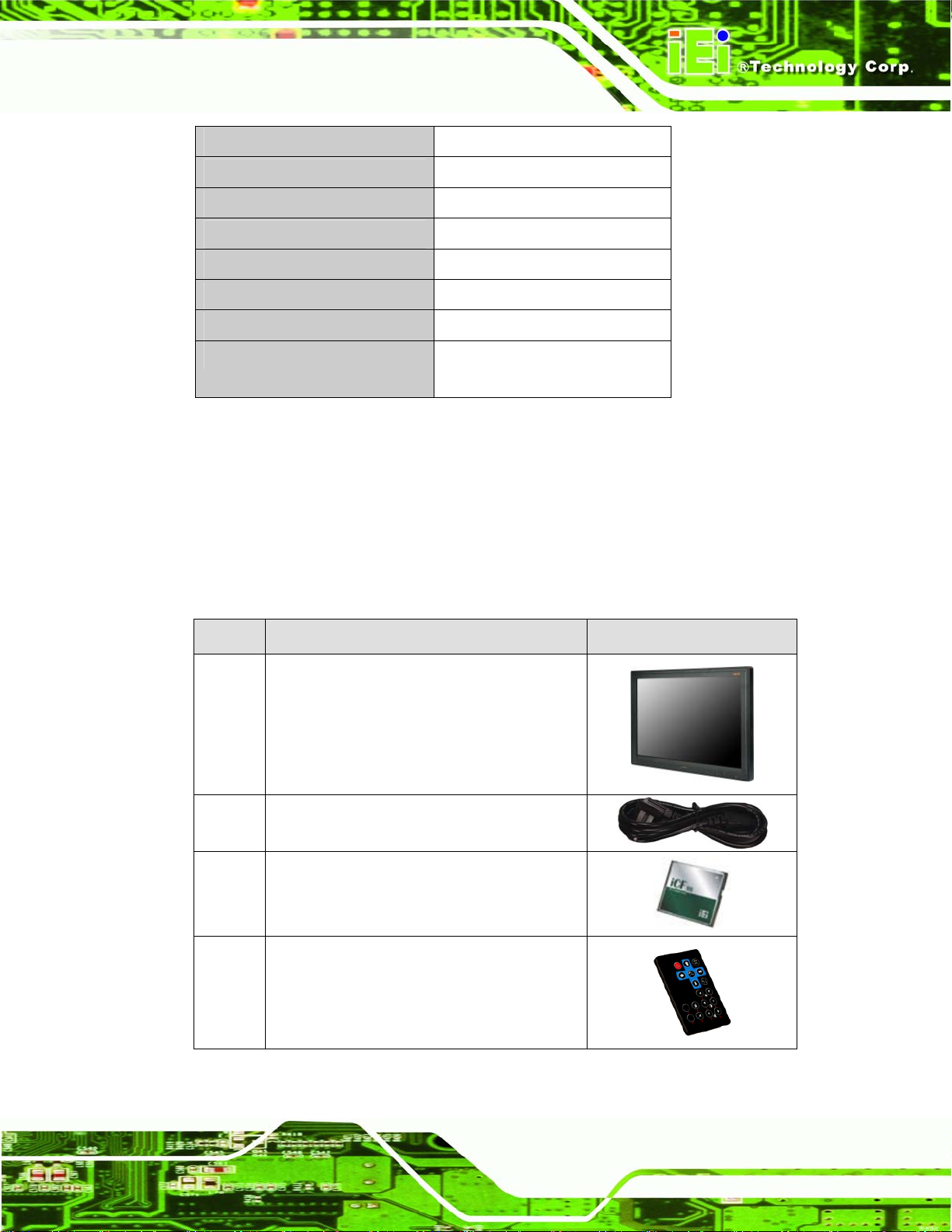

The items listed below should all be included in the iSignager LCD Series package.
1 x iSignager LCD Series
1 x Power cord
1 x 1GB demo CompactFlash® card
1 x OSD remote control
1 x Screw set
1 x Companion CD
Images of the above items are shown in Section
sales@iei-ndsp.com.
1.9.
Page vi
Page 7
iSignager LCD Series
Table of Contents
1 INTRODUCTION.......................................................................................................... 1
1.1 IMPORTANT NOTICE....................................................................................................2
1.2 ISIGNAGER-LCD-26/42 SERIES OVERVIEW................................................................ 2
1.3 ISIGNAGER LCD SERIES MODEL VA RIATIONS............................................................ 2
1.4 FEATURES................................................................................................................... 3
1.5 SYSTEM OVERVIEW.................................................................................................... 3
1.5.1 Front View.......................................................................................................... 3
1.5.2 Bottom Panel...................................................................................................... 5
1.5.3 Rear View........................................................................................................... 6
1.6 PHYSICAL DIMENSIONS.............................................................................................. 7
1.6.1 General Physical Dimensions............................................................................ 7
1.6.2 iSignager LCD-26 Physical Dimensions........................................................... 8
1.6.3 iSignager LCD-42 Physical Dimensions........................................................... 9
1.7 ISIGNAGER LCD SERIES SPECIFICATIONS................................................................. 10
1.8 LCD SPECIFICATIONS................................................................................................11
1.8.1 LCD Overview ..................................................................................................11
1.8.2 iSignager-LCD-26 LCD Specifications ............................................................11
1.8.3 iSignager-LCD-42 LCD Specifications ........................................................... 12
1.9 PACKING LIST........................................................................................................... 13
1.10 BEFORE START ....................................................................................................... 14
1.10.1 Choose Mass Storage Device - CF Card or HDD......................................... 14
1.10.2 The Concept of the iSignager AdDesign........................................................ 14
1.11 SUPPORTED FORMATS............................................................................................. 16
2 INSTALLATION ......................................................................................................... 17
2.1 HARDWARE INSTALLATION....................................................................................... 18
2.1.1 iSignager LCD Series Set-Up .......................................................................... 18
2.1.2 HDD Installation (Optional)............................................................................ 18
2.1.3 DVI/VGA Connection....................................................................................... 21
2.1.3.1 Supported Output Ports and Resolutions.................................................. 23
2.2 ISIGNAGER LCD SERIES MOUNTING........................................................................ 24
Page vii
Page 8
3 ON-SCREEN-DISPLAY (OSD) CONTROLS ....................................................... 25
3.1 USER MODE OSD STRUCTURE................................................................................. 26
3.1.1 OSD Buttons..................................................................................................... 26
3.1.2 OSD Menu Structure ........................................................................................ 27
3.2 USING THE OSD....................................................................................................... 29
3.2.1 Image Menu ..................................................................................................... 29
3.2.2 Display Menu................................................................................................... 30
3.2.3 Color Menu...................................................................................................... 31
3.2.4 System Menu .................................................................................................... 32
3.2.4.1 OSD Configuration................................................................................... 33
3.2.4.2 Auto-Brightness (Auto-Dimming) Configuration..................................... 34
3.3 REMOTE CONTROL................................................................................................... 35
A AUTO-DIMMING....................................................................................................... 36
iSignager LCD Series
A.1 AUTO-DIMMING CONFIGURATIONS ......................................................................... 37
A.1.1 Default Settings ............................................................................................... 37
A.1.2 OSD Control.................................................................................................... 38
B VIDEO, AUDIO AND GRAPHIC FORMA TS...................................................... 39
B.1 OVERVIEW OF VIDEO FORMATS ............................................................................... 40
B.1.1 MPEG-1........................................................................................................... 40
B.1.2 MPEG-2........................................................................................................... 40
B.1.3 MPEG-4........................................................................................................... 40
B.1.4 DivX® and XviD.............................................................................................. 40
B.1.5 DVD .ISO......................................................................................................... 41
B.1.6 DVD .VOB and .IFO........................................................................................ 41
B.1.7 .TS.................................................................................................................... 41
B.2 OVERVIEW OF AUDIO FORMATS............................................................................... 42
B.2.1 Dolby® Digital................................................................................................ 42
B.2.2 MP3 ................................................................................................................. 42
B.2.3 AAC.................................................................................................................. 42
B.2.4 W AV or WAVE.................................................................................................. 42
B.2.5 WMA................................................................................................................ 42
B.3 OVERVIEW OF GRAPHIC FORMATS........................................................................... 43
B.3.1 JPEG and JPG ................................................................................................ 43
Page viii
Page 9
iSignager LCD Series
B.3.2 BMP................................................................................................................. 43
B.3.3 GIF .................................................................................................................. 43
B.3.4 PNG................................................................................................................. 43
B.4 STANDARD DEFINITION (SD) INTRODUCTION.......................................................... 44
B.4.1 SDTV................................................................................................................ 44
B.5 HIGH DEFINITION (HD) INTRODUCTION .................................................................. 44
B.5.1 Notation........................................................................................................... 45
B.5.2 Progressive Scan vs. Interlaced Scan.............................................................. 45
C CHECK AND MODIFY THE PLAYER STATUS BY SERIAL PORT.............. 46
C.1 CHECK AND MODIFY THE ISIGNAGER LCD SERIES STAT US BY SERIAL PORT........... 47
C.1.1 Successful Message—LAN Connection........................................................... 54
C.1.2 Successful Message—Wifi Connection............................................................ 55
C.2 CHECKING CONNECTION ......................................................................................... 57
C.2.1 Check the LED ................................................................................................ 57
C.2.2 Ping in DOS Environment or Hyper Terminal Session................................... 57
C.2.2.1 PC............................................................................................................. 57
C.2.2.2 iSignager LCD Series............................................................................... 57
C.2.3 Check the Status in the Player Manager......................................................... 58
C.3 ISIGNAGER LCD SERIES NETWORK BEHAVIOR ....................................................... 58
D INDEX.......................................................................................................................... 59
Page ix
Page 10
iSignager LCD Series
List of Figures
Figure 1-1: iSignager-LCD-26 Front View ....................................................................................4
Figure 1-2: iSignager-LCD-42 Front View ....................................................................................4
Figure 1-3: iSignager-LCD-26 Bottom Panel View ......................................................................6
Figure 1-4: iSignager-LCD-26 Rear View......................................................................................6
Figure 1-5: iSignager LCD-26 Physical Dimensions (millimeters) ............................................8
Figure 1-6: iSignager LCD-42 Physical Dimensions (millimeters) ............................................9

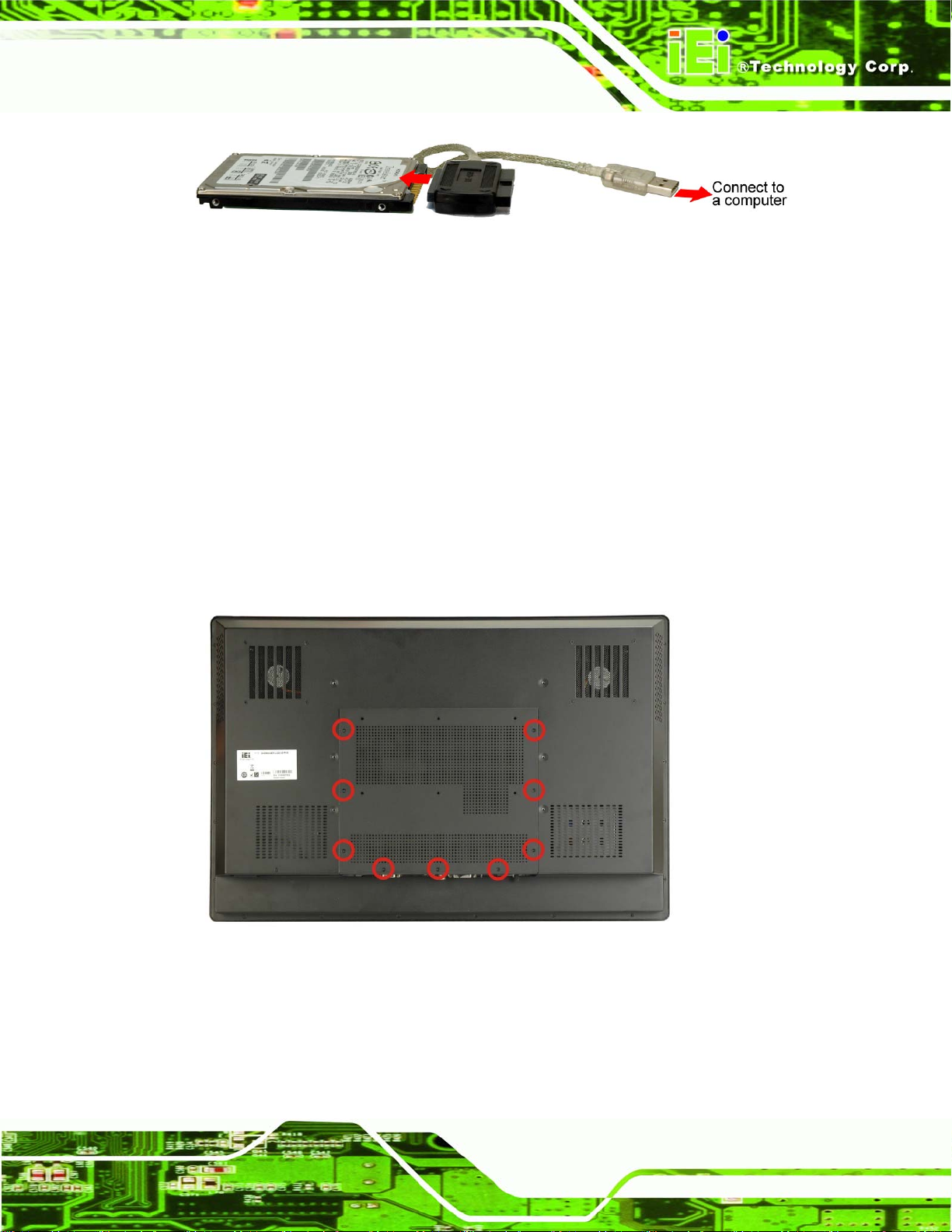

Figure 2-1: Format the HDD via IDE-USB Cable........................................................................19
Figure 2-2: iSignager-LCD-26 Motherboard Access Panel Retention Screws.......................19

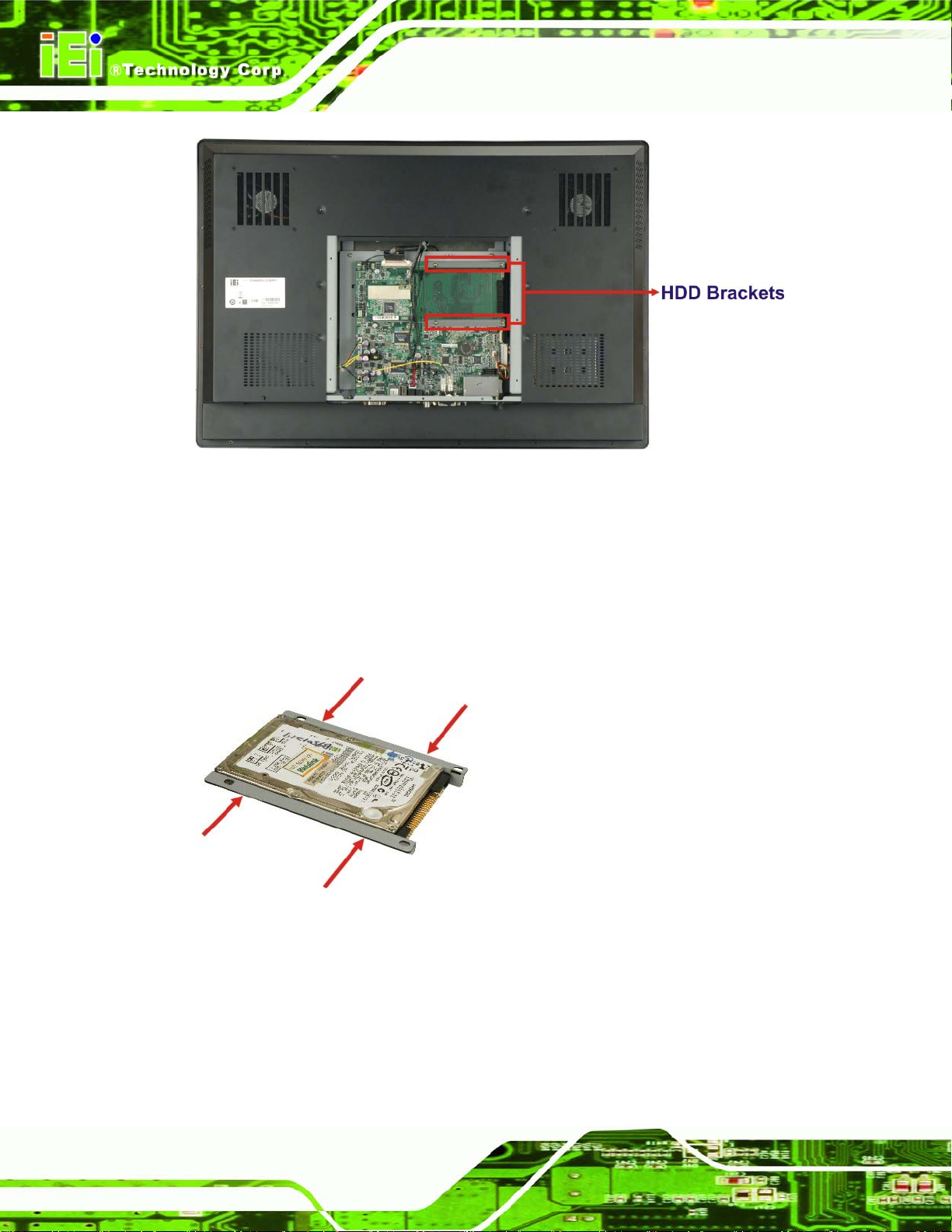

Figure 2-3: HDD Brackets............................................................................................................20
Figure 2-4: Secure HDD to the Brackets ....................................................................................20

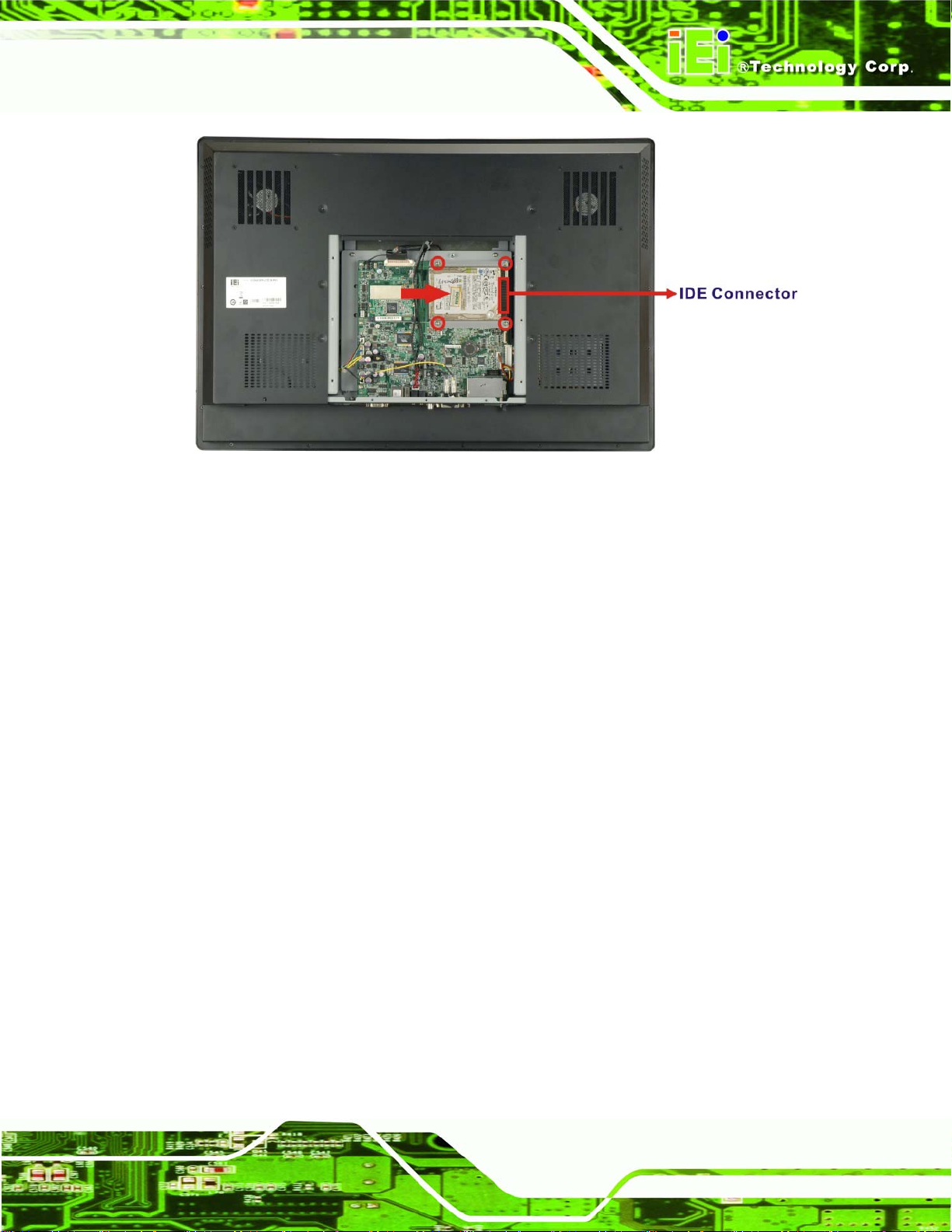

Figure 2-5: IDE HDD Installation .................................................................................................21

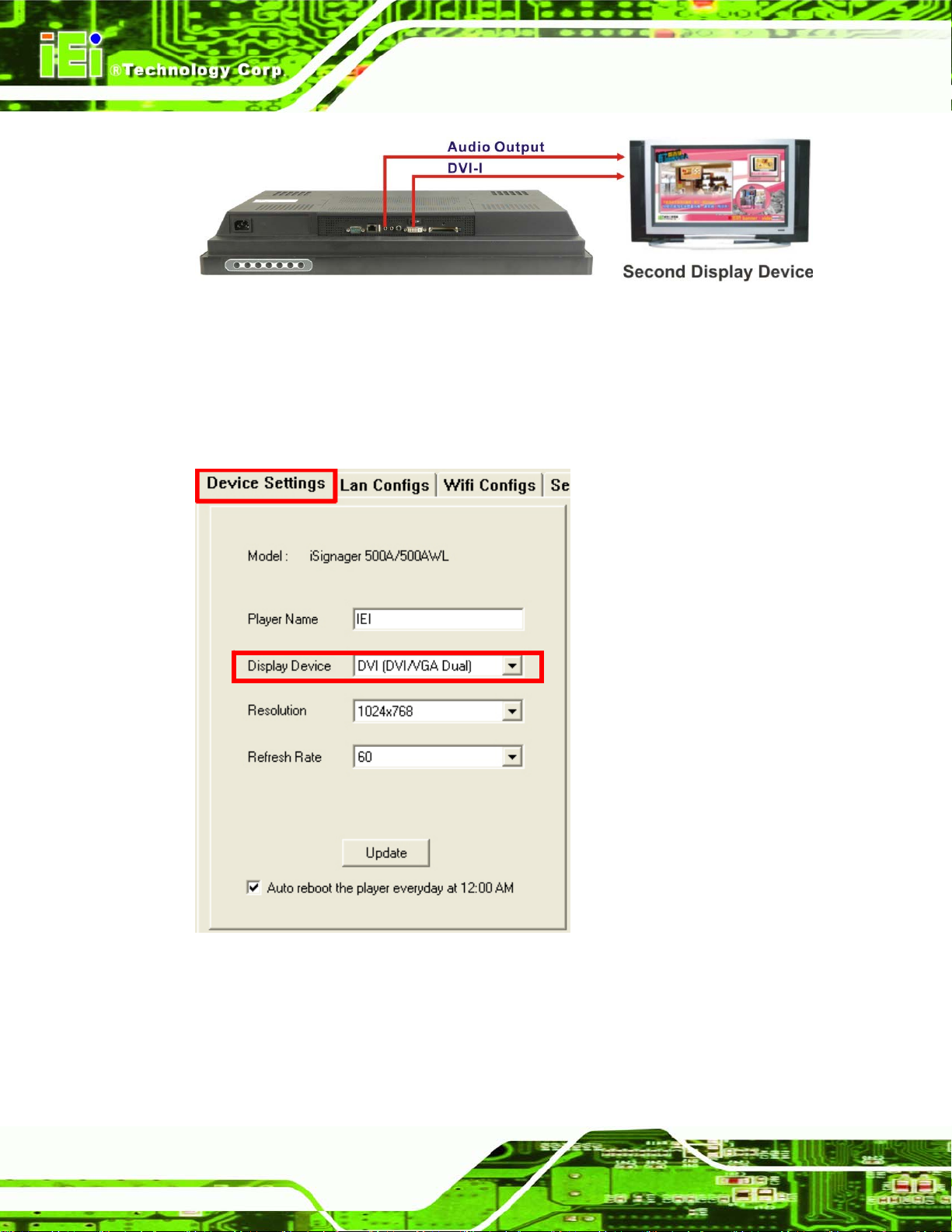

Figure 2-6: Second Display Device Connection........................................................................22
Figure 2-7: Device Settings .........................................................................................................22
Figure 3-1: OSD Control Buttons................................................................................................26
Figure 3-2: Image Menu ...............................................................................................................29
Figure 3-3: Display Menu.............................................................................................................30

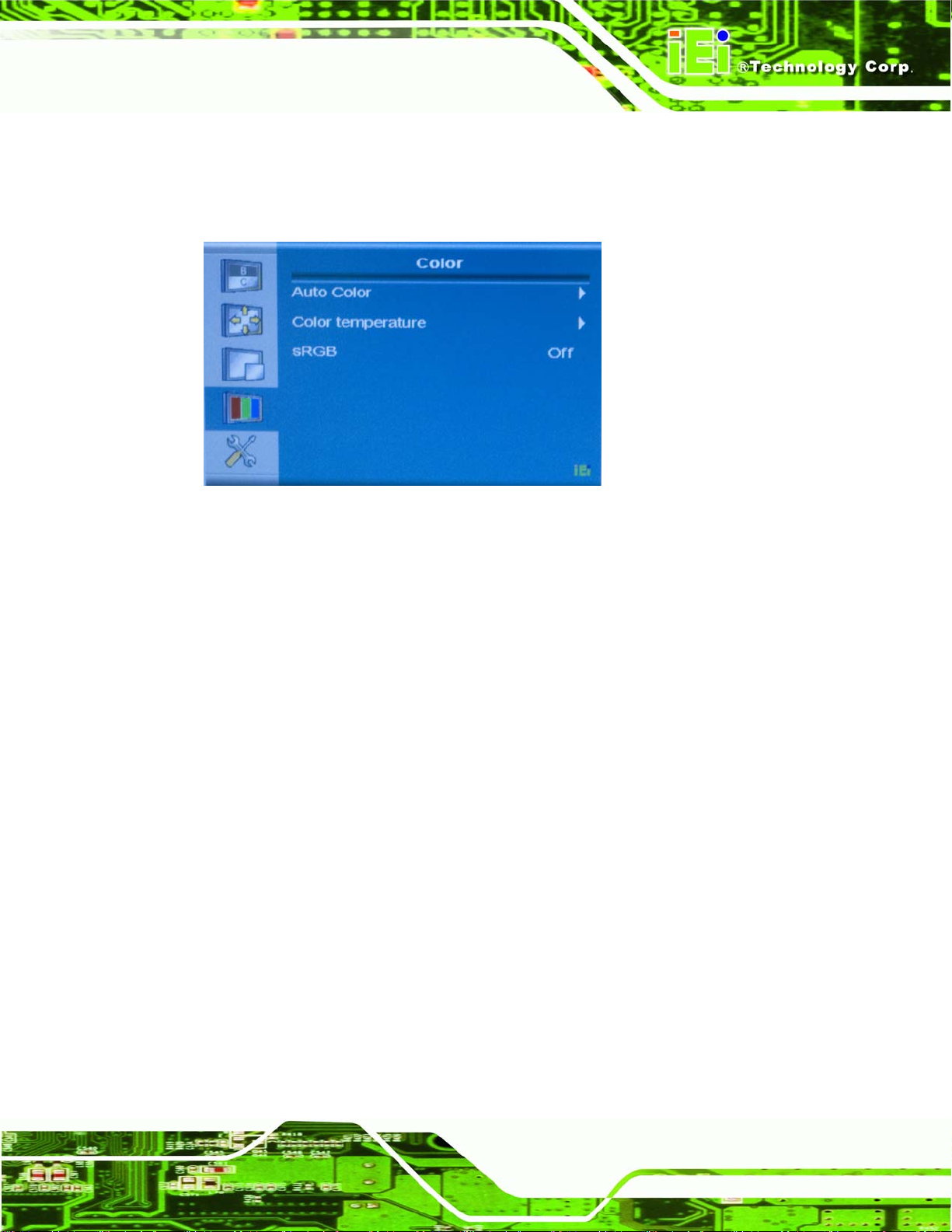

Figure 3-4: Color Menu ................................................................................................................31

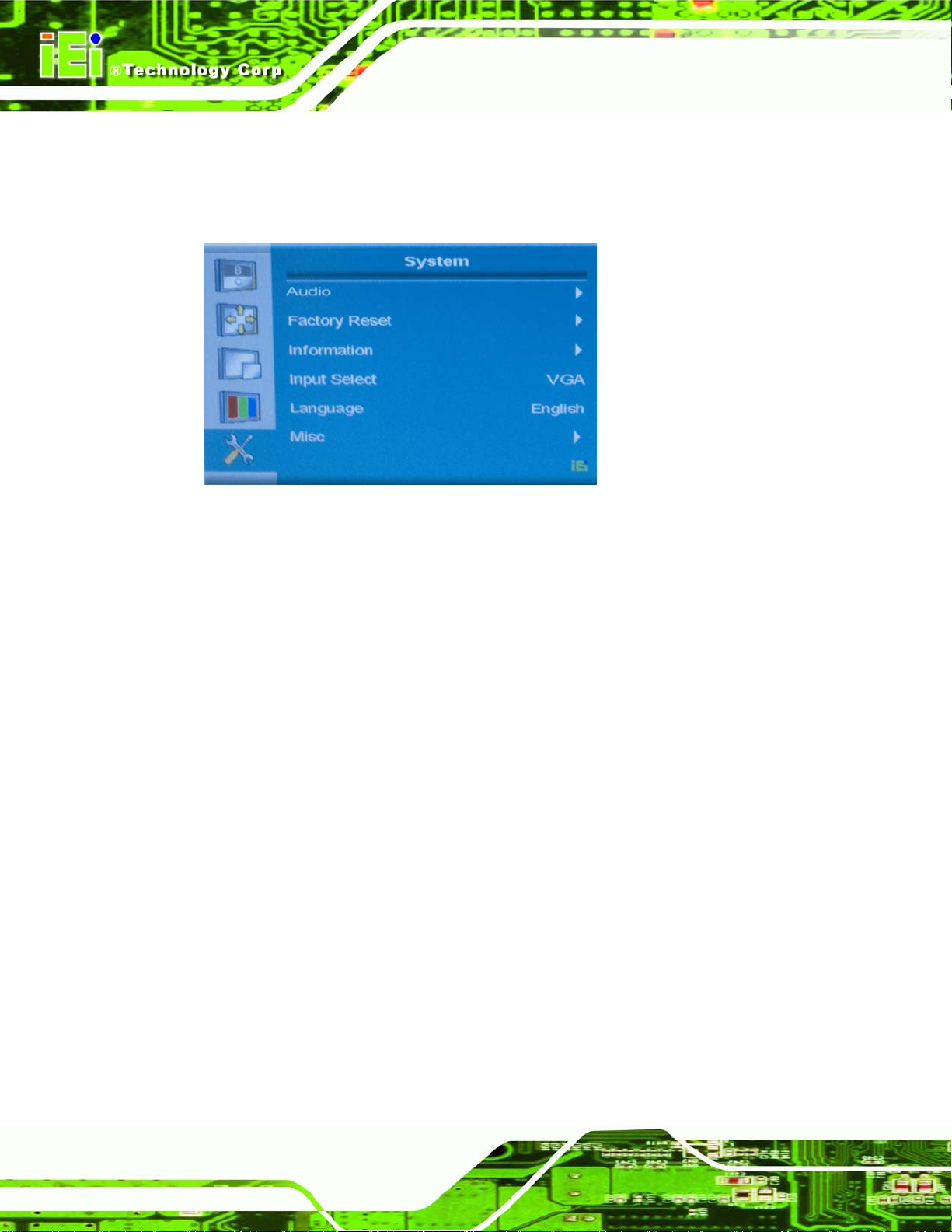

Figure 3-5: System Menu.............................................................................................................32

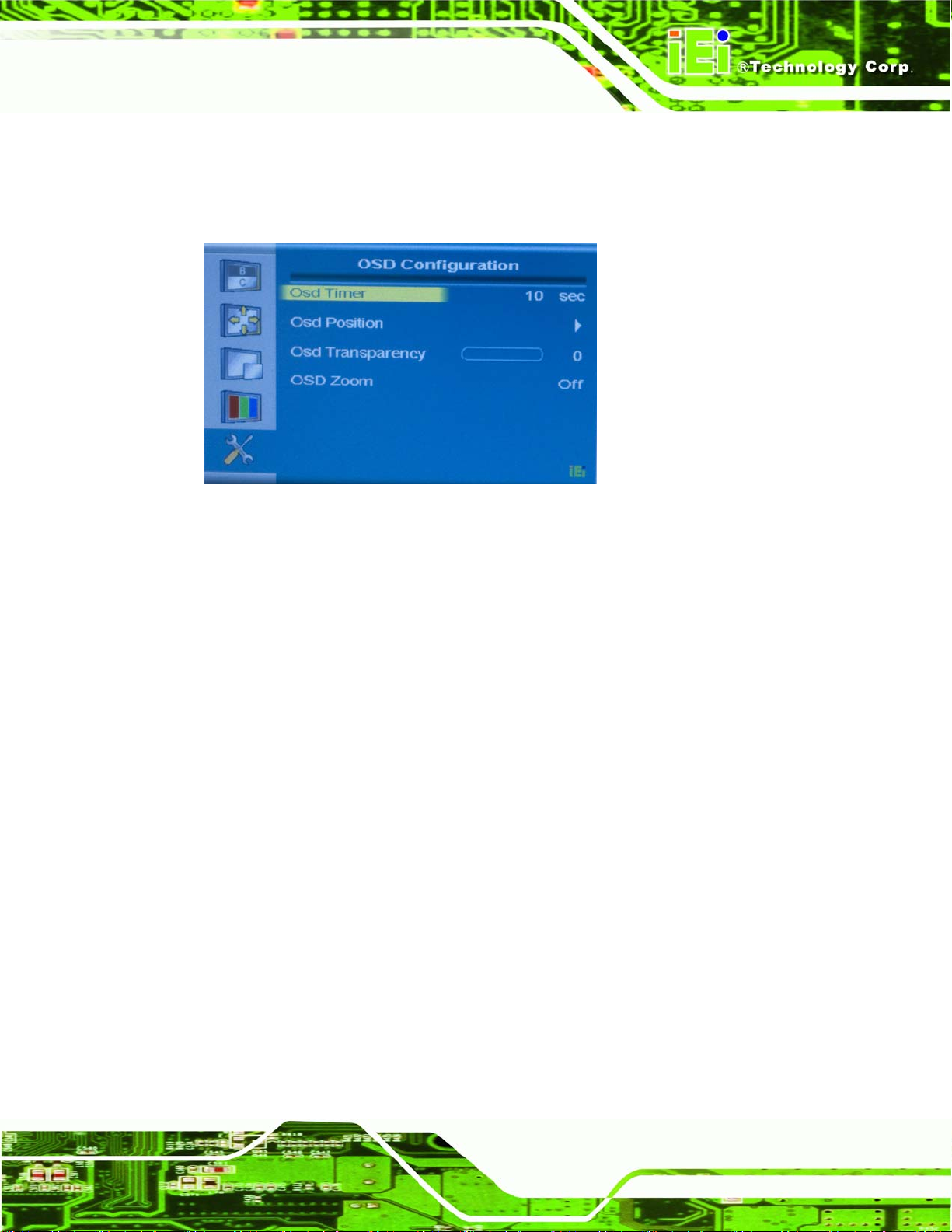

Figure 3-6: OSD Configuration....................................................................................................33

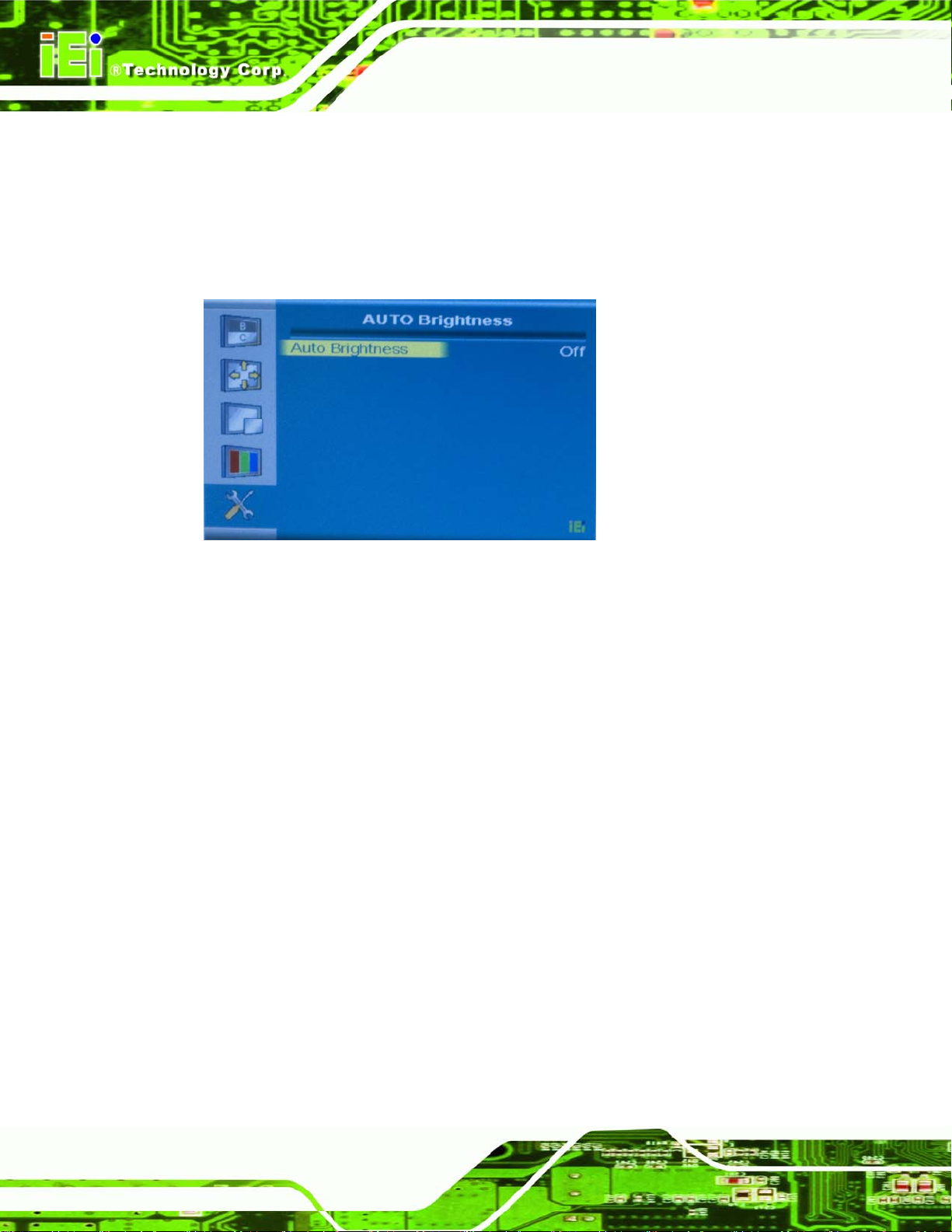

Figure 3-7: Auto Brightness Configuration ...............................................................................34
Figure 3-8: Remote Control .........................................................................................................35
Page x
Page 11
iSignager LCD Series
List of Tables
Table 1-1: iSignager LCD Series Model Variations.....................................................................2
Table 1-2: General Physical Dimensions .....................................................................................7
Table 1-3: iSignager LCD Series Specifications........................................................................11
Table 1-4: iSignager-LCD-26 LCD Specifications......................................................................12
Table 1-5: iSignager-LCD-42 LCD Specifications......................................................................13
Table 1-6: iSignager LCD Series Supported Formats...............................................................16
Table 2-1: Supported Resolutions for the Second Display Device.........................................23
Table 2-2: iSignager LCD Series Mounting Kits........................................................................24
Table 3-1: OSD Menus..................................................................................................................28
Page xi
Page 12
Page 13
iSignager LCD Series
Chapter
1
1 Introduction
Page 1
Page 14
1.1 Important Notice
NOTE:
This iSignager LCD Series user manual only contains the hardware information.
For the detailed information of the iSignager AdDesign or iSignager AdExpress
software that came with the iSignager LCD Series, please refer to the iSignager
AdDesign or iSignager AdExpress user manual.
1.2 iSignager-LCD-26/42 Series Overview
iSignager LCD Series
The iSignager LCD Series is a multimedia display device developed by IEI to display
dynamic, visual and audio contents for a target audience. The flat front panel of iSignager
LCD Series provides IP 64 protection, which effectively wards off dust and water. The
iSignager LCD Series comes with an application software, the iSignager AdDesign or the
iSignager AdExpress, to help users to design, schedule and transfer dynamic contents for
iSignager LCD Series to display. The built-in wireless connection enables the display
sources to be updated anytime anywhere. With the iSignager LCD Series, an advertising
station is easily established and promotes the product and services in the simplest way.
1.3 iSignager LCD Series Model Va riations
Three IEI iSignager LCD Series models are available. The models are listed in Table 1-1.
Model LCD Brightness Front Panel Wireless OSD
iSignager LCD-26
iSignager LCD-42
25.54” 350cd/m
42.02” 500 cd/m
2
Plastic Built-in Yes
2
Metal Built-in Yes
Table 1-1: iSignager LCD Series Model Variations
Page 2
Page 15
iSignager LCD Series
1.4 Features
Some of the iSignager LCD Series features are listed below.
25.54”/42.02” TFT LCD
Fully functional OSD remote control
Built-in 6 W speakers
Support wall/stand/arm mounting
Integrated auto-dimming control sensor
Built-in 802.11b/g wireless module and PIFA antenna
Multi-zone layout supports full spectrum of media formats
Flexible schedule management showing customized contents
Real time A/V input to display video from DVD player, NTSC/ PAL TV signal,
Digital Video Box, Cable TV within on large screen
High-resolution displays, HDTV, to produce the best advertising results
Contents can be stored in CompactFlash® disk, USB 2.0 flash driv e or IDE/
USB hard disk drive
Uploading content from remote to the iSignager LCD Series through Network
management function
IP 64 compliant front panel
RoHS compliant
1.5 System Overview
1.5.1 Front View
The front of the iSignager LCD Series is a flat panel TFT LCD screen surrounded by a
frame. The iSignager LCD Series also includes two sensors and one LED on the front
panel:
Ambient Light Sensor
The ambient light sensor detects the brightness of the ambient environment
when the auto-dimming function is turned on.
Infrared Sensor
This sensor receives the signal from the remote control.
Power LED lights up turned on in green when the LCD monitor is on.
Page 3
Page 16
Figure 1-1 shows the front view of iSignager-LCD-26.
iSignager LCD Series
Figure 1-1: iSignager-LCD-26 Front View
Figure 1-2: iSignager-LCD-42 Front View
Page 4
Page 17
iSignager LCD Series
A control button panel (OSD) with the following control buttons is located horizontally on
the bottom of the front frame of iSignager LCD Series:
LCD On/Off
Auto
Left
Up
Down
Right
Menu
Refer to Chapter
3 for the detailed descriptions of each OSD function.
1.5.2 Bottom Panel
All peripheral device connectors are located on the bottom panel of the iSignager LCD
Series. The following is a list of the bottom panel peripheral device connectors used on the
iSignager LCD Series.
12 V power connector
RS-232 serial connector
RJ-45 Ethernet connector
USB connector
Audio jacks (audio in, audio out)
Composite BNC connector
DVI-I connector
CompactFlash® slot
Power switch
Figure 1-3 shows the bottom panel of the iSignager-LCD-26 digital signage display.
Page 5
Page 18
iSignager LCD Series
Figure 1-3: iSignager-LCD-26 Bottom Panel View
1.5.3 Rear View
The rear panel features fan ventilation holes and few retention screw holes that support a
VESA FDMI mount.
iSignager-LCD-26.
Figure 1-4 shows the motherboard access panel of the
Page 6
Figure 1-4: iSignager-LCD-26 Rear View
Page 19
iSignager LCD Series
1.6 Physical Dimensions
The following sections describe the physical dimensions for the iSignager L CD Series.
1.6.1 General Physical Dimensions
General physical dimensions for the iSignager LCD Series are shown in Table 1-2.
Model Width
(mm)
iSignager LCD-26
iSignager LCD-42
Table 1-2: General Physical Dimensions
624.0 426.5 96.2
428.00 350.00 65.00
Height
(mm)
Depth
(mm)
Page 7
Page 20
1.6.2 iSignager LCD-26 Physical Dimensions
The physical dimensions of the iSignager LCD-26 are shown in Figure 1-5.
iSignager LCD Series
Page 8
Figure 1-5: iSignager LCD-26 Physical Dimensions (millimeters)
Page 21
iSignager LCD Series
1.6.3 iSignager LCD-42 Physical Dimensions
The physical dimensions of the iSignager LCD-42 are shown in Figure 1-6.
Figure 1-6: iSignager LCD-42 Physical Dimensions (millimeters)
Page 9
Page 22
iSignager LCD Series
1.7 iSignager LCD Series Specifications
Table 1-3 shows the iSignager LCD Series specifications.
Model iSignager LCD-26 iSignager LCD-42
LCD Size 25.54" 42.02"
Max. Resolution 1920 x 1200 1366 x 768
Brightness (cd/m2) 350 500
Contrast 1500:1 1500:1
LCD Color 16.7M 16.7M
Pixel Pitch (mm) 0.2856 0.681
View Angle (H / V) 176/176 178/178
Backlight MTBF (Hrs) 50000 60000
Front Frame ABS/PC ABS/PC
Secondary Display 1 x DVI-I (DVI/VGA) 1 x DVI-I (DVI/VGA)
Video In 1 x RCA fpr composite video in 1 x RCA fpr composite video in
Audio In 1 x Audio jack 1 x Audio jack
Audio Out
2 x AMP 6 W speakers
1 x Audio jack
USB 1 x USB 2.0 port 1 x USB 2.0 port
Serial Port 1 x RS-232 1 x RS-232
Ethernet 1 x 10/100BASE-T 1 x 10/100BASE-T
Wireless Built-in 802.11b/g wireless Built-in 802.11b/g wireless
1 x CF Type II
Storage
1 x 2.5” HDD (internal)
Input Power Voltage 90 V ~ 264 V AC input 90 V ~ 264 V AC input
Power Consumption 128 W 213 W
Wall mount
Ceiling mount
Mounting
Stand
2 x AMP 6 W speakers
1 x Audio jack
1 x CF Type II
1 x 2.5” HDD (internal)
Wall mount
Ceiling mount
Stand
(VESA FDMI 200 mm x 100 mm)
OSD function Yes (7-Keypad) Yes (7-Keypad)
IR Sensor/Remote Control Yes Yes
Ambient Light Sensor Yes Yes
Page 10
(VESA FDMI 400 mm x 200 mm)
Page 23
iSignager LCD Series
Construction Material
Front panel: Plastic
Chassis: Metal
Dimension (WxHxD) (mm) 622 x 425 x 100 1017 x 582 x 135
Operation Temperature 0°C ~ 40°C 0°C ~ 40°C
IP Level IP 64 IP 64
N/G Weight 16.7 kg 40.0 kg
EMC/Safety CE, FCC, UL CE, FCC, UL
Front panel: Metal
Chassis: Metal
Table 1-3: iSignager LCD Series Specifications
1.8 LCD Specifications
1.8.1 LCD Overview
The iSignager LCD Series uses the following LCD panels.
iSignager-LCD-26: CHI MEI M260J1-L05 26” WUXGA TFT LCD
iSignager-LCD-42: AUO G420XW02 42” WXGA TFT LCD
Detailed specifications for the LCD screens are listed in the following sections.
1.8.2 iSignager-LCD-26 LCD Specifications
Table 1-4 lists the LCD specifications of the iSignager-LCD-26.
Model iSignager-LCD-26
Size 25.54"
MFR/Model CHI MEI/M260J1-L05
Resolution WUXGA (1920 x 1200)
Active Area (mm) 550.08 x 343.8
Pixel Pitch (mm) 0.2865
Number of Colors 16.7M
View Angle (H/V) 176/176
Brightness (cd/m2) 350
Contrast Ratio 1500:1
Color Saturation (NTSC%)
92
Page 11
Page 24
Response Time (ms) (at 25C) 20 (Tr+Tf)
Power Consumption (W) 84
Interface 2ch LVDS
Supply Voltage (V) 5.0
Backlight 16 CCFL
Lamp Life (hrs) 50000
Operating Temperature 0℃~+50℃
Operating Humidity 20%~85%RH
Storage Temperature -20℃~+60℃
Storage Humidity 10%~90%RH
Shock (Non-Operating) 40G, 11ms, Half-sine wave
Vibration (Non-Operating) 1.5G, 10~300Hz,
Sine wave 10mins/axis, 3 direction
iSignager LCD Series
Table 1-4: iSignager-LCD-26 LCD Specifications
1.8.3 iSignager-LCD-42 LCD Specifications
Table 1-5 lists the LCD specifications of the iSignager-LCD-42.
Model iSignager-LCD-42
Size
MFR/Model
Resolution
Active Area (mm)
Pixel Pitch (mm)
Number of Colors
View Angle (H/V)
Brightness (cd/m2)
Contrast Ratio
42.02”
AUO/G420XW02
WXGA (1366 x 768)
930.25 x 523.01
0.681
16.7M
178/178
500
1500:1
Color Saturation (NTSC%)
Response Time (ms) (at 25C)
Power Consumption (W)
Page 12
72
8 ms (GTG)
174
Page 25
iSignager LCD Series
Interface
Supply Voltage (V)
Backlight
Lamp Life (hrs)
Operating Temperature -5℃~+50℃
Storage Temperature -20℃~+60℃
Shock (Non-Operating) 40 G, 11 ms, Half-sine wave
Vibration (Non-Operating) 1.5 G RMS, 10-500 Hz,
Table 1-5: iSignager-LCD-42 LCD Specifications
1.9 Packing List
The iSignager LCD Series is shipped with the following components. Should there be
any missing parts or defects in the package, please contact IEI immediately.
1ch LVDS
12.0
CCFL
60,000
Sine wave 30mins/axis, 3 direction

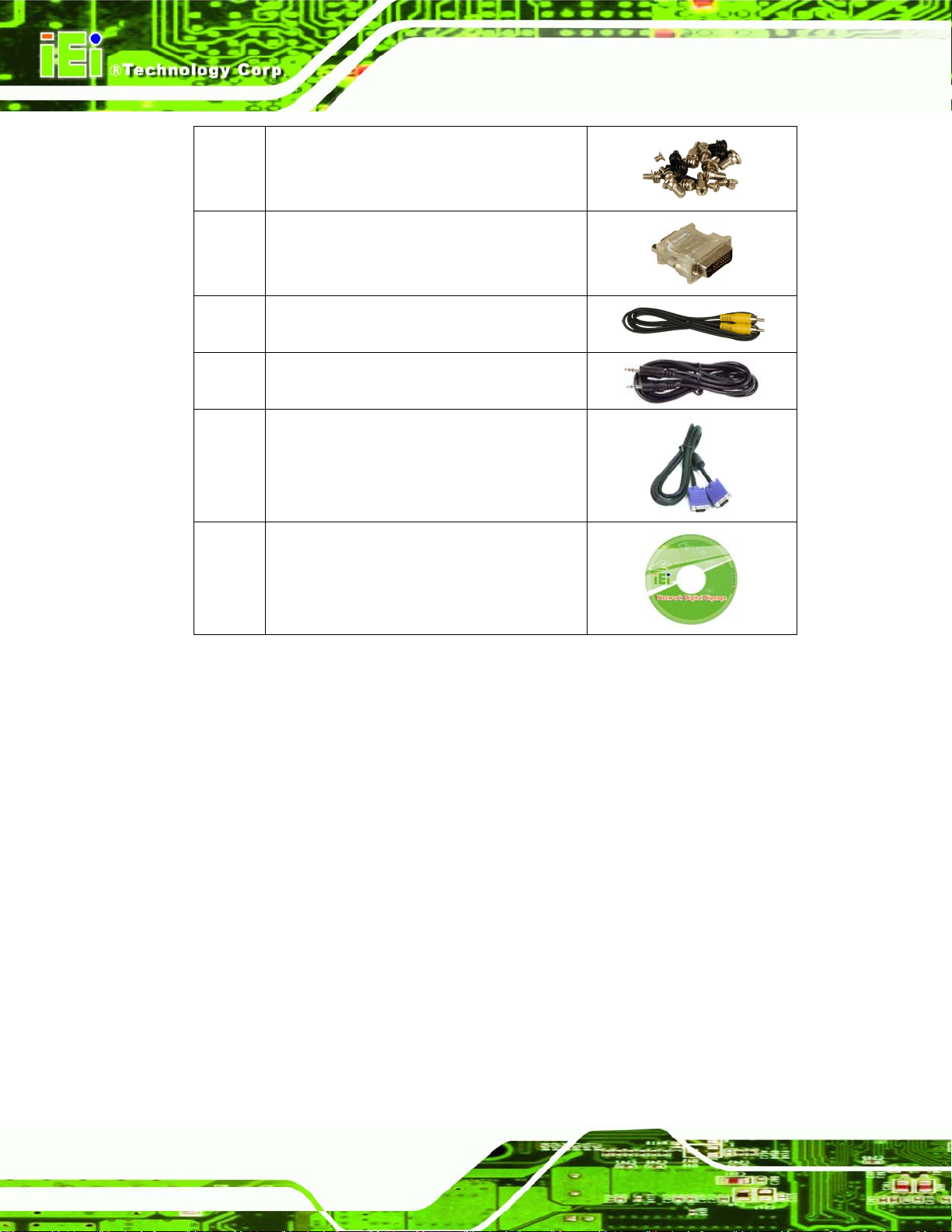

Quantity Item Image
1 iSignager LCD Series
1 Power cord
1 1GB demo CompactFlash® card
1 OSD remote control
Page 13
Page 26
1 Screw set
iSignager LCD Series
1 DVI-I to VGA adapter
1 RCA video cable
1 Audio cable
1 VGA cable
1 Companion CD
1.10 Before Start
1.10.1 Choose Mass Storage Device - CF Card or HDD
Before using the iSignager LCD Series, choose either a CF card or a HDD as the mass
storage device for the iSignager LCD Series. Device settings and display content are
saved in the mass storage device. The mass storage device (CF card or HDD) has to be
formatted as FAT 32 format for initial use.
1.10.2 The Concept of the iSignager AdDesign
The iSignager AdDesign is the software the user can use to design display contents for
Page 14
the iSignager LCD Series. Two essential components of the display content are the layout
and the sequence. The following descriptions help the user to understand the concepts of
the iSignager AdDesign. For more information please refer to iSignager AdDesign user
manual.
Page 27
iSignager LCD Series
Layout
To design a layout is to arrange what and where the content is displayed. A layout can
contain several display items, including:
Pictures
Crawling banners
Rolling banners
A video
A digital clock
Multiple files can be added into each display item.
Sequence
A sequence decides the broadcast sequ ence an d the broa dcast tim e of the cre ated layout.
After creating a layout, the layout must be added into a sequence. A sequence can include
several layouts.
Export Layout/Sequence
To copy the individual layout or sequence to another directory or computer, please use the
“Export Layout/Sequence” function to export the file.
Page 15
Page 28
1.11 Supported Formats
The iSignager LCD Series supports many kinds of video, audio and graphic formats. The
iSignager LCD Series
supported formats are listed in
found in Appendix B.
Table 1-6. Detailed descriptions of each format can be
NOTE:
The video in .mpe format can be run by iSignager LCD Series, but the video
length information will not be available.
iSignager LCD Series Supported Formats
Video
MPEG-1 VCD format (1.15 Mbps CBR) [.mpg, .mpe, .mpeg, .dat, .m1v]
SD and HD MPEG-2 up to 15 Mbps [.mpg, .mpe, .mpeg, .m2v, .vob, .vro]
SD and HD MPEG-4 (OpenDivX, XviD, RMP4) [.avi, .divx, .mp4]
AVI audio codec: MP3, AC3, PCM, WMA
Audio
Graphic
Table 1-6: iSignager LCD Series Supported Formats
MPEG-1 Layer 1 (MP1) [.mp1, .mpa]
MPEG-1 Layer 2 (MP2) [.mp2]
MPEG-1 Layer 3 (MP3) [.mp3]
Microsoft
Advanced Audio Coding (AAC, ADIF, ADTS) [.aac]
Apple MPEG-4 AAC Audio (M4A) [.m4a]
Microsoft
[.wma, .asf]
Microsoft
16/24/32-bit color BMP, GIF, PNG, JPEG
®
PCM Wave (WAV) [.wav]
®
Windows® Media Audio version 1 and version 2 (WMA)
®
Windows® Media Audio Professional (WMA Pro) [.asf]
Page 16
Page 29
iSignager LCD Series
Chapter
2
2 Installation
Page 17
Page 30
2.1 Hardware Installation
2.1.1 iSignager LCD Series Set-Up
To set up the iSignager LCD Series (the player), follow the steps below:
Step 1: Connect audio and video input to the player (if available).
Step 2: To transfer player settings or sequences to the player via the network, connect
the iSignager LCD Series to the same LAN of the PC via an Ethernet cable
(optional step).
Step 3: Connect the player to the power supply. Step 0:
iSignager LCD Series
NOTE:
After the hardware installation, a formatted CF card/HDD with display
content and player settings generated by iSignager AdDesign has to be
installed in the iSignager LCD Series for broadcasting.
2.1.2 HDD Installation (Optional)
A hard drive disk (HDD) can be used as the storage device on the iSignager LCD Series
instead of the CF card. The HDD provides larger data storage capacity. Before installing
the HDD, please install the iSignager AdDesign first and design the layout and sequence
with the iSignager AdDesign (see iSignager AdDesign user manual). After designing the
display content in the iSignager AdDesign, follow the steps below to install IDE HDD.
Step 1: Format the HDD as FAT 32 format. Connect the HDD to a computer with an
IDE-USB cable (
Figure 2-1) and format the HDD.
Page 18
Page 31
iSignager LCD Series
Figure 2-1: Format the HDD via IDE-USB Cable
Step 2: Generate a playable disk to the HDD. Follow the steps described in Gener ate
Playable Disk Section of the iSignager Design user manual to copy the player
settings and the sequence to the HDD. Disconnect the HDD from the computer.
Step 3: Remove the motherboard access panel of the iSignager L CD Series. The
metal panel is secured to the chassis with few retention screws (
Remove the retention screws and lift the metal panel off the iSignager LCD
Series.
Figure 2-2).
Figure 2-2: iSignager-LCD-26 Motherboard Access Panel Retention Screws
Step 4: Remove the HDD brackets (Figure 2-3) by removing the four HDD bracket
retention screws.
Page 19
Page 32
Figure 2-3: HDD Brackets
iSignager LCD Series
Step 5: Secure the HDD brackets to the HDD. Align the retention screw holes on the
HDD brackets with the retention screw holes on the sides of the HDD
Figure 2-4).
(
Figure 2-4: Secure HDD to the Brackets
Page 20
Step 6: Install the HDD into the . Insert the HDD to the IDE connector on the bo ard and
secure the HDD to the board with four retention screws (
Figure 2-5).
Page 33
iSignager LCD Series
Figure 2-5: IDE HDD Installation
Step 7: Replace the aluminum cover and the plastic back cover. Step 0:
2.1.3 DVI/VGA Connection
The iSignager LCD Series supports dual display via the DVI-I connector on the bottom
panel. To connect the iSignager LCD Series to a second display device, follow the
instructions below.
Step 1: DVI: Connect the DVI cable to the DVI port on the bottom panel of the iSignager
LCD Series. Connect the other side of the DVI cable to the second display
device.
VGA: Connect the DVI-I to VGA adapter to the DVI port on the bottom panel of
the iSignager LCD Series. Connect the VGA cable to the iSignager LCD Series
and the second display device.
Step 2: Connect the audio cable to the audio output port on the bottom panel of the
iSignager LCD Series. Connect the other side of the audio cable to the audio
input port of the second display device.
Page 21
Page 34
Figure 2-6: Second Display Device Connection
iSignager LCD Series
Step 3: Make sure the display device is set to DVI (DVI/VGA Dual) in the device settings
in the player manager of the iSignager AdDesign. Please refer to iSignager
AdDesign user manual for more details.Step 0:
Page 22
Figure 2-7: Device Settings
Page 35
iSignager LCD Series
2.1.3.1 Supported Output Ports and Resolutions
The iSignager LCD Series supports multiple resolutions for the second display device.
The supported display resolutions are listed in
Output Port Output Mode Resolution
DVI
VGA 640x480, 848x480, 800x600, 1024x768, 1152x864, 1280x768,
Table 2-1: Supported Resolutions for the Second Display Device
DVI 640x480, 848x480, 800x600, 1024x768,
1152x864, 1280x768, 1280x960, 1280x1024,
1360x768, 1400x1050, 1600x1200, 1920x1200
HDMI 480p(720x480), 720p(1280x720),
1080i(1920x1080), 1080p(1920x1080)
1280x960, 1280x1024, 1360x768, 1400x1050, 1600x1200,
1920x1200
Table 2-1.
Page 23
Page 36
2.2 iSignager LCD Series Mounting
The iSignager LCD Series can be mounted on a wall, ceiling or stand. Table 2-2 lists the
various optional mounting kits available for the iSignager LCD Series.
Model iSignager-LCD-26 iSignager-LCD-42
Stand Stand-A26 Stand-M100
Wall Mounting Kit WK-80
Ceiling Mounting Kit CEILMT-135
Wall Mounting Arm ARM-50
Table 2-2: iSignager LCD Series Mounting Kits
iSignager LCD Series
NOTE:
To mount the iSignager LCD series on a wall, ceiling or stand, please
refer to the user manual come with the mounting kit.
Page 24
Page 37
iSignager LCD Series
Chapter
3
3 On-Screen-Display
(OSD) Controls
Page 25
Page 38
3.1 User Mode OSD Structure
3.1.1 OSD Buttons
There are several on-screen-display (OSD) control buttons oriented either verti cally on the
iSignager LCD Series
bottom of the iSignager LCD Series front panel.
of OSD controls.
Figure 3-1 shows a typical arrangement
Figure 3-1: OSD Control Buttons
LCD ON/OFF Button
Press this button to turn the LCD monitor on or off. When the LCD monitor is
Page 26
on, the power LED is turned on in green.
Auto/Exit Button
Press this button to enable auto-configuration, apply default values or exit the
menu.
Up Button
Press this button to scroll up or to switch from one selected item to another.
Down Button
Press this button to scroll down or to switch from one selected item to another .
Left Button
Press this button to scroll to the left, to decrease the value, or to switch from
one selected item to another.
Page 39
iSignager LCD Series
Right Button
Press this button to scroll to the right, to increase the value, or to switch from
one selected item to another.
Menu/Enter Button
Press this button to open the OSD window. When inside a menu, press this
button to confirm the function adjustment or selection of the item. There may
be several levels in one item. As you select an item in the menu, the
sub-items will be displayed.
3.1.2 OSD Menu Structure
Table 3-1 shows the OSD menu structure for all models of the iSignager LCD Series.
Level 0 Level 1 Value
Image Menu
Display Menu
Color Menu
Brightness 0 to 100
Contrast 0 to 100
Sharpness 0 to 100
Auto Adjust Select
Phase 0 to 100
Clock 0 to 100
Display Control
Auto Color Select
Color Temperature
sRGB Off, On
Display Image Auto, 1:1, Aspect
Aspect Ratio Auto, 4x3, 14x9,
16x9, >16x9
Display Position Select
USER Red (0 to 100)
Green (0 to 100)
Blue (0 to 100)
4200K, 5000K, 6500K, 7500K, 9300K
System Menu
Factory Reset Select
Information Select
Input Select VGA, YpbPr, DVI, Svideo, CVBS
Mute On, Off Audio
Volume 0 to 100
Page 27
Page 40
Language English
Misc
iSignager LCD Series
Table 3-1: OSD Menus
OSD Configuration
OSD Timer Off, 5 sec, 10 sec,
15 sec, 20 sec, 25
sec, 30 sec
OSD Position Select
OSD Transparency 0 to 100
OSD Zoom 0 to 100
On Auto Brightness Auto Brightness
Off
Page 28
Page 41
iSignager LCD Series
3.2 Using the OSD
OSD menu options are described below.
3.2.1 Image Menu
Image menu options are shown in Figure 3-2.
Figure 3-2: Image Menu
Brightness
Contrast
Sharpness
Adjusts the brightness of screen. This function adjusts the
offset value of ADC. Setting this value too high or too low will
affect the quality of image. When the auto dimming function is
turned on, the brightness control is not effective.
Adjusts the gain value of ADC. Adjusting this value too high
or too low will worsen the quality of image.
Adjusts the sharpness level. This option may help reduce the
softening edges around the displayed objects.
Page 29
Page 42
3.2.2 Display Menu
Display options are shown in Figure 3-3.
Figure 3-3: Display Menu
Auto Adjust
iSignager LCD Series
Automatically adjusts the LCD screen position.
Phase
Clock
Display Control
Adjusts the input signal (Analog only)
Adjusts the dot clock position
This item allows adjustment of the following items.
Display Image – Adjusts the size of the display image
Display Position – Adjusts the horizontal and vertical
position of the display screen
Page 30
Page 43
iSignager LCD Series
3.2.3 Color Menu
Color options are shown in Figure 3-4.
Figure 3-4: Color Menu
Color options are described below.
Auto Adjust
Color Temperature
sRGB
Automatically adjusts the color hues
Fine-tunes the palette of color hues
Fine-tunes the balance among the Red, Green, and Blue
color hues if images look garish or unrealistic
Page 31
Page 44
3.2.4 System Menu
System options are shown in Figure 3-5.
Figure 3-5: System Menu
iSignager LCD Series
System options are described below.
Audio
Factory Reset
Information
Input Select
Language
Misc
Mutes the audio or adjusts audio volume.
Restores the default OSD settings. Note that this will
restore all default display settings.
Provides information on the LCD monitor, such as model
number, input device, and resolution
Allows selection of input device to use
Provides options for selecting OSD screen legends in a
preferred language
Provides options for OSD configuration and
auto-brightness (auto-dimming)
Page 32
Page 45
iSignager LCD Series
3.2.4.1 OSD Configuration
OSD configurations are shown in Figure 3-6.
Figure 3-6: OSD Configuration
OSD configuration options are described below.
OSD Timer
OSD Position
OSD Transparency
OSD Zoom
Determines how many seconds the OSD screen stays o n
screen before it disappears when OSD is left unattended.
Adjusts the OSD position on the screen. Use the arrow
buttons on the OSD control panel to move the OSD
screen
Adjusts the transparency of the OSD screen
Turns the OSD zoom feature on or off
Page 33
Page 46
3.2.4.2 Auto-Brightness (Auto-Dimming) Configuration
The iSignager LCD Series features an auto-dimming function. Use the OSD to turn this
iSignager LCD Series
function on or turn off. The auto-dimming screen is shown in
Appendix
Figure 3-7: Auto Brightness Configuration
Auto Brightness configuration options are described below.
On
3.3A for details.
Turns the auto-dimming function on. When auto-dimm ing
Figure 3-7. Refer to
Page 34
Off
is turned on, the auto-dimming LED on the OSD panel is
on and the monitor automatically adjusts the brightness
depending on ambient light conditions.
Turns the auto-dimming function off.
Page 47
iSignager LCD Series

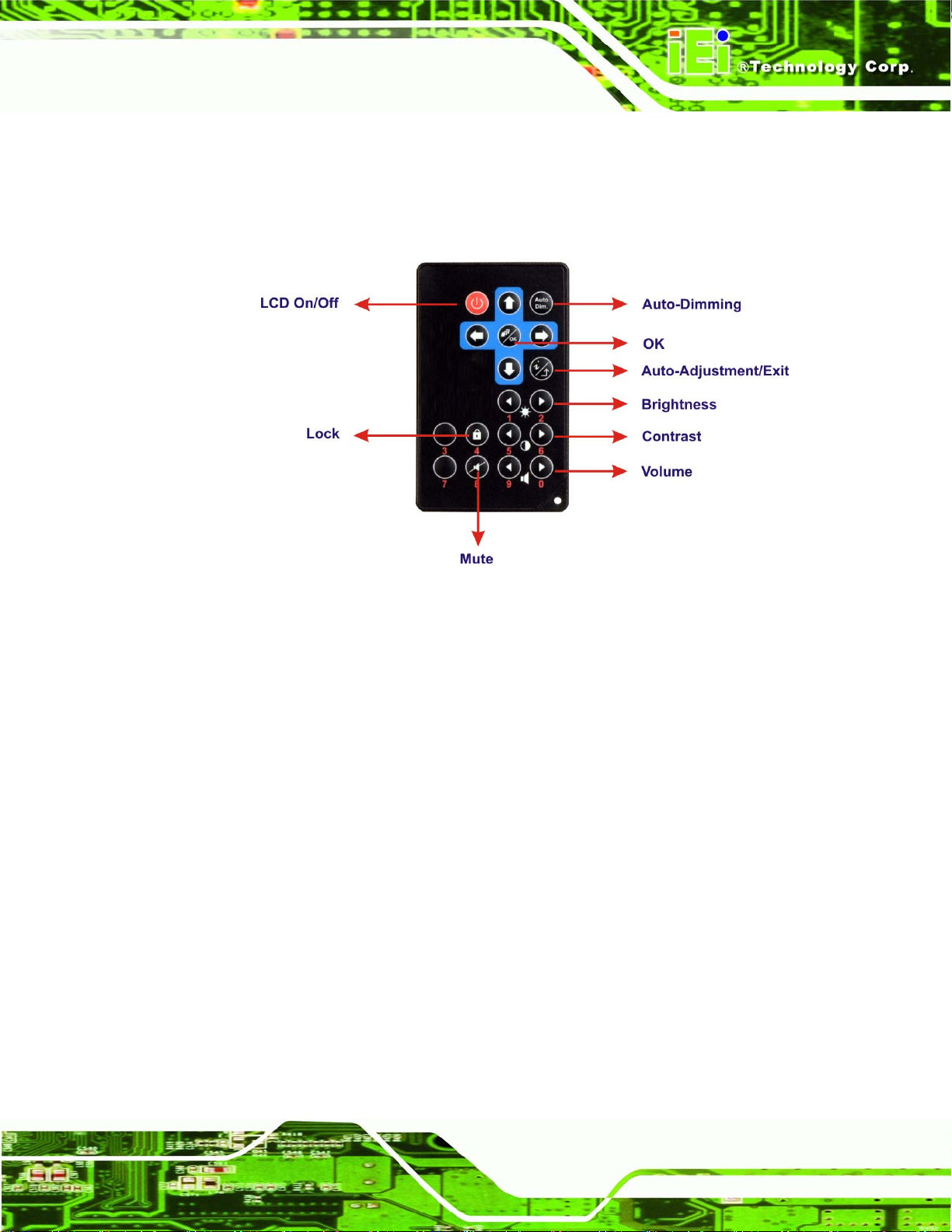

3.3 Remote Control
The iSignager LCD Series comes with a remote control for easy configuration of OSD
settings.
Figure 3-8 shows the remote control and its function keys.
Figure 3-8: Remote Control
LCD On/Off. Press this button to turn the LCD monitor on or off.
Lock. This function is currently unavailable.
Mute. Press this button to turn off the audio.
Auto-Dimming. Press this button to turn the auto-dimming function on or off.
OK. Press this button to confirm a setting or an adjustment made.
Auto-Adjustment/Exit. Press this button to let the system automatically
configure the OSD settings or to exit the current menu.
Brightness. Use these control buttons to adjust the brightness of the LCD
screen.
Contrast. Use these control buttons to adjust the contrast values.
Volume. Press this button to adjust the audio volume level.
Page 35
Page 48
iSignager LCD Series
Appendix
A
A Auto-Dimming
Page 36
Page 49
iSignager LCD Series
A.1 Auto-Dimming Configurations
The iSignager LCD Series features an auto-dimming LCD that can automatically adjust
the backlight brightness according to the ambient light. If the auto-dimming function is
turned on, the backlight turns brighter when the ambient illuminance is high. The backlight
dims automatically when the ambient illuminance level is low.
The SI unit of illuminance is “lux.” Lux measures the intensity of light. Table B-1 lists the
illuminance (LUX measurement) of everyday light sources.
Light Source
Night without moonlight
Night with moonlight
Office desk lighting
Overcast day
Sunny day
Direct sunlight
Table A-1: LUX Measurement of Everyday Light Source
Brightness (LUX)
<10
<100
500~1000
1000~2000
10,000
100,000
A.1.1 Default Settings
The auto-dimming default settings of the iSignager LCD Series industrial monitor is shown
in
Figure A-1 below. When the sensor detects the ambient illuminance as 2000 LUX or
above, the iSignager LCD Series adjusts the LCD brightness to 100%.
Page 37
Page 50
Figure A-1: Default Linearity of the LCD Backlight and Ambient Light
iSignager LCD Series
A.1.2 OSD Control
The auto-dimming configurations are shown in Section 3.2.4.2.
Figure A-2: Auto-Dimming Configurations Menu
Page 38
Page 51
iSignager LCD Series
Appendix
B
B Video, Audio and
Graphic Formats
Page 39
Page 52
B.1 Overview of Video Formats
B.1.1 MPEG-1
MPEG-1 is a standard used to compress audio and video (AV) digital data. MPEG-1
defines a group of AV coding standards agreed upon by MPEG (Moving Picture Experts
Group). MPEG-1 video is used by the Video CD format. The output quality at usual
VCD bit rates is roughly that of a VCR. MPEG-1 audio layer 3 is the full name for the
popular audio format MP3. The MPEG-1 AV format was later extended into the MPEG-2
and MPEG-4 formats. These extensions allow for greater compression for the same size
of data.
B.1.2 MPEG-2
MPEG-2 is a standard used primarily to compress audio and video (AV) digital data.
iSignager LCD Series
MPEG-2 is the designation for a group of coding standards for AV, agreed upon by MPEG
(Moving Pictures Experts Group), and published as the ISO/IEC 13818 international
standard. MPEG-2 is typically used to encode audio and video for broadcast signals,
including direct broadcast satellite and Cable TV. MPEG-2, with some modifications, is
also the coding format used by standard commercial DVD movies.
B.1.3 MPEG-4
MPEG-4 is a standard used primarily to compress audio and video (AV) digital data. It is
the designation for a group of audio and video coding standards and related technology
agreed upon by the ISO/IEC Moving Picture Experts Group (MPEG). The uses for the
MPEG-4 standard are web (streaming media) and CD distribution, conversational
(videophone), and broadcast television, all of which benefit from compressing the AV
stream.
B.1.4 DivX® and XviD
DivX is a video codec created by DivX, Inc. which has become popular due to its ability to
Page 40
compress lengthy video segments into small sizes while maintaining relatively high visual
quality. DivX uses lossy MPEG-4 Part 2 compression, where quality is balanced against
file size for utility.
Page 53
iSignager LCD Series
XviD is a free and open source MPEG-4 video codec. XviD features MPEG-4 Advanced
Simple Profile features such as b-frames, global and quarter pixel motion compensation,
lumi masking, trellis quantization, and H.263, MPEG and custom quantization matrices.
B.1.5 DVD .ISO
An ISO image (.iso) is an informal term for a disk image of an ISO 9660 file system. Most
CD/DVD authoring utilities can deal with ISO images: Producing them either by copying
the data from existing media or generating new ones from existing files, or using them to
create a copy on physical media.
B.1.6 DVD .VOB and .IFO
A VOB file (DVD-Video Object) is a file type contained in DVD-Video media. It contains
the actual Video, Audio, Subtitle and Menu contents in stream form. VOB files are
encoded very much like standard MPEG-2 files. When the extension is renamed
from .vob to .MPG or .MPEG the file is still readable and continues to hold all information,
although most players supporting MPEG-2 don't support subtitle tracks.
IFO file is a DVD information file that stores information about chapters, subtitles and
audio tracks. IFO files contain the formatting information of the VOB files, which tells the
DVD player how the DVD should be played.
B.1.7 .TS
Transport stream (TS) is used in MPEG-1, MPEG-2, and MPEG-4 systems protocols.
TS has features for error correction for transportation over imperfect media, and are used
in broadcast applications. The MPEG-2 transport stream is defined in the ISO/IEC
standard (13818-1).
Page 41
Page 54
B.2 Overview of Audio Formats
B.2.1 Dolby® Digital
Dolby® Digital, or AC-3, is the common version containing 6 total channels of sound, with
5 channels for normal-range speakers (right front, center, left front, right rear and left rear)
and one channel for the LFE, or subwoofer. The Dolby Digital format supports Mono and
Stereo usages as well.
B.2.2 MP3
MPEG-1 Audio Layer 3, more commonly referred to as MP3, is a popular digital audio
encoding and lossy compression format. MP3 is compression format. It provides a
representation of pulse-code modulation-encoded (PCM) audio data in a much smaller
size by discarding portions that are considered less important to human hearing.
iSignager LCD Series
B.2.3 AAC
AAC (Advanced Audio Coding) is one of the audio compression formats defined by the
MPEG-2 standard. AAC is a higher quality codec than the MP3, therefore requiring less
data for the same audio reproduction. As a result, an AAC file encoded at 96kbps bit rate
may actually sound better than an MP3 encoded at 128kbps bit rate.
B.2.4 WAV or WAVE
WAV (or WAVE), short for Waveform audio format, is a Microsoft® and IBM audio file
format standard for storing audio on PCs. It is a variant of the RIFF bitstream format
method for storing data in "chunks", and thus also close to the IFF and the AIFF format
used on Macintosh computers. WAV files store digital music data in a lossless format,
meaning the file is digitally identical to its source. However, the result is a very large,
uncompressed file.
B.2.5 WMA
Page 42
WMA, or Windows Media Audio, is proprietary audio codec of Microsoft®. WMA offers
the same quality as MP3 for half the bit rate (i.e., half the file size). WMA is now
positioning itself as the main competitor to AAC (Advanced Audio Codec), MP3's
successor.
Page 55
iSignager LCD Series
B.3 Overview of Graphic Formats
B.3.1 JPEG and JPG
JPEG (pronounced as jay-peg) is a commonly used standard method of lossy
compression for photographic images. JPEG is designed for compressing full-color or
gray-scale images of natural, real-world scenes. It works well on photographs, naturalistic
artwork, and similar material; not so well on lettering, simple cartoons, or line drawings.
The file format which employs this compression is commonly also called JPEG; the most
common file extensions for this format are .jpeg, .jfif, .jpg, .JPG, or .JPE although .jpg is
the most common on all platforms.
B.3.2 BMP
The name is short for bitmap and these files can be saved at various bit-depths. It is a
bitmapped graphics format used internally by the Microsoft® Windows® graphics
subsystem (GDI), and used commonly as a simple graphics file format on that platform.
Images are generally stored with a color depth of 2 (1-bit), 16 (4-bit), 256 (8-bit), 65,536
(16-bit), or 16.7 million (24-bit, referred to as true-color) colors (the bits represent the bits
per pixel). 8-bit images can also be gray scale instead of indexed color. 24-bit BMP
files are lossless but are much larger in file size than JPEGs.
B.3.3 GIF
GIF (Graphics Interchange Format) is a bitmap image format for pictures with up to 256
distinct colors from the over 16 million representable in 24 bit RGB.
A GIF file employs lossless data compression so that the file size of an image may be
reduced without degrading the visual quality, provided the image fits into 256 colors.
Therefore GIF is normally used for diagrams, buttons, etc., that have a small number of
colors, while the JPEG format is used for photographs.
B.3.4 PNG
PNG (Portable Network Graphics) is a lossless compressed bitmap image format. PNG
was created to both improve upon and replace the GIF format with an image file format not
requiring a patent license to use. PNG is officially pronounced "ping" and, like GIF and
Page 43
Page 56
BMP, reduces file size by reducing the number of colors. PNG can also be 24-bit
true-color and maintain all the original image information, but file sizes are large.
B.4 Standard Definition (SD) Introduction
B.4.1 SDTV
Standard-definition television or SDTV refers to television systems that have a lower
resolution than HDTV systems. The term is usually used in reference to digital television,
in particular when broadcasting at the same (or similar) resolution as analog systems.
In ATSC, SDTV can be broadcast in 704 pixels × 480 lines with 16:9 aspect ratio (40:33
rectangular pixel), 704 pixels × 480 lines with 4:3 aspect ratio (10:11 rectangular pixel) or
640 pixels × 480 lines with 4:3 ratio (and square pixels). The refresh rate can be any of
24, 30 or 60 pictures per second.
iSignager LCD Series
Digital SDTV in 4:3 aspect ratio has the same appearance as the regular analogue TV
(NTSC, PAL, PAL2, SÉCAM) minus the ghosting, snowy images and static noises.
However, if the reception is poor, the user may encounter various other artifacts such as
blockiness and stuttering.
Standards that can broadcast digital SDTV include DVB, ATSC and ISDB. The latter two
were originally developed for HDTV, but they have proved to be more often used for their
ability to deliver multiple SD video and audio streams via multiplexing, than to use the
entire bitstream for one HD channel.
B.5 High Definition (HD) Introduction
High-definition video or HDTV generally refers to any video system of higher resolution
than standard-definition (SD), i.e. NTSC, SÉCAM and PAL. HDTV is broadcast digitally,
and therefore its introduction sometimes coincides with the introdu ction of digital television
(DTV). High-definition signals require a high-definition television or computer monitor in
order to be viewed. High-definition video generally has an aspect ratio of 16:9 (1.78:1).
The aspect ratio of regular widescreen film shot today is typically 1.85:1 or 2.40:1.
Page 44
Standard-definition television (SDTV) has a 4:3 (1.33:1) aspect ratio.
High-definition television (HDTV) resolution is 1080 or 720 lines. In contrast, regular digital
television is 480 lines (NTSC-like) or 576 lines (PAL/SECAM-like).
Page 57
iSignager LCD Series
B.5.1 Notation
In the context of HDTV, the formats of the broadcasts are referred to using a notation
describing:
720p60
720: The number of lines in the display resolution.
P: Progressive frames (p) or interlaced fields (i).
60: Number of frames or fields per second.
For example, the format 720p60 is 1280x720 pixels, progressive encoding with 60 frames
per second (60 hertz known as Hz). The format 1080i50 is 1920x1080 pixels, interlaced
encoding with 50 fields (25 frames) per second. Often the frame or field rate is left out.
It can then usually be assumed to be either 50 or 60, except for 1080p which is only
supported as 1080p24, 1080p25 or 1080p30 by consumer HDTV displays.
A frame or field rate can also be specified without a resolution. For example 24p means
24 progressive frames per second and 50i means 50 interlaced frames per second.
B.5.2 Progressive Scan vs. Interlaced Scan
Interlaced scan is the way a television decodes an image–a fram e is bro ken into two field s,
odd (1, 3, 5, 7…) and even (2, 4, 6, 8…). A television scans 60 fields per second with 30
odd and 30 even fields created. By combining the two fields every 1/30 of a second, a
frame is created thus creating 30 frames per second.
Progressive scan differs from interlaced scan in that the image is displayed on a screen by
scanning each line (or row of pixels) in a sequential order rather than an alternate order.
Therefore, in progressive scan, the image lines are scanned in numerical order (1, 2, 3)
down the screen from top to bottom, instead of in an alternate order (lines or rows 1, 3, 5,
etc. followed by lines or rows 2, 4, 6). By progressively scanning the image onto a
screen every 60th of a second rather than "interlacing" alternate lines every 30th of a
second.
Page 45
Page 58
iSignager LCD Series
Appendix
C
C Check and Modify the
Player Status by
Serial Port
Page 46
Page 59
iSignager LCD Series
C.1 Check and Modify the iSignager LCD Series Status by Serial
Port
Follow the following steps and command to check and modify the iSignager LCD Series
status by RS-232 serial port.

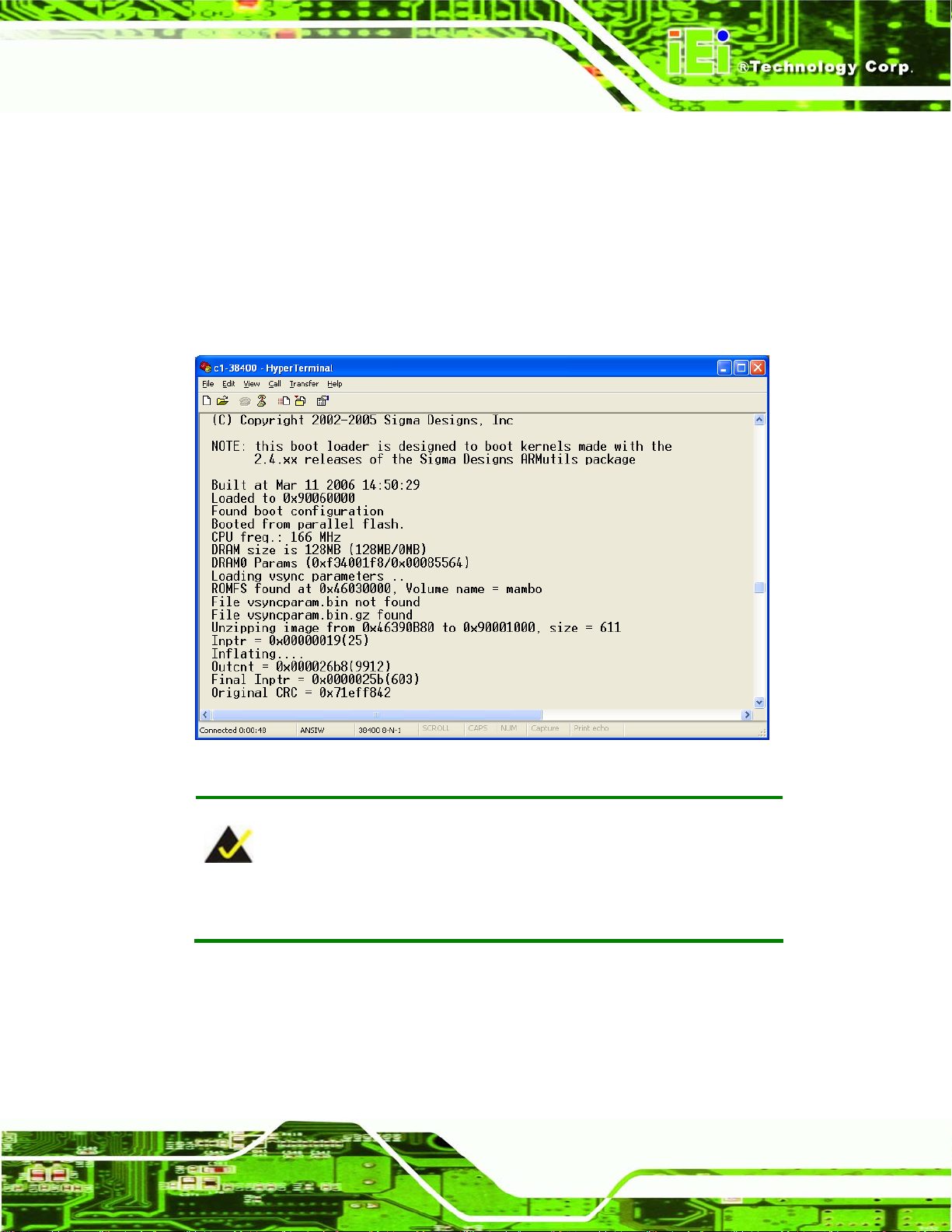

Step 1: In Windows
prepare a null modem cable to connect the PC and the iSignager LCD Series.
®
XP/ Windows® 2000 OS, create a HyperTerminal session and
NOTE:
All these settings can be done in the iSignager AdDesign.

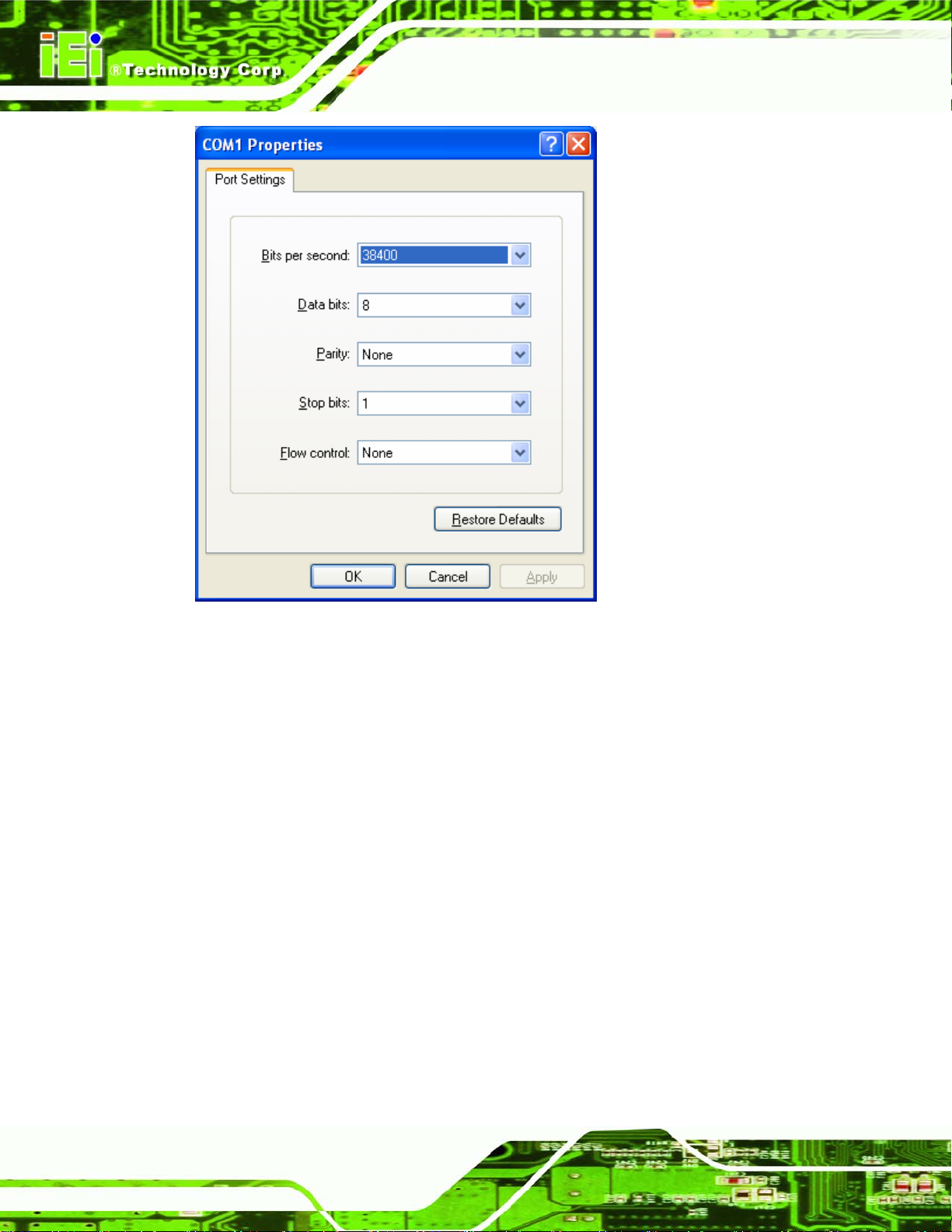

Step 2: Modify COM1 Settings as below.
Page 47
Page 60
iSignager LCD Series
Step 3: Connect RS-232 cable to COM1 of iSignager LCD Series:
vick[/]#
run vick[/]# cd /bin
Step 4: Display Playerinfo function:
vick[/bin]# ./playerinfo
BINFMT_FLAT: Loading file: ./playerinfo
Usage:
./playerinfo -i: To display all information
./playerinfo -sh hostname: To change PC host name
./playerinfo -ch hostname: To change client host name
./playerinfo -ddev <val>: To change device type
./playerinfo -si ip: To change PC IP
Page 48
./playerinfo -ci ip: To change client IP
./playerinfo -d 1/0: To enable DHCP(1) or to disable DHCP(0)
Page 61
iSignager LCD Series
./playerinfo -pstop: To stop playlist
./playerinfo -pstart: To start playlist
./playerinfo -cstart: To restart client
./playerinfo -time <val>: To change time
./playerinfo -wal :
./playerinfo -reboot : To reboot system
Step 5: Examples:
Example 1.1 Use command playerinfo-i and show the information of the player
is connected via LAN:
Glob1[/]# playerinfo -i
BINFMT_FLAT: Loading file: /new/part1/bin/playerinfo
***************Information************************
Romfs Version : 107
Client Hostname : Glob1
Client Ip eth0 : 10.10.19.253
Server Hostname : RD-VICKWU-NB
Server Ip : 10.10.18.37
Display Device : VGA 1024x768 60
Apps Version : 106
To display wireless info
WIFI :
BINFMT_FLAT: Loading file: /new/part1/bin/playerinfo
no wireless extensions
Example 1.1 Use command playerinfo-i and show the information of the player
is connected via Wifi
vick[/]# playerinfo -i
BINFMT_FLAT: Loading file: /new/part1/bin/playerinfo
***************Information************************
Romfs Version : 200
Client Hostname : vick
Client Ip eth0 : 192.168.10.7
Server Hostname : RD-VICKWU-NB
Server Ip : 192.168.10.5
Page 49
Page 62
Dhcp : disable
Display Device : VGA 1360x768 60
Apps Version : 200
WIFI :
BINFMT_FLAT: Loading file: /new/part1/bin/playerinfo
Client ra0 Ip : 192.168.10.3
Access Point : 00:13:46:87:EA:02
Encryption key : 132-3334-3536-3738-3930-6162-63
ESSID : "iei_sw2"
vick[/]#
Example 2. Set iDSServer hostname to client system
vick[/bin]# ./playerinfo -sh RD-VICKWU-NB
iSignager LCD Series
BINFMT_FLAT: Loading file: ./playerinfo
Changing server hostname
Done
Example 3. Set client hostname to client system
vick[/bin]# ./playerinfo -ch vick
BINFMT_FLAT: Loading file: ./playerinfo
Changing client hostname
Example 4. Set device display mode type
vick[/bin]# ./playerinfo -ddev VGA 1360x768 60
BINFMT_FLAT: Loading file: ./playerinfo
Display Device: VGA 1360x768 60
Page 50
Example 5. Set iDSServer IP to client system
vick[/bin]# ./playerinfo -si 10.10.10.58
BINFMT_FLAT: Loading file: ./playerinfo
Page 63
iSignager LCD Series
Example 6. Set client IP to client system
Changing server IP
Done
vick[/bin]# ./playerinfo -ci 10.10.10.74
BINFMT_FLAT: Loading file: ./playerinfo
Changing client IP 10.10.10.74
74
eth0: link up, 100Mbps, full-duplex, lpa 0x45E1
vick[/bin]# interface < eth0 > is up and running
==================================================
the systems IP address is :10.10.10.74
connecting to windows server..............
windows server ip address is : 10.10.10.58
windows server hostname is : RD-VICKWU-NB
connection = Y
CONNECTED TO WINDOWS SERVER!
==================================================
gateway: Unable to read gateway from interface
==================================================
Mac address of the board is: #00:0b:6a:36:a3:10
Default gateway of the board is: 0.0.0.0
Subnet mask is: 255.255.254.0
Host name is: vick
DNS of the board is: 172.16.2.6
==================================================
#00:0b:6a:36:a3:10#10.10.10.74#172.16.2.6#vick#0.0.0.0#255.255.254.0#0#0#0#0#0
##
Page 51
Page 64
Example 7. Set DHCP action
vick[/bin]# ./playerinfo -d 1
BINFMT_FLAT: Loading file: ./playerinfo
Changing dhcp.txt
Done
Example 8. Stop playing
vick[/bin]# ./playerinfo -pstop
BINFMT_FLAT: Loading file: ./playerinfo
killall: pictureplayer: no process killed
killall: play0: no process killed
killall: play1: no process killed
iSignager LCD Series
killall: play2: no process killed
munmap of non-mmaped memory by process 1811 (play_animate): 17e02000
munmap of non-mmaped memory by process 1812 (play_animate): 17e02000
killall: play_rotate: no process killed
killall: nano-X: no process killed
killall: audioplayer: no process killed
killall: audio: no process killed
killall: saver: no process killed
munmap of non-mmaped memory by process 1806 (banner): 17e02000
munmap of non-mmaped memory by process 1807 (banner): 17e02000
munmap of non-mmaped memory by process 1808 (banner): 17e02000
killall: mbanner: no process killed
killall: videoin: no process killed
Example 9. Restart Play action
vick[/bin]# ./playerinfo -pstart
BINFMT_FLAT: Loading file: ./playerinfo
vick[/bin]# *******************PLAYING
Page 52
Page 65
iSignager LCD Series
/new/playlist5.txt***********************Fading: disabled
Alpha0: 255
Alpha1: 255
D 0
Running check
iEi WCODE 1 0x05 0x02
iEi RCODE 1 0x05 0x02
Example 10. Restart client connect
vick[/bin]# ./playerinfo -cstart
BINFMT_FLAT: Loading file: ./playerinfo
vick[/bin]# interface < eth0 > is up and running
==================================================
the systems ip address is :10.10.10.74
connecting to windows server..............
windows server ip address is : 10.10.10.58
windows server hostname is : RD-VICKWU-NB
connection = Y
CONNECTED TO WINDOWS SERVER!
==================================================
==================================================
Mac address of the board is :#00:0b:6a:36:a3:10
Default gateway of the board is :10.10.10.1
Subnet mask is :255.255.254.0
Host name is :vick
DNS of the board is :172.16.2.6
==================================================
#00:0b:6a:36:a3:10#10.10.10.74#172.16.2.6#vick#10.10.10.1#255.255.254.0#0#0#0#
0#
Example 11. Set system time
vick[/bin]# ./playerinfo -time 072211142006
Page 53
Page 66
BINFMT_FLAT: Loading file: ./playerinfo
Setting the date
Sat Jul 22 11:14:00 MDT 2006
Example 12. Reboot the player
iSignager LCD Series
vick[/bin]# ./playerinfo -reboot
Step 6: Use the following command to modify LAN settings:
ifconfig eth0 IP : set client IP value
ifconfig eth0 netmask : set client mask
e.g. ifconfig eth0 netmask 192.168.1.255
ifconfig eth0 broadcast: set client broadcast
e.g. ifconfig eth0 broadcast 255.255.255.0
Step 7: Use the following command to modify Wifi settings: Step 0:
ifconfig ra0 IP : set client IP value
ifconfig ra0 netmask : set client mask
e.g. ifconfig ra0 netmask 192.168.1.255
ifconfig ra0 broadcast: set client broadcast
e.g. ifconfig ra0 broadcast 255.255.255.0
C.1.1 Successful Message—LAN Connection
If LAN is successfully connected, the following messages are shown.
*******************PLAYING/new/playlist7.txt****************************
Fading : disabled
vick[/]# Alpha0 : 255
Found RT61 Wifi Card
Alpha1 : 255
D 0
Runing check
killall: rcli: no process killed
killall: client: no process killed
Page 54
Page 67
iSignager LCD Series
interface < eth0 > is up and running
==================================================
the systems ip address is :192.168.1.10
connecting to windows server..............
windows server ip address is : 192.168.1.5
windows server hostname is : RD-VICKWU-NB
error status-w: Contact iEi code=0x05 failed
connection = Y
CONNECTED TO WINDOWS SERVER!
==================================================
iEi WCODE 1 0x05 0x02
iEi RCODE 1 0x05 0x02
==================================================
Mac address of the board is :#00:9b:6b:36:a8:70
Default gateway of the board is :192.168.1.1
Subnet mask is :255.255.255.0
Host name is :vick
DNS of the board is :127.0.0.1
==================================================
#00:9b:6b:36:a8:70#192.168.1.10#127.0.0.1#vick#192.168.1.1#255.255.255.
0#0#0#0##read returned : 20
C.1.2 Successful Message—Wifi Connection
If Wifi is successfully connected, the following messages are shown.
eth0: link down
ra0
killall: udhcpc: no process killed
Found RT61 Wifi Card
12:34:56:78:90:00:00:00:00:00:00:00:00:00:00:00:
RT61: RfIcType= 3
Probing for Wifi Card......
inf_name ra0
Page 55
Page 68
WiFi IP { 10.10.88.100 }
WiFi Encryption Enable { Y }
WiFi Key type { open }
WiFi cipher type { WEP }
WiFi key index { 1 }
WiFi Key Length { 128 }
WiFi Key { 1234567890abc }
WiFi Essid { iei_sw2 }
WiFi Network Type { infra }
Setting WiFi Ip Address......
Setting Network Type......
Command :iwpriv ra0 set NetworkType=infra
Setting Authenticaion Mode....
Command :iwpriv ra0 set AuthMode=open
iSignager LCD Series
Setting Encryption Type....
Command :iwpriv ra0 set EncrypType=WEP
Setting Default Key ID....
Command :iwpriv ra0 set DefaultKeyID=1
Setting Key .....
Command :iwpriv ra0 set Key1=1234567890abc
31:32:33:34:35:36:37:38:39:30:61:62:63:00:00:00:
Setting SSID....
Command :iwpriv ra0 set SSID=iei_sw2
interface < eth0 > is Down
interface < ra0 > is up and running
new complied on Sep 21 2006 19:02:59
Page 56
Page 69
iSignager LCD Series
C.2 Checking Connection
There are several ways to check if the connection exists between the iSignager LCD
Series and PC.
C.2.1 Check the LED
Check the LEDs on the top of the LAN port in the bottom panel of the iSignager LCD
Series. The green LED on the right side indicates LAN or Wifi is linked on the port. The
orange LED on the left side indicates transmission activity.
C.2.2 Ping in DOS Environment or Hyper Terminal Session
C.2.2.1 PC
To check if the specific IP connection exists in the server side, check in DOS environment
of the server. In DOS environment, type “ping” followed by the LAN IP or WLAN IP, e,g.
ping 10.10.12.82. Press Enter. If the reply message is shown, the connection exists, e.g.
Reply from 10.10.12.82: bytes=32 time<10ms TTL=128
Reply from 10.10.12.82: bytes=32 time<10ms TTL=128
Reply from 10.10.12.82: bytes=32 time<10ms TTL=128
C.2.2.2 iSignager LCD Series
To check if the specific IP connection exists in the client side, check in a Hyper Terminal
session of the iSignager LCD Series. To create a Hyper Terminal session, please refer to
Section
e,g. ping 10.10.19.253. Press Enter. If the reply message is shown, the connection exists,
e.g.
C.1. In Hyper Terminal session, type “ping” followed by the LAN IP or WLAN IP,
64 bytes from 10.10.19.253: icmp_seq=0 ttl=64 time=1.3 ms
64 bytes from 10.10.19.253: icmp_seq=1 ttl=64 time=0.7 ms
64 bytes from 10.10.19.253: icmp_seq=2 ttl=64 time=0.5 ms
Page 57
Page 70
C.2.3 Check the Status in the Player Manager
The iSignager AdDesign detects the player status automatically and shows the player
status in the “Status” column in the Player Manager window. The status of the player is
either On-Line, Off-Line or Playing.
C.3 iSignager LCD Series Network Behavior
The user can setup LAN and Wifi settings in the iSignager LCD Series at the same time.
However, the iSignager LCD Series takes LAN as the first priority by default when booting
up. If the LAN is successfully activated, the iSignager LCD Series does not activate the
Wifi settings. The Wifi settings is activated only when the LAN activation process is failed.
iSignager LCD Series
Page 58
Page 71
iSignager LCD Series
D Index
Page 59
Page 72
iSignager LCD Series
１
12V ..............................................................5
Ａ
auto-dimming................ 3, 32, 34, 35, 37, 38
Auto-Dimming............................................34
Ｂ
Brightness......................................10, 11, 12
Ｃ
Cable TV................................................3, 40
CompactFlash®...........................................3
Compliances
IP 64........................................................3
Ｈ
HDTV.............................................. 3, 44, 45
Ｉ
IDE-USB cable...........................................18
IP 64.............................................................2
Ｌ
LCD............................................................10
LCD Specifications.....................................11
iSignager LCD -42 LCD S pecifications .12
iSignager LCD-26 LCD Specifications...11
