Page 1
1

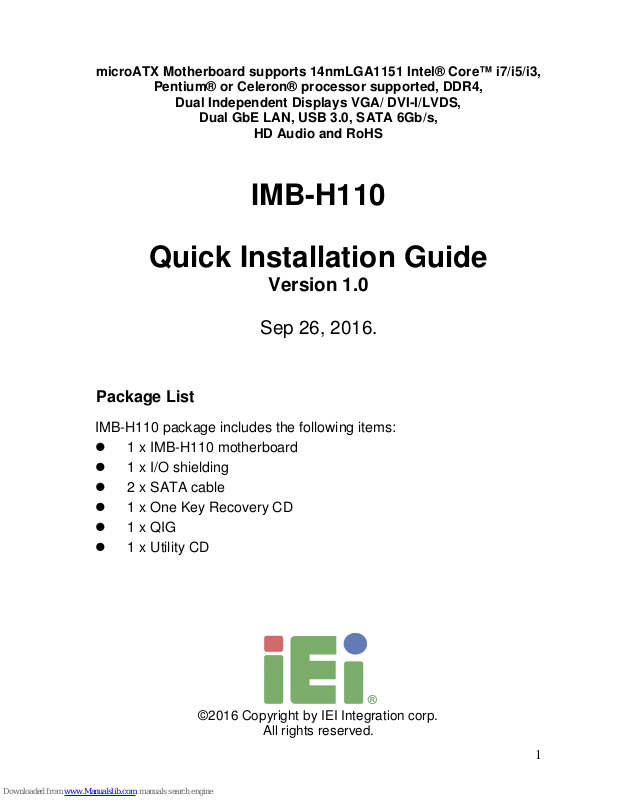

microATX Motherboard supports 14nmLGA1151 Intel® Core™ i7/i5/i3,
Pentium® or Celeron® processor supported, DDR4,
Dual Independent Displays VGA/ DVI-I/LVDS,
Dual GbE LAN, USB 3.0, SATA 6Gb/s,
HD Audio and RoHS
IMB-H110
Quick Installation Guide
Version 1.0
Sep 26, 2016.
Package List
IMB-H110 package includes the following items:
1 x IMB-H110 motherboard
1 x I/O shielding
2 x SATA cable
1 x One Key Recovery CD
1 x QIG
1 x Utility CD
©2016 Copyright by IEI Integration corp.
All rights reserved.
Page 2
2
Specifications
CPU:
LGA1151 socket supports Intel® skylake-S
Chipset: Intel® skylake H110
Memory:
Two 260-pin 2133MHz Dual-Channel DDR4 SDRAM
Unbuffered DIMM supported up to 64GB
BIOS: UEFI BIOS
Graphic Engine:
Intel® HD Graphics Gen 9 Engines with Low power 16
execution unit, supports DX2015, OpenGL 5.X and
OpenCL2.x, ES 2.0
Display Output:
Dual display
VGA (Chrontel 7517)
DVI-I (ASM1442, Chrontel 7517)
LVDS (Chrontel 7511)
iDP
Ethernet:
LAN1: RTL 8111GN controller
LAN2: RTL 8111GN controller
External I/O Interface:
4 x USB 3.0
6 x USB 2.0
Internal I/O Interface:
1 x KB/MS (1x6 pin)
1 x LPT (2 x 13pin, P=2.54)
4 x SATA 6Gb/s
2 x RS-232/422/485 (1x4 pin, P=2.0, colay with COM4)
2 x USB2.0 (2x4 pin, P=2.0)
10 x RS-232 (2x5 pin, P=2.0)
LPC to COM: F81866
Page 3
3
SMBus: 1 x SMBus (1x4 pin)
TPM: 1 x TPM (2x10 pin)
Audio:
Realtek ALC662 HD Audio Codec support 5.1 Channel, (2
Audio Jack colay 3)
Front Audio (2x 5 pin) (Line-in, Line-out, Mic)
Front Audio: 2 x 5-pin pin header
Front Panel:
1 x Front Panel (2x7 pin, Power LED, HDD LED, Speaker,
Power Button, Reset Button)
LEN LED: 2 x LAN LED (1x2 pin)
I²C: 1 x I²C (1x4 pin)
Expansion:
1 x PCIe x16 slot (Gen3)
1 x PCIe x1 slot (Gen2)
2 x PCI slot
1 x Full-size PCIe Mini card slot
Watchdog Timer:
Software programmable support 1~255 sec. system reset
Digital I/O: 8-bit digital I/O (2x5 pin)
Fan Connector:
1 x CPU smart fan (1x4 pin)
1 x System smart fan (1x4 pin)
Power supply: ATX/AT power supply
Power Consumption:
3.3V@0.93A, 5V@2.99A, 12V@6.88A, 5VSB@0.02A
(Intel® Core™ i7 6700K 4.0GHz CPU with 16 GB (two 8 GB)
2133 MHz DDR4 memory)
Operation Temperature:
-20°C ~ 60°C
Storage Temperature: -30°C ~ 70°C
Operation Humidity: 5% ~ 95%, non-condensing
Weight: GW:1200g, NW: 700g
Page 4
4
Ordering Information
IMB-H110:
microATX motherboard supports 14nm LGA1151 Intel® Core™
i7/i5/i3, Pentium® or Celeron® processor supported, DDR4, Dual
independent displays VGA/DVI-I/LVDS, Dual GbE LAN, USB 3.0,
SATA 6Gb/s, HD Audio and RoHS
19800-000049-RS: LPT cable
19800-000051-RS: RS-232 cable, 230mm (P=2.54)
19800-000075-RS: PS/2 KB/MS Y-cable with bracket, 220mm
19800-010500-100-RS: USB 3.0 cable, 457mm with bracket
32102-000100-200-RS:
SATA power cable, MOLEX 5264-4P to SATA15P
32205-001203-100-RS: RS-232 cable, 40-pin to four DB-9
32205-003800-100-RS: RS-422/485 cable, 200mm
CF-1156A-RS-R11: High performance LGA1155/LGA1156 cooler kit,
1U chassis compatible, 73W
CF-1156E-R11:
High performance LGA1155/LGA1156 cooler kit, 95W
DP-DP-R10:
DisplayPort to DisplayPort converter board (For iEi IDP connector)
DP-DVI-R10:
DisplayPort to DVI-D converter board (For iEi IDP connector)
DP-HDMI-R10:
DisplayPort to HDMI converter board (For iEi IDP connector)
DP-LVDS-R10:
DisplayPort to 24 bit dual channel LVDS converter board
(For iEi IDP connector)
DP-VGA-R10:
DisplayPort to VGA converter board (For iEi IDP connector)
TPM-IN01-R11: 20-Pin Infineon TPM module, software management
tool, firmware V3.17
Page 5
5
Jumpers setting and connectors
LABEL FUNCTION
J_PW1 Panel Power setting
SW1 LVDS Panel Resolution Selection
SW_DP1 LVDS/IDP Display Switch
J_DVI_CRT1 DVI-I Display Switch
SW_A/T1 AT Power Auto BTN Switch
J_CMOS1 Clear CMOS Switch
ATX1 Power input Connector
PW2 Power input Connector
PW1 Power input Connector
CPU_FAN1 CPU fan connector
SYS_FAN1 System fan connector
KB_MS1 6-pin header Keyboard/Mouse Connector
J_SMB1 SMBUS Connector
J_I2C1 I2C Connector
J_CS1 Chassie Pin Header
INV1 Panel inverter
LVDS1 LVDS Connector
DP1 IDP Connector
J_AUDIO1 Audio pin Header
COM1
/COM2/COM3/C
OM4
/COM7/COM8/COM9/COM
10/COM11/COM12
RS232
COM5/COM6 RS232/422/485
LPT1 LPT pin Header
J_USB1 Dual USB 2.0
F_PANEL1 FRONT PANEL & Power Button
TPM1 TPM
DIO1 Digital IO
J_SPI1 BIOS Programmer Connector
SATA1~4 SATA HDD Connector
J_EC1 EC Programmer Connector
EC_DBG1 For EC Debug card (FPC 20Pin)
Page 6
6
DVII1 External DVI-I and VGA Connector
H_USB1 External Four USB2.0 Connector
USB1 External Dual USB2.0 Connector
LAN1_USB1 External GIGA LAN and USB3.0 Connector
LAN2_USB1 External GIGA LAN and USB3.0 Connector
AUDIO1 External Audio Connector
CHA_DIMM1/CHB_DIMM1 DDR4 DIMM Slot
PCIEX16_1 PCIEx16 Slot
PCIE1 PCIEx1 Slot
PCI1/PCI2 PCI Slot
MINI-PCIE1 Support USB and PCIE Interface
J_CMOS1: Clear CMOS Setup
PIN NO. DESCRIPTION
Open Normal Operation (Default)
Push Clear CMOS Setup
SW_A/T1: AT Power Auto BTN Switch
PIN NO. DESCRIPTION
Short A - B ATX Mode
Short B - C AT Mode
J_DVI_CRT1: DVI-I Display Switch
PIN NO. DESCRIPTION
Short A-B
DVI Display
Short B-C
DVI-I Display
SW_DP1: LVDS/IDP Display Switch
PIN NO. DESCRIPTION
Short A-B
LVDS Display
Short B-C
IDP Display
J_PW1: Panel Power setting
PIN NO. DESCRIPTION
Short 1 - 2 Keep VCC3V Panel Setup
Short 2 - 3 Keep VCC5V Panel Setup
Page 7
7
SW1
:
LVDS Panel Resolution Selection
* ON=0, OFF=1; Single=S, Dual=D
4-3-2-1 DESCRIPTION
0000 800x600 18bit S (default)
0001 1024x768 18bit S
0010 1024x768 24bit S
0011 1280x768 18bit S
0100 1280x800 18bit S
0101 1280x960 18bit S
0110 1280x1024 24bit D
0111 1366x768 18bit S
1000 1366x768 24bit S
1001 1440x960 24bit D
1010 1400x1050 24bit D
1011 1600x900 24bit D
1100 1680x1050 24bit D
1101 1600x1200 24bit D
1110 1920x1080 24bit D
1111 1920x1200 24bit D
ATX1: Power input Connector
PIN NO.
DESCRIPTION PIN NO.
DESCRIPTION
1 VCC3.3V 13 VCC3.3V
2 VCC3.3V 14 -VCC12V
3 GND 15 GND
4 VCC5V 16 PS-ON
5 GND 17 GND
6 VCC5V 18 GND
7 GND 19 GND
8 PWR-OK 20 NC
9 5VSB 21 VCC5V
10 VCC12V 22 VCC5V
11 VCC12V 23 VCC5V
12 VCC3.3V 24 GND
Page 8
8
J_I2C1: I2C Connector
PIN NO. DESCRIPTION
PIN NO. DESCRIPTION
1 GND 2 I2C_DATA
3 I2C_CLK 4 VCC5V
J_SMB1: SMBUS Connector
PIN NO. DESCRIPTION
PIN NO. DESCRIPTION
1 GND 2 SMB_DATA
3 SMB_CLK 4 VCC5V
KB_MS1: 6-pin header Keyboard/Mouse Connector
PIN NO. DESCRIPTION
PIN NO. DESCRIPTION
1 VCC5V 2 MSDATA
3 MSCLK 4 KBDATA
5 KBCLOCK 6 GND
SYS_FAN1: System fan connector
PIN NO. DESCRIPTION
PIN NO. DESCRIPTION
1 GND 2 VCC12V
3 FANIO 4 PWM
CPU_FAN1: CPU fan connector
PIN NO. DESCRIPTION
PIN NO. DESCRIPTION
1 GND 2 VCC12V
3 FANIO 4 PWM
PW1: Power input Connector
PIN NO.
DESCRIPTION PIN NO.
DESCRIPTION
1 VCC12V 2 GND
3 GND 4 VCC5V
PW2: Power input Connector
PIN NO.
DESCRIPTION PIN NO.
DESCRIPTION
1 GND 2 GND
3 VCC12V 4 VCC12V
Page 9
9
LVDS1: LVDS Connector
PIN NO. DESCRIPTION PIN NO.
DESCRIPTION
1 GND 2 GND
3 A0P 4 A0M
5 A1P 6 A1M
7 A2P 8 A2M
9 CLK1P 10 CLK1M
11 A3P 12 A3M
13 GND 14 GND
15 A4P 16 A4M
17 A5P 18 A5M
19 A6P 20 A6M
21 CLK2P 22 CLK2,
23 A7P 24 A7M
25 GND 26 GND
27 LCD_VCC 28 LCD_VCC
29 LCD_VCC 30 LCD_VCC
INV1: Panel inverter
PIN NO. DESCRIPTION
PIN NO. DESCRIPTION
1 LCD_ADJ 2 GND
3 VCC12V 4 GND
5 BL_ON/OFF
J_CS1: Chassie Pin Header
PIN NO. DESCRIPTION
PIN NO. DESCRIPTION
1 VCC3V 2 CHASSIE
Page 10
10
COM1/COM2/COM3/COM4/COM7/COM8/COM9/COM10/COM11/
COM12: RS232
PIN NO. DESCRIPTION
PIN NO. DESCRIPTION
1 DCD 2 DSR
3 RX 4 RTS
5 TX 6 CTS
7 DTR 8 RI
9 GND 10 GND
J_AUDIO1: Audio pin Header
PIN NO. DESCRIPTION
PIN NO. DESCRIPTION
1 MICL 2 GND
3 MICR 4 Presence
5 LINER 6 MIC-JD
7 Sense 8 NC
9 LINEL 10 LINE-JD
DP1: IDP Connector
PIN
DESCRIPTION PIN
DESCRIPTION
1 DDI1_HPD# 2 DPD_AUX_CTRL_P2
3 GND 4 DPD_AUX_CTRL_N2
5 AUX_CTRL_DET_D 6 GND
7 GND 8 DPD_OB_LANE2_P_C
9 DPD_OB_LANE3_P_C 10
DPD_OB_LANE2_N_C
11 DPD_OB_LANE3_N_C 12
GND
13 GND 14
DPD_OB_LANE0_P_C
15 DPD_OB_LANE1_P_C 16
DPD_OB_LANE0_N_C
17 DPD_OB_LANE1_N_C 18
VCC3.3V
19 VCC5V 20
NC
Page 11
11
LPT1 : LPT pin Header
PIN NO.
DESCRIPTION PIN NO.
DESCRIPTION
1 STB 2 AFD
3 D0 4 ERR
5 D1 6 INIT
7 D2 8 SLIN
9 D3 10 GND
11 D4 12 GND
13 D5 14 GND
15 D6 16 GND
17 D7 18 GND
19 ACK 20 GND
21 BUSY 22 GND
23 PE 24 GND
25 SLCT 26 NC

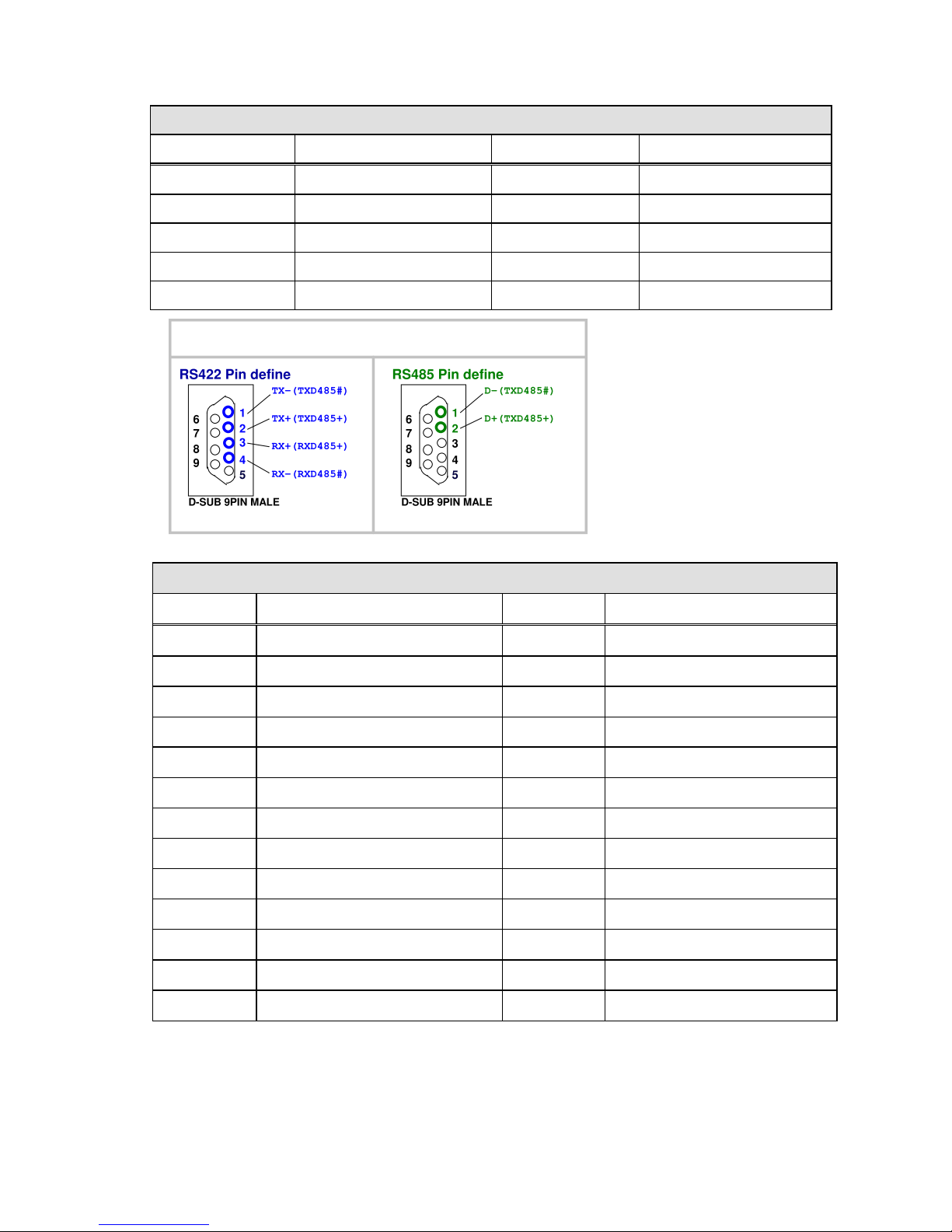

COM5/COM6: RS232/422/485
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 DCD/TX-/D- 2 DSR
3 RX/TX+/D+ 4 RTS
5 TX/RT+ 6 CTS
7 DTR/RX- 8 RI
9 GND 10 GND
Page 12
12
TPM1: TPM
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 CLOCK 2 GND
3 FRAME 4 KEY/NC
5 RESET 6 VCC5V
7 LAD3 8 LAD2
9 VCC3V 10 LAD1
11 LAD0 12 GND
13 SMB_CLK 14 SMB_DATA
15 SB3V 16 SERIRQ
17 GND 18 CLKRUN
19 LPCPD 20 DRQ
F_PANEL1: FRONT PANEL & Power Button
PIN NO. DESCRIPTION
PIN NO. DESCRIPTION
1 PWR_LED+ 2 SPKR+
3 NC 4 NC
5 PWR_LED- 6 NC
7 PWR_BTN+ 8 SPKR-
9 PWR_BTN- 10 NC
11 HDD_LED+ 12 RESET+
13 HDD_LED- 14 RESET-
J_USB1: Dual USB 2.0
PIN NO. DESCRIPTION
PIN NO. DESCRIPTION
1 VCC5V 2 GND
3 DATA- 4 DATA+
5 DATA+ 6 DATA-
7 GND 8 VCC5V
Page 13
13
J_EC1: EC Programmer Connector
PIN NO. DESCRIPTION
PIN NO. DESCRIPTION
1 VCC3.3V 2 CS
3 MISO 4 CLK
5 MOSI 6 GND
SATA1~4: SATA HDD Connector
PIN NO. DESCRIPTION
PIN NO. DESCRIPTION
1 GND 2 SATA_TXP
3 SATA_TXN 4 GND
5 SATA_RXN 6 SATA_RXP
7 GND
J_SPI1: BIOS Programmer Connector
PIN NO. DESCRIPTION
PIN NO. DESCRIPTION
1 VCC1.8V 2 CS
3 MISO 4 CLK
5 MOSI 6 GND
DIO1: Digital IO
PIN NO. DESCRIPTION
PIN NO. DESCRIPTION
1 GND 2 VCC5V
3 DOUT3 4 DOUT2
5 DOUT1 6 DOUT0
7 DIN3 8 DIN2
9 DIN1 10 DIN0
Page 14
14
EC_DBG1: For EC Debug card (FPC 20Pin)
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 KSI0 2 KSO0
3 KSO1 4 KSO2
5 KSO3 6 KSO4
7 KSO5 8 KSO6
9 KSO7 10 KSO8
11 KSO9 12 KSO10
13 KSO12 14 KSI1
15 KSO11 16 KSI2
17 KSI3 18 GND
19 GND 20 GND
Page 15
15

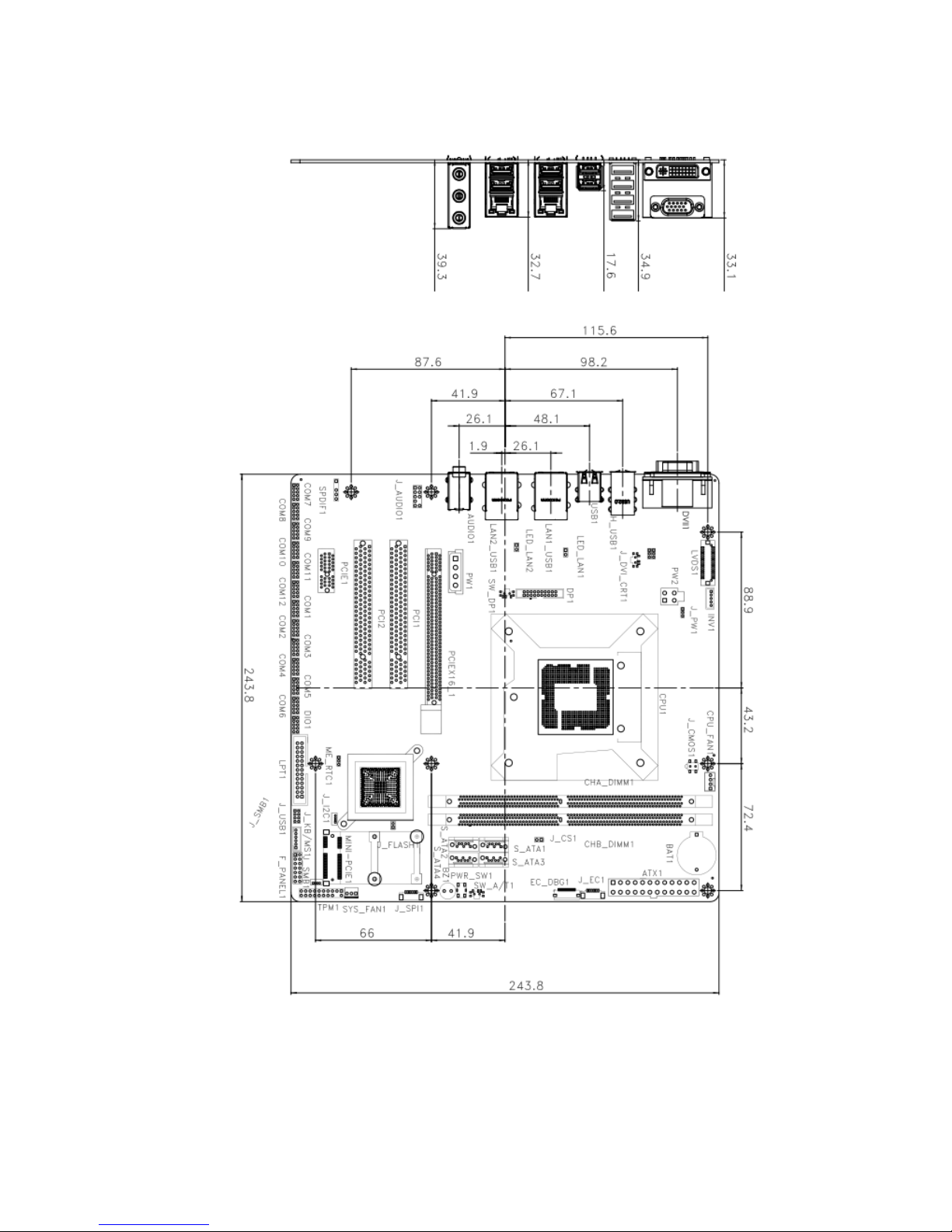

Board Layout: Jumper and Connector Locations
(Unit: mm)
