IMBA-G410 ATX Motherboard
Page i
IEI Technology Corp.
User Manual
MODEL:
IMBA-G410
ATX Motherboard for In tel® Co re™2 Duo /Quad C PU,
800/1066/1333 MHz FSB, DDR3, VGA, LAN, S ATA 3Gb/s,
PCIe x16, PCIe x4, P CI, USB , HD Audio, RoHS Compliant
Rev. 2.00 – 6 Ma rch, 2012
Page 2
ii3/6/2012165
IMBA-G4 10 ATX Motherboard
Page ii
Revision
Date Version Changes
6 March, 2012 2.00 Update the version number
20 January, 2012 1.02 Update the BIOS section
17 August, 2011 1.01 Modified Section 4.4.3: COM 2 Function Select Jumper
7 December, 2010 1.00 Initial release
Page 3
2012/1/202012/1/20
IMBA-G410 ATX Motherboard
Page iii
Copyright
COP YRIGHT NOTICE
The information in this document is subject to change without prior notice in order to
improve reliability, design and function and does not represent a commitment on the part
of the manufacturer.
In no event will the manufacturer be liable for direct, indirect, special, incidental, or
consequential damages arising out of the use or inability to use the product or
documentation, even if advised of the possibilit y of such damages.
This document contains proprietary information protected by copyright. All rights are
reserved. No part of this manual may be reproduced by any mechanical, electronic, or
other means in any form without prior written permi ssion of the manufacturer.
TRADEMARKS
All registered trademarks and product names mentioned herein are used for identification
purposes only and may be trademarks and/or registered trademarks of their respective
owners.
Page 4
iv1/20/2012165
IMBA-G4 10 ATX Motherboard
Page iv
Table of Contents
1 INTRODUCTION .......................................................................................................... 1
1.1 INTRODUCTION ........................................................................................................... 2
1.2 BENEFITS ................................................................................................................... 2
1.3 FEATURES ................................................................................................................... 3
1.4 CONNECTORS ............................................................................................................. 4
1.5 DIMENSIONS ............................................................................................................... 5
1.6 DATA FLOW ................................................................................................................ 6
1.7 TECHNICAL SPECIFICATIONS ...................................................................................... 7
2 PACKING LIST ............................................................................................................. 9
2.1 ANTI-STATIC PRECAUTIONS ...................................................................................... 10
2.2 UNPACKING PRECAUTIONS ....................................................................................... 10
2.3 PACKING LIST ............................................................................................................ 11

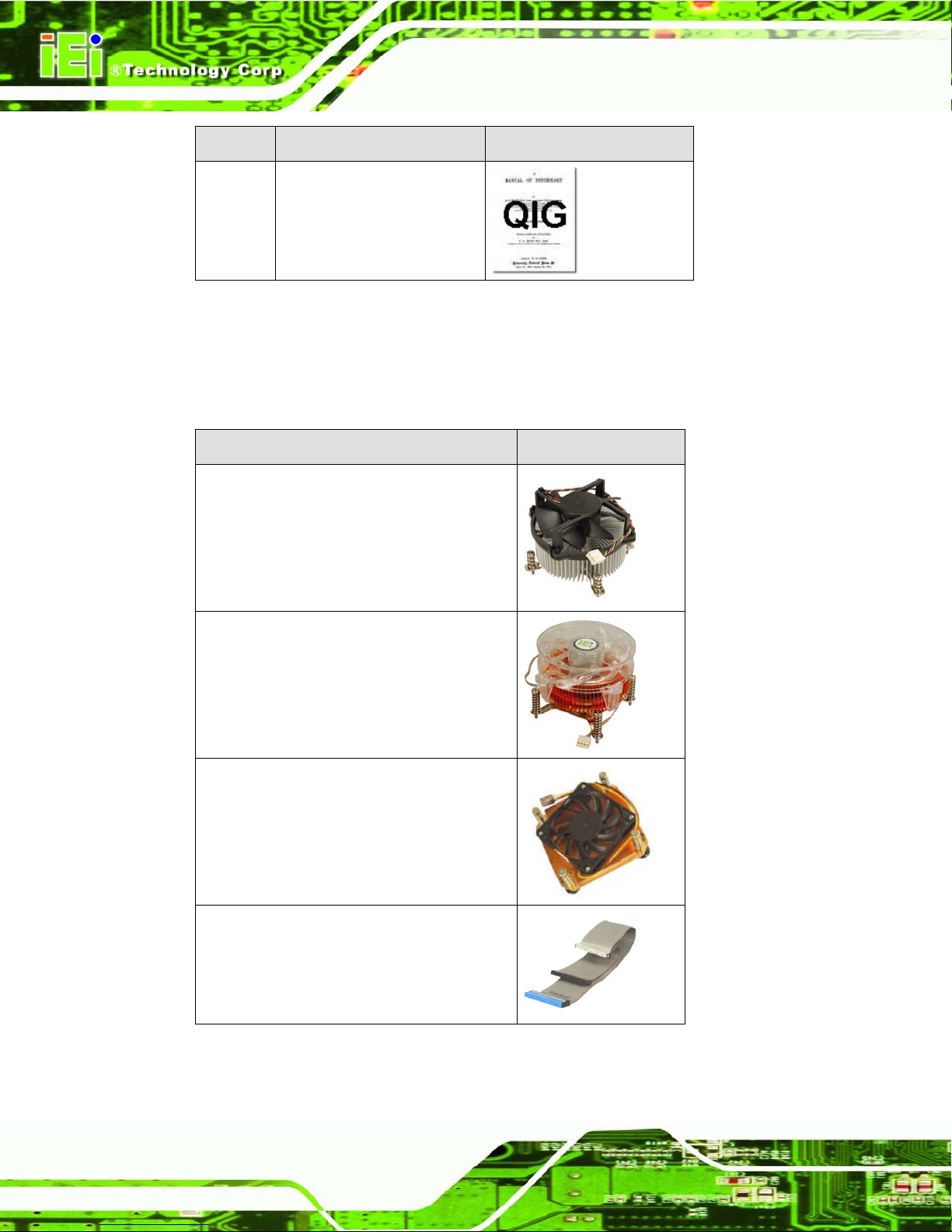

2.4 OPTIONAL ITEMS ...................................................................................................... 12
3 CONNECTORS ........................................................................................................... 14
3.1 PERIPHERAL INTERFACE CONNECTORS ..................................................................... 15
3.1.1 Layout .............................................................................................................. 15
3.1.2 Peripheral Interface Connectors ..................................................................... 16
3.1.3 External Interface Panel Connectors ............................................................... 17
3.2 INTERNAL PERIPHERAL CONNECTORS ...................................................................... 17
3.2.1 Audio Connector .............................................................................................. 17
3.2.2 CPU Fan Connector ........................................................................................ 18
3.2.3 System Fan Connectors .................................................................................... 19
3.2.4 CPU Power Input Connector ........................................................................... 20

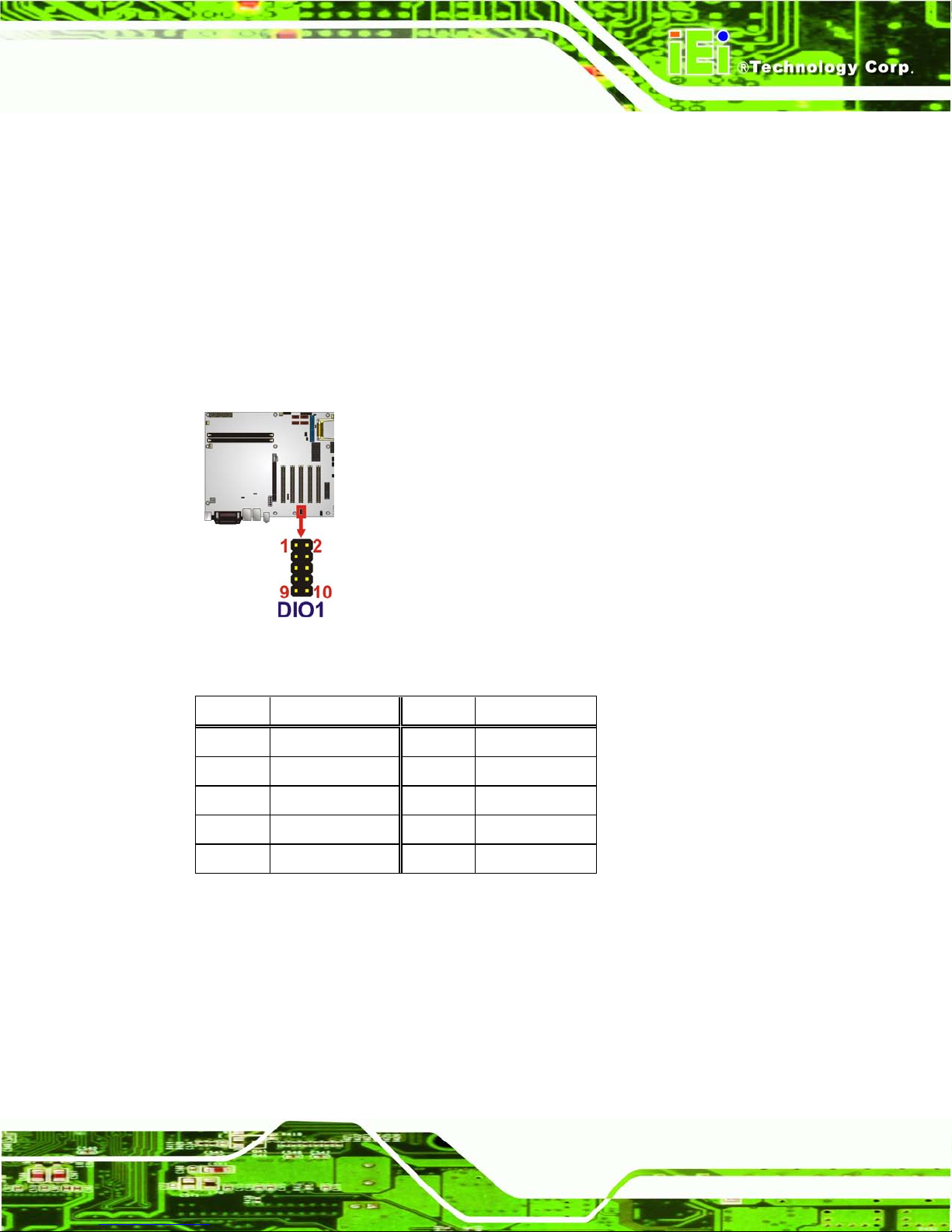

3.2.5 Digital I/O Connector ...................................................................................... 21
3.2.6 Front Panel Connector .................................................................................... 21

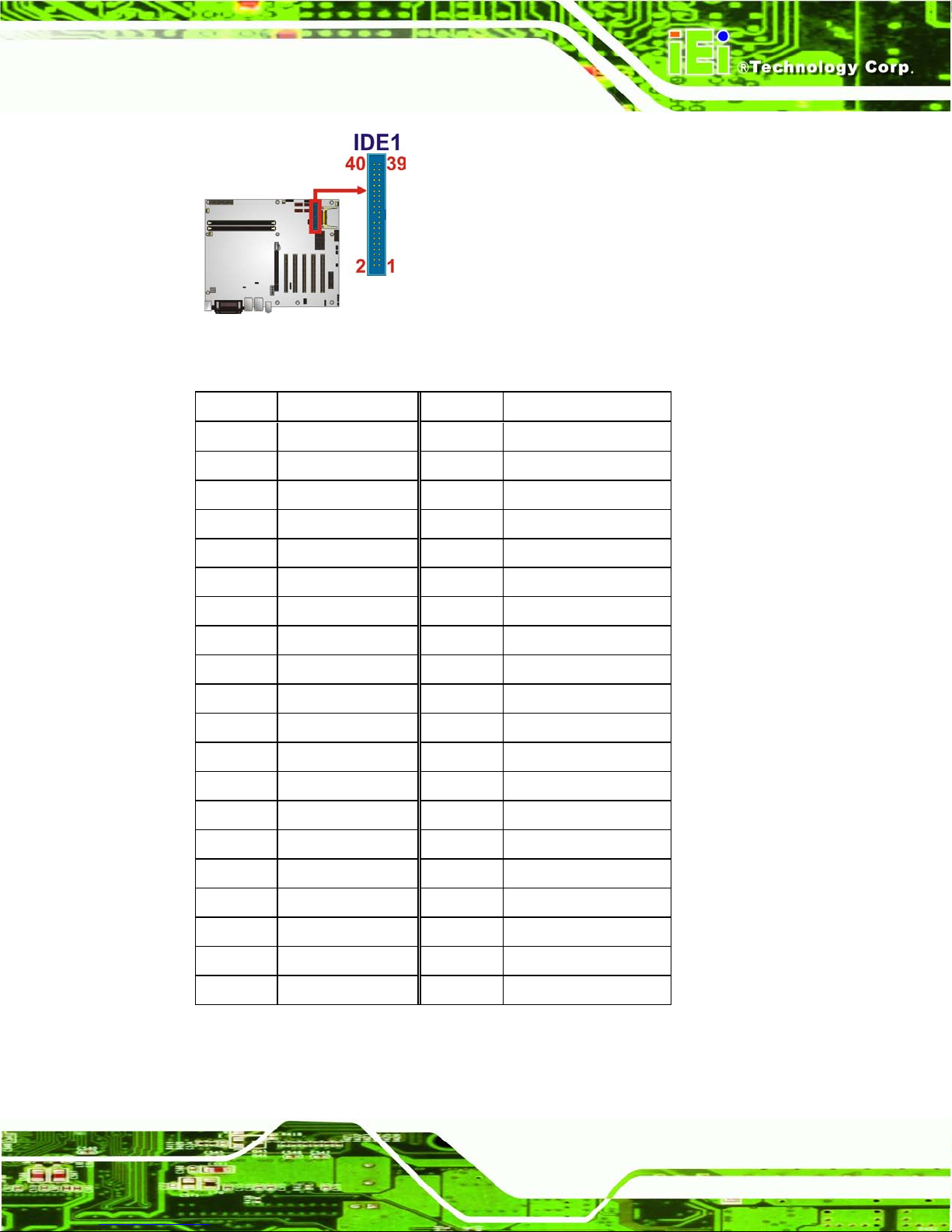

3.2.7 IDE Connector ................................................................................................. 22
3.2.8 Infrared Interface Connector ........................................................................... 24

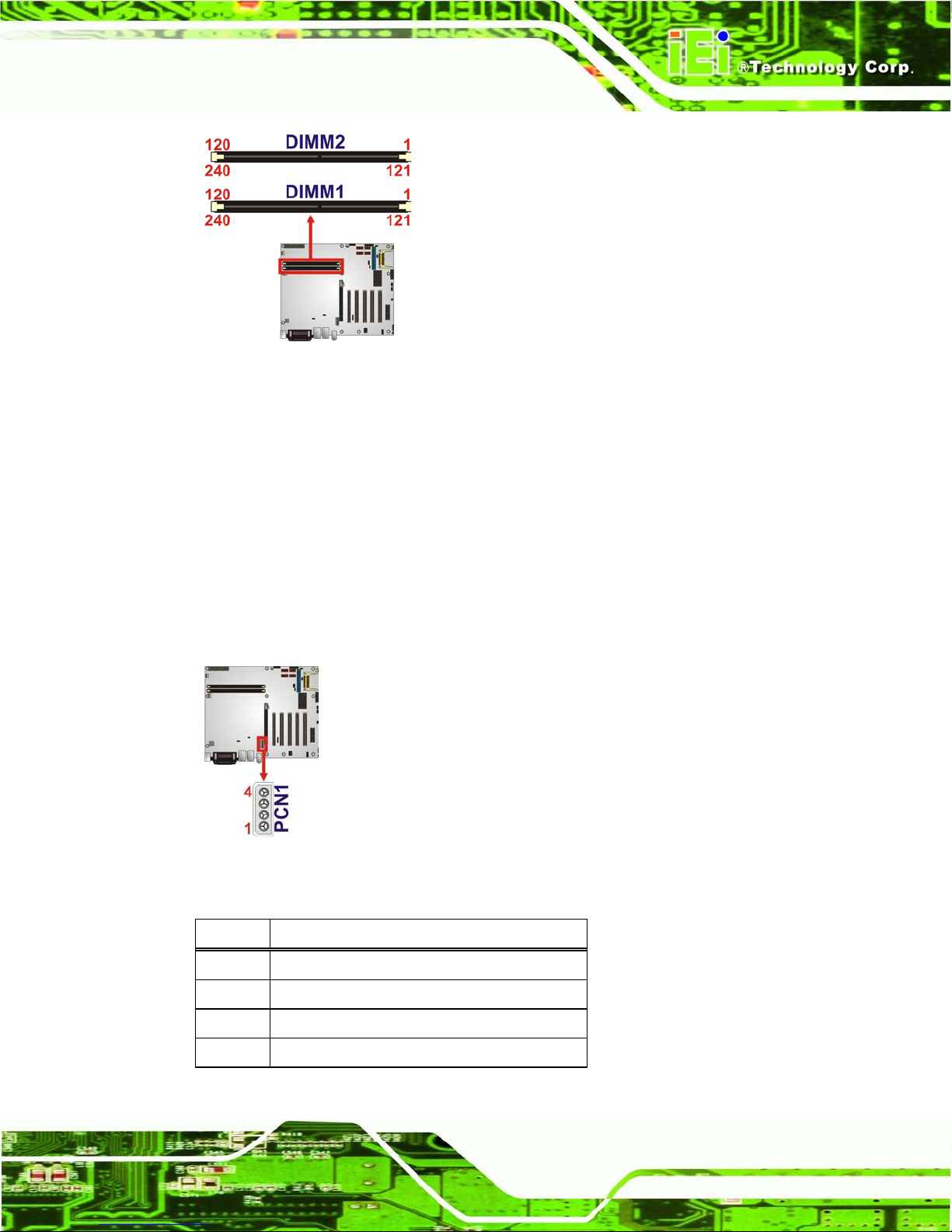

3.2.9 Memory Slots ................................................................................................... 24
3.2.10 PCIe Power Input Connector ......................................................................... 25
Page 5
2012/1/202012/1/20
IMBA-G410 ATX Motherboard
Page v

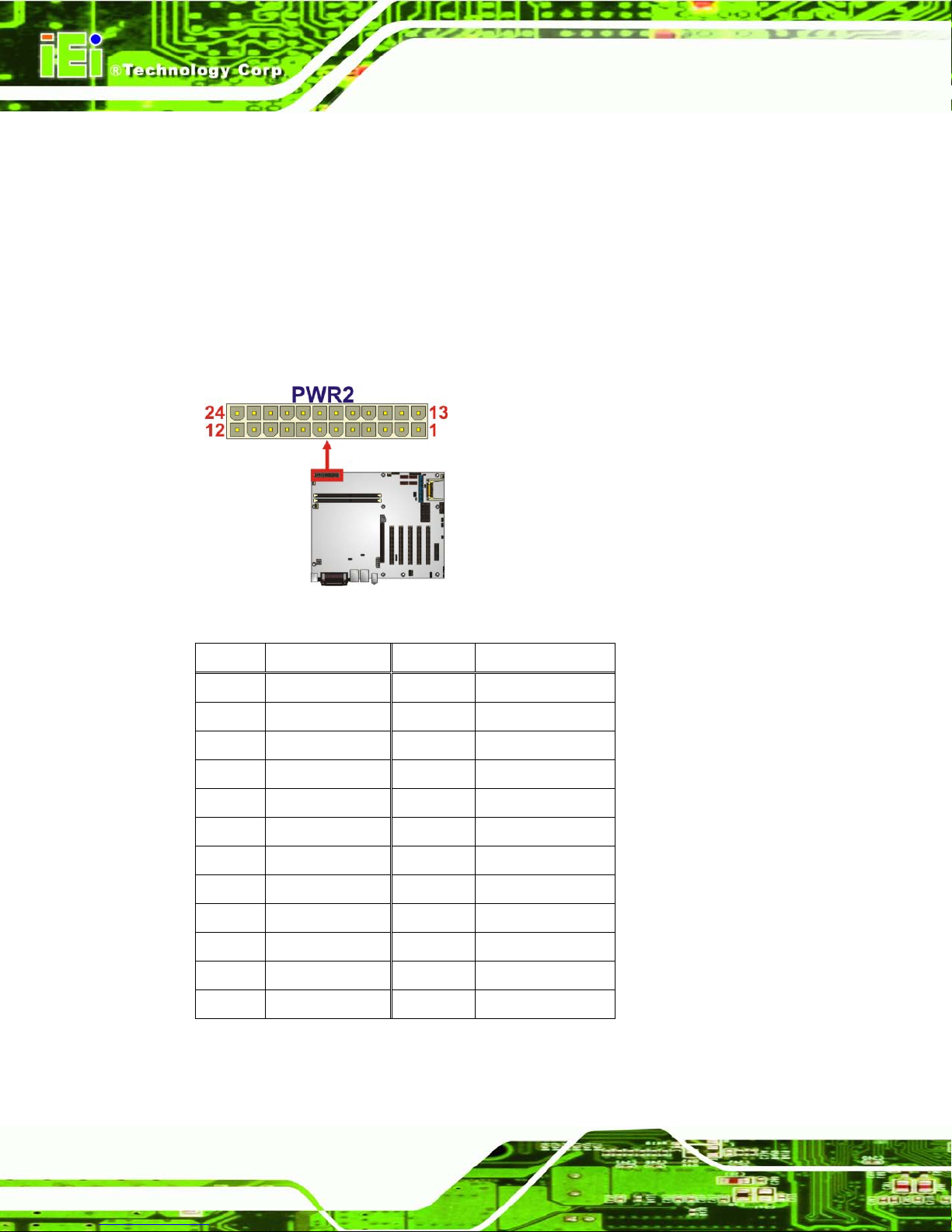

3.2.11 Power Connector ............................................................................................ 26
3.2.12 RS-232 Serial Port Connectors ...................................................................... 27
3.2.13 RS-232/422/485 Serial Port Connector ......................................................... 28
3.2.14 SATA Drive Connectors ................................................................................. 28
3.2.15 SMBus Connector .......................................................................................... 29
3.2.16 SPDIF Connector ........................................................................................... 30

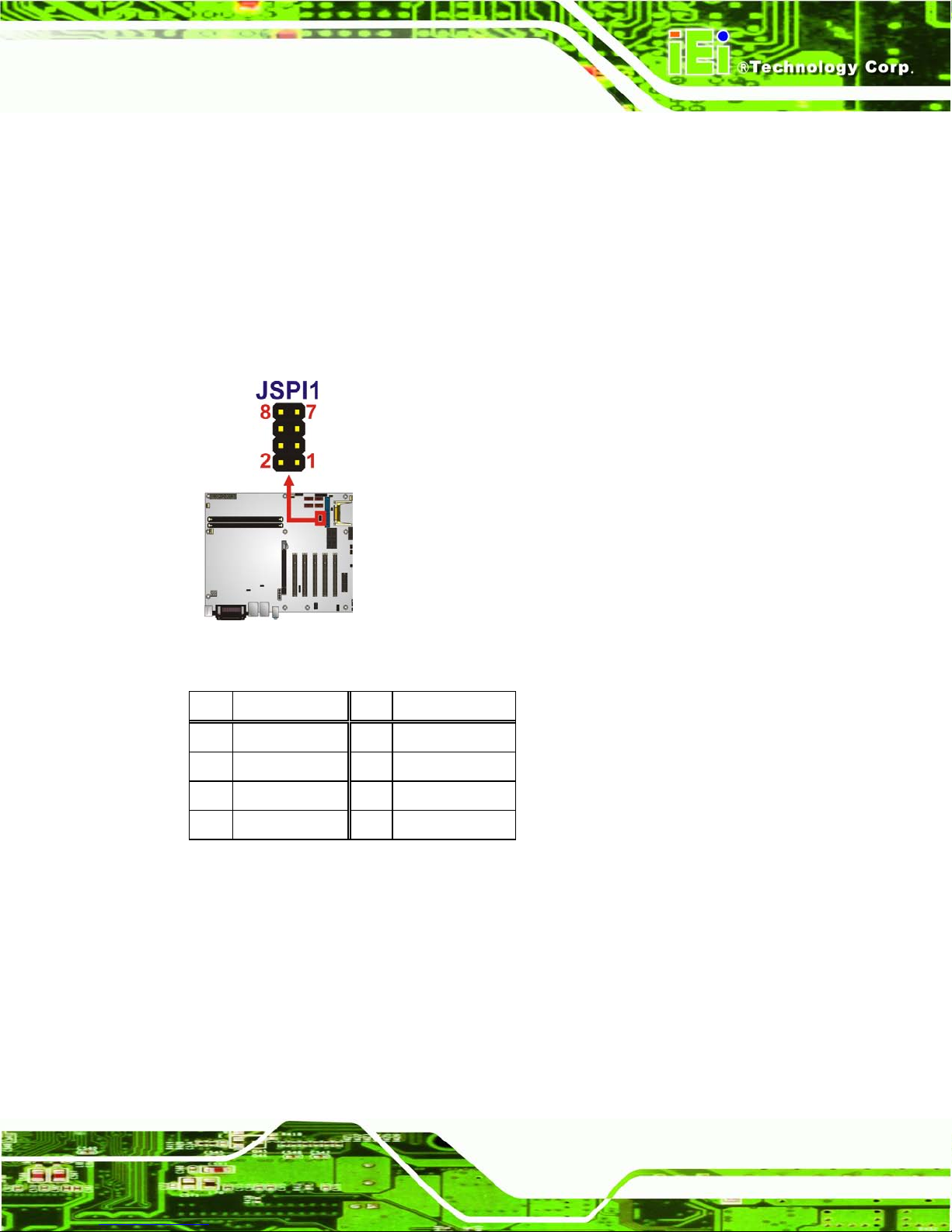

3.2.17 SPI Flash Connector ...................................................................................... 31
3.2.18 TPM Connector .............................................................................................. 31
3.2.19 USB Connectors ............................................................................................. 32
3.3 EXTERNAL PERIPHERAL INTERFACE CONNECTOR PANEL ......................................... 33
3.3.1 Audio Connectors ............................................................................................. 34

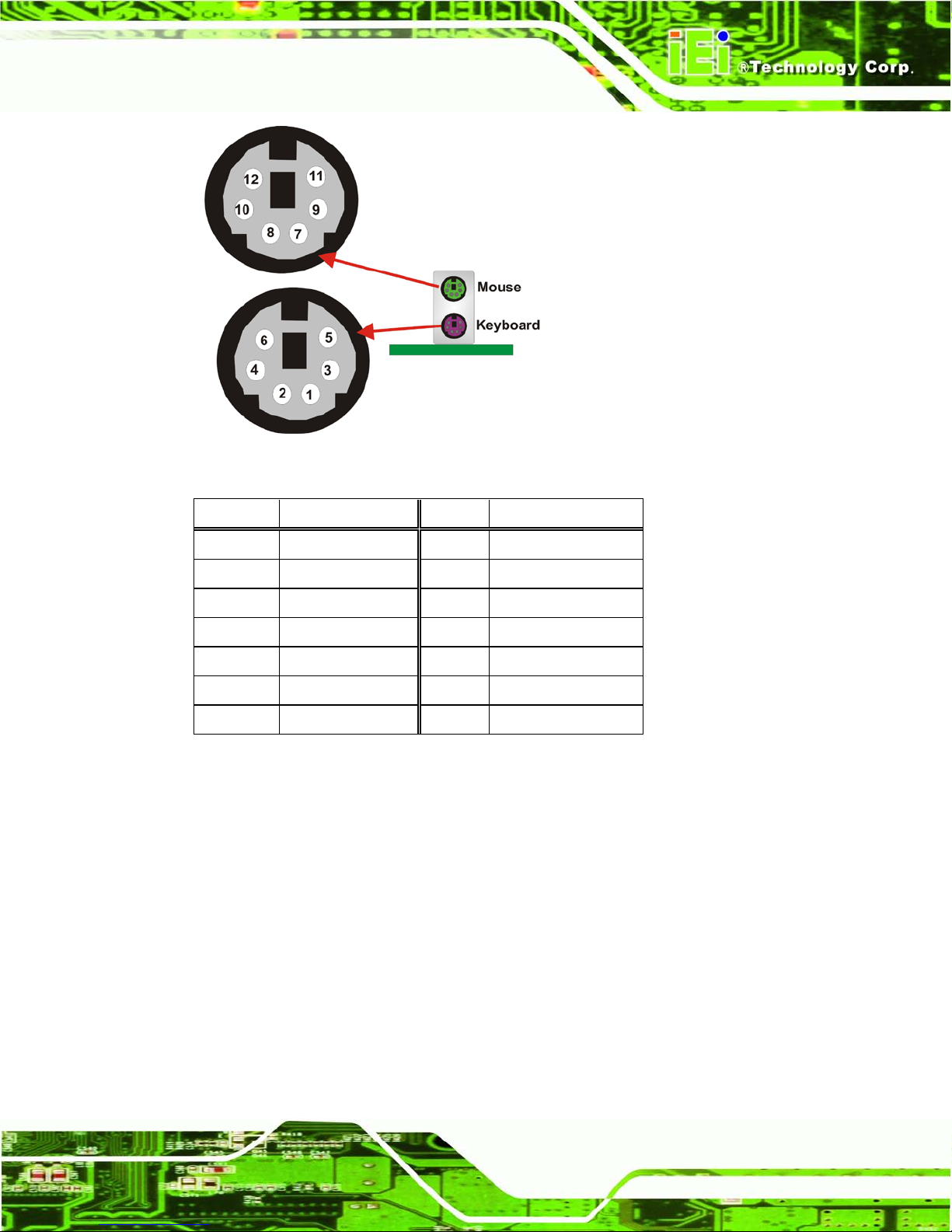

3.3.2 Keyboard/Mouse Connector ............................................................................ 34
3.3.3 LAN Connectors ............................................................................................... 35

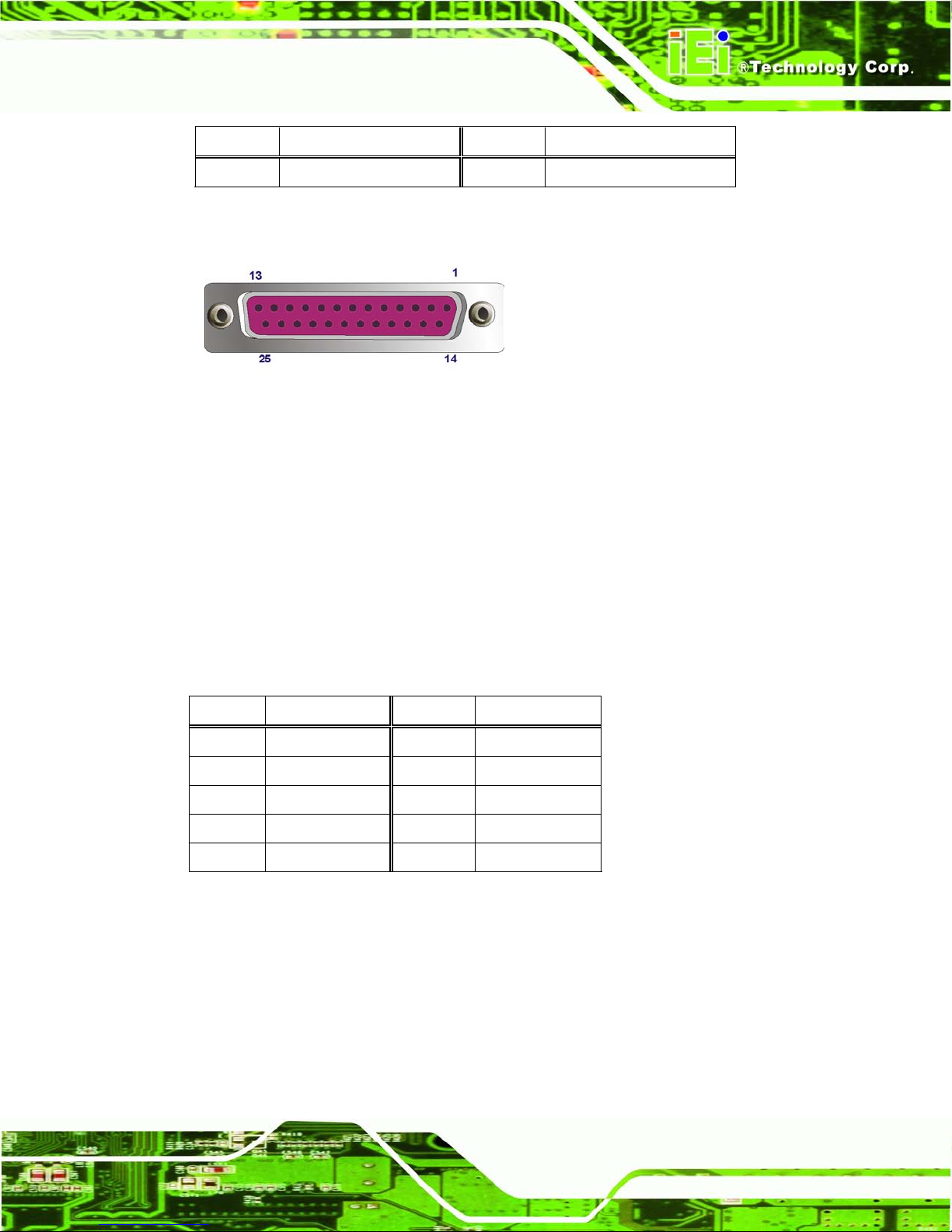

3.3.4 Parallel Port Connector .................................................................................. 36
3.3.5 Serial Port Connector (COM1) ....................................................................... 37
3.3.6 USB Connectors ............................................................................................... 38
3.3.7 VGA Connector ................................................................................................ 38
4 INSTALLATION ......................................................................................................... 40
4.1 ANTI-STATIC PRECAUTIONS ...................................................................................... 41
4.2 INSTALLATION CONSIDERATIONS .............................................................................. 41
4.3 BASIC INSTALLATION ............................................................................................... 43

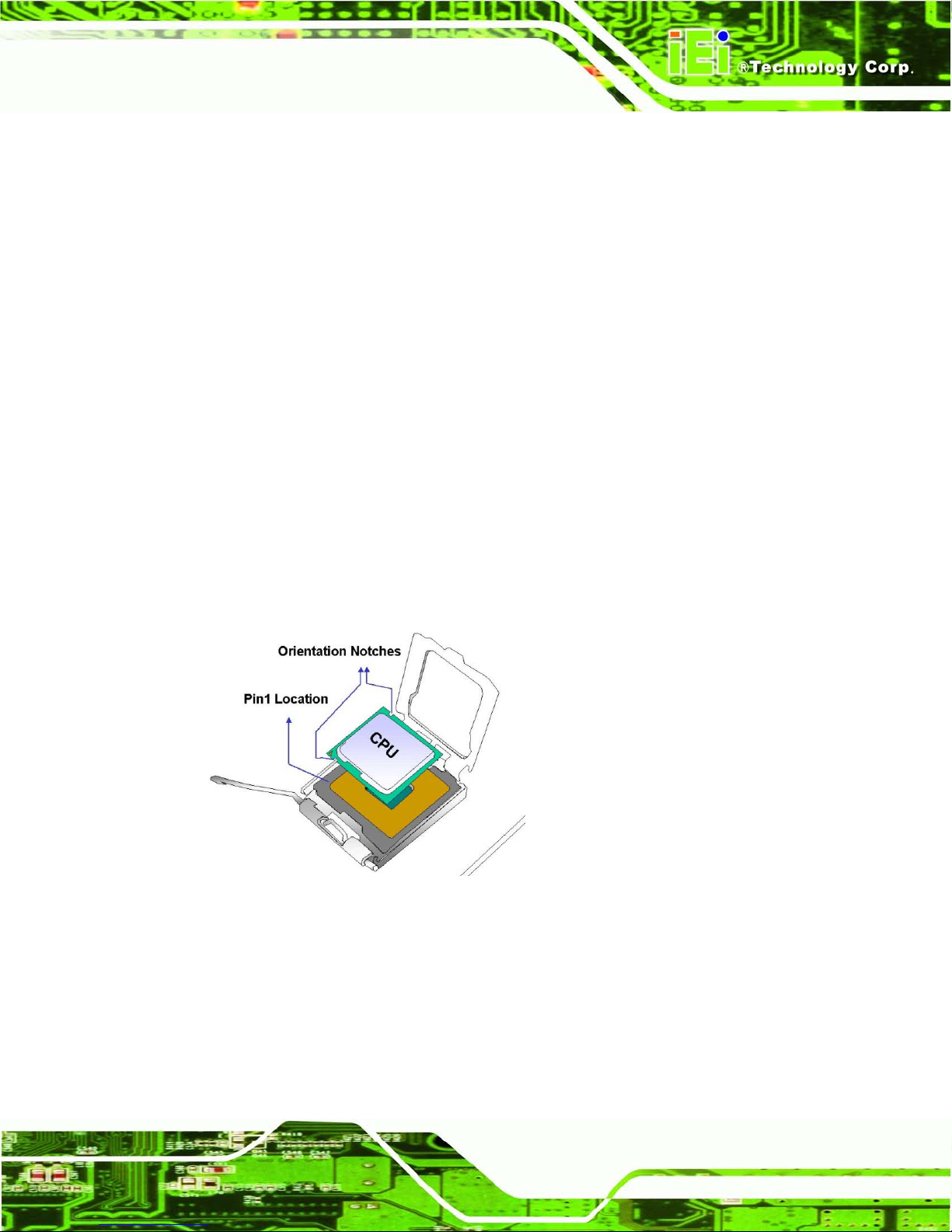

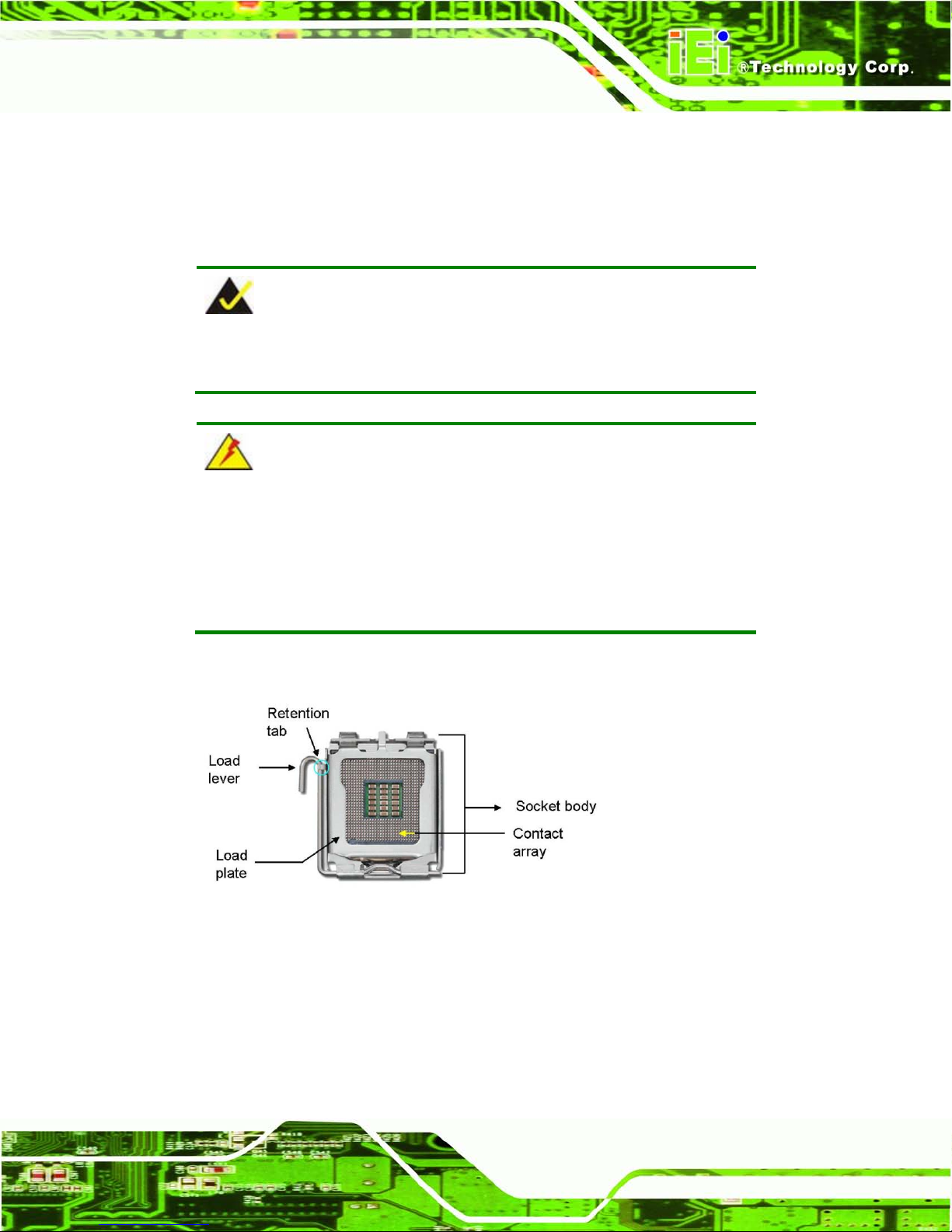

4.3.1 CPU Installation .............................................................................................. 43

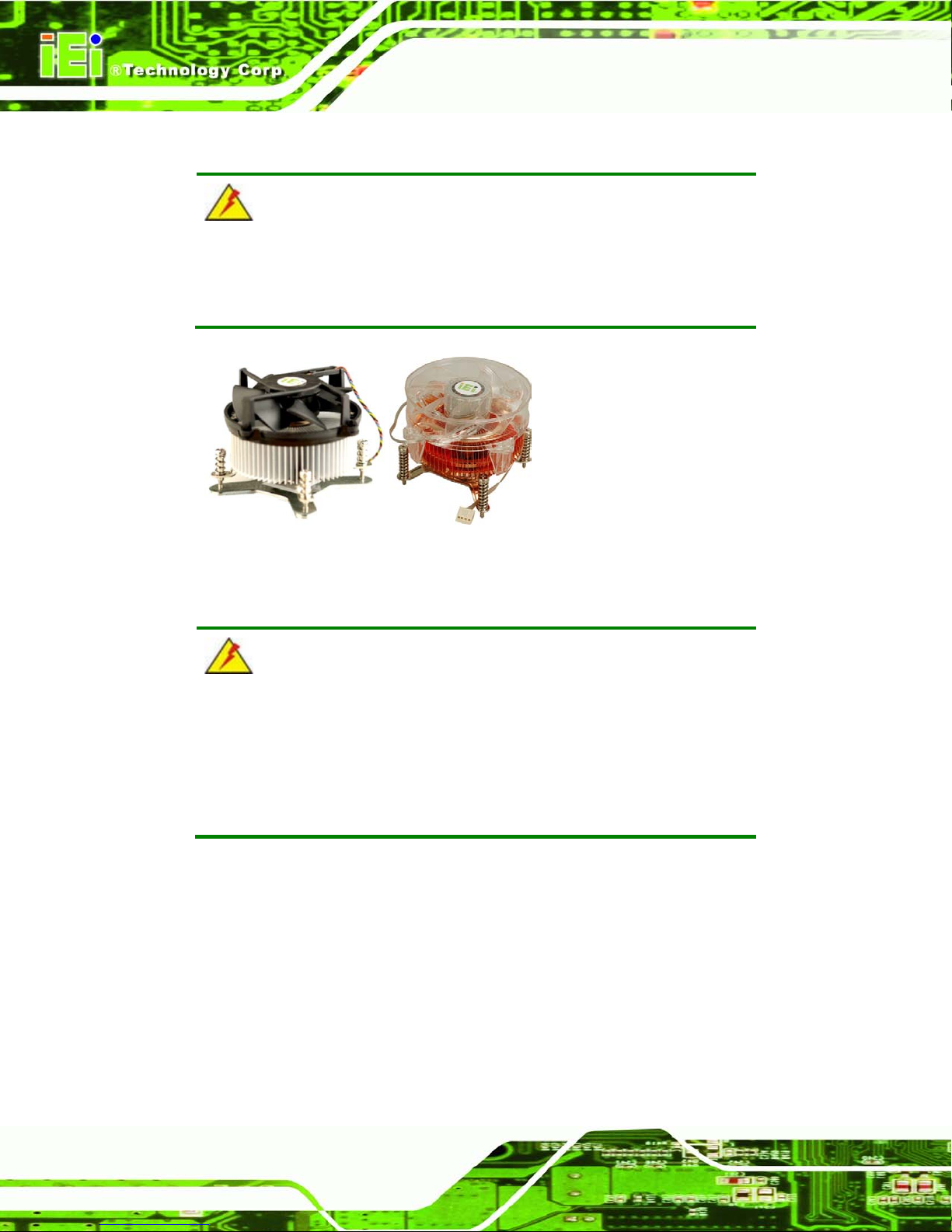

4.3.2 Cooling Kit Installation ................................................................................... 46

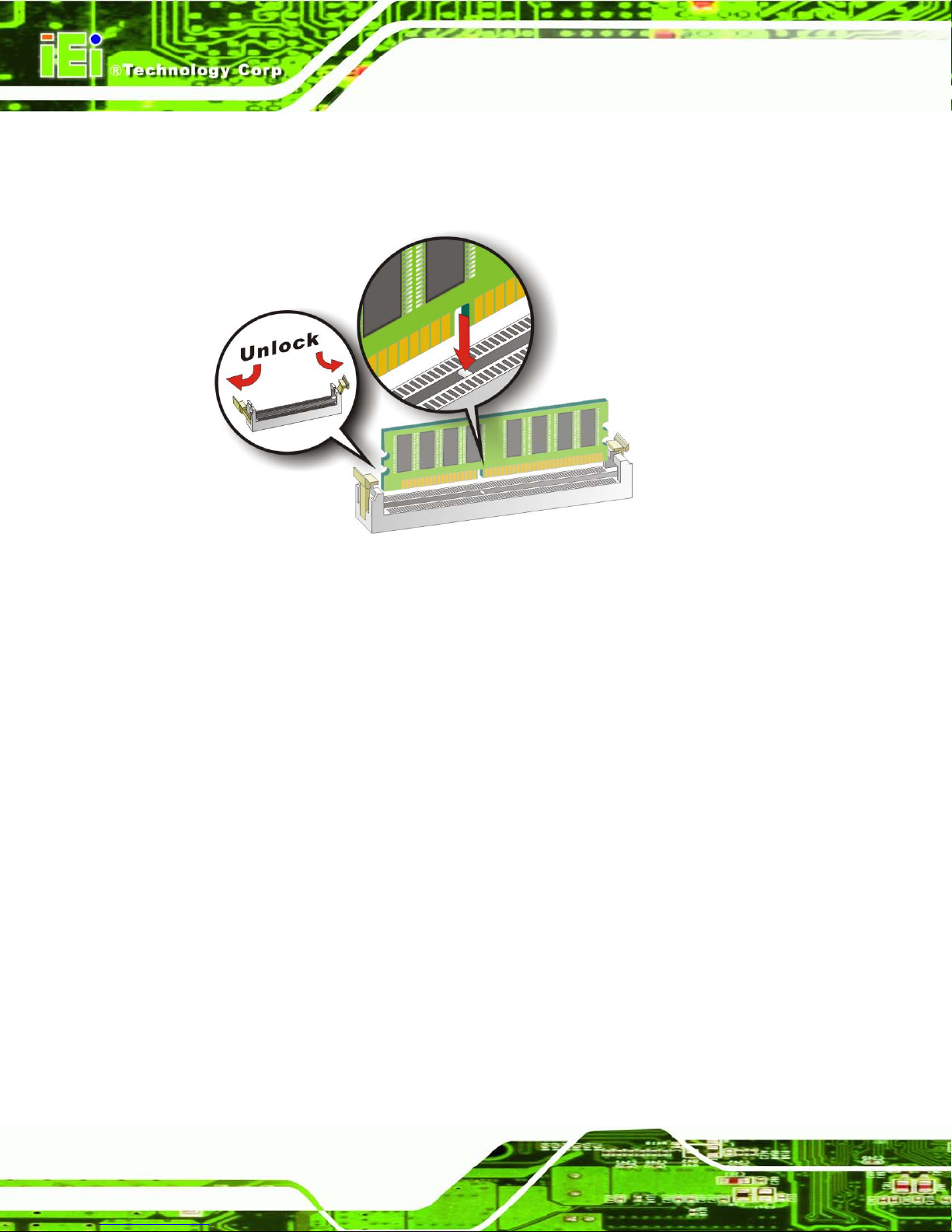

4.3.3 DIMM Installation ........................................................................................... 48
4.3.4 Motherboard Installation ................................................................................. 48

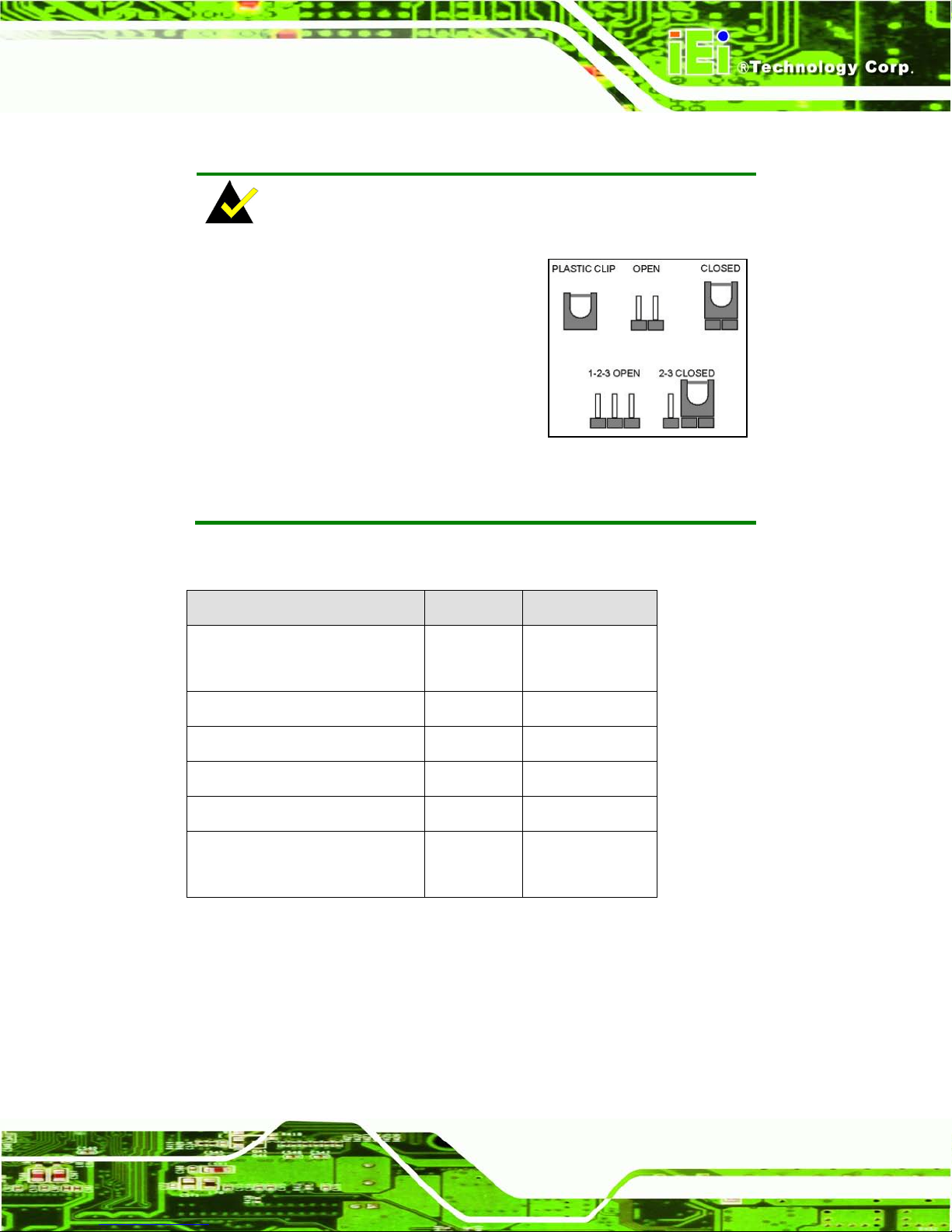

4.4 JUMPER SETTINGS .................................................................................................... 49
4.4.1 AT/ATX Power Select Jumpers ........................................................................ 49
4.4.2 Clear CMOS Jumper ........................................................................................ 50
4.4.3 COM 2 Function Select Jumper ....................................................................... 51
4.4.4 CompactFlash® Setup ..................................................................................... 52

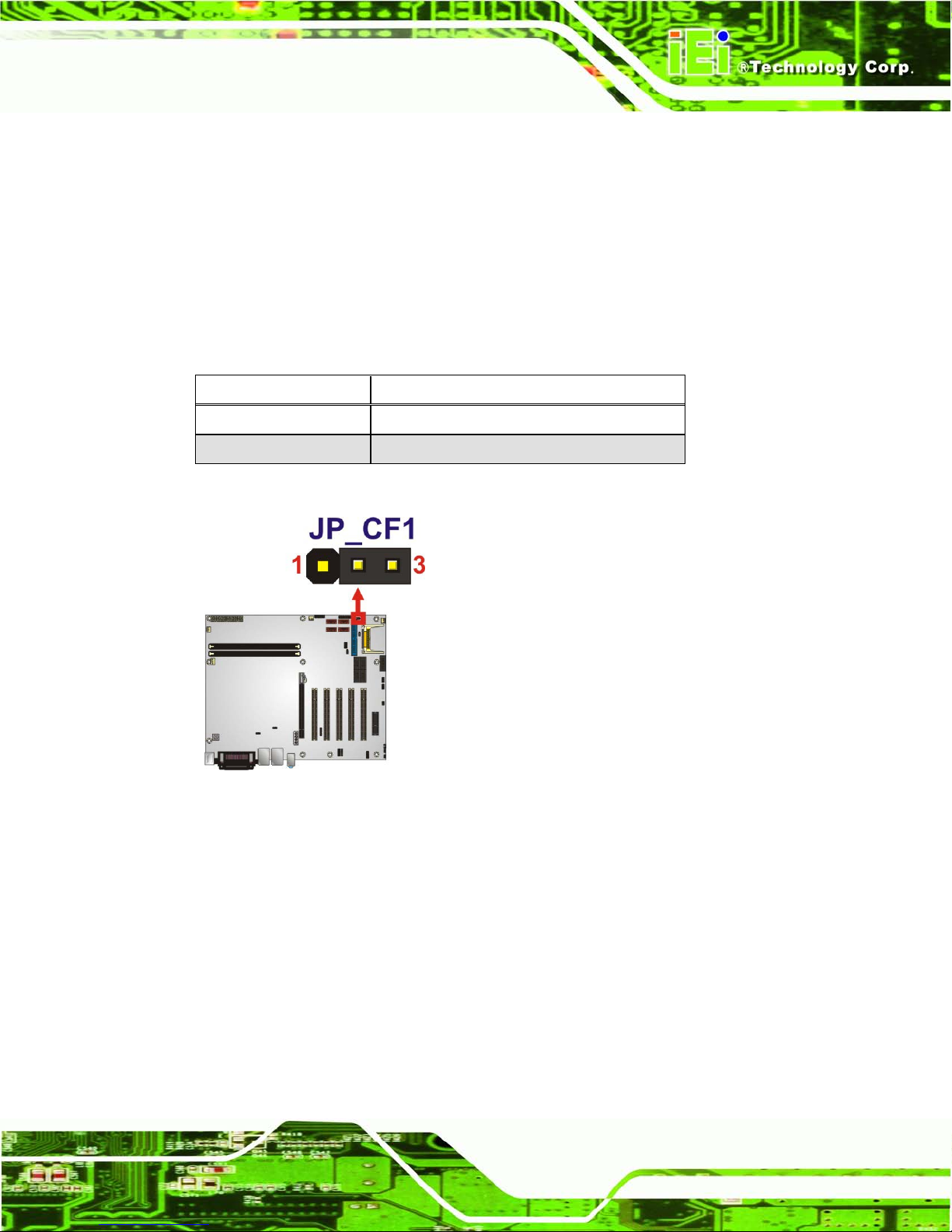

4.4.5 CF Voltage Select Jumper ................................................................................ 53

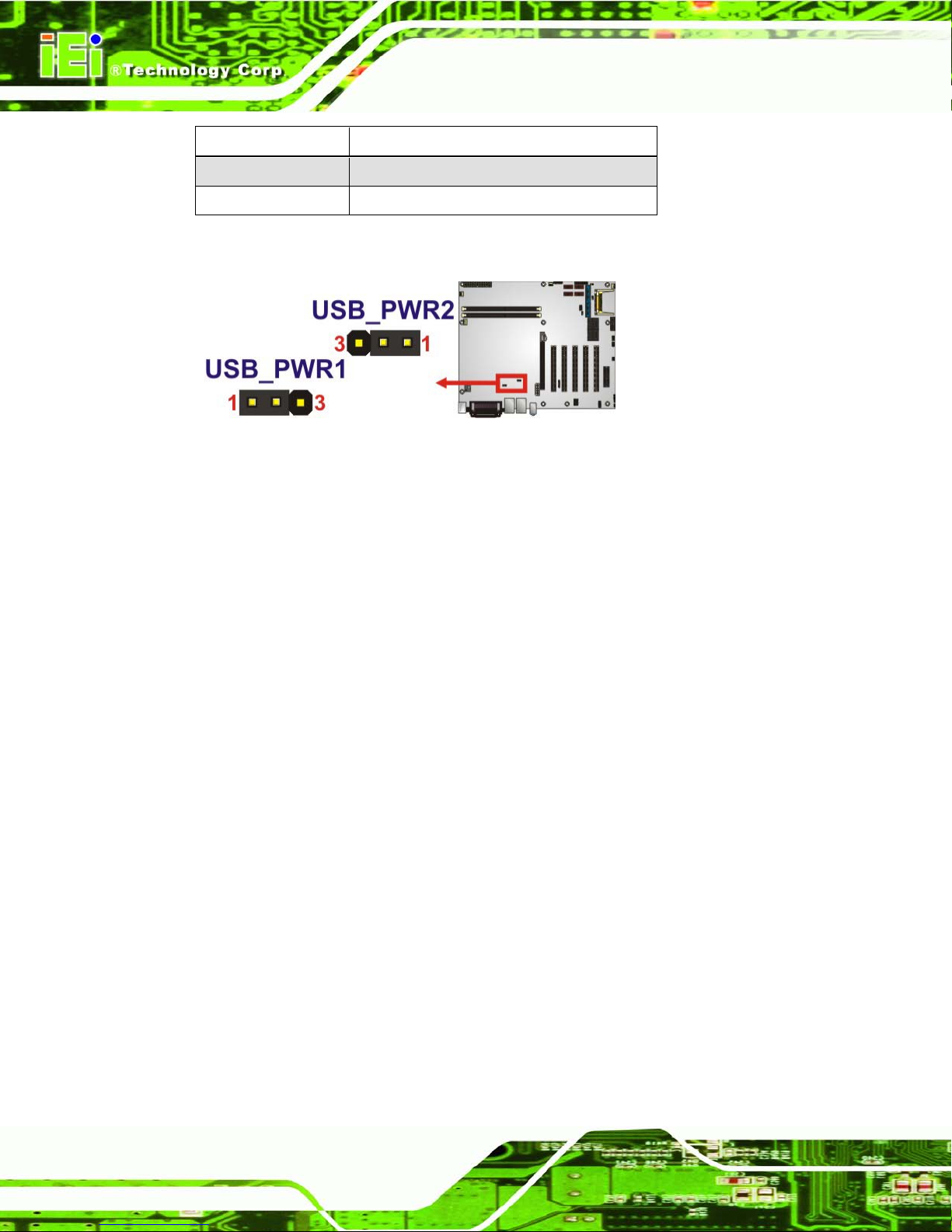

4.4.6 USB Power Select Jumpers .............................................................................. 53
4.5 INTERNAL PERIPHERAL DEVICE CONNECTIONS ........................................................ 54

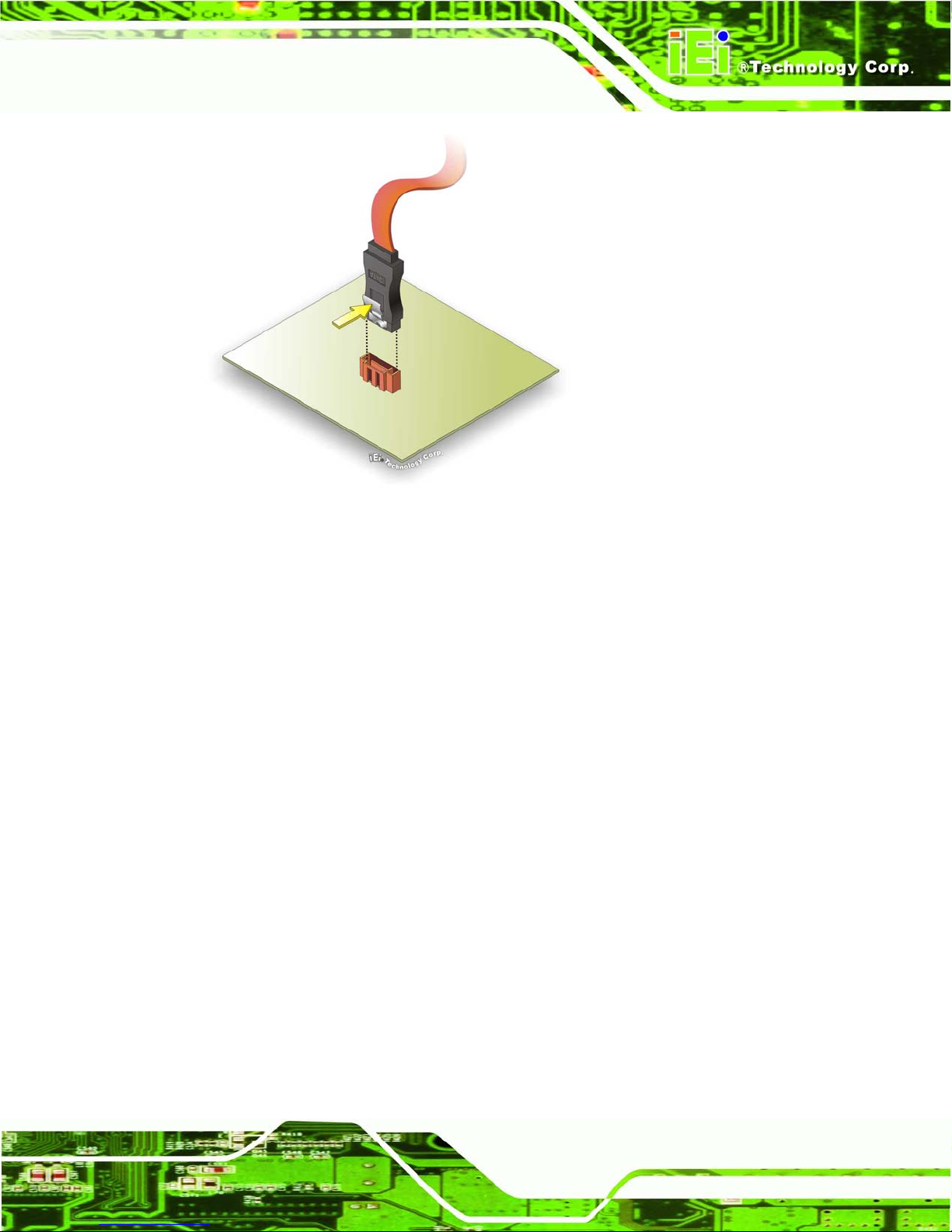

4.5.1 SATA Drive Connection ................................................................................... 54
Page 6
vi1/20/2012165
IMBA-G4 10 ATX Motherboard
Page vi
4.5.2 Dual RS-232 Cable with Slot Bracket .............................................................. 56
4.6 EXTERNAL PERIPHERAL INTERFACE CONNECTION ................................................... 57
4.6.1 Audio Connector .............................................................................................. 57
4.6.2 PS/2 Keyboard and Mouse Connection ........................................................... 58

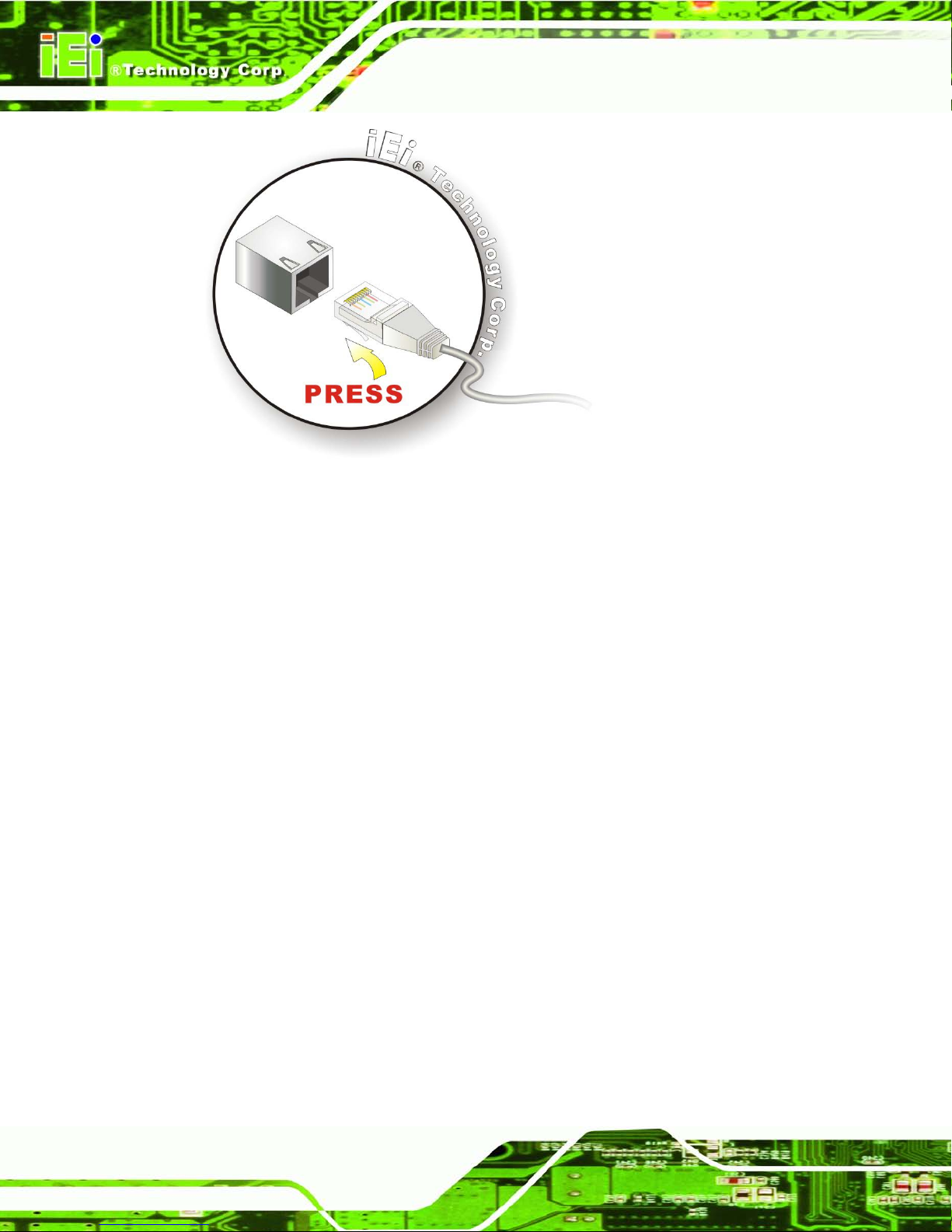

4.6.3 LAN Connection ............................................................................................... 59
4.6.4 Parallel Device Connection ............................................................................. 60
4.6.5 Serial Device Connection ................................................................................ 61

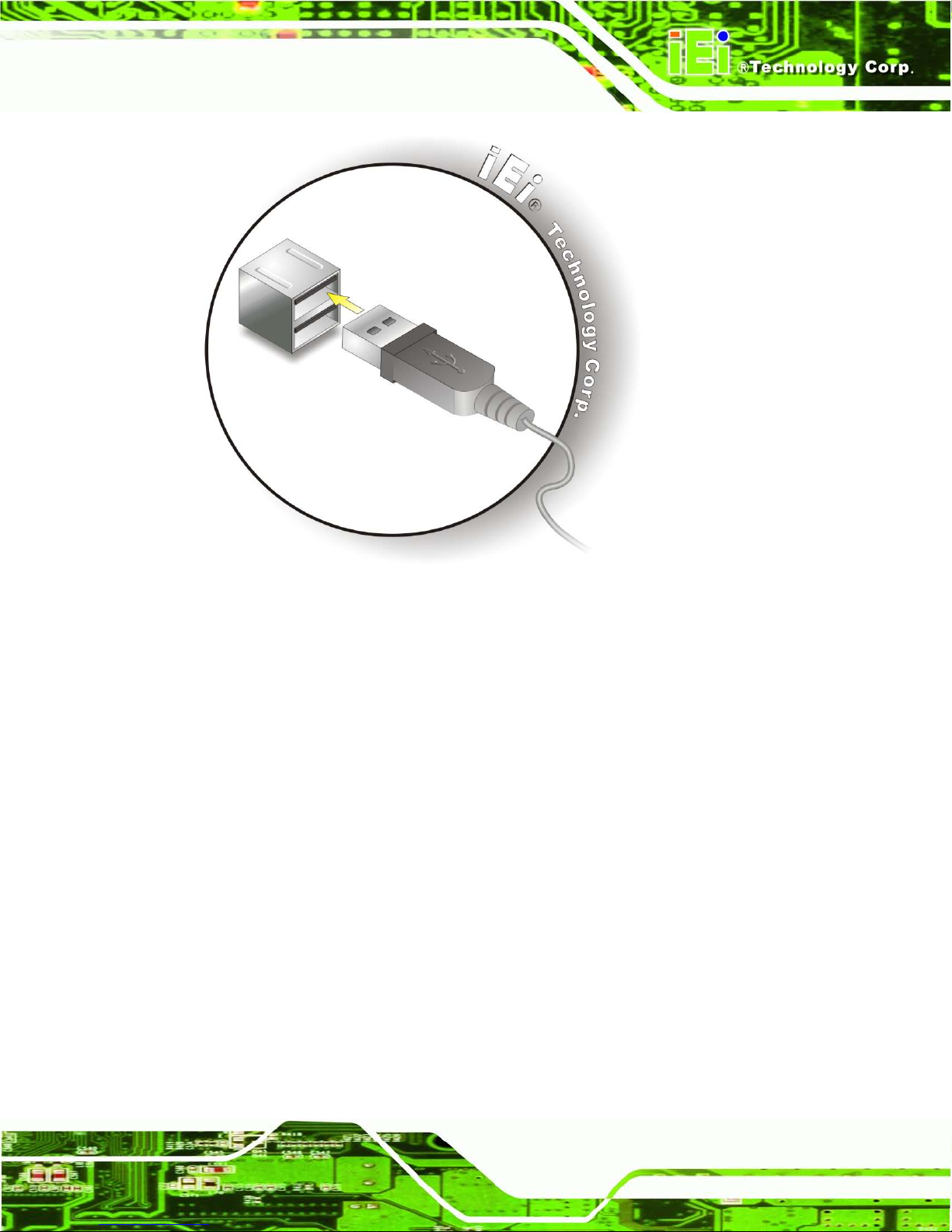

4.6.6 USB Device Connection ................................................................................... 62
4.6.7 VGA Monitor Connection ................................................................................ 63
4.7 SOFTWARE INSTALLATION ........................................................................................ 64
5 BIOS .............................................................................................................................. 65
5.1 INTRODUCTION ......................................................................................................... 66
5.1.1 Starting Setup ................................................................................................... 66
5.1.2 Using Setup ...................................................................................................... 66
5.1.3 Getting Help ..................................................................................................... 67
5.1.4 Unable to Reboot after Configuration Changes .............................................. 67
5.1.5 BIOS Menu Bar ................................................................................................ 67
5.2 MAIN ........................................................................................................................ 68
5.3 ADVANCED ............................................................................................................... 69
5.3.1 CPU Configuration .......................................................................................... 70
5.3.2 IDE Configuration ........................................................................................... 70
5.3.2.1 IDE Master, IDE Slave ............................................................................. 72
5.3.3 Super IO Configuration ................................................................................... 78
5.3.4 Hardware Health Configuration ...................................................................... 83
5.3.5 Power Configuration ....................................................................................... 86
5.3.5.1 ACPI configuration ................................................................................... 87
5.3.5.2 APM Configuration ................................................................................... 87
5.3.6 Remote Access Configuration .......................................................................... 89
5.3.7 USB Configuration ........................................................................................... 92
5.3.8 Trusted Computing ........................................................................................... 93
5.4 PCI/PNP ................................................................................................................... 94
5.5 BOOT ........................................................................................................................ 97
5.5.1 Boot Settings Configuration ............................................................................. 97
5.6 SECURITY ................................................................................................................. 99
Page 7
2012/1/202012/1/20
IMBA-G410 ATX Motherboard
Page vii
5.7 CHIPSET ................................................................................................................. 101
5.7.1 North Bridge Chipset Configuration ............................................................. 101
5.7.2 South Bridge Chipset Configuration .............................................................. 104
5.8 EXIT ....................................................................................................................... 105
A BIOS OPTIONS ........................................................................................................ 107
B TERMINOLOGY ....................................................................................................... 111
C ONE KEY RECOVERY ............................................................................................ 115
C.1 ONE KEY RECOVERY INTRODUCTION ..................................................................... 116
C.1.1 System Requirement ....................................................................................... 117
C.1.2 Supported Operating System .......................................................................... 118
C.2 SETUP PROCEDURE FOR WINDOWS ......................................................................... 119
C.2.1 Hardware and BIOS Setup ............................................................................. 119
C.2.2 Create Partitions ........................................................................................... 120
C.2.3 Install Operating System, Drivers and Applications ..................................... 123
C.2.4 Build-up Recovery Partition .......................................................................... 124
C.2.5 Create Factory Default Image ...................................................................... 126
C.3 SETUP PROCEDURE FOR LINUX .............................................................................. 131
C.4 RECOVERY TOOL FUNCTIONS ................................................................................ 134
C.4.1 Factory Restore ............................................................................................. 136
C.4.2 Backup System ............................................................................................... 137
C.4.3 Restore Your Last Backup .............................................................................. 138
C.4.4 Manual .......................................................................................................... 139
C.5 OTHER INFORMATION ............................................................................................ 140
C.5.1 Using AHCI Mode or ALi M5283 / VIA VT6421A Controller ...................... 140
C.5.2 System Memory Requirement ........................................................................ 142
D WA TCHDOG TIMER .............................................................................................. 143
E DIGITAL I/O INTERFACE ..................................................................................... 146
E.1 INTRODUCTION ...................................................................................................... 147
E.2 DIO CONNECTOR PINOUTS .................................................................................... 147
E.3 ASSEMBLY LANGUAGE EXAMPLE .......................................................................... 147
F HAZARDOUS MATERIALS DISCLOSU RE ........................................................ 148
F.1 HAZARDOUS MATERIALS DISCLOSURE TABLE F OR IPB PRODUCTS CERTIFIED AS
Page 8
viii1/20/2012165
IMBA-G4 10 ATX Motherboard
Page viii
ROHS COMPLIANT UNDER 2002/95/EC WITHOUT MERCURY ..................................... 149
Page 9
2012/1/202012/1/20
IMBA-G410 ATX Motherboard
Page ix
List of Figures
Figure 1-1: IMBA-G410 ................................................................................................................... 2

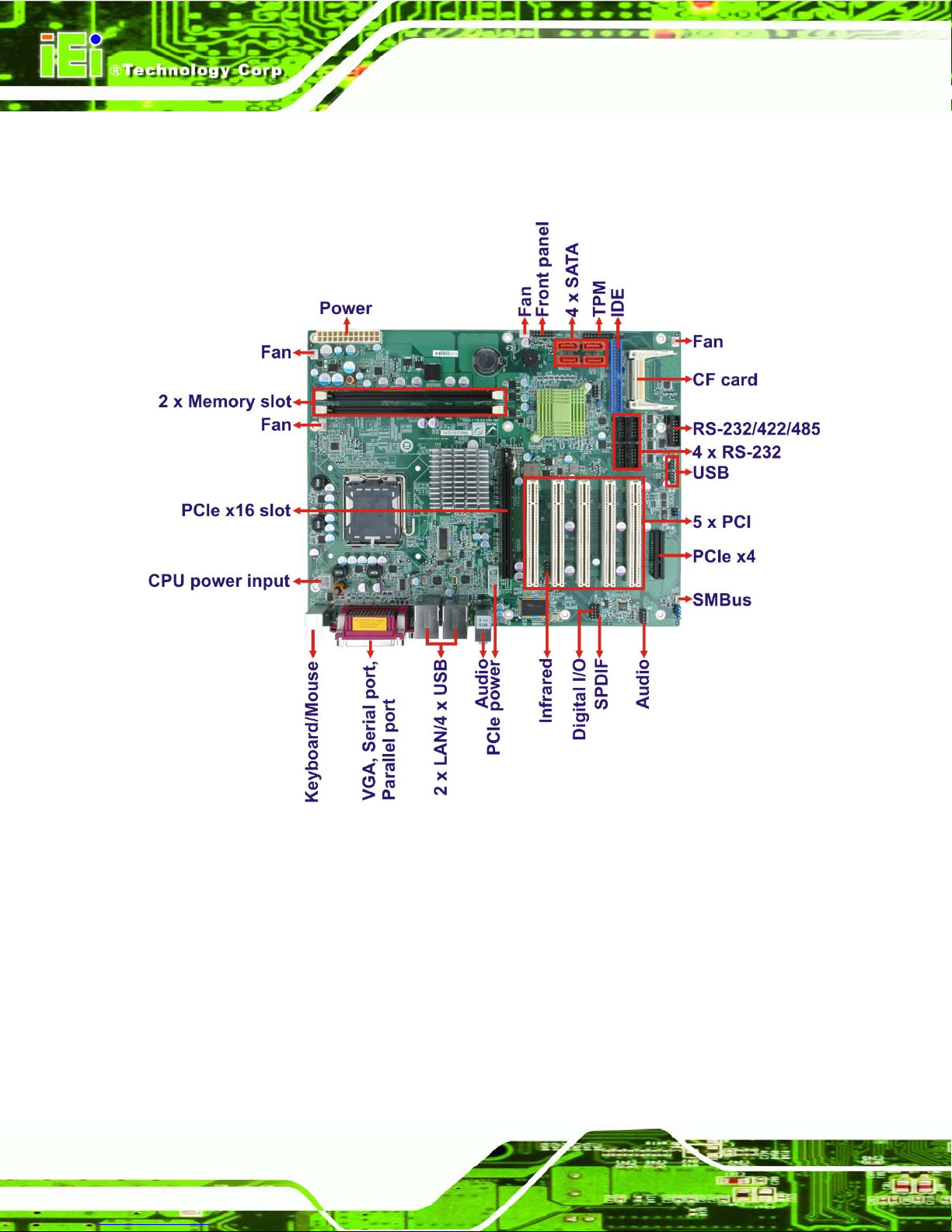

Figure 1-2: Connectors
.................................................................................................................. 4

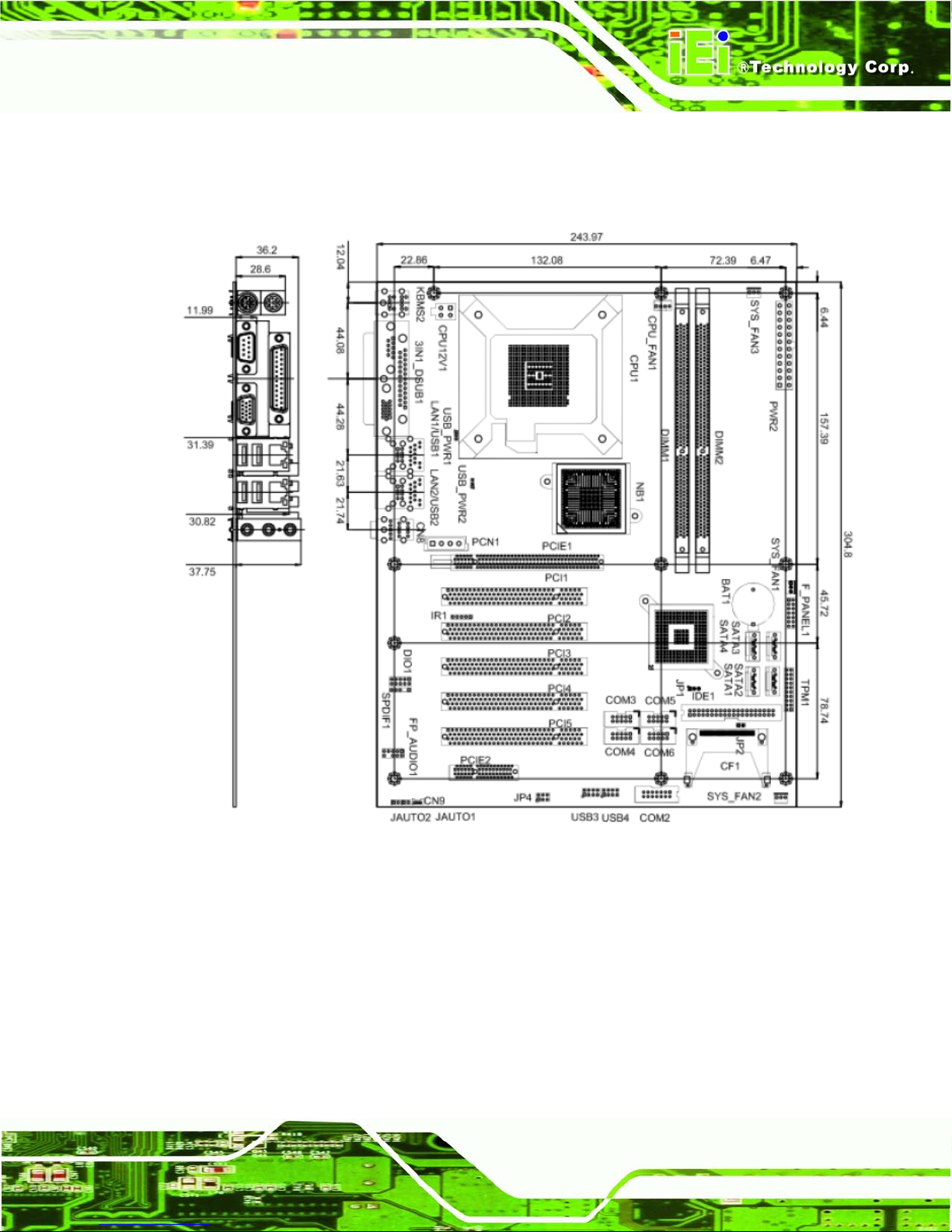

Figure 1-3: Dimensions (mm)
........................................................................................................ 5

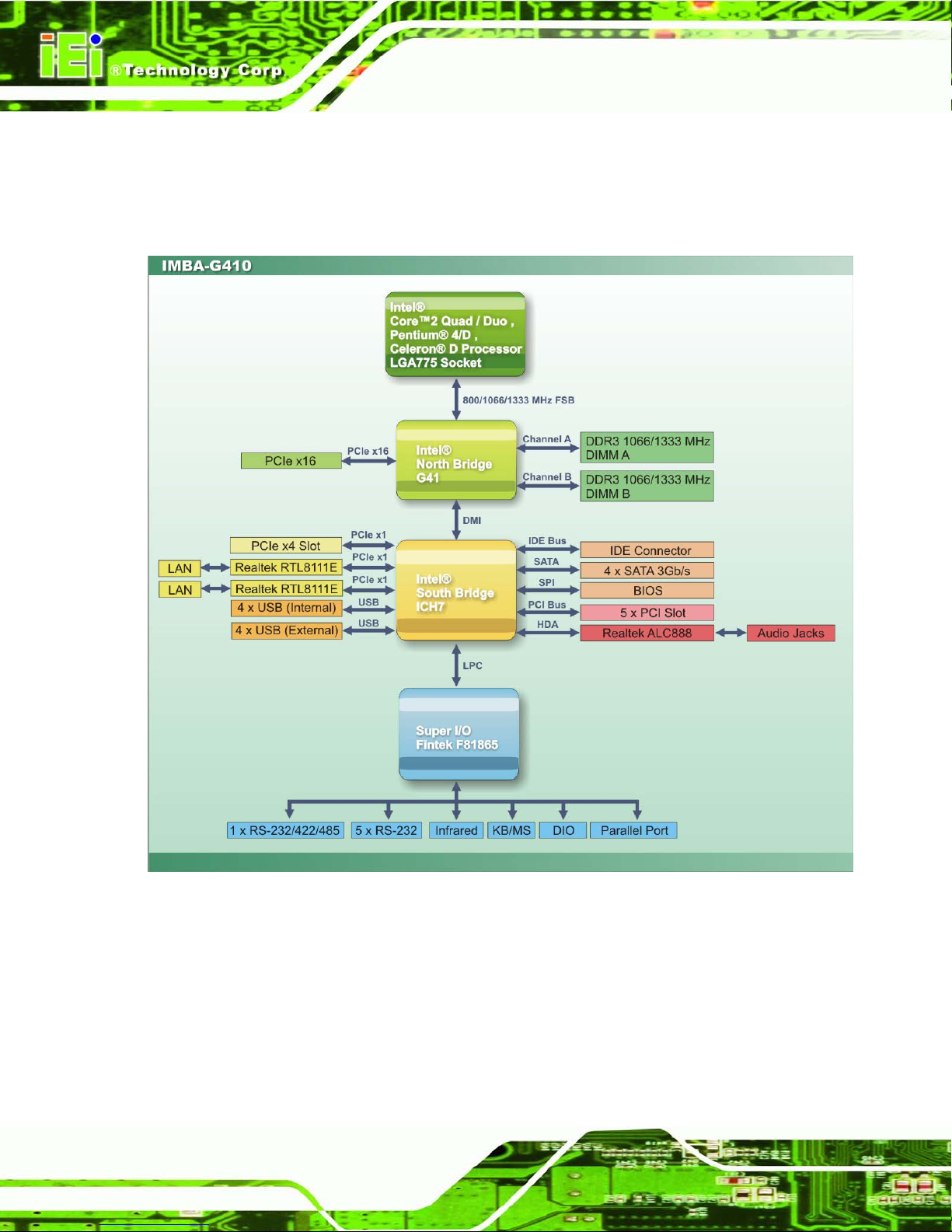

Figure 1-4: Data Flow Diagram
...................................................................................................... 6
Figure 3-1: Connectors and Jumpers
......................................................................................... 15

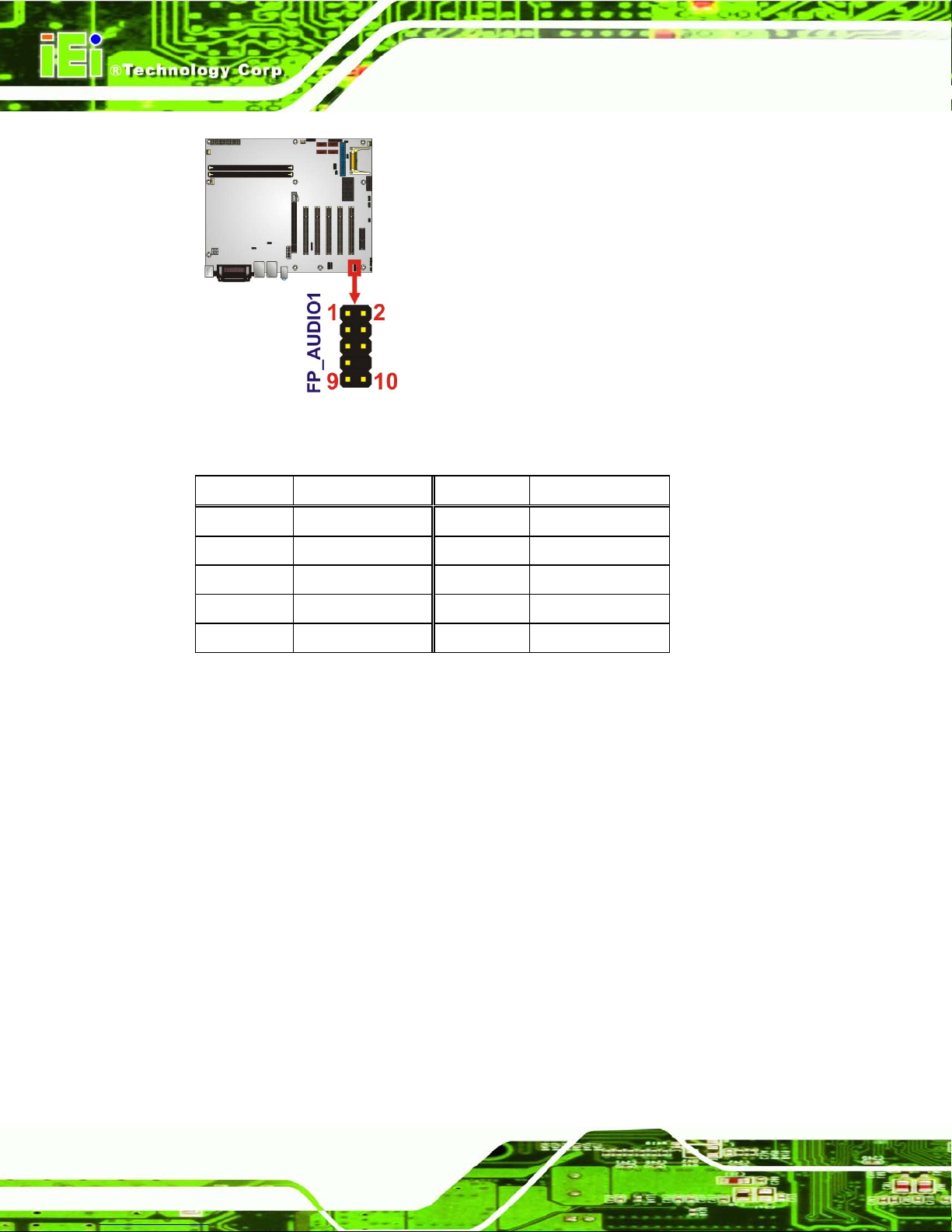

Figure 3-2: Audio Connector Location
....................................................................................... 18
Figure 3-3: CPU Fan Connector Location
.................................................................................. 19
Figure 3-4: System Fan Connector Locations
........................................................................... 19
Figure 3-5: CPU Power Input Connector Location
.................................................................... 20
Figure 3-6: Digital I/O Connector Location
................................................................................ 21

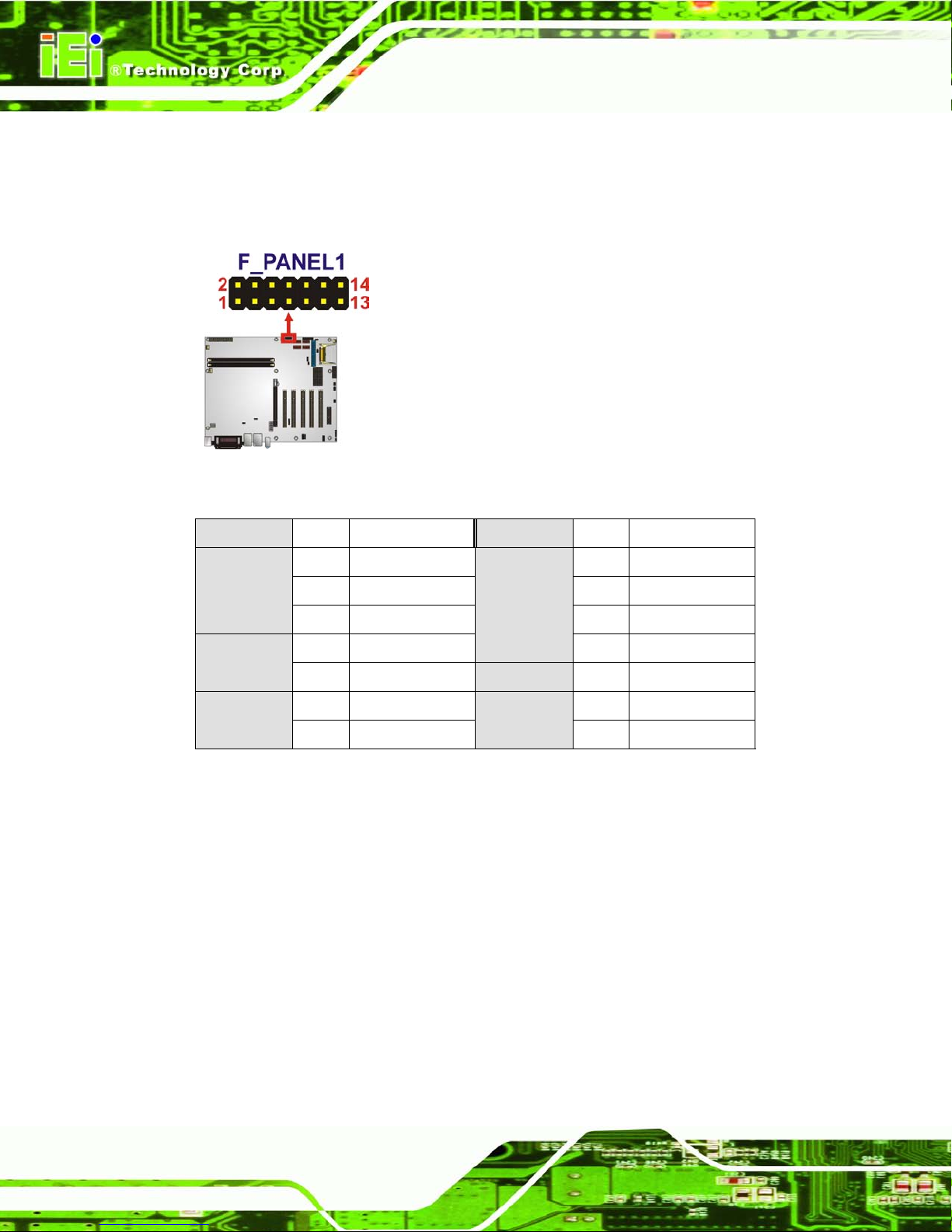

Figure 3-7: Front Panel Connector Location
............................................................................. 22
Figure 3-8: IDE Connector Location
........................................................................................... 23
Figure 3-9: Infrared Connector Location
.................................................................................... 24
Figure 3-10: Memory Card Slot Locations
................................................................................. 25
Figure 3-11: PCIe Power Input Connector Location
................................................................. 25
Figure 3-12: Power Connector Location
.................................................................................... 26

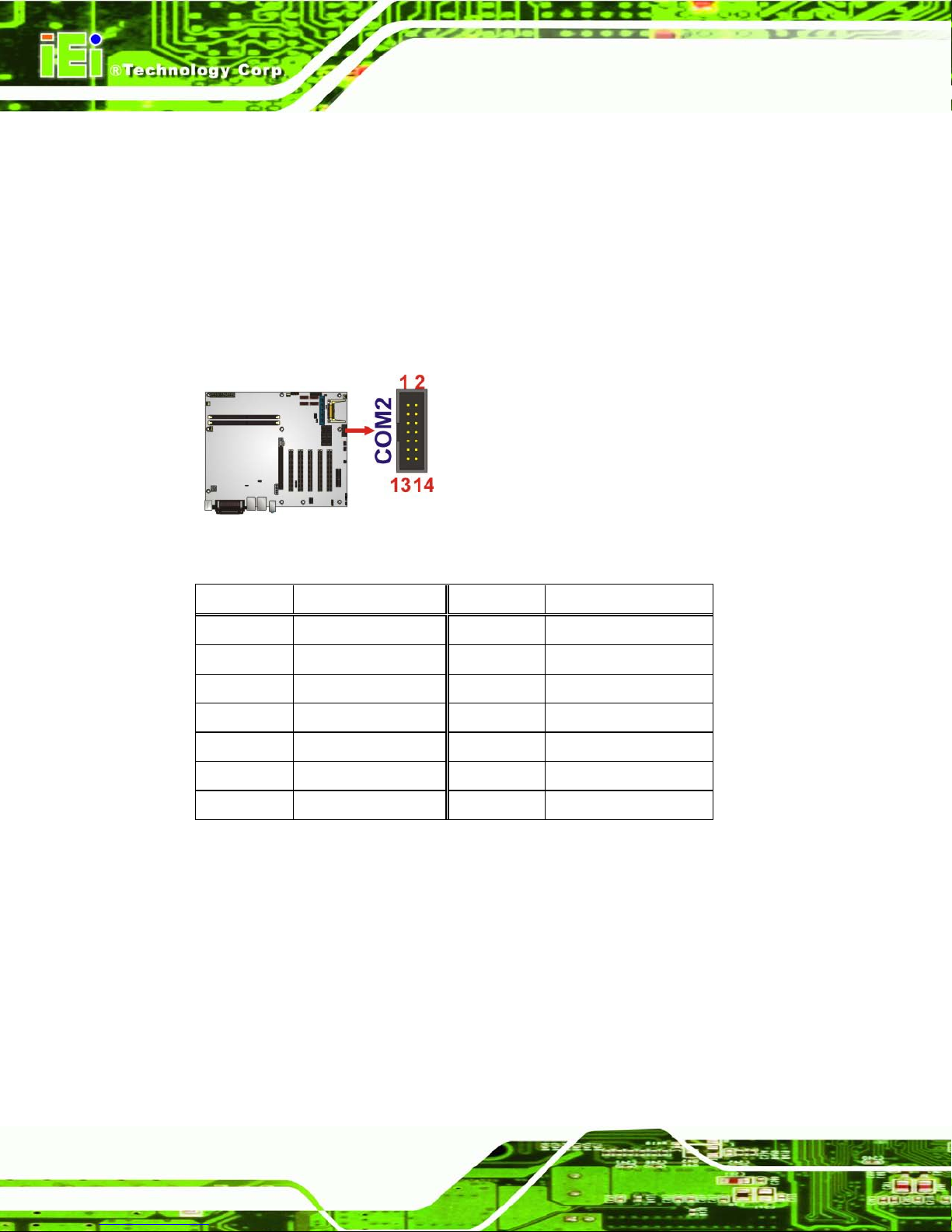

Figure 3-13: Serial Port Connector Locations
........................................................................... 27
Figure 3-14: RS-232/422/485 Serial Port Connector L ocation
.................................................. 28
Figure 3-15: SATA Drive Connector Locations
......................................................................... 29
Figure 3-16: SMBus Connector Location
................................................................................... 29
Figure 3-17: SPDIF Connector Location
.................................................................................... 30
Figure 3-18: SPI Flash Connector Location
............................................................................... 31
Figure 3-19: TPM Connector Pinout Location ........................................................................... 32
Figure 3-20: USB Connector Pinout Locations
......................................................................... 33
Figure 3-21: External Peripheral Interface Co nn ector
.............................................................. 33
Figure 3-22: Audio Connector
..................................................................................................... 34
Figure 3-23: PS/2 Pinout and Configuration
.............................................................................. 35
Figure 3-24: Parallel Port Connector Location
.......................................................................... 37

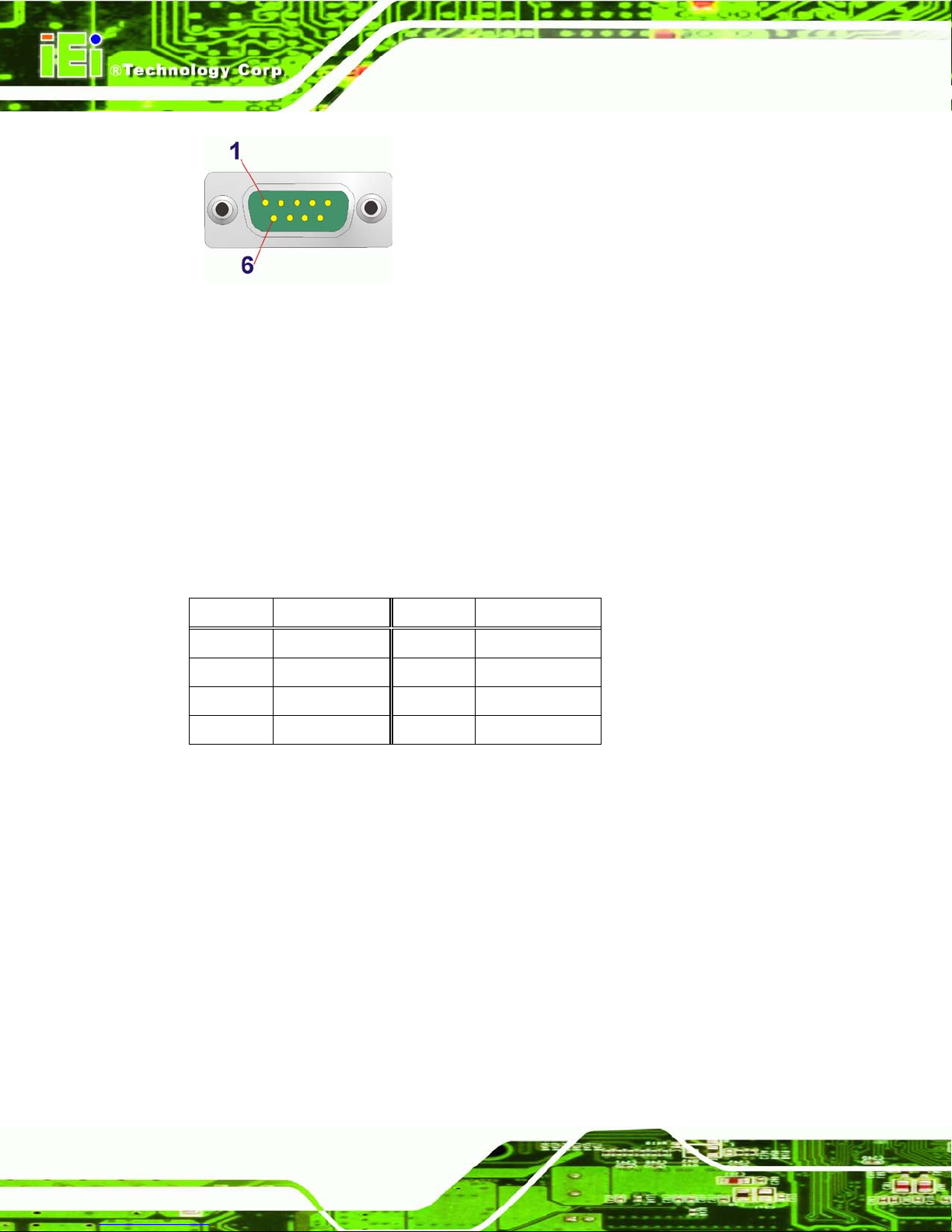

Figure 3-25: Serial Port Pinouts
.................................................................................................. 38

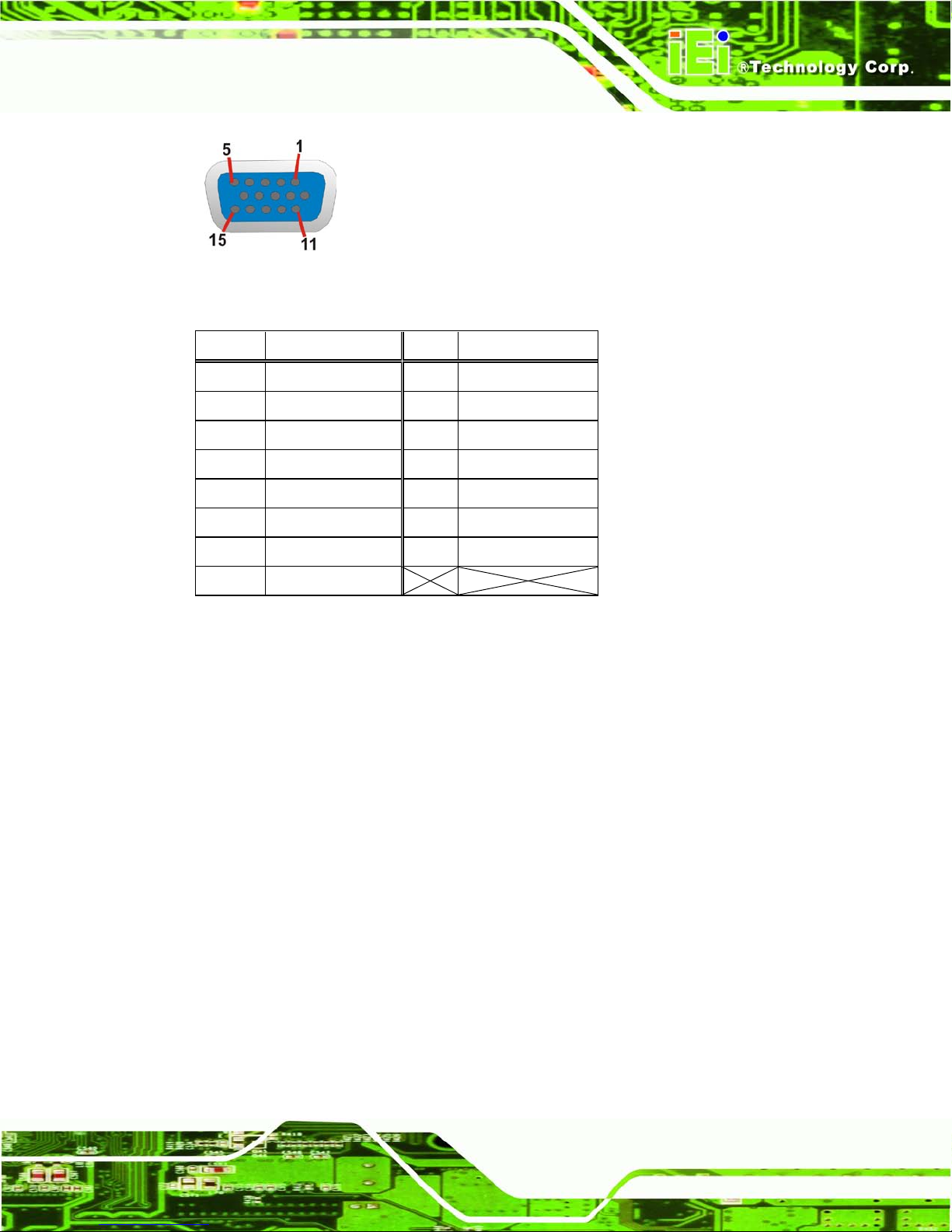

Figure 3-26: VGA Connector
....................................................................................................... 39
Page 10
x1/20/2012165
IMBA-G4 10 ATX Motherboard
Page x
Figure 4-1: Intel LGA775 Socket ................................................................................................. 43
Figure 4-2: Remove Protective Cover
......................................................................................... 44
Figure 4-3: CPU Socket Load Plate
............................................................................................. 44
Figure 4-4: Insert the Socket LGA775 CPU
................................................................................ 45
Figure 4-5: Cooling Kits
............................................................................................................... 46
Figure 4-6: Securing the Heat sink to the IMBA-G410
.............................................................. 47
Figure 4-7: DIMM Installation
....................................................................................................... 48

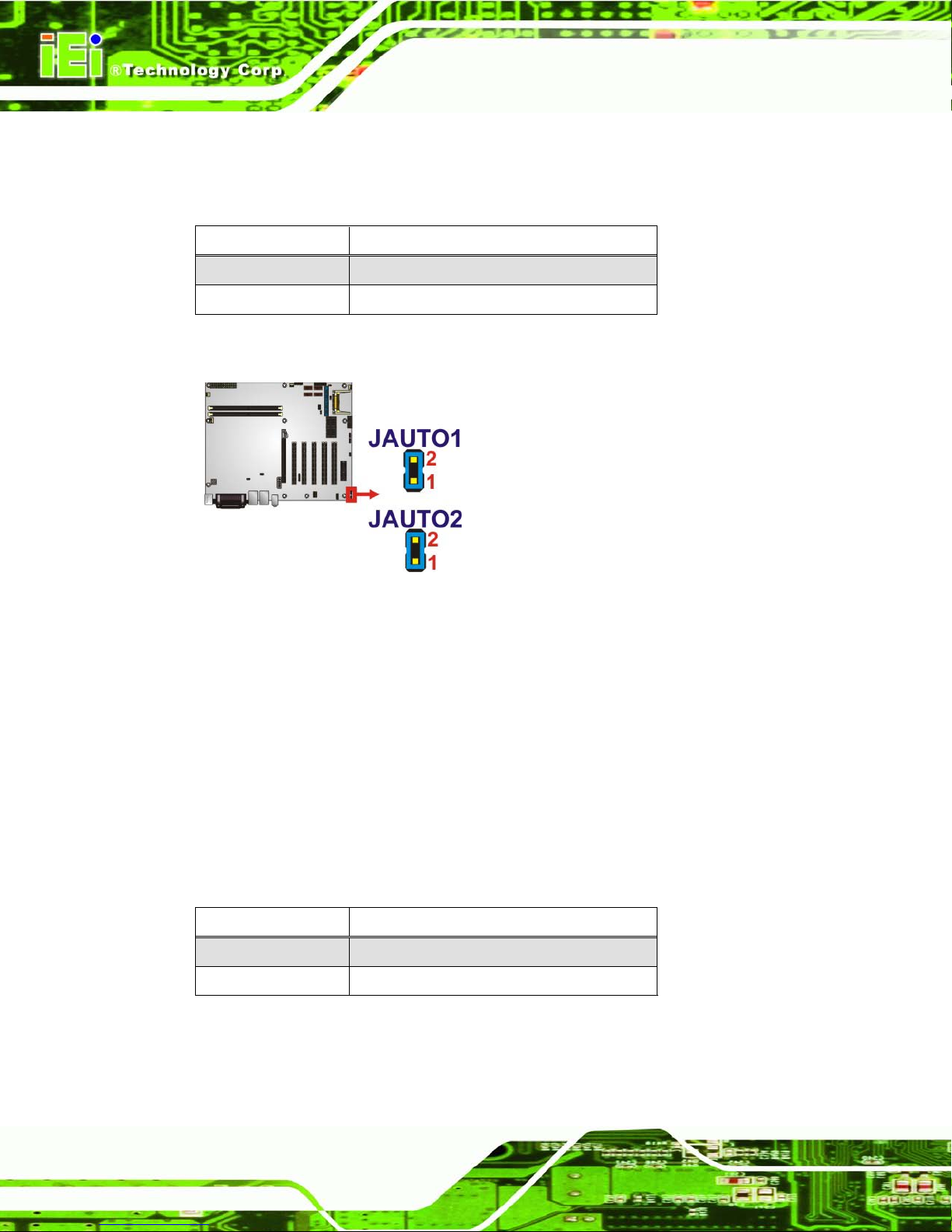

Figure 4-8: AT/ATX Power Select Jumper Location
.................................................................. 50
Figure 4-9: Clear BIOS Jumper Location
................................................................................... 51
Figure 4-10: COM 2 Function Select Jumper Location
............................................................. 52
Figure 4-11: CompactFlash® Setup Jumper Location
............................................................. 52
Figure 4-12: LCD Voltage Selection Jumper Location
.............................................................. 53
Figure 4-13: USB Power Select Jumper Location
..................................................................... 54
Figure 4-14: SATA Drive Cable Connection
............................................................................... 55
Figure 4-15: SATA Power Drive Connection
.............................................................................. 56
Figure 4-16: Dual RS-232 Cable Installation
.............................................................................. 57

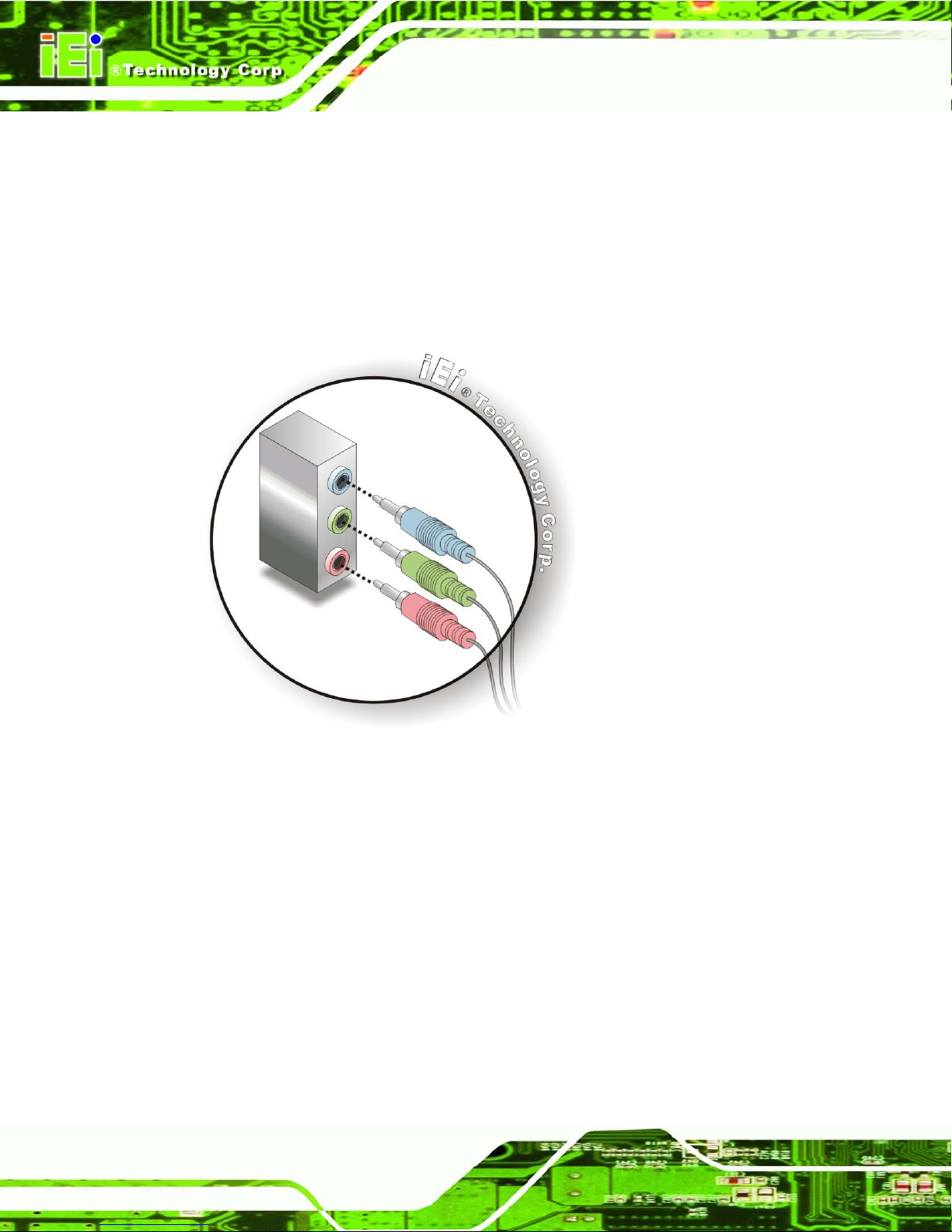

Figure 4-17: Audio Connector
..................................................................................................... 58
Figure 4-18: PS/2 Keyboard/Mouse Connector
......................................................................... 59
Figure 4-19: LAN Connection
...................................................................................................... 60
Figure 4-20: Parallel Device Connector
...................................................................................... 61
Figure 4-21: Serial Device Connector
......................................................................................... 62
Figure 4-22: USB Connector
........................................................................................................ 63

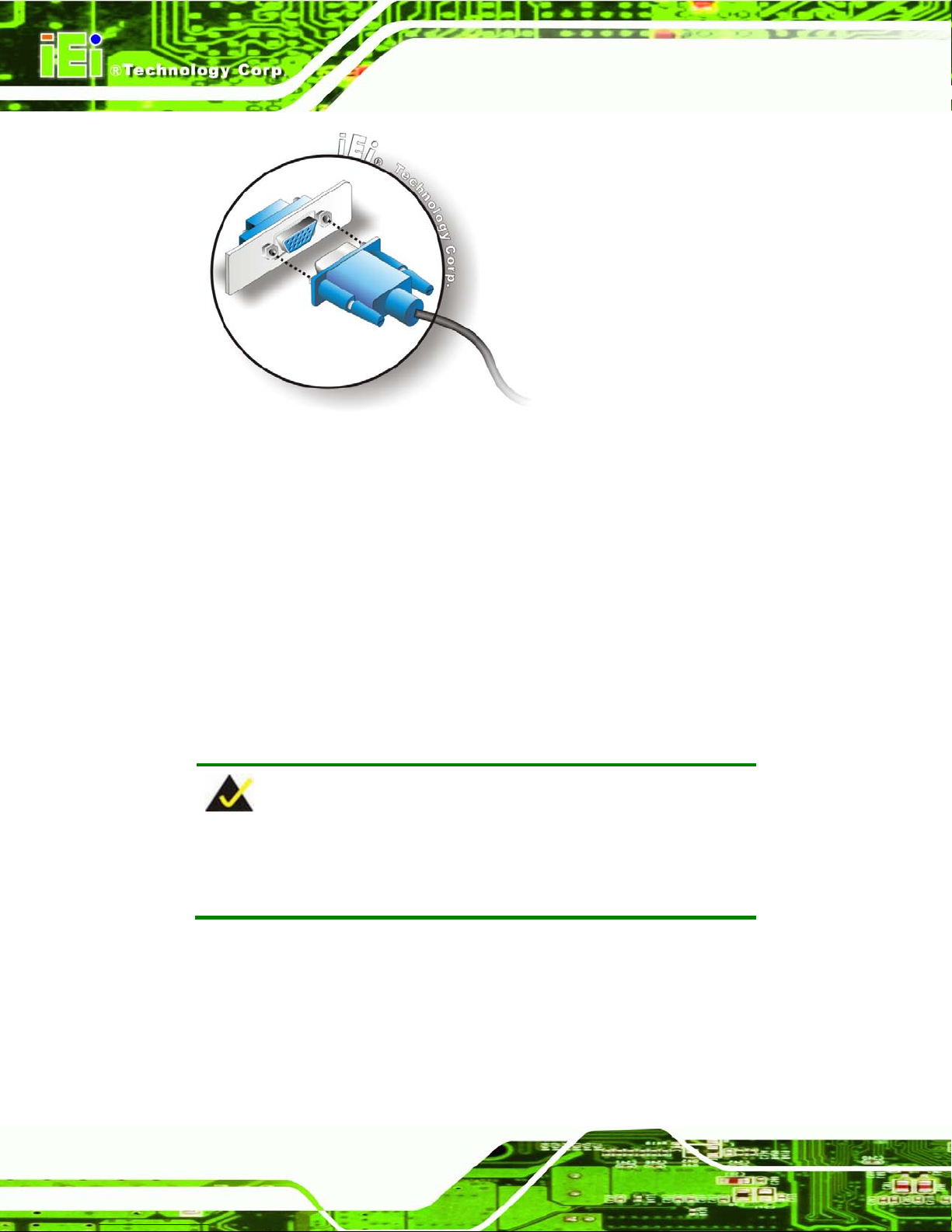

Figure 4-23: VGA Connector ....................................................................................................... 64
Figure C-1: IEI One Key Recovery Tool Menu
.........................................................................116
Figure C-2: Launching the Recovery Tool
...............................................................................120
Figure C-3: Recovery Tool Setup Menu
...................................................................................121
Figure C-4: Command Mode
......................................................................................................121
Figure C-5: Partition Creation Commands
...............................................................................122
Figure C-6: Launching the Recovery Tool
...............................................................................124
Figure C-7: System Configuration for Windows
.....................................................................124
Figure C-8: Build-up Recovery Partition
..................................................................................125
Figure C-9: Press any key to continue
.....................................................................................125
Figure C-10: Press F3 to Boot into Recovery Mode
................................................................126
Figure C-11: Recovery Tool Menu
............................................................................................126
Figure C-12: About Symantec Ghost Window
.........................................................................127
Page 11
2012/1/202012/1/20
IMBA-G410 ATX Motherboard
Page xi
Figure C-13: Symantec Ghost Path ..........................................................................................127
Figure C-14: Select a Local Source Drive
................................................................................128
Figure C-15: Select a Source Partition from Basic Drive
.......................................................128
Figure C-16: File Name to Copy Image to
................................................................................129
Figure C-17: Compress Image
...................................................................................................129
Figure C-18: Image Creation Confirmation
..............................................................................130
Figure C-19: Image Creation Process
.......................................................................................130
Figure C-20: Image Creation Complete
....................................................................................130
Figure C-21: Press Any Key to Continue
.................................................................................131
Figure C-22: Partitions for Linux
...............................................................................................132
Figure C-23: System Configuration for Linux
..........................................................................133
Figure C-24: Access menu.lst in Linux (Text Mode )
...............................................................133
Figure C-25: Recovery Tool Menu
............................................................................................134
Figure C-26: Recovery Tool Main Menu
...................................................................................135
Figure C-27: Restore Factory Default
.......................................................................................136
Figure C-28: Recovery Complete Window
...............................................................................136
Figure C-29: Backup System
.....................................................................................................137
Figure C-30: System Backup Complete Window
....................................................................137
Figure C-31: Restore Backup
....................................................................................................138
Figure C-32: Restore System Backup Complete Window
......................................................138
Figure C-33: Symantec Ghost Window
....................................................................................139
Page 12
xii1/20/2012165
IMBA-G4 10 ATX Motherboard
Page xii
List of Tables
Table 1-1: Technical Specifications .............................................................................................. 8
Table 2-1: Packing List
................................................................................................................. 12
Table 2-2: Optional Items
............................................................................................................. 13
Table 3–1: Internal Peripheral Connectors
................................................................................ 17
Table 3–2: External Peripheral Connectors
............................................................................... 17
Table 3-3: Audio Connector Pinouts
.......................................................................................... 18
Table 3-4: CPU Fan Connector Pinouts
...................................................................................... 19
Table 3-5: System Fan Connector Pinouts (SYS_FAN1)
.......................................................... 20
Table 3-6: System Fan Connector Pinouts (SYS_FAN2 and SYS_FAN3)
............................... 20
Table 3-7: CPU Power Input Connector Pinouts
....................................................................... 20
Table 3-8: Digital I/O Connector Pinouts
.................................................................................... 21
Table 3-9: Front Panel Connector Pinouts
................................................................................. 22
Table 3-10: IDE Connector Pinouts
............................................................................................. 23
Table 3-11: Infrared Connector Pinouts
..................................................................................... 24
Table 3-12: PCIe Power Input Connector Pinouts
..................................................................... 25
Table 3-13: Power Connector Pinouts
........................................................................................ 26
Table 3-14: Serial Port Connector Pinouts
................................................................................ 27
Table 3-15: RS-232/422/485 Serial Port Connector Pinouts
..................................................... 28
Table 3-16: SMBus Connector Pinouts
...................................................................................... 30
Table 3-17: SPDIF Connector Pinouts
........................................................................................ 30
Table 3-18: SPI Flash Connector
................................................................................................. 31
Table 3-19: TPM Connector Pinouts
........................................................................................... 32
Table 3-20: USB Port Connector Pinouts
................................................................................... 33
Table 3-21: Keyboard Connector Pinouts
.................................................................................. 35
Table 3-22: LAN Pinouts
.............................................................................................................. 36
Table 3-23: Parallel Port Connector Pinouts
............................................................................. 37
Table 3-24: Serial Port Pinouts
.................................................................................................... 37
Table 3-25: USB Port Pinouts
...................................................................................................... 38
Table 3-26: VGA Connector Pinouts
........................................................................................... 39
Table 4-1: Jumpers
....................................................................................................................... 49
Page 13
2012/1/202012/1/20
IMBA-G410 ATX Motherboard
Page xiii
Table 4-2: AT/ATX Power Select Jumper Settings .................................................................... 50
Table 4-3: Clear BIOS Jumper Settings
...................................................................................... 50
Table 4-4: COM 2 Function Select Jumper Settings
................................................................. 51
Table 4-5: CompactFlash® Setup Jumper Settings
.................................................................. 52
Table 4-6: LCD Voltage Selection Jumper Settings
.................................................................. 53
Table 4-7: USB Power Select Jumper Settings
......................................................................... 54
Table 5-1: BIOS Navigation Keys
................................................................................................ 67
Page 14
xiv1/20/2012165
IMBA-G4 10 ATX Motherboard
Page xiv
BIOS Menus
BIOS Menu 1: Main ....................................................................................................................... 68
BIOS Menu 2: Advanced
.............................................................................................................. 69
BIOS Menu 3: CPU Configuration
............................................................................................... 70
BIOS Menu 4: IDE
Configuration ................................................................................................. 71
BIOS Menu 5: IDE Master and IDE Slave Configuration
........................................................... 73
BIOS Menu 6: Super IO Configuration
........................................................................................ 78
BIOS Menu 7: Hardware Health Configuration
.......................................................................... 83
BIOS Menu 8: Power Configuration
............................................................................................ 86
BIOS Menu 9: ACPI Configuration
.............................................................................................. 87
BIOS Menu 10: Advanced Power Management Configuration
................................................ 88
BIOS Menu 11: Remote Access Configuration
.......................................................................... 89
BIOS Menu 12: USB Configuration
............................................................................................. 92
BIOS Menu 13: Trusted Computing
............................................................................................ 94
BIOS Menu 14: PCI/PnP Configuration
....................................................................................... 95
BIOS Menu 15: Boot
..................................................................................................................... 97
BIOS Menu 16: Boot Settings Configuration
............................................................................. 97
BIOS Menu 17: Security
............................................................................................................... 99
BIOS Menu 18: Chipset
..............................................................................................................101
BIOS Menu 19: North Bridge Chipset Configuration
..............................................................102
BIOS Menu 20: South Bridge Chipset Configuration
..............................................................104
BIOS Menu 21: Exit
.....................................................................................................................105
Page 15
2012/1/202012/1/20
IMBA-G410 ATX Motherboard
Page 1
Chapter
1
1 Introduction
Page 16
21/20/2012165
Page 2
IMBA-G4 10 ATX Motherboard
1.1 Introduction

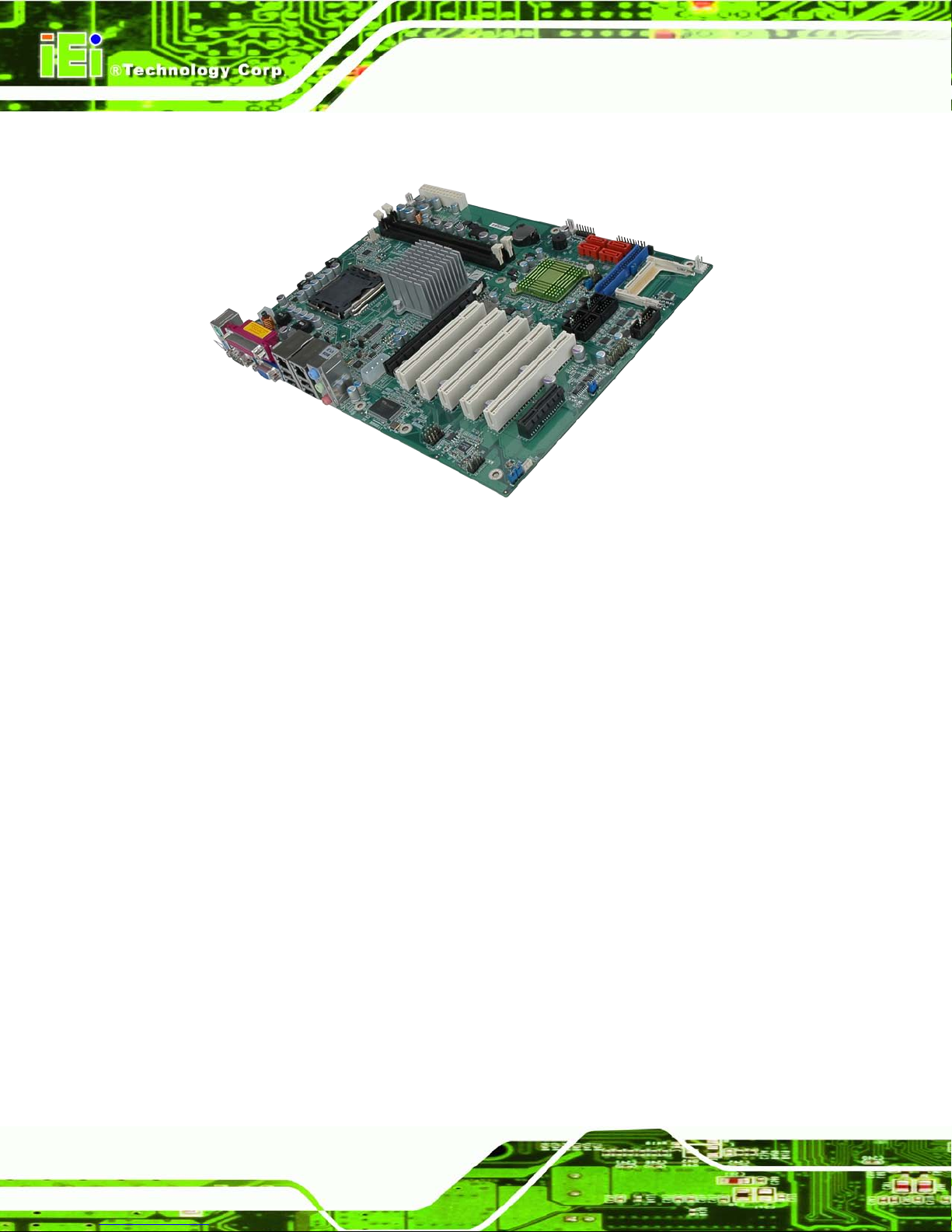

Figure 1-1: IMBA-G410
The IMBA-G410 is an ATX motherboard with an 800/1066/1333 MHz front side bus. The
LGA775 socket accepts Intel® Core™2 Duo/Quad processors and the motherboard
supports two DDR3 DIMMs up to 4.0 GB each (8.0 GB total). The IMBA-G410 includes
VGA output with up to QXGA resolution. Multiple expansion cards may be added,
including PCIe x16, PCIe x4 and PCI interface. Other features include four SATA 3Gb/s,
dual PCIe GbE, digital I/O, five RS-232 serial ports, one RS-232/422/485 serial ports, one
parallel port, audio jacks and eight USB ports.
1.2 Benefits
Some of the IMBA-G410 motherboard benefits include:
Powerful graphics
Staying connected with both wired LAN connections
Speedy running of multiple programs and applications
Multiple expansion capabilities
Page 17
2012/1/202012/1/20
IMBA-G410 ATX Motherboard
Page 3
1.3 Features
Some of the IMBA-G410 motherboard features ar e l i sted below:
ATX form factor
RoHS compliant
LGA775 CPU socket
Supports two DDR3 DIMMs
Supports dual display by VGA port and an optional PCIe x16 SDVO
expansion card
Two Gigabit Ethernet connectors
Four SATA connectors
Eight USB ports
Six serial ports
Supports PCI and PCIe x4 (PCIe x1 signal) expansion cards
Page 18
41/20/2012165
Page 4
IMBA-G4 10 ATX Motherboard
1.4 Connectors
The connectors on the IMBA-G410 are shown in the figure below.
Figure 1-2: Connectors
Page 19
2012/1/202012/1/20
IMBA-G410 ATX Motherboard
Page 5
1.5 Dimensions
The main dimensions of the IMBA-G410 are shown in the di agram below.
Figure 1-3: Dimensions (mm)
Page 20
61/20/2012165
Page 6
IMBA-G4 10 ATX Motherboard
1.6 Data Flow
Figure 1-4 shows the data flow between the system chipset, the CPU and other
components installed on the motherboard.
Figure 1-4: Data Flow Diagram
Page 21
2012/1/202012/1/20
IMBA-G410 ATX Motherboard
Page 7
1.7 Technical Specifications
IMBA-G410 technical specifications are shown below.
Specifications IMBA-G410
Form Facto r
ATX
CPU Supported
Socket LGA775 Intel® Core™2 Duo/Quad, Pentium® D or
Celeron® processor
Front Side Bus (FSB)
800/1066/1333 MHz
Northbridge Chipset
Intel® G41
Memory
Two 240-pin 800/1066 MHz dual-channel DDR3 SDRAM
DIMMs (system max. 4 GB)
Graphic Engine
Intel® GMA X4500 supports DirectX 10 / OpenGL 1.5
Integrated Graphics
VGA integrated in Intel® G41 supports up to
2048 x 1536 @ 75 MHz
Southbridge Chips et
Intel® ICH7
BIOS
UEFI BIOS
Digital I/O
8-bit, 4-bit input/4-bit output
Etherne t Contro llers
Two Realtek RTL8111E PCIe GbE controllers
(LAN1 with ASF2.0 support)
Audio
Realtek ALC888 HD Audio codec
Super I/O Controller
Fintek F81865
Watchdog Timer
Software programmable supports 1~255 sec. system reset
Expansion
One PCIe x16 socket
One PCIe x4 socket (with PCIe x1 signal)
Five PCI sockets
I/O Inte rfa c e
Audio Jack
One line-in
One line-out
One mic-in
Page 22
81/20/2012165
Page 8
IMBA-G4 10 ATX Motherboard
Fan connector
One 4-pin wafer for CPU fan
Three 3-pin wafer for system fans
Keyboard/Mouse
Two external PS/2 connectors
Serial Port s
Five RS-232 COM connectors
One RS-232/422/485 COM connector with auto flow control
USB 2.0/1.1 p orts
Four internal via pin header
Four external USB ports
Infrared
One infrared connector via 5-pin header
Parallel Po rt
One external parallel port
Serial ATA
Four independent SATA channels with 3.0 Gb/s data transfer
rates
IDE
One 40-pin IDE connector
CompactFlash®
One CF Type II slot
SMBu s
One 4-pin wafer SMBus connector
TPM
One TPM module connector via 20-pin head er
Environmental and Power Specifications
Power Supply
ATX power supported
Power Consumption
5 V @ 5.45 A
12 V @ 4.80 A
3.3 V @ 0.16 A
-12 V @ 0.06 A
(2.83 GHz Intel® Core™2 Quad Q9550 with 2 GB 1333 MHz
DDR3 DIMM)
Operating temperature
-10ºC ~ 60ºC, requires cooler and silicone heat sink paste
Humidity
5% ~ 95% (non-condensing)
Phys ical Sp ecification s
Dimensions
305 mm x 244 mm
Weight (Gross/Net)
1200 g / 750 g
Table 1-1: Technical Specifications
Page 23
2012/1/202012/1/20
IMBA-G410 ATX Motherboard
Page 9
Chapter
2
2 Packing List
Page 24
101/20/2012165
Page 10
IMBA-G4 10 ATX Motherboard
2.1 Anti-s tatic Precautions
WARNING!
Static electricity can destroy certain electronics. Make sure to follow the
ESD precautions to prevent damage to the product, and injury to the
user.
Make sure to adhere to the following guidelines:
Wear an anti-static wristband: Wearing an anti-static wristband can prevent
electrostatic discharge.
Self-grounding: Touch a grounded conductor every few minute s to discharge
any excess static buildup.
Use an anti-static pad: When configuring any circuit board, place it on an
anti-static mat.
Only handle the edges of the PCB: Don't touch the surface of the
motherboard. Hold the motherboard by the edges when handling.
2.2 Unpacking Precautions
When the IMBA-G410 is unpacked, please do the followin g:
Follow the antistatic guidelines above.
Make sure the packing box is facing upwards when opening.
Make sure all the packing list items are present.
Page 25
2012/1/202012/1/20
IMBA-G410 ATX Motherboard
Page 11
2.3 Packing List
NOTE:
If any of the components listed in the checklist below are missing, do
not proceed with the installation. Contact the IEI reseller or vendor the
IMBA-G410 was purchased from or contact an IEI sales representative
directly by sending an email to
sales@iei.com.tw.
The IMBA-G410 is shipped with the following components:
Quantity Item and Part Number Ima g e
1 IMBA-G410 SBC
2 SATA cable
(P/N: 32000-062800-RS)
2 Dual RS-232 cable
(P/N: 19800-000051-RS)
1 Mini jumper pack (2.54mm)
(P/N:33100-000079-RS)
1 I/O shielding
(P/N:45014-0017C0-00-RS)
1 Utility CD
Page 26
121/20/2012165
Page 12
IMBA-G4 10 ATX Motherboard
Quantity Item and Part Number Ima g e
1 Quick Installation Guide
Table 2-1: Packing List
2.4 Optional Items
The following are optional components which may be separately purchased:
Item and Part Number Image
CPU cooler kit
(P/N: CF-520-RS-R11)
CPU cooler kit
(P/N: CF-775A-RS)
CPU cooler
(P/N: CF-775B-RS)
ATA 66/100 flat cable
(P/N: 32200-000052-RS)
Page 27
2012/1/202012/1/20
IMBA-G410 ATX Motherboard
Page 13

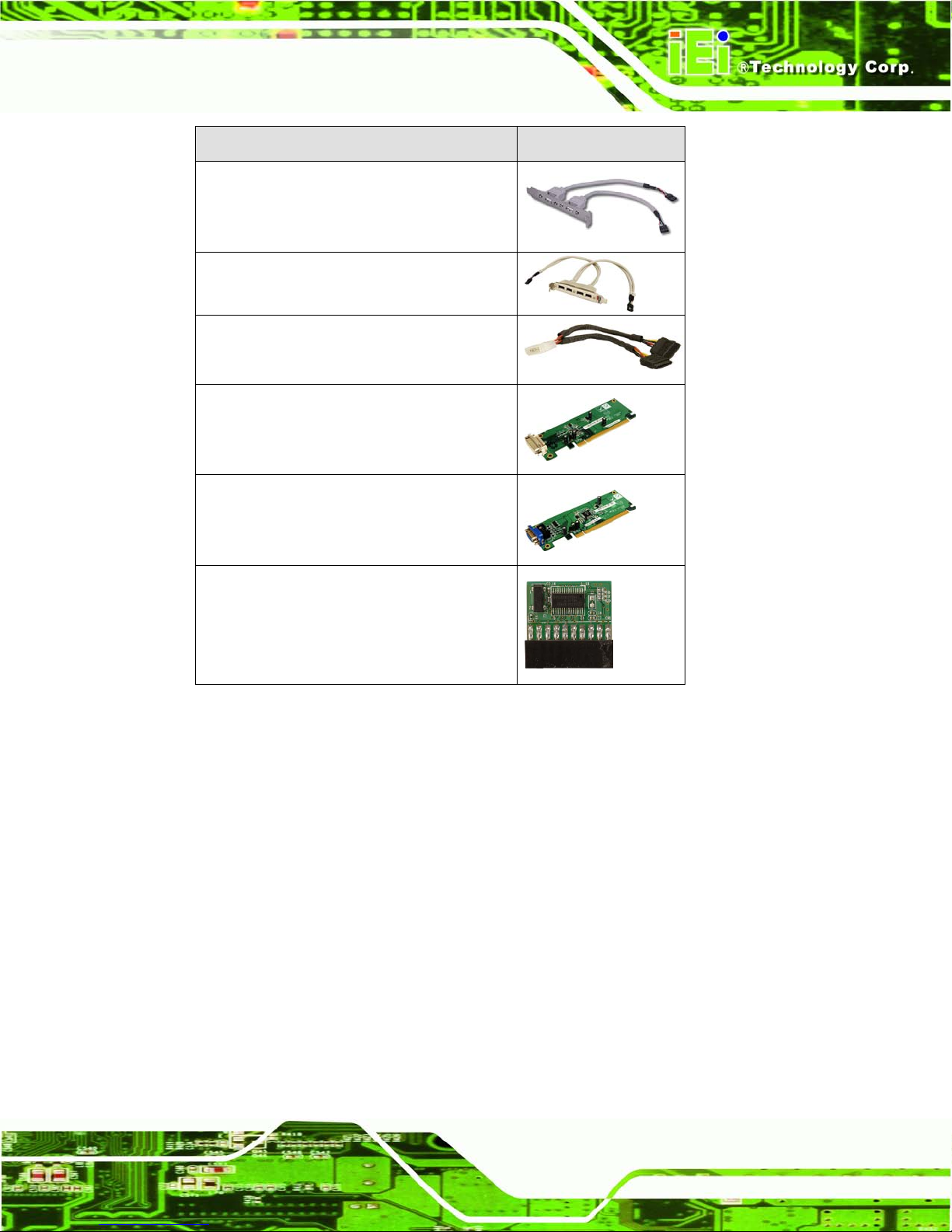

Item and Part Number Image
USB cable
(P/N: CB-USB02-RS
4 USB cable
(P/N: 19800-000100-200-RS)
SATA power cable
(P/N: 32102-000100-200-RS)
DVI output SDVO card
(P/N: SDVO-100DVI-R10)
VGA output SDVO card
(P/N: SDVO-100VGA-R10)
Infineon TPM module
(P/N: TPM-IN01-R11)
Table 2-2: Optional Items
Page 28
141/20/2012165
Page 14
IMBA-G4 10 ATX Motherboard
Chapter
3
3 Connectors
Page 29
2012/1/202012/1/20
IMBA-G410 ATX Motherboard
Page 15
3.1 Peripheral Interface Connectors
This chapter details all the jumpers and connectors.
3.1.1 Layout
The figure below shows all the connectors and jumpers.
Figure 3-1: Connectors and Jumpers
Page 30
161/20/2012165
Page 16
IMBA-G4 10 ATX Motherboard
3.1.2 Peripheral Interface Connectors
The table below lists all the connectors on the board.
Connector Type Label
Audio connector 10-pin header FP_AUDIO1
Fan connector (CPU) 4-pin wafer CPU_FAN1
Fan connector (system) 3-pin wafer SYS_FAN1,
SYS_FAN2,
SYS_FAN3
CPU power input connector 4-pin connector CPU12V1
Digital I/O connector 10-pin header DIO1
Front panel connector 14-pin header F_PANEL1
IDE connector 40-pin box header IDE1
Infrared connector 5-pin header IR1
Memory slot 240-pin DDR3 DIMM slot DIMM1, DIMM2
PCI slots PCI slot PCI1, PCI2,
PCI3, PCI4,
PCI5
PCIe x4 slot PCIe x4 slot PCIE2
PCIe x16 slot PCIe x16 slot PCIE1
PCIe power connector 4-pin connector PCN1
Power connector 24-pin connector PWR2
RS-232 serial port connector 10-pin box header COM3, COM4,
COM5, COM6
RS-232/422/485 serial port connector 14-pin box header COM2
SATA drive connectors 7-pin SATA drive conn ect ors SATA1, SATA2,
SATA3, SATA4
SMBus connector 4-pin wafer CN9
SPDIF connector 5-pin header SPDIF1
Page 31
2012/1/202012/1/20
IMBA-G410 ATX Motherboard
Page 17
Connector Type Label
SPI Flash 8-pin header JSPI1
TPM connector 20-pin header TPM1
USB connectors 8-pin header USB3, USB4
Table 3–1: Internal Peripheral Connectors
3.1.3 External Interface Panel Connectors
The table below lists the connectors on the ext ernal I/O panel.
Connector Type Label
Audio connector Audio jack CN8
Keyboard/Mouse connector PS/2 KBMS2
LAN connector RJ-45 LAN1, LAN2
Parallel port DB-25 Female 3IN1_DSUB1A
Serial port connector DB-9 Male 3IN1_DSUB1B
USB connector USB port USB1, USB2
VGA connector 15-pin Female 3IN1_DSUB1C
Table 3–2: External Peripheral Connectors
3.2 Internal Peripheral Connectors
The section describes all of the connectors on the IMBA-G410.
3.2.1 Audio Connector
CN Label: FP_AUDIO1
CN Type :
10-pin header
CN Lo ca tion:
See Figure 3-2
CN Pinou ts:
See Table 3-3
This connector connects to speakers, a microphone and an audio input.
Page 32
181/20/2012165
Page 18
IMBA-G4 10 ATX Motherboard
Figure 3-2: Audio Connector Location
Pin Description Pin Description
1 MIC_L 2 Audio GND
3 MIC_R 4 FP_AUO_DETECT
5 LINE_R 6 PD
7 F_SENSE 8 NC
9 LINE_L 10 PD
Table 3-3: Audio Connector Pinouts
3.2.2 CPU Fan Connector
CN Label: CPU_FAN1
CN Type :
4-pin wafer
CN Lo ca tion:
See Figure 3-3
CN Pinou ts:
See Table 3-4
The fan connector attaches to a CPU cooling fan.
Page 33
2012/1/202012/1/20
IMBA-G410 ATX Motherboard
Page 19
Figure 3-3: CPU Fan Connector Location
Pin Description
1 GND
2 +12 V
3 FANIN1
4 Fan Control1
Table 3-4: CPU Fan Connector Pinouts
3.2.3 System Fan Connectors
CN Label: SYS_FAN1, SYS_FAN2, S YS_FAN3
CN Type :
3-pin wafer
CN Lo ca tion:
See Figure 3-4
CN Pinou ts:
See Table 3-5 and Table 3-6
The fan connector attaches to a system cooli ng fan.
Figure 3-4: System Fan Connector Locations
Page 34
201/20/2012165
Page 20
IMBA-G4 10 ATX Motherboard
Pin Description
1 FANIN2
2 +12 V
3 GND
Table 3-5: System Fan Connector Pinouts (SYS_FAN1)
Pin Description
1 NC
2 +12 V
3 GND
Table 3-6: System Fan Connector Pinouts (SYS_FAN2 and SYS_FAN3)
3.2.4 CPU Power Input Connector
CN Label: CPU12V1
CN Type :
4-pin connector
CN Lo ca tion:
See Figure 3-5
CN Pinou ts:
See Table 3-7
The CPU power input connector provides po wer to the CPU.

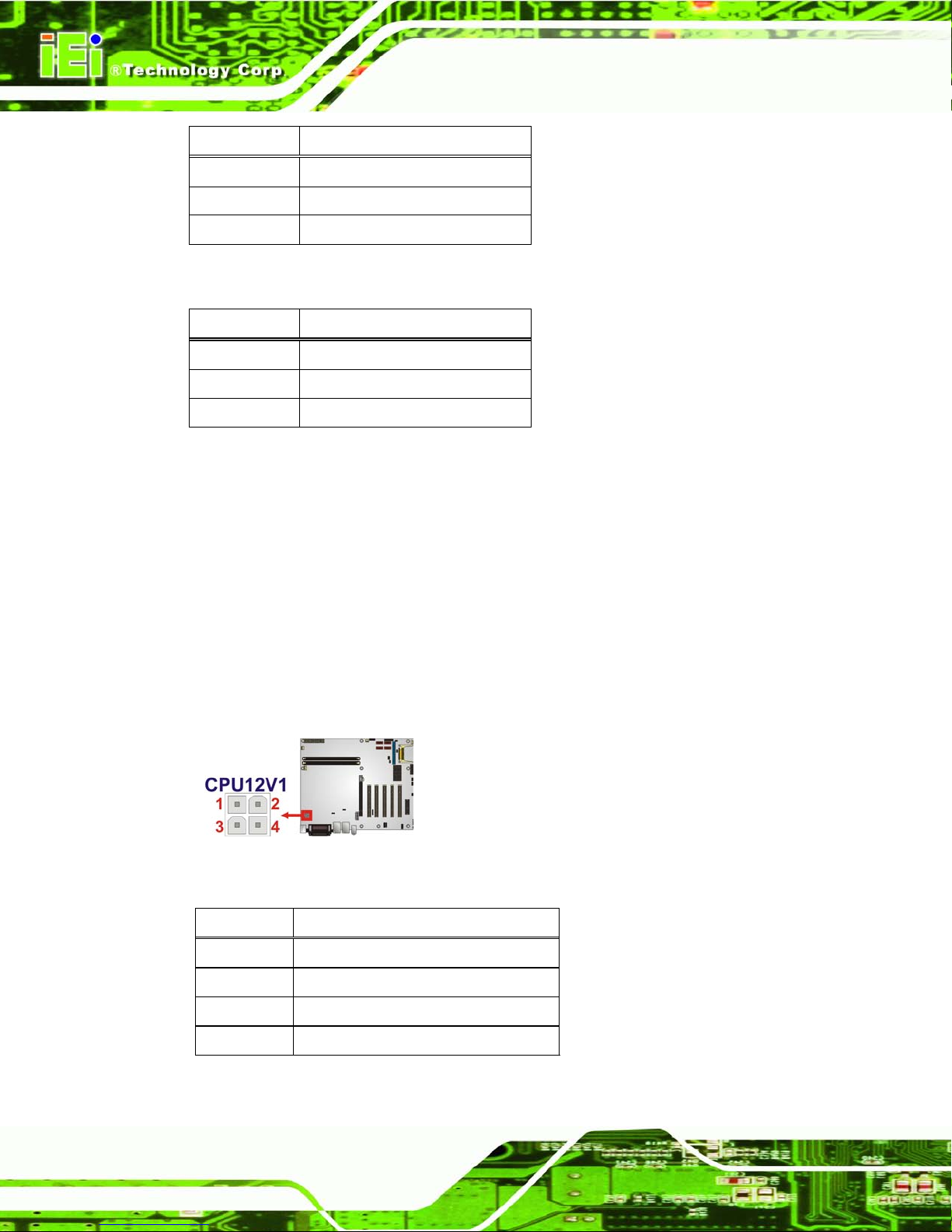

Figure 3-5: CPU Power Input Connector Location
Pin Description
1 GND
2 GND
3 +12 V
4 +12 V
Table 3-7: CPU Power Input Connector Pinouts
Page 35
2012/1/202012/1/20
IMBA-G410 ATX Motherboard
Page 21
3.2.5 Digital I/O Connec tor
CN Label: DIO1
CN Type :
10-pin header
CN Location:
See Figure 3-6
CN Pinou ts:
See Table 3-8
The digital I/O connector provides programmable input and output for external devices.
The digital I/O provides 4-bit output and 4-bit input .
Figure 3-6: Digital I/O Connector Location
Pin Description Pin Description
1 GND 2 VCC5S
3 Output 0 4 Output 1
5 Output 2 6 Output 3
7 Input 0 8 Input 1
9 Input 2 10 Input 3
Table 3-8: Digital I/O Connector Pinouts
3.2.6 Front Panel Connector
CN Label: F_PANEL1
CN Type :
14-pin header
CN Lo ca tion:
See Figure 3-7
Page 36
221/20/2012165
Page 22
IMBA-G4 10 ATX Motherboard
CN Pinou ts:
See Table 3-9
The front panel connector connects to the indicator LEDs and buttons on the computer's
front panel.
Figure 3-7: Front Panel Connector Location
FUNCTION PIN DESCRIPTION FUNCTION PIN DESCRIPTION
Power LED 1 Power LED Buzzer 2 BEEP_PWR
3 NC 4 NC
5 GND 6 NC
Power
Button
7 PWRBTSW# 8 PC_BEEP
9 GND -- 10 NC
HDD LED 11 HDD LED+ Reset 12 RESET
13 HDD LED- 14 GND
Table 3-9: Front Panel Connector Pinouts
3.2.7 IDE Connector
CN Label: IDE1
CN Type :
40-pin box header (2x20)
CN Lo ca tion:
See Figure 3-8
CN Pinou ts:
See Table 3-10
The IDE connector can connect to an IDE hard drive or optical device.
Page 37
2012/1/202012/1/20
IMBA-G410 ATX Motherboard
Page 23
Figure 3-8: IDE Connector Location
Pin Description Pin Description
1 RESET# 2 GROUND
3 DATA 7 4 DATA 8
5 DATA 6 6 DATA 9
7 DATA 5 8 DATA 10
9 DATA 4 10 DATA 11
11 DATA 3 12 DATA 12
13 DATA 2 14 DATA 13
15 DATA 1 16 DATA 14
17 DATA 0 18 DATA 15
19 GROUND 20 N/C
21 IDE DRQ 22 GROUND
23 IOW# 24 GROUND
25 IOR# 26 GROUND
27 IDE CHRDY 28 GROUND
29 IDE DACK 30 GROUND–DEFAULT
31 INTERRUPT 32 N/C
33 SA1 34 N/C
35 SA0 36 SA2
37 HDC CS0# 38 HDC CS1#
39 HDD ACTIVE# 40 GROUND
Table 3-10: IDE Connector Pinouts
Page 38
241/20/2012165
Page 24
IMBA-G4 10 ATX Motherboard
3.2.8 Infrared Interface Connector
CN Label: IR1
CN Type :
5-pin header (1x5)
CN Lo ca tion:
See Figure 3-9
CN Pinouts:
See Table 3-11
The infrared connector attaches to an infrared receiver for use with remote controls.

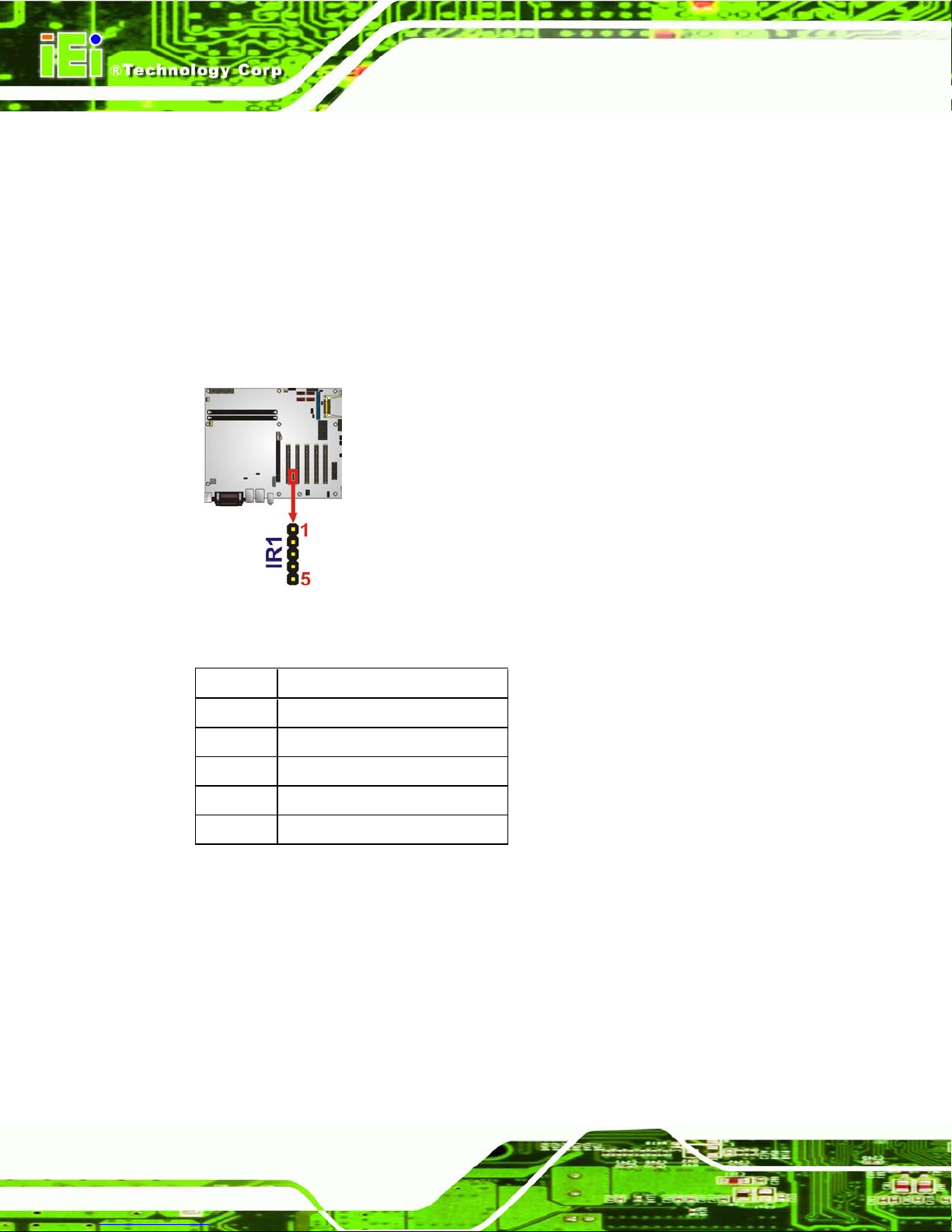

Figure 3-9: Infrared Connector Location
Pin Description
1 +5V
2 NC
3 IR-RX
4 GND
5 IR-TX
Table 3-11: Infrared Connector Pinouts
3.2.9 Mem ory Slots
CN Label: DIMM1, DIMM2
CN Type :
DIMM slot
CN Location:
See Figure 3-10
The DIMM slots are for DDR3 DIMM memory modules.
Page 39
2012/1/202012/1/20
IMBA-G410 ATX Motherboard
Page 25
Figure 3-10: Memory Card Slot Locations
3.2.10 PCIe P o w e r Input Connector
CN Label: PNC1
CN Type :
3-pin wafer (1x3)
CN Lo ca tion:
See Figure 3-11
CN Pinou ts:
See Table 3-12
The PCIe power input connector provides extra power to the PCIe card.
Figure 3-11: PCIe Power Input Connector Location
Pin Description
1 VCC +5 V
2 GND
3 GND
4 VCC +12 V
Table 3-12: PCIe Power Input Connector Pinouts
Page 40
261/20/2012165
Page 26
IMBA-G4 10 ATX Motherboard
3.2.11 Power Connector
CN Label: PWR2
CN Type :
24-pin connector
CN Lo ca tion:
See Figure 3-12
CN Pinou ts:
See Table 3-13
The power connector connects to an ATX power supply.
Figure 3-12: Power Connector Location
Pin Description Pin Description
1 +3.3V 13 +3.3V
2 +3.3V 14 -12V
3 GND 15 GND
4 +5V 16 PS_ON5 GND 17 GND
6 +5V 18 GND
7 GND 19 GND
8 NC 20 NC
9 +5V 21 +5V
10 +12V 22 +5V
11 +12V 23 +5V
12 +3.3V 24 GND
Table 3-13: Power Connector Pinouts
Page 41
2012/1/202012/1/20
IMBA-G410 ATX Motherboard
Page 27
3.2.12 RS-232 Serial Por t Connectors
CN Label: COM3, COM4, CO M5 , C OM6
CN Type :
10-pin box header
CN Lo ca tion:
See Figure 3-13
CN Pinou ts:
See Table 3-14
This connector provides RS-232 communications.

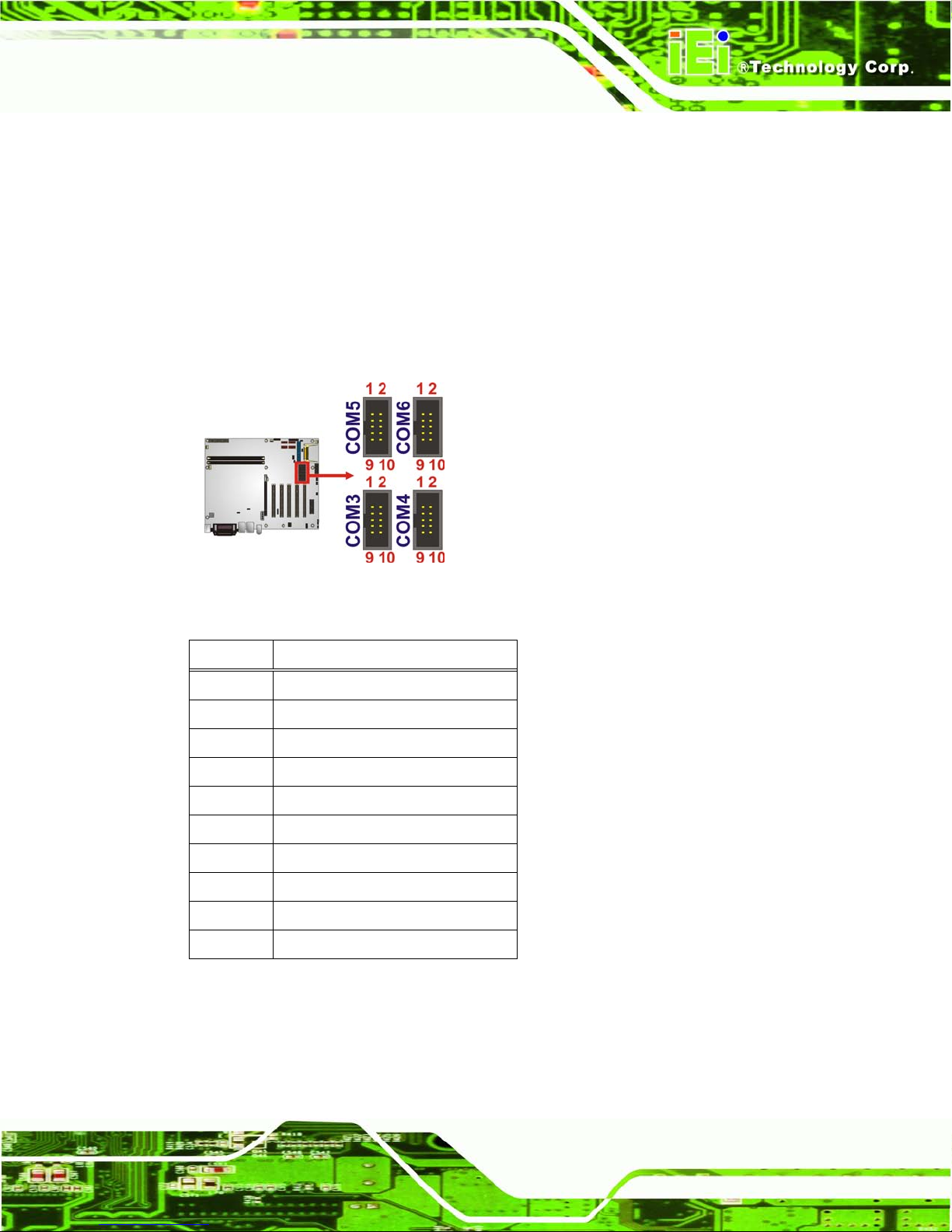

Figure 3-13: Serial Port Connector Locations
Pin Description
1 NRLSD
2 NDSR
3 NRX
4 NRTS
5 NTX
6 NCTS
7 NDTR
8 NRI
9 GND
10 NC
Table 3-14: Serial Port Connector Pinouts
Page 42
281/20/2012165
Page 28
IMBA-G4 10 ATX Motherboard
3.2.13 RS-232/422/485 Ser ial Po rt Connector
CN Label: COM2
CN Type :
14-pin box header
CN Lo ca tion:
See Figure 3-14
CN Pinou ts:
See Table 3-15
This connector provides RS-232, RS-422 or RS-485 communications.
Figure 3-14: RS-232/422/485 Serial Port Connector Location
Pin Description Pin Description
1 NDCD 2 NDSR
3 NRX 4 NRTS
5 NTX 6 NCTS
7 NDTR 8 NRI
9 GND 10 NC
11 TX+ 12 TX13 RX+ 14 RX-
Table 3-15: RS-232/422/485 Serial Port Connector Pinouts
3.2.14 SATA Dr ive Connectors
CN Label: S ATA1, SATA2, SATA3, SATA4
CN Type :
7-pin SATA drive connectors
CN Lo ca tion:
See Figure 3-15
The SATA drive connectors can be connected to SATA 3Gb/s drives.
Page 43
2012/1/202012/1/20
IMBA-G410 ATX Motherboard
Page 29

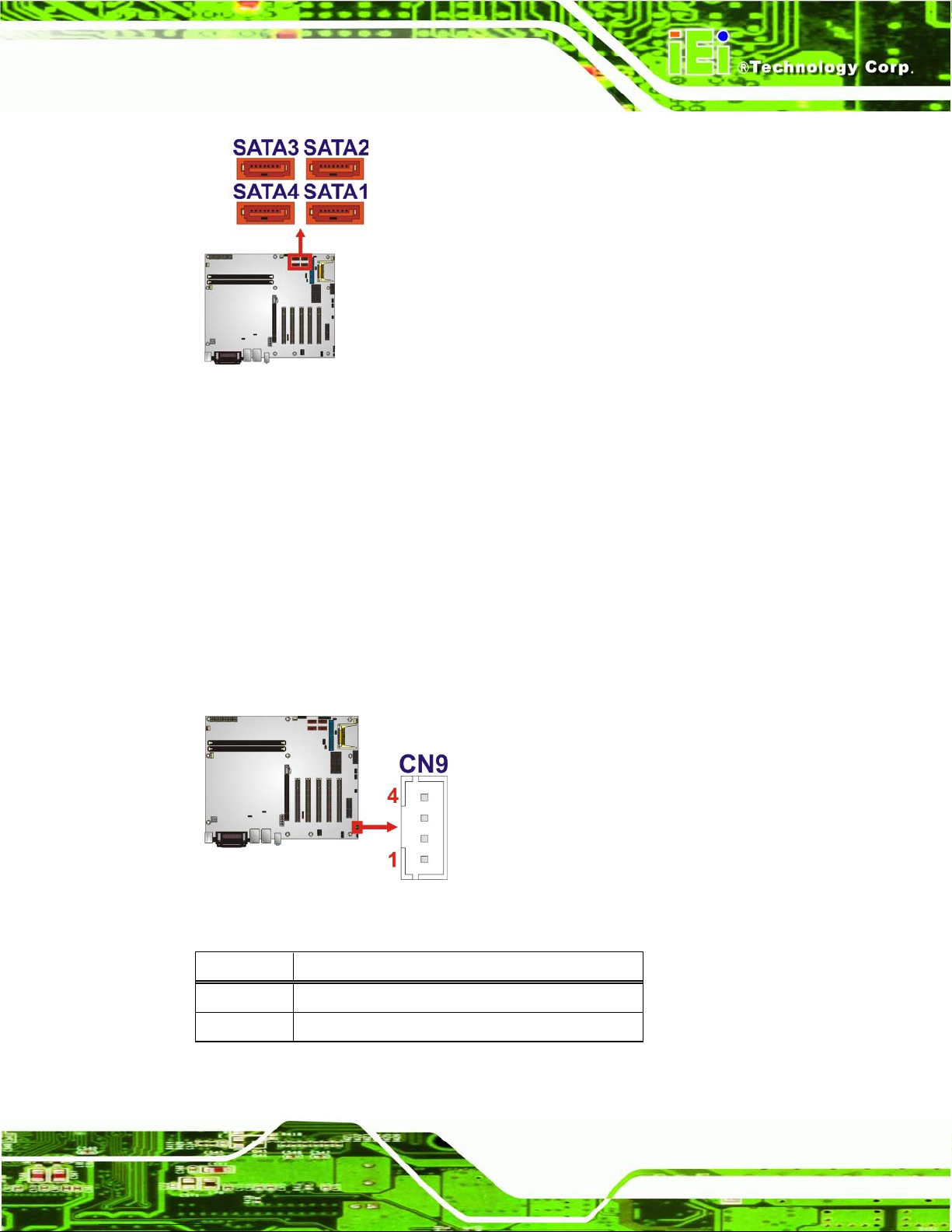

Figure 3-15: SATA Drive Connector Locations
3.2.15 SMBu s Connector
CN Label: CN9
CN Type :
4-pin wafer
CN Lo ca tion:
See Figure 3-16
CN Pinou ts:
See Table 3-16
The SMBus (System Management Bus) connector provides low-speed system
management communications.
Figure 3-16: SMBus Connector Location
Pin Description
1 GND
2 SMBDATA
Page 44
301/20/2012165
Page 30
IMBA-G4 10 ATX Motherboard
Pin Description
3 SMBCLK
4 +5V
Table 3-16: SMBus Connector Pinouts
3.2.16 SPDIF Connector
CN Label: SPDIF1
CN Type :
5-pin header
CN Lo ca tion:
See Figure 3-17
CN Pinou ts:
See Table 3-17
Use the SPDIF connector to connect digital audio devices to the system.

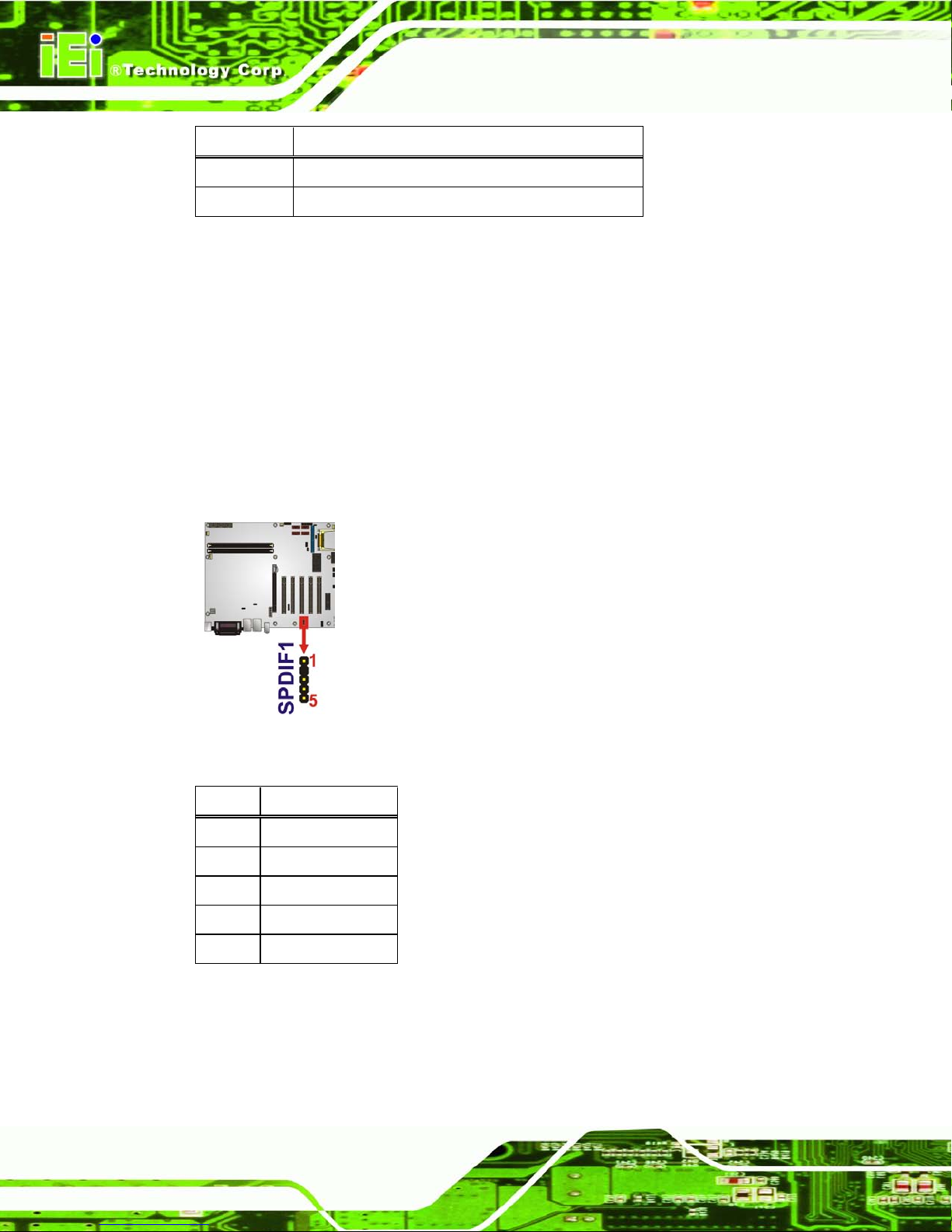

Figure 3-17: SPDIF Connector Location
Pin Description
1 +5V
2 NC
3 SPDIF OUT
4 GND AUDIO
5 SPDIF IN
Table 3-17: SPDIF Connector Pinouts
Page 45
2012/1/202012/1/20
IMBA-G410 ATX Motherboard
Page 31
3.2.17 SPI Flash Connector
CN Label: JSPI1
CN Type :
8-pin header
CN Lo ca tion:
See Figure 3-18
CN Pinou ts:
See Table 3-18
The 8-pin SPI Flash connector is used to flash the B IOS.
Figure 3-18: SPI Flash Connector Location
Pin Description Pin Description
1 +3.3V 2 GND
3 CS# 4 CLOCK
5 SO 6 SI
7 NC 8 NC
Table 3-18: SPI Flash Connector
3.2.18 TPM Connector
CN Label: TP M1
CN Type :
20-pin header (2x10)
CN Lo ca tion:
See Figure 3-19
CN Pinou ts:
See Table 3-19
Page 46
321/20/2012165
Page 32
IMBA-G4 10 ATX Motherboard
The Trusted Platform Module (TPM) connector secures the system on bootup.
Figure 3-19: TPM Connector Pinout Location
Pin Description Pin Description
1 TPMCLK 2 GND
3 LFRAME- 4 NC
5 PCIRST4- 6 +5 V
7 LAD3 8 LAD2
9 LAD0 10 LAD1
11 GND 12 GND
13 SMBCLK_MAIN 14 SMBDATA_MAIN
15 +3.3 V 16 SERIRQ
17 GND 18 CLKRUN19 +3.3 V 20 LDRQ-
Table 3-19: TPM Connector Pinouts
3.2.19 US B Connectors
CN Label: USB3, USB4
CN Type :
8-pin header
CN Lo ca tion:
See Figure 3-20
CN Pinou ts:
See Table 3-20
The USB connectors connect to USB devices. E ach pin header provides two USB ports.
Page 47
2012/1/202012/1/20
IMBA-G410 ATX Motherboard
Page 33
Figure 3-20: USB Connector Pinout Locations
Pin Description Pin Description
1 +5V 2 GND
3 USBP4/6# 4 USBP5/7
5 USBP4/6 6 USBP5/7#
7 GND 8 +5V
Table 3-20: USB Port Connector Pinouts
3.3 External Peripheral Interface Connector Panel
The figure below shows the external peripheral interface connector (EPIC) panel. The
EPIC panel consists of the following:
Figure 3-21: External Peripheral Interface Conn ector
Page 48
341/20/2012165
Page 34
IMBA-G4 10 ATX Motherboard
3.3.1 Audio Connectors
CN Label: CN8
CN Type :
Audio jacks
CN Lo ca tion:
See Figure 3-21
The audio jacks connect to external audio devices.
Line In port (Light Blue): Connects a CD-ROM, DVD play er, or other audio
devices.
Line Out port (Lime): Connects to a headphone or a speaker. With
multi-channel configurations, this port can also con nect to front speakers.
Microphone (Pink): Connects a microphone.

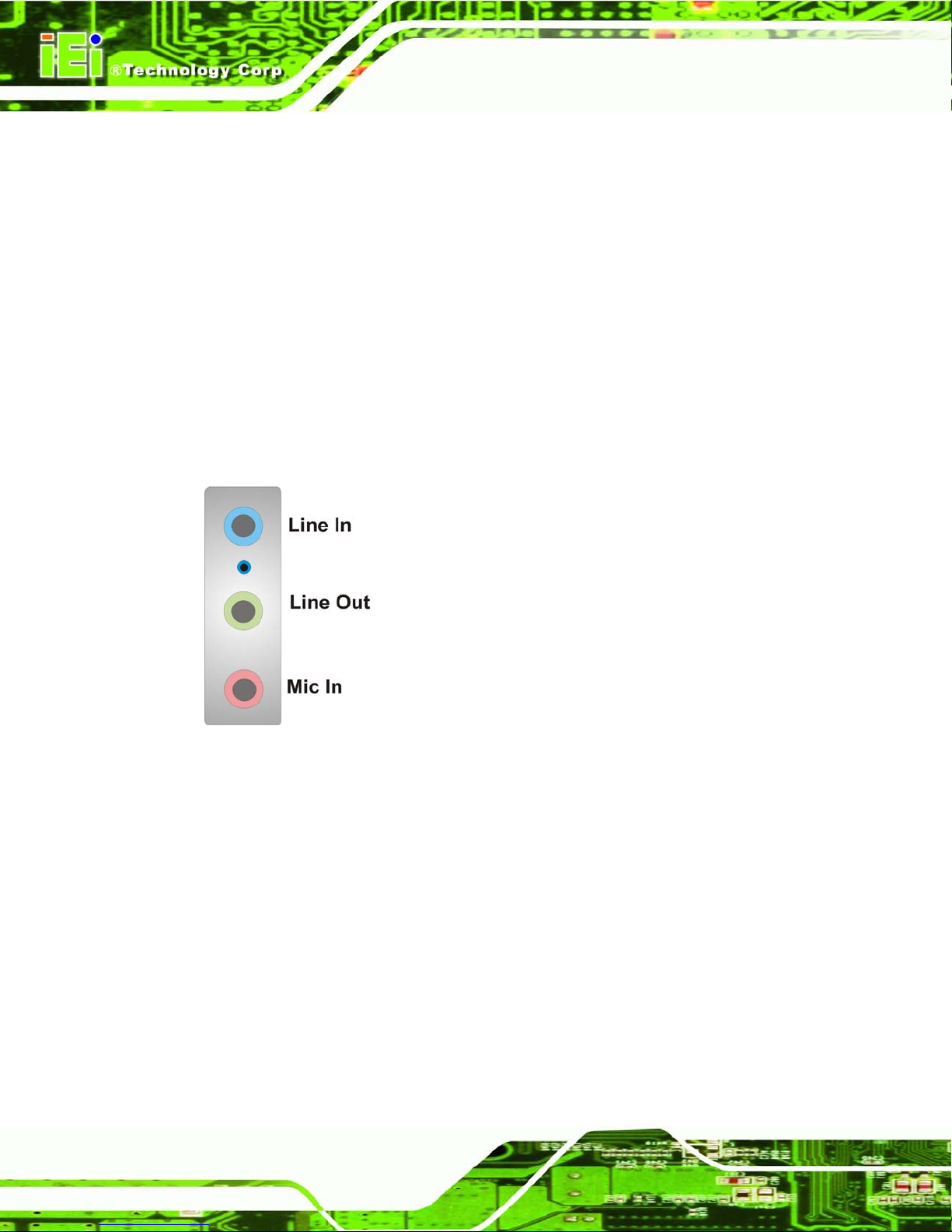

Figure 3-22: Audio Connector
3.3.2 Keyboard/Mouse Connector
CN Label: KBMS2
CN Type :
PS/2
CN Lo ca tion:
See Figure 3-21
CN Pinou ts:
See Table 3-21, Figure 3-23
The keyboard and mouse connector is a standard PS/ 2 connector.
Page 49
2012/1/202012/1/20
IMBA-G410 ATX Motherboard
Page 35
Figure 3-23: PS/2 Pinout and Configuration
Pin Description Pin Description
1 KB_DATA 8 NC
2 NC 9 GND
3 GND 10 5 V
4 5 V 11 MS_CLK
5 KB_CLK 12 NC
6 NC 13 KB_GND
7 MS_DATA 14 KB_GND
Table 3-21: Keyboard Connector Pinouts
3.3.3 LAN Connectors
CN Label: LAN1, LAN2
CN Type :
RJ-45
CN Lo ca tion:
See Figure 3-21
CN Pinou ts:
See Table 3-22
The LAN connector connects to a local network.
Page 50
361/20/2012165
Page 36
IMBA-G4 10 ATX Motherboard
Pin Description Pin Description
1 3.3 V 8 LAN1/2_MDI3+
2 LAN1/2_MDI0+ 9 LAN1/2_MDI33 LAN1/2_MDI0- 10 GND
4 LAN1/2_MDI1+ 11 LAN1/2_LINK100
5 LAN1/2_MDI1- 12 LAN1/2_LINK1000
6 LAN1/2_MDI2+ 13 LAN1/2_LED0
7 LAN1/2_MDI2- 14 3.3 V
Table 3-22: LAN Pinouts
3.3.4 Parallel Port Connector
CN Label: 3IN1_DSUB1A
CN Type :
DB-25 Female
CN Lo ca tion:
See Figure 3-21
CN Pinou ts:
See Table 3-23
The parallel port connects to parallel port device, typically a printer.
Pin Description Pin Description
1 STROBE# 14 AUTO FORM FEED #
2 DATA 0 15 ERROR#
3 DATA 1 16 INITIALIZE
4 DATA 2 17 PRINTER SELECT LN#
5 DATA 3 18 GROUND
6 DATA 4 19 GROUND
7 DATA 5 20 GROUND
8 DATA 6 21 GROUND
9 DATA 7 22 GROUND
10 ACKNOWLEDGE 23 GROUND
11 BUSY 24 GROUND
12 PAPER EMPTY 25 GROUND
Page 51
2012/1/202012/1/20
IMBA-G410 ATX Motherboard
Page 37
Pin Description Pin Description
13 PRINTER SELECT
Table 3-23: Parallel Port Connector Pinouts
Figure 3-24: Parallel Port Connector Location
3.3.5 Serial Por t Connector (COM1)
CN Label: 3IN1_DSUB1B (COM1)
CN Type :
DB-9 Male
CN Lo ca tion:
See Figure 3-21
CN Pinou ts:
See Table 3-24 and Figure 3-25
The serial port connects to a RS-232 serial communications device.
Pin Description Pin Description
1 DCD 6 DSR
2 RX 7 RTS
3 TX 8 CTS
4 DTR 9 RI
5 GND
Table 3-24: Serial Port Pinouts
Page 52
381/20/2012165
Page 38
IMBA-G4 10 ATX Motherboard
Figure 3-25: Serial Port Pinouts
3.3.6 USB Co nnec t o r s
CN Label: USB1, USB2
CN Type :
USB port
CN Lo ca tion:
See Figure 3-21
CN Pinou ts:
See Table 3-25
The USB connector can be connected to a USB dev i ce.
Pin Description Pin Description
1 USBPWR1 2 USBP0/23 USBP0/2+ 4 GND
5 USBPWR1 6 USBP1/37 USBP1/3+ 8 GND
Table 3-25: USB Port Pinouts
3.3.7 VGA Connector
CN Label: 3IN1_DSUB1C
CN Type :
15-pin Female
CN Lo ca tion:
See Figure 3-21
CN Pinou ts:
See Figure 3-26 and Table 3-26
The VGA connector connects to a monitor that accepts a standard VGA input.
Page 53
2012/1/202012/1/20
IMBA-G410 ATX Motherboard
Page 39
Figure 3-26: VGA Connector
Pin Description Pin Description
1 RED 2 GREEN
3 BLUE 4 CRT_PLUG#
5 GND 6 GND
7 GND 8 GND
9 VGAVCC 10 GND
11 NC 12 DDC DAT
13 HSYNC 14 VSYNC
15 DDCCLK
Table 3-26: VGA Connector Pinouts
Page 54
401/20/2012165
Page 40
IMBA-G4 10 ATX Motherboard
Chapter
4
4 Installation
Page 55
2012/1/202012/1/20
IMBA-G410 ATX Motherboard
Page 41
4.1 Anti-s tatic Precautions
WARNING:
Failure to take ESD precautions during the installation of the
IMBA-G410 may result in permanent damage to the IMBA-G410 and
severe injury to the user.
Electrostatic discharge (ESD) can cause serious damage to electronic components,
including the IMBA-G410. Dry climates are especially susceptible to ESD. It is therefore
critical that whenever the IMBA-G410 or any other electrical component is handled, the
following anti-static precautions are strictly adhered to.
Wear an anti-static wristband: Wearing a simple anti-static wrist band can
help to prevent ESD from damaging the board.
Self-grounding: Before handling the board, touch any grounded conducting
material. During the time the board is handled, f requently touch any
conducting materials that are connected to the ground.
Use an anti-static pad: When configuring the IMBA-G410, pl ace it on an
antic-static pad. This reduces the possibility of ESD damaging the
IMBA-G410.
Only handle the edges of the PCB: When handling the PCB, hold the PCB
by the edges.
4.2 Installation Considerations
NOTE:
The following installation notices and installation considerations should
be read and understood before installation. All instal l ation notices must
be strictly adhered to. Failing to adhere to these precautions may lead
to severe damage and injury to the person performing the installation.
Page 56
421/20/2012165
Page 42
IMBA-G4 10 ATX Motherboard
WARNING:
The installation instructions described in this manual should be
carefully followed in order to prevent damage to the components and
injury to the user.
Before and during the installation please DO the following:
Read the user manual:
o The user manual provi des a complete description of the IMBA-G410
installation instructions and configuration opt i ons.
Wear an electrostatic discharge cuff (ESD):
o Electronic compone nts are easily dam aged by ESD. Wearing an ESD cuff
removes ESD from the body and helps prevent ESD damage.
Place the IMBA-G410 on an antistatic pad:
o When installing or configuring the motherboard, place it on an antistatic
pad. This helps to prevent potential ESD damage.
Turn all power to t he IMBA-G410 off:
o When working with the IMBA-G410, make sure that it is disconnected
from all power supplies and that no electricity is being fed into the syst em.
Before and during the installation of the IMBA-G410 DO NOT:
Remove any of the stickers on the PCB board. These st ickers a re required f or
warranty validation.
Use the product before verifying all the cables and power connectors are
properly connected.
Allow screws to come in contact with t he PCB circuit, connector pins, or its
components.
Page 57
2012/1/202012/1/20
IMBA-G410 ATX Motherboard
Page 43
4.3 B as ic Ins tallat ion
This section outlines the parts that must be installed for the system to function correctly.
4.3.1 CPU Installation
NOTE:
To enable Hyper-Threading, the CPU and chipset must both support it.
WARNING:
CPUs are expensive and sensitive components. When installing the
CPU please be careful not to damage it in anyway. Make sur e the CPU
i
s installed properly and ensure the correct cooling kit is properly
installed.
The LGA775 socket is shown in Figure 4-1.
Figure 4-1: Intel LGA775 Socket
To install the CPU, follow the steps below.
Page 58
441/20/2012165
Page 44
IMBA-G4 10 ATX Motherboard
WARNING:
DO NOT touch the pins at the bottom of the CPU. When handling the
CPU, only hold it on the sides.
Step 1: Remove the protective cover. The black protective cover can be removed by
pulling up on the tab labeled "Remove". See Figure 4-2.

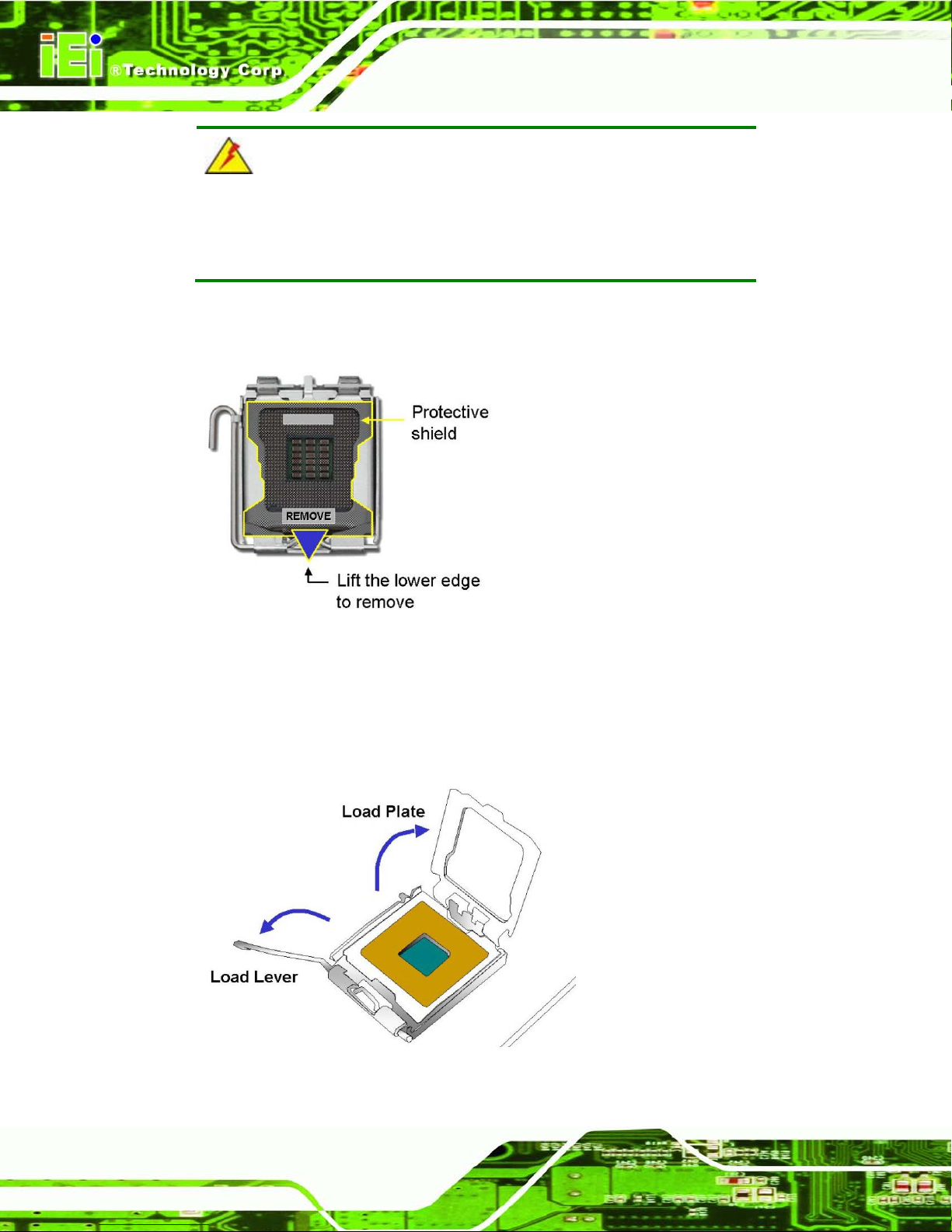

Figure 4-2: Remove Protective Cover
Step 2: Open the socket. Disengage the load lever by pressing the lever down and
slightly outward to clear the retention tab. Fully open the lever, then open the
load plate. See Figure 4-3.
Figure 4-3: CPU Socket Load Plate
Page 59
2012/1/202012/1/20
IMBA-G410 ATX Motherboard
Page 45
Step 3: Inspect the CPU socket. Make sure there are no bent pins and make sure the
socket contacts are free of foreig n mat eri al. I f any debris i s found, remov e it with
compressed air .
Step 4: Orientate the CPU properly. The contact array should be facing the CPU
socket.
Step 5: Correctly position the CPU. Match the Pin 1 mark with the cut edge on the
CPU socket.
Step 6: Align the CPU pins. Locate pin 1 and the two orientation notches on the CPU.
Carefully match the two orientation notches on the CPU with the socket
alignment keys.
Step 7: Insert the CPU. Gently insert the CPU into the socket. If the CPU pins are
properly aligned, the CPU should slide into the CPU socket smoothly.
See Figure 4-4.
Figure 4-4: Insert the Socket LGA775 CPU
Step 8: Close the CPU socket. Close the load plate and engage the load lever by
pushing it back to its original position. There will be some resistance, but will not
require extreme pressure.
Step 9: Connect the 12 V power to the board. Conne ct the 12 V power fr om the power
supply to the board. S tep 0:
Page 60
461/20/2012165
Page 46
IMBA-G4 10 ATX Motherboard
4.3.2 Cooling Kit Ins tallation
WARNING:
DO NOT use the original Intel® heat sink and fan. A proprietary one is
recommended.
Figure 4-5: Cooling Kits
The cooling kit can be bought from IEI. The cool ing kit has a heatsink and fan.
WARNING:
Do not wipe off (accidentally or otherwise) the pre-sprayed layer of
thermal paste on the bottom of the heat sink. The thermal paste
between the CPU and the heat sink is important for optimum heat
dissipation.
To install the cooling kit, follow the instruction s below.
Step 1: Place the cooling kit onto the socket LGA775 CPU. Make sure the CP U
cable can be properly routed when the cooling kit i s installed.
Step 2: Properly align the cooling kit. Make sure the four spring scre w f ast eners can
pass through the pre-drilled holes on the P CB.
Page 61
2012/1/202012/1/20
IMBA-G410 ATX Motherboard
Page 47
Step 3: Mount the cooling kit. Gently place the cooling kit on top of the CPU. Make
sure the four threaded screws on the corners of the cooling kit properly pass
through the predrilled holes on the bottom of the PCB.
Step 4: Secure the cooling kit. From the solder side of the PCB, align the support
bracket to the screw threads on heat sink that were inserted through the PCB
holes. (See Figure 4-6)

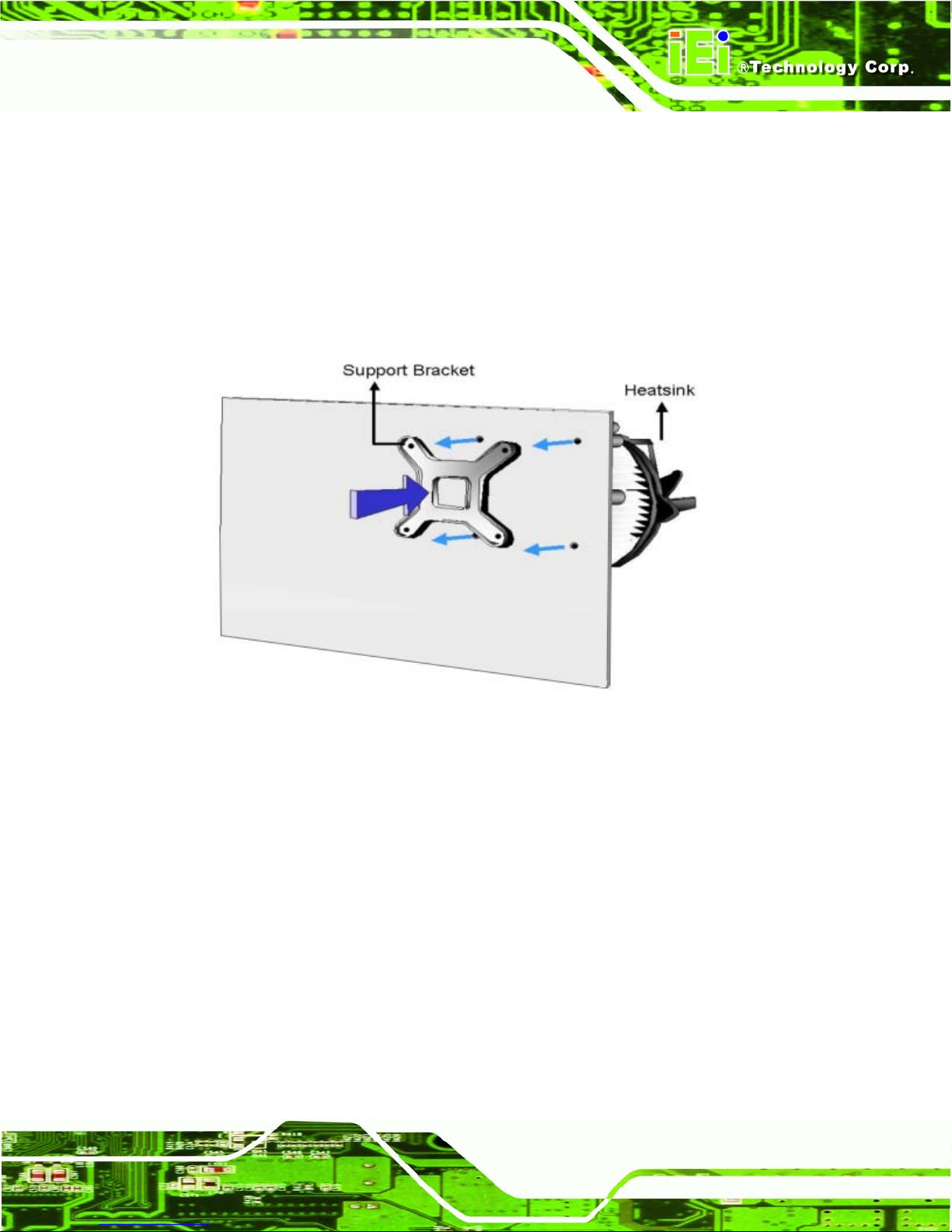

Figure 4-6: Securing the Heat sink to the IMBA-G410
Step 5: Tighten the screws. Use a screwdriver to tighten the four screws. Tighten each
nut a few turns at a time and do not over-tighten the s cre ws.
Step 6: Connect the fan cable. Connect the cooling kit fan cable to the fan connector
on the IMBA-G410. Carefully route the cable and avoid heat generating chips
and fan blades. S tep 0:
Page 62
481/20/2012165
Page 48
IMBA-G4 10 ATX Motherboard
4.3.3 DIMM Installation
To install a DIMM, please follow the steps belo w and refer to Figure 4-7.
Figure 4-7: DIMM Installation
Step 1: Open the DIMM socket handles. Open the two handles outwards as far as
they can. See Figure 4-7.
Step 2: Align the DIMM with the socket. Align the DIMM so the notch on the memory
lines up with the notch on the memory socket. See Figure 4-7.
Step 3: Insert the DIMM. Once aligned, press down until the DIM M i s properly seated.
Clip the two handles into place. See Figure 4-7.
Step 4: Removing a DIMM. To remove a DIMM, push both handles outward. The
memory module is ejected by a mechanism in t he socket.Step 0:
4.3.4 Motherboard Ins tallation
To install the IMBA-G410 motherboard into the chassis please refer to the reference
material that came with the chassis.
Page 63
2012/1/202012/1/20
IMBA-G410 ATX Motherboard
Page 49
4.4 J umper Settings
NOTE:
A jumper is a metal bridge used to close
an electrical circuit. It consists of two or
three metal pins and a small metal clip
(often protected by a plastic cover) that
slides over the pins to connect them. To
CLOSE/SHORT a jumper means
connecting the pins of the jumper with
the plastic clip and to OPEN a jumper means removing the plastic clip
from a jumper.
The IMBA-G410 includes some jumpers shown in Table 4-1.
Des cription Label Type
AT/ATX power select jumpers JAUTO1,
JAUTO2
2-pin header
Clear CMOS jumper JP1 3-pin h eader
COM2 function select jumper JP4 6-pin header
CompactFlash® setup JP2 2-pin header
CF voltage select jumper JP_CF1 3-pin header
USB power select jumpers USBPWR1,
USBPWR2
3-pin header
Table 4-1: Jumpers
4.4.1 AT/ATX Power Select Jumpers
Jumper Label: JAUTO1, J AUTO2
Jumper Type:
2-pin header
Jumper Settings:
See Table 4-2
Page 64
501/20/2012165
Page 50
IMBA-G4 10 ATX Motherboard
Jumper Location:
See Figure 4-8
The AT Power Select jumper specifies the systems p ower mode as AT or ATX.
Setting Description
Short Use AT power (Default)
Open Use ATX power
Table 4-2: AT/ATX Power Select Jumper Settings
Figure 4-8: AT/ATX Power Select Jumper Location
4.4.2 Clear CMOS Jumper
Jumper Label: JP1
Jumper Type:
3-pin header
Jumper Settings:
See Table 4-3
Jumper Location:
See Figure 4-9
To reset the BIOS, move the jumper to the "Clear BIOS" position for 3 seconds or more,
and then move back to the default position.
Pin Description
Short 1-2 Normal (Default)
Short 2-3 Clear BIOS
Table 4-3: Clear BIOS Jumper Settings
Page 65
2012/1/202012/1/20
IMBA-G410 ATX Motherboard
Page 51
Figure 4-9: Clear BIOS Jumper Location
4.4.3 COM 2 Function Select Jumper
Jumper Label: JP4
Jumper Type:
6-pin header
Jumper Settings:
See Table 4-4
Jumper Location:
See Figure 4-10
The COM 2 Function Select jumper sets the communication protocol used by the second
serial communications port (COM 2) as RS-232, RS-422 or RS-485. The COM 2 Function
Select settings are shown in Table 4-4.
Setting Description
Short 1-3 RS-232 (Default)
Short 2-4, 3-5 RS-422
Short 3-5, 4-6 RS-485
Table 4-4: COM 2 Function Select Jumper Settings
Page 66
521/20/2012165
Page 52
IMBA-G4 10 ATX Motherboard
Figure 4-10: COM 2 Function Select Jumper Location
4.4.4 CompactFlas h® Setup
Jumper Label: JP2
Jumper Type:
2-pin header
Jumper Settings:
See Table 4-5
Jumper Location:
See Figure 4-11
The CompactFlash® slot is connected through an IDE connection. This jumper sets the
CompactFlash® card as the master or slave I DE device.
Setting Description
Short Master (Default)
Open Slave
Table 4-5: CompactFlash® Setup Jumper Settings
Figure 4-11: CompactFlash® Setup Jumper Location
Page 67
2012/1/202012/1/20
IMBA-G410 ATX Motherboard
Page 53
4.4.5 CF Voltage Select Jumper
Jumper Label: JP_CF1
Jumper Type:
3-pin header
Jumper Settings:
See Table 4-6
Jumper Location:
See Figure 4-12
The CF voltage select jumper sets the vol tage of the CompactFlash® slot.
Setting Description
Short 1-2 +5.0 V
Short 2-3 +3.3 V
Table 4-6: LCD Voltage Selection Jumper Settings
Figure 4-12: LCD Voltage Selection Jumper Location
4.4.6 USB Power Select Jumpers
Jumper Label: USBPW12, US BP34
Jumper Type:
3-pin header
Jumper Settings:
See Table 4-7
Jumper Location:
See Figure 4-13
The USB Power Select jumper specifies the USB power.
Page 68
541/20/2012165
Page 54
IMBA-G4 10 ATX Motherboard
Setting Description
Short 1-2 +5 V (Default)
Short 2-3 +5VSB
Table 4-7: USB Power Select Jumper Settings
Figure 4-13: USB Power Select Jumper Location
4.5 Internal Peripheral Device Connections
This section outlines the installation of periphe ral devices to the onboard connectors.
4.5.1 SATA Drive Connection
The IMBA-G410 is shipped with two SATA drive cables and one SATA drive power cable.
To connect the SATA drives to the connectors, pl ease follow the steps below.
Step 1: Locate the connectors. The locations of t he S ATA drive connectors are shown
in Chapter 3.
Step 2: Insert the cable connector. Press the clip on the connector at the end of t he
SATA cable and insert the cable connector into the on-boa rd SATA drive
connector. See Figure 4-14.
Page 69
2012/1/202012/1/20
IMBA-G410 ATX Motherboard
Page 55
Figure 4-14: SATA Drive Cable Connection
Step 3: Connect the cable to the SATA disk. Connect the connector on the other end
of the cable to the connector at the back of t he SATA drive. See Figure 4-15.
Step 4: Connect the SA TA power cable. Connect the SAT A power connector to the
back of the SATA drive. See Figure 4-15. =
Page 70
561/20/2012165
Page 56
IMBA-G4 10 ATX Motherboard

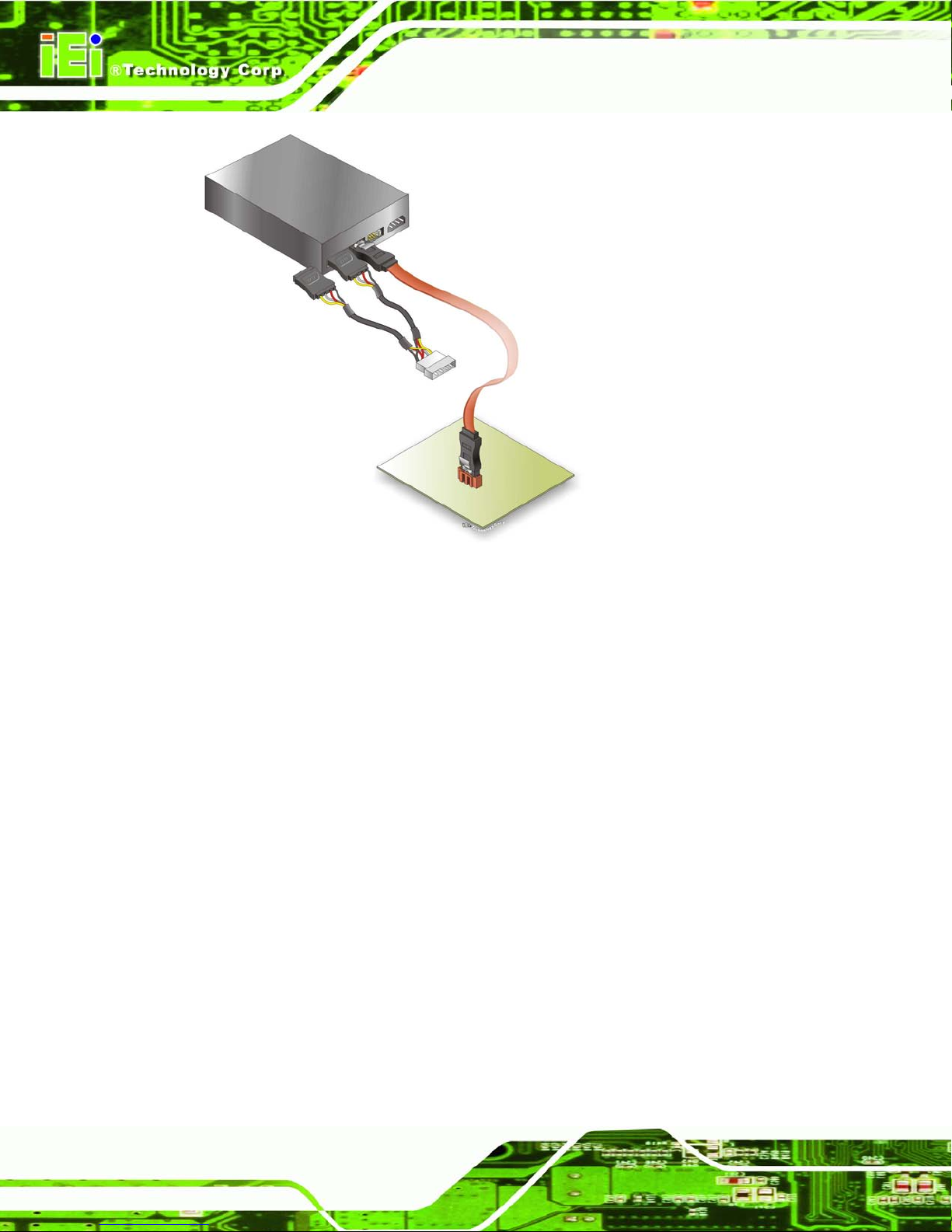

Figure 4-15: SATA Power Drive Connection
4.5.2 Dual RS-232 Cable with Slot Bracket
The dual RS-232 cable slot connector consists of two connectors attached to two
independent cables. Each cable is then attached to a D-sub 9 male connector that is
mounted onto a slot. To install the dual RS-232 cable, please follow the steps below.
Step 1: Locate the connectors. The locations of t he RS-23 2 connectors are shown in
Chapter 3.
Step 2: Insert the cable connectors. Insert one connector into eac h serial port box
headers. See Figure 4-16. A key on the front of the cable connectors en sur es
the connector can only be installed in one direction.
Page 71
2012/1/202012/1/20
IMBA-G410 ATX Motherboard
Page 57
Figure 4-16: Dual RS-232 Cable Installation
Step 3: Secure the bracket. The dual RS-232 connector has two D-sub 9 male
connectors secured on a bracket. To secure the bracket to the chassis please
refer to the reference material that came with the chassis. S tep 0:
4.6 External Peripheral Interface Connection
This section describes connecting devices to the external connectors on the IMBA-G410.
4.6.1 Audio Connector
The audio jacks on the external audio connector enable the IMBA-G410 to be connected
to a stereo sound setup. To install the audio devic es, follow the steps below.
Step 1: Identify the audio plugs. The plugs on your home theater system or speakers
may not match the colors on the rear pa nel . If audio plugs are plugged into the
wrong jacks, sound quality will be very bad.
Page 72
581/20/2012165
Page 58
IMBA-G4 10 ATX Motherboard
Step 2: Plug the audio plugs into the audio jacks. Plug the audio plugs into the audio
jacks. If the plugs on your speakers are different , an adapter will need to be used
to plug them into the audio jacks.
Line In port (Light Blue): Connects a CD-ROM, DVD play er, or other audio
devices.
Line Out port (Lime): Connects to a headphone or a speaker.
Microphone (Pink): Connects to a microphone.
Figure 4-17: Audio Connector
Step 3: Check audio clarity. Check that the sound is coming through the right speakers
by adjusting the balance front to rear and left to right. Step 0:
4.6.2 PS/2 Keyboard and Mous e Connection
The IMBA-G410 has a d ual PS/2 conne ctor on the ext ernal peripheral i nterface panel. The
dual PS/2 connector is used to connect to a keyboard and mouse to the system. Follow
the steps below to connect a keyboard and mouse to the IMBA-G410.
Step 1: Locate the dual PS/2 connector. The location of the dual PS/2 connector is
shown in Chapter 3.
Page 73
2012/1/202012/1/20
IMBA-G410 ATX Motherboard
Page 59
Step 2: Insert the keyboard/mouse connector. Insert a PS/2 keyboard or mouse
connector into the appropriate PS/2 con nect or on the external peripheral
interface connector. See Figure 4-18.

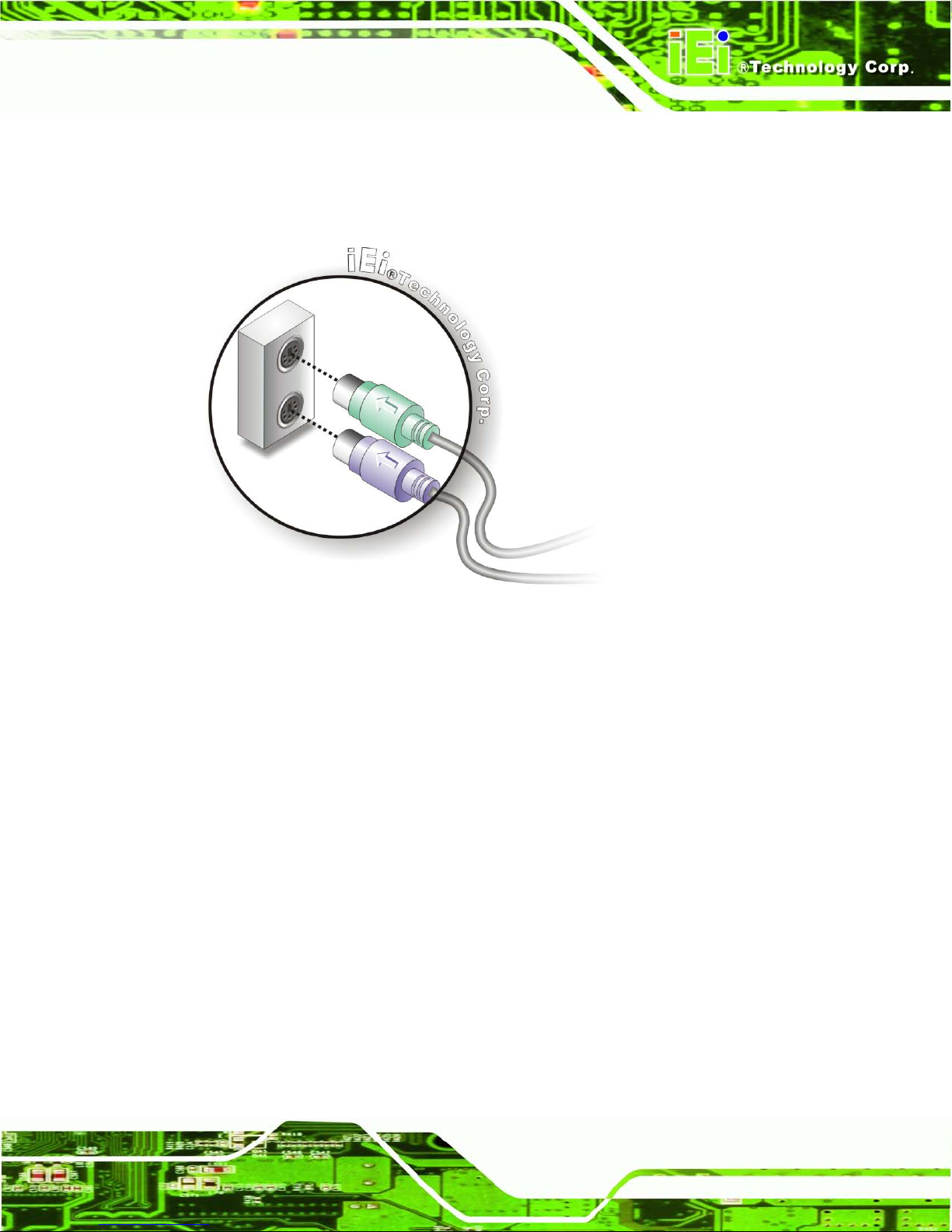

Figure 4-18: PS/2 Keyboard/Mouse Connector
4.6.3 LAN C onnection
There are two external RJ-45 LAN connectors. The RJ-45 connectors enable connection
to an external network. To connect a LAN cable with an RJ-45 connector, please follow
the instructions below.
Step 1: Locate the RJ-45 connectors. The locations of the U S B connectors are shown
in Chapter 4.
Step 2: Align the connectors. Align the RJ-45 connector on the LAN cabl e with one of
the RJ-45 connectors on the IMBA-G410. See Figure 4-19.
Page 74
601/20/2012165
Page 60
IMBA-G4 10 ATX Motherboard
Figure 4-19: LAN Connection
Step 3: Insert the LAN cable RJ-45 connector. Once aligned, gently insert the LAN
cable RJ-45 connector into the on-board RJ-45 connector . Ste p 0:
4.6.4 Parallel Device Connection
The IMBA-G410 has a single female DB-25 connector on the ex ternal peripheral interface
panel for parallel devices. Follow the steps below to connect a parallel device to the
IMBA-G410.
Step 1: Locate the DB-25 connector. The locat i on of the DB-25 connector is shown in
Chapter 3.
Step 2: Insert the DB-25 connector. Insert the DB-25 connector of a parallel device
into the DB-25 connector on the external peripheral interface. See Figure 4-20.
Page 75
2012/1/202012/1/20
IMBA-G410 ATX Motherboard
Page 61

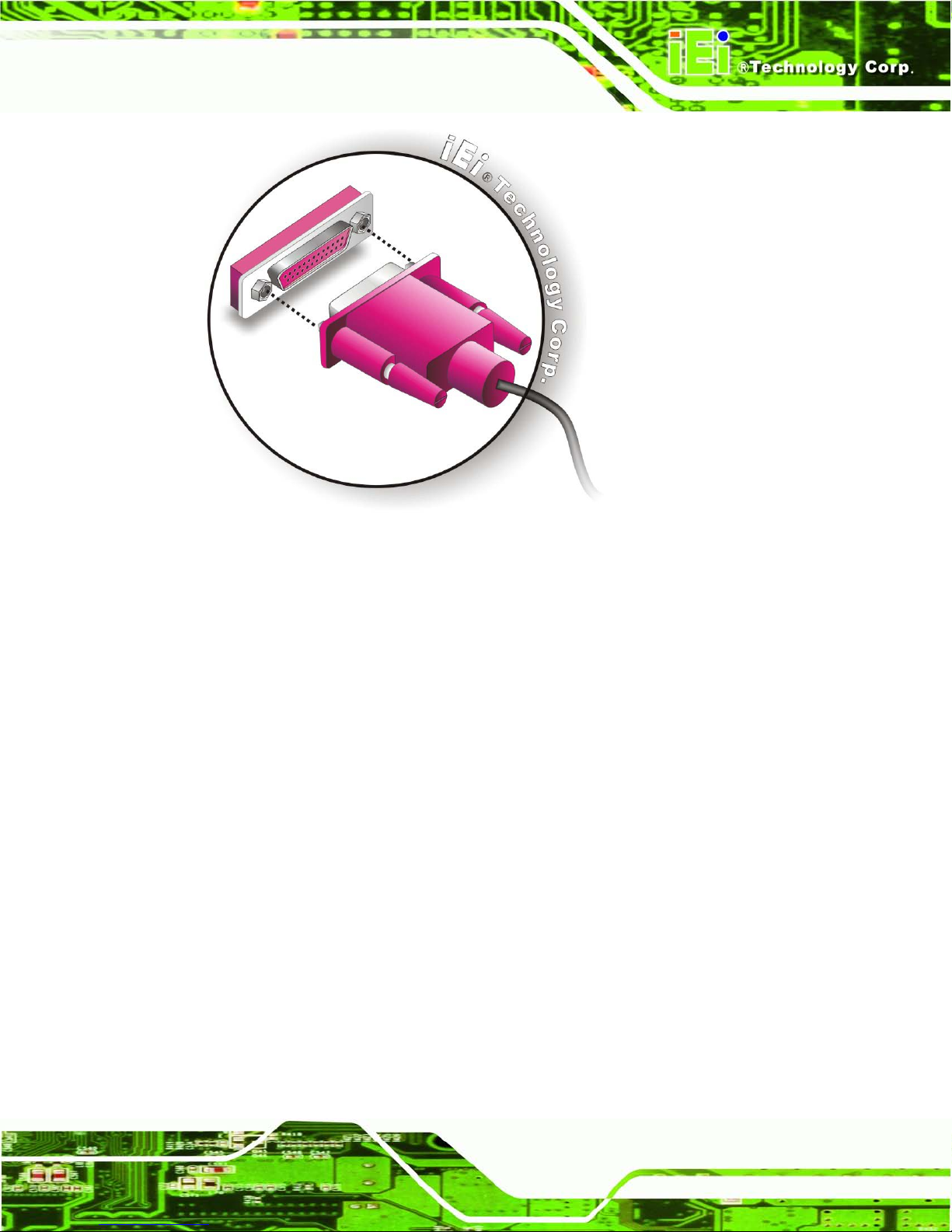

Figure 4-20: Parallel Device Connector
Step 3: Secure the connector. Secure the DB-25 connector t o the ext ernal int erface by
tightening the two retention screws on either side of the connector.
4.6.5 Serial Device Connection
The IMBA-G410 has one male DB-9 connectors on the external per ipher al int erfa ce pan el
for a serial device. Follow the steps below to con nect a serial device to the IMBA-G410.
Step 1: Locate the DB-9 connector. The location of the DB-9 connector is shown in
Chapter 3.
Step 2: Insert the serial connector. Insert the DB-9 connector of a serial device into
the DB-9 connector on the external peripheral interface. See Figure 4-21.
Page 76
621/20/2012165
Page 62
IMBA-G4 10 ATX Motherboard

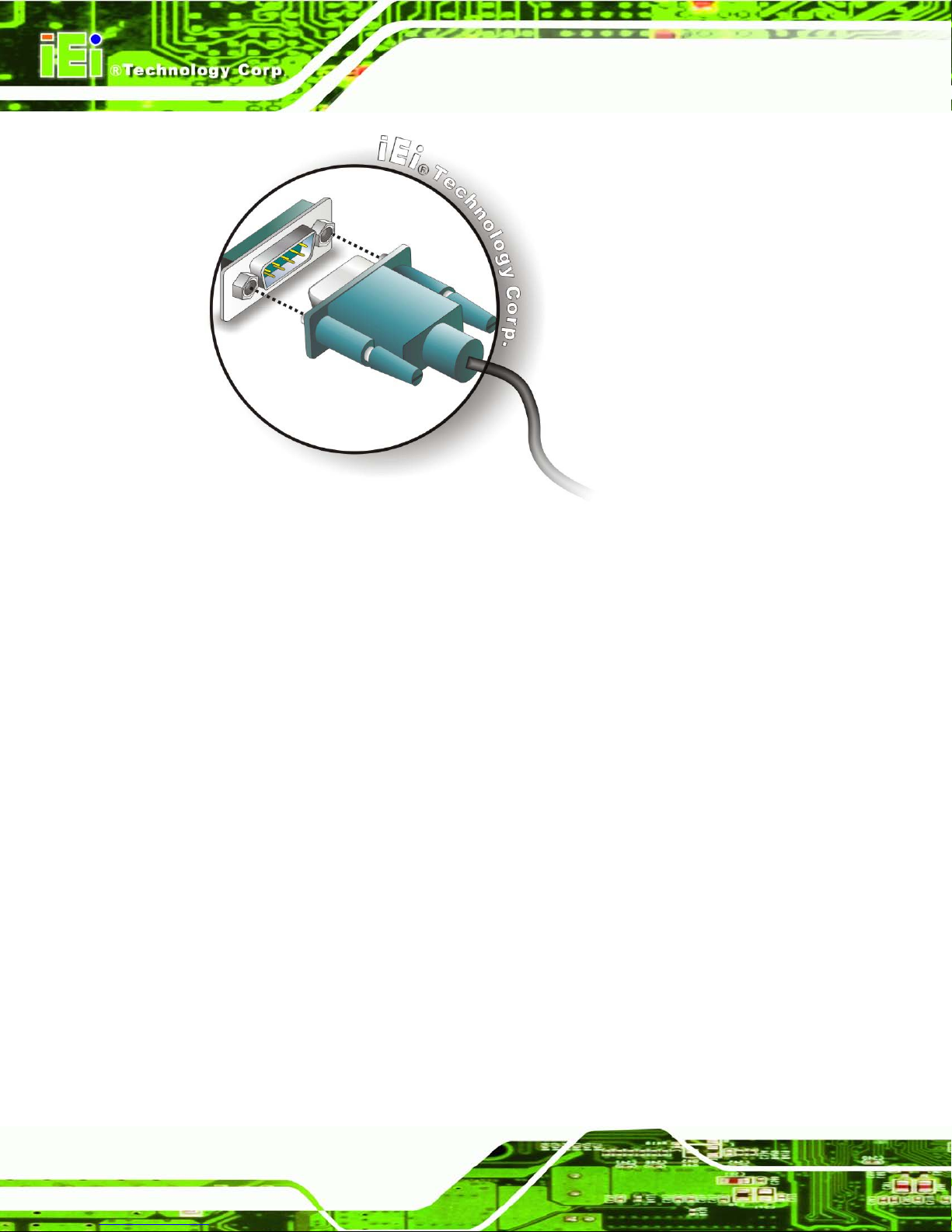

Figure 4-21: Serial Device Connector
Step 3: Secure the connector. Secure the serial device connector t o the external
interface by tightening the two retention sc rews on eit her side of th e connect or.
Step 0:
4.6.6 USB Device Connection
The external USB Series "A" receptacle connectors provide easier and quicker access to
external USB devices. Follow the steps below to connect USB devi ces to the IMBA-G410.
Step 1: Locate the USB Series "A" receptacle connectors. The locatio n of the USB
Series "A" receptacle connectors are shown in Chapter 3.
Step 2: Insert a USB Series "A" plug. Insert the USB Series "A" plug of a device into
the USB Series "A" receptacle on the external peripheral interface.
See Figure 4-22.
Page 77
2012/1/202012/1/20
IMBA-G410 ATX Motherboard
Page 63
Figure 4-22: USB Connector
4.6.7 VGA Monitor Connection
The IMBA-G410 has a single female DB-15 connector on the external peripheral interface
panel. The DB-15 connector is connected to a CRT or VGA m onitor. To conn ect a m onitor
to the IMBA-G410, please follow the instructions below.
Step 1: Locate the female DB-15 connector. The location of the female DB-15
connector is shown in Chapter 3.
Step 2: Align the VGA connector. Align the male DB-15 connector on the VGA screen
cable with the female DB-15 connector on the ext ernal peripheral interface.
Step 3: Insert the VGA connector. Once the connectors are properly aligned with the
insert the male connector from the VGA screen into the female connector on the
IMBA-G410. See Figure 4-23.
Page 78
641/20/2012165
Page 64
IMBA-G4 10 ATX Motherboard
Figure 4-23: VGA Connector
Step 4: Secure the connector. Secure the DB-15 VGA connector from the VGA
monitor to the external interface by tighteni ng the two retention screws on either
side of the connector. Step 0:
4.7 Software Ins tallation
All the drivers for the IMBA-G410 are on the CD that came with the system. To install the
drivers, please follow the steps below.
Step 1: Insert the CD into a CD drive connected to t he sy st em .
NOTE:
If the installation program doesn't start a utomatically:
Click "Start->My Computer->CD Drive->autorun.exe"
Step 2: The driver main menu appears.
Step 3: Click IMBA-G410.
Step 4: A new screen with a list of available drivers appears.
Step 5: Install all of the necessary drivers in this menu. St ep 0:
Page 79
2012/1/202012/1/20
IMBA-G410 ATX Motherboard
Page 65
Chapter
5
5 BIOS
Page 80
661/20/2012165
Page 66
IMBA-G4 10 ATX Motherboard
5.1 Introduction
The BIOS is programmed onto the BIOS chip. The BI OS setup pro gram allows changes to
certain system settings. This chapter outlines t he options that can be changed.
5.1.1 Sta rting Setup
The AMI BIOS is activated when the computer is turned on. The setup program can be
activated in one of two ways.
1. Press the
DELETE key as soon as the system is turned on or
2. Press the D
ELETE key when the “Press DEL to enter SE T UP” message
appears on the screen. 0.
If the message disappears before the D
ELETE key is pressed, restart the computer and try
again.
5.1.2 Us ing Setup
Use the arrow keys to highlight items, press ENTER to select, use the PageUp and
PageDown keys to change entries, press F1 for help and press E
SC to quit. Navigation
keys are shown in Table 5-1.
Key Function
Up arrow Move to previous item
Down arrow Move to next item
Left arrow Move to the item on the left hand side
Right arrow Move to the item on the right hand side
Esc key Main Menu – Quit and not save changes into CMOS
St atus Page Setup Menu and Option Page Setup Menu -Exit current page and return to Mai n M enu
+ Increase the numeric value or make changes
- Decre ase the numeric value or make changes
F1 key General help, only for S t atus Page Setup Menu and Opti on
Page Setup Menu
Page 81
2012/1/202012/1/20
IMBA-G410 ATX Motherboard
Page 67
Key Function
F2/F3 key Change color from total 3 colors. F2 to select color forward
F10 Save all the CMOS changes, only for Main M enu
Table 5-1: BIOS Navigation Keys
5.1.3 G et ting Help
When F1 is pressed a small help window describing the appropriate keys to use and the
possible selections for the highlighted item appears. To ex it the Help Window press E
SC or
the F1 key again.
5.1.4 Unable to Reboot after Configuration Changes
If the computer cannot boot after changes to the system configuration is made, CMOS
defaults. Use the jumper described in Chapter 4.
5.1.5 BIOS Me n u Bar
The menu bar on top of the BIOS screen has the foll owing main items:
Main – Changes the basic system configuration.
Advanced – Changes the advanced system settings.
PCIPnP – Changes the advanced PCI/PnP settings
Boot – Changes the system boot configuration.
Security – Sets User and Supervisor Passwords.
Chipset – Changes the chip set settings.
Exit – Selects exit options and loads default set tings
The following sections completely describe the configuration options found in the menu
items at the top of the BIOS screen and listed above.
Page 82
681/20/2012165
Page 68
IMBA-G4 10 ATX Motherboard
5.2 Main
The Main BIOS menu (BIOS Menu 1) appears when the BIOS Setup program is entered.
The Main menu gives an overview of the basic syste m information.
BIOS SETUP UTILITY
Main
Advanced
PCIPnP
Boot
Security
Chipset
Exit
System Overview
AMIBIOS
Version :08.00.15
Build Date :12/08/11
ID: :SA22MR11
Processor
Intel(R) Pentium(R) Dual CPU E2160 @ 1.80GHz
Speed :1800MHz
Count :1
System Memory
Size :990MB
System Time [14:20:27]
System Date [Tue 10/25/2011]
Use [ENTER], [TAB] or
[SHIFT-TAB] to select a
field.
Use [+] or [-] to
configure system time.
Select Screen
↑ ↓ Select Item
+ - Change Field
Tab Select Field
F1 General Help
F10 Save and Exit
ESC Exit
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
BIOS Menu 1: Main
Syste m Ove rview
The System Overvie w list s a brief summary of different syst em component s. The fields in
System Overview cannot be changed. The items shown in the system ov erview include:
AMI BIOS: Displays auto-detected BIOS information
o Version: Current BIOS version
o Build Date: Date the current BIOS version was made
o ID: Installed BIOS ID
Processor: Displays auto-detected CPU specificat i ons
o Type: Names the currently installed processor
o Speed: Lists the processor speed
o Count: The number of CPUs on the motherboard
System Memory: Displays the auto-detected system memory.
o Size: Lists memory size
Page 83
2012/1/202012/1/20
IMBA-G410 ATX Motherboard
Page 69
The System Overview field also has two user configurable fields:
System Time [xx:xx:xx]
Use the System Time option to set the system time. Manually enter the hours, minutes
and seconds.
System Date [xx/xx/xx]
Use the System Date option to set the system date. Manually enter the day, month and
year.
5.3 Advanced
Use the Advanced menu (BIOS Menu 2) to configure the CPU and peripheral devices
through the following sub-menus:
BIOS SETUP UTILITY
Main
Advanced
PCIPnP
Boot
Security
Chipset
Exit
Advanced Settings
WARNING: Setting wrong values in below sections may
cause system to malfunction.
> CPU Configuration
> IDE Configuration
> SuperIO Configuration
> Hardware Health Configuration
> Power Configuration
> Remote Access Configuration
> USB Configuration
> Trusted Computing
Configure CPU
Select Screen
↑ ↓ Select Item
Enter Go to Sub Screen
F1 General Help
F10 Save and Exit
ESC Exit
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
BIOS Menu 2: Advanced
WARNING:
Setting the wrong values in the section s below may cause the syst em to
malfunction. Make sure that the settings made are compatible with the
hardware.
Page 84
701/20/2012165
Page 70
IMBA-G4 10 ATX Motherboard
5.3.1 CPU Configuration
Use the CPU Configuration menu (BIOS Menu 3) to view detailed CPU specifications
and configure the CPU.
BIOS SETUP UTILITY
Advanced
Configure advanced CPU Settings
Module Version:3F.15
Manufacturer :Intel
Intel(R) Pentium(R) Dual CPU E2160 @ 1.80GHz
Frequency :1.80GHz
FSB Speed :800MHz
Cache L1 :64 KB
Cache L2 :1024 KB
Ratio Actual Value:9
Select Screen
↑ ↓ Select Item
+ - Change Option
F1 General Help
F10 Save and Exit
ESC Exit
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
BIOS Menu 3: CPU Configuration
The CPU Configuration menu (BIOS Menu 3) lists the following CP U details:
Manufacturer: Lists the name of the CPU manuf acturer
Brand String: Lists the brand nam e of the CPU being used
Frequency: Lists the CPU processing speed
FSB Speed: Lists the FSB speed
Cache L1: Lists the CPU L1 cache size
Cache L2: Lists the CPU L2 cache size
Ratio Actual Value: Lists the ratio of the frequency to the clock speed
5.3.2 IDE Configuration
Use the IDE Configuration menu (BIOS Menu 4) to change and/or set the configuration
of the IDE devices installed in the system.
Page 85
2012/1/202012/1/20
IMBA-G410 ATX Motherboard
Page 71
BIOS SETUP UTILITY
Advanced
IDE Configuration
ATA/IDE Configuration [Enhanced]
Configure SATA as [IDE]
Configure SATA Channels [Before PATA]
> Primary IDE Master : [Not Detected]
> Primary IDE Slave : [Not Detected]
> Secondary IDE Master : [Not Detected]
> Secondary IDE Slave : [Not Detected]
> Third IDE Master : [Not Detected]
> Third IDE Slave : [Not Detected]
Options
Disabled
Compatible
Enhanced
Select Screen
↑ ↓ Select Item
+ - Change Option
F1 General Help
F10 Save and Exit
ESC Exit
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
BIOS Menu 4: IDE Configuration
ATA/IDE Configuration [Enhanced]
Use the ATA/IDE Configuratio n option to configure the ATA/IDE controller.
Disabled
Disables the on-board ATA/IDE controller.
Compatible
Configures the on-board ATA/IDE controller to be in
compatible mode. In this mode, a SATA channel will
replace one of the IDE channels. This mode support s up
to 4 storage devices.
Enhanced D
EFAULT
Configures the on-board ATA/IDE controller to be in
Enhanced mode. In this mode, IDE channel s and SATA
channels are separated. This mode supports up to 6
storage devices. Some legacy OS do not support this
mode.
Con figu re S ATA as [IDE]
Use the Configure SATA as option to configure SATA devices a s normal IDE devices.
IDE D
EFAULT
Configures SATA devices as normal IDE device.
Page 86
721/20/2012165
Page 72
IMBA-G4 10 ATX Motherboard
Configure SATA Channels [Before PATA]
Use the Configure SATA Channels option to determine how SATA channels and PATA
channels are ordered.
Before PATA DEFAULT
Puts SATA channels before PATA channels.
Behind PATA
Puts SATA channels behind PATA channels.
IDE Mas ter a n d IDE Sla ve
When entering setup, BIOS auto detects the presence of IDE devices. BIOS displays the
status of the auto detected IDE devices. The following IDE devices are detected and are
shown in the IDE Configuration menu:
Primary IDE Master
Primary IDE Slave
Secondary IDE Master
Secondary IDE Slave
Third IDE Master
Third IDE Slave
The IDE Configuration menu (BIOS Menu 4) allows changes to the configurations for the
IDE devices installed in the system. If an IDE device is detected, and one of the above
listed four BIOS configuration options is selected, the IDE configuration options shown in
Section 5.3.2.1 appear.
5.3.2.1 IDE Mas ter, IDE Slave
Use the IDE Master and IDE Slave configuration menu to view both primary and
secondary IDE device details and configure the IDE devices connected to the system.
Page 87
2012/1/202012/1/20
IMBA-G410 ATX Motherboard
Page 73
BIOS SETUP UTILITY
Advanced
Primary IDE Master
Device :Not Detected
Type [Auto]
LBA/Large Mode [Auto]
Block (Multi-Sector Transfer) [Auto]
PIO Mode [Auto]
DMA Mode [Auto]
S.M.A.R.T. [Auto]
32Bit Data Transfer [Enabled]
Select the type of device
connected to the system.
Select Screen
↑ ↓ Select Item
+ - Change Option
F1 General Help
F10 Save and Exit
ESC Exit
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
BIOS Menu 5: IDE Master and IDE Slave Configuration
Auto-Detected Drive Parameters
The “grayed-out” items in the left frame are IDE disk drive parameters automatically
detected from the firmware of the selected IDE disk drive. The drive parameters are listed
as follows:
Device: Lists the device type (e.g. ha rd disk, CD-ROM etc.)
Type: Indicates the type of devices a user can manually select
Vendor: Lists the device manufacturer
Size: List the storage capacity of the devi ce.
LBA Mode: Indicates whether the LBA (Logical Block Addressing) is a
method of addressing data on a disk dri ve is supported or not.
Block Mode: Block mode boosts IDE drive performance by increasing the
amount of data transferred. Only 512 bytes of data can be transferred per
interrupt if block mode is not used. Block mode allows tran sfers of up to 64 KB
per interrupt.
PIO Mode: Indicates the PIO mode of the installed device.
Async DMA: Indicates the highest Asynchronous DMA Mode t hat is
supported.
Ultra DMA: Indicates the highest Synchronous DMA Mode that is supported.
S.M.A.R.T.: Indicates whether or not the Self-Monitoring Analysis and
Reporting Technology protocol is supported.
Page 88
741/20/2012165
Page 74
IMBA-G4 10 ATX Motherboard
32Bit Data Transfer: Enables 32-bit data transfer.
Ty pe [Auto]
Use the Type BIOS option select the type of device the AMIBIOS attempts to boot from
after the Power-On Self-Test (POST) is complete.
Not Installed
BIOS is prevented from searching for an IDE disk
drive on the specified channel.
Auto DEFAULT
The BIOS auto detects the IDE disk drive type
attached to the specified channel. This setting should
be used if an IDE hard disk drive is attached to the
specified channel.
CD/DVD
The CD/DVD option specifies that an IDE CD-ROM
drive is attached to the specified IDE channel. The
BIOS does not attempt to search for other types of
IDE disk drives on the specified channel.
ARMD
This option specifies an ATAPI Removable Media
Device. These include, but are not li m i ted to:
ZIP
LS-120
LBA/Large Mode [Auto]
Use the LBA/Large Mode option to disable or enable BIOS to auto detects LBA (Logical
Block Addressing). LBA is a method of addressing data on a disk drive. In LBA mode, the
maximum drive capacity is 137 GB.
Disabled
BIOS is prevented from using the LBA mode control on
the specified channel.
Auto DEFAULT
BIOS auto detects the LBA mode control on the specified
channel.
Page 89
2012/1/202012/1/20
IMBA-G410 ATX Motherboard
Page 75
Block (Multi Sector Transfer) [Auto]
Use the Block (Multi Sector Transfer) to disable or enable BIOS to auto detect if the
device supports multi-sector transfers.
Disabled
BIOS is prevent ed from using Mult i-Sector Transfer on the
specified channel. The dat a to and from the device occurs
one sector at a time.
Auto DEFAULT
BIOS auto detects Multi-Sector Transfer support on the
drive on the specified channel. If supported the data
transfer to and from the device occurs multiple sectors at
a time.
PIO Mode [Auto]
Use the PIO Mode option to select the IDE PIO (Programma ble I/O) m ode progr am tim ing
cycles between the IDE drive and the programmable IDE controller. As the PIO mode
increases, the cycle time decreases.
Auto DEFAULT
BIOS auto detects the PIO mode. Use this value if the IDE disk
drive support cannot be determined.
0
PIO mode 0 selected with a m aximum transfer rate of 3.3MBps
1
PIO mode 1 selected with a m aximum transfer rate of 5.2MBps
2
PIO mode 2 selected with a m aximum transfer rate of 8.3MBps
3
PIO mode 3 selected with a m aximum transfer rate of 11.1MBps
4
PIO mode 4 selected with a m aximum transfer rate of 16.6MBps
(This setting generally works with all hard disk drives
manufactured after 1999. For other disk drives, such as IDE
CD-ROM drives, check the specification s of the drive.)
DMA Mode [Auto]
Use the DMA Mode BIOS selection to adjust the DM A m ode options.
Auto DEFAULT
BIOS auto detects the DMA mode. Use this value if the IDE
disk drive support cannot be determined.
Page 90
761/20/2012165
Page 76
IMBA-G4 10 ATX Motherboard
SWDMA0
Single Word DMA mode 0 selected with a maximum data
transfer rate of 2.1MBps
SWDMA1
Single Word DMA mode 1 selected with a maximum data
transfer rate of 4.2MBps
SWDMA2
Single Word DMA mode 2 selected with a maximum data
transfer rate of 8.3MBps
MWDMA0
Multi Word DMA mode 0 selected with a maximum data
transfer rate of 4.2MBps
MWDMA1
Multi Word DMA mode 1 selected with a maximum data
transfer rate of 13.3MBps
MWDMA2
Multi Word DMA mode 2 selected with a maximum data
transfer rate of 16.6MBps
UDMA1
Ultra DMA mode 0 selected with a maximum data transfer
rate of 16.6MBps
UDMA1
Ultra DMA mode 1 selected with a maximum data transfer
rate of 25MBps
UDMA2
Ultra DMA mode 2 selected with a maximum data transfer
rate of 33.3MBps
UDMA3
Ultra DMA mode 3 selected with a maximum data transfer
rate of 44MBps (To use this mode, it is required that an
80-conductor ATA cable is used.)
UDMA4
Ultra DMA mode 4 selected with a maximum data transfer
rate of 66.6MBps (To use this mode, it is required that an
80-conductor ATA cable is used.)
UDMA5
Ultra DMA mode 5 selected with a maximum data transfer
rate of 99.9MBps (To use this mode, it is required that an
80-conductor ATA cable is used.)
Page 91
2012/1/202012/1/20
IMBA-G410 ATX Motherboard
Page 77
S.M.A.R.T [Auto ]
Use the S.M.A.R.T option to auto-detect, disable or enable Self-Monitoring Analysis and
Reporting Technology (SMART) on the driv e on the specif ied chan nel. S.M.A.R.T predicts
impending drive failures. The S.M.A.R.T BIOS option enables o r disables this function.
Auto DEFAULT
BIOS auto detects HDD SMART support.
Disabled
Prevents BIOS from using the HDD SMART feature.
Enabled
Allows BIOS to use the HDD SMART feature
32Bit Data Transfer [Enabled]
Use the 32Bit Data Transfer BIOS option to enable s or disable 32-bit data transfers.
Disabled
Prevents the BIOS from using 32-bit data transfers.
Enabled DEFAULT
Allows BIOS to use 32-bit data transfers on supported
hard disk drives.
Page 92
781/20/2012165
Page 78
IMBA-G4 10 ATX Motherboard
5.3.3 Super IO Configuration
Use the Super IO Configuration menu (BIOS Menu 6) to set or change the
configurations for the serial ports.
BIOS SETUP UTILITY
Advanced
Configure F81865F Super IO Chipset
Serial Port1 Address [3F8]
Serial Port1 IRQ [IRQ4]
Serial Port2 Address [2F8]
Serial Port2 IRQ [IRQ3]
Select RS232 or RS422/RS485 [RS232]
Serial Port3 Address [3E8]
Serial Port3 IRQ [IRQ11]
Serial Port4 Address [2E8]
Serial Port4 IRQ [IRQ10]
Serial Port5 Address [338]
Serial Port5 IRQ [IRQ11]
Serial Port6 Address [328]
Serial Port6 IRQ [IRQ10]
IR Function [COM6]
Parallel Port Address [378]
Parallel Port Mode [Normal]
Parallel Port IRQ [IRQ7]
Allows BIOS to select
Serial Port1 Base
Addresses
Select Screen
↑ ↓ Select Item
+ - Change Option
F1 General Help
F10 Save and Exit
ESC Exit
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
BIOS Menu 6: Super IO Configuration
S erial Port1 Address [3F8]
Use the Serial Port1 Address option to select the Serial Port 1 base address.
Disabled
No base address is assigned to Serial Port 1
3F8 DEFAULT
Serial Port 1 I/O port address is 3F8
2F8
Serial Port 1 I/O port address is 2F8
S erial Port1 IRQ [IRQ4]
Use the Serial Port1 IRQ option to select the interrupt address for serial port 1.
IRQ4 DEFAULT
Serial port 1 IRQ address is IRQ4
Page 93
2012/1/202012/1/20
IMBA-G410 ATX Motherboard
Page 79
IRQ3
Serial port 1 IRQ address is IRQ3
S erial Port2 Address [2F8]
Use the Serial Port2 Address option to select the Serial Port 2 base address.
Disabled
No base address is assigned to Serial Port 2
3F8
Serial Port 2 I/O port address is 3F8
2F8 DEFAULT
Serial Port 2 I/O port address is 2F8
S erial Port2 IRQ [IRQ3]
Use the Serial Port2 IRQ option to select the interrupt address for serial port 2
IRQ4
Serial port 2 IRQ address is IRQ4
IRQ3 DEFAULT
Serial port 2 IRQ address is IRQ3
Se lect RS 232 or RS422/RS485 [RS232]
Use the Select RS232 or RS422/RS485 option to select the Serial Port 2 signaling mode.
RS232 DEFAULT
Serial Port 2 signaling mode is RS-232
RS422/RS485
Serial Port 2 signaling mode is RS-422/RS-485
Se rial Port3 Addre ss [3E8]
Use the Serial Port3 Address option to select the Serial Port 3 b ase address.
Disabled
No base address is assigned to Serial Port 3
3E8 DEFAULT
Serial Port 3 I/O port address is 3E8
2E8
Serial Port 3 I/O port address is 2E8
Se rial Port3 IR Q [IRQ11]
Use the Serial Port3 IRQ option to select the interrupt address for serial port 3.
Page 94
801/20/2012165
Page 80
IMBA-G4 10 ATX Motherboard
IRQ10
Serial port 3 IRQ address is IRQ10
IRQ11 DEFAULT
Serial port 3 IRQ address is IRQ11
S erial Port4 Address [2E8]
Use the Serial Port4 Address option to select the Serial Port 4 base address.
Disabled
No base address is assigned to Serial Port 4
3E8
Serial Port 4 I/O port address is 3E8
2E8 DEFAULT
Serial Port 4 I/O port address is 2E8
S erial Port4 IRQ [IRQ10]
Use the Serial Port4 IRQ option to select the interrupt address for serial port 4.
IRQ10 DEFAULT
Serial port 4 IRQ address is IRQ10
IRQ11
Serial port 4 IRQ address is IRQ11
S erial Port5 Address [338]
Use the Serial Port5 Address option to select the Serial Port 5 base address.
Disabled
No base address is assigned to Serial Port 5
338 DEFAULT
Serial Port 5 I/O port address is 338
328
Serial Port 5 I/O port address is 328
S erial Port5 IRQ [IRQ11]
Use the Serial Port5 IRQ option to select the interrupt address for serial port 5.
IRQ10
Serial port 5 IRQ address is IRQ10
IRQ11 DEFAULT
Serial port 5 IRQ address is IRQ11
S erial Port6 Address [328]
Page 95
2012/1/202012/1/20
IMBA-G410 ATX Motherboard
Page 81
Use the Serial Port6 Address option to select the Serial Port 6 base address.
Disabled
No base address is assigned to Serial Port 6
338
Serial Port 6 I/O port address is 338
328 DEFAULT
Serial Port 6 I/O port address is 328
S erial Port6 IRQ [IRQ10]
Use the Serial Port6 IRQ option to select the interrupt address for serial port 6.
IRQ10 DEFAULT
Serial port 6 IRQ address is IRQ10
IRQ11
Serial port 6 IRQ address is IRQ11
IR Function [COM6]
Use the IR Function option to select the transmitting and receiving mode for the sixth
serial port.
COM6 D
EFAULT
Serial Port 6 mode is normal
IR
Serial Port 6 mode is IR
Parallel Port Address [378]
Use the Parallel Port Address option to select the parallel port base address.
Disabled
No base address is assigned to the Parallel Port
378 D
EFAULT
Parallel Port I/O port address is 378
278
Parallel Port I/O port address is 278
3BC
Parallel Port I/O port address is 3BC
Parallel Port Mode [Normal]
Use the Parallel Port Mode option to select the mode the parallel port operates in.
Normal D
EFAULT
The normal parallel port mode is the standard mode
Page 96
821/20/2012165
Page 82
IMBA-G4 10 ATX Motherboard
for parallel port operation.
Bi-Directional
Parallel port outputs are 8-
bits long. Inputs are
accomplished by reading 4 of the 8 bits on the
status register.
ECP
The parallel port
operates in the extended
capabilities port (ECP) mode. The ECP mode
supports bi-directional communication between the
system and the parallel port device and the
transmission rates between the two are much faster
than the Normal mode
EPP
The parallel port operates in the enhanced parallel
port mode (EPP). The EPP mode supports
bi-directional communication between the system
and the parallel port device and the transmission
rates between the two are much faster than the
Normal mode.
ECP&EPP
The parallel port
operates in the extended
capabilities port (ECP) mode. The ECP mode
supports bi-directional communication between the
system and the parallel port d
evice and the
transmission rates between the two are much faster
than the Normal mode
The parallel port is also be compatible with EPP
devices described above
Pa rallel Port IRQ [IRQ7]
Use the Parallel Port IRQ selection to set the parallel port interrupt address.
IRQ5
IRQ5 is assigned as the parallel port interrupt address
IRQ7 D
EFAULT
IRQ7 is assigned as the parallel port int errupt address
Page 97
2012/1/202012/1/20
IMBA-G410 ATX Motherboard
Page 83
5.3.4 Hardware Health Configuration
The Hardware Health Configuration menu (BIOS Menu 7) shows the operating
temperature, fan speed and system voltages.
BIOS SETUP UTILITY
Advanced
Hardware Health Configuration
CPU FAN Mode Setting [Auto Fan by RPM]
CPU Temp. Limit of Highest [050]
CPU Temp. Limit of Second [040]
CPU Temp. Limit of Third [030]
CPU Temp. Limit of Lowest [020]
CPU FAN Highest Setting [100]
CPU FAN Second Setting [080]
CPU FAN Third Setting [070]
CPU FAN Fourth Setting [060]
CPU FAN Lowest Setting [050]
NB FAN Mode Setting [Auto Fan by RPM]
NB Temp. Limit of Highest [050]
NB Temp. Limit of Second [040]
NB Temp. Limit of Third [030]
NB Temp. Limit of Lowest [020]
NB FAN Highest Setting [100]
NB FAN Second Setting [080]
NB FAN Third Setting [070]
NB FAN Fourth Setting [060]
NB FAN Lowest Setting [050]
CPU Temperature :16ºC/60ºF
System Temperature :28ºC/82ºF
CPU Fan Speed :4918 RPM
NB Fan1 Speed :N/A
VCC3 :3.312 V
VCC_Core :1.312 V
VIN_1.5V :1.560 V
VIN2_5V :5.016 V
VIN3_12V :11.968 V
VSB :3.392 V
VBAT :3.312 V
Fan configuration mode
setting
Select Screen
↑ ↓ Select Item
+ - Change Option
F1 General Help
F10 Save and Exit
ESC Exit
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
BIOS Menu 7: Hardware Health Configuration
Page 98
841/20/2012165
Page 84
IMBA-G4 10 ATX Motherboard
CPU FAN Mo de Setting [Auto Fan by RPM]
Use the CPU FAN Mode Setting option to configure the CPU Fan.
Auto Fan by
RPM
DEFAULT
The fan adjusts its speed using Auto Fan by RPM
settings
Auto Fan by
Duty-Cycle
The fan adjusts its speed using Auto Fan by
Duty-Cycle settings
Manual Mode
by RPM
The fan spins at the speed set in Manual Mode by
RPM settings
Manual Mode
by Duty-Cycle
The fan spins at the speed set in Manual Mode by
Duty-Cycle settings
CPU Tem p . L imit of Highe s t / Second / Third / Lowest [n]
Use the + or – key to change the CP U Temp. Limit of Highest / Second / Third / Lowest
value. Enter a decimal number between 0 and 12 7.
CPU Fan Highe st Setting [100]
F81865 only support full speed in highest speed val ue.
CPU Fan Second / Third / Fourth / Lowest Setting [n]
Use the + or – key to change the CPU Fan Second / Third / Fourth / Lowest speed.
Enter a decimal number between 12 and 100.
NB FAN1 Mo de S etting [Auto Fan by RPM]
Use the NB FAN1 Mode Setting option to configure the NB Fan.
Auto Fan by
RPM
DEFAULT
The fan adjusts its speed using Auto Fan by RPM
settings
Auto Fan by
Duty-Cycle
The fan adjusts its speed using Auto Fan by
Duty-Cycle settings
Page 99
2012/1/202012/1/20
IMBA-G410 ATX Motherboard
Page 85
Manual Mode
by RPM
The fan spins at the speed set in Manual Mode by
RPM settings
Manual Mode
by Duty-Cycle
The fan spins at the speed set in Manual Mode by
Duty-Cycle settings
NB Te m p. Limit of Highe s t / Second / Third / Lowest [n]
Use the + or – key to change the NB Temp. Limit of Highest / Second / Third / Lowest
value. Enter a decimal number between 0 and 12 7.
NB Fan Highest Se tting [100]
F81865 only support full speed in highest speed v al ue.
NB Fan Second / Third / Fourth / Lowest Setting [n]
Use the + or – key to change the NB Fan Second / Third / Fourth / Lowest speed. Enter
a decimal number between 12 and 100.
Monitored Values
The following system parameters and values are shown. The system parameters that are
monitored are:
The following system temperatures are monit ored:
o CPU Temperature
o System Temperature
The following fan speeds are monitored:
o CPU Fan Speed
o NB Fan1 Speed
The following core voltages are monitor ed:
o VCC3
o VCC_Core
o VIN1_1.5V
o VIN2_5V
o VIN3_12V
o VSB
Page 100
861/20/2012165
Page 86
IMBA-G4 10 ATX Motherboard
o VBAT
5.3.5 Power Configuration
The Power Configuration menu (BIOS Menu 8) configures the Advanced Configuration
and Power Interface (ACPI) and Power Management (APM) options.
BIOS SETUP UTILITY
Advanced
Select AT/ATX Power [BY HARDWARE]
Current Jumper Setting [ATX Power]
> ACPI Configuration
> APM Configuration
Default set AUTO is
detect power supply
status.
If set AT Power, Power
State will Auto set Power
On.
Select Screen
↑ ↓ Select Item
+ - Change Option
F1 General Help
F10 Save and Exit
ESC Exit
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
BIOS Menu 8: Power Configuration
Select AT /ATX Power [BY HARDWARE]
Sets the behavior of the power.
AT Power
ATX Power
BY HARDWARE D
EFAULT
When the Select AT/ATX Power o ption is set to ATX Power or BY HARDWARE, the
following sub-menus appear.
ACPI Configuration
APM Configuration
