Page 1
IMBA-9654 A TX Motherboard
Page i
Page 2
IMBA-9654 ATX Motherboard
Revision
Date Version Changes
2008-03-31 1.00 Initial release
Page ii
Page 3
IMBA-9654 A TX Motherboard
COPYRIGHT NOTICE
The information in this document is subject to change without prior notice in order to
improve reliability, design and function and does not represent a commitment on the part
of the manufacturer.
In no event will the manufacturer be liable for direct, indirect, special, incidental, or
consequential damages arising out of the use or inability to use the product or
documentation, even if advised of the possibility of such damages.
Copyright
This document contains proprietary information protected by copyright. All rights are
reserved. No part of this manual may be reproduced by any mechanical, electronic, or
other means in any form without prior written permission of the manufacturer.
TRADEMARKS
All registered trademarks and product names mentioned herein are used for identification
purposes only and may be trademarks and/or registered trademarks of their respective
owners.
Page iii
Page 4
IMBA-9654 ATX Motherboard
Manual Conventions
WARNING!
Warnings appear where overlooked details may cause damage to the equipment or result
in personal injury. Warnings should be taken seriously. Warnings are easy to recognize.
The word “warning” is written as “WARNING,” both capitalized and bold and is followed by
text. The text is the warning message. A warning message is sho w n below:
WARNING:
This is an example of a warning message. Failure to adhere to warning
messages may result in permanent damage to the IMBA-9654 or
personal injury to the user. Please take warning messages seriously.
CAUTION!
Cautionary messages should also be heeded to help reduce the chance of losing data or
damaging the IMBA-9654. Cautions are easy to recognize. The word “caution” is written
as “CAUTION,” both capitalized and bold and is followed. The italicized text is the
cautionary message. A caution message is shown be low:
Page iv
Page 5
IMBA-9654 A TX Motherboard
CAUTION:
This is an example of a caution message. Failure to adhere to cautions
messages may result in permanent damage to the IMBA-9654. Please
take caution messages seriously.
NOTE:
These messages inform the reader of essential but non-critical information. These
messages should be read carefully as any directions or instructions contained therein can
help avoid making mistakes. Notes are easy to recognize. The word “note” is written as
“NOTE,” both capitalized and bold and is followed by text. The text is the cautionary
message. A note message is shown below:
NOTE:
This is an example of a note message. Notes should always be read.
Notes contain critical information about the IMBA-9654. Please take
note messages seriously.
Page v
Page 6
IMBA-9654 ATX Motherboard
Packing List
NOTE:
If any of the components listed in the checklist below are missing,
please do not proceed with the installation. Contact the IEI reseller or
vendor you purchased the IMBA-9654 from or contact an IEI sales
representative directly. To contact an IEI sales representative, please
send an email to

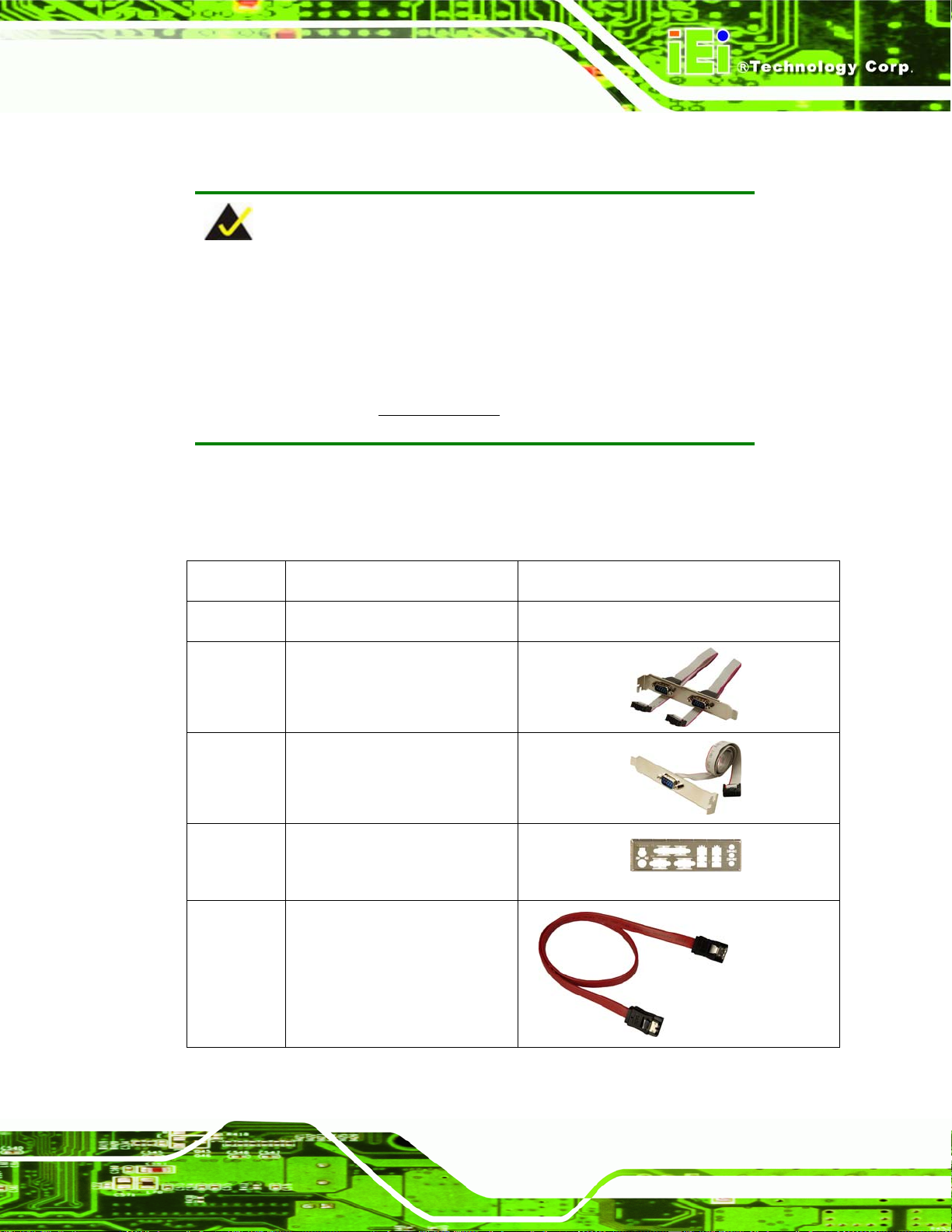

The items listed below should all be included in the IMBA-9654 package.
1 x IMBA-9654 single board computer
3 x SATA power cables
6 x SATA cables
2 x Dual RS-232 cable
1 x Single RS-232 cable
1 x I/O shielding
1 x Mini jumper pack
1 x Utility CD
1 x QIG (quick installation guide)
Images of the above items are shown in Chapter 3.
sales@iei.com.tw.
Page vi
Page 7
IMBA-9654 A TX Motherboard
Table of Contents
1 INTRODUCTION..................................................................................................... 1
1.1 OVERVIEW ................................................................................................................. 2
1.1.1 IMBA-9654 Features.......................................................................................... 2
1.2 IMBA-9654 OVERVIEW............................................................................................. 3
1.2.1 IMBA-9654 Overview Photo.............................................................................. 3
1.2.2 IMBA-9654 Peripheral Connectors and Jumpers ............................................. 4
1.2.3 Technical Specifications..................................................................................... 6
2 DETAILED SPECIFICATIONS ............................................................................. 9
2.1 DIMENSIONS ............................................................................................................ 10

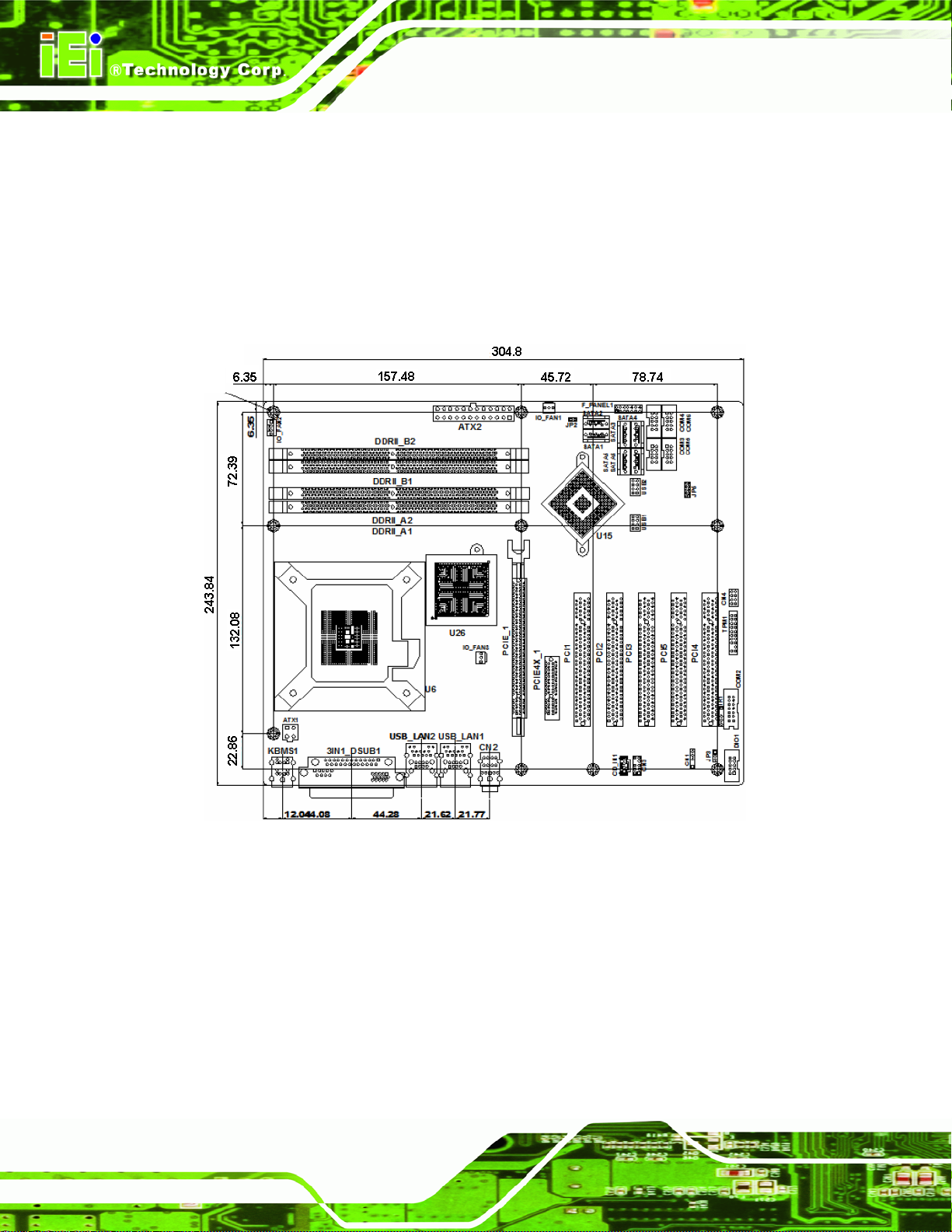

2.1.1 Board Dimensions............................................................................................ 10

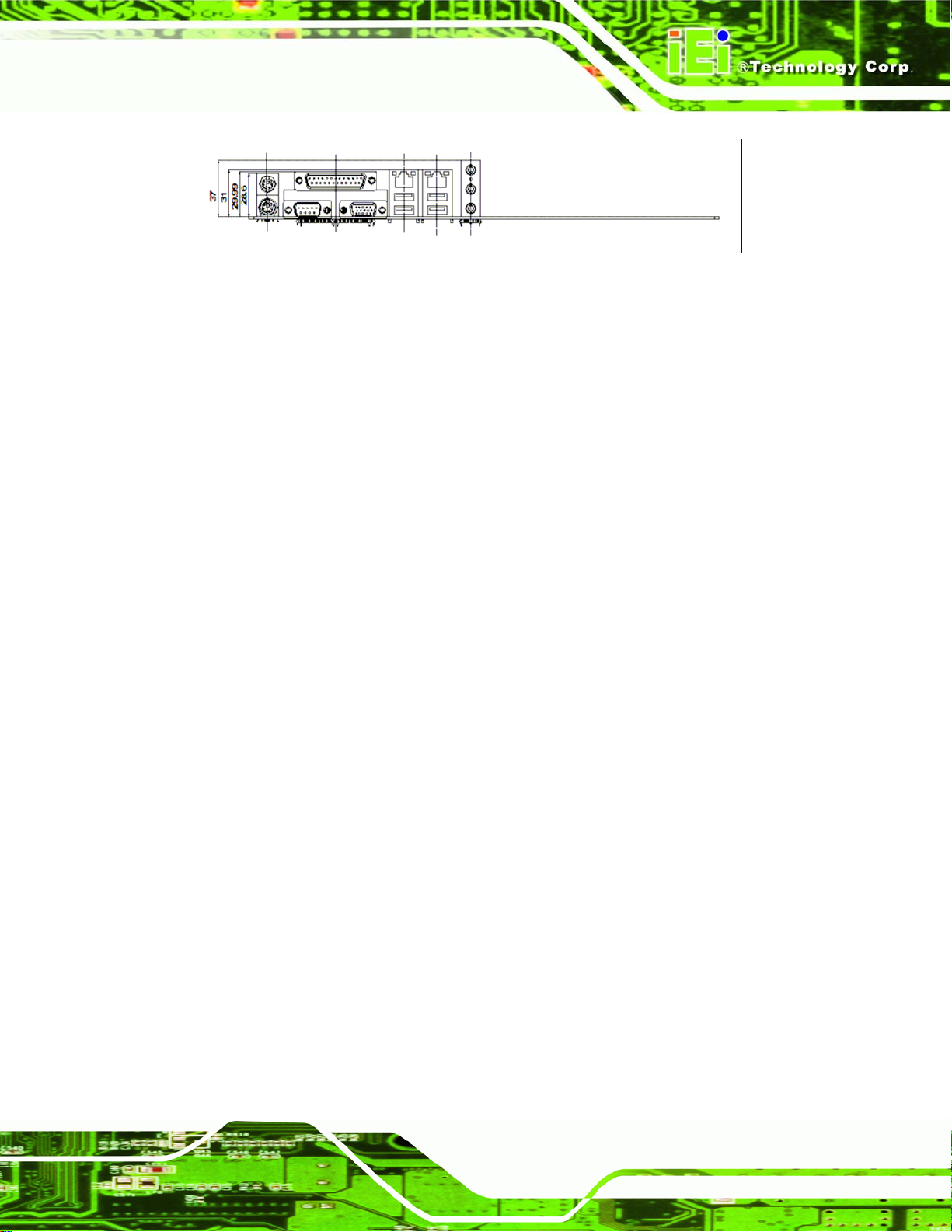

2.1.2 External Interface Panel Dimensions.............................................................. 10

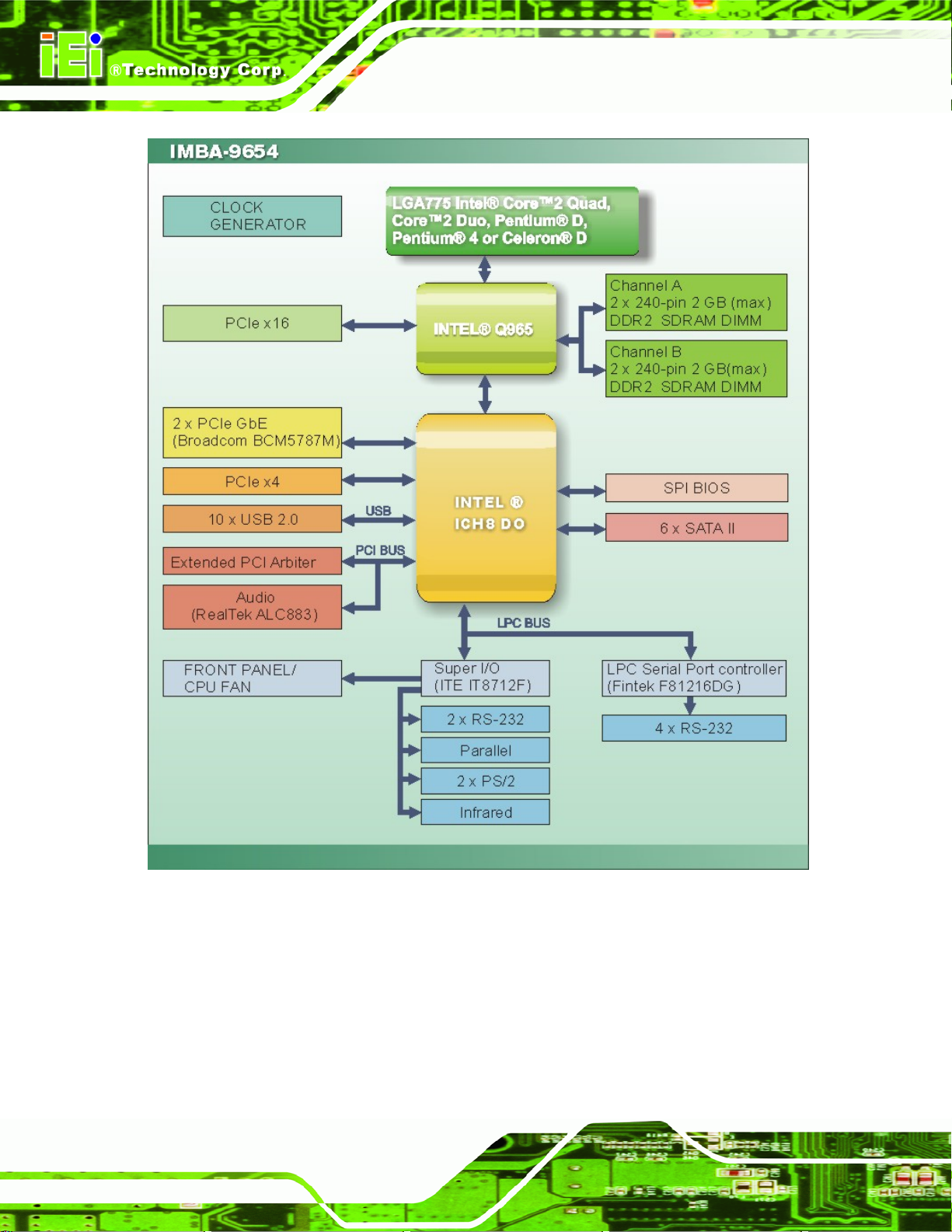

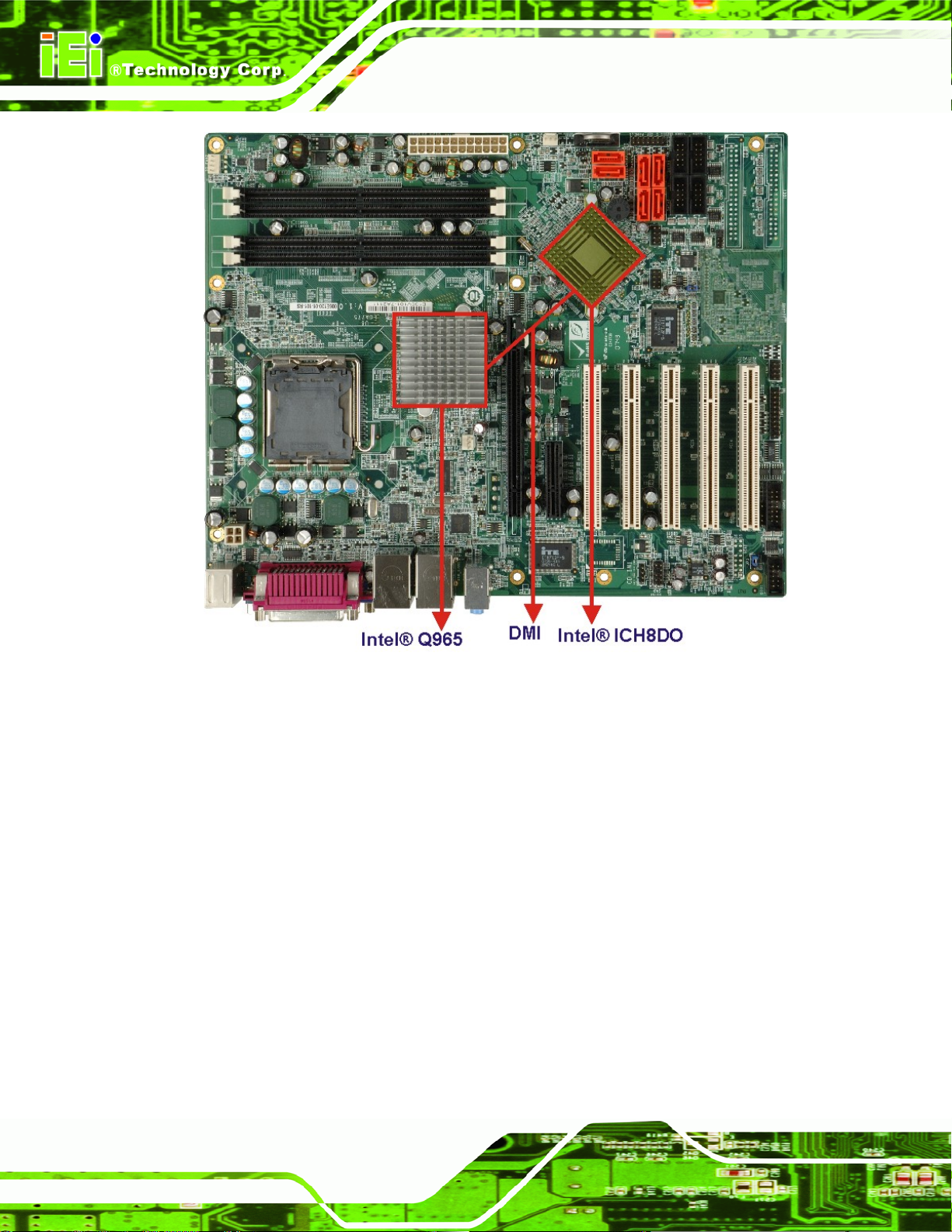

2.2 DATA FLOW...............................................................................................................11
2.3 COMPATIBLE PROCESSORS ....................................................................................... 13
2.3.1 Intel® Core™2 Quad Features ....................................................................... 13
2.3.2 Intel® Core™2 Duo Features ......................................................................... 13
2.3.3 Intel® Pentium® 4 Features............................................................................ 14
2.3.4 Intel® Pentium® D Features........................................................................... 14
2.3.5 Intel® Celeron® D Features ........................................................................... 14
2.4 INTEL
2.4.1 Intel® Q965 Overview...................................................................................... 15
2.4.2 Intel® Q965 Memory Support .......................................................................... 15
2.4.3 Intel® Q965 PCIe x16 ...................................................................................... 17
2.4.4 Intel® Q965 Direct Media Interface (DMI)..................................................... 19
2.5 INTEL
®
Q965 NORTHBRIDGE CHIPSET..................................................................... 15
2.4.2.1 Intel® Q965 Analog CRT Support............................................................. 17
2.4.3.1 PCIe x16 Bus Overview............................................................................ 17
2.4.3.2 PCIe x16 Bus Specifications..................................................................... 18
®
ICH8DO SOUTHBRIDGE CHIPSET................................................................ 20
2.5.1 Intel® ICH8DO Overview................................................................................ 20

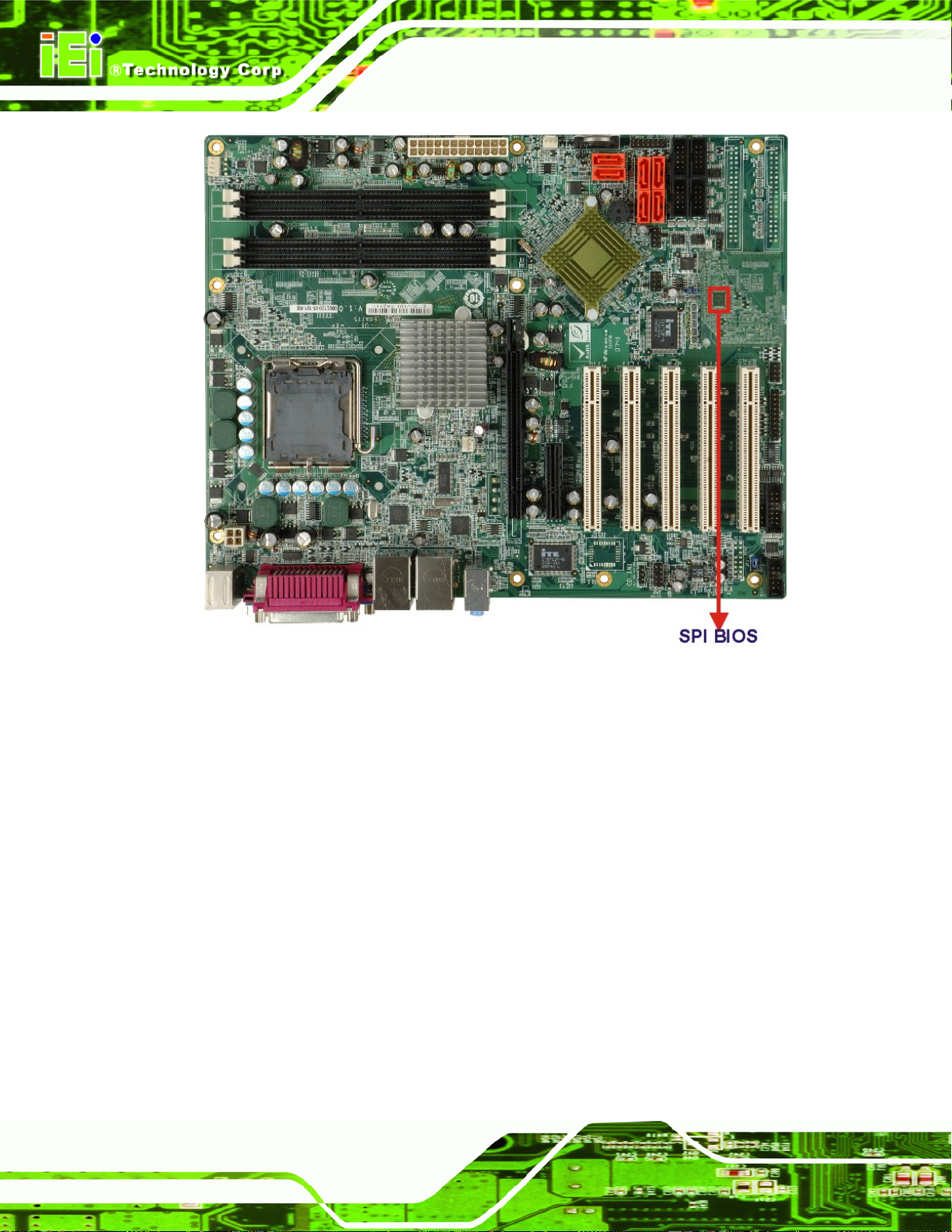

2.5.2 SPI BIOS Chipset:............................................................................................ 21
2.5.3 Intel® High Definition Audio ........................................................................... 22
Page vii
Page 8
2.5.4 Intel® ICH8DO Low Pin Count (LPC) Interface............................................. 23
2.5.5 Intel® ICH8DO PCI Interface.......................................................................... 23
2.5.6 Intel® ICH8DO PCIe Ports............................................................................. 24
2.5.7 Intel® ICH8DO Real Time Clock..................................................................... 25
2.5.8 Intel® ICH8DO SATA Controller..................................................................... 25
2.5.9 Intel® ICH8DO USB Controller ...................................................................... 26
2.6 INTEL® ICH8DO PCIE BUS COMPONENTS............................................................. 27
2.6.1 PCIe Bus Overview.......................................................................................... 27
2.6.2 PCIe x4 Expansion........................................................................................... 27
2.6.3 PCIe GbE Ethernet.......................................................................................... 28
2.7 LPC BUS COMPONENTS........................................................................................... 30
2.7.1 LPC Bus Overview........................................................................................... 30

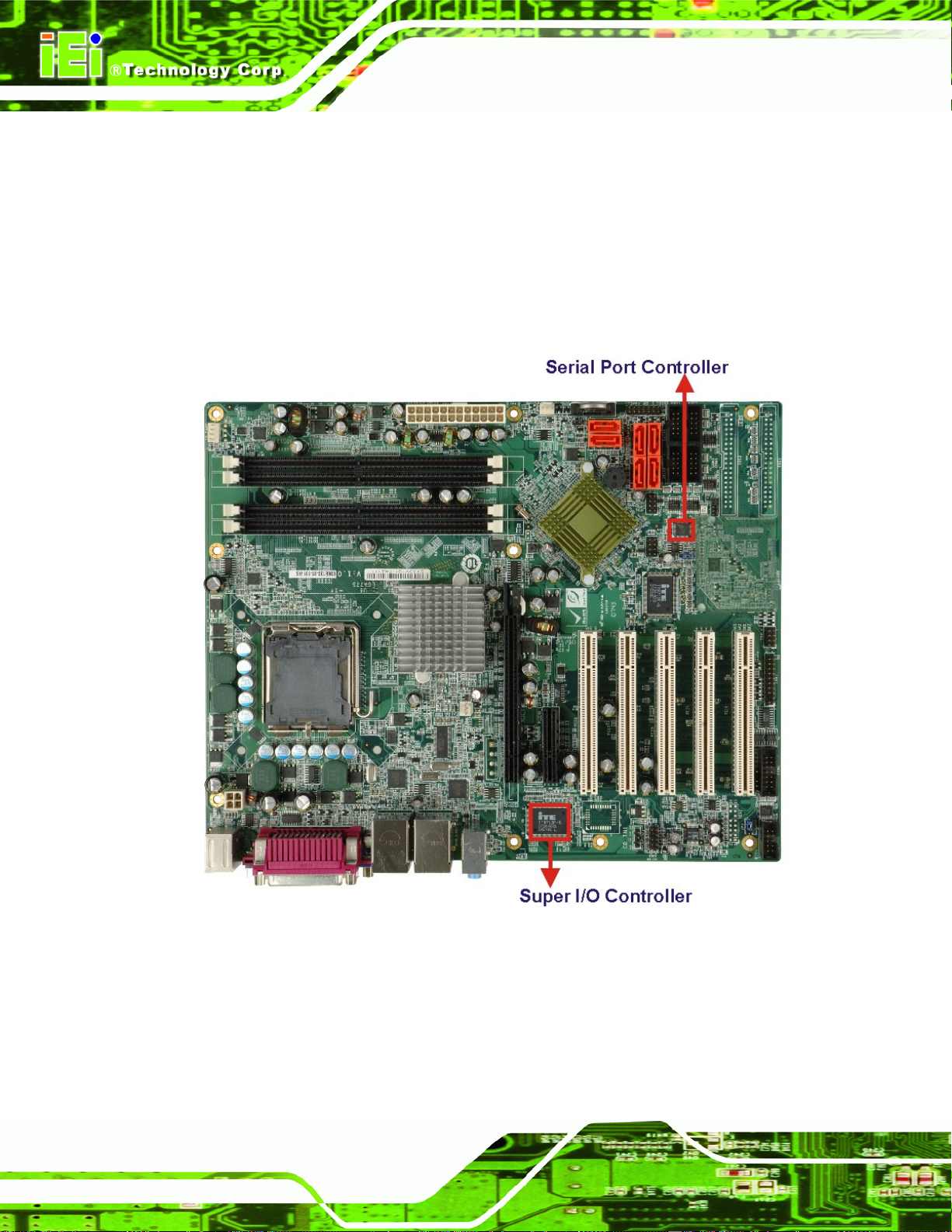

2.7.2 Super I/O chipset.............................................................................................. 30
2.7.2.1 Super I/O LPC Interface ........................................................................... 31
IMBA-9654 ATX Motherboard
2.7.2.2 Super I/O 16C550 UARTs ........................................................................ 31
2.7.2.3 Super I/O Enhanced Hardware Monitor................................................... 32
2.7.2.4 Super I/O Fan Speed Controller................................................................ 32
2.7.2.5 Super I/O Keyboard Controller................................................................. 32
2.7.3 Serial Port Chipset........................................................................................... 32
2.8 ENVIRONMENTAL AND POWER SPECIFICATIONS ....................................................... 33
2.8.1 System Monitoring........................................................................................... 33
2.8.2 Operating Temperature and Temperature Control........................................... 34
2.8.3 Power Consumption......................................................................................... 34
3 UNPACKING.......................................................................................................... 35
3.1 ANTI-STATIC PRECAUTIONS...................................................................................... 36
3.2 UNPACKING.............................................................................................................. 36
3.2.1 Unpacking Precautions.................................................................................... 36
3.3 UNPACKING CHECKLIST........................................................................................... 37
3.3.1 Package Contents............................................................................................. 37

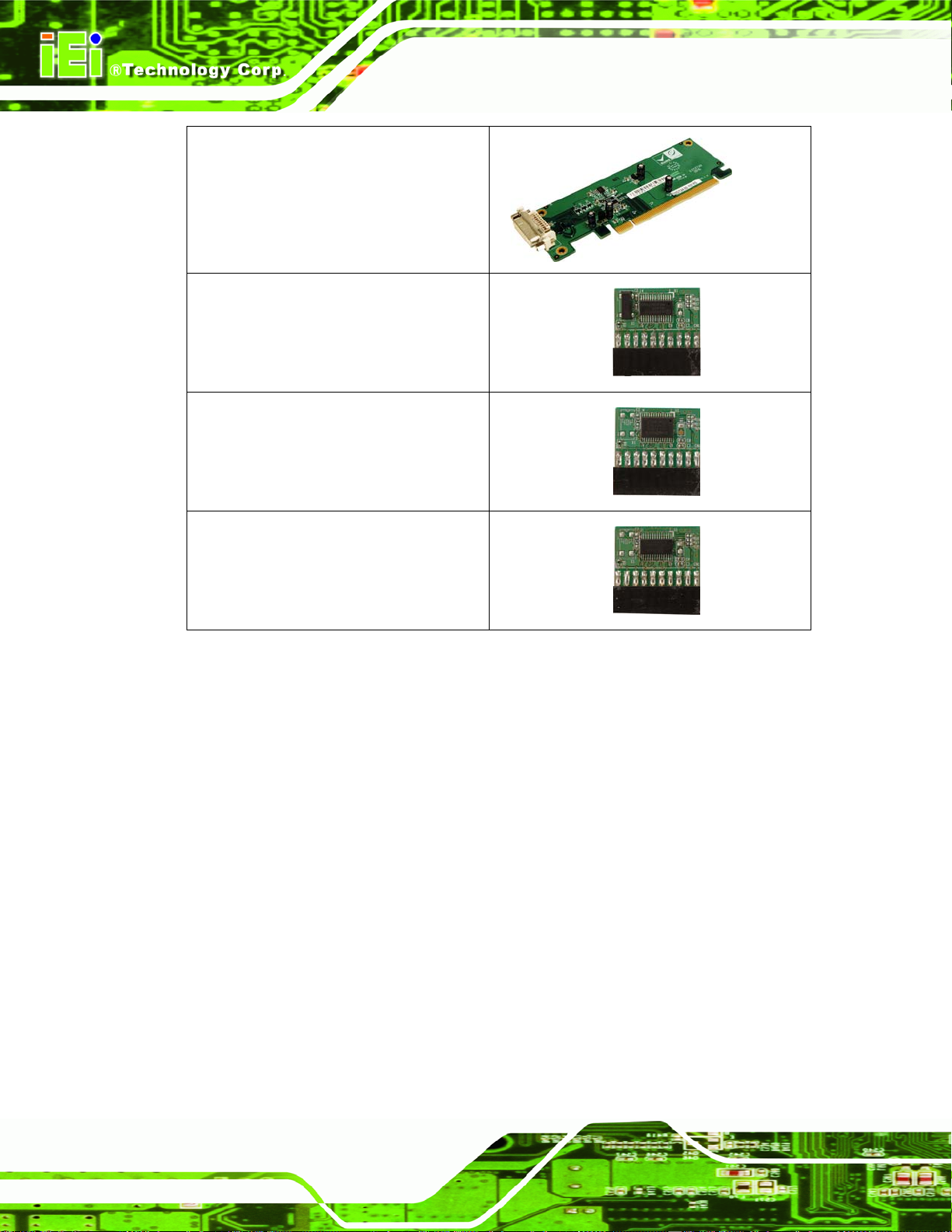

3.4 OPTIONAL ITEMS...................................................................................................... 39
4 CONNECTOR PINOUTS...................................................................................... 41
4.1 PERIPHERAL INTERFACE CONNECTORS .................................................................... 42
4.1.1 IMBA-9654 Layout........................................................................................... 42
Page viii
Page 9
IMBA-9654 A TX Motherboard
4.1.2 Peripheral Interface Connectors ..................................................................... 43

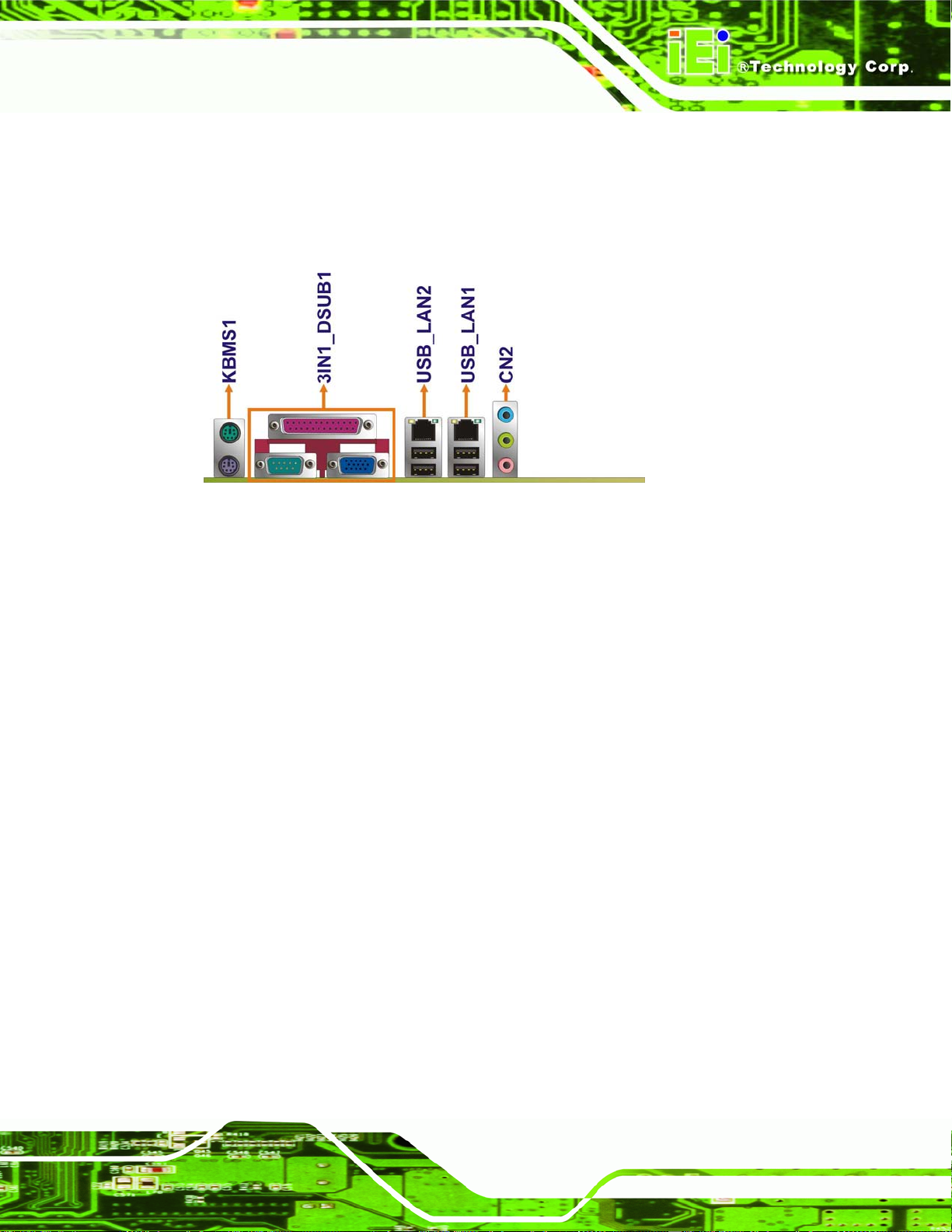

4.1.3 External Interface Panel Connectors............................................................... 44
4.2 INTERNAL PERIPHERAL CONNECTORS...................................................................... 45

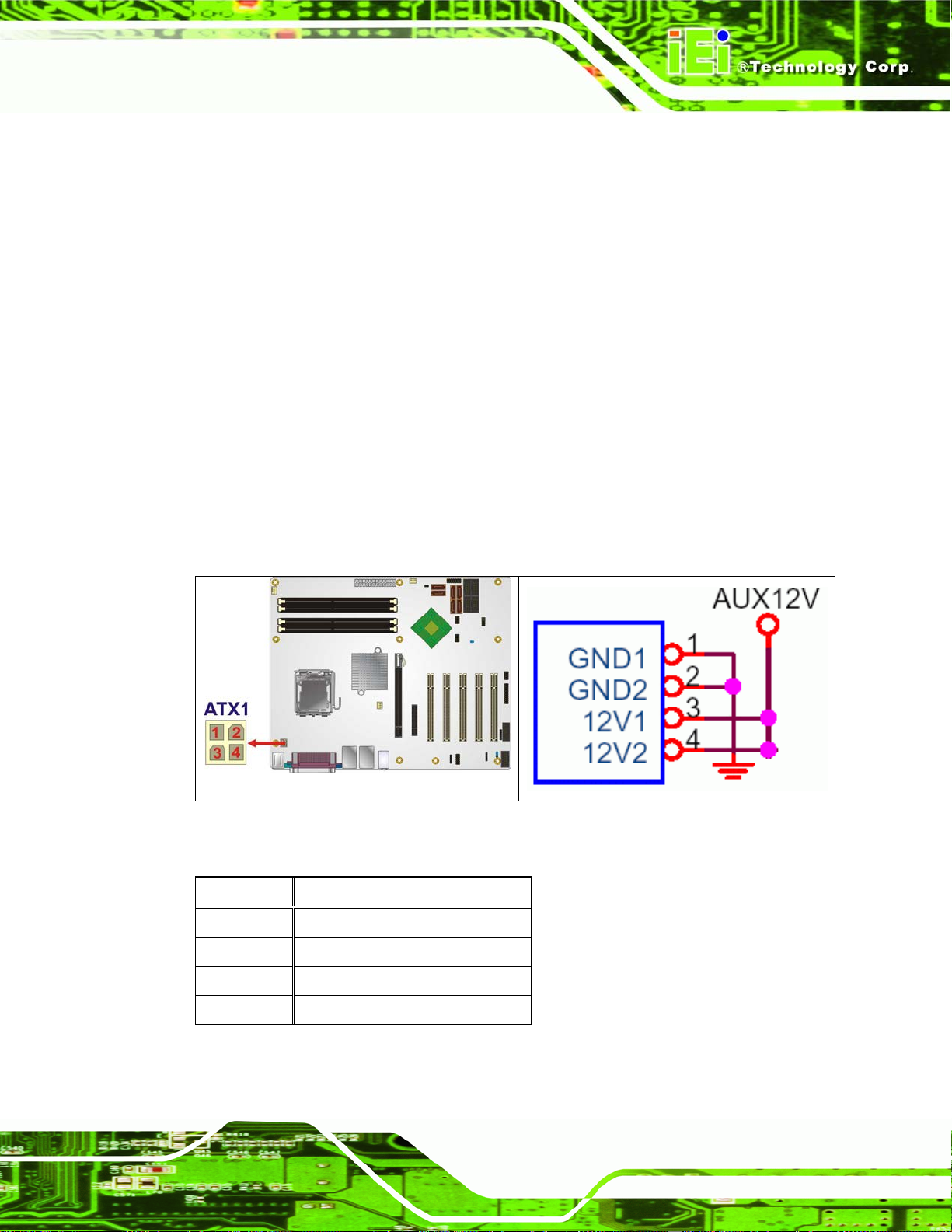

4.2.1 ATX +12V Power Connector ........................................................................... 45
4.2.2 ATX Power Connector ..................................................................................... 46

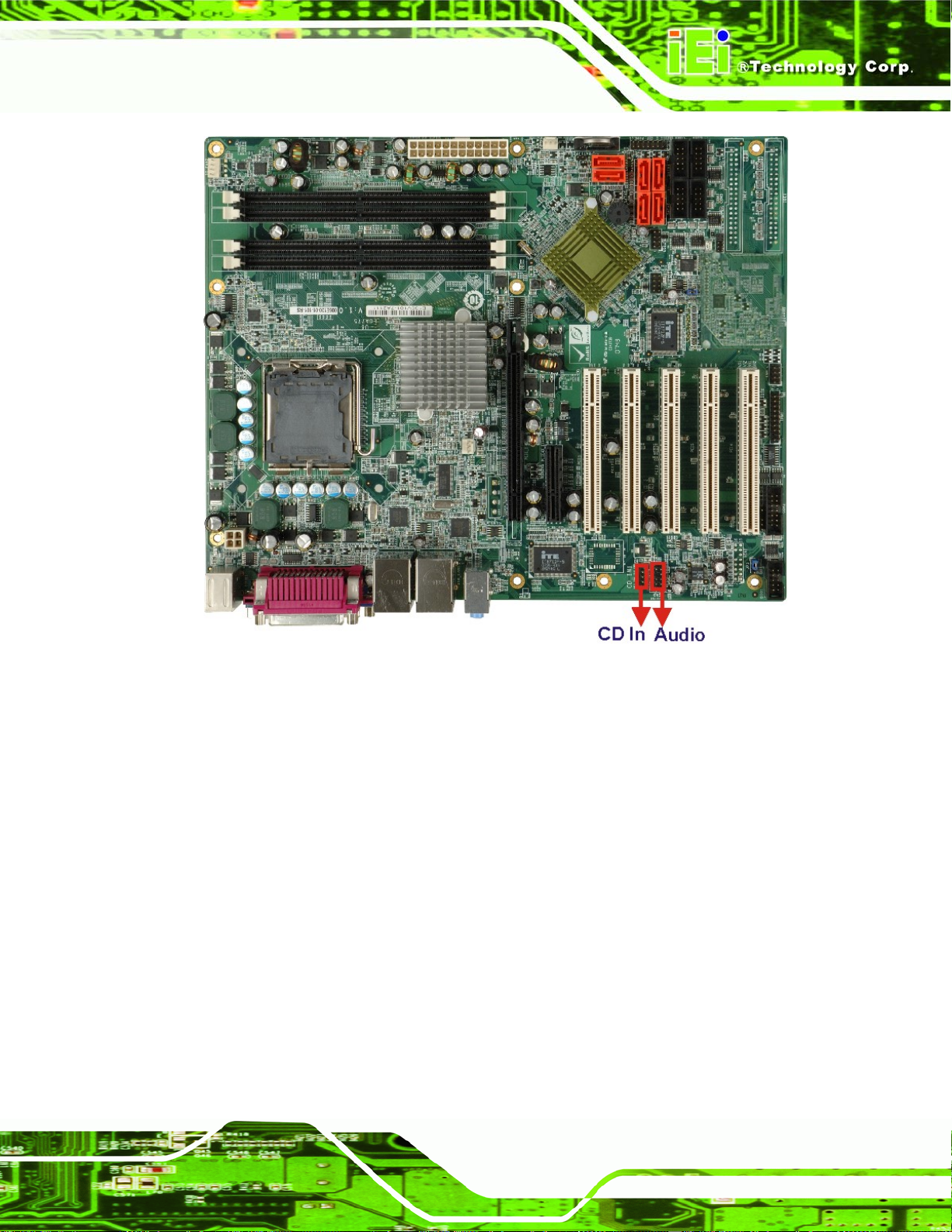

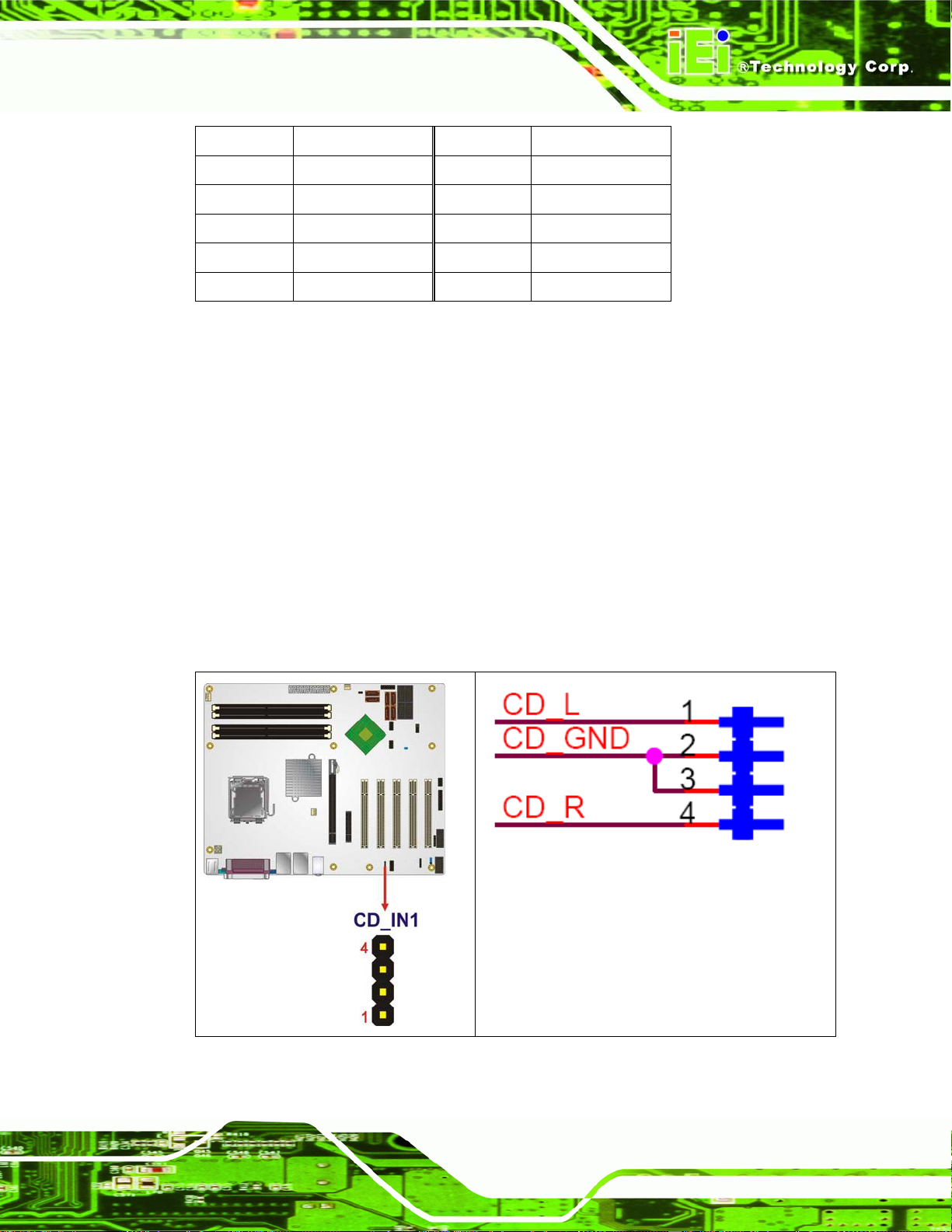

4.2.3 Audio CD In Connector (4-pin)....................................................................... 47

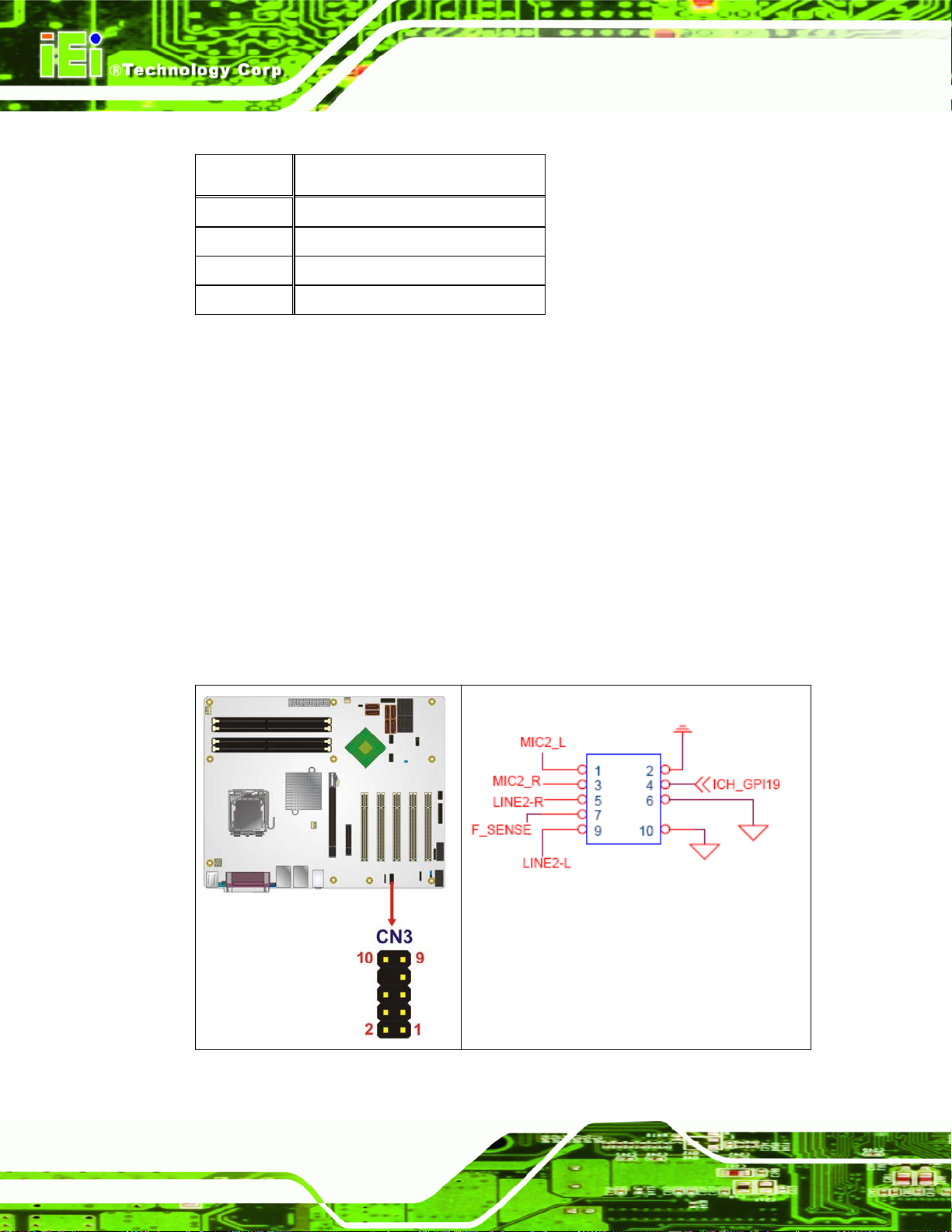

4.2.4 Audio Connector .............................................................................................. 48

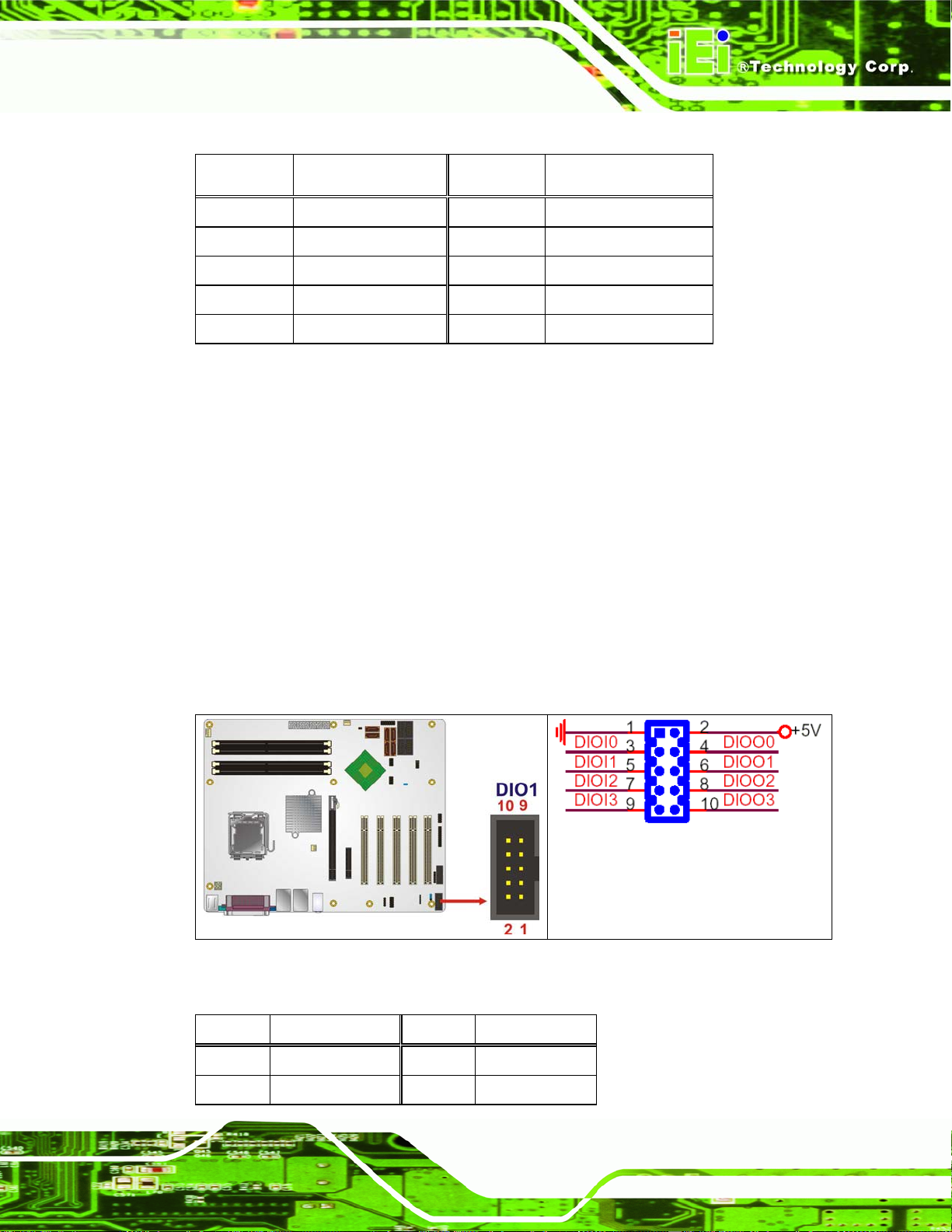

4.2.5 Digital Input/Output (DIO) Connector............................................................ 49

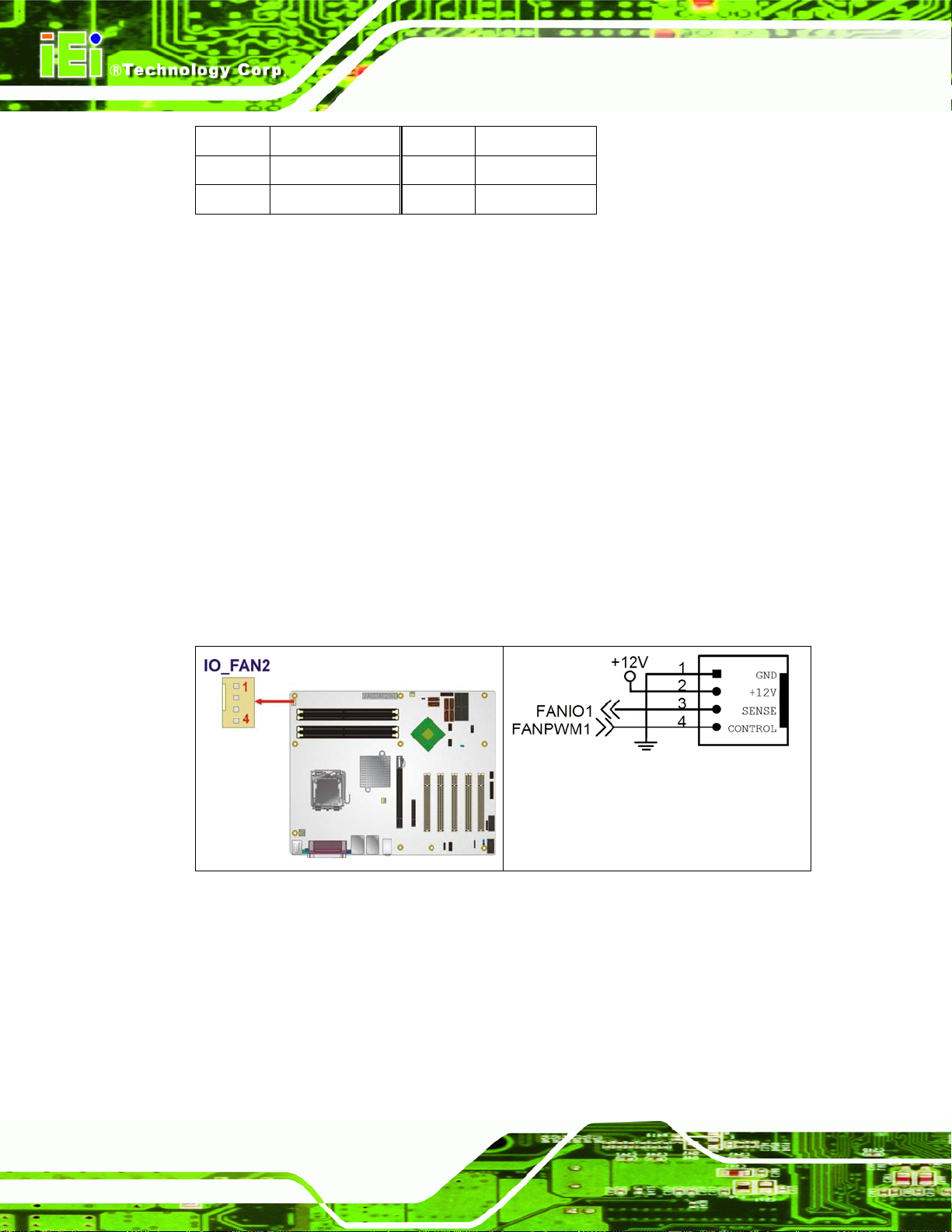

4.2.6 Fan Connector (+12V) (CPU Cooling Fan) ................................................... 50

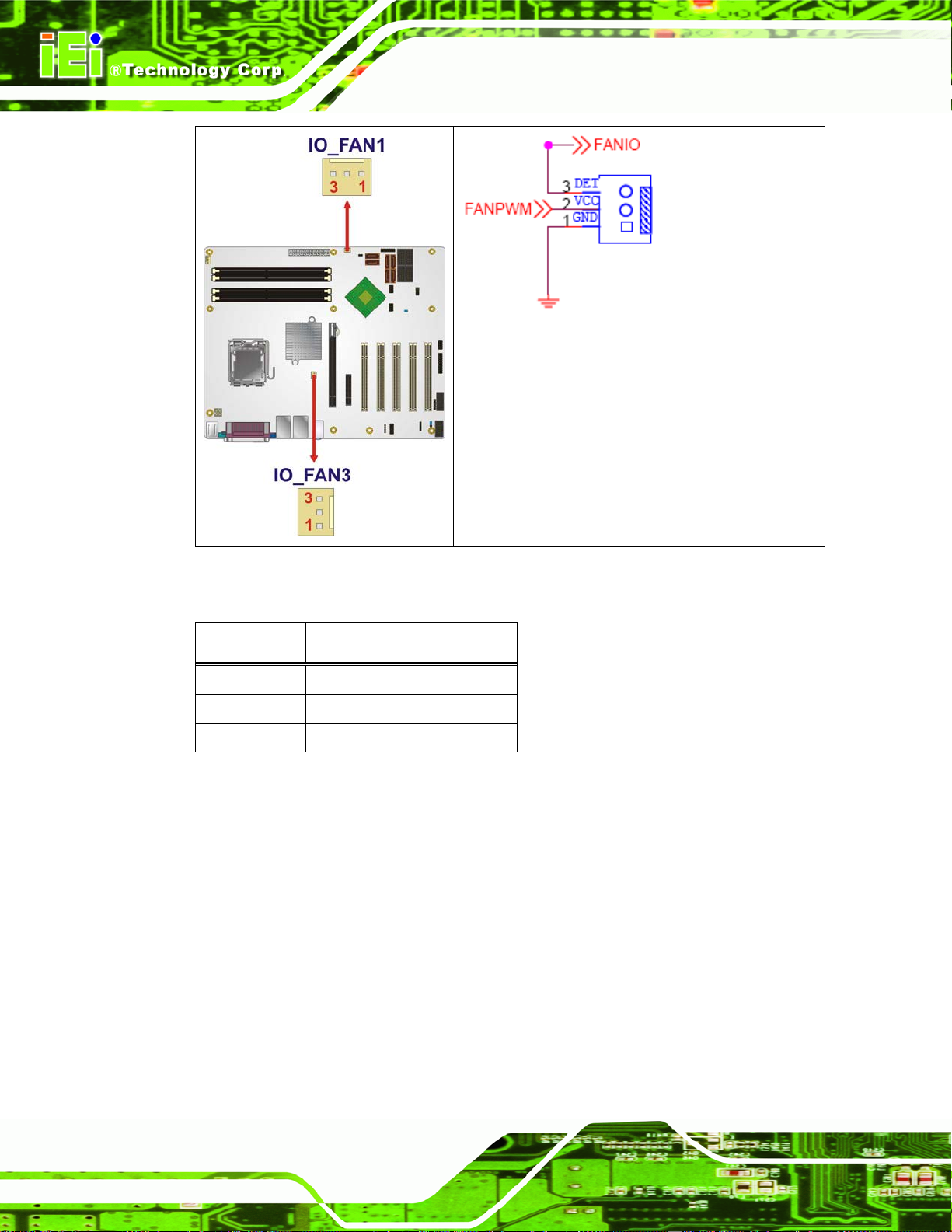

4.2.7 Fan Connector (+12V) (System Cooling Fans)............................................... 51

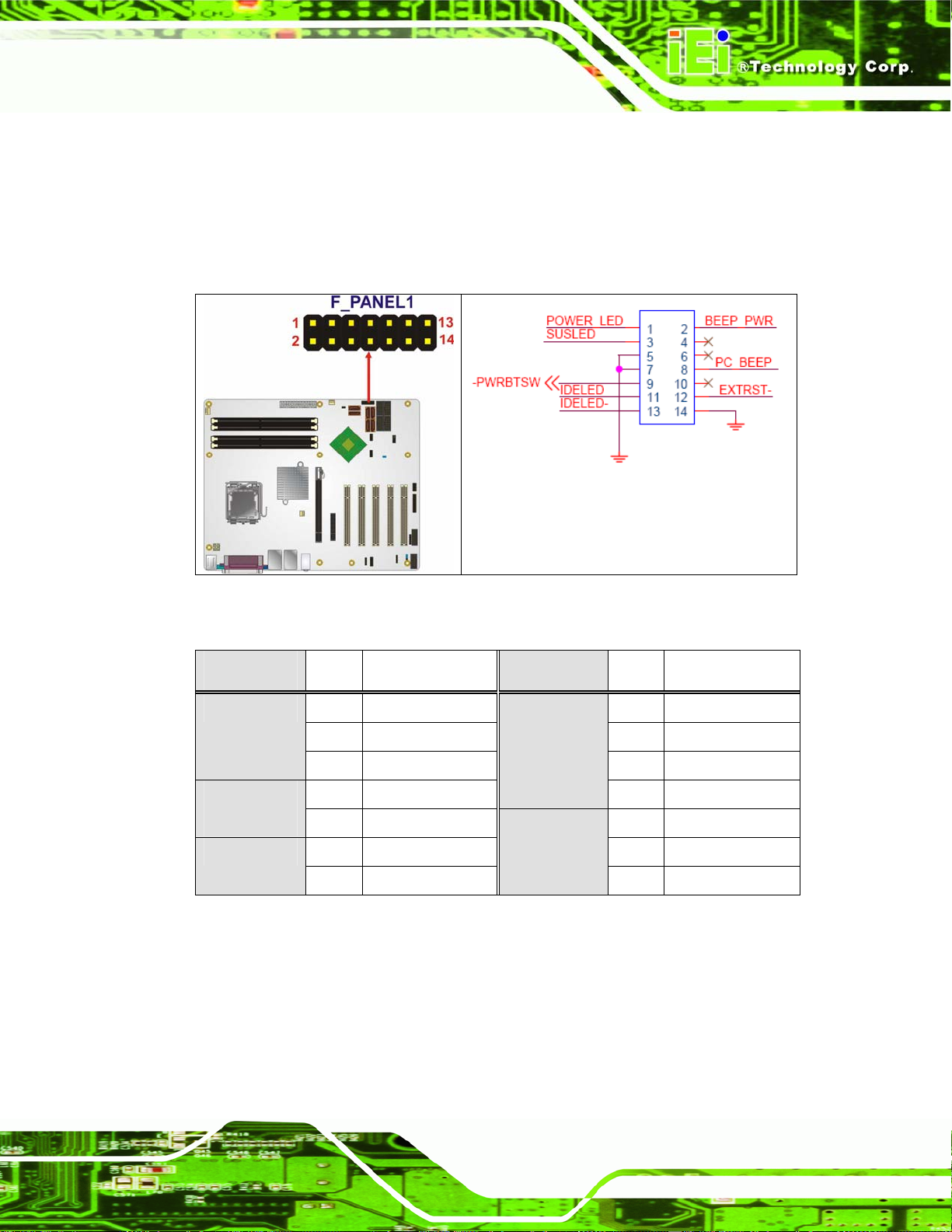

4.2.8 Front Panel Connector (14-pin)...................................................................... 52

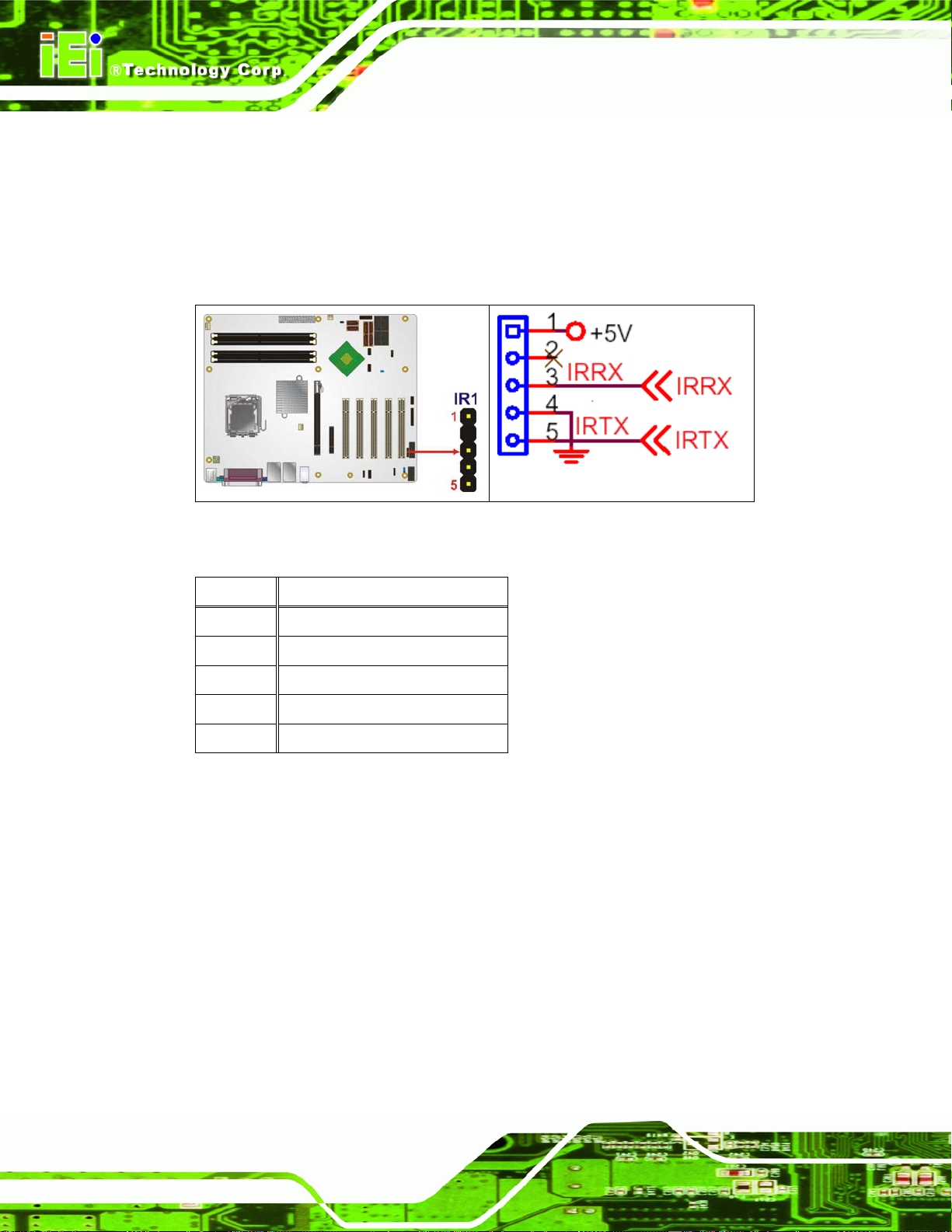

4.2.9 Infrared Interface Connector (5-pin)............................................................... 53

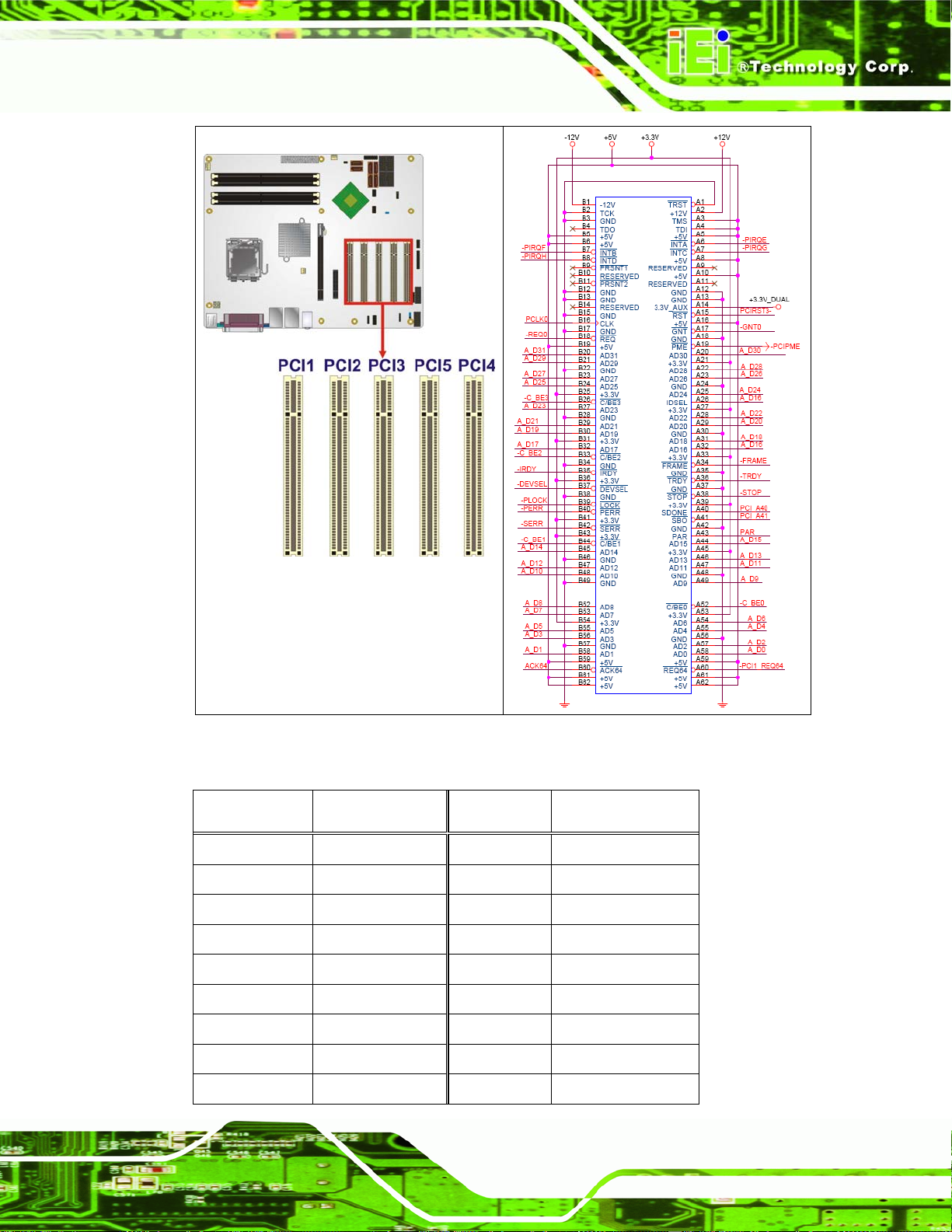

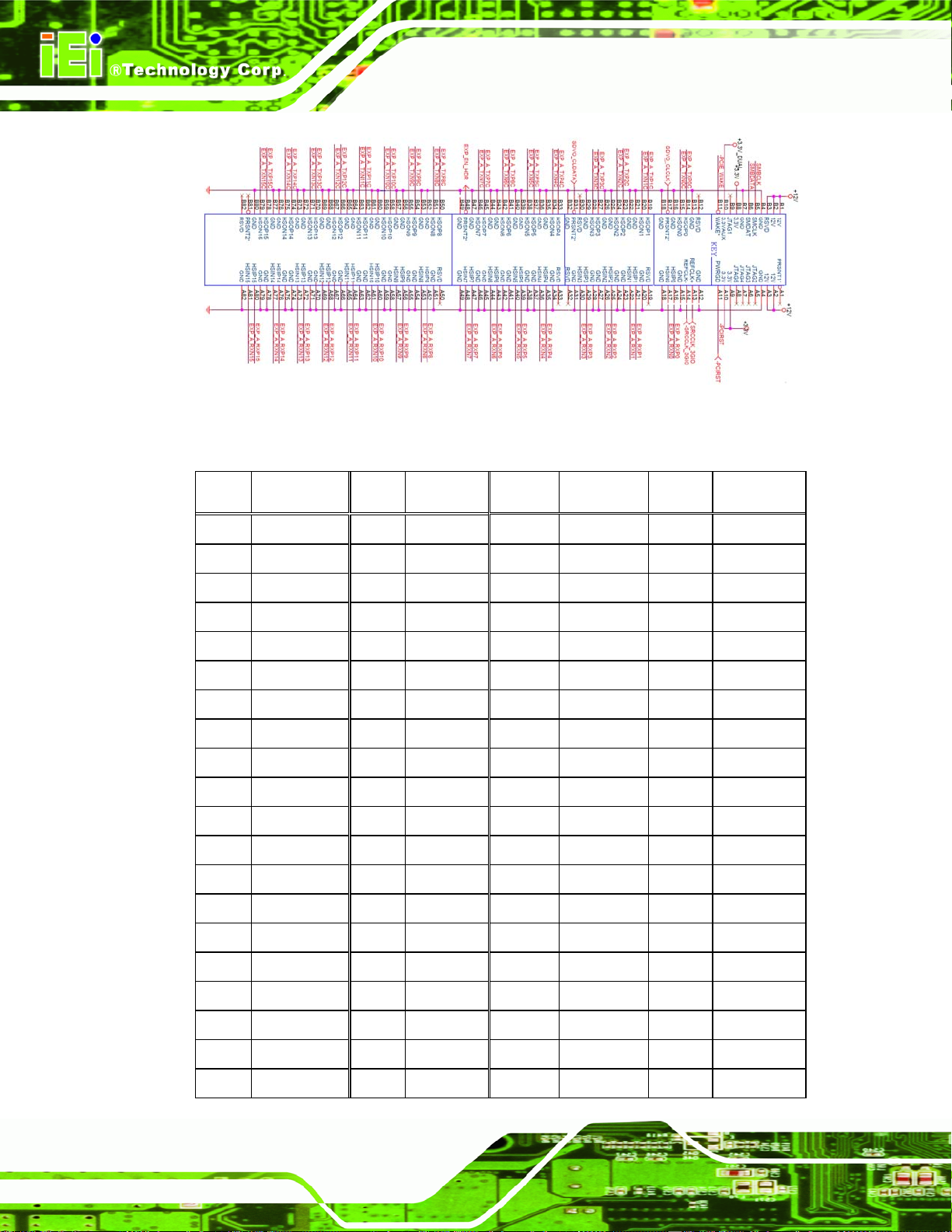

4.2.10 PCI Slot.......................................................................................................... 54

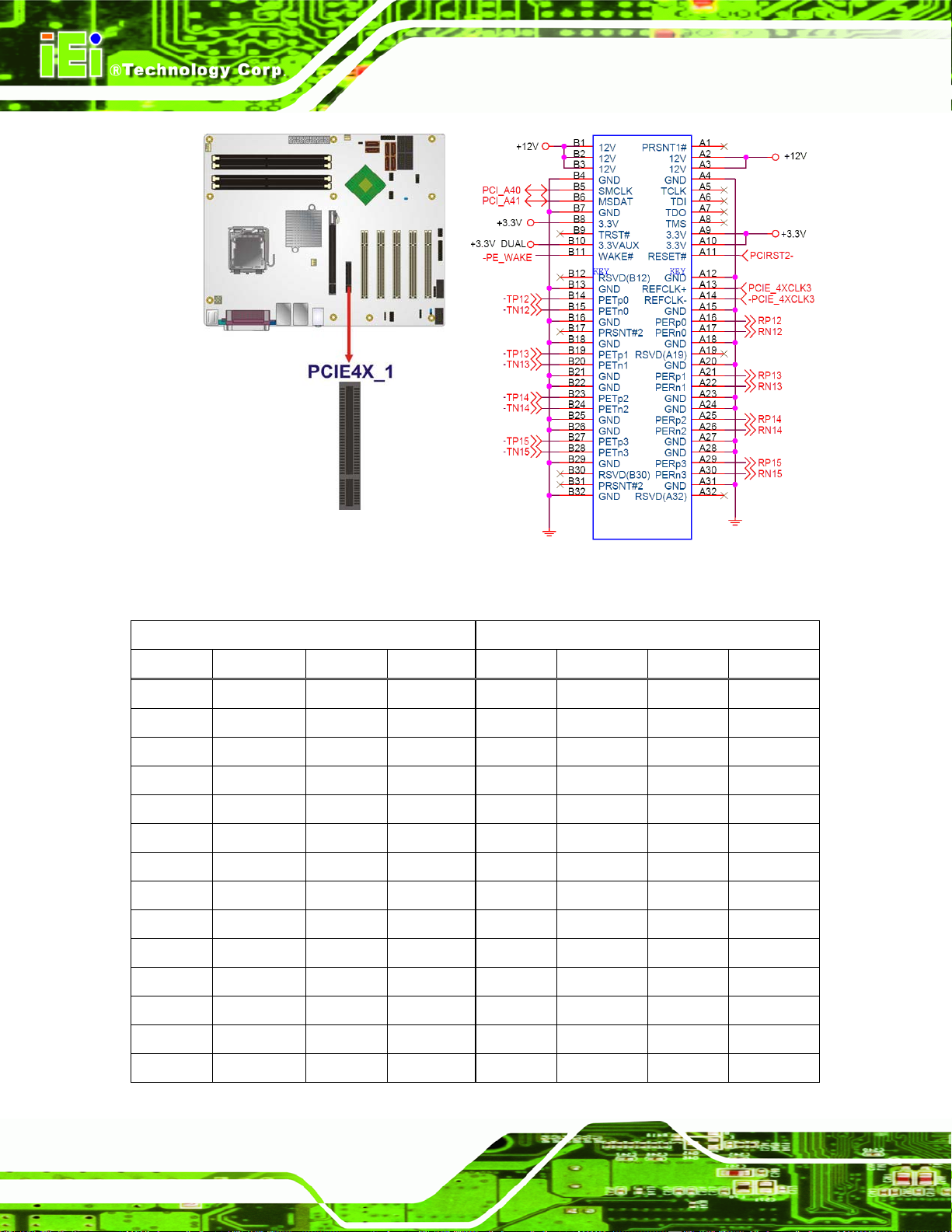

4.2.11 PCI Express x4 Slot........................................................................................ 57

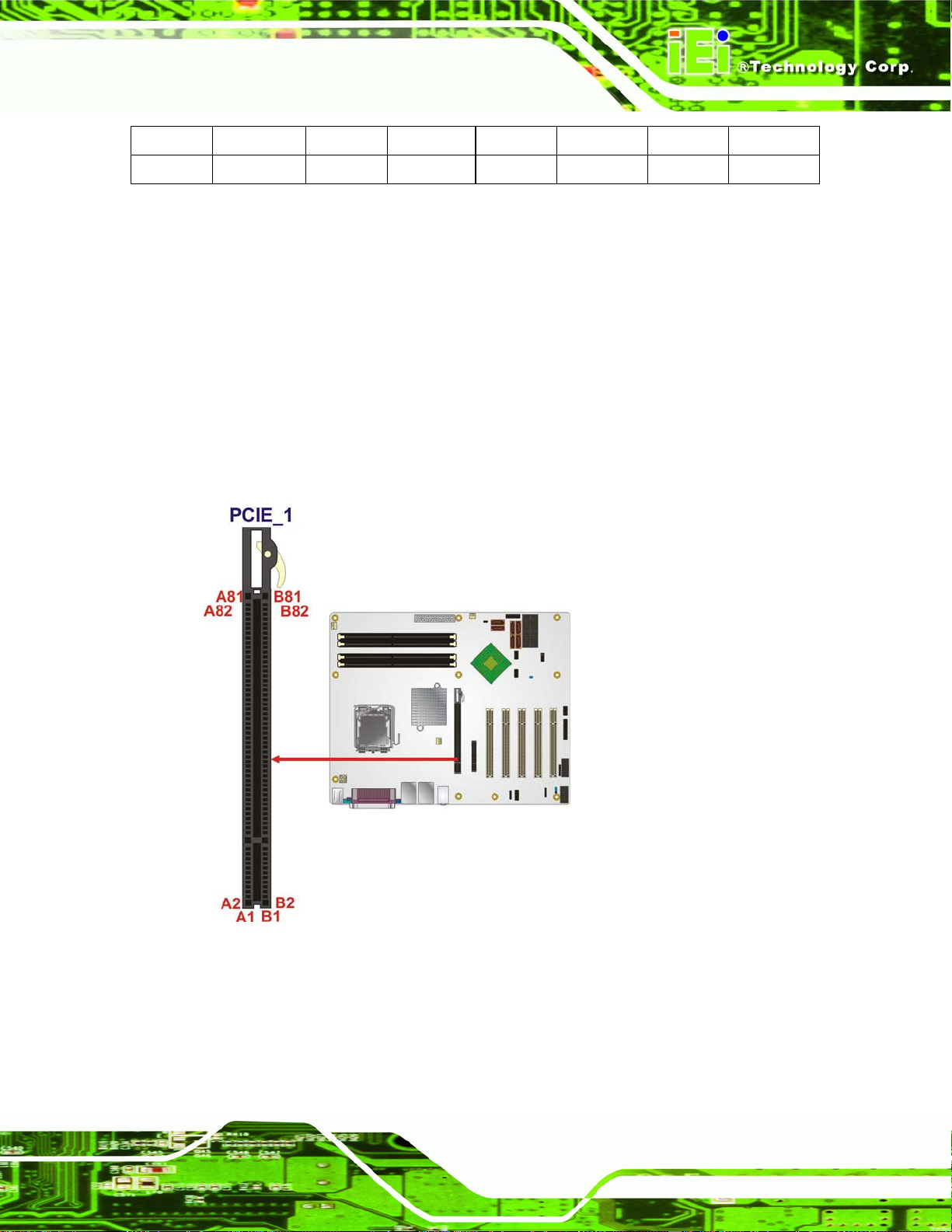

4.2.12 PCI Express x16 Slot...................................................................................... 59

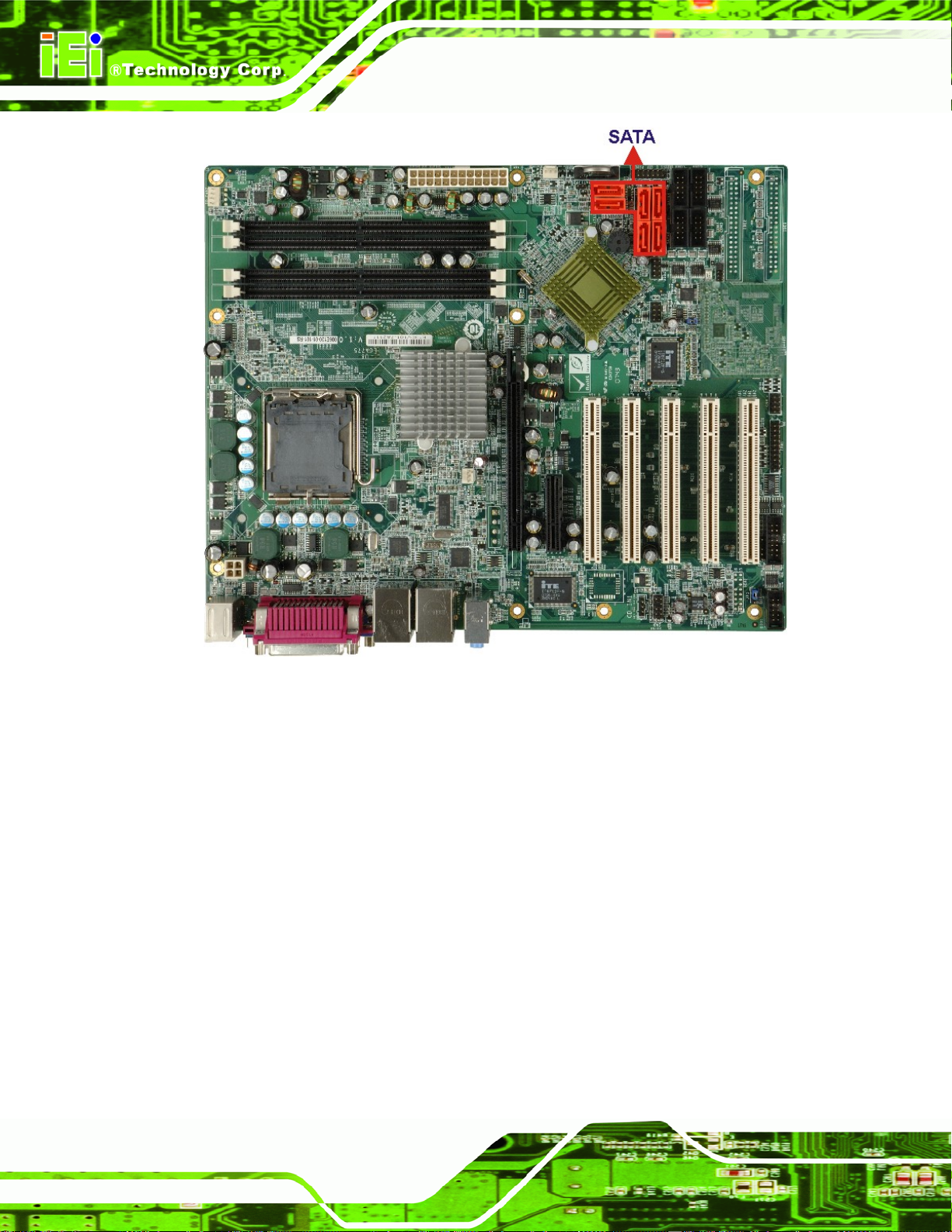

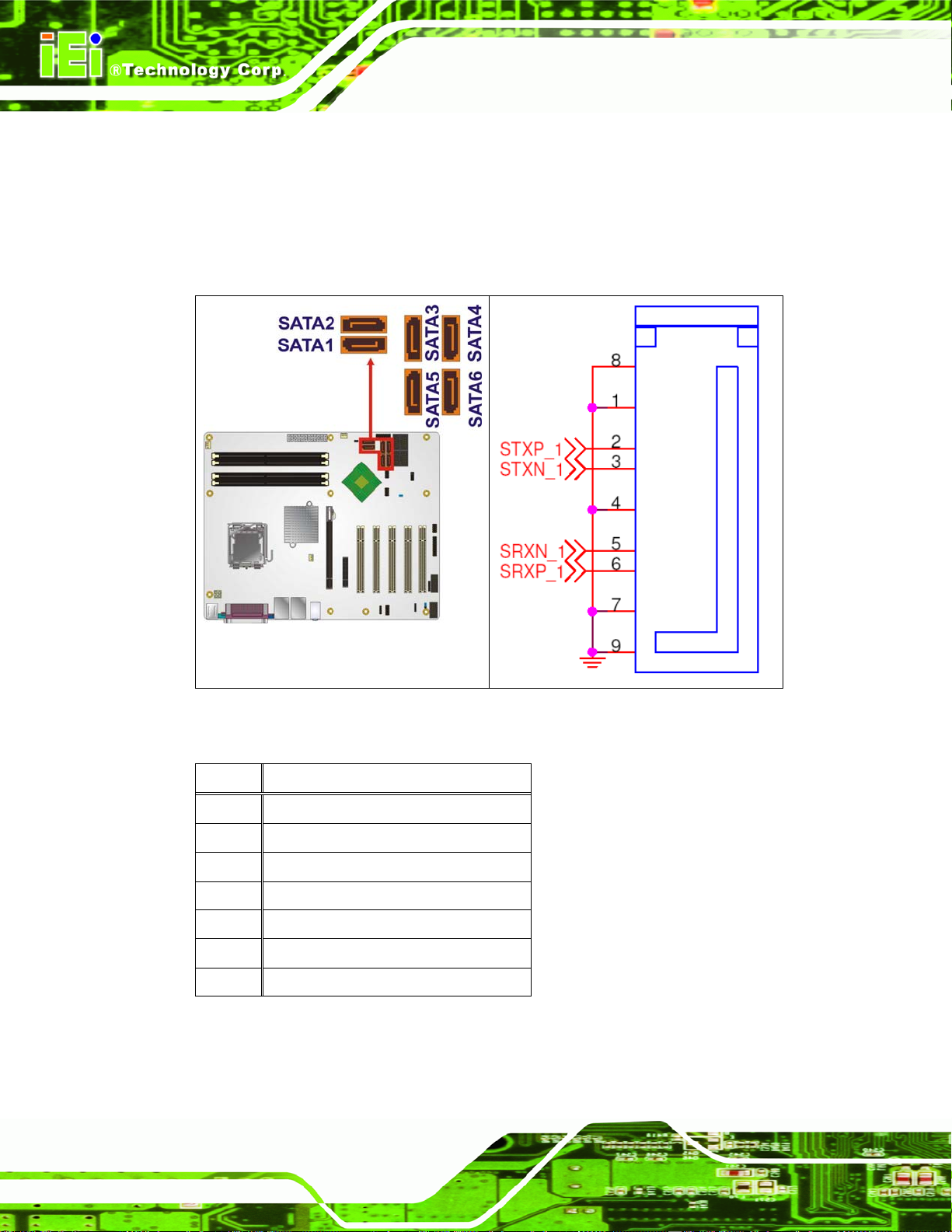

4.2.13 SATA Drive Connectors................................................................................. 61

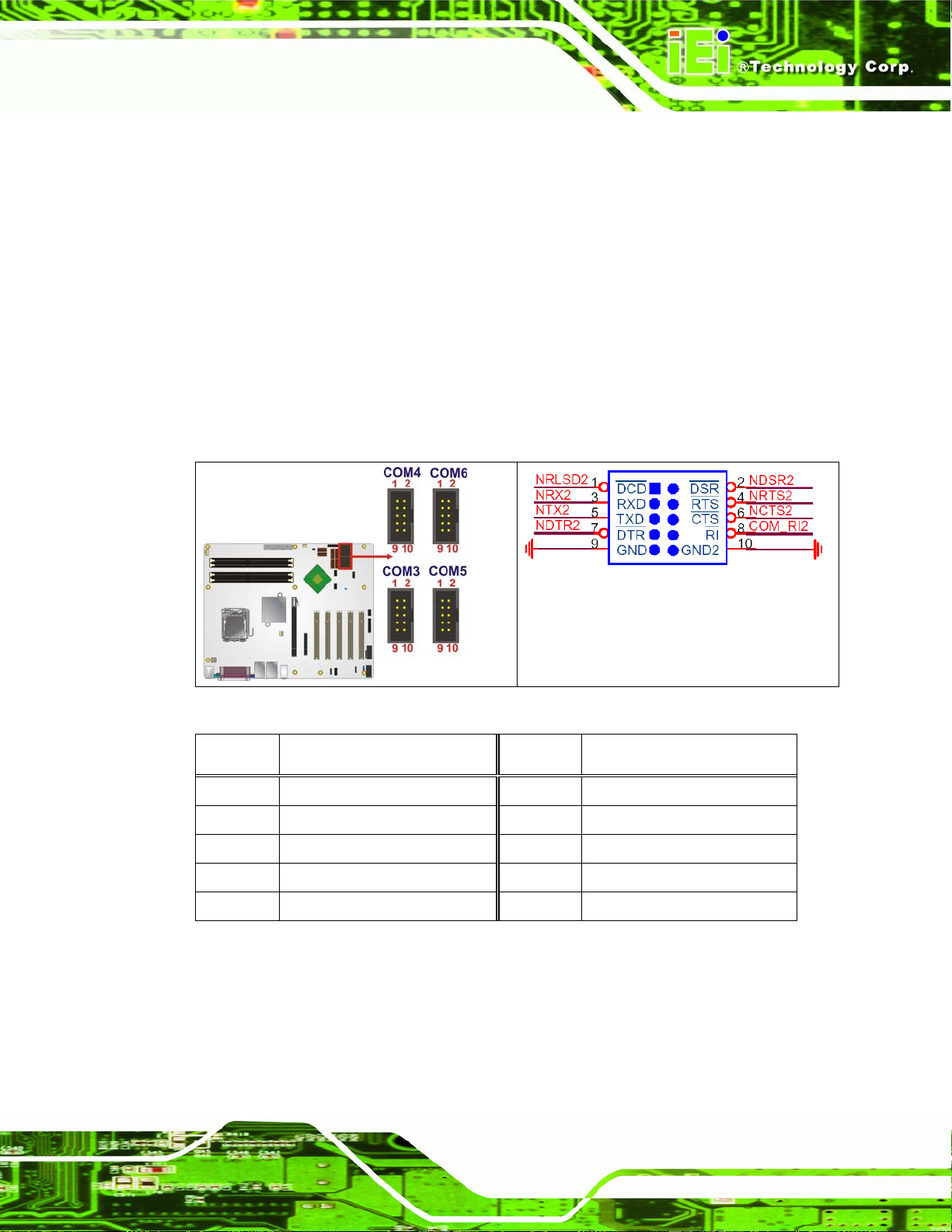

4.2.14 Serial Port Connectors (RS-232)................................................................... 63

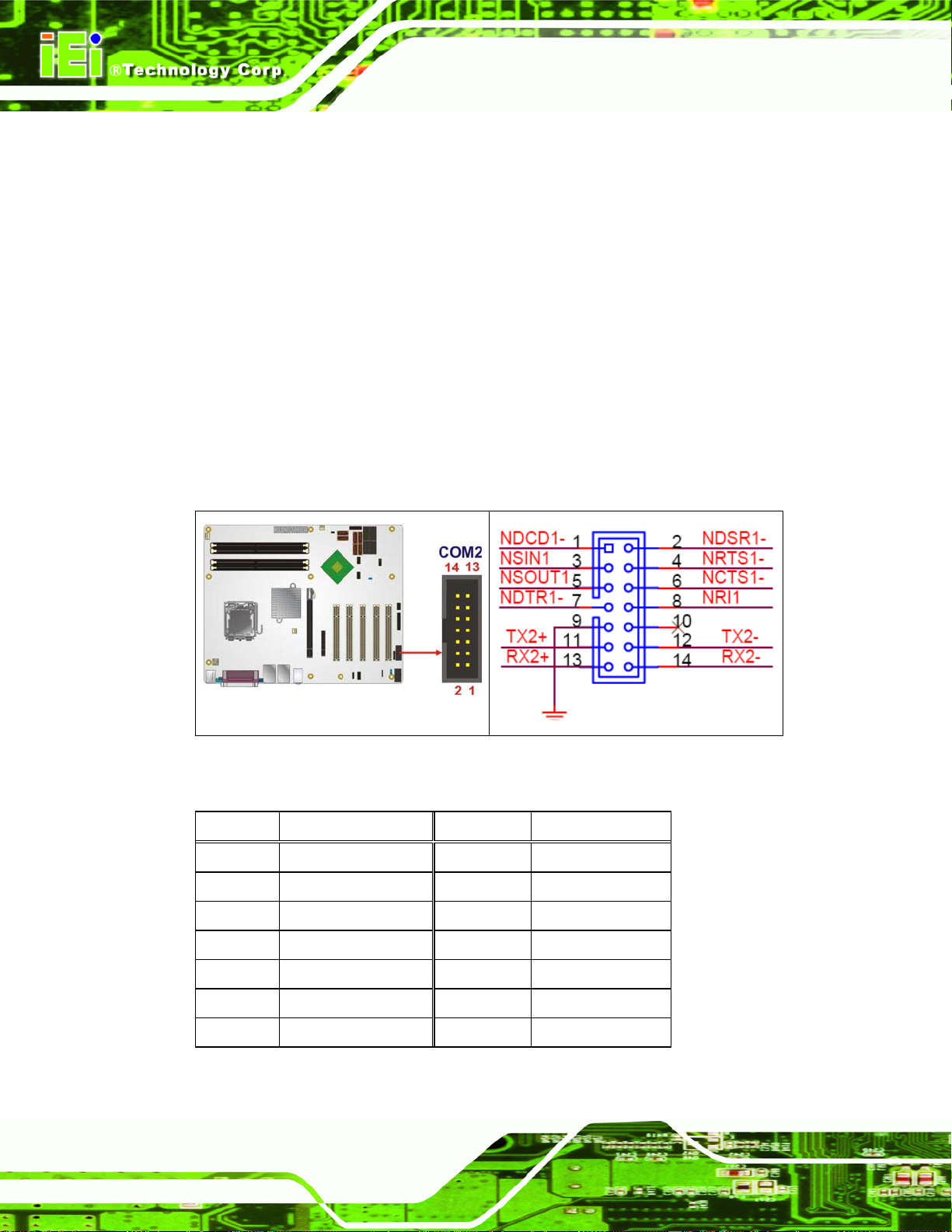

4.2.15 Serial Port Connector (COM 2)(RS-232, RS-422 or RS-485)....................... 64

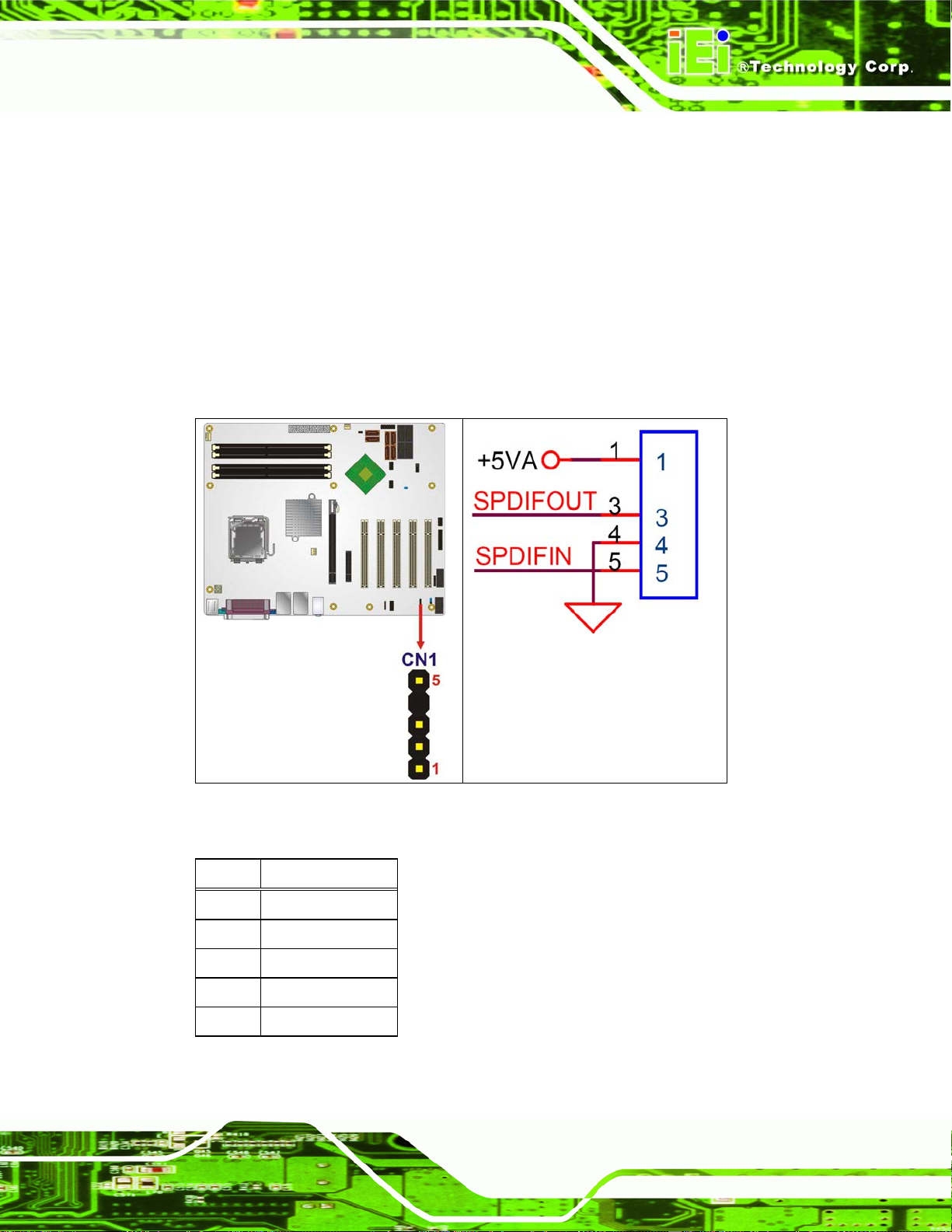

4.2.16 SPDIF Connector........................................................................................... 65

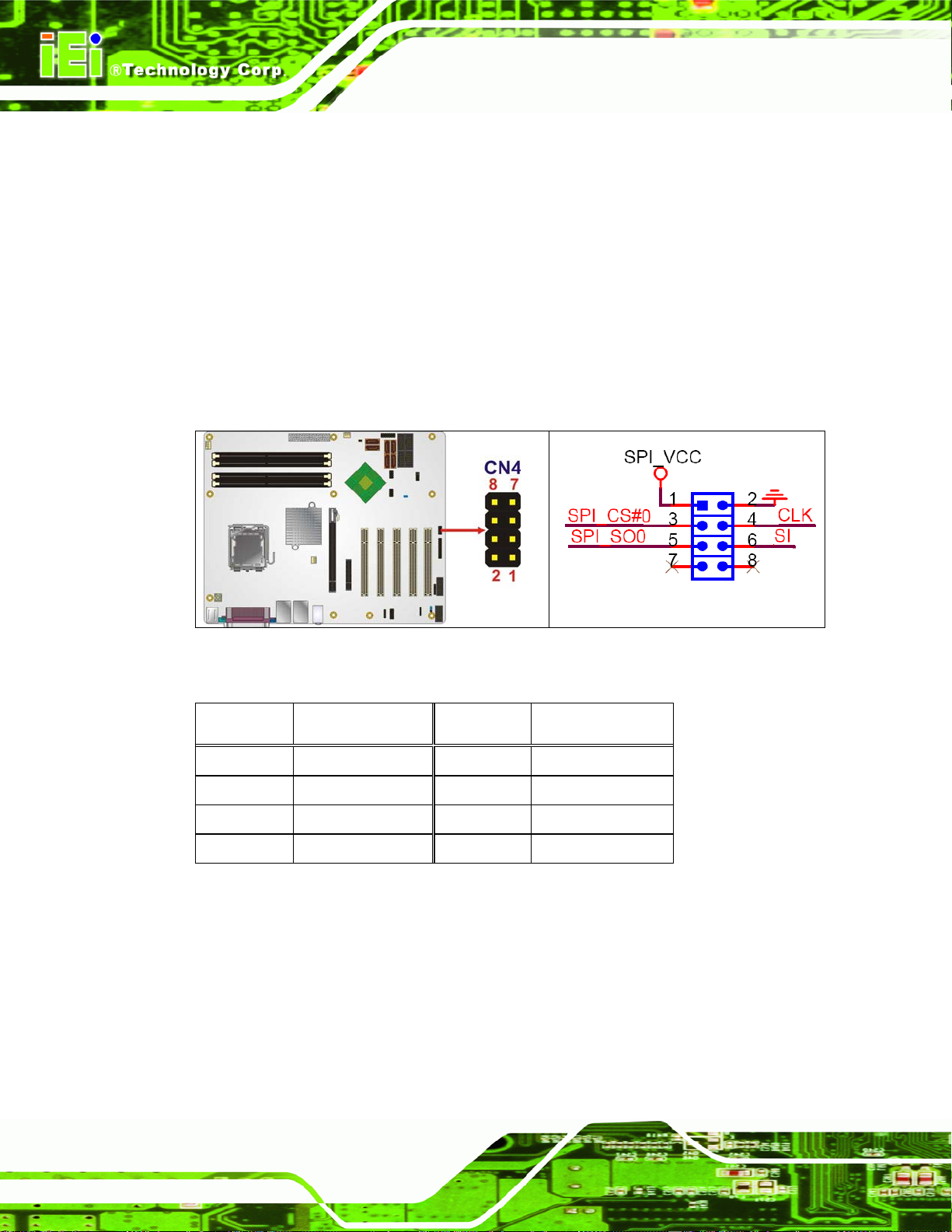

4.2.17 SPI Flash Connector...................................................................................... 66

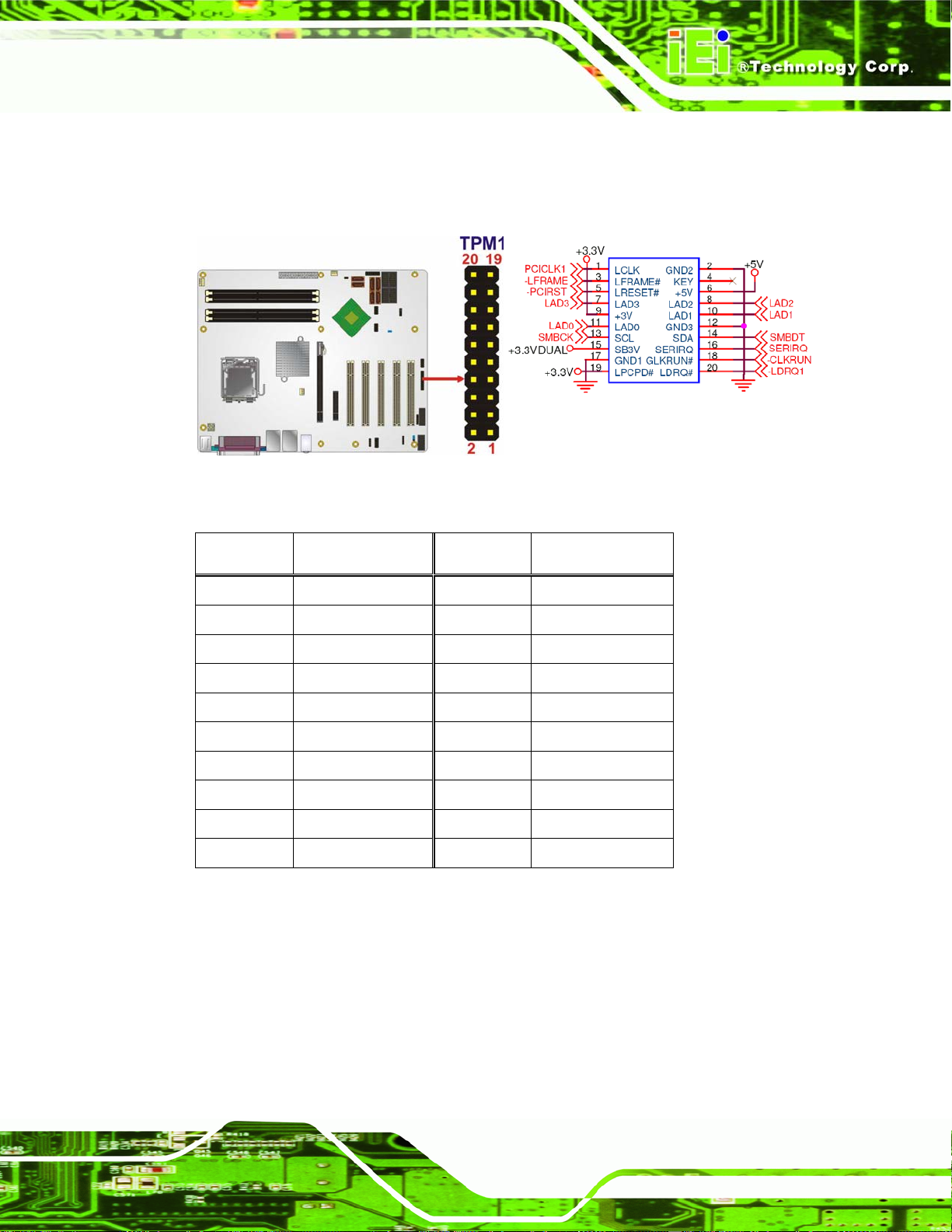

4.2.18 Trusted Platform Module (TPM) Connector.................................................. 66

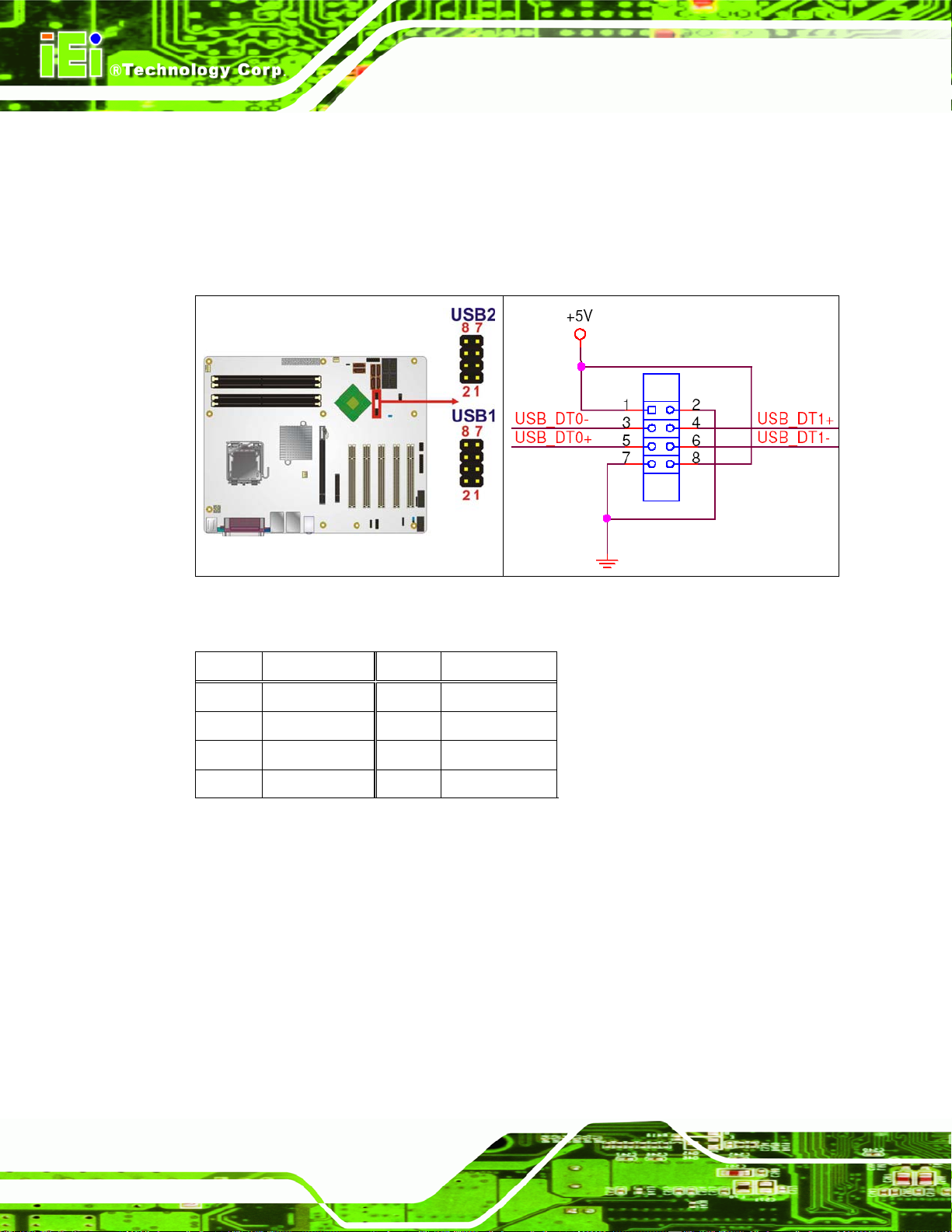

4.2.19 USB Connectors (Internal)............................................................................ 67
4.3 EXTERNAL PERIPHERAL INTERFACE CONNECTORS .................................................. 68

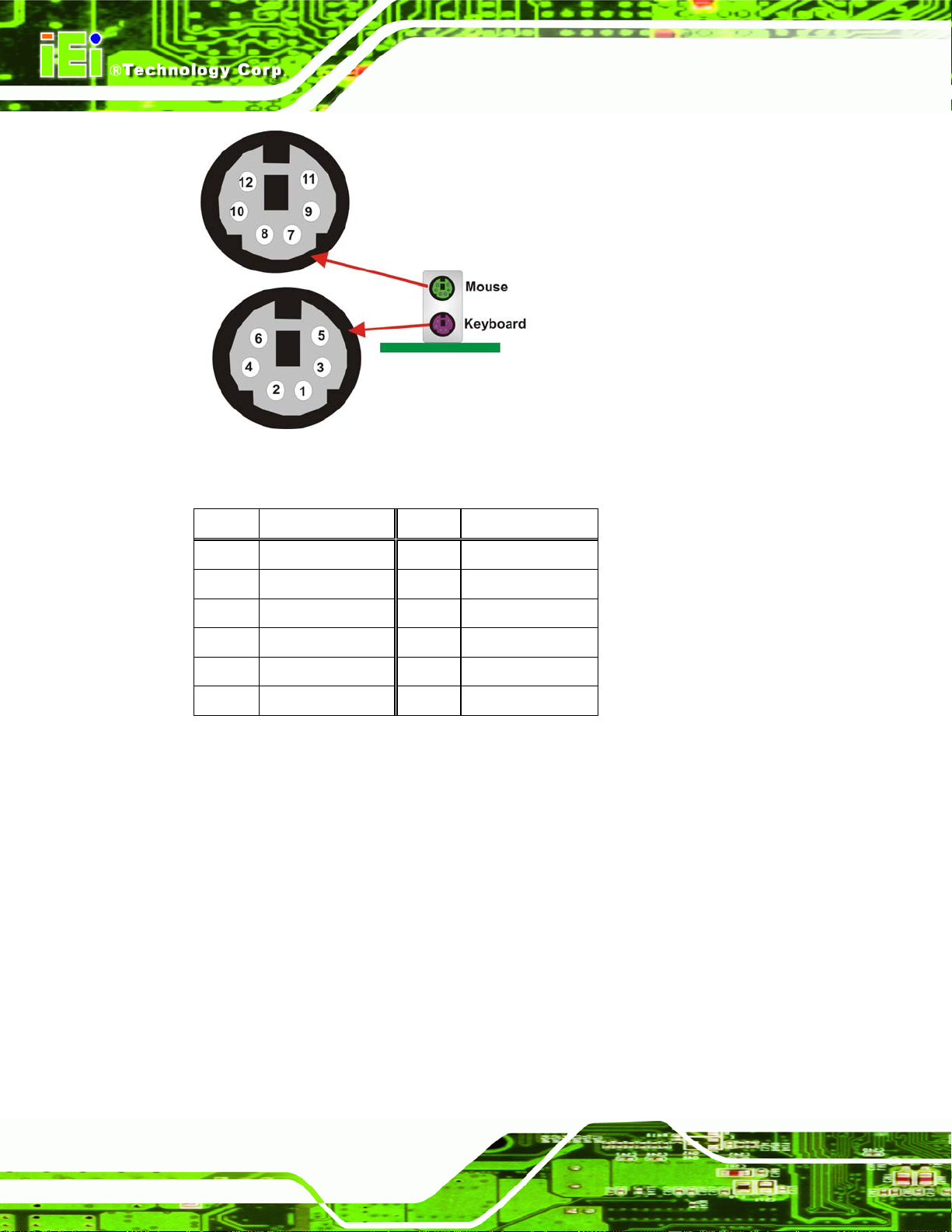

4.3.1 Keyboard/Mouse Connector............................................................................ 69
4.3.2 Parallel Port Connector .................................................................................. 70

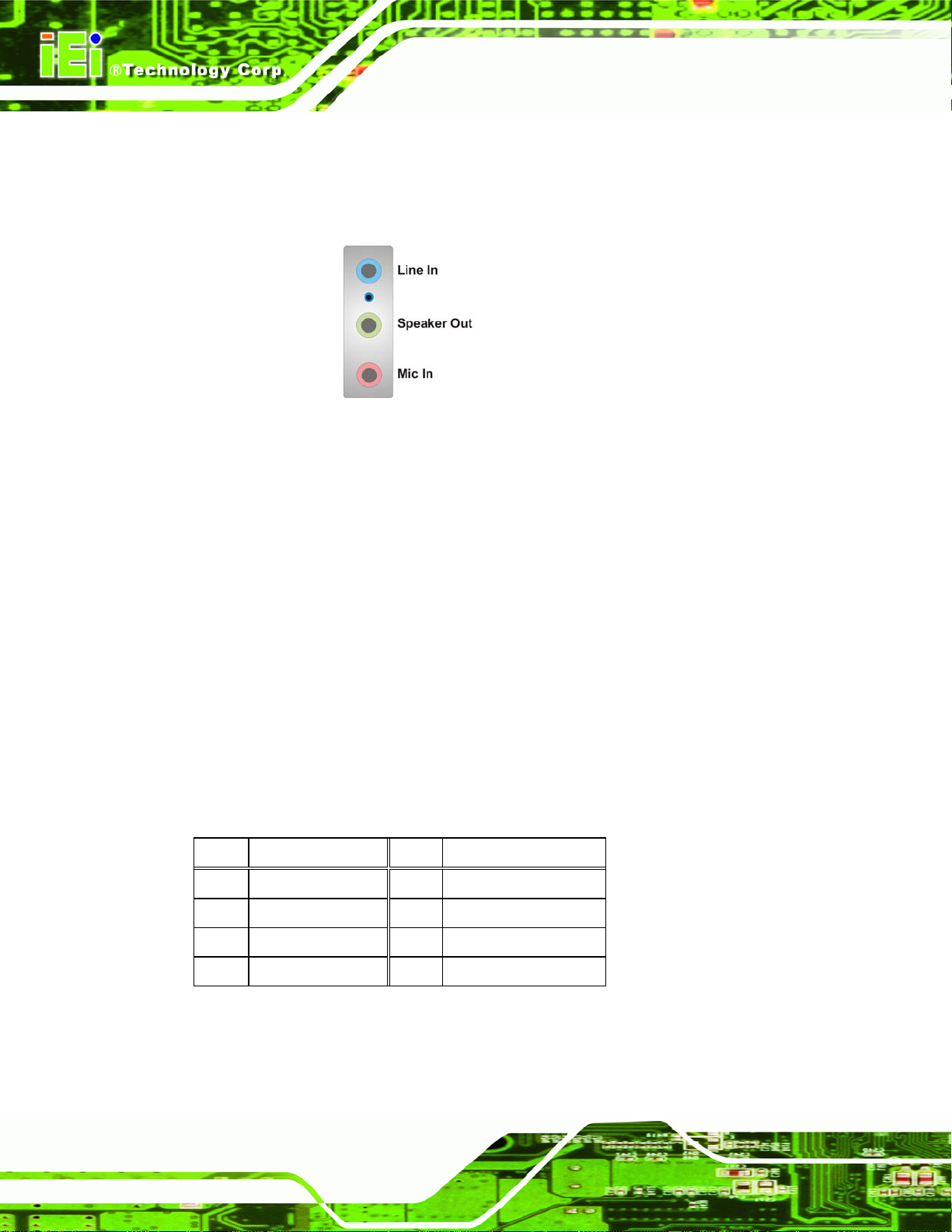

4.3.3 Audio Connectors............................................................................................. 71

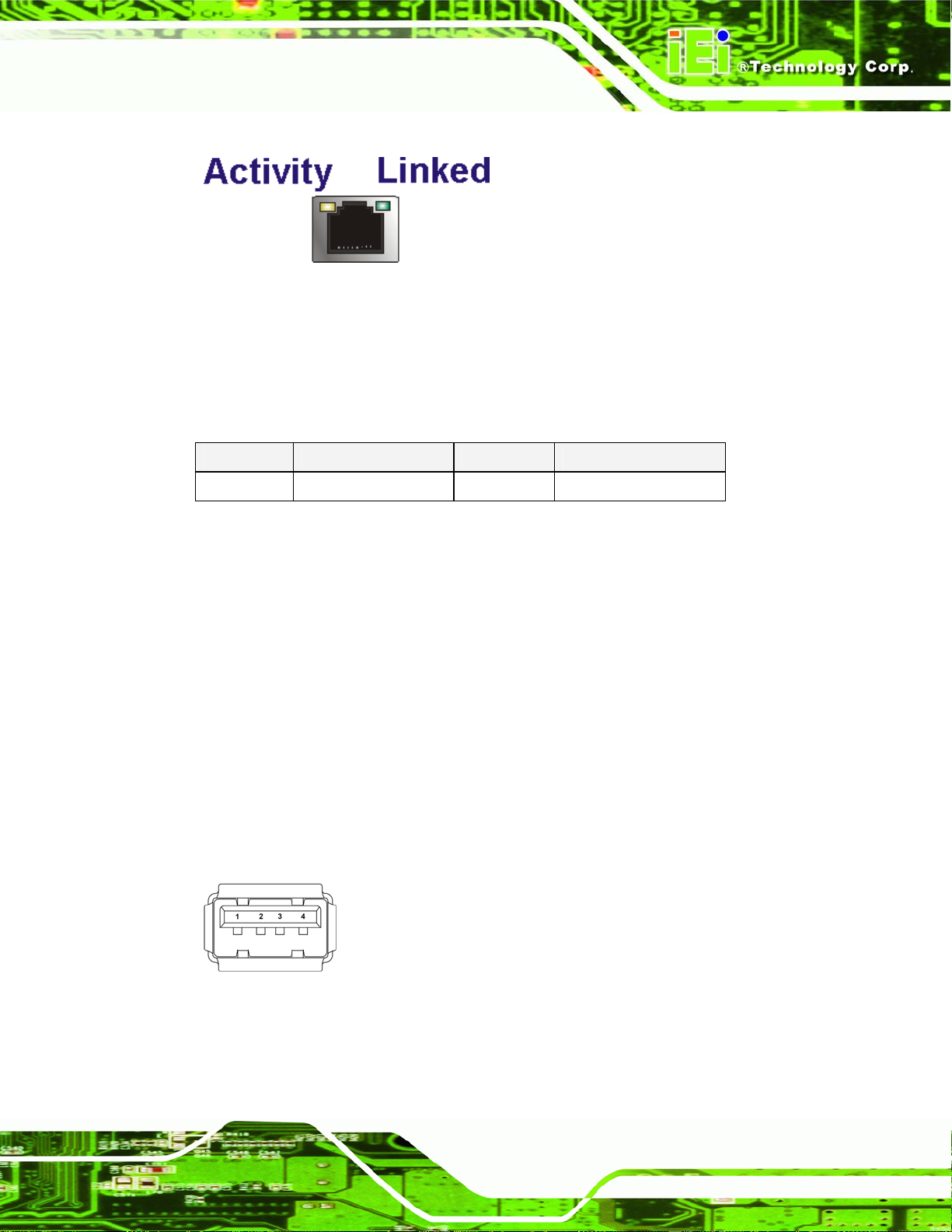

4.3.4 LAN Connectors............................................................................................... 72
4.3.5 USB Connectors............................................................................................... 73

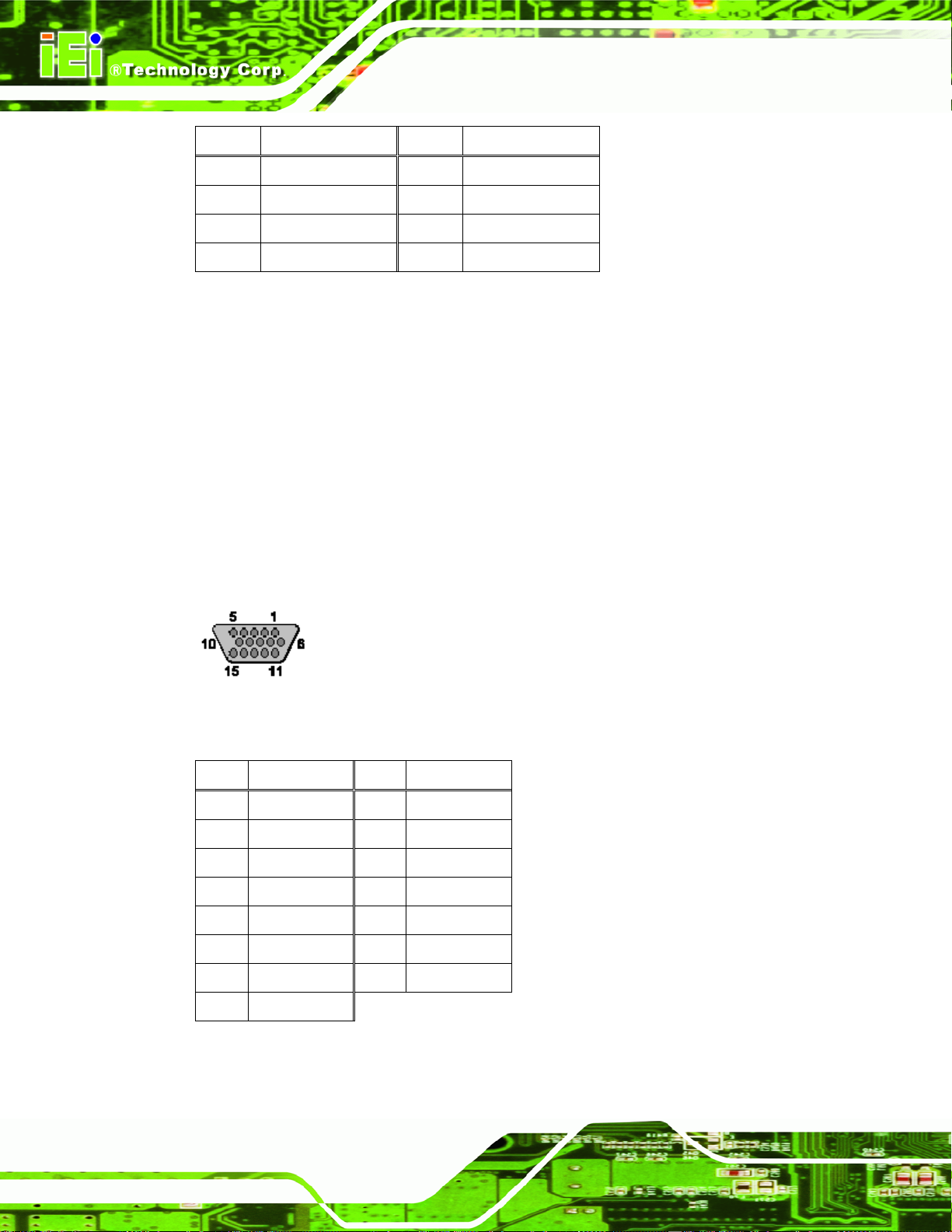

4.3.6 VGA Connector................................................................................................ 74

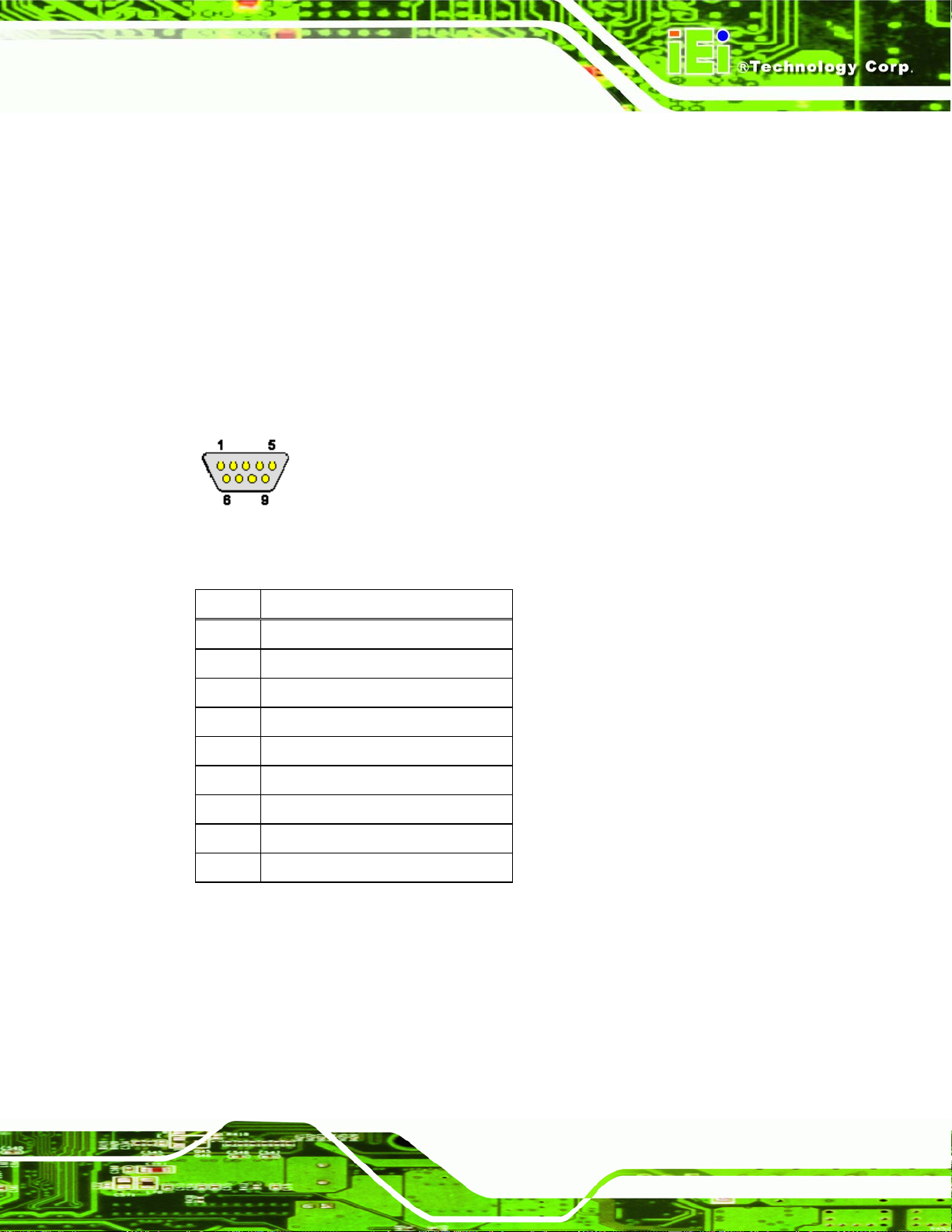

4.3.7 Serial Communications Connector.................................................................. 75
5 INSTALLATION .................................................................................................... 77
5.1 ANTI-STATIC PRECAUTIONS...................................................................................... 78
5.2 INSTALLATION CONSIDERATIONS ............................................................................. 79
5.2.1 Installation Notices.......................................................................................... 79
Page ix
Page 10
5.2.2 Installation Checklist....................................................................................... 80
5.3 UNPACKING.............................................................................................................. 81
5.3.1 Unpacking Precautions.................................................................................... 81
5.4 CPU, CPU COOLING KIT AND DIMM INSTALLATION ............................................. 82
5.4.1 LGA775 CPU Installation................................................................................ 82
5.4.2 LGA775 Cooling Kit Installation..................................................................... 86

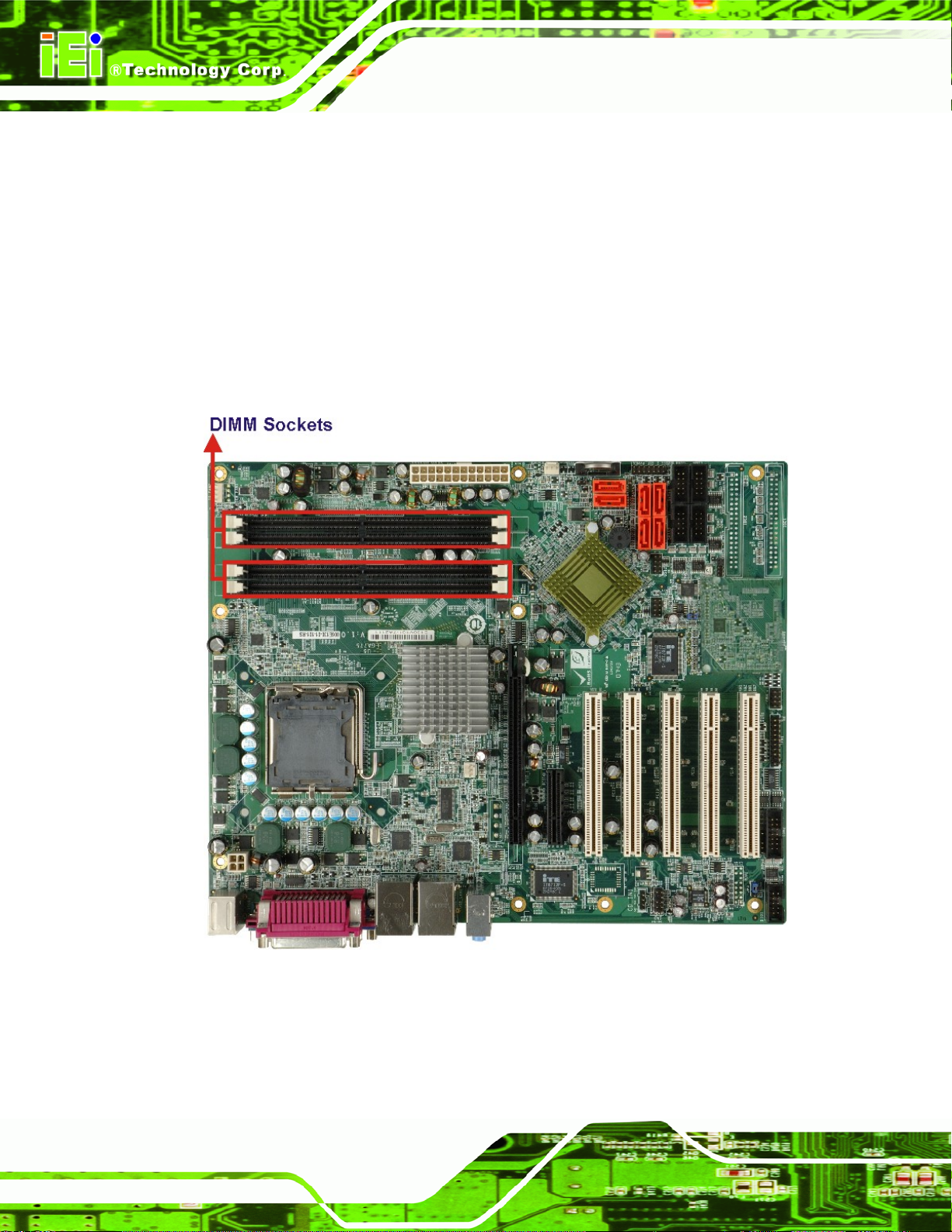

5.4.3 DIMM Installation........................................................................................... 88
5.5 JUMPER SETTINGS.................................................................................................... 90
5.5.1 Clear CMOS Jumper........................................................................................ 91
5.5.2 RS-232/RS-422/485 Serial Port Select Jumper................................................ 92
5.5.3 COM 3/4 Pin 9 Setting Jumper........................................................................ 93
5.6 CHASSIS INSTALLATION ........................................................................................... 94
5.6.1 Airflow.............................................................................................................. 94
5.7 INTERNAL PERIPHERAL DEVICE CONNECTIONS........................................................ 95
IMBA-9654 ATX Motherboard
5.7.1 Peripheral Device Cables................................................................................ 95
5.7.2 Dual RS-232 Cable with Slot Bracket.............................................................. 96
5.7.3 Single RS-232 Cable with Slot Bracket............................................................ 97
5.7.4 Dual RS-232/422/485 Cables .......................................................................... 98
5.7.5 SATA Drive Connection ................................................................................... 99
5.7.6 USB Cable (Dual Port).................................................................................. 100
5.7.7 USB Cable (Four Port) (Optional)................................................................ 101
5.8 EXTERNAL PERIPHERAL INTERFACE CONNECTION................................................. 102
5.8.1 Audio Connection........................................................................................... 103
5.8.2 LAN Connection............................................................................................. 104
5.8.3 Parallel Device Connection........................................................................... 104
5.8.4 PS/2 Keyboard and Mouse Connection......................................................... 105
5.8.5 Serial Device Connection .............................................................................. 106
5.8.6 USB Connection (Dual Connector)............................................................... 107
5.8.7 VGA Monitor Connection .............................................................................. 108
6 BIOS SCREENS.....................................................................................................111
6.1 INTRODUCTION .......................................................................................................112
6.1.1 Starting Setup..................................................................................................112
6.1.2 Using Setup.....................................................................................................112
6.1.3 Getting Help....................................................................................................113
Page x
Page 11
IMBA-9654 A TX Motherboard
6.1.4 Unable to Reboot After Configuration Changes.............................................113
6.1.5 BIOS Menu Bar...............................................................................................113
6.2 MAIN ......................................................................................................................114
6.3 ADVANCED..............................................................................................................115
6.3.1 CPU Configuration.........................................................................................116
6.3.2 IDE Configuration..........................................................................................117
6.3.2.1 IDE Master, IDE Slave............................................................................119
6.3.3 Super IO Configuration.................................................................................. 125
6.3.4 Hardware Health Configuration.................................................................... 131
6.3.5 ACPI Configuration ....................................................................................... 135
6.3.6 AHCI Configuration....................................................................................... 136
6.3.7 APM Configuration........................................................................................ 137
6.3.8 Remote Access Configuration........................................................................ 139
6.3.9 T rusted Computing......................................................................................... 143
6.3.10 USB Configuration....................................................................................... 145
6.3.10.1 USB Mass Storage Device Configuration............................................. 146
6.4 PCI/PNP ................................................................................................................ 149
6.5 BOOT ..................................................................................................................... 152
6.5.1 Boot Settings Configuration........................................................................... 152
6.6 SECURITY............................................................................................................... 155
6.7 CHIPSET ................................................................................................................. 156
6.7.1 NorthBridge Configuration............................................................................ 157
6.7.2 SouthBridge Configuration............................................................................ 159
6.8 EXIT....................................................................................................................... 161
7 DRIVER INSTALLATION.................................................................................. 163
7.1 AVAILABLE SOFTWARE DRIVERS............................................................................ 164
7.2 DRIVER CD AUTO-RUN.......................................................................................... 164
7.3 CHIPSET DRIVER INSTALLATION............................................................................. 166
7.4 INTEL GRAPHICS MEDIA ACCELERATOR DRIVER INSTALLATION............................ 168
7.5 BROADCOM LAN DRIVER (FOR GBE LAN) INSTALLATION .................................. 172
7.6 REALTEK HD AUDIO DRIVER (ALC883) INSTALLATION ....................................... 177
7.6.1 BIOS Setup..................................................................................................... 177
7.6.2 Driver Installation ......................................................................................... 177
7.7 SATA RAID DRIVER INSTALLATION ..................................................................... 183
Page xi
Page 12
A BIOS OPTIONS.................................................................................................... 191
B TERMINOLOGY................................................................................................. 195
C DIO INTERFACE................................................................................................. 201
C.1 DIO INTERFACE INTRODUCTION ........................................................................... 202
C.2 DIO CONNECTOR PINOUTS ................................................................................... 202
C.3 ASSEMBLY LANGUAGE SAMPLES........................................................................... 202
C.3.1 Enable the DIO Input Function..................................................................... 202
C.3.2 Enable the DIO Output Function.................................................................. 203
D WATCHDOG TIMER.......................................................................................... 205
E ADDRESS MAPPING.......................................................................................... 209
E.1 ADDRESS MAP....................................................................................................... 210
E.2 1ST MB MEMORY ADDRESS MAP .......................................................................... 210
IMBA-9654 ATX Motherboard
E.3 IRQ MAPPING TABLE .............................................................................................211
E.4 DMA CHANNEL ASSIGNMENTS..............................................................................211
F COMPATIBILITY................................................................................................ 213
F.1 COMPATIBLE OPERATING SYSTEMS........................................................................ 214
F.2 COMPATIBLE PROCESSORS ..................................................................................... 214
F.3 COMPATIBLE MEMORY MODULES .......................................................................... 215
G INTEL® MATRIX STORAGE MANAGER..................................................... 217
G.1 INTRODUCTION ...................................................................................................... 218
G.1.1 Precautions.................................................................................................... 218
G.2 FEA TURES AND BENEFITS ...................................................................................... 219
G.3 ACCESSING THE INTEL® MATRIX STORAGE MANAGER......................................... 219
G.4 RAID CONFIGURATION ......................................................................................... 220
G.4.1 Creating a RAID Volume............................................................................... 220
G.4.2 Deleting a RAID Volume................................................................................ 225
G.4.3 Resetting a Disk to Non-RAID....................................................................... 227
G.4.4 Exiting the Matrix Storage Manager............................................................. 230
Page xii
Page 13
IMBA-9654 A TX Motherboard
H HAZARDOUS MATERIALS DISCLOSURE................................................... 231
H.1 HAZARDOUS MATERIAL DISCLOSURE TABLE FOR IPB PRODUCTS CERTIFIED AS
ROHS COMPLIANT UNDER 2002/95/EC WITHOUT MERCURY..................................... 232
I INDEX.................................................................................................................... 235
Page xiii
Page 14
IMBA-9654 ATX Motherboard
List of Figures
Figure 1-1: IMBA-9654 Motherboard ...........................................................................2
Figure 1-2: IMBA-9654 Overview [Front View]............................................................4
Figure 2-1: IMBA-9654 Dimensions (mm).................................................................10
Figure 2-2: External Interface Panel Dimensions (mm)...........................................11
Figure 2-3: Data Flow Block Diagram........................................................................12
Figure 2-4: 240-pin DIMM Sockets.............................................................................16
Figure 2-5: PCIe x16 Expansion Slot.........................................................................18
Figure 2-6: DMI Interface ............................................................................................20
Figure 2-7: SPI BIOS Chipset.....................................................................................22
Figure 2-8: Audio Connectors....................................................................................23
Figure 2-9: PCI Expansion Slots................................................................................24
Figure 2-10: SATA Connectors...................................................................................26
Figure 2-11: USB Connector ......................................................................................27
Figure 2-12: PCIe x4 Expansion Slot.........................................................................28
Figure 2-13: Broadcom PCI GbE Controllers ...........................................................29
Figure 2-14: LPC Bus Components...........................................................................30
Figure 4-1: Connector and Jumper Locations .........................................................42
Figure 4-2: ATX Power Connector Location .............................................................45
Figure 4-3: ATX Power Connector Pinout Locations...............................................46
Figure 4-4: Audio CD In Connector Pinouts (4-pin).................................................47
Figure 4-5: Audio Connector Location (10-pin)........................................................48
Figure 4-6: DIO Connector Connector Locations ....................................................49
Figure 4-7: +12V Fan Connector Location................................................................50
Figure 4-8: +12V Fan Connector Location................................................................52
Page xiv
Figure 4-9: Front Panel Connector Pinout Locations (14-pin)................................53
Figure 4-10: Infrared Connector Pinout Locations..................................................54
Figure 4-11: PCI Slot Location...................................................................................55
Figure 4-12: PCIe x4 Connector Locations...............................................................58
Page 15
IMBA-9654 A TX Motherboard
Figure 4-13: PCIe x16 Connector Location...............................................................60
Figure 4-14: SATA Drive Connector Locations.........................................................62
Figure 4-15: RS-232 COM Connector Pinout Locations..........................................63
Figure 4-16: RS-232/422/485 Serial Port Connector Location ................................64
Figure 4-17: SPDIF Connector Pinout Locations.....................................................65
Figure 4-18: SPI Flash Connector Pinout Locations...............................................66
Figure 4-19: TPM Connector Pinout Locations........................................................67
Figure 4-20: USB Connector Pinout Locations........................................................68
Figure 4-21: IMBA-9654 External Interface Connectors..........................................69
Figure 4-22: PS/2 Pinouts...........................................................................................70
Figure 4-23: Parallel Port Connector Pinout Locations ..........................................71
Figure 4-24: Audio Connector....................................................................................72
Figure 4-25: RJ-45 Ethernet Connector ....................................................................73
Figure 4-26: USB Connector Pinout Locations........................................................73
Figure 4-27: VGA Connector......................................................................................74
Figure 4-28: Serial Communications Connector Pinout Locations .......................75
Figure 5-1: Intel LGA775 Socket................................................................................83
Figure 5-2: Remove the CPU Socket Protective Shield...........................................84
Figure 5-3: Open the CPU Socket Load Plate...........................................................84
Figure 5-4: Insert the Socket LGA775 CPU...............................................................85
Figure 5-5: IEI CF-520 Cooling Kit.............................................................................86
Figure 5-6: IEI CF-775A-RS Cooling Kit ....................................................................86
Figure 5-7: Securing the Heat sink to the PCB Board.............................................88
Figure 5-8: Installing a DIMM......................................................................................89
Figure 5-9: Clear CMOS Jumper................................................................................92
Figure 5-10: Serial Port Mode Select Jumper Pinout Locations ............................93
Figure 5-11: COM 3/4 Pin 9 Setting Jumper Location..............................................94
Figure 5-12: Dual RS-232 Cable Installation.............................................................96
Figure 5-13: Single RS-232 Cable Installation..........................................................97
Figure 5-14: Dual Serial Port Connector Cable Connection...................................98
Figure 5-15: SATA Drive Cable Connection..............................................................99
Figure 5-16: SATA Power Drive Connection.......................................................... 100
Page xv
Page 16
Figure 5-17: Dual USB Cable Connection.............................................................. 101
Figure 5-18: Four Port USB Cable Connection..................................................... 102
Figure 5-19: Audio Connectors............................................................................... 103
Figure 5-20: LAN Connection.................................................................................. 104
Figure 5-21: Parallel Device Connector ................................................................. 105
Figure 5-22: PS/2 Keyboard/Mouse Connector..................................................... 106
Figure 5-23: Serial Device Connector .................................................................... 107
Figure 5-24: USB Connector ................................................................................... 108
Figure 5-25: VGA Connector................................................................................... 109
Figure 7-1: Introduction Screen.............................................................................. 165
Figure 7-2: Available Drivers................................................................................... 165
Figure 7-3: Chipset Driver Installation Program ................................................... 166
Figure 7-4: Chipset Driver Installation Welcome Screen ..................................... 166
IMBA-9654 ATX Motherboard
Figure 7-5: Chipset Driver Installation License Agreement................................. 167
Figure 7-6: Chipset Driver Readme File Information............................................ 167
Figure 7-7: Chipset Driver Installation Complete.................................................. 168
Figure 7-8: Select the Operating System............................................................... 169
Figure 7-9: VGA Driver............................................................................................. 169
Figure 7-10: Intel® Graphics Media Accelerator InstallShield Wizard................ 170
Figure 7-11: InstallShield Wizard Extracting Files................................................ 170
Figure 7-12: Intel® Graphics Media Accelerator Driver Welcome Screen.......... 171
Figure 7-13: Intel® Graphics Media Accelerator Driver License Agreement ..... 171
Figure 7-14: Intel® Graphics Media Accelerator Driver Installing Notice........... 172
Figure 7-15: Intel® Graphics Media Accelerator Installation Complete.............. 172
Figure 7-16: Windows Control Panel...................................................................... 173
Figure 7-17: System Icon......................................................................................... 174
Figure 7-18: Device Manager Tab ........................................................................... 174
Figure 7-19: Device Manager List........................................................................... 175
Page xvi
Figure 7-20: Search for Suitable Driver.................................................................. 176
Figure 7-21: Locate Driver Files.............................................................................. 176
Figure 7-22: Location Browsing Window............................................................... 177
Figure 7-23: Select the Audio CODEC.................................................................... 178
Page 17
IMBA-9654 A TX Motherboard
Figure 7-24: Select the OS....................................................................................... 179
Figure 7-25: Select the OS Version......................................................................... 179
Figure 7-26: Locate the Setup Program Icon......................................................... 180
Figure 7-27: The InstallShield Wizard Starts ......................................................... 180
Figure 7-28: Preparing Setup Screen..................................................................... 181
Figure 7-29: InstallShield Wizard Welcome Screen.............................................. 181
Figure 7-30: Audio Driver Software Configuration ............................................... 182
Figure 7-31: Installation Wizard Updates the System........................................... 182
Figure 7-32: Restart the Computer......................................................................... 183
Figure 7-33: SATA RAID Driver Installation Program............................................ 184
Figure 7-34: SATA RAID Setup Program Icon........................................................ 185
Figure 7-35: InstallShield Wizard Setup Screen.................................................... 185
Figure 7-36: Matrix Storage Manager Setup Screen............................................. 186
Figure 7-37: Matrix Storage Manager Welcome Screen....................................... 186
Figure 7-38: Matrix Storage Manager Warning Screen......................................... 187
Figure 7-39: Matrix Storage Manager License Agreement................................... 187
Figure 7-40: Matrix Storage Manager Readme File............................................... 188
Figure 7-41: Matrix Storage Manager Setup Complete ........................................ 188
Page xvii
Page 18
IMBA-9654 ATX Motherboard
List of Tables
Table 1-1: Technical Specifications.............................................................................7
Table 2-1: Power Consumption..................................................................................34
Table 3-1: Package List Contents..............................................................................38
Table 3-2: Package List Contents..............................................................................40
Table 4-1: Peripheral Interface Connectors..............................................................44
Table 4-2: Rear Panel Connectors.............................................................................44
Table 4-3: ATX Power Connector Pinouts.................................................................45
Table 4-4: ATX Power Connector Pinouts.................................................................47
Table 4-5: Audio CD In Connector Pinouts...............................................................48
Table 4-6: Audio Connector Pinouts..........................................................................49
Table 4-7: DIO Connector Connector Pinouts..........................................................50
Table 4-8: +12V Fan Connector Pinouts....................................................................51
Table 4-9: +12V Fan Connector Pinouts....................................................................52
Table 4-10: Front Panel Connector Pinouts (14-pin)................................................53
Table 4-11: Infrared Connector Pinouts....................................................................54
Table 4-12: PCI Slot.....................................................................................................57
Table 4-13: PCIe x4 Pinouts........................................................................................59
Table 4-14: PCIe x16 Side A Pinouts..........................................................................61
Table 4-15: PCIe x16 Side B Pinouts .........................................................................61
Table 4-16: SATA Drive Connector Pinouts ..............................................................62
Table 4-17: RS-232 COM Connector Pinouts............................................................63
Table 4-18: RS-232/RS-485 Serial Port Connector Pinouts.....................................64
Table 4-19: SPDIF Connector Pinouts.......................................................................65
Table 4-20: SPI Flash Connector Pinouts .................................................................66
Page xviii
Table 4-21: TPM Connector Pinouts..........................................................................67
Table 4-22: USB Port Connector Pinouts..................................................................68
Table 4-23: PS/2 Connector Pinouts..........................................................................70
Table 4-24: Parallel Pinouts........................................................................................71
Page 19
IMBA-9654 A TX Motherboard
Table 4-25: LAN Pinouts .............................................................................................72
Table 4-26: RJ-45 Ethernet Connector LEDs............................................................73
Table 4-27: USB Connector Pinouts..........................................................................74
Table 4-28: VGA Connector Pinouts..........................................................................74
Table 4-29: COM1 RS-232 Mode Connector Pinouts ...............................................75
Table 5-1: Jumpers......................................................................................................90
Table 5-2: Clear CMOS Jumper Settings...................................................................91
Table 5-3: Serial Port Mode Select Jumper Settings ...............................................92
Table 5-4: COM 3/4 Pin 9 Setting Jumper Settings..................................................94
Table 5-5: IEI Provided Cables...................................................................................95
Table 6-1: BIOS Navigation Keys.............................................................................113
Page xix
Page 20
BIOS Menus
Menu 1: Main..............................................................................................................114
Menu 2: Advanced.....................................................................................................116
Menu 3: CPU Configuration......................................................................................117
Menu 4: IDE Configuration.......................................................................................118
Menu 5: IDE Master and IDE Slave Configuration ................................................ 120
Menu 6: Super IO Configuration............................................................................. 125
Menu 7: Hardware Health Configuration................................................................ 131
Menu 8: ACPI Configuration.................................................................................... 135
Menu 9: AHCI Configuration ................................................................................... 136
IMBA-9654 ATX Motherboard
Menu 10:Advanced Power Management Configuration....................................... 137
Menu 11: Remote Access Configuration [Advanced]........................................... 140
Menu 12: Trusted Computing.................................................................................. 144
Menu 13: USB Configuration .................................................................................. 145
Menu 14: USB Mass Storage Device Configuration.............................................. 147
Menu 15: PCI/PnP Configuration............................................................................ 150
Menu 16: Boot........................................................................................................... 152
Menu 17: Boot Settings Configuration................................................................... 153
Menu 18: Security..................................................................................................... 155
Menu 19: Chipset...................................................................................................... 157
Menu 20:NorthBridge Chipset Configuration........................................................ 158
Menu 21:SouthBridge Chipset Configuration....................................................... 160
Menu 22:Exit............................................................................................................. 161
Page xx
Page 21
IMBA-9654 A TX Motherboard
1 Introduction
Chapter
1
Page 1
Page 22
1.1 Overview
IMBA-9654 ATX Motherboard
Figure 1-1: IMBA-9654 Motherboard
The IMBA-9654 ATX form factor motherboard is a LGA775 Intel® Core™2 Quad, Core™2
Duo, Pentium® D, Pentium® 4 or Celeron® D platform with a 533 MHz, 800 MHz or
1066 MHz front side bus (FSB). Up to 8.0 GB of DDR2 SDRAM and up to six SATA II hard
disk drives (HDD) are supported. High-performance PCI Express (PCIe) Gigabit Ethernet
(GbE) connectivity is integrated into the system. One PCIe x16, one PCIe x4, five PCI
slots and eight USB 2.0 connectors (four external and four internal) provide flexible
expansion options. Added system security is provided with Trusted Platform Module (TPM
v1.2) support.
1.1.1 IMBA-9654 Features
Some of the IMBA-9654 features are listed below.
Supports LGA775 Intel® CPUs including:
o Intel® Core™2 Quad
Page 2
o Intel® Core™2 Duo
o Intel® Pentium® D
o Intel® Pentium® 4
o Intel® Celeron® D
Page 23
IMBA-9654 A TX Motherboard
Maximum FSB of 1066 MHz
Supports four 240-pin 533 MHz, 667 MHz or 800 MHz 2.0 GB (max.) DDR2
memory modules
Added security with support for TPM v1.2
Expansion slots include:
o One PCIe x16 slot
o One PCIe x4 slot
o Five PCI slots
Six SATA II drives with transfer rates of 3.0Gb/s supported
Eight USB 2.0 devices supported
Dual PCIe GbE Ethernet connectors
PICMG 1.3 form factor
RoHS compliant
Supports ATX power supplies
1.2 IMBA-9654 Overview
1.2.1 IMBA-9654 Overview Photo
The IMBA-9654 has a wide variety of peripheral interface connectors. Figure 1-2 is a
labeled photo of the peripheral interface connectors on the IMBA-9654.
Page 3
Page 24
IMBA-9654 ATX Motherboard
Figure 1-2: IMBA-9654 Overview [Front View]
1.2.2 IMBA-9654 Peripheral Connectors and Jumpers
The IMBA-9654 has the following connectors on-board:
1 x ATX +12V power connector
1 x ATX power connector
1 x Audio connector
1 x CompactFlash® Type II (CF Type II) socket
1 x Digital input/output (DIO) connector
3 x Fan connectors
1 x Front panel connector
Page 4
Page 25
IMBA-9654 A TX Motherboard
1 x Infrared interface connector
5 x PCI expansion slots
1 x PCIe x16 expansion slot
1 x PCIe x4 expansion slots
6 x Serial ATA II (SATA II) drive connectors
5 x Serial port connectors
1 x SPDIF connector
1 x SPI flash connector
1 x TPM connector
2 x USB 2.0 connectors (support four USB devices)
The IMBA-9654 has the following external peripheral interface connectors on the board
rear panel
3 x Audio jacks
2 x Ethernet connectors
1 x Parallel port connector
2 x PS/2 connectors
1 x Serial port connector
4 x USB 2.0 port connectors
1 x VGA connector
The IMBA-9654 has the following on-board jumpers:
Clear CMOS
CF card setting
Select RS-232/422/485 for COM2
COM3/COM4 Pin 8 Select
Page 5
Page 26
1.2.3 Technical Specifications
IMBA-9654 technical specifications are listed in Table 1-1. See Chapter 2 for details.
Specification IMBA-9654
IMBA-9654 ATX Motherboard
Form Factor
System CPU
Front Side Bus
System Chipset
Memory
ATX
LGA775 Intel® Core™ 2 Quad
LGA775 Intel® Core™ 2 Duo
LGA775 Intel® Pentium® D
LGA775 Intel® Pentium® 4
LGA775 Intel® Celeron® D
533 MHz, 800 MHz or 1066 MHz
Northbridge: Intel® Q965
Southbridge: Intel® ICH8DO
Four dual channel 240-pin DDR2 DIMM sockets support
four 533 MHz, 667 MHz or 800 MHz 2.0 GB (max.) DIMM. A
maximum of 8.0 GB DDR2 is supported.
Page 6
Display
BIOS
Audio
TPM
Expansion Options
Infrared (IrDA)
VGA integrated into the Intel® Q965
AMI Flash BIOS
7.1 channel HD audio kit with Realtek ALC883 and dual
audio streams supported
One 20-pin connector TPM v1.2 module
One PCIe x16 slot
One PCIe x4 slots
Five PCI slots
One IrDA by pin header
Page 27
IMBA-9654 A TX Motherboard
LAN
Dual Broadcom BCM5787M PCIe GbE chipsets with ASF
2.0 support
SuperIO
SSD
Digital I/O
COM
USB 2.0
IDE
SATA
Keyboard/mouse
Parallel Port
ITE IT8712F
CF Type II
8-bit digital I/O, 4-bit input/4-bit output
Five RS-232 serial ports (four internal, one external)
One RS-232, RS-422 or RS-485 serial port (internal)
Eight USB 2.0 devices supported
Two 40-pin IDE connector connects to two Ultra
ATA33/66/100 devices
Six 3.0 Gbps SAT A II drives supported
Two PS/2 connectors for keyboard and mouse
One external parallel port connects to parallel
communications device (e.g. printer)
Watchdog Timer
Power Supply
Power Consumption
Temperature
Humidity (operating)
Dimensions (LxW)
Weight (GW/NW)
Table 1-1: Technical Specifications
Software programmable 1-255 sec. by super I/O
ATX power only
5 V @ 4.62 A, 12 V @ 9.71 A and 3.3 V @ 5.74z A
(Intel® Pentium® 4 3.73GHz, 1066MHz FSB CPU and 1GB
667MHz DDR2)
0ºC – 60ºC (32ºF - 140ºF)
5%~95% non-condensing
304.80 mm x 243.84 mm
1350g/750g
Page 7
Page 28
IMBA-9654 ATX Motherboard
THIS PAGE IS INTENTIONALLY LEFT BLANK
Page 8
Page 29
IMBA-9654 A TX Motherboard
Chapter
2
2 Detailed Specifications
Page 9
Page 30
2.1 Dimensions
2.1.1 Board Dimensions
The dimensions of the board are listed below:
Length: 304.80mm
Width: 243.84mm
IMBA-9654 ATX Motherboard
Figure 2-1: IMBA-9654 Dimensions (mm)
2.1.2 External Interface Panel Dimensions
External peripheral interface connector panel dimensions are shown in Figure 2-2.
Page 10
Page 31
IMBA-9654 A TX Motherboard
Figure 2-2: External Interface Panel Dimensions (mm)
2.2 Data Flow
Figure 2-3 shows the data flow between the two on-board chip set s and other component s
installed on the motherboard and described in the followin g sections of this chapter.
Page 11
Page 32
IMBA-9654 ATX Motherboard
Figure 2-3: Data Flow Block Diagram
Page 12
Page 33
IMBA-9654 A TX Motherboard
2.3 Compatible Processors
The IMBA-9654 supports the following LGA775 proce ssors:
Intel® Core™2 Quad
Intel® Core™2 Duo
Intel® Pentium® D
Intel® Pentium® 4
Intel® Celeron® D
All of the above processors are interfaced with an Intel® Q965 northbridge chipset through
the front side bus (FSB). Features of the supported processors are listed in sections
below.
2.3.1 Intel® Core™2 Quad Features
Intel® Core™2 Quad features include:
Four processing cores
Up to 8MB of shared L2 cache
Up to 1066 MHz FSB
Intel® Wide Dynamic Execution
Intel® Intelligent Power Capability
Intel® Smart Memory Access
Intel® Advanced Smart Cache
Intel® Advanced Digital Media Boost
2.3.2 Intel® Core™2 Duo Features
Intel® Core™2 Duo features include:
Two processing cores
Up to 8MB of shared L2 cache
Up to 1066 MHz FSB
Intel® Wide Dynamic Execution
Intel® Intelligent Power Capability Intel® Smart Memory Access
Page 13
Page 34
Intel® Advanced Smart Cache
Intel® Advanced Digital Media Boost
2.3.3 Intel® Pentium® 4 Features
Intel® Pentium® 4 features include:
Hyper-Threading Technology
Enhanced Intel SpeedStep® Technology
Intel® Extended Memory 64 Technology
Execute Disable Bit
2.3.4 Intel® Pentium® D Features
Intel® Pentium® D features include:
IMBA-9654 ATX Motherboard
Dual core processing improves performance and multimedia management
Intel® Visualization Technology
Dual 2MB level 2 cache
800MHz FSB
Execute Disable Bit
Intel® Extended Memory 64 Technology
Enhanced Intel SpeedStep® Technology
Streaming SIMD solutions
2.3.5 Intel® Celeron® D Features
Intel® Celeron® D features include:
Intel® Extended Memory 64 Technology
512KB Level 2 cache
533MHz FSB
Execute Disable Bit
Streaming SIMD solutions
Page 14
Page 35
IMBA-9654 A TX Motherboard
2.4 Intel® Q965 Northbridge Chipset
2.4.1 Intel® Q965 Overview
The Intel® Q965 (G)MCH supports LGA775 processors. The (G)MCH supports a FSB
frequency of 533 MHz, 800 MHz or 1066 MHz. Some of the features of the Intel® Q965
(G)MCH Include:
Support for the following processors.
o Intel® Core™2 Quad
o Intel® Core™2 Duo
o Intel® Pentium® D
o Intel® Pentium® 4
o Intel® Celeron® D
Supports Hyper-Threading Technology (HT Technology)
Supports FSB Dynamic Bus Inversion (DBI)
Supports 36-bit host bus addressing, allowing the processor to access the
entire
64 GB of the (G)MCH’s memory address space
Has a 12-deep In-Order Queue to support up to twelve outstanding pipelined
address requests on the host bus
Has a 1-deep Defer Queue
Uses GTL+ bus driver with integrated GTL termination resistors
Supports a Cache Line Size of 64 bytes
2.4.2 Intel® Q965 Memory Support
WARNING:
Only DDR2 memory module can be installed on the IMBA-9654. Do not
install DDR memory modules. If a DDR memory module is installed on
the IMBA-9654, the IMBA-9654 may be irreparably damaged.
The Intel® Q965 supports up to four 2GB DDR2 DIMMs with the followin g specifications:
Page 15
Page 36
Only un-buffered DIMMs supported
DDR2 only
Maximum supported bandwidth (assuming DDR2 800 MHz):
IMBA-9654 ATX Motherboard
o Single-channel: 6.4 GB/s
o Dual-channel asymmetric mode: 6.4 GB/s
o Dual-channel interleaved mode: 12.8 GB/s
Capacities of 256MB, 512MB, 1GB or 2GB
Transfer speeds of 533MHz, 667MHz or 800MHz
The memory sockets are shown in
Figure 2-4.
Page 16
Figure 2-4: 240-pin DIMM Sockets
Page 37
IMBA-9654 A TX Motherboard
2.4.2.1 Intel® Q965 Analog CRT Support
A DB-15 VGA connector on the external peripheral interface connector panel is interfaced
to the Intel® Q965 graphics engine. The Intel® Q965 internal graphics engine, with an
400MHz integrated 24-bit RAMDAC. Some of the graphics features are listed below.
Analog Display Support
400 MHz Integrated 24-bit RAMDAC
Up to 2048x1536 @ 75 Hz refresh
Hardware Color Cursor Support
DDC2B Compliant Interface
2.4.3 Intel® Q965 PCIe x16
2.4.3.1 PCIe x16 Bus Overview
The Intel® Q965 northbridge has one 16-lane PCIe port that is intended for an external
PCIe graphics card. The PCIe x16 graphics card is installed on the PCIe x16 slot (
2-5) and interfaced to the northbridge directly.
Figure
Page 17
Page 38
IMBA-9654 ATX Motherboard
Figure 2-5: PCIe x16 Expansion Slot
2.4.3.2 PCIe x16 Bus Specifications
The PCIe port is compliant with the PCI Express* Base Specification revision 1.1. The
PCIe x16 port operates at a frequency of 2.5 Gb/s on each lane while employing 8b/10b
encoding; the port supports a maximum theoretical bandwidth of 40 Gb/s in each
direction. Some of the features are listed below.
One, 16-lane PCIe port intended for graphics attach, compatible to the PCI
Express* Base Specification revision 1.1a.
PCI Express frequency of 1.25 GHz resulting in 2.5 Gb/s each direction
Raw bit-rate on the data pins of 2.5 Gb/s results in a real bandwidth per pair of
250 MB/s given the 8b/10b encoding used to transmit data across this
interface
Maximum theoretical realized bandwidth on the interface of 4 GB/s in each
Page 18
Page 39
IMBA-9654 A TX Motherboard
direction simultaneously, for an aggregate of 8 GB/s when x16.
PCI Express* Graphics Extended Configuration Space. The first 256 bytes of
configuration space alias directly to the PCI Compatibility configuration space.
The remaining portion of the fixed 4-KB block of memory-mapped space
above that (starting at 100h) is known as extended configuration space.
PCI Express Enhanced Addressing Mechanism. Accessing the device
configuration pace in a flat memory mapped fashion.
Automatic discovery, negotiation, and training of link out of reset
Supports traditional PCI style traffic (asynchronous snooped, PCI ordering)
Supports traditional AGP style traffic (asynchronous non-snooped, PCI
Express relaxed ordering)
Hierarchical PCI-compliant configuration mechanism for downstream devices
(i.e., normal PCI 2.3 Configuration space as a PCI-to-PCI bridge)
Supports “static” lane numbering reversal. This method of lane reversal is
controlled by a Hardware Reset strap, and reverses both the receivers and
transmitters for all lanes (e.g., TX[15]->TX[0], RX[15]->RX[0]). This method is
transparent to all external devices and is different than lane reversal as
defined in the PCI Express Specification. In particular, link initialization is not
affected by static lane reversal.
2.4.4 Intel® Q965 Direct Media Interface (DMI)
Intel® Q965 northbridge GMCH is connected to the Intel® ICH8DO Southbridge Chipset
through the chip-to-chip Direct Media Interface (DMI). Features of the Intel
listed below:
chip-to-chip connection interface to Intel ICH8
2GB/s (1GB/s in each direction) bus speed
32-bit downstream address
100 MHz reference clock (shared with PCI Express Graphics Attach)
APIC and MSI interrupt messaging support
®
Q965 DMI are
Message Signaled Interrupt (MSI) messages
SMI, SCI and SERR error indication
DMA, floppy drive, and LPC bus master
Page 19
Page 40
IMBA-9654 ATX Motherboard
Figure 2-6: DMI Interface
2.5 Intel® ICH8DO Southbridge Chipset
2.5.1 Intel® ICH8DO Overview
The Intel® ICH8DO southbridge chipset is connected to the Intel® Q965 northbridge
GMCH through the chip-to-chip Direct Media Interface (DMI). Some of the features of the
Intel® ICH8DO are listed below.
Complies with PCI Express Base Sp ecification, Revision 1.1
Complies with PCI Local Bus S pecificati on, Revision 2.3 and su pp orts 33MHz
PCI operations
Supports ACPI Power Management Logic
Contains:
o Enhanced DMA controller
Page 20
Page 41
IMBA-9654 A TX Motherboard
o Interrupt controller
o Timer functions
Integrated SATA host controller with DMA operations and AHCI support
interfaced to six SATA connectors on the IMBA-9654
Supports the eight USB 2.0 devices on the IMBA-9654 with five UHCI
controllers and two EHCI controllers
Integrated 10/100/1000 GbE MAC with System Defense
Complies with System Management Bus (SMBus) Specification, Version 2.0
Supports Intel High Definition Audio
Supports Intel® Matrix Storage Technology
Supports Intel® Active Management Technology (ICH8DO only)
Low Pin Count (LPC) interface
Firmware Hub (FWH) interface support
Serial Peripheral Interface (SPI) support
2.5.2 SPI BIOS Chipset:
A licensed copy of AMI BIOS installed is an onboard SPI (Serial Peripheral Interface)
BIOS chipset. Some of the BIOS features are listed below:
AMI Flash BIOS
SMIBIOS (DMI) compliant
Console redirection function support
PXE (Pre-boot Execution Environment) support
USB booting support
Page 21
Page 42
IMBA-9654 ATX Motherboard
Figure 2-7: SPI BIOS Chipset
2.5.3 Intel® High Definition Audio
The IMBA-9654 onboard audio connector can connect to an optional audio kit. The codec
on the optional audio kit is connected to the ICH8DO controller through the Intel® High
Definition Audio serial link. The DMA engines in the controller move samples of digitally
encoded data between system memory and the audio kit codec.
Page 22
Page 43
IMBA-9654 A TX Motherboard
Figure 2-8: Audio Connectors
2.5.4 Intel® ICH8DO Low Pin Count (LPC) Interface
The ICH8DO LPC interface complies with the LPC 1.1 specifications. The LPC bus from
the ICH8DO is connected to the following components:
BIOS chipset
Super I/O chipset
2.5.5 Intel® ICH8DO PCI Interface
The PCI interface on the ICH8DO is compliant with the PCI Revision 2.3 implementation.
Some of the features of the PCI interface are listed below.
PCI Revision 2.3 compliant
33MHz
Page 23
Page 44
5V tolerant PCI signals (except PME#)
Integrated PCI arbiter supports up to seven PCI bus masters
Five PCI channels are connected to five PCI expansion sockets.
IMBA-9654 ATX Motherboard
Figure 2-9: PCI Expansion Slots
2.5.6 Intel® ICH8DO PCIe Ports
There are six root PCIe ports on the Intel® ICH8DO. Port 5 and port 6 provides PCIe x1
connectivity to two Broadcom PCIe GbE controllers. Port 1 to port 4 are connected to a
PCIe x4 expansion slot.
Page 24
Page 45
IMBA-9654 A TX Motherboard
2.5.7 Intel® ICH8DO Real Time Clock
256 bytes of battery backed RAM is provided by the Motorola MC146818A real time clock
(RTC) integrated into the ICH8DO. The RTC operates on a 3V battery and 32.768KHz
crystal. The RTC keeps track of the time and stores system data even when the system is
turned off.
2.5.8 Intel® ICH8DO SATA Controller
The two integrated SATA controllers on the ICH8DO southbridge support six SATA II
drives on the IMBA-9654 with independent DMA operations. The SATA controller contains
two modes of operation – a legacy mode using I/O space, and an AHCI mode using
memory space. SATA controller specifications are listed below.
Supports independent DMA operation on up to six ports
Supports six SATA drives
Supports 3Gb/s data transfer speeds
Supports Serial A TA 1.0 Specification, Revision 1.0
Page 25
Page 46
IMBA-9654 ATX Motherboard
Figure 2-10: SATA Connectors
2.5.9 Intel® ICH8DO USB Controller
Up to eight high-speed, full-speed or low-speed USB devices are supported by the
ICH8DO on the IMBA-9654. High-speed USB 2.0, with data transfers of up to 480MB/s, is
enabled with the ICH8DO integrated Enhanced Host Controller Interface (EHCI) compliant
host controller. USB full-speed and low-speed signaling is supported by the ICH8DO
integrated Universal Host Controller Interface (UHCI) controllers.
Page 26
Page 47
IMBA-9654 A TX Motherboard
Figure 2-11: USB Connector
2.6 Intel® ICH8DO PCIe Bus Components
2.6.1 PCIe Bus Overview
The IMBA-9654 Intel® ICH8DO southbridge PCIe bus is split into two PCIe x1 channels
and one PCIe x4 channel. The two PCIe x1 channels are each connected to a Broadcom
PCIe GbE controller. The PCIe x4 channel is connected to a PCIe x4 slot.
2.6.2 PCIe x4 Expansion
Four of the PCI express root ports are connected to a single PCIe x4 expansion slot
enabling PCIe x4 cards to be installed on the system.
Page 27
Page 48
IMBA-9654 ATX Motherboard
Figure 2-12: PCIe x4 Expansion Slot
2.6.3 PCIe GbE Ethernet
Two PCIe x1 lanes from the are connected to two Broadcom BCM5787M PCIe GbE
controllers shown in
Figure 2-13 below.
Page 28
Page 49
IMBA-9654 A TX Motherboard
Figure 2-13: Broadcom PCI GbE Controllers
The Broadcom BCM5787M is a 10/100/1000BASE-T Ethernet LAN controller. The
BCM5787M combines a triple-speed IEEE 802.3 compliant Media Access Controller
(MAC) with a triple-speed Ethernet transceiver, a PCIe bus interface, and an on-chip
buffer memory. Some of the BCM5787 controller features are listed below:
Integrated 10/100/1000BASE-T transceiver
Automatic MDI crossover function
PCIe v1.0a
10/100/1000BASE-T full/half-duplex MAC
Wake on LAN support meeting the ACPI requirements
Statistics for SNMP MIB II, Ethernet-like MIB, and Ethernet MIB (802.3z,
clause 30)
Serial EEPROM or serial flash support
Page 29
Page 50
2.7 LPC Bus Components
2.7.1 LPC Bus Overview
The LPC bus is connected to components listed below:
Super I/O chipset
Serial port chipset
IMBA-9654 ATX Motherboard
Figure 2-14: LPC Bus Components
2.7.2 Super I/O chipset
The iTE IT8712F Super I/O chipset is connected to the ICH8DO southbridge through the
LPC bus. The iTE IT8712F is an LPC interface-based Super I/O device that comes with
Page 30
Page 51
IMBA-9654 A TX Motherboard
Environment Controller integration. Some of the features of the iTE IT8712F chipset are
listed below:
PC98/99/2001, ACPI and LANDesk Co mpliant
Enhanced Hardware Monitor
Fan Speed Controller
Single +5V Power Supply
Two 16C550 UARTs for serial port control
One IEEE 1284 Parallel Port
Keyboard Controller
Watchdog T i mer
Serial IRQ Support
Vbat & Vcch Support
Single +5V Power Supply
Some of the Super I/O features are described in more detail below:
2.7.2.1 Super I/O LPC Interface
The LPC interface on the Super I/O complies with the Intel® Low Pin Count Specification
Rev. 1.0. The LPC interface supports both LDRQ# and SERIRQ protocols as well as PCI
PME# interfaces.
2.7.2.2 Super I/O 16C550 UARTs
The onboard Super I/O has two integrated 16C550 UARTs that can support the following:
Two standard serial ports (COM1 and COM2)
IrDa 1.0 and ASKIR protocols
Another two chipsets connected to the LPC bus provided connectivity to another two seri al
port connectors (COM3 and COM4).
Page 31
Page 52
IMBA-9654 ATX Motherboard
2.7.2.3 Super I/O Enhanced Hardware Monitor
The Super I/O Enhanced Hardware Monitor monitors three thermal inputs, VBAT
internally, and eight voltage monitor inputs. These hardware parameters are reported in
the BIOS and can be read from the BIOS Hardware Health Configuration menu.
2.7.2.4 Super I/O Fan Speed Controller
The Super I/O fan speed controller enables the system to monitor the speed of the fan.
One of the pins on the fan connector is reserved for fan speed detection and interfaced to
the fan speed controller on the Super I/O. The fan speed is then reported in the BIOS.
2.7.2.5 Super I/O Keyboard Controller
The Super I/O keyboard controller can execute the 8042 instruction set. Some of the
keyboard controller features are listed below:
The 8042 instruction is compatible with a PS/2 keyboard and PS/2 mouse
Gate A20 and Keyboard reset output
Supports multiple keyboard power on events
Supports mouse double-click and/or mouse move power on events
2.7.3 Serial Port Chipset
The IMBA-9654 has a Fintek F81216DG chipset onboard enables the addition of four
additional UART serial ports (COM3, COM4, COM5 and COM6). UART includes 16-byte
send/receive FIFO. The Fintek serial port chipset is interfaced to the southbridge chipset
through the LPC bus. Some of the features of the Fintek chipset are listed below:
Supports LPC interface
Totally provides 4 UART (16550 asynchronous) ports
o 3 x Pure UART
Page 32
o 1 x UART+IR
One Watch dog timer with WDTOUT# signal
One Frequency input 24/48MHz
Powered by 3Vcc
Page 53
IMBA-9654 A TX Motherboard
2.8 Environmental and Power Specifications
2.8.1 System Monitoring
Three thermal inputs on the IMBA-9654 Super I/O Enhanced Hardware Monitor monitor
the following temperatures:
Temperature sensor 1
Temperature sensor 2
Temperature sensor 3
All three fan speeds are monitored and can be seen in the BIOS as:
FAN1 Speed
FAN2 Speed
FAN3 Speed
Eight voltage inputs on the IMBA-9654 Super I/O Enhanced Hardware Monitor monitor the
following volatages:
Vcore
Vcc
+3.30V
+5.00V
+12.0V
+1.2V
+1.5V
+1.25V
VBAT
The IMBA-9654 Super I/O Enhanced Hardware Monitor also monitors the following
voltages internally:
VBAT
The values for the above environmental parameters are all recorded in the BIOS
Hardware Health Configuration menu.
Page 33
Page 54
IMBA-9654 ATX Motherboard
2.8.2 Operating Temperature and Temperature Control
The maximum and minimum operating temperatures for the IMBA-9654 are listed below.
Minimum Operating Temperature: 0ºC (32°F)
Maximum Operating Temperature: 60°C (140°F)
A cooling fan and heat sink must be installed on the CPU. Thermal paste must be
smeared on the lower side of the heat sink before it is mounted on the CPU. Heat sinks
are also mounted on the northbridge and southbridge chipsets to ensure the operating
temperature of these chips remain low.
2.8.3 Power Consumption
Ta bl e 2 - 1 shows the power consumption parameters for the IMBA-9654 running with a
1066 MHz FSB 3.73 GHz Intel® Pentium® 4 processor with 1 GB of 667 MHz DDR2
memory.
Voltage Current
+3.3 V 5.74 A
+5 V 4.62 A
+12 V 9.71 A
Table 2-1: Power Consumption
Page 34
Page 55
IMBA-9654 A TX Motherboard
Chapter
3
3 Unpacking
Page 35
Page 56
3.1 Anti-static Precautions
WARNING:
Failure to take ESD precautions during the installation of the
IMBA-9654 may result in permanent damage to the IMBA-9654 and
severe injury to the user.
Electrostatic discharge (ESD) can cause serious damage to electronic components,
including the IMBA-9654. Dry climates are especially susceptible to ESD. It is therefore
critical that whenever the IMBA-9654, or any other electrical component is handled, the
following anti-static precautions are strictly adhered to.
IMBA-9654 ATX Motherboard
Wear an anti-static wristband: - Wearing a simple anti-static wristband can
help to prevent ESD from damaging the board.
Self-grounding:- Before handling the board touch any grounded conducting
material. During the time the board is handled, frequently touch any
conducting materials that are connected to the ground.
Use an anti-static pad: When configuring the IMBA-9654, place it on an
antic-static pad. This reduces the possibility of ESD damaging the
IMBA-9654.
Only handle the edges of the PCB:-: When handling the PCB, hold the PCB
by the edges.
3.2 Unpacking
3.2.1 Unpacking Precautions
When the IMBA-9654 is unpacked, please do the following:
Follow the anti-static precautions outlined in Section 3.1.
Page 36
Make sure the packing box is facing upwards so the IMBA-9654 does not fall
out of the box.
Make sure all the components shown in Section 3.3 are present.
Page 57
IMBA-9654 A TX Motherboard
3.3 Unpacking Checklist
NOTE:
If some of the components listed in the checklist below are missing,
please do not proceed with the installation. Contact the IEI reseller or
vendor you purchased the IMBA-9654 from or contact an IEI sales
representative directly. To contact an IEI sales representative, please
send an email to
sales@iei.com.tw.
3.3.1 Package Contents
The IMBA-9654 is shipped with the following components:
Quantity Item and Part Number Image
1 IMBA-9654
2 Dual RS-232 cable
(P/N: 32200-004101-RS)
1 Single RS-232 cable
(P/N: 32200-029400-RS)
1 I/O Shielding
(P/N: 45002-450903-00-RS)
6 SATA cables
(P/N: 32000-062800-RS)
Page 37
Page 58
3 SATA power cables
IMBA-9654 ATX Motherboard
(P/N: 32100-088600-RS)
1 Mini jumper Pack
1 Quick Installation Guide
1 Utility CD
Table 3-1: Package List Contents
Page 38
Page 59
IMBA-9654 A TX Motherboard

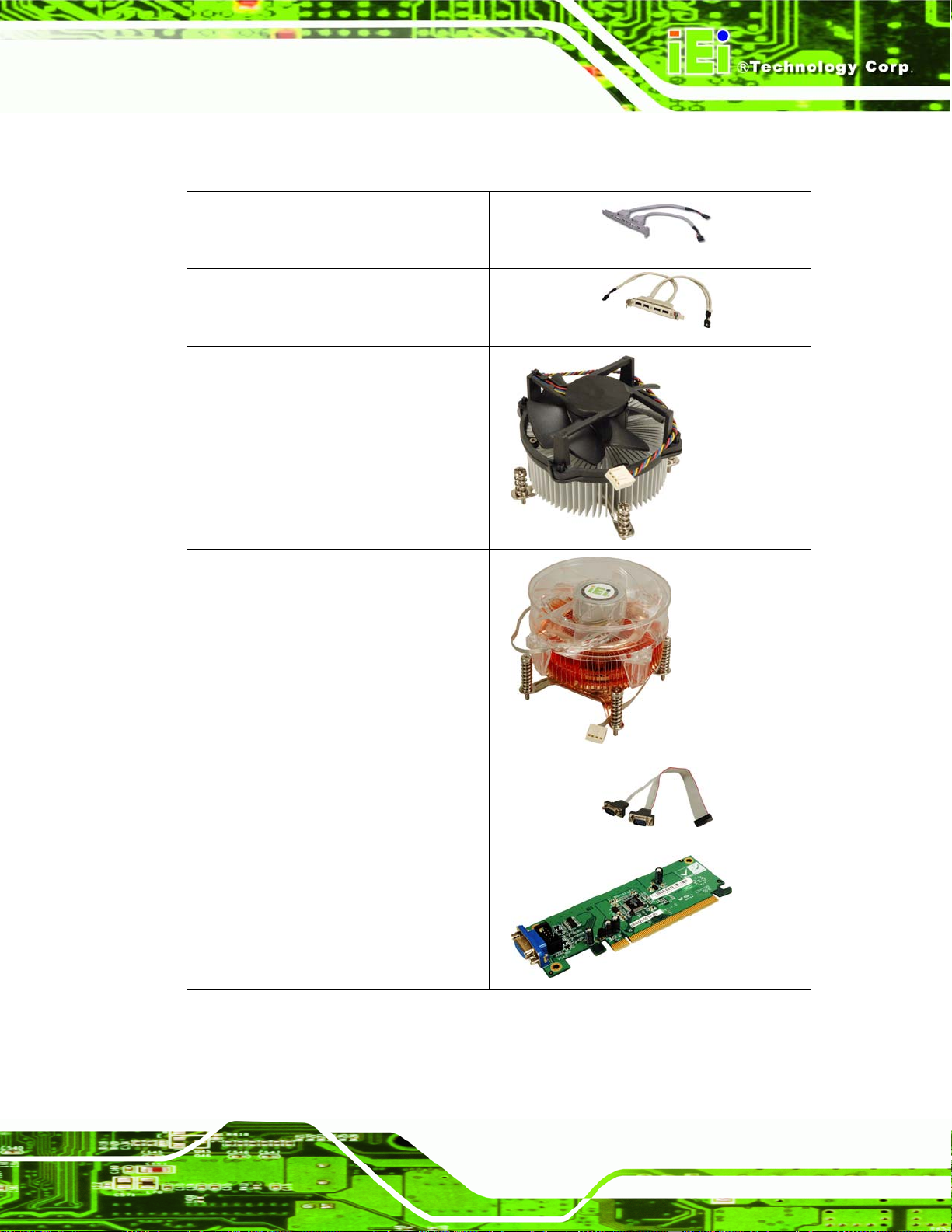

3.4 Optional Items
2-port USB cable (w bracket)
(P/N:CB-USB02-RS)
4-port USB cable
(P/N: CB-USB14-RS)
CPU cooling kit
(P/N: CF-520-RS)
CPU cooling kit
(P/N: CF-775A-RS)
Dual RS-232/422/485 cable
(P/N: 32200-000063-RS)
PCIe x16 VGA output SDVO card with
dual display support
(P/N: SDVO-100VGA-R10)
Page 39
Page 60
PCIe x16 DVI output SDVO card with
dual display support
(P/N: SDVO-100DVI-R10)
IMBA-9654 ATX Motherboard
Infineon TPM module
(P/N: TPM-IN01-R10)
Sinosun TPM module
(P/N: TPM-SI01-R10)
Winbond TPM module
(P/N: TPM-WI01-R10)
Table 3-2: Package List Contents
Page 40
Page 61
IMBA-9654 A TX Motherboard
Chapter
4
4 Connector Pinouts
Page 41
Page 62
4.1 Peripheral Interface Connectors
Section 4.1.2 shows peripheral interface connector locations. Section 4.1.2 lists all the
IMBA-9654 ATX Motherboard
peripheral interface connectors seen in Section
4.1.2.
4.1.1 IMBA-9654 Layout
Figure 4-1 shows the on-board peripheral connectors, rear panel peripheral connectors
and on-board jumpers.
Page 42
Figure 4-1: Connector and Jumper Locations
Page 63
IMBA-9654 A TX Motherboard
4.1.2 Peripheral Interface Connectors
Ta b le 4 -1 shows a list of the peripheral interface connectors on the IMBA-9654. Detailed
descriptions of these connectors can be found below.
Connector Type Label
ATX +12V power connector 4-pin ATX ATX1
ATX power connector 24-pin ATX ATX2
Audio CD In 4-pin header CD_IN1
Audio connector 10-pin header CN3
Cooling fan connector, CPU 4-pin wafer IO_FAN2
Cooling fan connector, system 3-pin wafer IO_FAN1
Cooling fan connector, system 3-pin wafer IO_FAN3
Digital input/output connector 10-pin header DIO1
Front panel connector 14-pin header F_PANEL1
Infrared (IrDA) connector 5-pin header IR1
Serial ATA drive connector 7-pin SATA SATA1
Serial ATA drive connector 7-pin SATA SATA2
Serial ATA drive connector 7-pin SATA SATA3
Serial ATA drive connector 7-pin SATA SATA4
Serial ATA drive connector 7-pin SATA SATA5
Serial ATA drive connector 7-pin SATA SATA6
Serial port connector (COM2) 14-pin header COM2
Serial port connector (COM3) 10-pin header COM3
Serial port connector (COM4) 10-pin header COM4
Page 43
Page 64
Serial port connector (COM5) 10-pin header COM5
Serial port connector (COM6) 10-pin header COM6
SPDIF connector 5-pin header CN1
SPI connector 8-pin header CN4
TPM connector 20-pin header TPM1
USB connectors 8-pin header USB1
USB connectors 8-pin header USB2
Table 4-1: Peripheral Interface Connectors
4.1.3 External Interface Panel Connectors
IMBA-9654 ATX Motherboard
Table 4-2 lists the rear panel connectors on the IMBA-9654. Detailed descriptions of these
connectors can be found in Section
Connector Type Label
Audio connector 3 x audio jacks CN2
Keyboard and mouse connector Dual PS/2 KBMS1
Parallel port connector D-Sub 25-pin female 3IN1 DSUB1
Serial port connector (RS-232) D-Sub 9-pin male 3IN1 DSUB1
Dual USB and LAN Combo Dual USB ports and RJ-45 USB_LAN1
Dual USB and LAN Combo Dual USB ports and RJ-45 USB_LAN2
VGA port connector D-Sub 15-pin female 3IN1 DSUB1
Table 4-2: Rear Panel Connectors
4.3 on page 68
Page 44
Page 65
IMBA-9654 A TX Motherboard
4.2 Internal Peripheral Connectors
Internal peripheral connectors are found on the motherboard and are only accessible
when the motherboard is outside of the chassis. This section has complete descriptions of
all the internal, peripheral connectors on the IMBA-9654.
4.2.1 ATX +12V Power Connector
CN Label:
CN Type:
CN Location: See
CN Pinouts: See
ATX1
4-pin ATX power connector (2x2)
Figure 4-2
Table 4-3
The 4-pin ATX power connector is connected to an ATX power supply.
Figure 4-2: ATX Power Connector Location
PIN NO. DESCRIPTION
1 GND
2 GND
3 +12V
4 +12V
Table 4-3: ATX Power Connector Pinouts
Page 45
Page 66
4.2.2 ATX Power Connector
IMBA-9654 ATX Motherboard
CN Label:
CN Type:
CN Location: See
CN Pinouts: See
ATX2
24-pin A TX (2x12)
Figure 4-3
Table 4-4
The ATX connector is connected to an external ATX power supply. Power is provided to
the system, from the power supply through this connector.
Page 46
Figure 4-3: ATX Power Connector Pinout Locations
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 +3.3V 13 +3.3V
2 +3.3V 14 -12V
3 GROUND 15 GROUND
4 +5V 16 PS-ON
5 GROUND 17 GROUND
6 +5V 18 GROUND
Page 67
IMBA-9654 A TX Motherboard
7 GROUND 19 GROUND
8 POWER GOOD 20 GND
9 5VSB 21 +5V
10 +12V 22 +5V
11 +12V 23 +5V
12 +3.3V 24 GND
Table 4-4: ATX Power Connector Pinouts
4.2.3 Audio CD In Connector (4-pin)
CN Label: CD_IN1
CN Type:
CN Location: See
CN Pinouts: See
The 4-pin audio CD in connector is connected to an external audio CD device for the input
and output of audio signals from a CD player to the system.
10-pin header
Figure 4-4
Table 4-5
Figure 4-4: Audio CD In Connector Pinouts (4-pin)
Page 47
Page 68
PIN NO. DESCRIPTION
1 CD Signal (Left)
2 Ground
3 Ground
4 CD Signal (Right)
Table 4-5: Audio CD In Connector Pinouts
4.2.4 Audio Connector
IMBA-9654 ATX Motherboard
CN Label:
CN Type:
CN Location:
CN Pinouts:
CN3
10-pin header (2x5)
Figure 4-5
See
Table 4-6
See
The 10-pin audio connector is connected to external audio devices including speakers a nd
microphones for the input and output of audio signals to and from the system.
Page 48
Figure 4-5: Audio Connector Location (10-pin)
Page 69
IMBA-9654 A TX Motherboard
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 MIC-L 2 GND
3 MIC-R 4 +5V
5 LINE OUT-R 6 PULL DOWN
7 LINE OUT SENSE 8 KEY
9 LINE OUT-L 10 PULL DOWN
Table 4-6: Audio Connector Pinouts
4.2.5 Digital Input/Output (DIO) Connector
CN Label:
CN Type:
CN Location:
CN Pinouts:
DIO1
10-pin header (2x5)
Figure 4-6
See
Table 4-7
See
The digital input/output connector is managed through a Super I/O chip. The DIO
connector pins are user programmable.
Figure 4-6: DIO Connector Connector Locations
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 Ground 2 VCC
3 Input 0 4 Output 0
Page 49
Page 70
5 Input 1 6 Output 1
7 Input 2 8 Output 2
9 Input 3 10 Output 3
Table 4-7: DIO Connector Connector Pinouts
4.2.6 Fan Connector (+12V) (CPU Cooling Fan)
IMBA-9654 ATX Motherboard
CN Label:
CN Type:
CN Location:
CN Pinouts:
IO_FAN2
4-pin wafer
Figure 4-7
See
Table 4-8
See
The CPU cooling fan connector provides a 12V, 500mA current to a CPU cooling fan. The
connector has a "rotation" pin to get rotation signals from fans and notify the system so the
system BIOS can recognize the fan speed. Please note that only specified fans can issue
the rotation signals.
Page 50
Figure 4-7: +12V Fan Connector Location
Page 71
IMBA-9654 A TX Motherboard
PIN NO. DESCRIPTION
1 GND
2 +12V
3 Rotation Signal
4 Control
Table 4-8: +12V Fan Connector Pinouts
4.2.7 Fan Connector (+12V) (System Cooling Fans)
CN Label: IO_FAN1, IO_FAN3
CN Type:
CN Location: See
CN Pinouts: See
3-pin header
Figure 4-7
Table 4-8
Two system cooling fan connectors provide a 12V, 500mA current to two system cooling
fans. The connectors have a "rotation" pin to get rotation signals from fans and notify the
system so the system BIOS can recognize the fan speed. Please note that only specified
fans can issue the rotation signals.
Page 51
Page 72
IMBA-9654 ATX Motherboard
Figure 4-8: +12V Fan Connector Location
PIN NO. DESCRIPTION
1 GND
2 +12V
3 Fan Speed Detect
Table 4-9: +12V Fan Connector Pinouts
4.2.8 Front Panel Connector (14-pin)
CN Label:
CN Type:
CN Location:
CN Pinouts:
F_PANEL1
14-pin header (2x7)
Figure 4-9
See
Table 4-10
See
Page 52
The front panel connector connects to external switches and indicators to monitor and
controls the motherboard. These indicators and switches include:
Page 73
IMBA-9654 A TX Motherboard
Power LED
Speaker
Power button
Reset
HDD LED
Figure 4-9: Front Panel Connector Pinout Locations (14-pin)
FUNCTION PIN DESCRIPTION FUNCTION PIN DESCRIPTION
Power LED
Button
1 LED+ 2 BUZZER3 N/C 4 N/C
5 GND 6 N/C
7 PWRBTSW9 PWRBTSW+ 10 N/C
11 IDE_LED+ 12 RESET- HDD LED
13 IDE_LED-
Buzzer
Reset
Table 4-10: Front Panel Connector Pinouts (14-pin)
4.2.9 Infrared Interface Connector (5-pin)
CN Label:
IR1
8 VCC Power
14 GND
CN Type:
5-pin header (1x5)
Page 53
Page 74
See
CN Location:
CN Pinouts:
Figure 4-10
Table 4-11
See
IMBA-9654 ATX Motherboard
The infrared interface connector supports both Serial Infrared (SIR) and Amplitude Shift
Key Infrared (ASKIR) interfaces.
Figure 4-10: Infrared Connector Pinout Locations
PIN NO. DESCRIPTION
1 VCC
2 NC
3 IR-RX
4 GND
5 IR-TX
Table 4-11: Infrared Connector Pinouts
4.2.10 PCI Slot
CN Label: PCI1, PCI2, PCI3, PCI4, PCI5
CN Type:
CN Location: See
CN Pinouts: See
PCI Slot
Figure 4-11
Table 4-12
Page 54
The PCI slot enables a PCI expansion module to be connected to the board.
Page 75
IMBA-9654 A TX Motherboard
Figure 4-11: PCI Slot Location
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
A1 TRST B1 -12V
A2 +12V B2 TCK
A3 TMS B3 GND
A4 TDI B4 TDO
A5 +5V B5 +5V
A6 INTA B6 +5V
A7 INTC B7 INTB
A8 +5V B8 INTD
A9 RESERVED3 B9 PRSNT1
Page 55
Page 76
A10 +5V B10 RESERVED1
A11 RESERVED4 B11 PRSNT2
A12 GND B12 GND
A13 GND B13 GND
A14 3.3V_AUX B14 RESERVED2
A15 RST B15 GND
A16 +5V B16 CLK
A17 GNT B17 GND
A18 GND B18 REQ
A19 PME B19 +5V
A20 AD30 B20 AD31
A21 +3.3V B21 AD29
A22 AD28 B22 GND
IMBA-9654 ATX Motherboard
A23 AD26 B23 AD27
A24 GND B24 AD25
A25 AD24 B25 +3.3V
A26 IDSEL B26 C/BE3
A27 +3.3V B27 AD23
A28 AD22 B28 GND
A29 AD20 B29 AD21
A30 GND B30 AD19
A31 AD18 B31 +3.3V
A32 AD16 B32 AD17
A33 +3.3V B33 C/BE2
A34 FRAME B34 GND
A35 GND B35 IRDY
A36 TRDY B36 +3.3V
A37 GND B37 DEVSEL
A38 STOP B38 GND
Page 56
A39 +3.3V B39 LOCK
A40 SDONE B40 PERR
A41 SBO B41 +3.3V
Page 77
IMBA-9654 A TX Motherboard
A42 GND B42 SERR
A43 PAR B43 +3.3V
A44 AD15 B44 C/BE1
A45 +3.3V B45 AD14
A46 AD13 B46 GND
A47 AD11 B47 AD12
A48 GND B48 AD10
A49 AD9 B49 GND
A52 C/BE0 B52 AD8
A53 +3.3V B53 AD7
A54 AD6 B54 +3.3V
A55 AD4 B55 AD5
A56 GND B56 AD3
A57 AD2 B57 GND
A68 AD0 B68 AD1
A59 +5V B59 +5V
A60 REQ64 B60 ACK64
A61 +5V B61 +5V
A62 +5V
B62 +5V
Table 4-12: PCI Slot
4.2.11 PCI Express x4 Slot
CN Label: PCIE4X_1
CN Type:
CN Location:
CN Pinouts:
64-pin PCIe x4 slots
Figure 4-12
See
Table 4-13
See
PCIe x4 expansion devices can be inserted into the PCIe x4 slots.
Page 57
Page 78
IMBA-9654 ATX Motherboard
Figure 4-12: PCIe x4 Connector Locations
SIDE A SIDE B
PIN NAME PIN NAME PIN NAME PIN NAME
A1 N/C A2 +12V B1 +12V B2 +12V
A3 +12V A4 GND B3 +12V B4 GND
A5 N/C A6 N/C B5 SMCLK B6 SMDAT
A7 N/C A8 N/C B7 GND B8 +3.3V
A9 +3.3V A10 +3.3V B9 N/C B10 3.3V
A11 RESET A12 GND B11 WAKE# B12 N/C
A13 REFCLK+ A14 REFCLK- B13 GND B14 HSOp(0)
A15 GND A16 HSIp(0) B15 HSOn(0) B16 GND
A17 HSIn(0) A18 GND B17 N/C B18 GND
A19 N/C A20 GND B19 HSOp(1) B20 HSOn(1)
A21 HSIp(1) A22 HSIn(1) B21 GND B22 GND
A23 GND A24 GND B23 HSOp(2) B24 HSOn(2)
A25 HSIp(2) A26 HSIn(2 B25 GND B26 GND
A27 GND A28 GND B27 HSOp(3) B28 HSOn(3)
Page 58
Page 79
IMBA-9654 A TX Motherboard
A29 HSIp(3) A30 HSIn(3) B29 GND B30 N/C
A31 GND A32 N/C B31 N/C B32 GND
Table 4-13: PCIe x4 Pinouts
4.2.12 PCI Express x16 Slot
CN Label: PCIE_1
CN Type:
CN Location:
CN Pinouts: See
PCIe x16 expansion devices can be inserted into the PCIe x16 slot.
164-pin PCIe x16 slot
Figure 4-23
See
Table 4-14 (Side A) Table 4-15 (Side B)
Page 59
Page 80
IMBA-9654 ATX Motherboard
Figure 4-13: PCIe x16 Connector Location
PIN NAME PIN NAME PIN NAME PIN NAME
A1 Name A22 HSIn(1) A43 HSIp(6) A64 HSIp(11)
A2 PRSNT#1 A23 GND A44 HSIn(6) A65 HSIn(11)
A3 +12v A24 GND A45 GND A66 GND
A4 +12v A25 HSIp(2) A46 GND A67 GND
A5 GND A26 HSIn(2) A47 HSIp(7) A68 HSIp(12)
A6 JTAG2 A27 GND A48 HSIn(7) A69 HSIn(12)
A7 JTAG3 A28 GND A49 GND A70 GND
A8 JTAG4 A29 HSIp(3) A50 RSVD A71 GND
A9 JTAG5 A30 HSIn(3) A51 GND A72 HSIp(13)
A10 +3.3v A31 GND A52 HSIp(8) A73 HSIn(13)
A11 +3.3v A32 RSVD A53 HSIn(8) A74 GND
A12 PWRGD A33 RSVD A54 GND A75 GND
A13 GND A34 GND A55 GND A76 HSIp(14)
A14 REFCLK+ A35 HSIp(4) A56 HSIp(9) A77 HSIn(14)
A15 REFCLK- A36 HSIn(4) A57 HSIn(9) A78 GND
A16 GND A37 GND A58 GND A79 GND
A17 HSIp(0) A38 GND A59 GND A80 HSIp(15)
Page 60
A18 HSIn(0) A39 HSIp(5) A60 HSIp(10) A81 HSIn(15)
A19 GND A40 HSIn(5) A61 HSIn(10) A82 GND
A20 RSVD A41 GND A62 GND
Page 81
IMBA-9654 A TX Motherboard
A21 GND A42 GND A63 GND
Table 4-14: PCIe x16 Side A Pinouts
PIN NAME PIN NAME PIN NAME PIN NAME
B1 +12v B22 GND B43 GND B64 GND
B2 +12v B23 HSOp(2) B44 GND B65 GND
B3 RSVD B24 HSOn(2) B45 HSOp(7) B66 HSOp(12)
B4 GND B25 GND B46 HSOn(7) B67 HSOn(12)
B5 SMCLK B26 GND B47 GND B68 GND
B6 SMDAT B27 HSOp(3) B48 PRSNT#2 B69 GND
B7 GND B28 HSOn(3) B49 GND B70 HSOp(13)
B8 +3.3v B29 GND B50 HSOp(8) B71 HSOn(13)
B9 JTAG1 B30 RSVD B51 HSOn(8) B72 GND
B10 3.3Vaux B31 PRNT#2 B52 GND B73 GND
B11 WAKE# B32 GND B53 GND B74 HSOp(14)
B12 RSVD B33 HSOp(4) B54 HSOp(9) B75 HSOn(14)
B13 GND B34 HSOn(4) B55 HSOn(9) B76 GND
B14 HSOp(0) B35 GND B56 GND B77 GND
B15 HSOn(0) B36 GND B57 GND B78 HSOp(15)
B16 GND B37 HSOp(5) B58 HSOp(10) B79 HSOn(15)
B17 PRSNT#2 B38 HSOn(5) B59 HSOn(10) B80 GND
B18 GND B39 GND B60 GND B81 PRSNT#2
B19 HSOp(1) B40 GND B61 GND B82 RSVD#2
B20 HSOn(1) B41 HSOp(6) B62 HSOp(11)
B21 GND B42 HSOn(6) B63 HSOn(11)
Table 4-15: PCIe x16 Side B Pinouts
4.2.13 SATA Drive Connectors
CN Label:
SATA1, SATA2, SATA3, SAT A4, SATA5 and SATA6
CN Type:
CN Location:
7-pin SATA drive connectors
Figure 4-14
See
Page 61
Page 82
See
CN Pinouts:
Table 4-16
IMBA-9654 ATX Motherboard
The six SATA drive connectors are each connected to a second generation SATA drive.
Second generation SATA drives transfer data at speeds as high as 300Mb/s. The SATA
drives can be configured in a RAID configuration.
Figure 4-14: SATA Drive Connector Locations
PIN NO. DESCRIPTION
1 GND
2 TX+
3 TX4 GND
5 RX6 RX+
7 GND
Table 4-16: SATA Drive Connector Pinouts
Page 62
Page 83
IMBA-9654 A TX Motherboard
4.2.14 Serial Port Connectors (RS-232)
CN Label: COM3, COM4, COM5 and COM6
CN Type:
CN Location: See
CN Pinouts: See
The four 10-pin serial port connectors provide four additional RS-232 serial
communications channels. The four internal RS-232 serial port connectors can be
connected to external RS-232 serial port devices.
10-pin header (2x5)
Figure 4-15
Table 4-17
Figure 4-15: RS-232 COM Connector Pinout Locations
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 Data Carrier Direct (DCD) 2 Data Set Ready (DSR)
3 Receive Data (RXD) 4 Request To Send (RTS)
5 Transmit Data (TXD) 6 Clear To Send (CTS)
7 Data Terminal Ready (DTR) 8 Ring Indicator (RI)
9 Ground (GND) 10 Ground (GND)
Table 4-17: RS-232 COM Connector Pinouts
Page 63
Page 84
IMBA-9654 ATX Motherboard
4.2.15 Serial Port Connector (COM 2)(RS-232, RS-422 or RS-485)
CN Label: COM2
CN Type:
CN Location: See
CN Pinouts: See
The 14-pin serial port connector connects to the COM 2 serial communications channels.
COM 2 is a multi function channel. In default mode COM 2 is an RS-232 serial
communication channel but, with the COM 2 function select jumper, can be configured as
either an RS-422 or RS-485 serial communications channel.
14-pin header (2x7)
Figure 4-16
Table 4-18
Page 64
Figure 4-16: RS-232/422/485 Serial Port Connector Location
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 DCD 2 DSR
3 RXD 4 RTS
5 TXD 6 CTS
7 DTR 8 RI
9 GND 10 GND
11 TXD+ 12 TX-
13 RX+ 14 RX-
Table 4-18: RS-232/RS-485 Serial Port Connector Pinouts
Page 85
IMBA-9654 A TX Motherboard
4.2.16 SPDIF Connector
CN Label:
CN Type:
CN Location:
CN Pinouts:
Use the SPDIF connector to connect digital audio devices to the system.
CN1
5-pin header
Figure 4-17
See
Table 4-19
See
Figure 4-17: SPDIF Connector Pinout Locations
PIN DESCRIPTION
1 VCC AUDIO
2 NC
3 SPDIF OUT
4 GND AUDIO
5 SPDIF IN
Table 4-19: SPDIF Connector Pinouts
Page 65
Page 86
4.2.17 SPI Flash Connector
IMBA-9654 ATX Motherboard
CN Label:
CN Type:
CN Location:
CN Pinouts:
CN4
8-pin header
Figure 4-18
See
Table 4-20
See
Use the SPI Flash connector to connect a serial peripheral interface (SPI) flash memory
module to the IMBA-9654.
Figure 4-18: SPI Flash Connector Pinout Locations
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 VCC 2 GND
3 CS# 4 CLOCK
5 SO 6 SI
7 N/C 8 N/C
Table 4-20: SPI Flash Connector Pinouts
4.2.18 Trusted Platform Module (TPM) Connector
CN Label: TPM1
CN Type:
CN Location: See
20-pin header (2x10)
Figure 4-19
Page 66
Page 87
IMBA-9654 A TX Motherboard
CN Pinouts: See Table 4-21
The Trusted Platform Module (TPM) connector secures the system on bootup.
Figure 4-19: TPM Connector Pinout Locations
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 LCLK 2 GND2
3 LFRAME# 4 KEY
5 LRESET# 6 +5V
7 LAD3 8 LAD2
9 +3.4V 10 LAD1
11 LAD0 12 GND3
13 SCL 14 SDA
15 SB3.3V 16 SERIRQ
17 GND1 18 GLKRUN#
19 LPCPD# 20 LDRQ#
Table 4-21: TPM Connector Pinouts
4.2.19 USB Connectors (Internal)
CN Label:
USB1, USB2
CN Type:
CN Location:
8-pin header (2x4)
Figure 4-20
See
Page 67
Page 88
See
CN Pinouts:
Table 4-22
IMBA-9654 ATX Motherboard
The 2x4 USB pin connectors each provide connectivity to two USB 1.1 or two USB 2.0
ports. Each USB connector can support two USB devices. Additional external USB ports
are found on the rear panel. The USB ports are used for I/O bus expansion.
Figure 4-20: USB Connector Pinout Locations
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 VCC 2 GND
3 DATAN- 4 DATAM+
5 DATAN+ 6 DATAN7 GND 8 VCC
Table 4-22: USB Port Connector Pinouts
4.3 External Peripheral Interface Connectors
The external peripheral interface connectors on the back panel are connected to devices
externally when the IMBA-9654 is installed in a chassis. The peripheral connectors on the
rear panel are:
1 x Keyboard/mouse connector
Page 68
1 x Parallel port connector
2 x RJ-45 Ethernet connector
Page 89
IMBA-9654 A TX Motherboard
3 x Audio jacks
4 x USB 2.0 connectors
1 x VGA connector
1 x Serial port connector
Figure 4-21: IMBA-9654 External Interface Connectors
4.3.1 Keyboard/Mouse Connector
CN Label:
CN T ype:
CN Location:
CN Pinouts:
The IMBA-9654 keyboard and mouse connectors are standard PS/2 connectors.
KBMS1
PS/2 connector
Figure 4-21
See
Figure 4-22 and Table 4-23
See
Page 69
Page 90
IMBA-9654 ATX Motherboard
Figure 4-22: PS/2 Pinouts
PIN DESCRIPTION PIN DESCRIPTION
1 L_KDAT 7 L_MDAT
2 NC 8 NC
3 GND 9 GND
4 5V 10 5V
5 L_KCLK 11 L_MCLK
6 NC 12 NC
Table 4-23: PS/2 Connector Pinouts
4.3.2 Parallel Port Connector
CN Label:
CN T ype:
CN Location:
CN Pinouts:
LPT1
DB-25
Figure 4-21
See
Figure 4-23 and Table 4-24
See
Page 70
These ports are usually connected to a printer. IMBA-9654 includes one on-board parallel
ports accessed through one 25-pin D-type female connector.
Page 91
IMBA-9654 A TX Motherboard
Figure 4-23: Parallel Port Connector Pinout Locations
PIN Description PIN Description
1 STROBE# 2 DATA 0
3 DATA 1 4 DATA 2
5 DATA 3 6 DATA 4
7 DATA 5 8 DATA 6
9 DATA 7 10 ACKNOWLEDGE
11 BUSY 12 PAPER EMPTY
13 PRINTER SELECT 14 AUTO FORM FEED #
15 ERROR# 16 INITIALIZE
17 PRINTER SELECT LN# 18 GND
19 GND 20 GND
21 GND 22 GND
23 GND 24 GND
25 GND
Table 4-24: Parallel Pinouts
4.3.3 Audio Connectors
CN Label:
CN T ype:
CN Location:
CN2
Audio jack
Figure 4-21
See
Figure 4-24
CN Pinouts:
Line In port (Light Blue): Connects a CD-ROM, DVD player, or other audio
See
devices.
Page 71
Page 92
Speaker Out port (Lime): Connects to a headphone or a speaker . With
multi-channel configurations, this port can also connect to front speakers.
Microphone (Pink): Connects a microphone.
Figure 4-24: Audio Connector
4.3.4 LAN Connectors
IMBA-9654 ATX Motherboard
CN Label:
CN Type:
CN Location:
CN Pinouts:
J20 and J21
RJ-45
Figure 4-21
Table 4-25
The IMBA-9654 is equipped with two built-in RJ-45 Ethernet controllers. The controllers
can connect to the LAN through two RJ-45 LAN connectors. There are two LEDs on the
connector indicating the status of LAN. The pin assignments are listed in the following
table:
PIN DESCRIPTION PIN DESCRIPTION
1 TXA+ 5 TXC-
2 TXA- 6 TXB3 TXB+ 7 TXD+
4 TXC+ 8 TXD-
Page 72
Table 4-25: LAN Pinouts
Page 93
IMBA-9654 A TX Motherboard
Figure 4-25: RJ-45 Ethernet Connector
The RJ-45 Ethernet connector has two status LE Ds, one g reen and one yellow. The green
LED indicates activity on the port and the yellow LED indicates the port is linked. See
Table 4-26.
STATUS
YELLOW Activity GREEN Linked
Table 4-26: RJ-45 Ethernet Connector LEDs
DESCRIPTION STATUS DESCRIPTION
4.3.5 USB Connectors
CN Label:
CN T ype:
CN Location:
CN Pinouts:
USB devices connect directly to the USB connectors on the external peripheral connector
panel.
USB_LAN1, USB_LAN2
Dual USB port
Figure 4-21
See
Figure 4-26 and Table 4-27
See
Figure 4-26: USB Connector Pinout Locations
Page 73
Page 94
PIN DESCRIPTION PIN DESCRIPTION
1 VCC 5 VCC
2 USBD0- 6 USBD03 USBD0+ 7 USBD0+
4 GND 8 GND
Table 4-27: USB Connector Pinouts
4.3.6 VGA Connector
IMBA-9654 ATX Motherboard
CN Label:
CN T ype:
CN Location:
CN Pinouts: See
VGA
HD-D-sub 15 Female connector
Figure 4-21 (labeled 6)
See
Figure 4-27 and Table 4-28
The standard HD-D-sub 15 female connector connects to a CRT or LCD monitor.
Figure 4-27: VGA Connector
PIN Description PIN Description
1 RED 2 GREEN
3 BLUE 4 N/C
Page 74
5 GND 6 GND
7 GND 8 GND
9 VCC 10 GND
11 N/C 12 DDC DAT
13 HSYNC 14 VSYNC
15 DDC CLK
Table 4-28: VGA Connector Pinouts
Page 95
IMBA-9654 A TX Motherboard
4.3.7 Serial Communications Connector
CN Label:
CN T ype:
CN Location:
CN Pinouts: See
The serial connector on the external interface panel provides serial connection in the
RS-232 mode.
COM1
D-sub 9 Male connector
Figure 4-21 (labeled 7)
See
Figure 4-28 and Table 4-29
Figure 4-28: Serial Communications Connector Pinout Locations
PIN DESCRIPTION
1 DATA CARRIER DETECT (DCD)
2 RECEIVE DATA (RXD)
3 TRANSMIT DATA (TXD)
4 DATA TERMINAL READY (DTR)
5 GROUND (GND)
6 DATA SET READY (DSR)
7 REQUEST TO SEND (RTS)
8 CLEAR TO SEND (CTS)
9 RING INDICATOR (RI)
Table 4-29: COM1 RS-232 Mode Connector Pinouts
Page 75
Page 96
IMBA-9654 ATX Motherboard
THIS PAGE IS INTENTIONALLY LEFT BLANK
Page 76
Page 97
IMBA-9654 A TX Motherboard
Chapter
5
5 Installation
Page 77
Page 98
5.1 Anti-static Precautions
WARNING:
Failure to take ESD precautions during the installation of the
IMBA-9654 may result in permanent damage to the IMBA-9654 and
severe injury to the user.
Electrostatic discharge (ESD) can cause serious damage to electronic components,
including the IMBA-9654. Dry climates are especially susceptible to ESD. It is therefore
critical that whenever the IMBA-9654, or any other electrical component is handled, the
following anti-static precautions are strictly adhered to.
IMBA-9654 ATX Motherboard
Wear an anti-static wristband: - Wearing a simple anti-static wristband can
help to prevent ESD from damaging the board.
Self-grounding:- Before handling the board touch any grounded conducting
material. During the time the board is handled, frequently touch any
conducting materials that are connected to the ground.
Use an anti-static pad: When configuring the IMBA-9654, place it on an
antic-static pad. This reduces the possibility of ESD damaging the
IMBA-9654.
Only handle the edges of the PCB:-: When handling the PCB, hold the PCB
by the edges.
Page 78
Page 99
IMBA-9654 A TX Motherboard
5.2 Installation Considerations
NOTE:
The following installation notices and installation considerations should
be read and understood before the IMBA-9654 is installed. All
installation notices pertaining to the installation of the IMBA-9654
should be strictly adhered to. Failing to adhere to these precautions
may lead to severe damage of the IMBA-9654 and injury to the person
installing the motherboard.
5.2.1 Installation Notices
WARNING:
The installation instructions described in this manual should be carefully
followed in order to prevent damage to the IMBA-9654, IMBA-9654
components and injury to the user.
Before and during the installation please DO the following:
Read the user manual:
o The user manual provides a complete description of the IMBA-9654
installation instructions and configuration options.
Wear an electrostatic discharge cuff (ESD):
o Electronic components are easily damaged by ESD. Wearing an ESD cuff
removes ESD from the body and helps prevent ESD damage.
Place the IMBA-9654 on an antistatic pad:
o When installing or configuring the motherboard, place it on an antistatic
pad. This helps to prevent potential ESD damage.
Turn all power to the IMBA-9654 off:
Page 79
Page 100
o When working with the IMBA-9654, make sure that it is disconnected from
all power supplies and that no electricity is being fed into the system.
Before and during the installation of the IMBA-9654 DO NOT:
Remove any of the stickers on the PCB board. These stickers are required for
warranty validation.
Use the product before verifying all the cables and power connectors are
properly connected.
Allow screws to come in contact with the PCB circuit, connector pins, or its
components.
5.2.2 Installation Checklist
The following checklist is provided to ensure the IMBA-9654 is properly installed.
IMBA-9654 ATX Motherboard
All the items in the packing list are present
The CPU is installed
The CPU cooling kit is properly installed
A compatible memory module is properly inserted into the slot
The CF Type I or CF Type II card is properly installed into the CF socket
The jumpers have been properly configured
The IMBA-9654 is inserted into a chassis with adequate ventilation
The correct power supply is being used
The following devices are properly connected
o Primary and secondary IDE device
o SATA drives
o Power supply
o USB cables
o Serial port cables
o I/O Shielding
The following external peripheral devices are properly connected to the
chassis:
Page 80
o VGA screen
o Keyboard
o Mouse
