IMBA-8654 Motherboard
Page i
Page 2
IMBA-8654 Motherboard
Revision
MODEL IMBA-8654 Motherboard
Revision Number Description Date of Issue
1.00 Initial release April 2007
Page ii
Page 3
IMBA-8654 Motherboard
COPYRIGHT NOTICE
The information in this document is subject to change without prior notice in order to
improve reliability, design and function and does not represent a commitment on the part
of the manufacturer.
In no event will the manufacturer be liable for direct, indirect, special, incidental, or
consequential damages arising out of the use or inability to use the product or
documentation, even if advised of the possibility of such damages.
Copyright
This document contains proprietary information protected by copyright. All rights are
reserved. No part of this manual may be reproduced by any mechanical, electronic, or
other means in any form without prior written permission of the manufacturer.
TRADEMARKS
IBM PC is a registered trademark of International Business Machines Corporation. INTEL
is a registered trademark of INTEL Corporation. Other product names mentioned herein
are used for identification purposes only and may be trademarks and/or registered
trademarks of their respective owners.
Page iii
Page 4
IMBA-8654 Motherboard
Packing List
NOTE:
If any of the components listed in the checklist below are missing, please do not
proceed with the installation. Contact the IEI reseller or vendor you purchased the
IMBA-8654 motherboard from or contact an IEI sales representative directly. To contact
an IEI sales representative, please send an email to sales@iei.com.tw
The items listed below should all be included in the IMBA-8654 motherboard package.

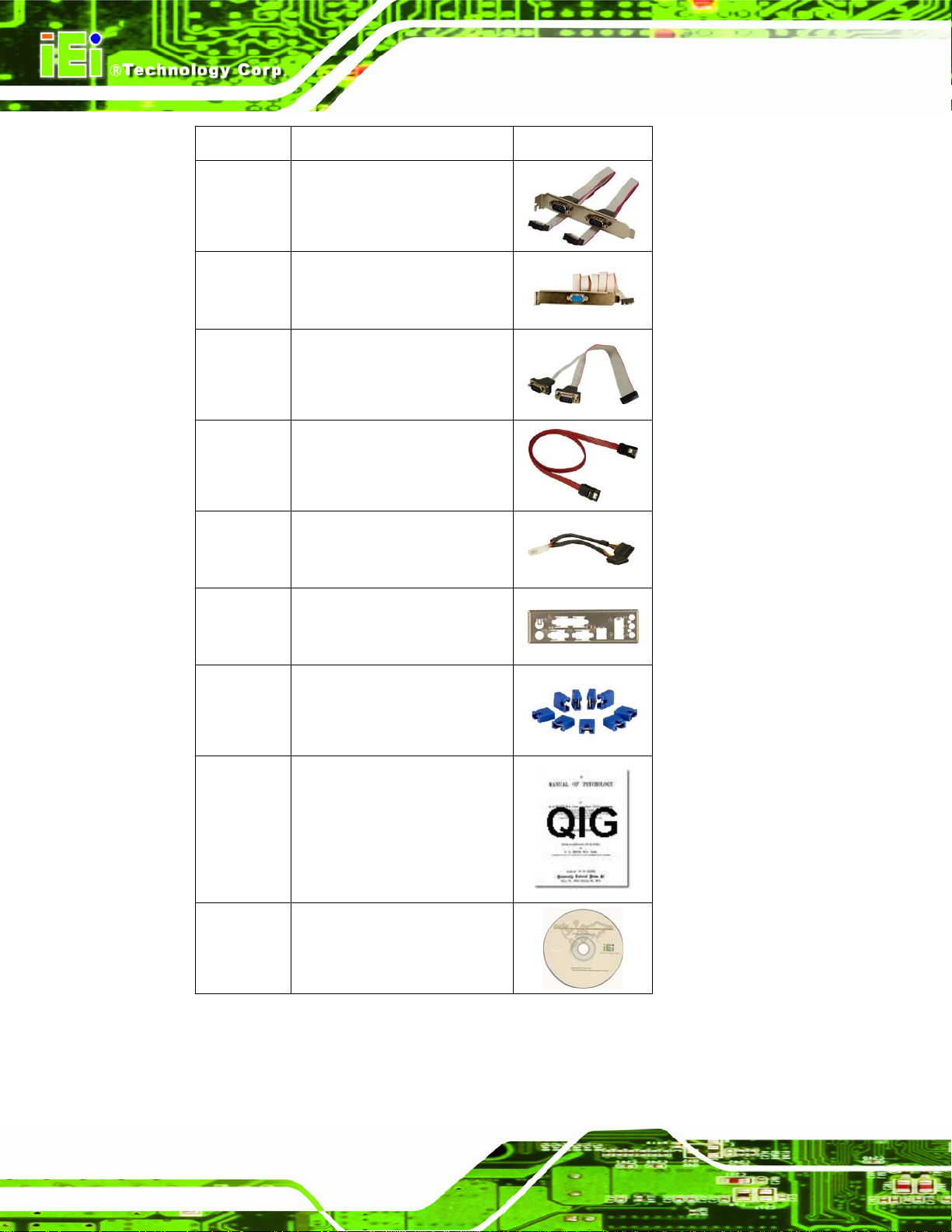

1 x IMBA-8654 Single Board Computer
1 x IDE Cable (P/N: 32200-000052-RS)
2 x RS-232 Cable (P/N: 32200-004101-RS)
1 x RS-232 Cable (P/N: 32200-029400-RS)
1 x RS-422/485 Cable (P/N: 19800-000063-RS)
2 x SATA Cable (P/N: 32000-0628000-RS)
1 x SATA Power Cable (P/N: 32100-088600-RS)
1 x I/O Shielding (P/N: 45002-0804C0-00-RS)
1 x Mini Jumper Pack (P/N: 33100-000079-RS)
1 x Utility CD (P/N: 51100-000079-RS)
1 x QIG (Quick Installation Guide) (P/N 51000-021930-RS)
Images of the above items are shown in Chapter 3.
.
Page iv
Page 5
IMBA-8654 Motherboard
Table of Contents
1 INTRODUCTION..................................................................................................... 1
1.1 IMBA-8654 OVERVIEW............................................................................................. 2
1.1.1 IMBA-8654 Features.......................................................................................... 2
1.2 IMBA-8654 OVERVIEW............................................................................................. 2

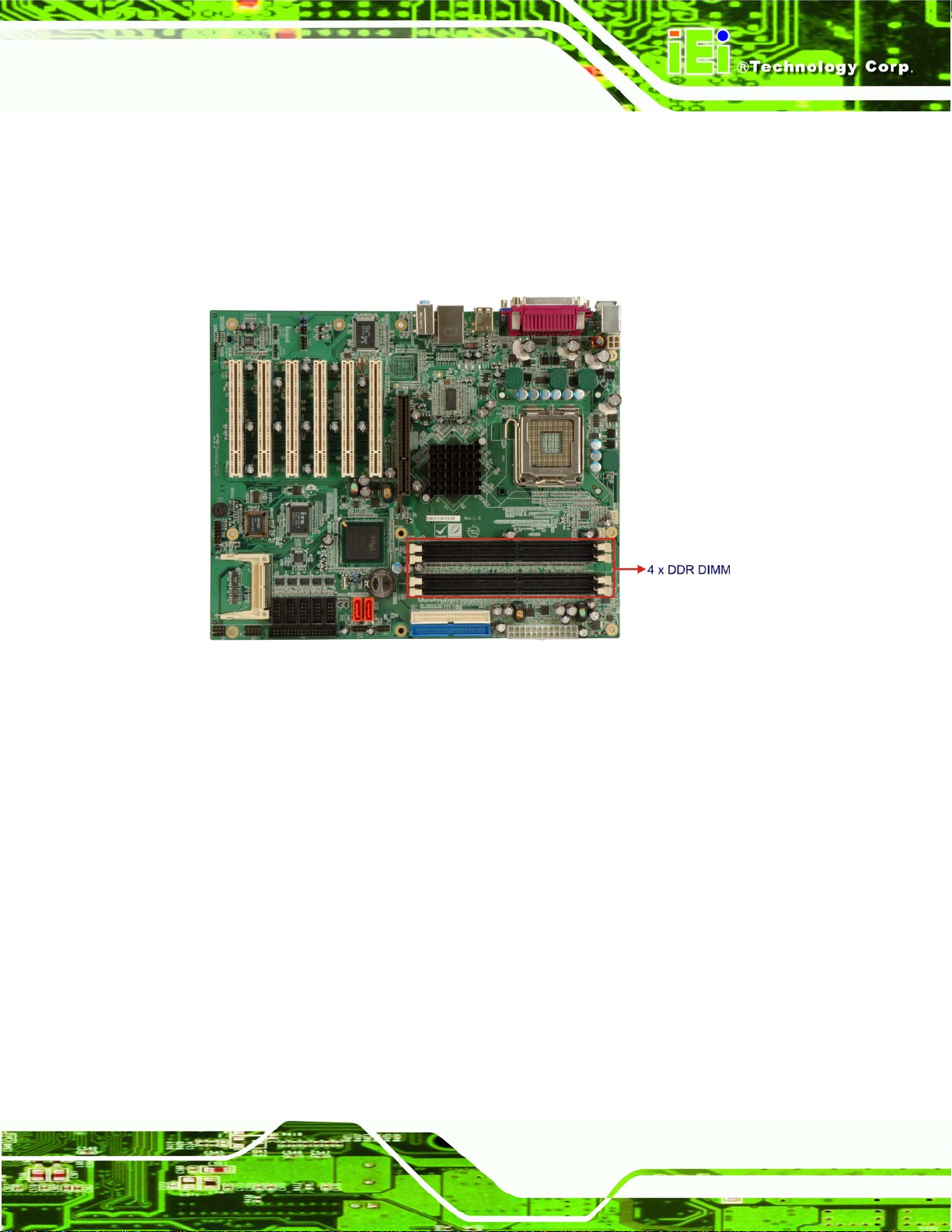

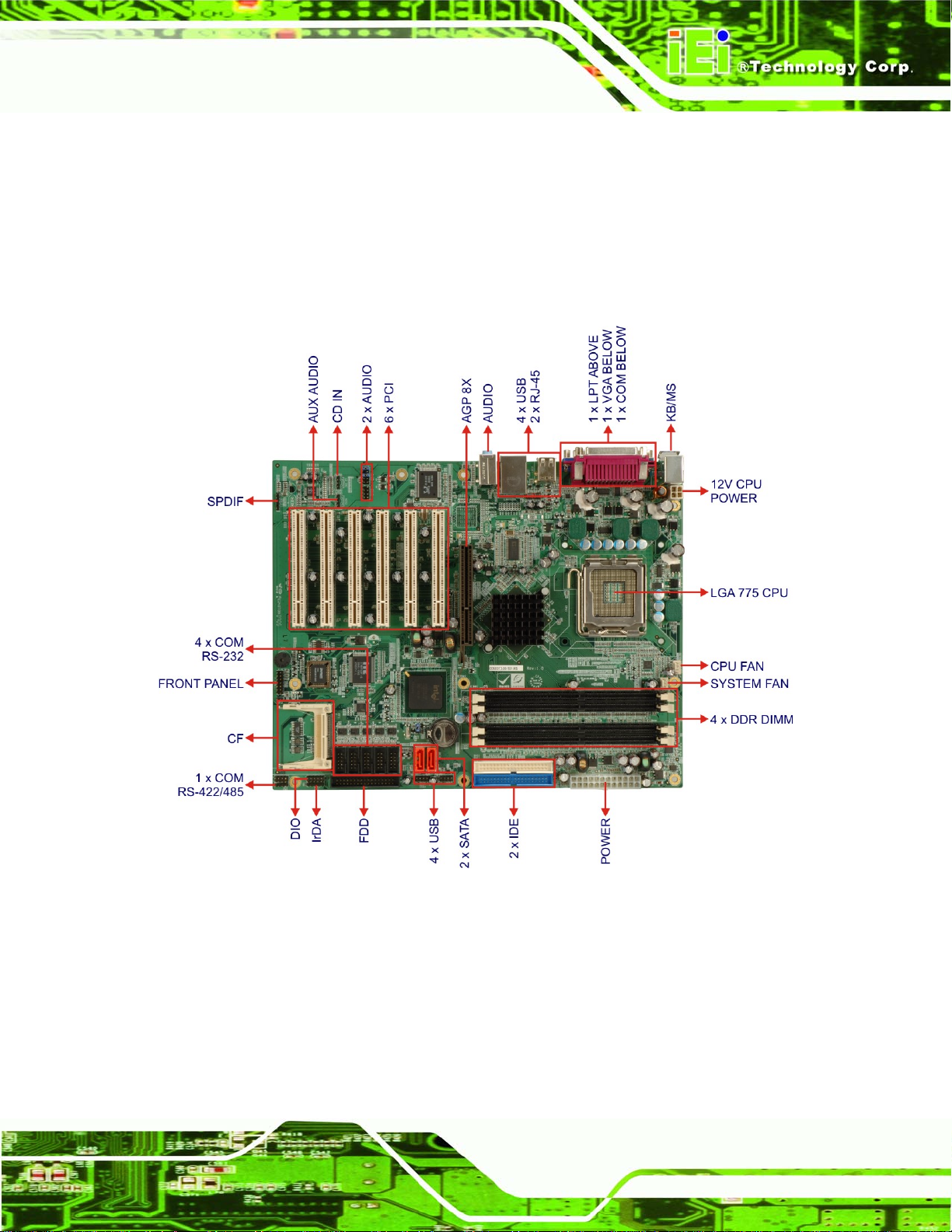

1.2.1 IMBA-8654 Overview Photo.............................................................................. 3
1.2.2 IMBA-8654 Peripheral Connectors and Jumpers ............................................. 4
1.2.3 Technical Specifications..................................................................................... 5
2 DETAILED SPECIFICATIONS............................................................................. 7
2.1 OVERVIEW ................................................................................................................. 8
2.2 DIMENSIONS .............................................................................................................. 8

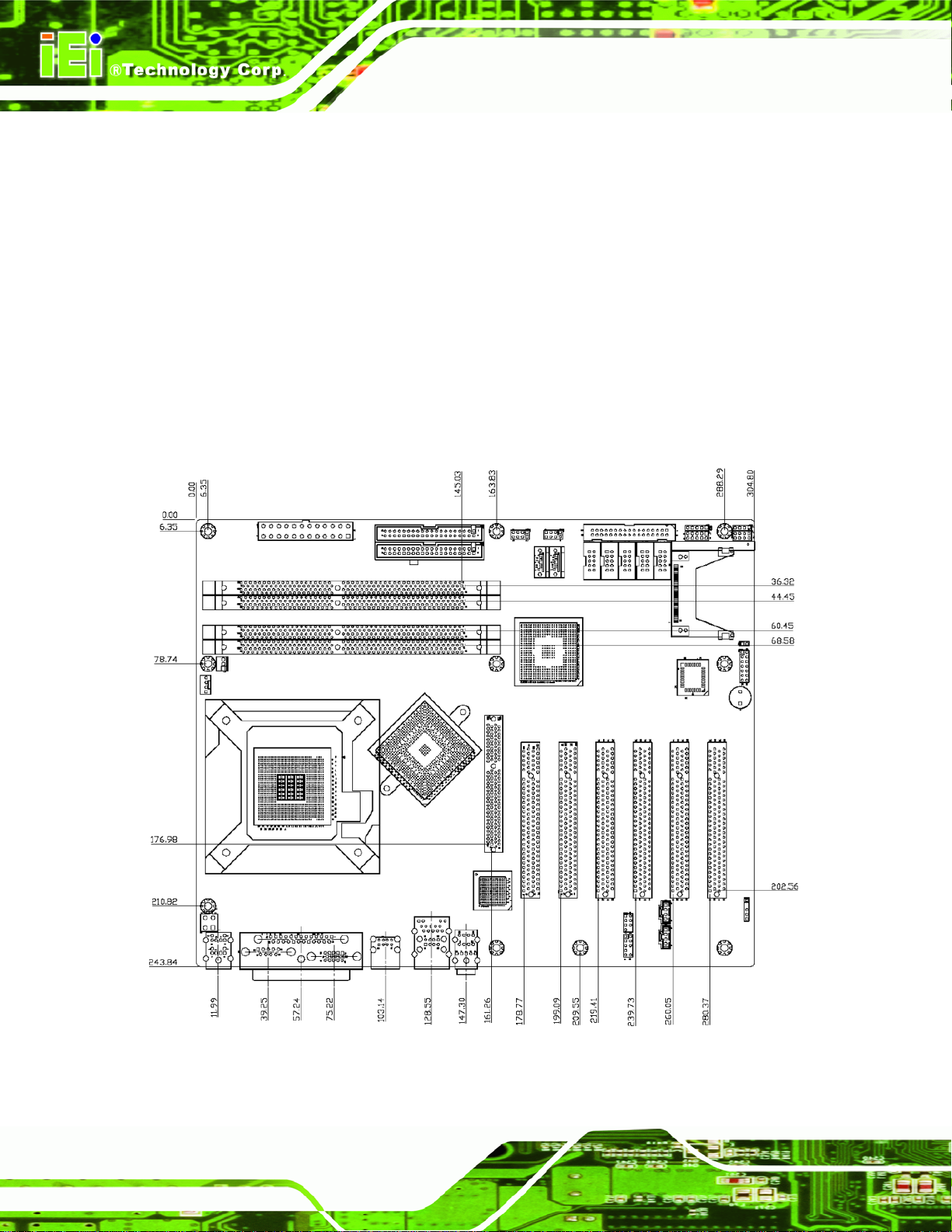

2.2.1 Board Dimensions.............................................................................................. 8
2.2.2 External Interface Panel Dimensions................................................................ 9

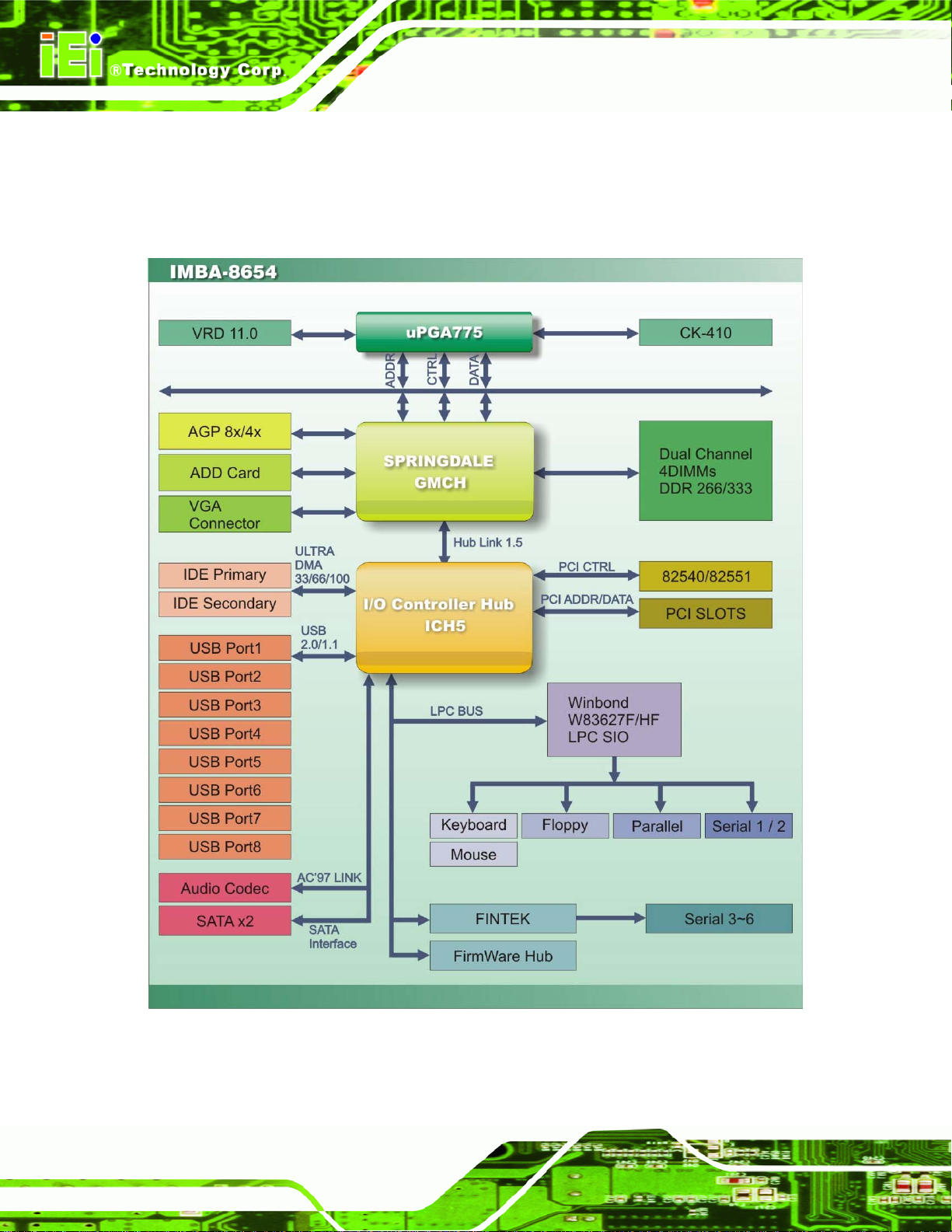

2.3 DATA FLOW.............................................................................................................. 10
2.4 COMPATIBLE PROCESSORS ........................................................................................11
2.4.1 CPU Overview..................................................................................................11
2.4.2 Supported Intel® Pentium® 4 Processors........................................................11
2.4.3 Supported Intel® Pentium® D Processors...................................................... 12
2.4.4 Supported Intel® Celeron® D Processors ...................................................... 12
NTEL® 865G NORTHBRIDGE CHIPSET.................................................................... 12
2.5 I
2.5.1 Intel® 865G Overview..................................................................................... 12
2.5.2 Intel® 865G Memory Support ......................................................................... 15
2.5.3 Intel® 865G Integrated Graphics.................................................................... 15
2.6 I
NTEL® ICH5 SOUTHBRIDGE CHIPSET ..................................................................... 18
2.6.1 Intel® ICH5 Overview...................................................................................... 18
2.6.2 Intel® ICH5 Audio Codec ’97 Controller.........................................................18
2.6.3 Intel® ICH5 IDE Interface............................................................................... 19
2.6.4 Intel® ICH5 Low Pin Count (LPC) Interface................................................... 19
2.6.5 Intel® ICH5 PCI Interface ............................................................................... 20
2.6.6 Intel® ICH5 Real Time Clock........................................................................... 20
2.6.7 Intel® ICH5 SATA Controller........................................................................... 20
Page v
Page 6
2.6.8 Intel
®
ICH5 USB Controller............................................................................ 21
IMBA-8654 Motherboard
2.7 PCI BUS COMPONENTS............................................................................................ 21
2.7.1 PCI Bus Overview............................................................................................ 21
2.7.2 Realtek GbE interface...................................................................................... 21
2.8 LPC BUS COMPONENTS........................................................................................... 22
2.8.1 LPC Bus Overview........................................................................................... 22
2.8.2 BIOS Chipset.................................................................................................... 22
2.8.3 Super I/O chipset.............................................................................................. 22
2.8.3.1 Super I/O LPC Interface ........................................................................... 23
2.8.3.2 Super I/O 16C550 UARTs ........................................................................ 23
2.8.3.3 Super I/O Hardware Monitor.................................................................... 23
2.8.3.4 Super I/O Fan Speed Controller................................................................ 24
2.8.3.5 Super I/O Parallel Port.............................................................................. 24
2.9 E
NVIRONMENTAL AND POWER SPECIFICATIONS ....................................................... 24
2.9.1 System Monitoring........................................................................................... 24
2.9.2 Operating Temperature and Temperature Control........................................... 25
2.9.3 Power Consumption......................................................................................... 26
3 UNPACKING.......................................................................................................... 27
3.1 ANTI-STATIC PRECAUTIONS...................................................................................... 28
3.2 UNPACKING.............................................................................................................. 29
3.2.1 Unpacking Precautions.................................................................................... 29
3.3 UNPACKING CHECKLIST........................................................................................... 29
3.3.1 Package Contents............................................................................................. 29
3.3.2 Optional Components ...................................................................................... 31
4 CONNECTOR PINOUTS...................................................................................... 33
ERIPHERAL INTERFACE CONNECTORS .................................................................... 34
4.1 P

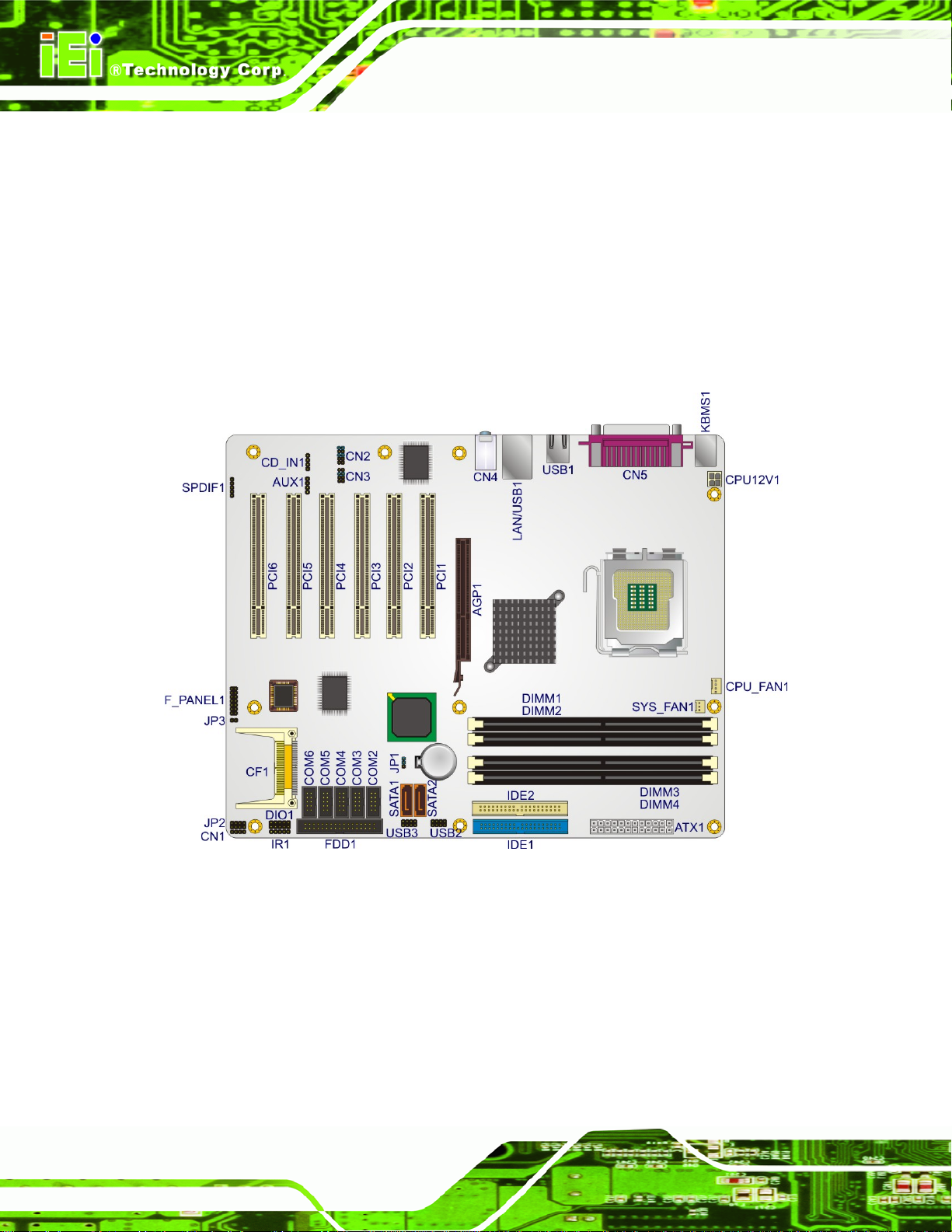

4.1.1 IMBA-8654 Layout........................................................................................... 34
4.1.2 Peripheral Interface Connectors ..................................................................... 34
4.1.3 External Peripheral Interface Panel Connectors............................................ 36
4.2 INTERNAL PERIPHERAL CONNECTORS...................................................................... 36

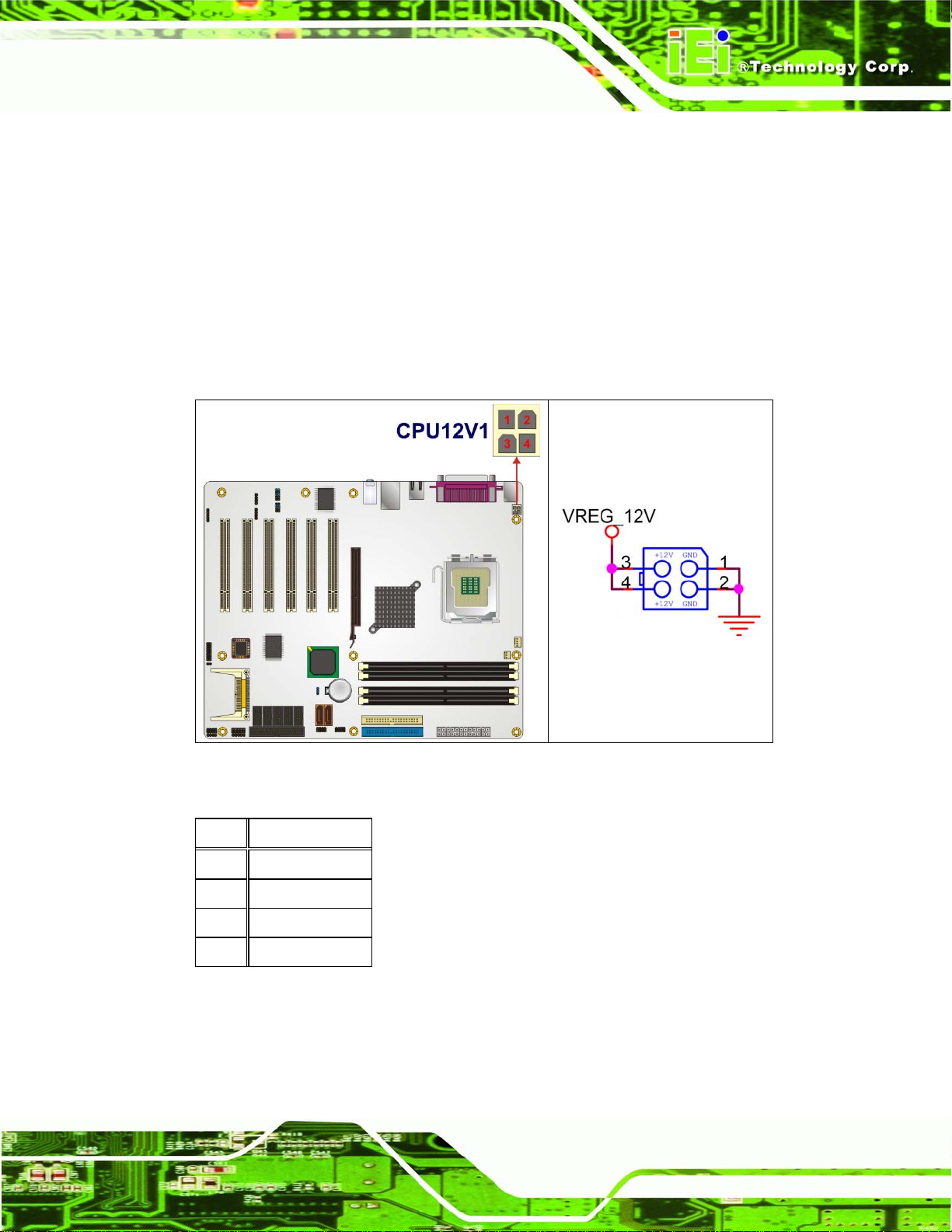

4.2.1 ATX Power Supply Connector (4-pins)............................................................ 37

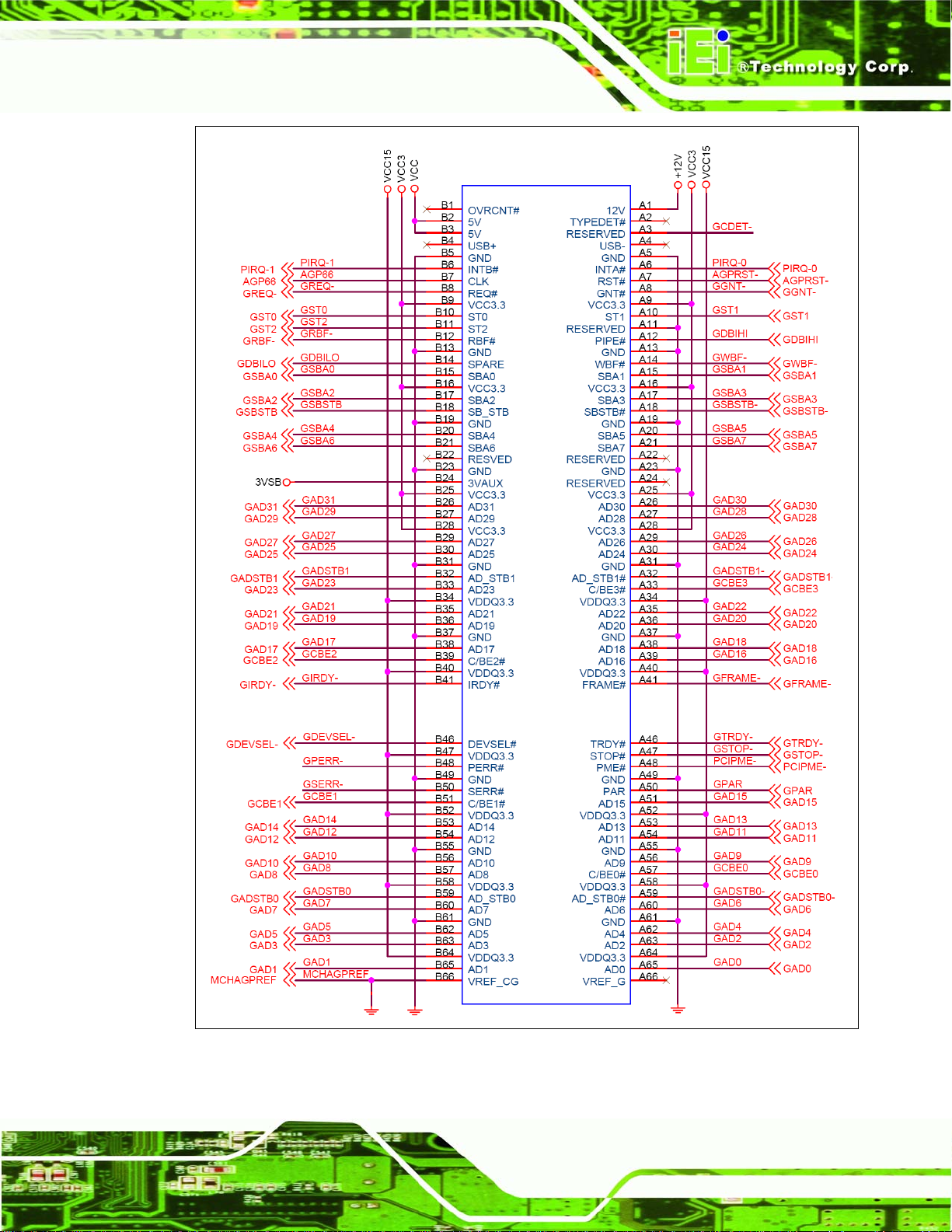

4.2.2 AGP Connector (66-pins)................................................................................ 38
4.2.3 ATX Power Supply Connector (24-pins).......................................................... 41
Page vi
Page 7
IMBA-8654 Motherboard
4.2.4 Audio Connector (8-pin).................................................................................. 43

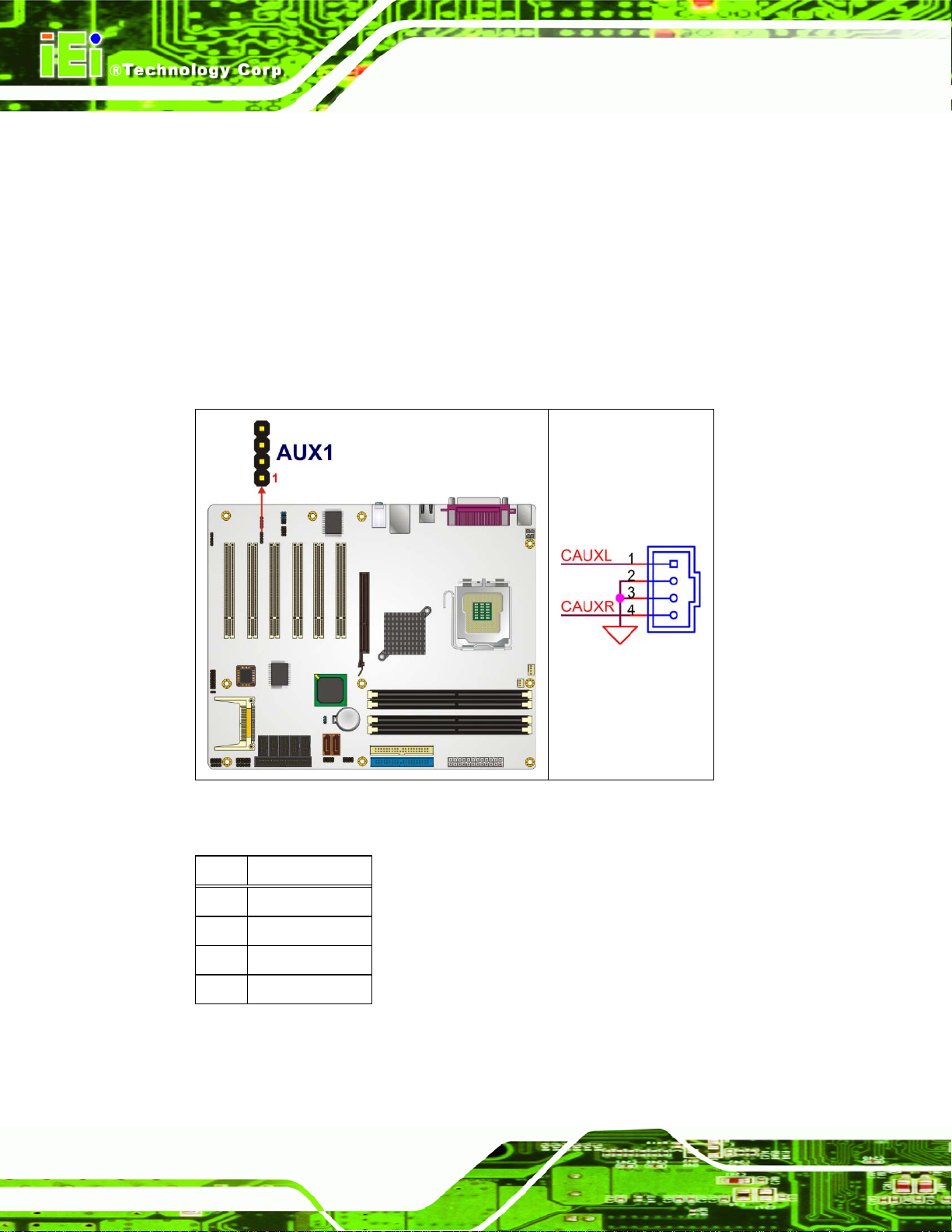

4.2.5 Auxiliary Audio Connector (4-pin) .................................................................. 44
4.2.6 CD-In Connector ............................................................................................. 45

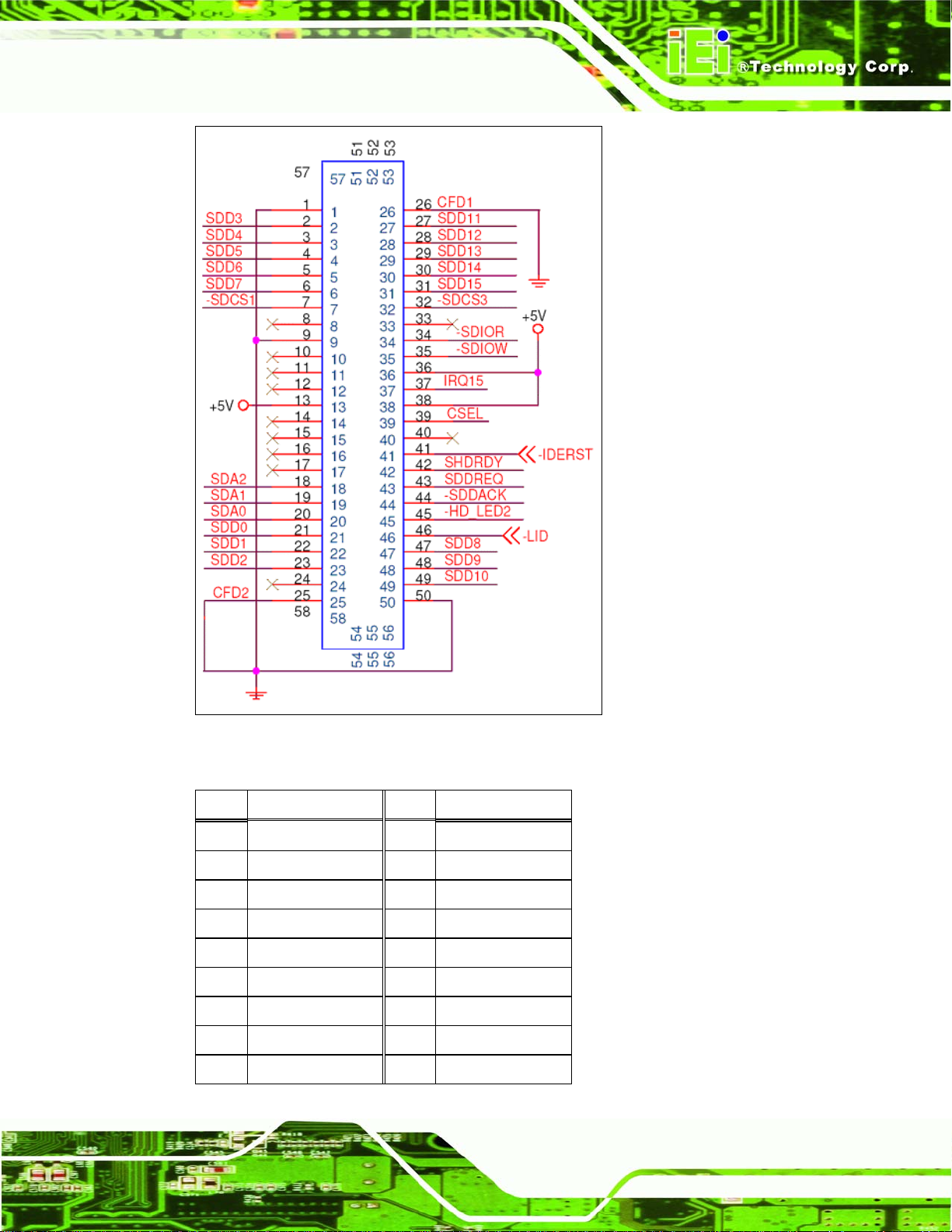

4.2.7 Compact Flash Socket...................................................................................... 46
4.2.8 Digital Input/Output (DIO) Connector............................................................ 49

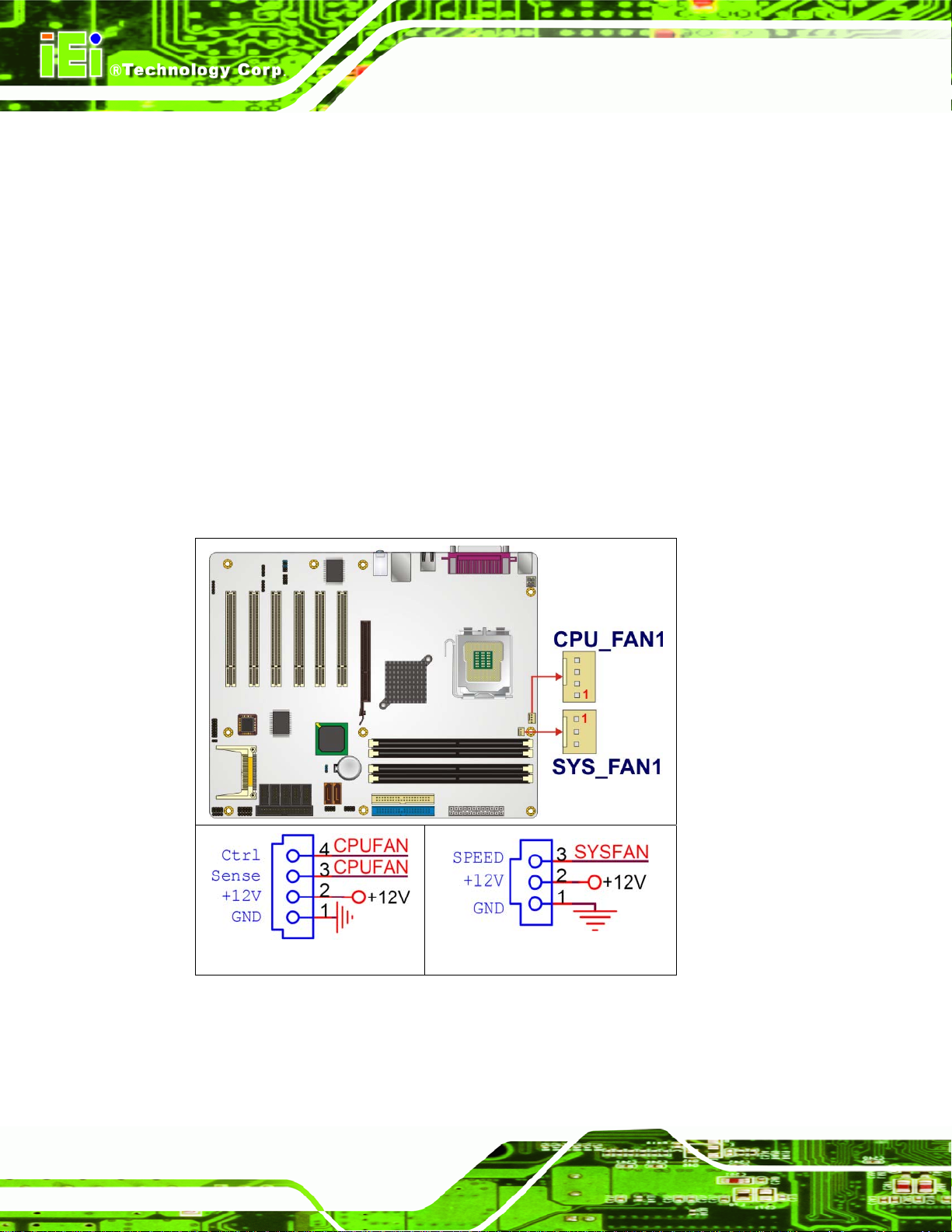

4.2.9 Fan Connectors................................................................................................ 50
4.2.10 Floppy Disk Connector.................................................................................. 51
4.2.11 Front Panel Audio Connector........................................................................ 52
4.2.12 Front Panel Connector (14-pin).................................................................... 54
4.2.13 IDE Connector (40-pin)................................................................................. 56

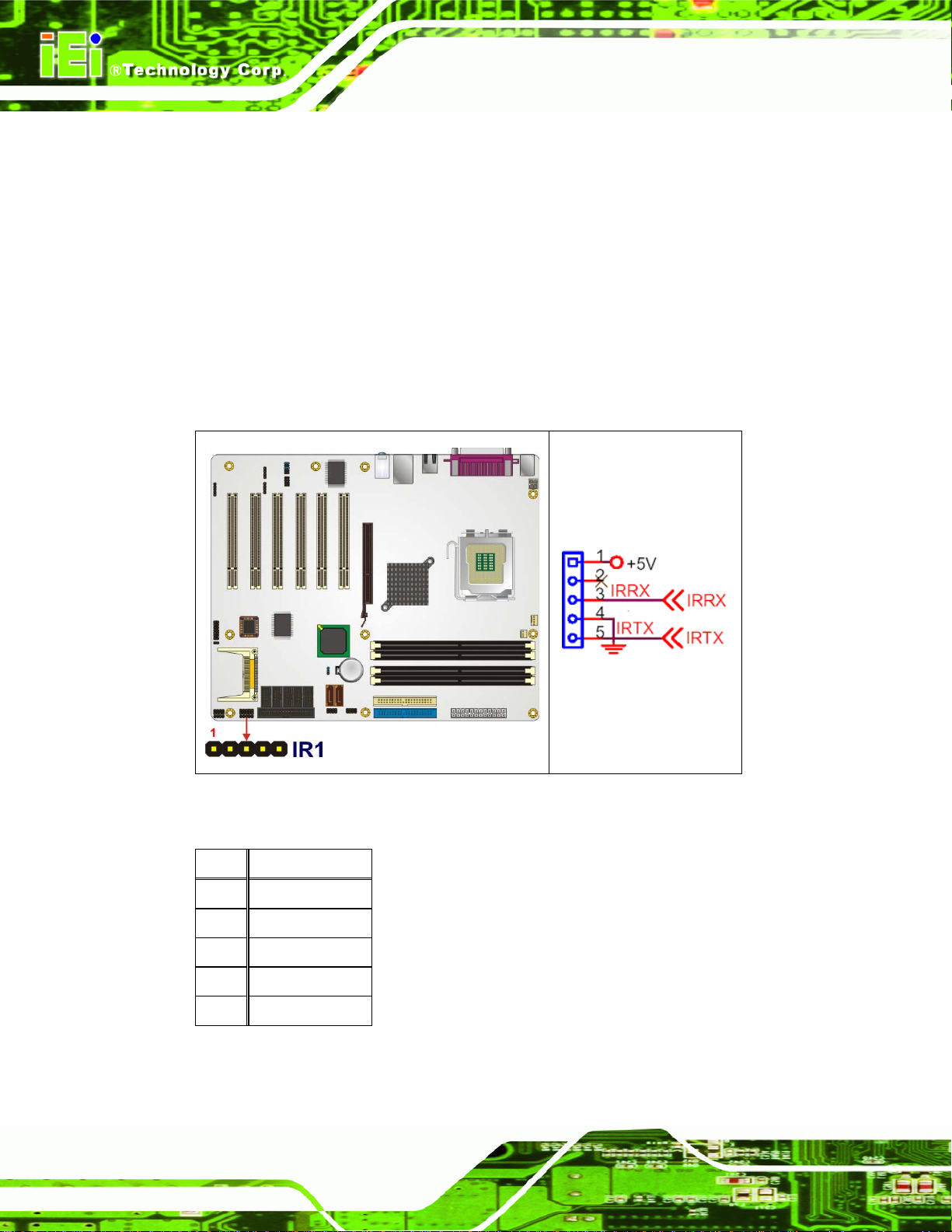

4.2.14 Infrared Interface Connector (5-pin)............................................................. 58

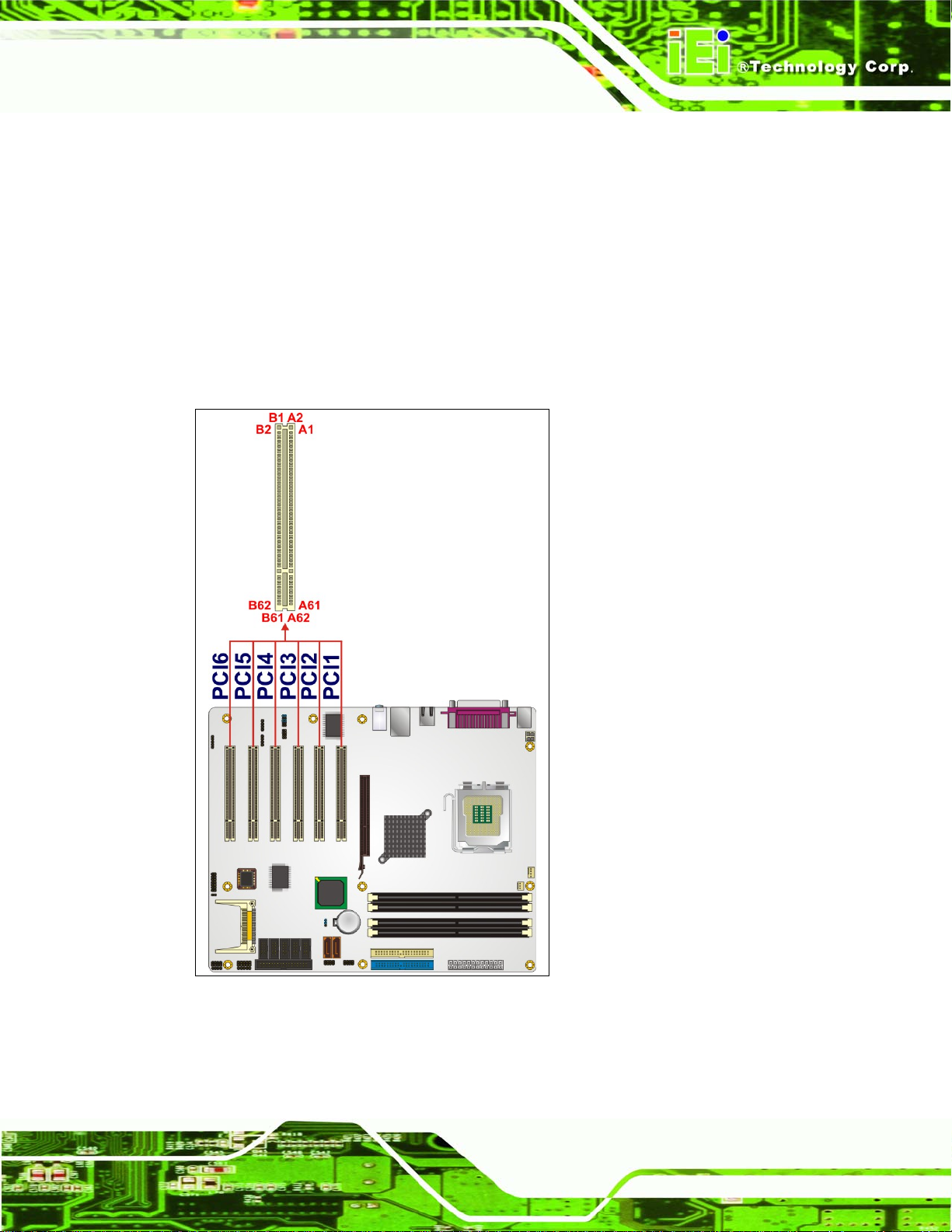

4.2.15 PCI Slot.......................................................................................................... 59

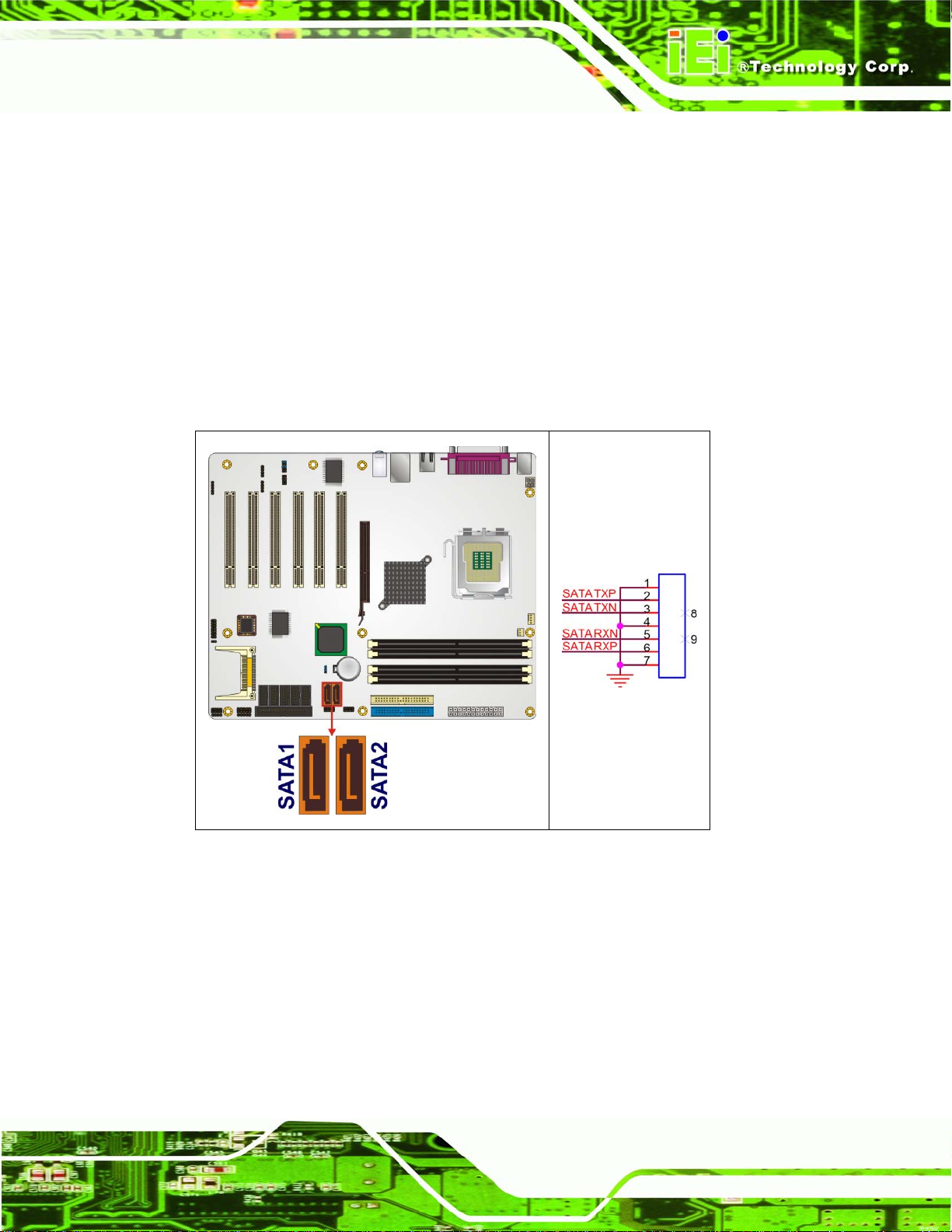

4.2.16 SATA Drive Connectors ................................................................................. 63

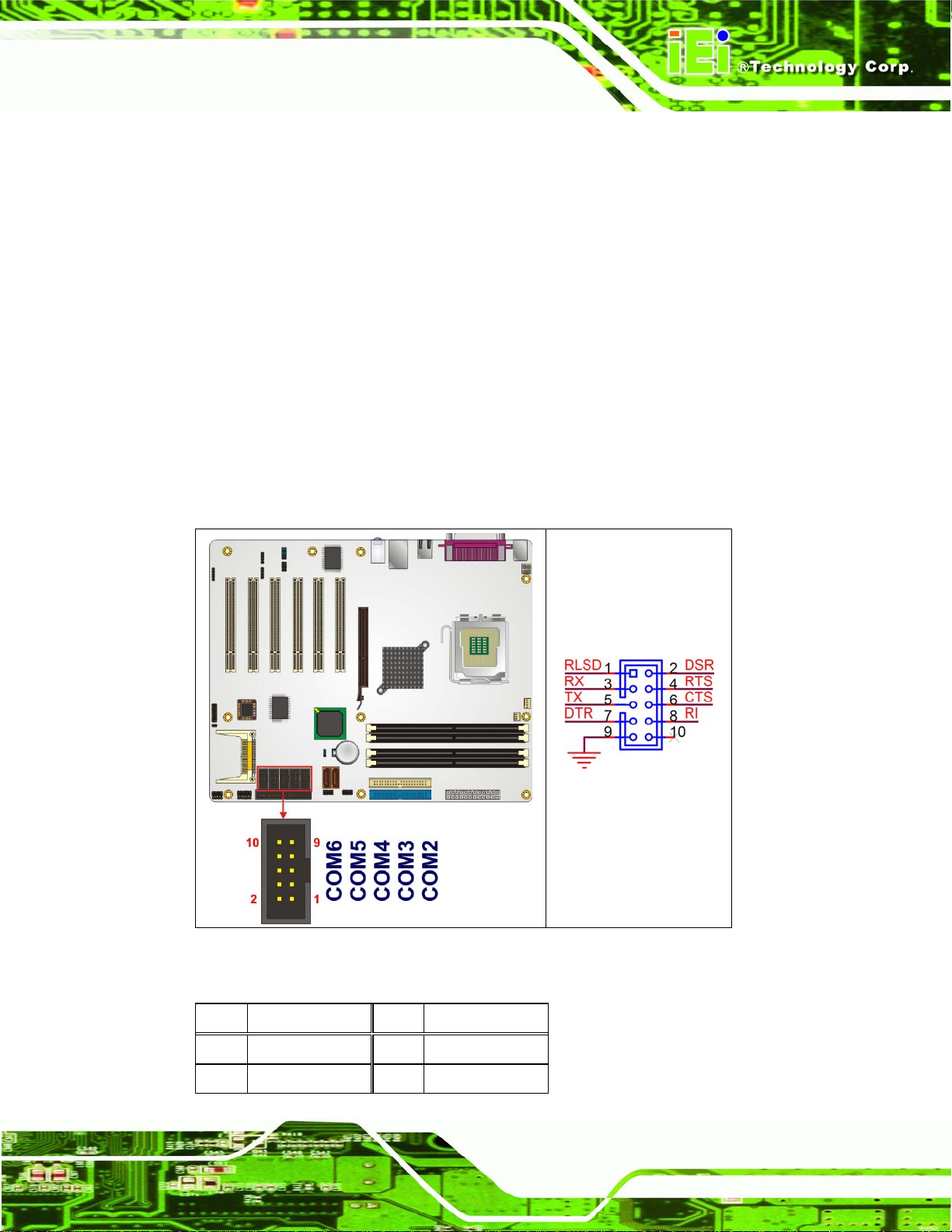

4.2.17 Serial Port Connector (RS-232/422/485) ...................................................... 65
4.2.18 Serial Port Connector (RS-422/485) ............................................................. 66

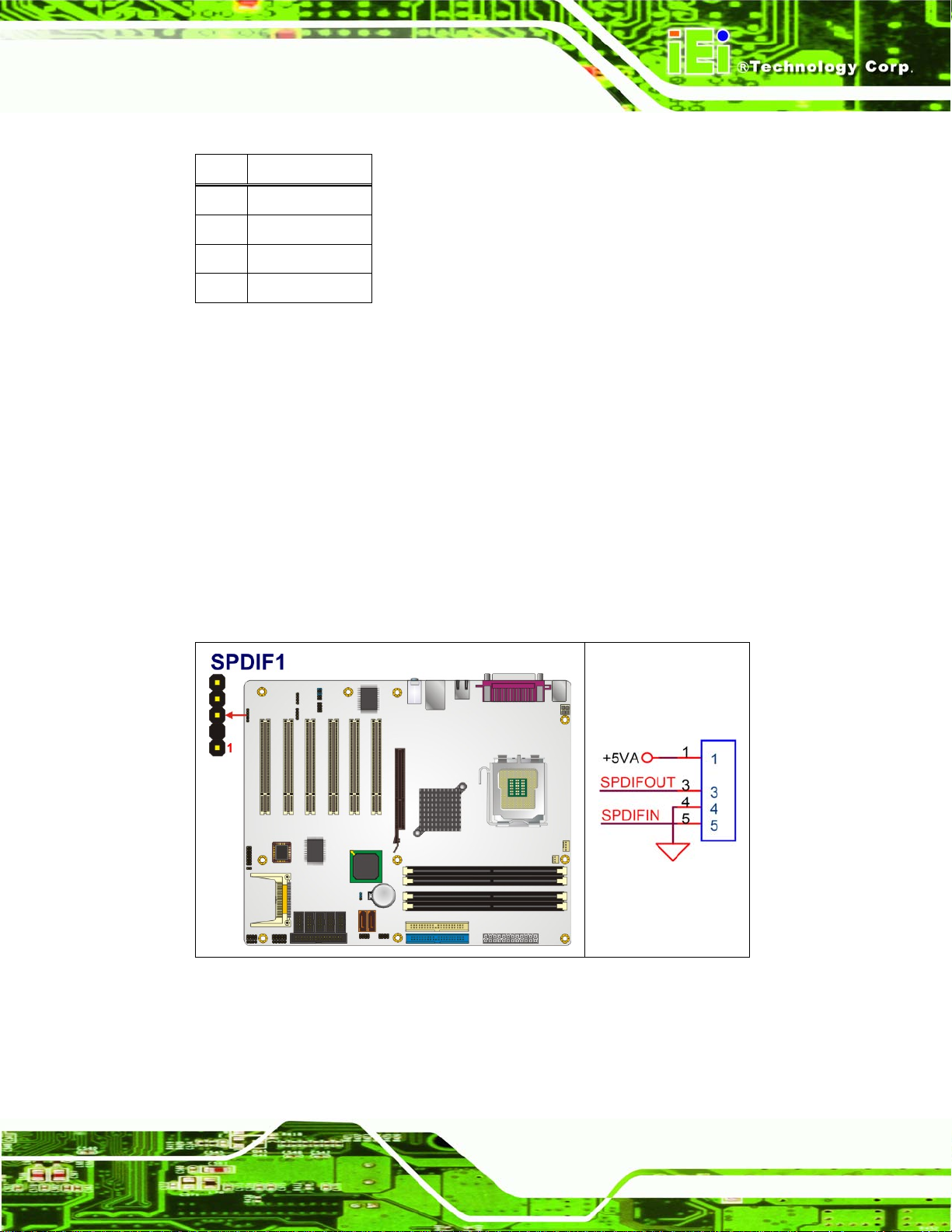

4.2.19 SPDIF Connector........................................................................................... 67

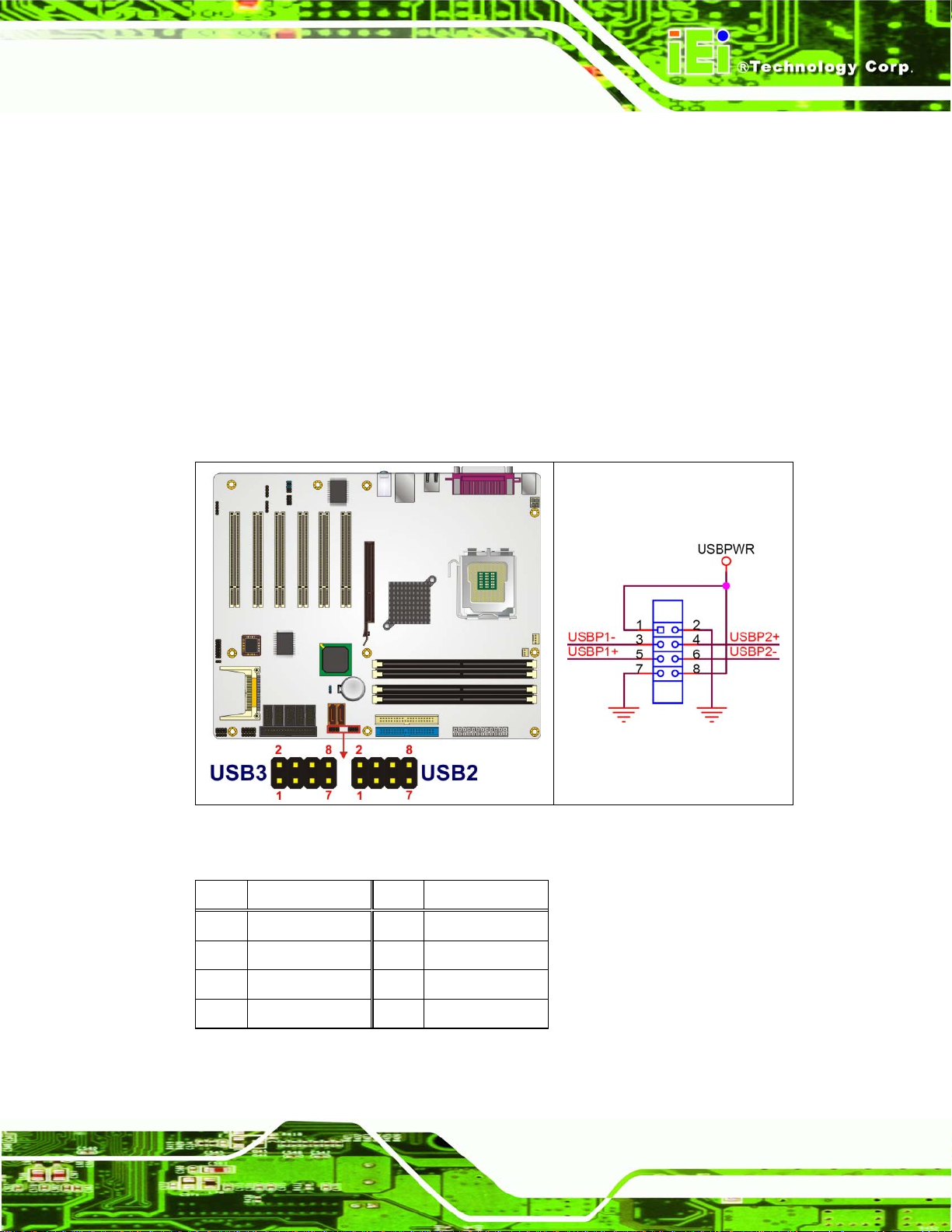

4.2.20 USB Connectors (Internal)............................................................................ 69

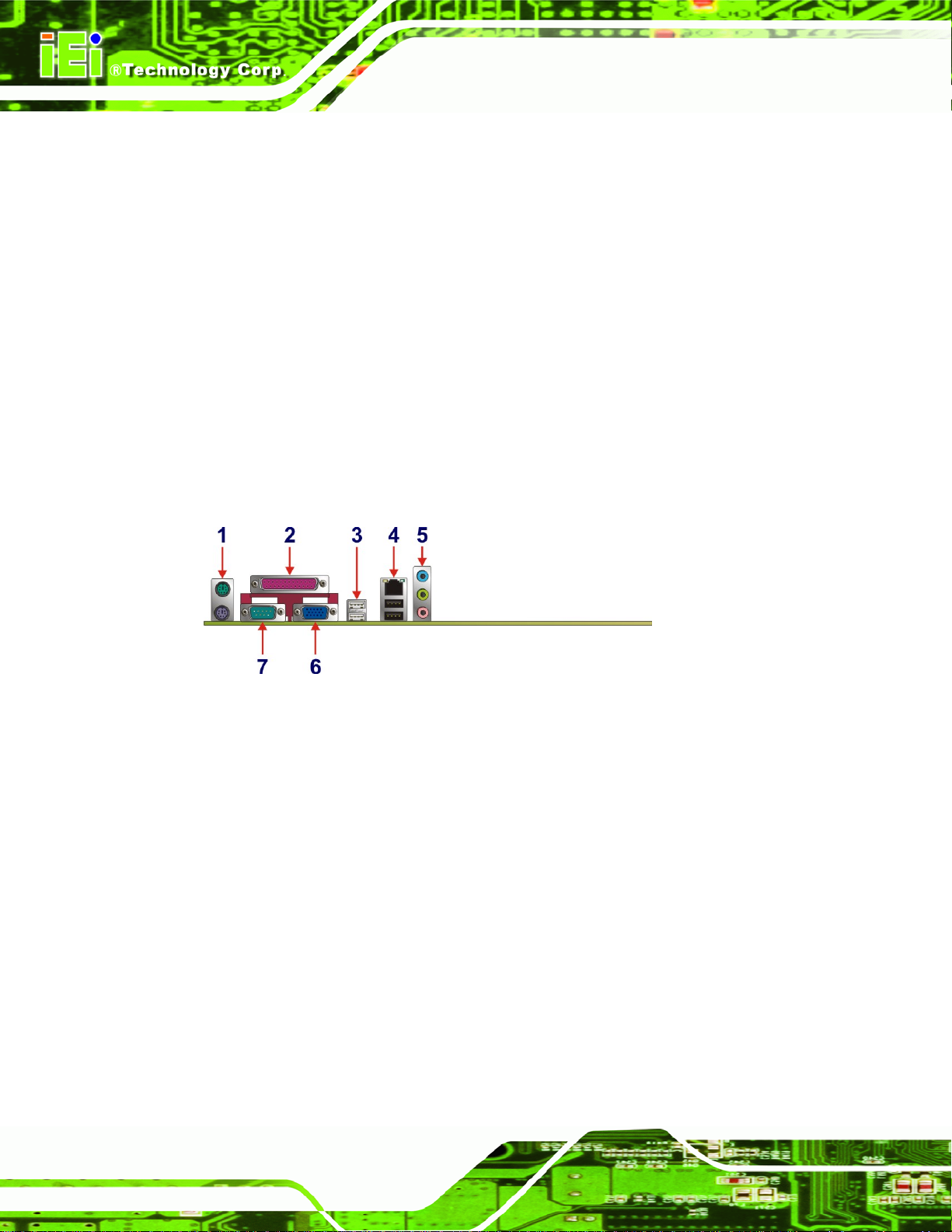

4.3 EXTERNAL PERIPHERAL INTERFACE CONNECTORS .................................................. 70
4.3.1 Keyboard/Mouse Connector............................................................................ 70
4.3.2 Parallel Port Connector .................................................................................. 71
4.3.3 USB Connectors............................................................................................... 72

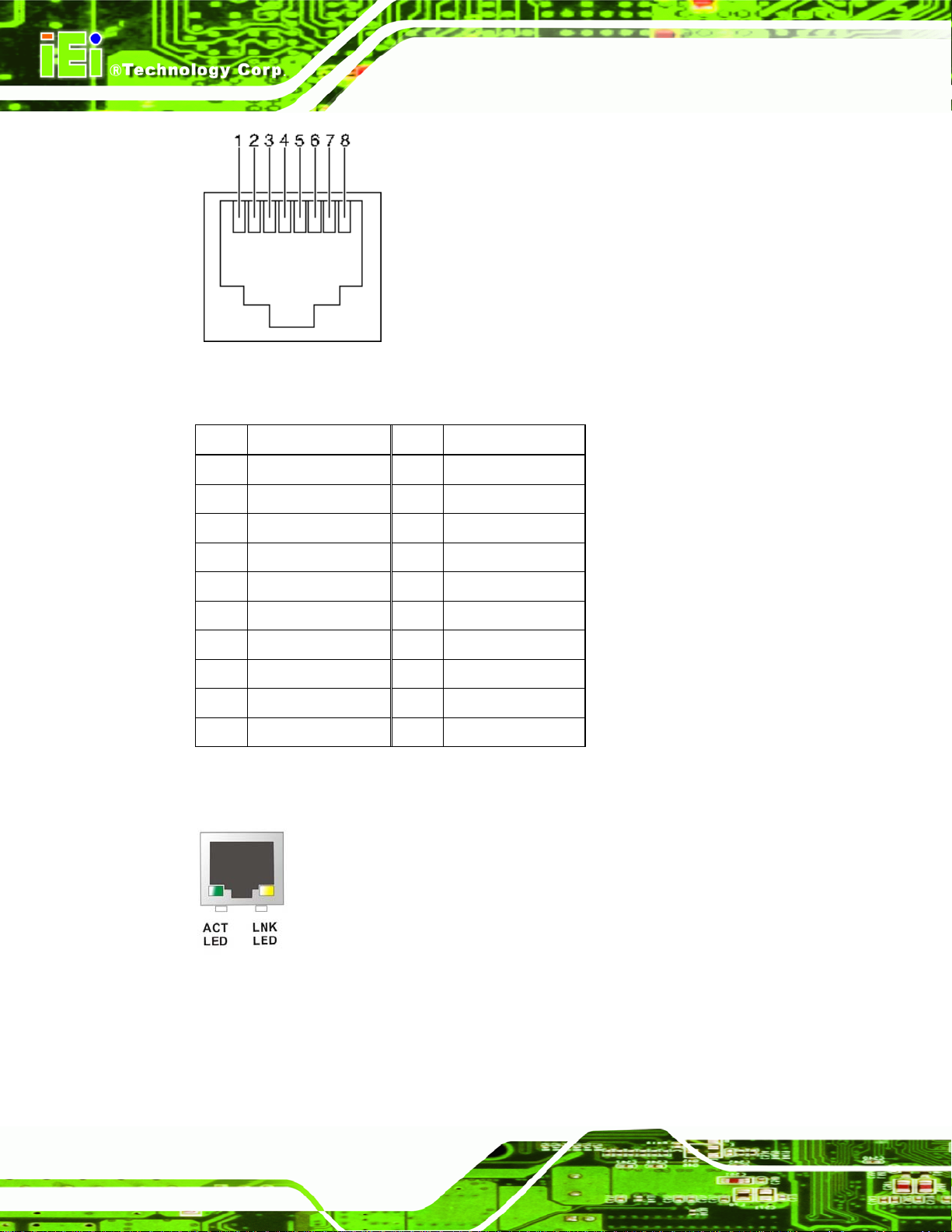

4.3.4 Ethernet Connector.......................................................................................... 73

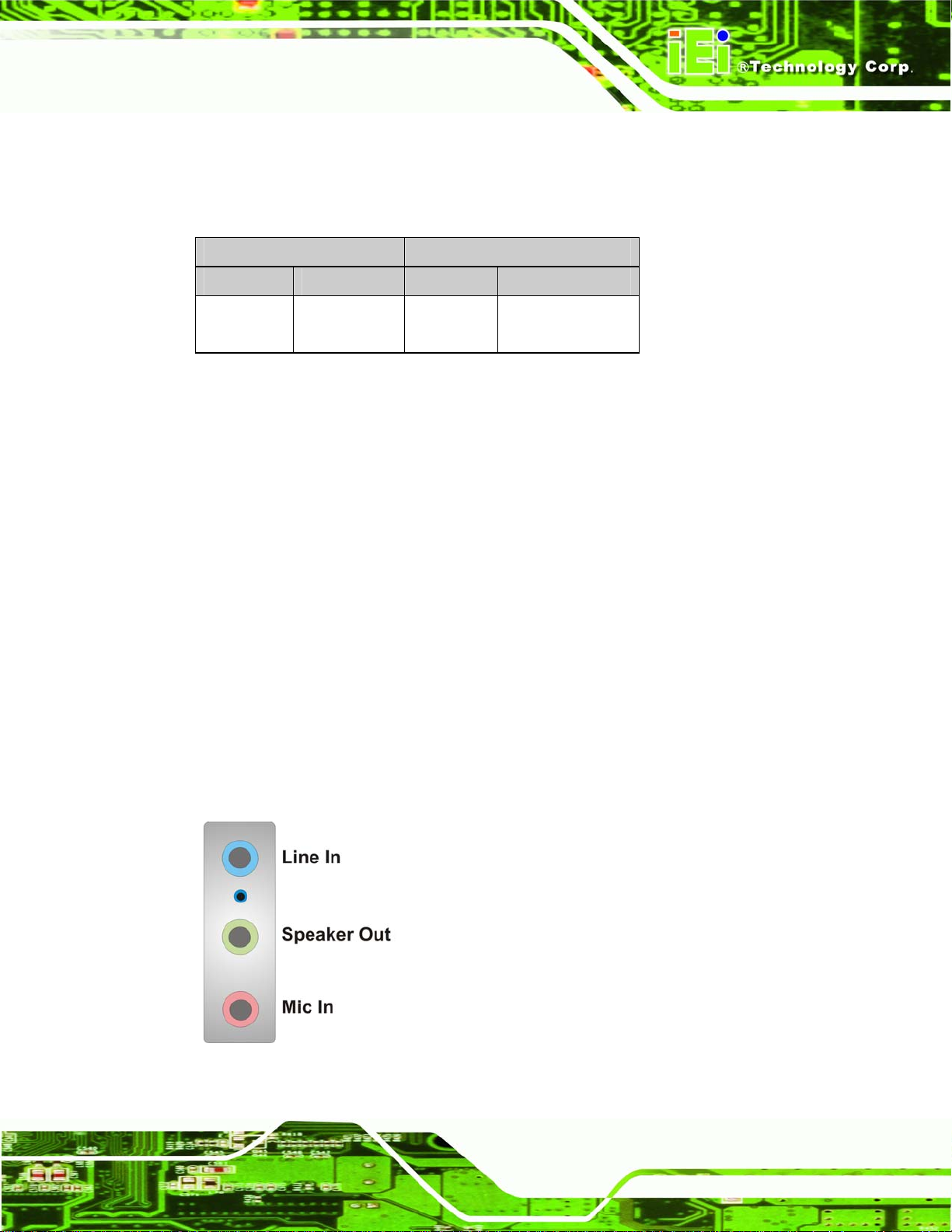

4.3.5 Audio Connectors............................................................................................. 75
4.3.6 VGA Connector................................................................................................ 76

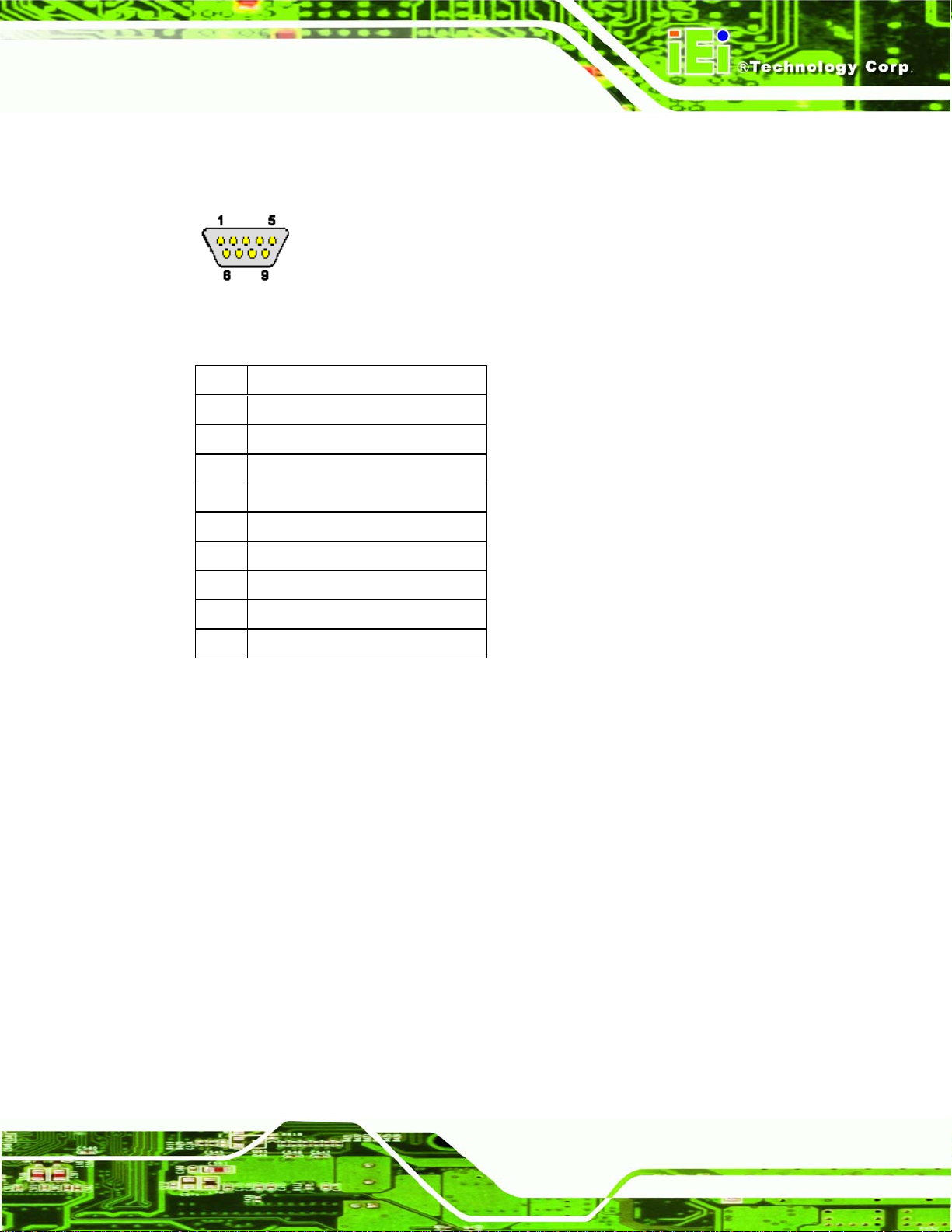

4.3.7 Serial Communications Connector.................................................................. 76
N-BOARD JUMPERS................................................................................................ 77
4.4 O
5 INSTALLATION .................................................................................................... 79
5.1 ANTI-STATIC PRECAUTIONS...................................................................................... 80
5.2 INSTALLATION CONSIDERATIONS ............................................................................. 81
5.2.1 Installation Notices.......................................................................................... 81
5.2.2 Installation Checklist....................................................................................... 82
5.3 CPU, CPU COOLING KIT AND DIMM INSTALLATION ............................................. 83
5.3.1 LGA775 CPU Installation................................................................................ 83
5.3.2 LGA775 Cooling Kit Installation..................................................................... 87
Page vii
Page 8
IMBA-8654 Motherboard
5.3.3 DIMM Installation........................................................................................... 89
UMPER SETTINGS.................................................................................................... 90
5.4 J
5.4.1 CF Master/Slave Selection............................................................................... 91
5.4.2 Clear CMOS Jumper........................................................................................ 92
5.4.3 COM3 Mode Selection..................................................................................... 93
5.5 CHASSIS INSTALLATION ........................................................................................... 93
5.5.1 Airflow.............................................................................................................. 93
5.6 INTERNAL PERIPHERAL DEVICE CONNECTIONS........................................................ 94
5.6.1 Peripheral Device Cables................................................................................ 94
5.6.2 ATA Flat Cable Connection............................................................................. 95
5.6.3 Dual RS-232 Cable with Slot Bracket.............................................................. 96
5.6.4 Single RS-232 Cable with Slot Bracket............................................................ 97
5.6.5 Dual RS-422/485 Cables.................................................................................. 98
5.6.6 SATA Drive Connection ................................................................................... 99
5.7 E
XTERNAL PERIPHERAL INTERFACE CONNECTION................................................. 100
5.7.1 PS/2 Keyboard/Mouse Connection................................................................ 101
5.7.2 Parallel Device Connection........................................................................... 102
5.7.3 RJ-45 Ethernet Connection............................................................................ 103
5.7.4 USB Connection............................................................................................. 103
5.7.5 Audio Connection........................................................................................... 104
5.7.6 VGA Monitor Connection .............................................................................. 105
5.7.7 Serial Device Connection .............................................................................. 106
6 AMI BIOS.............................................................................................................. 109
NTRODUCTION .......................................................................................................110
6.1 I
6.1.1 Starting Setup..................................................................................................110
6.1.2 Using Setup.....................................................................................................110
6.1.3 Getting Help....................................................................................................111
6.1.4 Unable to Reboot After Configuration Changes.............................................111
6.1.5 BIOS Menu Bar...............................................................................................111
6.2 MAIN ......................................................................................................................112
6.3 ADVANCED..............................................................................................................113
6.3.1 CPU Configuration.........................................................................................114
6.3.2 IDE Configuration..........................................................................................116
6.3.2.1 IDE Master, IDE Slave........................................................................... 120
Page viii
Page 9
IMBA-8654 Motherboard
6.3.3 Floppy Configuration..................................................................................... 126
6.3.4 Super IO Configuration.................................................................................. 127
6.3.5 Hardware Health Configuration.................................................................... 133
6.3.6 ACPI Configuration ....................................................................................... 135
6.3.7 Remote Access Configuration........................................................................ 136
6.3.8 USB Configuration......................................................................................... 140
6.3.8.1 USB Mass Storage Device Configuration............................................... 143
6.4 PCI/P
NP ................................................................................................................ 144
6.5 BOOT ..................................................................................................................... 150
6.5.1 Boot Settings Configuration........................................................................... 151
6.5.2 Boot Device Priority...................................................................................... 154
6.5.3 Hard Disk Drives........................................................................................... 155
6.5.4 Removable Drives.......................................................................................... 156
6.6 S
ECURITY............................................................................................................... 157
6.7 CHIPSET ................................................................................................................. 159
6.8 POWER................................................................................................................... 164
6.9 EXIT....................................................................................................................... 166
7 DRIVER INSTALLATION.................................................................................. 169
7.1 AVAILABLE SOFTWARE DRIVERS............................................................................ 170
7.2 DRIVER CD AUTO-RUN.......................................................................................... 170
7.3 CHIPSET DRIVER INSTALLATION............................................................................. 172
7.4 INTEL GRAPHICS MEDIA ACCELERATOR DRIVER ................................................... 176
NTEL® NETWORK ADAPTER INSTALLATION ......................................................... 181
7.5 I
7.6 REALTEK RTL8110SC GBE LAN INSTALLATION.................................................. 186
7.7 REALTEK AC`97 AUDIO DRIVER (ALC665) INSTALLATION .................................. 193
7.7.1 BIOS Setup..................................................................................................... 193
7.7.2 Driver Installation ......................................................................................... 194
A BIOS MENU OPTIONS....................................................................................... 199
A.1 BIOS CONFIGURATION OPTIONS........................................................................... 200
B WATCHDOG TIMER.......................................................................................... 205
C ADDRESS MAPPING.......................................................................................... 209
C.1 IO ADDRESS MAP ................................................................................................. 210
Page ix
Page 10
ST MB MEMORY ADDRESS MAP ......................................................................... 210
C.2 1
IMBA-8654 Motherboard
C.3 IRQ MAPPING TABLE.............................................................................................211
C.4 DMA CHANNEL ASSIGNMENTS..............................................................................211
D EXTERNAL AC’97 AUDIO CODEC ................................................................. 213
D.1 INTRODUCTION ..................................................................................................... 214
D.1.1 Accessing the AC’97 CODEC....................................................................... 214
D.1.2 Driver Installation......................................................................................... 214
D.2 SOUND EFFECT CONFIGURATION........................................................................... 215
D.2.1 Accessing the Sound Effects Manager.......................................................... 215
D.2.2 Sound Effect Manager Configuration Options ............................................. 217
INDEX............................................................................................................................ 219
Page x
Page 11
IMBA-8654 Motherboard
Figure 1-1: IMBA-8654 Overview .................................................................................3
Figure 2-1: IMBA-8654 Dimensions (mm)...................................................................8
Figure 2-2: External Interface Panel Dimensions (mm).............................................9
Figure 2-3: Data Flow Block Diagram........................................................................10
Figure 2-4: 184-pin DIMM Sockets.............................................................................15
Figure 4-1: Connector and Jumper Locations.........................................................34
Figure 4-2: ATX Power Supply Connector (4-pins) Location .................................37
Figure 4-3: AGP Slot Location...................................................................................39
Figure 4-4: ATX Power Connector Location.............................................................41
List of Figures
Figure 4-5: Audio Connector Location (8-pin) .........................................................43
Figure 4-6: Auxiliary Audio Connector Location (4-pin).........................................44
Figure 4-7: CD-In Connector......................................................................................45
Figure 4-8: CF Card Socket Location........................................................................47
Figure 4-9: DIO Connector Locations .......................................................................49
Figure 4-10: Fan Connectors Locations ...................................................................50
Figure 4-11: FDC Connector Location ......................................................................51
Figure 4-12: Front Panel Audio Connector Pinout Locations ................................53
Figure 4-13: Front Panel Connector Pinout Locations............................................54
Figure 4-14: IDE Device Connector Locations.........................................................56
Figure 4-15: Infrared Connector Pinout Locations..................................................58
Figure 4-16: PCI Slot Location...................................................................................60
Figure 4-17: SATA Drive Connector Locations........................................................63
Figure 4-18: Serial Port Connector Pinout Locations .............................................65
Figure 4-19: Serial Port Connector (RS-422/485) Pinout Locations.......................66
Figure 4-20: SPDIF Connector Pinout Locations.....................................................67
Figure 4-21: USB Connector Pinout Locations........................................................69
Figure 4-22: IMBA-8654 External Interface Connectors..........................................70
Figure 4-23: PS/2 Pinouts...........................................................................................71
Page xi
Page 12
Figure 4-24: Parallel Port Connector Pinout Locations ..........................................72
Figure 4-25: USB Connector Pinout Locations........................................................73
Figure 4-26: Ethernet Connector Pinout Locations.................................................74
Figure 4-27: Ethernet Connector...............................................................................74
Figure 4-28: Audio Connector....................................................................................75
Figure 4-29: VGA Connector......................................................................................76
Figure 4-30: Serial Communications Connector Pinout Locations .......................77
Figure 5-1: Intel LGA775.............................................................................................84
Figure 5-2: Remove the CPU Socket Protective Shield...........................................85
Figure 5-3: Open the CPU Socket Load Plate ..........................................................85
Figure 5-4: Insert the LGA775 CPU ...........................................................................86
Figure 5-5: IEI Cooling Kits........................................................................................87
Figure 5-6: Securing the Heat sink to the PCB Board.............................................88
IMBA-8654 Motherboard
Figure 5-7: Installing a DIMM .....................................................................................89
Figure 5-8: Jumper Locations....................................................................................90
Figure 5-9: Jumper Locations....................................................................................91
Figure 5-10: IDE Cable Connection...........................................................................95
Figure 5-11: Dual RS-232 Cable Installation.............................................................96
Figure 5-12: Single RS-232 Cable Installation..........................................................97
Figure 5-13: Dual Serial Port Connector Cable Connection...................................98
Figure 5-14: SATA Drive Cable Connection.............................................................99
Figure 5-15: SATA Power Drive Connection......................................................... 100
Figure 5-16: PS/2 Keyboard/Mouse Connector..................................................... 101
Figure 5-17: Parallel Device Connector ................................................................. 102
Figure 5-18: RJ-45 Ethernet Connector ................................................................. 103
Figure 5-19: USB Connector................................................................................... 104
Figure 5-20: Audio Connectors............................................................................... 105
Figure 5-21: VGA Connector................................................................................... 106
Page xii
Figure 5-22: Serial Device Connector .................................................................... 107
Figure 7-1: Introduction Screen.............................................................................. 171
Figure 7-2: Available Drivers................................................................................... 171
Figure 7-3: Chipset Folder....................................................................................... 172
Page 13
IMBA-8654 Motherboard
Figure 7-4: Chipset Driver Installation Program................................................... 172
Figure 7-5: Chipset Driver Installation Welcome Screen..................................... 173
Figure 7-6: Chipset Driver Installation License Agreement................................. 173
Figure 7-7: Chipset Driver Readme File Information............................................ 174
Figure 7-8: Chipset Driver Installation Complete.................................................. 175
Figure 7-9: VGA OS Folders.................................................................................... 176
Figure 7-10: VGA Chipset Folder............................................................................ 177
Figure 7-11: VGA Driver File ................................................................................... 177
Figure 7-12: Intel® Graphics Media Accelerator InstallShield Wizard................ 178
Figure 7-13: InstallShield Wizard Extracting Files................................................ 178
Figure 7-14: Intel® Graphics Media Accelerator Driver Welcome Screen ......... 179
Figure 7-15: Intel® Graphics Media Accelerator Driver License Agreement..... 179
Figure 7-16: Intel® Graphics Media Accelerator Driver Installing Notice........... 180
Figure 7-17: Intel® Graphics Media Accelerator Installation Complete ............. 180
Figure 7-18: Select the Driver Folder ..................................................................... 181
Figure 7-19: Select the Driver ................................................................................. 182
Figure 7-20: Network Adapter License Agreement............................................... 183
Figure 7-21: Location to Save Files........................................................................ 184
Figure 7-22: InstallShield Wizard Extracting Files................................................ 184
Figure 7-23: Overwrite Protection .......................................................................... 185
Figure 7-24: File Extraction Continues .................................................................. 185
Figure 7-25: Intel® Pro Network Connections....................................................... 186
Figure 7-26: Intel® Pro Network Connections Driver Installation Notice........... 186
Figure 7-27: LAN Window........................................................................................ 187
Figure 7-28: Realtek Folder..................................................................................... 187
Figure 7-29: RTL8110SC Folder.............................................................................. 188
Figure 7-30: Windows Folder.................................................................................. 188
Figure 7-31: WIN98_ME_2K_XP_XP64 Folder....................................................... 189
Figure 7-32: PCI_InstallShield_5649_060_919 Folder .......................................... 189
Figure 7-33: RTL8110SC InstallShield Wizard....................................................... 190
Figure 7-34: RTL8110SC InstallShield Wizard Continues.................................... 190
Figure 7-35: RTL8110SC InstallShield Wizard Welcome Screen......................... 191
Page xiii
Page 14
Figure 7-36: RTL8110SC Driver Ready Screen ..................................................... 192
Figure 7-37: RTL8110SC Drivers Installing ........................................................... 192
Figure 7-38: RTL8110SC InstallShield Wizard....................................................... 193
Figure 7-39: RTL8110SC Driver Installation Complete......................................... 193
Figure 7-40: Open the ALC655 Folder.................................................................... 194
Figure 7-41: Open the Windows Folder ................................................................. 195
Figure 7-42: Locate the Setup Program Icon ........................................................ 195
Figure 7-43: Preparing Setup Screen..................................................................... 196
Figure 7-44: InstallShield Wizard Welcome Screen.............................................. 196
Figure 7-45: Audio Driver Software Configuration............................................... 197
Figure 7-46: Audio Driver Digital Signal ................................................................ 197
Figure 7-47: Audio Driver Installation.................................................................... 198
Figure 7-48: Restart the Computer......................................................................... 198
IMBA-8654 Motherboard
Page xiv
Page 15
IMBA-8654 Motherboard
Table 1-1: Technical Specifications ............................................................................6
Table 2-1: Supported Intel® Pentium® 4 Processors..............................................11
Table 2-2: Supported Intel® Pentium® D Processors.............................................12
Table 2-3: Supported Intel® Celeron® D Processors................................................12
Table 2-4: Supported HDD Specifications................................................................19
Table 2-5: Power Consumption .................................................................................26
Table 3-1: Package List Contents..............................................................................30
Table 3-2: Optional Components...............................................................................31
Table 4-1: Peripheral Interface Connectors..............................................................36
List of Tables
Table 4-2: External Peripheral Interface Panel Connectors....................................36
Table 4-3: ATX Power Supply Connector (4-pins) Pinouts.....................................37
Table 4-4: AGP Slot Pinouts.......................................................................................41
Table 4-5: ATX Power Connector Pinouts................................................................42
Table 4-6: Audio Connector Pinouts (8-pin).............................................................43
Table 4-7: Auxiliary Audio Connector Pinouts (4-pin).............................................44
Table 4-8: CD-In Connector........................................................................................45
Table 4-9: CF Card Socket Pinouts ...........................................................................48
Table 4-10: DIO Connector Pinouts...........................................................................49
Table 4-11: Fan Connectors Pinouts.........................................................................51
Table 4-12: FDC Connector Pinouts..........................................................................52
Table 4-13: Front Panel Audio Connector Pinouts..................................................53
Table 4-14: Front Panel Connector Pinouts .............................................................55
Table 4-15: IDE Connector Pinouts...........................................................................57
Table 4-16: Infrared Connector Pinouts....................................................................58
Table 4-17: PCI Slot 62
Table 4-18: SATA Drive Connector Pinouts.............................................................64
Table 4-19: Serial Port Connector Pinouts...............................................................66
Table 4-20: Serial Port Connector (RS-422/485) Pinouts ........................................67
Page xv
Page 16
Table 4-21: SPDIF Connector Pinouts.......................................................................68
Table 4-22: USB Port Connector Pinouts .................................................................69
Table 4-23: PS/2 Connector Pinouts .........................................................................71
Table 4-24: Parallel Port Connector Pinouts............................................................72
Table 4-25: USB Connector Pinouts..........................................................................73
Table 4-26: Ethernet Connector Pinouts...................................................................74
Table 4-27: Ethernet Connector LEDs.......................................................................75
Table 4-28: VGA Connector Pinouts .........................................................................76
Table 4-29: COM1 RS-232 Mode Connector Pinouts...............................................77
Table 5-1: Jumpers 90
Table 5-2: CF Master/Slave Selection Settings ........................................................91
Table 5-3: Clear CMOS Jumper Settings ..................................................................92
Table 5-4: COM3 Mode Selection Jumper Settings.................................................93
IMBA-8654 Motherboard
Table 5-5: IEI Provided Cables...................................................................................94
Table 6-1: BIOS Navigation Keys............................................................................ 111
Page xvi
Page 17
IMBA-8654 Motherboard
List of BIOS Menus
BIOS Menu 1: Main 112
BIOS Menu 2: Advanced.......................................................................................... 114
BIOS Menu 3: CPU Configuration........................................................................... 114
BIOS Menu 4: IDE Configuration............................................................................ 117
BIOS Menu 5: IDE Master and IDE Slave Configuration....................................... 120
Menu 6: Floppy Configuration................................................................................ 126
BIOS Menu 7: Super IO Configuration................................................................... 127
BIOS Menu 8: Hardware Health Configuration...................................................... 134
BIOS Menu 9: ACPI Configuration.......................................................................... 135
BIOS Menu 10: Remote Access Configuration..................................................... 137
BIOS Menu 11: USB Configuration......................................................................... 140
BIOS Menu 12: USB Mass Storage Device Configuration.................................... 143
BIOS Menu 13: PCI/PnP Configuration.................................................................. 145
BIOS Menu 14: Boot................................................................................................. 150
BIOS Menu 15: Boot Settings Configuration......................................................... 151
BIOS Menu 16: Boot Device Priority Settings....................................................... 155
BIOS Menu 17: Hard Disk Drives............................................................................ 156
BIOS Menu 18: Removable Drives.......................................................................... 157
BIOS Menu 19: Security........................................................................................... 157
BIOS Menu 20: Chipset............................................................................................ 159
BIOS Menu 21: Power.............................................................................................. 164
BIOS Menu 22:Exit 166
Page xvii
Page 18
IMBA-8654 Motherboard
Glossary
AC’97 Audio Codec 97
ACPI Advanced Configuration and
Power Interface
APM Advanced Power Management
ARMD ATAPI Removable Media Device
ASKIR Shift Keyed Infrared
ATA Advanced Technology
Attachments
BIOS Basic Input/Output System
CFII Compact Flash Type 2
CMOS Complementary Metal Oxide
Semiconductor
CPU Central Processing Unit
Codec Compressor/Decompressor
COM Serial Port
DAC Digital to Analog Converter
DDR Double Data Rate
HDD Hard Disk Drive
IDE Integrated Data Electronics
I/O Input/Output
ICH5 I/O Controller Hub 5
L1 Cache Level 1 Cache
L2 Cache Level 2 Cache
LCD Liquid Crystal Display
LPT Parallel Port Connector
LVDS Low Voltage Differential Signaling
MAC Media Access Controller
OS Operating System
PCI Peripheral Connect Interface
PIO Programmed Input Output
PnP Plug and Play
POST Power On Self Test
RAM Random Access Memory
SATA Serial ATA
DIMM Dual Inline Memory Module
DIO Digital Input/Output
DMA Direct Memory Access
EIDE Enhanced IDE
EIST Enhanced Int el SpeedStep
Technology
FDD Floppy Disk Drive
FDC Floppy Disk Connector
FFIO Flexible File Input/Output
FIFO First In/First Out
FSB Front Side Bus
IrDA Infrared Data Association
Page xviii
S.M.A.R.T Self Monitoring Analysis and
Reporting Technology
SPD Serial Presence Detect
S/PDI Sony/Philips Digital Interface
SDRAM Synchronous Dynamic Random
Access Memory
SIR Serial Infrared
UART Universal Asynchronous
Receiver-transmitter
USB Universal Serial Bus
VGA Video Graphics Adapter
Page 19
IMBA-8654 Motherboard
Chapter
1
1 Introduction
Page 1
Page 20
1.1 IMBA-8654 Overview
IMBA-8654 Motherboard
The IMBA-8654 motherboard is an LGA775 Intel® Pentium® 4/Intel® Pentium® D/Intel®
Celeron® D CPU platform with an Intel® 865G Express Chipset and Intel® I/O Controller
Hub 5 (ICH5) Southbridge. The IMBA-8654 has a maximum front side bus (FSB)
frequency of 800MHz, supports up to 4GB of dual channel 333/400MHz DDR RAM and
comes with VGA, PS/2 keyboard/mouse, COM port, parallel port, serial port and audio
interfaces as well as a Realtek/Intel® (GbE). The IMBA-8654 supports up to two serial
ATA (SATA 3Gb/s) hard disk drives and up to eight USB 2.0 devices.
1.1.1 IMBA-8654 Features
Some of the IMBA-8654 features are listed below.
RoHS compliant
Support for the following CPUs:
o LGA775 Intel
o LGA775 Intel
o LGA775 Intel
Integrated Intel
®
Pentium® 4
®
Pentium® D
®
Celeron® D
®
Extreme 2 graphics engine
Maximum FSB of 800MHz
Four 184-pin dual channel 333/400MHz DDR SDRAM DIMMs support up to
4GB of memory
High performance Realtek or Intel® Gigabit Ethernet chipset
Two SATA 3Gb/s drives supported
Four Ultra ATA 100, Ultra ATA 66 or Ultra ATA 33 IDE HDDs supported
Eight USB 2.0 devices supported
ATX power only
Realtek ALC655 chipset with AC ’97 CODEC
Expansion:
o 1 x AGP 8X slot
o 6 x PCI expansion slots
1.2 IMBA-8654 Overview
Page 2
Page 21
IMBA-8654 Motherboard
1.2.1 IMBA-8654 Overview Photo
The IMBA-8654 has a wide variety of internal and external peripheral connectors. The
peripheral connectors are connected to devices including storage devices, display devices
and parallel communications devices. A labeled photo of the peripheral connectors is
shown in Figure 1-1.
Figure 1-1: IMBA-8654 Overview
Page 3
Page 22
1.2.2 IMBA-8654 Peripheral Connectors and Jumpers
The IMBA-8654 has the following on-board connectors:
1 x 12V power connector
1 x AGP slot
1 x ATX power connector
1 x Audio connector
1 x Aux. Audio connector
1 x CD-in connector
1 x CompactFlash slot
4 x DDR DIMM slots
1 x DIO connector
2 x Fan connectors
1 x Floppy disk connector
IMBA-8654 Motherboard
1 x Front panel connector
2 x IDE disk drive connectors
1 x Infrared interface connector
6 x PCI slots
2 x Serial ATA (SATA) drive connectors
7 x Serial port connectors
1 x SPDIF connector
4 x USB connectors
The IMBA-8654 has the following external peripheral interface connectors on the board
rear panel:
1 x PS/2 dual keyboard/mouse connector
1 x parallel port connector
1 x serial port connector
1 x VGA connector
1x Ethernet connectors
Page 4
4 x USB connectors
3 x audio connectors
Page 23
IMBA-8654 Motherboard
The IMBA-8654 has the following on-board jumpers:
CF Master/Slave Selection
Clear CMOS
COM3 RS-422/485 Selection
1.2.3 Technical Specifications
IMBA-8654 technical specifications are listed in Table 1-1. Detailed descriptions of each
specification can be found in Chapter 2.
Specification IMBA-8654
Form Factor ATX motherboard
System CPU
LGA775 Intel® Pentium® 4 (up to 3.8GHz)
LGA775 Intel® Pentium® D (up to 3.6GHz)
LGA775 Intel® Celeron® D (up to 3.6GHz)
(Hyperthreading Technology supported)
Front Side Bus 533MHz or 800MHz
Northbridge: Intel® 865G Express
System Chipset
Southbridge: Intel® ICH5
Four 184-pin DDR DIMM slots support four 4GB,
Memory
333MHz or 400MHz DDR SDRAM DIMMs
Display
BIOS AMI BIOS
Audio Realtek ALC655 with AC'97 codec
LAN
COM
Intel integrated graphics accelerator
- Intel® 82541 GbE chipset (IMBA-8650GN) with ASF2.0 support
- Realtek 8110SC GbE chipset (IMBA-8650GR)
Six on-board serial ports:
Five on-board RS-232 serial ports
One on-board RS-232/422/485 serial port (by jumper setting)
USB 2.0 Eight USB 2.0 devices supported
Page 5
Page 24
Specification IMBA-8654
IDE Two 40-pin IDE connects up to four Ultra ATA33/66/100 devices
Floppy Disk One FDD connector supports one floppy disk drive
SATA Two SATA 3Gb/s drives supported
Keyboard/mouse One PS/2 connector supports mouse and keyboard connectivity
Watchdog Timer Software programmable 1-255 sec. by supper I/O
12V@8.57A, 5V@5.9A, 3.3V@0.7A, -12V@0.2A, 5VSB@0.7A
Power Supply
(Pentium® D 3.6GHz/800 MHz CPU with 1GB DDR 400MHz)
Temperature 0ºC ~ 60ºC (32ºF ~140ºF)
Humidity (operating) 5%~95% non-condensing
Dimensions 305mm x 244mm
IMBA-8654 Motherboard
Weight (GW/NW) 1.2kg/0.6kg
Table 1-1: Technical Specifications
Page 6
Page 25
IMBA-8654 Motherboard
Chapter
2
2 Detailed Specifications
Page 7
Page 26
2.1 Overview
This chapter describes the specifications and on-board features of the IMBA-8654 in
detail.
2.2 Dimensions
2.2.1 Board Dimensions
The dimensions of the board are listed below and shown in Figure 2-1.
Length: 305 mm
Width: 244 mm
IMBA-8654 Motherboard
Figure 2-1: IMBA-8654 Dimensions (mm)
Page 8
Page 27
IMBA-8654 Motherboard
2.2.2 External Interface Panel Dimensions
External peripheral interface connector panel dimensions are shown in Figure 2-2.

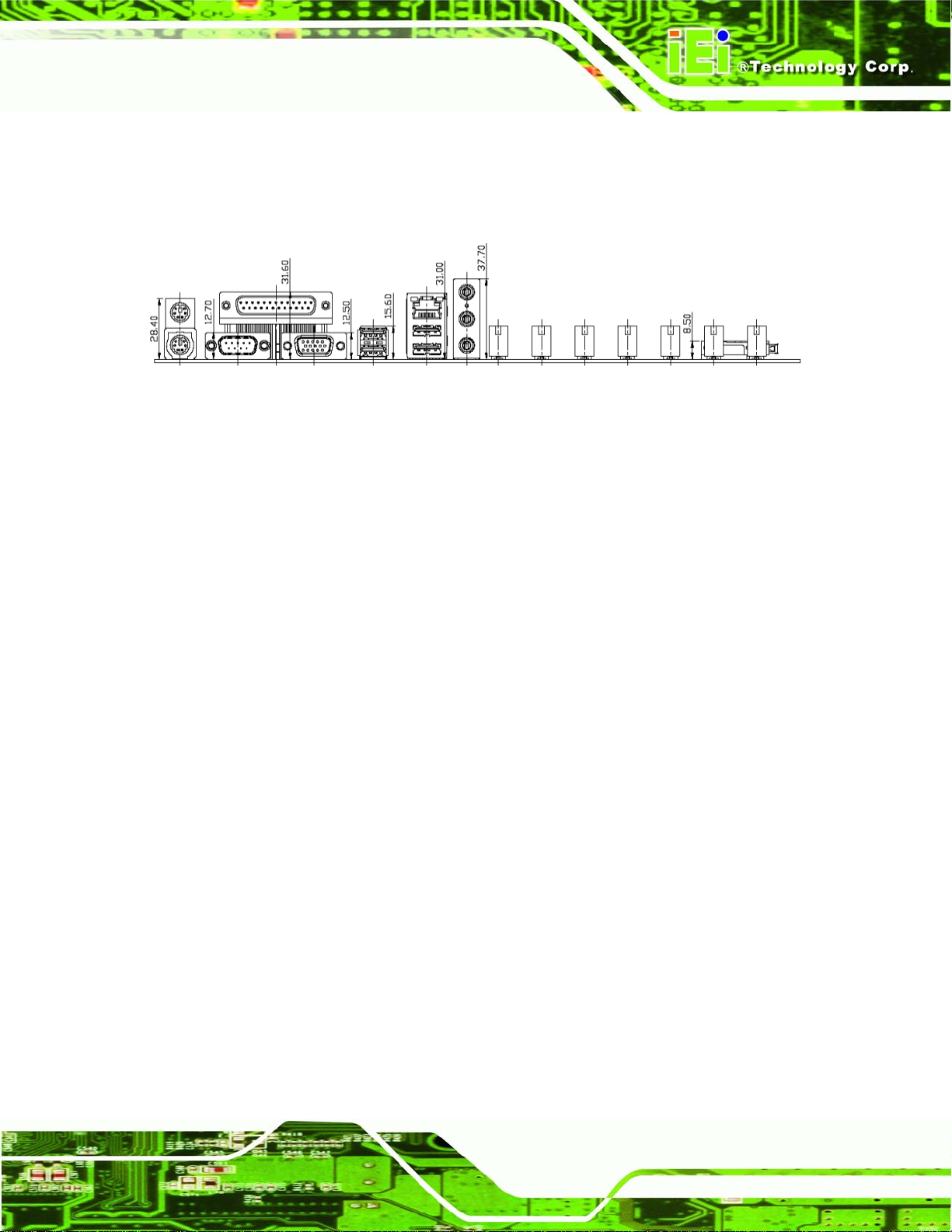

Figure 2-2: External Interface Panel Dimensions (mm)
Page 9
Page 28
2.3 Data Flow
Figure 2-3 shows the data flow between the two on-board chipsets and other components
installed on the motherboard and described in the following sections of this chapter.
IMBA-8654 Motherboard
Page 10
Figure 2-3: Data Flow Block Diagram
Page 29
IMBA-8654 Motherboard
2.4 Compatible Processors
2.4.1 CPU Overview
LGA775 Intel® Pentium® 4, Intel® Pentium® D and Intel® Celeron® D processors can be
installed on the IMBA-8654 motherboard. The Intel
Celeron® D processors all have Intel® Extended Memory 64 Technology (Intel® EMT64T)
2.4.2 Supported Intel® Pentium® 4 Processors
Specifications for the compatible Intel® Pentium® 4 processors are listed in Table 2-1.
CPU Speed Bus Speed Mfg. Tech Cache Package Processor No.
3.80 GHz 800 MHz 90 nm 2 MB LGA775 672
®
Pentium® 4 processors and the Intel
®
3.80 GHz 800 MHz 90 nm 1 MB LGA775 570J
3.80 GHz 800 MHz 90 nm 1 MB LGA775 571
Table 2-1: Supported Intel® Pentium® 4 Processors
Page 11
Page 30
2.4.3 Supported Intel® Pentium® D Processors
Specifications for the compatible Intel® Pentium® D processors are listed in Table 2-2.
CPU Speed Bus Speed Mfg. Tech Cache Package Processor No.
3.60 GHz 800 MHz 65 nm 4 MB LGA775 960
3.40 GHz 800 MHz 65 nm 4 MB LGA775 950
3.40 GHz 800 MHz 65 nm 4 MB LGA775 945
Table 2-2: Supported Intel® Pentium® D Processors
2.4.4 Supported Intel® Celeron® D Processors
Specifications for the compatible Intel® Celeron® D processors are listed in Table 2-3
IMBA-8654 Motherboard
below:
CPU Speed Bus Speed Mfg. Tech Cache Package Processor No.
3.60 GHz 533 MHz 65 nm 512 KB LGA775 365
3.46 GHz 533 MHz 65 nm 512 KB LGA775 360
3.33 GHz 533 MHz 65 nm 512 KB LGA775 356
Table 2-3: Supported Intel® Celeron® D Processors
2.5 Intel® 865G Northbridge Chipset
2.5.1 Intel® 865G Overview
The Intel® 865G northbridge chipset consists of a graphics and memory controller hub
(GMCH). The GMCH on the Intel® 865G is interfaced to the Intel
(ICH5) through a Hub Interface (HI) chip-to-chip connection. Some of the features of the
®
I/O Controller Hub 5
Page 12
Intel® 865G are listed below.
Page 31
IMBA-8654 Motherboard
Host Interface Support
o Intel® Pentium® 4 processors with 512-KB L2 cache on 0.13 micron
process / Pentium 4 processor on 90 nm process
o 64-bit FSB frequencies of 400 MHz (100 MHz bus clock), 533 MHz (133
MHz bus clock), and 800 MHz (200 MHz bus clock). Maximum theoretical
BW of 6.4 GB/s.
o FSB Dynamic Bus Inversion on the data bus
o 32-bit addressing for access to 4 GB of memory space
o Hyper-Threading Technology
System Memory Controller Support
o Dual-channel (128 bits wide) DDR memory interface
o Single-channel (64 bits wide) DDR operation supported
o Symmetric and asymmetric memory dual-channel upgrade supported
o 128-Mb, 256-Mb, 512-Mb technologies implemented as x8, x16 devices
o Up to 4 GB system memory
o Supports up to 16 simultaneously-open pages (four per row) in
dual-channel mode and up to 32 open pages in single-channel mode
o DDR (Double Data Rate type 1) Support
• Supports maximum of two DDR DIMMs per channel, single-sided
and/or double-sided
• Supports DDR266, DDR333, DDR400 DIMM modules
• Supports DDR channel operation at 266 MHz, 333 MHz and 400 MHz
with a Peak BW of 2.1 GB/s, 2.7 GB/s, and 3.2GB/s respectively per
channel
Communication Streaming Architecture (CSA) Interface
o Gigabit Ethernet (GbE) communication devices supported on the CSA
interface
o Supports 8-bit Hub Interface 1.5 electrical/transfer protocol
o 266 MB/s point-to-point connection
o 1.5 V operation
Hub Interface (HI)
o Supports Hub Interface 1.5 electrical/transfer protocol
o 266 MB/s point-to-point connection to the ICH5
o 66 MHz base clock
o 1.5 V operation
Page 13
Page 32
AGP Interface Support
IMBA-8654 Motherboard
o A single AGP device
o AGP 3.0 with 4X / 8X AGP data transfers and 4X / 8X fast writes,
respectively
o 32-bit 4X/8X data transfers and 4X/8X fast writes
o Peak BW of 2 GB/s.
o AGP 2.0 1X/4X AGP data transfers and 4X fast writes
Integrated Graphics
o Core Frequency of 266 MHz
o VGA/UMA Support
o High Performance 3D Setup and Render Engine
o 2D Graphics
o Video DVD/PC-VCR
o Video Mixer Render Supported (VMR)
o Bi-Cubic Filter Support
Display Interfaces
o AGP signals multiplexed with two DVO ports (ADD card supported)
o Multiplexed Digital Display Channels (Supported with ADD Card)
Analog Display Support
o 350 MHz Integrated 24-bit RAMDAC
o Up to 2048x1536 @ 75 Hz refresh
o Simultaneous Display options with digital display
Digital Display Channels
o Two channels multiplexed with AGP
o 165 MHz dot clock on each 12-bit interface
o Can combine two, 12-bit channels to form one, 24-bit interface Supports
flat panels up to 2048x1536 @ 60 Hz or digital CRT/HDTV at 1920x1080
@ 85 Hz
o Supports Hot Plug and Display
o Supports LVDS, TMDS transmitters or TV-out encoders
o ADD card utilizes AGP connector
Page 14
o Three Display Control interfaces (I2C/DDC) multiplexed on AGP
Page 33
IMBA-8654 Motherboard
2.5.2 Intel® 865G Memory Support
The Intel® 865G supports four, 1GB, 333/400MHz dual channel DDR SDRAM DIMMs.
Four 184-pin memory sockets on the IMBA-8654 enable a maximum of 4GB of memory to
be installed on the system. The memory sockets are shown in Figure 2-4.
Figure 2-4: 184-pin DIMM Sockets
2.5.3 Intel® 865G Integrated Graphics
Some of the features of the Intel® 865G integrated graphics accelerator are listed below.
Core Frequency of 266 MHz
VGA/UMA Support
High Performance 3D Setup and Render Engine
o Setup matching processor geometry delivery rates
o Triangle Lists, Strips and Fans Support
o Indexed Vertex and Flexible Vertex Formats
o Vertex Cache
o Pixel Accurate Fast Scissoring and Clipping Operation
o Backface Culling Support
o Supports D3D and OGL Pixelization Rules
Page 15
Page 34
IMBA-8654 Motherboard
o Anti-aliased Lines Support
o Sprite Points Support
High-Quality/Performance Texture Engine
o Per Pixel Perspective Corrected Texture Mapping
o Single Pass Quad Texture Compositing
o Enhanced Texture Blending Functions
o 12 Level of Detail MIP Map Sizes from 1x1 to 2Kx2K
o All texture formats including 32-bit RGBA and 8-bit palettes
o Alpha and Luminance Maps
o Texture Color-keying/ChromaKeying
o Bilinear, Trilinear and Anisotropic MIP-Mapped Filtering
o Cubic Environment Reflection Mapping
o Embossed and DOT3 Bump-Mapping
o DXTn T exture Decompression
o FXT1 T exture Compressio n
o Non-power of 2 Texture
o Render to Texture
2D Graphics
o Optimized 256-bit BLT Eng i ne
o Alpha Stretch Blitter
o Anti-aliased Lines
o 32-bit Alpha Blended Cursor
o Color Space Conversion
o Programmable 3-Color Transparent Cursor
o 8-, 16- and 32-bit Color
o ROP Support
3D Graphics Rendering Enhancements
o Flat and Gouraud Shading
o Color Alpha Blending For Transparency
o Vertex and Programmable Pixel Fog and Atmospheric Effect s
o Color Specular Lighting
Page 16
o Z Bias Support
o Dithering
o Line and Full-scene Anti-Aliasied
o 16- and 24-bit Z Buffering
Page 35
IMBA-8654 Motherboard
o 16- and 24-bit W Buffering
o 8-bit Stencil Buffering
o Double and Triple Render Buff er Support
o 16- and 32-bit Color
o Destination Alpha
o Vertex Cache
o Maximum 3D Resolution Supported: 1600x1200x32 @ 85Hz
o Fast Clear Support
Video DVD/PC-VCR
o Hardware Motion Compensation for MPEG2
o Dynamic Bob and Weave Support for Video Streams
o Synclock Display and TV-out to video source
o Source Resolution up to 1280x720 with 3-vertical taps and 1920x1080
with 2-vertical taps
o Software DVD At 30 fps, Full Screen
o Supports 720x480 DVD Quality Encoding at low processor Utilization for
PC-VCR or home movie recording and editing
o Video Overlay
o Single High Quality Scalable Overlay
o Multiple Overlay Functionality provided via Stretch Blitter (PIP, Video
Conferencing, etc.)
o 5-tap Horizontal, 3-tap Vertical Filtered Scaling
o Independent Gamma Correction
o Independent Brightness/Contrast/Saturation
o Independent Tint/Hue Support
o Destination Color-keying
o Source ChromaKeying
o Maximum Source Resolution: 720x480x32
o Maximum Overlay Display Resolution: 2048x1536x32
Video Mixer Render Supported (VMR)
Bi-Cubic Filter Support
Page 17
Page 36
2.6 Intel® ICH5 Southbridge Chipset
2.6.1 Intel® ICH5 Overview
The ICH5 southbridge chipset on the IMBA-8654 has the features are listed below.
PCI Local Bus Specification, Revision 2.3 with support for 33 MHz PCI
operations.
PCI slots (supports up to 6 Req/Gnt pairs)
ACPI power management logic support
Enhanced DMA controller, interrupt controller, and timer functions
Integrated IDE controller supports Ultra ATA100/66/33
Integrated SATA controller
USB host interface with support for eight USB ports; four UHCI host
controllers; one EHCI high-speed USB 2.0 host controller
IMBA-8654 Motherboard
Integrated LAN controller
Integrated ASF controller
System Management Bus (SMBus) Specification, Version 2.0 with additional
support for I2C devices
Supports Audio Codec ‘97 Component Specification, Version 2.3 (also known
as AC ’97 v2.3 Specification) link for audio and telephony code cs (up to seven
channels)
Low Pin Count (LPC) interface
Firmware Hub (FWH) interface support
2.6.2 Intel® ICH5 Audio Codec ’97 Controller
The Audio Codec ’97 (AC’97) controller integrated into the ICH5 complies with AC’97
Component Specification, Version 2.3. The AC’97 controller is connected to the onboard
audio connector. The audio connector is connected to an optional 5.1 channel or 7.1
channel audio kit with an embedded AC’97 audio codec. The A C’97 controlle r supports u p
to six PCM audio output channels. Complete surround sound requires six-channel audio
Page 18
consisting of:
Front left
Front right
Page 37
IMBA-8654 Motherboard
Back left
Back right
Center
Subwoofer
2.6.3 Intel® ICH5 IDE Interface
The integrated IDE interface on the ICH5 southbridge supports up to four IDE hard disks
and ATAPI devices, PIO IDE transfers up to 16MB/s and Ultra ATA transfers of 100MB/s.
The integrated IDE interface is able to support the following IDE HDDs:
Ultra A T A/10 0, with data transfer rates up to 100MB/s
Ultra A T A/66, with data transfer rates up to 66MB/s
Ultra A T A/33, with data transfer rates up to 33MB/s
Table 2-4 shows the supported HDD specifications.
Specification Ultra ATA/100 Ultra AT A/66 Ultra ATA/33
IDE devices 2 2 2
PIO Mode 0 – 4 0 – 4 0 – 4
PIO Max Transfer Rate 16.6 MB/s 16.6 MB/s 16.6 MB/s
DMA/UDMA designation UDMA 3 - 4 UDMA 3 – 4 UDMA 2
DMA/UDMA Max Transfer 100MB/s 66MB/s 33MB/s
Controller Interface 5V 5V 5V
Table 2-4: Supported HDD Specifications
2.6.4 Intel® ICH5 Low Pin Count (LPC) Interface
The ICH5 LPC interface complies with the LPC 1.1 specifications. The LPC bus from the
ICH5 is connected to the following components:
BIOS chipset
Super I/O chipset
Page 19
Page 38
2.6.5 Intel® ICH5 PCI Interface
The PCI interface on the ICH5 is compliant with the PCI Revision 2.3 implementation.
Some of the features of the PCI interface are listed below.
PCI Revision 2.3 compliant
33MHz
5V tolerant PCI signals (except PME#)
Integrated PCI arbiter supports up to seven PCI bus masters
Three of the seven PCI bus masters are interfaces to the following onboard components:
PCI slot connector on the bottom of the motherboard
Broadcom PCI Express GbE interface
ITE PCI-to-ISA bridge interface
IMBA-8654 Motherboard
The remaining four PCI bus masters are reserved for four PCI expansion boards that can
be installed on the backplane.
2.6.6 Intel® ICH5 Real Time Clock
256 bytes of battery backed RAM is provided by the Motorola MC146818A real time clock
(RTC) integrated into the ICH5. The RTC operates on a 3V battery and 32.768KHz crystal.
The RTC keeps track of the time and stores system data even when the system is turned
off.
2.6.7 Intel® ICH5 SATA Controller
The integrated SATA controller on the ICH5 southbridge supports four SATA drives with
independent DMA operations. SATA controller specifications are listed below.
Supports four SATA drives
Supports 1.5Gb/s data transfer spe eds
Supports Serial ATA Specification, Revisi on 1.0a and supports several
Page 20
optional sections of the Serial ATA II: Extensions to Serial ATA 1.0
Specification, Revision 1.0 (AHCI sup port is required for some elements).
Page 39
IMBA-8654 Motherboard
2.6.8 Intel® ICH5 USB Controller
Up to eight high-speed, full-speed or low-speed USB devices are supported by the ICH5.
High-speed USB 2.0, with data transfers of up to 480MB/s, is enabled with the ICH5
integrated Enhanced Host Controller Interface (EHCI) compliant host controller. USB
full-speed and low-speed signaling is supported by the four ICH5 integrated Universal
Host Controller Interface (UHCI) controller.
2.7 PCI Bus Components
2.7.1 PCI Bus Overview
The PCI bus controller on the ICH5 southbridge is compliant with PCI Revision 2.3
specifications and has a 33MHz PCI clock. The components listed below are all
connected to the PCI bus:
PCI slots on the motherboard
GbE interface
2.7.2 Realtek GbE interface
The Realtek 8110SC GbE controller is a 10/100/1000BASE-T Ethernet LAN controller.
The Realtek 8110SC combines a triple-speed IEEE 802.3 compliant Media Access
Controller (MAC) with a triple-speed Ethernet transceiver, a 32-bit PCI bus controller, and
embedded memory. Some of the Realtek 8110SC controller features are listed below:
Integrated 10/100/1000 transceiver
Auto-Negotiation with Next Page capability
Supports PCI rev.2.3, 32-bit, 33/66MHz
Supports CLKRUNB and MinPCI vl.0
Supports pair swap/polarity/skew correction
Crossover Detection & Auto-correction
Wake-on-LAN and remote wake-up support
Microsoft NDIS5 Checksum Offload (IP, TCP, UDP) and largesend offload
support
Supports Full Duplex flow control (IEEE 802.3x)
Page 21
Page 40
Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Supports IEEE 802. IP Layer 2 Priority Encoding
Supports IEEE 802. IQ VLAN tagging
Serial EEPROM
3.3V signaling, 5V PCI I/O tolerant
Transmit/Receive FIFO support
Supports power down/link down power saving
Supports PCI Message Signaled Interrupt (MSI)
2.8 LPC Bus Components
2.8.1 LPC Bus Overview
The LPC bus is connected to components listed below:
BIOS chipset
IMBA-8654 Motherboard
Super I/O chipset
2.8.2 BIOS Chipset
The BIOS chipset has a licensed copy of AMI BIOS installed on the chipset. Some of the
BIOS features are listed below:
AMI Flash BIOS
SMIBIOS (DMI) compliant
Console redirection function support
PXE (Pre-boot Execution Environment) support
USB booting support
2.8.3 Super I/O chipset
The Winbond W83697HG Super I/O chipset is connected to the ICH5 southbrid ge through
the LPC bus. The Winbond W83697HG is an LPC interface-based Super I/O device that
comes with Environment Controller integration. Some of the features of the iTE IT8712F
Page 22
chipset are listed below:
Page 41
IMBA-8654 Motherboard
LPC Interface
PC98/99, DPM and ACPI Compli ant
Hardware Monitor
Fan Speed Controller
Two 16C550 UARTs for serial port control
One IEEE 1284 Parallel Port
Floppy Disk Controller
Supports IrDA and ASKIR protocols
Watchdog T i mer
Serial IRQ Support
Vbat & Vcch Support
Single +5V Power Supply
Some of the Super I/O features are described in more detail below:
2.8.3.1 Super I/O LPC Interface
The LPC interface on the Super I/O complies with the Intel® Low Pin Count Specification
Rev. 1.0. The LPC interface supports both LDRQ# and SERIRQ protocols as well as PCI
PME# interfaces.
2.8.3.2 Super I/O 16C550 UARTs
The on-board Super I/O has two integrated 16C550 UARTs that can support the following:
Two standard serial ports
IrDa 1.0 and ASKIR protocols
SPP, BPP, EPP and ECP compatible parallel port
48 programmable general purpose I/O ports
2.8.3.3 Super I/O Hardware Monitor
The Super I/O Hardware Monitor monitors two thermal inputs, VBAT internally, and six
voltage monitor inputs. These hardware parameters are reported in the BIOS and can be
read from the BIOS Hardware Health Configuration menu.
Page 23
Page 42
IMBA-8654 Motherboard
2.8.3.4 Super I/O Fan Speed Controller
The Super I/O fan speed controller enables the system to monitor the speed of the fan.
One of the pins on the fan connector is reserved for fan speed detection and interfaced to
the fan speed controller on the Super I/O. The fan speed is then reported in the BIOS.
2.8.3.5 Super I/O Parallel Port
The Super I/O parallel port (LPT) supports standard mode, enhanced mode and
high-speed mode parallel port devices. The LPT is compliant with the following LPT
modes.
Standard mode
o Bi-directional SPP compliant
Enhanced mode
o EPP, IEEE 1284 compliant
High-speed mode
o ECP, IEEE 1284 compliant
2.9 Environmental and Power Specifications
2.9.1 System Monitoring
Three thermal inputs on the IMBA-8654 Super I/O Enhanced Hardware Monitor the
following temperatures:
CPU Temperature
System Temperature #1
System Temperature #2
Eight voltage inputs on the IMBA-8654 Super I/O Enhanced Hardware Monitor the
following voltages:
Page 24
CPU Core
GMCH VTT
+2.50V
+3.30V
Page 43
IMBA-8654 Motherboard
+5.00V
+12.0V
+1.50V
5VSB
The IMBA-8654 Super I/O Enhanced Hardware Monitor also monitors the following
voltages internally:
VBAT
The IMBA-8654 Super I/O Enhanced Hardware Monitor also monitors the following fan
speeds:
CPU Fan speed
System Fan speed
The values for the above environmental parameters are all recorded in the BIOS
Hardware Health Configuration menu.
2.9.2 Operating Temperature and Temperature Control
The maximum and minimum operating temperatures for the IMBA-8654 are listed below.
Minimum Operating Temperature: 0ºC (32°F)
Maximum Operating Temperature: 60°C (140°F)
A cooling fan and heat sink must be installed on the CPU. Thermal paste must be
smeared on the lower side of the heat sink before it is mounted on the CPU. Heat sinks
are also mounted on the northbridge and southbridge chipsets to ensure the operating
temperature of these chips remain low.
Page 25
Page 44
2.9.3 Power Consumption
Table 2-5 shows the power consumption parameters for the IMBA-8654 running with an
®
Pentium® D 3.6GHz/800 MHz CPU with 1GB DDR 400MHz of memory.
Intel
Voltage Current
+3.3V 0.7A
5VSB 0.7A
+5V 5.9A
+12V 8.57A
-12V 0.2A
Table 2-5: Power Consumption
IMBA-8654 Motherboard
Page 26
Page 45
IMBA-8654 Motherboard
Chapter
3
3 Unpacking
Page 27
Page 46
3.1 Anti-static Precautions
WARNING!
Failure to take ESD precautions during the installation of the
IMBA-8654 may result in permanent damage to the IMBA-8654 and
severe injury to the user.
Electrostatic discharge (ESD) can cause serious damage to electronic components,
including the IMBA-8654. Dry climates are especially susceptible to ESD. It is critical that
the following anti-static precautions are strictly adhered to whenever handling the
IMBA-8654 or any other electrical component.
IMBA-8654 Motherboard
Wear an anti-static wristband - Wearing a simple anti-static wristband can
help to prevent ESD from damaging the IMBA-8654.
Self-grounding - Touch a grounded conducting material before handling and
periodically while handling the IMBA-8654.
Use an anti-static pad - When configuring the IMBA-8654, place it on an
antic-static pad to reduce the possibility of ESD damage.
Only handle the edges of the IMBA-8654 - When handling the IMBA-8654,
hold it by its edges.
Page 28
Page 47
IMBA-8654 Motherboard
3.2 Unpacking
3.2.1 Unpacking Precautions
When the IMBA-8654 is unpacked, please do the following:
Follow the anti-static precautions outlined in Section 3.1.
Make sure the packing box is facing upwards so the IMBA-8654 does not fall
out of the box.
Make sure all the components shown in Section 3.3 are present.
3.3 Unpacking Checklist
NOTE:
If any components listed in the checklist below are missing, do not
proceed with the installation. Contact the IEI reseller or vendor the
IMBA-8654 was purchased from or contact an IEI sales representative
directly by sending an email to sales@iei.com.tw

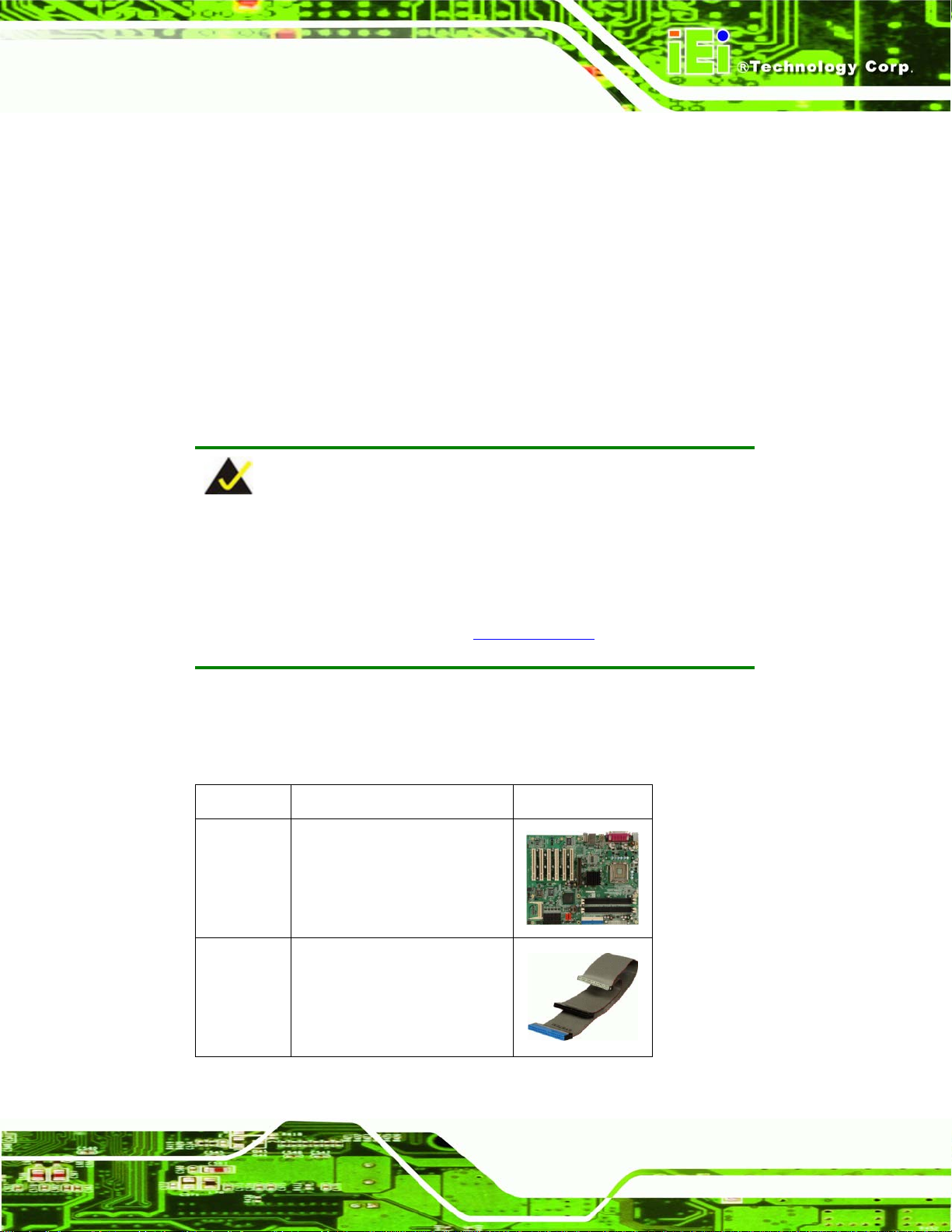

3.3.1 Package Contents
The IMBA-8654 is shipped with the following components:
Quantity Item and Part Number Image
1
1
IMBA-8654
ATA 66/10 0 flat cable
(P/N: 32200-000052-RS)
.
Page 29
Page 48
Quantity Item and Part Number Image
Dual RS-232 cable
2
(P/N: 32200-004101-RS)
IMBA-8654 Motherboard
RS-232 cable
1
(P/N: 32200-029400-RS)
RS-422/485 cable
1
(P/N: 19800-000063-RS)
SATA cables
2
(P/N: 32000-062800-RS)
1
1
1
1
1
SATA power cable
(P/N: 32100-088600-RS)
I/O Shielding
(P/N: 45002-0804C0-00-RS)
Mini jumper Pack
(P/N: 33100-000079-RS)
Quick Installation Guide
(P/N 51000-021930-RS)
Utility CD
(P/N: 51100-000079-RS)
Page 30
Table 3-1: Package List Contents
Page 49
IMBA-8654 Motherboard

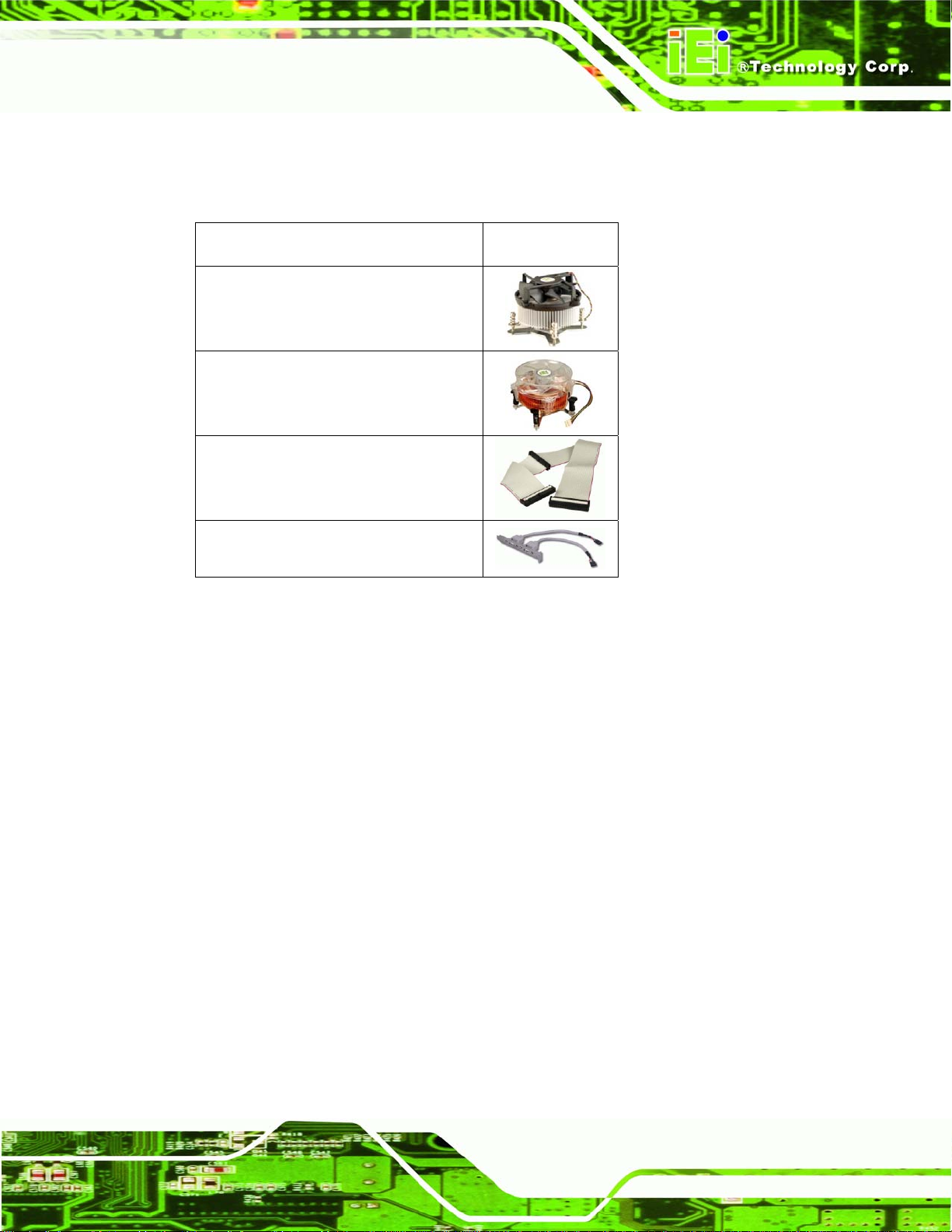

3.3.2 Optional Components
The following optional components are available from IEI.
Item and Part Number
CPU cooling kit (P/N: CF-520-RS)
CPU cooling kit (P/N: CF-775A-RS)
FDD cable (P/N: 32200-0000-17-RS)
Dual USB cable (P/N: CB-USB02-RS)
Table 3-2: Optional Components
Page 31
Page 50
IMBA-8654 Motherboard
THIS PAGE IS INTENTIONALLY LEFT BLANK
Page 32
Page 51
IMBA-8654 Motherboard
Chapter
4
4 Connector Pinouts
Page 33
Page 52
4.1 Peripheral Interface Connectors
Section 4.1.1 shows peripheral interface connector locations. Section 4.1.2 lists all the
peripheral interface connectors seen in Section 4.1.1.
4.1.1 IMBA-8654 Layout
Figure 4-1 shows the on-board peripheral connectors, rear panel peripheral connectors
and on-board jumpers.
IMBA-8654 Motherboard
Figure 4-1: Connector and Jumper Locations
4.1.2 Peripheral Interface Connectors
Table 4-1 shows a list of the peripheral interface connectors on the IMBA-8654. Detailed
descriptions of these connectors can be found below.
Page 34
Page 53
IMBA-8654 Motherboard
Connector Type Label
+12V ATX power connector 4-pin header CPU12V1
AGP slot 66-pin AGP 8X slot AGP1
ATX power connector 24-pin header ATX1
Audio connector 8-pin header CN3
Auxiliary audio connector 4-pin header AUX1
CD-in connector 4-pin header CD_IN1
CompactFlash connector 50-pin CF slot CF1
Digital input/output connector 10-pin header DIO1
Fan connector - CPU 4-pin wafer CPU_FAN1
Fan connector - System 3-pin wafer SYS_FAN1
Floppy disk drive connector 34-pin box header FDD1
Front panel connector 14-pin header F_PANEL1
Front Panel audio connector 10-pin header CN2
IDE Interface connector 40-pin box header IDE1
IDE Interface connector 40-pin box header IDE2
Infrared connector 5-pin header IR1
PCI slot 124-pin PCI slot PCI1
PCI slot 124-pin PCI slot PCI2
PCI slot 124-pin PCI slot PCI3
PCI slot 124-pin PCI slot PCI4
PCI slot 124-pin PCI slot PCI5
PCI slot 124-pin PCI slot PCI6
SATA drive connector 7-pin SATA SATA1
SATA drive connector 7-pin SATA SATA2
Serial port connector (RS-232) 10-pin box header COM2
Serial port connector (RS-232) 10-pin box header COM4
Serial port connector (RS-232) 10-pin box header COM5
Page 35
Page 54
Connector Type Label
Serial port connector (RS-232) 10-pin box header COM6
Serial port connector (RS-232/422/485) 10-pin box header COM3
Serial port connector (RS-422/485) 4-pin header CN1
SPDIF connector 5-pin header SPDIF1
USB connector 8-pin header USB2
USB connector 8-pin header USB3
Table 4-1: Peripheral Interface Connectors
4.1.3 External Peripheral Interface Panel Connectors
Table 4-2 lists the external peripheral interface panel connectors on the IMBA-8654.
Detailed descriptions of these connectors can be found in.
IMBA-8654 Motherboard
Connector Type Label
Keyboard/Mouse PS/2 KBMS1
Parallel port connector DB-25 (female) CN5
VGA connector DB-15 (female) CN5
Serial connector DB-9 (male) CN5
USB connector Dual USB port connector USB1
Ethernet/USB connector RJ-45/USB port combo connector LAN/USB1
Audio connector 3 x Audio jacks LAN2
Table 4-2: External Peripheral Interface Panel Connectors
4.2 Internal Peripheral Connectors
Internal peripheral connectors are found on the motherboard and are only accessible
when the motherboard is outside of the chassis. T his sect ion h as c omplete des cript ion s of
all the internal, peripheral connectors on the IMBA-8654.
Page 36
Page 55
IMBA-8654 Motherboard
4.2.1 ATX Power Supply Connector (4-pins)
CN Label:
CN Type:
CN Location:
CN Pinouts:
The 4-pin ATX power supply connector is connected to a +12V ATX power supply.
CPU12V1
4-pin ATX power connector (1x4)
See Figure 4-2
See Table 4-3
Figure 4-2: ATX Power Supply Connector (4-pins) Location
PIN DESCRIPTION
1 GND
2 GND
3 +12V
4 +12V
Table 4-3: ATX Power Supply Connector (4-pins) Pinouts
Page 37
Page 56
4.2.2 AGP Connector (66-pins)
IMBA-8654 Motherboard
CN Label:
CN Type:
CN Location:
CN Pinouts:
Use the 66-pin AGP slot to connect an AGP 3.0 compliant graphics card.
AGP1
66-pin AGP slot
See Figure 4-3
See Table 4-4
Page 38
Page 57
IMBA-8654 Motherboard

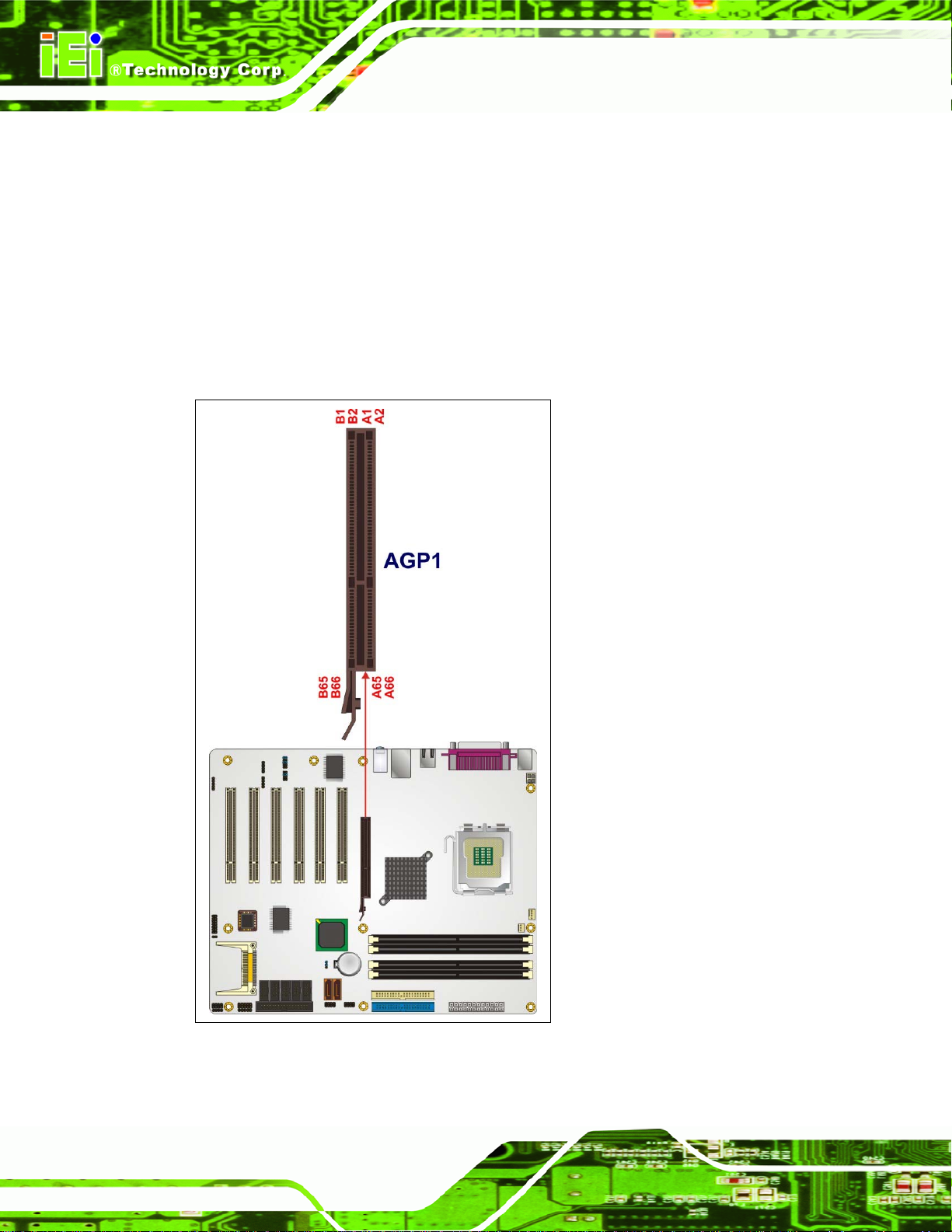

Figure 4-3: AGP Slot Location
Page 39
Page 58
IMBA-8654 Motherboard
PIN
1 OVRCNT# 12V 34 Vddq1.5 Vddq1.5
2 5.0V TYPEDET# 35 AD21 AD22
3 5.0V GC_DET# 36 AD19 AD20
4 USB+ USB- 37 GND GND
5 GND GND 38 AD17 AD18
6 INTB# INTA# 39 C#/BE2 AD16
7 CLK RST# 40 Vddq1.5 Vddq1.5
8 REQ GNT 41 IRDY FRAME
9 VCC3.3 VCC3.3 42 KEY KEY
10 ST0 ST1 43 KEY KEY
11 ST2 MB _DET# 44 KEY KEY
12 RBF DBI_HI 45 KEY KEY
13 GND GN D 46 DEVSEL TRDY
14 DBI_LO WBF 47 Vddq1.5 STOP
15 SBA0# SBA1# 48 PERR PME#
B A
PIN
B A
16 VCC3 .3 VCC3.3 49 GND GND
17 SBA2# SBA3# 50 SERR PAR
18 SB_STBF SB_STBS 51 C#/BE1 AD15
19 GND GND 52 Vddq1.5 Vddq1.5
20 SBA4# SBA5# 53 AD14 AD13
21 SBA6# SBA7# 54 AD12 AD11
22 Reserved Reserved 55 GND GND
23 GND GND 56 AD10 AD9
24 3.3V AUX Reserved 57 AD8 C#/BE0
25 VCC3.3 VCC3.3 58 Vddq1.5 Vddq1.5
26 AD31 AD30 59 AD_STBF0 AD_STBS0
27 AD29 AD28 60 AD7 AD6
28 VCC3 .3 VCC3.3 61 GND GND
29 AD27 AD26 62 AD5 AD4
30 AD25 AD24 63 AD3 AD2
31 GND GND 64 Vddq1.5 Vddq1.5
Page 40
32 AD_STBF1 AD_STBS1 65 AD1 AD0
Page 59
IMBA-8654 Motherboard
PIN
33 AD23 C#/BE3 66 AGPVrefcg AGPVrefgc
Table 4-4: AGP Slot Pinouts
B A
PIN
B A
4.2.3 ATX Power Supply Connector (24-pins)
CN Label:
CN Type:
CN Location:
CN Pinouts:
The 24-pin ATX power supply connector is connected to a ATX power supply.
PWR1
24-pin ATX power connector (2x12)
See Figure 4-4
See Table 4-5

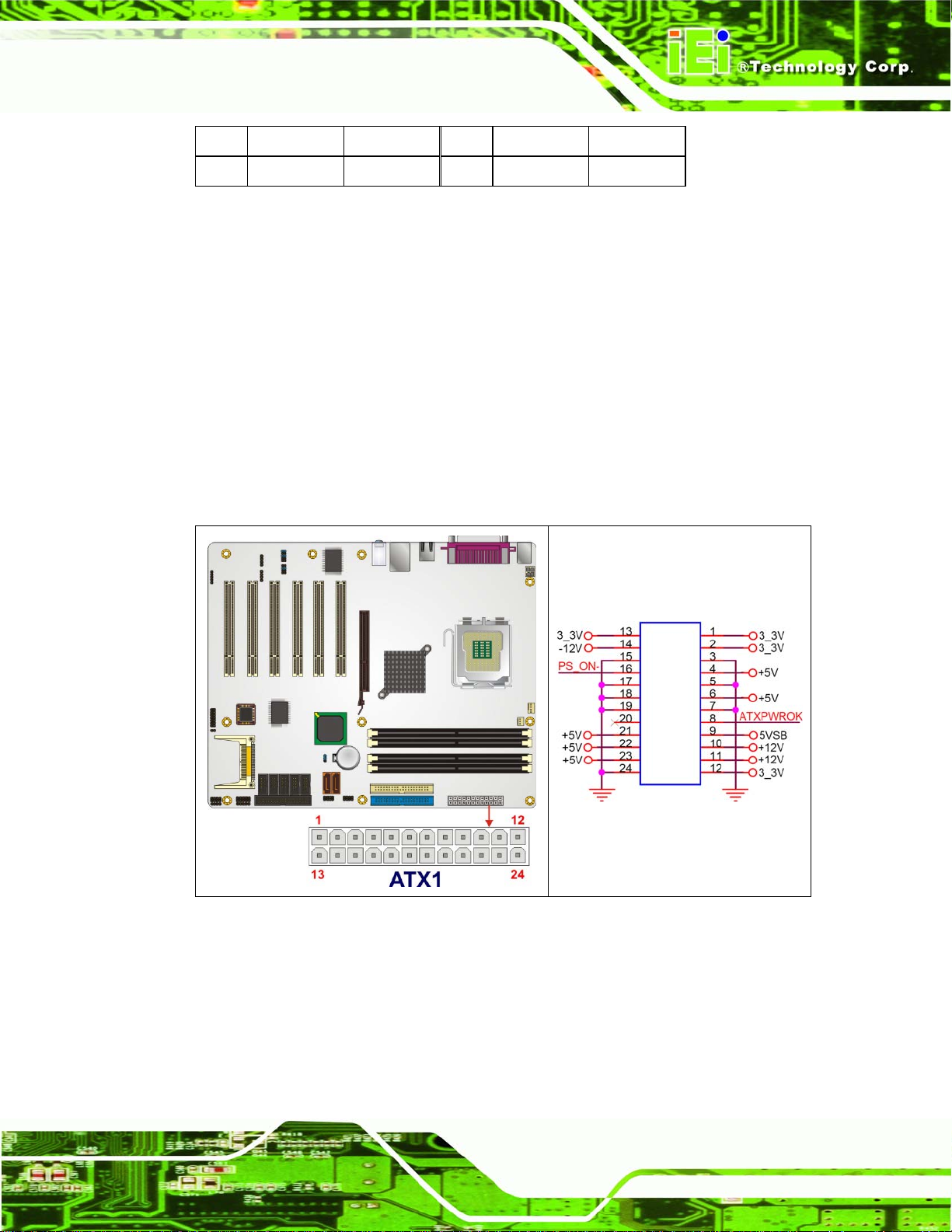

Figure 4-4: ATX Power Connector Location
Page 41
Page 60
IMBA-8654 Motherboard
PIN DESCRIPTION PIN DESCRIPTION
1 3.3V01 13 3.3V04
2 3.3V02 14 -12V
3 COM01 15 COM
4 +5V01 16 PS-ON
5 COM02 17 COM04
6 +5V02 18 COM05
7 COM03 19 COM06
8 PWR-OK 20 -5V
9 5VSB 21 +5V03
10 +12V01 22 +5V04
11 +12V02 23 +5V05
12 3.3V03 24 COM07
Table 4-5: ATX Power Connector Pinouts
Page 42
Page 61
IMBA-8654 Motherboard
4.2.4 Audio Connector (8-pin)
CN Label:
CN Type:
CN Location:
CN Pinouts:
The 8-pin audio connector is connected to external audio devices including speakers and
microphones for the input and output of audio signals to and from the system.
CN3
7-pin header
See Figure 4-5
See Table 4-6

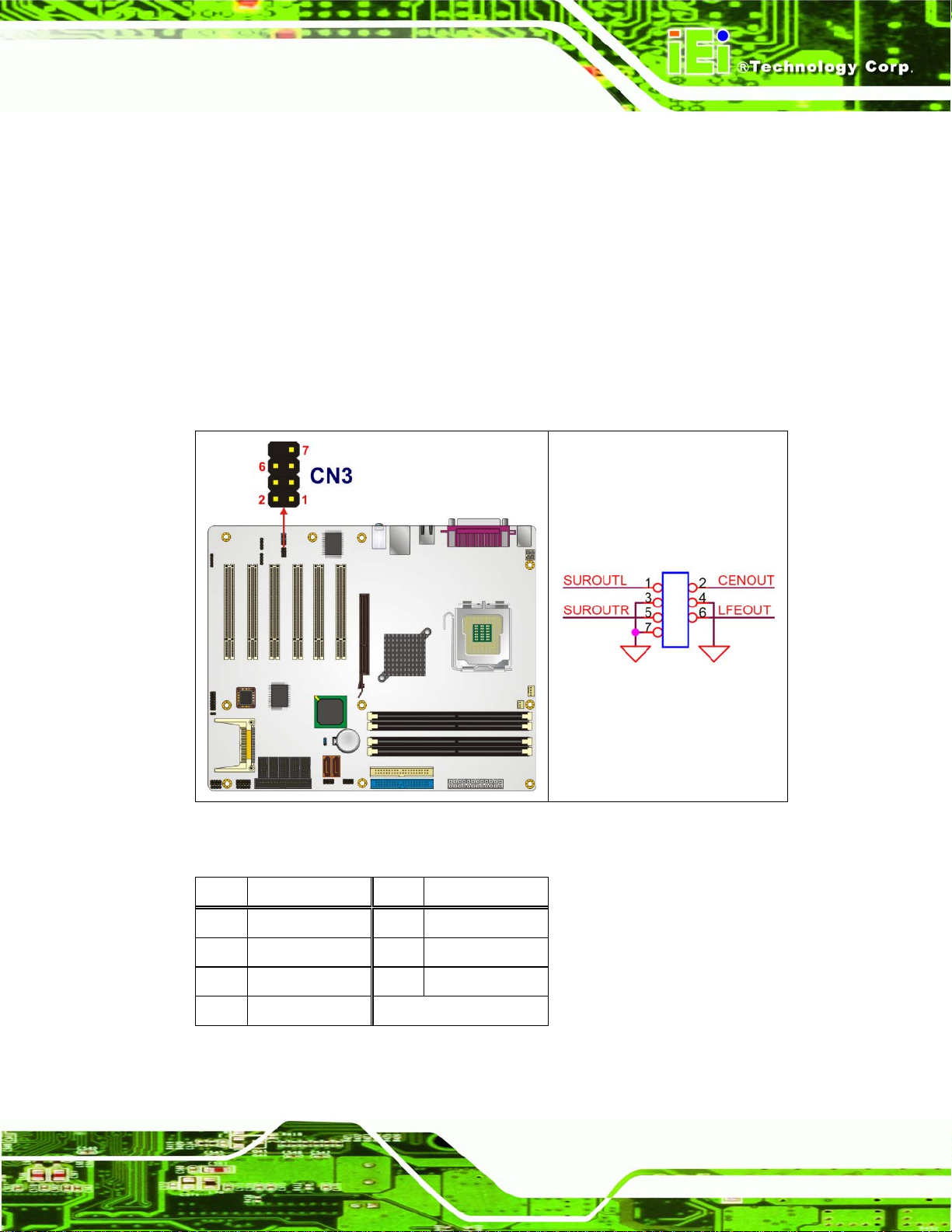

Figure 4-5: Audio Connector Location (8-pin)
PIN DESCRIPTION PIN DESCRIPTION
1 SUROUTL 2 CENOUT
3 GND 4 GND
5 SUROUTL 6 LFEOUT
7 GND
Table 4-6: Audio Connector Pinouts (8-pin)
Page 43
Page 62
4.2.5 Auxiliary Audio Connector (4-pin)
IMBA-8654 Motherboard
CN Label:
CN Type:
CN Location:
CN Pinouts:
The 4-pin auxiliary audio connector provides a second audio input to the system.
AUX1
4-pin header
See Figure 4-6
See Table 4-7
Page 44
Figure 4-6: Auxiliary Audio Connector Location (4-pin)
PIN DESCRIPTION
1 CAUXL
2 GND
3 GND
4 CAUXR
Table 4-7: Auxiliary Audio Connector Pinouts (4-pin)
Page 63
IMBA-8654 Motherboard
4.2.6 CD-In Connector
CN Label:
CN Type:
CN Location:
CN Pinouts:
The 4-pin CD-in connector connects a CD to the system.
CD_IN1
4-pin header
See Figure 4-7
See Table 4-8

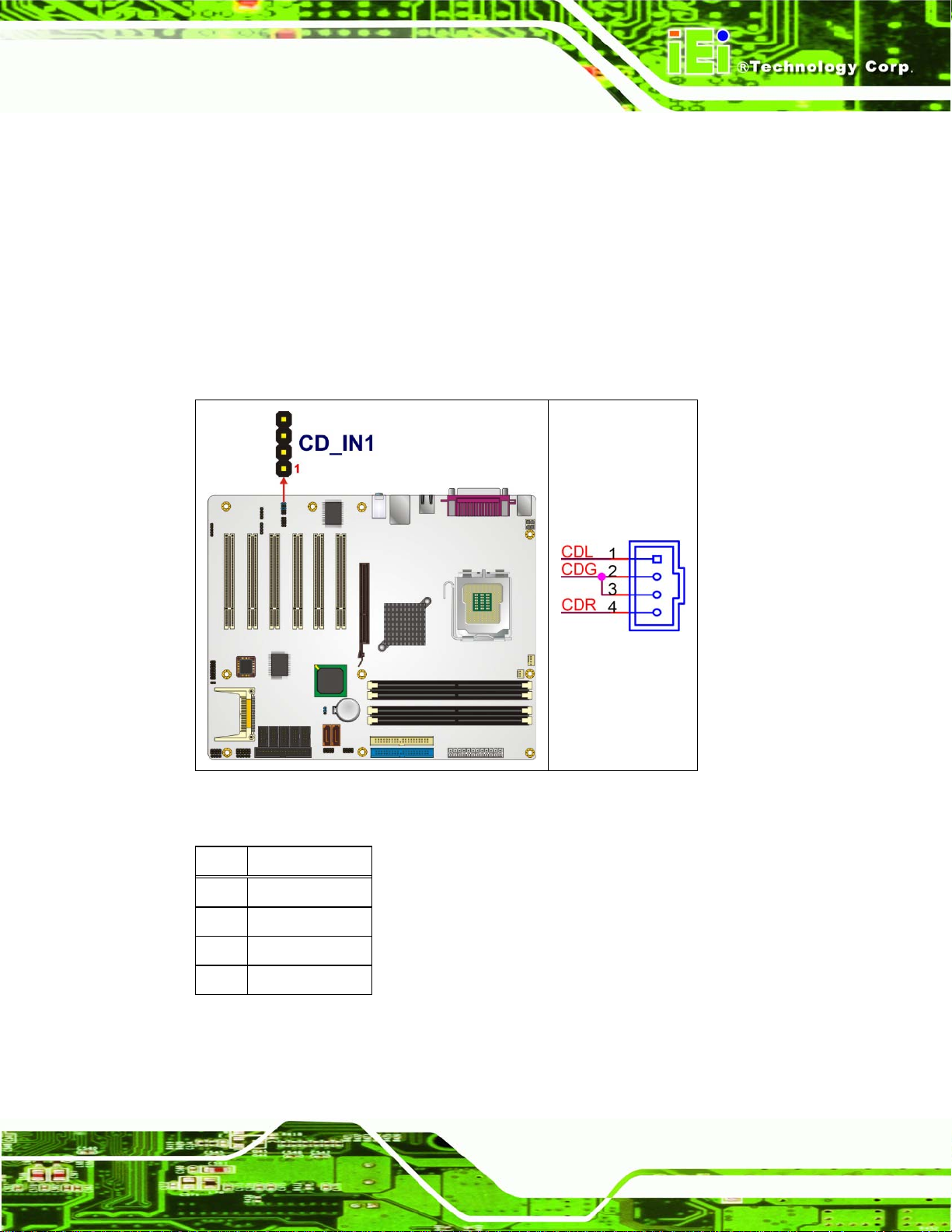

Figure 4-7: CD-In Connector
PIN DESCRIPTION
1 CDL
2 GND
3 GND
4 CDR
Table 4-8: CD-In Connector
Page 45
Page 64
4.2.7 Compact Flash Socket
IMBA-8654 Motherboard
CN Label:
CN Type:
CN Location:
CN Pinouts:
A CF Type I or Type II memory card inserts into the CF socket on the motherboard.
CF1
50-pin header (2x25)
See Figure 4-8
See Table 4-9
Page 46
Page 65
IMBA-8654 Motherboard

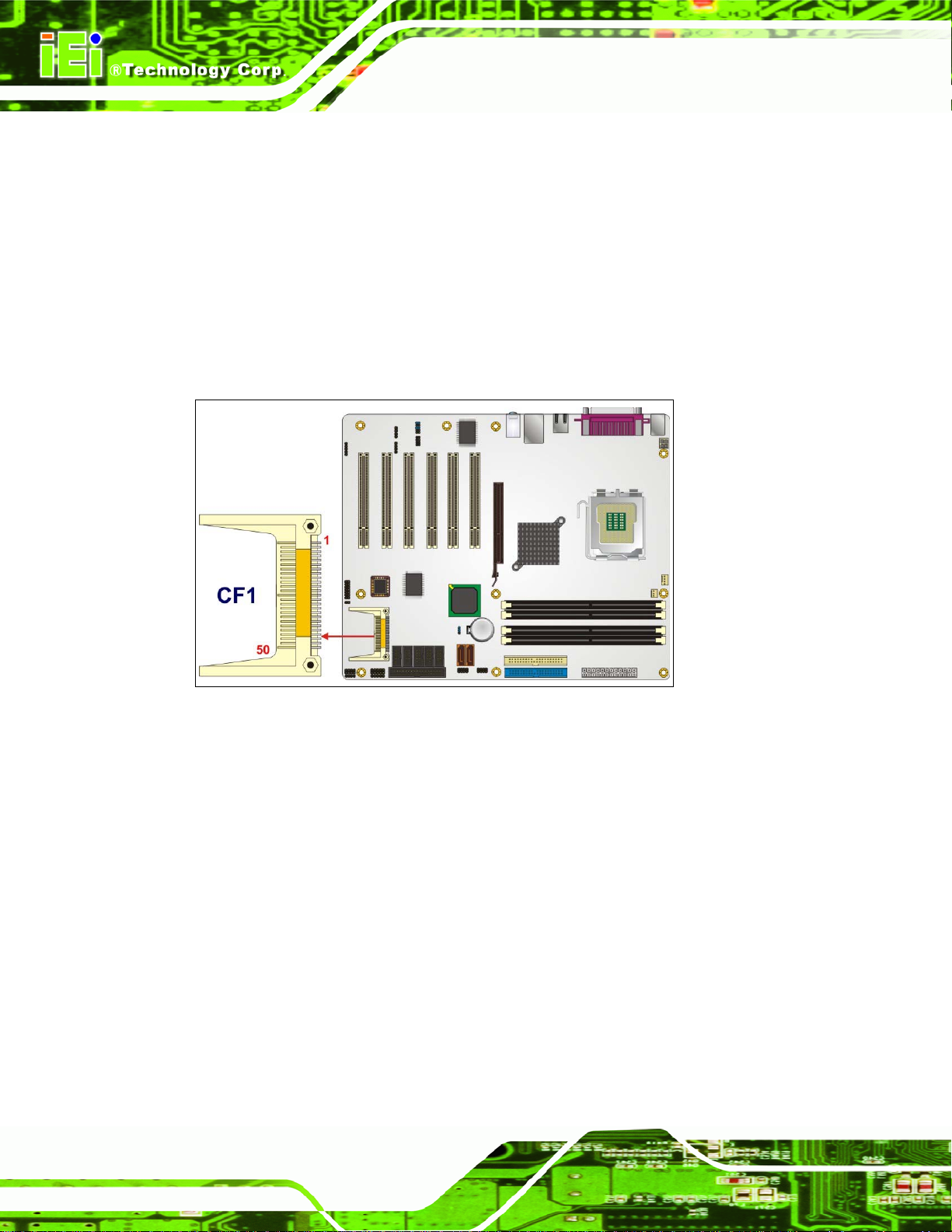

Figure 4-8: CF Card Socket Location
PIN DESCRIPTION PIN DESCRIPTION
1 GROUND 26 VCC-IN CHECK1
2 DATA 3 27 DATA 11
3 DATA 4 28 DATA 12
4 DATA 5 29 DATA 13
5 DATA 6 30 DATA 14
6 DATA 7 31 DATA 15
7 HDC_CS0# 32 HDC_CS1
8 N/C 33 N/C
9 GROUND 34 IOR#
Page 47
Page 66
PIN DESCRIPTION PIN DESCRIPTION
10 N/C 35 IOW#
11 N/C 36 VCC_COM
12 N/C 37 IRQ15
13 VCC_COM 38 VCC_COM
14 N/C 39 CSEL
15 N/C 40 N/C
16 N/C 41 HDD_RESET
17 N/C 42 IORDY
18 SA2 43 SDREQ
19 SA1 44 SDACK#
20 SA0 45 HDD_ACTIVE#
21 DATA 0 46 66DET
22 DATA 1 47 DATA 8
IMBA-8654 Motherboard
23 DATA 2 48 DATA 9
24 N/C 49 DATA 10
25 VCC-IN CHECK2 50 GROUND
Table 4-9: CF Card Socket Pinouts
Page 48
Page 67
IMBA-8654 Motherboard
4.2.8 Digital Input/Output (DIO) Connector
CN Label:
CN Type:
CN Location:
CN Pinouts:
The digital input/output connector is managed through a Super I/O chip. The DIO
connector pins are user programmable.
DIO1
10-pin header (2x5)
See Figure 4-9
See Table 4-10

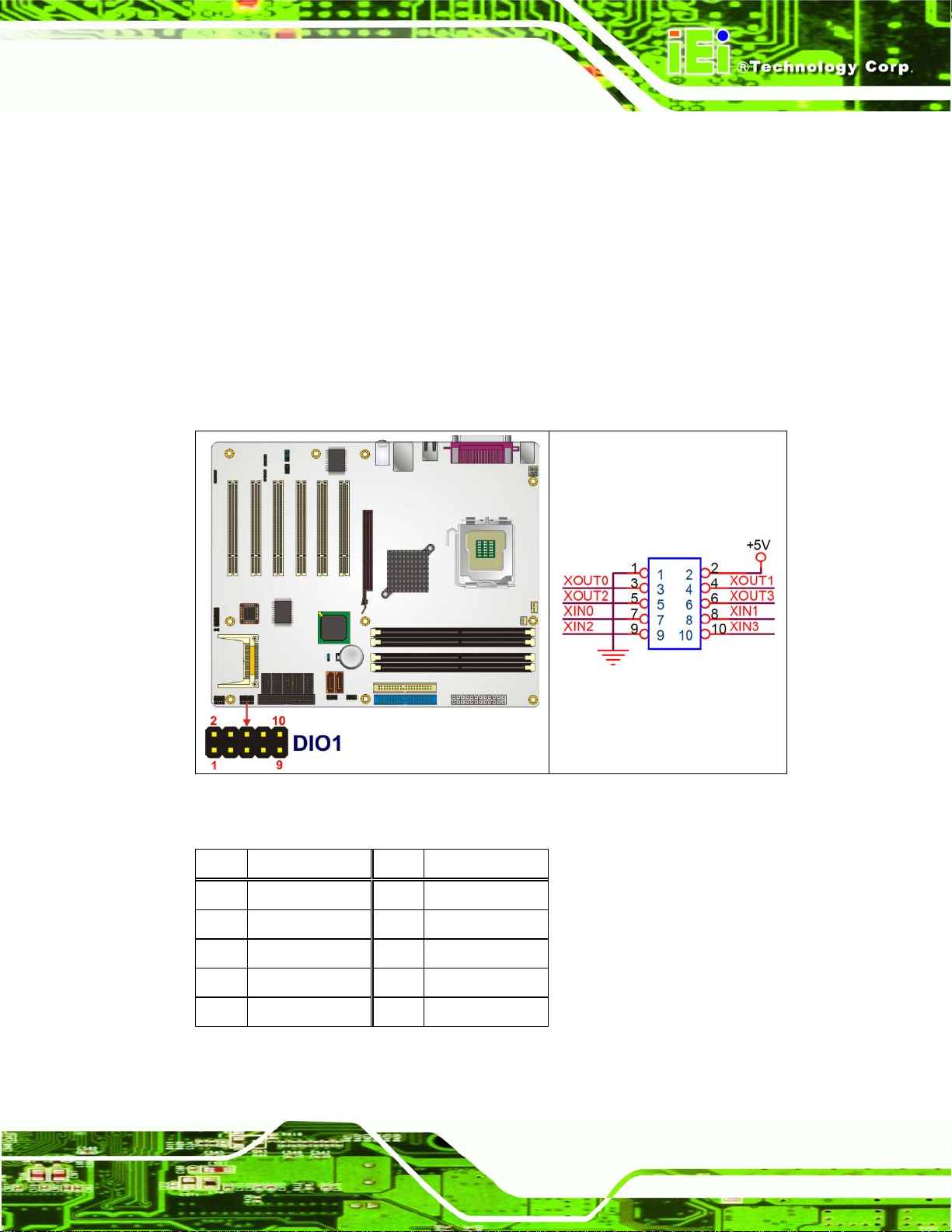

Figure 4-9: DIO Connector Locations
PIN DESCRIPTION PIN DESCRIPTION
1 GND 2 PWR (+5V)
3 XOUT0 4 XOUT1
5 XOUT3 6 XOUT4
7 XIN0 8 XIN1
9 XIN2 10 XIN3
Table 4-10: DIO Connector Pinouts
Page 49
Page 68
4.2.9 Fan Connectors
IMBA-8654 Motherboard
CN Label:
CN Type:
CN Location:
CN Pinouts:
The FAN1, FAN2 and FAN3 cooling fan connectors provide a 12V current to the cooling
fans. The connector has a "rotation" pin to get rotation signals from the fan and notify the
system so the system BIOS can recognize the fan speed. Please note that only certain
fans can issue the rotation signals.
CPU_FAN1, SYS_FAN1
CPU_FAN1: 4-pin wafer connector
SYS_FAN1: 3-pin wafer connector
See Figure 4-10
See Table 4-11
Page 50
CPU_FAN1
Figure 4-10: Fan Connectors Locations
SYS_FAN1
Page 69
IMBA-8654 Motherboard
PIN CPU_FAN1 SYS_FAN1
1 GND GND
2 +12V +12V
3 Rotation Signal Rotation Signal
4 Control
Table 4-11: Fan Connectors Pinouts
4.2.10 Floppy Disk Connector
CN Label:
CN Type:
CN Location:
CN Pinouts:
The floppy disk connector is connected to a floppy disk drive.
FDD1
34-pin header (2x17)
See Figure 4-11
See Table 4-12

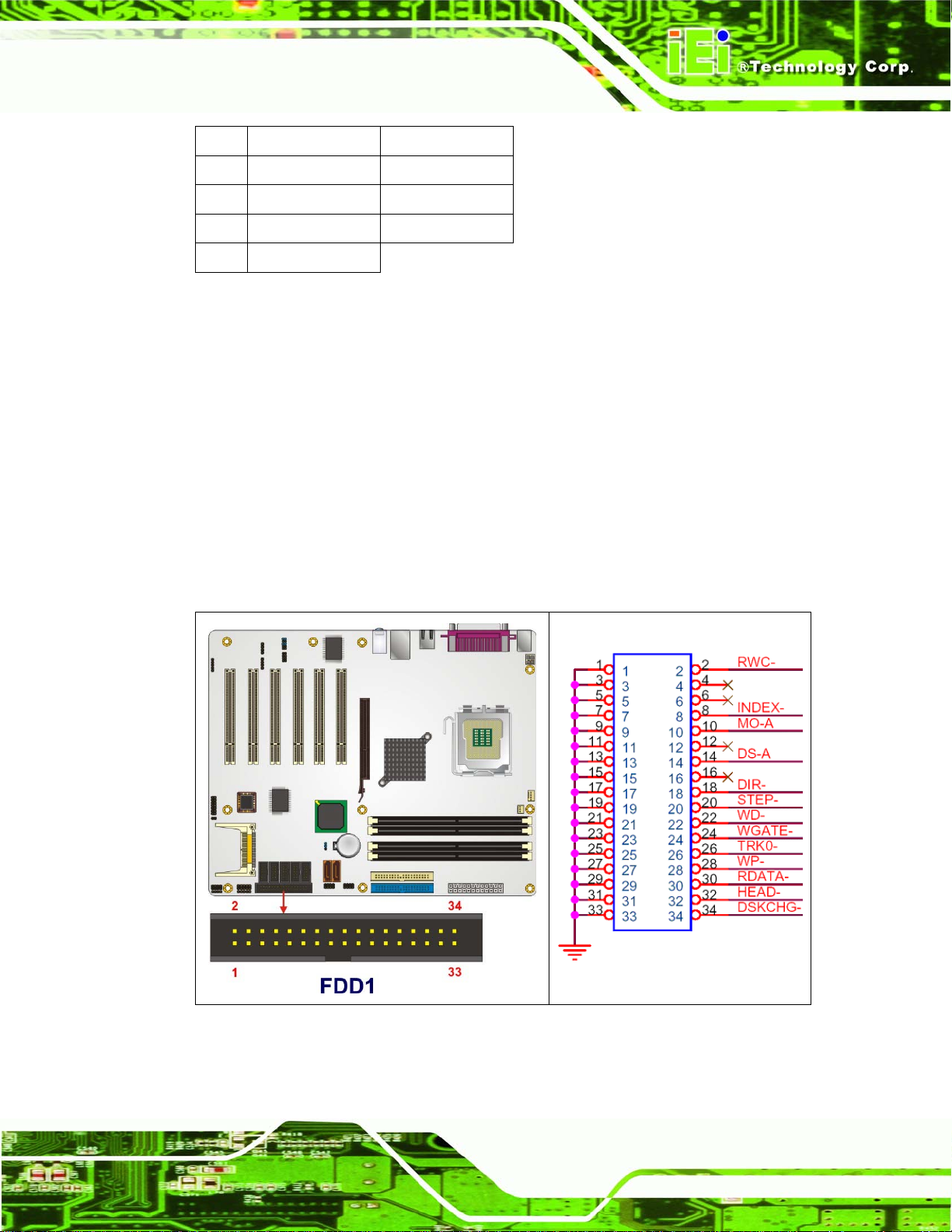

Figure 4-11: FDC Connector Location
Page 51
Page 70
PIN DESCRIPTION PIN DESCRIPTION
1 GND 2 REDUCE WRITE
3 GND 4 N/C
5 N/C 6 N/C
7 GND 8 INDEX#
9 GND 10 MOTOR ENABLE A#
11 GND 12 DRIVE SELECT B#
13 GND 14 DRIVE SELECT A#
15 GND 16 MOTOR ENABLE B#
17 GND 18 DIRECTION#
19 GND 20 STEP#
21 GND 22 WRITE DATA#
23 GND 24 WRITE GATE#
25 GND 26 TRACK 0#
IMBA-8654 Motherboard
27 GND 28 WRITE PROTECT#
29 GND 30 READ DATA#
31 GND 32 SIDE 1 SELECT#
33 GND 34 DISK CHANGE#
Table 4-12: FDC Connector Pinouts
4.2.11 Front Panel Audio Connector
CN Label: CN2
CN Type:
CN Location:
CN Pinouts:
The front panel audio connector connects to external audio devices via a system’s front
panel audio interfaces.
10-pin header (2x5)
See Figure 4-12
See Table 4-13
Page 52
Page 71
IMBA-8654 Motherboard

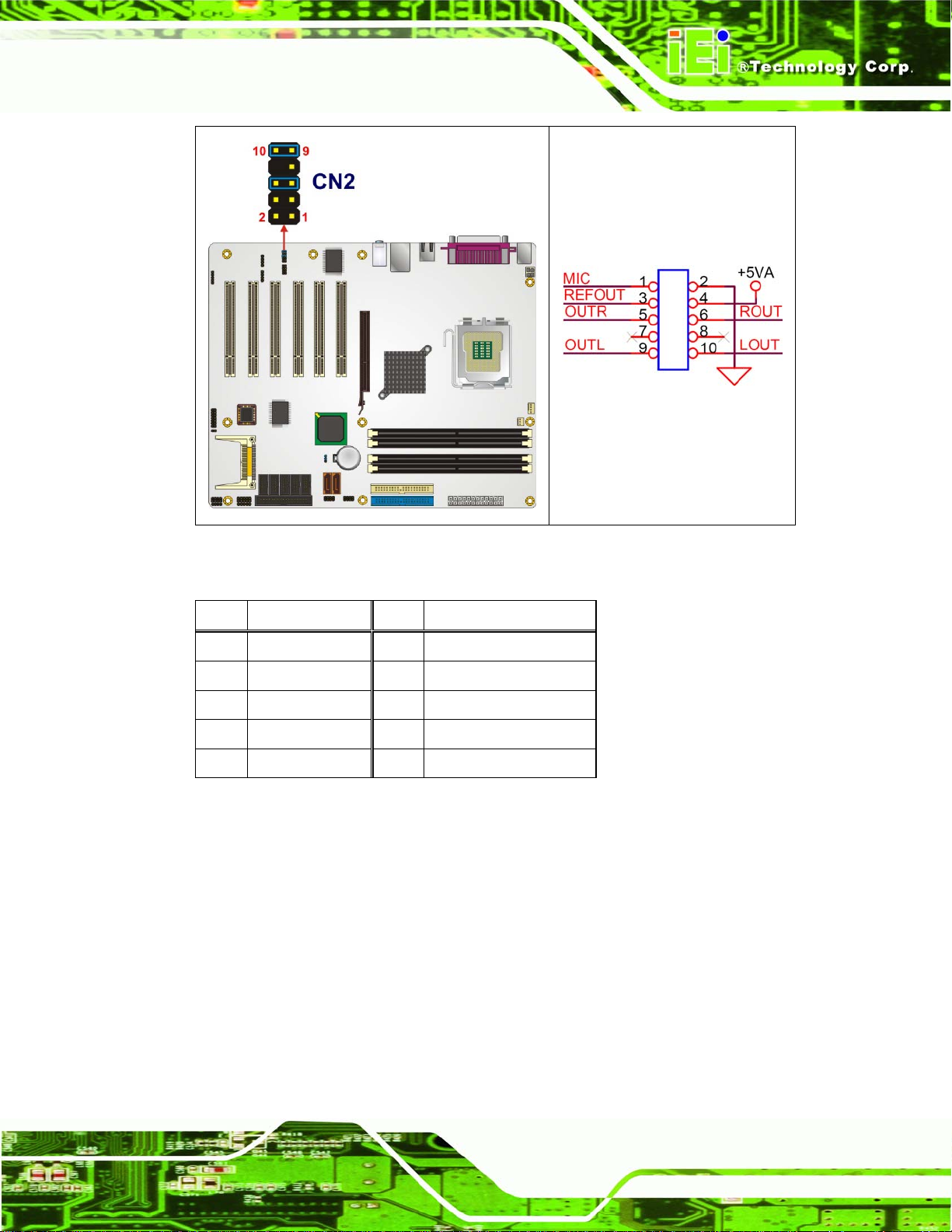

Figure 4-12: Front Panel Audio Connector Pinout Locations
PIN DESCRIPTION PIN DESCRIPTION
1 MIC IN 2 GROUND
3 MIC BIAS 4 5V
5 LINE OUT (R) 6 LINE OUT (R) Return
7 NC
9 LINE OUT (L) 10 LINE OUT (L) Return
Table 4-13: Front Panel Audio Connector Pinouts
Page 53
Page 72
4.2.12 Front Panel Connector (14-pin)
IMBA-8654 Motherboard
CN Label:
CN Type:
CN Location:
CN Pinouts:
The front panel connector connects to external switches and indicators to monitor and
controls the motherboard. These indicators and switches include:
Power button
Reset button
Speaker
Power LED
HDD LED
F_PANEL1
14-pin header (2x7)
See Figure 4-13
See Table 4-14
Page 54

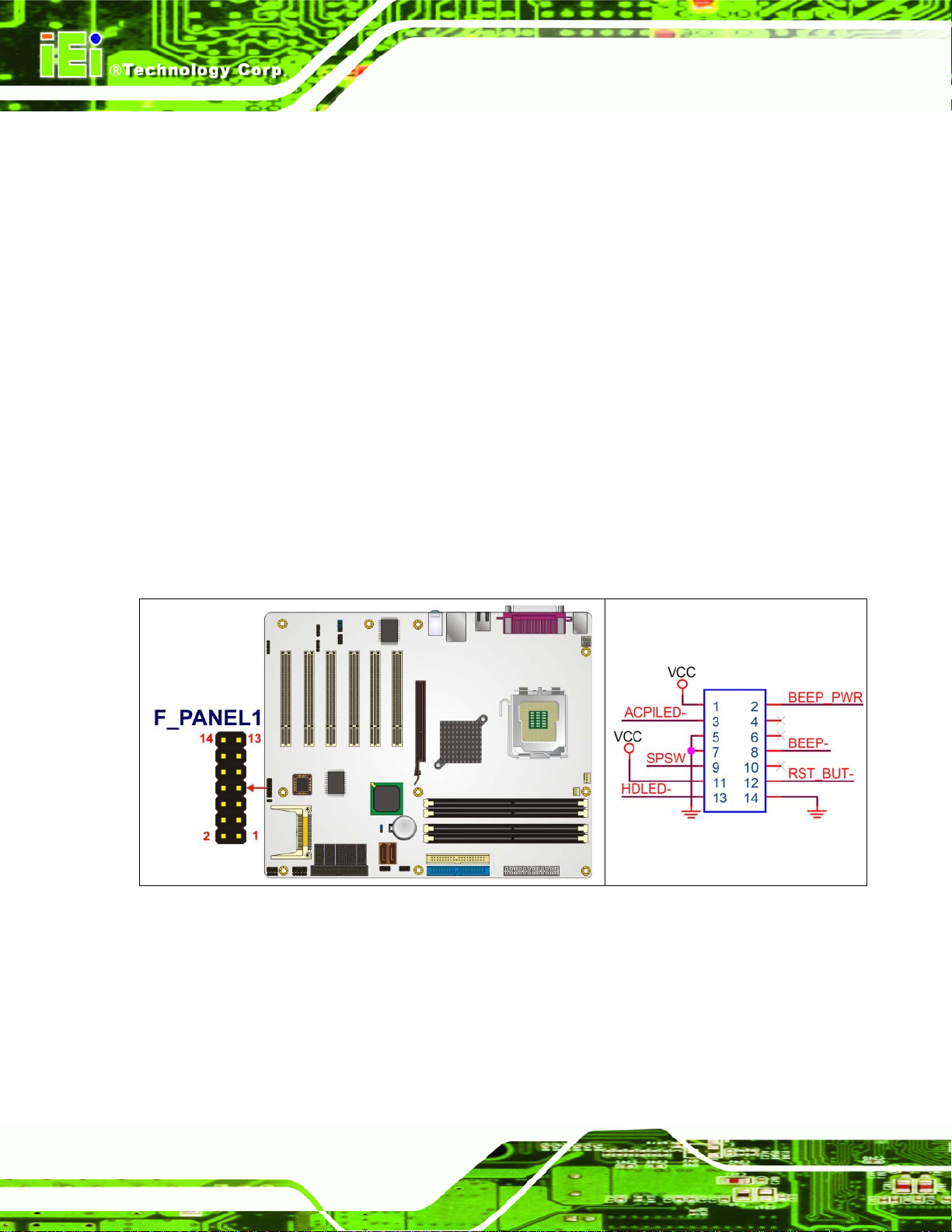

Figure 4-13: Front Panel Connector Pinout Locations
Page 73
IMBA-8654 Motherboard
FUNCTION PIN DESCRIPTION
BUZZER
POWER LED
2 VCC
4 NC
6 NC
8 BUZZER12 RESET RESET
14 GROUND
11 IDE_LED+ HDD LED
13 IDE_LED1 PWR_LED+
3 NC
5 PWR_LED7 GROUND POWER BUTTON
9 POWER BUTTON
Table 4-14: Front Panel Connector Pinouts
Page 55
Page 74
4.2.13 IDE Connector (40-pin)
IMBA-8654 Motherboard
CN Label:
CN Type:
CN Location:
CN Pinouts:
One 40-pin IDE device connector on the IMBA-8654 supports connectivity to two hard disk
drives.
IDE1, IDE2
40-pin box header (2x20)
See Figure 4-14
See Table 4-15
Page 56

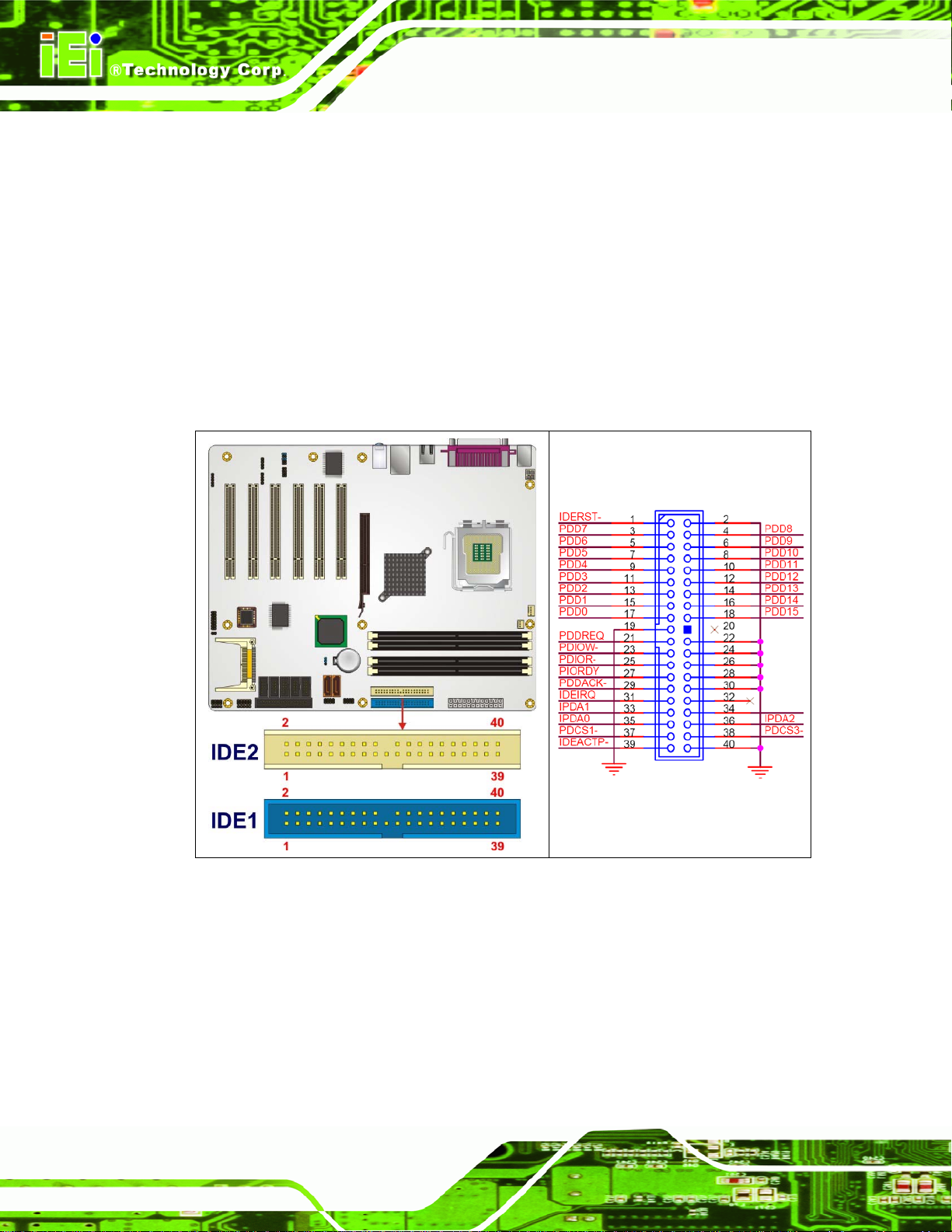

Figure 4-14: IDE Device Connector Locations
Page 75
IMBA-8654 Motherboard
PIN DESCRIPTION PIN DESCRIPTION
1 RESET# 2 GROUND
3 DATA 7 4 DATA 8
5 DATA 6 6 DATA 9
7 DATA 5 8 DATA 10
9 DATA 4 10 DATA 11
11 DATA 3 12 DATA 12
13 DATA 2 14 DATA 13
15 DATA 1 16 DATA 14
17 DATA 0 18 DATA 15
19 GROUND 20 N/C
21 IDE DRQ 22 GROUND
23 IOW# 24 GROUND
25 IOR# 26 GROUND
27 IDE CHRDY 28 GROUND
29 IDE DACK 30 GROUND–DEFAULT
31 INTERRUPT 32 N/C
33 SA1 34 N/C
35 SA0 36 SA2
37 HDC CS0# 38 HDC CS1#
39 HDD ACTIVE# 40 GROUND
Table 4-15: IDE Connector Pinouts
Page 57
Page 76
4.2.14 Infrared Interface Connector (5-pin)
IMBA-8654 Motherboard
CN Label:
CN Type:
CN Location:
CN Pinouts:
The infrared interface connector supports both Serial Infrared (SIR) and Amplitude Shift
Key Infrared (ASKIR) interfaces.
IR1
5-pin header (1x5)
See Figure 4-15
See Table 4-16
Figure 4-15: Infrared Connector Pinout Locations
PIN DESCRIPTION
1 VCC
2 NC
3 IR-RX
4 GND
5 IR-TX
Table 4-16: Infrared Connector Pinouts
Page 58
Page 77
IMBA-8654 Motherboard
4.2.15 PCI Slot
CN Label:
CN Type:
CN Location:
CN Pinouts:
The PCI slot enables a PCI expansion module to be connected to the board.
PCI1 to PCI6
PCI Slot
See Figure 4-16
See Table 4-17
Page 59
Page 78
IMBA-8654 Motherboard
Figure 4-16: PCI Slot Location
Page 60
Page 79
IMBA-8654 Motherboard
PIN DESCRIPTION PIN DESCRIPTION
A1 TRST B1 -12V
A2 +12V B2 TCK
A3 TMS B3 GND
A4 TDI B4 TDO
A5 +5V B5 +5V
A6 INTA B6 +5V
A7 INTC B7 INTB
A8 +5V B8 INTD
A9 RESERVED3 B9 PRSNT1
A10 +5V B10 RESERVED1
A11 RESERVED4 B11 PRSNT2
A12 GND B12 GND
A13 GND B13 GND
A14 3.3V_AUX B14 RESERVED2
A15 RST B15 GND
A16 +5V B16 CLK
A17 GNT B17 GND
A18 GND B18 REQ
A19 PME B19 +5V
A20 AD30 B20 AD31
A21 +3.3V B21 AD29
A22 AD28 B22 GND
A23 AD26 B23 AD27
A24 GND B24 AD25
A25 AD24 B25 +3.3V
A26 IDSEL B26 C/BE3
A27 +3.3V B27 AD23
A28 AD22 B28 GND
A29 AD20 B29 AD21
A30 GND B30 AD19
A31 AD18 B31 +3.3V
A32 AD16 B32 AD17
Page 61
Page 80
PIN DESCRIPTION PIN DESCRIPTION
A33 +3.3V B33 C/BE2
A34 FRAME B34 GND
A35 GND B35 IRDY
A36 TRDY B36 +3.3V
A37 GND B37 DEVSEL
A38 STOP B38 GND
A39 +3.3V B39 LOCK
A40 SDONE B40 PERR
A41 SBO B41 +3.3V
A42 GND B42 SERR
A43 PAR B43 +3.3V
A44 AD15 B44 C/BE1
A45 +3.3V B45 AD14
IMBA-8654 Motherboard
A46 AD13 B46 GND
A47 AD11 B47 AD12
A48 GND B48 AD10
A49 AD9 B49 GND
A52 C/BE0 B52 AD8
A53 +3.3V B53 AD7
A54 AD6 B54 +3.3V
A55 AD4 B55 AD5
A56 GND B56 AD3
A57 AD2 B57 GND
A68 AD0 B68 AD1
A59 +5V B59 +5V
A60 REQ64 B60 ACK64
A61 +5V B61 +5V
A62 +5V B62 +5V
Table 4-17: PCI Slot
Page 62
Page 81
IMBA-8654 Motherboard
4.2.16 SATA Drive Connectors
CN Label:
CN Type:
CN Location:
CN Pinouts:
The SATA drive connectors are connected to SATA 3Gb/s disk drives that transfer data at
speeds as high as 3.0Gb/s.
SATA1, SATA2
7-pin SATA drive connectors
See Figure 4-17
See Table 4-18
Figure 4-17: SATA Drive Connector Locations
Page 63
Page 82
IMBA-8654 Motherboard
PIN DESCRIPTION
1 GND
2 TX+
3 TX-
4 GND
5 RX-
6 RX+
7 GND
Table 4-18: SATA Drive Connector Pinouts
Page 64
Page 83
IMBA-8654 Motherboard
4.2.17 Serial Port Connector (RS-232/422/485)
RS-323: COM2, COM4, COM5, COM6
CN Label:
RS-232/422/485: COM3 (by jumper)
CN Type:
CN Location:
CN Pinouts:
The 10-pin COM2, COM4, COM5 and COM6 serial port connectors provide RS-232 serial
communications channels that can be connected to external RS-232 serial port devices.
The RS-232/422/485 COM3 signal type is controlled via the JP2 jumper and is shared with
the CN1 connector.
10-pin box header (2x5)
See Figure 4-18
See Table 4-19
COM2 to COM6
Figure 4-18: Serial Port Connector Pinout Locations
PIN DESCRIPTION PIN DESCRIPTION
1 DCD- 6 DSR2 SIN 7 RTS-
Page 65
Page 84
PIN DESCRIPTION PIN DESCRIPTION
3 SOUT 8 CTS4 DTR- 9 RI
5 GND 10 GND
Table 4-19: Serial Port Connector Pinouts
4.2.18 Serial Port Connector (RS-422/485)
CN Label: CN1
IMBA-8654 Motherboard
CN Type:
CN Location:
CN Pinouts:
The 4-pin serial port connector provides RS-422/485 serial communications channels that
can be connected to external RS-422/485 serial port devices. The port is shared with the
COM3 port.
4-pin header
See Figure 4-19
See Table 4-20
Page 66

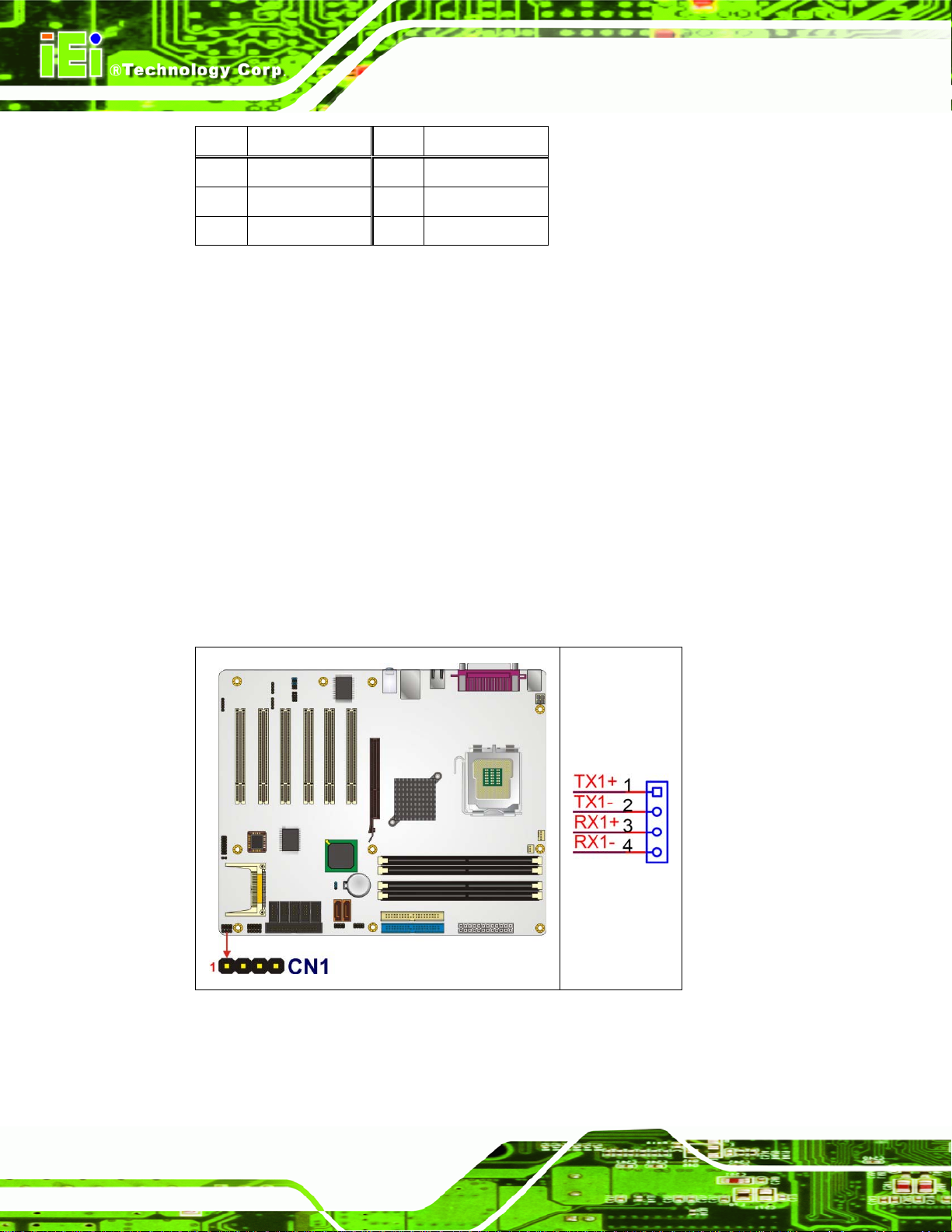

Figure 4-19: Serial Port Connector (RS-422/485) Pinout Locations
Page 85
IMBA-8654 Motherboard
PIN DESCRIPTION
1 TXD1+
2 TXD1-
3 RXD1+
4 RXD1-
Table 4-20: Serial Port Connector (RS-422/485) Pinouts
4.2.19 SPDIF Connector
CN Label:
CN Type:
CN Location:
CN Pinouts:
Use the SPDIF connector to connect digital audio devices to the system.
SPDIF1
5-pin header
See Figure 4-20
See Table 4-21
Figure 4-20: SPDIF Connector Pinout Locations
Page 67
Page 86
IMBA-8654 Motherboard
PIN DESCRIPTION
1 VCC AUDIO
2 NC
3 SPDIF OUT
4 GND AUDIO
5 SPDIF IN
Table 4-21: SPDIF Connector Pinouts
Page 68
Page 87
IMBA-8654 Motherboard
4.2.20 USB Connectors (Internal)
CN Label:
CN Type:
CN Location:
CN Pinouts:
The 2x4 USB pin connectors each provide connectivity to two USB 1.1 or two USB 2.0
ports. Each USB connector can support two USB devices. Additional external USB ports
are found on the rear panel. The USB ports are used for I/O bus expansion.
USB2, USB3
8-pin header (2x4)
See Figure 4-21
See Table 4-22
Figure 4-21: USB Connector Pinout Locations
PIN DESCRIPTION PIN DESCRIPTION
1 PWR (+5V) 2 GND
3 USBPB- 4 USBPB+
5 USBPA+ 6 USBPB-
7 GND 8 PWR (+5V)
Table 4-22: USB Port Connector Pinouts
Page 69
Page 88
4.3 External Peripheral Interface Connectors
The external peripheral interface connectors on the back panel are connected to devices
externally when the IMBA-8654 is installed in a chassis. The peripheral connectors on the
rear panel are:
1 x Keyboard/mouse connector
1 x Parallel port connector
1 x Serial port connector
1 x VGA connector
4 x USB 2.0 connectors
1 x RJ-45 Ethernet connector
3 x Audio jacks
IMBA-8654 Motherboard
Figure 4-22: IMBA-8654 External Interface Connectors
4.3.1 Keyboard/Mouse Connector
CN Label: KBMS1
CN Type: PS/2 connector
CN Location: See Figure 4-22 (labeled number 1)
CN Pinouts: See Figure 4-23 and Table 4-23
The IMBA-8654 keyboard and mouse connectors are standard PS/2 connectors.
Page 70
Page 89
IMBA-8654 Motherboard

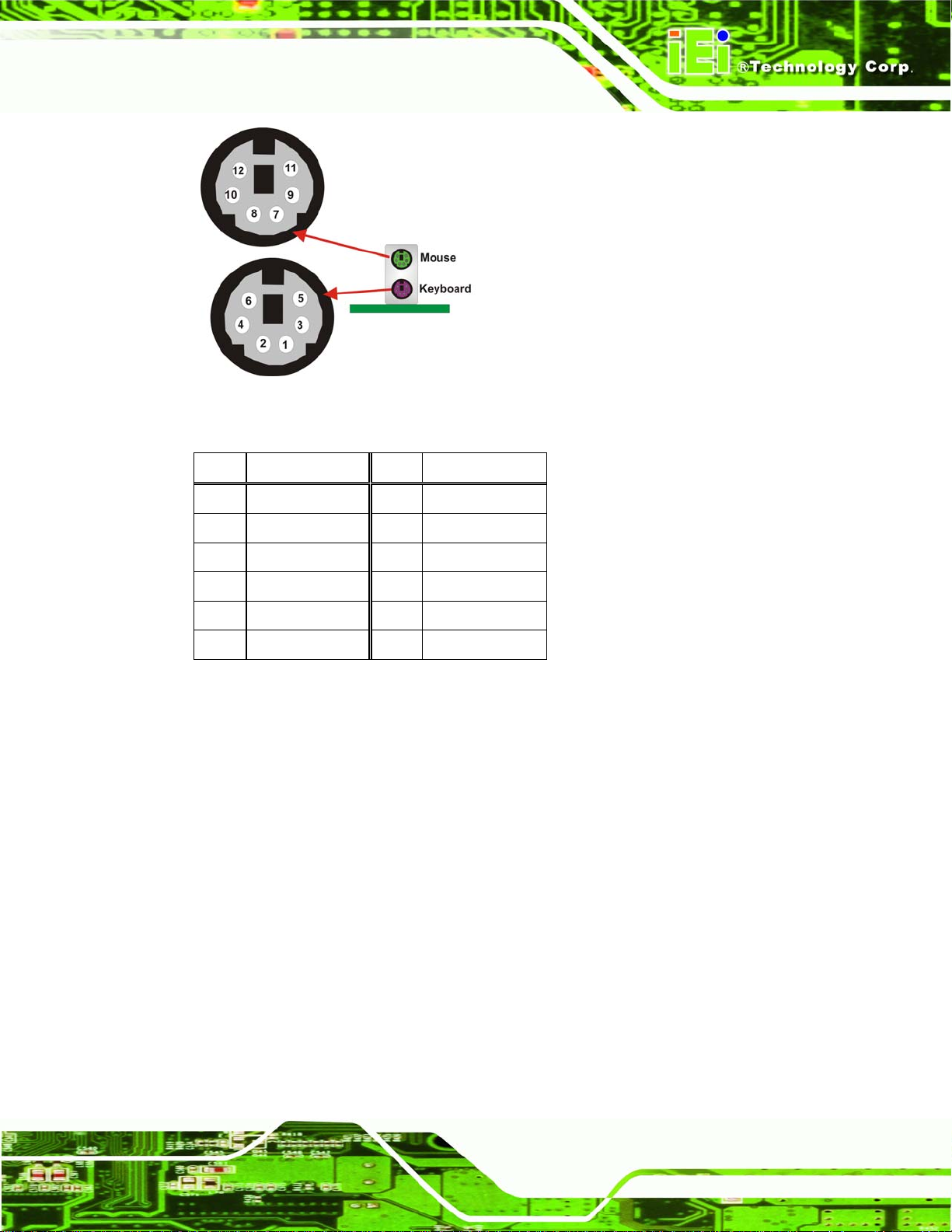

Figure 4-23: PS/2 Pinouts
PIN DESCRIPTION PIN DESCRIPTION
1 L_KDAT 7 L_MDAT
2 NC 8 NC
3 GND 9 GND
4 5V 10 5V
5 L_KCLK 11 L_MCLK
6 NC 12 NC
Table 4-23: PS/2 Connector Pinouts
4.3.2 Parallel Port Connector
CN Label: CN5
CN Type: DB-25
CN Location: See Figure 4-22 (labeled number 2)
CN Pinouts: See Figure 4-24 and Table 4-24
These ports are usually connected to a printer. IMBA-8654 includes one on-board parallel
ports accessed through one 25-pin D-type female connector.
Page 71
Page 90
IMBA-8654 Motherboard

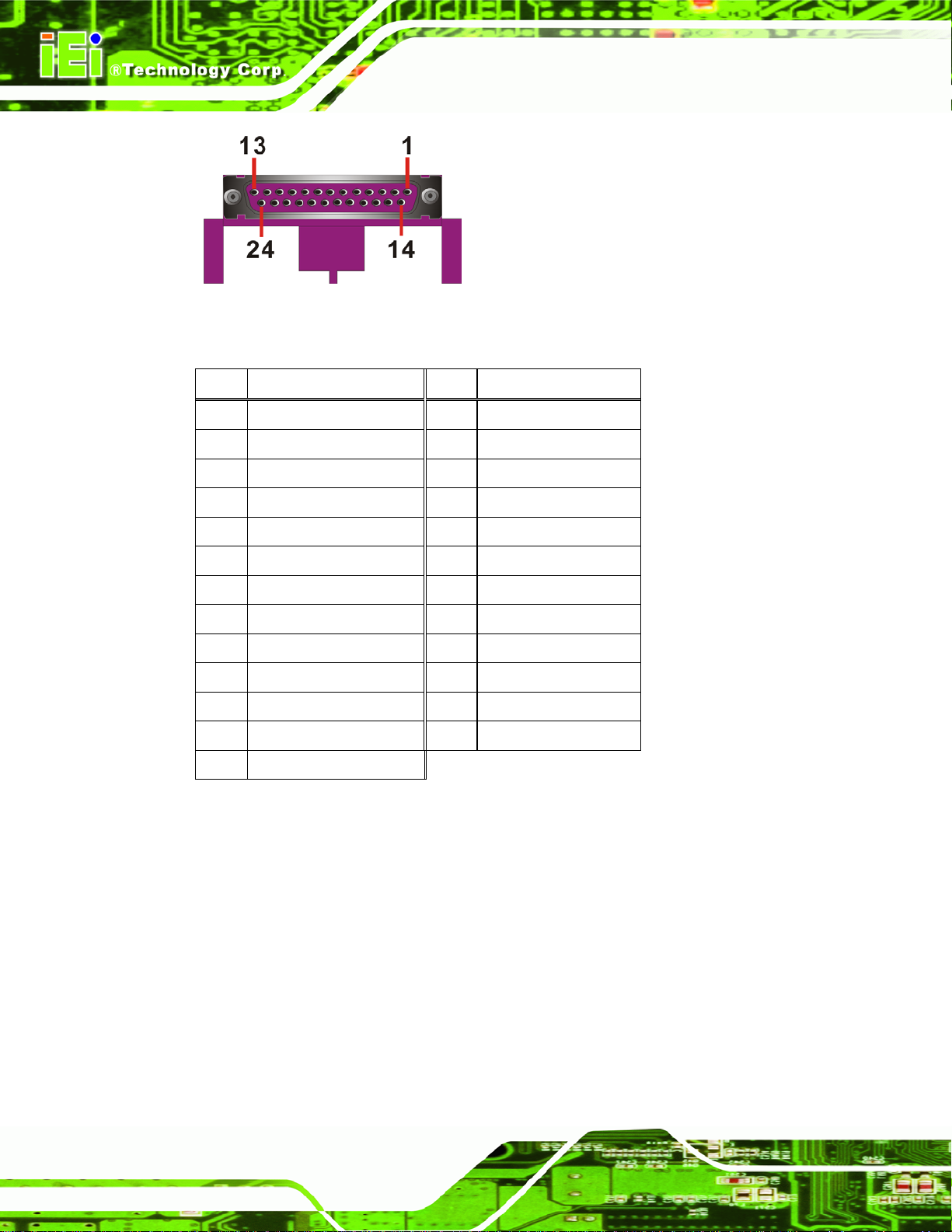

Figure 4-24: Parallel Port Connector Pinout Locations
PIN Description PIN Description
1 STROBE# 2 DATA 0
3 DATA 1 4 DATA 2
5 DATA 3 6 DATA 4
7 DATA 5 8 DATA 6
9 DATA 7 10 ACKNOWLEDGE
11 BUSY 12 PAPER EMPTY
13 PRINTER SELECT 14 AUTO FORM FEED #
15 ERROR# 16 INITIALIZE
17 PRINTER SELECT LN# 18 GND
19 GND 20 GND
21 GND 22 GND
23 GND 24 GND
25 GND
Table 4-24: Parallel Port Connector Pinouts
4.3.3 USB Connectors
CN Label: USB1 and LAN/USB1
CN Type: Dual USB port
Page 72
CN Location: See Figure 4-22 (labeled 3 and 4)
CN Pinouts:
See Figure 4-25 and Table 4-25
Page 91
IMBA-8654 Motherboard
USB devices connect directly to the USB connectors on the external peripheral connector
panel.

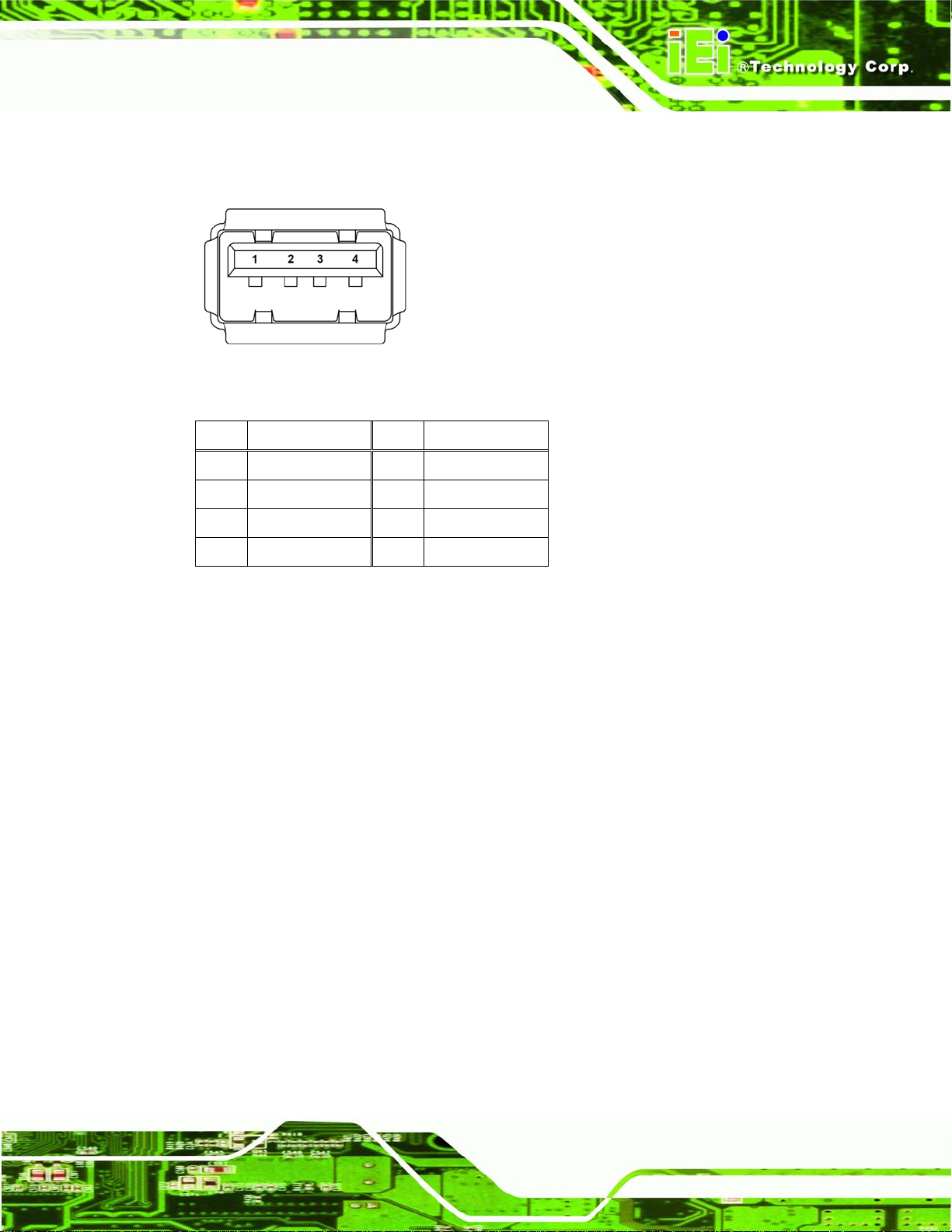

Figure 4-25: USB Connector Pinout Locations
PIN DESCRIPTION PIN DESCRIPTION
1 VCC 5 VCC
2 USBD0- 6 USBD03 USBD0+ 7 USBD0+
4 GND 8 GND
Table 4-25: USB Connector Pinouts
4.3.4 Ethernet Connector
CN Label: LAN/USB1
CN Typ e: RJ-45 ports
CN Location: See Figure 4-22 (labeled 4)
CN Pinouts:
A 1Gb connection can be made between the Ethernet connectors and a Local Area
Network (LAN) through a network hub.
See Figure 4-26, T able 4-26 and Table 4-27
Page 73
Page 92
IMBA-8654 Motherboard
Figure 4-26: Ethernet Connector Pinout Locations
PIN DESCRIPTION PIN DESCRIPTION
1 TX+ (or MDX0+) 5 N/C (or MDX2-)
2 TX- (or MDX0-) 6 RX- (or MDX1-)
3 RX+ (or MDX1+) 7 N / C (or MDX3+)
4 N/C (or MDX2+) 8 N/C (or MDX3-)
13 MDX0+ 17 MDX2-
14 MDX0- 18 MDX115 MDX1+ 19 MDX3+
16 MDX2+ 20 MDX31 TX+ (or MDX0+) 5 N/C (or MDX2-)
2 TX- (or MDX0-) 6 RX- (or MDX1-)
Table 4-26: Ethernet Connector Pinouts
Figure 4-27: Ethernet Connector
Page 74
Page 93
IMBA-8654 Motherboard
The RJ-45 Ethernet connector has two status LEDs, one green and one yello w. The green
LED indicates activity on the port and the yellow LED indicates the port is linked
(Table 4-27).
SPEED LED LINK LED
Status Description Status Description
GREEN ON: 100MB
OFF: 10MB
Table 4-27: Ethernet Connector LEDs
YELLOW ON: Linked
Flashing: Activity
4.3.5 Audio Connectors
CN Label: CN4
CN Type: Audio jack
CN Location: See Figure 4-22 (labeled number 5)
CN Pinouts: See Figure 4-28
Line In port (Light Blue): Connects a CD-ROM, DVD player, or other audio
devices.
Speaker Out port (Lime): Connects to a headphone or a speaker. With
multi-channel configurations, this port can also connect to front speakers.
Microphone (Pink): Connects a microphone.
Figure 4-28: Audio Connector
Page 75
Page 94
4.3.6 VGA Connector
CN Label: CN5
CN Type: HD-D-sub 15 Female connector
CN Location: See Figure 4-22 (labeled 6)
IMBA-8654 Motherboard
CN Pinouts:
See Figure 4-29 and Table 4-28
The standard HD-D-sub 15 female connector connects to a CRT or LCD monitor.

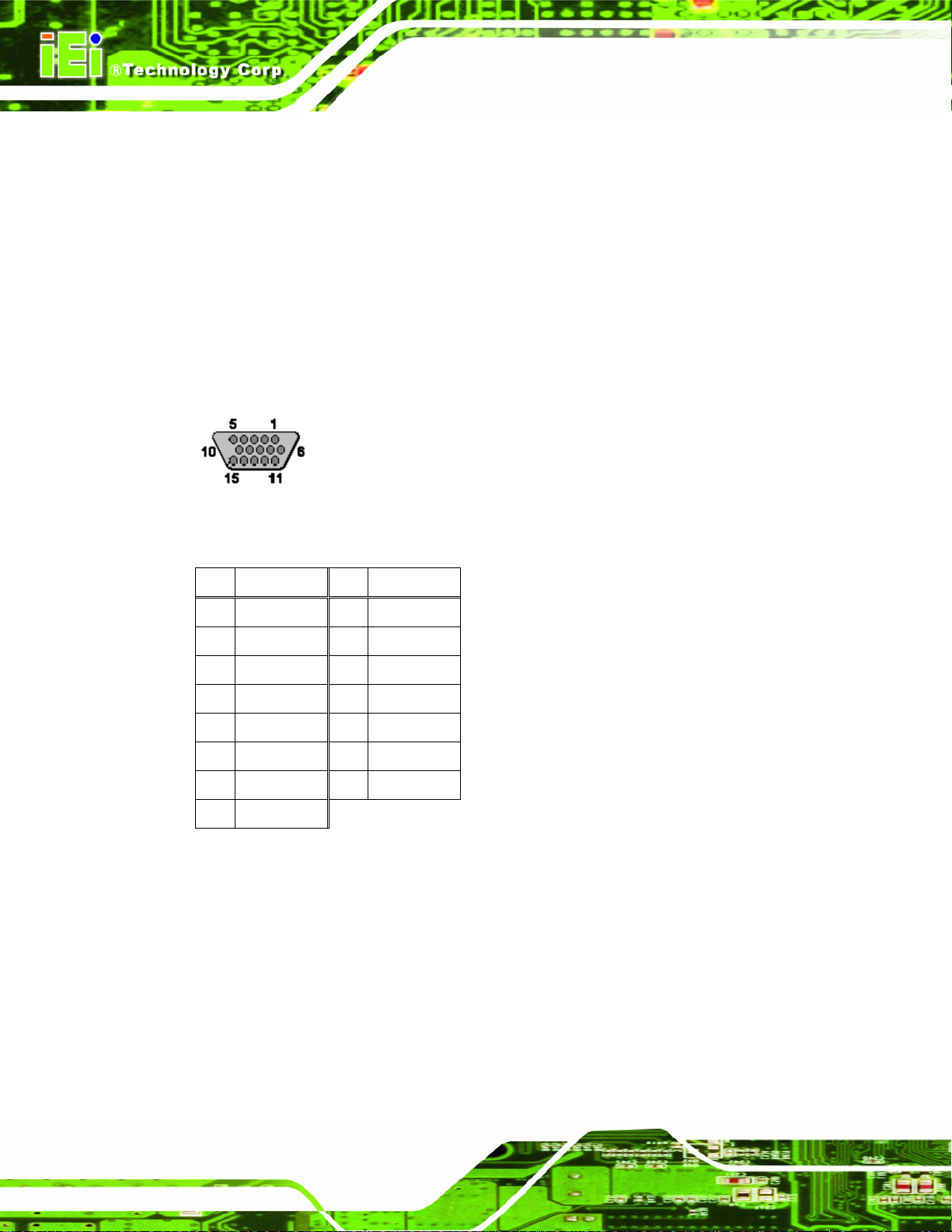

Figure 4-29: VGA Connector
PIN Description PIN Description
1 RED 2 GREEN
3 BLUE 4 N/C
5 GND 6 GND
7 GND 8 GND
9 VCC 10 GND
11 N/C 12 DDC DAT
13 HSYNC 14 VSYNC
15 DDC CLK
Table 4-28: VGA Connector Pinouts
4.3.7 Serial Communications Connector
CN Label: CN5
CN Type: D-sub 9 Male connector
CN Location: See Figure 4-22 (labeled 7)
Page 76
CN Pinouts:
See Figure 4-30 and Table 4-29
Page 95
IMBA-8654 Motherboard
The serial connector on the external interface panel provides serial connection in the
RS-232 mode.
Figure 4-30: Serial Communications Connector Pinout Locations
PIN DESCRIPTION
1 DATA CARRIER DETECT (DCD)
2 RECEIVE DATA (RXD)
3 TRANSMIT DATA (TXD)
4 DATA TERMINAL READY (DTR)
5 GROUND (GND)
6 DATA SET READY (DSR)
7 REQUEST TO SEND (RTS)
8 CLEAR TO SEND (CTS)
9 RING INDICATOR (RI)
Table 4-29: COM1 RS-232 Mode Connector Pinouts
4.4 On-board Jumpers
The NANO-4386A has fifteen on-board jumpers. Refer to Section 5.4 for jumper
configuration settings.
Page 77
Page 96
IMBA-8654 Motherboard
THIS PAGE IS INTENTIONALLY LEFT BLANK
Page 78
Page 97
IMBA-8654 Motherboard
Chapter
5
5 Installation
Page 79
Page 98
5.1 Anti-static Precautions
WARNING!
Failure to take ESD precautions during the installation of the
IMBA-8654 may result in permanent damage to the IMBA-8654 and
severe injury to the user.
Electrostatic discharge (ESD) can cause serious damage to electronic components,
including the IMBA-8654. Dry climates are especially susceptible to ESD. It is therefore
critical that whenever the IMBA-8654, or any other electrical component is handled, the
following anti-static precautions are strictly adhered to.
IMBA-8654 Motherboard
Wear an anti-static wristband: Wearing a simple an t i-static wristband can
help to prevent ESD from damaging the board.
Self-grounding: Before handling the board, touch any grounded conducting
material. During the time the board is handled, frequently touch any
conducting materials that are connected to the ground.
Use an anti-static pad: When configuring the IMBA-8654, place it on an
antic-static pad. This reduces the possibility of ESD damage.
Only handle the edges of the PCB: When handling the PCB, hold it by its
edges.
Page 80
Page 99
IMBA-8654 Motherboard
5.2 Installation Considerations
NOTE:
The following installation notices and installation considerations should
be read and understood before the IMBA-8654 is installed. All
installation notices pertaining to the installation of the IMBA-8654
should be strictly adhered to. Failing to adhere to these precautions
may lead to severe damage of the IMBA-8654 and injury to the person
installing the motherboard.
5.2.1 Installation Notices
WARNING!
The installation instructions described in this manual should be
carefully followed in order to prevent damage to the IMBA-8654 and
injury to the user.
Before and during the installation please DO the following:
Read the user manual:
o The user manual provides a complete description of the IMBA-8654
installation instructions and configuration options.
Wear an electrostatic discharge cuff (ESD):
o Electronic components are easily damaged by ESD. Wearing an ESD cuff
removes ESD from the body and helps prevent ESD damage.
Place the IMBA-8654 on an antistatic pad:
o When installing or configuring the motherboard, place it on an antistatic
pad. This helps to prevent potential ESD damage.
Turn off all power to the IMBA-8654:
Page 81
Page 100
o When working with the IMBA-8654, make sure that it is disconnected from
all power supplies and that no electricity is being fed into the system.
Before and during the installation of the IMBA-8654 DO NOT:
Remove any of the stickers on the PCB board. These stickers are required for
warranty validation.
Use the product before verifying all the cables and power connectors are
properly connected.
Allow screws to come in contact with the PCB circuit, connector pins, or its
components.
5.2.2 Installation Checklist
The following checklist is provided to ensure the IMBA-8654 is properly installed.
IMBA-8654 Motherboard
All the items in the packing list are present (see Chapter 3)
A CPU is installed
A CPU cooling kit is properly installed
Compatible memory modules are properly inserted into the memory slots
The IMBA-8654 is installed into a chassis with adequate ventilation
The correct power supply is being used
The following devices (if applicable) are properly connected
o IDE devices
o SATA drives
o Floppy disk drive
o System front panel connector
o Audio kit
o Power supply
o USB cable
o Serial port cable
o Parallel port cable
o Keyboard/mouse cable
Page 82
o COM port cables
The following external peripheral devices (if applicable) are properly
connected to the chassis:
