IMBA-690AM2 Motherboard
IMBA-690AM2 Motherboard
Page 1
Page 2
IMBA-690AM2 Motherboard
Revision
Date Version Changes
2008-09 1.10 Added COM 3 function jumper settings (JP3)
2007-08 1.00 Initial release
Page 2
Page 3
IMBA-690AM2 Motherboard
COPYRIGHT NOTICE
The information in this document is subject to change without prior notice in order to
improve reliability, design and function and does not represent a commitment on the part
of the manufacturer.
In no event will the manufacturer be liable for direct, indirect, special, incidental, or
consequential damages arising out of the use or inability to use the product or
documentation, even if advised of the possibility of such damages.
Copyright
This document contains proprietary information protected by copyright. All rights are
reserved. No part of this manual may be reproduced by any mechanical, electronic, or
other means in any form without prior written permission of the manufacturer.
TRADEMARKS
All registered trademarks and product names mentioned herein are used for identification
purposes only and may be trademarks and/or registered trademarks of their respective
owners.
Page 3
Page 4
IMBA-690AM2 Motherboard
Manual Conventions
WARNING!
Warnings appear where overlooked details may cause damage to the equipment or result
in personal injury. Warnings should be taken seriously. Warnings are easy to recognize.
The word “warning” is written as “WARNING,” both capitalized and bold and is followed by
text. The text is the warning message. A warning message is shown below:
WARNING:
This is an example of a warning message. Failure to adhere to warning
messages may result in permanent damage to the IMBA-690AM2 or
personal injury to the user. Please take warning messages seriously.
CAUTION!
Cautionary messages should also be heeded to help reduce the chance of losing data or
damaging the IMBA-690AM2. Cautions are easy to recognize. The word “caution” is
written as “CAUTION,” both capitalized and bold and is followed. The italicized text is the
cautionary message. A caution message is shown below:
Page 4
Page 5
IMBA-690AM2 Motherboard
CAUTION:
This is an example of a caution message. Failure to adhere to cautions
messages may result in permanent damage to the IMBA-690AM2.
Please take caution messages seriously.
NOTE:
These messages inform the reader of essential but non-critical information. These
messages should be read carefully as any directions or instructions contained therein can
help avoid making mistakes. Notes are easy to recognize. The word “note” is written as
“NOTE,” both capitalized and bold and is followed by text. The text is the cautionary
message. A note message is shown below:
NOTE:
This is an example of a note message. Notes should always be read.
Notes contain critical information about the IMBA-690AM2. Please take
note messages seriously.
Page 5
Page 6
IMBA-690AM2 Motherboard
Packing List
NOTE:
If any of the components listed in the checklist below are missing,
please do not proceed with the installation. Contact the IEI reseller or
vendor you purchased the IMBA-690AM2 from or contact an IEI sales
representative directly. To contact an IEI sales representative, please
send an email to
The items listed below should all be included in the IMBA-690AM2 package.

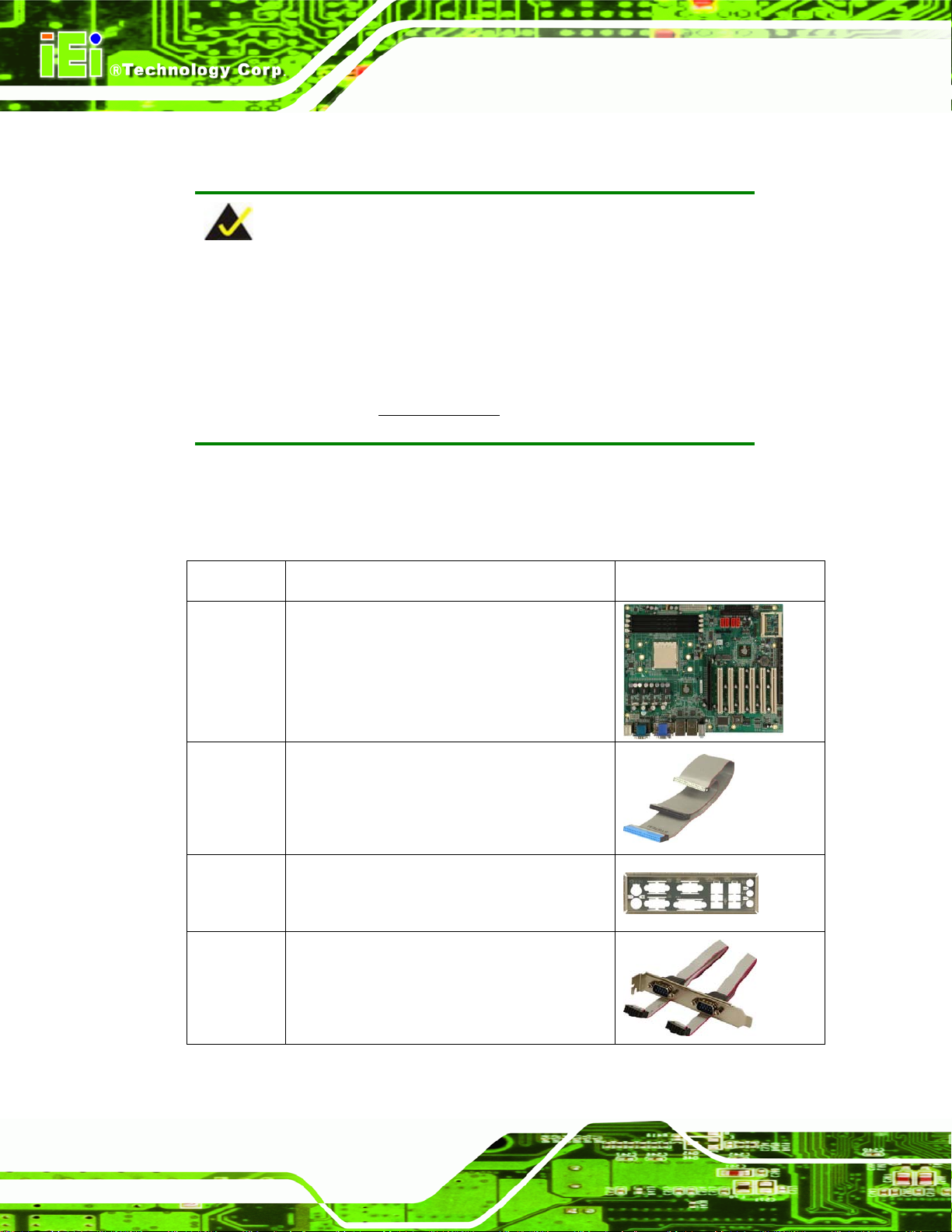

1 x IMBA-690AM2 single board computer
1 x IDE cable
1 x I/O shielding
2 x SATA power cables
4 x SATA cables
2 x Dual RS-232 cables
1 x Backplate for AMD Socket AM2
1 x Mini jumper pack
1 x Utility CD
1 x QIG (quick installation guide)
Images of the above items are shown in Chapter 3.
sales@iei.com.tw.
Page 6
Page 7
IMBA-690AM2 Motherboard
Table of Contents
1 INTRODUCTION................................................................................................... 21
1.1 OVERVIEW ................................................................................................................. 2
1.1.1 IMBA-690AM2 Features.................................................................................... 2
1.2 IMBA-690AM2 OVERVIEW......................................................................................3
1.2.1 IMBA-690AM2 Overview Photo........................................................................ 3
1.2.2 IMBA-690AM2 Peripheral Connectors and Jumpers........................................ 4
1.2.3 Technical Specifications..................................................................................... 6
2 DETAILED SPECIFICATIONS............................................................................. 9
2.1 DIMENSIONS ............................................................................................................ 10
2.1.1 Board Dimensions............................................................................................ 10
2.1.2 External Interface Panel Dimensions...............................................................11
2.2 DATA FLOW...............................................................................................................11
2.3 COMPATIBLE PROCESSORS ....................................................................................... 13
2.3.1 Supported Processors ...................................................................................... 13
2.3.2 DDR2 Memory Controller............................................................................... 13
2.3.3 Processor Electrical Interfaces........................................................................ 14
2.3.4 Processor Power Management........................................................................ 14
2.4 AMD 690G NORTHBRIDGE CHIPSET....................................................................... 14
2.4.1 PCI Express Interface...................................................................................... 14
2.4.1.1 PCIe x16 Expansion.................................................................................. 14
2.4.1.2 PCIe GbE Ethernet.................................................................................... 15
2.4.1.3 PCIe Mini Card......................................................................................... 16
2.4.2 Acceleration Features...................................................................................... 16
2.4.3 Display Support ............................................................................................... 17
2.4.3.1 TV Out ...................................................................................................... 18
2.4.3.2 Multiple Display Features......................................................................... 18
2.4.3.3 DVI ........................................................................................................... 18
2.5 AMD SB600 SOUTHBRIDGE CHIPSET...................................................................... 18
2.5.1 CPU Interface.................................................................................................. 18
2.5.2 A-Link Xpress II interface to the Northbridge................................................. 19
Page 7
Page 8
2.5.3 PCI Host Bus Controller.................................................................................. 19
2.5.4 USB Controllers............................................................................................... 20
2.5.5 SMBus Controller ............................................................................................ 21
2.5.6 Interrupt Controller......................................................................................... 21
2.5.7 DMA Controller............................................................................................... 21
2.5.8 LPC host bus controller................................................................................... 22
2.5.9 SATA II AHCI Controller................................................................................. 22
2.5.10 IDE Controller............................................................................................... 23
2.5.11 AC Link interface ........................................................................................... 24
2.5.12 T imers............................................................................................................. 26
2.5.13 RTC (Real Time Clock).................................................................................. 26
2.5.14 Power Management....................................................................................... 26
2.5.15 Hardware Monitor ......................................................................................... 27
2.6 LPC BUS COMPONENTS........................................................................................... 27
IMBA-690AM2 Motherboard
2.6.1 LPC Bus Overview........................................................................................... 27
2.6.2 BIOS Chipset.................................................................................................... 28
2.6.3 TPM Module .................................................................................................... 28
2.6.4 Super I/O chipset.............................................................................................. 29
2.6.4.1 Super I/O LPC Interface ........................................................................... 29
2.6.4.2 Super I/O Floppy Disk Drive (FDD) Controller....................................... 29
2.6.4.3 Super I/O 16C550 UARTs........................................................................ 30
2.6.4.4 Super I/O Enhanced Hardware Monitor................................................... 30
2.6.4.5 Super I/O Fan Speed Controller................................................................ 30
2.6.4.6 Super I/O Keyboard and Mouse Controller.............................................. 30
2.6.4.7 Super I/O Infrared..................................................................................... 31
2.6.5 Serial Port Chipset........................................................................................... 31
2.7 ENVIRONMENTAL AND POWER SPECIFICATIONS ....................................................... 31
2.7.1 System Monitoring........................................................................................... 31
2.7.2 Operating Temperature and Temperature Control........................................... 32
2.7.3 Power Consumption......................................................................................... 33
3 UNPACKING.......................................................................................................... 34
3.1 ANTI-STATIC PRECAUTIONS...................................................................................... 35
3.2 UNPACKING.............................................................................................................. 35
3.2.1 Unpacking Precautions.................................................................................... 35
Page 8
Page 9
IMBA-690AM2 Motherboard
3.3 UNPACKING CHECKLIST........................................................................................... 36
3.3.1 Package Contents............................................................................................. 36
3.4 OPTIONAL ITEMS...................................................................................................... 37
4 CONNECTOR PINOUTS...................................................................................... 39
4.1 PERIPHERAL INTERFACE CONNECTORS .................................................................... 40
4.1.1 IMBA-690AM2 Layout..................................................................................... 40
4.1.2 Peripheral Interface Connectors ..................................................................... 41
4.1.3 External Interface Panel Connectors............................................................... 43
4.2 INTERNAL PERIPHERAL CONNECTORS...................................................................... 43
4.2.1 Audio Connector (8-pin).................................................................................. 43
4.2.2 Audio Connector (10-pin)................................................................................ 44
4.2.3 Audio CD In Connector (4-pin)....................................................................... 45
4.2.4 Auxiliary Audio Connector .............................................................................. 46
4.2.5 ATX Power Connector ..................................................................................... 47
4.2.6 Compact Flash Socket...................................................................................... 49
4.2.7 Digital Input/Output (DIO) Connector............................................................ 51
4.2.8 Fan Connector................................................................................................. 52
4.2.9 Floppy Disk Connector (34-pin)...................................................................... 53
4.2.10 Front Panel Connector (14-pin).................................................................... 55
4.2.11 IDE Connector (40-pin)................................................................................. 56
4.2.12 Infrared Interface Connector......................................................................... 57
4.2.13 PCI Express Mini Card Connector................................................................ 58
4.2.14 PCIe Mini Card LED Connector................................................................... 61
4.2.15 PCI Slot.......................................................................................................... 62
4.2.16 PCI Express x16 Slot...................................................................................... 65
4.2.17 Power Connector........................................................................................... 68
4.2.18 Parallel Port Connector ................................................................................ 68
4.2.19 RS-422/485 Connector (for COM3)............................................................... 70
4.2.20 SATA Drive Connectors ................................................................................. 70
4.2.21 Serial Port Connectors .................................................................................. 72
4.2.22 SPDIF Connector........................................................................................... 73
4.2.23 Trusted Platform Module (TPM) Connector.................................................. 74
4.2.24 TV Out Connector.......................................................................................... 75
4.2.25 USB Connectors (Internal)............................................................................ 76
Page 9
Page 10
4.3 EXTERNAL PERIPHERAL INTERFACE CONNECTOR PANEL ......................................... 78
4.3.1 Audio Connector .............................................................................................. 78
4.3.2 DVI and VGA Combo Connector..................................................................... 79
4.3.3 Keyboard/Mouse Connector............................................................................ 81
4.3.4 LAN and Dual USB Combo Connectors.......................................................... 82
4.3.5 Serial Port Connectors (COM1 and COM2 ).................................................. 84
5 INSTALLATION .................................................................................................... 85
5.1 ANTI-STATIC PRECAUTIONS...................................................................................... 86
5.2 INSTALLATION CONSIDERATIONS ............................................................................. 87
5.2.1 Installation Notices.......................................................................................... 87
5.2.2 Installation Checklist....................................................................................... 88
5.3 UNPACKING.............................................................................................................. 89
5.3.1 Unpacking Precautions.................................................................................... 89
5.4 CPU, CPU COOLING KIT AND DIMM INSTALLATION ............................................. 90
IMBA-690AM2 Motherboard
5.4.1 AMD Socket AM2 CPU Installation ................................................................ 90
5.4.2 Cooling Kit Installation ................................................................................... 92
5.4.3 DIMM Installation........................................................................................... 94
5.5 JUMPER SETTINGS.................................................................................................... 95
5.5.1 CF Card Setup ................................................................................................. 96
5.5.2 Clear CMOS Jumper........................................................................................ 97
5.5.3 COM 3 Function Select Jumpers..................................................................... 98
5.5.4 COM3 Voltage Setup Jumper......................................................................... 100
5.6 CHASSIS INSTALLATION ......................................................................................... 101
5.6.1 Airflow............................................................................................................ 101
5.6.2 Motherboard Installation............................................................................... 101
5.7 INTERNAL PERIPHERAL DEVICE CONNECTIONS...................................................... 101
5.7.1 Peripheral Device Cables.............................................................................. 101
5.7.2 ATA Flat Cable Connection........................................................................... 102
5.7.3 Dual RS-232 Cable Connection..................................................................... 103
5.7.4 SATA Drive Connection ................................................................................. 104
5.7.5 FDD Cable Connection ................................................................................. 105
5.7.6 Parallel Port Cable with Slot Bracket........................................................... 106
5.7.7 USB Cable (Four Port).................................................................................. 108
5.8 EXTERNAL PERIPHERAL INTERFACE CONNECTION................................................. 109
Page 10
Page 11
IMBA-690AM2 Motherboard
5.8.1 Audio Connection........................................................................................... 109
5.8.2 DVI Display Device Connection.....................................................................110
5.8.3 LAN Connection (Single Connector)..............................................................111
5.8.4 PS/2 Keyboard and Mouse Connection..........................................................112
5.8.5 Serial Device Connection ...............................................................................113
5.8.6 USB Connection (Dual Connector)................................................................114
5.8.7 VGA Monitor Connection ...............................................................................115
6 BIOS SCREENS.....................................................................................................117
6.1 INTRODUCTION .......................................................................................................118
6.1.1 Starting Setup..................................................................................................118
6.1.2 Using Setup.....................................................................................................118
6.1.3 Getting Help....................................................................................................119
6.1.4 Unable to Reboot After Configuration Changes.............................................119
6.1.5 BIOS Menu Bar...............................................................................................119
6.2 MAIN ..................................................................................................................... 120
6.3 ADVANCED............................................................................................................. 121
6.3.1 CPU Configuration........................................................................................ 122
6.3.2 IDE Configuration......................................................................................... 124
6.3.2.1 IDE Master, IDE Slave........................................................................... 125
6.3.3 Floppy Configuration..................................................................................... 131
6.3.4 Super IO Configuration.................................................................................. 132
6.3.5 Hardware Health Configuration.................................................................... 137
6.3.6 ACPI Configuration ....................................................................................... 138
6.3.7 APM Configuration........................................................................................ 140
6.3.8 T rusted Computing......................................................................................... 142
6.3.9 Remote Access Configuration........................................................................ 143
6.3.10 USB Configuration....................................................................................... 147
6.3.10.1 USB Mass Storage Device Configuration............................................. 149
6.4 PCI/PNP ................................................................................................................ 151
6.5 BOOT ..................................................................................................................... 154
6.5.1 Boot Settings Configuration........................................................................... 155
6.5.2 Boot Device Priority...................................................................................... 157
6.5.3 Hard Disk Drives........................................................................................... 158
6.5.4 Removable Drives.......................................................................................... 159
Page 11
Page 12
6.6 SECURITY............................................................................................................... 160
6.7 CHIPSET ................................................................................................................. 161
6.7.1 NorthBridge Chipset Configuration .............................................................. 162
6.7.2 ECC Configuration........................................................................................ 163
6.7.3 Internal Graphics Configuration................................................................... 165
6.7.4 SouthBridge Configuration............................................................................ 168
6.7.5 CPU Over Frequency Function..................................................................... 169
6.8 EXIT....................................................................................................................... 172
7 SOFTWARE DRIVERS....................................................................................... 174
7.1 AVAILABLE SOFTWARE DRIVERS............................................................................ 175
7.2 DRIVER CD AUTO-RUN.......................................................................................... 175
7.3 AMD 690G CHIPSET DRIVER INSTALLATION......................................................... 177
7.4 BROADCOM LAN DRIVER (FOR GBE LAN) INSTALLATION .................................. 182
7.5 REALTEK AC`97 AUDIO DRIVER (ALC655) INSTALLATION .................................. 187
IMBA-690AM2 Motherboard
7.5.1 BIOS Setup..................................................................................................... 187
7.5.2 Driver Installation ......................................................................................... 187
7.6 WEBPAM RAID UTILITY DRIVER INSTALLATION................................................. 192
A BIOS OPTIONS.................................................................................................... 198
B DIO INTERFACE................................................................................................. 203
B.1 DIO INTERFACE INTRODUCTION ........................................................................... 204
B.2 DIO CONNECTOR PINOUTS ................................................................................... 204
B.3 ASSEMBLY LANGUAGE SAMPLES........................................................................... 205
B.3.1 Enable the DIO Input Function..................................................................... 205
B.3.2 Enable the DIO Output Function.................................................................. 205
C WATCHDOG TIMER.......................................................................................... 206
D ADDRESS MAPPING.......................................................................................... 209
D.1 ADDRESS MAP ...................................................................................................... 210
D.2 1ST MB MEMORY ADDRESS MAP ......................................................................... 210
D.3 IRQ MAPPING TABLE.............................................................................................211
D.4 DMA CHANNEL ASSIGNMENTS..............................................................................211
E HAZARDOUS MATERIALS DISCLOSURE................................................... 212
Page 12
Page 13
IMBA-690AM2 Motherboard
E.1 HAZARDOUS MATERIAL DISCLOSURE TABLE FOR IPB PRODUCTS CERTIFIED AS
ROHS COMPLIANT UNDER 2002/95/EC WITHOUT MERCURY..................................... 213
F RAID SETUP ........................................................................................................ 216
F.1 INTRODUCTION....................................................................................................... 217
F.1.1 Precautions .................................................................................................... 217
F.2 FEATURES AND BENEFITS....................................................................................... 218
F .3 ACCESSING THE AMD SB600 RAID UTILITY ....................................................... 218
G INDEX.................................................................................................................... 222
Page 13
Page 14
IMBA-690AM2 Motherboard
List of Figures
Figure 1-1: IMBA-690AM2 Motherboard......................................................................................2

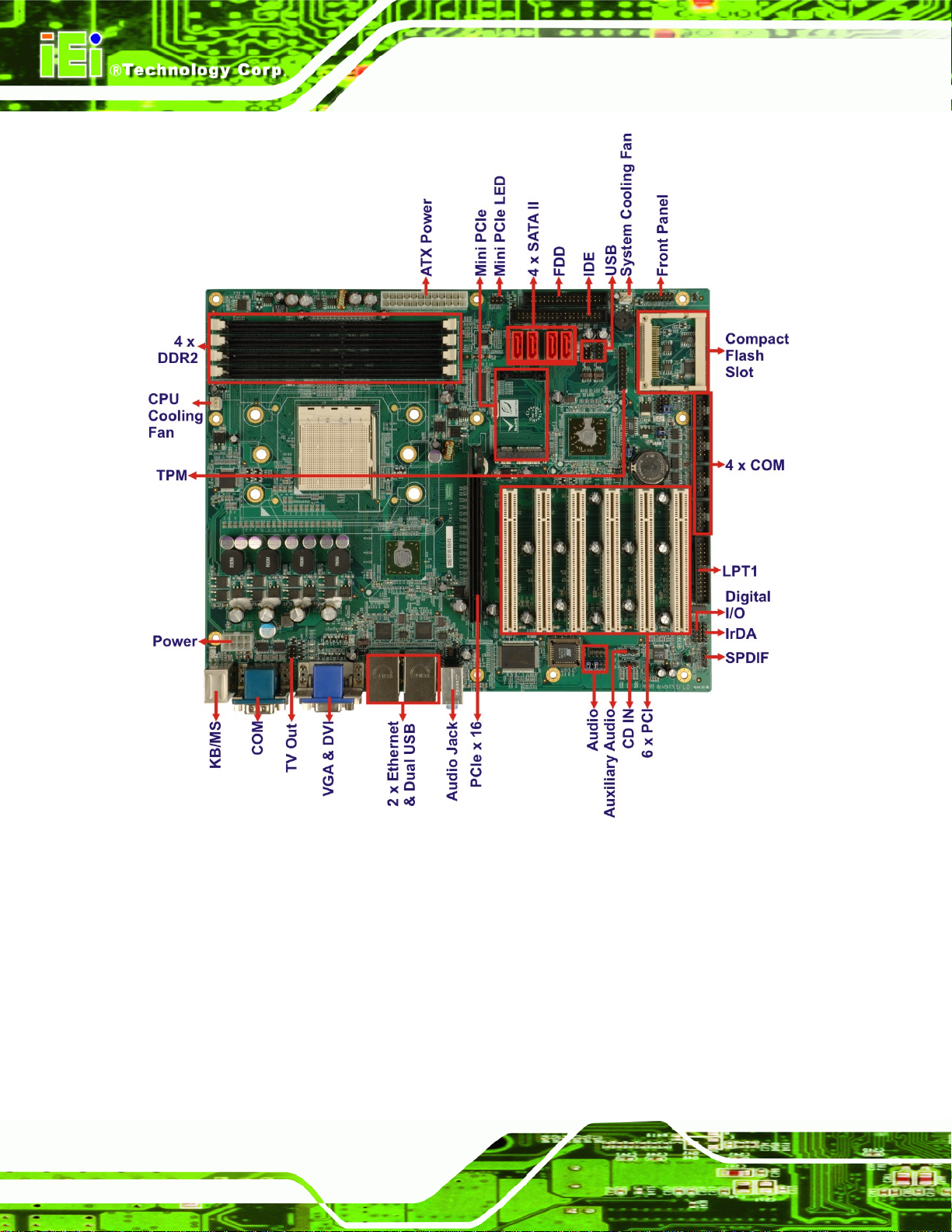

Figure 1-2: IMBA-690AM2 Overview............................................................................................4
Figure 2-1: IMBA-690AM2 Dimensions (mm)............................................................................10

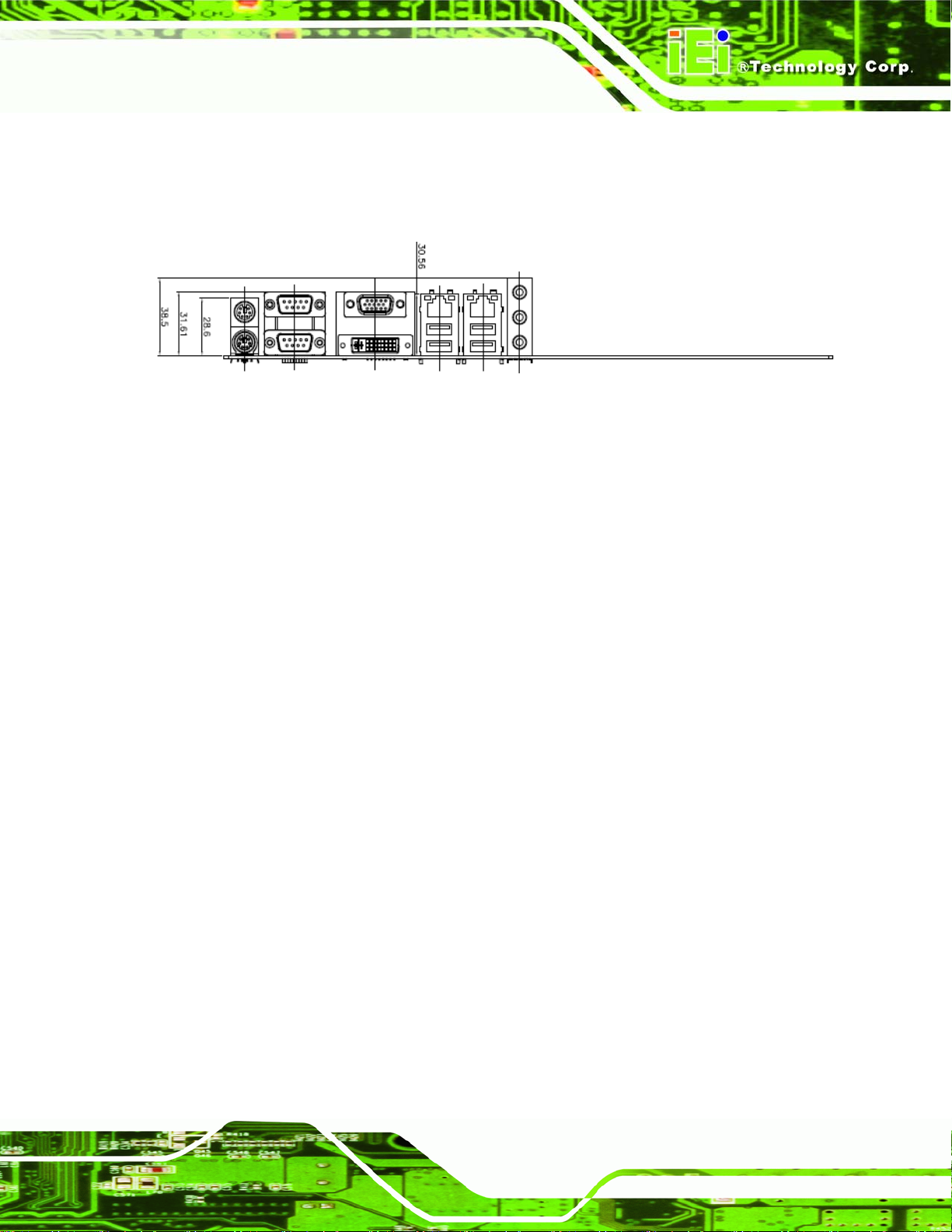

Figure 2-2: External Interface Panel Dimensions (mm)...........................................................11

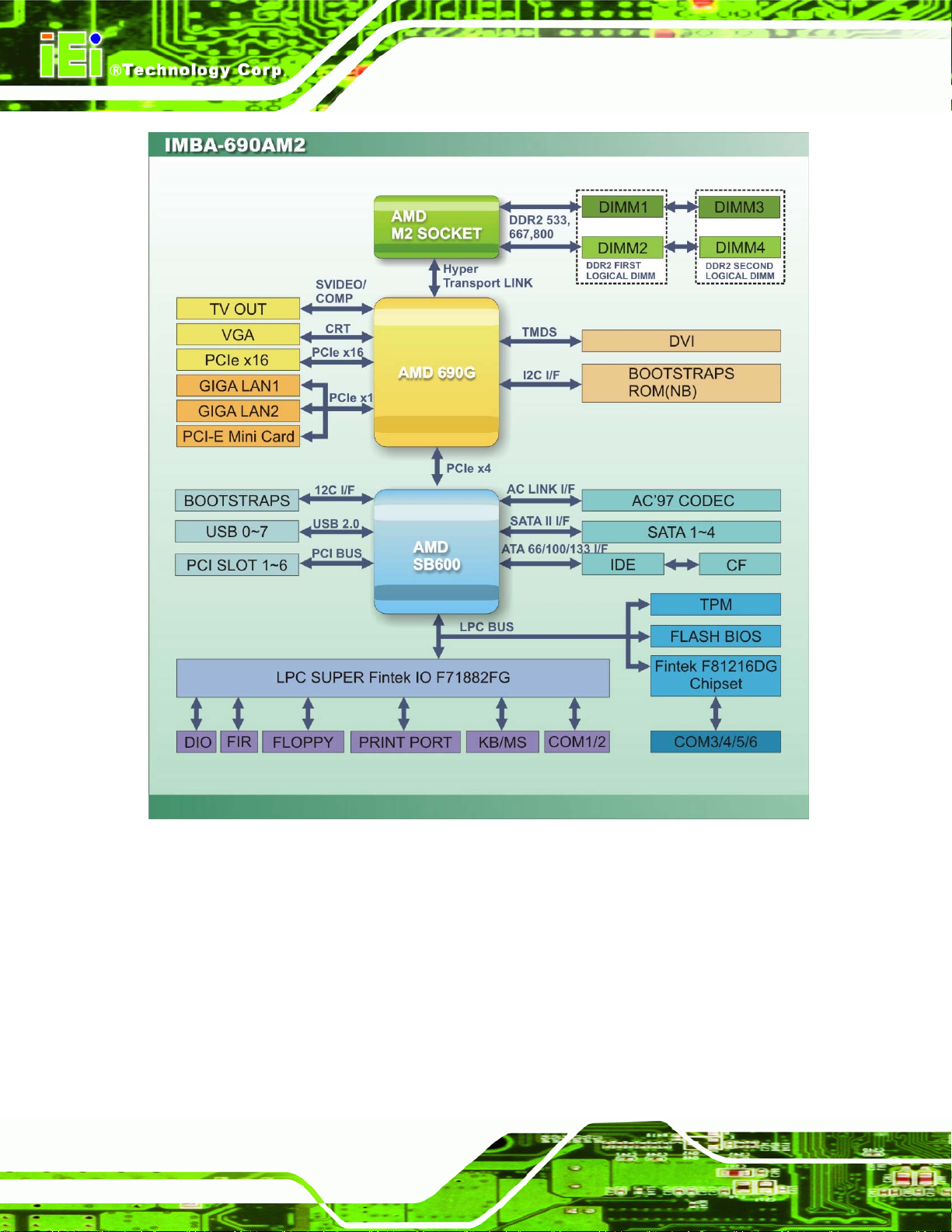

Figure 2-3: Data Flow Block Diagram........................................................................................12

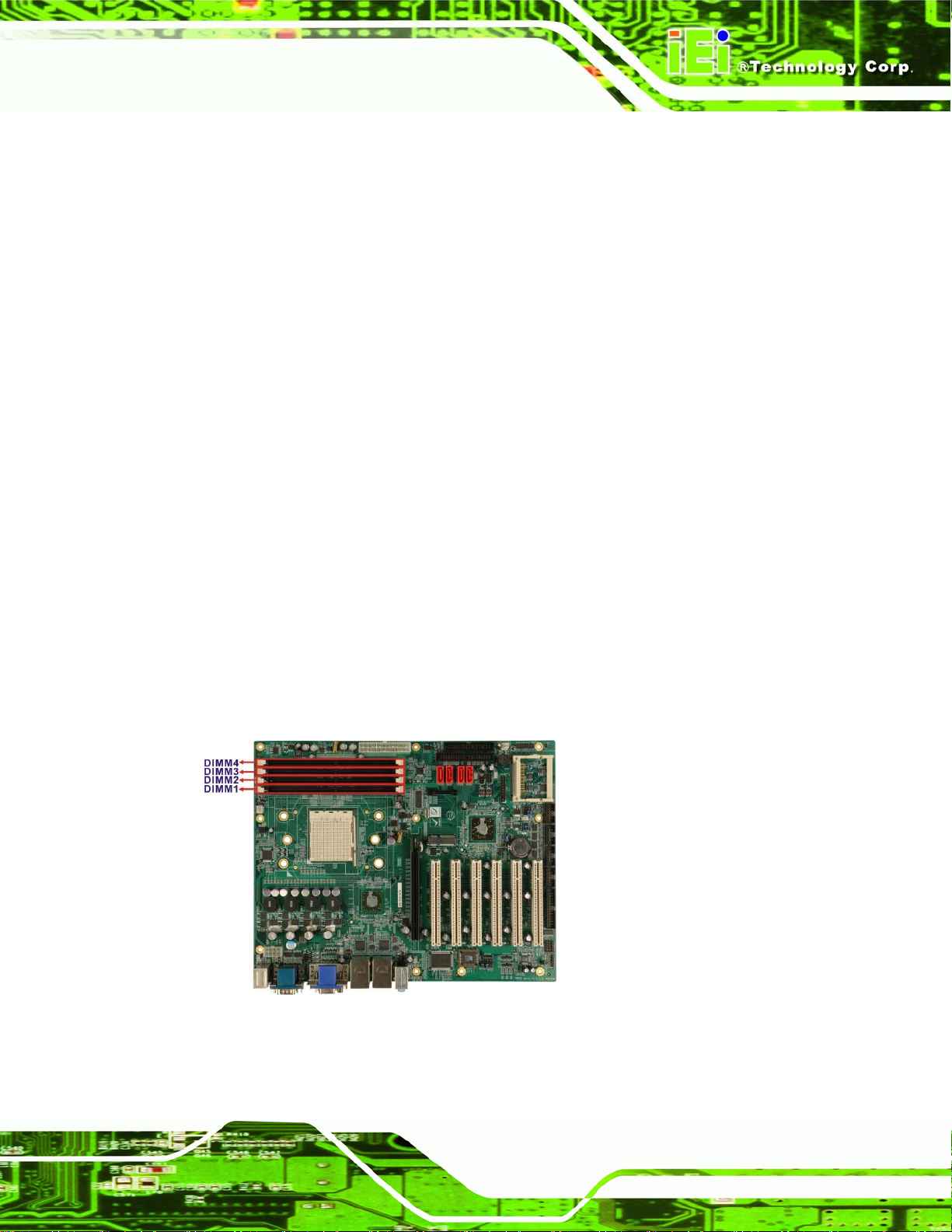

Figure 2-4: DIMM Sockets...........................................................................................................13

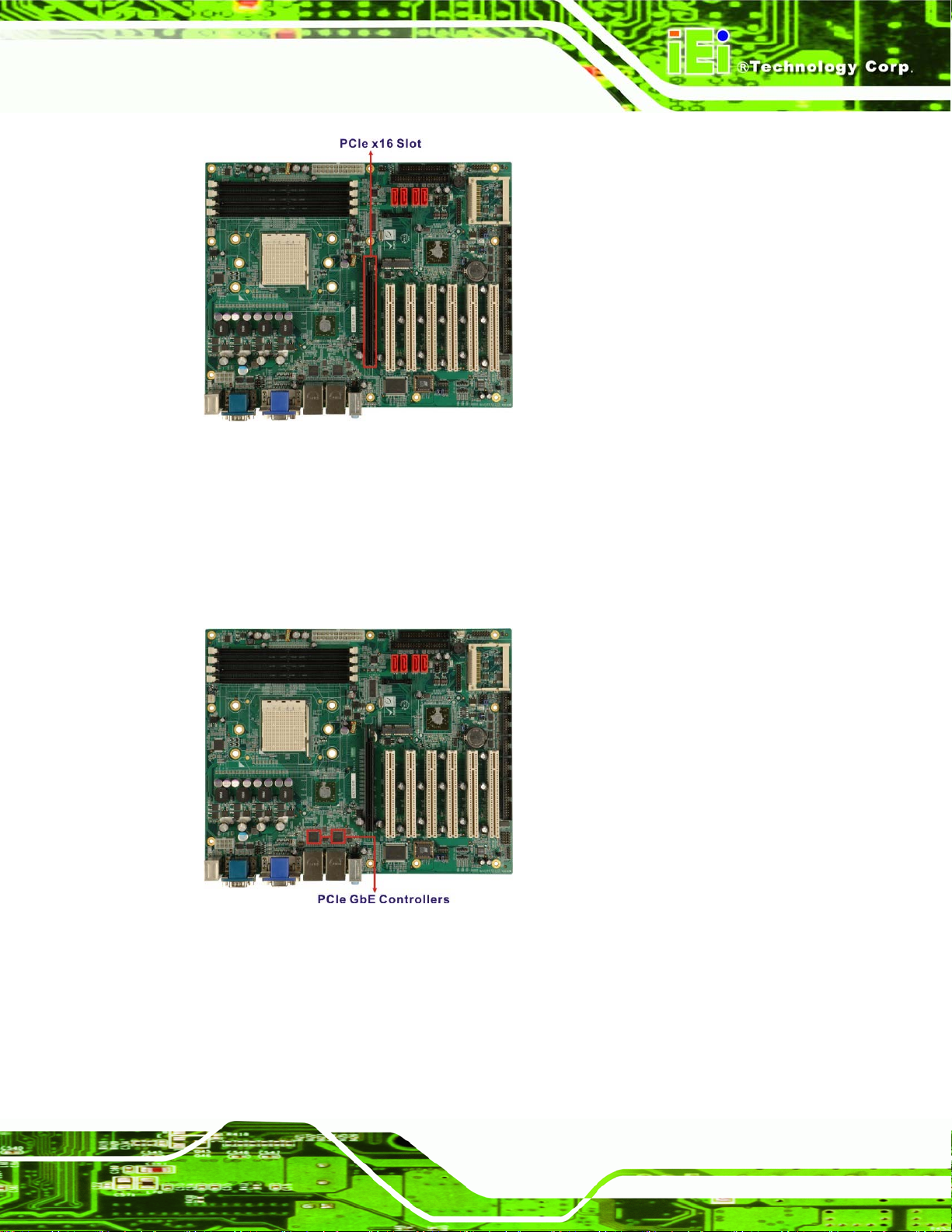

Figure 2-5: PCIe x1 Expansion Slot...........................................................................................15
Figure 2-6: Broadcom PCI GbE Controllers..............................................................................15

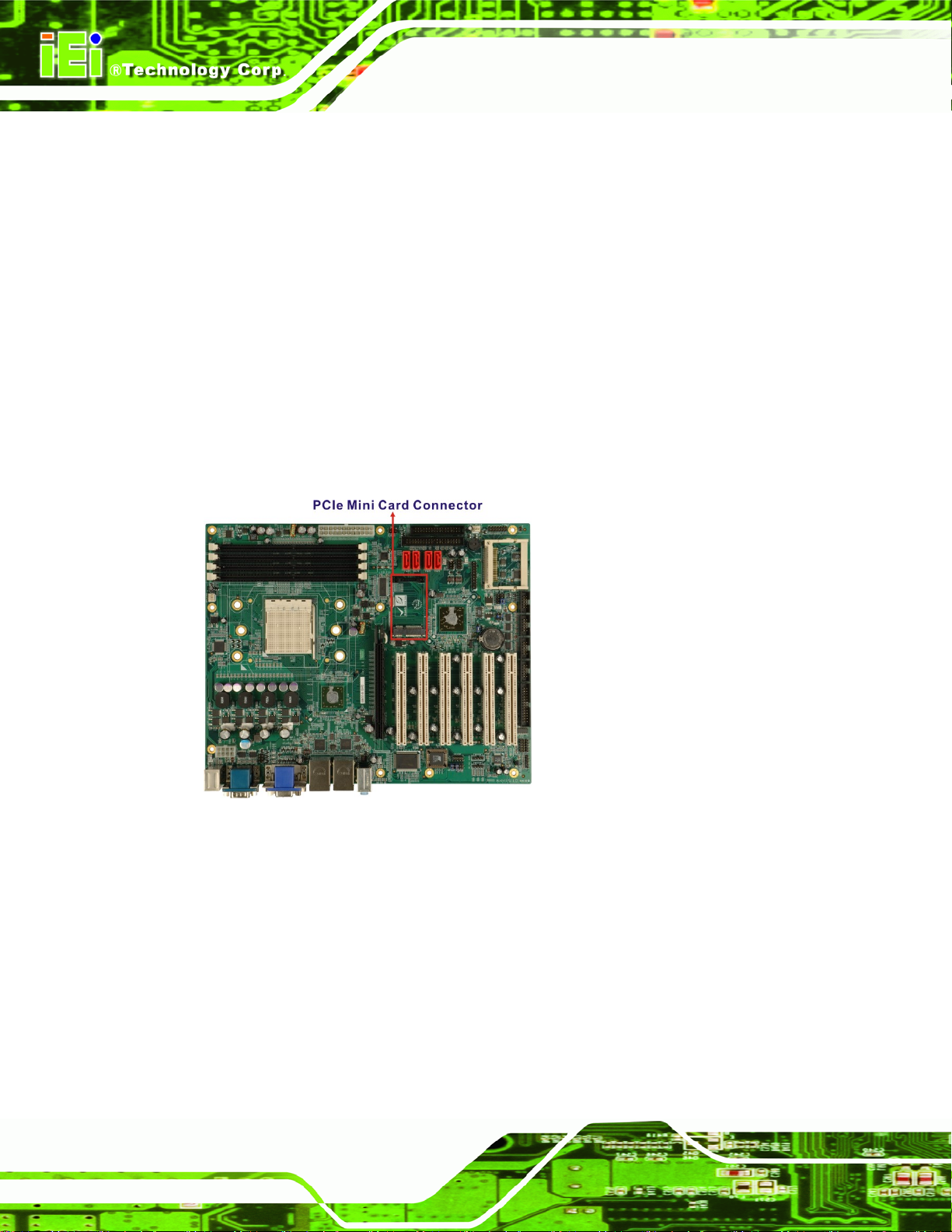

Figure 2-7: PCIe Mini Card Connector.......................................................................................16
Figure 2-8: Display Interfaces ....................................................................................................17

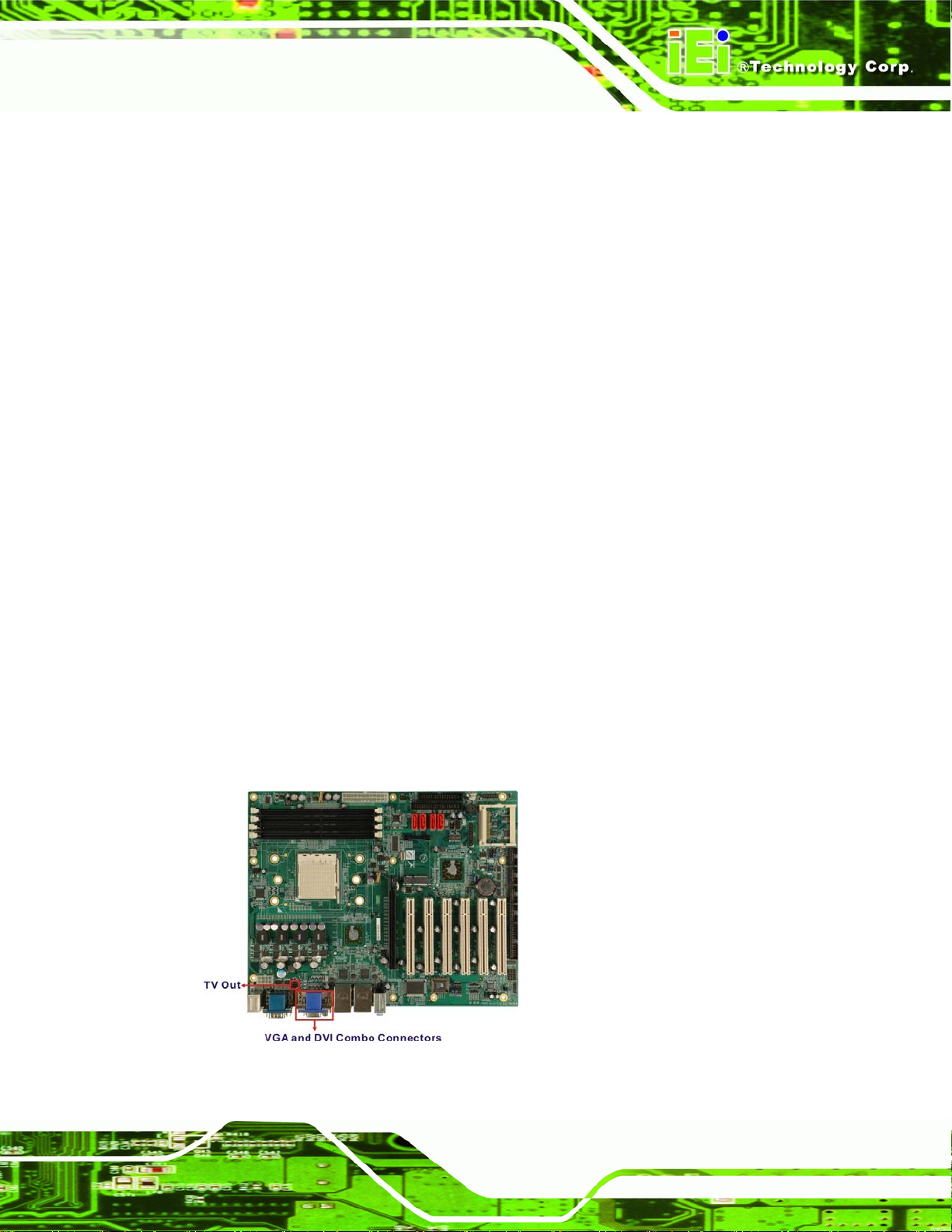

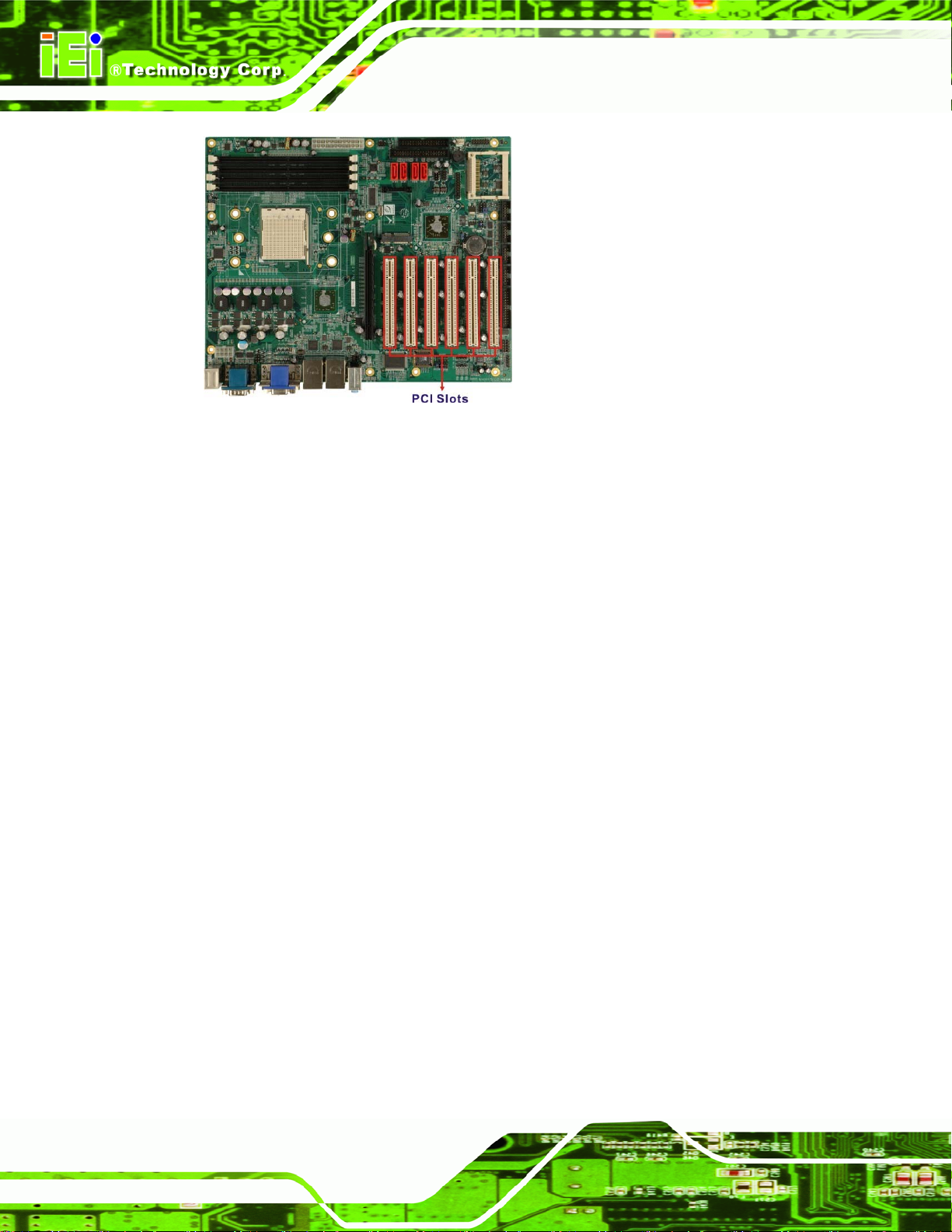

Figure 2-9: PCI Expansion Slots................................................................................................20
Figure 2-10: USB Connectors.....................................................................................................21

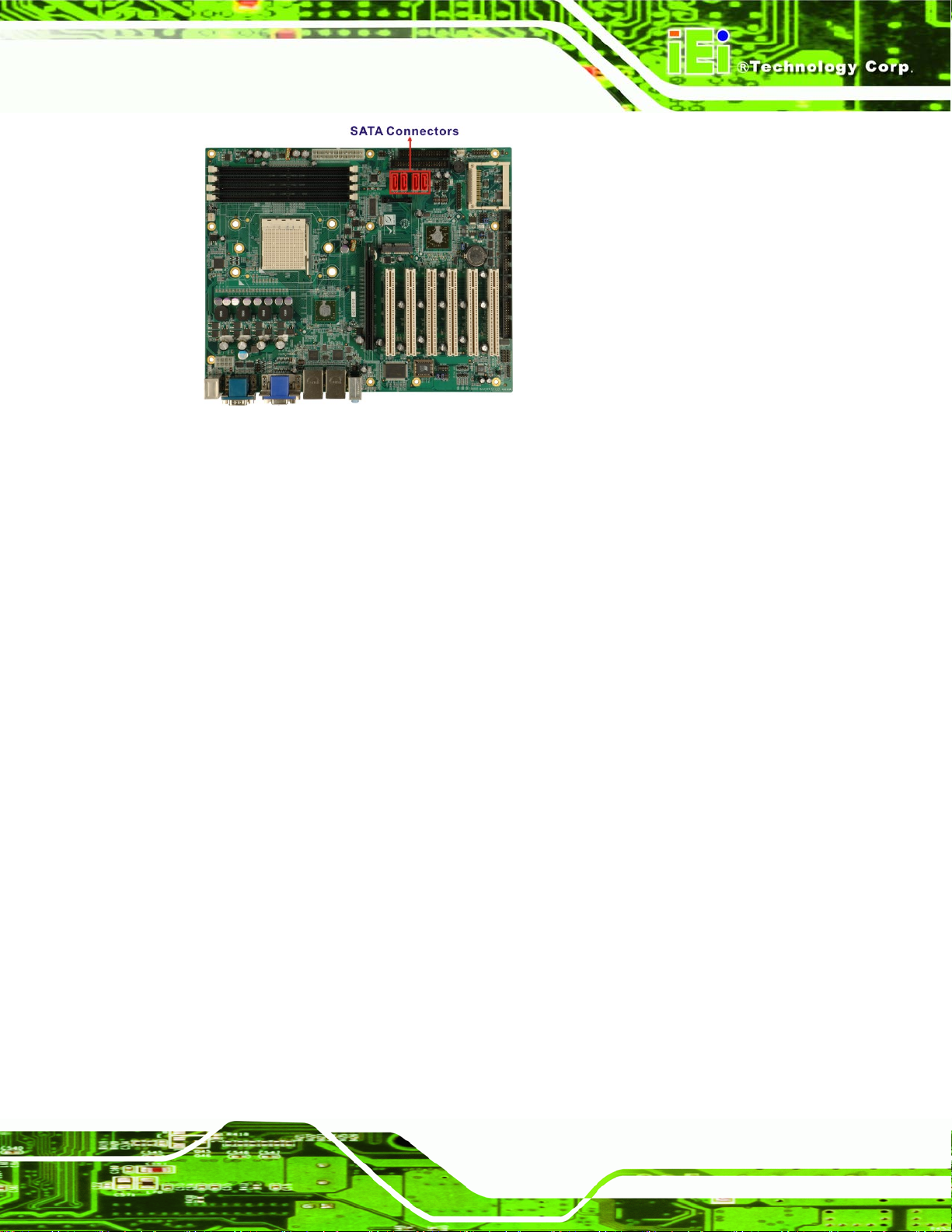

Figure 2-11: SATA Connectors ..................................................................................................23

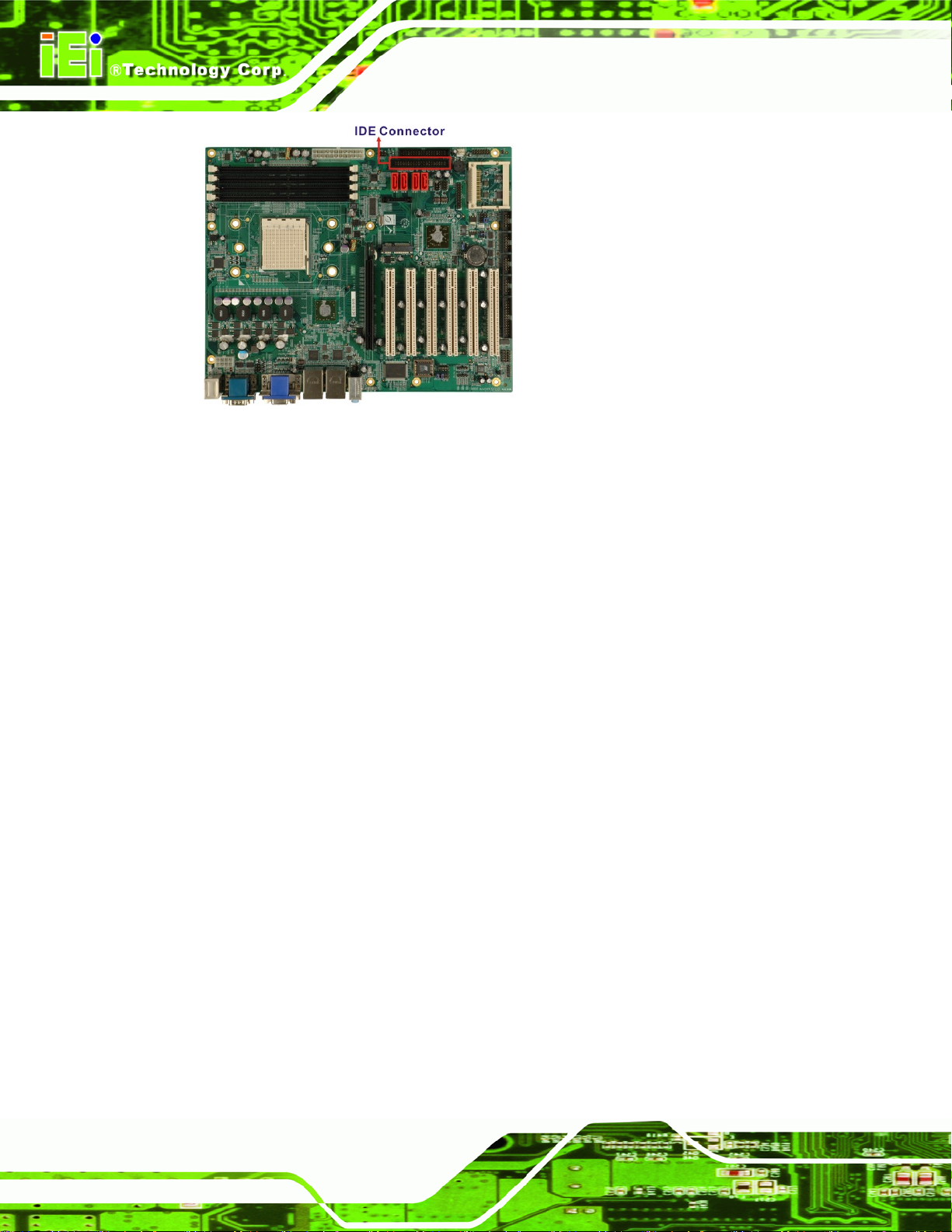

Figure 2-12: IDE Connector........................................................................................................24

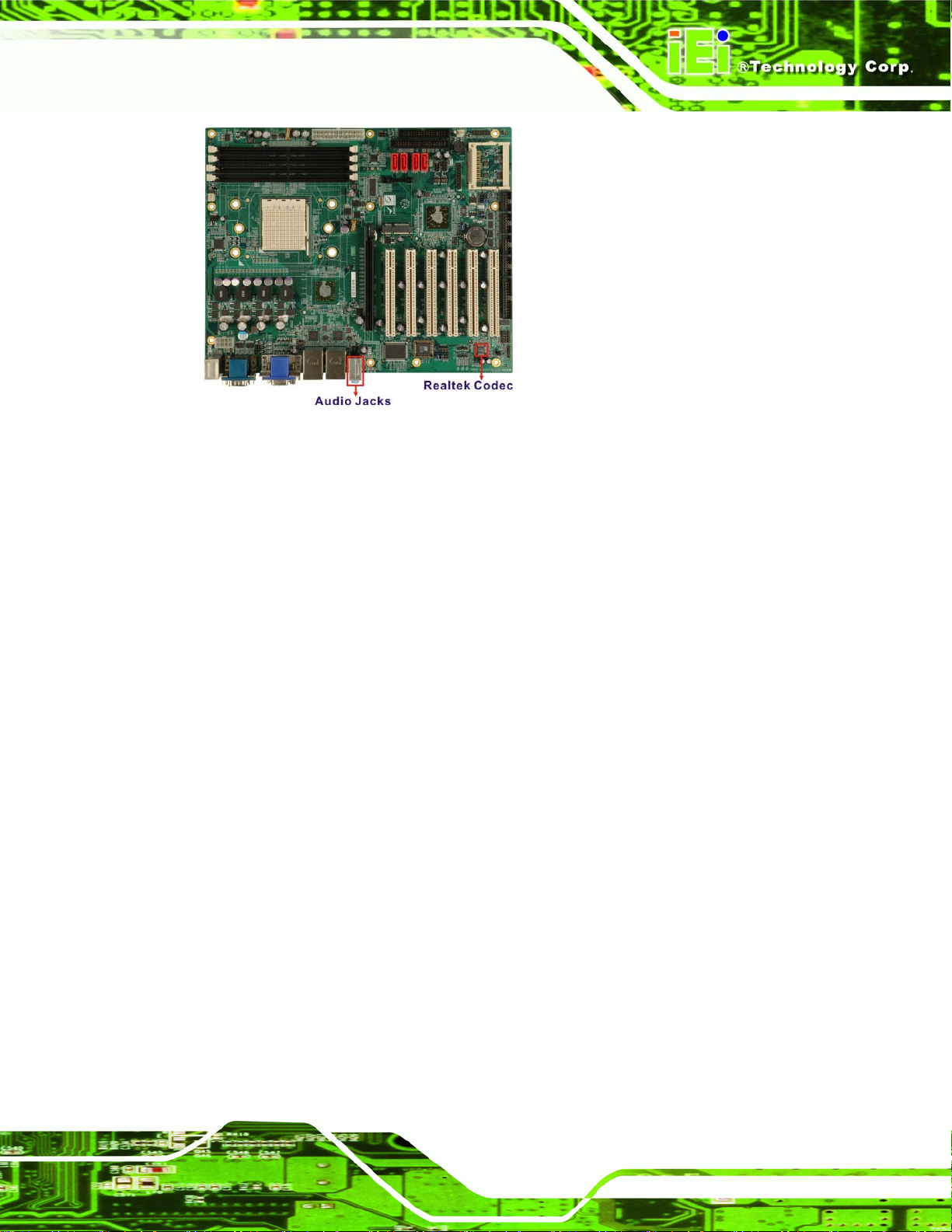

Figure 2-13: Audio Codec and Audio Jacks.............................................................................25

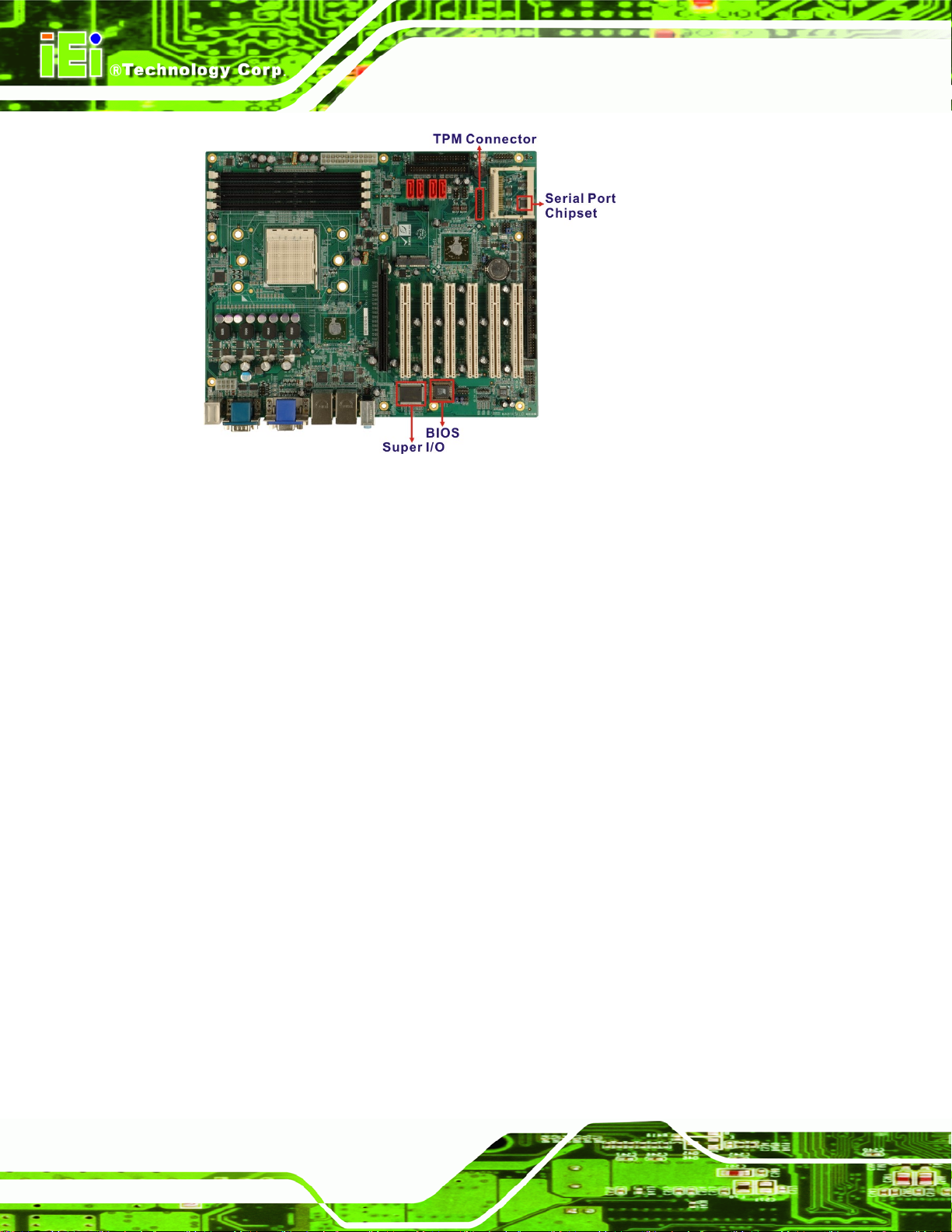

Figure 2-14: LPC BUS Components..........................................................................................28
Figure 4-1: Connector and Jumper Locations..........................................................................40
Figure 4-2: Audio Connector Location (9-pin)..........................................................................44

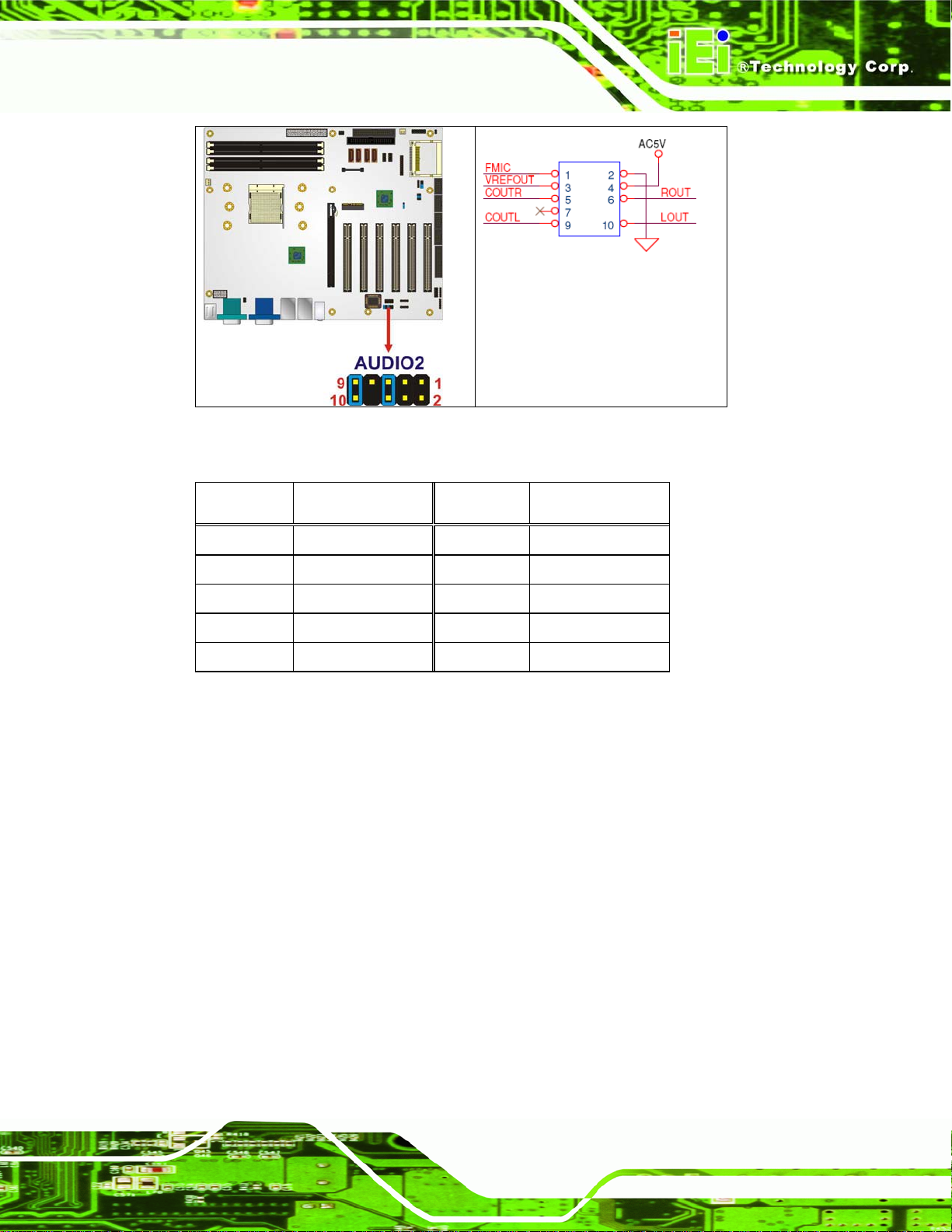

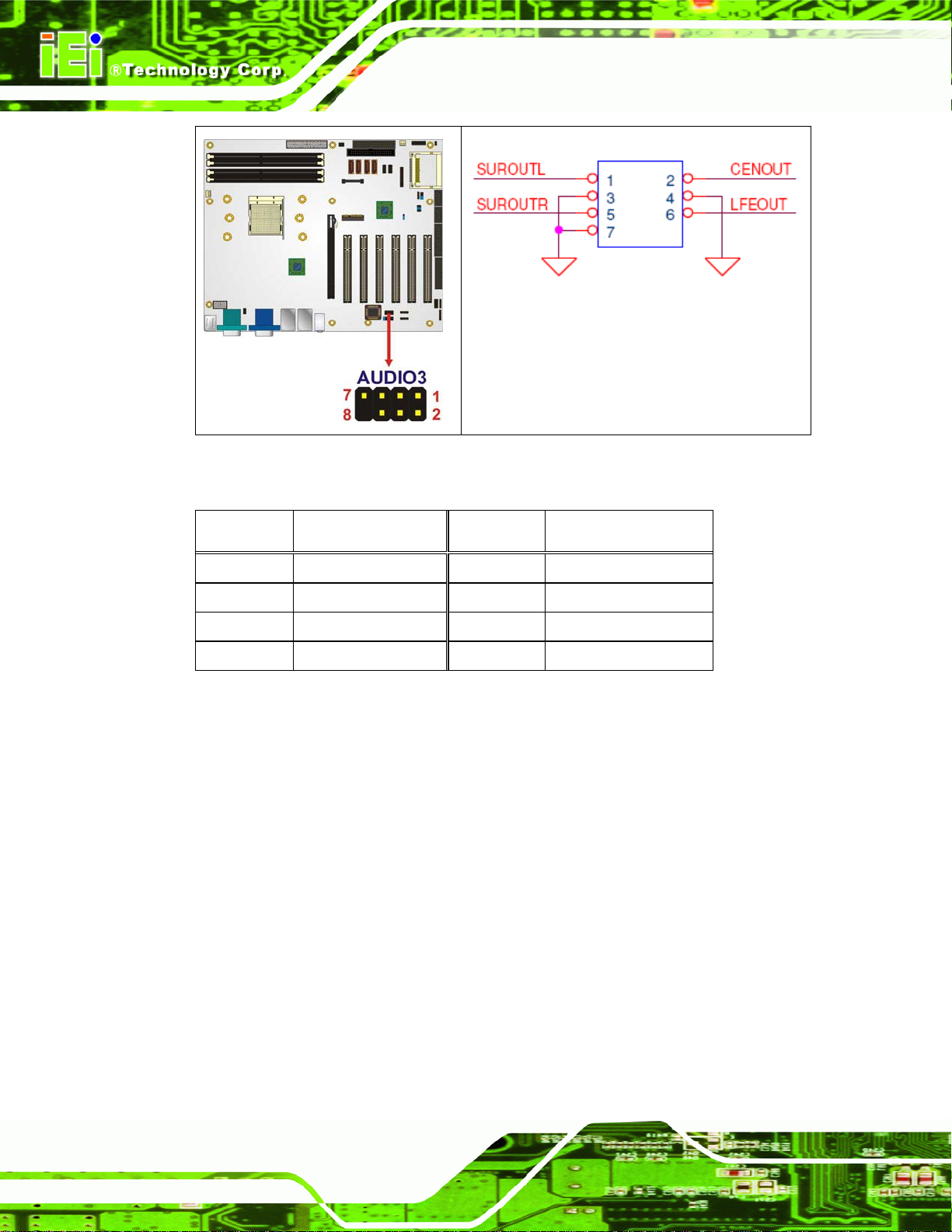

Figure 4-3: Audio Connector Pinouts (10-pin)..........................................................................45
Figure 4-4: Audio CD In Connector Pinouts (4-pin).................................................................46

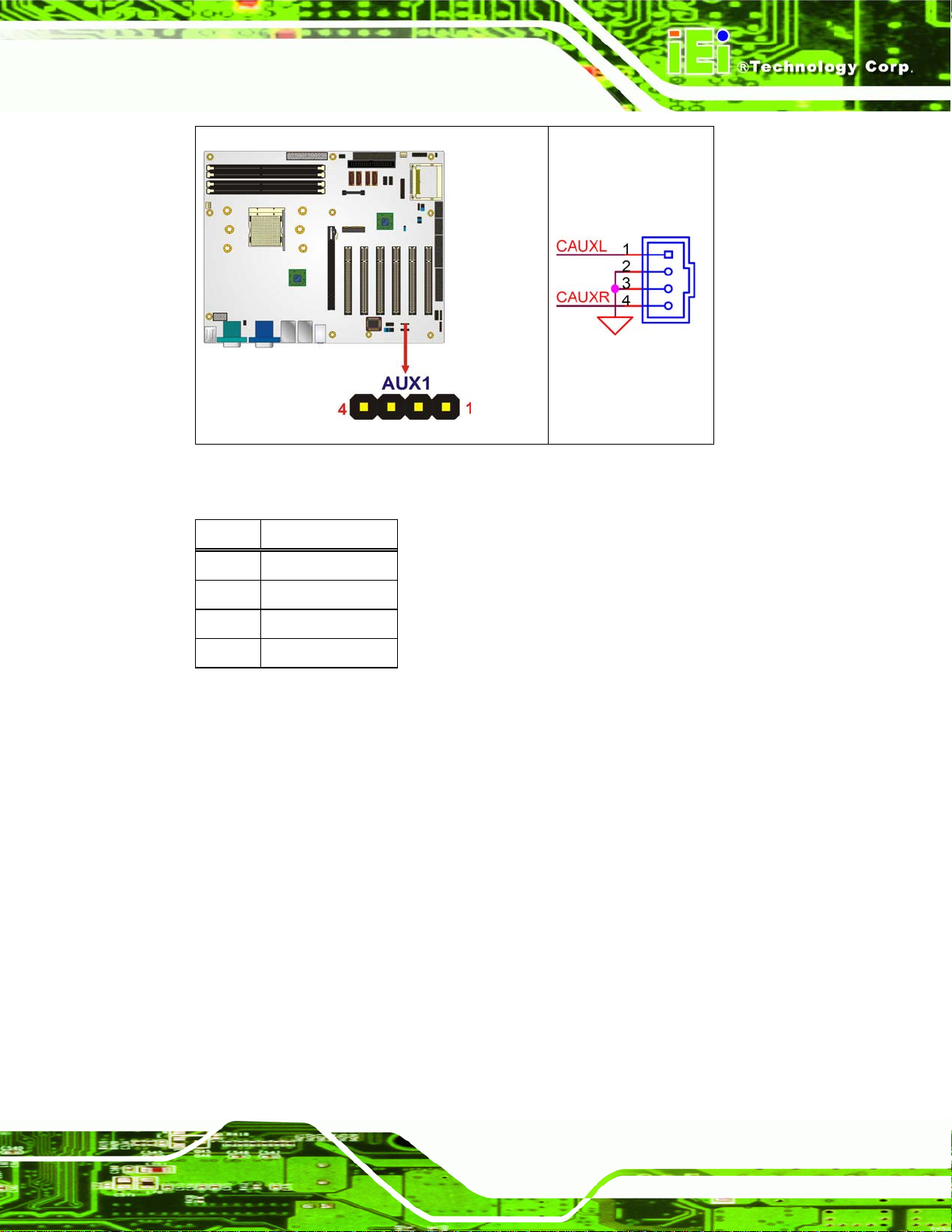

Figure 4-5: Auxiliary Audio Connector Location (4-pin) .........................................................47

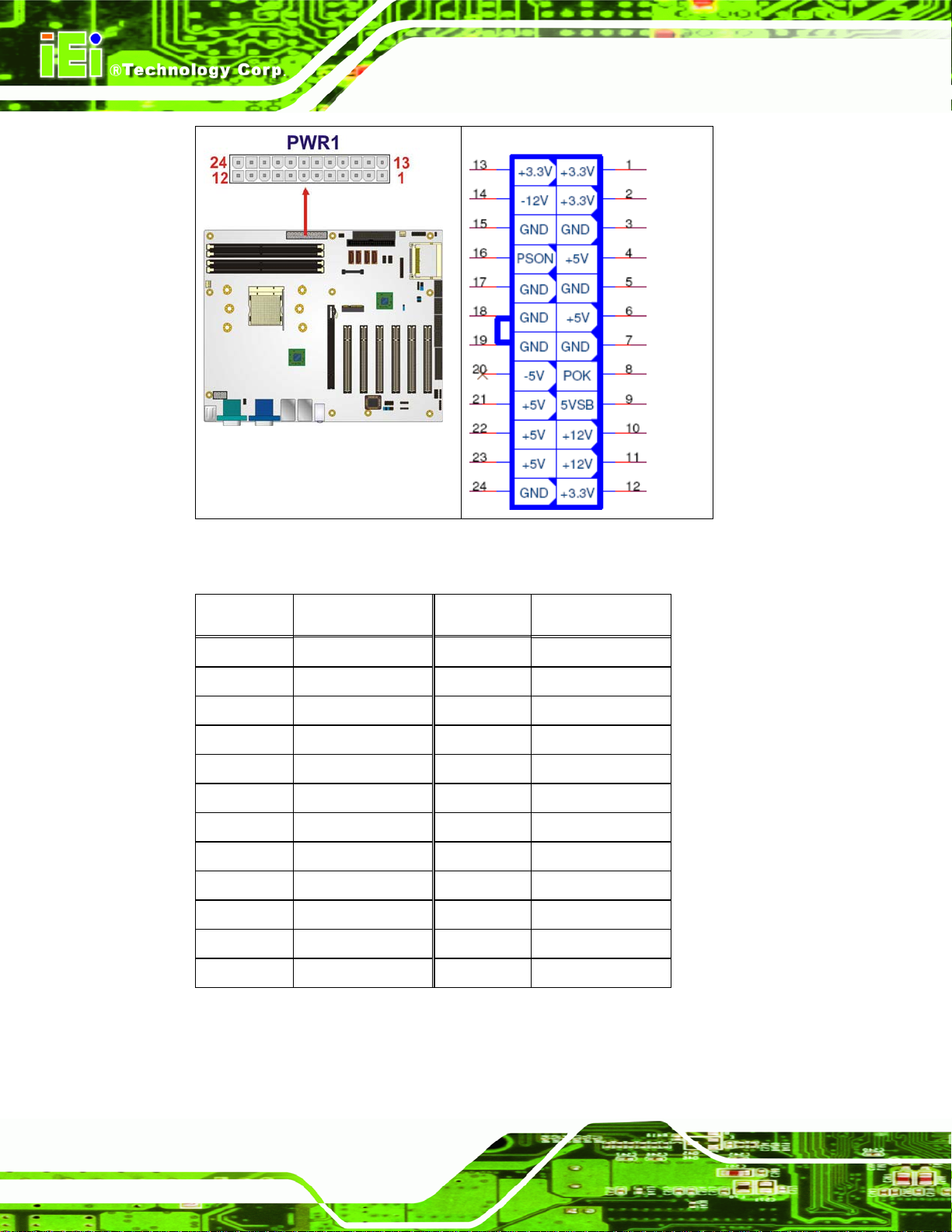

Figure 4-6: ATX Power Connector Pinout Locations...............................................................48

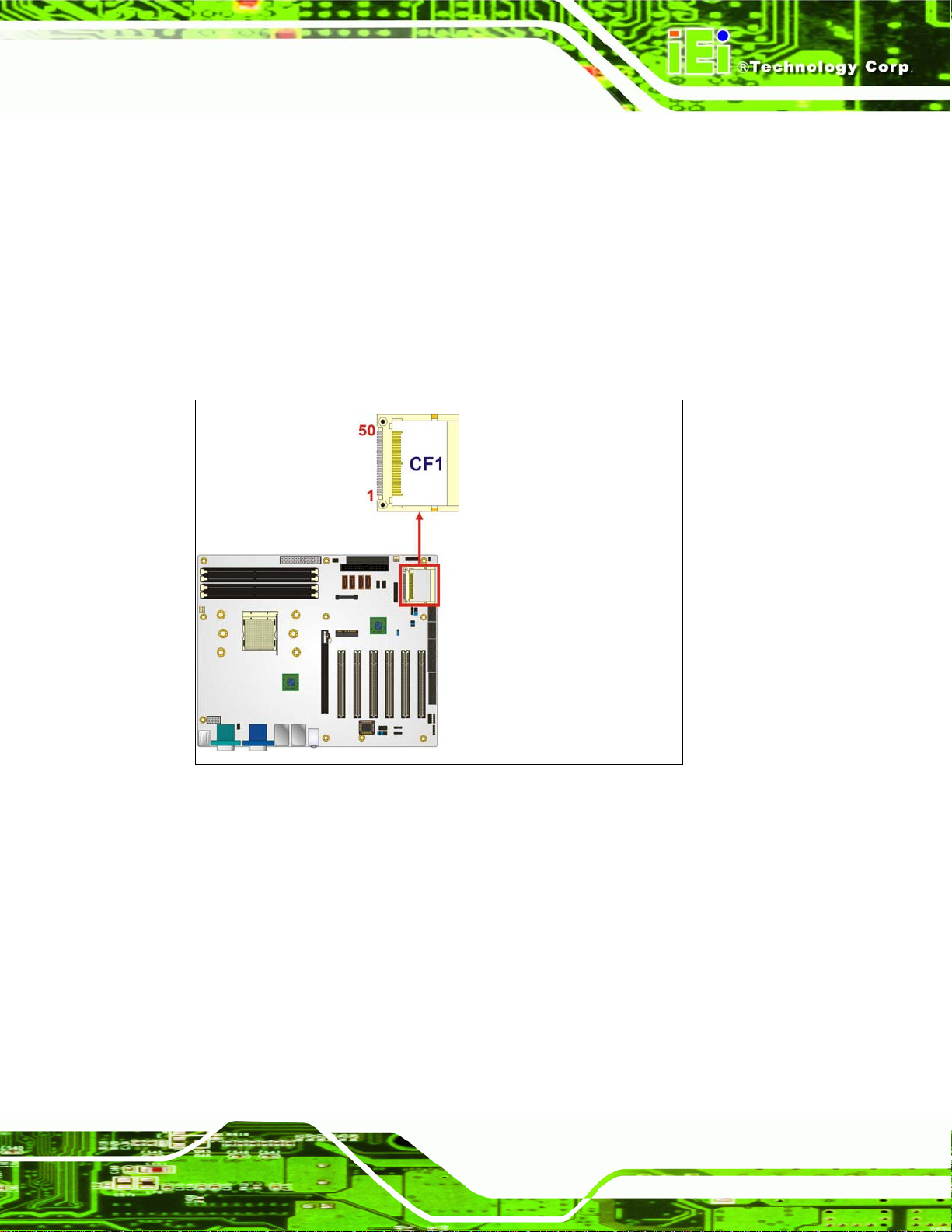

Figure 4-7: CF Card Socket Location ........................................................................................50

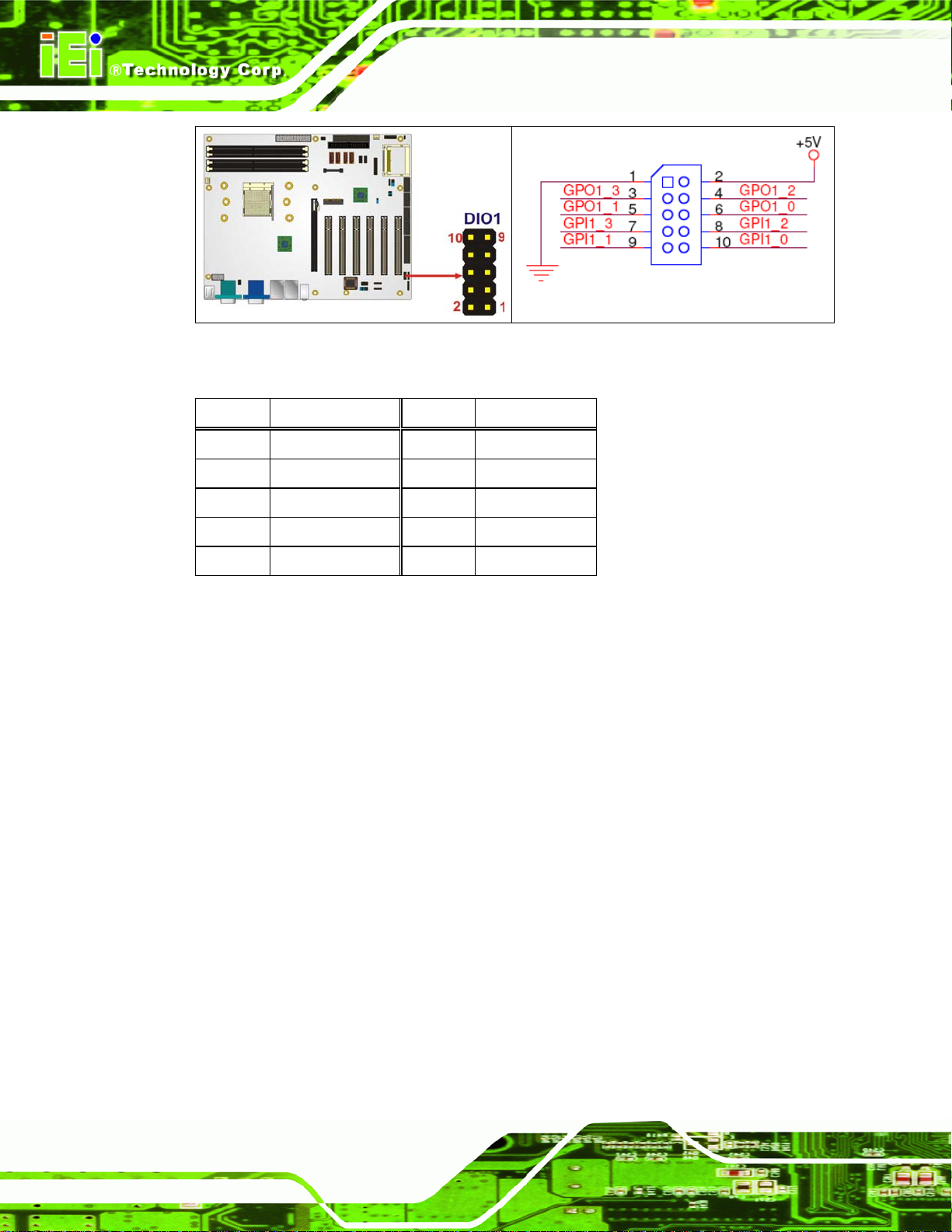

Figure 4-8: DIO Connector Locations........................................................................................52

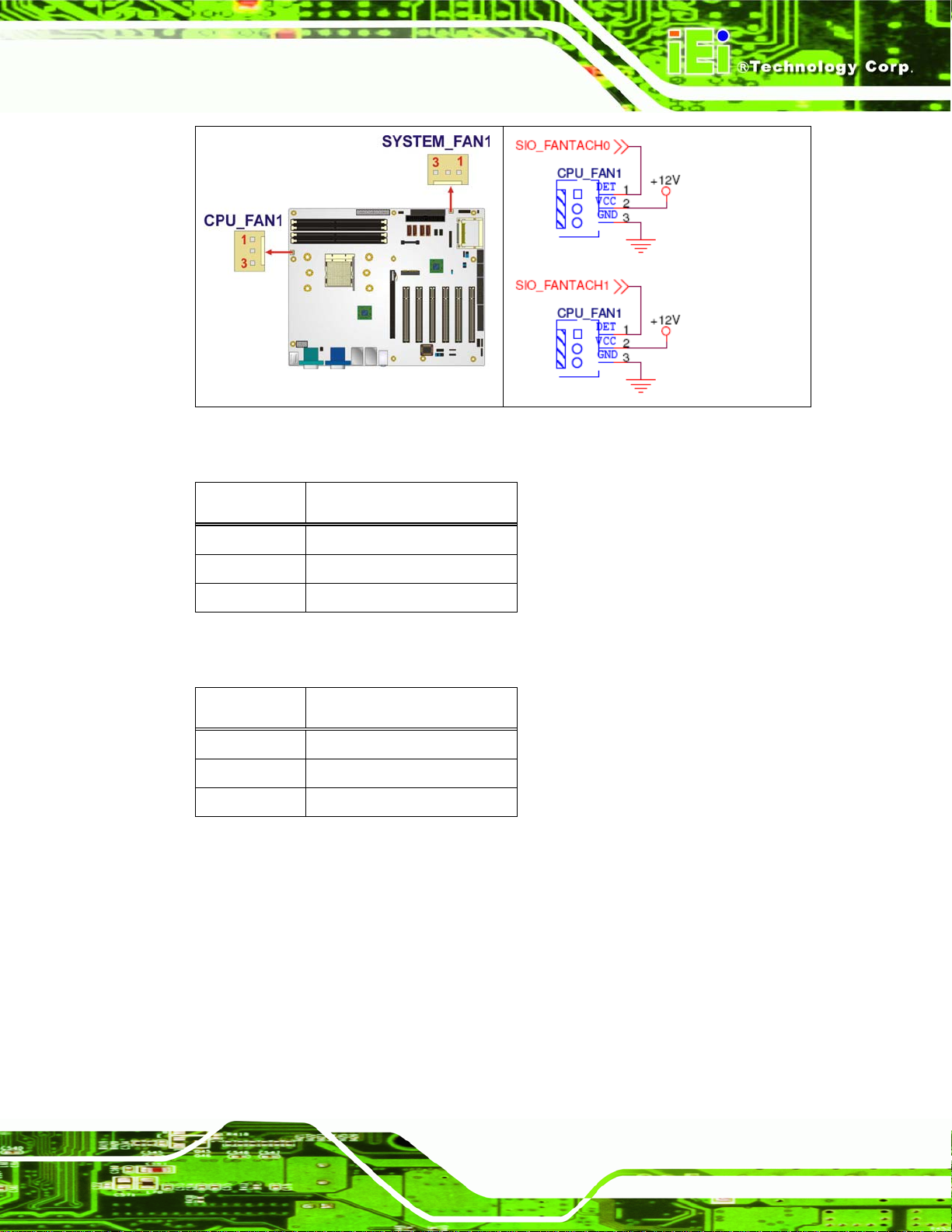

Figure 4-9: Fan Connector Location..........................................................................................53

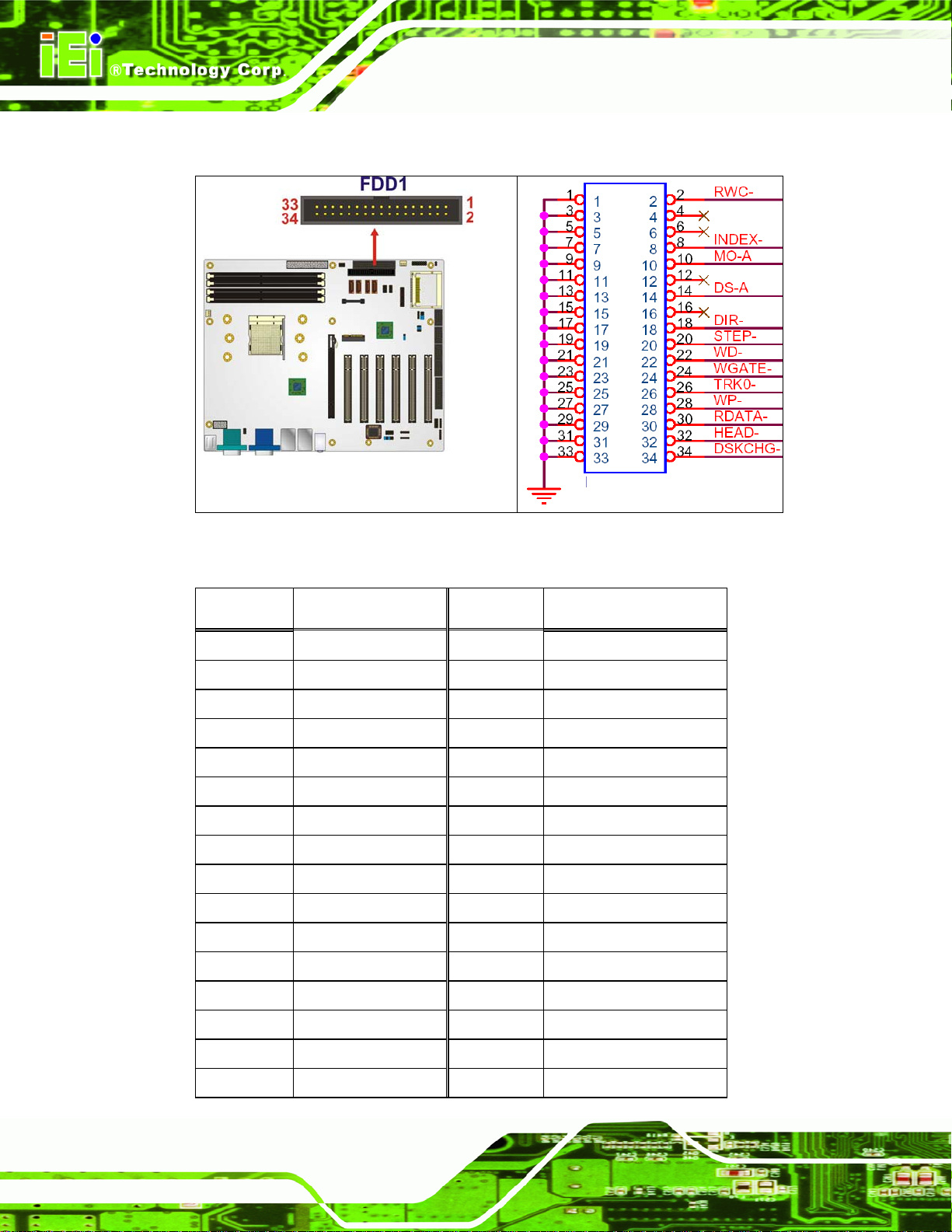

Figure 4-10: 34-pin FDD Connector Location...........................................................................54

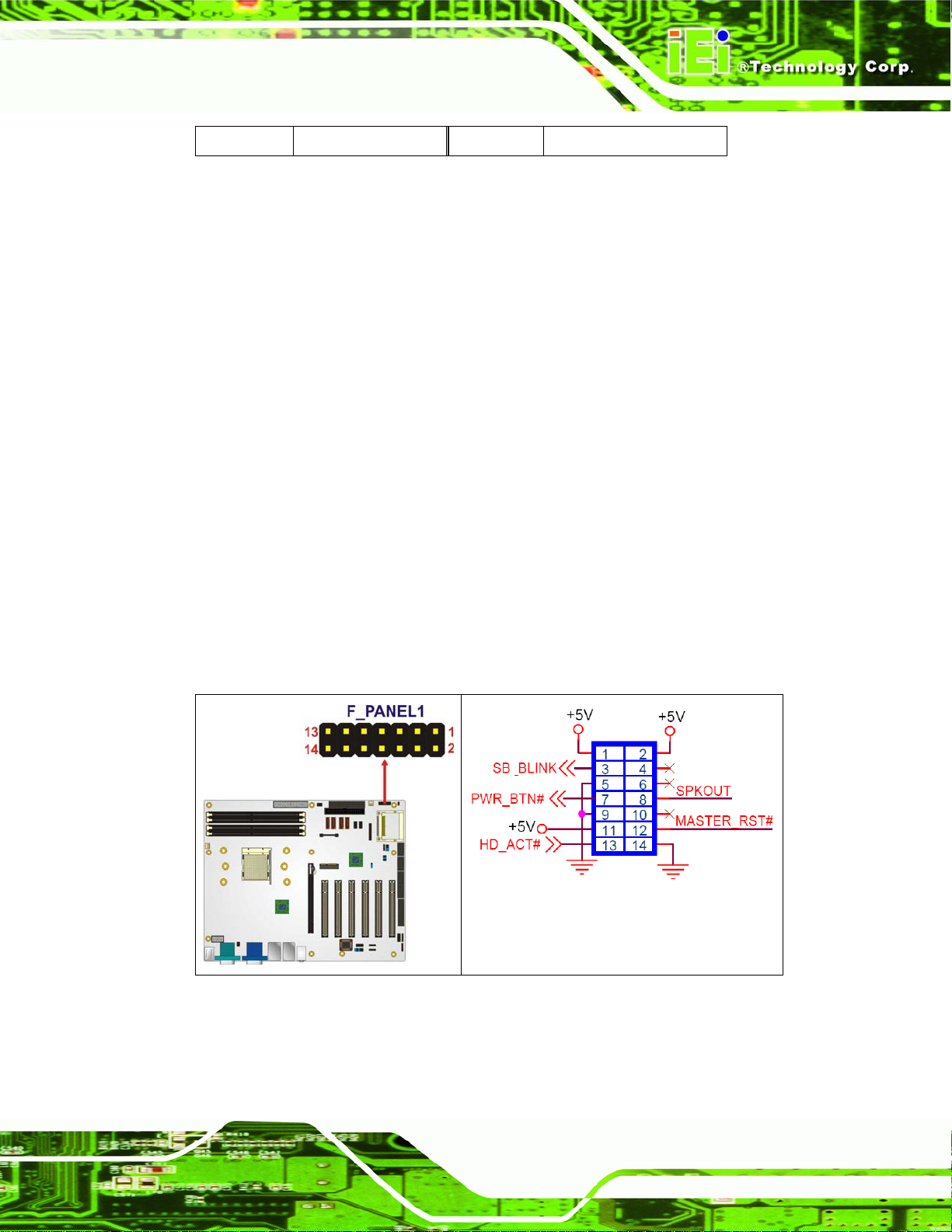

Figure 4-11: Front Panel Connector Pinout Locations (14-pin)..............................................55

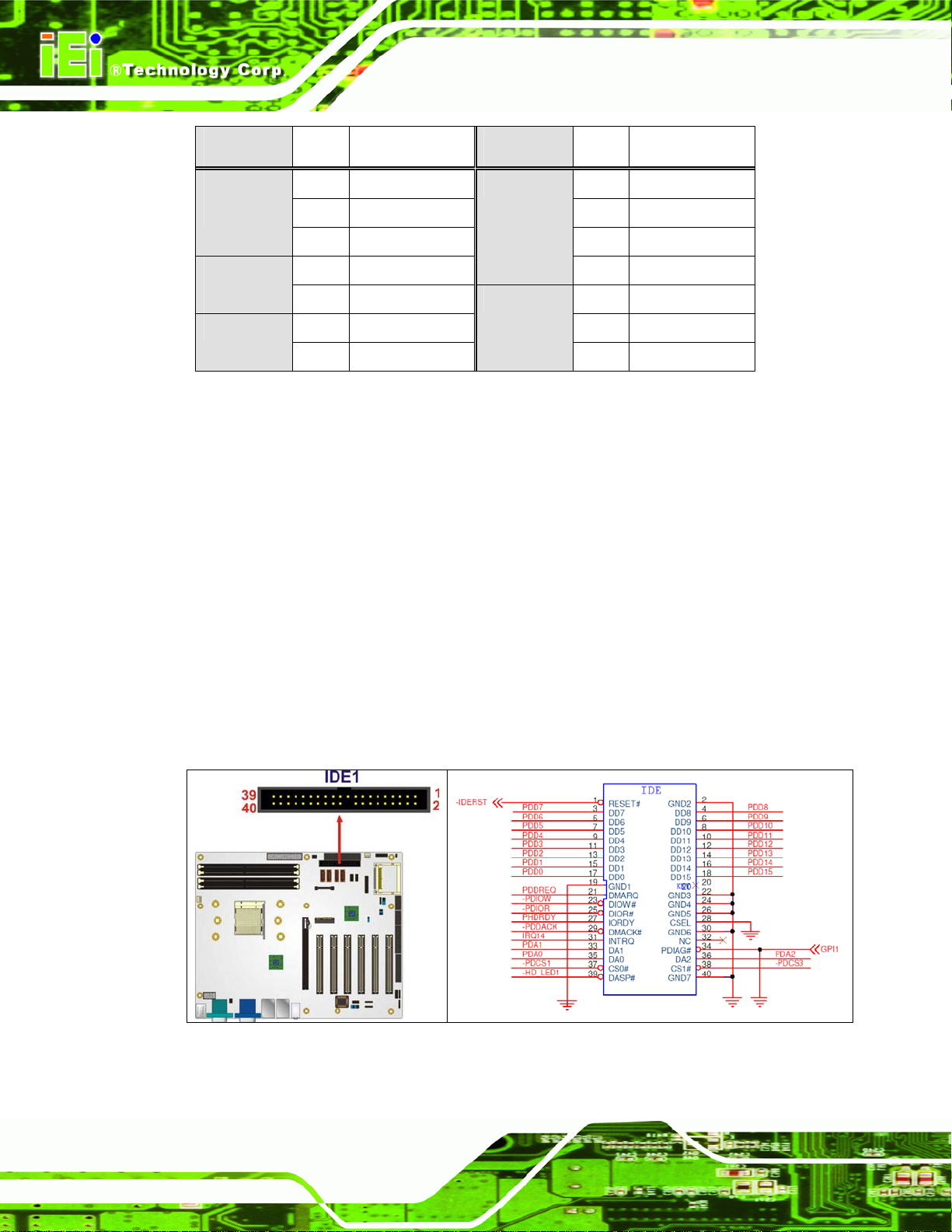

Figure 4-12: IDE Device Connector Locations .........................................................................56
Page 14
Page 15
IMBA-690AM2 Motherboard

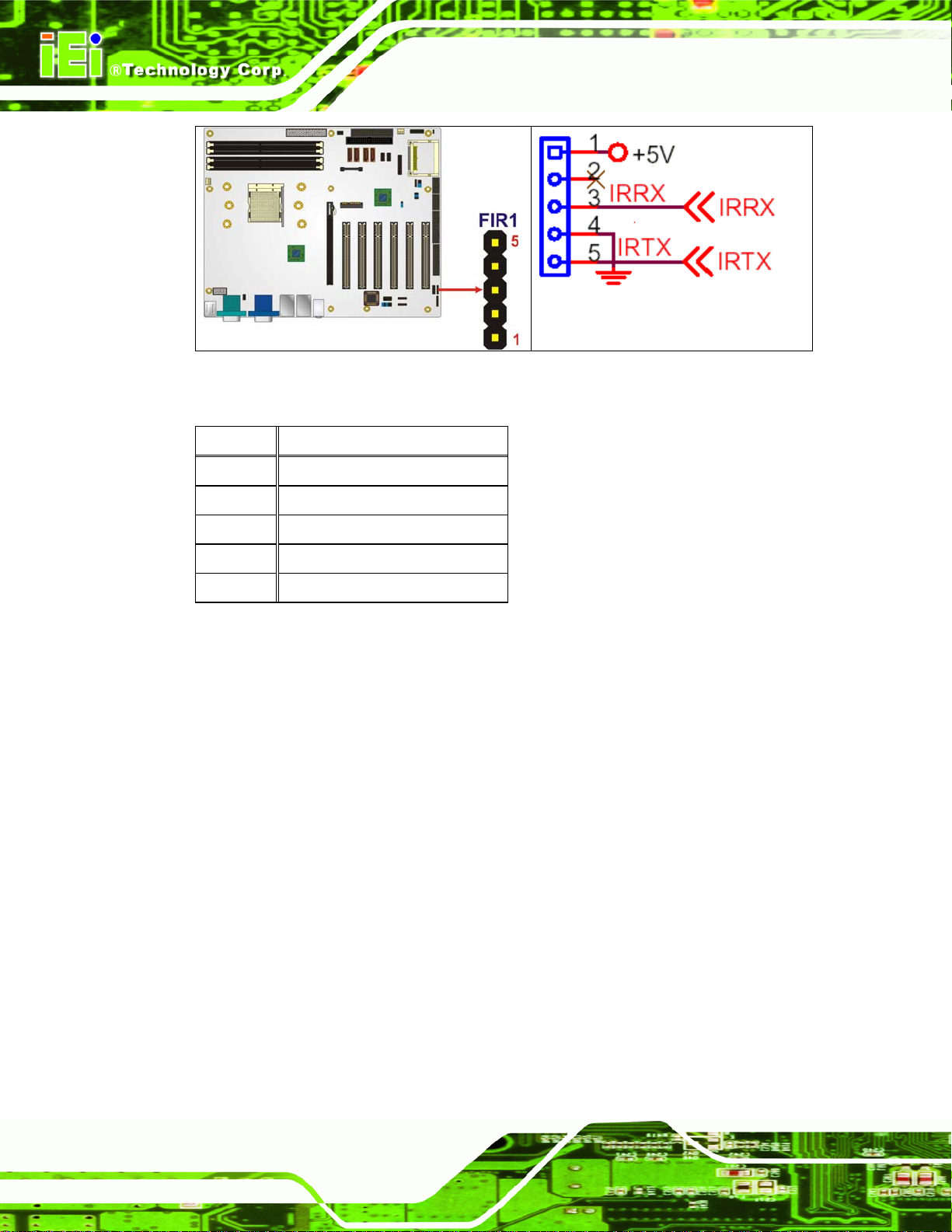

Figure 4-13: Infrared Connector Pinout Locations ..................................................................58

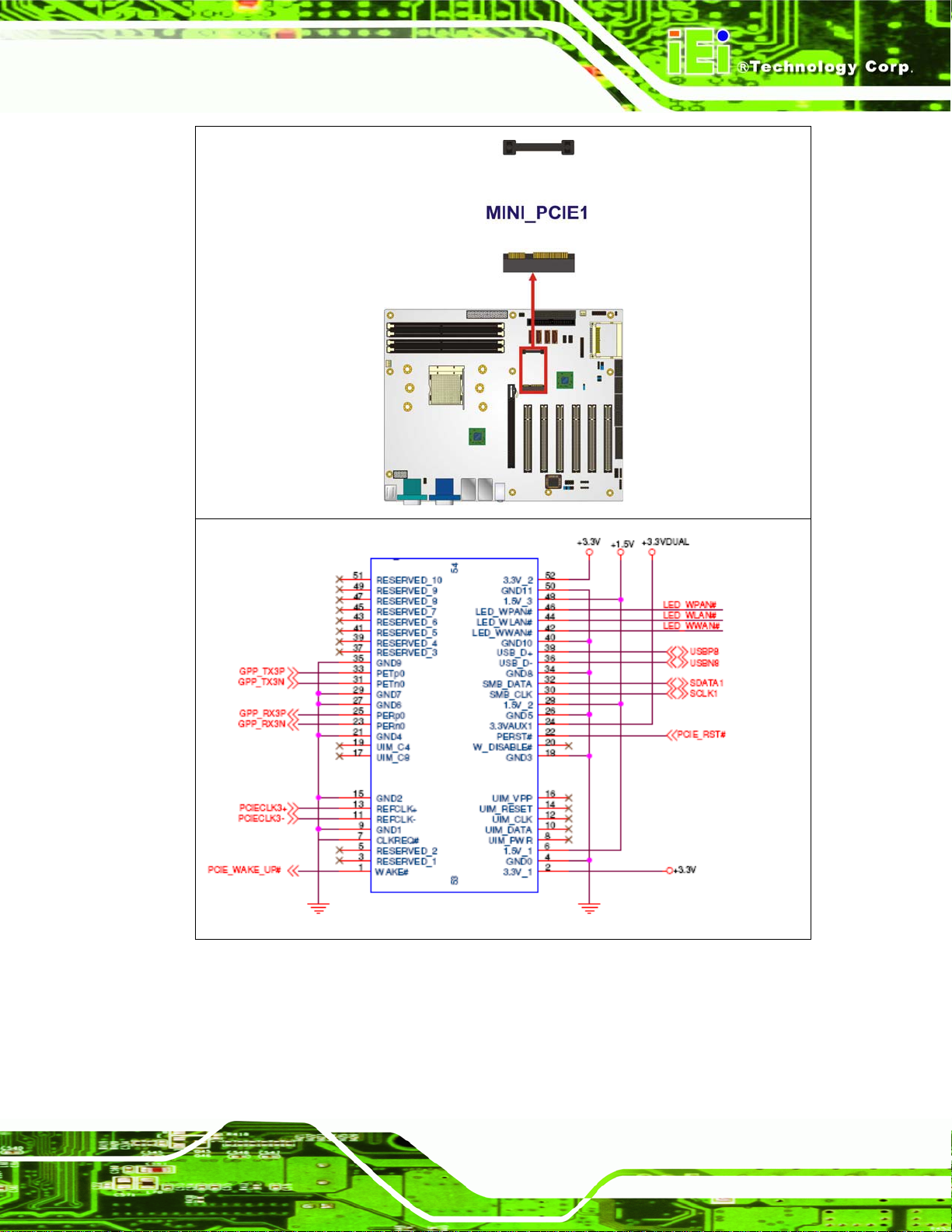

Figure 4-14: PCIe Mini Card Connector Location.....................................................................59

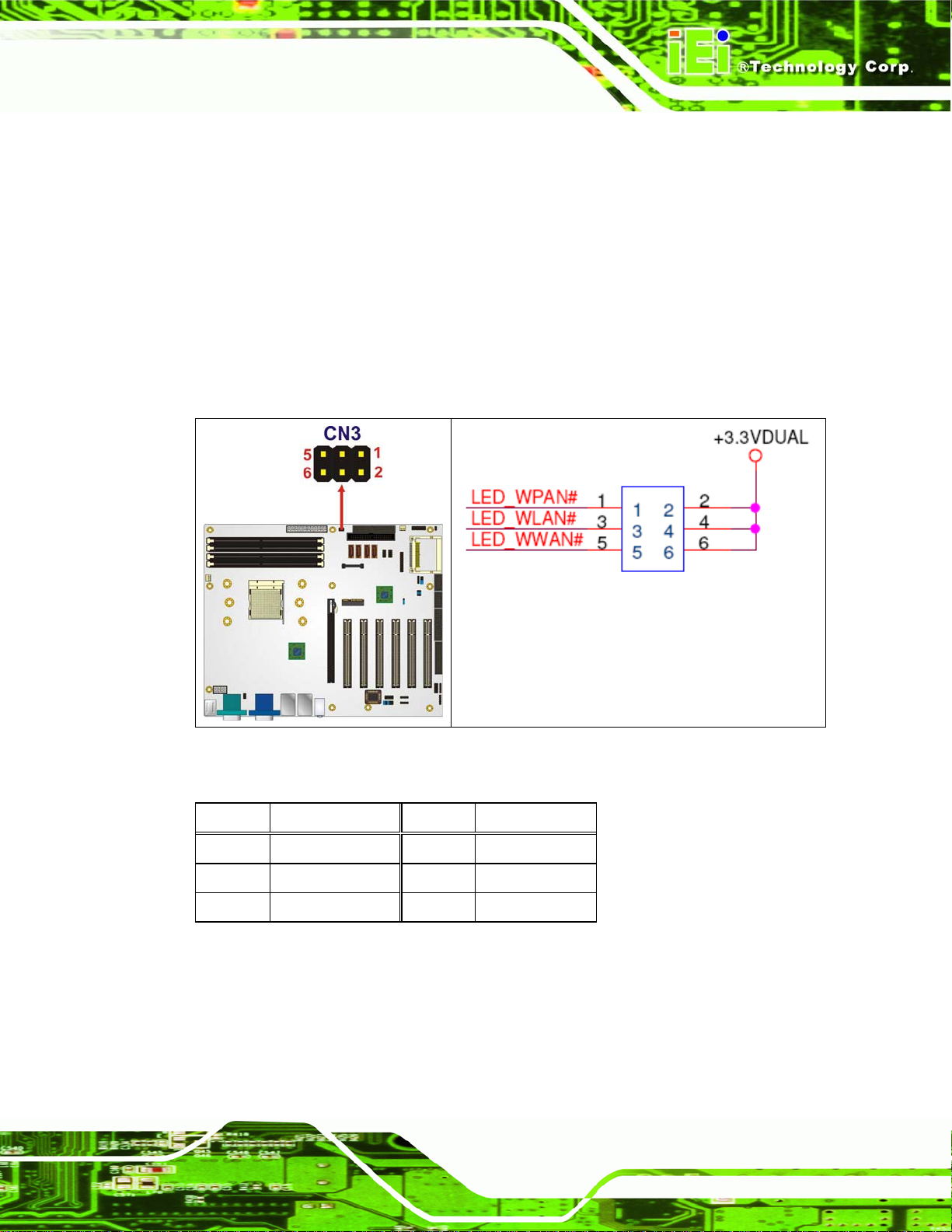

Figure 4-15: PCIe Mini Card LED Connector Location ............................................................61
Figure 4-16: PCI Slot Location ...................................................................................................63
Figure 4-17: PCI Express x16 Slot Locations...........................................................................66

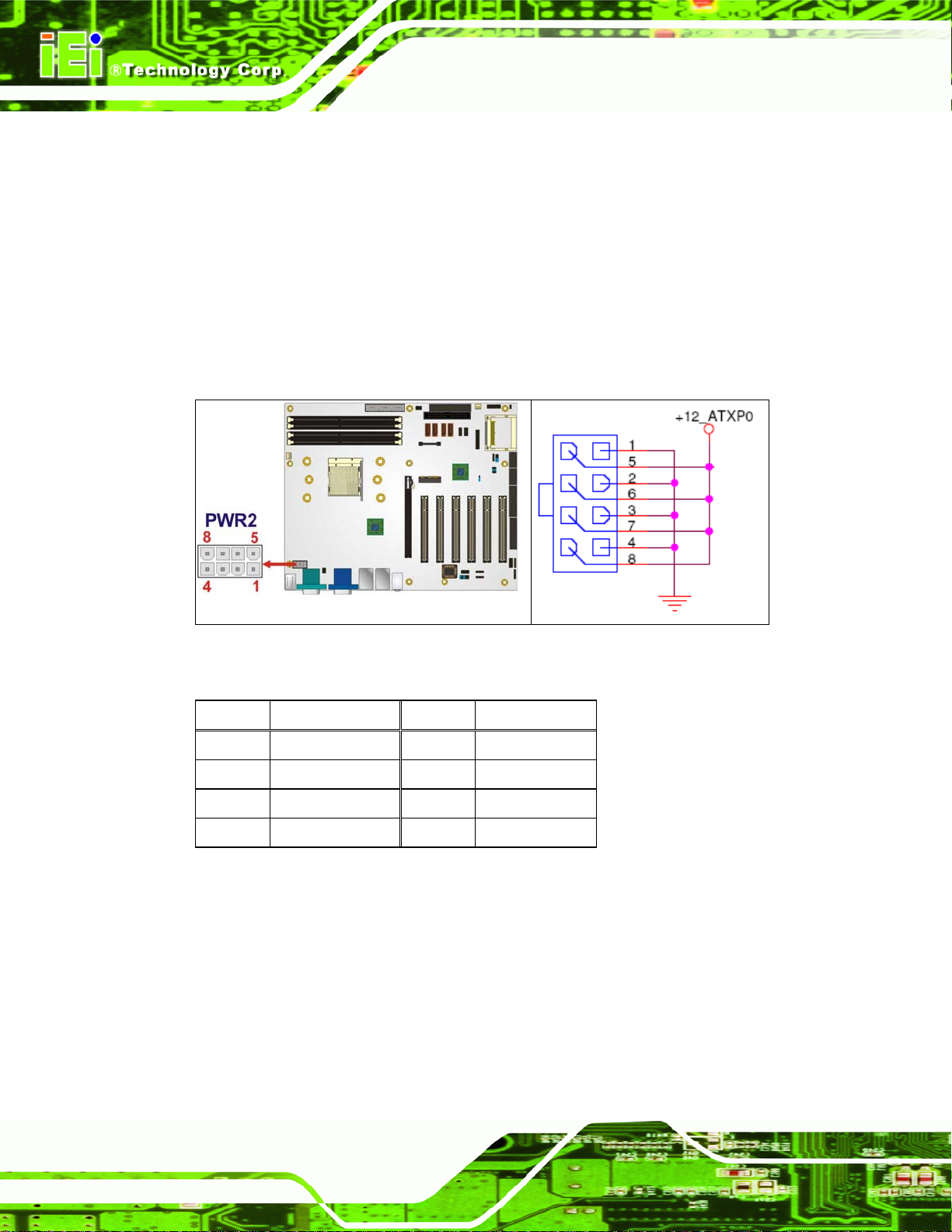

Figure 4-18: Power Connector Location...................................................................................68
Figure 4-19: Parallel Port Connector Location.........................................................................69
Figure 4-20: RS-422/485 Connector Location...........................................................................70

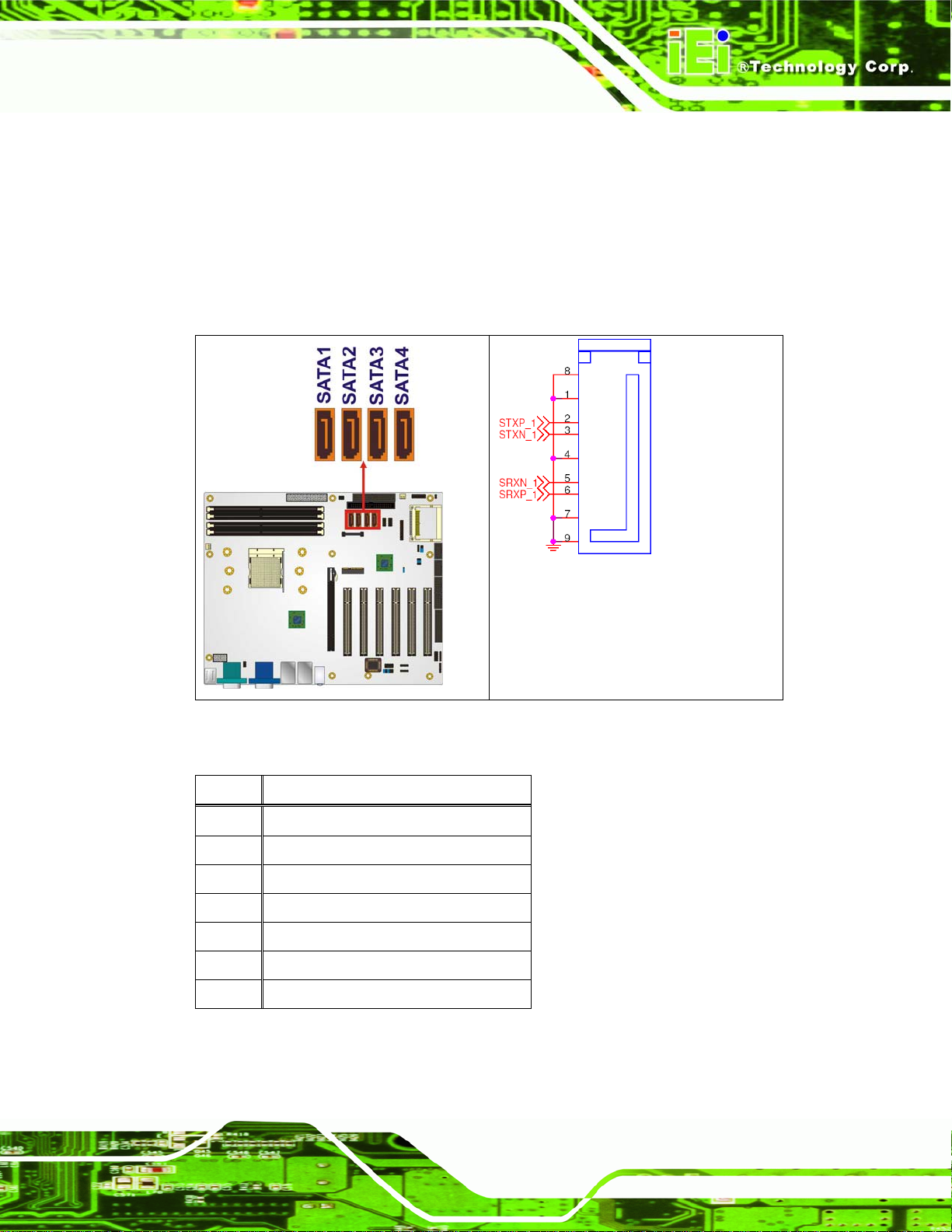

Figure 4-21: SATA Drive Connector Locations........................................................................71
Figure 4-22: Serial Connector Pinout Locations......................................................................72
Figure 4-23: SPDIF Connector Pinout Locations.....................................................................73
Figure 4-24: TPM Connector Pinout Locations........................................................................74

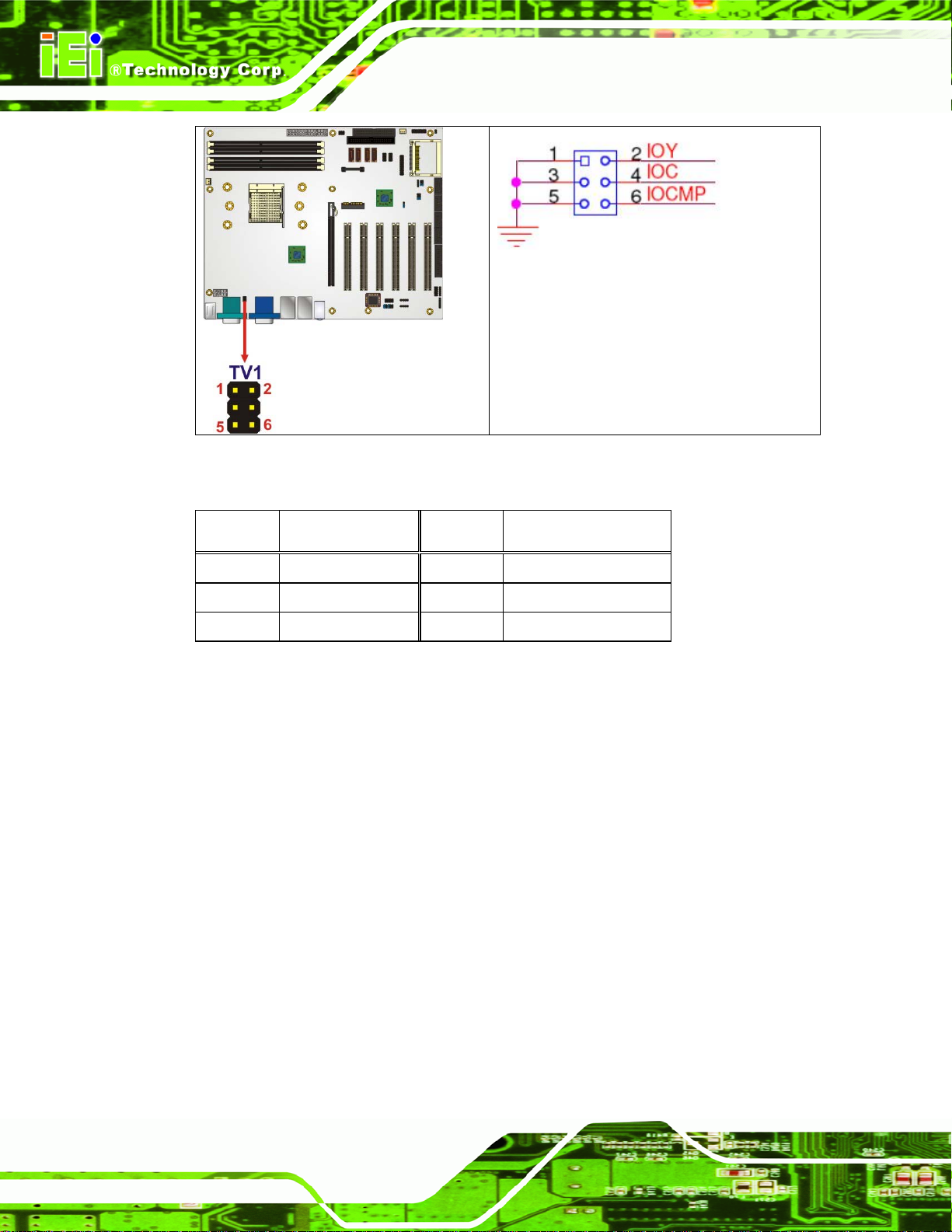

Figure 4-25: TV Connector Pinout Locations...........................................................................76

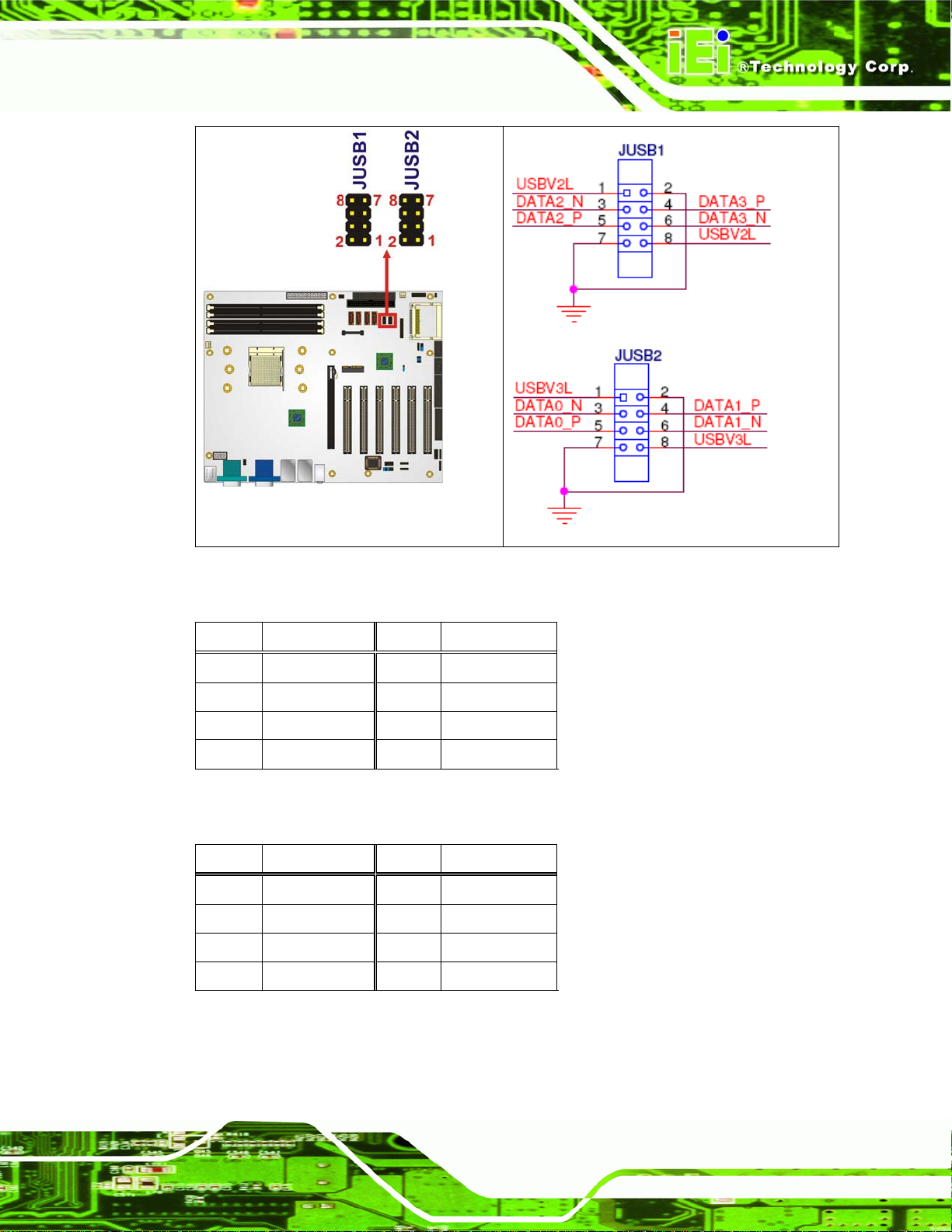

Figure 4-26: USB Connector Pinout Locations........................................................................77

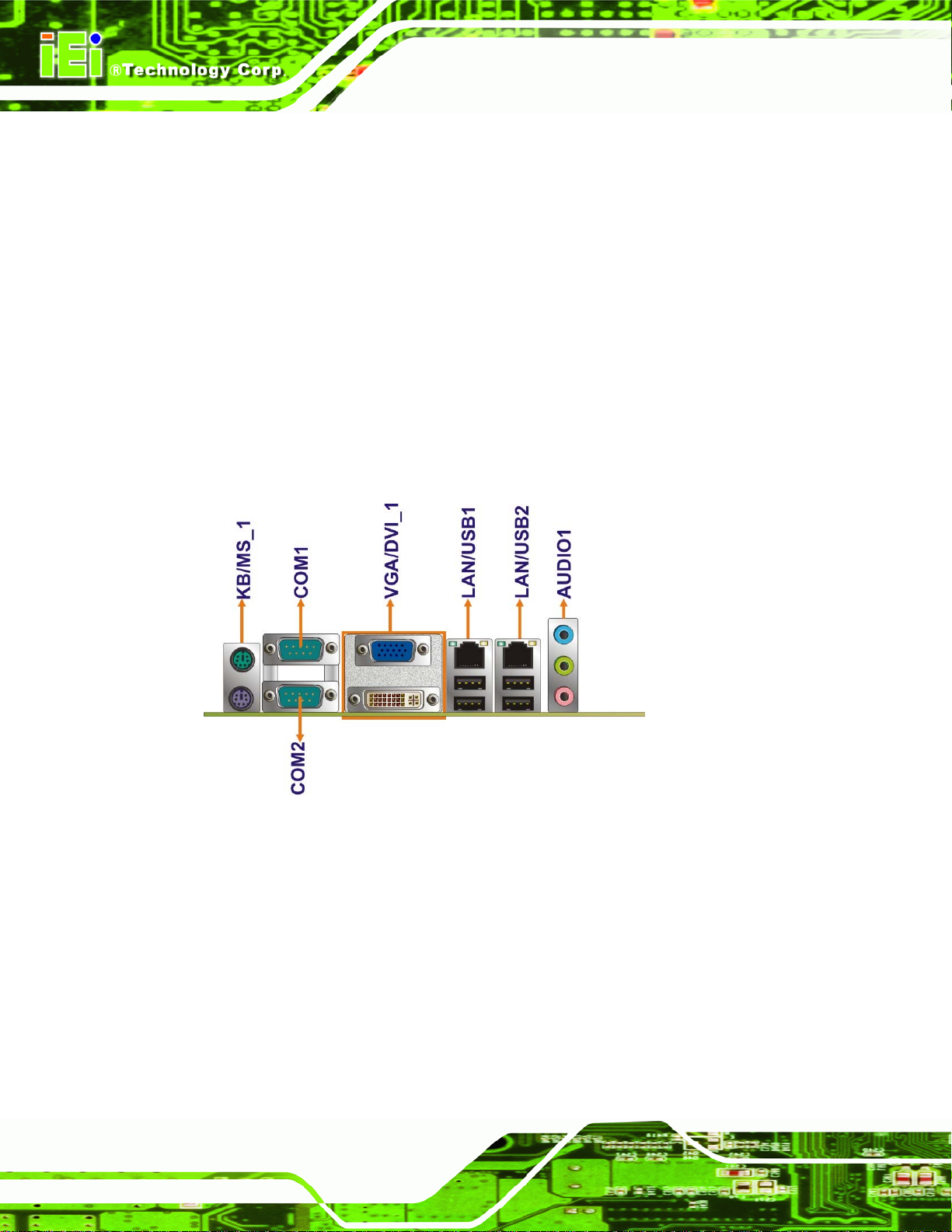

Figure 4-27: IMBA-690AM2 External Peripheral Interface Connector....................................78

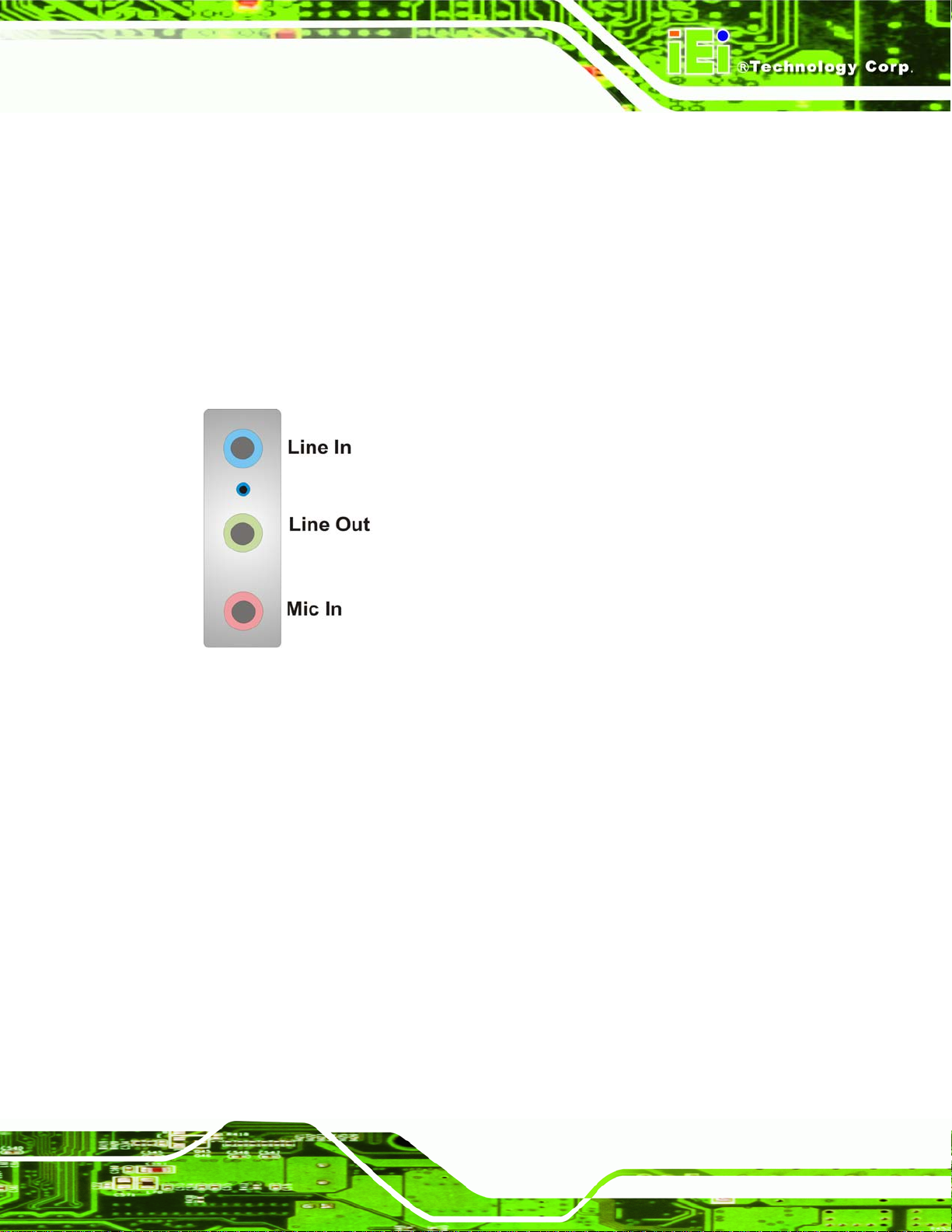

Figure 4-28: Audio Connector....................................................................................................79

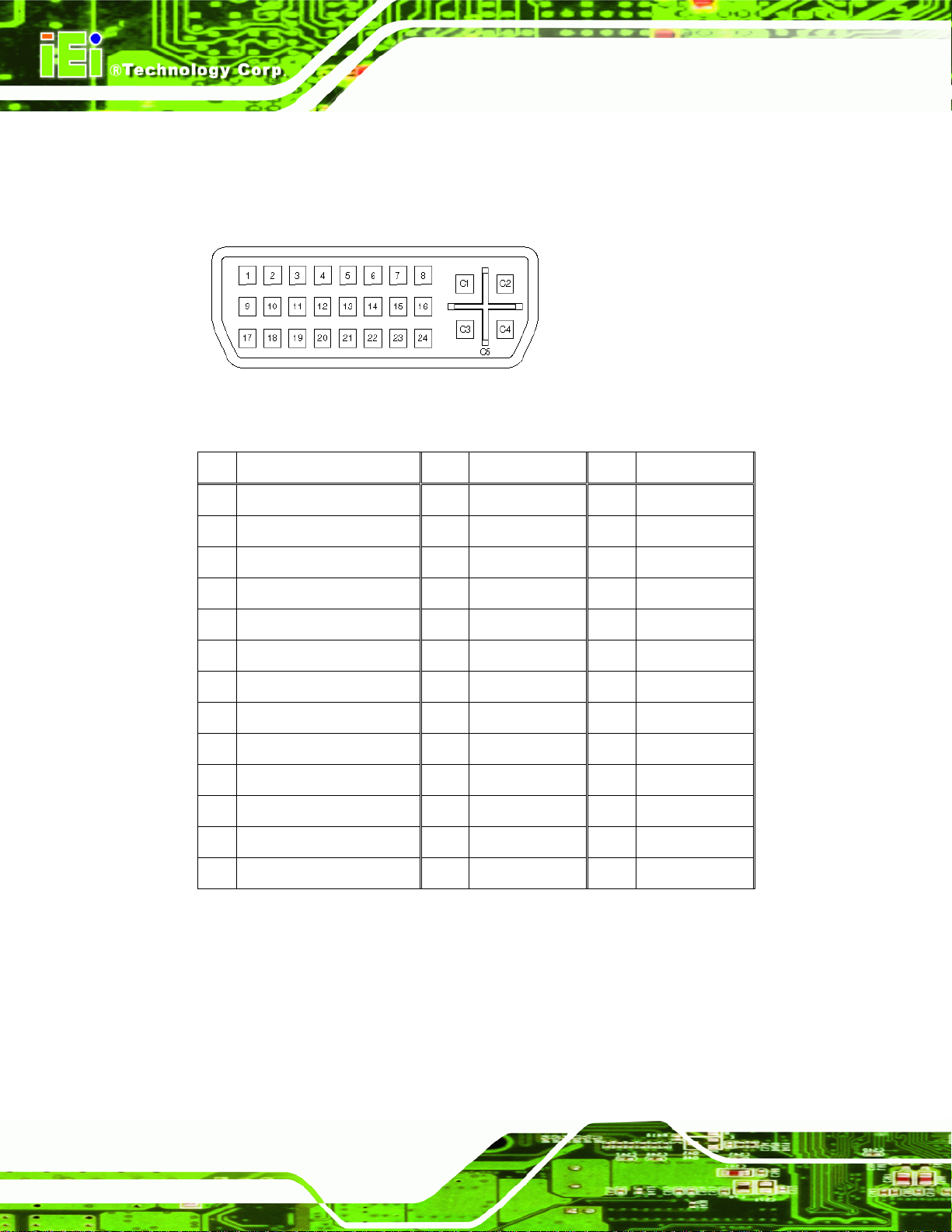

Figure 4-29: DVI-D Connector Pinouts......................................................................................80
Figure 4-30: VGA Connector ......................................................................................................81
Figure 4-31: PS/2 Pinouts...........................................................................................................82
Figure 4-32: RJ-45 Ethernet Connector.....................................................................................83
Figure 4-33: Pinout Locations....................................................................................................84
Figure 5-1: Install the CPU..........................................................................................................91

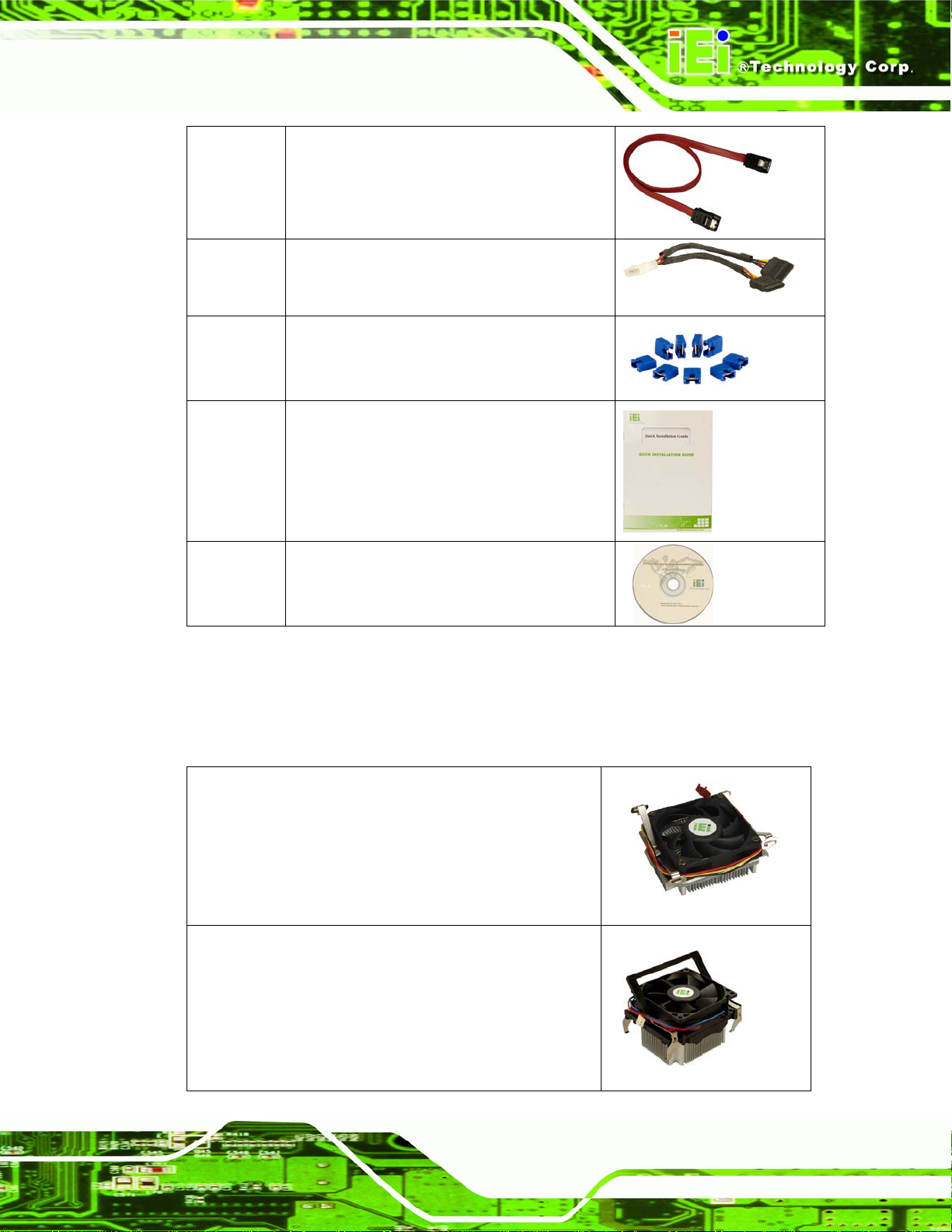

Figure 5-2: IEI Cooling Kit for IMBA-690AM2............................................................................92
Figure 5-3: Install the CPU cooler..............................................................................................93
Figure 5-4: Installing a DIMM......................................................................................................94
Figure 5-5: CF Card Setup Jumper Location............................................................................97
Figure 5-6: Clear CMOS Jumper ................................................................................................98
Figure 5-7: COM3 Function Select Jumper Locations.............................................................99
Figure 5-8: COM3 Voltage Setup Jumper Location............................................................... 100
Figure 5-9: IDE Cable Connection .......................................................................................... 102
Figure 5-10: Dual RS-232 Cable Installation.......................................................................... 103
Figure 5-11: SATA Drive Cable Connection........................................................................... 104
Page 15
Page 16
Figure 5-12: SATA Power Drive Connection.......................................................................... 105
Figure 5-13: FDD Cable Connection....................................................................................... 106
Figure 5-14: LPT Cable Connection........................................................................................ 107
Figure 5-15: Connect the LPT Device..................................................................................... 107
Figure 5-16: Four Port USB Cable Connection...................................................................... 108
Figure 5-17: Audio Connectors............................................................................................... 110
Figure 5-18: DVI Connector..................................................................................................... 111
Figure 5-19: LAN Connection.................................................................................................. 112
Figure 5-20: PS/2 Keyboard/Mouse Connector..................................................................... 113
Figure 5-21: Serial Device Connector..................................................................................... 114
Figure 5-22: USB Connector.................................................................................................... 115
Figure 5-23: VGA Connector ................................................................................................... 116
Figure 7-1: Introduction Screen.............................................................................................. 176
IMBA-690AM2 Motherboard
Figure 7-2: Available Drivers................................................................................................... 176
Figure 7-3: Chipset Driver Installation Program.................................................................... 177
Figure 7-4: Chipset Driver Installation Welcome Screen ..................................................... 178
Figure 7-5: Chipset Driver Installation License Agreement................................................. 178
Figure 7-6: Select Destination Folder..................................................................................... 179
Figure 7-7: Chipset Driver Installing Screen.......................................................................... 179
Figure 7-8: Welcome Screen ................................................................................................... 180
Figure 7-9: Chipset Driver Readme File Information ............................................................ 180
Figure 7-10: Chipset Driver Installation Complete................................................................ 181
Figure 7-11: Setup Complete................................................................................................... 182
Figure 7-12: Windows Control Panel...................................................................................... 183
Figure 7-13: System Icon......................................................................................................... 184
Figure 7-14: Device Manager Tab........................................................................................... 184
Figure 7-15: Device Manager List........................................................................................... 185
Figure 7-16: Search for Suitable Driver.................................................................................. 186
Figure 7-17: Locate Driver Files.............................................................................................. 186
Figure 7-18: Location Browsing Window............................................................................... 187
Figure 7-19: Select the Audio CODEC.................................................................................... 188
Figure 7-20: Locate the Setup Program Icon......................................................................... 189
Page 16
Page 17
IMBA-690AM2 Motherboard
Figure 7-21: Preparing Setup Screen..................................................................................... 189
Figure 7-22: InstallShield Wizard Welcome Screen.............................................................. 190
Figure 7-23: Audio Driver Software Configuration................................................................ 190
Figure 7-24: Audio Driver Digital Signal................................................................................. 191
Figure 7-25: Audio Driver Installation .................................................................................... 191
Figure 7-26: Restart the Computer......................................................................................... 192
Figure 7-27: Chipset Driver Installation Program.................................................................. 193
Figure 7-28: Chipset Drivers.................................................................................................... 193
Figure 7-29: RAID Utility Icon.................................................................................................. 194
Figure 7-30: SATA RAID Setup Program Icon....................................................................... 194
Figure 7-31: Welcome Screen ................................................................................................. 195
Figure 7-32: WebPAM License Agreement............................................................................ 195
Figure 7-33: Select WebPAM Installation Destination.......................................................... 196
Figure 7-34: WebPAM Ready to Install................................................................................... 196
Figure 7-35: WebPAM Installation .......................................................................................... 197
Figure 7-36: WebPAM Installation Complete......................................................................... 197
Page 17
Page 18
IMBA-690AM2 Motherboard
List of Tables
Table 1-1: Technical Specifications.............................................................................................7
Table 2-1: Power Consumption..................................................................................................33
Table 3-1: Package List Contents..............................................................................................37
Table 3-2: Package List Contents..............................................................................................38
Table 4-1: Peripheral Interface Connectors..............................................................................42
Table 4-2: Rear Panel Connectors.............................................................................................43
Table 4-3: Audio Connector Pinouts (9-pin).............................................................................44
Table 4-4: Audio Connector Pinouts (10-pin)...........................................................................45
Table 4-5: Audio CD In Connector Pinouts...............................................................................46
Table 4-6: Auxiliary Audio Connector Pinouts (4-pin).............................................................47
Table 4-7: ATX Power Connector Pinouts ................................................................................48
Table 4-8: CF Card Socket Pinouts............................................................................................51
Table 4-9: DIO Connector Pinouts.............................................................................................52
Table 4-10: CPU Fan Connector Pinouts ..................................................................................53
Table 4-11: System Fan Connector Pinouts.............................................................................53
Table 4-12: 34-pin FDD Connector Pinouts ..............................................................................55
Table 4-13: Front Panel Connector Pinouts (14-pin) ...............................................................56
Table 4-14: IDE Connector Pinouts ...........................................................................................57
Table 4-15: Infrared Connector Pinouts....................................................................................58
Table 4-16: PCIe Mini Card Connector Pinouts........................................................................60
Table 4-17: PCIe Mini Card LED Connector Pinouts................................................................61
Table 4-18: PCI Slot.....................................................................................................................65
Table 4-19: PCIe x16 Side A Pinouts.........................................................................................67
Table 4-20: PCI Express x16 Slot Pinouts.................................................................................67
Table 4-21: Power Connector Pinouts.......................................................................................68
Table 4-22: Parallel Port Connector Pinouts ............................................................................69
Table 4-23: RS-422/485 Connector Pinouts..............................................................................70
Table 4-24: SATA Drive Connector Pinouts..............................................................................71
Page 18
Page 19
IMBA-690AM2 Motherboard
Table 4-25: Serial Connector Pinouts........................................................................................73
Table 4-26: SPDIF Connector Pinouts.......................................................................................74
Table 4-27: TPM Connector Pinouts..........................................................................................75
Table 4-28: TV Port Connector Pinouts.....................................................................................76
Table 4-29: JUSB1 Port Connector Pinouts..............................................................................77
Table 4-30: JUSB2 Port Connector Pinouts..............................................................................77
Table 4-31: DVI-D Connector Pinouts........................................................................................80
Table 4-32: VGA Connector Pinouts..........................................................................................81
Table 4-33: PS/2 Connector Pinouts..........................................................................................82
Table 4-34: LAN Pinouts.............................................................................................................83
Table 4-35: RJ-45 Ethernet Connector LEDs............................................................................83
Table 4-36: USB Port Pinouts.....................................................................................................83
Table 4-37: RS-232 Serial Port Pinouts.....................................................................................84
Table 5-1: Jumpers......................................................................................................................96
Table 5-2: CF Card Setup Jumper Settings ..............................................................................96
Table 5-3: Clear CMOS Jumper Settings...................................................................................98
Table 5-4: COM3 Function Select Jumper Settings (JP2).......................................................99
Table 5-5: COM3 Function Select Jumper Settings (JP3).......................................................99
Table 5-6: COM3 Voltage Setup Jumper Settings................................................................. 100
Table 5-7: IEI Provided Cables................................................................................................ 101
Table 6-1: BIOS Navigation Keys............................................................................................ 119
Page 19
Page 20
IMBA-690AM2 Motherboard
BIOS Menus
Menu 1: Main............................................................................................................................. 120
Menu 2: Advanced.................................................................................................................... 122
Menu 3: CPU Configuration..................................................................................................... 123
Menu 4: IDE Configuration ...................................................................................................... 124
Menu 5: IDE Master and IDE Slave Configuration................................................................. 126
Menu 6: IDE Master and IDE Slave Configuration................................................................. 131
Menu 7: Super IO Configuration ............................................................................................. 132
Menu 8: Hardware Health Configuration................................................................................ 137
Menu 9: ACPI Configuration.................................................................................................... 139
Menu 10:Advanced Power Management Configuration....................................................... 140
Menu 11: Trusted Computing.................................................................................................. 142
Menu 12: Remote Access Configuration [Advanced]........................................................... 143
Menu 13: USB Configuration................................................................................................... 147
Menu 14: USB Mass Storage Device Configuration.............................................................. 149
Menu 15: PCI/PnP Configuration ............................................................................................ 152
Menu 16: Boot........................................................................................................................... 154
Menu 17: Boot Settings Configuration................................................................................... 155
Menu 18: Boot Device Priority Settings................................................................................. 157
Menu 19: Hard Disk Drives...................................................................................................... 158
Menu 20: Removable Drives.................................................................................................... 159
Menu 21: Security..................................................................................................................... 160
Menu 22: Chipset...................................................................................................................... 161
Menu 23:NorthBridge Chipset Configuration........................................................................ 162
BIOS Menu 24: ECC Configuration Chipset Configuration.................................................. 163
BIOS Menu 25: Internal Graphics Configuration................................................................... 166
Menu 26:SouthBridge Chipset Configuration ....................................................................... 168
Menu 27: ICP Over Clocking.................................................................................................... 170
Menu 28:Exit.............................................................................................................................. 172
Page 20
Page 21
IMBA-690AM2 Motherboard
1 Introduction
Chapter
1
Page 21
Page 22
1.1 Overview

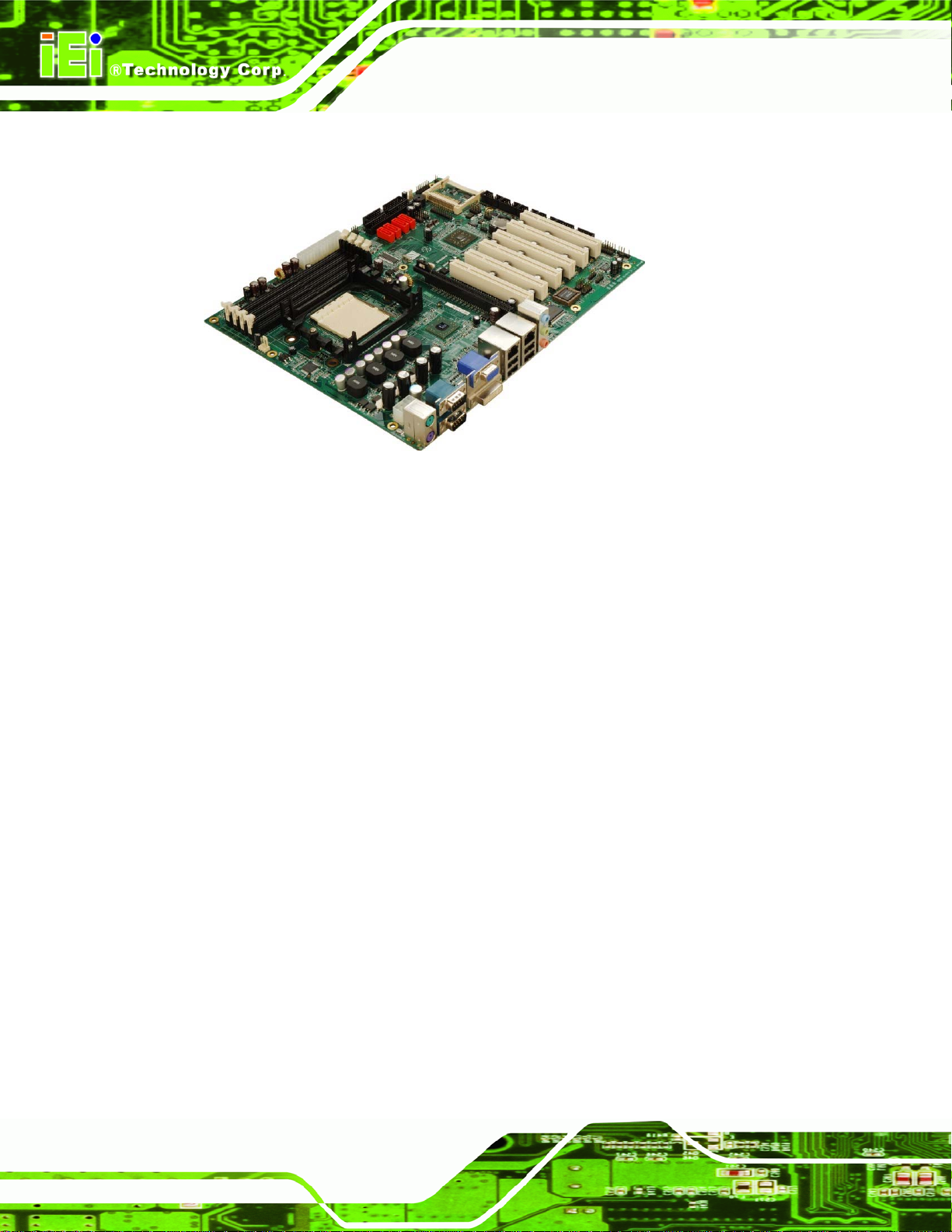

Figure 1-1: IMBA-690AM2 Motherboard
IMBA-690AM2 Motherboard
The IMBA-690AM2 ATX form factor motherboard is an AMD Socket AM2 processor
platform. Up to 8GB of DDR2 DIMM SDRAM and up to four SATA II hard disk drives (HDD)
are supported. SATA drives can be installed in a RAID configuration. High-performance
PCI Express (PCIe) Gigabit Ethernet (GbE) connectivity is integrated into the system. Six
PCI expansion slots along with eight USB 2.0 channels enable system flexibility and
expansion. Multi-display interfaces and dual display functions ensure display versatility.
Support for a (optional) trusted platform module (TPM) provides additional system security
during system boot-up.
1.1.1 IMBA-690AM2 Features
Some of the IMBA-690AM2 features are listed below.
Supports the following AMD Socket AM2 processors:
o AMD Athlon™ 64 X2 dual-core
o AMD Athlon™ 64
o AMD Sempron™
Page 2
Supports four 240-pin 400MHz, 533MHz, 667MHz or 800MHz DDR2 DIMMs
with a maximum capacity of 8GB.
Four SATA II drives with transfer rates of 3.0Gb/s supported
Two Ultra ATA 133, Ultra ATA 100, Ultra ATA 66 or Ultra ATA 33 IDE HDDs
Page 23
IMBA-690AM2 Motherboard
supported
Eight USB 2.0 devices supported
Six PCI and one PCIe x16 interfaces supported
Dual PCIe GbE Ethernet connectors
Multi-display interfaces (DVI, VGA and TV-out) and dual display functions
supported
ATX form factor
RoHS compliant
Supports ATX power supplies
1.2 IMBA-690AM2 Overview
1.2.1 IMBA-690AM2 Overview Photo
The IMBA-690AM2 has a wide variety of peripheral interface connectors. Figure 1-2 is a
labeled photo of the peripheral interface connectors on the IMBA-690AM2.
Page 3
Page 24
IMBA-690AM2 Motherboard
Figure 1-2: IMBA-690AM2 Overview
1.2.2 IMBA-690AM2 Peripheral Connectors and Jumpers
The IMBA-690AM2 has the following connectors on-board:
2 x Audio connectors
1 x AUX IN connector
1 x ATX power connector
1 x CD IN connector
Page 4
Page 25
IMBA-690AM2 Motherboard
1 x CompactFlash® card slot
1 x Digital input/output connector
4 x DDR2 DIMM slots
2 x Fan connectors
1 x FDD connector
1 x Front panel connector
1 x IDE disk drive connector
1 x Infrared interface connector
1 x Mini PCIe socket
1 x Mini PCIe LED connector
1 x Parallel port connector
6 x PCI slots
1 x PCIe x16 slot
1 x Power connector
1 x RS-422/485 connector (for COM3)
4 x Serial port connectors
4 x Serial ATA II (SATA II) drive connectors
1 x SPDIF connector
1 x TPM connector
1 x TV Out connector
2 x USB 2.0 connectors (support four USB 2.0 devices)
The IMBA-690AM2 has the following external peripheral interface connectors on the
board rear panel.
3 x Audio Jacks
2 x Ethernet connectors
1 x DVI-D connector
2 x PS/2 connectors
2 x Serial port connectors
4 x USB connectors
1 x VGA connector
The IMBA-690AM2 has the following on-board jumpers:
CF card setup
Page 5
Page 26
Clear CMOS
RS-232/422/485 COM3 setup
COM3 voltage setup
1.2.3 Technical Specifications
IMBA-690AM2 technical specifications are listed in Table 1-1. See Chapter 2 for details.
Specification IMBA-690AM2
IMBA-690AM2 Motherboard
Form Factor
System CPU
HyperTransport™
Technology
System Chipset
Memory
Super I/O
ATX
AMD Socket AM2 Athlon™ 64 X2
AMD Socket AM2 Athlon™ 64
AMD Socket AM2 Sempron™
A 1000 MHz HyperTransport™ interfaces is supported
Northbridge: AMD 690G
Southbridge: AMD SB600
Four 240-pin DDR2 DIMM sockets support four 400MHz,
533MHz, 667MHz, or 800MHz un-buffered DDR2 DIMMs
with a maximum capacity of 2GB each
Fintek F71882FG
VGA integrated in the AMD® 690G with ATI Radeon
TM
Page 6
Display Interface
BIOS
Audio
Xpress 1250 Graphic Core
Supports HDTV resolutions up to 1080i by component
interface
DVI by AMD® 690G with dual display support
AMI Flash BIOS
RealTek ALC655 with AC’97 codec 5.1 channel
Page 27
IMBA-690AM2 Motherboard
LAN
COM
USB2.0
IDE
SATA
FDD
Keyboard/mouse
Expansion
Digital I/O
Dual Broadcom BCM5787M PCIe GbE controllers
Five RS-232 serial ports
One RS-232/422/485 serial port
Eight USB 2.0 devices supported
One 40-pin IDE connector connects to two Ultra
ATA33/66/100/133 devices
Four 3.0Gb/s SATA II drives supported
One floppy disk drive supported
Two PS/2 connectors
Six PCI slots
One PCIe x16 slot
One 8-bit digital input/output connector; 4-bit input/4-bit
output
Watchdog Timer
Infrared
Power Supply
Power Consumption
Temperature
Humidity (operating)
Dimensions (LxW)
Weight (GW)
Table 1-1: Technical Specifications
Software programmable 1-255 sec. by super I/O
One IrDA connector by Super I/O
ATX power
3.3V@1.01A, 5V@3.22A, 12V@7.15A and 5VSB@0.14A
(AMD® Athlon 64 X2 dual-core 6000+ CPU and four 512MB
533MHz DDR2 DIMM)
0ºC – 60ºC (32ºF - 140ºF)
5%~95% non-condensing
305mm x 244mm
1500g
Page 7
Page 28
IMBA-690AM2 Motherboard
NOTE:
Due to the limitation of Windows 32-bit operating system, when more than
4GB of physical memory is installed, the actual memory available for the
operating system is less than 4GB. The Windows 64-bit operating system
doesn't have such limitation.
Page 8
Page 29
IMBA-690AM2 Motherboard
Chapter
2
2 Detailed Specifications
Page 9
Page 30
2.1 Dimensions
2.1.1 Board Dimensions
The dimensions of the board are listed below:
Length: 305mm
Width: 244mm
IMBA-690AM2 Motherboard

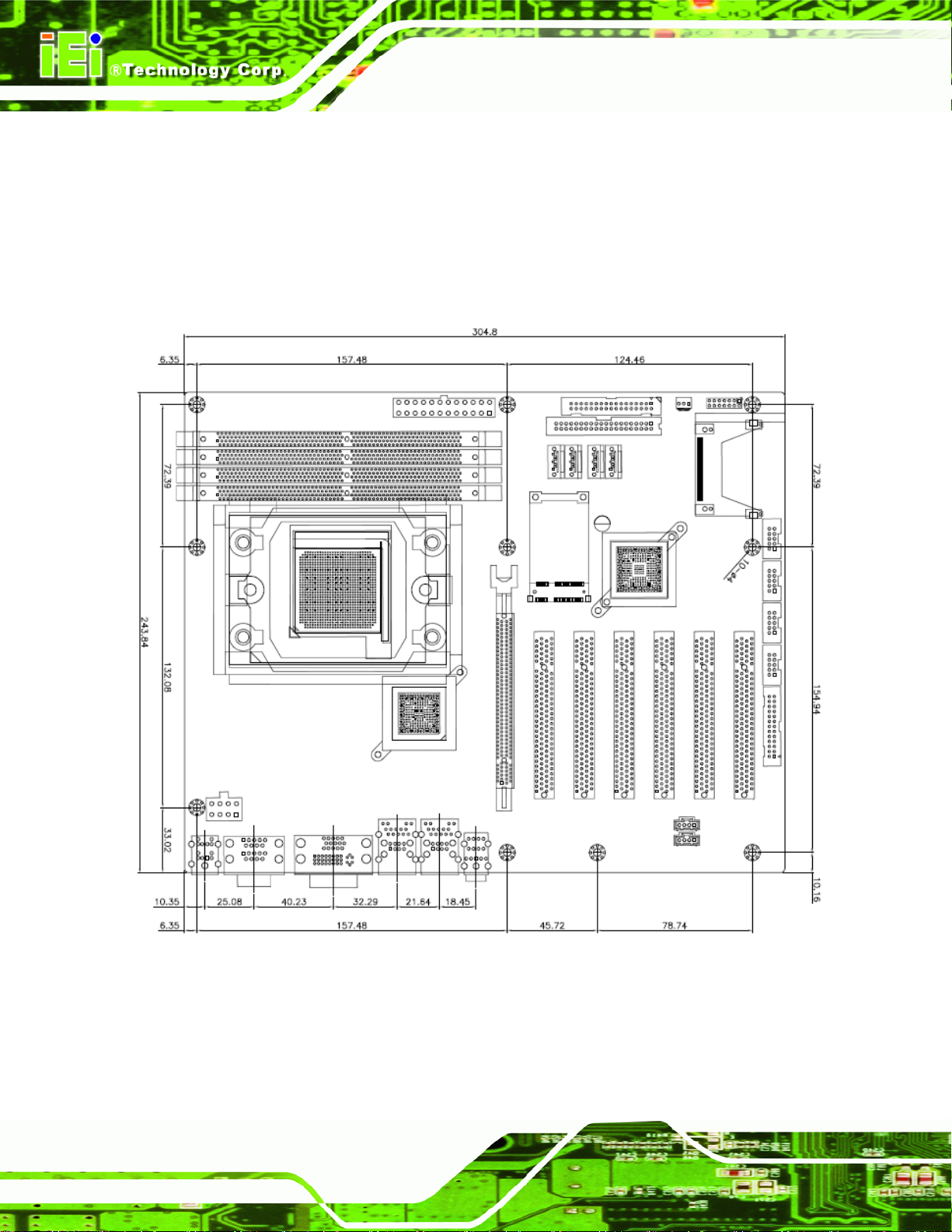

Figure 2-1: IMBA-690AM2 Dimensions (mm)
Page 10
Page 31
IMBA-690AM2 Motherboard
2.1.2 External Interface Panel Dimensions
External peripheral interface connector panel dimensions are shown in Figure 2-2.
Figure 2-2: External Interface Panel Dimensions (mm)
2.2 Data Flow
Figure 2-3 shows the data flow between the two on-board chipsets and other components
installed on the motherboard and described in the following sections of this chapter.
Page 11
Page 32
IMBA-690AM2 Motherboard
Figure 2-3: Data Flow Block Diagram
Page 12
Page 33
IMBA-690AM2 Motherboard
2.3 Compatible Processors
2.3.1 Supported Processors
The IMBA-690AM2 supports the following AMD Socket AM2 processors
AMD Athlon™ 64 processor
AMD Athlon™ 64 X2 dual -core processor
AMD Sempron™ processor
2.3.2 DDR2 Memory Controller
All processors supported by the IMBA-690AM2 CPU card have their own DDR2 memory
controller. The DDR2 controller has the following features:
Up to 12.8GB/s memory bandwidth
800MHz 128-bit DDR2 SDRAM controller
Supports up to four un-buffered DDR2 DIMM
Each DIMM has a maximum capacity of 2GB
The DDR2 controller on the processor is interfaced to four DIMM sockets on the
IMBA-690AM2.
Figure 2-4: DIMM Sockets
Page 13
Page 34
2.3.3 Processor Electrical Interfaces
The supported processors have the following electrical interfaces:
HyperTransport™ technology: LVDS-like differential, unidirectional
DDR SDRAM: SSTL_2 per JEDEC specification
Clock, reset, and test signals also use DDR SDRAM-like electrical
specifications.
2.3.4 Processor Power Management
The supported processors have the following power management features:
Multiple low-power states including C1E
System Management Mode (SMM)
ACPI compliant, including support for processor performance states
IMBA-690AM2 Motherboard
2.4 AMD 690G Northbridge Chipset
2.4.1 PCI Express Interface
The AMD 690G PCIe bus is compliant with the PCI Express 1.1a. The AMD 690G has one
PCIe x16 interfaces and four PCIe x1 interfaces. The PCIe x16 interface supports a PCIe
x16 graphics card. Two of the PCIe x1 lanes are connected to two PCIe GbE controllers
and a third PCIe x1 lane is connected to a Mini-PCIe expansion slot.
2.4.1.1 PCIe x16 Expansion
One of two PCIe interfaces from the AMD 690G is interfaced to a PCIe x16 expansion slot.
See
Figure 2-5. A standard PCIe x16 expansion board can be inserted into the slot to
provide additional functionality to the system.
Page 14
Page 35
IMBA-690AM2 Motherboard
Figure 2-5: PCIe x1 Expansion Slot
2.4.1.2 PCIe GbE Ethernet
Two PCIe x1 lanes from the AMD 690G Northbridge are interfaced to two Broadcom
BCM5787M PCIe GbE controllers shown in
Figure 2-6 below.
Figure 2-6: Broadcom PCI GbE Controllers
The Broadcom BCM5787M is a 10/100/1000BASE-T Ethernet LAN controller. The
BCM5787M combines a triple-speed IEEE 802.3 compliant Media Access Controller
(MAC) with a triple-speed Ethernet transceiver, a PCIe bus interface, and an on-chip
buffer memory. Some of the BCM5787 controller features are listed below:
Page 15
Page 36
Integrated 10/100/1000BASE-T transceiver
Automatic MDI crossover function
PCIe v1.0a
10/100/1000BASE-T full/half-duplex MAC
Wake on LAN support meeting the ACPI requirements
Statistics for SNMP MIB II, Ethernet-like MIB, and Ethernet MIB (802.3z,
IMBA-690AM2 Motherboard
clause 30)
Serial EEPROM or serial flash support
2.4.1.3 PCIe Mini Card
One PCIe x1 lanes from the AMD 690G Northbridge are interfaced to a PCIe Mini Card
connector shown in
Figure 2-6 below.
Figure 2-7: PCIe Mini Card Connector
2.4.2 Acceleration Features
Page 16
The AMD 690G has the following 2D acceleration features:
Highly optimized 128-bit engine, capable or processing multiple pixels per
clock
Supports a maximum resolution of 2048x1536 @ 32bpp
Game acceleration including support for Microsoft's Dire ctDraw
Page 37
IMBA-690AM2 Motherboard
The AMD 690G also has the following 3D acceleration features:
Full DirectX 9.0 support
3D Texture support, including projective 3D textures
Anti-aliasing using multi-sampling algorithm with support for 2, 4, and 6
samples
New generation rendering engine provides top 3D performance
Support for OpenGL format for Indirect Vertices in Vertex Walker
Motion video acceleration features on the AMD 690G include:
Enhanced MPEG-2 hardware decode acceleration
MPEG-4 decode support
Hardware acceleration for WMV9 playback
Supports top quality DVD and time-shifted SDTV/HDTV television playback
with low CPU usage
2.4.3 Display Support
The AMD 690G supports dual independent displays. The following display interface
connectors are on the IMBA-690AM2:
TV Out
DVI-D
VGA
Figure 2-8: Display Interfaces
Page 17
Page 38
IMBA-690AM2 Motherboard
2.4.3.1 TV Out
TV Out features include:
Integrated TV encoder from Xilleon products with int egrated Avivo™
Supports Macrovision 7.1 copy protection standard (requi red by DVD players)
Supports the formats of component, composite and S-video outputs
2.4.3.2 Multiple Display Features
The Multiple display features include
Dual independent displays including one digital output
Resolution, refresh rates, and display data can be completely independent for
the two display paths
Supports both interlaced and non-interlaced displ ays
2.4.3.3 DVI
DVI support features include:
Supports a TMDS interface, enabling DVI <1650 Mbps/channel with 165 MHz
pixel clock rate per link
HDCP 1.1 support on data stream with on-chip key storage
2.5 AMD SB600 Southbridge Chipset
2.5.1 CPU Interface
The AMD SB600 Southbridge chipset supports the following AMD Socket AM2
processors:
AMD Athlon™ 64 X2 dual -core processor
AMD Athlon™ 64 processor
AMD Sempron™ processor
Page 18
Page 39
IMBA-690AM2 Motherboard
2.5.2 A-Link Xpress II interface to the Northbridge
The AMD SB600 Southbridge is connected to the AMD 690G Northbridge chipset through
an A-Link Xpress II interface. Some of the A-Link Xpress II interface features are listed
below:
1/2/4-lane A-Link Xpre ss II interface
Dynamic detection of lane configuration
High data transfer bandwidth
2.5.3 PCI Host Bus Controller
The PCI interface on the AMD SB600 Southbridge is compliant with the PCI Revision 2.3
implementation. Some of the features of the PCI interface are listed below.
PCI rev. 2.3 specifications
PCI bus at 33 MHz
Up to 6 master devices
40-bit addressing
Interrupt steering for plug-n-play devices
Concurrent PCI operations
Hiding of PCI devices by BIOS/hardware
Spread spectrum
The PCI bus is interfaced to six PCI expansion slots (see
Figure 2-9).
Page 19
Page 40
IMBA-690AM2 Motherboard
Figure 2-9: PCI Expansion Slots
2.5.4 USB Controllers
Eight of the ten high-speed, full-speed or low-speed USB ports on the AMD SB600 are
implemented on the IMBA-690AM2. High-speed USB 2.0, with data transfers of up to
480MB/s, is enabled with the AMD SB600 integrated Enhanced Host Controller Interface
(EHCI) compliant host controller. USB full-speed and low-speed signaling are enabled
with the integrated Universal Host Controller Interface (UHCI) controllers.
The USB controller supports the following:
USB 1.1 (“Low Speed ”, “Full Speed”) a nd 2.0 (“High Speed”)
ACPI S1~S5
Legacy keyboard/mouse
USB debug port
Port disable with individual control
Four of the eight USB ports are interfaced to two 8-pin headers on the IMBA-690AM2.
Page 20
Four more USB ports are interfaced to four external USB connectors. See
Figure 2-10.
Page 41
IMBA-690AM2 Motherboard

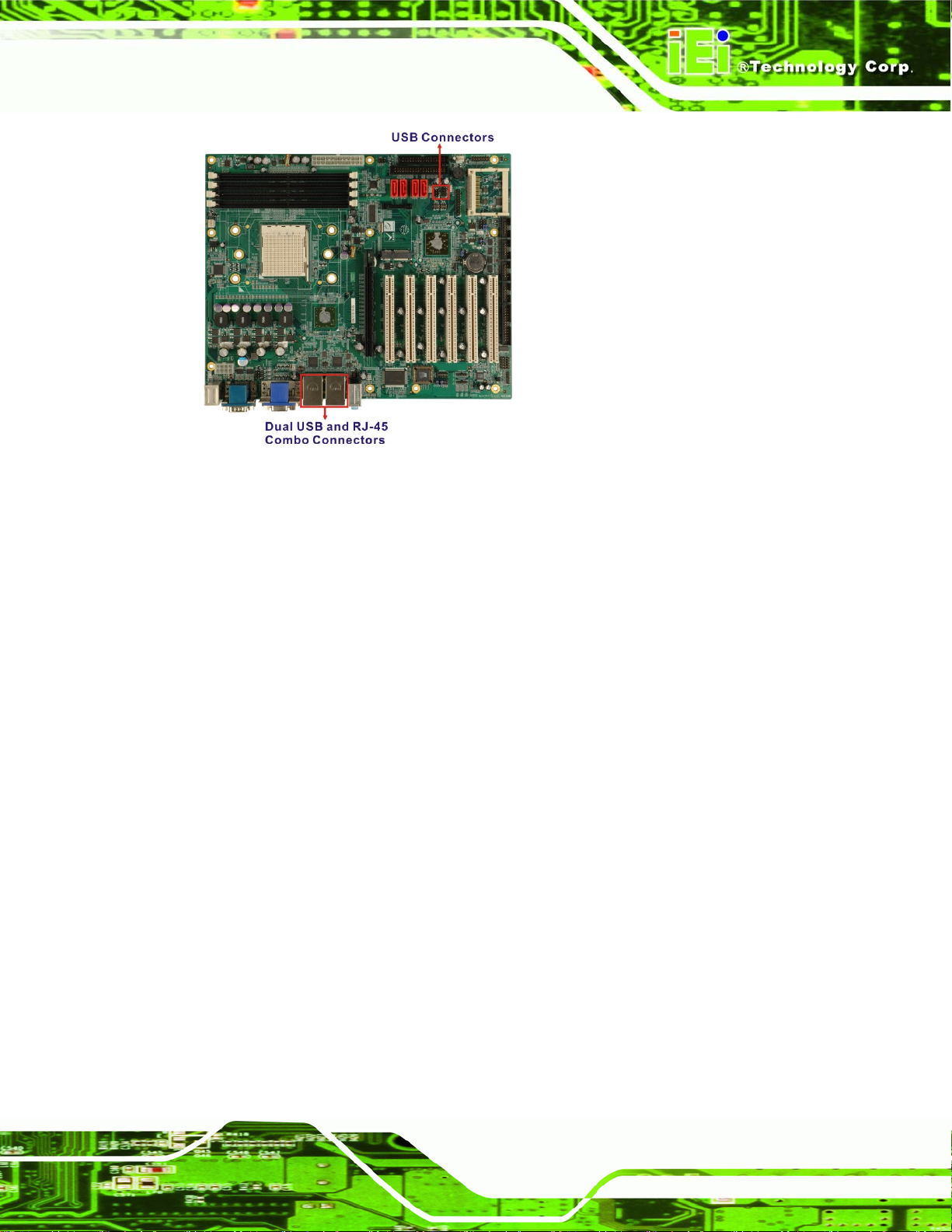

Figure 2-10: USB Connectors
2.5.5 SMBus Controller
The AMD SB600 Southbridge chipset SMBus Controller i s SMBus Rev. 2.0 com pliant and
supports SMBALERT # signal / GPIO.
2.5.6 Interrupt Controller
The AMD SB600 Southbridge interrupt controller supports the following:
IOAPIC/X-IO APIC mode for 24 channels of interrupts
8259 legacy mode for 15 interrupts
Programmable level/edge triggering on each channels
Serial interrupt on quiet and continuous modes
2.5.7 DMA Controller
The AMD SB600 Southbridge has two cascaded 8237 DMA controllers that support the
following:
PC/PCI/DMA
LPC DMA
Page 21
Page 42
Type F DMA
2.5.8 LPC host bus controller
The AMD SB600 Southbridge LPC interface complies with the LPC 1.1 and LPC 1.2
specifications. The LPC bus from the Southbridge is connected to the following
components:
BIOS chipset
Super I/O chipset
TPM connector
Some of the features of the LPC bus are listed below.
Supports LPC based super I/O and flash devices
Supports two master/DMA devices
IMBA-690AM2 Motherboard
Supports TPM version 1.1/1.2 devices for enhanced security
Supports SPI devices
2.5.9 SATA II AHCI Controller
The integrated SATA controllers on the AMD SB600 Southbridge support four SATA II
drives on the IMBA-690AM2 with independent DMA operations. The SATA controller
supports the following:
Four SATA ports, complying with SATA 2.0 specifications
SATA II 3.0GHz PHY, with backward compatibility with 1.5GHz
RAID stripping (RAID 0) across all 4 ports
RAID mirroring (RAID 1) across all 4 ports
RAID 10 (4 ports needed)
Both AHCI mode and IDE mode
Advanced power management with AHCI mode
The four SATA connectors are shown in
Figure 2-11.
Page 22
Page 43
IMBA-690AM2 Motherboard
Figure 2-11: SATA Connectors
2.5.10 IDE Controller
The AMD SB600 Southbridge IDE controller is interfaced to a single IDE connector. The
IDE controller has the following specifications.
Single P ATA channel support
Support PIO, multi-word DMA, and Ultra DMA 33/66/100/133 modes
32x32 byte buffers on each channel for buffering
Swap bay support by tri-state IDE signals
Supports Messages Signaled Interrupt (MSI)
Integrated IDE series resistor
The IDE connector is shown in
Figure 2-12.
Page 23
Page 44
Figure 2-12: IDE Connector
2.5.11 AC Link interface
IMBA-690AM2 Motherboard
The AMD SB600 Southbridge AC Link interface has the following features:
Supports for both audio and modem codecs
Compliant with AC-97 codec Rev. 2.3
6/8 channel support on audio codec
Multiple functions for audio and modem codec operations
Bus master logic
Supports up to 3 codecs simultaneou sly
Supports SPDIF output
AC Link
The AC Link Interface is connected to a 16-bit, full-duplex AC'97 Rev. 2.3 compatible
six-channel RealTek ALC655 audio codec. The ALC655 is then connected to three
externally accessible audio jacks. See
Figure 2-13.
Page 24
Page 45
IMBA-690AM2 Motherboard
Figure 2-13: Audio Codec and Audio Jacks
Some of the features of the ALC655 are listed below:
Complies with PC99/2001 systems audio performance requirements
Complies with Microsoft WHQL/WLP 2.0 audio requirements
16-bit Stereo full-duplex CODEC with 48KHz sampling rate
Compliant with AC'97 Rev 2.3 specifications
o Front-Out, Surround-Out, MIC-In and LINE-In Jack Sensing
o 14.318MHz -> 24.576MHz PLL to eliminate crystal
o 12.288MHz BITCLK input
o Integrated PCBEEP generator to save buzzer
o Interrupt capability
Three analog line-level stereo inputs with 5-bit volume control, LINE_IN, CD,
AUX
High-quality differential CD input
Two analog line-level mono inputs: PCBEEP, PHONE-IN
Dedicated Front-MIC input for front panel applications (software selectable)
Boost preamplifier for MIC input
LINE input shared with surround output; MIC input shared with Center and
LFE output
Built-in 50mW/20ohm amplifier for both Front-out and Surround-Out
External Amplifier Power Down (EAPD) capability
Power management and enhanced power saving features
Supports Power-Off CD function
Page 25
Page 46
2.5.12 Timers
IMBA-690AM2 Motherboard
Adjustable VREFOUT control
Supports 48KHz S/PDIF output, complying with AC'97 Rev 2.3 specifications
Supports 32K/44.1K/48KHz S/PDIF input
Power support: Digital: 3.3V; Analog: 3.3V/5V
EAX™ 1.0 & 2.0 compatible
Direct Sound 3D™ compatible
A3D™ compatible
I3DL2 compatible
HRTF 3D positional audio
10-band software equalizer
Voice cancellation and key shifting in Karaoke mode
AVRack® Media Player
Configuration Panel for improved user convenience
The AMD SB600 south bridge has the following timers
8254-compatible timer
Microsoft High Precision Event Timer (HPET)
ACPI power management timer
2.5.13 RTC (Real Time Clock)
256 bytes of battery backed RAM is provided by the real time clock (RTC) integrated into
the AMD SB600. The RTC keeps track of the time and stores system data even when the
system is turned off. Some of the features of the RTC are listed below:
256-byte battery backed CMOS RAM
Hardware supported century rollover
RTC battery monitoring feature
2.5.14 Power Management
Page 26
ACPI specification 3.0 compliant power management schemes on the AMD SB600
include:
Page 47
IMBA-690AM2 Motherboard
Supports C2, C3, C4
Supports C1e and C3 pop-up (AMD platform only)
Supports S0, S1, S2, S3, S4, and S5
Supports SpeedStep™
Full support for On-Now™
Supports CPU SMM, generating SMI# signal upon power management
events
GPIO supports on external wake up events
Supports CLKRUN# on PCI power management
Provides clock generator and CPU STPCLK# control
Hardware monitoring support
Support for ASF
2.5.15 Hardware Monitor
The AMD SB600 has the following hardware monitoring features:
Supports 3 Independent Fan Control output s
Supports 4 thermal diode temperature sensing functions
Supports 1 AMDSI function
2.6 LPC Bus Components
2.6.1 LPC Bus Overview
The LPC bus is connected to components listed below:
BIOS chipset
Super I/O chipset
Serial port chipset
TPM module connector
Page 27
Page 48
IMBA-690AM2 Motherboard
Figure 2-14: LPC BUS Components
2.6.2 BIOS Chipset
The BIOS chipset has a licensed copy of AMI BIOS installed on the chipset. Some of the
BIOS features are listed below:
AMI Flash BIOS
SMIBIOS (DMI) compliant
Console redirection function support
PXE (Pre-boot Execution Environment) support
USB booting support
2.6.3 TPM Module
A TPM connector on the IMBA-690AM2 is interfaced to the AMD SB600 Southbridge
through the LPC bus. The AMD SB600 Southbridge supports TPM version 1.1 and TPM
version 1.2 devices for enhanced security. Three TPM are available from IEI. The three IEI
TPM are listed below:
Page 28
Infineon TPM module
Sinosun TPM module
Winbond TPM module
Page 49
IMBA-690AM2 Motherboard
For more information about these modules please refer to Chapter 3 or contact the
IMBA-690AM2 reseller or vendor. Alternatively, please contact IEI at
sales@iei.com.tw.
2.6.4 Super I/O chipset
The Fintek F71882FG Super I/O chipset is connected to the AMD SB600 Southbridge
through the LPC bus. The Fintek F71882FG is an LPC interface-based Super I/O device
that comes with Environment Controller integration. Some of the features of the Fintek
F71882FG chipset are listed below:
Comply with LPC Spec. 1.0
Support DPM (Device Power Management), ACPI
6/12 VID pins for VRM9.0/10.0/11.0* and CPU VID OTF (On The Fly)
Easy voltage sensor I/O (VSI/VSO) for Vcore change use.
Support automatic and dynamic voltage change function (2 Turbo pins
Turbo1# and Turbo2# for VID usage)
Provides one FDC, two UARTs, KBC and Parallel Port
H/W monitor functions
SPI interface for BIOS usage
Support AMD SID/SIC interface and Intel SST/PECI interface
32 GPIO Pins for flexible application
24/48 MHz clock input
Packaged in 128-PQFP and powered by 3.3VCC
Some of the Super I/O features are described in more detail below:
2.6.4.1 Super I/O LPC Interface
The LPC interface on the Super I/O complies with the AMD® Low Pin Count Specification
Rev. 1.0. The LPC interface supports both LDRQ# and SERIRQ protocols as well as PCI
PME# interfaces.
2.6.4.2 Super I/O Floppy Disk Drive (FDD) Controller
The Super I/O FDD controller is compatible with the following specifications.
Compatible with IBM PC AT disk drive systems
Page 29
Page 50
Variable write pre-compensation with track selectable capability
Support vertical recording format
DMA enable logic
16-byte data FIFOs
Support floppy disk drives and tape drives
Detects all overrun and under run conditions
Built-in address mark detection circuit to simplify the read electronics
Completely compatible with industry standard 82077
360K/720K/1.2M/1.44M/2.88M format; 250K, 300K, 500K, 1M, 2M bps data
IMBA-690AM2 Motherboard
transfer rate
2.6.4.3 Super I/O 16C550 UARTs
The onboard Super I/O has two integrated 16C550 UARTs that can support the following:
Fully programmable serial-interface characteristics
Baud rate up to 115.2K
Support IRQ sharing
2.6.4.4 Super I/O Enhanced Hardware Monitor
The Super I/O Enhanced Hardware Monitor monitors three thermal inputs, VBAT
internally, and nine voltage monitor inputs. These hardware parameters are reported in
the BIOS and can be read from the BIOS Hardware Health Configuration menu.
2.6.4.5 Super I/O Fan Speed Controller
The Super I/O fan speed controller enables the system to monitor the speed of the fan.
One of the pins on the fan connector is reserved for fan speed detection and interfaced to
the fan speed controller on the Super I/O. The fan speed is then reported in the BIOS.
2.6.4.6 Super I/O Keyboard and Mouse Controller
Page 30
The Super I/O keyboard and mouse controller can execute the 8042 in struction set. Some
of the keyboard and mouse controller features are listed below:
8042 based with optional F/W from AMI KKEYTM-2, with 2K bytes of
Page 51
IMBA-690AM2 Motherboard
programmable ROM, and 256 bytes of RAM
Asynchronous Access to Two Data Registers and One status Register
Software compatibility with the 8042
Support PS/2 mouse
Support both interrupt and polling modes
Fast Gate A20 and Hardware Keyboard Reset
6 MHz, 8 MHz, 12 MHz, or 16 MHz operating frequency
2.6.4.7 Super I/O Infrared
The Super I/O has dedicated infrared (IrDA) pins that are interfaced to an IrDA connector.
The IrDA connector supports IrDA version 1.0 SIR protocol with maximum baud rate up to
115.2K bps.
2.6.5 Serial Port Chipset
An onboard Fintek F81216DG chipset provides access to four additional UART serial
ports (COM3, COM4, COM5 and COM6). UART includes 16-byte send/receive FIFO. The
Fintek serial port chipset is interfaced to the Southbridge chipset through the LPC bus.
Some of the features of the Fintek chipset are listed below:
Supports LPC interface
Provides UART (16550 asynchronous) ports
o 1 x Pure UART
o 1 x UART+IR
One Watch dog timer with WDTOUT# signal
One Frequency input 24/48MHz
Powered by 3Vcc
2.7 Environmental and Power Specifications
2.7.1 System Monitoring
Three thermal inputs on the IMBA-690AM2 Super I/O Enhanced Hardware Monitor
monitor the following temperatures:
CPU temperature
Page 31
Page 52
System temperature
IMBA-690AM2 Motherboard
Five voltage inputs on the IMBA-690AM2 Super I/O Enhanced Hardware Monito r monitors
the following voltages:
VCore
+1.8V
+1.2V
+5.0V
+12V
+1.5V
VCC
VSB
VBAT
The IMBA-690AM2 Super I/O Enhanced Hardware Monitor also monitors the foll owing fan
speeds:
CPU Fan speed
System Fan speed
The values for the above environmental parameters are all recorded in the BIOS
Hardware Health Configuration menu.
2.7.2 Operating Temperature and Temperature Control
The maximum and minimum operating temperatures for the IMBA-690AM2 are listed
below.
Minimum Operating Temperature: 0ºC (32°F)
Maximum Operating Temperature: 60°C (140°F)
A cooling fan and heat sink must be installed on the CPU. Thermal paste must be
Page 32
smeared on the lower side of the heat sink before it is mounted on the CPU. Heat sinks
are also mounted on the Northbridge and Southbridge chipsets to ensure the operating
temperature of these chips remain low.
Page 53
IMBA-690AM2 Motherboard
2.7.3 Power Consumption
Table 2-1 shows the power consumption parameters for the IMBA-690AM2 running with
an AMD® Athlon
Voltage Current
+3.3V 1.01A
+5.0V 3.22A
+12V 7.15A
5VSB 0.14A
Table 2-1: Power Consumption
TM
64 X2 dual-core 6000+ CPU and four 512MB 533MHz DDR2 DIMM.
Page 33
Page 54
IMBA-690AM2 Motherboard
Chapter
3
3 Unpacking
Page 34
Page 55
IMBA-690AM2 Motherboard
3.1 Anti-static Precautions
WARNING:
Failure to take ESD precautions during the installation of the
IMBA-690AM2 may result in permanent damage to the IMBA-690AM2
and severe injury to the user.
Electrostatic discharge (ESD) can cause serious damage to electronic components,
including the IMBA-690AM2. Dry climates are especially susceptible to ESD. It is therefo re
critical that whenever the IMBA-690AM2, or any other electrical component is handled, the
following anti-static precautions are strictly adhered to.
Wear an anti-static wristband: - Wearing a simple anti-static wristband can
help to prevent ESD from damaging the board.
Self-grounding:- Before handling the board touch any grounded conducting
material. During the time the board is handled, frequently touch any
conducting materials that are connected to the ground.
Use an anti-static pad: When configuring the IMBA-690AM2, place it on an
antic-static pad. This reduces the possibility of ESD damaging the
IMBA-690AM2.
Only handle the edges of the PCB: When handling the PCB, hold the PCB
by the edges.
3.2 Unpacking
3.2.1 Unpacking Precautions
When the IMBA-690AM2 is unpacked, please do the following:
Follow the anti-static precautions outlined in Section 3.1.
Make sure the packing box is facing upwards so the IMBA-690AM2 does not
fall out of the box.
Make sure all the components shown in Section 3.3 are present.
Page 35
Page 56
3.3 Unpacking Checklist
NOTE:
If some of the components listed in the checklist below are missing,
please do not proceed with the installation. Contact the IEI reseller or
vendor you purchased the IMBA-690AM2 from or contact an IEI sales
representative directly. To contact an IEI sales representative, please
IMBA-690AM2 Motherboard
send an email to
sales@iei.com.tw.
3.3.1 Package Contents
The IMBA-690AM2 is shipped with the following components:
Quantity Item and Part Number Image
1 IMBA-690AM2 sigle board computer
1 ATA 66/100 flat cable
(P/N: 32200-000052-RS)
Page 36
1 I/O Shielding
(P/N: 45014-0008C0-00-RS)
2 Dual RS-232 cables
(P/N: 32200-004101-RS)
Page 57
IMBA-690AM2 Motherboard
4 SATA cables
(P/N: 32000-062800-RS)
2 SATA power cables
(P/N: 32100-088600-RS)
1 Mini jumper pack
1 Quick Installation Guide
1 Utility CD
Table 3-1: Package List Contents

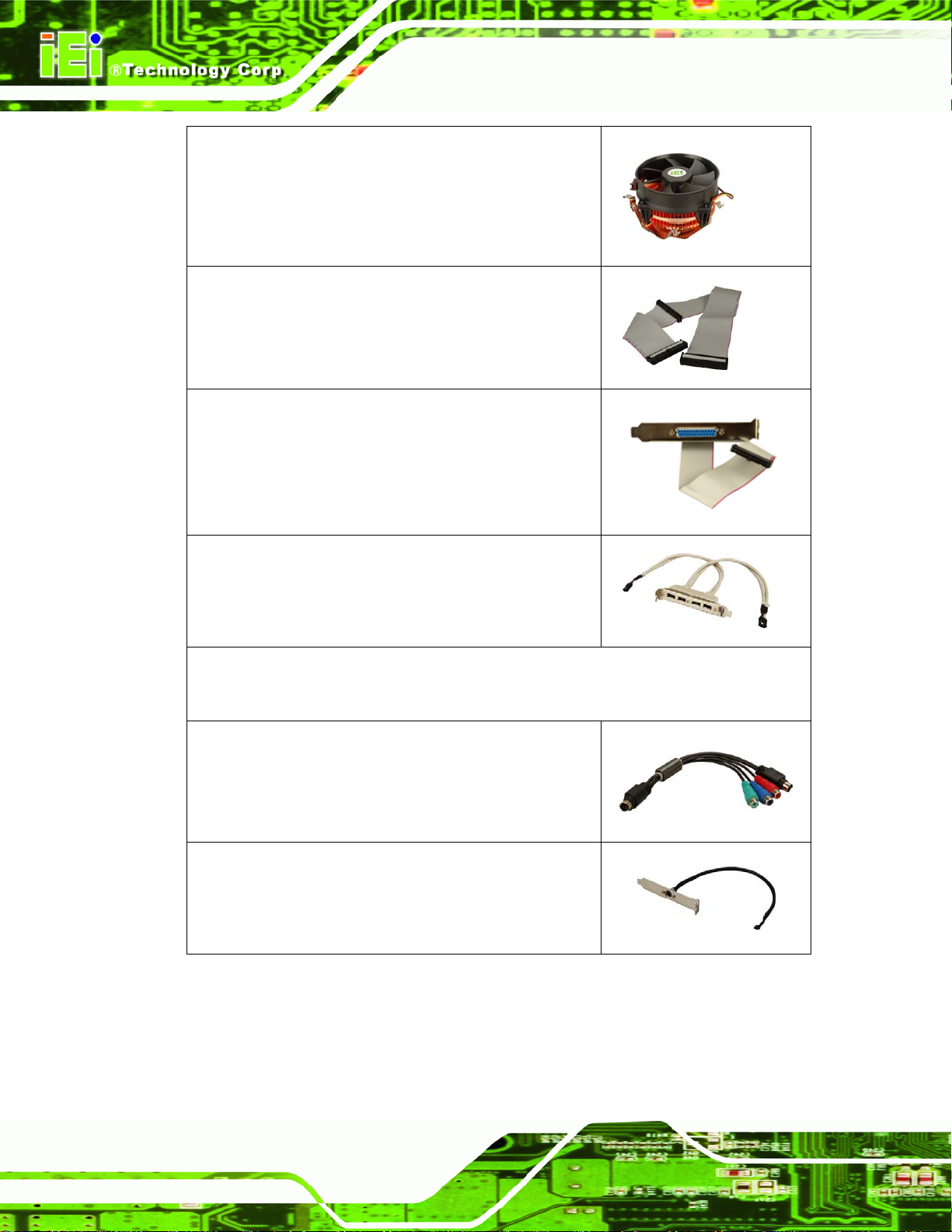

3.4 Optional Items
CPU cooler
(P/N: CF-AM2-RS)
CPU cooler
(P/N: CF-519-RS)
Page 37
Page 58
CPU cooler
(P/N: CF-478A-RS)
FDD cable
(P/N: 32200-000001-RS)
LPT cable
(P/N: 19800-000049-RS)
IMBA-690AM2 Motherboard
4-port USB cable
(P/N: CB-USB14-RS)
HDTV Cable Set comprises a S-Video cable and a TV-out cable (shown as images
below) (P/N: HDTVCABLESET-01)
TV-out extension cable with Composite / S-Video /
Component output (Max.1080i HDTV resolution
supported)
TV-out cable with 7-pin mini din on bracket
Table 3-2: Package List Contents
Page 38
Page 59
IMBA-690AM2 Motherboard
Chapter
4
4 Connector Pinouts
Page 39
Page 60
4.1 Peripheral Interface Connectors
Section 4.1.1 shows peripheral interface connector locations. Section 4.2 lists all the
IMBA-690AM2 Motherboard
peripheral interface connectors seen in Section
4.1.1.
4.1.1 IMBA-690AM2 Layout
Figure 4-1 shows the on-board peripheral connectors, rear panel peripheral connectors
and on-board jumpers.
Page 40

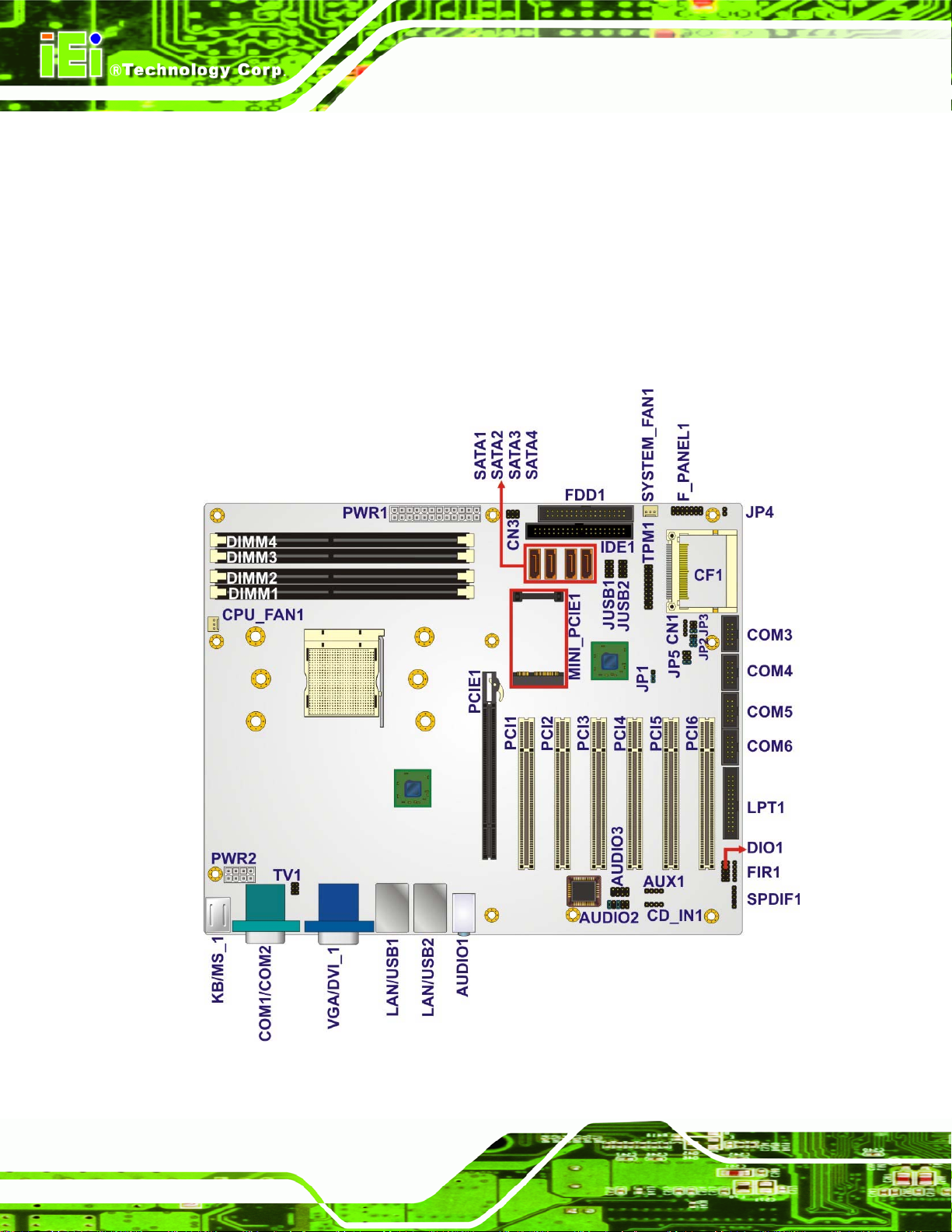

Figure 4-1: Connector and Jumper Locations
Page 61
IMBA-690AM2 Motherboard
4.1.2 Peripheral Interface Connectors
Table 4-1 shows a list of the peripheral interface connectors on the IMBA-690AM2.
Detailed descriptions of these connectors can be found below.
Connector Type Label
Audio connector (8-pin) 8-pin header AUDIO3
Audio connector (10-pin) 10-pin header AUDIO2
Audio CD In connector 4-pin header CD_IN1
Auxiliary audio connector 4-pin header AUX1
ATX power connector 24-pin ATX PWR1
CompactFlash® card slot 50-pin slot CF1
Cooling fan connector (CPU) 3-pin wafer connector CPU_FAN1
Cooling fan connector (System) 3-pin wafer connector SYSTEM_FAN1
Digital input/output connector 10-pin header DIO1
DIMM sockets 240-pin DIMM socket DIMM1
DIMM sockets 240-pin DIMM socket DIMM2
DIMM sockets 240-pin DIMM socket DIMM3
DIMM sockets 240-pin DIMM socket DIMM4
FDD connector 34-pin box header FDD1
Front panel connector 14-pin header F_PANEL1
IDE Interface connector 40-pin box header IDE1
Infrared (IrDA) connector 5-pin header FIR1
PCIe Mini Card connector 52-pin socket MINI_PCIE1
PCIe Mini Card LED connector 6-pin header CN3
Page 41
Page 62
Parallel port connector 26-pin box header LPT1
PCI expansion slots 124-pin PCI slot PCI1
PCI expansion slots 124-pin PCI slot PCI2
PCI expansion slots 124-pin PCI slot PCI3
PCI expansion slots 124-pin PCI slot PCI4
PCI expansion slots 124-pin PCI slot PCI5
PCI expansion slots 124-pin PCI slot PCI6
PCIe x16 expansion slot 164-pin PCIe slot PCIE1
Power connector 8-pin connector PWR2
RS-422/485 connector (for COM3) 4-pin header CN1
IMBA-690AM2 Motherboard
Serial ATA drive connector 7-pin SATA SATA1
Serial ATA drive connector 7-pin SATA SATA2
Serial ATA drive connector 7-pin SATA SATA3
Serial ATA drive connector 7-pin SATA SATA4
Serial port connector (COM3) 10-pin box header COM3
Serial port connector (COM4) 10-pin box header COM4
Serial port connector (COM5) 10-pin box header COM5
Serial port connector (COM6) 10-pin box header COM6
SPDIF connector 5-pin header SPDIF1
TPM connector 20-pin header TPM1
TV Out connector 6-pin header TV1
USB connector 8-pin header JUSB1
Page 42
USB connector 8-pin header JUSB2
Table 4-1: Peripheral Interface Connectors
Page 63
IMBA-690AM2 Motherboard
4.1.3 External Interface Panel Connectors
Table 4-2 lists the rear panel connectors on the IMBA-690AM2. Detailed descriptions of
these connectors can be found in Section
Connector Type Label
Audio connector Audio jack AUDIO1
DVI and VGA combo connector DVI and DB-15 VGA/DVI_1
Ethernet and dual USB combo connector RJ-45 and two USB LAN/USB1
Ethernet and dual USB combo connector RJ-45 and two USB LAN/USB2
Mouse or keyboard connector PS/2 KB/MS_1
Serial port connector (COM1) DB-9 (male) COM1
Serial port connector (COM2) DB-9 (male) COM2
Table 4-2: Rear Panel Connectors
4.2 Internal Peripheral Connectors
4.3.
Internal peripheral connectors are found on the motherboard and are only accessible
when the motherboard is outside of the chassis. T his se ction h as complet e d esc ription s of
all the internal, peripheral connectors on the IMBA-690AM2.
4.2.1 Audio Connector (8-pin)
CN Label:
CN Type:
CN Location:
CN Pinouts:
The 8-pin audio connector is connected to external audio devices including speakers and
microphones for the input and output of audio signals to and from the system.
AUDIO3
8-pin header (2x4)
See
See
Figure 4-2
Table 4-3
Page 43
Page 64
IMBA-690AM2 Motherboard
Figure 4-2: Audio Connector Location (9-pin)
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 SUROUTL 2 CENOUT
3 GND 4 GND
5 SUROUTR 6 LFEOUT
7 GND 8 N/C
Table 4-3: Audio Connector Pinouts (9-pin)
4.2.2 Audio Connector (10-pin)
CN Label:
CN Type:
CN Location:
CN Pinouts:
The 10-pin audio connector is connected to external audio devices including speakers a nd
AUDIO2
10-pin header
Figure 4-3
See
Table 4-4
See
Page 44
microphones for the input and output of audio signals to and from the system.
Page 65
IMBA-690AM2 Motherboard
Figure 4-3: Audio Connector Pinouts (10-pin)
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 FMIC 2 GND
3 VREFOUT 4 +5V
5 COUTR 6 ROUT
7 N/C 8 N/C
9 COUTL 10 LOUT
Table 4-4: Audio Connector Pinouts (10-pin)
4.2.3 Audio CD In Connector (4-pin)
CN Label:
CN Type:
CN Location:
CN Pinouts:
The 4-pin audio CD in connector is connected to an external audio CD device for the input
and output of audio signals from a CD player to the system.
CD_IN1
4-pin header
Figure 4-4
See
Table 4-5
See
Page 45
Page 66
IMBA-690AM2 Motherboard

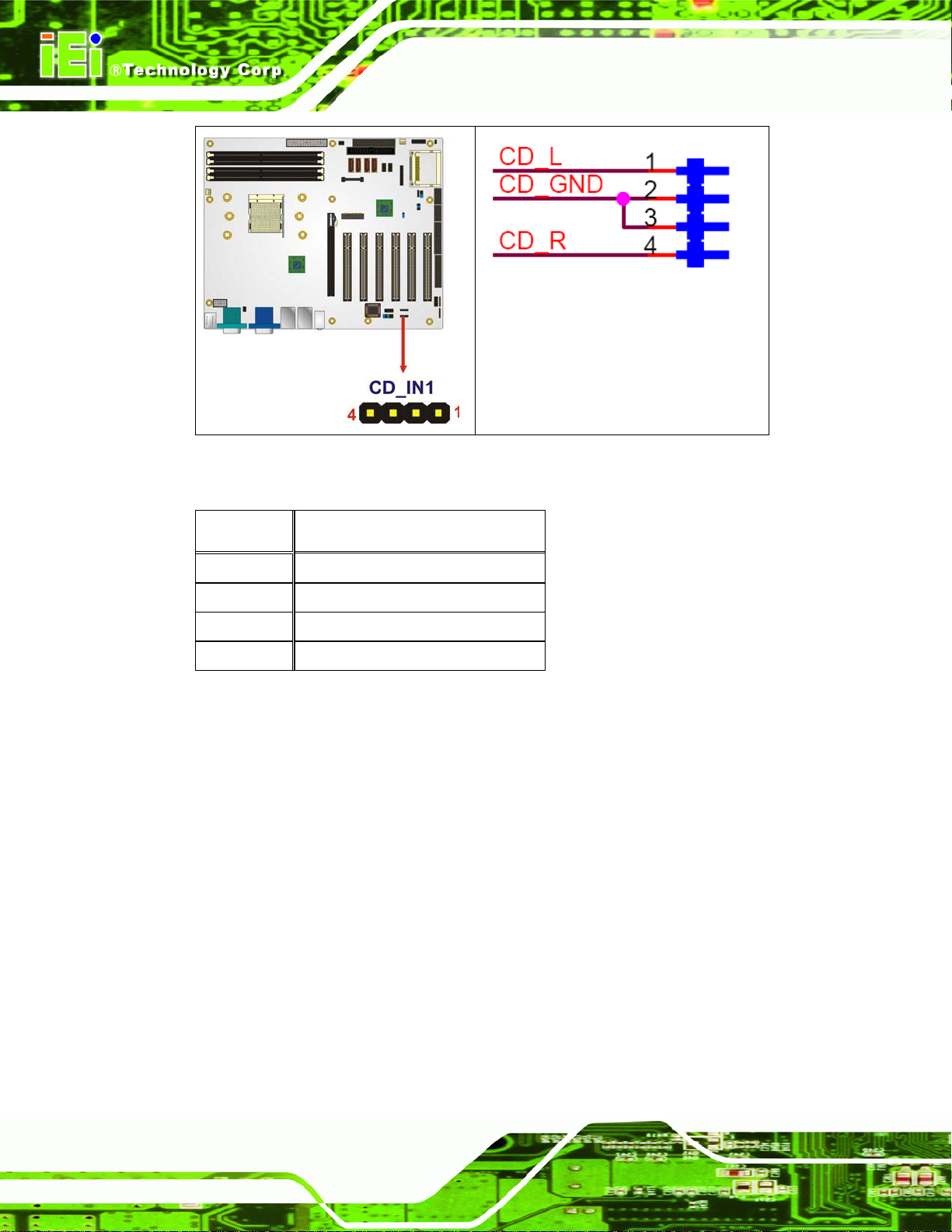

Figure 4-4: Audio CD In Connector Pinouts (4-pin)
PIN NO. DESCRIPTION
1 CD Signal (Left)
2 Ground
3 Ground
4 CD Signal (Right)
Table 4-5: Audio CD In Connector Pinouts
4.2.4 Auxiliary Audio Connector
CN Label:
CN Type:
CN Location:
CN Pinouts:
The 4-pin auxiliary audio connector provides a second audio input to the system.
AUX1
4-pin header
Figure 4-5
See
Table 4-6
See
Page 46
Page 67
IMBA-690AM2 Motherboard
Figure 4-5: Auxiliary Audio Connector Location (4-pin)
PIN DESCRIPTION
1 CAUXL
2 GND
3 GND
4 CAUXR
Table 4-6: Auxiliary Audio Connector Pinouts (4-pin)
4.2.5 ATX Power Connector
CN Label:
CN Type:
CN Location:
CN Pinouts:
The ATX connector is connected to an external ATX power supply. Power is provided to
PWR1
24-pin ATX (2x10)
Figure 4-6
See
Table 4-7
See
the system, from the power supply through this connector.
Page 47
Page 68
IMBA-690AM2 Motherboard
Figure 4-6: ATX Power Connector Pinout Locations
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 +3.3V 13 +3.3V
2 +3.3V 14 -12V
3 GND 15 GND
4 +5V 16 PSON
5 GND 17 GND
6 +5V 18 GND
7 GND 19 GND
8 POK 20 -5V(N/C)
9 5VSB 21 +5V
10 +12V 22 +5V
11 +12V 23 +5V
12 +3.3V 24 GND
Page 48
Table 4-7: ATX Power Connector Pinouts
Page 69
IMBA-690AM2 Motherboard
4.2.6 Compact Flash Socket
CN Label:
CN Type:
CN Location:
CN Pinouts:
A CF Type II memory card is inserted to the CF socket on the IMBA-690AM2.
CF1
50-pin header (2x25)
Figure 4-7
See
Table 4-8
See
Page 49
Page 70
IMBA-690AM2 Motherboard

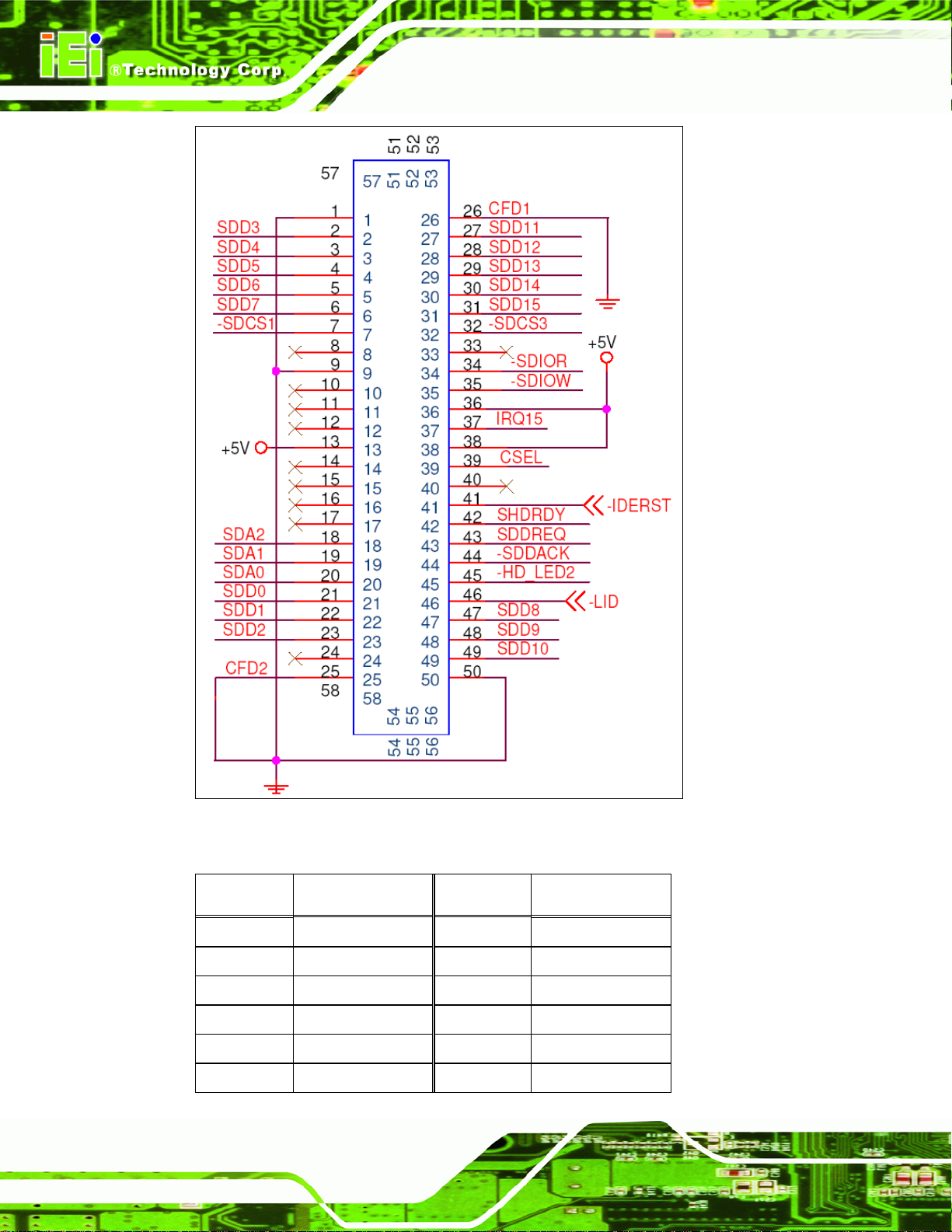

Figure 4-7: CF Card Socket Location
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 GROUND 26 VCC-IN CHECK1
2 DATA 3 27 DATA 11
3 DATA 4 28 DATA 12
4 DATA 5 29 DATA 13
5 DATA 6 30 DATA 14
6 DATA 7 31 DATA 15
Page 50
Page 71
IMBA-690AM2 Motherboard
7 HDC_CS0# 32 HDC_CS1
8 N/C 33 N/C
9 GROUND 34 IOR#
10 N/C 35 IOW#
11 N/C 36 VCC_COM
12 N/C 37 IRQ15
13 VCC_COM 38 VCC_COM
14 N/C 39 CSEL
15 N/C 40 N/C
16 N/C 41 HDD_RESET
17 N/C 42 IORDY
18 SA2 43 SDREQ
19 SA1 44 SDACK#
20 SA0 45 HDD_ACTIVE#
21 DATA 0 46 66DET
22 DATA 1 47 DATA 8
23 DATA 2 48 DATA 9
24 N/C 49 DATA 10
25 VCC-IN CHECK2 50 GROUND
Table 4-8: CF Card Socket Pinouts
4.2.7 Digital Input/Output (DIO) Connector
CN Label:
CN Type:
CN Location:
CN Pinouts:
The digital input/output connector is managed through a Super I/O chip. The DIO
DIO1
10-pin header (2x5)
Figure 4-8
See
Table 4-9
See
connector pins are user programmable.
Page 51
Page 72
IMBA-690AM2 Motherboard
Figure 4-8: DIO Connector Locations
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 GND 2 +5V
3 GPO1_3 4 GPO1_2
5 GPO1_1 6 GPO1_0
7 GPI1_3 8 GPI1_2
9 GPI1_1 10 GPI1_0
Table 4-9: DIO Connector Pinouts
4.2.8 Fan Connector
CN Label:
CN Type:
CN Location:
CN Pinouts: See
The cooling fan connectors provide 12V, 500mA current to a system cooling fan and a
CPU cooling fan. The connectors both have a "rotation" pin to get rotation signals from
fans and notify the system so the system BIOS can recognize the fan speed. Please note
that only specified fans can issue the rotation signals.
CPU_FAN1, SYSTEM_FAN1
3-pin header
Figure 4-9
See
Table 4-10 and Table 4-11
Page 52
Page 73
IMBA-690AM2 Motherboard
Figure 4-9: Fan Connector Location
PIN NO. DESCRIPTION
1 SIO_FANTACH0
2 +12V
3 GND
Table 4-10: CPU Fan Connector Pinouts
PIN NO. DESCRIPTION
1 SIO_FANTACH1
2 +12V
3 GND
Table 4-11: System Fan Connector Pinouts
4.2.9 Floppy Disk Connector (34-pin)
CN Label:
FDD1
CN Type:
CN Location:
CN Pinouts:
34-pin header (2x17)
Figure 4-10
See
Table 4-12
See
Page 53
Page 74
IMBA-690AM2 Motherboard
The floppy disk connector is connected to a floppy disk drive.
Figure 4-10: 34-pin FDD Connector Location
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 GND 2 REDUCE WRITE
3 GND 4 N/C
5 N/C 6 N/C
7 GND 8 INDEX#
9 GND 10 MOTOR ENABLE A#
11 GND 12 DRIVE SELECT B#
13 GND 14 DRIVE SELECT A#
15 GND 16 MOTOR ENABLE B#
17 GND 18 DIRECTION#
19 GND 20 STEP#
21 GND 22 WRITE DATA#
23 GND 24 WRITE GATE#
Page 54
25 GND 26 TRACK 0#
27 GND 28 WRITE PROTECT#
29 GND 30 READ DATA#
31 GND 32 SIDE 1 SELECT#
Page 75
IMBA-690AM2 Motherboard
33 GND 34 DISK CHANGE#
Table 4-12: 34-pin FDD Connector Pinouts
4.2.10 Front Panel Connector (14-pin)
CN Label:
CN Type:
CN Location:
CN Pinouts:
F_PANEL1
14-pin header (2x7)
Figure 4-11
See
Table 4-13
See
The front panel connector connects to external switches and indicators to monitor and
controls the motherboard. These indicators and switches include:
Power LED
Speaker
Power button
Reset
HDD LED
Figure 4-11: Front Panel Connector Pinout Locations (14-pin)
Page 55
Page 76
IMBA-690AM2 Motherboard
FUNCTION PIN DESCRIPTION FUNCTION PIN DESCRIPTION
Power
LED
Button
1 LED+ 2 SPEAKER+
3 BLINK 4 N/C
5 LED- 6 N/C
7 PWRBTSW+
9 GND 10 N/C
11 IDE LED+ 12 RESET+ HDD LED
13 IDE LED-
Table 4-13: Front Panel Connector Pinouts (14-pin)
4.2.11 IDE Connector (40-pin)
CN Label:
CN Type:
CN Location:
IDE1
40-pin header (2x20)
Figure 4-12
See
Speaker
8 SPEAKER - Power
Reset
14 GND
Table 4-14
CN Pinouts:
See
One 40-pin IDE device connector on the IMBA-690AM2 supports connectivity to two hard
disk drives.
Figure 4-12: IDE Device Connector Locations
Page 56
Page 77
IMBA-690AM2 Motherboard
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 IDE_RST# 2 GND
3 PDD7 4 PDD8
5 PDD6 6 PDD9
7 PDD5 8 PDD10
9 PDD4 10 PDD11
11 PDD3 12 PDD12
13 PDD2 14 PDD13
15 PDD1 16 PDD14
17 PDD0 18 PDD15
19 GND 20 N/C
21 PDREQ 22 GND
23 PDIOW# 24 GND
25 PDIOR# 26 GND
27 PDIORDY 28 PCSEL
29 PDACK# 30 GND
31 PIDE_INTR 32 N/C
33 PDA1 34 PDMA66
35 PDA0 36 PDA2
37 PDCS1# 38 PDCS3#
39 PIDEATC# 40 GND
Table 4-14: IDE Connector Pinouts
4.2.12 Infrared Interface Connector
CN Label:
CN Type:
CN Location:
CN Pinouts:
FIR1
5-pin header (1x5)
Figure 4-13
See
Table 4-15
See
The infrared interface connector supports both Serial Infrared (SIR) and Amplitude Shift
Key Infrared (ASKIR) interfaces.
Page 57
Page 78
IMBA-690AM2 Motherboard
Figure 4-13: Infrared Connector Pinout Locations
PIN NO. DESCRIPTION
1 VCC5
2 NC
3 IR-RX
4 GND
5 IR-TX
Table 4-15: Infrared Connector Pinouts
4.2.13 PCI Express Mini Card Connector
CN Label:
CN Type:
CN Location:
CN Pinouts:
The slot enables a PCI Express Mini Card to be connected to the board.
MINI_PCIE1
52-pin PCIe Mini Card Connector
Figure 4-14
See
Table 4-16
See
Page 58
Page 79
IMBA-690AM2 Motherboard
Figure 4-14: PCIe Mini Card Connector Location
Page 59
Page 80
IMBA-690AM2 Motherboard
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 PCIE_WAKE_UP# 2 3.3V
3 RESERVED_1 4 GND
5 RESERVED_2 6 1.5V
7 CLKREQ# 8 UIM_PWR
9 GND 10 UIM_DATA
11 PCIECLK3- 12 UIM_CLK
13 PCIECLK3+ 14 UIM_RESET
15 GND 16 UIM_VPP
17 UIM_C8 18 GND
19 UIM_C4 20 NC
21 GND 22 PCIE_RST#
23 GPP_RX3N 24 3.3VAUX
25 GPP_RX3P 26 GND
27 GND 28 1.5V
29 GND 30 SCLK
31 GPP_TX3N 32 SDATA1
33 GPP_TX3P 34 GND
35 GND 36 USBN8
37 RESERVED_3 38 USBP8
39 RESERVED_4 40 GND
41 RESERVED_5 42 LED_WWAN#
43 RESERVED_6 44 LED_WLAN#
45 RESERVED_7 46 LED_WPAN#
47 RESERVED_8 48 1.5V
49 RESERVED_9 50 GND
Page 60
51 RESERVED_10 52 3.3V
Table 4-16: PCIe Mini Card Connector Pinouts
Page 81
IMBA-690AM2 Motherboard
4.2.14 PCIe Mini Card LED Connector
CN Label:
CN Type:
CN Location:
CN Pinouts:
CN3
6-pin header (2x3)
Figure 4-15
See
Table 4-17
See
The PCIe Mini Card LED connector is for the indicator LED of the PCIe Mini Card.
Figure 4-15: PCIe Mini Card LED Connector Location
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 LED_WPAN# 2 +3.3VDUAL
3 LED_WLAN# 4 +3.3VDUAL
5 LED_WWAN#
6 +3.3VDUAL
Table 4-17: PCIe Mini Card LED Connector Pinouts
Page 61
Page 82
4.2.15 PCI Slot
IMBA-690AM2 Motherboard
CN Label:
CN Type:
CN Location:
CN Pinouts:
The PCI slot enables a PCI expansion module to be connected to the board.
PCI1, PCI2, PCI3, PCI4, PCI5, PCI6
PCI Slot
Figure 4-16
See
Table 4-18
See
Page 62
Page 83
IMBA-690AM2 Motherboard

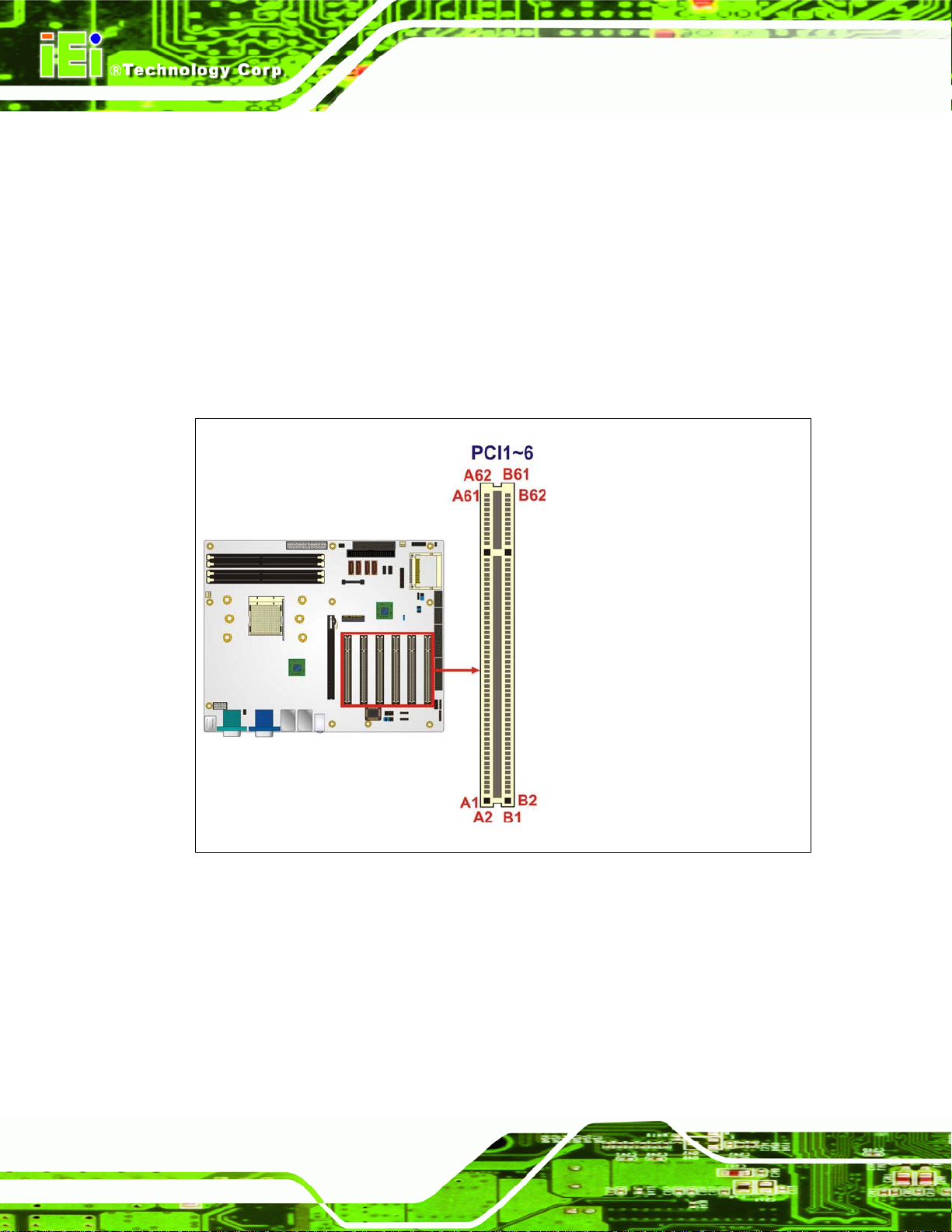

Figure 4-16: PCI Slot Location

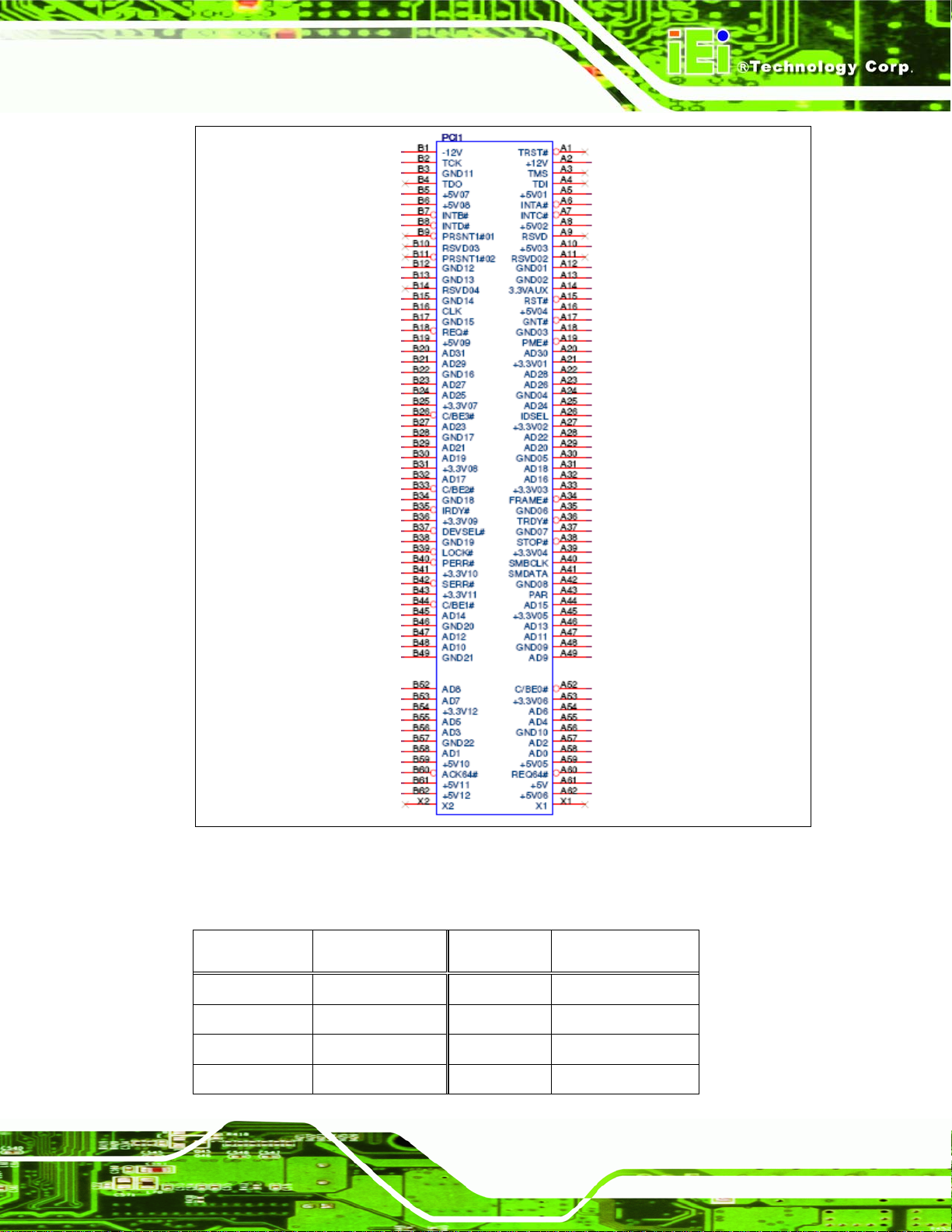

PIN NO. DESCRIPTION PIN NO. DESCRIPTION
A1 TRST B1 -12V
A2 +12V B2 TCK
A3 TMS B3 GND
A4 TDI B4 TDO
Page 63
Page 84
A5 +5V B5 +5V
A6 INTA B6 +5V
A7 INTC B7 INTB
A8 +5V B8 INTD
A9 RESERVED3 B9 PRSNT1
A10 +5V B10 RESERVED1
A11 RESERVED4 B11 PRSNT2
A12 GND B12 GND
A13 GND B13 GND
A14 3.3V_AUX B14 RESERVED2
A15 RST B15 GND
A16 +5V B16 CLK
A17 GNT B17 GND
IMBA-690AM2 Motherboard
A18 GND B18 REQ
A19 PME B19 +5V
A20 AD30 B20 AD31
A21 +3.3V B21 AD29
A22 AD28 B22 GND
A23 AD26 B23 AD27
A24 GND B24 AD25
A25 AD24 B25 +3.3V
A26 IDSEL B26 C/BE3
A27 +3.3V B27 AD23
A28 AD22 B28 GND
A29 AD20 B29 AD21
A30 GND B30 AD19
A31 AD18 B31 +3.3V
A32 AD16 B32 AD17
A33 +3.3V B33 C/BE2
Page 64
A34 FRAME B34 GND
A35 GND B35 IRDY
A36 TRDY B36 +3.3V
Page 85
IMBA-690AM2 Motherboard
A37 GND B37 DEVSEL
A38 STOP B38 GND
A39 +3.3V B39 LOCK
A40 SDONE B40 PERR
A41 SBO B41 +3.3V
A42 GND B42 SERR
A43 PAR B43 +3.3V
A44 AD15 B44 C/BE1
A45 +3.3V B45 AD14
A46 AD13 B46 GND
A47 AD11 B47 AD12
A48 GND B48 AD10
A49 AD9 B49 GND
A52 C/BE0 B52 AD8
A53 +3.3V B53 AD7
A54 AD6 B54 +3.3V
A55 AD4 B55 AD5
A56 GND B56 AD3
A57 AD2 B57 GND
A68 AD0 B68 AD1
A59 +5V B59 +5V
A60 REQ64 B60 ACK64
A61 +5V B61 +5V
A62 +5V
B62 +5V
Table 4-18: PCI Slot
4.2.16 PCI Express x16 Slot
CN Label:
PCIE1
CN Type:
CN Location:
164-pin PCIe x16 slot
Figure 4-17
See
Page 65
Page 86
See
CN Pinouts:
Table 4-20
IMBA-690AM2 Motherboard
PCIe x16 expansion devices can be inserted into the PCIe x16 slots.

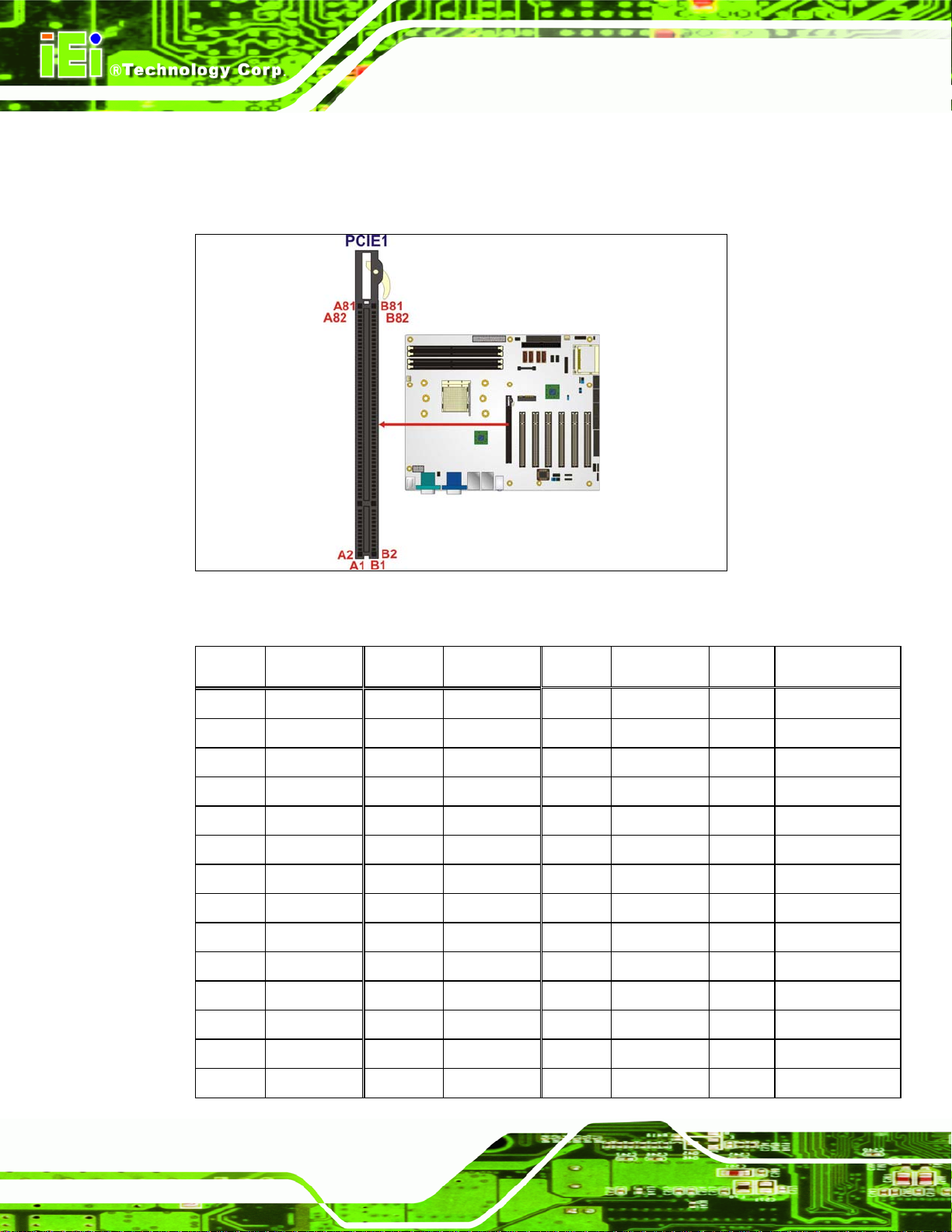

Figure 4-17: PCI Express x16 Slot Locations
PIN NAME PIN NAME PIN NAME PIN NAME
A1 PRSNT#1 A22 HSIn(1) A43 HSIp(6) A64 HSIp(11)
A2 +12v A23 GND A44 HSIn(6) A65 HSIn(11)
A3 +12v A24 GND A45 GND A66 GND
A4 GND A25 HSIp(2) A46 GND A67 GND
A5 JTAG2 A26 HSIn(2) A47 HSIp(7) A68 HSIp(12)
A6 JTAG3 A27 GND A48 HSIn(7) A69 HSIn(12)
A7 JTAG4 A28 GND A49 GND A70 GND
A8 JTAG5 A29 HSIp(3) A50 RSVD A71 GND
A9 +3.3v A30 HSIn(3) A51 GND A72 HSIp(13)
A10 +3.3v A31 GND A52 HSIp(8) A73 HSIn(13)
A11 PWRGD A32 RSVD A53 HSIn(8) A74 GND
Page 66
A12 GND A33 RSVD A54 GND A75 GND
A13 REFCLK+ A34 GND A55 GND A76 HSIp(14)
A14 REFCLK- A35 HSIp(4) A56 HSIp(9) A77 HSIn(14)
Page 87
IMBA-690AM2 Motherboard
A15 GND A36 HSIn(4) A57 HSIn(9) A78 GND
A16 HSIp(0) A37 GND A58 GND A79 GND
A17 HSIn(0) A38 GND A59 GND A80 HSIp(15)
A18 GND A39 HSIp(5) A60 HSIp(10) A81 HSIn(15)
A19 RSVD A40 HSIn(5) A61 HSIn(10) A82 GND
A20 GND A41 GND A62 GND
A21 HSIp(1) A42 GND A63 GND
Table 4-19: PCIe x16 Side A Pinouts
PIN NAME PIN NAME PIN NAME PIN NAME
B1 +12v B22 GND B43 GND B64 GND
B2 +12v B23 HSOp(2) B44 GND B65 GND
B3 RSVD B24 HSOn(2) B45 HSOp(7) B66 HSOp(12)
B4 GND B25 GND B46 HSOn(7) B67 HSOn(12)
B5 SMCLK B26 GND B47 GND B68 GND
B6 SMDAT B27 HSOp(3) B48 PRSNT#2 B69 GND
B7 GND B28 HSOn(3) B49 GND B70 HSOp(13)
B8 +3.3v B29 GND B50 HSOp(8) B71 HSOn(13)
B9 JTAG1 B30 RSVD B51 HSOn(8) B72 GND
B10 3.3Vaux B31 PRSNT#2 B52 GND B73 GND
B11 WAKE# B32 GND B53 GND B74 HSOp(14)
B12 RSVD B33 HSOp(4) B54 HSOp(9) B75 HSOn(14)
B13 GND B34 HSOn(4) B55 HSOn(9) B76 GND
B14 HSOp(0) B35 GND B56 GND B77 GND
B15 HSOn(0) B36 GND B57 GND B78 HSOp(15)
B16 GND B37 HSOp(5) B58 HSOp(10) B79 HSOn(15)
B17 PRSNT#2 B38 HSOn(5) B59 HSOn(10) B80 GND
B18 GND B39 GND B60 GND B81 PRSNT#2
B19 HSOp(1) B40 GND B61 GND B82 RSVD#2
B20 HSOn(1) B41 HSOp(6) B62 HSOp(11)
B21 GND B42 HSOn(6) B63 HSOn(11)
Table 4-20: PCI Express x16 Slot Pinouts
Page 67
Page 88
4.2.17 Power Connector
CN Label: PWR2
CN Type: 8-pin connector (2x4)
IMBA-690AM2 Motherboard
CN Location: See
CN Pinouts: See
Figure 4-18
Table 4-21
The connector supports the 12V power supply.
Figure 4-18: Power Connector Location
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 GND 5 +12_ATXP0
2 GND 6 +12_ATXP0
3 GND 7 +12_ATXP0
4 GND 8 +12_ATXP0
Table 4-21: Power Connector Pinouts
4.2.18 Parallel Port Connector
LPT1
26-pin box header
See
Page 68
CN Label:
CN Type:
CN Location:
Figure 4-19
Page 89
IMBA-690AM2 Motherboard
CN Pinouts:
See
The 26-pin parallel port connector connects to a parallel port connector interface or some
other parallel port device such as a printer.
Table 4-22

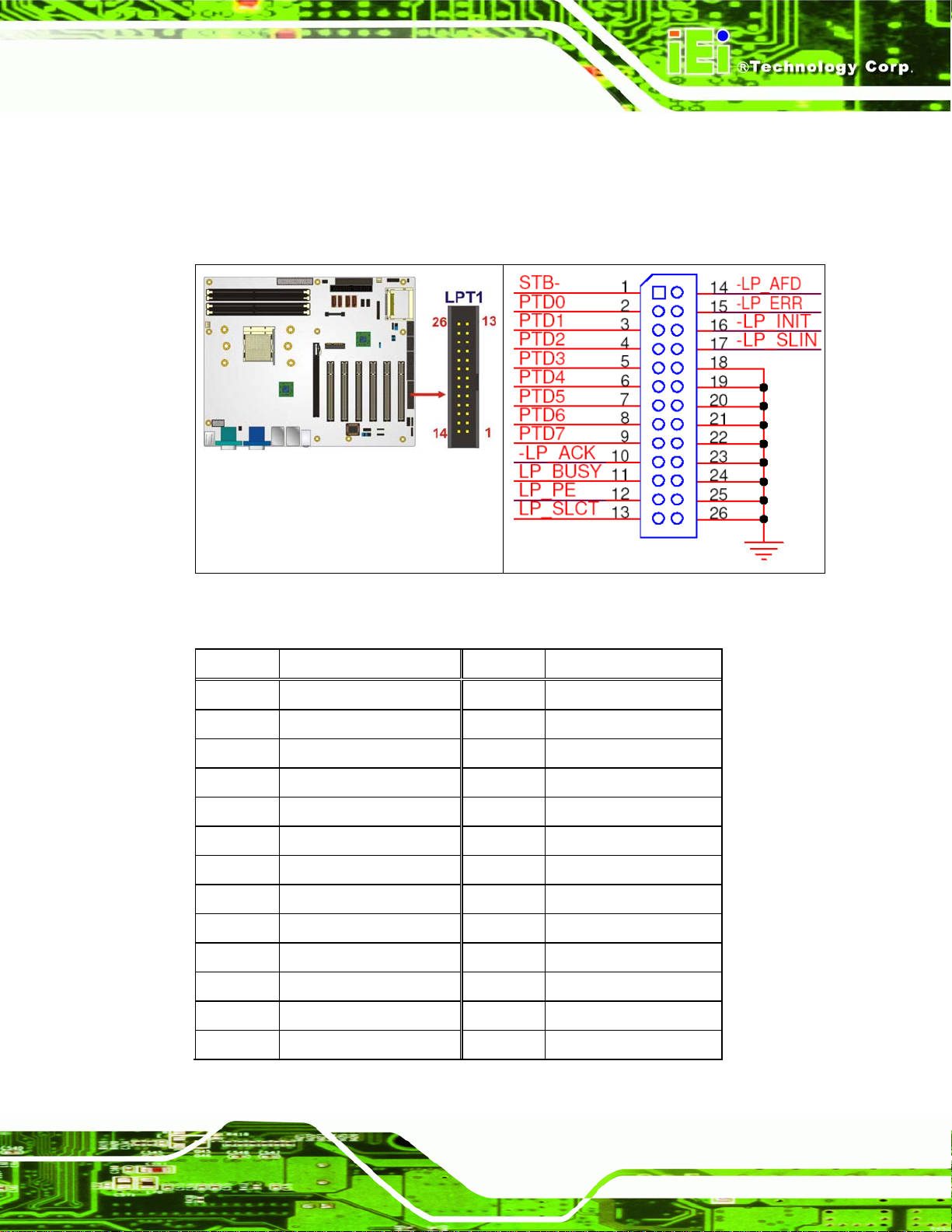

Figure 4-19: Parallel Port Connector Location
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 STB# 14 LP_AFD#
2 PTD0 15 LP_ERR#
3 PTD1 16 LP_INIT#
4 PTD2 17 LP_SLIN#
5 PTD3 18 GND
6 PTD4 19 GND
7 PTD5 20 GND
8 PTD6 21 GND
9 PTD7 22 GND
10 LP_ACK# 23 GND
11 LP_BUSY 24 GND
12 LP_PE 25 GND
13 LP_SLCT 26 GND
Table 4-22: Parallel Port Connector Pinouts
Page 69
Page 90
4.2.19 RS-422/485 Connector (for COM3)
CN Label: CN1
CN Type: 4-pin header (1x4)
IMBA-690AM2 Motherboard
CN Location:
CN Pinouts: See
Figure 4-20
See
Table 4-23
The CN1 connector along with COM3 serial port connector connects to an RS-422, or
RS-485 serial port devices.

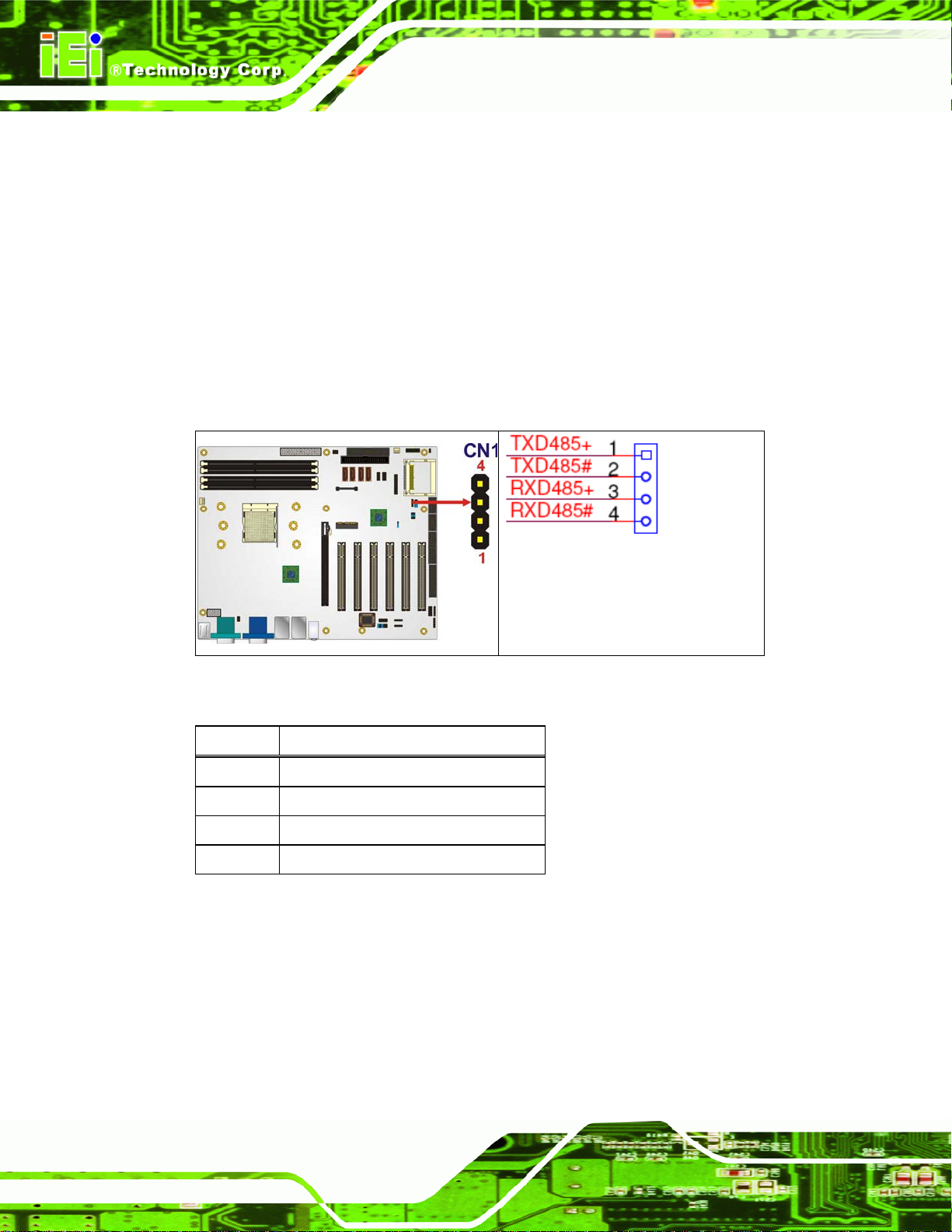

Figure 4-20: RS-422/485 Connector Location
PIN NO. DESCRIPTION
1 TXD485+
2 TXD485#
3 RXD485+
4 RXD485#
Table 4-23: RS-422/485 Connector Pinouts
4.2.20 SATA Drive Connectors
SATA1, SATA2, SATA3, and SATA4
7-pin SATA drive connectors
Page 70
CN Label:
CN Type:
Page 91
IMBA-690AM2 Motherboard
CN Location:
CN Pinouts:
See
See
The two SATA drive connectors are each connected to a SATA II drive. A SATA II drive
transfer data at speeds as high as 3.0Gb/s. The SATA drives can be configured in a RAID
configuration.
Figure 4-21
Table 4-24
Figure 4-21: SATA Drive Connector Locations
PIN NO. DESCRIPTION
1 GND
2 TX+
3 TX4 GND
5 RX6 RX+
7 GND
Table 4-24: SATA Drive Connector Pinouts
Page 71
Page 92
4.2.21 Serial Port Connectors
IMBA-690AM2 Motherboard
CN Label:
CN Type:
CN Location:
CN Pinouts:
The 10-pin serial port connector provides a second RS-232 serial communications
channel. The COM 4 serial port connector can be connected to external RS-232 serial port
devices.
COM3, COM4, COM5, COM6
10-pin header (2x5)
Figure 4-22
See
Table 4-25
See
Page 72

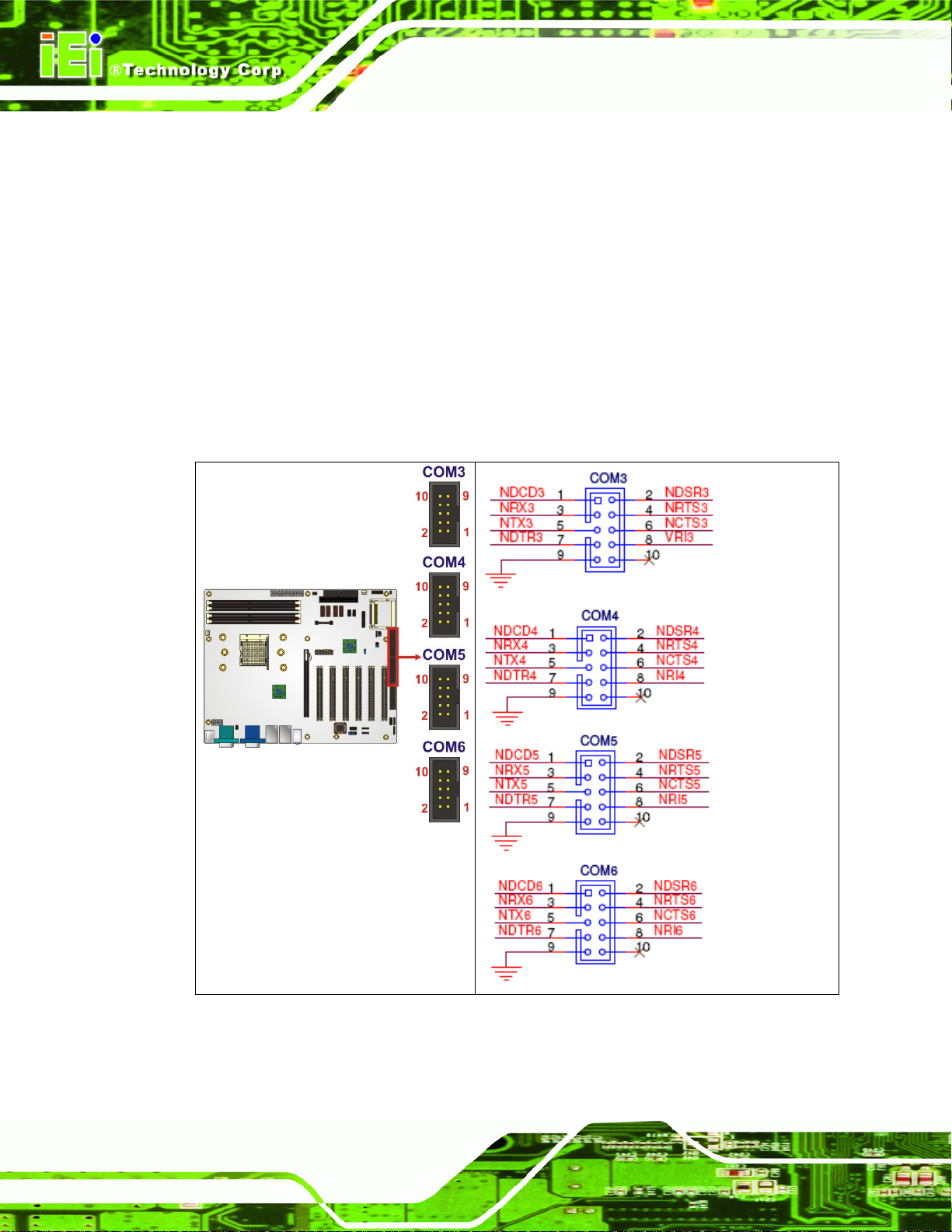

Figure 4-22: Serial Connector Pinout Locations
Page 93
IMBA-690AM2 Motherboard
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 Data Carrier Direct (DCD) 2 Data Set Ready (DSR)
3 Receive Data (RX D ) 4 Request To Send (RTS)
5 Transmit Data (TXD) 6 Clear To Send (CTS)
7 Data Terminal Ready (DTR) 8 Ring Indicator (RI)
9 Ground (GND) 10 N/C
Table 4-25: Serial Connector Pinouts
4.2.22 SPDIF Connector
CN Label:
CN Type:
CN Location:
CN Pinouts:
Use the SPDIF connector to connect digital audio devices to the system.
SPDIF1
5-pin header
Figure 4-23
See
Table 4-26
See

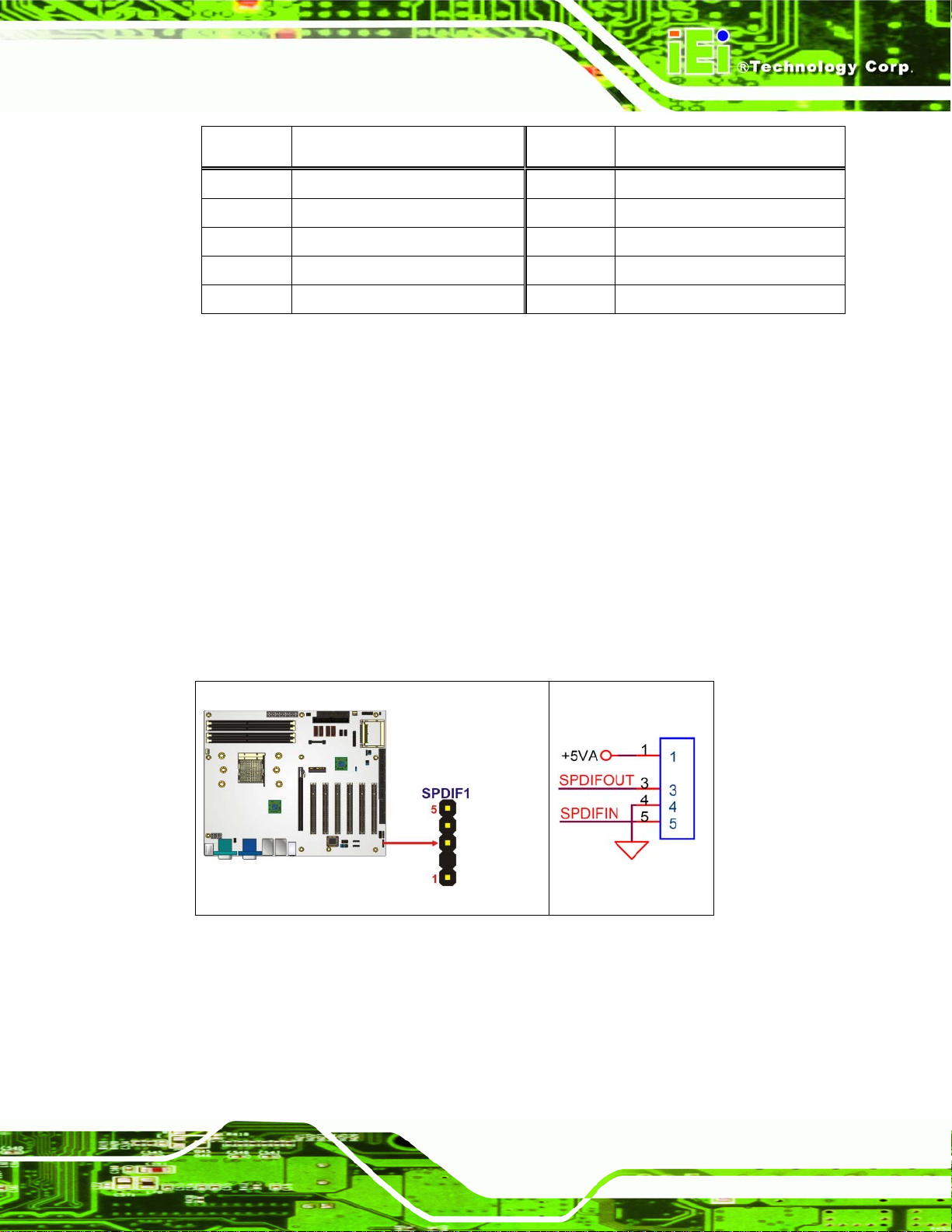

Figure 4-23: SPDIF Connector Pinout Locations
Page 73
Page 94
PIN DESCRIPTION
1 VCC AUDIO
2 NC
3 SPDIF OUT
4 GND AUDIO
5 SPDIF IN
Table 4-26: SPDIF Connector Pinouts
4.2.23 Trusted Platform Module (TPM) Connector
IMBA-690AM2 Motherboard
CN Label:
CN Type:
CN Location:
CN Pinouts:
TPM1
20-pin header (2x10)
Figure 4-24
See
Table 4-27
See
The Trusted Platform Module (TPM) connector secures the system on bootup. An optional
TPM (see packing list in Chapter 3) can be connected to the TPM connector.
Page 74

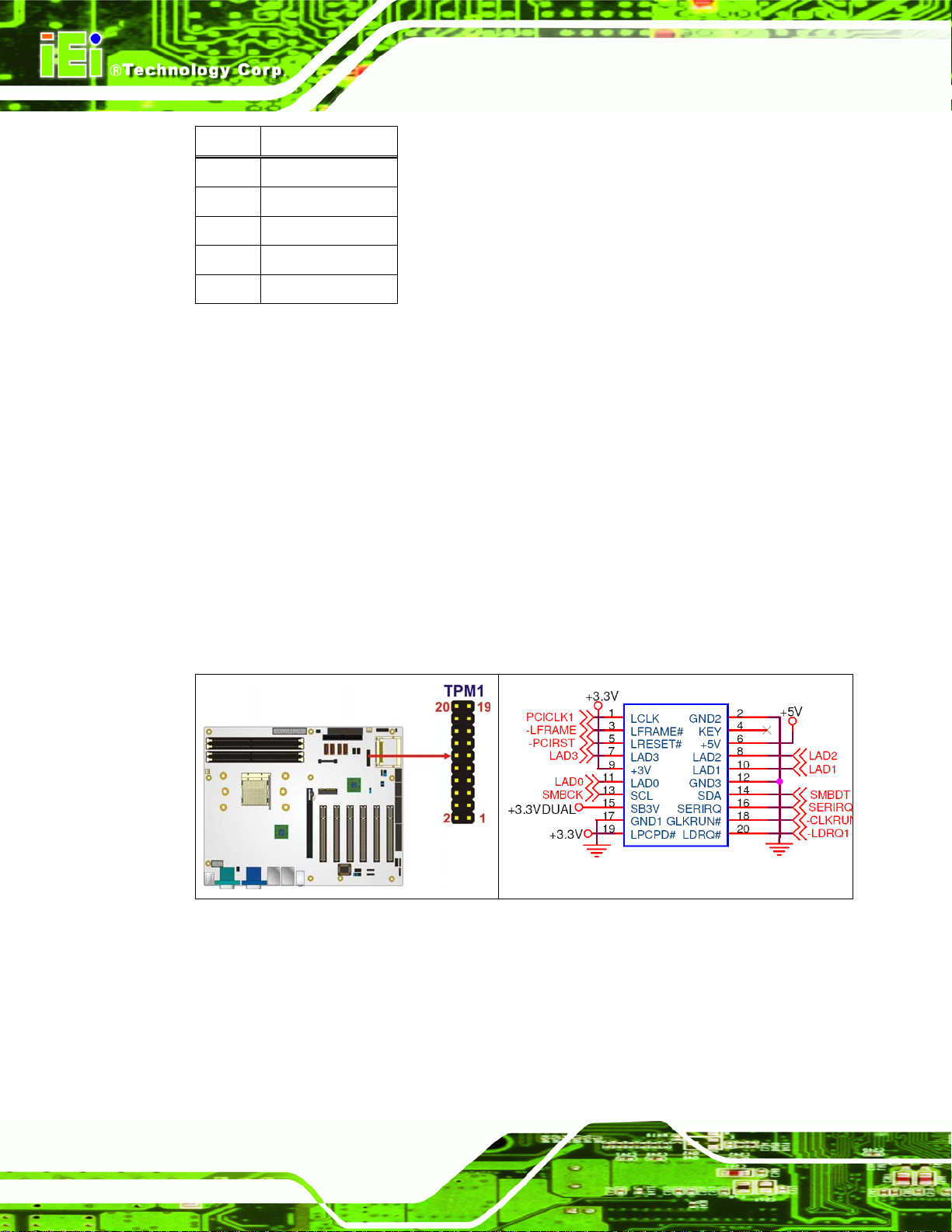

Figure 4-24: TPM Connector Pinout Locations
Page 95
IMBA-690AM2 Motherboard
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 TPM_CLK 2 GND
3 LFRAME# 4 KEY(N/C)
5 LPC_RST# 6 +5V
7 LAD3 8 LAD2
9 +3.3V 10 LAD1
11 LAD0 12 GND
13 SCLK 14 SDATA
15 +3.3VDUAL 16 SERIRQ
17 GND 18 GND
19 +3.3V 20 LDRQ#1
Table 4-27: TPM Connector Pinouts
4.2.24 TV Out Connector
CN Label:
CN Type:
CN Location:
CN Pinouts:
The 2x3 pin TV out connector connects to a TV output by using an S-Video or RCA
connector. The TV out connector makes displaying media data on a television easier.
TV1
6-pin header (2x3)
Figure 4-25
See
Table 4-28
See
Page 75
Page 96
IMBA-690AM2 Motherboard
Figure 4-25: TV Connector Pinout Locations
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 GND 2 IOY
3 GND 4 IOC
5 GND 6 IOCMP
Table 4-28: TV Port Connector Pinouts
4.2.25 USB Connectors (Internal)
CN Label:
CN Type:
CN Location:
CN Pinouts:
The 2x4 USB pin connectors each provide connectivity to two USB 1.1 or two USB 2.0
ports. Each USB connector can support two USB devices. Additional external USB ports
JUSB1 and JUSB2
8-pin header (2x4)
Figure 4-26
See
Table 4-29 and Table 4-30
See
Page 76
are found on the rear panel. The USB ports are used for I/O bus expansion.
Page 97
IMBA-690AM2 Motherboard
Figure 4-26: USB Connector Pinout Locations
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 USBV2L 2 GND
3 DATA2_N 4 DATA3_P
5 DATA2_P 6 DATA3_N
7 GND 8 USBV2L
Table 4-29: JUSB1 Port Connector Pinouts
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 USBV3L 2 GND
3 DATA0_N 4 DATA1_P
5 DATA0_P 6 DATA1_N
7 GND 8 USBV3L
Table 4-30: JUSB2 Port Connector Pinouts
Page 77
Page 98
IMBA-690AM2 Motherboard
4.3 External Peripheral Interface Connector Panel
Figure 4-27 shows the IMBA-690AM2 external peripheral interface connector (EPIC)
panel. The IMBA-690AM2 EPIC panel consists of the following:
3 x Audio jack connectors
1 x DVI connector
2 x PS/2 connectors
2 x RJ-45 LAN connectors
2 x RS-232 serial port connectors
4 x USB 2.0 connectors
1 x VGA connector
Figure 4-27: IMBA-690AM2 External Peripheral Interface Connector
4.3.1 Audio Connector
CN Label: AUDIO1
CN Type: 3 x audio jacks
CN Location: See
Page 78
Figure 4-27
Page 99
IMBA-690AM2 Motherboard
The three audio jacks on the external audio connector enable the IMBA-690AM2 to be
connected to external audio devices as specified below.
Line In port (Light Blue): Connects a CD-ROM, DVD player, or other audio
devices.
Line Out port (Lime): Connects to a headphone or a speaker. With
multi-channel configurations, this port can also connect to front speakers.
Microphone (Pink): Connects a microphone.
Figure 4-28: Audio Connector
4.3.2 DVI and VGA Combo Connector
CN Label: VGA/DVI_1
CN Type: DVI-D and DB-15
CN Location: See
CN Pinouts: See
A 24-pin Digital Visual Interface (DVI) connector and a female DB-15 VGA connector are
integrated into a single EPIC connector as shown in
Figure 4-27
Table 4-31 (DVI-D)
Figure 4-27.
Page 79
Page 100
The DVI connector connects to high-speed, high-resolution digital displays. The DVI-D
IMBA-690AM2 Motherboard
connector supports both digital and analog signals. The connector is show in
and the pinouts are shown in
Table 4-31.
Figure 4-29: DVI-D Connector Pinouts
PIN Signal Name PIN Signal Name PIN Signal Name
1 TMDS Data2-
2 TMDS Data2+
3 GND
4 N/C
5 N/C
9
10 TMDS Data1+ 18 TMDS Data0+
11 GND
12 NC
13 NC
TMDS Data1- 17 TMDS Data0-
19 GND
20 NC
21 NC
Figure 4-29
6 DDC Clock [SCL]
7 DDC Data [SDA]
8 Analog vertical sync
C1 N/C
C2 N/C
C3 N/C
C4 N/C
C5 N/C
Table 4-31: DVI-D Connector Pinouts
The female DB-15 VGA connector connects to standard VGA displays. The connector is
show in
Figure 4-30 and the pinouts are shown in Table 4-32.
14 PVDD1
15 GND
16 GND
--
--
--
--
--
--
--
--
--
--
22 GND
23 TMDS Clock +
24 TMDS Clock -
--
--
--
--
--
--
--
--
--
--
Page 80
