Page 1

IKARPC-07A-BT In-vehicle Panel PC

MODEL:

IKARPC-07A-BT

7” In-Vehicle Panel PC with Touchscreen,

Intel® Atom Processor E3826, OBD-II, GPS, USB 2.0/3.0,

HDMI, RS-232/422/485, RoHS Compliant, IP 54 Front Panel

User Manual

Rev. 1.10 – August 11, 2016

Page I

Page 2

IKARPC-07A-BT In-vehicle Panel PC

Revision

Date Version Changes

August 11, 2016 1.10 Updated Section 1.3: Front Panel

Updated Section 4.2: Mobile AP

November 27, 2015 1.01 Updated Table 6-1: Peripheral Interface Connectors

June 18, 2015 1.00 Initial release

Page II

Page 3

IKARPC-07A-BT In-vehicle Panel PC

The information in this document is subject to change without prior notice in order to

improve reliability, design and function and does not represent a commitment on the part

of the manufacturer.

In no event will the manufacturer be liable for direct, indirect, special, incidental, or

consequential damages arising out of the use or inability to use the product or

documentation, even if advised of the possibility of such damages.

This document contains proprietary information protected by copyright. All rights are

reserved. No part of this manual may be reproduced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer.

TRADEMARKS

All registered trademarks and product names mentioned herein are used for identification

purposes only and may be trademarks and/or registered trademarks of their respective

owners.

Page III

Page 4

IKARPC-07A-BT In-vehicle Panel PC

Manual Conventions

WARNING

Warnings appear where overlooked details may cause damage to the

equipment or result in personal injury. Warnings should be taken

seriously.

CAUTION

Cautionary messages should be heeded to help reduce the chance of

losing data or damaging the product.

NOTE

These messages inform the reader of essential but non-critical

information. These messages should be read carefully as any directions

or instructions contained therein can help avoid making mistakes.

HOT SURFACE

This symbol indicates a hot surface that should not be touched without

taking care.

Page IV

Page 5

IKARPC-07A-BT In-vehicle Panel PC

Table of Contents

1 INTRODUCTION.......................................................................................................... 1

1.1 OVERVIEW.................................................................................................................. 2

1.2 FEATURES................................................................................................................... 2

1.3 FRONT PANEL............................................................................................................. 3

1.3.1 LED Indicators................................................................................................... 4

1.4 REAR PANEL............................................................................................................... 5

1.5 BOTTOM PANEL.......................................................................................................... 6

1.6 SIDE PANELS .............................................................................................................. 6

1.7 TOP PANEL ................................................................................................................. 7

1.8 DIMENSIONS............................................................................................................... 7

1.9 SYSTEM SPECIFICATIONS............................................................................................ 8

2 UNPACKING............................................................................................................... 10

2.1 PACKING LIST............................................................................................................11

2.2 OPTIONAL ITEMS...................................................................................................... 12

3 INSTALLATION ......................................................................................................... 15

3.1 ANTI-STATIC PRECAUTIONS...................................................................................... 16

3.2 INSTALLATION PRECAUTIONS ................................................................................... 16

MICROSD CARD INSTALLATION................................................................................ 17

3.3

3.4 SIM CARD INSTALLATION (OPTIONAL) .................................................................... 18

3.5

MOUNTING THE SYSTEM .......................................................................................... 20

3.6 EXTERNAL I/O CONNECTORS................................................................................... 21

3.6.1 I/O Connector 1 (20-pin)................................................................................. 21

3.6.2 I/O Connector 2 (24-pin)................................................................................. 22

3.6.3 HDMI Connector............................................................................................. 23

3.6.4 Power Input Connection.................................................................................. 24

3.6.5 USB Connector ................................................................................................ 25

3.7 POWER-ON PROCEDURE........................................................................................... 26

3.7.1 Power State...................................................................................................... 26

3.8 SYSTEM MAINTENANCE........................................................................................... 27

Page V

Page 6

IKARPC-07A-BT In-vehicle Panel PC

4 SOFTWARE DRIVERS.............................................................................................. 28

4.1 DRIVERS................................................................................................................... 29

4.2 MOBILE AP.............................................................................................................. 30

4.2.1 Installation....................................................................................................... 30

4.2.2 Usage ............................................................................................................... 31

5 BIOS.............................................................................................................................. 33

5.1 INTRODUCTION......................................................................................................... 34

5.1.1 Starting Setup................................................................................................... 34

5.1.2 Using Setup...................................................................................................... 34

5.1.3 Getting Help..................................................................................................... 35

5.1.4 BIOS Menu Bar................................................................................................ 35

5.2

MAIN........................................................................................................................ 36

5.3 ADVANCED............................................................................................................... 38

5.3.1 ACPI Settings................................................................................................... 39

5.3.2 Super IO Configuration ................................................................................... 40

5.3.2.1 Serial Port 1 Configuration....................................................................... 40

5.3.3 Hardware Monitor ........................................................................................... 42

5.3.4 Power Management......................................................................................... 43

5.3.5 SMS/RTC Wake Settings................................................................................... 44

5.3.6 Serial Port Console Redirection...................................................................... 45

5.3.7 CPU Configuration.......................................................................................... 48

5.3.8 IDE Configuration........................................................................................... 50

5.3.9 USB Configuration........................................................................................... 51

CHIPSET ................................................................................................................... 52

5.4

5.4.1 North Bridge Configuration............................................................................. 53

5.4.1.1 Intel IGD Configuration............................................................................ 54

5.4.2 South Bridge Configuration............................................................................. 55

5.5 SECURITY................................................................................................................. 57

5.6 BOOT........................................................................................................................ 58

5.7 SAVE & EXIT ............................................................................................................ 60

6 INTERFACE CONNECTORS................................................................................... 62

6.1 PERIPHERAL INTERFACE CONNECTORS..................................................................... 63

6.2 INTERNAL PERIPHERAL CONNECTORS...................................................................... 64

Page VI

Page 7

IKARPC-07A-BT In-vehicle Panel PC

6.2.1 Battery Connector (BT1).................................................................................. 65

6.2.2 Camera Connector (WEB1)............................................................................. 65

6.2.3 Clear CMOS Connector (C_CMOS1) ............................................................. 65

6.2.4 LED Connector (JLED1)................................................................................. 65

6.2.5 LVDS Connector (LVDS1) ............................................................................... 66

6.2.6 Microphone Connector (JMIC1) ..................................................................... 67

6.2.7 mSATA Module Socket (SATA1)....................................................................... 67

6.2.8 PCIe Mini Socket for 3.75G Module (MINI_PCIE1) ...................................... 68

6.2.9 PCIe Mini Socket for Wireless Module (MINI_PCIE2)................................... 69

6.2.10 Programming Connector (JMCU1)............................................................... 70

6.2.11 Programming Connector (JOBD1)................................................................ 70

6.2.12 Speaker Connector (JSP1)............................................................................. 70

6.2.13 SPI Flash Connector (JSPI1)......................................................................... 71

6.2.14 Touch Panel Connector (TOUCH1)............................................................... 71

6.3

EXTERNAL PERIPHERAL CONNECTORS..................................................................... 72

A REGULATORY COMPLIANCE.............................................................................. 73

B SAFETY PRECAUTIONS.........................................................................................78

B.1 SAFETY PRECAUTIONS............................................................................................. 79

B.1.1 General Safety Precautions............................................................................. 79

B.1.2 Anti-static Precautions.................................................................................... 80

B.1.3 Product Disposal............................................................................................. 81

B.2 MAINTENANCE AND CLEANING PRECAUTIONS ........................................................ 82

B.2.1 Maintenance and Cleaning.............................................................................. 82

B.2.2 Cleaning Tools................................................................................................. 82

C OBD-II READER COMMAND ................................................................................ 84

SELECT A CHIP INITIAL MODE: UPDATE F/W OR RUN F/W.................................... 85

C.1

C.2 BOOT MODE ............................................................................................................ 85

C.3 RUN MODE.............................................................................................................. 85

C.4 INTO CAN_STANDARD V2.2.B (CAN STANDARD).................................................. 87

C.5 INTO TELEMATICS (VEHICEL INFORMATION) ........................................................... 89

D WA TCHDOG TIMER ................................................................................................ 93

E HAZARDOUS MATERIALS DISCLOSURE ......................................................... 96

Page VII

Page 8

IKARPC-07A-BT In-vehicle Panel PC

List of Figures

Figure 1-1: IKARPC-07A-BT Panel PC..........................................................................................2

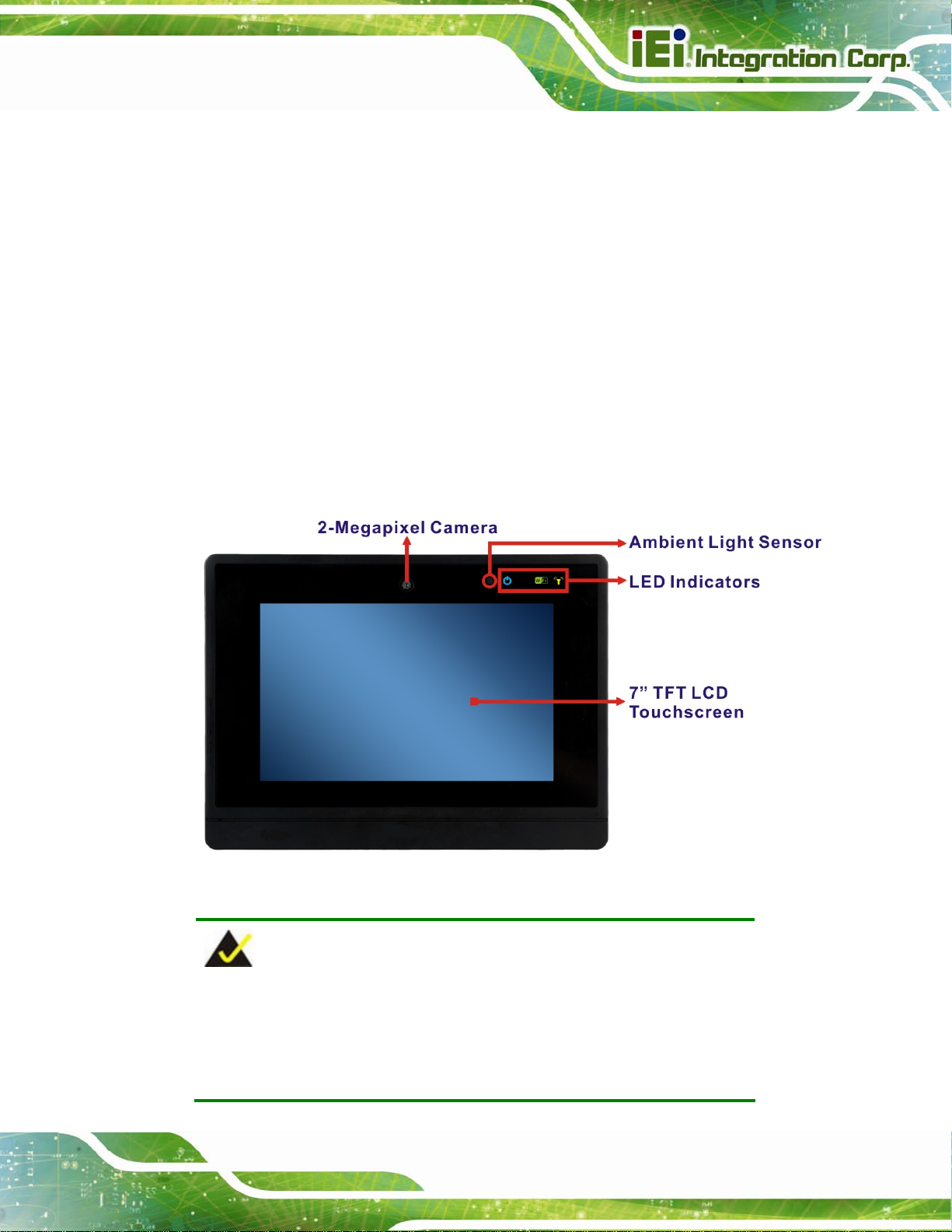

Figure 1-2: Front View....................................................................................................................3

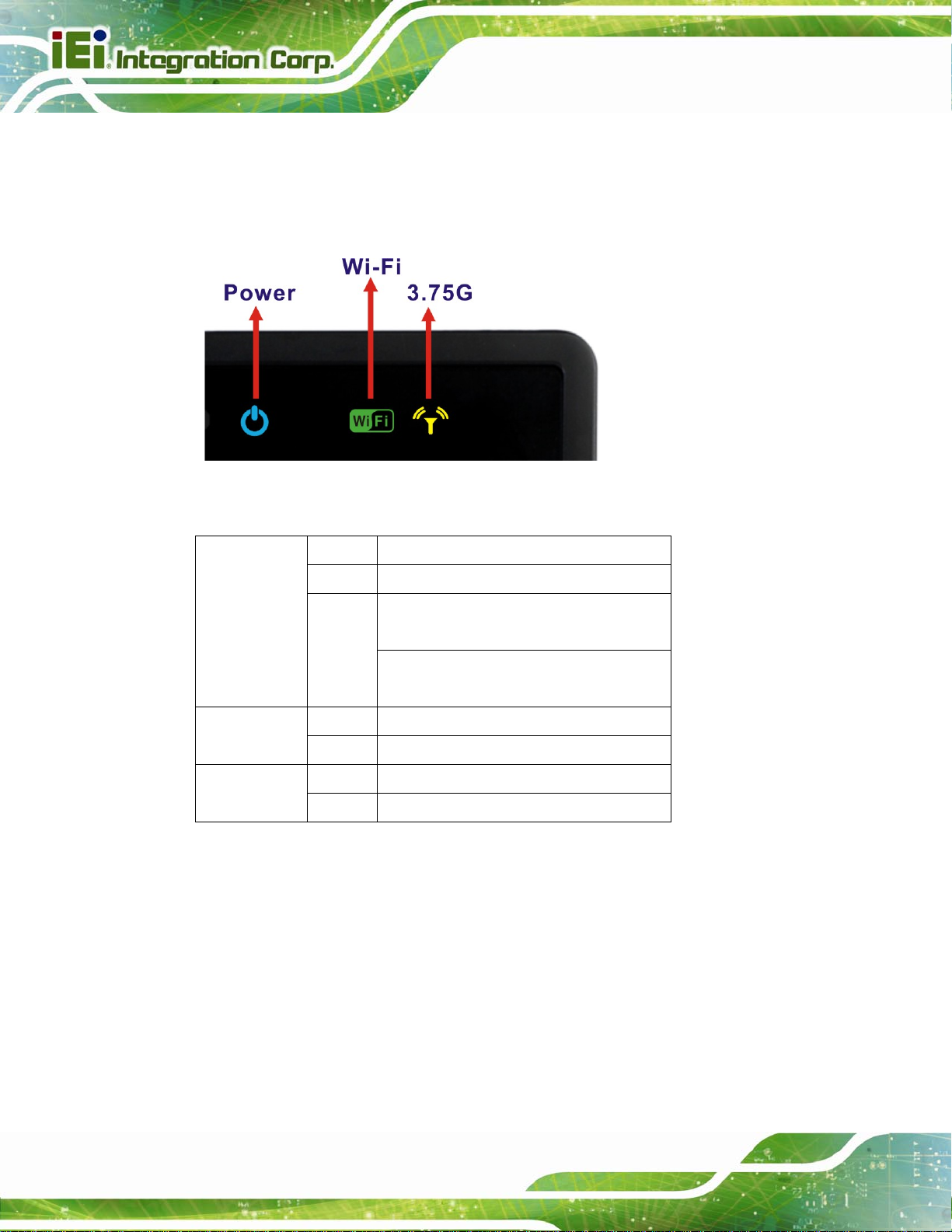

Figure 1-3: LED Indicators.............................................................................................................4

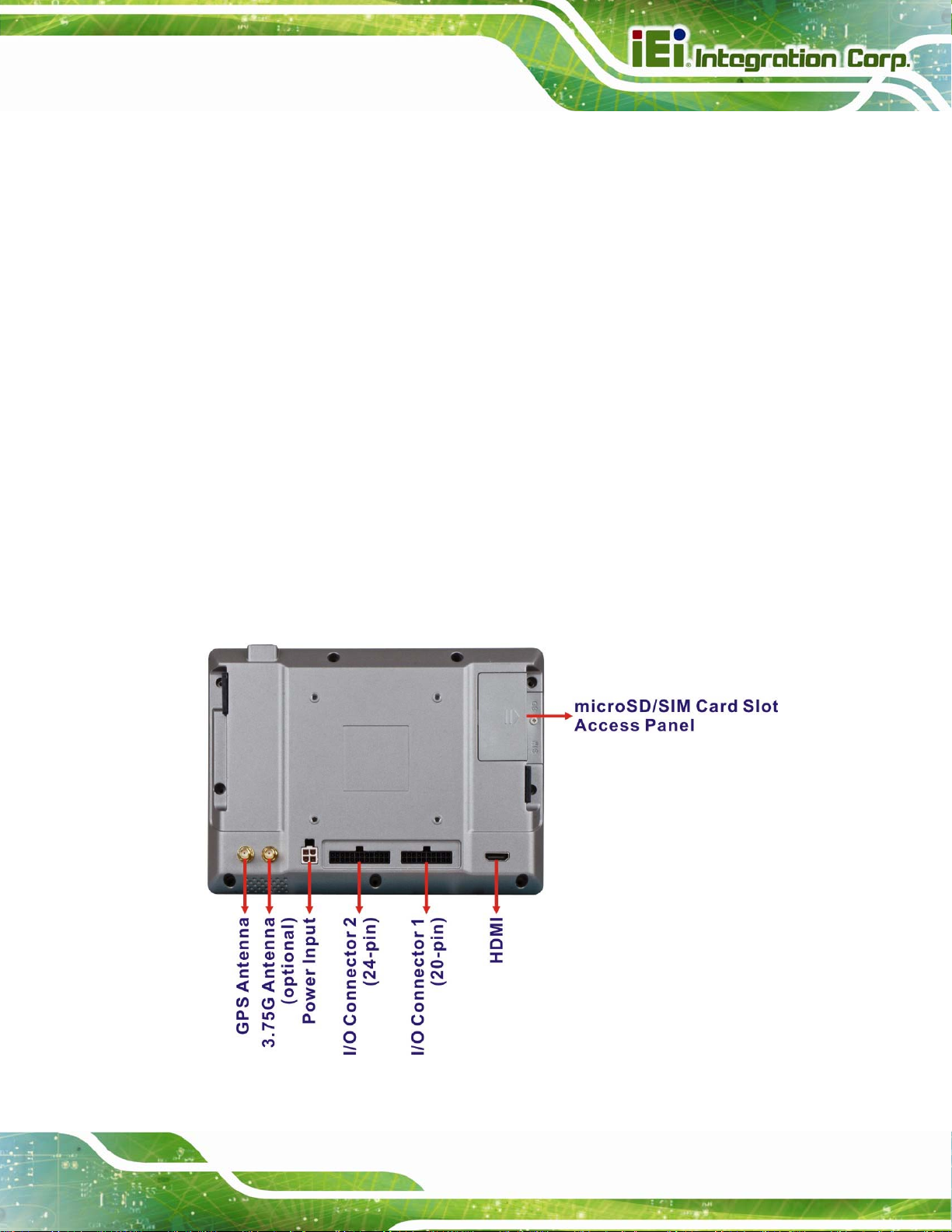

Figure 1-4: Rear Panel....................................................................................................................5

Figure 1-5: Bottom View ................................................................................................................6

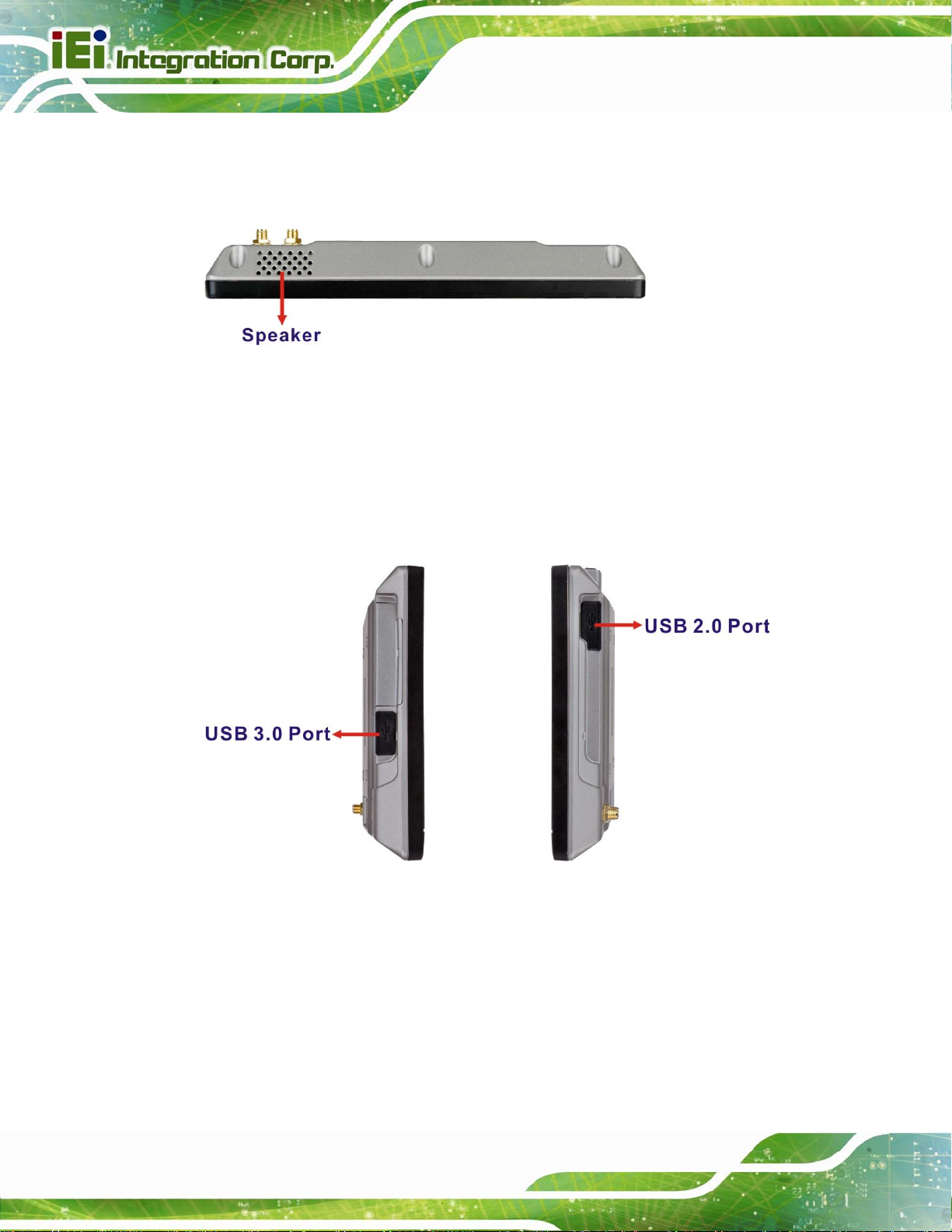

Figure 1-6: Side Panels..................................................................................................................6

Figure 1-7: Top Panel.....................................................................................................................7

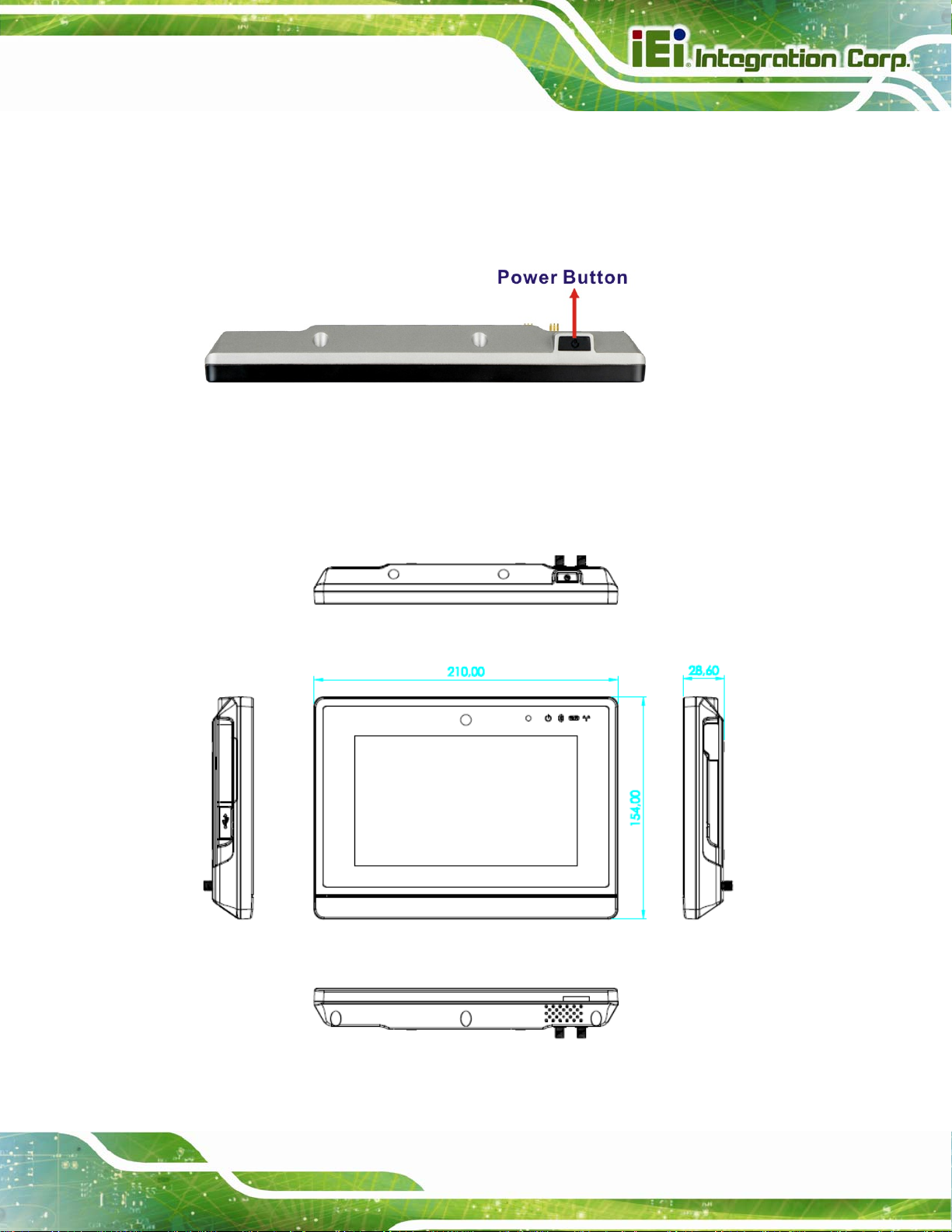

Figure 1-8: Dimensions (unit: mm)...............................................................................................7

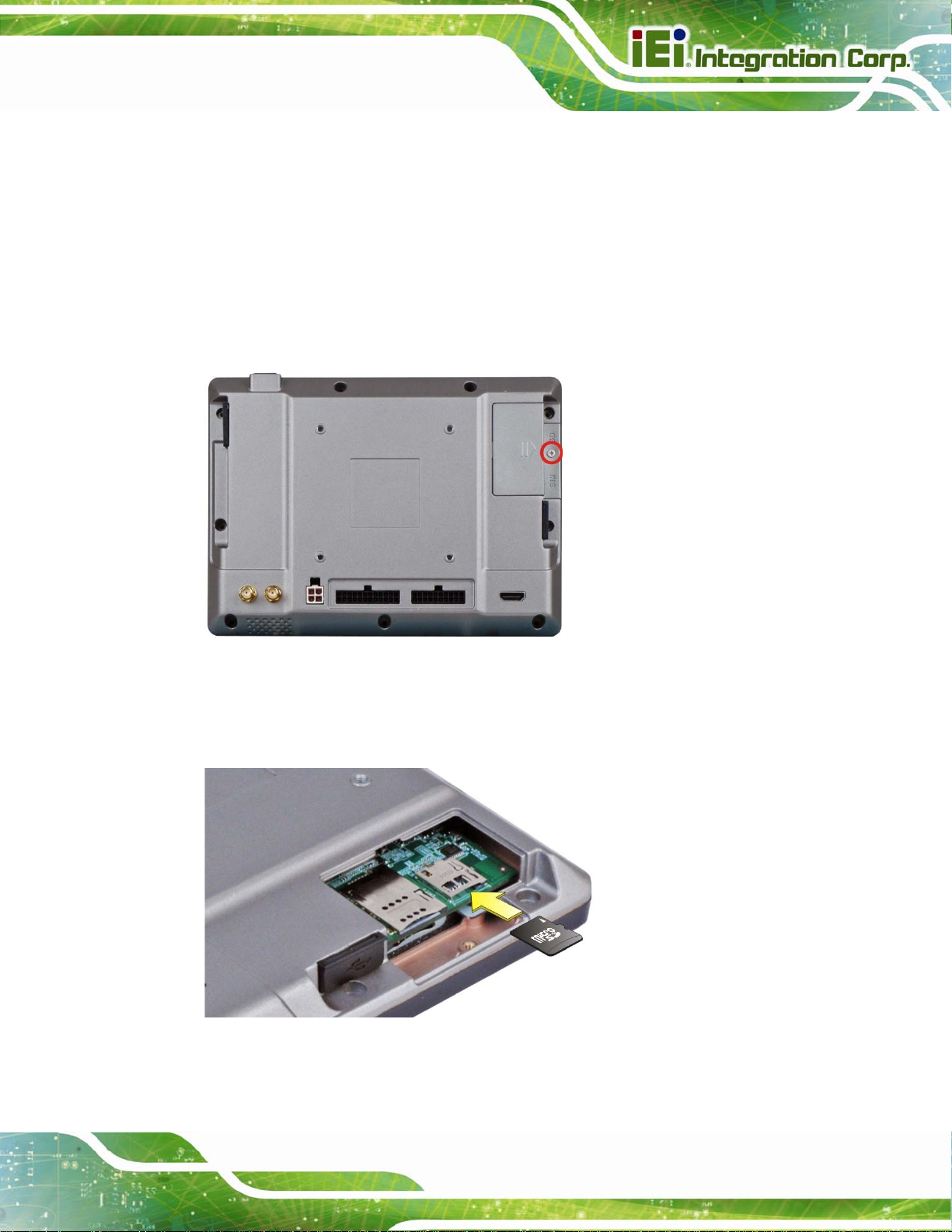

Figure 3-1: microSD Card Slot Access Panel Retention Screw...............................................17

Figure 3-2: Install microSD Card.................................................................................................17

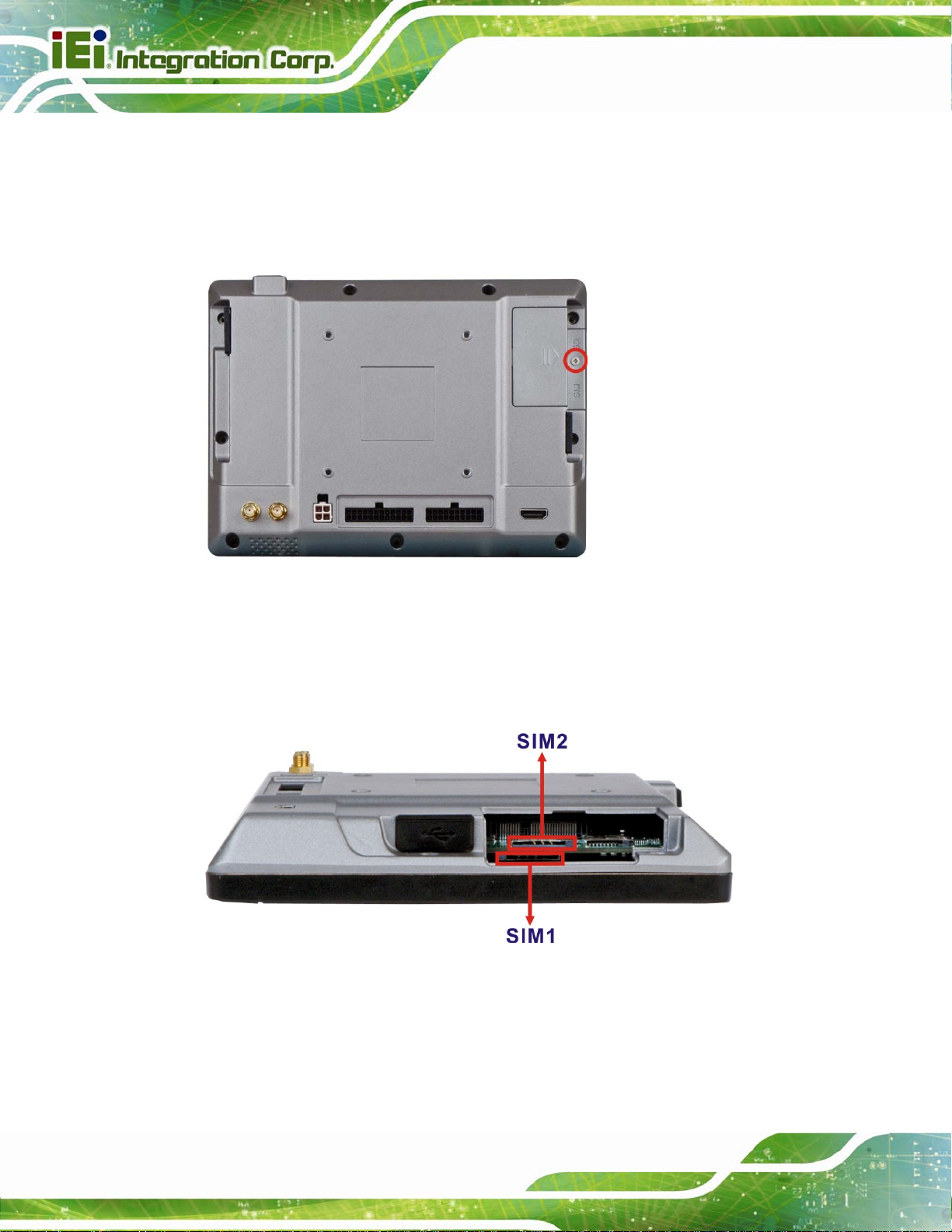

Figure 3-3: SIM Card Slot Access Panel Retention Screw.......................................................18

Figure 3-4: SIM Card Slot Locations...........................................................................................18

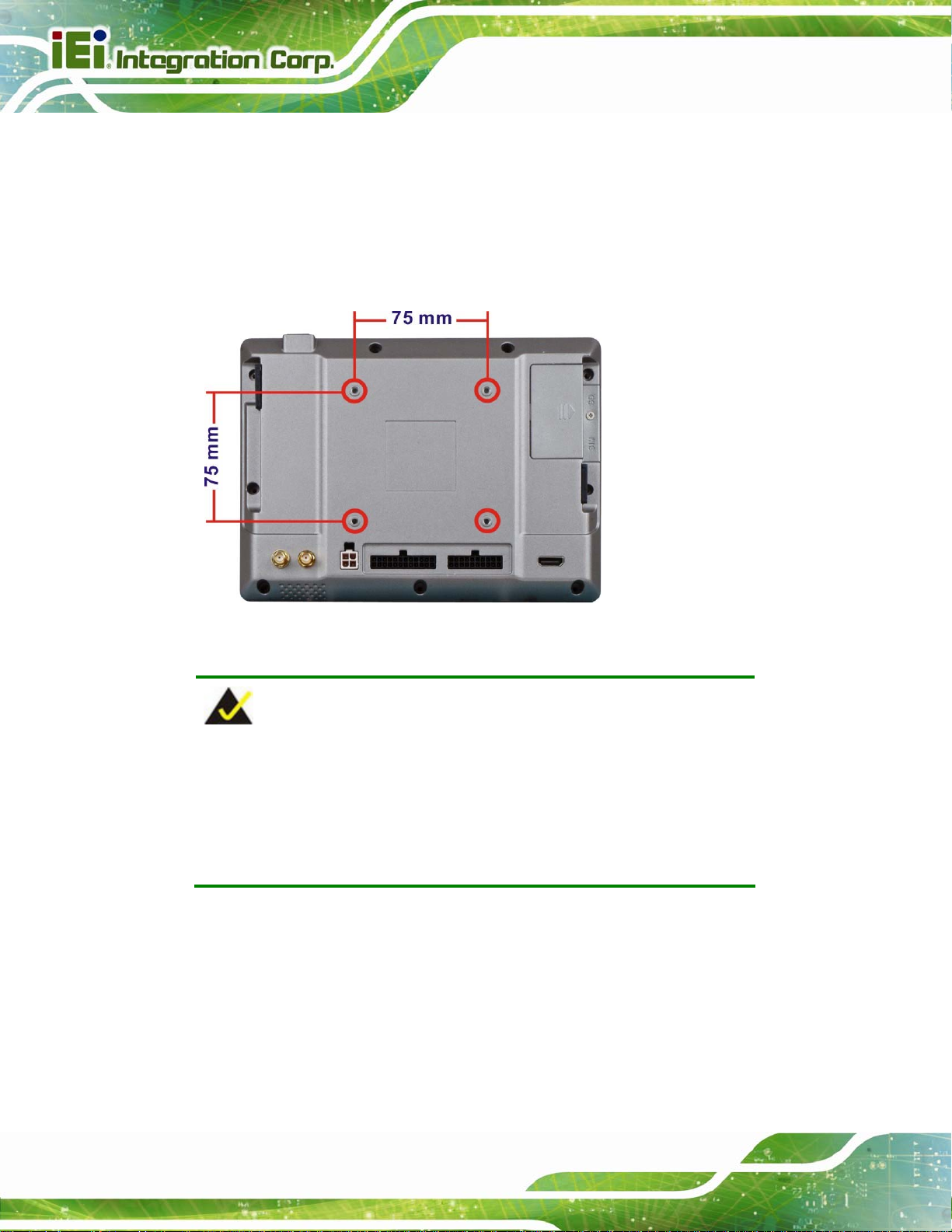

Figure 3-5: VESA Mount Retention Screw Holes ......................................................................20

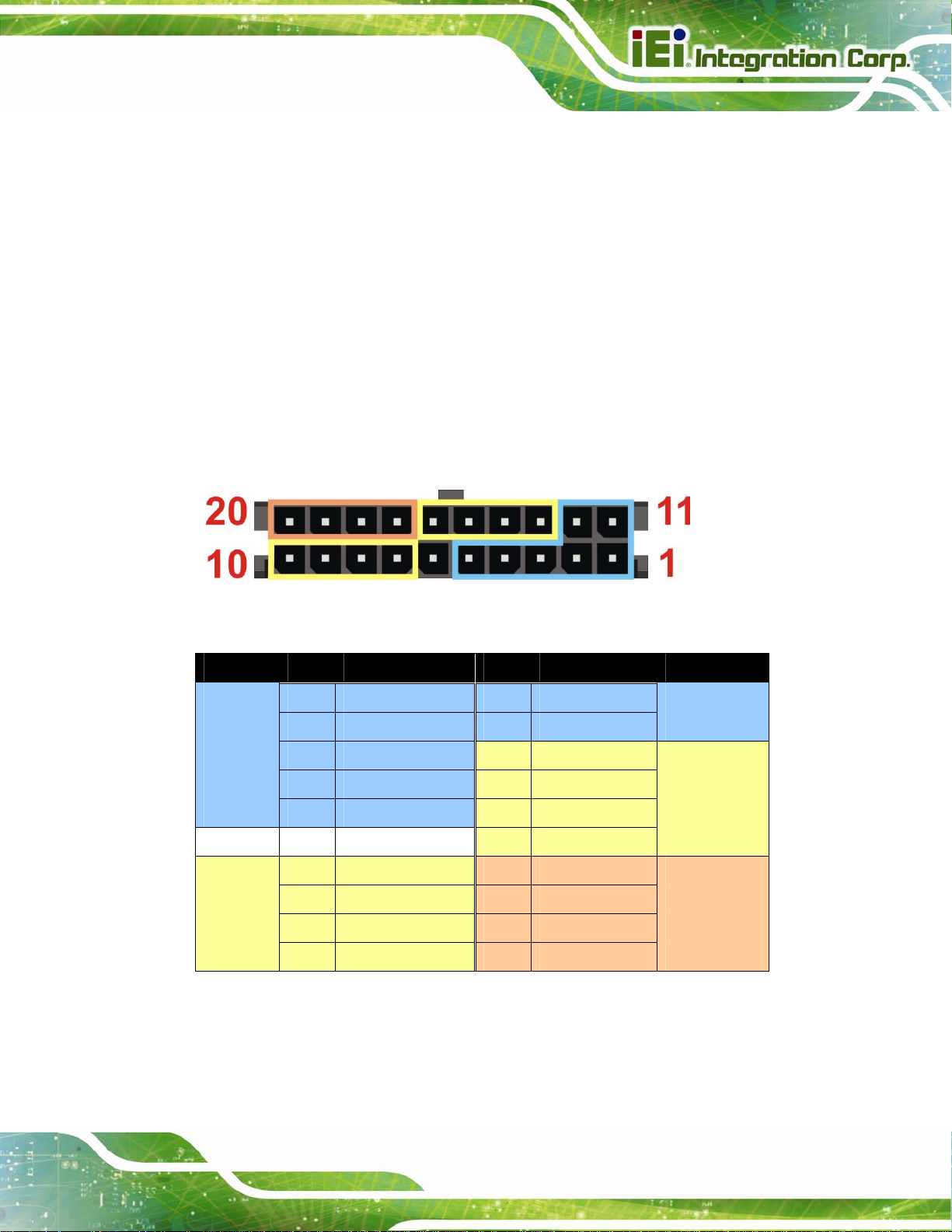

Figure 3-6: IO 1 Connector Pinout Locations............................................................................21

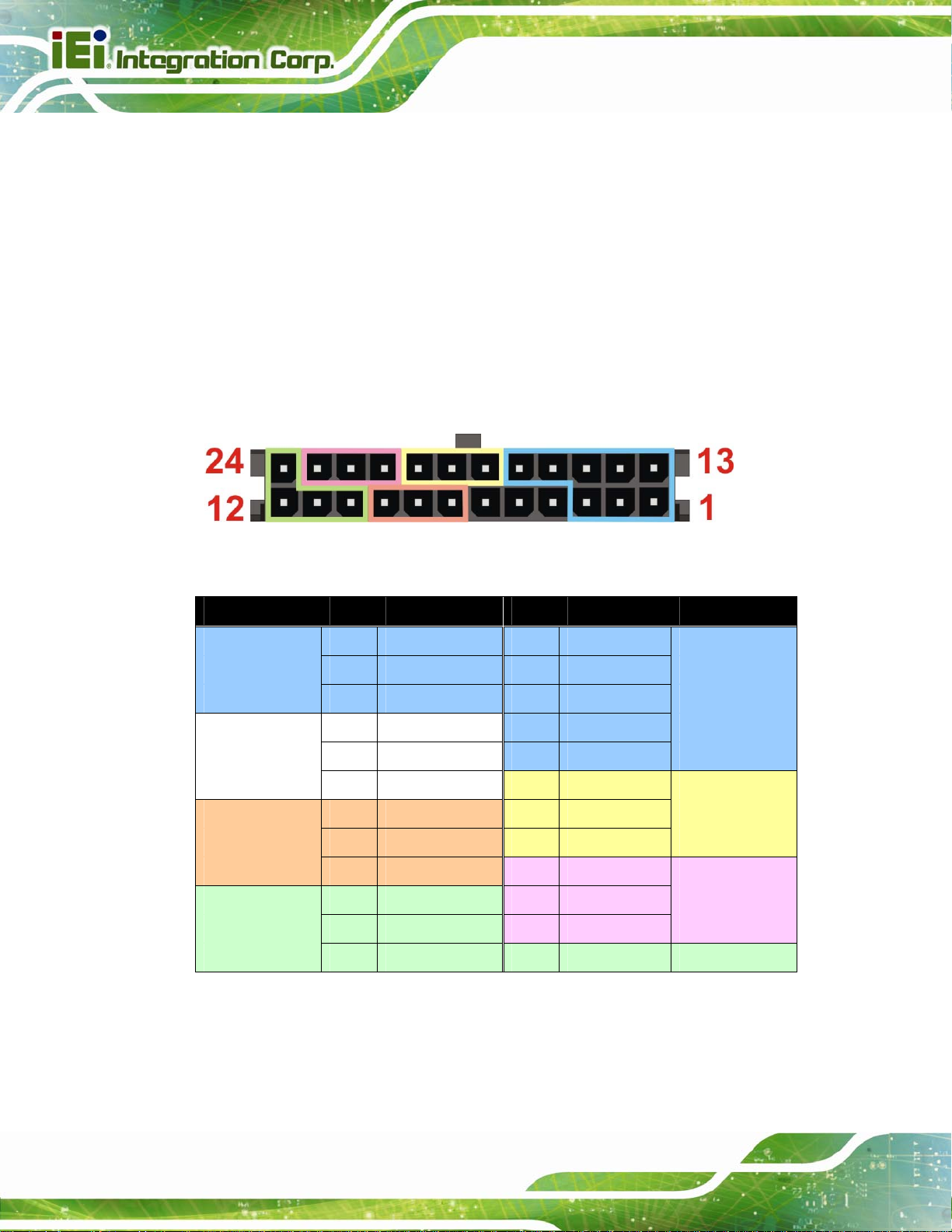

Figure 3-7: IO 2 Connector Pinout Locations............................................................................22

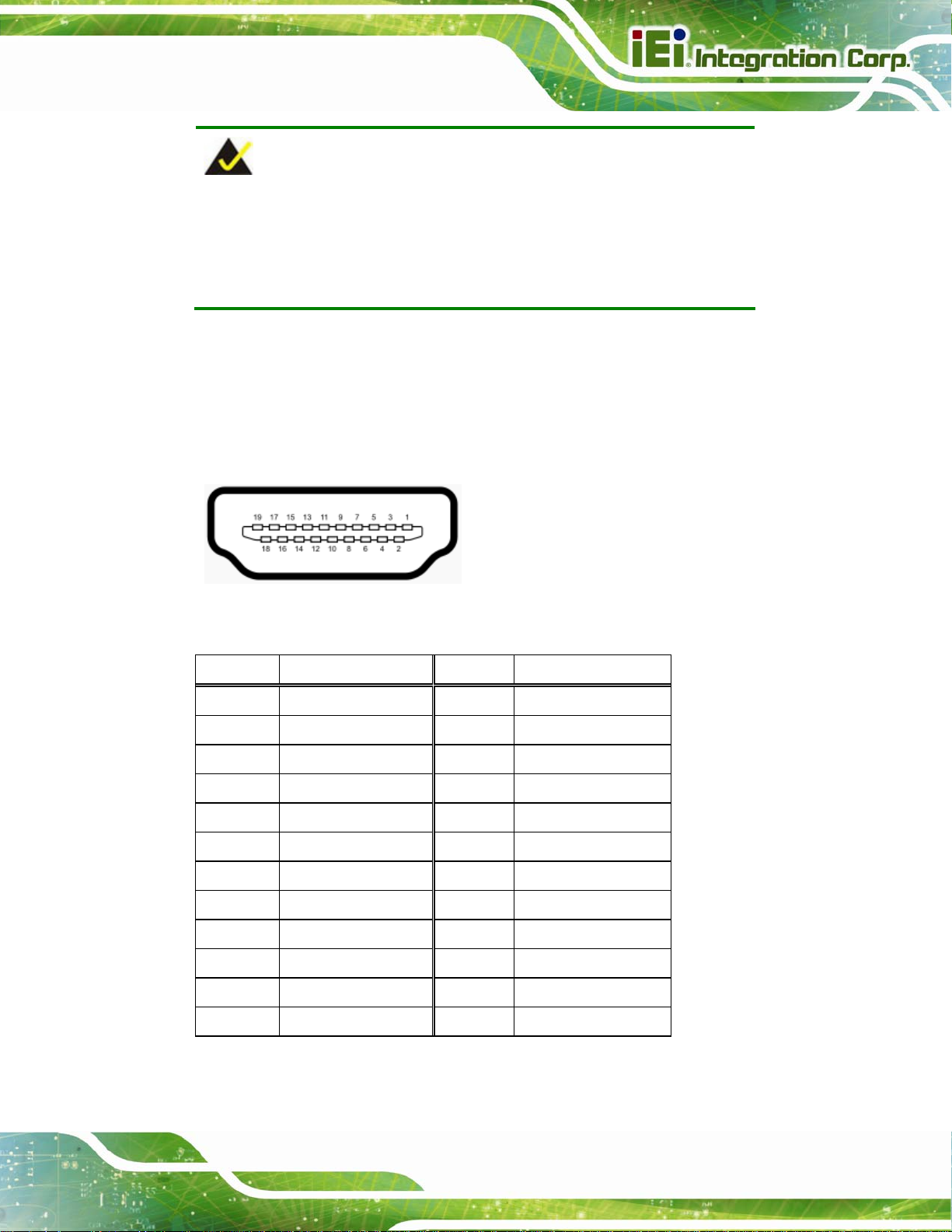

Figure 3-8: HDMI Connector........................................................................................................23

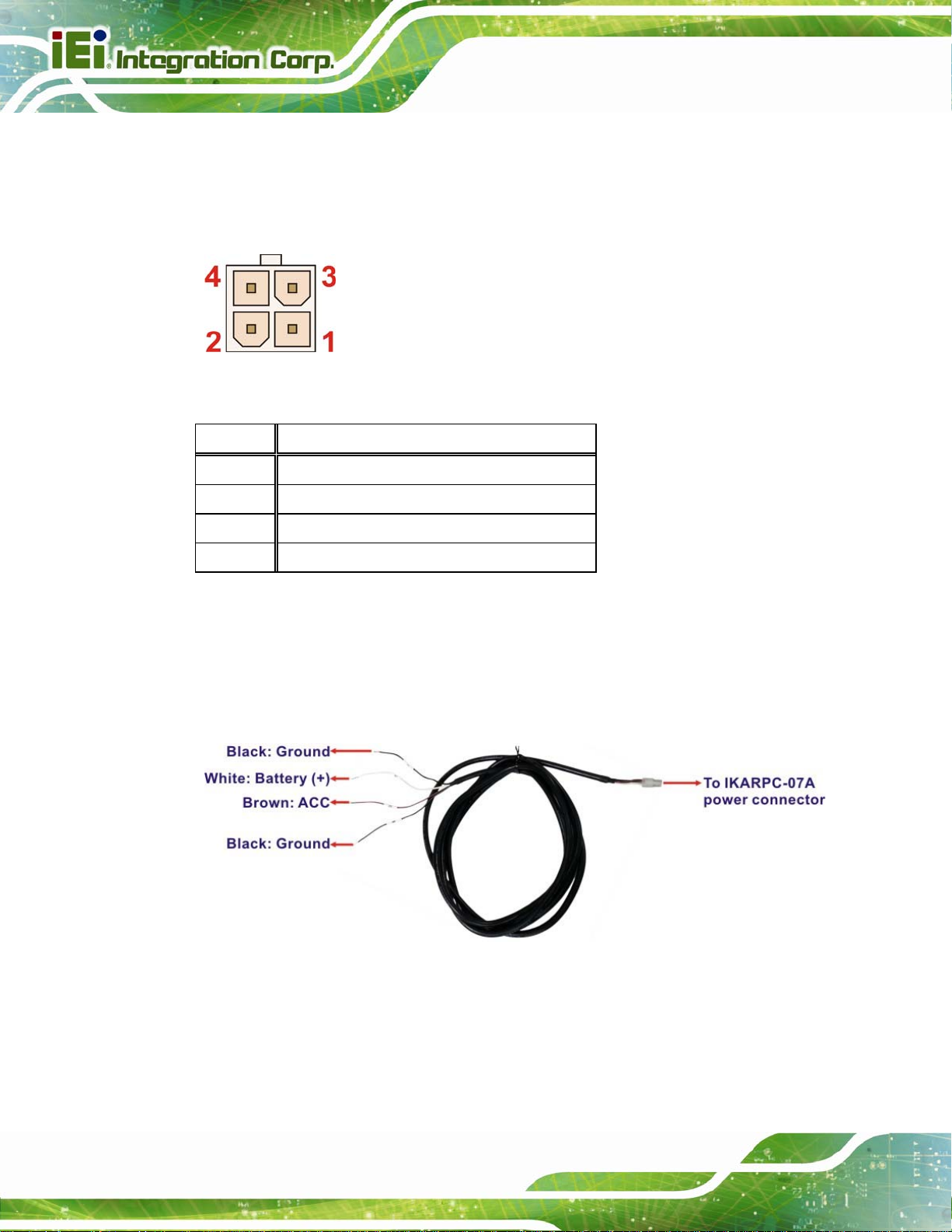

Figure 3-9: Power Input Connector.............................................................................................24

Figure 3-10: ACC Power Cable....................................................................................................24

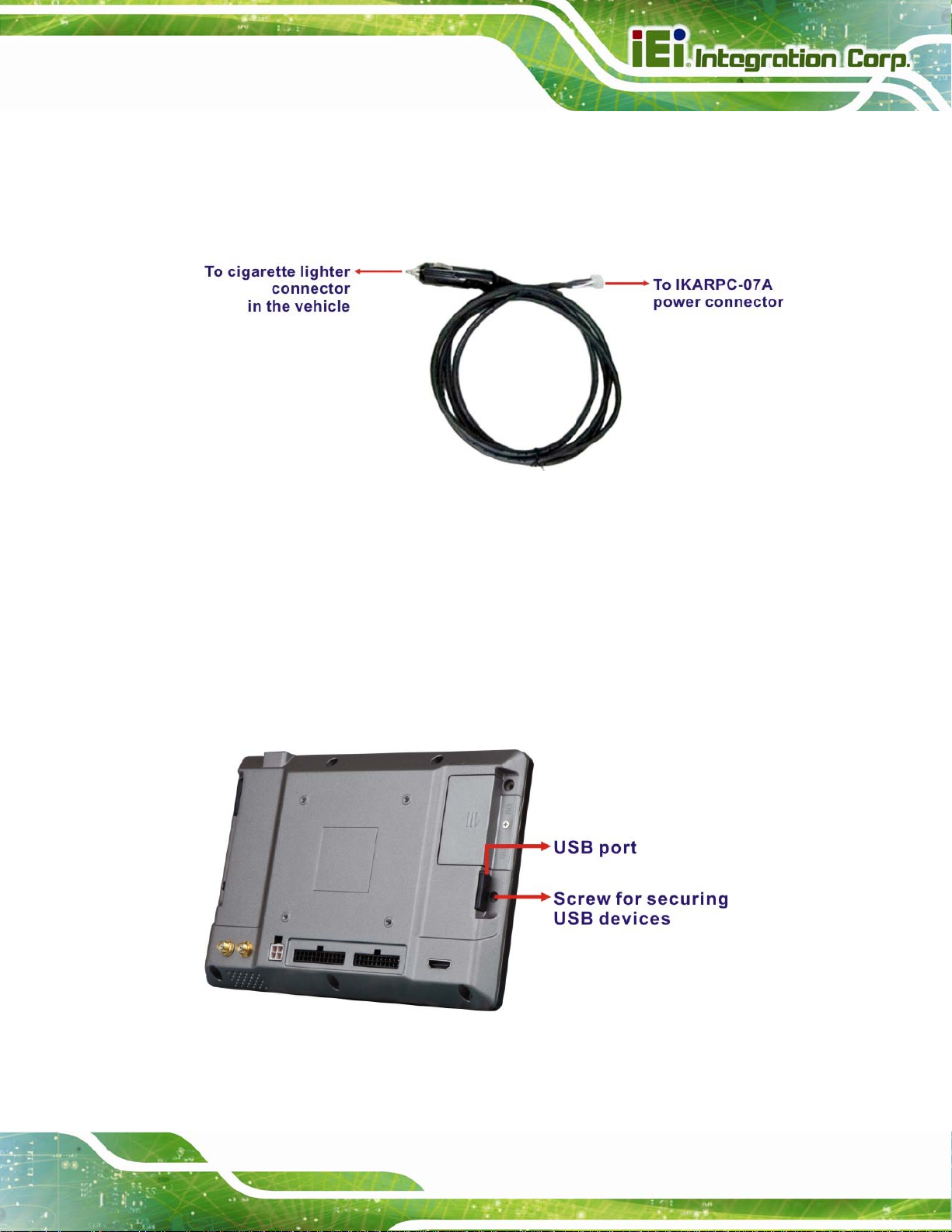

Figure 3-11: Optional Cigarette Lighter Cable...........................................................................25

Figure 3-12: USB Connector........................................................................................................25

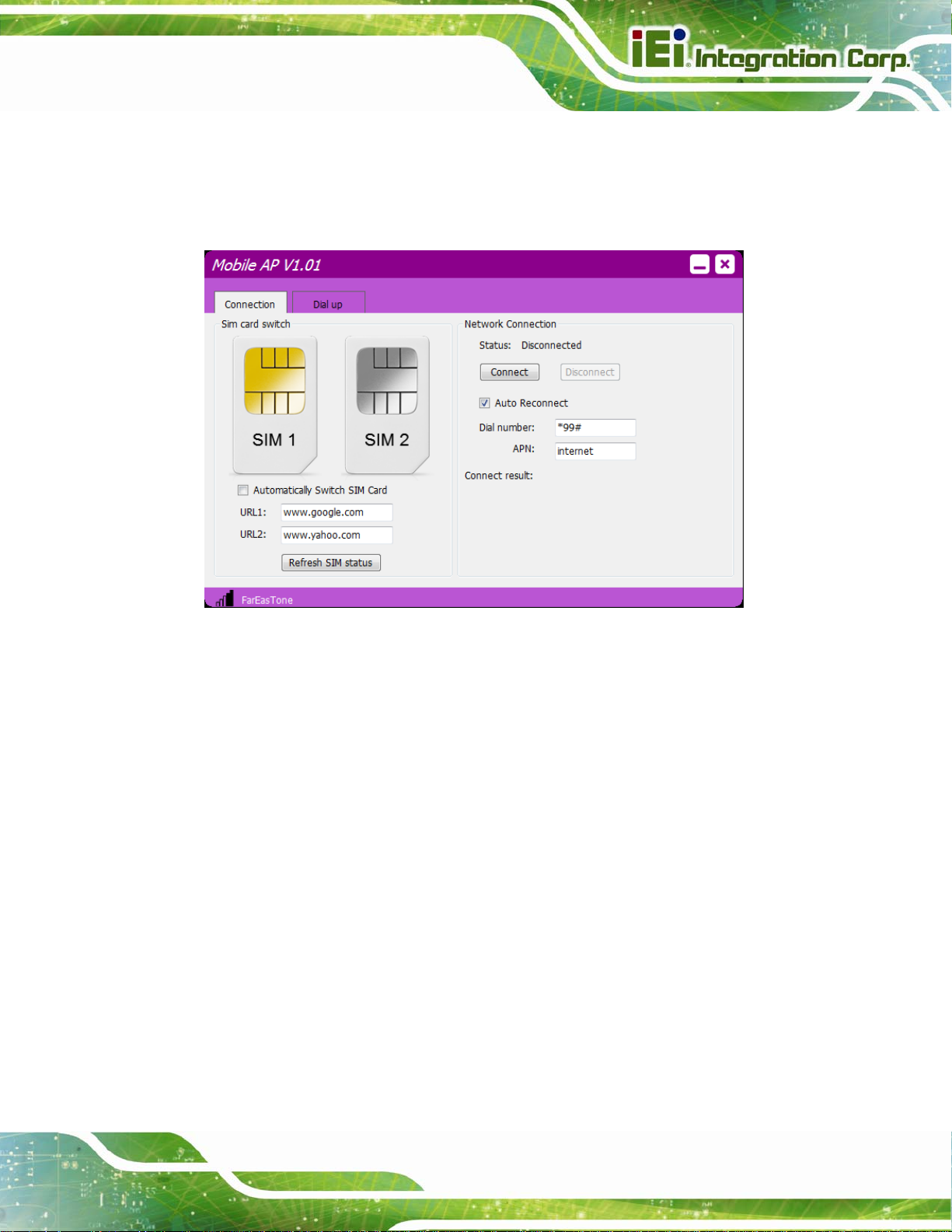

Figure 4-1: Mobile AP–Connection.............................................................................................31

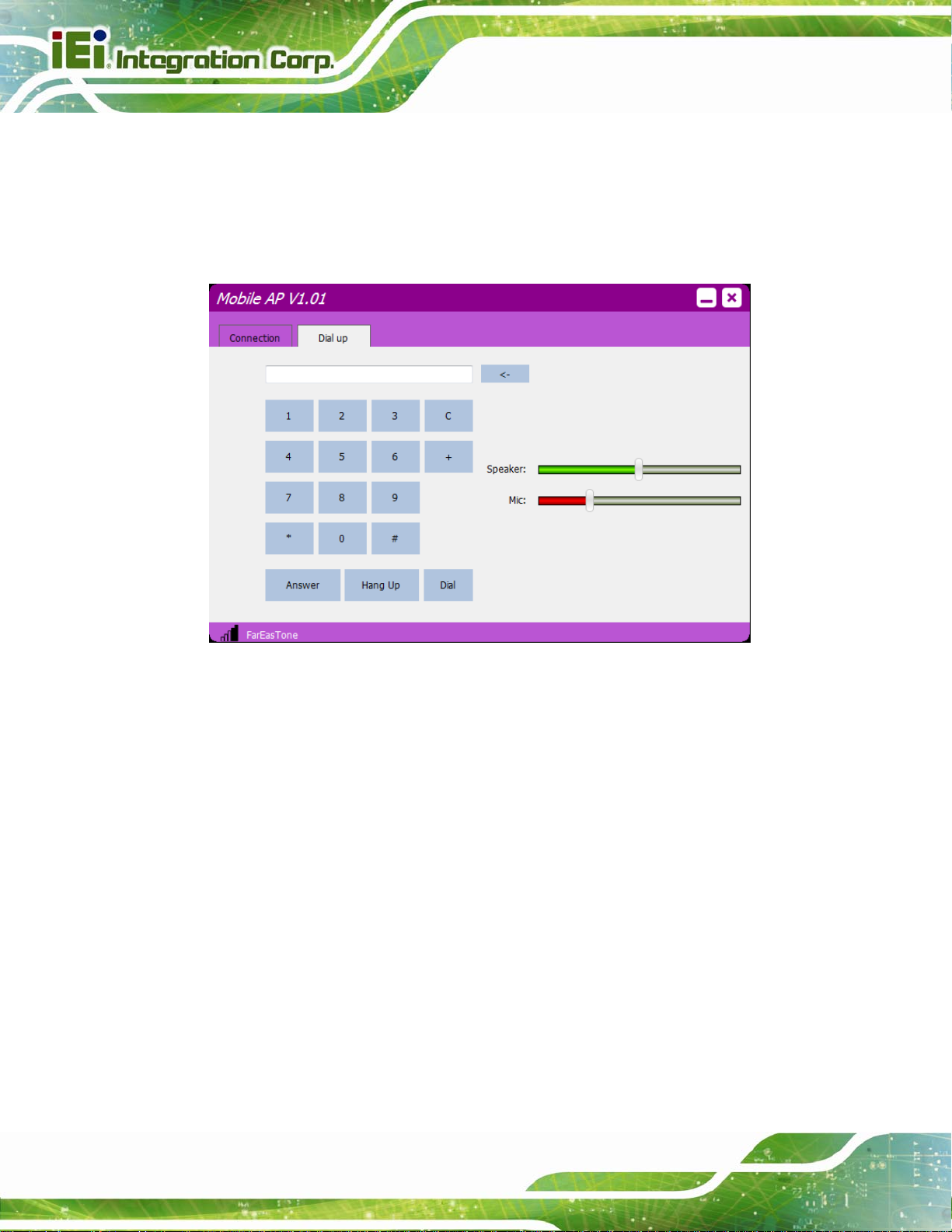

Figure 4-2: Mobile AP–Dial Up ....................................................................................................32

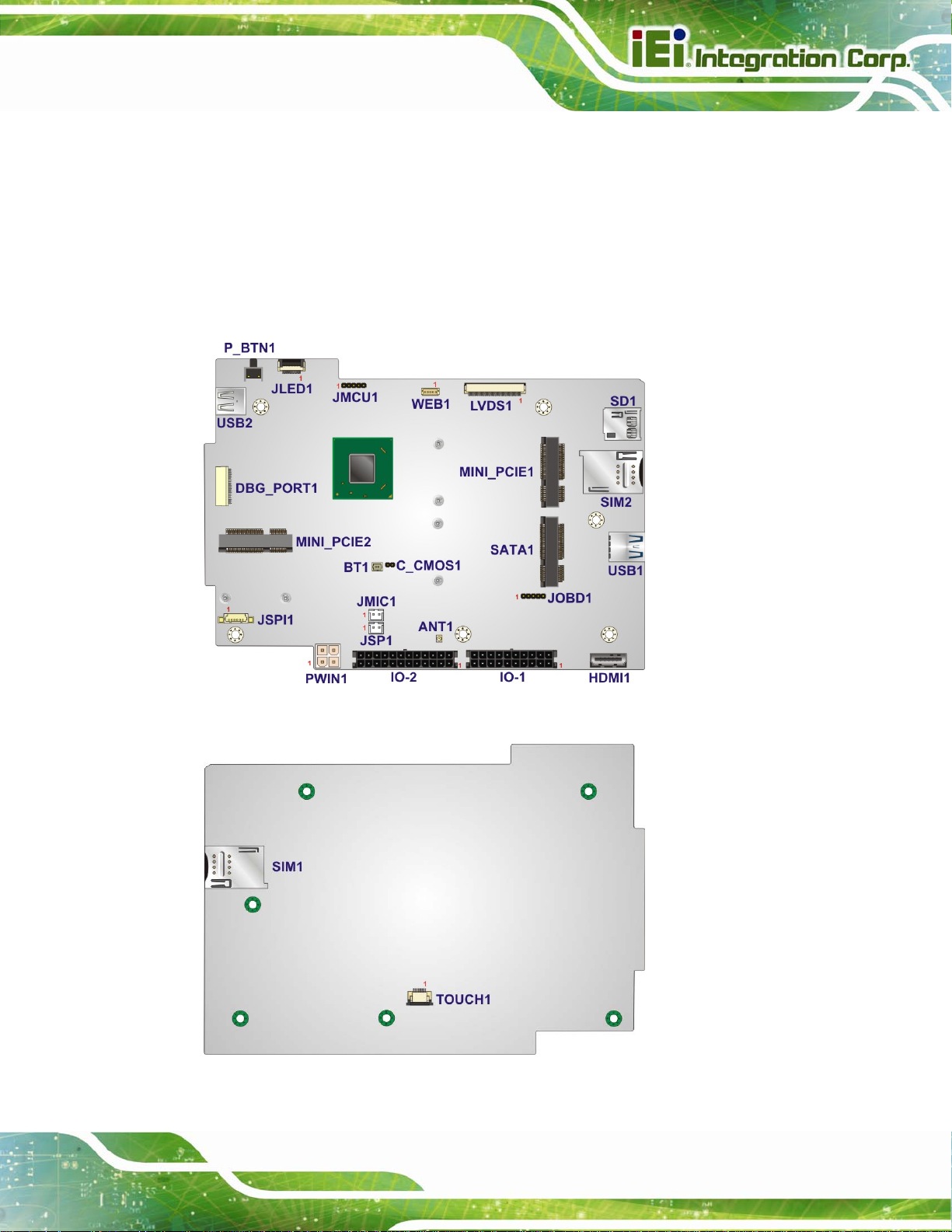

Figure 6-1: Main Board Layout Diagram (Front Side)...............................................................63

Figure 6-2: Main Board Layout Diagram (Solder Side).............................................................63

Page VIII

Page 9

IKARPC-07A-BT In-vehicle Panel PC

List of Tables

Table 1-1: LED Indicators ..............................................................................................................4

Table 1-2: Technical Specifications..............................................................................................9

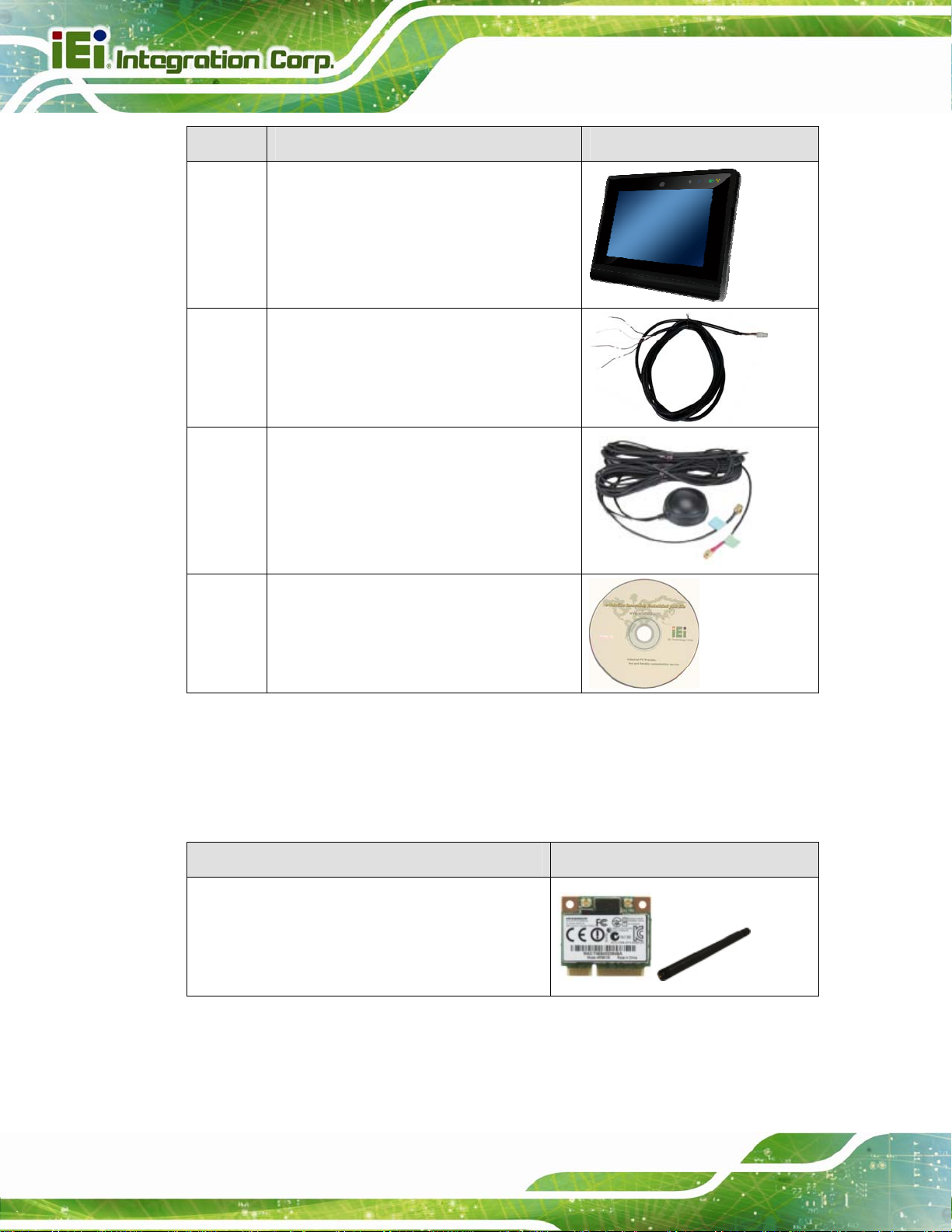

Table 2-1: Packing List.................................................................................................................12

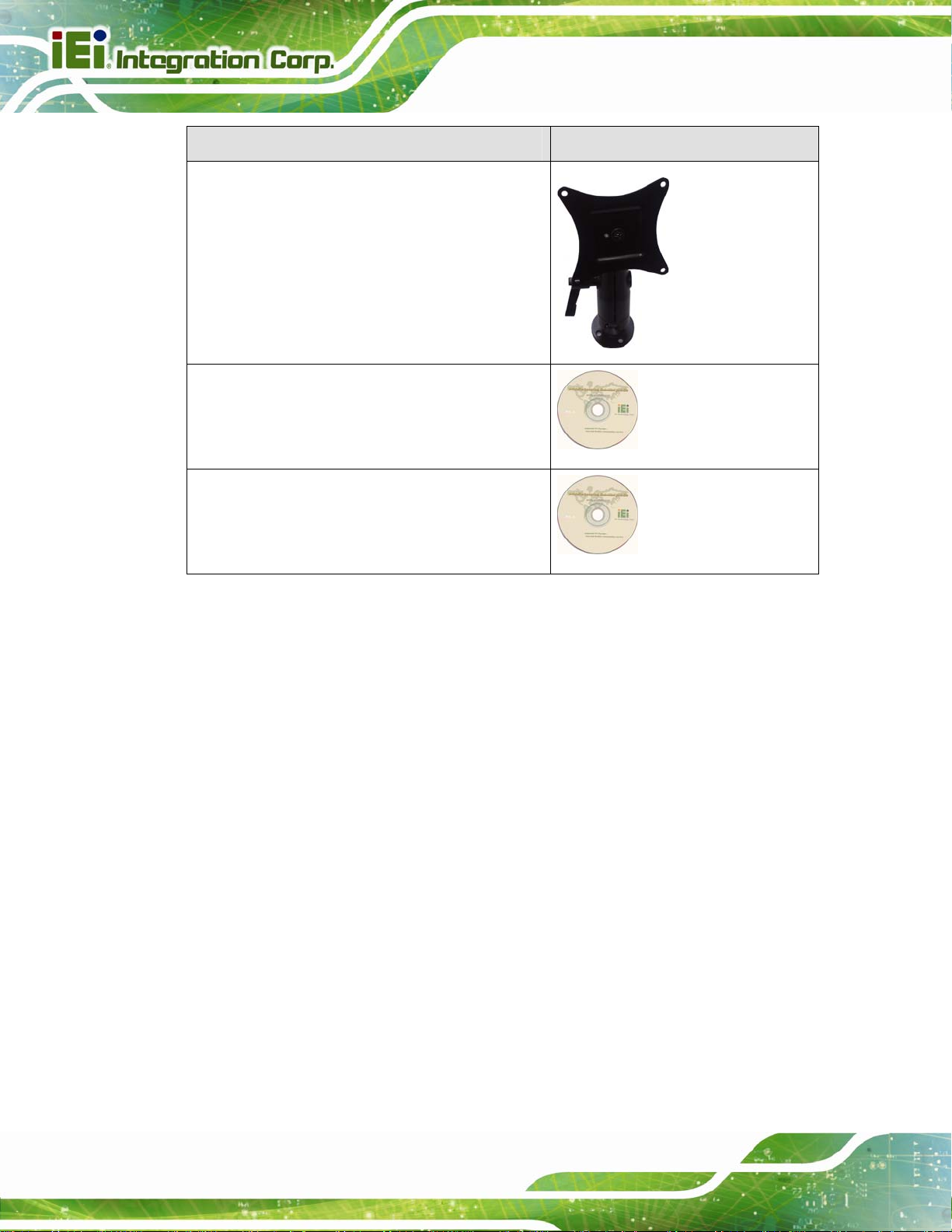

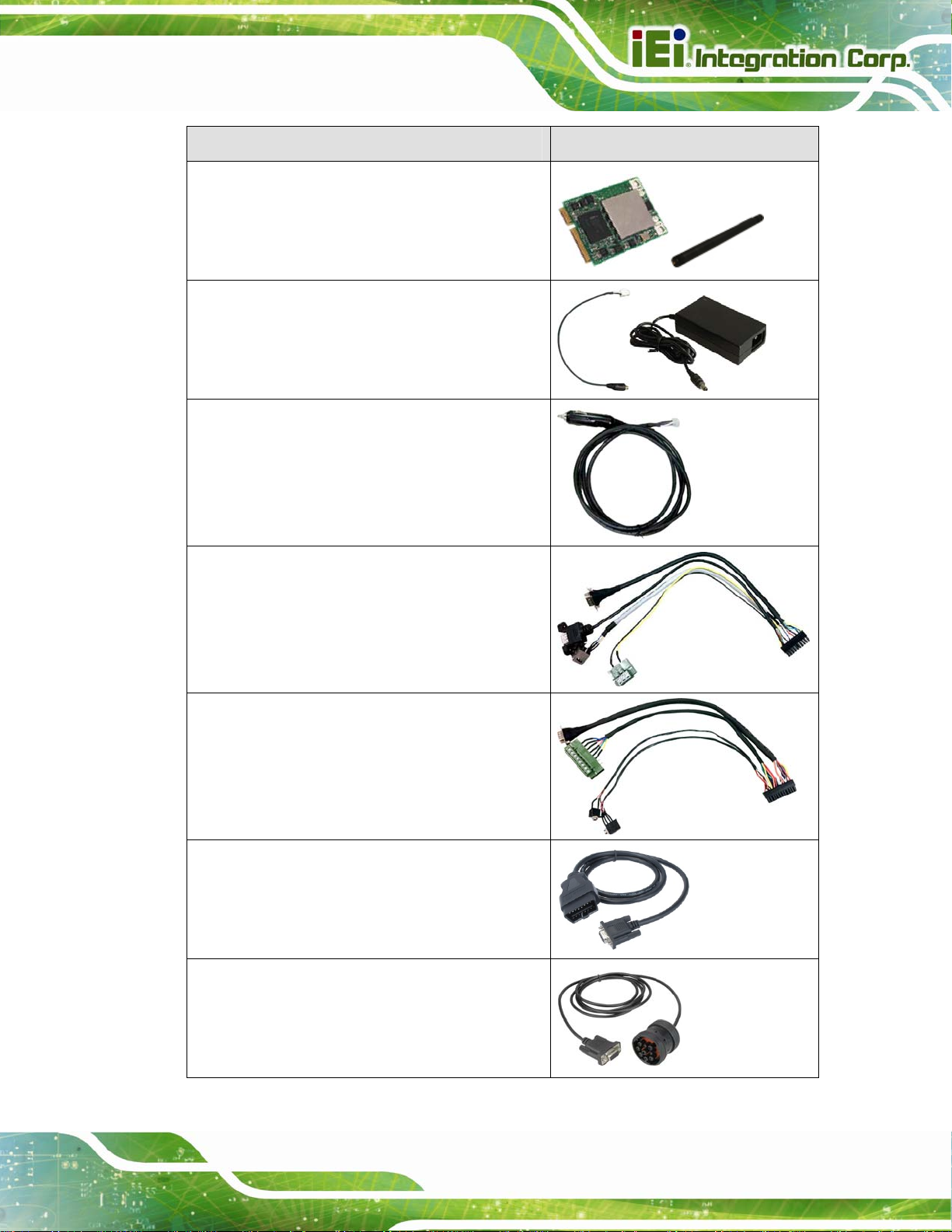

Table 2-2: Optional Items.............................................................................................................14

Table 3-1: IO 1 Connector Pinouts..............................................................................................21

Table 3-2: IO 2 Connector Pinouts..............................................................................................22

Table 3-3: HDMI Connector Pinouts ...........................................................................................23

Table 3-4: Power Input Connector Pinouts................................................................................24

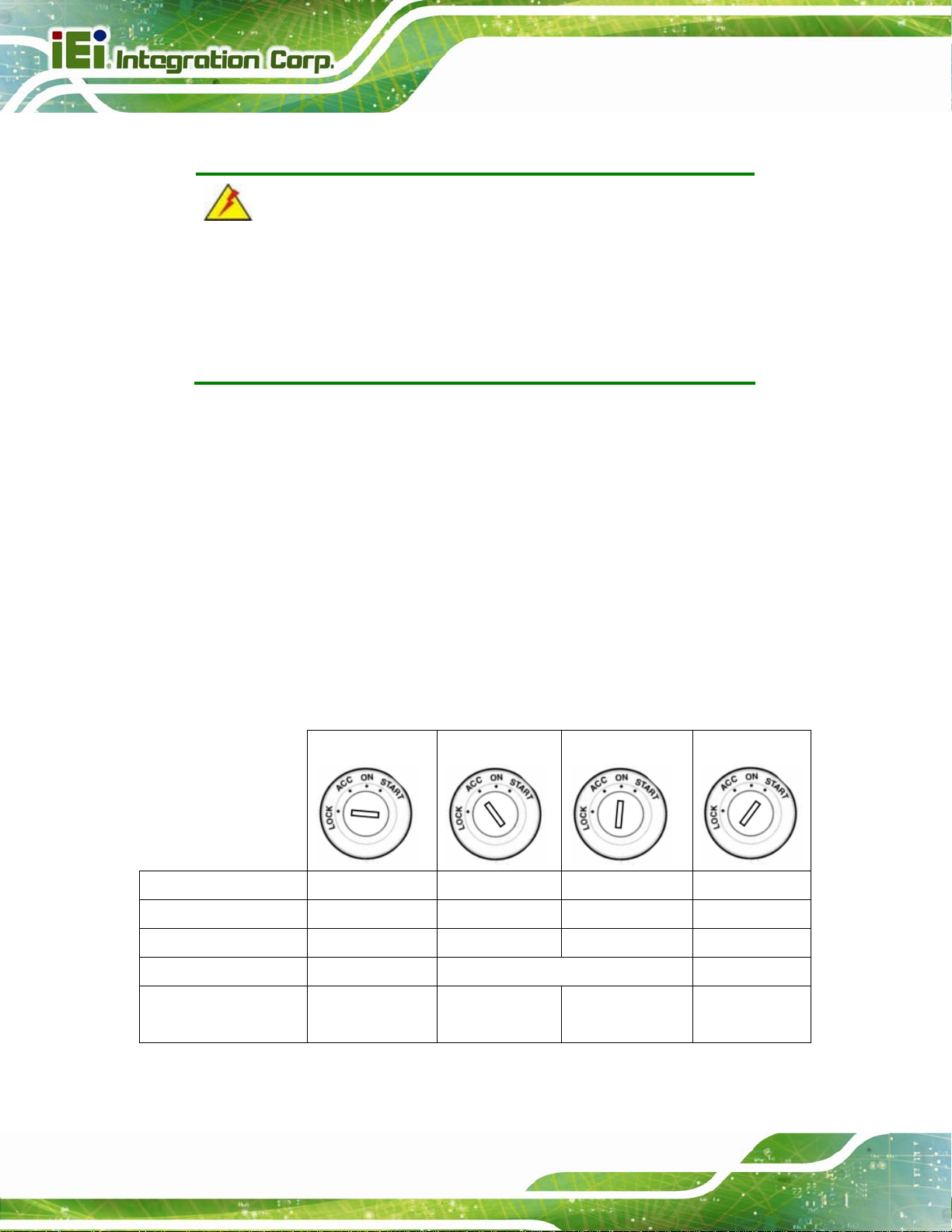

Table 3-5: Power State and Ignition System..............................................................................26

Table 5-1: BIOS Navigation Keys................................................................................................35

Table 6-1: Peripheral Interface Connectors...............................................................................64

Table 6-2: Battery Connector (BT1) Pinouts..............................................................................65

Table 6-3: Camera Connector (WEB1) Pinouts .........................................................................65

Table 6-4: Clear CMOS Connector (C_CMOS1) Pinouts...........................................................65

Table 6-5: LED Connector (JLED1) Pinouts...............................................................................66

Table 6-6: LVDS Connector (LVDS1) Pinouts............................................................................66

Table 6-7: Microphone Connector (JMIC1) Pinouts..................................................................67

Table 6-8: mSATA Module Socket (SATA1) Pinouts.................................................................68

Table 6-9: PCIe Mini Socket for 3.75G Module (MINI_PCIE1) Pinouts.....................................69

Table 6-10: PCIe Mini Socket for Wireless Module (MINI_PCIE2) Pinouts..............................70

Table 6-11: Programming Connector (JMCU1) Pinouts ...........................................................70

Table 6-12: Programming Connector (JOBD1) Pinouts............................................................70

Table 6-13: Speaker Connector (JSP1) Pinouts........................................................................70

Table 6-14: SPI Flash Connector (JSPI1) Pinouts.....................................................................71

Table 6-15: Touch Panel Connector (TOUCH1) Pinouts...........................................................71

Table 6-16: Peripheral Interface Connectors.............................................................................72

Page IX

Page 10

Page 11

IKARPC-07A-BT In-vehicle Panel PC

1 Introduction

Chapter

Page 1

Page 12

1.1 Overview

Figure 1-1: IKARPC-07A-BT Panel PC

IKARPC-07A-BT In-vehicle Panel PC

The IKARPC-07A-BT is a 7” panel PC designed for in-car use. At the heart of the system

is the Intel® Atom processor E3826, offering low power in a powerful package.

The system also offers a multimedia experience with a built-in 2-megapixel camera, HDMI

port and speaker. The OBD-II connection and GPS functionality make the

IKARPC-07A-BT an ideal system for in-vehicle applications.

Other peripherals include one USB 2.0 port, one USB 3.0 port, and two I/O connectors

which support RS-232, OBD-II, CAN bus, digital I/O, USB and audio input/output. Wireless

networking capabilities include Bluetooth 2.0 and 802.11b/g/n.

1.2 Features

The IKARPC-07A-BT features the following:

 Projected capacitive touchscreen

 Intel® Atom® processor E3826 (dual-core, 1.46 GHz, 7 W TDP)

 On-board 2.0 GB SDRAM memory

Page 2

 Support OBD-II, CAN bus, RS-232 and digital I/O

 GPS functionality with external antenna connector

 2-megapixel front-facing camera and speaker

 One HDMI connector

Page 13

IKARPC-07A-BT In-vehicle Panel PC

 Optional 802.11b/g/n wireless connection

 Optional 3.75G connectivity with dual SIM and an external antenna

 Optional Bluetooth 2.0

 IP 54 compliant front panel

 RoHS compliance

1.3 Front Panel

The front of the IKARPC-07A-BT is a flat panel screen with a plastic frame. The

components on the front panel are listed below:

 2-megapixel camera

 Ambient light sensor  LED indicators (see Section 1.3.1)

Figure 1-2: Front View

NOTE:

The automatic screen-dimming function is controlled by the BIOS option. To enable or disable the function, please refer to Section

5.4.1.1 (LVDS AUTO DIM

MING Control option).

Page 3

Page 14

1.3.1 LED Indicators

The LED indicators on the front panel show the status of power, Wi-Fi and 3.75G

connection.

Figure 1-3: LED Indicators

IKARPC-07A-BT In-vehicle Panel PC

Red The system is off with power connected Blue The system is turned on

Power LED

Blinking

Off Wi-Fi is not connected

Wi-Fi LED

Green Wi-Fi is connected Yellow SIM1 is being used for 3.75G connection

3.75G LED

Red SIM2 is being used for 3.75G connection

Table 1-1: LED Indicators

At regular intervals: low voltage warning (configured by BIOS option: Section 5.3.4) At irregular intervals (long-short-short): GPS antenna is not connected.

Page 4

Page 15

IKARPC-07A-BT In-vehicle Panel PC

1.4 Rear Panel

The rear panel has VESA mounting screw holes and an access panel for microSD card

and SIM card. The following I/O connectors can also be found on the rear panel.

 1 x 9 V~ 30 V DC input connector

 20-pin connector:

o 1 x GbE LAN o 1 x CAN bus/OBD-II o 1 x USB

 24-pin connector:

o 1 x Audio line-out (R+L) o 1 x Audio line-in o 1 x RS-232 o 2-bit digital input o 2-bit digital output

 1 x HDMI connector

 1 x GPS antenna connector

 1 x 3.75G antenna connector (optional)

Figure 1-4: Rear Panel

Page 5

Page 16

1.5 Bottom Panel

The bottom panel has a 2 W speaker.

Figure 1-5: Bottom View

1.6 Side Panels

The right side panel has one USB 3.0 port and the left side panel has one USB 2.0 port.

IKARPC-07A-BT In-vehicle Panel PC

Page 6

Figure 1-6: Side Panels

Page 17

IKARPC-07A-BT In-vehicle Panel PC

1.7 Top Panel

The top panel has a power button. Press the power button for 4~6 seconds to power on

the system.

Figure 1-7: Top Panel

1.8 Dimensions

The dimensions are shown below.

Figure 1-8: Dimensions (unit: mm)

Page 7

Page 18

1.9 System Specifications

The technical specifications for the IKARPC-07A-BT systems are listed in Table 1-2.

System CPU Intel® Atom™ processor E3826 (dual-core, 1.46 GHz, 7W TDP) Memory On-board 2 GB SDRAM Storage One microSD card slot (SD 2.0 compatible, max. 32 GB)

One mSATA slot (full-size PCIe Mini, SATA 3Gb/s)

Audio One 2 W speaker Camera 2-megapixel front-facing camera Watchdog Timer Software programmable supports 1~255 sec. system reset Real-time Clock Battery backup RTC Display LCD 7” TFT LCD with LED backlight

IKARPC-07A-BT In-vehicle Panel PC

Max. Resolution 1024 x 600 (WSVGA) Brightness (cd/m2) 500 Contrast Ratio 700:1 Pixel Pitch (mm) 0.05 (W) x 0.15 (H) Viewing Angle 130° (H)/140° (V) Touchscreen 2-point projected capacitive touchscreen with USB interface Auto-dimming Ambient light sensor on the front panel Communication LAN 1 x 10/100/1000 Mbps GPS Built-in u-blox NEO-M8N GPS module with external antenna connector Wireless LAN (Optional) 802.11b/g/n 1T1R PCIe Mini Wi-Fi module Bluetooth (Optional) Bluetooth v2.1 (combo with WWAN) WWAN (Optional) Optional u-blox LISA-U200 3.75G UMTS/HSPA+ module supports:

HSPA/UMTS-800/850/1900/2100 MHz Quad-band EDGE/GPRS/GSM-850/900/1800/1900MHz

Power Power Input 4-pin (2x2) Molex power connector supports DC or ACC power DC Power 9 V ~ 30 V DC input via optional cigarette lighter power cable ACC Power ACC power on/off mode with software configurable delay time

Page 8

Page 19

IKARPC-07A-BT In-vehicle Panel PC

Power Consumption 12 V @ 1.25 A Physical Character Construction Material ABS + PC plastic Mounting VESA 75 mm x 75 mm Dimensions (W x H x D) 210 mm x 154 mm x 29 mm Operation Temperature -20°C ~ 60°C with air flow Storage Temperature -30°C ~ 70°C Humidity 5% ~ 95%, non-condensing Weight (Net/Gross) 0.9 kg/2.1 kg Operating Shock Half-sine wave shock 5 G, 11 ms, 3 shocks per axis Operating Vibration MIL-STD-810G 514.6C-1 (with SSD) IP Level IP 54 compliant front panel Certifications CE, FCC, e-MARK Connectors and Buttons Antenna Connectors 1 x GPS antenna SMA female connector

1 x 3.75G antenna SMA female connector (optional)

Expansion Slot 2 x SIM card slot I/O Connector 1 x 9 V~ 30 V DC input connector

1 x USB 2.0 port 1 x USB 3.0 port 1 x HDMI connector

20-pin connector:

1 x 10/100/1000 Mbps LAN 1 x OBD-II/CAN bus 1 x USB 2.0

24-pin connector:

1 x Audio line-out (R+L) 1 x Audio line-in 1 x RS-232 2-bit digital input 2-bit digital output

Button 1 x Power button

Table 1-2: Technical Specifications

Page 9

Page 20

IKARPC-07A-BT In-vehicle Panel PC

Chapter

2 Unpacking

Page 10

Page 21

IKARPC-07A-BT In-vehicle Panel PC

To unpack the panel PC, follow the steps below:

WARNING!

The front side LCD screen has a protective plastic cover stuck to the

screen. Only remove the plastic cover after the system has been

properly installed. This ensures the screen is protected during the

installation process.

Step 1: Open the external box.

Step 2: Remove the two polystyrene strips that cover the system.

Step 3: Lift the IKARPC-07A-BT out of the boxes.

Step 4: Take the IKARPC-07A-BT out from the plastic bag.

Step 5: Pull the plastic cover off the IKARPC-07A-BT.

Step 6: Make sure all the components listed in the packing list are present.

2.1 Packing List

NOTE:

If any of the components listed in the checklist below are missing, do

not proceed with the installation. Contact the IEI reseller or vendor the

IKARPC-07A-BT was purchased from or contact an IEI sales

representative directly by sending an email to

The IKARPC-07A-BT is shipped with the following components:

31sales@ieiworld.com.

Page 11

Page 22

Quantity Item Image

1 IKARPC-07A-BT in-vehicle panel PC

1 ACC power cable

(P/N: 32002-001900-100-RS)

1 GPS/GSM antenna

(P/N: 32506-000100-100-RS)

IKARPC-07A-BT In-vehicle Panel PC

1 User manual CD and driver CD

Table 2-1: Packing List

2.2 Optional Items

The following are optional components which may be separately purchased:

Item Image

802.11/b/g/n wireless kit (assemble-to-order)

(P/N: IKARPC-WIFI-KIT01-R10)

Page 12

Page 23

IKARPC-07A-BT In-vehicle Panel PC

Item Image

WWAN kit (assemble-to-order)

(P/N: IKARPC-3G-KIT01-R10)

Power adapter with transfer cable

(P/N: IVIPOWER-4PIN-R10)

Cigarette lighter power cable

(P/N: 32002-004000-100-RS)

I/O connector 1 cable (20-pin)

(P/N: 32024-003000-100-RS)

I/O connector 2 cable (24-pin)

(P/N: 32124-003700-100-RS)

OBD-II cable

(P/N: 32025-000300-100-RS)

J1939/FMS cable

(P/N: 32025-000400-100-RS)

Page 13

Page 24

Item Image

VESA mount stand (138 mm)

(P/N: IVI-MK03-R10)

Windows Embedded 7 CD

(P/N: IKARPC-07A-BT-WES7P-R10)

Windows Embedded 8 CD

(P/N: IKARPC-W10A-WE8S-R10)

IKARPC-07A-BT In-vehicle Panel PC

Table 2-2: Optional Items

If any of these items are missing or damaged, contact the distributor or sales

representative immediately.

Page 14

Page 25

IKARPC-07A-BT In-vehicle Panel PC

Chapter

3 Installation

Page 15

Page 26

3.1 Anti-static Precautions

WARNING:

Failure to take ESD precautions during the maintenance of the

IKARPC-07A-BT may result in permanent damage to the

IKARPC-07A-BT and severe injury to the user.

Electrostatic discharge (ESD) can cause serious damage to electronic components,

including the IKARPC-07A-BT. Dry climates are especially susceptible to ESD. It is

therefore critical that whenever the IKARPC-07A-BT is accessed internally, or any other

electrical component is handled, the following anti-static precautions are strictly adhered

to.

IKARPC-07A-BT In-vehicle Panel PC

 Wear an anti-static wristband: Wearing a simple anti-static wristband can

help to prevent ESD from damaging the board.

 Self-grounding: Before handling the board, touch any grounded conducting

material. During the time the board is handled, frequently touch any

conducting materials that are connected to the ground.

 Use an anti-static pad: When configuring the IKARPC-07A-BT, place it on an

anti-static pad. This reduces the possibility of ESD damaging the

IKARPC-07A-BT.

 Only handle the edges of the PCB: When handling the PCB, hold the PCB

by the edges.

3.2 Installation Precautions

When installing the flat panel PC, please follow the precautions listed below:

 Power turned off: When installing the flat panel PC, make sure the power is

off. Failing to turn off the power may cause severe injury to the body and/or

damage to the system.

Page 16

 Certified Engineers: Only certified engineers should install and modify

onboard functionalities.

Page 27

IKARPC-07A-BT In-vehicle Panel PC

 Anti-static Discharge : If a user open the rear panel of the flat panel PC, to

configure the jumpers or plug in added peripheral devices, ground themselves

first and wear an anti-static wristband.

3.3 microSD Card Installation

To install the microSD card, follow the instructions below.

Step 1: Remove the retention screw and lift the microSD card slot access panel.

Figure 3-1: microSD Card Slot Access Panel Retention Screw

Step 2: Locate the microSD card slot. Insert the microSD card into the slot to install it. To

remove the microSD card, push the microSD card inwards to release it.

Figure 3-2: Install microSD Card

Step 3: Replace the microSD card slot access panel. Step 0:

Page 17

Page 28

IKARPC-07A-BT In-vehicle Panel PC

3.4 SIM Card Installation (Optional)

To install the SIM card, follow the instructions below.

Step 1: Remove the retention screw and lift the SIM card slot access panel.

Figure 3-3: SIM Card Slot Access Panel Retention Screw

Step 2: Locate the SIM card slots. The IKARPC-07A-BT has two SIM card slots (Figure

3-4). Insert a

SIM card to release it.

Figure 3-4: SIM Card Slot Locations

SIM card into the slot to install it. To remove the SIM card, push the

Page 18

Page 29

IKARPC-07A-BT In-vehicle Panel PC

WARNING:

The IKARPC-07A-BT is not compatible with a micro-SIM (3FF) adapter

or a nano-SIM (4FF) adapter. Please install a mini-SIM (2FF or

Standard SIM) card for proper network connection.

Step 3: Replace and secure the SIM card slot access panel with the previously removed

retention screw.

Step 4: Install IEI Mobile AP to designate a SIM card to use. The Mobile AP instruction is

described in detail in Section 4.2.

Step 5: The 3.75

being used.

LED Color Description

G LED indicator on the front panel shows the user which SIM card is

Yellow SIM1 is being used for 3.75G connection.

Red SIM2 is being used for 3.75G connection.

NOTE:

Before installing a SIM card for WWAN connection, please make sure a

3.75G module is installed in the PCIe Mini card slot of the

IKARPC-07A-BT.

Page 19

Page 30

3.5 Mounting the System

The IKARPC-07A-BT is VESA (Video Electronics Standards Association) compliant and

can be mounted on a mounting device with a 75 mm interface pad. The IKARPC-07A-BT

IKARPC-07A-BT In-vehicle Panel PC

VESA mount retention screw holes are shown in Figure 3-5. Refer

that came with the mounting device to mount the IKARPC-07A-BT.

Figure 3-5: VESA Mount Retention Screw Holes

to the installation guide

Page 20

NOTE:

When purchasing the mounting device please ensure that it is VESA

compliant and that the device has a 75 mm interface pad. If the

mounting device is not VESA compliant it cannot be used to support

the IKARPC-07A-BT.

Page 31

IKARPC-07A-BT In-vehicle Panel PC

3.6 External I/O Connectors

This section provides an overview of the external I/O connectors of the IKARPC-07A-BT.

3.6.1 I/O Connector 1 (20-pin)

The 20-pin I/O connector (IO 1) supports the following external peripheral devices:

 1 x GbE LAN

 1 x OBD-II/CAN bus

 1 x USB 2.0

The pinouts for the IO 1 connector are listed in the figure and table below.

Figure 3-6: IO 1 Connector Pinout Locations

Pin Description Pin Description

1 OBD_CAN_H 11 ISO9141-2-K OBD-II 2 OBD_CAN_L 12 ISO9141-2-L OBD-II 3 GND 13 LAN1_MDX0- GbE LAN 4 J1850_BUS+ 14 LAN1_MDX0+ 5 J1850_BUS- 15 LAN1_MDX1- 6 GND 16 LAN1_MDX1+

GbE LAN 7 LAN1_MDX2- 17 GND USB 2.0 8 LAN1_MDX2+ 18 USB DATA-

9 LAN1_MDX3- 19 USB DATA+ 10 LAN1_MDX3+ 20 USB VCC (+5V)

Table 3-1: IO 1 Connector Pinouts

Page 21

Page 32

3.6.2 I/O Connector 2 (24-pin)

The 24-pin I/O connector (IO 2) supports the following external peripheral devices:

 1 x Audio line-out (R+L)

 1 x Audio line-in

 1 x RS-232

 2-bit digital input

 2-bit digital output

The pinouts for the IO 2 connector are listed in the figure and table below.

IKARPC-07A-BT In-vehicle Panel PC

Figure 3-7: IO 2 Connector Pinout Locations

Pin Description Pin Description

COM 1 COM_SOUT 13 COM_SI COM 2 COM_DTR 14 COM_DSR 3 COM_RTS 15 COM_CTS 4 NC 16 COM_DCD 5 NC 17 COM_RI 6 NC 18 DIO_GND Digital Input Digital Output 7 DIO_OUT_1 19 DIO_IN_1 8 DIO_OUT_2 20 DIO_IN_2 9 DIO_GND 21 AUDIO_GND Audio Line-in Audio Line-out 10 AUDIO_GND 22 LINE_IN_L

11 SPK_OUT_L 23 LINE_IN_R 12 SPK_OUT_R 24 AUDIO_GND

Table 3-2: IO 2 Connector Pinouts

Page 22

Page 33

IKARPC-07A-BT In-vehicle Panel PC

NOTE:

In order to play sounds through the speaker connected to the audio

line-out connector, the “External Speaker” BIOS option must be enabled. Please refer to Section 5.4.2 for detail inform

3.6.3 HDMI Connector

The IKARPC-07A-BT has one HDMI connector on the rear panel. The pinouts for the

HDMI connector are listed in the figure and table below.

Figure 3-8: HDMI Connector

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 HDMI_DATA2 2 GND

ation.

3 HDMI_DATA2# 4 HDMI_DATA1 5 GND 6 HDMI_DATA1# 7 HDMI_DATA0 8 GND 9 HDMI_DATA0# 10 HDMI_CLK 11 GND 12 HDMI_CLK# 13 N/C 14 N/C 15 HDMI_SCL 16 HDMI_SDA 17 GND 18 +5V 19 HDMI_HPD 20 HDMI_GND 21 HDMI_GND 22 HDMI_GND 23 HDMI_GND

Table 3-3: HDMI Connector Pinouts

Page 23

Page 34

3.6.4 Power Input Connection

The IKARPC-07A-BT has one 4-pin power input connector on the rear panel. The pinouts

for the power input connector are listed in the figure and table below.

Figure 3-9: Power Input Connector

PIN NO. DESCRIPTION

1 GND 2 GND 3 POWER

IKARPC-07A-BT In-vehicle Panel PC

4 ACC

Table 3-4: Power Input Connector Pinouts

The IKARPC-07A-BT can use either ACC power or DC power from the vehicle. To use

ACC power, connect the IKARPC-07A-BT to the vehicle through the ACC power cable. See Figure 3-10.

Figure 3-10: ACC Power Cable

Page 24

Page 35

IKARPC-07A-BT In-vehicle Panel PC

[Optional Choice]

To use DC power, connect the IKARPC-07A-BT to the vehicle cigarette lighter connector through the optional cigarette lighter cable. See Figure 3-11.

Figure 3-11: Optional Cigarette Lighter Cable

3.6.5 USB Connector

The IKARPC-07A-BT has one USB 2.0 port on the left side panel and one USB 3.0 port on

the right side panel. The USB 3.0 port has a screw on the side for securing the USB

devices, such as barcode scanners and smart card readers. The following diagram shows

the USB 3.0 port and the screw on the side panel.

Figure 3-12: USB Connector

Page 25

Page 36

3.7 Power-On Procedure

WARNING:

Make sure a power supply with the correct input voltage is being fed

into the system. Incorrect voltages applied to the system may cause

damage to the internal electronic components and may also cause

injury to the user.

To power-on the IKARPC-07A-BT, connect either the ACC power cable or the optional

cigarette lighter power cable from the IKARPC-07A-BT to the vehicle. The

IKARPC-07A-BT will automatically turn on once the power is connected.

When the system is connected to power source, press the power button on the top panel

IKARPC-07A-BT In-vehicle Panel PC

for 4–6 seconds to power on/off the system.

3.7.1 Power State

The following table shows the relation of the power state and vehicle ignition system. The

auto start-up and shut down time delay can be set by the BIOS options (please refer to Section 5.3.4).

LOCK

ACC Signal Off On On Off Car Cigarette Lighter Off On On Off 5 V Standby Power Off On after 1 second On On Auto Start-up -- After 10~60 seconds (selectable) --

ACC

START

Auto Shut-down After 10~180

secs (selectable)

-- -- --

Table 3-5: Power State and Ignition System

Page 26

Page 37

IKARPC-07A-BT In-vehicle Panel PC

3.8 System Maintenance

If the components of the IKARPC-07A-BT fail, they must be replaced. Please contact the

system reseller or vendor to purchase the replacement parts.

NOTE:

A user cannot replace a motherboard. If the motherboard fails it must

be shipped back to IEI to be replaced. Please contact the system

vendor, reseller or an IEI sales person directly.

Page 27

Page 38

IKARPC-07A-BT In-vehicle Panel PC

Chapter

4 Software Drivers

Page 28

Page 39

IKARPC-07A-BT In-vehicle Panel PC

NOTE:

The content of the CD may vary throughout the life cycle of the product

and is subject to change without prior notice. Visit the IEI website or

contact technical support for the latest updates.

4.1 Drivers

The utility CD contains drivers for Windows 7 and Windows 8 operating systems. Please

select the corresponding drivers for the system.

The following drivers can be installed on the Windows 7 operating system:

 Chipset

 Graphics

 Audio

 LAN

 WLAN

o iKarPC-3G-mPCIe: for installing Bluetooth driver, ublox LISA-200 3.75G

module driver and IEI Mobile AP application tool

o ublox_LISA-U200: 3.75G module driver o VIA_VN9485: wireless LAN module driver

 Bluetooth

 Others:

o TXE o USB 3.0 o I/O driver

The following drivers can be installed on the Windows 8 operating system:

 Chipset

 Graphics

 Audio

 LAN

 WLAN

Page 29

Page 40

 Others:

4.2 Mobile AP

IEI provides an application tool, Mobile AP, for the users of the IKARPC-07A-BT with the

WWAN module installed to manage mobile network and make a phone call.

4.2.1 Installation

To install this application tool, please locate the WLAN folder in the utility CD. This folder

contains two files for different operating systems.

IKARPC-07A-BT In-vehicle Panel PC

o iKarPC-3G-mPCIe: for installing Bluetooth driver, ublox LISA-200 3.75G

module driver and IEI Mobile AP application tool

o ublox_LISA-U200: 3.75G module driver o VIA_VN9485: wireless LAN module driver

o I/O driver

 IEI_Mobile_AP_Setup_x86_v1.01.exe for 32-bit Windows OS  IEI_Mobile_AP_Setup_x64_v1.01.exe for 64-bit Windows OS

Double click the .exe file that is corresponding to the OS version, then the system starts to

extract the file. After extracting, it starts to install the Bluetooth driver followed by the

installation of the WWAN module driver, and IEI Mobile AP application tool. It is

recommended to follow the step-by-step procedure to install all of these three

drivers/applications.

NOTE:

After installing the drivers and applications, the IKARPC-07A-BT must

be restarted in order to complete the installation.

Page 30

Page 41

IKARPC-07A-BT In-vehicle Panel PC

4.2.2 Usage

To launch the application, double click the MobileAP icon on the Windows desktop. The user interface appears as shown in Figure 4-1. The fu

Figure 4-1: Mobile AP–Connection

nctions are described below.

 Sim card switch:

Select a SIM card to designate a SIM card to use or click the Refresh SIM status button to let the system detect automatically.

o Automatically Switch SIM Card: check to allow the system to ping URL1

and URL2 every 30 seconds. If the system is unable to ping both URLs in three minutes, the system will automatically switch to the other SIM card.

 Network Connection:

o Status: shows the connection status. Click the Connect button to

connect the selected SIM card to network.

o Auto Reconnect: allows the system to reconnect automatically. o Dial number: provided by the ISP for mobile network. The default value is

*99#.

o APN (Access Point Name): provided by the ISP for mobile network. The

default value is internet.

o Connect result: displays the connection result.

Page 31

Page 42

The Mobile AP also allows the user to make a phone call. To use Mobile AP to make a phone call, click the Dial up tab in the Mobile AP. Then, the user interface appears as

IKARPC-07A-BT In-vehicle Panel PC

shown in Figure 4-2. Th

Figure 4-2: Mobile AP–Dial Up

e functions are described below.

Page 32

 Blank field: for entering a phone number to call or displaying the incoming

phone number.

 : click to delete the previously entered number.  Dial: click to place a phone call after entering the phone number.  Hang Up: click to end a phone call.  Answer: the Answer button will flash in red when an incoming call arrives.

Click to answer a phone call.

 Speaker: drag to adjust the volume of the Bluetooth headset paired with the

IKARPC-07A-BT.

 Mic: drag to adjust the microphone volume of the Bluetooth headset paired

with the IKARPC-07A-BT.

Page 43

IKARPC-07A-BT In-vehicle Panel PC

Chapter

5 BIOS

Page 33

Page 44

5.1 Introduction

The BIOS is programmed onto the BIOS chip. The BIOS setup program allows changes to

certain system settings. This chapter outlines the options that can be changed.

NOTE:

Some of the BIOS options may vary throughout the life cycle of the

product and are subject to change without prior notice.

5.1.1 Starting Setup

The UEFI BIOS is activated when the computer is turned on. The setup program can be

activated in one of two ways.

IKARPC-07A-BT In-vehicle Panel PC

2. Press the DEL or F2 key as soon as the system is turned on or

3. Press the DEL or F2 key when the “Press DEL or F2 to enter SETUP”

message appears on the screen.

If the message disappears before the DEL or F2

try again.

key is pressed, restart the computer and

5.1.2 Using Setup

Use the arrow keys to highlight items, press ENTER to select, use the PageUp and PageDown keys to change entries, press F1 for help and press E

keys are shown in.

Key Function

Up arrow Move to previous item

Down arrow Move to next item

Left arrow Move to the item on the left hand side

SC to quit. Navigation

Page 34

Right arrow Move to the item on the right hand side

Page 45

IKARPC-07A-BT In-vehicle Panel PC

Key Function

+ Increase the numeric value or make changes

- Decrease the numeric value or make changes

Page Up key Move to the previous page

Page Dn key Move to the next page

Esc key Main Menu – Quit and not save changes into CMOS

Status Page Setup Menu and Option Page Setup Menu --

Exit current page and return to Main Menu

F1 General help, only for Status Page Setup Menu and Option

Page Setup Menu

F2 Load previous values

F3 Load optimized defaults

F4 Save changes and Exit BIOS

Table 5-1: BIOS Navigation Keys

5.1.3 Getting Help

When F1 is pressed a small help window describing the appropriate keys to use and the possible selections for the highlighted item appears. To exit the Help Window press E the F1 key again.

5.1.4 BIOS Menu Bar

The menu bar on top of the BIOS screen has the following main items:

 Main – Changes the basic system configuration.

 Advanced – Changes the advanced system settings.

SC or

 Chipset – Changes the chipset settings.

 Security – Sets User and Supervisor Passwords.

 Boot – Changes the system boot configuration.

 Save & Exit – Selects exit options and loads default settings

Page 35

Page 46

The following sections completely describe the configuration options found in the menu

items at the top of the BIOS screen and listed above.

IKARPC-07A-BT In-vehicle Panel PC

5.2 Main

The Main BIOS menu (BIOS Menu 1) appears when the BIOS Setup program is entered. The Main menu gives an overview of the basic system information.

Main Advanced Chipset Security Boot Save & Exit

BIOS Information BIOS Vendor American Megatrends Core Version 5.010 Compliancy UEFI 2.4; PI 1.3 Project Version Z245AI12.ROM Build Date and Time 03/25/2015 13:24:53

CPU Configuration Microcode Patch 901 BayTrial SoC D0 Stepping

Memory Information Total Memory 2048 MB (LPDDR3)

TXE Information Sec RC Version 00.05.00.00 TXE FW Version 01.00.02.1060

System Date [Fri 05/22/2015] System Time [15:34:41]

Access Level Administrator

Set the Date. Use Tab to switch between Data elements.

----------------------



 : Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

: Select Screen

BIOS Menu 1: Main

 BIOS Information

The BIOS Information lists a brief summary of the BIOS. The fields in BIOS Information

cannot be changed. The items shown in the system overview include:

 BIOS Vendor: Installed BIOS vendor  Core Version: Current BIOS version  Compliency: Current compliant version  Project Version: the board version

Page 36

Page 47

IKARPC-07A-BT In-vehicle Panel PC

 Build Date: Date the current BIOS version was made

 CPU Information

The CPU Information lists a brief summary of the CPU. The fields in CPU Information

cannot be changed. The items shown in the system overview include:

 Microcode Patch: Installed microcode patch  BayTrail SoC: CPU stepping level

 Memory Information

The Memory Information lists the total memory of the system

 TXE Information

The TXE Information lists a brief summary of Intel® Trusted Execution Engine (TXE). The fields in TXE Information cannot be changed. The items shown in the system

overview include:

 Sec RC Version: Current sec reference code version  TXE FW Version: Current Intel® TXE firmware version

 System Date [xx/xx/xx]

Use the System Date option to set the system date. Manually enter the day, month and year.

 System Time [xx:xx:xx]

Use the System Time option to set the system time. Manually enter the hours, minutes

and seconds.

Page 37

Page 48

IKARPC-07A-BT In-vehicle Panel PC

5.3 Advanced

Use the Advanced menu (BIOS Menu 2) to configure the CPU and peripheral devices

through the following sub-menus:

WARNING:

Setting the wrong values in the sections below may cause the system

to malfunction. Make sure that the settings made are compatible with

the hardware.

> ACPI Settings > Super IO Configuration > Hardware Monitor > Power Management > SMS/RTC Wake Settings > Serial Port Console Redirection > CPU Configuration > IDE Configuration > USB Configuration

Main Advanced Chipset Security Boot Save & Exit

Enable system to make from Soft-off, S3, S4, S5, using RTC alarm

----------------------



 : Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

: Select Screen

Page 38

BIOS Menu 2: Advanced

Page 49

IKARPC-07A-BT In-vehicle Panel PC

5.3.1 ACPI Settings

The ACPI Settings menu (BIOS Menu 3) configures the Advanced Configuration and

Power Interface (ACPI) options.

Advanced

ACPI Settings

ACPI Sleep State [S3 (Suspend to RAM)]

elect the highest ACPI sleep state the system will enter when the SUSPEND button is pressed.

----------------------



: Select Screen

 : Select Item Enter Select + - Change Opt. F1 General Help F2 Previous Values F3 Optimized Defaults F4 Save & Exit ESC Exit

BIOS Menu 3: ACPI Settings

 ACPI Sleep State [S3 (Suspend to RAM)]

Use the ACPI Sleep State option to specify the sleep state the system enters when it is

not being used.



S3 (Suspend to RAM)

DEFAULT

The caches are flushed and the CPU is powered

off. Power to the RAM is maintained. The

computer returns slower to a working state, but

more power is saved.

Page 39

Page 50

IKARPC-07A-BT In-vehicle Panel PC

5.3.2 Super IO Configuration

Use the Super IO Configuration menu (BIOS Menu 4) to set or change the

configurations for the serial ports.

Advanced

Super IO Configuration

Super IO Chip F81866

> Serial Port 1 Configuration

Set Parameters of Serial Port 1 (COMA)

---------------------



: Select Screen

 : Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

BIOS Menu 4: Super IO Configuration

5.3.2.1 Serial Port 1 Configuration

Use the Serial Port 1 Configuration menu (BIOS Menu 5) to configure the serial port 1.

Advanced

Serial Port 1 Configuration

Serial Port [Enabled]

Device Settings IO=3F8h; IRQ=4

Change Settings [Auto]

nable or Disable Serial

Port (COM)

---------------------



: Select Screen

 : Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

BIOS Menu 5: Serial Port 1 Configuration

Page 40

Page 51

IKARPC-07A-BT In-vehicle Panel PC

 Serial Port [Enabled]

Use the Serial Port option to enable or disable the serial port.



Disabled



Enabled DEFAULT

 Change Settings [Auto]

Use the Change Settings option to change the serial port IO port address and interrupt

address.



Auto DEFAULT



IO=3F8h; IRQ=4



IO=3F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12



IO=2F8h;

Disable the serial port

Enable the serial port

The serial port IO port address and interrupt address

are automatically detected.

Serial Port I/O port address is 3F8h and the interrupt

address is IRQ4

Serial Port I/O port address is 3F8h and the interrupt

address is IRQ3, 4, 5, 6, 7, 9, 10, 11, 12

Serial Port I/O port address is 2F8h and the interrupt

IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12



IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12



IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12

address is IRQ3, 4, 5, 6, 7, 9, 10, 11, 12

Serial Port I/O port address is 3E8h and the interrupt

address is IRQ3, 4, 5, 6, 7, 9, 10, 11, 12

Serial Port I/O port address is 2E8h and the interrupt

address is IRQ3, 4, 5, 6, 7, 9, 10, 11, 12

Page 41

Page 52

IKARPC-07A-BT In-vehicle Panel PC

5.3.3 Hardware Monitor

The Hardware Monitor menu (BIOS Menu 6) displays the CPU and system

temperatures.

Advanced

PC Health Status

CPU Temperature : +44 C System Temperature : +39 C +SOC_VCC :+0.808 V +V5S :+5.061 V +12S :+12.646 V +1.5S :+1.504 V VCC3V :+3.328 V VSB3V :+3.344 V VSB5V :+5.040 V

---------------------



: Select Screen

 : Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

BIOS Menu 6: Hardware Monitor

 PC Health Status

The following system parameters and values are shown. The system parameters that are

monitored are:

 CPU Temperature

 System Temperature

 Voltages:

o +SOC_VCC o +V5S o +12S o +1.5S o VCC3V o VSB3V o VSB5V

Page 42

Page 53

IKARPC-07A-BT In-vehicle Panel PC

5.3.4 Power Management

Use the Power Management menu (BIOS Menu 7) to configure the power management

function.

Advanced

Current Voltage : +12.1 V

Low Voltage Warning [9V]

*** Delay Time Setting ***

Auto Power On Delay [10 sec] Auto Power Off Delay [20 sec]

et Low Voltage Warning

(8V~37V)

---------------------



: Select Screen

 : Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

BIOS Menu 7: Power Management

 Low Voltage W arning [9V]

Use the Low Voltage Warning option to set the low voltage warning from 8V to 37V. If the

system voltage is lower than the value set here, the power LED on the system front panel will blink at regular intervals (refer to Section 1.3.1) to warn users

 Auto Power On Delay [10 sec]

Use the Auto Power On Delay option to set the automatic power-on delay time.

Configuration options are listed below.

 10 sec

 30 sec

 1 min

 5 min

 10 min

DEFAULT

 15 min

 30 min

Page 43

Page 54

 1 hour

 Auto Power Off Delay [20 sec]

Use the Auto Power Off Delay option to set the automatic power-off delay time.

Configuration options are listed below.

IKARPC-07A-BT In-vehicle Panel PC

 20 sec

 1 min

 5 min

 10 min

 30 min

 1 hour

 6 hour

 18 hour

DEFAULT

5.3.5 SMS/RTC Wake Settings

The SMS/RTC Wake Settings menu (BIOS Menu 8) enables the system to wake at the

specified time.

Advanced

Wake system with SMS [Disabled] Wake system with Fixed Time [Disabled]

nable or disable System SMS wake on. When enabled, System will wake by SMS event.

----------------------



: Select Screen

 : Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

BIOS Menu 8: SMS/RTC Wake Settings

Page 44

Page 55

IKARPC-07A-BT In-vehicle Panel PC

 Wake system with SMS [Disabled]

Use the Wake system with SMS option to enable or disable the system wake on SMS

event.



Disabled D



Enabled

 Wake system with Fixed Time [Disabled]

Use the Wake system with Fixed Time option to enable or disable the system wake on

alarm event.



Disabled D



Enabled

EFAULT

The SMS cannot generate a wake event

The SMS can generate a wake event

The real time clock (RTC) cannot generate a wake

event

If selected, the Wake up every day option appears

allowing you to enable to disable the system to wake

every day at the specified time. Besides, the

following options appear with values that can be

selected:

Wake up every day

5.3.6 Serial Port Console Redirection

The Serial Port Console Redirection menu (BIOS Menu 9) allows the console

redirection options to be configured. Console redirection allows users to maintain a

system remotely by re-directing keyboard input and text output through the serial port.

Wake up date

Wake up hour

Wake up minute

Wake up second

After setting the alarm, the computer turns itself on

from a suspend state when the alarm goes off.

Page 45

Page 56

Advanced

COM1

Console Redirection [Disabled]

> Console Redirection Settings

BIOS Menu 9: Serial Port Console Redirection

IKARPC-07A-BT In-vehicle Panel PC

Console Redirection Enable or Disable

---------------------



: Select Screen

 : Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

 Console Redirection [Disabled]

Use Console Redirection option to enable or disable the console redirection function.



Disabled DEFAULT



Enabled

The following options are available only when the Console Redirection option is enabled.

 Terminal Type [ANSI]

Use the Terminal Type option to specify the remote terminal type.



VT100



VT100+



VT-UTF8

Disabled the console redirection function

Enabled the console redirection function

The target terminal type is VT100

The target terminal type is VT100+

The target terminal type is VT-UTF8

Page 46



ANSI DEFAULT

The target terminal type is ANSI

Page 57

IKARPC-07A-BT In-vehicle Panel PC

 Bits per second [115200]

Use the Bits per second option to specify the serial port transmission speed. The speed

must match the other side. Long or noisy lines may require lower speeds.



9600



19200



38400



57600



115200 DEFAULT

 Data Bit s [ 8]

Use the Data Bits option to specify the number of data bits.



8 DEFAULT

 Parity [None]

Use the Parity option to specify the parity bit that can be sent with the data bits for

detecting the transmission errors.

Sets the serial port transmission speed at 9600.

Sets the serial port transmission speed at 19200.

Sets the serial port transmission speed at 38400.

Sets the serial port transmission speed at 57600.

Sets the serial port transmission speed at 115200.

Sets the data bits at 7.

Sets the data bits at 8.



None DEFAULT



Even



Odd



Mark



Space

No parity bit is sent with the data bits.

The parity bit is 0 if the number of ones in the data

bits is even.

The parity bit is 0 if the number of ones in the data

bits is odd.

The parity bit is always 1. This option does not

provide error detection.

The parity bit is always 0. This option does not

provide error detection.

Page 47

Page 58

 Stop Bits [1]

Use the Stop Bits option to specify the number of stop bits used to indicate the end of a

serial data packet. Communication with slow devices may require more than 1 stop bit.

IKARPC-07A-BT In-vehicle Panel PC



1 DEFAULT



Sets the number of stop bits at 1.

Sets the number of stop bits at 2.

5.3.7 CPU Configuration

Use the CPU Configuration menu (BIOS Menu 10) to view detailed CPU specifications

and configure the CPU.

Advanced

CPU Configuration

Intel(R) Atom(TM) CPU E3826 @ 1.46GHz CPU Signature 30679 Microcode Patch 901 Max CPU Speed 1460 MHz Min CPU Speed 533 MHz Processor Cores 2 Intel HT Technology Not Supported Intel VT-x Technology Supported

L1 Data ache 24 kB x 2 L1 Code Cache 32 kB x 2 L2 Cache 1024 kB x 1 L3 Cache Not Present 64-bit Supported

Intel Virtualization Technology [Disabled] EIST [Enabled]

hen enabled, a VMM can utilize the additional hardware capabilities provided by Vanderpool Technology.

----------------------



: Select Screen

 : Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

BIOS Menu 10: CPU Configuration

The CPU Configuration menu (BIOS Menu 10) lists t

 Processor Type: Lists the brand name of the CPU being used

 CPU Signature: Lists the CPU signature value.

 Microcode Patch: Lists the microcode patch being used.

 Max CPU Speed: Lists the maximum CPU processing speed.

Page 48

he following CPU details:

Page 59

IKARPC-07A-BT In-vehicle Panel PC

 Min CPU Speed: Lists the minimum CPU processing speed.

 Processor Cores: Lists the number of the processor core

 Intel HT Technology: Indicates if Intel HT Technology is supported by the

CPU.

 Intel VT-x Technology: Indicates if Intel VT-x Technology is supported by the

CPU.

 L1 Data Cache: Lists the amount of data storage space on the L1 cache.

 L1 Code Cache: Lists the amount of code storage space on the L1 cache.

 L2 Cache: Lists the amount of storage space on the L2 cache.

 L3 Cache: Lists the amount of storage space on the L3 cache.

 64-bit: Indicates if 64-bit OS is supported by the CPU.

 Intel Virtualization Technology [Disabled]

Use the Intel Virtualization Technology option to enable or disable virtualization on the

system. When combined with third party software, Intel® Virtualization technology allows

several OSs to run on the same system at the same time.



Disabled DEFAULT



Enabled

 EIST [Enabled]

Use the EIST option to enable or disable Enhanced Intel SpeedStep® Techonology

(EIST).



Disabled



Enabled DEFAULT

Disables Intel Virtualization Technology.

Enables Intel Virtualization Technology.

Disables Enhanced Intel SpeedStep®

Techonology.

Enables Enhanced Intel SpeedStep®

Techonology.

Page 49

Page 60

IKARPC-07A-BT In-vehicle Panel PC

5.3.8 IDE Configuration

Use the IDE Configuration menu (BIOS Menu 11) to change and/or set the configuration

of the SATA devices installed in the system.

Advanced

IDE Configuration

Serial-ATA (SATA) [Enabled] SATA Mode [IDE Mode]

SATA1 Port1 Not Present

nable / Disable Serial ATA

---------------------



: Select Screen

 : Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

BIOS Menu 11: IDE Configuration

 Serial-ATA (SATA) [Enabled]

Use the Serial-ATA (SATA) option to configure the SATA controller.



Enabled DEFAULT



Disabled

 SATA Mode [IDE Mode]

Use the SATA Mode option to configure SATA devices as normal IDE or AHCI devices.



IDE Mode DEFAULT



AHCI Mode

Enables the on-board SATA controller.

Disables the on-board SATA controller.

Configures SATA devices as normal IDE device.

Configures SATA devices as AHCI device.

Page 50

Page 61

IKARPC-07A-BT In-vehicle Panel PC

5.3.9 USB Configuration

Use the USB Configuration menu (BIOS Menu 12) to read USB configuration information and configure the USB settings.

Advanced

USB Configuration

USB Devices: 1 Keyboard, 1 Mouse, 1 Point, 3 Hubs

Legacy USB Support [Enabled]

Enables Legacy USB support. AUTO option

isables legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications.

---------------------



: Select Screen

 : Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

BIOS Menu 12: USB Configuration

 Legacy USB Support [Enabled]

Use the Legacy USB Support BIOS option to enable USB mouse and USB keyboard

support.

Normally if this option is not enabled, any attached USB mouse or USB keyboard does not

become available until a USB compatible operating system is fully booted with all USB

drivers loaded. When this option is enabled, any attached USB mouse or USB keyboard

can control the system even when there is no USB driver loaded onto the system.



Enabled DEFAULT



Disabled



Auto

Legacy USB support disabled

Legacy USB support enabled

Legacy USB support disabled if no USB devices are

connected

Page 51

Page 62

IKARPC-07A-BT In-vehicle Panel PC

5.4 Chipset

Use the Chipset menu (BIOS Menu 13) to access the North Bridge and South Bridge

configuration menus.

WARNING!

Setting the wrong values for the Chipset BIOS selections in the Chipset BIOS

menu may cause the system to malfunction.

Main Advanced Chipset Security Boot Save & Exit

> North Bridge > South Bridge

Host Bridge Parameters

---------------------



 : Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

: Select Screen

Page 52

BIOS Menu 13: Chipset

Page 63

IKARPC-07A-BT In-vehicle Panel PC

5.4.1 North Bridge Configuration

Use the North Bridge menu (BIOS Menu 14) to configure the north bridge chipset.

Chipset

> Intel IGD Configuration

Memory Information

Total Memory 2048 MB (LPDDR3)

DIMM1 2048 MB (LPDDR3)

Config Intel IGD Settings.

---------------------



: Select Screen

 : Select Item Enter Select + - Change Opt. F1 General Help F2 Previous Values F3 Optimized Defaults F4 Save & Exit ESC Exit

BIOS Menu 14: North Bridge

Page 53

Page 64

IKARPC-07A-BT In-vehicle Panel PC

5.4.1.1 Intel IGD Configuration

Use the Intel IGD Configuration submenu (BIOS Menu 15) to configure the graphics

settings.

Chipset

Intel IGD Configuration

DVMT Pre-Allocated [256M] DVMT Total Gfx Mem [MAX]

LVDS AUTO DIMMING Control [Enabled]

Select DVMT 5.0 Pre-Allocated (Fixed) Graphics Memory size used by the Internal Graphics Device.

---------------------



: Select Screen

 : Select Item Enter Select + - Change Opt. F1 General Help F2 Previous Values F3 Optimized Defaults F4 Save & Exit ESC Exit

BIOS Menu 15: Intel IGD Configuration

 DVMT Pre-Allocated [256M]

Use the DVMT Pre-Allocated option to specify the amount of system memory that can be

used by the internal graphics device.



64M



128M



256M DEFAULT



512M

64 MB of memory used by internal graphics device

128 MB of memory used by internal graphics

device

256 MB of memory used by internal graphics

device

512 MB of memory used by internal graphics

device

Page 54

Page 65

IKARPC-07A-BT In-vehicle Panel PC

 DVMT Total Gfx Mem [MAX]

Use the DVMT Total Gfx Mem option to specify the maximum amount of memory that can

be allocated as graphics memory. Configuration options are listed below.

 128MB  256MB  MAX Default

 LVDS AUTO DIMMING Control [Enabled]

Use the LVDS AUTO DIMMING Control enable or disable the auto dimming function.



Enabled DEFAULT



Disabled

The auto dimming function is enabled

The auto dimming function is disabled

5.4.2 South Bridge Configuration

Use the South Bridge menu (BIOS Menu 16) to configure the audio device connected to

the system.

Chipset

Audio Configuration

Audio Controller [Enabled] External Speaker [Enabled]

XHCI Mode [Smart Auto]

ontrol Detection of the

zalia device. Disabled = Azalia will be unconditionally disabled. Enabled = Azalia will be unconditionally Enabled.

---------------------



: Select Screen

 : Select Item Enter Select + - Change Opt. F1 General Help F2 Previous Values F3 Optimized Defaults F4 Save & Exit ESC Exit

BIOS Menu 16: South Bridge

Page 55

Page 66

 Audio Controller [Enabled]

Use the Audio Controller option to enable or disable the High Definition Audio controller.

IKARPC-07A-BT In-vehicle Panel PC



Disabled



Enabled DEFAULT

 External Speaker [Enabled]

Use the External Speaker option to enable or disable the external speaker connected to

the system.



Disabled



Enabled DEFAULT

 XHCI Mode [Smart Auto]

Use the XHCI Mode BIOS option to configure the USB xHCI (USB 3.0) controller.



Enabled

The onboard High Definition Audio controller is disabled

The onboard High Definition Audio controller

automatically detected and enabled

The external speaker is disabled

The external speaker is enabled

Enable the xHCI controller. USB 3.0 ports behave as



Smart Auto

DEFAULT

USB 3.0 ports.

Allow the use of USB 3.0 devices prior to OS boot.

USB 3.0 ports function as USB 3.0 ports even during a

reboot.

Page 56

Page 67

IKARPC-07A-BT In-vehicle Panel PC

5.5 Security

Use the Security menu (BIOS Menu 17) to set system and user passwords.

Main Advanced Chipset Security Boot Save & Exit

Password Description

If ONLY the Administrator’s password is set, then this only limits access to Setup and is only asked for when entering Setup. If ONLY the User’s password is set, then this is a power on password and must be entered to boot or enter Setup. In Setup the User will have Administrator rights. The password length must be: Minimum length 3 Maximum length 20

Administrator Password

User Password

Set Administrator Password

---------------------



 : Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

: Select Screen

BIOS Menu 17: Security

 Administrator Password

Use the Administrator Password to set or change a administrator password.

 User Password

Use the User Password to set or change a user password.

Page 57

Page 68

IKARPC-07A-BT In-vehicle Panel PC

5.6 Boot

Use the Boot menu (BIOS Menu 18) to configure system boot options.

Main Advanced Chipset Security Boot Save & Exit

Boot Configuration

Bootup NumLock State [On] Quiet Boot [Enabled] UEFI Boot [Disabled]

Launch PXE OpROM [Disabled] Option ROM Messages [Force BIOS]

Select the keyboard NumLock state

---------------------



 : Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

: Select Screen

BIOS Menu 18: Boot

 Bootup NumLock State [On]

Use the Bootup NumLock State BIOS option to specify if the number lock setting must

be modified during boot up.



On DEFAULT



Off

Allows the Number Lock on the keyboard to be

enabled automatically when the computer system

boots up. This allows the immediate use of the

10-key numeric keypad located on the right side of

the keyboard. To confirm this, the Number Lock LED

light on the keyboard is lit.

Does not enable the keyboard Number Lock

automatically. To use the 10-keys on the keyboard,

press the Number Lock key located on the upper

left-hand corner of the 10-key pad. The Number

Page 58

Lock LED on the keyboard lights up when the

Number Lock is engaged.

Page 69



IKARPC-07A-BT In-vehicle Panel PC

 Quiet Boot [Enabled]

Use the Quiet Boot BIOS option to select the screen display when the system boots.



Disabled



Enabled DEFAULT

 UEFI Boot [Disabled]

Use the UEFI Boot BIOS option to allow the system to boot from the UEFI devices.



Enabled



Disabled DEFAULT

 Launch PXE OpROM [Disabled]

Use the Launch PXE OpROM option to enable or disable boot option for legacy network

devices.



Disabled DEFAULT



Enabled

Enables to boot from the UEFI devices.

Normal POST messages displayed

OEM Logo displayed instead of POST messages

Disables to boot from the UEFI devices.

Ignore all PXE Option ROMs

Load PXE Option ROMs.

 Option ROM Messages [Force BIOS]

Use the Option ROM Messages option to set the Option ROM display mode.



Force BIOS

Keep Current

DEFAULT

Sets display mode to force BIOS.

Sets display mode to current.

Page 59

Page 70

IKARPC-07A-BT In-vehicle Panel PC

5.7 Save & Exit

Use the Save & Exit menu (BIOS Menu 19) to load default BIOS values, optimal failsafe

values and to save configuration changes.

Main Advanced Chipset Security Boot Save & Exit

Save Changes and Reset

Discard Changes and Reset

Restore Defaults Save as User Defaults Restore User Defaults

Reset the system after saving the changes.

---------------------



: Select Screen

 : Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

BIOS Menu 19: Save & Exit

 Save Changes and Reset

Use the Save Changes and Reset option to save the changes made to the BIOS options

and reset the system.

 Discard Changes and Reset

Use the Discard Changes and Reset option to exit the system without saving the

changes made to the BIOS configuration setup program.

 Restore Defaults

Use the Restore Defaults option to load the optimal default values for each of the parameters on the Setup menus. F3 key can be used for this operation.

 Save as User Defaults

Page 60

Use the Save as User Defaults option to save the changes done so far as user defaults.

Page 71

IKARPC-07A-BT In-vehicle Panel PC

 Restore User Defaults

Use the Restore User Defaults option to restore the user defaults to all the setup options.

Page 61

Page 72

IKARPC-07A-BT In-vehicle Panel PC

Chapter

6 Interface Connectors

Page 62

Page 73

IKARPC-07A-BT In-vehicle Panel PC

6.1 Peripheral Interface Connectors

The motherboard of the IKARPC-07A-BT comes with a number of peripheral interface connectors and configuration jumpers. The connector locations are shown in Figure 6-1 and Figure 6-2. The Pin 1 locations of the on-board connectors are also indicated in the

diagrams below. The connector pinouts for these connectors are listed in the following

sections.

Figure 6-1: Main Board Layout Diagram (Front Side)

Figure 6-2: Main Board Layout Diagram (Solder Side)

Page 63

Page 74

IKARPC-07A-BT In-vehicle Panel PC

6.2 Internal Peripheral Connectors

Internal peripheral connectors are found on the motherboard and are only accessible

when the motherboard is outside of the chassis. The table below shows a list of the

peripheral interface connectors on the IKARPC-07A-BT motherboard. Pinouts of these

connectors can be found in the following sections.

Connector Type Label

Battery connector 2-pin wafer BT1

Camera connector 5-pin wafer WEB1

Clear CMOS connector 2-pin header C_CMOS1

Debug port connector 12-pin wafer DBG_PORT1

GPS antenna connector Antenna connector ANT1

LED connector 12-pin FPC JLED1

LVDS connector 40-pin FPC LVDS1

Microphone connector 2-pin wafer JMIC1

mSATA module socket Full-size PCIe Mini SATA1

PCIe Mini socket for 3.75G module Full-size PCIe Mini MINI_PCIE1

PCIe Mini socket for wireless module Half-size PCIe Mini MINI_PCIE2

Power button Push button P_BTN1

Programming connector 5-pin header JMCU1

JOBD1

Speaker connector 2-pin wafer JSP1

SPI flash connector 6-pin wafer JSPI1

Touch panel connector 8-pin FPC TOUCH1

Page 64

Table 6-1: Peripheral Interface Connectors

Page 75

IKARPC-07A-BT In-vehicle Panel PC

6.2.1 Battery Connector (BT1)

PIN NO. DESCRIPTION

1 VBATT 2 GND

Table 6-2: Battery Connector (BT1) Pinouts

6.2.2 Camera Connector (WEB1)

PIN NO. DESCRIPTION

1 VCC 2 USB3 USB+ 4 GND 5 GND

Table 6-3: Camera Connector (WEB1) Pinouts

6.2.3 Clear CMOS Connector (C_CMOS1)

PIN NO. DESCRIPTION

1 RTC_RST# 2 GND

Table 6-4: Clear CMOS Connector (C_CMOS1) Pinouts

6.2.4 LED Connector (JLED1)

PIN NO. DESCRIPTION

1 VCC3 2 VCC3 3 PWR_LED_ON 4 PWR_LED_OFF 5 AUTODIMMING_DATA 6 AUTODIMMING_CLK 7 3.5G_LEDA

Page 65

Page 76

8 3.5G_LEDB 9 WIFI_LED 10 HDD_LED 11 GND 12 GND

Table 6-5: LED Connector (JLED1) Pinouts

6.2.5 LVDS Connector (LVDS1)

PIN NO. DESCRIPTION PIN NO. DESCRIP TIO N

1 VLCD_VCOM 21 LCM_RIN3+ 2 VLCD_VDD 22 GND 3 LCD_AVDD 23 NC 4 NC 24 NC

IKARPC-07A-BT In-vehicle Panel PC

5 RST 25 GND 6 LCD_AVDD 26 NC 7 GND 27 NC 8 LCM_RIN0- 28 GND 9 LCM_RIN0+ 29 VCC_LCD_AVDD 10 GND 30 GND 11 LCM_RIN1- 31 LCM_LEDK 12 LCM_RIN1+ 32 LCM_LEDK 13 GND 33 LCD_AVDD 14 LCM_RIN2- 34 GND 15 LCM_RIN2+ 35 VLCD_VGL 16 GND 36 GND 17 LCM_CLK- 37 GND 18 LCM_CLK+ 38 VLCD_VGH 19 GND 39 LCM_LEDA 20 LCM_RIN3- 40 LCM_LEDA

Page 66

Table 6-6: LVDS Connector (LVDS1) Pinouts

Page 77

IKARPC-07A-BT In-vehicle Panel PC

6.2.6 Microphone Connector (JMIC1)

PIN NO. DESCRIPTION

1 JMIC 2 GND

Table 6-7: Microphone Connector (JMIC1) Pinouts

6.2.7 mSATA Module Socket (SATA1)

PIN NO. DESCRIPTION PIN NO. DESCRIP TIO N

1 NC 2 VCC3 3 NC 4 GND 5 NC 6 NC 7 NC 8 NC 9 GND 10 NC 11 NC 12 NC 13 NC 14 NC 15 GND 16 NC 17 NC 18 GND 19 NC 20 NC 21 GND 22 NC 23 TPC_SAT0_RXP_C 24 VCC3 25 TPC_SAT0_RXN_C 26 GND 27 GND 28 NC 29 GND 30 NC 31 TPC_SAT0_TXN_C 32 NC 33 TPC_SAT0_TXP_C 34 GND 35 GND 36 NC 37 GND 38 NC 39 VCC3 40 GND 41 VCC3 42 NC 43 NC 44 NC 45 NC 46 NC

Page 67

Page 78

PIN NO. DESCRIPTION PIN NO. DESCRIP TIO N

47 NC 48 NC 49 NC 50 GND 51 NC 52 VCC3

IKARPC-07A-BT In-vehicle Panel PC

Table 6-8: mSATA Module Socket (SATA1) Pinouts

6.2.8 PCIe Mini Socket for 3.75G Module (MINI_PCIE1)

This socket supports USB interface only and voice function.

PIN NO. DESCRIPTION PIN NO. DESCRIP TIO N

1 NC 2 VCC3 3 NC 4 GND 5 NC 6 VCC1.5 7 NC 8 SIM_VCC 9 GND 10 SIM_CIO 11 NC 12 SIM_CLK 13 NC 14 SIM_RST 15 GND 16 NC 17 NC 18 GND 19 NC 20 NC 21 GND 22 NC 23 NC 24 VCC3 25 NC 26 GND 27 GND 28 VCC1.5 29 GND 30 NC 31 NC 32 SMS_RING 33 NC 34 GND 35 GND 36 USB_DATA_N 37 GND 38 USB_DATA_P 39 VCC3 40 GND

Page 68

41 VCC3 42 NC 43 3GLED_EN 44 NC 45 NC 46 NC

Page 79

IKARPC-07A-BT In-vehicle Panel PC

PIN NO. DESCRIPTION PIN NO. DESCRIP TIO N

47 NC 48 VCC1.5 49 NC 50 GND 51 NC 52 VCC3

Table 6-9: PCIe Mini Socket for 3.75G Module (MINI_PCIE1) Pinouts

6.2.9 PCIe Mini Socket for Wireless Module (MINI_PCIE2)

This socket supports USB interface and PCIe interface.

PIN NO. DESCRIPTION PIN NO. DESCRIP TIO N

1 WAKE# 2 VCC3 3 NC 4 GND 5 NC 6 VCC1.5 7 NC 8 NC 9 GND 10 NC 11 CLK_PCIE_CLK_N 12 NC 13 CLK_PCIE_CLK_P 14 NC 15 GND 16 NC 17 NC 18 GND 19 NC 20 GPIO_WIFI 21 WIFI_LED1 22 PCIRST# 23 PCIE_RXN 24 VCC3 25 PCIE_RXP 26 GND 27 GND 28 VCC1.5 29 GND 30 SMB_CLK 31 PCIE_TXN 32 SMB_DATA 33 PCIE_TXP 34 GND 35 GND 36 USB_DATA_N 37 NC 38 USB_DATA_P 39 NC 40 GND 41 NC 42 WIFI_LED3 43 NC 44 WIFI_LED2 45 NC 46 NC

Page 69

Page 80

PIN NO. DESCRIPTION PIN NO. DESCRIP TIO N

47 NC 48 VCC1.5 49 NC 50 GND 51 NC 52 VCC3

Table 6-10: PCIe Mini Socket for Wireless Module (MINI_PCIE2) Pinouts

6.2.10 Programming Connector (JMCU1)

PIN NO. DESCRIPTION

1 MCLR 2 VCC5 3 GND 4 ICSP_CLK 5 ICSP_DAT

IKARPC-07A-BT In-vehicle Panel PC

Table 6-11: Programming Connector (JMCU1) Pinouts

6.2.11 Programming Connector (JOBD1)

PIN NO. DESCRIPTION

1 MCLR 2 VCC5 3 GND 4 ICSP_CLK 5 ICSP_DAT

Table 6-12: Programming Connector (JOBD1) Pinouts

6.2.12 Speaker Connector (JSP1)

PIN NO. DESCRIPTION

1 SPK_OUT_P_L 2 SPK_OUT_N_L

Page 70

Table 6-13: Speaker Connector (JSP1) Pinouts

Page 81

IKARPC-07A-BT In-vehicle Panel PC

6.2.13 SPI Flash Connector (JSPI1)

PIN NO. DESCRIPTION

1 VCC3 2 CS 3 MISO 4 CLK 5 MOSI 6 GND

Table 6-14: SPI Flash Connector (JSPI1) Pinouts

6.2.14 Touch Panel Connector (TOUCH1)

PIN NO. DESCRIPTION

1 VCC3 2 GND 3 USB4 USB+ 5 NC 6 NC 7 NC 8 NC

Table 6-15: Touch Panel Connector (TOUCH1) Pinouts

Page 71

Page 82

IKARPC-07A-BT In-vehicle Panel PC

6.3 External Peripheral Connectors

The table below shows a list of the external peripheral interface connectors on the IKARPC-07A-BT motherboard. Pinouts of these connectors can be found in Section 3.6.

Connector Type Label

OBD-II, LAN and USB connector 20-pin connector IO-1

RS-232, DIO and audio connector 24-pin connector IO-2

HDMI connector HDMI connector HDMI1

microSD card socket microSD card socket SD1

Power input connector 4-pin Molex PWIN1

SIM card socket SIM card socket SIM1, SIM2

USB 2.0 port External USB 2.0 USB2

USB 3.0 port External USB 3.0 USB1

Table 6-16: Peripheral Interface Connectors

Page 72

Page 83

IKARPC-07A-BT In-vehicle Panel PC

Appendix

A Regulatory Compliance

Page 73

Page 84

IKARPC-07A-BT In-vehicle Panel PC

DECLARATION OF CONFORMITY

This equipment is in conformity with the following EU directives:

 EMC Directive (2004/108/EC, 2014/30/EU)

 Low-Voltage Directive (2006/95/EC, 2014/35/EU)

 RoHS II Directive (2011/65/EU, 2015/863/EU)

 Ecodesign Directive 2009/125/EC

If the user modifies and/or install other devices in the equipment, the CE conformity

declaration may no longer apply.

If this equipment has telecommunications functionality, it also complies with the

requirements of the Radio Equipment Directive 2014/53/EU.

English

IEI Integration Corp declares that this equipment is in compliance with the essential

requirements and other relevant provisions of Directive 2014/53/EU.

Български [Bulgarian]

IEI Integration Corp. декларира, че този оборудване е в съответствие със

съществените изисквания и другите приложими правила на Директива 2014/53/EU.

Česky [Czech]

IEI Integration Corp tímto prohlašuje, že tento zařízení je ve shodě se základními

požadavky a dalšími příslušnými ustanoveními směrnice 2014/53/EU.

Dansk [Danish]

IEI Integration Corp erklærer herved, at følgende udstyr overholder de væsentlige krav og

øvrige relevante krav i direktiv 2014/53/EU.

Deutsch [German]

IEI Integration Corp, erklärt dieses Gerät entspricht den grundlegenden Anforderungen

und den weiteren entsprechenden Vorgaben der Richtlinie 2014/53/EU.

Eesti [Estonian]

IEI Integration Corp deklareerib seadme seadme vastavust direktiivi 2014/53/EÜ

põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.

Page 74

Page 85

IKARPC-07A-BT In-vehicle Panel PC

Español [Spanish]

IEI Integration Corp declara que el equipo cumple con los requisitos esenciales y

cualesquiera otras disposiciones aplicables o exigibles de la Directiva 2014/53/EU.

Ελληνική [Greek]

IEI Integration Corp ΔΗΛΩΝΕΙ ΟΤΙ ΕΞΟΠΛΙΣΜΟΣ ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ

ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ

2014/53/EU.

Français [French]

IEI Integration Corp déclare que l'appareil est conforme aux exigences essentielles et aux

autres dispositions pertinentes de la directive 2014/53/EU.

Italiano [Italian]

IEI Integration Corp dichiara che questo apparecchio è conforme ai requisiti essenziali ed

alle altre disposizioni pertinenti stabilite dalla direttiva 2014/53/EU.

Latviski [Latvian]

IEI Integration Corp deklarē, ka iekārta atbilst būtiskajām prasībām un citiem ar to

saistītajiem noteikumiem Direktīvas 2014/53/EU.

Lietuvių [Lithuanian]

IEI Integration Corp deklaruoja, kad šis įranga atitinka esminius reikalavimus ir kitas

2014/53/EU Direktyvos nuostatas.

Nederlands [Dutch]

IEI Integration Corp dat het toestel toestel in overeenstemming is met de essentiële eisen

en de andere relevante bepalingen van richtlijn 2014/53/EU.

Malti [Maltese]

IEI Integration Corp jiddikjara li dan prodott jikkonforma mal-ħtiġijiet essenzjali u ma

provvedimenti oħrajn relevanti li hemm fid-Dirrettiva 2014/53/EU.

Magyar [Hungarian]

IEI Integration Corp nyilatkozom, hogy a berendezés megfelel a vonatkozó alapvetõ

követelményeknek és az 2014/53/EU irányelv egyéb elõírásainak.

Polski [Polish]

IEI Integration Corp oświadcza, że wyrobu jest zgodny z zasadniczymi wymogami oraz

pozostałymi stosownymi postanowieniami Dyrektywy 2014/53/EU.

Português [Portuguese]

IEI Integration Corp declara que este equipamento está conforme com os requisitos

essenciais e outras disposições da Directiva 2014/53/EU.

Page 75

Page 86

Româna [Romanian]

IEI Integration Corp declară că acest echipament este in conformitate cu cerinţele

esenţiale şi cu celelalte prevederi relevante ale Directivei 2014/53/EU.

Slovensko [Slovenian]

IEI Integration Corp izjavlja, da je ta opreme v skladu z bistvenimi zahtevami in ostalimi

relevantnimi določili direktive 2014/53/EU.

Slovensky [Slovak]

IEI Integration Corp týmto vyhlasuje, že zariadenia spĺňa základné požiadavky a všetky

príslušné ustanovenia Smernice 2014/53/EU.

Suomi [Finnish]

IEI Integration Corp vakuuttaa täten että laitteet on direktiivin 2014/53/EU oleellisten

vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.

Svenska [Swedish]

IEI Integration Corp förklarar att denna utrustningstyp står I överensstämmelse med de

IKARPC-07A-BT In-vehicle Panel PC

väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv

2014/53/EU.

Page 76

Page 87

IKARPC-07A-BT In-vehicle Panel PC

FCC WARNING

This equipment complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

 This device may not cause harmful interference, and

 This device must accept any interference received, including interference

This equipment has been tested and found to comply with the limits for a Class A digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference when the equipment is operated in a

commercial environment. This equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in accordance with the instruction

manual, may cause harmful interference to radio communications. Operation of this

equipment in a residential area is likely to cause harmful interference in which case the

user will be required to correct the interference at his own expense.

that may cause undesired operation.

Federal Communication Commission Interference Statement

This equipment has been assembled with components that comply with the limits for a

Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference to

radio communications. However, there is no guarantee that interference will not occur in

a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one of the following measures:

 Reorient or relocate the receiving antenna.

 Increase the separation between the equipment and receiver.

 Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

 Consult the dealer or an experienced radio/TV technician for help.

Page 77

Page 88

IKARPC-07A-BT In-vehicle Panel PC

Appendix

B Safety Precautions

Page 78

Page 89

IKARPC-07A-BT In-vehicle Panel PC

WARNING:

The precautions outlined in this chapter should be strictly followed.

Failure to follow these precautions may result in permanent damage to

the IKARPC-07A-BT.

B.1 Safety Precautions

Please follow the safety precautions outlined in the sections that follow:

B.1.1 General Safety Precautions

Please ensure the following safety precautions are adhered to at all times.

 Follow the electrostatic precautions outlined below whenever the device is

opened.

 Make sure the power is turned off and the power cord is disco nnected

whenever the IKARPC-07A-BT is being installed, moved or modified.

 To prevent the risk of electric shock, make sure power cord is

unplugged from wall socket. To fully disengage the power to the unit,

please disconnect the power cord from the power outlet. Refer servicing to

qualified service personnel. The power outlet shall be readily available and

accessible.

 Do not apply voltage levels that exceed the specified voltage range.

Doing so may cause fire and/or an electrical shock. Use a power cord that

matches the voltage of the power outlet, which has been approved and

complies with the safety standard of your particular country.

 Electric shocks can occur if the IKARPC-07A-BT chassis is opened when it

is running. To avoid risk of electric shock, this device must only be connected

to a supply mains with protective earth.

 Do not drop or insert any objects into the ventilation openings of the

IKARPC-07A-BT.

Page 79

Page 90

 If considerable amounts of dust, water, or fluids enter the device, turn off

the power supply immediately, unplug the power cord, and contact the

IKARPC-07A-BT vendor.

 DO NOT:

o Drop the device against a hard surface. o Strike or exert excessive force onto the LCD panel. o Touch any of the LCD panels with a sharp object o In a site where the ambient temperature exceeds the rated temperature

B.1.2 Anti-static Precautions

WARNING:

Failure to take ESD precautions during the installation of the

IKARPC-07A-BT In-vehicle Panel PC

IKARPC-07A-BT may result in permanent damage to the

IKARPC-07A-BT and severe injury to the user.

Electrostatic discharge (ESD) can cause serious damage to electronic components,

including the IKARPC-07A-BT. Dry climates are especially susceptible to ESD. It is

therefore critical that whenever the IKARPC-07A-BT is opened and any of the electrical

components are handled, the following anti-static precautions are strictly adhered to.

 Wear an anti-static wristband: Wearing a simple anti-static wristband can

help to prevent ESD from damaging any electrical component.

 Self-grounding: Before handling any electrical component, touch any

grounded conducting material. During the time the electrical component is

handled, frequently touch any conducting materials that are connected to the

ground.

 Use an anti-static pad: When configuring or working with an electrical

component, place it on an anti-static pad. This reduces the possibility of ESD

Page 80

damage.

 Only handle the edges of the electrical component: When handling the

electrical component, hold the electrical component by its edges.

Page 91

IKARPC-07A-BT In-vehicle Panel PC

B.1.3 Product Disposal

CAUTION:

Risk of explosion if battery is replaced by an incorrect type. Only

certified engineers should replace the on-board battery.

Dispose of used batteries according to instructions and local

regulations.

 Outside the European Union–If you wish to dispose of used electrical and

electronic products outside the European Union, please contact your local

authority so as to comply with the correct disposal method.

 Within the European Union–The device that produces less waste and is

easier to recycle is classified as electronic device in terms of the European

Directive 2012/19/EU (WEEE), and must not be disposed of as domestic

garbage.

EU-wide legislation, as implemented in each Member State, requires that

waste electrical and electronic products carrying the mark (left) must be

disposed of separately from normal household waste. This includes

monitors and electrical accessories, such as signal cables or power cords.

When you need to dispose of your display products, please follow the

guidance of your local authority, or ask the shop where you purchased the product. The

mark on electrical and electronic products only applies to the current European Union

Member States.

Please follow the national guidelines for electrical and electronic product disposal.

Page 81

Page 92

IKARPC-07A-BT In-vehicle Panel PC

B.2 Maintenance and Cleaning Precautions

When maintaining or cleaning the IKARPC-07A-BT, please follow the guidelines below.

WARNING:

 For safety reasons, turn-off the power and unplug the panel PC

before cleaning.

 If you dropped any material or liquid such as water onto the panel

PC when cleaning, unplug the power cable immediately and contact

your dealer or the nearest service center. Always make sure your

hands are dry when unplugging the power cable.

B.2.1 Maintenance and Cleaning

Prior to cleaning any part or component of the IKARPC-07A-BT, please read the details

below.

 Except for the LCD panel, never spray or squirt liquids directly onto any other

components. To clean the LCD panel, gently wipe it with a piece of soft dry

cloth or a slightly moistened cloth.

 The interior of the device does not require cleaning. Keep fluids away from the

device interior.

 Be cautious of all small removable components when vacuuming the device.

 Never drop any objects or liquids through the openings of the device.

 Be cautious of any possible allergic reactions to solvents or chemicals used

when cleaning the device.

 Avoid eating, drinking and smoking within vicinity of the device.

B.2.2 Cleaning Tools

Some components in the IKARPC-07A-BT may only be cleaned using a product

specifically designed for the purpose. In such case, the product will be explicitly mentioned in the cleaning tips. Below is a list of items to use when cleaning the IKARPC-07A-BT.

 Cloth– Although paper towels or tissues can be used, a soft, clean piece of

cloth is recommended when cleaning the device.

Page 82

Page 93

IKARPC-07A-BT In-vehicle Panel PC

 Water or rubbing alcohol–A cloth moistened with water or rubbing alcohol

can be used to clean the device.

 Using solvents–The use of solvents is not recommended when cleaning the

device as they may damage the plastic parts.

 Vacuum cleaner–Using a vacuum specifically designed for computers is

one of the best methods of cleaning the device. Dust and dirt can restrict the

airflow in the device and cause its circuitry to corrode.

 Cotton swabs–Cotton swaps moistened with rubbing alcohol or water are

excellent tools for wiping hard to reach areas.

 Foam swabs–Whenever possible, it is best to use lint free swabs such as

foam swabs for cleaning.

Page 83

Page 94

IKARPC-07A-BT In-vehicle Panel PC

Appendix

C OBD-II Reader

Command

Page 84

Page 95

IKARPC-07A-BT In-vehicle Panel PC

C.1 Select a Chip Initial Mode: UpDate F/W or RUN F/W

 AP sends query

 F/W receives query

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

Enter Boot

Mode

Enter RUN

Mode

0x31

0x30

C.2 Boot Mode

 Launch AP: P1618QP (Pic18F Bootloader )

 Baud Rate:115200

C.3 Run Mode

Any mode in Run mode

 AP sends query

 F/W receives query

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

Enter

OBD-II

Enter

CAN

Standard

V2.2.B

Request

mode &

version

$ M A 0x0

$ M B 0x0

$ M R 0x0A 0x0D

0x0

Page 85

Page 96

IKARPC-07A-BT In-vehicle Panel PC

F/W returns (after receiving query)

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

Select a

mode to

send

Tele mode

response

CAN S

mode

response

Enter Tele

mode to

respond

Enter CAN

$ M 0 0x00 Ver

(1)

0x1

$ M 1 0x00 Ver

(1)

0x1

$ M 2 0x00 Ver

(1)

0x1

$ M T 0x0

$ M C 0x0

0x0

Ver

0x0

(2)

0x0

Ver

0x0

(2)

0x0

Ver

0x0

(2)

0x0

S mode to

respond

Page 86

Page 97

IKARPC-07A-BT In-vehicle Panel PC

C.4 Into CAN_Standard V2.2.B (CAN standard)

 AP sends query

 F/W receives query

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

Sent by

CAN

Set CAN

baud

Set to

send by

CAN

Setup

Read

$ C T 0x0A 0x0D

$ C B xxx Baud 0x00

Reserved

$ C X 0x00

Reserved

$ C M M1ID(1) M1ID(2) M1I

M2F

M2F1ID(4

F1I

1ID(

F1I

)

D(1)

D(3)

$ C R 0x0A 0x0D

TxIDE RTR

B0 B1

DLC

M2F2ID(1) M2F

0x0

ID(1

)

D(3)

2ID(

0x0

ID(2

ID(3

ID(4

D1 D2 D3 D4 D5 D6 D7 D8 0x0

)

M1I

D(4) M1F1I

M2F

2ID(

D(1)

F2I

D(4)

M1F

1ID(

M3F

3ID(

F1I

D(3)

F3I

D(2)

M1F

1ID(

M3F

3ID(

F2I

D(1)

F3I

D(4)

M1F

2ID(

M3F

4ID(

M1F

2ID(

M3F

4ID(

F2I

D(4)

F4I

D(3)

M2I

D(1)

M3F

4ID(

M2I

D(2)

RxI

xxx

M2I

D(3)

0x0

M2I

D(4

)

0x0

setting

Setup

read

$ C G 0x0A 0x0D

 F/W returns (after receiving query)

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

Set CAN

baud

complete

CAN query

setup

$ C 9 0x0A 0x0

$ C 3 0x0A 0x0

Page 87

Page 98

complete

IKARPC-07A-BT In-vehicle Panel PC

Menu setup

complete

Read query

setup

Read menu

setup

Read CAN

$ C 4 0x0A 0x0

$ C 5 xxx

$ C 7 M1I

M2F

1ID(

$ C 6 xxx

Bau

D(1)

M2F

1ID(

TxID

RTR

DLC

M1I

D(2)

M2F

2ID(

IDE

ID(1) ID(2) ID(3) ID(4) D1 D2 D3 D4 D5 D6 D7 D8 0x0A 0x0

M1I

M1F

M2I

D(3)

D(4)

1ID(

2ID(

D(1)

D(2)

D(3)

D(4)

M2F

M3F

RxID

0x0A 0x0

2ID(

3ID(

4ID(

xxx

xxxx

ID(1) ID(2) ID(3) ID(4) D1 D2 D3 D4 D5 D6 D7 D8 0x0A 0x0

complete

CAN starts

query

CAN query

error

CAN query

succeed

Bau

RTR

DLC

$ C 8 0x0A 0x0

$ C E 0x0A 0x0

$ C F 0x0A 0x0

Page 88

Page 99

IKARPC-07A-BT In-vehicle Panel PC

C.5 Into Telematics (Vehicel Information)

 F/W:Telematics

 AP: Telematics V1.005

 AP sends query

 F/W receives query

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

Scan all

Scan

OBD-II

Scan J1939

Scan FMS

OBD-II

input PID-1

OBD-II

input PID-2

Z 0 0x0D

Z 0x0D

Z 1 0x0D

Z 2 0x0D

Z 1 0x0D

A Mo

B Mo

de-

D-1 PID-2

0x0D

OBD-II

input PID-3

OBD-II

input PID-4

Reserved

C Mo

D Mo

de-

D-1 PID-2

0x0D

Page 89

Page 100

IKARPC-07A-BT In-vehicle Panel PC

Reserved

J1939 input

PSPF

FMS input

PSPF

Version

I P

J P

Y 0x0D

0x0D

-1

-2

-1

-2

0x0D

-1

-2

-1

-2

 F/W returns (after receiving query)

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

device is

scanned

Devices

Scanned

Page 90
