Page 1

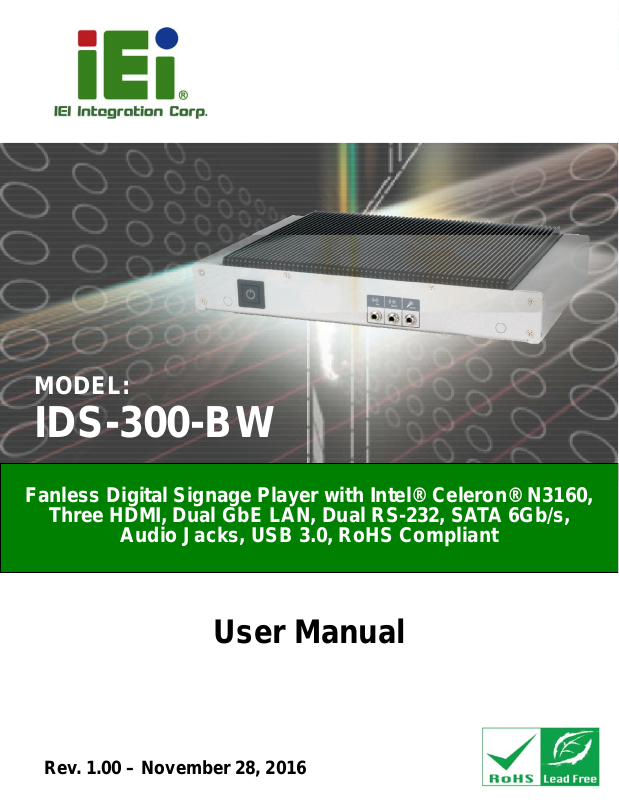

IDS-300-BW Digital Signage Player
System
MODEL:
IDS-300-BW
Fanless Digital Signage Player with Intel® Celeron® N3160,
Three HDMI, Dual GbE LAN, Dual RS-232, SATA 6Gb/s,
Audio Jacks, USB 3.0, RoHS Compliant
User Manual
Rev. 1.00 – November 28, 2016
Page I
Page 2
IDS-300-BW Digital Signage Player
Revision
Date Version Changes
November 28, 2016 1.01 Modified HDMI connector descriptions
Updated Chapter 4: BIOS
July 20, 2016 1.00 Initial release
Page II
Page 3
IDS-300-BW Digital Signage Player
COPYRIGHT NOTICE
The information in this document is subject to change without prior notice in order to
improve reliability, design and function and does not represent a commitment on the part
of the manufacturer.
In no event will the manufacturer be liable for direct, indirect, special, incidental, or
consequential damages arising out of the use or inability to use the product or
documentation, even if advised of the possibility of such damages.
This document contains proprietary information protected by copyright. All rights are
Copyright
reserved. No part of this manual may be reproduced by any mechanical, electronic, or
other means in any form without prior written permission of the manufacturer.
TRADEMARKS
All registered trademarks and product names mentioned herein are used for identification
purposes only and may be trademarks and/or registered trademarks of their respective
owners.
Page III
Page 4
IDS-300-BW Digital Signage Player
Safety Instructions
Warning! Read the user manual before connecting the system to the power
source.
Vorsicht! Bitte lesen Sie die Bedienungsanleitung, bevor Sie das System an eine
Stromquelle anschließen.
Attention! Avant de brancher le système à la source d'alimentation, consultez le
mode d'emploi.
Avvertenza! Consultare il manuale utente prima di collegare il sistema
all'alimentatore.
Atención! Lea atentamente este manual del usuario antes de operar la fuente de
alimentación.
警告！在將系統連接到電源之前，請仔細閱讀使用手冊。
警告！在将系统连接到电源之前，请仔细阅读使用手册。
Warning! To prevent the system from overheating, do not operate it in an area that
exceeds the maximum operating temperature described in the user manual.
Vorsicht! Um eine Überhitzung des Systems zu vermeiden, betreiben Sie es
ausschließlich im zulässigen Betriebstemperaturbereich. Dieser ist in der
Bedienungsanleitung vermerkt.
Attention! Pour éviter la surchauffe du système, ne l'utilisez pas dans une zone
dont la température dépasse les limites décrits dans le mode d'emploi.
Avvertenza! Per evitare che il sistema si surriscaldi, non utilizzarlo in aree che
superino la temperatura massima d'esercizio descritta nel manuale utente.
Atención! Para evitar el excesivo calentamiento del sistema, no opere en las
condiciones de temperatura superior a lo recomendado en este manual del
usuario.
警告！為防止系統過熱，不要在超過使用手冊上記載的產品工作溫度範圍之外操作
此系統。
警告！为防止系统过热，不要在超过使用手册上记载的产品工作温度范围之外操作
此系统。
Page IV
Page 5
IDS-300-BW Digital Signage Player
Warning! Use only the adapter and power cord approved for this system. Use of
another type of adapter may risk fire or explosion. Please refer to the user manual
for the power adapter specifications.
Vorsicht! Nur zugelassene Netzteile und Netzkabel dürfen verwendet werden. Die
Benutzung von anderen Netzteilen kann einen Brand oder eine Explosion zur
Folge haben. Prüfen Sie die jeweiligen Spezifikationen in der
Bedienungsanleitung.
Attention! Utilisez exclusivement le câble d'alimentation et l’adaptateur
homologués pour ce système. L’utilisation d’un autre type d’adaptateur risquerait
de provoquer un incendie ou une explosion. Veuillez référer au mode d'emploi
pour les spécifications de l'adaptateur d'alimentation.
Avvertenza! Utilizzare solo l'adattatore e il cavo di alimentazione approvati per
questo sistema. L'uso di un altro tipo di adattatore può causare rischio d'incendio
o esplosione. Si prega di fare riferimento al manuale utente per le specifiche
sull'alimentazione.
Atención! Utilice solamente el adaptador de corriente alterna (CA) con Marcas
Conformidad otorgadas. Cualquier otro adaptador no otorgado aumenta el riesgo
de explosión o incendio. Por favor consulte el manual del usuario para las
especificaciones del adaptador de alimentación.
警告！只能使用經過認證、適用於本系統的電源變壓器與電源線。使用不適用的電
源變壓器將可能導致火災或爆炸。電源變壓器規格請參考使用手冊。
警告！只能使用经过认证，适用于本系统的电源适配器与电源线。使用不适用的电
源适配器将可能导致火灾或爆炸。电源适配器规格请参考使用手册。
Warning! Ultimate disposal of this product should be handled according to all
national laws and regulations.
Vorsicht! Die Entsorgung dieses Produkts sollte gemäß allen Bestimmungen und
Gesetzen des Landes erfolgen.
Attention! La mise au rebut ou le recyclage de ce produit sont généralement
soumis aux lois et/ou directives de respect de l'environnement. Renseignez-vous
auprès de l'organisme compétent.
Avvertenza! Lo smaltimento di questo prodotto deve essere eseguito secondo le
leggi e i regolamenti locali.
Atención! La disposición final de residuos de este producto se debe cumplir con
las normativas y leyes del país.
警告！本產品的廢棄處理應根據該國家的法律和規章進行。
警告！本产品的废弃处理应根据该国家的法律和规章进行。
Page V
Page 6
IDS-300-BW Digital Signage Player
Manual Conventions
WARNING
Warnings appear where overlooked details may cause damage to the
equipment or result in personal injury. Warnings should be taken
seriously.
CAUTION
Cautionary messages should be heeded to help reduce the chance of
losing data or damaging the product.
NOTE
These messages inform the reader of essential but non-critical
information. These messages should be read carefully as any directions
or instructions contained therein can help avoid making mistakes.
HOT SURFACE
This symbol indicates a hot surface that should not be touched without
taking care.
Page VI
Page 7
IDS-300-BW Digital Signage Player
Table of Contents
1 INTRODUCTION.......................................................................................................... 1
1.1 OVERVIEW.................................................................................................................. 2
1.2 FEATURES................................................................................................................... 2

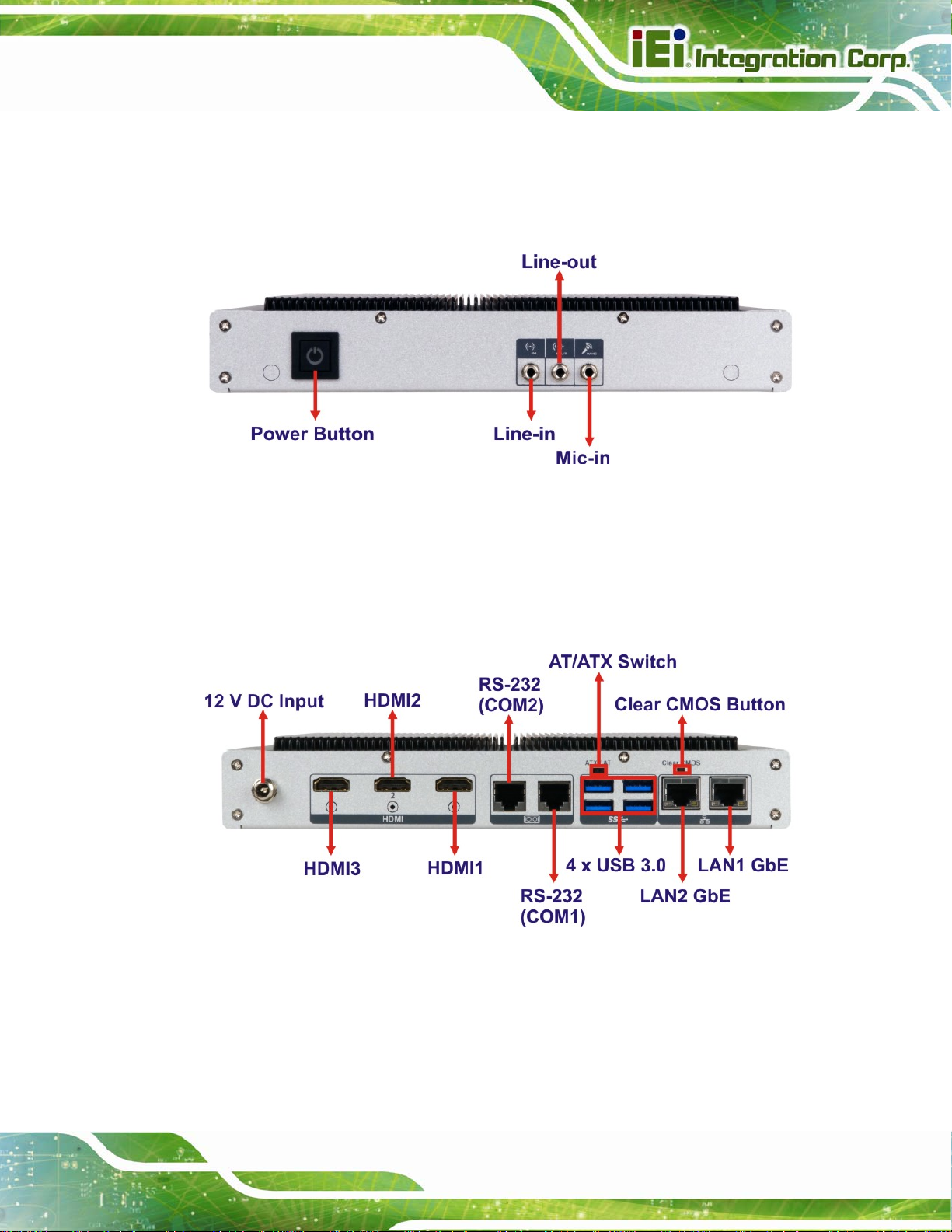

1.3 FRONT PANEL............................................................................................................. 3
1.4 REAR PANEL............................................................................................................... 3

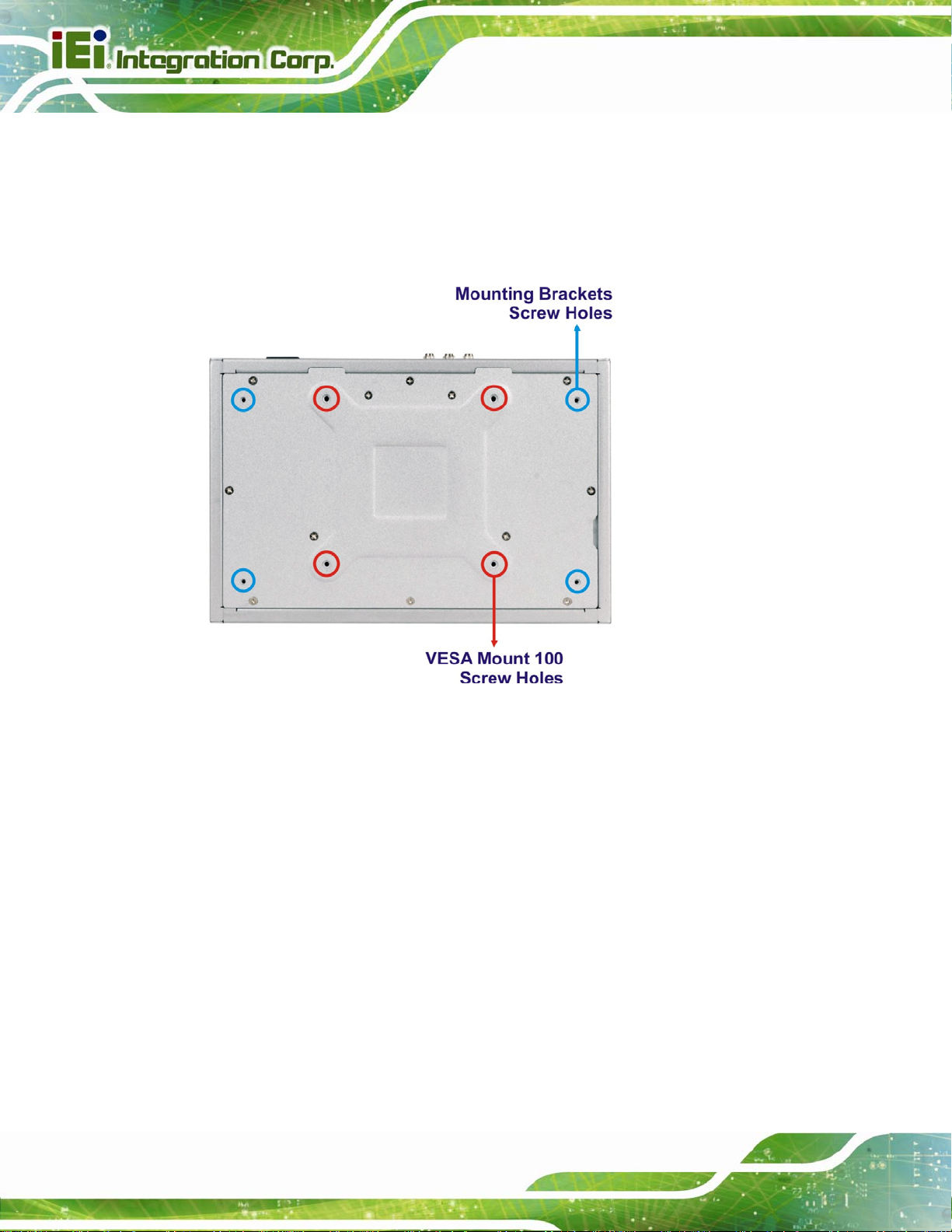

1.5 BOTTOM PANEL.......................................................................................................... 4
1.6 TECHNICAL SPECIFICATIONS ...................................................................................... 5

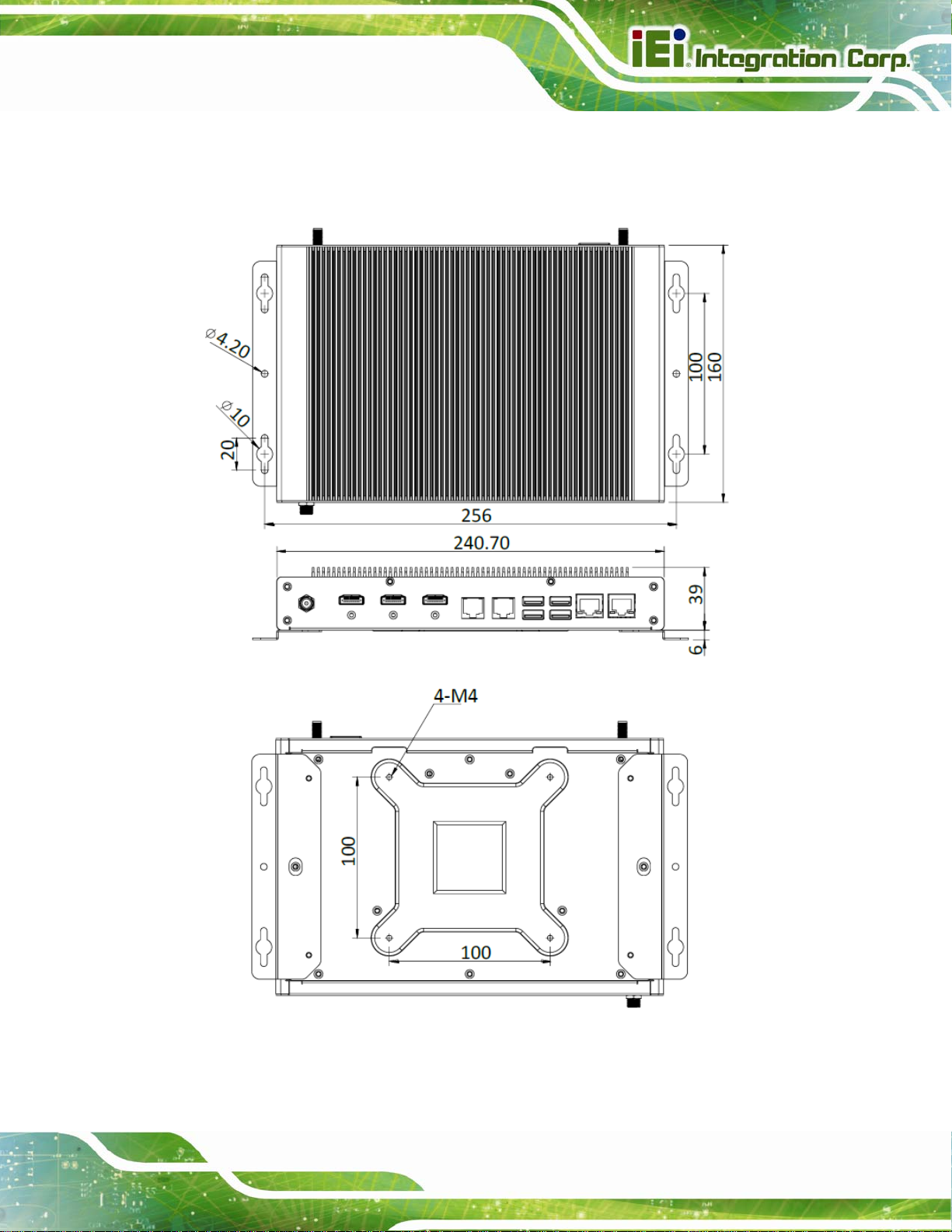

1.7 DIMENSIONS............................................................................................................... 7
2 UNPACKING................................................................................................................. 8
2.1 UNPACKING................................................................................................................ 9
2.2 PACKING LIST............................................................................................................. 9
2.3 OPTIONAL ITEMS...................................................................................................... 10
3 INSTALLATION ......................................................................................................... 12
3.1 ANTI-STATIC PRECAUTIONS...................................................................................... 13
3.2 INSTALLATION PRECAUTIONS ................................................................................... 13
3.2.1 High Surface Temperature............................................................................... 14
3.3 BOTTOM SURF ACE REMOVAL................................................................................... 15
HARD DRIVE INSTALLATION..................................................................................... 16
3.4
3.5 MSATA MODULE INSTALLATION.............................................................................. 19
3.6
WIRELESS LAN MODULE INSTALLATION (OPTIONAL)............................................. 21
3.7 AT/ATX POWER MODE SELECTION ......................................................................... 24
3.7.1 AT Power Mode................................................................................................ 25
3.7.2 ATX Power Mode............................................................................................. 25
3.8 MOUNTING THE SYSTEM .......................................................................................... 25
3.9 EXTERNAL PERIPHERAL INTERFACE CONNECTION ................................................... 27
3.9.1 LAN Connectors............................................................................................... 28
3.9.2 HDMI Connectors............................................................................................ 29
3.9.3 Power Connector............................................................................................. 30
3.9.4 RS-232 Serial Port Connectors........................................................................ 31
Page VII
Page 8
IDS-300-BW Digital Signage Player
3.9.5 USB 3.0 Connectors......................................................................................... 32
POWER-ON PROCEDURE......................................................................................... 33
3.10
3.10.1 Installation Checklist..................................................................................... 33
3.10.2 Power-on Procedure ...................................................................................... 33
3.11 CLEAR CMOS........................................................................................................ 34
3.12 OS INSTALLATION .................................................................................................. 34
3.12.1 Windows 7 Installation–USB 3.0 Creator Utility........................................... 35
4 BIOS.............................................................................................................................. 36
4.1 INTRODUCTION......................................................................................................... 37
4.1.1 Starting Setup................................................................................................... 37
4.1.2 Using Setup...................................................................................................... 37
4.1.3 Getting Help..................................................................................................... 38
4.1.4 BIOS Menu Bar................................................................................................ 38
4.2
MAIN........................................................................................................................ 39
4.3 ADVANCED............................................................................................................... 40
4.3.1 ACPI Settings................................................................................................... 41
4.3.2 RTC Wake Settings........................................................................................... 42
4.3.3 CPU Configuration.......................................................................................... 43
4.3.4 SATA Configuration ......................................................................................... 44
4.3.5 F81866 Super IO Configuration...................................................................... 45
4.3.5.1 Serial Port n Configuration....................................................................... 46
4.3.6 iWDD H/W Monitor......................................................................................... 48
4.3.7 Serial Port Console Redirection...................................................................... 49
4.3.7.1 Console Redirection Settings.................................................................... 50
4.3.8 IEI Feature....................................................................................................... 52
4.3.9 USB Configuration........................................................................................... 53
4.3.10 IEI QTS .......................................................................................................... 54
CHIPSET ................................................................................................................... 54
4.4
4.4.1 North Bridge Configuration............................................................................. 55
4.4.1.1 Intel IGD Configuration............................................................................ 56
4.4.2 South Bridge Configuration............................................................................. 58
4.4.2.1 PCI Express Configuration....................................................................... 59
4.5 SECURITY................................................................................................................. 60
4.6 BOOT........................................................................................................................ 61
Page VIII
Page 9
IDS-300-BW Digital Signage Player
EXIT......................................................................................................................... 63
4.7
5 MAINTENANCE......................................................................................................... 65
5.1 SYSTEM MAINTENANCE OVERVIEW......................................................................... 66
5.2 COMPONENT REPLACEMENT PROCEDURE................................................................ 66
5.2.1 SO-DIMM Replacement................................................................................... 67
6 INTERFACE CONNECTORS................................................................................... 69
6.1 PERIPHERAL INTERFACE CONNECTORS..................................................................... 70
6.2 INTERNAL PERIPHERAL CONNECTORS...................................................................... 71
6.2.1 Audio Connector (AUDIO1)............................................................................ 72
6.2.2 Chassis Intrusion Connector (J_CS1) ............................................................. 72
6.2.3 Debug Card Connector (DBG_PORT1).......................................................... 72
6.2.4 Digital I/O Connector (J_DIO1) ..................................................................... 73
6.2.5 EC Debug Connector (LPT_DB1)................................................................... 73
6.2.6 Fan Connector (CPU_FAN1)........................................................................... 73
6.2.7 Front Panel Connector (F_PANEL1)............................................................... 74
6.2.8 I
2
C Connector (J_I2C1)................................................................................... 74
6.2.9 Keyboard/Mouse Connector (J_KB/MS1)....................................................... 74
6.2.10 LAN Link LED Connector (JLAN_LED1, JLAN_LED2)............................... 75
6.2.11 PCIe Mini Slots (MINI_PCIE1, MSATA1) ..................................................... 75
6.2.12 Power Connector (PWR2) ............................................................................. 76
6.2.13 RS-232 Serial Ports (COM3, COM4, COM5)............................................... 76
6.2.14 RS-232/422/485 Serial Port (COM6) ............................................................ 77
6.2.15 SATA Connector (SATA1)............................................................................... 77
6.2.16 SMBus Connector (J_SMB1)......................................................................... 78
6.2.17 SPI Flash Connector, BIOS (J_SPI1) ............................................................ 78
6.2.18 SPI Flash Connector, EC (JSPI1).................................................................. 78
6.2.19 USB 2.0 Connector (J_USB1)........................................................................ 79
EXTERNAL INTERFACE PANEL CONNECTORS............................................................ 79
6.3
A REGULATORY COMPLIANCE.............................................................................. 80
B SAFETY PRECAUTIONS......................................................................................... 85
B.1 SAFETY PRECAUTIONS............................................................................................. 86
B.1.1 General Safety Precautions............................................................................. 86
Page IX
Page 10
IDS-300-BW Digital Signage Player
B.1.2 Anti-static Precautions.................................................................................... 87
B.1.3 Product Disposal............................................................................................. 88
MAINTENANCE AND CLEANING PRECAUTIONS ........................................................ 89
B.2
B.2.1 Maintenance and Cleaning.............................................................................. 89
B.2.2 Cleaning Tools................................................................................................. 89
C BIOS MENU OPTIONS............................................................................................. 91
C.1 BIOS CONFIGURATION OPTIONS ............................................................................. 92
D WA TCHDOG TIMER ................................................................................................ 94
E HAZARDOUS MATERIALS DISCLOSURE ......................................................... 97
Page X
Page 11
IDS-300-BW Digital Signage Player
List of Figures
Figure 1-1: IDS-300-BW Series Digital Signage Player...............................................................2
Figure 1-2: Front Panel ..................................................................................................................3
Figure 1-3: Rear Panel....................................................................................................................3
Figure 1-4: Bottom Panel...............................................................................................................4
Figure 1-5: Dimensions (mm)........................................................................................................7
Figure 3-1: Bottom Surface Retention Screws..........................................................................15
Figure 3-2: HDD Bracket Retention Screws...............................................................................16
Figure 3-3: HDD Retention Screws.............................................................................................17
Figure 3-4: HDD Installation ........................................................................................................17
Figure 3-5: SATA Connector Location .......................................................................................18
Figure 3-6: mSATA Module Slot Location..................................................................................19
Figure 3-7: Removing the Retention Screws.............................................................................19
Figure 3-8: Inserting the mSATA Module into the Slot at an Angle ........................................20
Figure 3-9: Securing the mSATA Module...................................................................................20
Figure 3-10: Knockouts for Wireless Antenna ..........................................................................21
Figure 3-11: PCIe Mini Slot Location..........................................................................................21
Figure 3-12: Removing the Retention Screw and Standoff......................................................22
Figure 3-13: Installing the Standoff ............................................................................................22
Figure 3-14: Inserting the WLAN Module...................................................................................23
Figure 3-15: Securing WLAN Module and Connecting RF Cables..........................................23
Figure 3-16: Securing SMA Connector and External Antenna Installation ............................24
Figure 3-17: AT/ATX Switch Location.........................................................................................24
Figure 3-18: Mounting Bracket Retention Screws ....................................................................26
Figure 3-19: External Peripheral Interface Connectors............................................................27
Figure 3-20: RJ-45 Ethernet Connector......................................................................................28
Figure 3-21: HDMI Connector......................................................................................................30
Figure 3-22: Power Connector ....................................................................................................30
Figure 3-23: RJ-45 Serial Port .....................................................................................................31
Figure 3-24: USB 3.0 Port ............................................................................................................32
Figure 3-25: Power Button...........................................................................................................33
Figure 3-26: Clear CMOS Button Location.................................................................................34
Page XI
Page 12
Figure 3-27: BIOS Option–OS Selection ....................................................................................34
Figure 5-1: Bottom Panel Retention Screws..............................................................................67
Figure 5-2: SO-DIMM Location....................................................................................................68
Figure 5-3: SO-DIMM Installation................................................................................................68
Figure 6-1: Main Board Layout Diagram....................................................................................70
IDS-300-BW Digital Signage Player
Page XII
Page 13
IDS-300-BW Digital Signage Player
List of Tables
Table 1-1: Technical Specifications..............................................................................................6
Table 2-1: Package List................................................................................................................10
Table 2-2: Optional Items.............................................................................................................11
Table 3-1: LAN Connector Pinouts.............................................................................................28
Table 3-2: RJ-45 Ethernet Connector LEDs...............................................................................28
Table 3-3: HDMI Connector Pinouts ...........................................................................................29
Table 3-4: Power Connector Pinouts..........................................................................................30
Table 3-5: Serial Port Pinouts......................................................................................................31
Table 3-6: USB 3.0 Port Pinouts..................................................................................................32
Table 4-1: BIOS Navigation Keys................................................................................................38
Table 6-1: Peripheral Interface Connectors...............................................................................71
Table 6-2: Audio Connector (AUDIO1) Pinouts.........................................................................72
Table 6-3: Chassis Intrusion Connector (J_CS1) Pinouts........................................................72
Table 6-4: Debug Card Connector (DBG_PORT1) Pinouts.......................................................72
Table 6-5: Digital I/O Connector (J_DIO1) Pinouts....................................................................73
Table 6-6: EC Debug Connector (LPT_DB1) Pinouts................................................................73
Table 6-7: Fan Connector (CPU_FAN1) Pinouts........................................................................73
Table 6-8: Front Panel Connector (F_PANEL1) Pinouts...........................................................74
Table 6-9: I2C Connector (J_I2C1) Pinouts.................................................................................74
Table 6-10: Keyboard/Mouse Connector (J_KB/MS1) Pinouts................................................74
Table 6-11: LAN Link LED Connector (JLAN_LED1, JLAN_LED2) Pinouts............................75
Table 6-12: PCIe Mini Slots (MINI_PCIE1, MSATA1) Pinouts...................................................76
Table 6-13: Power Connector (PWR2) Pinouts..........................................................................76
Table 6-14: RS-232 Serial Ports (COM3, COM4, COM5) Pinouts .............................................76
Table 6-15: RS-232/422/485 Serial Port (COM6) Pinouts ..........................................................77
Table 6-16: SATA Connector (SATA1) Pinouts .........................................................................77
Table 6-17: SMBus Connector (J_SMB1) Pinouts.....................................................................78
Table 6-18: SPI Flash Connector (J_SPI1) Pinouts...................................................................78
Table 6-19: SPI Flash Connector (JSPI1) Pinouts.....................................................................78
Table 6-20: USB 2.0 Connector (J_USB1) Pinouts....................................................................79
Table 6-21: External Interface Panel Connectors......................................................................79
Page XIII
Page 14
IDS-300-BW Digital Signage Player
List of BIOS Menus
BIOS Menu 1: Main.......................................................................................................................39
BIOS Menu 2: Advanced..............................................................................................................40
BIOS Menu 3: ACPI Settings .......................................................................................................41
BIOS Menu 4: RTC Wake Settings..............................................................................................42
BIOS Menu 5: CPU Configuration...............................................................................................43
BIOS Menu 6: SATA Configuration.............................................................................................44
BIOS Menu 7: F81866 Super IO Configuration ..........................................................................45
BIOS Menu 8: Serial Port n Configuration .................................................................................46
BIOS Menu 9: iWDD H/W Monitor ...............................................................................................48
BIOS Menu 10: Serial Port Console Redirection.......................................................................49
BIOS Menu 11: Console Redirection Settings...........................................................................50
BIOS Menu 12: IEI Feature...........................................................................................................52
BIOS Menu 13: USB Configuration.............................................................................................53
BIOS Menu 14: IEI QTS ................................................................................................................54
BIOS Menu 15: Chipset................................................................................................................55
BIOS Menu 16: North Bridge Configuration ..............................................................................55
BIOS Menu 17: Intel IGD Configuration......................................................................................56
BIOS Menu 18: South Bridge Configuration..............................................................................58
BIOS Menu 19: PCI Express Configuration ...............................................................................59
BIOS Menu 20: Security...............................................................................................................60
BIOS Menu 21: Boot.....................................................................................................................61
BIOS Menu 22: Exit.......................................................................................................................63
Page XIV
Page 15
IDS-300-BW Digital Signage Player
Chapter
1
1 Introduction
Page 1
Page 16
1.1 Overview
Figure 1-1: IDS-300-BW Series Digital Signage Player
The IDS-300-BW series is a fanless digital signage player with Intel
The IDS-300-BW is preinstalled with 4 GB of DDR3L SO-DIMM, and can accommodate
up to 8 GB of DDR3L memory. Storage in the system is supported by the 2.5” SATA
6Gb/s HDD/SSD bay and the PCIe Mini card slot for mSATA module.
IDS-300-BW Digital Signage Player
®
Celeron® N3160 SoC.
The IDS-300-BW includes three HDMI outputs supporting up to 3840 x 2160 resolution.
Other slots and connectors include full-size/half-size PCIe Mini card slots, RS-232, GbE
ports, USB 3.0 ports, and audio (line-in, line-out and mic-in).
1.2 Features
The IDS-300-BW has the following features
Fanless design
Intel
Three HDMI connectors supporting triple independent display with up to
Two GbE LAN for high speed network applications
Two full-size/half-size PCIe Mini card slots (one supports mSATA module)
One 2.5” SATA 6Gb/s HDD bay
Four USB 3.0 ports
Two RS-232 RJ-45 serial ports
®
Celeron® N3160 SoC platform delivers an optimized balance between
performance and power consumption
3840 x 2160 resolution
Page 2
Support audio line-out, line-in and mic-in
RoHS compliant design
Page 17
IDS-300-BW Digital Signage Player
1.3 Front Panel
The front panel of the IDS-300-BW contains a power button and three audio jacks. An
overview of the front panel is shown in
Figure 1-2: Front Panel
1.4 Rear Panel
The IDS-300-BW rear panel provides access to the external I/O connectors. An overview
of the rear panel is shown in
64Figure 1-2.
64Figure 1-3 below.
Figure 1-3: Rear Panel
Page 3
Page 18
1.5 Bottom Panel
The bottom panel of the IDS-300-BW contains several screw holes for VESA mount and
wall mounting brackets. The bottom panel also provides access to the internal
components, including HDD bay, SO-DIMM slot and PCIe Mini card slots.
IDS-300-BW Digital Signage Player
Figure 1-4: Bottom Panel
Page 4
Page 19
IDS-300-BW Digital Signage Player
1.6 Technical Specifications
The specifications for the IDS-300-BW are listed below.
IDS-300-BW
CPU
System Memory
Output Resolution
Ethernet
Display
Serial Port
USB
®
Celeron® N3160 SoC
Intel
(up to 2.24 GHz, quad-core, 2 MB cache, TDP=6 W)
1 x 1600/1333 MHz DDR3L SDRAM SO-DIMM slot
(system max. 8 GB)
4 GB DDR3L SO-DIMM preinstalled
HDMI 1 & HDMI 2: up to 3840x2160 @ 30Hz
HDMI 3: up to 2560x1600 @ 60Hz
(HDMI 3 does not support hot-plugging and audio)
2 x RJ-45 GbE LAN by Realtek RTL8111E PCIe GbE controller
3 x HDMI connector
2 x RS-232 RJ-45 serial port
4 x USB 3.0 port
Audio
Storage
Expansion Slot
Wireless
Button and Switch
5.1 channel Realtek ALC662 HD Audio codec
1 x Line-in jack
1 x Line-out jack
1 x Mic-in jack
1 x 2.5” SATA 6Gb/s HDD/SSD bay
2 x Full-size/half-size PCIe Mini slot (one supports mSATA modules)
Optional Wi-Fi 802.11b/g/n
1 x Power button
1 x Clear CMOS button
1 x AT/ATX power mode switch
Page 5
Page 20
IDS-300-BW Digital Signage Player
Mounting
Power Input
Power Consumption
Operating Temperature
Operating Humidity
Color
Chassis Construction
Dimensions (W x D x H)
Operation Vibration
Operation Shock
Weight (Net/Gross)
VESA mount 100 mm
Wall mount with brackets
12 V DC
®
12 V @ 2 A (Intel
-10ºC ~ 40ºC with air flow (SSD)
10% ~ 90%, non-condensing
Silver
Aluminum alloys
241 mm x 160 mm x 39 mm
MIL-STD-810F 514.5C-1 with HDD
Half-sine wave shock 5G, 11ms, 3 shocks per axis
1.8 kg / 3 kg
Celeron® N3160 with 4 GB memory)
EMC
Supported OS
Table 1-1: Technical Specifications
CE, FCC
Microsoft Windows 8 Embedded or
Microsoft Windows Embedded Standard 7
Page 6
Page 21
IDS-300-BW Digital Signage Player
1.7 Dimensions
The physical dimensions of the IDS-300-BW embedded systems are shown in 64Figure 1-5.
Figure 1-5: Dimensions (mm)
Page 7
Page 22
IDS-300-BW Digital Signage Player
Chapter
2
2 Unpacking
Page 8
Page 23
IDS-300-BW Digital Signage Player
2.1 Unpacking
To unpack the embedded system, follow the steps below:
Step 1: Use box cutters, a knife or a sharp pair of scissors that seals the top side of the
external (second) box.
Step 2: Open the external (second) box.
Step 3: Use box cutters, a knife or a sharp pair of scissors that seals the top side of the
internal (first) box.
Step 4: Lift the system out of the boxes.
Step 5: Remove both polystyrene ends, one from each side.
Step 6: Make sure all the components listed in the packing list are present.
2.2 Packing List
NOTE:
If any of the components listed in the checklist below are missing, do
not proceed with the installation. Contact the IEI reseller or vendor the
IDS-300-BW was purchased from or contact an IEI sales
representative directly by sending an email to sales@ieiworld.com
The IDS-300-BW is shipped with the following components:
Quantity Item Image
1 IDS-300-BW digital signage player
.
Page 9
Loading...
