IEI Technology Corp.
User Manual
ICEROCK-08A Panel PC
MODEL:
ICEROCK-08A
Industrial Tablet PC 1.6 GHz Intel® Atom™ Z530P CPU
On-board 1 GB DDR2 SDRAM, 802.11b/g/n Wireless, Mobile
3.75G, Gigabit Ethernet, USB, Mini USB, SD and CF card slots,
RoHS Compliant, IP62 Compliant Front Panel
Rev. 1.13 – 8 July, 2010
Page i
Page 2
Date Version Changes
8 July, 2010 1.00 Initial release
ICEROCK-08A Panel PC
Revision
Page ii
Page 3
ICEROCK-08A Panel PC
COPYRIGHT NOTICE
In no event will the manufacturer be liable for direct, indirect, special, incidental, or
consequential damages arising out of the use or inability to use the product or
documentation, even if advised of the possibility of such damages.
This document contains proprietary information protected by copyright. All rights are
reserved. No part of this manual may be reproduced by any mechanical, electronic, or
other means in any form without prior written permission of the manufacturer.
TRADEMARKS
Copyright
All registered trademarks and product names mentioned herein are used for identification
purposes only and may be trademarks and/or registered trademarks of their respective
owners.
Page iii
Page 4
ICEROCK-08A Panel PC
Table of Contents
1 INTRODUCTION.......................................................................................................... 1
1.1 OVERVIEW.................................................................................................................. 2
1.2 FEATURES................................................................................................................... 3
1.3 FRONT PANEL............................................................................................................. 3
1.4 REAR PANEL............................................................................................................... 4
1.5 CONNECTORS ............................................................................................................. 4
1.6 FRONT PANEL BUTTONS............................................................................................. 5
1.7 REMOTE CONTROL..................................................................................................... 6
1.8 TECHNICAL SPECIFICATIONS ...................................................................................... 7
1.9 DIMENSIONS............................................................................................................. 10
2 UNPACKING................................................................................................................11
2.1 UNPACK THE PANEL PC............................................................................................ 12
2.2 PACKING LIST........................................................................................................... 13
3 INSTALLATION ......................................................................................................... 15
3.1 COMPACTFLASH® INSTALLATION ............................................................................ 16
3.2 SIM CARD INSTALLATION........................................................................................ 18
3.3 SD CARD INSTALLATION .......................................................................................... 19
MOUNTING THE SYSTEM .......................................................................................... 19
3.4
3.5 I/O CONNECTORS..................................................................................................... 20
3.5.1 Audio connectors (Mic-in and Headphones)................................................... 20
3.5.2 LAN Connection Cable.................................................................................... 21
3.5.3 Mini USB Device Connection.......................................................................... 22
3.5.4 USB Device Connection................................................................................... 23
3.6
ICEROCK DOCKING STATION I/O CONNECTORS (OPTIONAL) ................................. 25
3.6.1 Serial Device Cable ......................................................................................... 25
3.6.2 VGA Monitor Connection ................................................................................ 27
3.7 POWER CONNECTION ............................................................................................... 28
3.8 DRIVER INSTALLATION............................................................................................. 28
4 DEMO APPLICATION............................................................................................... 29
Page iv
Page 5
ICEROCK-08A Panel PC
INTRODUCTION......................................................................................................... 30
4.1
4.1.1 Main Menu....................................................................................................... 30
4.1.2 User Interface .................................................................................................. 31
4.2 COMMUNICATION..................................................................................................... 31
4.2.1 Bluetooth.......................................................................................................... 32
4.2.2 Wi-Fi Connection............................................................................................. 32
4.2.3 LAN Connection............................................................................................... 33
4.2.4 SIM Card/Mobile Network Connection........................................................... 33
4.3 MULTIMEDIA............................................................................................................ 34
4.3.1 Webcam............................................................................................................ 35
4.4 SETTING ................................................................................................................... 35
4.4.1 Audio/Brightness.............................................................................................. 36
4.4.2 Power Status .................................................................................................... 38
4.4.3 Module On/Off................................................................................................. 38
4.4.4 Function Keys .................................................................................................. 39
5 BIOS SETUP................................................................................................................ 40
5.1 INTRODUCTION......................................................................................................... 41
5.1.1 Starting Setup................................................................................................... 41
5.1.2 Using Setup...................................................................................................... 41
5.1.3 Getting Help..................................................................................................... 42
5.1.4 Unable to Reboot After Configuration Changes.............................................. 42
5.1.5 BIOS Menu Bar................................................................................................ 42
MAIN........................................................................................................................ 43
5.2
5.3 ADVANCED ............................................................................................................... 44
5.3.1 CPU Configuration.......................................................................................... 45
5.3.2 IDE Configuration........................................................................................... 46
5.3.2.1 IDE Master, IDE Slave............................................................................. 47
5.3.3 Hardware Health Configuration...................................................................... 52
5.3.3.1 Embedded Controller Configuration......................................................... 53
5.3.4 USB Configuration........................................................................................... 54
5.3.4.1 USB Mass Storage Device Configuration................................................. 56
5.4 PCI/PNP................................................................................................................... 57
5.5 BOOT........................................................................................................................ 60
5.5.1 Boot Settings Configuration............................................................................. 60
Page v
Page 6
ICEROCK-08A Panel PC
5.5.2 Boot Device Priority........................................................................................ 62
5.5.3 Hard Disk Drives............................................................................................. 63
5.5.4 Removable Drives............................................................................................ 63
5.5.5 CD/DVD Drives............................................................................................... 64
SECURITY................................................................................................................. 65
5.6
5.7 CHIPSET ................................................................................................................... 66
5.7.1 Northbridge Configuration.............................................................................. 67
5.7.2 Southbridge Configuration .............................................................................. 69
5.8 EXIT......................................................................................................................... 70
6 SYSTEM MAINTENANCE ....................................................................................... 72
6.1
SYSTEM MAINTENANCE INTRODUCTION .................................................................. 73
6.2 MOTHERBOARD REPLACEMENT ............................................................................... 73
A SAFETY PRECAUTIONS......................................................................................... 74
A.1 SAFETY PRECAUTIONS ............................................................................................ 75
A.1.1 General Safety Precautions............................................................................. 75
A.1.2 Anti-static Precautions.................................................................................... 76
A.2 MAINTENANCE AND CLEANING PRECAUTIONS........................................................ 76
A.2.1 Maintenance and Cleaning.............................................................................. 76
A.2.2 Cleaning Tools................................................................................................. 77
B ONE KEY RECOVERY............................................................................................. 78
B.1 ONE KEY RECOVERY INTRODUCTION ...................................................................... 79
B.1.1 System Requirement......................................................................................... 79
B.1.2 Supported Operating System........................................................................... 79
SETUP PROCEDURE FOR WINDOWS.......................................................................... 81
B.2
B.2.1 Hardware and BIOS Setup .............................................................................. 82
B.2.2 Create Partitions............................................................................................. 82
B.2.3 Install Operating System, Drivers and Applications....................................... 85
B.2.4 Build-up Recovery Partition............................................................................ 85
B.2.5 Create Factory Default Image......................................................................... 87
B.3 SETUP PROCEDURE FOR LINUX................................................................................ 92
B.4 RECOVERY TOOL FUNCTIONS .................................................................................. 95
B.4.1 Factory Restore............................................................................................... 97
B.4.2 Backup System................................................................................................. 98
Page vi
Page 7
ICEROCK-08A Panel PC
B.4.3 Restore Your Last Backup................................................................................ 99
B.4.4 Manual........................................................................................................... 100
OTHER INFORMATION............................................................................................ 101
B.5
B.5.1 Using AHCI Mode or ALi M5283 / VIA VT6421A Controller....................... 101
B.5.2 System Memory Requirement ........................................................................ 103
C BIOS OPTIONS........................................................................................................ 104
D TERMINOLOGY ..................................................................................................... 107
E WATCHDOG TIMER................................................................................................111
F HAZARDOUS MATERIALS DISCLOSURE.........................................................114
F.1
HAZARDOUS MATERIALS DISCLOSURE TABLE FOR IPB PRODUCTS CERTIFIED AS
ROHS COMPLIANT UNDER 2002/95/EC WITHOUT MERCURY ......................................115
Page vii
Page 8
ICEROCK-08A Panel PC
List of Figures
Figure 1-1: ICEROCK-08A..............................................................................................................2
Figure 1-2: Front Panel ..................................................................................................................3
Figure 1-3: Rear Panel....................................................................................................................4
Figure 1-4: Connectors ..................................................................................................................5
Figure 1-5: Front Panel Buttons....................................................................................................5
Figure 1-6: Remote Control ...........................................................................................................6

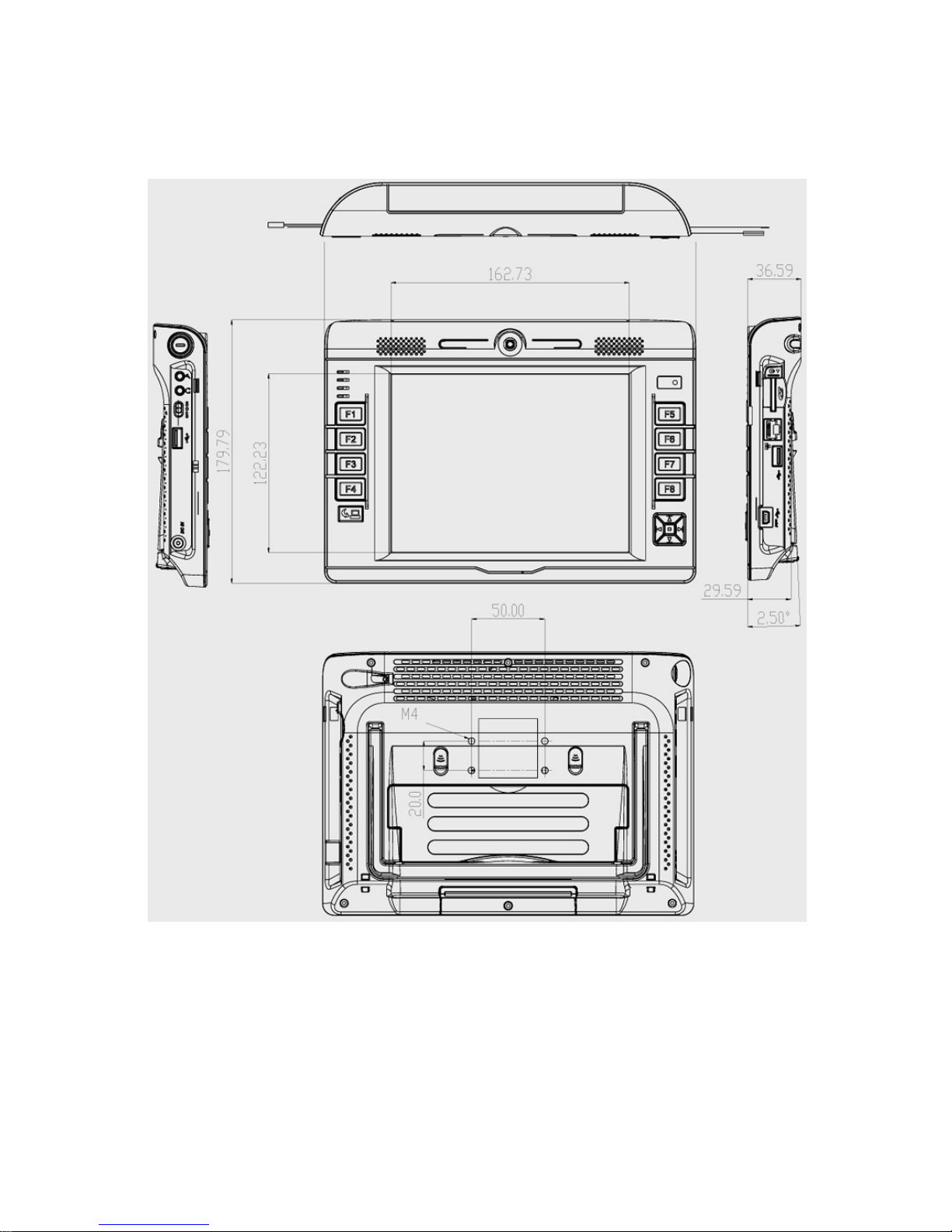

Figure 1-7: Dimensions (units in mm)........................................................................................10
Figure 3-1: Battery Removal........................................................................................................16
Figure 3-2: CompactFlash® Card Install....................................................................................17
Figure 3-3: CompactFlash® Card Removal ...............................................................................17
Figure 3-4: SIM Card Install.........................................................................................................18
Figure 3-5: SD Card Install...........................................................................................................19
Figure 3-6: Left and Right Side I/O Connectors ........................................................................20
Figure 3-7: Audio Connectors.....................................................................................................21
Figure 3-8: LAN Connection........................................................................................................22
Figure 3-9: Mini USB Device Connection...................................................................................23
Figure 3-10: USB Device Connection.........................................................................................24
Figure 3-11: ICEROCK Docking Station I/O Connectors..........................................................25
Figure 3-12: Serial Device Connector.........................................................................................26
Figure 3-13: Serial Port Pinouts..................................................................................................26
Figure 3-14: VGA Connector .......................................................................................................27
Figure 4-1: Main Menu..................................................................................................................30
Figure 4-2: User Interface ............................................................................................................31
Figure 4-3: Communication Menu...............................................................................................31
Figure 4-4: Bluetooth Setting ......................................................................................................32
Figure 4-5: Wi-Fi Setting ..............................................................................................................32
Figure 4-6: LAN Connection Setting...........................................................................................33
Figure 4-7: SIM Card/Mobile Network Connection Settings.....................................................34
Figure 4-8: Multimedia Menu.......................................................................................................34
Figure 4-9: Webcam......................................................................................................................35
Page viii
Page 9
ICEROCK-08A Panel PC
Figure 4-10: Setting Menu............................................................................................................36
Figure 4-11: Audio/Brightness Setting.......................................................................................37
Figure 4-12: Power Status ...........................................................................................................38
Figure 4-13: Module On/Off .........................................................................................................39
Figure 4-14: Program Function Key............................................................................................39
Figure B-1: Recovery Tool Setup Menu .....................................................................................83
Figure B-2: Command Mode........................................................................................................83
Figure B-3: Partition Creation Commands.................................................................................84
Figure B-4: System Configuration for Windows .......................................................................86
Figure B-5: Build-up Recovery Partition....................................................................................86
Figure B-6: Press any key to continue.......................................................................................87
Figure B-7: Press F3 to Boot into Recovery Mode....................................................................87
Figure B-8: Recovery Tool Menu ................................................................................................88
Figure B-9: About Symantec Ghost Window.............................................................................88
Figure B-10: Symantec Ghost Path ............................................................................................89
Figure B-11: Select a Local Source Drive ..................................................................................89
Figure B-12: Select a Source Partition from Basic Drive .........................................................89
Figure B-13: File Name to Copy Image to ..................................................................................90
Figure B-14: Compress Image.....................................................................................................91
Figure B-15: Image Creation Confirmation................................................................................91
Figure B-16: Image Creation Complete......................................................................................91
Figure B-17: Image Creation Complete......................................................................................92
Figure B-18: Press Any Key to Continue...................................................................................92
Figure B-19: Partitions for Linux.................................................................................................93
Figure B-20: System Configuration for Linux............................................................................94
Figure B-21: Access menu.lst in Linux (Text Mode).................................................................94
Figure B-22: Recovery Tool Menu ..............................................................................................95
Figure B-23: Recovery Tool Main Menu.....................................................................................96
Figure B-24: Restore Factory Default.........................................................................................97
Figure B-25: Recovery Complete Window.................................................................................97
Figure B-26: Backup System.......................................................................................................98
Figure B-27: System Backup Complete Window ......................................................................98
Figure B-28: Restore Backup......................................................................................................99
Figure B-29: Restore System Backup Complete Window........................................................99
Figure B-30: Symantec Ghost Window ................................................................................... 100
Page ix
Page 10
ICEROCK-08A Panel PC
List of Tables
Table 1-1: Technical Specifications..............................................................................................9
Table 2-1: Packing List.................................................................................................................13
Table 2-2: Packing List.................................................................................................................14
Table 3-1: Serial Port Pinouts......................................................................................................26
Table 5-1: BIOS Navigation Keys................................................................................................42
Page x
Page 11
ICEROCK-08A Panel PC
BIOS Menus
BIOS Menu 1: Main.......................................................................................................................43
BIOS Menu 2: Advanced..............................................................................................................44
BIOS Menu 3: CPU Configuration...............................................................................................45
BIOS Menu 4: IDE Configuration.................................................................................................46
BIOS Menu 5: IDE Master and IDE Slave Configuration...........................................................47
BIOS Menu 6: Hardware Health Configuration..........................................................................52
BIOS Menu 7: APM Configuration...............................................................................................53
BIOS Menu 8: USB Configuration...............................................................................................54
BIOS Menu 9: USB Mass Storage Device Configuration..........................................................56
BIOS Menu 10: PCI/PnP Configuration.......................................................................................58
BIOS Menu 11: Boot.....................................................................................................................60
BIOS Menu 12: Boot Settings Configuration.............................................................................60
BIOS Menu 13: Boot Device Priority Settings ...........................................................................62
BIOS Menu 14: Hard Disk Drives ................................................................................................63
BIOS Menu 15: Removable Drives..............................................................................................63
BIOS Menu 16: CD/DVD Drives ...................................................................................................64
BIOS Menu 17: Security...............................................................................................................65
BIOS Menu 18: Chipset................................................................................................................66
BIOS Menu 19: Northbridge Chipset Configuration..................................................................67
BIOS Menu 20: Southbridge Chipset Configuration.................................................................69
BIOS Menu 21: Exit.......................................................................................................................70
Page xi
Page 12
ICEROCK-08A Panel PC
Chapter
1
1 Introduction
Page 1
Page 13
1.1 Overview
ICEROCK-08A Panel PC
Figure 1-1: ICEROCK-08A
NOTE:
IEI recommends Windows XP Embedded preinstalled on a
CompactFlash® card. Cards with Windows XP Embedded are
available from IEI. Contact
http://www.ieiworld.com
The ICEROCK-08A is an industrial tablet PC with an 8 inch touchscreen and an IP62
compliant front panel. The ICEROCK-08A features a 1.6 GHz Intel® Atom™ Z530P or 1.1
GHz Intel® Atom Z510P with 1 GB DDR2 SDRAM on-board.
Storage needs are met by installing a CompactFlash® card and Secure Digital (SD) card.
A CompactFlash® card with Windows XPE is also available.
Wireless networking is enabled through an 802.11b/g/n wireless adapter. A Bluetooth
for more information.
sales@iei.com.tw
or go to
2.1+EDR module provides a connection to Bluetooth devices. An optional mobile 3.75G
module provides a connection to mobile phone networks. Wired options are always
available through RJ-45 connector on the side panel, with two USB ports and one Mini
USB port for peripherals.
A 1.3 megapixel webcam and microphone provide video conferencing capabilities.
Audio connections include one line-out for connecting to headphones and an input for an
external microphone. Two 1 watt speakers are built-in.
Page 2
Page 14
ICEROCK-08A Panel PC
1.2 Features
Some of the standard features of the ICEROCK-08A tablet PC include:
Wireless LAN
Gigabit Ethernet
Bluetooth v2.1+EDR
G-Sensor to automatically change display mode from portrait to landscape
Ambient light sensor
One Key Recovery
IP62 compliant front panel protection
RoHS compliant
1.3 Front Panel
The ICEROCK-08A is made with black plastic chassis.
Figure 1-2: Front Panel
Page 3
Page 15
1.4 Rear Panel
The rear panel consists of the built-in stand and battery. The CF and SIM card slots can
be accessed by removing the battery.
ICEROCK-08A Panel PC
Figure 1-3: Rear Panel
1.5 Connectors
The side panels have the following slots, buttons and switches (Figure 1-4):
1 x RJ-45 port for Gigabit LAN
1 x 12 V DC power input
1 x Mini USB port
2 x USB ports
1 x Mic-in jack
1 x Headphones jack
1 x Power button
1 x Bluetooth/Wi-Fi On/Off switch
1 x Touch pen
1 x SD card slot with lock
Page 4
Page 16
ICEROCK-08A Panel PC
Figure 1-4: Connectors
1.6 Front Panel Buttons
Figure 1-5: Front Panel Buttons
There are several buttons on the front panel of the ICEROCK-08A as show in the figure
above. Following are descriptions of their functions:
Programmable Function Keys (F1~F8)
Function Keys F1~F8 can be programmed to simplify frequently used
applications with the pressing of a single shortcut key.
Hotkey
Press the hotkey and a function key together at the same time to perform the
following functions:
o Hotkey + F1 = Sleep
o Hotkey + F2 = Mute on/off
o Hotkey + F3 = Volume up
o Hotkey + F4 = Volume down
Page 5
Page 17
o Hotkey + F5 = Auto dimmer on/off. When the ambient light sensor is on,
the screen brightness will adjust to match ambient light conditions. It is
recommended that this sensor be disabled during nighttime use.
o Hotkey + F6 = Brightness up
o Hotkey + F7 = Brightness down
o Hotkey + F8 = LCD on/off
Navigation Keypad
o Up, Down
o Right, Left
o Center (select or enter)
1.7 Remote Control
The figure below illustrates the buttons on the ICEROCK-08A remote control.
ICEROCK-08A Panel PC
Figure 1-6: Remote Control
The ICEROCK-08A comes with a remote control. Below is a list of the buttons on the
remote control and their function:
1. Power – turn the system on or off
Page 6
Page 18
ICEROCK-08A Panel PC
2. Auto Dim – turn the ambient light sensor on or off
3. Del - delete
4. Navigation – up/down, right/left, OK
5. Function Keys – programmable keys F1~F8
6. Esc – escape
7. Brightness – increase or decrease the LCD screen brightness
8. Volume – increase or decrease the volume
9. Mute – use this to mute the sound
10. LCD On/Off – turn the LCD on or off
1.8 Technical Specifications
The technical specifications for the ICEROCK-08A systems are listed in the table below.
System ICEROCK-08A-Z530 ICEROCK-08A-Z510
CPU 1.6 GHz Intel® Atom™ Z530P 1.1 GHz Intel® Atom Z510P
Chipset Intel® SCH US15WP
Memory 1.0 GB 533 MHz DDR2 SDRAM on-board
OS Windows XP Embedded with optional CompactFlash® card
Storage 1 x CompactFlash® card slot
1 x SD card slot
Audio 2 x Speaker (1 W each)
1 x Microphone
Camera 1 x 1.3 megapixel webcam
Display
LCD 8.0” LCD with resistive touchscreen and auto-dimmin g
Max. Resolution 800 x 600
Brightness (cd/m2) 250
Contrast Ratio 500:1
LCD Colors 262,000
Pixel Pitch 0.2025 x 0.2025
Viewing Angle (H/V) 140/130
Backlight MTBF 50000
Communication
LAN 1 x 10/100/1000 Mbps RJ-45
Page 7
Page 19
ICEROCK-08A Panel PC
System ICEROCK-08A-Z530 ICEROCK-08A-Z510
Wireless LAN 802.11b/g
Bluetooth Bluetooth 2.1 + EDR Class 1
WWAN (models with
optional HSDPA module
only)
Power
Power Input 12 V DC input
Power Consumption
Power Adapter P/N: 63000-FSP036RAB608-RS
Battery 4 hours of normal use (25% On state, 25% Standby, and 50% Off)
Physical Character
Construction Material ABS + PC plastic front frame
Mounting Mobile / optional Docking Station (VESA 75 mm x 75 mm)
HSPA/UMTS-800/850/900/1900/2100 MHz
Quad-band EDGE/GPRS/GSM-850/900/1800/1900 MHz
Dual-band EV-DO/CDMA-800/1900 MHz
36 W Power Adapter
Input: 90 V AC ~ 264 V AC, 50/60Hz
Output: 12 V DC
2 hours of continuous use
2400 mAh Lithium Ion Battery
Dimensions (W x H x D)
(mm)
Operation Temperature 0ºC ~ 40ºC
Storage Temperature -20ºC ~ 60ºC
Humidity 5% ~ 95% non-condensing
Net weight 1.044 kg with Battery pack (150 g)
IP level (front panel) IP62
Safety CE, FCC, CB, CCC
Connectors and Buttons
253.5 x 179.79 x 36.59
Page 8
Page 20
ICEROCK-08A Panel PC
System ICEROCK-08A-Z530 ICEROCK-08A-Z510
I/O Ports and Switches 1 x 12 V DC input connector
2 x USB 2.0
1 x Gigabit Ethernet RJ-45 port
1 x Microphone line-in jack
1 x Audio line-out jack
1 x Mini USB
1 x Wi-Fi/Bluetooth On/Off switch
1 x Power button
Front Panel Buttons and
LED Indicators
1 x Five-way navigation button
8 x Programmable buttons
1 x Hotkey
1 x Power LED
1 x Wi-Fi/Bluetooth LED
1 x HDD (CF Card) LED
1 x 3.75G LED
1 x IR Remote and Ambient Light Sensor
Table 1-1: Technical Specifications
Page 9
Page 21
1.9 Dimensions
ICEROCK-08A Panel PC
Figure 1-7: Dimensions (units in mm)
Page 10
Page 22
ICEROCK-08A Panel PC
Chapter
2
2 Unpacking
Page 11
Page 23
ICEROCK-08A Panel PC
WARNING:
When installing the ICEROCK-08A, make sure to:
Turn the power off: Chance of electrocution. Turn off the monitor
and unplug it from the power supply.
Only let certified engineers change the hardware settings:
Incorrect settings can cause irreparable damag e to the product.
Take anti-static precautions: Electrostatic discharge can destroy
electrical components and injure the user. Users must ground
themselves using an anti-static wristband or similar device.
The installation steps below should be followed in order.
Step 1: Unpack the tablet PC
Step 2: Check all the required parts are included
Step 3: Install the CompactFlash® card (if not included)
Step 4: Mount the tablet PC
Step 5: Connect peripheral devices to the side panels of the tablet PC
Step 6: Connect the power cable
Step 7: Configure the system Step 0:
2.1 Unpack the tablet PC
To unpack the tablet PC, follow the steps below:
WARNING!
Only remove the protective plastic cover stuck to the front screen after
installation. The plastic layer protects the monitor surface during
installation process.
Page 12
Page 24
ICEROCK-08A Panel PC
Step 1: Carefully cut the tape sealing the box. Only cut deep enough to break the tape.
Step 2: Open the outside box.
Step 3: Carefully cut the tape sealing the box. Only cut deep enough to break the tape.
Step 4: Open the inside box.
Step 5: Lift the table PC out of the boxes.
Step 6: Remove the peripheral parts box from the main box. Step 0:
2.2 Packing List
The ICEROCK-08A tablet PC is shipped with the following components:
Quantity Item Image
1 ICEROCK-08A
1 Power adapter
(P/N: 63000-FSP036RAB608-RS)
1 Power cable
(P/N: 32000-000002-RS)
1 Battery pack
(P/N: ICEROCKBP-08A-R10)
1 Remote control unit
1 Touchscreen pen
1 Utility CD
(P/N: 7B000-000087-RS)
Table 2-1: Packing List
Page 13
Page 25
These optional items are also available.
Quantity Item Image
ICEROCK-08A Panel PC
1 OS – Windows XP Embedded (CF card)
(P/N: ICEROCKCF-08-XPE-R10)
1 Battery pack
(P/N: ICEROCKBP-08A-R10)
1 Docking station
(P/N: ICEROCKDS-08A-R10)
1 Car power module
(P/N: IDD-930160-KIT)
1 Protection jacket
(P/N: ICEROCKPJ--00-R10)
1 Carrying bag
(P/N: ICEROCKCB--00-R10)
1 Touchscreen Pen
Table 2-2: Packing List
Page 14
Page 26
ICEROCK-08A Panel PC
Chapter
3
3 Installation
Page 15
Page 27
3.1 CompactFlash® Installation
This section covers the installation of the CompactFlash® card.
Step 1: Remove the battery. Unlock battery by sliding locks away from the battery. Lift
the battery and remove.
ICEROCK-08A Panel PC
Page 16
Figure 3-1: Battery Removal
Step 2: Install the CompactFlash® card in the slot indicated below. Fully insert the CF
card when installing.
Page 28
ICEROCK-08A Panel PC
Figure 3-2: CompactFlash® Card Install
Step 3: To remove the CF card push the tab on the right.
Figure 3-3: CompactFlash® Card Removal
Step 4: Replace and securely lock the battery.Step 0:
Page 17
Page 29
3.2 SIM Card Installation
This section covers the installation of a SIM card for mobile network connections on the
ICEROCK-08A models with optional mobile 3.75G module.
ICEROCK-08A Panel PC
Step 1: Remove the battery as shown above in Section 3.1, S
Step 2: Install the SIM card in the slot indicated below.
tep 1.
Page 18
Figure 3-4: SIM Card Install
Step 3: Replace and securely lock the battery.Step 0:
Page 30
ICEROCK-08A Panel PC
3.3 SD Card Installation
This section covers the installation of a SD card.
Step 1: Locate the SD card slot on the right side of the ICEROCK-08A.
Step 2: Install the SD card in the slot indicated below.
Figure 3-5: SD Card Install
Step 3: Slide the lock to secure the SD card.Step 0:
3.4 Mounting the System
The following installation options are available:
Docking Station
Wall mounting with optional Docking Station
The installation instructions are included with the Docking station or stand.
Page 19
Page 31
3.5 I/O Connectors
The I/O connectors on either side of the ICEROCK-08A extend the capabilities of the
panel PC but are not essential for operation (except power).Figure 3-6
Figure 3-6: Left and Right Side I/O Connectors
ICEROCK-08A Panel PC
3.5.1 Audio connectors (Mic-in and Headphones)
The audio jacks on the external audio connector enable the ICEROCK-08A to be
connected to a stereo sound setup. To install the audio devices, follow the steps below.
Step 1: Identify the audio plugs. The plugs on your home theater system or speakers
may not match the colors on the rear panel. If audio plugs are plugged into the
wrong jacks, sound quality will be very bad.
Step 2: Plug the audio plugs into the audio jacks. Plug the audio plugs into the audio
jacks. If the plugs on your speakers are different, an adapter will need to be used
to plug them into the audio jacks.
Line Out port (Lime): Connects to a head phone or a speaker.
Microphone (Pink): Connects to a microphone.
Page 20
Page 32
ICEROCK-08A Panel PC
Figure 3-7: Audio Connectors
Step 3: Check audio clarity. Check that the sound is coming through the right speakers
by adjusting the balance front to rear and left to right. Step 0:
3.5.2 LAN Connection Cable
The RJ-45 connectors enable connection to an external network. To connect a LAN cable
with an RJ-45 connector, please follow the instructions below.
Step 1: Locate the RJ-45 connector on the bottom panel.
Step 2: Align the connectors. Align the RJ-45 connector on the LAN cable with one of
the RJ-45 connectors on the bottom panel. See
Figure 3-8.
Page 21
Page 33
Figure 3-8: LAN Connection
Step 3: Insert the LAN cable RJ-45 connector. Once aligned, gently insert the LAN
cable RJ-45 connector into the onboard RJ-45 port. Step 0:
ICEROCK-08A Panel PC
3.5.3 Mini USB Device Connection
There is one Mini USB 2.0 connectors. The Mini USB connector is on the right side of the
ICEROCK-08A. To connect a USB 2.0 or USB 1.1 device, please follow the instructions
below.
Step 1: Located the Mini USB connector. The location of the Mini USB connector is
shown in Figure 3-6.
Step 2: Align the co
on the ICEROCK-08A. See figure below.
nnectors. Align the Mini USB device connector with the connector
Page 22
Page 34
ICEROCK-08A Panel PC
Figure 3-9: Mini USB Device Connection
Step 3: Insert the device connector. Once aligned, gently insert the Mini USB device
connector into the on-board connector. Step 0:
3.5.4 USB Device Connection
There are two USB 2.0 connectors. One connector is located on each side of the
ICEROCK-08A, left and right. To connect a USB 2.0 or USB 1.1 device, please follow the
instructions below.
Step 1: Located the USB connectors. The locations of the USB connectors are shown
in Figure 3-6.
Step 2: Align the co
connectors on the ICEROCK-08A. See figure below.
nnectors. Align the USB device connector with one of the
Page 23
Page 35
ICEROCK-08A Panel PC
Figure 3-10: USB Device Connection
Step 3: Insert the device connector. Once aligned, gently insert the USB device
connector into the on-board connector. Step 0:
Page 24
Page 36
ICEROCK-08A Panel PC
3.6 ICEROCK Docking Station I/O Connectors (optional)
The I/O connectors on the rear panel of the ICEROCK-08A Docking Station extend the
capabilities of the panel PC but are not essential for operation (except power).
Figure 3-11: ICEROCK Docking Station I/O Connectors
3.6.1 Serial Device Cable
The serial device connector is for connecting a RS-232 serial device. Follow the steps
below to connect a serial device to the panel PC.
Step 1: Locate the DB-9 connector. The location of the DB-9 connector is shown in
Figure 3-11.
Page 25
Page 37
ICEROCK-08A Panel PC
Step 2: Insert the serial connector. Insert the DB-9 connector of a serial device into
the DB-9 connector on the bottom panel. See Figure 3-12.
Figure 3-12: Serial Device Connector
Step 3: Secure the connector. Secure the serial device connector to the external
interface by tightening the two retention screws on either side of the connector.
Step 0:
3.6.1.1.1 RS-232 Serial Port Pinouts
Following are the RS-232 serial port pinouts.
Pin Description Pin Description
1 DCD 6 DSR
2 RX 7 RTS
3 TX 8 CTS
4 DTR 9 RI
5 GND
Table 3-1: Serial Port Pinouts
Figure 3-13: Serial Port Pinouts
Page 26
Page 38
ICEROCK-08A Panel PC
3.6.2 VGA Monitor Connection
The ICEROCK-08A Docking Station has a single female DB-15 connector on the bottom
peripheral interface panel. The DB-15 connector is connected to a CRT or VGA monitor.
To connect a second monitor to the ICEROCK-08A, please follow the instructions below.
Step 1: Locate the female DB-15 connector. The location of the female DB-15
connector is shown in Figure 3-11.
Step 2: Align the VG
cable with the female DB-15 connector on the external peripheral interface.
Step 3: Insert the VGA connector. Once the connectors are properly aligned with the
insert the male connector from the VGA screen into the female connector on the
ICEROCK-08A. See
A connector. Align the male DB-15 connector on the VGA screen
Figure 3-14.
Figure 3-14: VGA Connector
Step 4: Secure the connector. Secure the DB-15 VGA connector from the VGA
monitor to the external interface by tightening the two retention screws on either
side of the connector. Step 0:
Page 27
Page 39
3.7 Power Connection
The power cable connects the power adapter to the power outlet. The power adapter and
power cable are required for operation of the ICEROCK-08A.
Step 1: Connect the power adapter to the panel PC.
Step 2: Connect the power cable to the included power adapter.
Step 3: Connect the power cable to the power outlet. Step 0:
3.8 Driver Installation
NOTE:
The contents of the CD may vary throughout the life cycle of the
ICEROCK-08A Panel PC
product and is subject to change without prior notice. Visit the IEI
website or contact technical support for the latest updates.
The following drivers can be installed on the system; each driver is in its own directory on
the driver CD:
Chipset driver
Graphics driver
LAN driver
Audio driver
Touch panel driver
Keypad utility driver
Wireless LAN card driver
Page 28
Page 40
ICEROCK-08A Panel PC
4 Demo Application
Chapter
4
Page 29
Page 41
4.1 Introduction
The demo software application of the ICEROCK-08A includes three main categories:
Communication, Multimedia, and Setting. Each category has several functions which are
listed below:
Communication
o Bluetooth
o Wi-Fi
o LAN Connection
o SIM Card/Mobile Network
Multimedia
o Webcam
Setting
o Audio/Brightness Setting
ICEROCK-08A Panel PC
o Power Status
o Module On/Off
o Function Keys
4.1.1 Main Menu
Figure 4-1 shows the main menu of the application. Slide left or right to navigate the menu.
Click the image to go into the menu page.
Figure 4-1: Main Menu
Page 30
Page 42
ICEROCK-08A Panel PC
4.1.2 User Interface
Figure 4-2 shows the user interface of the menu page. Each menu page displays buttons
to navigate to the function setting page.
Figure 4-2: User Interface
4.2 Communication
Use the communication menu to setup Bluetooth, Wi-Fi and 3G connections.
Figure 4-3: Communication Menu
Page 31
Page 43
4.2.1 Bluetooth
Use the Bluetooth page to find available Bluetooth devices and enable or disable a
connection.
ICEROCK-08A Panel PC
Figure 4-4: Bluetooth Setting
4.2.2 Wi-Fi Connection
Use the Wi-Fi connection menu to find available Wi-Fi networks and connect to or
disconnect from a network.
Figure 4-5: Wi-Fi Setting
Page 32
Page 44
ICEROCK-08A Panel PC
4.2.3 LAN Connection
Use the LAN connection menu to connect to the Local Area Network via the RJ-45
Ethernet LAN connector. Check the auto connect box to automatically connect to the
network using connection details automatically provided by the network. If necessary
input the required values for your network.
Figure 4-6: LAN Connection Setting
4.2.4 SIM Card/Mobile Network Connection
Use the SIM Card connection menu to verify the PIN1 and PIN2 values for your 3.5G
mobile network and enable or disable PIN protection. The status, verify retries left, and
unblock retries left for PIN1 and PIN2 are displayed on this menu.
Page 33
Page 45
ICEROCK-08A Panel PC
Figure 4-7: SIM Card/Mobile Network Connection Settings
4.3 Multimedia
Use the multimedia menu to control the webcam.
Figure 4-8: Multimedia Menu
Page 34
Page 46
ICEROCK-08A Panel PC
4.3.1 Webcam
Use the webcam page to capture video through the built-in webcam or play previously
captured video. Also use this menu to start or stop the webcam preview.
Figure 4-9: Webcam
4.4 Setting
Use the Setting page to adjust the setting of audio volume, LCD brightness, embedded
modules, function keys and check the power/battery status.
Page 35
Page 47
Figure 4-10: Setting Menu
ICEROCK-08A Panel PC
4.4.1 Audio/Brightness
Use the Audio/Brightness page to adjust the LCD brightness and audio volume and
enable or disable Auto Dimming, LCD backlight, and Audio. Turning off Auto Dimming will
disable the Ambient Light Sensor. The LCD backlight is disabled when set to off. The
audio is muted when the Volume setting is turned off.
Page 36
Page 48
ICEROCK-08A Panel PC
Figure 4-11: Audio/Brightness Setting
Page 37
Page 49
4.4.2 Power Status
Use this menu to check the power status of the ICEROCK and its battery.
ICEROCK-08A Panel PC
Figure 4-12: Power Status
4.4.3 Module On/Off
Use the Module On/Off page to enable or disable the embedded modules including
Bluetooth, Wi-Fi, and 3.5G mobile connections. Slide the bars next to the module icons to
the left to turn on and to the right to turn off.
Page 38
Page 50
ICEROCK-08A Panel PC
Figure 4-13: Module On/Off
4.4.4 Function Keys
Use the Function Key page to program the function on the right edge of the front panel of
the ICEROCK-08A. To program a key, click the button on the screen. Select a function
from the pop-up menu, then click Apply button.
This section is missing from the software installed on my sample. Please
provide a screen captutre.
Figure 4-14: Program Function Key
Page 39
Page 51
ICEROCK-08A Panel PC
Chapter
5
5 BIOS Setup
Page 40
Page 52
ICEROCK-08A Panel PC
5.1 Introduction
The BIOS is programmed onto the BIOS chip. The BIOS setup program allows changes to
certain system settings. This chapter outlines the options that can be changed.
5.1.1 Starting Setup
The AMI BIOS is activated when the computer is turned on. The setup program can be
activated in one of two ways.
11. Press the D
12. Press the D
appears on the screen. 0.
If the message disappears before the D
again.
ELETE key as soon as the system is turned on or
ELETE key when the “Press Del to enter SETUP” message
ELETE key is pressed, restart the computer and try
5.1.2 Using Setup
Use the arrow keys to highlight items, press ENTER to select, use the PageUp and
PageDown keys to change entries, press F1 for help and press E
keys are shown in.
Key Function
Up arrow Move to previous item
Down arrow Move to next item
Left arrow Move to the item on the left hand side
SC to quit. Navigation
Right arrow Move to the item on the right hand side
Esc key Main Menu – Quit and not save changes into CMOS
Status Page Setup Menu and Option Page Setup Menu --
Exit current page and return to Main Menu
Page Up key Increase the numeric value or make changes
Page Dn key Decrease the numeric value or make changes
F1 key General help, only for St atus Page Setup Menu and Option
Page Setup Menu
Page 41
Page 53
Key Function
F2 /F3 key Change color from total 16 colors. F2 to select color
F10 key Save all the CMOS changes, only for Main Menu
Table 5-1: BIOS Navigation Keys
5.1.3 Getting Help
When F1 is pressed a small help window describing the appropriate keys to use and the
ICEROCK-08A Panel PC
forward.
possible selections for the highlighted item appears. To exit the Help Window press E
the F1 key again.
5.1.4 Unable to Reboot After Configuration Changes
If the computer cannot boot after changes to the system configuration is made, CMOS
defaults. Use the jumper described in Chapter 5.
5.1.5 BIOS Menu Bar
The menu bar on top of the BIOS screen has the following main items:
Main – Changes the basic system configuration.
Advanced – Changes the advanced system settings.
PCIPnP – Changes the advanced PCI/PnP Settings
Boot – Changes the system boot configuration.
Security – Sets User and Supervisor Passwords.
Chipset – Changes the chipset settings.
SC or
Exit – Selects exit options and loads default settings
The following sections completely describe the configuration options found in the menu
items at the top of the BIOS screen and listed above.
Page 42
Page 54
ICEROCK-08A Panel PC
5.2 Main
The Main BIOS menu (BIOS Menu 1) appears when the BIOS Setup program is entered.
The Main menu gives an overview of the basic system information.
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Exit
System Overview
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
AMIBIOS
Version :08.00.15
Build Date :06/02/10
ID: :Z109MR10
Processor
Intel® Atom™ CPU Z530 @ 1.60 GHz
Speed :1600 MHz
Count :1
System Memory
Size :1019MB
System Time [14:20:27]
System Time [Tue 06/14/2010]
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
Use [ENTER], [TAB] or
[SHIFT-TAB] to select a
field.
Use [+] or [-] to
configure system time.
ÅÆ
Select Screen
↑ ↓ Select Item
Enter Go to SubScreen
F1 General Help
F10 Save and Exit
ESC Exit
BIOS Menu 1: Main
System Overview
The System Overvie w lists a brief summary of different system components. Th e fields in
System Overview cannot be changed. The items shown in the system overview include:
AMI BIOS: Displays auto-detected BIOS information
o Version: Current BIOS version
o Build Date: Date the current BIOS version was made
o ID: Installed BIOS ID
Processor: Displays auto-detected CPU specifications
o Type: Names the currently installed processor
o Speed: Lists the processor speed
o Count: The number of CPUs on the motherboard
System Memory: Displays the auto-detected system memory.
o Size: Lists memory size
Page 43
Page 55
The System Overview field also has two user configurable fields:
System Time [xx:xx:xx]
Use the System Time option to set the system time. Manually enter the hours, minutes
and seconds.
System Date [xx/xx/xx]
Use the System Date option to set the system date. Manually enter the day, month and
year.
ICEROCK-08A Panel PC
5.3 Advanced
Use the Advanced menu (BIOS Menu 2) to configure the CPU and peripheral devices
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Exit
Advanced Settings
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
WARNING: Setting wrong values in below sections may cause
system to malfunction
> CPU Configuration
> IDE Configuration
> Hardware Health Configuration
> Embedded Controller Configuration
> USB Configuration
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
Configure CPU
ÅÆ
Select Screen
↑ ↓ Select Item
Enter Go to SubScreen
F1 General Help
F10 Save and Exit
ESC Exit
BIOS Menu 2: Advanced
Page 44
Page 56
ICEROCK-08A Panel PC
5.3.1 CPU Configuration
Use the CPU Configuration menu (BIOS Menu 3) to view detailed CPU specifications
and configure the CPU.
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Exit
Configure Advanced CPU Settings
Module Version:3F.14
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
Manufacturer :Intel®
Intel® Atom™ Z530 @ 1.60 GHz
Frequency :1.60GHz
FSB Speed :533MHz
Cache L1 :24 KB
Cache L2 :512 KB
Ratio Actual Value:12
ÅÆ
Select Screen
↑ ↓ Select Item
Enter Go to SubScreen
F1 General Help
F10 Save and Exit
ESC Exit
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
BIOS Menu 3: CPU Configuration
The CPU Configuration menu lists the following CPU details:
Manufacturer: Lists the name of the CPU manufacturer
Brand String: Lists the brand name of the CPU being used
Frequency: Lists the CPU processing speed
FSB Speed: Lists the FSB speed
Cache L1: Lists the CPU L1 cache size
Cache L2: Lists the CPU L2 cache size
Page 45
Page 57
ICEROCK-08A Panel PC
5.3.2 IDE Configuration
Use the IDE Configuration menu (BIOS Menu 4) to change and/or set the configuration
of the IDE devices installed in the system.
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Exit
IDE Configuration
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
ATA/IDE Configuration [Enabled]
> Primary IDE Master : [Hard Disk]
> Primary IDE Slave : [Not Detected]
Options
Disabled
Compatible
Enhanced
ÅÆ
Select Screen
↑ ↓ Select Item
Enter Go to SubScreen
F1 General Help
F10 Save and Exit
ESC Exit
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
BIOS Menu 4: IDE Configuration
ATA/IDE Configuration [Compatible]
Use the ATA/IDE Configuration option to configure the ATA/IDE controller.
Î
Disabled
Î
Compatible DEFAULT
Î
Enhanced
Legacy IDE Channels [SATA Pri, PATA Sec]
Use the Legacy IDE Channels option to configure SATA devices as normal IDE devices.
Î
SA TA Only
Disables the on-board ATA/IDE controller.
The SATA drive is configured on an IDE channel.
Both IDE and SATA channels are configured
separately.
Only SATA drives are on the IDE channels. IDE drives
Î
SA TA Pri,
PATA Sec
Page 46
DEFAULT
are disabled
SATA drives are configured on the Primary IDE
channel. IDE drives on the Secondary IDE channel
Page 58
ICEROCK-08A Panel PC
Î
PATA Only
Configure SATA as [IDE]
Use the Configure SATA as option to configure SATA devices as normal IDE devices.
Î
IDE DEFAULT
Î
RAID
Î
AHCI
Configures SATA devices as normal IDE device.
Used when a RAID setup is installed
Enables advanced SATA drive features
Only the IDE drives are enabled. SATA drives are
disabled
5.3.2.1 IDE Master, IDE Slave
Use the IDE Master and IDE Slave configuration menu to view both primary and
secondary IDE device details and configure the IDE devices connected to the system.
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Exit
Primary IDE Master
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
Device :Not Detected
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
Type [Auto]
LBA/Large Mode [Auto]
Block (Multi-Sector Transfer) [Auto]
PIO Mode [Auto]
DMA Mode [Auto]
S.M.A.R.T. [Auto]
32Bit Data Transfer [Enabled]
Select the type
of device connected
to the system
Å
Select Screen
↑ ↓ Select Item
+- Change Option
F1 General Help
F10 Save and Exit
ESC Exit
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
BIOS Menu 5: IDE Master and IDE Slave Configuration
Auto-Detected Drive Parameters
The “grayed-out” items in the left frame are IDE disk drive parameters automatically
detected from the firmware of the selected IDE disk drive. The drive parameters are listed
as follows:
Device: Lists the device type (e.g. hard disk, CD-ROM etc.)
Page 47
Page 59
Type: Indicates the type of devices a user ca n manually select
Vendor: Lists the device manufacturer
Size: List the storage capacity of the device.
LBA Mode: Indicates whether the LBA (Logical Block Addre s sing) is a method
of addressing data on a disk drive is supported or not.
Block Mode: Block mode boosts IDE drive performance by increasing the
amount of data transferred. Only 512 bytes of data can be transferred per
interrupt if block mode is not used. Block mode allows transfers of up to 64 KB
per interrupt.
PIO Mode: Indicates the PIO mode of the installed device.
Async DMA: Indicates the highest Asynchronous DMA Mode that is
supported.
Ultra DMA: Indicates the highest Synchronous DMA Mode that is supported.
S.M.A.R.T.: Indicates whether or not the Self-Monitoring Analysis and
ICEROCK-08A Panel PC
Reporting Technology protocol is supported.
32Bit Data Transfer: Enables 32-bit data transfer.
Type [Auto]
Use the Type BIOS option select the type of device the AMIBIOS attempts to boot from
after the Power-On Self-Test (POST) is complete.
Î
Not Installed
Î
Auto DEFAULT
Î
CD/DVD
BIOS is prevented from searching for an IDE disk
drive on the specified channel.
The BIOS auto detects the IDE disk drive type
attached to the specified channel. This setting should
be used if an IDE hard disk drive is attached to the
specified channel.
The CD/DVD option specifies that an IDE CD-ROM
drive is attached to the specified IDE channel. The
BIOS does not attempt to search for other types of
Page 48
IDE disk drives on the specified channel.
Page 60
ICEROCK-08A Panel PC
Î
ARMD
LBA/Large Mode [Auto]
Use the LBA/Large Mode option to disable or enable BIOS to auto detects LBA (Logical
Block Addressing). LBA is a method of addressing data on a disk drive. In LBA mode, the
maximum drive capacity is 137 GB.
Î
Disabled
Î
Auto DEFAULT
Block (Multi Sector Transfer) [Auto]
This option specifies an ATAPI Removable Media
Device. These include, but are not limited to:
ZIP
LS-120
BIOS is prevented from using the LBA mode control on
the specified channel.
BIOS auto detects the LBA mode control on the specified
channel.
Use the Block (Multi Sector Transfer) to disable or enable BIOS to auto detect if the
device supports multi-sector transfers.
Î
Disabled
Î
Auto DEFAULT
PIO Mode [Auto]
Use the PIO Mode option to select the IDE PIO (Programmable I/O) mode program timing
cycles between the IDE drive and the programmable IDE controller. As the PIO mode
increases, the cycle time decrease s.
BIOS is prevented from using Multi-Sector T ran sfer on the
specified channel. The data to and from the device occurs
one sector at a time.
BIOS auto detects Multi-Sector Transfer support on the
drive on the specified channel. If supported the data
transfer to and from the device occurs multiple sectors at
a time.
Page 49
Page 61
ICEROCK-08A Panel PC
Î
Auto DEFAULT
Î
0
Î
1
Î
2
Î
3
Î
4
DMA Mode [Auto]
Use the DMA Mode BIOS selection to adjust the DMA mode options.
BIOS auto detects the PIO mode. Use this value if the IDE disk
drive support cannot be determined.
PIO mode 0 selected with a maximum transfer rate of 3.3 MB/s
PIO mode 1 selected with a maximum transfer rate of 5.2 MB/s
PIO mode 2 selected with a maximum transfer rate of 8.3 MB/s
PIO mode 3 selected with a maximum transfer rate of 11.1 MB/s
PIO mode 4 selected with a maximum transfer rate of 16.6 MB/s
(This setting generally works with all hard disk drives
manufactured after 1999. For other disk drives, such as IDE
CD-ROM drives, check the specifications of the drive.)
Î
Auto DEFAULT
Î
SWDMA0
Î
SWDMA1
Î
SWDMA2
Î
MWDMA0
Î
MWDMA1
Î
MWDMA2
BIOS auto detects the DMA mode. Use this value if the IDE
disk drive support cannot be determined.
Single Word DMA mode 0 selected with a maximum data
transfer rate of 2.1 MB/s
Single Word DMA mode 1 selected with a maximum data
transfer rate of 4.2 MB/s
Single Word DMA mode 2 selected with a maximum data
transfer rate of 8.3 MB/s
Multi Word DMA mode 0 selected with a maximum data
transfer rate of 4.2 MB/s
Multi Word DMA mode 1 selected with a maximum data
transfer rate of 13.3 MB/s
Multi Word DMA mode 2 selected with a maximum data
transfer rate of 16.6 MB/s
Î
UDMA0
Page 50
Ultra DMA mode 0 selected with a maximum data transfer
rate of 16.6 MB/s
Page 62
ICEROCK-08A Panel PC
Î
UDMA1
Î
UDMA2
Î
UDMA3
Î
UDMA4
Î
UDMA5
S.M.A.R.T [Auto]
Ultra DMA mode 1 selected with a maximum data transfer
rate of 25 MB/s
Ultra DMA mode 2 selected with a maximum data transfer
rate of 33.3 MB/s
Ultra DMA mode 3 selected with a maximum data transfer
rate of 44 MB/s (To use this mode, it is required that an
80-conductor ATA ca ble is used.)
Ultra DMA mode 4 selected with a maximum data transfer
rate of 66.6 MB/s (To use this mode, it is required that an
80-conductor ATA ca ble is used.)
Ultra DMA mode 5 selected with a maximum data transfer
rate of 99.9 MB/s (To use this mode, it is required that an
80-conductor ATA ca ble is used.)
Use the S.M.A.R.T option to auto-detect, disable or enable Self-Monitoring Analysis and
Reporting Technology (SMART) on the drive on the specified channel. S.M.A.R.T predicts
impending drive failures. The S.M.A.R.T BIOS option enables or disables this function.
Î
Auto DEFAULT
Î
Disabled
Î
Enabled
32Bi t Data Transfer [Enabled]
Use the 32Bit Data Transfer BIOS option to enables or disable 32-bit data transfers.
Î
Disabled
Î
Enabled DEFAULT
BIOS auto detects HDD SMART support.
Prevents BIOS from using the HDD SMART feature.
Allows BIOS to use the HDD SMART feature
Prevents the BIOS from using 32-bit data transfers.
Allows BIOS to use 32-bit data transfers on supported
hard disk drives.
Page 51
Page 63
ICEROCK-08A Panel PC
5.3.3 Hardware Health Configuration
The Hardware Health Configuration menu (BIOS Menu 6) shows the operating
temperature, fan speeds and system voltages.
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Exit
Hardware Health Configuration
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
CPU Temperature :41ºC/105ºF
System Temperature :30ºC/86ºF
Vcore(VIN1) :1.024 V
+3.3V(VIN2) :3.328 V
VBAT(VIN3) :2.781 V
VCC :5.049 V
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
ÅÆ
Select Screen
↑ ↓ Select Item
Enter Go to SubScreen
F1 General Help
F10 Save and Exit
ESC Exit
BIOS Menu 6: Hardware Health Configuration
Monitored Values
The following system parameters and values are shown. The system parameters that are
monitored are:
The following system temperatures are monitored:
o CPU temperature
o System temperature
The following core voltages are monitored:
o Vcore
o +3.30V
o VBAT
o VCC
Page 52
Page 64
ICEROCK-08A Panel PC
5.3.3.1 Embedded Controller Configuration
The Embedded Controller Configuration menu (BIOS Menu 7) allows the advanced
power management options to be configured.
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Exit
Restore on AC Power Loss [Power On]
G-Sensor Function [Disabled]
Charging Temperature Protect [50ºC]
Discharging Temperature Protect [60ºC]
Options
Power Off
Power On
Last State
ÅÆ
Select Screen
↑ ↓ Select Item
Enter Go to SubScreen
F1 General Help
F10 Save and Exit
ESC Exit
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
BIOS Menu 7: APM Configuration
Restore on AC Power Loss [Last State]
Use the Restore on AC Power Loss BIOS option to specify what state the system
returns to if there is a sudden loss of power to the system.
Î
Power Off
Î
Power On DEFAULT
Î
Last State
G-Sensor Function [On/Off]
Use the G-Sensor Function BIOS to enable the G-Sensor function. When enabled,
G-Sensor will sense the orientation of the tablet and automatically switch between portrait
The system remains turned off
The system turns on
The system returns to its previous state. If it was on, it
turns itself on. If it was off, it remains off.
or landscape display mode.
Page 53
Page 65
ICEROCK-08A Panel PC
Î
Disabled DEFAULT
Î
Enabled
Charging Temperature Protect [50ºC]
Battery charging will stop if this temperature is exceeded and will resume at a temperature
that is 5ºC cooler than this temperature. This value cannot be changed.
Discharging Temperature Protect [60 ºC]
Battery discharging will stop if this temperature is exceeded and the system will shutdown.
This value cannot be changed.
The G-Sensor function is disabled.
The G-Sensor function is enabled
5.3.4 USB Configuration
Use the USB Configuration menu (BIOS Menu 8) to read USB configuration information
and configure the USB settings.
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Exit
USB Configuration
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
Module Version – 2.24.3-13.4
USB Devices Enabled:
1 Keyboard, 1 Mouse
USB Function [Enabled]
USB 2.0 Controller [Enabled]
Legacy USB Support [Enabled]
USB 2.0 Controller Mode [HiSpeed]
Options
Disabled
Enabled
ÅÆ
Select Screen
↑ ↓ Select Item
Enter Go to SubScreen
F1 General Help
F10 Save and Exit
ESC Exit
V02.61 ©Copyright 1985-2006, American Megatrends, Inc.
BIOS Menu 8: USB Configuration
USB Configuration
The USB Configuration field shows the system USB configuration. The items listed are:
Module Version: x.xxxxx.xxxxx
Page 54
Page 66
ICEROCK-08A Panel PC
USB Dev ices Enabled
The USB Devices Enabled field lists the USB devices that are enabled on the system
USB Function [Enabled]
Use the USB Function BIOS option to enable or disable USB function support.
Î
Disabled
Î
Enabled DEFAULT
USB 2.0 Controller [Enabled]
Use the USB 2.0 Controller BIOS option to enable or disable the USB 2.0 controller
Î
Disabled
Î
Enabled DEFAULT
Legacy USB Support [Enabled]
Use the Legacy USB Support BIOS option to enable USB mouse and USB keyboard
support.
Normally if this option is not enabled, any attached USB mouse or USB keyboard does not
become available until a USB compatible operating system is fully booted with all USB
USB function support disabled
USB function support enabled
USB 2.0 controller disabled
USB 2.0 controller enabled
drivers loaded. When this option is enabled, any attached USB mouse or USB keyboard
can control the system even when there is no USB driver loaded onto the system.
Î
Disabled
Î
Enabled DEFAULT
Î
Auto
USB2.0 Controller Mode [HiSpeed]
Use the USB2.0 Controller Mode option to set the speed of the USB2.0 controller.
Legacy USB support disabled
Legacy USB support enabled
Legacy USB support disabled if no USB devices are
connected
Page 55
Page 67
ICEROCK-08A Panel PC
Î
FullSpeed
Î
HiSpeed DEFAULT
The controller is capable of operating at 12 Mb/s
The controller is capable of operating at 480 Mb/s
5.3.4.1 USB Mass Storage Device Configuration
Use the USB Mass Storage Device C onfiguration menu (BIOS Menu 9) to configure
USB mass storage class devices.
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Exit
USB Mass Storage Device Configuration
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
USB Mass Storage Reset Delay [20 Sec]
Device #1 M-SysT5 Dell Memory Key 5.04
Emulation Type [Auto]
ÅÆ
Select Screen
↑ ↓ Select Item
Enter Go to SubScreen
F1 General Help
F10 Save and Exit
ESC Exit
V02.61 ©Copyright 1985-2006, American Megatrends, Inc.
BIOS Menu 9: USB Mass Storage Device Configuration
USB Mass Storage Reset Delay [20 Sec]
Use the USB Mass Storage Reset Delay option to set the number of seconds POST
waits for the USB mass storage device after the start unit command.
Î
10 Sec
Î
20 Sec DEFAULT
Î
30 Sec
Î
40 Sec
POST waits 10 seconds for the USB mass storage
device after the start unit command.
POST waits 20 seconds for the USB mass storage
device after the start unit command.
POST waits 30 seconds for the USB mass storage
device after the start unit command.
POST waits 40 seconds for the USB mass storage
device after the start unit command.
Page 56
Page 68
ICEROCK-08A Panel PC
Device ##
The Device## field lists the USB devices that are connected to the system.
Emulation Type [Auto]
Use the Emulation Type BIOS option to specify the type of emulation BIOS has to
provide for the USB device.
Î
Auto DEFAULT
Î
Floppy
Î
Forced FDD
Î
Hard Disk
Î
CDROM
BIOS auto-detects the current USB.
The USB device will be emulated as a floppy drive.
The device can be either A: or B: responding to
INT13h calls that return DL = 0 or DL = 1
respectively.
Allows a hard disk image to be connected as a
floppy image. This option works only for drives
formatted with FAT12, FAT16 or FAT32.
Allows the USB device to be emulated as hard disk
responding to INT13h calls that return DL values of
80h or above.
Assumes the CD-ROM is formatted as bootable
media. All the devices that support block sizes
greater than 512 bytes can only be booted using this
option.
5.4 PCI/PnP
Use the PCI/PnP menu (BIOS Menu 10) to configure advanced PCI and PnP settings.
WARNING!
Setting wrong values for the BIOS selections in the PCIPnP BIOS
menu may cause the system to malfunction.
Page 57
Page 69
A
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Exit
Advanced PCI/PnP Settings
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
IRQ3 [Available]
IRQ4 [Available]
IRQ5 [Available]
IRQ7 [Available]
IRQ9 [Available]
IRQ10 [Available]
IRQ11 [Available]
IRQ14 [Available]
IRQ15 [Available]
Reserved Memory Size [Disabled]
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
BIOS Menu 10: PCI/PnP Configuration
ICEROCK-08A Panel PC
vailable: Specified IRQ
is available to be use
the PCI/PnP devices
Reserved: Specified IRQ
is reserved for use by
legacy ISA devices
ÅÆ
Select Screen
↑ ↓ Select Item
Enter Go to SubScreen
F1 General Help
F10 Save and Exit
ESC Exit
IRQ# [Available]
Use the IRQ# address to specify what IRQs can be assigned to a particular peripheral
device.
Î
Available DEFAULT
Î
Reserved
Available IRQ addresses are:
IRQ3
IRQ4
IRQ5
IRQ7
IRQ9
The specified IRQ is available to be used by
PCI/PnP devices
The specified IRQ is reserved for use by Legacy ISA
devices
IRQ10
IRQ 11
IRQ 14
IRQ 15
Page 58
Page 70
ICEROCK-08A Panel PC
DMA Channel# [Available]
Use the DMA Channel# option to assign a specific DMA channel to a particular PCI/PnP
device.
Î
Available DEFAULT
Î
Reserved
Available DMA Channels are:
DM Channel 0
DM Channel 1
DM Channel 3
DM Channel 5
DM Channel 6
DM Channel 7
Reserved Memory Size [Disabled]
Use the Reserved Memory Size BIOS option to specify the amount of memory that
The specified DMA is available to be used by
PCI/PnP devices
The specified DMA is reserved for use by Legacy
ISA devices
should be reserved for legacy ISA devices.
Î
Disabled DEFAULT
Î
16K
Î
32K
Î
64K
No memory block reserved for legacy ISA devices
16 KB reserved for legacy ISA devices
32 KB reserved for legacy ISA devices
54 KB reserved for legacy ISA devices
Page 59
Page 71
ICEROCK-08A Panel PC
5.5 Boot
Use the Boot menu (BIOS Menu 11) to configure system boot options.
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Exit
Boot Settings
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
> Boot Settings Configuration
> Boot Device Priority
> Hard Disk Drives
> CD/DVD Drives
> Removable Drives
Configure settings
during system boot.
ÅÆ
Select Screen
↑ ↓ Select Item
Enter Go to SubScreen
F1 General Help
F10 Save and Exit
ESC Exit
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
BIOS Menu 11: Boot
5.5.1 Boot Settings Configuration
Use the Boot Settings Configuration menu (BIOS Menu 12) to configure advanced
system boot options.
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Exit
Boot Settings Configuration
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
Quick Boot [Enabled]
Quiet Boot [Enabled]
AddOn ROM Display Mode [Force BIOS]
Bootup Num-Lock [On]
Boot From LAN (RTL8111CP) [Disabled]
Allows BIOS to skip
certain tests while
booting. This will
decrease the time
needed to boot the
system.
ÅÆ
Select Screen
↑ ↓ Select Item
Enter Go to SubScreen
F1 General Help
F10 Save and Exit
ESC Exit
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
BIOS Menu 12: Boot Settings Configuration
Page 60
Page 72
ICEROCK-08A Panel PC
Quick Boot [Enabled]
Use the Quick Boot BIOS option to make the computer speed up the boot process.
Î
Disabled
Î
Enabled DEFAULT
Quiet Boot [Enabled]
Use the Quiet Boot BIOS option to select the screen display when the system boots.
Î
Disabled DEFAULT
Î
Enabled
AddOn ROM Display Mode [Force BIOS]
Use the AddOn ROM Display Mode option to allow add-on ROM (read-only memory)
messages to be displayed.
Î
Force BIOS DEFAULT
No POST procedures are skipped
Some POST procedures are skipped to decrease
the system boot time
Normal POST messages displayed
OEM Logo displayed instead of POST messages
The system forces third party BIOS to display
during system boot.
Î
Keep Current
Bootup Num-Lock [On]
Use the Bootup Num-Lock BIOS option to specify if the number lock setting must be
modified during boot up.
Î
Off
Does not enable the keyboard Number Lock automatically. To
use the 10-keys on the keyboard, press the Number Lock key
located on the upper left-hand corner of the 10-key pad. The
Number Lock LED on the keyboard lights up when the Number
Lock is engaged.
The system displays normal information during
system boot.
Page 61
Page 73
ICEROCK-08A Panel PC
Î
On DEFAULT
Boot From LAN (RTL81111CP) [Disabled]
Use the BOOT From LAN Support option to enable the system to be booted from a
remote system.
Î
Disabled DEFAULT
Î
Enabled DEFAULT
Allows the Number Lock on the keyboard to be enabled
automatically when the computer system boots up. This allows
the immediate use of the 10-key numeric keypad located on
the right side of the keyboard. To confirm this, the Number
Lock LED light on the keyboard is lit.
Cannot be booted from a remote system through the
LAN
Can be booted from a remote system through the
LAN
5.5.2 Boot Device Priority
Use the Boot Device Priority menu (BIOS Menu 13) to specify the boot sequence from
the available devices. The drive sequence also depends on the boot sequence in the
individual device section.
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Exit
Boot Device Priority
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
1st Boot Device [SATA:PM-Flash Modu]
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
BIOS Menu 13: Boot Device Priority Settings
Specifies the boot
sequence from the
available devices.
ÅÆ
Select Screen
↑ ↓ Select Item
Enter Go to SubScreen
F1 General Help
F10 Save and Exit
ESC Exit
Page 62
Page 74
ICEROCK-08A Panel PC
5.5.3 Hard Disk Drives
Use the Hard Disk Drives menu to specify the boot sequence of the available HDDs.
Only installed hard drives are shown.
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Exit
Hard Disk Drives
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
> 1st Drive [SATA:PM-Flash Modu]
Specifies the boot
sequence from the
available devices.
ÅÆ
Select Screen
↑ ↓ Select Item
Enter Go to SubScreen
F1 General Help
F10 Save and Exit
ESC Exit
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
BIOS Menu 14: Hard Disk Drives
5.5.4 Removable Drives
Use the Removable Drives menu (BIOS Menu 15) to specify the boot sequence of the
removable drives. Only connected drives are shown.
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Exit
Hard Disk Drives
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
> 1st Drive [Removable Drive 1]
> 2nd Drive [Removable Drive 2]
> 3rd Drive [Removable Drive 3]
Specifies the boot
sequence from the
available devices.
ÅÆ
Select Screen
↑ ↓ Select Item
Enter Go to SubScreen
F1 General Help
F10 Save and Exit
ESC Exit
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
BIOS Menu 15: Removable Drives
Page 63
Page 75
5.5.5 CD/DVD Drives
Use the CD/DVD Drives menu to specify the boot sequence of the available CD/DVD
drives. When the menu is opened, the CD drives and DVD drives connected to the system
are listed as shown below:
1st Drive [CD/DVD: PM-(part ID)]
2nd Drive [HDD: PS-(part ID)]
3rd Drive [HDD: SM-(part ID)]
4th Drive [HDD: SM-(part ID)]
NOTE:
Only the drives connected to the system are shown. For example, if
only two CDs or DVDs are connected only “1st Drive” and “2nd Drive”
ICEROCK-08A Panel PC
are listed.
The boot sequence from the available devices is selected. If the “1st Drive” option is
selected a list of available CD/DVD drives is shown. Select the first CD/DVD drive the
system boots from. If the “1st Drive” is not used for booting this option may be disabled.
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Exit
Hard Disk Drives
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
> 1st Drive [CD/DVD 1]
> 2nd Drive [CD/DVD 2]
> 3rd Drive [CD/DVD 3]
Specifies the boot
sequence from the
available devices.
ÅÆ
Select Screen
↑ ↓ Select Item
Enter Go to SubScreen
F1 General Help
F10 Save and Exit
ESC Exit
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
BIOS Menu 16: CD/DVD Drives
Page 64
Page 76
ICEROCK-08A Panel PC
5.6 Security
Use the Security menu (BIOS Menu 17) to set system and user passwords.
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Exit
Security Settings
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
Supervisor Password :Not Installed
User Password :Not Installed
Change Supervisor Password
Change User Password
ÅÆ
Select Screen
↑ ↓ Select Item
Enter Go to SubScreen
F1 General Help
F10 Save and Exit
ESC Exit
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
BIOS Menu 17: Security
Change Supervisor Password
Use the Change Supervisor Password to set or change a supervisor password. The
default for this option is Not Installed. If a supervisor password must be installed, select
this field and enter the password. After the password has been added, Install appears
next to Change Supervisor Password.
Change User Password
Use the Change User Password to set or change a user password. The default for this
option is Not Installed. If a user password must be installed, select this field and enter the
password. After the password has been added, Install appears next to Change User
Password.
Page 65
Page 77
ICEROCK-08A Panel PC
5.7 Chipset
Use the Chipset menu (BIOS Menu 18) to access the Northbridge and Southbridge
configuration menus
WARNING!
Setting the wrong values for the Chipset BIOS selections in the Chipset
BIOS menu may cause the system to malfunction.
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Exit
Advanced Chipset Settings
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
> Northbridge Configuration
> Southbridge Configuration
ÅÆ
Select Screen
↑ ↓ Select Item
Enter Go to SubScreen
F1 General Help
F10 Save and Exit
ESC Exit
Page 66
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
BIOS Menu 18: Chipset
Page 78
ICEROCK-08A Panel PC
5.7.1 Northbridge Configuration
Use the Northbridge Chipset Configuration menu (BIOS Menu 19) to configure the
Northbridge chipset.
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Exit
Northbridge Chipset Configuration
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
Integrated Graphics Mode [Enabled, 4MB]
Boot Display Configuration
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
Boot Display Device [Auto]
Flat Panel Type [800x600 (generic)]
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
ÅÆ
Select Screen
↑ ↓ Select Item
Enter Go to SubScreen
F1 General Help
F10 Save and Exit
ESC Exit
BIOS Menu 19: Northbridge Chipset Configuration
Internal Graphics Mode Select [Enable, 4 MB]
Use the Internal Graphic Mode Select option to specify the amount of system memory
that can be used by the internal graphics device.
Î
Disable
Î
Enable, 1 MB
Î
Enable, 4 MB DEFAULT
Î
Enable, 8 MB
Boot Display Device [Auto]
Selects which graphics output to use first after the system is turned on. Auto selects the
first available device.
Disabled the onboard graphics
Dedicates 1 MB of main memory for graphics
Dedicates 4 MB of main memory for graphics
Dedicated 8 MB of main memory for graphics
Auto D
LVDS
EFAULT
Page 67
Page 79
LFP Panel Type
Use the Panel Type to determine the LCD panel resolution. Configuration options are
listed below:
ICEROCK-08A Panel PC
CRT
640x480 (generic)
800x600 (generic)
1024x768 (generic)
640x480 (NEC 8.4”)
800x480 (NEC 9”)
1024x600 (TMD 5.61”)
1024x600 (Samsung 4.8”)
1024x768 (Samsung 15”)
1280x768 (Sharp 7.2”)
1280x800 (Samsung 15.4”)
1024x768 24bit
800x480 24bit
1360x768 24bit VESA
1366x768 18bit
1366x768 24bit
DEFAULT
Page 68
Page 80
ICEROCK-08A Panel PC
5.7.2 Southbridge Configuration
Use the Southbridge Configuration menu (BIOS Menu 20) to configure the Southbridge
chipset.
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Exit
Southbridge Configuration
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
Spread Spectrum Mode [Disabled]
Audio Controller Codec [Enabled]
USB Client Controller [Enabled]
Options
Auto
Azalia
AC'97 Audio Only
All Disabled
ÅÆ
Select Screen
↑ ↓ Select Item
Enter Go to SubScreen
F1 General Help
F10 Save and Exit
ESC Exit
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
BIOS Menu 20: Southbridge Chipset Configuration
Spread Spectrum [Disabled]
Use the Spread Spectrum option to reduce the EMI. Excess EMI is generated when the
system clock generator pulses have extreme values. Spreading the pulse spectrum
modulates changes in the extreme values from spikes to flat curves, thus reducing the
EMI. This benefit may in some cases be outweighed by problems with timing-critical
devices, such as a clock-sensitive SCSI device.
Î
Disabled DEFAULT
Î
Enabled
Audio Controller [Auto]
Use the HDA Controller option to enable or disable High Definition audio codec.
EMI not reduced
EMI reduced
Î
Azalia DEFAULT
Î
All disabled
Enabled High Definition audio
No audio
Page 69
Page 81
E
F
USB Client Controller
Use the USB Client Controller option to enable or disable the USB client controller.
ICEROCK-08A Panel PC
Î
Enabled DEFAULT
Î
Disabled
The USB client controller is enabled.
The USB client controller is disabled.
5.8 Exit
Use the Exit menu (BIOS Menu 21) to load default BIOS values, optimal failsafe values
and to save configuration changes.
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Exit
Exit Options
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
Save Changes and Exit
Discard Changes and Exit
Discard Changes
Load Optimal Defaults
Load Failsafe Defaults
xit system setup after
saving the changes.
10 key can be used for
this operation
ÅÆ
Select Screen
↑ ↓ Select Item
Enter Go to SubScreen
F1 General Help
F10 Save and Exit
ESC Exit
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
BIOS Menu 21: Exit
Save Changes and Exit
Use the Save Changes and Exit option to save the changes made to the BIOS options
and to exit the BIOS configuration setup program.
Discard Changes and Exit
Use the Discard Changes and Exit option to exit the BIOS configuration setup program
without saving the changes made to the system.
Page 70
Page 82
ICEROCK-08A Panel PC
Discard Changes
Use the Discard Changes option to discard the changes and remain in the BIOS
configuration setup program.
Load Optimal Defaults
Use the Load Optimal Defaults option to load the optimal default values for each of the
parameters on the Setup menus. F9 key can be used for this operation.
Load Failsaf e Defaults
Use the Load Failsafe Defaults option to load failsafe default values for each of the
parameters on the Setup menus. F8 key can be used for this operation.
Page 71
Page 83
ICEROCK-08A Panel PC
Chapter
6
6 System Maintenance
Page 72
Page 84
ICEROCK-08A Panel PC
6.1 System Maintenance Introduction
If the components of the ICEROCK-08A fail they must be replaced, such as the wireless
LAN module or the motherboard. Please contact the system reseller or vendor to
purchase the replacement parts.
6.2 Motherboard Replacement
In the case of motherboard failure, please contact an IEI sales representative, reseller or
system vendor. The motherboard is accessible after opening the rear cover.
Page 73
Page 85
ICEROCK-08A Panel PC
Appendix
A
A Safety Precautions
Page 74
Page 86
ICEROCK-08A Panel PC
WARNING:
The precautions outlined in this chapter should be strictly followed.
Failure to follow these precautions may result in permanent damage to
the ICEROCK-08A.
A.1 Safety Precautions
Please follow the safety precautions outlined in the sections that follow:
A.1.1 General Safety Precautions
Please ensure the following safety precautions are adhered to at all times.
Follow the electrostatic precautions outlined below whenever the
ICEROCK-08A is opened.
Make sure the power is turned off and the power cord is disco nnected
whenever the ICEROCK-08A is being installed, moved or modified.
Do not apply voltage levels that exceed the specified voltage range.
Doing so may cause fire and/or an electrical shock.
Electric shocks can occur if the ICEROCK-08A chassis is opened when the
ICEROCK-08A is running.
Do not drop or insert any objects into the ventilation openings of the
ICEROCK-08A.
If considerable amounts of dust, water, or fluids enter the ICEROCK-08 A,
turn off the power supply immediately, unplug the power cord, and contact the
ICEROCK-08A vendor.
DO NOT do the following:
o DO NOT drop the ICEROCK-08A against a hard surface.
o DO NOT strike or exert excessive force onto the LCD panel.
o DO NOT touch any of the LCD panels with a sharp object
o DO NOT use the ICEROCK-08A in a site where the ambient temperature
exceeds the rated temperature
Page 75
Page 87
A.1.2 Anti-static Precautions
WARNING:
Failure to take ESD precautions during the installation of the
ICEROCK-08A may result in permanent damage to the ICEROCK-08A
and sever injury to the user.
Electrostatic discharge (ESD) can cause serious damage to electronic components,
including the ICEROCK-08A. Dry climates are especially susceptible to ESD. It is
therefore critical that whenever the ICEROCK-08A is opened and any of the electrical
components are handled, the following anti-static precautions are strictly adhered to.
Wear an anti-static wristband: Wearing a simple an ti-static wristband can
ICEROCK-08A Panel PC
help to prevent ESD from damaging any electrical component.
Self-grounding: Before handling any electrical component, touch any
grounded conducting material. During the time the electrical component is
handled, frequently touch any conducting materials that are connected to the
ground.
Use an anti-static pad: When configuring or working with an electrical
component, place it on an antic-static pad. This reduces the possibility of ESD
damage.
Only handle the edges of the electrical component: When handling the
electrical component, hold the electrical component by its edges.
A.2 Maintenance and Cleaning Precautions
When maintaining or cleaning the ICEROCK-08A, please follow the guidelines below.
A.2.1 Maintenance and Cleaning
Prior to cleaning any part or component of the ICEROCK-08A, please read the details
below.
Page 76
Page 88
ICEROCK-08A Panel PC
Except for the LCD panel, never spray or squirt liquids directly onto any other
components. To clean the LCD panel, gently wipe it with a piece of soft dry
cloth or a slightly moistened cloth.
The interior does not require cleaning. Keep fluids away from the interior.
Be careful not to damage the small, removable components inside.
Turn off before cleaning.
Never drop any objects or liquids through the openings.
Be cautious of any possible allergic reactions to solvents or chemicals used
when cleaning.
Avoid eating, drinking and smoking nearby.
A.2.2 Cleaning Tools
Some components may only be cleaned using a product specifically designed for the
purpose. In such case, the product will be explicitly mentioned in the cleaning tips. Below
is a list of items to use for cleaning.
Cloth – Although paper towels or tissues can be used, a soft, clean piece of
cloth is recommended.
Water or rubbing alcohol – A cloth moistened with water or rubbing alcohol
should be used.
Using solvents – The use of solvents is not recommended as they may
damage the plastic parts.
Vacuum cleaner – Using a vacuum specifically designed for computers is
one of the best methods of cleaning. Dust and dirt can restrict the airflow and
cause circuitry to corrode
Cotton swabs - Cotton swaps moistened with rubbing alco hol or water are
excellent tools for wiping hard to reach areas.
Foam swabs - Whenever possible, it is best to use lint free swabs such as
foam swabs for cleaning.
Page 77
Page 89
ICEROCK-08A Panel PC
Appendix
B
B One Key Recovery
Page 78
Page 90
ICEROCK-08A Panel PC
B.1 One Key Recovery Introduction
The IEI one key recovery is an easy-to-use front end for the Norton Ghost system backup
and recovery tool. The one key recovery provides quick and easy shortcuts for creating a
backup and reverting to that backup or for reverting to the factory default settings.
To create the system backup the main storage device must be split into two partitions
(three partitions for Linux). The first partition will be for the operating system, while the
second partition will be invisible to the operating system and contain the backup made by
the one key recovery software.
B.1.1 System Requirement
The partition created for recovery images must be big enough to contain both the factory
default image and the user backup image. The size must be calculat ed before creating the
partitions. Please take the following table as a reference when calculating the size of the
partition.
OS OS Image after Ghost Compression Ratio
Windows® 7 7 GB 5 GB 70%
Windows® XPE 776 MB 560 MB 70%
Windows® CE 6.0 36 MB 28 MB 77%
NOTE:
Specialized tools are required to change the partition size if the
operating system is already installed.
B.1.2 Supported Operating System
The recovery CD is compatible with both Microsoft Windows and Linux operating system
(OS). The supported OS versions are listed below.
Microsoft Windows
o Windows XP (Service Pack 2 or 3 required)
o Windows Vista
Page 79
Page 91
ICEROCK-08A Panel PC
o Windows 7
o Windows CE 5.0
o Windows CE 6.0
o Windows XP Embedded
Linux
o Fedora Core 12 (Constantine)
o Fedora Core 11 (Leonidas)
o Fedora Core 10 (Cambridge)
o Fedora Core 8 (Werewolf)
o Fedora Core 7 (Moonshine)
o RedHat RHEL-5.4
o RedHat 9 (Ghirke)
o Ubuntu 8.10 (Intrepid)
o Ubuntu 7.10 (Gutsy)
o Ubuntu 6.10 (Edgy)
o Debian 5.0 (Lenny)
o Debian 4.0 (Etch)
o SuSe 11.2
o SuSe 10.3
NOTE:
Installing unsupported OS versions may cause the recovery tool to fail.
Page 80
Page 92
ICEROCK-08A Panel PC
NOTE:
The recovery CD can only be used with IEI products. The software will fail
to run and a warning message will appear when used on non-IEI hardware.
B.2 Setup Procedure for Windows
Prior to using the recovery tool to backup or restore system, a few setup procedures are
required.
Step 1: Hardware and BIOS setup
Step 2: Create partitions
Step 3: Install operating system, drivers and system applications.
Step 4: Build-up recovery partition
Step 5: Create factory default imageStep 0:
The detailed descriptions are described in the following sections.
Page 81
Page 93
ICEROCK-08A Panel PC
NOTE:
The setup procedures described below are for Microsoft Windows
operating system users. For Linux system, most setup procedures are
the same with Microsoft Windows except for several steps which is
described in Section
B.3.
B.2.1 Hardware and BIOS Setup
Step 1: Make sure the system is powered off and unplugged.
Step 2: Install a hard driver or SSD in the ICEROCK-08A. An unformatted and
unpartitioned disk is recommended.
Step 3: Connect an optical disk drive to the ICEROCK-08A and insert the recovery CD.
Step 4: Turn on the system.
Step 5: Press the <DELETE> key as soon as the system is turned on to enter the BIOS.
st
Step 6: Select the connected optical disk drive as the 1
st
Device Priority Æ 1
Step 7: Save changes and restart the computer. Continue to the next section for
Boot Device).
boot device. (Boot Æ Boot
instructions on partitioning the internal storage. Step 0:
B.2.2 Create Partitions
Step 1: Put the recovery CD in the optical drive.
Step 2: Turn on the system.
Step 3: When prompted, press any key to boot from the recovery CD. It will take a while
to launch the recovery tool. Please be patient.
Step 4: The recovery tool setup menu is shown as below.
Page 82
Page 94
ICEROCK-08A Panel PC
Figure B-1: Recovery Tool Setup Menu
Step 5: Press <5> then <Enter>.
Figure B-2: Command Mode
Step 6: The command prompt window appears. Type the following commands (marked
in red) to create two partitions. One is for the OS installation; the other is for
saving recovery files and images which will be an invisible partition.
(Press <Enter> after entering each line below)
system32>diskpart
DISKPART>list vol
DISKPART>sel disk 0
DISKPART>create part pri size= ___
DISKPART>assign letter=N
DISKPART>create part pri size= ___
DISKPART>assign letter=F
DISKPART>exit
system32>format N: /fs:ntfs /q /y
system32>format F: /fs:ntfs /q /v:Recovery /y
system32>exit
Page 83
Page 95
ICEROCK-08A Panel PC
Figure B-3: Partition Creation Commands
Page 84
Page 96
ICEROCK-08A Panel PC
NOTE:
Use the following commands to check if the partitions were created
successfully.
Step 7: Press any key to exit the recovery tool and automatically reboot the system.
Please continue to the following procedure: Build-up Recovery Partition.Step 0:
B.2.3 Install Operating System, Drivers and Applications
Install the operating system onto the unlabelled partition. The partition labeled as
"Recovery" is for use by the system recovery tool and should not be used for installing the
operating system or any applications.
NOTE:
The operating system installation program may offer to reformat the
chosen partition. DO NOT format the partition again. The partition has
already been formatted and is ready for installing the new operating
system.
To install the operating system, insert the operating system installation CD into the optical
drive. Restart the computer and follow the installation instructions.
B.2.4 Build-up Recovery Partition
Step 1: Put the recover CD in the optical drive.
Page 85
Page 97
Step 2: Start the system.
Step 3: Press any key to boot from the recovery CD. It will take a while to launch the
recovery tool. Please be patient.
Step 4: When the recovery tool setup menu appears, press <2> then <Enter>.
Figure B-4: System Configuration for Windows
ICEROCK-08A Panel PC
Step 5: The Symantec Ghost window appears and starts configuring the system to
build-up a recovery partition. In this process, the partition which is created for
recovery files in Section B.2.2 is hidde
partition.
n and the recovery tool is saved in this
Figure B-5: Build-up Recovery Partition
Page 86
Page 98
ICEROCK-08A Panel PC
Step 6: After completing the system configuration, press any key in the following window
to reboot the system.
Figure B-6: Press any key to continue
Step 7: Eject the recovery CD. Step 0:
B.2.5 Create Factory Default Image
NOTE:
Before creating the factory default image, please configure the system
to a factory default environment, including driver and application
installations.
To create a factory default image, please follow the steps below.
Step 1: Turn on the system. When the following screen displays (Figure B-7), pre
<F3> key to access the recovery tool. The message will display for 10 seconds,
please press F3 before the system boots into the operating system.
Figure B-7: Press F3 to Boot into Recovery Mode
ss the
Step 2: The recovery tool menu appears. T y pe <4> and press <Enter>. (Figure B-8)
Page 87
Page 99
Figure B-8: Recovery Tool Menu
Step 3: The About Symantec Ghost window appears. Click OK button to continue.
ICEROCK-08A Panel PC
Figure B-9: About Symantec Ghost Window
Step 4: Use mouse to navigate to the option shown below (Figure B-10).
Page 88
Page 100
ICEROCK-08A Panel PC
Figure B-10: Symantec Ghost Path
Step 5: Select the local source drive as shown in
Figure B-11: Select a Local Source Drive
Step 6: Select a source partition from basic drive as shown in Figure B-12.
OK.
Figure B-11.
Then click OK.
Then click
Figure B-12: Select a Source Partition from Basic Drive
Page 89
