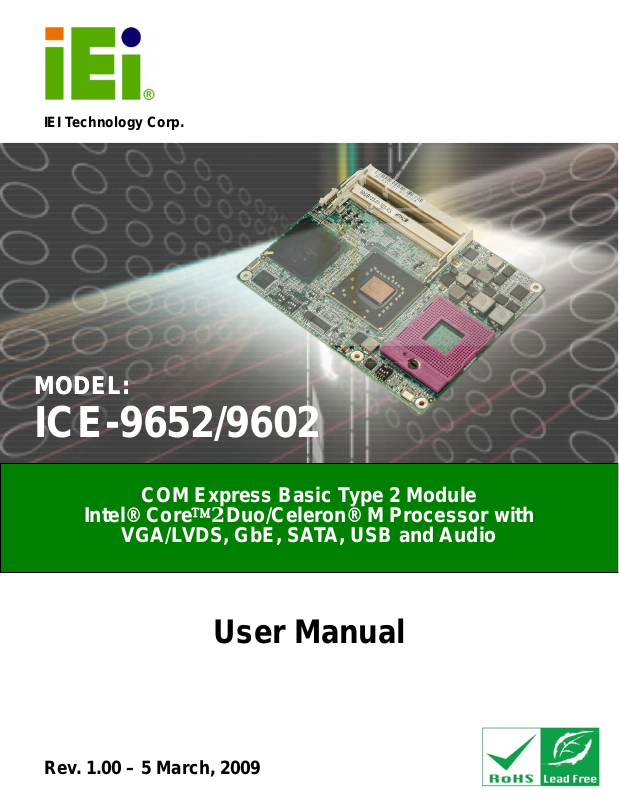

IEI Technology ICE-9652, ICE-9602 User Manual

ICE-9652/9602 COM Express Basic Type 2 Module
ICE-9652/9602
IEI Technology Corp.
MODEL:
MODEL:
ICE-9652/9602
Intel® Core2 Duo/Celeron® M Processor with
VGA/LVDS, GbE, SATA, USB and Audio
User Manual
Rev. 1.00 – 5 March, 2009
Page i
Date Version Changes
5 March, 2009 1.00 Initial release
ICE-9652/9602 COM Express Basic Type 2 Module
Revision
Page ii
ICE-9652/9602 COM Express Basic Type 2 Module
Copyright
COPYRIGHT NOTICE
The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer.
In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.
This document contains proprietary information protected by copyright. All rights are reserved. No part of this manual may be reproduced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer.
TRADEMARKS
All registered trademarks and product names mentioned herein are used for identification purposes only and may be trademarks and/or registered trademarks of their respective owners.
Page iii
ICE-9652/9602 COM Express Basic Type 2 Module
Table of Contents
1 INTRODUCTION.......................................................................................................... 1
1.1 INTRODUCTION........................................................................................................... 2
1.2 APPLICATIONS ............................................................................................................ 2
1.3 BENEFITS ................................................................................................................... 3
1.4 FEATURES................................................................................................................... 3
1.5 OVERVIEW PICTURE ................................................................................................... 4
1.6 DIMENSIONS............................................................................................................... 6
1.6.1 Side Dimensions................................................................................................. 7
1.7 DATA FLOW................................................................................................................ 8
1.8 TECHNICAL SPECIFICATIONS ...................................................................................... 9
2 UNPACKING................................................................................................................11
2.1 ANTI-STATIC PRECAUTIONS...................................................................................... 12
2.2 UNPACKING PRECAUTIONS....................................................................................... 12
2.3 PACKING LIST........................................................................................................... 13
3 CONNECTORS ........................................................................................................... 14
3.1 PERIPHERAL INTERFACE CONNECTORS..................................................................... 15
3.1.1 ICE-9652/9602 Layout..................................................................................... 15
3.1.2 Peripheral Interface Connectors ..................................................................... 16
3.2 INTERNAL PERIPHERAL CONNECTORS ...................................................................... 16
3.2.1 COM Express Connector AB........................................................................... 16
3.2.2 COM Express Connector CD........................................................................... 21
3.2.3 SO-DIMM Connector....................................................................................... 25
3.2.4 SPI Flash Connector........................................................................................ 26
4 INSTALLATION ......................................................................................................... 27
4.1 ANTI-STATIC PRECAUTIONS...................................................................................... 28
4.2 INSTALLATION CONSIDERATIONS.............................................................................. 28
4.3 SO-DIMM INSTALLATION ....................................................................................... 30
4.4 JUMPER SETTINGS .................................................................................................... 31
Page iv
ICE-9652/9602 COM Express Basic Type 2 Module
4.4.1 BIOS Selection................................................................................................. 31
4.4.2 LVDS Panel Resolution.................................................................................... 32
4.4.3 PEG and SDVO Configuration........................................................................ 33
4.5 MOUNTING THE ICE-9652/9602 .............................................................................. 34
5 BIOS SETUP................................................................................................................ 37
5.1 INTRODUCTION......................................................................................................... 38
5.1.1 Starting Setup................................................................................................... 38
5.1.2 Using Setup...................................................................................................... 38
5.1.3 Getting Help..................................................................................................... 39
5.1.4 Unable to Reboot After Configuration Changes.............................................. 39
5.1.5 BIOS Menu Bar................................................................................................ 39
5.2 MAIN........................................................................................................................ 40
5.3 ADVANCED............................................................................................................... 41
5.3.1 CPU Configuration.......................................................................................... 42
5.3.2 IDE Configuration........................................................................................... 43
5.3.2.1 IDE Master, IDE Slave............................................................................. 44
5.3.3 Floppy Configuration....................................................................................... 49
5.3.4 Super IO Configuration ................................................................................... 50
5.3.5 Win83627EHG Hardware Health Configuration ............................................ 55
5.3.6 Win83L784G Hardware Health....................................................................... 56
5.3.7 Power Configuration ....................................................................................... 58
5.3.7.1 ACPI Configuration .................................................................................. 58
5.3.7.2 APM Configuration................................................................................... 59
5.3.8 Remote Access Configuration.......................................................................... 62
5.3.9 USB Configuration........................................................................................... 65
5.4 PCI/PNP................................................................................................................... 66
5.5 BOOT........................................................................................................................ 69
5.5.1 Boot Settings Configuration............................................................................. 70
5.6 SECURITY................................................................................................................. 72
5.7 CHIPSET ................................................................................................................... 73
5.7.1 Northbridge Configuration.............................................................................. 74
5.7.1.1 V ideo Function Configuration .................................................................. 75
5.7.2 Southbridge Configuration .............................................................................. 76
5.8 EXIT......................................................................................................................... 77
Page v
ICE-9652/9602 COM Express Basic Type 2 Module
6 SOFTWARE INSTALLATION.................................................................................. 79
6.1 AVAILABLE SOFTWARE DRIVERS .............................................................................. 80
6.2 ST ARTING THE DRIVER PROGRAM ............................................................................ 80
6.3 CHIPSET DRIVER INSTALLATION............................................................................... 82
6.4 VGA DRIVER INSTALLATION.................................................................................... 85
6.5 LAN DRIVER INSTALLATION.................................................................................... 89
6.6 REALTEK HD AUDIO DRIVER (ALC883) INSTALLATION.......................................... 94
6.6.1 BIOS Setup....................................................................................................... 95
6.6.2 Driver Installation ........................................................................................... 95
6.7 INTEL
®
MATRIX STORAGE MANAGER DRIVER INSTALLATION................................ 101
6.8 IDE CONTROLLER INSTALLATION .......................................................................... 105
6.9 ISMM INSTALLATION..............................................................................................115
A BIOS OPTIONS ........................................................................................................ 121
B TERMINOLOGY...................................................................................................... 125
C WATCHDOG TIMER .............................................................................................. 129
D COMPATIBILITY.................................................................................................... 132
D.1 COMPATIBLE OPERATING SYSTEMS ....................................................................... 133
D.2 COMPATIBLE PROCESSORS..................................................................................... 133
D.3 COMPATIBLE MEMORY MODULES ......................................................................... 134
E HAZARDOUS MATERIALS DISCLOSURE ....................................................... 135
E.1 HAZARDOUS MATERIALS DISCLOSURE TABLE FOR IPB PRODUCTS CERTIFIED AS
ROHS COMPLIANT UNDER 2002/95/EC WITHOUT MERCURY ..................................... 136
Page vi
ICE-9652/9602 COM Express Basic Type 2 Module
List of Figures
Figure 1–1: ICE-9652/9602 with Heatspreader and Heatsink .....................................................2
Figure 1-2: ICE-9652/9602 Overview (Front Side)........................................................................4
Figure 1-3: ICE-9652/9602 Overview (Reverse Side)...................................................................5
Figure 1-4: Main Dimensions (mm)...............................................................................................6
Figure 1-5: Side Dimensions (mm) ...............................................................................................7
Figure 1-6: Data Flow Block Diagram...........................................................................................8
Figure 3-1: Connector and Jumper Locations (Front Side) .....................................................15
Figure 3-2: Connector and Jumper Locations...........................................................................15
Figure 3-3: COM Express Connector AB Location ...................................................................17
Figure 3-4: COM Express Connector CD Location ...................................................................21
Figure 3-5: SO-DIMM Connector Location.................................................................................25
Figure 3-6: SPI Flash Connector.................................................................................................26
Figure 4-1: SO-DIMM Installation................................................................................................30
Figure 4-2: BIOS Selection Switch Location..............................................................................32
Figure 4-3: LVDS Panel Resolution Selection Switch Location ..............................................33
Figure 4-4: PEG and SDVO Configuration Switch Location.....................................................34
Figure 4-5: ICE-9652/9602 Installation........................................................................................35
Figure 6-1: Start Up Screen .........................................................................................................81
Figure 6-2: Drivers........................................................................................................................81
Figure 6-3: Chipset Driver Installation Program........................................................................82
Figure 6-4: Chipset Driver Welcome Screen..............................................................................83
Figure 6-5: Chipset Driver License Agreement.........................................................................83
Figure 6-6: Chipset Driver Read Me File ....................................................................................84
Figure 6-7: Chipset Driver Installation Complete......................................................................85
Figure 6-8: Select the Operating System ...................................................................................86
Figure 6-9: GMA Driver ................................................................................................................86
Figure 6-10: GMA Driver Readme File........................................................................................87
Figure 6-11: GMA Driver File Extraction ....................................................................................87
Figure 6-12: GMA Driver Installation Welcome Screen ............................................................88
Figure 6-13: GMA Driver License Agreement............................................................................88
Page vii
Figure 6-14: GMA Driver Installing Notice .................................................................................89
Figure 6-15: GMA Driver Installation Complete.........................................................................89
Figure 6-16: Access Windows Control Panel ............................................................................90
Figure 6-17: Double Click the System Icon................................................................................90
Figure 6-18: Click the Device Manager Button..........................................................................91
Figure 6-19: Device Manager List ...............................................................................................91
Figure 6-20: PCIe Controller Driver Installation Icon................................................................92
Figure 6-21: LAN Driver Welcome Screen .................................................................................92
Figure 6-22: Ready to Install........................................................................................................93
Figure 6-23: LAN Driver Installation ...........................................................................................94
Figure 6-24: LAN Driver Installation Complete..........................................................................94
Figure 6-25: Select the Audio CODEC........................................................................................96
Figure 6-26: Select the OS...........................................................................................................97
Figure 6-27: Select the OS Version.............................................................................................97
ICE-9652/9602 COM Express Basic Type 2 Module
Figure 6-28: Locate the Setup Program Icon.............................................................................98
Figure 6-29: The InstallShield Wizard Starts .............................................................................98
Figure 6-30: Preparing Setup Screen .........................................................................................99
Figure 6-31: InstallShield Wizard Welcome Screen..................................................................99
Figure 6-32: Audio Driver Software Configuration................................................................. 100
Figure 6-33: Installation Wizard Updates the System............................................................ 100
Figure 6-34: Restart the Computer .......................................................................................... 101
Figure 6-35: InstallShield Wizard Setup Screen..................................................................... 102
Figure 6-36: Matrix Storage Manager Setup Screen.............................................................. 102
Figure 6-37: Matrix Storage Manager Welcome Screen ........................................................ 103
Figure 6-38: Matrix Storage Manager Warning Screen.......................................................... 103
Figure 6-39: Matrix Storage Manager License Agreement.................................................... 104
Figure 6-40: Matrix Storage Manager Readme File................................................................ 104
Figure 6-41: Matrix Storage Manager Setup Complete.......................................................... 105
Figure 6-42: Access Windows Control Panel ......................................................................... 106
Figure 6-43: Double Click the System Icon............................................................................. 107
Figure 6-44: Click the Device Manager Button....................................................................... 108
Figure 6-45: Device Manager List ............................................................................................ 109
Figure 6-46: Hardware Update Wizard..................................................................................... 110
Figure 6-47: Automatic or Manual Installation ....................................................................... 111
Figure 6-48: Select Driver Location......................................................................................... 112
Page viii
ICE-9652/9602 COM Express Basic Type 2 Module
Figure 6-49: Select Driver Location......................................................................................... 113
Figure 6-50: Install From Disk.................................................................................................. 113
Figure 6-51: Locate File ............................................................................................................ 114
Figure 6-52: Install From Disk.................................................................................................. 114
Figure 6-53: iSMM Directory..................................................................................................... 115
Figure 6-54: iSMM Installation File........................................................................................... 115
Figure 6-55: iSMM InstallShield Welcome Screen.................................................................. 116
Figure 6-56: iSMM License Agreement.................................................................................... 116
Figure 6-57: iSMM Customer Information............................................................................... 117
Figure 6-58: iSMM Setup Type ................................................................................................. 118
Figure 6-59: iSMM Installation Confirmation .......................................................................... 119
Figure 6-60: iSMM InstallShield Wizard Complete................................................................. 120
Figure 6-61: iSMM Restart Confirmation................................................................................. 120
Page ix
ICE-9652/9602 COM Express Basic Type 2 Module
List of Tables
Table 1-1: Technical Specifications............................................................................................10
Table 2-1: Package List Contents...............................................................................................13
Table 3-1: ICE-9652/9602 Interface Connectors ........................................................................16
Table 3-2: COM Express Connector AB Pin Definitions...........................................................20
Table 3-3: COM Express Connector CD Pin Definitions...........................................................25
Table 3-4: SPI Flash Connector...................................................................................................26
Table 4-1: Jumpers.......................................................................................................................31
Table 4-2: BIOS Selection............................................................................................................31
Table 4-3: LVDS Panel Resolution..............................................................................................32
Table 4-4: PEG and SDVO Configuration...................................................................................33
Table 5-1: BIOS Navigation Keys................................................................................................39
Page x
ICE-9652/9602 COM Express Basic Type 2 Module
BIOS Menus
BIOS Menu 1: Main.......................................................................................................................40
BIOS Menu 2: Advanced..............................................................................................................42
BIOS Menu 3: CPU Configuration...............................................................................................42
BIOS Menu 4: IDE Configuration.................................................................................................43
BIOS Menu 5: IDE Master and IDE Slave Configuration...........................................................45
BIOS Menu 6: IDE Master and IDE Slave Configuration...........................................................49
BIOS Menu 7: Super IO Configuration........................................................................................50
BIOS Menu 8: Hardware Health Configuration..........................................................................55
BIOS Menu 9: Hardware Health Configuration..........................................................................56
BIOS Menu 10:Power....................................................................................................................58
BIOS Menu 11: ACPI Configuration............................................................................................59
BIOS Menu 12: APM Configuration.............................................................................................60
BIOS Menu 13: Remote Access Configuration..........................................................................62
BIOS Menu 14: USB Configuration.............................................................................................65
BIOS Menu 15: PCI/PnP Configuration.......................................................................................67
BIOS Menu 16: Boot.....................................................................................................................69
BIOS Menu 17: Boot Settings Configuration.............................................................................70
BIOS Menu 18: Security...............................................................................................................72
BIOS Menu 19: Chipset................................................................................................................73
BIOS Menu 20:Northbridge Chipset Configuration...................................................................74
BIOS Menu 21:Northbridge Chipset Configuration...................................................................75
BIOS Menu 22:Southbridge Chipset Configuration..................................................................76
BIOS Menu 23:Exit........................................................................................................................77
Page xi
ICE-9652/9602 COM Express Basic Type 2 Module

1 Introduction

Chapter
1
Page 1

1.1 Introduction

ICE-9652/9602 COM Express Basic Type 2 Module
Figure 1–1: ICE-9652/9602 with Heatspreader and Heatsink
The ICE-9652/9602 COM Express Basic Type 2 module provides the main processing chips and is connected to a compatible COM Express carrier board. The ICE-9652/9602 is equipped with an Intel® Core™2 Duo/Celeron® M CPU, Intel® GME965/GLE960 Northbridge and Intel® ICH8M-E Southbridge and provides multiple modern serial I/O options, while offering limited support for legacy I/Os. The COM Express standard allows the COM Express carrier board to be designed, while leaving the choice of processor till the later stages of design. The ICE-9652/9602 provides a low power option with the full range of modern I/O options. The ICE-9652/9602 embedded module is designed for flexible integration by system developers into customized platform devices.

1.2 Applications

The ICE-9652/9602 is designed to the COM Express carrier board standard for being embedded in customized baseboards for flexible applications.
Page 2
ICE-9652/9602 COM Express Basic Type 2 Module

1.3 Benefits

Some of the ICE-9652/9602 embedded platform benefits include:
Low power, high performance  Easy integration into customized baseboards  Easy upgrading  Easy maintenance  Easy design compatibility  Low cost product development

1.4 Features

Some of the ICE-9652/9602 features are listed below:
Complies with PICMG COM Express specifications  Complies with RoHS  Embedded Intel® Core™2 Duo/Celeron® M CPU  Supports up to 4 GB of 400 MHz, 533 MHz or 667 MHz of DDR2 memory  Support for one high performance gigabit Ethernet (GbE) controller  Support three SATA II devices  Support for eight USB 2.0 ports  Support for one IDE device
Page 3

1.5 Overview Picture

An overview of the ICE-9652/9602 embedded module can be seen in Figure 1-2 and Figure 1-3.
ICE-9652/9602 COM Express Basic Type 2 Module
Page 4
Figure 1-2: ICE-9652/9602 Overview (Front Side)
ICE-9652/9602 COM Express Basic Type 2 Module
Figure 1-3: ICE-9652/9602 Overview (Reverse Side)
Page 5

1.6 Dimensions

The main dimensions of the ICE-9652/9602 are shown in the diagram below.
Length: 125 mm  Width: 95 mm
ICE-9652/9602 COM Express Basic Type 2 Module
Figure 1-4: Main Dimensions (mm)
Page 6
ICE-9652/9602 COM Express Basic Type 2 Module

1.6.1 Side Dimensions

The figure below shows the dimensions as viewed from the side.
Figure 1-5: Side Dimensions (mm)
Page 7

1.7 Data Flow

Figure 1-6 shows the data flow between the two on-board chipsets and other components
installed on the motherboard and described in the following sections of this chapter.
ICE-9652/9602 COM Express Basic Type 2 Module
Figure 1-6: Data Flow Block Diagram
Page 8
ICE-9652/9602 COM Express Basic Type 2 Module

1.8 Technical Specifications

ICE-9652/9602 technical specifications are listed in Table 1-1. Detailed descriptions of each specification can be found in the detailed specifications chapter.
Specification ICE-9652/9602 Form Factor CPU Socket CPUs Supported
Northbridge Chipset Southbridge Chipset Memory
Graphics
Ethernet
COM Express Type II Socket P Intel® Core™2 Duo with a 800 MHz FSB
Intel® Celeron® M with a 533 MHz FSB Intel® GME965/GLE960 Intel® ICH8M-E ICE-9652:
Two 200-pin 400/53 3/667 MHz DDR2 SO-DIMM up to 4.0 GB ICE-9602: Two 200-pin 400/53 3 MHz DDR2 SO-DIMM up to 2.0 GB
VGA HDTV
Dual-channel 18-bit or 24-bit LVDS One Realtek RTL8111CP PCIe GbE
Audio BIOS Watchdog Timer
Expansion PCI PCIe
I/O Interface Connectors USB
HD Audio AMI Software programmable supports 1~2 55 sec. system reset
(depends on the Super I/O on the baseboard)
4 x PCI (32-bit, 33 MHz) 1 x PCIe x16 (ICE-9652) or 2 x SDVO
5 x PCIe x1
Eight USB 2.0 (through baseboard)
Page 9
ICE-9652/9602 COM Express Basic Type 2 Module
SATA IDE Environmental and Power Specifications Power Support Power Consumption
Operating Temperature Humidity Physical Specifications Physical Dimensions Weight
Table 1-1: Technical Specifications
Three SATA II (through baseboa rd) One IDE channel to baseboard
AT/ATX power supported 12 V @ 3.039 A
2.2 GHz Intel® Core™2 Duo T7500 processor with 1.0 GB DDR2 SO-DIMM
0ºC ~ 60ºC (32ºF ~ 140ºF) 5% ~ 95% (non-condensing)
125 mm x 95 mm GW: 700 g
NW: 250 g
Page 10
ICE-9652/9602 COM Express Basic Type 2 Module

2 Unpacking

Chapter
2
Page 11
ICE-9652/9602 COM Express Basic Type 2 Module

2.1 Anti-static Precautions

WARNING!
Static electricity can destroy certain electronics. Make sure to follow the ESD precautions to prevent damage to the product, and injury to the user.
Make sure to adhere to the following guidelines:
Wear an anti-static wristband: - Wearing an anti-static wristband can
prevent electrostatic discharge.
Self-grounding:- Touch a grounded conductor every few minutes to
discharge any excess static buildup.
Use an anti-static pad: When configuring any circuit board, place it on an
anti-static mat.
Only handle the edges of the PCB:- Don't touch the surface of the
motherboard. Hold the motherboard by the edges when handling.

2.2 Unpacking Precautions

When the ICE-9652/9602 is unpacked, please do the following:
Follow the antistatic guidelines above.  Make sure the packing box is facing upwards whe n opening.  Make sure all the packing list items are present.
Page 12
ICE-9652/9602 COM Express Basic Type 2 Module

2.3 Packing List

NOTE:
If some of the components listed in the checklist below are missing, please do not proceed with the installation. Contact the IEI reseller or vendor you purchased the ICE-9652/9602 from or contact an IEI sales representative directly. To contact an IEI sales representative, please send an email to sales@iei.com.tw.
The ICE-9652/9602 is shipped with the following components:
Quantity Item Image
1 ICE-9652/9602
1 Heatspreader
1 Cooler
1 Quick Installation Guide
1 Utility CD
Table 2-1: Package List Contents
Page 13
ICE-9652/9602 COM Express Basic Type 2 Module
Chapter
3

3 Connectors

Page 14
ICE-9652/9602 COM Express Basic Type 2 Module

3.1 Peripheral Interface Connectors

This chapter details all the jumpers and connectors.

3.1.1 ICE-9652/9602 Layout

The figures below show all the connectors and jumpers.
Figure 3-1: Connector and Jumper Locations (Front Side)
Figure 3-2: Connector and Jumper Locations
Page 15
ICE-9652/9602 COM Express Basic Type 2 Module

3.1.2 Peripheral Interface Connectors

The table below lists all the connectors on the board.
Connector Type Label
COM Express connector AB COM Express connector J1 COM Express connector CD COM Express connector J2 SO-DIMM socket SO-DIMM socket DIMM1 SO-DIMM socket SO-DIMM socket DIMM2 SPI connector 6-pin wafer SPI1
Table 3-1: ICE-9652/9602 Interface Connectors

3.2 Internal Peripheral Connectors

The section describes all of the connectors on the ICE-9652/9602.

3.2.1 COM Express Connector AB

CN Label: J1 CN Type: CN Location: CN Pinouts:
The standard COM Express connector locations and pinouts are shown below.
220-pin COM Express connector See Figure 3-3 See Table 3-2
Page 16
ICE-9652/9602 COM Express Basic Type 2 Module
Figure 3-3: COM Express Connector AB Location
Pin No. Description Pin No. Description
A1
A2 GBE0_MDI3- B2 GBE0_ACT# A3 GBE0_MDI3+ B3 LPC_FRAME# A4 GBE0_LINK100# B4 LPC_AD0 A5 GBE0_LINK1000# B5 LPC_AD1 A6 GBE0_MDI2- B6 LPC_AD2 A7 GBE0_MDI2+ B7 LPC_AD3 A8 GBE0_LINK# B8 LPC_DRQ0# A9 GBE0_MDI1- B9 LPC_DRQ1# A10 GBE0_MDI1+ B10 LPC_CLK A11 GND B11 GND A12 GBE0_MDI0- B12 PWRBTN# A13 GBE0_MDI0+ B13 SMB_CK A14 GBE0_CTREF B14 SMB_DAT
GND B1 GND
A15 SUS_S3# B15 SMB_ALERT# A16 SATA0_TX+ B16 SATA1_TX+ A17 SATA0_TX- B17 SATA1_TX-
Page 17
Pin No. Description Pin No. Description
A18 SUS_S4# B18 SUS_STAT# A19 SATA0_RX+ B19 SATA1_RX+ A20 SATA0_RX- B20 SATA1_RX­A21 GND B21 GND A22 SATA2_TX+ B22 NC A23 SATA2_TX- B23 NC A24 SUS_S5# B24 PWR_OK A25 SATA2_RX+ B25 NC A26 SATA2_RX- B26 NC A27 BATLOW# B27 WDT A28 ATA_ACT# B28 AC_SDIN2 A29 AC_SYNC B29 AC_SDIN1 A30 AC_RST# B30 AC_SDIN0
ICE-9652/9602 COM Express Basic Type 2 Module
A31 GND B31 GND A32 AC_BITCLK B32 SPKR A33 AC_SDOUT B33 I2C_CK A34 BIOS_DISABLE# B34 I2C_DAT A35 THRMTRIP# B35 THRM# A36 USB6- B36 USB7­A37 USB6+ B37 USB7+ A38 USB_6_7_OC# B38 USB_4_5_OC# A39 USB4- B39 USB5­A40 USB4+ B40 USB5+ A41 GND B41 GND A42 USB2- B42 USB3­A43 USB2+ B43 USB3+ A44 USB_2_3_OC# B44 USB_0_1_OC# A45 USB0- B45 USB1­A46 USB0+ B46 USB1+
Page 18
A47 VCC_RTC B47 EXCD1_PERST# A48 EXCD0_PERST# B48 EXCD1_CPPE# A49 EXCD0_CPPE# B49 SYS_RESET#
ICE-9652/9602 COM Express Basic Type 2 Module
Pin No. Description Pin No. Description
A50 LPC_SERIRQ B50 CB_RESET# A51 GND B51 GND A52 NC B52 NC A53 NC B53 NC A54 GPI0 B54 GPO1 A55 PCIE_TX4+ B55 PCIE_RX4+ A56 PCIE_TX4- B56 PCIE_RX4­A57 GND B57 GPO2 A58 PCIE_TX3+ B58 PCIE_RX3+ A59 PCIE_TX3- B59 PCIE_RX3­A60 GND B60 GND A61 PCIE_TX2+ B61 PCIE_RX2+ A62 PCIE_TX2- B62 PCIE_RX2­A63 GPI1 B63 GPO3 A64 PCIE_TX1+ B64 PCIE_RX1+ A65 PCIE_TX1- B65 PCIE_RX1­A66 GND B66 WAKE0# A67 GPI2 B67 WAKE1# A68 PCIE_TX0+ B68 PCIE_RX0+ A69 PCIE_TX0- B69 PCIE_RX0­A70 GND B70 GND A71 LVDS_A0+ B71 LVDS_B0+ A72 LVDS_A0- B72 LVDS_B0­A73 LVDS_A1+ B73 LVDS_B1+ A74 LVDS_A1- B74 LVDS_B1­A75 LVDS_A2+ B75 LVDS_B2+ A76 LVDS_A2- B76 LVDS_B2­A77 LVDS_VDD_EN B77 LVDS_B3+ A78 NC B78 NC A79 NC B79 NC A80 GND B80 GND A81 LVDS_A_CK+ B81 LVDS_B_CK+
Page 19
Pin No. Description Pin No. Description
A82 LVDS_A_CK- B82 LVDS_B_CK­A83 LVDS_I2C_CK B83 LVDS_BKLT_CTRL A84 LVDS_I2C_DAT B84 5VSB A85 GPI3 B85 5VSB A86 KBD_RST# B86 5VSB A87 KBD_A20GATE B87 5VSB A88 PCIE0_CK_REF+ B88 NC A89 PCIE0_CK_REF- B89 VGA_RED A90 GND B90 GND A91 RSVD B91 VGA_GRN A92 RSVD B92 VGA_BLU A93 GPO0 B93 VGA_HSYNC A94 RSVD B94 VGA_VSYNC
ICE-9652/9602 COM Express Basic Type 2 Module
A95 RSVD B95 VGA_I2C_CK A96 GND B96 VGA_I2C_DAT A97 +V12 B97 TV_DAC_A A98 +V12 B98 TV_DAC_B A99 +V12 B99 TV_DAC_C A100 GND B100 GND A101 +V12 B101 +V12 A102 +V12 B102 +V12 A103 +V12 B103 +V12 A104 +V12 B104 +V12 A105 +V12 B105 +V12 A106 +V12 B106 +V12 A107 +V12 B107 +V12 A108 +V12 B108 +V12 A109 +V12 B109 +V12 A110 GND B110 GND
Page 20
Table 3-2: COM Express Connector AB Pin Definitions
ICE-9652/9602 COM Express Basic Type 2 Module

3.2.2 COM Express Connector CD

CN Label: J2 CN Type: CN Location: CN Pinouts:
220-pin COM Express connector See Figure 3-4 See Table 3-3
The standard COM Express connector locations and pinouts are shown below.
Figure 3-4: COM Express Connector CD Location
Pin No. Description Pin No. Description
C1 GND D1 GND C2 IDE_D7 D2 IDE_D5 C3 IDE_D6 D3 IDE_D10 C4 IDE_D3 D4 IDE_D11 C5 IDE_D15 D5 IDE_D12 C6 IDE_D8 D6 IDE_D4 C7 IDE_D9 D7 IDE_D0 C8 IDE_D2 D8 IDE_REQ
Page 21
Pin No. Description Pin No. Description
C9 IDE_D13 D9 IDE_IOW# C10 IDE_D1 D10 IDE_AC K# C11 GND D11 GND C12 IDE_D14 D12 IDE_IRQ C13 IDE_IORDY D13 IDE_A0 C14 IDE_IOR# D14 IDE_A1 C15 PCI_PME# D15 IDE_A2 C16 PCI_GNT2# D16 IDE_CS1# C17 PCI_REQ2# D17 IDE_CS3# C18 PCI_GNT1# D18 IDE_RESET# C19 PCI_REQ1# D19 PCI_GNT3# C20 PCI_GNT0# D20 PCI_REQ3# C21 GND D21 GND
ICE-9652/9602 COM Express Basic Type 2 Module
C22 PCI_REQ0# D22 PCI_AD1 C23 PCI_RESET# D23 PCI_AD3 C24 PCI_AD0 D24 PCI_AD5 C25 PCI_AD2 D25 PCI_AD7 C26 PCI_AD4 D26 PCI_C/BE0# C27 PCI_AD6 D27 PCI_AD9 C28 PCI_AD8 D28 PCI_AD11 C29 PCI_AD10 D29 PCI_AD13 C30 PCI_AD12 D30 PCI_AD15 C31 GND D31 GND C32 PCI_AD14 D32 PCI_PAR C33 PCI_C/BE1# D33 PCI_SERR# C34 PCI_PERR# D34 PCI_STOP# C35 PCI_LOCK# D35 PCI_TRDY# C36 PCI_DEVSEL# D36 PCI_FRAME# C37 PCI_IRDY# D37 PCI_AD16
Page 22
C38 PCI_C/BE2# D38 PCI_AD18 C39 PCI_AD17 D39 PCI_AD20 C40 PCI_AD19 D40 PCI_AD22
ICE-9652/9602 COM Express Basic Type 2 Module
Pin No. Description Pin No. Description
C41 GND D41 GND C42 PCI_AD21 D42 PCI_AD24 C43 PCI_AD23 D43 PCI_AD26 C44 PCI_C/BE3# D44 PCI_AD28 C45 PCI_AD25 D45 PCI_AD30 C46 PCI_AD27 D46 PCI_IRQC# C47 PCI_AD29 D47 PCI_IRQD# C48 PCI_AD31 D48 PCI_CLKRUN# C49 PCI_IRQA# D49 NC C50 PCI_IRQB# D50 PCI_CLK C51 GND D51 GND C52 PEG_RX0+ D52 PEG_TX0+ C53 PEG_RX0- D53 PEG_TX0­C54 NC D54 NC C55 PEG_RX1+ D55 PEG_TX1+ C56 PEG_RX1- D56 PEG_TX1­C57 NC D57 NC C58 PEG_RX2+ D58 PEG_TX2+ C59 PEG_RX2- D59 PEG_TX2­C60 GND D60 GND C61 NC D61 PEG_TX3+ C62 NC D62 PEG_TX3­C63 NC D63 NC C64 NC D64 NC C65 NC D65 NC C66 NC D66 NC C67 FAN _PW MOU T D67 GND C68 NC D68 NC C69 NC D69 NC C70 GND D70 GND C71 NC D71 NC C72 NC D72 NC
Page 23
Pin No. Description Pin No. Description
C73 SDVO_DATA D73 SVDO_CLK C74 NC D74 NC C75 NC D75 NC C76 GND D76 GND C77 FAN _TAC HOI N D77 IDE_CBLID# C78 NC D78 NC C79 NC D79 NC C80 GND D80 GND C81 NC D81 NC C82 NC D82 NC C83 NC D83 NC C84 GND D84 GND C85 NC D85 NC
ICE-9652/9602 COM Express Basic Type 2 Module
C86 NC D86 NC C87 GND D87 GND C88 NC D88 NC C89 NC D89 NC C90 GND D90 GND C91 NC D91 NC C92 NC D92 NC C93 GND D93 GND C94 NC D94 NC C95 NC D95 NC C96 GND D96 GND C97 NC D97 NC C98 NC D98 NC C99 NC D99 NC C100 GND D100 GND C101 NC D101 NC
Page 24
C102 NC D102 NC C103 GND D103 GND C104 +V12 D104 +V12
ICE-9652/9602 COM Express Basic Type 2 Module
Pin No. Description Pin No. Description
C105 +V12 D105 +V12 C106 +V12 D106 +V12 C107 +V12 D107 +V12 C108 +V12 D108 +V12 C109 +V12 D109 +V12 C110 GND D110 GND
Table 3-3: COM Express Connector CD Pin Definitions

3.2.3 SO-DIMM Connector

CN Label: DIMM1, DIMM2 CN Type: CN Location:
SO-DIMM socket
Figure 3-5
See
The SO-DIMM socket is for installing SO-DIMM memory.
Figure 3-5: SO-DIMM Connector Location
Page 25

3.2.4 SPI Flash Connector

CN Label: JSPI1
ICE-9652/9602 COM Express Basic Type 2 Module
CN Type: CN Location: CN Pinouts:
6-pin wafer (1x6) See Figure 3-6 See Table 3-4
The 6-pin SPI Flash connector is used to flash the BIOS.
Figure 3-6: SPI Flash Connector
PIN DESCRIPTION
1 SPI_VCC 2 SPI_CS# 3 SPI_SO 4 SPI_CLK 5 SPI_SI 6 GND
Table 3-4: SPI Flash Connector
Page 26
ICE-9652/9602 COM Express Basic Type 2 Module

4 Installation

Chapter
4
Page 27
ICE-9652/9602 COM Express Basic Type 2 Module

4.1 Anti-static Precautions

WARNING:
Failure to take ESD precautions during the installation of the ICE-9652/9602 may result in permanent damage to the ICE-9652/9602 and severe injury to the user.
Electrostatic discharge (ESD) can cause serious damage to electronic components, including the ICE-9652/9602. Dry climates are especially susceptible to ESD. It is therefore critical that whenever the ICE-9652/9602, or any other electrical component is handled, the following anti-static precautions are strictly adhered to.
Wear an anti-static wristband: - Wearing a simple anti-static wristband can
help to prevent ESD from damaging the board.
Self-grounding:- Before handling the board touch any grounded conducting
material. During the time the board is handled, frequently touch any conducting materials that are connected to the ground.
Use an anti-static pad: When configuring the ICE-9652/9602, place it on an
antic-static pad. This reduces the possibility of ESD damaging the ICE-9652/9602.
Only handle the edges of the PCB:-: When handling the PCB, hold the PCB
by the edges.

4.2 Installation Considerations

NOTE:
The following installation notices and installation considerations should be read and understood before installation. All installation notices must
Page 28
be strictly adhered to. Failing to adhere to these precautions may lead to severe damage and injury to the person performing the installation.
ICE-9652/9602 COM Express Basic Type 2 Module
WARNING:
The installation instructions described in this manual should be carefully followed in order to prevent damage to the components and injury to the user.
Before and during the installation please DO the following:
Read the user manual:
o The user manual provides a complete description of the ICE-9652/9602
installation instructions and configuration options.
Wear an electrostatic discharge cuff (ESD):
o Electronic components are easily damaged by ESD. Wearing an ESD cuff
removes ESD from the body and helps prevent ESD damage.
Place the ICE-9652/9602 on an antistatic pad:
o When installing or configuring the motherboard, place it on an antistatic
pad. This helps to prevent potential ESD damage.
Turn all power to the ICE-9652/9602 off:
o When working with the ICE-9652/9602, make sure that it is disconnected
from all power supplies and that no electricity is being fed into the system.
Before and during the installation of the ICE-9652/9602 DO NOT:
Remove any of the stickers on the PCB board. These stickers are required for
warranty validation.
Use the product before verifying all the cables and power connectors are
properly connected.
Allow screws to come in contact with the PCB circuit, connector pins, or its
components.
Page 29
ICE-9652/9602 COM Express Basic Type 2 Module

4.3 SO-DIMM Installation

To install a SO-DIMM into a SO-DIMM socket, please follow the steps below and refer to
Figure 4-1.
Figure 4-1: SO-DIMM Installation
Step 1: Locate the SO-DIMM socket. Place the ICE-9652/9602 on an anti-static pad.
Step 2: Align the SO-DIMM with the socket. The SO-DIMM must be oriented in such a
way that the notch in the middle of the SO-DIMM must be aligned with the plastic bridge in the socket.
Step 3: Insert the SO-DIMM. Push the SO-DIMM chip into the socket at an angle. (See
Figure 4-1)
Step 4: Open the SO-DIMM socket arms. Gently pull the arms of the SO-DIMM socket
out and push the rear of the SO-DIMM down. (See
Step 5: Secure the SO-DIMM. Release the arms on the SO-DIMM socket. They clip into
place and secure the SO-DIMM in the socket.Step 0:
Figure 4-1)
Page 30
ICE-9652/9602 COM Express Basic Type 2 Module

4.4 Jumper Settings

The hardware jumpers must be set before installation. Jumpers are shown in Table 4-1.
Description Label Type
BIOS selection SW1 4-in-1 switch LVDS panel resolution selection SW2 4-in-1 switch PEG and SDVO configuration SW3 4-in-1 switch
Table 4-1: Jumpers

4.4.1 BIOS Selection

Jumper Label: SW1 Jumper Type: Jumper Settings: Jumper Location:
This jumper selects which BIOS to use. There is a BIOS included on the ICE-9652/9602, but a BIOS connected to the LPC or PCI bus can be used instead. The clear CMOS jumper settings are shown in
1 2 3 4 Description
OFF OFF OFF ON SPI (four PCIe x1) ON ON OFF ON SPI (one PCIe x4) OFF OFF ON OFF FWH (four PCIe x1) ON ON ON OFF FWH (one PCIe x4)
Table 4-2: BIOS Selection
4-in-1 switch
Table 4-2
See
Figure 4-2
See
Table 4-2.
Page 31
ICE-9652/9602 COM Express Basic Type 2 Module
Figure 4-2: BIOS Selection Switch Location

4.4.2 LVDS Panel Resolution

Jumper Label: SW2 Jumper Type: Jumper Settings: Jumper Location:
This switch sets the resolution of the panel attached to the LVDS output. Settings are shown in
1 2 3 4 DESCRIPTION
OFF OFF OFF OFF 640 x 480 (18-bit) ON OFF OFF OFF 800 x 600 (18-bit) OFF ON OFF OFF 1024 x 768 (18-bit) ON OFF ON OFF 1024 x 768 (24-bit) ON ON OFF OFF 1280 x 1024 (48-bit)
Table 4-3.
4-in-1 switch
Table 4-3
See
Figure 4-3
See
Page 32
OFF OFF ON OFF 1600 x 1200 (48-bit)
Table 4-3: LVDS Panel Resolution
ICE-9652/9602 COM Express Basic Type 2 Module
Figure 4-3: LVDS Panel Resolution Selection Switch Location

4.4.3 PEG and SDVO Configuration

Jumper Label: SW3 Jumper Type: Jumper Settings: Jumper Location:
4-in-1 switch
Table 4-3
See
Figure 4-4
See
This switch configures the PEG and SDVO settings. Settings are shown in
Description Pin Pin Description
Reserve 1 Reserve 2 PEG Normal 3 PCIe and SDVO/DP/iHDMI
Å
8 Reserve
Å
7 Reserve
Å
6 PEG Reserve
Æ
4
5 PCIe or
SDVO/DP/iHDMI
Table 4-4: PEG and SDVO Configuration
Table 4-3.
Page 33
Figure 4-4: PEG and SDVO Configuration Switch Location
ICE-9652/9602 COM Express Basic Type 2 Module

4.5 Mounting the ICE-9652/9602

WARNING!
Never run the embedded module without an appropriate heat sink.
WARNING!
Please note that the installation instructions described in this manual should be carefully followed in order to avoid damage to the CPU module components and injury to the user.
Page 34
ICE-9652/9602 COM Express Basic Type 2 Module
WARNING!
When installing electronic components onto the embedded module or installing the embedded module onto the baseboard, always take anti-static precautions in order to prevent ESD damage to the CPU module and other electronic components like the CPU and SO-DIMM module.
The ICE-9652/9602 embedded module has two standard COM Express connectors on the reverse side. To install the ICE-9652/9602 please refer to and follow the installation instructions below:
Figure 4-5: ICE-9652/9602 Installation
Step 1: Align the ETX connectors. Align the COM Express connectors (J1, J2) with the
Page 35
corresponding connectors on a compatible baseboard.
Step 2: Gently insert the connectors. Gently push the embedded module down to
ensure the connectors are properly connected.
Step 3: Align the heatspreader. Align the heatspreader with the ICE-9652/9602 making
sure that the three onboard chipsets are in prop er cont act with the heatspre ader. Make sure the five retention screw holes on of the heatspreader a re properly aligned with the corresponding holes on the COM Express module and baseboad.
Step 4: Align the heatsink. Align the heatsink with the heatspreader. Make sure the
five retention screw holes on of the heatsink are properly aligned with the corresponding holes on the heatspreader.
ICE-9652/9602 COM Express Basic Type 2 Module
Step 5: Insert retention screws. Insert five retention screws through the heatsink,
heatspreader, and ICE-9652/9602 to secure them to the baseboard.
The baseboard can be designed by the end user, customized by IEI, or purchased from IEI. For more information visit the IEI website ( representative.
www.ieiworld.com) or contact an IEI sales
Page 36
ICE-9652/9602 COM Express Basic Type 2 Module

5 BIOS Setup

Chapter
5
Page 37

5.1 Introduction

The BIOS is programmed onto the BIOS chip. The BIOS setup program allows changes to certain system settings. This chapter outlines the options that can be changed.

5.1.1 Starting Setup

The AMI BIOS is activated when the computer is turned on. The setup program can be activated in one of two ways.
ICE-9652/9602 COM Express Basic Type 2 Module
1. Press the D
2. Press the D appears on the screen. 0.
If the message disappears before the D again.
ELETE key as soon as the system is turned on or ELETE key when the “Press Del to enter SETUP” message
ELETE key is pressed, restart the computer and try

5.1.2 Using Setup

Use the arrow keys to highlight items, press ENTER to select, use the PageUp and PageDown keys to change entries, press F1 for help and press E keys are shown in.
Key Function
Up arrow Move to previous item Down arrow Move to next item Left arrow Move to the item on the left hand side
SC to quit. Navigation
Page 38
Right arrow Move to the item on the right hand side Esc key Main Menu – Quit and not save change s into CMOS
Status Page Setup Menu and Option Page Setup Menu --
Exit current page and return to Main Menu Page Up key Increase the numeric value or make changes Page Dn key Decrease the numeric value or make changes F1 key Gene ral help, only for Status Page Setup Menu and Option
Page Setup Menu
ICE-9652/9602 COM Express Basic Type 2 Module
Key Function
F2 /F3 key Change color from total 16 colors. F2 to select color
forward. F10 key Save all the CMOS changes, only for Main Menu
Table 5-1: BIOS Navigation Keys

5.1.3 Getting Help

When F1 is pressed a small help window describing the appropriate keys to use and the possible selections for the highlighted item appears. To exit the Help Window press E the F1 key again.

5.1.4 Unable to Reboot After Configuration Changes

If the computer cannot boot after changes to the system configuration is made, CMOS defaults. Use the jumper described in Chapter 5.

5.1.5 BIOS Menu Bar

The menu bar on top of the BIOS screen has the following main items:
Main – Changes the basic system configuration.  Advanced – Changes the advanced system settings.  PCIPnP – Changes the advanced PCI/PnP Settings  Boot – Changes the system boot configuration.  Security – Sets User and Supervisor Passwords.  Chipset – Changes the chipset settings.
SC or
Exit – Selects exit options and loads default settings
The following sections completely describe the configuration options found in the menu items at the top of the BIOS screen and listed above.
Page 39
ICE-9652/9602 COM Express Basic Type 2 Module

5.2 Main

The Main BIOS menu (BIOS Menu 1) appears when the BIOS Setup program is entered. The Main menu gives an overview of the basic system information.
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Exit
System Overview
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
AMIBIOS
Version :08.00.15 Build Date :01/06/09 ID: :B133MR12
Processor
Genuine Intel® CPU 575 @ 2.00GHz Speed :200MHz Count :1
System Memory
Size :504MB
System Time [14:20:27]
System Time [Tue 05/06/2008]
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
Use [ENTER], [TAB] or [SHIFT-TAB] to select a field.
Use [+] or [-] to configure system time.
ÅÆ
Select Screen
Select Item Enter Go to SubScreen F1 General Help F10 Save and Exit ESC Exit
BIOS Menu 1: Main
Î System Overview
The System Overvie w lists a brief summary of different system components. Th e fields in System Overview cannot be changed. The items shown in the system overview include:
AMI BIOS: Displays auto-detected BIOS information
o Version: Current BIOS version o Build Date: Date the current BIOS version was made o ID: Installed BIOS ID
Processor: Displays auto-detected CPU specifications
o Type: Names the currently installed processor o Speed: Lists the processor speed o Count: The number of CPUs on the motherboard
System Memory: Displays the auto-detected system memory.
o Size: Lists memory size
Page 40
ICE-9652/9602 COM Express Basic Type 2 Module
The System Overview field also has two user configurable fields:
Î System Time [xx:xx:xx]
Use the System Time option to set the system time. Manually enter the hours, minutes and seconds.
Î System Date [xx/xx/xx]
Use the System Date option to set the system date. Manually enter the day, month and year.

5.3 Advanced

Use the Advanced menu (BIOS Menu 2) to configure the CPU and peripheral devices through the following sub-menus:
WARNING!
Setting the wrong values in the sections below may cause the system to malfunction. Make sure that the settings made are compatible with the hardware.
CPU Configuration (see Section 5.3.1) IDE Configuration (see Section Floppy Configuration (see Section Super IO Configuration (see Section Win83627EHG Hardware Health (see Section Win83L784G Hardware Heath (see Section  Power Configuration (see Section  Remote Access Configuration (see Section USB Configuration (see Section
5.3.2)
5.3.3)
5.3.4)
5.3.5)
5.3.6)
5.3.7)
5.3.8)
5.3.9)
Page 41
Main Advanced PCIPNP Boot Security Chipset Exit
Advanced Settings
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
WARNING: Setting wrong values in below sections may cause
system to malfunction
CPU Configuration
IDE Configuration
Floppy Configuration
SuperIO Configuration
Win83627EHG Hardware Health
Win83L784G Hardware Health
Power Configuration
Remote Access Configuration
USB Configuration
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
BIOS Menu 2: Advanced
ICE-9652/9602 COM Express Basic Type 2 Module
BIOS SETUP UTILITY
Configure CPU
ÅÆ
Select Screen
Select Item Enter Go to SubScreen F1 General Help F10 Save and Exit ESC Exit

5.3.1 CPU Configuration

Use the CPU Configuration menu (BIOS Menu 3) to view detailed CPU specifications and configure the CPU.
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Power Exit
Configure Advanced CPU Settings
Module Version – 3F.13
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
Manufacturer :Intel® Genuine Intel® CPU 575 @ 2.00GHz Frequency :2.00GHz FSB Speed :668MHz Cache L1 : 32KB Cache L2 : 1024KB Ratio Actual :12
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
BIOS Menu 3: CPU Configuration
ÅÆ
Select Screen
Select Item Enter Go to SubScreen F1 General Help F10 Save and Exit ESC Exit
Page 42
The CPU Configuration menu (
BIOS Menu 3) lists the following CPU details:
ICE-9652/9602 COM Express Basic Type 2 Module
Manufacturer: Lists the name of the CPU manufacturer  Brand String: Lists the brand name of the CPU being used  Frequency: Lists the CPU processing speed  FSB Speed: Lists the FSB speed  Cache L1: Lists the CPU L1 cache size  Cache L2: Lists the CPU L2 cache size

5.3.2 IDE Configuration

Use the IDE Configuration menu (BIOS Menu 4) to change and/or set the configuration of the IDE devices installed in the system.
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Power Exit
IDE Configuration
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ ATA/IDE Configuration [Compatible]
Legacy IDE Channels [SATA Pri, PATA Sec]
> Primary IDE Master : [Not Detected] > Primary IDE Slave : [Not Detected] > Secondary IDE Master : [Not Detected] > Secondary IDE Slave : [Not Detected]
Disabled Compatible Enhanced
ÅÆ
Select Screen
Select Item Enter Go to SubScreen F1 General Help F10 Save and Exit ESC Exit
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
BIOS Menu 4: IDE Configuration
Î ATA/IDE Configurations [Compatible]
Use the ATA/IDE Configurations option to configure the ATA/IDE controller.
Î
Disabled
Î
Compatible DEFAULT
Disables the on-board ATA/IDE controller. Configures the on-board ATA/IDE controller to be in
compatible mode. In this mode, a SATA channel will replace one of the IDE channels. This mode supports up to 4 storage devices.
Page 43
ICE-9652/9602 COM Express Basic Type 2 Module
Î
Enhanced
Î Legacy IDE Channels [P ATA Pri, SATA Sec]
Î
SA TA Only
Î
SA TA Pri, PATA Sec DEFAULT
Î
PATA Only
Î IDE Master and IDE Slave
When entering setup, BIOS auto detects the presence of IDE devices. BIOS displays the
Configures the on-board ATA/IDE controller to be in Enhanced mode. In this mode, IDE channels and SATA channels are separated. This mode supports up to 6 storage devices. Some legacy OS do not support this mode.
Only the SATA drives are enabled. The SATA drives are enabled on the Primary
IDE channel. The IDE drives are enabled on the Secondary IDE channel.
Only the IDE drives are enabled.
status of the auto detected IDE devices. The following IDE devices are detected and are shown in the IDE Configuration menu:
 Primary IDE Master  Primary IDE Slave  Secondary IDE Master  Secondary IDE Slave
The IDE Configuration menu ( IDE devices installed in the system. If an IDE device is detected, and one of the above listed four BIOS configuration options are selected, the IDE configuration options shown in
Section
5.3.2.1 appear.
BIOS Menu 4) allows changes to the configurations for the
5.3.2.1 IDE Master, IDE Slave
Use the IDE Master and IDE Slave configuration menu to view both primary and secondary IDE device details and configure the IDE devices connected to the system.
Page 44
S
ICE-9652/9602 COM Express Basic Type 2 Module
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Power Exit
Primary IDE Master
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
Device :Not Detected
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ Type [Auto] LBA/Large Mode [Auto] Block (Multi-Sector Transfer) [Auto] PIO Mode [Auto] DMA Mode [Auto] S.M.A.R.T. [Auto] 32Bit Data Transfer [Enabled]
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
BIOS Menu 5: IDE Master and IDE Slave Configuration
elect the type of device
connected to the system
ÅÆ
Select Screen
Select Item Enter Go to SubScreen F1 General Help F10 Save and Exit ESC Exit
Î Auto-Detected Drive Parameters
The “grayed-out” items in the left frame are IDE disk drive parameters automatically detected from the firmware of the selected IDE disk drive. The drive parameters are listed as follows:
Device: Lists the device type (e.g. hard disk, CD-ROM etc.)  Type: Indicates the type of devices a user ca n manually select  Vendor: Lists the device manufacturer  Size: List the storage capacity of the device.  LBA Mode: Indicates whether the LBA (Logical Block Addressing) is a method
of addressing data on a disk drive is supported or not.
Block Mode: Block mode boosts IDE drive performance by increasing the
amount of data transferred. Only 512 bytes of data can be transferred per interrupt if block mode is not used. Block mode allows transfers of up to 64 KB per interrupt.
PIO Mode: Indicates the PIO mode of the installed device.  Async DMA: Indicates the highest Asynchronous DMA Mode that is
supported.
Ultra DMA: Indicates the highest Synchronous DMA Mode that is supported.  S.M.A.R.T.: Indicates whether or not the Self-Monitoring Analysis and
Reporting Technology protocol is supported.
Page 45
Î Type [Auto]
Use the Type BIOS option select the type of device the AMIBIOS attempts to boot from after the Power-On Self-Test (POST) is complete.
ICE-9652/9602 COM Express Basic Type 2 Module
32Bit Data Transfer: Enables 32-bit data transfer.
Î
Not Installed
Î
Auto DEFAULT
Î
CD/DVD
Î
ARMD
BIOS is prevented from searching for an IDE disk drive on the specified channel.
The BIOS auto detects the IDE disk drive type attached to the specified channel. This setting should be used if an IDE hard disk drive is attached to the specified channel.
The CD/DVD option specifies that an IDE CD-ROM drive is attached to the specified IDE channel. The BIOS does not attempt to search for other types of IDE disk drives on the specified channel.
This option specifies an ATAPI Removable Media Device. These include, but are not limited to:
ZIP LS-120
Î LBA/Large Mode [Auto]
Use the LBA/Large Mode option to disable or enable BIOS to auto detects LBA (Logical Block Addressing). LBA is a method of addressing data on a disk drive. In LBA mode, the maximum drive capacity is 137 GB.
Î
Disabled
Î
Auto DEFAULT
Page 46
BIOS is prevented from using the LBA mode control on the specified channel.
BIOS auto detects the LBA mode control on the specified channel.
ICE-9652/9602 COM Express Basic Type 2 Module
Î Block (Multi Sector Transfer) [Auto]
Use the Block (Multi Sector Transfer) to disable or enable BIOS to auto detect if the device supports multi-sector transfers.
Î
Disabled
Î
Auto DEFAULT
Î PIO Mode [Auto]
Use the PIO Mode option to select the IDE PIO (Programmable I/O) mode program timing cycles between the IDE drive and the programmable IDE controller. As the PIO mode increases, the cycle time decrease s.
Î
Auto DEFAULT
Î
0
BIOS is prevented from using Multi-Sector T ran sfer on the specified channel. The data to and from the device occurs one sector at a time.
BIOS auto detects Multi-Sector Transfer support on the drive on the specified channel. If supported the data transfer to and from the device occurs multiple sectors at a time.
BIOS auto detects the PIO mode. Use this value if the IDE disk drive support cannot be determined.
PIO mode 0 selected with a maximum transfer rate of 3.3 MB/s
Î
1
Î
2
Î
3
Î
4
Î DMA Mode [Auto]
Use the DMA Mode BIOS selection to adjust the DMA mode options.
PIO mode 1 selected with a maximum transfer rate of 5.2 MB/s PIO mode 2 selected with a maximum transfer rate of 8.3 MB/s PIO mode 3 selected with a maximum transfer rate of 11.1 MB/s PIO mode 4 selected with a maximum transfer rate of 16.6 MB/s
(This setting generally works with all hard disk drives manufactured after 1999. For other disk drives, such as IDE CD-ROM drives, check the specifications of the drive.)
Page 47
ICE-9652/9602 COM Express Basic Type 2 Module
Î
Auto DEFAULT
Î
SWDMA0
Î
SWDMA1
Î
SWDMA2
Î
MWDMA0
Î
MWDMA1
Î
MWDMA2
BIOS auto detects the DMA mode. Use this value if the IDE disk drive support cannot be determined.
Single Word DMA mode 0 selected with a maximum data transfer rate of 2.1 MB/s
Single Word DMA mode 1 selected with a maximum data transfer rate of 4.2 MB/s
Single Word DMA mode 2 selected with a maximum data transfer rate of 8.3 MB/s
Multi Word DMA mode 0 selected with a maximum data transfer rate of 4.2 MB/s
Multi Word DMA mode 1 selected with a maximum data transfer rate of 13.3 MB/s
Multi Word DMA mode 2 selected with a maximum data transfer rate of 16.6 MB/s
Î
UDMA0
Î
UDMA1
Î
UDMA2
Î
UDMA3
Î
UDMA4
Î
UDMA5
Ultra DMA mode 0 selected with a maximum data transfer rate of 16.6 MB/s
Ultra DMA mode 1 selected with a maximum data transfer rate of 25 MB/s
Ultra DMA mode 2 selected with a maximum data transfer rate of 33.3 MB/s
Ultra DMA mode 3 selected with a maximum data transfer rate of 44 MB/s (To use this mode, it is required that an 80-conductor ATA cable is used.)
Ultra DMA mode 4 selected with a maximum data transfer rate of 66.6 MB/s (To use this mode, it is required that an 80-conductor ATA cable is used.)
Ultra DMA mode 5 selected with a maximum data transfer rate of 99.9 MB/s (To use this mode, it is required that an 80-conductor ATA cable is used.)
Page 48
S
ICE-9652/9602 COM Express Basic Type 2 Module
Î S.M.A.R.T [Auto]
Use the S.M.A.R.T option to auto-detect, disable or enable Self-Monitoring Analysis and Reporting Technology (SMART) on the drive on the specified channel. S.M.A.R.T predicts impending drive failures. The S.M.A.R.T BIOS option enables or disables this function.
Î
Auto DEFAULT
Î
Disabled
Î
Enabled
Î 32Bit Data Transfer [Enabled]
Use the 32Bit Data Transfer BIOS option to enables or disable 32-bit data transfers.
Î
Disabled
Î
Enabled DEFAULT
BIOS auto detects HDD SMART support. Prevents BIOS from using the HDD SMART feature. Allows BIOS to use the HDD SMART feature
Prevents the BIOS from using 32-bit data transfers. Allows BIOS to use 32-bit data transfers on supported
hard disk drives.

5.3.3 Floppy Configuration

Use the Floppy Configuration menu to configure the floppy disk drive connected to the system.
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Power Exit
Floppy Configuration
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ Floppy A [Disabled]
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
BIOS Menu 6: IDE Master and IDE Slave Configuration
elect the type of floppy drive connected to the system
ÅÆ
Select Screen
Select Item Enter Go to SubScreen F1 General Help F10 Save and Exit ESC Exit
Page 49
Î Floppy A/B
Use the Floppy A/B option to configure the floppy disk drive. Options are listed below:
 Disabled  360 KB 51/4”  1.2 MB 51/4”  720 KB 31/2”  1.44 MB 31/2’  2.88 MB 31/2”
ICE-9652/9602 COM Express Basic Type 2 Module

5.3.4 Super IO Configuration

Use the Super IO Configuration menu (BIOS Menu 7) to set or change the configurations for the FDD controllers, parallel ports and serial ports.
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Power Exit
Configure Win627EHF Super I/O Chipset
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ Serial Port1 Address [3F8/IRQ4] Serial Port2 Address [2F8/IRQ3]
Serial Port2 Mode [Normal]
Parallel Port Address [378]
Parallel Port Mode [Normal] Parallel Port IRQ [IRQ7]
Serial Port3 Address [3E8]
Serial Port3 IRQ [11]
Serial Port4 Address [2E8]
Serial Port4 IRQ [11]
Serial Port5 Address [2F0]
Serial Port5 IRQ [11]
Serial Port6 Address [2E0]
Serial Port6 IRQ [11]
COM6 Select RS232/422/485 [RS232]
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
Allows BIOS to select Serial Port Base Addresses
ÅÆ
Select Screen
Select Item Enter Go to SubScreen F1 General Help F10 Save and Exit ESC Exit
BIOS Menu 7: Super IO Configuration
Î Serial Port1 Address [3F8/IRQ4]
Use the Serial Port1 Address option to select the Serial Port 1 base address.
Î
Disabled
Page 50
No base address is assigned to Serial Port 1
ICE-9652/9602 COM Express Basic Type 2 Module
Î
3F8/IRQ4 DEFAULT
Î
3E8/IRQ4
Î
2E8/IRQ3
Î Serial Port2 Address [2F8/IRQ3]
Use the Serial Port2 Address option to select the Serial Port 2 base address.
Î
Disabled
Î
2F8/IRQ3 DEFAULT
Î
3E8/IRQ4
Serial Port 1 I/O port address is 3F8 and the interrupt address is IRQ4
Serial Port 1 I/O port address is 3E8 and the interrupt address is IRQ4
Serial Port 1 I/O port address is 2E8 and the interrupt address is IRQ3
No base address is assigned to Serial Port 2 Serial Port 2 I/O port address is 3F8 and the interrupt
address is IRQ3 Serial Port 2 I/O port address is 3E8 and the interrupt
address is IRQ4
Î
2E8/IRQ3
Î Serial Port2 Mode [Normal]
Use the Serial Port2 Mode option to select the Serial Port2 operational mode.
Î
Normal DEFAULT
Î
IrDA
Î
ASK IR
Î Parallel Port Address [378]
Use the Parallel Port Address option to select the parallel port base address.
Î
Disabled
Î
378 DEFAULT
Serial Port 2 I/O port address is 2E8 and the interrupt address is IRQ3
Serial Port 2 mode is normal Serial Port 2 mode is IrDA Serial Port 2 mode is ASK IR
No base address is assigned to the Parallel Port Parallel Port I/O port address is 378
Page 51
ICE-9652/9602 COM Express Basic Type 2 Module
Î
278
Î
3BC
Î Parallel Port Mode [Normal]
Use the Parallel Port Mode option to select the mode the parallel port operates in.
Î
Normal DEFAULT
Î
Bi-directional
Î
EPP
Parallel Port I/O port address is 278 Parallel Port I/O port address is 3BC
The normal parallel port mode is the standard mode for parallel port operation.
Parallel port outputs are 8-bits long. Inputs are accomplished by reading 4 of the 8 bits on the status register.
The parallel port operates in the enhanced parallel port mode (EPP). The EPP mode supports bi-directional communication between the system and the parallel port device and the transmission rates between the two are much faster than the Normal mode.
Î
ECP+EPP
Î Parallel Port IRQ [IRQ7]
Use the Parallel Port IRQ selection to set the parallel port interrupt address.
Î
IRQ5
Î
IRQ7 DEFAULT
IRQ5 is assigned as the parallel port interrupt address IRQ7 is assigned as the parallel port interrupt address
The parallel port operates in the extended capabilities port (ECP) mode. The ECP mode supports bi-directional communication between the system and the parallel port device and the transmission rates between the two are much faster than the Normal mode
The parallel port is also be compatible with EPP devices described above
Page 52
ICE-9652/9602 COM Express Basic Type 2 Module
Î Serial Port3 Address [3E8]
Use the Serial Port3 Address option to select the base addresses for serial port 3
Î
Disabled
Î
3E8 DEFAULT
Î
2E8
Î
2F0
Î
2E0
Î Serial Port3 IRQ [11]
Use the Serial Port3 IRQ option to select the interrupt address for serial port 3.
Î
10
Î
11 DEFAULT
Î Serial Port4 Address [2E8]
Use the Serial Port4 IRQ option to select the interrupt address for serial port 4.
No base address is assigned to serial port 3 Serial port 3 I/O port address is 3E8 Serial port 3 I/O port address is 2E8 Serial port 3 I/O port address is 2F0 Serial port 3 I/O port address is 2E0
Serial port 3 IRQ address is 10 Serial port 3 IRQ address is 11
Î
Disabled
Î
3E8
Î
2E8 DEFAULT
Î
2F0
Î
2E0
Î Serial Port4 IRQ [11]
Use the Serial Port4 IRQ option to select the interrupt address for serial port 4.
Î
10
Î
11 DEFAULT
No base address is assigned to serial port 3 Serial port 4 I/O port address is 3E8 Serial port 4 I/O port address is 2E8 Serial port 4 I/O port address is 2F0 Serial port 4 I/O port address is 2E0
Serial port 4 IRQ address is 10 Serial port 4 IRQ address is 11
Page 53
Î Serial Port5 Address [2F0]
Use the Serial Port5 IRQ option to select the interrupt address for serial port 5.
ICE-9652/9602 COM Express Basic Type 2 Module
Î
Disabled
Î
2F0 DEFAULT
Î
2E0
Î
2D8
Î
2D0
Î Serial Port5 IRQ [11]
Use the Serial Port5 IRQ option to select the interrupt address for serial port 5.
Î
10
Î
11 DEFAULT
Î Serial Port6 Address [2E0]
Use the Serial Port6 IRQ option to select the interrupt address for serial port 6.
No base address is assigned to serial port 5 Serial port 5 I/O port address is 2F0 Serial port 5 I/O port address is 2E0 Serial port 5 I/O port address is 2D8 Serial port 5 I/O port address is 2D0
Serial port 5 IRQ address is 10 Serial port 5 IRQ address is 11
Î
Disabled
Î
2F0
Î
2E0 DEFAULT
Î
2D8
Î
2D0
Î Serial Port6 IRQ [11]
Use the Serial Port6 IRQ option to select the interrupt address for serial port 6.
Î
10
Î
11 DEFAULT
Page 54
No base address is assigned to serial port 6 Serial port 6 I/O port address is 2F0 Serial port 6 I/O port address is 2E0 Serial port 6 I/O port address is 2D8 Serial port 6 I/O port address is 2D0
Serial port 6 IRQ address is 10 Serial port 6 IRQ address is 11
ICE-9652/9602 COM Express Basic Type 2 Module
Î COM6 Select RS232/RS485/RS422 [RS/232]
Use the COM6 Select RS232/RS485/RS422 option to select the Serial Port 6 signaling mode.
Î
RS232 DEFAULT
Î
RS422/RS485
Serial Port 6 signaling mode is RS-232 Serial Port 6 signaling mode is RS-422/RS-485

5.3.5 Win83627EHG Hardware Health Configuration

The Win83627EHG Hardware Health Configuration menu (BIOS Menu 8) shows the operating temperature, fan speeds and system voltages.
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Power Exit
Win83627EHG Hardware Health
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
SYSFAN Speed :N/A CPUFAN Speed :N/A
+V3.3 :3.376 V +12VIN :11.792 V +VBAT :3.200 V
SYSFAN PWM Control [250] CPUFAN PWM Control [250]
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
PWM Duty Cycle Control
Min=0 Max=225 Please input Dec number:
ÅÆ
Select Screen
Select Item Enter Go to SubScreen F1 General Help F10 Save and Exit ESC Exit
BIOS Menu 8: Hardware Health Configuration
Î CPU Fan PWM Control [250]
Use the CPU Fan PWM Control option to select PWM duty cycle control. The PWM duty cycle specifies the width of the modulated pulse. A high value ensures a wide pulse and a low value ensures a narrow pulse. To select a value, select the CPU Fan PWM Control option and enter a decimal number between 000 and 127. The PWM Duty Cycle control range is specified below.
PWM Minimum Mode: 0
Page 55
X
(
PWM Maximum Mode: 255
The following system parameters and values are shown. The system parameters that are monitored are:
Fan Speeds: The CPU cooling fan speed is monitored.
ICE-9652/9602 COM Express Basic Type 2 Module
o System Fan Speed o CPU Fan Speed
Voltages: The following system voltages are monitored
o +3.30 Vin o +12 Vin o VBAT

5.3.6 Win83L784G Hardware Health

The Win83L784G Hardware Health menu (BIOS Menu 8) shows the operating temperature, fan speeds and system voltages.
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Power Exit
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
On-Chip Temperature :40ºC/104ºF CPU Temperature :38ºC/100ºF System Temperature :43ºC/109ºF
SYSFAN2 Speed :3515 RPM
Vore :1.088 V +3.3V :3.376 V VBAT :5.049 V +5V :5.049 V
SYSFAN2 PWM Control [255]
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
BIOS Menu 9: Hardware Health Configuration
Fan PWM Duty Cycle.
:PWM output logic High percentage is
X/255*100%) during one cycle.
Min=150 Max=255 Please input Dec number:
ÅÆ
Select Screen
Select Item Enter Go to SubScreen F1 General Help F10 Save and Exit ESC Exit
The following system parameters and values are shown. The system parameters that are monitored are:
Page 56
ICE-9652/9602 COM Express Basic Type 2 Module
System Temperatures: The following system temperatures are monitored
o On-Chip Temperature o CPU Temperature o System Temperature
Fan Speeds: The CPU cooling fan speed is monitored.
o System Fan2 Speed
Voltages: The following system voltages are monitored
o Vcore o +3.30 Vin o VBAT o +5.00 Vin
Î SYSFAN2 PWM Control [250]
Use the SYSFAN2 PWM Control option to select PWM duty cycle control. The PWM duty cycle specifies the width of the modulated pulse. A high value ensures a wide pulse and a low value ensures a narrow pulse. To select a value, select the SYSFAN2 PWM Control option and enter a decimal number between 000 and 127. The PWM Duty Cycle control range is specified below.
PWM Minimum Mode: 150  PWM Maximum Mode: 255
Page 57
ICE-9652/9602 COM Express Basic Type 2 Module

5.3.7 Power Configuration

The Power Configuration menu (BIOS Menu 10) allows the advanced power management options to be configured.
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Power Exit
Power Type [ATX]
ACPI Configuration
APM Configuration
ÅÆ
Select Screen
Select Item Enter Go to SubScreen F1 General Help F10 Save and Exit ESC Exit
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
BIOS Menu 10:Power
Î Power Type [ATX]
Use the Power Type BIOS option to select the power supply that is connected to the system.
Î
AT
Î
ATX DEFAULT
An AT power supply is connected to the system An ATX power supply is connected to the system
5.3.7.1 ACPI Configuration
The ACPI Configuration menu (BIOS Menu 11) configures the Advanced Configuration and Power Interface (ACPI) and Power Management (APM) options.
Page 58
ICE-9652/9602 COM Express Basic Type 2 Module
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Power Exit
General ACPI Configuration
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ Suspend mode [S1 (POS)]
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
BIOS Menu 11: ACPI Configuration
Select the ACPI state used for System Suspend
ÅÆ
Select Screen
Select Item Enter Go to SubScreen F1 General Help F10 Save and Exit ESC Exit
Î Suspend Mode [S1(POS)]
Use the Suspend Mode option to specify the sleep state the system enters when it is not being used.
Î
S1 (POS) DEFAULT
Î
S3 (STR)
System appears off. The CPU has no power; RAM is in
The system enters S1(POS) sleep state. The system appears off. The CPU is stopped; RAM is refreshed; the system is running in a low power mode.
slow refresh; the power supply is in a reduced power mode.
5.3.7.2 APM Configuration
The APM Configuration menu (BIOS Menu 12) allows the advanced power management options to be configured.
Page 59
Main Advanced PCIPNP Boot Security Chipset Power Exit
APM Configuration
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ Power Button Mode [On/Off] Restore on AC Power Loss [Last State]
Resume On Ring/PCUE Wake up [Disabled] Resume on PME [Disabled] Resume on RTC Alarm [Disabled] Resume on Keyboard/Mouse [Disabled]
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
BIOS Menu 12: APM Configuration
ICE-9652/9602 COM Express Basic Type 2 Module
BIOS SETUP UTILITY
Go into On/Off, or Suspend when Power button is pressed
ÅÆ
Select Screen
Select Item Enter Go to SubScreen F1 General Help F10 Save and Exit ESC Exit
Î Power Button Mode [On/Off]
Use the Power Button Mode BIOS to specify how the power button functions.
Î
On/Off DEFAULT
Î
Suspend
Î Restore on AC Power Loss [Last State]
Use the Restore on AC Power Loss BIOS option to specify what state the system returns to if there is a sudden loss of power to the system.
Î
Power Off
Î
Power On
Î
Last State DEFAULT
When the power button is pressed the system is either turned on or off
When the power button is pressed the system goes into suspend mode
The system remains turned off The system turns on The system returns to its previous state. If it was on, it
Page 60
turns itself on. If it was off, it remains off.
ICE-9652/9602 COM Express Basic Type 2 Module
Î Resume on Ring/PCIE Wake up [Disabled]
Use the Resume on Ring/PCIE Wake up BIOS option to enable activity on the RI (ring in) modem line or on the PCI-Express bus to rouse the system from a suspend or standby state.
Î
Enabled
Î
Disabled DEFAULT
Î Resume on PME# [Disabled]
Use the Resume on PME# BIOS option to enable activity on the PCI PME (power management event) controller to rouse the system from a suspend or standby state.
Î
Disabled DEFAULT
Î
Enabled
Î Resume On RTC Alarm [Disabled]
Use the Resume On RTC Alarm option to specify the time the system should be roused
Wake event generated by an incoming call or PCI-Express activity
Wake event not generated by an incoming call or PCI-Express activity
Wake event not generated by PCI PME controller activity
Wake event generated by PCI PME controller activity
from a suspended state.
Î
Disabled DEFAULT
Î
Enabled
The real time clock (RTC) cannot generate a wake event
If selected, the following appears with values that can be selected:
RTC Alarm Date (Days) System Time After setting the alarm, the computer turns itself on
from a suspend state when the alarm goes off.
Page 61
Î Resume on Keyboard/Mouse [Disabled]
Use the Resume on Keyboard/Mouse BIOS option to enable activity on either the keyboard or mouse to rouse the system from a suspend or standby state. That is, the system is roused when the mouse is moved or a button on the keyboard is pressed.
ICE-9652/9602 COM Express Basic Type 2 Module
Î
Disabled DEFAULT
Î
Resume On Keyboard
Î
Resume On Mouse
Î
Enabled
Wake event not generated by activity on the keyboard or mouse
Wake event generated by activity on the keyboard
Wake event generated by activity on the mouse
Wake event generated by activity on the keyboard or mouse

5.3.8 Remote Access Configuration

Use the Remote Access Configuration menu (BIOS Menu 13) to configure remote access parameters. The Remote Access Configuration is an AMIBIOS feature and allows a remote host running a terminal program to display and configure the BIOS settings.
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Power Exit
Configure Remote Access type and parameters
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ Remote Access [Disabled]
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
Select Remote Access type
ÅÆ
Select Screen
Select Item Enter Go to SubScreen F1 General Help F10 Save and Exit ESC Exit
Page 62
BIOS Menu 13: Remote Access Configuration
ICE-9652/9602 COM Express Basic Type 2 Module
Î Remote Access [Disabled]
Use the Remote Access option to enable or disable access to the remote functionalities of the system.
Î
Disabled DEFAULT
Î
Enabled
Î Serial Port Number [COM1]
Use the Serial Port Number option allows to select the serial port used for remote access.
Î
COM1 DEFAULT
Î
COM2
Remote access is disabled. Remote access configuration options shown below
appear: Serial Port Number Serial Port Mode Redirection after BIOS POST Terminal Type These configuration options are discussed below.
System is remotely accessed through COM1 System is remotely accessed through COM2
Î
COM3
Î
COM4
Î
COM5
Î
COM6
NOTE: Make sure the selected COM port is enabled through the Super I/O configuration
menu.
Î Base Address, IRQ [3F8h,4]
The Base Address, IRQ option cannot be configured and only shows the interrupt address of the serial port listed above.
System is remotely accessed through COM3 System is remotely accessed through COM4 System is remotely accessed through COM5 System is remotely accessed through COM6
Page 63
Î Serial Port Mode [115200 8,n,1]
Use the Serial Port Mode option to select baud rate through which the console redirection is made. The following configuration options are available
ICE-9652/9602 COM Express Basic Type 2 Module
115200 8,n,1 D 57600 8,n,1 38400 8,n,1 19200 8,n,1 09600 8,n,1
EFAULT
NOTE:
Identical baud rate setting musts be set on the host (a management computer running a terminal software) and the slave
Î Redirection After BIOS POST [Always]
Use the Redirection After BIOS POST option to specify when console redirection should occur.
Î
Disabled
The console is not redirected after POST
Î
Boot Loader
Î
Always DEFAULT
Î Terminal Type [ANSI]
Use the Terminal Type BIOS option to specify the remote terminal type.
Î
ANSI DEFAULT
Î
VT100
Î
VT-UTF8
Page 64
Redirection is active during POST and during Boot Loader
Redirection is always active (Some OSes may not work if set to Always)
The target terminal type is ANSI The target terminal type is VT100 The target terminal type is VT-UTF8
ICE-9652/9602 COM Express Basic Type 2 Module

5.3.9 USB Configuration

Use the USB Configuration menu (BIOS Menu 14) to read USB configuration information and configure the USB settings.
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Power Exit
USB Configuration
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
Module Version – 2.24.0-11.4
USB Devices Enabled:
None
USB Functions [Enabled]
USB 2.0 Controller [Enabled]
Legacy USB Support [Enabled] USB 2.0 Controller Mode [HiSpeed]
Disabled Enabled
ÅÆ
Select Screen
Select Item Enter Go to SubScreen F1 General Help F10 Save and Exit ESC Exit
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
BIOS Menu 14: USB Configuration
Î USB Configuration
The USB Configuration field shows the system USB configuration. The items listed are:
Module Version: x.xxxxx.xxxxx
Î USB Devices Enabled
The USB Devices Enabled field lists the USB devices that are enabled on the system
Î USB Functions [Enabled]
Use the USB Functions BIOS option to enable or disable USB function support.
Î
Disabled
USB function support disabled
Î
Enabled DEFAULT
USB function support enabled
Page 65
Î USB 2.0 Controller [Enabled]
The USB 2.0 Controller is enabled
Î Legacy USB Support [Enabled]
Use the Legacy USB Support BIOS option to enable USB mouse and USB keyboard support.
Normally if this option is not enabled, any attached USB mouse or USB keyboard does not become available until a USB compatible operating system is fully booted with all USB drivers loaded. When this option is enabled, any attached USB mouse or USB keyboard can control the system even when there is no USB driver loaded onto the system.
ICE-9652/9602 COM Express Basic Type 2 Module
Î
Disabled
Î
Enabled DEFAULT
Î
Auto
Î USB2.0 Controller Mode [HiSpeed]
Use the USB2.0 Controller Mode option to set the speed of the USB2.0 controller.
Î
FullSpeed
Î
HiSpeed DEFAULT

5.4 PCI/PnP

Use the PCI/PnP menu (BIOS Menu 15) to configure advanced PCI and PnP settings.
Legacy USB support disabled Legacy USB support enabled Legacy USB support disabled if no USB devices are
connected
The controller is capable of operating at 12 Mb/s The controller is capable of operating at 480 Mb/s
Page 66
WARNING!
Setting wrong values for the BIOS selections in the PCIPnP BIOS menu may cause the system to malfunction.
A
R
ICE-9652/9602 COM Express Basic Type 2 Module
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Exit
Advanced PCI/PnP Settings
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
WARNING: Setting wrong values in below sections may cause system to malfunction
IRQ3 [Reserved] IRQ4 [Reserved] IRQ5 [Available] IRQ7 [Available] IRQ9 [Available] IRQ10 [Available] IRQ11 [Reserved] IRQ14 [Available] IRQ15 [Available]
DMA Channel 0 [Available] DMA Channel 1 [Available] DMA Channel 3 [Available] DMA Channel 5 [Available] DMA Channel 6 [Available] DMA Channel 7 [Available]
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
vailable: Specified IRQ is available to be use the PCI/PnP devices
eserved: Specified IRQ is reserved for use by legacy ISA devices
ÅÆ
Select Screen
Select Item Enter Go to SubScreen F1 General Help F10 Save and Exit ESC Exit
BIOS Menu 15: PCI/PnP Configuration
Î IRQ# [Available]
Use the IRQ# address to specify what IRQs can be assigned to a particular peripheral device.
Î
Available DEFAULT
Î
Reserved
Available IRQ addresses are:
IRQ3 IRQ4 IRQ5
The specified IRQ is available to be used by PCI/PnP devices
The specified IRQ is reserved for use by Legacy ISA devices
IRQ7 IRQ9
Page 67
IRQ10 IRQ 11 IRQ 14 IRQ 15
Î DMA Channel# [Available]
Use the DMA Channel# option to assign a specific DMA channel to a particular PCI/PnP device.
ICE-9652/9602 COM Express Basic Type 2 Module
Î
Available DEFAULT
Î
Reserved
Available DMA Channels are:
DM Channel 0  DM Channel 1  DM Channel 3  DM Channel 5  DM Channel 6  DM Channel 7
The specified DMA is available to be used by PCI/PnP devices
The specified DMA is reserved for use by Legacy ISA devices
Page 68
ICE-9652/9602 COM Express Basic Type 2 Module

5.5 Boot

Use the Boot menu (BIOS Menu 16) to configure system boot options.
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Exit
Boot Settings
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
Boot Settings Configuration
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
Configure settings during system boot.
ÅÆ
Select Screen
Select Item Enter Go to SubScreen F1 General Help F10 Save and Exit ESC Exit
BIOS Menu 16: Boot
Page 69
d
ICE-9652/9602 COM Express Basic Type 2 Module

5.5.1 Boot Settings Configuration

Use the Boot Settings Configuration menu (BIOS Menu 17) to configure advanced system boot options.
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Power Exit
Boot Settings Configuration
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ Quick Boot [Enabled] Quiet Boot [Enabled] AddOn ROM Display Mode [Force BIOS] Bootup Num-Lock [On] Onboard Lan Rom [Disabled]
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
Allows BIOS to skip certain tests while booting. This will
ecrease the time needed to boot the system.
ÅÆ
Select Screen
Select Item Enter Go to SubScreen F1 General Help F10 Save and Exit ESC Exit
BIOS Menu 17: Boot Settings Configuration
Î Quick Boot [Enabled]
Use the Quick Boot BIOS option to make the computer speed up the boot process.
Î
Disabled
Î
Enabled DEFAULT
Î Quiet Boot [Enabled]
Use the Quiet Boot BIOS option to select the screen display when the system boots.
Î
Disabled
Î
Enabled DEFAULT
No POST procedures are skipped Some POST procedures are skipped to decrease
the system boot time
Normal POST messages displayed OEM Logo displayed instead of POST messages
Page 70
ICE-9652/9602 COM Express Basic Type 2 Module
Î AddOn ROM Display Mode [Force BIOS]
Use the AddOn ROM Display Mode option to allow add-on ROM (read-only memory) messages to be displayed.
Î
Force BIOS DEFAULT
Î
Keep Current
Î Bootup Num-Lock [On]
Use the Bootup Num-Lock BIOS option to specify if the number lock setting must be modified during boot up.
Î
Off
Î
On DEFAULT
Does not enable the keyboard Number Lock automatically. To use the 10-keys on the keyboard, press the Number Lock key located on the upper left-hand corner of the 10-key pad. The Number Lock LED on the keyboard lights up when the Number Lock is engaged.
Allows the Number Lock on the keyboard to be enabled automatically when the computer system boots up. This allows
The system forces third party BIOS to display during system boot.
The system displays normal information during system boot.
Î Onboard Lan Rom [Disabled]
Use the Onboard Lan Rom option to enable the system to be booted from a remote system.
Î
Disabled DEFAULT
Î
Enabled DEFAULT
the immediate use of the 10-key numeric keypad located on the right side of the keyboard. To confirm this, the Number Lock LED light on the keyboard is lit.
Cannot be booted from a remote system through the LAN
Can be booted from a remote system through the LAN
Page 71
ICE-9652/9602 COM Express Basic Type 2 Module

5.6 Security

Use the Security menu (BIOS Menu 18) to set system and user passwords.
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Exit
Security Settings
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
Supervisor Password :Not Installed User Password :Not Installed
Change Supervisor Password Change User Password
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
ÅÆ
Select Screen
Select Item Enter Go to SubScreen F1 General Help F10 Save and Exit ESC Exit
BIOS Menu 18: Security
Î Change Supervisor Password
Use the Change Supervisor Password to set or change a supervisor password. The default for this option is Not Installed. If a supervisor password must be installed, select this field and enter the password. After the password has been added, Install appears next to Change Supervisor Password.
Î Change User Password
Use the Change User Password to set or change a user password. The default for this option is Not Installed. If a user password must be installed, select this field and enter the password. After the password has been added, Install appears next to Change User
Password.
Page 72
ICE-9652/9602 COM Express Basic Type 2 Module

5.7 Chipset

Use the Chipset menu (BIOS Menu 19) to access the Northbridge and Southbridge configuration menus
WARNING!
Setting the wrong values for the Chipset BIOS selections in the Chipset BIOS menu may cause the system to malfunction.
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Exit
Advanced Chipset Settings
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
WARNING: Setting wrong values in below sections may cause system to malfunction
Northbridge Configuration
Southbridge Configuration
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
Configure North Bridge features.
ÅÆ
Select Screen
Select Item Enter Go to SubScreen F1 General Help F10 Save and Exit ESC Exit
BIOS Menu 19: Chipset
Page 73
ICE-9652/9602 COM Express Basic Type 2 Module

5.7.1 Northbridge Configuration

Use the Northbridge Chipset Configuration menu (BIOS Menu 20) to configure the Northbridge chipset.
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Power Exit
Northbridge Chipset Configuration
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ Memory Hole [Disabled]
Boot Graphic Adapter Priority [PEG/PCI] Internal Graphics Mode Select [Enabled, 8MB]
Video Function Configuration
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
Disabled 15MB-16MB
ÅÆ
Select Screen
Select Item Enter Go to SubScreen F1 General Help F10 Save and Exit ESC Exit
BIOS Menu 20:Northbridge Chipset Configuration
Î Memory Hole [Disabled]
Use the Memory Hole option to reserve memory space between 15 MB and 16 MB for ISA expansion cards that require a specified area of memory to work properly. If an older ISA expansion card is used, please refer to the documentation that came with the card to see if it is necessary to reserve the space.
Î
Disabled DEFAULT
Î
15 MB – 16 MB
Î Boots Graphics Adapter Priority [PEG/PCI]
Use the Boots Graphics Adapter Priority option to select the grap hics controller used as the primary boot device. Select either an integrated graphics controller (IGD) or a
Memory is not reserved for ISA expansion cards Between 15 MB and 16 MB of memory is reserved
for ISA exp ansion cards
Page 74
combination of PCI graphics controller, a PCI express (PEG) controller or an IGD. Configuration options are listed below:
ICE-9652/9602 COM Express Basic Type 2 Module
IGD PCI/IGD PCI/PEG PEG/IGD PEG/PCI D
Î Internal Graphics Mode Select [Enable, 8 MB]
Use the Internal Graphic Mode Select option to specify the amount of system memory that can be used by the Internal graphics device.
Î
Disable
Î
Enable, 1 MB
Î
Enable, 8 MB DEFAULT
EFAULT
1 MB of memory used by internal graphics device 8 MB of memory used by internal graphics device
5.7.1.1 Video Function Configuration
Use the Video Function Configuration menu to configure the video device connected to the system.
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Power Exit
Video Function Configuration
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ Boot Display Device [CRT]
CRT TV LVDS
ÅÆ
Select Screen
Select Item Enter Go to SubScreen F1 General Help F10 Save and Exit ESC Exit
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
BIOS Menu 21:Northbridge Chipset Configuration
Page 75
Î Boot Display Device
Use the Boot Display Device option to select the display device used by the system when it boots. Configuration options are listed below.
ICE-9652/9602 COM Express Basic Type 2 Module
CRT D TV LVDS
EFAULT

5.7.2 Southbridge Configuration

The Southbridge Configuration menu (BIOS Menu 22) the Southbridge chipset to be configured.
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Power Exit
Southbridge Chipset Configuration
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ HDA Controller [Enabled] Spread Spectrum Mode [Disabled]
ÅÆ
Select Screen
Select Item Enter Go to SubScreen F1 General Help F10 Save and Exit ESC Exit
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
BIOS Menu 22:Southbridge Chipset Configuration
Î HDA Controller [Enabled]
Use the HDA Controller option to enable or disable the High Definition Audio controller.
Î
Enabled DEFAULT
Î
Disabled
Page 76
The onboard HD Audio controller is automatically detected and enabled
The HD Audio controller is disabled
E
F
ICE-9652/9602 COM Express Basic Type 2 Module
Î Spread Spectrum [Disabled]
Use the Spread Spectrum option to reduce the EMI. Excess EMI is generated when the system clock generator pulses have extreme values. Spreading the pulse spectrum modulates changes in the extreme values from spikes to flat curves, thus reducing the EMI. This benefit may in some cases be outweighed by problems with timing-critical devices, such as a clock-sensitive SCSI device.
Î
Disabled DEFAULT
Î
Enabled
EMI not reduced EMI reduced

5.8 Exit

Use the Exit menu (BIOS Menu 23) to load default BIOS values, optimal failsafe values and to save configuration changes.
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Exit
Exit Options
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ Save Changes and Exit Discard Changes and Exit Discard Changes
Load Optimal Defaults Load Failsafe Defaults
xit system setup after saving the changes.
10 key can be used for this operation
ÅÆ
Select Screen
Select Item Enter Go to SubScreen F1 General Help F10 Save and Exit ESC Exit
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
BIOS Menu 23:Exit
Î Save Changes and Exit
Use the Save Changes and Exit option to save the changes made to the BIOS options and to exit the BIOS configuration setup program.
Page 77
Î Discard Changes and Exit
Use the Discard Changes and Exit option to exit the BIOS configuration setup program without saving the changes made to the system.
Î Discard Changes
Use the Discard Changes option to discard the changes and remain in the BIOS configuration setup program.
Î Load Optimal Defaults
Use the Load Optimal Defaults option to load the optimal default values for each of the parameters on the Setup menus. F9 key can be used for this operation.
Î Load Failsafe Defaults
ICE-9652/9602 COM Express Basic Type 2 Module
Use the Load Failsafe Defaults option to load failsafe default values for each of the parameters on the Setup menus. F8 key can be used for this operation.
Page 78
ICE-9652/9602 COM Express Basic Type 2 Module

6 Software Installation

Chapter
6
Page 79
ICE-9652/9602 COM Express Basic Type 2 Module

6.1 Available Software Drivers

NOTE:
The content of the CD may vary throughout the life cycle of the product and is subject to change without prior notice. Visit the IEI website or contact technical support for the latest updates.
The following drivers can be installed on the system:
6.3 Chipset Driver Installation................................................................82
6.4 VGA Driver Installation.....................................................................85
6.5 LAN Driver Installation .....................................................................89
6.6 Realtek HD Audio Driver (ALC883) Installation...............................94
6.7 Intel
®
Matrix Storage Manager Driver Installation............................101
6.8 IDE Controller Installation ................................................................105
6.9 iSMM Installation..............................................................................115
Installation instructions are given below.

6.2 Starting the Driver Program

To access the driver installation programs, please do the following.
Step 6: Insert the CD-ROM that came with the system into a CD-ROM drive attached to
the system.
Page 80
ICE-9652/9602 COM Express Basic Type 2 Module
Step 7: The screen in Figure 6-1 appears.
Figure 6-1: Start Up Screen
Step 8: Click ICE-9652/9602.
Step 9: The list of drivers in
Figure 6-2 appears.Step 0:
Figure 6-2: Drivers
Page 81
ICE-9652/9602 COM Express Basic Type 2 Module

6.3 Chipset Driver Installation

To install the chipset driver, please do the following.
Step 1: Access the driver list shown in
Step 2: Click “1-INF
Step 3: A new window opens (
Figure 6-3).
Figure 6-2. (See Section 6.2)
Page 82
Figure 6-3: Chipset Driver Installation Program
Step 4: Double click the infinst_autol icon in
Step 5: When the setup files are completely extracted the Welcome Screen in
Figure 6-4 appears.
Figure 6-3.
ICE-9652/9602 COM Express Basic Type 2 Module
Figure 6-4: Chipset Driver Welcome Screen
Step 6: Click NEXT to continue.
Step 7: The license agreement in Figure 6-5 appears.
Figure 6-5: Chipset Driver License Agreement
Step 8: Read the License Agreement.
Page 83
Step 9: Click the YES button to accept the license agreement and continue.
Step 10: The Read Me file in Figure 6-6 appears.
ICE-9652/9602 COM Express Basic Type 2 Module
Figure 6-6: Chipset Driver Read Me File
Step 11: Click NEXT in Figure 6-6 to start the driver installation.
Step 12: After the driver installation process is complete, a confirmation screen (Figure
6-7) appears.
Page 84
ICE-9652/9602 COM Express Basic Type 2 Module
Figure 6-7: Chipset Driver Installation Complete
Step 13: Click FINISH to exit the InstallShield Wizard. Step 0:

6.4 VGA Driver Installation

To install the VGA driver, please do the following.
Step 1: Access the driver list shown in
Step 2: Click “2-VGA
Step 3: A new window opens (
Figure 6-2. (See Section 6.2)
Figure 6-8).
Page 85
Figure 6-8: Select the Operating System
ICE-9652/9602 COM Express Basic Type 2 Module
Step 4: Select the operating system from those shown in
Step 5: A new window appears (
Figure 6-9: GMA Driver
Figure 6-9).
Figure 6-8.
Page 86
Step 6: Click the installation program icon in
Step 7: The Readme information file shown in
Figure 6-9.
Figure 6-10 appears.
ICE-9652/9602 COM Express Basic Type 2 Module
Figure 6-10: GMA Driver Readme File
Step 8: Click NEXT to extract the GMA driver files. See Figure 6-11.
Step 9: The installation files are extracted. See Figure 6-11.
Figure 6-11: GMA Driver File Extraction
Step 10: The W elcome Screen in
Figure 6-12 appears.
Page 87
Figure 6-12: GMA Driver Installation Welcome Screen
ICE-9652/9602 COM Express Basic Type 2 Module
Click NEXT to continue.
Step 11: The license agreement in Figure 6-13 appears.
Figure 6-13: GMA Driver License Agreement
Step 12: Read the License Agreement.
Page 88
Step 13: Click YES to accept the license agreement and continue.
Step 14: The installation notice sh own in Figure 6-14 appears.
