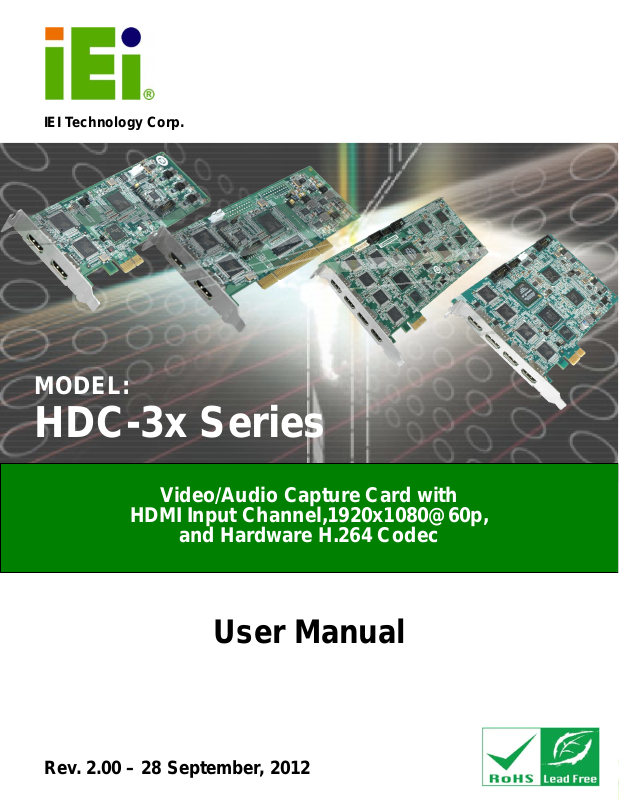

IEI Technology HDC-301, HDC-301E, HDC-302E, HDC-304E User Manual

HDC-3x Series Video Capture Card
IEI Technology Corp.
MODEL:
HDC-3x Series
ideo/Audio Capture Card with
HDMI Input Channel,1920x1080@60p,
and Hardware H.264 Codec
User Manual
Rev. 2.00 – 28 September, 2012
Page I
HDC-3x Series Video Capture Card
Revision
Date Version Changes
28 September, 2012 2.00 Updated for new software version v2.00
10 May, 2011 1.01 Added HDC-302E information
11 April, 2011 1.00 Initial release
Page II
HDC-3x Series Video Capture Card
COPYRIGHT NOTICE
The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer.
In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.
Copyright
This document contains proprietary information protected by copyright. All rights are reserved. No part of this manual may be reproduced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer.
TRADEMARKS
All registered trademarks and product names mentioned herein are used for identification purposes only and may be trademarks and/or registered trademarks of their respective owners.
Page III
HDC-3x Series Video Capture Card
Table of Contents
1 INTRODUCTION.......................................................................................................... 1
1.1 OVERVIEW.................................................................................................................. 2
1.2 MODEL VARIATIONS ................................................................................................... 2
1.3 FEATURES................................................................................................................... 3
1.4 APPLICATIONS............................................................................................................ 3
1.5 CONNECTOR OVERVIEW.............................................................................................4
1.5.1 HDC-301............................................................................................................ 4
1.5.2 HDC-301E ......................................................................................................... 4
1.5.3 HDC-302E ......................................................................................................... 5
1.5.4 HDC-304E ......................................................................................................... 5
1.6 SPECIFICATIONS ......................................................................................................... 7
1.7 DIMENSIONS............................................................................................................... 9
1.7.1 HDC-301 Dimensions........................................................................................ 9
1.7.2 HDC-301E Dimensions ................................................................................... 10
1.7.3 HDC-302E Dimensions ....................................................................................11
1.7.4 HDC-304E Dimensions ................................................................................... 12
2 HARDWARE INSTALLATION................................................................................. 13
2.1 UNPACKING.............................................................................................................. 14
2.1.1 Anti-static Precautions..................................................................................... 14
2.1.2 Unpacking Precautions.................................................................................... 14
2.1.3 Unpacking Checklist........................................................................................ 15
2.2 HARDWARE INSTALLATION PROCEDURE................................................................... 16
2.3 VIDEO CAPTURE CARD INSTALLATION..................................................................... 16
2.4 INST ALL THE HDMI OUTPUT KIT (HDC-304E MODEL ONLY)................................. 17
2.4.1.1 HDC-304E HDMI Output Kit Connector (JR1)....................................... 19
2.5 HDMI DEVICES INSTALLATION................................................................................ 20
3 DRIVER AND APPLICATION INSTALLATION (WINDOWS).......................... 22
3.1 OVERVIEW................................................................................................................ 23
3.2 DRIVER INSTALLATION............................................................................................. 24
Page IV
HDC-3x Series Video Capture Card
3.2.1 Driver Installation in 64-bit Windows 7 OS..................................................... 28
3.2.2 Uninstall Driver............................................................................................... 31
3.3 SOFTWARE INSTALLATION (WINDOWS) .................................................................... 32
3.3.1 System Requirements........................................................................................ 32
3.3.2 HDCapture Program Installation.................................................................... 33
4 HDCAPTURE APPLICATION (WINDOWS) ......................................................... 36
4.1 HDCAPTURE OVERVIEW.......................................................................................... 37
4.2 VIDEO CAPTURE....................................................................................................... 37
4.3 VIDEO DECODING .................................................................................................... 43
4.4 VIDEO BYPASS ......................................................................................................... 45
4.5 UNINSTALL HDCAPTURE ......................................................................................... 47
4.6 FAQ......................................................................................................................... 49
A HAZARDOUS MATERIALS DISCLOSURE......................................................... 51
A.1 HAZARDOUS MATERIAL DISCLOSURE TABLE FOR IPB PRODUCTS CERTIFIED AS
ROHS COMPLIANT UNDER 2002/95/EC WITHOUT MERCURY ....................................... 52
Page V
HDC-3x Series Video Capture Card
List of Figures
Figure 1-1: HDC-3x Series Video Capture Card...........................................................................2
Figure 1-2: HDC-301 Connector Overview...................................................................................4
Figure 1-3: HDC-301E Connector Overview.................................................................................5
Figure 1-4: HDC-302E Connector Overview.................................................................................5
Figure 1-5: HDC-304E Connector Overview.................................................................................6
Figure 1-6: HDC-301 Dimensions (mm)........................................................................................9
Figure 1-7: HDC-301E Dimensions (mm) ...................................................................................10
Figure 1-8: HDC-302E Dimensions (mm) ...................................................................................11
Figure 1-9: HDC-304E Dimensions (mm) ...................................................................................12
Figure 2-1: HDC-3x Series Installation .......................................................................................17
Figure 2-2: HDMI Output Kit Installation ....................................................................................18
Figure 2-3: HDC-304E and Display Connection.........................................................................18
Figure 2-4: HDC-304E HDMI Output Kit Connector Location...................................................20
Figure 2-5: HDMI Devices Connect to the Video Capture Card...............................................21
Figure 3-1: Windows Security.....................................................................................................24
Figure 3-2: Windows Warning Window......................................................................................25
Figure 3-3: Device Driver Installation Wizard............................................................................25
Figure 3-4: Driver Installing.........................................................................................................26
Figure 3-5: Driver Installation Complete ....................................................................................26
Figure 3-6: Device Manager.........................................................................................................28
Figure 3-7: Disable Driver Signature Enforcement...................................................................29
Figure 3-8: Command Prompt – Driver Installation ..................................................................30
Figure 3-9: Device Manager – 64-bit OS.....................................................................................31
Figure 3-10: HDCapture Setup Wizard........................................................................................33
Figure 3-11: Select Installation Folder........................................................................................34
Figure 3-12: Confirm Installation ................................................................................................34
Figure 3-13: Installation Complete..............................................................................................35
Figure 4-1: HDCapture .................................................................................................................39
Figure 4-2: HDC-302E and HDC-304E Device Ports..................................................................40
Figure 4-3: Encoding Settings.....................................................................................................41
Figure 4-4: Video Capture Control..............................................................................................42
Page VI
HDC-3x Series Video Capture Card
Figure 4-5: Decoding Settings.....................................................................................................43
Figure 4-6: Select Transmitter Bus for HDC-302E.....................................................................44
Figure 4-7: Select Transmitter Bus for HDC-304E.....................................................................45
Figure 4-8: Select Transmitter Device for HDC-302E................................................................46
Figure 4-9: Select Transmitter Device for HDC-304E................................................................46
Figure 4-10: Uninstall HDCapture...............................................................................................47
Figure 4-11: Uninstall HDCapture Confirmation Window.........................................................48
Page VII
HDC-3x Series Video Capture Card
List of Tables
Table 1-1: HDC Video Capture Card Models................................................................................2
Table 1-2: Specifications ...............................................................................................................8
Table 2-1: Package List Contents...............................................................................................15
Table 2-2: HDC-304E HDMI Output Kit Connector Pinouts......................................................19
Page VIII
HDC-3x Series Video Capture Card
Chapter
1

1 Introduction

Page 1

1.1 Overview

Figure 1-1: HDC-3x Series Video Capture Card
HDC-3x Series Video Capture Card
The low power HDC-3x Series video capture card supports 1080p Full HD video via HDMI connection. The HDC-3x Series video capture card is equipped with the high-performing codec component with HDMI video input channels and either audio input channel.
A software development kit (SDK) is shipped with each card and the flexible system architecture simplifies the integration of cameras, video signal processing, storage and video management and or security applications.

1.2 Model Variations

There are three HDC-3x Series video capture card models with different connecting interfaces. These models are listed below:
Model Name Interface Video Input Video Output HDC-301 HDC-301E HDC-302E
PCI 1 channel 1 channel PCIe 1 channel 1 channel PCIe 2 channels 2 channels
Page 2
HDC-304E
Table 1-1: HDC Video Capture Card Models
PCIe 4 channels 1 channel via
HDMI output kit
HDC-3x Series Video Capture Card

1.3 Features

Some of the HDC-3x Series video capture card features are listed below.
Encoding or decoding up to 1920x1080@60p HDMI input channel with 1920x1080@60p (per channel) Pass through for transmitting uncompressed video up to 1080p resolution.  Capture or record HD video in H.264 format Playback the recordings on HDMI monitor or television Reduce the amount of hard disk space needed by real-time H.264 recording
compression capability
Low power consumption Software development kit (SDK)

1.4 Applications

Some possible applications include:
Video game DVD/Blue-ray player, Camcorder Video surveillance Video analyzer Video post production
Page 3

1.5 Connector Overview

The following section introduce the three models of the HDC-3x Series.
NOTE:
The other connectors, jumpers and interfaces on the board not specified below are for R&D diagnostic purposes and should not be used by the end user.

1.5.1 HDC-301

The HDC-301 comes with one HDMI input connector. A PCI edge connector on the
HDC-3x Series Video Capture Card
bottom of the capture card enables the HDC-301 to interface with a motherboard.
Figure 1-2: HDC-301 Connector Overview

1.5.2 HDC-301E

The HDC-301E comes with one HDMI input connector. A PCIe edge connector on the bottom of the capture card enables the HDC-301E to interface with a motherboard.
Page 4
HDC-3x Series Video Capture Card
Figure 1-3: HDC-301E Connector Overview

1.5.3 HDC-302E

The HDC-302E comes with two HDMI input connectors. A PCIe edge connector on the bottom of the capture card enables the HDC-302E to interface with a motherboard.
Figure 1-4: HDC-302E Connector Overview

1.5.4 HDC-304E

The HDC-304E comes with four HDMI input connectors and one HDMI output kit connector that provides an HDMI output port. A PCIe edge connector on the bottom of the capture card enables the HDC-304E to interface with a motherboard.
Page 5
HDC-3x Series Video Capture Card
Figure 1-5: HDC-304E Connector Overview
Page 6
HDC-3x Series Video Capture Card

1.6 Specifications

The HDC-3x Series specifications are listed in the table below:
Video Input Channels Video Input Type Audio Input Channels Audio Input Type
Video Output Channel
Interface VIDEO PROCESSING Video Engine
Resolution
HDC-301 HDC-301E HDC-302E HDC-304E
One One Two Four HDMI HDMI HDMI HDMI One One Two Four HDMI HDMI HDMI HDMI
One via video
One One Two
output kit
PCI PCIe x1 PCIe x1 PCIe x1
H.264/AVC High Profile Level 4.2 1920 x 1080 60p/59.94p/50p
1920 x 1080 60i/59.94i/50i 1280 x 720 60p/59.94p/50p 720 x 576 50i 720 x 480 60i/59.94i
AUDIO PROCESSING Audio Format Bit Rate FUNCTIONALITY HDCP Compatibility SYSTEM REQUIREMENTS
System
MPEG-1 Audio Layer 2 256 kbps
Yes
Windows:
Microsoft Windows XP Service Pack2 (SP2) (32-bit version) Microsoft Windows 7 32-bit Microsoft Windows 7 64-bit (not supported by the HDC-301/301E serie s)
Microsoft DirectX 9.0c Microsoft .NET Framework 3.0/3.5/4.0
Page 7
HDC-3x Series Video Capture Card
SOFTWARE SUPPORT
Device Driver
SDK
OTHERS Dimensions (WxH) (mm)
HDC-301 HDC-301E HDC-302E HDC-304E
Win7DSFilterTweaker tool (for Windows 7 OS only) Visual C++ 2005 & 2008 Redistributable
Linux:
Fedora 16 (Kernel 3.1.0)
Driver for Windows XP, Windows 7 (32-bit/64-bit) and Linux Fedora 16 SDK provided with demo program and sample source code Windows: Provide SDK and demo program with sample source code in C# Linux: Provide SDK and driver/demo program with sample source code in C
167.7 x 64.4 167.6 x 68.9 155 x 106.7 230 x 106.7
Operating Temperature
Power Consumption
Table 1-2: Specifications
0ºC – 65ºC (32ºF - 149ºF), non-condensing
5.29 W 5 V@0.73 A
3.3 V@0.49 A
6.07 W 12 V@0.3 A
3.3 V@0.72 A
9.53 W 12 V@0.46 A
3.3 V@1.21 A
12.7 W 12 V@0.61 A
3.3 V@1.63 A
Page 8
HDC-3x Series Video Capture Card

1.7 Dimensions

The dimensions for the HDC-3x Series are listed in the following sections.

1.7.1 HDC-301 Dimensions

Figure 1-6: HDC-301 Dimensions (mm)
Page 9

1.7.2 HDC-301E Dimensions

HDC-3x Series Video Capture Card
Page 10
Figure 1-7: HDC-301E Dimensions (mm)
HDC-3x Series Video Capture Card

1.7.3 HDC-302E Dimensions

Figure 1-8: HDC-302E Dimensions (mm)
Page 11

1.7.4 HDC-304E Dimensions

HDC-3x Series Video Capture Card
Page 12
Figure 1-9: HDC-304E Dimensions (mm)
HDC-3x Series Video Capture Card

2 Hardware Installation

Chapter
2
Page 13

2.1 Unpacking

2.1.1 Anti-static Precautions

WARNING:
Failure to take ESD precautions during the installation of the video capture card may result in permanent damage to the capture card and severe injury to the user.
Electrostatic discharge (ESD) can cause serious damage to electronic components, including the video capture card. Dry climates are especially susceptible to ESD. It is therefore critical that whenever the video capture card, or any other electrical component is handled, the following anti-static precautions are strictly adhered to.
HDC-3x Series Video Capture Card
Wear an anti-static wristband: - Wearing a simple anti-static wristband can
help to prevent ESD from damaging the board.
Self-grounding:- Before handling the board touch any grounded conducting
material. During the time the board is handled, frequently touch any conducting materials that are connected to the ground.
Use an anti-static pad: When configuring the video capture card, place it on
an antic-static pad. This reduces the possibility of ESD damaging the video capture card.
Only handle the edges of the PCB:-: When handling the PCB, hold the PCB
by the edges.

2.1.2 Unpacking Precautions

When the video capture card is unpacked, please do the following:
Follow the anti-static precautions outlined in Section Make sure the packing box is facing upwards so the video capture card does
not fall out of the box.
2.1.1.
Page 14
Make sure all the components listed in Section
2.1.3 are present.
HDC-3x Series Video Capture Card

2.1.3 Unpacking Checklist

NOTE:
If some of the components listed in the checklist below are missing, please do not proceed with the installation. Contact the IEI reseller or vendor you purchased the video capture card from or contact an IEI sales representative directly. To contact an IEI sales representative, please send an email to
The video capture card is shipped with the following components:
Quantity Item Image
1 HDC-3x Series video capture card
1 HDMI output kit (HDC-304E only)
1 Low profile bracket
(HDC-301 and HDC-301E only)
1 Utility CD
sales@iei.com.tw.
1
Table 2-1: Package List Contents
Quick installation guide
Page 15
HDC-3x Series Video Capture Card

2.2 Hardware Installation Procedure

To install the video capture card hardware, the following steps must be followed:
Step 1: Install the video capture card.
Step 2: Install the HDMI output kit (HDC-304E model only)
Step 3: Install the HDMI source equipment. Step 0:
Once the steps above have been completed, the hardware installation procedures are complete.

2.3 Video Capture Card Installation

The HDC-3x Series video capture card has either a PCIe x1 or a PCI interface. To install the HDC-3x Series, please follow the steps below:
Step 1: Align the PCIe/PCI edge connector on the bottom of the video capture card with
the PCIe x1 or PCI slot on the system motherboard.
Step 2: Gently insert the video capture card into the PCIe x1 or PCI slot.
Step 3: Push down gently on the video card to make sure it is firmly inserted into the
PCIe x1 or PCI slot.
HDC-301
Page 16
HDC-3x Series Video Capture Card
HDC-301E, HDC-302E & HDC-304E
Figure 2-1: HDC-3x Series Installation
Step 4: Insert a retention screw through the top of the video capture card external
bracket into the chassis to secure t he card to the chassis. Step 0:

2.4 Install the HDMI Output Kit (HDC-304E Model Only)

The HDC-304E video card is shipped with an HDMI output kit in order to view the decode video or bypass video on the HDMI display. To install the HDMI output kit please follow the instructions below.
Step 1: Locate the HDMI output connector on the HDC-304E video capture card.
Step 2: Align the cable connector from the HDMI output kit with the HDMI output
connector on the HDC-304E.
Step 3: Push the cable connector onto the HDMI output connector making sure the pins
are correctly aligned.
Page 17
Figure 2-2: HDMI Output Kit Installation
Step 4: Secure the HDMI port bracket to the system chassis.
HDC-3x Series Video Capture Card
Step 5: Connect the HDMI cable (not included) from the HDMI output kit to the HDMI
display. Step 0:
Figure 2-3: HDC-304E and Display Connection
Page 18
HDC-3x Series Video Capture Card
NOTE:
The HDC-301 and HDC-301E models have one HDMI output port on the external peripheral IO panel. There is no need for these two models to install the HDMI output kit to enable the HDMI output connection.

2.4.1.1 HDC-304E HDMI Output Kit Connector (JR1)

The HDMI output kit connector connects to the HDMI output kit cable that provides an HDMI output port. Pinouts for the connector are shown in
Pin No. Description Pin No. Description
1 HDMI_OUT_TX2+ 11 GROUND 2 GROUND 12 HDMI_OUT_TXC­3 HDMI_OUT_TX2- 13 N/A 4 HDMI_OUT_TX1+ 14 N/A 5 GROUND 15 HDMI_OUT_DCLK 6 HDMI_OUT_TX1- 16 HDMI_OUT_DSDA 7 HDMI_OUT_TX0+ 17 GROUND 8 GROUND 18 VCC_5V 9 HDMI_OUT_TX0- 19 HDMI_OUT_HPD 10 HDMI_OUT_TXC+ 20 N/A
Table 2-2.
Table 2-2: HDC-304E HDMI Output Kit Connector Pinouts
Figure 2-4 shows the location of the HDMI output kit connector.
Page 19
HDC-3x Series Video Capture Card
Figure 2-4: HDC-304E HDMI Output Kit Connector Location

2.5 HDMI Devices Installation

Various HDMI devices can be connected to the HDC-3x Series. Video input and video output are all supported. Follow the steps below to connect the HDMI devices to the HDC-3x Series.
Step 1: Insert the HDMI connector from the cable into the HDMI input connector on the
HDC-3x Series. Make sure the connection is secure.
Step 2: Insert the HDMI connector of the other end of the cable into the HDMI connector
on the HDMI device. Make sure the connection is secure.
Step 3: This step is only required for the HDC-302E and HDC-304E.Repeat the steps
above until all HDMI devices are connected.
Step 4: Use another HDMI cable to connect the HDMI connector of the HDMI display
device to the HDMI output connector on the board or on the HDMI output kit
Page 20
(HDC-304E). Step 0:
HDC-3x Series Video Capture Card
Figure 2-5: HDMI Devices Connect to the Video Capture Card
Page 21
HDC-3x Series Video Capture Card
Chapter
3
3 Driver and Application
Installation (Windows)
Page 22
HDC-3x Series Video Capture Card

3.1 Overview

A CD is shipped with the video capture card. The CD contains a driver for the video capture controllers on the card. When the video capture card is installed on the system, the driver must be installed. Failure to install the driver means that that video capture card cannot be detected by the system.
NOTE:
The Found New Hardware Wizard will automatically start when the system detects the video capture card (see the image below). Click Cancel to exit the wizard and follow the steps described in this chapter to install the driver and the HDCapture demo program.
Page 23

3.2 Driver Installation

To install the HDC-3x Series driver, please follow the steps below: If the HDC-3x Series
HDC-3x Series Video Capture Card
driver is already installed, please refer to Section
3.2.1 to uninstall the driver first.
NOTE:
If the User Access Control dialog box appears during installation, click Yes to continue.
Step 1: Make sure to log in the system as the administrator.
Step 2: Insert the driver CD.
Step 3: Locate the “Driverinstaller.bat” file in the driver CD. Double click it.
Step 4: A confirmatio n wind ow appears. Click Install.
Page 24
Figure 3-1: Windows Security
Step 5: If the following window appears, click Install this driver software Anyway.
HDC-3x Series Video Capture Card
Figure 3-2: Windows Warning Window
Step 6: The Device Driver Installation Wizard appears. Click Next to start.
Figure 3-3: Device Driver Installation Wizard
Step 7: The driver starts to install a nd the screen in
Figure 3-4 appears.
Page 25
HDC-3x Series Video Capture Card
Figure 3-4: Driver Installing
Step 8: When the driver installation is complete, the screen in
the Finish button to finish driver installation.
Figure 3-5: Driver Installation Complete
Figure 3-5 appears. Click
Page 26
Step 9: Check the device manager in the Windows control panel to ensure the driver
(MB86H55-REB PCI, HDC controller and WinDriver) has been properly inst alled . The installed driver is slightly different on different models. See the details.
Figure 3-6 for
HDC-3x Series Video Capture Card
HDC-301 and HDC-301E
HDC-302E
Page 27
HDC-304E
HDC-3x Series Video Capture Card
Figure 3-6: Device Manager

3.2.1 Driver Installation in 64-bit Windows 7 OS

NOTE:
The HDC-301/301E series does not support Windows 7 64-bit operating system. Please install the HDC-301/301E series in a system with other OS, such as Windows 7 32-bit.
To install the driver in a 64-bit Windows 7 operating system, please do the followings:
Step 1: When the system is booting, press F8 to enter the Advanced Boot Options menu.
Choose “Disable Driver Signature Enforcement” and press Enter.
Page 28
HDC-3x Series Video Capture Card
Figure 3-7: Disable Driver Signature Enforcement
Step 2: Make sure to log in the system as the administrator.
Step 3: Insert the driver CD.
Step 4: Launch the Command Prompt application in Windows 7 as an administrator
(right click the Command Prompt and select “Run as administrator”).
Step 5: In the Command Prompt window , specify the 64-bit driver directory. Then, type
DriverInstaller to install the driver to the system.
Page 29
Figure 3-8: Command Prompt – Driver Installation
HDC-3x Series Video Capture Card
Step 6: Follow Step 5 ~ Step 8 in Section
Windows 7 operating system.
Step 7: Check the device manager in the Windows control panel to ensure the driver
(MB86H55-REB PCI, DEVICE and WinDriver) has been properly installed. See
Figure 3-9 for the details.
3.2 to complete installing the driver to a 64-bit
Page 30
HDC-3x Series Video Capture Card
Figure 3-9: Device Manager – 64-bit OS

3.2.2 Uninstall Driver

To uninstall the driver, please follow the steps below.
Step 1: Make sure to login the system as the administrator.
Step 2: Locate the “Driveruninstaller.bat” file in the driver CD. Double click it to uninstall
the driver.
Step 3: The console window pop-up and all drivers will be uninstalled.
Page 31
HDC-3x Series Video Capture Card

3.3 Software Installation (Windows)

The HDC-3x Series comes with a video capture application – HDCapture. This section describes how to install the application in Windows environment.

3.3.1 System Requirements

The supported OS versions are listed below:
Microsoft Windows XP SP2 32-bit  Microsoft Windows 7 32-bit  Microsoft Windows 7 64-bit (not supported by the HDC-301/301E series)
After installing the driver, the following programs must be installed in order to use the HDCapture demo program:
Microsoft .NET Framework 3.0/3.5/4.0  Microsoft DirectX 9.0c  Win7DSFilterTweaker tool (for Windows 7 OS only)  Visual C++ 2005 & 2008 Redistributable
Please download the setup files of these programs from the official websites and install these programs in the system. For detailed setup procedures for some of the above programs, please refer to Appendix A.
NOTE:
For the 64-bit Windows 7 operating system, the Microsoft .NET Framework 4.0 must be installed.
Page 32
HDC-3x Series Video Capture Card

3.3.2 HDCapture Program Installation

To install the HDCapture demo program, please follow the steps below.
NOTE:
If the User Access Control dialog box appears during installation, click Yes to continue.
Step 1: Insert the driver CD.
Step 2: Locate the HDCapture_x86_Vxxxx.msi file in the driver CD. Double click the
setup file to start the installation. The user can al so download the latest setu p file from IEI website.
Step 3: The HDCapture Setup Wizard welcome window appears. Click Next to start.
Figure 3-10: HDCapture Setup Wizard
Step 4: Select a folder for HDCapture installation in
Figure 3-11. Click Next to continue.
Page 33
HDC-3x Series Video Capture Card
Figure 3-11: Select Installation Folder
Step 5: The following screen appears. Click Next to confirm the installation.
Page 34
Figure 3-12: Confirm Installation
Step 6: The system starts installing the HDCapture.
Step 7: When the HDCapture is successfully installed, the following window appears.
Click Close to exit. Step 0:
HDC-3x Series Video Capture Card
Figure 3-13: Installation Complete
NOTE:
To be able to install the HDCapture Demo Program in a 64-bit Windows 7 operating system, please do the followings:
When the system is booting, press F8 to enter the Advanced Boot
Options menu. Choose “Disable Driver Signature Enforcement” and press Enter.
Login the system as “administrator” and start to install the driver
and application.
Page 35
HDC-3x Series Video Capture Card
Chapter
4
4 HDCapture Application
(Windows)
Page 36
HDC-3x Series Video Capture Card

4.1 HDCapture Overview

The HDCapture application is a video capture tool that allows user to capture video through the HDMI input ports in Windows environment. The HDCapture application also includes decoding function that decodes the video signal for video output to the HDMI-enabled display device.
NOTE:
If there is a problem launching the HDCapture application in a 64-bit Windows 7 operating system, right-click the HDCapture application from the Windows Start menu and select Run as administrator.

4.2 Video Capture

To use the HDCapture to capture video, follow the steps below. If the older version of the HDCapture is already installed, please refer to Section
Step 1: Launch the HDCapture. The Device Setting on the right side panel of the
HDCapture is varied based on the installed video capture card as shown in
Figure 4-1. The best resolution to view HDCapture is 1280 x 1024 or above.
4.5 to uninstall it.
Page 37
HDC-301 and HDC-301E
HDC-3x Series Video Capture Card
HDC-302E
Page 38
HDC-3x Series Video Capture Card
HDC-304E
Figure 4-1: HDCapture
Step 2: Enable and configure the device settings by clicking the Device # (0, 1, 2, 3)
buttons. The device number is decided by which port the device is installed. If the HDC-301 series is installed, there will be only one Device 0 button to choose.
Page 39
Figure 4-2: HDC-302E and HDC-304E Device Ports
HDC-3x Series Video Capture Card
Step 3: Click the Device # button. The Encoding window appears (
the video input format which depends on the video device. The video format selected here must be same with the HDMI input video format. The
available options include:
1920x1080 (60p) (6000kps – 30000kps)  1920x1080 (59.94p) (6000kps – 30000kps)  1920x1080 (50p) (6000kps – 30000kps)  1920x1080 (60i) (6000kps – 24000kps)  1920x1080 (59.94i) (6000kps – 24000kps)  1920x1080 (50i) (6000kps – 24000kps)  1280x720 (60p) (4000kps – 24000kps)  1280x720 (59.94p) (4000kps – 24000kps)  1280x720 (50p) (4000kps – 24000kps)  720x480 (60i) (2000kps – 10000kps)  720x480 (59.94i) (2000kps – 10000kps)  720x576 (50i) (2000kps – 10000kps)
Figure 4-3). Choose
Page 40
Step 4: Configure the encoding settings, including encoding file directory (cl i ck Ref
button to choose the directory), rate control (CBR or VBR) and video encoding
HDC-3x Series Video Capture Card
bitrate (must be in the range of video format). When “CBR” is selected, the “Bitrate” text box is displayed. When “VBR” is selected, the “A verage bitrate” and “Peak bitrate” text boxes are displayed. Close the window to save the settings.
Figure 4-3: Encoding Settings
NOTE:
If the HDC-301/301E series is installed, the version information shown in the encoding/decoding setting window will be N/A (as below).
Page 41
Step 5: Repeat Step 2 ~ Step 4 to configure the con ne cted in put devices if necessary.
HDC-3x Series Video Capture Card
Step 6: Click Start
Click
to start capture the video. Click St op to stop capture.
to reboot the device. Step 0:
Page 42
Figure 4-4: Video Capture Control
HDC-3x Series Video Capture Card

4.3 Video Decoding

The HDCapture also includes decoding function that decodes the video signal for video output to the HDMI-enabled display device. To decode a captured video clip, follow the steps below.
Step 1: Launch the HDCapture.
Step 2: Bring up the Decoding page by clicking one of the Device # buttons. Cli ck the
Decoding tab to access the decoding page.
Step 3: Click Ref button
Step 4: Select the video format of the selected video clip. The video format selected
here must be the same with the video format of the file selected in the previous step.
to locate a video file in the computer to decode.
Figure 4-5: Decoding Settings
Page 43
HDC-3x Series Video Capture Card
Step 5: Close the window to save the settings.
Step 6: This step is only required for the HDC-302E. Select the transmitter bus (2 or 3)
Figure 4-7). For example, when the Device0 button is selected to decode the
( encoded file, please select 2 from the device2 (transmitter bus) drop-down menu to display the video on HDMI display device via video output port. Please refer to the following table:
Device Port Device4 (Transmitter Bus) Setting
Device0 2 Device1 3
Figure 4-6: Select Transmitter Bus for HDC-302E
Step 7: This step is only required for the HDC-304E. Select the transmitter bus from 4
Figure 4-7). For example, when the Device0 button is selected to decode
to 7 ( the encoded file, please select 4 from the device4 (transmitter bus) drop-down menu to display the video on HDMI display device by output kit. Please refer to the following table:
Device Port Device4 (Transmitter Bus) Setting
Device0 4 Device1 5 Device2 6 Device3 7
Page 44
HDC-3x Series Video Capture Card
Figure 4-7: Select Transmitter Bus for HDC-304E
Step 8: Click Operation Start

4.4 Video Bypass

To view the video input source on HDMI display device in real time, please follow the steps below.
Step 1: Launch the HDCapture.
Step 2: Connect the HDMI cable from HDMI display device to the HDMI output port or
the HDMI output kit (HDC-304E).
Step 3: Connect the video input source to the HDMI input port of the HDC-3x Series.
Step 4: This step is only required for the HDC-302E. Select the transmitter bus (0 or 1)
Figure 4-9). For example, to view the video input source 1 on HDMI display
( device, select the transmitter bus 0. Please refer to the following table:
Video Input Source Transmitter Bus
to start decoding the selected video. Step 0:
Source 1 0 Source 2 1
Page 45
HDC-3x Series Video Capture Card
Figure 4-8: Select Transmitter Device for HDC-302E
Step 5: This step is only required for the HDC-304E. Select the transmitter bus from 0
Figure 4-9). For example, to view the video input source 1 on HDMI display
to 3 ( device, select the transmitter bus 0. Please refer to the following table:
Video Input Source Transmitter Bus
Source 1 0 Source 2 1 Source 3 2 Source 4 3
Page 46
Figure 4-9: Select Transmitter Device for HDC-304E
HDC-3x Series Video Capture Card
NOTE:
For the HDC-304E users:
The video input source 1 is set to default for video bypass. Thus, when turn on the computer, video bypass will be enabled and the video from video input 1 will show on the HDMI display, if
1. the HDMI output kit from the HDC-3x Series is connecting to HDMI display, and
2. the video input source is connecting to the video input 1 connector of the HDC-3x Series.

4.5 Uninstall HDCapture

To uninstall the HDCapture, follow the steps below.
Step 1: Select Control Panel Æ Programs Æ Programs and Features.
Step 2: Select HDCapture and click the Uninstall button.
Figure 4-10: Uninstall HDCapture
Page 47
Step 3: A confirmatio n wind ow appears. Click Yes to uninstall the HDCapture.
Figure 4-11: Uninstall HDCapture Confirmation Window
HDC-3x Series Video Capture Card
Page 48
HDC-3x Series Video Capture Card

4.6 FAQ

Q: One device of the HDC-304E appears exclamation mark in Windows Device Manager.
An error code generated by Windows Device Manager: This device cannot find enough free resources that it can use. If you want to use this device, you will need to disable one of the other devices on this system.
A: This error message will appear if the BIOS did not allocate enough resources to the device. The HDC-304E is compliant to the PCI Express Base Specification. What resource the HDC-304E requires and how these resources are assigned by the motherboard BIOS. Few motherboard BIOS could not assign proper resource allocation for HDC-304E proper operation.
Q: The input source video format is 60Hz and the HDCapture software video format setting is also 60Hz. But the video and sound are not synchronized.
A: Please change the video format of HDCapture software to 59.94P to capture the video.
Q: Capture card, driver, application and input source are all ready, but the video image is
not displayed or displayed incorrectly.
A: A correct video codec is needed to display the H.264 video image. For example, ffdshow codec.
Q: The error message window appears from time to time.
A: The OS status, audio codec and input devices may all be the reasons to trigger DMA
errors.
Page 49
Q: How to know the current DirectX version used on the system?
A: In Windows, Start Æ Run Æ Type ‘dxdiag’ Æ Enter. Then you can find the current
version in DirectX Diagnostic Tool window.
Q: How to obtain the latest driver?
HDC-3x Series Video Capture Card
Step 4: A: Please go to
latest driver from “Support” pages.
http://www.ieiworld.com/. You can always find and download the
Page 50
HDC-3x Series Video Capture Card
Appendix
A
A Hazardous Materials
Disclosure
Page 51
HDC-3x Series Video Capture Card

A.1 Hazardous Material Disclosure Table for IPB Products Certified as RoHS Compliant Under 2002/95/EC Without Mercury

The details provided in this appendix are to ensure that the product is compliant with the Peoples Republic of China (China) RoHS standards. The table below acknowledges the presences of small quantities of certain materials in the product, and is appli cable to China RoHS only.
A label will be placed on each product to indicate the estimated “Environmentally Friendly Use Period” (EFUP). This is an estimate of the number of years that these substances would “not leak out or undergo abrupt change.” This product may contain replaceable sub-assemblies/components which have a shorter EFUP such as batteries and lamps. These components will be separately marked.
Please refer to the table on the next page.
Page 52
HDC-3x Series Video Capture Card
Toxic or Hazardous Substances and Elements Part Name Lead (Pb)
Housing
X
Display X Printed Circuit
X
Mercury (Hg)
Cadmium (Cd)
Hexavalent Chromium (CR(VI))
Polybrominated Biphenyls (PBB)
O O O O O O O O O O O O
Polybrominated Diphenyl Ethers (PBDE)
X
X
X Board Metal
X
O O O O
O Fasteners Cable
X
O O O O
X Assembly Fan Assembly X Power Supply
X
O O O O O O O O
X
X Assemblies Battery O
O O O O O
O: This toxic or hazardous substance is contained in all of the homogeneous materials for the p art is below the limit requirement in SJ/T11363-2006
X: This toxic or hazardous substance is contained in at least one of the homogeneo us materials for this part is above the limit requirement in SJ/T11363-2006
Page 53
HDC-3x Series Video Capture Card
此附件旨在确保本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符 合中国 RoHS 标准规定的限量要求。
本产品上会附有环境友好使用期限的标签,此期限是估算这些物质不会有泄漏或突变”的
年限。本产品可能包含有较短的环境友好使用期限的可替换元件,像是电池或灯管,这些
元件将会单独标示出来。
部件名称
壳体
显示
印刷电路板
金属螺帽
电缆组装
风扇组装
电力供应组装
电池
表示该有毒有害物质在该部件所有物质材料中的含量均在
O:
表示该有毒有害物质至少在该部件的某一均质材料中的含量超出
X:
有毒有害物质或元素
(Pb)
X
X X X X X X O
(Hg)
O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O
(Cd)
六价铬
(CR(VI))
SJ/T11363-2006
SJ/T11363-2006
多溴联苯
(PBB)
多溴二苯醚
(PBDE)
X
X X O X X X
标准规定的限量要求以下。
标准规定的限量要求。
Page 54
Loading...
