A
HDB-301L Video/Audio Capture Box
MODEL:
HDB-301L
USB 2.0 Video
One HDMI Input Channel and One HDMI Output Channel,
1920x1080@30p, H.264 Hardware Encoder
User Manual
udio Capture Box with
Rev. 1.02 – June 23, 2017
Page i
HDB-301L Video/Audio Capture Box
Revision
Date Version Changes
June 23, 2017 1.02 Updated IEI HD Capture application
June 2, 2017 1.01 Updated product pictures, specifications and chapter 3
August 5, 2015 1.00 Initial release
Page ii
HDB-301L Video/Audio Capture Box
COPYRIGHT NOTICE
The information in this document is subject to change without prior notice in order to
improve reliability, design and function and does not represent a commitment on the part
of the manufacturer.
In no event will the manufacturer be liable for direct, indirect, special, incidental, or
consequential damages arising out of the use or inability to use the product or
documentation, even if advised of the possibility of such damages.
This document contains proprietary information protected by copyright. All rights are
Copyright
reserved. No part of this manual may be reproduced by any mechanical, electronic, or
other means in any form without prior written permission of the manufacturer.
TRADEMARKS
All registered trademarks and product names mentioned herein are used for identification
purposes only and may be trademarks and/or registered trademarks of their respective
owners.
Page iii
HDB-301L Video/Audio Capture Box
Manual Conventions
WARNING
Warnings appear where overlooked details may cause damage to the
equipment or result in personal injury. Warnings should be taken
seriously.
CAUTION
Cautionary messages should be heeded to help reduce the chance of
losing data or damaging the product.
NOTE
These messages inform the reader of essential but non-critical
information. These messages should be read carefully as any directions
or instructions contained therein can help avoid making mistakes.
HOT SURFACE
This symbol indicates a hot surface that should not be touched without
taking care.
Page iv
HDB-301L Video/Audio Capture Box
Table of Contents
1 INTRODUCTION.......................................................................................................... 1
1.1 OVERVIEW.................................................................................................................. 2
1.2 FEATURES................................................................................................................... 3
1.3 APPLICATIONS ............................................................................................................ 3
1.4 CONNECTOR OVERVIEW............................................................................................. 4
1.5 SPECIFICATIONS ......................................................................................................... 5
1.6 DIMENSIONS............................................................................................................... 7
2 HARDWARE INSTALLATION................................................................................... 8
2.1 UNPACKING................................................................................................................ 9
2.1.1 Anti-static Precautions....................................................................................... 9
2.1.2 Unpacking Precautions...................................................................................... 9
2.1.3 Unpacking Checklist........................................................................................ 10
2.2 INSTALLATION PRECAUTIONS....................................................................................11
2.3 CONNECTING TO A COMPUTER ..................................................................................11
2.4 HDMI DEVICES INSTALLATION................................................................................ 12
3 I E I H D C A P T U R E ( W I N D O WS ) ..................................................................................13
3.1 SOFTWARE INSTALLATION (WINDOWS).................................................................... 14
3.1.1 System Requirements........................................................................................ 14
3.1.2 IEI HD Capture Installation............................................................................ 14
3.2 USING IEI HD CAPTURE APPLICATION..................................................................... 21
3.2.1 IEI HD Capture Interface Overview................................................................ 21
3.2.2 Capture Video................................................................................................... 22
3.2.3 Play Video ........................................................................................................ 23
3.2.4 Assign Keyboard Shortcut................................................................................ 24
3.2.5 Schedule Recording.......................................................................................... 25
4 FAQ ............................................................................................................................... 27
A REGULATORY COMPLIANCE.............................................................................. 29
B HAZARDOUS MATERIALS DISCLOSURE ......................................................... 31
Page v
HDB-301L Video/Audio Capture Box
List of Figures
Figure 1-1: HDB-301L Video/Audio Capture Box ........................................................................2
Figure 1-2: HDB-301L Connector Overview.................................................................................4
Figure 1-3: HDB-301L Dimensions (mm)......................................................................................7
Figure 2-1: Connecting the Video/Audio Capture Box to a Computer....................................11
Figure 2-2: Connecting HDMI Devices to the Video/Audio Capture Box................................12
Figure 3-1: IEI_HDCapture_AP Setup Wizard Welcome Window ............................................15
Figure 3-2: Select Installation Folder..........................................................................................15
Figure 3-3: Confirm Installation ..................................................................................................16
Figure 3-4: Installing IEI HD Capture..........................................................................................16
Figure 3-5: USB to PCIe Driver Installation Wizard...................................................................17
Figure 3-6: Confirm USB to PCIe Driver Installation.................................................................18
Figure 3-7: USB to PCIe Driver Installation Complete..............................................................18
Figure 3-8: Device Driver Installation Wizard Welcome Window ............................................19
Figure 3-9: Window Security .......................................................................................................19
Figure 3-10: Device Driver Installation Complete......................................................................20
Figure 3-11: IEI HD Capture.........................................................................................................21
Figure 3-12: Playing the Video....................................................................................................23

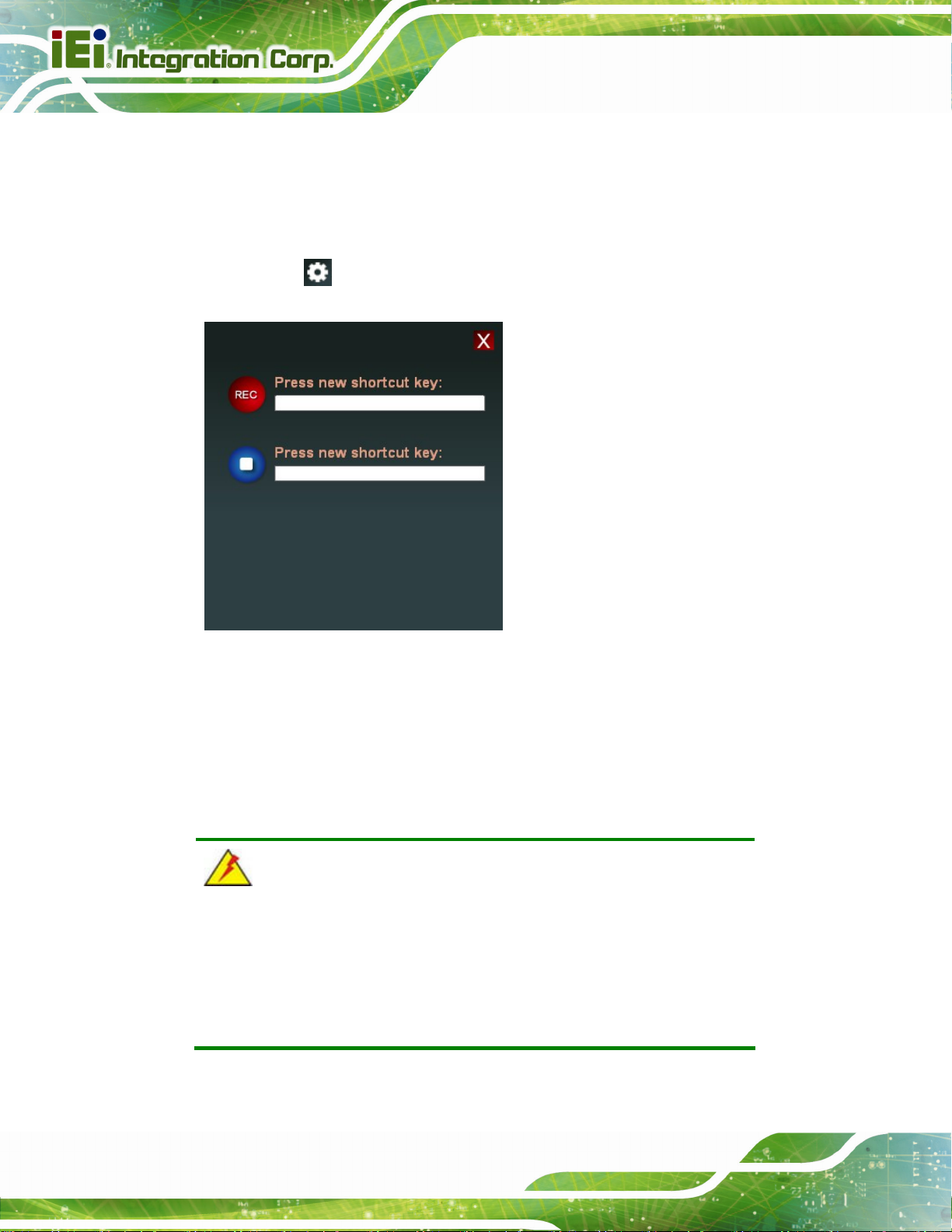

Figure 3-13: Keyboard Shortcut Setup Window........................................................................24
Figure 3-14: Recording Schedule Screen ..................................................................................25
Figure 3-15: Schedule Setting Window......................................................................................26
Page vi
HDB-301L Video/Audio Capture Box
List of Tables
Table 1-1: Specifications ...............................................................................................................6
Table 2-1: Package List Contents...............................................................................................10
Page vii
HDB-301L Video/Audio Capture Box
1 Introduction
Chapter
1
Page 1
1.1 Overview
Figure 1-1: HDB-301L Video/Audio Capture Box
HDB-301L Video/Audio Capture Box
The HDB-301L USB 2.0 video/audio capture box supports 1080p Full HD video via HDMI
connection. The HDB-301L video/audio capture box is equipped with the high-performing
codec component with one HDMI input channel and one HDMI output channel.
A software development kit (SDK) is available and the flexible system architecture
simplifies the integration of cameras, video signal processing, storage and video
management and or security applications.
Page 2
HDB-301L Video/Audio Capture Box
1.2 Features
Some of the HDB-301L video/audio capture box features are listed below.
Encoding up to 1920x1080@30p
HDMI input channel with 1920x1080@60p
Pass through for transmitting uncompressed video up to 1080p resolution
Capture or record HD video in H.264 format
Reduce the amount of hard disk space needed by real-time H.264 recording
compression capability
Low power consumption
Software development kit (SDK)
1.3 Applications
The HDB-301L can connect to the following devices:
Game consoles (PS4, Xbox One, Xbox 360)
DVD / Blue-ray player
Camcorder
Industrial video recording devices (marine, in-vehicle, factory or healthcare)
Some possible applications include:
Video surveillance
Video analyzer
Video post production
Page 3
1.4 Connector Overview
The connector overview of the HDB-301L is shown in Figure 1-2.
HDB-301L Video/Audio Capture Box
Page 4

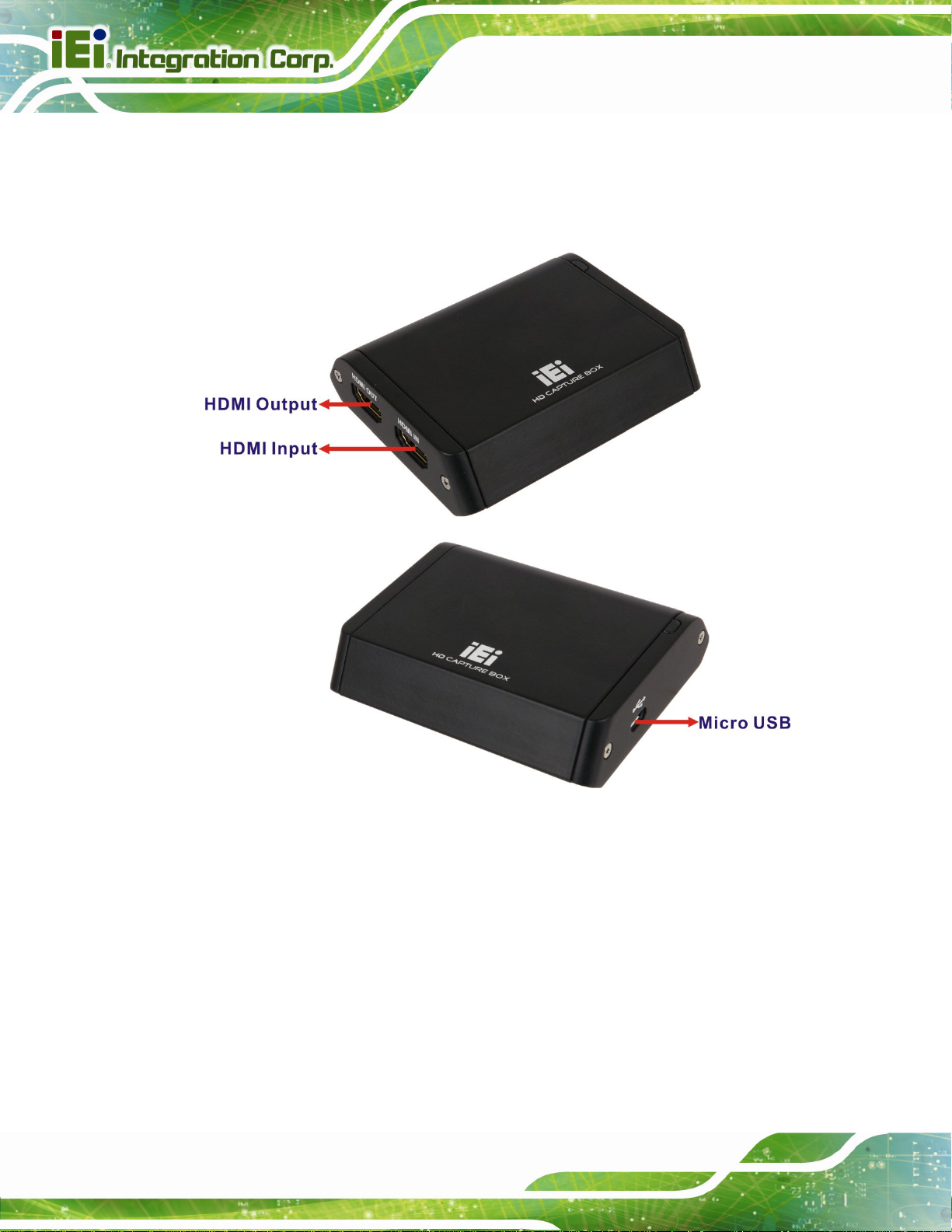

Figure 1-2: HDB-301L Connector Overview
HDB-301L Video/Audio Capture Box
1.5 Specifications
The HDB-301L specifications are listed in the table below:
PC Interface
INPUT PORT
Video Input Channel
Video Input Type
Audio Input Channel
Audio Input Type
LOOP-THROUGH OUTPUT PORT
Video Output Channel
Video Output Type
Audio Output Channel
Audio Output Type
VIDEO PROCESSING
HDB-301L
USB 2.0
One
HDMI
One
HDMI (stereo)
One
HDMI
One
HDMI (stereo)
Video Engine
Bit Rate
Video Input Resolution
H.264/AVC High Profile Level 4.1
Up to 30 Mbps
1920x1080 24p/25p/30p/50p/60p
1920x1080 60i/59.94i/50i
1280x1024 30p
1280x800 60p
1280x768 60p
1280x720 50p/60p
1024x768 60p
800x600 60p
720x576 50p
720x480 60p
640x480 60p
Page 5
1920x1080 24p/25p/30p
1280x1024 30p
1280x800 60p
1280x768 60p
Video Capture
Resolution (Encoding)
AUDIO PROCESSING
1280x720 50p/60p
1024x768 60p
800x600 60p
720x576 50p
720x480 60p
640x480 60p
HDB-301L Video/Audio Capture Box
Sampling Frequencies
Audio Format
Bit Rate
FUNCTIONALITY
Multiple Card Support
Scaling
SYSTEM REQUIREMENTS
System
Memory
OS Environment
44.1 k, 48 kHz
MPEG-4 AAC
128 kbps
4 boxes, 4 channels
Video scaling down compression
2.4 GHz Intel® Core™2 Duo CPU or above
2 GB or more
Windows:
Microsoft® Windows® 7/8.1/10 32-bit/64-bit
Microsoft® DirectX 10.0c (32-bit)
Linux:
Ubuntu 16.04 (64-bit) (kernel version 4.4.0-21-generic)
Page 6
SDK
OTHERS
Dimensions
Operating Temperature
Power Consumption
Table 1-1: Specifications
Provides SDK and demo program with sample source code
89 mm x 74.83 mm x 21.6 mm
0ºC ~ 60ºC (32ºF ~ 140ºF), non-condensing
4.5 W
HDB-301L Video/Audio Capture Box
1.6 Dimensions
The dimensions for the HDB-301L are listed below.
Figure 1-3: HDB-301L Dimensions (mm)
Page 7
HDB-301L Video/Audio Capture Box
Chapter
2
2 Hardware Installation
Page 8
HDB-301L Video/Audio Capture Box
2.1 Unpacking
2.1.1 Anti-static Precautions
WARNING:
Failure to take ESD precautions during the installation of the HDB-301L
may result in permanent damage to the capture box and severe injury
to the user.
Electrostatic discharge (ESD) can cause serious damage to electronic components,
including the video/audio capture box. Dry climates are especially susceptible to ESD. It is
therefore critical that whenever the video/audio capture box, or any other electrical
component is handled, the following anti-static precautions are strictly adhered to.
Wear an anti-static wristband: Wearing a simple an ti-static wristband can
help to prevent ESD from damaging the board.
Self-grounding: Before handling the board, touch any grounded conducting
material. During the time the board is handled, frequently touch any
conducting materials that are connected to the ground.
Use an anti-static pad: When configuring the video/audio capture box, place
it on an anti-static pad. This reduces the possibility of ESD damaging the
video/audio capture box.
Only handle the edges of the PCB: When handling the PCB, hold the PCB
by the edges.
2.1.2 Unpacking Precautions
When the video/audio capture box is unpacked, please do the following:
Follow the anti-static precautions outlined in Section
Make sure the packing box is facing upwards so the video/audio capture box
does not fall out of the box.
2.1.1.
Make sure all the components listed in Section
2.1.3 are present.
Page 9
2.1.3 Unpacking Checklist
NOTE:
If some of the components listed in the checklist below are missing,
please do not proceed with the installation. Contact the IEI reseller or
vendor you purchased the HDB-301L from or contact an IEI sales
representative directly. To contact an IEI sales representative, please
HDB-301L Video/Audio Capture Box
send an email to
The video/audio capture box is shipped with the following components:
Quantity Item Image
1 HDB-301L video/audio capture box
1 USB cable
1
Quick installation guide
sales@ieiworld.com.
Page 10
Table 2-1: Package List Contents
HDB-301L Video/Audio Capture Box
2.2 Installation Precautions
During installation, be aware of the precautions below:
Read the user manual: The user manual provides a complete description of
the HDB-301L, installation instructions and configuration options.
DANGER! Disconnect Power: Power to the HDB-301L must be
disconnected during the installation process. Failing to disconnect the power
may cause severe injury to the body and/or damage to the system.
Qualified Personnel: The HDB-301L must be installed and operated only by
trained and qualified personnel. Maintenance, upgrades, or repairs may only be
carried out by qualified personnel who are familiar with the associated dangers.
2.3 Connecting to a Computer
The HDB-301L is equipped with a Micro USB connector that allows connection to a
computer. Follow the steps below to connect the HDB-301L to a computer by using the
supplied USB cable.
Step 1: Locate the Micro USB connector . The location of the Micro USB connector is
shown in
Step 2: Align the Micro USB connector on the USB cable with the Micro USB connector
on the HDB-301L.
Step 3: Once aligned, gently insert the USB cable Micro USB connector into the Micro
USB connector on the HDB-301L.
Step 4: Connect the other end (USB Standard Type A) of the USB cable to the USB
Type A receptacle of a computer. Step 0:
Figure 2-1.
Figure 2-1: Connecting the Video/Audio Capture Box to a Computer
Page 11
2.4 HDMI Devices Installation
Various HDMI devices can be connected to the HDB-301L, such as the gamin g console
(PS4, Xbox One, Xbox 360) and camcorder. Follow the steps below to connect the HDMI
devices to the HDB-301L.
Step 1: Use an HDMI cable to connect the HDMI device to the HDMI input connector on
the HDB-301L.
Step 2: Use another HDMI cable to connect the HDMI output connector on the
HDB-301L to the HDMI socket of a monit or/TV. Step 0:
HDB-301L Video/Audio Capture Box
Page 12
Figure 2-2: Connecting HDMI Devices to the Video/Audio Capture Box
HDB-301L Video/Audio Capture Box
Chapter
3
3 IEI HD Capture (Windows)
Page 13
HDB-301L Video/Audio Capture Box
3.1 Software Installation (Windows)
The HDB-301L comes with a video capture application – IEI HD Capture. This section
describes how to install the application in Windows environment.
3.1.1 System Requirements
The supported OS versions are listed below:
Microsoft Windows 7, 32-bit/64-bit
Microsoft Windows 8.1, 32-bit/64-bit
Microsoft Windows 10, 32-bit/64-bit
3.1.2 IEI HD Capture Installation
To install the IEI HD Capture, please follow the steps below:
NOTE:
If the User Account Control dialog box appears during installation,
click Yes to continue.
Step 1: Go to IEI website (http://www.ieiworld.com). Click Products Æ Capture Box.
Enter the HDB-301L page by clicking th e product photo.
Step 2: Click the Download button on the product page. Find and download the latest
IEI HD Capture installer: IEI_HDCapture_V1xxAD_xxxxxx.exe (where x is
version and date characters).
Step 3: Run the IEI HD Capture installer which will install IEI HD Capture application, the
USB to PCIe driver and the device driver.
Step 4: The IEI_HDCapture_AP Setup Wizard appears. Click Next to continue.
Page 14
HDB-301L Video/Audio Capture Box
Figure 3-1: IEI_HDCapture_AP Setup Wizard Welcome Window
Step 5: Select a folder for IEI HD Capture installation as shown in
Click Next to continue.
Figure 3-2: Select Installation Folder
Figure 3-2.
Page 15
Step 6: The following screen appears. Click Install to confirm the installation.
HDB-301L Video/Audio Capture Box
Figure 3-3: Confirm Installation
Step 7: The system starts installing the IEI HD Capture.
Page 16
Figure 3-4: Installing IEI HD Capture
HDB-301L Video/Audio Capture Box
Step 8: When the IEI HD Capture installation is complete, the following window appears
to guide you to install the USB to PCIe driver. Click Next to continue.
Figure 3-5: USB to PCIe Driver Installation Wizard
CAUTION:
1. IEI HDC-301MS, HDC-301EL and HDB-301L capture devices use
this same installer for software and driver installation. Therefore, the
USB to PCIe driver which is needed by the HDC-301EL is also
included in the installer package.
2. The program may uninstall your previous installation of Etron USB to
PCIe driver during the process. If this happens, run the installer again
to re-install the USB to PCIe driver.
Page 17
Step 9: The following screen appears. Click Install to confirm the installation.
HDB-301L Video/Audio Capture Box
Figure 3-6: Confirm USB to PCIe Driver Installation
Step 10: When the USB to PCIe driver installation is complete, click the Finish button to
finish the USB to PCIe driver installation.
Figure 3-7: USB to PCIe Driver Installation Complete
Page 18
HDB-301L Video/Audio Capture Box
Step 11: When the USB to PCIe driver is complete, the following window appears to
guide you to install the device driver. Click Next to start installing the driver.
Figure 3-8: Device Driver Installation Wizard Welcome Window
Step 12: If the following window appears before installation, click Install to continue.
Figure 3-9: Window Security
Page 19
Step 13: The following window appears. Click Finish to exit. Step 0:
HDB-301L Video/Audio Capture Box
Figure 3-10: Device Driver Installation Complete
Page 20
HDB-301L Video/Audio Capture Box
3.2 Using IEI HD Capture Application
This section describes how to use IEI HD Capture in Windows environment.
3.2.1 IEI HD Capture Interface Overview
Figure 3-11: IEI HD Capture
①
②
③
④
⑤
⑥
⑦
⑧
⑨
⑩
⑪
⑫
Device: the IEI capture box installed in the computer for capturing video
Video Input: displays the video input resolution from the HDMI device
Device Audio: adjusts the volume amount for encoding.
Recording Resolution: the selected recording resolution
Recording Quality: the recording quality of the selected recording resolution
Keyboard shortcut setup
Software interface language
Schedule recording to automatically start/stop recording at a specific time
File Path: the directory to save the encoded video file
Recorded: displays the elapsed time of the recording
Record/Stop button
Click to locate and play a video recorded previously
Page 21
3.2.2 Capture Video
To use the IEI HD Capture to capture video, follow the steps below.
HDB-301L Video/Audio Capture Box
Step 1: Launch the IEI HD Capture by double-clicking the
desktop.
Step 2: The IEI HD Capture user interface appears (See
instructions described below to make necessary configuration settings.
① Device: Select the model name of the capture box installed in the
computer.
③ Device Audio: Adjust the volume amount for encoding.
Click
to mute audio.
④ Recording Resolution: Select a recording resolution. The available
recording resolution may vary upon the video input resolution from the
HDMI device.
⑤ Recording Quality: Drag to set the recording quality of the selected
recording resolution.
Step 3: Click
button (Figure 3-11 ⑨) to specify a location to save the encoded
icon on the
Figure 3-11). Follow the
Page 22
video file. The Open Folder window appears. Specify a location to save the
encoded video file.
Step 4: To start capturing the video, click the REC button (
Capture starts displaying the elapsed time of the recording (
Step 5: To stop capturing the video, click
button on the IEI HD Capture. Step 0:
WARNING:
Do not use IEI HDB-301L to record HDCP- or copyright-protected
content. Unauthorized use of screenshots or videos may infringe the
rights of the copyright owner and violate the law.
Figure 3-11 ⑪). IEI HD
Figure 3-11 ⑩).
HDB-301L Video/Audio Capture Box
3.2.3 Play Video
To use the IEI HD Capture to play the video recorded previously, follow the steps below.
Step 1: Click
Step 2: The selected video shows on the screen and starts to play. Step 0:
button (Figure 3-11 ⑫) to specify a video recorded previously.
Figure 3-12: Playing the Video
Page 23
3.2.4 Assign Keyboard Shortcut
The user can assign a keyboard shortcut for the REC button to start recording or stop
recording in HD Capture. To assign keyboard shortcuts, following the steps below.
HDB-301L Video/Audio Capture Box
Step 1: Click
Figure 3-13: Keyboard Shortcut Setup Window
Step 2: Click on the empty field and press the combination of keys that you want to
button (Figure 3-11 ⑥). The following window appears.
Page 24
assign.
Step 3: Close the window to save the settings. Step 0:
WARNING:
Do not assign the keyboard shortcuts defined in Windows system
(such as Ctrl+C or Ctrl+V) to IEI HD Capture application. Otherwise, it
will cause conflict and make the Windows shortcuts stop working while
running IEI HD Capture.
HDB-301L Video/Audio Capture Box
3.2.5 Schedule Recording
IEI HD Capture allows users to schedule recording. Users can specify the time for the
recording to start and stop, and IEI HD Capture will start automatically at the specified
time to perform the recording and stop automatically. To use the IEI HD Capture to
schedule recording, follow the steps below.
Step 1: Click the recording schedule tab (
appears.
Figure 3-11 ⑧), and the following screen
Figure 3-14: Recording Schedule Screen
Step 2: Click the New button to schedule a new recording. The following sch edule
setting window appears.
NOTE:
To modify or delete a scheduled recording, select the schedule in the
list and click the Edit button to modify the settings or click the Delete
button to delete the schedule.
Page 25
Figure 3-15: Schedule Setting Window
Step 3: To perform the scheduled recoding for one time, select Once and specify the
HDB-301L Video/Audio Capture Box
date on the left side of the window.
To perform the scheduled recoding daily or weekly for the specified duration,
select Daily or Weekly.
Step 4: Specify the start time and the stop time on the right side of the window.
Step 5: Specify the name of the schedule. Click OK to save the settings and exit.
NOTE:
An alert message will prompt when the hard disk space is less than
30 GB; another alert will prompt when the disk space is less than
500 MB.
The bitrate of the scheduled recording is corresponding to the bitrate
set in the recording quality (
The maximum number of scheduled tasks is 336.
Figure 3-11 ⑤).
Page 26
HDB-301L Video/Audio Capture Box
Chapter
4
4 FAQ
Page 27
HDB-301L Video/Audio Capture Box
How to play the recorded video of HDB-301L?
Q:
Please use a media player that supports H.264 format, such as VLC. If your media
A:
player doesn't support H.264 format, please install H.264 code c to decode the video, for
example, ffdshow.
How to know the current DirectX version used on the system?
Q:
In Windows, start Run and type ‘dxdiag’, then press Enter. You can find the current
A:
version in DirectX Diagnostic Tool window.
How to obtain the latest drivers?
Q:
The drivers are included in the IEI HD Capture software. To obtain the latest drivers,
A:
please go to IEI website:
http://www.ieiworld.com/. Cli ck Products → Capture Box →
HDB-301L → Download, and then find and download the latest IEI HD Capture
software.
How to obtain the latest SDK and sample code?
Q:
The sample code is included in the SDK. To obtain the latest SDK and sample code,
A:
please go to IEI website:
HDB-301L → Download, and then find and download the latest SDK and sample
code.
http://www.ieiworld.com/. Cli ck Products → Capture Box →
Page 28
HDB-301L Video/Audio Capture Box
Appendix
A
A Regulatory Compliance
Page 29
HDB-301L Video/Audio Capture Box
DECLARATION OF CONFORMITY
This equipment has been tested and found to comply with sp ecifications for CE marking.
If the user modifies and/or installs other devices in the equipment, the CE conformity
declaration may no longer apply.
FCC WARNING
This equipment complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
This device may not cause harmful interference, and
This device must accept any interference received, including interference
that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.
Page 30
HDB-301L Video/Audio Capture Box
B Hazardous Materials
Appendix
B
Disclosure
Page 31
HDB-301L Video/Audio Capture Box
The details provided in this appendix are to ensure that the product is compliant with the
Peoples Republic of China (China) RoHS standards. The table below acknowledges the
presences of small quantities of certain materials in the product, and is appli cable to China
RoHS only.
A label will be placed on each product to indicate the estimated “Environmentally Friendly
Use Period” (EFUP). This is an estimate of the number of years that these substances
would “not leak out or undergo abrupt change.” This product may contain replaceable
sub-assemblies/components which have a shorter EFUP such as batteries and lamps.
These components will be separately marked.
Please refer to below table.
Toxic or Hazardous Substances and Elements Part Name
Housing
Display
Printed Circuit
Lead
(Pb)
O O O O O O
O O O O O O
O O O O O O
Mercury
(Hg)
Cadmium
(Cd)
Hexavalent
Chromium
(CR(VI))
Polybrominated
Biphenyls
(PBB)
Polybrominated
Diphenyl Ethers
(PBDE)
Board
Metal
O O O O O O
Fasteners
Cable
O O O O O O
Assembly
Fan Assembly
Power Supply
O O O O O O
O O O O O O
Assemblies
Battery
O O O O O O
O: This toxic or hazardous substance is containe d in all of the homogeneous m aterials for the p art is below
the limit requirement in SJ/T 11363-2006 (now replaced by GB/T 26572-2011)
X: This toxic or hazardous substance is contained in at least one of the homogene ous materials for this
part is above the limit requirement in SJ/T 11363-2006 (now replaced by GB/T 26572-2011)
Page 32
HDB-301L Video/Audio Capture Box
此附件旨在确保本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符
合中国 RoHS 标准规定的限量要求。
本产品上会附有”环境友好使用期限”的标签，此期限是估算这些物质”不会有泄漏或突变”的
年限。本产品可能包含有较短的环境友好使用期限的可替换元件，像是电池或灯管，这些
元件将会单独标示出来。
部件名称
壳体
显示
印刷电路板
金属螺帽
电缆组装
风扇组装
电力供应组装
电池
表示该有毒有害物质在该部件所有物质材料中的含量均在
O:
标准规定的限量要求以下。
表示该有毒有害物质至少在该部件的某一均质材料中的含量超出
X:
26572-2011
取代) 标准规定的限量要求。
有毒有害物质或元素
铅
(Pb)
汞
(Hg)
镉
(Cd)
O O O O O O
O O O O O O
O O O O O O
O O O O O O
O O O O O O
O O O O O O
O O O O O O
O O O O O O
六价铬
(CR(VI))
SJ/T 11363-2006 (
SJ/T 11363-2006 (
多溴联苯
(PBB)
现由
GB/T 26572-2011
现由
多溴二苯醚
(PBDE)
GB/T
取代
)
Page 33
Loading...
