IEI Technology Enano-8523T User Manual

Download

Enano-8523T Motherboard

0-1

REVISION HISTORY

Title

Enano-8523T 800MHz Celeron M Board

Revision Number Description Date of Issue

1.0 Initial release MAY 2006

The information in this document is subject to change without prior notice in order to

improve reliability, design and function and does not represent a commitment on the part of

the manufacturer.

In no event is the manufacturer liable for direct, indirect, special, incidental, or

consequential damages arising out of the use or inability to use the product or

documentation, even if advised of the possibility of such damages.

This document contains proprietary information protected by copyright. All rights are

reserved. No part of this manual may be reproduced by any mechanical, electronic, or

other means in any form without prior written permission of the manufacturer.

TRADEMARKS

IBM PC is a registered trademark of International Business Machines Corporation. INTEL

is a registered trademark of INTEL Corporation. AMI is registered trademarks of American

Megatrends Inc. Other product names mentioned herein are used for identification

purposes only and may be trademarks and/or registered trademarks of their respective

owners.

0-2

IEI

Technology, Corp.

Enano-8523T Motherboard

Table of Contents

1 INTRODUCTION................................................................................................... 13

1.1 ENANO-8523T BOARD OVERVIEW..................................................................... 14

1.1.1 Enano-8523T Board Variations ....................................................................... 14

1.1.2 Enano-8523T Board Applications.................................................................... 14

1.1.3 Enano-8523T Board Benefits........................................................................... 14

1.1.4 Enano-8523T Board Features.......................................................................... 15

1.2 E

1.2.1 Enano-8523T Board Connectors ..................................................................... 17

1.2.2 Technical Specifications................................................................................... 18

2 DETAILED SPECIFICATIONS ........................................................................... 21

2.1 CPU S

2.2 ONBOARD CHIPSETS .......................................................................................... 22

2.2.1 Northbridge and Southbridge Chipsets ........................................................... 22

2.2.2 Intel® 852GM Northbridge Chipset................................................................ 22

2.2.3 Intel® ICH4 Southbridge Chipset.................................................................... 23

2.3 DATA FLOW........................................................................................................ 24

2.4 GRAPHICS SUPPORT ........................................................................................... 25

2.5 MEMORY SUPPORT............................................................................................. 26

2.6 TPM SUPPORT ................................................................................................... 26

2.7 PCI B

2.8 10/100 BASE-T INTERNET ................................................................................. 28

2.9 IDE DEVICE SUPPORT........................................................................................ 28

NANO-8523T BOARD OVERVIEW..................................................................... 16

UPPORT.................................................................................................... 22

US INTERFACE SUPPORT ........................................................................... 27

2.10 REAL TIME CLOCK............................................................................................. 28

2.11 SYSTEM MONITORING........................................................................................ 28

2.12 USB INTERFACES............................................................................................... 29

2.13 BIOS ................................................................................................................. 29

2.14 OPERATING TEMPERATURE AND TEMPERATURE CONTROL ................................. 29

2.15 AUDIO CODEC.................................................................................................... 30

2.16 P

2.17 PACKAGED CONTENTS AND OPTIONAL ACCESSORY ITEMS................................. 31

2.17.1 Package Contents........................................................................................... 31

OWER CONSUMPTION....................................................................................... 31

0-3

3 CONNECTORS AND JUMPERS ......................................................................... 33

3.1 PERIPHERAL INTERFACE CONNECTORS .............................................................. 34

3.1.1 Enano-8523T Board Layout............................................................................. 34

3.1.2 Peripheral Interface Connectors ..................................................................... 35

3.1.3 Rear Panel Connectors .................................................................................... 36

3.1.4 Onboard Jumpers............................................................................................. 36

3.2 INTERNAL PERIPHERAL CONNECTORS ................................................................ 37

3.2.1 IDE Connector ................................................................................................. 37

3.2.2 DIO Connector................................................................................................. 38

3.2.3 Battery Connector............................................................................................ 39

3.2.4 Front Panel Connector .................................................................................... 40

3.2.5 USB Connector ................................................................................................ 41

3.2.6 Fan Connector ................................................................................................. 42

3.2.7 ATX Power Connector ..................................................................................... 43

3.2.8 Power Connector ............................................................................................. 44

3.2.9 Keyboard/Mouse Connector ............................................................................ 45

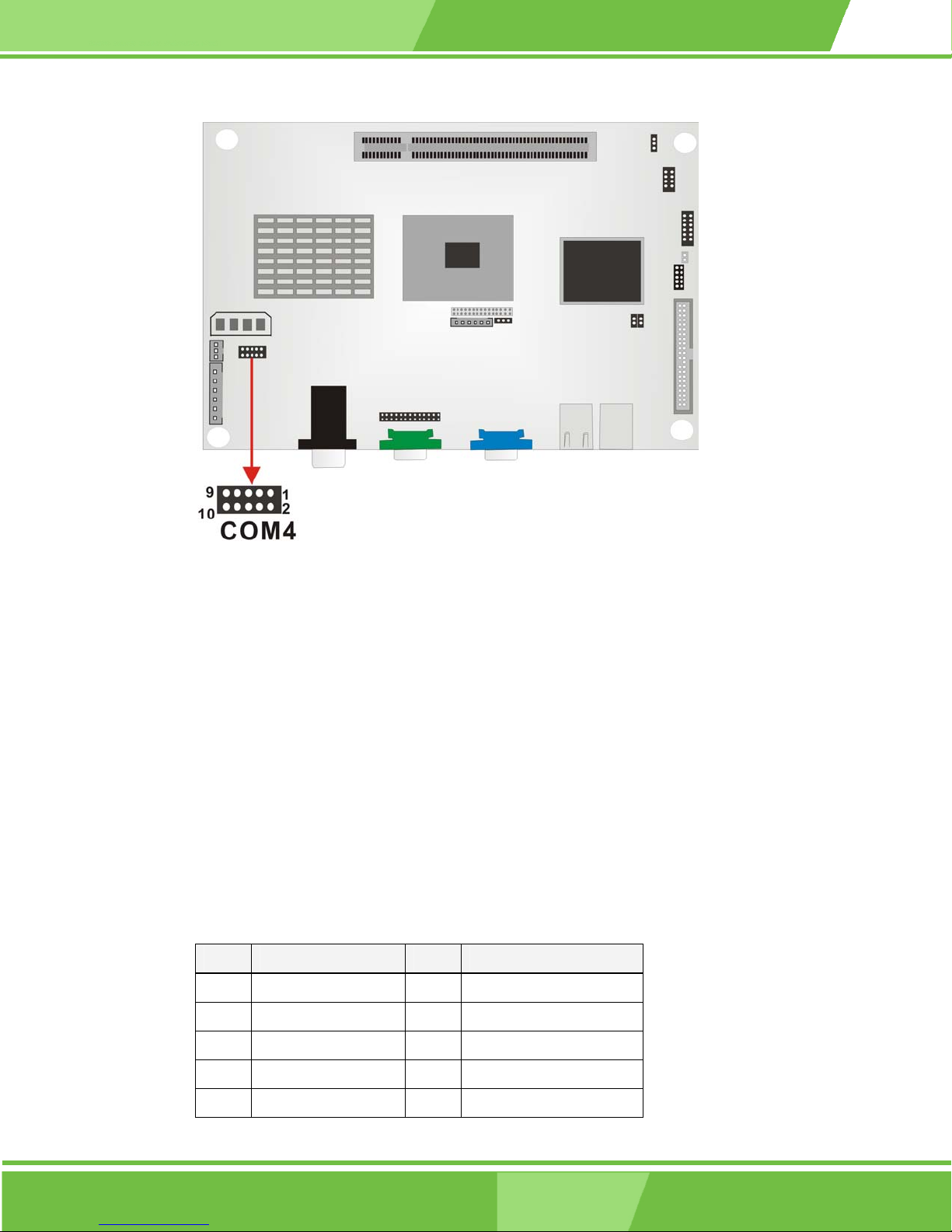

3.2.10 COM4 Connectors ......................................................................................... 46

3.2.11 Parallel Port Connector................................................................................. 47

3.2.12 Inverter Connector......................................................................................... 48

3.2.13 LVDS Connector ............................................................................................ 50

3.2.14 SODIMM Socket ............................................................................................ 51

3.2.15 Compact Flash Type 2 Socket ........................................................................ 52

3.3 EXTERNAL (REAR PANEL) CONNECTORS ........................................................... 54

3.3.1 Serial Port Connectors .................................................................................... 54

3.3.2 USB Connectors............................................................................................... 55

3.3.3 Ethernet Connector.......................................................................................... 55

3.3.4 VGA Connector ................................................................................................ 56

3.3.5 Audio Connector .............................................................................................. 57

3.4 O

NBOARD JUMPERS ........................................................................................... 58

3.4.1 Reset CMOS Jumper ........................................................................................ 59

3.4.2 CF Card Setup ................................................................................................. 59

3.4.3 LCD Voltage Setup........................................................................................... 60

4 INSTALLATION AND CONFIGURATION ....................................................... 61

4.1 INSTALLATION CONSIDERATIONS ....................................................................... 62

4.1.1 Installation Notices .......................................................................................... 62

0-4

IEI

Technology, Corp.

Enano-8523T Motherboard

4.2 U

NPACKING........................................................................................................ 63

4.2.1 Unpacking Precautions.................................................................................... 63

4.2.2 Checklist........................................................................................................... 63

4.3 ENANO-8523T BOARD INSTALLATION ............................................................... 64

4.3.1 Preinstalled Components ................................................................................. 64

4.3.2 Components to Install ...................................................................................... 65

4.3.3 DIMM Module Installation .............................................................................. 65

4.3.3.1 Purchasing the Memory Module............................................................... 65

4.3.3.2 DIMM Module Installation....................................................................... 65

4.3.4 Peripheral Device Connection......................................................................... 66

4.3.4.1 IDE Disk Drive Connector (IDE1) ........................................................... 66

4.3.4.2 Keyboard/Mouse Connection ................................................................... 67

4.4 CHASSIS INSTALLATION ..................................................................................... 67

4.5 REAR PANEL CONNECTORS ................................................................................ 67

4.5.1 LCD Panel Connection .................................................................................... 67

4.5.2 Ethernet Connection ........................................................................................ 67

4.5.3 USB Connection............................................................................................... 68

5 AMI BIOS SETUP.................................................................................................. 69

5.1 INTRODUCTION .................................................................................................. 70

5.1.1 Starting Setup................................................................................................... 70

5.1.2 Using Setup ...................................................................................................... 70

5.1.3 Getting Help..................................................................................................... 71

5.1.4 Unable to Reboot After Configuration Changes.............................................. 71

5.1.5 BIOS Menu Bar................................................................................................ 71

5.2 M

AIN ................................................................................................................. 72

5.3 ADVANCED......................................................................................................... 73

5.3.1 CPU Configuration.......................................................................................... 74

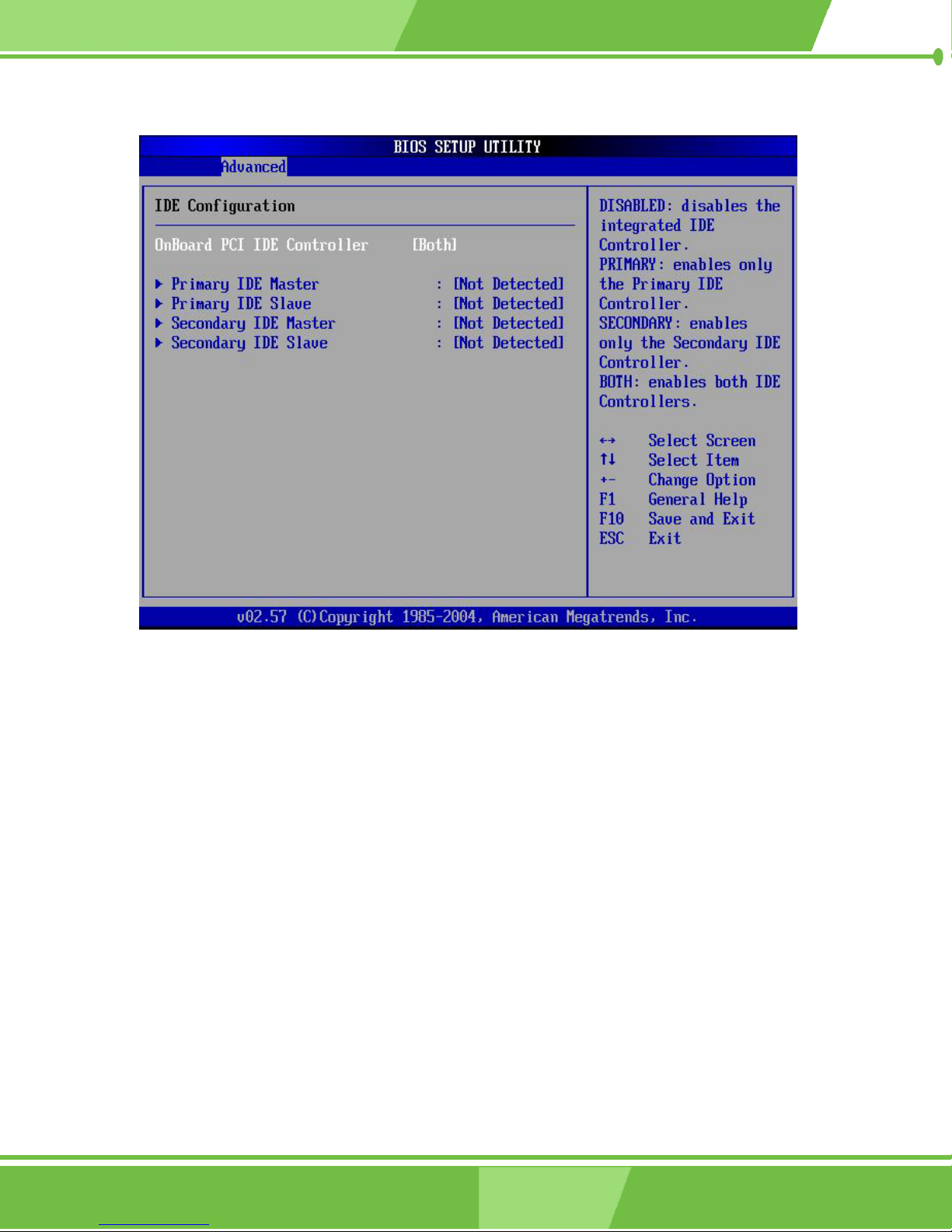

5.3.2 IDE Configuration ........................................................................................... 75

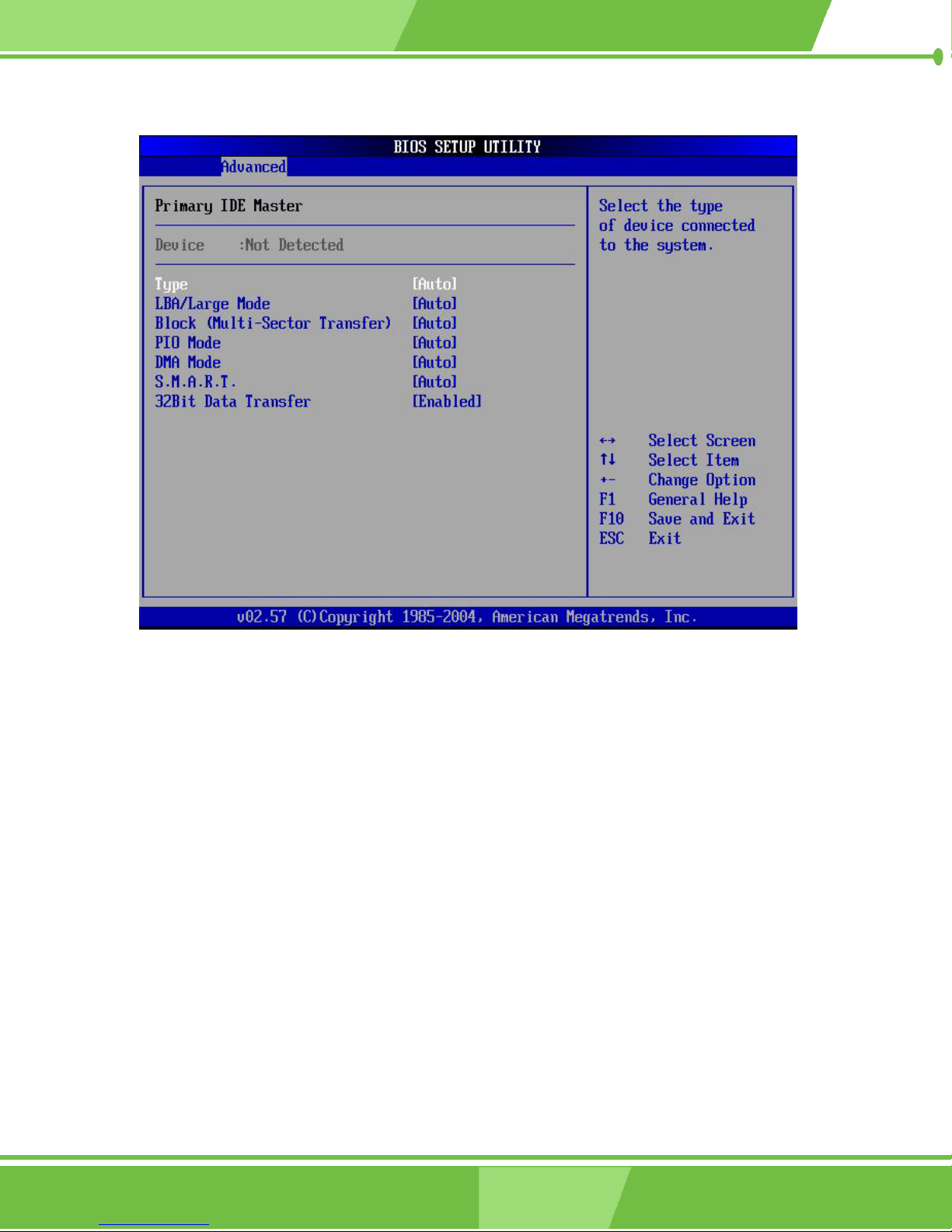

5.3.2.1 IDE Master, IDE Slave ............................................................................. 77

5.3.3 Super IO Configuration.................................................................................... 83

5.3.4 Hardware Health Configuration ...................................................................... 87

5.3.5 ACPI Configuration ......................................................................................... 89

5.3.6 MPS Configuration .......................................................................................... 90

5.3.7 Trusted Computing ........................................................................................... 90

5.3.8 USB Configuration........................................................................................... 92

0-5

5.4 BOOT ................................................................................................................. 96

5.4.1 Boot Settings Configuration............................................................................. 97

5.4.2 Boot Device Priority ........................................................................................ 99

5.4.3 Hard Disk Drives ........................................................................................... 101

5.4.4 Removable Drives .......................................................................................... 101

5.4.5 CD/DVD Drives ............................................................................................. 104

5.5 SECURITY......................................................................................................... 104

5.6 CHIPSET ........................................................................................................... 106

5.6.1 Northbridge Configuration ............................................................................ 107

5.7 POWER ..............................................................................................................113

5.8 EXIT..................................................................................................................114

6 SOFTWARE DRIVERS ........................................................................................117

6.1 AVAILABLE SOFTWARE DRIVERS.......................................................................118

6.2 CHIPSET DRIVER INSTALLATION........................................................................118

6.3 REALTEK AUDIO DRIVER INSTALLATION ......................................................... 121

6.4 INTEL GRAPHICS MEDIA ACCELERATOR DRIVER ............................................. 126

6.5 LAN DRIVER INSTALLATION ........................................................................... 129

A BIOS CONFIGURATION OPTIONS ................................................................ 133

A.1 BIOS CONFIGURATION OPTIONS ..................................................................... 134

B WATCHDOG TIMER .......................................................................................... 137

C ADDRESS MAPPING.......................................................................................... 141

C.1 IO ADDRESS MAP ............................................................................................ 142

C.2 1

ST MB MEMORY ADDRESS MAP .................................................................... 142

C.3 IRQ MAPPING TABLE....................................................................................... 143

C.4 DMA CHANNEL ASSIGNMENTS ....................................................................... 143

D EXTERNAL AC’97 AUDIO CODEC ................................................................. 145

D.1 INTRODUCTION ................................................................................................ 146

D.2 DRIVER INSTALLATION..................................................................................... 146

D.3 S

OUND EFFECT CONFIGURATION ..................................................................... 147

D.4 SOUND EFFECT ................................................................................................ 148

D.5 E

NVIRONMENT SIMULATION ............................................................................ 149

D.6 KARAOKE MODE.............................................................................................. 150

D.7 EQUALIZER SELECTION.................................................................................... 151

0-6

IEI

Technology, Corp.

Enano-8523T Motherboard

D.8 S

PEAKER CONFIGURATION ............................................................................... 152

D.9 SPEAKER TEST ................................................................................................. 153

D.10 S/PDIF-IN & S/PDIF-OUT .............................................................................. 154

D.11 CONNECTOR SENSING ...................................................................................... 154

D.12 HRTF DEMO.................................................................................................... 157

D.13 MICROPHONE EFFECT ...................................................................................... 157

D.14 GENERAL ......................................................................................................... 158

E INDEX.................................................................................................................... 159

0-7

List of Figures

Figure 1-1: Enano-8523T Board Overview (Top View).............................................16

Figure 1-2: Enano-8523T Board Overview (Bottom View).......................................17

Figure 2-1: Data Flow Block Diagram........................................................................24

Figure 3-1: Connector and Jumper Locations (Top Side).......................................34

Figure 3-2: Connector and Jumper Locations (Bottom Side) ................................35

Figure 3-3: IDE Connector Location..........................................................................38

Figure 3-4: DIO Connector Location .........................................................................39

Figure 3-5: Battery Connector Location ...................................................................40

Figure 3-6: Front Panel Connector Location............................................................41

Figure 3-7: USB Connector Location ........................................................................42

Figure 3-8: Table 3-9: FAN1 Connector Location ....................................................43

Figure 3-9: Power Connector Location.....................................................................44

Figure 3-10: Power Connector Location...................................................................45

Figure 3-11: Keyboard/Mouse Connector Location.................................................46

Figure 3-12: COM4 Connector Location ...................................................................47

Figure 3-13: Parallel Port Connector Location.........................................................48

Figure 3-14: Inverter Connector.................................................................................49

Figure 3-15: LVDS Connector ....................................................................................51

Figure 3-16: SODIMM Socket Location (Rear Side) .................................................52

Figure 3-17: CFII Socket Location (Rear Side) .........................................................53

Figure 3-18: Enano-8523T Board Rear Panel ...........................................................54

Figure 3-19: RJ-45 Ethernet Connector ....................................................................56

Figure 3-21: Jumper Locations..................................................................................58

Figure 6-1: InstallShield Wizard Preparation Screen............................................ 119

Figure 6-2: Welcome Screen ................................................................................... 119

Figure 6-3: License Agreement............................................................................... 120

Figure 6-4: Readme Information ............................................................................. 120

Figure 6-5: Restart the Computer ........................................................................... 121

Figure 6-6: Audio Driver Install Shield Wizard Starting ....................................... 122

0-8

IEI

Technology, Corp.

Enano-8523T Motherboard

Figure 6-7: Audio Driver Setup Preparation .......................................................... 122

Figure 6-8: Audio Driver Welcome Screen ............................................................ 123

Figure 6-9: Audio Driver Software Configuration ................................................. 123

Figure 6-10: Audio Driver Digital Signal ................................................................ 124

Figure 6-11: Audio Driver Installation Begins ....................................................... 125

Figure 6-12: Audio Driver Installation Complete................................................... 126

Figure 6-13: GMA Driver Installation Welcome Screen ........................................ 127

Figure 6-14: GMA Driver License Agreement........................................................ 128

Figure 6-15: GMA Driver Installing Notice ............................................................. 128

Figure 6-16: GMA Driver Installation Complete .................................................... 129

Figure 6-17: LAN License Agreement .................................................................... 130

Figure 6-18: Select the Driver Directory ................................................................ 130

Figure 6-19: LAN Driver Configuration .................................................................. 131

0-9

List of Tables

Table 1-1: Technical Specifications ..........................................................................19

Table 2-1: Power Consumption .................................................................................31

Table 3-1: Peripheral Interface Connectors..............................................................36

Table 3-2: Peripheral Interface Connectors..............................................................36

Table 3-3: Onboard Jumpers .....................................................................................37

Table 3-4: IDE Connector Pinouts .............................................................................38

Table 3-5: DIO Connector Pinouts.............................................................................39

Table 3-6: Front Panel Connector Pinouts ...............................................................40

Table 3-7: USB Connector Pinouts............................................................................41

Table 3-8: FAN1 Pinouts.............................................................................................42

Figure 3-8: Table 3-9: FAN1 Connector Location ....................................................43

Table 3-10: Power Connector Pinouts ......................................................................43

Table 3-11: Power Connector Pinouts ......................................................................44

Table 3-12: Keyboard/Mouse Connector Pinouts....................................................45

Table 3-13: COM4 Connector Pinouts.......................................................................46

Table 3-14: Parallel Port Connector Pinouts ............................................................48

Table 3-15: Inverter Connector Pinouts....................................................................49

Table 3-16: LVDS Connector Pinouts........................................................................50

Table 3-17: CFII Socket Pinouts.................................................................................53

Table 3-18: Serial Port Pinouts ..................................................................................55

Table 3-19: USB Connectors......................................................................................55

Table 3-20: RJ-45 Ethernet Connector Pinouts........................................................56

Table 3-21: RJ-45 Ethernet Connector LEDs............................................................56

Table 3-22: VGA Connector Pinouts .........................................................................57

Table 3-23: JP2 Jumper Settings...............................................................................59

Table 3-24: JP4 Jumper Settings...............................................................................60

Table 3-25: JP6 Jumper Settings...............................................................................60

Table 4-1: IEI Provided Cables...................................................................................66

Table 5-1: BIOS Navigation Keys...............................................................................71

0-10

IEI

Technology, Corp.

Enano-8523T Motherboard

List of BIOS Menus

Menu 1: Main ............................................................................................................72

Menu 2: Advanced.......................................................................................................74

Menu 3: CPU Configuration .......................................................................................75

Menu 4: IDE Configuration .........................................................................................76

Menu 5: IDE Master and IDE Slave Configuration ...................................................78

Menu 6: Super IO Configuration ................................................................................83

Menu 7: Hardware Health Configuration ..................................................................88

Menu 8: ACPI Configuration ......................................................................................89

Menu 9: MPS Configuration .......................................................................................90

Menu 10: Trusted Computing ....................................................................................91

Menu 11: USB Configuration .....................................................................................93

Menu 12: USB Mass Storage Device.........................................................................95

Menu 13: Boot ............................................................................................................96

Menu 14: Boot Settings Configuration......................................................................97

Menu 15: Boot Device Priority Settings................................................................. 100

Menu 16: Removable Drives ................................................................................... 103

Menu 17: Security..................................................................................................... 105

Menu 18: Chipset...................................................................................................... 107

Menu 19:Northbridge Chipset Configuration ........................................................ 108

Menu 20:Power ......................................................................................................... 113

Menu 21:Exit ......................................................................................................... 115

0-11

Glossary

AC ’97 Audio Codec 97

ACPI Advanced Configuration and

Power Interface

APM Advanced Power Management

ARMD ATAPI Removable Media Device

ASKIR Shift Keyed Infrared

ATA Advanced Technology

Attachments

BIOS Basic Input/Output System

CFII Compact Flash Type 2

CMOS Complementary Metal Oxide

Semiconductor

CPU Central Processing Unit

Codec Compressor/Decompressor

COM Serial Port

DAC Digital to Analog Converter

DDR Double Data Rate

ICH4 I/O Controller Hub 4

L1 Cache Level 1 Cache

L2 Cache Level 2 Cache

LCD Liquid Crystal Display

LPT Parallel Port Connector

LVDS Low Voltage Differential Signaling

MAC Media Access Controller

OS Operating System

PCI Peripheral Connect Interface

PIO Programmed Input Output

PnP Plug and Play

POST Power On Self Test

RAM Random Access Memory

SATA Serial ATA

S.M.A.R.T Self Monitoring Analysis and

Reporting Technology

SPD Serial Presence Detect

DIMM Dual Inline Memory Module

DIO Digital Input/Output

DMA Direct Memory Access

EIDE Enhanced IDE

EIST Enhanced Intel SpeedStep

Technology

FDD Floppy Disk Drive

FDC Floppy Disk Connector

FFIO Flexible File Input/Output

FIFO First In/First Out

FSB Front Side Bus

IrDA Infrared Data Association

HDD Hard Disk Drive

IDE Integrated Data Electronics

I/O Input/Output

S/PDI Sony/Philips Digital Interface

SDRAM Synchronous Dynamic Random

Access Memory

SIR Serial Infrared

TPM Trusted Platform Module

UART Universal Asynchronous

Receiver-transmitter

USB Universal Serial Bus

VGA Video Graphics Adapter

0-12

IEI

Technology, Corp.

Enano-8523T Motherboard

Chapter

1 Introduction

1-13

1.1 Enano-8523T Board Overview

The EPIC form factor Enano-8523T ULV Intel Celeron M embedded board is fully equipped

with a high performance processor and advanced multi-mode I/Os. The Enano-8523T is

designed for system manufacturers, integrators, and VARs that want performance,

reliability, and quality at a reasonable price. The Enano-8523T supports the TPM 1.2

(Trusted Platform Module) hardware security function.

1.1.1 Enano-8523T Board Variations

IEI currently provides two Enano-8523T board variations. These are:

 Enano-8523-800Z-R10: (No TPM1.2 support)

An EPIC form factor board with an onboard zero cache ULV Intel Celeron M

800MHz CPU and LCD/CRT VGA, LAN, USB2.0, Audio, and COM ports.

 Enano-8523T-800Z-R10: (Supports TPM1.2)

An EPIC form factor board with an onboard zero L2 cache ULV Intel Celeron M

800MHz CPU and LCD/CRT VGA, LAN, USB2.0, Audio, and COM ports. This

board also supports the TPM 1.2 hardware security function.

1.1.2 Enano-8523T Board Applications

The TPM 1.2 hardware security function implemented on the Enano-8523T makes this

board ideal for applications that require durable, yet secure platforms and were data

privacy issues are critical. These applications may include:

 Automation applications  Banking applications  Healthcare applications  Military applications

1.1.3 Enano-8523T Board Benefits

The TPM 1.2 hardware security function implemented on the Enano-8523T can,

 Protect secrets from attackers  Perform cryptographic functions

1-14

IEI

Technology, Corp.

o RSA, SHA-1, RNG o Meets encryption export requirements

 Create, store and manage cryptographic keys  Provide a unique Endorsement Key (EK)  Performs digital signature operations  Hold platform measurements (hashes)  Anchor chain of trust for keys, digital certificates and other credentials

1.1.4 Enano-8523T Board Features

Some of the Enano-8523T board features are listed below:

 Complies with EPIC form factor  Complies with RoHS

Enano-8523T Motherboard

 Preinstalled 800MHz Intel Celeron M CPU  Preinstalled CPU heat sink  Supports a maximum front side bus (FSB) speed up to 400MHz  Supports up to 1GB of 266MHz or 200MHz single channel DDR memory  Supports dual independent displays, CRT display and 18-bit LVDS flat panel

screens

 Complete I/O support with

o 4 x COM ports o 1 x IDE device o 1 x CFII o 1 x Intel LAN o 4 x USB2.0

1-15

1.2 Enano-8523T Board Overview

Figure 1-1: Enano-8523T Board Overview (Top View)

1-16

IEI

Technology, Corp.

Enano-8523T Motherboard

Figure 1-2: Enano-8523T Board Overview (Bottom View)

1.2.1 Enano-8523T Board Connectors

The Enano-8523T board has the following connectors onboard:

 1 x PCI slot  1 x Front panel connector  1 x IDE device connector  1 x Compact flash connector  1x Parallel port connector  1 x RS-232 serial port connector  1x USB 2.0 connector  1 x LCD LVDS interface Connector  1 x Inverter power connector  1 x DIO connector  1 x Keyboard/mouse connector  1 x ATX connector

1-17

 1 x Fan connector  1 x PCI slot  1 x DDR SDRAM SODIMM socket

The Enano-8523T board has the following connectors on the board rear panel:

 3 x Serial port connectors (COM)  1 x VGA connector  1 x RJ-45 Ethernet connector  2 x USB 2.0 ports  1 x Audio connector (3 x audio jacks)

The location of these connectors on the Enano-8523T can be seen in Figure 1-1 and

Figure 1-2. These connectors are fully described in Chapter 3.

1.2.2 Technical Specifications

Enano-8523T board technical specifications are listed in Table 1-1. Detailed descriptions

of each specification can be found in Chapter 2 Detailed Specifications.

SPECIFICATION

CPUs Supported

Chipsets

I/O Controller ICH4

Graphics Support Intel® Extreme Graphics 2

Memory One DDR SDRAM SODIMM memory module (Max.

PCI Bus Interface 33MHz, Revision 2.3

HDD Interface One IDE channel supports two Ultra ATA 100/66/33

Celeron® M

Intel

Northbridge: Intel

Southbridge: Intel

1GB)

852GM

ICH4

USB Interfaces Four USB 2.0 connectors supported

1-18

devices

IEI

Technology, Corp.

Enano-8523T Motherboard

Serial Ports Four COM ports

Real Time Clock 256-byte battery backed CMOS RAM

Hardware Monitoring Cooling fans, temperature and system voltages

Power Management Supports Advanced Configuration and Power Interface

(ACPI) Specifications Revision 2.0

Ethernet 10/100 Base-T Intel 82562ET

BIOS AMI flash BIOS

Physical Dimensions 115mm x 165mm (width x length)

Weight GW: 1.1 Kg

NW: 0.95 Kg

Operating Temperature Minimum: 0ºC (32°F)

Maximum: 60°C (140°F)

Audio Interfaces

Table 1-1: Technical Specifications

AC’97 Codec Realtek ALC655

1-19

THIS PAGE IS INTENTIONALLY KEPT BLANK

1-20

IEI

Technology, Corp.

Enano-8523T Motherboard

Chapter

2 Detailed Specifications

1-21

2.1 CPU Support

The Enano-8523T board comes with a preinstalled ultra low voltage (ULV) Intel® Celeron®

M 800MHz zero cache processor. The 800MHz Intel® Celeron® M processor has the

following features and specifications:

 Operates at 1.004 volts  Thermal design power (TDP) of 7 watts  400 MHz system bus  512 KB L2 cache  Advanced mobile power management, including Deep Sleep states, helps

enable longer battery life by minimizing the power consumption of the

processor during brief periods of inactivity by the user.

2.2 Onboard Chipsets

2.2.1 Northbridge and Southbridge Chipsets

The following chipsets are preinstalled on the board:

 Northbridge: Intel® 852GM  Southbridge: Intel® ICH4

The following two sections (Section 2.2.2 and Section 2.2.3) list some of the features of

the Intel® 852GM and the Intel® ICH4 chipsets. For more information on these two

chipsets please refer to the Intel website.

2.2.2 Intel® 852GM Northbridge Chipset

The Intel® 852GM Northbridge chipset comes with the following features:

 Supports Intel® NetBurst® micro-architecture  400 MHz system bus delivers a high-bandwidth connection between the

processor and the platform

 Supports integrated graphics utilizing Intel® Extreme Graphics 2 technology  Three USB host controllers provide high performance peripherals with 480

Mbps of bandwidth, while enabling support for up to six USB 2.0 ports.

1-22

IEI

Technology, Corp.

 The latest AC ’97 implementation delivers 20-bit audio for enhanced sound

quality and full surround-sound capability.

 LAN Connect Interface (LCI) provides flexible network solutions such as

10/100 Mbps Ethernet and 10/100 Mbps Ethernet with LAN manageability

 Dual Ultra ATA/100 controllers, coupled with the Intel® Application Accelerator

supports faster IDE transfers to storage devices

 Intel Application Accelerator software provides additional performance over

native ATA drivers by improving I/O transfer rates and enabling faster O/S load

time, resulting in accelerated boot times

2.2.3 Intel® ICH4 Southbridge Chipset

The ICH4 provides extensive I/O support. Functions and capabilities include:

Enano-8523T Motherboard

 PCI Local Bus Specification, Revision 2.2-compliant with support for 33 MHz

PCI operations.

 PCI slots (supports up to 6 Req/Gnt pairs)  ACPI Power Management Logic Support  Enhanced DMA controller, Interrupt controller, and timer functions  Integrated IDE controller supports Ultra ATA100/66/33  USB host interface with support for six USB ports; three UHCI host controllers;

one EHCI high-speed

 USB 2.0 Host controller  Integrated LAN controller  System Management Bus (SMBus) Specification, Version 2.0 with additional

support for I

C devices

 Supports Audio Codec ’97, Revision 2.3 specification (a.k.a., AC ’97

Component Specification, Revision 2.3)

 Link for Audio and Telephony codecs (up to seven channels)  Low Pin Count (LPC) interface  Firmware Hub (FWH) interface support  Alert On LAN* (AOL) and Alert On LAN 2* (AOL2)

1-23

2.3 Data Flow

Figure 2-1 shows the data flow between the two onboard chipsets and other components

installed on the Enano-8523T and described in the following sections of this chapter.

Figure 2-1: Data Flow Block Diagram

1-24

IEI

Technology, Corp.

2.4 Graphics Support

The Intel® Extreme Graphics 2 is integrated on the Intel® 852GM Northbridge chipset. The

Extreme Graphics 2 features are listed below.

Intel®

 Enhanced Rapid Pixel and Texel Rendering: Optimized visual quality and

performance from the addition of hardware to support of texel formatting,

bicubic filter, color blending accuracy, and video mixing render, resulting in

optimized visual quality and performance.

 Zone Rendering 2 Technology: Enhances the performance of zone

rendering by using larger zones and new commands that improve graphics

pipeline efficiency.

 Dynamic Video Memory Technology v2.0: Increases total system

performance by optimizing the efficiency of AGP dynamic video memory by

Enano-8523T Motherboard

increasing its size of Video RAM allocation to 96 MB.

 Enhanced Intelligent Memory Management: Improves memory bandwidth

efficiency and platform performance by improving the memory management

arbitration between CPU, system memory and graphics memory.

Intel® Extreme Graphics 2 specifications are listed below:

 Enhanced 2D:

o 256-bit internal path o 8/16/32bpp o DirectDraw*, GDI, GDI+ o Anti-aliased text support o Alpha blending o Alphas stretch blitter o Hardware alpha blended RGB cursor o Color space conversion o 5x2 overlay support o Rotate, scale and translate operations

 High-performance 3D:

o 256-bit internal path o 32bpp/ 24ZorW/ 8 Stencil o DX7*/DX8*/OGL*1.1

1-25

o DXTn texture compression o Up to 4 textures / pixel on a single pass o Cubic reflection map o Embossed/DOT3 bump mapping o Multi-texture o DOT3 bump-mapping o Point sprites

 Video and Display:

o DirectShow*/DirectVA* o Hardware motion compensation support for DVD playback o 4x2 overlay filter o 350 MHz DAC frequency o Maximum DVO pixel rate of up to 330MP/s o Flat panel monitors and TV-out support via AGP Digital Display (ADD)

cards

o 350 MHz DAC for 1800x1440 @ 85Hz max CRT resolution or

2048x1536@60Hz max FP resolution

o Synchronous display for dual monitor capabilities o 350MHz RAMDAC for up to QXGA analog monitor support o Dual DVO ports for up to QXGA digital display support o Multiple display types (LVDS, DVI, TV-out, CRT)

2.5 Memory Support

The Enano-8523T comes with one 200-pin DDR 266/200MHz SODIMM SDRAM socket

and supports up to 1GB of SDRAM

2.6 TPM Support

The Enano-8523T is equipped with a SINOSON SSX35 Trusted Platform Module (TPM).

The SSC complies with TCG v1.2 (Trusted Computing Group). The TPM security

processor is a single-chip security subsystem that protects the end user's privacy by

providing tamper-proof storage and management of the user's identity, passwords and

encryption keys.

1-26

IEI

Technology, Corp.

Enano-8523T Motherboard

TPM features include:

 Fully compatible with TCG v1.2 Specification.  Sinosun 8-bits CPU Core.  Embedded 16KB secure data FLASH memory and 16KB RAM  128KB program FLASH memory supporting online update of Firmware.  RSA engine supports up to 2048 bits RSA algorithm.  Embedded SHA-1 algorithm engine.  Integrated RNG for key generation and encryption transmission.  LPC interface and serial interface in conformance to ISO 7816 Standard.

TPM parameters are:

 Supply Voltage:3.3V 10%  Frequency:33MHz  Program Space:128KB FLASH memory and 64KB ROM  Data Space:16KB FLASH memory and 16KB RAM  Work Current:< 30mA  IdleCurrent:< 0.1mA  Speeds:

o RSA 2048 bits Signature (Decryption):<300ms o RSA 2048 bits Verification (Encryption):<40ms o RSA 1024 bits Signature (Decryption):<120ms o RSA 1024 bits Verification (Encryption):<15ms o SHA-1(1M bits) Computing Speed:<258ms o 2048 bits RSA Key pair generation:<10 Seconds

2.7 PCI Bus Interface Support

The PCI bus on the Enano-8523T board has the following features:

 33MHz Revision 2.2 is implemented  Maximum throughput: 133MB/sec  One PCI REQ/GNT pair can be given higher arbitration priority (intended for

external 1394 host controller)

 64-bit addressing supported

1-27

2.8 10/100 Base-T Internet

The onboard Intel 82562ET controller provides 10/100 Base-T Internet connectivity to the

system. The Intel 82562ET controller specifications are below.

 IEEE 802.3 10BASE-T compliant physical layer interface  IEEE 802.3u Auto-Negotiation and 100BASE-TX support  Digital adaptive equalization control  Link status interrupt capability  XOR Tree mode support for board testing  3-port LED support (speed, link and activity)  10BASE-T auto-polarity correction  Diagnostic loop back mode  1:1 transmit transformer ratio support  Low power (300 mW) typical in active transmit mode  Reduced power(less than 50 mW) in "unplugged mode"  Automatic detection of "unplugged mode"  3.3V device  Platform LAN connect interface support

2.9 IDE Device Support

The Enano-8523T comes with one IDE device connector and that can be connected to two

IDE devices.

2.10 Real Time Clock

256-byte battery backed CMOS RAM

2.11 System Monitoring

The Enano-8523T board is capable of self-monitoring various aspects of its operating

status including:

 CPU, chipset, and battery voltage, +3.3V, +5V, and +12V  RPM of cooling fans  CPU and board temperatures (by the corresponding embedded sensors)

1-28

IEI

Technology, Corp.

2.12 USB Interfaces

The Enano-8523T board has six USB interfaces, four internal and two external. The USB

interfaces support USB 2.0.

2.13 BIOS

The Enano-8523T board uses a licensed copy of AMI BIOS. The features of the flash BIOS

used are listed below:

 SMIBIOS (DMI) compliant  Console redirection function support  PXE (Pre-Boot Execution Environment ) support  USB booting support

Enano-8523T Motherboard

2.14 Operating Temperature and Temperature Control

The maximum and minimum operating temperatures for the Enano-8523T board are listed

below.

 Minimum Operating Temperature: 0ºC (32°F)  Maximum Operating Temperature: 60°C (140°F)

A heat sink must be installed on the CPU. Thermal paste must be smeared on the lower

side of the heat sink before it is mounted on the CPU. Heat sinks are also mounted on the

Northbridge and Southbridge chipsets to ensure the operating temperature of these chips

remain low.

NOTE:

The Enano-8523T comes with a preinstalled heat sink and CPU. The heat

sink should not be removed during operation. If the CPU is replaced, prior to

running the system, the heat sink must be reinstalled on the Enano-8523T.

1-29

2.15 Audio Codec

The Enano-8523T has an integrated REALTEK ALC655 CODEC. The ALC655 CODEC is

a 16-bit, full-duplex AC'97 Rev. 2.3 compatible six-channel audio CODEC designed for PC

multimedia systems, including host/soft audio and AMR/CNR-based designs. Some of the

features of the codec are listed below.

 Meets performance requirements for audio on PC99/2001 systems  Meets Microsoft WHQL/WLP 2.0 audio requirements  16-bit Stereo full-duplex CODEC with 48KHz sampling rate  Compliant with AC'97 Rev 2.3 specifications  Front-Out, Surround-Out, MIC-In and LINE-In Jack Sensing  14.318MHz -> 24.576MHz PLL to eliminate crystal  12.288MHz BITCLK input  Integrated PCBEEP generator to save buzzer  Interrupt capability  Three analog line-level stereo inputs with 5-bit volume control, LINE_IN, CD,

AUX

 High-quality differential CD input  Two analog line-level mono inputs: PCBEEP, PHONE-IN  Two software selectable MIC inputs  Dedicated Front-MIC input for front panel applications (software selectable)  Boost preamplifier for MIC input  LINE input shared with surround output; MIC input shared with Center and LFE

output

 Built-in 50mW/20ohm amplifier for both Front-out and Surround-Out  External Amplifier Power Down (EAPD) capability  Power management and enhanced power saving features  Supports Power-Off CD function  Adjustable VREFOUT control  Supports 48KHz S/PDIF output, complying with AC'97 Rev 2.3 specifications  Supports 32K/44.1K/48KHz S/PDIF input  Power support: Digital: 3.3V; Analog: 3.3V/5V  Standard 48-pin LQFP package  EAX™ 1.0 & 2.0 compatible  Direct Sound 3D™ compatible

1-30

IEI

Technology, Corp.

 A3D™ compatible  I3DL2 compatible  HRTF 3D positional audio  10-band software equalizer  Voice cancellation and key shifting in Karaoke mode  AVRack® Media Player  Configuration Panel for improved user convenience

2.16 Power Consumption

Table 2-1 shows the power consumption parameters for the Enano-8523T when a zero

cache ULV Celeron M CPU is running with a clock speed of 800MHz and a 256MB

266MHz DDR.

Enano-8523T Motherboard

Voltage Current

+5V 3.66A

+12V 0.2A

Table 2-1: Power Consumption

2.17 Packaged Contents and Optional Accessory Items

2.17.1 Package Contents

When you unpack the Enano-8523T you should find the following components.

 1 x Enano-8523T single board computer  1 x Keyboard/ PS2 mouse cable ( P/N: 32000-023800-RS)  1 x Mini jumper pack  1 x Utility CD  1 x IDE flat cable 44p/44p (P/N: 32200-000009-RS)  1 x QIG (quick installation guide)

An optional parallel port cable (P/N: 19800-000049-RS) can also be ordered and shipped

with the Enano-8523T.

1-31

THIS PAGE IS INTENTIONALLY KEPT BLANK

1-32

IEI

Technology, Corp.

Enano-8523T Motherboard

Chapter

3 Connectors and Jumpers

1-33

3.1 Peripheral Interface Connectors

The locations of the peripheral interface connectors are shown in Section 3.1.1. A

complete list of all the peripheral interface connectors can be seen in Section 3.1.2.

3.1.1 Enano-8523T Board Layout

Figure 3-1 and Figure 3-2 shows the onboard peripheral connectors, rear panel peripheral

connectors and onboard jumpers.

Figure 3-1: Connector and Jumper Locations (Top Side)

1-34

IEI

Technology, Corp.

Enano-8523T Motherboard

Figure 3-2: Connector and Jumper Locations (Bottom Side)

3.1.2 Peripheral Interface Connectors

Table 3-1 shows a list of the peripheral interface connectors on the Enano-8523T board.

Detailed descriptions of these connectors can be found in Section 3.2 on page 37.

Label Connector Type

IDE1 HDD connector 44-pin header

DIO1 Digital Input Output Connector 10-pin header

BT1 Battery Connector 2-pin header

CN12 Front Panel Connector 12-pin header

COM2 Serial communications connector 5-pin header

USB1 USB 2.0 connector for two USB devices 8-pin header

PCI1 Rev 2.2 PCI slot for PCI card 124-pin PCI slot

PW1 Board 12V power connector 4-pin header

PW2 System cooling fan connector 3-pin header

1-35

KB_MS1 Keyboard/Mouse connector 6-pin header

CN2 Parallel port connector 26-pin header

CN8 LVDS connector 30-pin header

CN3 Inverter connector 6-pin header

DIMM1 SODIMM slot 200-pin slot

CN7 CFII connector 50-pin

Table 3-1: Peripheral Interface Connectors

3.1.3 Rear Panel Connectors

Table 3-2 lists the rear panel connectors on the Enano-8523T board. Detailed descriptions

of these connectors can be found in Section 0 on page 50.

Label Connector Type

CN1 VGA Connector 15-pin VGA connector

CN6 COM3 connector 9-pin serial port connector

J5 COM1 and COM2 connectors 2 x 9-pin serial port connectors

J15 Ethernet connector

Two USB 2.0 ports

CN11 Audio connector 3 x audio jacks

Table 3-2: Peripheral Interface Connectors

RJ-45 connector

USB port connectors

3.1.4 Onboard Jumpers

Table 3-3 lists the onboard jumpers. Detailed descriptions of these jumpers can be found in

Section 3.3.5 on page 57.

Label Connector Type

JP2 Clear CMOS 3-pin header

1-36

IEI

Technology, Corp.

JP4 CF card setup 2-pin header

JP6 LCD voltage setup 3-pin header

Table 3-3: Onboard Jumpers

3.2 Internal Peripheral Connectors

Internal peripheral connectors are found on the board and are only accessible when the

board is outside of the chassis. This section has complete descriptions of all the internal,

peripheral connectors on the Enano-8523T board.

3.2.1 IDE Connector

Enano-8523T Motherboard

CN Label: IDE1

CN Type: 2x22 pin header

CN Location: See Figure 3-3

CN Pinouts: See Table 3-4

One IDE connector provides connectivity for two IDE devices.

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 RESET# 2 GROUND

3 DATA 7 4 DATA 8

5 DATA 6 6 DATA 9

7 DATA 5 8 DATA 10

9 DATA 4 10 DATA 11

11 DATA 3 12 DATA 12

13 DATA 2 14 DATA 13

15 DATA 1 16 DATA 14

17 DATA 0 18 DATA 15

19 GROUND 20 N/C

21 IDE DRQ 22 GROUND

23 IOW# 24 GROUND

1-37

25 IOR# 26 GROUND

27 IDE CHRDY 28 GROUND

29 IDE DACK 30 GROUND–DEFAULT

31 INTERRUPT 32 N/C

33 SA1 34 N/C

35 SA0 36 SA2

37 HDC CS0# 38 HDC CS1#

39 HDD ACTIVE# 40 GROUND

41 VCC 42 VCC

43 GROUND 44 N/C

Table 3-4: IDE Connector Pinouts

Figure 3-3: IDE Connector Location

3.2.2 DIO Connector

CN Label: DIO1

CN Type: 2x5 pin headers

CN Location: See Figure 3-4

CN Pinouts: See Table 3-5

1-38

IEI

Technology, Corp.

Enano-8523T Motherboard

The digital input output (DIO) connector is managed through a Winbond W83628G LPC I/O

chip. The DIO connector pins are user programmable.

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 GND 2 VCC5

3 GPIO0 4 GPIO1

5 GPIO2 6 GPIO3

7 GPIO4 8 GPIO5

9 GPIO6 10 GPIO7

Table 3-5: DIO Connector Pinouts

Figure 3-4: DIO Connector Location

3.2.3 Battery Connector

CN Label: BT1

CN Type: 1x2 pin header

CN Location: See Figure 3-5

The battery connector is connected to a preinstalled VARTA CR2032 3V battery

1-39

Figure 3-5: Battery Connector Location

3.2.4 Front Panel Connector

CN Label: CN12

CN Type: 2x6 pin header

CN Location: See Figure 3-6

CN Pinouts: See Table 3-6

The system panel connector connects to:

 the system chassis front panel LEDs  the chassis speaker  the power switch  the reset button.

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1-3 POWER LED 2-8 SPEAKER

5-7 PWR BUTTON 10-12 RESET

9-11 HDLED

Table 3-6: Front Panel Connector Pinouts

1-40

IEI

Technology, Corp.

Enano-8523T Motherboard

Figure 3-6: Front Panel Connector Location

3.2.5 USB Connector

CN Label: USB1

CN Type: 2x8 pin header

CN Location: See Figure 3-7

CN Pinouts: See Table 3-7

Two USB devices can be connected directly to the onboard USB connector. The onboard

USB connector is USB 2.0 compliant..

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 USBVCC2 2 USBGND3

3 D2- 4 D3+

5 D2+ 6 D3-

7 USBGND2 8 USBVCC3

Table 3-7: USB Connector Pinouts

1-41

Figure 3-7: USB Connector Location

3.2.6 Fan Connector

CN Label: FAN1

CN Type: 1x3 pin header

CN Location: See

CN Pinouts: See

The cooling fan connector provides a 12V, 500mA current to a system cooling fan. The

connector has a "rotation" pin to get rotation signals from fans and notify the system so the

system BIOS can recognize the fan speed. Please note that only specified fans can issue

the rotation signals.

PIN NO. DESCRIPTION

1 Fan Speed Detect

2 +12V

3 GND

Table 3-8: FAN1 Pinouts

1-42

IEI

Technology, Corp.

Enano-8523T Motherboard

Figure 3-8: Table 3-9: FAN1 Connector Location

3.2.7 ATX Power Connector

CN Label: PW1

CN Type: 1x4 pin header

CN Location: See Figure 3-9

CN Pinouts: See

Connects a power source from a Enano-8523T to a power supply unit (PSU).

PIN NO. DESCRIPTION

1 5V

2 GND

3 GND

4 12V

Table 3-10: Power Connector Pinouts

1-43

Figure 3-9: Power Connector Location

3.2.8 Power Connector

CN Label: PW2

CN Type: 1x3 pin header

CN Location: See Figure 3-10

CN Pinouts: See Table 3-11

PIN NO. DESCRIPTION

1 5VSBY

2 GND

3 PSON

Table 3-11: Power Connector Pinouts

1-44

IEI

Technology, Corp.

Enano-8523T Motherboard

Figure 3-10: Power Connector Location

3.2.9 Keyboard/Mouse Connector

CN Label: IR1

CN Type: 1x6 pin header

CN Location: See Figure 3-11

CN Pinouts: See Table 3-12

The Keyboard/ PS2 mouse cable that was shipped with the Enano-8523T board is

connected to the keyoard/mouse connector.

PIN NO. DESCRIPTION

1 5V

2 MS DATA

3 MS CLK

4 KB DATA

Table 3-12: Keyboard/Mouse Connector

5 KB CLK

6 GND

Pinouts

1-45

Figure 3-11: Keyboard/Mouse Connector Location

3.2.10 COM4 Connectors

CN Label: COM4

CN Type: 1x7 pin port

CN Location: See Figure 3-12

CN Pinouts: See

The COM4 connector provides connectivity to RS-232 serial communication devices.

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 DCD4 2 DSR4

3 RX4 4 RTS4

5 TX4 6 CTS4

7 DTR4 8 RI4

9 GND 10 GND

Table 3-13: COM4 Connector Pinouts

1-46

IEI

Technology, Corp.

Enano-8523T Motherboard

Figure 3-12: COM4 Connector Location

3.2.11 Parallel Port Connector

CN Label: LPT

CN Type: 1x5 pin header

CN Location: See Figure 3-13

CN Pinouts: See Table 3-14

The parallel port connector is usually connected to a printer. A 26-pin flat-cable connector

is used to connect the parallel port with a printer or other parallel communication device.

PIN DESCRIPTION PIN DESCRIPTION

1 STROBE# 14 AUTO FORM FEED #

2 DATA0 15 ERROR#

3 DATA1 16 INITIALIZE#

4 DATA2 17 PRINTER SELECT LN#

5 DATA3 18 GND

1-47

6 DATA4 19 GND

7 DATA5 20 GND

8 DATA6 21 GND

9 DATA7 22 GND

10 ACKNOWLEDGE# 23 GND

11 BUSY 24 GND

12 PAPER EMPTY 25 GND

13 PRINTER SELECT

Table 3-14: Parallel Port Connector Pinouts

Figure 3-13: Parallel Port Connector Location

3.2.12 Inverter Connector

CN Label: CN3

1-48

IEI

Technology, Corp.

Enano-8523T Motherboard

CN Type: 1x6 Pin header

CN Location: See Figure 3-14

CN Pinouts: See Table 3-15

The inverter connector connects to the LCD backlight inverter.

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 VCC12 2 VCC12

3 BKLT_EN 4 BKLT_ADJ

5 GND 6 GND

Table 3-15: Inverter Connector Pinouts

Figure 3-14: Inverter Connector

1-49

3.2.13 LVDS Connector

CN Label: CN8

CN Type: 2x15 Pin header

CN Location: See Figure 3-14

CN Pinouts: See Table 3-16

LVDS (Low Voltage Differential Signaling) is a low noise, low power, and low amplitude

method for high-speed data transmission over a copper wire. The LVDS connector is

typically connected to an LCD screen.

PIN NO. Description PIN NO. Description

1 GND 2 GND

3 LVDS_Y0+ 4 LVDS_Y0-

5 LVDS_Y1+ 6 LVDS_Y1-

7 LVDS_Y2+ 8 LVDS_Y2-

9 LVDS_CLK+ 10 LVDS_CLK-

11 LVDS_Y3+ 12 LVDS_Y3-

13 GND 14 GND

15 LVDSB_Y0+ 16 LVDSB_Y0-

17 LVDSB_Y1+ 18 LVDSB_Y1+

19 LVDSB_Y2+ 20 LVDSB_Y2-

21 LVDSBCLK+ 22 LVDSBCLK-

23 LVDSB_Y3+ 24 LVDSB_Y3-

25 GND 26 GND

27 VCC_LCD 28 VCC_LCD

29 VCC_LCD 30 VCC_LCD

Table 3-16: LVDS Connector Pinouts

1-50

IEI

Technology, Corp.

Enano-8523T Motherboard

Figure 3-15: LVDS Connector

3.2.14 SODIMM Socket

CN Label: DIMM1

CN Type: 200 Pin DDR-SDRAM SODIMM Socket

CN Location: See Figure 3-16

A 200 pin DDR-SDRAM SODIMM socket is located on the rear side of the Enano-8523T

board. The SODIMM socket can support 266MHz DDR SODIMM SDRAM of up to 1GB

1-51

Figure 3-16: SODIMM Socket Location (Rear Side)

3.2.15 Compact Flash Type 2 Socket

CN Label: CN7

CN Type: 50-pin

CN Location: See Figure 3-17

CN Pinouts: See Table 3-17

A CFII (compact flash type II connector) is located on the rear side of the Enano-8523T.

The CFII connector is for applications without external storage. The Compact Flash socket

provides an alternative to hard disk drives in applications where hard disk drives may

consume too much space and storage capacity is not a requirement. The CF card

behaves like a Secondary IDE Master disk drive.

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 GROUND 26 VCC-IN CHECK1

2 DATA 3 27 DATA 11

3 DATA 4 28 DATA 12

4 DATA 5 29 DATA 13

5 DATA 6 30 DATA 14

6 DATA 7 31 DATA 15

7 HDC_CS0# 32 HDC_CS1

1-52

IEI

Technology, Corp.

Enano-8523T Motherboard

8 N/C 33 N/C

9 GROUND 34 IOR#

10 N/C 35 IOW#

11 N/C 36 VCC_COM

12 N/C 37 IRQ15

13 VCC_COM 38 VCC_COM

14 N/C 39 CSEL

15 N/C 40 N/C

16 N/C 41 HDD_RESET

17 N/C 42 IORDY

18 SA2 43 SDREQ

19 SA1 44 SDACK#

20 SA0 45 HDD_ACTIVE#

21 DATA 0 46 66DET

22 DATA 1 47 DATA 8

23 DATA 2 48 DATA 9

24 N/C 49 DATA 10

25 VCC-IN CHECK2 50 GROUND

Table 3-17: CFII Socket Pinouts

Figure 3-17: CFII Socket Location (Rear Side)

1-53

3.3 External (Rear Panel) Connectors

Figure 3-18 shows the Enano-8523T board rear panel. The peripheral connectors on the

back panel can be connected to devices externally when the Enano-8523T is installed in a

chassis. The peripheral connectors on the rear panel are:

 1 x PS/2 keyboard connector  2 x USB connectors  1 x RJ-45 GbE connector  1 x VGA connector  1 x Line-out connector

Figure 3-18: Enano-8523T Board Rear Panel

3.3.1 Serial Port Connectors

CN Label: CN6, J5

CN Type: DB-9

CN Location: See Figure 3-18 (labeled number 1,2, 3)

CN Pinouts: See Table 3-18

The three serial ports (COM1, COM2 and COM3) can be connected to a serial

communications device directly.

1-54

IEI

Technology, Corp.

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

Table 3-18: Serial Port Pinouts

3.3.2 USB Connectors

CN Label: J15

CN Type: USB port

Enano-8523T Motherboard

1 DCD1 2 DSR1

3 RX1 4 RTS1

5 TX1 6 CTS1

7 DTR1 8 RI1

9 GND

CN Location: See Figure 3-18 (labeled number 5)

CN Pinouts: See Table 3-19

USB devices can be connected directly to the USB connectors on the rear panel.

PIN DESCRIPTION PIN DESCRIPTION

Table 3-19: USB Connectors

+5V 2 DATA-

DATA+ 4 GND

3.3.3 Ethernet Connector

CN Label: J15

CN Type: RJ-45

CN Location: See Figure 3-18 (labeled number 6)

CN Pinouts: See Table 3-20

The Ethernet connector can be directly connected to a Local Area Network (LAN) through a

network hub. An RJ-45 Ethernet connector is shown in Figure 3-19.

1-55

PIN DESCRIPTION PIN DESCRIPTION

1 TXD+ 8 GND

2 TXD- 9

3 RXD+ 10

4 CT_TXD 11 YEL-

5 CT_RXD 12

6 RXD- 13

7 N/C 14 S GND

Table 3-20: RJ-45 Ethernet Connector Pinouts

GRN+

GRN-

YEL+

S GND

Figure 3-19: RJ-45 Ethernet Connector

The RJ-45 Ethernet connector has two status LEDs, one green and one yellow. The green

LED indicates activity on the port and the yellow LED indicates the port is linked. See Table

3-21.

STATUS

GREEN Activity YELLOW Linked

Table 3-21: RJ-45 Ethernet Connector LEDs

DESCRIPTION STATUS DESCRIPTION

3.3.4 VGA Connector

CN Label: VGA1

CN Type: 15-pin

CN Location: See Figure 3-18 (labeled number 4)

The standard 15-pin VGA connector connects to a CRT or LCD display monitor.

1-56

IEI

Technology, Corp.

Enano-8523T Motherboard

PIN DESCRIPTION PIN DESCRIPTION

1 Red 9 No Connect

2 Green 10 Ground

3 Blue 11 No Connect

4 No Connect 12 DDC DAT

5 Ground 13 Horizontal Synchronization

6 Ground 14 Vertical Synchronization

7 Ground 15 DDC Clock

8 Ground

Table 3-22: VGA Connector Pinouts

3.3.5 Audio Connector

CN Label: CN11

CN Type: 3 x audio jacks

CN Location: See Figure 3-18 (labeled number 7)

 Line In port (Light Blue): Connects a CD-ROM, DVD player, or other audio

devices.

 Line Out port (Lime): Connects to a headphone or a speaker. With

multi-channel configurations, this port can also connect to front speakers.

 Microphone (Pink): Connects a microphone.

1-57

3.4 Onboard Jumpers

NOTE:

A jumper is a metal bridge that is used to

close an electrical circuit. It consists of

two metal pins and a small metal clip

(often protected by a plastic cover) that

slides over the pins to connect them.

To CLOSE/SHORT a jumper mean

connecting the pins of the jumper with

the plastic clip and to OPEN a jumper

means removing the plastic clip from a

jumper.

The Enano-8523T board has three one onboard jumpers, “Clear CMOS,” “CF card setup”

and “LCD voltage setup.”

Figure 1-3-20 Jumper

Figure 3-21: Jumper Locations

1-58

IEI

Technology, Corp.

3.4.1 Reset CMOS Jumper

Jumper Label: JP2

Jumper Type: 3 pin header

Jumper Settings: See Table 3-23

Jumper Location: See Figure 3-21

If the Enano-8523T fails to boot due to improper BIOS setting, use this jumper to clear the

CMOS data and reset the system BIOS information. To do this, use the jumper cap to

close pins 2 and 3 for a few seconds then reinstall the jumper clip back to pins 1 and 2.

If the “CMOS Settings Wrong” message displays during the boot up process, you may then

Enano-8523T Motherboard

try to correct the fault by pressing the F1 to enter the CMOS Setup menu. You may then

do one of the following:

 Enter the correct CMOS setting  Load Optimal Defaults  Load Failsafe Defaults.

After you have done one of the above, save your changes and exit the CMOS Setup menu.

JJP2 CLEAR CMOS

1-2 closed Normal (default)

2-3 closed Clear CMOS

Table 3-23: JP2 Jumper Settings

3.4.2 CF Card Setup

Jumper Label: JP4

Jumper Type: 2 pin header

Jumper Settings: See Table 3-24

Jumper Location: See Figure 3-21

This allows you to set a compact flash card as either the slave device or the master device.

1-59

Table 3-24: JP4 Jumper Settings

3.4.3 LCD Voltage Setup

Jumper Label: JP6

Jumper Type: 3 pin header

Jumper Settings: See Table 3-25

Jumper Location: See Figure 3-21

JP4 DESCRIPTION

Open Slave(Default)

Close Master

This allows you to set the correct voltage for your LCD screen.

WARNING:

Please refer to the technical documentation that came with your LCD panel.

If you set the incorrect voltage on this jumper you may cause irreversible

damage to both the LCD panel and the Enano-8523T.

JP6 DESCRIPTION

1-2 3.3V(Default)

2-3 5V

Table 3-25: JP6 Jumper Settings

1-60

IEI

Technology, Corp.

Enano-8523T Motherboard

Chapter

4 Installation and

Configuration

1-61

4.1 Installation Considerations

NOTE:

The following installation notices and installation considerations should be

read and understood before the Enano-8523T is installed. All installation

notices pertaining to the installation of the Enano-8523T should be strictly

adhered to. Failing to adhere to these precautions may lead to severe

damage of ENANP-8523 and injury to the person installing the ENANO-853.

4.1.1 Installation Notices

Before and during the installation of the Enano-8523T board, please do the following:

 Read the user manual

o The user manual provides a complete description of the

Enano-8523T board, installation instructions and configuration

options.

 Wear an electrostatic discharge cuff (ESD)

o Electronic components are easily damaged by ESD. Wearing an ESD

cuff removes ESD from your body and help to prevent ESD damage.

 Place the board on an antistatic pad

o When you are installing or configuring the board, place it on an

antistatic pad. This helps to prevent potential ESD damage.

 Turn off all power to the Enano-8523T board

o When working with the board, make sure that it is disconnected from

all power supplies and that no electricity is being fed into the system.

Before and during the installation of the Enano-8523T board DO NOT:

 remove any of the stickers on the PCB board. These stickers are required for

warranty validation.

 use the product before you have verified that all cables and power connectors

are properly connected.

1-62

IEI

Technology, Corp.

 allow screws to come in contact with the PCB circuit, connector pins, or its

components.

4.2 Unpacking

NOTE:

If any of the items listed below are missing when you unpack the

Enano-8523T board, do not proceed with the installation and contact the

reseller or vendor you purchased the board from.

Enano-8523T Motherboard

4.2.1 Unpacking Precautions

Before you install the Enano-8523T board, you must unpack the board. Some

Enano-8523T components are very sensitive to static electricity and can be damaged by a

sudden rush of power. To protect it from being damage, follow these precautions:

 Ground yourself to remove any static charge before touching your

Enano-8523T. You can do so by wearing a grounded wrist strap at all times or

by frequently touching any conducting materials that are connected to the

ground.

 Handle your Enano-8523T by its edges. Do not touch the IC chips, leads or

circuitry if not necessary.

Do not place a PCB on top of an anti-static bag. Only the inside of the bag is safe from

static discharge.

4.2.2 Checklist

When you unpack the Enano-8523T, please make sure that your package contains the

following items.

 1 x Enano-8523T single board computer  1 x Keyboard/ PS2 mouse cable

1-63

 1 x Mini jumper pack  1 x Utility CD  1 x IDE flat cable 44p/44p  1 x QIG (quick installation guide)

If one or more of these items are missing, please contact the reseller or vendor you

purchased the Enano-8523T board from and do not proceed any further with the

installation.

4.3 Enano-8523T Board Installation

WARNING!

1. Never run the Enano-8523Twithout an appropriate heatsink and cooler

that can be ordered from IEI Technology or purchased separately.

2. Be sure to use the CPU 12V power connector (CN10007) for the CPU

power.

WARNING!

Please note that the installation instructions described in this manual should

be carefully followed in order to avoid damage to the Enano-8523T

components and injury to you.

WARNING!

When installing electronic components onto the Enano-8523T always take the

following anti-static precautions in order to prevent ESD damage to your

Enano-8523T and other electronic components like the CPU and DIMM

modules

4.3.1 Preinstalled Components

The components listed below are preinstalled on the Enano-8523T.

1-64

IEI

Technology, Corp.

 CPU (800MHz Intel Celeron M)  CPU heat sink  Northbridge heat sink  Southbridge heat sink

4.3.2 Components to Install

To install the Enano-8523T, the following components must be installed or connected to

the Enano-8523T

 DIMM modules  Compact flash device  Peripheral devices

Enano-8523T Motherboard

4.3.3 DIMM Module Installation

4.3.3.1 Purchasing the Memory Module

WARNING!

The DDR2 architecture is not compatible with DDR1 modules. If your

system is installed with DDR1 modules, damage might occur and your

may become inaccessible

When you purchase your SODIMM modules, the following considerations should be taken

into account:

 The maximum SODIMM capacity supported in 1GB  The maximum SODIMM frequency supported is 266MHz.  The SODIMM chip must be a 200-pin memory chip

4.3.3.2 DIMM Module Installation

The Enano-8523T board has one 200-pin SODIMM socket. To install the SODIMM

module, follow the instructions below.

Step 1:

Step 2:

Turn the Enano-8523T over so that the SODIMM socket is facing up.

Push the SODIMM chip into the socket at an angle.

1-65

Step 3:

Step 4:

Gently pull the arms of the SODIMM socket out and push the rear of the

SODIMM module down.

Release the arms on the SODIMM socket. They clip into place and secure the

SODIMM module in the socket.Step 0:

4.3.4 Peripheral Device Connection

Cables provided by IEI that connect peripheral devices to the board are listed in Table 4-1.

Cables not included in the kit must be separately purchased.

Quantity Typ e

1 Keyboard/ PS2 mouse cable

2 IDE flat cable 44p/44p

Table 4-1: IEI Provided Cables

4.3.4.1 IDE Disk Drive Connector (IDE1)

The cable used to connect the Enano-8523T to the IDE HDD is a standard 44-pin ATA

66/100 flat cable. To connect an IDE device to the Enano-8523T, follow the instructions

below.

Step 1:

Step 2:

Step 3:

Step 4:

Find the ATA 66/100 flat cable in the kit that came with the Enano-8523T.

Connect one end of the cable to the IDE1 connector on the Enano-8523T. A

keyed pin on the IDE connectors prevents it from being connected incorrectly.

Locate the red wire on the other side of the cable that corresponds to the pin 1

connector.

Connect the other side of the cable to the IDE device making sure that the pin 1

cable corresponds to pin 1 on the connector.Step 0:

1-66

IEI

Technology, Corp.

Enano-8523T Motherboard

NOTE:

When two EIDE disk drives are connected together, back-end jumpers on

the drives must be used to configure one drive as a master and the other as

a slave.

4.3.4.2 Keyboard/Mouse Connection

The cable used to connect the Enano-8523T to the keyboard and mouse is Y-cable that is

connected to KB_MS1. To connect a keyboard and mouse, please do the following.

Step 1:

Step 2:

Insert the connector at the end of the keyboard/mouse cable in the

keyboard/mouse connector on the Enano-8523T.

Connect the respective cables to the keyboard and mouse.Step 0:

4.4 Chassis Installation

After the CPU, the cooling kit, and the DIMM modules have been installed and after the

internal peripheral connectors have been connected to the peripheral devices and the

jumpers have been configure, the Enano-8523T can be mounted into chassis.

To mount a board into a chassis, please refer to the chassis user guide that came with the

product.

4.5 Rear Panel Connectors

4.5.1 LCD Panel Connection

The conventional CRT monitor connector, VGA1, is a 15-pin, female D-SUB connector.

Pin assignments can be seen in that can be connected to external monitors.

4.5.2 Ethernet Connection

The rear panel RJ-45 connectors can be connected to an external LAN and communicate

with data transfer rates up to 100M/s.

1-67

4.5.3 USB Connection

The rear panel USB connectors provide easier and quicker access to external USB

devices. The rear panel USB connector is a standard connector and can easily be

connected to other USB devices.

1-68

IEI

Technology, Corp.

Enano-8523T Motherboard

Chapter

5 AMI BIOS Setup

1-69

5.1 Introduction

A licensed copy of AMI BIOS is preprogrammed into the ROM BIOS. The BIOS setup

program allows users to modify the basic system configuration. This chapter describes

how to access the BIOS setup program and the configuration options you may change.

5.1.1 Starting Setup

The AMI BIOS is activated when you turn on the computer. The setup program can be

activated in one of two ways.

1. Press the D

2. Press the DELETE key when the “Press Del to enter SETUP” message

appears on the screen. 0.

If the message disappears before you respond, you must restart your computer and try

again.

ELETE key as soon as the system is turned on or

5.1.2 Using Setup

Use the arrow keys to highlight items, press ENTER to select, use the PageUp and

PageDown keys to change entries, press F1 for help and press E

keys are shown in.

Key Function

Up arrow Move to previous item

Down arrow Move to next item

Left arrow Move to the item on the left hand side

SC to quit. Navigation

Right arrow Move to the item on the right hand side

Esc key Main Menu – Quit and not save changes into CMOS

Status Page Setup Menu and Option Page Setup Menu --

Exit current page and return to Main Menu

Page Up key Increase the numeric value or make changes

Page Dn key Decrease the numeric value or make changes

F1 key General help, only for Status Page Setup Menu and Option

Page Setup Menu

1-70

IEI

Technology, Corp.

F2 /F3 key Change color from total 16 colors. F2 to select color

F10 key Save all the CMOS changes, only for Main Menu

Table 5-1: BIOS Navigation Keys

5.1.3 Getting Help

When you press F1 a small help window describing the appropriate keys to use and the

Enano-8523T Motherboard

forward.

possible selections for the highlighted item appears. To exit the Help Window press E

the F1 key again.

5.1.4 Unable to Reboot After Configuration Changes

If you are unable to boot your computer after you have made changes to the system

configuration, you must restore the CMOS defaults. Use the jumper described in Chapter

Chapter 3, Section 3.4.1.

5.1.5 BIOS Menu Bar

The menu bar on top of the BIOS screen has the following main items:

 Main Changes the basic system configuration.  Advanced Changes the advanced system settings.  PCIPnP Changes the advanced PCI/PnP Settings  Boot Changes the system boot configuration.  Security Sets User and Supervisor Passwords.

SC or

 Chipset Changes the chipset settings.  Power Changes power management settings.  Exit Selects exit options and loads default settings

The following sections completely describe the configuration options found in the menu

items at the top of the BIOS screen and listed above.

1-71

5.2 Main

When you enter the BIOS Setup program, the Main menu (BIOS Menu 1) appears. The

Main menu gives you an overview of the basic system information.

BIOS Menu 1: Main

 System Overview

The System Overview lists a brief summary of different system components. The fields in

System Overview cannot be changed. The items shown in the system overview include:

 AMI BIOS: Displays auto-detected BIOS information

o Version: Current BIOS version o Build Date: Date the current BIOS version was made o ID: Installed BIOS ID

1-72

IEI

Technology, Corp.

Enano-8523T Motherboard

 Processor: Displays auto-detected CPU specifications

o Type: Names the currently installed processor o Speed: Lists the processor speed o Count: The number of CPUs on the Enano-8523T

 System Memory: Displays the auto-detected system memory.

o Size: Lists memory size

The System Overview field also has two user configurable fields:

 System Time [xx:xx:xx]: Allows you to set the system time.  System Date [Day xx/xx/xxxx]: Allows you to set the system date.

5.3 Advanced

The Advanced menu (BIOS Menu 2) allows you to access CPU and peripheral device

configuration options through the following sub-menus:

WARNING:

Setting the wrong values in the sections below may cause the system to

malfunction. Make sure that the settings you make are compatible with your

hardware.

 CPU Configuration (see Section 0)  IDE Configuration (see Section 5.3.2)  SuperIO Configuration (see Section 5.3.3)  Hardware Health Configuration (see Section 5.3.4)  ACPI Configuration (see Section 5.3.5)  MPS Configuration (see Section 5.3.6)  Trusted Computing (see Section 5.3.7)  USB Configuration (see Section 5.3.8)

1-73

BIOS Menu 2: Advanced

NOTE:

The floppy configuration function shown in the menu above is not available

on the Enano-8523T.

5.3.1 CPU Configuration

The CPU Configuration menu (BIOS Menu 3) shows detailed CPU specifications.

1-74

IEI

Technology, Corp.

Enano-8523T Motherboard

BIOS Menu 3: CPU Configuration [Advanced]

The CPU Configuration menu (BIOS Menu 3) lists the following CPU details:

 Manufacturer: Lists the name of the CPU manufacturer  Brand String: Lists the brand name of the CPU being used  Frequency: Lists the CPU processing speed  FSB Speed: Lists the FSB speed  Cache L1: Lists the CPU L1 cache size  Cache L2: Lists the CPU L2 cache size (which in this case is zero)

5.3.2 IDE Configuration

The IDE Configuration menu (BIOS Menu 4) allows you to set or change the

configurations for the IDE devices installed in the system.

1-75

BIOS Menu 4: IDE Configuration [Advanced]

 OnBoard PCI IDE Controller [Both]

The OnBoard PCI IDE Controller BIOS option specifies the IDE channels used by the

onboard PCI IDE controller. The following configuration options are available.



Disabled

Primary

Secondary

Prevents the system from using the onboard IDE

controller

Only allows the system to detect the Primary IDE

channel, including both the Primary Master and Primary

Slave)

Only allows the system to detect the Secondary IDE

1-76

channel, including both the Secondary Master and

IEI

Technology, Corp.

Enano-8523T Motherboard

Secondary Slave)



Both

 IDE Master and IDE Slave

When entering setup, BIOS auto detects the presence of IDE devices. This displays the

status of the auto detected IDE devices. The following IDE devices are detected and are

shown in the IDE Configuration menu:

(Default) Allows the system to detect both the Primary and

Secondary IDE channels including the Primary Master,

Primary Slave, Secondary Master and Secondary Slave.

 Primary IDE Master  Primary IDE Slave  Secondary IDE Master  Secondary IDE Slave  Third IDE Master  Third IDE Slave

The IDE Configuration menu (BIOS Menu 4) allows you to set or change the

configurations for the IDE devices installed in the system. If an IDE device is detected, and

one of the above listed four BIOS configuration options are selected, the IDE configuration

options shown in Section 5.3.2.1 appear.

5.3.2.1 IDE Master, IDE Slave

IDE Master and IDE Slave configuration options for both primary and secondary IDE

devices are shown in the BIOS menu below.

1-77

BIOS Menu 5: IDE Master and IDE Slave Configuration [Advanced/IDE Configuration]

 Auto-Detected Drive Parameters

The “grayed-out” items in the left frame are IDE disk drive parameters automatically

detected from the firmware of the selected IDE disk drive. The drive parameters are listed

as follows:

 Device: Lists the device type (e.g. hard disk, CD-ROM etc.)  Vendor: Lists the device manufacturer  Size: The size of the device.  LBA Mode: Indicates whether the LBA (Logical Block Addressing) is a method

of addressing data on a disk drive is supported or not.

 Block Mode: Block mode boosts IDE drive performance by increasing the

amount of data transferred. Only 512 bytes of data can be transferred per

interrupt if block mode is not used. Block mode allows transfers of up to 64 KB

1-78

IEI

Technology, Corp.

 Type [Auto]

The Type BIOS option determines the type of device that the AMIBIOS attempts to boot

from after the Power-On Self-Test (POST) has completed.

Enano-8523T Motherboard

per interrupt.

 PIO Mode: Indicates the PIO mode of the installed device.  Async DMA: Indicates the highest Asynchronous DMA Mode that is

supported.

 Ultra DMA: Indicates the highest Synchronous DMA Mode that is supported.  S.M.A.R.T.: Indicates whether or not the Self-Monitoring Analysis and

Reporting Technology protocol is supported.



Not Installed



Auto



CD/DVD



ARMD

Selecting this value prevents the BIOS from searching

for an IDE disk drive on the specified channel.

(Default) This selection enables the BIOS to auto detect the IDE

disk drive type attached to the specified channel. This

setting should be used if an IDE hard disk drive is

attached to the specified channel.

The CD/DVD option specifies that an IDE CD-ROM

drive is attached to the specified IDE channel. The

BIOS does not attempt to search for other types of IDE

disk drives on the specified channel.

This option specifies an ATAPI Removable Media

Device. These include, but are not limited to:

 LBA/Large Mode [Auto]

 ZIP

 LS-120

1-79

The LBA/Large Mode BIOS option allows you to disable or auto detect LBA (Logical Block

Addressing). LBA is a method of addressing data on a disk drive. In LBA mode, the

maximum drive capacity is 137 GB.



Disabled



Auto

 Block (Multi Sector Transfer) [Auto]



Disabled



Auto

This selection prevents the BIOS from using the LBA

mode control on the specified channel.

(Default) This option allows the BIOS to auto detect the LBA mode

control on the specified channel.

Selecting this option prevents the BIOS from using

Multi-Sector Transfer on the specified channel. The data to

and from the device occurs one sector at a time.

(Default) Selecting this value to allows the BIOS to auto detect the

device support for Multi-Sector Transfers on the specified

channel. If supported. Select this value to allow the BIOS

to auto detect the number of sectors per block for transfer

 PIO Mode [Auto]

The PIO Mode option allows you to select the IDE PIO (Programmable I/O) mode program

timing cycles between the IDE drive and the programmable IDE controller. As the PIO

mode increases, the cycle time decreases.



Auto



from the hard disk drive to the memory. The data transfer

to and from the device occurs multiple sectors at a time.

(Default) This setting allows the BIOS to auto detect the PIO mode. Use

this value if the IDE disk drive support cannot be determined.

PIO mode 0 selected with a maximum transfer rate of 3.3MBps

PIO mode 1 selected with a maximum transfer rate of 5.2MBps

1-80

IEI

Technology, Corp.

Enano-8523T Motherboard



 DMA Mode [Auto]

The DMA Mode BIOS selection allows you to you to adjust the DMA mode options.



Auto



SWDMA0

PIO mode 2 selected with a maximum transfer rate of 8.3MBps

PIO mode 3 selected with a maximum transfer rate of 11.1MBps

PIO mode 4 selected with a maximum transfer rate of 16.6MBps

(This setting generally works with all hard disk drives

manufactured after 1999. For other disk drives, such as IDE

CD-ROM drives, check the specifications of the drive.)

(Default) The BIOS auto detects the DMA mode. Use this value if the

IDE disk drive support cannot be determined.

Single Word DMA mode 0 selected with a maximum data



SWDMA1

SWDMA2

MWDMA0

MWDMA1

MWDMA2

UDMA1

transfer rate of 2.1MBps

Single Word DMA mode 1 selected with a maximum data

transfer rate of 4.2MBps

Single Word DMA mode 2 selected with a maximum data

transfer rate of 8.3MBps

Multi Word DMA mode 0 selected with a maximum data

transfer rate of 4.2MBps

Multi Word DMA mode 1 selected with a maximum data

transfer rate of 13.3MBps

Ultra DMA mode 0 selected with a maximum data transfer

Multi Word DMA mode 2 selected with a maximum data

transfer rate of 16.6MBps



UDMA1

rate of 16.6MBps

Ultra DMA mode 1 selected with a maximum data transfer

1-81

rate of 25MBps



UDMA2



UDMA3



UDMA4



UDMA5

 S.M.A.R.T [Auto]

Ultra DMA mode 2 selected with a maximum data transfer

rate of 33.3MBps

Ultra DMA mode 3 selected with a maximum data transfer

rate of 44MBps (To use this mode, it is required that an

80-conductor ATA cable is used.)

Ultra DMA mode 4 selected with a maximum data transfer

rate of 66.6MBps (To use this mode, it is required that an

80-conductor ATA cable is used.)

Ultra DMA mode 5 selected with a maximum data transfer

rate of 99.9MBps (To use this mode, it is required that an

80-conductor ATA cable is used.)

Self-Monitoring Analysis and Reporting Technology (SMART) feature can help predict

impending drive failures. The S.M.A.R.T BIOS option allows you to enable or disable this

function.



Auto



Disabled



Enabled

(Default) BIOS to auto detects if the hard disk drive supports

S.M.A.R.T. Use this setting if the IDE disk drive support

cannot be determined.

Select this value to prevent the BIOS from using the

SMART feature.

Select this value to allow the BIOS to use the SMART

feature on support hard disk drives.

1-82

IEI

Technology, Corp.

 32Bit Data Transfer [Enabled]

The 32Bit Data Transfer BIOS option allows you to enable or disable 32-bit data transfers.

Enano-8523T Motherboard



Disabled

Enabled

Prevents the BIOS from using 32-bit data transfers.

(Default) Allows BIOS to use 32-bit data transfers on support hard

disk drives.

5.3.3 Super IO Configuration

The Super IO Configuration menu (BIOS Menu 6) allows you to set or change the

configurations for the parallel ports and serial ports.

BIOS Menu 6: Super IO Configuration [Advanced]

 Serial Port1 Address [3F8/IRQ4]

1-83

The Serial Port1 Address option allows BIOS to select the Serial Port 1 base address.



Disabled



3F8/IRQ4



3E8/IRQ4



2E8/IRQ3

 Serial Port2 Address [2F8/IRQ3]

The Serial Port2 Address option allows BIOS to select the Serial Port 2 base address.



Disabled



2F8/IRQ3

No base address is assigned to Serial Port 1

(Default) Serial Port 1 I/O port address is 3F8 and the interrupt

address is IRQ4

Serial Port 1 I/O port address is 3E8 and the interrupt

address is IRQ4

Serial Port 1 I/O port address is 2E8 and the interrupt

address is IRQ3

No base address is assigned to Serial Port 2

(Default) Serial Port 2 I/O port address is 3F8 and the interrupt

address is IRQ3



3E8/IRQ4



2E8/IRQ3

 Serial Port2 Address [2F8/IRQ3]

This option allows BIOS to select the base addresses for Serial Port 2



Disabled



2F8/IRQ3



3E8/IRQ4



2E8/IRQ3

Serial Port 2 I/O port address is 3E8 and the interrupt

address is IRQ4

Serial Port 2 I/O port address is 2E8 and the interrupt

address is IRQ3

No base address is assigned to Serial Port 2

(Default) Serial Port 2 base address is 2F8/IRQ3

Serial Port 2 base address is 2F8/IRQ3

1-84

IEI

Technology, Corp.

 Parallel Port Address [378]

This option allows BIOS to select the base addresses for the Parallel Port

Enano-8523T Motherboard



Disabled



378



278



3BC

 Parallel Port Mode [Normal]

The Parallel Port Mode selection allows you to select the mode the parallel port operates

in.



Normal

EPP

No base address is assigned to the Parallel Port

(Default) Parallel Port I/O port address is 378

Parallel Port I/O port address is 278

Parallel Port I/O port address is 3BC

EFAULT) The normal parallel port mode is the standard mode

for parallel port operation.

The parallel port operates in the enhanced parallel



ECP

ECP+EPP

port mode (EPP). The EPP mode supports

bi-directional communication between the system

and the parallel port device and the transmission

rates between the two are much faster than the

Normal mode.

The parallel port operates in the extended

capabilities port (ECP) mode. The ECP mode

supports bi-directional communication between the

system and the parallel port device and the

transmission rates between the two are much faster

than the SPP mode.

The parallel port operates in the extended

1-85

 Parallel Port IRQ [IRQ7]

The Parallel Port IRQ selection allows you to set the parallel port interrupt address.

capabilities port (ECP) mode. The ECP mode

supports bi-directional communication between the

system and the parallel port device and the

transmission rates between the two are much faster

than the Normal mode

The parallel port becomes compatible with EPP

devices described above



IRQ5



IRQ7

 Serial Port3 Address [3E8]

This option allows BIOS to select the base addresses for Serial Port 3



Disabled



2E8



2F0



2E0

 Serial Port3 IRQ [11]

The Serial Port3 IRQ selection allows you to set the serial port 3 interrupt address

IRQ5 is assigned as the parallel port interrupt address

EFAULT) IRQ7 is assigned as the parallel port interrupt address

No base address is assigned to Serial Port 3

(Default) Serial Port 3 base address is 2E8

Serial Port 3 base address is 2F0

Serial Port 3 base address is 2E0



 Serial Port4 Address [2E8]

1-86

10 is assigned as the serial port 3 interrupt address

EFAULT) 11 is assigned as the serial port 3 interrupt address

IEI

Technology, Corp.

Enano-8523T Motherboard

This option allows BIOS to select the base addresses for Serial Port 4



Disabled



3E8



2E8



2F0



2E0

 Serial Port4 IRQ [10]

The Serial Port4 IRQ selection allows you to set the serial port 4 interrupt address



No base address is assigned to Serial Port 4

EFAULT) Serial Port 4 base address is 3E8

Serial Port 4 base address is 2E8

Serial Port 4 base address is 2F0

Serial Port 4 base address is 2E0

EFAULT) 10 is assigned as the serial port 4 interrupt address

11 is assigned as the serial port 4 interrupt address

5.3.4 Hardware Health Configuration

The Hardware Health Configuration menu (BIOS Menu 7) allows you to see the

configuration for the H/W Health Function and shows you the operating temperature and

system voltages.

1-87

BIOS Menu 7: Hardware Health Configuration [Advanced]

The following hardware health parameters are monitored.

 System Temperatures: The following system temperatures are monitored

o Temperature Sensor #1

 Voltages: The following system voltages are monitored

o Vcore o Vcc o +3.30Vin o +5.00Vin o +12.00Vin o GMCH core o +1.5V o 5VSB o VBAT

1-88

IEI

Technology, Corp.

5.3.5 ACPI Configuration

The ACPI Configuration menu (BIOS Menu 8) allows you to configure the Advanced

Configuration and Power Interface (ACPI) and Power Management (APM) options.

Enano-8523T Motherboard

BIOS Menu 8: ACPI Configuration [Advanced]

 ACPI Aware O/S [Yes]

ACPI Aware O/S can only be configured if your OS complies with the ACPI standard.

Windows 98, Windows 2000, and Windows XP all comply with ACPI.



Disables the ACPI support for the OS. This selection should be

disabled if the OS does not support ACPI

(Default) Enables the ACPI support for the operating system. This

Yes

selection should be enabled if the OS does support ACPI

1-89

5.3.6 MPS Configuration

The MPS Configuration menu (BIOS Menu 9) allows you to configure the multi-processor

table.

BIOS Menu 9: MPS Configuration [Advanced]

 MPS Revision [1.4]

The Multiprocessor Specification (MPS) for OS specifies the MPS version to be used.



MPS version 1.1 is used

1.1

(Default) MPS version 1.4 is used

1.4

5.3.7 Trusted Computing

1-90

IEI

Technology, Corp.

Enano-8523T Motherboard

NOTE:

For the BIOS trusted computing functions to be effective, the TPM driver

that came with the onboard TPM device must be loaded first.

The Trusted Computing configuration menu (BIOS Menu 10) allows you to initiate the

trusted computing option.

BIOS Menu 10: Trusted Computing [Advanced]

 TPM Device [Disabled]

The TPM Device BIOS option allows you to set enable or disable the TPM security device.



Enabled

(Default) The BIOS loads the vendor specific TPM driver, records

1-91

information that verifies the integrity of the BIOS and

pre-boot process, and provides a runtime software

interface to the TPM. Software at the operating system

level uses data in the TPM for trusted applications.



Disabled

 TPM Owner [Don’t Change]



Don’t Change



Clear

The TPM device is disabled and remains disabled until the

5.3.8 USB Configuration

The USB Configuration menu (BIOS Menu 11) gives you information on the USB

configuration and allows you to configure some USB features.

computer is restarted and this BIOS option is enabled.

(Default)

1-92

IEI

Technology, Corp.

Enano-8523T Motherboard

BIOS Menu 11: USB Configuration [Advanced]

 USB Configuration

The USB Configuration field shows the system USB configuration. The items listed are:

 Module Version: x.xxxxx.xxxxx

 USB Devices Enabled:

Lists the USB devices that are enabled on the system.

 USB Function [Enabled]

The USB Function BIOS option allows you to enable or disable the USB function

1-93



Disabled



Enabled

 Legacy USB Support [Disabled]

The Legacy USB Support BIOS option refers to USB mouse and USB keyboard support.

Normally if this option is not enabled, any attached USB mouse or USB keyboard does not

become available until a USB compatible operating system is fully booted with all USB

drivers loaded. When this option is enabled, any attached USB mouse or USB keyboard

can control the system even when there is no USB driver loaded on the system.



Disabled



Enabled

 USB 2.0 Controller [Enabled]

USB function disabled

(Default) USB function enabled

(Default) Legacy USB support disabled

Legacy USB support enabled

The USB 2.0 Controller BIOS option enables or disables the USB 2.0 controller



Disabled



Enabled

 USB2.0 Controller Mode [HiSpeed]

The USB2.0 Controller Mode BIOS option allows you to set the speed of the USB2.0

controller.



FullSpeed



HiSpeed

USB function disabled

(Default) USB function enabled

The controller is capable of operating at full speed

(12Mbits/second)

(Default) The controller is capable of operating at high speed

(480Mbits/second)

 USB Mass Storage Device Configuration

1-94

IEI

Technology, Corp.

Enano-8523T Motherboard

The USB Mass Storage Device Configuration field appears if a USB drive is connected

to one of the USB ports or connectors. If this option is selected a menu appears.

BIOS Menu 12: USB Mass Storage Device

 USB Mass Storage Delay [20 sec]

The USB Mass Storage Delay BIOS option allows you to set number of seconds the

POST waits for the USB mass storage device after the start unit command is issued. The

following options are available:

 10 sec  20 sec  30 sec  40 sec

 Device #1

The Device #1 listing shows the details of the USB drive attached to the system.

1-95

5.4 Boot

The Boot menu (BIOS Menu 13) allows you to configure system boot options.

BIOS Menu 13: Boot

1-96

IEI

Technology, Corp.

5.4.1 Boot Settings Configuration

The Boot Settings Configuration menu (BIOS Menu 13) allows you to configure

advanced system boot options.

Enano-8523T Motherboard

BIOS Menu 14: Boot Settings Configuration [Boot]

 Quick Boot [Enabled]

The Quick Boot BIOS option allows you to make the computer speed up the boot process.



Disabled

Enabled

System does not skip any POST procedures

(Default) Allows system to skip some POST procedures to

decrease the system boot time

1-97

 Quiet Boot [Disabled]

The Quiet Boot BIOS option allows the boot up screen options to be modified between

POST messages or an OEM logo.



Disabled



Enabled

 Bootup Num-Lock [Off]

The Bootup Num-Lock BIOS option allows the Number Lock setting to be modified during

boot up.



(Default) Does not enable the keyboard Number Lock automatically. To

Off

Allows the Number Lock on the keyboard to be enabled

(Default) Displays normal POST messages

Displays OEM Logo instead of POST messages

use the 10-keys on the keyboard, press the Number Lock key

located on the upper left-hand corner of the 10-key pad. The

Number Lock LED on the keyboard lights up when the Number

Lock is engaged.

automatically when the computer system boots up. This allows

 PS/2 Mouse Support [Enabled]

The PS/2 Mouse Support BIOS option allows the PS/2 mouse support to be adjusted.



Disabled



Enabled

1-98

the immediate use of the 10-key numeric keypad located on the

right side of the keyboard. To confirm this, the Number Lock

LED light on the keyboard is lit.

Disables PS/2 mouse support and prevents the PS/2

mouse port from using system resources.

Allows the system to use a PS/2 mouse.

IEI

Technology, Corp.

Enano-8523T Motherboard



Auto

 Wait For ‘F1’ If Error [Enabled]

The Wait For ‘F1’ if Error option allows you to specify how the system responds when the

system detects an error on boot up.



Disabled

(Default) Allows the system to automatically detect if a PS/2

mouse is being used.

If there is an error when booting up, the system does not

wait for user intervention but continues to boot up in the

operating system. Only use this setting if there is a known

reason for a BIOS error to appear. An example would be

a system administrator must remote boot the system.

The computer system does not have a keyboard

currently attached.



Enabled

 Hit ‘DEL’ Message Display [Enabled]

The Hit “DEL” Message Display option allows you to specify whether the instruction to hit

the delete button to enter BIOS during POST appears or not.



Disabled



Enabled

(Default) If there is an error during boot up, the system waits for a

user to press “F1” and enter the BIOS to rectify the

problem. The BIOS can then be adjusted to the correct

settings.

No message displayed during POST

(Default) Displays “Press DEL to run Setup” message in POST

5.4.2 Boot Device Priority

The Boot Device Priority menu (BIOS Menu 15) specifies the boot sequence from the

available devices. Possible boot devices may include:

1-99

 HDD  CD/DVD

BIOS Menu 15: Boot Device Priority Settings [Boot]
