ECK-161B Embedded System
ECK-161B Embedded System
Page i
ECK-161B Embedded System
Revision
Date Version Changes
2008-07 1.00 Initial Release
Page ii
ECK-161B Embedded System
COPYRIGHT NOTICE
The information in this document is subject to change without prior notice in order to
improve reliability, design and function and does not represent a commitment on the part
of the manufacturer.
In no event will the manufacturer be liable for direct, indirect, special, incidental, or
consequential damages arising out of the use or inability to use the product or
documentation, even if advised of the possibility of such damages.
Copyright
This document contains proprietary information protected by copyright. All rights are
reserved. No part of this manual may be reproduced by any mechanical, electronic, or
other means in any form without prior written permission of the manufacturer.
TRADEMARKS
All registered trademarks and product names mentioned herein are used for identification
purposes only and may be trademarks and/or registered trademarks of their respective
owners.
Page iii
ECK-161B Embedded System
Manual Conventions
WARNING!
Warnings appear where overlooked details may cause damage to the equipment or result
in personal injury. Warnings should be taken seriously. Warnings are easy to recognize.
The word “warning” is written as “WARNING,” both capitalized and bold and is followed by
text. The text is the warning message. A warning message is shown below:
WARNING:
This is an example of a warning message. Failure to adhere to warning
messages may result in permanent damage to the ECK-161B or
personal injury to the user. Please take warning messages seriously.
CAUTION!
Cautionary messages should also be heeded to help reduce the chance of losing data or
damaging the ECK-161B. Cautions are easy to recognize. The word “caution” is written as
“CAUTION,” both capitalized and bold and is followed. The italicized text is the cautionary
message. A caution message is shown below:
Page iv
ECK-161B Embedded System
CAUTION:
This is an example of a caution message. Failure to adhere to cautions
messages may result in permanent damage to the ECK-161B. Please
take caution messages seriously.
NOTE:
These messages inform the reader of essential but non-critical information. These
messages should be read carefully as any directions or instructions contained therein can
help avoid making mistakes. Notes are easy to recognize. The word “note” is written as
“NOTE,” both capitalized and bold and is followed by text. The text is the cautionary
message. A note message is shown below:
NOTE:
This is an example of a note message. Notes should always be read.
Notes contain critical information about the ECK-161B. Please take
note messages seriously.
Page v
ECK-161B Embedded System
Packing List
NOTE:
If any of the components listed in the checklist below are missing, please do not
proceed with the installation. Contact the IEI reseller or vendor you purchased
the ECK-161B from or contact an IEI sales representative directly. To contact
an IEI sales representative, please send an email to
The items listed below should all be included in the ECK-161B package.
1 x ECK-161B embedded system
1 x Screw set
1 x Power adaptor
1 x Power cord
1 x QIG
2 x Wall mount brackets
1 x HDD installation kit
1 x Driver CD
1 x Manual CD
Images of the above items are shown in Chapter 4.
sales@iei.com.tw.
Page vi
ECK-161B Embedded System
Table of Contents
1 INTRODUCTION..................................................................................................... 1
1.1 ECK-161B EMBEDDED SYSTEM OVERVIEW.............................................................. 2
1.1.1 ECK-161B Benefits............................................................................................ 3
1.1.2 ECK-161B Features........................................................................................... 3
1.2 ECK-161B MODEL VARIATION.................................................................................. 3
1.3 TECHNICAL SPECIFICATIONS ...................................................................................... 4
1.4 POWER ADAPTER SPECIFICATIONS ............................................................................. 6
2 MECHANICAL DESCRIPTION............................................................................ 7
2.1 ECK-161B MECHANICAL OVERVIEW........................................................................ 8
2.2 ECK-161B PHYSICAL DIMENSIONS........................................................................... 8
2.3 EXTERNAL OVERVIEW ............................................................................................... 9
2.3.1 Front Panel........................................................................................................ 9
2.3.2 Rear Panel Overview........................................................................................ 10
2.4 INTERNAL OVERVIEW................................................................................................11
3 SYSTEM SPECIFICATIONS ............................................................................... 12
3.1 CPU SUPPORT.......................................................................................................... 13
3.1.1 Intel® Core™ Duo Specifications.................................................................... 13
3.1.2 Intel® Celeron® M Specifications..................................................................... 14
3.2 SYSTEM CHIPSET ..................................................................................................... 14
3.2.1 Northbridge and Southbridge Chipsets ........................................................... 14
3.2.2 Intel® 945GM Northbridge Chipset................................................................. 14
3.2.3 Intel ICH7-M Southbridge Chipset.................................................................. 15
3.3 GRAPHICS SUPPORT ................................................................................................. 16
3.4 ETHERNET CONTROLLER SPECIFICATIONS ............................................................... 16
3.4.1 Overview.......................................................................................................... 16
3.4.2 Features ........................................................................................................... 16
4 INSTALLATION .................................................................................................... 18
4.1 ANTI-STATIC PRECAUTIONS...................................................................................... 19
Page vii
4.2 INSTALLATION PROCEDURE...................................................................................... 19
4.2.1 Installation Procedure Overview ..................................................................... 19
4.2.2 Unpacking........................................................................................................ 20
4.2.3 CompactFlash® Card Installation .................................................................. 21
4.2.4 Bottom Panel Removal..................................................................................... 22
4.2.5 HDD Installation ............................................................................................. 23
4.2.6 PCI Expansion Card Installation..................................................................... 26
4.2.7 ECK-161B Series Wall Mounting..................................................................... 28
4.2.8 Cable Connections........................................................................................... 29
4.3 POWER-ON PROCEDURE .......................................................................................... 30
4.3.1 Installation Checklist....................................................................................... 30
4.3.2 Power-on Procedure ........................................................................................ 31
4.4 SYSTEM MAINTENANCE........................................................................................... 31
5 AMI BIOS SETUP.................................................................................................. 33
ECK-161B Embedded System
5.1 INTRODUCTION ........................................................................................................ 34
5.1.1 Starting Setup................................................................................................... 34
5.1.2 Using Setup...................................................................................................... 34
5.1.3 Getting Help..................................................................................................... 35
5.1.4 BIOS Menu Bar................................................................................................ 35
5.2 MAIN ....................................................................................................................... 35
5.3 ADVANCED............................................................................................................... 37
5.3.1 CPU Configuration.......................................................................................... 38
5.3.2 IDE Configuration........................................................................................... 39
5.3.2.1 IDE Master, IDE Slave............................................................................. 41

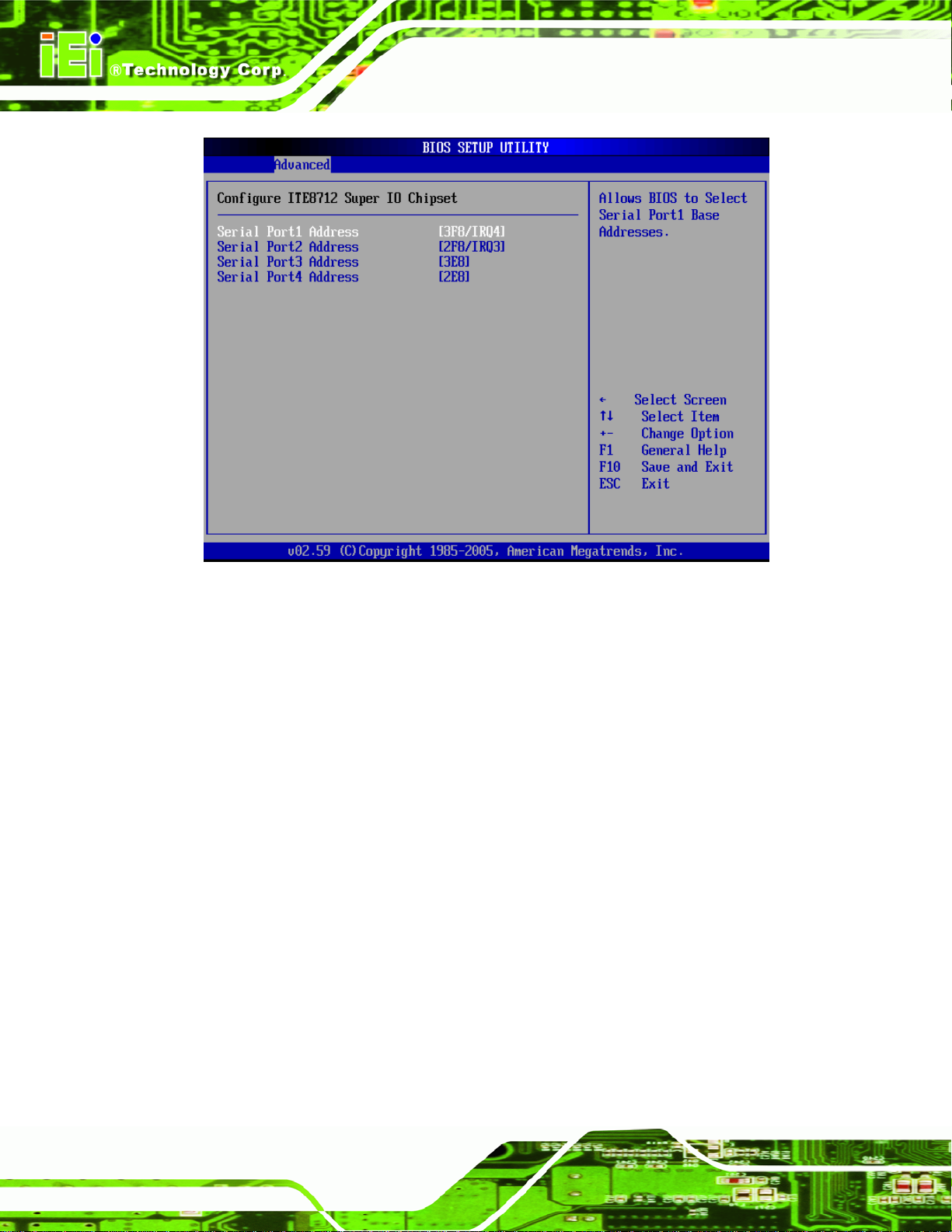

5.3.3 Super IO Configuration.................................................................................... 45
5.3.4 Hardware Health Configuration...................................................................... 47
5.3.5 ACPI Configuration ......................................................................................... 49
5.3.6 APM Configuration.......................................................................................... 51
5.3.7 Remote Access Configuration.......................................................................... 53
5.3.8 USB Configuration........................................................................................... 54
5.4 PCI/PNP .................................................................................................................. 57
5.5 BOOT ....................................................................................................................... 59
5.5.1 Boot Settings Configuration............................................................................. 60
5.6 SECURITY................................................................................................................. 63
Page viii
ECK-161B Embedded System
5.7 CHIPSET ................................................................................................................... 64
5.7.1 North Bridge Configuration............................................................................. 65
5.7.2 South Bridge Configuration............................................................................. 69
5.8 EXIT......................................................................................................................... 71
6 DRIVER INSTALLATION.................................................................................... 74
6.1 AVAILABLE SOFTWARE DRIVERS .............................................................................. 75

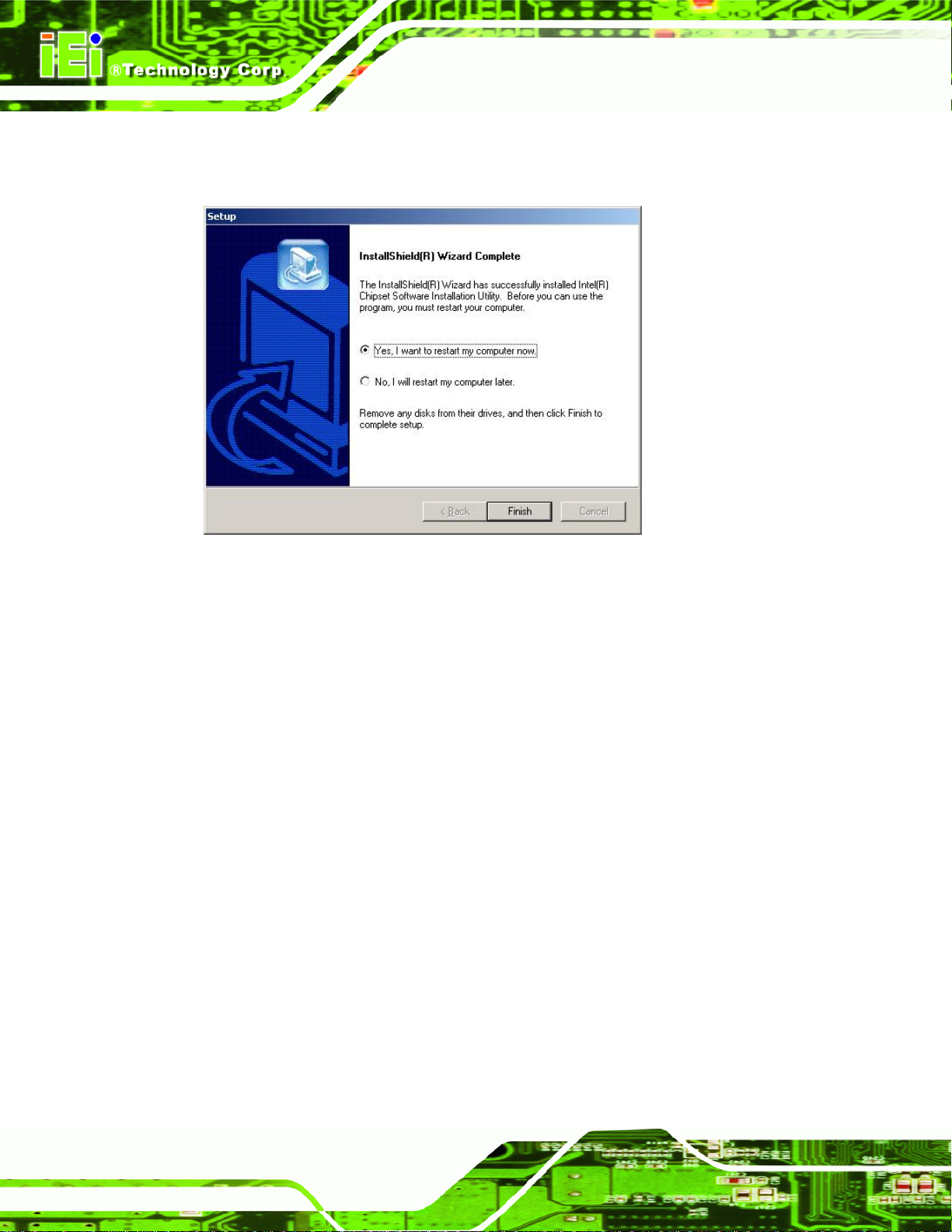

6.2 CHIPSET DRIVER INSTALLATION............................................................................... 75
6.3 VGA DRIVER........................................................................................................... 78
6.4 BROADCOM LAN DRIVER (FOR GBE LAN) INSTALLATION .................................... 82
6.5 REALTEK HD AUDIO DRIVER (ALC883) INSTALLATION......................................... 86
6.6 INTEL MATRIX STORAGE MANAGER INSTALLATION................................................. 90
A SAFETY PRECAUTIONS..................................................................................... 93
A.1 SAFETY PRECAUTIONS ............................................................................................ 94
A.1.1 General Safety Precautions............................................................................. 94
A.1.2 Anti-static Precautions.................................................................................... 95
A.2 MAINTENANCE AND CLEANING PRECAUTIONS........................................................ 95
A.2.1 Maintenance and Cleaning.............................................................................. 95
A.2.2 Cleaning Tools................................................................................................. 96
B IEI EMBEDDED SYSTEM SERIES................................................................. 97
B.1 IEI EMBEDDED SYSTEM SERIES.............................................................................. 98
B.1.1 Overview.......................................................................................................... 98
B.1.2 IEI Embedded System Series........................................................................... 98
B.1.3 IEI Embedded System Series Variations.......................................................... 99
B.2 EMBEDDED SYSTEM SOLUTIONS ............................................................................. 99
B.2.1 AMD® Geode® LX 800 500 MHz Solutions..................................................... 99
B.2.2 AMD® Geode® GX 466 333 MHz Solutions.................................................. 100
B.2.3 VIA® LUKE® 1GHz Solutions ....................................................................... 100
B.2.4 VIA® MARK® 800MHz Solutions.................................................................. 101
B.2.5 VIA® Eden™ 500 MHz Solutions.................................................................. 101
B.2.6 Intel® Celeron® M 1 GHz Solutions .............................................................. 102
B.2.7 Intel® Celeron® M 1.5GHz Solutions ............................................................ 102
B.2.8 Intel® Pentium® M 1.6GHz Solutions............................................................ 103
B.2.9 Intel® Socket 479 Pentium®/Celeron® M 2GHz Solutions ............................ 103
Page ix
B.2.10 LGA 775 Intel® Pentium® 4/ Pentium® D Solutions ................................... 104
B.2.11 Intel® Socket 479 Core Duo/Solo Solutions................................................. 104
C BIOS MENU OPTIONS....................................................................................... 105
C.1 BIOS CONFIGURATION OPTIONS........................................................................... 106
D WA TCHDOG TIMER .......................................................................................... 109
E ADDRESS MAPPING...........................................................................................112
E.1 IO ADDRESS MAP...................................................................................................113
E.2 1ST MB MEMORY ADDRESS MAP...........................................................................114
E.3 IRQ MAPPING TABLE .............................................................................................114
E.4 DMA CHANNEL ASSIGNMENTS ..............................................................................114
F HAZARDOUS MATERIALS DISCLOSURE....................................................115
F.1 HAZARDOUS MATERIAL DISCLOSURE TABLE FOR IPB PRODUCTS CERTIFIED AS
ECK-161B Embedded System
ROHS COMPLIANT UNDER 2002/95/EC WITHOUT MERCURY......................................116
7 INDEX.....................................................................................................................119
Page x
ECK-161B Embedded System
Figure 1-1: ECK-161B Embedded System..................................................................2
Figure 2-1: ECK-161B Dimensions (mm)....................................................................9
Figure 2-2: ECK-161B Front Panel.............................................................................10
Figure 2-3: ECK-161B Rear Panel..............................................................................10
Figure 2-4: Internal Overview.....................................................................................11
Figure 4-1: CF Slot Cover Retention Screws............................................................21
Figure 4-2: CF Card Installation.................................................................................21
Figure 4-3: Bottom Panel Retention Screws (Bottom)............................................22
Figure 4-4: Bottom Panel Retention Screws (Side).................................................22
List of Figures
Figure 4-5: PCI Card Holder Retention Screws........................................................23
Figure 4-6: HDD Bracket Retention Screws .............................................................24
Figure 4-7: SATA Cable Metal Plate Installation......................................................24
Figure 4-8: HDD Retention Screws............................................................................25
Figure 4-9: SATA Cable Retention Screws...............................................................25
Figure 4-10: HDD Installation.....................................................................................26
Figure 4-9: PCI Slot Cover Retention Screw ............................................................26
Figure 4-10: PCI Card Holder Retention Screws......................................................27
Figure 4-11: PCI Card Installation..............................................................................27
Figure 4-12: Secure the PCI Card..............................................................................28
Figure 4-13: Mounting Bracket Retention Screw Holes..........................................28
Figure 4-14: Wall Mounting Dimensions (mm).........................................................29
Figure 4-15: Power Switch and Power LED..............................................................31
Figure 6-1: InstallShield Wizard Preparation Screen...............................................76
Figure 6-2: Welcome Screen......................................................................................76
Figure 6-3: License Agreement..................................................................................77
Figure 6-4: Readme Information................................................................................77
Figure 6-5: Restart the Computer..............................................................................78
Figure 6-6: Starting Install Shield Wizard Screen....................................................79
Page xi
Figure 6-7: Preparing Setup Screen..........................................................................79
Figure 6-8: VGA Driver Installation Welcome Screen..............................................80
Figure 6-9: VGA Driver License Agreement.............................................................80
Figure 6-10: VGA Driver Installing Notice.................................................................81
Figure 6-11: VGA Driver Installation Complete........................................................81
Figure 6-12: Access Windows Control Panel...........................................................82
Figure 6-13: Double Click the System Icon ..............................................................83
Figure 6-14: Double Click the Device Manager Tab.................................................83
Figure 6-15: Device Manager List..............................................................................84
Figure 6-16: Search for Suitable Driver.....................................................................84
Figure 6-17: Locate Driver Files.................................................................................85
Figure 6-18: Location Browsing Window..................................................................85
Figure 6-19: Access Windows Control Panel...........................................................86
ECK-161B Embedded System
Figure 6-20: Double Click the System Icon ..............................................................87
Figure 6-21: Double Click the Device Manager Tab.................................................87
Figure 6-22: Device Manager List..............................................................................88
Figure 6-23: Search for Suitable Driver.....................................................................89
Figure 6-24: Locate Driver Files.................................................................................90
Figure 6-25: Preparing Setup Screen........................................................................91
Page xii
ECK-161B Embedded System
Table 1-1: Model Variation............................................................................................3
Table 1-2: Technical Specifications ............................................................................5
Table 1-3: Power Adapter Specifications....................................................................6
Table 4-1: Package List Contents..............................................................................20
Table 5-1: BIOS Navigation Keys...............................................................................35
List of Tables
Page xiii
ECK-161B Embedded System
List of BIOS Menus
BIOS Menu 1: Main......................................................................................................36
BIOS Menu 2: Advanced.............................................................................................38
BIOS Menu 3: CPU Configuration..............................................................................39
BIOS Menu 4: IDE Configuration...............................................................................40
BIOS Menu 5: IDE Master and IDE Slave Configuration..........................................42
BIOS Menu 6: Super IO Configuration......................................................................46
BIOS Menu 7: Hardware Health Configuration.........................................................48
BIOS Menu 8: ACPI Configuration.............................................................................50
BIOS Menu 9: APM Configuration.............................................................................51
BIOS Menu 10: Remote Access Configuration [Advanced] ...................................53
BIOS Menu 11: USB Configuration............................................................................55
BIOS Menu 12: PCI/PnP Configuration.....................................................................57
BIOS Menu 13: Boot....................................................................................................60
BIOS Menu 14: Boot Settings Configuration............................................................61
BIOS Menu 15: Security..............................................................................................63
BIOS Menu 16: Chipset...............................................................................................65
BIOS Menu 17: North Bridge Chipset Configuration...............................................66
BIOS Menu 18:South Bridge Chipset Configuration...............................................70
BIOS Menu 19:Exit ......................................................................................................72
Page xiv
ECK-161B Embedded System
Chapter
1
1 Introduction
Page 1
ECK-161B Embedded System
1.1 ECK-161B Embedded System Overview
Figure 1-1: ECK-161B Embedded System
The ECK-161B is an Intel® Core™ Duo or Intel® Celeron® M based embedded system
that is ideal for multimedia applications. The ECK-161B embedded system supports
diverse display including one VGA display and one HDTV display. The High Definition (HD)
Audio integrated in the ECK-161B provides surround sound quality and supports up to
eight channels of sound. A 1 GB DDR2 SDRAM memory module is preinstalled in the
ECK-161B.
The aluminum alloy fins on the chassis offers superior heat dissipation and makes the
fanless ECK-161B embedded system have high performance and low operating
temperature. The ECK-161B has two power input connectors to support 12 V DC input
and 9 V ~ 36 V DC input.
The ECK-161B supports one 2.5” SATA HDD and has one front-accessible
CompactFlash® card slot. Featuring two GbE, six USB, four serial communication ports,
as well as audio, TV-out, and VGA, the ECK-161B offers system integrators and
developers the best selection of robust and high performance computing system platforms.
The ECK-161B embedded system also supports one PCI card for more expansion
Page 2
options.
ECK-161B Embedded System
1.1.1 ECK-161B Benefits
The ECK-161B embedded system has the following benefits:
Easy installation saves installation time
Complete integration saves solution development time and cost
Multiple display interfaces and high quality HD audio support
Powerful preinstalled Intel® Core Duo/Celeron® M CPU and motherboard
ensures rigorous processing needs can be met
1.1.2 ECK-161B Features
The ECK-161B has the following features
RoHS compliant design
Fanless system
1.66 GHz Intel® Core Duo/1.86 GHz Intel® Celeron® M CPU supported
One PCI expansion card supported
Two GbE RJ-45 connectors supported
VGA and HDTV display interfaces supported
7.1 channel HD audio support
Six USB 2.0 ports and four serial ports
1.2 ECK-161B Model Variation
The ECK-161B embedded system has one preinstalled 1 GB DDR2 SDRAM memory
module preinstalled. The model information is listed in
ECK-161B CPU L2 Cache CPU # PCI Slot
SF-WD/T2300E/1GB
SF-WD /CM440/1GB
1.66 GHz Intel® Core Duo
1.86 GHz Intel® Celeron® M 1 MB 440 Yes
Table 1-1 below.
2 MB T2300E Yes
Table 1-1: Model Variation
Page 3
1.3 Technical Specifications
The specifications for the Intel based embedded systems are listed below.
ECK-161B
ECK-161B Embedded System
CPU
System Chipset
System Memory
Ethernet
Display
USB
Serial Port
Audio
1.66 GHz Intel® Core Duo T2300E CPU with 2 MB L2 cache
1.86 GHz Intel® Celeron® M 440 CPU with 1 MB L2 cache
GMCH: Intel® 945GM
ICH: Intel® ICH7-M
One 1 GB DDR2 SDRAM DIMM preinstalled
Two Broadcom PCIe GbE controllers
CRT and TV-out interfaces integrated in Intel® 945GM
1 x 7-pin mini DIN TV-out port
1 x VGA port (DB-15)
Six USB 2.0 supported
(two on the front panel and four on the rear panel)
Four RS-232
7.1 channel HD audio
Storage
Expansion
Chassis Construction
Power Input
Operating Temperature
Page 4
One CompactFlash® card slot
One 2.5” SATA hard disk drive bay
One PCI slot
Aluminum Alloy with heavy duty metal
12 V DC input by 4-pin mini DIN connector
9 ~ 36 V DC input by terminal block
0ºC ~ 40ºC (with consumer hard drive)
0ºC ~ 50ºC (with automotive hard drive/CF card)
ECK-161B Embedded System
Net Weight (NW/GW)
Dimensions (W x D x H)
EMC/Safety
Table 1-2: Technical Specifications
4.1 kg / 6.0 kg
222.20 mm x 210.20 mm x 99.49 mm
CE, FCC class A
Page 5
1.4 Power Adapter Specifications
The ECK-161B series models are shipped with a 150 W power adapter. The specifications
ECK-161B Embedded System
for the adapter are listed in
Nominal
Regulation
Output
Protection
Time Hold Up
Output Voltage
Output Current
AC Inlet
Short Circuit
Over-Voltage
Min.
Nominal
Table 1-3:
12.0 V DC
11.4 V – 12.6 V
380 mV P-P
0 A
12.5 A
Yes
Yes
≧3 ms
90 V
100V ~ 240V
Max.
Input
Frequency
Efficiency
Temperature
Environment
Relative
Humidity
Reliability MTBF
Table 1-3: Power Adapter Specifications
Page 6
264 V
47Hz ~ 63Hz
≧85% 100 Vac / 7.89 A
≧86% 240 Vac / 7.89 A
Operating 0ºC ~ 40ºC
Storage -20ºC ~ 80ºC
Operating (non-condensing) 20% ~ 80%
Storage (non-condensing) 10% ~ 90%
100,000 hours of continuous operation at 25ºC
ECK-161B Embedded System
Chapter
2
2 Mechanical
Description
Page 7
2.1 ECK-161B Mechanical Overview
The ECK-161B RoHS compliant, Intel® Core Duo/Celeron® M fanless embedded
system features industrial grade components that offer longer operating life, high
shock/vibration resistance and endurance over a wide temperature range. The ECK-161B
combines these features in an aluminum enclosure designed for space critical
applications that require low power consumption. Featuring two GbE, six USB, four serial
communication ports, as well as audio, TV-out, and VGA, the ECK-161B offers system
integrators and developers the best selection of robust and high performance computing
system platforms. The ECK-161B embedded system also supports one PCI card for more
expansion options.
2.2 ECK-161B Physical Dimensions
ECK-161B Embedded System
The dimensions of the ECK-161B are listed below and shown in Figure 2-1.
Height: 99.49 mm
Width: 222.20 mm
Length: 210.20 mm
Page 8
ECK-161B Embedded System
Figure 2-1: ECK-161B Dimensions (mm)
2.3 External Overview
2.3.1 Front Panel
The front panel of the ECK-161B (Figure 2-3) contains following connectors and buttons:
2 x USB 2.0 ports
1 x CompactFlash® slot
1 x Power switch
1 x Reset button
Page 9
1 x HDD LED
1 x Power LED
ECK-161B Embedded System
Figure 2-2: ECK-161B Front Panel
2.3.2 Rear Panel Overview
The rear panel of the ECK-161B contains all the external I/O interface connectors and
power connector. An overview of the rear panel is shown in
Figure 2-3 below.
Page 10
Figure 2-3: ECK-161B Rear Panel
ECK-161B Embedded System
The front panel I/O connectors shown in Figure 2-3 are listed below:
1 x 12 V DC inlet
1 x 9 V ~ 36 V DC input terminal block
6 x Audio jacks
1 x Keyboard connector
1 x Mouse connector
1 x PCI expansion card slot
2 x RJ-45 GbE connectors
4 x RS-232 serial port connectors
1 x TV-out connector
4 x USB 2.0 ports
1 x VGA connector
2.4 Internal Overview
The ECK-161B internal components are listed below:
1 x IEI KINO-9452 motherboard (preinstalled)
1 x 1 GB DDR2 SDRAM DIMM module (preinstalled)
1 x 2.5” SATA HDD (optional)
1 x PCI expansion card (optional)
Figure 2-4: Internal Overview
Page 11
ECK-161B Embedded System
Chapter
3
3 System Specifications
Page 12
ECK-161B Embedded System
3.1 CPU Support
NOTE:
The ECK-161B has a preinstalled 1.66 GHz Intel® Core™ Duo or
1.86GHz Intel® Celeron® M CPU. If the CPU fails, the motherboard has
to be replaced. Please contact the IEI reseller or vendor you purchased
the ECK-161B from or contact an IEI sales representative directly. To
contact an IEI sales representative, please send an email to
sales@iei.com.tw.
The KINO-9452 motherboard comes with a preinstalled 1.66 GHz Intel® Core™ Duo or
1.86 GHz Intel® Celeron® M CPU.
3.1.1 Intel® Core™ Duo Specifications
The specifications for the Intel® Core™ Duo processor are listed below
Two complete execution cores in one processor package provide
advancements in simultaneous computing
Dual-core processing efficiently delivers performance while balancing power
requirements
Two execution cores share a high-performance, power-optimized 667 MHz
front-side bus (FSB) to access the same chipset memory.
Enhanced Intel® SpeedStep® technology allows a system to dynamically
adjust processor voltage and core frequency, decreasing average power
consumption and average heat production
Intel® Smart Cache Design allows two execution cores to share 2 MB of L2
cache, reducing FSB traffic and enhancing system responsiveness
Intel® Advanced Thermal Manager supports new digital temperature sensors
and thermal monitors on each execution core to enhance thermal monitoring
accuracy
Streaming SIMD Extensions 3 (SSE3) provides significant performance
enhancement for multi-media applications
Page 13
Embedded lifecycle support protects system investment by enabling extended
product availability for embedded and communications customers
3.1.2 Intel® Celeron® M Specifications
The specifications for the Intel® Celeron® M processor are listed below
Intel® Streaming SIMD Extensions accelerates 3D graphics performance,
video decoding/encoding, and speech recognition.
Advanced power management features
Compatible with IA-32 software.
Advanced branch prediction and data prefetch logic
3.2 System Chipset
3.2.1 Northbridge and Southbridge Chipsets
ECK-161B Embedded System
The following chipsets are preinstalled on the board:
Northbridge: Intel
Southbridge: Intel
The following two sections (Section
the Intel® 945GM and the Intel® ICH7-M chipsets. For more information on these two
chipsets please refer to the Intel website.
®
945GM
®
ICH7-M
3.2.2 and Section 3.2.3) list some of the features of
3.2.2 Intel® 945GM Northbridge Chipset
The Intel® 945GM Northbridge chipset comes with the following features:
System Memory Support
o Supports single/dual-channel DDR2 SDRAM
o 64-bit wide per channel
o 256 MB, 512 MB and 1 GB memory technologies supported
o Support for DDR2 On-Die Termination (ODT)
Page 14
o Support for 2N timings only
Internal Graphics
o Intel® Gen 3.5 Integrated Graphics Engine
ECK-161B Embedded System
o 250 MHz core render clock and 200 MHz core display clock at 1.05 V
core voltage
o Supports TV-Out, CRT and SDVO
DMI
o Chip-to-chip interface between (G)MCH and ICH
o Configurable as x2 or x4 DMI lanes
o DMI lane reversal support
o 32-bit downstream address
Power Management
o ACPI S0, S3, S4, S5
o CPU States C0, C1, C2, C3, C4 states
o Rapid Memory Power Mgmt
3.2.3 Intel ICH7-M Southbridge Chipset
The Intel® ICH7-M Southbridge chipset comes with the following features:
PCI Local Bus Specification, Revision 2.3 support for 33 MHz PCI operations
(supports up to six Req/Gnt pairs)
ACPI Power Management Logic support
Enhanced DMA controller, interrupt controller, and timer functions
Integrated Serial ATA host controller with independent DMA operation on two
ports and AHCI
Integrated IDE controller supports Ultra ATA 100/66/33
USB host interface with support for six USB ports; four UHCI host controller;
one EHCI high-speed USB 2.0 Host controller
Integrated Intel® PRO 82573E GbE controller
Supports Audio Codec ’97, Revision 2.3 Specification
Supports Intel® High Definition Audio
Low Pint Count (LPC) interface
Firmware Hub (FWH) interface support
Serial Peripheral Interface (SPI) support
Page 15
3.3 Graphics Support
The graphics features listed below are all integrated on the Intel® 945GM Northbridge
chipset.
Analog CRT
o Integrated 400 MHz RAMDAC
o Analog monitor support up to QXGA
o Support for CRT hot plug
TV-Out
o Three integrated 10-bit DACS
o Overscaling
o NTSC/PAL
o HDTV support – 480p/720p/1080i/1080p
SDVO Ports
ECK-161B Embedded System
o Concurrent operation of x1 PCIe with SDVO
o Two SDVO ports supported
Supports appropriate external SDVO and TV-Out)
3.4 Ethernet Controller Specifications
3.4.1 Overview
The Broadcom BCM5787 is a seventh generation 10/100/1000BASE-T Ethernet LAN
controller solution for high performance network applications. The device combines a
triple-speed IEEE 802.3 compliant Media Access Controller (MAC) with a triple-speed
Ethernet transceiver, PCIe bus interface, and on-chip buffer memory in a single device.
The device is fabricated in a 1.2V CMOS process providing a low-power system solution.
The GbE controller features are below.
3.4.2 Features
Integrated 10/100/1000 transceiver
Page 16
10/100/1000 full/half-duplex MAC
Automatic MDI crossover function
Supports PCIe v1.0a
ECK-161B Embedded System
Wake-on-LAN support meeting the ACPI requirements
Statistics for SNMP MIB II, Ethernet-like MIB and Ethernet MIB (802.3z,
clause 30)
Serial EEPROM or serial flash supported
JTAG supported
196-FBGA package
Page 17
ECK-161B Embedded System
Chapter
4
4 Installation
Page 18
ECK-161B Embedded System
4.1 Anti-static Precautions
WARNING:
If the following anti-static precautions are not followed, a user may be
injured and the system irreparably damaged.
Electrostatic discharge (ESD) can cause serious damage to electronic components,
including the motherboard and the power module. (Dry climates are especially susceptible
to ESD.) It is therefore critical that whenever the ECK-161B is opened and any electrical
component handled, the following anti-static precautions are strictly adhered to.
Wear an anti-static wristband: Wearing a simple anti-static wristband can
help to prevent ESD from damaging the board.
Self-grounding: Before handling the board, touch any grounded conducting
material. During the time the board is handled, frequently touch any
conducting materials that are connected to the ground.
4.2 Installation Procedure
4.2.1 Installation Procedure Overview
To properly install the ECK-161B, the following steps must be followed. Detailed
descriptions of these instructions are listed in the sections that follow.
Step 1: Unpacking
Step 2: Install the CF card
Step 3: Install the HDD
Step 4: Install the PCI expansion card
Step 5: Mount the ECK-161B
Step 6: Connect the rear panel peripheral connectors
Page 19
Step 7: Power the system upStep 0:
ECK-161B Embedded System
4.2.2 Unpacking
After the ECK-161B is received make sure the following components are included in the
package. If any of these components are missing, please contact the ECK-161B reseller
or vendor where it was purchased or contact an IEI sales representative immediately.
Quantity Item Image
1 ECK-161B embedded system
1 Power adaptor
1 Power cord
1 Screw set
1 HDD installation kit
2 Wall mount brackets
1 Driver and manual CD
1 Quick installation guide
Page 20
Table 4-1: Package List Contents
ECK-161B Embedded System
4.2.3 CompactFlash® Card Installation
To install the CF card, please follow the steps below.
Step 1: Locate the CF slot on the front panel of the ECK-161B.
Step 2: Remove the two CF slot cover retention screws from the front panel (
4-1).
Figure 4-1: CF Slot Cover Retention Screws
Step 3: Insert the CF card into the slot (
Figure 4-2).
Figure
Figure 4-2: CF Card Installation
Step 4: Replace the CF slot cover to protect the CF card and secure the slot cover with
two previously removed retention screws. Step 0:
Page 21
ECK-161B Embedded System
4.2.4 Bottom Panel Removal
Before installing the internal components, the bottom panel must be removed. To remove
the bottom panel, please follow the steps below:
Step 1: Turn the ECK-161B embedded system over.
Step 2: Locate the bottom panel retention screws, four on the bottom panel (
two on the right panel and two on the left side panel (
Figure 4-4).
Figure 4-3: Bottom Panel Retention Screws (Bottom)
Figure 4-3),
Page 22
Figure 4-4: Bottom Panel Retention Screws (Side)
Step 3: Remove the eight bottom panel retention screws.
Step 4: Gently remove the bottom panel from the ECK-161B. Step 0:
ECK-161B Embedded System
4.2.5 HDD Installation
One 2.5” SATA HDD can be installed in the ECK-161B embedded system. To install the
HDD, follow the instructions below.
Step 1: Remove the bottom panel. See Section
Step 2: Remove the two PCI card holder retention screws and remove the PCI card
holder (
Figure 4-5).
4.2.3.
Figure 4-5: PCI Card Holder Retention Screws
Step 3: Remove the HDD bracket by removing the four retention screws (
Figure 4-6).
Page 23
ECK-161B Embedded System
Figure 4-6: HDD Bracket Retention Screws
Step 4: Install the metal plate for securing SATA cable. Align the retention screw
holes on the metal plate with the two retention screw holes near the connector
side on the bottom of the HDD. Insert two retention screws to secure the metal
plate with the HDD (
Figure 4-7).
Figure 4-7: SATA Cable Metal Plate Installation
Step 5: Secure the HDD with the HDD bracket. Align the retention screw holes on the
Page 24
sides of the HDD with the retention screw holes on the bracket. Insert four
retention screws from the sides of the bracket to secure the HDD with the
bracket (
Figure 4-8).
ECK-161B Embedded System
Figure 4-8: HDD Retention Screws
Step 6: Secure the SATA cable to the HDD. Connect the SATA cable from the
ECK-161B to the rear of the HDD. Insert two retention screws to secure the
SATA cable with the HDD (
Figure 4-9).
Figure 4-9: SATA Cable Retention Screws
Step 7: Replace the HDD bracket into the ECK-161B and reinsert the four previously
removed retention screws (
Figure 4-10).
Page 25
ECK-161B Embedded System
Figure 4-10: HDD Installation
Step 8: Replace the bottom panel. Step 0:
4.2.6 PCI Expansion Card Installation
The ECK-161B has one PCI slot. The PCI expansion card with a depth under 155 mm can
be installed in the ECK-161B. To install the PCI card, follow the instructions below.
Step 1: Remove the bottom panel. See Section
Step 2: Remove the PCI slot cover on the rear panel of the ECK-161B by removing the
retention screw shown in
Figure 4-11.
4.2.3.
Page 26
Figure 4-11: PCI Slot Cover Retention Screw
ECK-161B Embedded System
Step 3: Remove the two PCI card holder retention screws (Figure 4-12) and remove the
PCI card holder.
Figure 4-12: PCI Card Holder Retention Screws
Step 4: Insert the PCI card into the PCI slot in the ECK-161B (
Figure 4-13).
Figure 4-13: PCI Card Installation
Page 27
Step 5: Secure the PCI card with one retention screws and the cad holder (Figure 4-14).
Step 0:
ECK-161B Embedded System
Figure 4-14: Secure the PCI Card
4.2.7 ECK-161B Series Wall Mounting
To mount the ECK-161B, please follow the steps below.
Step 1: Locate the four ECK-161B series mounting bracket retention screw holes on the
bottom of the chassis. See
Figure 4-15.
Page 28
Figure 4-15: Mounting Bracket Retention Screw Holes
ECK-161B Embedded System
Step 2: Align the round retention screws on the first bracket with the ECK-161B
retention screw holes on the bottom of the chassis. Insert one of the retention
screws into each of the retention holes.
Step 3: Align the round retention screws on the second bracket with the ECK-161B
series retention screw holes on the other side of the bottom of the chassis. Insert
one of the retention screws into each of the retention holes.
Step 4: Drill four properly spaced holes into the surface on which the controller is going
to be mounted.
Figure 4-16: Wall Mounting Dimensions (mm)
Step 5: Insert one machine screw into each of the four retention holes on the bracket
and into the wall or surface on which the ECK-161B is mounted.
4.2.8 Cable Connections
Once the system has been mounted on the wall, the following connectors can be
connected to the system.
Audio jacks
Keyboard and mouse connectors
Power input connector
Page 29
RJ-45 connector
Serial port connector
TV-out cable connector
USB devices
VGA devices
ECK-161B Embedded System
The cable connection locations are shown in
4.3 Power-On Procedure
4.3.1 Installation Checklist
WARNING:
Make sure a power supply with the correct input voltage is being fed into
the system. Incorrect voltages applied to the system may cause damage to
the internal electronic components and may also cause injury to the user.
The ECK-161B has two power input connectors shown below, one
supports 12 V DC input and the other supports 9 ~ 36 V DC input.
Figure 2-3.
Page 30
To power on the embedded system please make sure of the following:
The bottom panel is installed
All peripheral devices (monitor, serial communications devices etc.) are
connected
The power cables are plugged in
ECK-161B Embedded System
4.3.2 Power-on Procedure
To power-on the ECK-161B please follow the steps below:
Step 6: Turn on the power switch (
Step 7: Once turned on, the green power LED on the front panel should be turned on.
Step 0:
Figure 4-17).
Figure 4-17: Power Switch and Power LED
4.4 System Maintenance
WARNING:
Take Anti-Static precautions whenever maintenance is being carried
out on the embedded system components. Failure to take anti-static
precautions can cause permanent embedded system damage.
The embedded system components listed below can all be replaced if they fail:
HDD
PCI card
CF card
Page 31
For the replacement procedures of the component listed above, please refer to
ECK-161B Embedded System
Section
A user cannot replace some of the components in the ECK-161B. If the following
components fail it must be shipped back to IEI to be replaced. Please contact the system
vendor, reseller or an IEI sales person directly.
4.2.
Motherboard
CPU
DIMM
Page 32
ECK-161B Embedded System
Chapter
5
5 AMI BIOS Setup
Page 33
5.1 Introduction
A licensed copy of AMI BIOS is preprogrammed into the ROM BIOS. The BIOS setup
program allows users to modify the basic system configuration. This chapter describes
how to access the BIOS setup program and the configuration options that may be
changed.
5.1.1 Starting Setup
The AMI BIOS is activated when the computer is turned on. The setup program can be
activated in one of two ways.
ECK-161B Embedded System
1. Press the D
2. Press the D
appears on the screen. 0.
If the message disappears before, restart the computer and try again.
ELETE key as soon as the system is turned on or
ELETE key when the “Press Del to enter SETUP” message
5.1.2 Using Setup
Use the arrow keys to highlight items, press ENTER to select, use the “+” and “-“ keys to
change entries, press F1 for help and press E
Key Function
Up arrow Move to previous item
Down arrow Move to next item
Left arrow Move to the item on the left hand side
Right arrow Move to the item on the right hand side
Esc key Main Menu – Quit and not save changes into CMOS
SC to quit. Navigation keys are shown in.
Page 34
Status Page Setup Menu and Option Page Setup Menu --
Exit current page and return to Main Menu
“+” key Increase the numeric value or make changes
“-“ key Decrease the numeric value or make changes
F1 key General help, only for Status Page Setup Menu and Option
Page Setup Menu
ECK-161B Embedded System
F2 /F3 key Change color from total 16 colors. F2 to select color
forward.
F10 key Save all the CMOS changes, only for Main Menu
Table 5-1: BIOS Navigation Keys
5.1.3 Getting Help
When F1 is pressed a small help window describing the appropriate keys to use and the
possible selections for the highlighted item appears. To exit the Help Window press E
SC or
the F1 key again.
5.1.4 BIOS Menu Bar
The menu bar on top of the BIOS screen has the following main items:
Main Changes the basic system configuration.
Advanced Changes the advanced system settings.
PCIPnP Changes the advanced PCI/PnP Settings
Boot Changes the system boot configuration.
Security Sets User and Supervisor Passwords.
Chipset Changes the chipset settings.
Exit Selects exit options and loads default settings
The following sections completely describe the configuration options found in the menu
items at the top of the BIOS screen and listed above.
5.2 Main
When the BIOS Setup program is entered, the Main menu (BIOS Menu 1) appears. The
Main menu gives an overview of the basic system information.
Page 35
ECK-161B Embedded System
BIOS Menu 1: Main
System Overview
The System Overvie w lists a brief summary of different system components. The fields in
System Overview cannot be changed. The items shown in the system overview include:
AMI BIOS: Displays auto-detected BIOS information
o Version: Current BIOS version
o Build Date: Date the current BIOS version was made
o ID: Installed BIOS ID
Processor: Displays auto-detected CPU specifications
o Type: Names the currently installed processor
o Speed: Lists the processor speed
o Count: The number of CPUs on the motherboard
System Memory: Displays the auto-detected system memory.
o Size: Lists memory size
Page 36
ECK-161B Embedded System
The System Overview field also has two user configurable fields:
System Time [xx:xx:xx]: The system time is set here.
System Date [Day xx/xx/xxxx]: The system date is set here.
5.3 Advanced
The Advanced menu (BIOS Menu 2) allows access to the CPU and peripheral device
configuration options through the following sub-menus:
WARNING:
Setting the wrong values in the sections below may cause the system to
malfunction. Make sure that the settings made are compatible with the
hardware.
CPU Configuration (see Section 5.3.1)
IDE Configuration (see Section 5.3.2)
SuperIO Configuration (see Section 5.3.3)
Hardware Health Configuration (see Section 5.3.4)
ACPI Configuration (see Section 5.3.5)
APM Configuration (see Section 5.3.6)
Remote Access Configuration (see Section 5.3.7)
USB Configuration (see Section 5.3.8)
Page 37
ECK-161B Embedded System
BIOS Menu 2: Advanced
5.3.1 CPU Configuration
The CPU Configuration menu (BIOS Menu 3) shows detailed CPU specifications and
CPU configuration options.
Page 38
ECK-161B Embedded System
BIOS Menu 3: CPU Configuration
The CPU Configuration menu (
Manufacturer: Lists the name of the CPU manufacturer
Brand String: Lists the brand name of the CPU being used
Frequency: Lists the CPU processing speed
FSB Speed: Lists the FSB speed
Cache L1: Lists the CPU L1 cache size
Cache L2: Lists the CPU L2 cache size
BIOS Menu 3) lists the following CPU details:
5.3.2 IDE Configuration
The IDE Configuration menu (BIOS Menu 4) allows changes to the configurations for the
IDE devices installed in the system.
Page 39
ECK-161B Embedded System
BIOS Menu 4: IDE Configuration
ATA/IDE Configuration [Compatible]
The ATA/IDE Configuration BIOS option allows the user to configure the ATA/IDE device
mode.
Disabled
Compatible DEFAULT
Enhanced
Disable all ATA/IDE ports. No Primary/Secondary IDE
mode is presented for configuration
Up to 4 HDDs can be used, two for SATA and the other
for PATA IDE. If this option is selected, “Legacy IDE
Channels” option is presented for configuration.
If this option is selected, “Configure SATA as” and
“Configure SATA channels” options are presented for
configuration.
Page 40
ECK-161B Embedded System
Legacy IDE Channels [SATA Pri, PATA Sec]
Use the Legacy IDE Channels option configures PATA and SATA resources for operating
systems that require legacy IDE operation.
SA TA Only
SATA Pri,
PATA Sec
IDE Master and IDE Slave
When entering setup, BIOS auto detects the presence of IDE devices. This displays the
status of the auto detected IDE devices. The following IDE devices are detected and are
shown in the IDE Configuration menu:
Primary IDE Master
Primary IDE Slave
Secondary IDE Master
Secondary IDE Slave
The IDE Configuration menu (
Enable up to two SATA devices
DEFAULT
This option allows the system to access the SATA
devices before the primary IDE devices
BIOS Menu 4) allows changes to the configurations for the
IDE devices installed in the system. If an IDE device is detected, and one of the above
listed four BIOS configuration options are selected, the IDE configuration options shown in
Section
5.3.2.1 appear.
5.3.2.1 IDE Master, IDE Slave
IDE Master and IDE Slave configuration options for both primary and secondary IDE
devices are shown in the BIOS menu below.
Page 41
ECK-161B Embedded System
BIOS Menu 5: IDE Master and IDE Slave Configuration
Type [Auto]
The Type BIOS option determines the type of device that the AMIBIOS attempts to boot
from after the Power-On Self-Test (POST) has completed.
Not Installed
Auto DEFAULT
CD/DVD
Selecting this value prevents the BIOS from searching
for an IDE disk drive on the specified channel.
This selection enables the BIOS to auto detect the
IDE disk drive type attached to the specified channel.
This setting should be used if an IDE hard disk drive is
attached to the specified channel.
The CD/DVD option specifies that an IDE CD-ROM
Page 42
drive is attached to the specified IDE channel. The
BIOS does not attempt to search for other types of
ECK-161B Embedded System
IDE disk drives on the specified channel.
ARMD
LBA/Large Mode [Auto]
The LBA/Large Mode BIOS option disables or auto detects LBA (Logical Block
Addressing). LBA is a method of addressing data on a disk drive. In LBA mode, the
maximum drive capacity is 137 GB.
Disabled
Auto DEFAULT
This option specifies an ATAPI Removable Media
Device. These include, but are not limited to:
ZIP
LS-120
This selection prevents the BIOS from using the LBA
mode control on the specified channel.
This option allows the BIOS to auto detect the LBA mode
control on the specified channel.
Block (Multi Sector Transfer) [Auto]
Disabled
Auto DEFAULT
Selecting this option prevents the BIOS from using
Multi-Sector Transfer on the specified channel. The data
to and from the device occurs one sector at a time.
Selecting this value to allows the BIOS to auto detect the
device support for Multi-Sector Transfers on the specified
channel. If supported. Select this value to allow the BIOS
to auto detect the number of sectors per block for transfer
from the hard disk drive to the memory. The data transfer
to and from the device occurs multiple sectors at a time.
Page 43
PIO Mode [Auto]
The PIO Mode option selects the IDE PIO (Programmable I/O) mode program timing
cycles between the IDE drive and the programmable IDE controller. As the PIO mode
increases, the cycle time decreases.
ECK-161B Embedded System
Auto DEFAULT
0
1
2
3
4
DMA Mode [Auto]
PIO mode 0 selected with a maximum transfer rate of 3.3MBps
PIO mode 1 selected with a maximum transfer rate of 5.2MBps
PIO mode 2 selected with a maximum transfer rate of 8.3MBps
PIO mode 3 selected with a maximum transfer rate of 11.1MBps
PIO mode 4 selected with a maximum transfer rate of 16.6MBps
This setting allows the BIOS to auto detect the PIO mode. Use
this value if the IDE disk drive support cannot be determined.
(This setting generally works with all hard disk drives
manufactured after 1999. For other disk drives, such as IDE
CD-ROM drives, check the specifications of the drive.)
The DMA Mode BIOS selection adjusts the DMA mode options.
Auto DEFAULT
S.M.A.R.T [Auto]
Self-Monitoring Analysis and Reporting Technology (SMART) feature can help predict
impending drive failures. The S.M.A.R.T BIOS option enables or disables this function.
Auto DEFAULT
Page 44
The BIOS auto detects the DMA mode. Use this value if the
IDE disk drive support cannot be determined.
BIOS to auto detects if the hard disk drive supports
S.M.A.R.T. Use this setting if the IDE disk drive support
ECK-161B Embedded System
cannot be determined.
Disabled
Enabled
32Bit Data Transfer [Enabled]
The 32Bit Data Transfer BIOS option enables or disables 32-bit data transfers.
Disabled
Enabled DEFAULT
Select this value to prevent the BIOS from using the
SMART feature.
Select this value to allow the BIOS to use the SMART
feature on support hard disk drives.
Prevents the BIOS from using 32-bit data transfers.
Allows BIOS to use 32-bit data transfers on support hard
disk drives.
5.3.3 Super IO Configuration
The Super IO Configuration menu (BIOS Menu 6) sets or changes the configurations for
the FDD controllers, parallel ports and serial ports.
Page 45
ECK-161B Embedded System
BIOS Menu 6: Super IO Configuration
Serial Port1 Address [3F8/IRQ4]
The Serial Port1 Address option allows BIOS to select the Serial Port 1 base address.
Disabled
3F8/IRQ4 DEFAULT
3E8/IRQ4
2E8/IRQ3
No base address is assigned to Serial Port 1
Serial Port 1 I/O port address is 3F8 and the interrupt
address is IRQ4
Serial Port 1 I/O port address is 3E8 and the interrupt
address is IRQ4
Serial Port 1 I/O port address is 2E8 and the interrupt
address is IRQ3
Serial Port2 Address [2F8/IRQ3]
The Serial Port2 Address option allows BIOS to select the Serial Port 2 base address.
Page 46
ECK-161B Embedded System
Disabled
2F8/IRQ3 DEFAULT
3E8/IRQ4
2E8/IRQ3
Serial Port3 Address [3E8]
This option allows BIOS to select the base addresses for serial port 3
Disabled
3E8 DEFAULT
No base address is assigned to Serial Port 2
Serial Port 2 I/O port address is 3F8 and the interrupt
address is IRQ3
Serial Port 2 I/O port address is 3E8 and the interrupt
address is IRQ4
Serial Port 2 I/O port address is 2E8 and the interrupt
address is IRQ3
No base address is assigned to serial port 3
Serial port 3 I/O port address is 3E8
2E8
2E0
Serial Port4 Address [2E8]
This option allows BIOS to select the base addresses for serial port 4.
Disabled
3E8
2E8 DEFAULT
2E0
Serial port 3 I/O port address is 2E8
Serial port 3 I/O port address is 2E0
No base address is assigned to serial port 4
Serial port 4 I/O port address is 3E8
Serial port 4 I/O port address is 2E8
Serial port 4 I/O port address is 2E0
5.3.4 Hardware Health Configuration
The Hardware Health Configuration menu (BIOS Menu 7) shows the operating
temperature, fan speeds and system voltages.
Page 47
ECK-161B Embedded System
BIOS Menu 7: Hardware Health Configuration
CPU FAN Mode Setting: [Full On mode]
The CPU FAN Mode Setting has the following options:
Full On mode DEFAULT
Automatic
Mode
If selected, the following options will appear with
If selected, there are no additional configurable
options.
values that can be configured:
CPU Temp. Limit of OFF
CPU Temp. Limit of Start
CPU Temp. Limit of Full
Page 48
CPU Fan Start PWM
ECK-161B Embedded System
Slop PWM 1: 0 PWM, 1 PWM (Default),
2 PWM, 4 PWM, 8 PWM, 16 PWM, 32
PWM or 64 PWM
PWM Manually
mode
The following system parameters and values are shown. The system parameters that are
monitored are:
System Temperatures: The following system temperatures are monitored
If selected, the following option will appear with
values that can be configured:
CPU Fan PWM Control
o CPU Temperature
o System Temperature
Fan Speeds: The CPU cooling fan speed is monitored.
o CPU Fan Speed
o System Fan Speed
Voltages: The following system voltages are monitored
o CPU Core
o +2.5V
o +3.30V
o +5.00V
o +12.0V
o GMCH (1.5V)
o 1.05V
o 5VSB
o VBAT
5.3.5 ACPI Configuration
The ACPI Configuration menu (BIOS Menu 8) configures the Advanced Configuration
and Power Interface (ACPI) and Power Management (APM) options.
Page 49
ECK-161B Embedded System
BIOS Menu 8: ACPI Configuration
Suspend mode [S3 (STR)]
Use the Suspend Mode option to specify the sleep state the system enters when it is not
being used.
S1 (POS)
S3 (STR) DEFAULT
The system enters S1(POS) sleep state. The system
appears off. The CPU is stopped; RAM is refreshed; the
system is running in a low power mode.
The system enters a S3(STR) sleep state. The CPU has
no power; RAM is in slow refresh; the power supply is in a
reduced power mode.
Page 50
ECK-161B Embedded System
5.3.6 APM Configuration
Use the APM Configuration menu (BIOS Menu 9) to select the advanced power
management.
BIOS Menu 9: APM Configuration
AT/ATX power [ATX power]
Use the AT/ATX power BIOS option to select the power supply that is connected to the
system.
AT power
ATX power DEFAULT
Restore on AC Power Loss by IO [Power Off]
The Restore on AC Power Loss by IO BIOS option specifies what state the system
returns to if there is a sudden loss of power to the system.
An AT power supply is connected to the system
An ATX power supply is connected to the system
Page 51
ECK-161B Embedded System
Power Off DEFAULT
Power On
Resume on PME# [Disabled]
The Resume on PME# BIOS option specifies if the system will be roused from a
suspended or standby state when there is activity on the PCI PME (power management
event) controller.
Disabled DEFAULT
Enabled
Resume On PCI-Express WAKE# [Enabled]
The Resume On PCI-Express WAKE# BIOS option specifies if the system will be roused
The system turns on
Wake event generated by PCI PME controller activity
The system remains turned off
Wake event not generated by PCI PME controller
activity
from a suspended or standby state when there is activity on the PCI-Express controller.
Disabled
Enabled DEFAULT
Resume On RTC Alarm [Disabled]
The Resume On RTC Alarm determines when the computer will be roused from a
suspended state.
Disabled DEFAULT
Enabled
Wake event not generated by PCI-Express controller
activity
Wake event generated by PCI-Express controller
activity
The real time clock (RTC) cannot generate a wake
event
If selected, the following will appear with values that
Page 52
can be selected:
ECK-161B Embedded System
5.3.7 Remote Access Configuration
Use the Remote Access Configuration menu (BIOS Menu 10) to configure remote
access parameters. The Remote Access Configuration is an AMIBIOS feature and
allows a remote host running a terminal program to display and configure the BIOS
settings.
RTC Alarm Date (Days)
RTC Alarm Time
After setting the alarm, the computer will turn itself on
from a suspend state when the alarm goes off.
BIOS Menu 10: Remote Access Configuration [Advanced]
Page 53
Remote Access [Disabled]
Use the Remote Access option to enable or disable access to the remote functionalities
of the system.
ECK-161B Embedded System
Disabled DEFAULT
Enabled
Remote access configuration options shown below
Remote access is disabled.
appear:
Serial Port Number
Serial Port Mode
Flow Control
Redirection after BIOS POST
Terminal Type
VT-UTF8 Combo Key Support
These configuration options are discussed below.
Page 54
5.3.8 USB Configuration
Use the USB Configuration menu (BIOS Menu 11) to read USB configuration
information and configure the USB settings.
ECK-161B Embedded System
BIOS Menu 11: USB Configuration
USB Configuration
The USB Configuration field shows the system USB configuration. The items listed are:
Module Version: x.xxxxx.xxxxx
USB Devices Enabled
The USB Devices Enabled field lists the USB devices that are enabled on the system
USB Functions [Enabled]
Use the USB Functions BIOS option to enable or disable USB function support.
Disabled
USB function support disabled
Enabled DEFAULT
USB function support enabled
Page 55
USB 2.0 Controller [Enabled]
Use the USB 2.0 Controller BIOS option to enable or disable the USB 2.0 controller
ECK-161B Embedded System
Enabled DEFAULT
Disabled
Legacy USB Support [Enabled]
Use the Legacy USB Support BIOS option to enable USB mouse and USB keyboard
support.
Normally if this option is not enabled, any attached USB mouse or USB keyboard does not
become available until a USB compatible operating system is fully booted with all USB
drivers loaded. When this option is enabled, any attached USB mouse or USB keyboard
can control the system even when there is no USB driver loaded onto the system.
Disabled
Enabled DEFAULT
USB 2.0 controller disabled
Legacy USB support disabled
USB 2.0 controller enabled
Legacy USB support enabled
Auto
USB2.0 Controller Mode [FullSpeed]
Use the USB2.0 Controller Mode option to set the speed of the USB2.0 controller.
FullSpeed DEFAULT
HiSpeed
BIOS EHCI Handoff [Enabled]
Use the BIOS EHCI Handoff option for systems running OSes that do not have EHCI
hand-off support. The EHCI ownership change is managed by the EHCI driver.
The controller is capable of operating at 480Mb/s
Legacy USB support disabled if no USB devices are
connected
The controller is capable of operating at 12Mb/s
Page 56
ECK-161B Embedded System
Disabled
Enabled DEFAULT
5.4 PCI/PnP
Use the PCI/PnP menu (BIOS Menu 12) to configure advanced PCI and PnP settings.
WARNING!
Systems with OSes that do not support EHCI can
use the EHCI handoff functionality.
Systems with OSes that do not support EHCI cannot
use the EHCI handoff functionality.
Setting wrong values for the BIOS selections in the PCIPnP BIOS menu
may cause the system to malfunction.
BIOS Menu 12: PCI/PnP Configuration
Page 57
IRQ# [Available]
Use the IRQ# address to specify what IRQs can be assigned to a particular peripheral
device.
ECK-161B Embedded System
Available DEFAULT
Reserved
Available IRQ addresses are:
IRQ3
IRQ4
IRQ5
IRQ7
IRQ9
IRQ10
IRQ 11
IRQ 14
IRQ 15
The specified IRQ is reserved for use by Legacy ISA
The specified IRQ is available to be used by
PCI/PnP devices
devices
DMA Channel# [Available]
Use the DMA Channel# option to assign a specific DMA channel to a particular PCI/PnP
device.
Available DEFAULT
Reserved
Available DMA Channels are:
DM Channel 0
Page 58
The specified DMA is available to be used by
PCI/PnP devices
The specified DMA is reserved for use by Legacy
ISA devices
ECK-161B Embedded System
DM Channel 1
DM Channel 3
DM Channel 5
DM Channel 6
DM Channel 7
Reserved Memory Size [Disabled]
Use the Reserved Memory Size BIOS option to specify the amount of memory that
should be reserved for legacy ISA devices.
5.5 Boot
Use the Boot menu (BIOS Menu 13) to configure system boot options.
Disabled DEFAULT
16K
32K
64K
16KB reserved for legacy ISA devices
32KB reserved for legacy ISA devices
54KB reserved for legacy ISA devices
No memory block reserved for legacy ISA devices
Page 59
ECK-161B Embedded System
BIOS Menu 13: Boot
5.5.1 Boot Settings Configuration
Use the Boot Settings Configuration menu (BIOS Menu 14) to configure advanced
system boot options.
Page 60
ECK-161B Embedded System
BIOS Menu 14: Boot Settings Configuration
Quick Boot [Enabled]
Use the Quick Boot BIOS option to make the computer speed up the boot process.
Disabled
Enabled DEFAULT
Quiet Boot [Disabled]
Use the Quiet Boot BIOS option to select the screen display when the system boots.
Disabled DEFAULT
No POST procedures are skipped
Some POST procedures are skipped to decrease
the system boot time
Normal POST messages displayed
Enabled
OEM Logo displayed instead of POST messages
Page 61
AddOn ROM Display Mode [Force BIOS]
Use the AddOn ROM Display Mode option to allow add-on ROM (read-only memory)
messages to be displayed.
ECK-161B Embedded System
Force BIOS DEFAULT
Keep Current
Bootup Num-Lock [On]
Use the Bootup Num-Lock BIOS option to specify if the number lock setting must be
modified during boot up.
Does not enable the keyboard Number Lock automatically. To
Off
The system displays normal information during
use the 10-keys on the keyboard, press the Number Lock key
located on the upper left-hand corner of the 10-key pad. The
Number Lock LED on the keyboard lights up when the Number
Lock is engaged.
The system forces third party BIOS to display
during system boot.
system boot.
On DEFAULT
Boot From LAN Support [Disabled]
The BOOT From LAN Support option enables the system to be booted from a remote
system.
Disabled DEFAULT
Page 62
Allows the Number Lock on the keyboard to be enabled
automatically when the computer system boots up. This allows
the immediate use of the 10-key numeric keypad located on
the right side of the keyboard. To confirm this, the Number
Lock LED light on the keyboard is lit.
Cannot be booted from a remote system through the
ECK-161B Embedded System
LAN
Enabled
5.6 Security
Use the Security menu (BIOS Menu 15) to set system and user passwords.
Can be booted from a remote system through the
LAN
BIOS Menu 15: Security
Change Supervisor Password
Use the Change Supervisor Password to set or change a supervisor password. The
default for this option is Not Installed. If a supervisor password must be installed, select
this field and enter the password. After the password has been added, Install appears
next to Change Supervisor Password.
Page 63
Change User Password
Use the Change User Password to set or change a user password. The default for this
option is Not Installed. If a user password must be installed, select this field and enter the
password. After the password has been added, Install appears next to Change User
Password.
5.7 Chipset
Use the Chipset menu (BIOS Menu 16) to access the Northbridge and Southbridge
configuration menus
ECK-161B Embedded System
WARNING!
Setting the wrong values for the Chipset BIOS selections in the Chipset
BIOS menu may cause the system to malfunction.
Page 64
ECK-161B Embedded System
BIOS Menu 16: Chipset
5.7.1 North Bridge Configuration
Use the North Bridge Configuration menu (BIOS Menu 17) to configure the northbridge
chipset.
Page 65
ECK-161B Embedded System
BIOS Menu 17: North Bridge Chipset Configuration
Memory Hole [Disabled]
Use the Memory Hole option to reserve memory space between 15MB and 16MB for ISA
expansion cards that require a specified area of memory to work properly. If an older ISA
expansion card is used, please refer to the documentation that came with the card to see if
it is necessary to reserve the space.
Disabled DEFAULT
15MB – 16MB
Boots Graphics Adapter Priority [PCI/IGD]
Use the Boots Graphics Adapter Priority option to select the graphics controller used as
Between 15MB and 16MB of memory is reserved for
Memory is not reserved for ISA expansion cards
ISA expansion cards
Page 66
the primary boot device. Select either an integrated graphics controller (IGD) or a
combination of PCI graphics controller, a PCI express (PEG) controller or an IGD.
Configuration options are listed below:
ECK-161B Embedded System
IGD
PCI/IGD DEFAULT
Internal Graphics Mode Select [Enable, 8MB]
Use the Internal Graphic Mode Select option to specify the amount of system memory
that can be used by the Internal graphics device.
Disable
Enable, 1MB
Enable, 8MB DEFAULT
DVMT Mode Select [DVMT Mode]
Use the DVMT Mode Select option to select the Intel Dynamic Video Memory Technology
(DVMT) operating mode.
Fixed Mode
DVMT Mode DEFAULT
Combo Mode
1MB of memory used by internal graphics device
8MB of memory used by internal graphics device
A fixed portion of graphics memory is reserved as
graphics memory.
Graphics memory is dynamically allocated
according to the system and graphics needs.
A fixed portion of graphics memory is reserved as
DVMT/FIXED Memory [128MB]
Use the DVMT/FIXED Memory option to specify the maximum amount of memory that
can be allocated as graphics memory. This option can only be configured for if DVMT
Mode or Fixed Mode is selected in the DVMT Mode Select option. If Combo Mode is
graphics memory. If more memory is needed,
graphics memory is dynamically allocated
according to the system and graphics needs.
Page 67
selected, the maximum amount of graphics memory is 128MB. Configuration options are
listed below.
64MB
128MB DEFAULT
Maximum DVMT
Boot Display Device [Auto]
Use the Boot Display Device option to select the display device used by the system
when it boots. Configuration option is listed below.
Auto DEFAULT
CRT
TV
ECK-161B Embedded System
LFP
Flat Panel Type [1024*768]
Use the Flat Panel Type option to select the type of flat panel connected to the system.
Configuration options are listed below.
1366*768
1920*1080
1024*768 DEFAULT
1280*1024 (36bits)
1400*1050 (36bits)
1600*1200 (36bits)
1280*768
1680*1050 (36bits)
1920*1200 (36bits)
1024*768 (48bits)
Page 68
1440*900 (36bits)
1440*900 (48bits)
1280*800
1280*600
ECK-161B Embedded System
2048*1536 (36bits)
Local Flat Panel Scaling [Auto]
Use the Local Flat Panel Scaling option to select the method of scaling for the flat panel
screen attached to the system.
Auto DEFAULT
Forced Scaling
Disabled
TV Standard [VBIOS-Default]
Use the TV Standard option to select the standard of the television connected to the
system. The configuration options are listed below.
VBIOS-Default DEFAULT
NTSC
PAL
Scaling is forced
Scaling is disabled
Scaling is automatic
5.7.2 South Bridge Configuration
The SouthBridge Configuration menu (BIOS Menu 18) the Southbridge chipset to be
configured.
Page 69
ECK-161B Embedded System
BIOS Menu 18:South Bridge Chipset Configuration
ASF Support [Enabled]
Use the ASF Support BIOS option to control the system’s ability to connect to a remote
management server.
Enabled DEFAULT
Audio Controller [Azalia]
The Audio Controller option enables or disables the High Definition Audio CODEC.
Azalia DEFAULT
The Alert Standard Format (ASF) controller is activated
and can communicate with a remote management
server.
The Intel High Definition Audio controller automatically
Page 70
detected and enabled
ECK-161B Embedded System
Disabled
OnBoard LAN1 (BCM5787M) [Enabled]
The OnBoard LAN1 (BCM5787M) option enables or disables the onboard LAN1.
Disabled
Enabled DEFAULT
OnBoard LAN2 (BCM5787M) [Enabled]
The OnBoard LAN2 (BCM5787M) option enables or disables the onboard LAN1.
Disabled
Enabled DEFAULT
The onboard High Definition Audio controller is disabled
Onboard LAN1 controller manually disabled
The onboard LAN1 controller automatically detected and
enabled
Onboard LAN2 controller manually disabled
The onboard LAN2 controller automatically detected and
5.8 Exit
Use the Exit menu (BIOS Menu 19) to load default BIOS values, optimal failsafe values
and to save configuration changes.
enabled
Page 71
ECK-161B Embedded System
BIOS Menu 19:Exit
Save Changes and Exit
Use the Save Changes and Exit option to save the changes made to the BIOS options
and to exit the BIOS configuration setup program.
Discard Changes and Exit
Use the Discard Changes and Exit option to exit the BIOS configuration setup program
without saving the changes made to the system.
Discard Changes
Use the Discard Changes option to discard the changes and remain in the BIOS
configuration setup program.
Page 72
ECK-161B Embedded System
Load Optimal Defaults
Use the Load Optimal Defaults option to load the optimal default values for each of the
parameters on the Setup menus. F9 key can be used for this operation.
Load Failsafe Defaults
Use the Load Failsafe Defaults option to load failsafe default values for each of the
parameters on the Setup menus. F8 key can be used for this operation.
Page 73
ECK-161B Embedded System
Chapter
6
6 Driver Installation
Page 74
ECK-161B Embedded System
6.1 Available Software Drivers
NOTE:
The content of the CD may vary throughout the life cycle of the product and
is subject to change without prior notice. Visit the IEI website or contact
technical support for the latest updates.
The ECK-161B embedded system has the following software drivers:
Intel Chipset Driver Installation
VGA Utilities Driver
LAN Driver (for GbE LAN) Installation
RealTek Audio Driver (ALC883) Installation
SATA Driver Installation
All drivers can be found on the CD that came with the motherboard. To install the drivers
please follow the instructions in the sections below.
6.2 Chipset Driver Installation
To install the chipset driver, please follow the steps below:
Step 1: Insert the CD into the system that contains the ECK-161B embedded system.
Open the 1-INF directory and locate the icon for the infinst_autol.exe
installation file. Once located, use the mouse to double click the icon.
Step 2: The “InstallShield Wizard Preparation Screen” in
Figure 6-1 appears.
Page 75
ECK-161B Embedded System
Figure 6-1: InstallShield Wizard Preparation Screen
Step 3: The “Welcome” window in
Figure 6-2: Welcome Screen
Figure 6-2 appears next.
Page 76
Step 4: Click “N
EXT” and the license agreement shown in Figure 6-3 appears.
ECK-161B Embedded System
Figure 6-3: License Agreement
Step 5: Agree to the license terms by clicking “Y
appears.
Figure 6-4: Readme Information
ES”. The “Readme” in Figure 6-4
Step 6: Click “Y
complete, the installation complete screen shown in
ES”. The driver is installed on the computer. After the installation is
Figure 6-5 appears. Select
Page 77
the preferred option and click “FINISH” to complete the installation process.
Step 0:
ECK-161B Embedded System
Figure 6-5: Restart the Computer
6.3 VGA Driver
To install the VGA driver, please follow the steps below:
Step 1: Insert the Utility CD that came with the motherboard into the system CD drive.
Step 2: Open the X:\2-VGA\WIN2K_XP directory (where X:\ is the system CD drive)
and double-click the win2k_xp1420.exe installation file.
Step 3: The Starting Install Shield Wizard appears (
Figure 6-6).
Page 78
ECK-161B Embedded System
Figure 6-6: Starting Install Shield Wizard Screen
Step 4: The Preparing Setup window appears next (
Figure 6-7).
Figure 6-7: Preparing Setup Screen
Page 79
Step 5: A Welcome screen shown in Figure 6-8 appears. Click NEXT to continue the
installation.
ECK-161B Embedded System
Figure 6-8: VGA Driver Installation Welcome Screen
Step 6: A license agreement shown in
agreement.
Figure 6-9 appears. Read through the license
Page 80
Figure 6-9: VGA Driver License Agreement
Step 7: Accept the terms and conditions stipulated in the license agreement by clicking
ECK-161B Embedded System
the “YES” button (Figure 6-9). The installation notice shown in Figu re 6-10
appears.
Figure 6-10: VGA Driver Installing Notice
Step 8: After the driver installation process is complete, a confirmation screen shown in
Figure 6-11 appears.
Figure 6-11: VGA Driver Installation Complete
Step 9: The confirmation screen shown in
computer immediately after the installation is complete or to restart the computer
later. For the settings to take effect the computer must be restarted. Once
decided when to restart the computer, click the “F
Figure 6-11 allows user to restart the
INISH” button. Step 0:
Page 81
ECK-161B Embedded System
6.4 Broadcom LAN Driver (for GbE LAN) Installation
To install the Broadcom LAN driver, please follow the steps below.
Step 1: Open Windows Control Panel (
Figure 6-12).
Page 82
Figure 6-12: Access Windows Control Panel
Step 2: Double click the System icon (
Figure 6-13).
ECK-161B Embedded System
Figure 6-13: Double Click the System Icon
Step 3: Double click the Device Manager tab (
Figure 6-14).
Figure 6-14: Double Click the Device Manager Tab
Step 4: A list of system hardware devices appears (
Figure 6-15).
Page 83
Figure 6-15: Device Manager List
ECK-161B Embedded System
Step 5: Double click the listed device that has question marks next to it. (This means
Windows does not recognize the device).
Step 6: The Device Driver Wizard appears (
Figure 6-16). Click NEXT to continue.
Page 84
Figure 6-16: Search for Suitable Driver
ECK-161B Embedded System
Step 7: Select “Specify a Location” in the Locate Driver Files window (Figure 6-17).
Click N
Figure 6-17: Locate Driver Files
EXT to continue.
Step 8: Select the proper OS folder under the “X:\3-LAN\BROADCOM BCM57xx
Drivers” directory (
the system CD drive.
Figure 6-18) in the location browsing window, where “X:\” is
Figure 6-18: Location Browsing Window
Page 85
Step 9: Click OK to continue. A driver files location menu window appears. Click NEXT to
continue. The driver is installed.Step 0:
ECK-161B Embedded System
6.5 RealTek HD Audio Driver (ALC883) Installation
To install the Realtek High Definition (HD) Audio driver, please follow the steps below.
Step 1: Open Windows Control Panel (
Figure 6-12).
Page 86
Figure 6-19: Access Windows Control Panel
Step 2: Double click the System icon (
Figure 6-13).
