IEI Technology AFL-10A-CX-15GZ/WT-R/512MB, AFL-10A-CX-05GZ/WT-R/512MB, AFL-12B-CX, AFL-12B-CX-15GZ/WT-R/512MB, AFL-12B-CX-05GZ/WT-R/512MB User Manual
...
AFOLUX CX Series Flat Panel PC
AFOLUX CX Series Flat Panel PC
Page i
A
FOLUX CX Series Flat Panel PC
Revision
Date Version Changes
2007-11 1.03 Modified 12” model name to AFL-12B-CX
2007-10 1.02 Added new models (AFL-10A-CX and AFL-12A-CX) information
2007-08 1.01
2007-07 1.00 Initial Release
Added AT/ATX mode selection description
Page ii
AFOLUX CX Series Flat Panel PC
COPYRIGHT NOTICE
The information in this document is subject to change without prior notice in order to
improve reliability, design and function and does not represent a commitment on the part
of the manufacturer.
In no event will the manufacturer be liable for direct, indirect, special, incidental, or
consequential damages arising out of the use or inability to use the product or
documentation, even if advised of the possibility of such damages.
Copyright
This document contains proprietary information protected by copyright. All rights are
reserved. No part of this manual may be reproduced by any mechanical, electronic, or
other means in any form without prior written permission of the manufacturer.
TRADEMARKS
All registered trademarks and product names mentioned herein are used for identification
purposes only and may be trademarks and/or registered trademarks of their respective
owners.
Page iii
A
FOLUX CX Series Flat Panel PC
Manual Conventions
WARNING!
Warnings appear where overlooked details may cause damage to the equipment or result
in personal injury. Warnings should be taken seriously. Warnings are easy to recognize.
The word “warning” is written as “WARNING,” both capitalized and bold and is followed by
text. The text is the warning message. A warning message is shown below:
WARNING:
This is an example of a warning message. Failure to adhere to warning
messages may result in permanent damage to the AFOLUX CX series
or personal injury to the user. Please take warning messages seriously.
CAUTION!
Cautionary messages should also be heeded to help reduce the chance of losing data or
damaging the AFOLUX CX series. Cautions are easy to recognize. The word “caution” is
written as “CAUTION,” both capitalized and bold and is followed. The italicized text is the
cautionary message. A caution message is shown below:
Page iv
AFOLUX CX Series Flat Panel PC
CAUTION:
This is an example of a caution message. Failure to adhere to cautions
messages may result in permanent damage to the AFOLUX CX series.
Please take caution messages seriously.
NOTE:
These messages inform the reader of essential but non-critical information. These
messages should be read carefully as any directions or instructions contained therein can
help avoid making mistakes. Notes are easy to recognize. The word “note” is written as
“NOTE,” both capitalized and bold and is followed by text. The text is the cautionary
message. A note message is shown below:
NOTE:
This is an example of a note message. Notes should always be read.
Notes contain critical information about the AFOLUX CX series. Please
take note messages seriously.
Page v
A
FOLUX CX Series Flat Panel PC
Packing List
NOTE:
If any of the components listed in the checklist below are missing,
please do not proceed with the installation. Contact the IEI reseller or
vendor you purchased the AFOLUX CX series from or contact an IEI
sales representative directly. To contact an IEI sales representative,
please send an email to
The items listed below should all be included in the AFOLUX CX series package.
1 x AFOLUX CX series panel PC
1 x Power cord
1 x 80W power adapter
1 x HDD cable
1 x eSATA cable
1 x Screw set
1 x Touch pen
1 x User Manual and driver CD
1 x Wall mounting kit (optional)
1 x Arm mounting kit (optional)
1 x Stand mounting kit (optional)
1 x 128MB CompactFlash® card with Windows CE 5.0 pre-installed (optional)
sales@iei.com.tw.
Page vi
1 x 1GB CompactFlash® card with Windows XPE pre-installed (optional)
Images of the above items are shown in Chapter 3.
AFOLUX CX Series Flat Panel PC
Table of Contents
1 INTRODUCTION..................................................................................................... 1
1.1 AFOLUX CX SERIES FLAT PANEL PC OVERVIEW .................................................... 2
1.1.1 Model Variations................................................................................................ 2
1.1.2 Applications ....................................................................................................... 3
1.1.3 Standard Features.............................................................................................. 3
1.2 EXTERNAL OVERVIEW ............................................................................................... 4
1.2.1 General Description........................................................................................... 4
1.2.2 Front Panel........................................................................................................ 4
1.2.3 Rear Panel ......................................................................................................... 5
1.2.4 Bottom Panel...................................................................................................... 6
1.2.4.1 AFL-10A-CX/AFL-12B-CX....................................................................... 6
1.2.4.2 AFL-15A-CX/AFL-17A-CX/AFL-19A-CX............................................... 6
1.3 INTERNAL OVERVIEW................................................................................................. 7
1.4 SPECIFICATIONS ......................................................................................................... 8
1.4.1 Preinstalled Hardware Components.................................................................. 8
1.4.2 System Specifications......................................................................................... 9
1.4.3 Motherboard Specifications..............................................................................11
1.4.4 Flat Panel Screen Specifications..................................................................... 12
1.4.4.1 AFL-10A-CX/AFL-12B-CX..................................................................... 12
1.4.4.2 AFL-15A-CX/AFL-17A-CX/AFL-19A-CX............................................. 12
1.4.5 Touch Screen Specifications............................................................................. 14
1.4.6 Bluetooth Module Specifications ..................................................................... 15
1.4.7 Optional GPRS Module Specifications............................................................ 16
1.5 DIMENSIONS ............................................................................................................ 17
1.5.1 AFL-10A-CX Dimensions ................................................................................ 17
1.5.2 AFL-12B-CX Dimensions ................................................................................ 18
1.5.3 AFL-15A-CX Dimensions ................................................................................ 19
1.5.4 AFL-17A-CX Dimensions ................................................................................ 20
1.5.5 AFL-19A-CX Dimensions ................................................................................ 21
2 MOTHERBOARD.................................................................................................. 23
Page vii
A
2.1 INTRODUCTION ........................................................................................................ 24
2.2 CPU SUPPORT.......................................................................................................... 24
2.2.1 VIA C7® Specifications .................................................................................... 24
2.3 SYSTEM CHIPSET ..................................................................................................... 25
2.4 GRAPHICS SUPPORT ................................................................................................. 25
2.5 ETHERNET CONTROLLER SPECIFICATIONS ............................................................... 26
2.5.1 Overview.......................................................................................................... 26
2.5.2 Features ........................................................................................................... 26
2.6 PERIPHERAL DEVICE INTERFACES, CONNECTORS, AND SLOTS................................. 27
2.6.1 OEM Options................................................................................................... 27
2.6.2 Internal Slots.................................................................................................... 27
2.6.3 Internal Peripheral Device Connectors........................................................... 27
2.6.4 External Peripheral Device Connectors.......................................................... 28
3 INSTALLATION .................................................................................................... 29
FOLUX CX Series Flat Panel PC
3.1 INSTALLATION PRECAUTIONS ................................................................................... 30
3.2 PREINSTALLED COMPONENTS .................................................................................. 30
3.3 INSTALLATION AND CONFIGURATION STEPS ............................................................. 31
3.4 UNPACKING.............................................................................................................. 31
3.4.1 Packing List ..................................................................................................... 32
3.5 CF CARD INSTALLATION.......................................................................................... 33
3.6 HDD INSTALLATION ................................................................................................ 36
3.7 AT/ATX MODE SELECTION ..................................................................................... 39
3.7.1 AT Power Mode................................................................................................ 40
3.7.2 ATX Power Mode............................................................................................. 41
3.8 MOUNTING THE SYSTEM .......................................................................................... 41
3.8.1 Wall Mounting.................................................................................................. 41
3.8.2 Arm Mounting .................................................................................................. 44
3.8.3 Panel Mounting (AFL-10A-CX/AFL-12B-CX Only) ....................................... 46
3.8.4 Cabinet and Rack Installation (AFL-10A-CX/AFL-12B-CX Only)................. 48
3.9 BOTTOM PANEL CONNECTORS ................................................................................. 50
3.9.1 LAN Connection............................................................................................... 50
3.9.2 Serial Device Connection ................................................................................ 52
3.9.3 USB Device Connection................................................................................... 53
4 SYSTEM MAINTENANCE .................................................................................. 55
Page viii
AFOLUX CX Series Flat Panel PC
4.1 SYSTEM MAINTENANCE INTRODUCTION .................................................................. 56
4.2 MOTHERBOARD REPLACEMENT ............................................................................... 56
4.3 INTERNAL ALUMINUM COVER REMOVAL ................................................................. 56
4.4 MEMORY MODULE REPLACEMENT .......................................................................... 59
4.5 JUMPER SETTINGS .................................................................................................... 61
4.5.1 J4: LCD Voltage Select Jumper Settings.......................................................... 62
4.5.2 JP7: COM2 Mode Select Jumper Settings....................................................... 63
4.5.3 JP8: COM2 Mode Select Jumper Settings....................................................... 63
5 AMI BIOS SETUP.................................................................................................. 65
5.1 INTRODUCTION ........................................................................................................ 66
5.1.1 Starting Setup................................................................................................... 66
5.1.2 Using Setup...................................................................................................... 66
5.1.3 Getting Help..................................................................................................... 67
5.1.4 Unable to Reboot After Configuration Changes.............................................. 67
5.1.5 BIOS Menu Bar................................................................................................ 67
5.2 MAIN ....................................................................................................................... 68
5.3 ADVANCED ............................................................................................................... 69
5.3.1 CPU Configuration.......................................................................................... 70
5.3.2 IDE Configuration........................................................................................... 71
5.3.2.1 IDE Master, IDE Slave ............................................................................. 73
5.3.3 Super IO Configuration.................................................................................... 78
5.3.4 ACPI Configuration ......................................................................................... 81
5.3.5 APM Configuration.......................................................................................... 82
5.3.6 Remote Access Configuration.......................................................................... 84
5.3.7 USB Configuration........................................................................................... 87
5.3.7.1 USB Mass Storage Device Configuration................................................. 89
5.4 PCI/PNP .................................................................................................................. 92
5.5 BOOT ....................................................................................................................... 95
5.5.1 Boot Settings Configuration............................................................................. 95
5.5.2 Boot Device Priority........................................................................................ 98
5.5.3 Hard Disk Drives............................................................................................. 99
5.5.4 Removable Drives.......................................................................................... 100
5.6 SECURITY............................................................................................................... 101
5.7 CHIPSET ................................................................................................................. 103
Page ix
A
5.8 EXIT....................................................................................................................... 105
A INTERFACE CONNECTORS............................................................................ 107
A.1 PERIPHERAL INTERFACE CONNECTORS ................................................................. 108
B SAFETY PRECAUTIONS....................................................................................115
B.1 SAFETY PRECAUTIONS............................................................................................116
B.1.1 General Safety Precautions............................................................................116
B.1.2 Anti-static Precautions...................................................................................117
B.2 MAINTENANCE AND CLEANING PRECAUTIONS .......................................................117
B.2.1 Maintenance and Cleaning.............................................................................117
B.2.2 Cleaning Tools................................................................................................118
C BIOS CONFIGURATION OPTIONS .................................................................119
C.1 BIOS CONFIGURATION OPTIONS ........................................................................... 120
FOLUX CX Series Flat Panel PC
D SOFTWARE DRIVERS....................................................................................... 125
D.1 REMOTE MANAGEMENT TOOL .............................................................................. 126
D.2 TOUCH PANEL DRIVER .......................................................................................... 126
D.2.1 Introduction................................................................................................... 126
D.2.2 Driver Installation......................................................................................... 127
D.2.3 Touch Panel Driver Configuration ............................................................... 130
E WATCHDOG TIMER.......................................................................................... 131
F HAZARDOUS MATERIALS DISCLOSURE................................................... 135
F.1 HAZARDOUS MATERIAL DISCLOSURE TABLE FOR IPB PRODUCTS CERTIFIED AS
ROHS COMPLIANT UNDER 2002/95/EC WITHOUT MERCURY ..................................... 136
G INDEX.................................................................................................................... 139
Page x
AFOLUX CX Series Flat Panel PC
Figure 1-1: Front View...................................................................................................4
Figure 1-2: AFL-10A-CX/AFL-12B-CX Series Rear View............................................5
Figure 1-3: AFL-15A-CX/AFL-17A-CX/AFL-19A-CX Series Rear View .....................5
Figure 1-4: AFL-10A-CX/AFL-12B-CX Bottom View...................................................6
Figure 1-5: AFOLUX CX Series Bottom View .............................................................7
Figure 1-6: AFOLUX CX Series Internal Overview.....................................................8

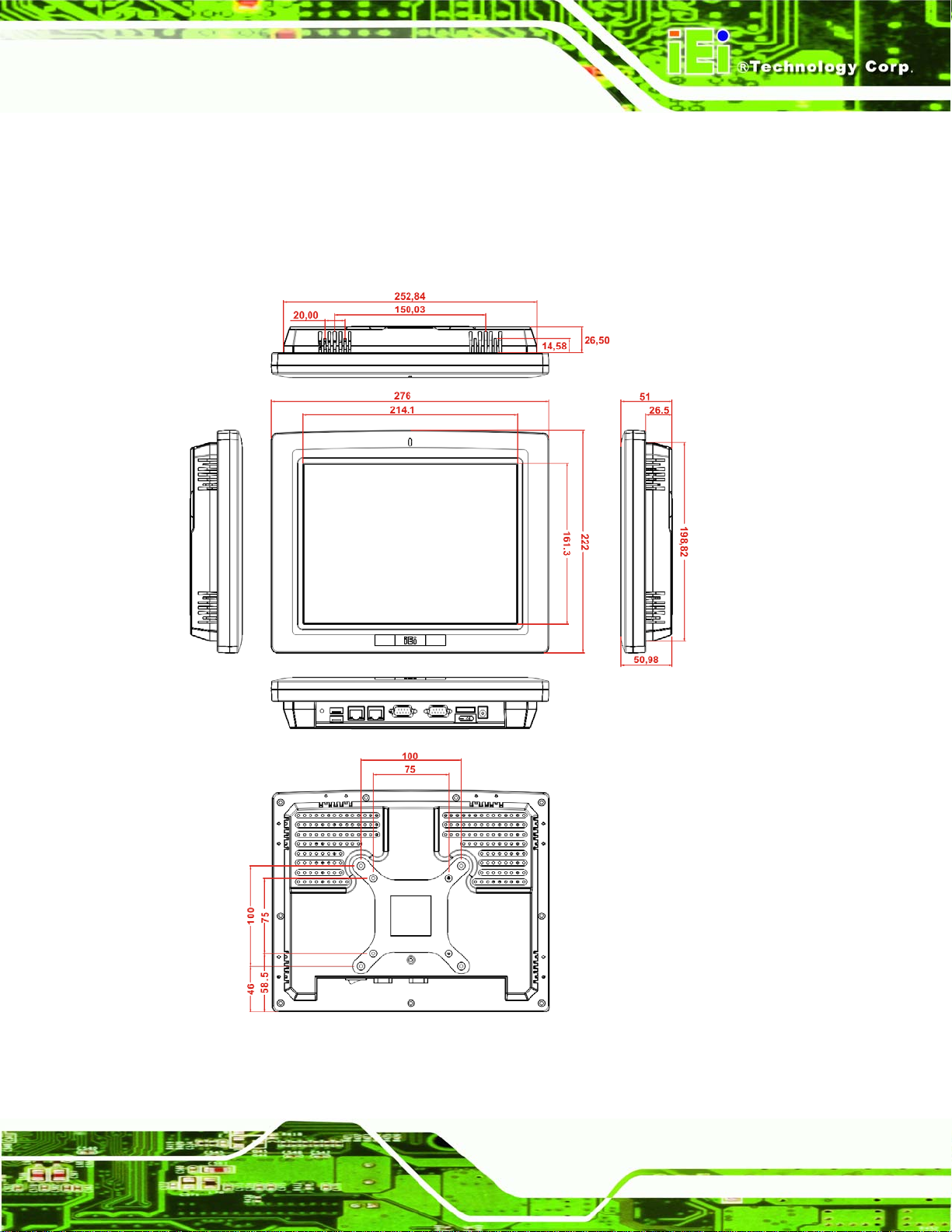

Figure 1-7: AFL-10A-CX Dimensions (units in mm).................................................17
Figure 1-8: AFL-12B-CX Dimensions (units in mm).................................................18
Figure 1-9: AFL-15A-CX Dimensions (units in mm).................................................19
List of Figures
Figure 1-10: AFL-17A-CX Dimensions (units in mm)...............................................20
Figure 1-11: AFL-19A-CX Dimensions (units in mm)...............................................21
Figure 2-1: AFLMB-CX700 Connector Overview......................................................28

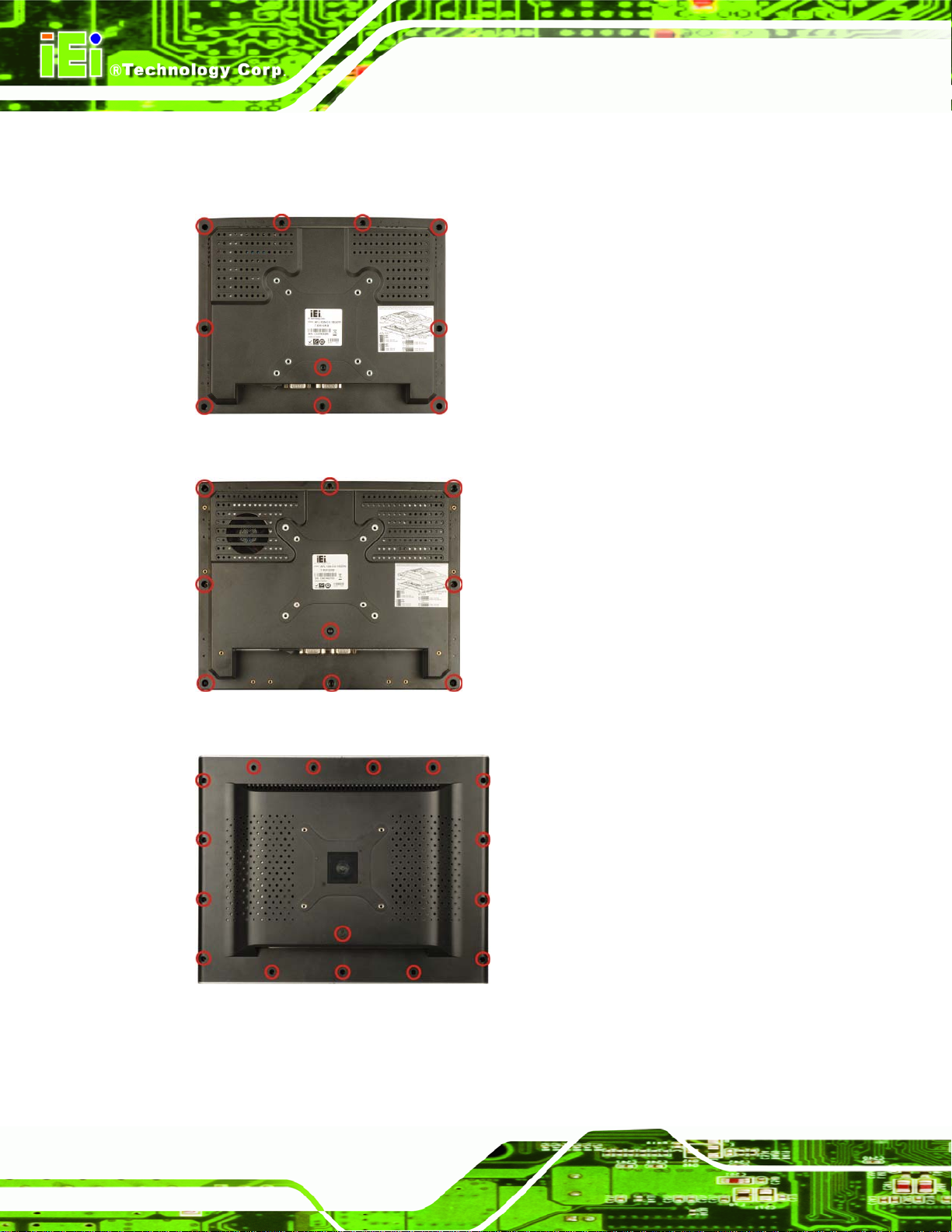

Figure 3-1: AFL-10A-CX Back Cover Retention Screws..........................................34
Figure 3-2: AFL-12B-CX Back Cover Retention Screws..........................................34
Figure 3-3: AFL-15A-CX Back Cover Retention Screws..........................................34
Figure 3-4: AFL-17A-CX Back Cover Retention Screws..........................................35
Figure 3-5: AFL-19A-CX Back Cover Retention Screws..........................................35
Figure 3-6: CF Card Location.....................................................................................36

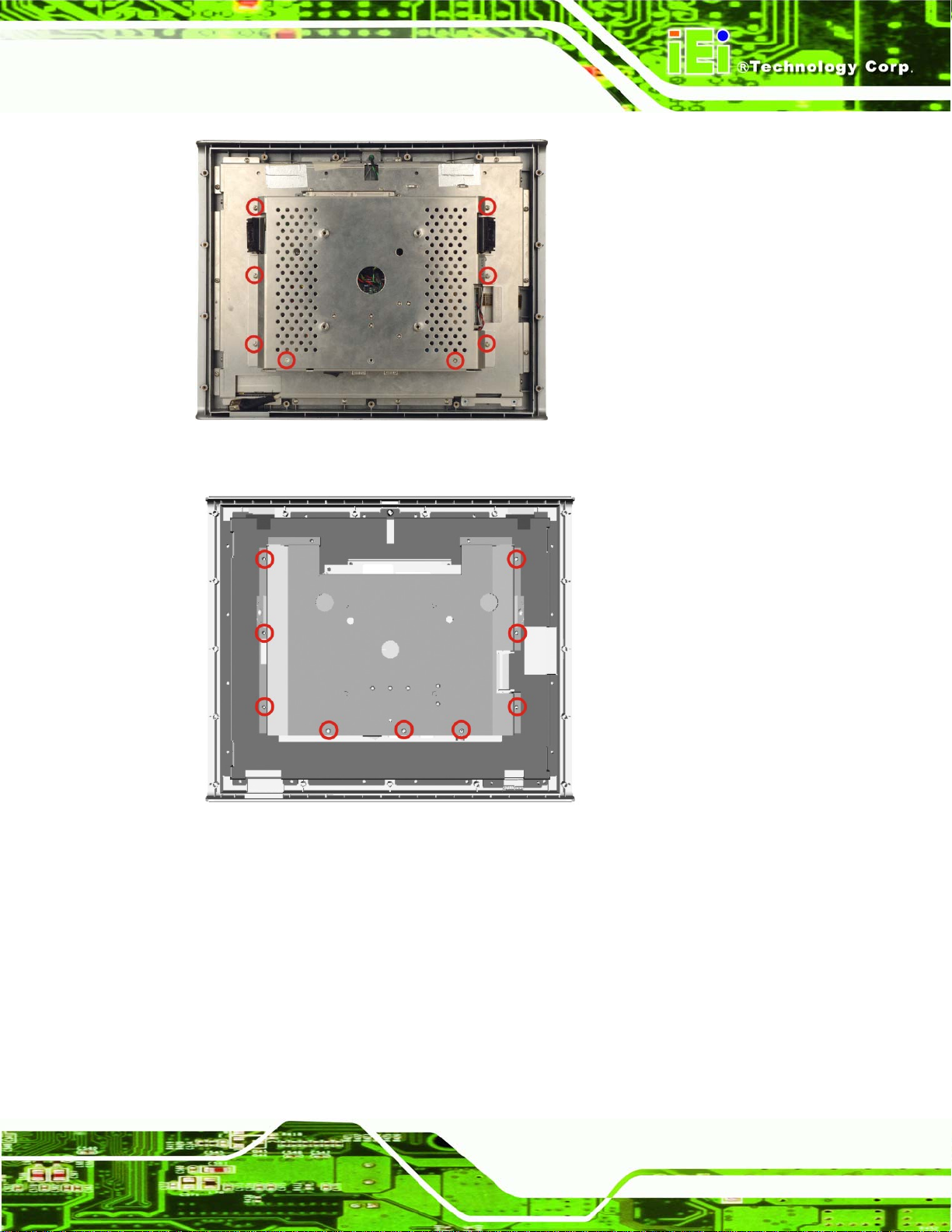

Figure 3-7: AFL-12B-CX Aluminum Back Cover Retention Screws.......................36
Figure 3-8: AFL-15A-CX Aluminum Back Cover Retention Screws.......................37
Figure 3-9: AFL-17A-CX Aluminum Back Cover Retention Screws.......................37
Figure 3-10: AFL-19A-CX Aluminum Back Cover Retention Screws.....................38
Figure 3-11: AFL-19A-CX HDD Bracket Retention Screws .....................................38
Figure 3-12: AFL-CX HDD Retention Screws ...........................................................39
Figure 3-13: AT/ATX Switch Location (AFL-10A-CX/AFL-12B-CX) ........................40
Figure 3-14: AT/ATX Switch Location (AFL-15A-CX/AFL-17A-CX/AFL-19A-CX) ..40
Figure 3-15: Wall-mounting Bracket..........................................................................42
Figure 3-16: Chassis Support Screws.......................................................................43
Page xi
A
Figure 3-17: Secure the Panel PC..............................................................................44
Figure 3-18: Arm Mounting Retention Screw Holes (AFL-10A-CX/AFL-12B-CX) .45

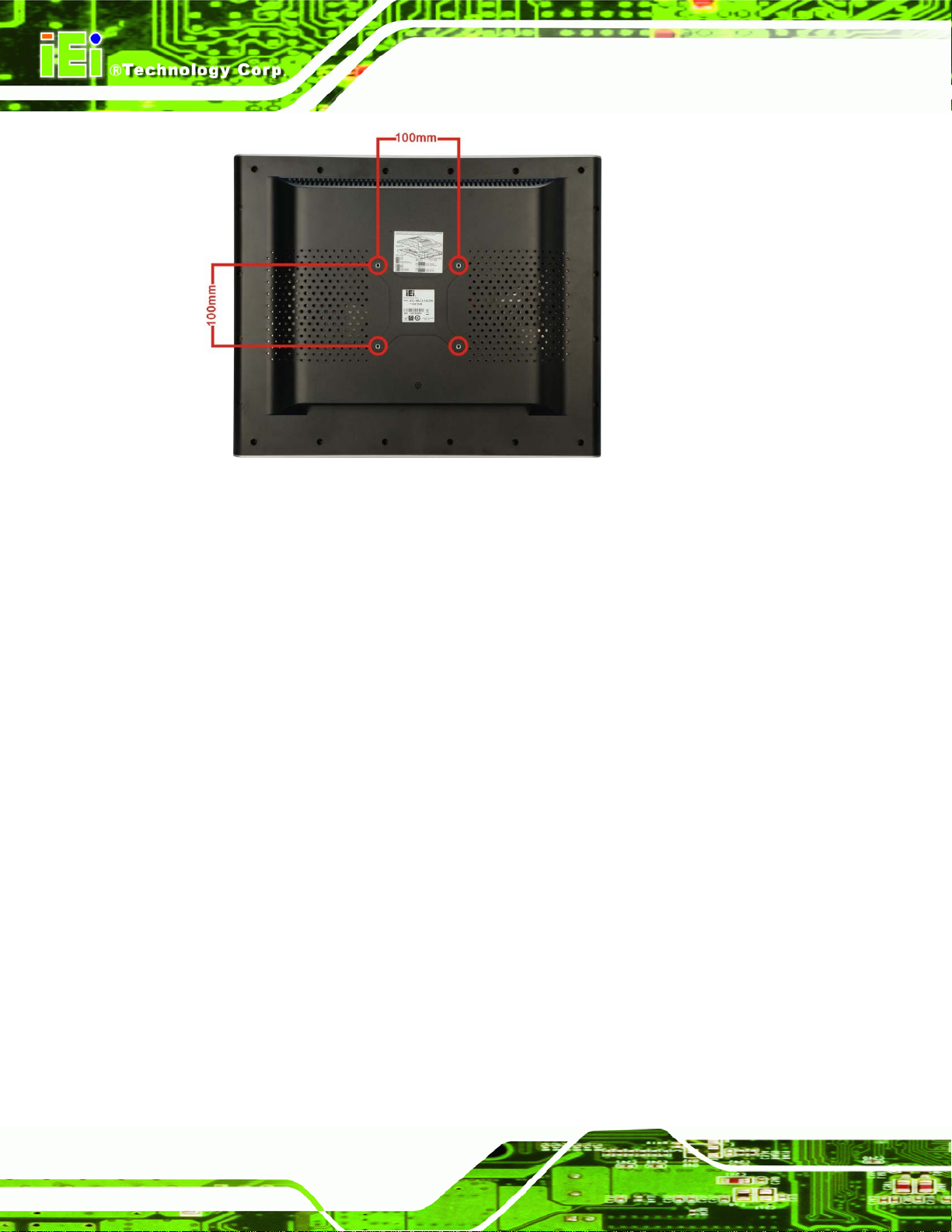

Figure 3-19: Arm Mounting Retention Screw Holes (AFL-15A/17A/19A-CX) ........46

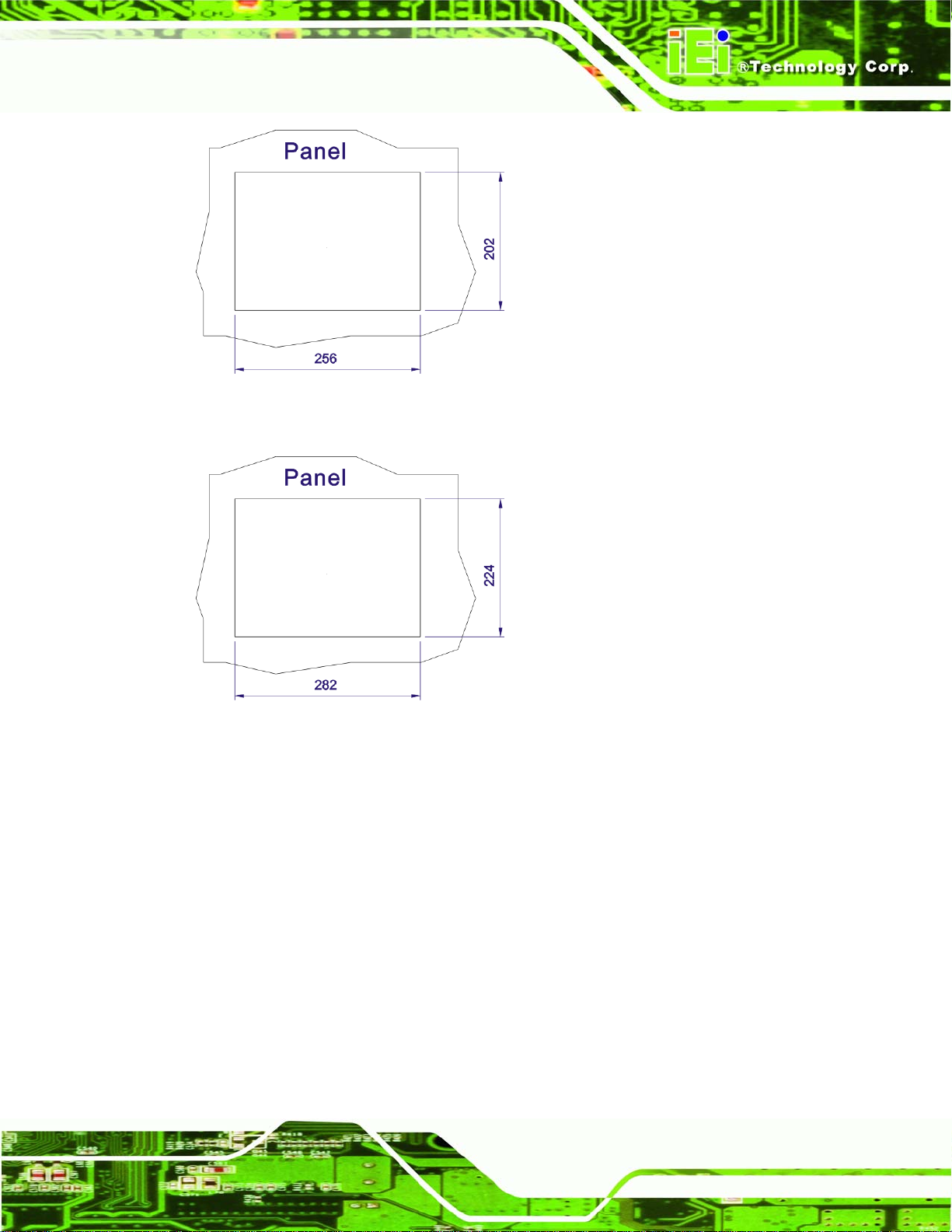

Figure 3-20: AFL-10A-CX Panel Opening .................................................................47
Figure 3-21: AFL-12B-CX Panel Opening .................................................................47
Figure 3-22: Tighten the Panel Mounting Clamp Screws (AFL-10A/12B-CX)........48
Figure 3-23: The Rack/Cabinet Bracket ....................................................................49
Figure 3-24: Secure the Rack/Cabinet Bracket (AFL-10A/12B-CX)........................49
Figure 3-25: Install into a Rack/Cabinet....................................................................50
Figure 3-26: LAN Connection.....................................................................................51
Figure 3-27: Serial Device Connector .......................................................................52
Figure 3-28: USB Device Connection........................................................................53
Figure 4-1: AFL-10A-CX Aluminum Back Cover Retention Screws.......................57
FOLUX CX Series Flat Panel PC
Figure 4-2: AFL-12B-CX Aluminum Back Cover Retention Screws.......................57
Figure 4-3: AFL-15A-CX Aluminum Back Cover Retention Screws.......................58
Figure 4-4: AFL-17A-CX Aluminum Back Cover Retention Screws.......................58
Figure 4-5: AFL-19A-CX Aluminum Back Cover Retention Screws.......................59
Figure 4-6: SO-DIMM Socket Location......................................................................60
Figure 4-7: DDR2 SO-DIMM Module Installation......................................................61
Figure 4-8: Jumper Locations....................................................................................62
Page xii
AFOLUX CX Series Flat Panel PC
Table 1-1: Model Variations..........................................................................................2
Table 1-2: AFOLUX CX Series System Specifications ............................................10
Table 1-3: Motherboard Specifications.....................................................................11
Table 1-4: AFL-10A/12B-CX TFT LCD Monitor Specifications................................12
Table 1-5: AFL-15A/17A/19A-CX TFT LCD Monitor Specifications........................13
Table 1-6: Touch Panel Specifications......................................................................14
Table 1-7: Bluetooth Module Specifications ............................................................15
Table 1-8: GPRS Module Specifications...................................................................16
Table 4-1: LCD Voltage Setup Jumper Settings.......................................................62
List of Tables
Table 4-2: COM2 Mode Select Jumper Settings.......................................................63
Table 4-3: COM2 Mode Select Jumper Settings.......................................................63
Table 5-1: BIOS Navigation Keys...............................................................................67
Page xiii
A
FOLUX CX Series Flat Panel PC
THIS PAGE IS INTENTIONALLY LEFT BLANK
Page xiv
AFOLUX CX Series Flat Panel PC
Chapter
1
1 Introduction
Page 1
A
FOLUX CX Series Flat Panel PC
1.1 AFOLUX CX Series Flat Panel PC Overview
The AFOLUX CX series flat panel PC is a flexible, multi-functional flat panel PC that can
be applied in diverse operational environments and implemented in multi-faceted
applications. The AFOLUX CX series comes fully kitted with a high-performance
motherboard and a host of other peripheral interface connectors. The integrated wireless
LAN module and Bluetooth module ensure an uninterrupted wireless connection. The
flexible AT/ATX power mode selection allows the AFOLUX series to meet multiple
application requirements. The AFOLUX CX series is designed for ease of use and easy
installation.
1.1.1 Model Variations
The models of AFOLUX CX series are listed in Table 1-1.
AFL-10A-CX CPU LCD Memory Wireless LAN Touch screen
-15GZ/WT-R/512MB
-05GZ/WT-R/512MB
AFL-12B-CX CPU LCD Memory Wireless LAN Touch screen
-15GZ/WT-R/512MB
-05GZ/WT-R/512MB
AFL-15A-CX CPU LCD Memory Wireless LAN Touch screen
-15GZ/WT-R/512MB
-05GZ/WT-R/512MB
AFL-17A-CX CPU LCD Memory Wireless LAN Touch screen
-15GZ/WT-R/512MB
-05GZ/WT-R/512MB
AFL-19A-CX CPU LCD Memory Wireless LAN Touch screen
-15GZ/WT-R/512MB
-05GZ/WT-R/512MB
VIA C7®
VIA Eden
VIA C7®
VIA Eden
VIA C7®
VIA Eden
VIA C7®
VIA Eden
VIA C7
®
VIA EdenTM
10.4” 512MB DDR2
TM
10.4” 512MB DDR2
12.1” 512MB DDR2
TM
12.1” 512MB DDR2
15” 512MB DDR2
TM
15” 512MB DDR2
17” 512MB DDR2
TM
17” 512MB DDR2
19” 512MB DDR2
19” 512MB DDR2
Yes Yes
Yes Yes
Yes Yes
Yes Yes
Yes Yes
Yes Yes
Yes Yes
Yes Yes
Yes Yes
Yes Yes
Table 1-1: Model Variations
Page 2
AFOLUX CX Series Flat Panel PC
1.1.2 Applications
The AFOLUX CX series all-in-one panel PC is designed for multiple applications. Its
durability and strength makes it an ideal choice for public access computers. Some
possible applications include:
Vehicle Interior device
o Truck PC
o Logistic car PC
General computing
o PC based testing center
o Distance learning
Industrial applications
o Plant environment monitoring system
o Factory automation platform
o Manufacturing shop flow
o Equipment and device control
Home and building automation
o Digital surveillance system
o E-home platform
o Home IA control terminal
Self-Service Kiosk
o Receptionist kiosk in hotel and business premises
o Self registration terminal in hospital and airport
o Ticket vending machine for transportation use
1.1.3 Standard Features
Some of the standard features of the AFOLUX CX series flat panel PC include:
VIA C7® 1.5GHz processor/VIA Eden
Rugged mechanism design with ABS/PC case
IP 64 dustproof and waterproof front panel
TM
500MHz processor
One 512MB DDR2 memory module pre-installed
AT/ATX power mode supported
Wireless LAN module and Bluetooth module integrated
Page 3
A
Dual GbE LAN support
One CompactFlash
Optional GPRS module
Simplified installation process
RoHS compliance
1.2 External Overview
1.2.1 General Description
The AFOLUX CX series is a stylish flat panel PC that comprises of a screen, rear panel,
and bottom panel. An ABS/PC plastic front frame surrounds the front screen. The rear
panel provides screw holes for a wall-mounting bracket compliant with VESA FDMI
standard. The bottom panel provides access to external interface connectors that include
LAN, VGA, USB 2.0 ports, serial ports, reset button, power connector and power switch.
FOLUX CX Series Flat Panel PC
®
Type II socket support
1.2.2 Front Panel
The front side of the AFOLUX CX series is a flat panel TFT LCD screen surrounded by an
ABS/PC plastic frame.
Figure 1-1: Front View
Page 4
AFOLUX CX Series Flat Panel PC
1.2.3 Rear Panel
The rear panel provides access to retention screw holes that support the wall mounting.
Refer to
Figure 1-2: AFL-10A-CX/AFL-12B-CX Series Rear View
Figure 1-2 and Figure 1-3.
Figure 1-3: AFL-15A-CX/AFL-17A-CX/AFL-19A-CX Series Rear View
Page 5
A
1.2.4 Bottom Panel
1.2.4.1 AFL-10A-CX/AFL-12B-CX
The bottom panel of the AFL-10A-CX/AFL-12B-CX has the following I/O interfaces
(
Figure 1-5):
2 x USB 2.0 connectors
1 x AC power adapter connector
1 x Power switch
1 x RS-232 serial port connector
1 x RS-232 or RS-422/485 serial port connector (selected by a jumper)
2 x RJ-45 GbE connectors
1 x Reset button
FOLUX CX Series Flat Panel PC
Page 6
Figure 1-4: AFL-10A-CX/AFL-12B-CX Bottom View
1.2.4.2 AFL-15A-CX/AFL-17A-CX/AFL-19A-CX
The bottom panel of the AFL-15A-CX/AFL-17A-CX/AFL-19A-CX has the following I/O
interfaces (
Figure 1-5):
4 x USB 2.0 connectors
1 x AC power adapter connector
1 x Power switch
AFOLUX CX Series Flat Panel PC
1 x RS-232 serial port connector
1 x RS-232 or RS-422/485 serial port connector (selected by a jumper)
2 x RJ-45 GbE connectors
1 x Reset button
1 x VGA connector (AFL-17A-CX/AFL-19A-CX only)
Figure 1-5: AFOLUX CX Series Bottom View
1.3 Internal Overview
The AFOLUX CX series internal components are protected in an aluminum chassis in side
the plastic back cover. An AT/ATX switch is located in the bottom of the aluminum chassis
inside the plastic cover. The motherboard, wireless LAN module, Bluetooth module and
DDR2 memory module are installed on a metal sheet that protects the rear of the TFT
LCD screen (
screen and the motherboard.
Figure 1-6). Below the metal sheet is a circuit board that is connected to the
Page 7
A
FOLUX CX Series Flat Panel PC

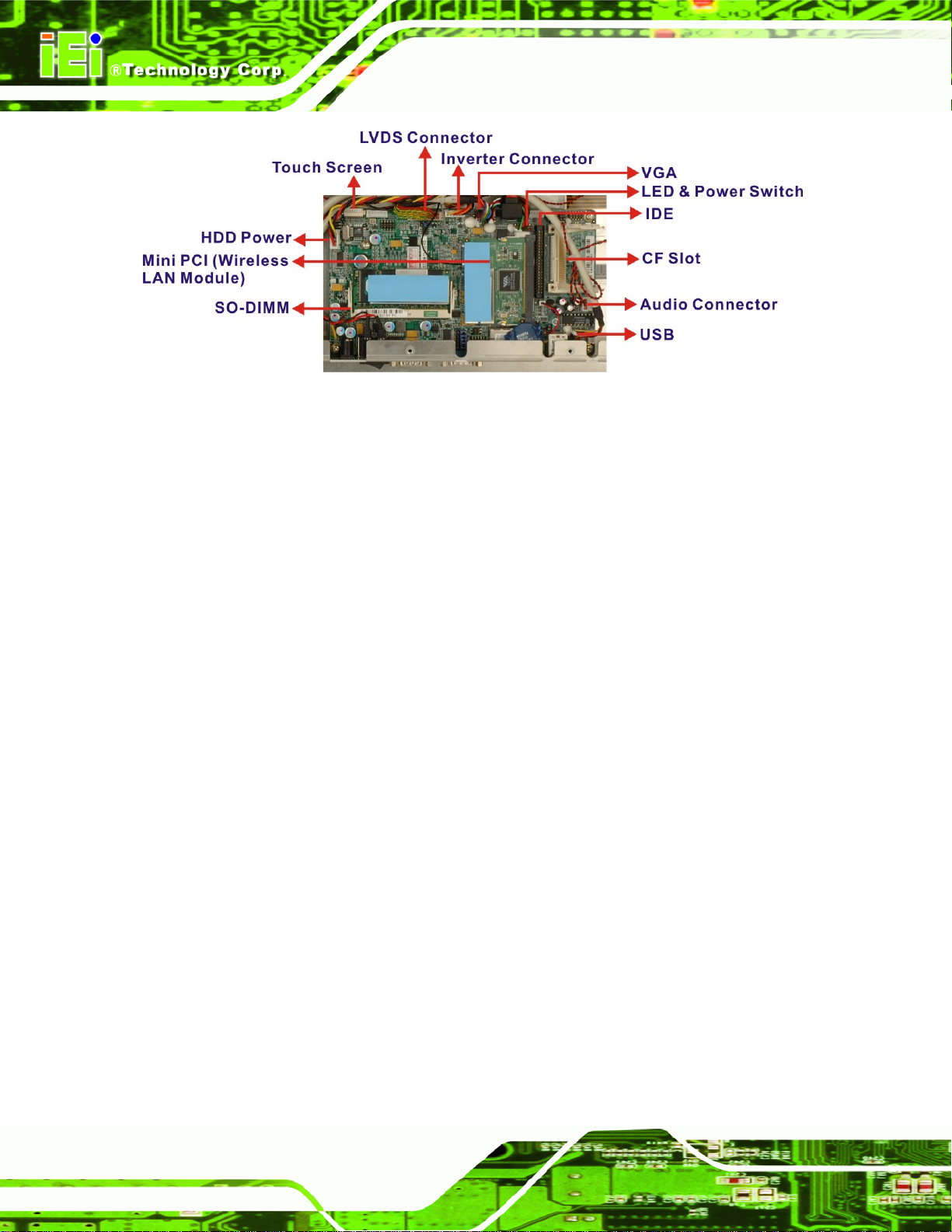

Figure 1-6: AFOLUX CX Series Internal Overview
1.4 Specifications
1.4.1 Preinstalled Hardware Components
The AFOLUX CX series flat panel PC has the following preinstalled components:
1 x Motherboard
1 x TFT LCD screen
1 x Touch screen
1 x Inverter
1 x Wireless LAN module
1 x Bluetooth module
1 x DDR2 memory module
1 x AT/ATX switch
Page 8
1 x GPRS module (optional)
AFOLUX CX Series Flat Panel PC
The technical specifications for some of these components and the system are shown in
the sections below.
1.4.2 System Specifications
The technical specifications for the AFOLUX CX series systems a re listed in Table 1-2.
SPECIFICATION AFL-10A-CX AFL-12B-CX AFL-15A-CX AFL-17A-CX AFL-19A-CX
Front Panel ABS/PC plastic front panel
Chassis Aluminum chassis
LCD Panel 10.4” 12.1” 15” 17” 19”
Resolution 800 x 600 1024 x768 1024 x 768 1280 x 1024 1280 x 1024
Brightness 400cd/m
Contrast Ratio 500:1 700:1 400:1 800:1 800:1
Viewing Angle (H-V) 120/100 160/160 120/100 160/160 160/160
2
450cd/m2 350cd/m2 300cd/m2 300cd/m2
Backlight MTBF 50000 50000 50000 50000 50000
Touch Screen 5-wire resistive type (touch controller IC is on-board)
SSD CompactFlash
Audio AMP 1.5W + AMP 1.5W (internal speaker)
Extension 1 x Mini PCI (for wireless LAN module)
1 x Bluetooth module (USB interface, Bluetooth v2.0)
Anti-shock Drive Bay N/A 1 x 2.5” HDD bay
GPRS Module Optional
I/O 2 x USB 2.0 ports
1 x Power switch
1 x eSATA port
1 x RS-232 serial port
1 x RS-232/422/485 serial port
2 x Gigabit Ethernet ports
1 x Reset button
1 x AT/ATX power switch (internal)
®
Type II
1 x 2.5” HDD bay or
optional GPRS Module
Optional
4 x USB 2.0 ports
1 x Power switch
1 x eSATA port
1 x RS-232 serial port
1 x RS-232 or RS-422/485 serial port
2 x Gigabit Ethernet ports
1 x Reset button
1 x VGA port (AFL-17A-CX/AFL-19A-CX only)
1 x AT/ATX power switch (internal)
Power 12V, 48W DC power adapter 12V, 80W DC power adapter
Power Consumption 34W 41W 52W 61W 61W
Mounting Feature Panel, Rack, Wall, Arm, Stand Wall, Arm, Stand
Page 9
A
SPECIFICATION AFL-10A-CX AFL-12B-CX AFL-15A-CX AFL-17A-CX AFL-19A-CX
Operating Temperature 0ºC ~40ºC
Storage Temperature -20ºC ~60ºC
Relative Humidity 10% ~ 80% RH, non-condensing
Vibration Operating Random Vibration Mode (MIL-STD-810F)
1. Axes: 3 axes/Verticle/Transverse/Longitudinal
2. 10Hz ~ 500Hz, 60min/axis
FOLUX CX Series Flat Panel PC
3. Equivalent to Z: 1.04G
Shock Reference IEC68-2-27 Testing Procedures
Operating Shock Half-Sine Wave Shock
3G: 11ms: 3 shocks per axis: Vertical / Transverse / Longitudinal
Dimension (W x H x D) 276 x 227 x 51
Net Weight 1.4Kg 1.8Kg 3.2Kg 5Kg 5.6Kg
Front Panel Protection IP 64 compliant
Safety & EMI CE / FCC / EMC / CB
304 x 246 x 50 394 x 309 x 61 428 x 350 x 65 470 x 383 x 67
, X: 0.204 G
rms
, Y: 0.74 G
rms
rms
Table 1-2: AFOLUX CX Series System Specifications
Page 10
AFOLUX CX Series Flat Panel PC
1.4.3 Motherboard Specifications
The AFOLUX CX series come with an AFLMB-CX700 motherboard. The technical
specifications of the motherboard are listed in
Specification AFLMB-CX700
CPU VIA C7
Chipset VIA
Display CRT integrated in VIA
Memory Supports one DDR2 400/533 200-pin SO-DIMM SDRAM module up to
Extension One mini PCI slot
BIOS Award BIOS
SSD CFII
Super I/O N/A for legacy free
Audio VT1708 (High Definition Audio)
LAN 10/100/1000 Base-T dual RTL8110SC
COM 1 x RS-232 serial port
®
/ VIA Eden
CX-700M
Supports panel resolution from VGA to UXGA (1600 x 1200)
Supports one Dual-Channel / two Single-Channel LVDS panel
1GB
Table 1-3.
TM
CX-700M
1 x RS-232 or RS-422/485 serial port
IDE One 44-pin IDE connects to two IDE devices
Touch Screen Controller DMC9000
Power Supply DC 12V In
Dimensions 102mm x 186mm
Table 1-3: Motherboard Specifications
Page 11
A
FOLUX CX Series Flat Panel PC
1.4.4 Flat Panel Screen Specifications
The AFOLUX CX series come with a TFT LCD monitor at the front of the flat panel PC
(see
Figure 1-1). The specifications for the LCD monitor are shown in Table 1-4 and
Table 1-5 below.
1.4.4.1 AFL-10A-CX/AFL-12B-CX
SPECIFICATION AFL-10A-CX AFL-12B-CX
Model Toshiba LTA104D182F CMO-G121X1-L01
Size 10.4” 12.1”
Resolution 800 x 600 (SVGA) 1024 x 768 (XGA)
Active Area (mm) 211.2 x 158.4 245.76 x 184.32
Pixel Pitch (mm) 0.264 x 0.264 0.240 x 0.240
LCD Color Native 262K colors Native 262K colors
View Angel (H/V) 120/100 160/160
Brightness (cd/m2) 400 450
Contrast Ratio 500:1 700:1
Response Time (ms) 8(Tr) / 17(Tf) 6(Tr) / 17(Tf)
Power Consumption 6.2W 4W
Supply Voltage (V) 3.3 3.3
Backlight 2 CCFL 2 CCFL
Backlight MTBF (hrs.) 50000 50000
Dimensions (mm) 242.0 x 178.45 x 13.2 260 x 204 x 12.2
Table 1-4: AFL-10A/12B-CX TFT LCD Monitor Specifications
1.4.4.2 AFL-15A-CX/AFL-17A-CX/AFL-19A-CX
SPECIFICATION AFL-15A-CX AFL-17A-CX AFL-19A-CX
Model AUO-G150XG01 AUO-M170EG01 VD AUO-M190EG02 V4
Size 15” 17” 19”
Resolution 1024 x 768 (XGA) 1280 x 1024 (SXGA) 1280 x 1024 (SXGA)
Active Area (mm) 304.128 x 228.096 337.920 x 270.336 376.32 x 301.06
Pixel Pitch (mm) 0.297 x 0.297 0.264 x 0.264 0.294 x 0.294
Page 12
AFOLUX CX Series Flat Panel PC
SPECIFICATION AFL-15A-CX AFL-17A-CX AFL-19A-CX
LCD Color Native 262K colors Native 16.7M colors Native 16.7M colors
View Angel (H/V) 120/100 160/160 160/160
Brightness (cd/m2) 350 300 300
Contrast Ratio 400:1 800:1 800:1
Response Time (ms) 16 (Tr + Tf) 5 (Tr + Tf) 5 (Tr + Tf)
Power Consumption (W) 11.5 25.8 24.71
Input Voltage (V) 3.3 5.0 5.0
Backlight 2 CCFL 2 CCFL 2 CCFL
Electrical Interface 1ch LVDS 2ch LVDS 2ch LVDS
Backlight MTBF (hrs.) 50000 50000 50000
Outline Dimensions (mm) 326.5 x 253.5 x 12.0
358.5 x 296.5 x 15.8 396 x 324 x 16.3
Table 1-5: AFL-15A/17A/19A-CX TFT LCD Monitor Specifications
Page 13
A
FOLUX CX Series Flat Panel PC
1.4.5 Touch Screen Specifications
The AFOLUX CX series come with an analog resistive type touch panel. Table 1-6 lists
the touch panel specifications.
SPECIFICATION AFL-10A-CX AFL-12B-CX AFL-15A-CX AFL-17A-CX AFL-19A-CX
Model PanJit
1104502A
Type Analog Resistive Type Touch Panel
Wire Type 5-wire
Viewing Area (mm) 219.8 x 166.8 188 x 250 232.1 x 308.2 342.05x 275.45 306.05 x 381.30
Active Area (mm) 212.1 x 159.3 185 x 246 228.1 x 304.1 339.0 x 272.4 301.05 x 376.30
Total Transmission 78%
Maximum Voltage DC 7V
Connector Type FPC.
Operating
Temperature
Operating Humidity 20% ~ 90% RH
Storage
Temperature
Storage Humidity 20% ~ 90% RH
Dimensions 238.8x188.7x2.6 204x268x2.1 258x334x2.9 365x295x2.9 330x405x2.8
-10°C ~ 40°C -10°C ~ 40°C -10°C ~ 40°C -10°C ~ 40°C -10°C ~ 40°C
-20°C ~ 70°C
PanJit
1121505B
PANJIT
1150508B
PANJIT
1171505A
PANJIT 1190503A
Table 1-6: Touch Panel Specifications
Page 14
AFOLUX CX Series Flat Panel PC
1.4.6 Bluetooth Module Specifications
The AFOLUX CX series are all integrated with a Bluetooth module. The Bluetooth module
enables the transmission between various peripheral devices through a Bluetooth network.
The peripheral devices may include:
Headsets
Barcode readers
PDA
Printers
Cell phones
The technical specifications of the Bluetooth module are listed in
Specification Bluetooth Module
Standard Bluetooth v2.0
Frequency Band 2.402GHz~2.480GHz unlicensed ISM band
Modulation Method GFSK for 1Mbps
π/4-DQPSK for 2Mbps
8-DPSK for 3Mbps
Spread Spectrum FHSS (Frequency Hopping Spread Spectrum)
RF Output Power Class 2 (under 4dBm)
Antenna Terminal 50 Ohms
DC Power DC 3.3V or DC 5V
I/O Interface USB 2.0 interface
Two GPIO Interface LED link indicator interface
Dimensions 35mm x 11mm
Operating System Windows XP, Windows 2000, Windows 98SE, Windows Me
Table 1-7.
Table 1-7: Bluetooth Module Specifications
Page 15
A
1.4.7 Optional GPRS Module Specifications
The GPRS module is one of the OEM options for the AFOLUX CX series. The technical
FOLUX CX Series Flat Panel PC
specifications of the GPRS module are listed in
Specification
EDG/GPRS/GSM Air Interface
EGPRS/GPRS (PS) Feature Set
GPRS Module
Quad-band operation GSM850, EGSM 900, DCS 1800, PCS
1900
GSM Power Class 4 (2W) for 850/900 bands
GSM Power Class 1 (1W) for 1800/1900 bands
EDFE class E2 (+27dBm in 850/900 bands,
+26dBm in 1800/1900 bands)
GSM/GPRS Rel ’97; PCS 1900 Rel ’98; EGPRS Rel ’99
compliant
GPRS Class 10, coding schemes 1-4
EDGE Class 10, Multi-slot classes 1-9
GPRS/EGPRS Class B type 1 MT
Link Adaptation
Incremental redundancy (IR)
Table 1-8.
Page 16
USB Interface USB 2.0 +5VDC
SIM Card Interface 3.0V interface
Temperature -30°C ~ +65°C
Humidity Up to 95%, non-condensing
Dimensions 109.3mm x 42.7mm x 17.7mm
Operating System Windows 2000/XP Home/XP Professional
Table 1-8: GPRS Module Specifications
AFOLUX CX Series Flat Panel PC
1.5 Dimensions
1.5.1 AFL-10A-CX Dimensions
The dimensions of the AFL-10A-CX flat panel PC are shown in Figure 1-9 below.
Figure 1-7: AFL-10A-CX Dimensions (units in mm)
Page 17
A
1.5.2 AFL-12B-CX Dimensions
The dimensions of the AFL-12B-CX flat panel PC are shown in Figure 1-9 below.
FOLUX CX Series Flat Panel PC
Figure 1-8: AFL-12B-CX Dimensions (units in mm)
Page 18
AFOLUX CX Series Flat Panel PC
1.5.3 AFL-15A-CX Dimensions
The dimensions of the AFL-15A-CX flat panel PC are shown in Figure 1-9 below.
Figure 1-9: AFL-15A-CX Dimensions (units in mm)
Page 19
A
1.5.4 AFL-17A-CX Dimensions
The dimensions of the AFL-17A-CX flat panel PC are shown in Figure 1-10 below.
FOLUX CX Series Flat Panel PC
Figure 1-10: AFL-17A-CX Dimensions (units in mm)
Page 20
AFOLUX CX Series Flat Panel PC
1.5.5 AFL-19A-CX Dimensions
The dimensions of the AFL-19A-CX flat panel PC are shown in Figure 1-11 below.
Figure 1-11: AFL-19A-CX Dimensions (units in mm)
Page 21
A
FOLUX CX Series Flat Panel PC
THIS PAGE IS INTENTIONALLY LEFT BLANK
Page 22
AFOLUX CX Series Flat Panel PC
Chapter
2
2 Motherboard
Page 23
A
2.1 Introduction
The AFOLUX CX series flat screen PC contains the AFLMB-CX700 motherboard. The
motherboard is the heart of any computer and is responsible for transmitting, receiving
and processing data as well as driving the different onboard devices. This chapter gives a
brief introduction to the AFLMB-CX700 motherboard.
2.2 CPU Support
The AFLMB-CX700 motherboard comes with a preinstalled VIA C7® or VIA EdenTM CPU.
2.2.1 VIA C7® Specifications
The specifications for the VIA C7® and VIA EdenTM processor are listed below
CPU clock speeds up to 2.0GHz
FOLUX CX Series Flat Panel PC
Full x86 Operating System and software application compatibility
VIA V4 Bus up to 800MHz FSB
16 pipeline stages
Efficiency enhanced 128KB full-speed exclusive L2 cache with 32-way
associativity
Sophisticated branch prediction mechanism
MMX, SSE, SSE2 & SSE3 instruction sets
Full-speed FPU
IO/APIC support
90nm SOI (Silicon-on-Insulator) process technology
x86 processor die (30mm2)
Compact VIA nanoBGA2 package (21mm x 21mm)
AES Encryption
Secure Hash SHA-1 and SHA-256
Two Quantum-based Random Number Generators
NX Execute Protection
Page 24
AFOLUX CX Series Flat Panel PC
2.3 System Chipset
The AFLMB-CX700 motherboard has a preinstalled VIA CX-700M system chipset. The
system chipset features are listed below.
533MB/sec Front Side Bus
Supports up to 4GB DDR2 533/400MHz or DDR400/333/266MHz SDRAM
Integrated VIA UniChrome Pro Graphics
Chromotion™ video engine
MPEG-2 Decoder
Video De-blocking
Adaptive De-Interlace
DuoView+™
Optimized Unified memory Architecture (UMA)
200MHz Graphics Engine Clock with separated 128-bit data paths
128-bit 2D and 3D Graphics engine
Multi-configuration LVDS/DVI transmitter
Support for VIA Vinyl HD Audio
Serial ATA support for up to 2 devices
Parallel ATA133/100/6 6 su pport for up to 2 devices
Support for up to 6 USB 2.0 ports
2.4 Graphics Support
The VIA CX700M utilizes the VIA UniChrome™ Pro Integrated Graphics Processor (IGP)
ensuring optimal performance for all multimedia, entertainment, and productivity
applications. The graphics processor features are listed below.
With a 200MHz 2D/3D graphics engine
128-bit data paths for pixel data flow
Texture/command access
Chromotion™ video engine raises the bar for digital entertainment support
MPEG-2, MPEG-4 and WMV9 decoding integrated
Flawless digital video playback with ultra-low CPU-utilization
Adaptive De-Interlacing and Video Deblocking advanced rend ering tools
Ensure clearer playback of digital content on all display devices
Page 25
A
2.5 Ethernet Controller Specifications
2.5.1 Overview
A highly integrated and cost-effective single-chip, fast RealTek RTL8110SC GbE Ethernet
controller is interfaced through first the PCI bus to the CPU and system chipset. The
RealTek RTL8110SC controller provides 10Mbps, 100Mbps or 1000Mbps Ethernet
connectivity to the AFLMB-CX700.
2.5.2 Features
Integrated 10/100/1000 transceiver
Auto-Negotiation with Next Page capability
Supports PCI rev.2.3, 32-bit, 33/66MHz
Supports CLKRUNB and MiniPCI v1.0
FOLUX CX Series Flat Panel PC
Supports pair swap/polarity/skew correction
Crossover Detection & Auto-Correction
Wake-on-LAN and remote wake-up support
Microsoft® NDIS5 Checksum Offload (IP, TCP, UDP) and largesend offload
support
Supports Full Duplex flow control (IEEE 802.3x)
Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Supports IEEE 802.1P Layer 2 Priority Encoding
Supports IEEE 802.1Q VLAN tagging
Serial EEPROM
3.3V signaling, 5V PCI I/O tolerant
Transmit/Receive FIFO (8K/64K) support
Supports power down/link down power saving
Supports PCI Message Signaled Interrupt (MSI)
Page 26
AFOLUX CX Series Flat Panel PC
2.6 Peripheral Device Interfaces, Connectors, and Slots
The peripheral device connectors, interfaces and slots on the AFLMB-CX700
motherboard are listed in the sections below.
2.6.1 OEM Options
Many of the peripheral device connectors listed below are not connected to any devices.
These connectors are reserved for OEM customizations. For a customized option, please
contact the vendor, reseller or IEI sales representative.
2.6.2 Internal Slots
The slots listed below can all be found on the AFLMB-CX700 motherboard.
1 x 200-pin DDR2 SO-DIMM socket
1 x CF Type II slot
1 x Mini PCI slot (for wireless LAN module)
2.6.3 Internal Peripheral Device Connectors
The peripheral device connectors listed below are located on the AFLMB-CX700
motherboard and used for the AFOLUX series.
connectors that are used for the AFOLUX series.
1 x Audio connector
1 x Inverter connector
1 x LCD interface connector
1 x LED connector
1 x Power switch connector
1 x Touch screen connector
Figure 2-1 shows the overview of the
Page 27
A
Figure 2-1: AFLMB-CX700 Connector Overview
2.6.4 External Peripheral Device Connectors
The peripheral device connectors listed below are located on the rear panel of the
FOLUX CX Series Flat Panel PC
AFLMB-CX700 motherboard.
2 x Ethernet connectors
2 x USB connectors
2 x Serial port connectors
1 x eSATA connector
1 x Reset button
1 x Power connector
Page 28
AFOLUX CX Series Flat Panel PC
Chapter
3
3 Installation
Page 29
A
3.1 Installation Precautions
When installing the flat panel PC, please follow the precautions listed below:
Power turned off: When installing the flat panel PC, make sure the power is
off. Failing to turn off the power may cause severe injury to the body and/or
damage to the system.
Certified Engineers: Only certified engineers should install a nd modify
onboard functionalities.
Mounting: The flat panel PC is a heavy device. When mounting the system
onto a rack, panel, wall or arm please make sure that at least two people are
assisting with the procedure.
Anti-static Discharge: If a user open the rear panel of the flat panel PC, to
configure the jumpers or plug in added peripheral devices, ground themselves
first and wear and anti-static wristband.
FOLUX CX Series Flat Panel PC
3.2 Preinstalled Components
The following components are all preinstalled.
Motherboard
TFT LCD screen
512MB DDR2 memory module
Resistive type touch screen
Wireless LAN module
Bluetooth module
Power switch
Preinstalled OEM customizations may include the following.
Different DDR2 memory module
Hard disk drive
GPRS module
Page 30
Installation of some of the components are described in the following sections.
AFOLUX CX Series Flat Panel PC
3.3 Installation and Configuration Steps
The following installation steps must be followed.
Step 1: Unpack the flat panel PC
Step 2: Install CF card
Step 3: Install HDD
Step 4: Mount the flat panel PC
Step 5: Connect peripheral devices to the bottom panel of the flat panel PC
Step 6: Configure the systemStep 0:
3.4 Unpacking
To unpack the flat panel PC, follow the steps below:
WARNING!
The front side LCD screen has a protective plastic cover stuck to the
screen. Only remove the plastic cover after the flat panel PC has been
properly installed. This ensures the screen is protected during the
installation process.
Step 1: Use box cutters, a knife or a sharp pair of scissors that seals the top side of the
external (second) box.
Step 2: Open the external (second) box.
Step 3: Use box cutters, a knife or a sharp pair of scissors that seals the top side of the
internal (first) box.
Step 4: Lift the monitor out of the boxes.
Step 5: Remove both polystyrene ends, one from each side.
Page 31
A
Step 6: Pull the plastic cover off the flat panel PC.
Step 7: Make sure all the components listed in the pa cking list are present. Step 0:
3.4.1 Packing List
The AFOLUX CX flat panel PC is shipped with the following components:
Quantity Item Image
Standard
1 AFL-10A/12B/15A/17A/19A-CX panel PC
FOLUX CX Series Flat Panel PC
1
AFL-10A/12B-CX: 48W power adapter
(P/N: 63000-FSP0481AD101C-RS)
AFL-15A/17A/19A-CX: 80W power adapter
(P/N: 63000-FSP0361AD101C-RS)
1 Power cord
1
HDD cable
(P/N: 32200-766100-RS)
1 eSATA cable
1 User manual CD and driver CD
1 Screw set
Page 32
AFOLUX CX Series Flat Panel PC
1 Touch pen
Optional
1 Wall mounting kit
1 Stand mounting kit (STAND-A19)
1 Stand mounting kit (STAND-B19)
1 128MB CompactFlash® card with Windows
CE 5.0 pre-installed and SDK
1 1GB CompactFlash® card with Windows XPE
pre-installed
If any of these items are missing or damaged, contact the distributor or sales
representative immediately.
3.5 CF Card Installation
The AFOLUX CX series has one CF Type II slot inside the rear panel. To install the CF
card, follow the instructions below.
Page 33
A
Step 1: Remove the retention screws (Figure 3-1, Figure 3-2, Figure 3-3, Figure
FOLUX CX Series Flat Panel PC
3-4and
Figure 3-5) and lift the plastic cover off the flat panel PC.
Figure 3-1: AFL-10A-CX Back Cover Retention Screws
Figure 3-2: AFL-12B-CX Back Cover Retention Screws
Figure 3-3: AFL-15A-CX Back Cover Retention Screws
Page 34
AFOLUX CX Series Flat Panel PC
Figure 3-4: AFL-17A-CX Back Cover Retention Screws
Figure 3-5: AFL-19A-CX Back Cover Retention Screws
Step 2: Locate the CF slot. Insert a CF card into the slot (Figure 3-6).
Page 35
A
Figure 3-6: CF Card Location
Step 3: Replace the plastic back cover. Once replaced reinsert the twenty-one
previously removed retention screws. Step 0:
3.6 HDD Installation
FOLUX CX Series Flat Panel PC
The AFOLUX CX series (except AFL-10A-CX) has space for installing one HDD. To install
the HDD into the AFOLUX CX series, please follow the steps below:
Step 1: Remove the plastic back cover. See Section
Step 2: Remove the retention screws securing the internal aluminum cover (
Figure 3-8, Figure 3-9 and Figure 3-10) and lift the aluminum cover off the
panel PC.
3.5 above.
Figure 3-7,
Page 36
Figure 3-7: AFL-12B-CX Aluminum Back Cover Retention Screws
AFOLUX CX Series Flat Panel PC
Figure 3-8: AFL-15A-CX Aluminum Back Cover Retention Screws
Figure 3-9: AFL-17A-CX Aluminum Back Cover Retention Screws
Page 37
A
FOLUX CX Series Flat Panel PC
Figure 3-10: AFL-19A-CX Aluminum Back Cover Retention Screws
Step 3: Remove the four HDD bracket retention screws (Figure 3-11) and lift the HDD
bracket off the panel PC.
Figure 3-11: AFL-19A-CX HDD Bracket Retention Screws
Page 38
Step 4: Attach the HDD brackets to the HDD. To do this, align the four retention screw
holes in the both sides of the HDD bracket with the retention screw holes on the
sides of the HDD. Insert four retention screws into the HDD bracket (
Figure
AFOLUX CX Series Flat Panel PC
3-12).
Figure 3-12: AFL-CX HDD Retention Screws
Step 5: Connect the SATA/IDE cable to the rear of HDD.
Step 6: Install the HDD into the panel PC by aligning the retention screw holes in the
HDD brackets with the retention screw holes on the chassis. Insert the four
retention screws.
Step 7: Replace the aluminum back cover to the chassis.
Step 8: Replace the plastic back cover. Step 0:
3.7 AT/ATX Mode Selection
AT and ATX power modes can both be used on the AFOLUX CX series. The selection is
made through an AT/ATX switch on the aluminum chassis inside the plastic back cover
(
Figure 3-14). To select AT mode or ATX mode, follow the steps below.
Step 1: Remove the plastic back cover. See Section
Step 2: Locate the AT/ATX switch on the aluminu m chassis
(
Figure 3-13 and Figure 3-14).
3.5 above.
Page 39
A
FOLUX CX Series Flat Panel PC
Figure 3-13: AT/ATX Switch Location (AFL-10A-CX/AFL-12B-CX)
Figure 3-14: AT/ATX Switch Location (AFL-15A-CX/AFL-17A-CX/AFL-19A-CX)
Step 3: Adjust the AT/ATX switch. Step 0:
3.7.1 AT Power Mode
With the AT mode selected, the power is controlled by a central power unit rather than a
power switch. The AFOLUX CX panel PC turns on automatically when the power is
connected. The AT mode benefits a production line to control multiple panel PCs from a
central management center and other applications including:
ATM
Self-service kiosk
Plant environment monitoring system
Factory automation platform
Manufacturing shop flow
Page 40
AFOLUX CX Series Flat Panel PC
3.7.2 ATX Power Mode
With the ATX mode selected, the AFOLUX CX panel PC goes in a standby mode when it
is turned off. The panel PC can be easily turned on via network or a power switch in
standby mode. Remote power control is perfect for advertising applications since the
broadcasting time for each panel PC can be set individually and cont rolled remotely . Other
possible application includes
Security surveillance
Point-of-Sale (POS)
Advertising terminal
3.8 Mounting the System
WARNING!
When mounting the flat panel PC onto an arm, onto the wall or onto a
panel, it is better to have more than one person to help with the installation
to make sure the panel PC does not fall down and get damaged.
The four methods of mounting the AFOLUX CX are listed below.
Wall mounting
Stand/Arm mounting
The four mounting methods are described below.
3.8.1 Wall Mounting
To mount the flat panel PC onto the wall, please follow the steps below.
Step 1: Select the location on the wall for the wall-mounting bracket.
Step 2: Carefully mark the locations of the four brackets screw holes on the wall.
Step 3: Drill four pilot holes at the marked locations on the wall for the bracket retention
Page 41
A
screws.
Step 4: Align the wall-mounting bracket screw holes with the pilot holes.
Step 5: Secure the mounting-bracket to the wall by inserting the retention screws into
FOLUX CX Series Flat Panel PC
the four pilot holes and tightening them (
Figure 3-15).
Figure 3-15: Wall-mounting Bracket
Step 6: Insert the four monitor mounting screws provided in the wall mounting kit into the
Page 42
four screw holes on the real panel of the flat panel PC and tighten until the screw
shank is secured against the rear panel (
Step 7: Align the mounting screws on the monitor rear panel with the mounting holes on
the bracket.
Step 8: Carefully insert the screws through the holes and gently pull the monitor
downwards until the monitor rests securely in the slotted holes (
Ensure that all four of the mounting screws fit snuggly into their respective
slotted holes.
Figure 3-16).
Figure 3-16).
AFOLUX CX Series Flat Panel PC
Figure 3-16: Chassis Support Screws
NOTE:
In the diagram below the bracket is already installed on the wall.
Step 9: Secure the panel PC by fastening the retention screw of the wall-mounting
bracket. (
Figure 3-17).Step 0:
Page 43
A
FOLUX CX Series Flat Panel PC
Figure 3-17: Secure the Panel PC
3.8.2 Arm Mounting
The AFOLUX CX series is VESA (Video Electronics Standards Association) compliant
and can be mounted on an arm with a 100mm interface pad. To mount the AFOLUX CX
series on an arm, please follow the steps below.
Step 1: The arm is a separately purchased item. Please correctly mount the arm onto
the surface it uses as a base. To do this, refer to the installation documentation
that came with the mounting arm.
Page 44
AFOLUX CX Series Flat Panel PC
NOTE:
When purchasing the arm please ensure that it is VESA compliant and that
the arm has a 100mm interface pad. If the mounting arm is not VESA
compliant it cannot be used to support the AFOLUX CX series flat panel
PC. The AFL-10A-CX and AFL-12B-CX also support VESA MIS-D 75.
Step 2: Once the mounting arm has been firmly attached to the surface, lift the flat p anel
PC onto the interface pad of the mounting arm.
Step 3: Align the retention screw holes on the mounting arm interface with those in the
flat panel PC. The AFL-CX arm mount retention screw holes are shown in
Figure 3-18 and Figure 3-19.
Figure 3-18: Arm Mounting Retention Screw Holes (AFL-10A-CX/AFL-12B-CX)
Page 45
A
FOLUX CX Series Flat Panel PC
Figure 3-19: Arm Mounting Retention Screw Holes (AFL-15A/17A/19A-CX)
Step 4: Secure the flat panel PC to the interface pad by inserting four retention screws
through the bottom of the mounting arm interface pad and into the flat panel PC.
Step 0:
3.8.3 Panel Mounting (AFL-10A-CX/AFL-12B-CX Only)
To mount the AFL-10A-CX/AFL-12B-CX flat panel PC into a panel, plea se follow the steps
below.
Step 1: Select the position on the panel to mount the flat panel PC.
Step 2: Cut out a section from the panel that corresponds to the rear panel dimensions
of the flat panel PC. Take care that the panel section that is cut out is smaller
than the overall size of the metal frame that surrounds the flat panel PC but just
large enough for the rear panel of the flat panel PC to fit through (
Figure 3-21).
and
Figure 3-20
Page 46
AFOLUX CX Series Flat Panel PC
Figure 3-20: AFL-10A-CX Panel Opening
Figure 3-21: AFL-12B-CX Panel Opening
Step 3: Slide the flat panel PC through the hole until the aluminum frame is flush against
the panel.
Step 4: Insert the panel mounting clamps into the pre-formed holes along t he edges of
the chassis, behind the aluminum frame. There are a total of 6 panel mounting
clamps for AFL-10A-CX/AFL-12B-CX.
Step 5: Tighten the screws that pass through the p anel mou nting clamp s u ntil the plastic
caps at the front of all the screws are firmly secured to the panel (
Step 0:
Figure 3-22).
Page 47
A
FOLUX CX Series Flat Panel PC
Figure 3-22: Tighten the Panel Mounting Clamp Screws (AFL-10A/12B-CX)
3.8.4 Cabinet and Rack Installation (AFL-10A-CX/AFL-12B-CX Only)
The AFL-10A-CX/AFL-12B-CX flat panel PC can be installed into a cabinet or rack. The
installation procedures are similar to the panel mounting installation. To do this, please
follow the steps below:
NOTE:
When purchasing the cabinet/rack installation bracket, make sure it is
compatible with both the AFL-10A-CX/AFL-12B-CX flat panel PC and the
rack/cabinet into which the AFL-10A-CX/AFL-12B-CX is installe d.
Page 48
Step 1: Slide the rear chassis of the AFL-1 0A-CX/AFL-12B-CX flat panel PC thro ugh the
rack/cabinet bracket until the aluminum frame is flush against the front of the
bracket (
Figure 3-23).
AFOLUX CX Series Flat Panel PC
Figure 3-23: The Rack/Cabinet Bracket
Step 2: Insert the rack mounting clamps into the pre-formed holes along the edges of
the flat panel PC, behind the ABS/PC plastic frame. There are a total of 6 rack
mounting clamps for AFL-10A-CX/AFL-12B-CX.
Step 3: Tighten the screws that pa ss through the rack mounting clamps until the plastic
caps at the front of all the screws are firmly secured to the bracket (
Figure 3-24).
Figure 3-24: Secure the Rack/Cabinet Bracket (AFL-10A/12B-CX)
Step 4: Slide the flat panel PC with the attached rack/cabinet bracket into a rack or
cabinet (
Figure 3-25).
Page 49
A
FOLUX CX Series Flat Panel PC
Figure 3-25: Install into a Rack/Cabinet
Step 5: Once the flat panel PC with the attached rack/cabinet bracket has been properly
inserted into the rack or cabinet, secure the front of the rack/cabinet bracket to
the front of the rack or cabinet (
3.9 Bottom Panel Connectors
3.9.1 LAN Connection
There are two external RJ-45 LAN connectors. The RJ-45 connectors enable connection
to an external network. To connect a LAN cable with an RJ-45 connector, please follow
the instructions below.
Step 1: Locate the RJ-45 connectors on the bottom panel of the AFOLUX CX Series.
Step 2: Align the connectors. Align the RJ-45 connector on the LAN cable with one of
the RJ-45 connectors on the bottom panel of the AFOLUX CX Series. See
Figure 3-25).Step 0:
Page 50
Figure 3-26.
AFOLUX CX Series Flat Panel PC
Figure 3-26: LAN Connection
Step 3: Insert the LAN cable RJ-45 connector. Once aligned, gently insert the LAN
cable RJ-45 connector into the onboard RJ-45 connector. Step 0:
Page 51
A
3.9.2 Serial Device Connection
The AFOLUX CX Series has two single female DB-9 connectors on the bottom panel for a
serial device. Follow the steps below to connect a serial device to the AFOLUX CX Series
panel PC.
Step 1: Locate the DB-9 connector. The location of the DB-9 connector is shown in
Chapter 2.
Step 2: Insert the serial connector. Insert the DB-9 connector of a serial device into
FOLUX CX Series Flat Panel PC
the DB-9 connector on the bottom panel. See
Figure 3-27.
Page 52
Figure 3-27: Serial Device Connector
Step 3: Secure the connector. Secure the serial device connector to the external
interface by tightening the two retention screws on either side of the connector.
Step 0:
AFOLUX CX Series Flat Panel PC
3.9.3 USB Device Connection
There are four external USB 2.0 connectors. All connectors are perpendicular to the
AFOLUX CX Series. To connect a USB 2.0 or USB 1.1 device, please follow the
instructions below.
Step 1: Located the USB connectors. The locations of the USB connectors are shown
in Chapter 2.
Step 2: Align the connectors. Align the USB device connector with one of the
connectors on the bottom panel. See
Figure 3-28.
Figure 3-28: USB Device Connection
Step 3: Insert the device connector. Once aligned, gently insert the USB device
connector into the onboard connector. Step 0:
Page 53
A
FOLUX CX Series Flat Panel PC
THIS PAGE IS INTENTIONALLY LEFT BLANK
Page 54
AFOLUX CX Series Flat Panel PC
Chapter
4
4 System Maintenance
Page 55
A
FOLUX CX Series Flat Panel PC
4.1 System Maintenance Introduction
If the components of the AFOLUX CX series fail they must be replaced, such as the
wireless LAN module or the motherboard. Please contact the system reseller or vendor to
purchase the replacement parts. Back cover removal instructions and jumper settings for
the AFOLUX CX series are described below.
4.2 Motherboard Replacement
A user cannot replace a motherboard. If the motherboard fails it must be shipped back to
IEI to be replaced. If the system motherboard has failed, please contact the system vendor ,
reseller or an IEI sales person directly.
4.3 Internal Aluminum Cover Removal
WARNING!
BEFORE REMOVING THE BACK COVER, MAKE SURE THE POWER IS
OFF. Failing to do so may lead to severe damage of AFOLUX CX series
and injury to the body.
WARNING!
PLEASE TAKE ANTISTATIC PRECAUTIONS WHEN WORKING WITH
THE INTERNAL COMPONENTS. The interior of the AFOLUX CX series
contains very sensitive electronic components. These components are
easily damaged by electrostatic discharge (ESD). Before working with the
internal components make sure all the anti-static precautions described
earlier have been observed.
Page 56
To replace any of the following components,
AFOLUX CX Series Flat Panel PC
Motherboard
DDR2 memory module
Wireless LAN module
Bluetooth module
GPRS module
Inverter
The internal aluminum back cover of the AFOLUX CX series must be removed. To remove
the aluminum back cover, please follow the steps below.
Step 1: Remove the retention screws securing the internal aluminum cover (
Figure 4-2, Figure 4-3, Figure 4-4 and Figure 4-5).
Figure 4-1: AFL-10A-CX Aluminum Back Cover Retention Screws
Figure 4-1,
Figure 4-2: AFL-12B-CX Aluminum Back Cover Retention Screws
Page 57
A
FOLUX CX Series Flat Panel PC
Figure 4-3: AFL-15A-CX Aluminum Back Cover Retention Screws
Page 58
Figure 4-4: AFL-17A-CX Aluminum Back Cover Retention Screws
AFOLUX CX Series Flat Panel PC
Figure 4-5: AFL-19A-CX Aluminum Back Cover Retention Screws
Step 2: Lift the aluminum cover off the AFOLUX CX series. The AT/ATX switch on the
aluminum cover is connected to the motherboard. Please be caution when lif ting
the cover. Step 0:
4.4 Memory Module Replacement
The flat panel PC is preinstalled with a 512MB DDR2 memory module. If the memory
module is fail, follow the instructions below to replace the memory module.
Step 1: Remove the back cover. S ee Section
Step 2: Remove the internal aluminum back cover. See Section
Step 3: Locate the DDR2 memory module on the motherboard of the flat panel PC
(
Figure 4-6).
3.5 above.
4.3 above.
Page 59
A
FOLUX CX Series Flat Panel PC
Figure 4-6: SO-DIMM Socket Location
Step 4: Remove the thermal pad off the memory module.
Step 5: Remove the DDR2 memory module by pulling both the spring retainer clips
outward from the socket.
Step 6: Grasp the DDR2 memory module by the edges and carefully pull it out of the
socket.
Step 7: Install the new DDR2 memory module by pushing it into the socket at an angle
(
Figure 4-7).
Step 8: Gently pull the spring retainer clips of the SO-DIMM socket out and push the
rear of the DDR2 memory module down (
Step 9: Release the spring retainer clips on the SO-DIMM socket. They clip into place
and secure the DDR2 memory module in the socket.
Figure 4-7).
Page 60
AFOLUX CX Series Flat Panel PC
Figure 4-7: DDR2 SO-DIMM Module Installation
Step 10: Re-insert the thermal pad into the memory module. Step 0:
4.5 Jumper Settings
NOTE:
A jumper is a metal bridge that is used to
close an electrical circuit. It consists of
two metal pins and a small metal clip
(often protected by a plastic cover) that
slides over the pins to connect them. To
CLOSE/SHORT a jumper means
connecting the pins of the jumper with
the plastic clip and to OPEN a jumper
means removing the plastic clip from a
jumper.
The motherboard comes with two jumpers. They are listed below.
LCD voltage select (J4)
COM2 mode (RS-232/485) select (JP7)
Jumper
COM2 mode (RS-232/485) select (JP8)
Page 61
A
Figure 4-8: Jumper Locations
4.5.1 J4: LCD Voltage Select Jumper Settings
FOLUX CX Series Flat Panel PC
WARNING!
Do not change this voltage. This voltage has been preset and is compatible
with the currently installed 12.1” TFT LCD screen. Change this jumper
setting may cause damage to the system.
The LCD Voltage Setup jumper sets the voltage for the LCD screen. This setting MUST
NOT be changed.
JP4 DESCRIPTION
Short 1-2 LCDVCC = +3.3V
Short 2-3 LCDVCC = +5V
Table 4-1: LCD Voltage Setup Jumper Settings
Page 62
AFOLUX CX Series Flat Panel PC
4.5.2 JP7: COM2 Mode Select Jumper Settings
The COM2 can be selected as RS-232 or RS-485.
JP7 Description
Short 1-2 RS-232 Default
Short 2-3 RS-485
Table 4-2: COM2 Mode Select Jumper Settings
4.5.3 JP8: COM2 Mode Select Jumper Settings
The COM2 can be selected as RS-232 or RS-485.
JP8 Description
Short 1-2 RS-232 Default
Short 2-3 RS-485
Short 4-5 RS-232 Default
Short 5-6 RS-485
Short 7-8 RS-232 Default
Short 8-9 RS-485
Short 10-11 RS-232 Default
Short 11-12 RS-485
Table 4-3: COM2 Mode Select Jumper Settings
Page 63
A
FOLUX CX Series Flat Panel PC
THIS PAGE IS INTENTIONALLY LEFT BLANK
Page 64
AFOLUX CX Series Flat Panel PC
Chapter
5
5 AMI BIOS Setup
Page 65
A
5.1 Introduction
A licensed copy of AMI BIOS is preprogrammed into the ROM BIOS. The BIOS setup
program allows users to modify the basic system configuration. This chapter describes
how to access the BIOS setup program and the configuration options that may be
changed.
5.1.1 Starting Setup
The AMI BIOS is activated when the computer is turned on. The setup program can be
activated in one of two ways.
FOLUX CX Series Flat Panel PC
1. Press the D
2. Press the D
message appears on the screen. 0.
If the message disappears before the D
again.
ELETE key as soon as the system is turned on or
ELETE key when the “Press Del to enter SETUP”
ELETE key is pressed, restart the computer and try
5.1.2 Using Setup
Use the arrow keys to highlight items, press ENTER to select, use the PageUp and
PageDown keys to change entries, press F1 for help and press E
keys are shown in.
Key Function
Up arrow Move to previous item
Down arrow Move to next item
Left arrow Move to the item on the left hand side
SC to quit. Navigation
Page 66
Right arrow Move to the item on the right hand side
Esc key Main Menu – Quit and not save changes into CMOS
Status Page Setup Menu and Option Page Setup Menu --
Exit current page and return to Main Menu
Page Up key Increase the numeric value or make changes
Page Dn key Decrease the numeric value or make changes
AFOLUX CX Series Flat Panel PC
F1 key General help, only for St atus Page Setup Menu and Option
Page Setup Menu
F2 /F3 key Change color from total 16 colors. F2 to select color
forward.
F10 key Save all the CMOS changes, only for Main Menu
Table 5-1: BIOS Navigation Keys
5.1.3 Getting Help
When F1 is pressed a small help window describing the appropriate keys to use and the
possible selections for the highlighted item appears. To exit the Help Window press E
SC or
the F1 key again.
5.1.4 Unable to Reboot After Configuration Changes
If the computer cannot boot after changes to the system configuration is made, CMOS
defaults. Use the jumper described in Chapter Chapter 4, Section
4.5.
5.1.5 BIOS Menu Bar
The menu bar on top of the BIOS screen has the following main items:
Main Changes the basic system configuration.
Advanced Changes the advanced system settings.
PCIPnP Changes the advanced PCI/PnP Settings
Boot Changes the system boot configuration.
Security Sets User and Supervisor Passwords.
Chipset Changes the chipset settings.
Exit Selects exit options and loads default settings
The following sections completely describe the configuration options found in the menu
items at the top of the BIOS screen and listed above.
Page 67
A
5.2 Main
FOLUX CX Series Flat Panel PC
The Main BIOS menu (BIOS Menu 1) appears when the BIOS Setup program is entered.
The Main menu gives an overview of the basic system information.
BIOS Menu 1: Main
System Overview
The System Overvie w lists a brief summary of different system components. Th e fields in
System Overview cannot be changed. The items shown in the system overview include:
AMI BIOS: Displays auto-detected BIOS information
Processor: Displays auto-detected CPU specifications
Page 68
o Version: Current BIOS version
o Build Date: Date the current BIOS version was made
o ID: Installed BIOS ID
o Type: Names the currently installed processor
o Speed: Lists the processor speed
AFOLUX CX Series Flat Panel PC
o Count: The number of CPUs on the motherboard
System Memory: Displays the auto-detected system memory.
o Size: Lists memory size
The System Overview field also has two user configurabl e fields:
System Time [xx:xx:xx]
Use the System Time option to set the system time. Manually enter the hours, minutes
and seconds.
System Date [xx/xx/xx]
Use the System Date option to set the system date. Manually enter the day, month and
year.
5.3 Advanced
Use the Advanced menu (BIOS Menu 2) to configure the CPU and peripheral devices
through the following sub-menus:
WARNING!
Setting the wrong values in the sections below may cause the system to
malfunction. Make sure that the settings made are compatible with the
hardware.
CPU Configuration (see Section 5.3.1)
IDE Configuration (see Section 5.3.2)
Super IO Configuration (see Section 5.3.3)
ACPI Configuration (see Section 5.3.4)
APM Configuration (see Section 5.3.5)
Remote Access Configuration (see Section 5.3.6)
USB Configuration (see Section 5.3.7)
Page 69
A
FOLUX CX Series Flat Panel PC
BIOS Menu 2: Advanced
5.3.1 CPU Configuration
Use the CPU Configuration menu (BIOS Menu 3) to view detailed CPU specifications
and configure the CPU.
Page 70
AFOLUX CX Series Flat Panel PC
BIOS Menu 3: CPU Configuration
The CPU Configuration menu (
Manufacturer: Lists the name of the CPU manufacturer
Brand String: Lists the brand name of the CPU bei ng used
Frequency: Lists the CPU processing speed
FSB Speed: Lists the FSB speed
Cache L1: Lists the CPU L1 cach e size
Cache L2: Lists the CPU L2 cach e size
BIOS Menu 3) lists the following CPU details:
5.3.2 IDE Configuration
Use the IDE Configuration menu (BIOS Menu 4) to change and/or set the configuration
of the IDE devices installed in the system.
Page 71
A
FOLUX CX Series Flat Panel PC
BIOS Menu 4: IDE Configuration
IDE Master and IDE Slave
When entering setup, BIOS auto detects the presence of IDE devices. BIOS displays the
status of the auto detected IDE devices. The following IDE devices are detected and are
shown in the IDE Configuration menu:
Primary IDE Master
Primary IDE Slave
Secondary IDE Master
Secondary IDE Slave
The IDE Configuration menu (
IDE devices installed in the system. If an IDE device is detected, and one of the above
listed four BIOS configuration options are selected, the IDE configuration options shown in
Section
5.3.2.1 appear.
BIOS Menu 4) allows changes to the configurations for the
Page 72
AFOLUX CX Series Flat Panel PC
5.3.2.1 IDE Master, IDE Slave
Use the IDE Master and IDE Slave configuration menu to view both primary and
secondary IDE device details and configure the IDE devices connected to the system.
BIOS Menu 5: IDE Master and IDE Slave Configuration
Auto-Detected Drive Parameters
The “grayed-out” items in the left frame are IDE disk drive parameters automatically
detected from the firmware of the selected IDE disk drive. The drive parameters are listed
as follows:
Device: Lists the device type (e.g. hard disk, CD-ROM etc.)
Vendor: Lists the device manufacturer
Size: List the storage capacity of the device.
LBA Mode: Indicates whether the LBA (Logical Block Addressing) is a
method of addressing data on a disk drive is supported or not.
Block Mode: Block mode boosts IDE drive performance by increa sing the
Page 73
A
Type [Auto]
Use the Type BIOS option select the type of device the AMIBIOS attempts to boot from
after the Power-On Self-Test (POST) is complete.
FOLUX CX Series Flat Panel PC
amount of data transferred. Only 512 bytes of data can be transferred per
interrupt if block mode is not used. Block mode allows transfers of up to 64 KB
per interrupt.
PIO Mode: Indicates the PIO mode of the installed device.
Async DMA: Indicates the highest Asynchronous DMA Mode that is
supported.
Ultra DMA: Indicates the highest Synchronous DMA Mode that is supported.
S.M.A.R.T.: Indicates whether or not the Self-Monitoring Analysis and
Reporting Technology protocol is supported.
Not Installed
Auto DEFAULT
CD/DVD
ARMD
BIOS is prevented from searching for an IDE disk
drive on the specified channel.
The BIOS auto detects the IDE disk drive type
attached to the specified channel. This setting should
be used if an IDE hard disk drive is attached to the
specified channel.
The CD/DVD option specifies that an IDE CD-ROM
drive is attached to the specified IDE channel. The
BIOS does not attempt to search for other types of
IDE disk drives on the specified channel.
This option specifies an ATAPI Removable Media
Device. These include, but are not limited to:
Page 74
ZIP
LS-120
AFOLUX CX Series Flat Panel PC
LBA/Large Mode [Auto]
Use the LBA/Large Mode option to disable or enable BIOS to auto detects LBA (Logical
Block Addressing). LBA is a method of addressing data on a disk drive. In LBA mode, the
maximum drive capacity is 137 GB.
Disabled
Auto DEFAULT
Block (Multi Sector Transfer) [Auto]
Use the Block (Multi Sector Transfer) to disable or enable BIOS to auto detect if the
device supports multi-sector transfers.
Disabled
Auto DEFAULT
BIOS is prevented from using the LBA mode control on
the specified channel.
BIOS auto detects the LBA mode control on the specified
channel.
BIOS is prevented from using Multi-Sector Transfer o n the
specified channel. The data to and from the device occurs
one sector at a time.
BIOS auto detects Multi-Sector Transfer support on the
drive on the specified channel. If supported the data
PIO Mode [Auto]
Use the PIO Mode option to select the IDE PIO (Programmable I/O) mode program timing
cycles between the IDE drive and the programmable IDE controller. As the PIO mode
increases, the cycle time decrease s.
Auto DEFAULT
transfer to and from the device occurs multiple sectors at
a time.
BIOS auto detects the PIO mode. Use this value if the IDE disk
drive support cannot be determined.
Page 75
A
FOLUX CX Series Flat Panel PC
0
1
2
3
4
DMA Mode [Auto]
Use the DMA Mode BIOS selection to adjust the DMA mode options.
Auto DEFAULT
PIO mode 0 selected with a maximum transfer rate of 3.3MBps
PIO mode 1 selected with a maximum transfer rate of 5.2MBps
PIO mode 2 selected with a maximum transfer rate of 8.3MBps
PIO mode 3 selected with a maximum transfer rate of 11.1MBp s
PIO mode 4 selected with a maximum transfer rate of 16.6MBps
(This setting generally works with all hard disk drives
manufactured after 1999. For other disk drives, such as IDE
CD-ROM drives, check the specifications of the drive.)
BIOS auto detects the DMA mode. Use this value if the IDE
SWDMA0
SWDMA1
SWDMA2
MWDMA0
MWDMA1
MWDMA2
disk drive support cannot be determined.
Single Word DMA mode 0 selected with a maximum data
transfer rate of 2.1MBps
Single Word DMA mode 1 selected with a maximum data
transfer rate of 4.2MBps
Single Word DMA mode 2 selected with a maximum data
transfer rate of 8.3MBps
Multi Word DMA mode 0 selected with a maximum data
transfer rate of 4.2MBps
Multi Word DMA mode 1 selected with a maximum data
transfer rate of 13.3MBps
Multi Word DMA mode 2 selected with a maximum data
Page 76
transfer rate of 16.6MBps
AFOLUX CX Series Flat Panel PC
UDMA1
UDMA1
UDMA2
UDMA3
UDMA4
UDMA5
Ultra DMA mode 0 selected with a maximum data transfer
rate of 16.6MBps
Ultra DMA mode 1 selected with a maximum data transfer
rate of 25MBps
Ultra DMA mode 2 selected with a maximum data transfer
rate of 33.3MBps
Ultra DMA mode 3 selected with a maximum data transfer
rate of 44MBps (To use this mode, it is required that an
80-conductor ATA cable is used.)
Ultra DMA mode 4 selected with a maximum data transfer
rate of 66.6MBps (To use this mode, it is required that an
80-conductor ATA cable is used.)
Ultra DMA mode 5 selected with a maximum data transfer
rate of 99.9MBps (To use this mode, it is required that an
80-conductor ATA cable is used.)
S.M.A.R.T [Auto]
Use the S.M.A.R.T option to auto-detect, disable or enable Self-Monitoring Analysis and
Reporting Technology (SMART) on the drive on the specified channel. S.M.A.R.T predicts
impending drive failures. The S.M.A.R.T BIOS option enables or disables this function.
Auto DEFAULT
Disabled
Enabled
32Bit Data Transfer [Enabled]
Use the 32Bit Data Transfer BIOS option to enables or disable 32-bit data transfers.
Prevents BIOS from using the HDD SMART feature.
Allows BIOS to use the HDD SMART feature
BIOS auto detects HDD SMART support.
Page 77
A
FOLUX CX Series Flat Panel PC
Disabled
Enabled DEFAULT
Prevents the BIOS from using 32-bit data transfers.
Allows BIOS to use 32-bit data transfers on supported
hard disk drives.
5.3.3 Super IO Configuration
Use the Super IO Configuration menu (BIOS Menu 6) to set or change the
configurations for the FDD controllers, parallel ports and serial ports.
BIOS Menu 6: Super IO Configuration
Serial Port1 Address [3F8]
Use the Serial Port1 Address option to select the Serial Port 1 base address.
Disabled
3F8 DEFAULT
Page 78
No base address is assigned to Serial Port 1
Serial Port 1 I/O port address is 3F8
AFOLUX CX Series Flat Panel PC
2F8
3E8
2E8
Serial Port1 IRQ [4]
Use the Serial Port1 IRQ option to select the interrupt address for serial port 1.
4 DEFAULT
Serial Port2 Address [2F8]
Use the Serial Port2 Address option to select the Serial Port 2 base address.
Disabled
2F8 DEFAULT
Serial Port 1 I/O port address is 3E8
Serial Port 1 I/O port address is 2E8
No base address is assigned to Serial Port 2
Serial Port 1 I/O port address is 2F8
Serial port 1 IRQ address is 4
Serial Port 2 I/O port address is 3F8
2F8
3E8
2E8
Serial Port2 IRQ [3]
Use the Serial Port2 IRQ option to select the interrupt address for serial port 2.
3 DEFAULT
Serial Port3 Address [3E8]
Use the Serial Port3 Address option to select the base addresses for serial port 3
Disabled
3E8 DEFAULT
Serial Port 2 I/O port address is 3E8
Serial Port 2 I/O port address is 2E8
No base address is assigned to serial port 3
Serial Port 1 I/O port address is 2F8
Serial port 2 IRQ address is 3
Serial port 3 I/O port address is 3E8
Page 79
A
FOLUX CX Series Flat Panel PC
2E8
2E0
2D8
2D0
Serial Port3 IRQ [11]
Use the Serial Port3 IRQ option to select the interrupt address for serial port 3.
4
5
6
7
Serial port 3 I/O port address is 2E8
Serial port 3 I/O port address is 2E0
Serial port 3 I/O port address is 2D8
Serial port 3 I/O port address is 2D0
Serial port 3 IRQ address is 4
Serial port 3 IRQ address is 5
Serial port 3 IRQ address is 6
Serial port 3 IRQ address is 7
9
10
11 DEFAULT
12
Serial Port4 Address [2E8]
Use the Serial Port4 IRQ option to select the interrupt address for serial port 4.
Disabled
3E8
2E0
Serial Port4 IRQ [10]
Serial port 3 IRQ address is 9
Serial port 3 IRQ address is 10
Serial port 3 IRQ address is 11
Serial port 3 IRQ address is 12
No base address is assigned to serial port 4
Serial port 4 I/O port address is 3E8
Serial port 4 I/O port address is 2E0
Page 80
Use the Serial Port4 IRQ option to select the interrupt address for serial port 4.
AFOLUX CX Series Flat Panel PC
3 DEFAULT
Serial port 4 IRQ address is 3
5.3.4 ACPI Configuration
The ACPI Configuration menu (BIOS Menu 7) configures the Advanced Configuration
and Power Interface (ACPI) and Power Management (APM) options.
BIOS Menu 7: ACPI Configuration
Suspend Mode [S1(POS)]
Use the Suspend Mode option to specify the sleep state the system enters when it is not
being used.
S1 (POS) DEFAULT
The system enters S1(POS) sleep state. The system
appears off. The CPU is stopped; RAM is refreshed; the
system is running in a low power mode.
Page 81
A
5.3.5 APM Configuration
The APM Configuration menu (BIOS Menu 8) allows the advanced power management
options to be configured.
FOLUX CX Series Flat Panel PC
BIOS Menu 8:Advanced Power Management Configuration
AT/ATX Power [ATX]
Use the AT/ATX Power option to select the power supply that is connected to the system.
AT
ATX DEFAULT
Power Button Mode [On/Off]
Use the Power Button Mode BIOS to specify how the power button functions.
On/Off DEFAULT
Page 82
An AT power supply is connected to the system
An ATX power supply is connected to the system
When the power button is pressed the system is either
AFOLUX CX Series Flat Panel PC
turned on or off
Suspend
Restore on AC Power Loss [Power Off]
Use the Restore on AC Power Loss BIOS option to specify what state the system
returns to if there is a sudden loss of power to the system.
Power Off DEFAULT
Power On
Last State
Resume on Lan/Ring [Disabled]
Use the Resume on Lan/Ring BIOS option to enable activity on the RI (ring in) modem
When the power button is pressed the system goes into
suspend mode
The system remains turned off
The system turns on
The system returns to its previous state. If it was on, it
turns itself on. If it was off, it remains off.
line to rouse the system from a suspend or standby state. That is, the system will be
roused by an incoming call on a modem.
Disabled DEFAULT
Enabled
Resume on PME# [Disabled]
Use the Resume on PME# BIOS option to enable activity on the PCI PME (power
management event) controller to rouse the system from a suspend or standby state.
Disabled DEFAULT
Enabled
Wake event generated by an incoming call
Wake event generated by PCI PME controller activity
Wake event not generated by an incoming call
Wake event not generated by PCI PME controller
activity
Page 83
A
Resume On RTC Alarm [Disabled]
Use the Resume On RTC Alarm option to specify the time the system should be roused
from a suspended state.
FOLUX CX Series Flat Panel PC
Disabled DEFAULT
Enabled
If selected, the following appears with values that
The real time clock (RTC) cannot generate a wake
event
can be selected:
RTC Alarm Date (Days)
System Time
After setting the alarm, the computer turns itself on
from a suspend state when the alarm goes off.
5.3.6 Remote Access Configuration
Use the Remote Access Configuration menu (BIOS Menu 9) to configure remote
access parameters. The Remote Access Configuration is an AMIBIOS feature and
allows a remote host running a terminal program to display and configure the BIOS
Page 84
settings.
AFOLUX CX Series Flat Panel PC
BIOS Menu 9: Remote Access Configuration [Advanced]
Remote Access [Enabled]
Use the Remote Access option to enable or disable access to the remote functionalities
of the system.
Disabled
Enabled DEFAULT
Remote access is disabled.
Remote access configuration options shown below
appear:
Serial Port Number
Serial Port Mode
Flow Control
Redirection after BIOS POST
Page 85
A
Serial Port Number [COM1]
Use the Serial Port Number option allows to select the serial port used for remote
access.
FOLUX CX Series Flat Panel PC
Terminal Type
VT-UTF8 Combo Key Support
These configuration options are discussed below.
COM1 DEFAULT
COM2
NOTE: Make sure the selected COM port is enabled through the Super I/O configuration
menu.
Base Address, IRQ [3F8h,4]
The Base Address, IRQ option cannot be configured and only shows the interrupt
address of the serial port listed above.
Serial Port Mode [115200 8,n,1]
Use the Serial Port Mode option to select baud rate through which the console redirection
is made. The following configuration options are available
115200 8,n,1 DEFAULT
System is remotely accessed through COM2
System is remotely accessed through COM1
Page 86
57600 8,n,1
38400 8,n,1
19200 8,n,1
09600 8,n,1
