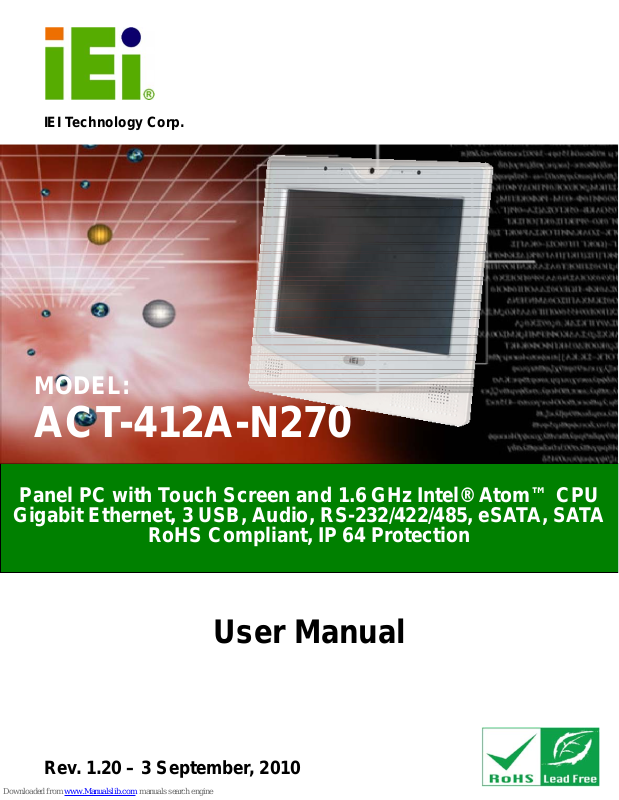

IEI Technology Corp.
User Manual
ACT-412A-N270 User Manual
MODEL:
ACT-412A-N270
Panel PC with Touch Screen and 1.6 GHz Intel® Atom™ CPU
Gigabit Ethernet, 3 USB, Audio, RS-232/422/485, eSATA, SATA
RoHS Compliant, IP 64 Protection
Rev. 1.20 – 3 September, 2010
Page i
Date Version Changes
3 September, 2010 1.20 LCD panel update
30 September, 2009 1.00 Initial release
ACT-412A-N270 User Manual
Revision
Page ii
ACT-412A-N270 User Manual
COPYRIGHT NOTICE
The information in this document is subject to change without prior notice in order to
improve reliability, design and function and does not represent a commitment on the part
of the manufacturer.
In no event will the manufacturer be liable for direct, indirect, special, incidental, or
consequential damages arising out of the use or inability to use the product or
documentation, even if advised of the possibility of such damages.
This document contains proprietary information protected by copyright. All rights are
Copyright
reserved. No part of this manual may be reproduced by any mechanical, electronic, or
other means in any form without prior written permission of the manufacturer.
TRADEMARKS
All registered trademarks and product names mentioned herein are used for identification
purposes only and may be trademarks and/or registered trademarks of their respective
owners.
Page iii
ACT-412A-N270 User Manual
Table of Contents
1 INTRODUCTION........................................................................................................ 12
1.1 ACT-412A-N270 ALL-IN-ONE ACCESS CONTROL TERMINAL ................................. 13
1.1.1 Features ........................................................................................................... 13
1.1.2 Applications ..................................................................................................... 14
1.2 EXTERNAL OVERVIEW.............................................................................................. 14
1.2.1 Front Panel...................................................................................................... 14
1.2.2 RFID Reader.................................................................................................... 16
1.2.3 Rear Panel ....................................................................................................... 16
1.2.4 Bottom Panel.................................................................................................... 16
1.2.5 CompactFlash® Slot........................................................................................ 17
1.3 INTERNAL OVERVIEW............................................................................................... 18
1.4 SPECIFICATIONS ....................................................................................................... 18
1.4.1 System Specifications....................................................................................... 18
1.5 DIMENSIONS............................................................................................................. 20
2 INSTALLATION ......................................................................................................... 22
2.1 UNPACKING.............................................................................................................. 23

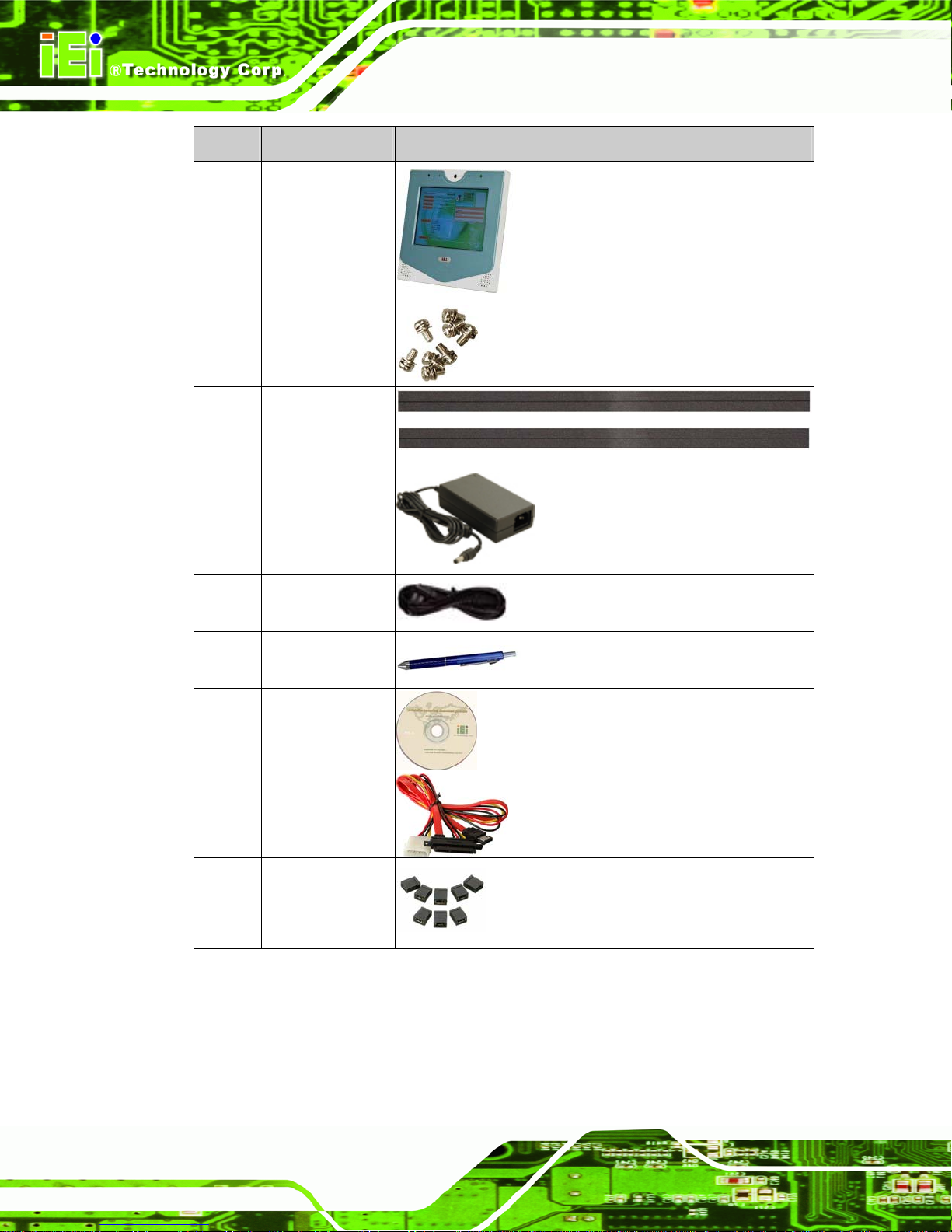

2.1.1 Packing List ..................................................................................................... 23
2.2 ANTI-STA TIC PRECAUTIONS ..................................................................................... 25
2.3 INSTALLATION PRECAUTIONS ................................................................................... 25
2.4 PREINSTALLED COMPONENTS................................................................................... 26
2.5 INST ALLATION AND CONFIGURATION STEPS............................................................. 26
2.6 REAR PANEL REMOVAL............................................................................................ 26
2.7 HARD DRIVE INSTALLATION..................................................................................... 27
2.8 CF CARD INSTALLATION .......................................................................................... 28
2.9 SYSTEM POWER ....................................................................................................... 29
2.9.1.1 ATX Power Mode (Default)...................................................................... 30
2.9.1.2 AT Power Mode ........................................................................................ 30
2.9.2 Power Adapter................................................................................................. 30
2.10 JUMPER SETTINGS.................................................................................................. 31
2.10.1 Access the Jumpers........................................................................................ 31
Page iv
ACT-412A-N270 User Manual

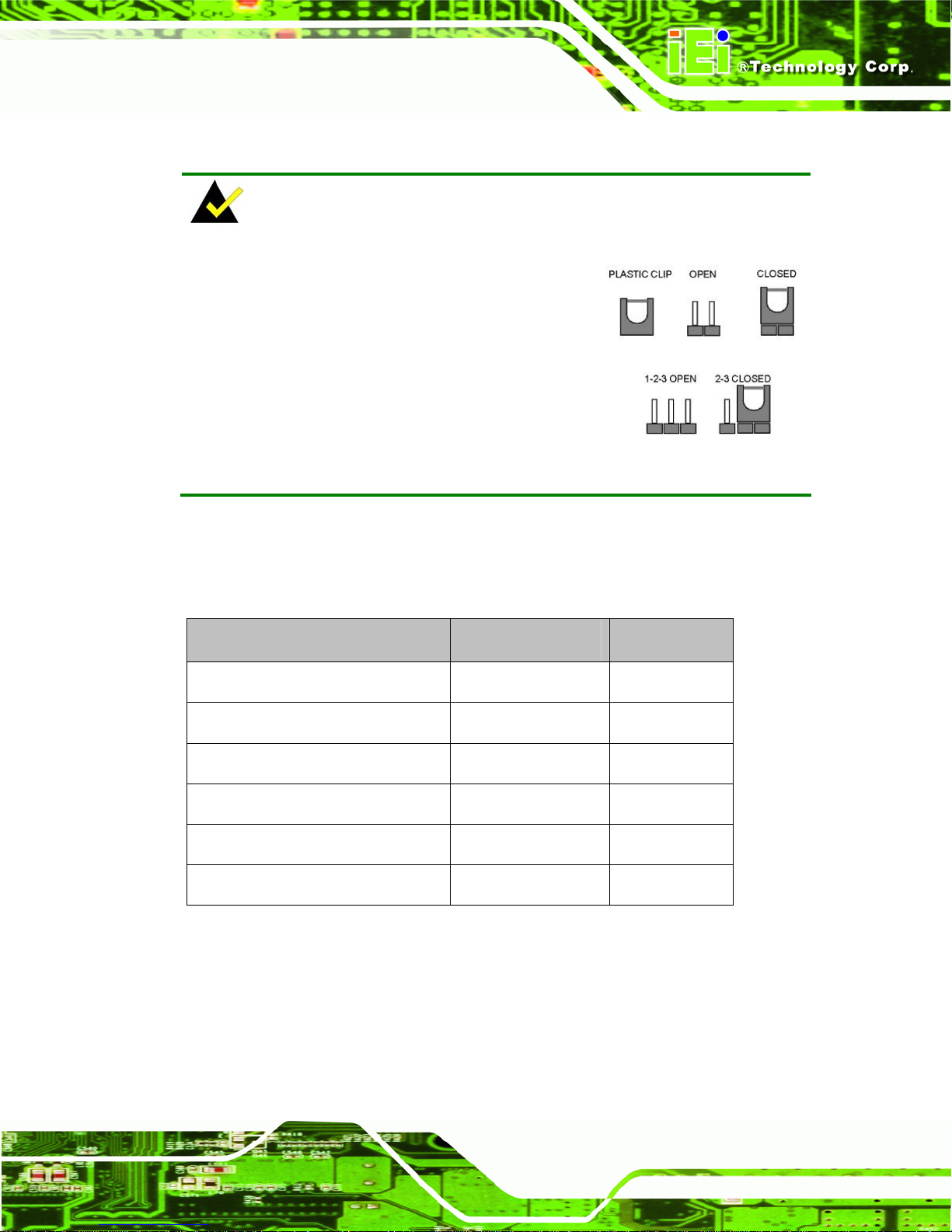

2.10.2 Preconfigured Jumpers .................................................................................. 32
2.10.3 Clear CMOS Jumper...................................................................................... 33
2.10.4 COM Port Pin 9 Select .................................................................................. 34
2.10.4.1 COM3 RS-422 and RS-485 Pinouts....................................................... 35
2.10.5 COM3 RX Function Select Jumper................................................................ 36
2.10.6 COM3 TX Function Select Jumper................................................................ 37
2.10.7 COM3 RS-232/422/485 Serial Port Select Jumper ....................................... 38
2.10.8 AT/ATX Mode Selection................................................................................. 39
2.11 MOUNTING THE SYSTEM ........................................................................................ 40
2.1 1.1 Wall Mounting................................................................................................ 41

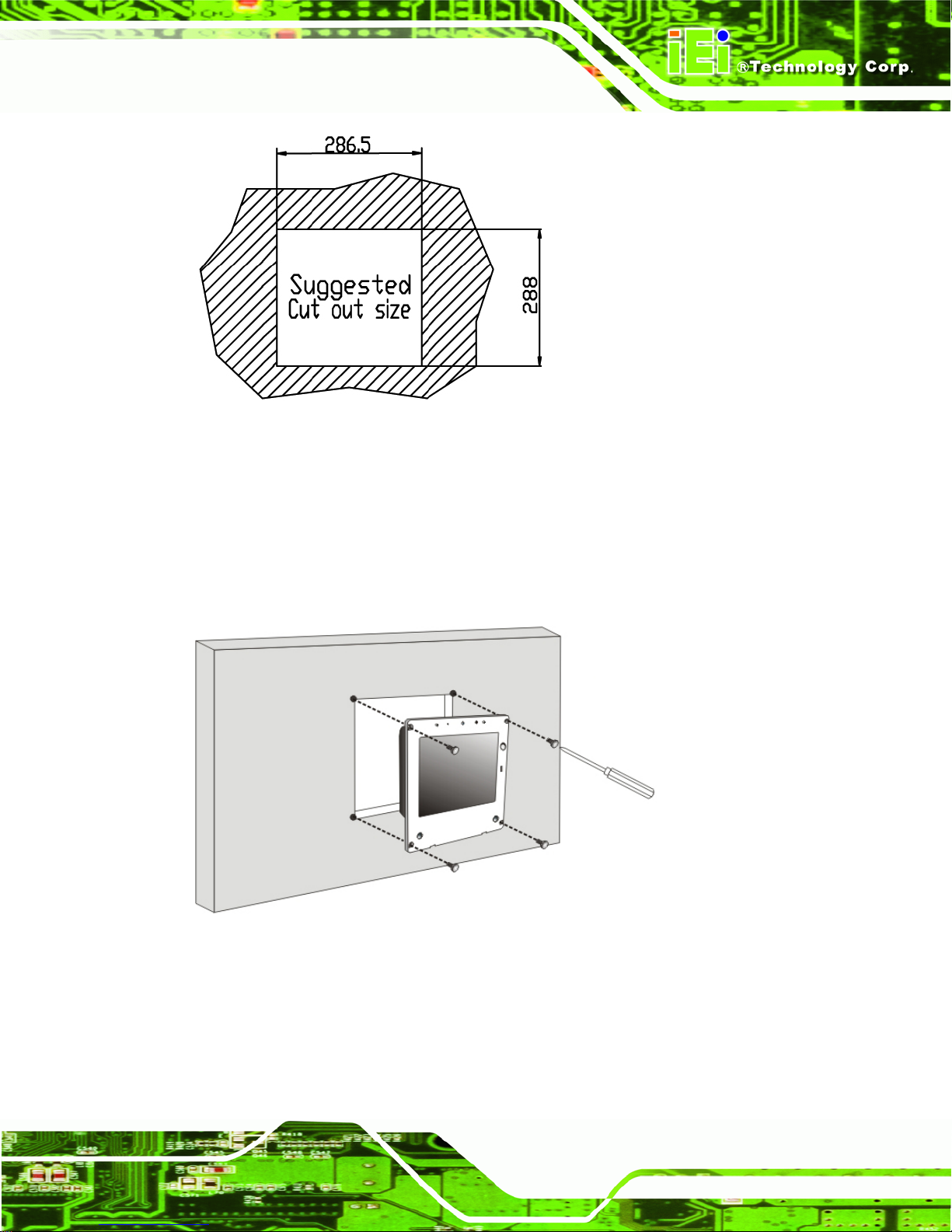

2.11.2 In-wall Mounting............................................................................................ 43
2.1 1.3 Arm Mounting ................................................................................................ 46
2.12 BOTTOM PANEL CONNECTORS................................................................................ 47

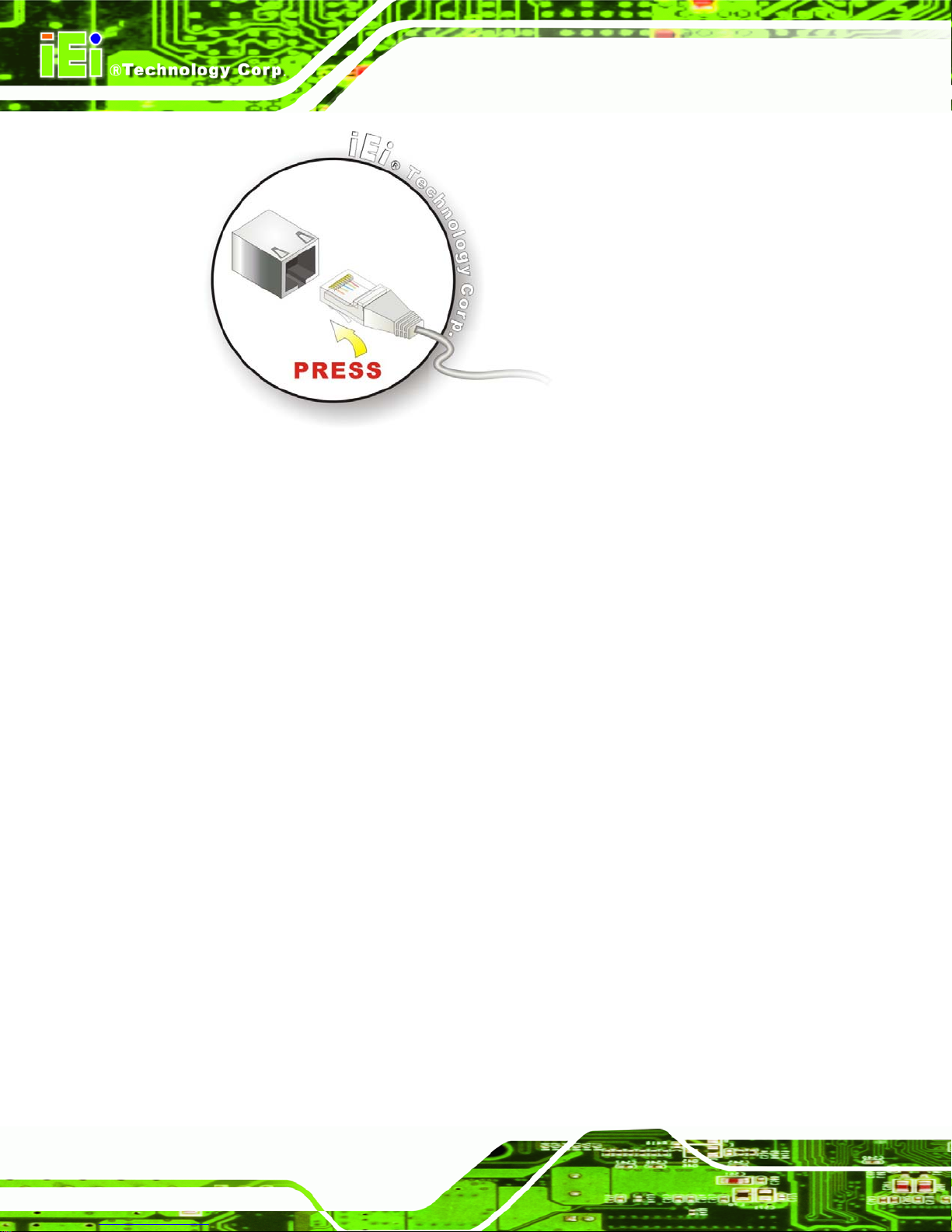

2.12.1 LAN Connection............................................................................................. 47

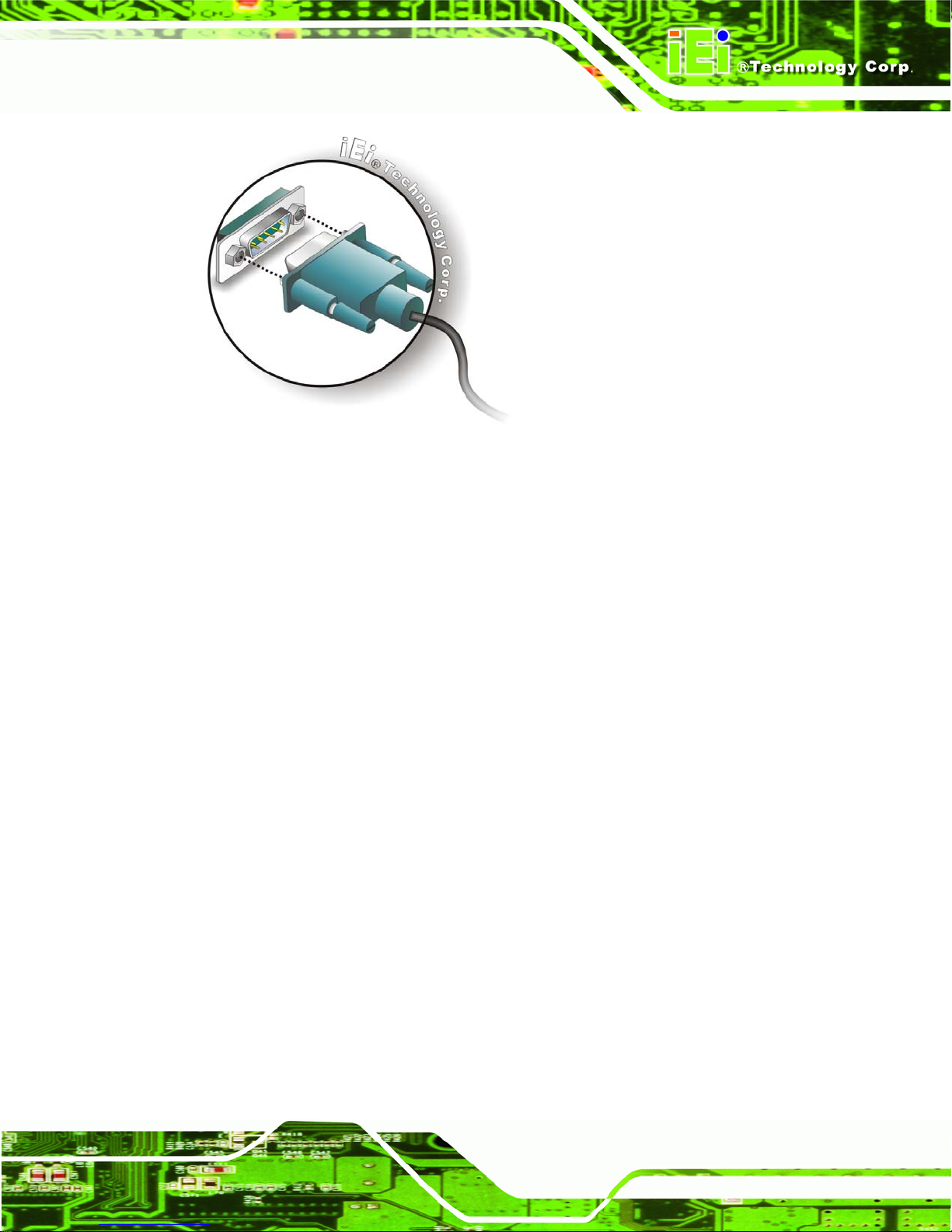

2.12.2 Serial Device Connection .............................................................................. 48

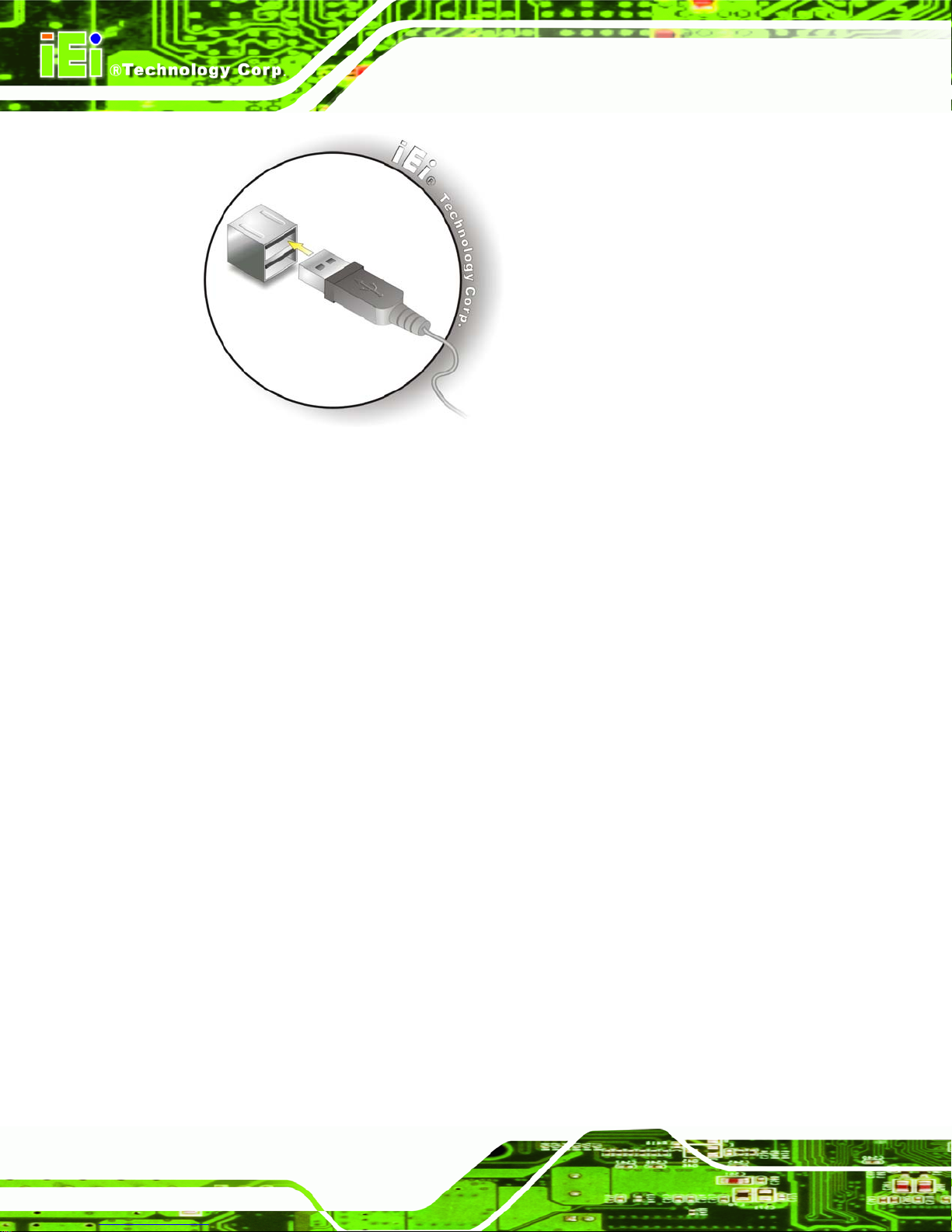

2.12.3 USB Device Connection................................................................................. 49
3 RFID READER............................................................................................................ 51
3.1 INTRODUCTION......................................................................................................... 52

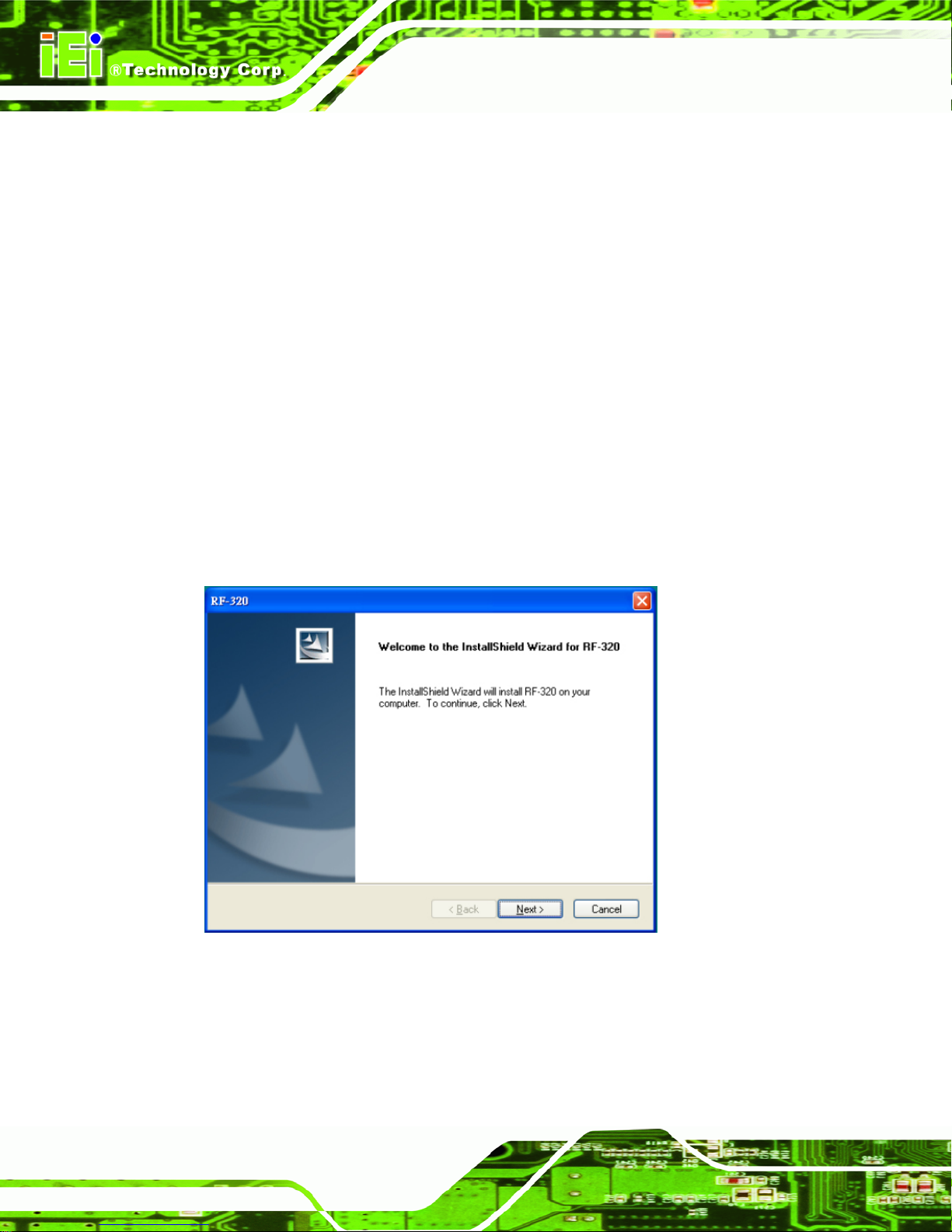

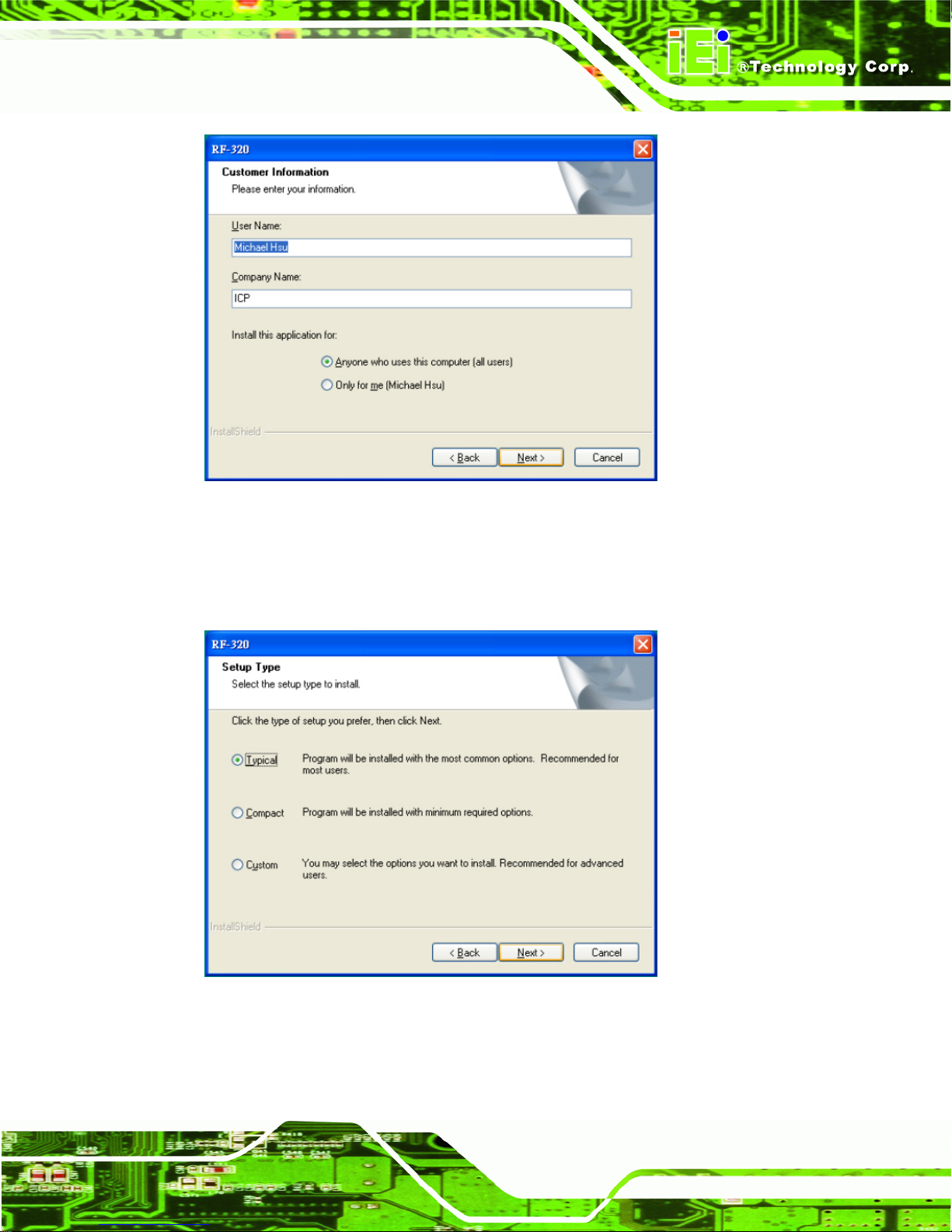

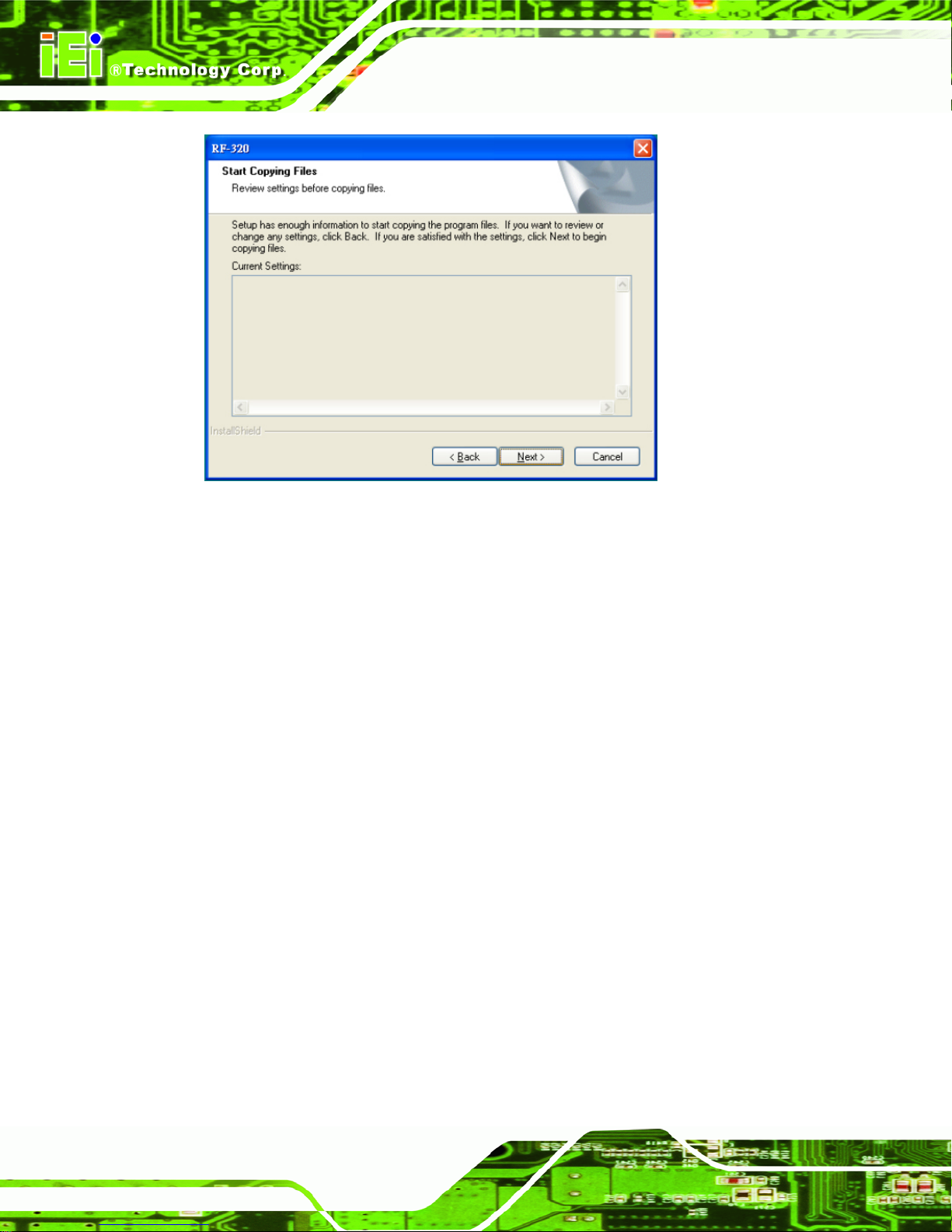

3.2 INSTALLATION .......................................................................................................... 52

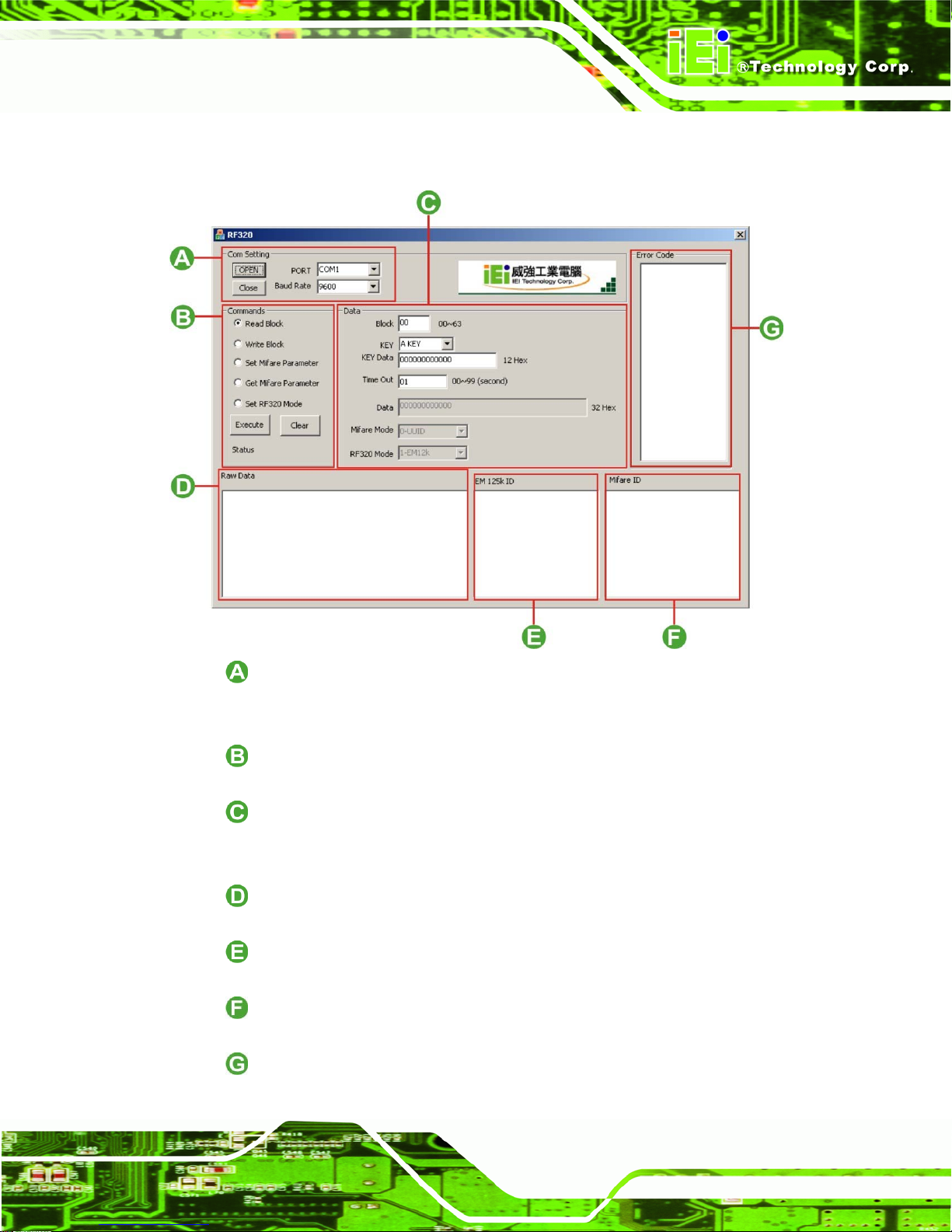

3.3 RF320 INTERFACE OVERVIEW.................................................................................. 55

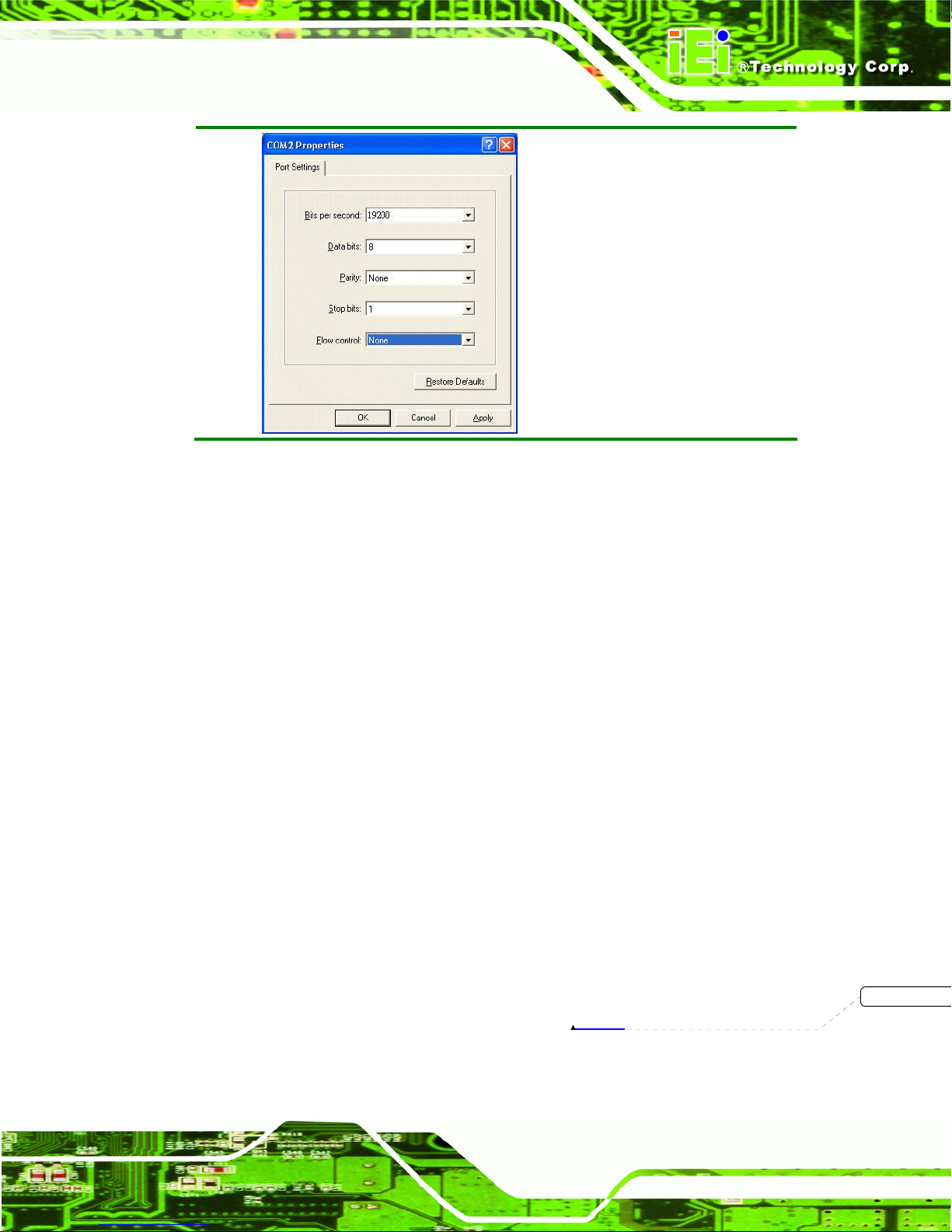

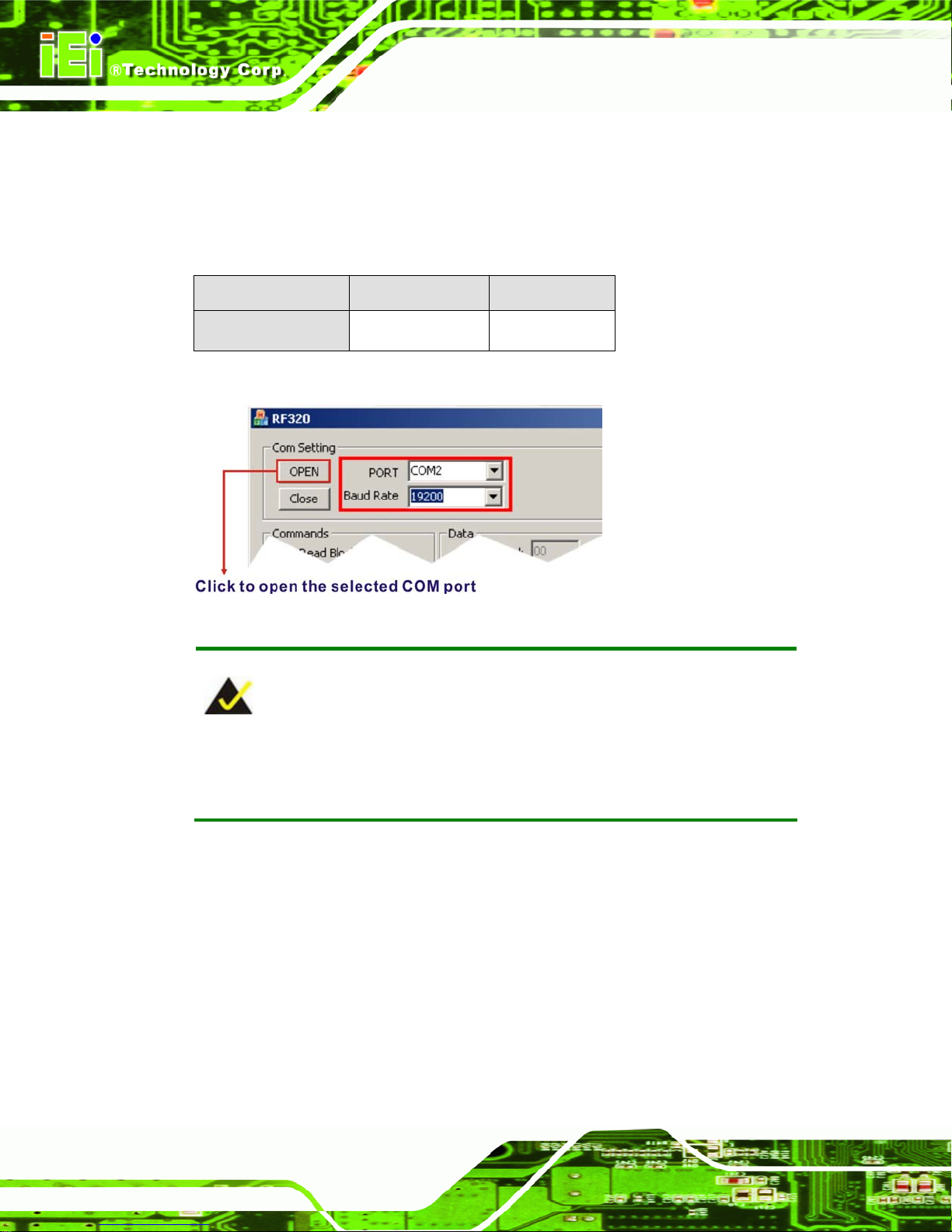

3.4 SERIAL PORT (COM) SETTINGS ............................................................................... 56
3.5 RF320 COMMANDS.................................................................................................. 57
3.5.1 Read Block....................................................................................................... 57
3.5.2 Write Block....................................................................................................... 59

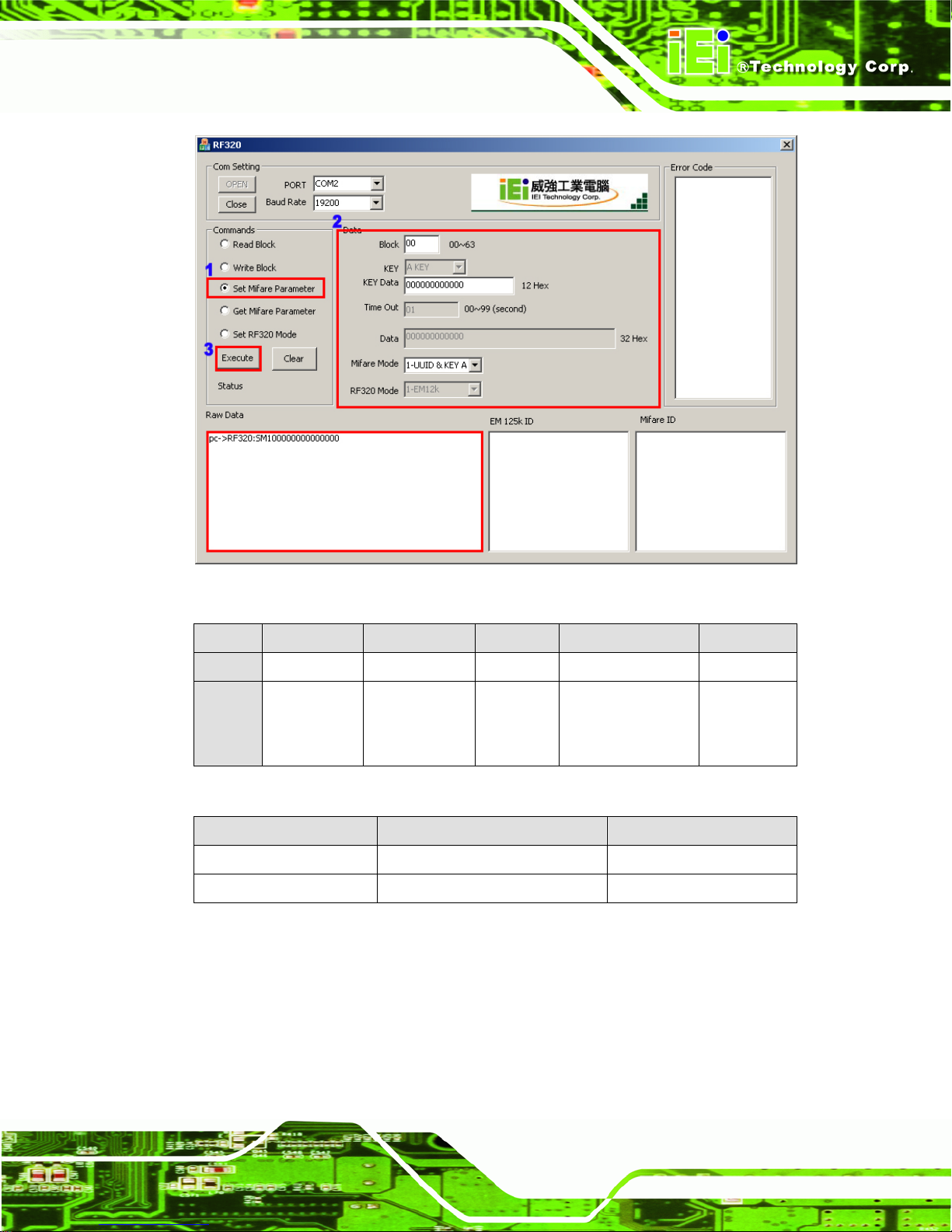

3.5.3 Set Mifare Parameter....................................................................................... 60

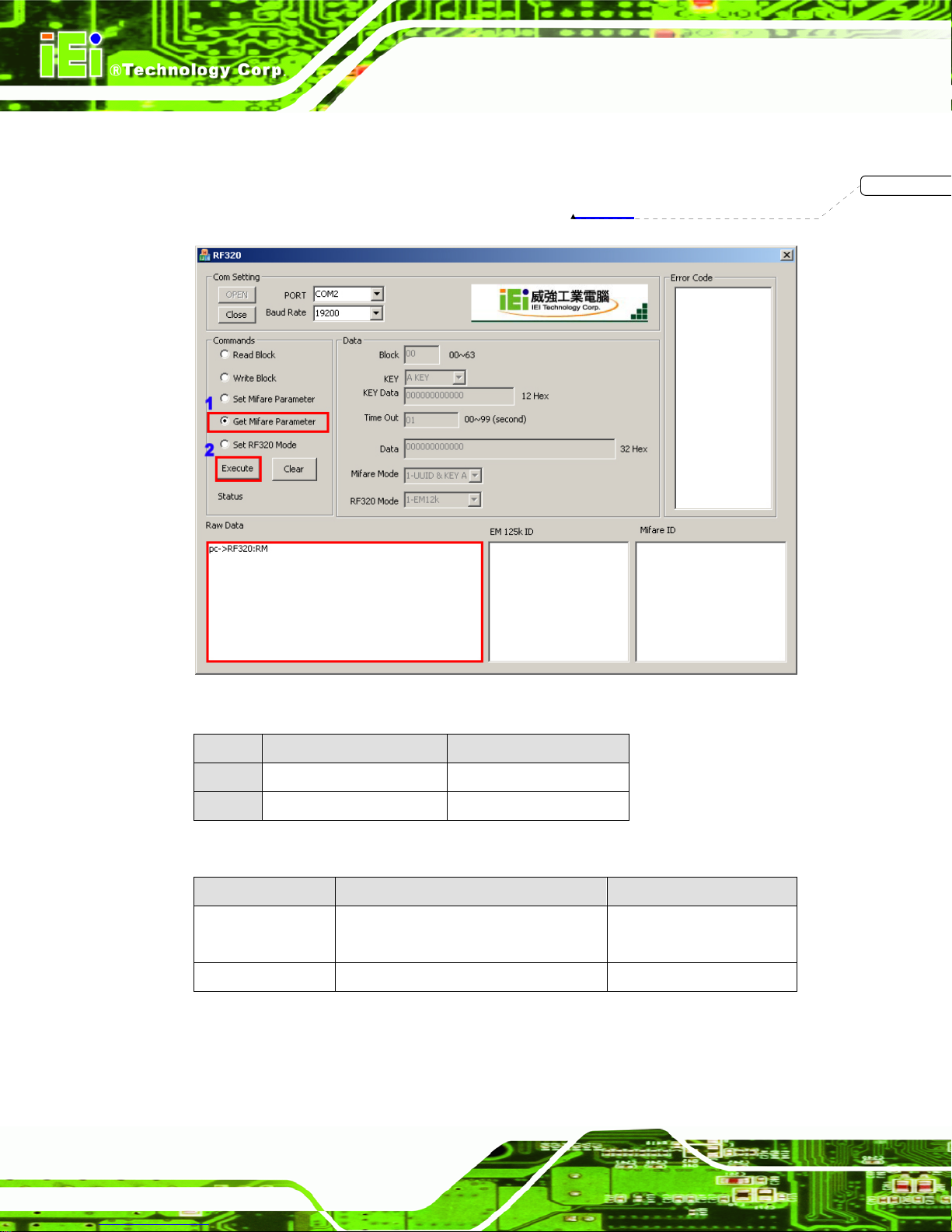

3.5.4 Get Mifare Parameter...................................................................................... 61

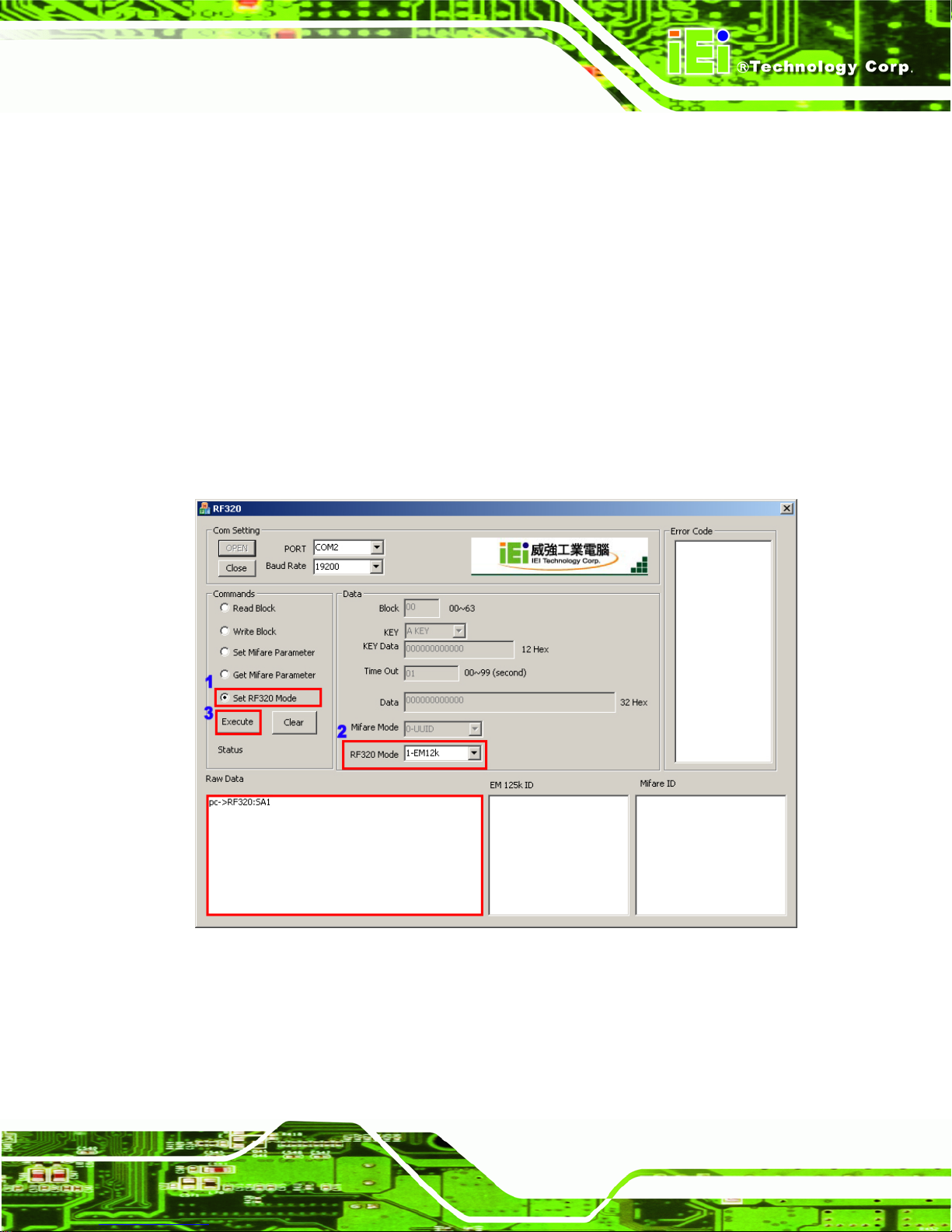

3.5.5 Set RF320 Mode............................................................................................... 62
4 SYSTEM MAINTENANCE ....................................................................................... 65
4.1 SYSTEM MAINTENANCE INTRODUCTION .................................................................. 66
4.2 ANTI-STATIC PRECAUTIONS...................................................................................... 66
4.3 TURN OFF THE POWER.............................................................................................. 67
4.4 REMOVING THE REAR PANEL ................................................................................... 67
4.5 REPLACING COMPONENTS........................................................................................ 68
Page v
ACT-412A-N270 User Manual
4.5.1 CF Card Replacement...................................................................................... 68

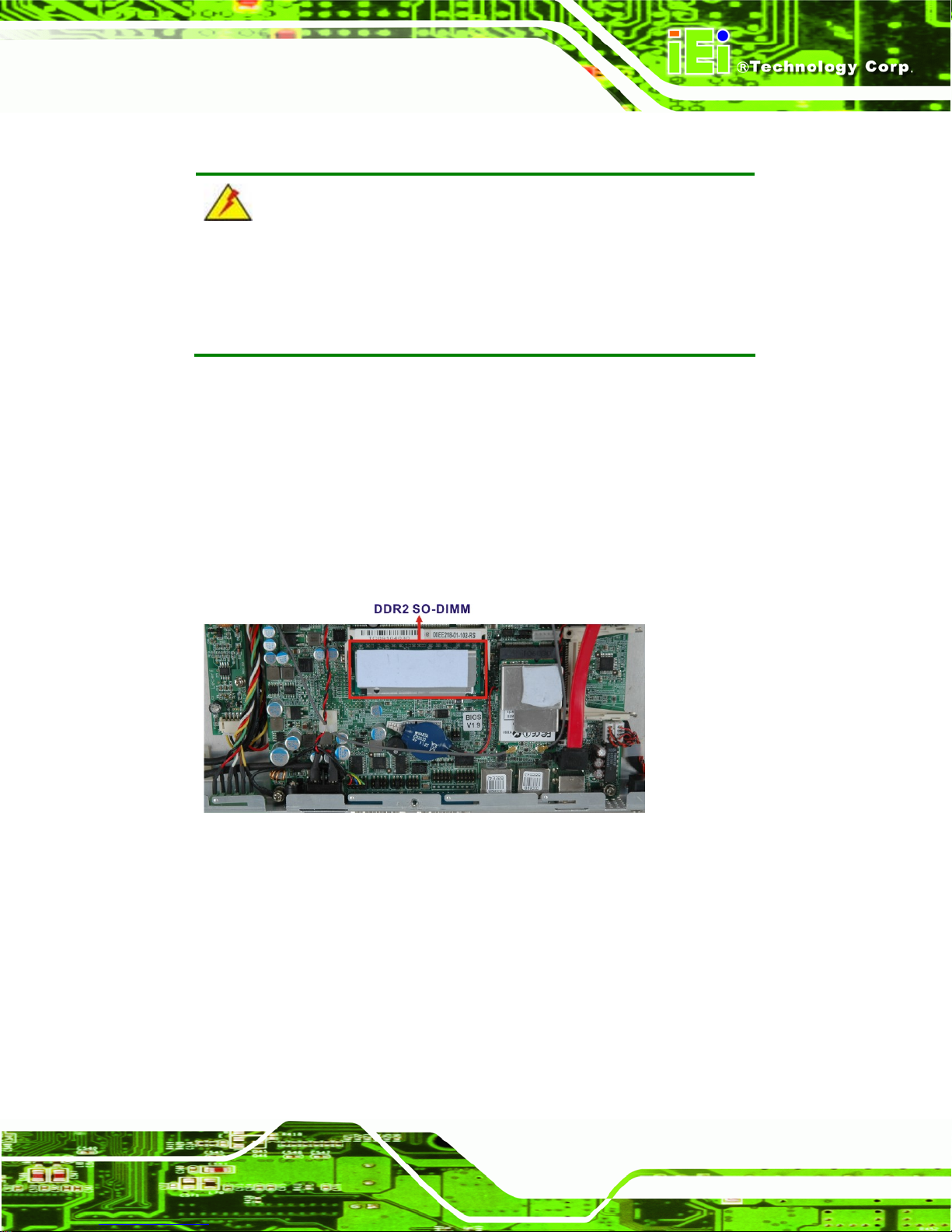

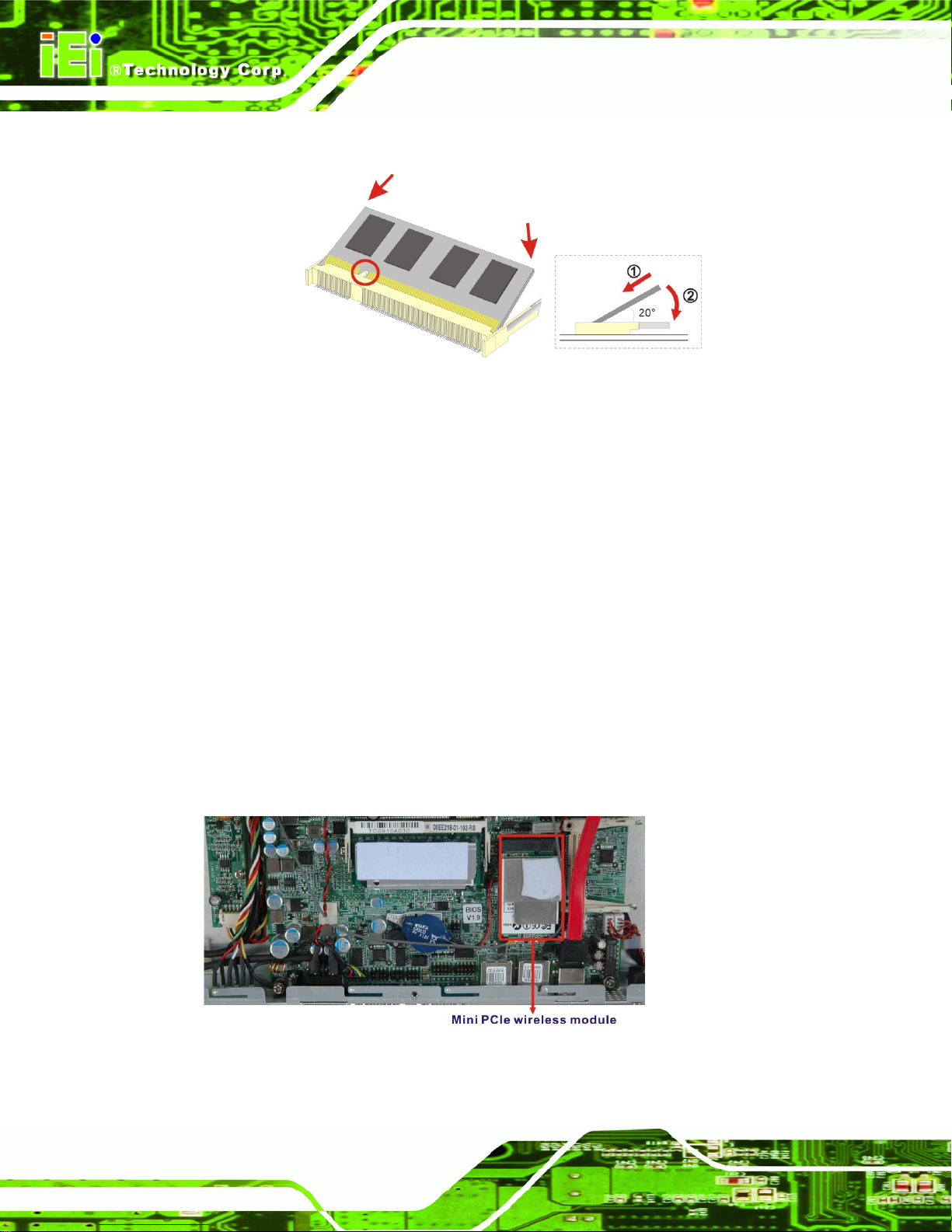

4.5.2 SO-DIMM Module Replacement...................................................................... 69
4.5.3 Wireless Module Replacement......................................................................... 70
4.5.4 Motherboard Replacement............................................................................... 71
5 BIOS.............................................................................................................................. 72
5.1 INTRODUCTION......................................................................................................... 73
5.1.1 Starting Setup................................................................................................... 73
5.1.2 Using Setup...................................................................................................... 73
5.1.3 Getting Help..................................................................................................... 74
5.1.4 Unable to Reboot After Configuration Changes.............................................. 74
5.1.5 BIOS Menu Bar................................................................................................ 74
5.2 MAIN........................................................................................................................ 75
5.3 ADVANCED ............................................................................................................... 76
5.3.1 CPU Configuration.......................................................................................... 77
5.3.2 IDE Configuration........................................................................................... 78
5.3.2.1 IDE Master, IDE Slave............................................................................. 79
5.3.3 Super I/O Configuration .................................................................................. 84
5.3.4 Hardware Health Configuration...................................................................... 86
5.3.5 Power Configuration ....................................................................................... 89
5.3.6 ACPI Configuration......................................................................................... 90
5.3.7 APM Configuration.......................................................................................... 91
5.3.8 Remote Access Configuration.......................................................................... 93
5.3.9 USB Configuration........................................................................................... 97
5.4 PCI/PNP................................................................................................................... 98
5.5 BOOT...................................................................................................................... 101
5.5.1 Boot Settings Configuration........................................................................... 102
5.5.2 Boot Device Priority...................................................................................... 104
5.5.3 Hard Disk Drives........................................................................................... 105
5.5.4 Removable Drives.......................................................................................... 106
5.5.5 CD/DVD Drives............................................................................................. 106
5.6 SECURITY............................................................................................................... 107
5.7 CHIPSET ................................................................................................................. 108
5.7.1 Northbridge Configuration............................................................................ 109
5.7.2 Southbridge Configuration .............................................................................112
Page vi
ACT-412A-N270 User Manual
5.8 EXIT........................................................................................................................113
A EXTERNAL CONNECTOR PINOUTS..................................................................115
A.1 INTRODUCTION.......................................................................................................116
A.2 DIGITAL I/O CONNECTOR.......................................................................................116
A.3 EXTERNAL SATA CONNECTOR...............................................................................116
A.4 LAN CONNECTOR..................................................................................................117
A.5 POWER CONNECTOR...............................................................................................117
A.6 SERIAL PORT CONNECTOR (COM1).......................................................................118
A.7 SERIAL PORT CONNECTOR (COM3).......................................................................118
A.8 USB CONNECTORS.................................................................................................118
B SAFETY PRECAUTIONS........................................................................................119
B.1 SAFETY PRECAUTIONS........................................................................................... 120
B.1.1 Anti-static Precautions.................................................................................. 121
B.2 MAINTENANCE AND CLEANING PRECAUTIONS...................................................... 121
B.2.1 Cleaning Tools............................................................................................... 122
C BIOS CONFIGURATION OPTIONS..................................................................... 123
C.1 BIOS CONFIGURATION OPTIONS ........................................................................... 124
D WATCHDOG TIMER .............................................................................................. 127
E HAZARDOUS MATERIALS DISCLOSURE ....................................................... 130
E.1 HAZARDOUS MATERIALS DISCLOSURE TABLE FOR IPB PRODUCTS CER TIFIED AS
ROHS COMPLIANT UNDER 2002/95/EC WITHOUT MERCURY ..................................... 131
Page vii
ACT-412A-N270 User Manual
List of Figures

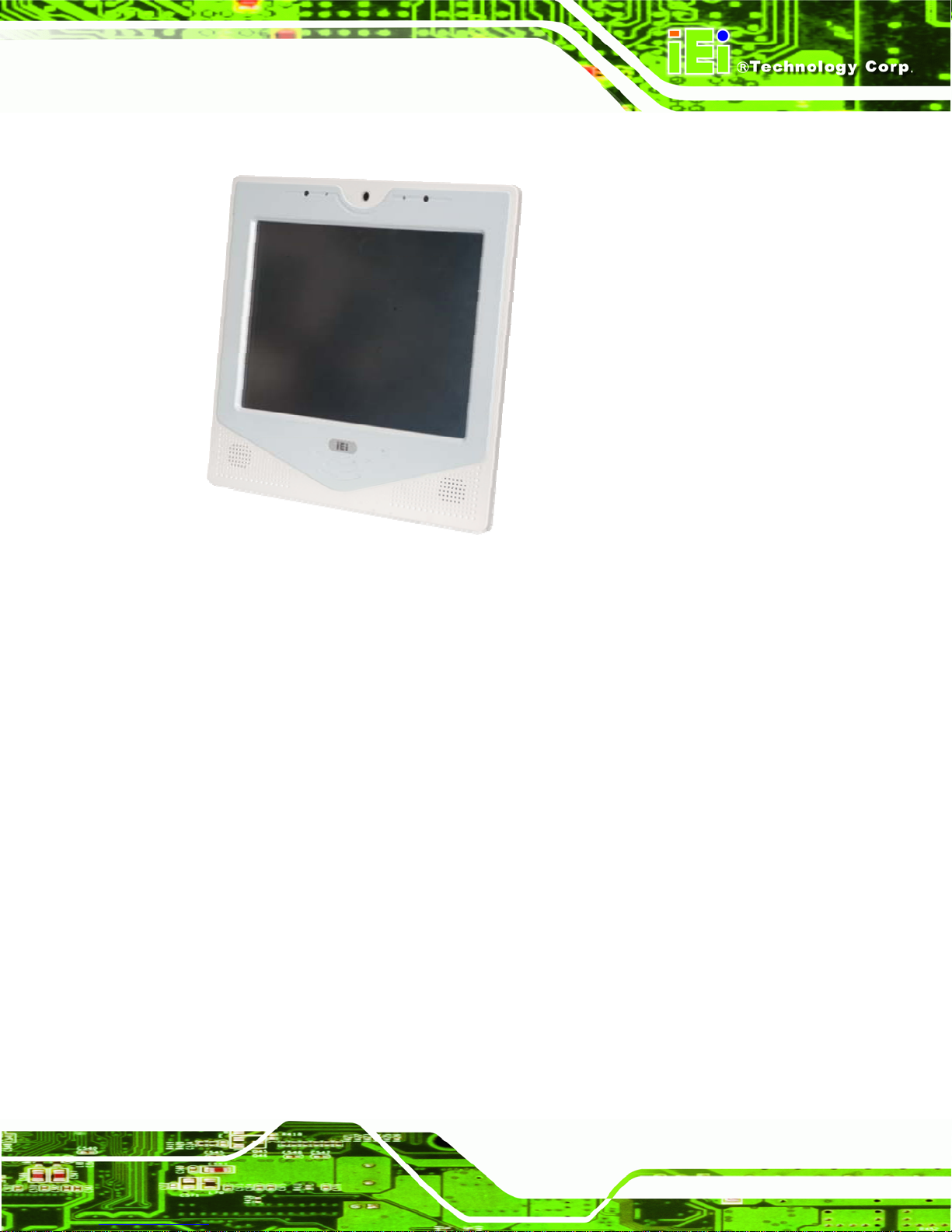

Figure 1-1: ACT-412A-N270 All-in-One Access Control Terminal...........................................13

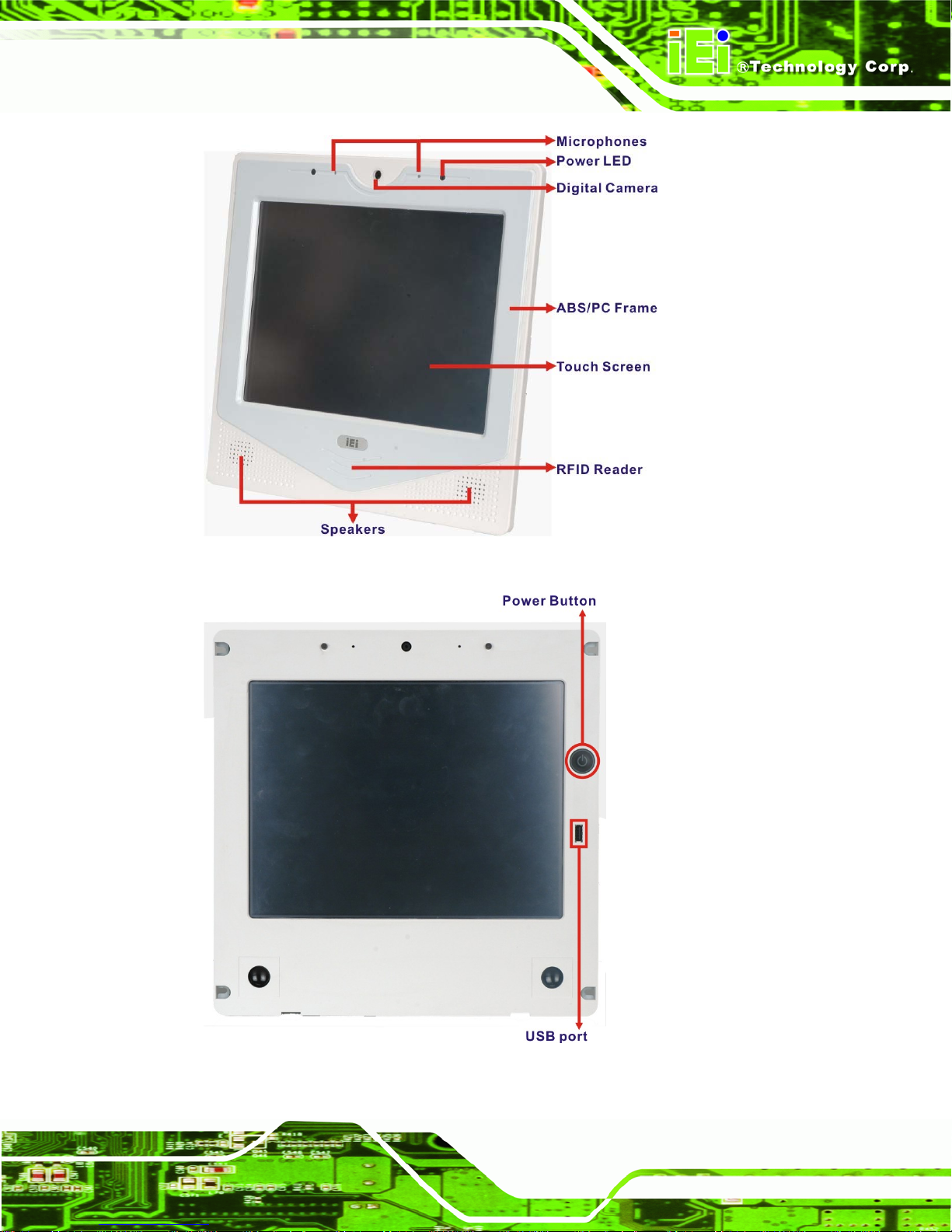

Figure 1-2: ACT-412A-N270 Front View......................................................................................15

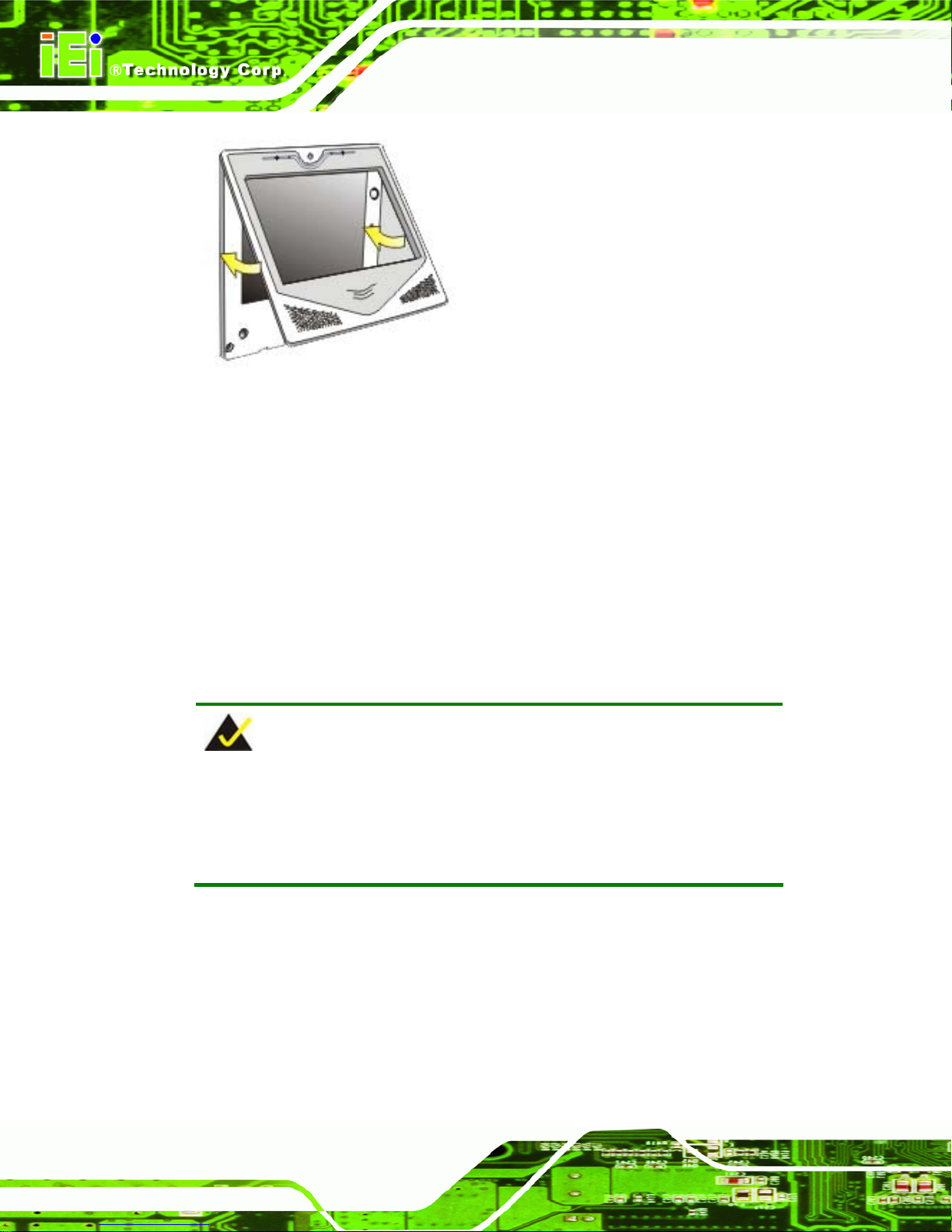

Figure 1-3: Front View (Faceplate Removed) ............................................................................15
Figure 1-4: ACT-412A-N270 Rear View.......................................................................................16

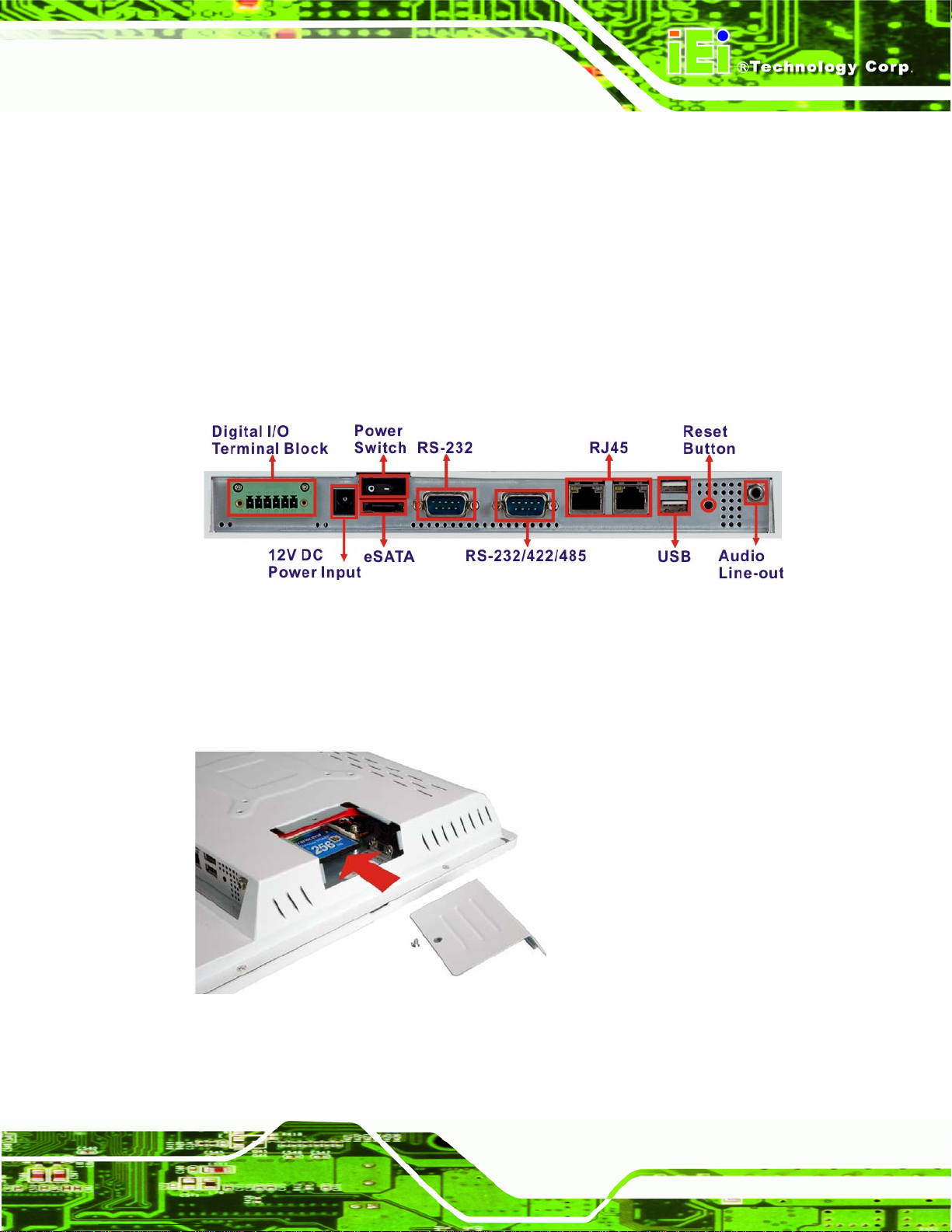

Figure 1-5: ACT-412A-N270 Bottom View ..................................................................................17
Figure 1-6: CompactFlash® Slot.................................................................................................17

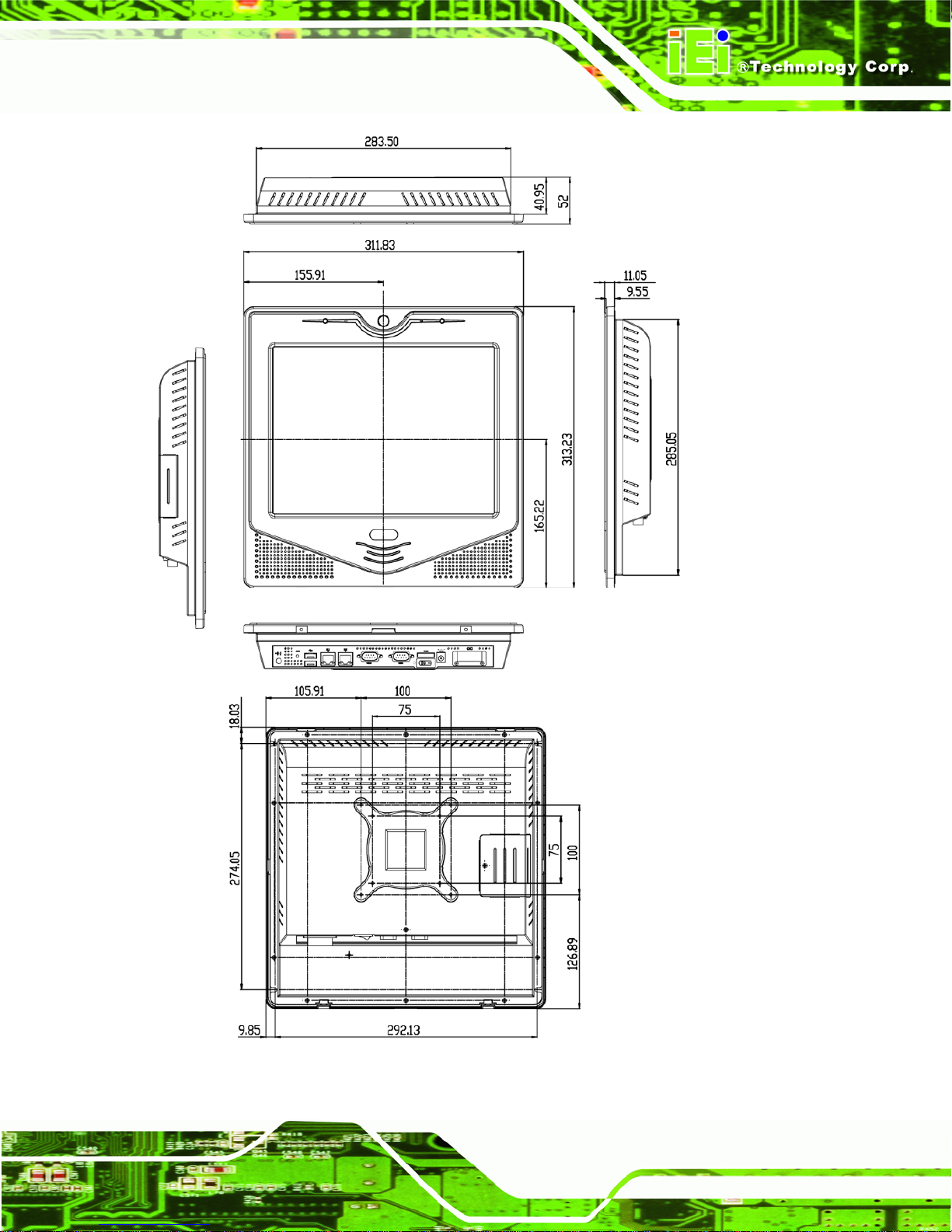

Figure 1-7: ACT-412A-N270 Dimensions (mm)..........................................................................21

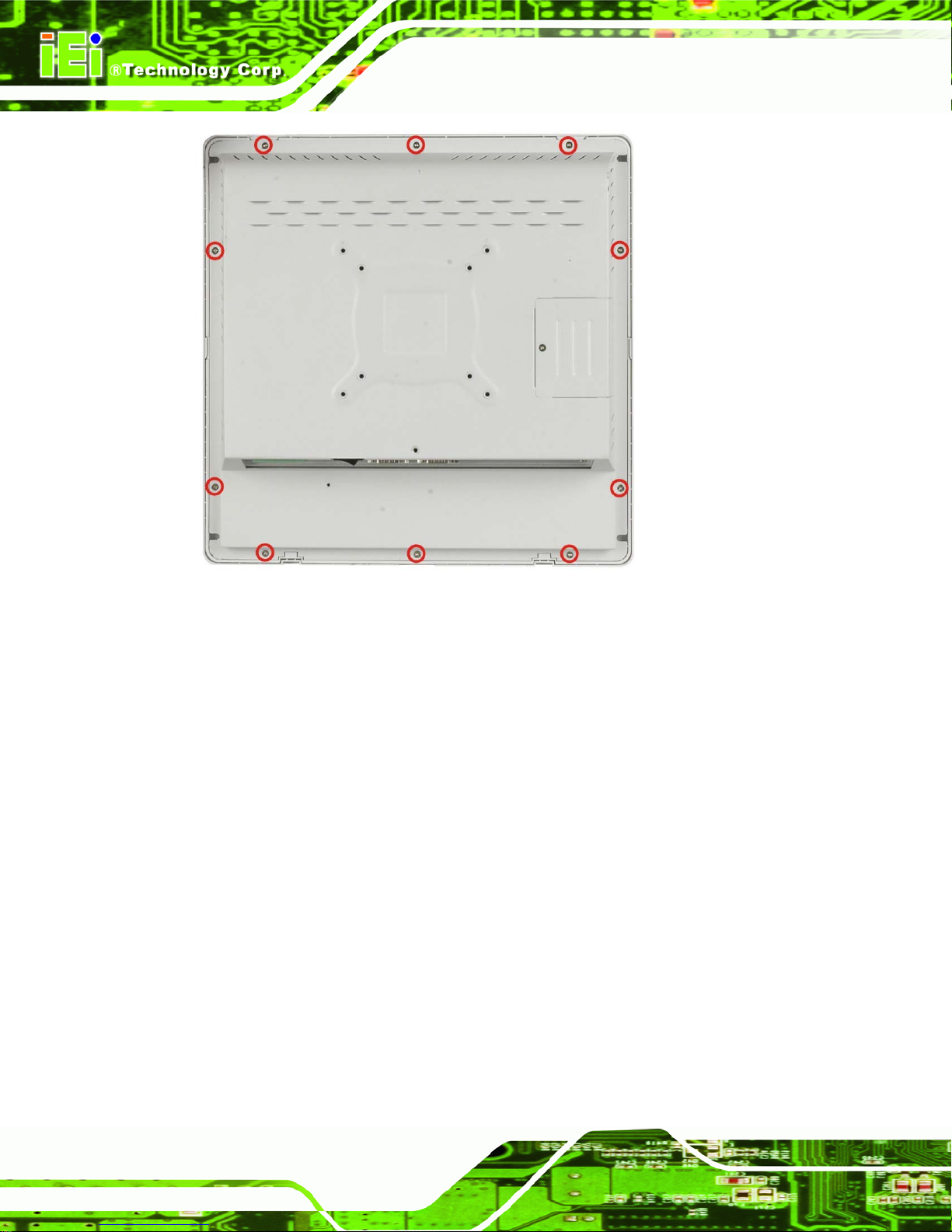

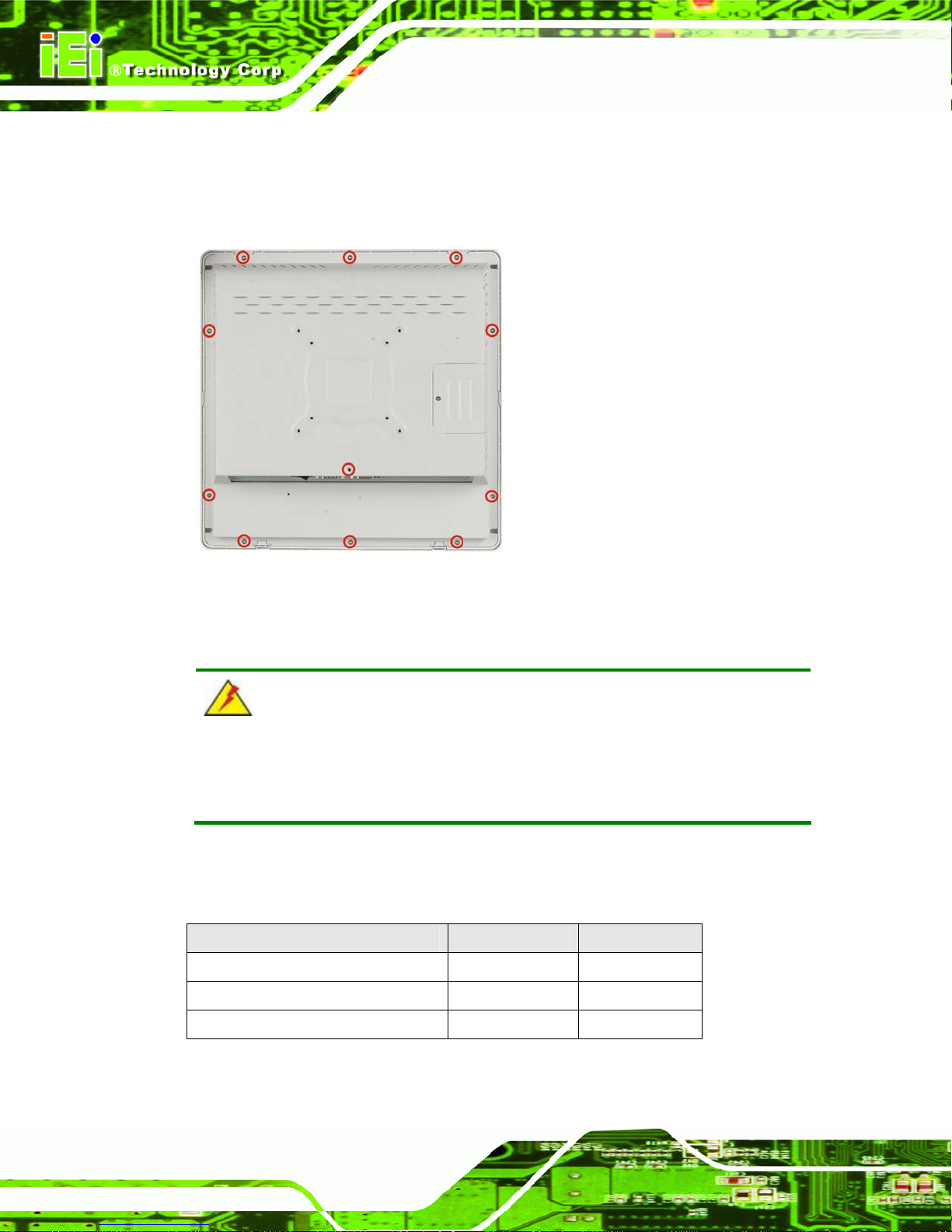

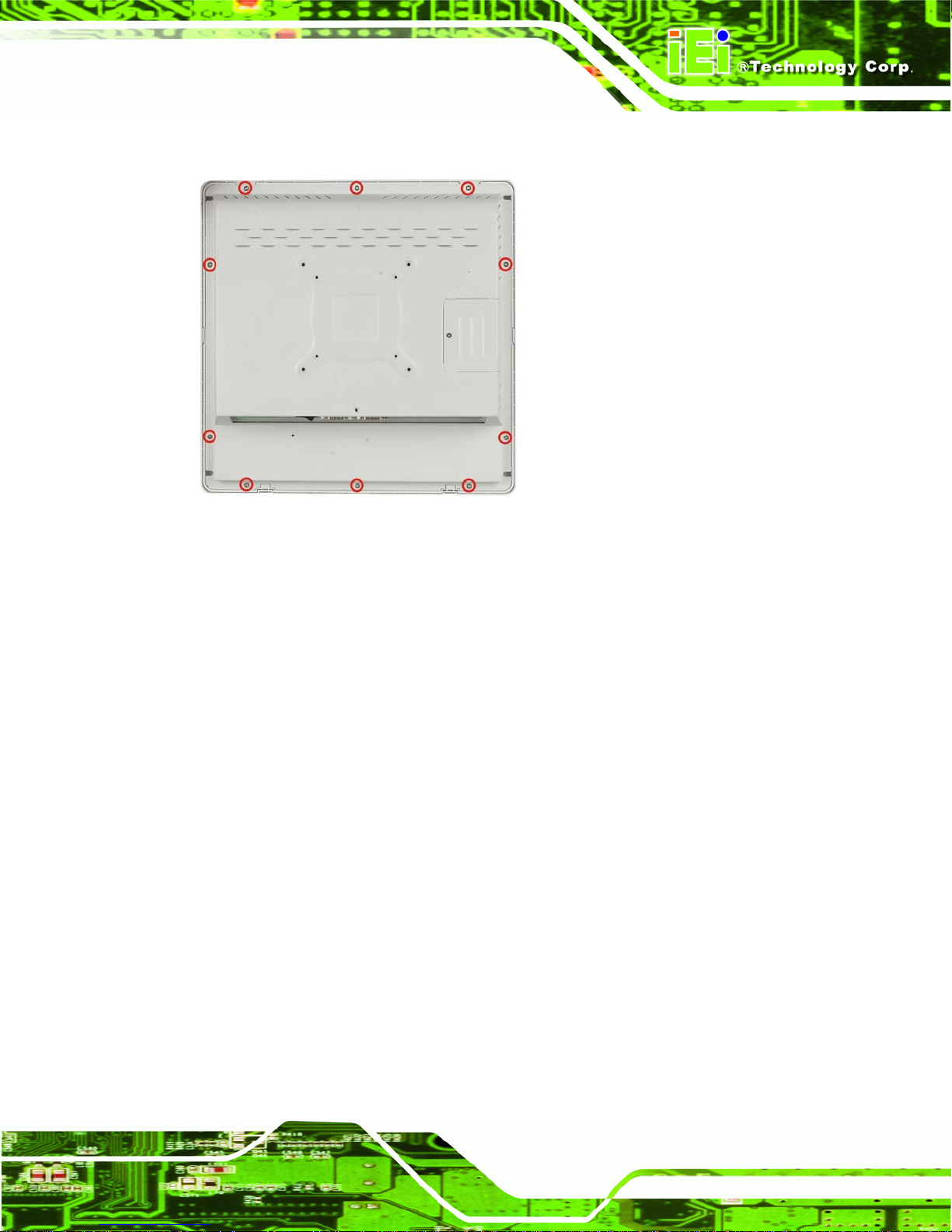

Figure 2-1: Rear Panel Retention Screws ..................................................................................27
Figure 2-2: HDD Retention Screws.............................................................................................28

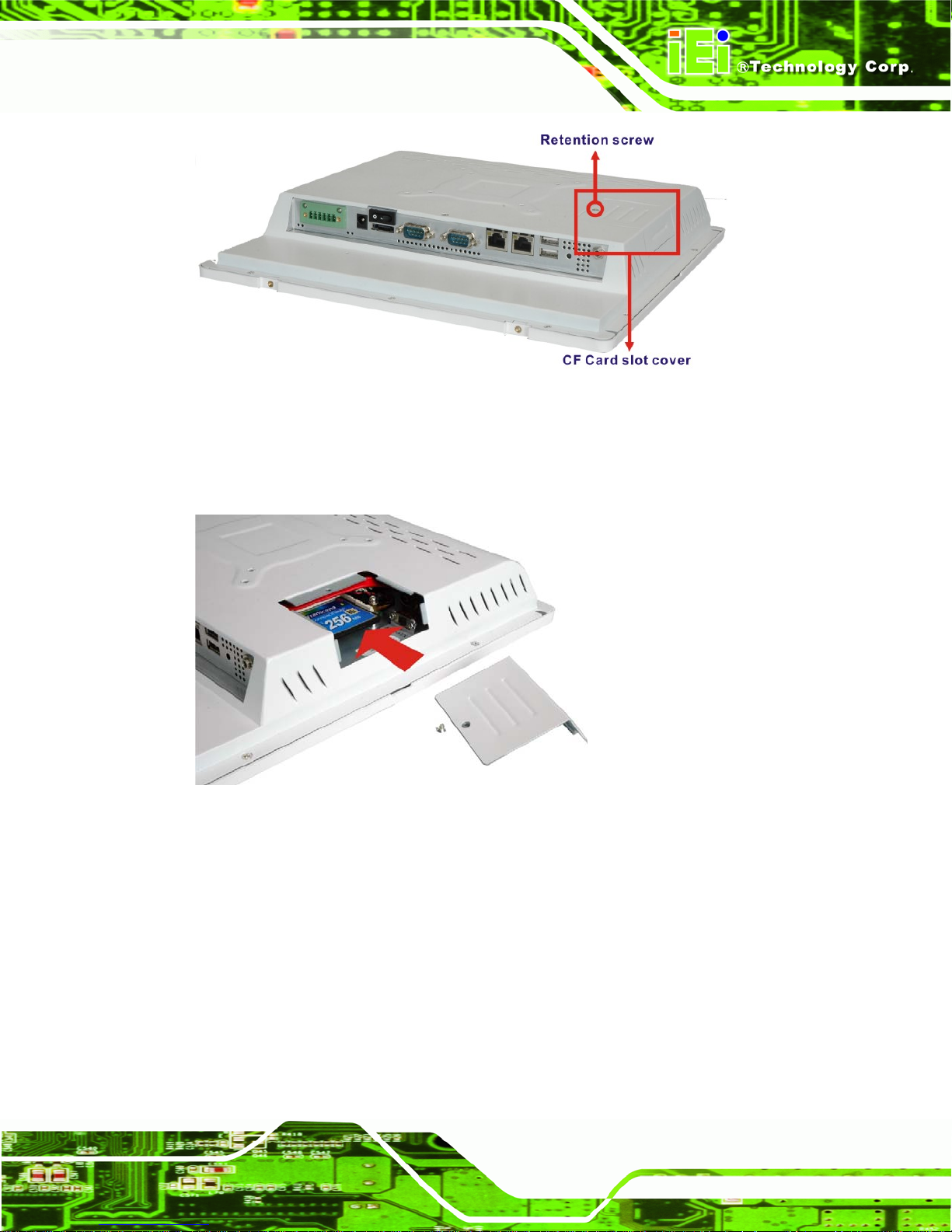

Figure 2-3: CF Card Slot Cover Location...................................................................................29
Figure 2-4: CF Card Installation..................................................................................................29
Figure 2-5: Rear Panel Retention Screws ..................................................................................32

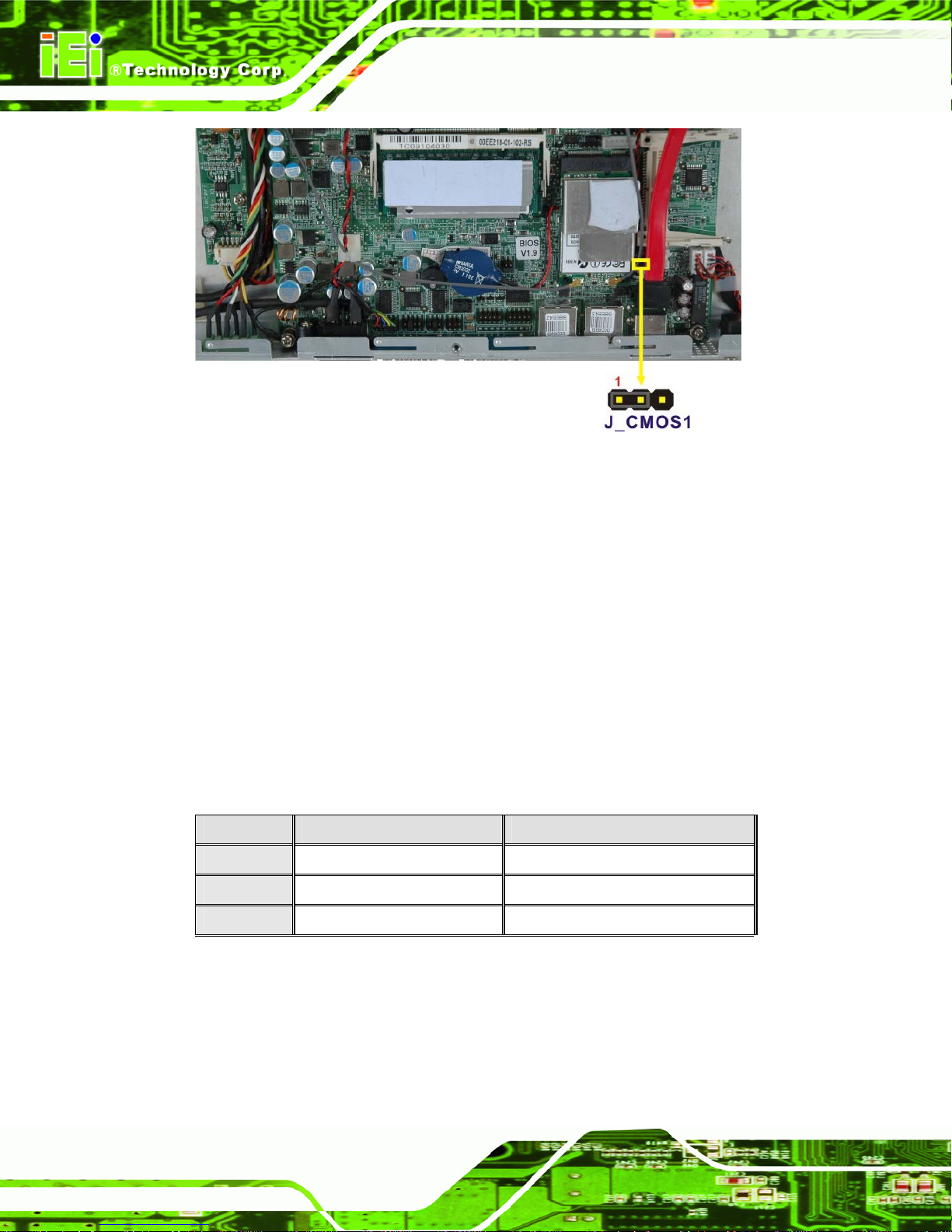

Figure 2-6: Clear CMOS Jumper .................................................................................................34

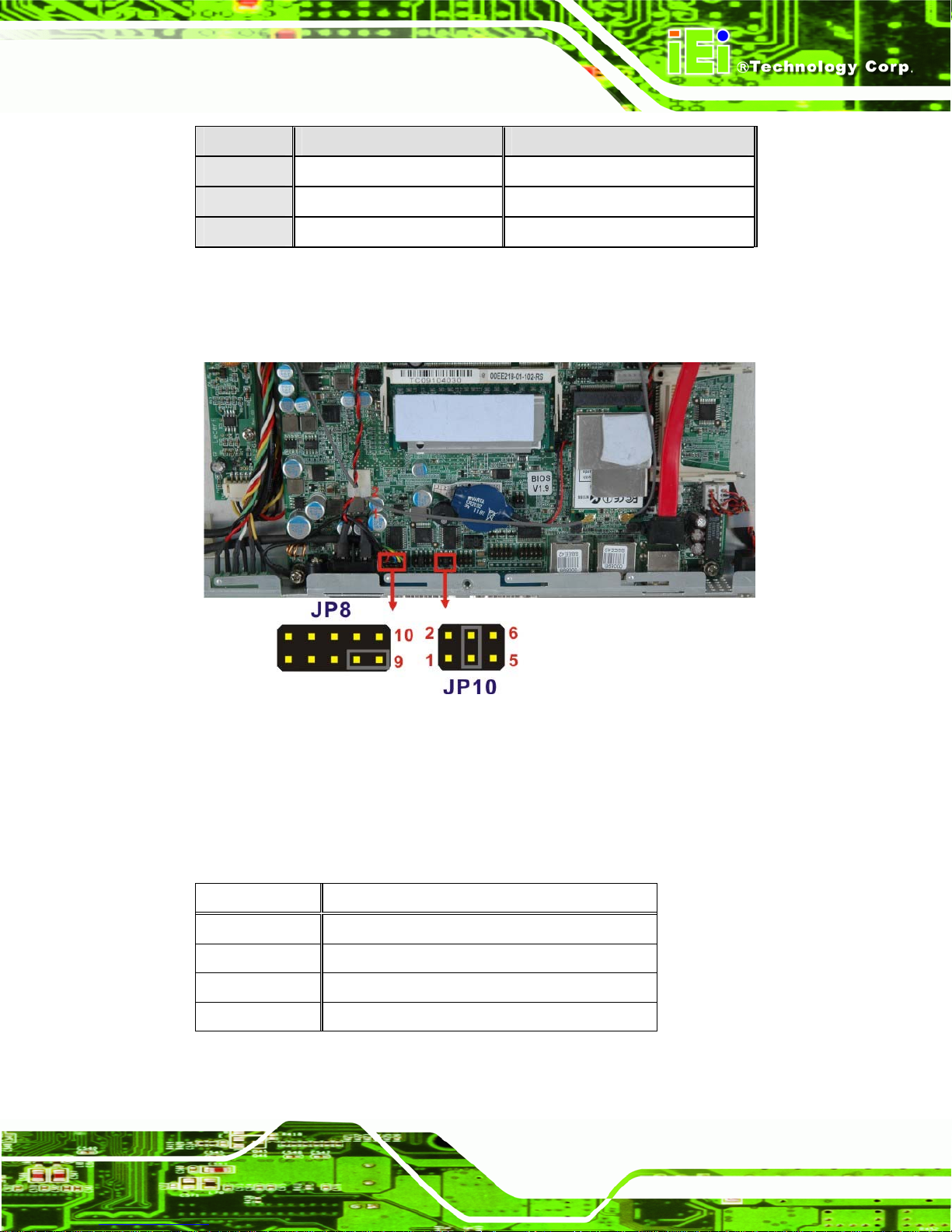

Figure 2-7: COM1 and COM3 Pin 9 Setting Jumper Locations................................................35

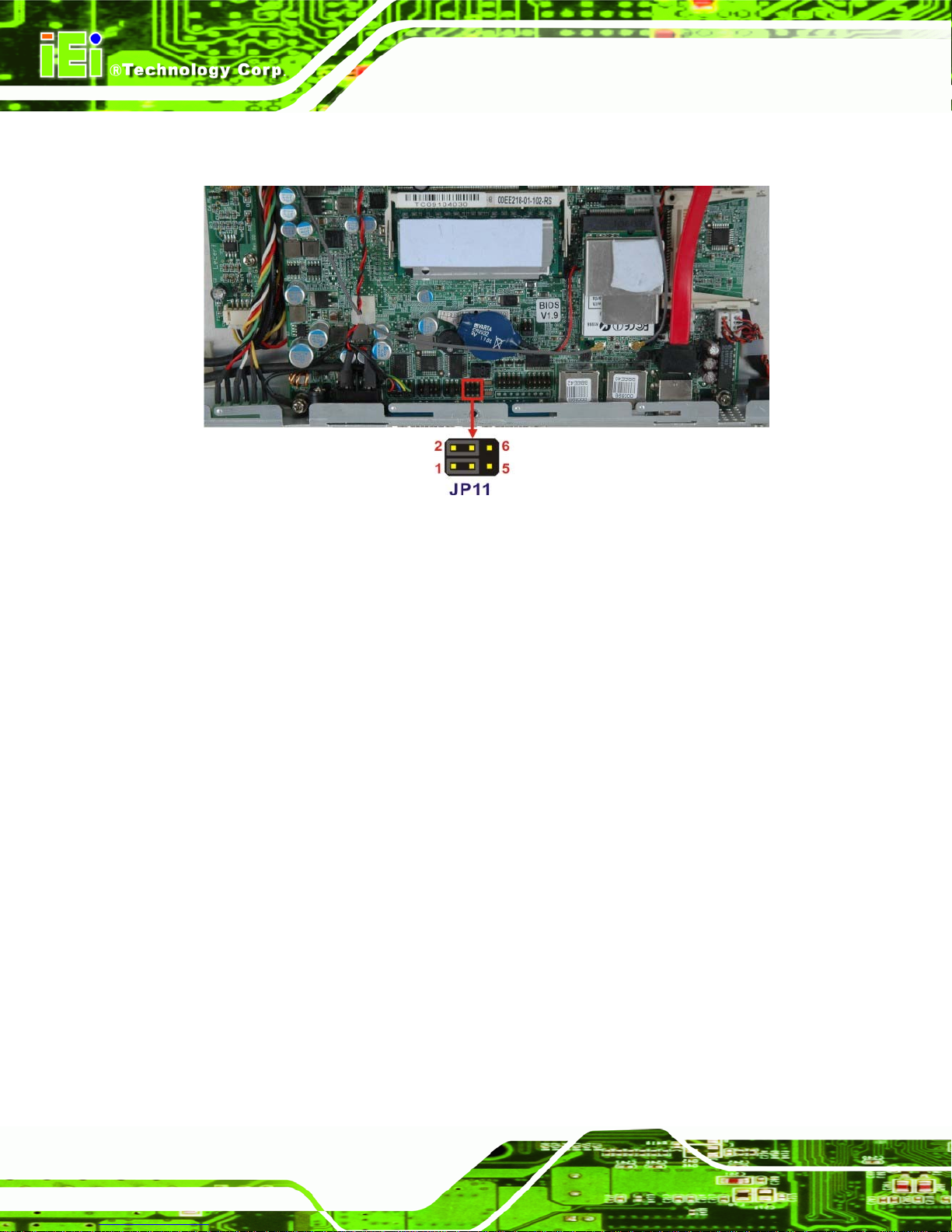

Figure 2-8: COM3 RX Function Select Jumper Location..........................................................37
Figure 2-9: COM3 TX Function Select Jumper Pinout Locations............................................38

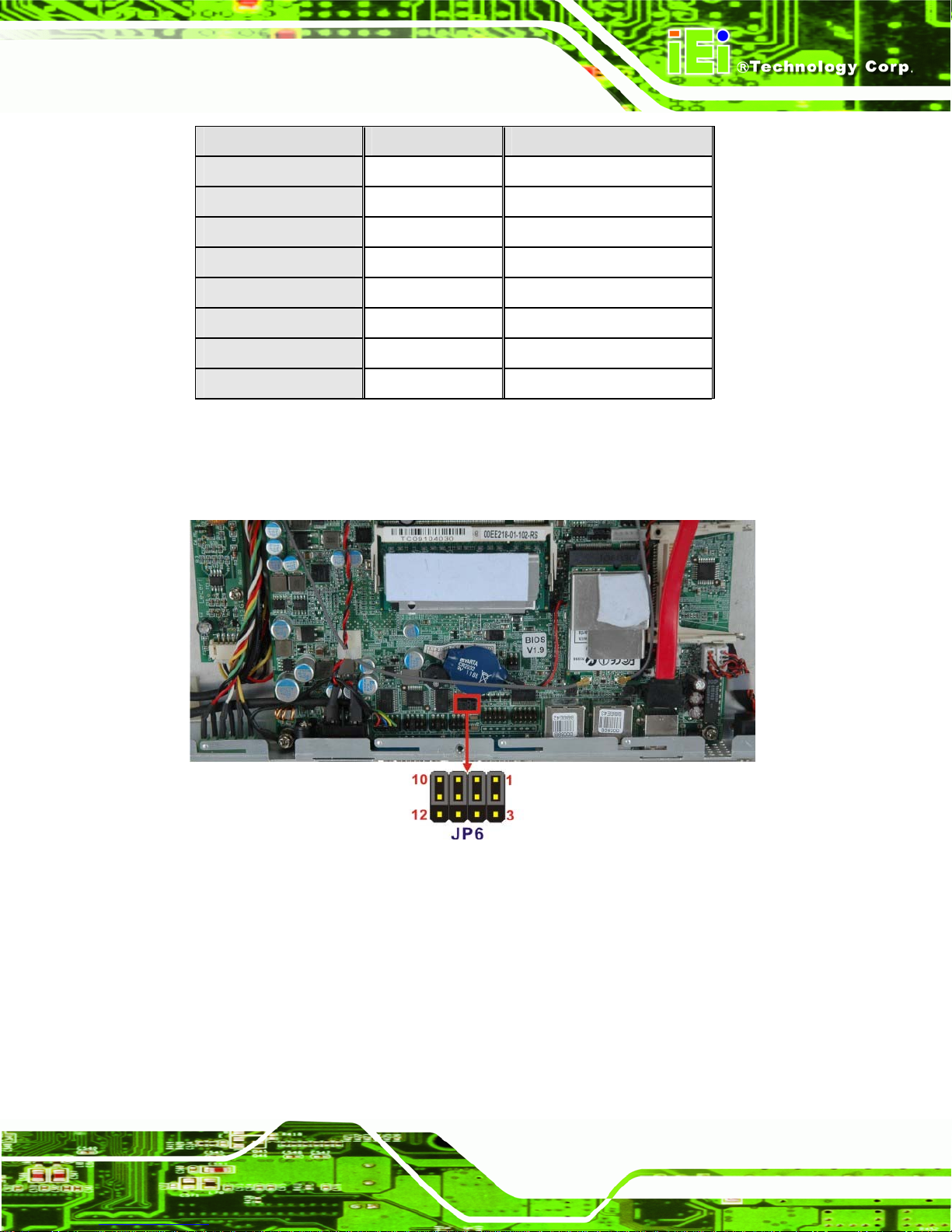

Figure 2-10: COM3 RS-232/422/485 Serial Port Select Jumper Location................................39

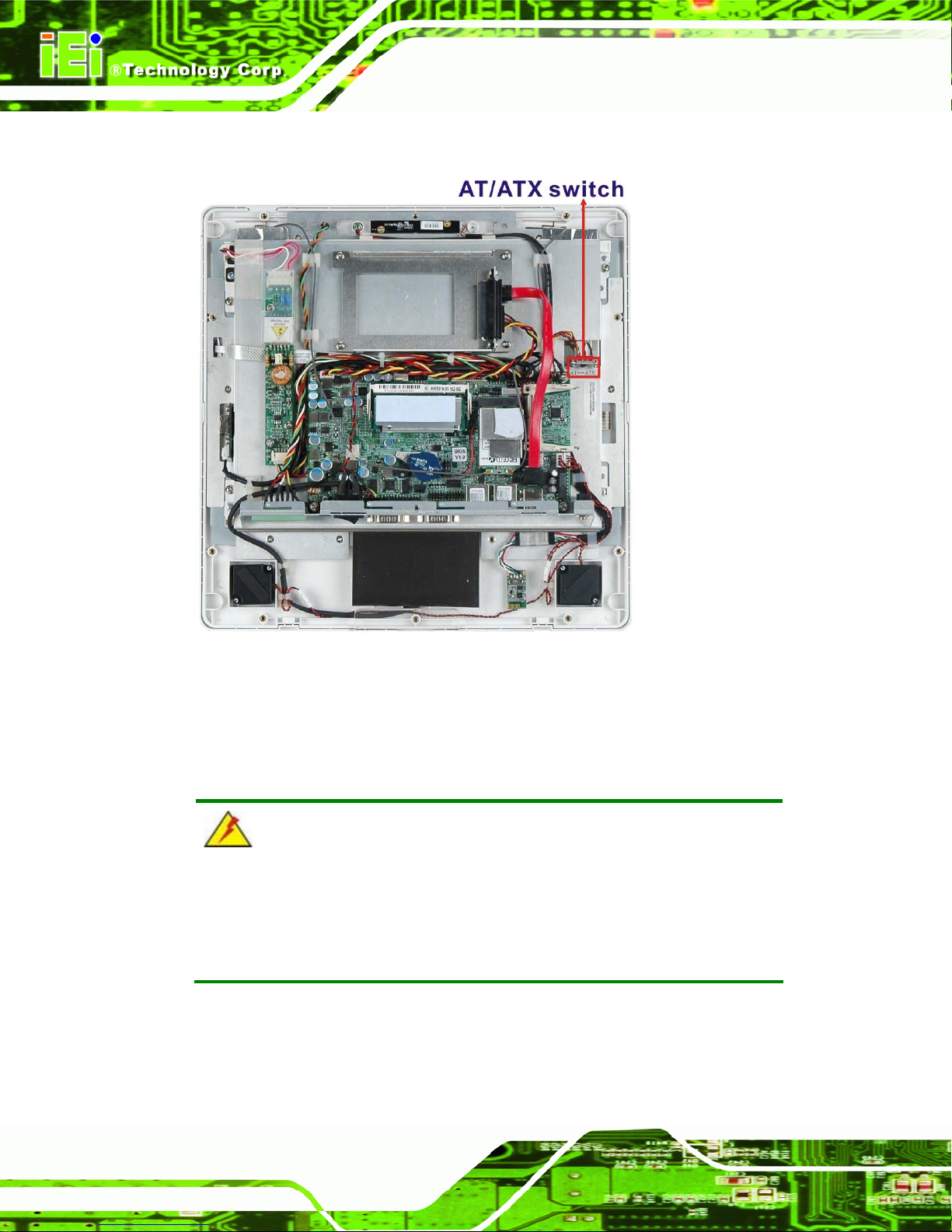

Figure 2-11: AT/ATX Switch.........................................................................................................40

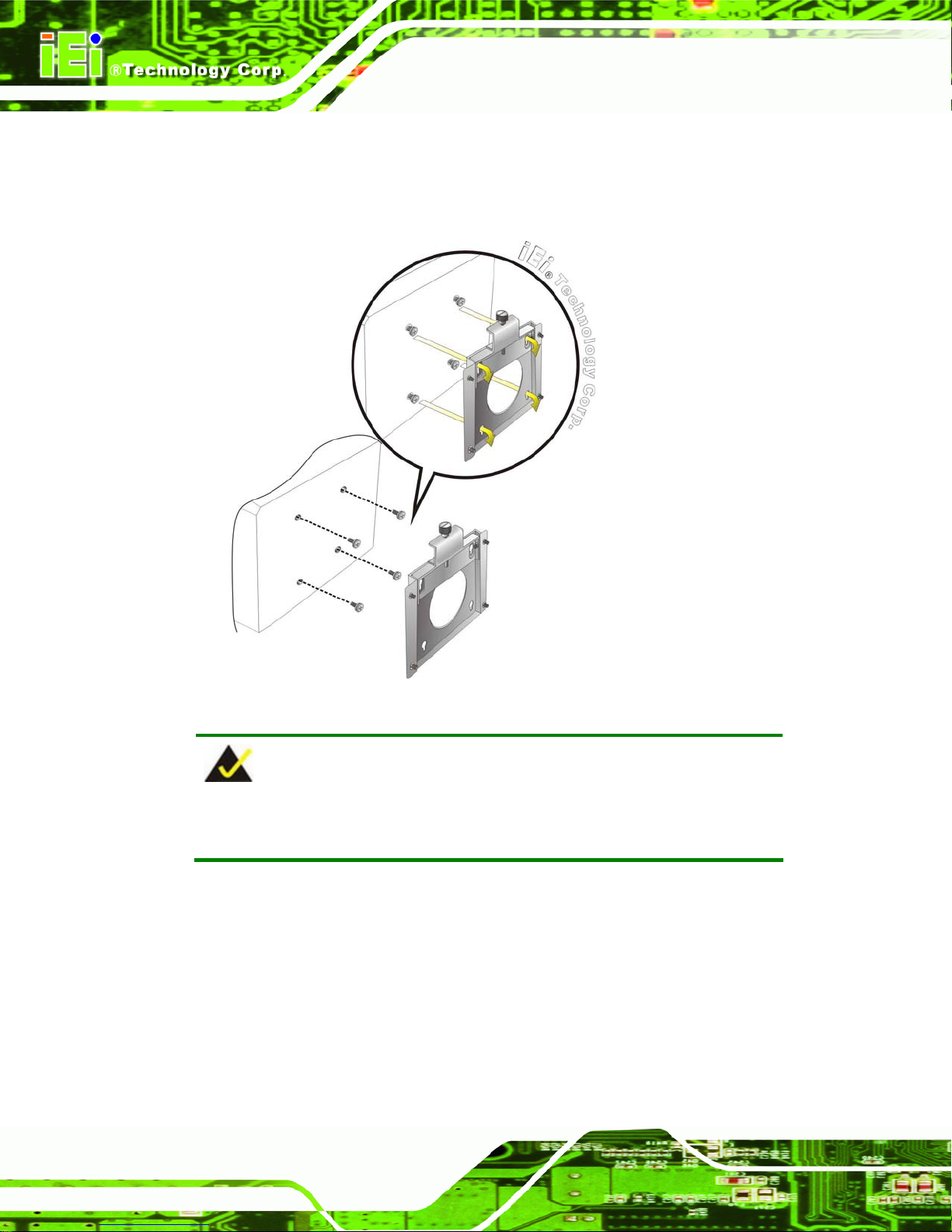

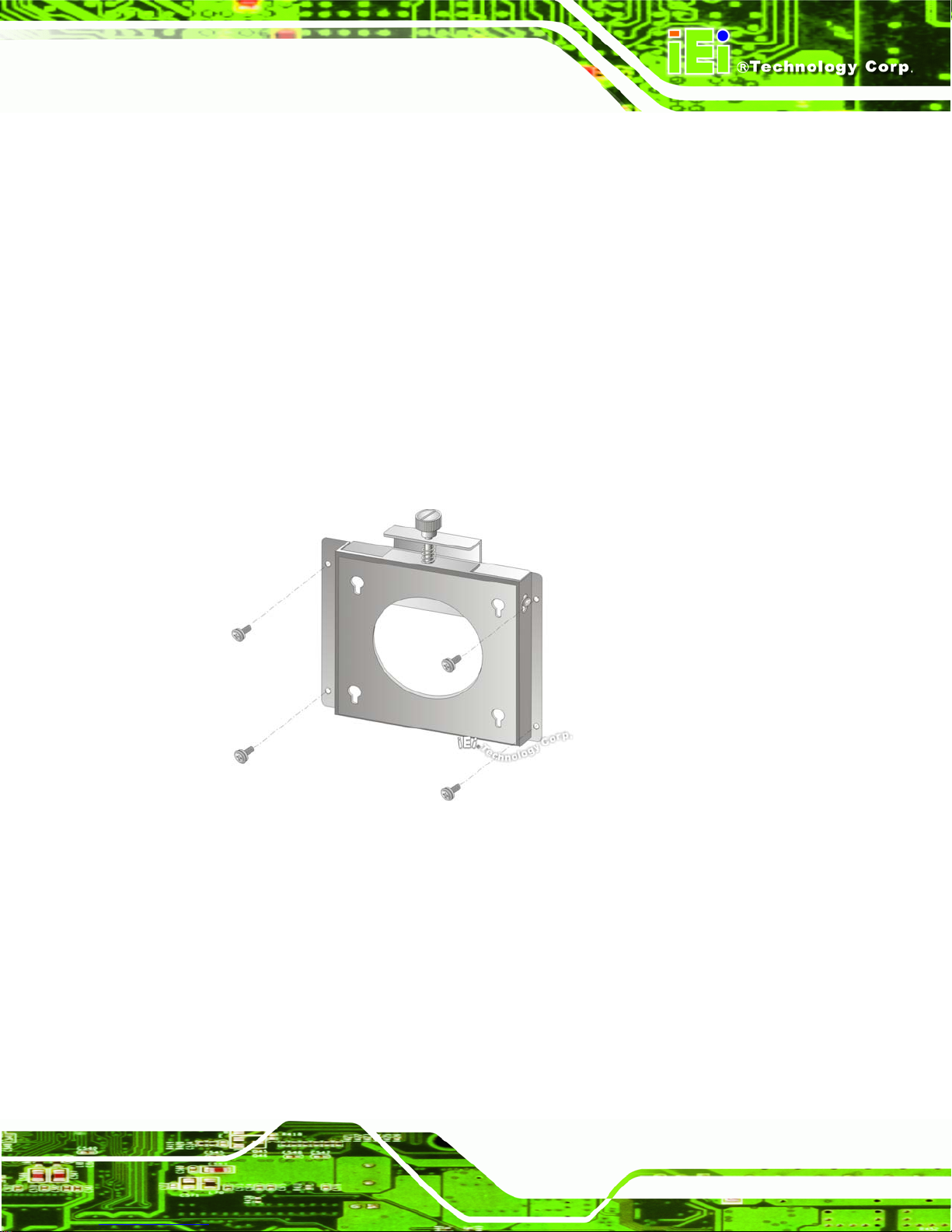

Figure 2-12: Wall-mounting Bracket...........................................................................................41
Figure 2-13: Chassis Support Screws........................................................................................42

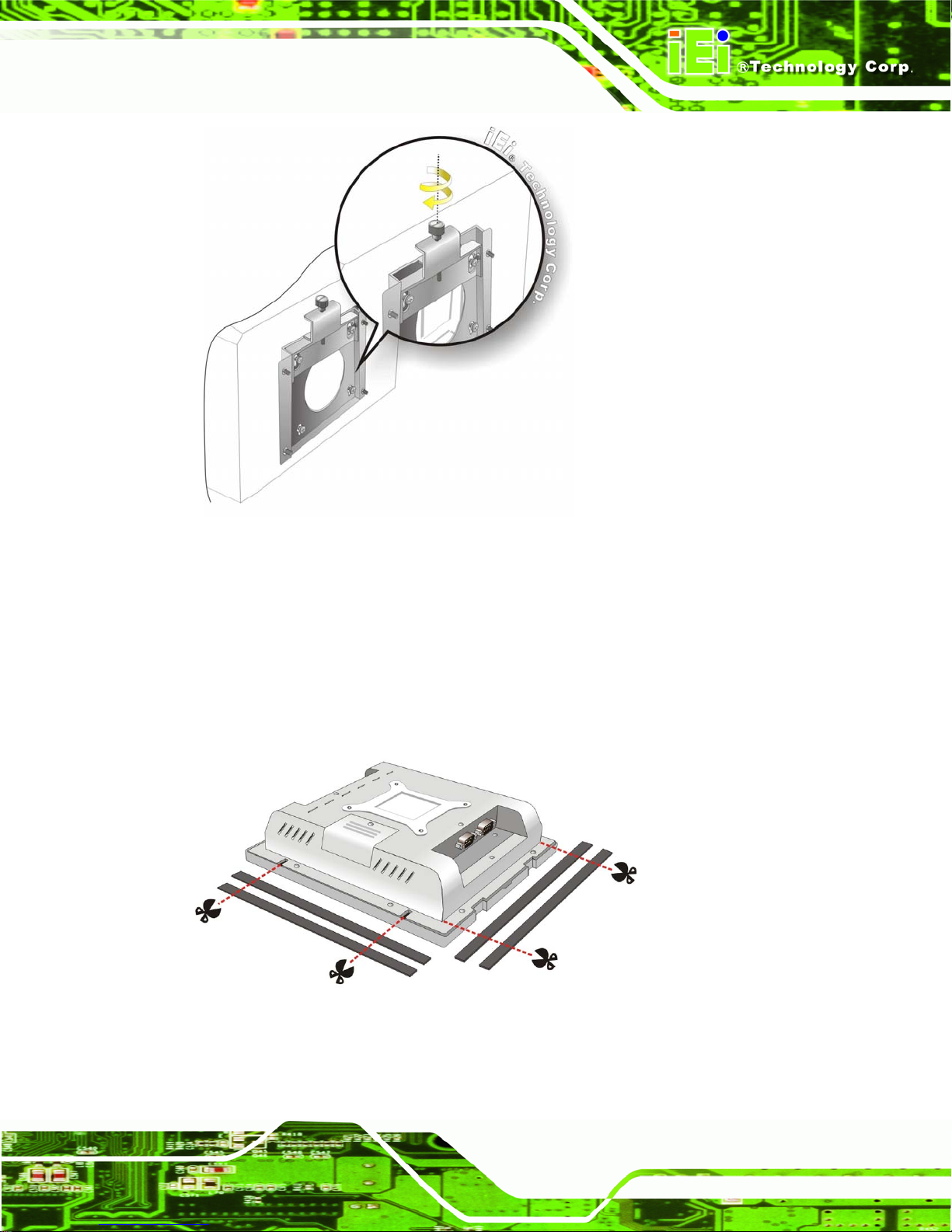

Figure 2-14: Secure the ACT-412A-N270....................................................................................43
Figure 2-15: Cut Foam Tape........................................................................................................43

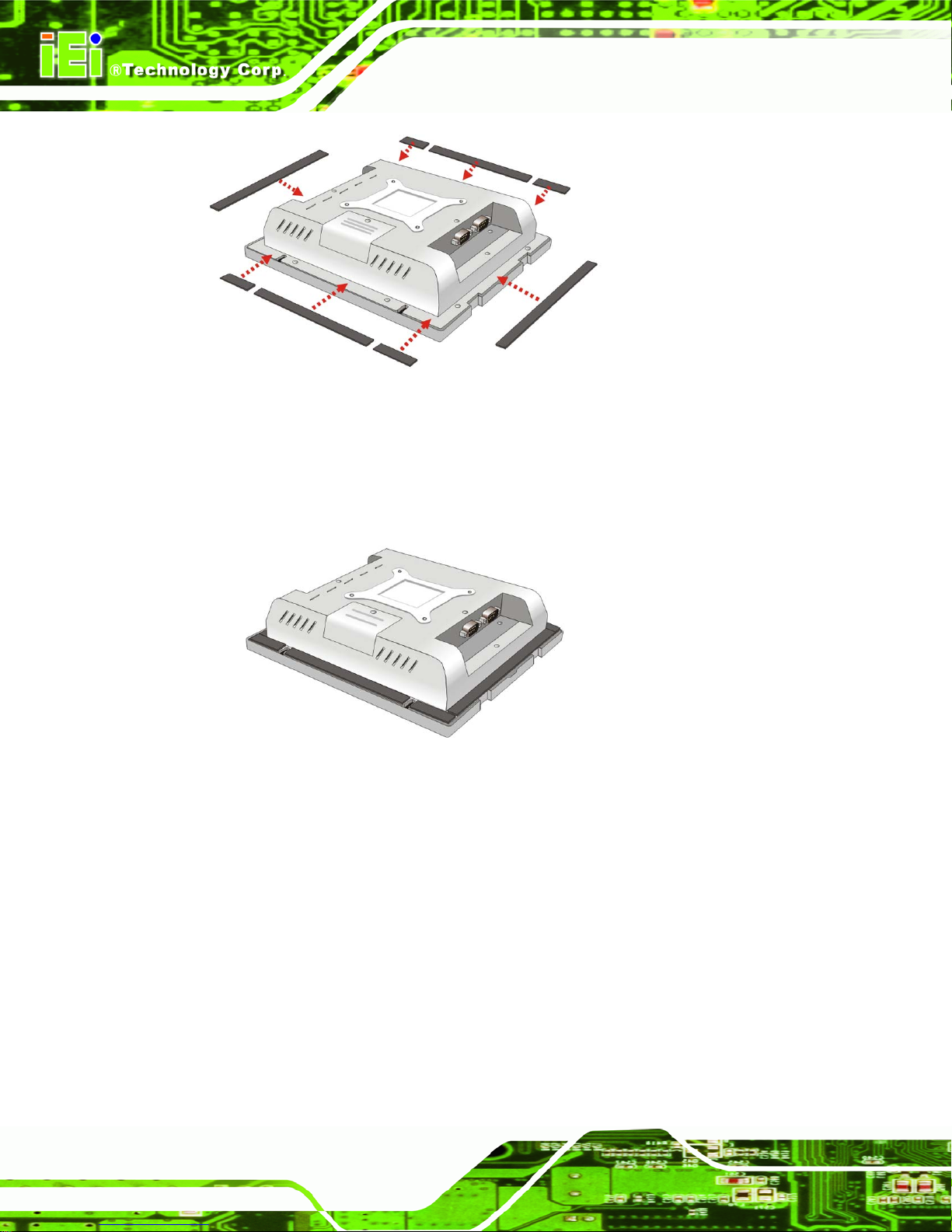

Figure 2-16: Attach Foam Tape...................................................................................................44
Figure 2-17: Foam Tape Installed................................................................................................44
Figure 2-18: ACT-412A-N270 Panel Opening.............................................................................45
Figure 2-19: Tighten the In-wall Mounting Screws....................................................................45
Figure 2-20: Faceplate Installation..............................................................................................46
Figure 2-21: ACT-412A-N270 Arm Mounting Retention Screw Holes .....................................47
Figure 2-22: LAN Connection......................................................................................................48
Figure 2-23: Serial Device Connector.........................................................................................49
Page viii
ACT-412A-N270 User Manual
Figure 2-24: USB Device Connection.........................................................................................50
Figure 3-1: InstallShield Wizard Welcome Screen....................................................................52
Figure 3-2: Customer Information Screen .................................................................................53
Figure 3-3: Setup Type Selection Screen...................................................................................53
Figure 3-4: Current Settings Confirmation Screen ...................................................................54
Figure 3-5: RF320 COM Port Settings.........................................................................................56

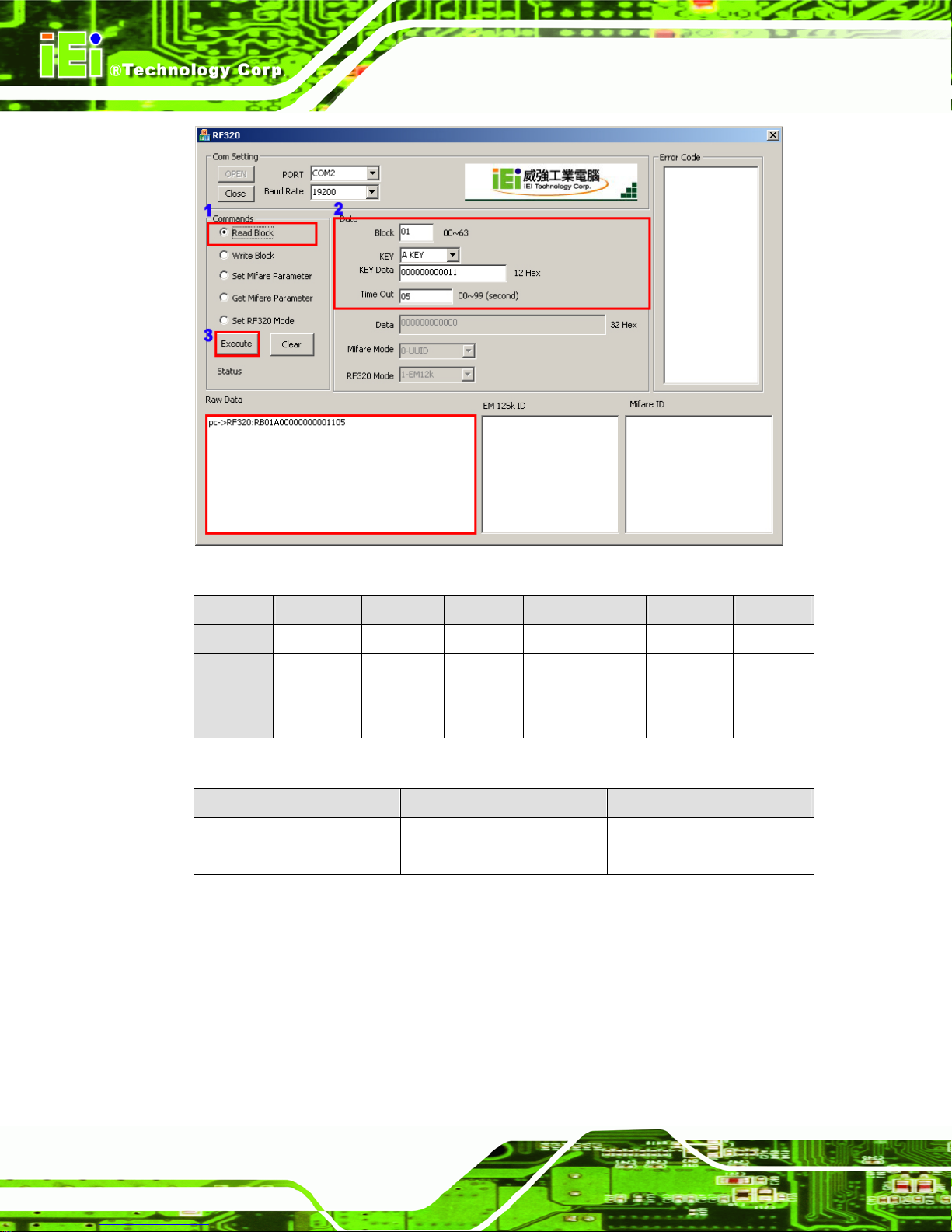

Figure 3-6: Read Block.................................................................................................................58
Figure 3-7: Write Block ................................................................................................................59
Figure 3-8: Set Mifare Parameter ................................................................................................61
Figure 3-9: Get Mifare Parameter................................................................................................62
Figure 3-10: Set RF-320 Mode.....................................................................................................63

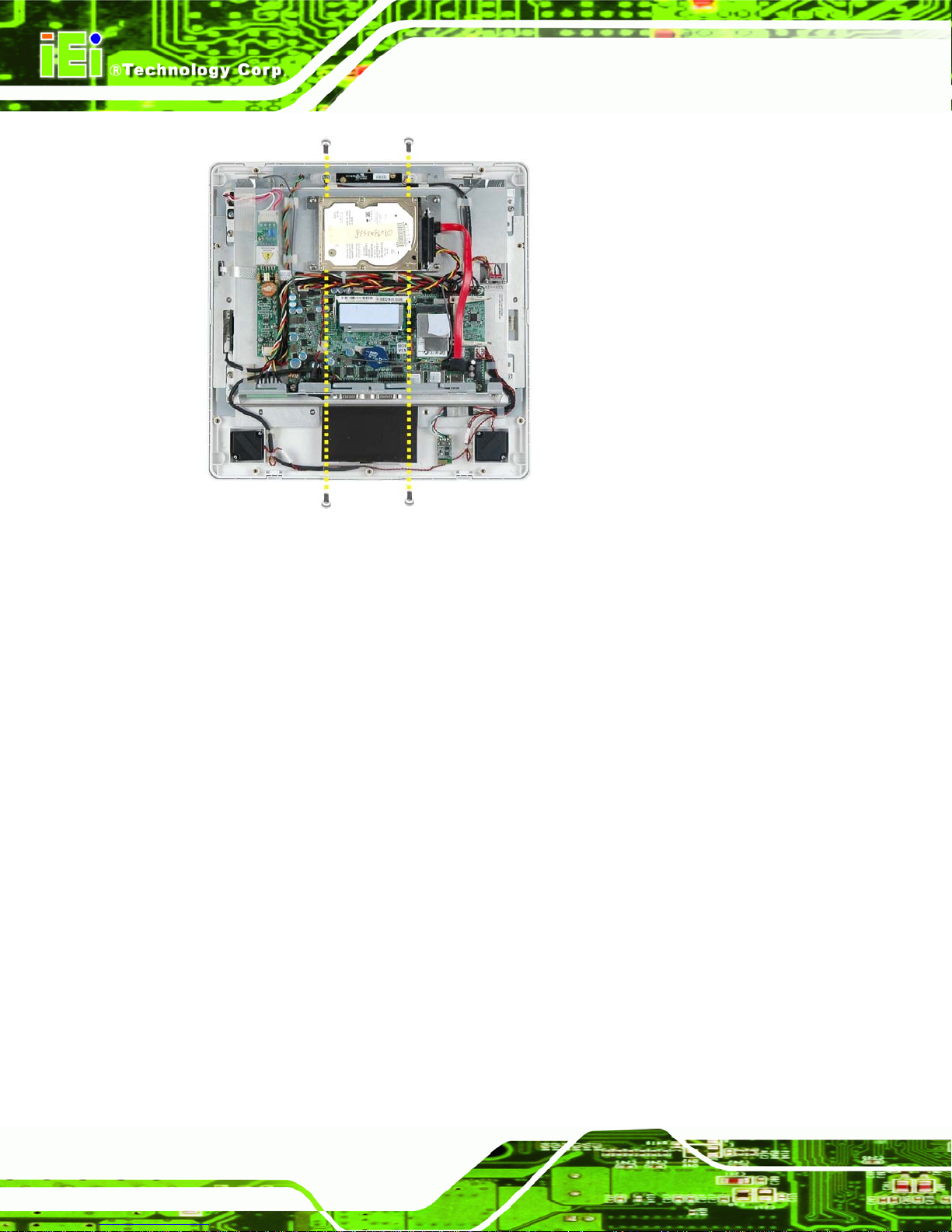

Figure 4-1: Rear Panel Retention Screws ..................................................................................68
Figure 4-2: SO-DIMM Socket Location .......................................................................................69
Figure 4-3: SO-DIMM Installation................................................................................................70
Figure 4-4: Wireless Module Location........................................................................................70
Page ix
ACT-412A-N270 User Manual
List of Tables
Table 1-1: ACT-412A-N270 System Specifications ...................................................................20
Table 2-1: Jumpers.......................................................................................................................31
Table 2-2: Preconfigured Jumpers .............................................................................................32
Table 2-3: Clear CMOS Jumper Settings....................................................................................33
Table 2-4: COM1 Pin 9 Setting Jumper Settings.......................................................................34
Table 2-5: COM3 Pin 9 Setting Jumper Settings.......................................................................35
Table 2-6: RS-422 Pinouts ...........................................................................................................35
Table 2-7: RS-485 Pinouts ...........................................................................................................36
Table 2-8: COM3 RX Function Select Jumper Settings............................................................36
Table 2-9: COM3 TX Function Select Jumper Settings.............................................................37
Table 2-10: COM3 RS-232/422/485 Serial Port Select Jumper Settings..................................39
Table 3-1: RF320 COM Port Settings..........................................................................................56
Table 3-2: Read Block Raw Data Format....................................................................................58
Table 3-3: Read Block Response Format...................................................................................58
Table 3-4: Write Block Raw Data Format ...................................................................................60
Table 3-5: Write Block Response Format ..................................................................................60
Table 3-6: Set Mifare Parameter Raw Data Format ...................................................................61
Table 3-7: Set Mifare Parameter Response Format ..................................................................61
Table 3-8: Get Mifare Parameter Raw Data Format...................................................................62
Table 3-9: Get Mifare Parameter Response Format..................................................................62
Table 3-10: Set RF320 Mode Raw Data Format .........................................................................64
Table 3-11: Set RF320 Mode Response Format ........................................................................64
Table 5-1: BIOS Navigation Keys................................................................................................74
Page x
ACT-412A-N270 User Manual
BIOS Menus
BIOS Menu 1: Main.......................................................................................................................75
BIOS Menu 2: Advanced..............................................................................................................76
BIOS Menu 3: CPU Configuration...............................................................................................77
BIOS Menu 4: IDE Configuration.................................................................................................78
BIOS Menu 5: IDE Master and IDE Slave Configuration...........................................................79
BIOS Menu 6: Super I/O Configuration.......................................................................................84
BIOS Menu 7: Hardware Health Configuration..........................................................................86
BIOS Menu 8: APM Configuration...............................................................................................89
BIOS Menu 9: General ACPI Configuration ...............................................................................90
BIOS Menu 10: APM Configuration.............................................................................................91
BIOS Menu 11: Remote Access Configuration..........................................................................93
BIOS Menu 12: USB Configuration.............................................................................................97
BIOS Menu 13: PCI/PnP Configuration.......................................................................................99
BIOS Menu 14: Boot.................................................................................................................. 101
BIOS Menu 15: Boot Settings Configuration.......................................................................... 102
BIOS Menu 16: Boot Device Priority Settings ........................................................................ 104
BIOS Menu 17: Hard Disk Drives ............................................................................................. 105
BIOS Menu 18: Removable Drives........................................................................................... 106
BIOS Menu 19: CD/DVD Drives ................................................................................................ 107
BIOS Menu 20: Security............................................................................................................ 107
BIOS Menu 21: Chipset............................................................................................................. 109
BIOS Menu 22: Northbridge Chipset Configuration............................................................... 109
BIOS Menu 23:Southbridge Chipset Configuration............................................................... 112
BIOS Menu 24:Exit..................................................................................................................... 113
Page xi
ACT-412A-N270 User Manual
Chapter
1
1 Introduction
Page 12
ACT-412A-N270 User Manual
1.1 ACT-412A-N270 All-in-One Access Control Terminal
Figure 1-1: ACT-412A-N270 All-in-One Access Control Terminal
The ACT-412A-N270 is 1.6 GHz Intel® Atom™ powered access control terminal with a
RFID reader and a rich variety of functions. The ACT-412A-N270 is designed for easy and
simplified integration in to access control applications.
An Intel® 945GSE graphics memory controller hub (GMCH) coupled with an Intel®
ICH7M input/output controller hub ensures optimal memory, graphics, and peripheral I/O
support. The system comes with 1 GB of preinstalled DDR2 SDRAM and supports a
maximum of 2.0 GB of DDR2 SDRAM ensuring smooth data throughputs with reduced
bottlenecks and fast system access.
Two serial ports and two external USB 2.0 ports ensure simplified connectivity to a variety
of external peripheral devices. Wi-Fi capabilities and two RJ-45 Ethernet connectors
ensure smooth connection of the system to an external LAN.
1.1.1 Features
The ACT-412A-N270 features the following:
12.1” TFT LCD with resistive type touch screen
Page 13
1.1.2 Applications
ACT-412A-N270 User Manual
1.6 GHz Intel® Atom™ CPU with 512 KB L2 cache preinstalled
Built-in RFID reader supports Mifare card and EM card read/write
Preinstalled 1 GB DDR2 memory module
802.11 b/g wireless module
One RS-232 port and one RS-232/422/485 port
Three USB 2.0 ports
CompactFlash® Type II slot
Provides RFID configuration tool to read or write Mifare tags and EM tags
Built-in digital camera and microphone
Built-in 2.0 W stereo speakers
IP 64 compliant front panel
RoHS compliance
The ACT-412A-N270 is elegant yet sophisticated systems that are easily implemented in
diverse environments including:
Door access
Time attendance
Cashless payment terminal
Parking access control
1.2 External Overview
The stylish ACT-412A-N270 access control terminal comprises of a screen, front and rear
panels. An ABS/PC plastic front frame surrounds the front screen. The rear panel provides
screw holes for a wall-mounting bracket compliant with VESA FDMI standard. An I/O
interface panel on the rear panel provides access to external interface connectors that
include LAN, USB 2.0, serial port, reset button, power connector and power switch.
1.2.1 Front Panel
The front side of the ACT-412A-N270 is a flat panel TFT LCD screen surrounded by an
ABS/PC plastic hard cover. The top of the front panel has a 300K pixel digital camera, two
microphones, a power LED indicator, power button, a USB port, a RFID reader for
Mifare/EM tag and two speakers for stereo sound (
Page 14
Figure 1-2).
ACT-412A-N270 User Manual
Figure 1-2: ACT-412A-N270 Front View
Figure 1-3: Front View (Faceplate Removed)
Page 15
1.2.2 RFID Reader
A RFID reader is integrated in the front panel and supports Mifare 13.56 MHz or EM
125 KHz RFID tags. The ACT-412A-N270 also came with a RFID tool to read or write data
on or into the Mifare tags or EM tags. Please refer to Chapter 5 for detailed description of
the RFID tool (RF320).
1.2.3 Rear Panel

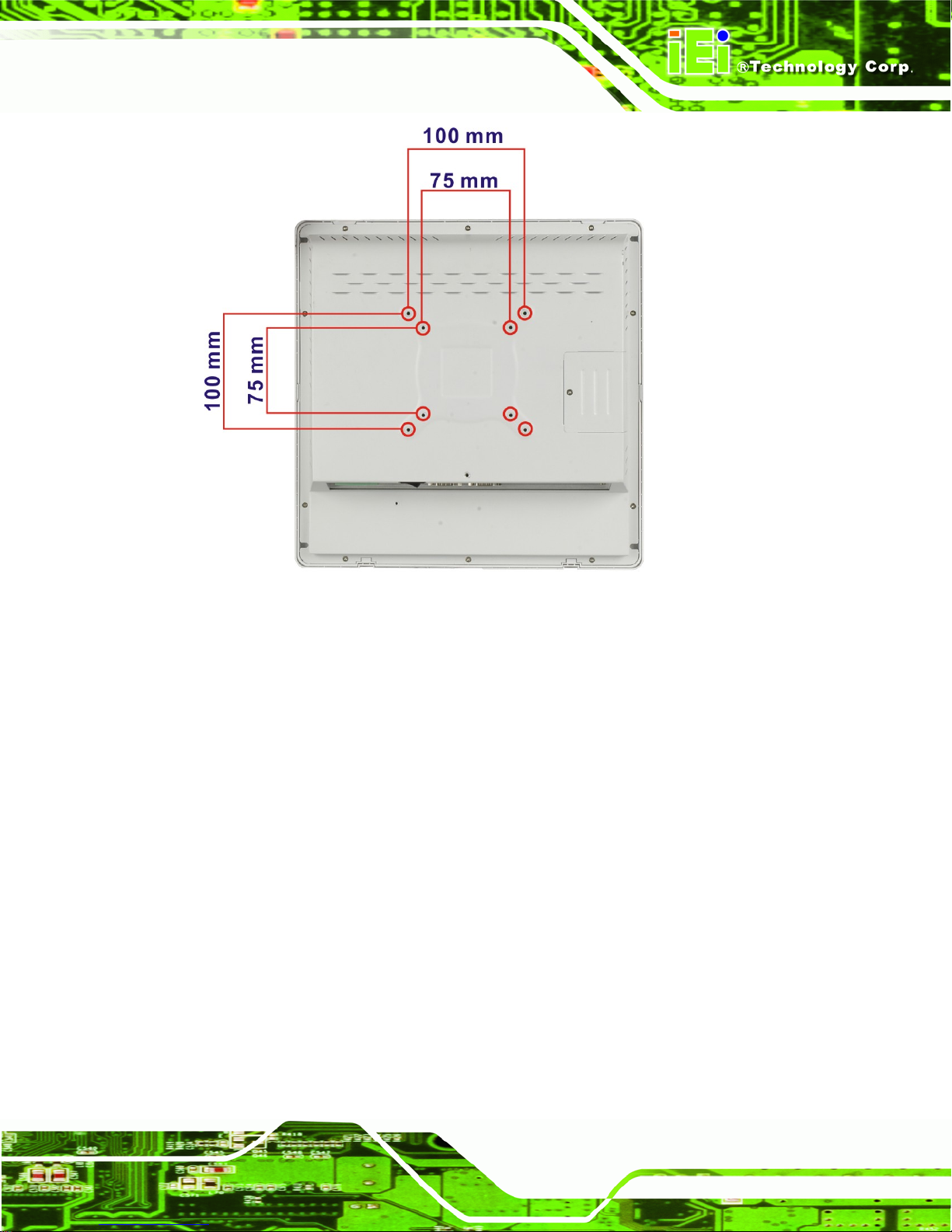

The rear panel provides access to retention screw holes that support the VESA 75 and
ACT-412A-N270 User Manual
100 mounting. Refer to
Figure 1-4.

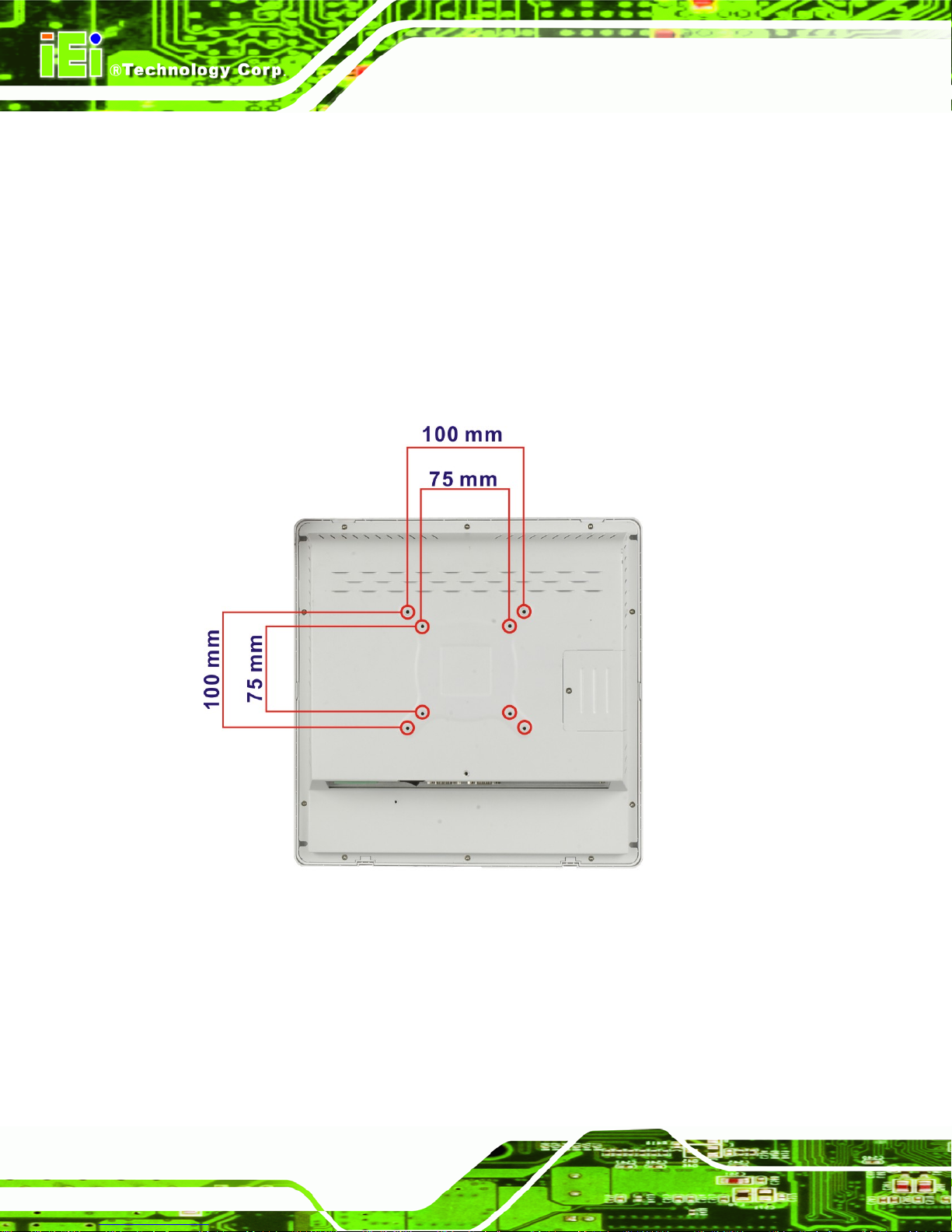

Figure 1-4: ACT-412A-N270 Rear View
1.2.4 Bottom Panel
The I/O interface panel located on the bottom panel of the ACT-412A-N270 (Figure 1-5)
has the following I/O interface connectors:
1 x 12 V DC power jack
Page 16
ACT-412A-N270 User Manual
1 x Audio jack
1 x Power switch
1 x External SATA connector
1 x RS-232 port
1 x RS-232 or RS-422/485 port
2 x RJ-45 GbE LAN connectors
2 x USB 2.0 ports
1 x Reset button
The external I/O interface connectors on the rear panel are shown in
Figure 1-5: ACT-412A-N270 Bottom View
Figure 1-5.
1.2.5 CompactFlash® Slot
The system can also support a CompactFlash® Type II (CF Type II) memory disk.
Figure 1-6: CompactFlash® Slot
Page 17
1.3 Internal Overview
The ACT-412A-N270 has the following components installed internally:
1 x Motherboard
1 x 1 GB DDR2 SDRAM SO-DIMM
1 x Wireless module
1 x RFID reader
2 x Speakers
1 x Digital camera
2 x Microphones
1.4 Specifications
The ACT-412A-N270 has the following preinstalled components:
ACT-412A-N270 User Manual
1 x Motherboard
1 x TFT LCD screen
1 x Touch screen
1 x Inverter
1 x Wireless LAN module
1 x DDR2 memory module
1 x AT/ATX switch
The following section lists the system specifications. The technical specifications for some
other preinstalled components are shown in the Appendix A.
1.4.1 System Specifications
The technical specifications for the ACT-412A-N270 system are listed in Table 1-1.
Specification ACT-412A-N270
LCD Size
12.1”
Max. Resolution
Brightness
Contrast Ratio
Page 18
1024 x 768
500 cd/m
700:1
2
ACT-412A-N270 User Manual
LCD Color
Pixel Pitch (mm)
Viewing Angle (H-V)
Backlight MTBF
SBC Model
CPU
GMCH
Memory
LAN
SSD
HDD
Watchdog Timer
Audio
262 K
0.3075 (H) x 0.3075 (V)
160 (H) / 160 (V)
60,000 hours
AFLMB2-945GSE-N270-R10
1.6 GHz Intel® Atom™ CPU with 512 KB L2 cache
Intel® 945GSE + ICH7M
1 GB DDR2 SDRAM SO-DIMM (system max. 2 GB)
Two Realtek RTL8111CP PCIe GbE Controllers
CF Type II
One 2.5” SATA HDD bay
Software Programmable supports 1 sec. ~ 255 sec. system reset
ALC888 HD Audio codec
AMP 2.0 W + AMP 2.0 W (built-in stereo speakers)
Expansion
Camera and MIC
RFID
Construction Material
Front Panel Color
Mounting
Dimensions (W x H x D)
(mm)
Operation Temperature
Net weight
IP level (front panel)
EMC
One PCIe Mini card slot (for wireless LAN 802.11 b/g module)
Built-in 300 K pixel camera and microphone
Supports MIFARE and EM RFID
ABS + PC plastic front frame
Aluminum alloy chassis
Blue and White
Panel, Wall, Stand or Arm (VESA 75 x 75 mm, 100 x 100 mm)
244.69 x 251.72 x 53.3
-10ºC ~ 50ºC with CF card or SSD SATA HDD
0ºC ~ 45ºC with SATA HDD
2.842 kg
IP 64
CE and FCC
Safety
CB and CCC
Page 19
ACT-412A-N270 User Manual
Touch Screen
Power Adapter
Power Consumption
I/O Ports and Switches
(Rear Panel)
Table 1-1: ACT-412A-N270 System Specifications
5-wire resistive type
12 V DC output, 100 ~ 264 V AC, 50/60 Hz input (60 W max)
38 W
One 12 V DC power jack
One Power switch
One 6-pin terminal block for signal input (2 x Digital Input, 2 x
Digital Output)
One eSATA port
One Audio line-out jack
One RS-232 COM port
One RS-232/422/485 COM port
Two RJ-45 GbE LAN connectors
Three USB 2.0 ports (one on front panel)
One Reset button
1.5 Dimensions
The dimensions of the ACT-412A-N270 are shown in Figure 1-7 and listed below.
Width: 244.69 mm
Height: 251.72 mm
Depth: 53.3 mm
Page 20
ACT-412A-N270 User Manual
Figure 1-7: ACT-412A-N270 Dimensions (mm)
Page 21
ACT-412A-N270 User Manual
Chapter
2
2 Installation
Page 22
ACT-412A-N270 User Manual
2.1 Unpacking
To unpack the access control terminal, follow the steps below:
WARNING!
The front side LCD screen has a protective plastic cover stuck to the
screen. Only remove the plastic cover after the ACT-412A-N270 has been
properly installed. This ensures the screen is protected during the
installation process.
Step 1: Use box cutters, a knife or a sharp pair of scissors that seals the top side of the
external (second) box.
Step 2: Open the external (second) box.
Step 3: Use box cutters, a knife or a sharp pair of scissors that seals the top side of the
internal (first) box.
Step 4: Lift the monitor out of the boxes.
Step 5: Remove both polystyrene ends, one from each side.
Step 6: Pull the plastic cover off the ACT-412A-N270.
Step 7: Make sure all the components listed in the packing list are present. Step 0:
2.1.1 Packing List
The ACT-412A-N270 access control terminal is shipped with the following components:
Page 23
Quantity Item Image
1 ACT-412A-N270
access control
terminal
1 Screw set
4 Adhesive foam
tape strips
1 Power adapter
ACT-412A-N270 User Manual
1 Power cord
1 Touch pen
1 User manual CD
and driver CD
1 External SATA
cable
1 Mini jumper pack
(2.0 mm)
If any of these items are missing or damaged, contact the distributor or sales
representative immediately.
Page 24
ACT-412A-N270 User Manual
2.2 Anti-Static Precautions
WARNING:
Failure to take ESD precautions during the maintenance of the ACT-412A-N270
may result in permanent damage to the ACT-412A-N270 and severe injury to the
user.
Electrostatic discharge (ESD) can cause serious damage to electronic components,
including the ACT-412A-N270. Dry climates are especially susceptible to ESD. It is
therefore critical that whenever the ACT-412A-N270 is accessed internally, or any other
electrical component is handled, the following anti-static precautions are strictly adhered
to.
Wear an anti-static wristband: Wearing a simple anti-static wristband can
help to prevent ESD from damaging the board.
Self-grounding: Before handling the board, touch any grounded conducting
material. During the time the board is handled, frequently touch any
conducting materials that are connected to the ground.
Use an anti-static pad: When configuring the ACT-412A-N270, place it on an
antic-static pad. This reduces the possibility of ESD damaging the
ACT-412A-N270.
Only handle the edges of the PCB: When handling the PCB, hold the PCB
by the edges.
2.3 Installation Precautions
When installing the POS system, please follow the precautions listed below:
Power turned off: When installing the system, make sure the power is off.
Failing to turn off the power may cause severe injury to the body and/or
damage to the system.
Certified Engineers: Only certified engineers should install and modify
onboard functionalities.
Anti-static Discharge : If a user open the rear panel of the system, to
Page 25
configure the jumpers or plug in added peripheral devices, ground themselves
first and wear and anti-static wristband.
2.4 Preinstalled Components
The following components are all preinstalled.
Motherboard
TFT LCD screen
DDR2 memory module
Resistive type touch screen
RFID module
Wireless LAN module
Component installation is described in the following sections.
ACT-412A-N270 User Manual
2.5 Installation and Configuration Steps
The following installation steps must be followed.
Step 1: Unpack the ACT-412A-N270
Step 2: Install SATA HDD
Step 3: Install CF card
Step 4: Configure the system
Step 5: Mount the ACT-412A-N270
Step 6: Connect peripheral devices to the bottom panel of the ACT-412A-N270. Step 0:
2.6 Rear Panel Removal
To access the CF slot and AT/ATX switch, the back cover must be removed. To remove
the back cover, please follow the steps below.
Step 1: Place the ACT-412A-N270 face down on a flat surface.
Step 2: Remove the rear panel. Remove the nine retention screws (
Page 26
Figure 2-1) from
ACT-412A-N270 User Manual
the rear panel and lift the back cover off the ACT-412A-N270. Step 2:
Figure 2-1: Rear Panel Retention Screws
2.7 Hard Drive Installation
Step 3: The ACT-412A-N270 has one hard drive bay inside the rear panel. To install a
hard drive follow the instructions below.
Step 4: Locate the HDD bracket and insert the HDD into the bracket
Step 5: Slide HDD SATA connector into the SATA cable to connect.
Step 6: Fasten SATA HDD retention screws to secure the HDD.
Page 27
ACT-412A-N270 User Manual
Figure 2-2: HDD Retention Screws
2.8 CF Card Installation
The ACT-412A-N270 has one CF Type II slot. To install the CF card, follow the instructions
below.
Step 1: Locate the CF card slot cover. The CF card slot cover is located on the back
panel of the ACT-412A-N270. See
Step 2: Remove the retention screw and cover. Remove the retention screw and
remove the cover
Figure 2-3
Page 28
ACT-412A-N270 User Manual
Figure 2-3: CF Card Slot Cover Location
Step 3: Install the CF Card. Correctly align the CF card with the socket and insert the
CF card into the socket. See
Figure 2-4: CF Card Installation
Step 4: Replace the CF card slot cover. Make sure the cover is properly secured with
the previously removed retention screw.Step 0:
Figure 2-4.
2.9 System Power
The system can be run in the AT power mode or the ATX power mode. Both these power
modes are described below.
Page 29
2.9.1.1 ATX Power Mode (Default)
With the ATX mode selected, the ACT-412A-N270 panel PC goes in a standby mode
when it is turned off. The panel PC can be easily turned on via network or a power switch
in standby mode. Remote power control is perfect for advertising applications since the
broadcasting time for each panel PC can be set individually and controlled remotely. Other
possible application includes
Security surveillance
Point-of-Sale (POS)
Advertising terminal
2.9.1.2 AT Power Mode
With the AT mode selected, the power is controlled by a central power unit rather than a
power switch. The ACT-412A-N270 panel PC turns on automatically when the power is
ACT-412A-N270 User Manual
connected. The AT mode benefits a production line to control multiple panel PCs from a
central management center and other applications including:
ATM
Self-service kiosk
Plant environment monitoring system
Factory automation platform
Manufacturing shop flow
2.9.2 Power Adapter
The system is shipped with a 100 V to 240 V IEI AC power adapter that has a maximum
power output of 60 W. The power adapter has a 12 V DC output connector.
Page 30
ACT-412A-N270 User Manual
2.10 Jumper Settings
NOTE:
A jumper is a metal bridge used to close an
electrical circuit. It consists of two or three metal
pins and a small metal clip (often protected by a
plastic cover) that slides over the pins to connect
them. To CLOSE/SHORT a jumper means
connecting the pins of the jumper with the plastic
clip and to OPEN a jumper means removing the
plastic clip from a jumper.
Before the ACT-412A-N270 is installed, the jumpers must be set in accordance with the
desired configuration. The jumpers on the ACT-412A-N270 motherboard are listed in
Table 2-1.
Description Label Type
Clear CMOS J_CMOS1 2-pin header
COM1 Pin 9 setting JP8 10-pin header
COM3 Pin 9 setting JP10 6-pin header
COM3 RX RS-232/422/485 select JP9 8-pin header
COM3 TX RS-422/485 select JP11 6-pin header
COM3 RS-232/422/485 select JP6 12-pin header
Table 2-1: Jumpers
2.10.1 Access the Jumpers
To access the jumpers, the rear panel and the aluminum cover must be removed. To
remove the rear panel and the aluminum cover, please follow the steps below.
Page 31
Step 1: Put the front panel of the ACT-412A-N270 on a table.
ACT-412A-N270 User Manual
Step 2: Remove the rear panel. Remove the retention screws (
rear panel and lift the rear panel off the ACT-412A-N270.
Figure 2-5: Rear Panel Retention Screws
Figure 2-1) from the
2.10.2 Preconfigured Jumpers
WARNING:
Do not change the settings on the jumpers in described here. Doing so may
disable or damage the system.
The following jumpers are preconfigured for the ACT-412A-N270. Users should no
change these jumpers (
Jumper Name Label Type
LVDS voltage selection J_VLVDS1 3-pin header
Touch Screen Select J1 4-pin header
Panel Type and Resolution J_LCD_TYPE1 10-pin header
Table 2-2: Preconfigured Jumpers
Table 2-2).
Page 32
ACT-412A-N270 User Manual
2.10.3 Clear CMOS Jumper
Jumper Label:
Jumper Type:
Jumper Settings:
Jumper Location:
If the ACT-412A-N270 fails to boot due to improper BIOS settings, the clear CMOS jumper
clears the CMOS data and resets the system BIOS information. To do this, use the jumper
cap to close the pins for a few seconds then remove the jumper clip.
If the “CMOS Settings Wrong” message is displayed during the boot up process, the fault
may be corrected by pressing the F1 to enter the CMOS Setup menu. Do one of the
following:
Enter the correct CMOS setting
Load Optimal Defaults
Load Failsafe Defaults.
J_CMOS1
2-pin header
Table 2-3
See
Figure 2-6
See
After having done one of the above, save the changes and exit the CMOS Setup menu.
The clear CMOS jumper settings are shown in
Clear CMOS Description
Short 1 - 2 Keep CMOS Setup Default
Short 2 - 3 Clear CMOS S etup
Table 2-3: Clear CMOS Jumper Settings
The location of the clear CMOS jumper is shown in Figure 2-6 below.
Table 2-3.
Page 33
Figure 2-6: Clear CMOS Jumper
2.10.4 COM Port Pin 9 Select
ACT-412A-N270 User Manual
Jumper Label:
Jumper Settings:
Jumper Location:
Two jumpers (JP8 and JP10) configure pin 9 on COM1 and COM3 DB-9 connectors. Pin 9
on the COM1 and the COM3 DB-9 connectors can be set as the ring (RI) signal, +5 V or
+12 V. The COM1 and COM3 Pin 9 Setting jumper selection options are shown in
2-4 and Table 4-5.
JP8 Description
Short 1-3 COM1 RI Pin use +12 V
Short 5-7 COM1 RI Pin use +5 V
Short 7-9 COM1 RI Pin use RI Default
Table 2-4: COM1 Pin 9 Setting Jumper Settings
JP8 and JP10
Table 2-4
See
Figure 2-7
See
Table
Page 34
ACT-412A-N270 User Manual
JP10 Description
Short 1-2 COM3 RI Pin use +12 V
Short 3-4 COM3 RI Pin use RI Default
Short 5-6 COM3 RI Pin use +5 V
Table 2-5: COM3 Pin 9 Setting Jumper Settings
The COM1 and COM3 Pin 9 Setting jumper locations are shown in Figure 2-7 below.
Figure 2-7: COM1 and COM3 Pin 9 Setting Jumper Locations
2.10.4.1 COM3 RS-422 and RS-485 Pinouts
The pinouts for RS-422 and RS-485 operation of external serial port COM 3 are detailed
below.
COM 3 RS-422 Description
Pin 1 TX-
Pin 2 TX+
Pin 6 RX-
Pin 7 RX+
Table 2-6: RS-422 Pinouts
Page 35
COM 3 RS-485 Description
Pin 1 Data-
Pin 2 Data+
Table 2-7: RS-485 Pinouts

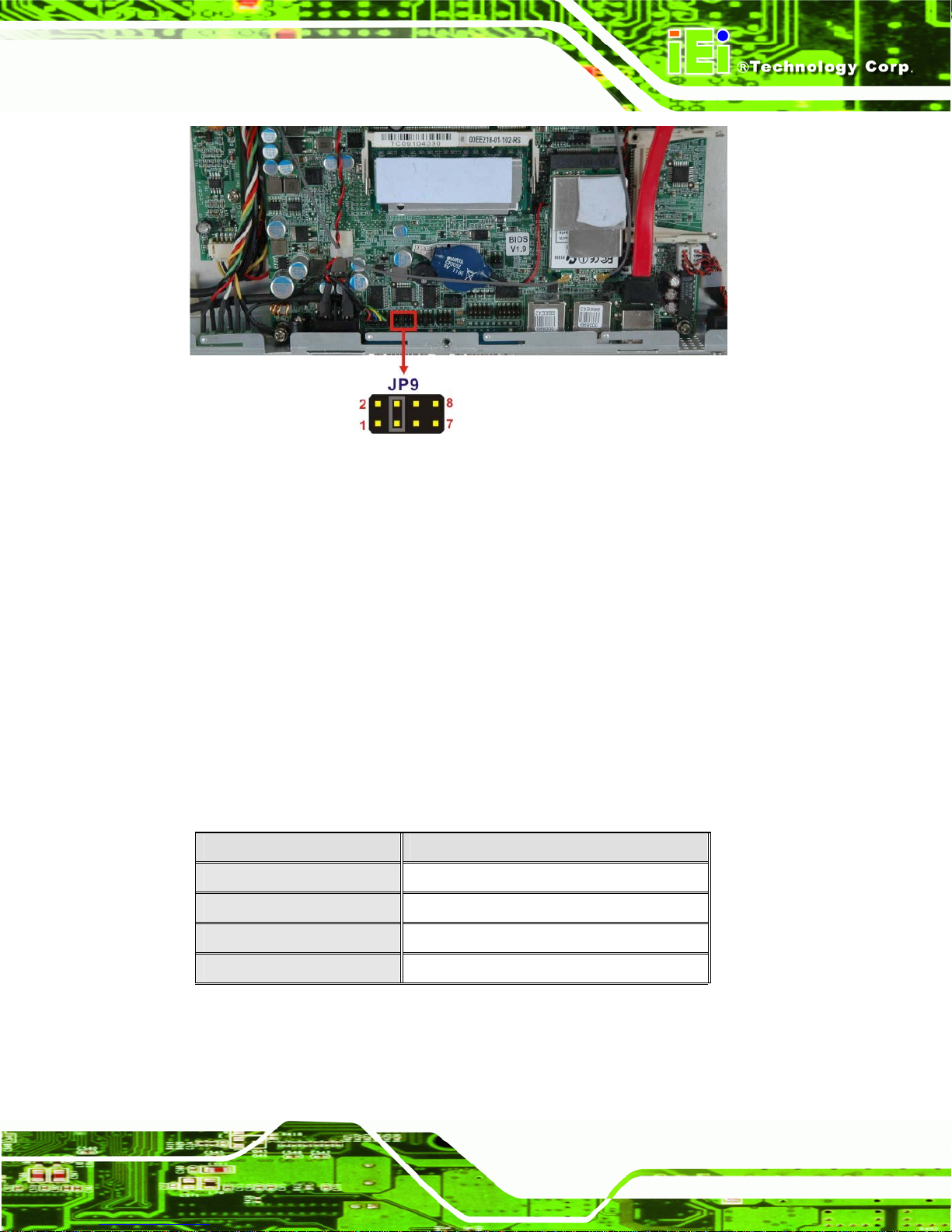

2.10.5 COM3 RX Function Select Jumper
ACT-412A-N270 User Manual
Jumper Label:
Jumper Type:
Jumper Settings:
Jumper Location:
JP9
8-pin header
Table 2-8
See
Figure 2-8
See
The COM3 RX Function Select jumper sets the communication protocol used by the RX
serial communications port COM3 as RS-232, RS-422 or RS-485. The COM3 RX
Function Select jumper settings are shown in
COM3 RX Function Select Description
Short 3-4 RS-232 Default
Short 1-2, 5-6 RS-422
Short 1-2, 7-8 RS-485
Table 2-8.
Table 2-8: COM3 RX Function Select Jumper Settings
The COM3 RX Function Select jumper location is shown in Figure 2-8.
Page 36
ACT-412A-N270 User Manual
Figure 2-8: COM3 RX Function Select Jumper Location
2.10.6 COM3 TX Function Select Jumper
Jumper Label:
Jumper Type:
Jumper Settings:
Jumper Location:
JP11
6-pin header
Table 2-9
See
Figure 2-9
See
The COM3 TX Function Select jumper configures the TX pin on COM3 serial port
connector as RS-422 as an RS-485. The COM3 TX Function Select jumper selection
options are shown in
COM3 TX Function Select Description
Short 1 – 3 RS-422
Short 2 – 4 RS-422
Short 3 – 5 RS-485
Short 4 – 6 RS-485
Table 2-9.
Table 2-9: COM3 TX Function Select Jumper Settings
Page 37
The COM3 TX Function Select jumper location is shown in Figure 2-9 below.
ACT-412A-N270 User Manual
Figure 2-9: COM3 TX Function Select Jumper Pinout Locations
2.10.7 COM3 RS-232/422/485 Serial Port Select Jumper
Jumper Label:
Jumper Type:
Jumper Settings:
Jumper Location:
The COM3 RS-232/422/485 Serial Port Select jumper sets the communication protocol
used by the second serial communications port (COM3) as RS-232, RS-422 or RS-485.
The COM3 RS-232/422/485 Serial Port Select settings are shown in
JP6
12-pin header (four 3-pin headers combined)
Table 2-10
See
Figure 2-10
See
Table 2-10.
Page 38
ACT-412A-N270 User Manual
RS-232/485 Select Description
Short 1-2 RS-232 Default
Short 4-5 RS-232 Default
Short 7-8 RS-232 Default
Short 10-11 RS-232 Default
Short 2-3 RS-422/485
Short 5-6 RS-422/485
Short 8-9 RS-422/485
Short 11-12 RS-422/485
Table 2-10: COM3 RS-232/422/485 Serial Port Select Jumper Settings
The COM3 RS-232/422/485 Serial Port Select jumper location is shown in Figure 2-10.
Figure 2-10: COM3 RS-232/422/485 Serial Port Select Jumper Location
2.10.8 AT/ATX Mode Selection
AT and ATX power modes can both be used on the ACT-412A-N270. The selection is
made through an AT/ATX switch inside the side the rear panel (
mode or ATX mode, follow the steps below.
Step 1: Remove the rear panel. Refer to Section
Figure 2-11). To select AT
2.6.
Page 39
Step 2: Locate the AT/ATX switch. (Figure 2-11).
ACT-412A-N270 User Manual
Figure 2-11: AT/ATX Switch
Step 3: Adjust the AT/ATX switch. The default mode is ATX mode. (
2.11 Mounting the System
WARNING!
When mounting the flat panel PC onto an arm, onto the wall or into a wall, it
is better to have more than one person to help with the installation to make
sure the panel PC does not fall down and get damaged.
Figure 2-11)Step 3:
Page 40
ACT-412A-N270 User Manual
2.11.1 Wall Mounting
To mount the ACT-412A-N270 onto the wall, please follow the steps below.
Step 4: Select the location on the wall for the wall-mounting bracket.
Step 5: Carefully mark the locations of the four screw holes in the bracket on the wall.
Step 6: Drill four pilot holes at the marked locations on the wall for the bracket retention
screws.
Step 7: Align the wall-mounting bracket screw holes with the pilot holes.
Step 8: Secure the mounting-bracket to the wall by inserting the retention screws into
the four pilot holes and tightening them (
Figure 2-12: Wall-mounting Bracket
Step 9: Insert the four monitor mounting screws provided in the wall mounting kit into the
four screw holes on the real panel of the ACT-412A-N270 and tighten until the
Figure 2-12).
screw shank is secured against the rear panel (
Step 10: Align the mounting screws on the rear panel with the mounting holes on the
bracket.
Step 11: Carefully insert the screws through the holes and gently pull the monitor
Figure 2-13).
Page 41
downwards until the ACT-412A-N270 rests securely in the slotted holes (Figure
2-13). Ensure that all four of the mounting screws fit snuggly into their respective
slotted holes.
ACT-412A-N270 User Manual
Figure 2-13: Chassis Support Screws
NOTE:
In the diagram below the bracket is already installed on the wall.
Step 12: Secure the ACT-412A-N270 by fastening the retention screw of the
wall-mounting bracket. (
Figure 2-14).Step 12:
Page 42
ACT-412A-N270 User Manual
Figure 2-14: Secure the ACT-412A-N270
2.11.2 In-wall Mounting
Before installing into a wall mounting, attach the adhesive strips to the sides as shown
below:
Step 13: Place the ACT-412A-N270 face down on a flat surface.
Figure 2-15: Cut Foam Tape
Step 14: Cut the adhesive foam tape as shown above.
Page 43
Figure 2-16: Attach Foam Tape
Step 15: Attach the adhesive foam tape to the edge of rear panel of the ACT-412A-N270
Figure 2-16). Make sure the adhesive tape does not cover the screw
(see
holes as shown below. Step 15:
ACT-412A-N270 User Manual
Page 44
Figure 2-17: Foam Tape Installed
To mount the ACT-412A-N270 panel PC into a wall, please follow the steps below.
Step 16: Select the position on the wall to mount the flat panel PC.
Step 17: Cut out a section from the wall that corresponds to the dimensions in
2-18. Take care that the wall section that is cut out is no larger than the
suggested cut out size.
Figure
ACT-412A-N270 User Manual
Figure 2-18: ACT-412A-N270 Panel Opening
Step 18: Slide the ACT-412A-N270 through the hole until the frame is flush against the
wall.
Step 19: Tighten the screws that pass through the wall mounting screw holes until the
screws are firmly secured to the wall (
Figure 2-19: Tighten the In-wall Mounting Screws
Step 20: Install the faceplate. Snap faceplate onto the ACT-412A-N270 frame. See
Figure 2-19).
Figure 2-20.
Page 45
Figure 2-20: Faceplate Installation
2.11.3 Arm Mounting
The ACT-412A-N270 is VESA (Video Electronics Standards Association) compliant and
ACT-412A-N270 User Manual
can be mounted on an arm with a 75 mm or 100 mm interface pad. To mount the
ACT-412A-N270 on an arm, please follow the steps below.
Step 1: The arm is a separately purchased item. Please correctly mount the arm onto
the surface it uses as a base. To do this, refer to the installation documentation
that came with the mounting arm.
NOTE:
When purchasing the arm please ensure that it is VESA compliant and that
the arm has a 75 mm or 100 mm interface pad. If the mounting arm is not
VESA compliant it cannot be used to support the ACT-412A-N270.
Step 2: Once the mounting arm has been firmly attached to the surface, lift the flat panel
PC onto the interface pad of the mounting arm.
Step 3: Align the retention screw holes on the mounting arm interface with those in the
flat panel PC. The ACT-412A-N270 arm mount retention screw holes are shown
Figure 2-21.
in
Page 46
ACT-412A-N270 User Manual
Figure 2-21: ACT-412A-N270 Arm Mounting Retention Screw Holes
Step 4: Secure the flat panel PC to the interface pad by inserting four retention screws
through the bottom of the mounting arm interface pad and into the flat panel PC.
Step 0:
2.12 Bottom Panel Connectors
2.12.1 LAN Connection
There are two external RJ-45 LAN connectors. The RJ-45 connectors enable connection
to an external network. To connect a LAN cable with an RJ-45 connector, please follow
the instructions below.
Step 1: Locate the RJ-45 connectors on the bottom panel of the ACT-412A-N270.
Step 2: Align the connectors. Align the RJ-45 connector on the LAN cable with one of
the RJ-45 connectors on the bottom panel of the ACT-412A-N270. See
2-22.
Figure
Page 47
ACT-412A-N270 User Manual
Figure 2-22: LAN Connection
Step 3: Insert the LAN cable RJ-45 connector. Once aligned, gently insert the LAN
cable RJ-45 connector into the onboard RJ-45 connector. Step 0:
2.12.2 Serial Device Connection
The ACT-412A-N270 has two male DB-9 connectors on the bottom panel for serial
devices to be connected. Follow the steps below to connect a serial device to the
ACT-412A-N270 POS system.
Step 1: Locate the DB-9 connector. The location of the DB-9 connector is shown in
Chapter 2.
Step 2: Insert the serial connector. Insert the DB-9 connector of a serial device into
the DB-9 connector on the bottom panel. See
Figure 2-23.
Page 48
ACT-412A-N270 User Manual
Figure 2-23: Serial Device Connector
Step 3: Secure the connector. Secure the serial device connector to the external
interface by tightening the two retention screws on either side of the connector.
2.12.3 USB Device Connection
There are four external USB 2.0 connectors. All connectors are perpendicular to the
ACT-412A-N270. To connect a USB 2.0 or USB 1.1 device, please follow the instructions
below.
Step 1: Located the USB connectors. The locations of the USB connectors are shown
in Chapter 2.
Step 2: Align the connectors. Align the USB device connector with one of the
connectors on the bottom panel. See
Figure 2-24.
Step 0:
Page 49
ACT-412A-N270 User Manual
Figure 2-24: USB Device Connection
Step 3: Insert the device connector. Once aligned, gently insert the USB device
connector into the onboard connector. Step 0:
Page 50
ACT-412A-N270 User Manual
Chapter
3
3 RFID Reader
Page 51
3.1 Introduction
IEI provides a RFID tool (RF320) to configure Mifare cards and EM cards. The following
sections describe how to install the RF320 and how to use RF320 to configure Mifare
cards and EM cards.
3.2 Installation
The RF320 must be installed in the ACT-412A-N270 from the utility CD in the package
before using it to configure the RFID cards. To install the RF320, please follow the steps
below. The following example is based on the Windows
Step 1: Run the RF-320 setup V1.3.2.exe file from the utility CD.
Step 2: The InstallShield Wizard is prepared to guide the user through the rest of the
process. Once initialized, the InstallShield Wizard welcome screen appears
ACT-412A-N270 User Manual
®
XP environment.
Figure 3-1).
(
Figure 3-1: InstallShield Wizard Welcome Screen
Step 3: Click N
Step 4: The Customer Information screen shown in
and a company name. Click N
Page 52
EXT to continue the installation.
Figure 3-2. Enter a user name
EXT to continue the installation.
ACT-412A-N270 User Manual
Figure 3-2: Customer Information Screen
Step 5: At this stage in
continue the installation.
Figure 3-3: Setup Type Selection Screen
Figure 3-3 appears. Please choose the setup type. Click NEXT to
Step 6: The window shows the current settings for installing the RF320 (
Click N
EXT to confirm the settings and continue the installation.
Figure 3-4).
Page 53
Figure 3-4: Current Settings Confirmation Screen
ACT-412A-N270 User Manual
Step 7: Click F
Step 8: To launch the RF320, click Start menu Program File IEI RF320.
Step 0:
INISH to exit.
Page 54
ACT-412A-N270 User Manual
3.3 RF320 Interface Overview
- COM Port Settings and Activation Area
Allows the user to select the serial port used by the ACT-412A-N270 to
communicate with the RFID reader module.
- Commands Area
Shows various request options for user to select.
- Data Input Area
The data input area is where the user enters block number, key, key data, and other
information required by certain commands.
- Raw Data Display Area
Shows all communication logs and responses of the executed commands.
- EM Card ID Display Area
Displays the EM card ID when the EM card is detected.
- Mifare Card ID Display Area
Displays the Mifare card ID when the Mifare card is detected.
Error Code Display Area
Shows the error message when an error occurs.
Page 55
3.4 Serial Port (COM) Settings
After launching the RF320 RFID tool, the COM port settings have to be set correctly to
enable the communication with the built-in RFID reader. Please follow the information
below to setup the COM port settings.
Model COM Port Baud Rate
ACT-412A-N270 User Manual
ACT-412A-N270
Table 3-1: RF320 COM Port Settings
COM 2 19200
Figure 3-5: RF320 COM Port Settings
NOTE:
If the Hyper Terminal is used for communication, please setup the port
properties as shown below.
Page 56
t
ACT-412A-N270 User Manual
Bits per second: 19200
Data bits: 8
Parity: None
Stop bits: 1
Flow control: None
3.5 RF320 Commands
The RF320 provides five commands, including:
Read Block: read the block data from the Mifare/EM card
Write Block: write the block data into the Mifare/EM card
Set Mifare Parameter
Get Mifare Parameter
Set RF320 Mode
The following sections describe how to use these commands.
3.5.1 Read Block
To read the block data from a Mifare card, please follow the steps below.
Step 1: Select Read Block in the command area (
Figure 3-6).
Step 2: Configure the data, including block, key, key data and time out (
Step 3: Click the Execute button to execute the command through the selected serial
Figure 3-6). The raw data of this command shows in the Raw Data area in
port (
the format listed in
Figure 3-6).
Formatted: Bulle
Table 3-2 and Table 3-3. Step 3:
Page 57
ACT-412A-N270 User Manual
Figure 3-6: Read Block
Field Command Block KEY KEY Data Time Out End
Digit 2 2 1 12 2 1
Data RB 00~63 A/B 000000000000
︴
(Hex)
FFFFFFFFFFFF
00~99
(Second)
CR (0x0d)
Table 3-2: Read Block Raw Data Format
Status (2 digits) Block Data (32 digits) END (2 digits)
OK 32 bits (Hex) CR,LF (0x0d,0x0a)
ER Error Code (3 digits) CR,LF (0x0d,0x0a)
Table 3-3: Read Block Response Format
Page 58
t
ACT-412A-N270 User Manual
3.5.2 Write Block
To write the block data into a Mifare card, please follow the steps below.
Step 4: Select Write Block in the command area (
Step 5: Configure the data, including block, key, key data, time out and data
Figure 3-7).
(
Step 6: Click the Execute button to execute the command through the selected serial
Figure 3-7). The raw data of this command shows in the Raw Data area in
port (
the format listed in
Table 3-4 and Table 3-5. Step 6:
Figure 3-7).
Formatted: Bulle
Figure 3-7: Write Block
Page 59
t
Field Command Block KEY KEY Data Time Out Block Data End
Digit 2 2 1 12 2 32 1
ACT-412A-N270 User Manual
Data WB 00~63 A/B 000000000000
Table 3-4: Write Block Raw Data Format
Status (2 digits) Block Data END (2 digits)
OK Null CR,LF (0x0d,0x0a)
ER Error Code (3 digits) CR,LF (0x0d,0x0a)
Table 3-5: Write Block Response Format
3.5.3 Set Mifare Parameter
To set parameter of a Mifare card reader, please follow the steps below.
Step 7: Select Set Mifare Parameter in the command area (
Step 8: Select a Mifare mode.
︴
(Hex)
FFFFFFFFFFFF
00~99
(Second)
Figure 3-8).
32 digits
Hex
CR
(0x0d)
0-UUID: read serial number only.
1-UUID & KEY A: read serial number and use "KEY A" to read "Block' data".
2-UUID & KEY B: read serial number and use "KEY B" to read "Block data".
Step 9: Configure the block number, and key data (
Figure 3-8).
Step 10: Click the Execute button to execute the command through the selected serial
Figure 3-8). The raw data of this command shows in the Raw Data area in
port (
the format listed in
Table 3-6 and Table 3-7. Step 10:
Formatted: Bulle
Page 60
ACT-412A-N270 User Manual
Figure 3-8: Set Mifare Parameter
Field Command Access Mode Block KEY Data End
Digit 2 1 2 12 1
Data SM 0~2 00~63 000000000000
Table 3-6: Set Mifare Parameter Raw Data Format
Status (2 digits) Block Data END (2 digits)
OK Null CR,LF (0x0d,0x0a)
ER Error Code (3 digits) CR,LF (0x0d,0x0a)
Table 3-7: Set Mifare Parameter Response Format
3.5.4 Get Mifare Parameter
︴
(Hex)
FFFFFFFFFFFF
CR (0x0d)
To read the parameter of a Mifare card reader, please follow the steps below.
Step 11: Select Get Mifare Parameter in the command area (
Figure 3-9).
Page 61
t
ACT-412A-N270 User Manual
Step 12: Click the Execute button to execute the command through the selected serial
Figure 3-9). The raw data of this command shows in the Raw Data area in
port (
the format listed in
Table 3-8 and Table 3-9. Step 12:
Formatted: Bulle
Figure 3-9: Get Mifare Parameter
Field Command End
Digit 2 1
Data RM CR (0x0d)
Table 3-8: Get Mifare Parameter Raw Data Format
Status (2 digits) Block Data END (2 digits)
OK Access mode (1 digit) +
ER Error Code (3 digits) CR,LF (0x0d,0x0a)
Table 3-9: Get Mifare Parameter Response Format
3.5.5 Set RF320 Mode
CR,LF (0x0d,0x0a)
Block (2 digits) + Mode (1 digit)
Page 62
ACT-412A-N270 User Manual
The Set RF320 Mode command is to set the type of RFID card for the RFID reader to
detect. To set the type of RFID card, please follow the steps below.
Step 13: Select Set RF320 Mode in the command area (
Step 14: Select a RF320 mode.
1-EM12K: detect EM cards only.
2-Mifare: detect Mifare cards only.
3-EM and Mifare: detect both EM and Mifare cards.
Step 15: Click the Execute button to execute the command through the selected serial
Figure 3-10). The raw data of this command shows in the Raw Data area
port (
in the format listed in
Table 3-10 and Table 3-11. Step 0:
Figure 3-10).
Figure 3-10: Set RF-320 Mode
Page 63
Field Command Mode End
Digit 2 1 1
Data SA 1~3 CR (0x0d)
ACT-412A-N270 User Manual
Table 3-10: Set RF320 Mode Raw Data Format
Status (2 digits) Block Data END (2 digits)
OK Null CR,LF (0x0d,0x0a)
ER Error Code (3 digits) CR,LF (0x0d,0x0a)
Table 3-11: Set RF320 Mode Response Format
Page 64
ACT-412A-N270 User Manual
4 System Maintenance
Chapter
4
Page 65
4.1 System Maintenance Introduction
If the components of the ACT-412A-N270 fail they must be replaced. Components that
can be replaced include:
CF Module
Wireless LAN module
SO-DIMM module
Please contact the system reseller or vendor to purchase the replacement parts. Back
cover removal instructions and component replacement for the ACT-412A-N270 are
described below.
4.2 Anti-static Precautions
ACT-412A-N270 User Manual
WARNING:
Failure to take ESD precautions during the maintenance of the
ACT-412A-N270 may result in permanent damage to the
ACT-412A-N270 and severe injury to the user.
Electrostatic discharge (ESD) can cause serious damage to electronic components,
including the ACT-412A-N270. Dry climates are especially susceptible to ESD. It is
therefore critical that whenever the ACT-412A-N270 is accessed internally, or any other
electrical component is handled, the following anti-static precautions are strictly adhered
to.
Wear an anti-static wristband: Wearing a simple anti-static wristband can
help to prevent ESD from damaging the board.
Self-grounding: Before handling the board, touch any grounded conducting
material. During the time the board is handled, frequently touch any
conducting materials that are connected to the ground.
Use an anti-static pad: When configuring the ACT-412A-N270, place it on an
antic-static pad. This reduces the possibility of ESD damaging the
ACT-412A-N270.
Page 66
ACT-412A-N270 User Manual
Only handle the edges of the PCB: When handling the PCB, hold the PCB
by the edges.
4.3 Turn off the Power
WARNING:
Failing to turn off the system before opening it can cause permanent
damage to the system and serious or fatal injury to the user.
Before any maintenance procedures are carried out on the system, make sure the system
is turned off.
4.4 Removing the Rear Panel
To access the ACT-412A-N270 internally, the rear panel must be removed. To remove the
rear panel, please follow the steps below.
Step 1: Follow all anti-static procedures. See Section
Step 2: Turn off the power. See Section
Step 3: Put the front panel of the ACT-412A-N270 on a table.
Step 4: Remove the rear panel. Remove the nine retention screws (
the rear panel and lift the rear panel off the ACT-412A-N270.
4.2.
4.3.
Figure 4-1) from
Page 67
ACT-412A-N270 User Manual
Figure 4-1: Rear Panel Retention Screws
4.5 Replacing Components
4.5.1 CF Card Replacement
The ACT-412A-N270 has one CF Type II slot. To replace the CF card, follow the
instructions below.
Step 1: Follow all anti-static procedures. See Section
Step 2: Turn off the power. See Section
Step 3: Follow the steps described in Section
4.2.
4.3.
2.7 to replace the CF card. Step 3:
Page 68
ACT-412A-N270 User Manual
4.5.2 SO-DIMM Module Replacement
WARNING:
Using incorrectly specified SO-DIMM may cause permanently damage
the ACT-412A-N270. Please make sure the purchased SO-DIMM
complies with the memory specifications of the ACT-412A-N270.
To replace the SO-DIMM module, please follow the steps below.
Step 4: Follow all anti-static procedures. See Section
Step 5: Turn off the power. See Section
Step 6: Remove the back panel. See Section
Step 7: Locate the SO-DIMM module. See
Figure 4-2: SO-DIMM Socket Location
4.3.
4.4.
Figure 4-2.
4.2.
Step 8: Open the SO-DIMM socket arms. Gently pull the arms of the SO-DIMM socket
out and remove the old SO-DIMM.
Step 9: Align the SO-DIMM with the socket. The SO-DIMM must be oriented in such a
way that the notch in the middle of the SO-DIMM must be aligned with the
plastic bridge in the socket.
Step 10: Insert the SO-DIMM. Push the SO-DIMM chip into the socket at an angle
Page 69
(Figure 4-3).
Figure 4-3: SO-DIMM Installation
Step 11: Secure the SO-DIMM. Push the SO-DIMM down. The clip into place and secure
the SO-DIMM in the socket.Step 0:
4.5.3 Wireless Module Replacement
ACT-412A-N270 User Manual
To replace the wireless module, please follow the steps below.
Step 1: Follow all anti-static procedures. See Section
Step 2: Turn off the power. See Section
Step 3: Remove the back panel. See Section
Step 4: Locate the wireless module. The wireless module is located below the CPU
heat sink. See
Figure 4-4.
4.3.
4.4.
4.2.
Figure 4-4: Wireless Module Location
Page 70
ACT-412A-N270 User Manual
Step 5: Open the Mini PCIe card socket clips. The Mini PCIe card socket has two
clips that secure the Mini PCIe wireless module into the socket. Before the
wireless module can be removed from the socket, the clips must be opened.
Step 6: Remove the wireless module. Once the two clips of the Mini PCIe card socket
are open, remove the wireless module from the socket.
Step 7: Align the new wireless module with the Mini PCIe card socket. The wireless
module must be oriented in such a way that the notch in the wireless module
must be aligned with the plastic bridge in the socket.
Step 8: Insert the wireless module. Push the wireless module into the socket at an
angle.
Step 9: Secure the wireless module. Push the wireless module down until the two
clips into place, securing the card in place.
4.5.4 Motherboard Replacement
A user cannot replace a motherboard. If the motherboard fails it must be shipped back to
IEI to be replaced. If the system motherboard has failed, please contact the system vendor,
reseller or an IEI sales person directly.
Page 71
ACT-412A-N270 User Manual
Chapter
5
5 BIOS
Page 72
ACT-412A-N270 User Manual
5.1 Introduction

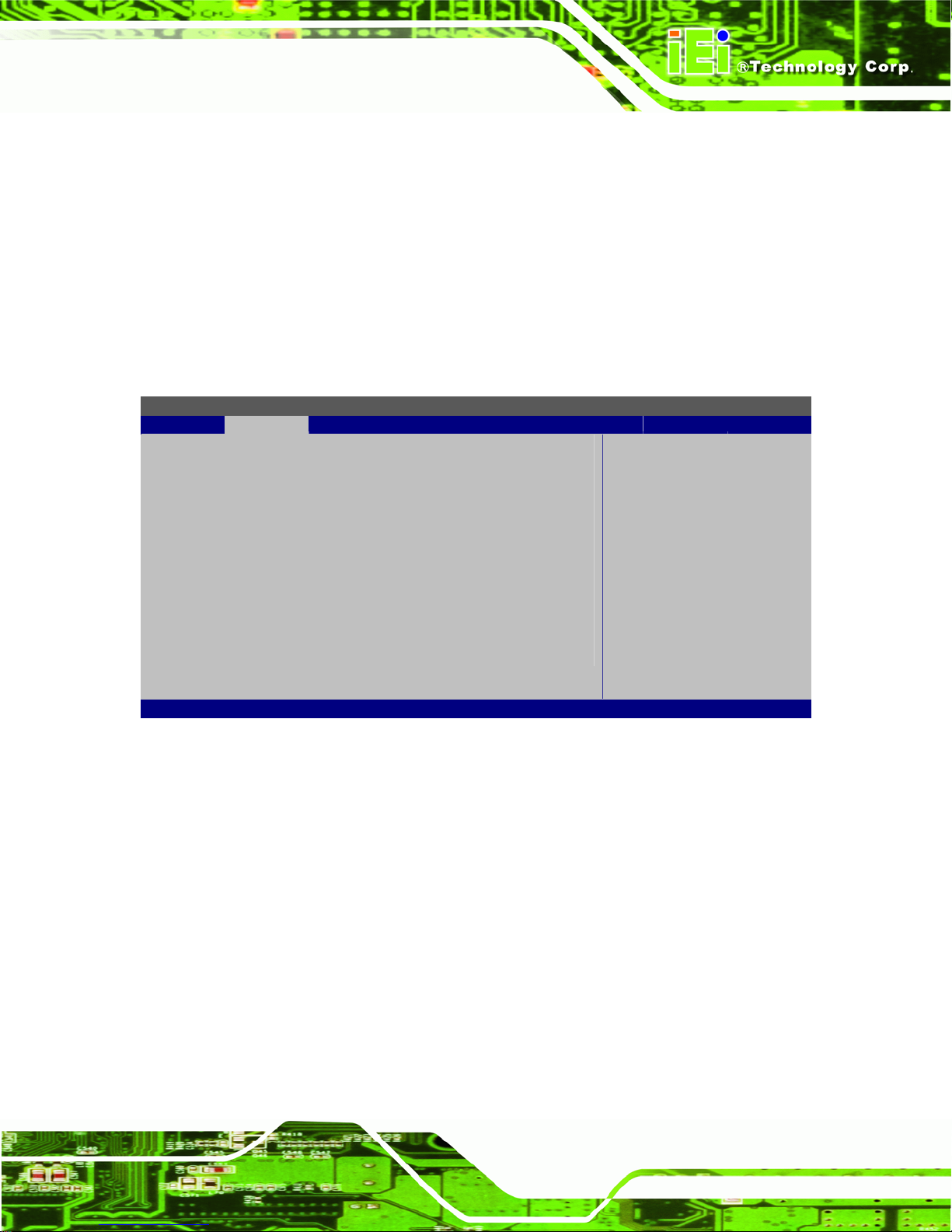

The BIOS is programmed onto the BIOS chip. The BIOS setup program allows changes to
certain system settings. This chapter outlines the options that can be changed.
5.1.1 Starting Setup
The AMI BIOS is activated when the computer is turned on. The setup program can be
activated in one of two ways.
1. Press the D
2. Press the D
appears on the screen. 0.
If the message disappears before the D
again.
ELETE key as soon as the system is turned on or
ELETE key when the “Press Del to enter SETUP” message
ELETE key is pressed, restart the computer and try
5.1.2 Using Setup
Use the arrow keys to highlight items, press ENTER to select, use the PageUp and
PageDown keys to change entries, press F1 for help and press E
keys are shown in.
Key Function
Up arrow Move to previous item
Down arrow Move to next item
Left arrow Move to the item on the left hand side
SC to quit. Navigation
Right arrow Move to the item on the right hand side
Plus & Minus Changes the value
Esc key Main Menu – Quit and not save changes into CMOS
Status Page Setup Menu and Option Page Setup Menu --
Exit current page and return to Main Menu
F1 key General help, only for Status Page Setup Menu and Option
Page Setup Menu
Page 73
Key Function
F10 key Save all the CMOS changes, only for Main Menu
Table 5-1: BIOS Navigation Keys
5.1.3 Getting Help
When F1 is pressed a small help window describing the appropriate keys to use and the
ACT-412A-N270 User Manual
possible selections for the highlighted item appears. To exit the Help Window press E
the F1 key again.
5.1.4 Unable to Reboot After Configuration Changes
If the computer cannot boot after changes to the system configuration is made, CMOS
defaults. Use the jumper described in Chapter 5.
5.1.5 BIOS Menu Bar
The menu bar on top of the BIOS screen has the following main items:
Main – Changes the basic system configuration.
Advanced – Changes the advanced system settings.
PCIPnP – Changes the advanced PCI/PnP Settings
Boot – Changes the system boot configuration.
Security – Sets User and Supervisor Passwords.
Chipset – Changes the chipset settings.
SC or
Exit – Selects exit options and loads default settings
The following sections completely describe the configuration options found in the menu
items at the top of the BIOS screen and listed above.
Page 74
ACT-412A-N270 User Manual
5.2 Main
The Main BIOS menu (BIOS Menu 1) appears when the BIOS Setup program is entered.
The Main menu gives an overview of the basic system information.
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Exit
System Overview
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
AMIBIOS
Version :08.00.15
Build Date :02/23/09
ID: :H479MR11
Processor
Genuine Intel® CPU N270 @ 1.60 GHz
Speed :1600 MHz
Count :1
System Memory
Size :1016MB
System Time [20:09:10]
System Time [Sun 01/27/2009]
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
Use [ENTER], [TAB]
or [SHIFT-TAB] to
select a field.
Use [+] or [-] to
configure system time.
Select Screen
↑ ↓ Select Item
Enter Go to SubScreen
F1 General Help
F10 Save and Exit
ESC Exit
BIOS Menu 1: Main
System Overview
The System Overvie w lists a brief summary of different system components. The fields in
System Overview cannot be changed. The items shown in the system overview include:
AMI BIOS: Displays auto-detected BIOS information
o Version: Current BIOS version
o Build Date: Date the current BIOS version was made
o ID: Installed BIOS ID
Processor: Displays auto-detected CPU specifications
o Type: Names the currently installed processor
o Speed: Lists the processor speed
o Count: The number of CPUs on the motherboard
System Memory: Displays the auto-detected system memory.
o Size: Lists memory size
Page 75
The System Overview field also has two user configurable fields:
System Time [xx:xx:xx]
Use the System Time option to set the system time. Manually enter the hours, minutes
and seconds.
System Date [xx/xx/xx]
Use the System Date option to set the system date. Manually enter the day, month and
year.
ACT-412A-N270 User Manual
5.3 Advanced
Use the Advanced menu (BIOS Menu 2) to configure the CPU and peripheral devices
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Exit
Advanced Settings
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
WARNING: Setting wrong values in below sections may cause
system to malfunction
> CPU Configuration
> IDE Configuration
> SuperIO Configuration
> Hardware Health Configuration
> Power Configuration
> Remote Access Configuration
> USB Configuration
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
Configure CPU
Select Screen
↑ ↓ Select Item
Enter Go to SubScreen
F1 General Help
F10 Save and Exit
ESC Exit
BIOS Menu 2: Advanced
Page 76
ACT-412A-N270 User Manual
5.3.1 CPU Configuration
Use the CPU Configuration menu (BIOS Menu 3) to view detailed CPU specifications
and configure the CPU.
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Exit
Configure Advanced CPU Settings
Module Version:3F.10
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
Manufacturer :Intel®
Genuine Intel® CPU N270 @ 1.60 GHz
Frequency :1.60GHz
FSB Speed :532MHz
Cache L1 : 24KB
Cache L2 : 512KB
Ratio Actual Value:12
Select Screen
↑ ↓ Select Item
Enter Go to SubScreen
F1 General Help
F10 Save and Exit
ESC Exit
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
BIOS Menu 3: CPU Configuration
The CPU Configuration menu lists the following CPU details:
Manufacturer: Lists the name of the CPU manufacturer
Brand String: Lists the brand name of the CPU being used
Frequency: Lists the CPU processing speed
FSB Speed: Lists the FSB speed
Cache L1: Lists the CPU L1 cache size
Cache L2: Lists the CPU L2 cache size
Page 77
ACT-412A-N270 User Manual
5.3.2 IDE Configuration
Use the IDE Configuration menu (BIOS Menu 4) to change and/or set the configuration
of the IDE devices installed in the system.
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Exit
IDE Configuration
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
ATA/IDE Configuration [Compatible]
Legacy IDE Channels [SATA Pri, PATA Sec]
> Primary IDE Master : [Not Detected]
> Primary IDE Slave : [Not Detected]
> Secondary IDE Master : [Not Detected]
> Secondary IDE Slave : [Not Detected]
Options
Disabled
Compatible
Enhanced
Select Screen
↑ ↓ Select Item
Enter Go to SubScreen
F1 General Help
F10 Save and Exit
ESC Exit
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
BIOS Menu 4: IDE Configuration
ATA/IDE Configuration [Compatible]
Use the ATA/IDE Configuration option to configure the ATA/IDE controller.
Disabled
Compatible DEFAULT
Enhanced
Legacy IDE Channels [SATA Pri, PATA Sec]
Use the Legacy IDE Channels option to configure SATA devices as normal IDE devices.
SA TA Only
Disables the on-board ATA/IDE controller.
The SATA drive is configured on an IDE channel.
Both IDE and SATA channels are configured
separately.
Only SATA drives are on the IDE channels. IDE drives
Reserved
Page 78
are disabled
The IDE channels are reserved
ACT-412A-N270 User Manual
SA TA Pri,
PATA Sec
PATA Only
DEFAULT
SATA drives are configured on the Primary IDE
channel. IDE drives on the Secondary IDE channel
Only the IDE drives are enabled. SATA drives are
disabled
5.3.2.1 IDE Master, IDE Slave
Use the IDE Master and IDE Slave configuration menu to view both primary and
secondary IDE device details and configure the IDE devices connected to the system.
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Exit
Primary IDE Master
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
Device :Not Detected
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
Type [Auto]
LBA/Large Mode [Auto]
Block (Multi-Sector Transfer) [Auto]
PIO Mode [Auto]
DMA Mode [Auto]
S.M.A.R.T. [Auto]
32Bit Data Transfer [Enabled]
Select the type
of device connected
to the system
Select Screen
↑ ↓ Select Item
+- Change Option
F1 General Help
F10 Save and Exit
ESC Exit
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
BIOS Menu 5: IDE Master and IDE Slave Configuration
Auto-Detected Drive Parameters
The “grayed-out” items in the left frame are IDE disk drive parameters automatically
detected from the firmware of the selected IDE disk drive. The drive parameters are listed
as follows:
Device: Lists the device type (e.g. hard disk, CD-ROM etc.)
Type: Indicates the type of devices a user can manually select
Vendor: Lists the device manufacturer
Size: List the storage capacity of the device.
LBA Mode: Indicates whether the LBA (Logical Block Addressing) is a method
of addressing data on a disk drive is supported or not.
Page 79
T ype [Auto]
Use the Type BIOS option select the type of device the AMIBIOS attempts to boot from
ACT-412A-N270 User Manual
Block Mode: Block mode boosts IDE drive performance by increasing the
amount of data transferred. Only 512 bytes of data can be transferred per
interrupt if block mode is not used. Block mode allows transfers of up to 64 KB
per interrupt.
PIO Mode: Indicates the PIO mode of the installed device.
Async DMA: Indicates the highest Asynchronous DMA Mode that is
supported.
Ultra DMA: Indicates the highest Synchronous DMA Mode that is supported.
S.M.A.R.T.: Indicates whether or not the Self-Monitoring Analysis and
Reporting Technology protocol is supported.
32Bit Data Transfer: Enables 32-bit data transfer.
after the Power-On Self-Test (POST) is complete.
Not Installed
Auto DEFAULT
CD/DVD
ARMD
BIOS is prevented from searching for an IDE disk
drive on the specified channel.
The BIOS auto detects the IDE disk drive type
attached to the specified channel. This setting should
be used if an IDE hard disk drive is attached to the
specified channel.
The CD/DVD option specifies that an IDE CD-ROM
drive is attached to the specified IDE channel. The
BIOS does not attempt to search for other types of
IDE disk drives on the specified channel.
This option specifies an ATAPI Removable Media
Device. These include, but are not limited to:
ZIP
Page 80
LS-120
ACT-412A-N270 User Manual
LBA/Large Mode [Auto]
Use the LBA/Large Mode option to disable or enable BIOS to auto detects LBA (Logical
Block Addressing). LBA is a method of addressing data on a disk drive. In LBA mode, the
maximum drive capacity is 137 GB.
Disabled
Auto DEFAULT
Block (Multi Sector Transfer) [Auto]
Use the Block (Multi Sector Transfer) to disable or enable BIOS to auto detect if the
device supports multi-sector transfers.
Disabled
Auto DEFAULT
BIOS is prevented from using the LBA mode control on
the specified channel.
BIOS auto detects the LBA mode control on the specified
channel.
BIOS is prevented from using Multi-Sector Transfer on the
specified channel. The data to and from the device occurs
one sector at a time.
BIOS auto detects Multi-Sector Transfer support on the
drive on the specified channel. If supported the data
transfer to and from the device occurs multiple sectors at
a time.
PIO Mode [Auto]
Use the PIO Mode option to select the IDE PIO (Programmable I/O) mode program timing
cycles between the IDE drive and the programmable IDE controller. As the PIO mode
increases, the cycle time decreases.
Auto DEFAULT
0
1
2
BIOS auto detects the PIO mode. Use this value if the IDE disk
drive support cannot be determined.
PIO mode 0 selected with a maximum transfer rate of 3.3 MB/s
PIO mode 1 selected with a maximum transfer rate of 5.2 MB/s
PIO mode 2 selected with a maximum transfer rate of 8.3 MB/s
Page 81
ACT-412A-N270 User Manual
3
4
DMA Mode [Auto]
Use the DMA Mode BIOS selection to adjust the DMA mode options.
Auto DEFAULT
SWDMA0
SWDMA1
PIO mode 3 selected with a maximum transfer rate of 11.1 MB/s
PIO mode 4 selected with a maximum transfer rate of 16.6 MB/s
(This setting generally works with all hard disk drives
manufactured after 1999. For other disk drives, such as IDE
CD-ROM drives, check the specifications of the drive.)
BIOS auto detects the DMA mode. Use this value if the IDE
disk drive support cannot be determined.
Single Word DMA mode 0 selected with a maximum data
transfer rate of 2.1 MB/s
Single Word DMA mode 1 selected with a maximum data
transfer rate of 4.2 MB/s
SWDMA2
MWDMA0
MWDMA1
MWDMA2
UDMA0
UDMA1
UDMA2
Single Word DMA mode 2 selected with a maximum data
transfer rate of 8.3 MB/s
Multi Word DMA mode 0 selected with a maximum data
transfer rate of 4.2 MB/s
Multi Word DMA mode 1 selected with a maximum data
transfer rate of 13.3 MB/s
Multi Word DMA mode 2 selected with a maximum data
transfer rate of 16.6 MB/s
Ultra DMA mode 0 selected with a maximum data transfer
rate of 16.6 MB/s
Ultra DMA mode 1 selected with a maximum data transfer
rate of 25 MB/s
Ultra DMA mode 2 selected with a maximum data transfer
rate of 33.3 MB/s
Page 82
ACT-412A-N270 User Manual
UDMA3
UDMA4
UDMA5
S.M.A.R.T [Auto]
Use the S.M.A.R.T option to auto-detect, disable or enable Self-Monitoring Analysis and
Reporting Technology (SMART) on the drive on the specified channel. S.M.A.R.T predicts
impending drive failures. The S.M.A.R.T BIOS option enables or disables this function.
Auto DEFAULT
Ultra DMA mode 3 selected with a maximum data transfer
rate of 44 MB/s (To use this mode, it is required that an
80-conductor ATA cable is used.)
Ultra DMA mode 4 selected with a maximum data transfer
rate of 66.6 MB/s (To use this mode, it is required that an
80-conductor ATA cable is used.)
Ultra DMA mode 5 selected with a maximum data transfer
rate of 99.9 MB/s (To use this mode, it is required that an
80-conductor ATA cable is used.)
BIOS auto detects HDD SMART support.
Disabled
Enabled
32Bit Data Transfer [Enabled]
Use the 32Bit Data Transfer BIOS option to enables or disable 32-bit data transfers.
Disabled
Enabled DEFAULT
Prevents BIOS from using the HDD SMART feature.
Allows BIOS to use the HDD SMART feature
Prevents the BIOS from using 32-bit data transfers.
Allows BIOS to use 32-bit data transfers on supported
hard disk drives.
Page 83
ACT-412A-N270 User Manual
5.3.3 Super I/O Configuration
Use the Super I/O Configuration menu (BIOS Menu 6) to set or change the
configurations for the FDD controllers, parallel ports and serial ports.
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Exit
Configure Super I/O Chipset
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
Serial Port1 Address [3F8/IRQ4]
Serial Port2 Mode [Normal]
Serial Port2 Address [2F8/IRQ3]
Serial Port3 Address [3E8]
Serial Port3 IRQ [11]
Select RS232 or RS422/485 [RS232]
Serial Port4 Address [2E8]
Serial Port4 IRQ [10]
V02.61 ©Copyright 1985-2006, American Megatrends, Inc.
Allows BIOS to select
Serial Port1 Base
Addresses
Select Screen
↑ ↓ Select Item
Enter Go to SubScreen
F1 General Help
F10 Save and Exit
ESC Exit
BIOS Menu 6: Super I/O Configuration
Serial Port1 Address [3F8/IRQ4]
Selects the serial port base address.
Disabled
3F8/IRQ4 DEFAULT
3E8/IRQ4
2E8/IRQ3
Serial Port3 Address [3E8]
Selects the serial port base address.
Disabled
3E8 DEFAULT
No base address
I/O address 3F8 and interrupt address IRQ4
I/O address 3E8 and interrupt address IRQ4
I/O address 2E8 and interrupt address IRQ3
No base address
I/O address 3E8
Page 84
ACT-412A-N270 User Manual
2E8
2F0
2E0
Serial Port3 IRQ [11]
Selects the serial port interrupt address.
10
11 DEFAULT
Serial Port4 Address [2E8]
Selects the serial port base address.
Disabled
3E8
I/O address 2E8
I/O address 2F0
I/O address 2E0
IRQ address 10
IRQ address 11
No base address
I/O address 3E8
2E8 DEFAULT
2F0
2E0
Serial Port4 IRQ [10]
Selects the serial port interrupt address.
10
11 DEFAULT
Serial Port5 Address [2F0]
Selects the serial port base address.
Disabled
3E8
I/O address 2E8
I/O address 2F0
I/O address 2E0
IRQ address 10
IRQ address 11
No base address
I/O address 3E8
Page 85
ACT-412A-N270 User Manual
2E8
2F0 DEFAULT
2E0
Serial Port5 IRQ [10]
Selects the serial port interrupt address.
10
11 DEFAULT
I/O address 2E8
I/O address 2F0
I/O address 2E0
IRQ address 10
IRQ address 11
5.3.4 Hardware Health Configuration
The Hardware Health Configuration menu (BIOS Menu 7) shows the operating
temperature, fan speeds and system voltages.
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Exit
Hardware Health Event Monitoring
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
CPU FAN Mode Setting [Full On mode]
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
CPU Temperature :57ºC/132ºF
System Temperature :47ºC/116ºF
CPU Speed :N/A
CPU Core :1.088 V
+1.05V :1.040 V
+3.30V :3.296 V
+5.00V :4.945 V
+12.0V :11.904 V
+1.50V :1.456 V
+1.80V :1.792 V
5VSB :4.972 V
VBAT :3.200 V
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
Fan configuration
mode setting
Select Screen
↑ ↓ Select Item
Enter Go to SubScreen
F1 General Help
F10 Save and Exit
ESC Exit
BIOS Menu 7: Hardware Health Configuration
Page 86
ACT-412A-N270 User Manual
Mode Setting [Full On Mode]
Use the Mode Setting option to configure the second fan.
Full On Mode DEFAULT
Automatic mode
PWM Manual mode
Temp. Limit of OFF [000]
WARNING:
CPU failure can result if this value is set too high
Fan is on all the time
The fan adjusts its speed using these settings:
Temp. Limit of OFF
Temp. Limit of Start
Fan Start PWM
Slope PWM 1
The fan spins at the speed set in:
Fan PWM control
The fan will turn off if the temperature falls below this value.
Minimum Value: 0°C
Maximum Value: 127°C
Temp. Limit of Start [020]
WARNING:
CPU failure can result if this value is set too high
When the fan is off, it will only start when the temperature exceeds this setting.
Minimum Value: 0°C
Maximum Value: 127°C
Page 87
Start PWM [070]
This is the initial speed of the fan when it first starts spinning.
PWM Minimum Mode: 0
PWM Maximum Mode: 127
Slope PWM [1 PWM]
A greater value will increase the fan speed in large amounts. A smaller value will increase
the speed more gradually.
0 PWM
1 PWM
2 PWM
4 PWM
ACT-412A-N270 User Manual
8 PWM
16 PWM
32 PWM
64 PWM
CPU Fan PWM Control [070]
This value specifies the speed of the fan.
PWM Minimum Mode: 0
PWM Maximum Mode: 127
Page 88
ACT-412A-N270 User Manual
5.3.5 Power Configuration
The Power Configuration menu (BIOS Menu 8) allows the advanced power
management options to be configured.
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Exit
> ACPI Configuration
> APM Configuration
Select Screen
↑ ↓ Select Item
Enter Go to SubScreen
F1 General Help
F10 Save and Exit
ESC Exit
V02.61 ©Copyright 1985-2006, American Megatrends, Inc.
BIOS Menu 8: APM Configuration
Page 89
ACT-412A-N270 User Manual
5.3.6 ACPI Configuration
Use the ACPI Configuration menu (BIOS Menu 9) to select the ACPI state when the
system is suspended.
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Power Exit
General ACPI Configuration
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
Suspend Mode [S1 (POS)]
Select Screen
↑ ↓ Select Item
Enter Go to SubScreen
F1 General Help
F10 Save and Exit
ESC Exit
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
BIOS Menu 9: General ACPI Configuration
Suspend Mode [S1(POS)]
Use the Suspend Mode option to specify the sleep state the system enters when it is not
being used.
S1 (POS) DEFAULT
S3 (STR)
The system enters S1(POS) sleep state. The system
appears off. The CPU is stopped; RAM is refreshed; the
system is running in a low power mode.
System appears off. The CPU has no power; RAM is in
slow refresh; the power supply is in a reduced power
mode.
Page 90
ACT-412A-N270 User Manual

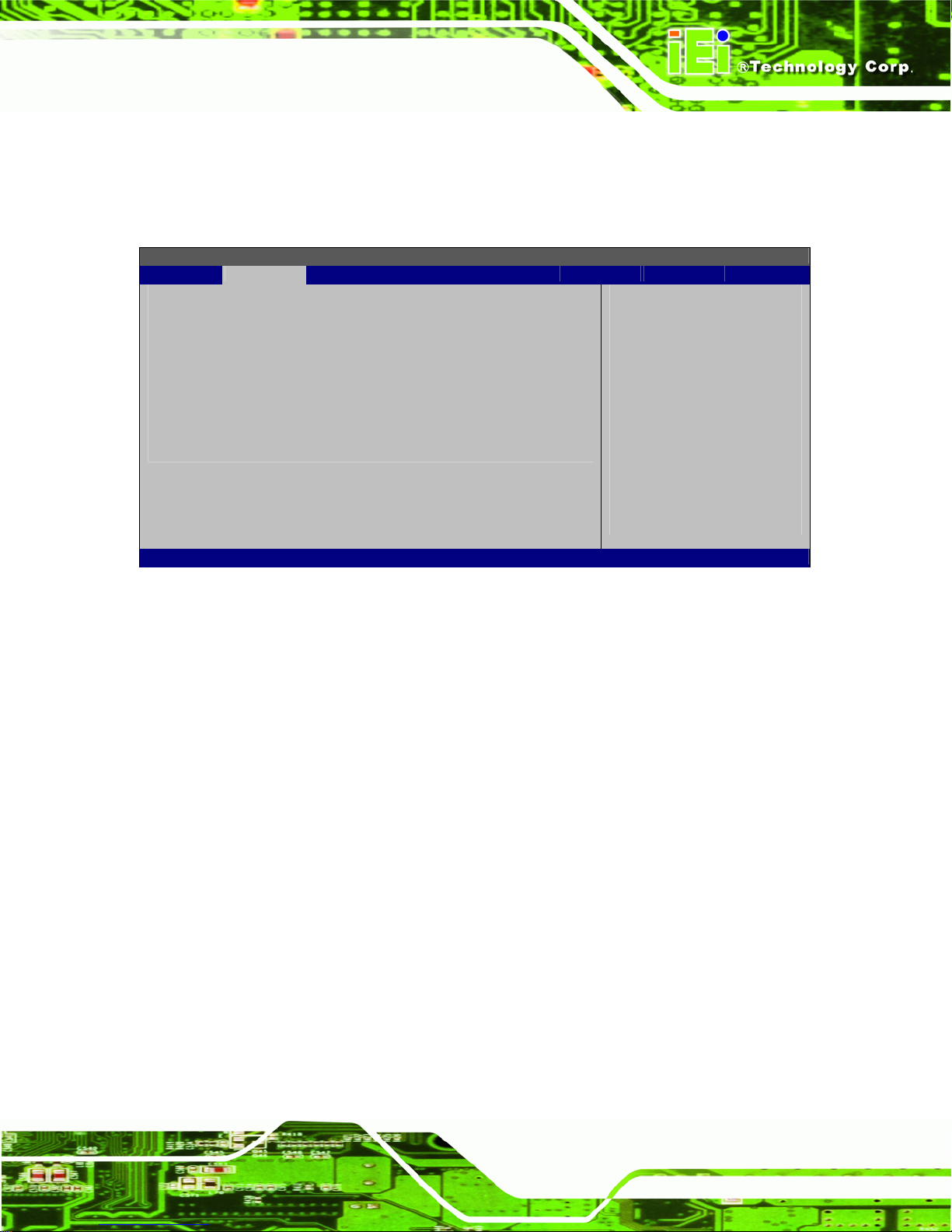

5.3.7 APM Configuration
The APM Configuration menu (BIOS Menu 10) allows the advanced power
management options to be configured.
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Exit
APM Configuration
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
Power Button Mode [On/Off]
Advanced Resume Events Controls
Resume on Keyboard/Mouse [Disabled]
Resume On Ring [Disabled]
Resume on PCI-Express Wake# [Enabled]
Resume on RTC Alarm [Disabled]
Go into On/Off, or
Suspend when Power
button is pressed
Select Screen
↑ ↓ Select Item
Enter Go to SubScreen
F1 General Help
F10 Save and Exit
ESC Exit
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
BIOS Menu 10: APM Configuration
Power Button Mode [On/Off]
Use the Power Button Mode BIOS to specify how the power button functions.
On/Off D
Suspend
Resume on Keyboard/Mouse [Disabled]
Use the Resume on Keyboard/Mouse BIOS option to enable activity on either the
keyboard or mouse to rouse the system from a suspend or standby state. That is, the
system is roused when the mouse is moved or a button on the keyboard is pressed.
EFAULT
When the power button is pressed the system goes into
When the power button is pressed the system is either
turned on or off
suspend mode
Page 91
ACT-412A-N270 User Manual
Disabled DEFAULT
Resume On
KeyBoard
Resume On
Mouse
Enabled
Resume on Ring [Disabled]
Use the Resume on Ring BIOS option to enable activity on the RI (ring in) modem line to
rouse the system from a suspend or standby state. That is, the system will be roused by
an incoming call on a modem.
Disabled D
Wake event not generated by activity on the
Wake event not generated by activity on the
Wake event generated by activity on the
EFAULT
Wake event not generated by activity on the
keyboard or mouse
keyboard
mouse
keyboard or mouse
Wake event not generated by an incoming call
Enabled
Resume on PCI-Express WAKE# [Enabled]
Use the Resume PCI-Express WAKE# BIOS option to enable activity on the
PCI-Express WAKE# signal to rouse the system from a suspend or standby state.
Disabled
Enabled D
Resume On RTC Alarm [Disabled]
Use the Resume On RTC Alarm option to specify the time the system should be roused
from a suspended state.
Wake event generated by an incoming call
Wake event not generated by PCI-Express WAKE#
signal activity
EFAULT
Wake event generated by PCI-Express WAKE# signal
activity
Page 92
ACT-412A-N270 User Manual
Disabled D
Enabled
EFAULT
If selected, the following appears with values that
The real time clock (RTC) cannot generate a wake
event
can be selected:
RTC Alarm Date (Days)
System Time
After setting the alarm, the computer turns itself on
from a suspend state when the alarm goes off.
5.3.8 Remote Access Configuration
Use the Remote Access Configuration menu (BIOS Menu 11) to configure remote
access parameters. The Remote Access Configuration is an AMIBIOS feature and
allows a remote host running a terminal program to display and configure the BIOS
settings.
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Exit
Configure Remote Access type and parameters
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
Remote Access [Disabled]
Serial port number [COM1]
Base Address, IRQ [3F8H, 4]
Serial Port Mode [115200 8,n,1]
Redirection After BIOS POST [Always]
Terminal Type [ANSI]
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
BIOS Menu 11: Remote Access Configuration
Remote Access [Disabled]
Use the Remote Access option to enable or disable access to the remote functionalities
Select Screen
↑ ↓ Select Item
Enter Go to SubScreen
F1 General Help
F10 Save and Exit
ESC Exit
of the system.
Page 93
ACT-412A-N270 User Manual
Disabled DEFAULT
Enabled
Serial Port Number [COM1]
Use the Serial Port Number option to select the serial port used for remote access.
COM1 DEFAULT
Remote access is disabled.
Remote access configuration options shown below
appear:
Serial Port Number
Serial Port Mode
Flow Control
Redirection after BIOS POST
Terminal Type
VT-UTF8 Combo Key Support
These configuration options are discussed below.
System is remotely accessed through COM1
COM2
NOTE: Make sure the selected COM port is enabled through the Super I/O configuration
menu.
Base Address, IRQ [2F8h,3]
The Base Address, IRQ option cannot be configured and only shows the interrupt
address of the serial port listed above.
Serial Port Mode [115200 8,n,1]
Use the Serial Port Mode option to select baud rate through which the console redirection
is made. The following configuration options are available
115200 8,n,1 D
57600 8,n,1
38400 8,n,1
System is remotely accessed through COM2
EFAULT
19200 8,n,1
Page 94
ACT-412A-N270 User Manual
09600 8,n,1
NOTE:
Identical baud rate setting musts be set on the host (a management
computer running a terminal software) and the slave
Flow Control [None]
Use the Flow Control option to report the flow control method for the console redirection
application.
None DEFAULT
Hardware
Software
Redirection After BIOS POST [Always]
Use the Redirection After BIOS POST option to specify when console redirection should
occur.
Disabled
Boot Loader
Always DEFAULT
Terminal Type [ANSI]
No control flow,
Hardware is set as the console redirection
Software is set as the console redirection
The console is not redirected after POST
Redirection is active during POST and during Boot
Loader
Redirection is always active (Some OSes may not
work if set to Always)
Use the Terminal Type BIOS option to specify the remote terminal type.
ANSI DEFAULT
VT100
VT-UTF8
The target terminal type is ANSI
The target terminal type is VT100
The target terminal type is VT-UTF8
Page 95
VT-UTF8 Combo Key Support [Disabled]
Use the VT-UFT8 Combo Key Support option to enable additional keys that are not
provided by VT100 for the PC 101 keyboard.
The VT100 Terminal Definition is the standard convention used to configure and conduct
emergency management tasks with UNIX-based servers. VT100 does not support all keys
on the standard PC 101-key layout, however. The VT-UTF8 convention makes available
additional keys that are not provided by VT100 for the PC 101 keyboard.
ACT-412A-N270 User Manual
Disabled DEFAULT
Enabled
Sredir Memory Display Delay [Disabled]
Use the Sredir Memory Display Delay option to select the delay before memory
information is displayed. Configuration options are listed below
No Delay D
Delay 1 sec
Delay 2 sec
Delay 4 sec
Disables the VT-UTF8 terminal keys
Enables the VT-UTF8 combination key. Support for
ANSI/VT100 terminals
EFAULT
Page 96
ACT-412A-N270 User Manual
5.3.9 USB Configuration
Use the USB Configuration menu (BIOS Menu 12) to read USB configuration
information and configure the USB settings.
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Exit
USB Configuration
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
Module Version – 2.24.3-13.4
USB Devices Enabled:
None
USB Functions [Enabled]
USB 2.0 Controller [Enabled]
Legacy USB Support [Enabled]
USB 2.0 Controller Mode [HiSpeed]
Options
Disabled
Enabled
Select Screen
↑ ↓ Select Item
Enter Go to SubScreen
F1 General Help
F10 Save and Exit
ESC Exit
V02.61 ©Copyright 1985-2006, American Megatrends, Inc.
BIOS Menu 12: USB Configuration
USB Configuration
The USB Configuration field shows the system USB configuration. The items listed are:
Module Version: x.xxxxx.xxxxx
USB Devices Enabled
The USB Devices Enabled field lists the USB devices that are enabled on the system
USB Function [Enabled]
Use the USB Function BIOS option to enable or disable USB function support.
Disabled
USB function support disabled
Enabled DEFAULT
USB function support enabled
Page 97
USB 2.0 Controller [Enabled]
Use the USB 2.0 Controller BIOS option to enable or disable the USB 2.0 controller
ACT-412A-N270 User Manual
Disabled
Enabled DEFAULT
Legacy USB Support [Enabled]
Use the Legacy USB Support BIOS option to enable USB mouse and USB keyboard
support.
Normally if this option is not enabled, any attached USB mouse or USB keyboard does not
become available until a USB compatible operating system is fully booted with all USB
drivers loaded. When this option is enabled, any attached USB mouse or USB keyboard
can control the system even when there is no USB driver loaded onto the system.
Disabled
Enabled DEFAULT
Auto
USB 2.0 controller disabled
USB 2.0 controller enabled
Legacy USB support disabled
Legacy USB support enabled
Legacy USB support disabled if no USB devices are
connected
USB2.0 Controller Mode [HiSpeed]
Use the USB2.0 Controller Mode option to set the speed of the USB2.0 controller.
FullSpeed
HiSpeed DEFAULT
5.4 PCI/PnP
Use the PCI/PnP menu (BIOS Menu 13) to configure advanced PCI and PnP settings.
Page 98
The controller is capable of operating at 12 Mb/s
The controller is capable of operating at 480 Mb/s
ACT-412A-N270 User Manual
WARNING!
Setting wrong values for the BIOS selections in the PCIPnP BIOS
menu may cause the system to malfunction.
BIOS SETUP UTILITY
Main Advanced PCIPNP Boot Security Chipset Exit
Advanced PCI/PnP Settings
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
IRQ3 [Reserved]
IRQ4 [Reserved]
IRQ5 [Available]
IRQ7 [Available]
IRQ9 [Available]
IRQ10 [Reserved]
IRQ11 [Reserved]
IRQ14 [Available]
IRQ15 [Available]
DMA Channel 0 [Available]
DMA Channel 1 [Available]
DMA Channel 3 [Available]
DMA Channel 5 [Available]
DMA Channel 6 [Available]
DMA Channel 7 [Available]
Reserved Memory Size [Disabled]
v02.61 ©Copyright 1985-2006, American Megatrends, Inc.
Available: Specified IRQ
is available to be use
the PCI/PnP devices
Reserved: Specified IRQ
is reserved for use by
legacy ISA devices
Select Screen
↑ ↓ Select Item
Enter Go to SubScreen
F1 General Help
F10 Save and Exit
ESC Exit
BIOS Menu 13: PCI/PnP Configuration
IRQ# [Available]
Use the IRQ# address to specify what IRQs can be assigned to a particular peripheral
device.
Available DEFAULT
Reserved
The specified IRQ is available to be used by
PCI/PnP devices
The specified IRQ is reserved for use by Legacy ISA
devices
Page 99
Available IRQ addresses are:
IRQ3
IRQ4
IRQ5
IRQ7
IRQ9
IRQ10
IRQ 11
IRQ 14
IRQ 15
DMA Channel# [Available]
Use the DMA Channel# option to assign a specific DMA channel to a particular PCI/PnP
ACT-412A-N270 User Manual
device.
Available D
Reserved
Available DMA Channels are:
DM Channel 0
DM Channel 1
DM Channel 3
DM Channel 5
DM Channel 6
DM Channel 7
Reserved Memory Size [Disabled]
EFAULT
The specified DMA is available to be used by
PCI/PnP devices
The specified DMA is reserved for use by Legacy
ISA devices
Use the Reserved Memory Size BIOS option to specify the amount of memory that
should be reserved for legacy ISA devices.
Page 100
