IEI Technology Corp.
User Manual
TDM Series LCD Monitor
MODEL:
TDM Series
12.1"/15" LCD Monitor, Aluminum Front Panel
Wide Range Temperature, 9~36 V DC Input
Rev. 2.01 – 8 November, 2011
Page I
TDM Series LCD Monitor
Revision
Date Version Changes
8 November, 2011 2.01 Updated Section 4.4.6: RS-232 Touch Screen Connector
15 December, 2010 2.00 Updated for R20 version
May 2007 1.11 -Added safety warning note for monitors used in high
temperature areas (pg. iv)
-AV-6600 AD Board CN25 connector pin 3 voltage
changed to +9V~+36V input
April 2007 1.10 Updated Chapter 4: AV-6600 AD Board
December 2006 1.00 Initial release
Page II
TDM Series LCD Monitor
COPYRIGHT NOTICE
The information in this document is subject to change without prior notice in order to
improve reliability, design and function and does not represent a commitment on the part
of the manufacturer.
In no event will the manufacturer be liable for direct, indirect, special, incidental, or
consequential damages arising out of the use or inability to use the product or
documentation, even if advised of the possibility of such damages.
Copyright
This document contains proprietary information protected by copyright. All rights are
reserved. No part of this manual may be reproduced by any mechanical, electronic, or
other means in any form without prior written permission of the manufacturer.
TRADEMARKS
All registered trademarks and product names mentioned herein are used for identification
purposes only and may be trademarks and/or registered trademarks of their respective
owners.
Page III
TDM Series LCD Monitor
Safety Precautions
WARNING:
When the ambient temperature is above +50°C, please do the following:
Only use monitors with a DC terminal block for power
Place the monitor in a secure area accessible only to trained
service persons
The monitor can operate in ambient temperatures up to +50°C; however, in
such environments the temperature of the LCD monitor can be in excess of
+70°C. When the monitor is installed in such environments, please strictly
adhere to the two operational guidelines listed above.
Prior to installing, moving, and modifying the monitor, make sure the power is
turned off and the power cord is disconnected.
Do not apply voltage levels that exceed the specified voltage range. Doing so
will cause fire or an electrical shock.
Electric shocks can occur if the panel is opened. Do not drop or insert any
objects into the ventilation openings of the monitor.
Only qualified engineers from certified system integrators or VARs are
allowed to make necessary functional modifications to the monitor, e.g.,
adding a touch screen. IEI offers the customization service on a per-order
basis.
Designs with stand-alone and fault-tolerant hardware considerations should
be implemented using the series models as a critical alarm or production line
control.
Page IV
If considerable amount of dust, water, or fluids entered the monitor, turn off
the power supply immediately, unplug the power cord, and contact the monitor
vendor.
TDM Series LCD Monitor
Explosions may occur with installations in environments where flammable
gases are present.
Fault-tolerant and failsafe designs should be implemented with the use of the
series models on transportation vehicles, ships, safety/security devices, or
medical devices not related to life-support functionalities. Users/integrators
should take the responsibility for implementations with adequate levels of
reliability and safety.
FURTHER PRECAUTIONS
Do not drop the monitor against a hard surface. Doing so will damage the
display.
Do not strike or exert excessive force onto the touch screen.
Touching the touch screen using a sharp object will damage the LCD panel.
Avoid environments exposed to direct sunlight, dust, or chemical vapors.
The ambient temperature of the installation site should be observed and
controlled to avoid overheating the monitor.
Condensation might form inside the monitor chassis if exposed to sudden
changes in temperature.
Carefully route the power cord so that people cannot step on it. Do not place
anything over the power cord.
If the equipment should be left unused for an extended period of time,
disconnect it from the power source to avoid damage by transient
over-voltage.
If any of the following situations arise, have the equipment checked by
qualified service personnel:
o The power cord or plug is damaged.
o Liquid has penetrated into the equipment.
o The equipment has been exposed to moisture.
o The equipment does not work properly, or cannot be made to work
according to the user manual.
o The equipment has been dropped and damaged.
o The equipment shows obvious signs of damage.
Page V
TDM Series LCD Monitor
WARNING:
Any changes or modifications made to the equipment that are not
expressly approved by the relevant standards could void the authority
to operate the equipment.
ADDITIONAL INFORMA TION AND ASSISTANCE
MAINTENANCE AND CLEANING
Prior to cleaning any part or component of the monitor, please read the details below.
Except for the properly installed front LCD panel, never spray or squirt liquids
directly onto any other component. To clean the front panel, please rub it with
a piece of soft dry cloth or a slightly moistened cloth.
The interior of the LCD monitor does not require cleaning. Keep fluids away
from the LCD monitor interior.
Be cautious of all small removable components when vacuuming the monitor.
Turn the system off before cleaning the LCD monitor.
Never drop any objects or liquids through the openings of the LCD monitor.
Be cautious of any possible allergic reactions to solvents or chemicals used
when cleaning the monitor.
Avoid eating, drinking and smoking within vicinity of the monitor.
CLEANING TOOLS
Some components in the monitor may only be cleaned using a product specifically
designed for the purpose. In such case, the product will be explicitly mentioned in the
cleaning tips. Below is a list of items to use when cleaning the computer or computer
peripherals.
Page VI
Cloth – Although paper towels or tissues can be used, a soft, clean piece of
cloth is recommended when cleaning the monitor.
TDM Series LCD Monitor
Water or rubbing alcohol – A cloth moistened with water or rubbing alcohol
can be used to clean the monitor.
Using solvents – The use of solvents is not recommended when cleaning the
monitor as they may damage the plastic parts.
Vacuum cleaner – Using a vacuum specifically designed for computers is
one of the best methods of cleaning the monitor. Over dust and dirt can
restrict the airflow in a computer and cause circuitry to corrode.
Cotton swabs - Cotton swaps moistened with rubbing alcohol or water are
excellent tools for wiping hard to reach areas.
Foam swabs - Whenever possible, it is best to use lint free swabs such as
foam swabs for cleaning.
ESD PRECAUTIONS
Observe all conventional anti-ESD methods while handling the components contained
within the LCD should the need arise for adding a functionality. The use of a grounded
wrist strap and an anti-static work pad is recommended. Avoid dust and debris or other
static-accumulating materials in the work area.
Page VII
TDM Series LCD Monitor
Table of Contents
1 INTRODUCTION.......................................................................................................... 1
1.1 TDM-121GMS/150GMS LCD MONITOR OVERVIEW ............................................... 2
1.1.1 Standard Features.............................................................................................. 2
1.1.2 Model Variations................................................................................................ 3
1.1.3 Applications ....................................................................................................... 3
1.1.4 Features ............................................................................................................. 4
1.2 EXTERNAL OVERVIEW................................................................................................ 4
1.2.1 Front View.......................................................................................................... 5
1.2.2 Rear View........................................................................................................... 6
1.2.3 Top View............................................................................................................. 7
1.2.4 Bottom View ....................................................................................................... 7
1.2.5 Side View............................................................................................................ 7
1.2.6 Frame................................................................................................................. 8
1.2.7 Internal View...................................................................................................... 9
1.3 SERIES SPECIFICATIONS.............................................................................................. 9
1.4 CERTIFICATIONS....................................................................................................... 10
2 DETAILED SPECIFICATIONS .................................................................................11
2.1 INTRODUCTION......................................................................................................... 12
2.2 FRONT PANEL........................................................................................................... 12
2.3 REAR PANEL............................................................................................................. 13
2.4 PHYSICAL DIMENSIONS............................................................................................ 14
2.4.1 General Physical Dimensions.......................................................................... 14
2.4.2 TDM-121GMS Physical Dimensions............................................................... 15
2.4.3 TDM-150GMS Physical Dimensions............................................................... 16
2.5 MOUNTING KITS ...................................................................................................... 17
2.6 MOUNTING OPTIONS................................................................................................ 17
2.6.1 Panel Mounting................................................................................................ 17
2.6.2 Rack and Cabinet Mounting ............................................................................ 18
2.6.3 Wall Mounting.................................................................................................. 18
2.6.4 Monitor Arm or Stand Mounting......................................................................18
Page VIII
TDM Series LCD Monitor
3 LCD AND TOUCH SCREEN SPECIFICATIONS.................................................. 19
3.1 LCD SPECIFICATIONS............................................................................................... 20
3.1.1 LCD Overview ................................................................................................. 20
3.1.2 TDM-121GMS LCD Specifications ................................................................. 20
3.1.3 TDM-150GMS LCD Specifications ................................................................. 21
3.2 TOUCH SCREENS ...................................................................................................... 22
3.3 AV-6600 AD BOARD OVERVIEW.............................................................................. 22
3.3.1 AV-6600 Peripheral Interface Connectors....................................................... 23
3.3.2 AV-6600 Rear Panel Connectors..................................................................... 24
4 INSTALLATION ......................................................................................................... 25
4.1 INSTALLATION PRECAUTIONS ................................................................................... 26
4.2 UNPACKING.............................................................................................................. 27
4.2.1 Packaging ........................................................................................................ 27
4.2.2 Unpacking Procedure ...................................................................................... 27
4.2.3 Packing List ..................................................................................................... 28
4.3 PRE-INSTALLATION PREPARATION ............................................................................ 28
4.3.1 Tools................................................................................................................. 28
4.3.2 Voltage Select Jumper Settings........................................................................ 29
4.4 CONNECTORS ........................................................................................................... 30
4.4.1 Rear Panel Connectors Overview.................................................................... 31
4.4.2 VGA Connector................................................................................................ 31
4.4.3 DVI-D Connector............................................................................................. 32
4.4.4 12V Power Connector...................................................................................... 32
4.4.5 DC Power Connector....................................................................................... 32
4.4.6 RS-232 Touch Screen Connector...................................................................... 33
4.4.7 USB Touch Panel Connector ........................................................................... 33
4.5 MOUNTING THE TDM SERIES LCD MONITOR ......................................................... 34
4.5.1 Panel Mounting................................................................................................ 34
4.5.2 Cabinet and Rack Installation ......................................................................... 38
4.5.3 Wall Mounting.................................................................................................. 40
4.5.4 Monitor Stand Installation............................................................................... 43
4.5.5 Monitor Arm Installation................................................................................. 45
5 ON-SCREEN-DISPLAY (OSD) CONTROLS.......................................................... 47
Page IX
TDM Series LCD Monitor
5.1 USER MODE OSD STRUCTURE................................................................................. 48
5.1.1 OSD Buttons..................................................................................................... 48
5.1.2 OSD Menu Structure........................................................................................ 50
5.2 USING THE OSD....................................................................................................... 51
5.2.1 Main Display Features..................................................................................... 51
5.2.2 Color................................................................................................................ 52
5.2.3 OSD Configurations......................................................................................... 53
6 SOFTWARE DRIVERS.............................................................................................. 54
6.1 INTRODUCTION......................................................................................................... 55
6.2 RS-232 OR USB TOUCH SCREEN ............................................................................. 55
6.3 TOUCH PANEL DRIVER INSTALLATION...................................................................... 56
6.4 CHANGE THE TOUCH SCREEN INTERFACE ................................................................ 59
6.5 CALIBRATING THE TOUCH SCREEN........................................................................... 59
7 GASKET REPLACEMENT....................................................................................... 62
7.1 GASKET REPLACEMENT ........................................................................................... 63
A CERTIFICATIONS .................................................................................................... 64
A.1 ROHS COMPLIANT.................................................................................................. 65
A.2 IP 65 COMPLIANT FRONT PANEL............................................................................. 65
Page X
TDM Series LCD Monitor
List of Figures
Figure 1-1: Front View....................................................................................................................5
Figure 1-2: Rear View.....................................................................................................................6
Figure 1-3: Top View.......................................................................................................................7
Figure 1-4: Bottom View ................................................................................................................7
Figure 1-5: Side View......................................................................................................................8
Figure 1-6: TDM-121GMS Frame Rear View (4 rack mount kit screw holes)............................8
Figure 1-7: TDM-150GMS Frame Rear View (6 rack mount kit screw holes)............................9
Figure 2-1: Front Panel ................................................................................................................12
Figure 2-2: TDM Series Rear Panel Connector Locations........................................................13
Figure 2-3: TDM-121GMS Physical Dimensions (millimeters) .................................................15
Figure 2-4: TDM-150GMS Physical Dimensions (millimeters) .................................................16
Figure 3-1: AV-6600 AD Board Overview ...................................................................................23
Figure 4-1: Monitor Rear Panel Connections ............................................................................31
Figure 4-2: 12V Power Connector...............................................................................................32
Figure 4-3: DC Power Connector................................................................................................32
Figure 4-4: RS-232 Touch Screen Connector............................................................................33
Figure 4-5: USB Touch Screen Connector.................................................................................34
Figure 4-6: Panel Opening...........................................................................................................35
Figure 4-7: Insert the Monitor......................................................................................................36
Figure 4-8: Clamp Insertion Holes..............................................................................................37
Figure 4-9: Panel Mounting Clamp Position..............................................................................38
Figure 4-10: Secure the Rack Mount Kit ....................................................................................39
Figure 4-11: Install into a Cabinet/Rack .....................................................................................40
Figure 4-12: Wall-mounting Bracket...........................................................................................41
Figure 4-13: Monitor Support Screws.........................................................................................42
Figure 4-14: Wall Mounting the Monitor.....................................................................................43
Figure 4-15: VESA Mounting Holes ............................................................................................44
Figure 4-16: Monitor Stand Mounting.........................................................................................45
Figure 4-17: Monitor Arm Mounting............................................................................................46
Figure 5-1: OSD Control Buttons for All Models.......................................................................48
Figure 5-2: Main Display Features..............................................................................................51
Page XI
Figure 5-3: Color Options ............................................................................................................52
Figure 5-4: OSD Configurations Menu .......................................................................................53
Figure 6-1: Setup Icon..................................................................................................................56
Figure 6-2: Welcome Screen .......................................................................................................57
Figure 6-3: License Agreement...................................................................................................57
Figure 6-4: Initiate Install .............................................................................................................58
Figure 6-5: Installation Starts......................................................................................................58
Figure 6-6: Finish Installation......................................................................................................59
Figure 6-7: PenMount Monitor Icon............................................................................................60
Figure 6-8: PenMount Monitor Popup Menu..............................................................................60
Figure 6-9: Configuration Screen................................................................................................60
Figure 6-10: Calibration Initiation Screen..................................................................................61
Figure 6-11: Calibration Screen ..................................................................................................61
Figure 7-1: Gasket Replacement.................................................................................................63
TDM Series LCD Monitor
Page XII
TDM Series LCD Monitor
List of Tables
Table 1-1: TDM Series Model Variants..........................................................................................3
Table 1-2: TDM Series Specifications.........................................................................................10
Table 2-1: General Physical Dimensions ...................................................................................14
Table 2-2: TDM Series Mounting Kits.........................................................................................17
Table 2-3: Panel Mounting Clamps.............................................................................................18
Table 2-4: Rack Mounting Holes.................................................................................................18
Table 3-1: TDM-121GMS LCD Specifications.............................................................................20
Table 3-2: TDM-150GMS LCD Specifications.............................................................................21
Table 3-3: AV-6600 Peripheral Interface Connectors................................................................24
Table 3-4: AV-6600 Rear Panel Connectors...............................................................................24
Table 4-1: External Peripheral Interface Connectors................................................................30
Table 4-2: RS-232 Touch Screen Connector Pinouts ...............................................................33
Table 4-3: USB Touch Screen Connector Pinouts....................................................................33
Table 5-1: OSD Menus..................................................................................................................50
Page XIII
TDM Series LCD Monitor
Chapter
1
1 Introduction
Page 1
TDM Series Monitor
1.1 TDM-121GMS/150GMS LCD Monitor Overview
The TDM series is a Liquid Crystal Display (LCD) module. It is the latest member of IEI’s
line of RoHS-compliant sophisticated LCD designs. Utilizing the thin film transistor (TFT)
technology, the TDM series offers crisp displays and bright resolutions while meeting the
demanding operating requirements of rugged industrial applications. The TDM series is
designed for applications that require minimum installation space and flexible
configuration. The flat front panel provides IP 65 protection, which effectively wards off
dust and water. Touch screens are also preinstalled.
1.1.1 Standard Features
All the models listed in Section 1.2.1 have the following standard features:
LCD monitor
VGA
XGA (1024 x 768 pixels) resolution
Silver color
Aluminum front
RoHS compliance
DE (Data Enable) only mode
Low Voltage Differential Signaling (LVDS) interface
Wide range operating temperature
Wide viewing angle
High contrast ratio
Fast response time
High color saturation
Page 2
TDM Series Monitor
1.1.2 Model Variations
The TDM LCD series has four model variations listed in Table 1-1.
Model Number LCD Size 9~36V
Power
Input
TDM-121GMS-R20 12.1” Yes Yes Yes Yes
TDM-150GMS-R20 15” Yes Yes Yes Yes
Table 1-1: TDM Series Model Variants
Touch
Screen with RS-232
Interface
VGA DVI
1.1.3 Applications
The TDM series industrial monitor is designed for rigorous industrial environments where
it may be exposed to both heat and moisture. Its durability and strength also makes it an
ideal choice for public access computers. Some possible applications include:
Digital Surveillance
X-ray imaging terminal
Multimedia advertising platform
General Computing
o Computer-based testing center
o General purpose information system
o Mobile nursing station
o Interactive education use
Automation & Control
o Plant environment monitoring
o Factory automation HMI terminal
o Shop-floor/MES control
Self-service Kiosk
o Full-service receptionist kiosk
o Hospital self-registration terminal
o Interactive photo kiosk
o Video rental kiosk
o Self-service POS terminal
Page 3
1.1.4 Features
Some of the features of the TDM series industrial monitor include:
TDM Series Monitor
IP 65 compliant aluminum front panel
Wide range temperature support
Analog VGA interface supports most general system boards
RS-232 interface touch screen
Up to 500 cd/m
Advanced thermal and air-flow design
Supports panel, rack, wall, rail, stand and arm mounting
9 ~ 36V DC power input for mobile application
Long product life support
RoHS compliant
Analog resistive type touch screen
2
high brightness and 50000hrs MTFB long lifetime panel
1.2 External Overview
The TDM series industrial monitors are durable devices that can be used in harsh
industrial environments. The following sections describe the physical layout of the TDM
series industrial monitors.
Page 4
TDM Series Monitor
1.2.1 Front View
The front of the TDM series industrial monitor is a flat panel TFT LCD screen surrounded
by an aluminum frame. A control button panel (OSD) is located vertically on the right side
of the frame with the following control buttons:
LCD On/Off
Auto
Left
Right
Menu
The OSD panel also has one power LED.
Figure 1-1 shows the LCD monitor front view.
Figure 1-1: Front View
Page 5
1.2.2 Rear View
The rear panel features fan ventilation holes and four retention screw holes that support a
TDM Series Monitor
wall-mounting bracket. The retention screw holes are circled in
Figure 1-2.
Figure 1-2: Rear View
Page 6
TDM Series Monitor
1.2.3 Top View
The top view provides access to retention screws that secure the back cover to the
chassis. The retention screw holes are circled in
Figure 1-3: Top View
1.2.4 Bottom View
The bottom view provides access to retention screws that secure the back cover to the
chassis. The retention screw holes are circled in
Figure 1-4: Bottom View
Figure 1-3 below.
Figure 1-4 below.
1.2.5 Side View
The rear panel shown in Figure 1-5 has the following interfaces. See Section 5.4.1 for the
connector locations.
1 x RS-232 connector touch screen interface
1 x USB connector touch screen interface
1 x 9~36V DC terminal block
1 x 12V DC input connector
1 x VGA connector
1 x DVI-D connector
Page 7
Figure 1-5: Side View
1.2.6 Frame
An aluminum frame surrounds the TDM series LCD monitor. This aluminum frame has
TDM Series Monitor
small screw holes that are used to attach the LCD monitor to a rack mount kit for mounting
into a rack or cabinet. The screw holes on TDM-121GMS are circled in
Figure 1-6.
Figure 1-6: TDM-121GMS Frame Rear View (4 rack mount kit screw holes)
Page 8
TDM Series Monitor
Figure 1-7: TDM-150GMS Frame Rear View (6 rack mount kit screw holes)
1.2.7 Internal View
The TDM series industrial monitor AD board provides a wide variety of control interfaces,
receiving and managing signals from a CPU card through cabling. Refer to Section
a complete description of the AV-6600 AD board and its connectors.
1.3 Series Specifications
Table 1-2 shows the TDM Series specifications.
Model TDM-121GMS TDM-150GMS
LCD Size
Input Interface
Resolution
Brightness
12.1” 15”
Analog VGA+DVI-D Analog VGA+DVI-D
1024 x 768 1024 x 768
2
500 cd/m
350 cd/m2
3.3 for
Contrast
Display Color
700:1 700:1
262,144 262,144
Page 9
Model TDM-121GMS TDM-150GMS
TDM Series Monitor
View Angle
Front Frame
Chassis
Input Voltage
OSD Function
Mounting
Color
Dimension (mm)
Operation Temperature
Storage Temperature
IP Level
Net Weight
160/160 140/125
Aluminum
Heavy-duty steel
9~36VDC
Yes
Wall / Panel / Rack / Arm / Stand
Silver
340 x 260 x 58 410 x 309x 65.2
-30°C~70°C
-40°C~80°C
IP 65
3.3kg 6kg
Table 1-2: TDM Series Specifications
1.4 Certifications
All TDM series industrial monitor models comply with the following international standards:
RoHS
IP 65
For a more detailed description of these standards, please refer to Sections
A.1 and A.2.
Page 10
TDM Series Monitor
2
2 Detailed Specifications
Chapter
Page 11
2.1 Introduction
This chapter describes the general mechanical overview of the TDM series monitors
including front and rear panel, available interfaces and overall dimensions.
2.2 Front Panel
The front panel of the TDM series industrial monitor is comprised of a TFT LCD with LED
TDM Series Monitor
backlight in an aluminum frame with an OSD control panel.
panel of the TDM series.
Figure 2-1 shows the front
Page 12
Figure 2-1: Front Panel
TDM Series Monitor
2.3 Rear Panel
All peripheral device connectors are located on the rear panel of the TDM series industrial
monitor. The following rear panel connectors may be found on the TDM series.
shows the location of the connectors.
12V power connector
9V ~ 36V terminal block
DVI-D connector
Touch screen with RS-232 interface
Touch screen with USB interface
VGA connector
Figure 2-2
Figure 2-2: TDM Series Rear Panel Connector Locations
Page 13
2.4 Physical Dimensions
The following sections describe the physical dimensions for each model of the TDM series
industrial monitor.
2.4.1 General Physical Dimensions
General physical dimensions for the TDM series industrial monitors are shown in
Table 2-1.
TDM Series Monitor
Model Width
(mm)
TDM-121GMS 340 260 58
TDM-150GMS 410 309 65.2
Table 2-1: General Physical Dimensions
Height
(mm)
Depth
(mm)
Page 14
TDM Series Monitor
2.4.2 TDM-121GMS Physical Dimensions
The physical dimensions of the TDM121GMS are shown in Figure 2-3.
Figure 2-3: TDM-121GMS Physical Dimensions (millimeters)
Page 15
2.4.3 TDM-150GMS Physical Dimensions
The physical dimensions of the TDM-150GMS are shown in Figure 2-4.
TDM Series Monitor
Figure 2-4: TDM-150GMS Physical Dimensions (millimeters)
Page 16
TDM Series Monitor
2.5 Mounting Kits
The following sections describe the various optional mounting kits available for each
model of the TDM series industrial monitor. Refer to Section
on the different mounting methods for the monitors.
Table 2-2 lists the mounting kits available for the TDM series monitor.
Model TDM-121GMS TDM-150GMS
Panel Mounting Kit PK-121M PK-150M
Wall Mounting Kit WK-121MS-R10 WK-150MS-R10
Rack Mounting Kit RK-121MS-R10 RK-150MS-R10
LCD Monitor Arm ARM-11 ARM-31
LCD Monitor Stand STAND-100-RS STAND-200-RS
Table 2-2: TDM Series Mounting Kits
2.6 Mounting Options
4.4.7 for detailed instructions
Each TDM series industrial monitor has a number of mounting holes or slots located on
the back side of the aluminum frame or on the rear panel for mounting the monitor to a
rack, panel, cabinet, rail, wall, arm or stand. The following sections describe the various
mounting methods or each model of the TDM series industrial monitor.
2.6.1 Panel Mounting
Each model of the TDM series industrial monitor has a series of mounting slots located on
the top and bottom panel for mounting the monitor to a panel.
Table 2-3 lists the number of mounting clamps required to mount the monitor to a panel.
Page 17
Model Mounting Clamps
TDM-121GMS 10
TDM-150GMS 10
Table 2-3: Panel Mounting Clamps
2.6.2 Rack and Cabinet Mounting
Each model of the TDM series industrial monitor has a series of holes located on the rear
of the front panel for securing the monitor to the rack mounting kit.
Table 2-4 lists the number of holes each monitor has to secure the monitor to the rack
mounting kit.
Model Holes
TDM Series Monitor
TDM-121GMS 4
TDM-150GMS 6
Table 2-4: Rack Mounting Holes
2.6.3 Wall Mounting
Each model of the TDM series industrial monitor has four holes located on the rear panel
for mounting the monitor to a wall.
2.6.4 Monitor Arm or Stand Mounting
The TDM series industrial monitor has four Video Electronics Standards Association
(VESA) standard holes located on the rear panel for mounting the monitor to a monitor
arm or stand.
NOTE:
Page 18
The monitor stand is purchased separately.
TDM Series Monitor
Chapter
3
3 LCD and Touch Screen
Specifications
Page 19
3.1 LCD Specifications
3.1.1 LCD Overview
The TDM series industrial monitors use the following LCD panels.
TDM-121GMS: AUO G121XN01 V0
TDM-150GMS: AUO G150XG01 V1
Detailed specifications for the LCD screens are listed in the following sections.
3.1.2 TDM-121GMS LCD Specifications
Table 3-1 lists the LCD specifications of the TDM-121GMS.
Model TDM-121GMS
TDM Series Monitor
Size 12.1”
MFR/Model AUO/G121XN01 V0
Resolution XGA (1024 x 768)
Active Area (mm) 245.76 x 184.32
Pixel Pitch (mm) 0.3075
Mode TN
Number of Colors 262K
View Angle (H/V) 160/160
Brightness (cd/m2) 500
Contrast Ratio 700:1
Response Time (ms) (at 25C) 35
Power Consumption (W) 9.15
Interface 1ch LVDS
Supply Voltage (V) 3.3
Backlight LED
Page 20
Color Saturation (NTSC%) 70
Table 3-1: TDM-121GMS LCD Specifications
TDM Series Monitor
3.1.3 TDM-150GMS LCD Specifications
Table 3-2 lists the LCD specifications of the TDM-150GMS.
Model TDM-121GMS
Size 15”
MFR/Model AUO/G150XG01 V1
Resolution XGA (1024 x 768)
Active Area (mm) 304.1 x 228.1
Pixel Pitch (mm) 0.297
Mode TN
Number of Colors 16.2M
Color Saturation (NTSC%) 65
View Angle (H/V) 140/120
Brightness (cd/m2) 350
Contrast Ratio 700:1
Response Time (ms) (at 25C) 8
Power Consumption (W) 8.9
Interface 1ch LVDS
Supply Voltage (V) 3.3
Backlight 2 CCFL
Lamp Life (hrs) 50000
Table 3-2: TDM-150GMS LCD Specifications
Page 21
3.2 Touch Screens
The TDM series industrial monitors all preinstalled with touch screens with the following
features:
8-wire touch screen
Small border customized design
All size touch screen design
Customized activation force and palm rejection
Customized optical characteristics
High reliability and durability in the field
3.3 AV-6600 AD Board Overview
TDM Series Monitor
The TDM series industrial monitor AD board provides a wide variety of control interfaces,
receiving and managing interface signals from a CPU card through cabling. The following
sections describe the AV-6600 AD board in detail.
Page 22
TDM Series Monitor
Figure 3-1: AV-6600 AD Board Overview
3.3.1 AV-6600 Peripheral Interface Connectors
3Table 3-3 shows a list of the peripheral interface connectors on the AV-6600 AD board.
Connector Type Label
Audio input connector 4-pin wafer connector CN11
Audio speaker output connector 4-pin wafer connector CN12
Auto-dimming connector 6-pin wafer connector CN7
Debug connector 4-pin wafer connector CN9
External OSD and LED indication connector 9-pin wafer connector CN10
Page 23
Infrared connector 6-pin wafer connector CN8
Inverter interface connector 6-pin wafer connector CN6
LVDS connector 30-pin connector CN5
Power output connector (+12 V) 2-pin wafer connector CN3
Power output connector (+5 V) 2-pin wafer connector CN4
Power input connector 3-pin connector CN2
RS-232 and USB signal input connector 12-pin wafer connector CN14
Touchscreen connector 9-pin wafer connector J4
VGA connector 10-pin box header VGA2
Table 3-3: AV-6600 Peripheral Interface Connectors
TDM Series Monitor
3.3.2 AV-6600 Rear Panel Connectors
3Table 3-4 lists the rear panel connectors on the AV-6600 AD board.
Connector Type Label
12V DC power connector DC Power Jack CN13
DVI connector 24-pin DVI-D connector J2
VGA connector 15-pin VGA connector VGA1
Table 3-4: AV-6600 Rear Panel Connectors
Page 24
TDM Series Monitor
Chapter
4
4 Installation
Page 25
4.1 Installation Precautions
When installing the TDM series industrial monitor, please follow the precautions listed
below:
Read the user manual: The user manual provides a complete description of
the TDM series industrial monitor, installation instructions and configuration
options.
DANGER! Disconnect Power: Power to the monitor must be disconnected
when installing the TDM series industrial monitor, or before any attempt is
made to access the rear panel. Electric shock and personal injury might occur
if the rear panel of the monitor is opened while the power cord is still
connected to an electrical outlet.
Qualified Personnel: The TDM series industrial monitor must be installed
and operated only by trained and qualified personnel. Maintenance, upgrades,
TDM Series Monitor
or repairs may only be carried out by qualified personnel who are familiar with
the associated dangers.
Mounting: Since the monitor may weigh up to 10 kg (not including a swing
arm or other accessories), please ensure at least two people assist with
mounting the monitor.
Air Circulation: Make sure there is sufficient air circulation when installing the
monitor. The monitor’s cooling vents must not be obstructed by any objects.
Blocking the vents can cause overheating of the monitor. Leave at least 5 cm
of clearance around the monitor to prevent overheating.
Grounding: The monitor should be properly grounded. The voltage feeds
must not be overloaded. Adjust the cabling and provide external overcharge
protection per the electrical values indicated on the label attached to the back
of the monitor.
Anti-static Discharge : The rear panel of the monitor must to be removed to
configure the monitor’s AD board voltage select jumper. When doing so, be
sure the monitor is disconnected from its power source and take all necessary
safety precautions to avoid electrocution and static discharge to the AD board.
Page 26
The use of a grounded wrist strap and an anti-static work pad is
recommended.
TDM Series Monitor
4.2 Unpacking
4.2.1 Packaging
When shipped, the TDM series industrial monitor is wrapped in a plastic bag. Two
polystyrene ends are placed on either side of the monitor. The monitor is then placed into
a first (internal) cardboard box. This box is then sealed and placed into a second (external)
cardboard box. The second box is also sealed. A bag containing accessory items is
placed underneath the monitor, at the bottom of the internal (first) box.
4.2.2 Unpacking Procedure
To unpack the TDM series industrial monitor, follow the steps below:
WARNING:
The front side LCD screen has a protective plastic cover stuck to the
screen. Only remove the plastic cover after the TDM series industrial
monitor has been properly installed. This ensures the screen is
protected during the installation process.
Step 1: Use box cutters, a knife or a sharp pair of scissors to open the seal on the top
side of the external (second) box.
Step 2: Open the external (second) box.
Step 3: Use box cutters, a knife or a sharp pair of scissors the seal on the top side of the
internal (first) box.
Step 4: Lift the monitor out of the boxes.
Step 5: Remove both polystyrene ends, one from each side.
Step 6: Pull the plastic cover off the TDM series industrial monitor.
Step 7: Make sure all the components listed in the packing list are present. Step 0:
Page 27
4.2.3 Packing List
All the monitors in the TDM series are shipped with the following components:
TDM-121GMS / TDM-121GMS/T-R / TDM-150GMS / TDM-150GMS/T-R
1 x Power cable for terminal block
1 x VGA cable
1 x Screw set
1 x User manual on CD-ROM
1 x Touch screen RS-232 cable / touch pen / driver CD-ROM (T-R models
*1 x 45W AC power adapter with AC 90V ~ 264V @ 1A input and DC +12V
* External 45W power adapter only supports 0°C ~ 40°C operating
TDM Series Monitor
industrial LCD monitor
only)
@3.75A output / AC power cord
temperature
If any of these items are missing or damaged, contact the distributor or sales
representative immediately.
4.3 Pre-installation Preparation
4.3.1 Tools
Before installing the TDM series industrial monitor, make sure the following tools are on
hand:
Phillips (crosshead) screwdriver: All the retention screws on the system are
Phillips screws.
Soft working mat: When the TDM series industrial monitor is installed, the
screen is placed on the working surface. It is therefore important to rest the
MPC industrial workstation on a soft at that cannot damage the LCD screen
on the front of the TDM series industrial monitor.
Page 28
TDM Series Monitor
4.3.2 Voltage Select Jumper Settings
If the monitor comes with both 12V and 9 ~ 36V DC power connectors, the voltage select
jumper on the integrated AD board must be configured for the DC connector that is used
to power the monitor. Refer to Section 4.3.2 for the appropriate jumper settings of the AD
board.
NOTE:
The default voltage select jumper is configured for a 12V power source.
Do not change the jumper setting unless a 9~36V DC power connector
is to be used as the monitor’s power source.
To properly set the voltage select jumper, the following steps must be completed:
Step 1: Use a screwdriver to remove all the screws holding the rear panel to the monitor.
Step 2: Remove the rear panel.
Step 3: Locate the voltage select jumper. (See Section 4.3 )
Step 4: Use the jumper(s) to set the correct voltage input. (See Section 4.3.2)
Step 5: Replace the rear panel.
Step 6: Replace all removed screws.Step 0:
Page 29
4.4 Connectors
Table 4-1 lists the external peripheral interface panel connectors for the TDM series
industrial monitors.
TDM-121GMS TDM-150GMS
VGA Yes Yes
DVI-D Yes Yes
Power (12V Jack) Yes Yes
Power (9 ~ 36V) Yes Yes
RS-232 Touch Screen Yes Yes
USB Touch Panel Yes Yes
Table 4-1: External Peripheral Interface Connectors
TDM Series Monitor
Page 30
TDM Series Monitor
4.4.1 Rear Panel Connectors Overview
Figure 4-1: Monitor Rear Panel Connections
Figure 4-1 shows all the possible rear panel connectors for the TDM series LCD monitor.
The following sections fully describe the rear panel connectors for the TDM series LCD
monitor.
4.4.2 VGA Connector
Use the rear panel standard 15-pin female VGA connector to connect the monitor to the
system graphics interface. See Section 4.2.8 for the VGA connector location and pinouts.
Page 31
4.4.3 DVI-D Connector
Use the rear panel standard 24-pin female DVI-D connector to connect the monitor to the
system graphics interface. See Section 4.4.3 for the DVI-D connector location and
pinouts.
4.4.4 12V Power Connector
Use the rear panel +12V DC jack to connect the monitor to a power source.
Figure 4-2: 12V Power Connector
TDM Series Monitor
4.4.5 DC Power Connector
Use the rear panel 3-pin terminal block DC power connector to connect the monitor to a
DC power source.
Figure 4-3: DC Power Connector
Page 32
TDM Series Monitor
4.4.6 RS-232 Touch Screen Connector
Use the rear panel standard RS-232 DB-9 female touch screen connector to connect the
monitor to the system graphics interface.
PIN DESCRIPTION PIN DESCRIPTION
1 N/A 6 NDSR
2 NRX 7 NRTS
3 NTX 8 N/A
4 NDTR 9 N/A
5 GND
Table 4-2: RS-232 Touch Screen Connector Pinouts
Figure 4-4: RS-232 Touch Screen Connector
4.4.7 USB Touch Panel Connector
Use the rear panel standard USB touch panel connector to connect the monitor to the
system graphics interface.
PIN DESCRIPTION PIN DESCRIPTION
1 VCC 5 VCC
2 Data- 6 Data3 Data+ 7 Data+
4 GND 8 GND
Table 4-3: USB Touch Screen Connector Pinouts
Page 33

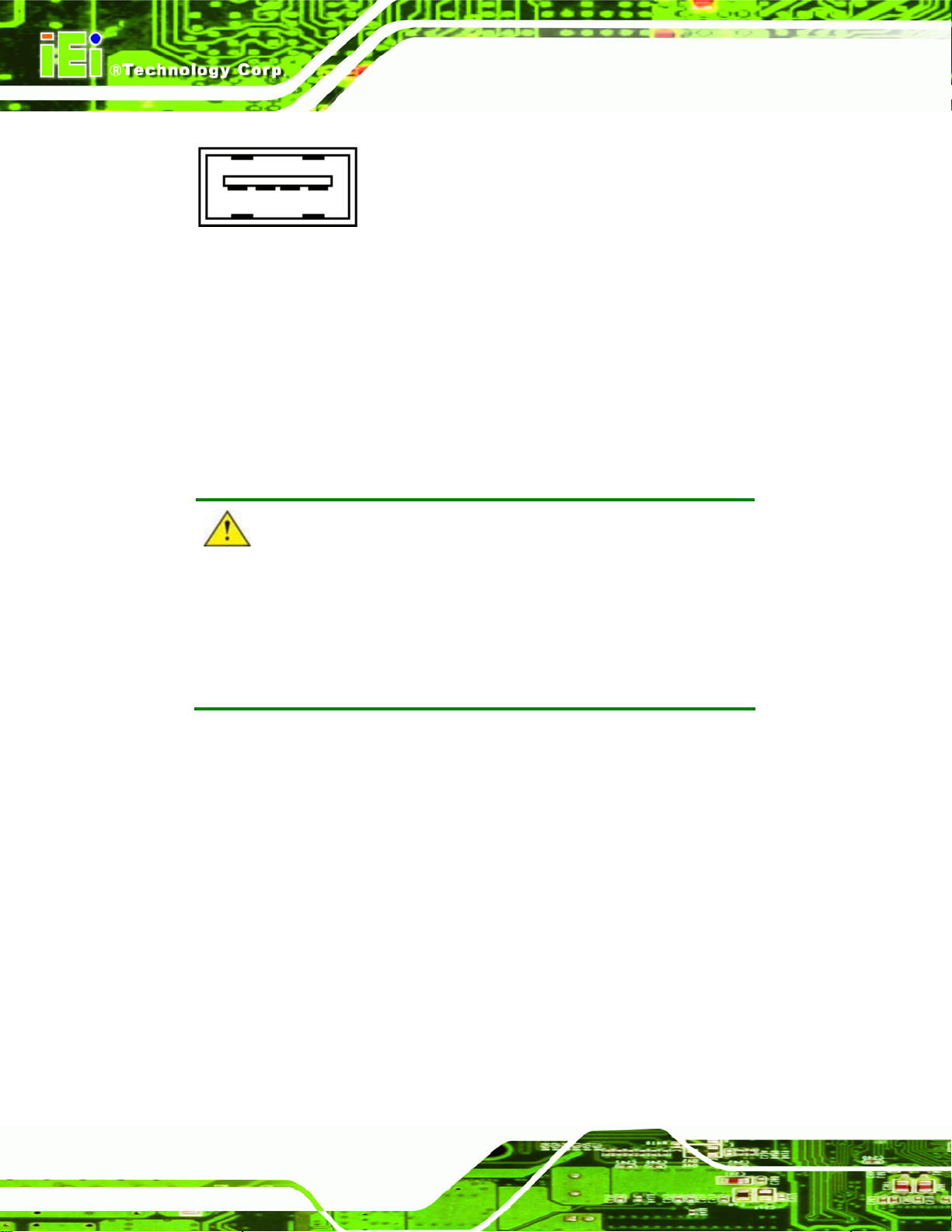

Figure 4-5: USB Touch Screen Connector
4.5 Mounting the TDM Series LCD Monitor
The TDM series LCD monitor can be mounted in a panel, cabinet, rack, or wall. The
monitor can also be mounted on a monitor arm or stand. The mounting methods are
described below.
TDM Series Monitor
CAUTION:
When mounting the monitor take care to tighten the retention screws or
bolts until fully secure, but do not over tighten. Over tightening the
retention screws or bolts may cause them to become stripped,
rendering them useless.
4.5.1 Panel Mounting
To mount the TDM series LCD monitor into a panel, please follow the steps below.
Step 1: Select the position on the panel to mount the monitor.
Step 2: Cut out a section of the panel that corresponds to the rear panel dimensions of
the monitor. Take care that the panel section that is cut out is smaller than the
overall size of the metal frame that surrounds the monitor but just large enough
Page 34
for the rear panel of the monitor to fit through (
Figure 4-6).
TDM Series Monitor
Figure 4-6: Panel Opening
Page 35

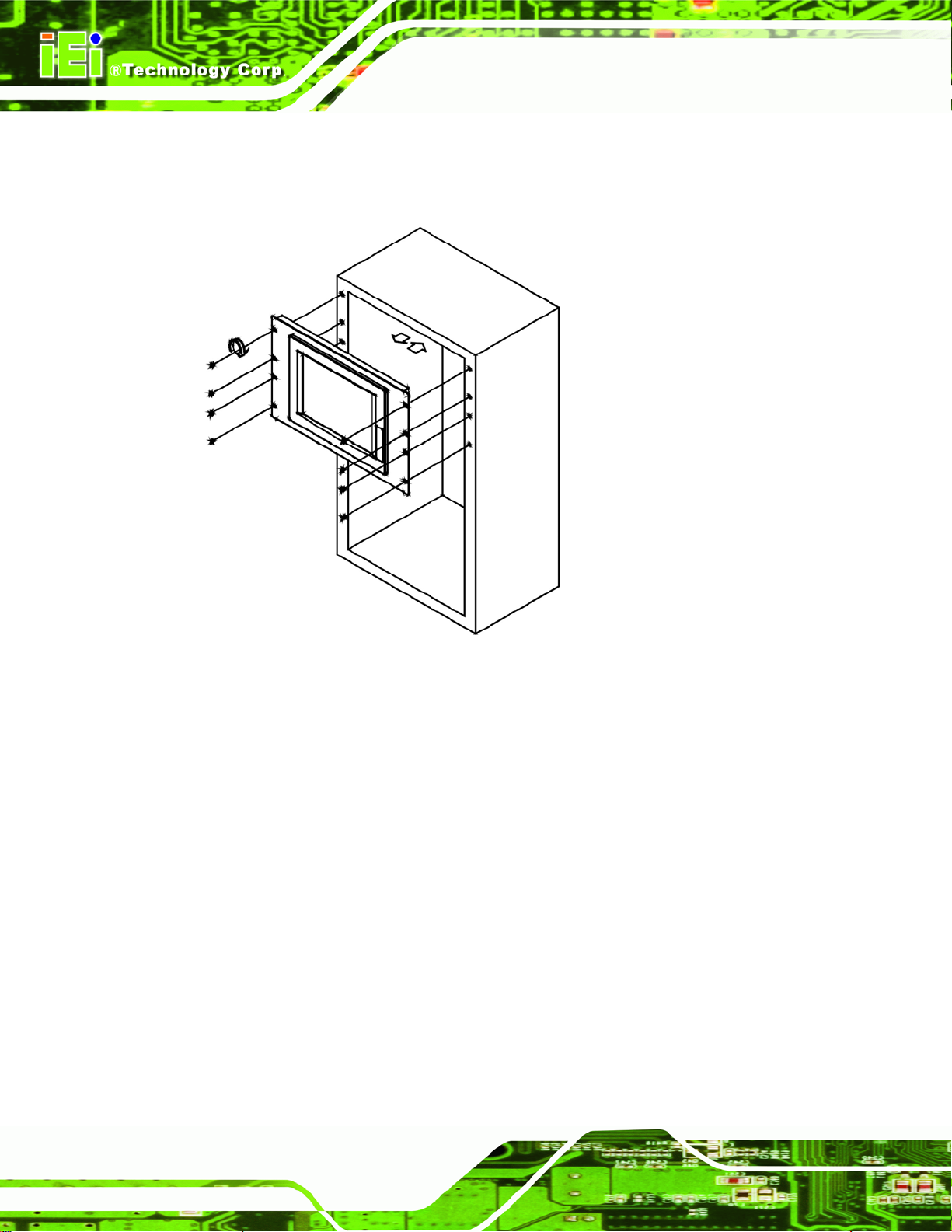

Step 3: Slide the monitor through the hole until the metal frame is flushed against the
TDM Series Monitor
panel (
Figure 4-7: Insert the Monitor
Figure 4-7).
Page 36
TDM Series Monitor
Step 4: Insert the panel mounting clamps into the pre-formed holes along the edges of
the monitor, behind the metal frame.
insertion holes on one side of the LCD monitor. Refer to
mounting clamps required for each model.
Figure 4-8 shows the location of clamp
Table 2-3 for the
Figure 4-8: Clamp Insertion Holes
Page 37
Step 5: Tighten the screws that pass through the panel mounting clamps until the plastic
TDM Series Monitor
caps at the front of all the screws are firmly secured to the panel (
Figure 4-9).
Figure 4-9: Panel Mounting Clamp Position
4.5.2 Cabinet and Rack Installation
The TDM series provides optional rack mount kits for industrial racks. To mount the TDM
series LCD monitor into a cabinet/rack, please follow the steps below.
Step 1: The back of the metal frame surrounding the TDM series LCD monitor has
several retention screw holes for a rack mount kit. See
Figure 1-7.
Step 2: Slide the monitor through the rack mount kit until the rear side of the monitor
frame is flushed against the front of the rack mount kit.
Step 3: Make sure the retention screw holes at the rear of the monitor frame are aligned
with the retention screw holes in the rack mount kit.
Figure 1-6 and
Page 38
TDM Series Monitor
Step 4: Secure the rack mount kit to the monitor by inserting and tightening the retention
screws (
Figure 4-10: Secure the Rack Mount Kit
Figure 4-10).
Page 39
Step 5: Slide the monitor with the attached rack mount kit into a rack or cabinet
Figure 4-11).
(
TDM Series Monitor
Figure 4-11: Install into a Cabinet/Rack
Step 6: Once the monitor with the attached cabinet/rack has been properly inserted into
the rack or cabinet, secure the front of the rack/cabinet bracket to the front of the
rack or cabinet (
Figure 4-11).
4.5.3 Wall Mounting
To mount the TDM series industrial monitor onto a wall, please follow the steps below.
Step 1: Select a location on the wall for the wall-mounting bracket.
Step 2: Carefully mark the locations of the four bracket screw holes on the wall.
Step 3: Drill four pilot holes at the marked locations on the wall for the bracket retention
screws.
Page 40
TDM Series Monitor
Step 4: Align the wall-mounting bracket screw holes with the pilot holes.
Step 5: Secure the mounting-bracket to the wall by inserting the retention screws into
the four pilot holes and tightening them (
Figure 4-12).
Figure 4-12: Wall-mounting Bracket
Step 6: Insert the four monitor mounting screws provided in the wall mounting kit into the
four screw holes on the real panel of the monitor and tighten until the screw
shank is secured against the rear panel (
Figure 4-13).
Page 41
TDM Series Monitor
Figure 4-13: Monitor Support Screws
Step 7: Align the mounting screws on the monitor rear panel with the mounting holes on
the bracket.
Step 8: Carefully insert the screws through the holes and gently pull the monitor
downwards until the monitor rests securely in the slotted holes (
Ensure that all four of the mounting screws fit snuggly into their respective
slotted holes.
Figure 4-14).
Page 42
TDM Series Monitor
Figure 4-14: Wall Mounting the Monitor
4.5.4 Monitor Stand Installation
The TDM series industrial monitor has Video Electronics Standards Association (VESA)
standard mounting holes tapped into the rear panel. The standard holes are M4 set at
100m x 100mm apart (
Figure 4-15).
Page 43
TDM Series Monitor
Figure 4-15: VESA Mounting Holes
The monitor stand mounting plate has a matching VESA hole pattern. To mount the TDM
series industrial monitor onto a stand, please follow the steps below.
Step 1: Line up the threaded holes on the monitor rear panel with the screw holes on the
monitor stand mounting plate.
Step 2: Secure the monitor to the stand with the supplied retention screws
Figure 4-16).
(
Page 44
TDM Series Monitor
Figure 4-16: Monitor Stand Mounting
4.5.5 Monitor Arm Installation
The TDM series industrial monitor has Video Electronics Standards Association (VESA)
standard mounting holes tapped into the rear panel. The standard holes are M4 set at
100m x 100mm apart (
VESA hole pattern. To mount the TDM series industrial monitor onto a monitor arm,
please follow the steps below.
Figure 4-15). The monitor arm mounting plate has a matching
Page 45
Step 1: Line up the threaded holes on the monitor rear panel with the screw holes on the
monitor arm mounting plate.
TDM Series Monitor
Step 2: Secure the monitor to the arm with the supplied retention screws (
Step 0:
Figure 4-17: Monitor Arm Mounting
Figure 4-17).
Page 46
TDM Series Monitor
Chapter
5
5 On-Screen-Display (OSD)
Controls
Page 47
5.1 User Mode OSD Structure
5.1.1 OSD Buttons
There are several on-screen-display (OSD) control buttons oriented either vertically along
TDM Series Monitor
the right hand side of the monitor front panel.
OSD controls.
Figure 5-1 shows a typical arrangement of
Page 48
Figure 5-1: OSD Control Buttons for All Models
Menu/Enter Button
Press this button to open the OSD window. When inside a menu, press this
button to confirm the function adjustment or selection of the item. There may
be several levels in one item. As you select an item in the menu, the
sub-items will be displayed.
Right Button
Press this button to scroll to the right, to decrease the value, or to switch from
one selected item to another.
TDM Series Monitor
Left Button
Press this button to scroll to the left, to increase the value, or to switch from
one selected item to another.
Auto/Exit Button
Press this button to enable auto-configuration or apply default values.
LCD ON/OFF Button
Press this button to turn the LCD monitor on or off.
Page 49
5.1.2 OSD Menu Structure
Table 5-1 shows the OSD menu structure for all models of the TDM series LCD monitor.
Level 0 Level 1 Value
TDM Series Monitor
Main Display Features Menu
Color Menu
OSD Menu
Brightness 0 to 100
Contrast 0 to 100
Clock 0 to 100
Phase 0 to 100
H. Position 0 to 100
V. Position 0 to 100
Sharpness 1 to 5
6500K - Preset NTSC value
7500K - Preset NTSC value
9300K - Preset NTSC value
Red RGB values from 0 to 100
Green RGB values from 0 to 100
Blue RGB values from 0 to 100
OSD Time Out 0 to 60 sec
OSD Position 1 to 5
OSD Transparency 20, 40, 60, 80, 100
Page 50
Factory Reset Select
Auto Adjust Sele ct
Auto Color Select
Gamma Off, On
Exit Menu Exit Select
Table 5-1: OSD Menus
TDM Series Monitor
5.2 Using the OSD
OSD menu options are described below.
5.2.1 Main Display Features
Main display features are shown in Figure 5-2.
Figure 5-2: Main Display Features
The brightness option adjusts the brightness of screen. This function
Brightness
Contrast
Clock
Phase
H. Position
V. Position
Sharpness
adjusts the offset value of ADC. Setting this value too high or too low
will affect the quality of image. When the auto- dimming function is
turned on, the brightness control is not effective.
This function adjusts the gain value of ADC. Adjusting this value too
high or too low will worsen the quality of image.
Adjusts the width of the display screen.
Adjusts the input signal.
Adjusts the horizontal position of the display screen.
Adjusts the vertical position of the display screen
Adjust the sharpness of the display
Page 51
5.2.2 Color
Color options are shown in Figure 5-3.
TDM Series Monitor
Figure 5-3: Color Options
The Color menu fine-tunes the palette of color hues for the LCD.
6500k
7500k
9300k
User
NTSC standard Kelvin
NTSC standard Kelvin
NTSC standard Kelvin
This item allows fine-tuning the balance among Red, Green, and Blue color
hues if images look garish or unrealistic.
Page 52
TDM Series Monitor
5.2.3 OSD Configurations
The OSD configurations are shown in Figure 5-4.
Figure 5-4: OSD Configurations Menu
OSD Configurations are described below.
OSD Time Out
OSD Position
OSD Transparency
Factory Reset
Auto Adjust
Auto Color
Determines how many seconds the OSD screen stays on screen
before it disappears when OSD is left unattended.
Adjusts the OSD position on the screen. Position 1 is in the upper left
of the screen, position 2 in the upper right and position 3 in the
center.
Adjust the transparency of the OSD menu background.
Restores the default OSD settings. Note that this will restore all
default display settings.
Automatically adjusts the position of the display screen
Automatically adjusts the color settings.
Page 53
TDM Series Monitor
Chapter
6
6 Software Drivers
Page 54
TDM Series Monitor
6.1 Introduction
The touch panel controller enables analog resistive touch panels for four-wire, five-wire &
eight-wire models. The controller directly communicates with the PC system through the
touch panel communications interface. The controller design is superior in sensitivity,
accuracy, and friendly operation. The touch panel driver emulates the left mouse button
and the right mouse button functions.
The touch panel driver supports the following operating systems:
Microsoft
o Microsoft
o Microsoft
o Microsoft
o Microsoft
o Microsoft
o Microsoft
Microsoft
o Microsoft
o Microsoft
o Microsoft
Linux Kernel 2.6
DOS
Driver installation is described below.
®
Windows® versions:
®
Windows® 2000
®
Windows® XP
®
Windows® 2003
®
Windows® 2008
®
Windows® Vista
®
Windows® 7
®
Windows® CE versions:
®
Windows® CE 4.2
®
Windows® CE 5.0
®
Windows® CE 6.0
6.2 RS-232 or USB Touch Screen
Before installing the driver, connect the TDM Series monitor to the motherboard. The TDM
Series monitors support touch screen modality through an RS-232 or USB interface
connection. Decide through which interface the touch screen is to be controlled.
RS-232 Interface: If the touch screen interface connection is an RS-232
connection, connect the RS-232 connector on the single board computer to
the DB-9 connector of the TDM Series monitor.
Page 55
USB Interface: If the touch screen interface connection is a USB connection,
connect the USB connector on the single board computer to the external USB
port connector of the TDM Series monitor.
6.3 Touch Panel Driver Installation
WARNING:
Before the touch screen driver is installed, make sure the system is
connected to the monitor with a USB cable or an RS-232 null cable.
Also, make sure the VGA connector on the system is connected to the
VGA connector on the bottom of the monitor.
To install the touch panel driver for the TDM Series, please follow the instructions below:
TDM Series Monitor
Step 1: Connect the TDM Series monitor to the single board computer. See above.
Step 2: Install the driver CD. Install the driver CD into the system to which the TDM
Series monitor is connected.
Step 3: Select the Touch Screen option in the menu of driver CD. The directory in
Figure 6-1 appears.
Page 56
Figure 6-1: Setup Icon
TDM Series Monitor
Step 4: Double click the setup icon in Figure 6-1.
Step 5: The Welcome screen in
Figure 6-2: Welcome Screen
Step 6: Click Next to continue.
Figure 6-2 appears.
Step 7: The license agreement in
agreement by clicking I Agree.
Figure 6-3: License Agreement
Figure 6-3 appears. Accept the terms of the
Page 57
Step 8: The installation destination screen appears. See Figure 6-4. Click Install.
TDM Series Monitor
Figure 6-4: Initiate Install
Step 9: The installation of the program begins. See
Figure 6-5.
Figure 6-5: Installation Starts
Step 10: When the installation is complete, the complete screen appears. See
Figure 6-6.
Page 58
To complete the installation process click Finish.
TDM Series Monitor
Figure 6-6: Finish Installation
6.4 Change the Touch Screen Interface
If the touch screen interface must be changed from an RS-232 interface to a USB
interface or, from a USB interface to an RS-232 interface, the following steps must be
followed.
Step 1: Uninstall the touch screen driver
Step 2: Remove the interface cable i.e. remove the RS-232 cable or the USB cable
Step 3: Install the new cable i.e. install the USB cable or the RS-232 cable.
Step 4: Reinstall the driver CD as described above. Step 0:
6.5 Calibrating the Touch Screen
To calibrate the touch screen cursor with the motion of the touch screen pen (or finger),
please follow the steps below:
Step 1: Make sure the system is properly connected through an RS-232 or a USB
interface to the TDM Series monitor.
Step 2: Make sure the touch screen driver is properly installed.
Page 59
Step 3: Locate the PenMount Monitor icon in the bottom left corner of the screen.
TDM Series Monitor
Figure 6-7: PenMount Monitor Icon
Step 4: Click the icon. A pop up menu appears. See
Figure 6-8.
Figure 6-8: PenMount Monitor Popup Menu
Step 5: Click Control Panel in the pop up menu shown in
Step 6: The configuration screen in
Figure 6-9 appears.
Figure 6-8.
Page 60
Figure 6-9: Configuration Screen
TDM Series Monitor
Step 7: Double click the PenMount 6000 icon as shown in Figure 6-9.
Step 8: The calibration initiation screen in
Step 9: Select the Standard Calibration button as shown in
Figure 6-10 appears.
Figure 6-10.
Figure 6-10: Calibration Initiation Screen
Step 10: The calibration screen in is shown. See
Figure 6-11.
Figure 6-11: Calibration Screen
Step 11: Follow the instructions. The user is asked touch the screen at five specified
points after which the screen is calibrated. Step 0:
Page 61
TDM Series Monitor
Chapter
Chapter
6
7
7 Gasket Replacement
Page 62
TDM Series Monitor
7.1 Gasket Replacement
A gasket used for a long time may gradually lose its ability to protect the monitor from
fluids and vapors; scratches or dirt may also accumulate. It is recommended that the
gasket be replaced yearly.
NOTE:
If the monitor is mounted vertically, first remove it and place it on a flat,
level surface with the display screen facing down before changing the
gasket.
Step 1: Remove the old gasket from the sides of the monitor.
Step 2: Attach the new gasket to the monitor. Make sure the gasket fits precisely into the
groove along the edges of the monitor’s front panel (

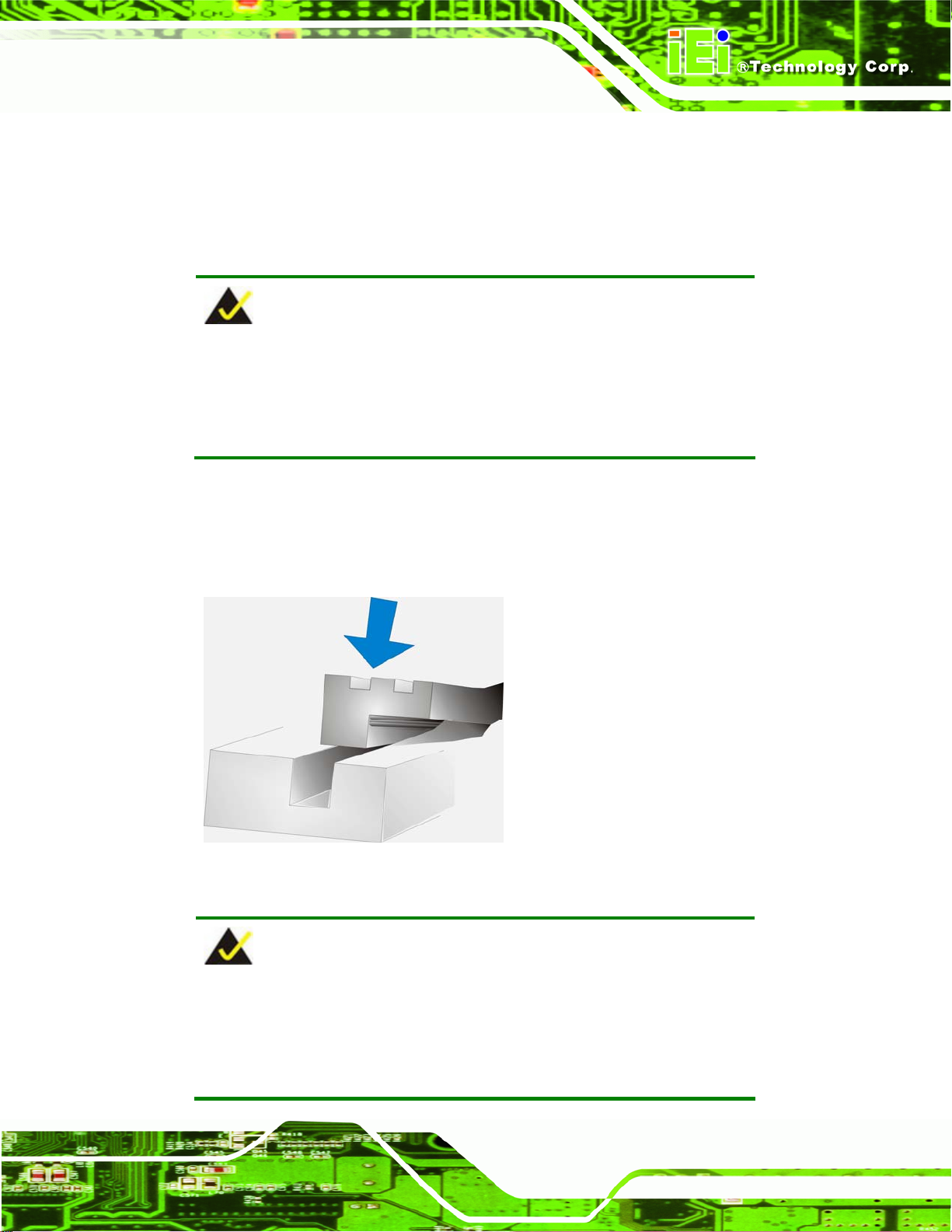

Figure 7-1: Gasket Replacement
NOTE:
Compliance with the IP 65 standard depends on correct installation of
Figure 7-1).
the gasket. Be sure to check that the gasket is properly installed after
changing it.
Page 63
TDM Series Monitor
Appendix
A
A Certifications
Page 64
TDM Series Monitor
A.1 RoHS Compliant
All models in the TDM LCD monitor series comply with the Restriction of Hazardous
Materials (RoHS) Directive. This means that all components used to build the industrial
workstations and the workstation itself are RoHS compliant.
The RoHS Directive bans the placing on the EU market of new electrical and electronic
equipment containing more than agreed levels of lead, cadmium, mercury, hexavalent
chromium, polybrominated biphenyl (PBB) and polybrominated diphenyl ether (PBDE)
flame retardants.
A.2 IP 65 Compliant Front Panel
The front panels on all five models in the TDM series LCD monitor series have an ingress
protection rating (IP) of 65, IP 65. The front panels are protected from dust particles and
water spray.
Page 65
Loading...
