IEI Integration TACTUM 4NTR User Manual
TACTUM 4NTR
4.3’’ touch panel LCD Remote Control
Installation guide
User Manual – Tactum 4NTR – june 2011
THANK YOU AND CONGRATULATION:

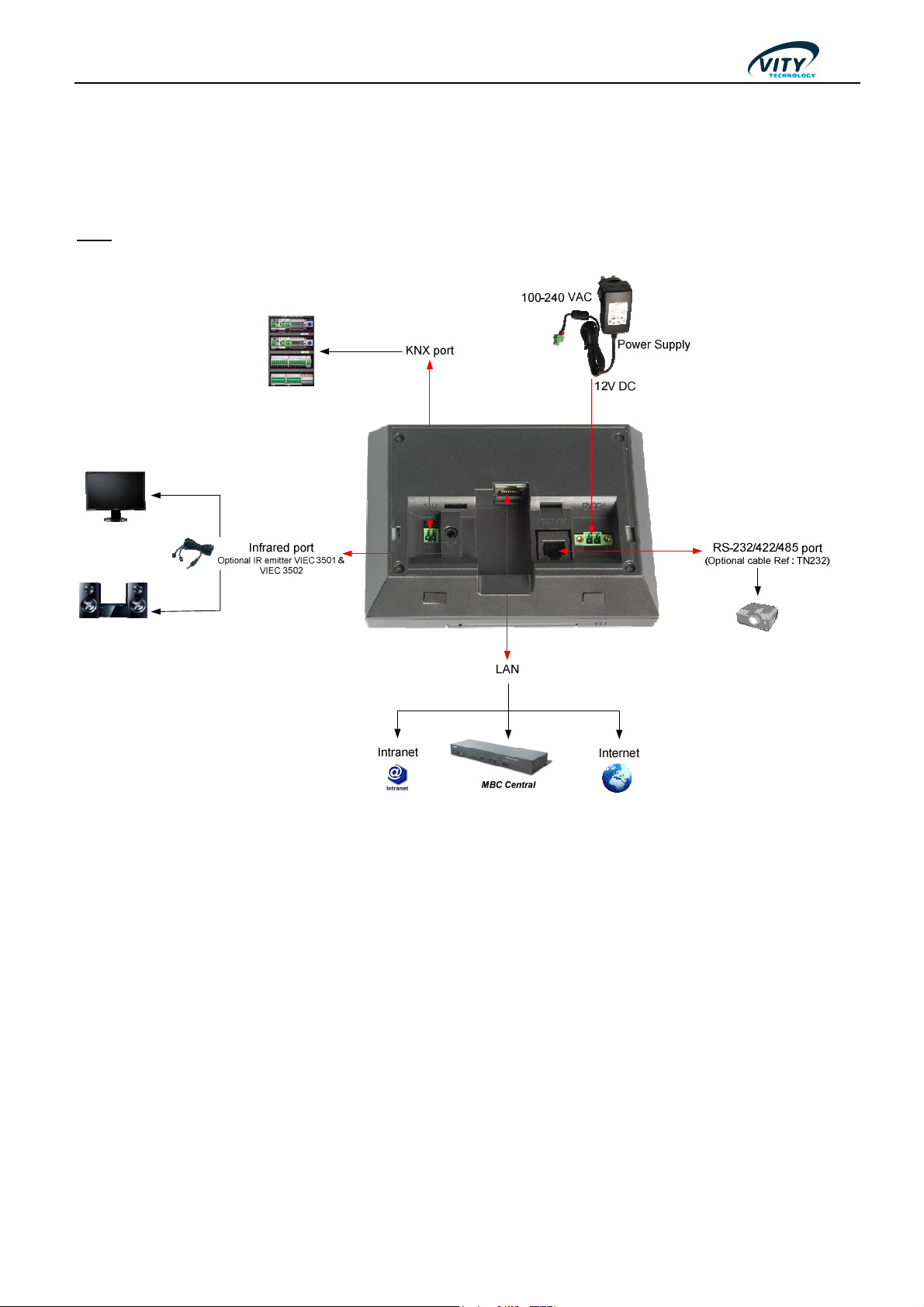

Thank you for the trust you have according to us buying the TACTUM 4NTR Remote Control. This device
allows you to drive VITY “MBC” controllers, as well as drive directly KNX devices, RS232 / 422 / 485
devices and infrared devices. The LAN and Wi-Fi connection allows the user to drive IP devices as well as
Internet and Intranet network connecting. This manual is made to help you during installation. Read it
carefully before processing to the installation.
Informations contained in this manual are protected by Copyright. Any part of this manual can’t be copied
or reproduced to any form, without written authorizing from Vity Technology – France. VITY Technology is
not responsible in case of accident or damage linked to an error or forgetting in this manual. In a worry of
improvement of the product, all the manual content may be modified without any warning. TACTUM and
“MBC” Media Bus Control
the manual are the registered property or not of their own company or organization.
®
are registered trademarks of Vity Technology. Others products or names used in
180 rue Pierre Landais, 56850 Caudan, France
Téléphone: 00 33 (0)2 97 89 20 02 – Fax: 00 33 (0)2 97 89 20 10
WWW.VITY.COM
VITY Technology www.vity.com
2
User Manual – Tactum 4NTR – june 2011
Security regulation & Approval
CE – FCC conformity
This device has been tested and approved conform to the class A and B digital device limits.
WARNING: changes and modifications done by the user and not approved by the manufacturer could cancel the
conformity and reduce authorization of using the TACTUM 4NTR remote control.
Copyright
‘’TACTUM 4NTR STARTING GUIDE’’
authorization from the copyright owner.
VITY SAS
All right reserved. The total or partial reproduction is forbidden without any
VITY Technology www.vity.com
3
User Manual – Tactum 4NTR – june 2011
Contents
1. WHAT IS IN THE TACTUM 4NTR PACKAGE? ...........................................................................................................5
2. PRESENTATIONS OF THE TOUCH PANEL LCD 4.3” TACTUM 4NTR REMOTE CONTROL ...................................6
A. F
EATURES
B. USE...................................................................................................................................................................................7
C. S
PECIAL FEATURES
D. S
PECIFICATIONS
E. WARRANTY..............................................................................................................................................................12
..........................................................................................................................................................................6
..............................................................................................................................................................8
................................................................................................................................................................10
VITY Technology www.vity.com
4
User Manual – Tactum 4NTR – june 2011
1. What is in the TACTUM 4NTR package?
- 1 pc TACTUM 4 NTR remote control
- 1 pc table stand
- 1 pc soft and flat network RJ 45 LAN cable of 2m
- 1 pc Power supply 100/240 DC – 12V DC 1 Amp
- 1 Pc bag containing: 1 camera shutter and 4 screws 13.4 mm for the TACTUM 4 NTR remote control
fixation on the wall embedded case .
TACTUM 4NTR remote control
Table stand
1 pc flexible and flat network RJ 45 LAN cable of 2m
1 pc Power supply 100/240 AC – 12V DC 1 Amp
Bag containing: 1 camera shutter and 4 screws 13.4 mm
VITY Technology www.vity.com
5
