IEI Integration IOVU 570M User Manual
MODEL:
Panel PC
, 5.7"
Touch Screen,
520
MHz Marvell XScale PXA270
,
IOVU-570M Panel PC
IEI Technology Corp.
IOVU-570M
Fast Ethernet, 2 x USB, 802.11b/g Wireless, RS-232/422/485
RoHS Compliant, IP 64 Protection
User Manual
Rev. 1.00 – 17 September, 2010
Page i
Date Version Changes
17 September, 2010 1.00 Initial release
IOVU-570M Panel PC
Revision
Page ii
IOVU-570M Panel PC
COPYRIGHT NOTICE
The information in this document is subject to change without prior notice in order to
mprove reliability, design and function and does not represent a commitment on the part
i
of the manufacturer.
In no event will the manufacturer be liable for direct, indirect, special, incidental, or
consequential damages arising out of the use or inability to use the product or
documentation, even if advised of the possibility of such damages.
This document contains proprietary information protected by copyright. All rights are
Copyright
reserved. No part of this manual may be reproduced by any mechanical, electronic, or
other means in any form without prior written permission of the manufacturer.
TRADEMARKS
All registered trademarks and product names mentioned herein are used for identification
purposes only and may be trademarks and/or registered trademarks of their respective
owners.
Page iii
IOVU-570M Panel PC
Table of Contents
1 INTRODUCTION.......................................................................................................... 1
1.1 OVERVIEW.................................................................................................................. 2
.2 BENEFITS ................................................................................................................... 2
1
1.3 FEATURES................................................................................................................... 3
1.4 TECHNICAL SPECIFICATIONS ...................................................................................... 3
1.5 CERTIFICATIONS ......................................................................................................... 4
2 DETAILED SPECIFICATIONS .................................................................................. 5
2.1 FRONT PANEL ............................................................................................................. 6
2.2 CONNECTOR PANEL.................................................................................................... 6
2.3 DIMENSIONS............................................................................................................... 8
2.4 POWER SUPPLY .......................................................................................................... 9
3 UNPACKING ............................................................................................................... 10
3.1 ANTI-STATIC PRECAUTIONS .......................................................................................11
3.2 UNPACKING PRECAUTIONS........................................................................................11
3.3 UNPACKING CHECKLIST ........................................................................................... 12
INSTALLATION ......................................................................................................... 13
4
4.1 INSTALLATION PRECAUTIONS ................................................................................... 14
4.2 SD CARD INSTALLATION.......................................................................................... 14
4.3 EXTERNAL PERIPHERAL INTERFACE CONNECTORS................................................... 15
4.3.1 12 V~36 V DC Terminal Block ....................................................................... 16
4.3.2 RS-232/422/485 Serial Port ............................................................................. 16
4.3.2.1 Connecting the Serial Port ........................................................................ 16
4.3.2.2 RS-232/422/485 Selection ........................................................................ 17
4.3.2.3 Pinouts....................................................................................................... 18
4.3.3 USB Connectors............................................................................................... 19
4.3.4 Ethernet Connector .......................................................................................... 20
4.4 MOUNTING THE SYSTEM .......................................................................................... 22
4.4.1 Wall Mounting ................................................................................................. 23
Page iv
IOVU-570M Panel PC
4.5 SOFTWARE................................................................................................................ 25
4.5.1 Wireless AP...................................................................................................... 26
A CERTIFICATIONS .................................................................................................... 29
A.1 ROHS COMPLIANT .................................................................................................. 30
A.2 IP 64 COMPLIANT FRONT PANEL ............................................................................. 30
B SAFETY PRECAUTIONS ......................................................................................... 31
B.1 SAFETY PRECAUTIONS............................................................................................. 32
.1.1 General Safety Precautions............................................................................. 32
B
B.1.2 Anti-static Precautions .................................................................................... 33
B.2 MAINTENANCE AND CLEANING PRECAUTIONS ........................................................ 33
B.2.1 Maintenance and Cleaning.............................................................................. 33
B.2.2 Cleaning Tools................................................................................................. 34
B.3 FCC PRECAUTIONS ................................................................................................. 35
C HAZARDOUS MATERIALS DISCLOSURE ......................................................... 36
C.1 HAZARDOUS MATERIALS DISCLOSURE TABLE FOR IPB PRODUCTS CERTIFIED AS
ROHS COMPLIANT UNDER 2002/95/EC WITHOUT MERCURY ....................................... 37
Page v
IOVU-570M Panel PC
List of Figures
Figure 1-1: IOVU-570M .............................................................................................................. 2
Figure 2-1: Front Panel .............................................................................................................6
Figure 2-2: IOVU-570M Peripheral Connectors ........................................................................ 6
Figure 2-3: IOVU-570M Physical Dimensions (millimeters) ..................................................... 8
Figure 4-1: SD Card Installation.............................................................................................. 15
Figure 4-2: IOVU-570M Peripheral Connectors ...................................................................... 15

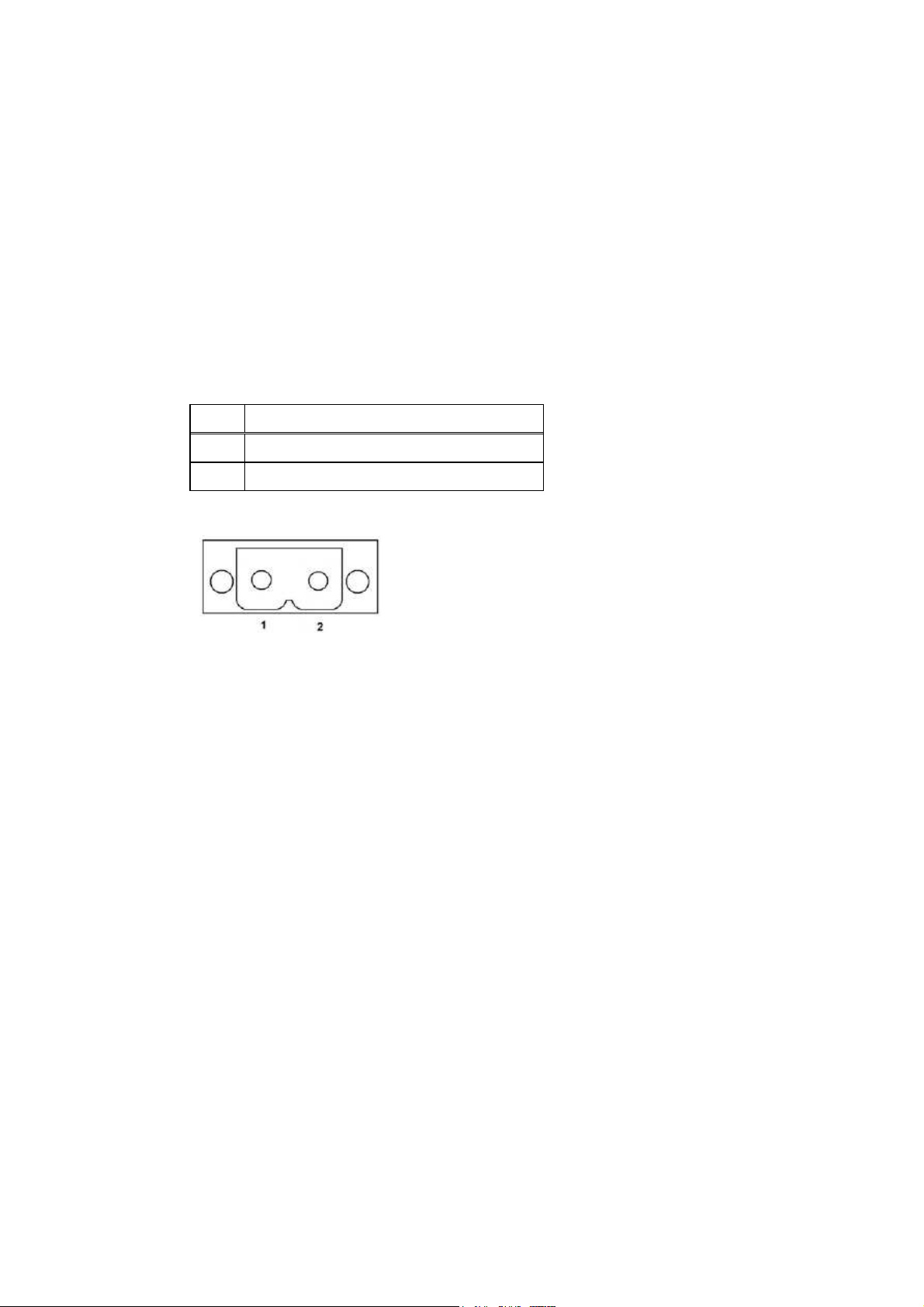

Figure 4-3: Power Terminal Block .......................................................................................... 16
Figure 4-4: Serial Device Connector....................................................................................... 17
Figure 4-5: Serial Port Mode Setting ...................................................................................... 18
Figure 4–6: Serial Port Pinouts ............................................................................................... 19
Figure 4-7: USB Connector ..................................................................................................... 20
Figure 4-8: LAN Connection ................................................................................................... 21
Figure 4-9: Ethernet Connector .............................................................................................. 22
Figure 4-10: Wall-mounting Bracket ....................................................................................... 23
Figure 4-11: Chassis Support Screws .................................................................................... 24
Figure 4-12: Secure the IOVU-570M........................................................................................ 25
Figure 4-13: Wireless AP......................................................................................................... 26
igure 4-14: Wireless Network Properties.............................................................................. 27
F
Figure 4-15: Wireless AP Connected...................................................................................... 27
Figure 4-16: IP Information ..................................................................................................... 28
Page vi
IOVU-570M Panel PC
List of Tables
Table 1-1: Technical Specifications..........................................................................................4
Table 3-1: Package List Contents........................................................................................... 12
Table 4-1: External Interface Connectors............................................................................... 15
Table 4-2: 12~36 V Power Connector Pinouts........................................................................ 16
Table 4-3: Serial Port Pinouts ................................................................................................. 19
Table 4-5: USB Connector Pinouts......................................................................................... 20
Table 4-6: Ethernet Connector Pinouts .................................................................................. 21
Table 4-7: Ethernet Connector LEDs ...................................................................................... 22
Page vii
IOVU-570M Panel PC
Chapter
1
1 Introduction
Page 1
1.1 Overview
Figure 1-1: IOVU-570M
IOVU-570M Panel PC
The IOVU-570M Panel PC comes with a 5.7" touch panel screen. It is powered by the
520 MHz Marvell XScale PXA270 processor and has 128 MB of SDRAM.
The IOVU-570M includes an SD card with Windows CE 5.0 installed. The package also
includes a software development kit and documentation to help easily customize the
operating system according to needs.
The IOVU-570M is an extremely low power Panel PC. The system is fanless, which allows
quiet and reliable operation
1.2 Benefits
Some of the IOVU-570M benefits include:
Less downtime from overheating because there are not fans to fail
Cost savings with low power consumption
Easy installation with a wide range of input voltages supported
Can handle tough environments because of solid-state storage and IP64
Customizable operating system to suit application needs.
protection of the front cover
Page 2
IOVU-570M Panel PC
1.3 Features
The IOVU-570M features are listed below:
520 MHz Marvell XScale PXA270 processor
128 MB of SDRAM
Two Ethernet ports
Two USB ports
One RS-232/422/485 serial communication connection
Two built-in speakers
4-wire resistive touch panel
12-36 VDC input
RoHS compliant
1.4 Technical Specifications
The IOVU-570M technical specifications are listed in Table 1-1.
Specifications
System
CPU 520 MHz Marvell XScale PXA270 processor
Memory
Real-time Clock Battery backup RTC
Watchdog Timer Software programmable supports 1~255 sec. system reset
Reset Reset button
Display
Display Type TFT LCD screen
Display Size 5.7"
Resolution 640 x 480, 262,000
128 MB of SDRAM
1.0 GB SD card
Brightness 400 cd/m2
Touch Panel 4-wired resistive touch panel
Page 3
Specifications
I/O and Communications
Ethernet 2 x 10/100 Mb/s
Serial Ports 1 x RS-232/422/485
USB Interfaces 2 x USB host connectors
Audio 2 x 1.5 Watt speakers
Power
Power Supply 12-36 VDC
Power Consumption 8.5 W
Environmental and Mechanical
IOVU-570M Panel PC
Operating Temperature
Humidity 5%RH to 90%RH (non-condensing)
Vibration
Front Panel Color Pantone Black C
Physical Dimensions 180 mm x 135.8 mm x 46.7 mm
Ingress Protection IP 64 compliant front panel
Table 1-1: Technical Specifications
1.5 Certifications
All IOVU-570M series models comply with the following international standards:
Minimum: -20ºC (-4°F)
Maximum: 60°C (140°F)
Operating Random Vibration Mode (MIL-STD-810F
514.5C-3)
1.Axes: 3 axs (Vertical / Transverse / Longitudinal).
2.10-500 Hz, 60min/axis.
3.Equivalent to Z:2.18 Grms X:1.6 Grms Y:1.96 Grms
RoHS
IP 64
For a more detailed description of these standards, please refer to Appendix A.
Page 4
IOVU-570M Panel PC
Chapter
2
2 Detailed Specifications
Page 5
2.1 Front Panel
The IOVU-570M front panel (Figure 2-1) comprises a 5.7" TFT WVGA 16-bit color touch
creen LCD in an ABS+PC plastic frame.
s
IOVU-570M Panel PC
Figure 2-1: Front Panel
2.2 Connector Panel
All external peripheral interface connectors are located on the bottom panel of the
OVU-570M . The peripheral interface connectors are shown in Figure 2-2.
I
Figure 2-2: IOVU-570M Peripheral Connectors
Page 6
IOVU-570M Panel PC
External peripheral interface connectors on the IOVU-570M include:
1 x DC-IN bare wire terminal block
2 x RJ-45 LAN connectors
1 x RS-232/422/485 connector
2 x USB connectors
Page 7
