User Manual
IDDUPS Series DC/DC Converter Module
IDDUPS-6364120A/IDDUPS-636260A Converter Module
MODEL:
IDDUPS-6364120A/636260A
120W/60W DC/DC Converter Module
with UPS and Utility Software
Rev. 1.21 – May 7, 2014
Page 1
Date Version Changes
IDDUPS Series DC/DC Converter Module
Revision
May 7, 2014 1.21 Added Appendix A:
January 7, 2010 1.20 Added CN8 connector information (Section
August 2007 1.01 - Added Chapter 5: Software
- Added RS-232 cable connector (JP2) pinouts
May 2007 1.00 Initial release
Safety Precautions
97H
4.2.6)
96H96H96H98H
Page 2
IDDUPS Series DC/DC Converter Module
COPYRIGHT NOTICE
The information in this document is subject to change without prior notice in order to
improve reliability, design and function and does not represent a commitment on the part
of the manufacturer.
In no event will the manufacturer be liable for direct, indirect, special, incidental, or
consequential damages arising out of the use or inability to use the product or
documentation, even if advised of the possibility of such damages.
This document contains proprietary information protected by copyright. All rights are
Copyright
reserved. No part of this manual may be reproduced by any mechanical, electronic, or
other means in any form without prior written permission of the manufacturer.
TRADEMARKS
All registered trademarks and product names mentioned herein are used for identification
purposes only and may be trademarks and/or registered trademarks of their respective
owners.
Page 3
IDDUPS Series DC/DC Converter Module
Packing List
NOTE:
If any of the components listed in the checklist below are missing,
please do not proceed with the installation. Contact the IEI reseller or
vendor you purchased the IDDUPS-6364120/636260 from or contact
an IEI sales representative directly. To contact an IEI sales
representative, please send an email to
The items listed below should all be included in the IDDUPS-6364120/636260 package.
1 x IDDUPS-6364120/636260 DC/DC converter module
1 x RS-232 cable
1 x Utility software CD
1 x QIG (Quick Installation Guide)
Optional items:
Li-Polymer Smart Battery
Cable for AC-DC adapters
Cable for 63000-FSP120AAB-RS 120W AC-DC adapter
Cable for Terminal Block
Output power cable for SATA
Output power cable for IDE or any standard 4-pin I/O devices
0H0H0H0Hsales@ieiworld.com.tw.
Page 4
20p-20p ATX cable (for IDDUPS-6364120A)
SBC main power cable (for IDDUPS-636260A)
Cable with on/off switch
Cable to SBC (5VSB & PS_ON)
Images of the above items are shown in Chapter 3.
IDDUPS Series DC/DC Converter Module
Table of Contents
1H1 INTRODUCTION.......................................................................................................... 99H9
2H1.1 IDDUPS-6364120/636260 OVERVIEW.................................................................... 100H10
3H1.2 IDDUPS-6364120/636260 POWER MODULE FEATURES.......................................... 101H10
4H1.3 IDDUPS-6364120/636260 DIMENSIONS..................................................................102H11
5H2 DETAILED SPECIFICATIONS................................................................................ 103H12
6H2.1 IDDUPS-6364120/636260 SYSTEM BLOCK DIAGRAM............................................ 104H13
7H2.2 SAFETY .................................................................................................................... 105H14
8H2.3 BATTERY SPECIFICATIONS........................................................................................ 106H14
9H3 UNPACKING ............................................................................................................... 107H16
10H3.1 ANTI-STATIC PRECAUTIONS...................................................................................... 108H17
11H3.2 UNPACKING.............................................................................................................. 109H17
12H3.2.1 Unpacking Precautions.................................................................................... 110H17
13H3.3 UNPACKING CHECKLIST ........................................................................................... 111H18
14H3.3.1 Package Contents............................................................................................. 112H18
15H3.3.2 Optional Items.................................................................................................. 113H19
16H4 CONNECTOR PINOUTS........................................................................................... 114H21
17H4.1 PERIPHERAL INTERFACE CONNECTORS..................................................................... 115H22
18H4.1.1 IDDUPS-6364120 Layout................................................................................ 116H22
19H4.1.2 IDDUPS-636260 Layout.................................................................................. 117H22
20H4.1.3 Peripheral Interface Connectors ..................................................................... 118H23
21H4.1.4 Jumper.............................................................................................................. 119H23
22H4.2 INTERNAL PERIPHERAL CONNECTORS ...................................................................... 120H24
23H4.2.1 ATX Mode Connector....................................................................................... 121H24
24H4.2.2 ATX Power Connector (IDDUPS-6364120A Only)......................................... 122H25
25H4.2.3 Battery Connectors .......................................................................................... 123H26
26H4.2.4 Input Power Connector.................................................................................... 124H27
27H4.2.5 Output Power Connectors................................................................................ 125H29
28H4.2.6 Power Switch Connector.................................................................................. 126H30
Page 5
29H4.2.7 RS-232 Cable Connector ................................................................................. 127H31
30H4.2.8 SBC Main Power Connector (IDDUPS-636260A Only)................................. 128H32
31H4.3 JUMPER SETTINGS .................................................................................................... 129H33
32H4.3.1 AT/ATX Mode Select Jumper ........................................................................... 130H33
33H5 SOFTWARE APPLICATION..................................................................................... 131H35
34H5.1 INTRODUCTION......................................................................................................... 132H36
35H5.2 MONITORING DC POWER AND SMART BATTERY ...................................................... 133H36
36H5.2.1 Using the Application....................................................................................... 134H36
37H5.2.2 Status Information............................................................................................ 135H36
38H5.2.2.1 DC Detection ............................................................................................ 136H37
39H5.2.2.2 Battery Detection...................................................................................... 137H37
40H5.2.2.3 Battery Remaining Time........................................................................... 138H38
41H5.2.3 Battery Information.......................................................................................... 139H39
42H5.2.4 Setting .............................................................................................................. 140H39
IDDUPS Series DC/DC Converter Module
43H5.3 SYSTEM LOG............................................................................................................ 141H41
44H5.4 EXIT......................................................................................................................... 142H42
45HA SAFETY PRECAUTIONS......................................................................................... 143H43
46HB HAZARDOUS MATERIALS DISCLOSURE ......................................................... 144H49
47HB.1 HAZARDOUS MATERIAL DISCLOSURE TABLE FOR IPB PRODUCTS CERTIFIED AS
ROHS COMPLIANT UNDER 2002/95/EC WITHOUT MERCURY ....................................... 145H50
Page 6
IDDUPS Series DC/DC Converter Module
List of Figures
48HFigure 1-1: IDDUPS-6364120/636260 Dimensions (mm)...........................................................146H11
49HFigure 2-1: IDDUPS-6364120/636260 System Block Diagram..................................................147H13
50HFigure 4-1: IDDUPS-6364120 Connector and Jumper Locations.............................................148H22
51HFigure 4-2: IDDUPS-636260 Connector and Jumper Locations...............................................149H22
52HFigure 4-3: ATX Mode Connector Location ...............................................................................150H24
53HFigure 4-4: ATX Power Connector Location..............................................................................151H25
54HFigure 4-5: Battery Connector Locations...................................................................................152H27
55HFigure 4-6: Battery Connected....................................................................................................153H27
56HFigure 4-7: Input Power Connector Location ............................................................................154H28
57HFigure 4-8: Output Power Connector Locations .......................................................................155H29
58HFigure 4-9: Power Switch Connector Locations........................................................................156H30
59HFigure 4-10: RS-232 Cable Connector Location........................................................................157H31
60HFigure 4-11: JP2 Connector Cable (RS-232 cable)....................................................................158H32
61HFigure 4-12: SBC Main Power Connector Location ..................................................................159H32
62HFigure 4-13: CN7 Connector Cables...........................................................................................160H33
63HFigure 4-14: AT/ATX Mode Select Jumper Location.................................................................161H34
64HFigure 5-1: IDDUPS Battery Status Monitor Application..........................................................162H36
65HFigure 5-2: Status Information ....................................................................................................163H37
66HFigure 5-3: DC Detection..............................................................................................................164H37
67HFigure 5-4: Battery Detection ......................................................................................................165H38
68HFigure 5-5: Battery Remaining Time...........................................................................................166H38
69HFigure 5-6: Battery Information...................................................................................................167H39
70HFigure 5-7: Application Setting ...................................................................................................168H40
71HFigure 5-8: COM Port Status........................................................................................................169H40
72HFigure 5-9: Special Event Pop-up Setting..................................................................................170H40
73HFigure 5-10: IDDUPS Application Quick Launch Icon...............................................................171H41
74HFigure 5-11: System Log Example..............................................................................................172H41
75HFigure 5-12: Exit IDDUPS Application ........................................................................................173H42
Page 7
IDDUPS Series DC/DC Converter Module
List of Tables
76HTable 1-1: Output Voltage............................................................................................................174H11
77HTable 2-1: BAT-LI-2S1P3000 Specifications ..............................................................................175H15
78HTable 3-1: Package List Contents...............................................................................................176H18
79HTable 3-2: Optional Items.............................................................................................................177H20
80HTable 4-1: Peripheral Interface Connectors...............................................................................178H23
81HTable 4-2: Rear Panel Connectors..............................................................................................179H23
82HTable 4-3: ATX Mode Connector Pinouts...................................................................................180H24
83HTable 4-4: CN2 Connector Cables...............................................................................................181H25
84HTable 4-5: ATX Power Connector Pinouts .................................................................................182H26
85HTable 4-6: J3 Connector Cables..................................................................................................183H26
86HTable 4-7: Battery Connector Pinouts........................................................................................184H27
87HTable 4-8: Input Power Connector Pinouts................................................................................185H28
88HTable 4-9: CN1 Connector Cables...............................................................................................186H29
89HTable 4-10: Output Power Connector Pinouts...........................................................................187H29
90HTable 4-11: CN3 & CN4 Connector Cables.................................................................................188H30
91HTable 4-12: Power Switch Connector Pinouts...........................................................................189H31
92HTable 4-13: RS-232 Cable Connector Pinouts ...........................................................................190H31
93HTable 4-14: SBC Main Power Connector Pinouts......................................................................191H32
94HTable 4-15: AT/ATX Mode Select Jumper Settings ...................................................................192H34
Page 8
IDDUPS Series DC/DC Converter Module
Chapter
1
1 Introduction
Page 9
IDDUPS Series DC/DC Converter Module
1.1 IDDUPS-6364120/636260 Overview
The highly efficient, high-performance IDDUPS-6364120/636260 DC-to-DC converter
module provides 5V, 3.3V, 12V, -12V and 5VSB outputs. The IDDUPS-6364120/636260
supports up to two Li-Polymer smart batteries to provide stable and uninterruptible power.
The power module also receives a wide range of inputs between 6 and 36 VDC. The
IDDUPS-6364120/636260 is built on an intelligent design and provides outstanding line
and load regulations. The IDDUPS-6364120/636260 is capable of sustaining 90% power
efficiency.
The IDDUPS-6364120/636260 power module also comes with the utility software that
provides information on current power source, battery status, charging status and
remaining percentage.
1.2 IDDUPS-6364120/636260 Power Module Features
Highly compact design
High efficiency up to 90%
Load down protection
Over voltage protection
Over current protection
Short circuit protection
Supports up to two battery packs
Supports AT or ATX mode
RoHS compliant
I/O interface:
o SMBus/I
2
C
o RS-232
Utility software: pull data out through RS-232 to system
Total output capacity:
o IDDUPS-6364120A: 120W
o IDDUPS-636260A: 60W
Input Voltage: 6VDC to 36VDC
Page 10
IDDUPS Series DC/DC Converter Module
Output Voltage:
Voltage (Max Load) +5V +12V -12V +3.3V 5VSB
IDDUPS-6364120A 10A 4A 0.3A 8A 2A
IDDUPS-636260A 10A 3A - - 0.5A
Table 1-1: Output Voltage
Dimensions: 60mm x 160mm
Environment:
o Operating temperature: -20°C ~ +85°C
o Storage temperature: -40°C ~ +125°C
Weight: NW:
o IDDUPS-6364120A: 98g
o IDDUPS-636260A: 75g
1.3 IDDUPS-6364120/636260 Dimensions
190H190H190H193HFigure 1-1 shows the IDDUPS-6364120/636260 dimensions. The dimensions are given in
millimeters.
Figure 1-1: IDDUPS-6364120/636260 Dimensions (mm)
Page 11
IDDUPS Series DC/DC Converter Module
Chapter
2
2 Detailed Specifications
Page 12
IDDUPS Series DC/DC Converter Module
2.1 IDDUPS-6364120/636260 System Block Diagram
191H191H191H194HFigure 2-1 shows the system block diagram of the IDDUPS-6364120/636260. The
detailed descriptions of the system operation are described in the following sections.
Figure 2-1: IDDUPS-6364120/636260 System Block Diagram
The IDDUPS series is a charging circuit that provides the Smart Battery with charging
current and charging voltage from DC input to match the requirements from Smart Battery.
The IDDUPS series also provides DC output power to the Host System with following
features:
Provide stable and uninterruptible power to equipment during a power outage,
line sags and spikes
Absorb power surges and transients
Smooth out noisy power sources
The IDDUPS series receives critical events from the Smart Battery when it detects a
problem. The Smart Battery communicates with IDDUPS series via two separate
communication interfaces:
The SMBus CLOCK and DATA lines (primary communication channel)
The secondary signaling mechanism or Safety Signal (secondary
communication channel)
Page 13
The Host System (SMBus Host) requests information from the battery and then uses it to
provide the user information about the battery present state and capabilities. The Host
System (SMBus Host) also receives critical events from the Smart Battery when it detects
a problem. Using the utility software, the battery state and capabilities can be shown in the
Host System through RS-232.
2.2 Safety
Both the battery and the IDDUPS series must agree it is safe enough to begin charging. If
the battery detects some error conditions, the charging never begins. The error conditions
might include:
IDDUPS Series DC/DC Converter Module
battery pack voltage too high or low,
temperature out of acceptable ranges,
individual cell voltage shorted.
Furthermore, to continue charging, both the battery and the IDDUPS series must be
satisfied it is still safe to do so. The battery sends a message or stop sending messages to
the IDDUPS series to terminate charge if any error condition occurs in the battery. Second,
the IDDUPS series monitors the battery pack Safety Signal terminal. If the Safety Signal
moves out of a range that allows charging, the IDDUPS series immediately terminates
charge. This could happen if the temperature of the battery pack got too hot.
These mechanisms are independent of and in addition to any protection mechanisms in
the battery pack itself, for example, fuses or protection FETs controlled by hard-wired
safety circuitry.
2.3 Battery Specifications
The IDDUPS series may also come with a Li-Polymer smart battery. Some of the
Li-Polymer smart battery specifications are listed in
Battery Type
Li-Polymer
192H192H192H195HTable 2-1.
Page 14
Nominal Capacity
Nominal Voltage
3000mAH
7.4V (Two 3.7V Li-Polymer battery cell)
IDDUPS Series DC/DC Converter Module
Main Board
Max. Output Power
Max. Output Current
Housing
Dimensions
Operating Temperature
Weight
Table 2-1: BAT-LI-2S1P3000 Specifications
Dual-cell Li-Ion battery PCB, Gauge IC and NTC 10KΩ
100W
16.7AH
DR202
148mm x 89mm x 20mm
-20°C ~ +60°C
230g
Page 15
IDDUPS Series DC/DC Converter Module
Chapter
3
3 Unpacking
Page 16
IDDUPS Series DC/DC Converter Module
3.1 Anti-static Precautions
WARNING:
Failure to take ESD precautions during the installation of the
IDDUPS-6364120/636260 may result in permanent damage to the
IDDUPS-6364120/636260 and severe injury to the user.
Electrostatic discharge (ESD) can cause serious damage to electronic components,
including the IDDUPS-6364120/636260. Dry climates are especially susceptible to ESD. It
is therefore critical that whenever the IDDUPS-6364120/636260, or any other electrical
component is handled, the following anti-static precautions are strictly adhered to.
Wear an anti-static wristband: Wearing a simple anti-static wristband can
help to prevent ESD from damaging the board.
Self-grounding: Before handling the board touch any grounded conducting
material. During the time the board is handled, frequently touch any
conducting materials that are connected to the ground.
Use an anti-static pad: When configuring the IDDUPS-6364120/636260,
place it on an antic-static pad. This reduces the possibility of ESD damaging
the IDDUPS-6364120/636260.
Only handle the edges of the PCB: When handling the PCB, hold the PCB
by the edges.
3.2 Unpacking
3.2.1 Unpacking Precautions
When the IDDUPS-6364120/636260 is unpacked, please do the following:
Follow the anti-static precautions outlined in Section
193H193H193H196H3.1.
Make sure the packing box is facing upwards so the
IDDUPS-6364120/636260 does not fall out of the box.
Make sure all the components shown in Section
194H194H194H197H3.3 are present.
Page 17
3.3 Unpacking Checklist
NOTE:
If some of the components listed in the checklist below are missing,
please do not proceed with the installation. Contact the IEI reseller or
vendor you purchased the IDDUPS-6364120/636260 from or contact
an IEI sales representative directly. To contact an IEI sales
IDDUPS Series DC/DC Converter Module
representative, please send an email to
94H94H94H95Hsales@ieiworld.com.tw.
3.3.1 Package Contents
The IDDUPS-6364120/636260 is shipped with the following components:
Quantity Item Image
1 IDDUPS-6364120A / IDDUPS-636260A
DC/DC converter module
1
1 Utility software CD
RS-232 cable (P/N: 32100-157200-RS)
Page 18
1 QIG (Quick Installation Guide)
Table 3-1: Package List Contents
IDDUPS Series DC/DC Converter Module
3.3.2 Optional Items
NOTE:
The items listed in this section are optional items that must be ordered
separately. Please contact your IDDUPS-6364120A/636260A vendor,
distributor or reseller for more information or, contact iEi directly by
sending an email to
The following optional items are available for the IDDUPS-6364120A/636260A.
Quantity Item and Part Number Image
1 Li-Polymer Smart Battery, 2S1P,
3000mAH
(P/N: BAT-LI-2S1P3000)
DC Input Cable
1 Cable for following AC-DC adapters
-FSP0601AD101C 60W
-UP0451E12P 45W
-UP0251E12PL 25W
95H95H95H96Hsales@ieiworld.com.tw.
(P/N: CB-P1LP4-RS)
1 Cable for 63000-FSP120AAB-RS
120W AC-DC adapter
(P/N: CB-MD4P4-RS)
1 Cable for Terminal Block
(P/N: CB-NOLP4-RS)
I/O Power Cable
Page 19
1 Output power cable for SATA
(P/N: CB-3PSATA-RS)
1 Output power cable for IDE or any
standard 4-pin I/O devices
IDDUPS Series DC/DC Converter Module
(P/N: CB-3PIDE-RS)
SBC Main Power Cable
1 20p-20p ATX cable
(for IDDUPS-6364120A)
(P/N: CB-ATX20P-RS)
1 SBC main power cable
(for IDDUPS-636260A)
(P/N: CB-5PSBC-RS)
Power On/Off Cable
1 Cable with on/off switch
(P/N: CB-JST3PSW-RS)
1 Cable to SBC (5VSB & PS_ON)
Page 20
(P/N: CB-JST3P001-RS)
Table 3-2: Optional Items
IDDUPS Series DC/DC Converter Module
Chapter
4
4 Connector Pinouts
Page 21
IDDUPS Series DC/DC Converter Module
4.1 Peripheral Interface Connectors
Section 195H195H195H198H4.1.2 shows peripheral interface connector locations. Section 196H196H196H199H4.1.2 lists all the
peripheral interface connectors seen in Section
197H197H197H200H4.1.2.
4.1.1 IDDUPS-6364120 Layout
198H198H198H201HFigure 4-1 shows the on-board peripheral connectors, rear panel peripheral connectors
and on-board jumper of IDDUPS-6364120.
Figure 4-1: IDDUPS-6364120 Connector and Jumper Locations
4.1.2 IDDUPS-636260 Layout
Page 22
199H199H199H202HFigure 4-1 shows the on-board peripheral connectors, rear panel peripheral connectors
and on-board jumper of IDDUPS-636260.
Figure 4-2: IDDUPS-636260 Connector and Jumper Locations
IDDUPS Series DC/DC Converter Module
4.1.3 Peripheral Interface Connectors
200H200H200H203HTable 4-1 shows a list of the peripheral interface connectors on the
IDDUPS-6364120/636260. Detailed descriptions of these connectors can be found below.
Connector Type Label
ATX mode connector 3-pin wafer connector CN2
ATX power connector
20-pin connector J3
(IDDUPS-6364120A only)
Battery connector 7-pin wafer connector J1, J2
Input power connector 4-pin wafer connector CN1
Output power connector 3-pin wafer connector CN3, CN4
Power switch connector 2-pin wafer connector CN8
RS-232 cable connector 3-pin wafer connector JP2
SBC main power connector
5-pin wafer connector CN7
(IDDUPS-636260A only)
Table 4-1: Peripheral Interface Connectors
4.1.4 Jumper
201H201H201H204HTable 4-2 lists the jumper on the IDDUPS-6364120/636260. Detailed descriptions of
these jumper can be found in Section
202H202H202H205H4.3.
Connector Type Label
AT/ATX mode select jumper 2-pin header JP1
Table 4-2: Rear Panel Connectors
Page 23
IDDUPS Series DC/DC Converter Module
4.2 Internal Peripheral Connectors
Internal peripheral connectors are found on the motherboard and are only accessible
when the motherboard is outside of the chassis. This section has complete descriptions of
all the internal, peripheral connectors on the IDDUPS-6364120/636260.
4.2.1 ATX Mode Connector
CN Label: CN2
CN Type:
CN Location: See
CN Pinout s: See
3-pin wafer connector (1x3)
203H203H203H206HFigure 4-3
204H204H204H207HTable 4-3
Connect the ATX Mode Connector (CN2) to the motherboard to use ATX mode to control
power on/off. The JP1 jumper should be open when using ATX mode (Section
205H205H205H208H4.3.1).
Page 24
Figure 4-3: ATX Mode Connector Location
PIN NO. DESCRIPTION
1 5VSB
2 GROUND
3 PS_ON
Table 4-3: ATX Mode Connector Pinouts
Use either one of the following cables to connect CN2 with motherboard:
IDDUPS Series DC/DC Converter Module
Cable with on/off switch
(P/N: CB-JST3PSW-RS)
Cable to SBC (5VSB & PS_ON)
(P/N: CB-JST3P001-RS)
Table 4-4: CN2 Connector Cables
4.2.2 ATX Power Connector (IDDUPS-6364120A Only)
CN Label: J3
CN Type:
CN Location: See
CN Pinouts: See
20-pin connector (2x10)
206H206H206H209HFigure 4-4
207H207H207H210HTable 4-5
The 20-pin ATX power connector is connected to an ATX power connector on the
motherboard to provide output power.
Figure 4-4: ATX Power Connector Location
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 3.3V 11 3.3V
2 3.3V 12 -12V
3 GND 13 GND
4 +5V 14 PS_ON
Page 25
IDDUPS Series DC/DC Converter Module
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
5 GND 15 GND
6 +5V 16 GND
7 GND 17 GND
8 Power good 18 -5V
9 5VSB 19 +5V
10 +12V 20 +5V
Table 4-5: ATX Power Connector Pinouts
Use the following cable to connect J3 with motherboard:
20p-20p ATX cable
(for IDDUPS-6364120A)
(P/N: CB-ATX20P-RS)
Table 4-6: J3 Connector Cables
4.2.3 Battery Connectors
CN Label: J1, J2
CN Type:
CN Location: See
CN Pinouts: See
This connector is connected to the smart battery.
7-pin wafer connector (1x7)
208H208H208H211HFigure 4-5
209H209H209H212HTable 4-7
Page 26
IDDUPS Series DC/DC Converter Module
Figure 4-5: Battery Connector Locations
PIN NO. DESCRIPTION
1 BAT+
2 BAT+
3 Clock
4 DATA
5 Temp
6 GROUND
7 GROUND
Table 4-7: Battery Connector Pinouts
Figure 4-6: Battery Connected
4.2.4 Input Power Connector
CN Label: CN1
CN Type:
CN Location: See
CN Pinouts: See
The input power connector is connected to power source, such as a power adapter or a
terminal block.
4-pin wafer connector (1x4)
210H210H210H213HFigure 4-7
211H211H211H214HTable 4-8
Page 27
Figure 4-7: Input Power Connector Location
IDDUPS Series DC/DC Converter Module
PIN NO. DESCRIPTION
1 VIN
2 VIN
3 GROUND
4 GROUND
Table 4-8: Input Power Connector Pinouts
Use either one of the following cables to connect CN1 with power source:
Cable for following AC-DC
adapters
-FSP0601AD101C 60W
-UP0451E12P 45W
-UP0251E12PL 25W
(P/N: CB-P1LP4-RS)
Cable for 63000-FSP120AAB-RS
120W AC-DC adapter
(P/N: CB-MD4P4-RS)
Page 28
IDDUPS Series DC/DC Converter Module
Cable for Terminal Block
(P/N: CB-NOLP4-RS)
Table 4-9: CN1 Connector Cables
4.2.5 Output Power Connectors
CN Label: CN3, CN4
CN Type:
CN Location: See
CN Pinouts: See
3-pin wafer connector (1x3)
212H212H212H215HFigure 4-8
213H213H213H216HTable 4-10
The power module provides power to devices through this output power connector.

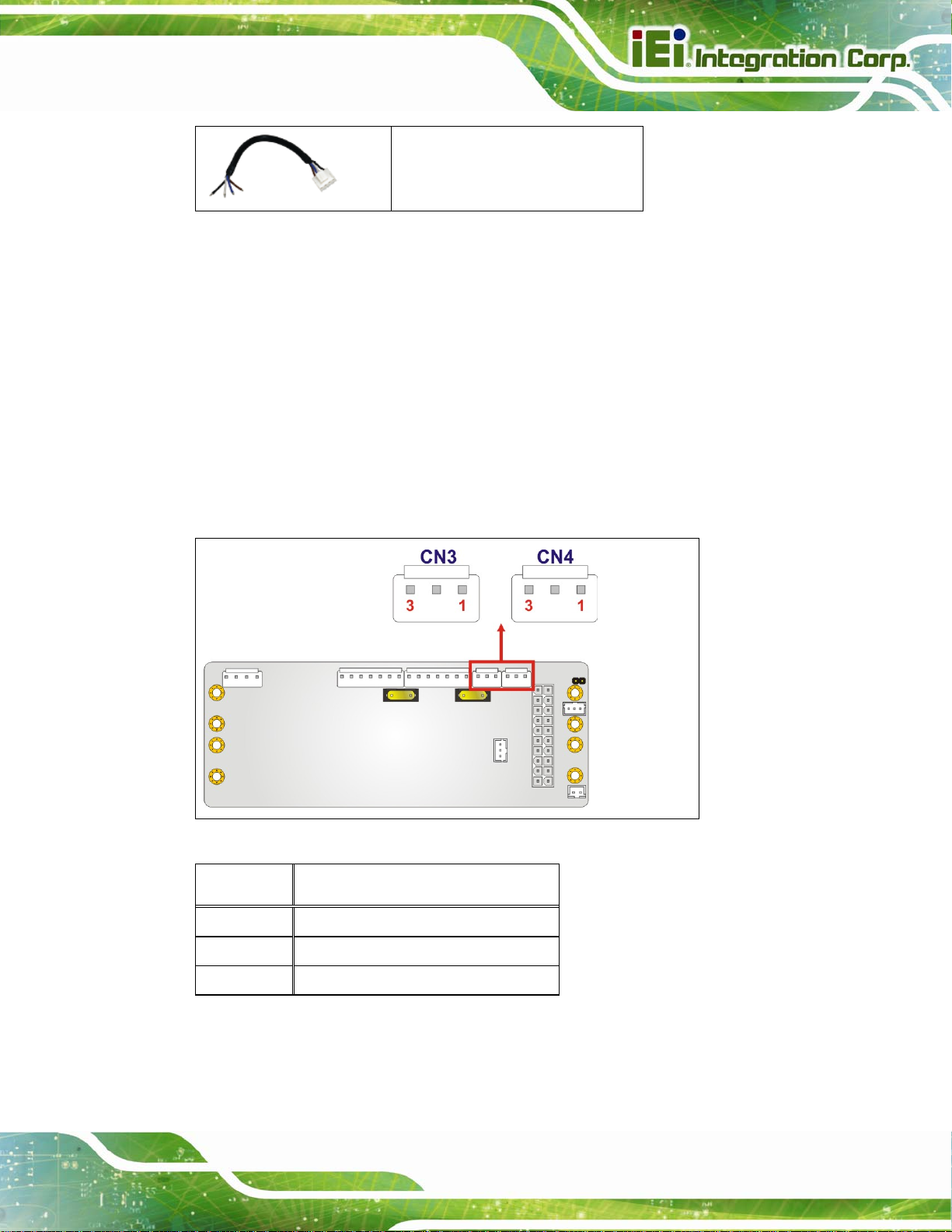

Figure 4-8: Output Power Connector Locations
PIN NO. DESCRIPTION
1 +5V
2 GROUND
3 +12V
Table 4-10: Output Power Connector Pinouts
Use either one of the following cables to connect CN3 or CN4 with HDD:
Page 29
Table 4-11: CN3 & CN4 Connector Cables
4.2.6 Power Switch Connector
CN Label: CN8
IDDUPS Series DC/DC Converter Module
Output power cable for SATA
(P/N: CB-3PSATA-RS)
Output power cable for IDE or any
standard 4-pin I/O devices
(P/N: CB-3PIDE-RS)
CN Type:
CN Location: See
CN Pinouts: See
This connector connects to a power switch to activate or inactivate the power module. To
prevent the connected Li-Polymer smart batteries from losing power, please inactivate the
power module while not in use. To keep the power module always being able to be
activated, please short pin 1 and pin 2 of the power switch connector (CN8).
2-pin wafer connector (1x2)
214H214H214H217HFigure 4-9
215H215H215H218HTable 4-12
Page 30
Figure 4-9: Power Switch Connector Locations
IDDUPS Series DC/DC Converter Module
PIN NO. DESCRIPTION
1 BAT_SW
2 GROUND
Table 4-12: Power Switch Connector Pinouts
4.2.7 RS-232 Cable Connector
CN Label: JP2
CN Type:
CN Location: See
CN Pinouts: See
3-pin wafer connector (1x3)
216H216H216H219HFigure 4-10
217H217H217H220HTable 4-13
This connector enables the IDDUPS series to communicate with the SBC through RS-232
serial port.
Figure 4-10: RS-232 Cable Connector Location
PIN NO. DESCRIPTION
1 GROUND
2 TX
3 RX
Table 4-13: RS-232 Cable Connector Pinouts
Use the following cable to connect JP2 with the serial port of the SBC.
Page 31
IDDUPS Series DC/DC Converter Module
Figure 4-11: JP2 Connector Cable (RS-232 cable)
4.2.8 SBC Main Power Connector (IDDUPS-636260A Only)
CN Label: CN7
CN Type:
CN Location: See
CN Pinouts: See
5-pin wafer connector (1x5)
218H218H218H221HFigure 4-12
219H219H219H222HTable 4-14
This connector provides the main power to the single board computer (SBC).
Figure 4-12: SBC Main Power Connector Location
Page 32
PIN NO. DESCRIPTION
1 +5V
2 +5V
3 GROUND
4 GROUND
5 +12V
Table 4-14: SBC Main Power Connector Pinouts
Use the following cable to connect CN7 with SBC and SATA HDD:
IDDUPS Series DC/DC Converter Module
SBC main power cable for IDDUPS-636260A (P/N: CB-5PSBC-RS)
Figure 4-13: CN7 Connector Cables
4.3 Jumper Settings
NOTE:
A jumper is a metal bridge used to close an
electrical circuit. It consists of two or three metal
pins and a small metal clip (often protected by a
plastic cover) that slides over the pins to connect
them. To CLOSE/SHORT a jumper means
connecting the pins of the jumper with the plastic
clip and to OPEN a jumper means removing the
plastic clip from a jumper.
Jumper
Before the IDDUPS-6364120/636260 is installed in the system, the jumper must be set in
accordance with the desired configuration. The jumper on the IDDUPS-6364120/636260
is listed below.
4.3.1 AT/ATX Mode Select Jumper
CN Label: JP1
CN Type:
CN Location: See
CN Pinouts: See
2-pin header (1x2)
220H220H220H223HFigure 4-14
221H221H221H224HTable 4-15
The AT/ATX mode select jumper allows the user to select AT or ATX power for the
motherboard. If the ATX mode is selected, please connect CN2 (Section
222H222H222H225H4.2.1) to the
motherboard to enable ATX power.
Page 33
IDDUPS Series DC/DC Converter Module
Figure 4-14: AT/ATX Mode Select Jumper Location
JP1 DESCRIPTION
Short AT
Open ATX
Table 4-15: AT/ATX Mode Select Jumper Settings
Page 34
IDDUPS Series DC/DC Converter Module
Chapter
5
5 Software Application
Page 35
IDDUPS Series DC/DC Converter Module
5.1 Introduction
The IEI IDDUPS Battery Status Monitor application detects the information of the smart
battery and monitors the battery status. It is recommended to execute this IDDUPS
application in Windows XP SP2 environment.
5.2 Monitoring DC Power and Smart Battery
5.2.1 Using the Application
Follow the steps below to start the IDDUPS Battery application.
Step 1: Use the RS-232 cable to connect the JP2 connector on the IDDUPS series to
the serial port of the SBC. Please refer to Section
JP2 connector.
Step 2: Insert the application CD that comes with IDDUPS series.
Step 3: Double click the IDDUPS.exe icon (
Figure 5-1: IDDUPS Battery Status Monitor Application
5.2.2 Status Information
The IEI IDDUPS Battery Status Monitor application shows the DC power status and
battery status (
details.
223H223H223H226H4.3.1 for the location of the
224H224H224H227HFigure 5-1).
225H225H225H228HFigure 5-2). The following sections describe the status information in
Page 36
IDDUPS Series DC/DC Converter Module
Figure 5-2: Status Information
5.2.2.1 DC Detection
When the DC power is connected to the IDDUPS series power module, the IDDUPS
Battery Status Monitor detects it and shows in the screen as
226H226H226H229HFigure 5-3.
Figure 5-3: DC Detection
5.2.2.2 Battery Detection
When the smart battery is connected to the IDDUPS series power module, the IDDUPS
Battery Status Monitor detects it and shows in the screen as
can be connected to the IDDUPS series power module at the same time. The second
battery information is shown in the Battery B Detection section if connected.
227H227H227H230HFigure 5-4. Two batteries
Page 37
IDDUPS Series DC/DC Converter Module
Figure 5-4: Battery Detection
On The battery is connected to the IDDUPS series.
Off The battery is not connected to the IDDUPS series.
Battery Full The battery is fully charged.
Battery Low The battery is low.
Using The battery is being used.
Charging The battery is being charged.
Standby The battery is fully charged and ready to be used
>60 C The battery temperature is above 60°C.
<60 C The battery temperature is below 60°C.
5.2.2.3 Battery Remaining Time
anytime.
Page 38
The battery remaining time is shown in the top right corner (228H228H228H231HFigure 5-5) of the status
screen to indicate the total battery remaining time. To view the individual battery time, click
on the BATTERY A/BATTERY B tab (Section
229H229H229H232H5.2.3).
Figure 5-5: Battery Remaining Time
IDDUPS Series DC/DC Converter Module
5.2.3 Battery Information
Click on the BATTERY A/ BATTERY B tab to view the information of battery A/ battery B.
The listed information includes battery type, capacity, output voltage, temperature,
charging rate, discharging rate and battery remaining time (
are updated per second.
230H230H230H233HFigure 5-6). The values listed
Figure 5-6: Battery Information
5.2.4 Setting
Click on the SETTING tab to select the COM port or enable/disable the special event
pop-up window (
231H231H231H234HFigure 5-7).
Page 39
IDDUPS Series DC/DC Converter Module
Figure 5-7: Application Setting
When the IDDUPS Battery Status Monitor application starts up, it automatically scans all
COM port (COM1~COM16) and shows the valid COM port.
232H232H232H235HFigure 5-8 shows the
IDDUPS application is communicating with IDDUPS module through COM 1.
Figure 5-8: COM Port Status
The IDDUPS Battery Status Monitor application will notify users with pop-up window if
some special events happen, such as battery low or temperature over 60°C. This function
can be enabled or disabled. Click Yes to enable or click No to disable (
233H233H233H236HFigure 5-9).
Figure 5-9: Special Event Pop-up Setting
Page 40
IDDUPS Series DC/DC Converter Module
5.3 System Log
The IDDUPS application provides easy access to the system log. To view the system log,
right click the icon in the quick launch toolbar on the desktop as shown in
select System Log.
Figure 5-10: IDDUPS Application Quick Launch Icon
After clicking on the System Log, a screen pops-up (
that have happened.
235H235H235H238HFigure 5-11) and displays all events
234H234H234H237HFigure 5-10 and
Figure 5-11: System Log Example
Page 41
5.4 Exit
To close the IDDUPS application, right click the icon in the quick launch toolbar on the
IDDUPS Series DC/DC Converter Module
desktop as shown in and select Exit (
236H236H236H239HFigure 5-12).
Figure 5-12: Exit IDDUPS Application
Page 42
IDDUPS Series DC/DC Converter Module
A Safety Precautions
Appendix
A
Page 43
IDDUPS Series DC/DC Converter Module
DANGER!
1. Disassemble and Reconstruction
“Do not disassemble or reconstruct battery”
The battery pack has safety function and protection circuit to avoid the danger. If they have
serious damage, it will cause the generating heat, smoke, rupture or flame.
2. Short-circuit
“Do not short-circuit battery”
Do not connect the + and – terminals with metals (such as wire). Do not carry or store the
battery with metal objects (such as wire, necklace or hairpins). If the battery is short-circuited,
excessive large current will flow and then the generating heat, smoke, rupture of flame will
occur. And also, it causes generating heat at metals.
3. Incineration and Heating
“Do not incinerate or heat the battery”
These occur the melting of insulator, damage of gas release vent or safety function, or ignition
on electrolyte. Above mentioned matters cause the generating heat, smoke, rupture or flame.
4. Use Nearby Heated Place
“Do not use or leave battery nearby the fire, stove or heated place (more than 80
In case that separator made of polymer is melted by high temperature, the internal short-circuit
occurs in individual cells and then it causes the generating heat, smoke, rupture or flame. In
addition, do not use the battery under the heated place (more than 80℃) for same reason.
5. Immersion
“Do not immerse the battery in water or sea water, or get it wet”
If the protection circuit included in the battery is broken, the battery will be charged at extreme
current or voltage and the abnormal chemical reaction occurs in it. And then it causes the
generating heat, smoke, rupture or flame.
6. Charge Nearby Heated Place
“Do not charge battery nearby the fire or under the blazing sun”
If the protection circuit to avoid the danger works under high temperature or it is broken, the
battery will be charged at abnormal current (or voltage) and abnormal chemical reaction will
occur. It caused the generating heat, smoke, rupture or flame.
℃
)”
7. Charger and Charge Condition
“Do use the specified charger and observe charging requirement”
If the battery is charged with unspecified condition (under high temperature over the regulated
value, excessive high voltage or current over regulated value, or remodeled charger), there
Page 44
IDDUPS Series DC/DC Converter Module
are cases that it will be overcharged or the abnormal chemical reaction will occur in cells. It
caused the generating heat, smoke, rupture or flame.
8. Penetration
“Do not drive a nail into the battery, strike it by hammer, or tread it”
As the battery might be broken or deformed and then it will be short-circuited, it caused the
generating heat, smoke, rupture or flame.
9. Impact
“Do not give battery impact or throw it”
The impact might cause leakage, heat, smoke, rupture, and/or fire of cell in the battery. And
also if the protection circuit in the battery is broken, the battery will be charged at abnormal
voltage or current, and abnormal chemical reaction might occur. It might cause leakage, heat,
smoke rupture, and/or fire.
10. Deformation
“Do not use the battery with conspicuous damage or deformation”
It causes the generating heat, smoke, rupture or flame.
11. Soldering
“Do not make the direct soldering on battery”
As the insulator is melted by heat or the gas release vent (or safety function) is broken, it
caused the generating heat, smoke, rupture or flame.
12. Reverse Charge and Overdischarge
“Do not reverse polarity (and terminals)”
On charging, the battery is reverse-charged and abnormal chemical reaction occurs. And also,
there may be case that unexpected large current flows on discharging. These cause the
generating heat, smoke, rupture or flame.
13. Reversed Polarity Use
“Do not reverse-charge or reverse-connect”
The battery has polarity. In case the battery is not connected with charger or equipment
smoothly, do not force them to connect and do check polarity of battery. If the battery is
connected to opposite polarity with charger, it will be reverse-charged and abnormal chemical
reaction will occur. It causes the generating heat, smoke, rupture or flame.
14. Connect Battery to the Plug
“Do not connect battery to the plug socket or car-cigarette-plug”
Added high voltage to the battery, the excessive current will flow in it and then it will cause the
generating heat, smoke, rupture or flame.
Page 45
15. Inappropriate Use for Other Equipment
“Do not use battery for other equipment”
If the battery is used for unspecified equipment, it will deteriorate its performance and cycle-life.
At worst, abnormal current will flow or battery may generate heat, smoke, rupture or flame.
16. Leakage
“Do not touch a leaked battery directly”
in case the leaked electrolyte gets into eyes, wash them with fresh water as soon as possible
without rubbing eyes. And then, see a doctor immediately.
If leave damaged eyes undone, it will cause eye-trouble.
IDDUPS Series DC/DC Converter Module
WARNING:
1. Mixed Use
“
Do not use Lithium ion battery in mixture”
Do not use Lithium ion battery with the primary batteries or secondary batteries whose
capacity kind or maker is different, if do that, the battery will be discharged or charged
excessively in use. And it may cause the generating, smoke, rupture or flaming because of the
abnormal chemical reaction in cells.
2. Ingestion
“Keep the battery away from babies”
Keep the little battery out of the reach of babies in order to avoid troubles by swallowing. In
case of swallowing the battery, see a doctor immediately.
3. Charging Time
“Do not continue to charge battery over specified time”
If the battery is not finished charging over regulated time, let it stop charging. There is
possibility that the battery might generate, smoke, rupture or flame.
4. Store
“Do not get into a microwave or a high pressure conta iner”
It causes the generating, smoke, rapture or flaming because of a sudden heat or damage of
sealing condition of battery.
5. Leakage
“Do not use a leaked battery nearby fire”
If the liquid leaks from the battery (or the battery gives out bad smell), let the battery leave
from flammable objects immediately. Unless do that, the electrolyte leaked from battery will
catch fire and it will cause the smoke, flaming or rupture of it.
Page 46
IDDUPS Series DC/DC Converter Module
6. Rust, Changing Color and Deformation
“Do not use an abnormal battery”
In case the battery has bad smell or is generated its changing color or deformation or causes
something wrong in using (includes charging and storage), let it take out from equipment or
charger and do not use it. If an abnormal battery is used, it will generate, smoke, rupture or
flame.
CAUTION:
1. Use Under Strong Sunshine
Do not use or leave the battery under the blazing sun (or heated car by sunshine). The battery
may generate heat, smoke or flame. And also, it might cause the deterioration of battery’s
characteristics or cycle life.
2. Static Electricity
The battery has the protection circuit to avoid the danger. Do not use nearby the place where
generates static electricity (more than 100 V) which gives damage to the protection circuit. If
protection circuit were broken, the battery would generate, smoke, rupture or flame.
3. Charging Temperature Range
Charging temperature rage is regulated 0℃ and 40℃. Do not charge the battery out of
recommended temperature range. Charging out of recommended range might cause the
generating heat or serious damage of battery. And also, it might cause the deterioration of
battery’s characteristics and cycle life.
4. Manual
Please read the manual before using the battery and keep it after reading.
5. Charging Method
Please read the manual of specified charger about charging method.
6. First Time Use
When the battery has rust, bad smell or something abnormal at first-time-using, do not use the
equipment and bring the battery to the shop from which it was purchased.
7. Used By Children
In case younger children use the battery, their parents teach how to use batteries according to
the manual with care. And also, when children are using the batteries, pay attention to use it
according to that or not.
Page 47
8. Keep Battery Away From Children
Keep the battery out of the reach of younger children. And also, pay attention when the battery
is taken out from the charger or equipment by little children.
9. Leakage
If the skin or cloth is smeared with liquid from the battery, wash with fresh water. It may cause
the skin inflammation.
IDDUPS Series DC/DC Converter Module
Page 48
IDDUPS Series DC/DC Converter Module
B Hazardous Materials
Appendix
B
Disclosure
Page 49
IDDUPS Series DC/DC Converter Module
B.1 Hazardous Material Disclosure Table for IPB Products
Certified as RoHS Compliant Under 2002/95/EC Without
Mercury
The details provided in this appendix are to ensure that the product is compliant with the
Peoples Republic of China (China) RoHS standards. The table below acknowledges the
presences of small quantities of certain materials in the product, and is applicable to China
RoHS only.
A label will be placed on each product to indicate the estimated “Environmentally Friendly
Use Period” (EFUP). This is an estimate of the number of years that these substances
would “not leak out or undergo abrupt change.” This product may contain replaceable
sub-assemblies/components which have a shorter EFUP such as batteries and lamps.
These components will be separately marked.
Please refer to the table on the next page.
Page 50
IDDUPS Series DC/DC Converter Module
Toxic or Hazardous Substances and Elements Part Name
Housing
Display
Printed Circuit
Board
Metal Fasteners
Cable Assembly
Fan Assembly
Power Supply
Assemblies
Battery
Lead
(Pb)
Mercury
(Hg)
Cadmium
(Cd)
Hexavalent
Chromium
(CR(VI))
Polybrominated
Biphenyls
(PBB)
Polybrominated
Diphenyl Ethers
(PBDE)
O O O O O O
O O O O O O
O O O O O O
O O O O O O
O O O O O O
O O O O O O
O O O O O O
O O O O O O
O: This toxic or hazardous substance is contained in all of the homogeneous materials for the part is below
the limit requirement in SJ/T11363-2006
X: This toxic or hazardous substance is contained in at least one of the homogeneous materials for this part
is above the limit requirement in SJ/T11363-2006
Page 51
IDDUPS Series DC/DC Converter Module
此附件旨在确保本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符
合中国 RoHS 标准规定的限量要求。
本产品上会附有”环境友好使用期限”的标签，此期限是估算这些物质”不会有泄漏或突变”的
年限。本产品可能包含有较短的环境友好使用期限的可替换元件，像是电池或灯管，这些
元件将会单独标示出来。
部件名称
壳体
显示
印刷电路板
金属螺帽
电缆组装
风扇组装
电力供应组装
电池
有毒有害物质或元素
铅
(Pb)
汞
(Hg)
镉
(Cd)
六价铬
(CR(VI))
多溴联苯
(PBB)
多溴二苯醚
(PBDE)
O O O O O O
O O O O O O
O O O O O O
O O O O O O
O O O O O O
O O O O O O
O O O
O
O O
O O O O O O
O: 表示该有毒有害物质在该部件所有物质材料中的含量均在 SJ/T11363-2006 标准规定的限量要求以下。
X: 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T11363-2006 标准规定的限量要求。
Page 52
Loading...
