IEI Integration AFL-08B-N270 User Manual

Download

IEI Technology Corp.

User Manual

AFL-08B-N270 User Manual

MODEL:

AFL-08B-N270

Panel PC with Touch Screen, Intel® Atom N270

1.6 GHz CPU, Gigabit Ethernet, Wireless LAN, USB 2.0

External SATA, RS-232/422/485, Audio, RoHS Compliant,

IP 64 Protection

Rev. 2.30 – 21 September, 2012

Page i

Date Version Changes

21 September, 2012 2.30 Updated for R23 version

Updated audio codec spec Added Section 5: Interface Connectors Added Appendix C: ALC892 Digital Microphone Configuration

22 February, 2012 2.20 Bluetooth function optional

12 July, 2011 2.10 Updated WLAN card to RT3090.

Added note to Section 2.9 Driver Installation. Added Section A.1.3 Product Disposal.

AFL-08B-N270 User Manual

Revision

29 September, 2009 1.02 Added screw torque warning

22 July, 2009 1.01 Minor edit

12 June, 2009 1.00 Initial release

Page ii

AFL-08B-N270 User Manual

The information in this document is subject to change without prior notice in order to

improve reliability, design and function and does not represent a commitment on the part

of the manufacturer.

In no event will the manufacturer be liable for direct, indirect, special, incidental, or

consequential damages arising out of the use or inability to use the product or

documentation, even if advised of the possibility of such damages.

This document contains proprietary information protected by copyright. All rights are

reserved. No part of this manual may be reproduced by any mechanical, electronic, or

other means in any form without prior written permission of the manufacturer.

TRADEMARKS

All registered trademarks and product names mentioned herein are used for identification

purposes only and may be trademarks and/or registered trademarks of their respective

owners.

Page iii

AFL-08B-N270 User Manual

Table of Contents

REVISION........................................................................................................................ II

COPYRIGHT..................................................................................................................III

TABLE OF CONTENTS................................................................................................IV

LIST OF FIGURES .....................................................................................................VIII

LIST OF TABLES.............................................................................................................X

BIOS MENUS................................................................................................................ XII

1 INTRODUCTION........................................................................................................ 13

1.1 OVERVIEW................................................................................................................ 14

1.2 FEATURES................................................................................................................. 15

1.3 EXTERNAL OVERVIEW.............................................................................................. 15

1.3.1 Front Panel...................................................................................................... 15

1.3.2 Rear Panel ....................................................................................................... 16

1.3.3 I/O Interface Panel .......................................................................................... 17

1.4 INTERNAL OVERVIEW............................................................................................... 18

1.5 SYSTEM SPECIFICATIONS.......................................................................................... 19

1.6 DIMENSIONS............................................................................................................. 20

2 INSTALLATION ......................................................................................................... 22

2.1 UNPACK THE PANEL PC............................................................................................ 24

2.1.1 Packing List ..................................................................................................... 24

2.2 REMOVING THE REAR PANEL ................................................................................... 27

2.3 CF CARD INSTALLATION .......................................................................................... 28

2.4 AT/ATX MODE SELECTION...................................................................................... 30

2.4.1 AT Power Mode................................................................................................ 30

2.4.2 ATX Power Mode............................................................................................. 31

2.5 JUMPER SETTINGS .................................................................................................... 31

2.5.1 Access the Jumpers.......................................................................................... 32

2.5.2 Preconfigured Jumpers.................................................................................... 32

2.5.3 Clear CMOS Jumper........................................................................................ 33

Page iv

AFL-08B-N270 User Manual

2.5.4 COM Port Pin 9 Select .................................................................................... 34

2.5.5 COM3 RX Function Select Jumper.................................................................. 35

2.5.6 COM3 TX Function Select Jumper.................................................................. 36

2.5.7 COM3 RS-232/422/485 Serial Port Select Jumper ......................................... 37

2.5.8 CompactFlash® Setup..................................................................................... 38

2.6 MOUNTING THE SYSTEM .......................................................................................... 39

2.6.1 Wall Mounting.................................................................................................. 40

2.6.2 Panel Mounting................................................................................................ 42

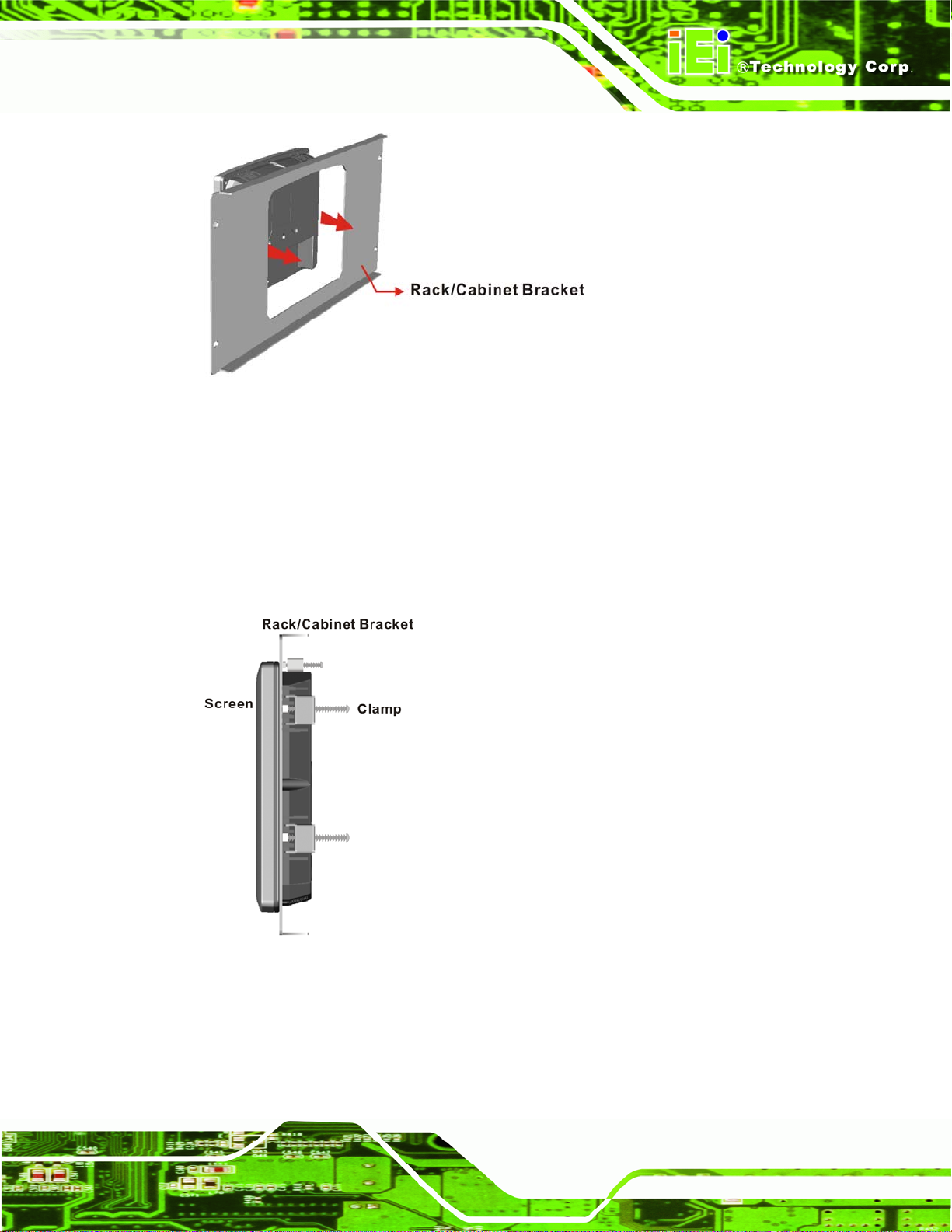

2.6.3 Cabinet and Rack Installation ......................................................................... 44

2.6.4 Arm Mounting .................................................................................................. 46

2.7 BOTTOM PANEL CONNECTORS ................................................................................. 47

2.7.1 LAN Connection............................................................................................... 47

2.7.2 Serial Device Connection and RS-422/485 Pinouts ........................................ 48

2.7.3 USB Device Connection................................................................................... 50

2.8 POWER CONNECTION ............................................................................................... 50

2.9 DRIVER INSTALLATION............................................................................................. 51

3 SYSTEM MAINTENANCE ....................................................................................... 52

3.1 SYSTEM MAINTENANCE INTRODUCTION .................................................................. 53

3.2 MOTHERBOARD REPLACEMENT ............................................................................... 54

3.3 COVER REMOVAL..................................................................................................... 54

3.4 MEMORY MODULE REPLACEMENT........................................................................... 56

3.5 CF CARD REPLACEMENT ......................................................................................... 57

3.6 REINST ALLING THE COVERS..................................................................................... 57

4 BIOS OPTIONS........................................................................................................... 59

4.1 INTRODUCTION......................................................................................................... 60

4.1.1 Starting Setup................................................................................................... 60

4.1.2 Using Setup...................................................................................................... 60

4.1.3 Getting Help..................................................................................................... 61

4.1.4 Unable to Reboot After Configuration Changes.............................................. 61

4.1.5 BIOS Menu Bar................................................................................................ 61

4.2 MAIN........................................................................................................................ 62

4.3 ADVANCED............................................................................................................... 63

4.3.1 CPU Configuration.......................................................................................... 64

Page v

4.3.2 IDE Configuration........................................................................................... 65

4.3.3 Super IO Configuration ................................................................................... 70

4.3.4 Hardware Health Configuration...................................................................... 72

4.3.5 Power Configuration........................................................................................ 72

4.3.6 Remote Access Configuration.......................................................................... 75

4.3.7 USB Configuration........................................................................................... 78

4.4 PCI/PNP................................................................................................................... 79

4.5 BOOT........................................................................................................................ 82

4.5.1 Boot Settings Configuration............................................................................. 82

4.6 SECURITY................................................................................................................. 85

4.7 CHIPSET ................................................................................................................... 86

4.7.1 North Bridge Configuration............................................................................. 87

4.7.2 South Bridge Configuration............................................................................. 89

4.8 EXIT......................................................................................................................... 90

AFL-08B-N270 User Manual

5 INTERFACE CONNECTORS................................................................................... 92

5.1 PERIPHERAL INTERFACE CONNECTORS..................................................................... 93

5.2 INTERNAL PERIPHERAL CONNECTORS ...................................................................... 94

5.2.1 Audio Line-out Connector (CN8)..................................................................... 95

5.2.2 Audio Speaker-out Connector (CN3)............................................................... 96

5.2.3 Audio MIC-in Connector (MIC1) .................................................................... 96

5.2.4 Audio DMIC-in Connector (DMIC1)............................................................... 96

5.2.5 Battery Connector (BT1).................................................................................. 97

5.2.6 CompactFlash® Type II Slot (CF1)................................................................. 97

5.2.7 CRT Connector (CN4) ..................................................................................... 98

5.2.8 DIO Connector (DIO1).................................................................................... 98

5.2.9 HDD Power Connector (CN1)......................................................................... 98

5.2.10 LED Indicator and Button Connector (JP2).................................................. 99

5.2.11 LVDS Backlight Connector (INVERTER1).................................................... 99

5.2.12 MCU Connector (JP7)................................................................................... 99

5.2.13 MCU Connector (TS2)................................................................................. 100

5.2.14 PCIe Mini Slot (CN2)................................................................................... 100

5.2.15 RFID Connector (JP8)................................................................................. 101

5.2.16 SATA Connector (SATA1)............................................................................. 101

5.2.17 Touch Panel Connector (TS1)...................................................................... 102

Page vi

AFL-08B-N270 User Manual

5.2.18 TTL Panel Connector (CN7)........................................................................ 102

5.2.19 JUSB Connector (JUSB1)............................................................................ 103

5.2.20 USB Connector (USB1) ............................................................................... 103

5.2.21 USB Connector (USB2) ............................................................................... 103

5.2.22 USB Connector (USB4) ............................................................................... 104

5.3 EXTERNAL INTERFACE PANEL CONNECTORS.......................................................... 104

5.3.1 Ethernet Connector (LAN1, LAN2)................................................................ 104

5.3.2 Power Connector (CN5)................................................................................ 105

5.3.3 RS-232 Serial Ports (COM1)......................................................................... 105

5.3.4 RS-422/485 Serial Port (COM3) ................................................................... 105

5.3.5 SATA Connector (SATA2)............................................................................... 106

5.3.6 USB 2.0 Connectors (USB3).......................................................................... 106

5.4 PRECONFIGURED JUMPER SETTINGS....................................................................... 107

5.4.1 Backlight Voltage Selection Jumper (J_BL1)................................................. 107

5.4.2 Inverter Power Selection Jumper (JP12)....................................................... 107

5.4.3 LVDS Panel Voltage Selection Jumper (J_VLVDS1)..................................... 108

5.4.4 MCU LCD Type Selection Jumper (JP14)..................................................... 108

5.4.5 MCU PWM Power Selection Jumper (JP13)................................................. 108

5.4.6 Panel Type Selection Jumper (J_LCD_TYPE1)............................................. 108

5.4.7 Touchscreen Selection Jumper (J1)................................................................ 109

5.4.8 USB2 and USB4 Power Selection Jumper (JP15)......................................... 109

Page vii

AFL-08B-N270 User Manual

List of Figures

Figure 1-1: AFL-08B-N270 Panel PC...........................................................................................14

Figure 1-2: AFL-08B-N270 Front View........................................................................................16

Figure 1-3: AFL-08B-N270 Rear View .........................................................................................17

Figure 1-4: AFL-08B-N270 I/O Interface Connector Panel........................................................18

Figure 1-5: Internal Overview......................................................................................................18

Figure 1-6: AFL-08B-N270 Dimensions (mm) ............................................................................21

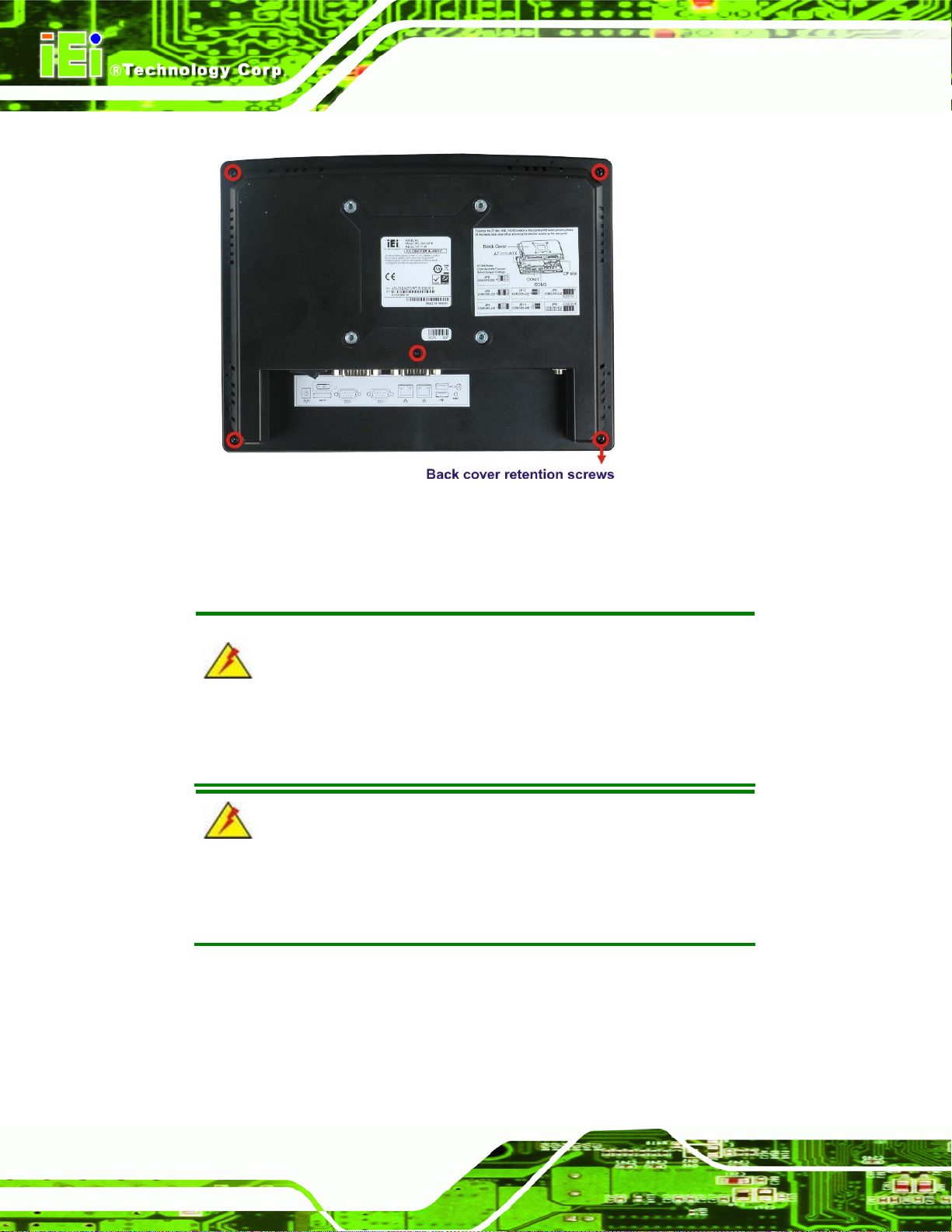

Figure 2-1: Back Cover Retention Screws.................................................................................28

Figure 2-2: CF card slot location.................................................................................................29

Figure 2-3: CF Card Location......................................................................................................29

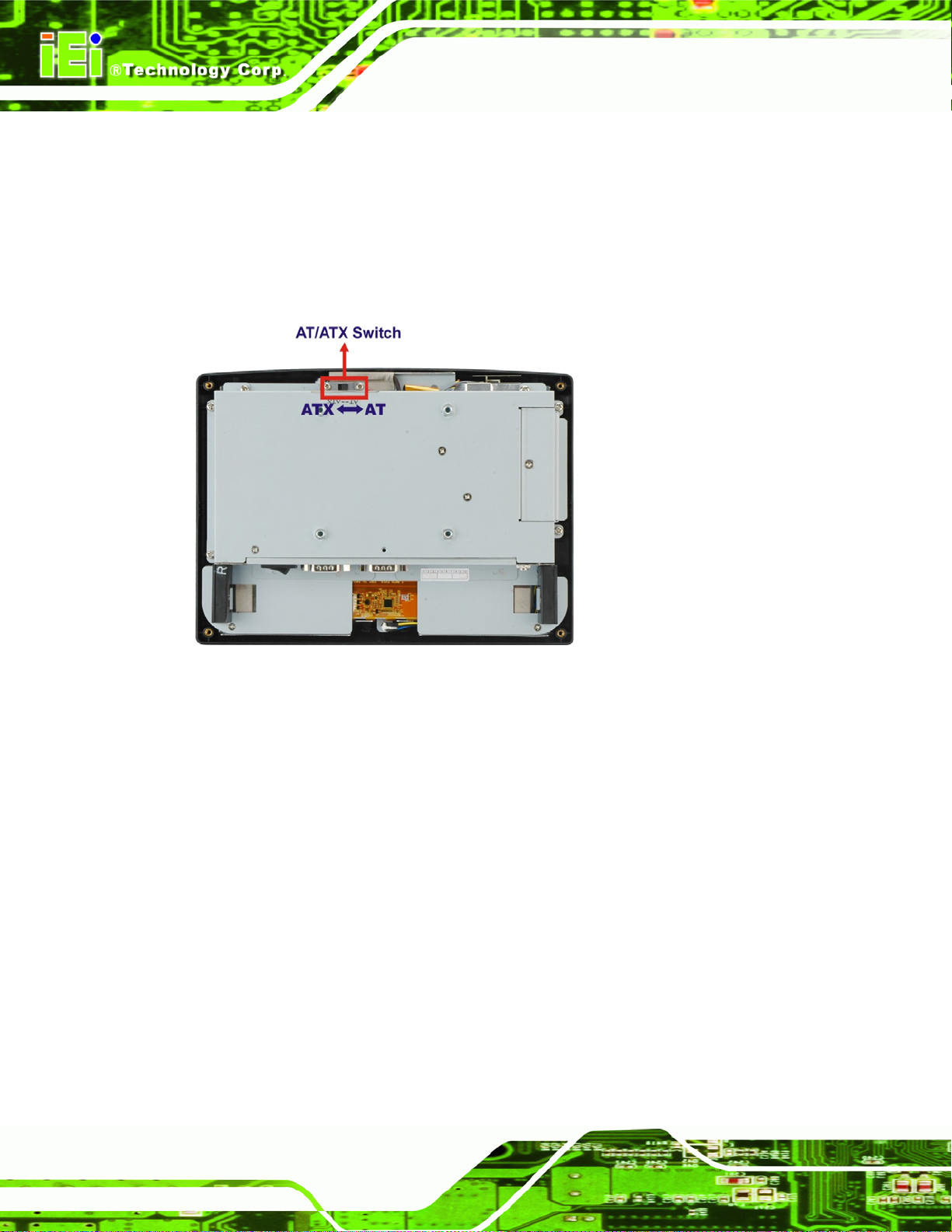

Figure 2-4: AT/ATX Switch Location...........................................................................................30

Figure 2-5: Clear CMOS Jumper .................................................................................................34

Figure 2-6: COM1 and COM3 Pin 9 Setting Jumper Locations................................................35

Figure 2-7: COM3 RX Function Select Jumper Location..........................................................36

Figure 2-8: COM3 TX Function Select Jumper Pinout Locations............................................37

Figure 2-9: COM3 RS-232/422/485 Serial Port Select Jumper Location..................................38

Figure 2-10: CompactFlash® Setup Jumper Location .............................................................39

Figure 2-11: Wall-mounting Bracket...........................................................................................40

Figure 2-12: Chassis Support Screws........................................................................................41

Figure 2-13: Secure the Panel PC...............................................................................................42

Figure 2-14: AFL-08B-N270 Cutout Dimensions (units in mm)................................................43

Figure 2-15: Tighten the Panel Mounting Clamp Screws.........................................................44

Figure 2-16: The Rack/Cabinet Bracket......................................................................................45

Figure 2-17: Secure the Rack/Cabinet Bracket..........................................................................45

Figure 2-18: Install into a Rack/Cabinet .....................................................................................46

Figure 2-19:AFL-08B-N270 Arm Mounting Retention Screw Holes.........................................47

Figure 2-20: LAN Connection......................................................................................................48

Figure 2-21: Serial Device Connector.........................................................................................49

Figure 2-22: USB Device Connection.........................................................................................50

Figure 3-1: Replaceable Components........................................................................................54

Figure 3-2: Back Cover Retention Screws.................................................................................55

Page viii

AFL-08B-N270 User Manual

Figure 3-3: Aluminum Cover Retention Screws........................................................................55

Figure 3-4:AFL-08B-N270 SO-DIMM Socket Location...............................................................56

Figure 3-5: DDR2 SO-DIMM Module Installation........................................................................57

Figure 5-1: Main Board Layout Diagram (Front Side)...............................................................93

Figure 5-2: Main Board Layout Diagram (Solder Side).............................................................94

Figure C-1: Realtek HD Audio Manager Icon [Task Bar] ....................................................... 119

Figure C-2: Realtek HD Audio Manager................................................................................... 119

Figure C-3: Mixer Screen.......................................................................................................... 120

Figure C-4: Mixer ToolBox Screen........................................................................................... 120

Figure C-5: Enabling the Digital Microphone Function......................................................... 121

Page ix

AFL-08B-N270 User Manual

List of Tables

Table 1-1: AFL-08B-N270 Specifications....................................................................................20

Table 2-1: Jumpers.......................................................................................................................32

Table 2-2: Preconfigured Jumpers .............................................................................................32

Table 2-3: Clear CMOS Jumper Settings....................................................................................33

Table 2-4: COM1 Pin 9 Setting Jumper Settings.......................................................................34

Table 2-5: COM3 Pin 9 Setting Jumper Settings.......................................................................34

Table 2-6: RS-422 Pinouts ...........................................................................................................35

Table 2-7: RS-485 Pinouts ...........................................................................................................35

Table 2-8: COM3 RX Function Select Jumper Settings............................................................36

Table 2-9: COM3 TX Function Select Jumper Settings.............................................................37

Table 2-10: COM3 RS-232/422/485 Serial Port Select Jumper Settings..................................38

Table 2-11: CompactFlash® Setup Jumper Settings................................................................39

Table 2-12: RS-422 Pinouts .........................................................................................................49

Table 2-13: RS-485 Pinouts .........................................................................................................50

Table 4-1: BIOS Navigation Keys................................................................................................61

Table 5-1: Peripheral Interface Connectors...............................................................................95

Table 5-2: Audio Line-out Connector (CN8) Pinouts ................................................................95

Table 5-3: Audio Speaker-out Connector (CN3) Pinouts..........................................................96

Table 5-4: Audio MIC-in Connector (MIC1) Pinouts..................................................................96

Table 5-5: Audio DMIC-in Connector (DMIC1) Pinouts.............................................................96

Table 5-6: Battery Connector (BT1) Pinouts..............................................................................97

Table 5-7: CompactFlash® Slot (CF1) Pinouts..........................................................................98

Table 5-8: CRT Connector (CN4) Pinouts ..................................................................................98

Table 5-9: DIO Connector (DIO1) Pinouts ..................................................................................98

Table 5-10: HDD Power Connector (CN1) Pinouts....................................................................98

Table 5-11: LED Indicator and Button Connector (JP2) Pinouts.............................................99

Table 5-12: LVDS Backlight Connector (INVERTER1) Pinouts................................................99

Table 5-13: MCU Connector (JP7) Pinouts ................................................................................99

Table 5-14: MCU Connector (TS2) Pinouts ............................................................................. 100

Table 5-15: PCIe Mini Card Slot (CN2) Pinouts....................................................................... 101

Page x

AFL-08B-N270 User Manual

Table 5-16: RFID Connector (JP8) Pinouts ............................................................................. 101

Table 5-17: SATA Connector (SATA1) Pinouts ...................................................................... 101

Table 5-18: Touch Panel Connector (TS1) Pinouts................................................................ 102

Table 5-19: TTL Panel Connector (CN7) Pinouts.................................................................... 103

Table 5-20: JUSB Connector (JUSB1) Pinouts....................................................................... 103

Table 5-21: USB Connector (USB1) Pinouts........................................................................... 103

Table 5-22: USB Connector (USB2) Pinouts........................................................................... 103

Table 5-23: USB Connector (USB4) Pinouts........................................................................... 104

Table 5-24: Rear Panel Connectors......................................................................................... 104

Table 5-25: Ethernet Connector (LAN1, LAN2) Pinouts......................................................... 105

Table 5-26: Power Connector (CN5) Pinouts.......................................................................... 105

Table 5-27: RS-232 Serial Ports (COM1) Pinouts ................................................................... 105

Table 5-28: COM3 Connector Pinouts..................................................................................... 106

Table 5-29: SATA Connector (SATA2) Pinouts ...................................................................... 106

Table 5-30: USB 2.0 Connectors (USB3) Pinouts................................................................... 106

Table 5-31: Preconfigured Jumpers ........................................................................................ 107

Table 5-32: Backlight Voltage Selection Jumper (J_BL1) Settings...................................... 107

Table 5-33: Inverter Power Selection Jumper (JP12) Settings ............................................. 107

Table 5-34: LVDS Voltage Selection Jumper (J_VLVDS1) Settings..................................... 108

Table 5-35: MCU LCD Type Selection Jumper (JP14) Settings ............................................ 108

Table 5-36: MCU PWM Power Selection Jumper (JP13) Settings......................................... 108

Table 5-37: Panel Type Selection Jumper (J_LCD_TYPE1) Settings................................... 108

Table 5-38: Touchscreen Selection Jumper (J1) Settings .................................................... 109

Table 5-39: USB2 and USB4 Power Selection Jumper (JP15) Settings............................... 109

Page xi

AFL-08B-N270 User Manual

BIOS Menus

BIOS Menu 1: Main.......................................................................................................................62

BIOS Menu 2: Advanced..............................................................................................................64

BIOS Menu 3: CPU Configuration...............................................................................................64

BIOS Menu 4: IDE Configuration.................................................................................................65

BIOS Menu 5: IDE Master and IDE Slave Configuration...........................................................67

BIOS Menu 6: Super IO Configuration........................................................................................70

BIOS Menu 7: Hardware Health Configuration..........................................................................72

BIOS Menu 8: Power Configuration............................................................................................72

BIOS Menu 9: General ACPI Configuration ...............................................................................73

BIOS Menu 10: APM Configuration.............................................................................................74

BIOS Menu 11: Remote Access Configuration..........................................................................76

BIOS Menu 12: USB Configuration.............................................................................................78

BIOS Menu 13: PCI/PnP Configuration.......................................................................................80

BIOS Menu 14: Boot.....................................................................................................................82

BIOS Menu 15: Boot Settings Configuration.............................................................................82

BIOS Menu 16: Security...............................................................................................................85

BIOS Menu 17: Chipset................................................................................................................86

BIOS Menu 18:Northbridge Chipset Configuration...................................................................87

BIOS Menu 19:South Bridge Chipset Configuration.................................................................89

BIOS Menu 20:Exit........................................................................................................................90

Page xii

AFL-08B-N270 User Manual

Chapter

1 Introduction

Page 13

1.1 Overview

AFL-08B-N270 User Manual

Figure 1-1: AFL-08B-N270 Panel PC

The AFOLUX AFL-08B-N270 is an Intel® Atom N270 powered all-in-one touch screen

panel PC with a rich variety of functions and peripheral connections. It is designed for

easy and simplified integration into conference center, home automation, and building

control applications.

An Intel® 945GSE graphics memory controller hub (GMCH) coupled with an Intel®

ICH7M input/output controller hub ensures optimal memory, graphics, and peripheral I/O

support. The system comes with 1.0 GB of preinstalled DDR2 SDRAM and supports a

maximum of 2.0 GB ensuring smooth data throughputs with reduced bottlenecks and fast

system access.

Two serial ports, two USB 2.0 ports, and one external SATA port provide simplified

connectivity to a variety of external peripheral devices. Wi-Fi capabilities and two RJ-45

Ethernet connectors ensure uninterrupted connection of the system to an external LAN.

The AFL-08B-N270 panel PC is an elegant yet sophisticated system that is as easily

Page 14

implemented in commercial, industrial, and corporate environments as the home.

AFL-08B-N270 User Manual

1.2 Features

The AFL-08B-N270 features the following:

 Intel® Atom™ processor

 Intel® 945GSE chipset

 1 GB 533 MHz DDR2 SDRAM preinstalled

 802.11 b/g/n wireless module

 Two USB 2.0 ports

 One external SATA port

 Watchdog timer that triggers a system reset if the system hangs for some

reason

 IP 64 compliant front panel

 AT or ATX power mode

 Touch screen

 RoHS compliance

1.3 External Overview

The stylish AFL-08B-N270 panel PC comprises of a screen, rear panel, top panel, bottom

panel and two side panels (left and right). An ABS/PC plastic front frame surrounds the

front screen. The rear panel provides screw holes for a wall-mounting bracket compliant

with VESA FDMI standard. An I/O interface panel on the bottom panel of the

AFL-08B-N270 provides access to external interface connectors.

1.3.1 Front Panel

The front side of the AFL-08B-N270 is a TFT LCD screen surrounded by an ABS/PC

plastic frame. The top of the front panel has a digital camera and microphone. A power

LED is located on the bottom of the front panel with an integrated IEI logo. Refer to

Figure 1-2.

Page 15

AFL-08B-N270 User Manual

Figure 1-2: AFL-08B-N270 Front View

1.3.2 Rear Panel

The rear panel provides access to the internal components of the AFL-08B-N270 and CF

card slot. Refer to

holes.

Figure 1-3 for back cover retention screw and VESA mount screw

Page 16

AFL-08B-N270 User Manual

Figure 1-3: AFL-08B-N270 Rear View

1.3.3 I/O Interface Panel

The I/O interface panel located on the bottom of the AFL-08B-N270 has the following I/O

interface connectors:

 1 x 12 V DC-IN connector

 1 x Audio line-out jack

 1 x External SATA port

 1 x Power switch

 1 x Reset button

 2 x RJ-45 GbE LAN ports

 1 x RS-232 serial port

 1 x RS-232/422/485 serial port

 2 x USB 2.0 connectors

The external I/O interface connector panel is shown in the following figure.

Page 17

AFL-08B-N270 User Manual

Figure 1-4: AFL-08B-N270 I/O Interface Connector Panel

1.4 Internal Overview

The AFL-08B-N270 has the following components installed internally:

 1 x Motherboard

 1 x 1.0 GB 533 MHz DDR2 SDRAM SO-DIMM

 1 x Wireless LAN module

 2 x 1.5W speakers

Page 18

Figure 1-5: Internal Overview

AFL-08B-N270 User Manual

1.5 System Specifications

The technical specifications for the AFL-08B-N270 systems are listed below.

Specifications AFL-08B-N270 LCD Size

Max Resolution Brightness (cd/m2) Contrast Ratio LCD Color Pixel Pitch (mm) Viewing Angle (H-V) Backlight MTBF CPU Chipset

RAM

Audio Codec

800 x 600

300

400:1

262K

0.0675(H) x 0.2025(V)

130º/120º

30000 hrs

Intel® Atom™ N270 1.6 GHz CPU

Intel 945GSE + ICH7M

1 GB 533 MHz DDR2 SO-DIMM

Supports one 400 MHz or 533 MHz DDR2 SO-DIMM (2 GB

Max.)

Realtek ALC892

I/O Ports and Switches

SSD Watchdog Timer

One 12V DC power jack

One Audio line-out jack

One External SATA port

One Power switch

One Reset button

Two RJ-45 GbE LAN ports

One RS-232 serial port

One RS-232/422/485 serial port

Two USB 2.0 ports

CF Type II

Software programmable supports 1~255 sec. System reset

Page 19

Specifications AFL-08B-N270

AFL-08B-N270 User Manual

Audio

Digital Camera Wireless LAN Bluetooth V2.0 Construction Material LED Function Mounting Front Panel Color Dimension (W x H x D) (mm) Operation Temperature (ºC) Storage Temperature (ºC) Net Weight

AMP 1.5 W + 1.5 W internal speakers

Digital microphone

2-megapixel digital camera on the front panel

Wireless LAN 802.11 b/g/n PCIe Mini card module

Optional

ABS + PC Plastic front frame

One power on/off LED on the front panel

Panel, Wall, Rack, Arm, Stand (VESA 75mm x 75mm)

Grey 7539U

234 x 177 x 43

-10ºC~50ºC

-20ºC~60ºC

0.8 Kg

IP Level EMC Safety Touch Screen

Power Adapter

Power Requirement Power Consumption

Table 1-1: AFL-08B-N270 Specifications

Front Frame IP64

CE, FCC, CCC

Resistive 5-Wire

36 W power adapter

Input: 100 V AC ~ 240 V A

Output: 12 V DC

12 V DC

25 W

1.6 Dimensions

The AFL-408A/B-N270 dimensions are listed below and shown in the following figure.

 Width: 234 mm

C; 50 Hz ~ 60 Hz

Page 20

AFL-08B-N270 User Manual

 Height: 177 mm  Depth: 43 mm

Figure 1-6: AFL-08B-N270 Dimensions (mm)

Page 21

AFL-08B-N270 User Manual

Chapter

2 Installation

Page 22

AFL-08B-N270 User Manual

WARNING:

When installing the AFL-08B-N270, make sure to:

 Turn the power off: Chance of electrocution. Turn off the monitor and

unplug it from the power supply.

 Only let certified engineers change the hardware settings: Incorrect

settings can cause irreparable damage to the product.

 Install the monitor with assistan ce: The product is very heavy and may be

damaged by drops and bumps. Two or more people should install the panel

PC.

 Take anti-static precautions: Electrostatic discharge can destroy electrical

components and injure the user. Users must ground themselves using an

anti-static wristband or similar device.

The installation steps below should be followed in order.

Step 1: Unpack the panel PC

Step 2: Check all the required parts are included

Step 3: Install the CompactFlash® card

Step 4: Mount the panel PC

Step 5: Connect peripheral devices to the bottom panel of the panel PC

Step 6: Connect the power cable

Step 7: Configure the system Step 0:

Page 23

2.1 Unpack the Panel PC

To unpack the panel PC, follow the steps below:

WARNING!

Only remove the protective plastic cover stuck to the front screen after

installation. The plastic layer protects the monitor surface during installation

process.

Step 1: Carefully cut the tape sealing the box. Only cut deep enough to break the tape.

Step 2: Open the outside box.

Step 3: Carefully cut the tape sealing the box. Only cut deep enough to break the tape.

AFL-08B-N270 User Manual

Step 4: Open the inside box.

Step 5: Lift the monitor out of the boxes.

Step 6: Remove the peripheral parts box from the main box.

2.1.1 Packing List

The AFL-08B-N270 panel PC is shipped with the following components:

Quantity Item Image

1 AFL-08B-N270 panel PC

1 Power adapter

(P/N: 63000-FSP036RAB608-RS)

Page 24

AFL-08B-N270 User Manual

1 Power cord

(P/N: 32702-000400-100-RS)

1 Power transfer cord

(P/N: 32702-000300-100-RS)

4 Screw kit (M4*6)

(P/N: 44403-040061-RS)

1 Touch pen

(P/N: 43125-0002C0-00-RS)

1 User manual CD and driver CD

Optional

WIN CE 6.0

ALFCF-W10-N270-CE060

WIN XPE

ALFCF-W10-N270-XPE

Linux

ALFCF-W10-N270-LNX-R10

Panel mounting kit

(P/N: AFLPK-12)

Wall mounting kit

(P/N: AFLWK-12)

Page 25

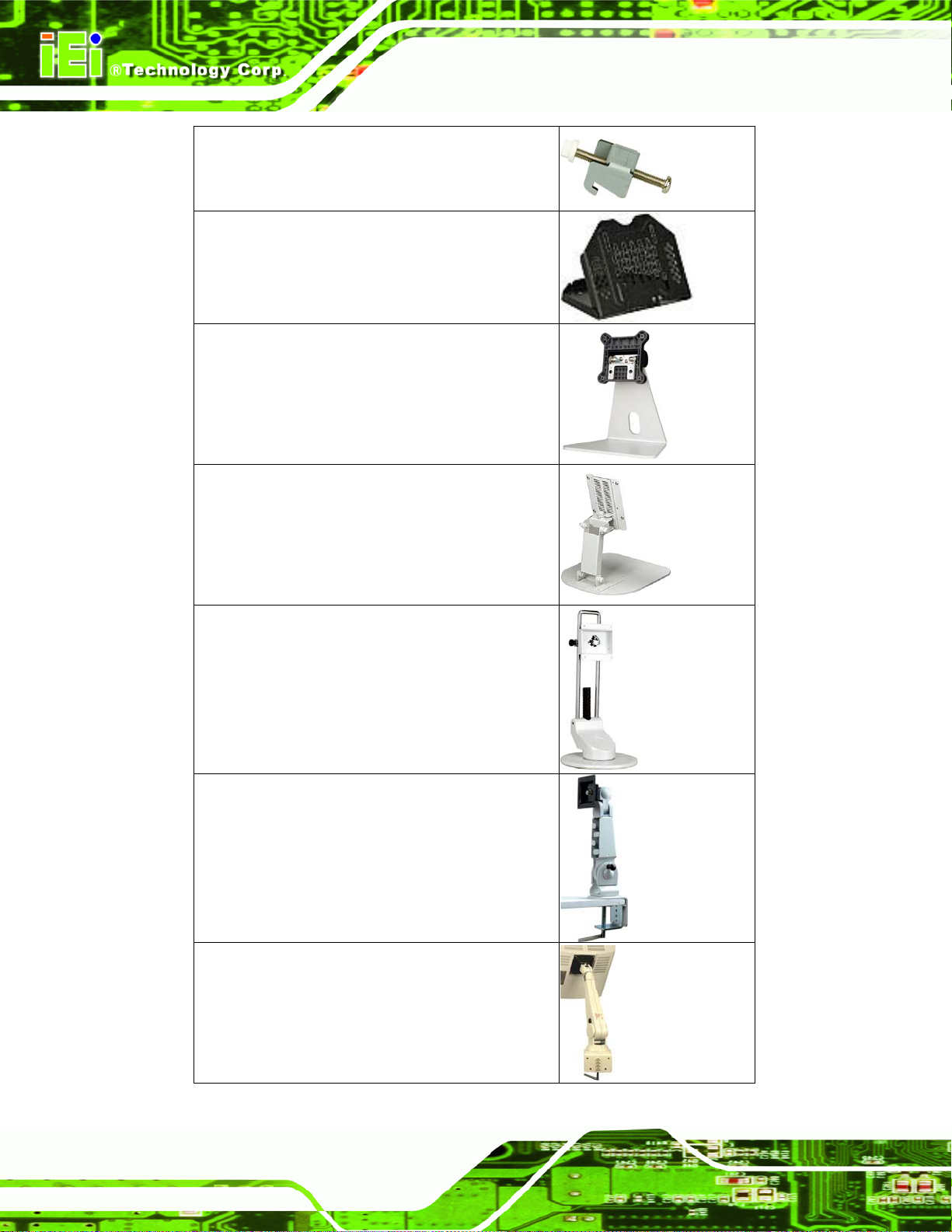

Rack mounting kit

(P/N: AFLRK-08)

VSTAND:

(P/N: VSTAND-A10)

Stand

(P/N:STAND-A08)

Stand

(P/N:STAND-100-RS)

AFL-08B-N270 User Manual

Stand

(P/N: STAND-150-RS)

Arm

(P/N: ARM-11-RS)

Arm

(P/N: ARM-31-RS)

Page 26

AFL-08B-N270 User Manual

Hybrid card reader

(P/N: AFLP-08AMSI-U)

Magnetic stripe reader

(P/N: AFLP-08AMSR-U)

60 W DC/DC 9-30 VDC input vehicle power adapter:

IDD-930160-KIT

DC 12 V Input UPS

AUPS-A10-R10

DC 9-36V Input UPS

AUPS-A20-R10

Make sure all the components listed in the packing list are present. If any of these items

are missing or damaged, contact the distributor or sales representative immediately.

2.2 Removing the Rear Panel

To access the AFL-08B-N270 internally the rear panel must be removed. To remove the

rear panel, please follow the steps below.

Step 1: Remove the retention screws (

Figure 2-1).

Page 27

Figure 2-1: Back Cover Retention Screws

AFL-08B-N270 User Manual

Step 2: Lift the cover and pull down the cover a bit to make it possible to fully remove it.

More strength is required to separate the cover from the chassis. Step 0:

WARNING:

Failing to reinstall the covers may result in permanent damage to the

system. Please make sure all coverings are properly installed.

WARNING:

Over-tightening rear cover screws will crack the plastic frame.

Maximum torque for cover screws is 5 kg-cm (0.36 lb-ft/0.49 Nm).

2.3 CF Card Installation

Page 28

The AFL-08B-N270 has one CF Type II slot inside the rear panel cover. The slot can be

accessed after removing the back cover. To install the CF card, follow the instructions

below.

AFL-08B-N270 User Manual

Step 1: Locate the CF slot cover. Remove the retention screw and CF slot cover (Figure

2-2).

Figure 2-2: CF card slot location

Step 2: Insert a CF card into the slot (

Figure 2-3: CF Card Location

Figure 2-3).

Step 3: Replace the CF card slot cover.

Step 4: Reinsert retention screw.Step 0:

Page 29

2.4 AT/ATX Mode Selection

AT and ATX power modes can both be used on the AFL-08B-N270. The selection is made

AFL-08B-N270 User Manual

through an AT/ATX switch on the top edge of the inner aluminum cover (

select AT mode or ATX mode, follow the steps below.

Step 1: Locate the AT/ATX switch on the top edge of the aluminum cover (

Figure 2-4). To

Figure 2-4).

Figure 2-4: AT/ATX Switch Location

Step 2: Adjust the AT/ATX switch. Step 0:

2.4.1 AT Power Mode

With the AT mode selected, the power is controlled by a central power unit rather than a

power switch. The AFL-08B-N270 panel PC turns on automatically when the power is

connected. The AT mode benefits a production line to control multiple panel PCs from a

central management center and other applications including:

 ATM

 Self-service kiosk

 Plant environment monitoring system

 Factory automation platform

 Manufacturing shop flow

Page 30

AFL-08B-N270 User Manual

2.4.2 ATX Power Mode

With the ATX mode selected, the AFL-08B-N270 panel PC goes in a standby mode when

it is turned off. The panel PC can be easily turned on via network or a power switch in

standby mode. Remote power control is perfect for advertising applications since the

broadcasting time for each panel PC can be set individually and controlled remotely. Other

possible application includes

 Security surveillance

 Point-of-Sale (POS)

 Advertising terminal

2.5 Jumper Settings

NOTE:

A jumper is a metal bridge used to close an

electrical circuit. It consists of two or three metal

pins and a small metal clip (often protected by a

plastic cover) that slides over the pins to connect

them. To CLOSE/SHORT a jumper means

connecting the pins of the jumper with the plastic

clip and to OPEN a jumper means removing the

plastic clip from a jumper.

The following jumpers and switches can be changed after removing the rear cover.

Description Label Type

Clear CMOS J_COMS1 2-pin header

COM1 Pin 9 setting JP8 10-pin header

COM3 Pin 9 setting JP10 6-pin header

COM3 RX RS-232/422/485 select JP9 8-pin header

COM3 TX RS-422/485 select JP11 6-pin header

COM3 RS-232/422/485 select JP6 12-pin header

Page 31

CompactFlash® setup JCF1 2-pin header

Table 2-1: Jumpers

2.5.1 Access the Jumpers

To access the jumpers, remove the back cover. To remove the back cover, please refer to

AFL-08B-N270 User Manual

Section

3.3.

2.5.2 Preconfigured Jumpers

WARNING:

Do not change the settings on the jumpers in described here. Doing so

may disable or damage the system.

The following jumpers are preconfigured for the AFL-08B-N270. Users should not change

these jumpers (

Chapter 5 for reference.

Jumper Name Label Type

Backlight voltage selection J_BL1 3-pin header

Inverter power selection JP12 6-pin header

5Table 2-2). The jumper settings of the preconfigured jumpers are listed in

Page 32

LVDS voltage selection J_VLVDS1 3-pin header

MCU LCD type selection JP14 4-pin header

MCU PWM power selection JP13 3-pin header

Panel type and resolution J_LCD_TYPE1 10-pin header

Touchscreen selection J1 4-pin header

USB2 and USB4 power selection JP15 6-pin header

Table 2-2: Preconfigured Jumpers

AFL-08B-N270 User Manual

2.5.3 Clear CMOS Jumper

Jumper Label: J_CMOS1 Jumper Type: Jumper Settings: Jumper Location:

2-pin header

5Table 2-3

See

5Figure 2-5

See

If the AFL-08B-N270 fails to boot due to improper BIOS settings, the clear CMOS jumper

clears the CMOS data and resets the system BIOS information. To do this, use the jumper

cap to close the pins for a few seconds then remove the jumper clip.

If the “CMOS Settings Wrong” message is displayed during the boot up process, the fault

may be corrected by pressing the F1 to enter the CMOS Setup menu. Do one of the

following:

 Enter the correct CMOS setting

 Load Optimal Defaults

 Load Failsafe Defaults.

After having done one of the above, save the changes and exit the CMOS Setup menu.

The clear CMOS jumper settings are shown in

Clear CMOS Description

Short 1 - 2 Keep CMOS Setup Default

Short 2 - 3 Clear CMOS Setup

5Table 2-3.

Table 2-3: Clear CMOS Jumper Settings

The location of the clear CMOS jumper is shown in 5Figure 2-5 below.

Page 33

Figure 2-5: Clear CMOS Jumper

2.5.4 COM Port Pin 9 Select

AFL-08B-N270 User Manual

Jumper Label: Jumper Settings: Jumper Location:

JP8 and JP10

5Table 2-4

See

5Figure 2-6

See

Two jumpers (JP8 and JP10) configure pin 9 on COM1 and COM3 DB-9 connectors. Pin 9

on the COM1 and the COM3 DB-9 connectors can be set as the ring (RI) signal, +5 V or

+12 V. The COM1 and COM3 Pin 9 Setting jumper selection options are shown in

5Table

2-4.

JP8 Description

Short 1-3 COM1 RI Pin use +12 V

Short 3-5 COM1 RI Pin use +5 V

Short 7-9 COM1 RI Pin use RI Defaul t

Table 2-4: COM1 Pin 9 Setting Jumper Settings

JP10 Description

Page 34

Short 1-2 COM3 RI Pin use +12 V

Short 3-4 COM3 RI Pin use RI Default

Short 5-6 COM3 RI Pin use +5 V

Table 2-5: COM3 Pin 9 Setting Jumper Settings

The COM1 and COM3 Pin 9 Setting jumper locations are shown in 5Figure 2-6 below.

AFL-08B-N270 User Manual

Figure 2-6: COM1 and COM3 Pin 9 Setting Jumper Locations

2.5.4.1 COM3 RS-422 and RS-485 Pinouts

The pinouts for RS-422 and RS-485 operation of external serial port COM 3 are detailed

below.

COM 3 RS-422 Description

Pin 1 TX-

Pin 2 TX+ Pin 6 RX-

Pin 7 RX+

Table 2-6: RS-422 Pinouts

COM 3 RS-485 Description

Pin 1 Data-

Pin 2 Data+

Table 2-7: RS-485 Pinouts

2.5.5 COM3 RX Function Select Jumper

Jumper Label: JP9 Jumper Type:

8-pin header

5Table 2-8

Jumper Settings: Jumper Location:

See

5Figure 2-7

See

Page 35

AFL-08B-N270 User Manual

The COM3 RX Function Select jumper sets the communication protocol used by the RX

serial communications port COM3 as RS-232, RS-422 or RS-485. The COM3 RX

Function Select jumper settings are shown in

COM3 RX Function Select Description

Short 1-2 DET BIOS

RS-232/422/485

Short 3-4 RS-232 Default

Short 5-6 RS-422

Short 7-8 RS-485

5Table 2-8.

Table 2-8: COM3 RX Function Select Jumper Settings

The COM3 RX Function Select jumper location is shown in 5Figure 2-7.

Figure 2-7: COM3 RX Function Select Jumper Location

2.5.6 COM3 TX Function Select Jumper

Jumper Label: JP11

6-pin header

5Table 2-9

See

5Figure 2-8

Page 36

Jumper Type: Jumper Settings:

Jumper Location:

AFL-08B-N270 User Manual

The COM3 TX Function Select jumper configures the TX pin on COM3 serial port

connector as RS-422 as an RS-485. The COM3 TX Function Select jumper selection

options are shown in

COM3 TX Function Select Description

Short 1 – 3 RS-422 TX-

Short 2 – 4 RS-422 TX+

Short 3 – 5 RS-485 D-

Short 4 – 6 RS-485 D+

5Table 2-9.

Table 2-9: COM3 TX Function Select Jumper Settings

The COM3 TX Function Select jumper location is shown in 5Figure 2-8 below.

Figure 2-8: COM3 TX Function Select Jumper Pinout Locations

2.5.7 COM3 RS-232/422/485 Serial Port Select Jumper

Jumper Label: JP6 Jumper Type: Jumper Settings: Jumper Location:

12-pin header (four 3-pin headers combined)

5Table 2-10

See

5Figure 2-9

See

The COM3 RS-232/422/485 Serial Port Select jumper sets the communication protocol

used by the second serial communications port (COM3) as RS-232, RS-422 or RS-485.

The COM3 RS-232/422/485 Serial Port Select settings are shown in

5Table 2-10.

Page 37

RS-232/485 Select Description

Short 1-2 RS-232 Default

Short 4-5 RS-232 Default

Short 7-8 RS-232 Default

Short 10-11 RS-232 Default

Short 2-3 RS-422/485

Short 5-6 RS-422/485

Short 8-9 RS-422/485

Short 11-12 RS-422/485

AFL-08B-N270 User Manual

Table 2-10: COM3 RS-232/422/485 Serial Port Select Jumper Settings

The COM3 RS-232/422/485 Serial Port Select jumper location is shown in 5Figure 2-9.

Figure 2-9: COM3 RS-232/422/485 Serial Port Select Jumper Location

2.5.8 CompactFlash® Setup

Jumper Label: JCF1 Jumper Type: Jumper Settings: Jumper Location:

Page 38

2-pin header

Table 2-11

See

Figure 2-10

See

AFL-08B-N270 User Manual

The CompactFlash® slot is connected through an IDE connection. This jumper sets the

CompactFlash® card as the master or slave IDE device.

Setting Description

Open Master (Default) Short Slave

Table 2-11: CompactFlash® Setup Jumper Settings

Figure 2-10: CompactFlash® Setup Jumper Location

2.6 Mounting the System

WARNING!

When mounting the panel PC onto an arm, onto the wall or onto a panel, it

is better to have more than one person to help with the installation to make

sure the panel PC does not fall down and get damaged.

The four methods of mounting the AFL-08B-N270 are listed below.

 Wall mounting

 Panel mounting

 Arm mounting

 Rack mounting

The four mounting methods are described below.

Page 39

2.6.1 Wall Mounting

To mount the panel PC onto the wall, please follow the steps below.

Step 1: Select the location on the wall for the wall-mounting bracket.

Step 2: Carefully mark the locations of the four screw holes in the bracket on the wall.

Step 3: Drill four pilot holes at the marked locations on the wall for the bracket retention

screws.

Step 4: Align the wall-mounting bracket screw holes with the pilot holes.

Step 5: Secure the mounting-bracket to the wall by inserting the retention screws into

AFL-08B-N270 User Manual

the four pilot holes and tightening them (

Figure 2-11: Wall-mounting Bracket

Step 6: Insert the four monitor mounting screws provided in the wall mounting kit into the

four screw holes on the real panel of the panel PC and tighten until the screw

Figure 2-11).

Page 40

shank is secured against the rear panel (

Step 7: Align the mounting screws on the monitor rear panel with the mounting holes on

the bracket.

Step 8: Carefully insert the screws through the holes and gently pull the monitor

downwards until the monitor rests securely in the slotted holes (

Figure 2-12).

AFL-08B-N270 User Manual

Ensure that all four of the mounting screws fit snuggly into their respective

slotted holes.

NOTE:

In the diagram below the bracket is already installed on the wall.

Figure 2-12: Chassis Support Screws

Step 9: Secure the panel PC by fastening the retention screw of the wall-mounting

bracket. (

Figure 2-13).

Page 41

AFL-08B-N270 User Manual

Figure 2-13: Secure the Panel PC

2.6.2 Panel Mounting

To mount the AFL-08B-N270 panel PC into a panel, please follow the steps below.

Step 1: Select the position on the panel to mount the panel PC.

Step 2: Cut out a section from the panel that corresponds to the rear panel dimensions

of the panel PC. Take care that the panel section that is cut out is smaller than

the overall size of the metal frame that surrounds the panel PC but just large

enough for the rear panel of the panel PC to fit through (

Figure 2-14).

Page 42

AFL-08B-N270 User Manual

Figure 2-14: AFL-08B-N270 Cutout Dimensions (units in mm)

Step 3: Slide the panel PC through the hole until the aluminum frame is flush against the

panel.

Step 4: Insert the panel mounting clamps into the pre-formed holes along the edges of

the chassis, behind the aluminum frame.

Step 5: Tighten the screws that pass through the panel mounting clamps until the plastic

caps at the front of all the screws are firmly secured to the panel (

Figure 2-15).

Page 43

AFL-08B-N270 User Manual

Figure 2-15: Tighten the Panel Mounting Clamp Screws

2.6.3 Cabinet and Rack Installation

The AFL-08B-N270 panel PC can be installed into a cabinet or rack. The installation

procedures are similar to the panel mounting installation. To do this, please follow the

steps below:

NOTE:

When purchasing the cabinet/rack installation bracket, make sure it is

compatible with both the AFL-08B-N270 panel PC and the rack/cabinet

into which the AFL-08B-N270 is installed.

Step 1: Slide the rear of the AFL-08B-N270 panel PC through the rack/cabinet bracket

Page 44

until the aluminum frame is flush against the front of the bracket (

Figure 2-16).

AFL-08B-N270 User Manual

Figure 2-16: The Rack/Cabinet Bracket

Step 2: Insert the rack mounting clamps into the pre-formed holes along the edges of

the panel PC, behind the ABS/PC plastic frame.

Step 3: Tighten the screws that pass through the rack mounting clamps until the plastic

caps at the front of all the screws are firmly secured to the bracket

Figure 2-17).

(

Figure 2-17: Secure the Rack/Cabinet Bracket

Step 4: Slide the panel PC with the attached rack/cabinet bracket into a rack or cabinet

Figure 2-18).

(

Page 45

Figure 2-18: Install into a Rack/Cabinet

AFL-08B-N270 User Manual

Step 5: Once the panel PC with the attached rack/cabinet bracket has been properly

inserted into the rack or cabinet, secure the front of the rack/cabinet bracket to

the front of the rack or cabinet (

Figure 2-18).

2.6.4 Arm Mounting

The AFL-08B-N270 is VESA (Video Electronics Standards Association) compliant and can

be mounted on an arm with a 75mm interface pad. To mount the panel PC on an arm,

please follow the steps below.

Step 1: Please correctly mount the arm onto the surface it uses as a base. To do this,

refer to the installation documentation that came with the mounting arm.

NOTE:

When purchasing the mounting arm please ensure that it is VESA

compliant and that the arm has a 75 mm interface pad. If it is not VESA

Page 46

compliant, it cannot be used to support the AFL-08B-N270 panel PC.

AFL-08B-N270 User Manual

Step 2: Once the mounting arm has been firmly attached to the surface, lift the panel PC

onto the interface pad of the mounting arm.

Step 3: Align the retention screw holes on the mounting arm interface with those in the

panel PC. The arm mount retention screw holes are shown in

Figure 2-19.

Figure 2-19:AFL-08B-N270 Arm Mounting Retention Screw Holes

Step 4: Secure the panel PC to the interface pad by inserting the retention screws

through the bottom of the mounting arm interface pad and into the panel PC.

Step 0:

2.7 Bottom Panel Connectors

All I/O interface connections of the AFL-08B-N270 are found on the bottom panel.

2.7.1 LAN Connection

There are two external RJ-45 LAN connectors. The RJ-45 connector enables connection

to an external network. To connect a LAN cable with an RJ-45 connector, please follow

the instructions below.

Page 47

Step 1: Locate the RJ-45 connectors on the bottom panel of the AFL-08B-N270

Series.

Step 2: Align the connector. Align the RJ-45 connector on the LAN cable with one of

AFL-08B-N270 User Manual

the RJ-45 connectors on the bottom panel of the AFL-08B-N270. See

2-20.

Figure 2-20: LAN Connection

Figure

Step 3: Insert the LAN cable RJ-45 connector. Once aligned, gently insert the LAN

cable RJ-45 connector into the onboard RJ-45 connector. Step 0:

2.7.2 Serial Device Connection and RS-422/485 Pinouts

The AFL-08B-N270 has two DB-9 connectors for connecting to RS-232 and RS-422/485

serial devices on the bottom panel. Follow the steps below to connect a serial device to

Page 48

the panel PC. Please see Section

Serial Port COM3.

Step 1: Locate the DB-9 connector. The location of the DB-9 connector is shown in

Chapter 3.

2.7.2.1 below for the RS-422 and RS-485 pinouts of

AFL-08B-N270 User Manual

Step 2: Insert the serial connector. Insert the DB-9 connector of a serial device into

the DB-9 connector on the external peripheral interface. See

Figure 2-21: Serial Device Connector

Figure 2-21.

Step 3: Secure the connector. Secure the serial device connector to the external

interface by tightening the two retention screws on either side of the connector.

2.7.2.1 COM3 RS-422 and RS-485 Pinouts

The pinouts for RS-422 and RS-485 operation of external serial port COM3 are detailed

below.

COM 3 RS-422 Description

Pin 1 TX-

Pin 2 TX+ Pin 6 RX-

Pin 7 RX+

Table 2-12: RS-422 Pinouts

COM 3 RS-485 Description

Pin 1 Data-

Step 0:

Pin 2 Data+

Page 49

Table 2-13: RS-485 Pinouts

2.7.3 USB Device Connection

There are two external USB 2.0 connectors. To connect a USB 2.0 or USB 1.1 device,

please follow the instructions below.

Step 1: Located the USB connectors. The locations of the USB connectors are shown

in Chapter 2.

Step 2: Align the connectors. Align the USB device connector with one of the

AFL-08B-N270 User Manual

connectors on the bottom panel. See

Figure 2-22.

Figure 2-22: USB Device Connection

Step 3: Insert the device connector. Once aligned, gently insert the USB device

connector into the onboard connector. Step 0:

2.8 Power Connection

The power cable connects the power adapter to the power outlet. The power adapter and

power cable are required for operation of the panel PC.

Page 50

AFL-08B-N270 User Manual

Step 1: Connect the power adapter to the panel PC.

Step 2: Connect the power cable to the included power adapter.

Step 3: Connect the power cable to the power outlet. Step 0:

2.9 Driver Installation

NOTE:

The content of the CD may vary throughout the life cycle of the product

and is subject to change without prior notice. Visit the IEI website or

contact technical support for the latest updates.

The following drivers can be installed on the system; each driver is in its own directory on

the driver CD:

 Chipset driver

 Graphics driver

 LAN driver

 Audio driver

 Touch panel driver

 Wireless LAN card driver

 Bluetooth driver (optional)

NOTE:

When installing the Wireless LAN card driver, make sure to select the

RT3090 folder which indicates the WLAN card model installed on the

system.

Page 51

AFL-08B-N270 User Manual

Chapter

3 System Maintenance

Page 52

AFL-08B-N270 User Manual

3.1 System Maintenance Introduction

WARNING!

Turn off the power before removing the back cover. Risk of

electrocution. Severe damage to the product and injury to the body

may occur if internal parts are touched while the power is still on.

WARNING!

Take antistatic precautions when working on the internal components. Some internal components are easily damaged or

destroyed by electrostatic discharge. Take antistatic precautions to

prevent electrostatic discharge.

If the components of the AFL-08B-N270 fail they must be replaced. Components that can

be replaced include (see

 CF Module

 Wireless LAN module

 SO-DIMM module

Please contact the system reseller or vendor to purchase the replacement parts. Back

cover removal instructions for the AFL-08B-N270 are described below.

Figure 3-1):

Page 53

Figure 3-1: Replaceable Components

3.2 Motherboard Replacement

In the case of motherboard failure, please contact an IEI sales representative, reseller or

AFL-08B-N270 User Manual

system vendor. The motherboard is accessible after opening the rear cover.

3.3 Cover Removal

To access the AFL-08B-N270 internally the back panel must be removed. To remove the

back panel, please follow the steps below.

Step 1: Follow all anti-static procedures. See Section A.1.2.

Step 2: Turn off the power. See Section 3.1.

Step 3: Remove the retention screws on the back. Remove the retention screws

Figure 3-2) from the rear panel.

(

Page 54

AFL-08B-N270 User Manual

Figure 3-2: Back Cover Retention Screws

Step 4: Lift the cover and pull down the cover a bit to make it possible to fully remove it.

More strength is required to separate the cover from the chassis.

Step 5: Remove the retention screws indicated by the arrows and circles in

from the aluminum cover.

Figure 3-3: Aluminum Cover Retention Screws

Figure 3-3

Step 6: Lift off the cover. Step 0:

Page 55

3.4 Memory Module Replacement

The panel PC is preinstalled with a 1 GB DDR2 memory module. If the memory module is

fail, follow the instructions below to replace the memory module.

Step 1: Remove the aluminum back cover. See Section 3.3 above.

AFL-08B-N270 User Manual

Step 2: Locate the DDR2 SO-DIMM on the motherboard (

Figure 3-4:AFL-08B-N270 SO-DIMM Socket Location

Step 3: Remove the SO-DIMM by pulling both the spring retainer clips outward from the

socket.

Step 4: Grasp the SO-DIMM by the edges and carefully pull it out of the socket.

Figure 3-4).

Page 56

Step 5: Install the new SO-DIMM by pushing it into the socket at an angle (

Step 6: Push the SO-DIMM down. The spring retainer clips on the SO-DIMM socket clip

into place and secure the SO-DIMM in the socket.Step 0:

Figure 3-5).

AFL-08B-N270 User Manual

Figure 3-5: DDR2 SO-DIMM Module Installation

3.5 CF Card Replacement

The AFL-08B-N270 has one CF Type II slot. Follow the instructions below to replace the

CF card.

Step 1: Follow all anti-static procedures. See Section A.1.2.

Step 2: Turn off the power. See Section 3.1.

Step 3: Follow the instruction listed in Section

3.6 Reinstalling the Covers

WARNING:

Failing to reinstall the covers may result in permanent damage to the

system. Please make sure all coverings are properly installed.

WARNING:

Over-tightening rear cover screws will crack the plastic frame.

2.3 to replace the CF card. Step 0:

Maximum torque for cover screws is 5 kg-cm (0.36 lb-ft/0.49 Nm).

Page 57

When maintenance procedures are complete, please make sure all the covers are

replaced, including the following:

 Aluminum cover

 CF card slot cover

 Plastic rear cover

AFL-08B-N270 User Manual

Page 58

AFL-08B-N270 User Manual

Chapter

4 BIOS Options

Page 59

4.1 Introduction

A licensed copy of AMI BIOS is preprogrammed into the ROM BIOS. The BIOS setup

program allows users to modify the basic system configuration. This chapter describes

how to access the BIOS setup program and the configuration options that may be

changed.

4.1.1 Starting Setup

The AMI BIOS is activated when the computer is turned on. The setup program can be

activated in one of two ways.

AFL-08B-N270 User Manual

1. Press the D

2. Press the D

message appears on the screen. 0.

If the message disappears before the D

again.

ELETE key as soon as the system is turned on or ELETE key when the “Press Del to enter SETUP”

ELETE key is pressed, restart the computer and try

4.1.2 Using Setup

Use the arrow keys to highlight items, press ENTER to select, use the PageUp and PageDown keys to change entries, press F1 for help and press E

keys are shown in.

Key Function

Up arrow Move to previous item

Down arrow Move to next item

Left arrow Move to the item on the left hand side

SC to quit. Navigation

Page 60

Right arrow Move to the item on the right hand side

Esc key Main Menu – Quit and not save changes into CMOS

Status Page Setup Menu and Option Page Setup Menu --

Exit current page and return to Main Menu

Page Up key Increase the numeric value or make changes

Page Dn key Decrease the numeric value or make changes

AFL-08B-N270 User Manual

F1 key General help, only for Status Page Setup Menu and Option

Page Setup Menu

F2 /F3 key Change color from total 16 colors. F2 to select color

forward.

F10 key Save all the CMOS changes, only for Main Menu

Table 4-1: BIOS Navigation Keys

4.1.3 Getting Help

When F1 is pressed a small help window describing the appropriate keys to use and the possible selections for the highlighted item appears. To exit the Help Window press E the F1 key again.

4.1.4 Unable to Reboot After Configuration Changes

If the computer cannot boot after changes to the system configuration is made, CMOS

defaults. Use the jumper described in Chapter 5.

4.1.5 BIOS Menu Bar

The menu bar on top of the BIOS screen has the following main items:

Main Changes the basic system configuration.



Advanced Changes the advanced system settings.

 PCIPnP Changes the advanced PCI/PnP Settings

 Boot Changes the system boot configuration.



Security Sets User and Supervisor Passwords.



Chipset Changes the chipset settings.

SC or



Exit Selects exit options and loads default settings

The following sections completely describe the configuration options found in the menu

items at the top of the BIOS screen and listed above.

Page 61

AFL-08B-N270 User Manual

4.2 Main

The Main menu gives an overview of the basic system information.

BIOS SETUP UTILITY

Main Advanced PCIPNP Boot Security Chipset Exit

System Overview

⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯

AMIBIOS

Version :08.00.15 Build Date :10/22/09 ID: :H731MR11

Processor

Intel® Atom CPU N270 @ 1.60GHz Speed :1600MHz Count :1

System Memory

Size :1016MB

System Time [14:20:27] System Time [Tue 05/06/2008]

ÅÆ

Select Screen

↑ ↓ Select Item Enter Go to SubScreen F1 General Help F10 Save and Exit ESC Exit

BIOS Menu 1: Main

Î System Overview

The System Overvie w lists a brief summary of different system components. The fields in System Overview cannot be changed. The items shown in the system overview include:

 AMI BIOS: Displays auto-detected BIOS information

o Version: Current BIOS version o Build Date: Date the current BIOS version was made o ID: Installed BIOS ID

 Processor: Displays auto-detected CPU specifications

o Type: Names the currently installed processor o Speed: Lists the processor speed o Count: The number of CPUs on the motherboard

 System Memory: Displays the auto-detected system memory.

o Size: Lists memory size

Page 62

AFL-08B-N270 User Manual

The System Overview field also has two user configurable fields:

Î System Time [xx:xx:xx]

Use the System Time option to set the system time. Manually enter the hours, minutes

and seconds.

Î System Date [xx/xx/xx]

Use the System Date option to set the system date. Manually enter the day, month and year.

4.3 Advanced

Use the Advanced menu to configure the CPU and peripheral devices through the

following sub-menus:

WARNING!

Setting the wrong values in the sections below may cause the system

to malfunction. Make sure that the settings made are compatible with

the hardware.

Page 63

BIOS SETUP UTILITY

Main Advanced PCIPNP Boot Security Chipset Exit

Advanced Settings

⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯

WARNING: Setting wrong values in below sections may cause system to malfunction

> CPU Configuration > IDE Configuration > SuperIO Configuration > Hardware Health Configuration > Power Configuration > Remote Access Configuration > USB Configuration

BIOS Menu 2: Advanced

AFL-08B-N270 User Manual

ÅÆ

Select Screen

↑ ↓ Select Item Enter Go to SubScreen F1 General Help F10 Save and Exit ESC Exit

4.3.1 CPU Configuration

Use the CPU Configuration menu to view detailed CPU specifications and configure the

CPU.

BIOS SETUP UTILITY

Main Advanced PCIPNP Boot Security Chipset Exit

Configure Advanced CPU Settings

Module Version:3F.10

⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯

Manufacturer :Intel® Intel® Atom CPU N270 @ 1.60GHz Frequency :1.60GHz FSB Speed :532MHz

Cache L1 : 24KB Cache L2 : 512KB

Ratio Actual Value:12

BIOS Menu 3: CPU Configuration

ÅÆ

Select Screen

↑ ↓ Select Item Enter Go to SubScreen F1 General Help F10 Save and Exit ESC Exit

Page 64

The CPU Configuration menu lists the following CPU details:

 Manufacturer: Lists the name of the CPU manufacturer

 Brand String: Lists the brand name of the CPU being used

AFL-08B-N270 User Manual

 Frequency: Lists the CPU processing speed

 FSB Speed: Lists the FSB speed

 Cache L1: Lists the CPU L1 cache size

 Cache L2: Lists the CPU L2 cache size

 Ratio Actual Value: the clock multiplier

4.3.2 IDE Configuration

Use the IDE Configuration menu to change and/or set the configuration of the IDE

devices installed in the system.

BIOS SETUP UTILITY

Main Advanced PCIPNP Boot Security Chipset Exit

IDE Configuration

⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ ATA/IDE Configuration [Compatible] Legacy IDE Channels [SATA Pri, PATA Sec]

> Primary IDE Master : [Not Detected] > Primary IDE Slave : [Not Detected] > Secondary IDE Master : [Not Detected] > Secondary IDE Slave : [Not Detected]

ÅÆ

Select Screen

↑ ↓ Select Item Enter Go to SubScreen F1 General Help F10 Save and Exit ESC Exit

BIOS Menu 4: IDE Configuration

Î ATA/IDE Configurations [Compatible]

Use the ATA/IDE Configurations option to configure the ATA/IDE controller.

Disabled

Compatible DEFAULT

Disables the on-board ATA/IDE controller.

Configures the on-board ATA/IDE controller to be in

compatible mode. In this mode, a SATA channel will

replace one of the IDE channels. This mode supports

up to 4 storage devices.

Page 65

AFL-08B-N270 User Manual

Enhanced

Î Legacy IDE Channels [SATA Pri, PATA Sec]

SA TA Only

SA TA Pri, PATA Sec DEFAULT

PATA Only

Î IDE Master and IDE Slave

When entering setup, BIOS auto detects the presence of IDE devices. BIOS displays the

Configures the on-board ATA/IDE controller to be in

Enhanced mode. In this mode, IDE channels and SATA

channels are separated. This mode supports up to 6

storage devices. Some legacy OS do not support this

mode.

Only the SATA drives are enabled.

The SATA drives are enabled on the primary

IDE channel, traditional IDE devices are

enabled on the secondary channel

Only the IDE devices are enabled

status of the auto detected IDE devices. The following IDE devices are detected and are

shown in the IDE Configuration menu:

 Primary IDE Master

 Primary IDE Slave

 Secondary IDE Master

 Secondary IDE Slave

The IDE Configuration menu allows changes to the configurations for the IDE devices

installed in the system. If an IDE device is detected, and one of the above listed four BIOS

configuration options are selected, the IDE configuration options are shown.

4.3.2.1 IDE Master, IDE Slave

Use the IDE Master and IDE Slave configuration menu to view both primary and

secondary IDE device details and configure the IDE devices connected to the system.

Almost all settings are set to auto-detect, which will work for all modern drives.

Page 66

AFL-08B-N270 User Manual

BIOS SETUP UTILITY

Main Advanced PCIPNP Boot Security Chipset Exit

Primary IDE Master

⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯

Device :Not Detected

Type [Auto] LBA/Large Mode [Auto] Block (Multi-Sector Transfer) [Auto] PIO Mode [Auto] DMA Mode [Auto] S.M.A.R.T. [Auto] 32Bit Data Transfer [Enabled]

BIOS Menu 5: IDE Master and IDE Slave Configuration

Î Auto-Detected Drive Parameters

ÅÆ

Select Screen

↑ ↓ Select Item Enter Go to SubScreen F1 General Help F10 Save and Exit ESC Exit

The “grayed-out” items in the left frame are IDE disk drive parameters automatically

detected from the firmware of the selected IDE disk drive. The drive parameters are listed

as follows:

 Device: Lists the device type (e.g. hard disk, CD-ROM etc.)

 Type: Indicates the type of devices a user can manually select

 LBA Mode: Indicates whether the LBA (Logical Block Addressing) is a method

of addressing data on a disk drive is supported or not.

 Block Mode: Block mode boosts IDE drive performance by increasing the

amount of data transferred. Only 512 bytes of data can be transferred per

interrupt if block mode is not used. Block mode allows transfers of up to 64 KB

per interrupt.

 PIO Mode: Indicates the PIO mode of the installed device.

 DMA: Indicates the DMA Mode that is supported.

 S.M.A.R.T.: Indicates whether or not the Self-Monitoring Analysis and

Reporting Technology protocol is supported.

 32Bit Data Transfer: Enables 32-bit data transfer.

Page 67

Î T ype [Auto]

Use the Type BIOS option select the type of device the AMIBIOS attempts to boot from

after the Power-On Self-Test (POST) is complete.

AFL-08B-N270 User Manual

Not Installed

Auto DEFAULT

CD/DVD

ARMD

BIOS is prevented from searching for an IDE disk

drive on the specified channel.

The BIOS auto detects the IDE disk drive type

attached to the specified channel. This setting should

be used if an IDE hard disk drive is attached to the

specified channel.

The CD/DVD option specifies that an IDE CD-ROM

drive is attached to the specified IDE channel. The

BIOS does not attempt to search for other types of

IDE disk drives on the specified channel.

This option specifies an ATAPI Removable Media

Device. These include, but are not limited to:

ZIP

LS-120

Î LBA/Large Mode [Auto]

Use the LBA/Large Mode option to disable or enable BIOS to auto detects LBA (Logical

Block Addressing). LBA is a method of addressing data on a disk drive. In LBA mode, the

maximum drive capacity is 137 GB.

Disabled

Auto DEFAULT

Î Block (Multi Sector Transfer) [Auto]

Use the Block (Multi Sector Transfer) to disable or enable BIOS to auto detect if the

device supports multi-sector transfers.

Page 68

BIOS is prevented from using the LBA mode control on

the specified channel.

BIOS auto detects the LBA mode control on the specified

channel.

AFL-08B-N270 User Manual

Disabled

Auto DEFAULT

Î PIO Mode [Auto]

Use the PIO Mode option to select the IDE PIO (Programmable I/O) mode program timing

cycles between the IDE drive and the programmable IDE controller. As the PIO mode

increases, the cycle time decreases.

Auto DEFAULT

BIOS is prevented from using Multi-Sector Transfer on the

specified channel. The data to and from the device occurs

one sector at a time.

BIOS auto detects Multi-Sector Transfer support on the

drive on the specified channel. If supported the data

transfer to and from the device occurs multiple sectors at

a time.

BIOS auto detects the PIO mode. Use this value if the IDE disk

drive support cannot be determined.

PIO mode 0 selected with a maximum transfer rate of 3.3 MB/s

Î DMA Mode [Auto]

Use the DMA Mode BIOS selection to adjust the DMA mode options.

Auto DEFAULT

PIO mode 1 selected with a maximum transfer rate of 5.2 MB/s

PIO mode 2 selected with a maximum transfer rate of 8.3 MB/s

PIO mode 3 selected with a maximum transfer rate of 11.1 MB/s

PIO mode 4 selected with a maximum transfer rate of 16.6 MB/s

(This setting generally works with all hard disk drives

manufactured after 1999. For other disk drives, such as IDE

CD-ROM drives, check the specifications of the drive.)

BIOS auto detects the DMA mode. Use this value if the IDE

disk drive support cannot be determined.

Page 69

Î S.M.A.R.T [Auto]

Use the S.M.A.R.T option to auto-detect, disable or enable Self-Monitoring Analysis and Reporting Technology (SMART) on the drive on the specified channel. S.M.A.R.T predicts impending drive failures. The S.M.A.R.T BIOS option enables or disables this function.

AFL-08B-N270 User Manual

Auto DEFAULT

Disabled

Enabled

Î 32Bit Data Transfer [Enabled]

Use the 32Bit Data Transfer BIOS option to enables or disable 32-bit data transfers.

Disabled

Enabled DEFAULT

BIOS auto detects HDD SMART support.

Prevents BIOS from using the HDD SMART feature.

Allows BIOS to use the HDD SMART feature

Prevents the BIOS from using 32-bit data transfers.

Allows BIOS to use 32-bit data transfers on supported

hard disk drives.

4.3.3 Super IO Configuration

Use the Super IO Configuration menu to set or change the configurations for the FDD

controllers, parallel ports and serial ports.

BIOS SETUP UTILITY

Main Advanced PCIPNP Boot Security Chipset Exit

Configure ITE8718 Super I/O Chipset

⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ Serial Port1 Address [3F8/IRQ4] Serial Port3 Address [3E8] Serial Port3 IRQ [11]

Select RS232 or RS422/485 [RS232]

Page 70

BIOS Menu 6: Super IO Configuration

ÅÆ

Select Screen

↑ ↓ Select Item Enter Go to SubScreen F1 General Help F10 Save and Exit ESC Exit

AFL-08B-N270 User Manual

Î Serial Port 1 Address [3F8/IRQ4]

Sets the port address and IRQ of serial port 1.

 Disabled

 3F8/IRQ4 D

EFAULT

 2F8/IRQ3

 3E8/IRQ4

 2E8/IRQ3

Î Serial Port 3 Address [3E8]

Sets the port address of serial port 3.

 Disabled

 3E8 D

EFAULT

 2E8

 2F0

 2E0

Î Serial Port 3 IRQ [IRQ4]

Sets the interrupt address of serial port 3.

 10

 11 D

EFAULT

Î Select RS232 or RS422/RS485 [RS232]

Sets the communications protocol for serial port 3. This is set using a hardware jumper

inside the system. This option can only be changed if the jumper setting is set to allow it.

 RS232 D

EFAULT

 RS422/RS485

Page 71

AFL-08B-N270 User Manual

4.3.4 Hardware Health Configuration

The Hardware Health Configuration menu shows the operating temperature, fan speeds

and system voltages.

BIOS SETUP UTILITY

Main Advanced PCIPNP Boot Security Chipset Exit

Hardware Health Event Monitoring

⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯

CPU Temperature :53ºC/127ºF System Temperature :42ºC/107F

CPU Core :1.184 V +1.05V :1.040 V +3.30V :3.290 V +5.00V :4.972 V +12.0V :12.224V +1.50V :1.472 V +1.80V :1.792 V 5VSB :4.919 V VBAT :3.232 V

ÅÆ

Select Screen

↑ ↓ Select Item Enter Go to SubScreen F1 General Help F10 Save and Exit ESC Exit

BIOS Menu 7: Hardware Health Configuration

4.3.5 Power Configuration

The Power Configuration menu configures the power related settings.

BIOS SETUP UTILITY

Main Advanced PCIPNP Boot Security Chipset Exit

Auto Power Button Status [Disabled]

> ACPI Configuration > APM Configuration

ÅÆ

Select Screen

↑ ↓ Select Item Enter Go to SubScreen F1 General Help F10 Save and Exit ESC Exit

Page 72

BIOS Menu 8: Power Configuration

AFL-08B-N270 User Manual

4.3.5.1 ACPI Configuration

Use the ACPI Configuration menu (5BIOS Menu 9) to select the ACPI state when the

system is suspended.

BIOS SETUP UTILITY

Main Advanced PCIPNP Boot Security Chipset Exit

ACPI Settings

⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ Suspend mode [S1 (POS)]

ÅÆ

Select Screen

↑ ↓ Select Item Enter Go to SubScreen F1 General Help F10 Save and Exit ESC Exit

BIOS Menu 9: General ACPI Configuration

Î Suspend Mode [S1(POS)]

Use the Suspend Mode option to specify the sleep state the system enters when it is not

being used.

S1 (POS) DEFAULT

S3 (STR)

System appears off. The CPU is stopped. RAM is

refreshed.

System appears off. The CPU has no power. RAM in slow

refresh. Power supply in reduced power mode.

4.3.5.2 APM Configuration

The APM Configuration menu allows the advanced power management options to be

configured.

Page 73

BIOS SETUP UTILITY

Main Advanced PCIPNP Boot Security Chipset Exit

APM Configuration

⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ Restore on AC Power Loss [Last State] Power Button Mode [On/Off]

Advanced Resume Event Controls

Resume On Ring [Disabled] Resume on PCI-Express WAKE# [Enabled] Resume on RTC Alarm [Disabled]

BIOS Menu 10: APM Configuration

Î Restore on AC Power Loss [Last State]

AFL-08B-N270 User Manual

ÅÆ

Select Screen

↑ ↓ Select Item Enter Go to SubScreen F1 General Help F10 Save and Exit ESC Exit

Use the Restore on AC Power Loss BIOS option to specify what state the system

returns to if there is a sudden loss of power to the system.

Power Off

Power On

Last State DEFAULT

Î Power Button Mode [On/Off]

Use the Power Button Mode BIOS to specify how the power button functions.

On/Off DEFAULT

Suspend

The system remains turned off

The system turns on

The system returns to its previous state. If it was on, it

turns itself on. If it was off, it remains off.

When the power button is pressed the system is either

turned on or off

When the power button is pressed the system goes into

suspend mode

Page 74

AFL-08B-N270 User Manual

Î Resume on Ring [Disabled]

Use the Resume on Ring BIOS option to enable activity on the RI (ring in) modem line to

rouse the system from a suspend or standby state. That is, the system will be roused by

an incoming call on a modem.

Disabled DEFAULT

Enabled

Î Resume on PCI-Express W AKE# [Enabled]

The Resume on PCI-Express WAKE# BIOS option specifies if the system is roused from

a suspended or standby state when there is activity on the PCI-Express bus.

Disabled

Enabled DEFAULT

Î Resume On RTC Alarm [Disabled]

Use the Resume On RTC Alarm option to specify the time the system should be roused

from a suspended state.

Disabled DEFAULT

Wake event not generated by an incoming call

Wake event generated by an incoming call

Wake event not generated by PCI-Express activity

Wake event generated by PCI-Express activity

The real time clock (RTC) cannot generate a wake

Enabled

4.3.6 Remote Access Configuration

Use the Remote Access Configuration menu to configure remote access parameters. The Remote Access Configuration is an AMIBIOS feature and allows a remote host

running a terminal program to display and configure the BIOS settings.

event

If selected, the following appears with values that

can be selected:

RTC Alarm Date (Days)

System Time

After setting the alarm, the computer turns itself on

from a suspend state when the alarm goes off.

Page 75

BIOS SETUP UTILITY

Main Advanced PCIPNP Boot Security Chipset Exit

Configure Remote Access type and parameters

⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ Remote Access [Disabled]

BIOS Menu 11: Remote Access Configuration

Î Remote Access [Disabled]

AFL-08B-N270 User Manual

ÅÆ

Select Screen

↑ ↓ Select Item Enter Go to SubScreen F1 General Help F10 Save and Exit ESC Exit

Use the Remote Access option to enable or disable access to the remote functionalities

of the system.

Disabled DEFAULT

Enabled

Î Serial Port Number [COM1]

Use the Serial Port Number option allows to select the serial port used for remote

access.

Remote access is disabled.

Remote access configuration options shown below

appear:

Serial Port Number

Serial Port Mode

Redirection after BIOS POST

Terminal Type

These configuration options are discussed below.

Page 76

COM1 DEFAULT

COM3

System is remotely accessed through COM1

System is remotely accessed through COM3

AFL-08B-N270 User Manual

NOTE: Make sure the selected COM port is enabled through the Super I/O configuration

menu.

Î Base Address, IRQ [3F8h,4]

The Base Address, IRQ option cannot be configured and only shows the interrupt

address of the serial port listed above.

Î Serial Port Mode [115200 8,n,1]

Use the Serial Port Mode option to select baud rate through which the console redirection

is made. The following configuration options are available

 115200 8,n,1 D  57600 8,n,1  38400 8,n,1  19200 8,n,1  09600 8,n,1

EFAULT

NOTE:

Identical baud rate setting musts be set on the host (a management

computer running a terminal software) and the slave

Î Redirection After BIOS POST [Always]

Use the Redirection After BIOS POST option to specify when console redirection should

occur.

Disabled

The console is not redirected after POST

Boot Loader

Always DEFAULT

Redirection is active during POST and during Boot

Loader

Redirection is always active (Some OSes may not

work if set to Always)

Page 77

Î Terminal Type [ANSI]

Use the Terminal Type BIOS option to specify the remote terminal type.

AFL-08B-N270 User Manual

ANSI DEFAULT

VT100

VT-UTF8

The target terminal type is ANSI

The target terminal type is VT100

The target terminal type is VT-UTF8

4.3.7 USB Configuration

Use the USB Configuration menu to read USB configuration information and configure

the USB settings.

BIOS SETUP UTILITY

Main Advanced PCIPNP Boot Security Chipset Exit

USB Configuration

⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯

Module Version – 2.24.0-11.4

USB Devices Enabled:

None

USB Functions [Enabled] USB 2.0 Controller [Enabled] Legacy USB Support [Enabled] USB 2.0 Controller Mode [HiSpeed]

ÅÆ

Select Screen

↑ ↓ Select Item Enter Go to SubScreen F1 General Help F10 Save and Exit ESC Exit

BIOS Menu 12: USB Configuration

Î USB Function [Enabled]

Use the USB Function BIOS option to enable or disable USB function support.

Disabled

Enabled DEFAULT

Î USB 2.0 Controller [Enabled]

Use the USB 2.0 Controller BIOS option to enable or disable the USB 2.0 controller

Page 78

USB function support disabled

USB function support enabled

AFL-08B-N270 User Manual

Enabled DEFAULT

Disabled

Î Legacy USB Support [Enabled]

Use the Legacy USB Support BIOS option to enable USB mouse and USB keyboard

support.

Normally if this option is not enabled, any attached USB mouse or USB keyboard does not

become available until a USB compatible operating system is fully booted with all USB

drivers loaded. When this option is enabled, any attached USB mouse or USB keyboard

can control the system even when there is no USB driver loaded onto the system.

Disabled

Enabled DEFAULT

Auto

USB 2.0 controller enabled

USB 2.0 controller disabled

Legacy USB support disabled

Legacy USB support enabled

Legacy USB support disabled if no USB devices are

connected

Î USB2.0 Controller Mode [HiSpeed]

Use the USB2.0 Controller Mode option to set the speed of the USB2.0 controller.

FullSpeed

HiSpeed DEFAULT

4.4 PCI/PnP

Use the PCI/PnP menu (5BIOS Menu 13) to configure advanced PCI and PnP settings.

WARNING!

Setting wrong values for the BIOS selections in the PCIPnP BIOS

menu may cause the system to malfunction.

The controller is capable of operating at 12 Mb/s

The controller is capable of operating at 480 Mb/s

Page 79

BIOS SETUP UTILITY

Main Advanced PCIPNP Boot Security Chipset Exit

Advanced PCI/PnP Settings

⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯

WARNING: Setting wrong values in below sections may cause system to malfunction

IRQ3 [Reserved] IRQ4 [Reserved] IRQ5 [Available] IRQ7 [Available] IRQ9 [Available] IRQ10 [Reserved] IRQ11 [Reserved] IRQ14 [Available] IRQ15 [Available]

DMA Channel 0 [Available] DMA Channel 1 [Available] DMA Channel 3 [Available] DMA Channel 5 [Available] DMA Channel 6 [Available] DMA Channel 7 [Available]

Reserved Memory Size [Disabled]

AFL-08B-N270 User Manual

ÅÆ

Select Screen

↑ ↓ Select Item Enter Go to SubScreen F1 General Help F10 Save and Exit ESC Exit

BIOS Menu 13: PCI/PnP Configuration

Î IRQ#

Use the IRQ# address to specify what IRQs can be assigned to a particular peripheral

device.

Available

Reserved

Available IRQ addresses are:

 IRQ3

 IRQ4

 IRQ5

The specified IRQ is available to be used by

PCI/PnP devices

The specified IRQ is reserved for use by Legacy ISA

devices

Page 80

 IRQ7

AFL-08B-N270 User Manual

 IRQ9

 IRQ10

 IRQ 11

 IRQ 14

 IRQ 15

Î DMA Channel# [Available]

Use the DMA Channel# option to assign a specific DMA channel to a particular PCI/PnP

device.

Available DEFAULT

Reserved

Available DMA Channels are:

 DM Channel 0

 DM Channel 1

 DM Channel 3

 DM Channel 5

 DM Channel 6

 DM Channel 7

Î Reserved Memory Size [Disabled]

Use the Reserved Memory Size BIOS option to specify the amount of memory that

The specified DMA is available to be used by

PCI/PnP devices

The specified DMA is reserved for use by Legacy

ISA devices

should be reserved for legacy ISA devices.

Disabled DEFAULT

16K

32K

64K

No memory block reserved for legacy ISA devices

16 KB reserved for legacy ISA devices

32 KB reserved for legacy ISA devices

54 KB reserved for legacy ISA devices

Page 81

AFL-08B-N270 User Manual

4.5 Boot

Use the Boot menu to configure system boot options.

BIOS SETUP UTILITY

Main Advanced PCIPNP Boot Security Chipset Exit

Boot Settings

⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ > Boot Settings Configuration

ÅÆ

Select Screen

↑ ↓ Select Item Enter Go to SubScreen F1 General Help F10 Save and Exit ESC Exit

BIOS Menu 14: Boot

4.5.1 Boot Settings Configuration

Use the Boot Settings Configuration menu (5BIOS Menu 15) to configure advanced

system boot options.

BIOS SETUP UTILITY

Main Advanced PCIPNP Boot Security Chipset Exit

Boot Settings Configuration

⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ Quick Boot [Enabled] Quiet Boot [Enabled] AddOn ROM Display Mode [Force BIOS] Bootup Num-Lock [On] Boot From LAN Support [Disabled] Spread Spectrum Function [Disabled]

ÅÆ

Select Screen

↑ ↓ Select Item Enter Go to SubScreen F1 General Help F10 Save and Exit ESC Exit

Page 82

BIOS Menu 15: Boot Settings Configuration

AFL-08B-N270 User Manual

Î Quick Boot [Enabled]

Use the Quick Boot BIOS option to make the computer speed up the boot process.

Disabled

Enabled DEFAULT

Î Quiet Boot [Enabled]

Use the Quiet Boot BIOS option to select the screen display when the system boots.

Disabled

Enabled DEFAULT

Î AddOn ROM Display Mode [Force BIOS]

Use the AddOn ROM Display Mode option to allow add-on ROM (read-only memory)

messages to be displayed.

Force BIOS DEFAULT

No POST procedures are skipped

Some POST procedures are skipped to decrease

the system boot time

Normal POST messages displayed

OEM Logo displayed instead of POST messages

The system forces third party BIOS to display

during system boot.

Keep Current

Î Bootup Num-Lock [On]

Use the Bootup Num-Lock BIOS option to specify if the number lock setting must be

modified during boot up.

Off

Does not enable the keyboard Number Lock automatically. To

use the 10-keys on the keyboard, press the Number Lock key

located on the upper left-hand corner of the 10-key pad. The

Number Lock LED on the keyboard lights up when the Number

Lock is engaged.

The system displays normal information during

system boot.

Page 83

AFL-08B-N270 User Manual

On DEFAULT

Î Boot From LAN Support [Disabled]

Use the BOOT From LAN Support option to enable the system to be booted from a

remote system.

Enabled

Disabled DEFAULT

Î Spread Spectrum Function [Disabled]

Allows the Number Lock on the keyboard to be enabled

automatically when the computer system boots up. This allows

the immediate use of the 10-key numeric keypad located on

the right side of the keyboard. To confirm this, the Number

Lock LED light on the keyboard is lit.

Can be booted from a remote system through the

LAN

Cannot be booted from a remote system through the

LAN

The Spread Spectrum Function option can help to improve CPU EMI issues.

Disabled DEFAULT

Enabled

The spread spectrum mode is disabled

The spread spectrum mode is enabled

Page 84

AFL-08B-N270 User Manual

4.6 Security

Use the Security menu to set system and user passwords.

BIOS SETUP UTILITY

Main Advanced PCIPNP Boot Security Chipset Exit

Security Settings

⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯

Supervisor Password :Not Installed User Password :Not Installed

Change Supervisor Password Change User Password

ÅÆ

Select Screen

↑ ↓ Select Item Enter Go to SubScreen F1 General Help F10 Save and Exit ESC Exit

BIOS Menu 16: Security

Î Change Supervisor Password

Use the Change Supervisor Password to set or change a supervisor password. The default for this option is Not Installed. If a supervisor password must be installed, select this field and enter the password. After the password has been added, Install appears next to Change Supervisor Password.

Î Change User Password

Use the Change User Password to set or change a user password. The default for this option is Not Installed. If a user password must be installed, select this field and enter the password. After the password has been added, Install appears next to Change User

Password.

Page 85

AFL-08B-N270 User Manual

4.7 Chipset

Use the Chipset menu to access the Northbridge and Southbridge configuration menus

WARNING!

Setting the wrong values for the Chipset BIOS selections in the Chipset

BIOS menu may cause the system to malfunction.

BIOS SETUP UTILITY

Main Advanced PCIPNP Boot Security Chipset Exit

Advanced Chipset Settings

⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯

WARNING: Setting wrong values in below section may cause system to malfunction.

> North Bridge Configuration > South Bridge Configuration

ÅÆ

Select Screen

↑ ↓ Select Item Enter Go to SubScreen F1 General Help F10 Save and Exit ESC Exit

Page 86

BIOS Menu 17: Chipset

AFL-08B-N270 User Manual

4.7.1 North Bridge Configuration

Use the North Bridge Chipset Configuration menu (5BIOS Menu 18) to configure the

Northbridge chipset.

BIOS SETUP UTILITY

Main Advanced PCIPNP Boot Security Chipset Exit

North Bridge Chipset Configuration

⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ Memory Hole [Disabled] Internal Graphics Mode Select [Enabled, 8MB]

Video Function Configuration

⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ DVMT Mode Select [DVMT Mode] DVMT/FIXED Memory [Maximum DVMT]

LFP Panel Type [by H/W]

LFP Current Jumper Setting [1024x600 18b]

ÅÆ

Select Screen

↑ ↓ Select Item Enter Go to SubScreen F1 General Help F10 Save and Exit ESC Exit

BIOS Menu 18:Northbridge Chipset Configuration

Î Memory Hole [Disabled]

Use the Memory Hole option to reserve memory space between 15 MB and 16 MB for

ISA expansion cards that require a specified area of memory to work properly. If an older

ISA expansion card is used, please refer to the documentation that came with the card to

see if it is necessary to reserve the space.

Disabled DEFAULT

15 MB–16 MB

Î Internal Graphics Mode Select [Enable, 8 MB]

Use the Internal Graphic Mode Select option to specify the amount of system memory

that can be used by the Internal graphics device.

Memory is not reserved for ISA expansion cards

Between 15 MB and 16 MB of memory is reserved

for ISA expansion cards

Disable

Page 87

AFL-08B-N270 User Manual

Enable, 1 MB

Enable, 8 MB DEFAULT

Î DVMT Mode Select [DVMT Mode]

Use the DVMT Mode Select option to select the Intel Dynamic Video Memory Technology

(DVMT) operating mode.

Fixed Mode

DVMT Mode DEFAULT

Combo Mode

1 MB of memory used by internal graphics device

8 MB of memory used by internal graphics device

A fixed portion of graphics memory is reserved as

graphics memory.

Graphics memory is dynamically allocated

according to the system and graphics needs.

A fixed portion of graphics memory is reserved as

graphics memory. If more memory is needed,

graphics memory is dynamically allocated

according to the system and graphics needs.

Î DVMT/FIXED Memory [Maximum DVMT]

Use the DVMT/FIXED Memory option to specify the maximum amount of memory that can be allocated as graphics memory. This option can only be configured for if DVMT Mode or Fixed Mode is selected in the DVMT Mode Select option. If Combo Mode is

selected, the maximum amount of graphics memory is 128 MB. Configuration options are

listed below.

 64 MB

 128 MB

 Maximum DVMT D

Î LFP Panel Type [by H/W]

Use the LFP Panel Type to determine the LCD panel resolution. Configuration options

are listed below:

 640x480 18b

EFAULT

Page 88

 800x480 18b

AFL-08B-N270 User Manual

 800x600 18b

 1024x768 18b

 1280x1024 36b

 1400x1050 36b

 1440x900 36b

 1600x1200 36b

 1024x600 18b

 by H/W

Î LFP Current Jumper Setting [1024x600 18b]

Displays the resolution setting of the LFP port by the on-board jumper.

4.7.2 South Bridge Configuration

The South Bridge Configuration menu the Southbridge chipset to be configured.

BIOS SETUP UTILITY

Main Advanced PCIPNP Boot Security Chipset Exit

South Bridge Chipset Configuration

⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ Audio Controller [Auto]

ÅÆ

Select Screen

↑ ↓ Select Item Enter Go to SubScreen F1 General Help F10 Save and Exit ESC Exit

BIOS Menu 19:South Bridge Chipset Configuration

Î Audio Controller [Auto]

Use the Audio Controller option to enable or disable the onboard audio.

Auto DEFAULT

All Disabled

The audio chip is activated if detected

The audio chip is disabled

Page 89

AFL-08B-N270 User Manual

4.8 Exit

Use the Exit menu to load default BIOS values, optimal failsafe values and to save

configuration changes.

BIOS SETUP UTILITY

Main Advanced PCIPNP Boot Security Chipset Exit

Exit Options

⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ Save Changes and Exit Discard Changes and Exit Discard Changes

Load Optimal Defaults Load Failsafe Defaults

ÅÆ

Select Screen

↑ ↓ Select Item Enter Go to SubScreen F1 General Help F10 Save and Exit ESC Exit

BIOS Menu 20:Exit

Î Save Changes and Exit

Use the Save Changes and Exit option to save the changes made to the BIOS options

and to exit the BIOS configuration setup program.

Î Discard Changes and Exit

Use the Discard Changes and Exit option to exit the BIOS configuration setup program

without saving the changes made to the system.

Î Discard Changes

Use the Discard Changes option to discard the changes and remain in the BIOS

configuration setup program.

Î Load Optimal Defaults

Page 90

Use the Load Optimal Defaults option to load the optimal default values for each of the parameters on the Setup menus. F9 key can be used for this operation.

AFL-08B-N270 User Manual

Î Load Failsafe Defaults

Use the Load Failsafe Defaults option to load failsafe default values for each of the parameters on the Setup menus. F8 key can be used for this operation.

Page 91

AFL-08B-N270 User Manual

Chapter

5 Interface Connectors

Page 92

AFL-08B-N270 User Manual

5.1 Peripheral Interface Connectors

The AFL-08B-N270 panel PC motherboard comes with a number of peripheral interface

connectors and configuration jumpers. The connector locations are shown in Figure 6-1.

The Pin 1 locations of the on-board connectors are also indicated in the diagram below.

The connector pinouts for these connectors are listed in the following sections.

Figure 5-1: Main Board Layout Diagram (Front Side)

Page 93

AFL-08B-N270 User Manual

Figure 5-2: Main Board Layout Diagram (Solder Side)

5.2 Internal Peripheral Connectors

Internal peripheral connectors are found on the motherboard and are only accessible

when the motherboard is outside of the chassis. The table below shows a list of the

peripheral interface connectors on the AFL-08B-N270 motherboard. Pinouts of these

connectors can be found in the following sections.

Connector Type Label

AT/ATX switch connector 2-pin header JP4

Audio line-out connector 4-pin wafer CN8

Audio speaker connector 4-pin wafer CN3

Audio MIC-in connector 4-pin wafer MIC1

Audio DMIC-in connector 4-pin wafer DMIC1

Battery connector 2-pin wafer BT1

Page 94

CF slot CF slot CF1

AFL-08B-N270 User Manual

Connector Type Label

CRT connector 10-pin header CN4

DIO connector 10-pin header DIO1

HDD power connector 4-pin wafer CN1

LED indicator and button connector 10-pin header JP2

LVDS backlight connector 6-pin wafer INVERTER1

MCU connector 8-pin header

10-pin header

PCIe Mini card slot PCIe Mini card slot CN2

RFID connector 10-pin header JP8

SATA connector SATA connector SATA1

SO-DIMM connector SO-DIMM connector DIMM1

SPI Flash connector 8-pin header JSPI1

Touch panel connector (solder side) 9-pin wafer TS1

TTL panel connector (solder side) 40-pin FPC connector CN7

JUSB connector 4-pin header JUSB1

USB connector 8-pin header USB1

USB connector 4-pin wafer USB2

USB connector 4-pin wafer USB4

TS2

JP7

Table 5-1: Peripheral Interface Connectors

5.2.1 Audio Line-out Connector (CN8)

PIN NO. DESCRIPTION

1 SPK_R 2 AMP_R 3 AMP_L 4 SPK_L

Table 5-2: Audio Line-out Connector (CN8) Pinouts

Page 95

5.2.2 Audio Speaker-out Connector (CN3)

PIN NO. DESCRIPTION

1 AMP_L+ 2 AMP_L3 AMP_R4 AMP_R+

Table 5-3: Audio Speaker-out Connector (CN3) Pinouts

5.2.3 Audio MIC-in Connector (MIC1)

PIN NO. DESCRIPTION

1 MIC_IN_L

AFL-08B-N270 User Manual

2 AGND_AMP 3 MIC_JD 4 MIC1_IN_R

Table 5-4: Audio MIC-in Connector (MIC1) Pinouts

5.2.4 Audio DMIC-in Connector (DMIC1)

PIN NO. DESCRIPTION

1 DMIC_CLK 2 DMIC_DATA 3 +3.3V 4 GND

Table 5-5: Audio DMIC-in Connector (DMIC1) Pinouts

Page 96

AFL-08B-N270 User Manual

5.2.5 Battery Connector (BT1)

PIN NO. DESCRIPTION

1 Battery +3.3V 2 GND

Table 5-6: Battery Connector (BT1) Pinouts

5.2.6 CompactFlash® Type II Slot (CF1)

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 GROUND1 26 CD1 2 DATA 3 27 DATA 11 3 DATA 4 28 DATA 12 4 DATA 5 29 DATA 13 5 DATA 6 30 DATA 14 6 DATA 7 31 DATA 15 7 CE 32 CE2 8 A10 33 VS1 9 OE 34 IOR 10 A9 35 IOW 11 A8 36 WE 12 A7 37 IRQ 13 VCC1 38 VCC2 14 A6 39 CSEL 15 A5 40 VS2 16 A4 41 RESET 17 A3 42 WAIT 18 A2 43 INPACK 19 A1 44 REG 20 A0 45 BVD2 21 DATA 0 46 BVD1 22 DATA 1 47 DATA 8 23 DATA 2 48 DATA 9

Page 97

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

24 IOCS16 49 DATA 10 25 CD2 50 GROUND2

Table 5-7: CompactFlash® Slot (CF1) Pinouts

5.2.7 CRT Connector (CN4)

PIN NO. DESCRIPTION PIN NO. DESCRIPTIO N

AFL-08B-N270 User Manual

1 DACR_RED 2 SPD2 3 DACG_GREEN 4 SPCLK2 5 DACB_BLUE 6 V_GND 7 H_SYNC 8 V_GND 9 V_SYNC 10 V_GND

Table 5-8: CRT Connector (CN4) Pinouts

5.2.8 DIO Connector (DIO1)

PIN NO. DESCRIPTION PIN NO. DESCRIPTIO N

1 GND 2 VCC_+5V 3 DGPO3 4 DGPO2 5 DGPO1 6 DGPO0 7 DGPI3 8 DGPI2 9 DGPI1 10 DGPI0

Table 5-9: DIO Connector (DIO1) Pinouts

2 10

y y y y y

1 9

2 10

y y y y y

1 9

5.2.9 HDD Power Connector (CN1)

PIN NO. DESCRIPTION

1 +5V 2 GND 3 GND 4 +12V

Table 5-10: HDD Power Connector (CN1) Pinouts

Page 98

AFL-08B-N270 User Manual

5.2.10 LED Indicator and Button Connector (JP2)

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 PW_LED +5V 2 +5V 3 GND 4 HD_LED 5 SUS PW LED +5V 6 RST_SW 7 GND 8 GND 9 PW_BN 10 GND

2 10

y y y y y

1 9

Table 5-11: LED Indicator and Button Connector (JP2) Pinouts

5.2.11 LVDS Backlight Connector (INVERTER1)

PIN NO. DESCRIPTION

1 +12V 2 +12V 3 BLON 4 BRIGHTNESS 5 GND 6 GND

Table 5-12: LVDS Backlight Connector (INVERTER1) Pinouts

5.2.12 MCU Connector (JP7)

PIN NO. DESCRIPTION PIN NO. DESCRIPTIO N

1 MCLR 2 +5V 3 +5V 4 MCU_IR 5 ICSPCLK 6 AUTO_CLK 7 ICSPDAT 8 AUTO_DATA 9 GND 10 GND

Table 5-13: MCU Connector (JP7) Pinouts

2 10

y y y y y

1 9

Page 99

5.2.13 MCU Connector (TS2)

PIN NO. DESCRIPTION

1 AUTO_DIMMING 2 LOCK_BUTTON 3 VOL+ 4 VOL5 BRIGHT+ 6 BRIGHT7 LCD_ON_OFF 8 GND

Table 5-14: MCU Connector (TS2) Pinouts

5.2.14 PCIe Mini Slot (CN2)

AFL-08B-N270 User Manual

PIN NO. DESCRIPTION PIN NO. DESCRIPTION
