IDX MD-NBV User Manual

MD-NBV

CAUTION: To reduce the risk of electric shock, do not remove cover. Refer
servicing to qualified service personnel. Disconnect the main power supply
before connecting or disconnecting the links to the battery.

Read the Instruction Manual carefully before use. Use only with compatible
batteries listed in the instruction manual.

CAUTION: To reduce the risk of electric shock, do not remove cover. Refer
servicing to qualified service personnel. Disconnect the main power supply
before connecting or disconnecting the links to the battery.

Read the Instruction Manual carefully before use. Use only with compatible
batteries listed in the instruction manual.

WARNING

WARNING

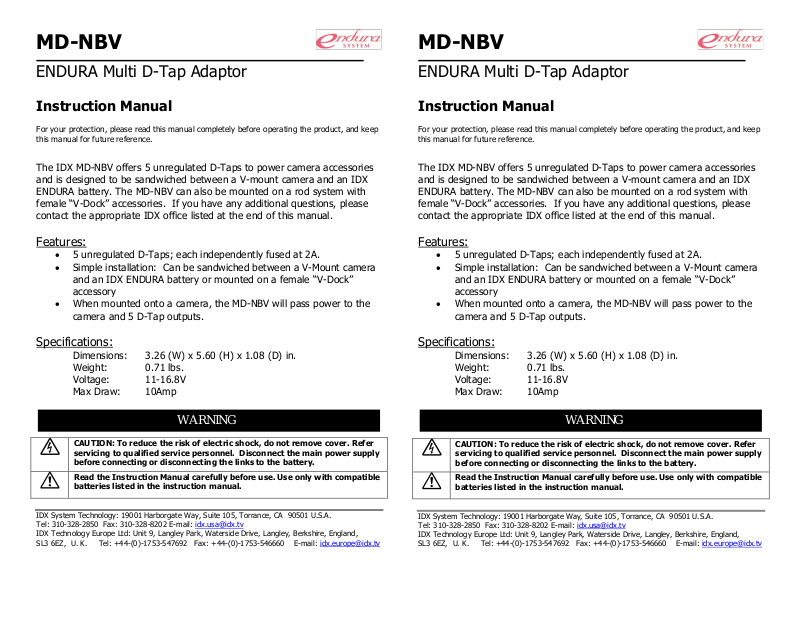

MD-NBV

ENDURA Multi D-Tap Adaptor

Instruction Manual

For your protection, please read this manual completely before operating the product, and keep
this manual for future reference.

The IDX MD-NBV offers 5 unregulated D-Taps to power camera accessories
and is designed to be sandwiched between a V-mount camera and an IDX
ENDURA battery. The MD-NBV can also be mounted on a rod system with
female “V-Dock” accessories. If you have any additional questions, please
contact the appropriate IDX office listed at the end of this manual.

Features:

 5 unregulated D-Taps; each independently fused at 2A.
 Simple installation: Can be sandwiched between a V-Mount camera

and an IDX ENDURA battery or mounted on a female “V-Dock”
accessory

 When mounted onto a camera, the MD-NBV will pass power to the

camera and 5 D-Tap outputs.

Specifications:

Dimensions: 3.26 (W) x 5.60 (H) x 1.08 (D) in.
Weight: 0.71 lbs.
Voltage: 11-16.8V
Max Draw: 10Amp

ENDURA Multi D-Tap Adaptor

Instruction Manual

For your protection, please read this manual completely before operating the product, and keep
this manual for future reference.

The IDX MD-NBV offers 5 unregulated D-Taps to power camera accessories
and is designed to be sandwiched between a V-mount camera and an IDX
ENDURA battery. The MD-NBV can also be mounted on a rod system with
female “V-Dock” accessories. If you have any additional questions, please
contact the appropriate IDX office listed at the end of this manual.

Features:

 5 unregulated D-Taps; each independently fused at 2A.
 Simple installation: Can be sandwiched between a V-Mount camera

and an IDX ENDURA battery or mounted on a female “V-Dock”
accessory

 When mounted onto a camera, the MD-NBV will pass power to the

camera and 5 D-Tap outputs.

Specifications:

Dimensions: 3.26 (W) x 5.60 (H) x 1.08 (D) in.
Weight: 0.71 lbs.
Voltage: 11-16.8V
Max Draw: 10Amp

IDX System Technology: 19001 Harborgate Way, Suite 105, Torrance, CA 90501 U.S.A.
Tel: [phone] Fax: [phone] E-mail: [e-mail]
IDX Technology Europe Ltd: Unit 9, Langley Park, Waterside Drive, Langley, Berkshire, England,
SL3 6EZ, U. K. Tel: [phone] Fax: [phone] E-mail: [e-mail]

IDX System Technology: 19001 Harborgate Way, Suite 105, Torrance, CA 90501 U.S.A.
Tel: [phone] Fax: [phone] E-mail: [e-mail]
IDX Technology Europe Ltd: Unit 9, Langley Park, Waterside Drive, Langley, Berkshire, England,
SL3 6EZ, U. K. Tel: [phone] Fax: [phone] E-mail: [e-mail]
