iDule ID65MB-CL, ID65MC-CL Technical Manual

65M CMOS Camera

ID65MB-CL (B/W) ID65MC-CL (Color)

Technical Manual

iDule Corporation

Table of Contents

PAGE

1. Product Outline ............................................................................................................................................ 3

2. Handling Precautions ................................................................................................................................... 3

3. Specification ................................................................................................................................................ 4

3.1. General Specification ..................................................................................................................................... 4

3.2. Camera Output Signal Specification ................................................................................................................. 5

3.3. Spectral Response (Representative Value) ....................................................................................................... 6

4. Connector ..................................................................................................................................................... 7

4.1.Camera Link Connector 12226-1100-00PL (SUMITOMO 3M) ................................................................................ 7

4.2. Power LED .................................................................................................................................................... 8

4.3. 12pin Connector HR10A-10R-12PB (HIROSE) (CN1) .......................................................................................... 8

4.4. Power input to camera ................................................................................................................................... 8

5. Timing Chart ................................................................................................................................................ 9

5.1. Horizontal Synchronous Signals Timing (2Tap Base Configuration : 2.4fps ) ...................................................... 9

5.2. Vertical Synchronous Signals Timing (2Tap Base Configuration : 2.4fps) ........................................................... 9

5.3. Horizontal Synchronous Signals Timing (3Tap Base Configuration : 3.1fps) ..................................................... 10

5.4. Vertical Synchronous Signals Timing (3Tap Base Configuration : 3.1fps) ......................................................... 10

5.5. Horizontal Synchronous Signals Timing (4Tap Medium Configuration : 4.7fps) ................................................. 11

5.6. Vertical Synchronous Signals Timing (4Tap Medium Configuration : 4.7fps) ..................................................... 11

5.7. Horizontal Synchronous Signals Timing (8Tap Full Configuration : 9.4fps) ....................................................... 12

5.8. Vertical Synchronous Signals Timing (8Tap Full Configuration : 9.4fps) ........................................................... 12

5.9. Image output format .................................................................................................................................... 13

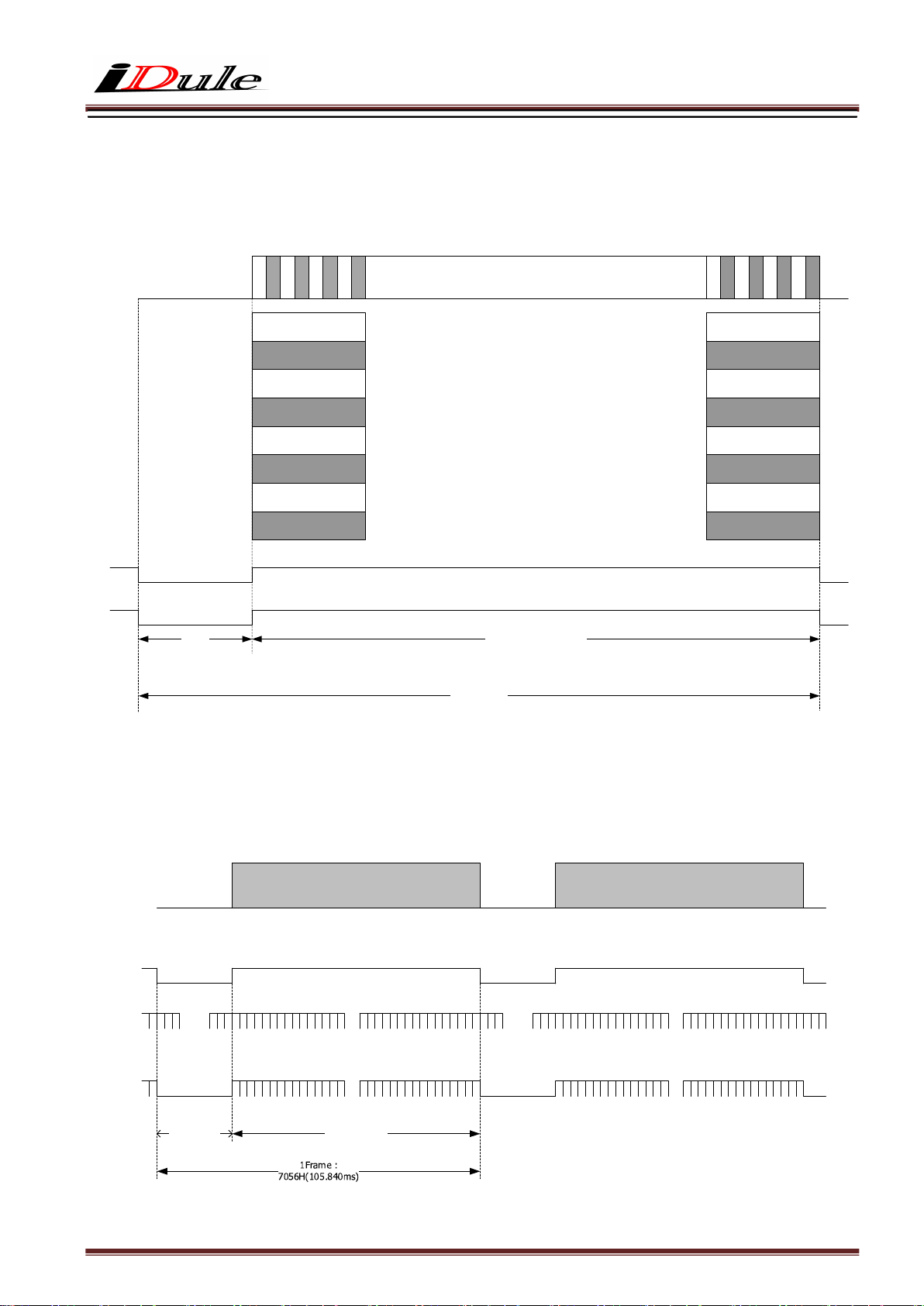

5.10. Fixed Trigger Shutter Mode ......................................................................................................................... 15

6. Partial Scan Mode ...................................................................................................................................... 17

7. Horizontal cutout function ........................................................................................................................ 19

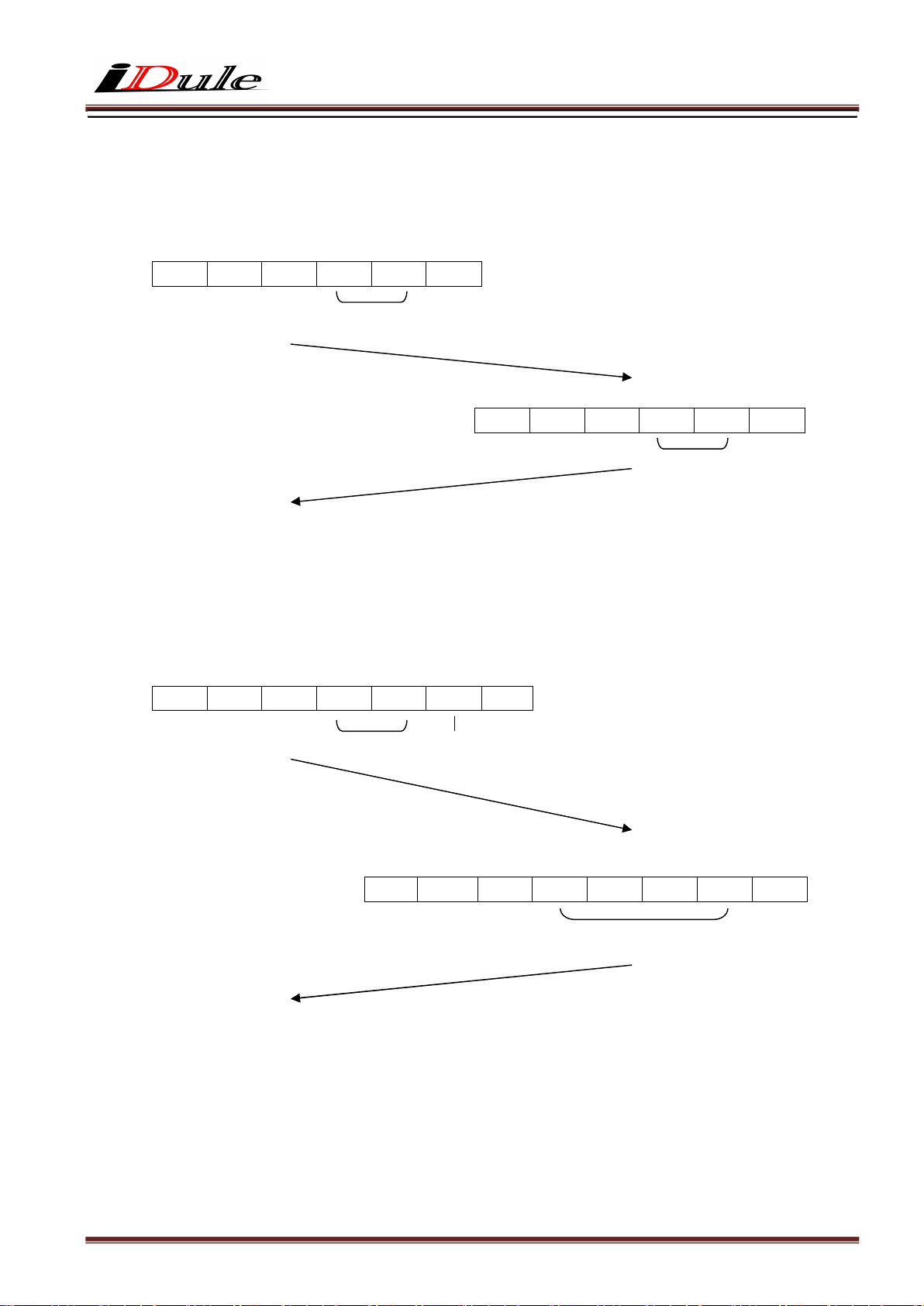

8. Remote Communication ............................................................................................................................ 20

8.1. Command Specifications ............................................................................................................................... 21

8.2. Control Example .......................................................................................................................................... 25

9. Function Setting ......................................................................................................................................... 29

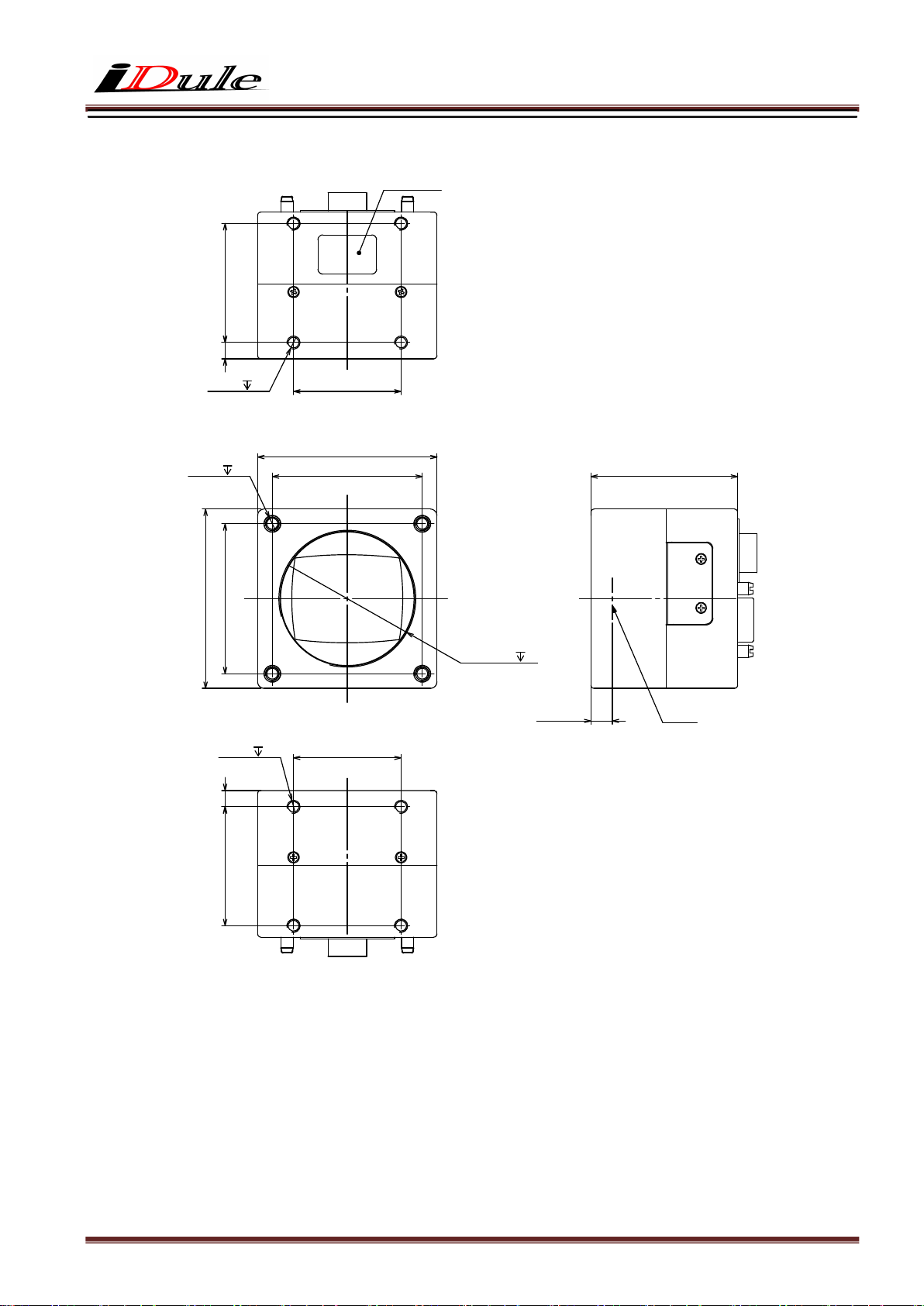

10. Dimensions................................................................................................................................................. 31

11. Initial Setting ............................................................................................................................................. 32

12. Cases for Indemnity (Limited Warranty) .................................................................................................. 33

13. CMOS Pixel Defect ..................................................................................................................................... 33

14. Product Support ......................................................................................................................................... 33

1. Product Outline ID65MB-CL/ID65MC-CL is a Camera Link interfaced and 65M resolution camera module. 65M pixels CMOS sensor with diagonal length 37.361mm is utilized. Entire pixels can be read out within 1/9.4s at Full Configuration output.

Features

□ Global Shutter CMOS sensor is utilized. □ Camera Link Base , Medium, Full Configuration are supported. □ Fixed trigger shutter mode, pulse width trigger shutter mode are operable.

□ Full frame rates are as follows.

2Tap Base Configuration 2.4fps 8bit/10bit/12bit 3Tap Base Configuration 3.1fps 8bit

4Tap Medium Configuration 4.7fps 8bit/10bit/12bit

8Tap Full Configuration* 9.4fps 8bit/10bit *Initial Setting : 8Tap Full Configuration (9.4fps, 8bit)

2. Handling Precautions The camera must not be used for any nuclear equipment or aerospace equipment with which mechanical

failure or malfunction could result in serious bodily injury or loss of human life. Our warranty does not apply to dameges or defects caused by irregular and /or abnormal use of the product.

Please observe all warnings and cautions stated below.

Our warranty does not apply to damages or malfunctions caused by neglecting these precautions.

Do not use or store the camera in the following extreme conditions :

- Extremely dusty or humid places.

- Extremely hot or cold places (operating temperature -5℃ to +45℃).

- Close to generators of powerful electromagnetic radiation such as radio or TV transmitters.

- Places subject to fluorescent light reflections.

- Places subject to unstable (flickering, etc.) lighting conditions.

- Places subject to strong vibration.

· Remove dust or dirt on the surface of the lens with a blower.

· Do not apply excessive force or static electricity that could damage the camera.

· Do not shoot direct images that are extremely bright (e.g., light source, sun, etc.), and when camera is not

in use, put the lens cap on.

· Confirm the mutual ground potential carefully and then connect the camera to monitors or computers.

AC leaks from the connected devices may cause damages or destroy the camera.

· Do not apply excessive voltage. (Use only the specified voltage.) Unstable or improper power supply

voltage may cause damages or malfunction of the camera.

· The voltage ripple of camera power DC +12V±10% shall be within ±50mV. Improper power supply

voltage may cause noises on the video signals.

· The rising time of camera power supply voltage shall be less than +10V, Max 60ms. Please avoid

noises like chattering when rising.

3. Specification

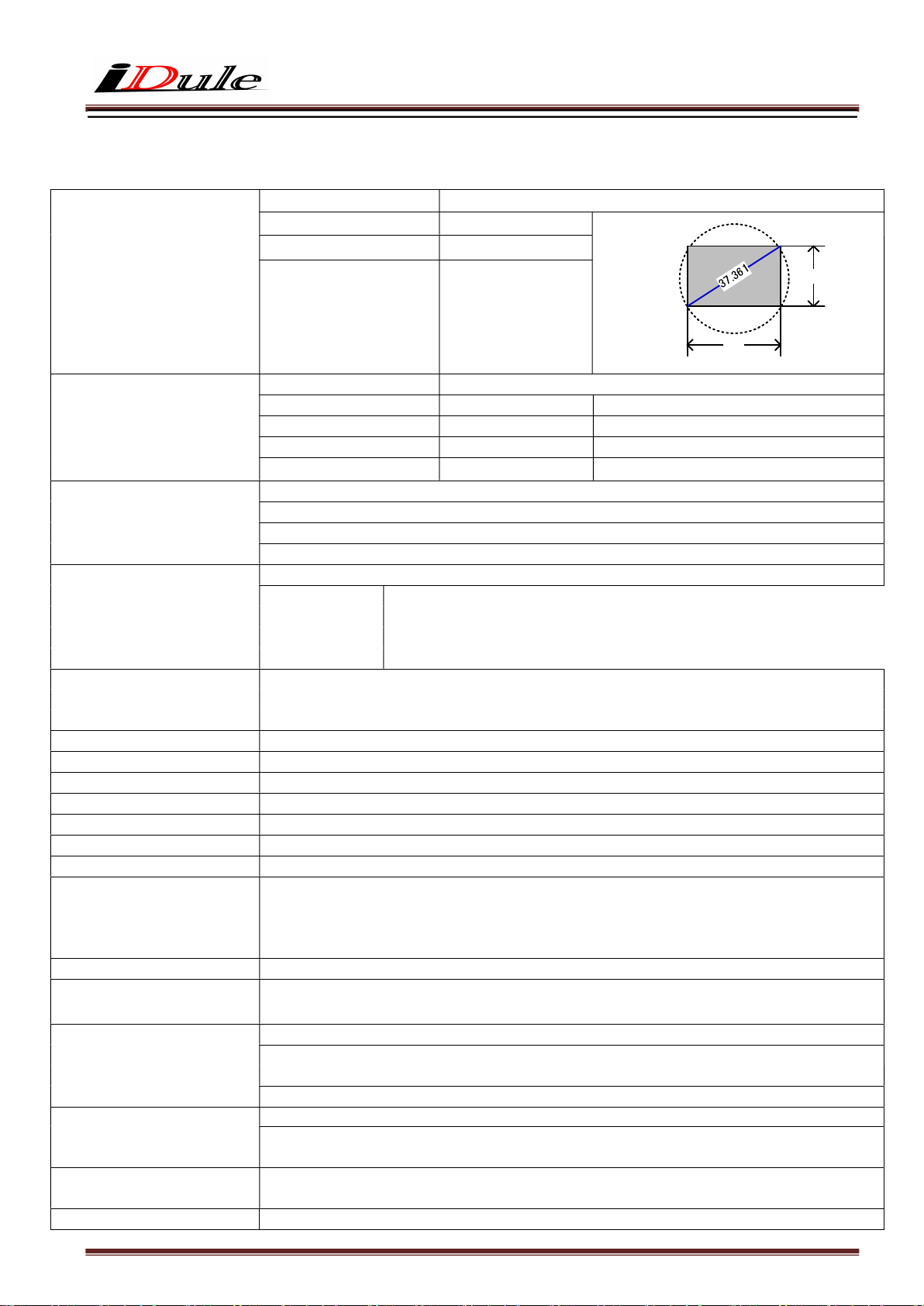

3.1. General Specification

(1) Image Sensor Device type

Effective pixel number

Unit cell size

Image circle

Diagonal length 37.361mm, Global Shutter type (GPIXEL GMAX3265)

9344(H) x 7000(V)

3.2μm(H) x 3.2μm(V)

Φ37.361mm

22.4

29.9 (単位:mm)

(2) Video Output Frequency Pixel Clock 80MHz

2Tap Base Configuration 2.4fps 4800(H) x 7056(V) with blanking 3Tap Base Configuration 3.1fps 3600(H) x 7056(V) with blanking 4Tap Medium Configuration 4.7fps 2400(H) x 7056(V) with blanking 8Tap Full Configuration 9.4fps 1200(H) x 7056(V) with blanking

(3) Video Output 2Tap Base Configuration

3Tap Base Configuration 4Tap Medium Configuration 8Tap Full Configuration (Initial Setting)

(4) Output Format Sensor AD 12bit

Camera Link Output

2Tap Base Configuration :8bit / 10bit / 12bit 3Tap Base Configuration :8bit 4Tap Medium Configuration:8bit / 10bit / 12bit 8Tap Full Configuration :8bit / 10bit

(5) Sensitivity B/W F16 2000lx

Color F11 2000lx

(at shutter speed 1/9.4s (OFF), Gain 0dB, Full Configuration mode) (6) Power supply input voltage DC+12V±10% 12 pin connector (Initial Setting) / PoCL (7) Power Consumption max 6.0W (at 8Tap Full Configuration) (8) Dimensions H:55mm W:55mm D:45mm excluding projection (9) Weight Approx. 185g (10) Lens Mount M42 P1 mount (Cover glass or IR cut filter in none) (11) Optical Axis Accuracy Refer to drawing for CMOS optical axis accuracy (12) Gain Variable Range 0dB ～ +12dB (Guaranteed range) (13) Shutter Speed Variable Range OFF(1/2.4s) ～ 1/12000s (2Tap Base Configuration)

OFF(1/3.1s) ～ 1/15000s (3Tap Base Configuration)

OFF(1/4.7s) ～ 1/20000s (4Tap Medium Configuration)

OFF(1/9.4s) ～1/25000s (8Tap Full Configuration) (14) Trigger Shutter Mode Fixed shutter trigger mode / Pulse width shutter trigger mode (15) Partial Scan Mono : Full frame ～ 1Line (1Line/Step) Color : Full frame ～ 2Line (2Line/Step) 1area

*Start position and Effective line : Even number only

(16) Safety/Quality Standards UL : Conform to UL Standard including materials and others.

CE : To be applied for EN55022:2006 Class A for Emission06

To be applied for EN61000-6-2:2005 for Immunity

RoHS : Confirm to RoHS (17) Durability Vibration 20～200 Hz,98m/s2 (10G), X,Y and Z 3directions (120 min for each direction)

Shock No malfunction shall be occurred with 980m/s2 (100G) for ±X,±Y,and ±Z,

6 directions. (without package)

(18) Operation Environment Temperature -5 ～ +45℃

Humidity 20 ～ 80%RH with no condensation. (19) Storage Environment Temperature -25 ～ +60℃ Humidity 20 ～ 80%RH with no condensation.

3FFh

under

Both horizontal and vertical should be under

3.2. Camera Output Signal Specification

(1)Video Output Data Effective Video Output 9344(H) × 7000(V)

(at Full Frame Scan Mode) *3Tap : 9360(H) x 7000(V) 9360(H) = 9344(H)+16pix(Black)

(2)Sync Signal Output LVAL Camera Link (LVDS)

FVAL DVAL SP FVAL 12pin Connector 6pin (LVTTL) Exposure 12pin Connector 10pin (LVTTL)

(3)Camera Control

Signal Input

CC2・CC3・CC4

Camera Link (LVDS) (No Function)

(4)Trigger Input Polarity Positive/Negative Selectable (Address 05h)

Pulse Width

2HD(Min) ～ (*)

2Tap Base Configuration : 1HD (60us)

3Tap Base Configuration : 1HD (45us)

4Tap Medium Configuration : 1HD (30us)

8Tap Full Configuration : 1HD (15us) *The trigger input signal is sampled n times HD in the camera, and the exposure time is processed n times HD. Trigger pulses shorter than 1 HD are treated as 1 HD wide. Functionally, no upper limitation is set but noises such as dark noises and shadings might be noticeable at long time exposure.

CC1(Trigger Input) Camera Link (LVDS) (Address 06h)

12pin Connector(Trigger Input)

(5)Serial

Communication

SerTC SerTFG (Serial to Frame Grabber)

(6)Video Signals White Clip Level

Setup Level Dark Shading

12pin Connector 11pin Input (LVTTL) Camera Link (LVDS）

(Serial to Camera)

(at Gain 0dB, 10bit)

002h

00Fh

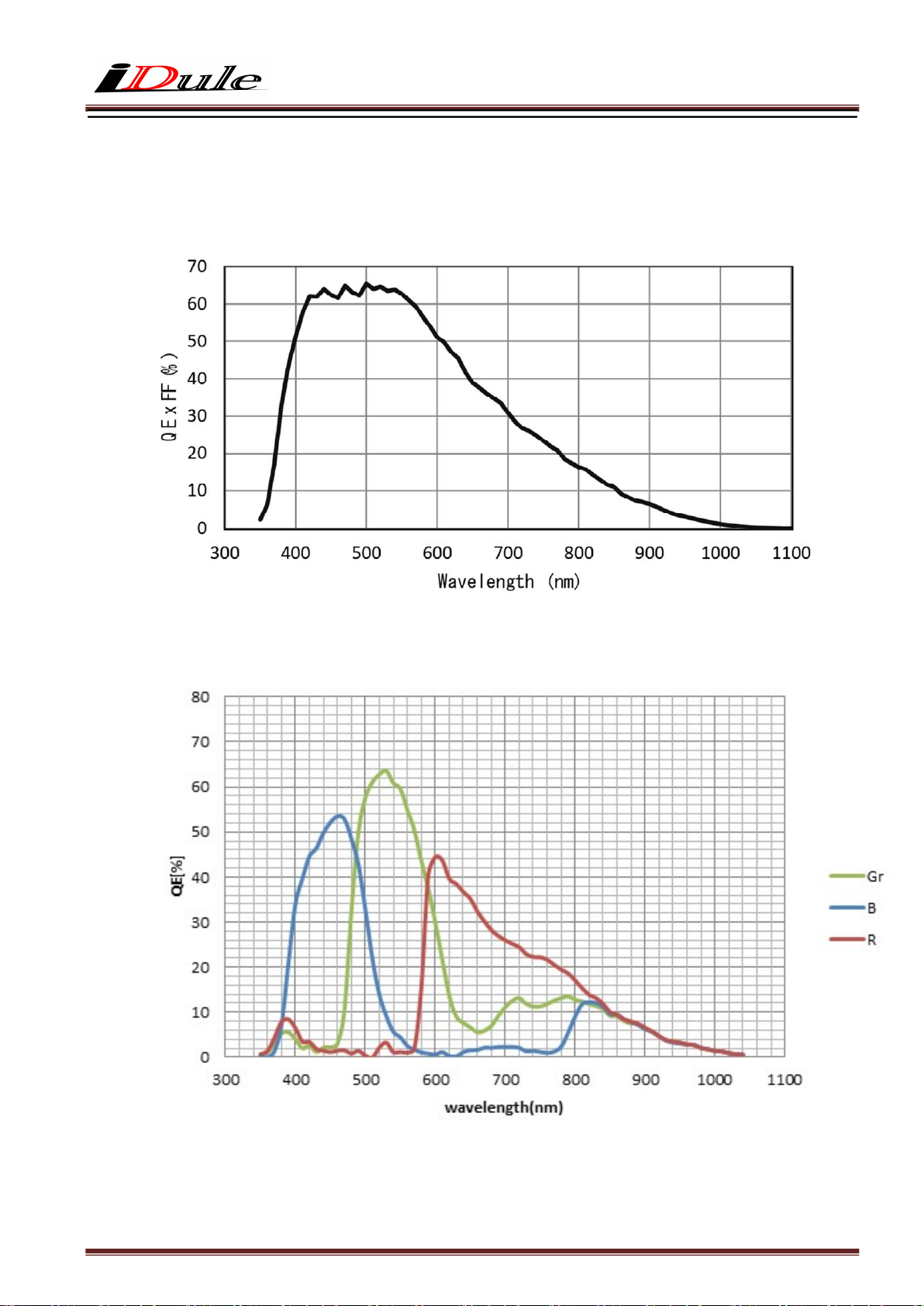

3.3. Spectral Response (Representative Value)

ID65MB-CL (B/W)

ID65MC-CL (Color)

4. Connector

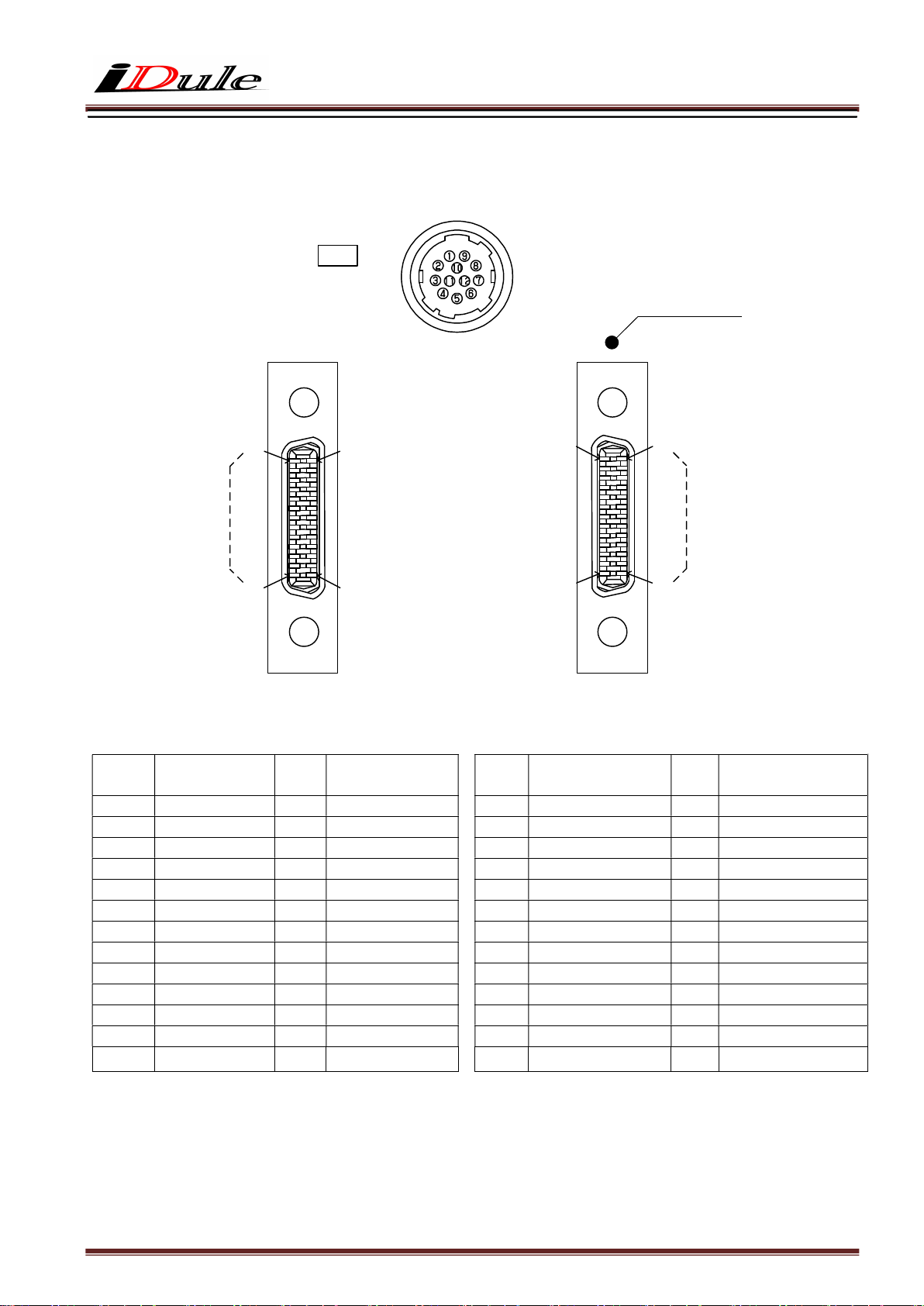

4.1.Camera Link Connector 12226-1100-00PL (SUMITOMO 3M)

Connector (P2) Connector (P1)

No

1 +12V(PoCL) 14 GND 2 Y0- 15 Y0+ 3 Y1- 16 Y1+ 4 Y2- 17 Y2+ 5 Yclk- 18 Yclk+ 6 Y3- 19 Y3+ 7 100Ω 20 Terminated 8 Z0- 21 Z0+

9 Z1- 22 Z1+ 10 Z2- 23 Z2+ 11 Zclk- 24 Zclk+ 12 Z3- 25 Z3+ 13 GND 26 +12V(PoCL)

(Medium / Full Configuration)

26

14

Name PIN

(Power LED)

13

1

(P2)

No

Name

(CN1)

No

1 +12V(PoCL) 14 GND 2 X0- 15 X0+ 3 X1- 16 X1+ 4 X2- 17 X2+ 5 Xclk- 18 Xclk+ 6 X3- 19 X3+ 7 SerTC+ 20 SerTC8 SerTFG- 21 SerTFG+ 9 CC1- (Trigger IN -) 22 CC1+ (Trigger IN +)

10 CC2+ 23 CC211 CC3- 24 CC3+ 12 CC4+ 25 CC413 GND 26 +12V(PoCL)

Base side

1

13

14

26

(P1)

Name PIN

(Base Configuration)

Name

No

+5.0V(VCC)

4.2. Power LED

LED lights when the camera is operational. If the power is not supplied or the camera is broken, the LED will not light. ※ LED can be turned off (address 1Bh) by serial setting.

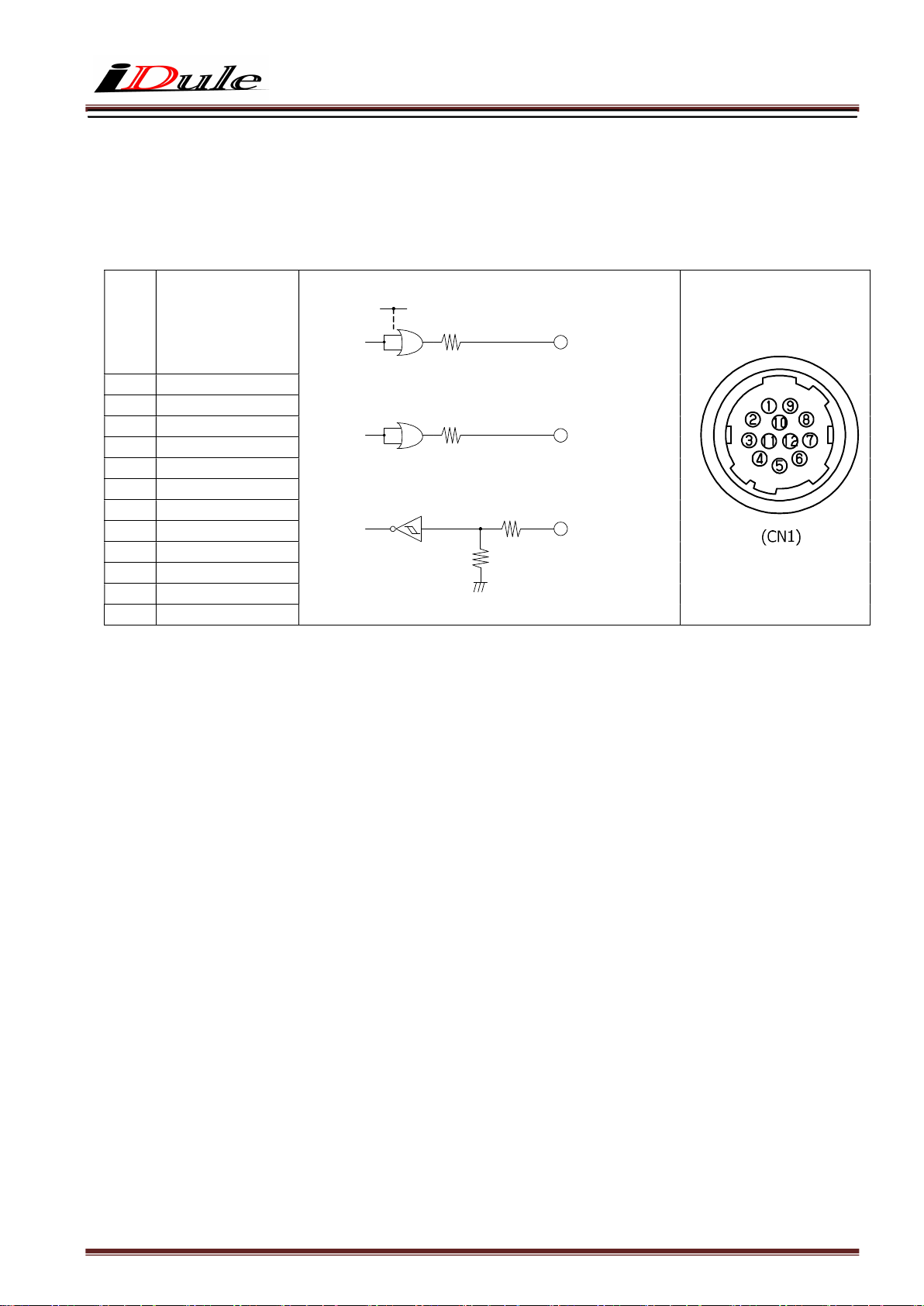

4.3. 12pin Connector HR10A-10R-12PB (HIROSE) (CN1)

IO(5V LVTTL)

No

Name

1 GND 2 Power in(DC+12V) 3 GND 4 NC 5 GND 6 FVAL out 7 NC 8 GND

9 NC 10 Exposure out 11 Trigger in

SN74LVC1G32(TI)

Voh:3.8V(Min) Vol:0.55V(Max)

SN74LVC1G32(TI)

Voh:3.8V(Min) Vol:0.55V(Max)

SN74LVC1G14(TI)

⊿ ⊿

Vt-:0.71(Min) Vt+:1.04V(Max)

100

Ω

100

Ω

1K

12pin

FVAL Output

6

Exposure Output

10

Ω

External Trigger Input

11

12 GND

4.4. Power input to camera

Camera rear 12pin connector (2pin) or Camera Link (PoCL) feeding is possible. (Because the power supply is diode-OR connected, there is no problem even if it is powered simultaneously.)
