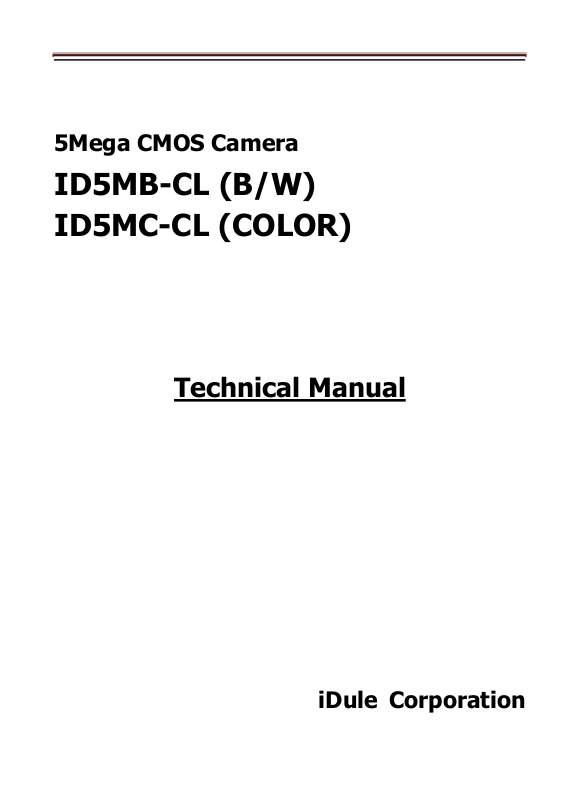

iDule ID5MB-CL, ID5MC-CL Technical Manual

5Mega CMOS Camera

ID5MB-CL (B/W) ID5MC-CL (COLOR)

Technical Manual

iDule Corporation

Table of Contents

PAGE

Product Outline ............................................................................................................................................... 3

1.

2. Handling Precautions ..................................................................................................................................... 3

3. Specification ................................................................................................................................................... 4

3.1.General Specification ......................................................................................................................................... 4

3.2.Camera Output Signal Specification .................................................................................................................... 5

3.3.Spectral Response (Representative Value) ........................................................................................................... 6

4. Connector ........................................................................................................................................................ 7

4.1.Camera Link 12226-1100-00PL(SUMITOMO3M) .................................................................................................. 7

4.2.Power LED ........................................................................................................................................................ 7

4.3.12pin Connector HR10A-7R-6PB(74) HIROSE .................................................................................................... 8

5. Timing Chart ................................................................................................................................................... 9

5.1.Horizontal Synchronous Signals Timing (2Tap Base Configuration ) .................................................................... 9

5.2.Vertical Synchronous Signals Timing (2Tap Base Configuration) ......................................................................... 9

5.3.Horizontal Synchronous Signals Timing (3Tap Base Configuration) ................................................................... 10

5.4.Vertical Synchronous Signals Timing (3Tap Base Configuration) ....................................................................... 10

5.5.Output Format ................................................................................................................................................. 11

5.6.Fixed Trigger Shutter Mode .............................................................................................................................. 12

5.7.Pulse Width Trigger Shutter Mode ..................................................................................................................... 13

6. Partial Scan Mode ......................................................................................................................................... 14

7. Remote Communication ............................................................................................................................... 16

7.1.Command Specifications .................................................................................................................................. 17

7.2.Control Example .............................................................................................................................................. 21

8. Dimensions ................................................................................................................................................... 27

9. Initial Setting ................................................................................................................................................ 28

10. Cases for Indemnity (Limited Warranty) .................................................................................................... 29

11. CMOS Pixel Defect ........................................................................................................................................ 29

12. Product Support ........................................................................................................................................... 29

1. Product Outline ID5MB-CL/ID5MC-CL is a Camera Link interfaced and 5Mega resolution camera module. 5Mega pixels CMOS sensor with diagonal length mm is utilized. Entire pixels can be read out within 1/35.7s at 3Tap Base Configuration output.

Features

□ Global Shutter CMOS sensor is utilized. □ Camera Link Base Configuration is supported. □ Fixed trigger shutter mode, pulse width trigger shutter mode are operable.

□ Full frame rates are as follows.

2Tap Base Configuration 3Tap Base Configuration

2. Handling Precautions The camera must not be used for any nuclear equipment or aerospace equipment with which mechanical

failure or malfunction could result in serious bodily injury or loss of human life. Our warranty does not apply to dameges or defects caused by irregular and /or abnormal use of the product.

Please observe all warnings and cautions stated below.

Our warranty does not apply to damages or malfunctions caused by neglecting these precautions.

Do not use or store the camera in the following extreme conditions :

- Extremely dusty or humid places.

- Extremely hot or cold places (operating temperature -5℃ to +45℃).

- Close to generators of powerful electromagnetic radiation such as radio or TV transmitters.

- Places subject to fluorescent light reflections.

- Places subject to unstable (flickering, etc.) lighting conditions.

- Places subject to strong vibration.

· Remove dust or dirt on the surface of the lens with a blower.

· Do not apply excessive force or static electricity that could damage the camera.

· Do not shoot direct images that are extremely bright (e.g., light source, sun, etc.), and when camera is not

in use, put the lens cap on.

· Confirm the mutual ground potential carefully and then connect the camera to monitors or computers.

AC leaks from the connected devices may cause damages or destroy the camera.

· Do not apply excessive voltage. (Use only the specified voltage.) Unstable or improper power supply

voltage may cause damages or malfunction of the camera.

· The voltage ripple of camera power DC +12V±10% shall be within ±50mV. Improper power supply

voltage may cause noises on the video signals.

· The rising time of camera power supply voltage shall be less than +10V, Max 60ms. Please avoid

noises like chattering when rising.

32.8fps

35.7fps

8bit/10bit/12bit 8bit

3. Specification

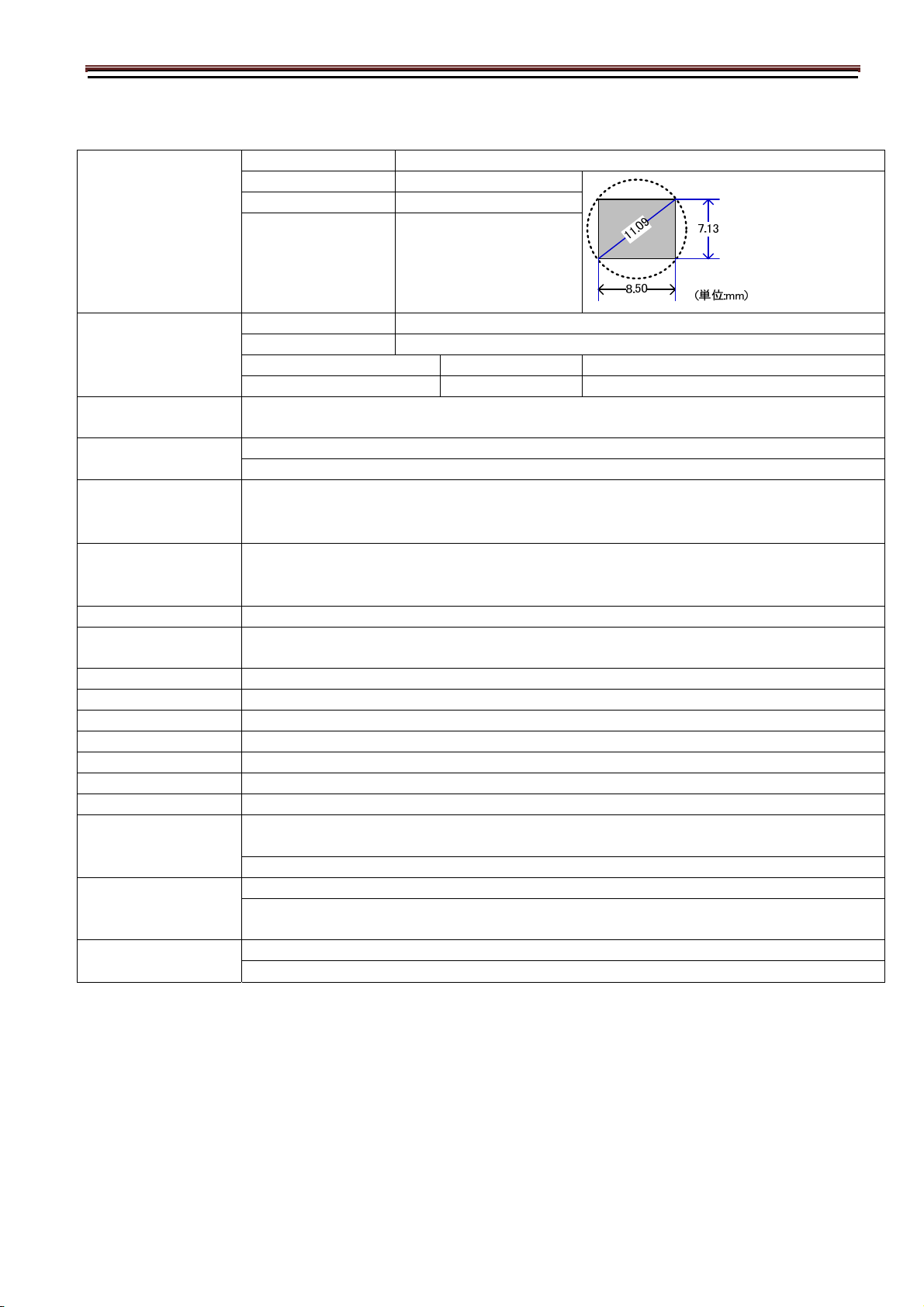

3.1.General Specification

(1) Image Sensor Type

Effective Pixel Number Cell Size Image Circle

(2) Video Output

Frequency

Pixel CLK 85MHz (2Tap) / 66MHz (3Tap)

Output effective pixel number 2464(H) x 2056(V)

Diagonal length 11.1mm Global Shutter (SONY IMX264) 2464(H) x 2066(V)

3.45μm(H) x 3.45μm(V) Φ11.09mm

2Tap Base Configuration 32.8fps 1238(H) x 2089(V) : with Blanking 3Tap Base Configuration 35.6fps 886(H) x 2089(V) : with Blanking

(3) Video Output 2Tap Base Configuration

3Tap Base Configuration

(4) Output Format Sensor AD 12bit

Camera Link 8bit / 10bit / 12bit (3Tap Base Configuration : 8bit f ixed)

(5) Sensitivity B/W F11 2000lx

Color F8 2000lx (at shutter speed 1/32.8s(OFF), Gain 0dB)

(6) Minimum

Illumination

B/W F1.4 4lx

Color F1.4 8lx (at shutter speed 1/32.8s(OFF), Gain +12dB)

(7) Power Requirements DC+12V±10% (12pin / PoCL) (8) Power Consumption typ 2.0 W

max 2.5 W (9) Dimensions H:29.0mm W:29.0mm D:29.0mm excluding projection (10) Weights Approx. 50g (11) Lens Mount C Mount (12) Gain 0dB ～ +12dB (13) Shutter Speed OFF(1/32.8s) ～ 1/35000s (2Tap) / OFF(1/35.7s) ～ 1/37000s (3Tap) (14) Trigger Mode Fixed Trigger Shutter Mode, Pulse Width Shutter Trigger Mode (15) Partial Scan Full Frame ～ 4 Line （4Line/Step） Partial Area : 1area (16) Safety/

Quality Standards

CE To be applied for EN55022:2006 Class B for Emission 06

To be applied for EN61000-6-2:2005 for Immunity

RoHS: Conform to RoHS (17) Durability Vibration

20～200 Hz, 98m/s

2

(10G), X,Y and Z directions (120 min for each direction)

Shock No malfunction shall be occurred with 980m/s2 (100G) for ±X,±Y,±Z, 6 directions.

(without package)

(18) Environment Operation -5℃ ～ +50℃ Humidity 0 ～ 90%RH

Storage -25℃ ～ +65℃ Humidity 0 ～ 90%RH

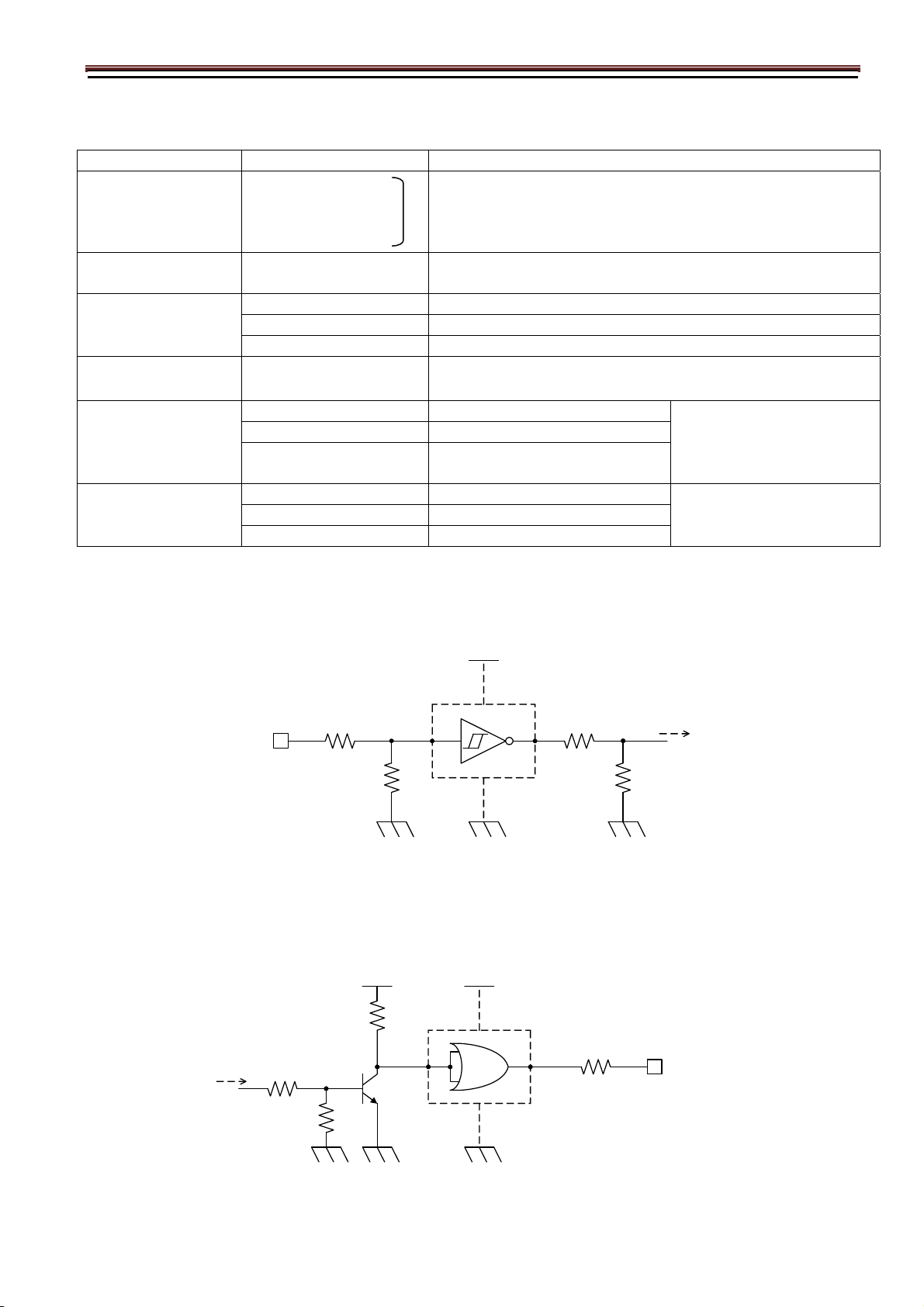

3.2.Camera Output Signal Specification

(1)Video Output Data Effective Video Output 2464(H) × 2056(V) (at Full Frame Scan Mode) (2)Sync Signal Output LVAL Camera Link (LVDS)

FVAL DVA SP

(3)Camera Control

CC2・CC3・CC4

Camera Link Input(LVDS) Signal Input (4)Trigger Input Polarity Positive/Negative Selectable (Address 05)

Pulse Width CC1 Camera Link Input (LVDS)

(5)Serial

Communication

(6)Video Signals

SerTC SerTFG (Serial to Frame Grabber)

White Clip Level FFEh (at Gain 0dB, 12bit) Setup Level under 060h Dark Shading

(7)Trigger in CN1 CN1 : 11 pin (8)Exposure out CN1 CN1 : 6 pin (9)FVAL out CN1 CN1 : 7 pin

1HD(Min:14.586us) ～Approx 2 frames

Camera Link (LVDS）

Both horizontal and vertical should be

under 00Fh

Low1.4V(max),High3.3V~5.0V

Low0.55V(max),High3.8V(min)

(Address 06: ⇔CN1)

(Serial to Camera)

Trigger in CN1

CN1 11pin (Input)

100Ω

1.0KΩ

5.0V

SN74LVC1G14

(TI)

Delay approx 50 ns.

2.2KΩ

Signal

2.2KΩ

Exposure / FVAL out CN1

5.0V

10KΩ

Signal

1KΩ

2SC4116

5.0V

SN74LVC1G32

(TI)

100Ω

Delay approx 1.2μs.

CN1 6pin,7pin (Output)

1KΩ

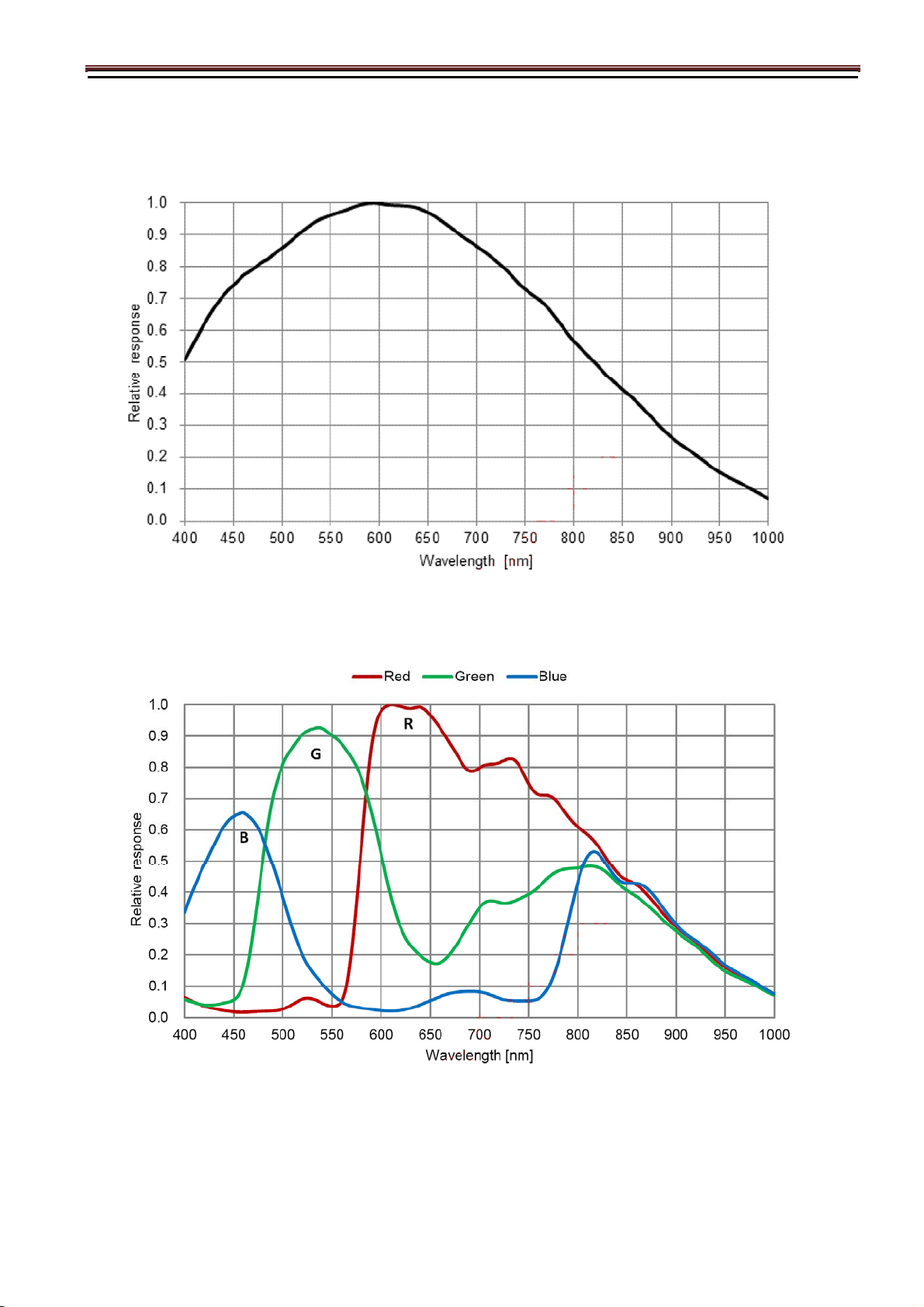

3.3.Spectral Response (Representative Value)

ID5MB-CL (B/W)

ID5MC-CL (Color)

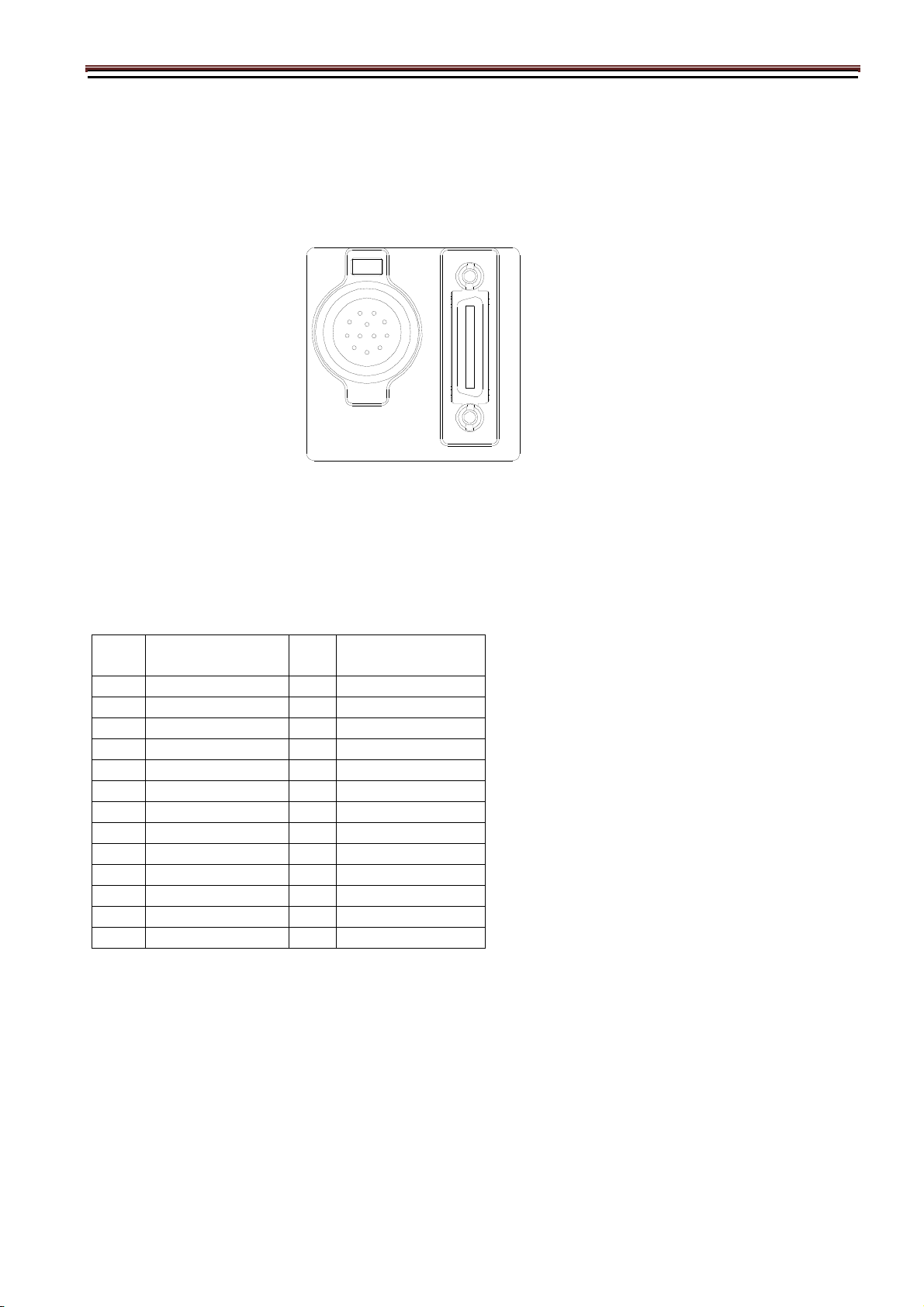

4. Connector

4.1.Camera Link 12226-1100-00PL(SUMITOMO3M)

Connector (P1)

NO

1 +12V(PoCL) 14 GND 2 X0- 15 X0+ 3 X1- 16 X1+ 4 X2- 17 X2+ 5 Xclk- 18 Xclk+ 6 X3- 19 X3+ 7 SerTC+ 20 SerTC8 SerTFG- 21 SerTFG+ 9 CC1- (Trigger IN -) 22 CC1+ (Trigger IN +)

10 CC2+ 23 CC211 CC3- 24 CC3+ 12 CC4+ 25 CC413 GND 26 +12V(PoCL)

4.2.Power LED

Camera turns on LED light, when it is supplied electricity from the frame Grabber board.

NO

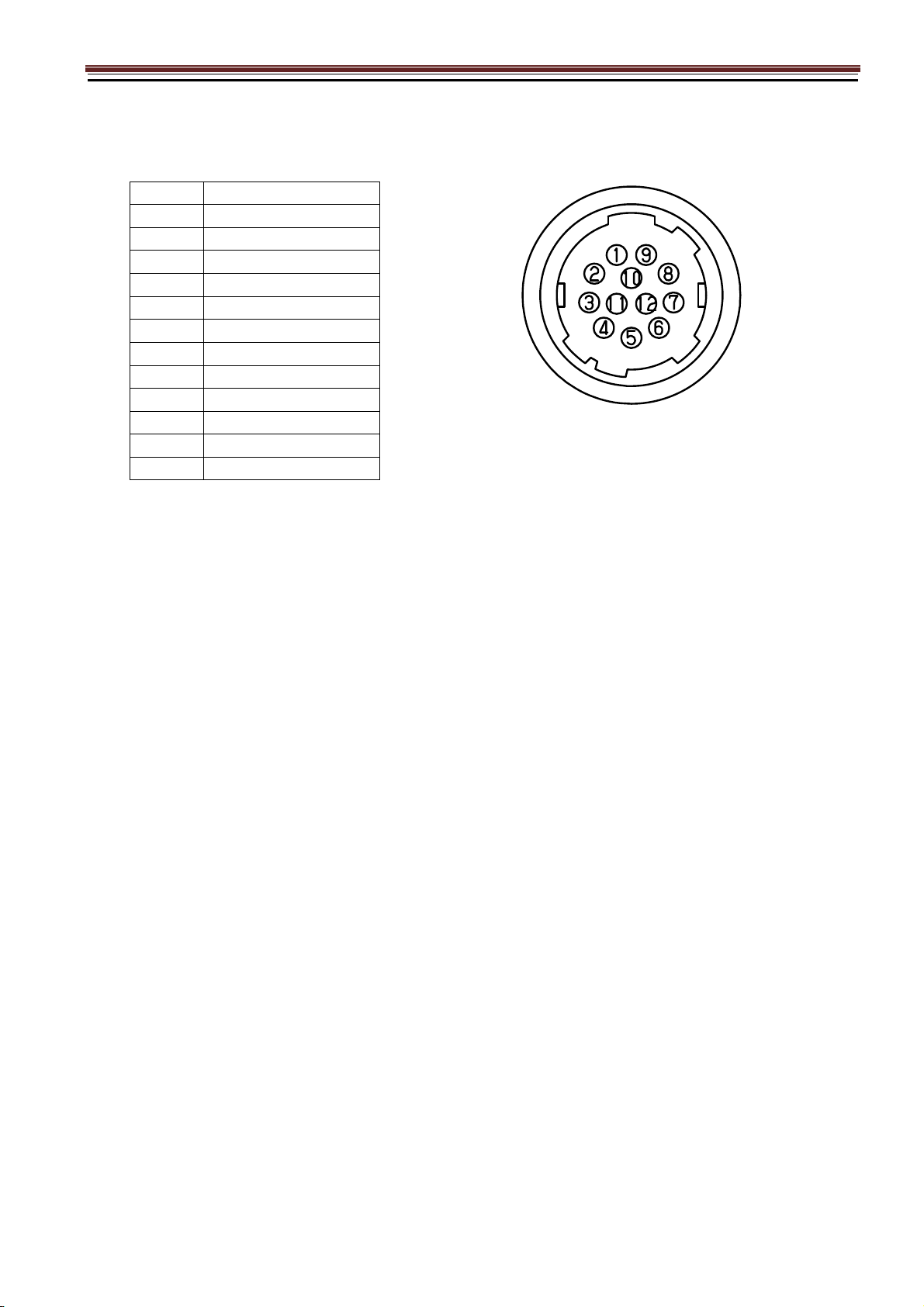

4.3.12pin Connector HR10A-7R-6PB(74) HIROSE

PIN NO

1 GND

2 Power Input (DC+12V)

3 GND

4 NC

5 GND

6 FVAL out

7

8 GND

9 NC

10 NC

11 Trigger in

12 GND

Exposure out

5. Timing Chart

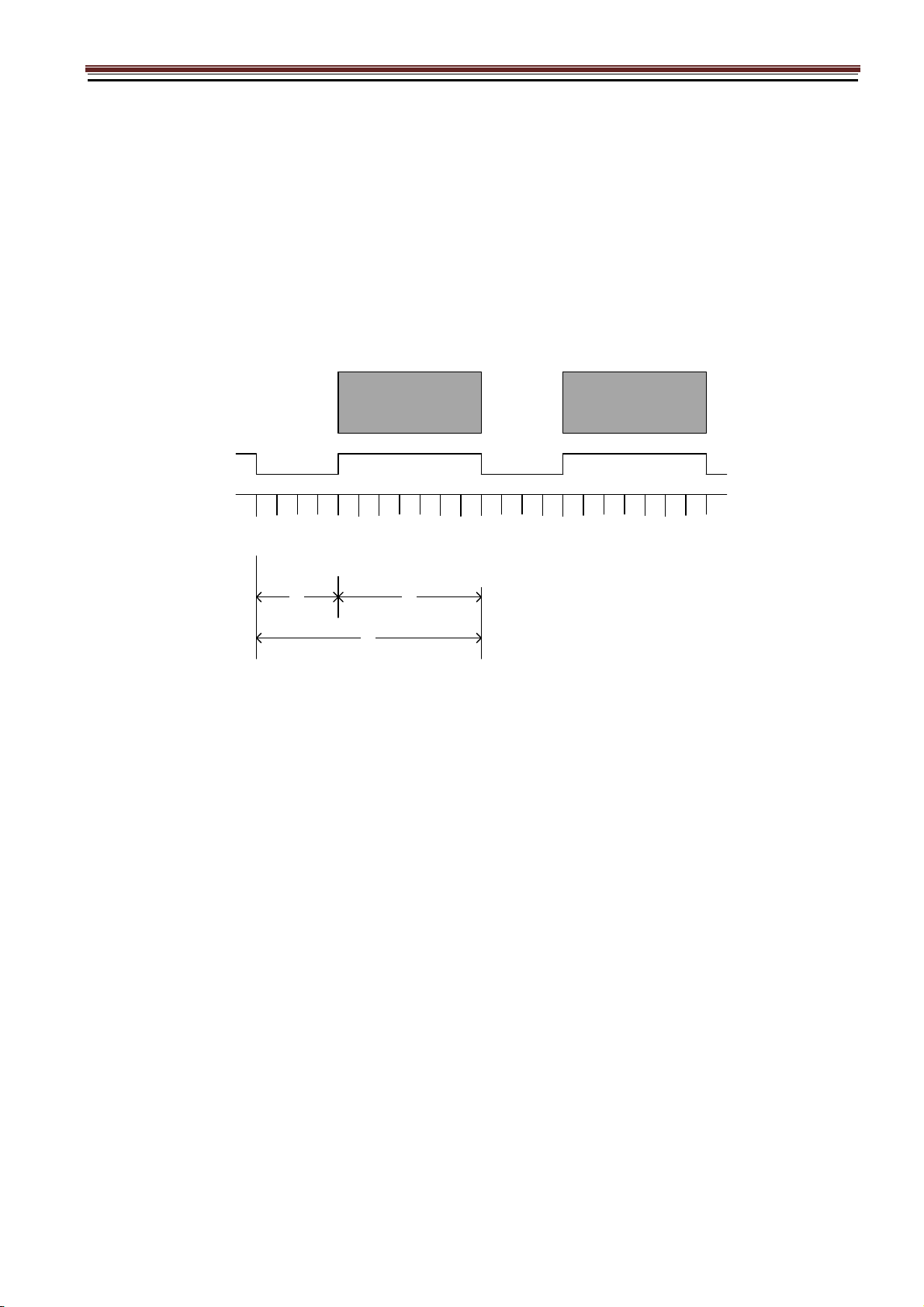

5.1.Horizontal Synchronous Signals Timing (2Tap Base Configuration )

1

2

Video Out

3 4 5 6 7 8

～

(Camera Link Port A)

(Camera Link Port B)

1 3

2 4 6 8 2458 2460 2462 2464

5 7 2457 2459 2461 2463

・・・・・・・・・・・・

～

LVAL Out

～

DVAL Out

Effective Data : 1232 CLK5 or 6 CLK

～

1H = 1237 or 1238 CLK

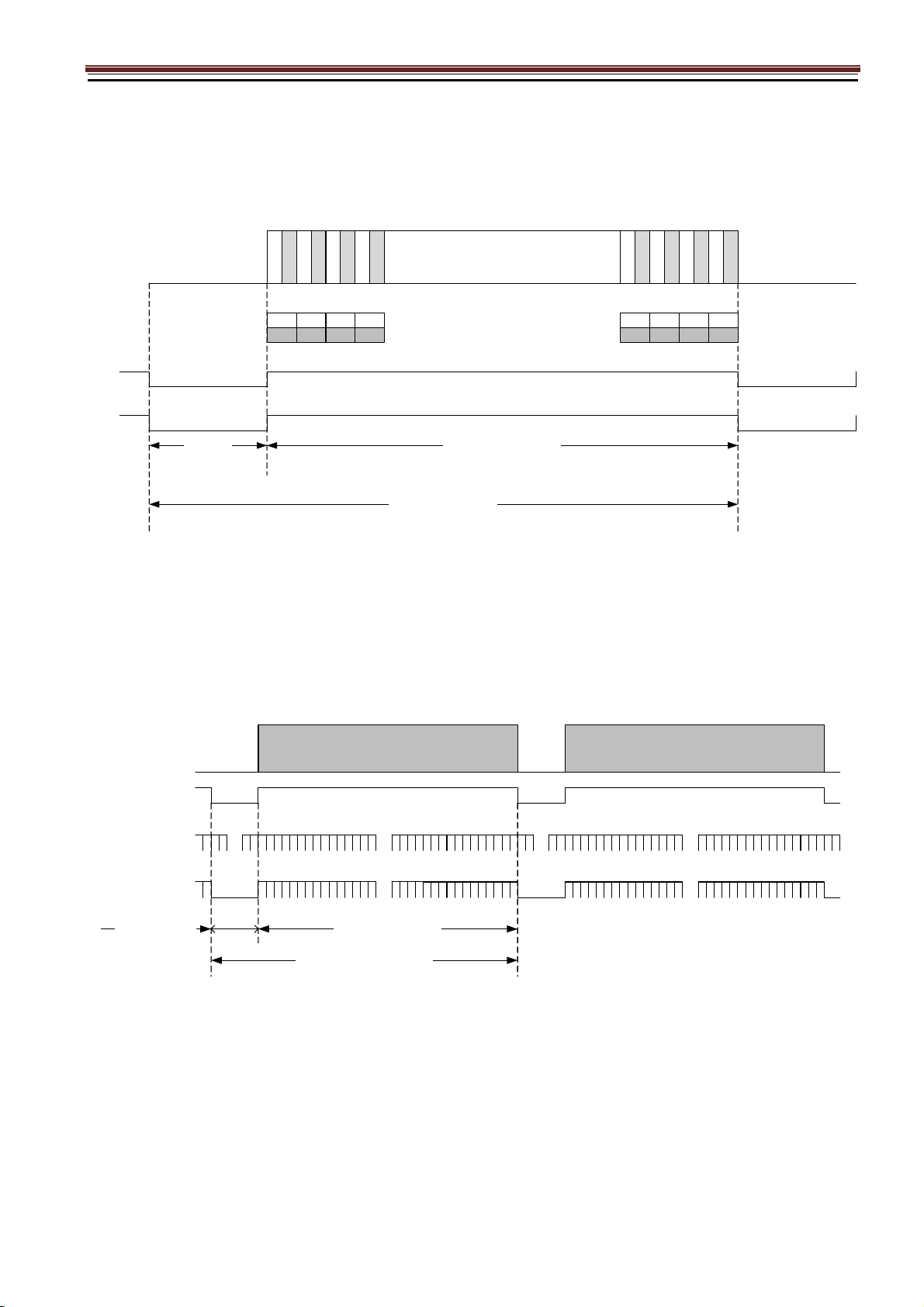

5.2.Vertical Synchronous Signals Timing (2Tap Base Configuration)

Video Out

FVAL Out

～

LVAL Out

DVAL Out

V Blanking : 33H

～

11

Effective Line : 2056H

1Frame = 2089H (30.47ms)

～

2 0

～

5 6

2

4

5

9

7

8

Camera Link CLK : 84.857143MHz (Clock count per 1frame : 2585585)

～

4

6

3

4

1

2

0

～

2 0

～

5 6

1H = 14.586 us

2

5.3.Horizontal Synchronous Signals Timing (3Tap Base Configuration)

Video Out

1

2 / /

3 4 5 6 7 8

9

～

LVAL Out

DVAL Out

(Camera Link Port A)

(Camera Link Port B) (Camera Link Port C)

1 4

2 5 8

3 6 9

7

・・・・・・・・・・・・

～

Effective Data : 822 CLK63 or 64 CLK

1H = 885 or 886 CLK

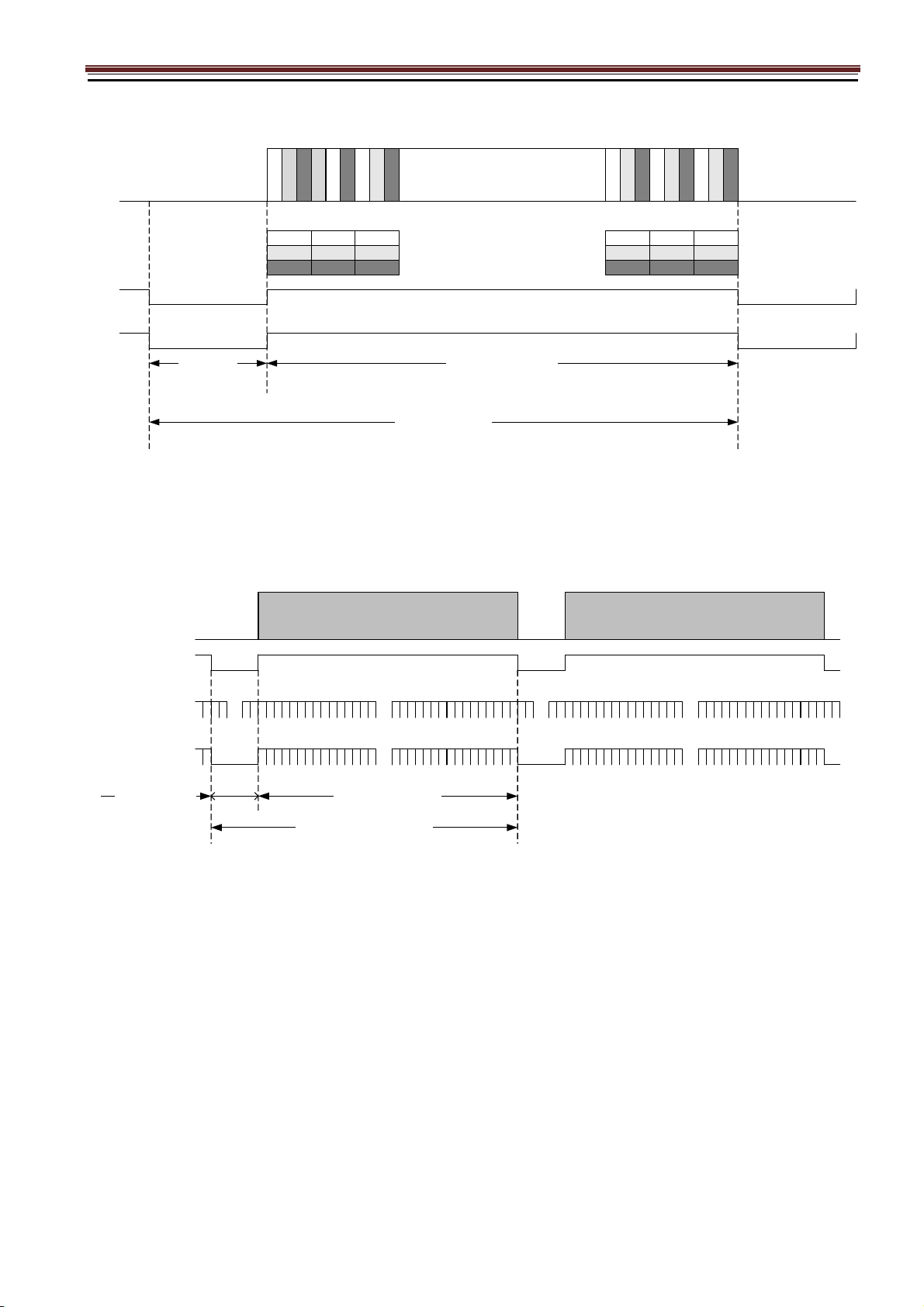

5.4.Vertical Synchronous Signals Timing (3Tap Base Configuration)

Video Out

FVAL Out

～

LVAL Out

DVAL Out

V Blanking : 33H

～

11

Effective Line : 2056H

1Frame = 2089H (28.02ms)

～

2 0

～

5 6

2

4

5

9

8

2458 2461 2464

2459 2462 /

2460 2463 /

～

4

6

3

4

1

2

0

Camera Link CLK : 66.00MHz (Clock count per 1frame : 1849461)

～

2 0 5 6

1H = 13.414 us

2

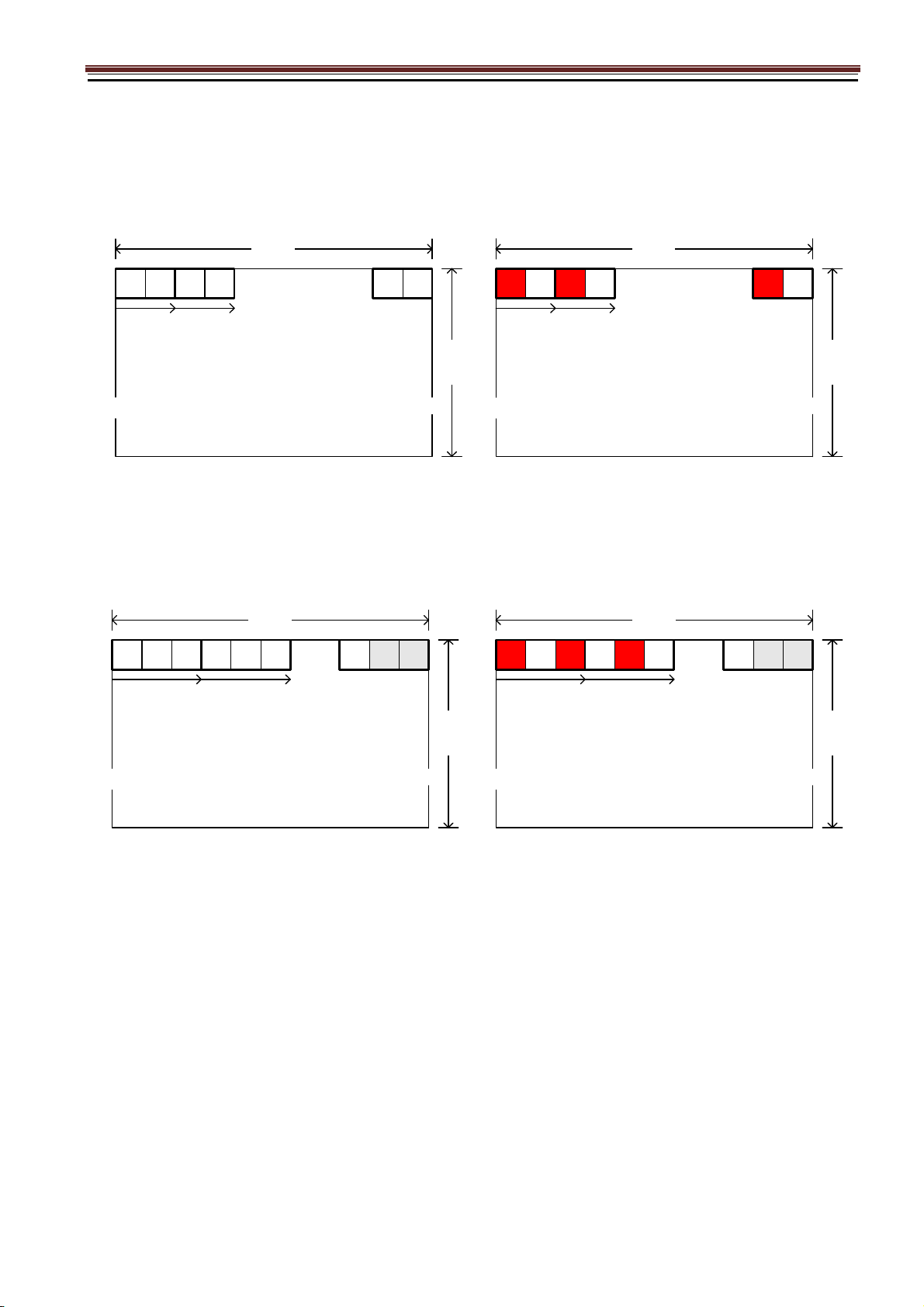

5.5.Output Format

2Tap Base Configuration

ID5MB-CL ID5MC-CL

D1

2464pixel

D4D3

・・・D2

D

2463D2464

2056 Line

～

3Tap Base Configuration

ID5MB-CL ID5MC-CL

D1 D6D5D4

D3

2464pixel

D

2064

/ /

・・・D2

2056 Line

～

2464pixel

2464

G

R

2463G2464

/ /

2056 Line

～

2056 Line

～

・・・R1 G2 R3 G4

～

2464pixel

G4 R5 G6

～

・・・R1 G2 R3

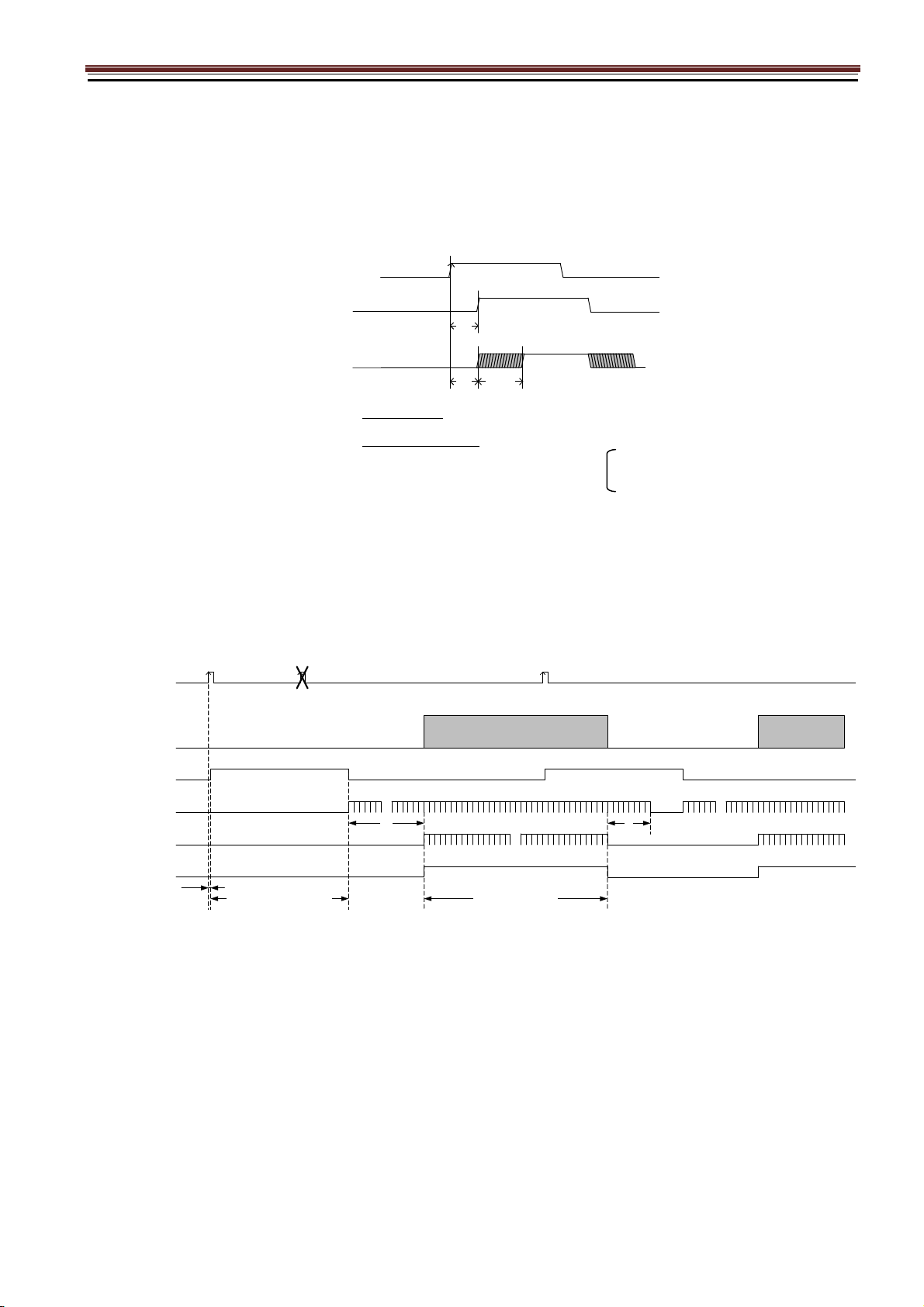

5.6.Fixed Trigger Shutter Mode

□ This is the mode to start exposure with external input trigger signals, and set the exposure time with serial

commands.

□ Delay time (Exposure Time Delay) from detecting trigger edge in the camera to starting exposure is as below.

Exposure OUT

(Trigger Hsync : OFF)

Exposure OUT

(Trigger Hsync : ON)

(1) Trigger Hsync Mode OFF ： 0.15 us fixed

(2) Trigeer Hsync Mode ON ： 0.15 us + max1HD

・2Tap Base Configuration ・3Tap Base Configuration

TRIG IN

0.15

us

max1HD

us

0.15us + max 1HD (14.586us)

max 1HD (13.414us)

□ Triggers can be accepted even when outputting video signals.

However, trigger signals for exposure to start the next video output prior to the completion of video transmission

for the prior video output signals can not be accepted.

□ Trigger input during exposure time should be ignored. (Refer to the below A)

(Exposure Out)

Exposure Time Delay

TRIG IN

Video Out

SP Out

LVAL Out

DVAL Out

FVAL Out

(Trigger input ignore period)

（Caution） Trigger Hsync Mode is available : Change the function ->SAVE->Camera restart

Exposure Time

(A)

～

25H

～

1

Effective Line : 2056H

8H

2 0 5 6

～

1

～

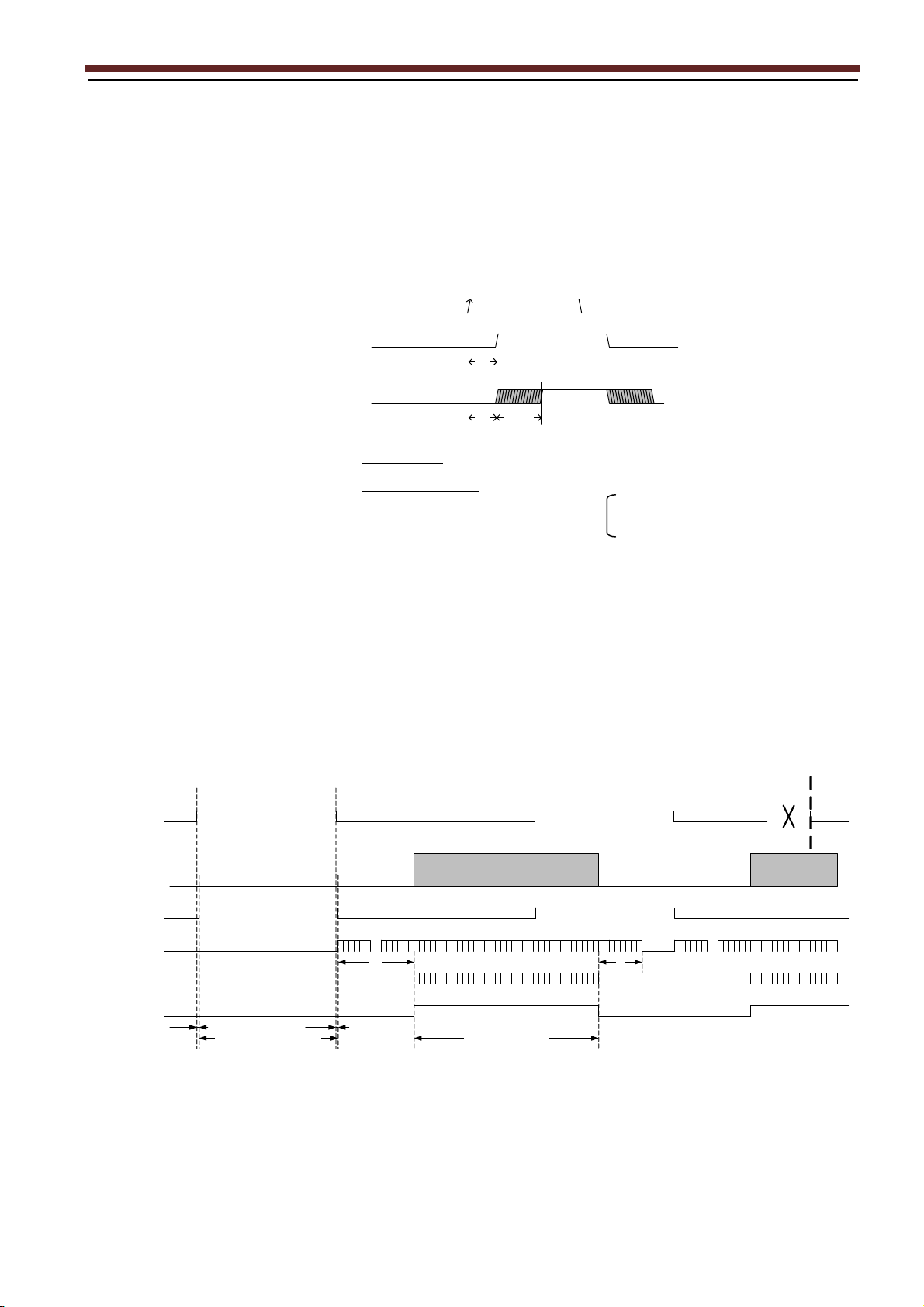

5.7.Pulse Width Trigger Shutter Mode

□ This is the mode to start exposure with external input trigger signals, and set the exposure time with

pulse width of the trigger signals.

□ Delay time (Exposure Time Delay) from detecting trigger edge in the camera to starting exposure, and from

detecting trigger end edge to completing exposure is as below.

Exposure OUT

(Trigger Hsync : OFF)

Exposure OUT

(Trigger Hsync : ON)

TRIG IN

0.15

us

max1HD

us

(1) Trigger Hsync Mode OFF ： 0.15 us fixed

(2) Trigeer Hsync Mode ON ： 0.15 us + max1HD

・2Tap Base Configuration ・3Tap Base Configuration

0.15us + max 1HD (14.586us)

max 1HD (13.414us)

□ Pulse width is min. 1HD (min) to approx. 2 frames.

Functionally, there is no upper limitation, but noises such as dark noises and shadings may be noticeable

at long time exposure.

□ Triggers can be accepted even when outputting video signals.

However, trigger signals for exposure to start the next video output prior to the completion of video transmission

for the prior video output signals can not be accepted.

TRIG IN

Video Out

SP Out

(Exposure Out)

LVAL Out

DVAL Out

FVAL Out

Exposure Time Delay Exposure Time Delay

Exposure Time

(Trigger input ignore period)

（Caution） Trigger Hsync Mode is available : Change the function ->SAVE->Camera restart

25H

～

1

Effective Line : 2056H

8H

2 0 5 6

～

1

～

6. Partial Scan Mode

□ 1 partial area can be set by serial commands.

Partial Scan Setting

Partial Scan Start Position Address : 40 - 41

Partial Scan Effective Line Number Address : 50 – 51

Example

Video Out

FVAL

LVAL

Start Position

ｽﾀｰﾄﾎﾟｼﾞｼｮﾝ

②

有効ライン数

Effective Line Number

①

③

④

① : V Blanking ： 33H fixed ② : Partial Scan Start Position ： 120H ③ : Partial Scan Effective Line Number ： 400H ④ : Total Lines ： 433H(①＋③)

□ When setting several partial scan areas, please set the start position and effective lines ->4 x n.

□ Total Lines

= V blanking line number (33H fixed) ＋ Partial Scan Effective line numbers

Note that “Sum total of partial effective line numbers (expect V blanking lines) < 2056 should be met.

□ Frame Rate = 1 / Total lines

Time for 1 line = 14.586us(2Tap) / 13.414us(3Tap)

□ Example

Effective line number Total line

4H(min) 37H 1852fps 2014fps

・

12H 45H 1523fps 1656fps

・

100H 133H 515fps 560fps

・

400H 433H 158fps 172fps

・

800H 833H 82.3fps 89.4fps

・

1600H 1633H 41.9fps 45.6fps

・

2056H(max) 2089H 32.8fps 35.6fps

2Tap Base Configuration 3Tap Base Configuration

Frame rate

7. Remote Communication

Communication Settings

Baud Rate

Data

Stop bit

Parity

XON / XOFF

・ Send Command Format （Host to Camera）

If send a command, set the command and parameter between STX and ETX.

STX

(02H)

・ Return Command Format （Camera to Host） Normally, a camera returns a control code which is ACK or NAK.

If return value has a text message, the message is between STX and ETX.

ACK

(06H)

NAK

(15H)

STX

(02H)

・ Command list

Command Function

SR Set some values of resister

GR Get some values of resister

SU Set a user’s data

GU Get a user’s data

CS Save all configurations

CR Restore all configurations

QM Get a model name

QS Get a serial number

QV Get a firmware version

QE Get a detail of error information

Command

(2byte)

・・・ Succeed

・・・ Fail

command

(2byte)

：9600bps (Initial Setting) ：8bit ：1bit ：None ：No Control

Parameter(ASCII code)

(20H-7FH)

parameter(ASCII code)

(2FH- 7FH)

ETX

(03H)

ETX

(03H)

・・・ return message

7.1.Command Specifications

1) Set some values of resister

【Command】 Set ： Resister

STX S R (a) (a) (d) (d)

･･･

ETX

Address

Data （Variable-length :max 16 address）

【Return Value】

Succeed

Fail

・・・

ACK

NAK

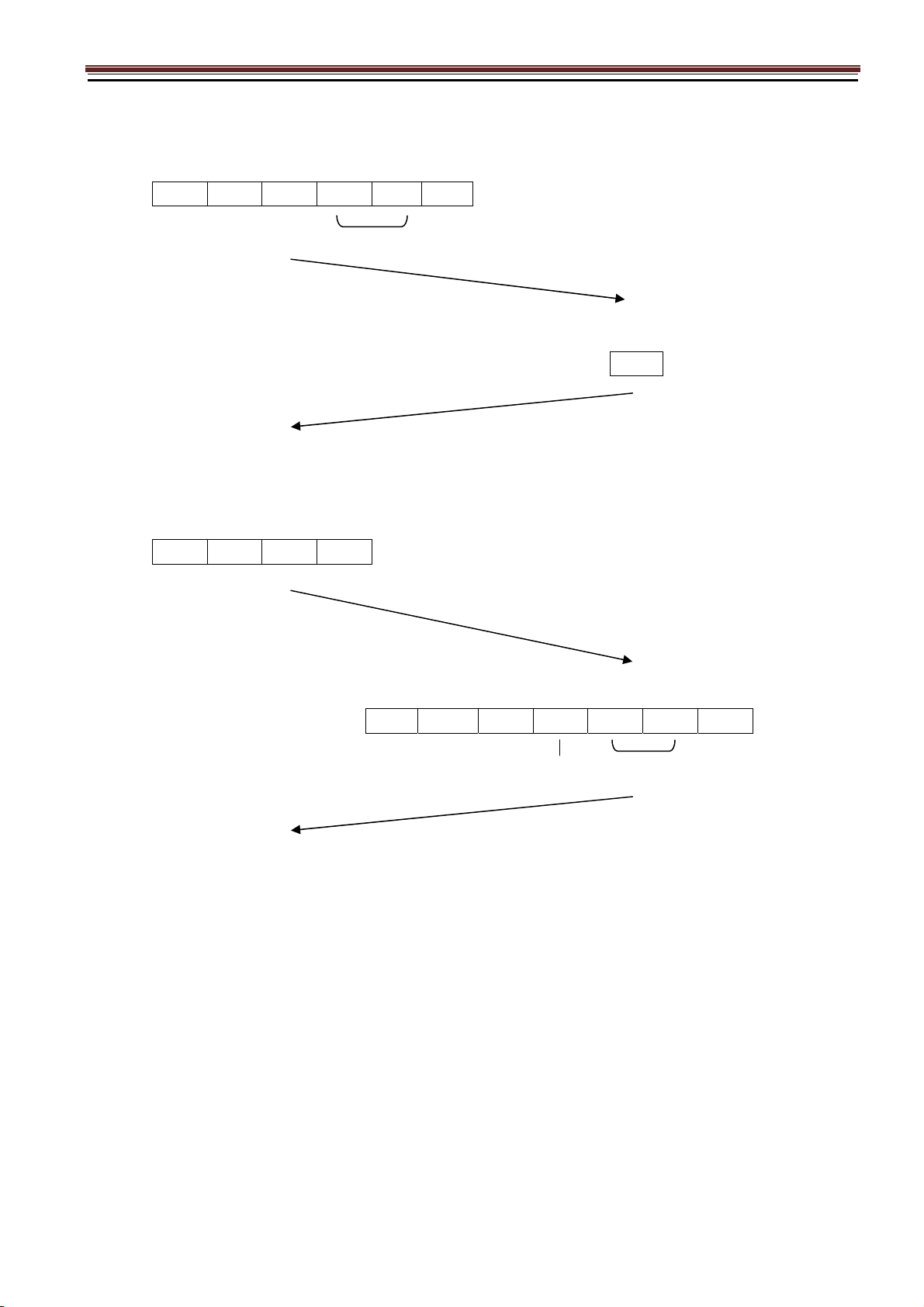

2) Get some value of resister

【Command】 Get ： Resister

STX G R (a) (a) (d) ETX

Address

Number of data acquisition （optional）

【Return value】

Succeed

・・・

STX A R (d) (d)

･･･

ETX

Fail

・・・

NAK

Data （Data length depends on the number of acquisitions）

【Remarks】

The command gets some value of register of the specified address. The number of the acquisition is between ’0’ and ’F’（ Hexadecimal ）.

If appoint ’0’ at the address, the command send data of 16 address. If the command is omitted at the address,

the command send an address.

3) Set User’s data

【Command】 Set ： User’s data

STX S U (n)

･･･

ETX

Table No.

User’s data (fixed length :16byte)

(0~3)

【Return Value】

Succeed

Fail

・・・

ACK

NAK

【Remarks】 The commands, sets free data on the specified register, and can use 4 tables (1 table : 16 characters).

4) Get User’s data

【Command】 Get ： User’s data

STX G U 0 ETX

Table No.

(0~3)

【Response】

Succeed

・・・

STX A U (d) (d)

･･･

ETX

User’s data (fixed length : 16byte)

Fail

・・・

NAK

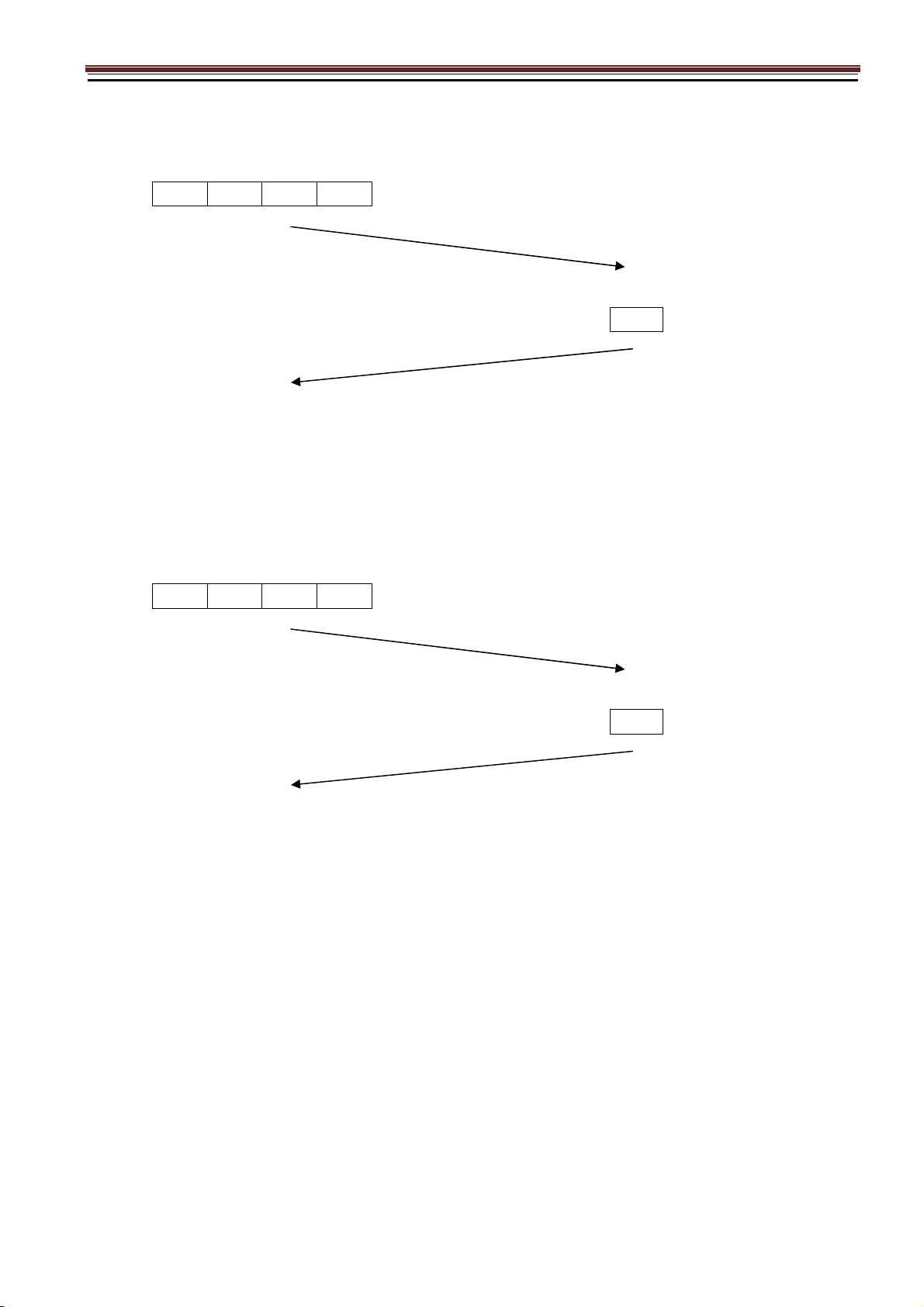

5) Save all configurations

【Command】 Conf iguration ： Save

STX C S ETX

【Return Value】

Succeed

Fail

6) Restore all configurations

【Command】 Conf iguration ： Restore

STX C R ETX

【Return Value】

Succeed

Fail

7) Get a model name

【Command】 Query ： Model name

STX Q M ETX

【Return Value】

Succeed

Fail

8) Get a serial number

【Command】 Query ： Serial number

STX Q S ETX

【Return Value】

Succeed

Fail

・・・

ACK

NAK

ACK

NAK

STX R M (d) (d)

Model name (Fixed length：16byte)

NAK

STX R S (d) (d)

Serial Number(Fixed length：8byte)

NAK

･･･

ETX

9) Get a firmware version

【Command】 Query ： Version

STX Q V ETX

【Return Value】

Succeed

Fail

10) Get a detail of error information

【Command】 Query ： Error

STX Q E ETX

【Return Value】

Succeed

Kind Detal

Fail

0：

No Error

1：

Communication Protocol

Error

2：

Internal Control Error

・・・

Kind Detail

STX R V (d) (d)

Version information (fixed length：8byte)

NAK

STX R E (d) (d) (d) ETX

NAK

00： 00： 01： 02：

03：

04：

05：

06：

00：

01：

02：

03：

04：

05：

06：

Normal result

The command is undefined.

The command length is more than defined.

The address is undefined.

The value of data is undefined.

The length is more than defined.

The table number is undefined.

The string of user data was abnormal.

Internal control is abnormal.

A read only address was written by the command.

A protected address was written by the command.

Out of range address was written by the command.

The selected table number is abnormal.

The value of the man acquisition area is abnormal.

A function is not implemented.

･･･

ETX

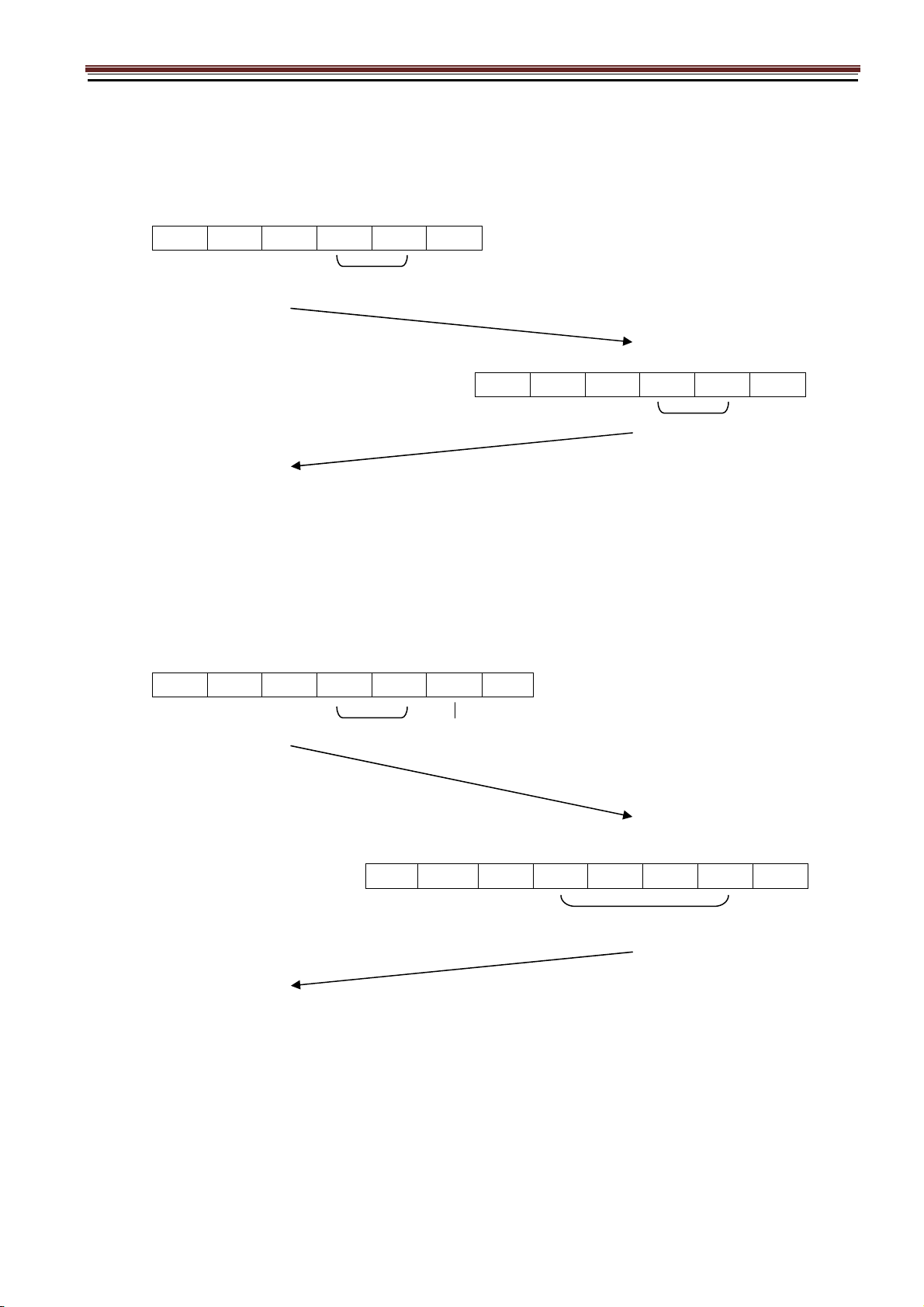

7.2 .Control Exam ple

1) How to check trigger shutter mode. ( The command gets a value from address 04)

【Send Command】

STX G R 0 4 ETX

Address 04

【Return value form camera】

Data 01

【Receive Return Value】 The camera is working with a trigger shutter mode, because the command received a 01 from the camera.

2) How to check trigger shutter mode. ( The command gets consecutive 2 bytes values from address 20)

【Send Command】

STX G R 2 0 2 ETX

Address20 2Byte

【Receive return value】

Data 02FF

【Receive return value】 The shutter mode of camera is working +12dB, because the command received a 02FF(767)

from the camera.

STX A R F F 0 2 ETX

STX A R 0 1 ETX

3) How to set partial scan mode. (The command sets 01 for address 08)

【Send Command】

STX S R 0 8 0 1 ETX

Address 08 Data 01

【Return value form camera】

【Receive Return Value】 The command finished normally, because the command received ACK from the camera.

4) How to set 01FF for manual shutter. (The command set 01FF for address 24)

【Send Command】

STX S R 2 4 F F 0 1 ETX

Address 24 Data 01FF

【Return value form camera】

【Receive Return Value】 The command finished normally, because the command received ACK from the camera.

ACK

5) How to save configurations of a camera. (The command send CS)

【Send Command】

STX C S ETX

【Return value form camera】

【Receive Return Value】 The command finished normally, because the command received ACK from the camera.

6) How to restore the camera to initial settings. (The command send CR)

【Send Command】

STX C R ETX

【Return value form camera】

【Receive Return Value】 The command finished normally, because the command received ACK from the camera.

ACK

7) How to get detail of a communication error.

【Send Command】

STX G R @ 0 ETX

Set the address invalid value

【Return value form camera】

【Receive return value】 The command finished abnormally, because the command received ‘NAK’ from the camera. When the command did not f inish normally, retry to send command or send to get detail of a detail error command.

【Send Command】

STX Q E ETX

【Return value form camera】

Kind1 Detail 02

【Receive Return Value】 The ‘GR’ command accessed invalid address , because the error command received kind ‘1’ and detail ‘02’.

STXR E 1 0 2 ETX

NAK

8. Function Setting

Function address(Hex) Data(Hex)

Shutter 01 2Tap Base Configuration 3Tap Base Configuration

00: 1/32.8s(OFF) 1/35.6s(OFF)

01: 1/75s 1/75s

02: 1/150s 1/150s

03: 1/350s 1/350s

04: 1/500s 1/500s

05: 1/1000s 1/1000s

06: 1/2500s 1/2500s

07: 1/5000s 1/5000s

08: 1/7500s 1/7500s

09: 1/10000s 1/10000s

0A: 1/14000s 1/15000s

0B: 1/17000s 1/19000s

0C: 1/23000s 1/25000s

0D: 1/35000s 1/37000s

0E: 1/35000s 1/37000s

0F: Manual (Address24-25)

White Balance

(Color model)

Trigger Mode 04 00: Normal(Trigger OFF)

Trigger Polarity 05 00: Positive

Trigger Input 06 00: CC1

Slow Shutter 07 0 - FF: min:0(0H) - max:255(FFH) 0: OFF, 255: +255 frame time

Partial Scan 08 00: Full Frame

Camera output Mode 0A 00: 2Tap Base Configuration

Output bit rate 0B 00: 8bit

Baud rate 10 00: 9600bps

02 00: THRU

01: 3200K

02: THRU(Spare)

03: Manual

01: Fixed Trigger Shutter Mode(Address01 -> Shutter Speed)

02: Pulse Width Trigger Shutter Mode

01: Negative

01: 11pin (Hirose 12pin connector)

1frame =

2Tap Base Configuration : 30.47ms

3Tap Base Configuration : 28.02ms

01: Partial Scan

01: 3Tap Base Configuration

01: 10bit

02: 12bit

01: 19200bps

02: 38400bps

03: 57600bps

04: 115200bps

Function

Address(Hex)

Data(Hex)

Flip / Reverse 18 00: Normal

01: Flip

02: L-R Reverse

03: Flip & L-R Reverse

LED ON/OFF 1B 00: OFF

01: ON

Manual Gain 20-21 0 - 78: min:0(0H) - max:120(78H) 0: x1(0dB), 120: x4(+12dB)

Manual Shutter 24-25 LLHH: min:0(0H) - max:2079(81FH)

2Tap Base Configuration Shutter time = 13.73us + (2080 - (setting value))×14.586us

min:0=30.35ms(1/32.8s) , max:2079=28.32us(1/35000s)

3Tap Base Configuration Shutter time = 13.73us + (2080 - (setting value))×13.414us

min:0=27.92ms(1/35.6s) , max:2079=27.14us(1/37000s)

Manual White Balance R

28-29 LLHH: min:0(0H) - max:767(2FFH) 0: x1(0dB), 767: x4(+12dB)

(Color model)

Manual White Balance G

2A-2B LLHH: min:0(0H) - max:767(2FFH) 0: x1(0dB), 767: x4(+12dB)

(Color model)

Manual White Balance B

2C-2D LLHH: min:0(0H) - max:767(2FFH) 0: x1(0dB), 767: x4(+12dB)

(Color model)

Partial Scan

Start Position

Partial Scan

Effective line number

40-41 LLHH: min:0(0H) - max:2052(804H)

※Setting value :4 x n

50-51 LLHH: min:4(4H) - max:2056(808H)

※ LLHH : The data set with 2 Byte shall be set with Low Byte first, then set with High Byte.

< Example > Manual Gain(Address 24-25) ->767(02FFH)

STX SR 24 FF 02 ETX

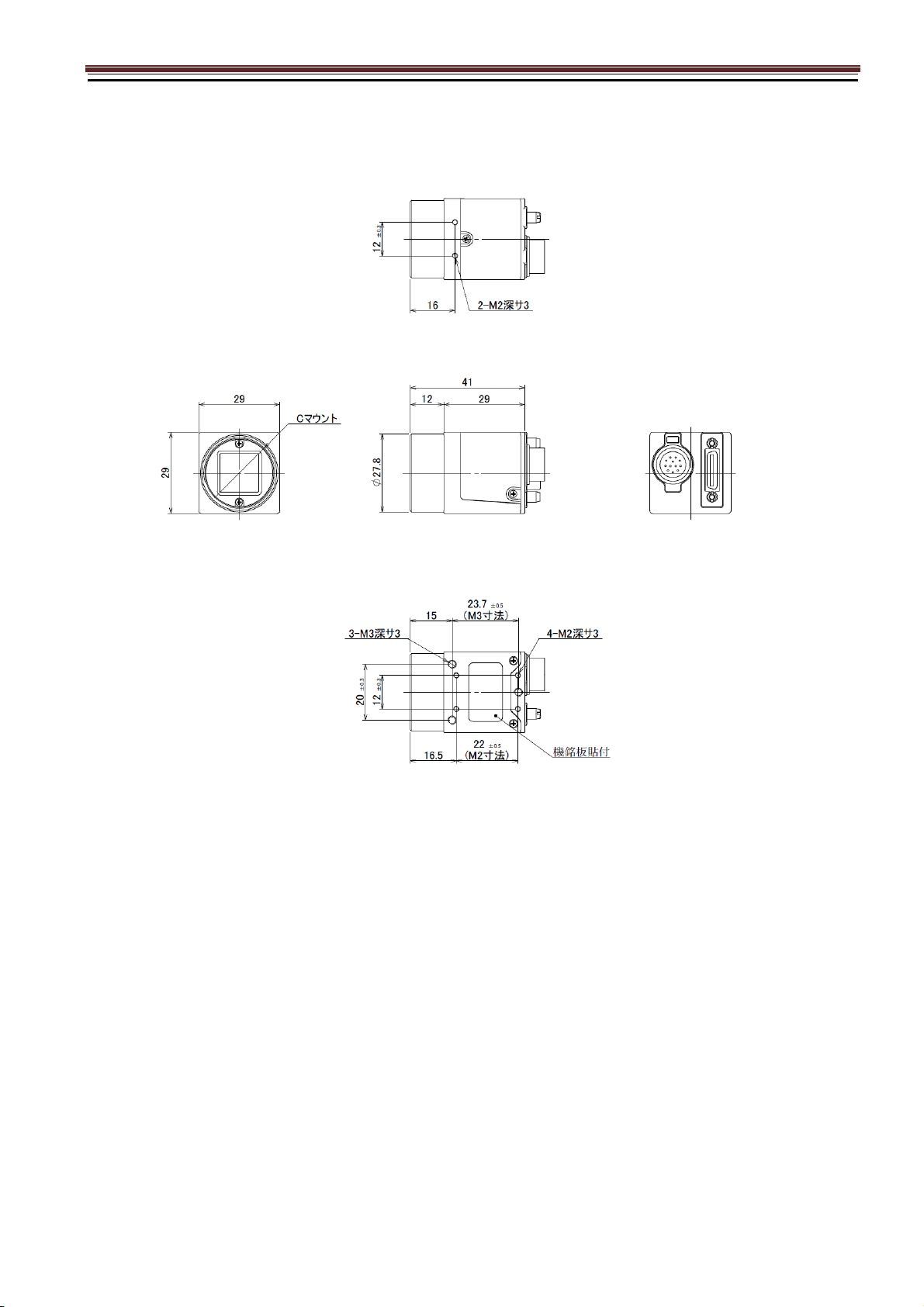

8. Dimensions

(単位:mm)

9. Initial Setting

Function Address Data

Shutter 01 00: 1/32.8s(OFF)

White Balance (Color model) 02 01: 3200K

Trigger Mode 04 00: Normal (Trigger OFF)

Trigger Polarity 05 00: Positive

Trigger Input 06 00: CC1

Slow Shutter 07 00: OFF

Partial Scan Mode 08 00: Full Frame

Camera Output Mode 0A 00: 2Tap Base Configuration

Output Data Selection 0B 00: 8bit

Baud Rate 10 00: 9600bps

Output Image Flip 18 00: Normal

LED ON/OFF 1B 01: ON

Manual Gain 20-21 0000: 0dB

Manual Shutter 24-23 0000: Shutter(OFF)

Manual White Balance R (Color model) 28-29 0000: 0dB

Manual White Balance G (Color model) 2A-2B 0000: 0dB

Manual White Balance B (Color model) 2C-2D 0000: 0dB

Partial Scan Start Position 40-41 0000: Start Position 0

Partial Scan Effective Lines 50-51 0808: Effective lines 2056

10. Cases for Indemnity (Limited Warranty)

We shall be exempted from taking responsibility and held harmless for damage or losses incurred by

the user in the following cases.

 In case damage or losses are caused by fire, earthquake, or other acts of God, acts by third party,

deliberate or accidental misuse by the user, or use under extreme operating conditions.

 In case indirect, additional, consequential damages (loss of business interests, suspension of

business activities) are incurred as result of malfunction or non-function of the equipment, we

shall be exempted from responsibility for such damages.

 In case damage or losses are caused by failure to observe the information contained in the

instructions in this product specification & operation manual.

 In case damage or losses are caused by use contrary to the instructions in this product

specification & operation manual.

 In case damage or losses are caused by malfunction or other problems resulting from use of

equipment or software that is not specified.

 In case damage or losses are caused by repair or modification conducted by the customer or any

unauthorized third party (such as an unauthorized service representative).

11. CMOS Pixel Defect

IDULE compensates the noticeable CMOS pixel defects found at the shipping inspection prior to our

shipment. On very rare occasions, however, CMOS pixel defects might be noted with time of usage of

the products.

Cause of the CMOS pixel defects is the characteristic phenomenon of CMOS itself and IDULE is exempted

from taking any responsibilities for them. Should you have any questions on CMOS pixel defects

compensation, please contact us.

12. Product Support

When defects or malfunction of our products occur, and if you would like us to investigate on the cause

and repair, please contact your distributors you purchased from to consult and coordinate.
