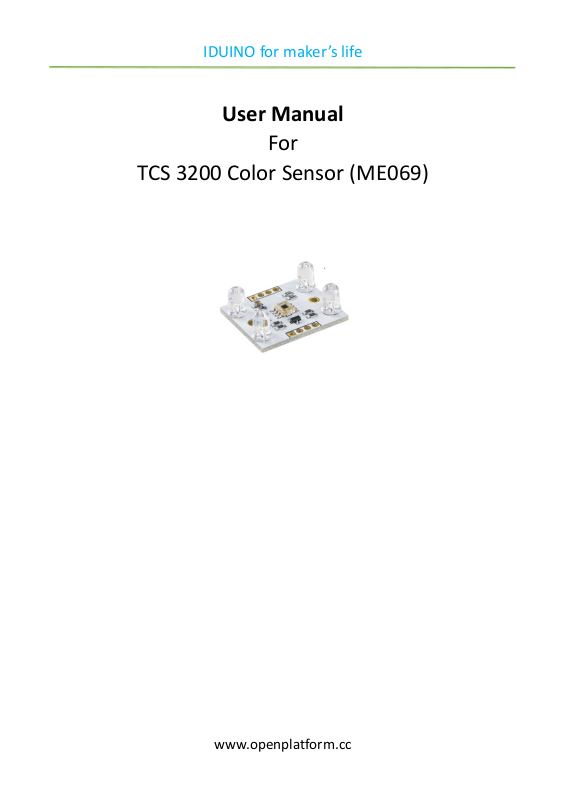

IDUINO for maker’s life
User Manual
For
TCS 3200 Color Sensor (ME069)
www.openplatform.cc
IDUINO for maker’s life
Pin
Description
GND
OUT
Output frequency (fo).
S0
Output frequency scaling selection inputs.
S1
Output frequency scaling selection inputs.
S2
S3
Vcc
Description:
TCS3200 Color Sensor is a complete color detector, including a TAOS TCS3200 RGB
sensor chip and 4 white LEDs. The TCS3200 can detect and measure a nearly limitless
range of visible colors. Applications include test strip reading, sorting by color, ambient
light sensing and calibration, and color matching, to name just a few.
The TCS3200 has an array of photodetectors, each with either a red, green, or blue
filter, or no filter (clear). The filters of each color are distributed evenly throughout the
array to eliminate location bias among the colors. Internal to the device is an oscillator
which produces a square-wave output whose frequency is proportional to the
intensity of the chosen color.
Specification
• Single-Supply Operation (2.7V to 5.5V)
• High-Resolution Conversion of Light Intensity to Frequency
• Programmable Color and Full-Scale Output Frequency
• Power Down Feature
• Communicates Directly to Microcontroller
• S0~S1: Output frequency scaling selection inputs
• S2~S3: Photodiode type selection inputs
• OUT Pin: Output frequency
• Support LED lamp light supplement control
• Size: 28.4x28.4mm
PinOut
Power ground
Photodiode type selectio n inputs
Photodiode type selectio n inputs
Power supply 5V/DC
www.openplatform.cc
IDUINO for maker’s life
Example:
Wire connection as below:
Vcc--------------5V
GND--------------GND
S0--------------D3
S1--------------D4
S2--------------D5
S3--------------D6
OUT--------------D2
*******Code Begin*********
#include <TimerOne.h>
#include <Wire.h>
#include <LiquidCrystal_I2C.h>
LiquidCrystal_I2C lcd(0x27,20,4);
#define S0 6
#define S1 5
#define S2 4
#define S3 3
#define OUT 2
//#define LED 7
int g_count = 0; // count the frequecy
int g_array[3]; // store the RGB value
int g_flag = 0; // filter of RGB queue
float g_SF[3]; // save the RGB Scale factor
// Init TSC230 and setting Frequency.
void TSC_Init()
{
pinMode(S0, OUTPUT);
pinMode(S1, OUTPUT);
pinMode(S2, OUTPUT);
pinMode(S3, OUTPUT);
pinMode(OUT, INPUT);
digitalWrite(S0, LOW);// OUTPUT FREQUENCY SCALING 2%
digitalWrite(S1, HIGH);
}
www.openplatform.cc
IDUINO for maker’s life
// Select the filter color//
void TSC_FilterColor(int Level01, int Level02)
{
if(Level01 != 0)
Level01 = HIGH;
if(Level02 != 0)
Level02 = HIGH;
digitalWrite(S2, Level01);
digitalWrite(S3, Level02);
}
void TSC_Count()
{
g_count ++ ;
}
void TSC_Callback()
{
switch(g_flag)
{
case 0:
Serial.println("->WB Start");
TSC_WB(LOW, LOW);
break;
case 1:
Serial.print("->Frequency R=");
//lcd.setCursor(0,0);
//lcd.print("Start");
Serial.println(g_count);
g_array[0] = g_count;
TSC_WB(HIGH, HIGH);
break;
case 2:
Serial.print("->Frequency G=");
Serial.println(g_count);
g_array[1] = g_count;
TSC_WB(LOW, HIGH);
break;
case 3:
Serial.print("->Frequency B=");
Serial.println(g_count);
www.openplatform.cc
IDUINO for maker’s life
Serial.println("->WB End");
g_array[2] = g_count;
TSC_WB(HIGH, LOW);
break;
default:
g_count = 0;
break;
}
}
void TSC_WB(int Level0, int Level1) //White Balance
{
g_count = 0;
g_flag ++;
TSC_FilterColor(Level0, Level1);
Timer1.setPeriod(1000000);
}
void setup()
{
TSC_Init();
lcd.init();
delay(100);
lcd.backlight();
Wire.begin();
delay(100);
lcd.setCursor(14,0);
lcd.print("Color");
lcd.setCursor(0,3);
lcd.print("S0:2 S1:3 S2:4 S3:5 OUT:6 LED:-");
Serial.begin(9600);
Timer1.initialize(); // defaulte is 1s
Timer1.attachInterrupt(TSC_Callback);
attachInterrupt(0, TSC_Count, RISING);
delay(4000);
for(int i=0; i<3; i++)
Serial.println(g_array[i]);
g_SF[0] = 255.0/ g_array[0]; //R Scale factor
g_SF[1] = 255.0/ g_array[1] ; //G Scale factor
g_SF[2] = 255.0/ g_array[2] ; //B Scale factor
Serial.println(g_SF[0]);
Serial.println(g_SF[1]);
Serial.println(g_SF[2]);
www.openplatform.cc
IDUINO for maker’s life
//for(int i=0; i<3; i++)
// Serial.println(int(g_array[i] * g_SF[i]));
}
void loop()
{
g_flag = 0;
for(int i=0; i<3; i++)
{
Serial.println(int(g_array[i] * g_SF[i]));
//lcd.setCursor(0,1);
//lcd.print(int(g_array[i] * g_SF[i]));
}
lcd.setCursor(0,1);
lcd.print(int(g_array[0] * g_SF[0]));
lcd.setCursor(6,1);
lcd.print(int(g_array[1] * g_SF[1]));
lcd.setCursor(12,1);
lcd.print(int(g_array[2] * g_SF[2]));
delay(4000);
Clean2004();
}
void Clean2004()
{
lcd.setCursor(0,1);
lcd.print(" ");
lcd.setCursor(0,2);
lcd.print(" ");
}
*******Code End*********
